SAFETYTRAININGINFORMATION

YourQuanzhouChierdaElectronicTeleco mCo.,Ltd.radiogeneratesRFelectromagnetic

energyduringtransmitmode.Thisradioisdesignedforandclassifiedas“OccupationalUse

Only”,meaningitmustbeusedonlyduringthecourseofemploymentbyindividualsaware

ofthehazards,andthewaystominimizesuchhazards.ThisradioisNOTintendedforuseby

the“GeneralPopulation”inanuncontrolledenvironment.

ThisradiohasbeentestedandcomplieswiththeFCCRFexposurelimitsfor“OccupationalUseOnly”.Inaddition,

yourQuanzhouChierdaElectronicTel ecomCo.,Ltd.radiocomplieswiththefollowingStandardsandGuidelines

withregardtoRFenergyandelectromagneticenergylevelsandevaluationofsuchlevelsforexposuretohumans:

 FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to

Radio Frequency Electromagnetic Fields.

 American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure

to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.

 American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially

Hazardous Electromagnetic Fields– RF and Microwave.

 The following accessories are authorized for use with this product. Use of accessories other than those (listed in the

instruction) specified may result in RF exposure levels exceed the FCC requirements for wireless RF exposure.



ToensurethatyourexposetoRFelectromagneticenergyiswithintheFCCallowablelimitsfor

occupationaluse,alwaysadheretothefollowingguidelines:



 DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you

to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or

antenna specifically authorized by the manufacturer for use with this radio.

 DO NOT transmits for more than 50% of total radio use time (“50%duty cycle”). Transmitting more than 50% of the time

can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator”

lights red. You can cause the radio to transmit by pressing the “PTT” switch.

 ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the HYT belt-clip

which is listed in instructions when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance

requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna

at least 5 cm (2 inches) from your mouth, and slightly off to one side.

TheinformationlistedaboveprovidestheuserwiththeinformationneededtomakehimorherawareofRF

exposure,andwhattodotoas‐surethatthisradiooperateswiththeFCCRFexposurelimitsofthisradio.



ElectromagneticInterference/Compatibility

Duringtransmissions,yourQuanzhouChierdaElectronicTele comCo.,Ltd.radiogeneratesRFenergythatcan

possiblycauseinterferencewithotherdevicesorsystems.Toavoidsuchinterference,turnofftheradioinareas

wheresignsarepostedtodoso.DONOToperatethetransmitterinareasthataresensitivetoelectromagnetic

radiationsuchashospitals,aircraft,andblastingsites.



Occupational/ControlledUse

Theradiotransmitterisusedinsituationsinwhichpersonsareexposedasconsequenceoftheiremployment

providedthosepersonsarefullyawareofthepotentialforexposureandcanexercisecontrolovertheirexposure.

Thanks for buying the CHIERDA transceiver.

This transceiver offers latest design; enhanced features, solid performance and easy accessibility.

We believe you will be pleased with the high quality and reliable features for all your

communication needs.

. Please do not use the transceiver when you are in exploring places (such as gas, dust, smoke etc)

. Please turn off the transceiver while your car is being refueled or parked a gas station.

Operation instructions and training guidelines

To ensure optimal performance and compliance with the occupational/controlled environment RF

energy exposure limits in the above standards and guidelines, users should transmit no more than

50% of the time and always adhere to the following procedures:

Transmit and Receive

To transmit (talk), push the PTT button,; to receiver, release the PTT button.

Hand-held radio operation

Hold the radio in a vertical position with the microphone 5cms away from the lips and let the

antenna farther away from you head

Notices to the user

. Government law prohibits the operation of unlicensed radio transmitters within the territories

under government control.

. Illegal operation is punishable by fine or imprisonment or both.

. Refer service to qualified technicians Only.

. It is important that the operator is aware of and understand hazards common to the operation of

any transceiver. Explosive environment (such as gases, dust, fumes), turn off your transceiver

while talking on fuel, or while parked in gasoline service stations.

Measures:

. Reorient or relocate the receiving antenna.

. Increasing separation between the equipment and receiver.

. Connect the equipment into and outlet on a circuit different from that to which the receiver is

connected.

. Consult the dealer or and experienced radio/TV technician for help.

Precautions

Only qualified technicians are allowed to maintain this product

Do not use the radio or charge a battery in explosive areas such as coal gas, dust , steam, etc.

Switch off the radio while refueling or parking at gas station

Do not modify or adjust this radio without permission.

No not expose the radio to direct sunlight over a long time, nor place it close to heating source.

Do no place the radio in excessively dusty, humid areas, or on unstable surfaces.

Safety: It is important that the operator is aware of and understands hazards common to the

operation of any radio.

CONTENTS

Unpacking and checking the equipment

Supplied accessories

Description of function

Getting started

LCD Display

Description of transceiver

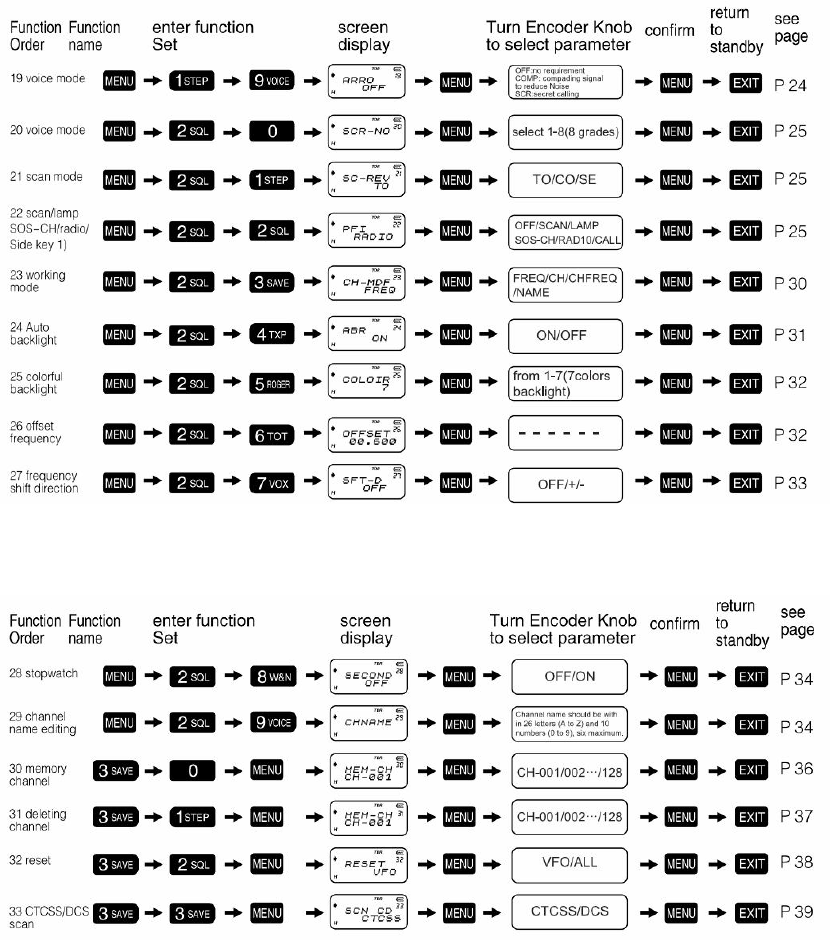

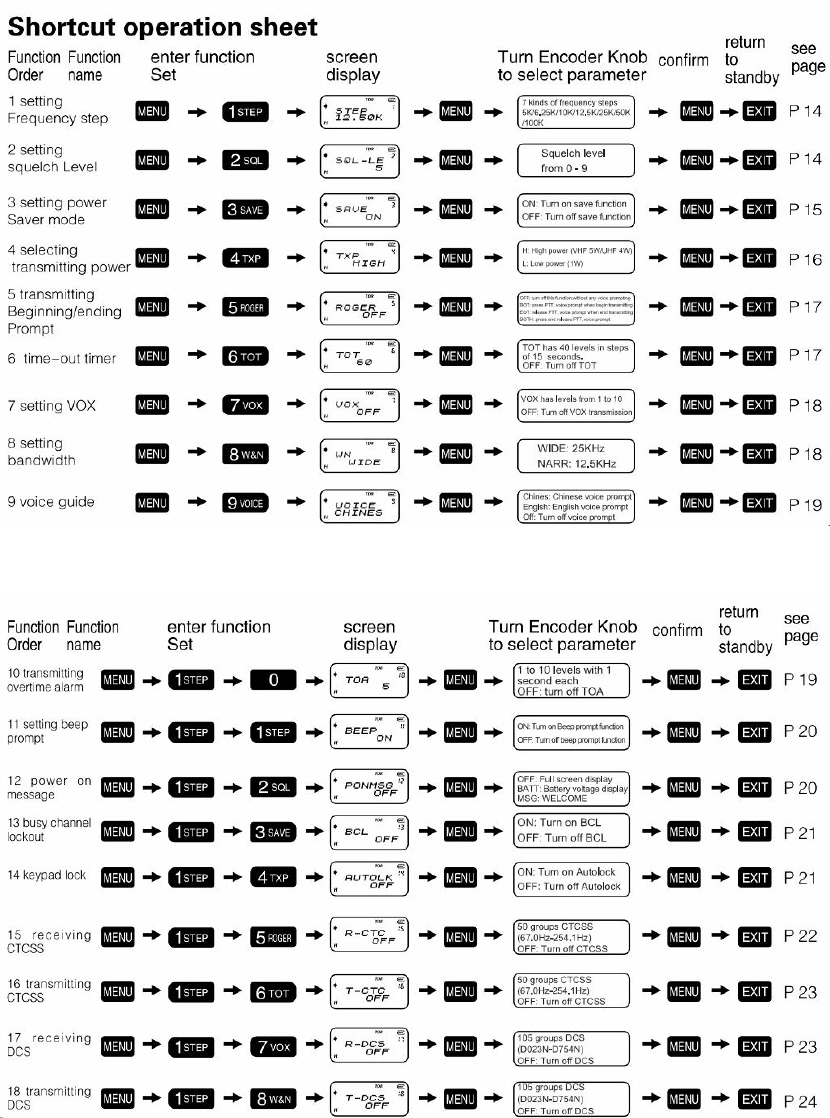

Shortcut operation sheet

How to operate

Menu lock function

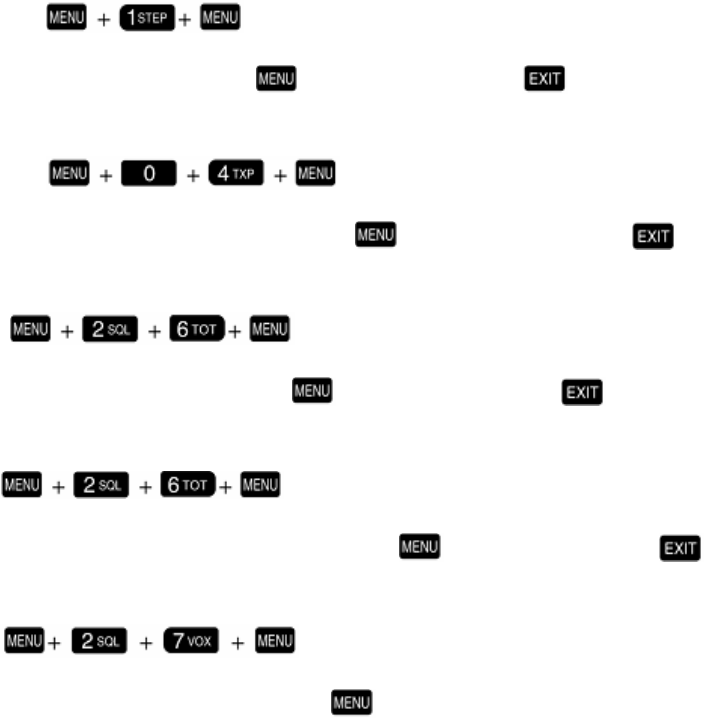

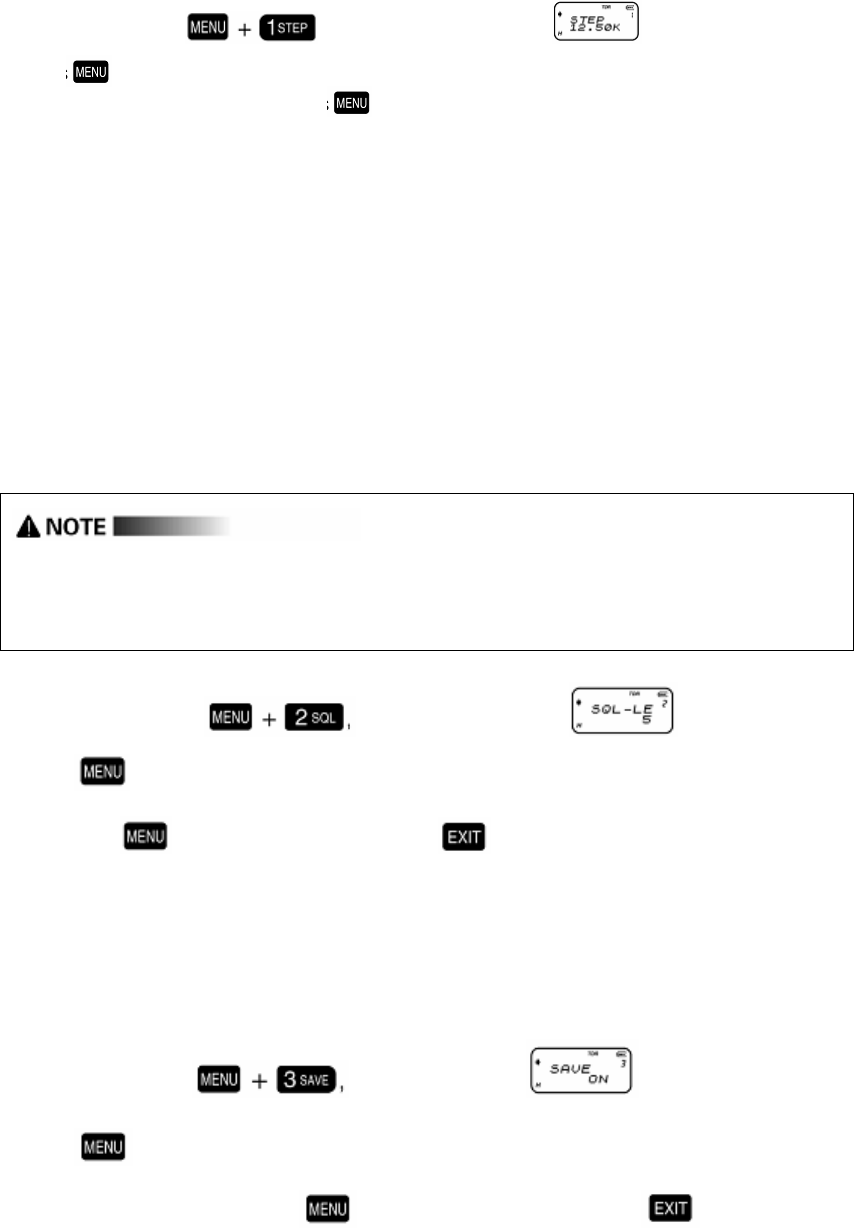

Setting frequency step(STEP)—MENU 1

Setting squelch level(SQL-LE)---MENU 2

Setting power saver mode(SAVE)---MENU 3

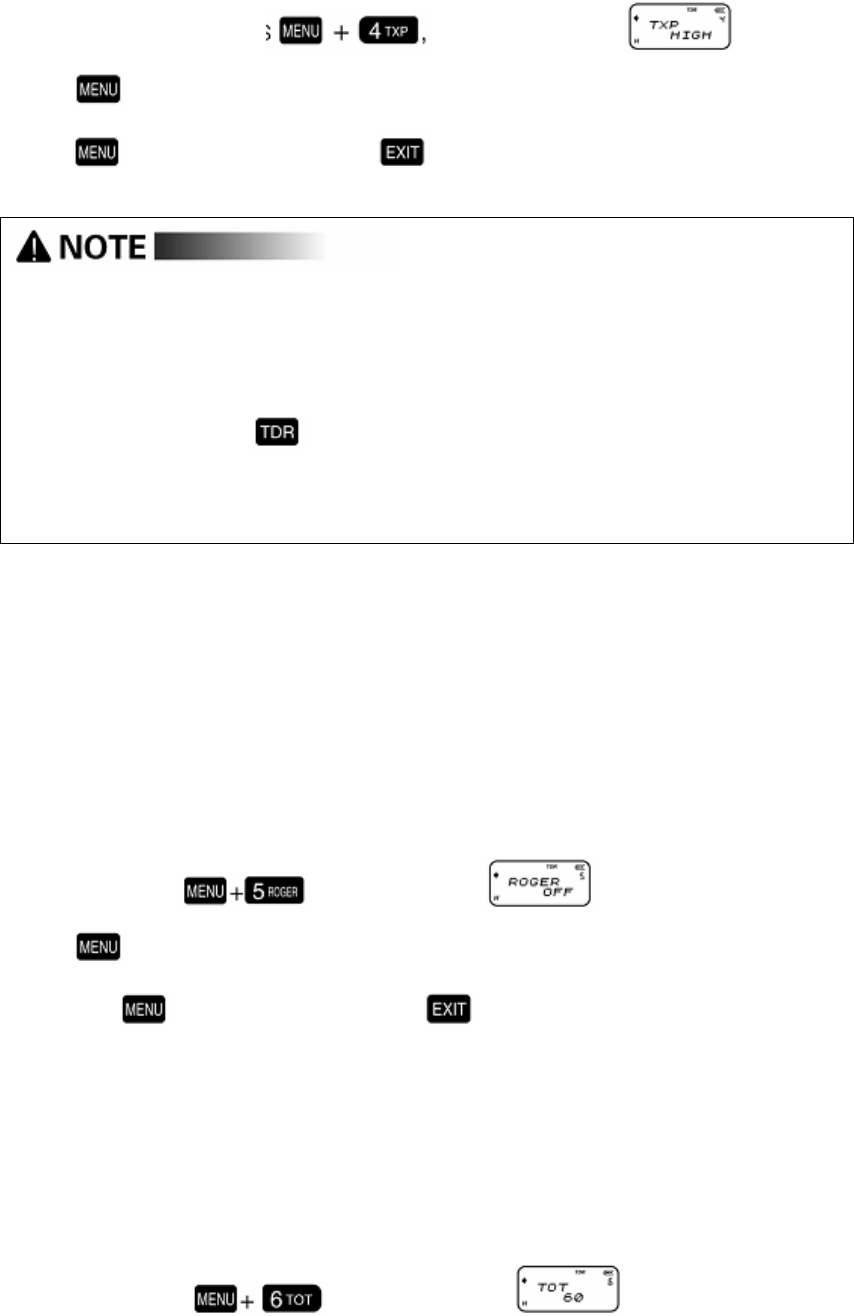

Selecting transmitting power(TXP)----MENU 4

Setting transmitting beginning/ending prompt(ROGER)---MENU 5

Timer-out timer(TOT)----MENU +

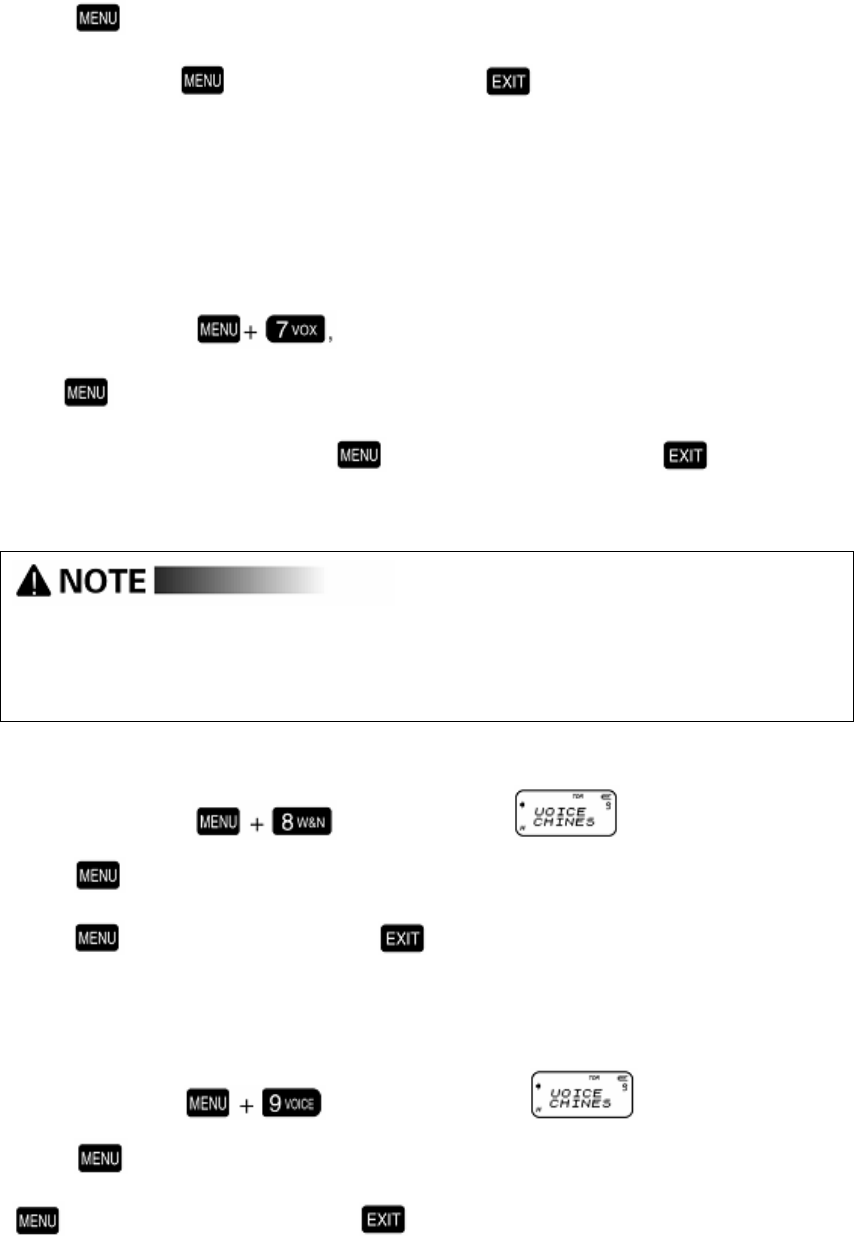

Setting VOX (VOX)----MENU 7

Setting wide or narrow bandwidth(WN)------MENU 8

Setting voice guide(VOICE)-----MENU 9

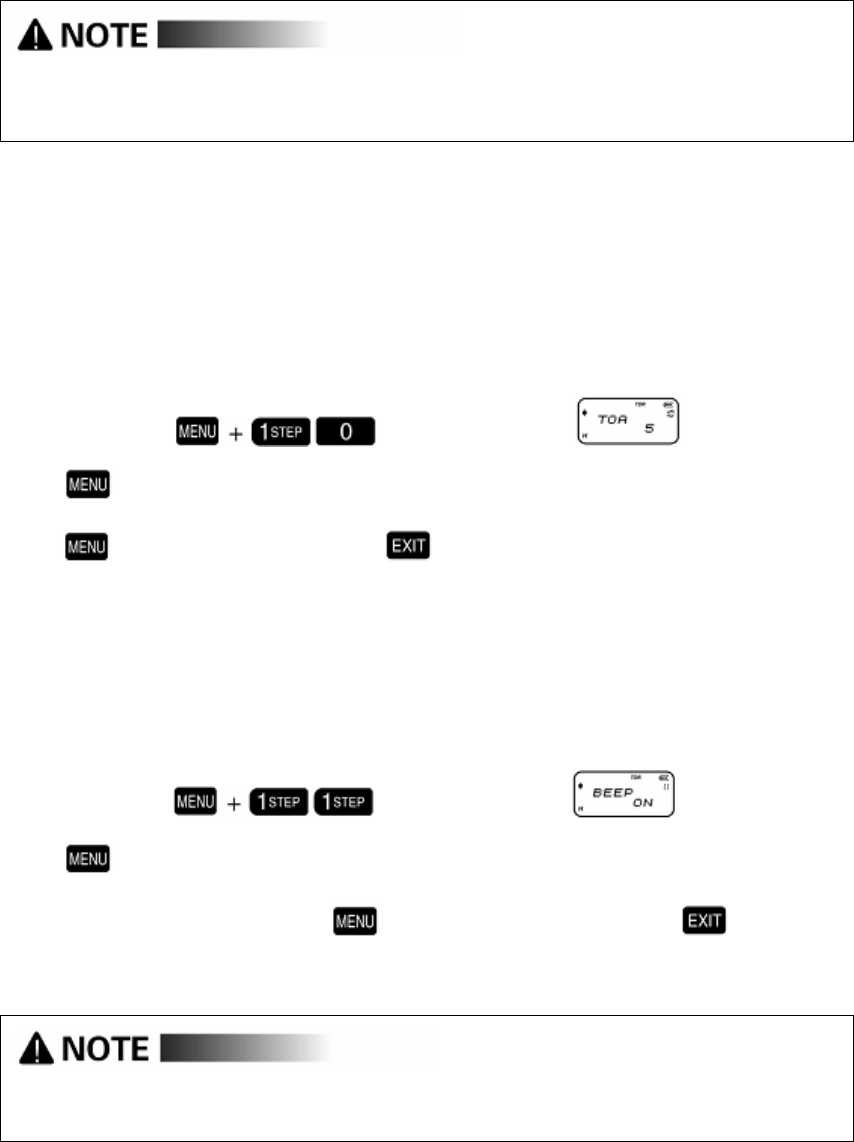

Setting transmitting overtime alarm(TOA)----MENU 10

Beep prompt function (BEEP)--------MENU 11

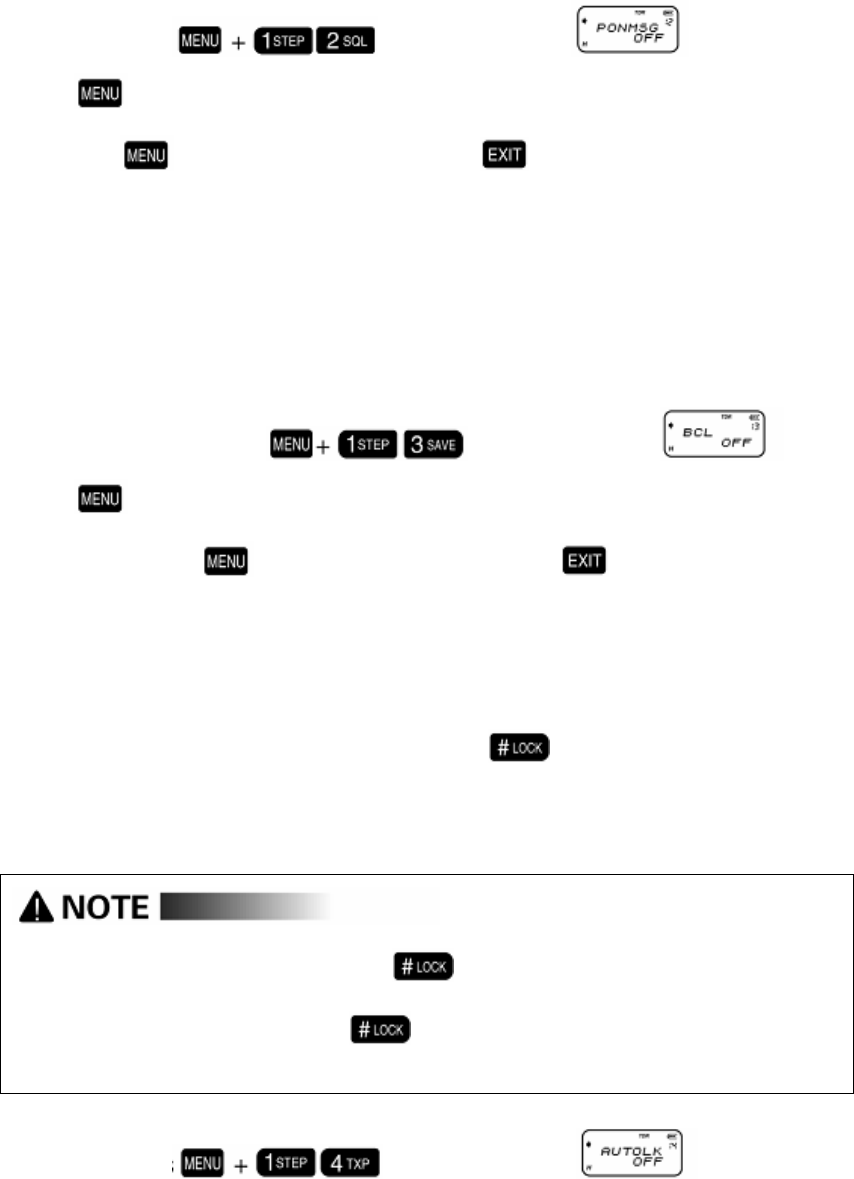

Setting power-on- message (PONMSG)-----MENU 12

Busy channel lockout(BCL)----MENU 13

Setting keypad lock(AUTOLK)-----MENU 14

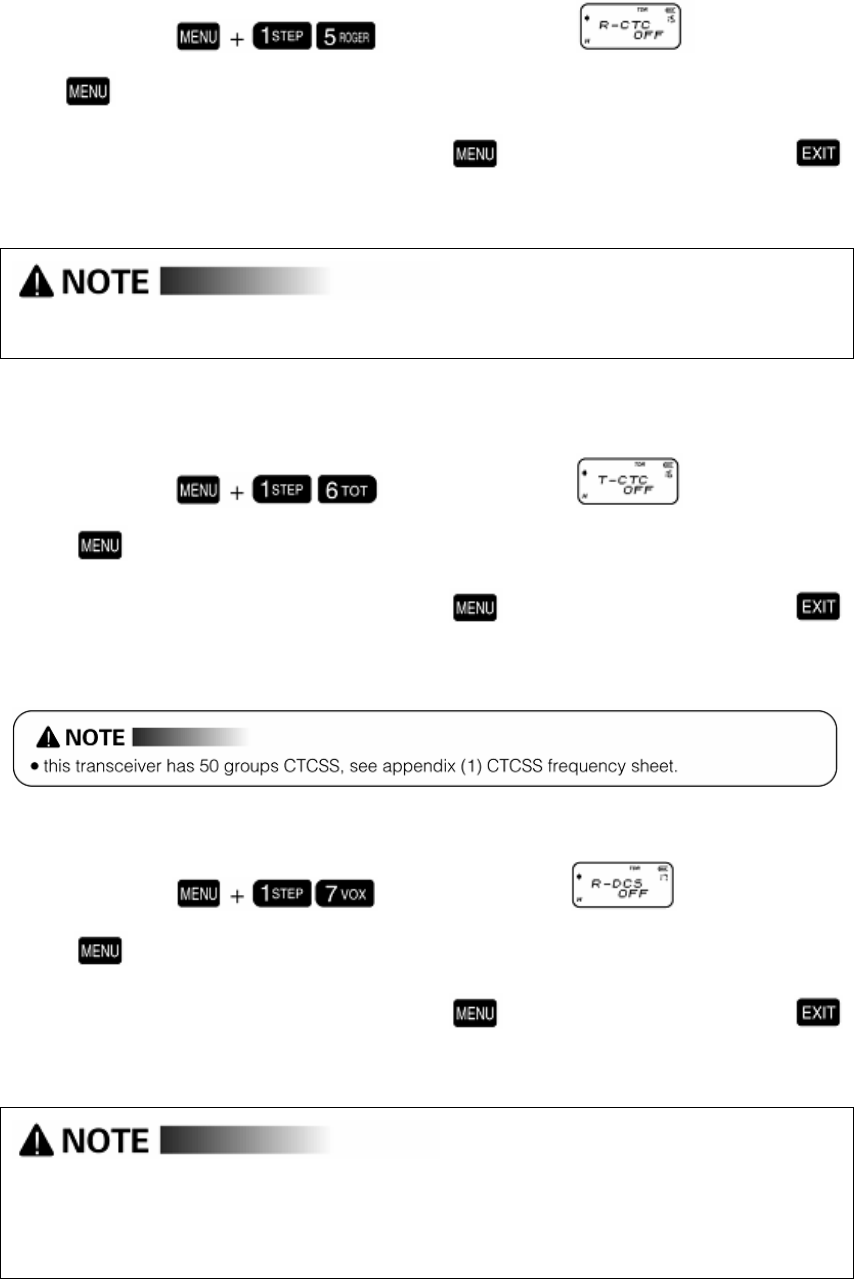

Setting receiving CTCSS(R-CTCSS)-----MENU 15

Setting transmitting CTCSS(T-CTCSS)---MENU 16

Setting receiving DCS (R-DCS)------MENU 17

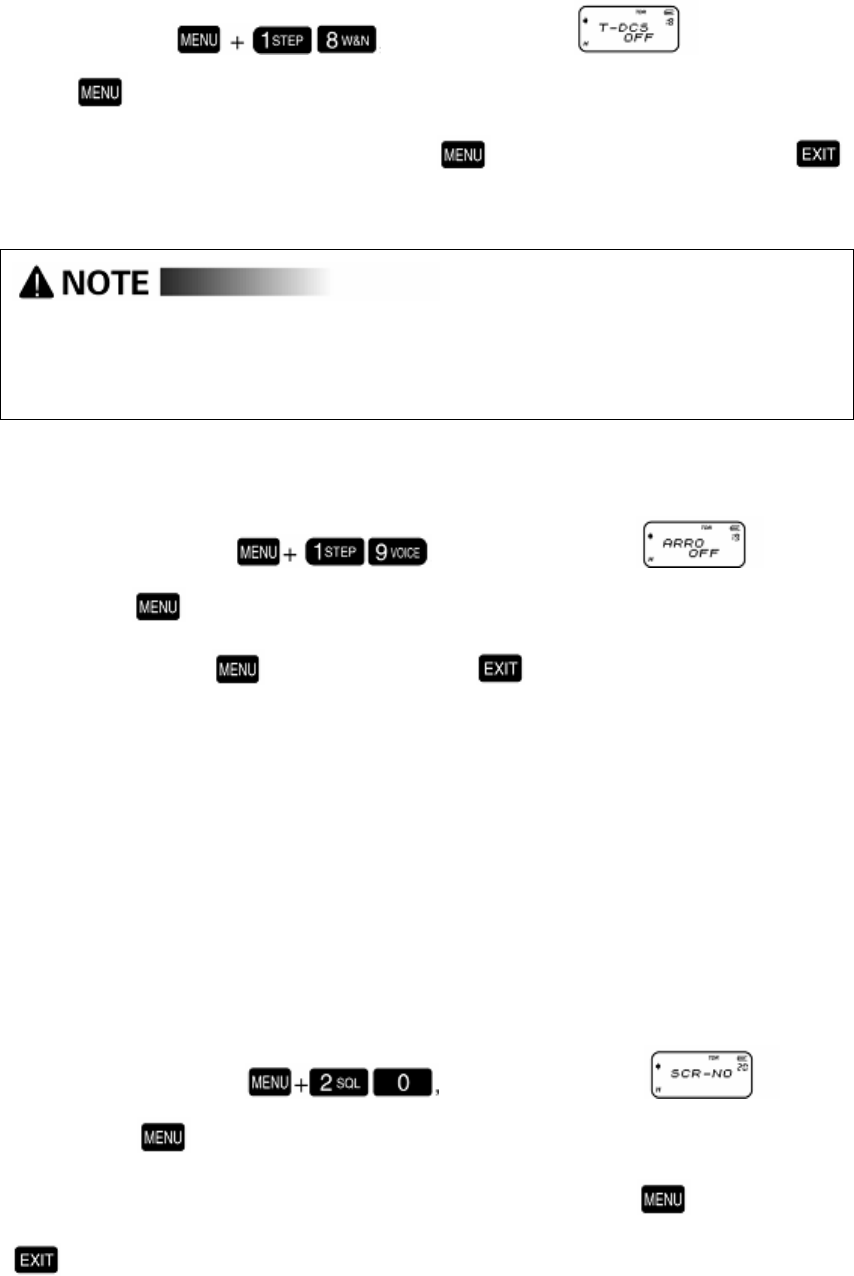

Setting transmitting DCS(T-DCS)--- MENU 18

Setting voice mode (APRO)-----MENU 19

Setting Calling Grade(SCR-NO)-----MENU 20

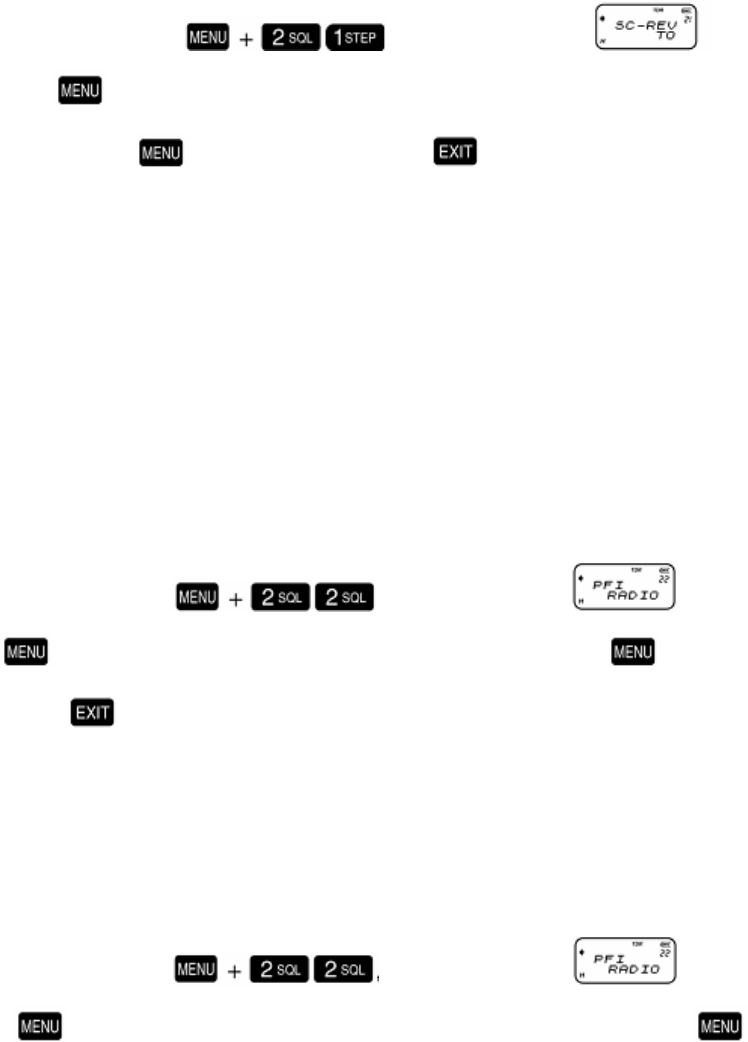

Setting scan mode (SC-REV)---- MENU 21

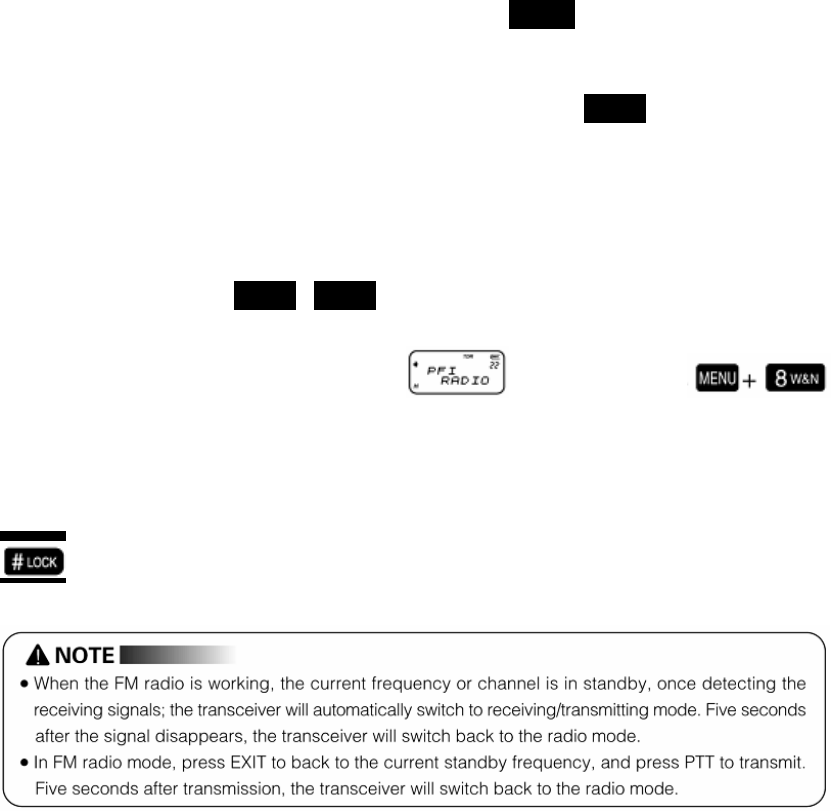

Setting SCAN/LAMP/SOS-CH/FM radio function on side key 1----MENU 22

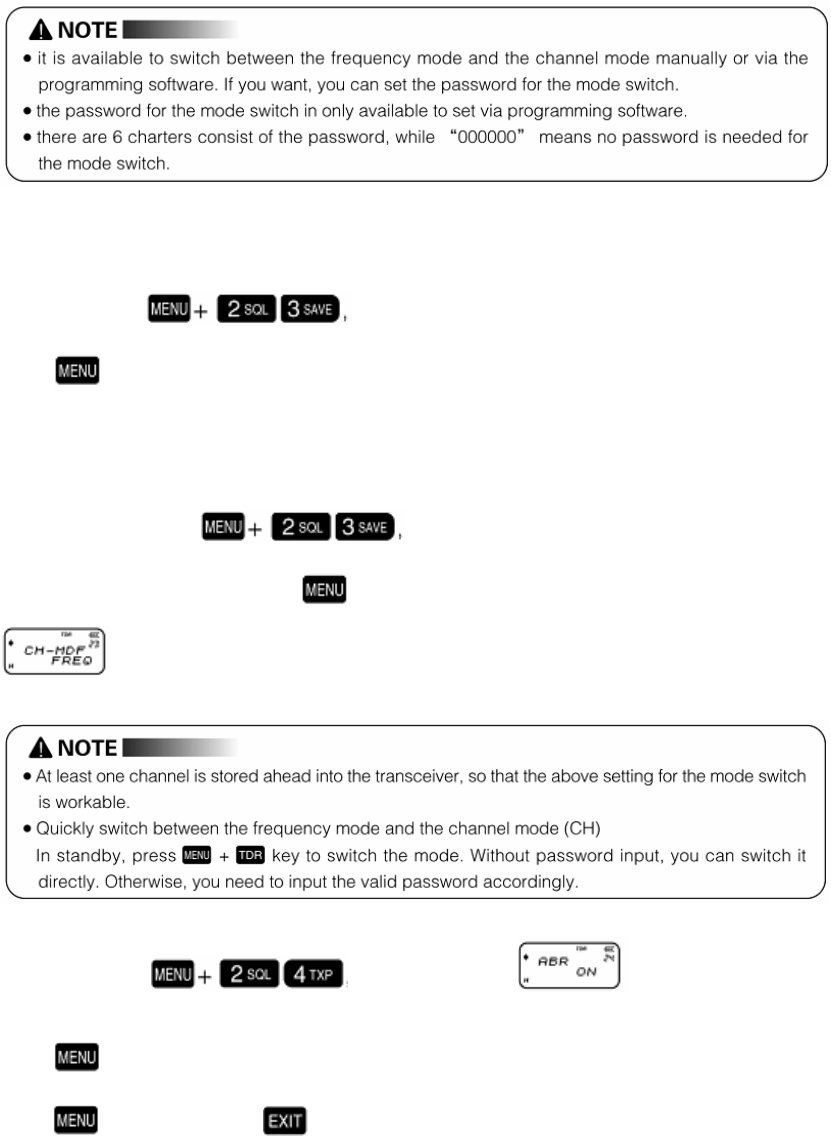

Working mode (CH-MDF)---------MENU 23

Setting auto backlight (ABR)------MENU 24

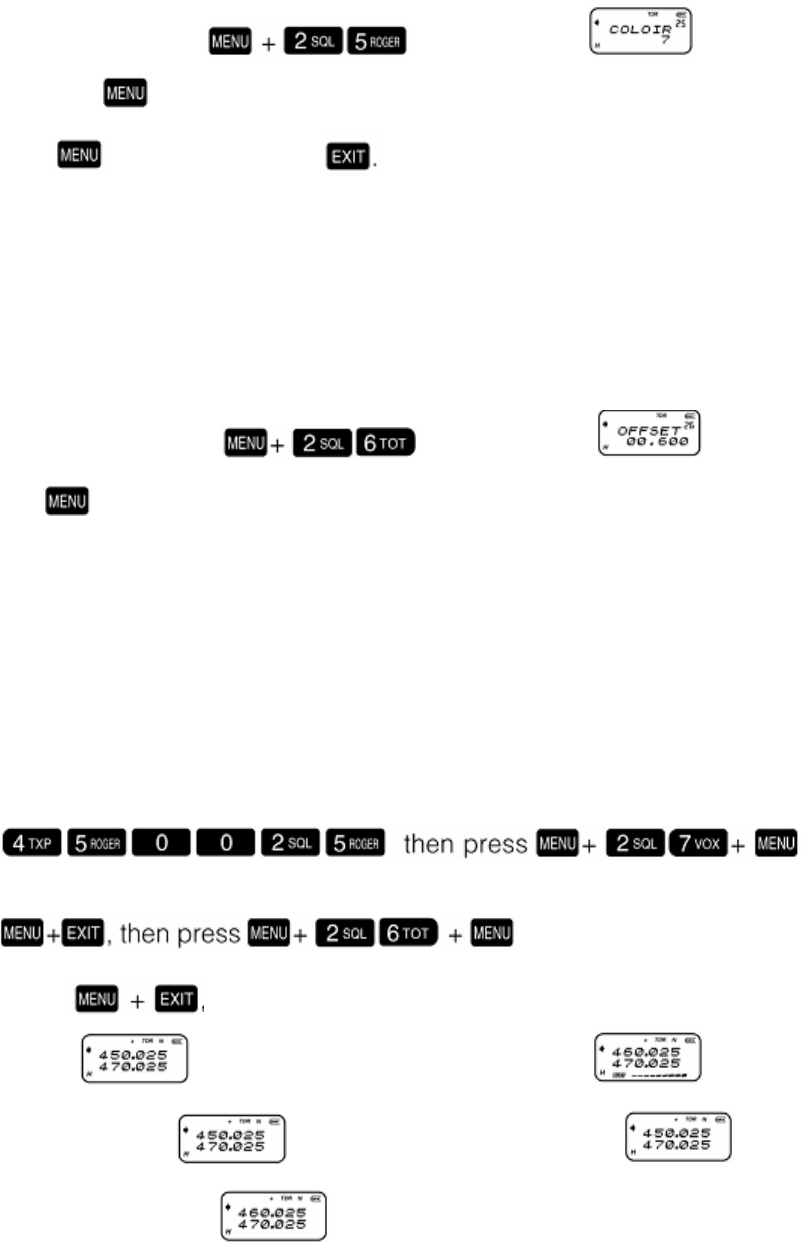

Setting colorful background light-------MENU 25

Setting offset frequency (OFF-SET)----MENU 26

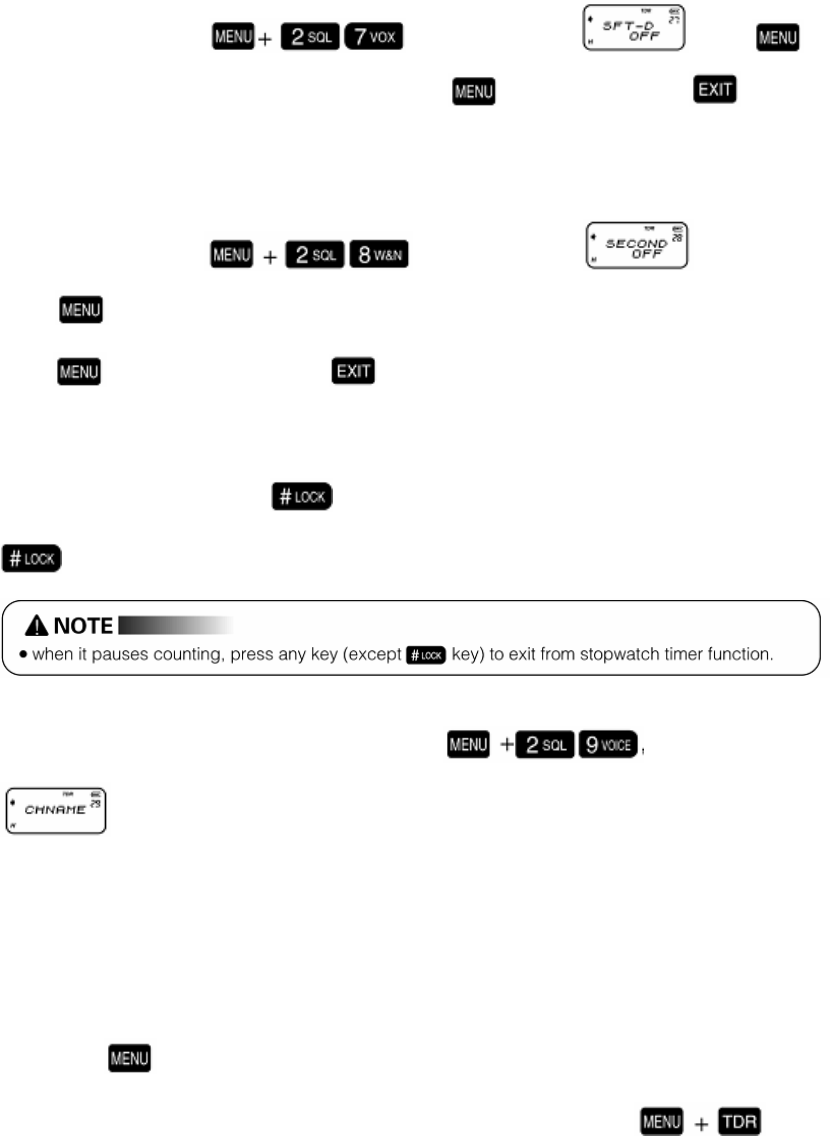

Setting frequency shift direction (SFT-D)---MENU 27

Setting Stopwatch timer function(SECOND)--- MENU 28

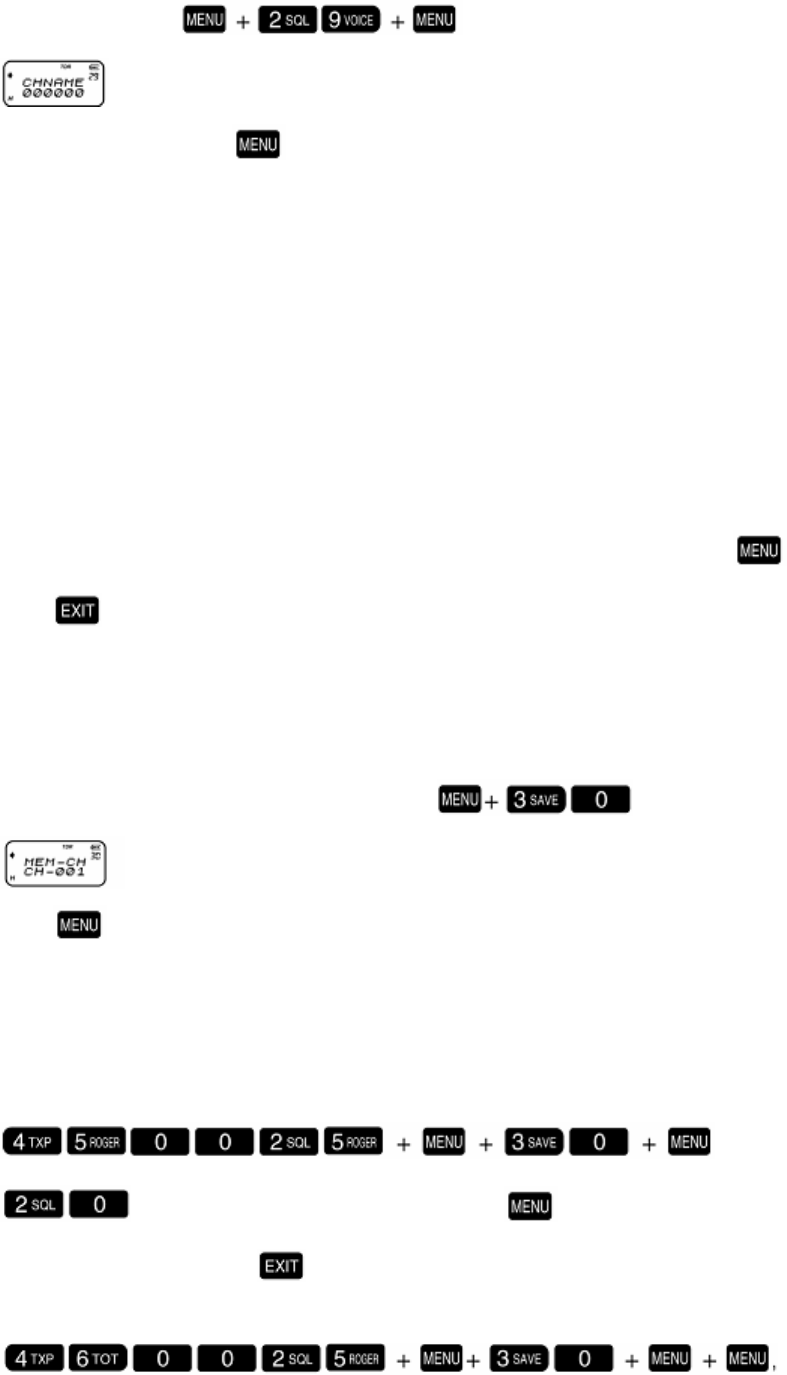

Channel name editing(CHNAME)--------MENU 29

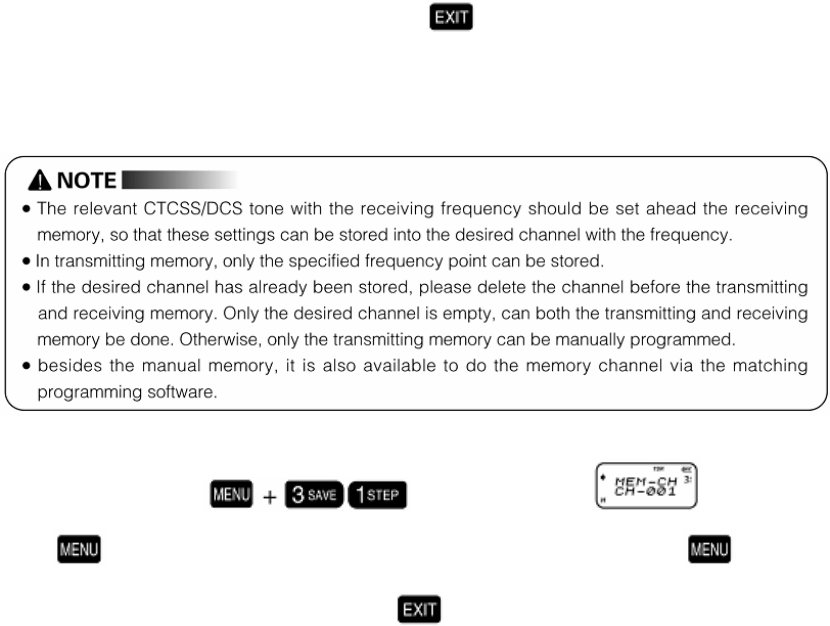

Setting memory channel (MEM-CH)-----MENU 30

Deleting channel (DEL-CH)----MENU 31

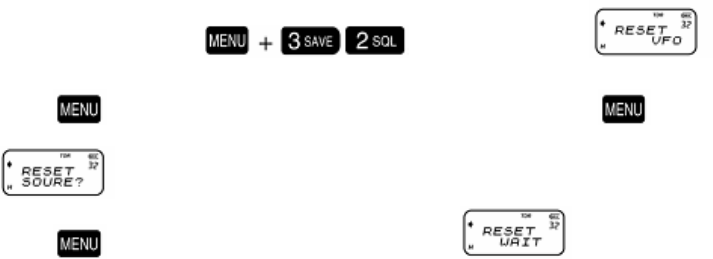

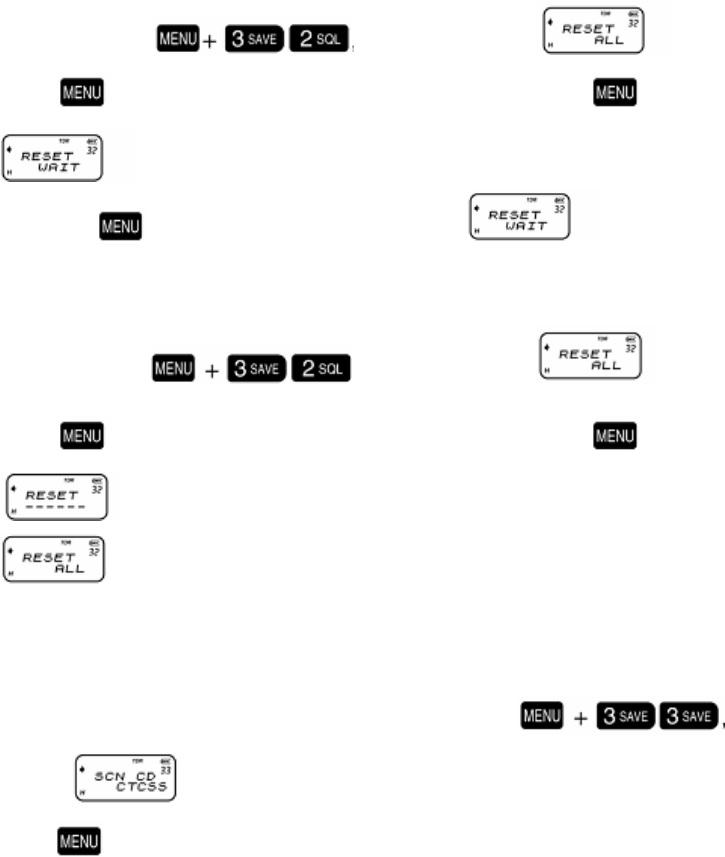

Setting reset (RESET)--------MENU 32

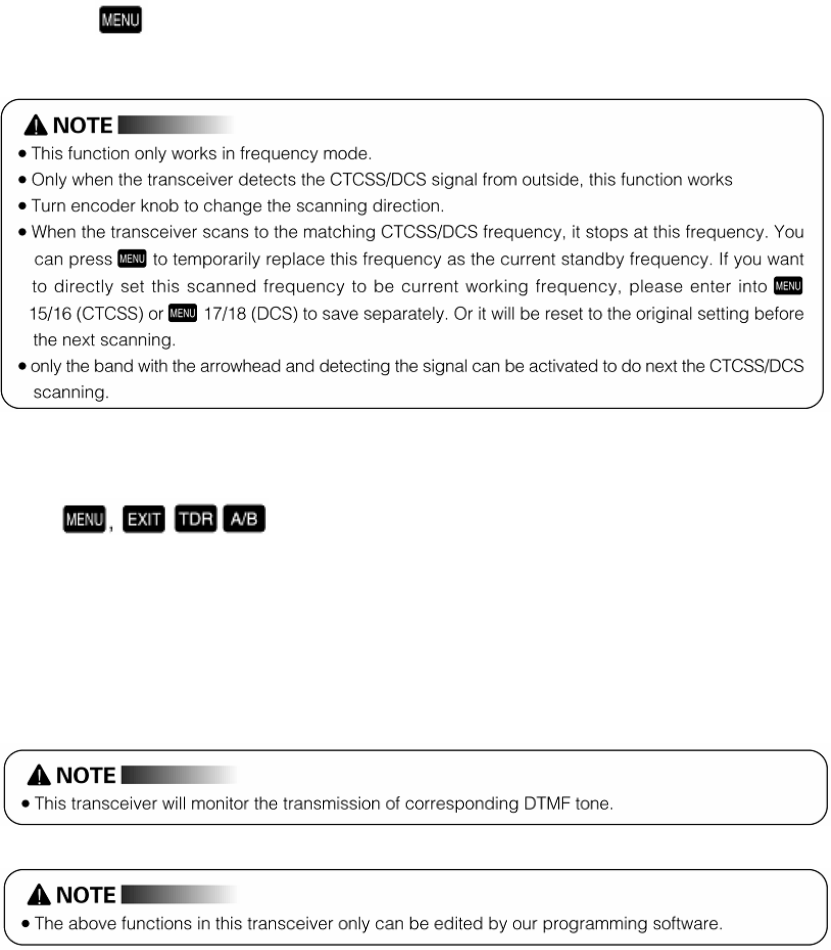

CTCS/DCS scan (SCN CD)----MENU 33

DTMF encoding

Editing/transmitting ANI –IN Code, ANI-ID Code transmitting delay and DTMF side tone

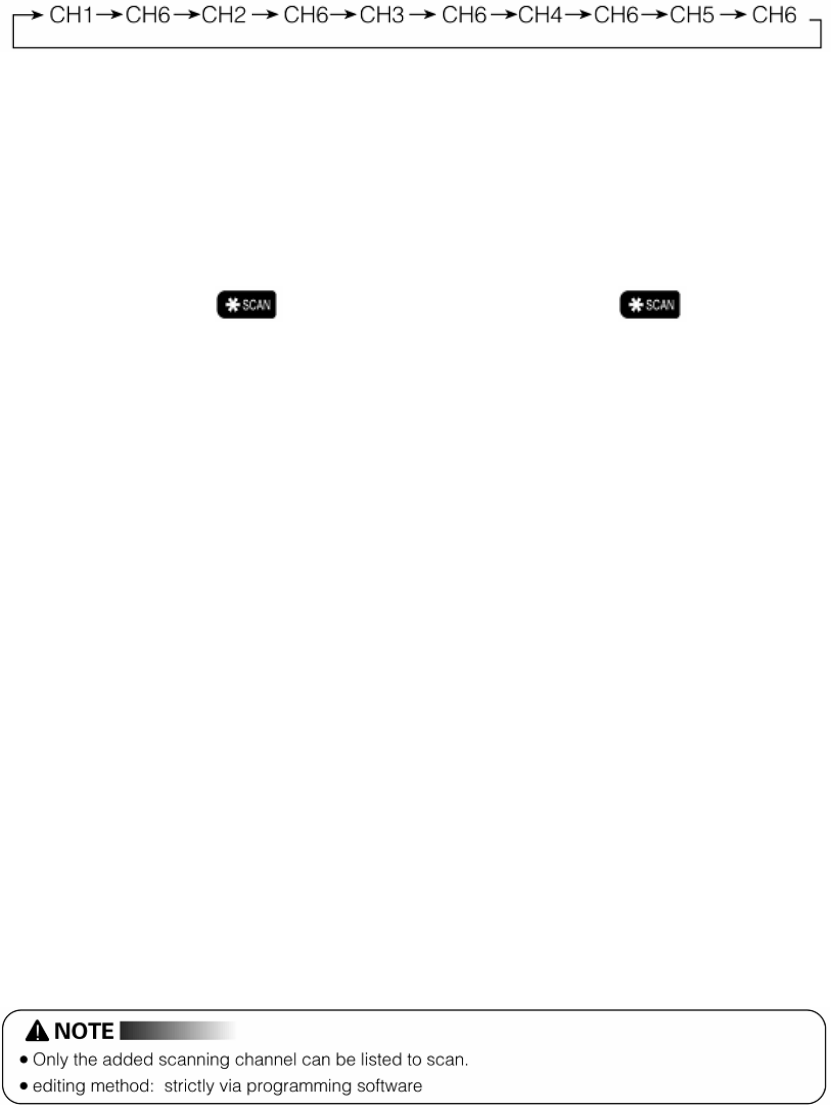

Setting priority scan function

Setting reverse frequency function

Low voltage prompt

Transmitting overtime prompt

Adding scanning channel

Wire-clone function

Working with repeater

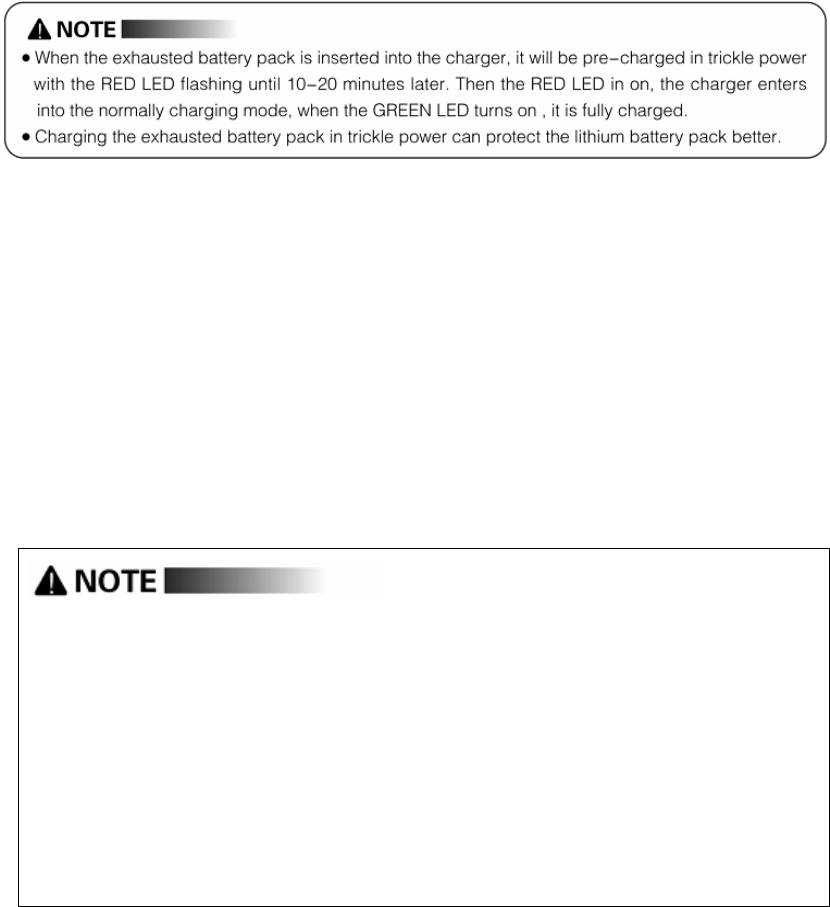

How to use the intelligent charger

Programming guide for software (via USB Programming cable)

Troubleshooting Guide

Technical Specification

Appendix 1 (CTCSS)

Appendix 2 (DCS)

Technical specification

Unpacking and checking of your equipment

Carefully unpack the transceiver. We recommend that you identify the items in the following

table before discarding the packing material. If any items are missing or have been damaged

during shipment, please notify your Chierda dealer.

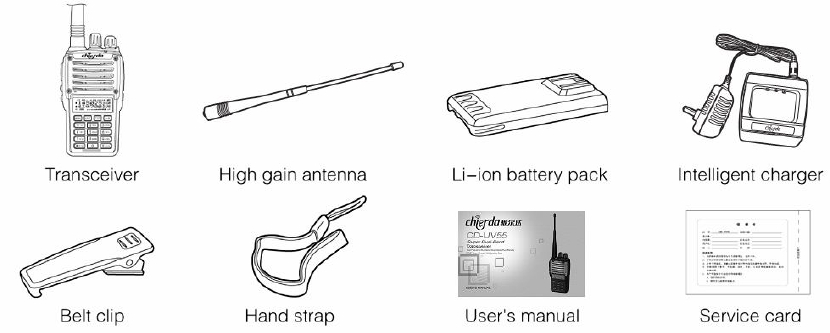

Supplied accessories

Description of functions

1. Dual frequency, dual band, dual display ,dual standby.

2. Frequency Range

A. Standard frequency range for the two-way radio

400-470MHz (RX/TX)

B. Optional Frequency Range

400-470MHz((RX/TX)

3. Working mode: U-V,V-V or U-U selectable.

4. Channel setting: UHF TX selectable.

5. DTMF encoding

6. Digital FM Radio (76-108MHz)

7. CTCSS/DCS scan

8. Output power: 4W UHF

9. 128 memory channels

10. VOX

11. Stopwatch timer function

12. 105 groups DCS and 50 groups CTCSS

13. Voice guide

14. SOS function

15. Wide/narrow bandwidth selection (25khz/12.5khz)

16. Multi-display modes (Channel order number/channel frequency/channel name selectable)

17. Reverse frequency

18. Multi-function function

19. Priority scan function

20. Frequency steps selectable (5/6.25/10.12.5/25/50/100khz)

21. High/low power changeable when transmitting

22. High capacity li-ion battery pack

23. Intelligent charger

24. Offset frequency setting (0-69.950MHz)

25. Frequency shift direction setting

26. Busy channel lockout

27. Power-on message (battery-V/full screen/other characters)

28. Low voltage prompt

29. Transmitting beginning/ending prompt

30. Transmitting overtime prompt

31. Keypad locks(auto/manual)

32. Adding scanning channel

33. High/low power switch able when transmitting

34. Programmable by computer

35. Wire-clone function

36. Menu/channel reset

Getting started

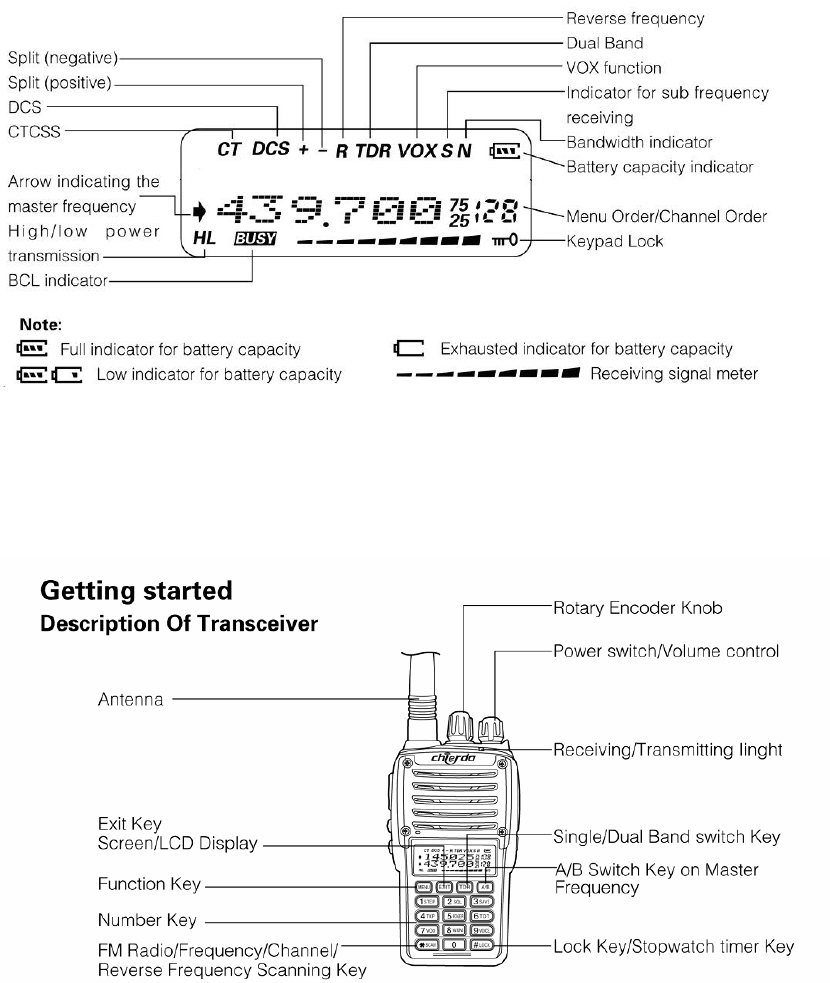

LCD display

There are various indicators displaying on the screen when powering on. Please refer the below

table to learn what the indicators stand for accordingly.

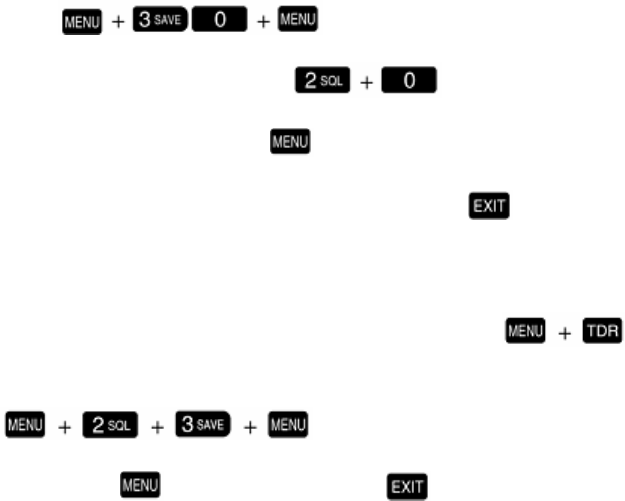

Note: Quickly switch the working mode (MENU+TDR)

Quickly resume the transceiver (MENU+ A/B)

Quick search

Turn encode knob one time to search the desired function or parameter when setting for each

function or parameter, while keeping turning encoder knob to quickly search.

Single/dual band switch

Press

Single band <---------------------------> Dual band

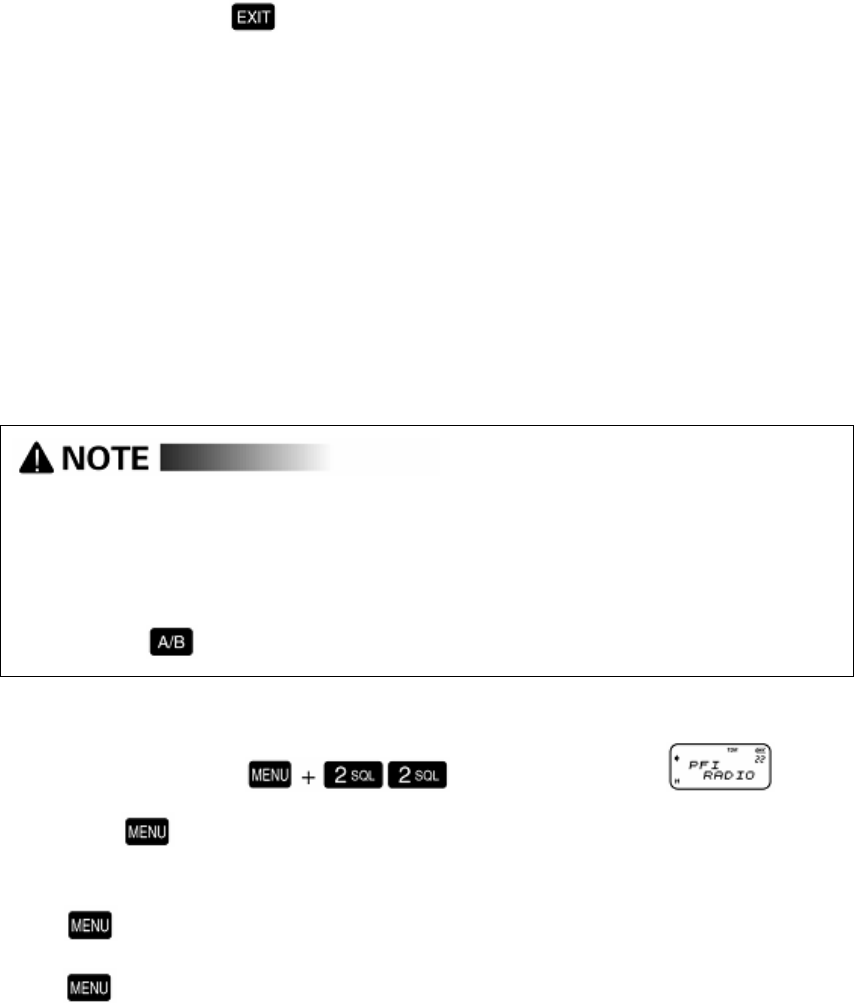

Quickly resume the transceiver

In standby , press then LCD display . Press to confirm, and

then the transceiver re-start.

A/B Switch

Press to select the master frequency. The frequency with arrowhead mark is the master

frequency, while the other frequency without arrowhead mark is the sub frequency. The

transceiver can transmit and receive in the master frequency , but only receivers in the sub

frequency. When it is receiving in the sub frequency, there shows “S” in the screen.

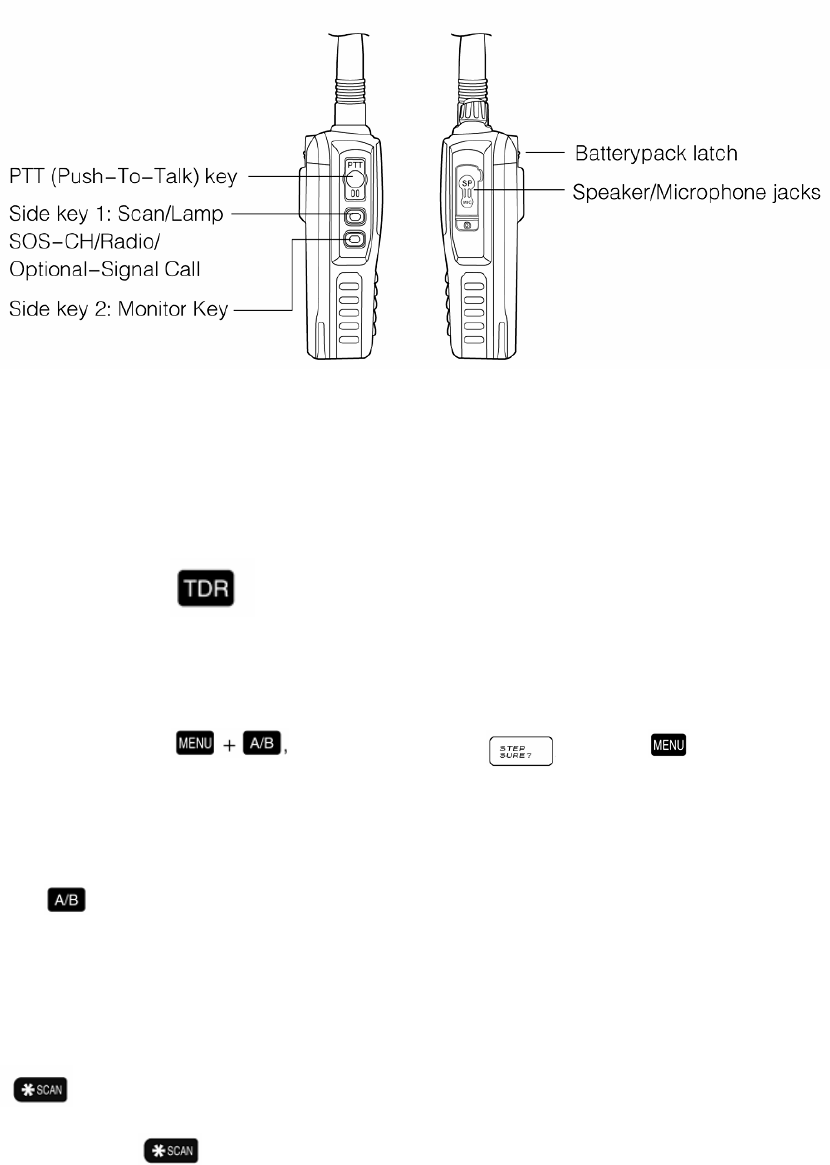

Key

Short press the key to set the reverse frequency, while keeping pressing for 2 seconds to

active the scan function, also have optional-signal-call function.

Side key 2: Monitor function

. Quick search to turn encoder . Programming guide(see page 49-50)

. High/low power changeable (see page 16) . SOS-CH(SOS function)(see page 26)

. DTMF encoding (see page 40) . Priority scan function(see page 42)

. Set reverse frequency (see page 43) .Low voltage prompt (see page 44)

. Setting transmitting overtime prompt (see page 44) .Adding scanning channel function (see page 44)

.Wire-clone function (see page 45) Working with repeater (see page 46-48)

How to operate

Menu lock function

Sometimes if the menu is not need to operated frequency, you can lock the menu via

the programming software. Please see the detailed steps as follow:

1. set channel mode as the working mode.

2. turn off operating menu function in the channel mode

If you want to operate menu function, can activate menu available of channel of mode

by programming software, then change the working mode to frequency mode.

. in dual standby mode, the screen shows “TDR” , the frequency with arrowhead mark

is the master frequency while the other without arrowhead mark is the sub frequency,

when the sub frequency is receiving, there shows “S” in the screen. In the dual

standby mode, the transceiver only transmits in the master frequency and receives in

the sub frequency.

. mater frequency setting

In dual standby, press A/B to select the master frequency.

. this transceiver is the dual band, with dual frequency and dual display functions. In

frequency mode, it can display two different receiving/transmitting frequencies at the

same time. In channel mode, it can also display the channel frequency and related

parameter in both channels at the same time.

.in frequency/channel mode, it is switch able between band A and band B by A/B key,

when the A/B indicator shows in band A, all the operations are based on band B.

.in frequency mode, it is available to separately set the frequency step, transmitting

power, squelch level , bandwidth, CTCSS/DCS, offset frequency, frequency shift

direction and channel display modes in band A or band B.

.in channel mode, it is invalid to set frequency step, transmitting power, CTCSS/DCS,

bandwidth, offset frequency, and frequency shift direction and channel display modes

in band A or band B.

Setting frequency step (STEP)-----MENU 1

In standby ,press , the screen displays

Press to enter, it shows “12.50K”, turn encoder to select the desired step, then

press to confirm, finally press to return to standby.

The frequency steps selectable for this transceiver are as follow:

5.00khz,6.25khz, 10.00khz,12.5khz,25.00khz,50.00khz,100.00khz

Setting squelch level (SQL-LE)-----MENU 2

Squelch level is about when the signal is strong enough to turn on the squelch

function, and when it is weak enough to turn off the squelch function. When the

squelch is on, there is voice from the loudspeaker for all the signaling set by the

transceiver. When the squelch level is set too high, the weaker signals may be missed,

while the squelch level is set too low, the transceiver maybe disturbed by some novice

or other needless signals.

. The squelch level for this transceiver has 0~9 levels selectable, and level 0 is to turn

off the squelch function. The higher level the squelch is set, the stronger receiving

signal is needed.

In standby , press ,the screen display

Press to enter, it shows “5”, turn encoder to select the desired squelch level,

then press to confirm, finally press to return to standby.

Setting power saver mode (SAVE)-------MENU 3

When the power saver function is on, the receiver circuit will be cut off for the

moment, and then re-activate to detect the signals for a while, in order to reduce the

battery capacity consumption.

In standby , press ,the screen display

Press to enter, it shows “5”, turn encoder to select turn on/off the power

saving function, then press to confirm, finally press to return to

standby.

Selecting transmitting power (TXP)-----MENU 4

In frequency mode, press the screen displays

Press to enter, it shows “high”, turn encoder to select high/low power,, then

press to confirm, finally press to return to standby.

. this transceiver has high and low transmitting power selectable:

UHF: High: 4W, LOW:1W

. The quick switch between the high and low transmitting powers is temporary. In

transmitting mode, press key to quick switch the high/low transmitting power.

Once the transceiver is resumed, the transmitting power reverts to the original output

power.

Setting transmitting beginning/ending prompt (ROGER)-------MENU 5

This function is to select the prompt modes when beginning/ending transmitting as

followings:

OFF: press and release PTT key, there is no prompt for either beginning or ending

transmitting.

BOT: press PTT key, there is prompt for the beginning transmitting.

EOT: Release PTT key, there is prompt for the ending transmitting.

BOTH: press and release PTT key, there is prompt for both beginning/ending

transmitting.

In standby , press ,the screen display

Press to enter, it shows “OFF”, turn encoder to select OFF/BOT/EOT/BOTH,,

then press to confirm, finally press to return to standby.

Time-Out Timer (TOT)---------MENU 6

This function is to prevent the transceiver from transmitting for too long time. When

the transceiver is exceeding the press time limit , it will stop transmitting with an

overtime alarm.

This transceiver can be set in 40 levels with 15 seconds each, between 15 and 600

seconds.

In standby , press ,the screen display

Press to enter, it shows “60”, turn encoder to select the desired transmitting

level, then press to confirm, finally press to return to standby.

Setting VOX (VOX)-------MENU 7

This transceiver will switch to the transmitting mode when detecting the voice signal.

The transceiver operation will somewhat be delayed, and the voice signal information

maybe not transmitted at the first beginning, since there needs some time for the VOX

circuit to detect the voice signal.

In standby , press the screen display

Press to enter, it shows “OFF”, turn encoder to turn off VOX function or select

VOX level (1~10), then press to confirm, finally press to return to

standby.

. The higher level of VOX is set, the higher volume is needed.

. In scan and radio modes, the vox function is not available, but just showing VOX

mark on the upper right of the display screen.

Setting wide or narrow bandwidth (WN)-------MENU 8

In standby , press ,the screen display

Press to enter, it shows “wide”, turn encoder to select the desired step, then

press to confirm, finally press to return to standby.

Setting voice guide(VOICE)---MENU 9

In standby, press , the screen displays

Press to enter, turn encoder to select Chinese , English or OFF, and then press

key to confirm, finally press to return to standby

. Please turn off MENU 9 and MENU 11 at the same time to turn off all the voice

prompt for this transceiver

Setting transmitting overtime alarm (TOA)-----MENU 10

This alarm is the pre-alert time when the transmitting time is nearly up to requested

transmitting time. When the time is up , the transceiver sounds out the beep prompt

and the LCD keeps flashing. This transceiver can be set from 1-10 TOA level with 1

second each. Level 1 means that the prompt 1 second ahead when the transmitting

time is up to the TOT preset time.

In standby, press , the screen displays

Press to enter, it shows “5”, turn encoder knob to select OFF/1-10 Level, then

press key to confirm, finally press to return to the standby mode.

Beep prompt function (BEEP)----MENU 11

Beep prompt function is for the transceiver operating confirmation, error status

prompt or faulty reminders. We faithfully advise you to keep this function ON, so that

you can detect or check the errors and faults in time.

In standby, press , the screen displays

Press to enter, it shows “ON, ”turn encoder to select turn ON/OFF the beep

prompting function, then press key to confirm, finally press to return to

standby

. When MENU 9 VOICE function and MENU 11 beep function are both on at the

same time ,the voice function is prioritized.

Setting power on message (PONMSG)-----MENU 12

This transceiver has 3 display modes selectable for the power on message as follow:

OFF: display the full screen

BATT-V: display the current battery voltage

MSG: display “welcome”.

In standby, press the screen displays

Press to enter, it shows “OFF, ”turn encoder to select OFF/BATT-V/MSG.,

then press key to confirm, finally press to return to standby.

Busy channel lockout(BCL)-----MENU 13

This function is to prevent the interference from the other communicating channels.

When the selected channel is occupied by others, press PTT and there will be an

alarm prompt for BCL, while release PTT, the alarm prompt disappears and the

transceiver will be back to the receiving mode.

In frequency mode, press , the screen displays

Press to enter, it shows “OFF, ”turn encoder knob to select ON/OFF this

function, then press key to confirm, finally press to return to standby.

Setting keypad lock (AUTOLK)-----MENU 14

This transceiver has automatically lock (AUTOLK) and manual lock selectable

ON: When the AUTOLK is on, there are no operations within 15 seconds, the

transceiver will be locked automatically. Press key more than 2 seconds to

unlock the keypad.

OFF: The AUTOLK is off, it is only available to lock the keypad manually.

.According to the manual lock, press key for the more than two seconds to

lock in standby mode, and press key for more than two seconds again to

unlock it.

In standby, press the screen displays

Press to enter, it shows “OFF, ”turn encoder knob to select ON/OFF this function,

then press key to confirm, finally press to return to standby.

Setting receiving CTCSS (R-CTCSS)----MENU 15

Using the CTCSS/DCS can be used for you to receive the specified individual or

group calls and avoid the needless callings from others with the same frequency. Only

receiving the same CTCSS/DCS signals, the transceiver can release the squelch.

In standby, press the screen displays

Press to enter, it shows “OFF, ”turn encoder to turn off this function or select

67.0hz to 254.1hz CTCSS code, then press key to confirm, finally press

to return to standby.

.This transceiver has 50 groups CTCSS, see appendix (1) CTCSS frequency sheet.

Setting transmitting CTCSS (T-CTCSS)----MENU 16

In standby, press , the screen displays

Press to enter, it shows “OFF, ”turn encoder to turn off this function or select

67.0hz to 254.1hz CTCSS code, then press key to confirm, finally press

to return to standby.

Setting receiving DCS (R-DCS)----MENU 17

In standby, press , the screen displays

Press to enter, it shows “OFF, ”turn encoder to turn off this function or select

67.0hz to 254.1hz CTCSS code, then press key to confirm, finally press

to return to standby.

. This transceiver has 105 groups DCS, see appendix (2) DCS frequency sheet

. In DCS selections, DXXXN(from D023N to D754N) means POSITIVE code, while

DXXX (from D0231 to D7541) means NEGATIVE code.

Setting transmitting DCS (T-DCS)----MENU 18

In standby, press , the screen displays

Press to enter, it shows “OFF, ”turn encoder to turn off this function or select

67.0hz to 254.1hz CTCSS code, then press key to confirm, finally press

to return to standby.

. This transceiver has 105 groups DCS, see appendix (2) DCS frequency sheet

. In DCS selections, DXXXN(from D023N to D754N) means POSITIVE code, while

DXXX (from D0231 to D7541) means NEGATIVE code.

Voice mode (APRO)---MENU 19

In standby mode, press , the screen displays

Then press to confirm, and then turn encoder knob to select OFF, COMP or

SCR. And then press to confirm, finally

COMP: companying voice signal, reduce noise, improve clear voice, especially

distance between you far away(or one another).

SCR: secret calling, it is unique dealing voice mode, other radio which have same

frequency can receive scrambled and incorrect signal.

OFF: turn off the above-mentioned functions for COMP&SCR.

Secret Calling(SCR-NO)----MENU 20

In standby mode, press , the screen displays

Then press to confirm, and then turn encoder knob to select from

(1.2.3.4.5.6.7.8), 8 modes of secret in all, and then press to confirm,

finally

Setting scan mode (SC-REV)---MENU 21

This transceiver has three scan modes:

TO: the transceiver continues scanning if there are no any operations 5 seconds after

receiving signals.

CO: the transceiver pauses scanning when receiving signal, and continues scanning 3

seconds after the signal disappears.

SE: the transceiver stops scanning when receiving signals.

In standby mode, press , the screen displays

Then press to confirm, it shows “TO, turn encoder knob to select TO/CO/SE scan

mode, then press to confirm, finally press to return to standby mode.

Setting Scan/Lamp/SOS-CH/FM radio/Optional-Signal Call on side key

(PF1)---MENU 22

There are 4 functions selectable on the side key 1 of this transceiver

1.SCAN: scan function 2 LAMP: lamp function 3 SOS-CH: SOS function

4.RADIO: FM radio function 5. Call: (Opt-signal Call: MSK/2-Tone/5-Tone) 6. OFF: Disable this side key

1. SCAN Function

In standby mode, press side key 1 enter to activate scanning (scan mode can be set

through MENU 19-scan mode setting), while press any key to stop scanning in scan

mode.

In standby mode, press , the screen displays

Press to enter, turn encoder knob to select SCAN, then press to confirm,

finally press to return to standby mode.

2. LAMP function

In standby mode, press side key 1 to turn on the lamp, and press this key again to turn

it off.

In standby mode, press , the screen displays

Press to enter, turn encoder knob to select LAMP, then press to

confirm, finally press to return to standby mode.

3. SOS-CH (SOS function)

In emergency, the transceiver transmits the SOS signals to the outside

surrounding on the specified channel or frequency in band A or band B.

Meanwhile, the transceiver will sound “wu…wu” with the green light keeping

flashing. It will transmit signals every 5 minutes, lasting for 10 seconds each time.

When the carrier signal receives in the SOS transmitting mode, the transceiver

will automatically switch into the receiving mode. After the carrier signals

disappear, the transceiver switches back to the SOS transmitting mode. Please

press any key to exit in the SOS transmitting mode.

. In case the SOS-CH frequency you set is not the master frequency , the

transceiver will automatically set the SOS-CH frequency to be the master

frequency in the SOS-CH mode. Meanwhile , the master frequency will not

restore the settings before the SOS transmitting.

. Please press key to reset the master frequency.

In standby mode, press , the screen displays

Then press to enter, turn encoder to choose SOS-CH submenu, the screen

displays

Press again to confirm, turn encoder to choose Band A or Band B, the

press to confirm, the transceiver sounds “wu…wu..” meanwhile the

RED/GREEN/FLASHLIGHT keeps flashing, while means SOS-CH function is on.

After above settings, switch the transceiver to the standby mode, and press PF1 side

key to transmit the

SOS signal.

4. RADIO function

.Turning on the FM radio: in standby mode, press side key 1to turn on. The screen displays

145.025 22 then the indicator keeps flashing, which means transceiver is automatically turning the

radio stations. Once the transceiver gets tuned, it stops at this radio station and starts the listening.

.Turning on the FM radio station: in radio mode, press *SCAN , the radio keeps turning the

stations automatically and the green light keeps flashing at the same time until it succeed in

searching the available stations. You can turn encoder to manually turn the radio stations.

.toring radio station: after detecting a radio station, presses MENU, the screen display

SAVE?88.100, and then select one of the number keys from 1to 9 (1-9), the detected radio station

will be stored into the clip for your future use.

The transceiver has 2 groups of storages selectable for your storing, and the default group is the

first storage.

Egif you want to store 88.1MHz into the 1st group channel8, in radio mode, hen turning the

desired radio station, press MENU +8W&N to store it into the 1st storage directly, if you want to

store this frequency into the 2nd group channel 8. In radio mode, when turning the desired radio

station, press # key then the screen will display . At this time, press

to store this station into the 2nd group channel 8. in radio mode, press 1-9 to select the stored

stations accordingly to listen to, while use the

key to switch between 1st and 2nd storages.

.Exiting from the radio mode: press side key 1 again to exit from the radio mode.

5. Call (Optional Signal Call)

3kinds of Opt-Signal Call (MSK、2-Tone、5-tone) are available, each can set 8 groups code , both

MSK and 2-Tone can set 10 groups code, but the code of 5-Tone are not be limited. The codes for

Optional-signal-call must be set by programming Software of the 2 way radio.

MSK/2-Tone manually set code (but PF1 must be set CALL by Programming Software in

advance)

Call list and send out if relative calling list is not still edited, it will have beep tone prompt

When 2-tone is editing in Programming software, code of A Tone form is transmit for 1second,

code of B Tone form is transmit 3seconds, But code of A tone is transmit for 5 seconds when there

is Only A tone edited in call List (it is regarded as group-call when it is used actually).

Code of 5-tone is manually Edited (but PF1 must be set CALL by programming software via PC

in advance). Press PF1 key , LCD display “CALL/----“, then input code of 5-tone you want, and

then press PTT key to call, that’s ok!

Working mode (CH-MDF)---MENU23

This transceiver has 2options for the working mode:

1. Frequency mode (FREQ) 2.Channel mode

There are 3 channel display selections in channel mode as follow:

① Channel (CH) ② frequency + channel (CH FREQ) ③channel name(NAME)

Frequency mode (FREQ) and channel mode switchable

(1) Without password input

In standby, press then turn encoder to choose working mode and finally

press to confirm.

(2)With password input

Please set the password for the mode switch via programming software. This password is

consisting of 6charters from 0-9. The valid password should be made up by 6 digit except: 00000.

In standby, press then turn encoder to choose one of

FREQ/NAME/CH/CHREQ. Press to confirm, the screen will display the password input

. Please input the preset password through the keypad, then the transceiver will

switch to the selected mode.

Setting auto backlight (ABR) ---MENU24

In standby, press , the screen display

Press to enter , it shows “ON”, turn encoder to turn ON/OFF auto backlight function, then

press to confirm, press return to standby.

Colorful backlight (COLOR) ---MENE25

In standby mode, press then screen displays

Then press to confirm, and then turn encoder to select Arabic number from (1-7), and then

press to confirm again, finally

Note: every Arabic number means a kind of colorful backlight.

E.G：1 means red backlight, 2 means green backlight, 3 means yellow backlight, and 4 means blue

backlight and so on.

Setting offset frequency (OFF SET) ---MENU 26

Offset frequency means the difference between transmitting frequency and receiving frequency.

The range of the offset frequency for this transceiver is from 0-69.950 MHz

In standby mode, presses , the screen displays

Press to enter, and then turn encoder to select the listed offset frequency, or manually input

through in order to transmit and receive in different frequencies, it is necessary to set the offset

frequency shift direction in the frequency mode.

Please follow the below setting steps:

1. Set the working mode to the frequency mode.

2. Set the frequency shift direction and offset frequency.

Eg: in frequency mode, the transceiver needs to work on receiving frequency 450.025 MHz and

transmitting frequency 460.025 MHz.

In frequency mode, input

to select positive direction (+), press

+turn encoder knob to choose

10.000+ , so the frequency shift direction and offset frequency are set. The screen

displays , press PTT to transmit and the screen displays ，release PTT,

the screen displays ，and it means receiving frequency is , while the

transmitting frequency is

Setting frequency shift direction (SFT-D) ---MENU 27

There are 3 selections for the frequency shift direction setting:]

1. Plus shift (+), which means the transmitting frequency is higher than the receiving frequency.

2. Minus shift (-), which means the transmitting frequency is lower than the receiving frequency.

3. Turn off this function.

In standby mode, press , the screen display press to

enter, turn encoder to select +/-/OFF, then pres to confirm, finally return to

standby mode.

Selecting stopwatch timer (SECOND) ---MENU28

In standby mode, press , the screen display

press to enter, it shows “OFF”, then turn encoder knob to turn ON/OFF this stopwatch,

press to confirm, finally press to return to standby mode.

Using the stopwatch timer:

When this function is in, press key to start counting, while press any key to pause. Press

key again to re-start counting.

Channel Name Editing (CHNAME) ---MENU29

In frequency mode an din standby, you press , the screen display

This means that the channel name is not edited up to now.

1. the method of editing

do it via programming software

or directly operate through the keypad manually.

2. with the following 2 items before editing

you store/memory at least 1channel before editing channel name, specific operation detail is

read in 30-setting channel memory

the transceiver (two way radio) is in the channel mode, must press key to

switch into the channel mode if it is in the frequency mode.

3. manual operation steps in the channel mode

The 1step: press key to confirm, the screen display

The 2 step: after you press to confirm, at this time, you can edit the name of channel

(1) If the channel name which you need is consist of 6 digital numbers （0 123456789）, directly

input digital number key from keypad. Turn encoder clockwise to select the digit, turn

encoder anti-clockwise for 1time, you will edit second number, and then you will turn

clockwise for 1time again, the second digital number will appear. Then operation of editing

next number according to the same theory.

(2) If the 9-digit numbers of channel name is consisted of 1 English letter (from A-Z) or more

(6 letters at most ) you will turn encoder clockwise to select English letter you want, these

letters will appear after digital number 9 come out, and then turn encoder anti-clockwise

1time, you will select the second digit, and then turn encoder clockwise for 1time again. You

will select digit according to the above mentioned theory as well as the 6th digit.

The 3 step: After you finish selecting the 6digits of channel name, and then press , and

press .

Setting channel memory: setting Co-Channel and Dis-Channel (MEM-CH) ---MENU30

In frequency mode and in standby mode, it is available to store the desired frequencies and

relevant parameter into the specified channel.

Input the desired frequency, and then press , the screen display

press to enter, turn encoder to select channel is co-channel. If you need to store as

dis-channel, repeat the above operation on another frequency and transmitting frequency are

stored as dis-channel.

e.g: store receiving frequency450.025mhz and transmitting frequency460.025mhz into channel 20

as dis-channel..

1. In frequency mode, input

then press

or turn encoder to select CH-20, press to confirm, voice prompt for

receiving memory, then press .

2. Input

,

voice prompt for transmitting memory, then press

4. the dis-channel is set successfully.

Deleting channel (DEL-CH) ---MENU31

In standby mode, press ，the screen display

press to enter, and turn encoder to select the desired channel, then press to confirm,

after the channel is deleted successfully, press to return to standby.

37

Setting reset---MENU32

This transceiver has 2selections for the reset operation- VFO reset and ALL reset.

VFO reset means all the function parameter set in frequency mode resumes to the factory setting.

ALL reset means all the function parameter set in both frequency mode and channel mode

resumes to the factory setting.

1. VFO Reset

In standby mode, press ，the screen display

press to enter, and turn encoder to select VFO, then press ，the screen display

press again to confirm, and the screen displays

After this operation, the transceiver will be resumed automatically

2. All Reset

3. In order to avoid the faulty operations, we suggest that you set the password for the All Reset

via programming software. Only input the valid password, the transceiver can be reset to the

factory setting completely. Please see the password setting in the programming software, which is

consist of six Arabic number selectable from 0-9.

When the input password is 000000, it means no password is needed to input for this operation.

(1) setting password is 000000

In standby, press ，the screen display

press to enter, and turn encoder to select ALL, press , the screen display

then press again to confirm, the screen displays

When the reset operation is done, the transceiver will be resumed automatically

(2) setting password as xxxxxx (e.g 123456)

In standby, press ，the screen display

press to enter, and turn encoder to select ALL, press , the screen display

, at this time input the valid password (e.g:123456), the screen displays

then the transceiver will start resetting. After reset is done, the transceiver will be

resumed automatically

CTCSS/DCS scanning ---MENU33

When the transceiver detects the CTCSS/DCS signals, press ，the screen

display

press to enter, the arrowhead points to CTCSS, turn encoder select to scan CTCSS/DCS.

And

then press to confirm, it starts scanning CTCSS/DCS frequencies.

DTMF Encoding

These keys and knob are respectively corresponding to A, B, C, D at

DTMF encoding setting.

Please follow the below steps to activate DTMF manually：

1. Hold on pressing PTT key to transmit.

2. AT the same time, press the keys on the keyboard to sent out the DTMF tone.

Editing / Transmitting ANI ID Code, ANI ID Code transmitting delay and DTMF Side tone

·Editing ANI ID code

ANI ID Code can be made up by alphanumeric (A-D and 0-9) with 6 digits max

·Transmitting ANI ID Code

Turn this function on means when press PTT key, the ANI ID Code will be transmitted

automatically, while turning it off means manually transmitting.

·ANI ID Code transmitting delay

The delay time for transmitting ANI ID Code means the time which the transceiver is

automatically delayed

41

transmitting ANI ID Code

this delay can be set 3seconds max, total 30 levels with 100ms each.

·DTMF Side tone

DTMF Side tone means to turn on/off the speaker when transmitting ANI ID Code, and get the

corresponding DTMF tone.

·There are 4options on setting side tone:

(1) Keypad side tone: press keypad to turn on side tone when transmitting

(2) ANI ID Code side tone: transmit ANI ID Code to turn on side tone.

(3) Key side tone + ANI ID side tone: press number key or transmit ANI ID side can turn on

side tone when transmitting

(4) OFF: in encoding mode, all side tones are off.

Setting priority scan function

If you want to monitor the other frequency and check the certain preferred frequency at the same

time,

You can set priority scan function.

E.G: scan six channels: set CH1, CH2,CH3, CH4 and CH5 as the common scanned channels and

CH6 as the priority scanned channel, then the scanning order is as followings:

When this transceiver detects signal on the priority channel when scanning, it will call on its

frequency. Please program the priority channel via chierda programming software.

Setting reverse frequency function

When using the reverse frequency function, the transmitting and receiving frequencies of this

transceiver will be interchanged, together with as well as all setting for CTCSS/DTMF.

·How to set the reverse frequency:

In standby mode, press to activated this function, while press again to switch it

off.

·In channel mode, if you want to:

1. turn on the menu setting.

2. reset the transceiver

please program above operations via chierda programming software.

Low voltage prompt

When the battery pack is in low voltage, there will be voice prompt for the lower voltage, at this

time, the backlight flashes one time every five seconds and the transceiver sounds out “click” to

remind of being

charged timely.

Transmitting overtime prompt

When the transmitting time is exceeding the preset time, there will be an alarm to remind of

overtime transmitting, and the transmitting will be paused. If you want to continue transmitting,

please press PTT to resume transmitting. (Please see MENU 6 about the time-out timer TOT)

Adding scanning channel

Wire-clone function

a. Install battery packs on

source radio and target radio

and connect then via

wire-clone

b. And then power target radio

on

c. Power on the source radio an

hold on the MONI key at the

same time

d. Red LED on the source radio

Flashes, while the green

LED on the target radio

flashes, it shows the wire

cloning in completely

proceeding

Red LED flashing means transmitting

data when wire cloning. Red LED will be

extinguished after completing wire-clone,

and the transceiver returns to standby.

Red LED lasting flashing means the

wire-clone is failed and the transceiver

returns to standby mode

Wire-clone

setting

Target radio

Green LED flashing means receiving

data when wire cloning. Green LED will

be extinguished after completing

wire-clone, and the transceiver returns to

standby.

Working with repeater

This series of transceiver is available to work with the repeater both in frequency mode and

channel mode, which is programmable through the key board and via the programming software.

Please refer to the following steps about manually programming the channels to work the repeater.

a. set the transceiver work in the frequency/VFO mode, (if the radio work on channel mode,

please press key to switch frequency mode )

b. Input the receive frequency through the keyboard. ( the receive frequency of this transceiver is

the transmit frequency of repeater)

c. Set the related parameter you need for this frequency, like MENU15-18 CTCDD/DCS,

MENU 26 Offset frequency, MENU 27 shift frequency direction and others.

d. Memorize this frequency and the parameter into the specified channel by MENU 30.

e. After setting the Offset frequency and the shift frequency direction of receiving memory, you

do not need to memorize the transmit frequency.

After above, the settings to work with repeater are successful. Switch the working mode to

channel mode, call out this specified channel you have memorized, the transceiver can join in the

repeater.

For example, the receive frequency range of repeater is 442.850MHz, the offset frequency is

5.00MHz, the shift frequency direction is “-“, the T-CTCSS is 103.5hz, the specified channel

CH-20. Please see the steps as following:

a. Power on the transceiver, and set it to work in frequency mode.

b. Press to set the frequency step, turn encode knob to select the desired

frequency step, and then press to confirm, finally press to return to standby.

c. Input the frequency447.850 through the keypad, and operate as follows:

Press to set the transmitting power. Turn encode key to

select the desired power, and then press to confirm, finally press to return to

standby. (Please refer to MENU 4 on page 16)

Press to set the T-CTCSS, turn encode key to select the desired

CTCSS code 103.5HZ, and then press to confirm, finally press to return to standby.

(Please refer to MENU 16 on page 23)

Press to set the offset frequency, turn encode knob to select the

desired offset frequency 5.00 MHz, and then press to confirm, finally press to return

to standby. (Please refer to MENU 26)

Press to set the shift frequency direction. Turn encode key to

select the desired direction – and then press to return to standby. (Please refer to MENU 27)

Press to memory channel, turn encoder knob clockwise or

anti-clockwise, or directly input through the keypad to select the specified

channel CH-20, and then press to confirm,, there is voice prompt “receiving memory” (it

prompts when the voice guide is ON). Finally press to return to standby. (Please refer to

MENU 30)

After above, the settings for memory channel to the repeater is done.

If necessary for the channel name editing, please press to switch the working

mode to channel mode. Select the specified channel CH-20, and then press

to change channel mode. Turn encode key to select name

and then press to confirm, finally press to return to standby.

How to use the intelligent charger

1. Insert the AC plug into the power grid socket (AC: 110-220V). The indicator on the charger

flashes, and then the charger is in the charger is in the charging standby mode.

2. Insert the battery into the charger, the RED LED is on, which means charging is on the

progress. When the RED LED turns to GREEN, the charging completes.

Programming guide for software (via USB Programming cable)

1. Download, unzip and install the USB driver according to different operating system.

2. Restart your computer, and it shows the driver is installed successfully.

3. download and unzip the matching programming software

4. Connect the transceiver and open the software

5. Power on the transceiver and open the software

6. Read from the radio to check the connection

7. Set the parameter and functions accordingly

8. Wire to the radio

·if you get the message “failed connection” when you try to read from the radio, please check

the first five steps and the communication ports accordingly.

·Please confirm that the first 3 steps are done well, the com port will be selected

automatically when you open the software. However, according to the different computer

settings, the com port may be needed to re-set.

·Please determine the port assignment form the device manager of the computer and select

the correct commutation port, which is available for the connection.

·If the connection is still not ok, please try another cable or another transceiver on another

computer to double check. Please refer to the detailed manual.

Troubleshooting Guide

Before the transceiver is regarded as being faulty, please double checks according to the main

problems as following chart, it the problems are still happening, please reset it to avoid some

mis-function operation, search assistance from the experienced technician or contact your buyer

accordingly.

problem solution

The transceiver can not be powered

on

·The battery may be exhausted, please change the

new battery or re-charge it

·The battery was not installed correctly, please

re-stall

The battery life is too short to use ·The battery life is over, please change a new

battery

·The battery is not full charge

The receiving light keeps flashing,

But there is no sound coming out

·make sure the volume is highest

·make sure the CTCSS/DCS settings are the same

as the transmitting transceiver

It seems the keypad does not work ·make sure if the keypad is locked or not

·make sure if the keys are not stuck

In standby, the transceiver will

transmit automatically even the PTT

key is not pressed

·make sure if VOX function is ON or not, and its

level is set too low or not

Some functions can not be stored

normally

·please confirm if the transceiver is working in

channel mode, since some functions are only set in

frequency mode via programming software

There are other disturbed signals or

noise (from other groups) in the

channel

·please change the CTCSS/DCS frequencies set in

your group.

Technical Specification

Appendix 1

CTCSS

1 67.0 11 94.8 21 131.8 31 171.3 41 203..5

2 69.3 12 97.4 22 136.5 32 173.8 42 206.5

3 71.9 13 100.0 23 141.3 33 177.3 43 210.7

4 74.4 14 103.5 24 146.2 34 179.9 44 218.1

5 77.0 15 107.2 25 151.4 35 183.5 45 225.7

6 79.7 16 110.9 26 156.4 36 186.2 46 229.1

7 82.5 17 114.8 27 159.8 37 189.9 47 233.6

8 85.4 18 118.8 28 162.2 38 192.8 48 241.8

9 88.5 19 123.0 29 165.5 39 196.6 49 250.3

10 91.5 20 127.3 30 167.9 40 199.5 50 254.1

Appendix 1

DCS

1 D023N

16

D074N

31 D165N

46

D261N

61

D356N

76 D462N

91 D627N

2 D025N

17

D114N

32 D172N

47

D263N

62

D364N

77 D464N

92 D631N

3 D026N

18

D115N

33 D174N

48

D265N

63

D365N

78 D465N

93 D632N

4 D031N

19

D116N

34 D205N

49

D266N

64

D371N

79 D466N

94 D645N

5 D032N

20

D122N

35 D212N

50

D271N

65

D411N

80 D503N

95 D654N

6 D036N

21

D125N

36 D223N

51

D274N

66

D412N

81 D506N

96 D662N

7 D043N

22

D131N

37 D225N

52

D306N

67

D413N

82 D516N

97 D664N

8 D047N

23

D132N

38 D226N

53

D311N

68

D423N

83 D523N

98 D703N

9 D051N

24

D134N

39 D243N

54

D315N

69

D431N

84 D526N

99 D712N

10

D053N

25

D143N

40 D244N

55

D325N

70

D432N

85 D532N

100

D723N

11

D054N

26

D145N

41 D245N

56

D331N

71

D445N

86 D546N

101

D731N

12

D065N

27

D152N

42 D246N

57

D332N

72

D446N

87 D565N

102

D732N

13

D071N

28

D155N

43 D251N

58

D343N

73

D452N

88 D606N

103

D734N

14

D072N

29

D156N

44 D252N

59

D346N

74

D454N

89 D612N

104

D743N

15

D073N

30

D162N

45 D255N

60

D351N

75

D455N

90 D624N

105

D745N

Technical Specification

Frequency range (can be suitable

for different countries or

Areas)

1.Standard frequency for the transceiver

400-470 MHz (Rx/Tx)

2. Optional frequency

400-470 MHz (Rx/Tx)

Memory channel 128 channels

Operating voltage 7.4v

Operating temperature -30 to +60℃

Working mode Co-channel or Dis-channel simplex

Output power UHF:4W

Modulation F3E(FM)

Max frequency deviation ﹤+5khz

Spurious radiation ﹤-60db

Frequency stability +2.5ppm

Receive sensitivity ﹤0.2uv

Audio output power ﹥500mw

Dimension 120(L)*62(W)*41(T)mm

Weight 250g

NOTE: Specifications is subject to be updated without prior notice.

Quanzhou Chierda Electronic Telecom CDUV55 UHF-FM Hand Held Land-Mobile Transceiver User Manual Draft Manual

Quanzhou Chierda Electronic Telecom Co., Ltd. UHF-FM Hand Held Land-Mobile Transceiver Draft Manual

Contents

Draft Manual

Navigation menu

Namespaces

Views

Navigation
