1. Introduction
The water resistant GL300VC is a powerful GPS/GNSS locator designed for lone worker, vehicle,
pet and asset tracking applications. The thumb sized button makes this device ideal for
applications requiring rapid notification of emergency alert or regular setting of geo-fences based
on current location. Its built-in GNSS receiver has superior sensitivity and fast time to first fix. Its
CDMA2000-1X allowing the GL300VC's location to be monitored in real time or periodically
tracked by a backend server and mobile devices. Its built-in 3-axis accelerometer allows motion
detection and extends battery life through sophisticated power management algorithms. System
integration is straightforward as complete documentation is provided for the full featured @Track
protocol. The @Track protocol supports a wide variety of reports including emergency, geo-fence
boundary crossings, low battery and scheduled GPS/GNSS position.
WARNING: This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Statement:
For the product, under normal use condition is at least 20cm away from the body of the user, the user must keeping
at least 20cm distance to the product.
FCC RF Exposure Information and Statement:
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram oftissue.
Device types: GL300VC(FCC ID:YQD-GL300VC) has also been tested against this SAR limit.
The highest SAR value reported under this standard during product certification for use on the body is 0.849W/kg.
GL300VC User Manual
TRACGL300VCUM001 - 5 -
2. Product Overview

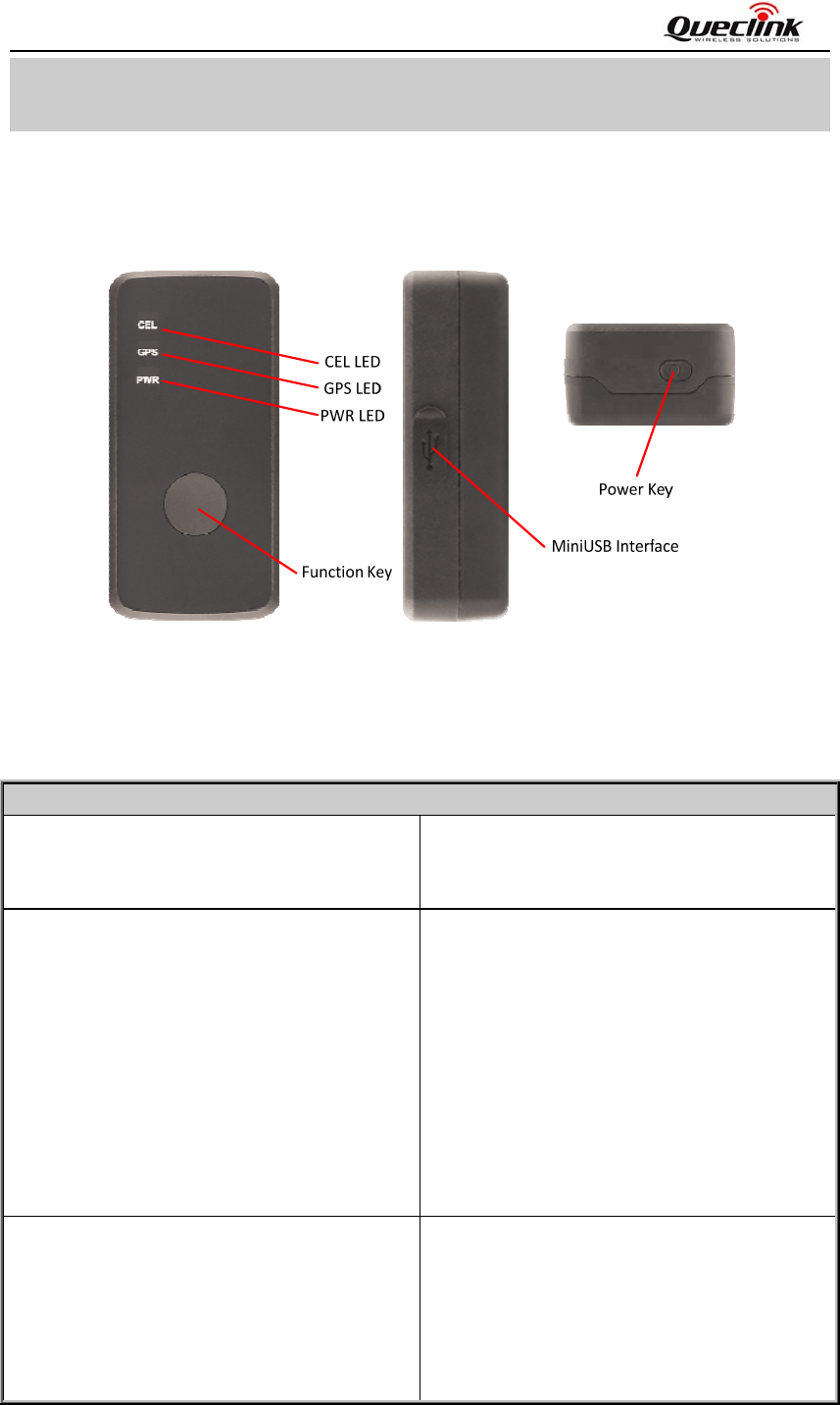

2.1. Appearance
2.2. Buttons/Mini USB Interface Description
Button /Mini USB Interface Description
Power Key Turn on GL300VC
Turn off GL300VC when without charging.
(If power key is enabled)
Function Key Geo-Fence mode
Long press the key to enable/disable
Geo-Fence ID0
Geo-Fence in current position mode
Long press the key to enable/disable
Geo-Fence ID0. If enable Geo-Fence ID0,
using the current position as the center of
Geo-Fence 0.
SOS mode (default)
Long press the key to active SOS alarm
Mini USB interface Connect a 5V DC adapter can power
GL300VC and charge the internal battery
Connect a 3.7V Li-ion or Li-Polymer
battery can power GL300VC
Backend server developer or administrator
can use the Data_Cable_M to configure
GL300VC User Manual
TRACGL300VCUM001 - 6 -
GL300VC
2.3. LEDs Description
There are three LED in GL300VC, the description as following.
2.4. External Power Interface
2.4.1. External DC Charger Interface

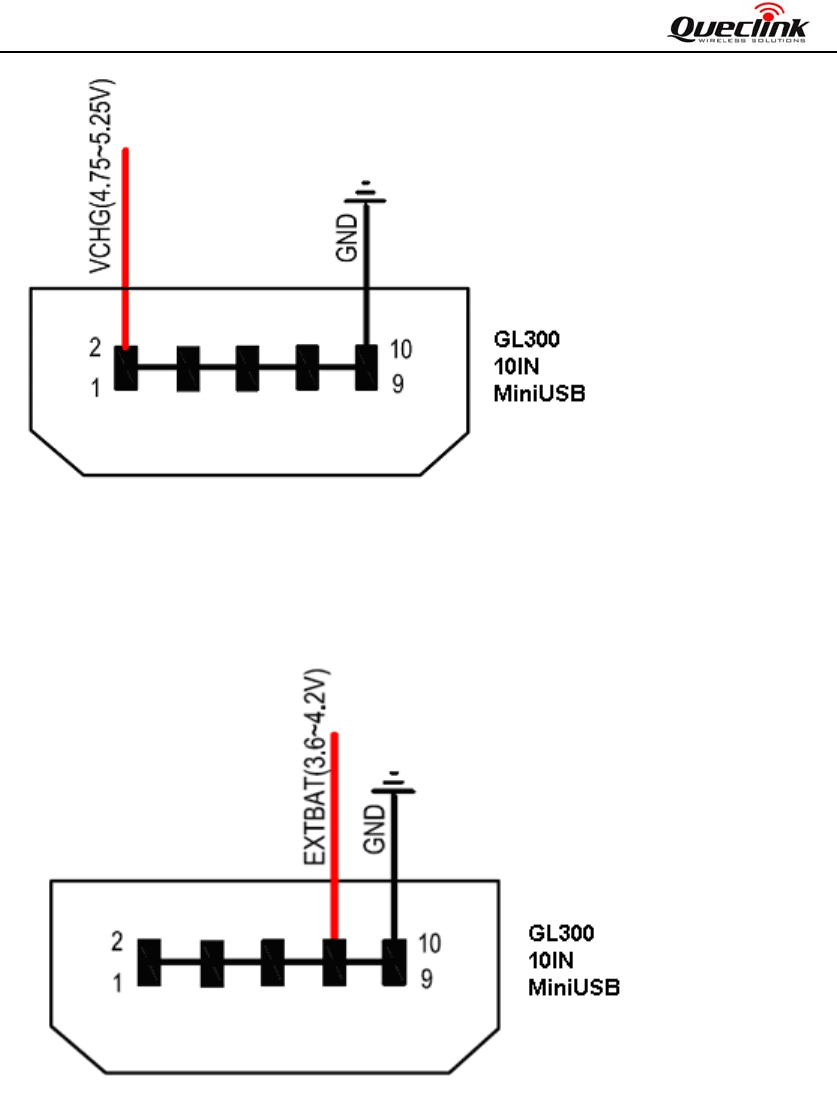

The Pin2 on Mini-USB connector are used for charging and named as VCHG pin, It can be
connected to a 5V DC power supply to power GL300VC and charge the internal battery.
LED Event State
CELL LED Searching network Fast flash
Network has been registered Slow flash
Power off Dark
SIM-PIN Locked Solid
Receives a valid protocol command Turn on for 3 seconds
<LED on> is 2 Dark
GPS LED GPS has fixed Solid
GPS is in fixing Fast flash
GPS is on and GPS data wrong Slow flash
GPS is off Dark
If <LED on> is 0, 150 seconds later after powers
on.
Dark
<LED on> is 2 Dark
PWR LED Power on and normal Dark
Charger inserted and charging completed Solid
Charger inserted and charging Fast flash
Power key was pressed and prepare to power off Fast flash
Abnormal Fast flash
Power low alert Slow flash
Power off or turn off the power light by command Dark
<LED on> is 2 Dark
GL300VC User Manual
TRACGL300VCUM001 - 7 -
2.4.2. External Battery Interface
The Pin 8 on Mini-USB connector is for external battery and named as EXTBAT pin, It can be
connected to 3.7V Li-ion or Li-Polymer battery to power GL300VC.
2.5. Ignition Detection

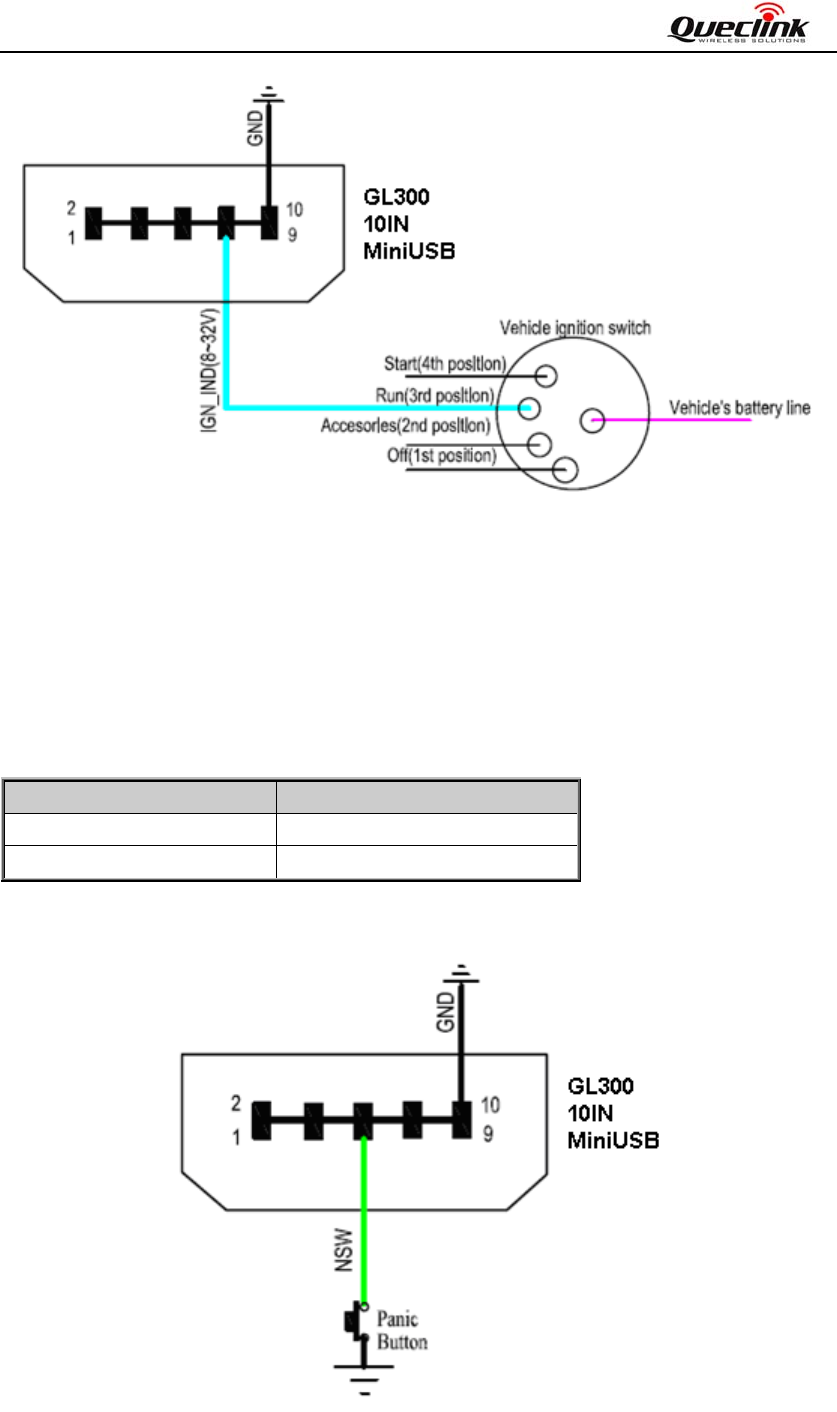

The Pin 7 on Mini-USB connector is for ignition detection when GL300VC is used in vehicle
tracking application, It is named as IGN_IND pin.
GL300VC User Manual
TRACGL300VCUM001 - 8 -
Another easy way is to connect PIN7 to a power output in the fuse box of the vehicle which is
only enabled after the vehicle is ignition on. For example: the power output for radio FM.
2.6. External Input Interface
The Pin 5 on Mini-USB connector is a negative trigger input in newer hardware version, It is
named as NSW pin.
For negative trigger input the electrical conditions are:
Logical State Electrical State
Active 0V to 0.8V
Inactive 1.7V to 32V or Open
An input example is shown as following figures:
Example of NSW pin connect to a panic button
GL300VC User Manual
TRACGL300VCUM001 - 9 -
3. Getting Started

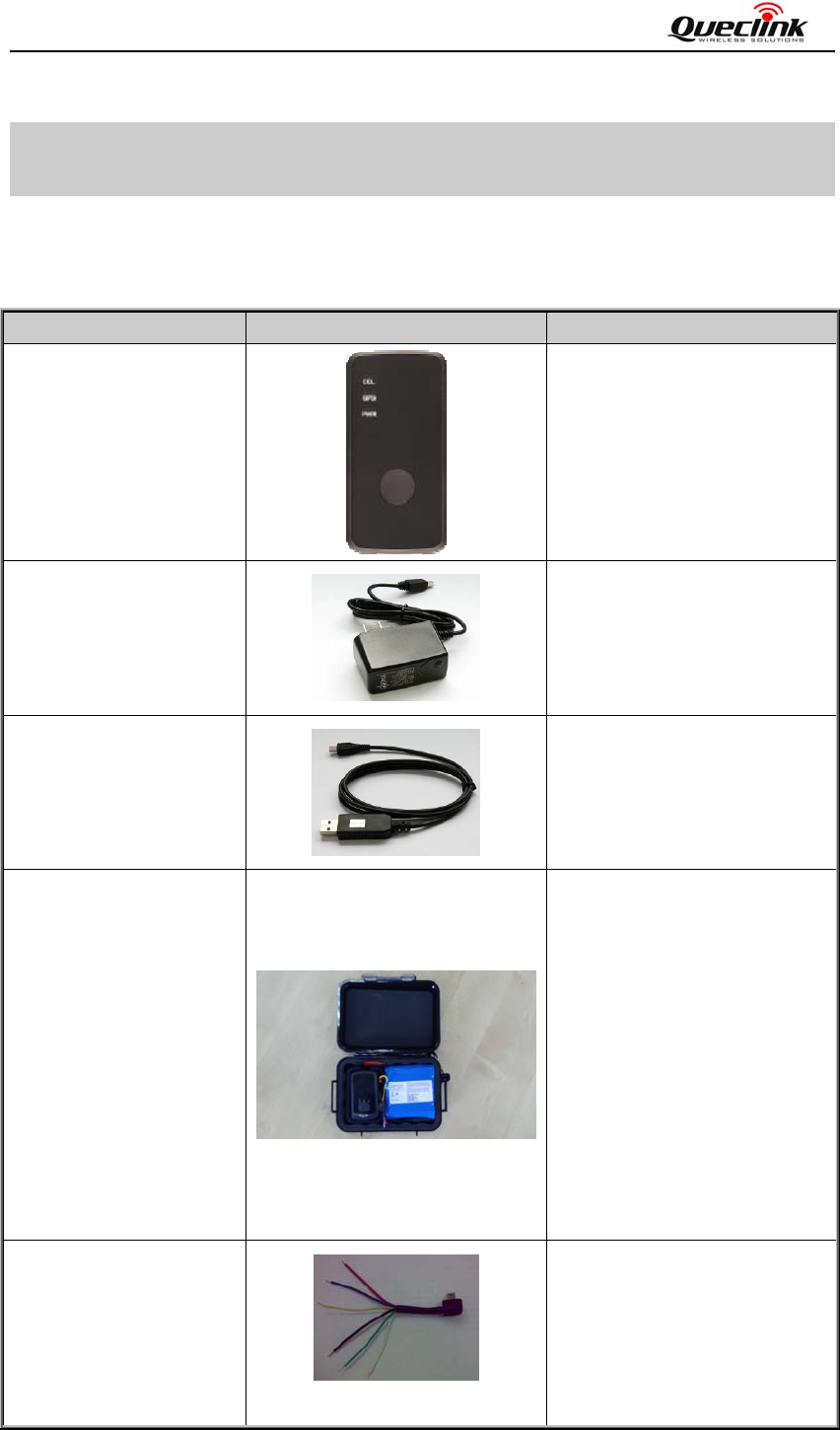

3.1. Parts List
Name Picture Remark
GL300VC Locater
The CDMA-1X/GPRS/GPS
locator.
AC-DC Power Adapter
(Standard accessory)
It is used to charge the internal
battery of GL300VC.
GL300VC Data Cable
(Optional accessory)
It is the USB data cable which
can be used for firmware
upgrading and configuration.
External Battery Kit
（Optional accessory）
It is a set of accessories include
an external battery, a power
control unit and a pelican
waterproof casing,. It will
greatly improve the working
time of GL300VC and also let
the GL300VC can be used for
some special application like
container tracking.
Please refer to “GL200 External
Battery Kit User Manual.pdf”
for detail.
GL300VC External Cable
(Optional accessory)
It is the extend cable which
include the charger interface
and external battery interface on
GL300VC. It also includes the
ignition detection interface on
the GL300VC.
GL300VC User Manual
TRACGL300VCUM001 - 10 -
3.2. Battery Charging
Please connect AC-DC power adapter with GL300VC.
Insert the AC-DC power adapter into the power socket.
During charging, the PWR LED is flashing fast. When the battery is full charged, the PWR LED
will be Ever-light.
You can also charge the battery by USB cable which connects GL300VC with the PC.
Charging time is about 5 hours.
Note: Before the first time using GL300VC, please full charge the battery.
3.3. GL300VC External Cable Interface

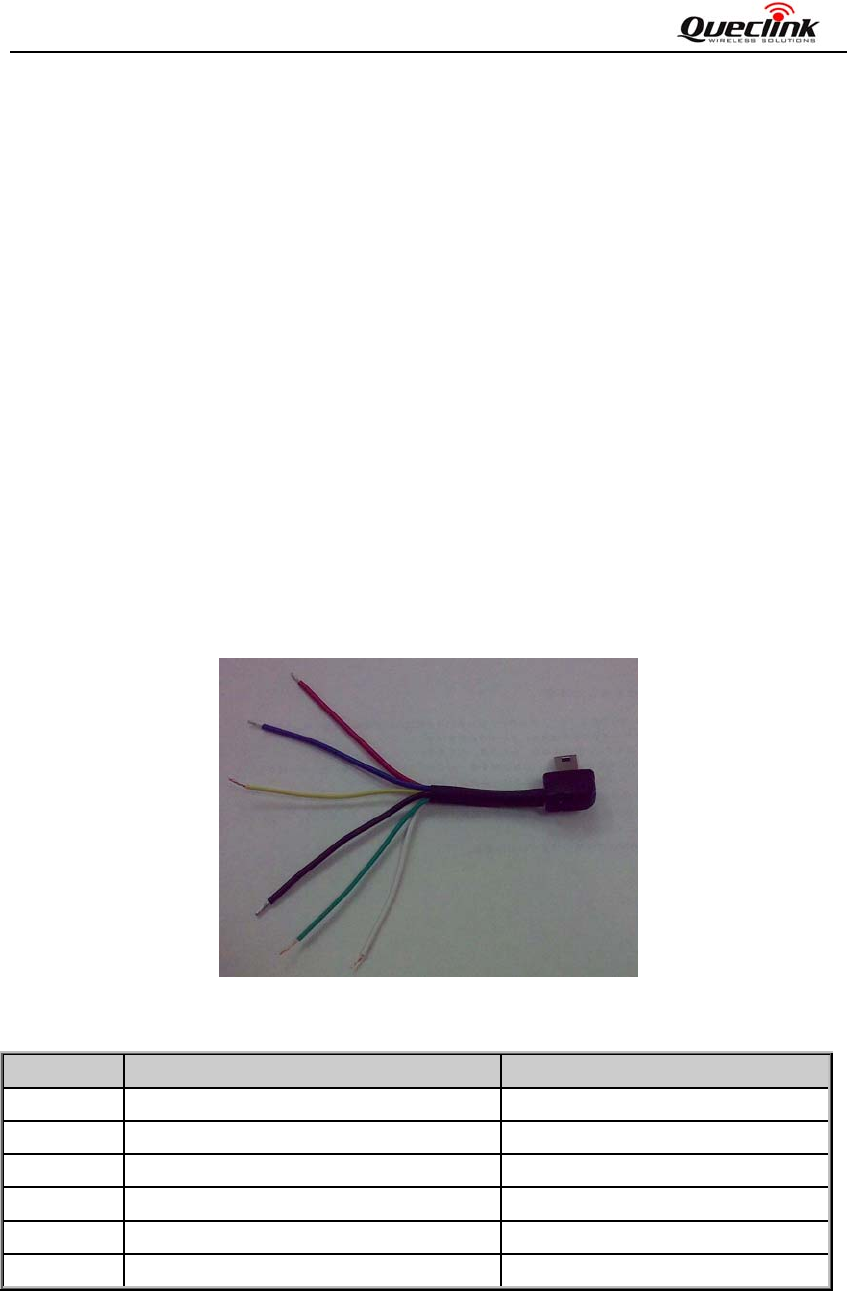

GL300VC External Cable is a cable with a Mini USB connector and six wires which include
the external power interface, ignition detect and input interface for GL300VC. Please find the
detail description in following table.
Color Name Remark
RED External DC IN (5V) Please refer to 2.4.1 for detail
Black Ground Please refer to 2.4.1 for detail
Blue External Battery IN (DC 3.4V to 4.2V) Please refer to 2.4.2 for detail
White Ignition Detect Please refer to 2.5for detail
Green NSW（negative trigger input） Please refer to 2.6 for detail
Yellow OUT(negative trigger output) Please refer to 2.6 for detail
GL300VC User Manual
TRACGL300VCUM001 - 11 -
3.4. Turn on/Turn off
Turn on:
Method 1: Press the Power key at least 3 seconds and release it to turn on GL300VC.
At the same time, PWR LED will light on.
Method 2: Connect device to charger or external battery, and it will turn on
automatically, PWR LED will light on.
Turn off:
Method 1: Press the power key about 2 seconds; PWR LED will fast flash and then turn
off, it indicates that GL300VC is turned off. The time of power off is depended on the
quality of network. The maximum time of power off is 90 seconds. It is only valid to
turn off when using internal battery. Please note the end-user can not power off
GL300VC when the power key is disabled by protocol.
Method 2: If using external battery, device will power turn-off when external battery
disconnect.
GL300VC User Manual
TRACGL300VCUM001 - 12 -
4. Troubleshooting and Safety info
4.1. Troubleshooting
Trouble Possible Reason Solution
After GL300VC is turned
on, the CDMA-1X LED
flashes quickly always.
The signal is too weak;
GL300VC can’t register to the
network.
Please move GL300VC into
place with good CDMA-1X
coverage.
Messages can’t be reported
to the backend server by
GPRS.
APN is wrong. Some APN
cannot visit the internet directly.
Ask the network operator for
the right APN.
The IP address or port of the
backend server is wrong.
Make sure the IP address for
the backend server is an
identified address in the
internet.
Unable to power off
GL300VC.
The function of power key was
disabled by AT+GTSFR.
Enable the function of power
key by AT+GTFKS.
Unable to power off GL300VC
if charger connected or using
external battery.
Disconnect charger or external
battery, and try again.
No response from UART
when configure GL300VC
through UART
GL300VC is in power saving
mode.
Remove the Data_Cable_M,
and plug it in again. After this
operation, GL300VC will exit
from power saving mode for 10
seconds.
Re-try GL300VC manager tool
again, it will try to wake up
device.
GL300VC can’t get
successful GPS fixing.
The GPS signal is weak. Please move GL300VC to a
place with open sky.
It is better to let the top surface
face to sky. (The same surface
with indication LED)
4.2. Safety info
Please do not disassemble the device by yourself.
Please do not put the device on the overheating or too humid place, avoid exposure to direct
sunlight. Too high temperature will damage the device or even cause the battery explosion.
Please do not use GL300VC on the airplane or near medical equipment.
