1. Introduction
The GMT100 is a powerful GPS locator designed for vehicle or asset tracking. It has
superior receiver sensitivity, fast TTFF (Time to First Fix) and supports Quad-Band GSM
frequencies 850/900/1800/1900, its location can be monitored in real time or be
periodically tracked by a backend server or other specified terminals. The GMT100 has
multiple input/output interfaces that can be used for monitoring or controlling external
devices. Based on the integrated @Track protocol, the GMT100 can communicate with a
backend server through the GPRS/GSM network to transfer reports of Emergency,
geo-fence boundary crossings, low backup battery or scheduled GPS position as well as
many other useful functions. Users can also use GMT100 to monitor the status of a
vehicle and control the vehicle by its external relay output. System Integrators can easily
setup their tracking systems based on the full-featured @Track protocol.
FCC RF Exposure Statement:
For the product,under normal use condition is at least 20cm away from the body of the
user,the user must keeping at least 20cm distance to the product.
1.1. Reference
Table 1: GMT100 Protocol Reference
SN Document name Remark
[1] GMT100 @Track Air Interface Protocol The air protocol interface between
GMT100 and backend server.
1.2. Terms and Abbreviations
Table 2: Terms and Abbreviations
Abbreviation Description
AIN Analog Input
DIN Digital Input
DOUT Digital Output
GND Ground
GMT100 User Manual
TRACGMT100UM001 -10-
2. Product Overview
2.1. Appearance

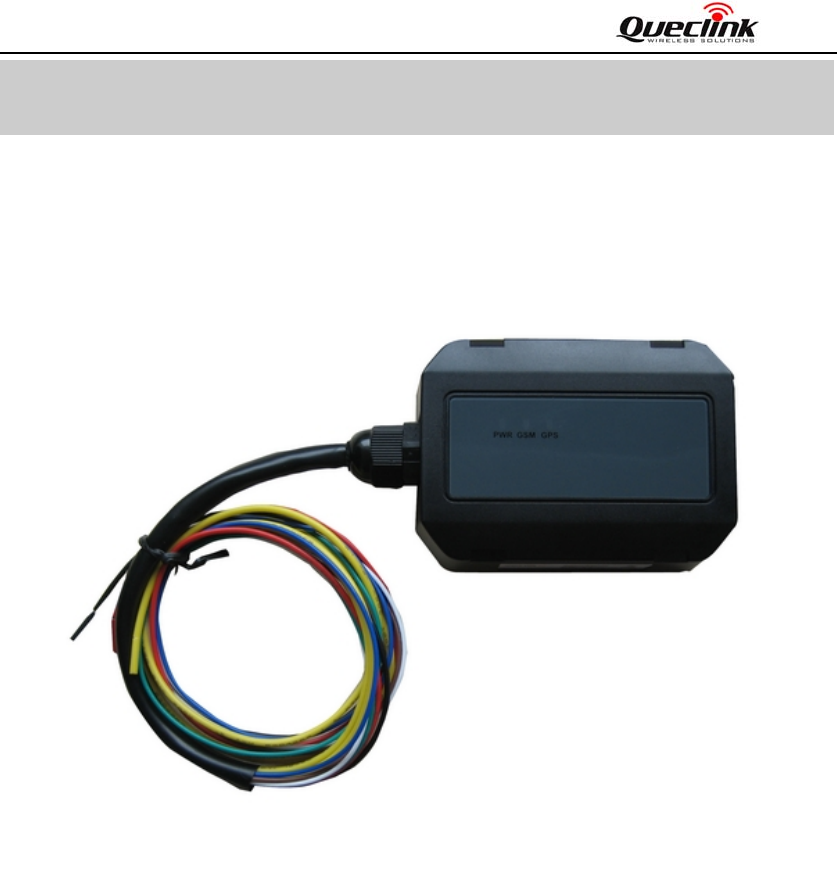

Figure 1. Appearance of GMT100
GMT100 User Manual
TRACGMT100UM001 - 9 -
2.2. Parts List

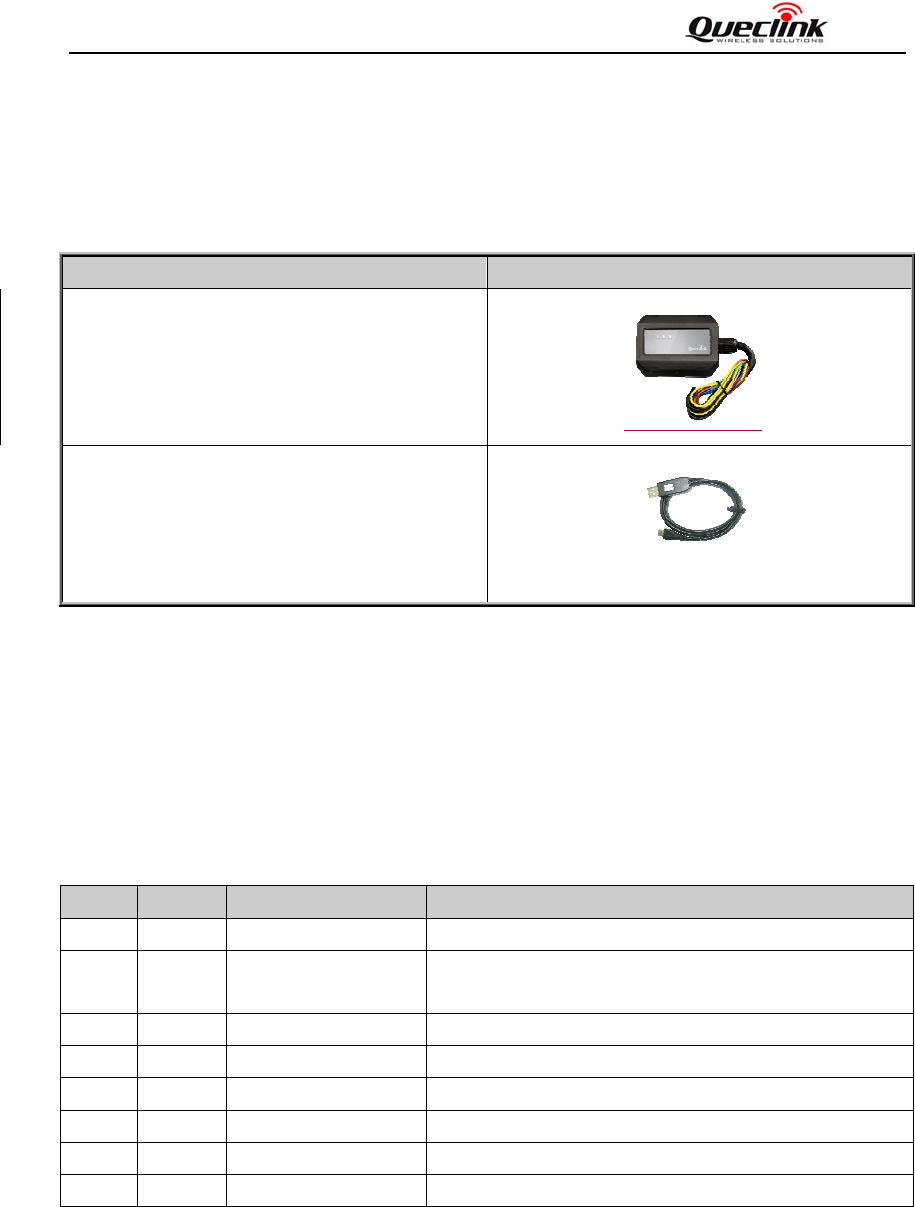

Table 3: Part List
Name Picture
GMT100 Locator
DATA_CABLE_M (Optional)
Please note this data cable is only for
backend server developers or
administrators. It is not in the delivery list of
GMT100
2.3. Interface Definition
There are 8 wires on GMT100 User Cable which contain the connection for power, ignition
input, digital input, analog input, siren output, cut output etc. The user cable’s definition is
shown in following table.
Table 4: Description of GMT100 User Cable
Index Colour Description Comment
1 Red Power External DC power input, 8-32V
2 Black Ground System ground
(connect to the vehicle’s frame directly）
3 White Ignition Ignition input, positive trigger
4 Blue Digital input Digital input, negative trigger
5 Green Analog input Analog input, 0-32V
6 Brown Siren output Siren output, high end
7 Yellow Relay output line1 Internal relay output line1.
8 Yellow Relay output line2 Internal relay output line2
GMT100 User Manual
TRACGMT100UM001 -10-
3. Getting Started
3.1. Installing a SIM Card
Step 1: Remove the cover by screwdriver.
Step 2: Make sure the contact area is facing down, insert the SIM into the slot.
Step 3: Install the SIM card cover.

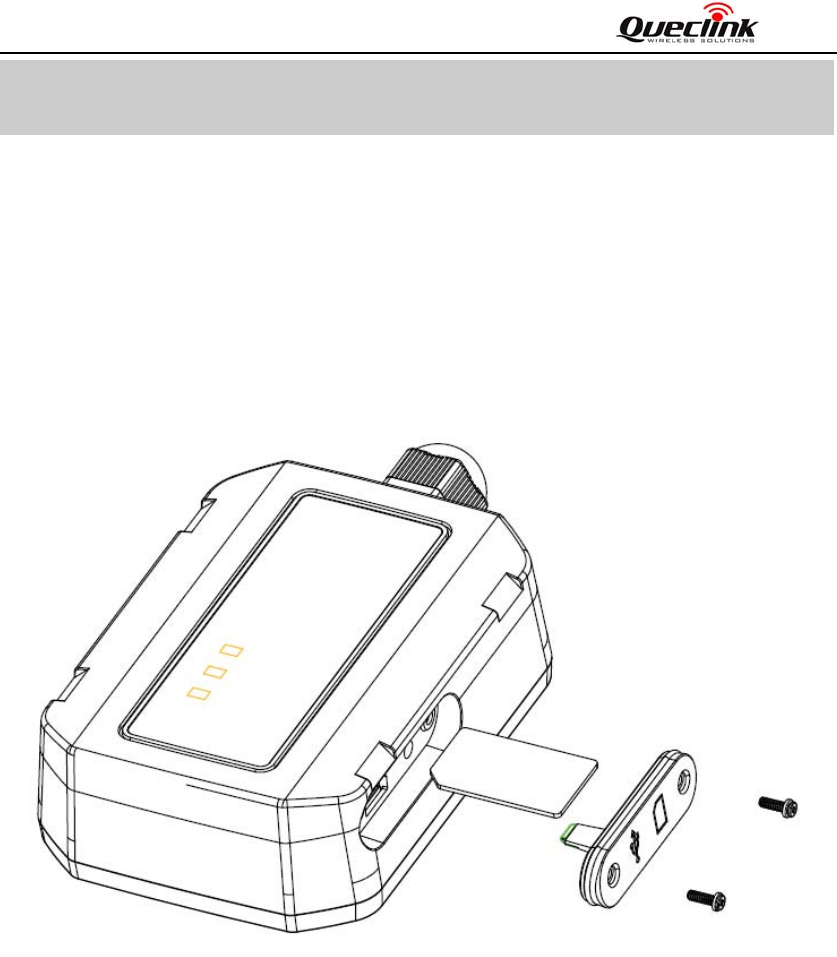

Figure 2. SIM Card Installation
3.2. Switch the set on/off
There are two methods to Power on GMT100:
- GMT100 external power turned on.
- Connect GMT100 to PC with user cable.
When the external power or USB cable power be removed,GMT100 will switch to internal
backup battery and keep on running. When internal backup battery is exhausted, GMT100
will give a report and then turn off.
Note:
1-External power and User USB power can be present at same time.
2-For USB port current limitation, when configuring GMT100 by user cable, please let
backup battery on using.
There is one method to turn off GMT100.
GMT100 User Manual
TRACGMT100UM001 -12 -
-Remove the external power and USB power.
-Press the reset key.
Note:
GMT100 PWR LED will off.
3.3. Reset Key
There is a reset key behind the SIM card cover. If the power wire is connected to vehicle
power, the system will reboot when the key is pressed; if the system is powered by the
backup battery and the power wire is not be connected to vehicle power, the system will
shutdown when the key is pressed.
Note:
When you finished the firmware upgrade, please press the reset key to reboot the system
before configuring the terminal.
3.4. USB connector
There is a USB connector on GMT100 which is beside the SIM card. With the USB
connector and the DATA_CABLE_M, user can configure the system or download firmware.
As long as the DATA_CABLE_M is plugged in, the system will boot.
3.5. Power Connection
The red wire is power wire and the black wire is ground wire. The input voltage range for
this device is from 8V to 32V. The device is designed to be installed in vehicles that
operate on 12V or 24V systems without the need for external transformers.

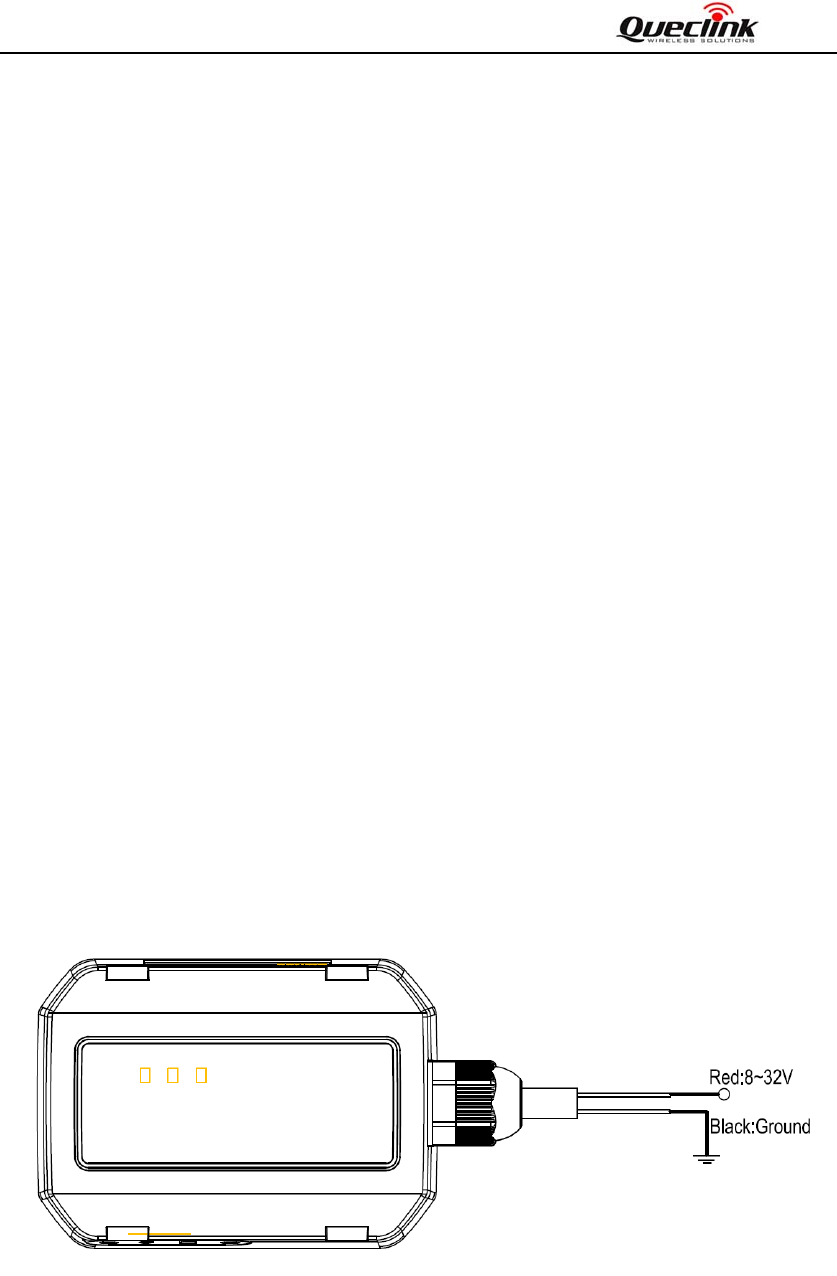

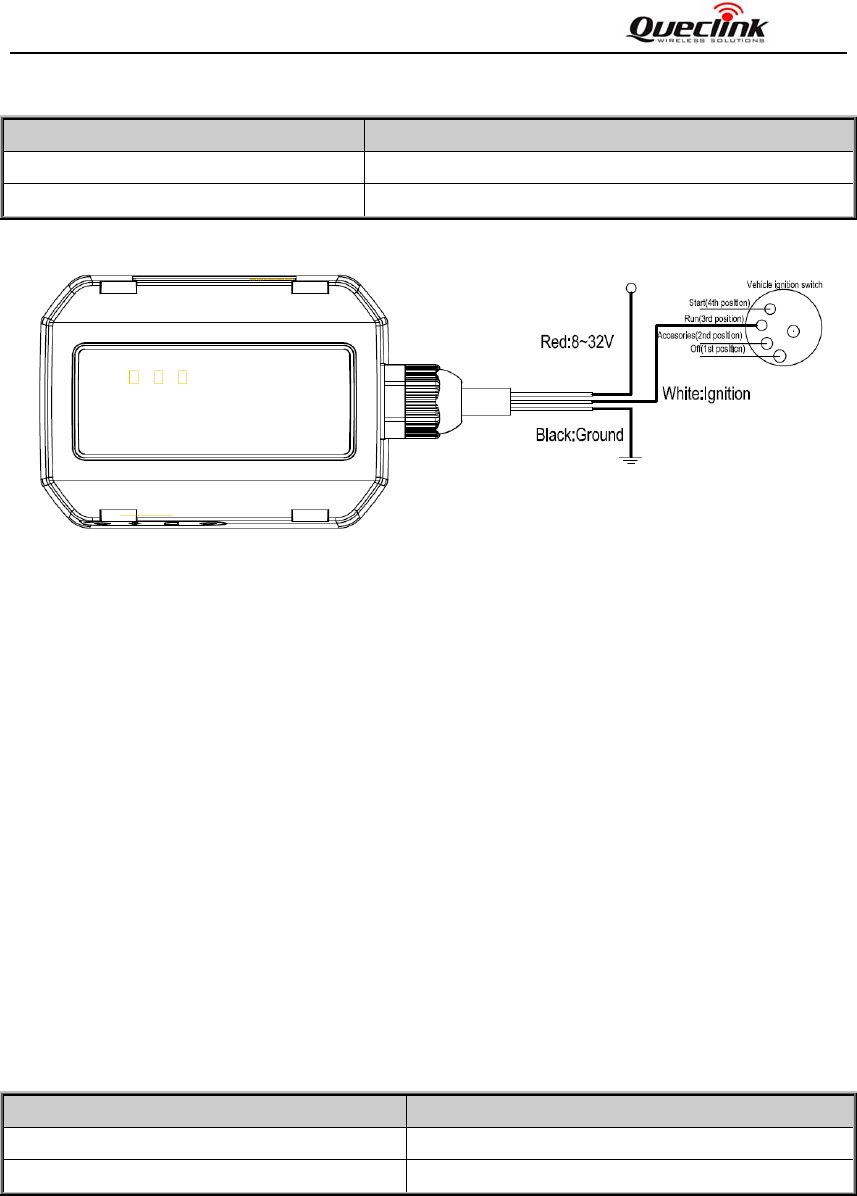

Figure 3. Typical Power Connection
3.6. Ignition Detection
GMT100 User Manual
TRACGMT100UM001 -12 -
Table 5: Electrical Characteristics of Ignition Detection
Logical State Electrical State
Active 5.0V to 32V
Inactive 0V to 3V or Open
Figure 4. Typical Ignition Detection
The white wire is used for ignition detection. It is strongly recommended to connect this
wire to ignition key “RUN” position as shown up.
An alternative to connecting to the ignition switch is to find a non permanent power source
that is only available when the vehicle is running. For example the power source for the
FM radio.
Ignition signal can be configured to start transmitting information to backend server when
ignition is on; and enter power saving mode when ignition is off.
3.7. Digital Input
There is a general purpose digital input which is the blue wire on GMT100 User Cable,
and it is a negative trigger. The digital input is recommended to support panic button
function.
Table 6: Electrical Characteristics of the digital inputs
Logical State Electrical Characteristics
Active 0V to 0.8V
Inactive Open
The following diagram shows the recommended connection of the digital input.
GMT100 User Manual
TRACGMT100UM001 -12 -

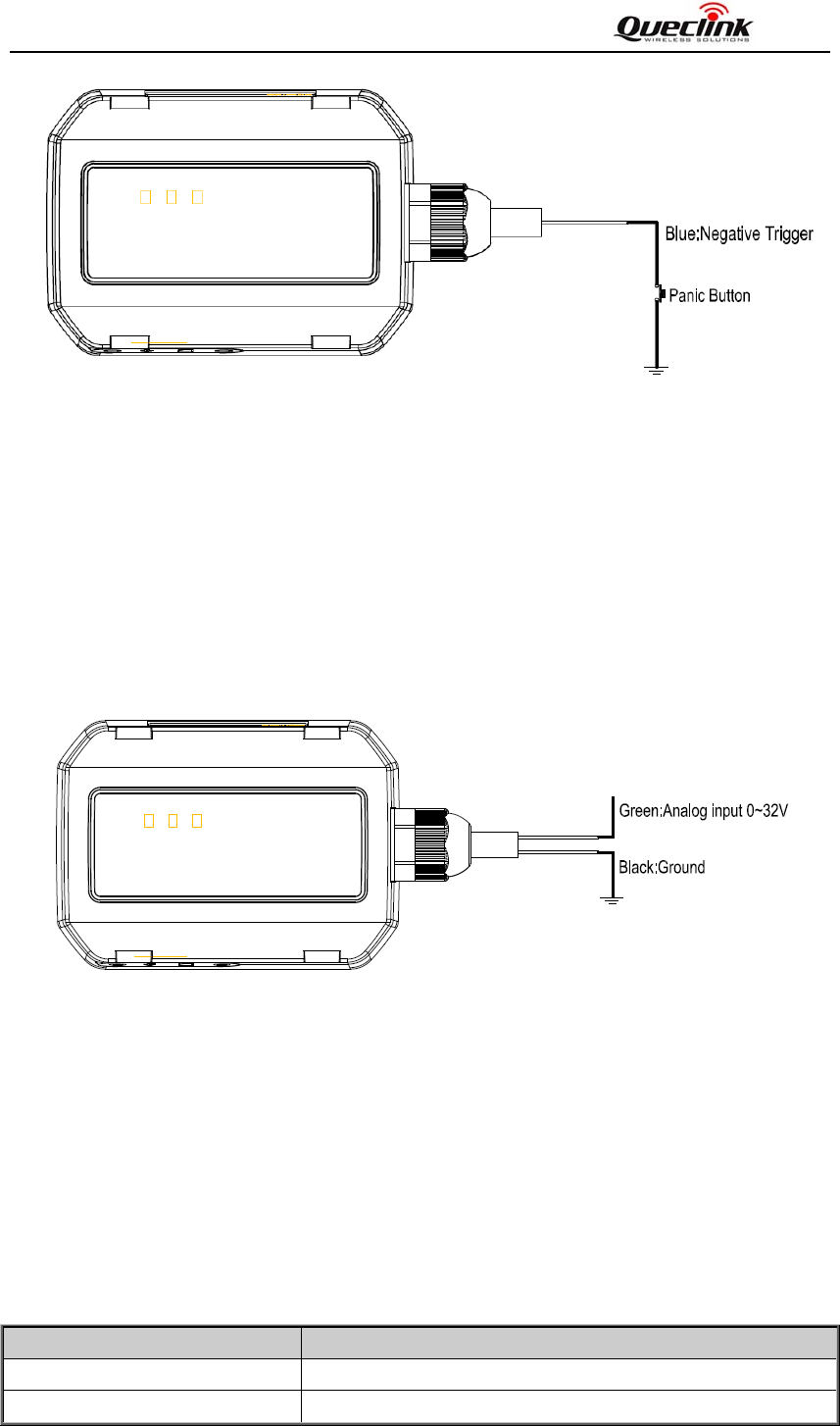

Figure 5. Typical Digital Input Connection
3.8. Analog Input
There is an analog input which is the green wire on GMT100 User Cable, and the analog
input voltage range is from 0 to 32V. The following diagram shows the recommended
connection.
Figure 6. Typical Analog Input Connection
3.9. Digital Output
There is an output which is the brown wire on GMT100 User Cable. This output is used to
drive a siren and the maximum drive current is 750mA. When the siren output is enabled,
the voltage on the siren output is determined by the system power level, if the system
power is 12V, then the siren output voltage is 12V.
Table 7: Electrical Characteristics of Digital Output
Logical State Electrical Characteristics
Active 12V/24V(determined by the system power)
Inactive Floating
GMT100 User Manual
TRACGMT100UM001 -12 -

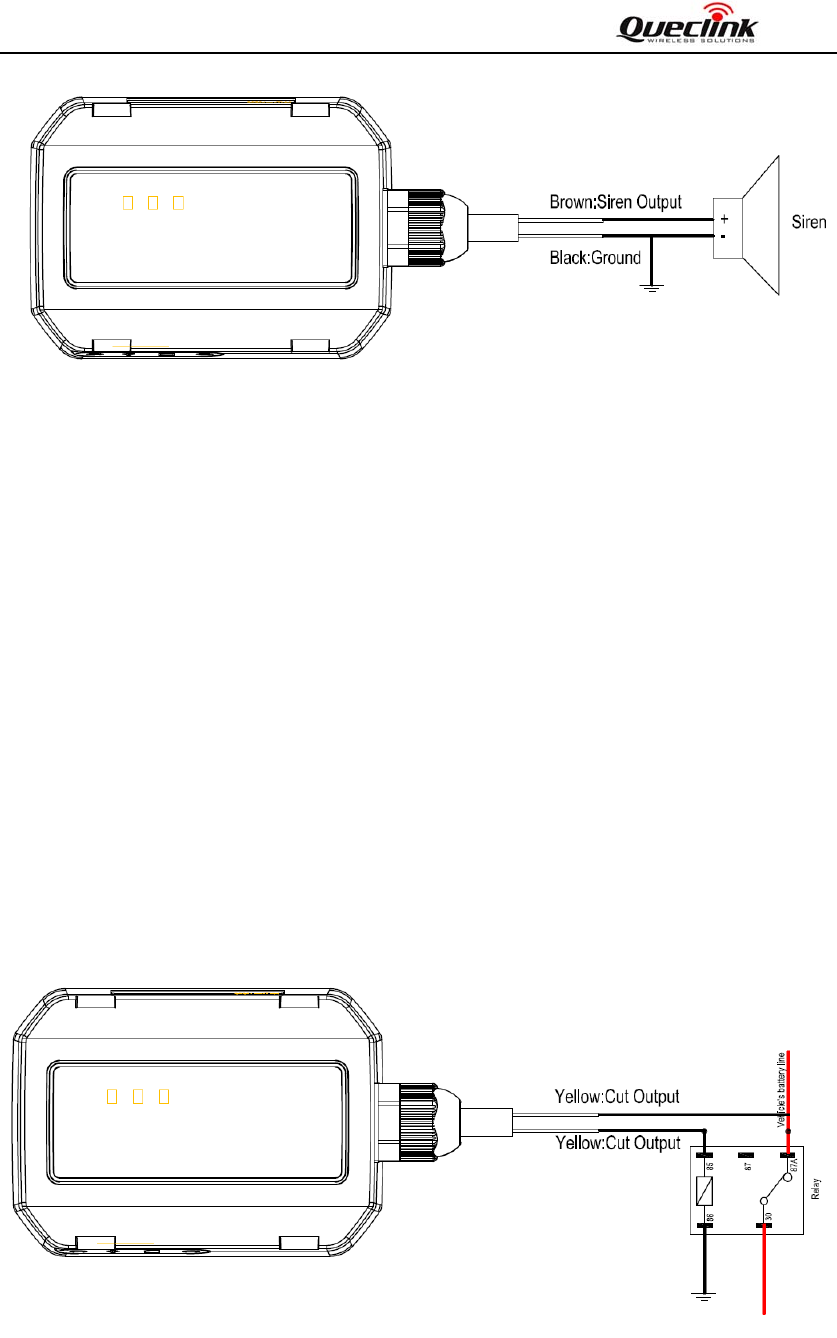

Figure 7. Typical Connection with Siren
3.10. Relay Output
There is a built-in cut relay on GMT100, and it is a NC(Normal Close) type relay which
maximum switching voltage is 12VDC and maximum continuous current is 20A. On
GMT100 user cable one 18AWG yellow wire is connected to the relay NC contact and the
other 18AWG yellow wire is connected to the relay COM contact. In certain instances the
two wires will be connected together.
Note:
1: The relay output can be latched by the software, so even if the GMT100 is restart or
power down in some cases, the relay output will not change. To use the latch function the
main power and backup battery should be connected. Otherwise the relay will be always
in normal close status.
2: The relay works only with 12V main power. Use it when the main power is 24V may
result in damaging.
Figure 8. Typical Connection with Relay
GMT100 User Manual
TRACGMT100UM001 -12 -
3.11. Device Status LED

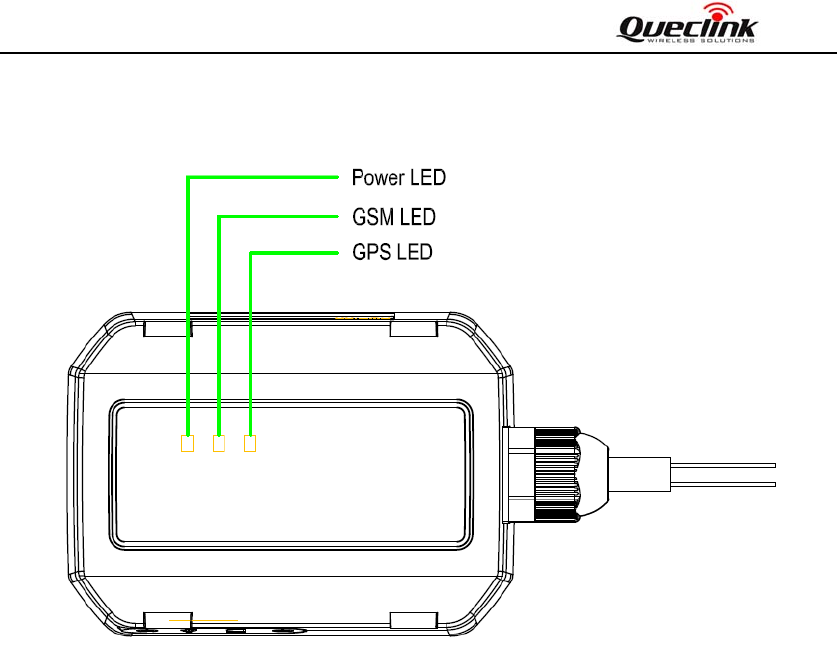

Figure 9. GMT100 LED on the Case
GMT100 User Manual
TRACGMT100UM001 -12 -
Table 8: Definition of Device status and LED
Note:
1 - GSM LED cannot be configured.
2 - GPS LED and PWR LED can be configured to turn off after a period of time using the
configuration tool
3 - Fast flashing is about 60ms ON/ 780ms OFF
4 - Slow flashing is about 60ms ON/ 1940ms OFF
LED Device status LED status
GSM
(note1)
Device is searching GSM network Fast flashing
(Note3)
Device has registered to GSM network. Slow flashing
(Note4)
SIM card needs pin code to unlock. ON
GPS
(note 2)
GPS chip is powered off OFF
GPS sends no data or data format error. Slow flashing
GPS chip is searching GPS info. Fast flashing
GPS chip has gotten GPS info. ON
PWR
(note 2)
No external power and backup battery voltage is
lower than 3.35V.
OFF
No external power and backup battery voltage is
below 3.5V.
Slow flashing
External power in and backup battery is charging Fast flashing
External power in and backup battery is fully
charged
ON

Navigation menu
