1. Introduction
The GMT200 is a water resistant GPS tracker designed for applications requiring low
current drain such as motorcycles and boats. Its built-in GPS receiver has superior
sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports
850/900/1800/1900 MHz allowing the GMT200's location to be monitored in real time or
periodically tracked by a backend server and mobile devices. Its built-in 3-axis
accelerometer allows motion detection and extends battery life through sophisticated
power management algorithms. Further reduction in current drain is achieved by
configuring alternative recharge schemes for the internal battery. It measures
70mm*46mm*17.5mm and weighs only 65g, allowing easier and more covert installation.
System integration is straightforward as complete documentation is provided for the full
featured @Track protocol. The @Track protocol supports a wide variety of reports
including emergency, geo-fence boundary crossings, low battery and scheduled GPS
position.
1.1. Reference
Table 1: GMT200 Protocol Reference
SN Document name Remark
[1] GMT200 @Track Air Interface Protocol The air protocol interface between
GMT200 and backend server.
1.2. Terms and Abbreviations
Table 2: Terms and Abbreviations
Abbreviation Description
DIN Digital Input
DOUT Digital Output
GND Ground
GMT200 User Manual
TRACGMT200UM001 -10-
2. Product Overview
2.1. Appearance

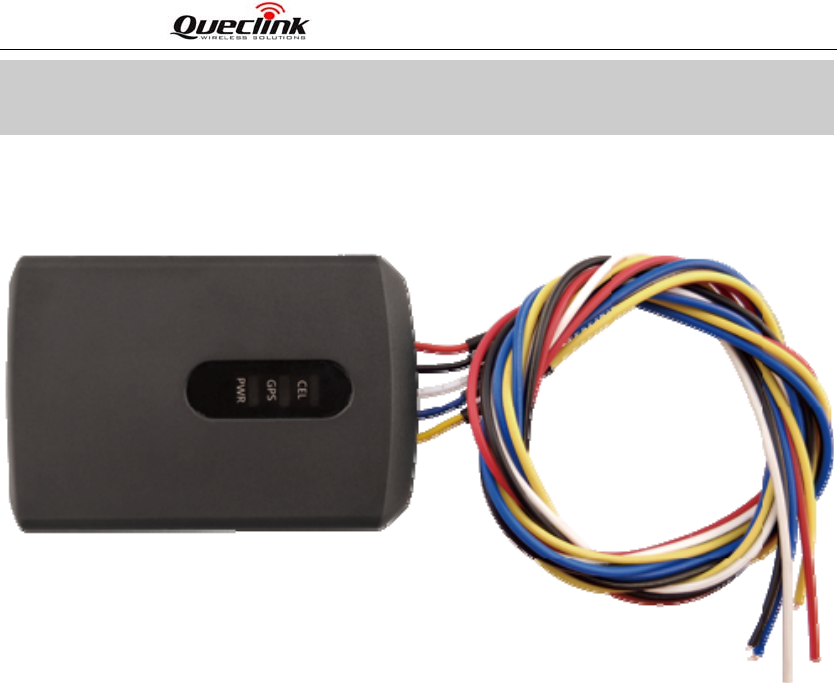

Figure 1. Appearance of GMT200
GMT200 User Manual
TRACGMT200UM001 - 9 -
2.2. Parts List

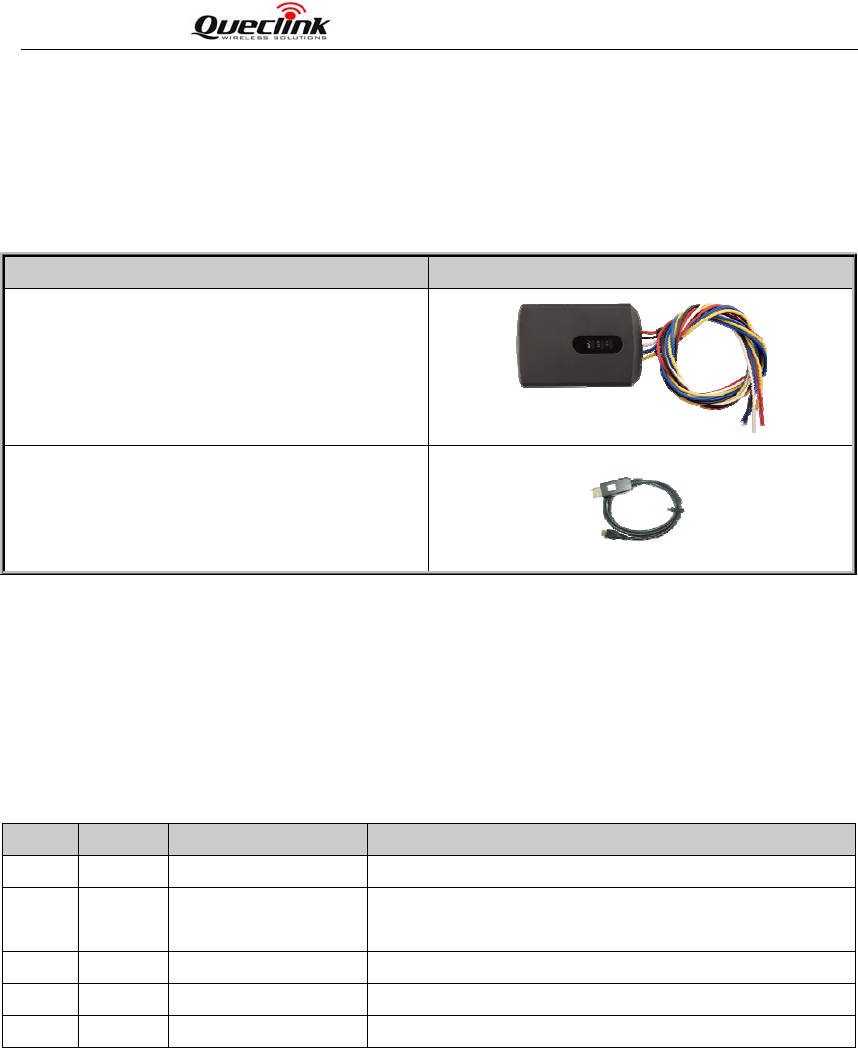

Table 3: Part List
Name Picture
GMT200 Locator
DATA_CABLE_M(Optional)
2.3. Interface Definition
There are 5 wires on GMT200 User Cable which contain the connection for power, ignition
input, digital input, digital output etc. The user cable’s definition is shown in following table.
Table 4: Description of GMT200 User Cable
Index Colour Description Comment
1 Red Power External DC power input,9-32V
2 Black Ground System ground
(connect to the vehicle’s frame directly)
3 White Ignition Ignition input, positive trigger
4 Blue Digital input Digital input, negative trigger
5 Yellow Digital output Digital output ,low side 150mA max with latch
GMT200 User Manual
TRACGMT200UM001 -10-
3. Getting Started
3.1. Installing a SIM Card
Step 1: Remove the cover.
Step 2: Insert the SIM Card into the SIM card holder.
Step 3: Compress the SIM card cover.

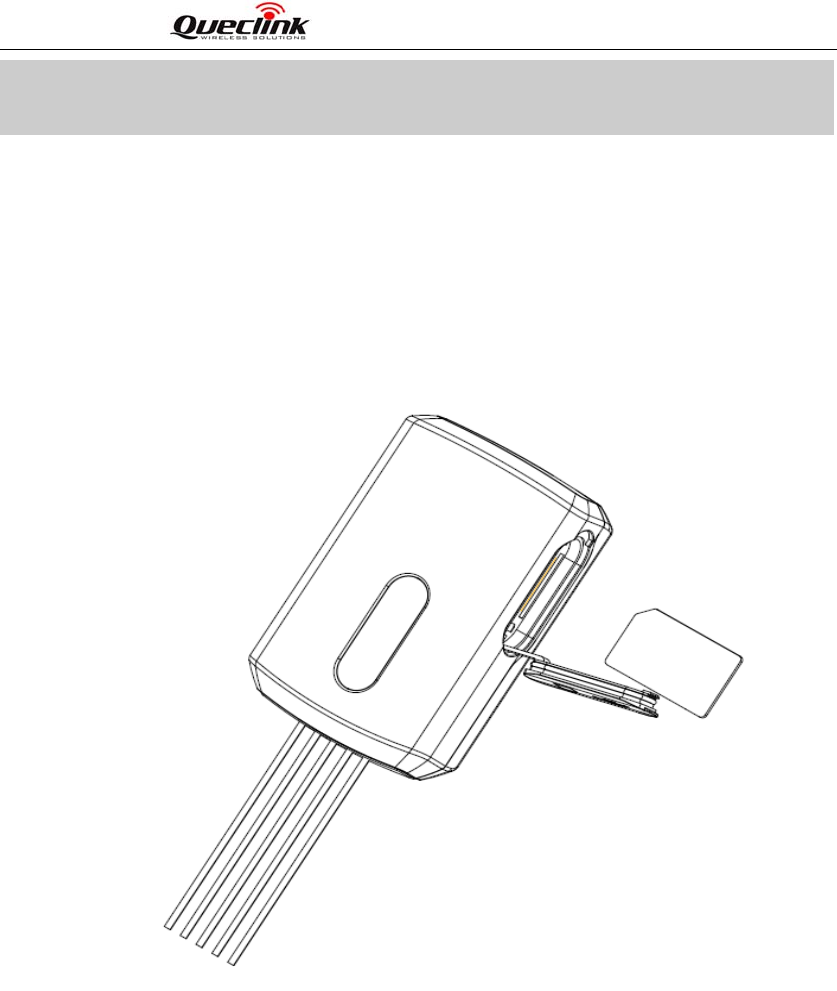

Figure 2. SIM Card Installation
3.2. Switch the device on/off
There are two methods to Power on GMT200:
- Use external power to turn on.
- Connect GMT200 to PC with user cable.
When the external power or USB cable removed,GMT200 will switch to internal backup
battery and keep on running. When internal backup battery is exhausted, GMT200 will
give a report and then turn off.
Note:
1-External power and User USB power can be present at the same time.
2-For USB port current limitation, when configuring GMT200 by user cable, please let
the backup battery on going.
GMT200 User Manual
TRACGMT200UM001 -12 -
There is one method to turn off GMT200.
-Remove the external power and USB power.
-Press the reset key.
Note:
GMT200 PWR LED will be off.
3.3. Reset Key
There is a reset key behind the SIM card cover. If the power wire is connected to vehicle
power, the system will reboot when the key is pressed; if the system is powered by the
backup battery and the power wire is not be connected to vehicle power, the system will
shutdown when the key is pressed.
Note:
When you finished the firmware upgrade, please press the reset key to reboot the system
before configuring the terminal.
3.4. USB connector
There is a USB connector on GMT200 which is beside the SIM card holder. With the USB
connector and the DATA_CABLE_M, user can configure the system or upgrade the
firmware. When the DATA_CABLE_M is plugged in, the system will boot.
3.5. Power Connection
The red wire is power wire and the black wire is ground wire. The input voltage range for
this device is from 9V to 32V. The device is designed to be installed in vehicles that
operate on 12V or 24V systems without the need for external transformers.

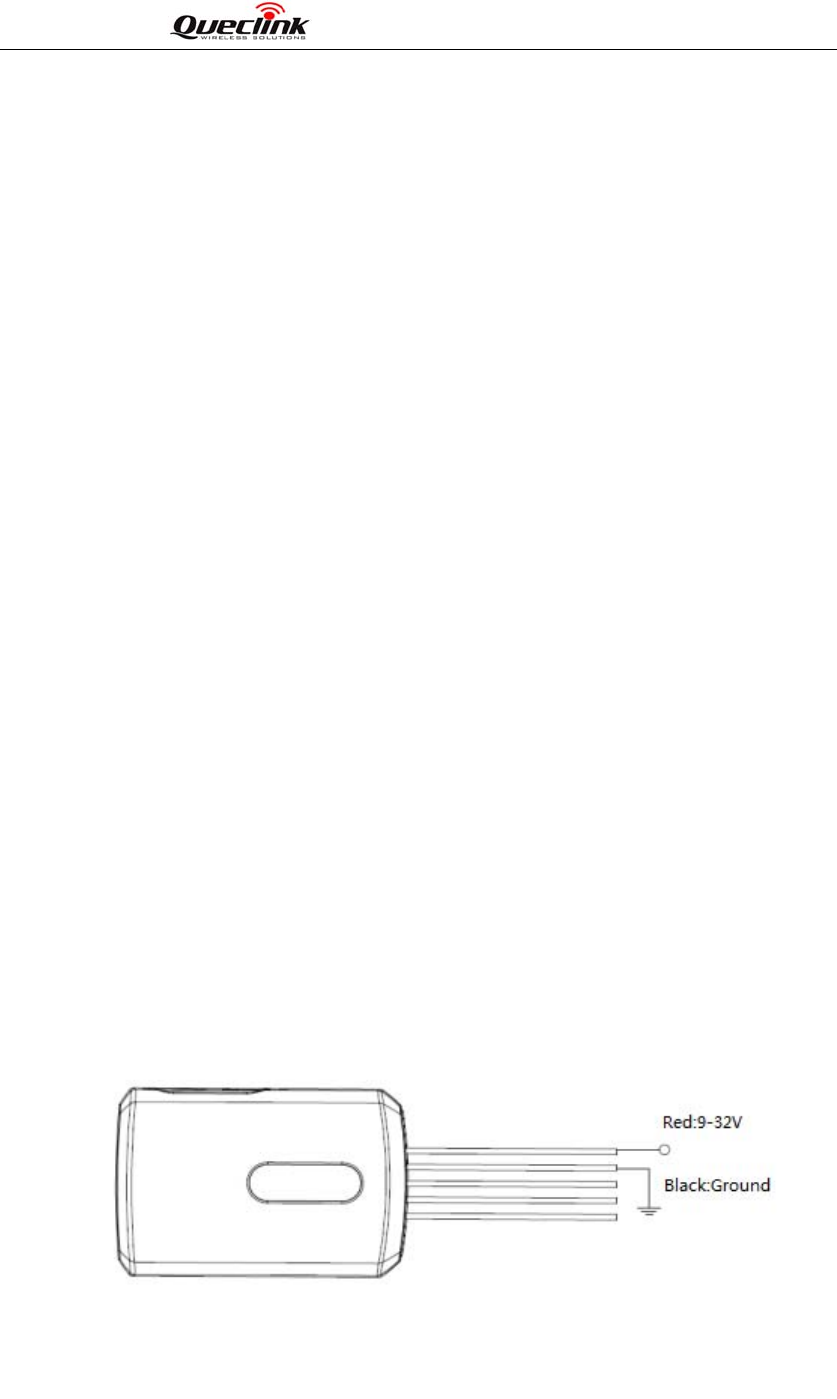

Figure 3. Typical Power Connection
GMT200 User Manual
TRACGMT200UM001 -12 -
3.6. Ignition Detection
Table 5: Electrical Characteristics of Ignition Detection
Logical State Electrical State
Active 5.0V to 32V
Inactive 0V to 3V or Open

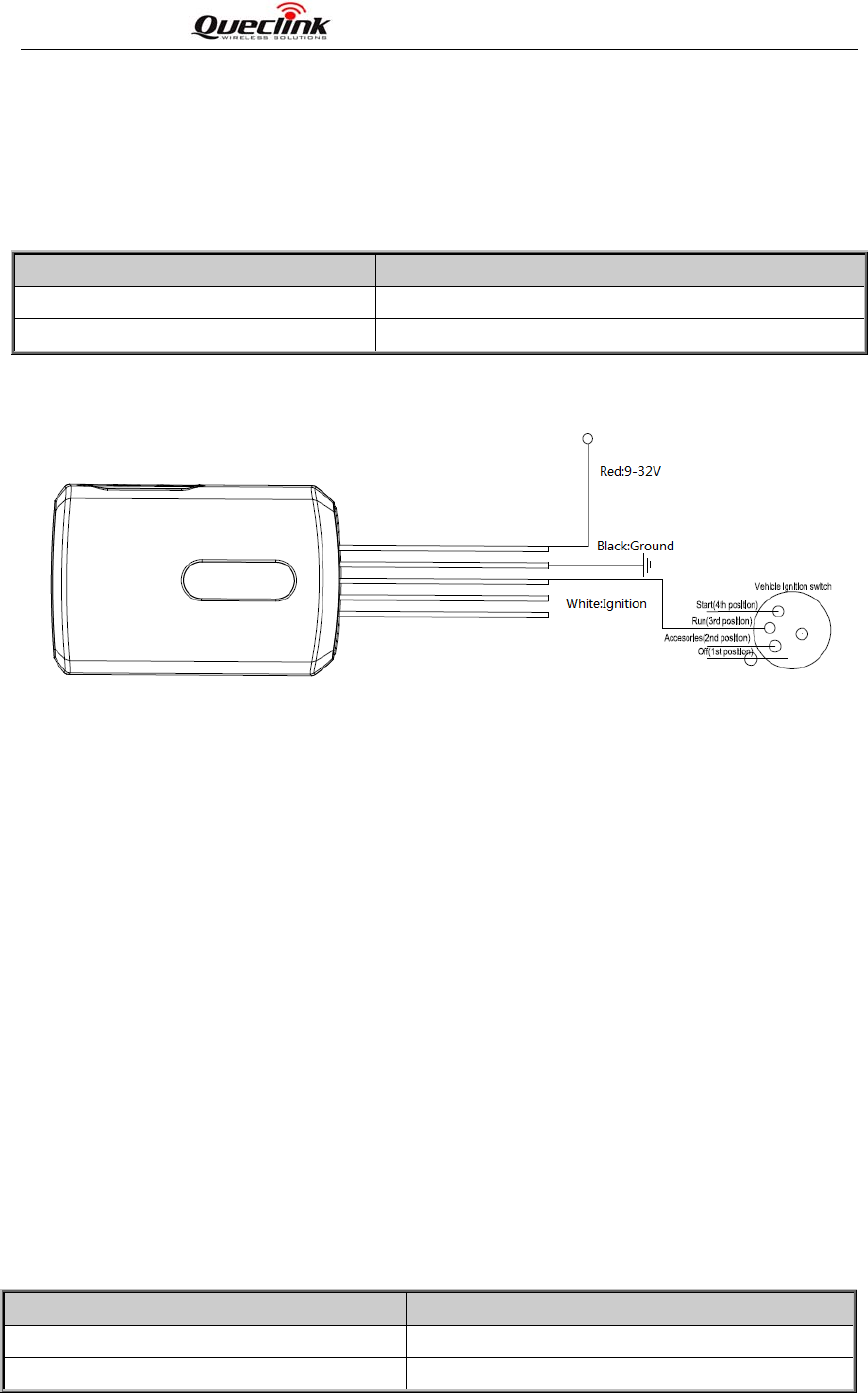

Figure 4. Typical Ignition Detection
The white wire is used for ignition detection. It is strongly recommended to connect this
wire to ignition key “RUN” position as shown up.
An alternative to connecting to the ignition switch is to find a non permanent power source
that is only available when the vehicle is running. For example the power source for the
FM radio.
Ignition signal can be configured to start transmitting information to backend server when
ignition is on; and enter power saving mode when ignition is off.
3.7. Digital Input
There is a general purpose digital input which is the blue wire on GMT200 User Cable,
and it is a negative trigger. The digital input is recommended to support panic button
function.
Table 6: Electrical Characteristics of the digital inputs
Logical State Electrical Characteristics
Active 0V to 0.8V
Inactive Open

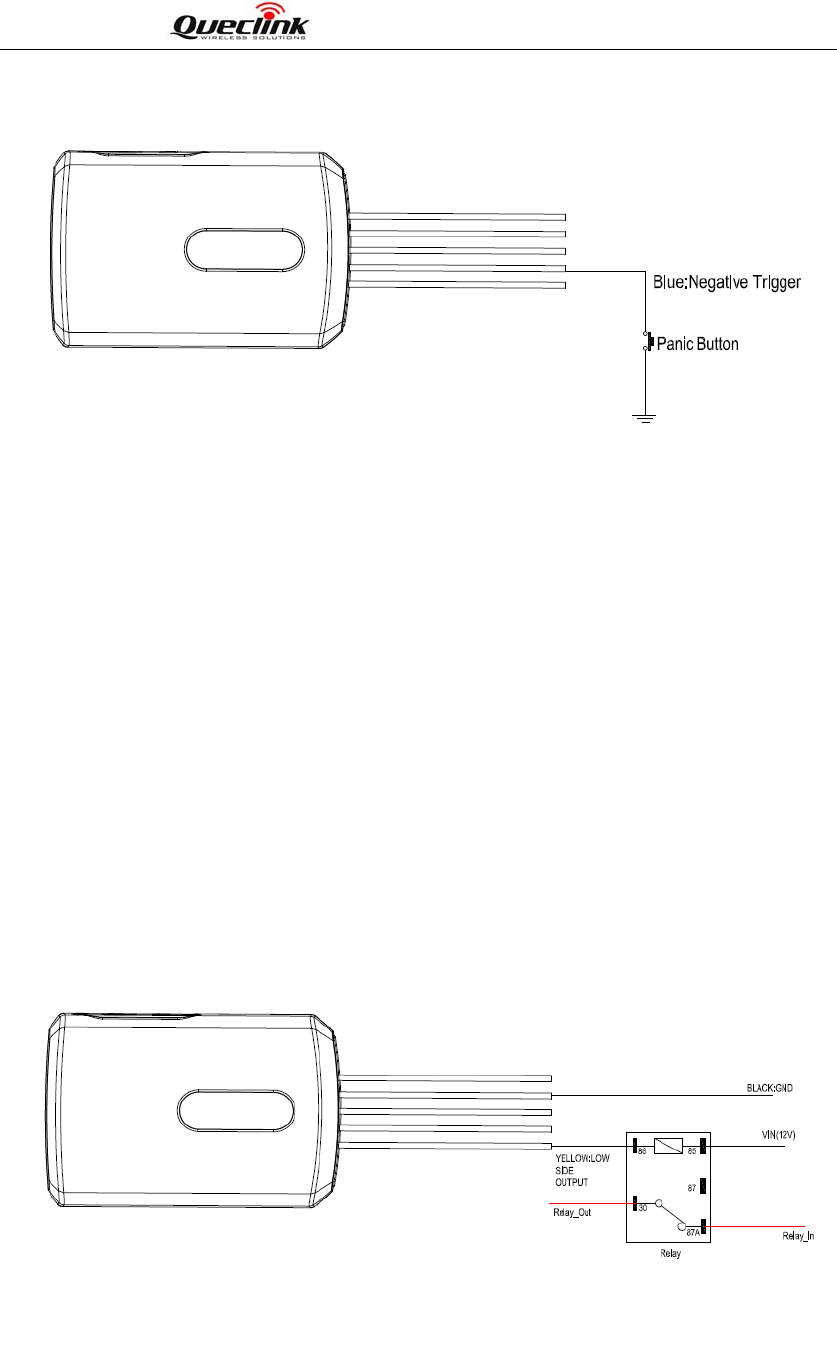

The following diagram shows the recommended connection of the digital input.
GMT200 User Manual
TRACGMT200UM001 -12 -
Figure 5. Typical Digital Input Connection
3.8. Digital Output
There is a Digital Output for relay on GMT200, and it is low side 150mA max with latch .It
can be connected relay which maximum switching voltage is 12VDC and maximum
continuous current is 20A.
Note:
1: The relay output can be latched by the software, so even if the GMT200 is restart or
power down in some cases, the relay output will not change. To use the latch function the
main power and backup battery should be connected. Otherwise the relay will be always
in normal close status.
2: The relay works only with 12V / 24vmain power.
Figure 6. Typical Connection with Relay
GMT200 User Manual
TRACGMT200UM001 -12 -
3.9. Device Status LED
Figure 7. GMT200 LED on the Case
GMT200 User Manual
TRACGMT200UM001 -12 -
Table 7: Definition of Device status and LED
Note:
1 - CEL LED cannot be configured.
2 - GPS LED and PWR LED can be configured to turn off after a period of time using the
configuration tool
3 - Fast flashing is about 60ms ON/ 780ms OFF
4 - Slow flashing is about 60ms ON/ 1940ms OFF
LED Device status LED status
CEL
(note1)
Device is searching GSM network Fast flashing
(Note3)
Device has registered to GSM network. Slow flashing
(Note4)
SIM card needs pin code to unlock. ON
GPS
(note 2)
GPS chip is powered off OFF
GPS sends no data or data format error. Slow flashing
GPS chip is searching GPS info. Fast flashing
GPS chip has gotten GPS info. ON
PWR
(note 2)
No external power and backup battery voltage is
lower than 3.35V.
OFF
No external power and backup battery voltage is
below 3.5V.
Slow flashing
External power in and backup battery is charging Fast flashing
External power in and backup battery is fully
charged
ON
