The GV304N is a powerful GPS locator designed for vehicle or asset tracking. It has superior
receiver sensitivity, fast TTFF (Time to First Fix) and supports quad band GSM frequencies
GSM850/GSM900/DCS/PCS. Its location can be monitored in real time or periodically tracked by
a backend server or other specified terminals. The GV304N has multiple input/output interfaces
that can be used for monitoring or controlling external devices. Based on the integrated @Track
protocol, the GV304N can communicate with a backend server through the GPRS/GSM network
to transfer reports of emergency, geo-fence boundary crossings, low backup battery and scheduled
GPS position as well as many other useful functions. Users can also use GV304N to monitor the
status of a vehicle and control the vehicle by its external relay output. System integrators can
easily set up their tracking systems based on the full-featured @Track protocol.
WARNING: This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
FCC RF Exposure Statement:
For the product, under normal use condition is at least 20cm away from the body of the user,
the user must keeping at least 20cm distance to the product.
QUECLINK
GV304N User Manual
1.1 Reference
Table 1. GV304N Protocol Reference
SN Document name Remark
[1] GV304N @Track Air Interface Protocol The air protocol interface between
GV304N and backend server.
1.2 Terms and Abbreviations
Table 2. Terms and Abbreviations
Abbreviation Description
AGND Analog Ground
AIN Analog Input
DIN Digital Input
DOUT Digital Output
GND Ground
MIC Microphone
RXD Receive Data
TXD Transmit Data
SPKN Speaker Negative
SPKP Speaker Positive
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 15 -
2. Product Overview
2.1. Check Parts List
Before starting, check whether all the following items have been included with your GV304N. If
anything is missing, please contact your supplier.

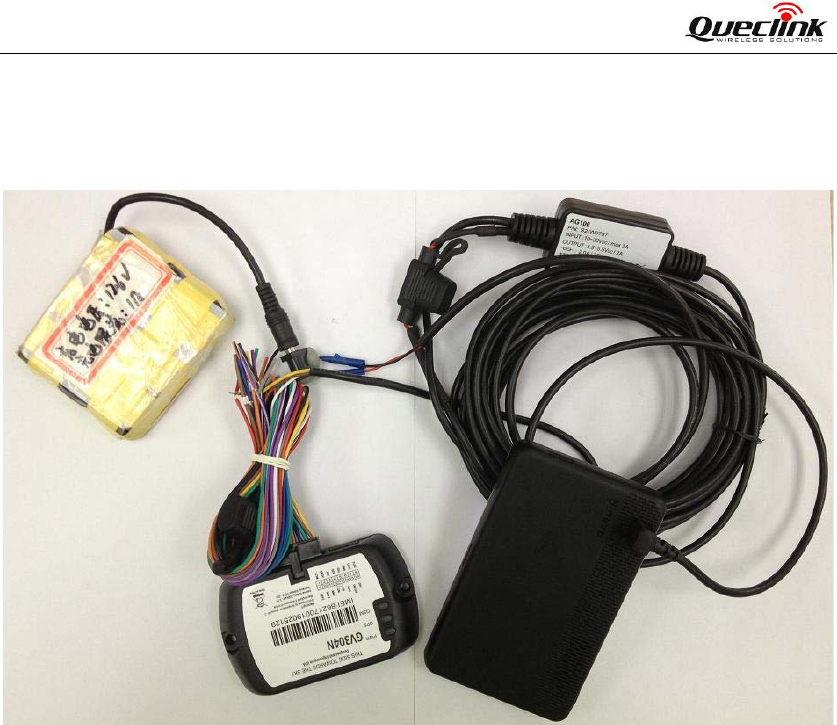

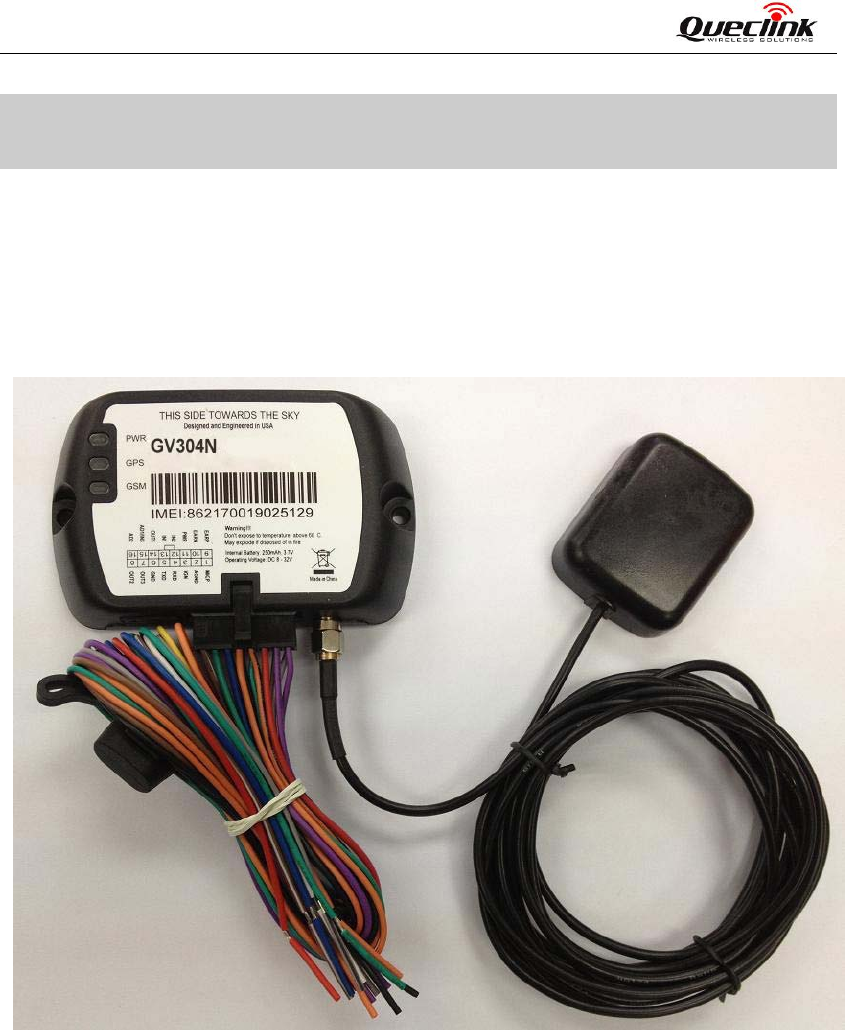

Figure 1. Appearance of GV304N
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 16 -
2.2. Parts List

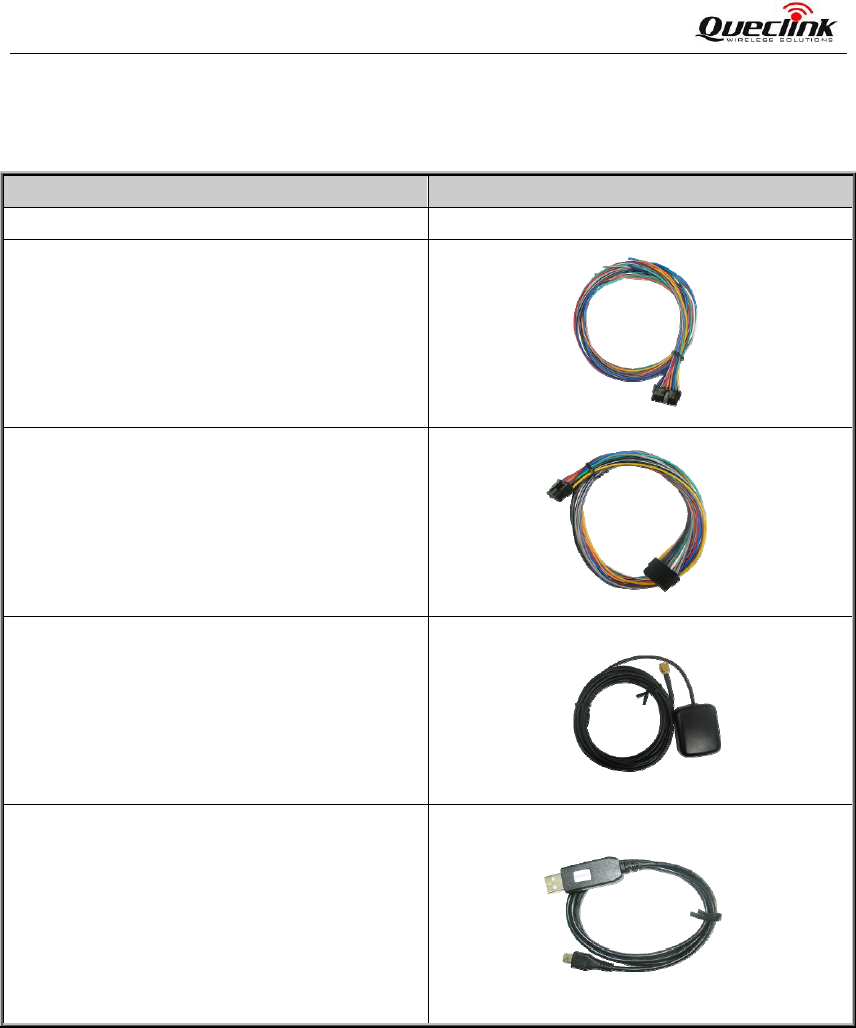

Table 3. Parts List
Name Picture
GV304N Locator 94*57*24.5 mm
User Cable
Extend Cable (Optional)
GPS Antenna (Optional)
DATA_CABLE_M (Optional)
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 17 -
2.3. Interface Definition
The GV304N has a 16 PIN interface connector which contains the connections for power, I/O,
RS232, microphone, speaker, etc. The sequence and definition of the 16PIN connector are shown
in the following figure:

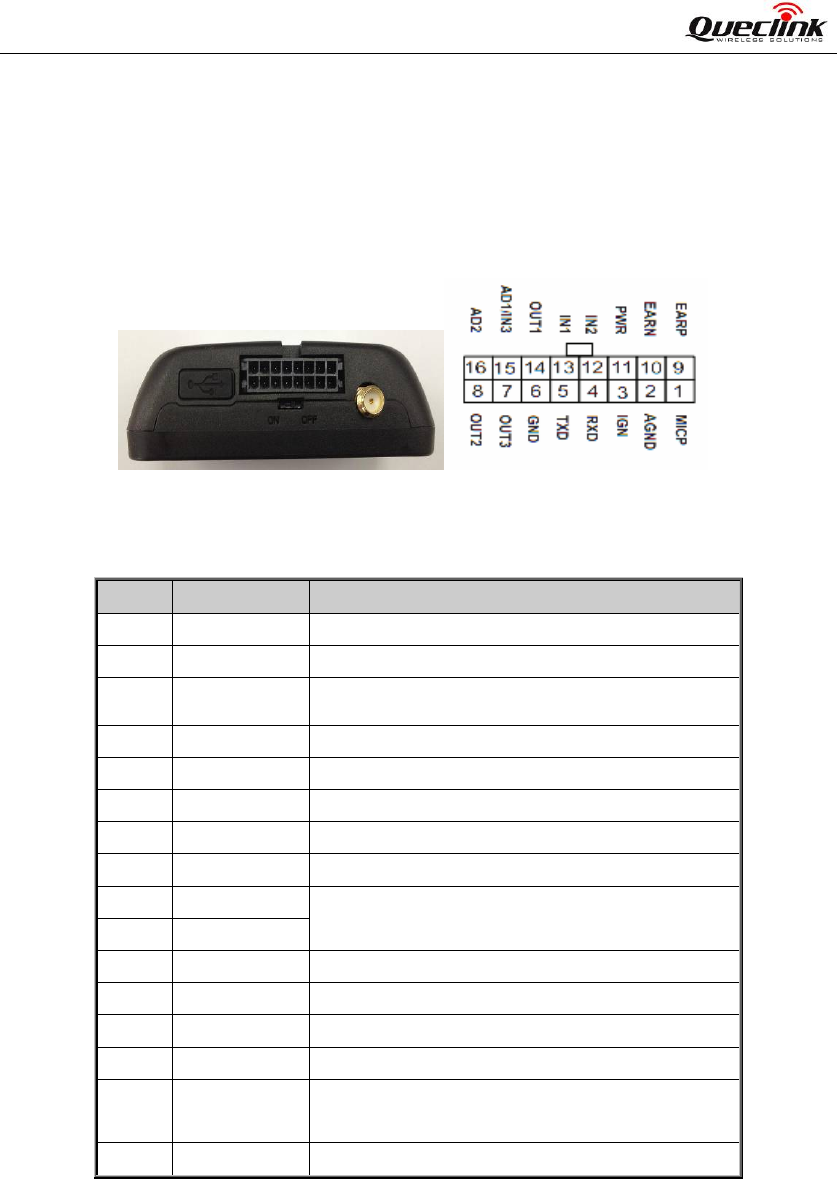

Figure 2. The 16 PIN Connector on the GV304N
Table 4. Description of 16 PIN Connections
Index Description Comment
1 MICP Single end, 2-2.2k microphone, internal bias
2 AGND Analog ground
3 IGN Ignition input, positive trigger
4 RXD UART RXD, RS232
5 TXD UART TXD, RS232
6 GND Power and digital ground
7 OUT3 Open drain, 150 mA max
8 OUT2 Open drain, 150 mA max
9 EARP Differential output, 32 ohm 1/4w speaker
10 EARN
11 PWR External DC power input, 8-32V
12 IN2 Digital input, negative trigger
13 IN1 Digital input, negative trigger
14 OUT1 Open drain, 150 mA max ,with latch circuit
15 AD1/IN3 Multifunction input, analog or digital input
0-16V
16 AD2 Analog input 0.3-16V
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 18 -

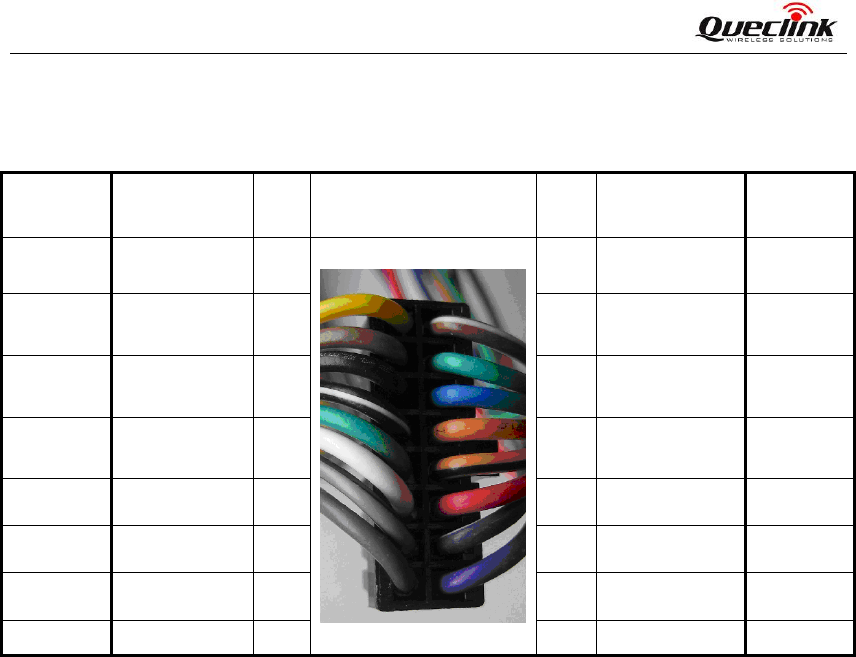

2.4. GV304N User Cable Color
Table 5. GV304N User Cable Color Definition
Definition Color PIN
No Cable PIN
No Color Definition
OUT2 Yellow 8 16 Brown/White AD2
OUT3 Brown 7 15 Green AD1/IN3
GND Black 6 14 Blue OUT1
TXD White/Black 5 13 Orange IN1
RXD Pink 4 12 Orange/Black IN2
IGN White 3 11 Red PWR
AGND Gray/Black 2 10 Purple/White EARN
MICP Gray 1 9 Purple EARP
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 19 -
3. GettingStarted
3.1. Opening the Case

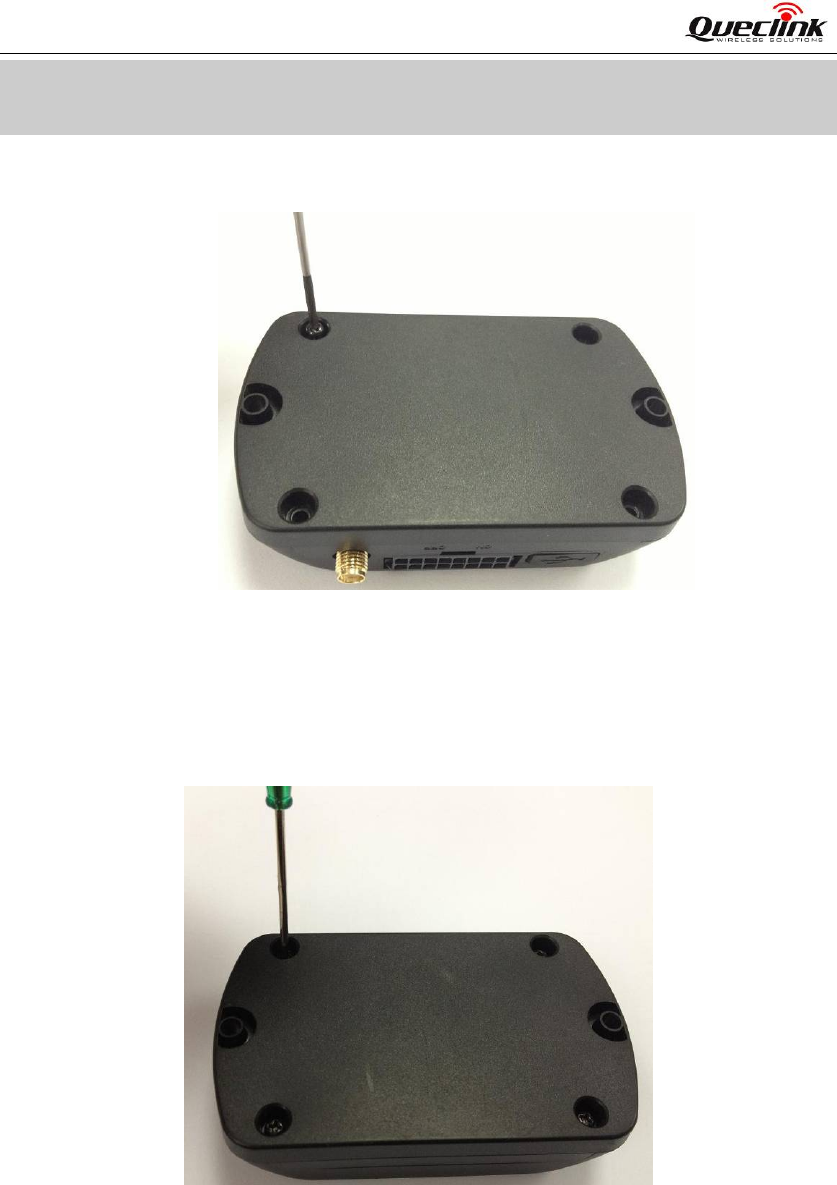

Figure 3. Opening the Case
As shown, Roll the four screws counter clockwise with a screwdriver ,you can easily open
the product.
3.2. Closing the Case
Figure 4. Closing the Case
Place the cover on the bottom in the position as shown in the following figure. Use a screwdriver
clockwise to tighten four screws.
3.3. Installing a SIM Card
Open the case and ensure the unit is not powered (unplug the 16Pin cable and switch the internal
battery to off position). Slide the holder right to open the SIM card. Insert the SIM card into the
holder as shown below with the gold-colored contact area facing down taking care to align the cut
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 20 -
mark. Close the SIM card holder. Close the case.
Figure 5. SIM Card Installation
3.4. Installing the Internal Backup Battery
Figure 6. Backup Battery Installation
There is an internal backup Li-ion battery,
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 21 -
3.5. Switch ON the Backup Battery
To use the GV304N backup battery, the switch must be at the ON position. Switch on the case and
ON/OFF position are shown below.
Figure 7. Switch and ON/OFF position
Note:
1. The switch must be on the “OFF” position when shipped on an aircraft.
2. When the switch is on the “OFF” position, the battery cannot be charged or discharged.
3.6. Installing the External GPS Antenna (Optional)
There is a SMA GPS antenna connector on GV304N. The GV304N will automatically detect and
use an external antenna when connected.
Figure 8. GPS Antenna of GV304N
3.6.1. GPSAntennaSpecification
Table 6. GPS Antenna Specification
GPS antenna: Frequency: 1575.42MHz
Bandwidth: >5MHz
Beam width: >120 deg
Supply voltage: 2.7V-3.3V
Polarization: RHCP
Gain: Passive: 0dBi min
Active: 15dB
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 22 -
Impedance: 50Ω
VSWR: <2
Noise figure: <3
3.7. Power Connection
PWR (PIN11) / GND (PIN6) are the power input pins. The input voltage range for this device is
from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V
systems without the need for external transformers.

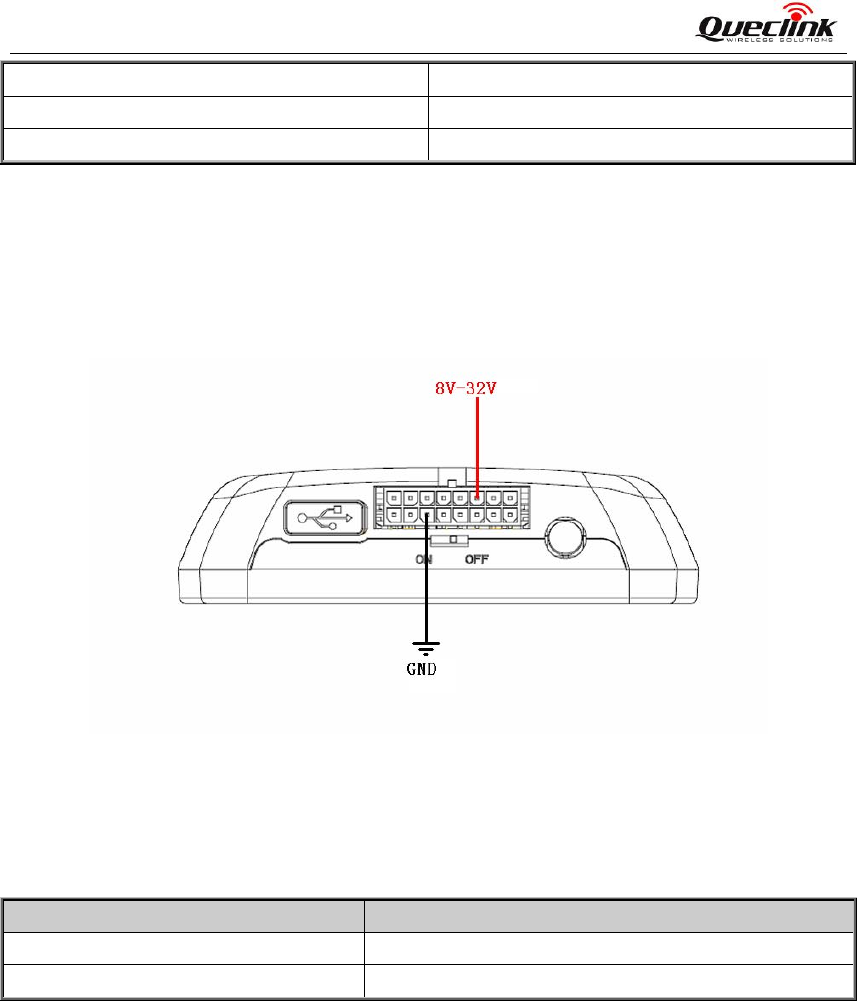

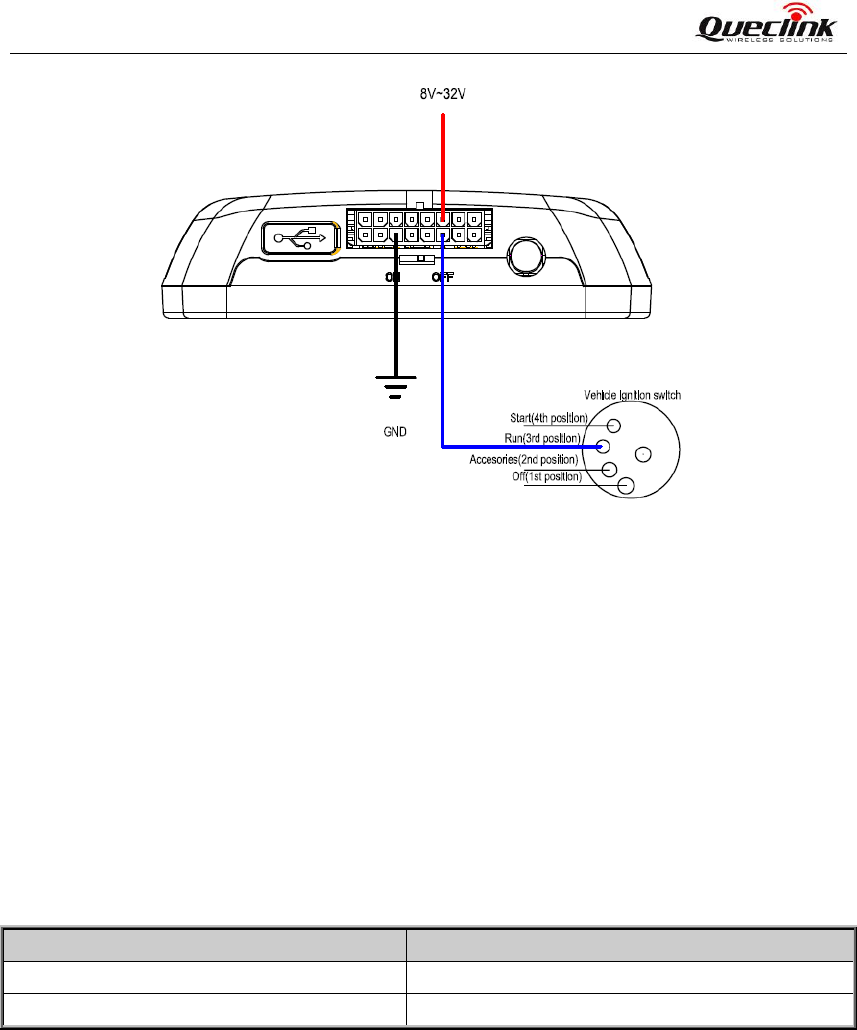

Figure 9. Typical Power Connection
3.8. Ignition Detection
Table 7. Electrical Characteristics of Ignition Detection
Logical State Electrical State
Active 5.0V to 32V
Inactive 0V to 3V or Open
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 23 -
Figure 10. Typical Ignition Detection
IGN (Pin3)is used for ignition detection. It is strongly recommended to connect this pin to ignition
key “RUN” position as shown up.
An alternative to connecting to the ignition switch is to find a non permanent power source that is
only available when the vehicle is running. For example the power source for the FM radio.
IGN signal can be configured to start transmitting information to backend server when ignition is
on; and enter power saving mode when ignition is off.
There are three general purpose digital inputs on GV304N. They are all negative trigger.
3.9. Digital Inputs
Table 8. Electrical Characteristics of the digital inputs
Logical State Electrical Characteristics
Active 0V to 0.8V
Inactive Open
The following diagram shows the recommended connection of a digital input.
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 24 -
Figure 11. Typical Digital Input Connection
3.10. Analog Inputs
There are two analog inputs on GV304N, the analog input voltage range is from 0 to 16V. The
following diagram shows the recommended connection.
Figure 12. Typical Analog Input Connection
Note:
PIN 15 is an multifunction pin: it can be configured as a digital input or an analog input.
3.11. Digital Outputs
There are three digital outputs on GV304N. All are of open drain type and the maximum drain
current is 150 mA. Each output has the built-in over current and recovery PTC fuse
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 25 -

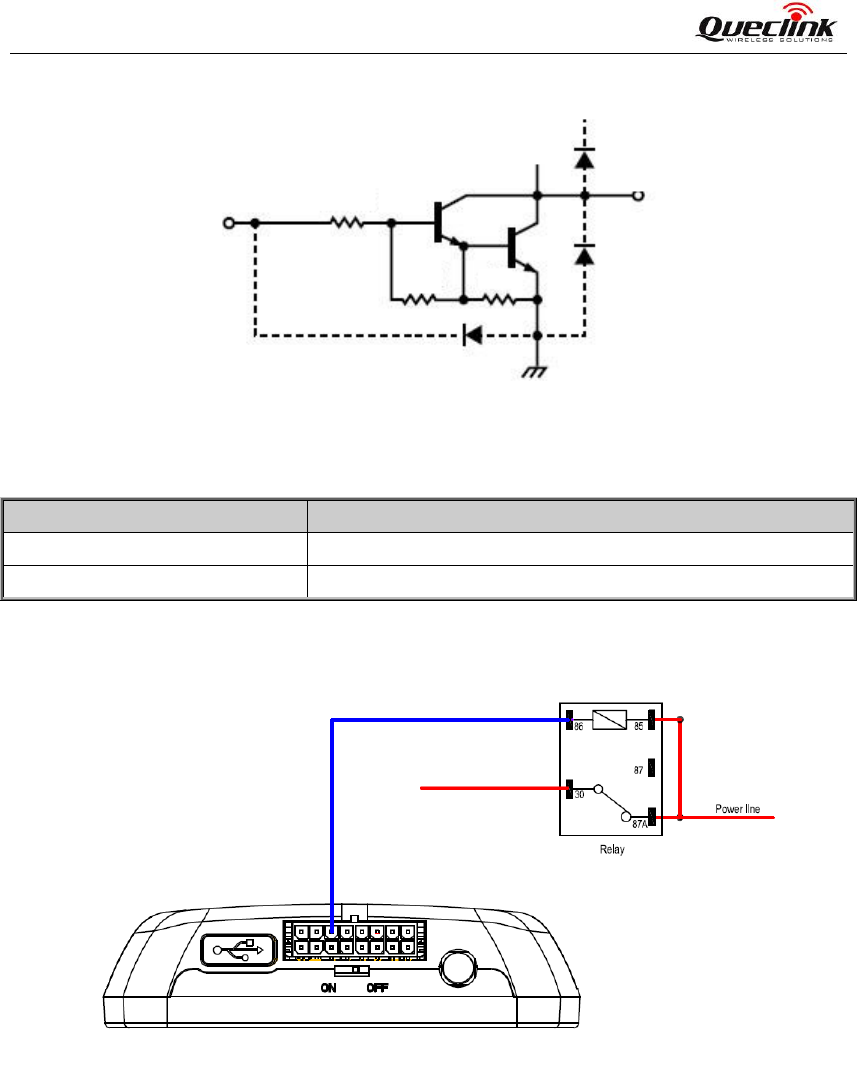

Figure 13. Digital Output Internal Drive Circuit
Table 9. Electrical Characteristics of Digital Outputs
Logical State Electrical Characteristics
Enable <1.5V @150mA
Disable Open drain
Figure 14. Typical Connection with Relay
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 26 -

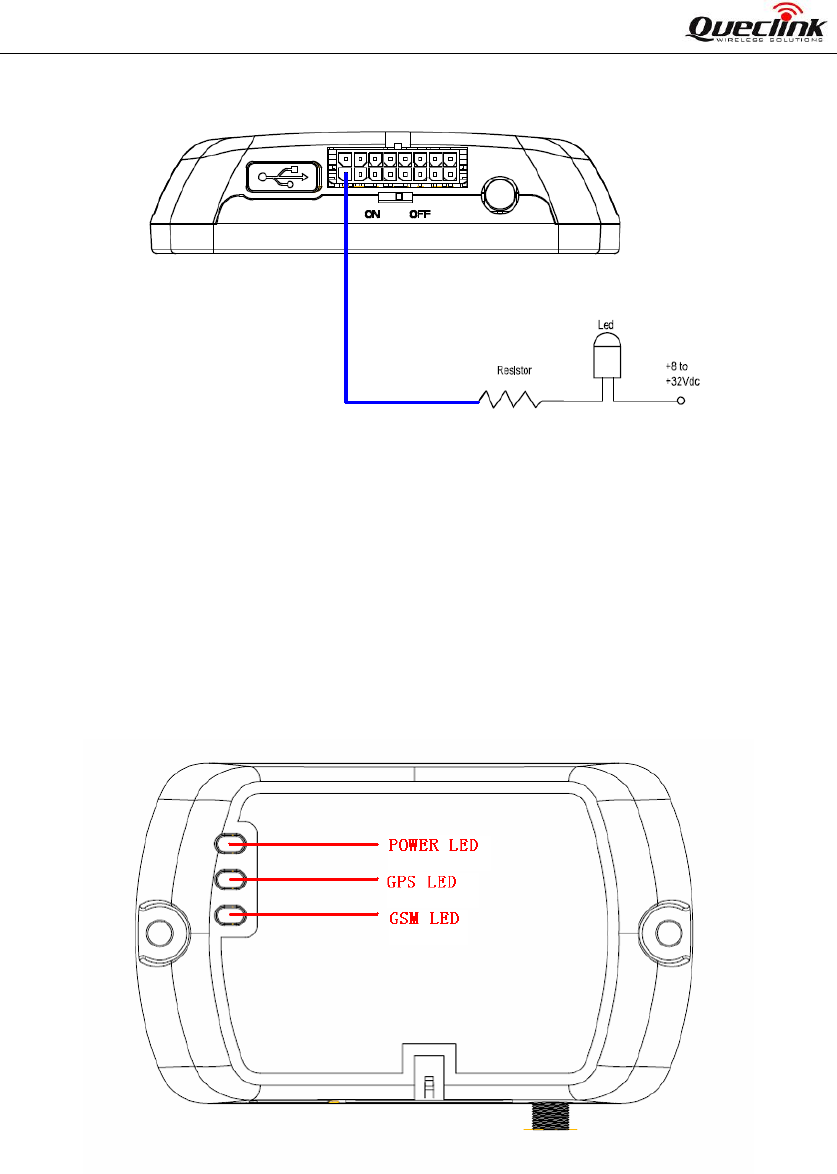

Figure 15. Typical Connection with LED
Note:
1. OUT1 will latch the output state during reset.
2. All outputs are internally pulled up to PWR pin by a diode. So no external flyback diode is
needed when the output is connected to an inductive load.
3.12. Device Status LED
Figure 16. GV304N LED on the Case
Table 10. Definition of Device status and LED
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 27 -
Note:
1. GSM LED cannot be configured.
2. GPS LED and PWR LED can be configured to turn off after a period of time using the
configuration tool
3. Fast flashing is about 60ms ON/ 780ms OFF
4 . Slow flashing is about 60ms ON/ 1940ms OFF
3.13. Serial Port / UART Interface
There are two lines dedicated to the Serial Port / UART interface (TXD and RXD).TXD / RXD
are standard RS232 signal.

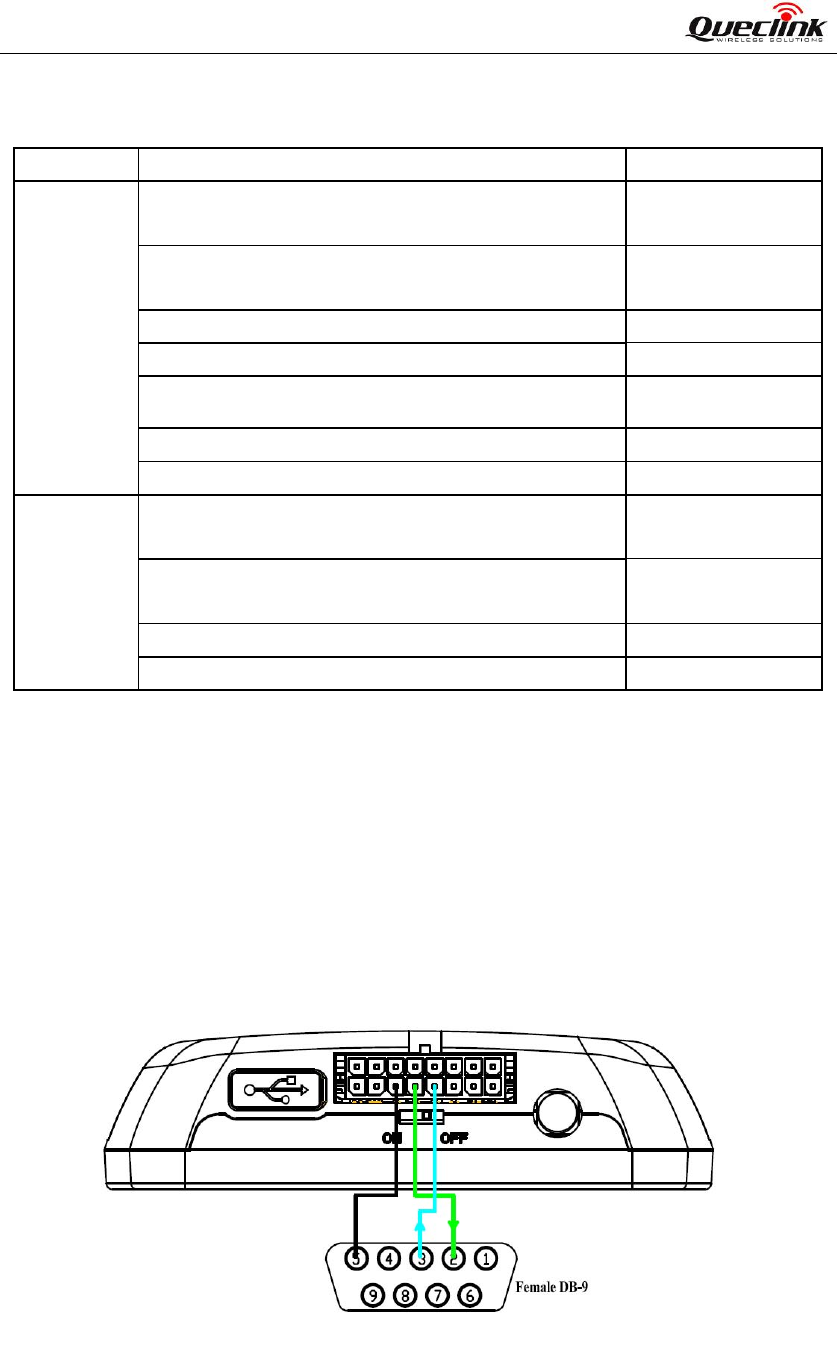

Figure 17. Typical Connection with RS232 Port
LED Device status LED status
GSM
(note1)
Device is searching GSM network Fast flashing
(Note3)
Device has registered to GSM network. Slow flashing
(Note4)
SIM card needs pin code to unlock. ON
GPS
(note 2)
GPS chip is powered off OFF
GPS sends no data or data format error. Slow flashing
GPS chip is searching GPS info. Fast flashing
GPS chip has gotten GPS info. ON
PWR
(note 2)
No external power and internal battery voltage is lower
than 3.35V.
OFF
No external power and internal battery voltage is
below 3.5V.
Slow flashing
External power in and internal battery is charging Fast flashing
External power in and internal battery is fully charged ON
QUECLINK
GV304N User Manual
TRACGV304NUM001 - 28 -
3.13.1. ConnectWithGarminGPSSet
GV304N can communicate with Garmin GPS Set. The following typical connection is using
Queclink AG100 cable.
Figure 18. GV304N connection with Garmin GPS set
Note:
GV304N some version maybe connects with Garmin GPS set by Garmin FMI10/FMI15 cable,
please consult with Queclink for detail information.
QUECLINK
