1. Introduction
The GV500MA is a vehicle tracking device that plugs into a vehicle's OBD II port. It's compact
design allows easy installation. Its built in GNSS receiver has superior sensitivity and fast time
to first fix. Its subsystem supports GPRS/EGPRS/LTE allowing the GV500MA's location
to be monitored in real time or periodically tracked by a backend server and mobile devices. Its
built in 3-axis accelerometer allows motion detection , BLE device allows near field location
and communication,and extended backup battery life through sophisticated power management
algorithms. System integration is straightforward as complete documentation is provided
for the full featured @Track protocol. The @Track protocol supports a wide variety of reports
including; emergency, geo-fence boundary crossings, driver behaviour, low battery or
scheduled GNSS position and many other useful functions.
The device contains FCC ID: XMR201707BG96.
1.1. Reference
Table 1: GV500MA Protocol Reference
SN Document name Remark
[1] GV500MA @Track Air Interface Protocol The air protocol interface between
GV500MA and backend server.
1.2. Terms andAbbreviations
Table2: Terms and Abbreviations
Abbreviation Description
PWR External Power Supply
GND Ground
OBD On-Board Diagnostics
SAE Society of Automotive Engineers
HS_CAN High Speed CAN
MS_CAN Medium Speed CAN
GV500MAUserManual
TRACGV500UM0010
2. Product Overview
2.1. Description
GV500MA is based on the OBD II interface GNSS vehicle tracking device, compact design
and easy to install. GV500MA contains a 5PIN micro USB connector, an internal GPRS/
EGPRS/LTE antenna, two internal GNSS antennas and two LEDs.

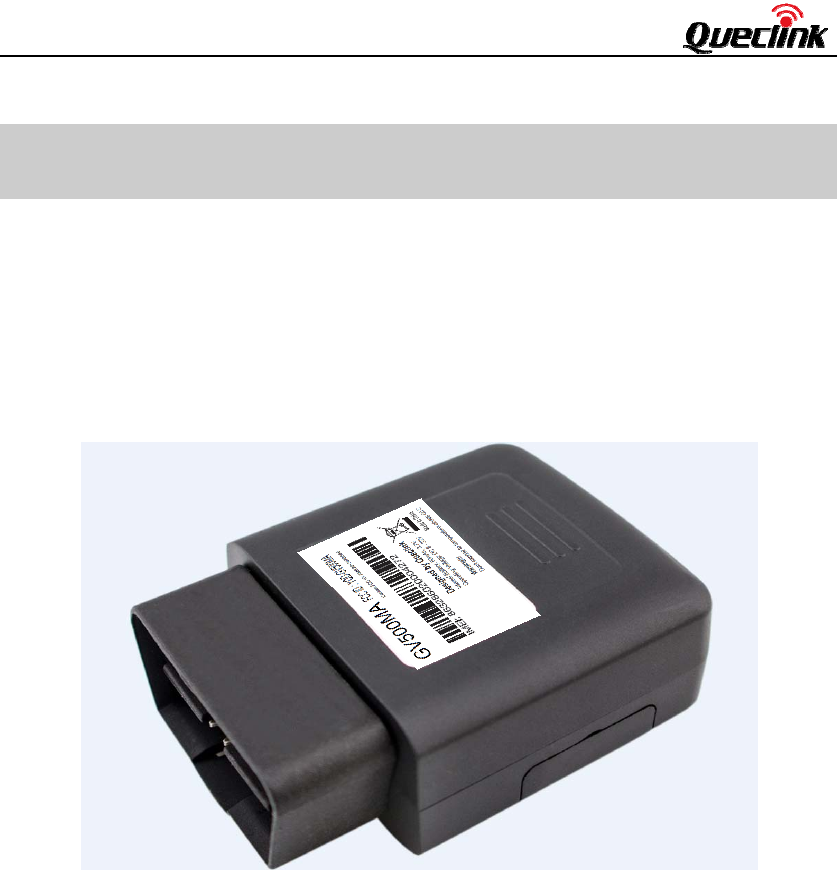

Figure 1. Appearance of GV500MA
‐7‐
GV500MAUserManual
TRACGV500UM0011
2.2. Parts List
Table 3: Part List
Name Picture
GV500MA Locator
49.49mm*48.5mm*21.9mm
2.3. Interface Definition
The GV500MA has an OBD II connector. The sequence and definition of the OBD II connector
are shown in following figure:

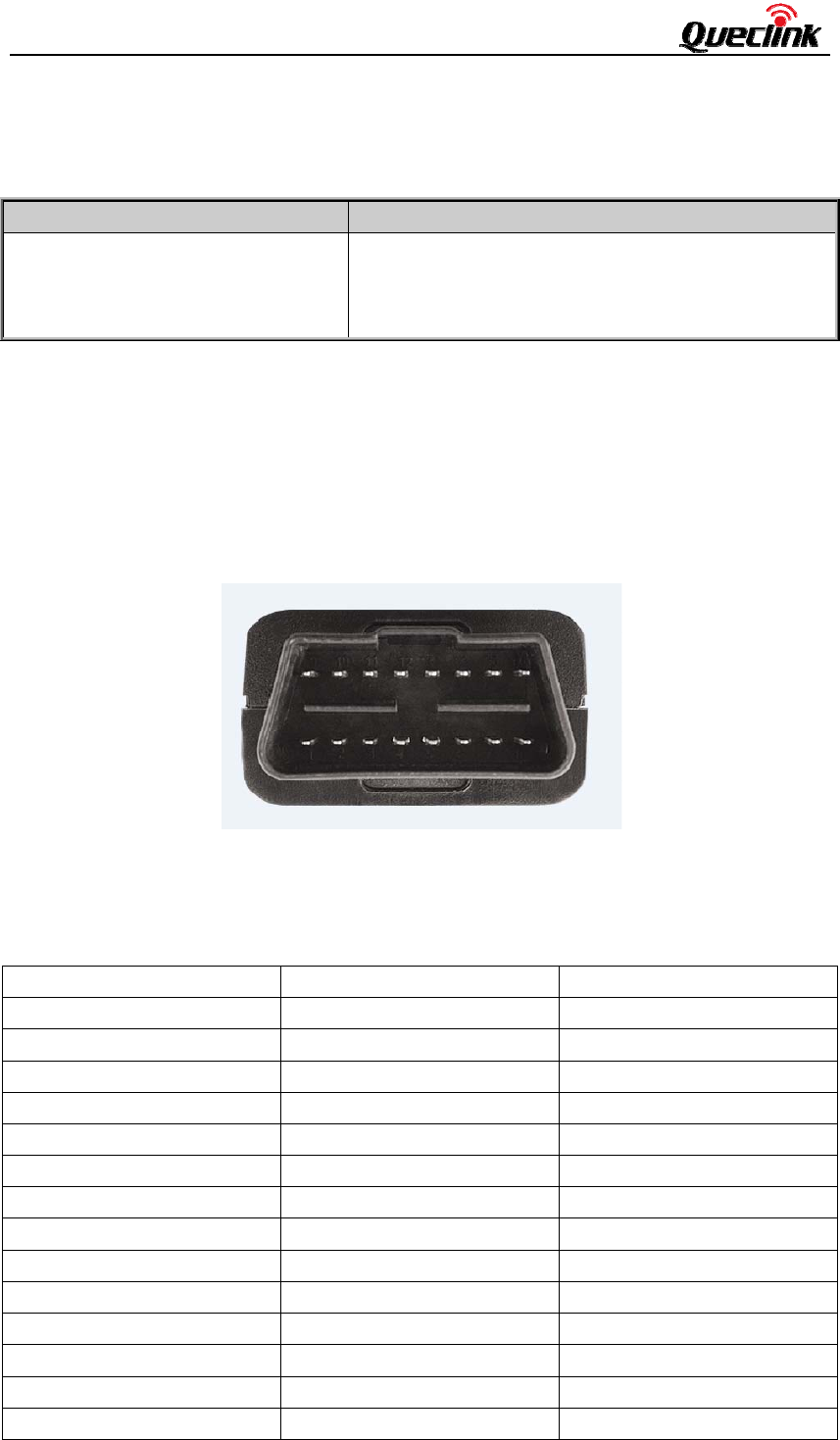

Figure 2. The OBD II connector on the GV500MA
Table 4: Description of OBD II Connections
IndexDescriptionComment
1reserved
2reserved
3NCNo connect
4GNDPower and digital ground
5GNDPower and digital ground
6NCNo connect
7reserved
8reserved
9reserved
10reserved
11NCNo connect
12reserved
13reserved
14NCNo connect
123 4 56 7 8
1615
1413
12
1110
9
‐8‐
GV500MAUserManual
TRACGV500UM0012
15reserved
16PWRExternal DC power input,
8-32V
3. GettingStarted
3.1. Opening the Case

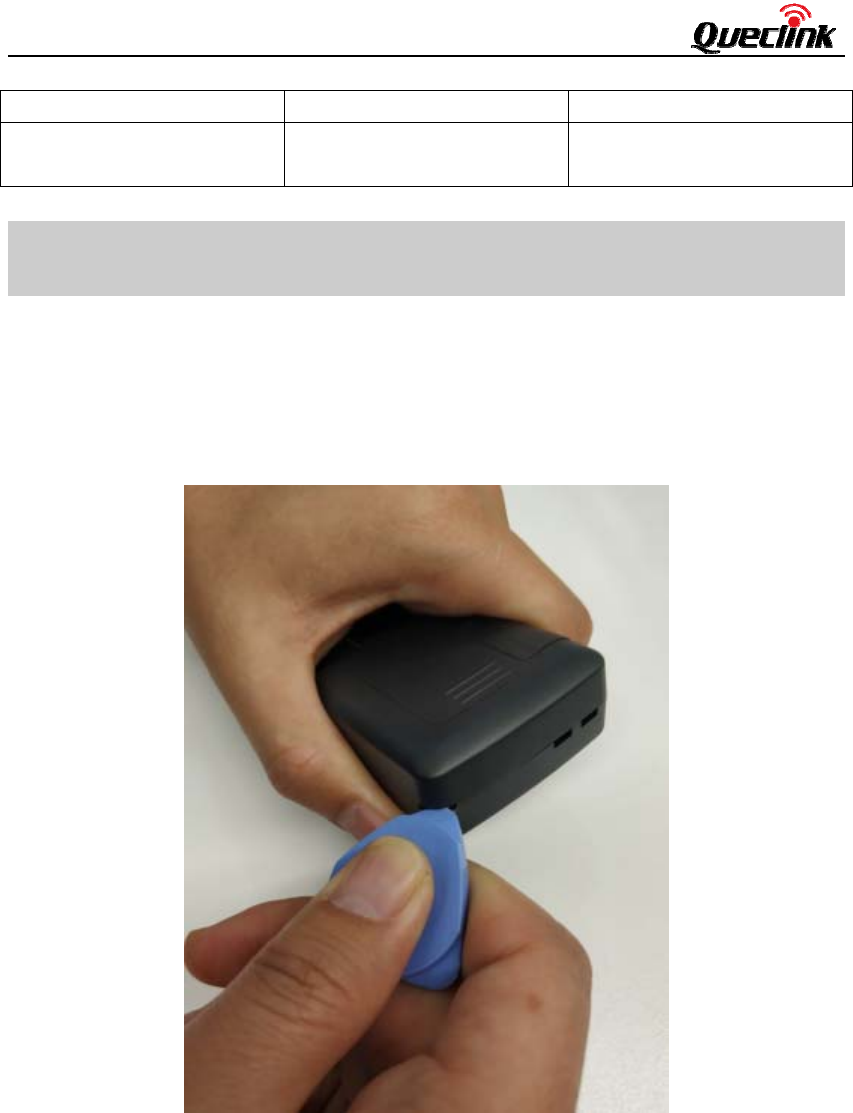

Insert the triangular-pry-opener into the gap of the case as shown below, push the opener up until
the case unsnapped.
Figure 3. Opening the Case
‐9‐
GV500MAUserManual
TRACGV500UM0013
3.2. Closing the Case
The step of closing case is shown as following:
Figure 4. Closing the Case
3.3. Installing a SIM Card

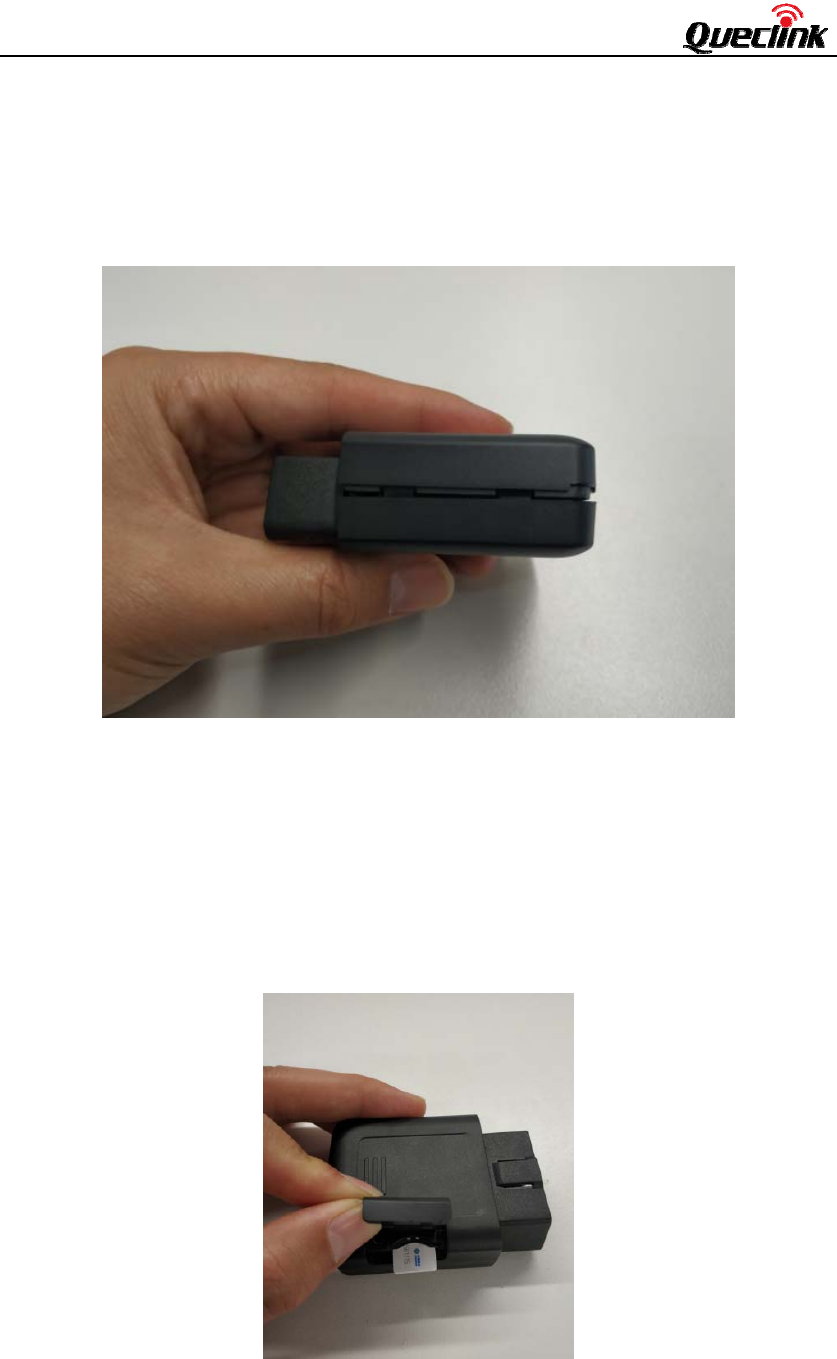

Open the rubber plugandInsert the SIM card into the holder as shown below
Figure 5. SIM Card Installation
‐10‐
GV500MAUserManual
TRACGV500UM0014
3.4. Device Status LED

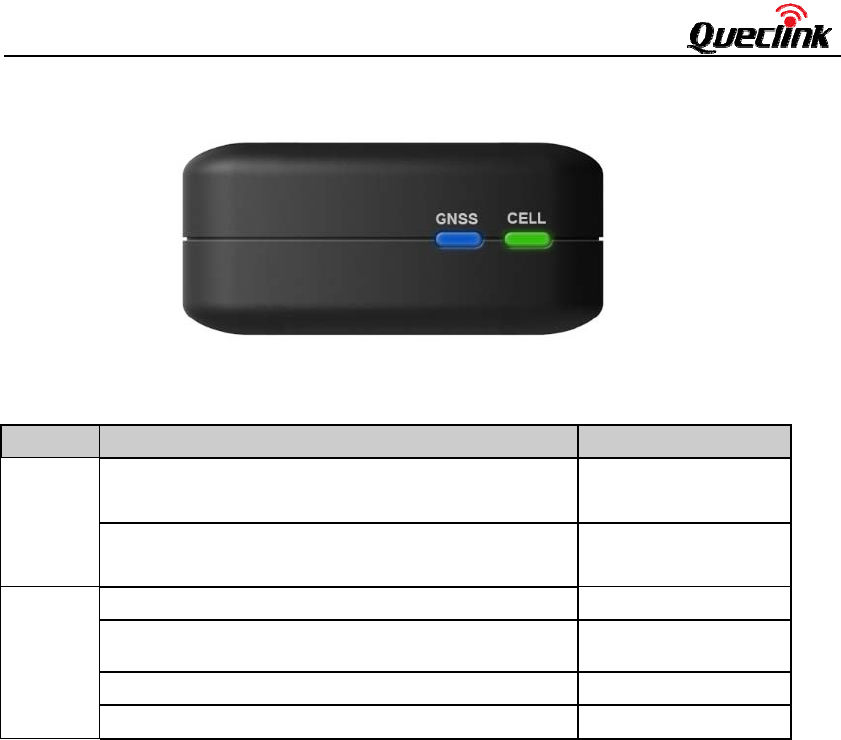

Figure 6. GV500MA LED on the Case
Table 5: Definition of Device status and LED
Note:
1 - CELL LED cannot be configured.
2 - GNSS LED can be configured to turn off after a period of time using the configuration tool
3 - Fast flashing is about 60ms ON/ 780ms OFF
4 - Slow flashing is about 60ms ON/ 1940ms OFF
LED Device status LED status
CELL
(note1)
Device is searching GPRS/EGPRS/LTE network Fast flashing
(Note3)
Device has registered to GPRS/EGPRS/LTE network. Slow flashing
(Note4)
GNSS
(note 2)
GNSS chip is powered off OFF
GNSS sends no data or data format error. Slow flashing
GNSS chip is searching GNSS info. Fast flashing
GNSS chip has gotten GNSS info. ON
‐11‐
FCC Statement
Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance 20cm between the
radiator& your body.
3.5. Bluetooth:
The device role of Bluetooth could be Master and Slave.
When the device role is Slave, the device will provide below services: device information service,
battery information service, virtual serial port service. Other devices can read or use these
services after connecting devices.
When the device role is Master, the device will provide below services: the others devices
can read or use the above services after connecting devices, connect the designated
device to read the data or related information of the designated Bluetooth devices. After
reading the data, the server can be reported to the server by the corresponding message.
NOTE:
The frequency for LTE:
Band2:1850-1910MHz,Band4:1710-1755MHz,Band5:824-849MHz.
Band12:699-716MHz,Band13:777-787MHz, Band26:814-849MHz.
The LTE module FCC ID: XMR201707BG96.
The frequency for 2G:
GPRS/EGPRS850:824-849MHz
GPRS/EGPRS1900:1850-1910MHz
