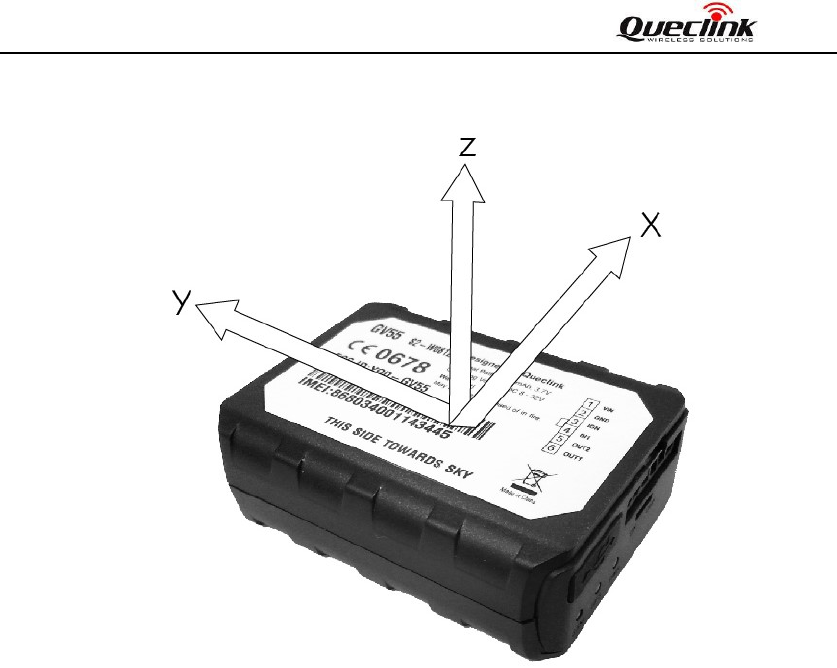

3.8. Motion Sensor direction .................................................................................................... 17
TRACGV55VCUM001 - 4 -
GV55VC User manual
TableIndex
TABLE 1. GV55VC PROTOCOL REFERENCE............................................................................7
TABLE 2. TERMS AND ABBREVIATIONS..................................................................................7
TABLE 3. PART LIST......................................................................................................................9
TABLE 4. DESCRIPTION OF 6 PIN CONNECTIONS................................................................10
TABLE 5. GV55VC USER CABLE COLOUR DEFINITION......................................................10
TABLE 6. ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION .........................12
TABLE 7. ELECTRICAL CHARACTERISTICS OF THE DIGITAL INPUTS ...........................13
TABLE 8. ELECTRICAL CHARACTERISTICS OF DIGITAL OUTPUTS................................14
TABLE 9. DEFINITION OF DEVICE STATUS AND LED .........................................................16
TRACGV55VCUM001 - 5 -
GV55VC User manual
FigureIndex
FIGURE 1. APPEARANCE OF GV55VC.........................................................................................8
FIGURE 2. THE 6 PIN CONNECTOR ON THE GV55VC..............................................................9
FIGURE 3. OPENING THE CASE..................................................................................................11
FIGURE 4. CLOSING THE CASE..................................................................................................11
FIGURE 5. TYPICAL POWER CONNECTION.............................................................................12
FIGURE 6. TYPICAL IGNITION DETECTION............................................................................12
FIGURE 7. TYPICAL DIGITAL INPUT CONNECTION ..............................................................13
FIGURE 8. DIGITAL OUTPUT INTERNAL DRIVE CIRCUIT....................................................14
FIGURE 9. TYPICAL CONNECTION WITH RELAY ..................................................................14
FIGURE 10. TYPICAL CONNECTION WITH LED .......................................................................15
FIGURE 11. GV55VC LED ON THE CASE ....................................................................................15
FIGURE 12. MOTION SENSOR DIRECTION ................................................................................17
TRACGV55VCUM001 - 6 -
GV55VC User manual
Revision History
Revision Date Author Description of change
1.00 2014-1-30 York Zhu Initial
GV55VC User manual
1 Introduction
The GV55VC is a powerful GPS locator designed for vehicle or asset tracking. It has
superior receiver sensitivity, fast TTFF (Time to First Fix) and supports Dual-Band
CDMA2000-1x frequencies 800/1900, its location can be monitored in real time or be
periodically tracked by a backend server or other specified terminals. The GV55VC has
multiple input/output interfaces that can be used for monitoring or controlling external
devices. Based on the integrated @Track protocol, the GV55VC can communicate with a
backend server through the CDMA2000-1x network to transfer reports of Emergency, geo-
fence boundary crossings, low backup battery or scheduled GPS position as well as many
other useful functions. Users can also use GV55VC to monitor the status of a vehicle and
control the vehicle by its external relay output. System Integrators can easily setup their
tracking systems based on the full-featured @Track protocol.
1.1. Reference
Table 1. GV55VC Protocol Reference
SN Document name Remark
[1] GV55VC @Track Air Interface Protocol The air protocol interface between
GV55VC and backend server.
1.2. Terms and Abbreviations
Table 2. Terms and Abbreviations
Abbreviation Description
AGND Analog Ground
AIN Analog Input
DIN Digital Input
DOUT Digital Output
GND Ground
MIC Microphone
RXD Receive Data
TXD Transmit Data
SPKN Speaker Negative
SPKP Speaker Positive
TRACGV55VCUM001 - 7 -
GV55VC User manual
2 Product Overview
2.1. Check Part List
Before starting, check all the following items have been included with your GV55VC. If
anything is missing, please contact your supplier.
Figure 1. Appearance of GV55VC
GV55VC User manual
TRACGV55VCUM001 - 8 -

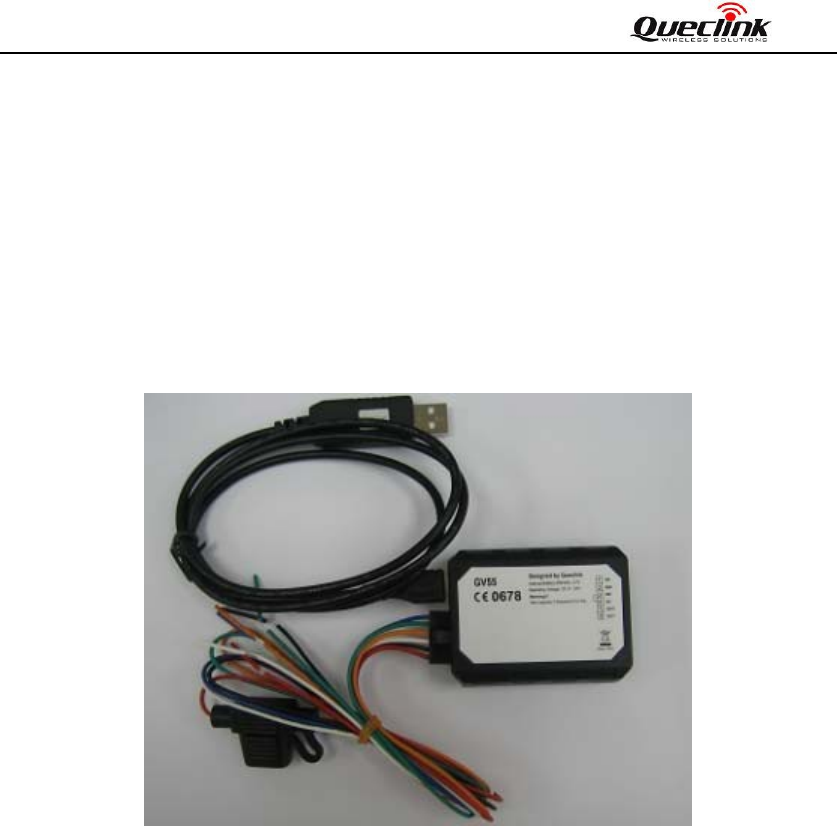

2.2. Parts List
Table 3. Part List

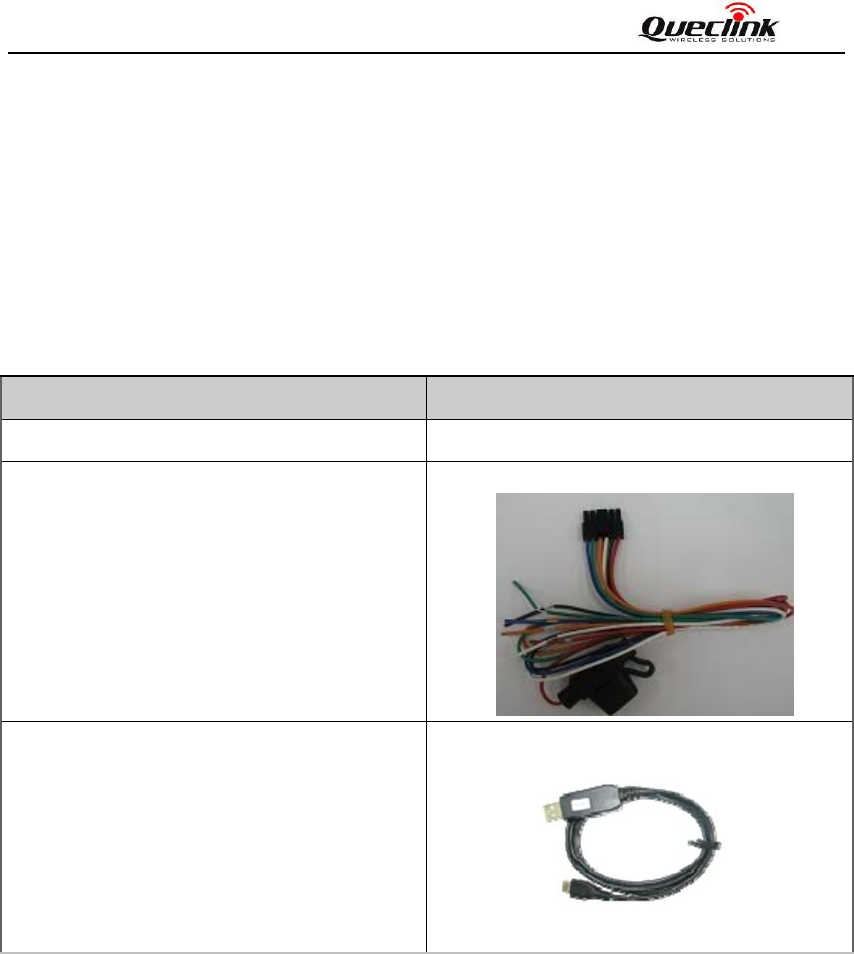

Name Picture
GV55VC Locator 74mm*50mm*13.5mm
User Cable
DATA_CABLE_M (Optional)
2.3. Interface Definition

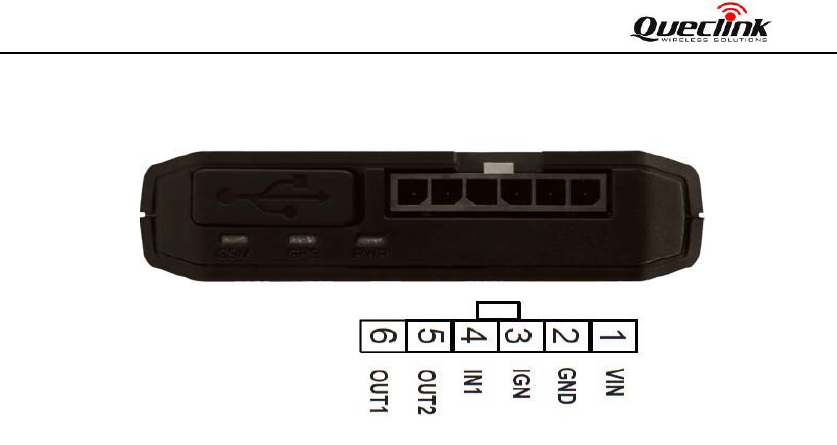

The GV55VC has a 6 PIN interface connector. It contains the connections for power, I/O.
The sequence and definition of the 6PIN connector are shown in following figure:
GV55VC User manual
Figure 2. The 6 PIN connector on the GV55VC
TRACGV55VCUM001 - 9 -
TRACGV55VCUM001 - 11 -
GV55VC User manual
Table 4. Description of 6 PIN Connections
Index Description Comment
1 VIN External DC power input, 8-32V
2 GND GND
3 IGN Ignition input, positive trigger
4 IN1 Digital input, negative trigger
5 OUT2 Open drain, 150mA max
6 OUT1 Open drain, 150mA max ,with latch circuit
2.4. GV55VC User Cable Colour
Table 5. GV55VC User Cable Colour definition
Definition Colour PIN
No Cable

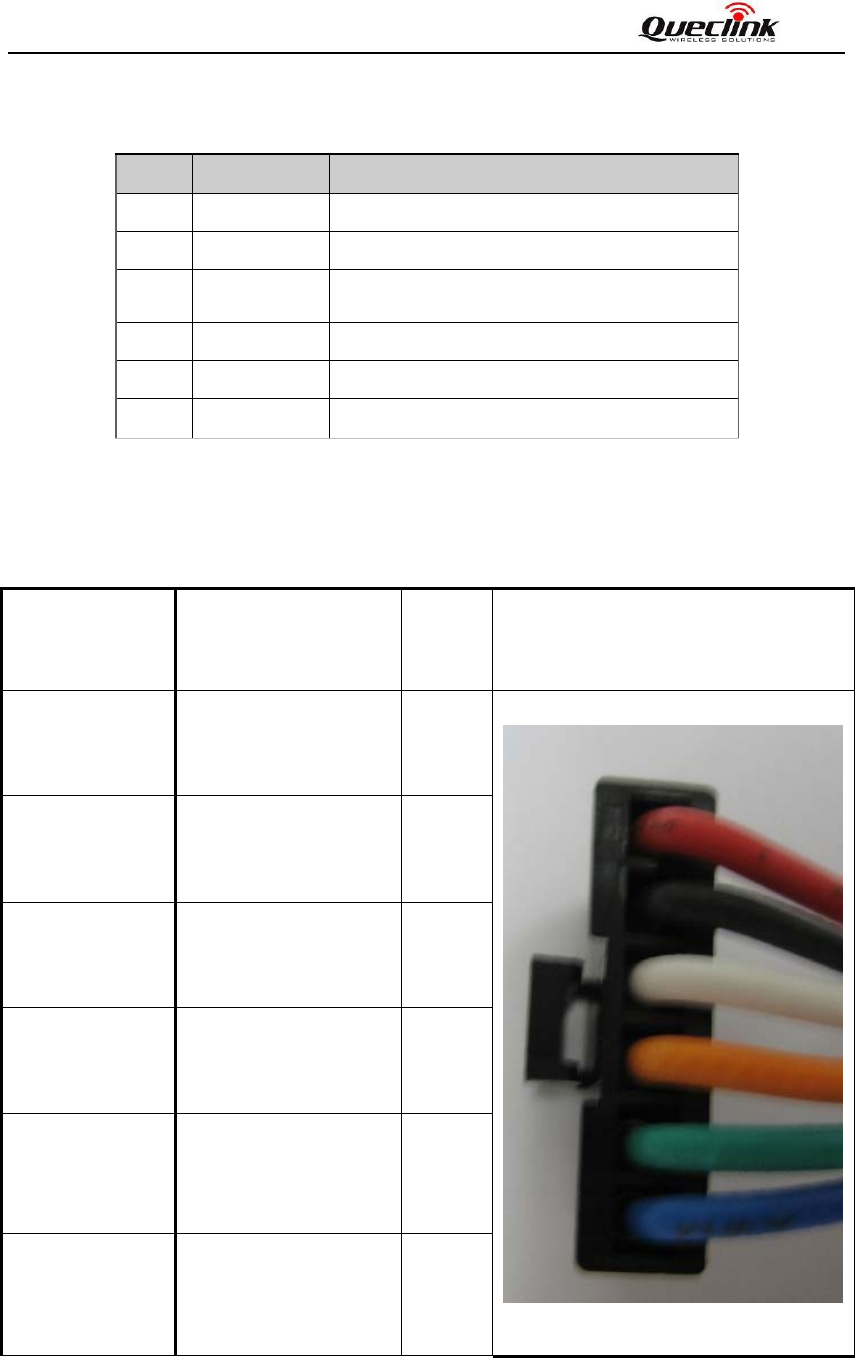

VIN Red 1
GND Black 2
IGN White 3
IN1 Orange 4
OUT2 Green 5
OUT1 Blue 6
TRACGV55VCUM001 - 12 -
GV55VC User manual
3 .Getting Started
3.1. Opening the Case

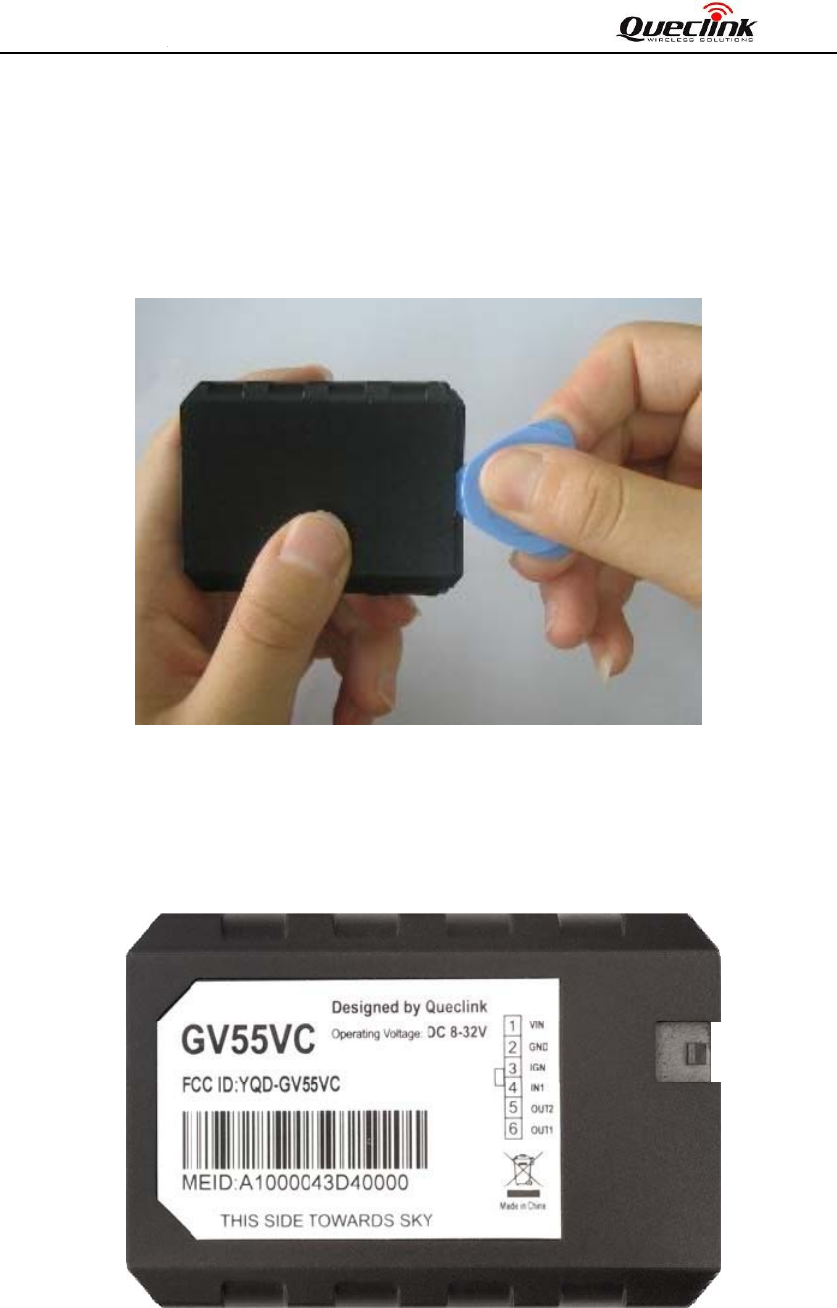

Figure 3. Opening the Case
Insert the triangular-pry-opener into the gap of the case as shown below, push the opener
up until the case unsnapped.
3.2. Closing the Case
Figure 4. Closing the Case
Place the cover on the bottom in the position as shown in the following figure. Slide the
cover against the direction of the arrow until it snapped.
TRACGV55VCUM001 - 11 -
GV55VC User manual
3.3. Power Connection
VIN (PIN1) / GND (PIN2) are the power input pins. The input voltage range for this device
is from 8V to 32V. The device is designed to be installed in vehicles that operate on
12V/24V vehicle without the need for external transformers.

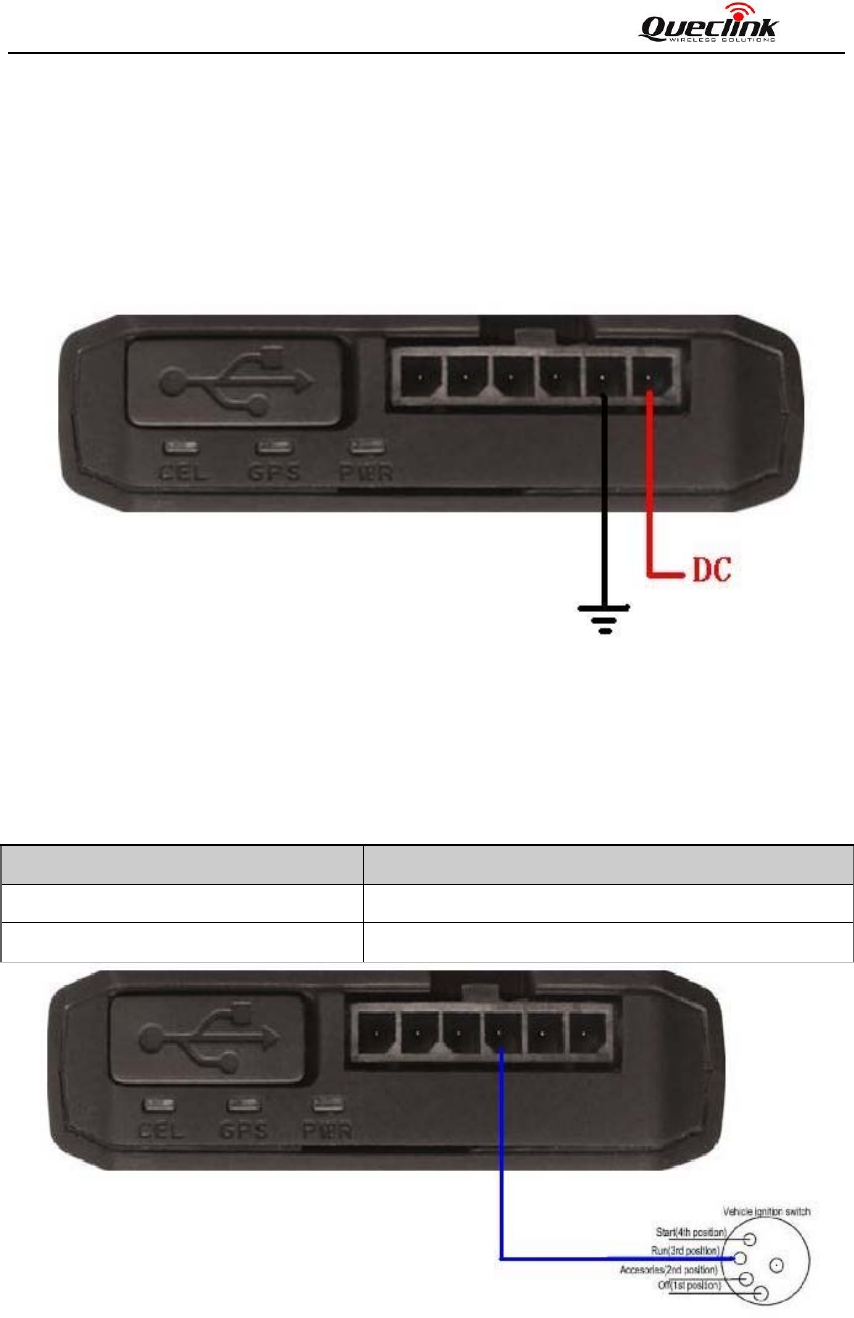

Figure 5. Typical Power Connection
3.4. Ignition Detection
Table 6. Electrical Characteristics of Ignition Detection
Logical State Electrical State
Active 5.0V to 32V
Inactive 0V to 3V or Open
Figure 6. Typical Ignition Detection
IGN (Pin3) is used for ignition detection. It is strongly recommended to connect this pin to
ignition key “RUN” position as shown up.
An alternative to connecting to the ignition switch is to find a non permanent power source
that is only available when the vehicle is running. For example the power source for the
TRACGV55VCUM001 - 14 -
GV55VC User manual
FM radio.
IGN signal can be configured to start transmitting information to backend server when
ignition is on; and enter power saving mode when ignition is off.
3.5. Digital Inputs
There are one general purpose digital inputs on GV55VC. They are all negative trigger.
Table 7. Electrical Characteristics of the digital inputs
Logical State Electrical Characteristics
Active 0V to 0.8V
Inactive Open

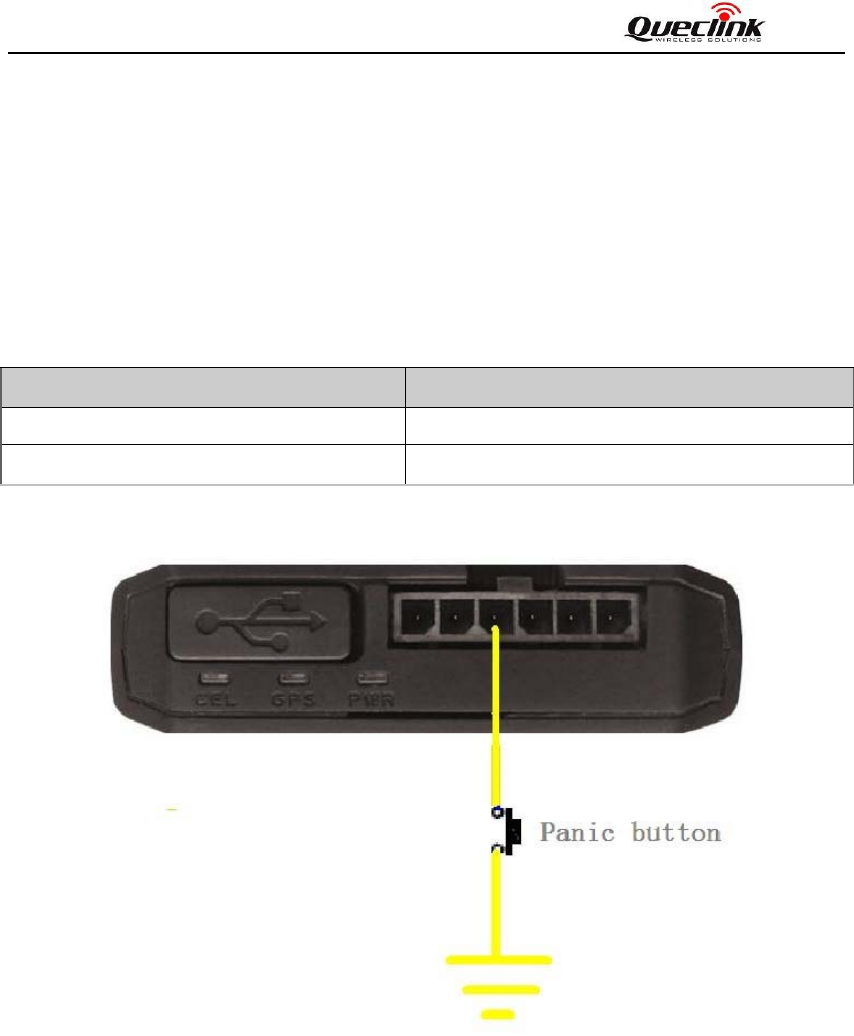

The following diagram shows the recommended connection of a digital input.
Figure 7. Typical Digital Input Connection
3.6. Digital Outputs
There are two digital outputs on GV55VC. All are of open drain type and the maximum
drain current is 150mA. Each output has the built-in over current and recovery PTC fuse
TRACGV55VCUM001 - 15 -
GV55VC User manual

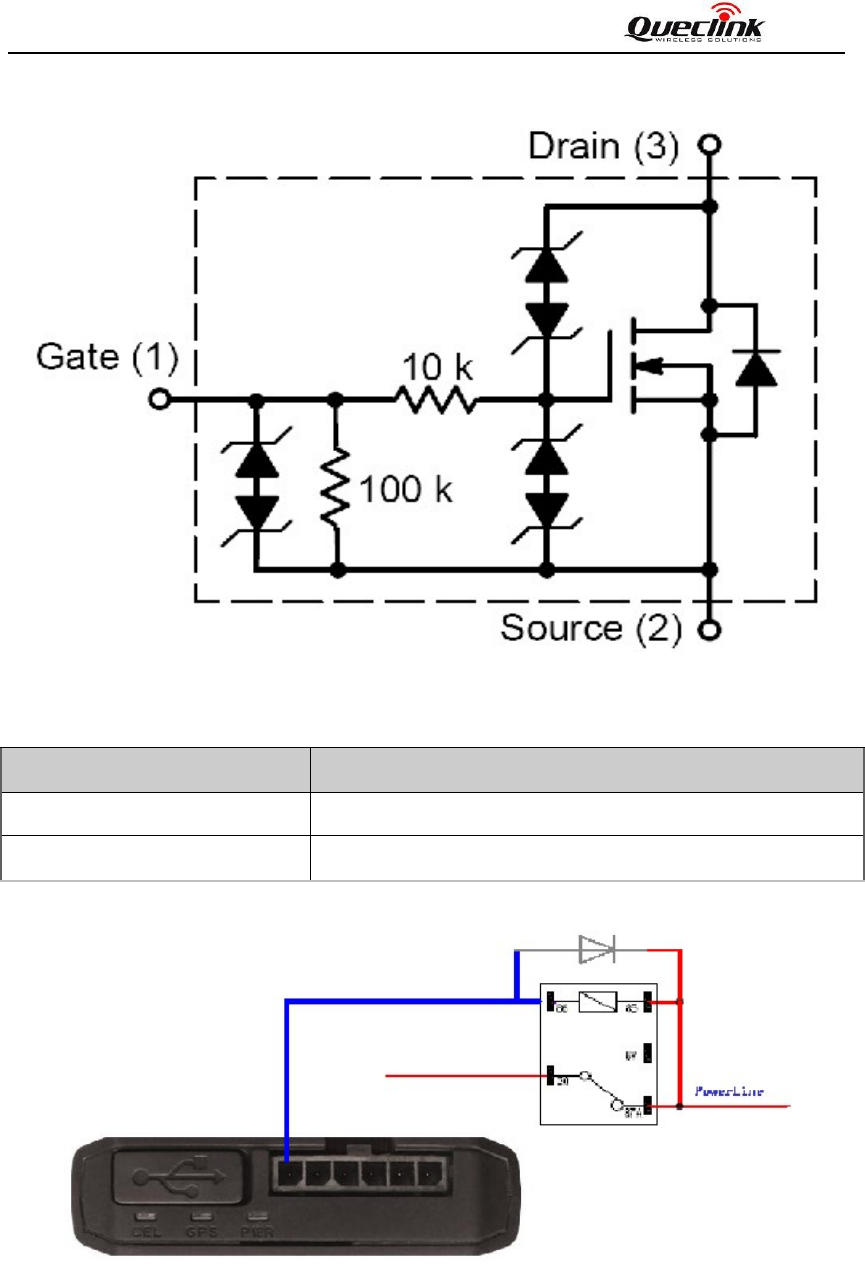

Figure 8. Digital Output Internal Drive Circuit
Table 8. Electrical Characteristics of Digital Outputs
Logical State Electrical Characteristics
Enable <1.5V @150mA
Disable Open drain
TRACGV55VCUM001 - 16 -
GV55VC User manual
Figure 9. Typical Connection with Relay

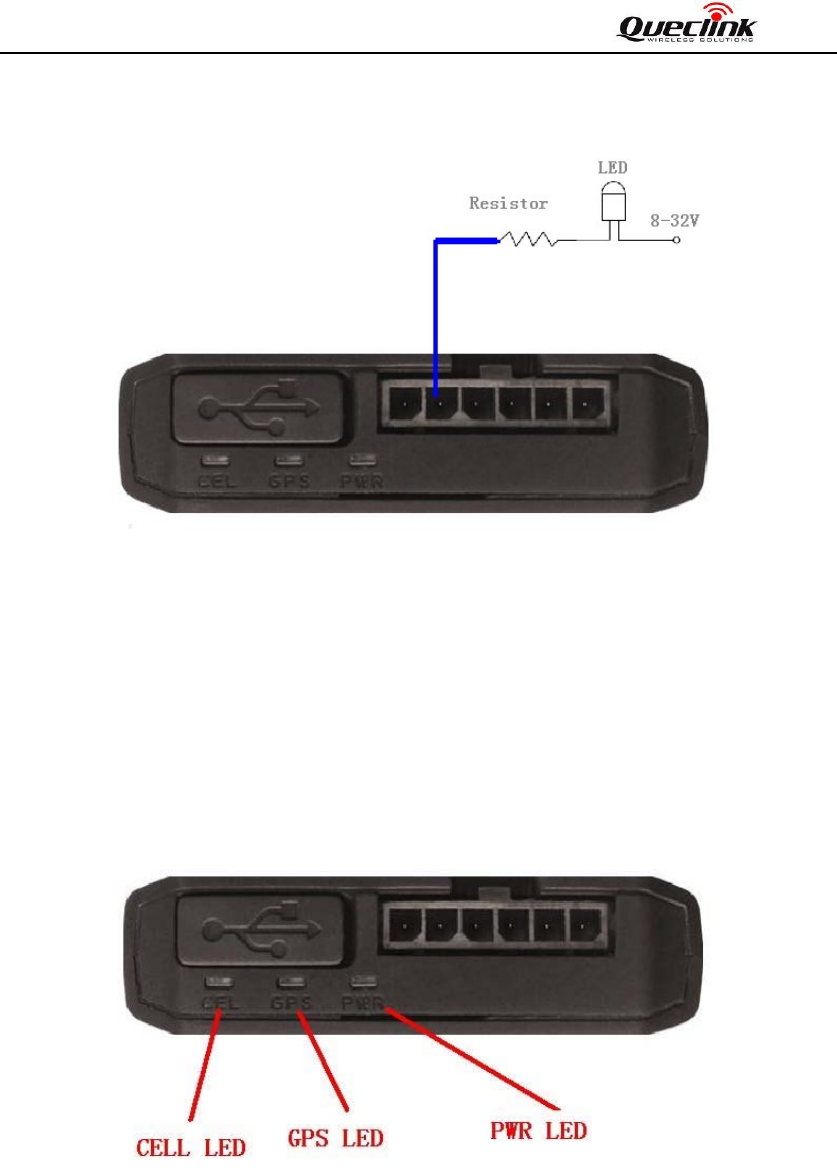

Figure 10. Typical Connection with LED
Note:
1 - OUT1 will latch the output state during reset.
2- Many modern relays come with a flyback diode pre-installed internal to the relay itself. If
the relay has this diode, insure the proper relay polarity connected is used. If this diode is
not internal, it should be added externally. A common diode such as a 1N4004 will work in
most circumstances.
3.7. Device Status LED
Figure 11. GV55VC LED on the Case
GV55VC has three status led that CELL GPS PWR led.
TRACGV55VCUM001 - 17 -
GV55VC User manual
Table 9. Definition of Device status and LED
CELL
(note1)
GPS
(note 2)
Device is searching CELL network Fast flashing
Device has registered to CELL network. Slow flashing
GPS chip is powered off OFF
GPS sends no data or data format error Slow flashing
GPS chip is searching GPS info. Fast flashing
GPS chip has gotten GPS info. ON
PWR
(note 2)
No external power, and each time the device
powers on, both LED’s will work for 30 minutes
and then are turned off deadly when LED ON is 0
OFF
External power in and LED ON is 1 ON
Note:
1 – CELL LED cannot be configured.
2 - GPS LED and PWR LED can be configured to turn off after a period of time using the
configuration tool
3 - Fast flashing is about 60ms ON/ 780ms OFF
4 - Slow flashing is about 60ms ON/ 1940ms OFF
5 –When LED ON is 0, each time the device powers on, both LED’s will work for 30 minutes
and then are turned off deadly
3.8. Motion Sensor direction
GV55VC has an internal 3-axis accelerometer supporting driving behavior monitoring,
power conservation and motion detection. The following is the direction of the motion
sensor.
TRACGV55VCUM001 - 18 -
GV55VC User manual
Figure 12. Motion sensor direction
