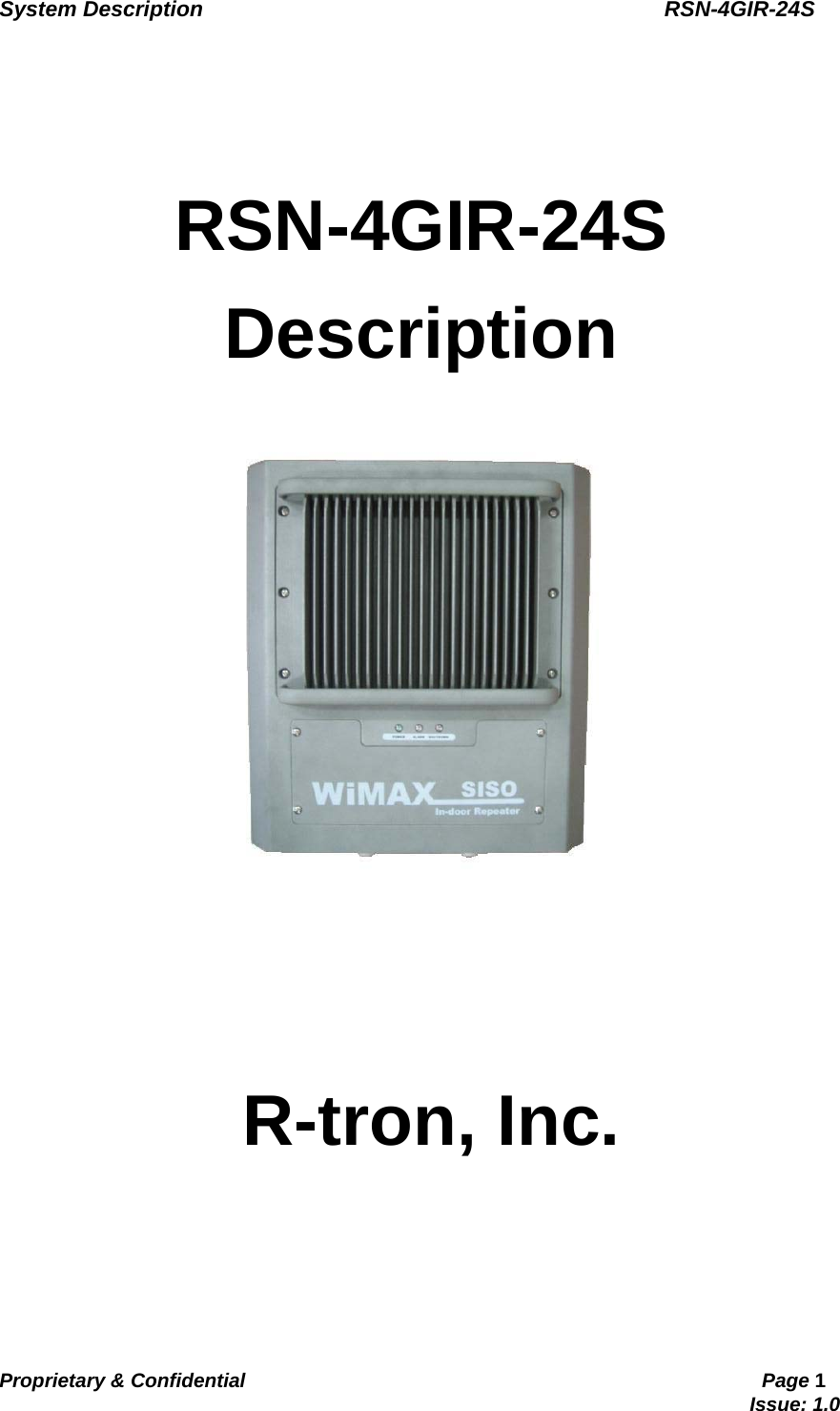

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 1                                                                               Issue: 1.0     RSN-4GIR-24S Description    R-tron, Inc.

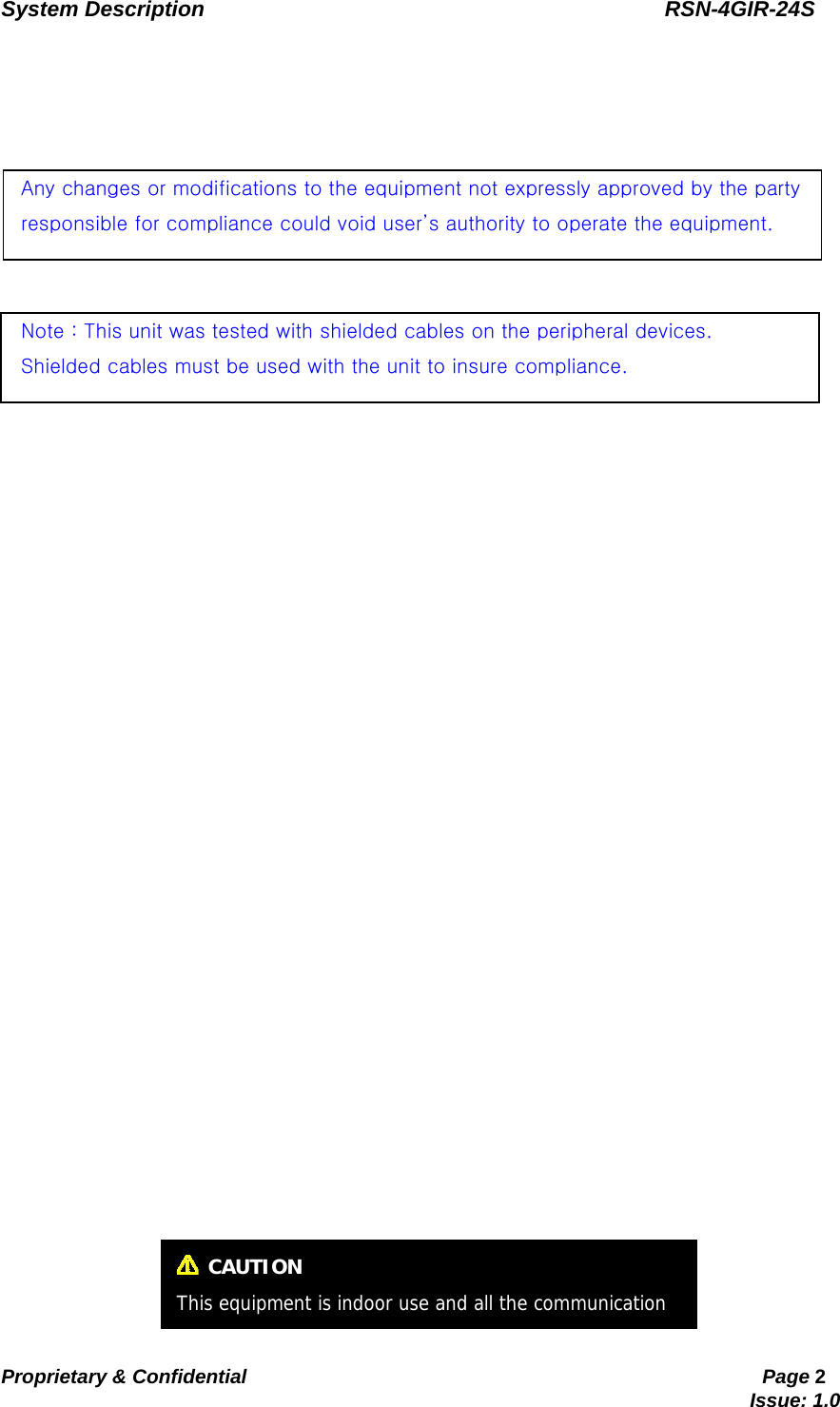

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 2                                                                               Issue: 1.0       Any changes or modifications to the equipment not expressly approved by the party   responsible for compliance could void user’s authority to operate the equipment.   Note : This unit was tested with shielded cables on the peripheral devices.     Shielded cables must be used with the unit to insure compliance.          CAUTION This equipment is indoor use and all the communication

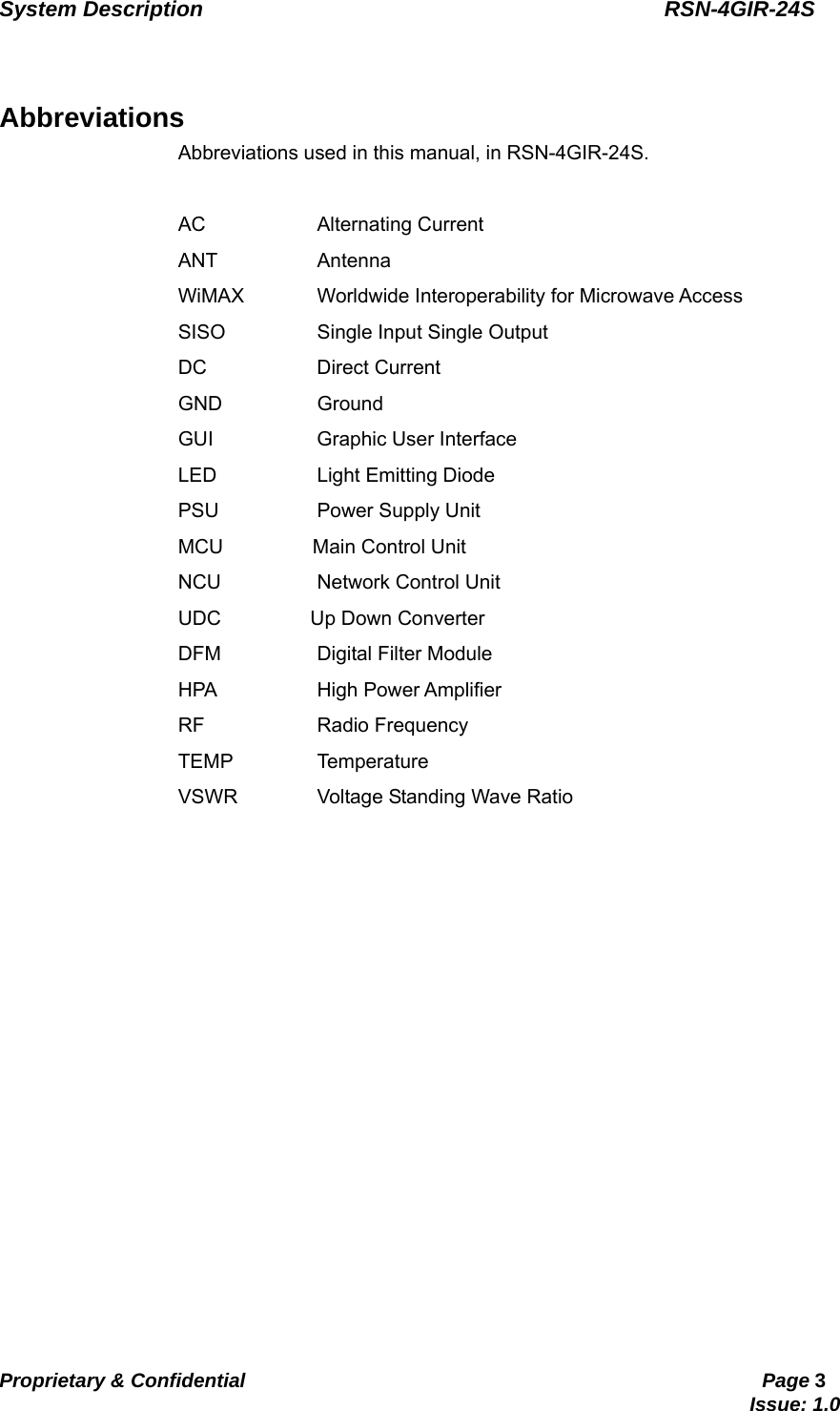

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 3                                                                               Issue: 1.0     Abbreviations Abbreviations used in this manual, in RSN-4GIR-24S.  AC           Alternating Current ANT          Antenna WiMAX   Worldwide Interoperability for Microwave Access   SISO    Single Input Single Output DC           Direct Current  GND          Ground GUI          Graphic User Interface LED          Light Emitting Diode PSU          Power Supply Unit MCU         Main Control Unit NCU    Network Control Unit UDC         Up Down Converter DFM    Digital Filter Module HPA   High Power Amplifier RF           Radio Frequency TEMP   Temperature VSWR    Voltage Standing Wave Ratio

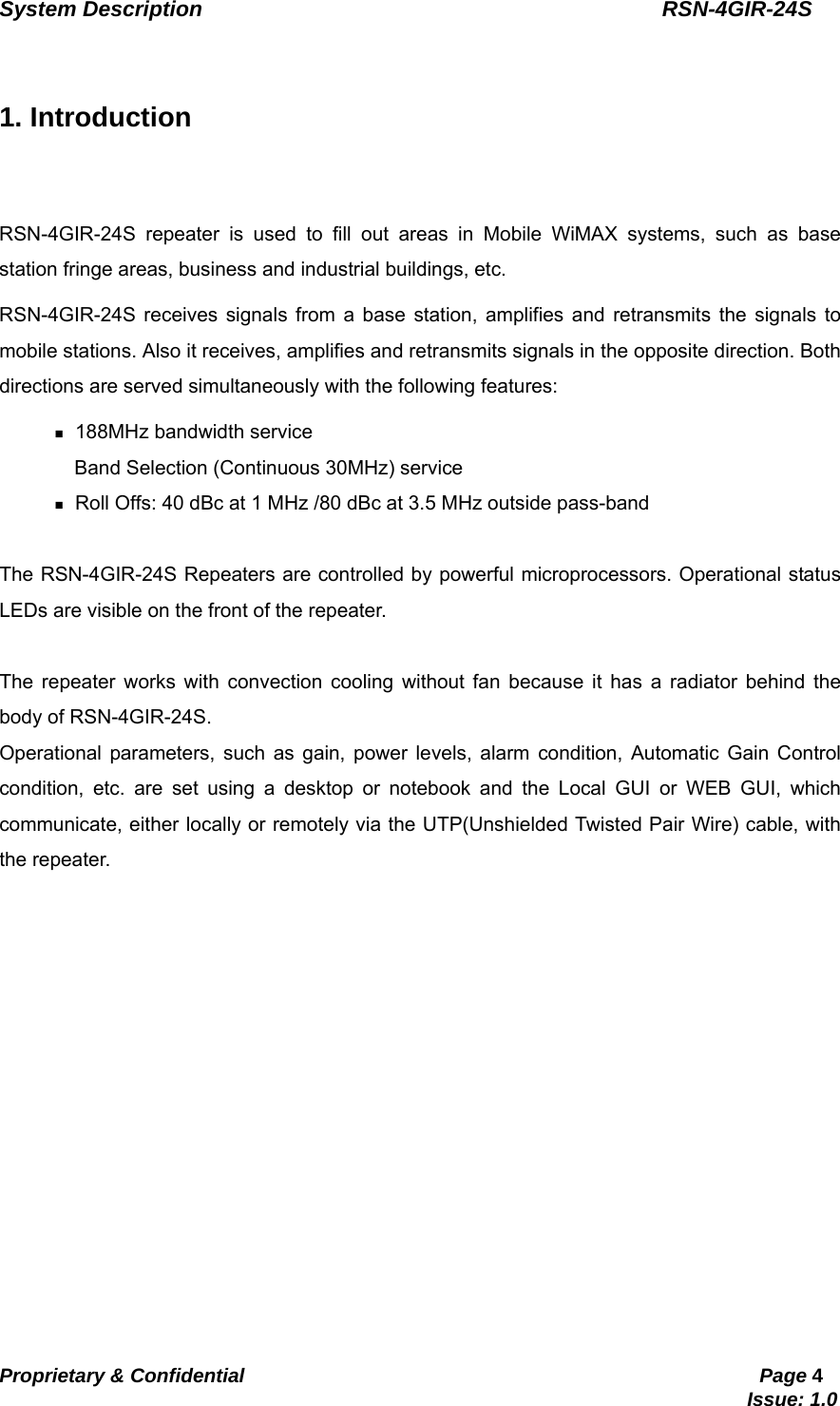

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 4                                                                               Issue: 1.0     1. Introduction      RSN-4GIR-24S repeater is used to fill out areas in Mobile WiMAX systems, such as base station fringe areas, business and industrial buildings, etc. RSN-4GIR-24S receives signals from a base station, amplifies and retransmits the signals to mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both directions are served simultaneously with the following features:  188MHz bandwidth service   Band Selection (Continuous 30MHz) service  Roll Offs: 40 dBc at 1 MHz /80 dBc at 3.5 MHz outside pass-band  The RSN-4GIR-24S Repeaters are controlled by powerful microprocessors. Operational status LEDs are visible on the front of the repeater.  The repeater works with convection cooling without fan because it has a radiator behind the body of RSN-4GIR-24S. Operational parameters, such as gain, power levels, alarm condition, Automatic Gain Control condition, etc. are set using a desktop or notebook and the Local GUI or WEB GUI, which communicate, either locally or remotely via the UTP(Unshielded Twisted Pair Wire) cable, with the repeater.

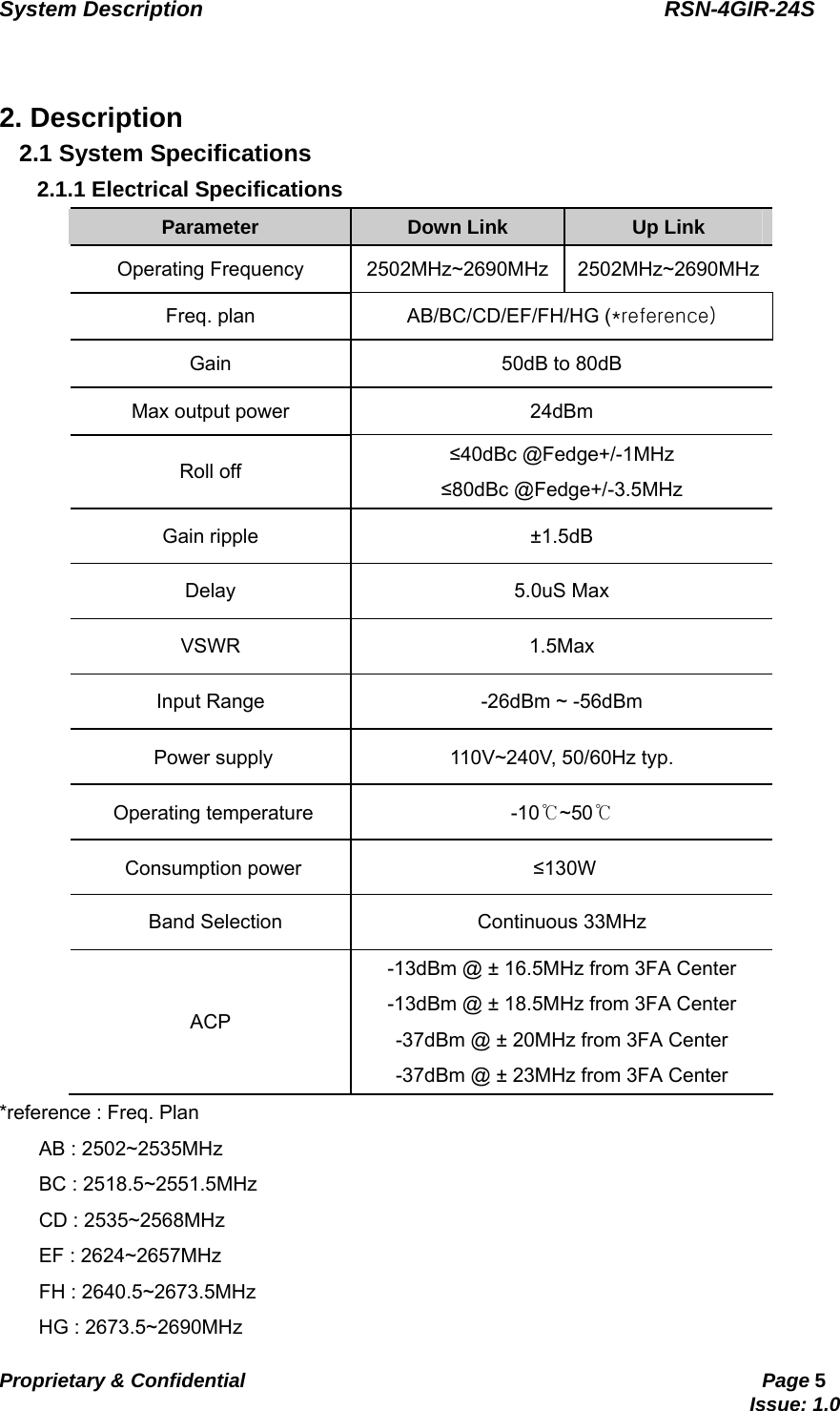

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 5                                                                               Issue: 1.0     2. Description 2.1 System Specifications 2.1.1 Electrical Specifications Parameter  Down Link  Up Link Operating Frequency  2502MHz~2690MHz 2502MHz~2690MHz Freq. plan  AB/BC/CD/EF/FH/HG (*reference) Gain  50dB to 80dB Max output power  24dBm Roll off ≤40dBc @Fedge+/-1MHz ≤80dBc @Fedge+/-3.5MHz Gain ripple  ±1.5dB   Delay 5.0uS Max VSWR 1.5Max Input Range  -26dBm ~ -56dBm Power supply  110V~240V, 50/60Hz typ. Operating temperature  -10℃~50℃ Consumption power  ≤130W   Band Selection  Continuous 33MHz ACP -13dBm @ ± 16.5MHz from 3FA Center -13dBm @ ± 18.5MHz from 3FA Center -37dBm @ ± 20MHz from 3FA Center -37dBm @ ± 23MHz from 3FA Center *reference : Freq. Plan     AB : 2502~2535MHz     BC : 2518.5~2551.5MHz     CD : 2535~2568MHz     EF : 2624~2657MHz     FH : 2640.5~2673.5MHz       HG : 2673.5~2690MHz

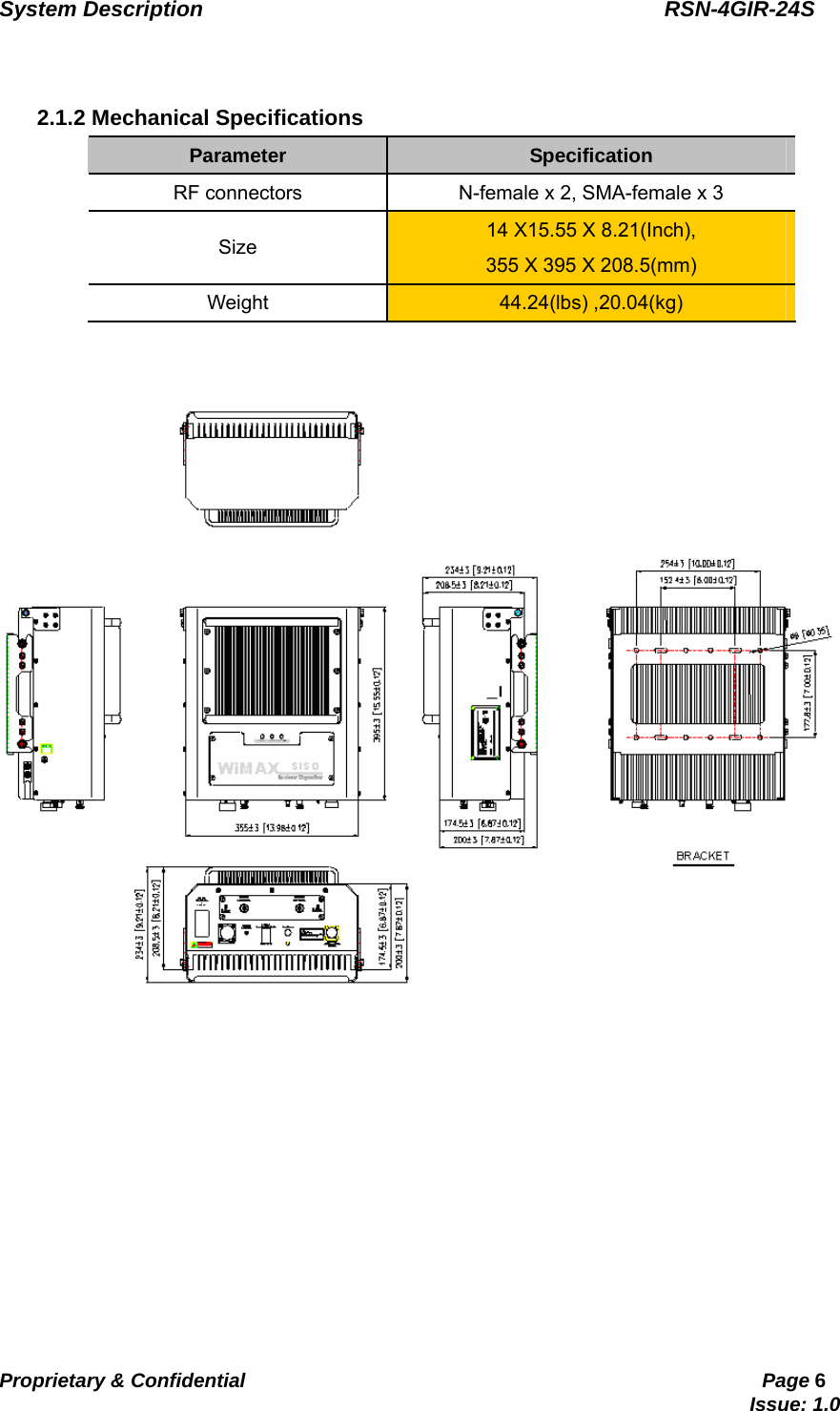

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 6                                                                               Issue: 1.0     2.1.2 Mechanical Specifications Parameter  Specification RF connectors  N-female x 2, SMA-female x 3 Size  14 X15.55 X 8.21(Inch),   355 X 395 X 208.5(mm) Weight  44.24(lbs) ,20.04(kg)

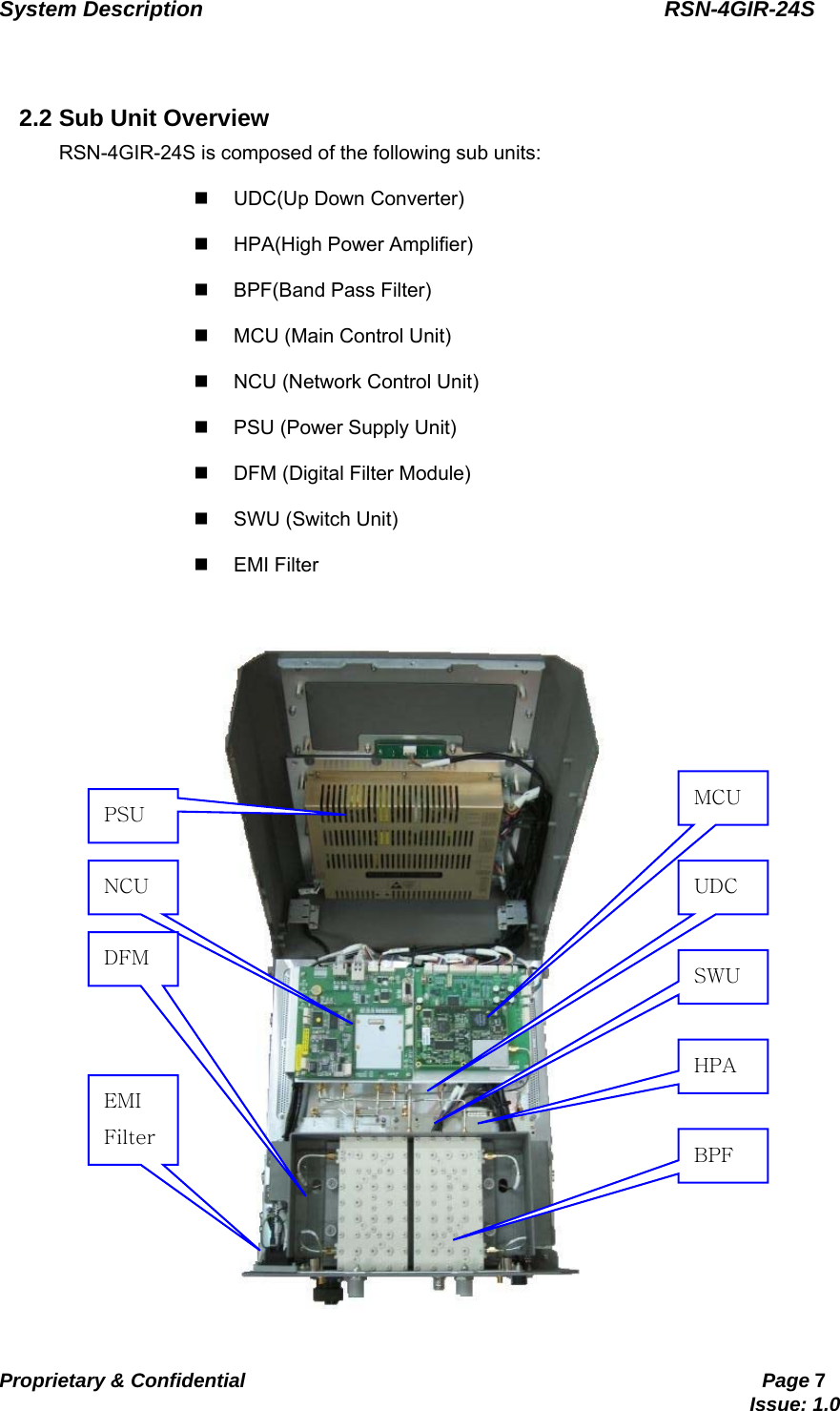

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 7                                                                               Issue: 1.0     2.2 Sub Unit Overview RSN-4GIR-24S is composed of the following sub units:  UDC(Up Down Converter)  HPA(High Power Amplifier)   BPF(Band Pass Filter)   MCU (Main Control Unit)   NCU (Network Control Unit)   PSU (Power Supply Unit)   DFM (Digital Filter Module)   SWU (Switch Unit)  EMI Filter  PSU NCU MCU DFM UDC SWU HPA BPF EMI Filter

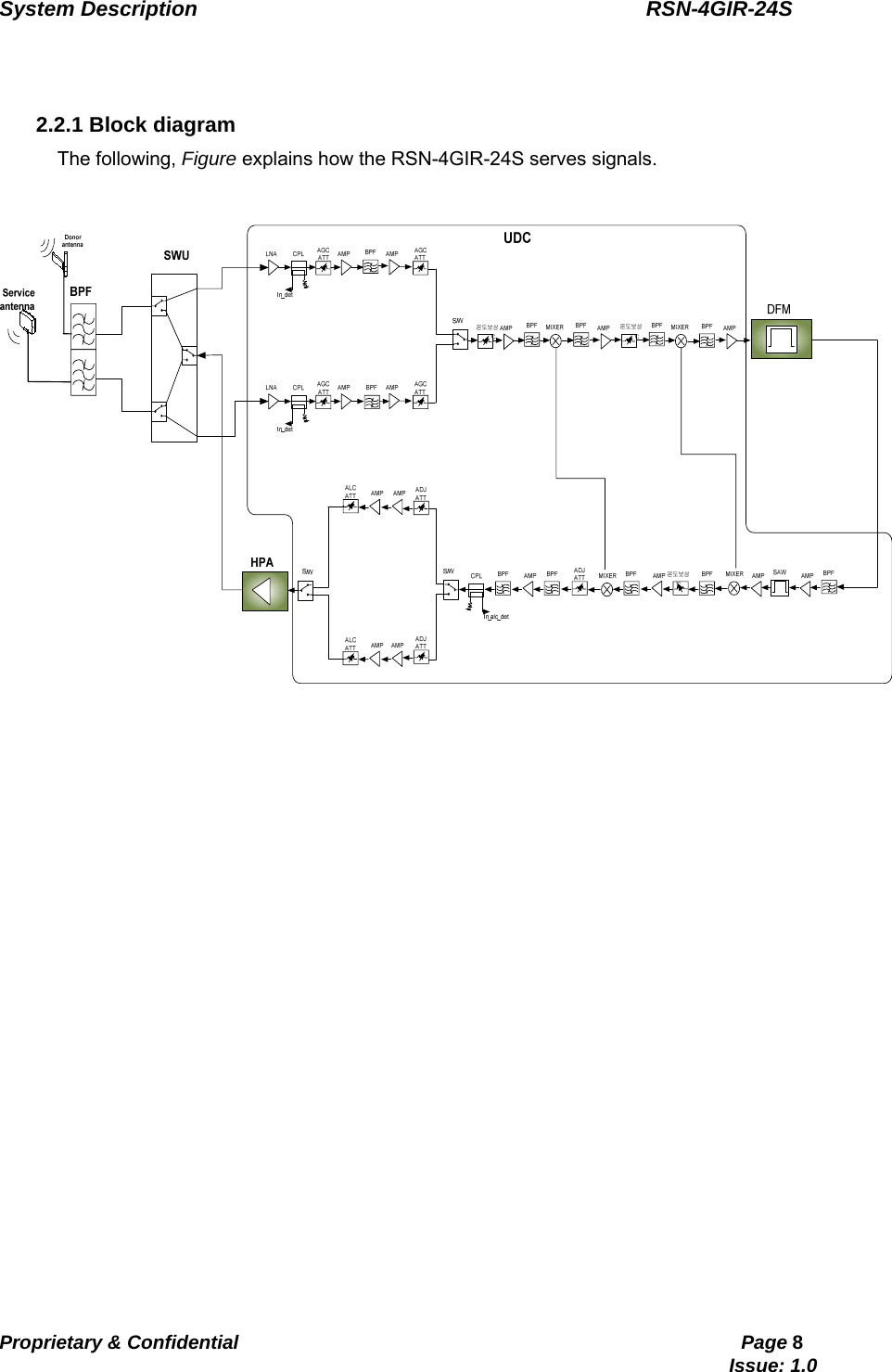

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 8                                                                               Issue: 1.0     2.2.1 Block diagram The following, Figure explains how the RSN-4GIR-24S serves signals.

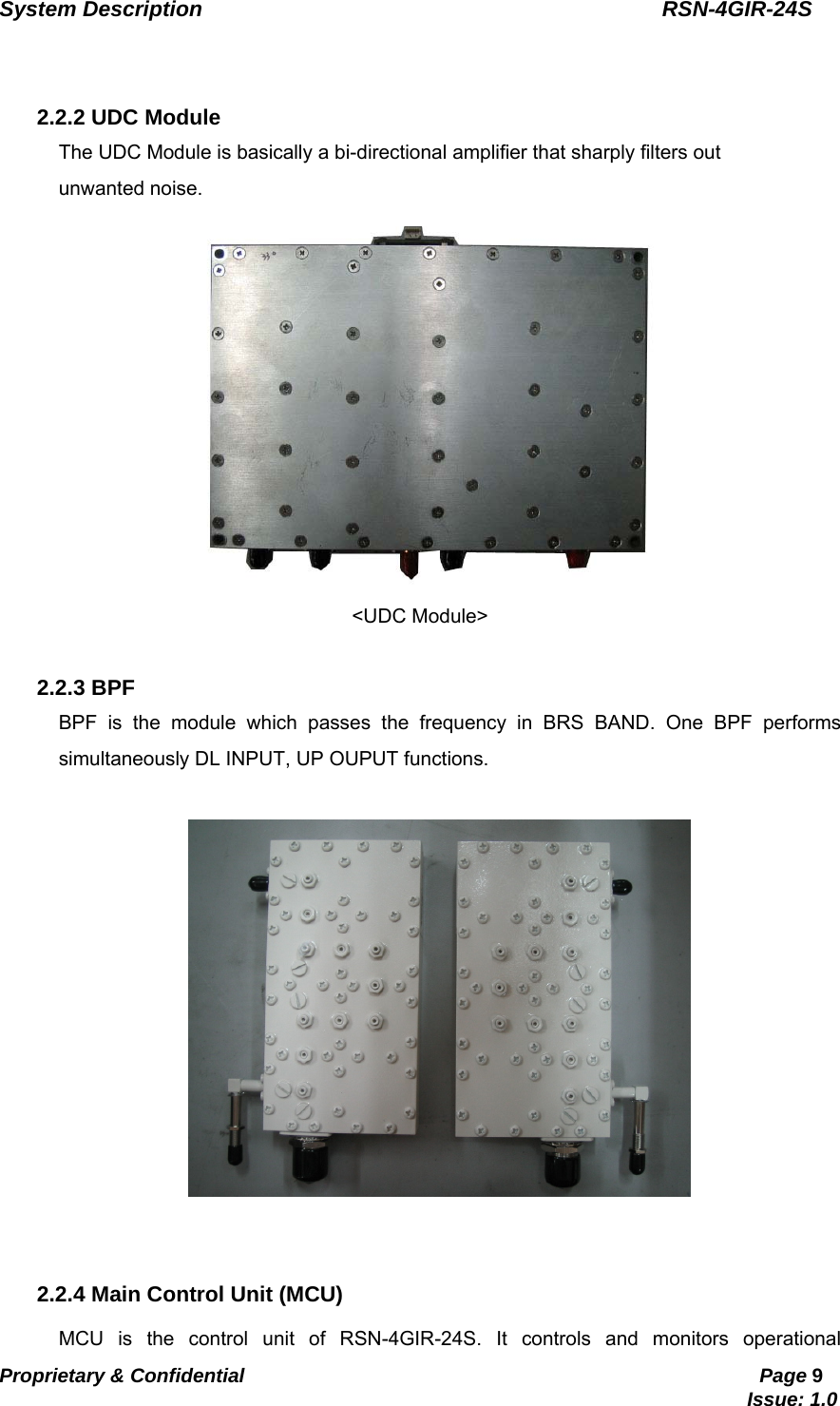

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 9                                                                               Issue: 1.0     2.2.2 UDC Module The UDC Module is basically a bi-directional amplifier that sharply filters out   unwanted noise.  <UDC Module>  2.2.3 BPF BPF is the module which passes the frequency in BRS BAND. One BPF performs simultaneously DL INPUT, UP OUPUT functions.     2.2.4 Main Control Unit (MCU) MCU is the control unit of RSN-4GIR-24S. It controls and monitors operational
  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 10                                                                               Issue: 1.0    parameters.  It also generates alarms, an event log and many other functions of the RSN-4GIR-24S.  *Pin Map* Port   Connected to   J3  RFU1 Control pin 1 J4  RFU1 Control pin 2 J5  HPA Control pin J6  PSU Control pin J7  Sync Unit Control pin J8 Local GUI J9 LED J11 NCU J12 SWU J13 Main Power(5.5V)

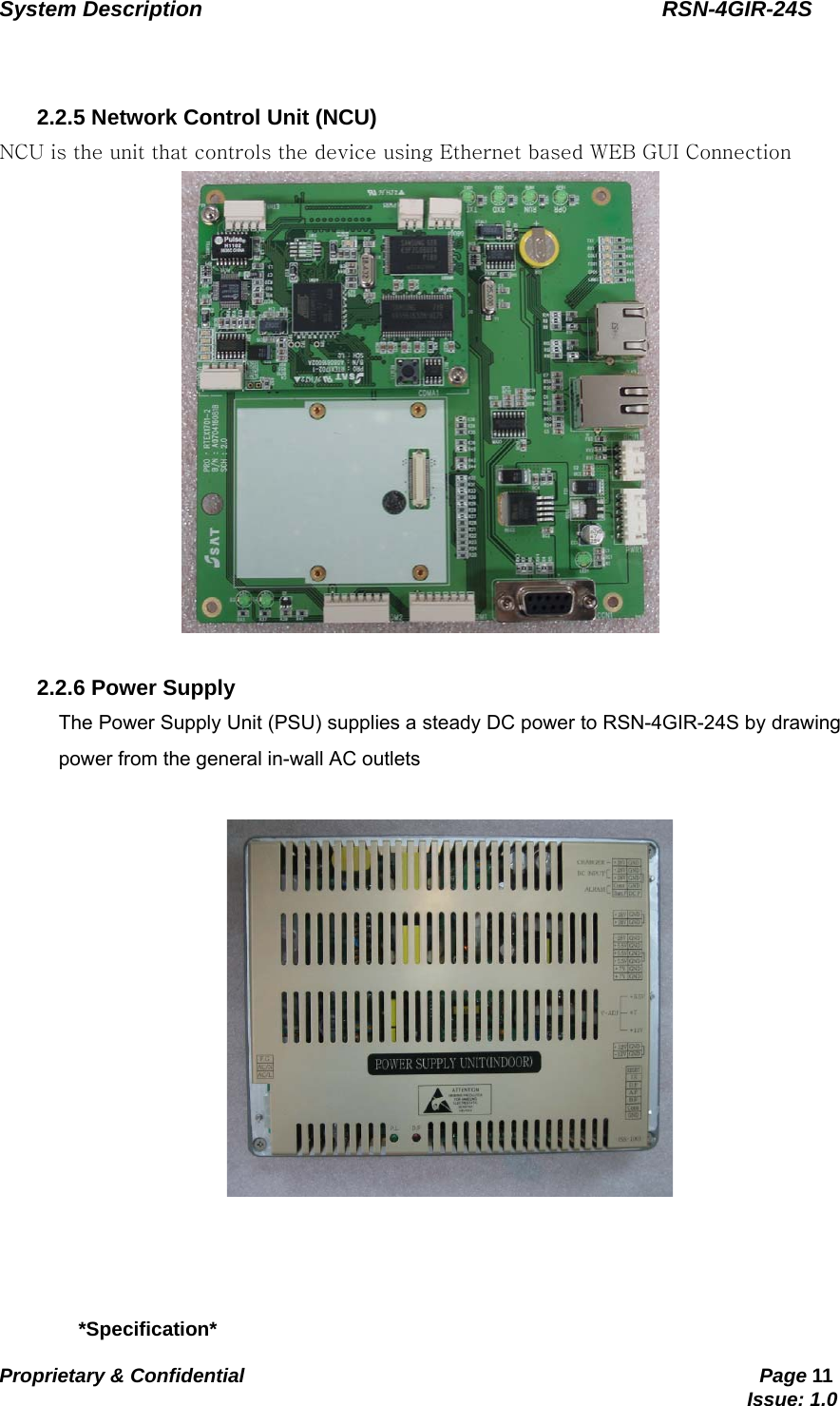

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 11                                                                               Issue: 1.0     2.2.5 Network Control Unit (NCU) NCU is the unit that controls the device using Ethernet based WEB GUI Connection     2.2.6 Power Supply The Power Supply Unit (PSU) supplies a steady DC power to RSN-4GIR-24S by drawing power from the general in-wall AC outlets      *Specification*

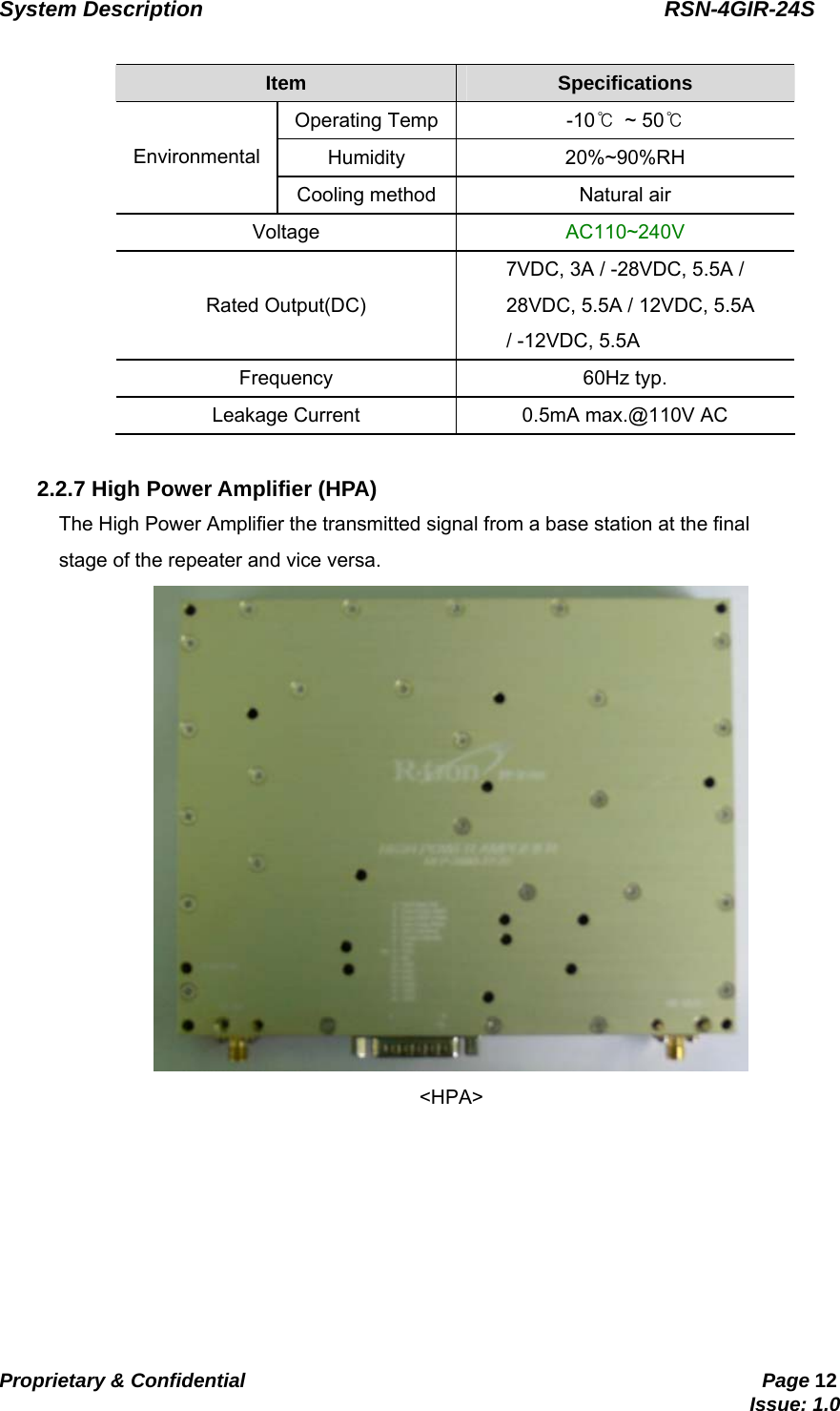

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 12                                                                               Issue: 1.0    Item   Specifications   Operating Temp  -10℃  ~ 50℃  Humidity   20%~90%RH  Environmental  Cooling method  Natural air   Voltage   AC110~240V  Rated Output(DC) 7VDC, 3A / -28VDC, 5.5A /   28VDC, 5.5A / 12VDC, 5.5A   / -12VDC, 5.5A   Frequency   60Hz typ. Leakage Current    0.5mA max.@110V AC    2.2.7 High Power Amplifier (HPA) The High Power Amplifier the transmitted signal from a base station at the final   stage of the repeater and vice versa.  <HPA>

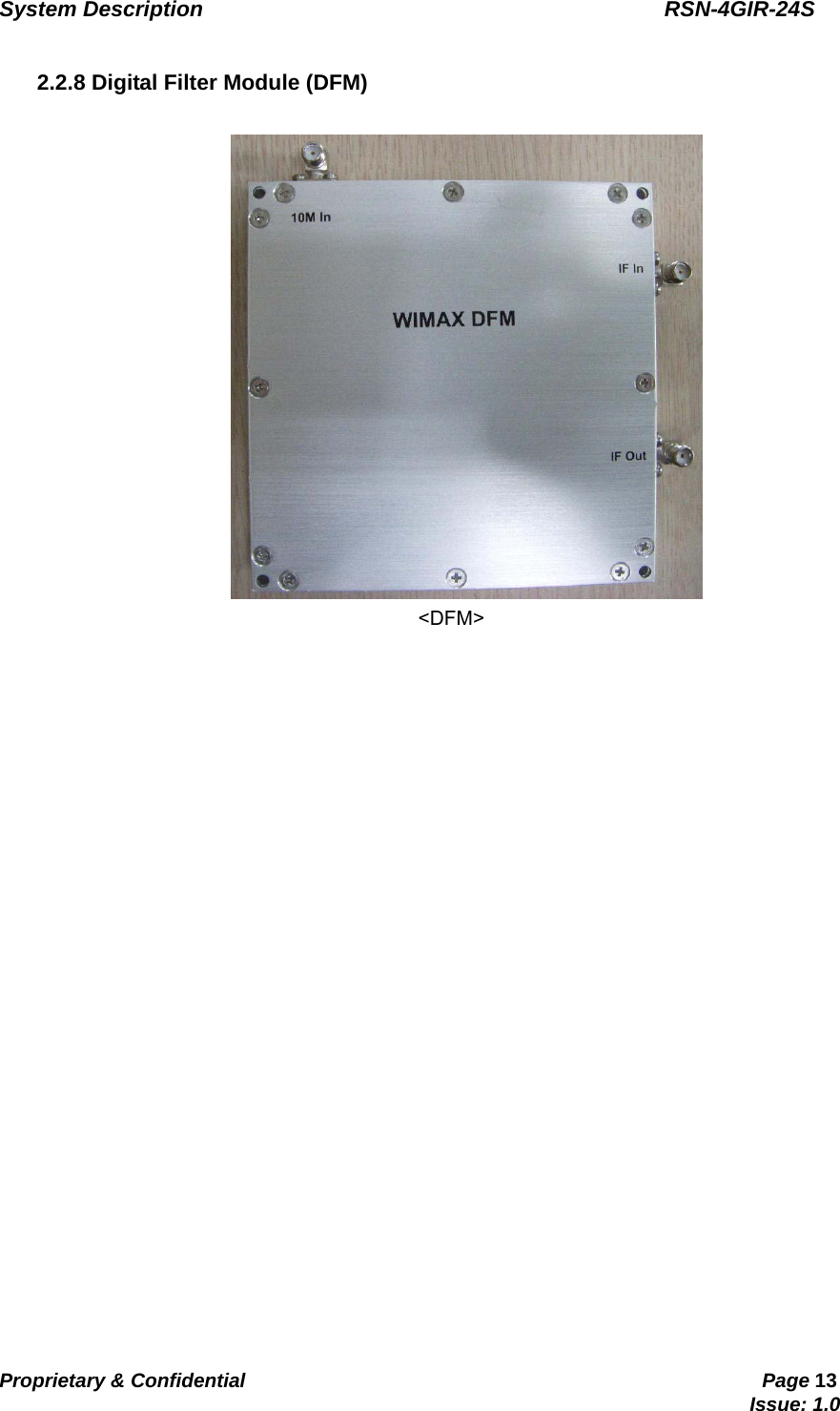

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 13                                                                               Issue: 1.0    2.2.8 Digital Filter Module (DFM)               <DFM>

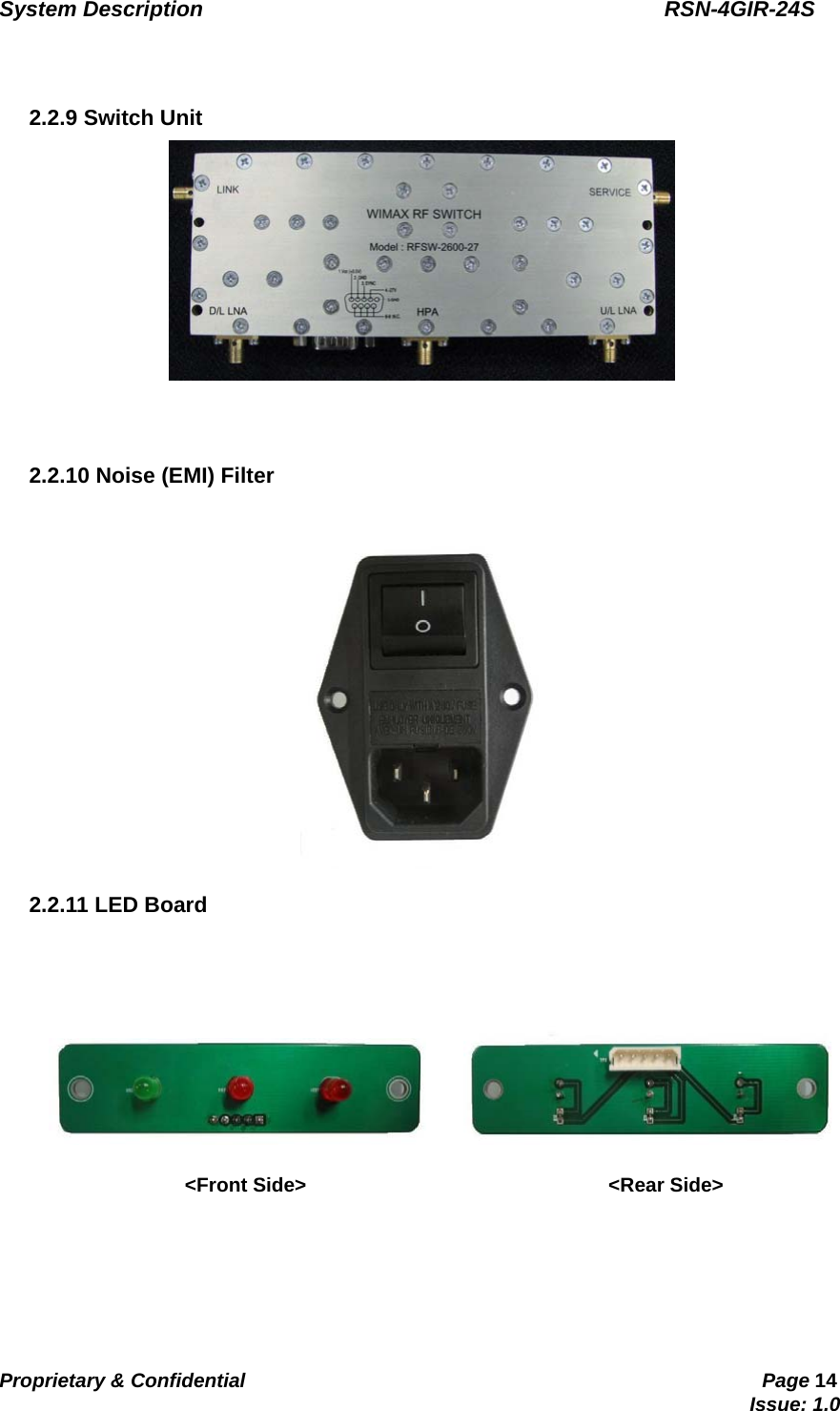

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 14                                                                               Issue: 1.0     2.2.9 Switch Unit    2.2.10 Noise (EMI) Filter   2.2.11 LED Board                         <Front Side>                               <Rear Side>

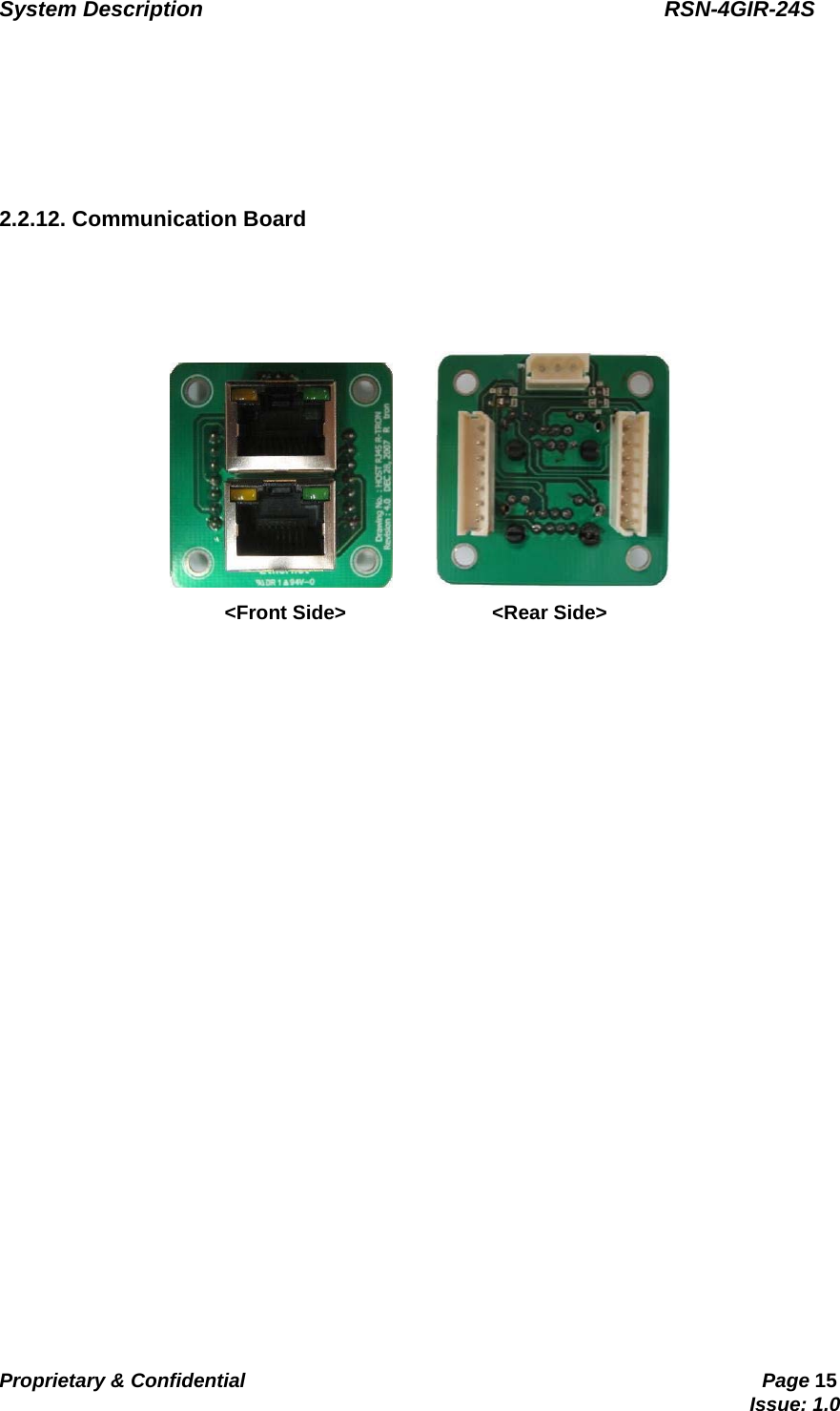

  System Description                                           RSN-4GIR-24S   Proprietary & Confidential                                                     Page 15                                                                               Issue: 1.0       2.2.12. Communication Board            <Front Side>               <Rear Side>
