R tron SN-4GIR-30S Wireless Booster (WiMAX) User Manual

R-tron Inc. Wireless Booster (WiMAX) Users Manual

Users Manual

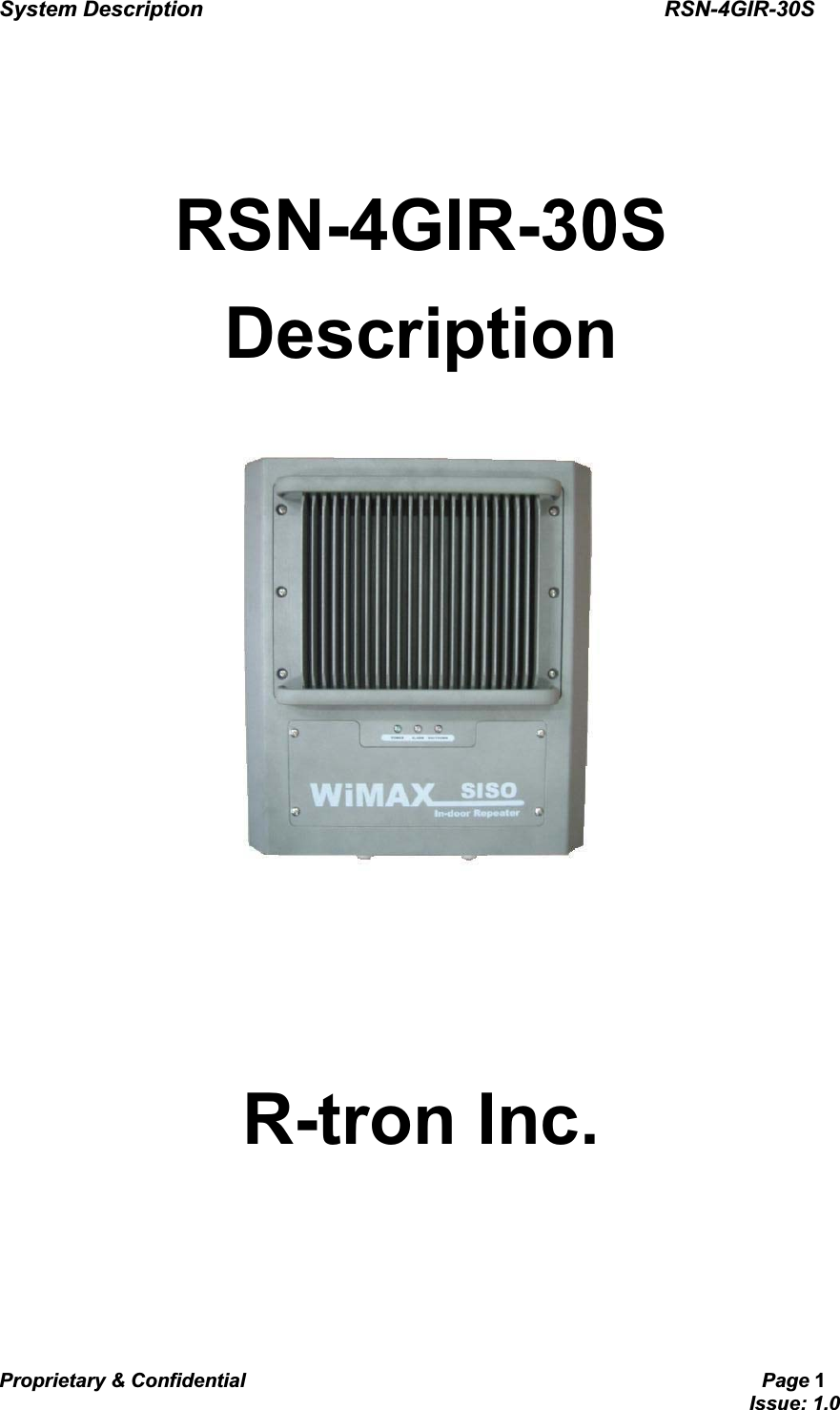

System Description RSN-4GIR-30SProprietary & Confidential Page 1 Issue: 1.0 GRSN-4GIR-30SDescriptionR-tron Inc.

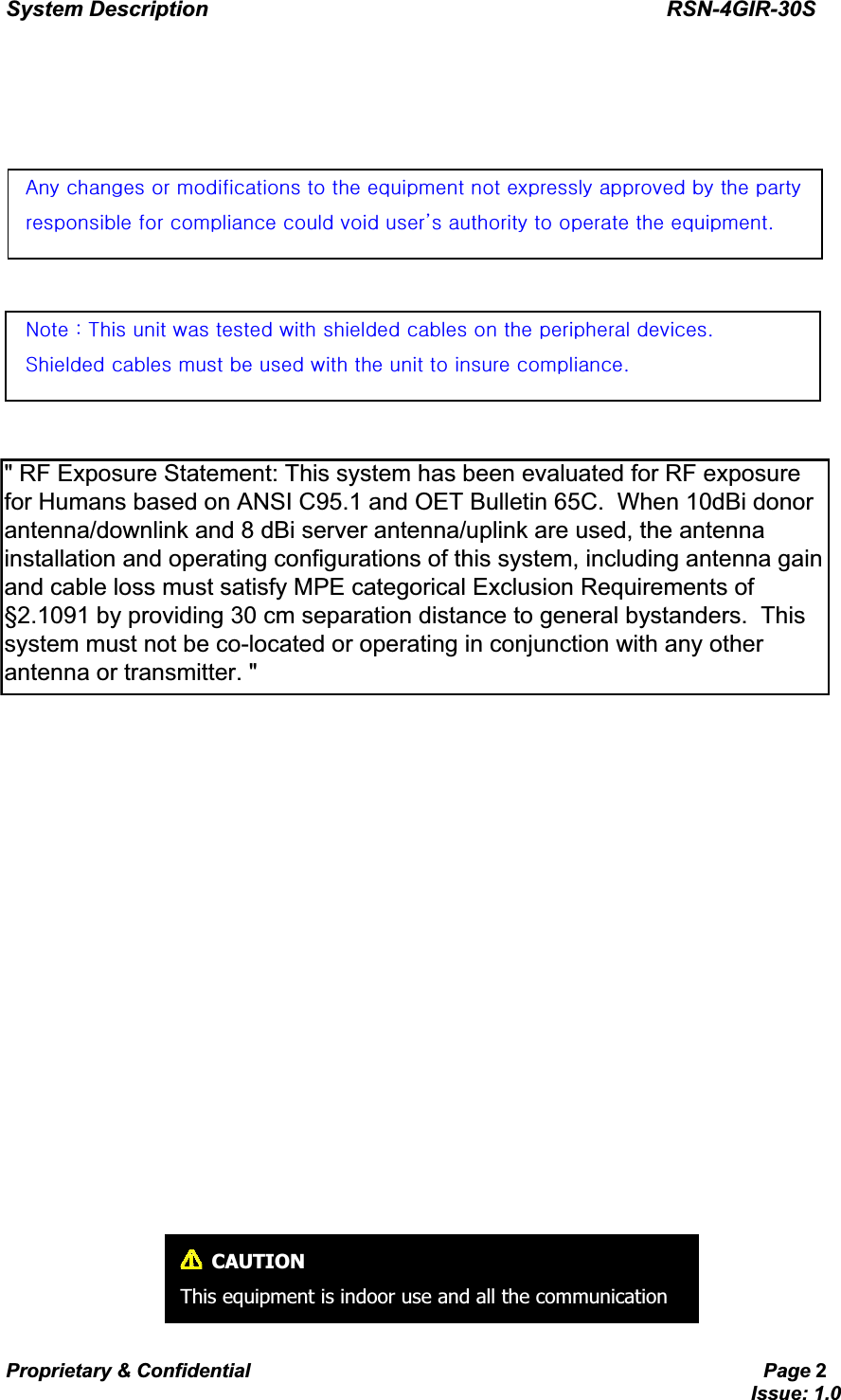

System Description RSN-4GIR-30SProprietary & Confidential Page 2 Issue: 1.0 GGGGhGGGGGGGGGGGGG GGGGGG˅GGGGGUGGGuGaG{GGGGGGGGGGUG G G G GzGGGGGGGGGGUG GGGGGGGCAUTIONThis equipment is indoor use and all the communication " RF Exposure Statement: This system has been evaluated for RF exposure for Humans based on ANSI C95.1 and OET Bulletin 65C. When 10dBi donor antenna/downlink and 8 dBi server antenna/uplink are used, the antenna installation and operating configurations of this system, including antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of §2.1091 by providing 30 cm separation distance to general bystanders. This system must not be co-located or operating in conjunction with any other antenna or transmitter. "

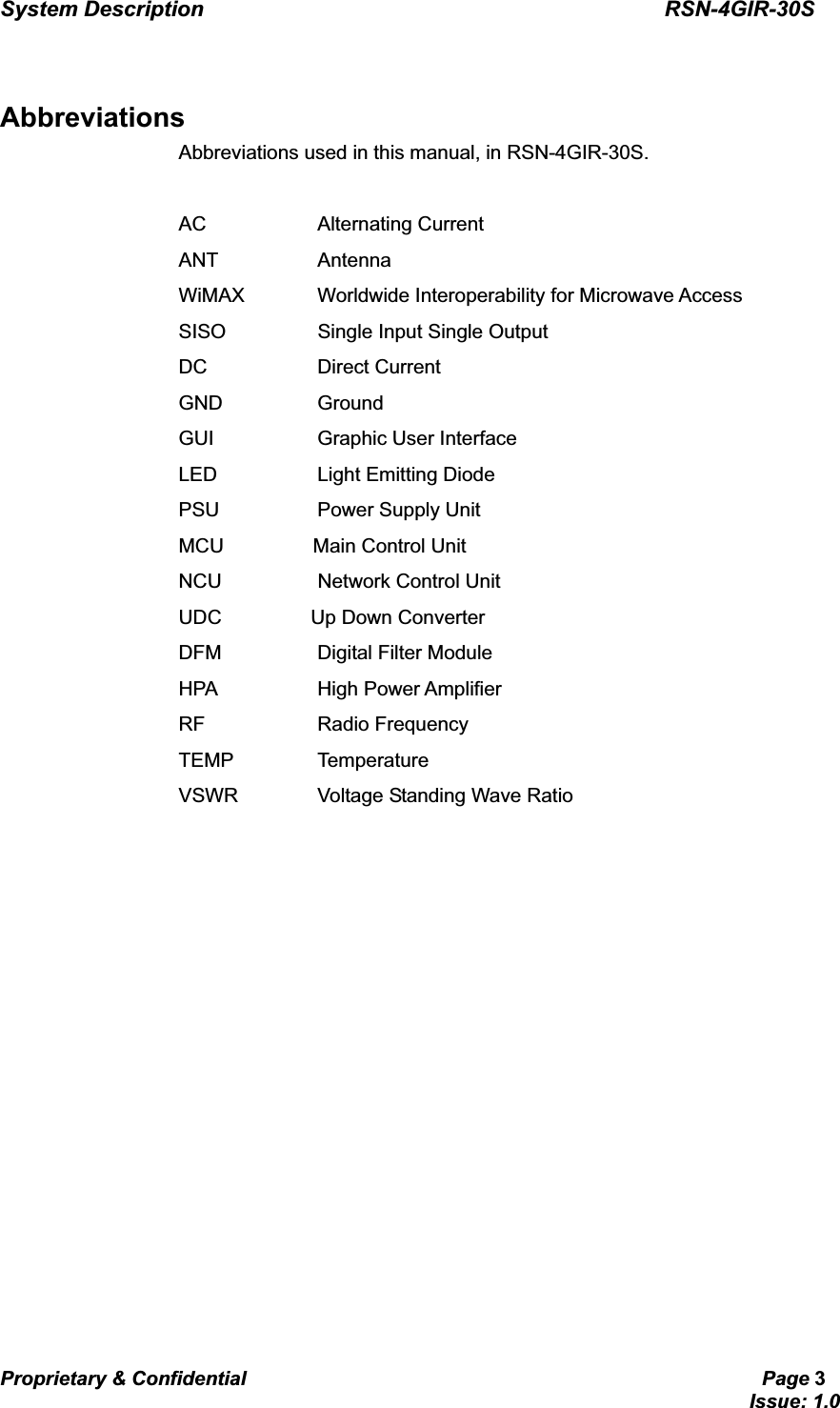

System Description RSN-4GIR-30SProprietary & Confidential Page 3 Issue: 1.0 GGAbbreviationsAbbreviations used in this manual, in RSN-4GIR-30S. AC Alternating Current ANT Antenna WiMAX Worldwide Interoperability for Microwave Access SISO Single Input Single Output DC Direct Current GND Ground GUI Graphic User Interface LED Light Emitting Diode PSU Power Supply Unit MCU Main Control Unit NCU Network Control Unit UDC Up Down Converter DFM Digital Filter Module HPA High Power Amplifier RF Radio Frequency TEMP Temperature VSWR Voltage Standing Wave Ratio

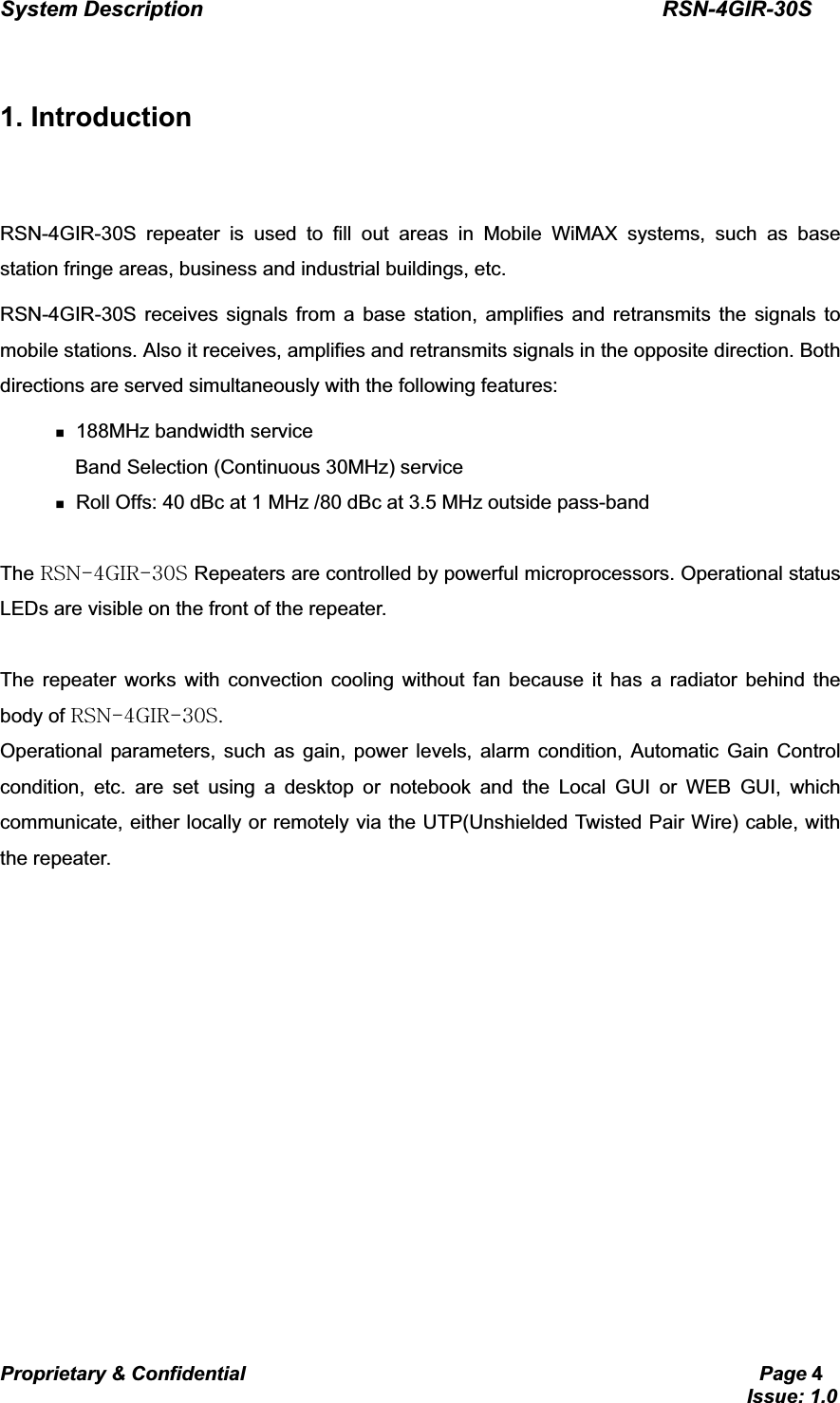

System Description RSN-4GIR-30SProprietary & Confidential Page 4 Issue: 1.0 GG1. Introduction GGRSN-4GIR-30S repeater is used to fill out areas in Mobile WiMAX systems, such as base station fringe areas, business and industrial buildings, etc. RSN-4GIR-30S receives signals from a base station, amplifies and retransmits the signals to mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both directions are served simultaneously with the following features:  188MHz bandwidth service Band Selection (Continuous 30MHz) service  Roll Offs: 40 dBc at 1 MHz /80 dBc at 3.5 MHz outside pass-band The yzuT[npyTZWzGRepeaters are controlled by powerful microprocessors. Operational status LEDs are visible on the front of the repeater. The repeater works with convection cooling without fan because it has a radiator behind the body of yzuT[npyTZWzUGOperational parameters, such as gain, power levels, alarm condition, Automatic Gain Control condition, etc. are set using a desktop or notebook and the Local GUI or WEB GUI, which communicate, either locally or remotely via the UTP(Unshielded Twisted Pair Wire) cable, with the repeater.

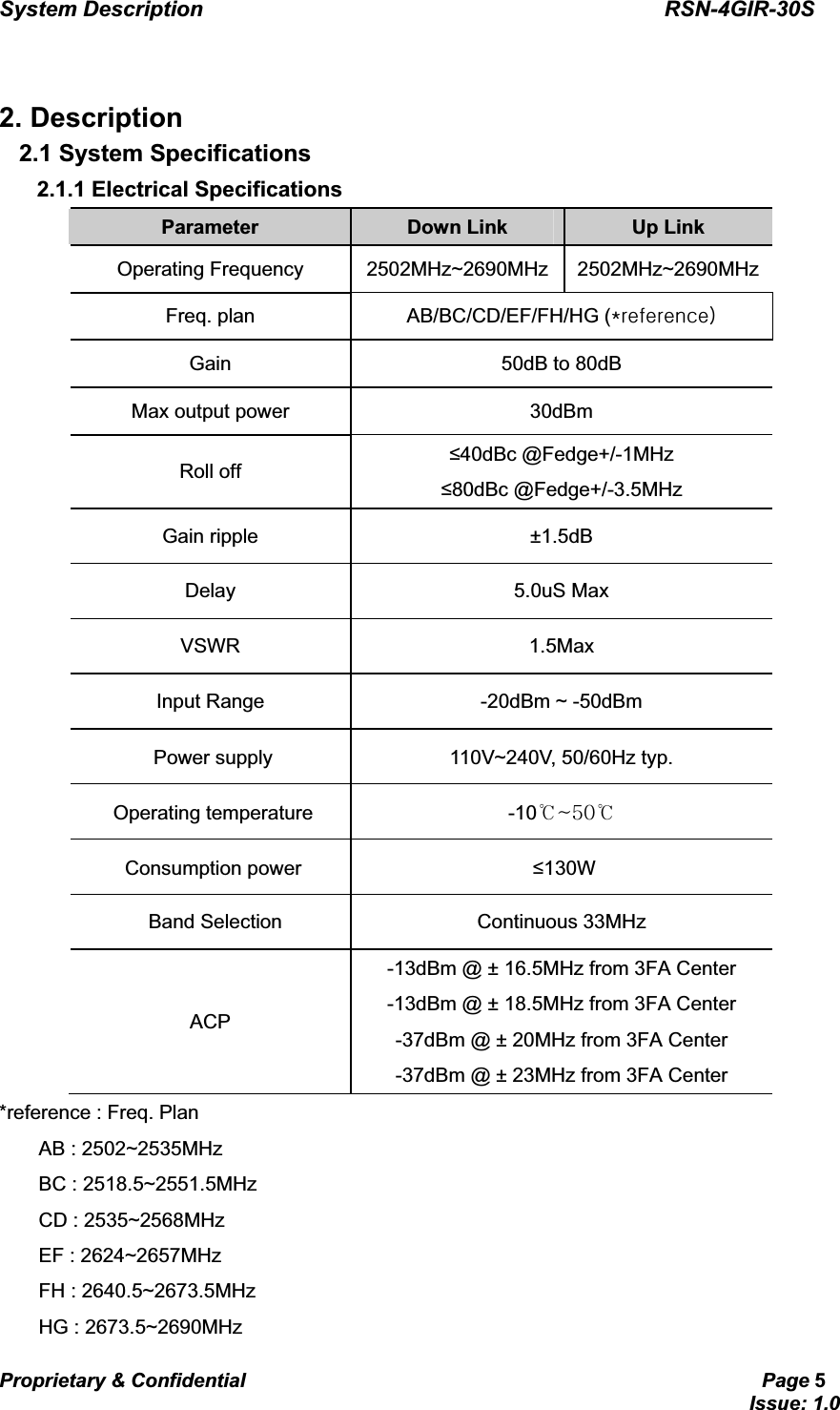

System Description RSN-4GIR-30SProprietary & Confidential Page 5 Issue: 1.0 GG2. Description 2.1 System Specifications 2.1.1 Electrical Specifications Parameter Down Link Up Link Operating Frequency 2502MHz~2690MHz 2502MHz~2690MHz Freq. plan AB/BC/CD/EF/FH/HG (QP Gain 50dB to 80dB Max output power 30dBm Roll off 40dBc @Fedge+/-1MHz 80dBc @Fedge+/-3.5MHz Gain ripple ±1.5dB Delay 5.0uS Max VSWR 1.5Max Input Range -20dBm ~ -50dBm Power supply 110V~240V, 50/60Hz typ. Operating temperature -10ଇ¥\Wଇ Consumption power 130W Band Selection Continuous 33MHz ACP -13dBm @ ± 16.5MHz from 3FA Center -13dBm @ ± 18.5MHz from 3FA Center -37dBm @ ± 20MHz from 3FA Center -37dBm @ ± 23MHz from 3FA Center *reference : Freq. Plan AB : 2502~2535MHz BC : 2518.5~2551.5MHz CD : 2535~2568MHz EF : 2624~2657MHz FH : 2640.5~2673.5MHz HG : 2673.5~2690MHz

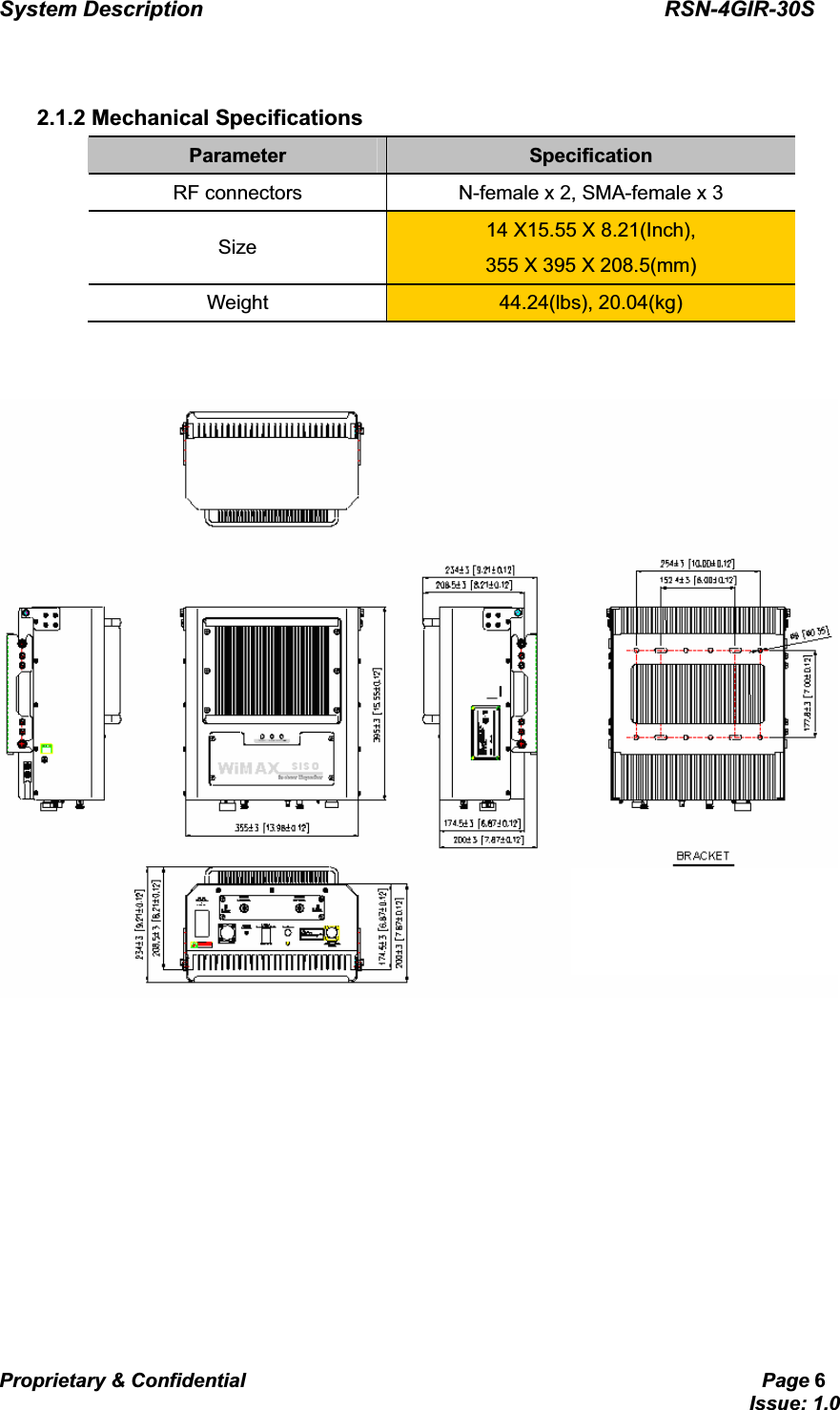

System Description RSN-4GIR-30SProprietary & Confidential Page 6 Issue: 1.0 GG2.1.2 Mechanical Specifications Parameter Specification RF connectors N-female x 2, SMA-female x 3 Size 14 X15.55 X 8.21(Inch), 355 X 395 X 208.5(mm) Weight 44.24(lbs), 20.04(kg) GG

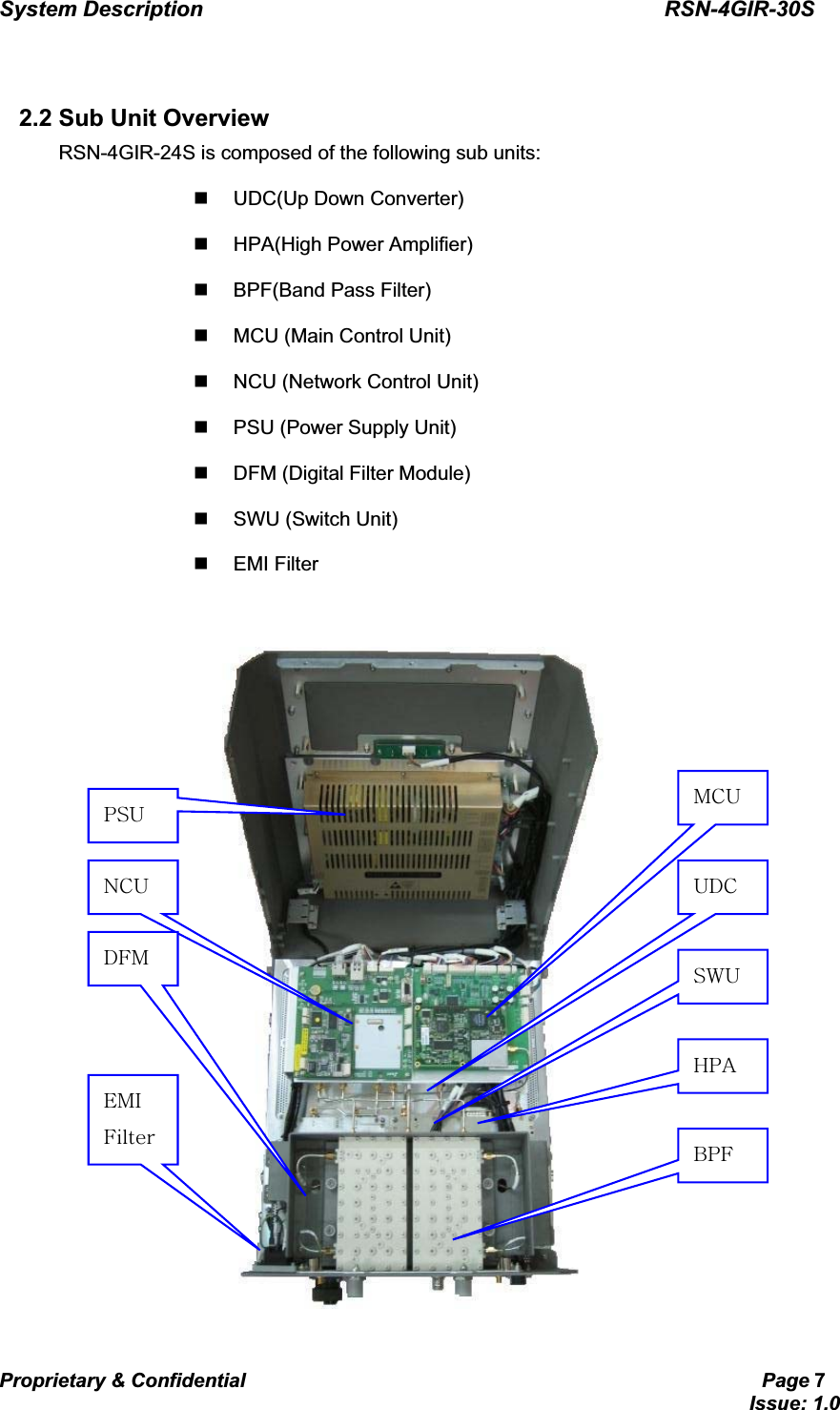

System Description RSN-4GIR-30SProprietary & Confidential Page 7 Issue: 1.0 GG2.2 Sub Unit Overview RSN-4GIR-24S is composed of the following sub units:  UDC(Up Down Converter)  HPA(High Power Amplifier)  BPF(Band Pass Filter)  MCU (Main Control Unit)  NCU (Network Control Unit)  PSU (Power Supply Unit)  DFM (Digital Filter Module)  SWU (Switch Unit)  EMI Filter wz|Guj|Gtj|GkmtG|kjGz~|GowhGiwmGltpGmG

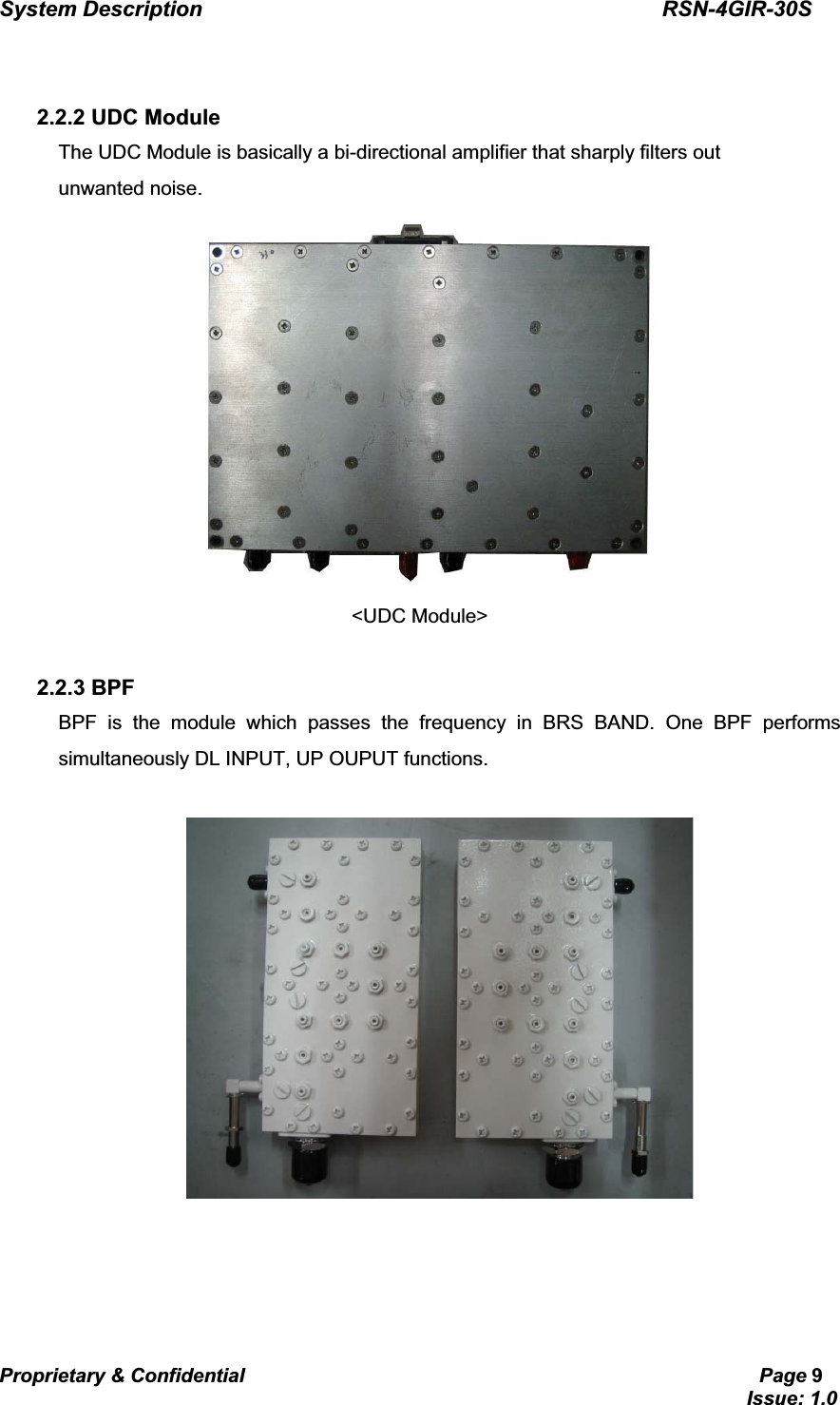

System Description RSN-4GIR-30SProprietary & Confidential Page 9 Issue: 1.0 GG2.2.2 UDC Module The UDC Module is basically a bi-directional amplifier that sharply filters out unwanted noise. <UDC Module> 2.2.3 BPF BPF is the module which passes the frequency in BRS BAND. One BPF performs simultaneously DL INPUT, UP OUPUT functions. GGG

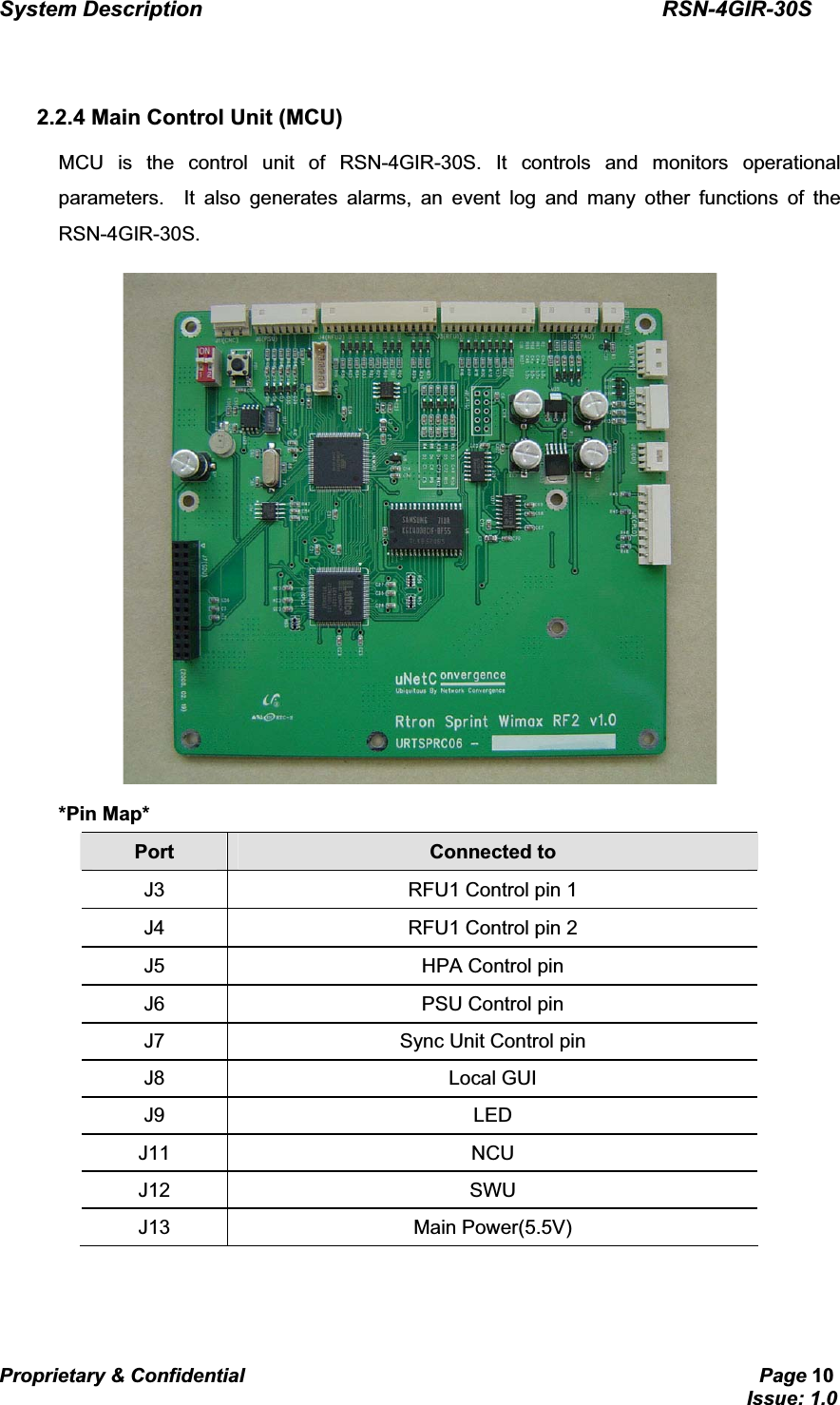

System Description RSN-4GIR-30SProprietary & Confidential Page 10 Issue: 1.0 G2.2.4 Main Control Unit (MCU) MCU is the control unit of RSN-4GIR-30S. It controls and monitors operational parameters. It also generates alarms, an event log and many other functions of the RSN-4GIR-30S. G*Pin Map* Port Connected to J3 RFU1 Control pin 1 J4 RFU1 Control pin 2 J5 HPA Control pin J6 PSU Control pin J7 Sync Unit Control pin J8 Local GUI J9 LED J11 NCU J12 SWU J13 Main Power(5.5V)

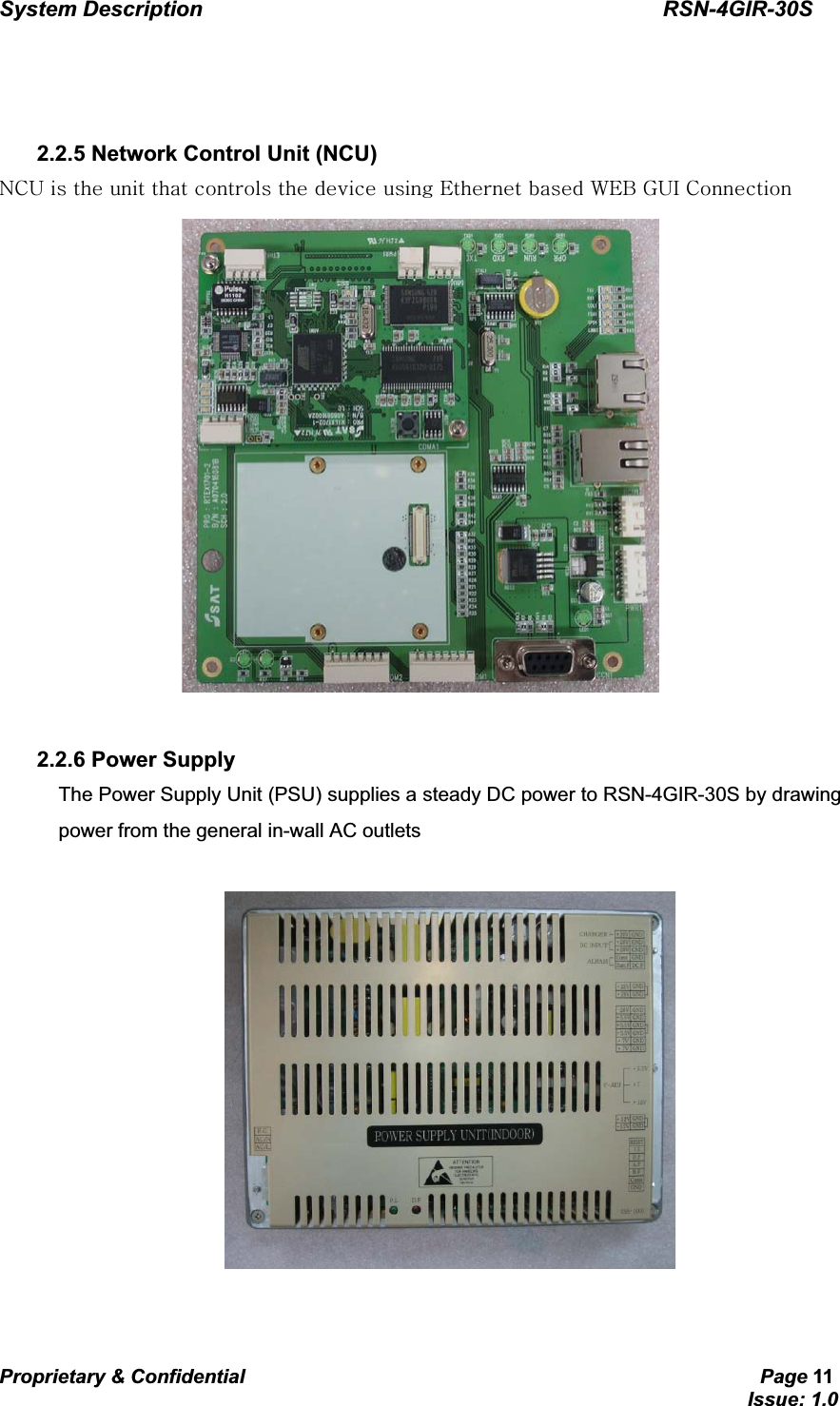

System Description RSN-4GIR-30SProprietary & Confidential Page 11 Issue: 1.0 G 2.2.5 Network Control Unit (NCU) uj|GGGGGGGGGlGG~liGn|pGjG GG 2.2.6 Power Supply The Power Supply Unit (PSU) supplies a steady DC power to RSN-4GIR-30S by drawing power from the general in-wall AC outlets

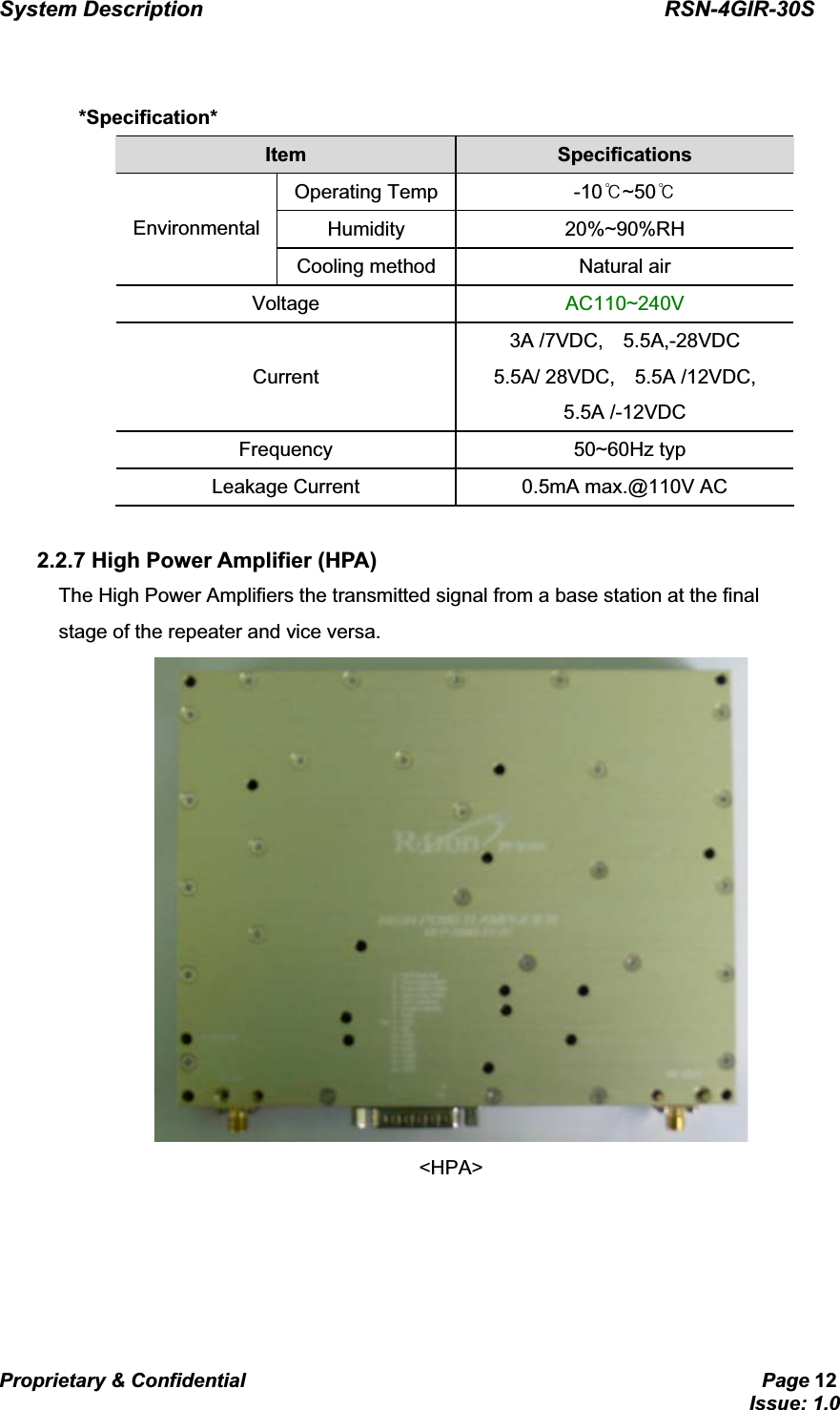

System Description RSN-4GIR-30SProprietary & Confidential Page 12 Issue: 1.0 G *Specification* Item Specifications Operating Temp -10୅~50୅ Humidity 20%~90%RH Environmental Cooling method Natural air Voltage AC110~240V Current 3A /7VDC, 5.5A,-28VDC 5.5A/ 28VDC, 5.5A /12VDC, 5.5A /-12VDC Frequency 50~60Hz typ Leakage Current 0.5mA max.@110V AC 2.2.7 High Power Amplifier (HPA) The High Power Amplifiers the transmitted signal from a base station at the final stage of the repeater and vice versa. <HPA>

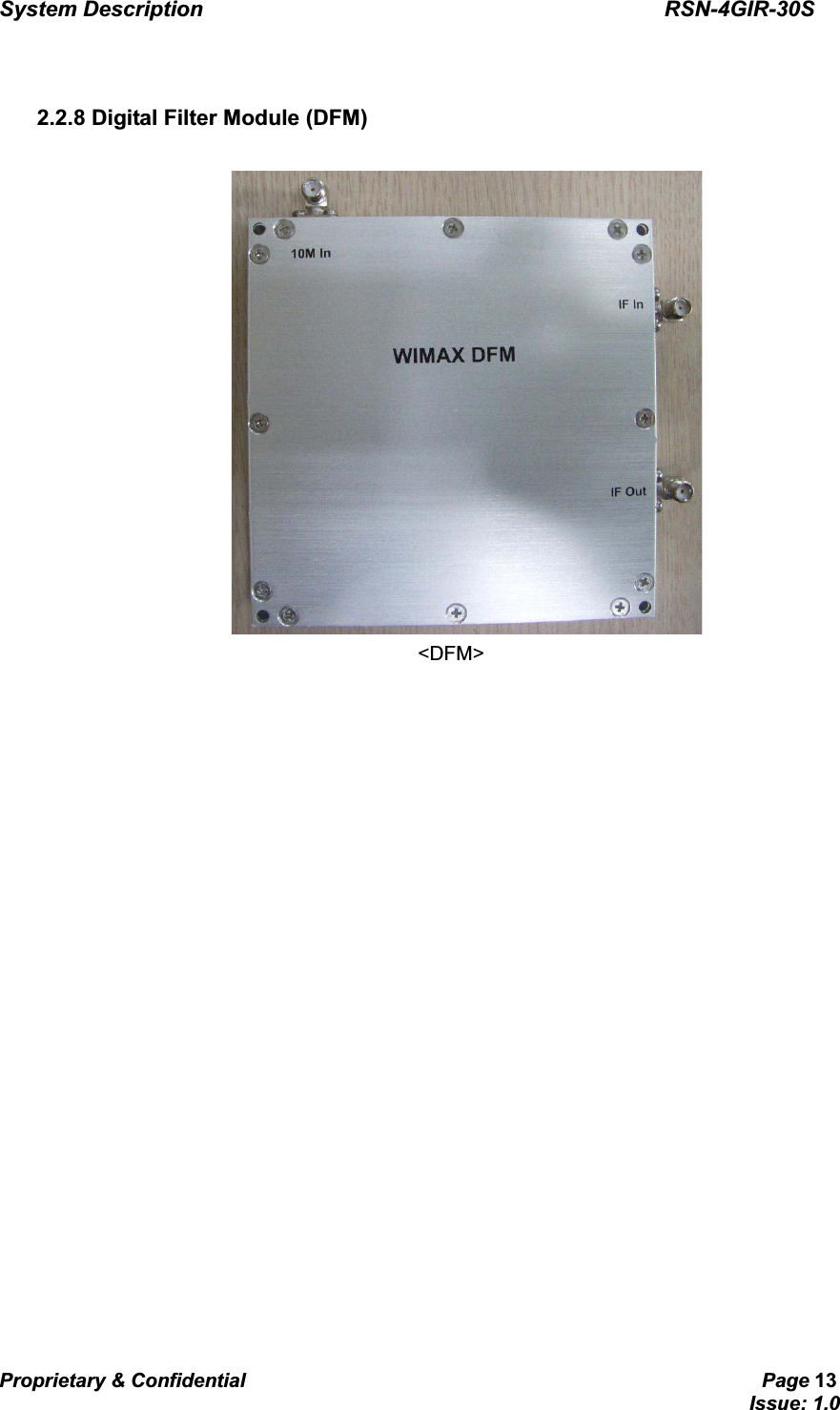

System Description RSN-4GIR-30SProprietary & Confidential Page 13 Issue: 1.0 G 2.2.8 Digital Filter Module (DFM) GGG <DFM>

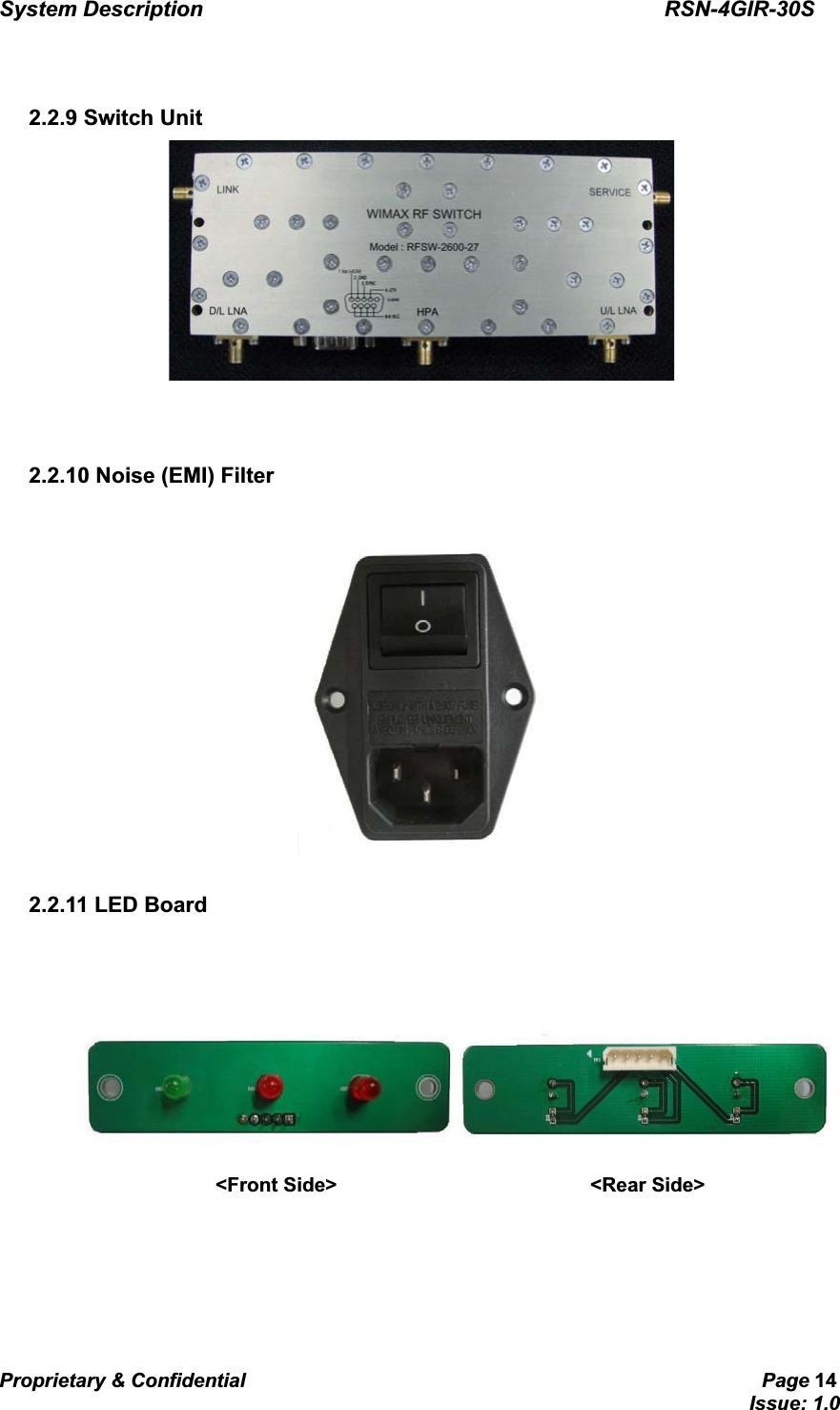

System Description RSN-4GIR-30SProprietary & Confidential Page 14 Issue: 1.0 GG2.2.9 Switch Unit GGG2.2.10 Noise (EMI) Filter GG2.2.11 LED Board G <Front Side> <Rear Side>

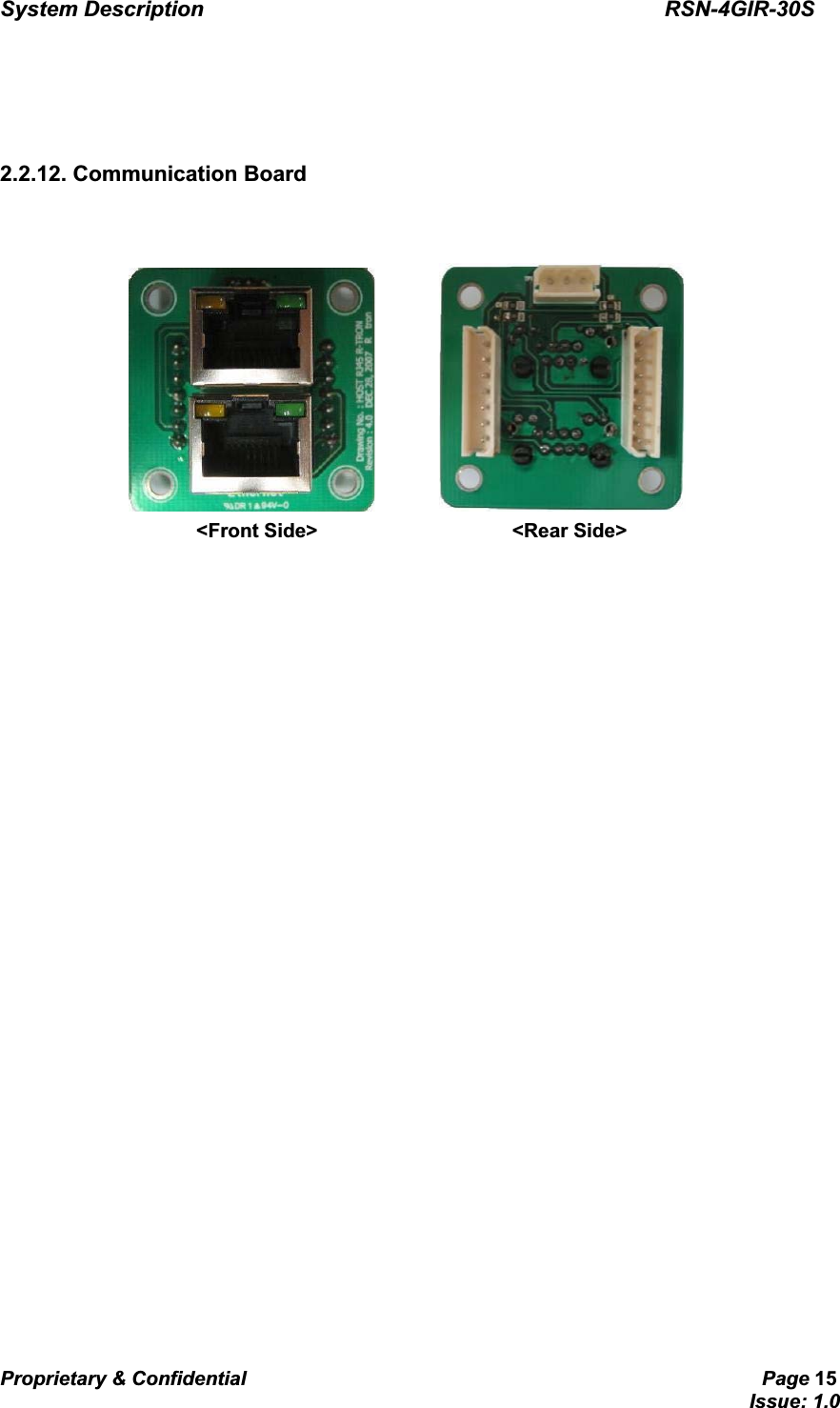

System Description RSN-4GIR-30SProprietary & Confidential Page 15 Issue: 1.0 G 2.2.12. Communication Board <Front Side> <Rear Side>
