RAE Systems RM2400 RAE Mesh Module User Manual Opportunity Proposal
RAE Systems, Inc RAE Mesh Module Opportunity Proposal
User Manual_Rev 1
RAEMesh2 User Manual
Doc.No:
Originator: kren
Page 1 of 21
Data: 2014-3-18
RAEMesh2 Radio User Manual
RAE Systems Inc
RAEMesh2 User Manual
Doc.No:
Originator: kren
Page 2 of 21
Data: 2014-3-18
Revision
Date
Comments
Author
0.1
11/28/2008
Initial
Alven
0.2
12/1/2008
Add “Radio Core Setting Procedure”
Alven
0.3
1/4/2009
Add “Fuse config”, “Firmware programmer”
Alven
0.4
1/5/2009
Add “Soft Reset” command
Alven
0.5
3/26/2010
Add “Reset reason” command
kren
0.6
4/22/2010
Add description about TXPOWER and
Channel setting
kren
0.7
5/20/10
Add START_ROUTING command.
Change SET_FACTORY_RST for RM2400
kren
0.8
5/25/10
Add RAEMesh and RAEMesh-II difference,
CHG START_ROUTING to
SET_ROUTEINTERVAL, add
GET_ROUTEINTERVAL and SET_REGION.
kren
0.9
8//17/10
Modify ModuleType definition.
kren
1.0
10/14/10
Add modem longest startup time;
Add modem longest packet length from SOP
to EOP; rename “RFD” as “STD”,
rename “FFD” as “RTR”, rename
“Coordinator” as “GTW”.
kren
1.1
11/19/10
Error, best rssi of at command response is
240, not 100.
kren
1.2
01/31/11
Add new command, GET_FWVERSION
kren
1.3
03/25/11
Add new commands, SET_CMDBATCH and
GET_CMDBATCH
kren
1.4
04/07/11
Modify GET_PARENT_ID definition.
Modem return 0x5b 24 27 5d when it transmit
a pack and get acknowledge successfully.
kren
1.5
6/28/2011
Add SET_BOOTLOADER
kren
11/25/2011
Add bootloader section
kren
5/8/2012
Add RM900A module type.
Add SAM7X RAELoader Section
Add RM900A low temperature current
comsumption.
kren
5/23/2012
Add RM2400, RM2400M, RM900AM, Wifi and
Cellular modem type.
kren
8/16/2013
Modify FACTORY_RESET.
kren
9/23/13
Add GET_TRIAL_INFO
kren
1/23/14
Add Wi-Fi related command
Wu Wei
2/18/14
Add three commands, SYS_CTRL_GET,
SYS_CTRL_SET, SEC_KEY_SET
kren
04/03/14
Delete Wi-Fi related command
Wu Wei
4/3/2014
Add GET_NEIGHBOUR_LIST
kren
RAEMesh2 User Manual
Doc.No:
Originator: kren
Page 3 of 21
Data: 2014-3-18
1. Introduction
The RAEMesh Radio module offers a complete microcontroller/transceiver solution Containing all hardware features
necessary for development of a low data-rate, low-power wireless application. The primary components include an IEEE
802.15.4 compliant Zigbee-ready transceiver , a microcontroller, a 40-pin interface connector, a MMCS antenna
connector,
This documentation describes the RAEMesh radio module hardware interface as well as RAE System’s Command
Interface.
2. Hardware
1) Specifications
Frequency Band
2.4Ghz: 15 channels of operation in the 2.4GHz world wide ISM band. 5MHz
channel spacing.
Power
+3.3V + .3V from carrier board, 3.0V to 3.6V from battery pack
Interfaces
40-pin surface-mount 2x20 1.27mm pitch
RF
250kbps OQPSK Direct Sequence Spread Spectrum @2.4GHz
Dimensions
46.5 mm x 26 mm x 10 mm
Antenna Interface
50-Ohm MMCX female
Operating Temperature Range
-40ºC to +85ºC
Indicators
Two LEDs
2) Pin Layout
Pin
Description
Pin
Description
1
DGND
2
DGND
3
nRESET
4
DGND
5
TXD1
6
TXD0/Bootload.
7
RXD1
8
RXD0
9
GPIO0
10
GPIO/LED2
11
GPIO1
12
GPIO/LED3
13
GPIO2
14
GPIO/LED4
15
GPIO3
16
GPIO/LED5
17
TEMP_E/GPIO4
18
GPIO/PS_CS
19
WakeUp/GPIO5
20
GPIO/PS_FRAME
21
BUZZER/GPIO6
22
+3.3V
23
GPIO7/PS_DIR
24
AGND
RAEMesh2 User Manual
Doc.No:
Originator: kren
Page 4 of 21
Data: 2014-3-18
25
BUTTON0/GPIO8
26
AREF
27
BUTTON1/GPIO9
28
ATEMP/ADC1
29
GPIO10
30
ADC2
31
RF_SO
32
TCK
33
RF_SI
34
TMS
35
RF_CK
36
TDO
37
SFD
38
TDI
39
+3.3V
40
+3.3V
3. Mechanical Size
Top View
RAEMesh2 User Manual
Doc.No:
Originator: kren
Page 5 of 21
Data: 2014-3-18
The height of the shielding box is 4.3mm from the PCB.

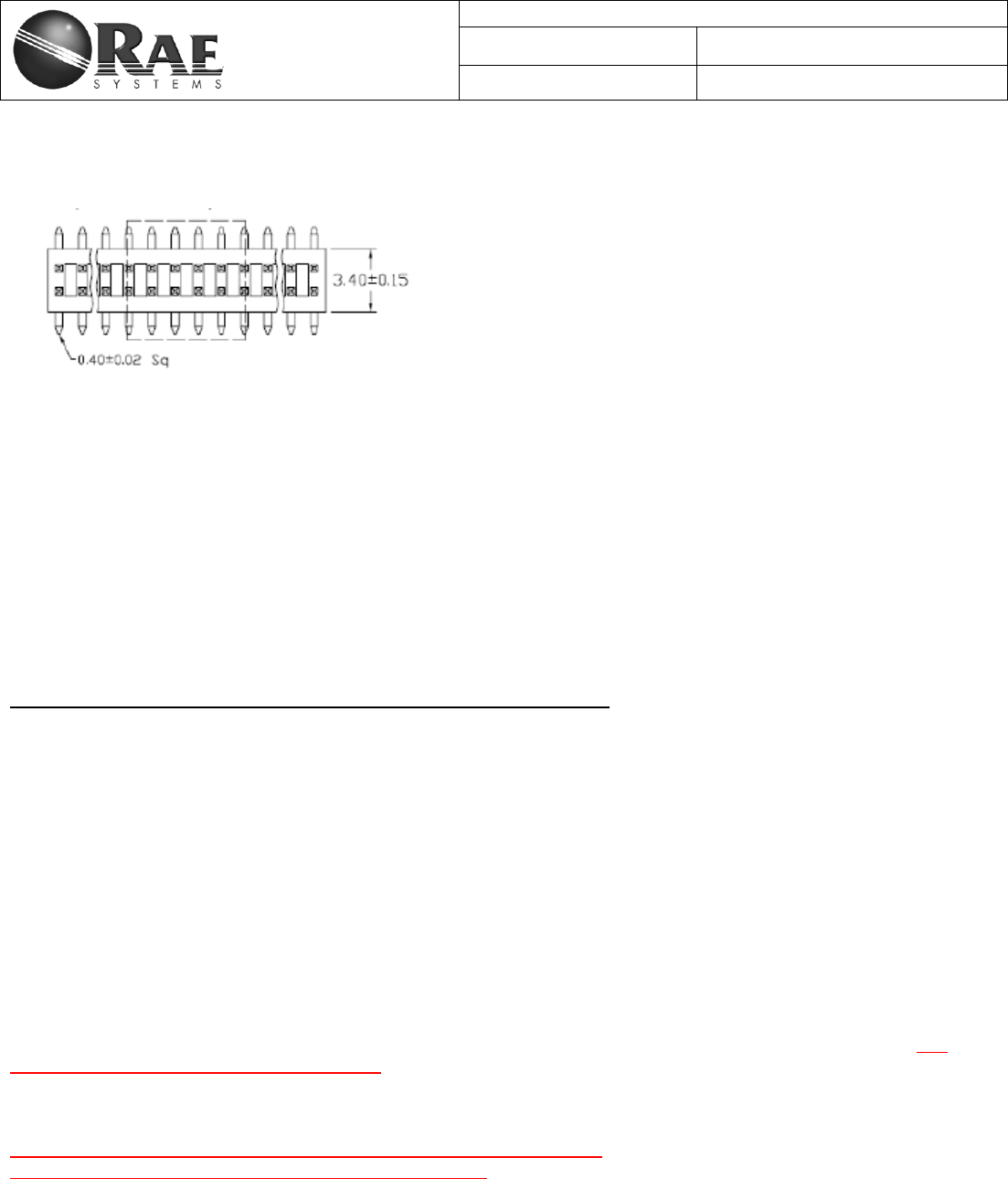

40 Pin header (1.27mm) is used for board to board connection. Corresponding mate connector can be JVE
22P8702-40M00B-01G-4.5
4. Firmware
The module is pre-loaded with the bootloader, which supports serial bootloading of firmware update. The
module contains RAEMesh application and comply with the RAE System’s RCS protocol. The module also has
built-in RAEMesh Module Command Interface(RMCI).
This documentation is focused on the instruction on RMCI interface.
The RMCI command interface allows customer to easily access to low level mesh functionality without pain to
develop the firmware. The module can be configured to a GTW to hook up to a getaway or just a stand alone
regular full function node or a Sleepy reduce function node.
Make sure to configure the module to right mode before using.
1) Quick Start
UART
Via the TXD1 and RXD1 pins the command interpreter can be accessed. The RCM can buffer up to 128 bytes of incoming
data in a software FIFO buffer and uses XON/XOFF flow control. See the datasheet of the Atmel ATmega1281 for more
information about the build-in UART.
Connect Pin5 (TXD1) and Pin7 (RXD1) to the customer board. Use the following settings for serial port.
RTR and STD: 19200bps, 8N1.
GTW: 38400bps, 8N1.
Data Packet
RCM will transmit any data in the { }, all data in the {} will be transparently sent out without radio’s interpretation. The
maximum data packet is 90 bytes including {}.
The data in the {} can be any characters including ‘{‘ ‘}’ ’[‘ ’]’ .
The interval between 2 data packets must be >200ms for RTR and GTW.
The interval between 2 data packets must be >1s for STD.
Wakeup
If the radio is set to STD mode, the Wakeup pin Pin19 (PE7) is used to make the radio asleep and wakeup. A constant
high on this pin will let the radio go to the sleep mode and a low level signal on this pin will wake-up the radio.
The Radio sleep mode is the power save mode so the power consumption can be very low. (<40uA)
RAEMesh2 User Manual
Doc.No:
Originator: kren
Page 6 of 21
Data: 2014-3-18
The Wakeup pin must be held up to 10ms before sending a data packet.
Power
Ground: Pin1, Pin2 and Pin4.
VCC: Pin39, Pin40. 3.0V or 3.3V
Heartbeat
Connect Pin12 to a LED for heartbeat indicator.
Reset.
RST: Pin3 Active Low.
PC communication
Please has your serial port debug software installed on the PC. For example: sscom32.exe
Microsoft Hyper Terminal is not recommended for this application because it is not good to send characters and
commands in Hex.
Base on correct setting and connection, you will see following display on your screen when power is applied.
GTW:
[%A]RAEMESH-II RM2400 8MHz
FwVer:V1.02b on Sep 28 2011 09:52:14
Stack: BC1.10.0
Type: Coordinator/Gateway
Band: 2400
EUI: 0001002400001005
Channel: 0x10
TxPwr: Medium
PanId: 0x03E5
RTR:
[%A]RAEMESH-II RM2400 8MHz
FwVer:V1.02b on Sep 28 2011 09:52:14
Stack: BC1.10.0
Type: FFD/Router
Band: 2400
EUI: 0001002400001005
Channel: 0x10
TxPwr: Medium
PanId: 0x03E5
STD
[%A]RAEMESH-II RM2400 8MHz
FwVer:V1.02b on Sep 28 2011 09:52:14
Stack: BC1.10.0
Type: RFD Sleep Sensor
Band: 2400
EUI: 0001002400001005
Channel: 0x10
RAEMesh2 User Manual
Doc.No:
Originator: kren
Page 7 of 21
Data: 2014-3-18
TxPwr: Medium
PanId: 0x03E5
2) RAEMesh Module Command Interface
Format:
SOP Length Command Code Command Data EOP
Byte: 1 1 1 0~n 1
Byte Number
Name
Comment
0
SOP
Radio Protocol beginning of packet. This is always ‘[‘ (0x5B)
1
Length
Total length of packet + 0x20, include ‘[‘ and ‘]’.
2
Command Code
0x20 ~ 0xFF. Excluding:0x5A~0x5F and 0x7A~0x7F. 0xF0~0xFF are
reserved for common commands.
Even for packet sent from SDTE or RDTE to RCM.
Odd for packet response from RCM to SDTE or RDTE.
3
Command Data
Hex
…
…
N+3
EOP
Radio protocol end of packet.. This is always ‘]’(0x5D)
The minimum length for one packet is 4 bytes long. The Length is 0x20 based. E.g. the total length of a packet without
command data is 4, the Length byte is 0x20 + 4 = 0x24.
The SDTE or RDTE always initiate the communication with Radio module (RRCM, SRCM). Radio Module responses to
the command it received.
The Command Code for packet sent from SDTE or RDTE to Radio module is even, the response from Radio module to
SDTE or RDTE is 1 higher than the command code.
Command Data can be empty.
No command for 0x5A~0x5F and 0x7A~0x7F.
A Section 0xF0~0xFF is reserved for common commands such as help, Version etc.
Caution: the maximum packet length from SOP to EOP is 64 bytes.
Notes:
1. All commands response in 50ms
2. Check RCM’s information when turn on the radio. Command: 5B 24 60 5D.
3. Wait at least 5s for RCM to finish the initialization after power on.
4. Check the network status of the STD before sending the data for first time. Command: 5B 24 20 5D.
5. It is recommend to add 1s interval between 2 data packets for STD. Check 0x5b 24 27 5d for sending
acknowledge with successfully. There is no ACK for transmission failed.
6. For STD, if there is no network, the RCM will automatically wake up every 10 minute to search for a new network.
It can be interrupted any time. RCM will keep in asleep if it has joined a network.
For Internal Use Only
Table1 RAEMesh and RAEMeshII Difference
Item
RAEMesh
RAEMeshII
Description
Hardware
MCU: ATMEGA128L
Radio: EM2420
MCU: ATMEGA1281V
Radio: AT86RF212,
AT86RF230, AT86RF231
N/A
Stack
Ember Zigbee Stack
Atmel Bitcloud
N/A
Specification
Zigbee 2004
Zigbee Pro
Owing to the difference of specification, RAEMesh
and RAEMeshII can’t inter-communication
Power Failure
Support
Un-support
In RAEMesh, all device can save their child or
neighbor table into eeprom.
RAEMeshII can’t support this feature, so they
should re-form or re-join by themselves after
reset.
RSSI
Router/RTR update
RSSI when it receive
every frame.
Router/RTR read next
hop’s RSSI.
Next hop is that Router/RTR send frame to GTW
through next hop’s routing.
Many-to-one
routing(MTOR)
Support
Un-support
In RAEMesh, GTW manage MTOR periodically
and automatically.
In RAEMeshII, Router need to do route discovery
and maintenance by themselves.
EUI
Set it on RangeTest.
Set it on application
firmware.
N/A
Transmission
power
Always is maximum.
There are three level to be
choose.
In RAEMeshII, high, medium and low represent
different txpower on different platform.
Bootloader
Provide by Ember
Provide by Atmel
N/A
Warm up time
time scale of
milliseconds
More than five seconds
N/A
For Internal Use Only
Command List of RMCI
5B 24 20 5D = Get network status
5B 24 50 5D = Join or form network by scan.
5B xx 26 dd dd 7B .. .. 7D 5D = Send massage in unicast
5B 24 2A 5D = Get Radio Type
5B 24 3A 5D = Get device application type
5B 24 60 5D = Get Radio's UID, channel, PANID
5B 24 6C 5D = Get Application's UID, channel, PANID
5B 24 68 5D = Get parent Network ID
5B 24 7B 5D = Get Last Hop Link Quality (LQI)
5B 24 40 5D = Get reset reason.
5B 24 4C 5D = GET_FWVERSION
5B 24 30 5D = Enable GTW function
5B 24 32 5D = Enable RTR function
5B 24 46 5D = Enable STD function
5B 24 4A 5D = Restore the radio to factory setting
5B 25 34 xx 5D = Set channel number, xx( 0x00 for EURO, 0x01-0x0A for North
America, 0x0B-0x1A for ISM)
5B 25 A0 xx 5D = Enable receiver while idle on STD.
5B 24 A2 5D = Get receiver on/off on STD.
5B 25 A4 xx 5D = Set region.
5B 24 A6 5D = Get region.
5B 25 3C xx 5D = Set Tx power, xx(0xFF for maximum, 0x80 for middle, and 0x00 for
minimum)
5B 26 44 xx xx 5D = Set PanId, xxxx(0x0000-0x03E7)
5B 2C 4E xx xx xx xx xx xx xx xx 5D = Set MAC/UID address
5B 25 AC xx 5D = SET_CMDBATCH
5B 24 AE 5D = GET_CMDBATCH
5B 24 A8 5D = GET TRIAL INFOMATION
5B 24 3E 5D = Leave current network
5B 26 42 xx xx 5D = Set routing discovery interval
5B 24 52 5d = Get routing discovery interval
5B 24 38 5D = Report node’s position
5B 24 48 5D = Soft reset
5B 24 56 5D = Access into bootloader
5B 25 FE xx 5D = Set print debug info, xx(00-disable; 01-enable)
For Internal Use Only
3) Command Sets
Command Name
Effect
Area
CMD
Code
CMD Data (bytes)
Resp
onse
CMD
Code
Response CMD
Data(Bytes)
Description
NETWORK_STATUS
Use on:
GTW
RTR
STD
RM
RMII
0x20
None
0x21
STATUS(1)
Return the radio’s network status
0x00: NO NETWORK
0x02: JOINED NETWORK.
Host controller or instrument should call it periodically with
certain duty cycle to check the network status.
SEND_MSG_UNI
Use on:
GTW
RTR
STD
RM
0x26
DestAdd(2)
RCS Pack(x)
0x27
None
Send message in Zigbee address mode.
DestAddr
0x0000 ->to coordinator
0x0001~0Xfff0 ->to STD or RTR
0xfff1~0xfffb –reserved
0xfffc ->all RTR in network
0xfffd ->all receiver on in network
0xfffe ->reserved
0xffff ->all modem in network
RCS Pack(x) must be compliant with RCS format.
GET_MODULE_TYPE
Use on:
GTW
RTR
STD
RM
RMII
0x2A
None
0x2B
Type(1)
Return the radio’s type.
Type definition:
0: Bluetooth
1: coRE3-433MHz
2: coRE3-868MHz
3: coRE3-915MHz
4: ZcoRE3-2400
5: UART to Ethernet
6: UART to RS485
7: RM2420
8: RM900
For Internal Use Only
9: RM900A
10: RM2400
11: coRE1-433MHz
12: coRE1-868MHz
13: coRE1-915MHz
14: coRE2-433MHz
15: coRE2-868MHz
16: coRE2-915MHz
17: coRE6-2.4GHz
18: RM2400
19: RM2400M
20: Reserved for 2.4GHz modem
21: RM900AM
22: Reserved for 900MHz modem
23: Roving Wifi
24: GainSpan Wifi
25: Reserved for wi-fi Modem
26: Cellular Modem1
27: Cellular Modem2
28: Cellular Modem3
GTW_ENABLE
Use on:
GTW
RTR
STD
RM
RMII
0x30
None
0x31
None
Set the radio as a GTW so that the radio can be use on a
Gateway device.
Baud rate change to 38400 8N1
Reset automatically.
RTR_ENABLE
Use on:
GTW
RTR
STD
RM
RMII
0x32
None
0x33
None
Set radio to RTR. Always on and has router function.
Baud rate change to 19200 8N1
Reset automatically.
CHG_RRCM_CHAN
Use on:
GTW
RTR
STD
RM
RMII
0x34
Channel Number(1)
0x35
None
Requests change radio channel to specified channel.
Meanwhile, specified channel should be compliance with
radio region setting.
0x00 for RM900 if region is BAND_868_EU.
0x01 to 0x0A total 10 channels for RM900 if region is
For Internal Use Only
BAND_915_NA.
0x0B to 0x1A total 16 channels for RM2400 if region is
BAND_2400_ISM.
If channel number is not compliance with radio region, do not
return response CMD.
Reset automatically.
RPT_LOCATION
Use on:
GTW
RTR
STD
RM
RMII
0x38
None
0x39
None
Print node’s network information in ASCII.
GET_APPTYPE
Use on:
GTW
RTR
STD
RM
RMII
0x3A
None
0x3B
AppType(1)
Get application type.
AppType:
1 – GTW;
2 – RTR;
3 – Reserved;
4 – STD;
5 – Reserved;
other - invalid
SET_TX_POWER
Use on:
GTW
RTR
STD
RM
RMII
0x3C
TxPwr(1)
0x3D
None
Set modem transmission power level.
For RAEMeshII
0xFF – maximum level,
0x80 – middle level,
0x00 – minimum level,
For RAEMesh
Power setting from 0xE3(-25dBm) to 0xFF(0dBm).
Reset automatically.
LEAVE_NETWORK
Use on:
GTW
RTR
STD
RM
RMII
0x3E
None
0x3F
None
Leave the current network.
For Internal Use Only
RST_REASON
Use on:
GTW
RTR
STD
RM
RMII
0x40
None
0x41
Reason(1)
Below just list RAEMeshII reset reason,
0x00 = UNKNOW,
0x01 = RESET_ EXTERNAL,
0x02 = RESET_ POWERON_,
0x03 = RESET_ WDT,
0x04 = RESET_BROWNOUT,
0x05 = RESET_JTAG,
0x06 = RESET_WARM,
CHG_PAN_ID
Use on:
GTW
RTR
STD
RM
RMII
0x44
PanID:(2)
XXXX
0x45
None
Change GTW Pan ID into XXXX.
From 0x0001 to 0x03E7(1-999)
Reset automatically.
STD_ENABLE
Use on:
GTW
RTR
STD
RM
RMII
0x46
None
0x47
None
Put a node into STD. Interrupt enable and active low.
Baud rate change to 19200 8N1
Reset automatically.
SOFT_RESET
Use on:
GTW
RTR
STD
RM
RMII
0x48
None
0x49
None
Perform soft reset.
Reset automatically.
FACTORY_RST
Use on:
GTW
RTR
STD
RM
RMII
0x4A
None
0x4B
None
Restore the RCM to factory defaults.
PanId is 0x03E7;
Device Type is STD;
Txpower is medium;
STD receiver is disable;
Debug print is off;
When RM2400, channel is 15;
When RM900A and RM900, channel is 6;
Reset automatically.
For Internal Use Only
GET_FWVERSION
Use on:
GTW
RTR
STD
RM
RMII
RW
0x4C
None
0x4D
Fw Version and Build
Time[30]
Return fw version and build time, for example
[BMv1.00 Feb 14 2011 10:11:11], this mean fw version is
V1.00 and build is on Feb 14 2011 10:11:11.
SET_UID
Use on:
GTW
RTR
STD
RMII
0x4E
UID(8)
0x4F
None
For RMII:
Set radio’s UID(MAC address).
Note:
The last two bytes must not set to 0x0000, 0xFFF0-
0xFFFF
Reset automatically.
JION_FORM_NETWO
RK
Use on:
GTW
RTR
STD
RM
RMII
0x50
None
0x51
None
GTW: Form a network using customized PANID to allow the
other nodes to join.
RTR/STD: Search the network using customized PANID and
try to join the network.
GET_NEIGHBOUR_LI
ST
Use on:
GTW
RTR
STD
RMII
0x54
None
0x55
Node[0]
shortAddr[2]
rssi[1]
relation[1]
depth[1]
Node[1]…
Node[2]…
…
Neighbor table list like this:
shortAddr:
Short address when network is up.
RSSI:
Best: 240, Worst:0
Relation:
PARENT = 0x00
CHILD = 0x01
SIBLING = 0x02
NONE_OF_ABOVE = 0x03
PREVIOUS_CHILD = 0x04
UNAUTHENTICATED_CHILD = 0x05
EMPTY = 0x06
Depth:
Network depth in the routing link toward coordinator.
For Internal Use Only
SET_BOOTLOADER
Use on:
GTW
RTR
STD
RM
RMII
0x56
None
0x57
None
Make modem into bootloader mode and wait for new app
image.
SYS_CTRL_SET
RMII
0x58
System Control Word,
B[3]…B[0]
0x59
00 – failed
01 – success
System Control Word.
Bit0: Roaming function, 1 – enable; 0 – disable;
Bit1: pending, AES128 security, 1 – enable; 0 – disable;
Bit2: Receiver setting of RFD; 1 – always on when idle; 0 –
power saving mode;
.
.
.
Bit31: reversed;
SYS_CTRL_GET
RMII
0x5A
None
0x5B
System Control Word,
B[3]…B[0]
Get System Control Word.
SEC_KEY_SET
RMII
0x5C
KEY[15]…KEY[0]
0x5D
00- failed
01- success
Set AES-128 key for application encrypt/decrypt.
GET_NODE_INFO
Use on:
GTW
RTR
STD
RM
RMII
0x60
None
0x61
UID(8)
Channel(1)
Power(1)
PAN ID(2)
Get the node information: UID, Channel, Txpower level,, PAN
ID,
GET_APPNODE_INF
O
Use on:
GTW
RTR
STD
RM
RMII
0x6C
None
0x6D
UID(8)
Channel(1)
Power(1)
PAN ID(2)
Get the application information: UID, Channel, Power, PAN
ID. If the network is not connected, the GET_NODE_INFO will
return wrong information, and then use this to get what we
set.
For Internal Use Only
GET_PARENT_ID
Use on:
RTR
STD
RM
RMII
0x68
None
0x69
Parent radio ID(8)
0x00 00 00 00 00 00 00 00 means that STD or RTR’s parent
is coordinator/gateway.
0x00 00 00 00 00 00 mm nn means STD or RTR’s parent is a
RTR which short address is mm nn.
0x00 00 00 00 00 00 ff fe means that STD or RTR do not
have parent.
LAST_HOP_RSSI
Use on:
RTR
STD
RM
RMII
RW
0x7B
None
0x7C
RSSI(1)
Get RSSI percent, the higher, the better.
Best: 240
Worst:0
RTR get next hop rssi;
STD get parent rssi.
SET_RECEIVER
Use on:
STD
RMII
0xA0
00 - Disable
01 - Enable
0xA1
None
Enable or disable STD’s receiver.
STD should receive data packet from parent if enable
receiver;
STD should use poll to request data packet from parent if
disable receiver.
Reset automatically.
GET_RECEIVER
Use on:
STD
RMII
0xA2
None
0xA3
Status(1)
Return STD receiver’s status,
00 – Disable
01 - Enable
SET_REGION
Use on:
GTW
RTR
STD
RMII
0xA4
Region(1)
0xA5
None
For RMII
Region(1)
BAND_868_EU = 0x01,
BAND_915_NA = 0x04,
BAND_2400_ISM = 0x08,
When 2.4Ghz modem, this command is useless because
RM2400 always work on BAND_2400_ISM.
When 915/868Mhz modem, default channel is 0x00 if set
region to BAND_868_EU; default channel is 0x06 if set region
to BAND_915_NA.
Reset automatically.
For Internal Use Only
GET_REGION
Use on:
GTW
RTR
STD
RMII
RW
0xA6
None
0xA7
Region(1)
Get modem setting of region.
GET_TRAIL_INFO
Use on:
GTW
RTR
STD
RMII
0xA8
None
0xA9
NWK_INFO[16]
Use this command to get modem trail information.
BYTE0: modem reset count. This count should be increased if
any reset occur.(0~255)
BYTE1: reset reason.
0x00 = UNKNOW,
0x01 = EXTERNAL,
0x02 = POWERON
0x03 = WATCHDOG,
0x04 = BROWNOUT,
0x05 = JTAG,
0x06 = WARM
BYTE2: network depth(0~15)
BYTE3~BYTE15: reserved.
SET_DEBUG_PRINT
Use on:
GTW
RTR
STD
RM
RMII
0xFE
00,Disable
01,Enable
0xFF
None
Set display debug information enable/disable.
The default setting is disabled.
SET_CMDBATCH
Use on:
GTW
RTR
STD
RMII
0xAC
00,
Disable
01,
Enable
0xAD
None
Enable or disable command batch function. If enable, modem
will not reset automatically after change panid, channel,
power, eui, region， receiver and join permission. They will
take effect after reset manually.
Batch function will disable after reset.
For Internal Use Only
GET_CMDBATCH
Use on:
GTW
RTR
STD
RMII
0xAE
None
0xAF
00: Disable
01: Enable
Return command batch configuration.
Caution: RCM will save corresponding command data of AT command into its persist data server if this command cause “Reset automatically”, it
will take effect after reset.
For Internal Use Only
4) RMII Command Classification
There are a lot of RMCI command set in this manual, different application need different command, below is a
table that which command must have, which are recommend and which are optional.
Table 2 Command Classification
ITEM
MUST HAVE
RECOMMENED
OPTIONAL
CMDS
GET_APPTYPE
NETWORK_STATUS
GET_APPNODE_INFO
GTW_ENABLE
RTR_ENABLE
STD_ENABLE
SET_PANID
JOIN_FORM_NETWORK
LEAVE_THE_NETWORK
SET_CHANNEL
GET_PARENT_ID
LAST_HOP_RSSI
GET_MODEM_TYPE
SET_TXPOWER
RST_REASON
SEND_MSG_UNI
SET_UID
SET_REGION
SET_RECEIVER
FACTORY_RST
SET_DEBUG_PRINT
For Internal Use Only
5. Terms
GTW: A RTR used for gateway. Only one GTW per network.
RTR: Full Function Device. Sensor node with routing ability. RTR requires line power all time.
STD: Reduce Function Device. A Sleeping node can only talk to a RTR or GTW. Can not relay the message. Can be a
battery powered device.
RCM :Radio Communications Module
RDTE: Reader Data Terminal Equipment.
RMCI: RAEMesh Module Command Interface.
SDTE : Sensor Data Terminal Equipment.
6. Reference
Atmel:
FCC: www.gcc.gov
Zigbee Alliance: www.zigbee.org
7. Contact
Developer: Kai Ren
Tel:021-69522616 Ext4115
Email: kren@raesystems.com
8. Disclaimer
Product and Company names and logos referenced may either be trademarks or registered trademarks of their respective
companies. We reserve the right to make modifications and/or improvements without prior notification. All information is
correct at time of issue. RAE Systems does not convey any license under its patent rights or assume any responsibility for
the use of the described product.
9. Warnings
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
For Internal Use Only
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
MPE Reminding
To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the
antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance
is not recommended.
Information for the OEM Integrators
This device is intended for OEM integrators only. Please see the full grant of equipment document for restrictions.
Label Information to the End User by the OEM or Integrators
If the FCC ID of this module is not visible when it is installed inside another device, then the outside of the device into
which the module is into which the module is installed must be label with "Contains FCC ID: SU3RM2400".
For detachable antennas:
This device is tested together with a PCB and a Pole antenna. The client can use an antenna with the same type of the
two antennas, but must make sure that the maximum gain of PCB antenna is 0dBi and the maximum gain of Pole antenna
is 1.5dBi.
