BR250TM Professional Two-Way Radio Instruction Manual

THANK YOU!

Thank you for purchasing the BR250TM Professional Two-Way Radio by RCA Communications

Systems. With its exquisite, ergonomic design, the BR250TM is customized for logistics, warehousing,

construction, property management and service industries. It meets Class IP54 requirements for

dust and water and is equipped with a large speaker.

This easy-to-use, push-to-talk radio will deliver you secure, instant and reliable communications

at peak efciency. Please carefully read this manual before use in order to achieve maximum

performance from your radio.

MODELS COVERED IN THIS MANUAL:

• BR250 VHF Two-Way Radio

• BR250 UHF Two-Way Radio

BR250TM Professional Two-Way Radio Instruction Manual

2

Safety and General Information.....................4

Product Inspection.........................................5

RCA BR250TM Overview.................................7

Battery Information.....................................10

Initial Use.............................................10

Applicable Battery Packs.......................10

Battery Tips..........................................10

Tips to Prolong Battery Life...................11

Battery Storage.....................................11

Charging the Battery.............................11

Steps for Setting Up Your Charger...............13

Troubleshooting...................................14

No LED Indication............................14

Red LED Flashes Rapidly...................14

Antenna Information...................................15

Assembly and Disassembly...........................15

Attaching the Battery...........................15

Removing the Battery...........................16

Attaching the Antenna........................17

Removing the Antenna........................17

Attaching / Removing the Belt Clip......18

Attaching the Earpiece / Microphone...19

Removing the Earpiece / Microphone...19

General Radio Operations and Functions.....20

Radio Operations.................................20

Turn the Radio On/Off......................20

Adjust the Volume............................20

Select a Channel...............................21

Transmitting......................................21

Receiving..........................................21

Radio Functions....................................21

Time-out Timer (TOT).......................21

Battery Save Mode...........................21

Battery Strength Indicator.................22

Low Battery Alert.............................23

Busy Channel Lockout (BCL).............23

Voice Operated Transmit (VOX)........23

Troubleshooting..........................................25

CONTENTS:

3

BR250TM Professional Two-Way Radio Instruction Manual

Care and Cleaning......................................26

Optional Accessories...................................27

Glossary......................................................32

Warranty Statement....................................33

CONTENTS continued

-worn: 5.60W/Kg

duty factor are- Face Held:5.60W/Kg, Body

The highest reported SAR value at 50%

BR250TM Professional Two-Way Radio Instruction Manual

4

SAFETY AND GENERAL INFORMATION

Please observe the following general safety

precautions during all phases of operation,

service and repair of this equipment.

»Turn radio off prior entering any area with

a potentially explosive atmosphere, such

as gas, petroleum, chemicals, blasting

caps, etc.

»Do not charge the battery in a potentially

explosive atmosphere.

»Do not use any portable radio that has a

damaged antenna, as it can burn skin.

»This equipment is to be serviced only by

authorized RCA Communications Systems

technicians. Any service performed by

unauthorized technicians will void the

warranty.

»Turn radio off when near electrical blasting

caps to avoid possible interference with

blasting operations. Obey posted signs

such as those in hospitals or blasting areas

advising people to turn off all two-way

radios. Obey pilots and ight attendants

instructions to turn off radios on airplanes.

»Do not place a radio over an air bag or in

an air bag’s deployment area, as the force

with which an air bag is inated could

propel the radio and may cause serious

injury.

»Do not place the radio close to a heat

source or expose the radio to direct

sunlight for a prolonged time.

»Hold the radio while in use in a vertical

position with the microphone one to two

inches away from your lips.

»While wearing a transmitting radio, keep

the radio and its antenna at least one inch

away from your body.

»

5

BR250TM Professional Two-Way Radio Instruction Manual

PRODUCT INSPECTION

Prior to unpacking the BR250TM portable

radio, please inspect the packaging for

signs of damage and report any damage or

missing components immediately to your RCA

Communications Systems Sales and Service

Outlet. Every BR250TM portable radio comes

with the following items:

Item Qty.(PCS)

CH250R - Desktop Rapid Charger 1

B250LI - Li-Ion Battery (1700mAh) 1

PS250R - Power Supply 1

BC250 - Belt Clip 1

STR250 - Handy Carry Strap

(prevents dropping the BR250) 1

AN250U - Antenna for UHF

Models

AN250V - Antenna for VHF

Models

1

Instruction Manual 1

B250LI

Li-Ion Battery (2000mAh)

CH250R

Desktop

Rapid Charger

PS250R

Power Supply

BC250

Belt Clip

STR250

Handy Carry Strap

Antenna

AN250U - UHF models

AN250V - VHF models

BR250TM Professional Two-Way Radio Instruction Manual

6

Notes:

The frequency band of the BR250TM is marked

on the radio label. If it is not visible, identify

the frequency band according to the color

circle on the antenna: red indicates UHF and

green indicates VHF.

7

BR250TM Professional Two-Way Radio Instruction Manual

RCA BR250 Overview (1) PTT (Push-to-Talk) key

(2) SK1 (Side Key 1) (programmable)

(3) SK2 (Side Key 2) (programmable)

(4) Speaker

(5) Microphone

(6) Antenna

(7) LED Indicator

(8) Channel Selector Knob

(9) Radio On-Off/ Volume Control Knob

(10) Battery Latch

(11) Accessory Jack

(12) Accessory Cover

(13) Belt Clip

(14) Battery

(15) Screw

(16) Electrode Piece

BR250TM Professional Two-Way Radio Instruction Manual

8

PTT (Push-to-Talk) Key

Press and hold down the PTT key to transmit,

release it to receive.

SK1 (Side Key 1)

Side Key 1 is the programmable key to which

your dealer can assign long and short press

function. (See Glossary for denitions of long

and short press.)

SK2 (Side Key 2)

Side Key 2 is the programmable key to which

your dealer can assign long and short press

function. (See Glossary for denitions of long

and short press.)

LED Indicator

For information on status of LED Indicator and

alert tone, see table on pg. 9 (See Functions

and Settings for the detailed operations.)

Channel Selector Knob

Turn the knob to select channels 1 to 16.

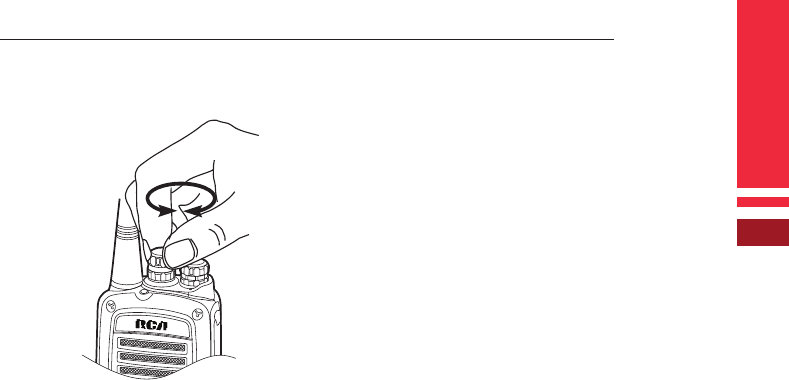

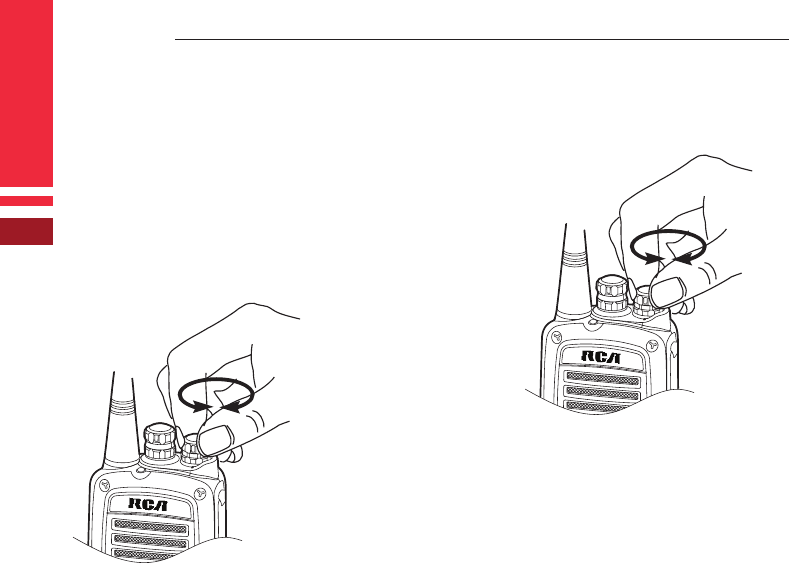

Radio On-Off/Volume Control Knob

Turn the knob clockwise to turn the radio on,

and turn the knob fully counter-clockwise until

it clicks to turn the radio off.

Turn the knob clockwise to increase the

volume, or counter-clockwise to decrease the

volume. WARNING!! Make sure the BR250

is at low volume prior to using any earpiece

accessory, and then adjust the volume to a

comfortable level. Failing to do so may cause

ear damage.

Battery Latch

Use to remove the battery.

Accessory Jack

The jack is used to connect speaker,

microphone, external PTT, earpiece, headset,

programming cable and cloning cable.

9

BR250TM Professional Two-Way Radio Instruction Manual

LED Indicator and Alert Tones

Power Up in User Mode

When the radio is turned on, the power up alert tone will sound.

When the current channel is a blank channel, the radio continuously

beeps.

Low Battery Alert LED ashes red and a low-pitched tone sounds at ten second

intervals.

Transmitting LED glows red when transmitting. When TOT timer expires, the radio

continuously beeps. TOT pre-alert causes radio to beep.

Receiving LED glows green when carrier is present.

Scanning

Green LED ashes every second while scanning is in progress.

Scan Start Alert Tone (programmable by your dealer): radio beeps.

Scan Exit Alert Tone (programmable by your dealer): radio beeps.

Priority Channel Scan Alert Tone (programmable by your dealer): if

the current channel is the priority channel when scanning, the radio

beeps.

Power Adjust

A low-pitched tone sounds when transmit power is adjusted from

high to low. A high-pitched tone sounds when transmit power is

adjusted from low to high.

VOX A high-pitched tone sounds when the VOX feature is activated. A

low-pitched tone sounds when the VOX feature is disabled.

BR250TM Professional Two-Way Radio Instruction Manual

10

BATTERY INFORMATION

Initial Use

New batteries are shipped from the

factory uncharged. Charge a new battery

approximately 12 hours prior to initial use

(applies to Ni-CD, Ni-MH and Li-Ion batteries

charged with slow or rapid rate charger).

NOTE: The Indicator Light will turn GREEN

approximately one hour after battery is

placed in a Rapid Rate Charger; however, it is

strongly recommended the battery charge for

12 hours. This initializes it and allows for the

best performance. Maximum battery capacity

is normally achieved after two or three full

charge / discharge cycles. If battery power

runs low, recharge the battery. Batteries that

are brand new or that have been stored for an

extended period of time (several weeks), may

require more time to fully charge.

Applicable Battery Packs

To reduce the risk of injury, use only batteries

specied by RCA Communications Systems.

Caution:

1. To avoid risk of personal injury, do not

dispose of batteries in a re.

2. Dispose of batteries according to local

recycling regulations. Do not dispose as

household waste.

3. Never attempt to disassemble the battery.

Battery Tips:

1. When charging a battery, keep it at a

temperature between 41°F ~ 104°F (5°C ~

40°C) to ensure a full charge. Temperatures

outside this range signicantly reduce

battery life.

2. Before charging a battery attached to a

radio, turn the radio off to ensure a full

charge. Never leave a radio on while it is

11

BR250TM Professional Two-Way Radio Instruction Manual

in the charger, as it can damage both the

battery and the radio; the charger is not a

radio stand.

3. Do not cut off the power supply or remove

battery while charging.

4. Never charge a battery that is wet. Dry it

with soft cloth prior charging.

5. The battery will eventually weaken. When

the operating time (talk-time and standby

time) is noticeably shorter than normal,

replace the battery.

Tips To Prolong Battery Life:

1. Battery performance greatly decreases at

temperatures below -4°F (-20°C).Having

a spare battery is always necessary in

extremely cold environments. A cold

battery may work again when it returns to

room temperature,so keep it for later use.

2. Dust on the battery contact may cause the

battery not to work or charge properly. Use

a clean dry cloth to wipe it before attaching

the battery to the radio.

3. Batteries with damaged contacts can be

extremely dangerous. Any battery with

damage to one or more contacts should be

replaced immediately and not used under

any circumstances.

Battery Storage

1. Fully charge a battery before storing it for

an extended period of time to avoid battery

damage due to over-discharge.

2. Recharge a battery after three months

storage to avoid reduced battery capacity

due to over-discharge.

3. When storing a battery, keep it in a dry

place at room temperature.

Charging the Battery

1. When the battery level is very low, recharge

it. It is never recommended to completely

drain the battery, which may cause your

BR250TM Professional Two-Way Radio Instruction Manual

12

battery to malfunction and no longer

accept a charge.

2. Use only chargers specied by RCA

Communications Systems. When the

charger’s LED illuminates red, it is an

indication that the battery is being correctly

charged. When the LED illuminates green,

the battery charge is complete.

Status Charged LED

Standby (no-load) Red LED slowly ashes

(0.2s on/3s off )

Battery is charging Red LED solidly glows

Battery is fully charged Green LED solidly glows

Error Red LED rapidly ashes

(0.2s on/0.2s off)

13

BR250TM Professional Two-Way Radio Instruction Manual

4. Make sure the battery contact is touching

the charging terminals. The charging

process begins when the red LED light

illuminates.

5. The green LED light will illuminate

approximately one hour later, indicating

the battery is fully charged.

Steps for setting up your charger:

1. Plug the adapter’s AC connector into the

AC outlet socket.

2. Plug the adapter’s DC connector into the

DC socket on the back of the charger.

3. Place the radio with the battery attached,

or the battery alone, in the charger.

BR250TM Professional Two-Way Radio Instruction Manual

14

Troubleshooting:

When troubleshooting, always observe the

color of the LED:

No LED Indication

1. Make sure that the power cord is plugged

into an appropriate AC outlet.

Red LED ashes rapidly (0.2s on/0.2s off)

Remove the battery from the charger, and:

1. Make sure that you are using an original

RCA Communications Systems battery.

Remove power from the battery charger.

Clean the charger and the battery’s

charging contacts using a clean, dry cloth.

2. Make sure the battery temperature isn’t

above 113°F. (45°C)

3. Power up the charger and place the

battery back into the charging cup. If the

LED indicator continues to ash red, most

likely, the battery can no longer be charged

and must be replaced. To determine if the

battery requires replacement, place the

battery pack into another charger that

you know is working properly. If the LED

continually ashes red, battery replacement

is necessary.

Notes:

• When the battery charger detects the

proper battery conditions, rapid charging

begins automatically (steady red LED).

• If the battery temperature is above 113°F

(45°C), the charger will report the fault by

flashing the red LED rapidly (0.2s on/0.2s

off), and will not charge until the battery

temperature is below 113°F (45°C) with

the red LED changing to solid illumination.

15

BR250TM Professional Two-Way Radio Instruction Manual

ANTENNA INFORMATION

• Stubby (3”) antennas are ideal for

communication within limited range, and

standard (6”) antennas optimize coverage;

the longer the antenna, the better the

coverage is. If you use a stubby antenna for

convenience instead of a standard length

antenna, you can expect approximately a

30% reduction in coverage. When using a

two-way radio outdoors, heavy rain, snow,

buildings or thick forest can dramatically

reduce radio coverage.

ASSEMBLY AND DISASSEMBLY

Attaching the Battery

1. Hold the battery and attach it close to the

top of aluminum chassis. (Note: Insert tab

on top of the battery into the top of battery

slot.) See Figure 1.

2. Lightly press the bottom of the battery until

Figure 1

it clicks. This signies that the battery latch

is locked to the main unit and assembly is

nished. See Figure 2.

Note: If the battery is not securely locked,

remove it and reattach it.

Figure 2

BR250TM Professional Two-Way Radio Instruction Manual

16

Removing the Battery

1. First, turn off the radio. Hold the top of

radio and press the belt clip to make its

tail turn up. Lift the battery latch in the

direction of the arrow. See Figure 3.

2. When the bottom of the battery is turned

up, release the battery latch and remove

the battery. (Note: When the battery is

turned up, keep the angle between the

battery and main unit small so the battery

doesn’t get scratched.) See Figure 4.

Figure 3

Figure 4

17

BR250TM Professional Two-Way Radio Instruction Manual

Attaching the Antenna

1. Insert the antenna into the big screw thread

hole on top of the main unit.

2. Turn the antenna clockwise until it is

screwed down as shown in Figure 5 below.

Figure 5

Removing the Antenna

To remove the antenna, turn it counter-

clockwise as shown in Figure 6 below.

Figure 6

BR250TM Professional Two-Way Radio Instruction Manual

18

Attaching/Removing the Belt Clip

1. Using a small screwdriver, remove the

screws from the back of the radio’s chassis.

2. Align the belt clip’s screw holes to the

radio’s chassis. Turn the screw clockwise

into the belt clip’s screw holes. See Figure

7 below.

3. To remove the belt clip, turn the screwdriver

counter-clockwise to loosen the screw. See

Figure 8 below.

Figure 7-

Attaching the Belt Clip

Figure 8-

Removing the Belt Clip

19

BR250TM Professional Two-Way Radio Instruction Manual

2. Firmly plug the audio accessory into the

accessory jack and secure the screw. See

Figure 10. Warning!! Over-tightening

accessories may cause damage to the radio

that is not covered under warranty.

3. To remove the audio accessory from the

jack, turn the screw counter-clockwise and

remove the accessory.

Attaching/Removing the Earpiece/

Microphone

1. Open the accessory cover without removing

it, as shown in Figure 9.

Figure 9

Figure 10

BR250TM Professional Two-Way Radio Instruction Manual

20

GENERAL RADIO OPERATIONS AND

FUNCTIONS

Radio Operations

Turn the Radio On/Off

Turn the radio on-off /volume control knob

clockwise to turn on the radio, and an alert

tone will be heard. Turn the radio on-off /

volume control knob counter-clockwise until

it clicks to turn off the radio. See Figure 1.

Figure 1

Adjust the Volume

Turn the volume control knob clockwise/

counter-clockwise to increase/decrease the

volume. See Figure 2.

Figure 2

21

BR250TM Professional Two-Way Radio Instruction Manual

Select a Channel

Turn the channel selector knob to select a

channel. See Figure 3.

Figure 3

Transmitting

To transmit, press and hold down PTT key and

speak into the microphone. Hold the radio be-

tween one and two inches away from your lips

(2.5 to 5 centimeters).

Receiving

To receive signal, release the PTT key.

Radio Functions

Note: To simplify operation and ensure

maximum performance, the following

functions are disabled by default. They

can be acivated by your authorized RCA

Communications Systems dealer for an

additional charge.

Time-out Timer (TOT)

This limits the amount of time the radio user

can continuously transmit on a channel. If

the user holds down the PTT longer than the

preprogrammed limit, the radio automatically

stops transmitting and generates a warning

tone until the PTT is released.

A dealer may program the alert tone that

sounds before the TOT timer nearly expires.

See Glossary for the denition of Time-out

Timer.

Battery Save Mode

This feature can be enabled by your dealer. The

BR250TM Professional Two-Way Radio Instruction Manual

22

Battery Save feature is automatically activated

when no activities or operations have been

performed (no key press and no knob selection)

for an extended period of time.

Pressing any key or receiving a signal will end

the Battery Save mode and restore the radio

to normal operation. See Glossary for the

denition of Battery Save Mode.

Battery Strength Indicator

The LED light on top of the radio allows you

to check the battery status by illuminating

lights with different colors. This feature is

programmed by your RCA Communications

Systems dealer upon request. Please refer to

the table below:

Battery Strength LED Indication

70% - 100% Green

50% - 70% Orange

30% - 50% Red

10% - 30% LED is unlit when the programmed key is pressed and ashes red while

the radio is operating.

Less than 10%

LED is unlit when the programmed key is pressed. While the radio is on

standby, LED ashes red and a low-pitched tone sounds at ten second

intervals. Pressing the PTT then activates the talk prohibit tone.

23

BR250TM Professional Two-Way Radio Instruction Manual

Low Battery Alert

For extra convenience, when the battery level

is low, the LED ashes red and a low-pitched

tone sounds every ten seconds to alert users to

recharge the battery.

Busy Channel Lockout (BCL)

Avoid interference with other users on the

same channel by preventing transmission if

another talkgroup is currently speaking over

the air. The radio will generate a continuous

tone when the PTT is pressed and will not

allow a second transmission to “step-on”the

current conversation. Releasing the PTT will

cancel the tone.

Voice Operated Transmit (VOX)

You can transmit hands-free with the use

of optional accessories. The quality of the

transmission and performance of the radio

may be degraded. The radio will automatically

begin transmitting when you speak and stop

transmitting when you stop. For optimum

performance, this feature is not recommended

in high noise environments. See Glossary for

denition of VOX.

Press the programmed VOX key to activate

or turn off the VOX feature and an alert tone

sounds accordingly.

Your dealer can enable/disable the VOX

feature and set the VOX sensitivity. When the

VOX feature is enabled, the user can transmit

hands-free with VOX accessories. Note: Usage

of non RCA Communicatios Systems VOX

accessories is not recommended!

1. Press the programmed VOX key to activate

the VOX feature.

2. Select VOX on the PTT/VOX earpiece

switch.

3. Plug the earpiece into the accessory jack.

-ware is 100%.

The maximum duty factor supported by hard

50% of the using time in VOX and PTT mode.

Users should always transmit no more than

BR250TM Professional Two-Way Radio Instruction Manual

24

4. Speak into the earpiece microphone, and

your voice will be transmitted.

When transmitting with VOX accessories, you

may faintly hear your own voice from the VOX

earpiece. Press the PTT of your radio to disable

the VOX feature. Turn the radio off and on

again or plug the earpiece into the accessory

jack again to restore the VOX feature.

Note: Regardless of whether or not the VOX

feature is enabled, if you select PTT on the

PTT/VOX earpiece switch, you can transmit

by pressing the external PTT. Do not push

the switch from PTT to VOX or the radio will

continuously transmit. When continuous

transmission occurs, push the PTT/VOX switch

from VOX to PTT, or activate the radio again to

restore the radio to operation use.

Note: For more information on the accessories

that are available for the BR250TM, please see

the Optional Accessories available on page 26,

contact your dealer or visit:

www.dtwr.com/rca

25

BR250TM Professional Two-Way Radio Instruction Manual

Symptom Solution

Cannot power on the radio

a. The battery needs charging. Recharge the battery or replace

it with a fresh one.

b. The battery is not properly installed. Remove the battery and

reattach it.

The operating time is

noticeably shorter than

normal even though the

battery is properly charged.

a. The battery has worn out; it is time to buy a new battery.

b. The battery is not fully charged. Make sure that the battery is

removed after LED indicator has turned green.

Cannot talk to or hear

group members

a. Make sure that your radio operates on the same frequency

and has the same CTCSS/CDCSS settings as your group

members.

b. Make sure you are within their communication range.

Hear non-group members Please change your CTCSS/CDCSS settings and have your group

members do so, also.

No voice or low voice while

transmitting

a. Turn the volume control knob to its maximum volume.

b. Return the radio to your dealer to check for microphone

damage.

TROUBLESHOOTING

BR250TM Professional Two-Way Radio Instruction Manual

26

CARE AND CLEANING

• Do not directly handle the radio by its

antenna or external microphone.

• Do not place the radio in a dusty or dirty

environment.

• Clean the radio with a lint-free cloth

moistened with clean water and/or a mild

dishwashing liquid to remove dirt, grease,

and dust.

• Avoid subjecting the radio to corrosives,

solvents or spirits.

27

BR250TM Professional Two-Way Radio Instruction Manual

Optional Accessories

Stubby Antenna

AN250SU – UHF

AN250SV - VHF

More compact and convenient than the standard antenna, but

reduces coverage by approximately 30%.

Multi-Unit Rapid-Rate Charger

CH250R6

More convenient and saves space by using one power outlet for

6 radios.

Heavy Duty, Remote Speaker Microphone

SM250L

No need to remove the radio from your waist, which prevents

radio damage or loss.

BR250TM Professional Two-Way Radio Instruction Manual

28

Optional Accessories continued

Light Duty, Remote Speaker Microphone

HMN250M

Lighter and more compact than the heavy duty microphone but

with the same benets.

Professional Receive-Only Earpiece w/ Transparent

Acoustic Tube (for use with remote speaker microphones)

LOE250SC

Lightweight earpiece for use with speaker mics and when

transmitting is not necessary.

Economy Receive-Only Earpiece

(for use with remote speaker microphones)

LOE250EH

Same functions as the professional earpiece but at economical

price.

29

BR250TM Professional Two-Way Radio Instruction Manual

Optional Accessories continued

Ear-Hook Style Earpiece with Microphone PTT

BDN6105EH

Serves the same function as the professional surveillance kit at

an economical price.

Surveillance Kit with Palm Mic and In-Line PTT

BDN7203A

Professional, high quality earpiece ideal for radio users requiring

discreet communication.

Lightweight Over-The-Head Headset with In-line PTT

HS250LWH

Durable and inexpensive. Perfect for retail stores, restaurants and

bars.

BR250TM Professional Two-Way Radio Instruction Manual

30

Optional Accessories continued

Heavy Duty, Over-The-Head Headset

H0500D

For use in high noise environments such as airports, race tracks

and manufacturing plants (-24dB noise reduction).

Heavy Duty, Behind-the-Head Headset

H4500D

When a hard hat is necessary in high noise environments.

Leather Holster (xed or swivel clip)

HL250C

More durable and stronger than Nylon. Offers the best

protection for your BR250TM radio.

31

BR250TM Professional Two-Way Radio Instruction Manual

Optional Accessories continued

Nylon Holster (xed or swivel clip)

HN250C

Prevents loss and prolongs your radio life by preventing

unnecessary drops and abuse.

Waterproof Bag

HNWPBG

Protect your BR250TM radio when working around water.

Chest Pack

CHEST-A

For those applications when securing the BR250TM radio to your

waist is not possible.

BR250TM Professional Two-Way Radio Instruction Manual

32

GLOSSARY

Short Press - Key press shorter than 1.5 seconds

Long Press - Key press longer than 1.5 seconds

Standby Status - In normal mode, no key operation is made on the radio and the radio is in

receiving status.

CTCSS/CDCSS - The setting of CTCSS/CDCSS code in transmitting party must match that in the

receiving party for the receiver to unmute its output audio.

Battery Save - The function is to save battery power and prolong the operation time. Once no

activity or operations are occurring on the channel, the radio will be on and off alternately.

Time-out Timer (TOT) - The time-out timer feature stops someone from talking too long and tying

up the channel.

Squelch - The purpose of squelch is to mute audio output from the speaker when no signals are

present. Open the squelch to unmute radio speaker.

Squelch Off - Always unmute speaker to receive audio as well as background noise.

Monitor - Carrier condition must be satised for the radio to unmute to an incoming call, regardless

of CTCSS/CDCSS condition.

continued >

33

BR250TM Professional Two-Way Radio Instruction Manual

Momentary - Hold down the Function key to activate the status, and release it to turn it off.

Scan - The scan feature enables the radio to continuously scan each channel for activity.

Busy Channel Lockout - Avoid interference with users on same channel by preventing transmission

if another talkgroup is already on the air.

VOX - The radio will automatically begin transmitting when you speak.

GLOSSARY continued

WARRANTY STATEMENT

RCA Communications Systems warrants each new radio product it supplies to be free from defects in

material and workmanship under normal use and service for the time period listed below, provided

that the user has complied with the requirements stated herein.

The warranty period begins on the date of purchase from an Authorized RCA Communications

Systems Sales and Service Outlet. This warranty is offered to the original end user and is not assignable

or transferable. RCA Communications Systems is not responsible for any ancillary equipment which

is attached to or used in conjunction with RCA Communications Systems products.

BR250TM Professional Two-Way Radio Instruction Manual

34

RCA Communications Systems offers to the original end user a Two (2) Year Limited Warranty on

the RCA BR250TM Radio Handset. The BR250TM Antenna, BR250TM Battery and the BR250TM Battery

Charger are covered under a One (1) Year Limited Warranty. The BR250TM Belt Clip is not covered

under the warranty.

During this period, if the product fails to function under normal use because of manufacturing

defect(s) or workmanship, it should be returned to the Authorized RCA Communications Systems

Sales and Service Outlet from which it was purchased. The Sales and Service Outlet will repair the

product to full operating specications or replace the product with a new product of the same

make and model. The user is responsible for all charges incurred in returning the product to the

Authorized RCA Communications Systems Sales and Service Outlet. RCA Communications Systems

will be responsible for all charges in returning the product to the end user via standard ground

shipping service.

RCA Communications Systems shall have no obligation to repair or replace the product, if there

is damage as a result of normal wear and tear or if the damage is caused in whole or in part by

catastrophe, fault or negligence of the user, improper or unauthorized alterations or repairs to the

product, incorrect wiring, use of the product in a manner for which it was not designed, or by

causes external to the product. This warranty is void if the product serial number is altered, defaced

or removed.

THE EXPRESS WARRANTIES CONTAINED HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES, EITHER

EXPRESSED OR IMPLIED OR STATUTORY, INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

35

BR250TM Professional Two-Way Radio Instruction Manual

FOR ANY PRODUCT WHICH DOES NOT COMPLY WITH THE WARRANTY SPECIFIED, THE SOLE

REMEDY WILL BE REPAIR OR REPLACEMENT. IN NO EVENT WILL RCA COMMUNICATIONS SYSTEMS

BE LIABLE TO THE BUYER OR ITS CUSTOMERS FOR ANY DAMAGES, INLCUDING ANY SPECIAL,

INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, OR THE LOSS OF PROFIT, REVENUE OR

DATA ARISING OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT.

RCA Communications Systems endeavors to achieve the accuracy and completeness of this manual,

but is not liable for any possible omission and printing mistakes.

All the above specications and design are subject to change without prior notice.

All the reproduction and translation of this manual without authorization is prohibited.

In this manual, we strive to achieve accuracy and completeness, but provide no warranty of accuracy

or reliability. All the above specications and design are subject to change without notice due to

continuous development.

No part of this manual may be copied, reproduced, translated, stored in a retrieval system, distributed,

or transmitted in any form or by any means, electronic or mechanical, for any purpose without the

expressed, written permission from RCA Communications Systems.

The end-user of any two-way radio is solely responsible for obtaining any license or other

authorizations required by the Federal Communications Commission (FCC). For further information

visit www.fcc.gov or call 1-888-CALL-FCC (1-888-225-5322).

BR250TM Professional Two-Way Radio Instruction Manual

36

For Sales, Warranty and Customer Support please contact:

Discount Two-Way Radio Corporation – North American Distributor

1430 240th Street

Harbor City, CA 90710

Phone: 310-224-5100 / Fax: 310-224-5101

www.discounttwo-wayradio.com

RCA Communications Systems BR250U1 FM Handheld Transceiver User Manual

RCA Communications Systems FM Handheld Transceiver

User Manual

Navigation menu

Namespaces

Views

Navigation
