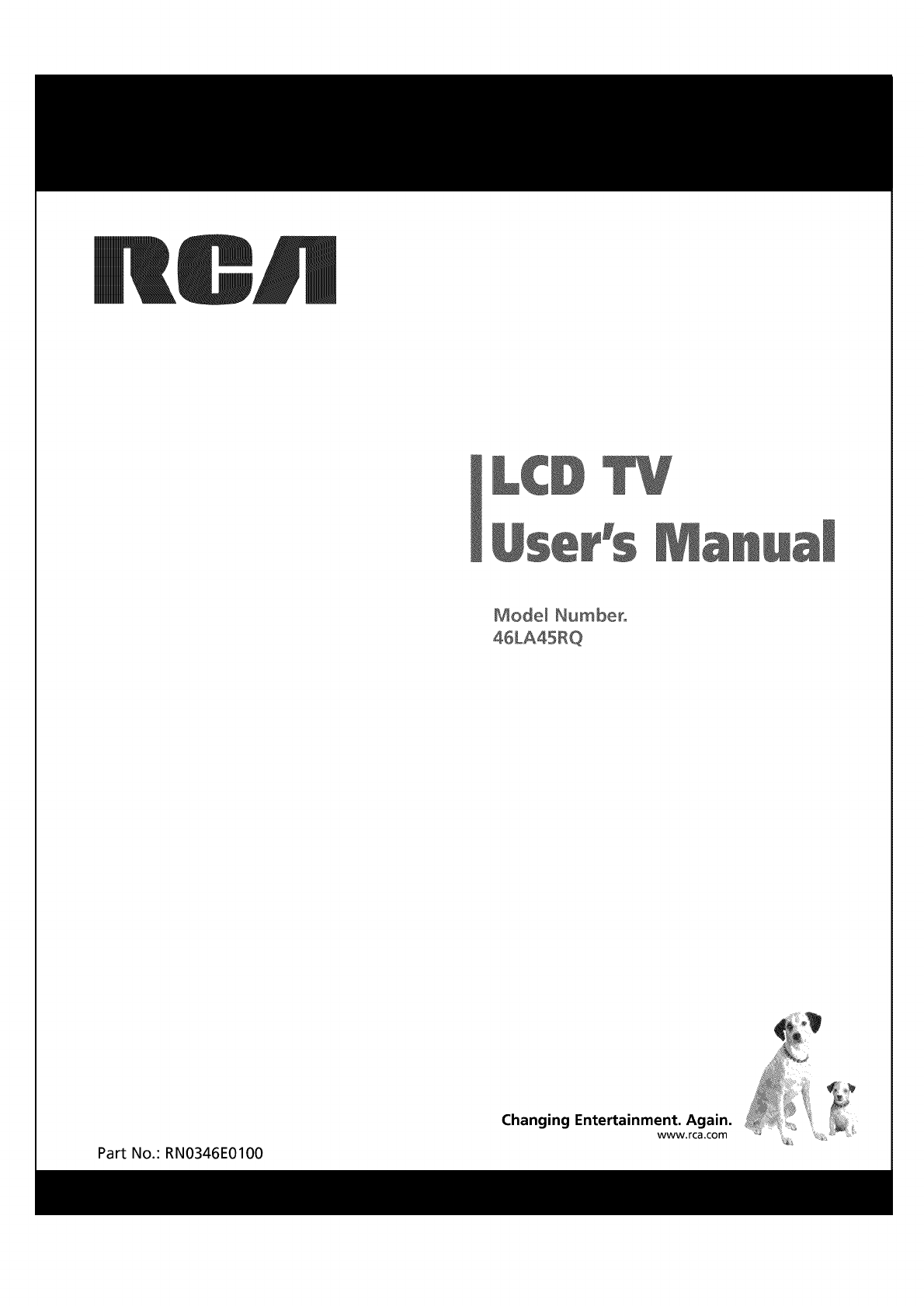

RCA 46LA45RQ User Manual LCD TELEVISION Manuals And Guides L1003502

RCA LCD Television Manual L1003502 RCA LCD Television Owner's Manual, RCA LCD Television installation guides

User Manual: RCA 46LA45RQ 46LA45RQ RCA LCD TELEVISION - Manuals and Guides View the owners manual for your RCA LCD TELEVISION #46LA45RQ. Home:Electronics Parts:Rca Parts:Rca LCD TELEVISION Manual

Open the PDF directly: View PDF .
Page Count: 40

Mode_ Number_

Part No.: RNO346E0100

Changing Entertainment. Again.

www.rca.com

CAUTION

Caution: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside.

Refer servicing to qualified service personnel.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR

COMPLIANCE WITH THE FCC RULES COULD AVOID THE USERS AUTHORITY TO OPERATE THIS

EQUIPMENT.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio Communications. However, there is no Guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

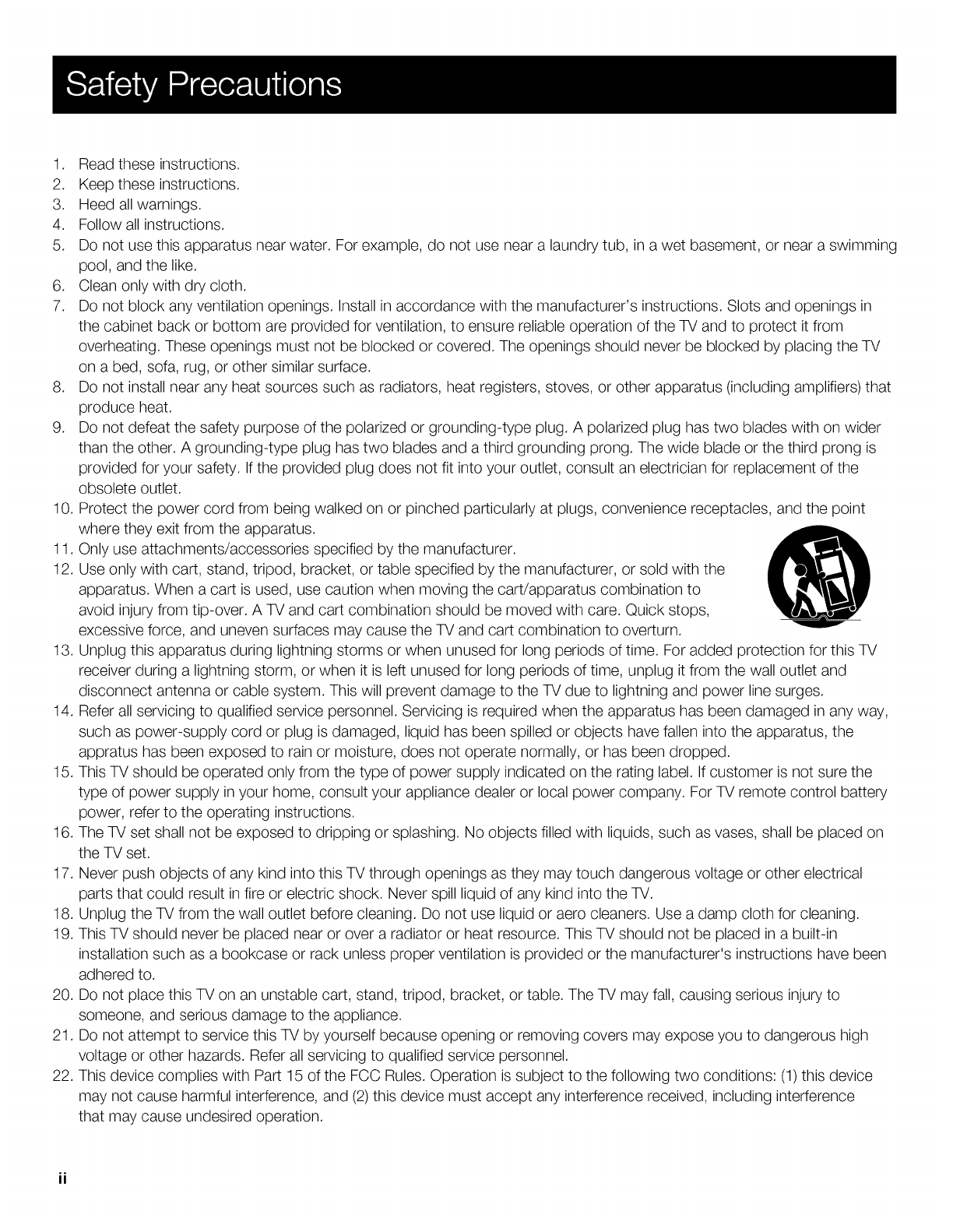

1. Readtheseinstructions.

2. Keeptheseinstructions.

3. Heedallwarnings.

4. Followallinstructions.

5. Donotusethisapparatusnearwater.Forexample,donotuseneara laundrytub,inawetbasement,ornearaswimming

pool,andthelike.

6. Cleanonlywithdrycloth.

7. Donotblockanyventilationopenings.Installinaccordancewiththemanufacturer'sinstructions.Slotsandopeningsin

thecabinetbackorbottomareprovidedforventilation,toensurereliableoperationoftheTVandtoprotectitfrom

overheating.Theseopeningsmustnotbeblockedorcovered.TheopeningsshouldneverbeblockedbyplacingtheTV

onabed,sofa,rug,orothersimilarsurface.

8. Donotinstallnearanyheatsourcessuchasradiators,heatregisters,stoves,orotherapparatus(includingamplifiers)that

produceheat.

9. Donotdefeatthesafetypurposeofthepolarizedorgrounding-typeplug.A polarizedplughastwobladeswithonwider

thantheother.Agrounding-typeplughastwobladesandathirdgroundingprong.Thewidebladeorthethirdprongis

providedforyoursafety.Iftheprovidedplugdoesnotfitintoyouroutlet,consultanelectricianforreplacementofthe

obsoleteoutlet.

10.Protectthepowercordfrombeingwalkedonorpinchedparticularlyatplugs,conveniencereceptacles,andthepoint

wheretheyexitfromtheapparatus.

11.Onlyuseattachments/accessoriesspecifiedbythemanufacturer.

12.Useonlywithcart,stand,tripod,bracket,ortablespecifiedbythemanufacturer,orsoldwiththe

apparatus.Whenacartisused,usecautionwhenmovingthecart/apparatuscombinationto

avoidinjuryfromtip-over.ATVandcartcombinationshouldbemovedwithcare.Quickstops,

excessiveforce,andunevensurfacesmaycausetheTVandcartcombinationtooverturn.

13.Unplugthisapparatusduringlightningstormsorwhenunusedforlongperiodsoftime.ForaddedprotectionforthisTV

receiverduringalightningstorm,orwhenit isleftunusedforlongperiodsoftime,unplugitfromthewalloutletand

disconnectantennaorcablesystem.ThiswillpreventdamagetotheTVdueto lightningandpowerlinesurges.

14.Referallservicingto qualifiedservicepersonnel.Servicingisrequiredwhentheapparatushasbeendamagedinanyway,

suchaspower-supplycordorplugisdamaged,liquidhasbeenspilledorobjectshavefallenintotheapparatus,the

appratushasbeenexposedto rainormoisture,doesnotoperatenormally,orhasbeendropped.

15.ThisTVshouldbeoperatedonlyfromthetypeofpowersupplyindicatedontheratinglabel.Ifcustomerisnotsurethe

typeof powersupplyinyourhome,consultyourappliancedealerorlocalpowercompany.ForTVremotecontrolbattery

power,referto theoperatinginstructions.

16.TheTVsetshallnotbeexposedtodrippingorsplashing.Noobjectsfilledwithliquids,suchasvases,shallbeplacedon

theTVset.

17.NeverpushobjectsofanykindintothisTVthroughopeningsastheymaytouchdangerousvoltageorotherelectrical

partsthatcouldresultinfireorelectricshock.NeverspillliquidofanykindintotheTV.

18.UnplugtheTVfromthewalloutletbeforecleaning.Donotuseliquidoraerocleaners.Useadampclothforcleaning.

19.ThisTVshouldneverbeplacednearorovera radiatororheatresource.ThisTVshouldnotbeplacedinabuilt-in

installationsuchasabookcaseorrackunlessproperventilationisprovidedorthemanufacturer'sinstructionshavebeen

adheredto.

20.DonotplacethisTVonanunstablecart,stand,tripod,bracket,ortable.TheTVmayfall,causingseriousinjuryto

someone,andseriousdamagetotheappliance.

21.DonotattempttoservicethisTVbyyourselfbecauseopeningorremovingcoversmayexposeyoutodangeroushigh

voltageorotherhazards.Referallservicingto qualifiedservicepersonnel.

22.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)thisdevice

maynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterference

thatmaycauseundesiredoperation.

23.WARNING:Topreventinjury,thisapparatusmustbesecurelyattachedto thefloor/wallinaccordancewiththe

installationinstructions.

24.Toreducetheriskofelectricshock,thegroundingofcenterpinofplugmustbemaintained.

25.Ifanoutsideantennaorcablesystemisconnectedto theTV,besuretheantennaorcablesystemisgroundedtoprovide

someprotectionagainstvoltagesurgesandbuilt-upstaticcharges.Section810oftheNationalElectricalCode,

ANSI/NFPANO.70,providesinformationwithrespectto propergroundingofthemastandsupportingstructure,

groundingofthelead-inwireto anantennadischargeunit,sizeofgroundingconductors,locationofantennadischarge

unit,connectionto groundingelectrodes,andrequirementsforthegroundingelectrodes.(SeeDiagramFigureA.)

ANTENNA

LEAD tN

WIRE

GROUND CLAMP

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

ELECTRIC SERVICE

EQUIPMENT

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PARTH)

Diagram Figure A

Safety Strap

Caution: Pushing, pulling or climbing on the TV may cause the TV falling. Do not let children climb or hang on the TV.

Always place the TV on a sturdy, level, sable surface that can hold the weight of TV. And if possible, secure the TV according

to the instruction below (Note: The fastening components such as screws are not supplied with TV).

Step one: Insert the M6 mounting screws into the upper two wall mounting screw holes and fasten them (Figure A).

Step two: Insert anchors to wall and connect the bolts and anchors with ropes or chains (Figure B).

M6 Screws

Figure A Figure B

Wall

iii

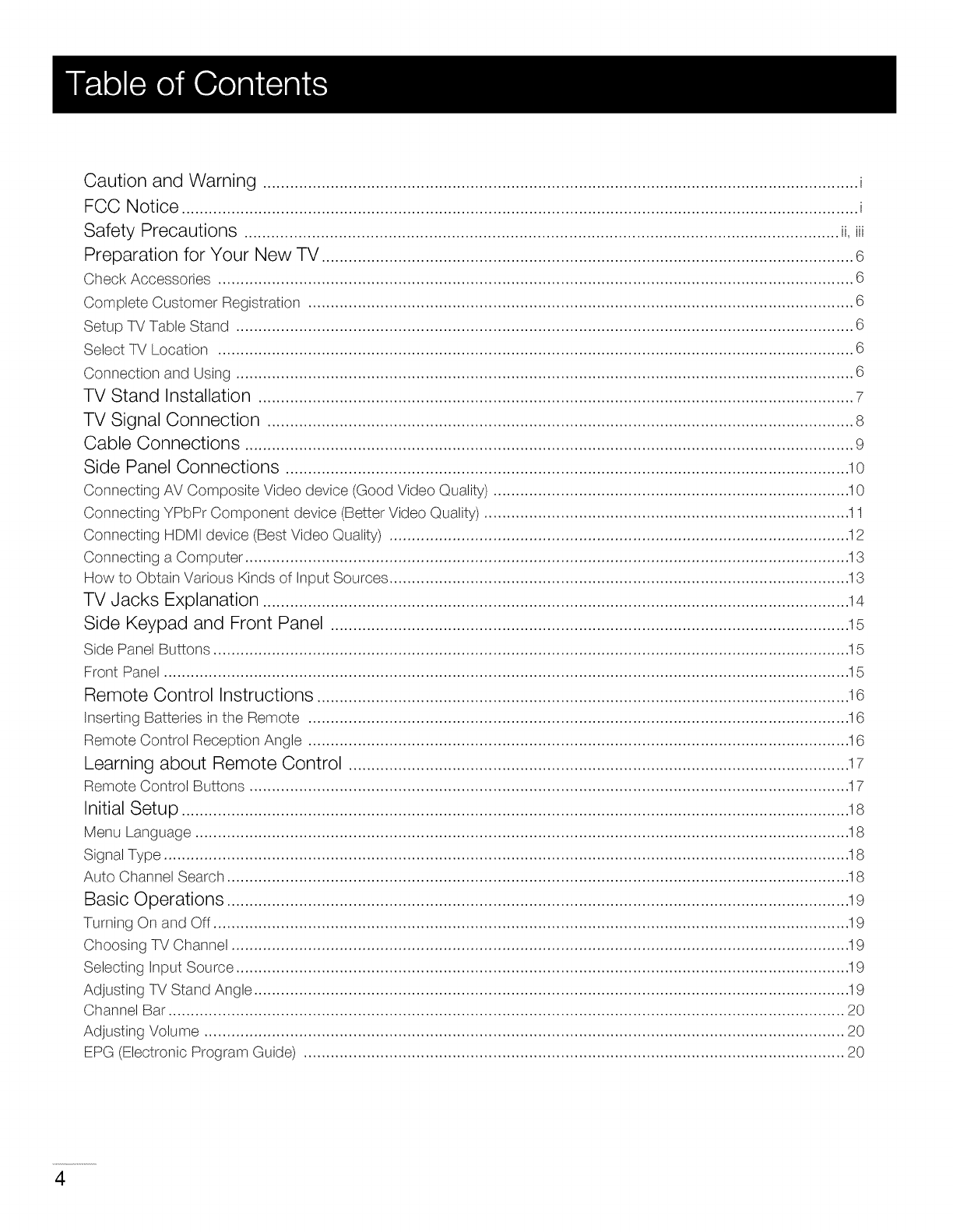

Caution and Warning .................................................................................................................................... i

FCC Notice ...................................................................................................................................................... i

Safety Precautions .................................................................................................................................... ii, iii

Preparation for Your New TV ...................................................................................................................... 6

Check Accessories ............................................................................................................................................. 6

Complete Customer Registration ......................................................................................................................... 6

Setup TV Table Stand ......................................................................................................................................... 6

Select TV Location ............................................................................................................................................. 6

Connection and Using ......................................................................................................................................... 6

TV Stand Installation .................................................................................................................................... 7

TV Signal Connection .................................................................................................................................. 8

Cable Connections ....................................................................................................................................... 9

Side Panel Connections ............................................................................................................................. 10

Connecting AV Composite Video device (Good Video Quality) ............................................................................... I 0

Connecting YPbPr Component device (Better Video Quality) ................................................................................. ! I

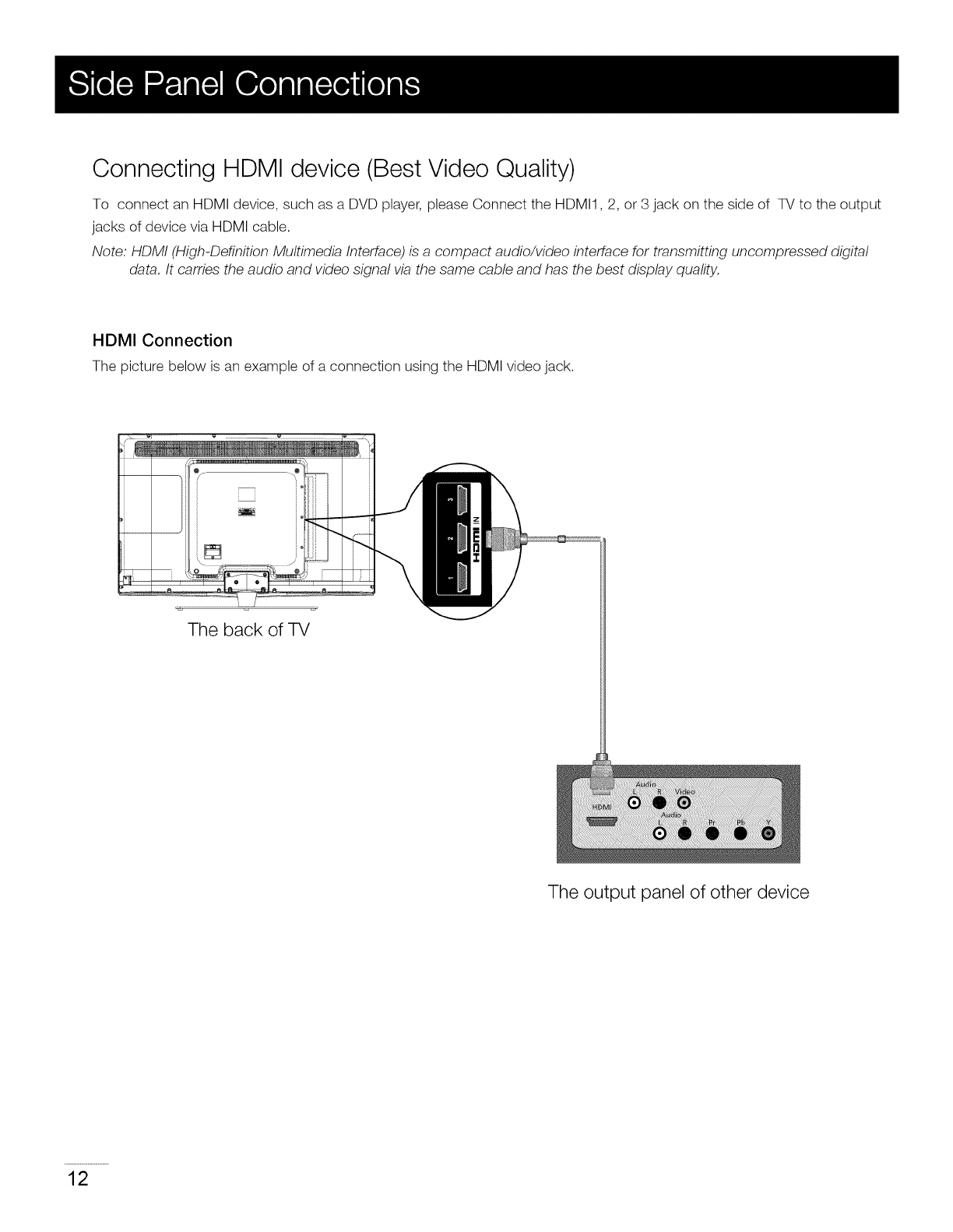

Connecting HDMI device (Best Video Quality) ...................................................................................................... ! 2

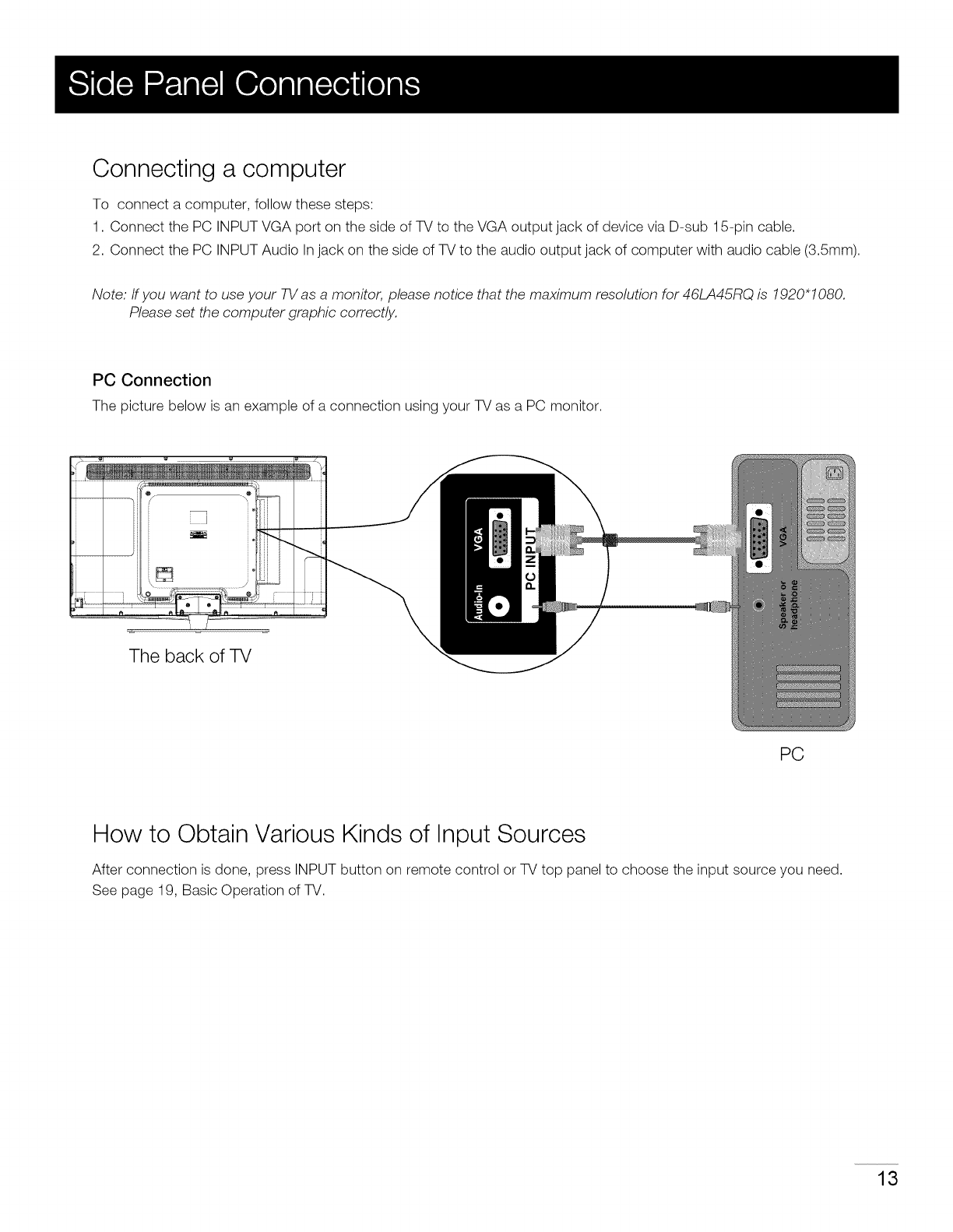

Connecting a Computer ...................................................................................................................................... 13

How to Obtain Various Kinds of Input Sources ...................................................................................................... 13

TV Jacks Explanation .................................................................................................................................. 14

Side Keypad and Front Panel ................................................................................................................... 15

Side Panel Buttons ............................................................................................................................................. ! 5

Front Panel ........................................................................................................................................................ ! 5

Remote Control Instructions ...................................................................................................................... 16

Inserting Batteries in the Remote ........................................................................................................................ 16

Remote Control Reception Angle ........................................................................................................................ ! 6

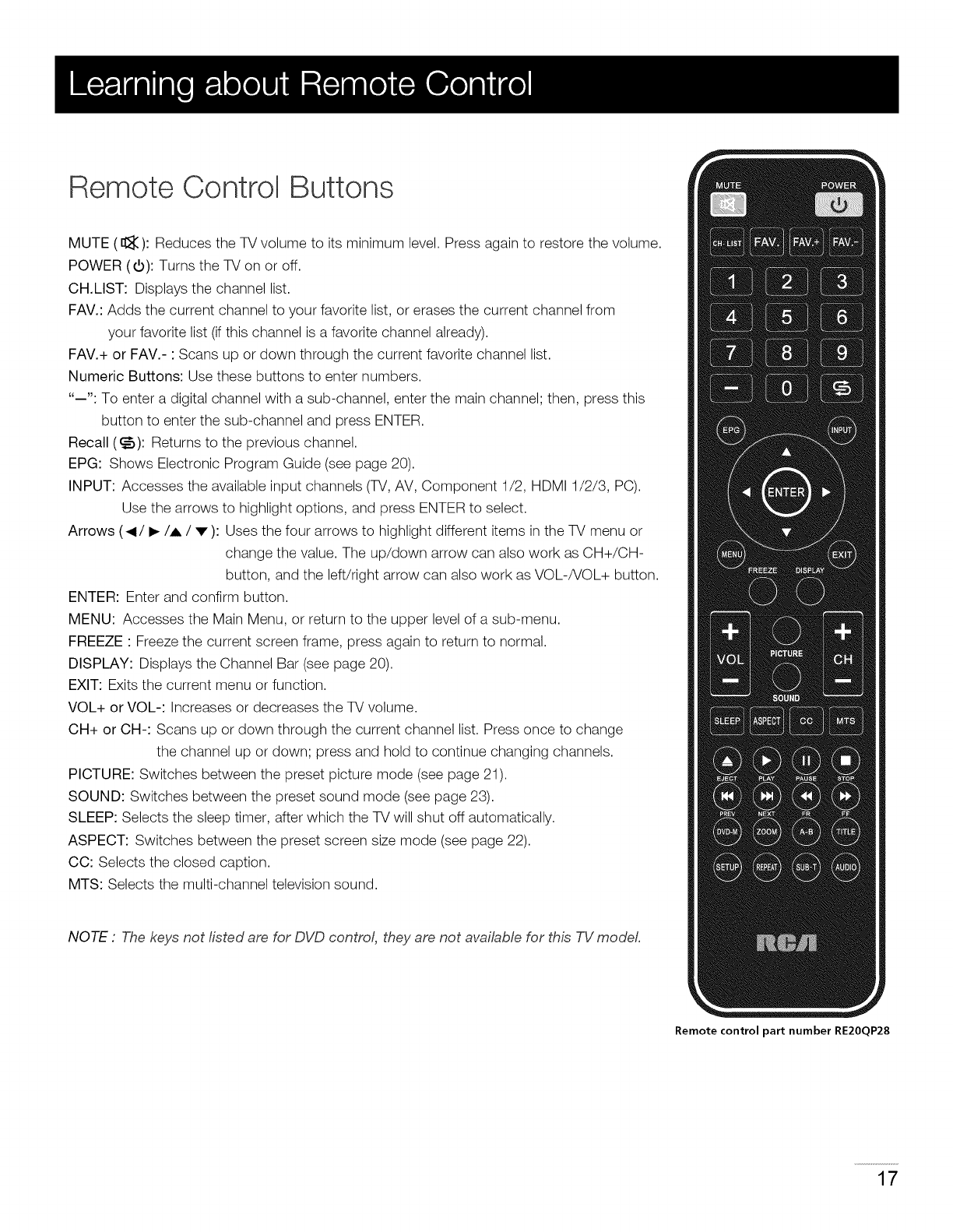

Learning about Remote Control ............................................................................................................... 17

Remote Control Buttons ..................................................................................................................................... ! 7

Initial Setup .................................................................................................................................................... 18

Menu Language ................................................................................................................................................. ! 8

Signal Type ........................................................................................................................................................ ! 8

Auto Channel Search .......................................................................................................................................... ! 8

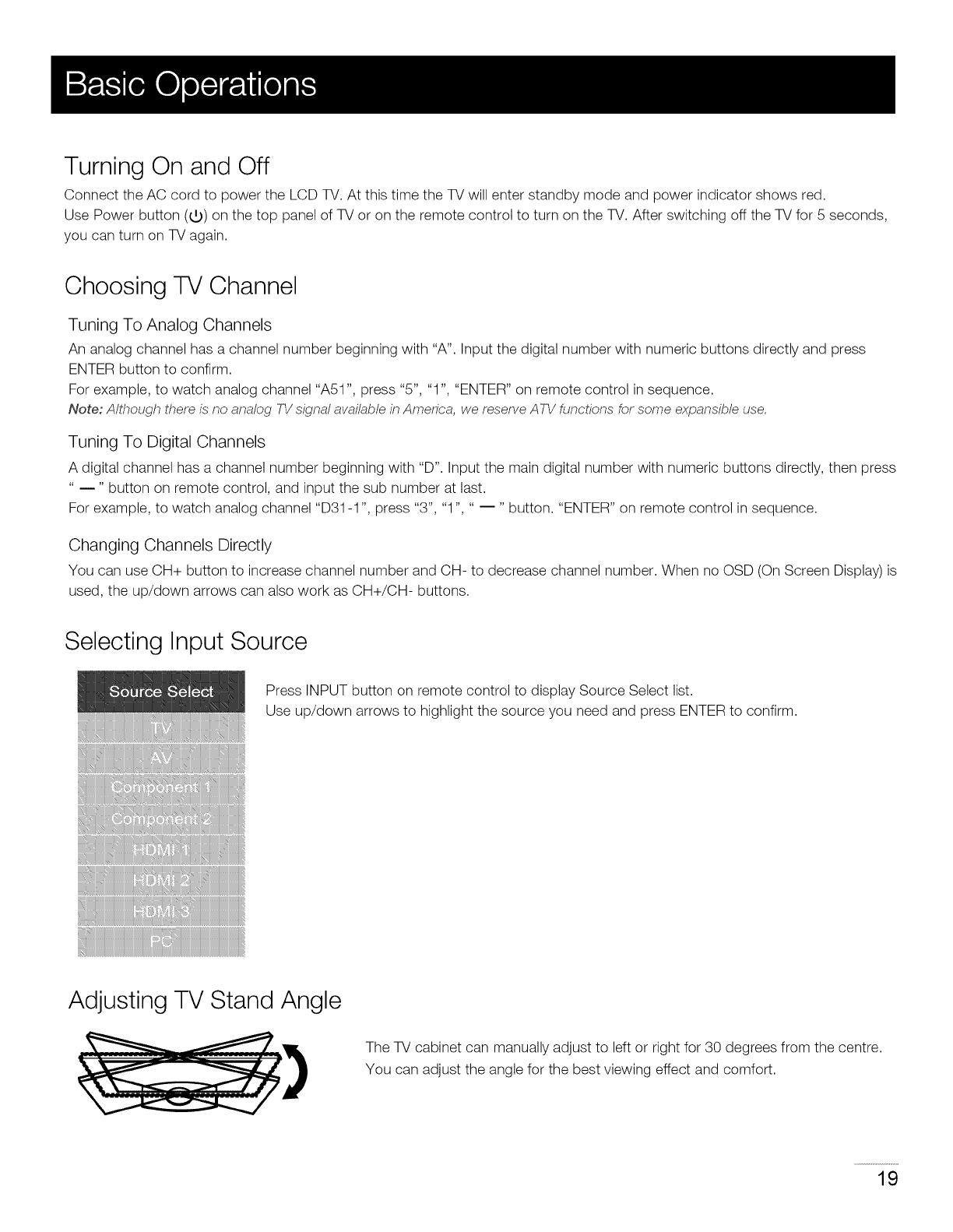

Basic Operations .......................................................................................................................................... 19

Turning On and Off ............................................................................................................................................. 19

Choosing TV Channel ......................................................................................................................................... ! 9

Selecting input Source ........................................................................................................................................ 19

Adjusting TV Stand Angle .................................................................................................................................... 19

Channel Bar ...................................................................................................................................................... 20

Adjusting Volume .............................................................................................................................................. 20

EPG (Electronic Program Guide) ........................................................................................................................ 20

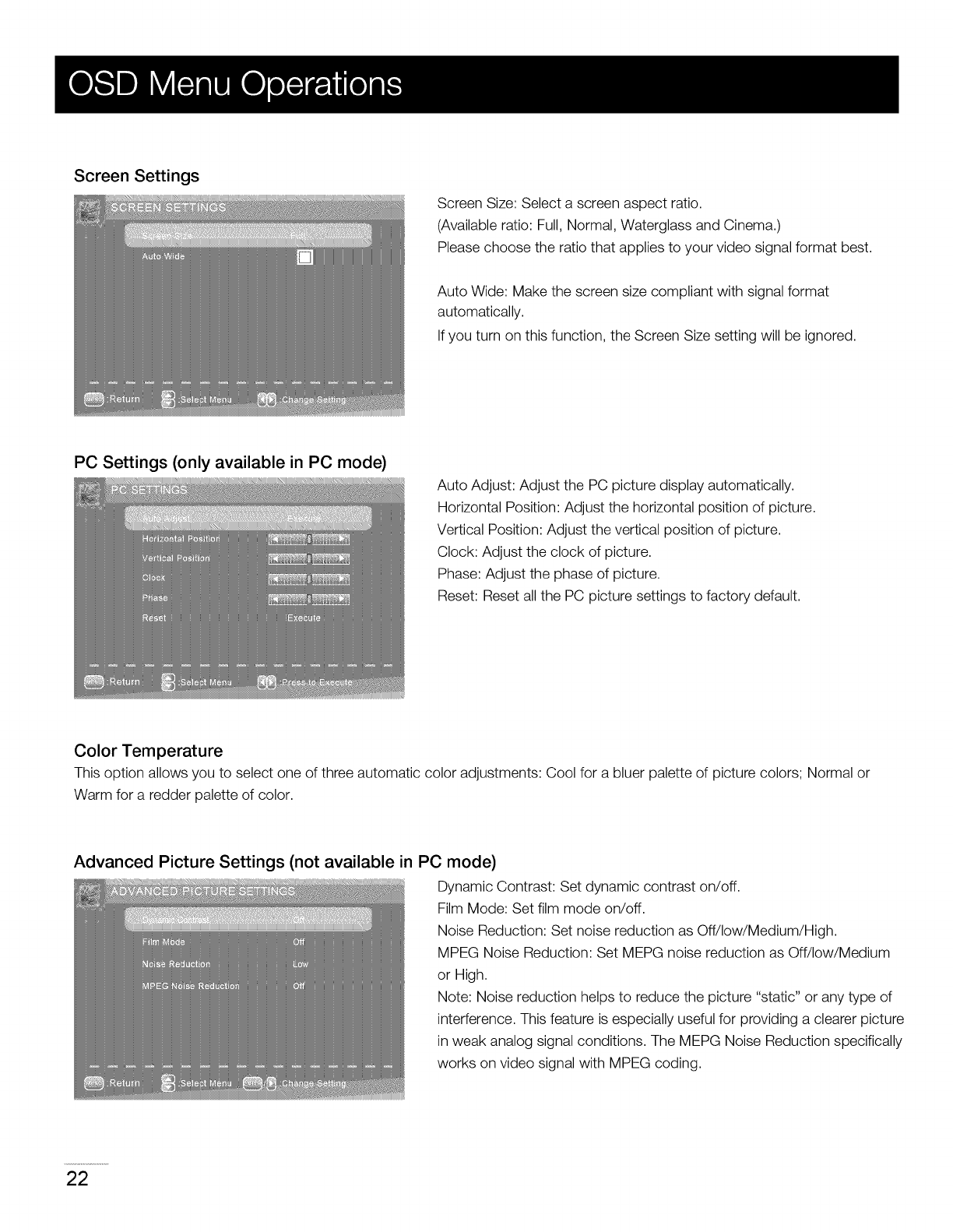

OSD Menu Operations ............................................................................................................................. 21

Adjust the OSD Screen .................................................................................................................................... 21

Picture Menu ................................................................................................................................................... 21

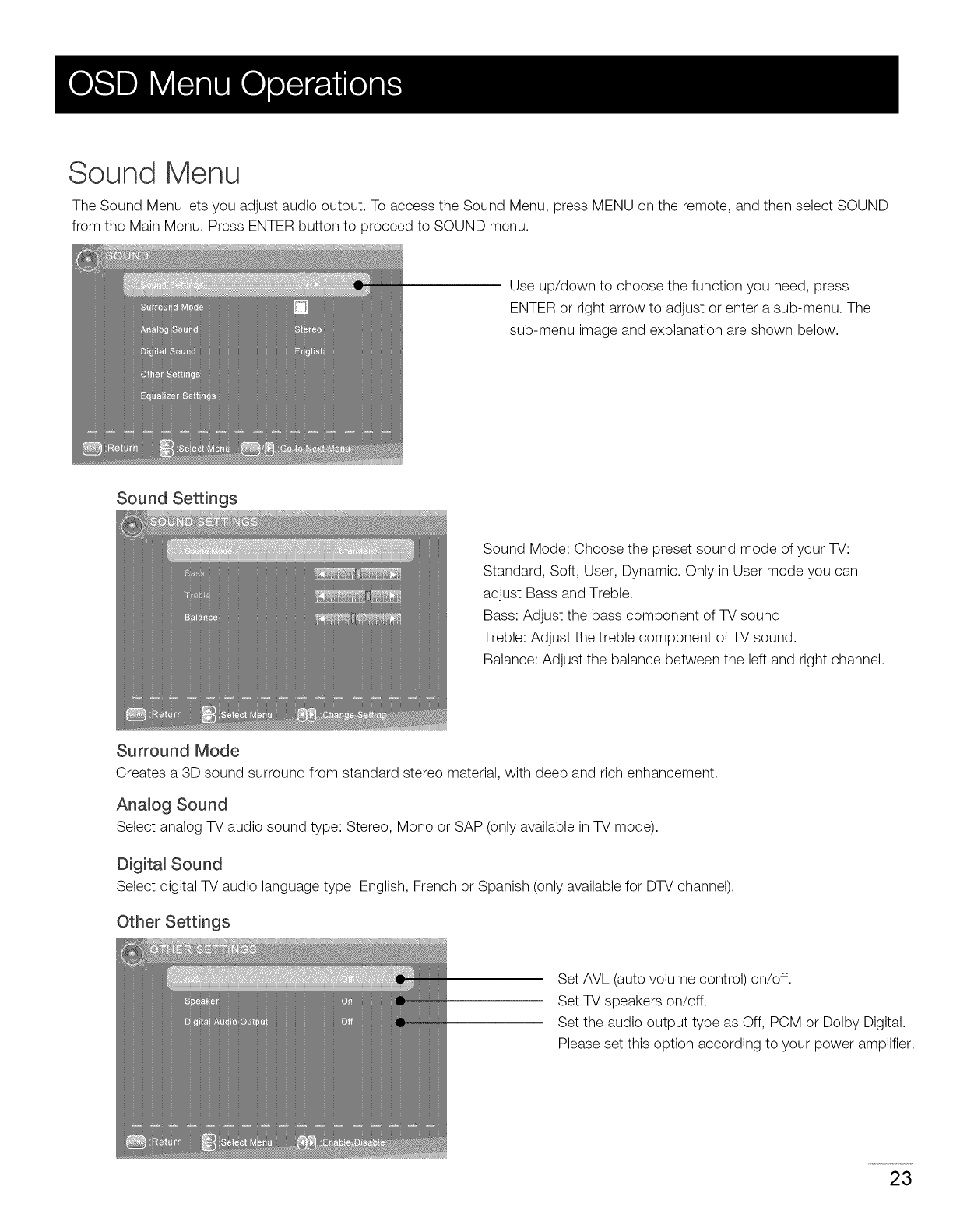

Sound Menu ................................................................................................................................................... 23

Channel Menu ................................................................................................................................................. 24

Parental Menu ................................................................................................................................................. 25

Setup Menu ...................................................................................................................................................... 29

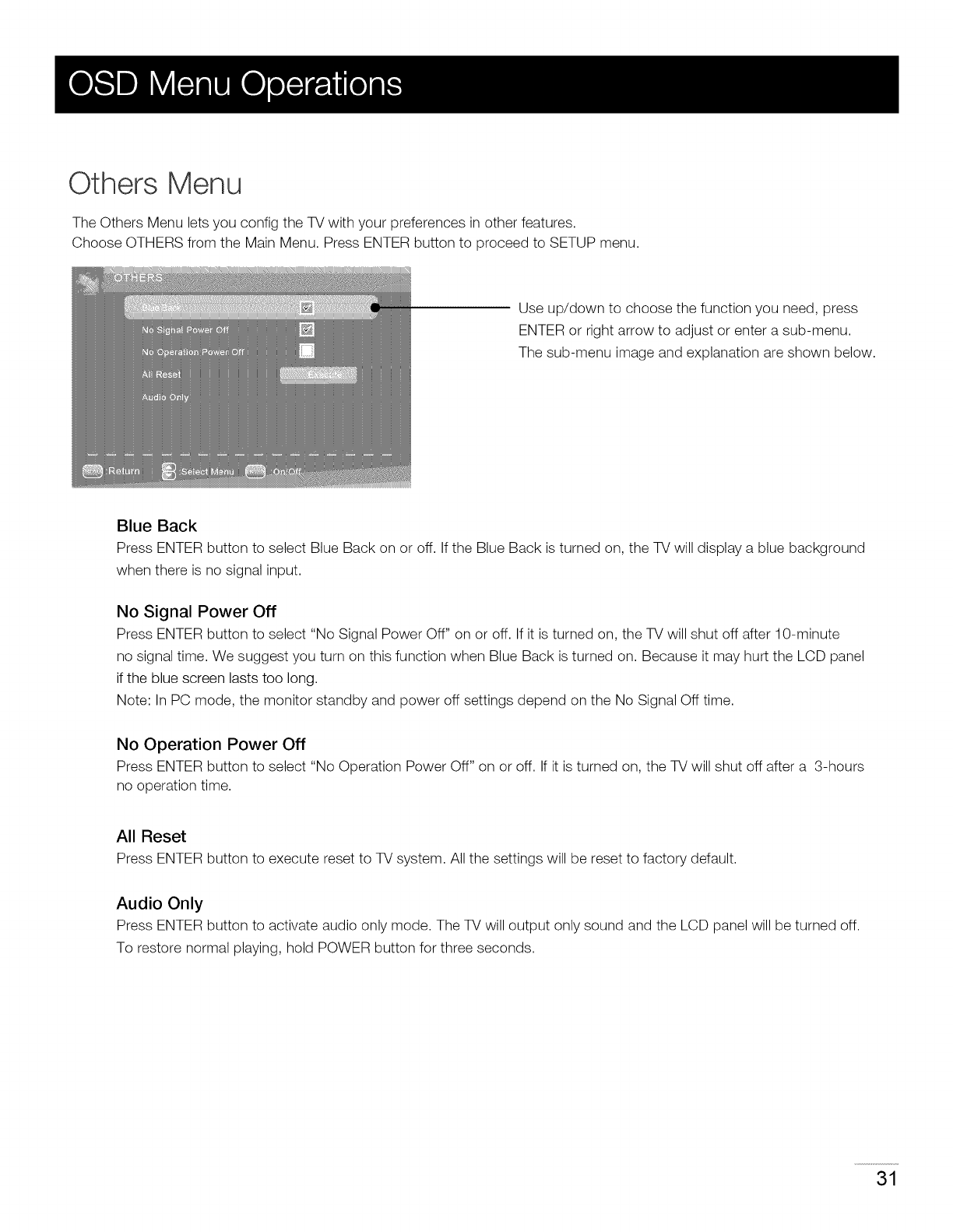

Others Menu ................................................................................................................................................... 31

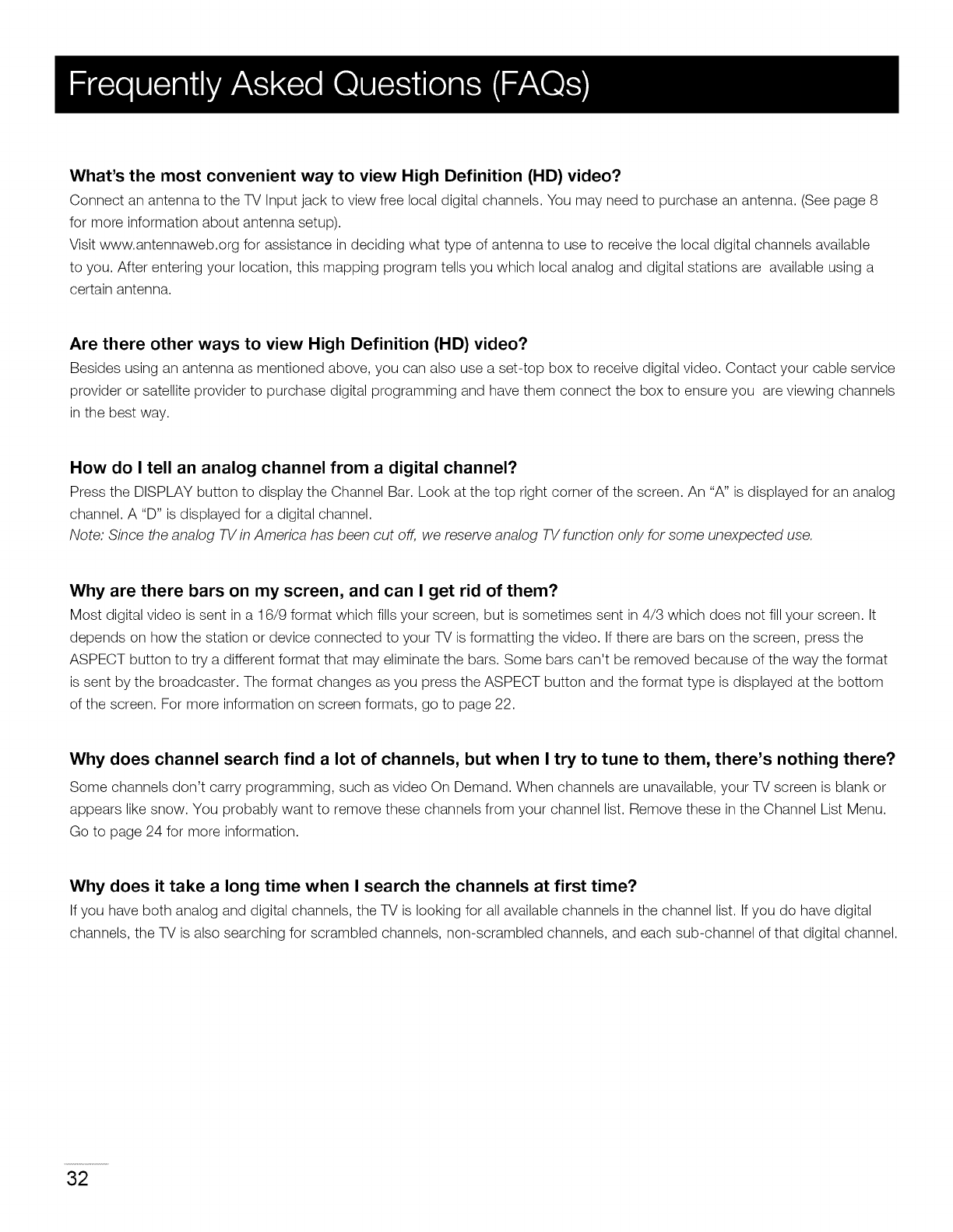

Frequently Asked Questions (FAQs) ..................................................................................................... 32

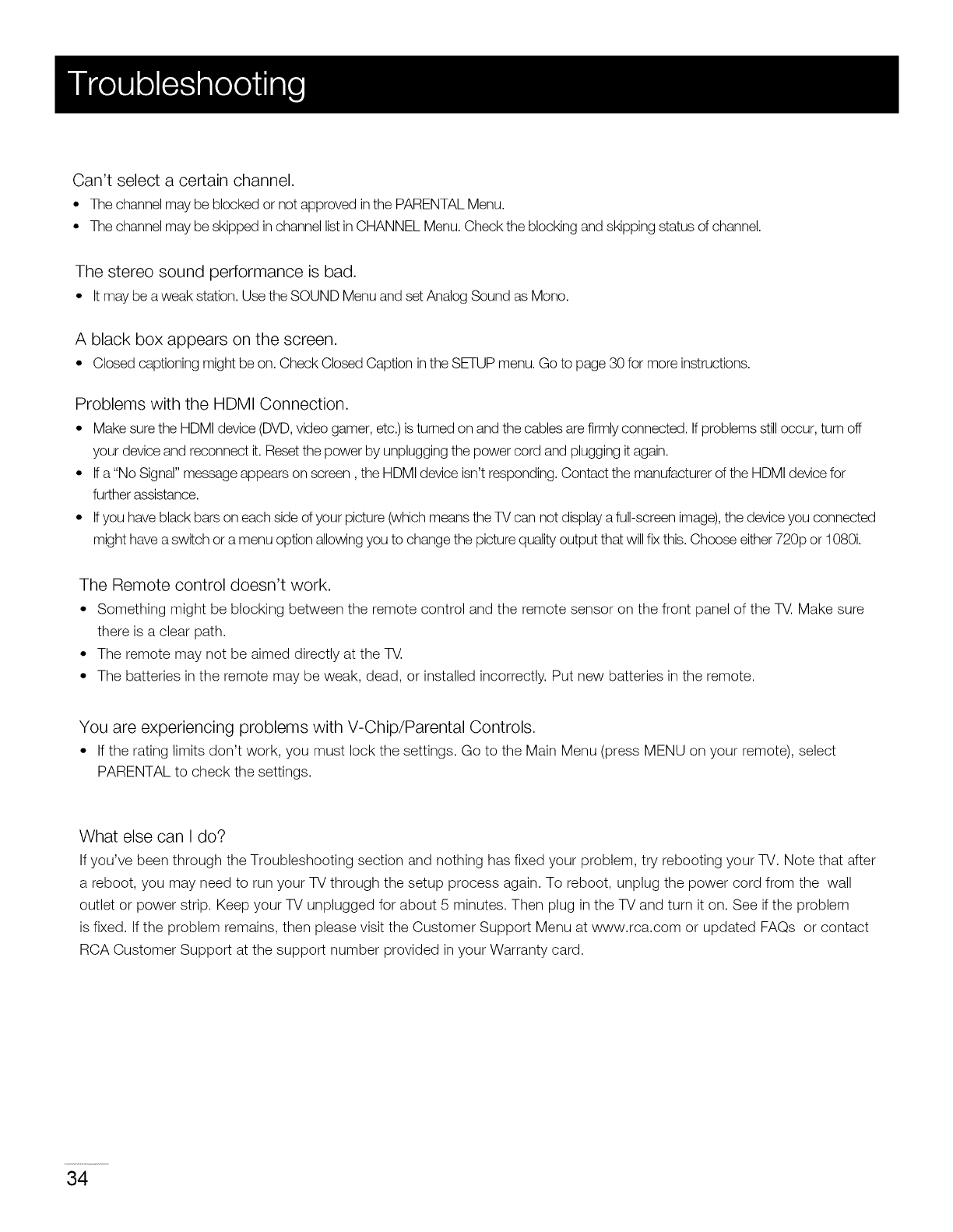

Troubleshooting ......................................................................................................................................... 33

V-Chip Rating Explanations .................................................................................................................... 35

US V-Chip Rating System ................................................................................................................................. 35

Canadian English Rating System ....................................................................................................................... 35

Canadian French Rating System ....................................................................................................................... 36

Universal Remote Control Code List ..................................................................................................... 36

Wall Mounting Unit Specification ............................................................................................................ 37

Product Specification ................................................................................................................................. 38

Before Turning On TV

Check Accessories

Check the accessories that are packed with your TV.

:| =i_[O]l i: [0[o] _i i :[e] I r;V;V;| :_;_lI i =-'|I _

PART NO.: RE20QP28

_ MACHINE

SCREW

riCH

QUICK START REGISTRATION

USER'S GUIDE GUIDE CARD

I |vE._ Ir±1_1D_

CHILD SAFETY REMOTE CONTROL WARRANTY

CARD GUIDE CARD

Complete Customer Registration

Please fill the RCA registration Card and return it to the address printed on it. That is for your customer service. To achieve best

customer warranty work, please read and fill it carefully.

Setup TV Table Stand

Please refer to TV Stand Installation guide in next page to carry out stand installing.

Select TV Location

Select a flat, stable table to locate your TV set. Please follow the Safety Instructions when locating the TV.

Connection and Using

After placing your TV properly, you can connect the TV with power supply and cable components. For further information, see page

10 to page 13.

6Note:Above accessoriesare subject to change without notice.

TV 46LA45RQ is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry out the

installation according to the instructions below.

Step One

Place the TV faced down on a soft cloth or cushion to prevent the

LCD panel from being damaged.

The LCD panel is easy to scratch, so please:

1. Choose an absolutely flat surface to place the TV on.

2. Use soft cloth or cushion to face the TV panel.

Do not put TV on the table directly.

Always unplug the AC cord first when installing/removing

the stand.

Step Two

Put the stand body (plastic) onto the stand base in cabinet.

Align the four holes in TV stand body to the screwholes in TV

stand base.

Step Three

Insert the six M4 machine screws (which are totally the same) and

tighten them.

Six black

stand screws

The first step in connecting your TV is obtaining the signal. Your TV 46LA45RQ has a side panel, which allows you to receive analog

and/or digital television channels via ANT/CABLE jack.

Before connecting your TV, determine using an antenna or a cable service to obtain the signal.

A. Antenna

Connect the antenna to TV via coaxial cable on ANT/CABLE jack of the side panel. You are ready to receive air local digital and

analog channels.

B. Cable -rv service

Connect the cable TV wall jack to TV via coaxial cable on ANT/CABLE jack of the side panel. You are ready to receive off-air local

digital and analog channels.

C. Set-Top Box

Ifyou use a set-top box, you may need to call your cable company or satellite service provider, which use a special connection,

please refer to the user's guide of set-top box.

Note: Do not plug the AC cord until you have accomplished all the connections.

110V/60Hz

Cable TV Antenna

]

AC Power Cord

(Connect after all the other connections are done.)

Choose Your Connections

TV 46LA45RQ supports various of connecting ways from other devices (such as DVD, VCR, Set-top box, ect.). Please follow the

table sheet to choose the cables which adapt to your device.

AUDIO-IN L and R, Video In

AUDIO-IN L and R

COMPONENT 1 Y, Pb, Pr

COMPONENT 2 Y, Pb, Pr

HDMI IN 1,2, 3

PC INPUT

VGA, Audio In

Note:

Video/Audio cable

Audio Cable

COMPONENT video cable

HDMI TMcable

Audio cable with 3.5mm terminal

VGA cable

Go to page 10

Go to page 11

Go to page 12

Go to page 13

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC

Caution:

Unplug the AC cord when you connect other devices to TV.

Connecting AV Composite device (Good Video Quality)

To connect an composite AV device, such as a DVD player, follow these steps:

1. Connect the Video In jack on the side of TV to the video output jacks of device via video cable (yellow).

2. Connect the AUDIO-IN L and R jacks on the side of TV to the audio output jacks of device via audio cable.

Notice the left channel jack and plugs are white and the right channel jack and plugs are red.

Note: AV signal belongs to composite video. This kind of video signal has regular good display quality.

Composite Video Connection

The picture below is an example of a connection using the composite video jack.

The back of TV

The output panel of other device

Connecting YPbPr Component device (Better Video Quality)

To connect a component device, such as a DVD player, follow these steps:

1. Connect the COMPONENT 1,2 Y/Pb/Pr jack on the side of TV to the video output jacks of device via video cable (green,

blue and red).

2. Connect the COMPONENT 1,2 AUDIO-IN L and R jacks on the side of TV to the audio output jacks of device via audio cable.

Notice the left channel jack and plugs are white and the right channel jack and plugs are red.

Note. Y/Pb/Pr jacks are component video. This kind of video signal has better display quality.

Component Video Connection

The picture below is an example of a connection using the component video jack.

The back of TV

The output panel of other device

Connecting HDMI device (Best Video Quality)

To connect an HDMI device, such as a DVD player, please Connect the HDMI1,2, or 3 jack on the side of TV to the output

jacks of device via HDMI cable.

Note: HDMI (High-Definition Multimedia Interface) is acompact audio/video interface for transmitting uncompressed digital

data. It carries the audio and video signal via the same cable and has the best display quality.

HDMI Connection

The picture below is an example of a connection using the HDMI video jack.

The back of TV

The output panel of other device

Connecting a computer

To connect a computer, follow these steps:

1. Connect the PC INPUT VGA port on the side of TV to the VGA output jack of device via D-sub 15-pin cable.

2. Connect the PC INPUT Audio In jack on the side of TV to the audio output jack of computer with audio cable (3.5mm).

Note. If you want to use your TV as a monitor, please notice that the maximum resolution for 46LA45RQ is !920"!080.

Please set the computer graphic correctly.

PC Connection

The picture below is an example of a connection using your TV as a PC monitor.

The back of TV

How to Obtain Various Kinds of Input Sources

After connection is done, press INPUT button on remote control or TV top panel to choose the input source you need.

See page 19, Basic Operation of TV.

ANT/CABLE: Connect to receive the signal from your antenna or cable via coaxial cable.

Head phone: Connect a 3.Smm headphone for personal audio.

Digital Audio-out: Connect a coaxial cable for digital audio output.

AUDIO OUTPUT L/R: Connect double-channel coaxial cables for analog audio output.

Note:• Digital Audio-out and AUD/O OUTPUT L/R are supposed to be connected to audio power

amplifer, which proddes smoother and more powerful sound performance.

AUDIO-IN L/R, Video In: Connect an AV device that has composite video jacks, such as a VCR

or a DVD player. To access device connected to these jacks, press the INPUT button on your

remote; then press the up/down arrow to select AV. Press the ENTER button at last to confirm.

•AUDIO-IN L: Left audio channel connection. The left audio connector is usually white. For mono audio

sources, be sure to use the left AUDIO INPUT.

•AUDIO-IN R: Right audio channel connection. The right audio connector is usually red.

Note:• The AV input (Video In), COMPONENT I _nput _, Pb, Pr) share the same audio _nputjacks-AUD/O-tN L/R.

COMPONENT 1,2 Y/Pb/Pr: Connect a device that has component video jacks, such as a DVD player.

To access device connected to the Y/Pb/Pr jack, press the INPUT button on your remote; then press the up/down arrow to

select Component1 or Component2. Press the ENTER button at last to confirm.

•Y/Pb/Pr (Component Video): They provide good picture quality because the video signal is separated into three components.

Use three video-grade or component video cables for the connection. When using Y/Pb/Pr, make sure you connect left and

right audio cables to the Audio L and Audio R jacks.

HDMI1, 2, 3: (High-Definition Multimedia Interface) It provides an uncompressed digital connection that carries both video and audio

data by way of an integrated mini-plug cable.

PC INPUT VGA: Connect your computer or other device with a VGA output to this jack using a 15-pin, D-sub cable.

PC INPUT Audio-In: Use to obtain sound when a PC is connected to TV. Use 3.5mm stereo mini-pin cable to connect PC to TV.

SERVICE: For service use only. Do not connect any device.

Side Keypad Buttons

If you cannot locate your remote, you can use the side keypad buttons on your TV to operate many TV features.

INPUT: Displays the Source Select List.

MENU ([_): Displays the TV Main Menu.

CH+:Scans up through the channel list. In the TV menu system, it acts like the up arrow on the remote control and

can be used to select menu options.

OH-: Scans down through the channel list. In the TV menu system, it acts like the down arrow on the remote control

and can be used to select menu options.

VOL+: Increases the volume. In the TV menu system, it acts like the right arrow on the remote control and can be used

to select menu options.

VOL-: Decreases the volume. In the TV menu system, it acts like the left arrow on the remote control and can be used

to select menu options.

POWER ((_): Turns the TV on and off.

Front Panel

About remote control working distance and angle, see page 16.

Power/Standby Indicator: Blue and red dual-color LED. It shows red when the TV is turned off and blue when turned on.

Remote Control Sensor: Remote control IR sensor, which receives infrared ray sent by remote control.

Remote Control Sensor

•)Power/Standby Indicator l

(blue/red)

Inserting Batteries in the Remote

Remove the cover of battery cabin on the back of the remote control by lifting the cover

Insert two AAA batteries making sure the polarities (+ and ) are aligned correctly

Place the cover back

If the remote control does not work, check these points:

• Are the polarities (+) correct?

• Are the batteries worn out?

• Is there an AC power failure?

• Is the power cord plugged in?

• Is there any interference or block near the remote

control sensor?

CAUTION:

• Used batteries should be recycled

• Keep out of children's reach

• DO NOT use new and old batteries together

• Change both the batteries at the same time

• When not using the remote control for a long time

remove the batteries from the unit

Remote Control Reception Angle

Use your remote control within the distance and angle range shown below

7 meters

Remote Oontrol Buttons

MUTE ([:_): Reduces the TV volume to its minimum level. Press again to restore the volume.

POWER (_): Turns the TV on or off.

CH.LIST: Displays the channel list.

FAV.: Adds the current channel to your favorite list, or erases the current channel from

your favorite list (if this channel is a favorite channel already).

FAV.+ or FAV.- : Scans up or down through the current favorite channel list.

Numeric Buttons: Use these buttons to enter numbers.

"--": To enter a digital channel with a sub-channel, enter the main channel; then, press this

button to enter the sub-channel and press ENTER.

Recall(g): Returns to the previous channel.

EPG: Shows Electronic Program Guide (see page 20).

INPUT: Accesses the available input channels (TV, AV, Component 1/2, HDMI 1/2/3, PC).

Use the arrows to highlight options, and press ENTER to select.

Arrows (_1/•/A /v ): Uses the four arrows to highlight different items in the TV menu or

change the value. The up/down arrow can also work as CH+/CH-

button, and the left/right arrow can also work as VOL-/VOL+ button.

ENTER: Enter and confirm button.

MENU: Accesses the Main Menu, or return to the upper level of a sub-menu.

FREEZE : Freeze the current screen frame, press again to return to normal.

DISPLAY: Displays the Channel Bar (see page 20).

EXIT: Exits the current menu or function.

VOL+ or VOL-: Increases or decreases the TV volume.

CH+ or CH-: Scans up or down through the current channel list. Press once to change

the channel up or down; press and hold to continue changing channels.

PICTURE: Switches between the preset picture mode (see page 21).

SOUND: Switches between the preset sound mode (see page 23).

SLEEP: Selects the sleep timer, after which the TV will shut off automatically.

ASPECT: Switches between the preset screen size mode (see page 22).

CC: Selects the closed caption.

MTS: Selects the multi-channel television sound.

NOTE :The keys not fisted are for DVD controi, they are not avaiiabie for this TV modei.

Remote control part number RE20QP28

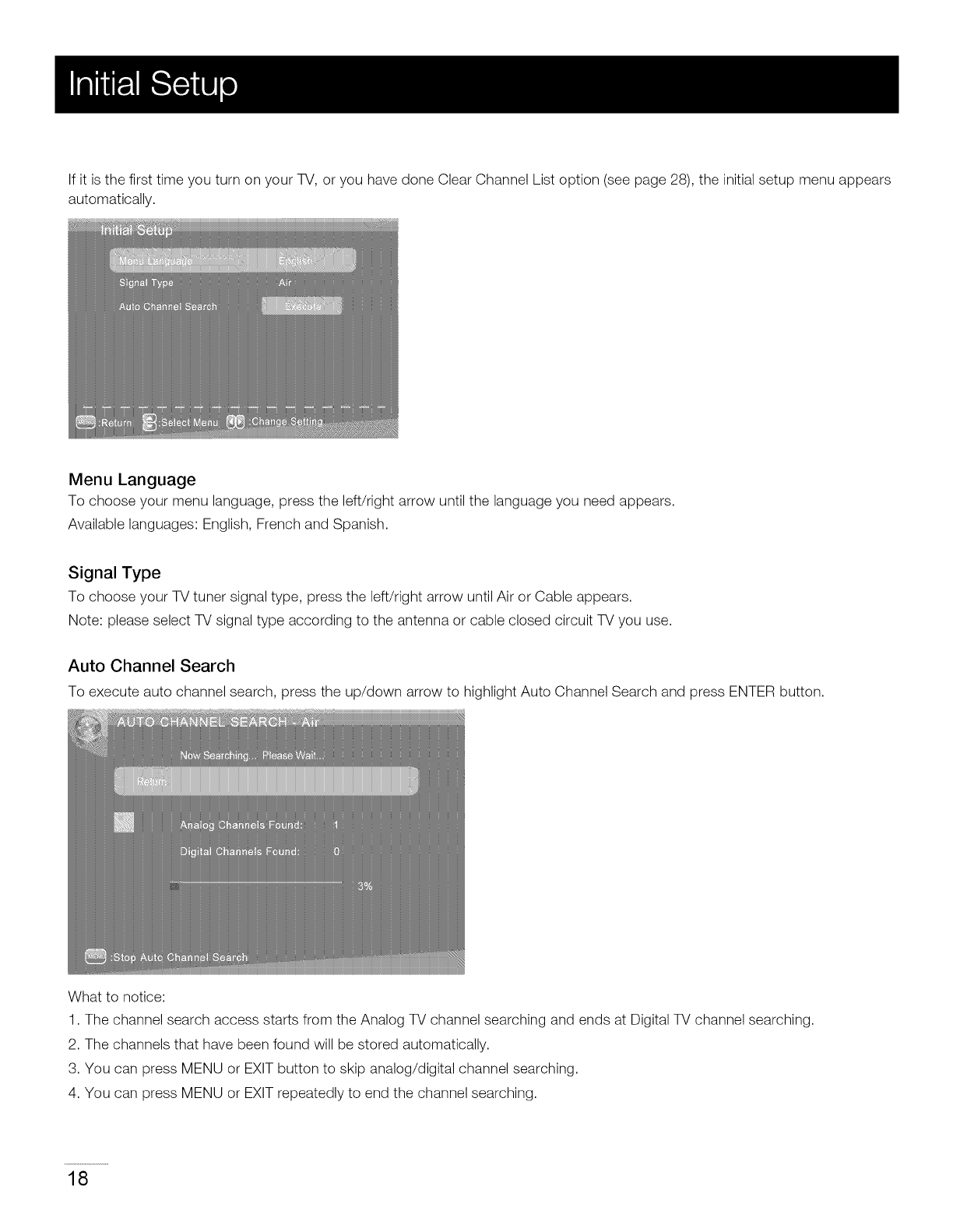

If it is the first time you turn on your TV, or you have done Clear Channel List option (see page 28), the initial setup menu appears

automatically.

Menu Language

To choose your menu language, press the left/fight arrow until the language you need appears.

Available languages: English, French and Spanish.

Signal Type

To choose your TV tuner signal type, press the left/right arrow until Air or Cable appears.

Note: please select TV signal type according to the antenna or cable closed circuit TV you use.

Auto Channel Search

To execute auto channel search, press the up/down arrow to highlight Auto Channel Search and press ENTER button.

What to notice:

1. The channel search access starts from the Analog TV channel searching and ends at Digital TV channel searching.

2. The channels that have been found will be stored automatically.

3. You can press MENU or EXIT button to skip analog/digital channel searching.

4. You can press MENU or EXIT repeatedly to end the channel searching.

Turning On and Off

Connect the AC cord to power the LCD TV. At this time the TV will enter standby mode and power indicator shows red.

Use Power button (_) on the top panel of TV or on the remote control to turn on the TV. After switching off the TV for 5 seconds,

you can turn on TV again.

Choosing TV Channel

Tuning To Analog Channels

An analog channel has a channel number beginning with "A". Input the digital number with numeric buttons directly and press

ENTER button to confirm.

For example, to watch analog channel "A51 ", press "5", "1 ", "ENTER" on remote control in sequence.

Note; Although there is no analog TV signal available in America, we reserve ATe! functions for some expansible use.

Tuning To Digital Channels

A digital channel has a channel number beginning with "D". Input the main digital number with numeric buttons directly, then press

" --" button on remote control, and input the sub number at last.

For example, to watch analog channel "D31-1 ", press "3", "1 ", ..... button. "ENTER" on remote control in sequence.

Changing Channels Directly

You can use CH+ button to increase channel number and CH- to decrease channel number. When no OSD (On Screen Display) is

used, the up/down arrows can also work as CH+/CH- buttons.

Selecting Input Source

Press INPUT button on remote control to display Source Select list.

Use up/down arrows to highlight the source you need and press ENTER to confirm.

Adjusting TV Stand Angle

The TV cabinet can manually adjust to left or right for 30 degrees from the centre.

You can adjust the angle for the best viewing effect and comfort.

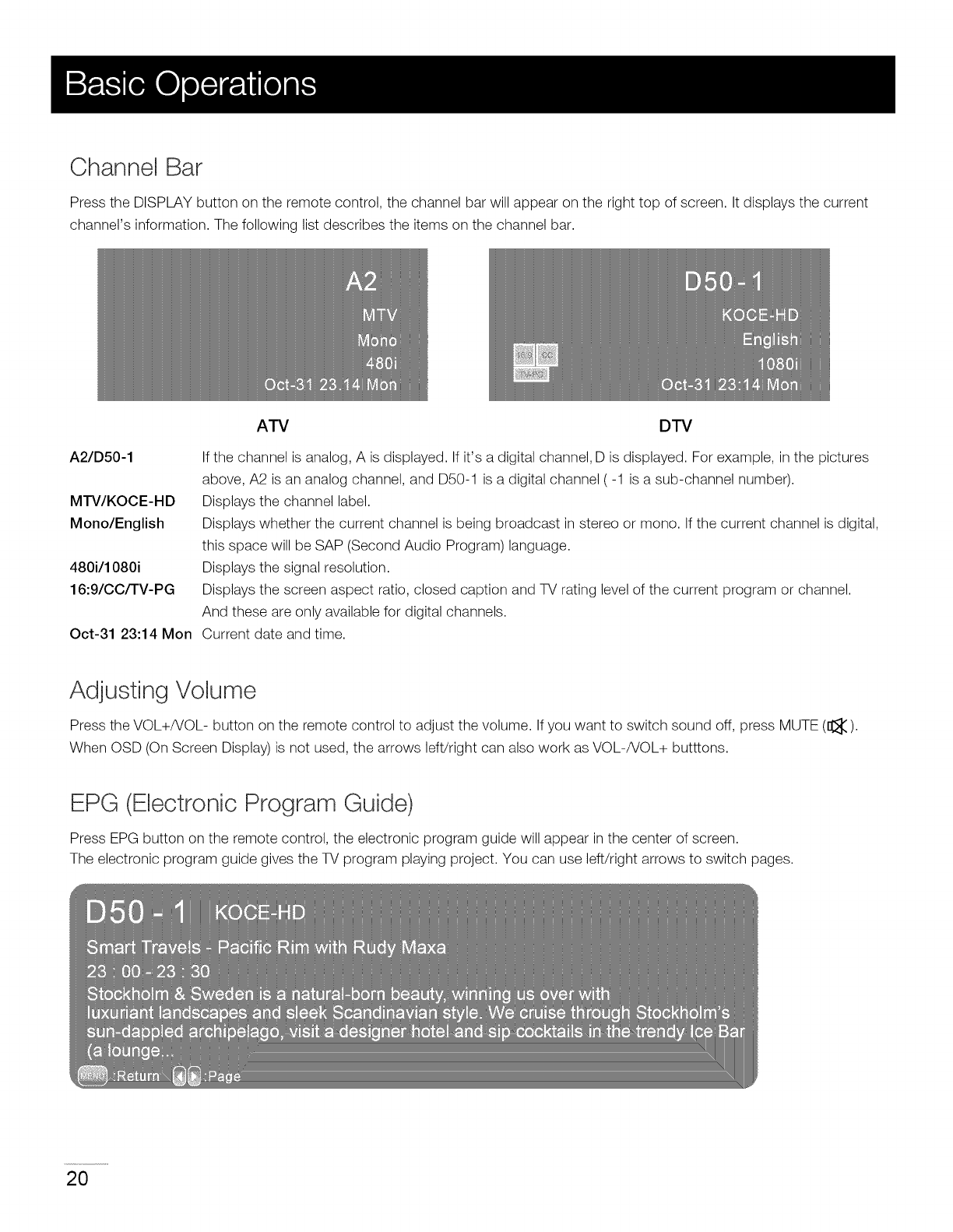

Channel Bar

Press the DISPLAY button on the remote control, the channel bar will appear on the right top of screen. It displays the current

channel's information. The following list describes the items on the channel bar.

A2/D50-1

MTV/KOCE-HD

Mono/English

480i/1080i

16:9/CC/TV-PG

Oct-31 23:14 Mon

ATV DTV

If the channel is analog, A is displayed. If it's a digital channel, D is displayed. For example, in the pictures

above, A2 is an analog channel, and D50-1 is a digital channel ( -1 is a sub-channel number).

Displays the channel label.

Displays whether the current channel is being broadcast in stereo or mono. If the current channel is digital,

this space will be SAP (Second Audio Program) language.

Displays the signal resolution.

Displays the screen aspect ratio, closed caption and TV rating level of the current program or channel.

And these are only available for digital channels.

Current date and time.

Adjusting Volume

Press the VOL+/VOL- button on the remote control to adjust the volume. If you want to switch sound off, press MUTE (1_).

When OSD (On Screen Display) is not used, the arrows lefVright can also work as VOL-/VOL+ butttons.

EPG (Electronic Program Guide)

Press EPG button on the remote control, the electronic program guide will appear in the center of screen.

The electronic program guide gives the TV program playing project. You can use left/right arrows to switch pages.

Adjust the OSD Screen

The OSD (On Screen Display) menu enables you to approach to the TV functions.

To use OSD menu system, press MENU button on remote control, then use left/right arrow to highlight an option from PICTURE,

SOUND, CHANNEL, PARENTAL, SETUP or OTHERS and press ENTER button.

Press the up and down arrow to move to a different option within each menu. If necessary, press ENTER or right arrow to display

the choices of the option you've highlighted. If available, use the text at the bottom of each screen for help. To return to the

previous menu, press the MENU button.

To exit the OSD menu:

• Press the EXIT button. The menu will clear from the screen.

• Press the MENU button repeatedly until the menus disappear.

Picture Menu

The Picture Menu contains menus and controls to configure the way the picture appears. The Picture Menu options apply to the

video for the main TV and VIDEO INPUT selections. All picture options can be applied to each input.

Press MENU on the remote. Select Picture from the Main menu. Press the ENTER button to proceed to PICTURE menu.

Use up/down to choose the function you need, press

ENTER or right arrow to adjust or enter a sub-menu. The

sub-menu image and explanation are shown below.

Picture Settings

Picture Settings: Choose the preset visual mode of your TV:

Standard, Movie, User, Dynamic. Only in User mode you can

adjust Brightness, Contrast, Color, Tint and Sharpness.

Brightness: Adjust the brightness of picture.

Color: Adjust the richness of color.

Tint: Adjust the balance between red and green level (only

available in NTSC signal.

Sharpness: Adjust the sharpness level of picture.

Screen Settings

Screen Size: Select a screen aspect ratio.

(Available ratio: Full, Normal, Waterglass and Cinema.)

Please choose the ratio that applies to your video signal format best.

Auto Wide: Make the screen size compliant with signal format

automatically.

If you turn on this function, the Screen Size setting will be ignored.

PC Settings (only available in PC mode)

Auto Adjust: Adjust the PC picture display automatically.

Horizontal Position: Adjust the horizontal position of picture.

Vertical Position: Adjust the vertical position of picture.

Clock: Adjust the clock of picture.

Phase: Adjust the phase of picture.

Reset: Reset all the PC picture settings to factory default.

Color Temperature

This option allows you to select one of three automatic color adjustments: Cool for a bluer palette of picture colors; Normal or

Warm for a redder palette of color.

Advanced Picture Settings (not available in PC mode)

Dynamic Contrast: Set dynamic contrast on/off.

Film Mode: Set film mode on/off.

Noise Reduction: Set noise reduction as Off/low/Medium/High.

MPEG Noise Reduction: Set MEPG noise reduction as Off/low/Medium

or High.

Note: Noise reduction helps to reduce the picture "static" or any type of

interference. This feature is especially useful for providing a clearer picture

in weak analog signal conditions. The MEPG Noise Reduction specifically

works on video signal with MPEG coding.

Sound Menu

The Sound Menu lets you adjust audio output. To access the Sound Menu, press MENU on the remote, and then select SOUND

from the Main Menu. Press ENTER button to proceed to SOUND menu.

Use up/down to choose the function you need, press

ENTER or right arrow to adjust or enter a sub-menu. The

sub-menu image and explanation are shown below.

Sound Settings

Sound Mode: Choose the preset sound mode of your TV:

Standard, Soft, User, Dynamic. Only in User mode you can

adjust Bass and Treble.

Bass: Adjust the bass component of TV sound.

Treble: Adjust the treble component of TV sound.

Balance: Adjust the balance between the left and right channel.

Surround Mode

Creates a 3D sound surround from standard stereo material, with deep and rich enhancement.

Analog Sound

Select analog TV audio sound type: Stereo, Mono or SAP (only available in TV mode).

Digital Sound

Select digital TV audio language type: English, French or Spanish (only available for DTV channel).

Other Settings

Set AVL (auto volume control) on/off.

Set TV speakers on/off.

Set the audio output type as Off, PCM or Dolby Digital.

Please set this option according to your power amplifier.

Equalizer Settings

The seven-band graphic equalizer allows you to adjust the audio frequency

settings. You can select one of the equalizer presets (OFF, POP, ROCK,

JAZZ) or create your own personal preset (USER).

Press the left or right arrow to select the frequency (100Hz, 250Hz, 500Hz,

1KHz, 2KHz, 4KHz, 10KHz) you want to adjust. Use the up or down arrow

to adjust.

Channel Menu

The Channel Menu enables you to search, view and edit channels. It is available in TV mode only.

Press MENU and choose CHANNEL from the Main menu. Press the ENTER button to proceed to CHANNEL menu.

Use up/down to choose the function you need, press

ENTER or right arrow to adjust or enter a sub-menu. The

sub-menu image and explanation are shown below.

Channel List

Display a channel list. It shows the current channels.

Favorite List

Display a favorite channel list. It shows the current favorite channels.

Channel Settings

Go to channel setting sub-menu (as shown below).

Press left/right arrow to switch the channel you want to edit.

Set if the current channel is contained in channel list.

-- Enter a channel label to rename the current channel.

Set if the current channel is the favorite channel.

Signal Type

Select your TV signal type: Air or Cable.

Auto Channel Search

Execute an auto channel search (see page 18).

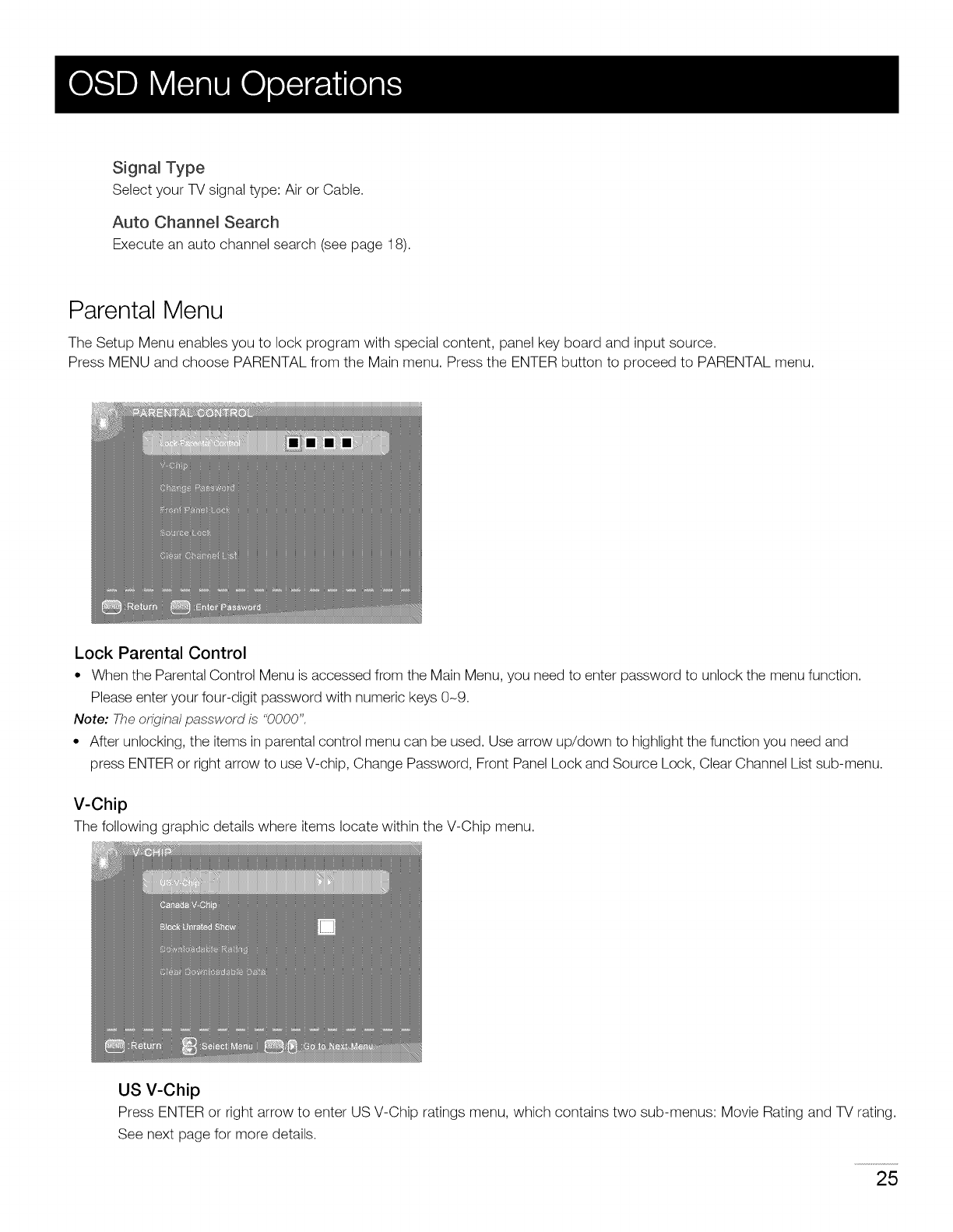

Parental Menu

The Setup Menu enables you to lock program with special content, panel key board and input source.

Press MENU and choose PARENTAL from the Main menu. Press the ENTER button to proceed to PARENTAL menu.

Lock Parental Control

• When the Parental Control Menu is accessed from the Main Menu, you need to enter password to unlock the menu function.

Please enter your four-digit password with numeric keys 0-9.

Note: The original passwo/_ is "0000",

• After unlocking, the items in parental control menu can be used. Use arrow up/down to highlight the function you need and

press ENTER or right arrow to use V-chip, Change Password, Front Panel Lock and Source Lock, Clear Channel List sub-menu.

V-Chip

The following graphic details where items locate within the V-Chip menu.

US V-Chip

Press ENTER or right arrow to enter US V-Chip ratings menu, which contains two sub-menus: Movie Rating and TV rating.

See next page for more details.

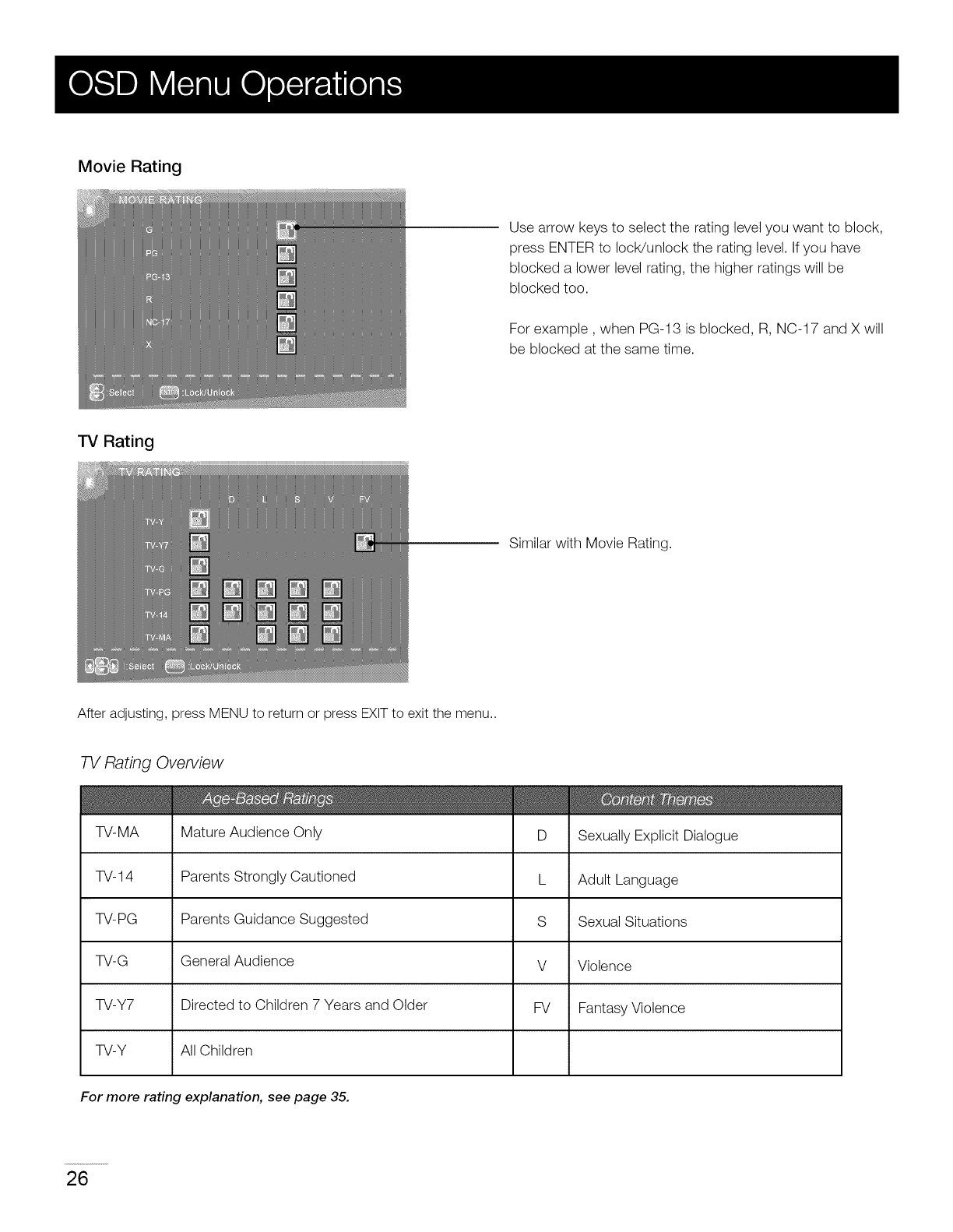

Movie Rating

Use arrow keys to select the rating level you want to block,

press ENTER to IocWunlock the rating level. If you have

blocked a lower level rating, the higher ratings will be

blocked too.

For example, when PG-13 is blocked, R, NC-17 and X will

be blocked at the same time.

TV Rating

Similar with Movie Rating.

After adjusting, press MENU to return or press EXIT to exit the menu..

TV Rating Overview

TV-MA

TV-14

-R/-PG

TV-G

TV-Y7

TV-Y

Mature Audience Only

Parents Strongly Cautioned

Parents Guidance Suggested

General Audience

Directed to Children 7 Years and Older

All Children

D Sexually Explicit Dialogue

L Adult Language

S Sexual Situations

V Violence

FV Fantasy Violence

For more rating explanation, see page 35.

Canada V-Chip

Press ENTER or right arrow to enter US V-Chip ratings menu, which contains two sub-menus: English Rating and French Rating.

English Rating

Press ENTER or right arrow to enter English rating menu.

Use arrow keys to select the rating level you want

to block, press ENTER to IocWunlock the rating

level. If you have blocked a lower level rating,

the higher ratings will be blocked too.

For example, when PG is blocked, 14+ and 18+

will be blocked at the same time.

French Rating

Press ENTER or right arrow to enter French rating menu.

Similar with English Rating.

Note: These ratings are

available only if the

broadcaster ls sending

rating info/rnation.

Block Unrated Show

Block all the unrated program.

Downloadable Rating, Clear Downloadable Data

Activate or downloadable rating data. if available.

Change Password

Change the password of parental menu.

Input the old password.

Input the new password.

Input the new password again to confirm.

Front Panel Lock

Select this option to block or unblock the TV's side panel buttons so that they can't be used.

Source Lock

This option allows you to lock or unlock the input source. The source blocked can not be

chosen from input list unless you input the correct parental password.

Use up/down arrow

to select the source,

press ENTERto

lock or unlock it.

Clear Channel List

This option allows you to execute Clear Channel List function.

This function will reset the whole TV system to factory default (not only reset OSD menu).

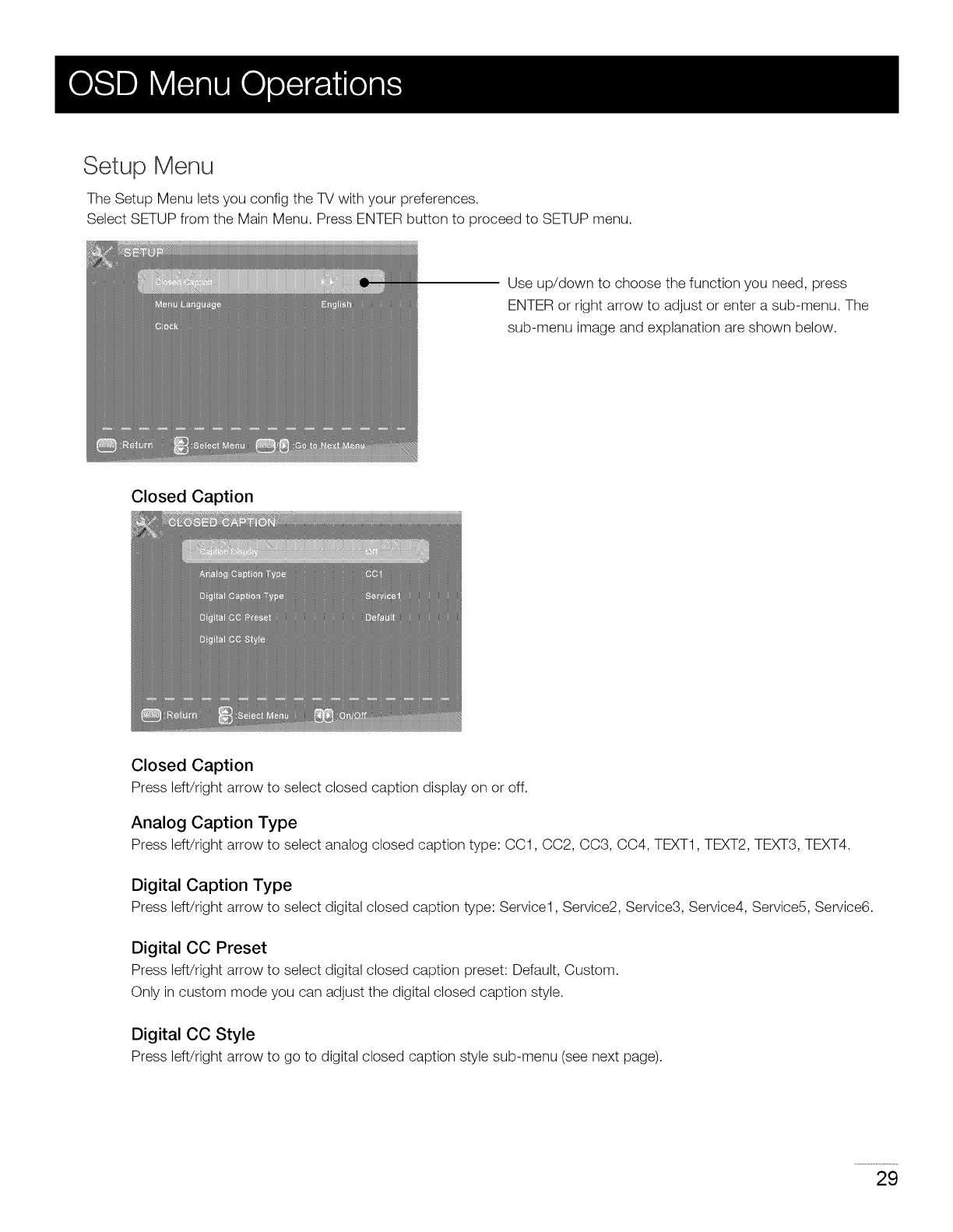

Setup Menu

The Setup Menu lets you config the TV with your preferences.

Select SETUP from the Main Menu. Press ENTER button to proceed to SETUP menu.

Use up/down to choose the function you need, press

ENTER or right arrow to adjust or enter a sub-menu. The

sub-menu image and explanation are shown below.

Closed Caption

Press left/right arrow to select closed caption display on or off.

Analog Caption Type

Press left/right arrow to select analog closed caption type: CC1, CC2, CC3, CC4, TEXT1, TEXT2, TEXT3, TEXT4.

Digital Caption Type

Press left/right arrow to select digital closed caption type: Service1, Service2, Service3, Service4, Service5, Service6.

Digital CO Preset

Press left/right arrow to select digital closed caption preset: Default, Custom.

Only in custom mode you can adjust the digital closed caption style.

Digital CO Style

Press left/right arrow to go to digital closed caption style sub-menu (see next page).

Digital CO Style

-- Select the item you want to adjust in Digital CC Style menu

with up/down arrows.

After changing, you can preview the caption style here.

Clock

Time Zone

Select your time zone: Eastern, Central, Mountain, Pacific, Alaska, Hawaii, Samoa, Newfoundland, Atlantic.

Auto Clock

Select auto clock on/off. Auto clock helps you synchronize your TV time to standard time (from DTV signal).

Setup Time

Set your TV time manually (needs to turn off auto clock).

Day of Week

Display what day it is (can't be adjust, display only).

Others Menu

The Others Menu lets you config the TV with your preferences in other features.

Use up/down to choose the function you need, press

ENTER or right arrow to adjust or enter a sub-menu.

The sub-menu image and explanation are shown below.

Blue Back

Press ENTER button to select Blue Back on or off. If the Blue Back is turned on, the TV will display a blue background

when there is no signal input.

No Signal Power Off

Press ENTER button to select "No Signal Power Off" on or off. If it is turned on, the TV will shut off after 10-minute

no signal time. We suggest you turn on this function when Blue Back is turned on. Because it may hurt the LCD panel

if the blue screen lasts too long.

Note: In PC mode, the monitor standby and power off settings depend on the No Signal Off time.

No Operation Power Off

Press ENTER button to select "No Operation Power Off" on or off. If it is turned on, the TV will shut off after a 3-hours

no operation time.

All Reset

Press ENTER button to execute reset to TV system. All the settings will be reset to factory default.

Audio Only

Press ENTER button to activate audio only mode. The TV will output only sound and the LCD panel will be turned off.

To restore normal playing, hold POWER button for three seconds.

What's the most convenient way to view High Definition (HD) video?

Connect an antenna to the TV Input jack to view free local digital channels. You may need to purchase an antenna. (See page 8

for more information about antenna setup).

Visit www.antennaweb.org for assistance in deciding what type of antenna to use to receive the local digital channels available

to you. After entering your location, this mapping program tells you which local analog and digital stations are available using a

certain antenna.

Are there other ways to view High Definition (HD) video?

Besides using an antenna as mentioned above, you can also use a set-top box to receive digital video. Contact your cable service

provider or satellite provider to purchase digital programming and have them connect the box to ensure you are viewing channels

in the best way.

How do I tell an analog channel from a digital channel?

Press the DISPLAY button to display the Channel Bar. Look at the top right corner of the screen. An "A" is displayed for an analog

channel. A "D" is displayed for a digital channel.

Note: Since the analog TV in America has been cut off, we reserve analog TV function only for some unexpected use.

Why are there bars on my screen, and can I get rid of them?

Most digital video is sent in a 16/9 format which fills your screen, but is sometimes sent in 4/3 which does not fill your screen. It

depends on how the station or device connected to your TV is formatting the video. If there are bars on the screen, press the

ASPECT button to try a different format that may eliminate the bars. Some bars can't be removed because of the way the format

is sent by the broadcaster. The format changes as you press the ASPECT button and the format type is displayed at the bottom

of the screen. For more information on screen formats, go to page 22.

Why does channel search find a lot of channels, but when I try to tune to them, there's nothing there?

Some channels don't carry programming, such as video On Demand. When channels are unavailable, your TV screen is blank or

appears like snow. You probably want to remove these channels from your channel list. Remove these in the Channel List Menu.

Go to page 24 for more information.

Why does it take a long time when I search the channels at first time?

If you have both analog and digital channels, the TV is looking for all available channels in the channel list. If you do have digital

channels, the TV is also searching for scrambled channels, non-scrambled channels, and each sub-channel of that digital channel.

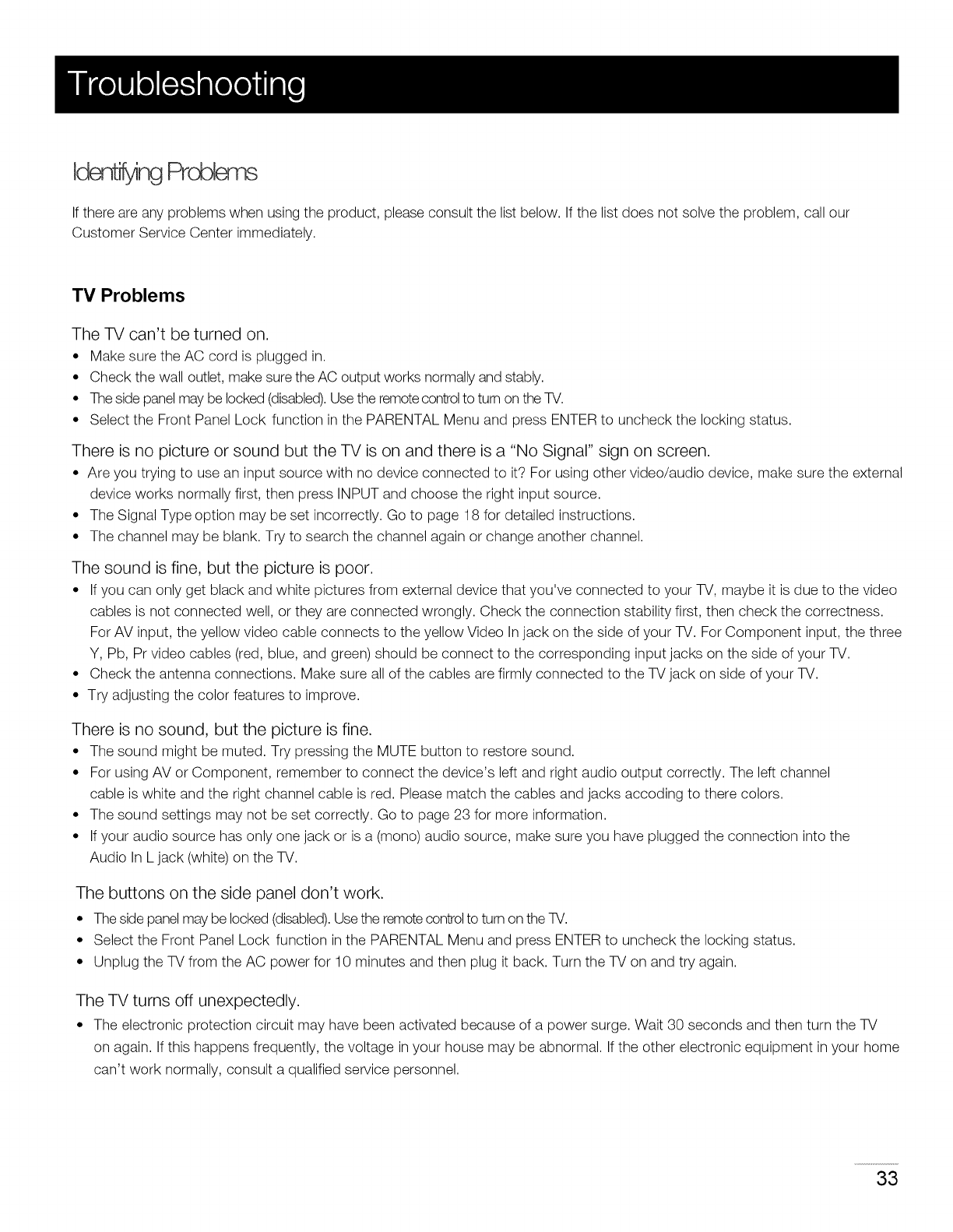

ldent ng Problen

If there are any problems when using the product, please consult the list below. If the list does not solve the problem, call our

Customer Service Center immediately.

TV Problems

The TV can't be turned on.

• Make sure the AC cord is plugged in.

• Check the wall outlet, make sure the AC output works normally and stably.

• The side panel may be locked (disabled). Use the remote control to turn on the TV.

• Select the Front Panel Lock function in the PARENTAL Menu and press ENTER to uncheck the locking status.

There is no picture or sound but the TV is on and there is a "No Signal" sign on screen.

• Are you trying to use an input source with no device connected to it? For using other video/audio device, make sure the external

device works normally first, then press INPUT and choose the right input source.

• The Signal Type option may be set incorrectly. Go to page 18 for detailed instructions.

• The channel may be blank. Try to search the channel again or change another channel.

The sound is fine, but the picture is poor.

• If you can only get black and white pictures from external device that you've connected to your TV, maybe it is due to the video

cables is not connected well, or they are connected wrongly. Check the connection stability first, then check the correctness.

For AV input, the yellow video cable connects to the yellow Video In jack on the side of your TV. For Component input, the three

Y, Pb, Pr video cables (red, blue, and green) should be connect to the corresponding input jacks on the side of your TV.

• Check the antenna connections. Make sure all of the cables are firmly connected to the TV jack on side of your TV.

• Try adjusting the color features to improve.

There is no sound, but the picture is fine.

• The sound might be muted. Try pressing the MUTE button to restore sound.

• For using AV or Component, remember to connect the device's left and right audio output correctly. The left channel

cable is white and the right channel cable is red. Please match the cables and jacks accoding to there colors.

• The sound settings may not be set correctly. Go to page 23 for more information.

• If your audio source has only one jack or is a (mono) audio source, make sure you have plugged the connection into the

Audio In L jack (white) on the TV.

The buttons on the side panel don't work.

• Theside panelmaybe locked(disabled).Usethe remotecontrolto turn onthe TV.

• Select the Front Panel Lock function in the PARENTAL Menu and press ENTER to uncheck the locking status.

• Unplug the TV from the AC power for 10 minutes and then plug it back. Turn the TV on and try again.

The TV turns off unexpectedly.

• The electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn the TV

on again. If this happens frequently, the voltage in your house may be abnormal. If the other electronic equipment in your home

can't work normally, consult a qualified service personnel.

Can't select a certain channel.

• The channel may be blocked or not approved in the PARENTAL Menu.

• The channel may be skipped in channel listin CHANNEL Menu. Check the blocking and skipping status of channel.

The stereo sound performance is bad.

• It may be a weak station. Use the SOUND Menu and set Analog Sound as Mono.

A black box appears on the screen.

• Closed captioning might be on. Check Closed Caption in the SETUP menu. Go to page 30 for more instructions.

Problems with the HDMI Connection.

• Make sure the HDMI device (DVD, video gamer, etc.) is turned on and the cables are firmly connected. If problems still occur, turn off

your device and reconnect it. Reset the power by unplugging the power cord and plugging it again.

• If a "No Signal" message appears on screen, the HDMI device isn't responding. Contact the manufacturer of the HDMI device for

further assistance.

• Ifyou have black bars on each side of your picture (which means the TV can not display a full-screen image), the device you connected

might have a switch or a menu option allowing you to change the picture quality output that willfix this. Choose either 720p or 1080i.

The Remote control doesn't work.

• Something might be blocking between the remote control and the remote sensor on the front panel of the TV. Make sure

there is a clear path.

• The remote may not be aimed directly at the TV.

• The batteries in the remote may be weak, dead, or installed incorrectly. Put new batteries in the remote.

You are experiencing problems with V-Chip/Parental Controls.

• If the rating limits don't work, you must lock the settings. Go to the Main Menu (press MENU on your remote), select

PARENTAL to check the settings.

What else can I do?

If you've been through the Troubleshooting section and nothing has fixed your problem, try rebooting your TV. Note that after

a reboot, you may need to run your TV through the setup process again. To reboot, unplug the power cord from the wall

outlet or power strip. Keep your TV unplugged for about 5 minutes. Then plug in the TV and turn it on. See if the problem

is fixed. If the problem remains, then please visit the Customer Support Menu at www.rca.com or updated FAQs or contact

RCA Customer Support at the support number provided in your Warranty card.

US V-Chip Rating System

TV-MA (Mature Audience Only): Specifically designed to be viewed by adults and may be unsuitable for children under 17. It

contains one or more of the following content themes: crude indecent language (L), explicit sexual activity (S), or graphic violence (V).

TV-14 (Parents Strongly Cautioned): Contains some material that many parents would find unsuitable for children under 14.

Parents are strongly urged to exercise greater care in monitoring this program and are cautioned against letting children under the

age of 14 watch unattended. This program contains one or more of the following content themes: intensely suggestive dialogue (D),

strong coarse language (L), intense sexual situations (S), or intense violence (V).

rV-PG (Parental Guidance Suggested) : Contains material that parents may find unsuitable for younger children. Many parents

may want to watch it with their younger children. The program contains one or more of the following content themes: some

suggestive dialogue (D), infrequent coarse language (L), some sexual situations (S), or moderate violence (V).

TV-G (Parental Audience): Most parents would find this program suitable for all ages. It contains little or no sexual dialogue (D)

or situations (S), no strong language (L), and little or no violence (V).

TV-Y7 (Directed to Children 7 years and older): Designed for children age of 7 and above. It may be more appropriate for children

who have acquired the developmental skills needed to distinguish between make believe and reality. Themes and elements in this

program may include mild fantasy violence (FV) or comedic violence, or may frighten children under the age of 7.

TV-Y (All Children): Themes and elements in this program are designed for a young audience, including children ages 2-6.

It is not expected to frighten younger children.

Canadian English V-Chip Rating System

18+ (Adult): Programming intended for adults 18 and older. It may contain elements of violence, language, and sexual content

which could make it unsuitable for viewers under 18. Violence Guidelines: May contain violence integral to the development of

the plot, character or theme, intended for adult audiences. Other Content Guidelines: May contain graphic language an d explicit

portrayals of nudity and/or sex.

14+ (Viewer 14 and over): Programming contains themes or contents which may not be suitable for viewers under the age of 14.

Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. Violence Guidelines:

May contain intense scenes of violence. Could deal with mature themes and societal issues in a realistic fashion.

Other Content Guidelines: May contain scenes of nudity and/or sexual activity. There could be frequent use of profanity.

PG (Parental Guidance): Programming intended for a general audience but which may not be suitable for younger children

(under the age of 8). Parents may consider some content inappropriate for unsupervised viewing by children aged 8-13.

Violence Guidelines: Depictions of conflict and/or aggression will be limited and moderate; may include physical, fantasy, or

supernatural violence. Other Content Guidelines: May contain infrequent mild profanity, or mildly suggestive language.

Could also contain brief scenes of nudity.

G (General Audience): Programming considered acceptable for all ages groups. While not designed specifically for children,

it is understood younger viewers may be part of the audience. Violence Guidelines: Will contain very little violence, either physical or

verbal or emotional. Will be sensitive to themes which could frighten a younger child, will not depict realistic scenes of violence

which minimize or gloss over the effects of violent acts. Other Content Guidelines: There may be some inoffensive slang, no

profanity and no nudity.

C8+ (Children 8 and older): Programming generally considered acceptable for children 8 years and over to watch on their own.

Violence Guidelines: Violence will not be portrayed as the preferred, acceptable, or only way to resolve conflict or encourage

children to imitate dangerous acts which they may see on television. Any realistic depictions of violence will be infrequent,

discreet, of low intensity and will show the consequences of the acts. Other Content Guidelines: There will be no profanity,

nudity or sexual content.

C (Children): Programming intended for children under age of 8. Violence Guidelines: Careful attention is paid to themes which

could threaten children's sense of security and well being. There will be no realistic scenes of violence. Depictions of aggressive

behavior will be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature.

Other Content Guidelines: There will be no offensive language, nudity or sexual content.

Canadian French V-Chip Rating System

18+ (Adult): Programming is for adults only. This program contains sustained violence or extremely violent scenes.

16+ (Viewer 16 and over): Programming is not suitable for those under age 16. This program contains frequent scenes of

violence or intensely violent scenes.

13+ (Viewer 13 and over): Programming may not be suitable for children under the age of 13. This program either contains

several violent scenes or one or more scenes that are violent enough to affect them. Viewing in the company of an adult is

therefore strongly recommended for children under the age of 13.

8+ (Viewer 8 and over): Not recommended for young children. This program is suitable for most audiences, but it contains mild

or occasional violence that could upset young children. Viewing in the company of an adult is therefore recommended for young

children (under the age of 8) who do not distinguish between reality and imagination.

G (General Audience): This program is suitable for audiences of all ages. It contains no violence, or any violence that it does

contain is either minimal or is presented in a humorous manner, as a caricature, or in an unrealistic way.

For Universal Remote Control brands listed below, please use accompanying codes and refer to your Universal Remote Control

User Manual for basic Instruction for changing TV code to operate the TV model.

Codes for

DIRECTV:0178, 10178

Time Warner Cable: 0178, 10178

Cox Communications: 0178

Comcast: 10178

Dish Network: 627

Fios Verizon: 0205, 0057, 0493, 0775

46LA45RQ VESA 400 x 400 M6 screws, length 14mm

400 mm

Note:

A. The wall mount is not contained in the accessories sold with television. We only provide the installing specifications but not the

wall mount itself. If you need the mount, please consult with the local dealer for a VESA wall mount.

B. We strongly suggest to set the wall mount with equipments of specification we ordered. If not, inappropriate installing may

cause damage to device or people.

Warnings:

1. Do not set up the wall mount by yourself. Please contact qualified professionals for installation.

2. The TV should not be mounted on walls or surfaces which have an angle more than 10 degrees with vertical direction.

Otherwise the TV set may fall.

3. The walls for mounting must have enough strength to hold the whole weight of TV set. For example, concrete wall and brickwork

are eligible. Do not place the mount on soft walls such as earth walls and plasterboard.

4. If spare parts of different specifications (such as screws) are used during mounting, consult with qualified professionals to make

sure these parts are safe and effective.

5. Before attaching the base to wall, ensure the holes for anchors are in keeping with the installing rules. Otherwise there may exist

some potential problems.

6. Do not place any heating source under your television. Or else, it can cause fire.

7. Do not place the TV near anything dripping. Transducers and high voltage wires should be kept far away from the apparatus too.

Or else, it may cause creepage, electric shock or bad resonance.

8. Do not place TV in a location where collision or vibration is liable to happen.

9. In order to avoid unexpected falling of the TV set, do not put any strong force on TV or wall mount after installing.

10. Be sure to unplug the TV before installing. Keep anything hard or sharp away from the screen panel to prevent the scuffing.

11. After installing, if there is any need to move the cabinet, please contact the qualified professionals.

Diagonal Display Size

Television System

Channel Coverage

Power Supply

RF input

Connection

Interface

Video input

Audio input

Audio output

Graphic input

Resolution

Component/HDMI mode

With stand

Dimensions Without stand

Package

With stand

Weight Without stand

Package

Power Consumption

46 inches

American TV standard ATSC/NTSC system

VHF: 2-13 UHF: 14-69 CATV: 1-135

Digital Terrstrial Broadcast (8VSB): 2-69

Digital Cable (64/256QAM): 1-135

AC 110 V, 60Hz

Cable/Antenna x 1

AVx 1

Component x 2

HDMI x 3

AVx 1

Component x 2

PC Audio In x 1

Headphone x 1, Digital Audio Out x 1, Analog Audio Out x 1

RGB 15pin x 1

1920 x 1080

480i, 480p, 720p, 1080i, 1080p

43.7"W x 30.0"H x 10.1"D

43.7"W x 27.8"H x 4.3"D

54.5"W x 33.7"H x 9.3"D

55.6LBS (25KGS)

49.1 LBS (22.1 KGS)

64LBS (28.8KGS)

less than 300W

Notice: Specifications are subject to change without notice.

ON Corp US, Inc.

4370 La Jolla Village Drive, Suite 400

San Diego, CA 92122

RCA is a trademark of RCA Trademark Management SAS

used under license to ON Corporation.

RCA 46LA45RQ User Manual LCD TELEVISION Manuals And Guides L1003502

RCA LCD Television Manual L1003502 RCA LCD Television Owner's Manual, RCA LCD Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
