USER'S

GUIDE

!_i_ __i¸ _ _ _ _

[

VIDEO CASSETTE

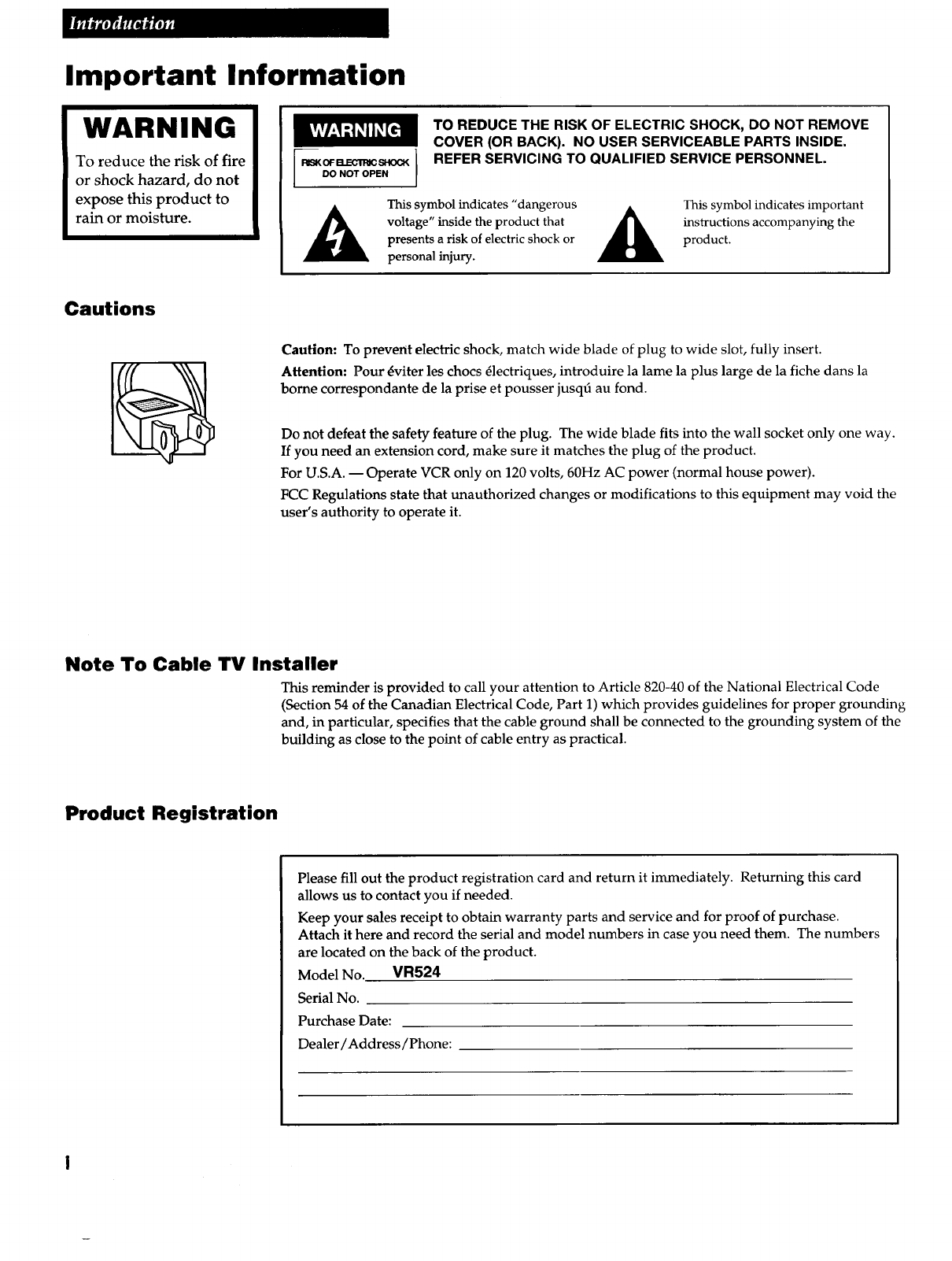

Important Information

WARNING

To reduce the risk of fire

or shock hazard, do not

expose this product to

rain or moisture.

[RISK OF B.EC11:aC SI'KX_ I

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates "dangerous

voltage" inside the product that

presents a risk of electric shock or

personal injury.

This symbol indicates important

instructions accompanying the

product.

Cautions

Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Attention: Pour _viter les chocs _lectriques, introduire la lame la plus large de la fiche dans la

borne correspondante de la prise et pousser jusq6 au fond.

Do not defeat the safety feature of the plug. The wide blade fits into the wall socket only one way.

If you need an extension cord, make sure it matches the plug of the product.

For U.S.A. -- Operate VCR only on 120 volts, 60Hz AC power (normal house power).

FCC Regulations state that unauthorized changes or modifications to this equipment may void the

user's authority to operate it.

Note 3"o Cable TV Installer

This reminder is provided to call your attention to Article 820-40 of the National Electrical Code

(Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to the grounding system of the

building as close to the point of cable entry as practical.

Product Registration

Please fill out the product registration card and return it immediately. Returning this card

allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof of purchase.

Attach it here and record the serial and model numbers in case you need them. The numbers

are located on the back of the product.

Model No. VR524

Serial No.

Purchase Date:

Dealer/Address/Phone:

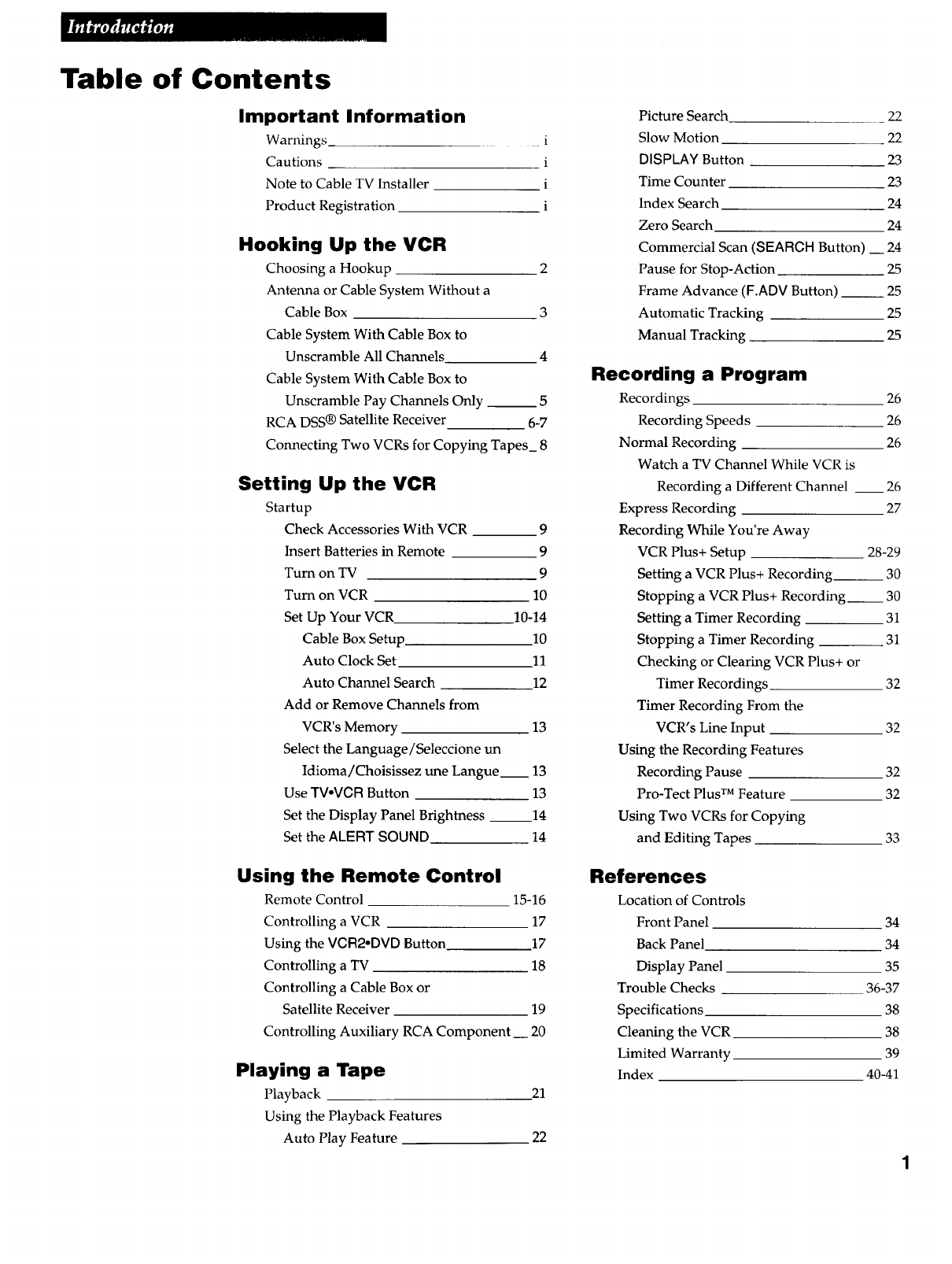

Table of Contents

Important Information

Warnings i

Cautions i

Note to Cable TV Installer i

Product Registration i

Hooking Up the VCR

Choosing a Hookup 2

Antenna or Cable System Without a

Cable Box 3

Cable System With Cable Box to

Unscramble All Channels 4

Cable System With Cable Box to

Unscramble Pay Channels Only __ 5

RCA DSS ® Satellite Receiver 6-7

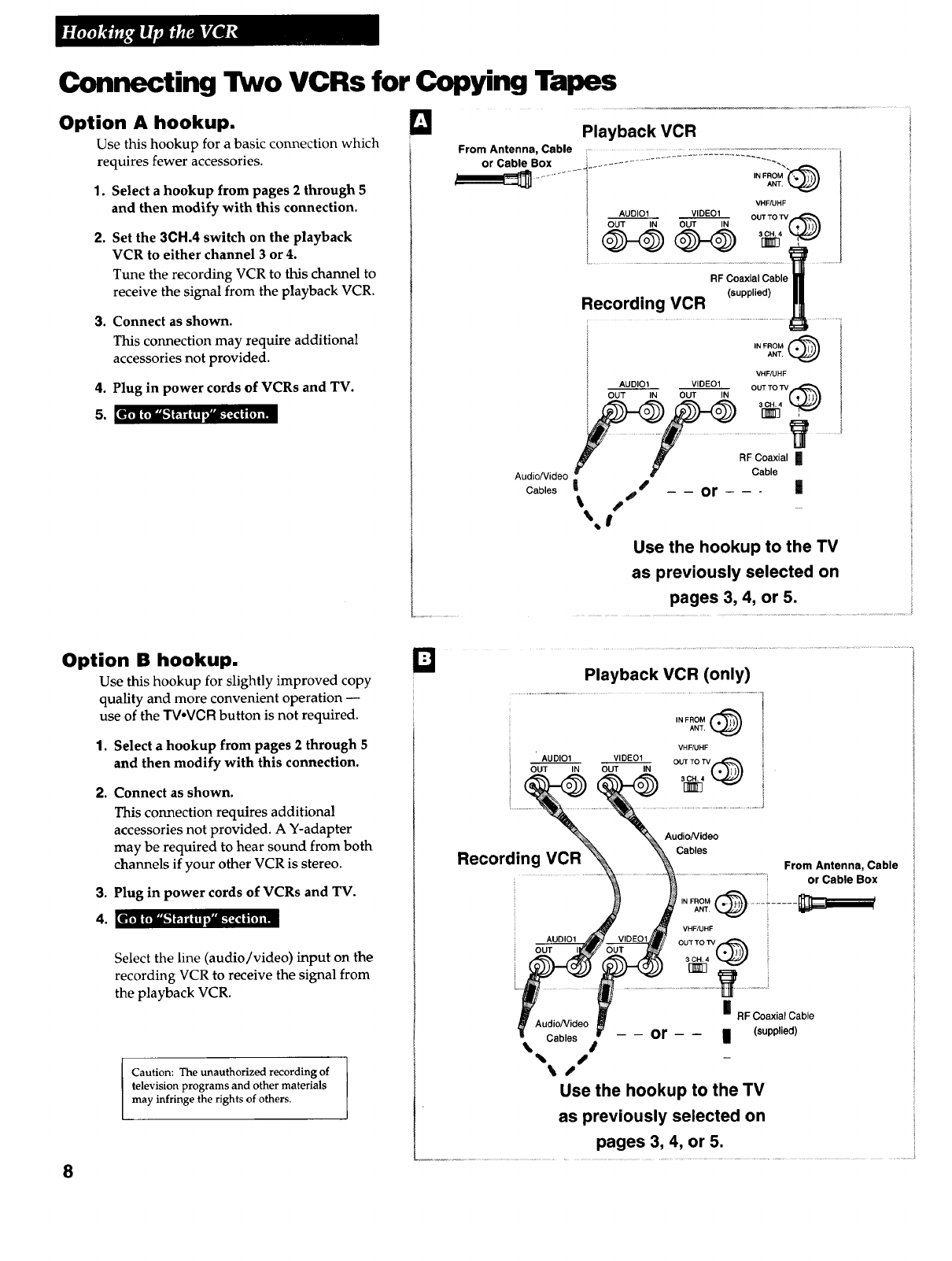

Connecting Two VCRs for Copying Tapes_ 8

Setting Up the VCR

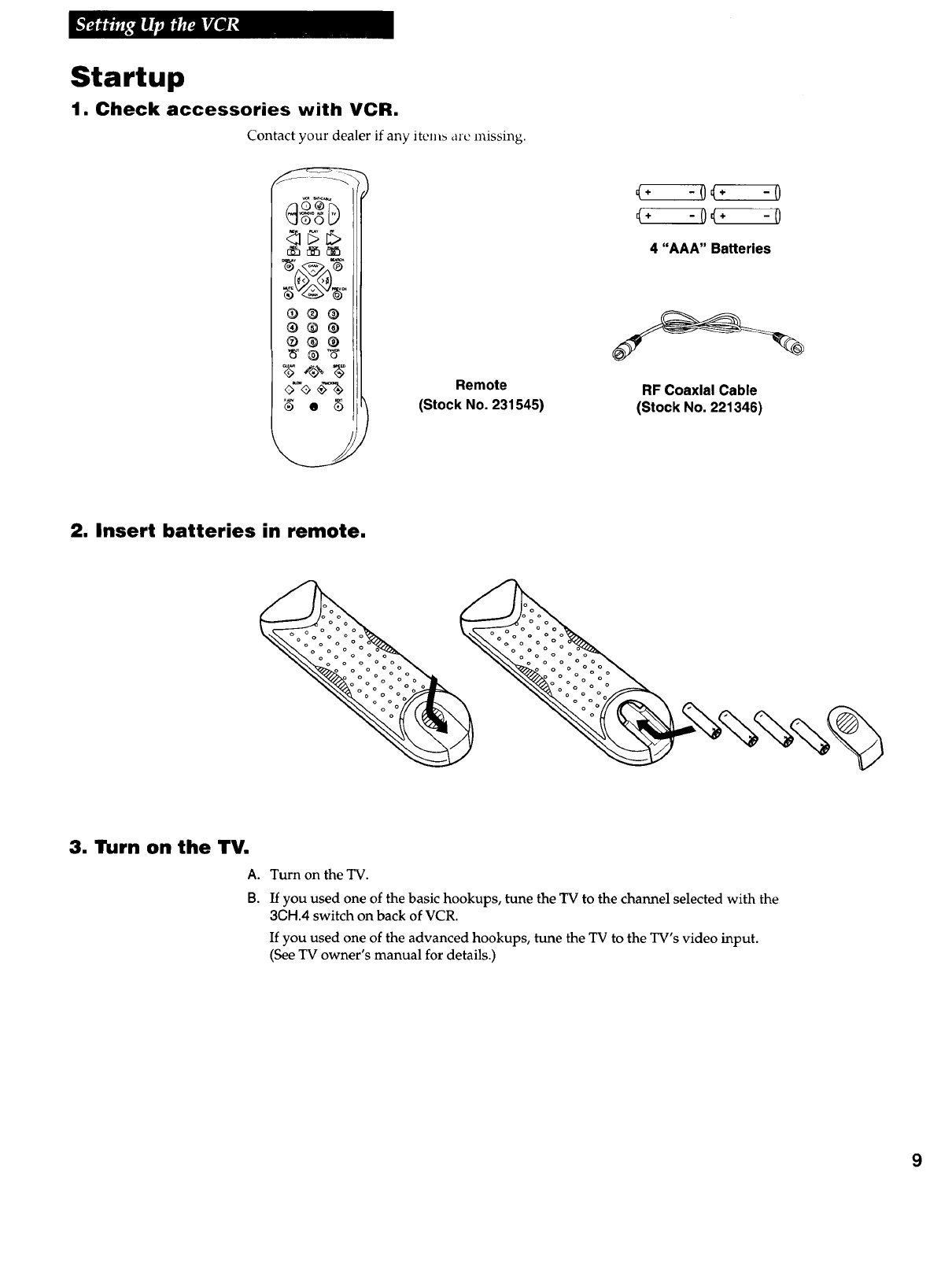

Startup

Check Accessories With VCR 9

Insert Batteries in Remote 9

Turn on TV 9

Turn on VCR 10

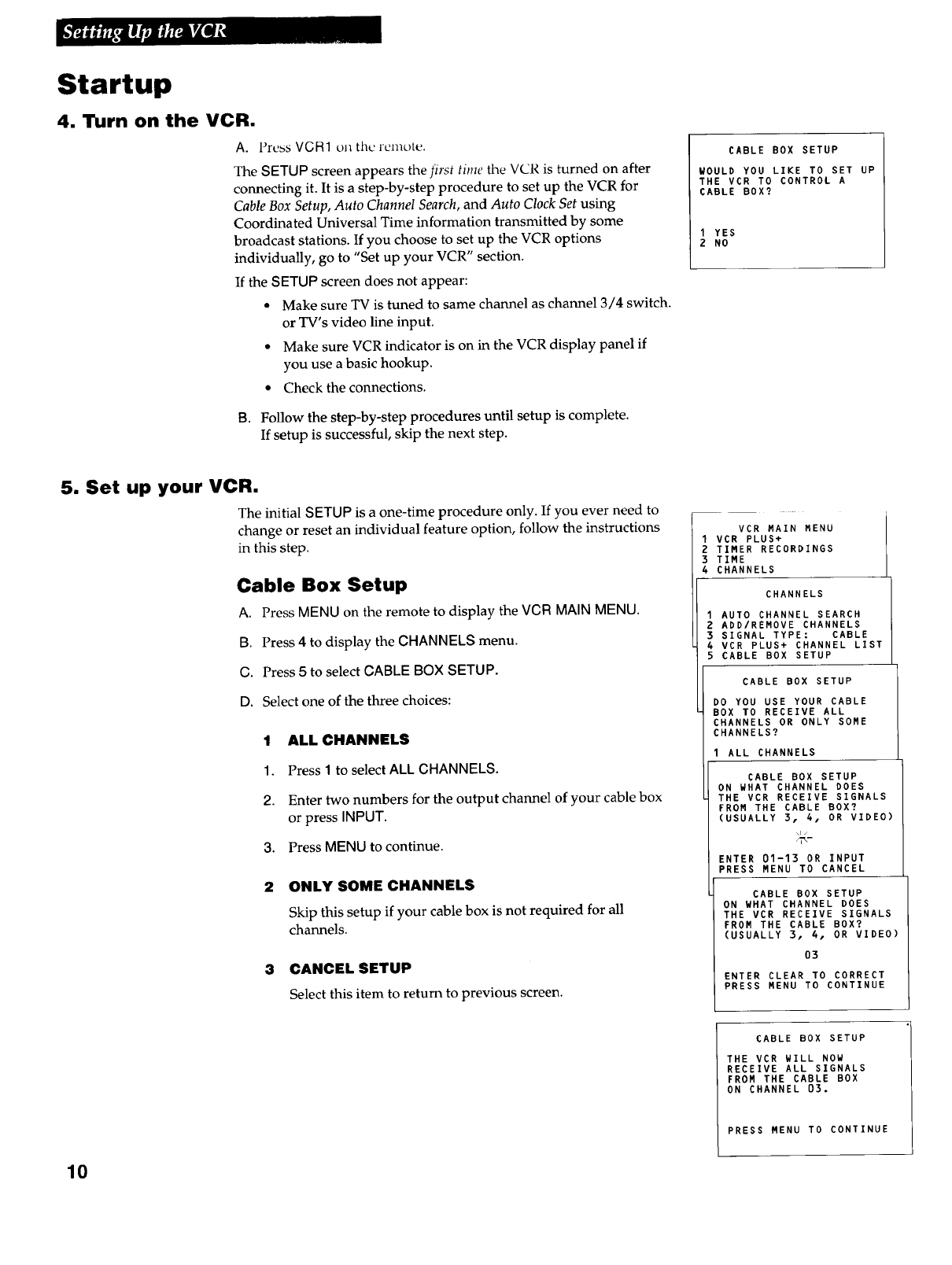

Set Up Your VCR 10-14

Cable Box Setup 10

Auto Clock Set 11

Auto Channel Search 12

Add or Remove Channels from

VCR's Memory 13

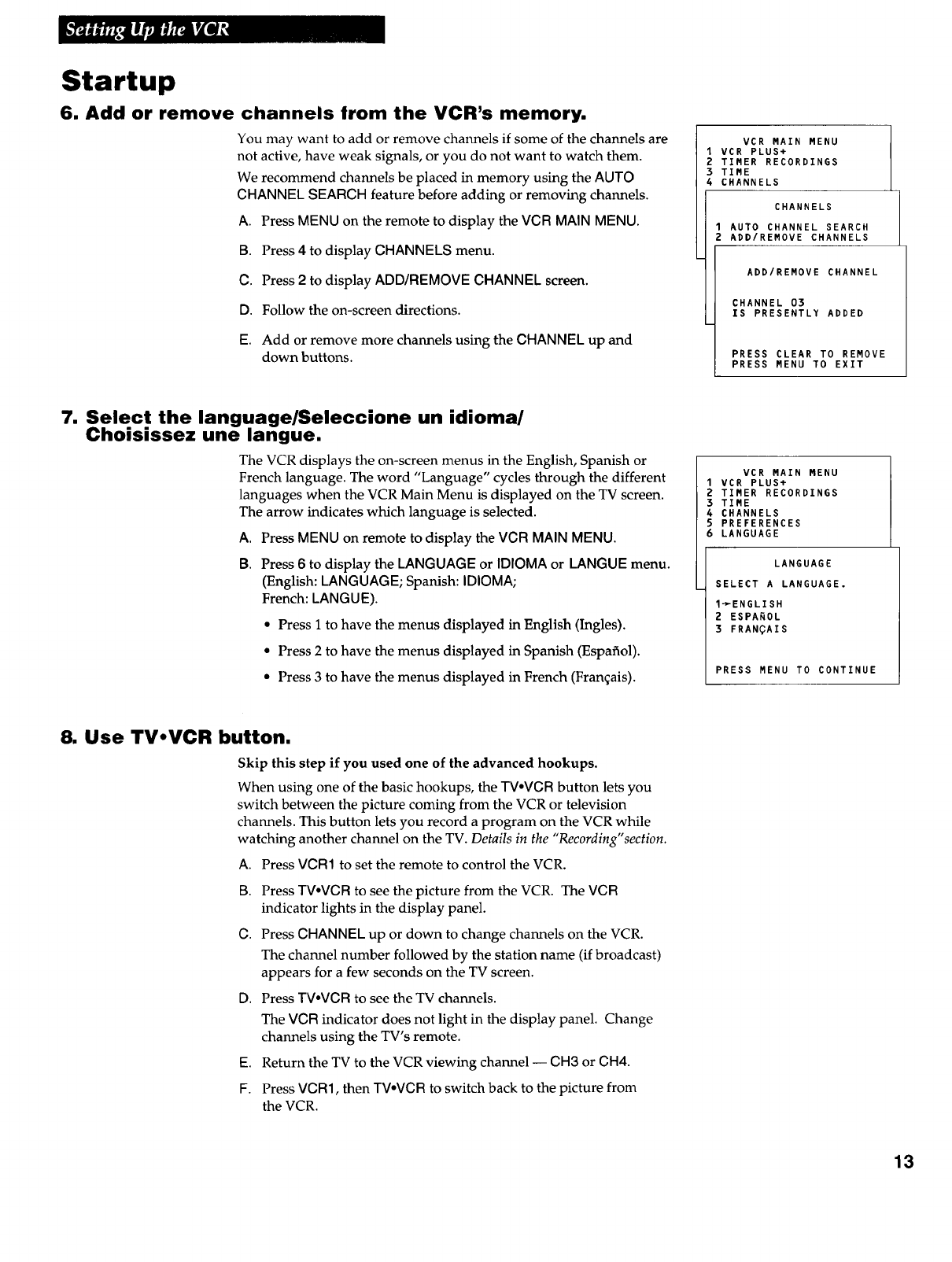

Select the Language/Seleccione un

Idioma/Choisissez une Langue 13

Use TVoVCR Button 13

Set the Display Panel Brightness 14

Set the ALERT SOUND 14

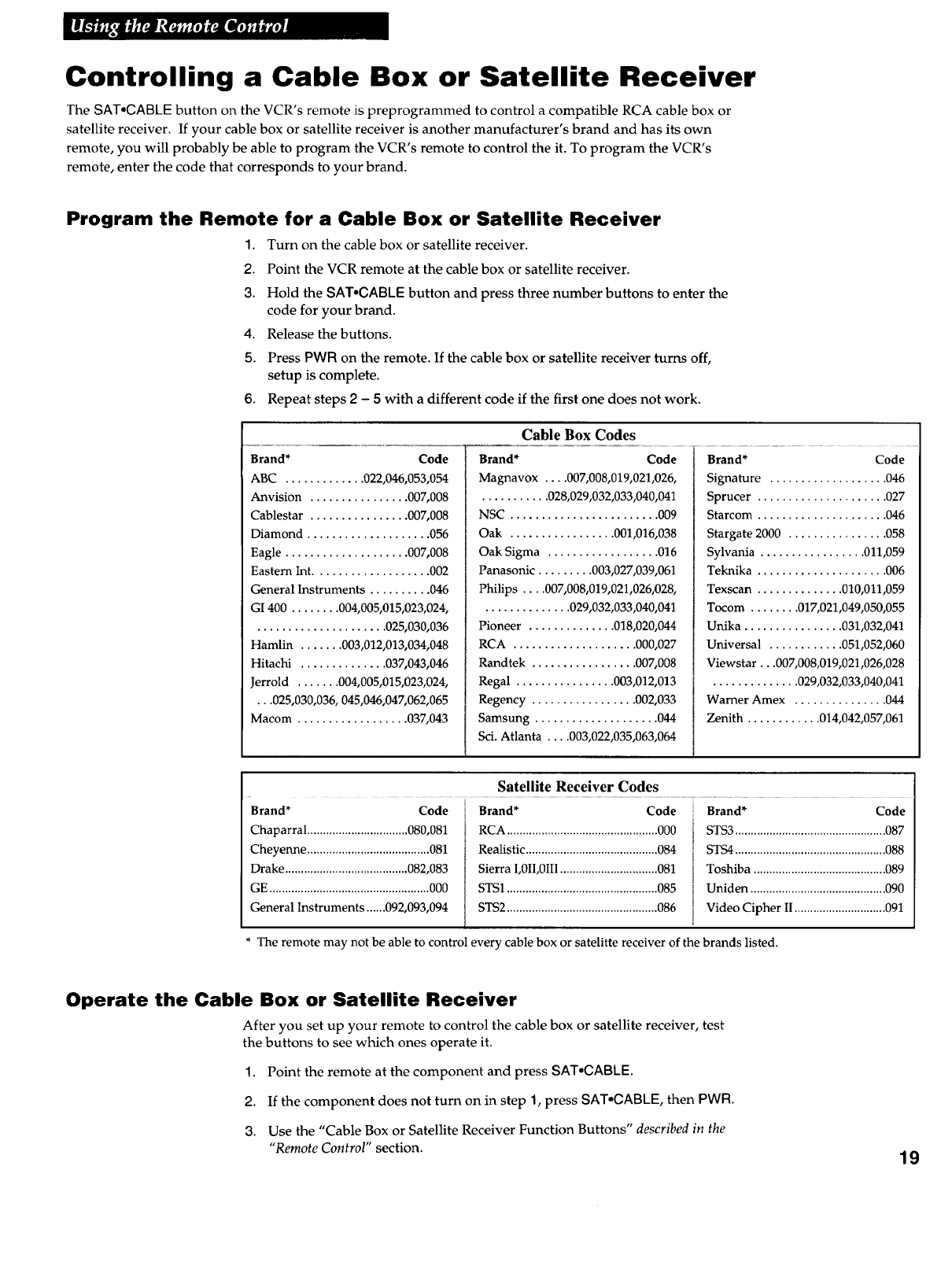

Using the Remote Control

Remote Control 15-16

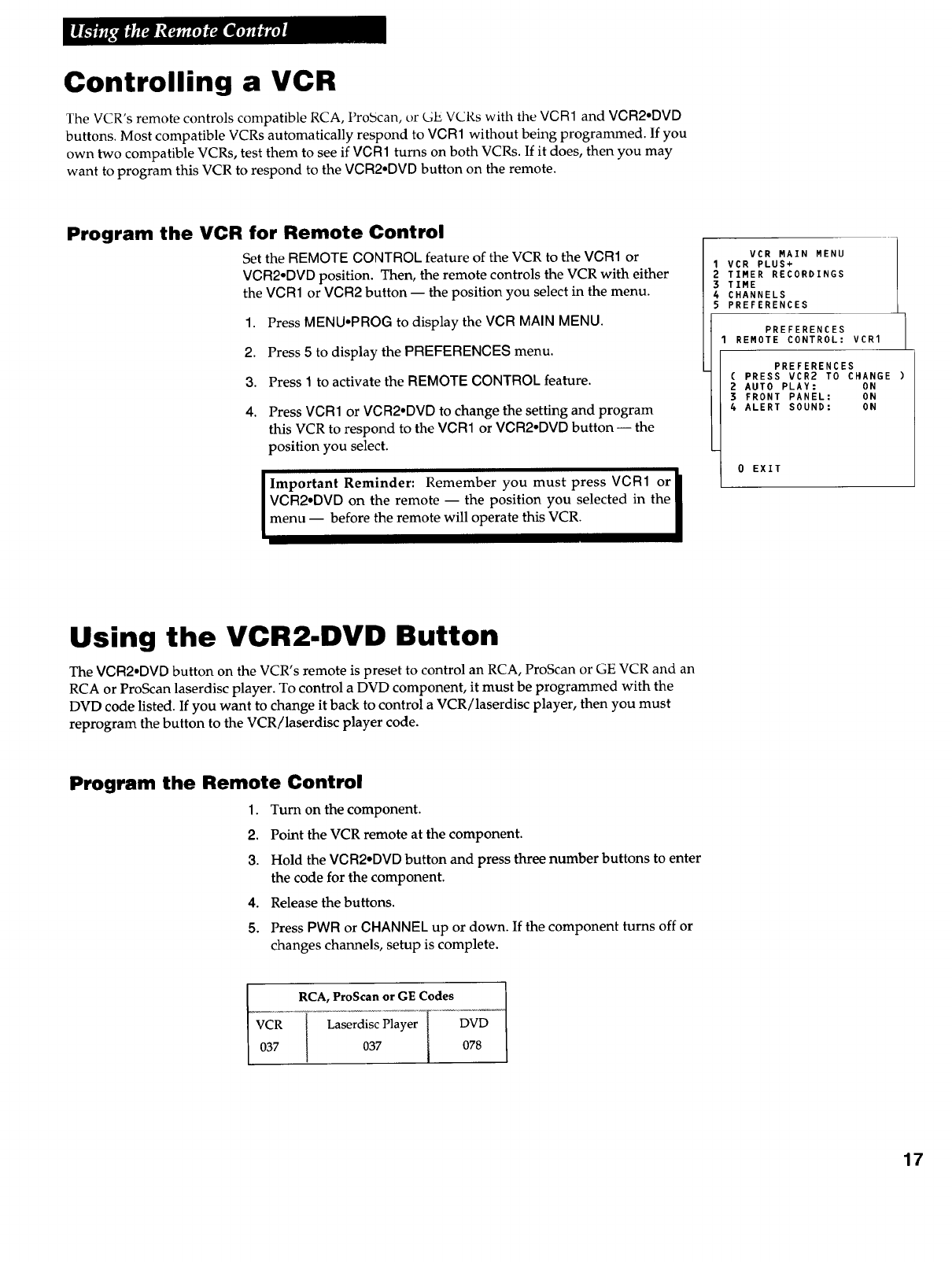

Controlling a VCR 17

Using the VCR2°DVD Button 17

Controlling a TV 18

Controlling a Cable Box or

Satellite Receiver 19

Controlling Auxiliary RCA Component __ 20

Playing a Tape

Playback

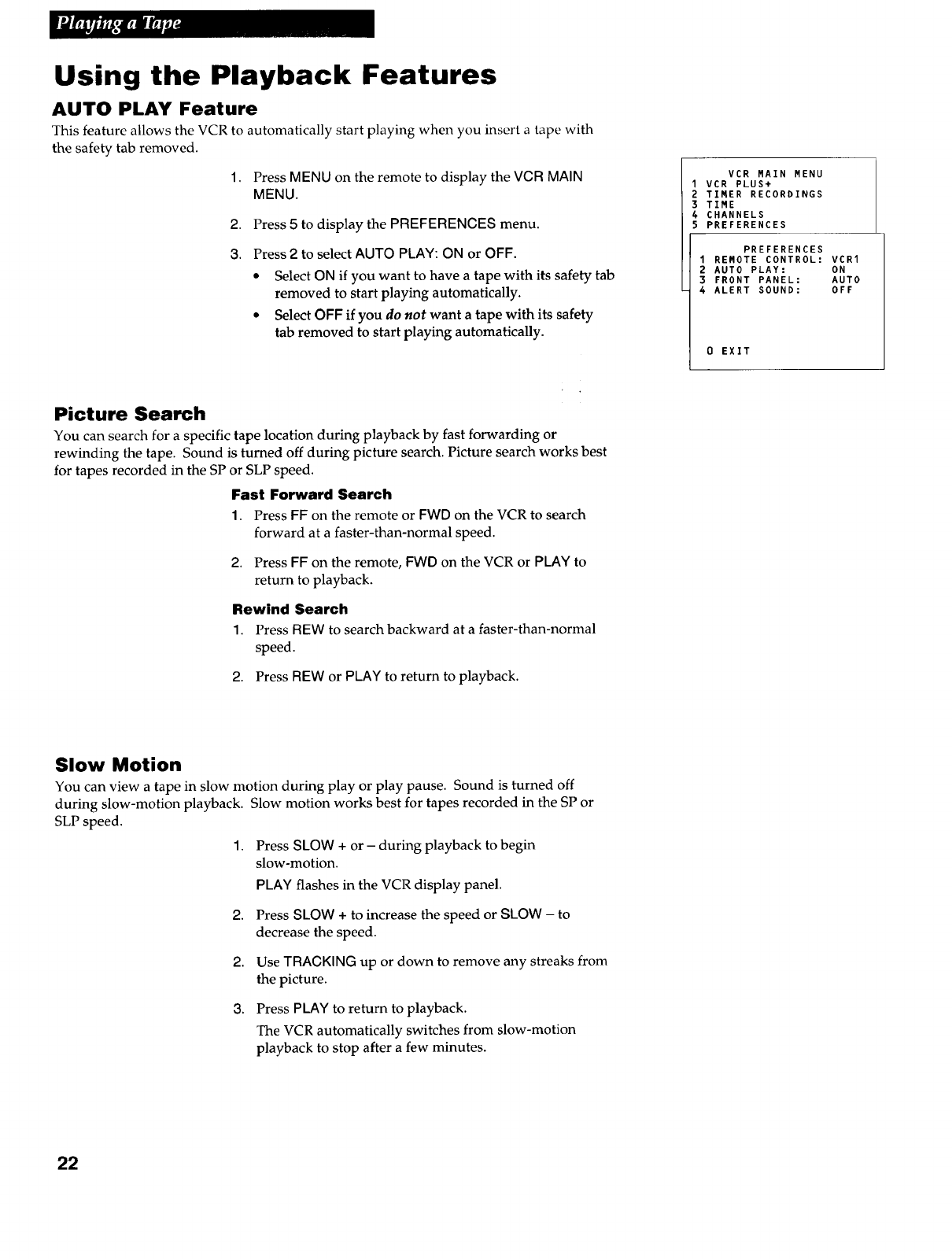

Using the Playback Features

Auto Play Feature

Picture Search 22

Slow Motion 22

DISPLAY Button 23

Time Counter 23

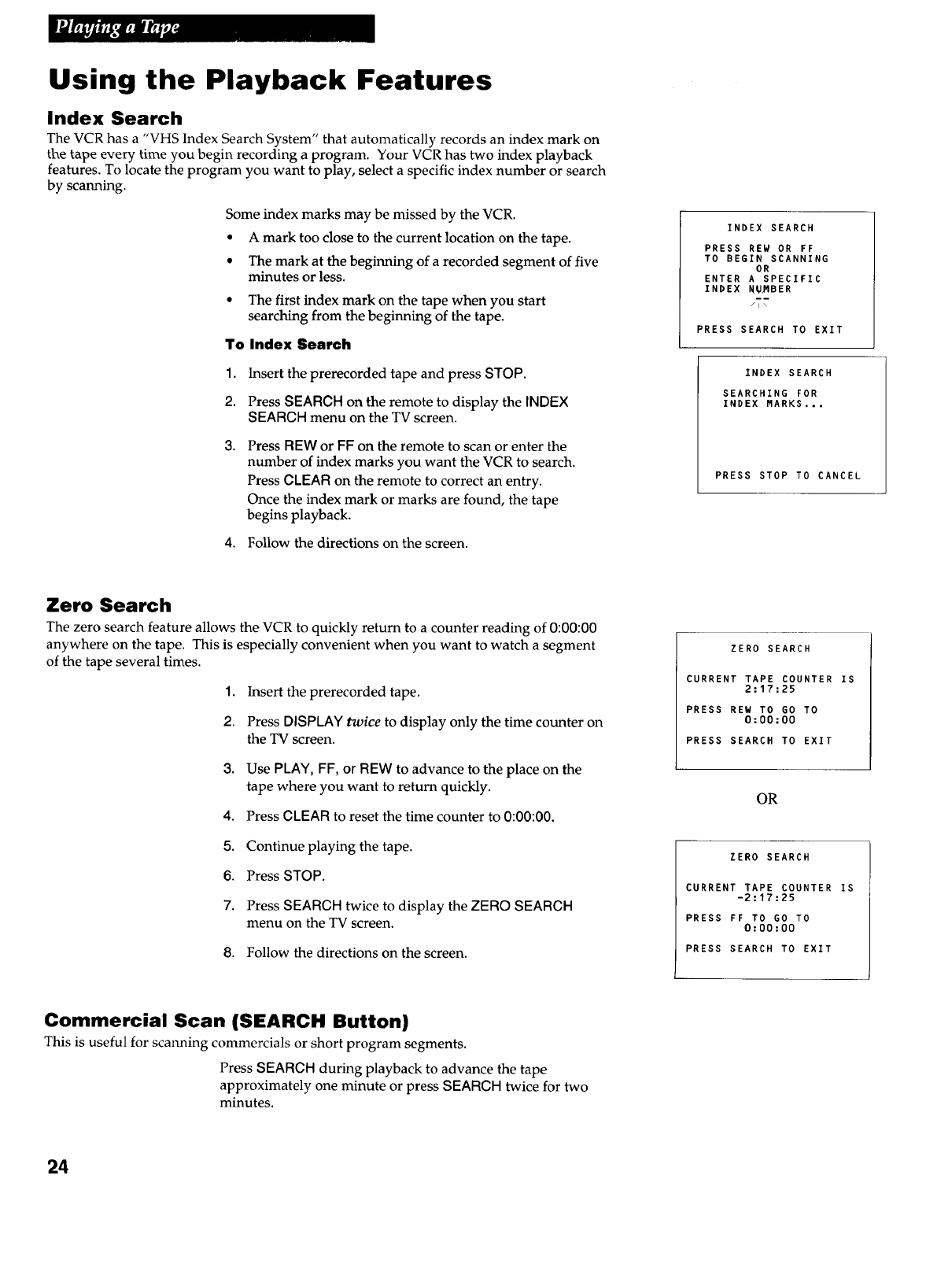

Index Search 24

Zero Search 24

Commercial Scan (SEARCH Button) __ 24

Pause for Stop-Action 25

Frame Advance (F.ADV Button) __ 25

Automatic Tracking 25

Manual Tracking 25

Recording a Program

Recordings 26

Recording Speeds 26

Normal Recording 26

Watch a TV Channel While VCR is

Recording a Different Channel __ 26

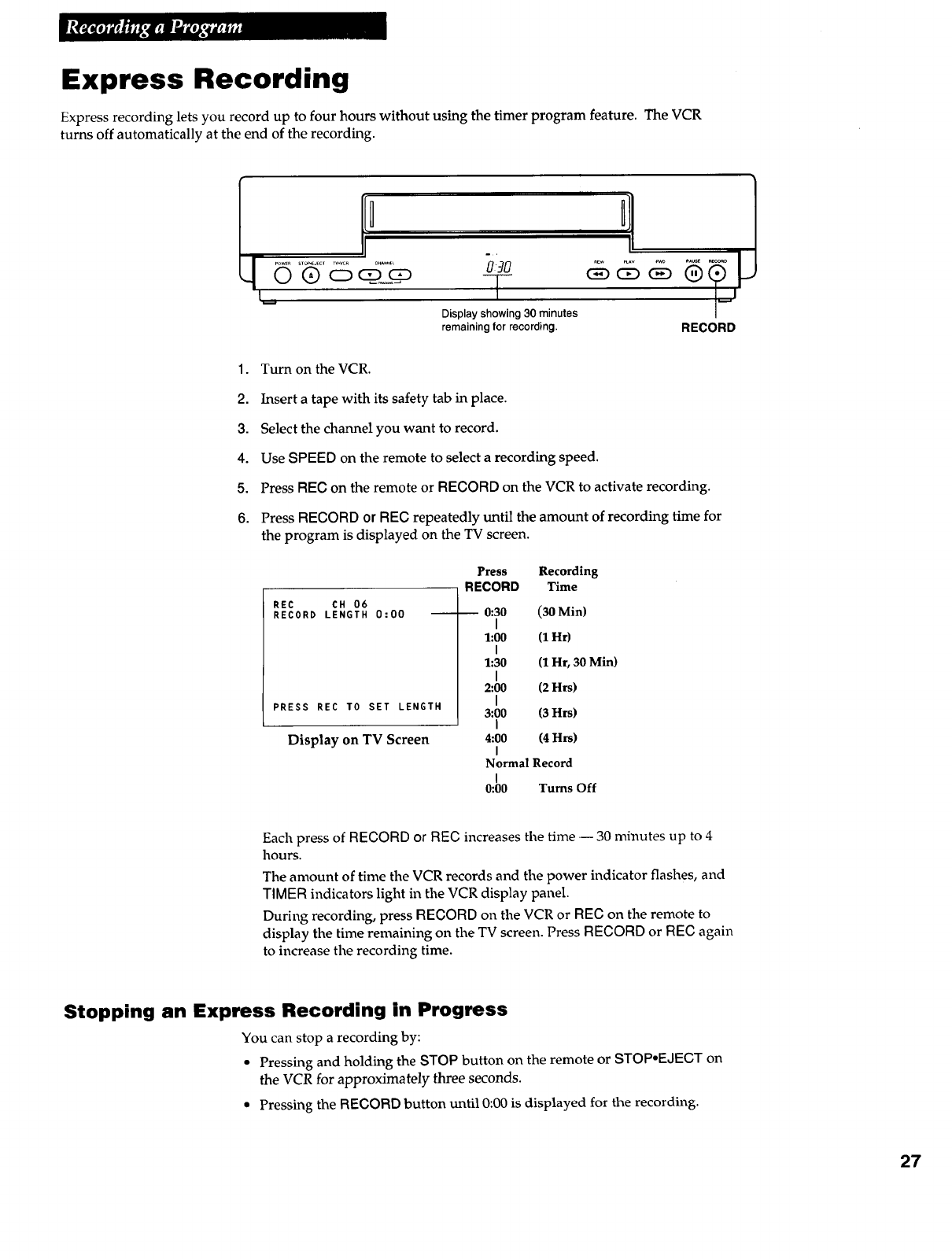

Express Recording 27

Recording While You're Away

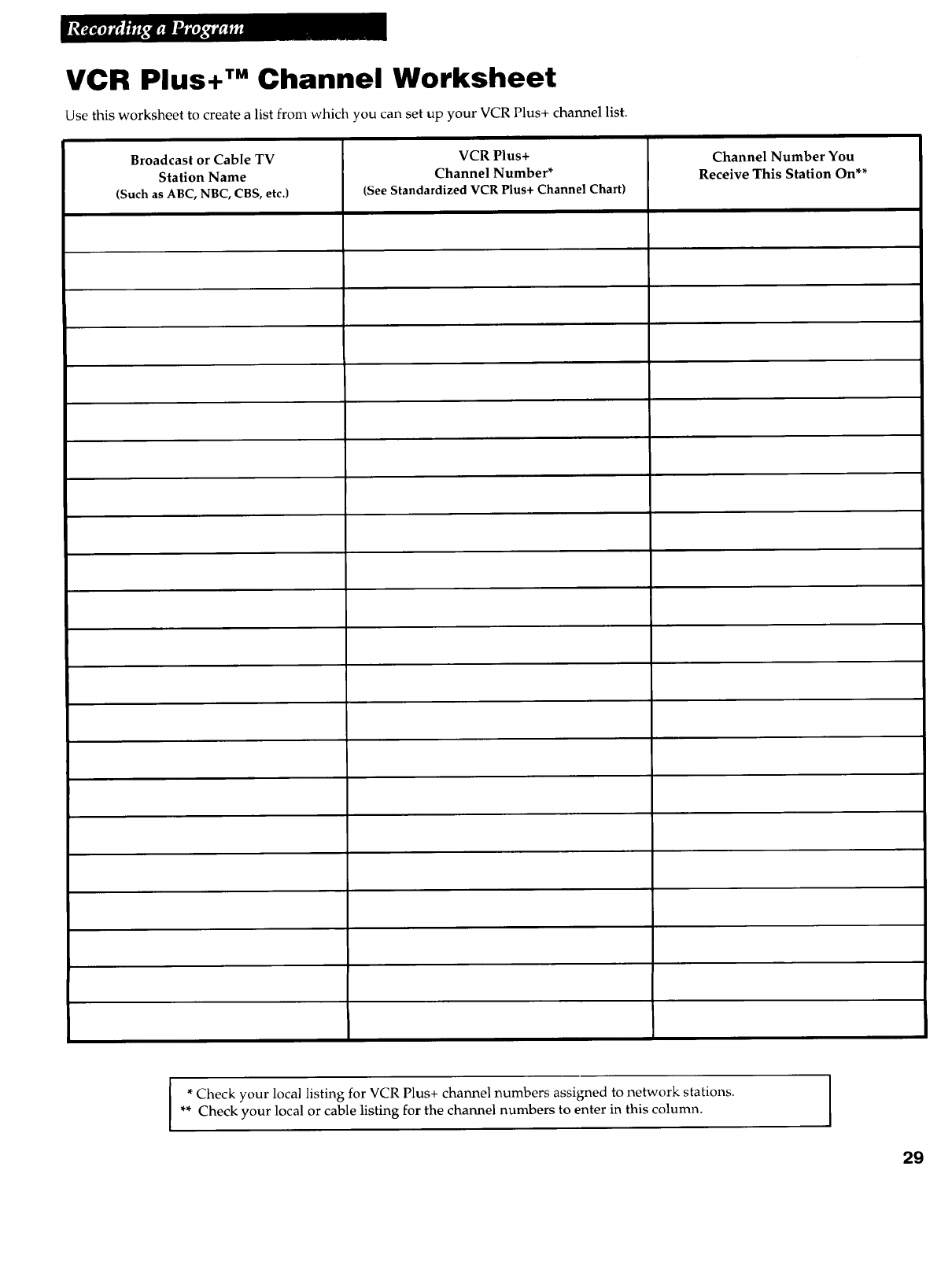

VCR Plus+ Setup 28-29

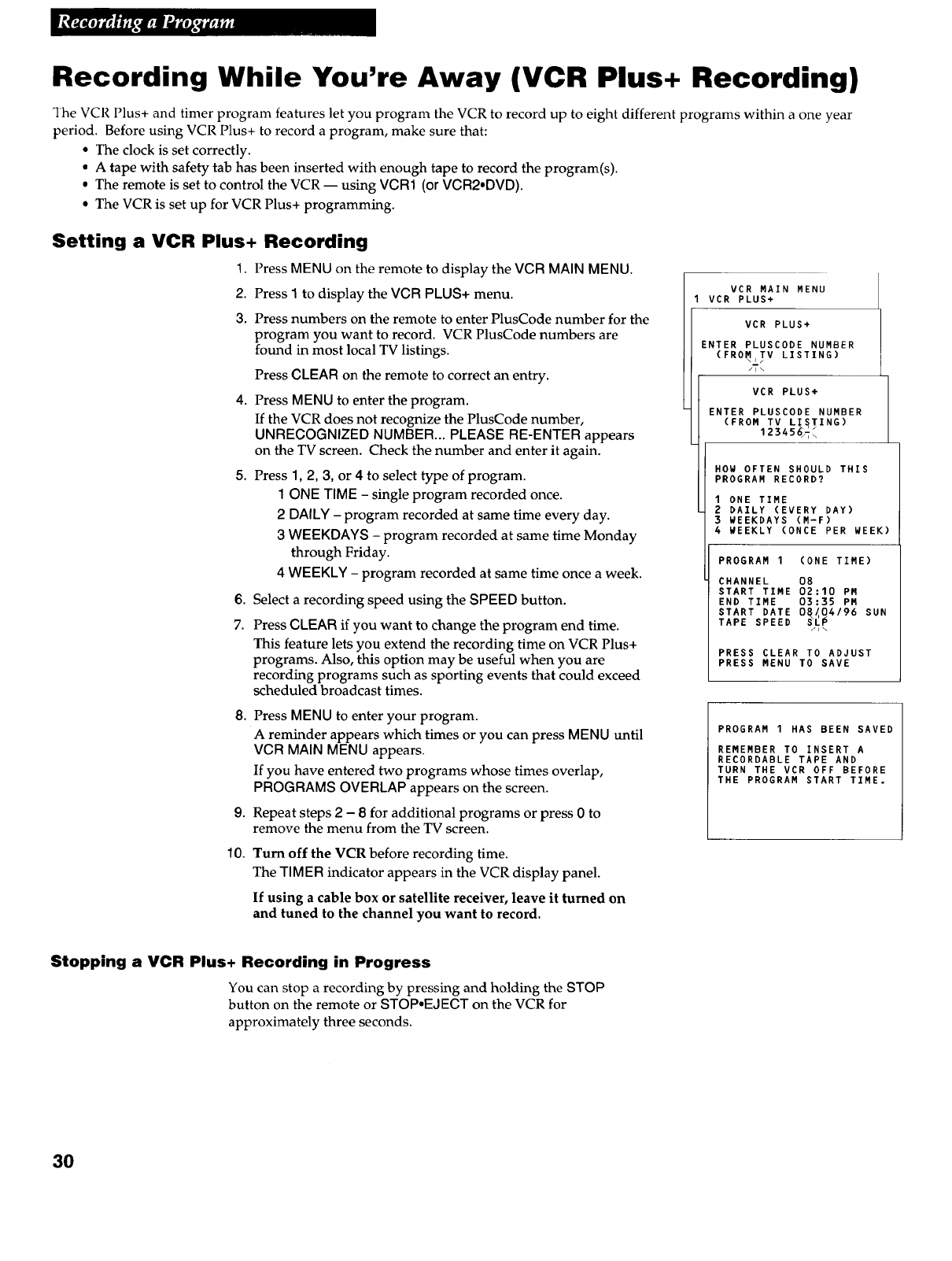

Setting a VCR Plus+ Recording.__ 30

Stopping a VCR Plus+ Recording__ 30

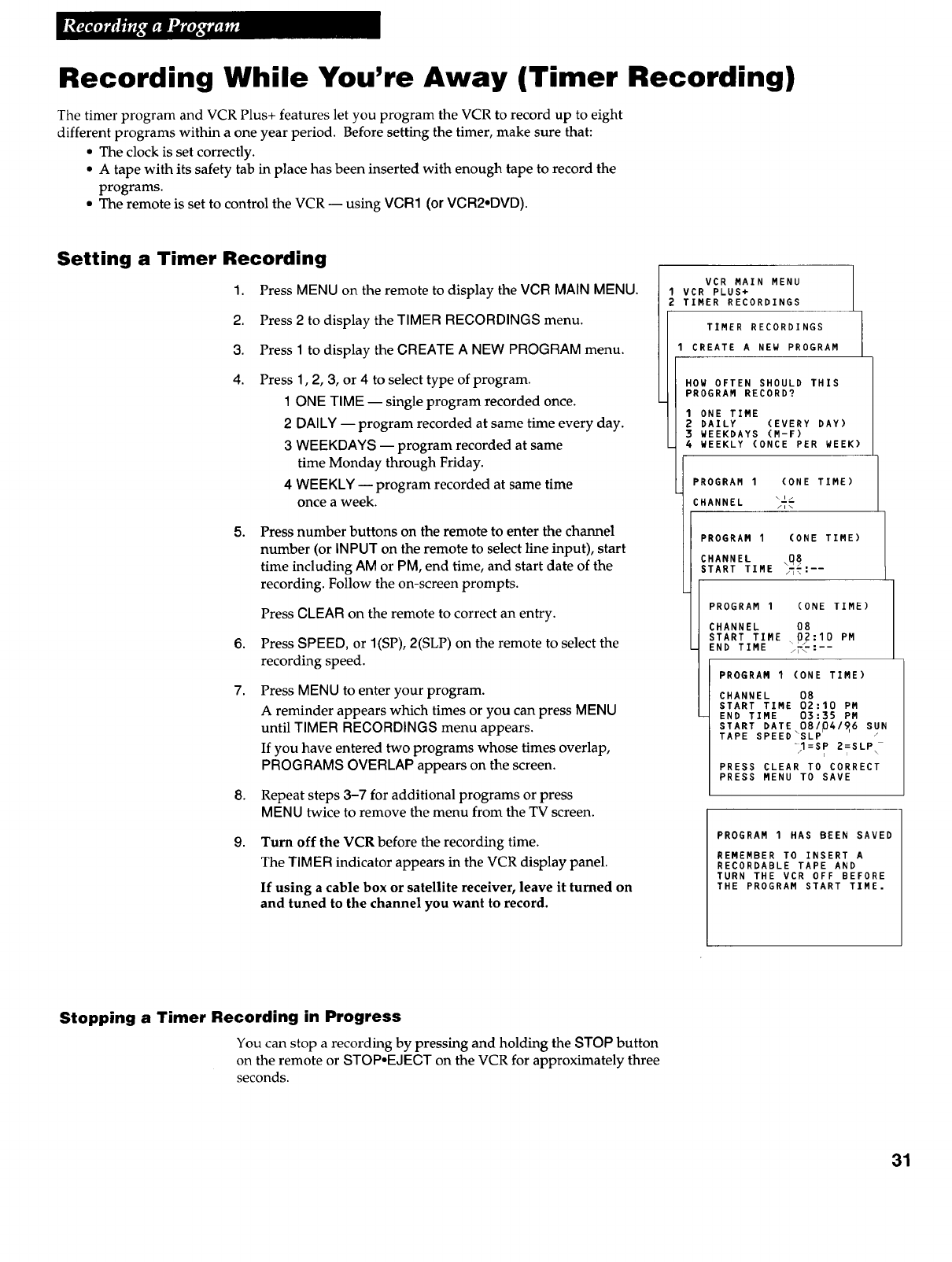

Setting a Timer Recording 31

Stopping a Timer Recording 31

Checking or Clearing VCR Plus+ or

Timer Recordings 32

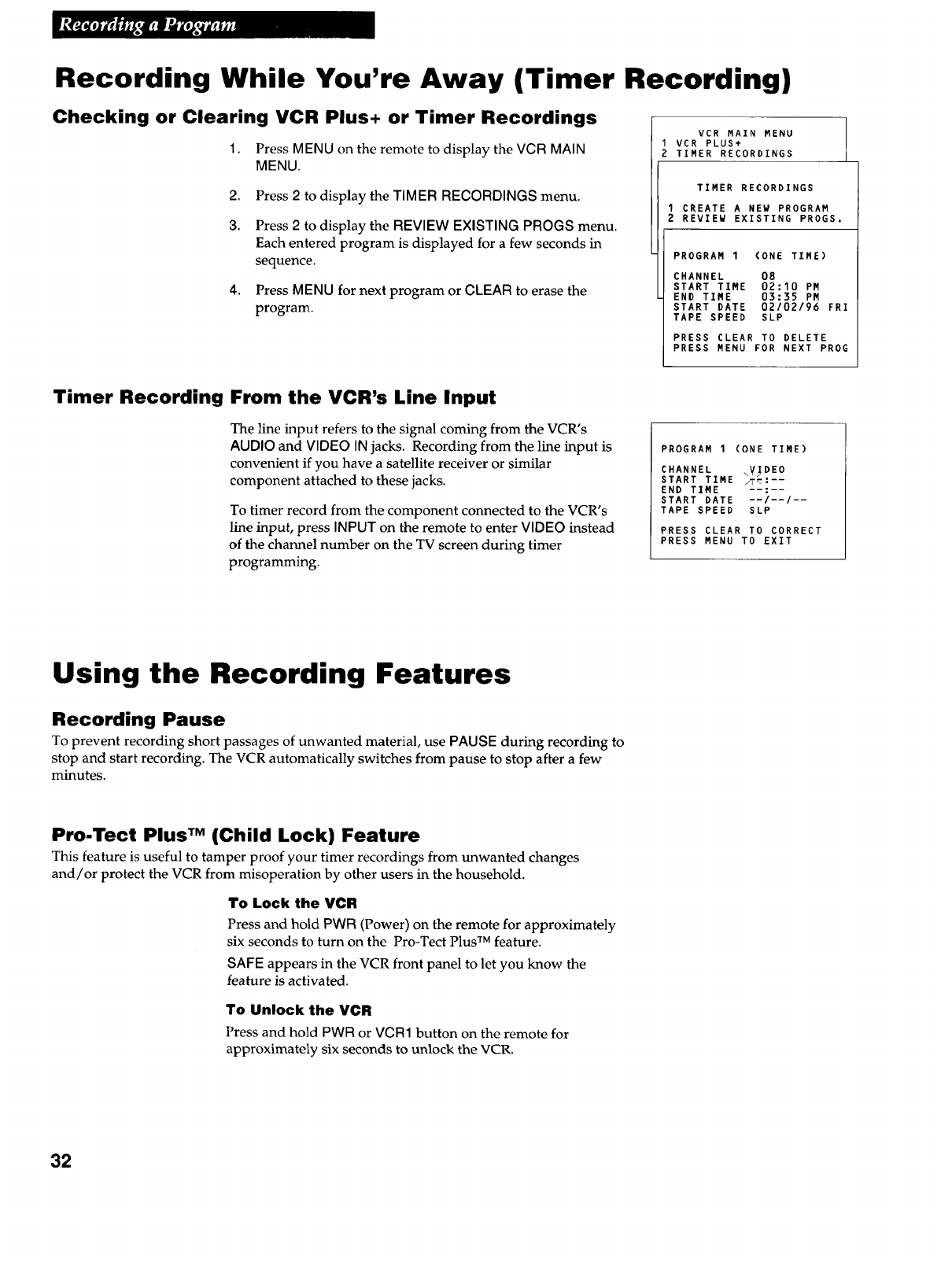

Timer Recording From the

VCR's Line Input 32

Using the Recording Features

Recording Pause 32

Pro-Tect Plus TM Feature 32

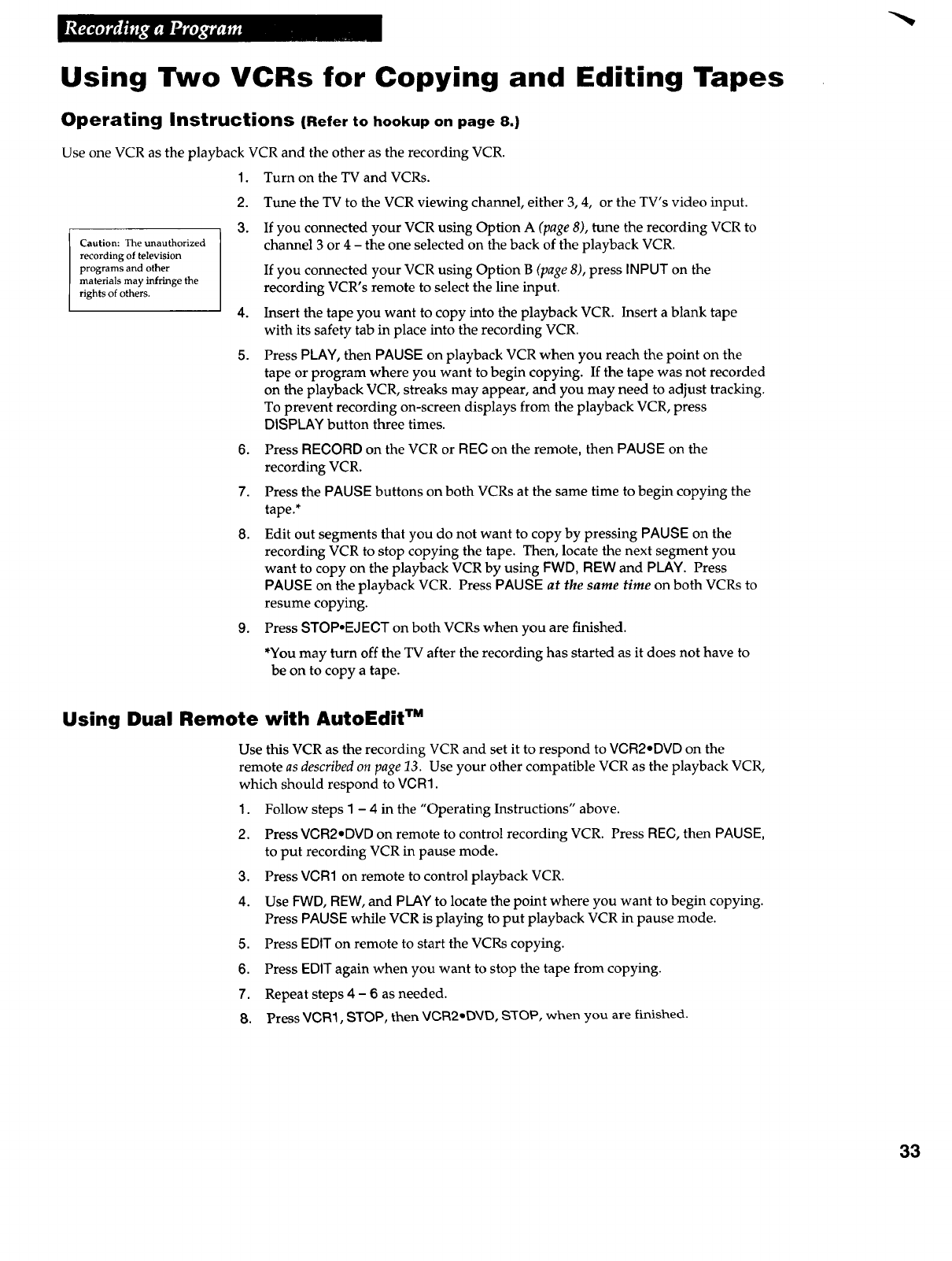

Using Two VCRs for Copying

and Editing Tapes 33

References

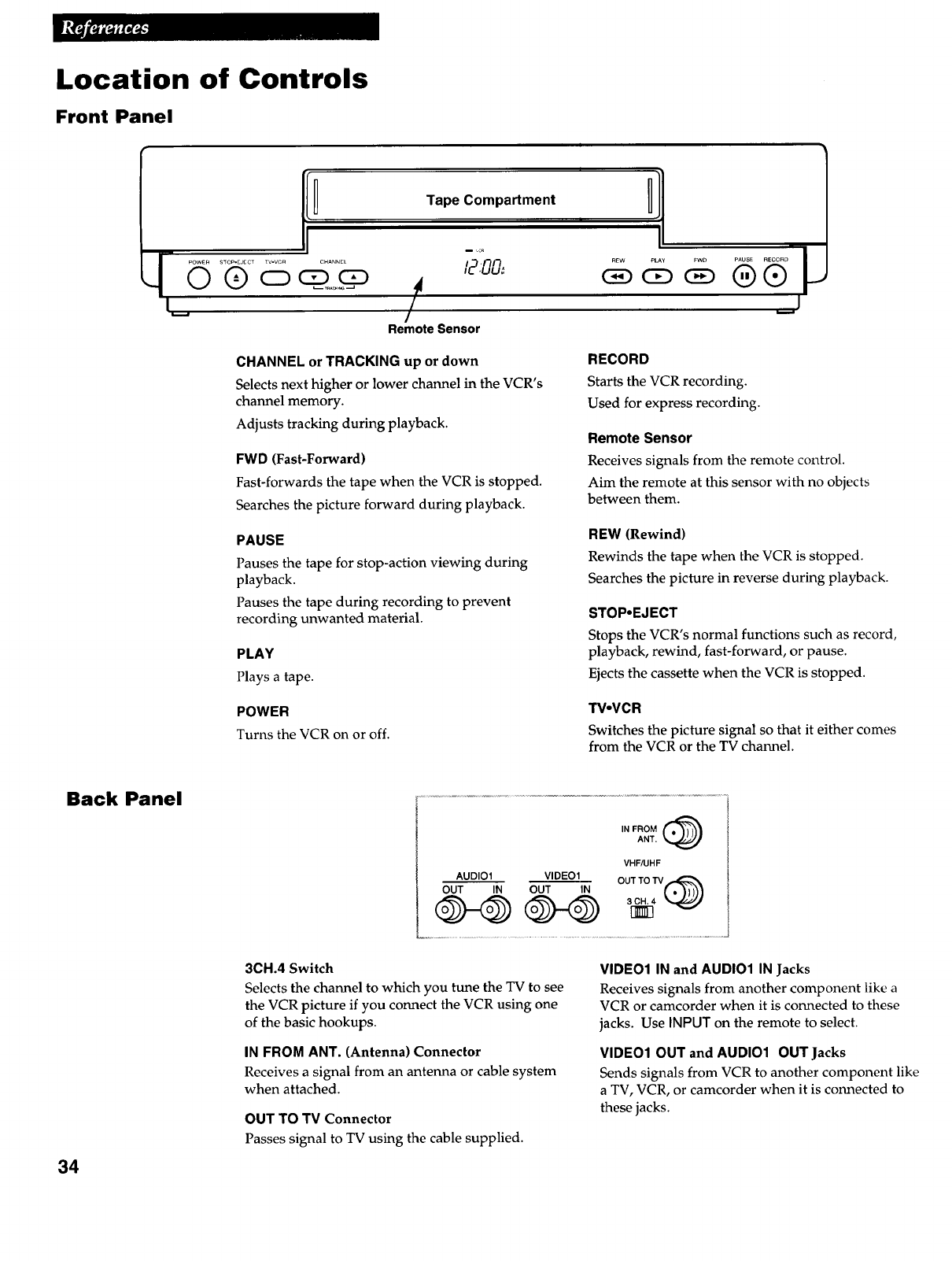

Location of Controls

Front Panel 34

Back Panel 34

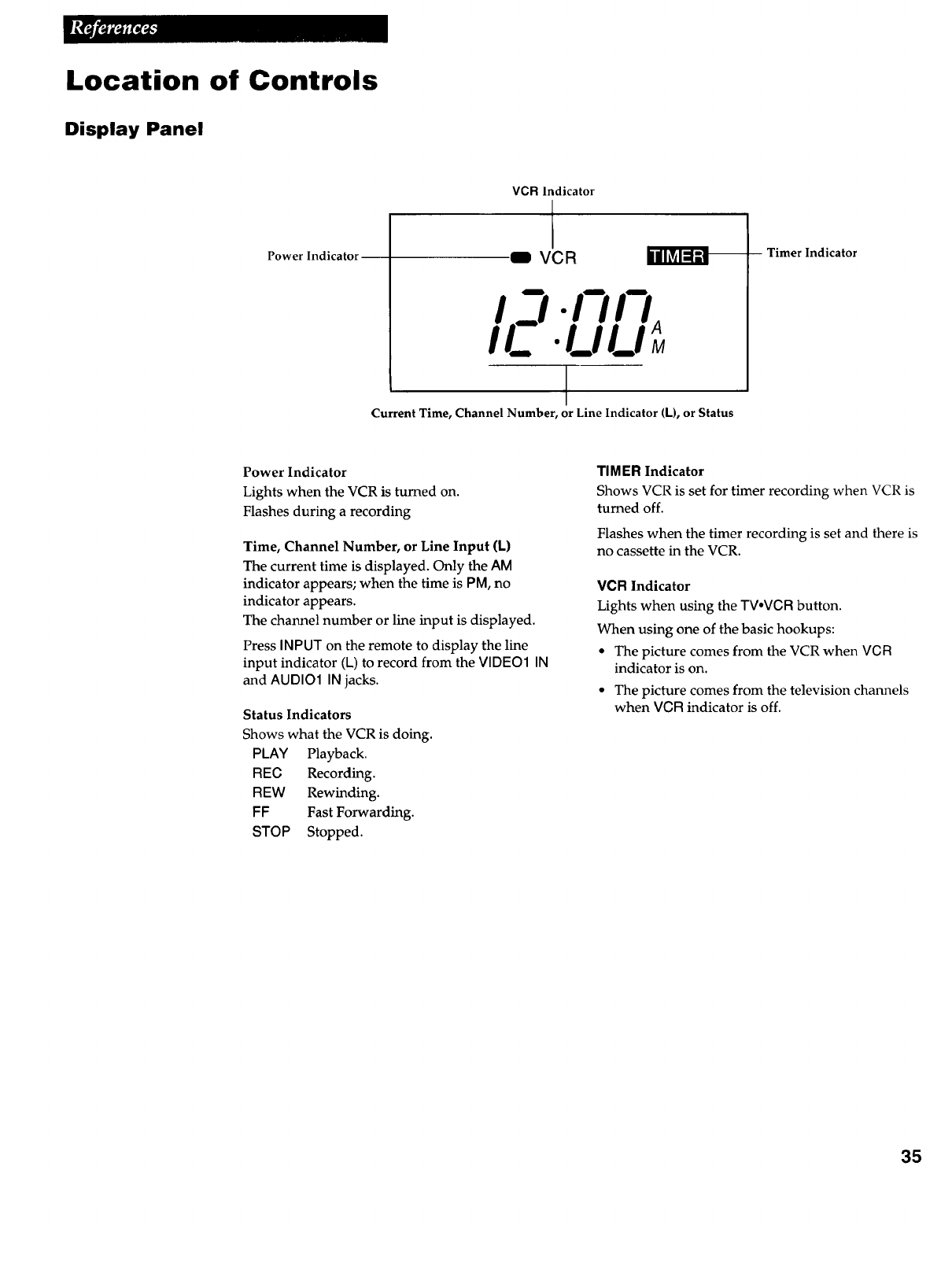

Display Panel 35

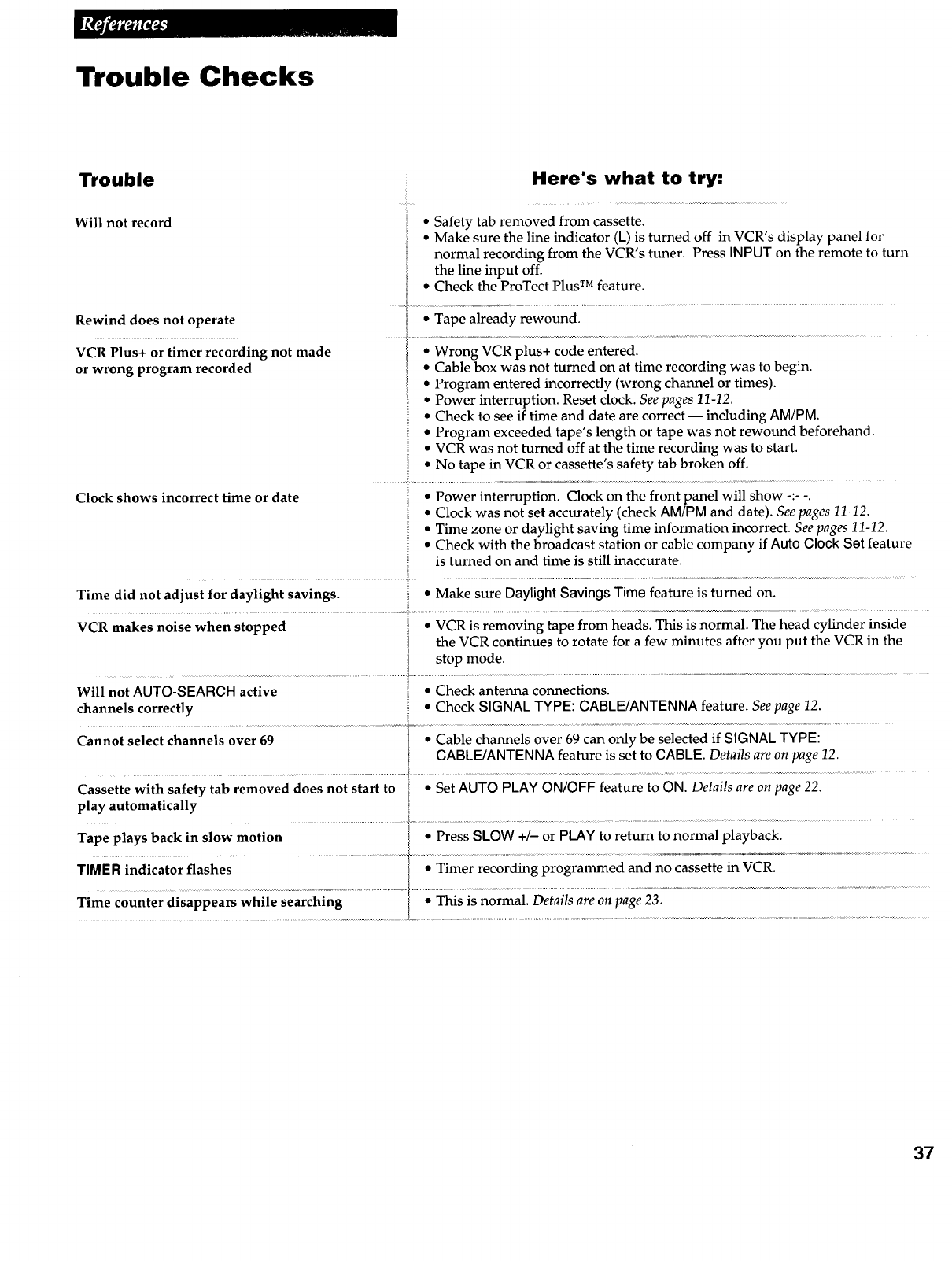

Trouble Checks 36-37

Specifications 38

Cleaning the VCR 38

Limited Warranty 39

Index 40-41

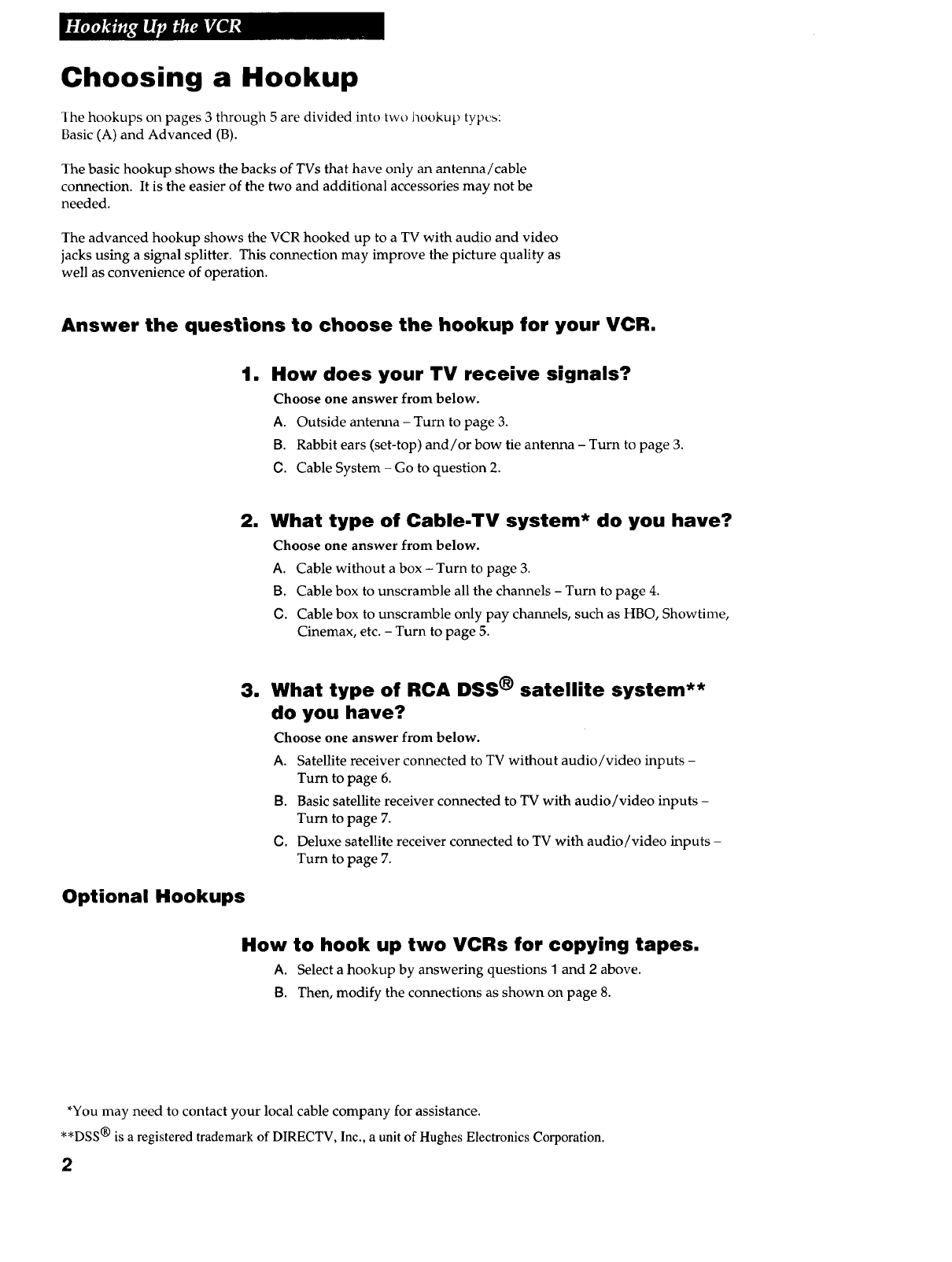

Choosing a Hookup

I he hookups on pages 3 through 5 are divided into two hookup types:

Basic (A) and Advanced (B).

The basic hookup shows the backs of TVs that have only an antenna/cable

connection. It is the easier of the two and additional accessories may not be

needed.

The advanced hookup shows the VCR hooked up to a TV with audio and video

jacks using a signal splitter. This connection may improve the picture quality as

well as convenience of operation.

Answer the questions to choose the hookup for your VCR.

1. How does your TV receive signals?

Choose one answer from below.

A. Outside antenna - Turn to page 3.

B. Rabbit ears (set-top) and/or bow tie antenna - Turn to page 3.

O. Cable System - Go to question 2.

2. What type of Cable-TV system* do you have?

Choose one answer from below.

A. Cable without a box - Turn to page 3.

B. Cable box to unscramble all the channels - Turn to page 4.

C. Cable box to unscramble only pay channels, such as HBO, Showtime,

Cinemax, etc. - Turn to page 5.

3. What type of RCA DSS ® satellite system**

do you have?

Choose one answer from below.

A. Satellite receiver connected to TV without audio/video inputs -

Turn to page 6.

13. Basic satellite receiver connected to TV with audio/video inputs -

Turn to page 7.

O. Deluxe satellite receiver connected to TV with audio/video inputs -

Turn to page 7.

Optional Hookups

How to hook up two VCRs for copying tapes.

A. Select a hookup by answering questions 1and 2above.

13. Then, modify the connections as shown on page 8.

*You may need to contact your local cable company for assistance.

**DSS ®is a registered trademark of DIRECTV, Inc., a unit of Hughes Electronics Corporation.

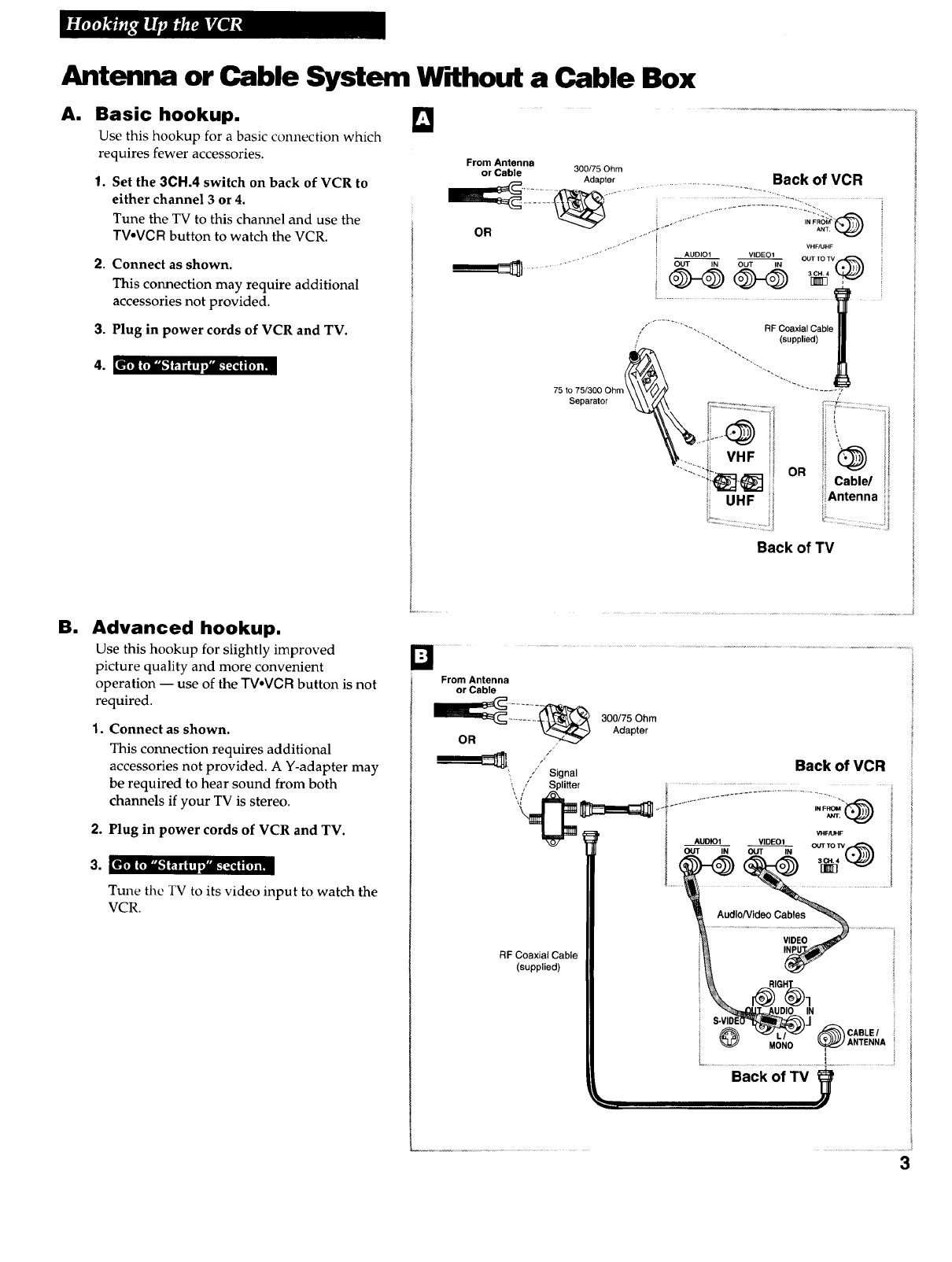

Antenna or Cable System W'[Ithout a Cable Box

A. Basic hookup.

Use this hookup for a basic connection which

requires fewer accessories.

1. Set the 3CH.4 switch on back of VCR to

either channel 3 or 4.

Tune the TV to this channel and use the

TVoVCR button to watch the VCR.

2. Connect as shown.

This connection may require additional

accessories not provided.

3. Plug in power cords of VCR and TV.

4. [_,]= _'J iw;;rrvaL_ i(,),m

From Antenna

or Cable 300/75 Ohm

Adapter .................. Back of VCR

•.,- •'_ ""'" VHF/UHF

• • -'_ •AUDIO1 VIDEO1 OUTTO TV

!............................................... !

75 to 75/300

Separator

/"--, RF Coaxial Cable

/"_' ",. (supplied)

iVHF

•UHF i

ii i "

OR !,iCable/ _/

iiAntenna

Back of TV

El Advanced hookup.

Use this hookup for slightly improved

picture quality and more convenient

operation -- use of the TVoVCR button is not

required.

1, Connect as shown.

This connection requires additional

accessories not provided. A Y-adapter may

be required to hear sound from both

channels if your TV is stereo.

2. Plug in power cords of VCR and TV.

Tune the TV to its video input to watch the

VCR.

From Antenna

or Cable

O__R I_I_-_""_ -_ 300175 0hmAdapter

"Back of VCR

.. ./' Signal

,/Splitter ......... __.._i_................................... i

VltF_-IF I

_TOW

_dlo/Video Cables

_MONO ,

RF Coaxial Cable

(supplied)

_CABLE/

ANTENNA iii

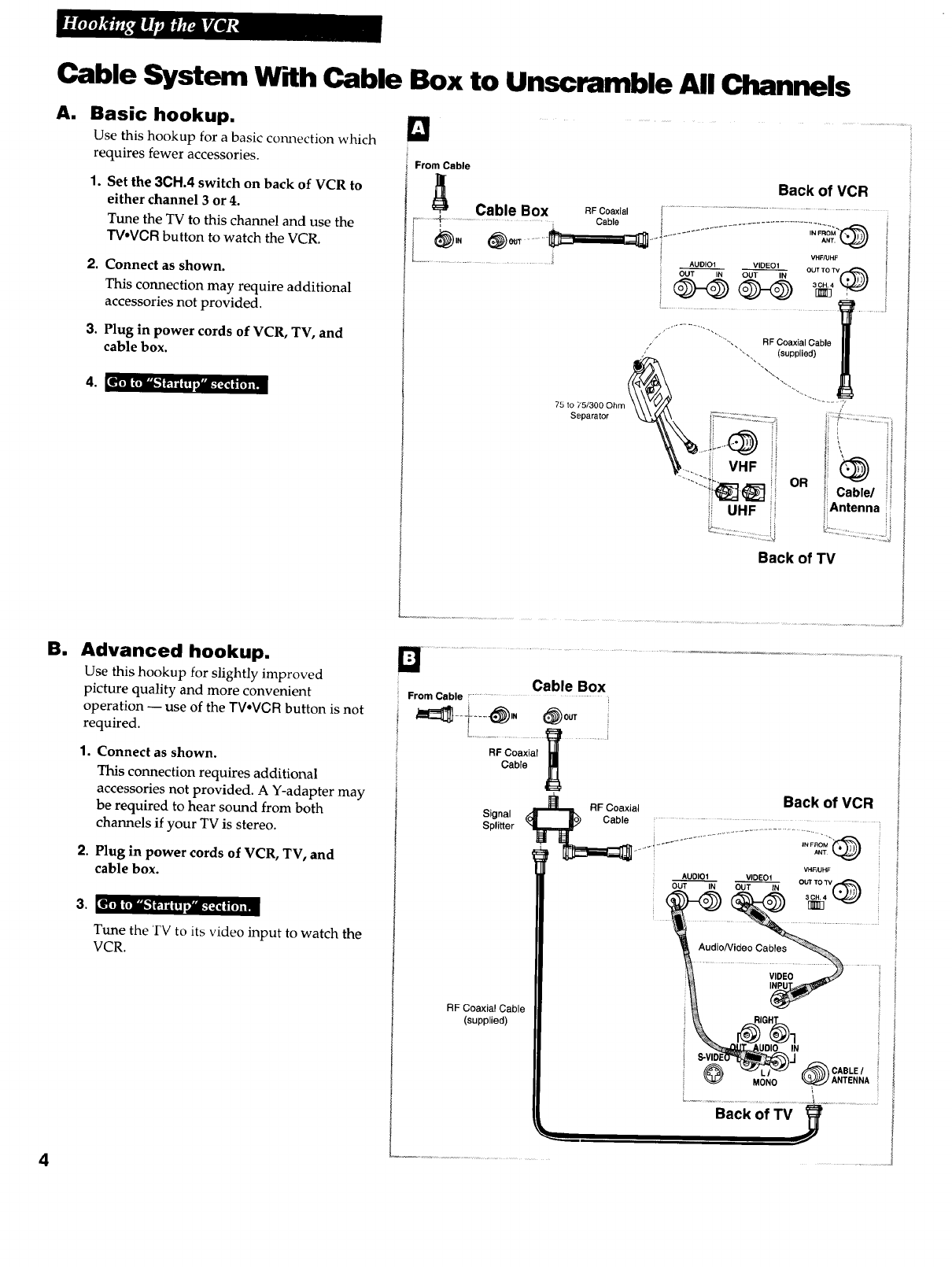

Cable System W_AhCable Box to Unscramble All Channels

AI Basic hookup.

Use this hookup for a basic comlection which

requires fewer accessories.

1. Set the 3CH.4 switch on back of VCR to

either channel 3 or 4.

Tune the TV to this channel and use the

TV, VGR button to watch the VCR.

2. Connect as shown.

This connection may require additional

accessories not provided.

3. Plug in power cords of VCR, TV, and

cable box.

IFrom Cable

l _][ Back of VCR

Cable Box RFooaxia, !........................................................................................................

_...........4....................... Cable ......................................... .

,,L,. t ............... iNFROM

[VHF/UHF

.................................................. _ AUDIOI VIDEOI

_T iN OUT IN OUT TO TV_

@-@ @-@ 0_,! ..........I

Back of TV

BI Advanced hookup.

Use this hookup for slightly improved

picture quality and more convenient

operation -- use of the TV,VCR button is not

required.

Connect as shown.

This connection requires additional

accessories not provided. A Y-adapter may

be required to hear sound from both

channels if your TV is stereo.

Plug in power cords of VCR, TV, and

cable box.

Tune the TV to its video input to watch the

VCR.

Cable Box

From Cable ...................................

_-t-°@" @o0, i

RF Coaxial

Cable

Signal

Splitter

RF Coaxial Cable

(supplied)

_RFCoaxial Back of VCR

Cable ................................................

i...... v 2;:@

I.AUDIO1 VIDE01 OUT TOTV

OUT IN OUT IN 3CH.4 "_) : :

Audio/Video Cables

VIDEO

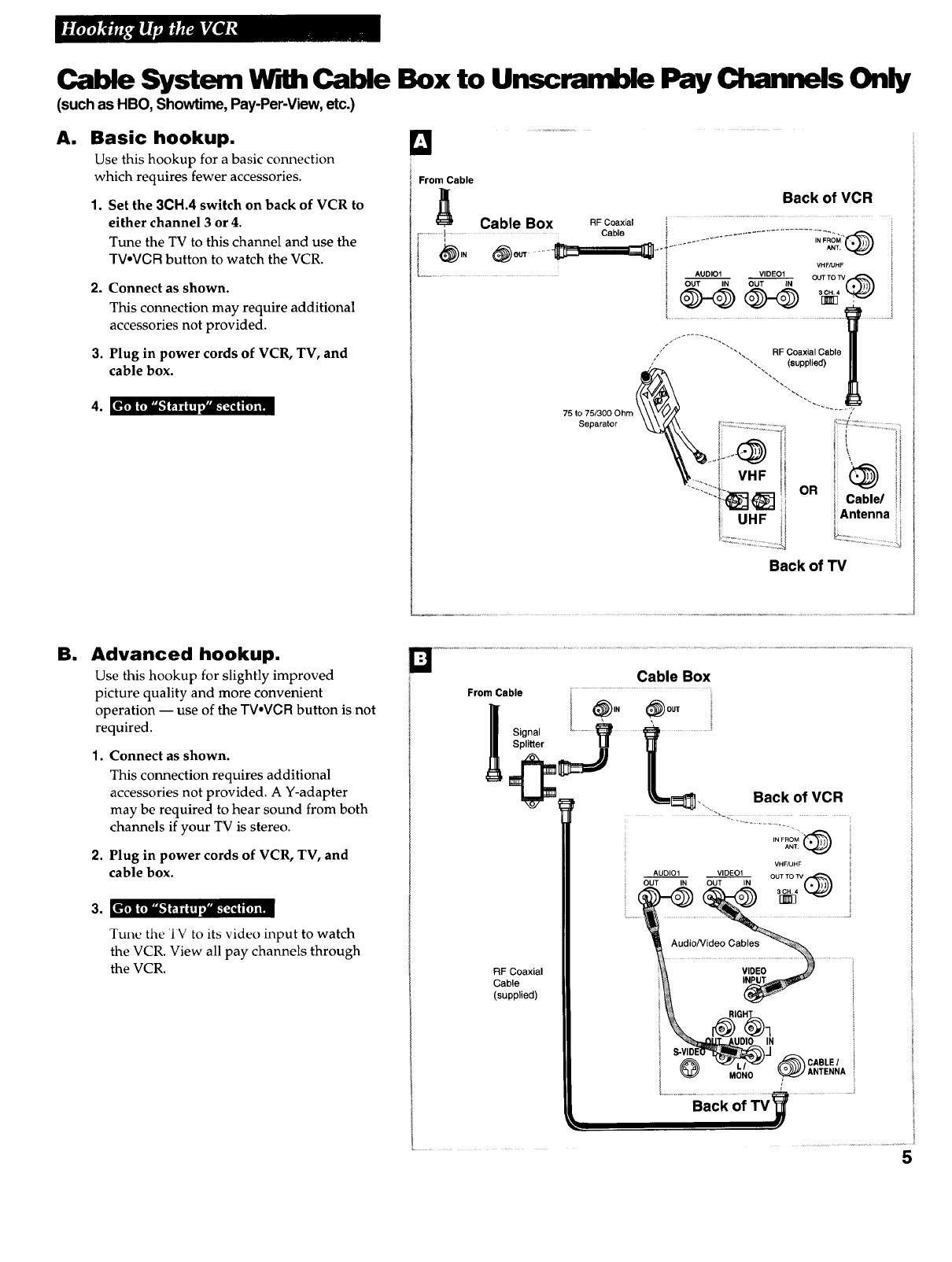

Cable System Wdh Cable Box to Unscramble Pay Channels Only

(such as HBO, Showtime, Pay-Per-View, etc.)

AI Basic hookup.

Use this hookup for a basic connection

which requires fewer accessories.

1. Set the 3CH.4 switch on back of VCR to

either channel 3 or 4.

Tune the TV to this channel and use the

TVoVCR button to watch the VCR.

Connect as shown.

This connection may require additional

accessories not provided.

Plug in power cords of VCR, TV, and

cable box.

IFrom Cable

Back of VCR

Cable Box RFCoaxial ....................................................................................:_ _

................I......... Cablo _ ...................................._ _ i

E i . _ _ ....... IN FROM

L........... i AUDIO1 VIDEO1 i

iOUT IN OUT IN OUT TOW_

Back of TV

all Advanced hookup.

Use this hookup for slightly improved

picture quality and more convenient

operation -- use of the TVoVCR button is not

required.

1° Connect as shown.

This connection requires additional

accessories not provided. A Y-adapter

may be required to hear sound from both

channels if your TV is stereo.

2. Plug in power cords of VCR, TV, and

cable box.

Tune the IV to its video input to watch

the VCR. View all pay channels through

the VCR.

Cable Box

From Cable i...............................................................................:

_Splitter _L_]"" "'Signal _............._,N _0UT i

RF Coaxial

Cable

(supplied)

Back of VCR

INFROM

ANT.

VHFtdHF

.......................Backof ...............

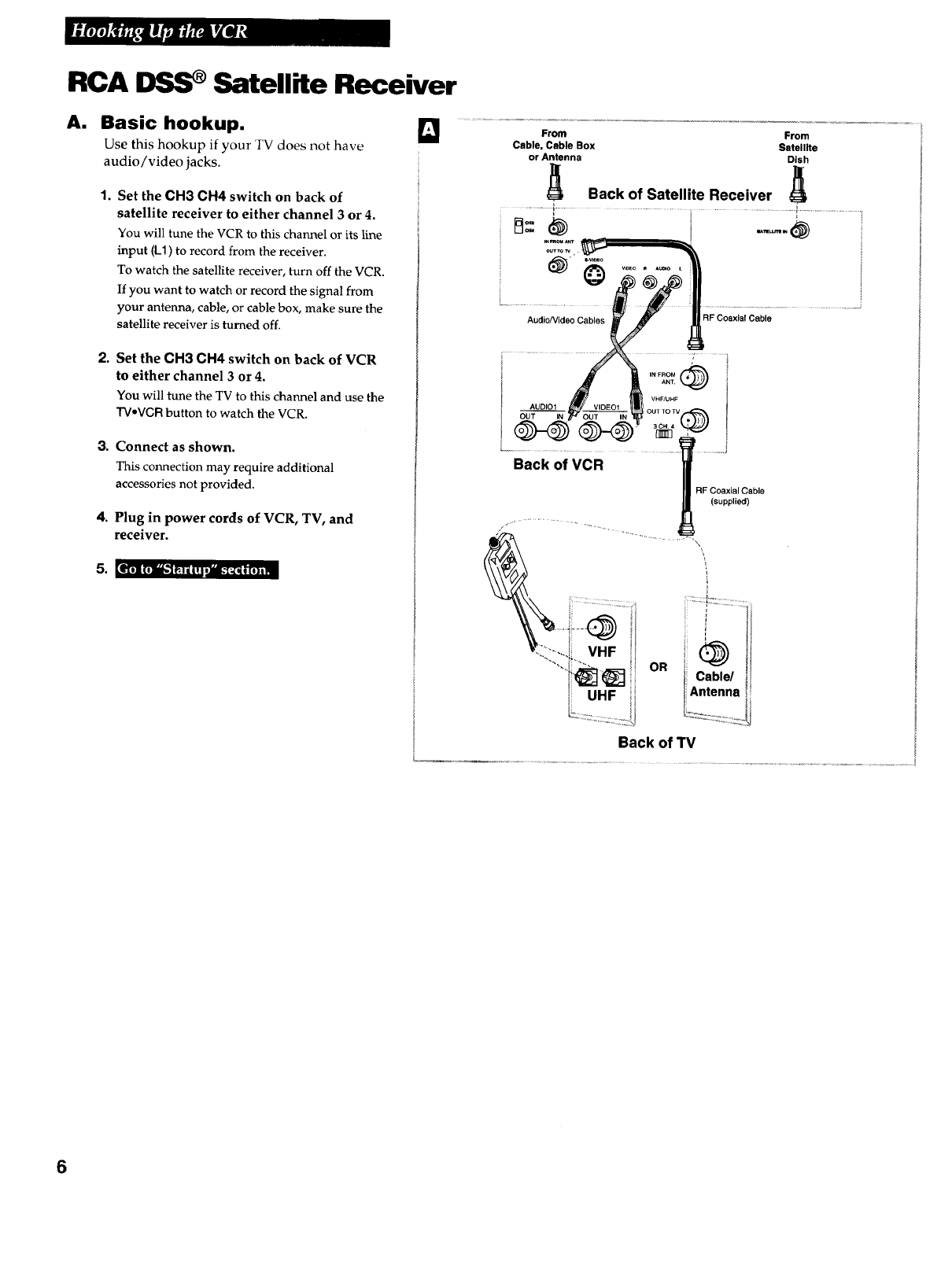

RCA I)SS Satellite Receiver

A. Basic hookup.

Use this hookup if your TV does not have

audio/video jacks.

1o Set the CH3 CH4 switch on back of

satellite receiver to either channel 3 or 4.

You will tune the VCR to this channel or its line

input (L1) to record from the receiver.

To watch the satellite receiver, turn off the VCR.

If you want to watch or record the signal from

your antenna, cable, or cable box, make sure the

satellite receiver is turned off.

,Set the CH3 CH4 switch on back of VCR

to either channel 3 or 4.

You will tune the TVto this channel and use the

TV-VCR button to watch the VCR.

Connect as shown.

This connection may require additional

accessories not provided.

Plug in power cords of VCR, TV, and

receiver.

From From

Cable, Cable Box Satellite

or Antenna Dish

IBack of Satellite Receiver J_

AudioNideo Cables RF Coaxial Cable

IN FROM (_ANT.

Back of VCR

RF Coaxial Cable

(supplied)

! 1

_:." ...... i VHF '

"'t:_t_] -- C.b,¢

1UHF i i Antenna

_ ..............il L_,.-...-_._._.........

Back of TV

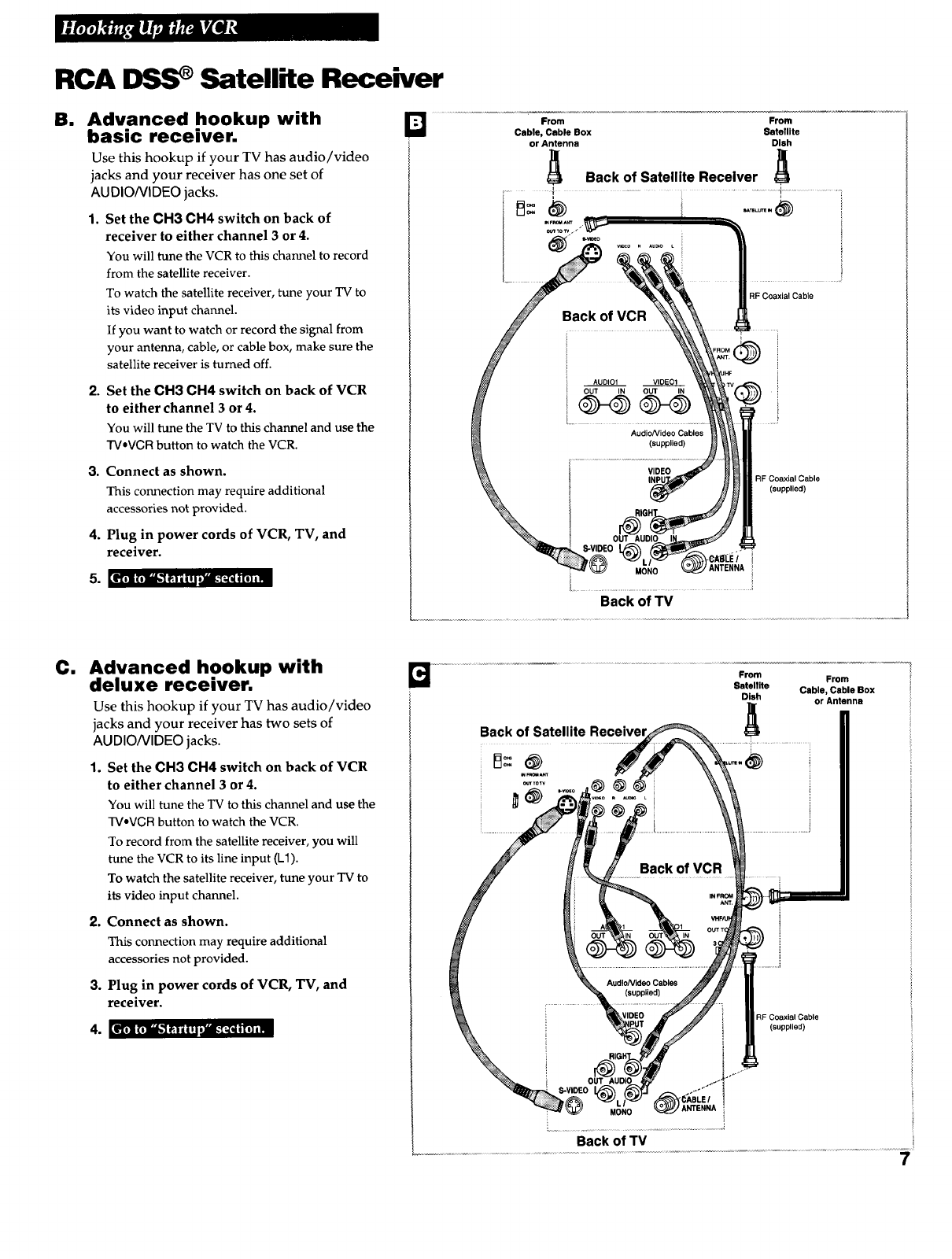

RCA I)SS Satellite Receiver

B. Advanced hookup with

basic receiver.

Use this hookup if your TV has audio/video

jacks and your receiver has one set of

AUDIONiDEO jacks.

1. Set the CH3 CH4 switch on back of

receiver to either channel 3 or 4.

You will tune the VCR to this channel to record

from the satellite receiver.

To watch the satellite receiver, tune your TV to

its video input channel.

If you want to watch or record the signal from

your antenna, cable, or cable box, make sure the

satellite receiver is turned off.

2. Set the CH3 CH4 switch on back of VCR

to either channel 3 or 4.

You will tune the TV to this channel and use the

TVaVCRbutton to watch the VCR.

3. Connect as shown.

This connection may require additional

accessories not provided.

4. Plug in power cords of VCR, TV, and

receiver.

5. [eli] tilik'1 ;_'T'ijq,_-[_ J[0]im

From From

Cable, Cable Box Satellite

or Antenna Dish

_Back of Satellite Receiver _

RF Coaxial Cable

(supplied)

C. Advanced hookup with

deluxe receiver.

Use this hookup if your TV has audio/video

jacks and your receiver has two sets of

AUDIO/VIDEO jacks.

1. Set the OH3 CH4 switch on back of VCR

to either channel 3 or 4.

You will tune the TV to this channel and use the

TV.VCR button to watch the VCR.

To record from the satellite receiver, you will

tune the VCR to its line input (L1).

To watch the satellite receiver, tune your TV to

its video input channel.

2. Connect as shown.

This connection may require additional

accessories not provided.

3. Plug in power cords of VCR, TV, and

receiver.

........................................................................................................................................Fr_°m............. _'_"_m ...........................

Satellite Cable _%bleBox

Dish orAntenna

Back of Satellite

RF Coaxial Cable

(supplied)

t,mi trlk_'l _'13ITl ,"]_.'[;_,i i [ J]i_

Connecting Two VCRs for Copying Tapes

Option A hookup.

Use this hookup for a basic connection which

requires fewer accessories.

1. Select ahookup from pages 2 through 5

and then modify with this connection.

Set the 3CH.4 switch on the playback

VCR to either channel 3 or 4.

Tune the recording VCR to this channel to

receive the signal from the playback VCR.

3. Connect as shown.

This connection may require additional

accessories not provided.

4. Plug in power cords of VCRs and TV.

5. [eTri_'l;_; IT[;'aL-_qim,m

Playback VCR

From Antenna, Cable ....

or Cable Box __............ .

IN FROM _

IANT.

VHF/UHF

• AUDIOI VIDEOI OUTTOW

I OUT IN OUT IN

RF Coaxial Cable

(supplied)

Recording VCR

IN FROMANT,

VHF/UHF

AUDIO1 VIDEO1

OUT TO TV

OUT IN OUT IN

3CH,4

NN ,

i .............../

RF Coaxial II

Audio/Video Cable

CablesIJ_ -- -- or - - - |

t. S....

Use the hookup to the TV

as previously selected on

pages 3, 4, or 5.

Option B hookup.

Use this hookup for slightly improved copy

quality and more convenient operation --

use of the TV,VCR button is not required.

1. Select a hookup from pages 2 through 5

and then modify with this connection.

2. Connect as shown.

This connection requires additional

accessories not provided. A Y-adapter

may be required to hear sound from both

channels if your other VCR is stereo.

3. Plug in power cords of VCRs and TV.

4. [e_ .1k'1 _'T_OT_a.__rq,[mm

Select the line (audio/video) input on the

recording VCR to receive the signal from

the playback VCR.

Caution: The unauthorized recording of

television programs and other materials

may infringe the rights of others.

Playback VCR (only)

AUDIO1 VIDEO1

OUT IN OUT IN

IN FROM _)ANT.

VHF/UHF

OUT TO "rv

Recording VCR

Audio/video

Cables

From Antenna, Cable

or Cable Box

IN FROM _ "'_- i "ANT. .....

OUTTOW

OUT

"RF Coaxial Cable

Audio/Video

Cables -- -- or - - II (supplied)

Use the hookup to the TV

as previously selected on

pages 3, 4, or 5.

Startup

1. Check accessories with VCR.

Contact your dealer if any items arc missing.

OOLJ

®®®

®®@

o-o4_ Remote

(Stock No. 231546)

* - 0_÷ - 0

_+ -0 _÷ -0

4"AAA" Batteries

RF Coaxial Cable

(Stock No. 221346)

2. Insert batteries in remote.

3. Turn on the TV.

Turn on the TV.

If you used one of the basic hookups, tune the TV to the channel selected with the

30H.4 switch on back of VCR.

If you used one of the advanced hookups, tune the TV to the TV's video input.

(See TV owner's manual for details.)

Startup

4. Turn on the VCR.

AI Press VCR1 on the remote.

The SETUP screen appears the first time the VCR is turned on after

connecting it. It is a step-by-step procedure to set up the VCR for

Cable Box Setup, Auto Channel Search, and Auto Clock Set using

Coordinated Universal Time information transmitted by some

broadcast stations. If you choose to set up the VCR options

individually, go to "Set up your VCR" section.

If the SETUP screen does not appear:

• Make sure TV is tuned to same channel as channel 3/4 switch.

or TV's video line input.

•Make sure VCR indicator is on in the VCR display panel if

you use a basic hookup.

•Check the connections.

B. Follow the step-by-step procedures until setup is complete.

If setup is successful, skip the next step.

CABLE BOX SETUP

WOULD YOU LIKE TO SET UP

THE VCR TO CONTROL A

CABLE BOX?

1YES

2NO

5. Set up your VCR.

The initial SETUP is a one-time procedure only. If you ever need to

change or reset an individual feature option, follow the instructions

in this step.

Cable Box Setup

A. Press MENU on the remote to display the VCR MAIN MENU.

B. Press 4 to display the CHANNELS menu.

C. Press 5 to select CABLE BOX SETUP.

D. Select one of the three choices:

1 ALL CHANNELS

1. Press 1 to select ALL CHANNELS,

2. Enter two numbers for the output channel of your cable box

or press INPUT.

3. Press MENU to continue.

2 ONLY SOME CHANNELS

Skip this setup if your cable box is not required for all

channels.

3 CANCEL SETUP

Select this item to return to previous screen.

VCR MAIN MENU

1 VCR PLUS+

2 TIMER RECORDINGS

3TIME

4CHANNELS

CHANNELS

AUTO CHANNEL SEARCH

ADD/REMOVE CHANNELS

SIGNAL TYPE: CABLE

VCR PLUS+ CHANNEL LIST

CABLE BOX SETUP

DO YOU USE YOUR CABLE

BOX TO RECEIVE ALL

CHANNELS OR ONLY SOME

CHANNELS?

1ALL CHANNELS

CABLE BOX SETUP

ON WHAT CHANNEL DOES

THE VCR RECEIVE SIGNALS

FROM THE CABLE BOX?

(USUALLY 3, 4, OR VIDEO)

ENTER 01-13 OR INPUT

PRESS MENU TO CANCEL

CABLE BOX SETUP

ON WHAT CHANNEL DOES

THE VCR RECEIVE SIGNALS

FROM THE CABLE BOX?

(USUALLY 3, 4, OR VIDEO)

ENTER CLEAR TO CORRECT

PRESS MENU TO CONTINUE

CABLE BOX SETUP

THE VCR WILL NOW

RECEIVE ALL SIGNALS

FROM THE CABLE BOX

ON CHANNEL 03.

PRESS MENU TO CONTINUE

Startup

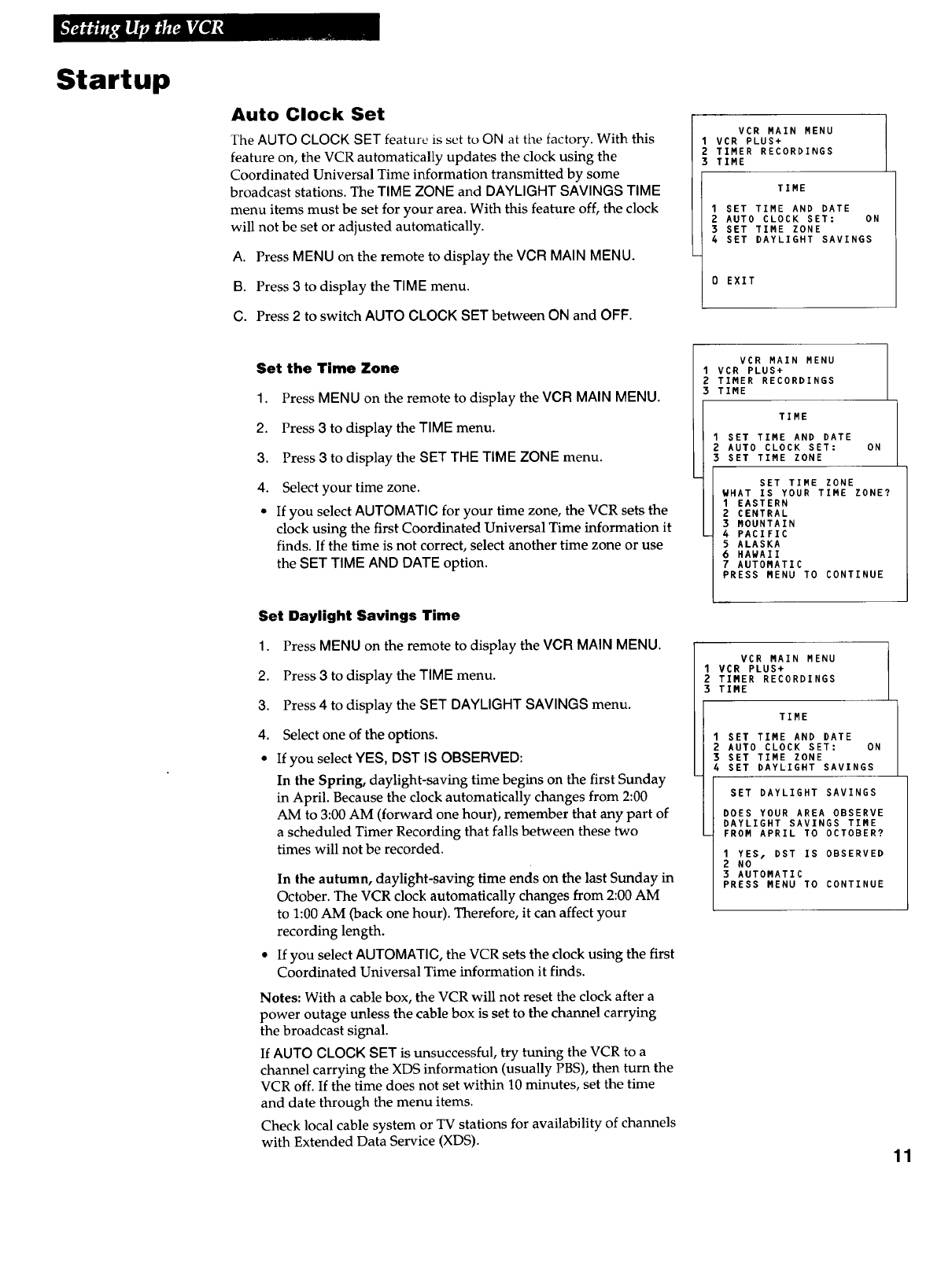

Auto Clock Set

The AUTO CLOCK SET feature is set to ON at the factory. With this

feature on, the VCR automatically updates the clock using the

Coordinated Universal Time information transmitted by some

broadcast stations. The TIME ZONE and DAYLIGHT SAVINGS TIME

menu items must be set for your area. With this feature off, the clock

will not be set or adjusted automatically.

A. Press MENU on the remote to display the VCR MAIN MENU.

B. Press 3to display the TIME menu.

C. Press 2to switch AUTO CLOCK SET between ON and OFF.

VCR MAIN MENU

VCR PLUS+

TIMER RECORDINGS

TIME

I SET TIME AND DATE

2 AUTO CLOCK SET: ON

3SET TIME ZONE

4 SET DAYLIGHT SAVINGS

0 EXIT

VCR MAIN MENU

1VCR PLUS+

2 TIMER RECORDINGS

3TIME

TIME

SET TIME AND DATE

AUTO CLOCK SET: ON

SET TIME ZONE

Set the Time Zone

1. Press MENU on the remote to display the VCR MAIN MENU.

2. Press 3 to display the TIME menu.

3. Press 3 to display the SET THE TIME ZONE menu.

4. Select your time zone.

•If you select AUTOMATIC for your time zone, the VCR sets the

clock using the first Coordinated Universal Time information it

finds. If the time is not correct, select another time zone or use

the SET TIME AND DATE option.

SET TIME ZONE

WHAT IS YOUR TIME ZONE?

I EASTERN

2CENTRAL

3MOUNTAIN

4PACIFIC

5 ALASKA

6 HAWAII

7 AUTOMATIC

PRESS MENU TO CONTINUE

Set Daylight Savings Time

1. Press MENU on the remote to display the VCR MAIN MENU.

2. Press 3to display the TIME menu.

3. Press 4to display the SET DAYLIGHT SAVINGS menu.

4. Select one of the options.

If you select YES, DST IS OBSERVED:

In the Spring, daylight-saving time begins on the first Sunday

in April. Because the clock automatically changes from 2:00

AM to 3:00 AM (forward one hour), remember that any part of

a scheduled Timer Recording that falls between these two

times will not be recorded.

In the autumn, daylight-saving time ends on the last Sunday in

October. The VCR clock automatically changes from 2:00 AM

to 1:00 AM (back one hour). Therefore, it can affect your

recording length.

If you select AUTOMATIC, the VCR sets the clock using the first

Coordinated Universal Time information it finds.

Notes: With a cable box, the VCR will not reset the clock after a

power outage unless the cable box is set to the channel carrying

the broadcast signal.

If AUTO CLOCK SET is unsuccessful, try tuning the VCR to a

channel carrying the XDS information (usually PBS), then turn the

VCR off. If the time does not set within 10 minutes, set the time

and date through the menu items.

Check local cable system or TV stations for availability of channels

with Extended Data Service (XDS).

VCR MAIN MENU

VCR PLUS+

TIMER RECORDINGS

TIME

SET TIME AND DATE

AUTO CLOCK SET: ON

SET TIME ZONE

SET DAYLIGHT SAVINGS

DOES YOUR AREA OBSERVE

DAYLIGHT SAVINGS TIME

FROM APRIL TO OCTOBER?

IYES, DST IS OBSERVED

2 NO

3 AUTOMATIC

PRESS MENU TO CONTINUE

Startup

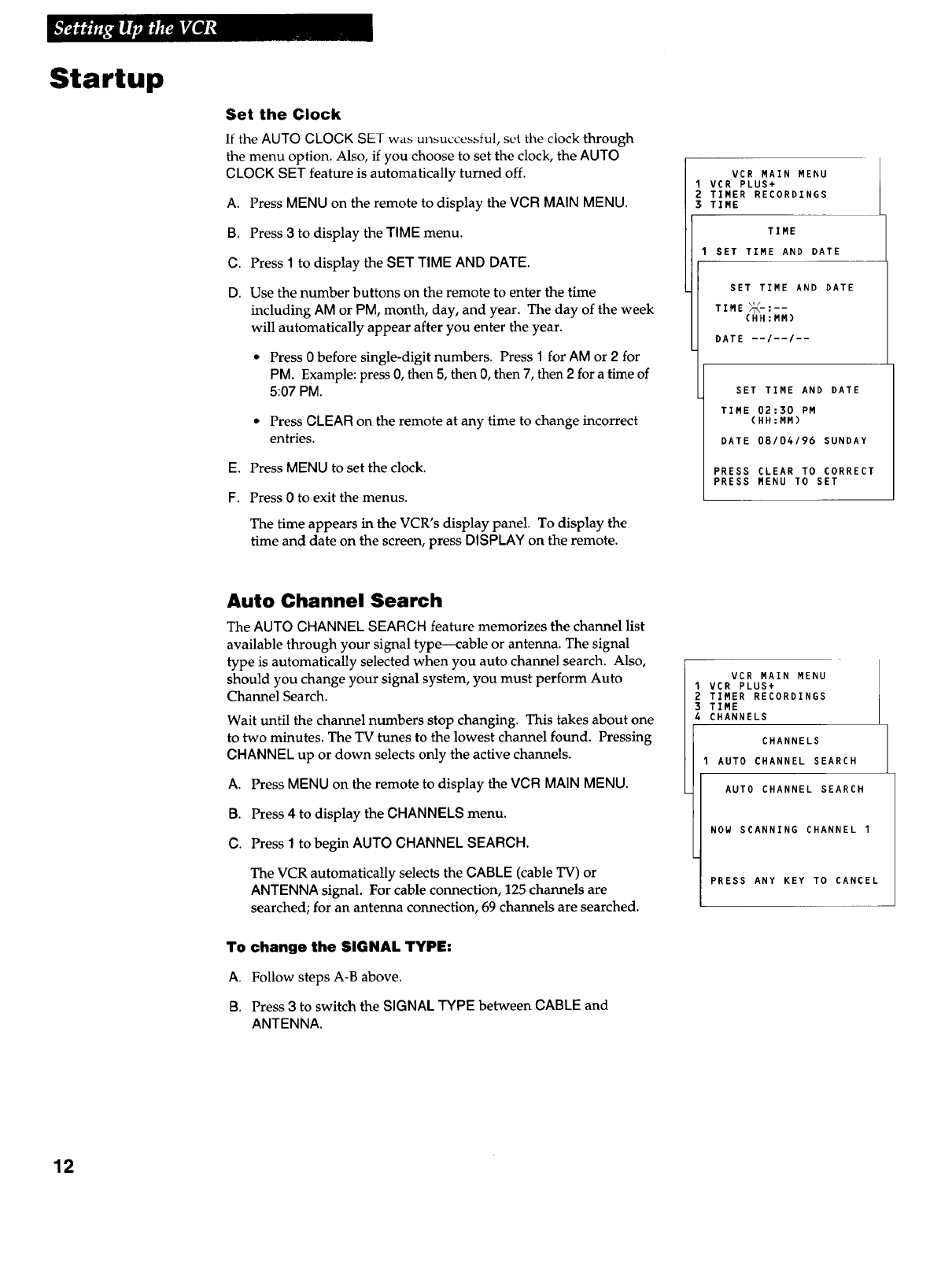

Set the Clock

If the AUTO CLOCK SET was unsuccessful, set the clock through

the menu option. Also, if you choose to set the clock, the AUTO

CLOCK SET feature is automatically turned off.

A. Press MENU on the remote to display the VCR MAIN MENU.

B. Press 3 to display the TIME menu.

C. Press 1to display the SET TIME AND DATE.

D. Use the number buttons on the remote to enter the time

including AM or PM, month, day, and year. The day of the week

will automatically appear after you enter the year.

• Press 0 before single-digit numbers. Press 1for AM or 2 for

PM. Example: press 0, then 5, then 0, then 7, then 2 for a time of

5:07 PM.

• Press CLEAR on the remote at any time to change incorrect

entries.

E. Press MENU to set the clock.

F. Press 0 to exit the menus.

The time appears in the VCR's display panel. To display the

time and date on the screen, press DISPLAY on the remote.

VCR MAIN MENU

I VCR PLUS+

2TIMER RECORDINGS

3TIME

TIME

I SET TIME AND DATE

SET TIME AND DATE

TIME;_:-- MM)

DATE --/--/--

SET TIME AND DATE

TIME 02:30 PM

(HH:MM)

DATE 08/04/96 SUNDAY

PRESS CLEAR TO CORRECT

PRESS MENU TO SET

Auto Channel Search

The AUTO CHANNEL SEARCH feature memorizes the channel list

available through your signal type---cable or antenna. The signal

type is automatically selected when you auto channel search. Also,

should you change your signal system, you must perform Auto

Channel Search.

Wait until the channel numbers stop changing. This takes about one

to two minutes. The TV tunes to the lowest channel found. Pressing

CHANNEL up or down selects only the active channels.

A. Press MENU on the remote to display the VCR MAIN MENU.

B. Press 4to display the CHANNELS menu.

C. Press 1 to begin AUTO CHANNEL SEARCH.

The VCR automatically selects the CABLE (cable TV) or

ANTENNA signal. For cable connection, 125 channels are

searched; for an antenna connection, 69 channels are searched.

To change the SIGNAL TYPE:

A. Follow steps A-B above.

B. Press 3 to switch the SIGNAL TYPE between CABLE and

ANTENNA.

VCR MAIN MENU

I VCR PLUS+

2TIMER RECORDINGS

3TIME

4CHANNELS

CHANNELS

AUTO CHANNEL SEARCH

NOW SCANNING CHANNEL I

PRESS ANY KEY TO CANCEL

Startup

6. Add or remove channels from the VCR's memory.

You may want to add or remove channels if some of the channels are

not active, have weak signals, or you do not want to watch them.

We recommend channels be placed in memory using the AUTO

CHANNEL SEARCH feature before adding or removing channels.

A. Press MENU on the remote to display the VCR MAIN MENU.

B. Press 4 to display CHANNELS menu.

C. Press 2 to display ADD/REMOVE CHANNEL screen.

D. Follow the on-screen directions.

E. Add or remove more channels using the CHANNEL up and

down buttons.

VCR MAIN MENU

I VCR PLUS+

2 TIMER RECORDINGS

3TIME

4CHANNELS

CHANNELS

I AUTO CHANNEL SEARCH

2 ADD/REMOVE CHANNELS

ADD/REMOVE CHANNEL

CHANNEL 03

IS PRESENTLY ADDED

PRESS CLEAR TO REMOVE

PRESS MENU TO EXIT

7. Select the language/Seleccione un idioma/

Choisissez une langue.

The VCR displays the on-screen menus in the English, Spanish or

French language. The word "Language" cycles through the different

languages when the VCR Main Menu is displayed on the TV screen.

The arrow indicates which language is selected.

A. Press MENU on remote to display the VCR MAIN MENU.

B. Press 6 to display the LANGUAGE or IDIOMA or LANGUE menu.

(English: LANGUAGE; Spanish: IDIOMA;

French: LANGUE).

•Press 1 to have the menus displayed in English (Ingles).

• Press 2 to have the menus displayed in Spanish (Espafiol).

• Press 3 to have the menus displayed in French (Fran_ais).

VCR MAIN MENU

1 VCR PLUS+

2 TIMER RECORDINGS

3TIME

4CHANNELS

5 PREFERENCES

6LANGUAGE

LANGUAGE

SELECT A LANGUAGE.

1÷ENGLISH

2ESPAROL

3FRAN_AIS

PRESS MENU TO CONTINUE

8. Use TVoVCR button.

Skip this step if you used one of the advanced hookups.

When using one of the basic hookups, the TV.VCB button lets you

switch between the picture coming from the VCR or television

channels. This button lets you record a program on the VCR while

watching another channel on the TV. Details in the "Recording'section.

A. Press VCR1 to set the remote to control the VCR.

B. Press TV.VCR to see the picture from the VCR. The VGR

indicator lights in the display panel.

C. Press CHANNEL up or down to change channels on the VCR.

The channel number followed by the station name (if broadcast)

appears for a few seconds on the TV screen.

D. Press TV,VGR to see the TV channels.

The VCR indicator does not light in the display panel. Change

channels using the TV's remote.

E. Return the TV to the VCR viewing channel -- CH3 or CH4.

F. Press VCR1, then TV-VCR to switch back to the picture from

the VCR.

Startup

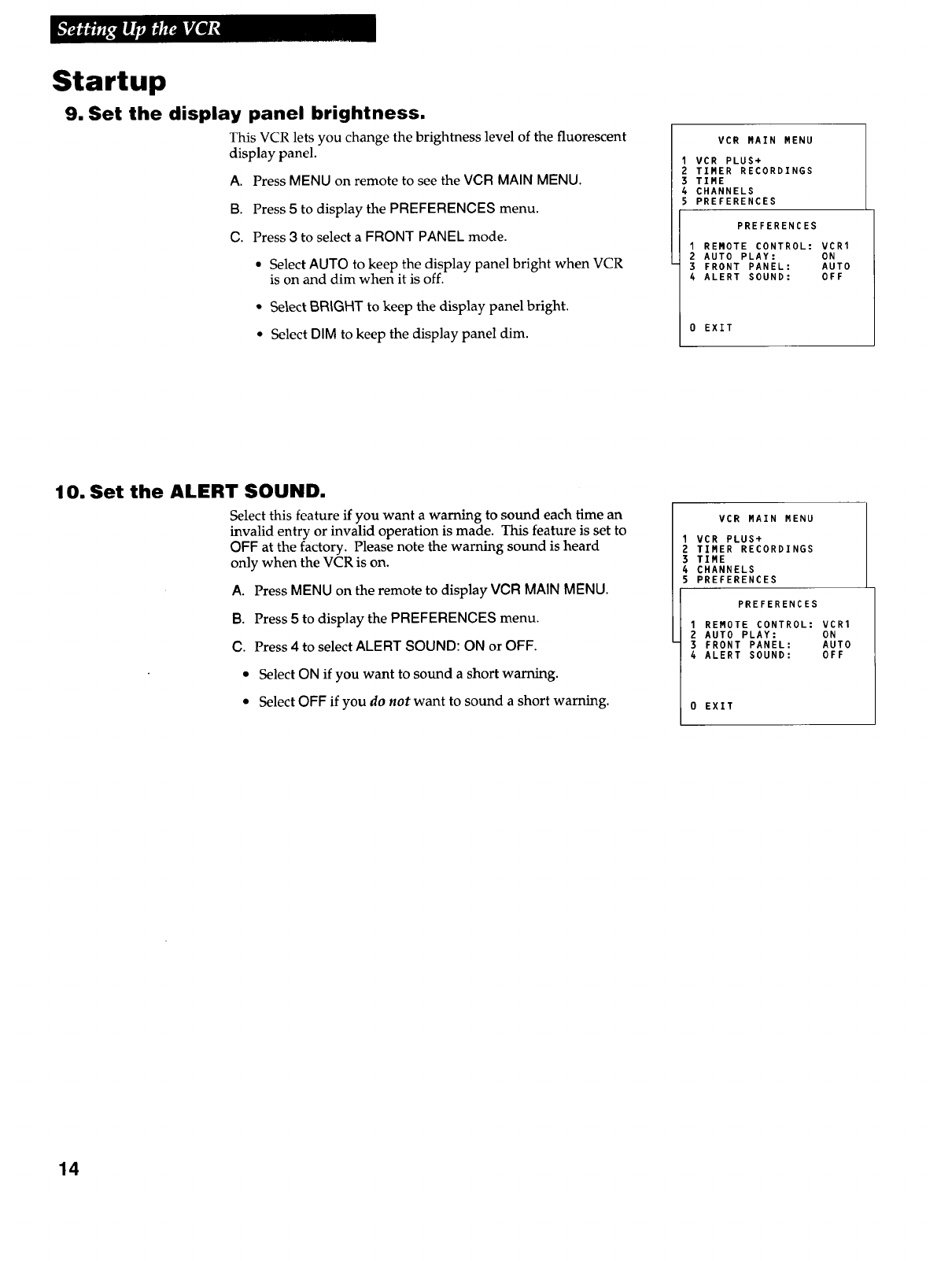

9. Set the display panel brightness.

This VCR lets you change the brightness level of the fluorescent

display panel.

A. Press MENU on remote to see the VCR MAIN MENU.

B. Press 5 to display the PREFERENCES menu.

C. Press 3to select a FRONT PANEL mode.

•Select AUTO to keep the display panel bright when VCR

is on and dim when it is off.

• Select BRIGHT to keep the display panel bright.

• Select DIM to keep the display panel dim.

VCR MAIN MENU

IVCR PLUS+

2 TIMER RECORDINGS

3 TIME

4CHANNELS

PREFERENCES

1REMOTE CONTROL: VCR1

2 AUTO PLAY: ON

3FRONT PANEL: AUTO

4ALERT SOUND: OFF

0 EXIT

10. Set the ALERT SOUND.

Select this feature if you want a warning to sound each time an

invalid entry or invalid operation is made. This feature is set to

OFF at the factory. Please note the warning sound is heard

only when the VCR is on.

A. Press MENU on the remote to display VCR MAIN MENU.

B. Press 5 to display the PREFERENCES menu.

C. Press 4 to select ALERT SOUND: ON or OFF.

• Select ON if you want to sound a short warning.

• Select OFF if you do not want to sound a short warning.

VCR MAIN MENU

IVCR PLUS+

2 TIMER RECORDINGS

3 TIME

4 CHANNELS

5 PREFERENCES

PREFERENCES

1 REMOTE CONTROL: VCR1

2AUTO PLAY: ON

3FRONT PANEL: AUTO

4 ALERT SOUND: OFF

0 EXIT

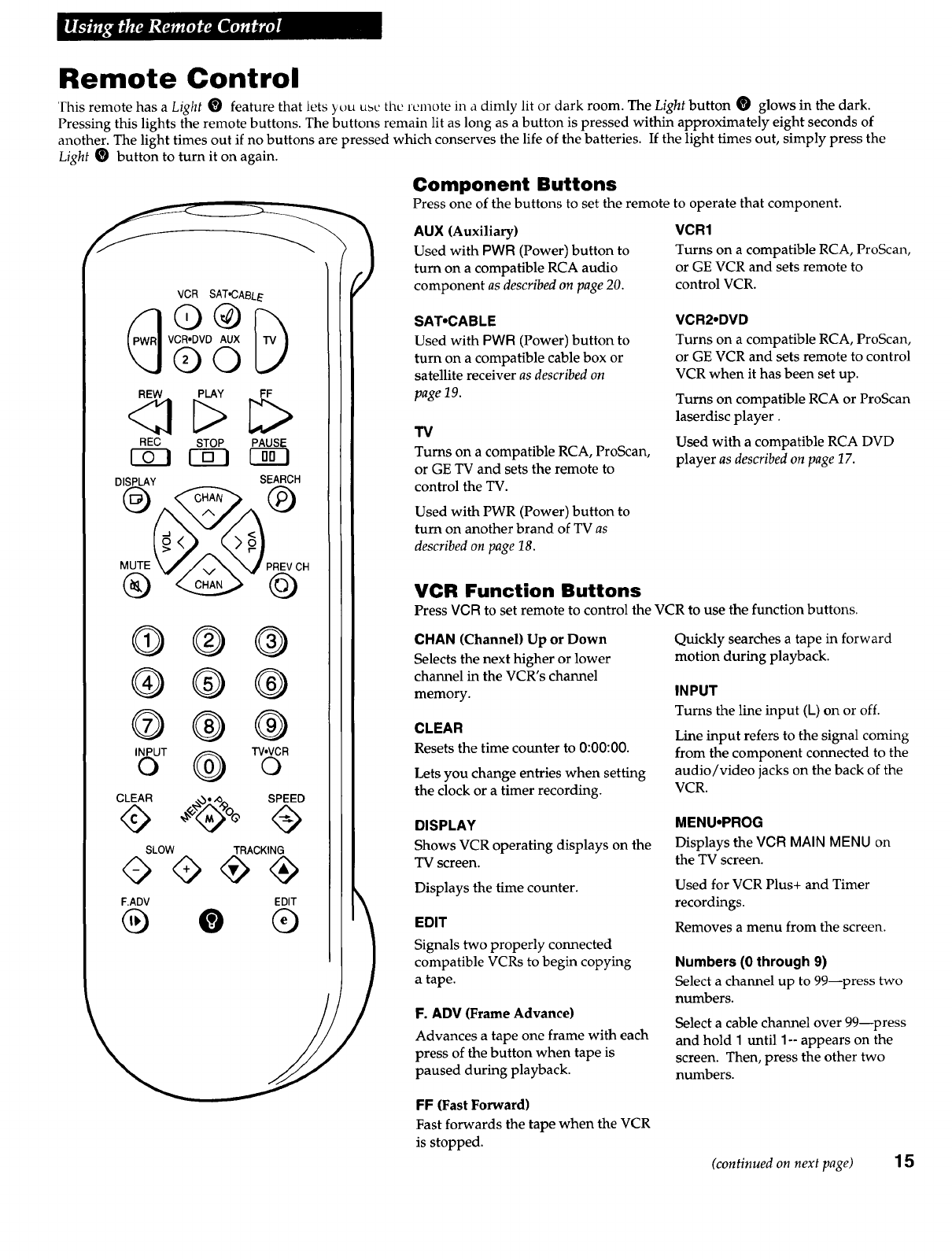

Remote Control

Pressing this lights the remote buttons. The buttons remain lit as long as a button is pressed within approximately eight seconds of

another. The light times out if no buttons are pressed which conserves the life of the batteries. If the light times out, simply press the

Light 0 button to turn it on again.

VCR SAT'CABLE

VCR.DVD AUX

©©

REW PLAY FF

<3 E>

REC STOP

DISPLAY SEARCH

@@®

®@®

®®®

INPUTo @ TV,VCRQ

SLOW TRACKING

F.ADV EDIT

® 0 ®

Component Buttons

Press one of the buttons to set the remote to operate that component.

AUX (Auxiliary) VCR1

Used with PWR (Power) button to Turns on a compatible RCA, ProScan,

turn on a compatible RCA audio or GE VCR and sets remote to

component as described on page 20. control VCR.

SAT.CABLE

Used with PWR (Power) button to

turn on a compatible cable box or

satellite receiver as described on

page 19.

131

Turns on a compatible RCA, ProScan,

or GE TV and sets the remote to

control the TV.

Used with PWR (Power) button to

turn on another brand of TV as

described on page 18.

VCR2.DVD

Turns on a compatible RCA, ProScan,

or GE VCR and sets remote to control

VCR when it has been set up.

Turns on compatible RCA or ProScan

laserdisc player.

Used with a compatible RCA DVD

player as described on page 17.

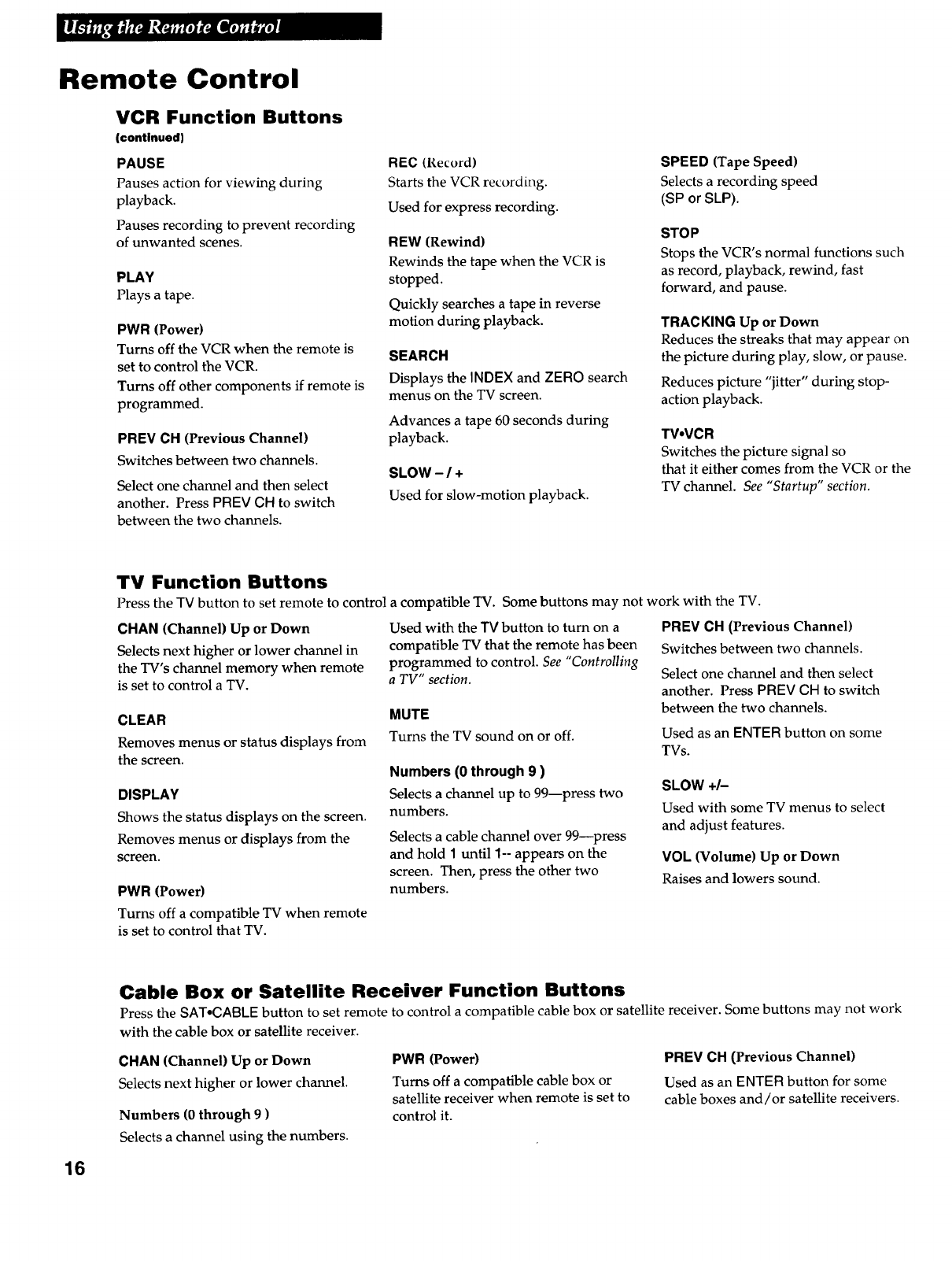

VCR Function Buttons

Press VCR to set remote to control the VCR to use the function buttons.

CHAN (Channel) Up or Down

Selects the next higher or lower

channel in the VCR's channel

memory.

CLEAR

Resets the time counter to 0:00:00.

Lets you change entries when setting

the clock or a timer recording.

Quickly searches a tape in forward

motion during playback.

INPUT

Turns the line input (L) on or off.

Line input refers to the signal coming

from the component connected to the

audio/video jacks on the back of the

VCR.

DISPLAY

Shows VCR operating displays on the

TV screen.

Displays the time counter.

EDIT

Signals two properly connected

compatible VCRs to begin copying

a tape.

F. ADV (Frame Advance)

Advances a tape one frame with each

press of the button when tape is

paused during playback.

MENU*PROG

Displays the VCR MAIN MENU on

the TV screen.

Used for VCR Plus+ and Timer

recordings.

Removes a menu from the screen.

Numbers (0 through 9)

Select a channel up to 99--press two

numbers.

Select acable channel over 99--press

and hold 1until 1-- appears on the

screen. Then, press the other two

numbers.

FF (Fast Forward)

Fast forwards the tape when the VCR

is stopped.

(continued on next page) 1 5

Remote Control

VCR Function Buttons

(continued)

PAUSE

Pauses action for viewing during

playback.

Pauses recording to prevent recording

of unwanted scenes.

PLAY

Plays a tape.

PWR (Power)

Turns off the VCR when the remote is

set to control the VCR.

Turns off other components if remote is

programmed.

PREV CH (Previous Channel)

Switches between two channels.

Select one channel and then select

another. Press PREV GH to switch

between the two channels.

REC (Record)

Starts the VCR recording.

Used for express recording.

REW (Rewind)

Rewinds the tape when the VCR is

stopped.

Quickly searches atape in reverse

motion during playback.

Displays the INDEX and ZERO search

menus on the TV screen.

Advances a tape 60 seconds during

playback.

SLOW - /+

Used for slow-motion playback.

SPEED (Tape Speed)

Selects a recording speed

(SP or SLP).

STOP

Stops the VCR's normal functions such

as record, playback, rewind, fast

forward, and pause.

TRACKING Up or Down

Reduces the streaks that may appear on

the picture during play, slow, or pause.

Reduces picture "jitter" during stop-

action playback.

TV.VCR

Switches the picture signal so

that it either comes from the VCR or the

TV channel. See "Startup" section.

TV Function Buttons

Press the TV button to set remote to control a compatible TV. Some buttons may not work with the TV.

CHAN (Channel) Up or Down

Selects next higher or lower channel in

the TV's channel memory when remote

is set to control aTV.

CLEAR

Removes menus or status displays from

the screen.

DISPLAY

Shows the status displays on the screen.

Removes menus or displays from the

screen.

PWR (Power)

Used with the TV button to turn on a

compatible TV that the remote has been

programmed to control. See "Controlling

aTV" section.

MUTE

Turns the TV sound on or off.

Numbers (0 through 9 )

Selects achannel up to 99--press two

numbers.

Selects a cable channel over 99--press

and hold 1until 1-- appears on the

screen. Then, press the other two

numbers.

PREV CH (Previous Channel)

Switches between two channels.

Select one channel and then select

another. Press PREV OH to switch

between the two channels.

Used as an ENTER button on some

TVs.

SLOW +/-

Used with some TV menus to select

and adjust features.

VOL (Volume) Up or Down

Raises and lowers sound.

Turns off a compatible TV when remote

is set to control that TV.

Cable Box or Satellite Receiver Function Buttons

Press the SAT,GABLE button to set remote to control a compatible cable box or satellite receiver. Some buttons may not work

with the cable box or satellite receiver.

CHAN (Channel) Up or Down

Selects next higher or lower channel.

Numbers (0 through 9 )

Selects a channel using the numbers.

PWR (Power)

Turns off a compatible cable box or

satellite receiver when remote is set to

control it.

PREV CH (Previous Channel)

Used as an ENTER button for some

cable boxes and/or satellite receivers.

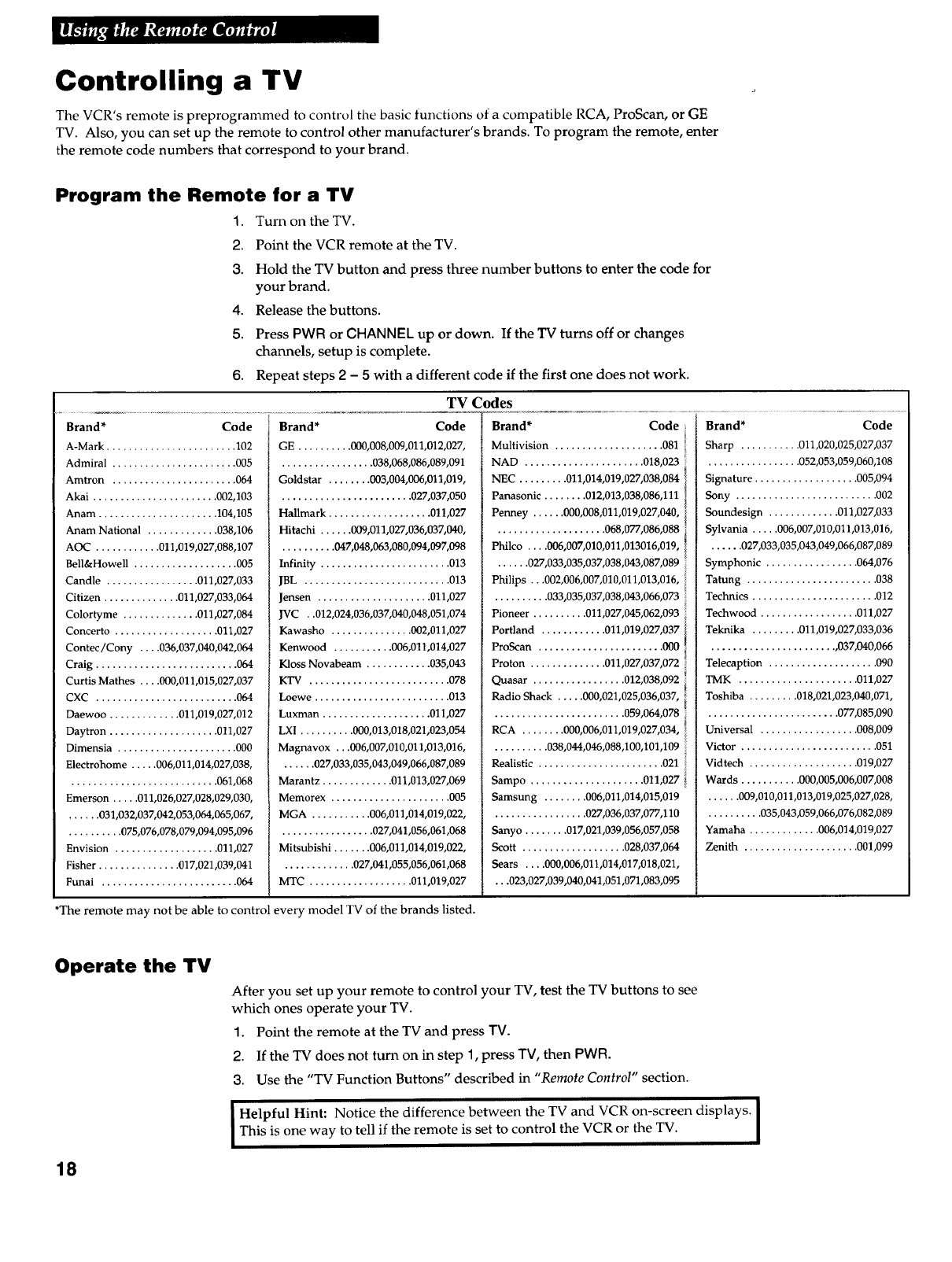

Controlling a VCR

The VCR's remote controls compatible RCA, ProScan, or GE VCRs with the VCR1 and VCR2.DVD

buttons. Most compatible VCRs automatically respond to VGR1 without being programmed. If you

own two compatible VCRs, test them to see if VCR1 turns on both VCRs. If it does, then you may

want to program this VCR to respond to the VGR2.DVD button on the remote.

Program the VCR for Remote Control

Set the REMOTE CONTROL feature of the VCR to the VCR1 or

VCR2°DVD position. Then, the remote controls the VCR with either

the VCR1 or VCR2 button -- the position you select in the menu.

1. Press MENUopROG to display the VCR MAIN MENU.

2. Press 5 to display the PREFERENCES menu.

3. Press 1 to activate the REMOTE CONTROL feature.

4. Press VCR1 or VCR2°DVD to change the setting and program

this VCR to respond to the VCR1 or VCR2°DVD button -- the

position you select.

IImportant Reminder: Remember you must press VCR1 or

VCR2°DVD on the remote -- the position you selected in the

menu -- before the remote will operate this VCR.

VCR MAIN MENU

VCR PLUS+

TIMER RECORDINGS

TIME

CHANNELS

PREFERENCES

REMOTE CONTROL: VCRI

PREFERENCES

(PRESS VCR2 TO CHANGE )

2AUTO PLAY: ON

3FRONT PANEL: ON

6 ALERT SOUNb: ON

0 EXIT

Using the VCR2-DVD Button

The VCR2°DVD button on the VCR's remote is preset to control an RCA, ProScan or GE VCR and an

RCA or ProScan laserdisc player. To control a DVD component, it must be programmed with the

DVD code listed. If you want to change it back to control a VCR/laserdisc player, then you must

reprogram the button to the VCR/laserdisc player code.

Program the Remote Control

1. Turn on the component.

2. Point the VCR remote at the component.

3. Hold the VCR2.DVD button and press three number buttons to enter

the code for the component.

4. Release the buttons.

5. Press PWR or CHANNEL up or down. If the component turns off or

changes channels, setup is complete.

tVC' RCA, ProScan or GE Codes

R" Laserdisc Player DVD

037 037 O78

Controlling a TV

The VCR's remote is preprogrammed to control tile basic functions of a compatible RCA, ProScan, or GE

TV. Also, you can set up the remote to control other manufacturer's brands. To program the remote, enter

the remote code numbers that correspond to your brand.

Program the Remote for a TV

1. Turn on the TV.

2. Point the VCR remote at the TV.

3. Hold the TV button and press three number buttons to enter the code for

your brand.

4. Release the buttons.

5. Press PWR or CHANNEL up or down• If the TV turns off or changes

channels, setup is complete.

6. Repeat steps 2 - 5with a different code if the first one does not work.

TV Codes

Brand* Code

A-Mark ........................ 102

Admiral ....................... 005

Amtron ....................... 064

Akai ....................... 002,103

Anam ...................... 104,105

Anam National ............. 038,106

AOC ............ 011,019,027,088,107

Bell&Howell ................... 005

Candle ................. 011,027,033

Citizen .............. 011,027,033,064

Colortyme .............. 011,027,084

Concerto ................... 011,027

Contec/Cony .... 036,037,040,042,064

Craig .......................... 064

Curtis Mathes .... 000,011,015,027,037

CXC .......................... 064

Daewoo ............. 011,019,027,012

Daytron .................... 011,027

Dimensia ...................... 000

Electrohome ..... 006,011,014,027,038,

........................... 061,068

Emerson ..... 011,026,027,028,029,030,

...... 031,032,037,042,053,064,065,067,

.......... 075,076,078,079,094,095,096

Envision ................... 011,027

Fisher ............... 017,021,039,041

Funai ......................... 064

Brand* Code

GE .......... 000,008,009,011,012,027,

................. 038,068,086,089,091

Goldstar ........ 003,004,006,011,019,

........................ 027,037,050

Hallmark ................... 011,027

Hitachi ...... 009,011,027,036,037,040,

.......... 047,048,063,080,094,097,098

Infinity ........................ 013

JBL ........................... 013

Jensen ..................... 011,027

JVC . .012,024,036,037,040,048,051,074

Kawasho ............... 002,011,027

Kenwood ........... 006,011,014,027

Kloss Novabeam ............ 035,043

KTV .......................... 078

Loewe ......................... 013

Luxman .................... 011,027

LXI .......... 000,013,018,021,023,054

Magnavox ...006,007,010,011,013,016,

...... 027,033,035,043,049,066,087,089

Marantz ............. 011,013,027,069

Memorex ...................... 005

MGA ........... 006,011,014,019,022,

................. 027,041,056,061,068

Mitsubishi ....... 006,011,014,01%022,

............. 027,041,055,056,061,068

MTC ................... 011,01%027

Brand* Code

Multivision .................... 081

NAD ...................... 018,023

NEC ......... 011,014,019,027,038,084

Panasonic ........ 012,013,038,086,111

Penney ...... 000,008,011,019,027,040,

.................... 068,077,086,088

Philco .... 006,007,010,011,013016,019,

...... 027,033,035,037,038,043,087,089

Philips ...002,006,007,010,011,013,016,

.......... 033,035,037,038,043,066,073

Pioneer .......... 011,027,045,062,093

Portland ............ 011,019,027,037

ProScan ....................... 000

Proton .............. 011,027,037,072

Quasar ................. 012,038,092

Radio Shack ..... 000,021,025,036,037,

........................ 059,064,078

RCA ........ 000,006,011,019,027,034,

.......... 038,044,046,088,100,101,109

Realistic ....................... 021

Sampo ..................... 011,027

Samsung ........ 006,011,014,015,019

................. 027,036,037,077,110

Sanyo ........ 017,021,039,056,057,058

Scott ................... 028,037,064

Sears .... 000,006,011,014,017,018,021,

•..023,027,039,040,041,051,071,083,095

Brand* Code

Sharp ........... 011,020,025,027,037

................. 052,053,059,060,108

Signature ................... 005,094

Sony .......................... 002

Soundesign ............. 011,027,033

Sylvania ..... 006,007,010,011,013,016,

...... 027,033,035,043,049,066,087,089

Symphonic ................. 064,076

Tatung ........................ 038

Technics ....................... 012

Techwood .................. 011,027

Teknika ......... 011,019,027,033,036

........................ 037,040,066

Telecaption .................... 090

TMK ...................... 011,027

Toshiba ......... 018,021,023,040,071,

........................ 077,085,090

Universal .................. 008,009

Victor ......................... 051

Vidtech .................... 019,027

Wards ........... 000,005,006,007,008

...... 009,010,011,013,019,025,027,028,

.......... 035,043,059,066,076,082,089

Yamaha ............. 006,014,019,027

Zenith ..................... 001,099

*The remote may not be able to control every model TV of the brands listed.

Operate the TV

After you set up your remote to control your TV, test the TV buttons to see

which ones operate your TV.

1. Point the remote at the TV and press TV.

2. If the TV does not turn on in step 1, press TV, then PWR.

3. Use the "TV Function Buttons" described in "Remote Control" section.

IHelpful Hint: Notice the difference between the TV and VCR on-screen displays. I

This is one way to tell if the remote is set to control the VCR or the TV. I

Controlling a Cable Box or Satellite Receiver

The SAT.CABLE button on the VCR's remote is preprogrammed to control a compatible RCA cable box or

satellite receiver. If your cable box or satellite receiver is another manufacturer's brand and has its own

remote, you will probably be able to program the VCR's remote to control the it. To program the VCR's

remote, enter the code that corresponds to your brand.

Program the Remote for a Cable Box or Satellite Receiver

1. Turn on the cable box or satellite receiver.

2. Point the VCR remote at the cable box or satellite receiver.

3. Hold the SAT.CABLE button and press three number buttons to enter the

code for your brand.

4. Release the buttons.

5. Press PWR on the remote. If the cable box or satellite receiver turns off,

setup is complete.

6. Repeat steps 2- 5 with a different code if the first one does not work.

Brand* Code

ABC ............. 022,046,053,054

Anvision ................ 007,008

Cablestar ................ 007,008

Diamond .................... 056

Eagle .................... 007,008

Eastern Int ................... 002

General Instruments .......... 046

G1400 ........ 004,005,015,023,024,

..................... 025,030,036

Hamlin ....... 003,012,013,034,048

Hitachi .............. 037,043,046

Jerrold ....... 004,005,015,023,024,

•..025,030,036, 045,046,047,062,065

Macom .................. 037,043

Cable Box Codes

Brand* Code

Magnavox .... 007,008,019,021,026,

........... 028,029,032,033,040,041

NSC ........................ 009

Oak ................. 001,016,038

Oak Sigma .................. 016

Panasonic ......... 003,027,039,061

Philips .... 007,008,019,021,026,028,

.............. 029,032,033,040,041

Pioneer .............. 018,020,044

RCA .................... 000,027

Randtek ................. 007,008

Regal ................ 003,012,013

Regency ................. 002,033

Samsung .................... 044

Sci. Atlanta .... 003,022,035,063,064

Brand* Code

Signature ................... 046

Sprucer ..................... 027

Starcom ..................... 046

Stargate 2000 ................ 058

Sylvania ................. 011,059

Teknika ..................... 006

Texscan .............. 010,011,059

Tocom ........ 017,021,049,050,055

Unika ................ 031,032,041

Universal ............ 051,052,060

Viewstar...007,008,019,021,026,028

.............. 029,032,033,040,041

Warner Amex ............... 044

Zenith ............ 014,042,057,061

Brand* Code

Chaparral ................................ 080,081

Cheyenne ....................................... 081

Drake ....................................... 082,083

GE ................................................... 000

General Instruments ......092,093,094

Satellite Receiver Codes

Brand* Code

RCA ................................................ 000

Realistic .......................................... 084

Sierra 1,0II,0III ............................... 081

STS1 ................................................ 085

STS2 ................................................ 086

Brand* Code

iTS3 ................................................ 087

STS4 ................................................ 088

ioshiba .......................................... 089

Uniden ........................................... 090

I Video Cipher II ............................. 091

The remote may not be able to control every cable box or satelitte receiver of the brands listed.

Operate the Cable Box or Satellite Receiver

After you set up your remote to control the cable box or satellite receiver, test

the buttons to see which ones operate it.

1. Point the remote at the component and press SAT.CABLE.

2. If the component does not turn on in step 1, press SAT.CABLE, then PWR.

3. Use the "Cable Box or Satellite Receiver Function Buttons" described in the

"Remote Control" section. 19

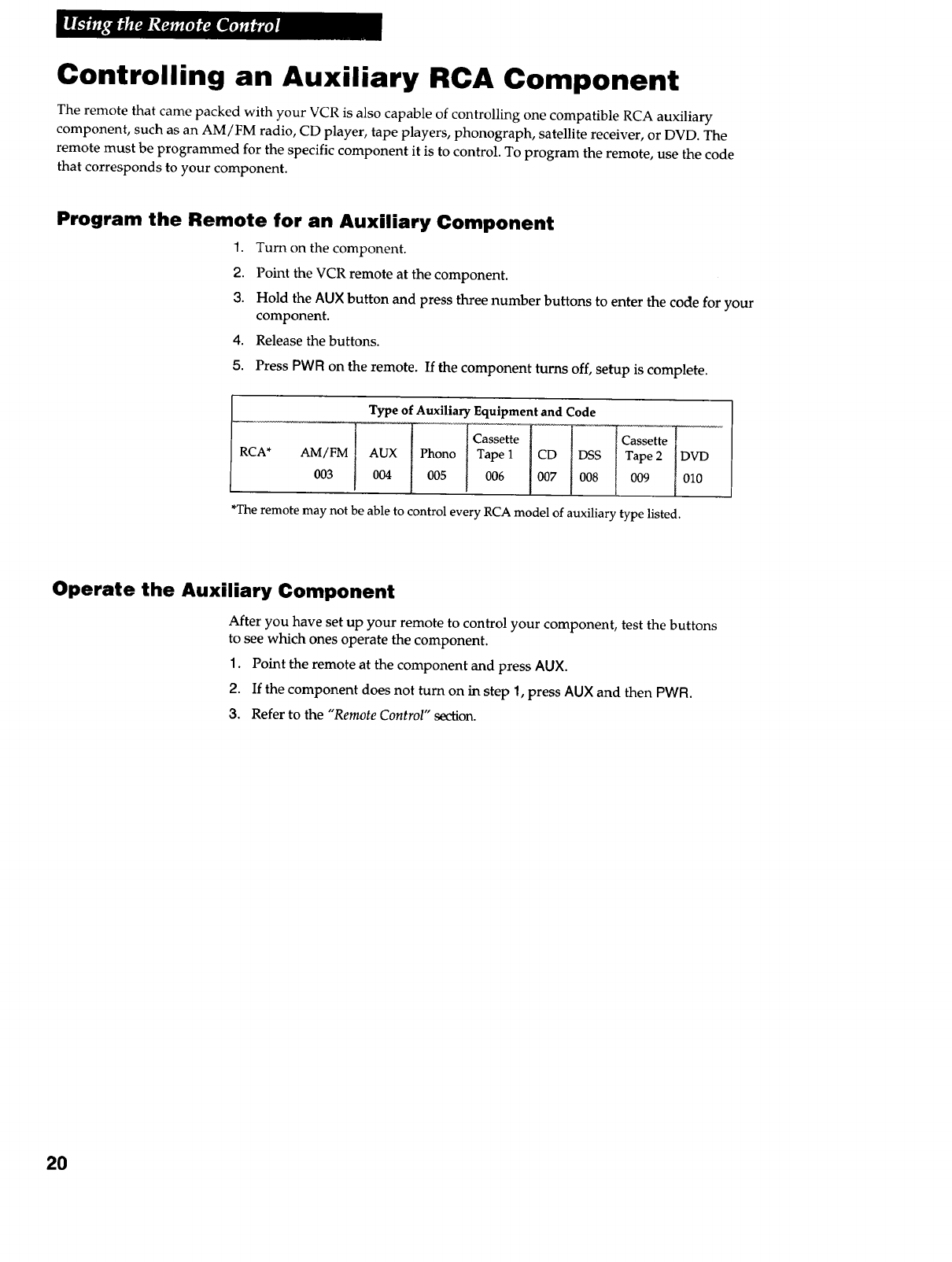

Controlling an Auxil iary RCA Component

The remote that came packed with your VCR is also capable of controlling one compatible RCA auxiliary

component, such as an AM/FM radio, CD player, tape players, phonograph, satellite receiver, or DVD. The

remote must be programmed for the specific component it is to control. To program the remote, use the code

that corresponds to your component.

Program the Remote for an Auxiliary Component

1. Turn on the component.

2. Point the VCR remote at the component.

3. Hold the AUX button and press three number buttons to enter the code for your

component.

4. Release the buttons.

5. Press PWR on the remote. If the component turns off, setup is complete.

RCA* AM/FM

003

Type of Auxiliary Equipment and Code

oI_e_ ICDI_S_I_ape2I_VD

1004I 00_I 006lOO_lOOOI009 I0,0

*The remote may not be able to control every RCA model of auxiliary type listed.

Operate the Auxiliary Component

After you have set up your remote to control your component, test the buttons

to see which ones operate the component.

1. Point the remote at the component and press AUX.

2. If the component does not turn on in step 1, press AUX and then PWR.

8. Refer to the "Remote Control" section.

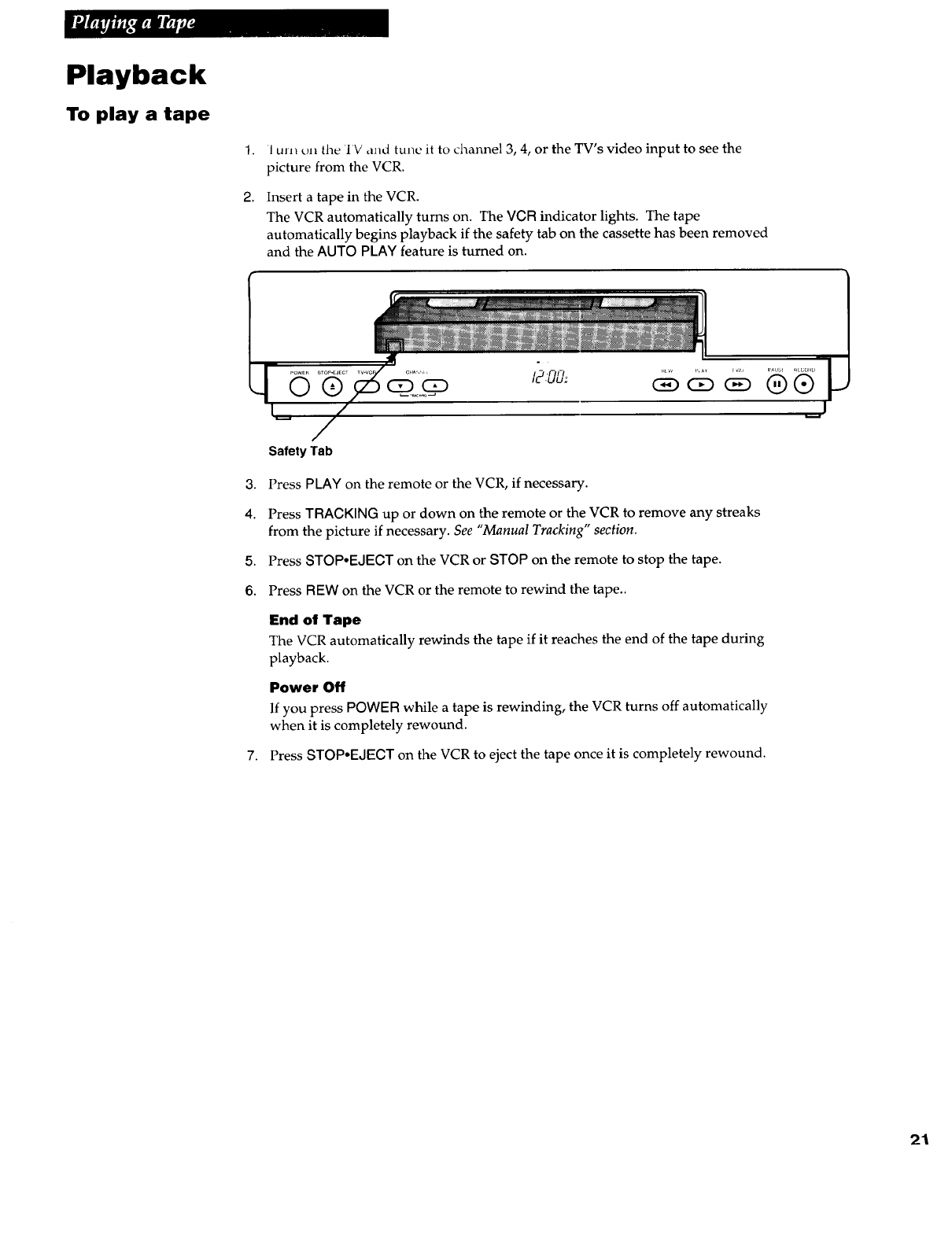

Playback

To play a tape

I urn _,n die IV (|lid tune it to channel 3, 4, or the TV's video input to see the

picture from the VCR.

Insert a tape in the VCR.

The VCR automatically turns on. The VCR indicator lights. The tape

automatically begins playback if the safety tab on the cassette has been removed

and the AUTO PLAY feature is turned on.

Press PLAY on the remote or the VCR, if necessary.

Press TRACKING up or down on the remote or the VCR to remove any streaks

from the picture if necessary. See "Manual Tracking" section.

Press STOP.EJECT on the VCR or STOP on the remote to stop the tape.

Press REW on the VCR or the remote to rewind the tape..

End of Tape

The VCR automatically rewinds the tape if it reaches the end of the tape during

playback.

Power Off

If you press POWER while a tape is rewinding, the VCR turns off automatically

when it is completely rewound.

Press STOP-EJECT on the VCR to eject the tape once it is completely rewound.

Using the

AUTO PLAY Feature

Playback Features

This feature allows the VCR to automatically start playing when you insert a tape with

the safety tab removed.

1. Press MENU on the remote to display the VCR MAIN

MENU.

Press 5to display the PREFERENCES menu.

Press 2 to select AUTO PLAY: ON or OFF.

• Select ON if you want to have a tape with its safety tab

removed to start playing automatically.

• Select OFF if you do not want a tape with its safety

tab removed to start playing automatically.

VCR MAIN MENU

I VCR PLUS+

2TIMER RECORDINGS

3 TIME

4 CHANNELS

PREFERENCES

1REMOTE CONTROL: VCRI

2AUTO PLAY: ON

3FRONT PANEL: AUTO

4ALERT SOUND: OFF

0 EXIT

Picture Search

You can search for a specific tape location during playback by fast forwarding or

rewinding the tape. Sound is turned off during picture search. Picture search works best

for tapes recorded in the SP or SLP speed.

Fast Forward Search

1. Press FF on the remote or FWD on the VCR to search

forward at a faster-than-normal speed.

2. Press FF on the remote, FWD on the VCR or PLAY to

return to playback.

Rewind Search

1. Press MEW to search backward at a faster-than-normal

speed.

2. Press REW or PLAY to return to playback.

Slow Motion

You can view a tape in slow motion during play or play pause. Sound is turned off

during slow-motion playback. Slow motion works best for tapes recorded in the SP or

SLP speed.

1. Press SLOW + or- during playback to begin

slow-motion.

PLAY flashes in the VCR display panel.

Press SLOW + to increase the speed or SLOW - to

decrease the speed.

Use TRACKING up or down to remove any streaks from

the picture.

3. Press PLAY to return to playback.

The VCR automatically switches from slow-motion

playback to stop after a few minutes.

Using the Playback Features

DISPLAY Button

The DISPLAY button shows the status of the VCR channel number, station name

(if broadcast), time counter, date, time and tape speed on the TV screen. The time

and date must be set before they can be displayed.

1. Press DISPLAY.

If you do not press DISPLAY again, this display

times out.

2. Press DISPLAY again to display only the time

counter on the TV screen.

3. Press DISPLAY again to return to TV viewing.

Turning off the VCR automatically returns the

displays to normal.

Time Counter

The time counter shows the actual time it takes to record a program or play back a

segment of a prerecorded tape. It helps locate the beginning or end of programs

you taped. The time counter resets to 0:00:00 when the tape is ejected from

the VCR.

For example, if you record a30-minute program at the beginning of the tape and

you want to go to the end of that program to begin another recording,

you would:

Insert the prerecorded tape and make sure it is

rewound to the beginning.

Press DISPLAY twice to display only the time

counter on the TV screen.

3. Press CLEAR to reset the time counter to 0:00:00.

4. Press FF to fast forward the tape until 0:30:00

appears in the time counter and press STOP.

The time counter does not advance when it

detects no signal (blank tape).

5. P]:ess _)\_Pk -/ks( to rerr_ove Yhe yin_e counteT _rorn

the screen.

0:30:00

Hours _ I T

Minutes

Seconds

Using the Playback Features

Index Search

The VCR has a "VHS Index Search System" that automatically records an index mark on

the tape every time you begin recording a program. Your VCR has two index playback

features. To locate the program you want to play, select a specific index number or search

by scanning.

Some index marks may be missed by the VCR.

• A mark too close to the current location on the tape.

• The mark at the beginning of a recorded segment of five

minutes or less.

• The first index mark on the tape when you start

searching from the beginning of the tape.

To Index Search

1. Insert the prerecorded tape and press STOP.

2. Press SEARCH on the remote to display the INDEX

SEARCH menu on the TV screen.

,Press REW or FF on the remote to scan or enter the

number of index marks you want the VCR to search.

Press CLEAR on the remote to correct an entry.

Once the index mark or marks are found, the tape

begins playback.

4. Follow the directions on the screen.

INDEX SEARCH

PRESS REW OR FF

TO BEGIN SCANNING

ENTER A SPECIFIC

INDEX NUMBER

_TT

PRESS SEARCH TO EXIT

INDEX SEARCH

SEARCHING FOR

INDEX MARKS,..

PRESS STOP TO CANCEL

Zero Search

The zero search feature allows the VCR to quickly return to a counter reading of 0:0O:O0

anywhere on the tape. This is especially convenient when you want to watch a segment

of the tape several times.

1. Insert the prerecorded tape.

2. Press DISPLAY twice to display only the time counter on

the TV screen.

3. Use PLAY, FF, or REW to advance to the place on the

tape where you want to return quickly.

4. Press CLEAR to reset the time counter to 0:00:00.

5. Continue playing the tape.

6. Press STOP.

7. Press SEARCH twice to display the ZERO SEARCH

menu on the TV screen.

8. Follow the directions on the screen.

ZERO SEARCH

CURRENT TAPE COUNTER IS

2:17:25

PRESS REW TO GO TO

0:00:00

PRESS SEARCH TO EXIT

ZERO SEARCH

CURRENT TAPE COUNTER IS

-2:17:25

PRESS FF TO GO TO

0:00:00

PRESS SEARCH TO EXIT

Commercial Scan (SEARCH Button)

This is useful for scantling commercials or short program segments.

Press SEARCH during playback to advance the tape

approximately one minute or press SEARCH twice for two

minutes.

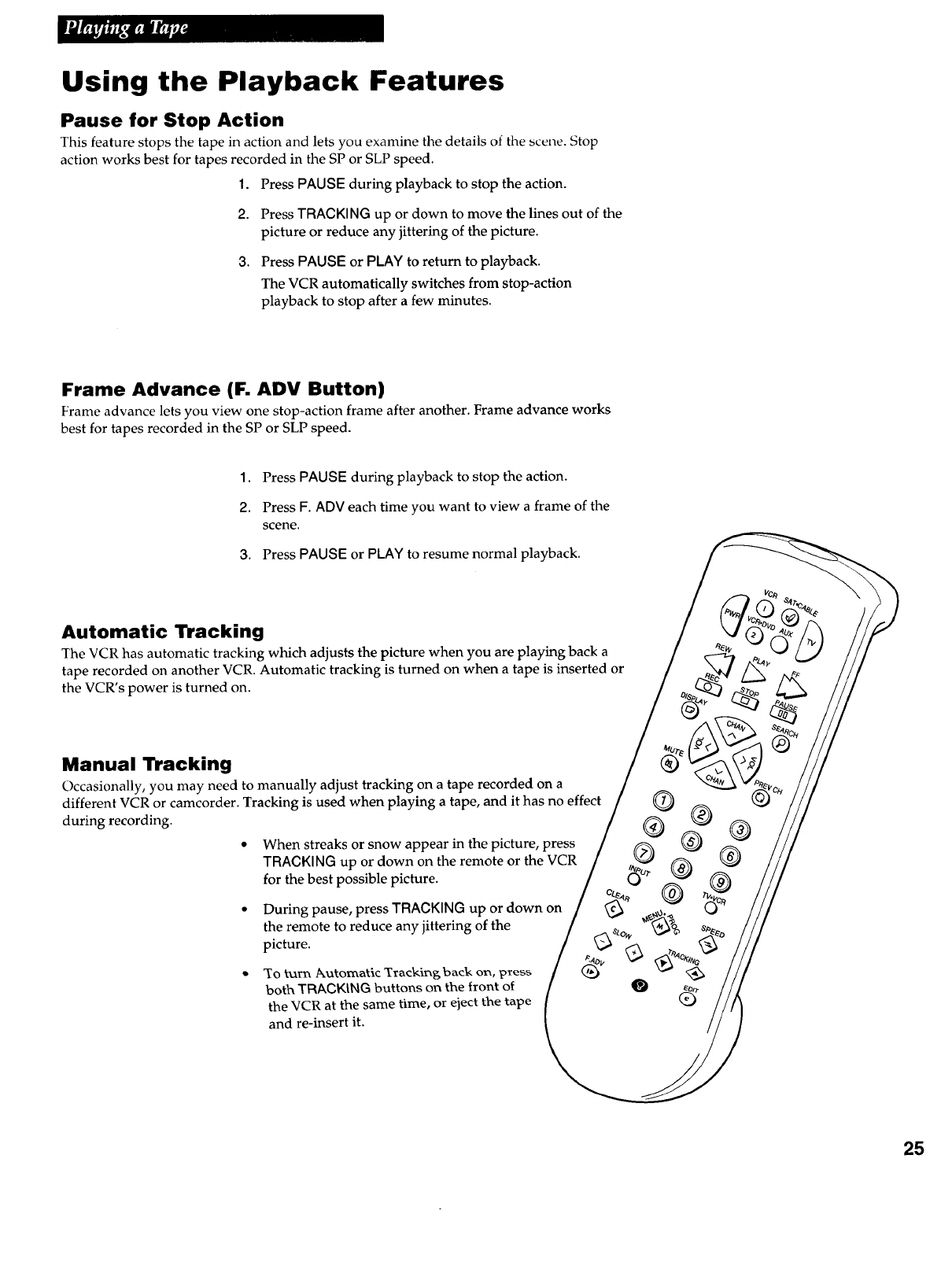

Using the Playback Features

Pause for Stop Action

This feature stops the tape in action and lets you examine the details of the scene. Stop

action works best for tapes recorded in the SP or SLP speed•

1. Press PAUSE during playback to stop the action.

2. Press TRACKING up or down to move the lines out of the

picture or reduce any jittering of the picture.

3. Press PAUSE or PLAY to return to playback.

The VCR automatically switches from stop-action

playback to stop after a few minutes.

Frame Advance (F. ADV Button)

Frame advance lets you view one stop-action frame after another. Frame advance works

best for tapes recorded in the SP or SLP speed.

1. Press PAUSE during playback to stop the action.

2. Press F. ADV each time you want to view a frame of the

scene.

3. Press PAUSE or PLAY to resume normal playback.

Automatic Tracking

The VCR has automatic tracking which adjusts the picture when you are playing back a

tape recorded on another VCR. Automatic tracking is turned on when a tape is inserted or

the VCR's power is turned on.

Manual Tracking

Occasionally, you may need to manually adjust tracking on a tape recorded on a

different VCR or camcorder. Tracking is used when playing a tape, and it has no effect Q

during recording.

• ® ®

• When streaks or snow appear in the picture, press /Q Q

TRACKING up or down on the remote or the VCR //, _,

for the best possible picture. /_o_ _ (_

• During pause, press TRACKING up or down on [_ _ _)_

the remote to reduce any jittering of the - _Lo, _G_

picture. "_ G'k

•To turn !kutomat_c T]cacking, back on, 1?_ess _w '_'

both TRACKING buttons on the front of (_

the VCR at the same time, or eject the tape (_r

and re-insert it.

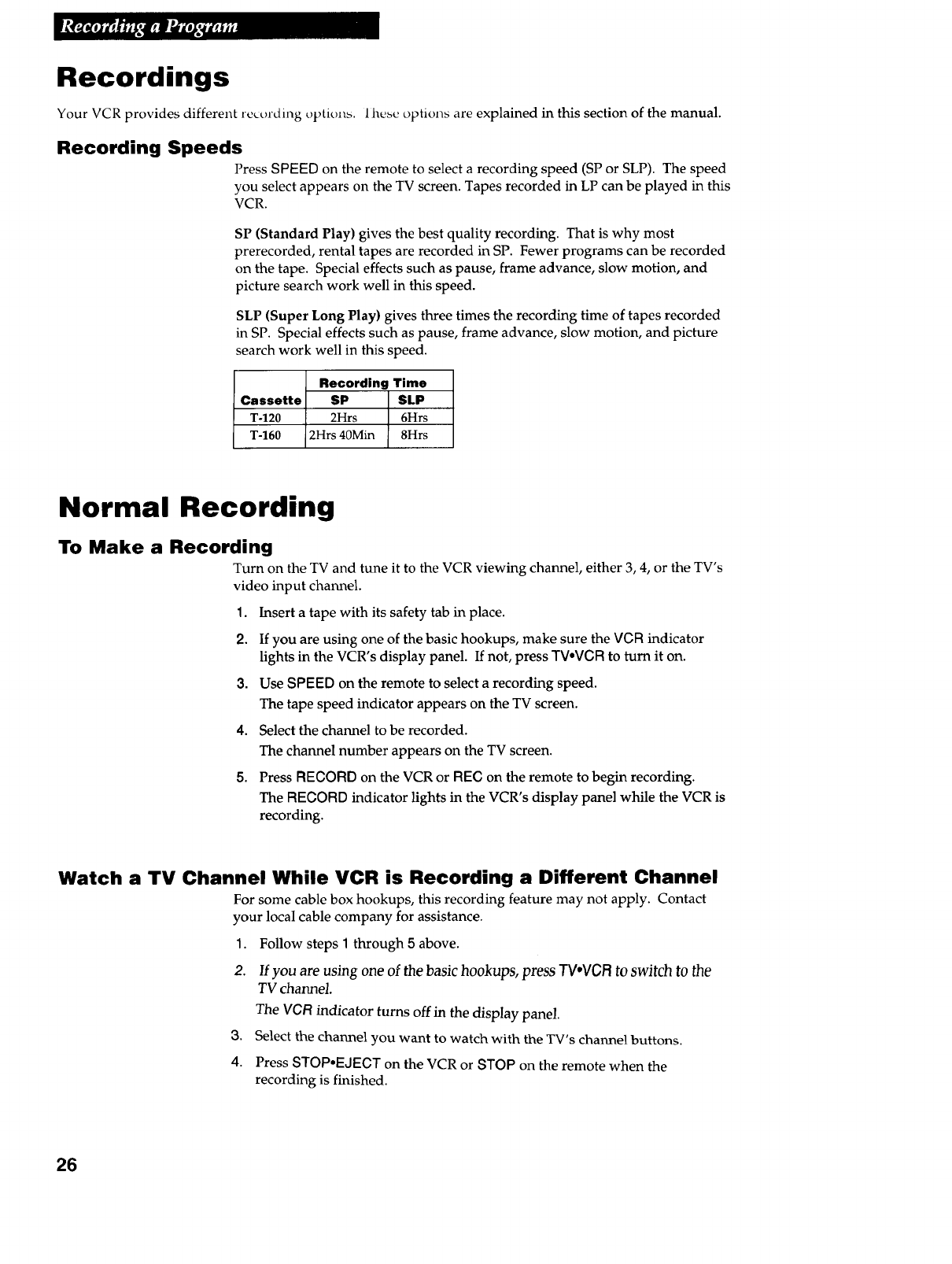

Recordings

Your VCR provides different rcc(_rding _)ptions. I hesc options are explained in this section of the manual.

Recording Speeds

Press SPEED on the remote to select a recording speed (SP or SLP). The speed

you select appears on the TV screen. Tapes recorded in LP can be played in this

VCR.

SP (Standard Play) gives the best quality recording. That is why most

prerecorded, rental tapes are recorded in SP. Fewer programs can be recorded

on the tape. Special effects such as pause, frame advance, slow motion, and

picture search work well in this speed.

SLP (Super Long Play) gives three times the recording time of tapes recorded

in SP. Special effects such as pause, frame advance, slow motion, and picture

search work well in this speed.

Recording Time

Cassette SP SLP

T-120 2Hrs 6Hrs

T-160 2Hrs 40Min 8Hrs

Normal Recording

To Make a Recording

Turn on the TV and tune it to the VCR viewing channel, either 3, 4, or the TV's

video input channel.

1. Insert a tape with its safety tab in place.

2. If you are using one of the basic hookups, make sure the VCR indicator

lights in the VCR's display panel. If not, press TV.VCR to turn it on.

3. Use SPEED on the remote to select a recording speed.

The tape speed indicator appears on the TV screen.

4. Select the channel to be recorded.

The channel number appears on the TV screen.

6. Press RECORD on the VCR or REC on the remote to begin recording.

The RECORD indicator lights in the VCR's display panel while the VCR is

recording.

Watch a TV Channel While VCR is Recording a Different Channel

For some cable box hookups, this recording feature may not apply. Contact

your local cable company for assistance.

1. Follow steps 1 through 5 above.

2. If you are using one of the basic hookups, press TV.VCR to switch to the

TV channel.

The VGF_indicator turns off in the display panel.

8. Select the channel you want to watch with the TV's channel buttons.

4. Press STOpoEJECT on the VCR or STOP on the remote when the

recording is finished.

Express Recording

Express recording lets you record up to four hours without using the timer program feature. The VCR

turns off automatically at the end of the recording.

I 1

Display showing 30 minutes

remainingfor recording. RECORD

Turn on the VCR.1.

2. Insert a tape with its safety tab in place.

3. Select the channel you want to record.

4. Use SPEED on the remote to select a recording speed.

5. Press REC on the remote or RECORD on the VCR to activate recording.

6. Press RECORD or REC repeatedly until the amount of recording time for

the program is displayed on the TV screen.

REC ¢H 06

RECORD LENGTH 0:00

PRESS REC TO SET LENGTH

Display on TV Screen

Press Recording

RECORD Time

0:30 (30 Min)

1:00 (1 Hr)

1:30 (1 Hr, 30 Min)

2:00 (2 Hrs)

3:00 (3 Hrs)

4:00 (4 Hrs)

Normal Record

0:00 Turns Off

Each press of RECORD or REC increases the time -- 30 minutes up to 4

hours.

The amount of time the VCR records and the power indicator flashes, and

TIMER indicators light in the VCR display panel.

During recording, press RECORD on the VCR or REC on the remote to

display the time remaining on the TV screen. Press RECORD or REC again

to increase the recording time.

Stopping an Express Recording in Progress

You can stop a recording by:

• Pressing and holding the STOP button on the remote or STOP-EJECT on

the VCR for approximately three seconds.

•Pressing the RECORD button until 0:00 is displayed for the recording.

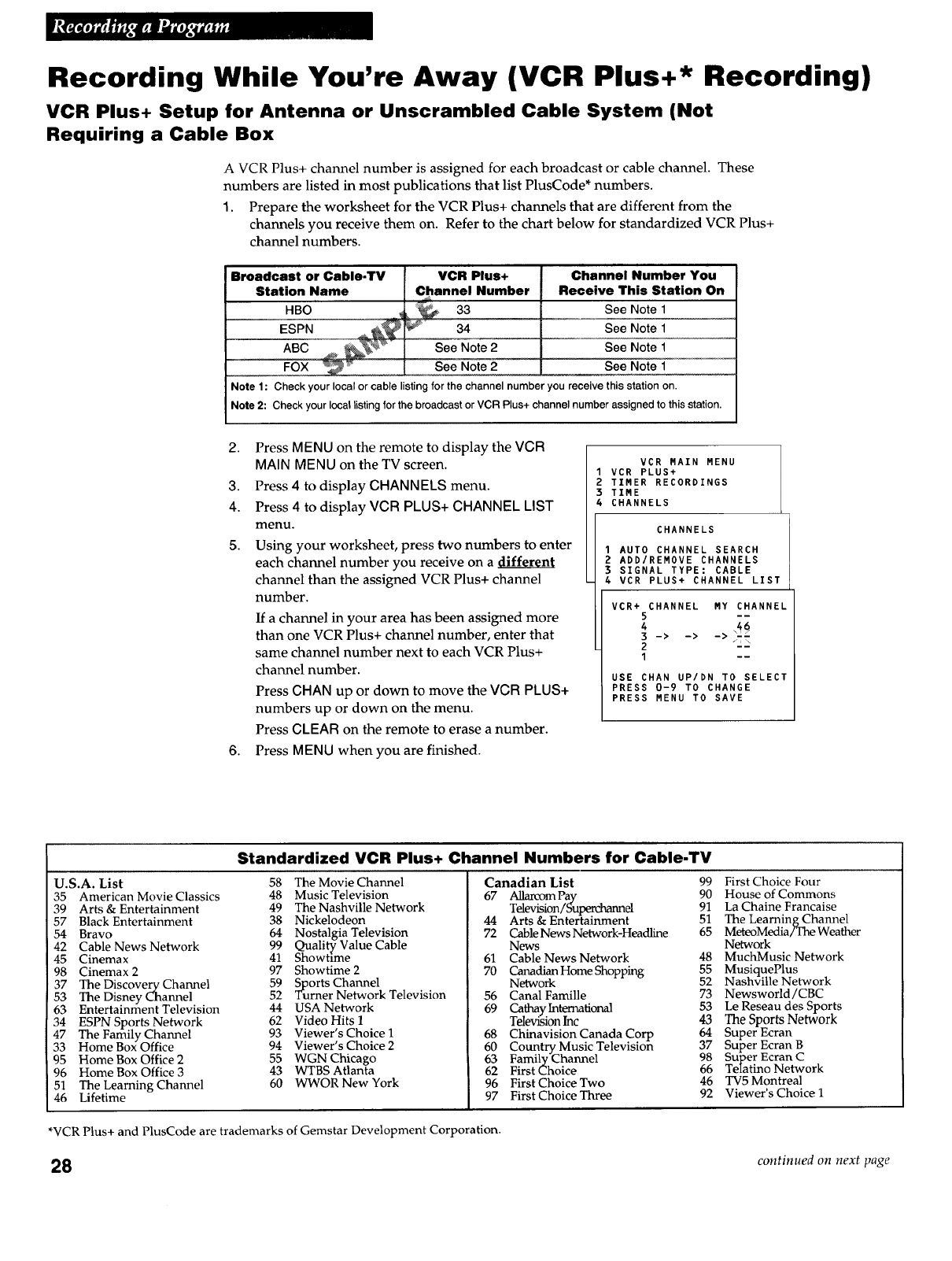

Recording While You're Away (VCR Plus+* Recording)

VCR Plus+ Setup for Antenna or Unscrambled Cable System (Not

Requiring a Cable Box

A VCR Plus+ charmel number is assigned for each broadcast or cable channel. These

numbers are listed in most publications that list PlusCode* numbers.

1. Prepare the worksheet for the VCR Plus+ channels that are different from the

channels you receive them on. Refer to the chart below for standardized VCR Plus+

channel numbers.

Channel Number You

Receive This Station On

See Note 1

Broadcast or Cable-TV VCR Plus+

Station Name Channel Number

HBO _" 33 _

ABC _ See Note 2 See Note 1

FOX _ _ See Note 2 See Note 1

Note 1: Check your local or cable listingfor the channel number you receive this station on.

Note 2: Check your locallisting forthe broadcastor VCR Plus+ channelnumber assigned to this station.

2. Press MENU on the remote to display the VCR

MAIN MENU on the TV screen.

3. Press 4 to display CHANNELS menu.

4. Press 4 to display VCR PLUS+ CHANNEL LIST

menu.

5. Using your worksheet, press two numbers to enter

each channel number you receive on a

channel than the assigned VCR Plus+ channel

number.

If a channel in your area has been assigned more

than one VCR Plus+ channel number, enter that

same channel number next to each VCR Plus+

channel number.

Press CHAN up or down to move the VCR PLUS+

numbers up or down on the menu.

Press CLEAR on the remote to erase a number.

6. Press MENU when you are finished.

VCR MAIN MENU

VCR PLUS+

TIMER RECORDINGS

TIME

CHANNELS

AUTO CHANNEL SEARCH

ADD/REMOVE CHANNELS

SIGNAL TYPE: CABLE

VCR PLUS+ CHANNEL LIST

VCR+ CHANNEL MY CHANNEL

5 --

4A_

3-> -> -> _

2 --

1 --

USE CHAN UP/DN TO SELECT

PRESS 0-9 TO CHANGE

PRESS MENU TO SAVE

Standardized VCR Plus+ Channel Numbers for Cable-TV

U.S.A. List 58 The Movie Channel

35 American Movie Classics 48 Music Television

39 Arts & Entertainment 49 The Nashville Network

57 Black Entertainment 38 Nickelodeon

54 Bravo 64 Nostalgia Television

42 Cable News Network 99 Quali_ Value Cable

45 Cinemax 41 Showtlme

98 Cinemax 2 97 Showtime 2

37 The Discovery Channel 59 Sports Channel

53 The Disney Channel 52 Turner Network Television

63 Entertainment Television 44 USA Network

34 ESPN Sports Network 62 Video Hits 1

47 The Family Channel 93 Viewer's Choice 1

33 Home Box Office 94 Viewer's Choice 2

95 Home Box Office 2 55 WGN Chicago

96 Home Box Office 3 43 WTBS Atlanta

51 The Learning Channel 60 WWOR New York

46 Lifetime

Canadian List

67 _Pay

Television/Superchannel

44 Arts & Entertainment

72 Cable News Network-Headline

News

61 Cable News Network

70 Canadian Home Shopping

Network

56 Canal Famille

69 CathayIntemational

Television Inc

68 Chinavision Canada Corp

60 Country Music Television

63 Family Channel

62 First Choice

96 First Choice Two

97 First Choice Three

99 First Choice Four

90 House of Commons

91 LaChaine Francaise

51 The Learning Channel

65 MeteoMedia/The Weather

Network

48 MuchMusic Network

55 MusiquePlus

52 Nashville Network

73 Newsworld/CBC

53 Le Reseau des Sports

43 The Sports Network

64 Super Ecran

37 Super Ecran B

98 Super Ecran C

66 Telatino Network

46 TV5 Montreal

92 Viewer's Choice I

*VCR Plus+ and PlusCode are trademarks of Gemstar Development Corporation.

28 continued on next page

VCR Plus+TM Channel Worksheet

Use this worksheet to create a list from which you can set up your VCR Plus+ channel list.

Broadcast or Cable TV

Station Name

(Such as ABC, NBC, CBS, etc.)

VCR Plus+

Channel Number*

(See Standardized VCR Plus+ Channel Chart)

Channel Number You

Receive This Station On**

I*Check your local listing for VCR Plus+ channel numbers assigned to network stations.

•* Check your local or cable listing for the channel numbers to enter in this column.

Recording While You're Away (VCR Plus+ Recording)

The VCR Plus+ and timer program features let you program the VCR to record up to eight different programs within a one year

period. Before using VCR Plus+ to record a program, make sure that:

• The clock is set correctly.

• A tape with safety tab has been inserted with enough tape to record the program(s).

•The remote is set to control the VCR -- using VCR1 (or VCR2,DVD).

• The VCR is set up for VCR Plus+ programming.

Setting a VCR Plus+ Recording

1. Press MENU on the remote to display the VCR MAIN MENU.

2. Press 1 to display the VCR PLUS+ menu.

3. Press numbers on the remote to enter PlusCode number for the

program you want to record. VCR PlusCode numbers are

found in most local TV listings.

Press CLEAR on the remote to correct an entry.

4. Press MENU to enter the program.

If the VCR does not recognize the PlusCode number,

UNRECOGNIZED NUMBER... PLEASE RE-ENTER appears

on the TV screen. Check the number and enter it again.

5. Press 1, 2, 3, or 4 to select type of program.

1 ONE TIME - single program recorded once.

2 DAILY - program recorded at same time every day.

3 WEEKDAYS - program recorded at same time Monday

through Friday.

4 WEEKLY - program recorded at same time once a week.

Select a recording speed using the SPEED button.

Press CLEAR if you want to change the program end time.

This feature lets you extend the recording time on VCR Plus+

programs. Also, this option may be useful when you are

recording programs such as sporting events that could exceed

scheduled broadcast times.

Press MENU to enter your program.

A reminder appears which times or you can press MENU until

VCR MAIN MENU appears.

If you have entered two programs whose times overlap,

PROGRAMS OVERLAP appears on the screen.

Repeat steps 2 - 8 for additional programs or press 0 to

remove the menu from the TV screen.

10. Turn off the VCR before recording time.

The TIMER indicator appears in the VCR display panel.

If using a cable box or satellite receiver, leave it turned on

and tuned to the channel you want to record.

VCR MAIN MENU

VCR PLUS+

ENTER PLUSCODE NUMBER

(FROM TV LISTING)

/i\

VCR PLUS+

ENTER PLUSCODE NUMBER

(FROM TV L_TING)

1234s_

HOW OFTEN SHOULD THIS

PROGRAM RECORD?

I ONE TIME

2 DAILY (EVERY DAY)

3 WEEKDAYS (M-F)

4 WEEKLY (ONCE PER WEEK)

PROGRAM I (ONE TIME)

CHANNEL 08

START TIME 02:10 PM

END TIME 03:35 PM

START DATE 0_04/96 SUN

TAPE SPEED SLP

PRESS CLEAR TO ADJUST

PRESS MENU TO SAVE

PROGRAM 1 HAS BEEN SAVED

REMEMBER TO INSERT A

RECORDABLE TAPE AND

TURN THE VCR OFF BEFORE

THE PROGRAM START TIME.

Stopping a VCR Plus+ Recording in Progress

You can stop a recording by pressing and holding the STOP

button on the remote or STOP.EJECT on the VCR for

approximately three seconds.

Recording While You're Away (Timer Recording)

Tile timer program and VCR Plus+ features let you program the VCR to record up to eight

different programs within a one year period. Before setting the timer, make sure that:

• The clock is set correctly.

• A tape with its safety tab in place has been inserted with enough tape to record the

programs.

• The remote is set to control the VCR -- using VCR1 (or VCR2°DVD).

Setting a Timer Recording

1. Press MENU on the remote to display the VCR MAIN MENU.

2. Press 2 to display the TIMER REGORDINGS menu.

B. Press 1 to display the CREATE A NEW PROGRAM menu.

4. Press 1,2, 8, or 4 to select type of program.

1 ONE TIME -- single program recorded once.

2 DAILY -- program recorded at same time every day.

3 WEEKDAYS -- program recorded at same

time Monday through Friday.

4 WEEKLY -- program recorded at same time

once a week.

5. Press number buttons on the remote to enter the channel

number (or INPUT on the remote to select line input), start

time including AM or PM, end time, and start date of the

recording. Follow the on-screen prompts.

Press CLEAR on the remote to correct an entry.

6. Press SPEED, or I(SP), 2(SLP) on the remote to select the

recording speed.

7. Press MENU to enter your program.

A reminder appears which times or you can press MENU

until TIMER RECORDINGS menu appears.

If you have entered two programs whose times overlap,

PROG RAMS OVERLAP appears on the screen.

8. Repeat steps 3--7 for additional programs or press

MENU twice to remove the menu from the TV screen.

9. Turn off the VCR before the recording time.

The TIM E R indicator appears in the VCR display panel.

If using a cable box or satellite receiver, leave it turned on

and tuned to the channel you want to record.

VCR MAIN MENU

VCR PLUS+

TIMER RECORDINGS

CREATE A NEW PROGRAM

HOW OFTEN SHOULD THIS

PROGRAM RECORD?

1 ONE TIME

2 DAILY (EVERY DAY)

3 WEEKDAYS (M-E)

4WEEKLY (ONCE PER WEEK)

PROGRAM 1(ONE TIME)

CHANNEL \_

/1\

PROGRAM I (ONE TIME)

CHANNEL \Q8

START TIME _:--

PROGRAM 1 (ONE TIME)

CHANNEL 08

START TIME 02:10 PM

END TIME /-_-_ --

PROGRAM 1(ONE TIME)

CHANNEL 08

START TIME 02:10 PM

END TIME 03:35 PM

START bATE 08/_04/_6 SUN

TAPE SPEED\SLP i

-_=SP 2=SLP_

PRESS CLEAR TO CORRECT

PRESS MENU TO SAVE

PROGRAM 1 HAS BEEN SAVED

REMEMBER TO INSERT A

RECORDABLE TAPE AND

TURN THE VCR OFF BEFORE

THE PROGRAM START TIME.

Stopping a Timer Recording in Progress

You can stop a recording by pressing and holding the STOP button

on the remote or STOP°EJECT on the VCR for approximately three

seconds.

Recording While You're Away (Timer Recording)

Checking or Clearing VCR Plus+ or Timer Recordings

1. Press MENU on the remote to display the VCR MAIN

MENU.

2. Press 2 to display the TIMER RECORDINGS menu.

3. Press 2 to display the REVIEW EXISTING PROGS menu.

Each entered program is displayed for a few seconds in

sequence.

4. Press MENU for next program or CLEAR to erase the

program.

VCR MAIN MENU

I VCR PLUS+

2TIMER RECORDINGS

TIMER RECORDINGS

ICREATE A NEW PROGRAM

2 REVIEW EXISTING PROGS.

PROGRAM 1 (ONE TIME)

CHANNEL 08

START TIME 02:10 PM

END TIME 03:35 PM

START DATE 02/02/96 FRI

TAPE SPEED SLP

PRESS CLEAR TO DELETE

PRESS MENU FOR NEXT PROG

Timer Recording From the VCR's Line Input

The line input refers to the signal coming from the VCR's

AUDIO and VIDEO IN jacks. Recording from the line input is

convenient if you have a satellite receiver or similar

component attached to these jacks.

To timer record from the component connected to the VCR's

line input, press INPUT on the remote to enter VIDEO instead

of the channel number on the TV screen during timer

programming.

PROGRAM 1 (ONE TIME)

CHANNEL \VJDEO

START TIME _:--

END TIME

START DATE --/--/--

TAPE SPEED SLP

PRESS CLEAR TO CORRECT

PRESS MENU TO EXIT

Using the Recording Features

Recording Pause

To prevent recording short passages of unwanted material, use PAUSE during recording to

stop and start recording. The VCR automatically switches from pause to stop after a few

minutes.

Pro-Tect Plus TM (Child Lock) Feature

This feature is useful to tamper proof your timer recordings from unwanted changes

and/or protect the VCR from misoperation by other users in the household.

To Lock the VCR

Press and hold PWR (Power) on the remote for approximately

six seconds to turn on the Pro-Tect Plus feature.

SAFE appears in the VCR front panel to let you know the

feature is activated.

To Unlock the VCR

Press and hold PWR or VCR1 button on the remote for

approximately six seconds to unlock the VCR.

Using Two VCRs for Copying and Editing Tapes

Operating Instructions (Refer to hookup on page 8.)

Use one VCR as the playback VCR and the other as the recording VCR.

1. Turn on the TV and VCRs.

Caution: The unauthorized

recording of television

programs and other

materials may infringe the

rights of others.

2. Tune the TV to the VCR viewing channel, either 3, 4, or the TV's video input.

3. If you connected your VCR using Option A (page 8), tune the recording VCR to

channel 3 or 4 - the one selected on the back of the playback VCR.

If you connected your VCR using Option B (page 8), press INPUT on the

recording VCR's remote to select the line input.

4. Insert the tape you want to copy into the playback VCR. Insert a blank tape

with its safety tab in place into the recording VCR.

5. Press PLAY, then PAUSE on playback VCR when you reach the point on the

tape or program where you want to begin copying. If the tape was not recorded

on the playback VCR, streaks may appear, and you may need to adjust tracking.

To prevent recording on-screen displays from the playback VCR, press

DISPLAY button three times.

6. Press RECORD on the VCR or REG on the remote, then PAUSE on the

recording VCR.

7. Press the PAUSE buttons on both VCRs at the same time to begin copying the

tape.*

8. Edit out segments that you do not want to copy by pressing PAUSE on the

recording VCR to stop copying the tape. Then, locate the next segment you

want to copy on the playback VCR by using FWD, REW and PLAY. Press

PAUSE on the playback VCR. Press PAUSE at the same time on both VCRs to

resume copying.

9. Press STOPoEJ ECT on both VCRs when you are finished.

*You may turn off the TV after the recording has started as it does not have to

be on to copy a tape.

Using Dual Remote with AutoEdit TM

Use this VCR as the recording VCR and set it to respond to VCR2.DVD on the

remote as described on page 13. Use your other compatible VCR as the playback VCR,

which should respond to VCR1.

1. Follow steps I - 4 in the "Operating Instructions" above.

2. Press VCR2*DVD on remote to control recording VCR. Press REC, then PAUSE,

to put recording VCR in pause mode.

3. Press VCR1 on remote to control playback VCR.

4. Use FWD, REW, and PLAY to locate the point where you want to begin copying.

Press PAUSE while VCR is playing to put playback VCR in pause mode.

5. Press EDIT on remote to start the VCRs copying.

6. Press EDIT again when you want to stop the tape from copying.

7. Repeat steps 4- 6 as needed.

8. Press VCR1, STOP, then VGR2-DVD, STOP, when you are finished.

Location of Controls

Front Panel

ti ITape Compartment

POWE R STOP,EJECT TV.VGR CHANNEL

Remote Sensor

......

(ED

CHANNEL or TRACKING up or down

Selects next higher or lower channel in the VCR's

channel memory.

Adjusts tracking during playback.

FWD (Fast-Forward)

Fast-forwards the tape when the VCR is stopped.

Searches the picture forward during playback.

PAUSE

Pauses the tape for stop-action viewing during

playback.

Pauses the tape during recording to prevent

recording unwanted material.

PLAY

Playsatape.

POWER

TurnstheVCRonoroff.

RECORD

Starts the VCR recording.

Used for express recording.

Remote Sensor

Receives signals from the remote control.

Aim the remote at this sensor with no objects

between them.

REW (Rewind)

Rewinds the tape when the VCR is stopped.

Searches the picture in reverse during playback.

STOP,EJECT

Stops the VCR's normal functions such as record,

playback, rewind, fast-forward, or pause.

Ejects the cassette when the VCR is stopped.

TV-VCR

Switches the picture signal so that it either comes

from the VCR or the TV channel.

Back Panel

AUDIO1 VIDEO1

OUT IN OUT IN

IN FROM @ANT.

VHF/UHF

OUT TO TV_

3CH.4 Switch

Selects the channel to which you tune the TV to see

the VCR picture if you connect the VCR using one

of the basic hookups.

IN FROM ANT. (Antenna) Connector

Receives asignal from an antenna or cable system

when attached.

OUT TO TV Connector

Passes signal to TV using the cable supplied.

VIDEO1 IN and AUDIO1 IN Jacks

Receives signals from another component like a

VCR or camcorder when it is connected to these

jacks. Use INPUT on the remote to select.

VIDE01 OUT and AUDIO1 OUT Jacks

Sends signals from VCR to another component like

a TV, VCR, or camcorder when it is connected to

these jacks.

Location of Controls

Display Panel

VCR Indicator

Power Indicator VCR

Current Time, Channel Number, or Line Indicator (L),or Status

-- Timer Indicator

Power Indicator

Lights when the VCR is turned on.

Flashes during a recording

Time, Channel Number, or Line Input (L)

The current time is displayed. Only the AM

indicator appears; when the time is PM, no

indicator appears.

The channel number or line input is displayed.

Press INPUT on the remote to display the line

input indicator (L) to record from the VIDE01 IN

and AUDIO1 IN jacks.

Status Indicators

Shows what the VCR is doing.

PLAY Playback.

REC Recording.

REW Rewinding.

FF Fast Forwarding.

STOP Stopped.

TIMER Indicator

Shows VCR is set for timer recording when VCR is

turned off.

Flashes when the timer recording is set and there is

no cassette in the VCR.

VCR Indicator

Lights when using the TV.VCR button.

When using one of the basic hookups:

• The picture comes from the VCR when VCR

indicator is on.

•The picture comes from the television charmels

when VGR indicator is off.

Trouble Checks

Sometimes problems can be easily solved by checking d te_, basic things. Check below before you call for help or

take your VCR to an Authorized RCA VCR Servicenter.

Trouble Here's what to try:

No power ........... i" ° Plug VCR into an operating outlet.

• Check connections.

VCR does not respond to remote • Remove batteries and hold down one or more buttons for several seconds to

drain the microprocessor inside the remote and reset it. Re-install the

batteries and try remote again.

• Press VCR to set remote to control the VCR. See page 13.

• Aim remote at VCR with no objects between them.

• Change batteries.

• Check the ProTect Plus TM feature.

Remote no longer controls an RCA TV • Press TV to set remote to control a compatible TV. See page 18.

•Reprogram remote for RCA TV. See page 18.

Remote no longer controls a compatible TV, cable I • Press component button to set remote to control the corresponding

box, satelhte receiver, laserdisc player, DVD icomponent.

player, or auxiliary component •Reprogram remote to control the component. See pages 17-20.

•Aim remote at TV with no objects between them.

•Reprogram remote after batteries have been changed.

•Change batteries.

Remote locks up •Remove batteries and hold down one or more buttons for several seconds to

drain the microporcessolr inside the remote to reset it. Reinstall the batteries

and try remote again.

VCR only responds to VCR2•DVD button on •Check setting of Remote Control: VCR1MCR2 feature. See page 17.

remote

Poor or no picture for normal TV viewing • Press TVoVGR to turn VGR indicator off.

•Switch TV to an active channel.

•Check antenna connections.

Snowy or no picture during playback • Press TV•VCR to turn VGR indicator on.

•Check TV channel selected (3 or 4) to make sure it matches the channel

selected with 3CH.4 switch on back of VCR.

•Check TV's fine tuning.

•Check video cable connections between VCR and TV monitor.

•Set TV monitor to video input channel.

•Try another tape.

•Some snow/streaks are normal during search, stop action, frame advance,

and slow-motion playback.

Streaks in picture during normal playback .............................................................,"PressYRACKING to move streaks for tl_e best picture. ....................

•Check tape -- it may be worn out or of poor quality.

Time counter not working •The time counter does not advance during unrecorded portions of tape.

When an unrecorded segment of tape is encountered, the time counter will

hold its count until recorded material is detected again.

• A minus (-) appears in front of the time if you rewind the tape farther back

than a counter reading of 0:00:00.

Will not record or play • No cassette in VCR.

• Eject and reinsert cassette.

• Broken tape -- try another cassette.

• VCR is in pause mode. Press PAUSE on the remote or the VCR during

recording or playback.

• Check the ProTect Plus TM feature.

Trouble Checks

Trouble Here's what to try:

Will not record

Rewind does not operate

VCR Plus+ or timer recording not made

or wrong program recorded

Clock shows incorrect time or date

Time did not adjust for daylight savings.

•Safety tab removed from cassette.

• Make sure the line indicator (L) is turned off in VCR's display panel for

normal recording from the VCR's tuner. Press INPUT on the remote to turn

the line input off.

• Check the ProTect Plus TM feature.

• Tape already rewound.

• Wrong VCR plus+ code entered.

• Cable box was not turned on at time recording was to begin.

• Program entered incorrectly (wrong channel or times).

• Power interruption. Reset clock. See pages 11-12.

• Check to see if time and date are correct -- including AM/PM.

• Program exceeded tape's length or tape was not rewound beforehand.

• VCR was not turned off at the time recording was to start.

• No tape in VCR or cassette's safety tab broken off.

• Power interruption. Clock on the front panel will show -:- -.

• Clock was not set accurately (check AM/PM and date). See pages 11-12.

• Time zone or daylight saving time information incorrect. See pages 11-12.

• Check with the broadcast station or cable company if Auto Clock Set feature

is turned on and time is still inaccurate.

• Make sure Daylight Savings Time feature is turned on.

VCR makes noise when stopped • VCR is removing tape from heads. This is normal. The head cylinder inside

the VCR continues to rotate for a few minutes after you put the VCR in the

stop mode.

Will not AUTO-SEARCH active •Check antenna connections.

channels correctly ,Check SIGNAL TYPE: GABLE/ANTENNA feature. See page 12.

Cannot select channels over 69 •Cable channels over 69 can only be selected if SIGNAL TYPE:

GABLE/ANTENNA feature is set to CABLE. Details are on page 12.

Cassette with safety tab removed does not start to •Set AUTO PLAY ON/OFF feature to ON. Details are on page 22.

play automatically

Tape plays back in slow motion • Press SLOW +/- or PLAY to return to normal playback.

TIM ERindicator flashes •Timer recording programmed and no cassette in VCR.

Time counter disappears while searching • This is normal. Details are on page 23.

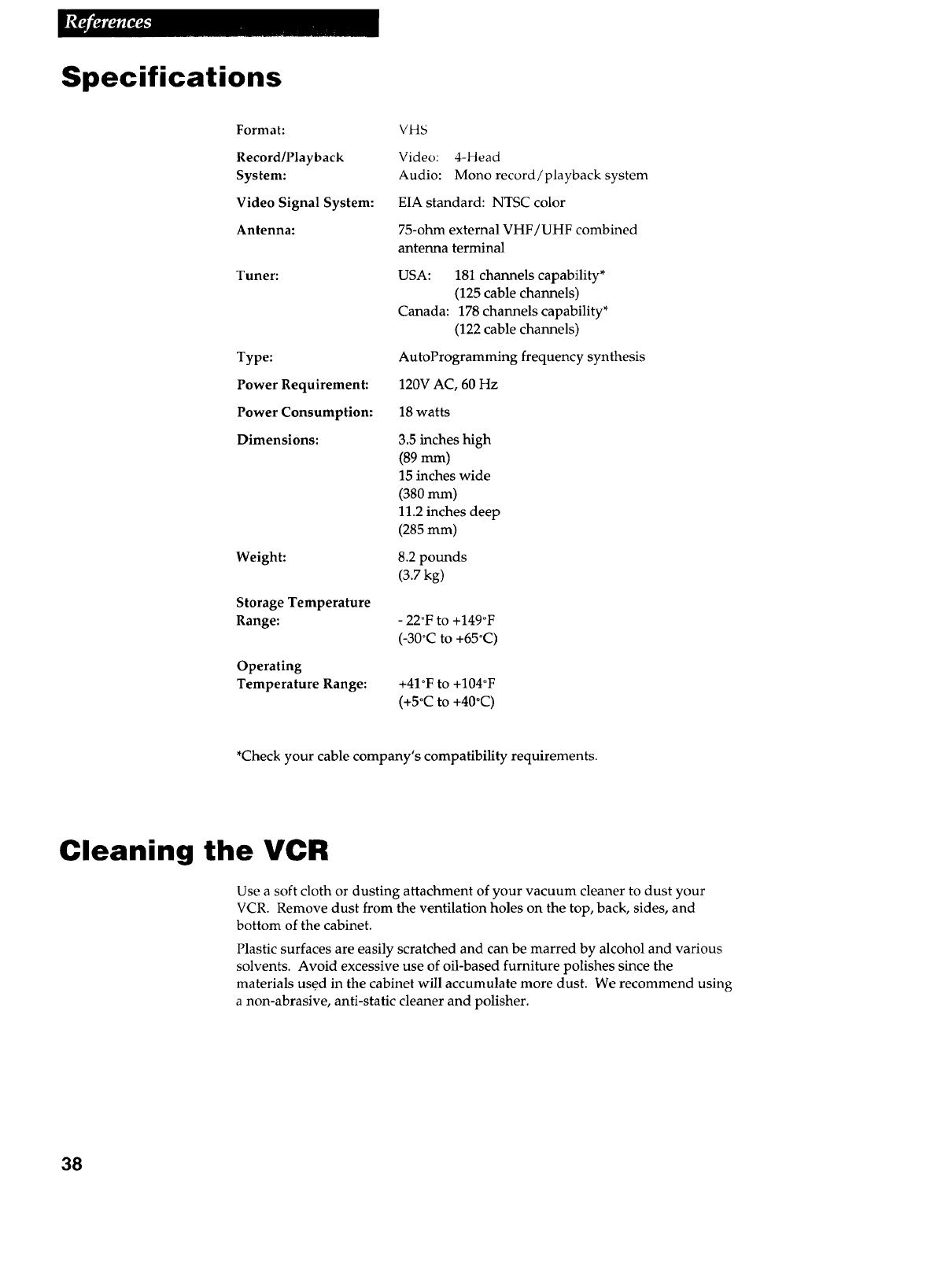

Specifications

Format:

Record/Playback

System:

Video Signal System:

Antenna:

Tuner:

Type:

Power Requirement:

Power Consumption:

Dimensions:

VHS

Video: 4-Head

Audio: Monorecordiplayback system

EIA standard: NTSC color

75-ohm external VHF/UHF combined

antenna terminal

USA: 181 channels capability*

(125 cable channels)

Canada: 178 channels capability*

(122 cable channels)

AutoProgramming frequency synthesis

120V AC, 60 Hz

18 watts

3.5 inches high

(89 mm)

15 inches wide

(380 mm)

11.2 inches deep

(285 mm)

Weight: 8.2 pounds

(3.7 kg)

Storage Temperature

Range: - 22°F to +149°F

(-30°C to +65°C)

Operating

Temperature Range: +41°F to +104°F

(+5°C to +40°C)

*Check your cable company's compatibility requirements.

Cleaning the VCR

Use a soft cloth or dusting attachment of your vacuum cleaner to dust your

VCR. Remove dust from the ventilation holes on the top, back, sides, and

bottom of the cabinet.

Plastic surfaces are easily scratched and can be marred by alcohol and various

solvents. Avoid excessive use of oil-based furniture polishes since the

materials used in the cabinet will accumulate more dust. We recommend using

a non-abrasive, anti-static cleaner and polisher.

Limited Warranty

What your warranty covers:

• Any defect in material o_ workmanship.

For how long after your purchase:

•Ninety days forlabor charges.

• One year for parts.

The warranty period for rental units begins with the first rental or 45 days

from date of shipment to the customer, whichever comes first.

What we will do:

Pay any Authorized RCA VCR Servicenter the labor charges to repair your

VCR.

Pay any Authorized RCA VCR Servicenter for the new or, at our option,

refurbished replacement parts required to repair your VCR.

How you get service:

• Take your VCR to any Authorized RCA VCR Servicenter. To identify your

nearest Authorized RCA VCR Servicenter, ask your dealer, look in the

Yellow Pages, or call 1-800-336-1900.

• Show the service technician your evidence of purchase date.

• Pick up your VCR when repairs are completed.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual clearly describes how to

install, adjust, and operate your VCR. Any additional information should

be obtained from your Dealer.)

• Installation and related adjustments.

• Signal reception problems not caused by your VCR.

• Damage from misuse or neglect.

• Cleaning of video/audio heads.

• Remote control batteries.

• A VCR that has been modified or incorporated into other products or is

used for institutional or other commercial purposes.

• A VCR purchased or serviced outside the USA.

• Acts of God, such as but not limited to lightning damage.

Product Registration:

• Please complete and mail the Product Registration Card packed with your

VCR. It will make it easier to contact you should it ever be necessary. The

return of the card is not required for warranty coverage.

How state law relates to this warranty:

• This warranty gives you specific legal rights, and you also may have other

rights that vary from state to state.

If you purchased your VCR outside the United States:

• This warranty does not apply. Contact your dealer for warranty

information.

Index

and Button> ...................................................... 15,10,22

3CH.4 Switch .......................................................3-8,9,13,34

Accessories, Included .........................................................9

Add or Remove Channels from

Memory .........................................................................13

ADD/REMOVE CHANNEL Menu ...................................13

ALERT SOUND Feature ..................................................14

Antenna Connections ......................................................2,3

ANTENNA Signal ..............................................................12

Audio Equipment .............................................................20

AUDIO1NIDEO1 IN

Jacks....................................................................6-8,32,34

AUDIO1NIDEO1 OUT Jacks..................................3-5,8,34

AUTO CHANNEL SEARCH ...........................................12

AUTO CLOCK SET ..........................................................11

AUTO, Display Panel .......................................................14

AUTO PLAY Feature ........................................................22

Automatic Tracking ..........................................................25

Back Panel ..........................................................................34

Batteries, Inserting in Remote ...........................................8

BRIGHT, Display Panel ...................................................14

CABLE*SATButton ................................................15,16,19

CABLE Signal ....................................................................12

Cable Box Function Buttons .......................................15,16

Cable Box, Programming Remote ..................................19

Cable Box Setup ................................................................10

Cable System With Cable Box

Connections .............................................................2,4,5

Cable System Without Cable Box

Connections ................................................................2,3

Card, Registration ................................................................i

CHAN Up or Down Buttons .......................................15-20

CHANNEL Buttons .................................................34,17-20

Checking Timer Recordings ............................................32

Checks, Trouble ............................................................36,37

Child Lock Feature ...........................................................32

Choisissez une langue ......................................................13

Choosing a Hookup ............................................................2

Cleaning the VCR .............................................................38

CLEAR Button ....................................................12,15,30,32

Clearing VCR Plus+ or

Timer Recordings ........................................................32

Clock Setting ......................................................................12

Commercial Scan ..............................................................24

Connections ......................................................................2-8

Antenna .....................................................................2,3

Audio/Video Jacks...............................................2,3-8

Cable-TV ................................................................2,4,5

Satellite Receivers ....................................................6-7

Two VCRs ....................................................................8

Contents ...............................................................................1

Controlling a

Audio Equipment .....................................................20

Auxiliary Component ..............................................20

Cable Box ...................................................................19

DVD Player ...............................................................17

Laserdisc Player ........................................................17

Satellite Receiver .......................................................19

TV ................................................................................18

Copying Tape, Connections ..............................................8

Copying and Editing Tapes .............................................33

Date and Time, Setting .....................................................12

Daylight Savings Time .....................................................11

Design Specifications ........................................................38

DIM,Display Panel ...........................................................14

DISPLAY Button .....................................................15,23,33

Display Panel ................................................................14,35

Editing and Copying Tapes .............................................33

EJECT*STOPButton .......................................................34

English Language .............................................................13

Espafiol ...............................................................................13

Express Recording ............................................................27

F.ADV (Frame Advance) Button ................................15,25

FF (Fast Forward) Button ......................................15,22,24

FWD (Fast Forward) Button ..................................22,24,34

Frame Advance Feature ..............................................15,25

Franqais...............................................................................13

French Language...............................................................13

Front Panel .........................................................................34

Hookups

Antenna .....................................................................2,3

Audio/Video Jacks...............................................2,3-8

Cable-TV ................................................................2,4,5

Satellite Receivers ....................................................6,7

Two VCRs ....................................................................8

Hookup, Choosing ..............................................................2

Idioma .................................................................................13

IN FROM ANT. Connector ........................................3-8,34

INDEX SEARCH ...............................................................24

INPUT Button .....................................................15,16,33-34

LANGUAGE/IDIOMA/LANGUE Menu ...........................13

Language, Selecting ..........................................................13

Langue ................................................................................13

Limited Warranty .............................................................39

Line Input, Recording From ............................................32

Location of Controls

Back Panel ..................................................................34

Display Panel .............................................................35

Front Panel .................................................................34

Remote Control ....................................................15,16

LP Speed .............................................................................26

Manual Tracking ...............................................................25

MENU Button ...............................................................10-15

Normal Recording ............................................................26

Number Buttons .......................................12,15,16,28,30,31

Operating Instructions

Copying Tapes ..........................................................33

Express Recording ....................................................27

Normal Recording ....................................................26

Playing a Tape ...........................................................21

Timer Recording ..................................................31,32

VCR Plus+ Recording .........................................28-30

OUTTO TV Connector ..............................................3-8,34

PANEL DISPLAY Feature ................................................14

PAUSE Button ...............................................15,16,25,32.34

Pause for Stop Action .......................................................25

Pause, Recording ...............................................................32

Picture Search....................................................................22

PLAYButton .............................................15,16,21,22,25,34

Playing a Tape ..............................................................21-25

POWER Button .................................................................34

POWER Indicator ..........................................................9,35

PREV CH (Previous Channel)

Button ....................................................................15,16

Problems, Solving ........................................................36,37

Product Registration ...........................................................i

Programming Remote for

Audio Equipment .....................................................20

Index

,\UXdlaly _Olll}_OILu'n[ .............................................. 2U

Cable Box ................................................................... 19

DVD Player ................................................................ 17

Laserdisc Player ........................................................ 17

Satellite Receiver ....................................................... 19

TV ................................................................................ 18

VCR ............................................................................. 17

ProTect Plus TM ................................................................... 32

PWR (Power) Button .................................................. 15-20

REC Button .................................................... 15,16,26,27,33

RECORD Button ................................................ 26,27,33,34

RECORD Indicator ....................................... 26,27,30,31,35

Recording

Express ........................................................................ 27

From Another VCR ................................................... 33

Normal ........................................................................ 26

One Program While

Watching Another .............................................. 26

Pause ........................................................................... 32

Speeds ......................................................................... 26

Timer ...................................................................... 31,32

VCR Plus+ ............................................................ 28-30

Registration Card ................................................................. i

REMOTE CONTROL Feature ......................................... 17

Remote Control ............................................................ 15,16

Remote Sensor ................................................................... 34

Remove or Add Channels from

Memory ........................................................................ 13

Review Programs Feature ............................................... 32

REW Button ........................................................ 15,16,24,34

Safety Precautions ............................................................... i

SEARCH Button ..................................................... 15,16,24

Searching, Picture ............................................................. 22

Seleccione el idioma .......................................................... 13

Sensor, Remote .................................................................. 34

Setting

Clock ............................................................................. 12

Time and Date ............................................................. 12

Timer Recording ......................................................... 31

Up the VCR ............................................................. 10-14

VCR Plus+ Recording ................................................. 30

SAT*CABLE Button ................................................ 15,16,19

SIGNAL TYPE Feature ..................................................... 12

SLOW +[- Button .................................................... 15,16,22

Slow Motion ....................................................................... 22

SLP Speed .......................................................................... 26

Solving Problems ......................................................... 36,37

SOUND ALERT Feature .................................................. 14

SP Speed ............................................................................ 26

Specifications ..................................................................... 38

SPEED Button ............................................... 15,16,26,30,31

Speeds, Recording ............................................................. 26

Stop-Action Pause ........................................................ 25,32

STOP Button ....................................................................... 15,16

STOP,EJECT Button .................................................. 21,34

Stopping a Recording ............................................ 27,20,31,

Table of Contents ................................................................ 1

Time and Date, Setting ..................................................... 12

Time

Counter ....................................................................... 23

Daylight Savings ....................................................... 11

Setting ......................................................................... 12

Zone ............................................................................ 11

TIMER Indicator ...................................................... 30,31,35

Timer Recording

Checking and Clearing ............................................. 32

Front VCR Line Input ............................................... 32

Recording ................................................................... 31

Setting ......................................................................... 31

Stopping ..................................................................... 31

Tracking, Automatic and Manual .................................. 25

TRACKING Button ............................................. 15,16,25,34

Trouble Checks ............................................................. 36,37

Turn On VCR ..................................................................... 10

TV Button ................................................................. 15,16,18

TV Function Buttons ......................................................... 16

TV,VGR Button ............................................ 3-8,13,15,16,34

VCR1 Button ....................................................... 10,13,15,33

VCR2°DVD Button ....................................................... 15,17

VCR Controls ..................................................................... 34

VCR, Cleaning ................................................................... 38

VCR Function Button .................................................. 15,16

VGR Indicator ............................................................ 9,13,35

VCR Plus+ Recording

Checking or Clearing ................................................ 32

Setting ......................................................................... 30

Setup ...................................................................... 28,29

Stopping ..................................................................... 30

VCR, Turn On .................................................................... 10

VCRs Memory, Placing Channels .................................. 12

VCRs, Connecting for Tape Copying ............................... 8

VIDEO1 IN Jacks .................................................... 6-8,32,34

VIDEO1 OUT Jacks .................................................. 3-5,8,34

Warning .............................................................................. 14

Warranty, Limited ............................................................ 39

Zero Search ........................................................................ 24

Zone, Time ......................................................................... 11

For your ncarcst Homc

Entertainment Dealer

or Authorized Servicenter

call toll-free in the U.S.A.

1-800-336-1900

Canadian Consumers -

Your toll free numbers are:

English: 1-800-522-0338

French: 1-800-522-0445

If you would like acopy of this manual in French, please follow the

instructions below:

Si un livret d'instructions en frangais n'est pas inclus avec votre appareil, vous

pouvez en obtenir un (indiquer le num6ro de module, votre nom, et votre

adresse) en vous adressant _:

Thomson Consumer Electronics

Attention: Canadian Operations

P.O. Box 0944

Indianapolis, IN 46206-0944

Please do not send any products to the Indianapolis address listed

in this manual or on the carton. This will only add delays in

service for your product.

q._ THOMSON CONSUMER ELECTRONICS

10330 North Meridian Street

Indianapolis, IN 46290-1024

Trademark(s) Registered

Marca(s)Registrada(s)

Printed in Japan

Part Number 96-VR524-1

VQTS3227 (A)

RCA VCR Manual 97090009

Navigation menu

Versions of this User Manual:

Views

Navigation
