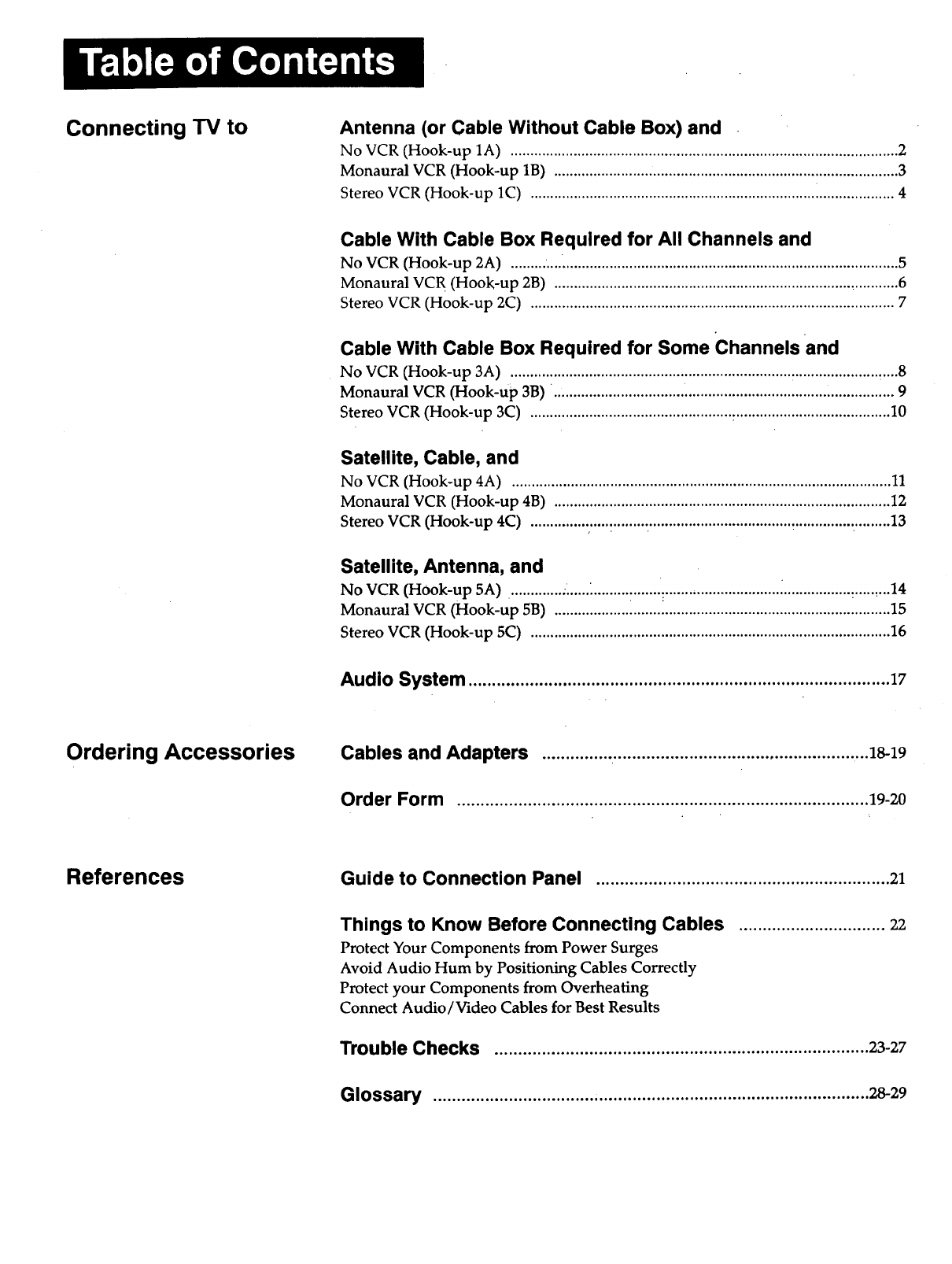

CONNECTIONS
GUIDE
SHOWS HOW
YOUR TV _
To Find
Your Hook-up
Turn To
Page 1
Connecting TV to Antenna (or Cable Without Cable Box) and
No VCR (Hook-up 1A) ..................................................................................................2
Monaural VCR (Hook-up 1B) .......................................................................................3
Stereo VCR (Hook-up 1C) ............................................................................................ 4
Cable With Cable Box Required for All Channels and
No VCR (Hook-up 2A) .........:........................................................................................5
Monaural VCR (Hook-up 2B) .......................................................................................6
Stereo VCR (Hook-up 2C) ............................................................................................ 7
Cable With Cable Box Required for Some Channels and
No VCR (Hook-up 3A) .............................................................................................._.8
Monaural VCR (Hook-up 3B). ................................ .................................... ................. 9
Stereo VCR (Hook-up 3C) ................................................... ........................................ 10
Satellite, Cable, and
No VCR (Hook-up 4A) ................................................................................................ 11
Monaural VCR (Hook-up 4B) ..................................................................................... 12
Stereo VCR (Hook-up 4C) .............. ...... :........ ..................................... _.............. .......... 13
Satellite, Antenna, and
No VCR (Hook-up 5A) . ............ L....._................. .............................. i................. .......... 14

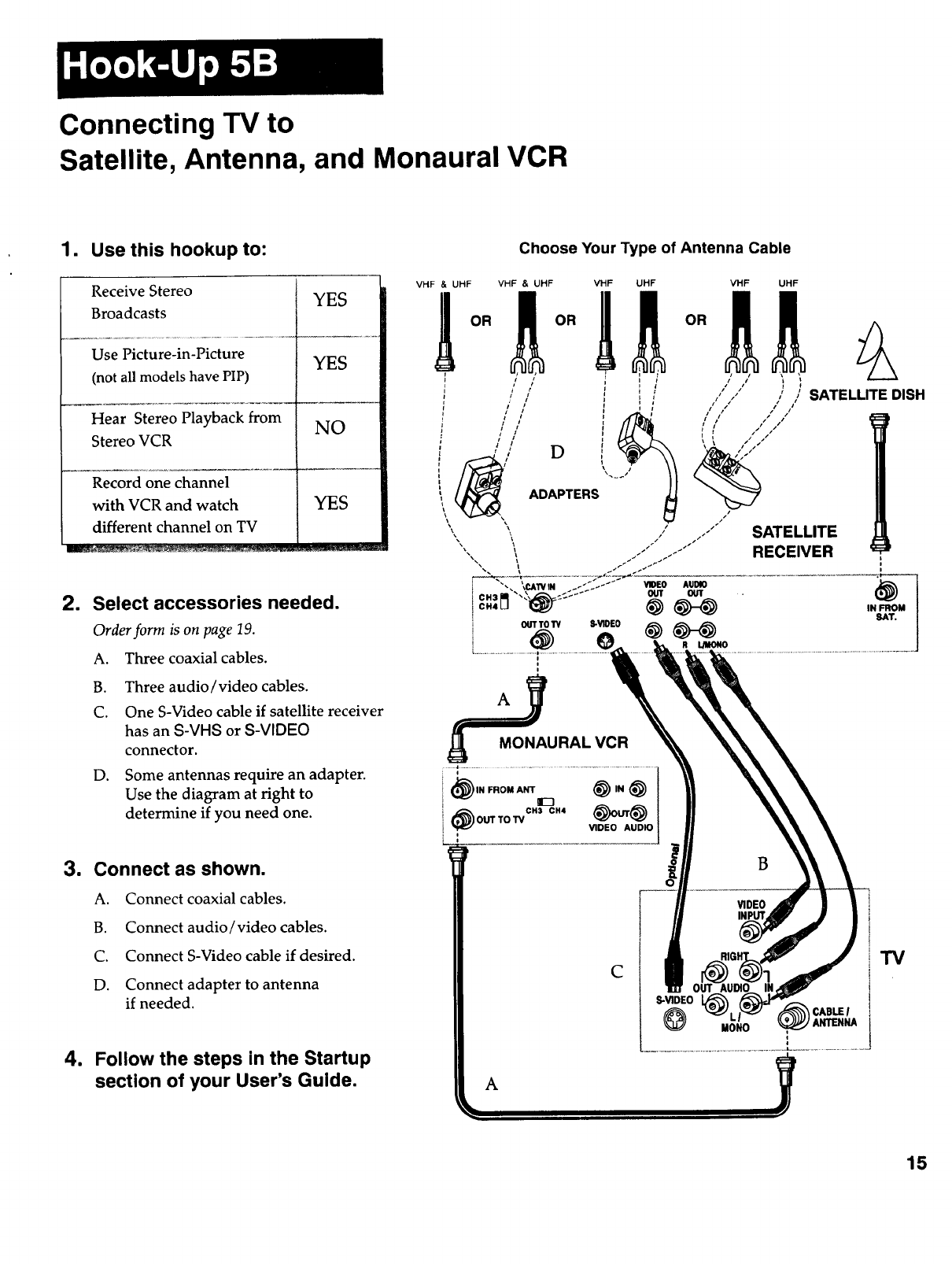

Monaural VCR (Hook-up 5B) ................... i....... i......................................................... 15

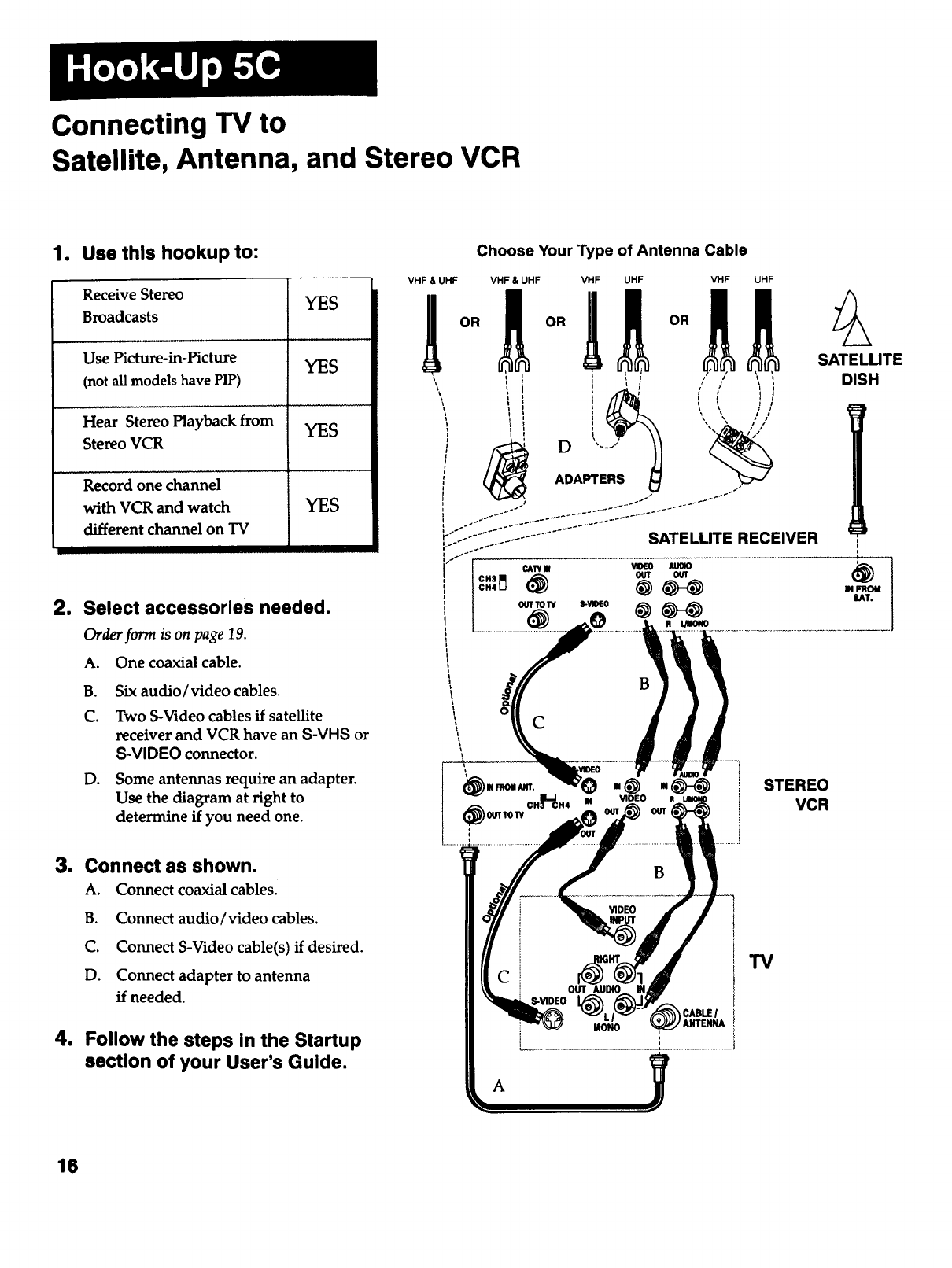

Stereo VCR (Hook-up 5C) ........................................................................................... 16

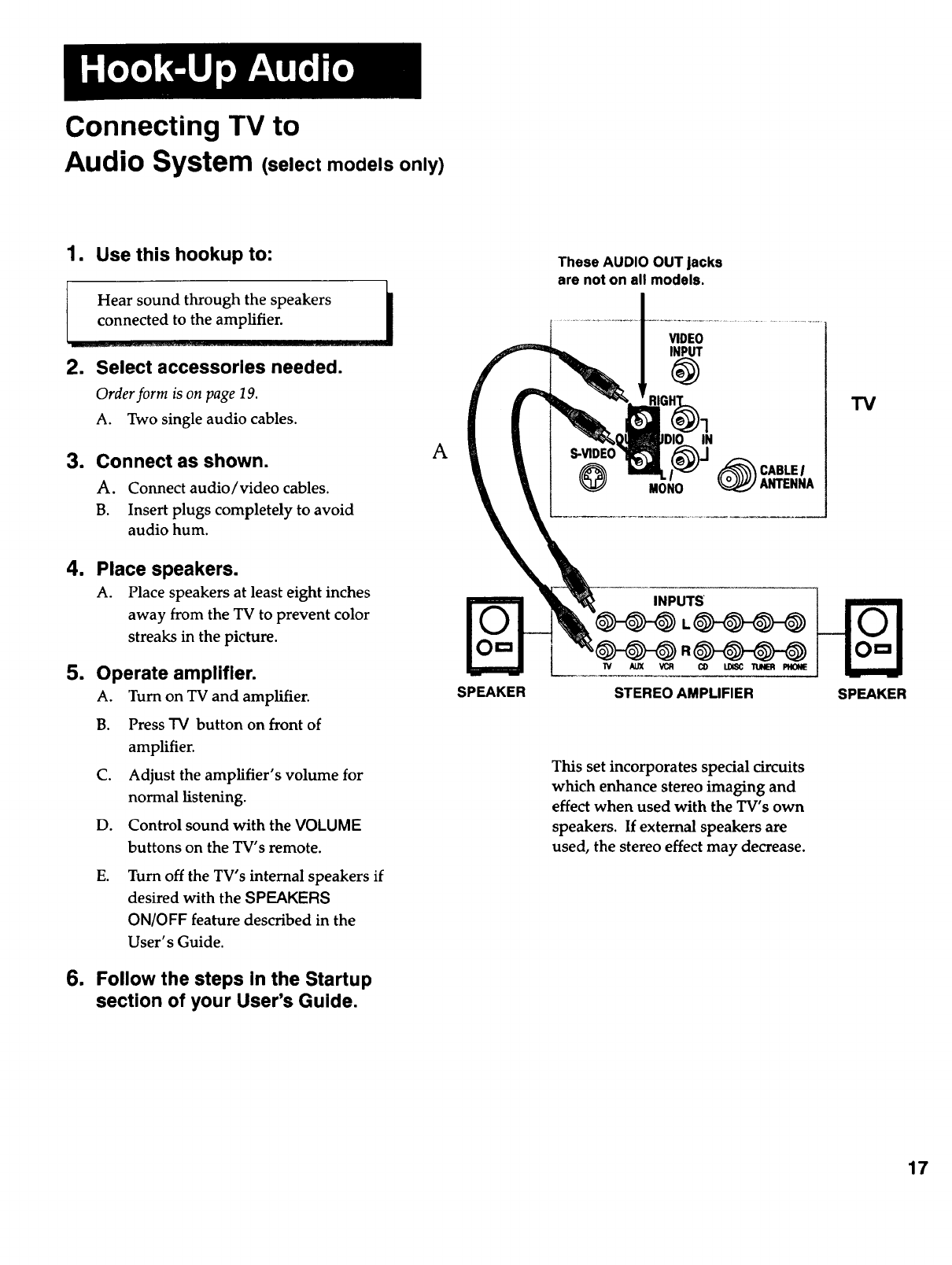

Audio System ......................................................................................... 17

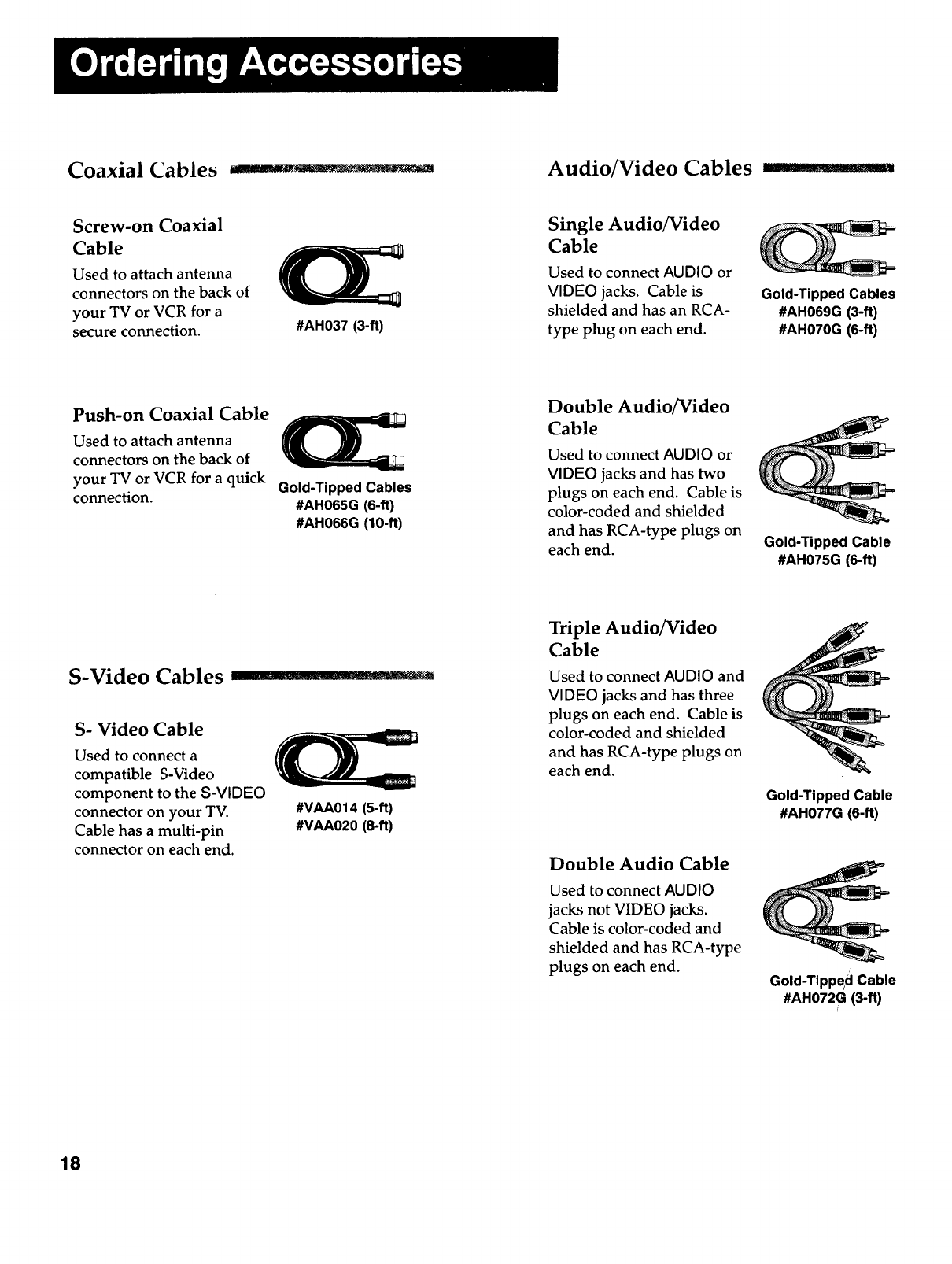

Ordering Accessories Cables and Adapters .....................................................................18-19

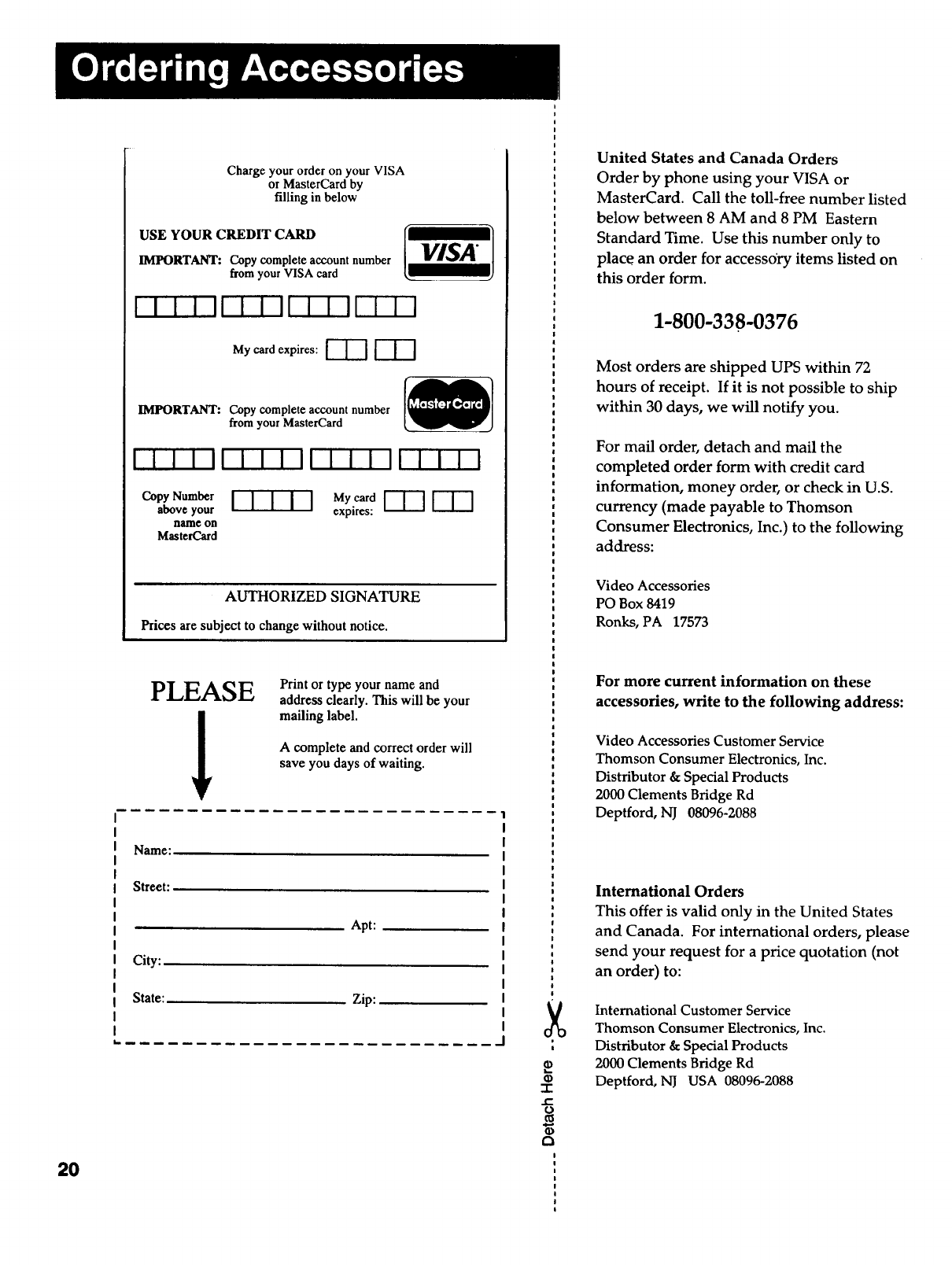

Order Form ....................................................................................... 19-20

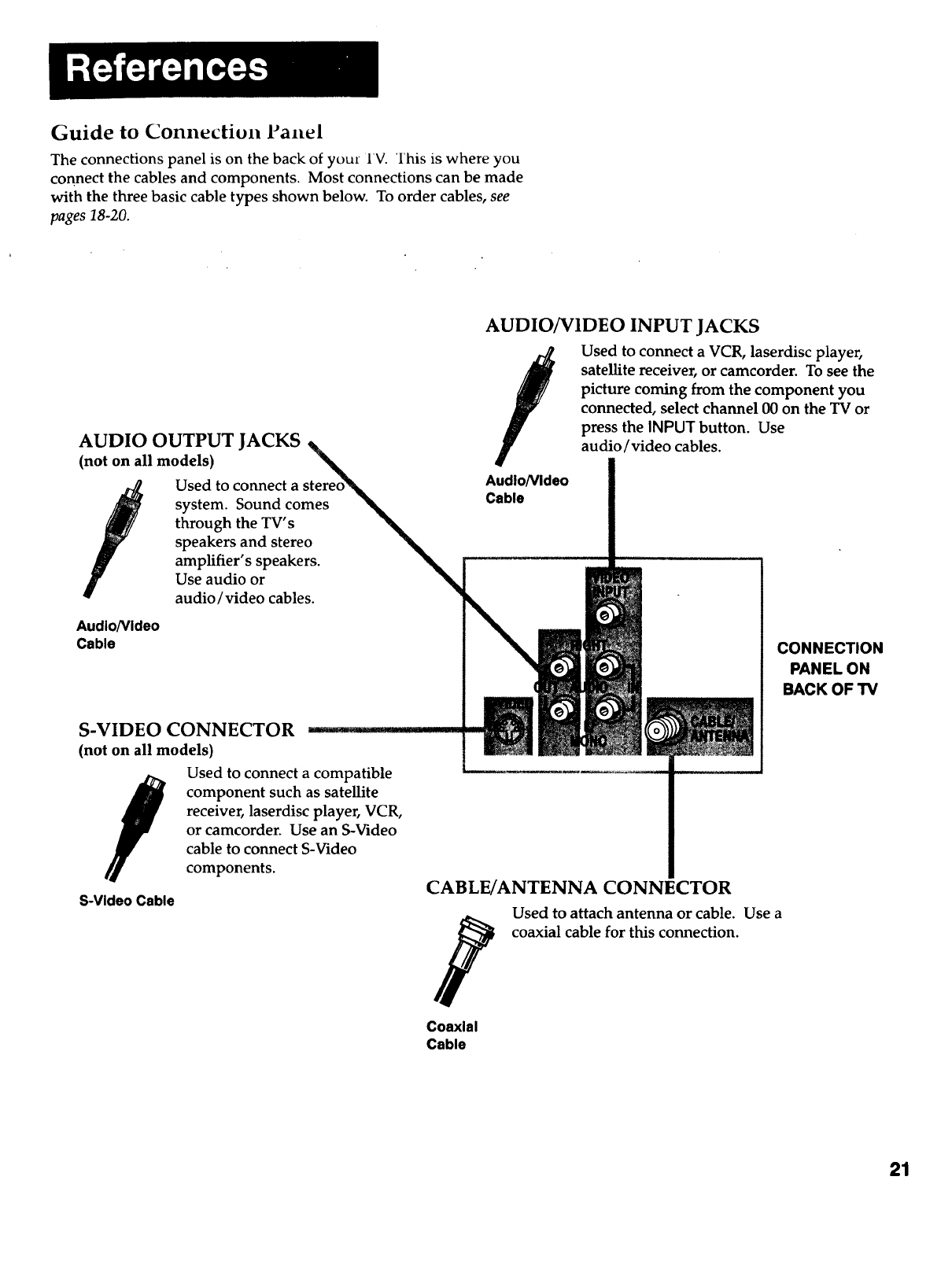

References Guide to Connection Panel .............................................................. 21

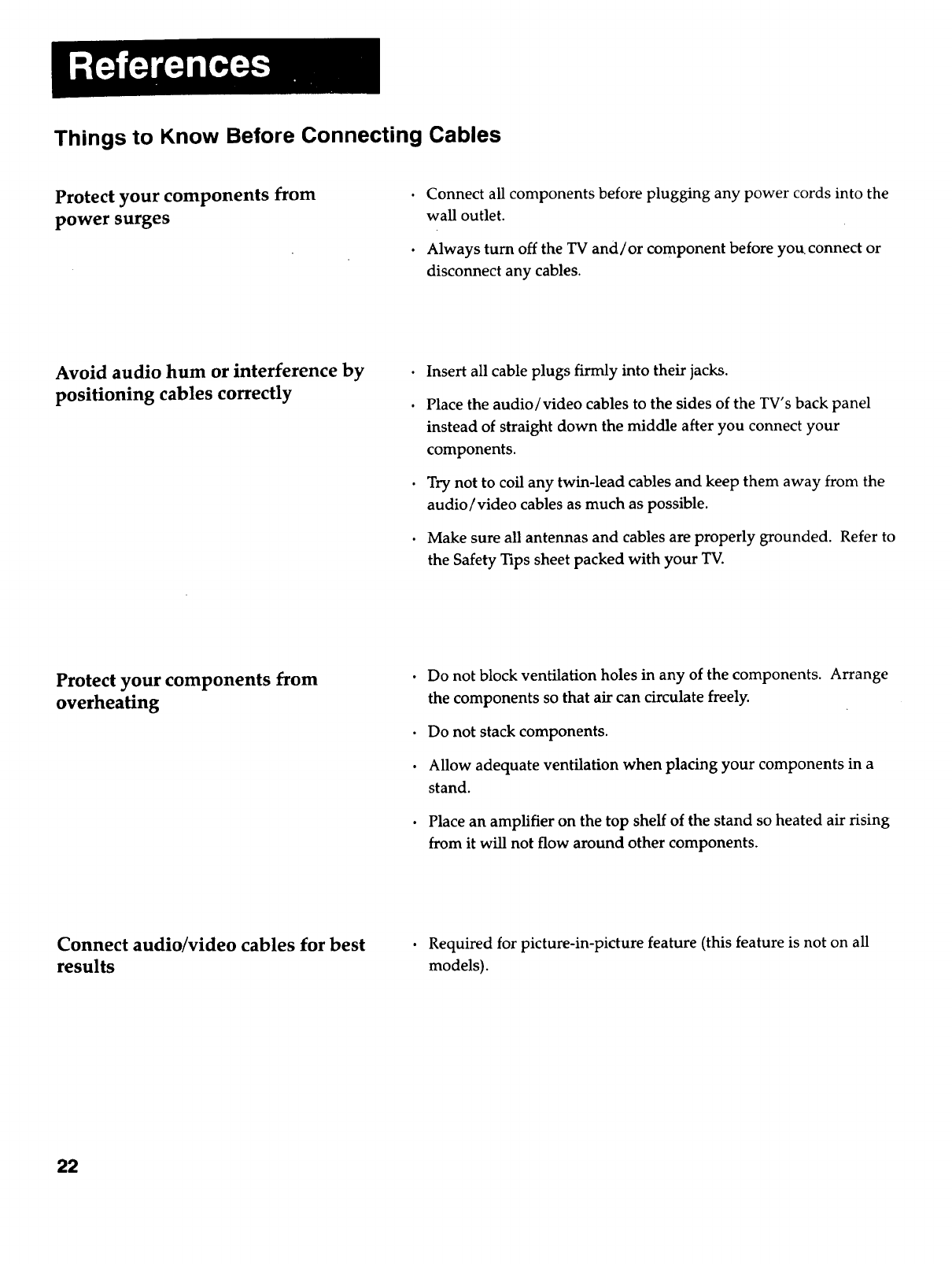

Things to Know Before Connecting Cables ...............................22
Protect Your Components from Power Surges
Avoid Audio Hum by Positioning Cables Correctly
Protect your Components from Overheating
Connect Audio/Video Cables for Best Results

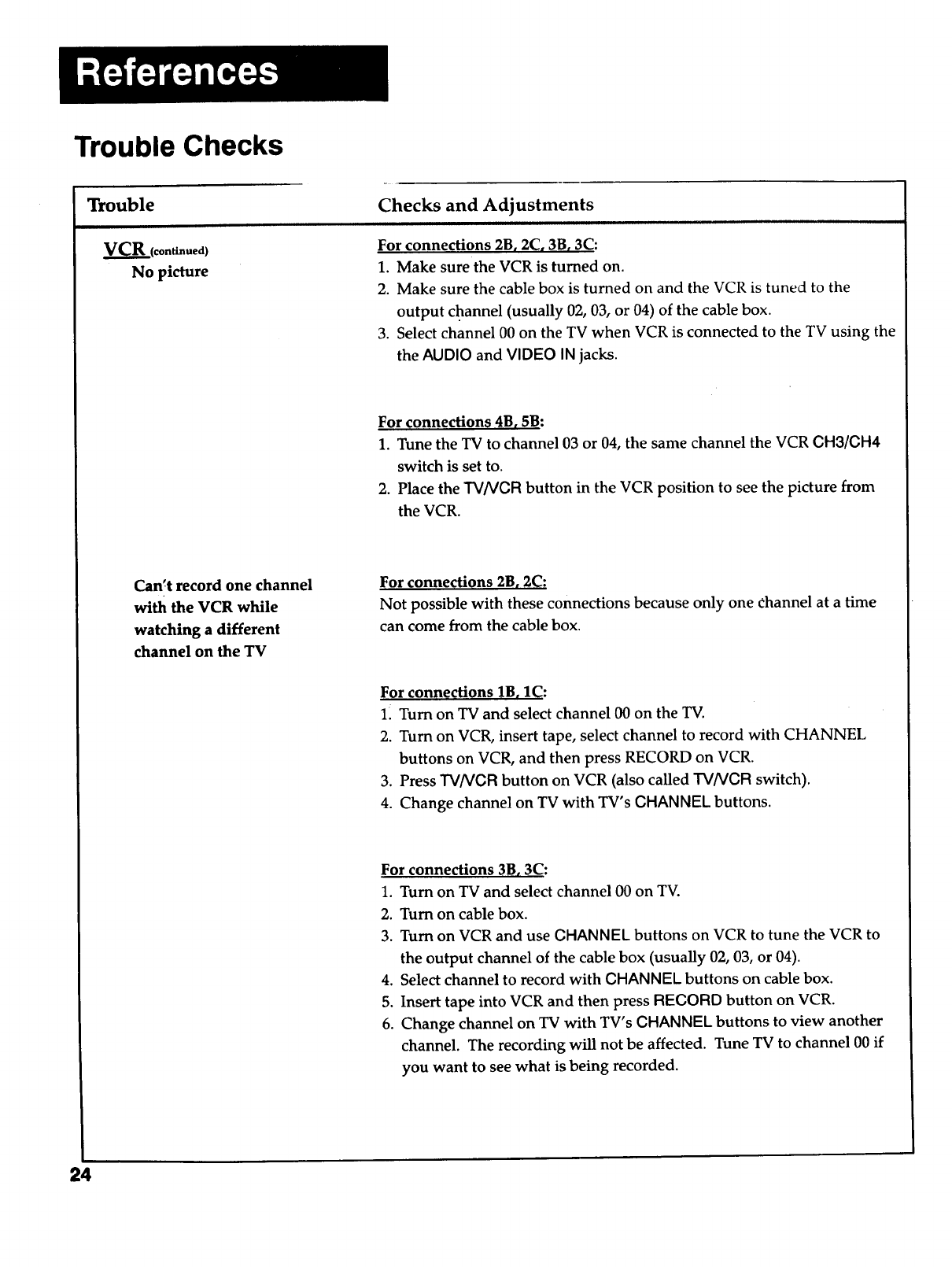

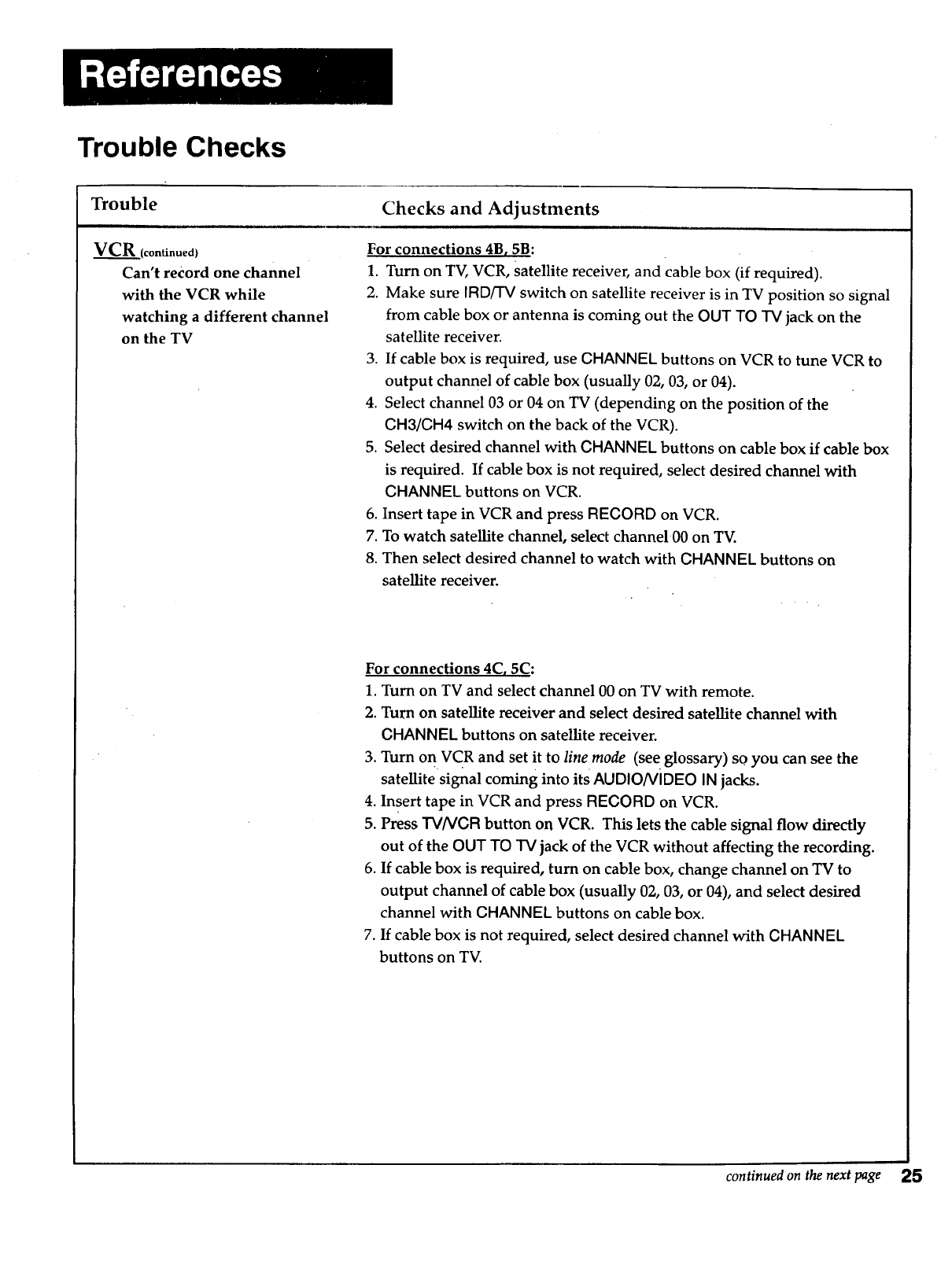

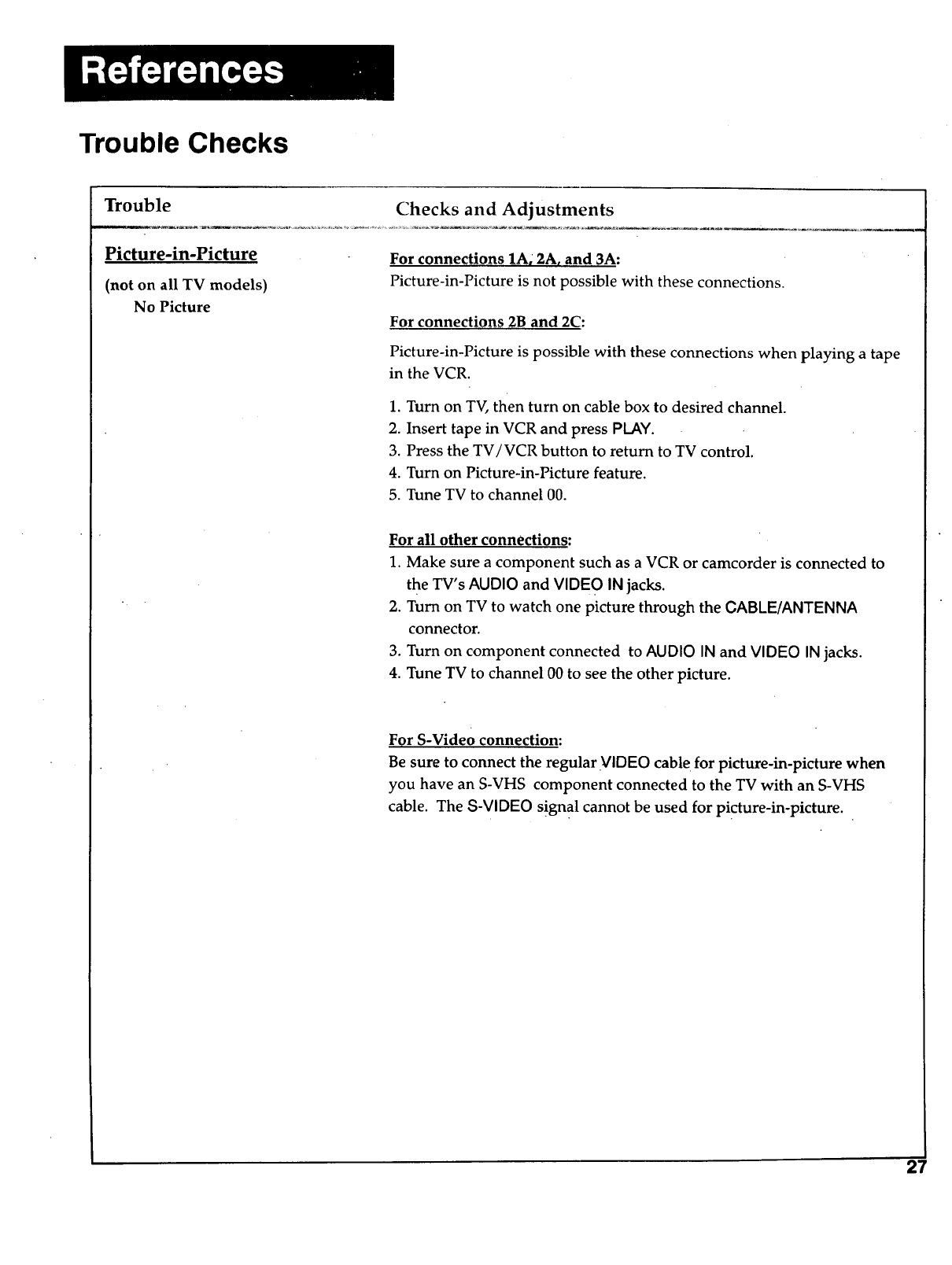

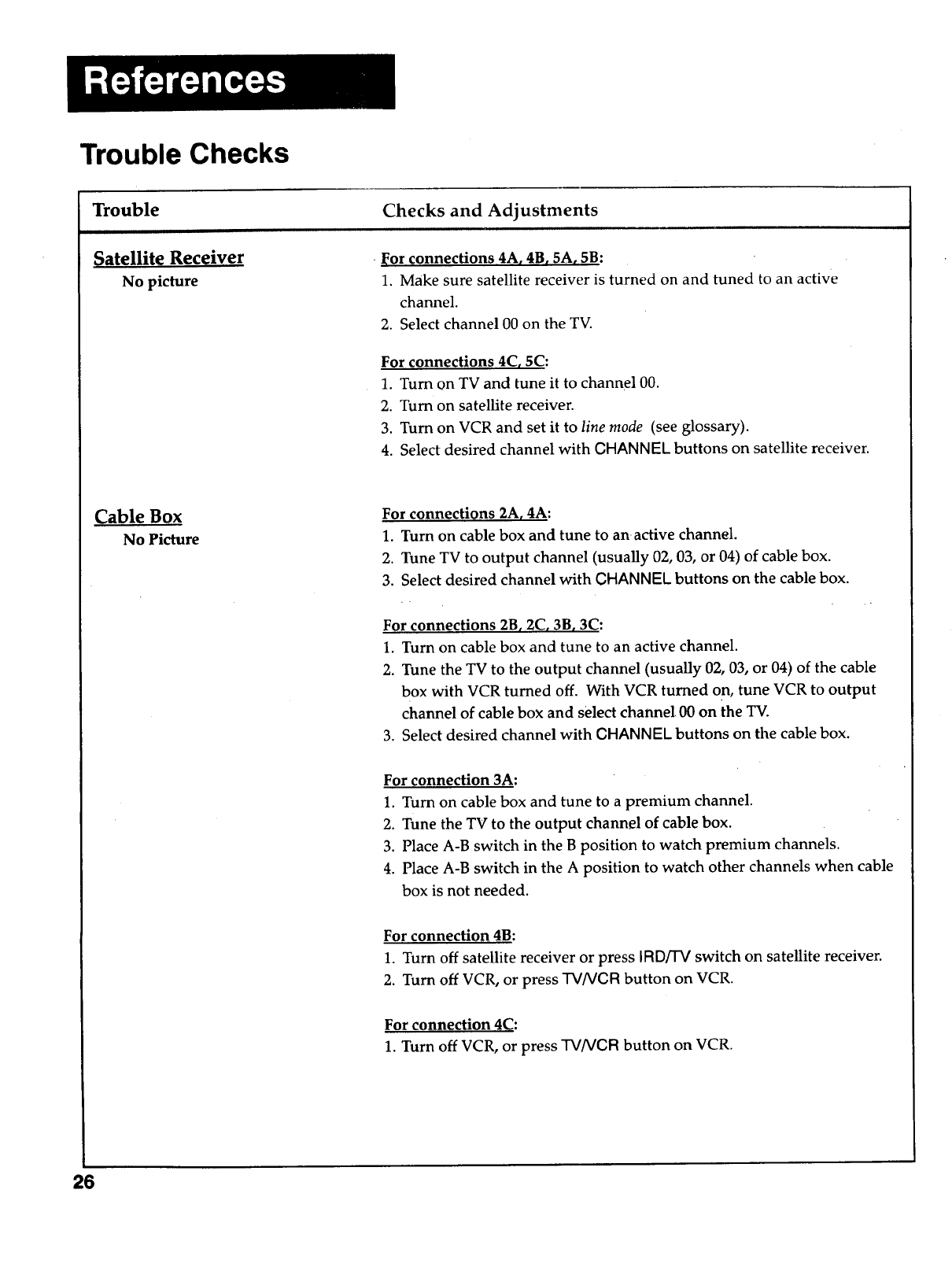

Trouble Checks ............................................................................... 23-27

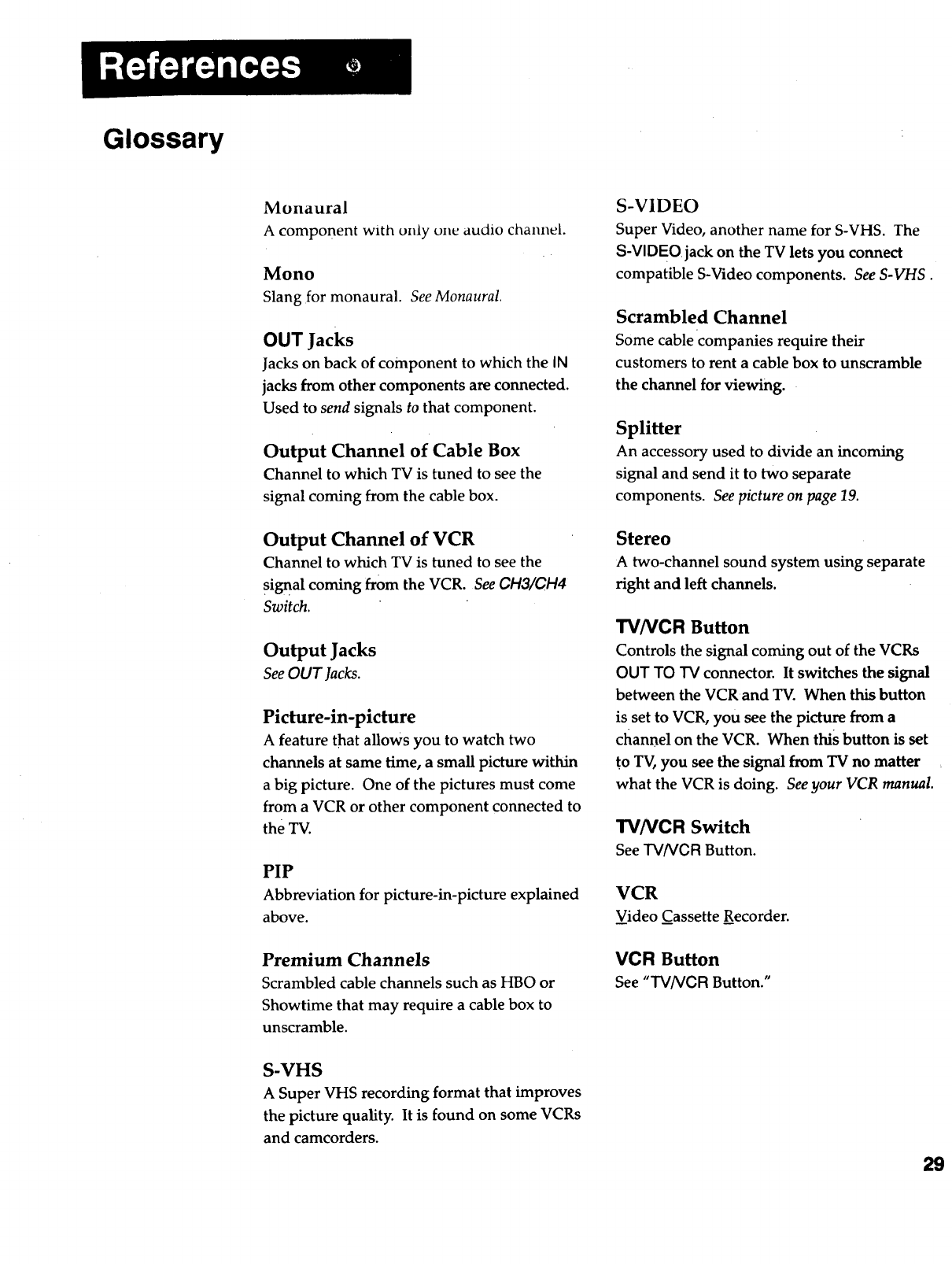

Glossary .................................. .......................................................... 28-29
You need only one page mthis book to hook up your 'IV. Answer the
questions and follow the steps below.
Where does your TV signal come from?
If you have a cable box and are unsure of how it works, select answer 3 below.
Choose one answer from below.
O1. Antenna or cable without a cable box
Cable with cable box required for all channels
Cable with cable box required for only some channels
Example: Premium channels such as HBO, Showtime, Disney ,etc.
Satellite and cable
Satellite and antenna
2. What are you connecting to the TV?
If you have a VCR and are unsure of how it works, select answer B below.
Choose one answer from below.
O A. No VCR
[_ B. Monaural VCR
[_ C. Stereo VCR
3. Take the answer from question #1 and combine it with the answer from
question #2. This is your hookup. "
Example: If you choose 1 and C, your hookup is 1C.
Answer From Question #1
[
1A - page 2
i
A
Answer From I
Question t/2 B 1B - page 32B - page 6
C_C- page _
2A -page 5 3A - page 8 4A - page 11
I
5A - page 14
3B - page 9 _B - page 12 5B - page 15
5C - page 16
i
Turn to the page shown in the chart for your hookup. This is the only
page you will need.

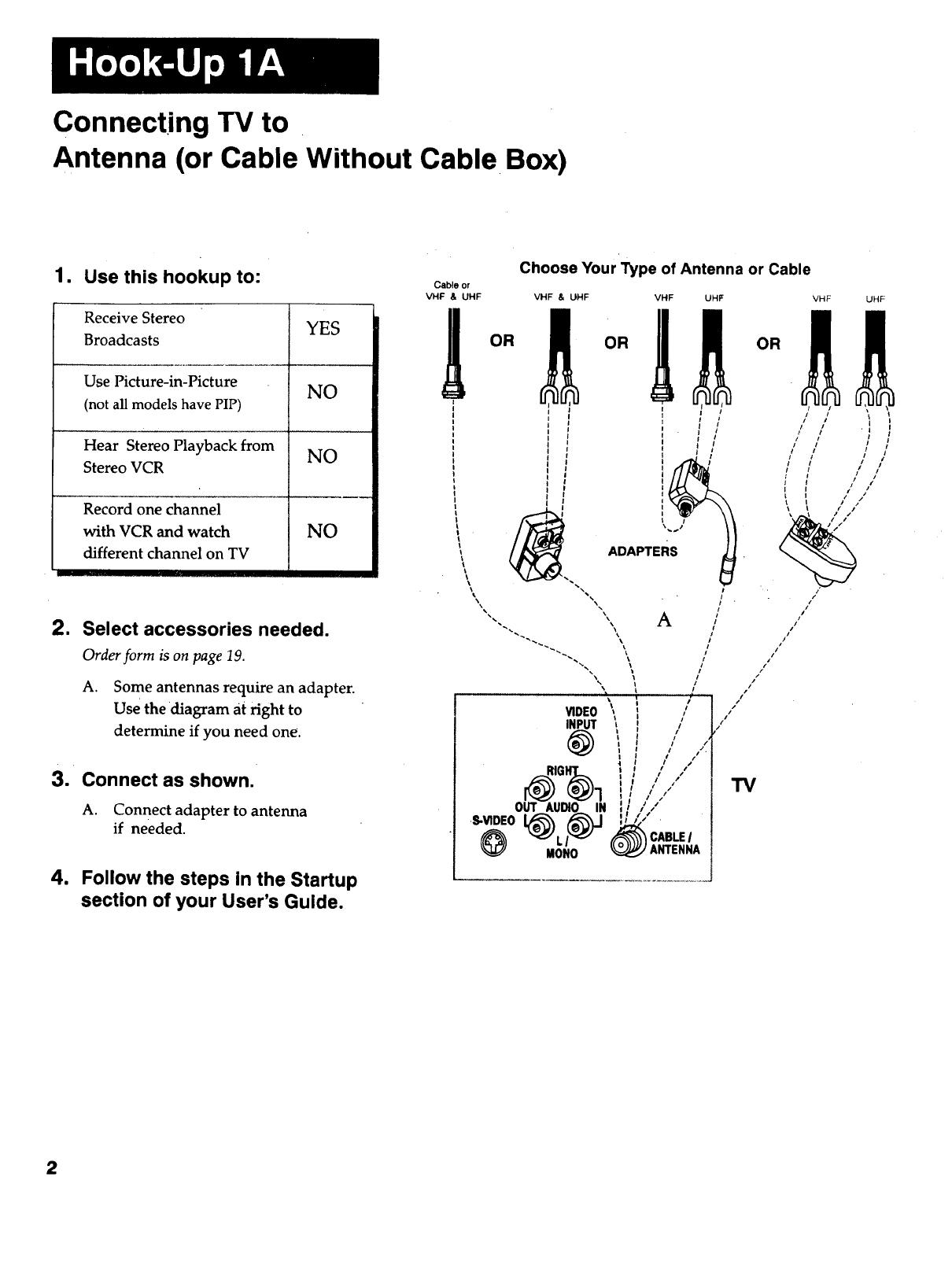

Connecting TV to
Antenna (or Cable Without Cable•Box)
1. Use this hookup to:
1
3.
11
Receive Stereo
Broadcasts
Use Picture-in-Picture
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
NO
NO
NO
Select accessories needed.
Order form is on page 19.
A. Some antennas require an adapter.
Use the diagram at right to
determine if you need one.
Connect as shown.
A. Connect adapter to antenna
if needed.
Follow the steps in the Startup
section of your User's Guide.
Cable or
VHF & UHF
Choose Your Type of Antenna or Cable
VHF & UHF VHF UHF
VIDEO \
iNPUT
@,
AUDIO
.S,VIDEO
(_ MONO
ADAPTERS
CABLEI
ANTENNA
II
s
/
TV
VHF UHF
//
//
///
]
ii j /_ !1
¢"
2

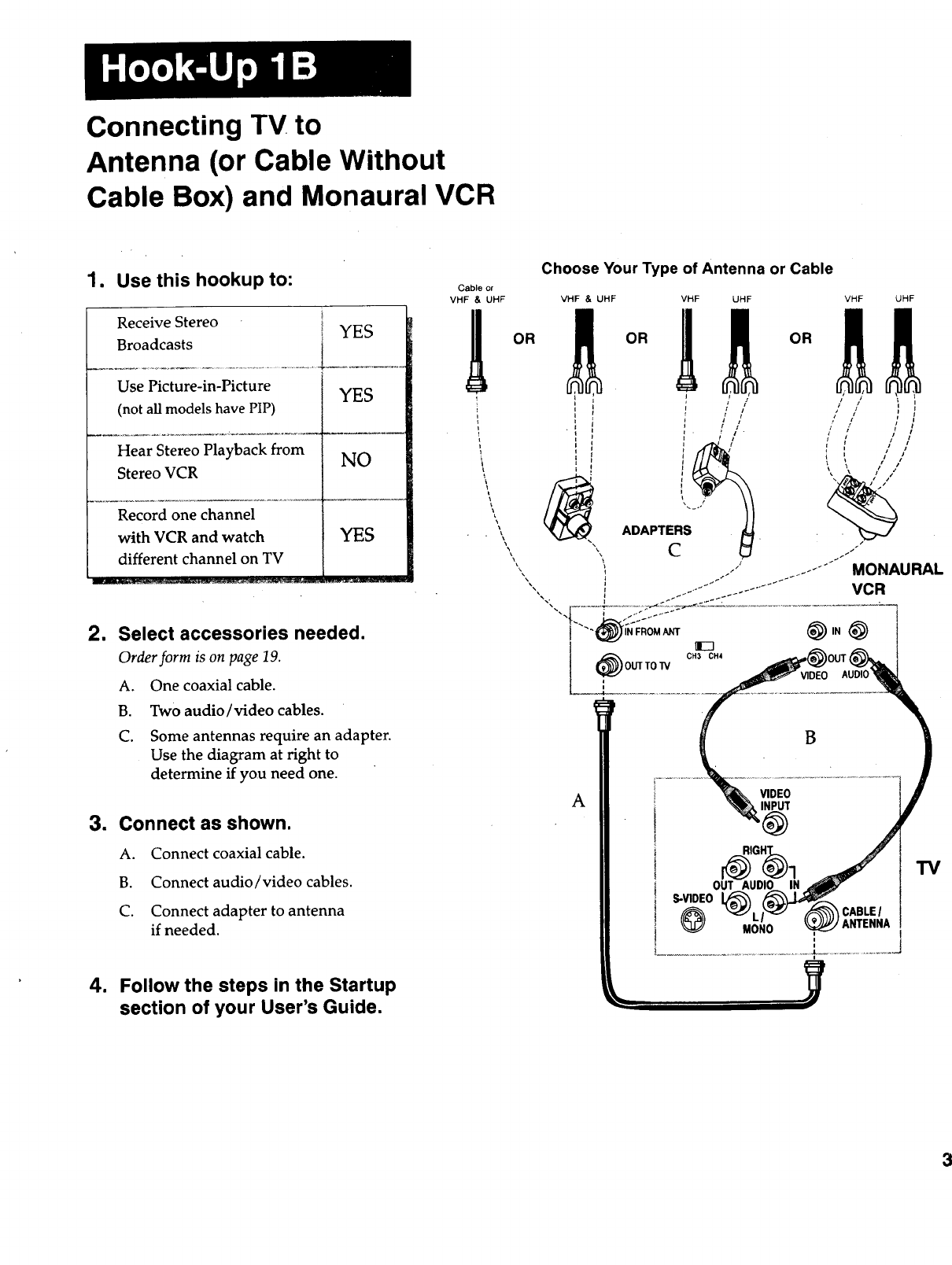

Connecting TV to
Antenna (or Cable Without
Cable Box) and Monaural VCR
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Picture-in-Picture
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
YES
NO
YES
=Select accessories needed.
Order form is on page 19.
A. One coaxial cable.
B. Two audio/video cables.
C. Some antennas require an adapter.
Use the diagram at right to
determine if you need one.
3. Connect as shown.
A. Connect coaxial cable.
B. Connect audio/video cables.
C. Connect adapter toantenna
if needed.
4. Follow the steps in the Startup
section of your User's Guide.
Choose Your Type of Antenna or Cable
Cable or
VHF & UHF VHF & UHF VHF UHF VHF UHF
A
RIGHT=
OUT AUDIO IN
S-VIDEO CABLE/
MONO /ANTENNA
,,
Connecting TV to
Antenna (or Cable Without
Cable Box) and Stereo VCR
1. Use this hookup to:
Receive Stereo
Broadcasts YES
........................................ ....... i..........................
Use Picture-in-Picture i YES
(not all models have PIP)
Hear Stereo Playback from YES
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
2. Select accessories needed.
Order form is on page 19.
A. One coaxial cable.
B. Three audio/video cables.
C. One S-Video cable if VCR has an
S-VHS or S-VIDEO connector.
D. Some antennas require an adapter.
Use the diagram at right to
determine if you need one.
3. Connect as shown.
A. Connect coaxial cable.
B. Connect audio/video cables.
C. Connect S-Video cable if desired.
D. Connect adapter to antenna
if needed.
4. Follow the steps in the Startup
section of your User's Guide.
Cable or
VHF & UHF
Choose Your Type of Antenna or Cable
\
\,\
B
TV
A
CABLE/
MONO ANTENNA
i
i
4

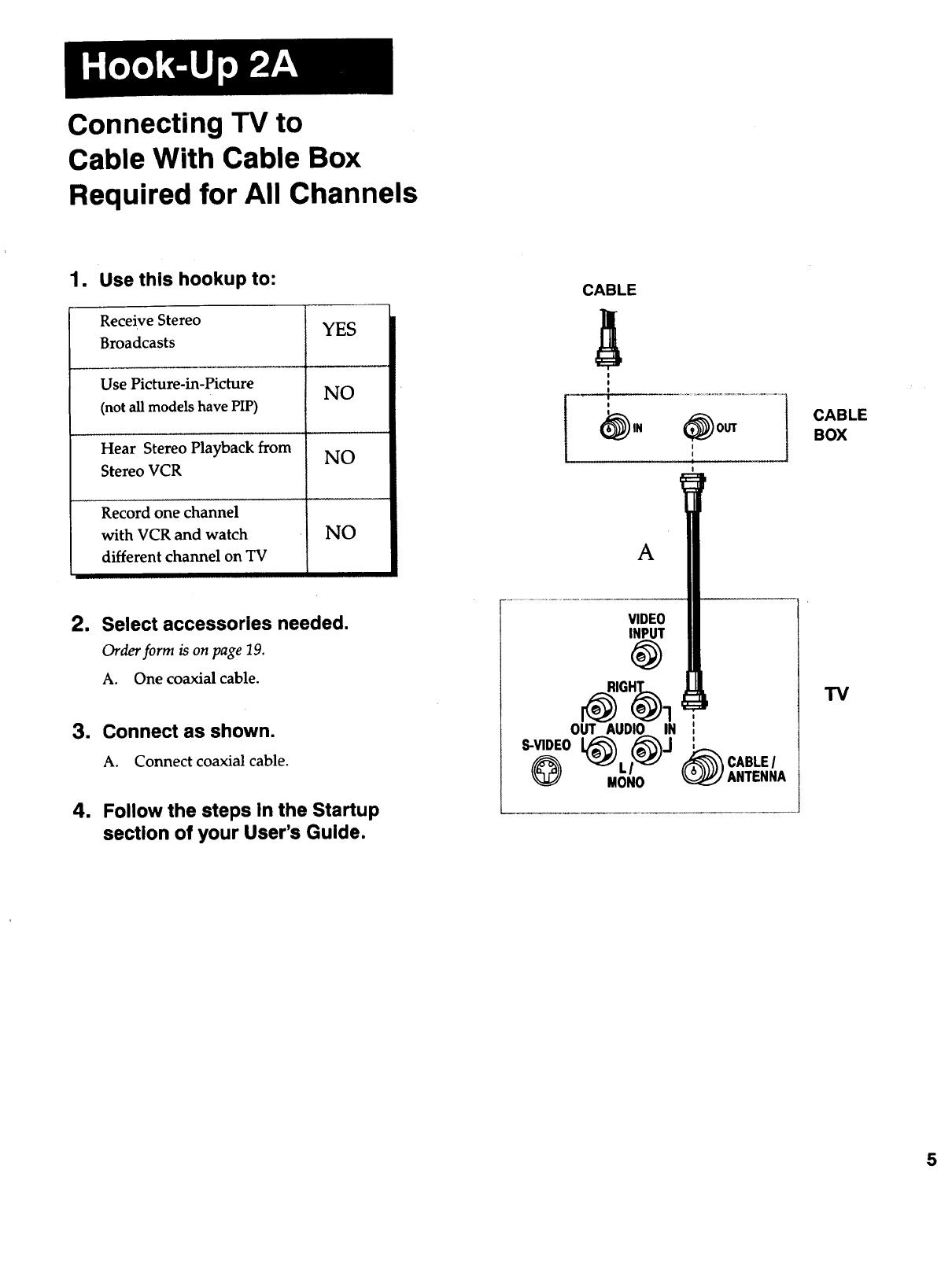

Connecting TV to
Cable With Cable Box
Required for All Channels
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Picture-in-Picture
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
NO
NO
NO
2. Select accessories needed.
Order form is on page 19.
A. One coaxial cable.
3. Connect as shown.
A. Connect coaxial cable.
4. Follow the steps in the Startup
section of your User's Guide.
S-VIDEO
@
CABLE
!
!CABLE
BOX
A
VIDEO
RIGHT_ TV
@1 ,
OUT AUDIO IN ,
J_,,.,,,,.. CABLE/
L_ANTENNA
MONO
5

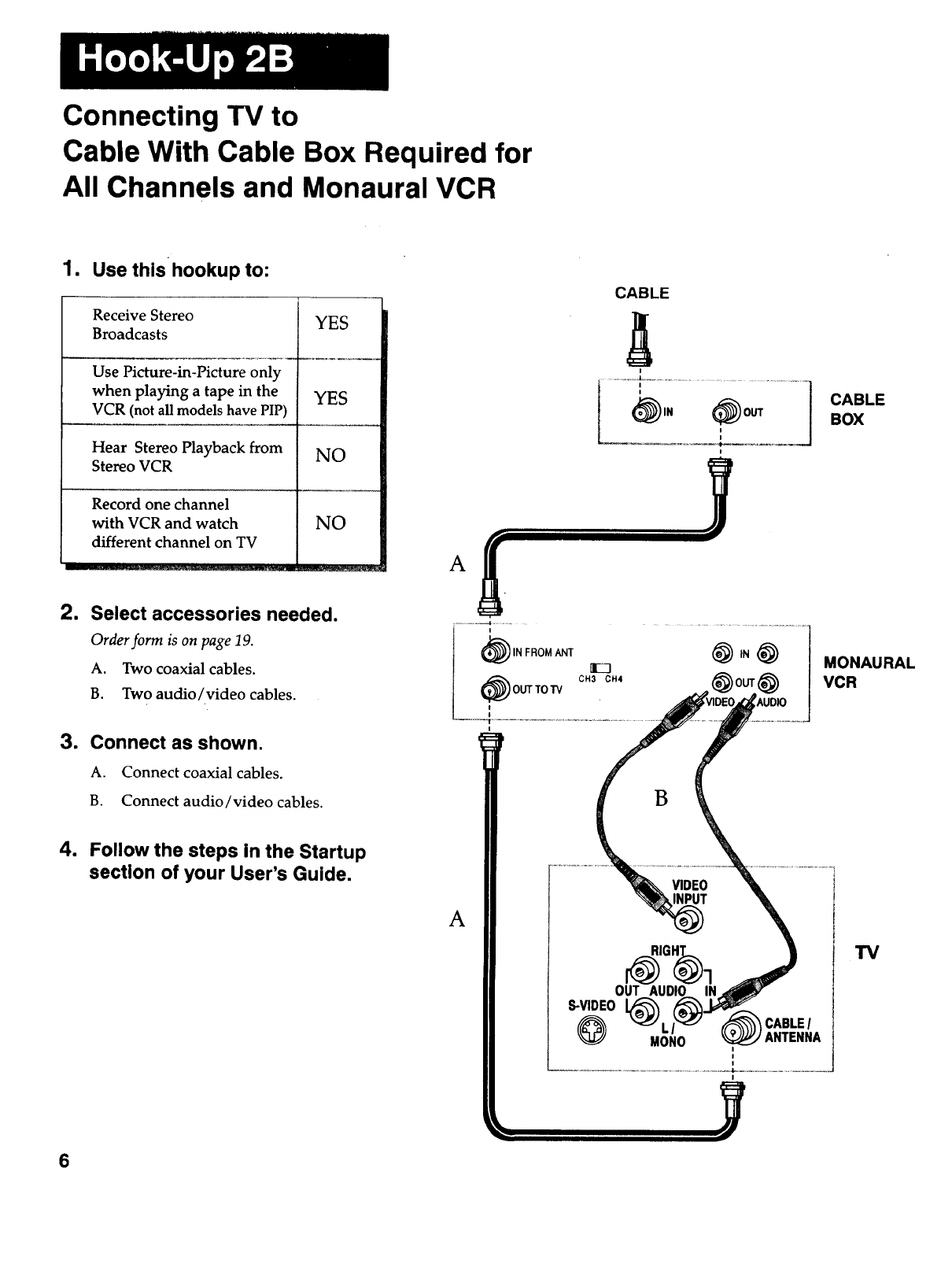

Connecting TV to
Cable With Cable Box Required for
All Channels and Monaural VCR
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Picture-in-Picture only
when playing a tape in the
VCR (not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
YES
NO
NO
1Select accessories needed.
Order form is on page 19.
A. Two coaxial cables.
B. Two audio/video cables.
CABLE
(_IN FROM ANT
_) OUT TO TV
A
I
_Ie _:_0_
I
i
CH3 CH4
CABLE
BOX
MONAURAL
VCR
3, Connect as shown.
A. Connect coaxial cables.
B. Connect audio/video cables.
4. Follow the steps in the Startup
section of your User's Guide.
6
A
B
VIDEO
INPUT
OUT AUDIO IN
S-VIDEO
MONO CABLEI
ANTENNA
"IV

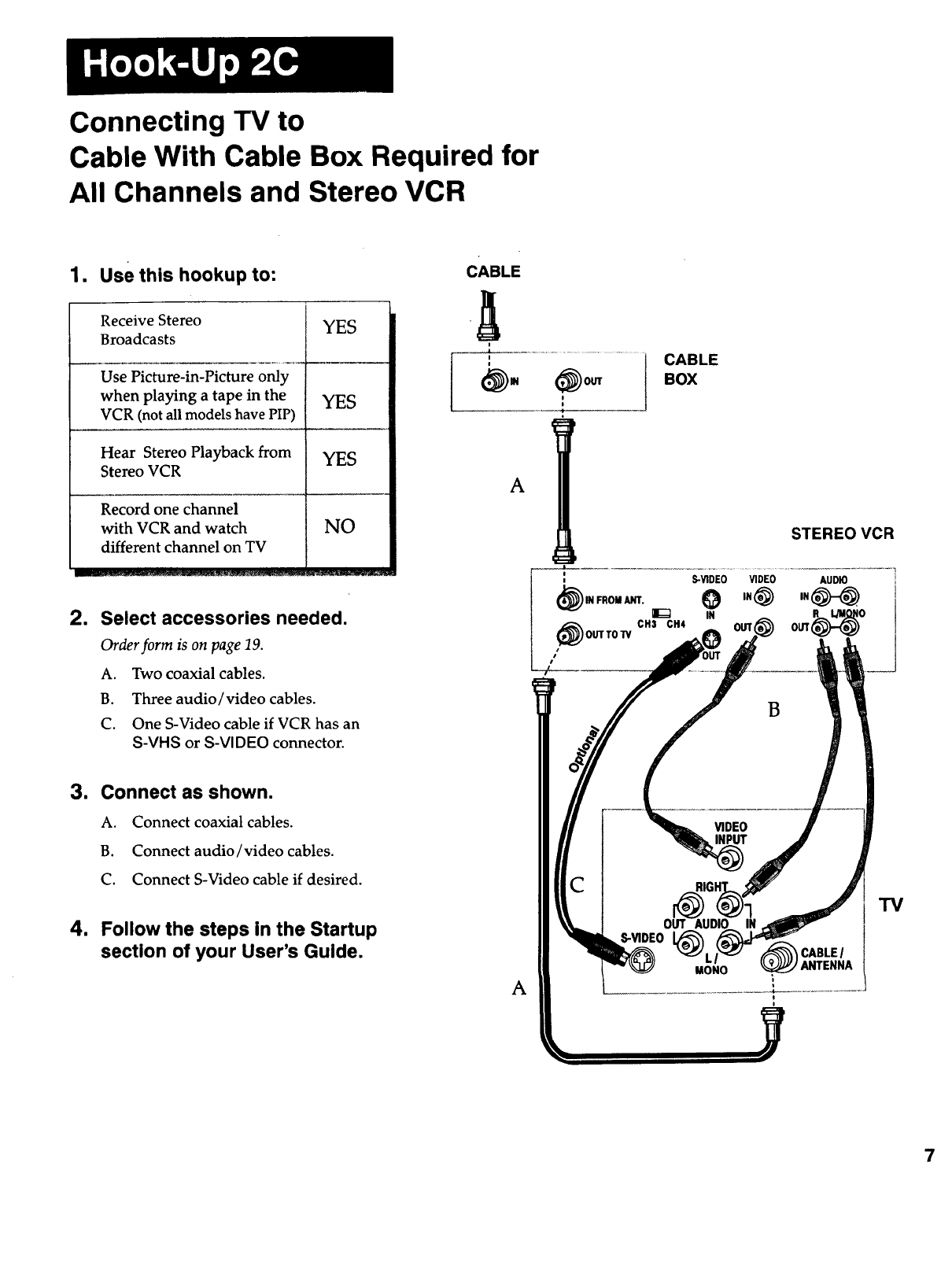

Connecting "IV to
Cable With Cable Box Required for
All Channels and Stereo VCR
1, use this hookup to: CABLE
Receive Stereo
Broadcasts
Use Picture-in-Picture only
when playing a tape in the
VCR (not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
YES
YES
NO
=Select accessories needed.
Order form is on page 19.
A. Two coaxial cables.
B. Three audio/video cables.
C. One S-Video cable if VCR has an
S-VHS or S-VIDEO connector.
0Connect as shown.
A. Connect coaxial cables.
B. Connect audio/video cables.
C. Connect S-Video cable if desired.
4. Follow the steps in the Startup
section of your User's Guide.
i
i
i
i
÷
0
CABLE
BOX
A
STEREO VCR
l ! S-VIDEO
(_ iN FROMANT. O
IN
e_)OUTTO'rV CH3 CH4
VIDEO AUDIO
OUT_ 0
A
OUT
0
B
VIDEO
INPUT
IN
CABLEI
MONO _ANTENNA
i
t
i
7

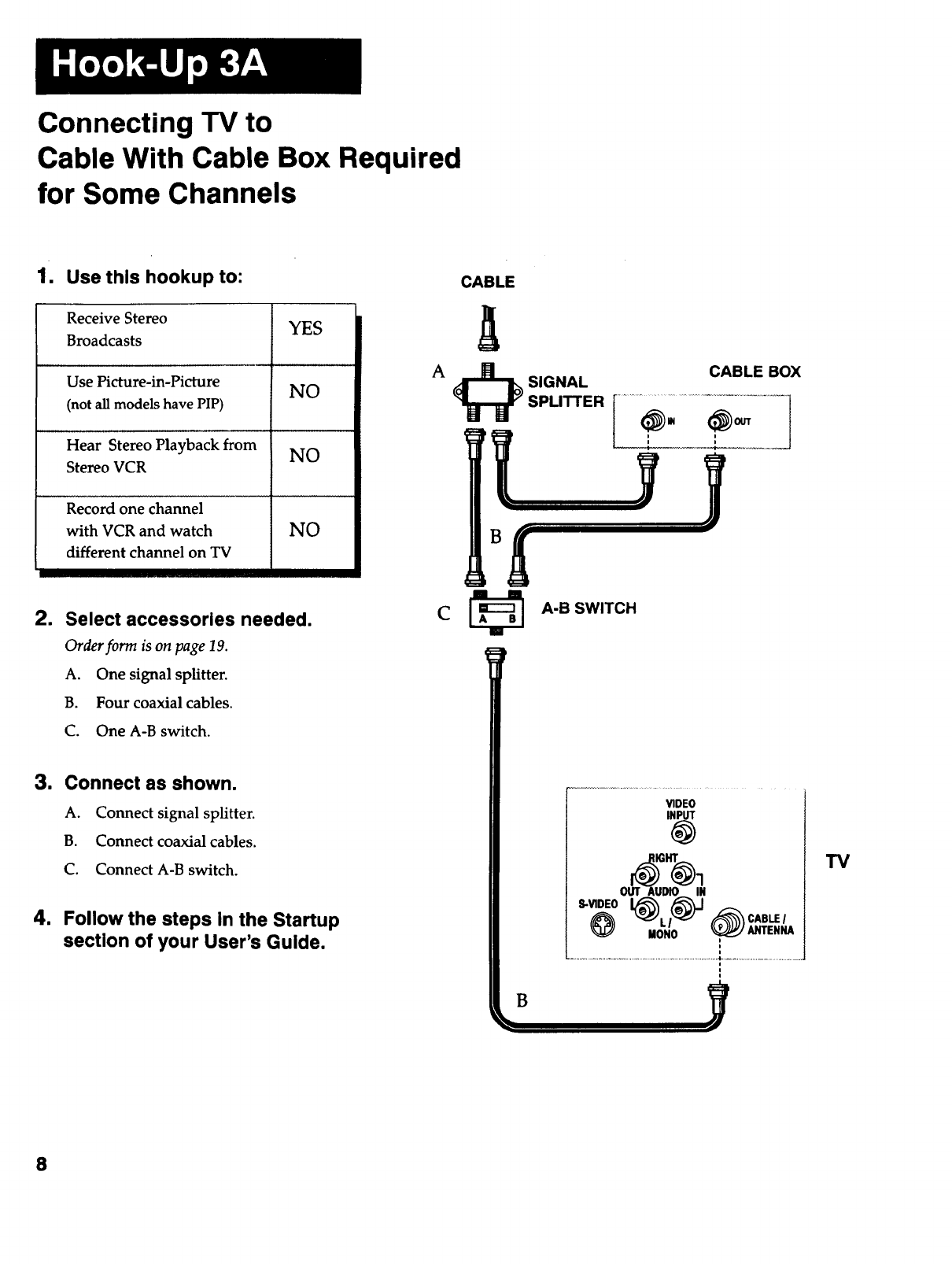

Connecting TV to
Cable With Cable Box Required
for Some Channels
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Hcture-in-Picture
(not all models have PiP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
NO
NO
NO
2. Select accessories needed.
Order form is on page 19.
A. One signal splitter.
B. Four coaxial cables.
C. One A-B switch.
1Connect as shown.
A. Connect signal splitter.
B. Connect coaxial cables.
C. Connect A-B switch.
4. Follow the steps in the Startup
section of your User's Guide.
CABLE
VIDEO
INPUT
@
i
i
1
B
TV
8

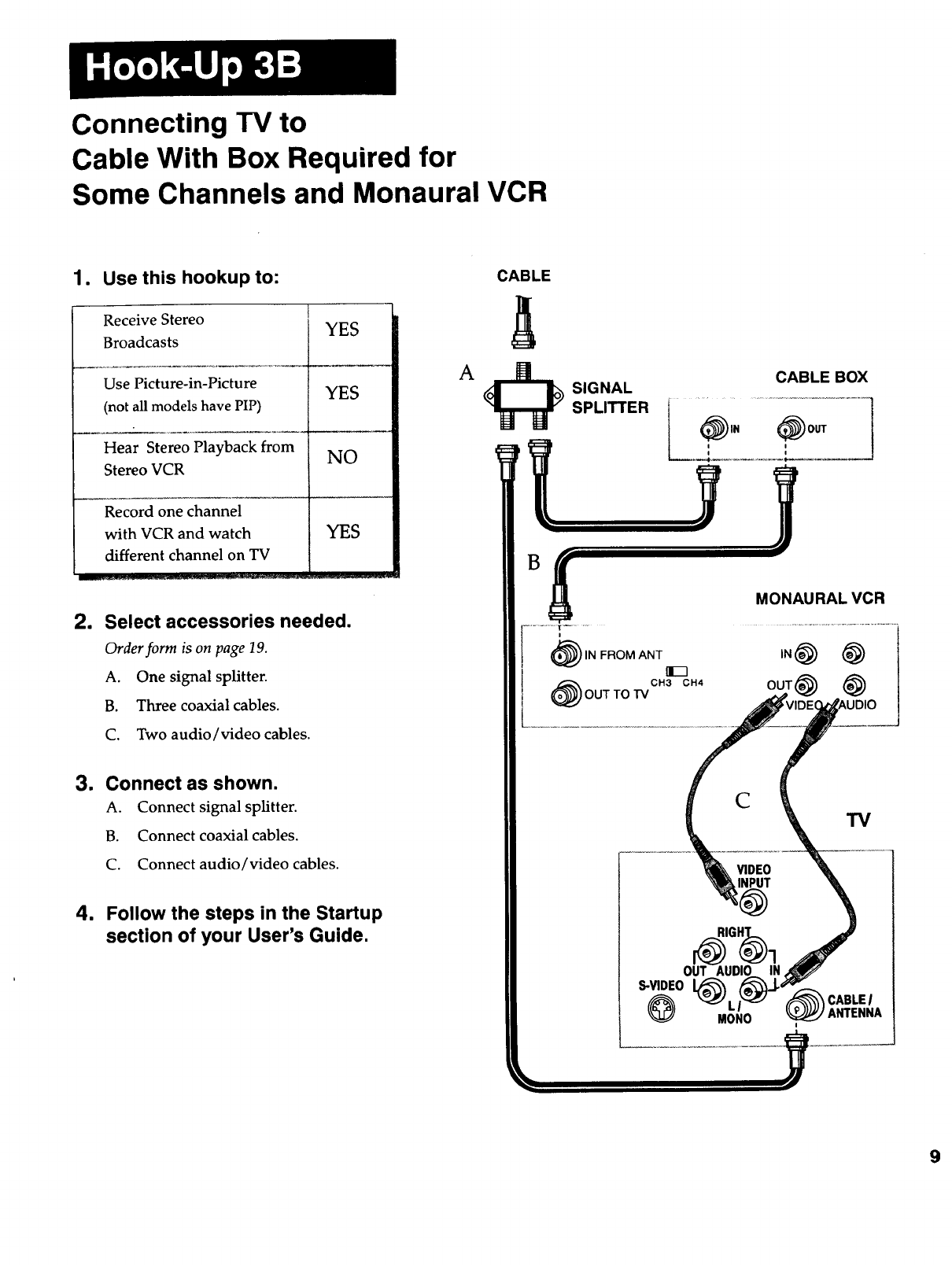

Connecting TV to
Cable With Box Requ ired for
Some Channels and Monaural VCR
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Picture-in-Picture
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
YES
NO
YES
2. Select accessories needed.
Order form is on page 19.
A. One signal splitter.
B. Three coaxial cables.
C. Two audio/video cables.
nConnect as shown.
A. Connect signal splitter.
B. Connect coaxial cables.
C. Connect audio/video cables.
4. Follow the steps in the Startup
section of your User's Guide.
A
CABLE
SIGNAL
SPLITTER
............... x......
i
IN FROM ANT
_ OUT TO .rvCH3 CH4
CABLE BOX
MONAURAL VCR
,.@ @
ooT@@
TV
RIGHT_
OUTAUDIO IN
S-VIDEO
MONO CABLEI
ANTENNA
9

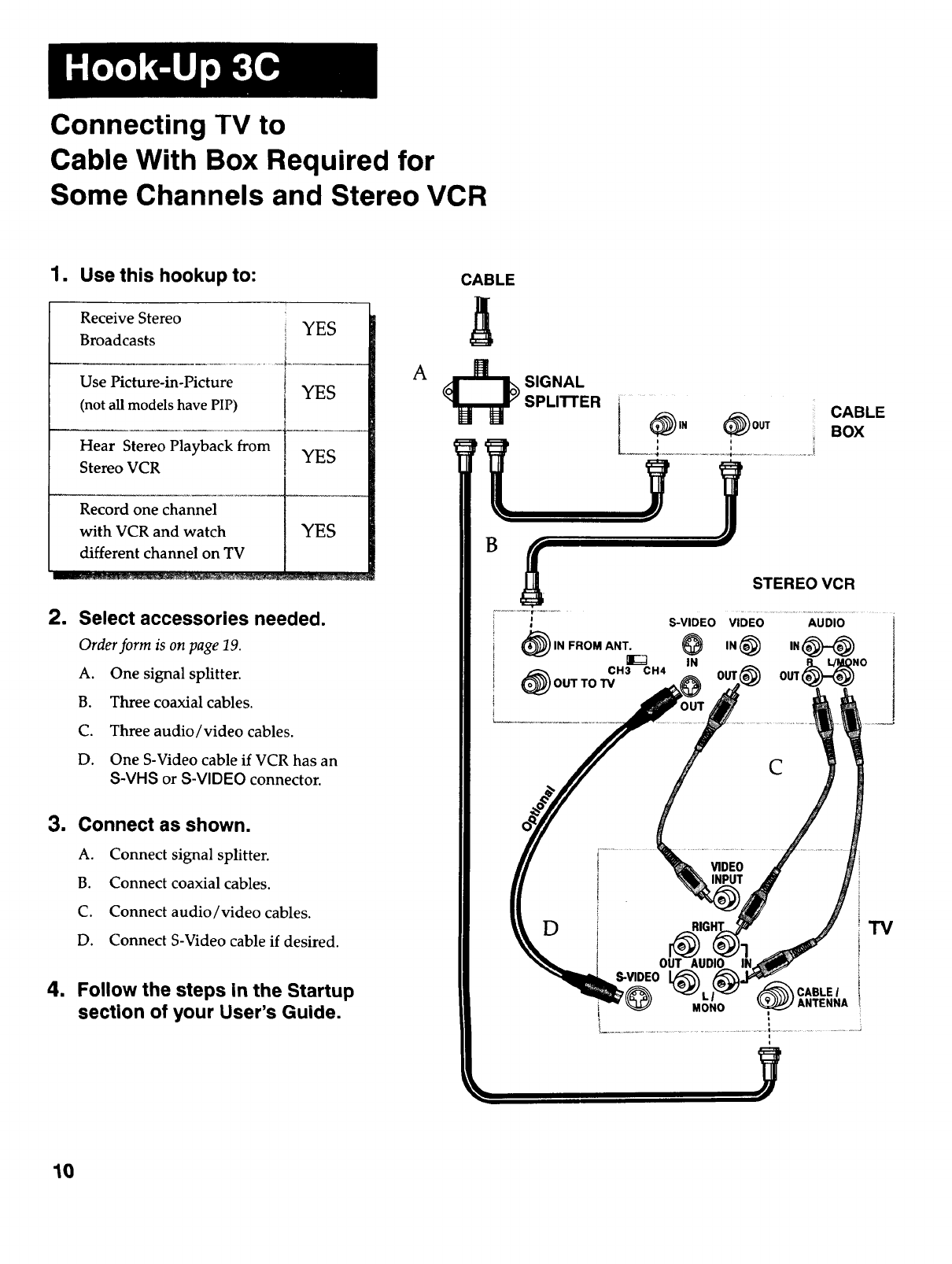

Connecting TV to
Cable With Box Required for
Some Channels and Stereo VCR
1. Use this hookup to:
Receive Stereo YES
Broadcasts i
Use Picture-in-Picture f YES
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
YES
1Select accessories needed.
Order form is on page 19.
A. One signal splitter.
B. Three coaxial cables.
C. Three audio/video cables.
D. One S-Video cable if VCR has an
S-VHS or S-VIDEO connector.
3. Connect as shown.
A. Connect signal splitter.
B. Connect coaxial cables.
C. Connect audio/videocables.
D. Connect S-Video cable if desired.
4. Follow the steps in the Startup
section of your User's Guide.
CABLE
A _ SIGNAL
SPLI'rl'ER i _,. 0UT
,o
CABLE
BOX
STEREO VCR
VIDEO AUDIO
OUT _NO
C
D
VIDEO
OUT AUDIO
10

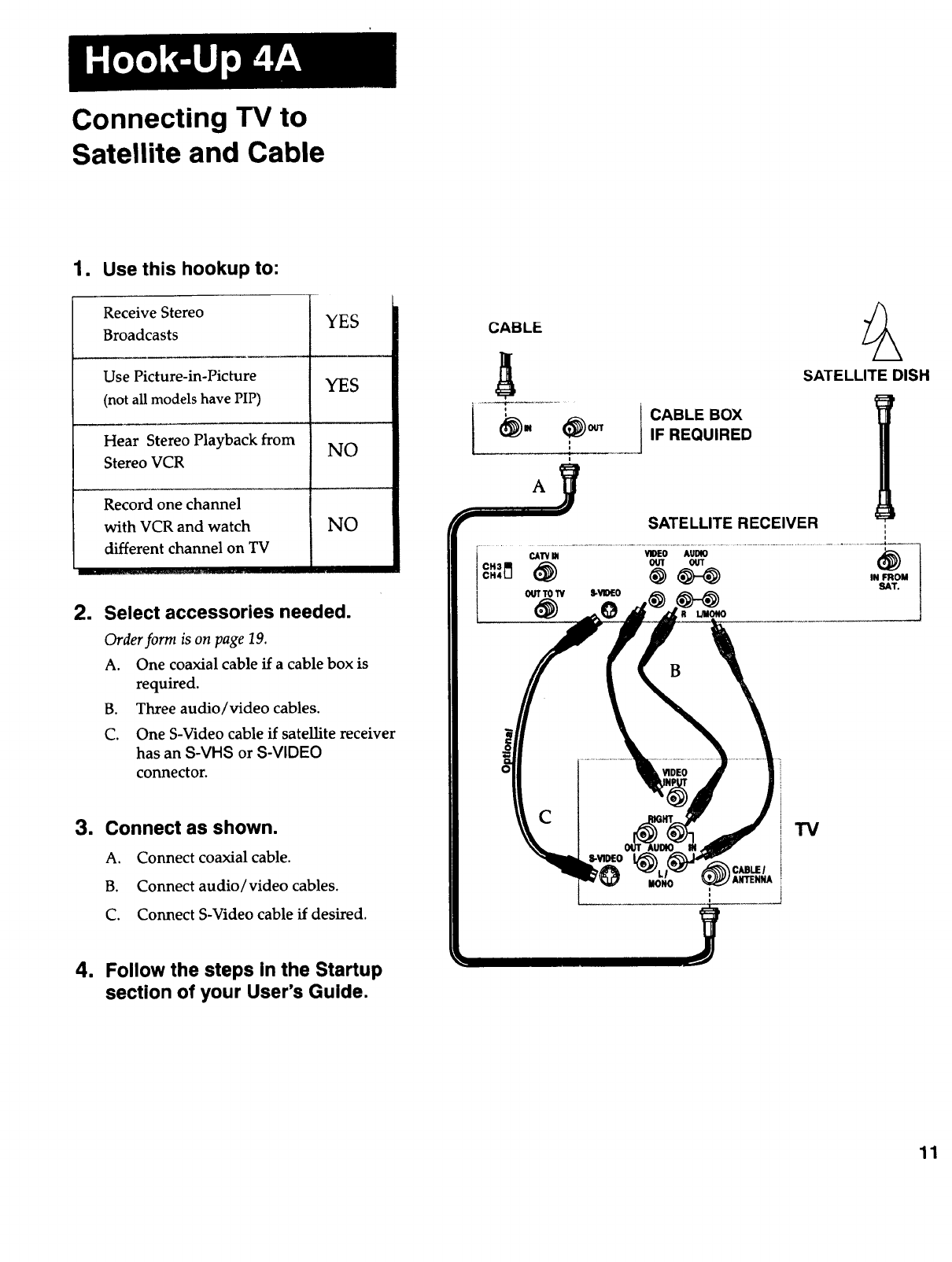

Connecting TV to
Satellite and Cable
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Picture-in-Picture
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
YES
NO
NO
2. Select accessories needed.
Order form is on page 19.
A. One coaxial cable if a cable box is
required.
B. Three audio/video cables.
C. One S-Video cable if satellite receiver
has an S-VHS or S-VIDEO
connector.
1Connect as shown.
A. Connect coaxial cable.
B. Connect audio/video cables.
C. Connect S-Video cable if desired.
4. Follow the steps in the Startup
section of your User's Guide.
CABLE
SATELLITE DISH
0
IIONO
(_) CABLEI
ANTENNA
TV
11

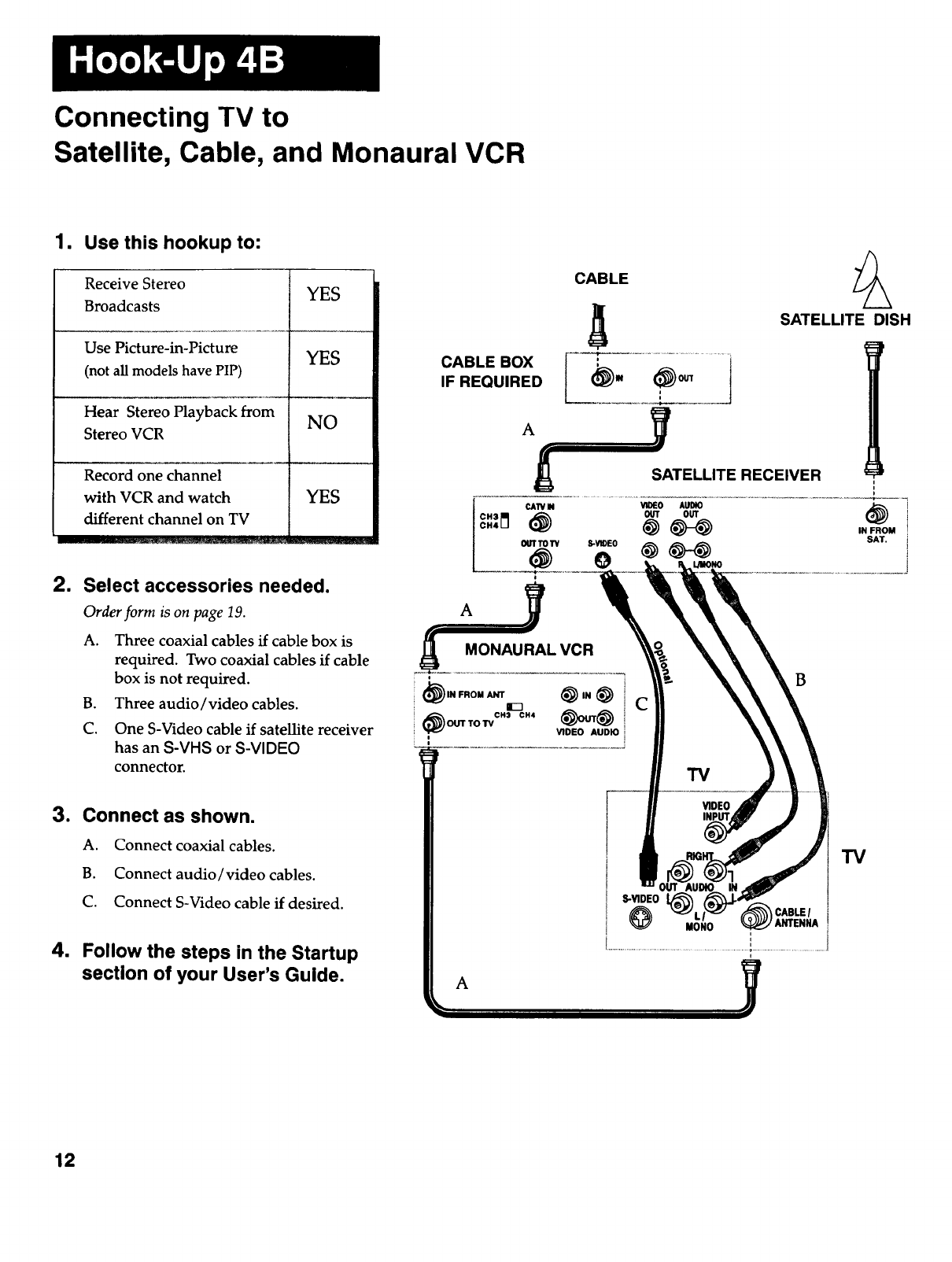

Connecting TV to
Satellite, Cable, and Monaural VCR
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Picture-in-Picture
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
YES
NO
YES
2. Select accessories needed.
Order form is on page 19.
A. Three coaxial cables if cable box is
required. Two coaxial cables if cable
box is not required.
B. Three audio/video cables.
C. One S-Video cable if satellite receiver
has an S-VHS or S-VIDEO
connector.
1Connect as shown.
A. Connect coaxial cables.
B. Connect audio/video cables.
C. Connect S-Video cable if desired.
4. Follow the steps in the Startup
section of your User's Guide.
CABLE
SATELLITE DISH
CABLE BOX [-- ,'_ ..............................i!
SATELLITE RECEIVER ',
CMV IN V_EO AUDIO
CH3_I OUT OUT (_)
CH411 (_) (_ (_ IN FROM
OUTTO TV S-YtDEO SAT.
,e
=
i
-7 C
_OEO AUDIO
12

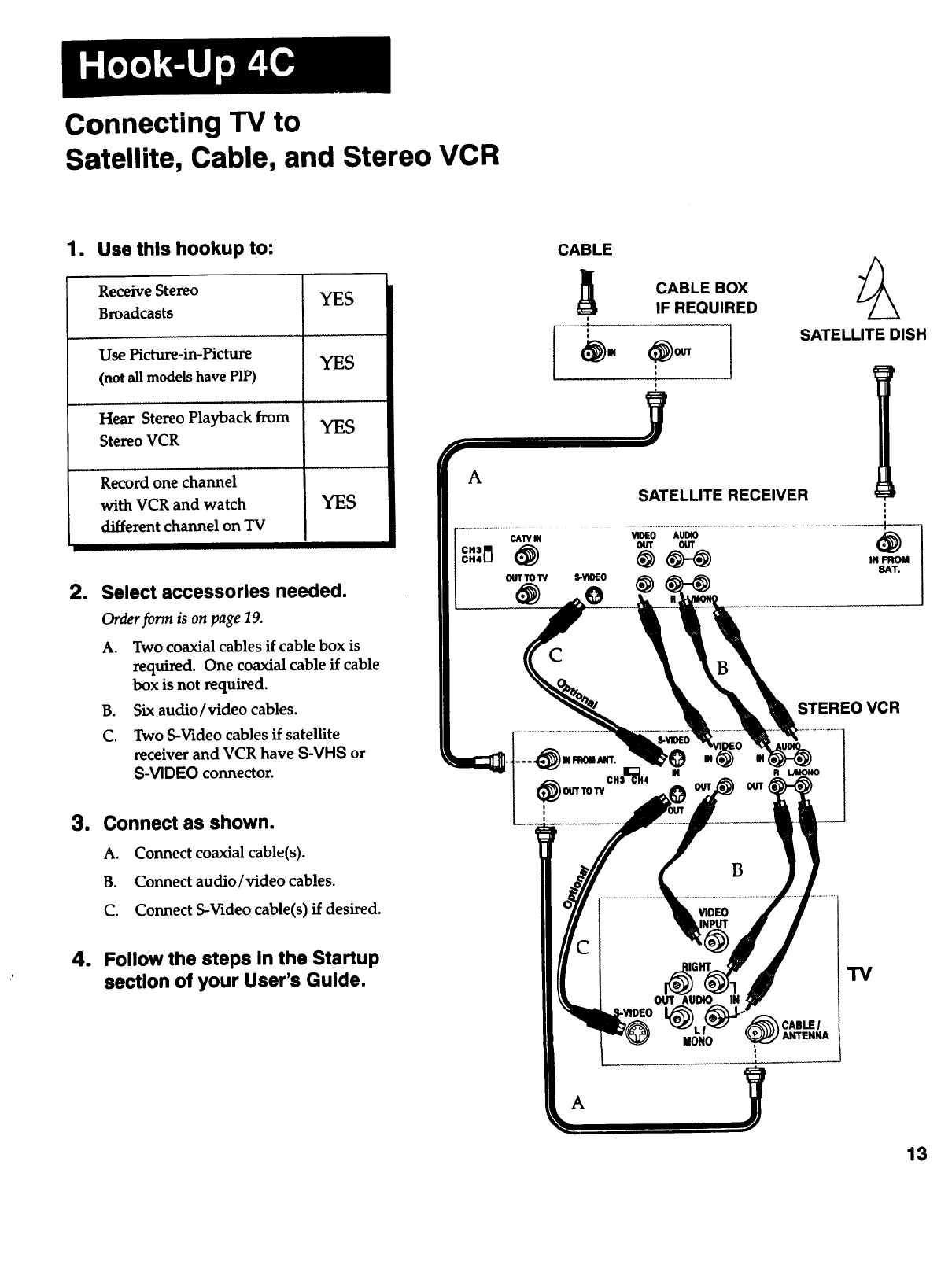

Connecting TV to
Satellite, Cable, and Stereo VCR
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Picture-in-Picture
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
YES
YES
YES
al Select accessories needed.
Order formis on page 19.
A. Two coaxial cables if cable box is
required. One coaxial cable if cable
box is not required.
B. Six audio/video cables.
C. Two S-Video cables if satellite
receiver and VCR have S-VHS or
S-VIDEO connector.
3. Connect as shown.
A. Connect coaxial cable(s).
B. Connect audio/video cables.
C. Connect S-Video cable(s) if desired.
CABLE
i"
I
CABLE BOX
IF REQUIRED
|
i
SATELLITE DISH
A
CAW IN
oulrlgw S-V_E0
SATELLITE RECEIVER
i
C
STEREO VCR
4. Follow the steps In the Startup
section of your User's Guide. TV
CABLE I
)ANTENNA
13
Connecting TV to
Satellite and Antenna
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Picture-in-Picture
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
YES
NO
NO
SATELLITE DISH
SATELLITE RECEIVER !
i
CAW I VIDEO AUDIO
T0 W $-V_EO SAT.
R_NO
11
11
u
14
Select accessories needed.
Order form is on page 19.
A. Three audio/video cables.
B. One S-Video cable if satellite receiver
has an S-VHS or S-VIDEO
connector.
C. Some antennas require an adapter.
Use the diagram at right to
determine if you need one.
Connect as shown.
A. Connect audio/video cables.
B. Connect S-Video cable if desired.
C. Connect adapter to antenna
if needed.
Follow the steps in the Startup
section of your User's Guide.
TV
OR OR OR
UHF VHF UHF VHF & UHF VHF & UHF
Choose Your Type of Antenna Cable
Connecting TV to
Satellite, Antenna, and Monaural VCR
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Picture-in-Picture
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
YES
YES
NO
Record one channel
with VCR and watch YES
different channel on TV
2. Select accessories needed.
Order form is on page 19.
A. Three coaxial cables.
B. Three audio/video cables.
C. One S-Video cable if satellite receiver
has an S-VHS or S-VIDEO
connector.
D. Some antennas require an adapter.
Use the diagram at right to
determine if you need one.
3, Connect as shown.
A. Connect coaxial cables.
B. Connect audio/video cables.
C. Connect S-Video cable if desired.
D. Connect adapter to antenna
if needed.
4. Follow the steps in the Startup
section of your User's Guide.
Choose Your Type of Antenna Cable
VHF & UHF VHF & UHF VHF
/
/
/
t
/
/D
ADAPTERS
MONAU RAL VCR
UHF VHF UHF
i
/t
,/SATELLITE
/-'/" RECEIVER
A
B
VIDEO
C
i
IN FROM
SAT.
TV
15
Connecting TV to
Satellite, Antenna, and Stereo VCR
1. Use this hookup to:
Receive Stereo
Broadcasts
Use Picture-in-Picture
(not all models have PIP)
Hear Stereo Playback from
Stereo VCR
Record one channel
with VCR and watch
different channel on TV
YES
YES
YES
YES
2. Select accessories needed.
Order form is on page 19.
A. One coaxial cable.
B. Six audio/video cables.
C. Two S-Video cables if satellite
receiver and VCR have an S-VHS or
S-VIDEO connector.
D. Some antennas require an adapter.
Use the diagram at right to
determine if you need one.
uConnect as shown.
A. Connect coaxial cables.
B. Connect audio/video cables.
C. Connect S-Video cable(s) if desired.
D. Connect adapter to antenna
if needed.
4. Follow the steps in the Startup
section of your User's Guide.
Choose Your Type of Antenna Cable
VHF & UHF VHF & UHF V'HF UHF VHF UHF
B
.@
_IOEO
B
STEREO
VCR
i
VIDEO
C
o_CABLEI
: MONO ;ANTENNA
,,
i
"IV
A
SATELUTE
DISH
=
IN FROM
SAT.
16
Connecting TV to
Audio System (select models only)
1. Use this hookup to:
Hear sound through the speakers j
connected to the amplifier.
2. Select accessories needed.
Order form is on page 19.
A. Two single audio cables.
BConnect as shown.
A. Connect audio/video cables.
B. Insert plugs completely to avoid
audio hum.
4. Place speakers.
A. Place speakers at least eight inches
away from the TV to prevent color
streaks in the picture.
1
=
Operate amplifier.
A. Turn on TV and amplifier.
B. Press "IV button on front of
amplifier.
C. Adjust the amplifier's volume for
normal listening.
D. Control sound with the VOLUME
buttons on the TV's remote.
E. Turn off the TV's internal speakers if
desired with the SPEAKERS
ON/OFF feature described in the
User's Guide.
Follow the steps in the Startup
section of your User's Guide.
A
SPEAKER
These AUDIO OUT jacks
are not on all models.
S-VIDEO
@MONO
(_ CABLEI
ANTENNA
TV
This set incorporates special circuits
which enhance stereo imaging and
effect when used with the TV's own
speakers. If external speakers are
used, the stereo effect may decrease.
17
Coaxial Cables Audio/Video Cables ......... --_-_
Screw-on Coaxial
Cable
Used to attach antenna
connectors on the back of
your TV or VCR for a
secure connection. #AH037 (3-ft)
Single Audio/Video
Cable
Used to connect AUDIO or
VIDEO jacks. Cable is
shielded and has an RCA-
type plug on each end.
Gold-Tipped Cables
#AH069G (3-ft)
#AH070G (6-ft)
Push-on Coaxial Cable
Used to attach antenna
connectors on the back of
your TV or VCR for a quick
connection. Gold-Tipped Cables
#AHO65G (6-ft)
#AH066G (10-ft)
Double Audio/Video
Cable
Used to connect AUDIO or
VIDEO jacks and has two
plugs on each end. Cable is
color-coded and shielded
and has RCA-type plugs on
each end. Gold-Tipped Cable
#AH075G (6-ft)
S-Video Cables ..........
S- Video Cable
Used to connect a
compatible S-Video
component to the S-VIDEO
connector on your TV.
Cable has a multi-pin
connector on each end.
#VAA014 (5-ft)
#VAA020(8-ft)
Triple Audio/Video
Cable
Used to connect AUDIO and
VIDEO jacks and has three
plugs on each end. Cable is
color-coded and shielded
and has RCA-type plugs on
each end.
Double Audio Cable
Used to connect AUDIO
jacks not VIDEO jacks.
Cable is color-coded and
shielded and has RCA-type
plugs on each end.
Gold-Tipped Cable
#AH077G (6-ft)
Gold-Tippe/d Cable
#AH072G (3-ft)
18
Antenna Adapters mammmamma
Antenna Adapter
Used to connect a
twin-lead cable to the
connector on your TV
or VCR. Adapter
#193983
Antenna Adapter
Used to attach one
coaxial cable and one
twin-lead cable to the
connector on your TV
or VCR. Adapter
#197551
Antenna Adapter
Used to attach two
twin-lead cables to
the connector on your
TV or VCR.
Adapter
#193984
Signal Splitters
Splitter
Used to separate
incoming signal and
send to separate Splitter
devices. #AH047
Signal Switch
A-B Switch
Used to send a signal
to one of two separate
devices. A-B Switch
#AH041
Order Form
(Book No. 1Q57 400-01A, Rev 1)
Description
Coaxial Cable
Length: 3-ft
Coaxial Cable
Length: 6-ft
Coaxial Cable
Length: 10-ft
S-VHS Video Cable
Length: 5-ft
S-VHS Video Cable
Length: 8-ft
Single Audio/Video Cable
Length: 3-ft
Single Audio/Video Cable
Length: 6-ft
Double Audio/Video Cable
Length: 6-ft
Triple Audio/Video Cable
Length: 6-ft
Double Audio Cable
Length: 3-ft
Antenna Adapter
Antenna Adapter
Antenna Adapter
Splitter
A-B Switch
Part No.
AH037
AH065G
AH066G
VAA014
VAA020
AH069G
AH070G
AH075G
AH077G
AH072G
193983
197551
193984
AH047
AH041
Price
$ 3.95
$6.99
$ 8.99
$27.55
$29.95
$ 5.99
$ 7.99
$10.99
$14.99
$ 8.99
$ 6.95
$11.40
$10.73
$ 3.99
$14.95
Qty Total
Prices are subject to change without notice•
Total Merchandise ($10 Minimum Order) ...............................$
Sales Tax.................................................................................................$._
We arerequiredby law to collectthe appropriate
salestaxforeach individualstate, county, and locality
to which themerchandiseisbeingsent.
2
-1-
t-
O
0_
a
Shipping, Handling, and Insurance ............................................$__5.00
Total Amount Enclosed .................................................................... $__
Use VISA or MasterCard preferably.
Money order or check must be in U.S. currency only.
No COD or CASH.
19
2O
Charge your order on your VISA
or MasterCard by
filling in below
USE YOUR CREDIT CAR1)
IMPORTANT: Copy complete account number
from your VISA card
N-F-N VT-N VF
M, .expires:VT-1VVq
IMPORTANT: Copy complete account number
from your MasterCard
FT'T'qT[-I-I---NI I I I II I I I I
Copy m r ycar F-r-lF-1--1
above your expires:
name On
MasterCard
AUTHORIZED SIGNATURE
Prices are subject to change without notice.
PLEASE Print or type your name and
address clearly. This will be your
mailing label.
Acomplete and correct order will
save you days of waiting.
Name:
Street:
City:
State:
Apt:
Zip:
"l-
t-
O
ID
a
United States and Canada Orders
Order by phone using your VISA or
MasterCard. Call the toll-free number listed
below between 8 AM and 8 PM Eastern
Standard Time. Use this number only to
place an order for accessory items listed on
this order form.
1-800-338-0376
Most orders are shipped UPS within 72
hours of receipt. If it is not possible to ship
within 30 days, we will notify you.
For mail order, detach and mail the
completed order form with credit card
information, money order, or check in U.S.
currency (made payable to Thomson
Consumer Electronics, Inc.) to the following
address:
Video Accessories
PO Box 8419
Ronks, PA 17573
For more current information on these
accessories, write to the following address:
Video Accessories Customer Service
Thomson Consumer Electronics, Inc.
Distributor & Special Products
2000 Clements Bridge Rd
Deptford, NJ 08096-2088
International Orders
This offer is valid only in the United States
and Canada. For international orders, please
send your request for a price quotation (not
an order) to:
International Customer Service
Thomson Consumer Electronics, Inc.
Distributor & Special Products
2000 Clements Bridge Rd
Deptford, NJ USA 08096-2088
Guide to Connection l'anel
The connections panel is on the back of your IV. This is where you
connect the cables and components. Most connections can be made
with the three basic cable types shown below. To order cables, see
pages 18-20.
AUDIO OUTPUT JACKS
(not on all models)
Used to connect a
system. Sound comes
through the TV's
speakers and stereo
amplifier's speakers.
Use audio or
audio /video cables.
Audio/Video
Cable
S-VIDEO CONNECTOR
(not on all models)
tUsed to connect a compatible
component such as satellite
receiver, laserdisc player, VCR,
or camcorder. Use an S-Video
cable to connect S-Video
components.
S-Video Cable
AUDION1DEO INPUT JACKS
Used to connect a VCR, laserdisc player,
satellite receiver, or camcorder. To see the
picture coming from the component you
Audio/Video
Cable
connected, select channel 00 on the TV or
press the INPUT button. Use
audio/video cables.
CONNECTION
PANEL ON
BACK OF TV
CABLE/ANTENNA CONNECTOR
Used to attach antenna or cable. Use a
coaxial cable for this connection.
Coaxial
Cable
21
Things to Know Before Connecting Cables
Protect your components from
power surges
Connect all components before plugging any power cords into the
wall outlet.
Always turn off the TV and/or component before you. connect or
disconnect any cables.
Avoid audio hum or interference by
positioning cables correctly
Insert all cable plugs firmly into their jacks.
Place the audio/video cables to the sides of the TV's back panel
instead of straight down the middle after you connect your
components.
Try not to coil any twin-lead cables and keep them away from the
audio/video cables as much as possible.
Make sure all antennas and cables are properly grounded. Refer to
the Safety Tips sheet packed with your TV.
Protect your components from
overheating
Do not block ventilation holes in any of the components. Arrange
the components so that air can circulate freely.
Do not stack components.
Allow adequate ventilation when placing your components in a
stand.
Place an amplifier on the top shelf of the stand so heated air rising
from it will not flow around other components.
Connect audio/video cables for best
results
• Required for picture-in-picture feature (this feature is not on all
models).
22
Trouble Checks
Trouble
TV
No picture or sound
Checks and Adj ustments
i i ii
Check your connections.
Make sure TV's power cord is plugged into awall socket.
Make sure TV is turned on.
Make sure TV is tuned to correct channel. If TV is tuned to channel 00,
turn on component connected to TV's AUDIO and VIDEO jacks.
Make sure TV is tuned to the output channel (usually 02, 03, or 04) if
using a cable box.
No sound Make sure the TV's internal speakers are turned on.
No stereo sound Connect the three audio and video cables from the component's outputs
to the TV's inputs, then select channel 00 on TV to hear stereo from a
stereo component.
Make sure the TV's stereo feature is turned on.
Sound comes from only
one speaker
Make sure the monaural (not stereo) component's AUDIO OUT is
connected to the TV's AUDIO INjack labeled I.!MONO.
Check the speaker wire connections if you connected an amplifier.
Color streaks appear in the
picture Make sure all cables are firmly seated in their jacks.
Place external speakers at least 8 inches away from the TV.
VCR
No picture For connections 1B, 1C, 4C, 5C:
1. Make sure the VCR is turned on and tuned to an active channel.
2. Select channel 00 on the TV when VCR is connected to the TV using the
the AUDIO and VIDEO IN jacks.
continued on the next page 23
Trouble Checks
Trouble
VCR (con_-ed)
No picture
Checks and Adjustments
For connections 2B, 2C, 3B, 3C:
1. Make sure the VCR is turned on.
2. Make sure the cable box is turned on and the VCR is tuned to the
output c.hannel (usually 02, 03, or 04) of the cable box.
3. Select channel 00 on the TV when VCR is connected to the TV using the
the AUDIO and VIDEO INjacks.
For connections 4B, 5B:
1. Tune the TV to channel 03 or 04, the same channel the VCR CH3/CH4
switch is set to.
2. Place the TVNCFI button in the VCR position to see the picture from
the VCR.
Can't record one channel
with the VCR while
watching a different
channel on the TV
For connections 2B, 2C:
Not possible with these connections because only one channel at a time
can come from the cable box.
For connections 1B, 1C:
11 Turn on TV and select channel 00 on the TV.
2. Turn on VCR, insert tape, select channel to record with CHANNEL
buttons on VCR, and then press RECORD on VCR.
3. Press TVNCR button on VCR (also called "I'VNCR switch).
4. Change channel on TV with TV's CHANNEL buttons.
For connections 3B, 3C:
1. Turn on TV and select channel 00 on TV.
2. Turn on cable box.
3. Turn on VCR and use CHANNEL buttons on VCR to tune the VCR to
the output channel of the cable box (usually 02, 03, or 04).
4. Select channel to record with CHANNEL buttons on cable box.
5. Insert tape into VCR and then press RECORD button on VCR.
6. Change channel on TV with TV's CHANNEL buttons to view another
channel. The recording will not be affected. Tune TV to channel 00 if
you want to see what is being recorded.
24
Trouble Checks
Trouble Checks and Adjustments
VC......._R (continued)
Can't record one channel
with the VCR while
watching a different channel
on the TV
For connections 4B, 5B:
1. Turn on TV, VCR, satellite receiver, and cable box (if required).
2. Make sure [RD/'I'V switch on satellite receiver is in TV position so signal
from cable box or antenna is coming out the OUT TO TV jack on the
satellite receiver.
3. If cable box is required, use CHANNEL buttons on VCR to tune VCR to
output channel of cable box (usually 02, 03, or 04).
4. Select channel 03 or 04 on TV (depending on the position of the
CH3/CH4 switch on the back of the VCR).
5. Select desired channel with CHANNEL buttons on cable box if cable box
is required. If cable box is not required, select desired channel with
CHANNEL buttons on VCR.
6. Insert tape in VCR and press RECORD on VCR.
7. To watch satellite channel, select channel 00 on TV.
8. Then select desired channel to watch with CHANNEL buttons on
satellite receiver.
For connections 4C, 5C:
1. Turn on TV and select channel 00 on TV with remote.
2. Turn on satellite receiver and select desired satellite channel with
CHANNEL buttons on satellite receiver.
3. Turn on VCR and set it to line mode (se e glossary) so you can see the
satellite signal coming into its AUDIONIDEO INjacks.
4. Insert tape in VCR and press RECORD on VCR.
5. Press "I'VNCR button on VCR. This lets the cable signal flow directly
out of the OUT TO "IVjack of the VCR without affecting the recording.
6. If cable box is required, turn on cable box, change channel on TV to
output channel of cable box (usually 02, 03, or 04), and select desired
channel with CHANNEL buttons on cable box.
7. If cable box is not required, select desired channel with CHANNEL
buttons on TV.
continued on the next page 25
Trouble Checks
Trouble Checks and Adjustments
Satellite Receiver
No picture
l_or connections 4A, 4B, 5A, 5B:
1. Make sure satellite receiver is turned on and tuned to an active
channel.
2. Select channel 00 on the TV.
For connections 4C, 5C:
1. Turn on TV and tune it to channel 00.
2. Turn on satellite receiver.
3. Turn on VCR and set it to line mode (see glossary).
4. Select desired channel with CHANNEL buttons on satellite receiver.
Cable Box
No Picture
For connections 2A, 4A:
1. Turn on cable box and tune to an active channel.
2. Tune TV to output channel (usually 02, 03, or 04) of cable box.
3. Select desired channel with GHANNEL buttons on the cable box.
For connections 2B, 2C, 3B, 3C:
1. Turn on cable box and tune to an active channel.
2. Tune the TV to the output channel (usually 02, 03, or 04) of the cable
box with VCR turned off. With VCR turned on, tune VCR to output
channel of cable box and select channel 00 on the TV.
3. Select desired channel with CHANNEL buttons on the cable box.
For connection 3A:
1. Turn on cable box and tune to a premium channel.
2. Tune the TV to the output channel of cable box.
3. Place A-B switch in the B position to watch premium channels.
4. Place A-B switch in the Aposition to watch other channels when cable
box is not needed.
For connection 4B:
1. Turn off satellite receiver or press IRDi-I'V switch on satellite receiver.
2. Turn off VCR, or press -I-VNGR button on VCR.
For connection 4C:
1. Turn off VCR, or press -I'V/VGR button on VCR.
26
Trouble Checks
Trouble Checks and Adjustments
Picture-in-Picture
(not on all TV models)
No Picture
For connections 1A, 2A, and 3A:
Picture-in-Picture is not possible with these connections.
For connections 2B and 2C:
Picture-in-Picture is possible with these connections when playing a tape
in the VCR.
1. Turn on TV, then turn on cable box to desired channel.
2. Insert tape in VCR and press PLAY.
3. Press the TV/VCR button to return to TV control.
4. Turn on Picture-in-Picture feature.
5. Tune TV to channel 00.
For all other connections:
1. Make sure a component such as a VCR or camcorder is connected to
the TV's AUDIO and VIDEO IN jacks.
2. Turn on TV to watch one picture through the CABLE/ANTENNA
connector.
3. Turn on component connected to AUDIO IN and VIDEO INjacks.
4. Tune TV to channel 00 to see the other picture.
For S-Vide0 connection:
Be sure to connect the regular VIDEO cable for picture-in-picture when
you have an S-VHS component connected to the TV with an S-VHS
cable. The S-VIDEO signal cannot be used for picture-in-picture.
2!
Glossary
28
Adapter
Accessory u_d to attach antenna cables to the
round antenna connector on the TV.
Antenna
Antenna used to receive local broadcast.
Usually an outdoor roof antenna, attic type
antenna, or indoor dipole type antenna (some-
times referred to as rabbit ears).
Audio/Video Cables
Cables that carry sound and picture signals
from one component to another.
Cable
Asystem of distribUting TV signals to a home
supported by a cable company.
Cable Box
Required by some cable companies to receive
all or some cable channels.
Cable Box Required for All Channels
Required by some cable companies to receive
all cable channels.
Cable Box Required for Some
Channels
Required by some cable companies to receive
premium channels like HBO, Showtime, etc.
CATV
Abbreviation used for Cable TV.
CH3/CH4 Switch
Located on components such as VCRs,
satellite receivers, camcorders, etc. Lets you
select the output channel of the component..
Coaxial Cable
Acable surrounded by a protective shielding
to prevent interference.
Component
Any device such as a VCR, camcorder,
laserdisc,, satellite receiver, amplifier, etc.
Connection Panel'
Name given to area on back of TV where you
connect additional components. Also called
"jack panel."
IN Jacks
Jacks on back of component to which the OUT
jacks from other components are connected.
Used to receive signals from that component.
INPUT Jacks
SeeIN Jacks.
IRD/TV Switch
Controls the signal coming out of the
receiver's OUT TO "IV jack. Lets you choose
between either satellite signals or signals from
whatever is connected to the receiver's CATV
IN jack.
Jack Panel
See Connection Panel.
Jacks
See IN Jacks or OUT Jacks.
L/MONO (left/monaural) Jack
Used to connect a monaural component with
only one audio jack. Sound comes through
both TV's left and right speakers.
Line Input
Used on a VCR to switch between the VCR
signal and the signal of the component
connected to the AUDIO and VIDEO INjacks
of the VCR.
Line Mode
See Line Input.
Glossary
Monaural
A component with only one audio channel.
Mono
Slang for monaural. See Monaural.
OUT Jacks
Jacks on back of component to which the IN
jacks from other components are connected.
Used to send signals to that component.
Output Channel of Cable Box
Channel to which TV is tuned to see the
signal coming from the cable box.
Output Channel of VCR
Channel to which TV is tuned to see the
signal coming from the VCR. See CH3/CH4
Switch.
Output Jacks
SeeOUT lacks.
Picture-in-picture
Afeature that allows you to watch two
channels at same time, a small picture within
a big picture. One of the pictures must come
from a VCR or other component connected to
the TV.
PIP
Abbreviation for picture-in-picture explained
above.
Premium Channels
Scrambled cable channels such as HBO or
Showtime that may require a cable box to
unscramble.
S-VIDEO
Super Video, another name for S-VHS. The
S-VIDEO jack on the TV lets you connect
compatible S-Video components. See S-VHS.
Scrambled Channel
Some cable companies require their
customers to rent a cable box to unscramble
the channel for viewing.
Splitter
An accessory used to divide an incoming
signal and send it to two separate
components. See picture on page 19.
Stereo
A two-channel sound system using separate
right and left channels.
TVNCR Button
Controls the signal coming out of the VCRs
OUT TO TV connector. It switches the signal
between the VCR and TV. When this button
is set to VCR, you see the picture from a
channel on the VCR. When this button is set
to TV, you see the signal from TV no matter
what the VCR is doing. See your VCR manual.
TV/VCR Switch
See TVNCR Button.
VCR
Video Cassette Recorder.
VCR Button
See "TVNCR Button."
S-VHS
A Super VHS recording format that improves
the picture quality. It is found on some VCRs
and camcorders.
If your TV needs service, please refer to the warranty in the TV User's
Guide. Please do not send any products to the Indianapolis address
listed in this manual or on the carton. This will only add delays in
service for your product.
Thomson Consumer Electronics
600 N Sherman Dr, PO Box 1976
Indianapolis, IN 46206-1976
FL68690
©1994 Thomson Consumer Electronics, Inc.
Trademark(s)® Registered
Marca(s) Registrada(s)
Printed in the U.S.A.
Part Number 1Q57 400-01A, Rev 1
