nCR

camcorder

user's guide

CC8251

Important Safety Information

Be sure to read all the safety information before you begin to use this product.

WARNING: To reduce the risk of fire or shockhazard, do not expose

camcorder or AC adapter/charger to rain or moisture.

RISK_ELECn:UCSHOCK

DO NOT OPEN

This symbol indicates "dangerous voltage"

inside the product that presents a risk of electric

shock or personal injury.

This symbol indicates important instructions

accompanying the product.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER

(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

Cautions

CAUTION: To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION: Pour 6viter les chocs 61ectriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la prise et

pousser jusqu au fond.

To reduce risk of injury, charge only rechargeable batteries recom-

mended by the manufacturer for this camcorder. Other types of

batteries may burst causing damage and personal injury.

FCC Regulations state that unauthorized changes or modifications to

this equipment may void the user's authority to operate it.

Product Registration .

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed.

Keep your sales receipt for proof of purchase to obtain warranty parts

and service and attach it here.. Record the serial number and model

numbers located on the bottom of the camcorder.

Model No: CC8251

Serial No:

Purchase Date: .....

Purchased From: _ _ ....

Wewantto makesureyouenjoyyournewcamcorder.If youhaveany

questions,call:

Camcorder Exchange Warranty ...........800-283-6503 (pages62-63)

Customer Service ................................... 800-336-1900 (page 61)

Accessories ............................................. 800-338-0376 (pages 48-53)

Safety Information .............................. i

First Time Operation

•Assistance ....................................... 3

•Unpack the Camcorder and

Accessories ................................. 3

• Attach the Adapter/Charger ............ 4

• Insert a Tape .................................... 4

• Open the Lens Cover ...................... 5

• Adjust the Hand Strap ..................... 5

• Turn on the Camcorder ................... 6

• Adjust the Viewfinder and

Eyepiece Focus Control ............. 6

• Start and Stop Recording ................ 6

• Play Back What you Have

Recorded .................................... 7

• Set the CAM/OFF/VCR

Switch to OFF ............................ 7

• Close the Lens Cover ...................... 7

• Review Camcorder's

Operating Controls .................. 8-9

Remote Control

• Location and Function of

Buttons ............................... 10-11

•Install Remote Batteries ................ 12

•Re;note Sensor ............. :................ 12

Power Your Camcorder

Use the Adapter/Charger to

Power Your Camcorder ............ 13

Use the Battery to Power

Your Camcorder

•Charge the Battery .................... 14

• Attach the Battery ..................... 15

• Battery Safety Precautions ....... 15

• Battery Level Indicator ............. 16

• Battery Care and Storage .......... 16

Use the RCA Optional

Car Cord Adapter ..................... 17

Videocassettes

•Erase Protection ............................ 18

•Recording and Playback

Speed and Times ...................... 18

• Insert and Remove Cassettes ........ 19

• Cassette Care and Storage ............. 19

Date and Time Display

•Set the Time and Date ................... 20

• Record Time and Date, AUTO

Date, Auto TITLE, or Date ......... 21

• Install the Clock Lithium Cell ....... 22

1

Recording

• Use the Viewfinder

to See What You Record .......... 23

• Viewfinder Displays ................. 24-25

• Microphone ................................... 26

• Flying Erase Head ................ ......... 26

• Tally Light ..................................... 26

• Quick Review Feature ................... 26

• Camera Edit Feature ..................... 27

• Program AE (Auto Exposure) ....... 27

• Fociasing

• Auto Focus ................................ 28

• Manual Focus ........................... 28

• Macro Focus ............................. 29

• Tape-Remaining Display ............... 29

• Zooming

• Use the Zoom Lever ................. 30

• Instant Zoom. ............................ 30

• Fade In and Out of Scenes ............ 31

•DISPLAYButton... ......................... 32

• Time Counter ............................ 32

• Memory-Stop Feature ............ 32

• Date Search ............................... 33

• Digital Effects ............................... 34

• 16 X 9 Mode ............................. 35

• Negative Mode ......................... 36

• Digital Zooming ....................... 36

• Mirror Mode ............................. 37

• Mosaic Mode ............................ 37

• Titler

• Create a Title ............................. 38

• Record a Title on the Tape

in the Camcorder ................... 39

• Record a Title While Copying

a Tape .................................... 39

• ,_,udio and Video Dub ................... 40

2

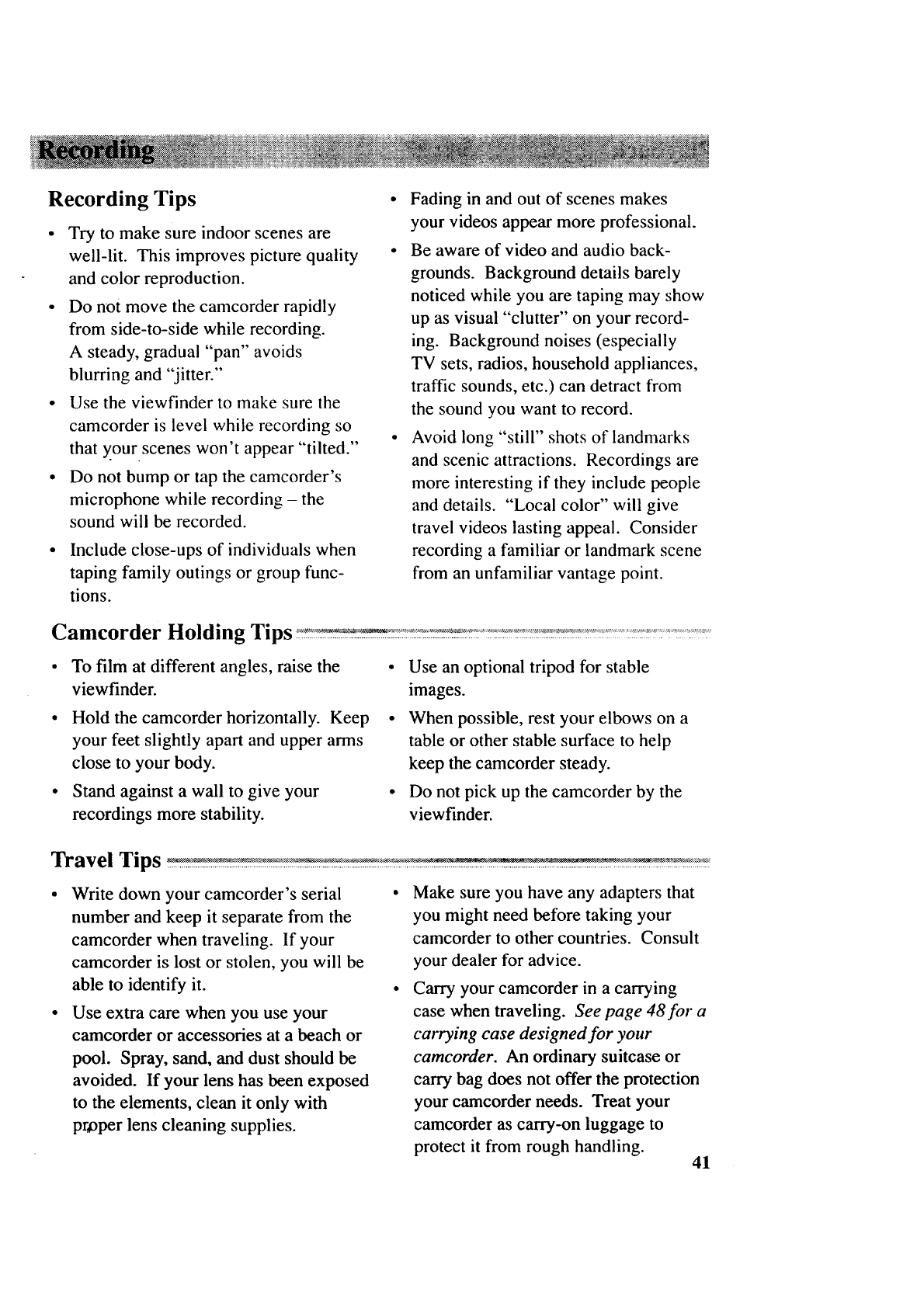

• Recording Tips .............................. 41

• Camcorder Holding Tips ............... 41

• Travel Tips .................................... 41

Playback

• Playback a Tape in the

Viewfinder ............................ 42

• Playback Features

• Stop-Action Pause ..................... 43

• Visual Searching ........................ 43

• Tape Positioning ........................ 43

• Playback on TV (or VCR) with

Audio/Video Input Jacks ..... 44-45

• Playback on TV Without

Audio/Video Input Jacks ..... 46-47

Optional Accessories

•Accessories ................................... 48

• Using the Optional Tripod ............ 49

• Attaching the Optional Shoulder

Strap .......................................... 50

• Accessory Order Form ............. 51-53

Trouble Checks ........................... 54-57

Care and Maintenance

• Clean the Camcorder ..................... 58

• Clean the Camcorder's Lens ......... 58

• Clean the Camcorder's

Viewfinder ................................. 58

• Proper Care and Storage ............... 59

• Things to Avoid ............................. 59

Specifications .................................... 60

Information to User ..................... .... 60

Customer Assistance ........................ 61

Limited Warranty ............... ........ 62-63

Index ............................................ 64-68

This section describes the basic steps necessary to set up your camcorder to record.

Refer to the other sections for detailed operation and feature options.

Assistance

The toll-free numbers are available to help you with any problem you may encounter.

Camcorder Exchange Warranty ............... 800-283-6503

Customer Service ................................... 800-336-1900

Accessories ............................................. 800-338-0376

.Unpack the camcorder and accessories.

•Save the packing materials and box in case you ever need to ship

or-store your camcorder.

•The items shown below are packed with your camcorder. If any

are missing or appear damaged, contact your dealer immediately.

"AA" Batteries

for Remote

Camcorder

Model CC8251

AC Adapter/Charger

Stock No. 241250

DC Cable: Stock No. 233407

Remote Control

Stock No. 241920

Rechargeable 7.2-Volt Battery

Stock No. BB65L

Audio/Video

Output Cable

Stock No. 233408

<S)

Clock Cell

3-Volt Micro Lithium

Cell - such as CR2025 -

available from most local

drug stores and camera

shops. Use.f other cells

present a risk of fire or

explclsion.

3

(continued on next page)

2. Attach the adapter/charger. To AC 100-240V, 50/60 Hz

JlCOUT Jack It'[]_

ble F"_/

DC C J Adapter/

DC IN 6V Jack Charger

Since the battery must be charged

before it can be used the first time,

attach the adapter/charger to the

camcorder.

1. Attach one end of the adapter/

charger's DC cable to the DC

OUT jack on the side of the

adapter/charger.

2. Attach the other end of the cable

to the DC IN 6V jack on the

camcorder.

3. Plug the adapter/charger's plug

into an operating outlet.

4. Details are on page 13.

oInsert a tape .................................................................................................................................................................................................................................................

Cassette Holder

EJECT Switch

Tab

Tape Window

4

Cassette Door (Presson

PUSH LOCK to close.)

1.Slide EJECT to open the cassette

compartment. _ EJECT

appears in the viewf'mder.

2. Insert the cassette fully with the

, safety tab and tape window

facing out into the cassette

compartmen t.

3. Press on the area labeled PUSH:

LOCK until the door clicks.

4. Open the lens cover.

Lens Cover CLOSE/

OPEN Switch

• Align the lens cover CLOSE/

OPEN switch to OPEN to open the

lens cover.

Note: Press in the small button on the

switch when you set the switch to

CLOSE.

5. Adjust the hand strap. _______

Handstrap Flap

Handstrap

•Open the handstrap, insert your

hand, and adjust the handstrap to

fit your hand. Close the handstrap

pad securely.

.€ (continued on next page)

5

_iece

Focus

Control

Viewfinder

Thumb Trigger

Switch

6. Turn on the camcorder.

•Press and hold the small button

on the CAM/OFF/VCR switch

while you set it to CAM. The

camcorder enters record-pause.

•The position of this switch tells

the camcorder whether you want

to record (CAM), turn the power

off (OFF), or play back tapes

(VCR).

•The camcorder automatically

turns off if it remains in record-

pause for five minutes. Place

the switch to OFF and then back

to CAM.

Notes:

The TAPE indicator flashes in the

viewfinder when there is moisture in the

camcorder. Remove the tape and wait an

hour before inserting the tape in the

camcorder again.

If you want the date and time displayed

on your recordings, you must set it. See

Date and Time Display on pages 20-22.

0Adjust the viewfinder and

eyepiece focus control.

Rotate the viewfinder into a

comfortable viewing position.

Turn the eyepiece focus control to

adjust the focus of the viewfinder

for your vision.

8. Start and stop recording.

•Press and release the thumb

trigger to start recording. REC

appears in the viewfinder when

the camcorder is recording.

• Press and release the thumb

trigger again to stop recording.

The camcorder is now in the

record-pause mode ( • IIappears in

the viewfinder when the

camcorder is in record-pause).

6

sCover

CLOSE/OPEN

Switch

.Play back what you have

recorded.

1. Press the thumb trigger to pause

recording.

2. Press and hold the small button

on the CAM/OFF/VCR switch

while you set it to VCR.

3. Press REW/REVIEW to rewind

the tape.

4. Press PLAY to play backthe tape.

5. Press STOP when you are

finished playing backthe tape.

10.

11.

Details on viewfinder playback are

on page 42. _ _ _ •

Set the CAM/OFF/VCR

switch to OFF to turn off the

camcorder.

Close the lens cover.

Press and hold the •small button on

the lens cover CLOSE/OPEN

switch while you set it to CLOSE.

7

•..

12. Review camcorder's operating controls.

Viewfinder

Eyepiece

Focus

Control

_- Shoulder Strap

Attachment Ring

Lens

Tally Light

Remote Sensor

ZOOM Button

EFFECTS Button

Button

v/A

Buttons

PUSH LOCK

Button (Press here

to close cassette

Cover compartment.)

CLOSEIOPEN

Switch

Button

Rechargeable

Battery Here

Shoulder Strap

Attachment Ring

DC IN 6V Jack (Attach

Adapter/Charger's DC

Cord Here)

8

12. Review camcorder's operating controls. (continued)

EJECT

• Button

Button /

REW/REVIEW / [_

Button _-_

STOP

Button

Audio (White)

and Video

(Yellow) Jacks

(Under Small

Cover)

RF Output

Connector

(Under Small

Cover)

VCR Switch

Thumb Trigger

Power Zoom

Lever

Strap Flap

Hand Strap

Clock Cell

Compartment Tripod

Mounting

Hole

9

Location and Function of Buttons

A brief description of the functions of the remote buttons is given here. Some

buttons perform the same function as the corresponding controls on your camcorder.

You can use whichever is more convenient at the time.

Notes: Install the batteries in the remote as described on page 12.

An RCA VCR that is set to respond to VCR2 may respond to this remote when it is used to

operate the camcorder.

A/V (Audio/Video) DUB Button

Use this button to record new audio and

video in place of existing audio and video

on a recorded tape. Details are on

page 40.

DISPLAY Button

Repeatedly press DISPLAY to display the

time counter, turn the time counter's

memory-stop feature on, and display the

date-search feature. Details are on

pages 32-33.

COUNTER/RESET Button

Press COUNTER/RESET to set the time

counter back to 0:00:00.

F.FWD (Fast Forward) Button

•Press and hold FFWD when the CAM/

OFF/VCR switch is set to CAM to

visually search forward on the recorded

tape. Release F.FWD to begin record-

ing at that point on the tape.

•Press F.FWD when the CAM/OFF/

VCR switch is set to VCR to fast

forward the tape. Press STOP to stop

fast forwarding.

• Press F.FWD during playback (CAM/

OFF/VCR Switch set to VCR) to

visually search the tape forward at a

high speed. Press PLAY to return to

normal playback.

10

Location and Function of Buttons (continued)

PLAY Button

• Press PLAY when the CAM/OFF/VCR

switch is set to CAM to visually search

the recorded material at normal speed.

Release PLAY to begin recording at

that point.

• Press PLAY when the CAM/OFF/VCR

switch is set to VCR to begin playback.

REW (Rewind) Button

• Press and release REW when the CAM/

OFF/VCR switch is set to CAM to

visually search the last few seconds of

recorded tape. The camcorder will

play back the last few seconds of the

recording and return the tape to its

previous position.

• Press and hold REW when the CAM/

OFF/VCR switch is set to CAM to

visually search in reverse on the

recorded tape. Release REW to begin

recording at that point.

• Press REW when the CAM/OFF/VCR

switch is set to VCR to rewind the tape.

Press STOP to stop rewinding.

• Press REW during playback (CAM/

OFF/VCR switch set to VCR) to

visually search the tape in reverse at a

high speed. Press PLAY to return to

normal playback.

START/STOP and PAUSE Button

(Same as Thumb Trigger on

Camcorder)

•Press and release START/STOP to start

and stop recording when the CAM/

OFF/VCR switch is set to CAM.

Press and release START/STOP

(PAUSE) during playback (CAM/OFF/

VCR switch set to VCR) to produce a

stop-action picture. Press again to

return to normal playback.

STOP Button

• Press STOP when the CAM/OFF/VCR

switch is set to VCR to stop playback,

rewinding, or fast forwarding.

•STOP has no effect during recording.

Press START/STOP to start and stop

recording.

TITLE ON/OFF Button

Press TITLE ON/OFF to display and

remove the titler graphics from the

viewfinder. Details are on

pages 38-39

ZOOM W and TButtons

•Press ZOOM Tto move the lens in the

telephoto direction.

• Press ZOOM W to move the lens in the

wide-angle direction.

11

Install Remote Batteries

1. Slide the battery cover on the back of

the remote in the direction of the

arrow to remove it.

Notes: Never place anything heavy on top of

the remote or lay it upside down.

Replace batteries when camcorder fails to

respond to the remote.

Remove the batteries from the remote if it will

not be used for a month or more to prevent

possible damage from the battery. If leakage

occurs, wipe up the liquid inside the compart-

ment and replace the batteries.

2. Insert the batteries making sure to

match the +and - of the batteries to

the + and - in the battery

compartment.

3. Replace the battery compartment

cover.

Remote Sensor

The remote operates the camcorder by infrared light, so it is protected from electrical

and sound interference. However, the remote must be aimed directly at the

camcorder's remote sensor. There cannot be any obstructions between them.

12

j,

j,

Note: The camcorde_: may not respond to the

remote if its sensor is exposed to direct

sunlight or strong artificial light.

Use the Adapter/Charger to Power Your Camcorder

The adapter/charger attaches to the camcorder and lets you power your camcorder

directly from standard household power. The adapter/charger operates on 100-240

volts, 50/60 Hz, so it can be used virtually anywhere in the world to power the

camcorder or recharge the battery.

To AC 100-240V, 50/60 Hz

DC IN 6V Jack

DC OUT Jack

II oc Cable .

JAdapter/

Charger

Attach Adapter/Charger

1. Attach one end of the adapter/

charger's DC cable to the DC OUT

jack on the side of the

adapter/charger.

2. Attach the other end of the cable to

the DC IN 6V jack on the camcorder.

3. Plug the adapter/charger's plug into an

operating AC outlet (100-240V, 50/

60Hz).

Caution: D6 nO[:_fig_this: adapted:

Remove Adapter/Charger

1. Unplug the adapter/charger from the

wall outlet.

2. Remove the DC cable from the

adapter/charger and camcorder.

Using an Optional Plug Adapter

An optional plug adapter might be

required in some countries.

Optional AC AC 100-240V

Plug Adapter

1. Plug the adapter[charger's plug into

the AC plug adapter.

2. Plug the AC plug adapter into the AC

outlet.

13

Use the Battery to Power Your Camcorder

Charge the Battery

You must charge the battery before you can use it the first time. Initial charging will

take approximately 130 minutes. The camcorder's operating time depends on how

often you turn the power on and off and how much you use zoom and pause.

Conserve battery power by turning the camcorder off during recording breaks.

To AC 100-240V, 50/60 Hz

CHARCE

Indicator

Indicator

Rechargeable Battery

•(Hold battery flush and

Adapter/Charger slide down.)

Charge the Battery

If the DC cable is attached to the

DC OUT jack on the adapter/charger,

remove it.

.

.

Plug adapter/charger into nearest AC

outlet. The red POWER indicator on

the adapter/charger lights.

Align reference mark on the bottom of

the battery with the mark on the

adapter/charger. Hold the battery

flush against the adapter/charger and

slide it down in the direction of the

arrow. The green CHARGE indicator

lights.

14

3. The CHARGE indicator will

repeatedly light for three seconds and

then go off to show that the battery is

approximately 70% charged. The

CHARGE indicator turns off when the

battery is completely charged.

4. Unplug the adapter/charger and

remove the charged battery by sliding

it up and off the adapter/charger.

Note: If you reattach a fully charged

battery, the CHARGE indicator will light.

This does not indicate the battery is not

charged.

5. Attach the charged battery to the

camcorder as shown on the next page.

Use the Battery to Power Your Camcorder (continued)

BATTERY

Switch

Rechargeable Battery

(Hold battery flush

and slide down.)

Attach the Charged Battery

If the DC cable is attached to the

camcorder, remove it before attaching

the battery.

1. Set the CAM/OFF/VCR switch to

OFF.

2. Align the bottom of the battery to the

arrow on the back of the camcorder

so the battery fits in the grooves.

3. Hold the battery flush against the

camcorder while sliding it down in

the direction of the arrow.

4. Press and hold the small button on the

CAM/OFF/VCR switch while you

slide it to CAM.

Remove the Battery

Remove the battery from the camcorder

when you are finished.

1. Set the CAM/OFF/VCR switch to

OFF.

2. Slide and hold the BATTERY EJECT

switch while you slide the battery up

and remove it from the camcorder.

Battery Safety Precautions _.'___ " _ .... _ _'

•If the POWER indicator on the adapter/

charger starts flashing, remove the

battery, and reattach it. If after several

attempts, the indicator continues to

flash, your battery cannot take a charge

and must be replaced.

• Throwing the battery into a fire or

exposing the battery to excessive heat -

over 149°F (65*C) could be hazardous.

•Do not attempt to disassemble or

modify the battery. There are no user-

serviceable parts inside.

•Use the battery only with specified AC

adapter/chargers and camcorders.

• If leakage from a damaged battery

contacts your skin or clothing, wash it

off immediately with running water.

Do not short the battery's terminals.

Allow the battery to cool down before

attaching it to the adapter/charger.

15

Use the Battery to Power Your Camcorder (continued)

Battery Level Indicator

The battery level indicator appears in the viewfinder and shows you the amount of

power in the rechargeable battery. The battery level indicator will not be recorded

on the tape when it appears in the viewfinder.

i

• When _ appears, the battery is

fully charged.

•As the power is used _"--", _ _,

--, and ,, appear.

• When the battery power is almost

gone, _ :: • flashes in the viewfinder.

Recharge the battery or use the adapter/

charger before continuing to use the

camcorder. Set the CAM/OFF/VCR

switch to OFF to turn off the cam-

corder before replacing the battery.

Note: The battery level indicator does not

appear when you use the adapter/charger or

car cord adapter to power the camcorder.

CautiOns: When a battery reaches i

_mpty during use, the camcorder: :i

turns off? _The battery sh_Uld':!_tiifiiii_::_!::',_i

have enough reservepower_t 0 ei_ct i:

cassette,_ _wer the-eame_td¢_::i_i: ::i::i

the adap:ier[charger o!7reCh_i:__!::i :::':

Battery Care and Storage

•Discharge the battery when not in

use to provide better service and

longer performance.

• The battery should be charged at a

temperature of 32°F - 104*F (0°C -

40°C) to prevent damage.

• Do not operate the battery at

temperatures below 14*F (-10*C) or

above 113°F (45*C). The battery

might be damaged if operated at

temperatures above 122°F (50°C).

Operation time will decrease at

extremely low temperatures.

• After repeated chargings and use the

operation time will decrease. When

the operation time becomes too

short to be useful, it is time to

replace the battery.

• Store the battery at normal room

temperature. High temperatures

will damage the battery.

• Discharge the battery before storage

and charge it before use.

16

Use the RCA Optional Car Cord Adapter

The optional DCC06 car cord shown on

page 48 allows you to power your

camcorder from the cigarette lighter

socket of a car, truck, or RV. It converts

24- and 12-volts to a 6-volt output.

Note: Consult the installation and operating

instructions enclosed with the DCC06 for

complete operating instructions.

Use the DCC06 Car Cord Adapter

pter/Charger's

DC Cable

DC IN 6 Jack

Optional Car

Cord (DCC06)

DC Cigarette Lighter

OUTPUT Socket

Jack

1. Set the CAM/OFF/VCR switch to

OFF to turn off the camcorder.

2. Connect one of the DC cable's small

plugs into the DC OUTPUT jack on

the car cord adapter.

3. Attach the other end of the DC cable

to the DC IN 6V jack located on the

back of the camcorder.

4. Take the vehicle's cigarette lighter out

of the socket.

5. Insert the car cord's cigarette lighter

plug into the vehicle's cigarette lighter

socket.

.Press and hold the small button on

the CAM/OFF/VCR switch while you

set it to CAM to turn on

the camcorder.

Notes: Consult the vehicle owner's manual to

see if the vehicle's ignition switch must be

tumed on before the DC car cord will operate.

When using the car cord to power the

camcorder, the battery level indicator has

no meaning.

17

Makesureyouselectgoodqualitytapesfor yourcamcorder.Useof poorquality

tapesor tapesthathavebeendamagedor mishandledcancontaminatethevideo

heads,resultingin asnowypictureor nopictureat all duringplayback.Becausethere

is nocontrol overthetypeof tapepurchasedor rentedby consumers,headcleaningis

not coveredunder warranty. It is considerednormalmaintenance.

Playinganew tapefor approximately30minuteswill oftensatisfactorilycleanthe

headsandimprovethepicturequality.

Erase Protection - Safety Tab __:_

You can use your videocassettes over and over again. To erase a previous recording,

just record over it.

Safety Tab To prevent erasure,

close the safety tab

(expose red).

To record again,

open safety tab

(cover red).

Record and Playback Speed and Times_

The camcorder records and plays back in standard speed (SP). Listed below are the

maximum recording times for popular 8mm cassettes.

P6-20

P6-45

P6-60

P6-90

P6-120

20 Minutes

45 Minutes

60 Minutes

90 Minutes

2 Hours

18

Insert and Remove Cassettes

Cassette Holder

_Safety Tab

Cassette Door (Press on rape Window

PUSH LOCK to close.)

.

.

Slide EJECT to open the cassette

compartment. _ EJECT appears

in the viewfinder.

Insert the cassette fully with the

safety tab and tape window facing

out.

3. Press on the area labeled PUSH

LOCK until the cassette door clicks.

4. Remove, rewind and label the cassette

when you are finished recording.

Cassette Care and Storage

• When you are finished with a cassette,

rewind it, remove it from the

camcorder, and label it.

• Close the safety tab to prevent acciden-

tal erasure of your recording=.

• Do not touch or cover the small holes •

in the cassette or use cassettes with

damaged or spliced tape.

• Store cassettes vertically in their

protective cases at normal room

temperatures. Do not leave your •

camcorder or cassettes in a car or

outdoors for an extended period.

Excessive heat or cold might damage

your cassettes.

Keep the cassette away from strong

magnetic fields such as electric motors

and other devices.

Keep dust from entering the cassette

compartment. All dust is abrasive and

will cause excessive wear on the tape

and the camcorder's recording or

playback heads.

Do not use a cassette if it has been

damaged or exposed to moisture. The

tape might jam and/or damage your

camcorder.

19

Set the Time and Date

You must set the correct date and time before it can be displayed and recorded on your

tapes. The clock cell must be installed as described on page 22.

Button

Button

VCR Switch

STOP Button DATE/DISP Button

.

.

Attach apower supply to the

camcorder.

Press and hold the small button on the

CAM/OFF/VCR switch while you set

it to CAM.

3. Press the DATE/DISP button to

display the date and time. A flashing

cursor lets you know which part of the

display you are setting.

Note: If the flashing cursor does not

appear, press and hold DATE/DISP and

then press STOP.

4. Repeatedly press FFWD or REW/

REVIEW until the correct month

appears. Press and hold the button to

advance the digits faster.

12:OOAM

111998

5. When the correct month is displayed,

press STOP. The cursor moves to the

next part of the display.

6. Repeat steps 4 and 5 to set the correct

month, day, year, hour, minute(s), and

AM/PM.

.After setting AM or PM, press the

DATE/DISP button to remove the

flashing cursor and start the internal

clock.

To Correct the Date or Time

To correct the date or time, press and hold

the DATE/DISP button and then press

STOP. The display and the flashing

cursor appear. Use STOP, F.FWD, and

REW/REVIEW to correct the time or date.

Press DATE/DISP to remove the flashing

cursor and start the clock.

20

i ..........

Record the Time and Date, AUTO Date, Auto TITLE, or Date

The time and date, AUTO date, auto TITLE and date, date only, or no display can be

recorded on your tape. Whenever one of these displays appears, it will be recorded.

To Select the Display to Record

lo Repeatedly press DATE/D1SP to select

the display you want to record.

•Date and Time Display: The date

and time will be displayed and

recorded.

(S) AUTO Date: The date is

automatically recorded for approxi-

mately ten seconds at the beginning

of the recording.

• (_ TITLE: The date and title you

have created are displayed and

recorded for approximately ten

seconds at the beginning of the

recording.

•Date Display: The date is dis-

played and recorded.

• No Display: No display is dis-

played or recorded.

21

Install the Clock Lithium Cell

The lithium cell must be installed before you set the time and date.

1. Set the CAM/OFF/VCR switch to

OFF and remove any power supply.

.

_Cloc _kCell/ _Y--Clock Cell

Compartment Holder

Remove the cell holder from the

camcorder.

Clock Cell (+ Side

Facing Up)

!

__--Cl_ckCell

()

CIo°CmkCr_lmle/nt _--C_tkCell

4. Place the cell holder back into the

camcorder. Press it in firmly to lock

into place.

Note: Remove the battery from the camcorder

if it will not be used for a month or more. This

will prevent possible damage from battery

leakage. If leakage occurs, wipe up the liquid

inside the compartment and replace the

battery.

3. Insert the clock cell into the cell

holder with the + side facing up.

22

Use the Viewfinder to See What You Record

The camcorder's viewfinder is a miniature monitor that displays the picture seen by

the camcorder when recording.

Adjust Viewfinder for Convenient Viewing

For convenient viewing, rotate the viewfinder into a comfortable viewing position and

adjust the eyepiece.

Eyepiece

Viewfinder

•Eyepiece Focus

Control

The eyepiece focus control lets you set

the focus of the viewfinder for your

vision. If you wear eyeglasses, you

probably can operate the camcorder

without them.

It is easiest to set the correct focus by

focusing on one of the viewfinder's on,

screen displays. Look through the

viewfinder and adjust the eyepiece focus

control for your vision.

The eyepiece focus control does not affect

the focus of the picture actually recorded

by the camcorder.

23

Viewfinder Displays

Several displays that aid in the operation of the camcorder appear in the viewfinder.

AE:60 FOCUS 0:00:35M

BIW _-_l

16X9

ZOOM NO TAPE

T

WI0:30AM

REC 11/18/1998

AE:60 (Auto Exposure) Shutter Speed

The shutter speed selected by the

camcorder appears here.

Battery Level Indicator (.-----)

This indicator displays the amount of time

left on the rechargeable battery. Details

are on page 16.

Digital Effects (16X9)

Press the D. EFFECTS button to select a

digital effect mode.

• Select 16X9 to make a recording

that you're going to play back on a

16X9 TV.

Select NEGPOS to reverse the image

from positive to negative.

Select ZM:2 to activate the extended

zoom mode - wide angle to 130 times.

ZOOM appears when you zoom over

16 times.

24

• Select MIRROR to record a symmetric

image on the left and right.

• Select MOSAIC to record a mosaic

image.

•Details are on pages 34-37.

Fade Indicator (B/W)

Press the FADE button to select a fade.

•Select [] to white fade.

• Select [_] to wipe fade.

• Select [] to zoom fade.

• Select B/W to black-and-white fade.

•Details are on page 31.

FOCUS Indicator

•FOCUS appears during manual focus.

• No focus indicator appears during

auto focus. Details are on page 28.

Status Displays

The following displays appear to tell you

the status of the camcorder.

¥iewfinder Displays (continued)

• The REC indicator appears during

recording.

• The • II indicator appears during

record-pause.

•A/V DUB appears during audio/video

dubbing.

• The • • indicator appears when the

camcorder is fast-forwarding.

• The •• indicator appears when the

carricorder is rewinding.

Time Counter with Memory Stop

(0:00:35M) or SEARCH

Repeatedly press DISPLAY on the remote

to display the time counter, turn memory

stop on, and display SEARCH for the date

search feature.

• The time counter shows the amount of

elapsed recording or playback time.

•Mappears after the time counter

when memory stop is turned on.

Details are on page 32.

Note: During playback or play pause, you

can also press DATE/DISP on the cam-

corder to turn memory stop on and off.

• You can search for the beginning or

end of recordings made on a certain

date when SEARCH appears. Details

are on page 33.

Tape Warnings (TAPE, NO TAPE, and

TAPE END)

•TAPE flashes when you try to record

with the safety tab closed.

•TAPE flashes when a damaged tape is

inserted. Remove the tape and replace

it with a new one.

•TAPE flashes when moisture is

I_resent in the camcorder. Remove the

tape and wait an hour before

reinserting.

•NO TAPE flashes when you try to

record with no cassette inserted.

•TAPE END flashes when there is

approximately three minutes of

recording time left on the tape.

•TAPE END briefly appears when you

reach the end of the cassette when

you're recording.

Tape-Remaining Indicator (_)

This display shows the approximate

amount of tape left for recording or

playback. Details are on page 29.

Time and Date Display

Press the DATE/DISP button to display

the time and date, AUTO date, auto

TITLE, date only, or no date when the

camcorder is in record-pause.

• These displays are recorded on the

tape when they appear in the

viewfinder.

•Details are on pages 20-21.

Zoom ( t)' ZOOM, andLZOOM

iJ

Indicators

zoom indicator ( ! ) appears

The

when you use the power zoom

lever (T and W).

•ZOOM appears when you zoom with

the Tbutton more than i 6times.

•LZOOM appears when you press the

INST. ZOOM button to enlarge the

picture 1.5 times.

•Details are on pages 30 and 36.

25

phone

Tally Light CAM/OFF/

Switch

REW/REVIEW

Button

Microphone

The microphone picks up the sound

during a recording. It is more sensitive to

sounds coming from the direction the lens

is pointed.

Flying Erase Head

Aseparate erase head is mounted on the

spinning headwheel (hence the term

"flying"). This allows you to make clean

edits without the "glitches" or "rainbow

noise" that might occur at the beginning

or end of recordings.

Tally Light

The tally light on the front of the

camcorder lights when the camcorder is

recording.

Quick Review Feature

Press and release REW/REVIEW (REW

on remote) when the camcorder is in

record-pause to review the last few

seconds of a recording. The CAM/OFF/

VCR switch must be set to CAM.

The camcorder will play back the last few

seconds of the recording, return the tape

to its previous position, and return to

record-pause.

26

F.FWD

Butt°n_ / I£

PLAY [_'_ _ [[["_ I_

stoP J

Button _ _

REW/REVIEW

Button

REW

Button--

PLAY

Button j

l

--F.FWD

Button

_STOP

Button

Camera Edit Feature

The camera edit feature allows you to

position the tape when the camcorder is

in record-pause. Press and hold the small

button on the CAM/OFF/VCR switch

while you set it to CAM.

• Press and hold REW/REVIEW (REW

on remote) to visually search the

recorded tape in reverse.

• Press and hold F.FWD to visually

search forward on the recorded tape.

• Press and hold PLAY to view the

recorded tape at normal speed.

When you release the button, the cam-

corder returns to record-pause at that

point on the tape.

Program AE (Auto Exposure)

The camcorder automatically selects the

best shutter speed and adjusts the iris

according to recording conditions.

AE:60

The AE indicator for the shutter speed

selected (1/60, 1/100, 1/120, 1/180, 1/250,

1/350, 1/500, 1/750, 1/1000, 1/1500,

1/2000, or 1/4000 second) appears in the

viewfinder.

27

Focusing

The camcorder can adjust focus automatically under normal conditions.

You might need to focus manually under certain conditions.

Zoom Lever

FOCUS •/v Buttons

Auto Focus

During auto focus, the camcorder

focuses on the object located in the center

area of the viewfinder.

•Auto focus operates on the telephoto

"T" side from approximately 3.3 feet

to infinity.

• Auto focus operates on the wide-angle

"W'" side from approximately 3/8

inches from the lens surface to infinity.

• No indicator appears in the viewfinder

during auto focus.

Note: The lens must be clean for the

camcorder to focus accurately.

Manual Focus

You might need to focus manually under

certain conditions, such as those listed on

the following page.

.Press and hold the small button on the

CAM/OFF/VCR switch while you set

it to CAM.

2. PressFOCUS •/• togethertotum

on manual focus. FOCUS appears in

the viewfinder during manual focus.

3. Slide the zoom lever to Tto zoom in

on the subject and center the subject in

the viewfinder.

4. Adjust the focus for a subject nearer

or farther away.

• Press and hold FOCUS • to focus

clearly on a near subject.

• Press and hold FOCUS • to focus

clearly on a subject far away.

5. When you are finished focusing

manually, press FOCUS •/v

together to turn on auto focus.

FOCUS disappears from the

viewfinder.

28

Focusing (continued)

Macro Focus

You can focus on objects as close as 3/8

inch from the camcorder lens with macro

focus.

.Make sure FOCUS does not appear in

the viewfinder. If it does, press

FOCUS A/v together to turn off

manual focus.

2. Slide the zoom lever to W until the

lens is completely zoomed out.

3. Position the subject in the center of

the viewfinder.

Notes: Zooming is not possible when using

macro focus. To change the size of the

subject, move the camcorder's lens closer or

farther away from it.

For best results, increase illumination when

recording using macro focus.

Conditions Requiring Manual Focus

* When recording a subject through a

window.

•When recording a subject having a

close foreground and a background

that is far away.

•When recording in low-light situa-

tions.

• When recording two subjects at

different distances that overlap in the

same scene.

• When the subject is not in the center

of the scene.

• When recording a scene with fast

motions, like a tennis swing.

Tape-Remaining Display _,___,_____

The tape-remaining display shows the

approximate amount of tape remaining for

recording or playback.

Tape-Remaining Display

in Viewfinder

The camcorder takes approximately ten

seconds to calculate the tape remaining

when you first start playing or record-

ing a tape.

ii,

.... appears while the

camcorder calculates the amount of

tape remaining.

Once tape remaining has been calcu-

lated, it automatically updates and is

readily available as long as the same

tape remains in the camcorder.

When ml appears, all or most of

the tape remains.

m,--,-- and m_--- appear as the tape is

being used.

When the tape is almost at its end

(approximately three minutes of

recording time remain), TAPE END

flashes in the viewfinder.

TAPE END appears briefly when the

end of the cassette is reached during

recording.

29

Zooming

The zoom lens allows you to zoom in (enlarge the image from 1-16 times) for close-

ups or zoom out for wide-angle shots. Instant zooming lets you magnify the picture

1.5 times regardless of the position of the zoom lever. Digital zooming lets you zoom

in on a subject with magnification up to 130 times as described on page 36.

Zoom Lever

Zoom Buttons

(T and

OM

_Button

Use the Zoom Lever (T and W)

°To zoom in or out from wide angle to

32 times, slide the zoom lever (ZOOM

Tand Won remote).

• To move the lens in the telephoto

(close-up) direction, slide the lever

to T(press ZOOM T on remote).

• To move the lens in the wide-angle

direction, slide the lever to W(press

ZOOM W on remote).

The zoom level indicator appears in

the viewfinder.

ZOON

T

W

ZOOM appears when you zoom more

than 16 times.

Note: Some deterioration of the picture might

occur with zoom ratios over 16.

Instant Zooming

.Press the INST. ZOOM button to

magnify the subject 1.5 times.

L ZOOM appears during instant

zooming.

Notes: Some deterioration of the picture

might occur during instant zooming.

Instant zooming does not operate during

MIRROR and MOSAIC digital effects.

30

Fade In and Out of Scenes

You can add a professional touch to your recordings when you fade in and out of

scenes. Both the picture and sound gradually appear or disappear. The speed of

the fade is controlled by the camcorder.

"FADE Button

START/STOP

Button

Fade In

.

.

Press the thumb trigger (START/ 3.

STOP on remote) to pause recording.

Repeatedly press FADE to select the

fade you want to use. The indicator

for the fade you select will appear.

•Select _-_ (white) to fade in and

out to/from a white screen. 1.

• Select [_] (black wipe) to fade in

and out to/from a black screen.

• Select _-_ (zoom) to fade in and

out while zooming. 2.

• Select B/W (black-and-white) to

fade in and out to/from a black-

and-white picture.

• Select no fade indicator if you do

not want to fade in or out.

Note: The last fade used appears the first

time you press FADE.

Press the thumb trigger (START/

STOP on remote) to start recording.

The picture and sound gradually

appear in place of the blank screen.

Fade Out

During recording, repeatedly press

FADE to select a fade.

Note: The last fade used appears the

first time you press FADE.

Press the thumb trigger (START/

STOP on remote) to stop

recording. The picture and sound

gradually disappear.

31

DISPLAY Button

Press the DISPLAY button on the remote to display the time counter, time counter with

memory stop, or date search indicator. During playback or play pause, you can also

press the DATE/DISP button on the camcorder to turn memory stop on or off.

Time Counter

The time-counter display shows the actual

time elapsed when recording or playing

back a segment of tape. The memory-

stop feature helps locate a certain point on

the tape. Turn memory stop on to stop the

tape automatically during rewind or fast

forward when the time counter reaches

O:O0:OOM.

To Use the Memory-Stop Feature

°Start recording or playing back the

tape. Locate the place on the tape you

want to retum to and press COUNTER

RESET on the remote to reset the

counter to 0:00:00.

Notes: The camcorder stops rewinding or

fast forwarding when the counter reaches

32

O:O0:OOM. To continue rewinding or fast

forwarding, press the button again.

The time counter automatically resets to

O:O0:OOMwhenever a cassette is inserted.

2. Continue to record or play the tape.

When you want to return to the place

you marked, press the thumb trigger

on the camcorder (START/STOP on

the remote) to stop recording or STOP

to stop playback.

3. Press DISPLAY on the remote to

display the time counter. Press

DISPLAY again to turn on the

memory-stop feature. An Mappears

after the time counter.

Note: During playback, you can also

press DATE/DISP on the camcorder to

turn memory stop on or off.

DISPLAY Button (continued)

_CA START/

DATE/ _STOP

(PAUSE)

D/SP n_..__ _ _ Button_

f-_-_zz_.._ M/OFF/ REW

VCR Switch Butt°n/

_'---Th umb

_"X_EE W/RETIEgg er

_Button

STOP Button

/DISPLAY

Button

COUNTER

RESET

Button

_STOP

Button

Time Counter (continued)

4. Press and hold the small button while

you set the CAM/OFF/VCR switch to

VCR.

5. Press REW/REVIEW (REW on

remote). The tape rewinds to the time

counter reading of O:O0:OOM.

Date Search

You can search for the beginning or end of recordings you make on a certain day. The

cassette must remain in the camcorder for date search to operate. The clock cell must

be installed and the date and time set.

1. Attach a power supply and press and

hold the small button on the CAM/

OFF/VCR switch while you set it to

VCR.

2. Repeatedly press DISPLAY on the

remote to display SEARCH in the

viewfinder.

3. If you are in the middle of the day's

recording, press REW/REVIEW or

F.FWD to search for the beginning or

end of the recording.

• Press F.FWD to search for the end

of the day's recording. SEARCHI; I,,

appears in the viewfinder.

The camcorder locates the beginning

or end of the day's recording and

enters the stop mode. SEARCH

disappears from the viewfinder.

Notes: The cassette must remain in the

camcorder. If you insert a cassette and start

recording, that location is the starting point for

that day.

Date search only operates on tapes recorded

•Press REWIREV1EW (REW on . :_.on this camcorder.

remote) to search for the beginning

---oftheday'sree-Ording__SEARCH To StopDate Search ......

.appears in the viewfinder. - Press STOP to stopa search in progress.

33

Digital Effects

The camcorder has a digital processor that allows you to record using five special

digital effects: 16X9, a negative image, 130 times digital zoom, a symmetric mirror

image, or a mosaic image. Each effect is described in detail on the next pages.

D. EFFECTS

Button

To Select a Digital Effect

1. Repeatedly press the D. EFFECTS button. The indicator for the digital effect you

select appears in the viewfinder.

ZM:2

34

Digital Effects (continued)

16X9 Mode

The camcorder has awide recording mode that lets you make recordings compatible

with the 16X9 format. When 16X9 is activated, the camcorder records black bars at

the top and bottom of the picture to produce the wide-screen effect. This is also known

as "letterbox" recording.

New 16x9 TV Screen

i

z

i

Standard Shape TV Screen

fe

the

To

1.

2.

.

.

Place the camcorder in record pause.

Repeatedly press the D. EFFECTS

button until 16X9 appears.

Press the thumb trigger to start

recording.

To turn off 16X9 recording, press the

thumb trigger to pause recording, and

repeatedly press D. EFFECTS until no

digital effects display appears.

16X9 Mode

16X9

16X9 Display in

Viewfinder

Normal Mode 35

Digital Effects (continued)

Negative Mode

The camcorder has a negative mode that lets you turn the image negative.

1. Place the camcorder in record-pause.

2. Repeatedly press D. EFFECTS until

NEGPOS appears.

3. Press the thumb trigger to start

.To turn off negative recording, press

the thumb trigger to pause recording,

and repeatedly press D. EFFECTS

until no digital effects display appears.

recording.

Negative Mode Normal Mode

Digital Zooming ___

The camcorder has digital zooming that allows you to zoom in on a subject with

magnification up to 130 times. Normal zooming is up to 32 times.

1. Place the camcorder in record-pause.

2. Repeatedly press D. EFFECTS until

ZM:2 appears. Use the zoom lever to

zoom in and out. ZOOM appears

when you zoom above 16X.

3. Press the thumb trigger to start

recording.

4. To turn off digital zooming, press the

thumb trigger to pause recording, and

repeatedly press D. EFFECTS until no

digital effects display appears.

Note: As the zoom level increases during

digital zooming, the picture will gradually

become less sharp. Use the high zoom levels

mainly for special effects.

Digital Zooming Mode

36

Digital Effects (continued)

Mirror Mode

The camcorder has a mirror mode that lets you display a symmetric image on

the left and right, obtained by placing a mirror at the center of the screen.

1. Place the camcorder in record-pause.

2. Repeatedly press D. EFFECTS until

MIRROR appears.

3. Press the thumb trigger to start

recording.

Mirror Mode

4. To turn off mirror recording, press the

thumb trigger to pause recording, and

repeatedly press D. EFFECTS until no

digital effects display appears.

Note: Mirror recording cannot be used with

digital zooming, instant zooming, or the zoom

fade feature.

Normal Mode

Mosaic Mode

The mosaic feature lets you add a mosaic effect to your recording.

1. Place the camcorder in record-pause.

2. Repeatedly press D. EFFECTS until

MOSAIC appears.

3. Press the thumb trigger to start

recording.

Mosaic

4. To turn off mosaic recording, press the

thumb trigger to pause recording, and

repeatedly press D. EFFECTS until no

digital effects display appears.

Note: Mosaic recording cannot be used with

digital zooming, instant zooming, or the zoom

fade feature.

Normal Mode

37

Titler

The camcorder's built-in titler can store atitle in memory. The created title can be

displayed and recorded at any time. The built-in character register contains more than

45 different characters. Your title can contain a total of 32 characters on two lines.

DATE/

Button _ _'J[ ]7jF.FWD

\ _._..___ I_.._CAM/OFF/

STOP [

Button _ I_ \ _ _-.-Thumb

____REW/R_VIEW Trigger

Button

TITLE

ON/OFF

Button--

REW

Button --

START/

STOP

.-Button

-F.FWD

Button

"STOP

Button

To Create a Title

1. Attach a power source to the 6.

camcorder. Press and hold the small

button on the CAM/OFF/VCR switch 7.

while you set it to CAM or VCR.

2. Press TITLE ON/OFF on the remote

to display the titler graphics in the

viewfinder. A flashing cursor appears.

Note: When the CAM/OFF/VCR switch is

in CAM, repeatedly pressing DATE/DISP

will also display the title in the viewfinder. To

3. Press STOP to move the flashing 1.

cursor to the place where you want to

begin your title.

4. Press F.FWD or REW/REVIEW (REW 2.

on remote) until the first character you

want appears in the viewfinder.

See the chart on the next page for 3.

available characters.

5. After youhave selected the first

charactei', pressSTOP tOmove the

flashing cursor to the place where you

want the next character to appear.

38'

Repeat steps 4and 5 until you have

completed the title.

When you are finished, press TITLE

ON/OFF to store the title and remove

the title graphics from the viewfinder.

Remember: Press TITLE ON/OFF on the

remote to remove the titler graphics from

the viewfinder for normal recording.

Correct an Error

Press TITLE ON/OFF on the remote

to display the titler graphics in the

viewfinder.

Press STOP to move the flashing

cursor over the character you want to

correct.

Press F.FWD or REW!REVIEW (REW

on remote) until the correct character

.: .+

appears. +i! :

Note: If you want to delete a character,

press F.FWD or REWIREVIEW (REW on

remote) until the blank space appears.

Titler (continued)

Chart of Characters in Titler's Register

AB C DEFGHIJKLM

N 0 P QR5S6 TU VW X34 78 " Y Z

01 2 9? . /,

- +:<>!(BiankSpace)

Record a Title on a Tape in the

.Attach apower source to the

camcorder. Press and hold the small

button on the CAM/OFF/VCR switch

4. Press the thumb trigger (START/STOP

on the remote) to start recording the

title.

.

°

while you set it to CAM.

Locate the place on the tape where

you want to record the title.

Note: If you record a title on a

prerecorded tape, the audio and video is

erased where the title is inserted. A three-

to-four second pause of blank tape

appears before the existing audio and

video return.

To eliminate the pauses of blank tape, use

the audio and video dub feature to add

titles to prerecorded tapes. Details are on

page 40.

Press TITLE ON/OFF on the remote

to display the titler graphics in the

viewfinder.

.After you have recorded the title for

the desired length of time, press

TITLE ON/OFF to remove the titler

graphics. The camcorder will now

record normally. If you do not want to

continue recording, press the thumb

trigger (START/STOP on the remote).

Remember: Remove the titler

graphics for normal recording.

Note: You can also use the automatic title

recording feature to automatically record

the title and date for ten seconds when you

begin recording. Press the DATE/DISP

button to display (S) TITLE before

starting to record.

Record a Title While Copying a Tape from the Camcorder to Another VCR

1. Attach a power source to the

camcorder.

2. Place the tape you want to copy in

the camcorder and press and hold

the small button on the CAM/OFF/

VCR switch while you set it to VCR.

3. Place a blank tape in the VCR, and

place the VCR in record-pause.

4. Start copying the tape from the

camcorder to the VCR. Details are

on pages 44-45.

°When you see the place on the tape

you want to insert the title, press

TITLE ON/OFF on the remote:

6. After you have recorded the title for

the desired time, press TITLE ON/

OFF to stop recording the title.

7. Stop the camcorder and VCR when

you are finished copying the tape.

Important Note: Remove the titler graphics

for normal recording.

39

Audio and Video Dub

The audio/video dub feature lets you record new audio (sound) and video

(picture) from the camcorder's built in microphone and camera onto a previously

recorded tape.

_F.FWD

(( ((_-J)/_'__-_'_ __ Button

eL4r \\ __ _ I[ J CAM/OFF/

Button __ VCR Switch

STOP -I

Button _ I_-_ \ _ _----Thumb

REW/REVIEW

Button

To Audio and Video Dub

nutton l[

Button

A/V I[_

START/

STOP and

(PAUSE)

Button

--F.FWD

Button

"STOP

Button

lo Press and hold the small button on the

CAM/OFF/VCR switch while you set

it to VCR.

2. Insert the tape you want to dub and

press PLAY. Press the thumb trigger

(PAUSE on remote) exactly at the

place where you want to stop dubbing

to place the camcorder in play-pause.

3. Press DISPLAY on the remote twice

to display the time counter with

memory stop. Press COUNTER/

RESET on the remote to reset the

counter to O:O0:OOM.

.Use PLAY, F.FWD, and/or REW/

REVIEW (REW on remote) to locate a

point on the tape that is a few seconds

before the place on the tape where

you want to begin dubbing.

IP

5. Press and hold A/VDUB on the

remote and then press PLAY. Release

both buttons at the same time. A/V

DUB n will appear in the viewfinder

when the camcorder is ready to begin

dubbing.

6. To begin dubbing, press the thumb

trigger (PAUSE on remote).

udisappears while you dub.

7. The camcorder stops dubbing when

the time counter reaches O:O0:OOM.

Notes: The camcorder will enter the stop

mode after remaining in dub pause for more

than five minutes.

The date search feature does not operate

during audio/video dubbing.

Noise might appear at the end of the dubbed

portion.

40

Recording Tips

• Try to make sure indoor scenes are

well-lit. This improves picture quality

and color reproduction.

• Do not move the camcorder rapidly

from side-to-side while recording.

A steady, gradual "pan" avoids

blurring and "jitter."

• Use the viewfinder to make sure the

camcorder is level while recording so

that y.our scenes won't appear "tilted."

•Do not bump or tap the camcorder's

microphone while recording - the

sound will be recorded.

•Include close-ups of individuals when

taping family outings or group func-

tions.

• Fading in and out of scenes makes

your videos appear more professional.

• Be aware of video and audio back-

grounds. Background details barely

noticed while you are taping may show

up as visual "clutter" on your record-

ing. Background noises (especially

TV sets, radios, household appliances,

traffic sounds, etc.) can detract from

the sound you want to record.

• Avoid long "still" shots of landmarks

and scenic attractions. Recordings are

more interesting if they include people

and details. "Local color" will give

travel videos lasting appeal. Consider

recording a familiar or landmark scene

from an unfamiliar vantage point.

To film at different angles, raise the

viewfinder.

• Hold the camcorder horizontally. Keep

your feet slightly apart and upper arms

close to your body.

• Stand against a wall to give your

recordings more stability.

• Use an optional tripod for stable

images.

• When possible, rest your elbows on a

table or other stable surface to help

keep the camcorder steady.

• Do not pick up the camcorder by the

viewfinder.

Write down your camcorder's serial

number and keep it separate from the

camcorder when traveling. If your

camcorder is lost or stolen, you will be

able to identify it.

Use extra care when you use your

camcorder or accessories at a beach or

pool. Spray, sand, and dust should be

avoided. If your lens has been exposed

to the elements, clean it only with

proper lens cleaning supplies.

Make sure you have any adapters that

you might need before taking your

camcorder to other countries. Consult

your dealer for advice.

Carry your camcorder in a carrying

case when traveling. See page 48for a

carrying case designed for your

camcorder. An ordinary suitcase or

carry bag does not offer the protection

your camcorder needs. Treat your

camcorder as carry-on luggage to

protect it from rough handling. 41

Viewfinder Playback and Playback Features

The simplest way to watch tapes using the camcorder is in the viewfinder. You can

use the playback features during viewfinder playback. There is no sound during

viewfinder playback.

PUSH LOCK

View de ................_:............ :.:....-.:.:................. _..............................................

Play Back a Tape in the " fin r .............................................................................................................

I.

.

Attach a power supply. 3.

Attach either the adapter/charger, a

charged battery, or an optional

car cord. 4.

Insert a tape.

• Slide EJECT to open the cassette

compartment.

• Insert the cassette with the safety

tab and window facing out.

• Press on the area labeled PUSH

LOCK to close the cassette com-

partment door.

• The camcorder onlyplays back

,tapes recorded in the SP speed.

.

.

Press and hold the small button on

the CAM/OFF/VCR switch while you

set it to VCR.

Adjust the viewfinder.

• Adjust the viewfinder into a

comfortable viewing position.

• Turn the eyepiece focus control to

adjust the focus of the viewfinder

for your vision.

Press PLAY to begin playback.

•During playback, use the playback

features on the next page.

Press STOP when you are

finished.

42

Viewfinder Playback and Playback Features (continued)

REW

Button --

PA USE

Button

Button

Playback Features

Stop-Action Pause

• During playback, press the thumb

trigger (PAUSE on remote) to "stop

the action" and view one frame of

the tape.

• Press the thumb trigger (PAUSE on

remote) again to return to normal

playback.

Visual Searching

During playback, press and hold F.FWD

or REW/REVIEW (REW on remote) if

you want to search the tape visually in

forward or reverse.

• Release the button to return to normal

playback.

Tape Positioning

Press and hold the small button on the

CAM/OFF/VCR switch while you set it

to VCR.

• Press and quickly release REW/REVIEW

(REW on remote) or F.FWD to rewind or

fast-forward the tape.

•Press STOP to stop the tape.

43

Playback on TV (or VCR)-with Audio/Video Inputs

To connect your camcorder to a TV monitor (or VCR) with audio and video inputs, use

the audio/video cable that was packed with your camcorder. If your TV is already

connected to a VCR, attach the camcorder to the VCR and watch what the camcorder is

recording or playing on the TV.

_DIO'" ] White Audio Plug

AUIN l..... jack

VIDEO /_Yellow .....

1_Video Plug _ .......

IH ._L-'" _ideo Cable _ .......

• ...........

/® '"

Back of Yellow Video Plug _-" ,'°

VCR or White ,, Z

TV Monitor -OR- Audio Plug ,° /7

Yellow

Video Plug

L._

v,,_o@.

Back of

Stereo

VCR or

TV Monitor

'-_ Y-Adapter White Audio Plug

Yello

Jack ,:_

.... ..°-

..-"" _White

Audio

Plug

Audio/Video Cable

Yellow Video Plug

Installation

.Attach the white plug on one end of

the audio/video cable to the AUDIO

IN jack on the TV (or VCR).

Notes: If your cable does not have white

and yellow plugs, attach the same color to

the audio jacks.

If your TV (or VCR) has stereo AUDIO IN

jacks, attach the plug to the0ne labeled

MONO. If one is not labeled MONO, you:

need a Y-adapter, such 'as AH25, shown on

page 48 to hear both channels.

.

.

Attach the yellow plug to the VIDEO

IN jack on the TV (or VCR).

Attach the white plug on the other

end of the audio/video cable to the

audio jack and the yellow plug to the

yellow video jack.

The jacks are located under the small

cover on the back of the camcorder.

44

Playback Operation and How to Copy Tapes on the VCR

1. A. Camcorder connected directly to

TV: Turn on the TV and tune it to

the video input channel.

B. Camcorder connected to VCR that 4.

is already connected to TV: Turn

on VCR and place it in the "line"

or "camera mode". (If your VCR

does not have a "line" or "camera

mode", consult the VCR owner's

manual.) Operate the TV as you

normally do to see the signal

coming from the VCR. 5.

2. Press and hold the small button on the

CAM/OFF/VCR switch while you set

it to VCR.

3. Press PLAY.

•During playback, use the playback

features on page 43.

To copy what the camcorder is

playing, place a blank cassette in

the VCR, and press the VCR's

RECORD button.

Note: Make sure the memory-stop feature

is turned off (press DISPLAY on the

remote) or the camcorder will enter play-

pause when the counter reaches O:O0:OOM.

Press STOP when you are finished.

Note: The camcorder only plays back

tapes recorded ifi the SP speed.

Viewing What the Camcorder is Seeing (or Recording) .. •

1. m. Camcorder connected directly to

TV: Turn on the TV, and tune it to

the video input channel.

2. Press and hold the small button on the

CAM/OFF/VCR switch while you set

it to CAM.

B° Camcorder connected to VCR that

is already connected to TV: Turn

on VCR and place it in the "line"

or "camera mode". (If your VCR

does not have a "line" or "camera

mode", consult the VCR owner's

manual.) Operate the TV as you

normally do to see the signal

coming from the VCR.

.

Note: Turn the TV's volume down to

prevent a high-pitched squeal caused

by feedback.

Press the thumb trigger (START/STOP

button on remote) to begin recording.

You can watch what the camcorder is

seeing (or recording) on the TV

screen.

45

Playback on a TV Without Audio/Video Inputs

To connect your camcorder to a TV without audio/video inputs, you need an

optional CRF81A RF output adapter shown on page 48. If your TV has audio and

video inputs (or is connected to a VCR), refer to pages 44-45.

Back of TV( Audio/Video Out

Connector

Located Behind

mall Cover) ®

VHF Antenna

VHF Antenna Optional 300/75 ohm

Transformer

®

CH3/CH4

Switch

Installation

°

.

Disconnect the VHF antenna from

your TV. Connect the antenna to the

ANT IN connector on the RF output

adapter if you are going to leave the

adapter connected to the TV.

Note: If your VHF antenna is the flat

twin-lead type attached by two screws,

you need an optional 300/75 ohm

transformer.

Attach the RF output adapter's cable

to the VHF input on your TV as

shown.

°

Note: If your TV has 300 ohm screw

terminals, you need a 75/300 ohm

transformer, such as VH54, shown on

page 48.

Attach the RF output adapter's plug to

the RF output connector located under

the small cover on the side of the

camcorder.

46

Playback Operation

1. Set the CH3/CH4 switch on the

RF output adapter to CH3 or CH4.

2. Tum on the TV, and tune it to the

same channel you selected with the

RF output adapter's CH3/CH4 switch.

3. Press and hold the small button on the

CAM/OFF/VCR switch while you set

it to VCR.

4. Press PLAY on the camcorder.

•During playback, use the playback

features described on page 43.

5. Press STOP on the camcorder when

you are finished.

Viewing What the Camcorder Is Recording ........................._ .......

1. Turn on the TV and tune it to channel 3.

3 or 4. Turn the TV's volume down to

prevent a high-pitched squeal caused

by feedback. 4.

2. Set the CH3/CH4 switch on the RF

output adapter to the same channel

you selected on the TV.

Press and hold the small button on the

CAM/OFF/VCR switch while you set

it to CAM.

Press the thumb trigger (START/STOP

button on remote) to begin recording.

You can watch what the camcorder is

seeing (or recording) on the TV

screen.

Normal TV Viewing

For normal TV viewing, leave the RF

output adapter hooked up to the TV.

Disconnect the adapter's plug from

the camcorder or turn the camcorder's

power off. :

Note to Cable TV Installer

This reminder is provided to call your attention to Article 820-40 of the

National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that

provides guidelines for proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding system of the building as

close to the' point of cable entry as practical. ,_-.... _ _ _ _ i '

47

We invite you to take a look at some great ideas for sparking creativity and adding to

the fun of using your VHS camcorder. The following pages have a selection of

accessories to help make your memorable moments look and sound even better.

These accessories are designed to make the process of recording and watching your

videos more enjoyable.

To order accessories, contact your local Dealer.

If a dealer is not nearby, all accessories are available through toll-free ordering or by

using the order form on page 51.

AC201A Soft Carrying Case CRF81A RF Output Adapter

Custom compact soft case designed

especially to provide protection and utility

for your 8mm camcorder and most

accessories. Rugged Aczoia lined with

soft non-abrasive material and generous

padding. The carrying case has three

outside pockets with storage for lens

filters, adapters, batteries, and tapes.

DCC06 DC Car Cord Adapter

This RF output adapter is used to connect

your camcorder to a standard TV (one

without audio/video inputs) for playback.

If your antenna cable is the flat twin-lead

type attached by two screws, you need a

300-to-75 ohm transformer. If your TV

has 300 ohm antenna screw terminals,

you need an optional 75-to-300 ohm

transformer such as VH54.

VH54 Cable Transformer

This 75-to-300 ohm transformer is used to

connect the RF output adapter's cable to

the 300 ohm screw terminals on a TV.

AH25 Y-Adapter

This car cord adapter enables you to

operate your camcorder from your car,

truck, or RV by plugging the car cord

directly into the vehicle's cigarette lighter

socket. The DCC06 is designed

specificallytoconverrpower from a "

24- 8r 12-volt battery to a 6-volt output.

48

This Y-adapter allows you to connect

.your camcorder's mono audio cable to

a stereo TV or VCR.

Using the Optional AC088 Tripod

Mounting the camcorder on a tripod, such as AC088, keeps the camcorder steady and

produces excellent video results.

This tripod's fluid-effect head provides smooth camera pan and tilt. The quick-release

mount makes it easy to attach or remove the camcorder. The grooved, tubular 3-section

leg design folds down to 26" when not in use. Rubber feet allow for sure footing.

49

Attaching the Optional 215770 Shoulder Strap

An optional shoulder strap lets you carry the camcorder from your shoulder and - when

you are ready to shoot - bring the camcorder to shooting position in one quick

movement.

To Attach the Shoulder Strap

.

.

Thread each end of the strap through

one of the attachment rings.

Thread each end of the strap back into

its buckle. Pull on the strap to make

sure it is securely fastened before

using the shoulder strap to support the

camcorder.

50

. . . . .

Order Form for Camcorder Model CC8251

Description Part No. Price Qty. Total

Super Lightweight Tripod AC088 $ 39.95

Soft Camcorder Case AC201A $ 39.95

Y-Adapter! ..... AH25 $ 2.95

Rechargeable Battery BB65L $ 99.95

RF Output Adapter CRF81A $ 89.95

Car Cord Adapter DCC06 $ 89.95

75-300 Cable Transformer VH54 $ 2.95

Shoulder Strap 215770 $ 11.15

DC Cable 233407 $ 12.65

Audio/Video Cable 233408 $ 38.20

AC Adapter/Charger 241250 $ 89.95

Remote Control 241920 $ 39.95

Total Merchandise ........ ......................... . ........................................... .....: ........ $

Sales Tax .......................................................................................................... $

We are required by law to collect the appropriate

sales tax for each individual state, county, and

locality to which the merchandise is beiiig sent.

Shipping and Handling ..................................................................................... $ 5.00

Total Amount Enclosed ................................................................................. $

Use VISA, MasterCard, or Discover.

Money order orcheck must be in U.S.

currency only. No COD or cash.

Prices are subject to change without notice.

51

Charge your order on your VISA,MasterCard,

or Discover Card by filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number from your VISA card f_"

'I-I-1 I-V'I-GI-I-'N T-1 Exp,ra,io. ate:I--I--1

IMPORTANT: Copy complete account number from your MasterCard

I---I--I-N I I I I II---I---I--NI---I---I---_

Copy Number above your name on MasterCard _ Expiration date: I I It I I

IMPORTANT: Copy complete account number from your Discover Card

I---I---I-_I--l---l-T-II---I-l_ I--V-I-_

Expiration date: [--[--1 _

AUTHORIZED SIGNATURE

Prices are subject to change without notice.

Print or type your name and

address clearly.

A complete and correct order will

Name:

Daytime Phone:

Street:

City:

State:

Apt:

Zip:

save you days of waiting.

..I

Please make sure that both sides of this form have been filled out completely.

• Allow 4 weeks for delivery.

• All accessories are subject to availability. ....

t_.

€.1

52

To order accessories, contact your local Dealer.

If a dealer is not nearby, you can also follow the directions below to order by

telephone or direct-by-mail.

United States and Canada Orders

To place your order by phone, have your Visa, MasterCard, or Discover card ready

and call the toll-free number listed below between 8 AM and 10 PM (EST)

Monday through Friday or between 9AM and 5PM (EST) Saturday.

Use this number only to place an order for accessory items listed on

this order form.

1-800-338-0376

To place your order by mail, detach and mail the completed order form with credit

card information, money order, or check in U.S. currency (made payable to

Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories

PO Box 8419

Ronks, PA 17573

53

If you're having trouble with your camcorder, you probably can correct the problem

yourself. Before you take your camcorder to an Authorized RCA Camcorder Service

Center or call a service person, use the chart below. Find the problem and try the

adjustment(s) that is listed to the right.

If service should be necessary, read your warranty to find out what is covered and how

to get service.

No power

Won't record or

play back

TAPE appears in

the viewfinder

• Set the CAM/OFF/VCR switch to CAM or VCR to turn

on the camcorder.

• If using battery, it may need to be recharged.

• If using AC adapter/charger, make sure it is plugged

into a working outlet.

No picture

Camcorder turns

off

• If using AC adapter/charger, make sure it is plugged

into a working outlet:

• Make sure CAM/OFF/VCR switch is set to correct

position for desired operation.

• There might not be a cassette in the camcorder.

• Try ejecting and reinserting the cassette.

• The cassette tape might be broken, try another cassette.

• You might have reached the end of the cassette, try

rewinding it.

Moisture condensation might cause the tape to stick to

the headwheel and damage the headwheel or tape.

Remove tape and give the camcorder an hour to reach a

stable temperature before reinserting a cassette.

Won't play back * CAMERA/OFF/VCR switch must be set to VCR.

Won't record * Safety tab closed. Seepage 18.

•CAM/OFF/VCR switch must be set to CAM.

• Set lens cover OPEN/CLOSE switch to OPEN.

Set the CAM/OFF/VCR switch to OFF and then to

CAM or VCR to turn back on. If camcorder is left in

record-pause or play-pause for several minutes, it turns

off to prevent tape wear.

54

Sound is too low or

distorted

Tape stops during

rewind or fast forward

or will not operate

during rewind or fast

forward

Camcorder remains in

play-pause mode

Poor auto-focus

operation

Viewfinder displays

are out of focus

Picture quality is poor

during playback

Picture recorded with

a special fade or

digital effect (such as

negative, 16X9,

mosaic, or mirror)

Black bars on top and

bottom of picture

• Subject was too far from camcorder.

• Whenever memory stop is turned on, the camcorder

will stop rewinding (or fast forwarding) when the time

counter reads O:O0:OOM. Press REW/REVIEW (REW

on remote) or F.FWD again to continue rewinding or

fast forwarding, or press DISPLAY on the remote to

remove the time counter.

• Make sure titler graphics do not appear in viewfinder.

Press TITLE ON/OFF button on remote to remove.

• Make sure flashing cursor does not appear in date or

time display. Press DATE/DISP button to remove.

• Press the thumb trigger (START/STOP PAUSE on

remote) to return to normal playback.

• Lens is smudged and image appears unfocused.

• Eyepiece focus control is maladjusted.

• If FOCUS appears in viewfinder, press FOCUS • and

FOCUS • together to turn on auto focus.

• Eyepiece focus control is maladjusted. See page 23.

• Camcorder only has one speed (SP). If the tape was

recorded at a different speed, it cannot be played back

on this camcorder.

A fade or fade wipe mode has been selected. Turn off

the fade effect by pressing FADE. See page 31.

A digital recording effect has been selected. Turn off

the digital effects by pressing D. EFFECTS.

See pages 34-37

•16X9 feature selected. See page 35.

55

Dateand/ortimeor

title wererecorded

ontape

Dateand/ortime are

incorrect

Remotecontrol will

not operate

camcorder

Power is turned on

but function buttons

will not operate

Bright, crystal-

shaped spots appear

in viewfinder

Colored bright spots

appear in viewfinder

• Displays are recorded on tape whenever they appear

in the viewfinder. Remove them from the viewfinder

when recording. See pages 21 and 39.

• When (S) DATE or TITLE is selected, the display is

automatically recorded when you begin recording or

change the cassette. See page 21.

• The title is recorded whenever it appears in the

viewfinder. Press the TITLE ON/OFF button on the

remote to remove the title from the viewfinder. See

page 39.

Date or time may need to be set. See page 20.

Clock lithium cell battery may need replacing.

See page 22.

• Aim remote at remote sensor on camcorder.

• Remote must be within 16 feet of the camcorder.

• Remote batteries need replacing. See page 12.

•CAM/OFF/VCR switch must be set to CAM or VCR.

• Remote sensor on the _amcorder is exposed to direct

sunlight or strong artificial light. This might interfere

with operation of camcorder by remote.

Remove the power source and clock cell. After one

minute the viewfinder displays will be reset. You will

have to reset your features.

• Sunlight is directly entering the lens.

Black spots or bright spots of light (red, green, or

blue) may appear in the viewfinder. These spots are

not recorded on the tape and are not due to a defect in

the unit.

56

Rechargeable

batteryrunsdown

soonerthan

expected

Batteryruntimesaremeasuredwhenthe

camcorderis recordingcontinuously.To check

yourbattery;chargeit completely,aimthe

camcorderat aclock,andrecordtheclock.

Whenthecamcorderstopsrecording,play the

lastpartof thetapeandcheckthetime onthe

clock. A one-hourbatteryshouldgive youabout

60minutesof recordingtime. In practicaluse,a

fully chargedbatterymightnotrecordfor 60

minutesbecausethebatteryusespowerwhen

youpausethe•recordingandusesextrapower

whenyouzoom.

57

Clean the Camcorder

To clean the camcorder's exterior, remove

any power source connected to the

camcorder and gently wipe it with a clean

soft cloth.

Clean the Camcorder's Lens .......

To clean the camcorder's lens, blow it with ablower brush, and then gently wipe the

lens with cleaning tissue and commercially prepared cleaning solution designed for

use on camera lens. Improper cleaning might scratch the lens.

Lens

Clean the Camcorder's Viewfinder

You can remove the viewfinder eyepiece for cleaning.

1. Turn the eyepiece counterclockwise

until it stops and pull it out.

.Gently use a soft non-abrasive cloth,

cotton swab, blower brush, or lens

cleaning paper to clean the miniature

monitor.

3. Reattach the eyepiece by aligning

the raised mark (D) to the center of

the viewfinder. Turn the eyepiece

clockwise until it stops.

58

Proper Care and Storage

Keep dust and grit from entering the

camcorder's cassette door. Dust and

grit are abrasive and cause excessive

wear to both the camcorder's

recording/playback heads and

cassettes.

Always close the lens cover on the

camcorder when it is not in use.

Before handling your camcorder, make

sure ygur hands and face are free from

any chemical products such as suntan

lotion, as it might damage the finish.

The camcorder might be damaged by

improper storage or handling. Do not

subject the camcorder to swinging,

shaking, or dropping.

Do not store the camcorder in

temperatures below -22"F (-30°C) or

above 149°F (65*C).

When the camcorder is not in use,

always remove the cassette and AC

adapter/charger or battery.

Retain the original carton for future

storage or shipping purposes.

Things to Avoid

Do not attempt to disassemble your

camcorder. There are no user-

serviceable parts inside.

Avoid operating your camcorder

immediately after moving it from a

cold location to a warm location. Give

the camcorder 2 to 3 hours to reach a

stable:temperature before inserting a

cassette. When the camcorder is

moved from cold to warm,

condensation might cause the tape to

stick to the headwheel and damage the

headwheel or tape.

Do not aim your camcorder at the sun

or other bright objects.

• Do not leave your camcorder in direct

sunlight for extended periods of time.

The resulting heat buildup might

permanently damage the camcorder's

internal parts.

., _.: _ _ ..... • , • :.

• Do not operate the camcorder in

extl'emely humid environments.

Do not operate the camcorder near the

ocean as salt water or salt water spray

might damage the internal parts of the

camcorder. _

Do not operate the camcorder for

extended periods in temperatures

below 40*F (4°C) or above 95°F

(35 *C).

Do not expose the camcorder or

adapter/charger to rain or moisture.

If any component becomes wet, turn

off the power and take the unit to an

Authorized RCA Camcorder

Service Center.

Do not use an adapter/charger or

batteries other than the ones specified

for the camcorder. Use of the wrong

accessories might cause damage to the

camcorder.

59

General

Power requirement: 7.2VDC

Power consumption: 4 watts

Weight: 1.67 lbs, without battery

or cassette

Camera Section

Scanning: 525 lines/60 fields/30 frames

Image Sensor: 1/4" CCD Imager

Lens: F1.4 - 2.8 (4 - 64mm)

Diameter: 46 mm

Dimensions -Including Viewfinder:

3-7/8" (W) x 4-1/2" (H) x 9-7/16" (D)

98 (W) x 115 (H) x239 (D) mm

Video Recorder Section

Format: 8mm

Record/playback system:

Two xiide0 record/playback heads

One flying erase head ,_.,..:

Video signal: EIA standard

NTSC color

Tape speed: 14.3 mm/sec.

Video output: 1.0Vp-p, 75 ohm

Audio output: -7.8 dBs (316Vms)

Fast forward/rewind time: less than 8

minutes with P6-120 cassette

AC Adapter/Charger

Power requirement: 100-240 V,

50/60 Hz.

Power consumption: 20 watts max

Weight: 12 ounces (330g)

Dimensions:

2-13/16"(W) x 1.3/4"(H) x 5-15/16"(D)

74 (W) x 44 (H) x 151 (D) mm

Tripod Mount

One 1/4" x 20 threaded hole

This equipment has been tested and found to

comply with the limits for a Class B digital

device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference ina residential installation. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user

is encouraged to try to correct the interference

by one or more of the following measures:

• R_orient or relocate the receiving antenna.

• Increase the separation between the

equipment and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/

TV technician for help.

Alterations or modifications carried out

without appropriate authorization may

invalidate the user's FCC right to operate the

equipment.

60

_i k-

You can reach Thomson at the

following number:

800-283-6503

(Toll free inside U.S.A.)

Our toll-free Camcorder number

operates from 8 a.m. to 5 p.m., CST

Monday - Friday

for U.S. customers only

Thomson provides a toll-free telephone

number to help you with any problems you

may encounter with your camcorder. Many

can be diagnosed over the phone, and if

necessary, repair or replacement will be

arranged. Please have your camcorder model/

serial number and date of purchase ready

when you call. If your unit is out of warranty,

we will quote the cost of a repair or

replacement unit to you.

Returnlngequipment to Thomson for

If we are unable to resolve your problem over

the phone, we will gladly service your unit or

exchange it for a new or, at our option,

refurbished camcorder. Refer to the limited

warranty on the next page to learn about your

specific rights and responsibilities.

repair or exchange

Always consult Thomson and get a Return

Authorization number before returning

anything! Obtain a Retum Authorization

(RA) number from the telephone

representative before returning your

equipment to avoid delays, accounting errors,

or even loss of your unit.

Important information to customers who ship defective equipment to

Thomson Consumer Electronics

The Thomson representative who authorized

the return of your equipment will give you an

RA number over the phone. They will also

provide you with instructions on where and

how to return your camcorder. Write the

number in large, clear characters on the

outside of the box. To avoid confusion and

misunderstandings, shipments without an RA

number clearly visible on the outside of the

box will be returned to you at your expense.

Include a brief note describing the problem

and any conversations about the problem you

have had with Thomson personnel.

Include your name, address and model/serial

number of your camcorder. These numbers

are located on the bottom of your unit.

If your camcorder is within the warranty

period, please provide a copy of the bill of sale

to verify purchase date. Use the original box

and packing material to protect the equipment

from damage in shipment.

For your protection, insure all shipments for

full replacement value and use a reliable

shipper. Thomson assumes no responsibility

for warranty shipments from the customer to

the factory if not shipped in the manner

prescribed by Thomson.-

61

5. " .......

What your warranty covers:

• Any defect in materials or

workmanship.

For how long after your purchase:

• 90 days for labor charges.

• One year for parts.

The warranty period for rental units

begins with the first rental or 45 days

from date of shipment to the rental firm,

whichever comes first.

What we will do:

During the initial 90 days

• Repair your camcorder or exchange

your camcorder with a new or

refurbished unit. The option will be

ours. There will be no cost to you.

After the 90 days and within one year

•Repair your camcorder or exchange

your camcorder with a new or

refurbished unit. The option will be

ours. Parts will be provided at no

charge, but you will be responsible for

the cost of labor required for the

repair.

How you get service:

1. Call 1-800-283-6503 and have your

unit's date of purchase and model/

serial number ready. The model/

serial number information is on the

bottom of your camcorder.

2. A representative will troubleshoot

your problem over the phone. If the

representative determines that your

unit is defective, you will be provided

.

.

.

with a Return Authorization (RA)

number, and the location to which your

unit should be returned. No returns

will be accepted without the RA

number.

Write the RA number on the outside

of the carton used to return the unit.

Make sure you insure your shipment in

case of damage or loss.

Carefully pack the unit excluding all

accessories, using the original box and

packing material if possible.

Include with the shipment:

• Evidence of purchase date, such as a

bill of sale, to verify your unit's

warranty eligibility.

• A brief note describing your

camcorder problem.

• Your name, address and phone

number.

Return transportation, handling and

insurance costs are your responsibility.

We accept no liability in case of

damage or loss.

6. The representative will advise the

address to mail a cashier's check or

money order for payment if there are

any out of warranty labor or parts

charge s.

7. Your camcorder will be returned to you

when it is repaired.

To have your camcorder repaired by an

Authorized RCA Camcorder Service

Center:

Check with your dealer or Call 1=800-

336-1900 for the Authorized RCA ....

Camcorder Service Center nearest you.

62

Take your unit to the Authorized RCA

Camcorder Service Center of your

choice.

• Show the Authorized RCA Camcorder

Service Center representative evidence

of purchase date, such as a bill of sale.

• Pick up your camcorder when repairs

are complete.

What your warranty does not cover:

• Adjustment of customer controls.

• Damage from misuse or neglect.

• A unit that has been modified or

incorporated into other products or is

used for institutional or other

commercial purposes.

• Batteries for remote control and clock.

• Cleaning of video/audio heads.

• Camcorders purchased or serviced

outside the U.S.A.

• Return transportation and handling

costs of your unit, including insurance

for loss or damage.

• Acts of God, such as but not limited to

lightning damage.

How State Law relates to warranty:

This warranty gives you specific legal

rights and you also may have other

rights that vary from state to state.

If you purchased your Camcorder

outside the United States:

• This warranty does not apply. Contact

your dealer for warranty information.

Product Registration:

Please complete and mail the Product

Registration Card packed with your

camcorder. It will make it easier to

contact you should it ever be necessary.

The return of the card is not required

for warranty coverage.

63

16X9 feature 35

16X9 indicator 24, 35

A

AN DUB button 10, 40

AN DUB indicator 25, 40

Accessories

included 3

optional 48

order form 51

Adapter/charger

accessory 3

charging battery 14

using 4, 13

AE focus indicators 24, 27

Assistance, customer 1, 3, 61

Attaching optional shoulder strap 50

Audio and video dub 40

Audio and video jacks 9, 44

Audio/video output cable

accessory 3

Auto focus 28

B

Battery

accessory 3

attaching and removing 15

care 16

charging 14

safety precautions 15

storage 16

using 14

BATTERY EJECT button 8, 15

Battecy level indicator 16, 24, 25

Cable TV installer note 47

CAM/OFF/VCR switch

6, 7, 9, 10, 11, 15, 16, 17, 20, 22,

26, 27, 28, 32, 33, 38, 39, 40, 42,

43, 45, 47

Camcorder

cleaning 58

holding tips 41

operating controls 8

turn on 6

Camera edit feature 27

Car cord

using optional 17

Care and maintenance

cleaning the camcorder viewfinder 58

cleaning the lens 58

cleaning the viewfinder 58

proper care and storage 59

things to avoid 59

Care and storage

camcorder 59

cassette 19

Cassette compartment 42

Cassette door 4

Cassette EJECT indicator 4, 19

Cassette holder 4

Cassettes

care and storage 19

insert and remove 19

video 18

Cautions i

Cell compartment 22

Cell holder 22

Chart of characters in titler 39

Checks, trouble 54

64

Cleaningthecamcorder'slens58

Cleaningtheviewf'mder58

Clockcell

accessory3

install22

Clockcellcompartment9

Clocklithiumcell 22

CLOSE/OPENswitch5, 7, 8

Contents1

Copytapes45

COUNTER/RESETbutton10,32

Customerassistanceandservice61

D

D. EFFECTS button 8, 24, 34, 35, 36, 37

Date search 33

DATE/DISP button

8, 20, 21, 25, 32, 38, 39

DC cable 14, 17

accessory 3

using 4

DC IN 6V jack 8, 13, 17

DC OUT jack 4

Design specifications 60

Digital effects 34

Digital effects indicators 24, 34

Digital zooming 36

DISPLAY button 10, 25, 32, 33, 45

date search 33

memory stop 32

time counter 32

Displays, viewfinder 24, 25

Dubbing 40

E

EJECT button 4, 9, 16, 19, 42

Erase protection 18

Eyepiece focus control 6, 8, 23, 42

F

F.FWD button

9, 10, 20, 27, 33, 38, 40, 43

FADE button 8, 31

Fade feature 31

Fade indicators 24, 31

Fast-forwarding indicator 25

First time operation 3

Flying erase head 26

Focus

auto 28

macro 29

manual 28

FOCUS buttons 8, 28

FOCUS indicator 24, 28, 29

Focusing 28, 29

H

Hand strap 5, 9

Hand strap flap 9

Head cleaning 18

I

I.ZOOM indicator 25, 30

Important safety information i

Indicators

16X9 24, 35

65

AN DUB 25, 40

AE focus 24, 27

batterylevel 16, 24

cassette EJECT 4, 19

digital effects 24, 34

fade 24, 31

fast-forwarding 25

FOCUS 24, 28, 29

I.ZOOM 25, 30

in viewfinder 24

memory stop 25, 32

MIRROR 24, 37

MOSAIC 24, 37

NEGPOS 24, 36

NO TAPE 25

pause 6, 25

REC 6, 25

record-pause 6

rewind 25

SEARCH 25, 33

status 24

TAPE 25

tape counter 32

TAPE END 25, 29

tape-remaining 25, 29

time counter 25, 32

ZM:2 24, 36

ZOOM 24, 25, 30, 36

zoom level 25, 30

Information to user 60

Insert and remove cassettes 19

INST. ZOOM button 8, 30

Instant zooming 30

L

Leng 7, 8, 27

Lens cover 5, 7, 8

Letterbox recording 35

M

Macro focus 29

Manual focus 28, 29

Memory stop 32

Memory stop indicator 25, 32

Microphone 8, 26, 41

MIRROR indicator 24, 37

Mirror mode 37

MOSAIC indicator 24, 37

Mosaic mode 37

N

Negative mode 36

NEGPOS indicator 24, 36

NO TAPE indicator 25

O

Operating controls 8

Optional accessories 48

Optional plug adapter 13

Order form, accessories 51

P

PAUSE button 11, 40, 43

PLAY button 7, 9, 11, 27, 40, 42, 45, 47

Playback

first 7

viewfmder 42

Playback features 43

66

memory-stop 32

stop-action pause 43

tape counter 32

tape positioning 43

visual searching 43

Playback on a TV without audio/video inputs

46

Playback on TV (or VCR) with audio/video In

Jacks 44

Playback speed 18

Plug adapter, optional 13

Powering your camcorder

using adapter/charger 13

using battery 14

using optional car cord adapter 17

Problem solving 54

Product registration i

Program AE 27

PUSH LOCK button 4, 8, 19, 42

Q

Quick review feature 26

R

REC indicator 6, 25

Record-pause indicator 6

Recording

16X9 35

letterbox 35

speed 18

tips 41

Registration i

Remote

accessory 3

accessory batteries 3

buttons 10

install batteries 12

sensor 8, 12

REWbutton 11, 33, 38, 40, 43

REW/REVIEW button

7, 9, 20, 26, 27, 33, 38, 40, 43

Rewinding indicator 25

RF output adapter, optional 46

RF output connector 9, 46

S

Safety information i

Safety precautions

battery 15

Safety tab 4, 18, 19, 42

SEARCH indicator 25, 33

Searching during playback 43

Sensor, remote 12

Shoulder strap

attaching optional 50

attachment rings 8, 50

Solving problems 54

SPspeed 18, 42

Specifications 60

Speed

recording and playback 18

START/STOPbutton 31, 32, 39, 45, 47

Status indicators 24

STOP button

7, 9, 10, 11, 20, 32, 33, 38, 43,

45, 47

Stop-action pause 43

67

T

Table of contents 1

Tally light 8, 26

Tape

inserting 4

Tape copying 45

Tape counter 32

TAPE END indicator 25, 29

TAPE indicator 6, 25

Tape positioning 43

Tape warnings 25

Tape-remaining display 25, 29

Things to avoid 59

Thumb trigger

6, 7, 9, 11, 31, 35, 39, 40, 43

Time and date

correct 20

display 20, 25

recording 21

setting 20

Time counter 25, 32, 40

Tips

camcorder holding 41

recording 41

travel 41

Title

record 21

TITLE ON/OFF button 11, 38, 39

Titler 38, 39

chart of characters 39

correct an error 38

create a title 38

record while copying a tape 39

recording 39

68

Travel Tips 41

Tripod mounting hole 9

Tripod, using 49

Trouble checks 54

U

Unpack camcorder and accessories 3

V

Videocassettes 18

Viewfinder 6, 8, 41

adjust for viewing 23

displays 24, 25

eyepiece focus control 23

playback 42

use to record 23

W

Warnings i

Warnings, tape 25

Z

ZM:2 indicator 24, 36

ZOOM buttons 11, 30

ZOOM indicator 24, 25, 30, 36

Zoom level indicator 25, 30

Zoom lever 9, 30, 36

Zooming 30

digital 36

instant 30

using zoom buttons 30

using zoom lever 30

_THOMSON CONSUMER ELECTRONICS

10330 N Meridian Street

Indianapolis, IN 46290

© 1998 Thomson Consumer Electronics, Inc.

Trademark(s) ® Registered

Marca(s) Registrada(s)

Printed in Japan

15357370

QR19293
