USER MANUAL

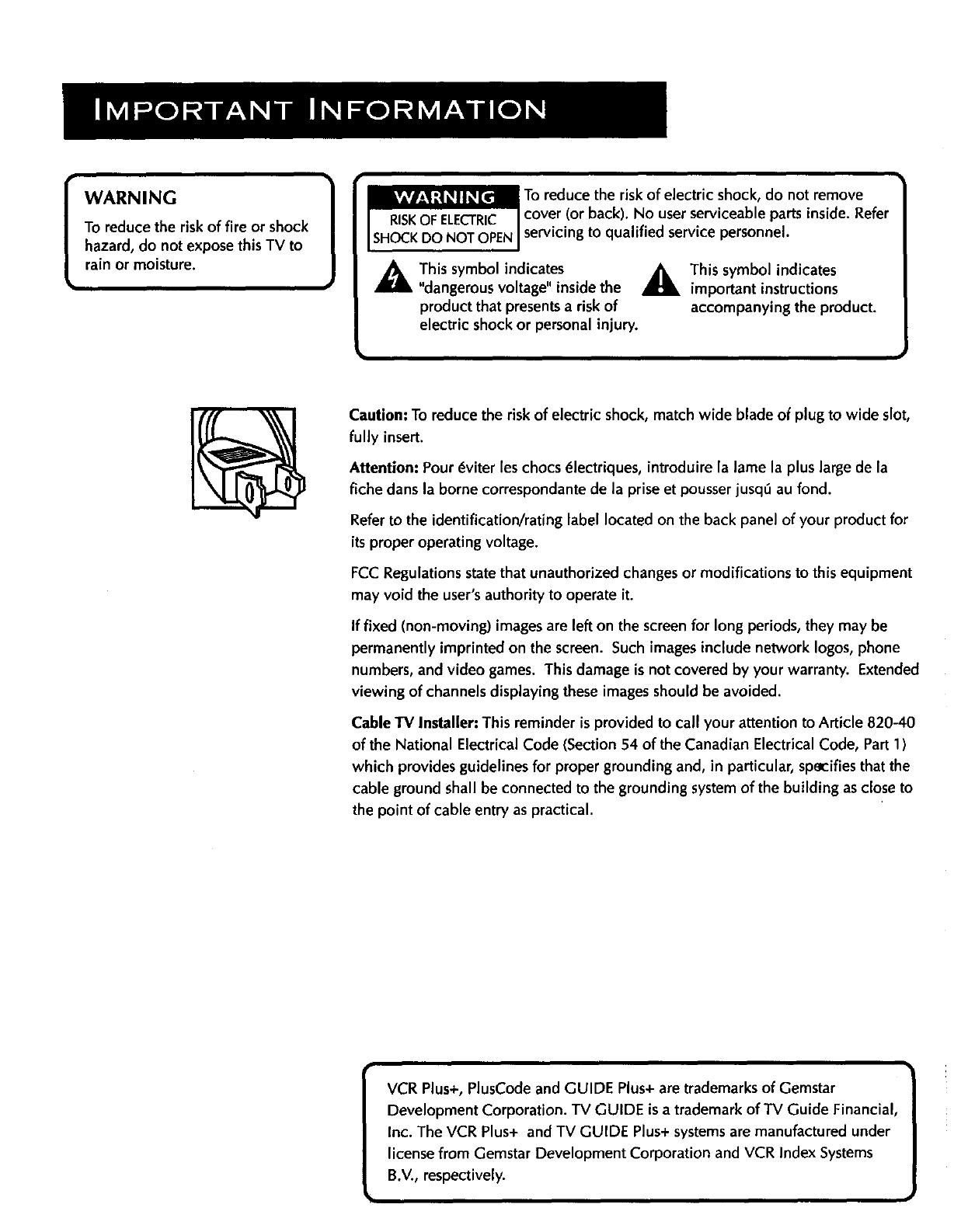

WARNING

To reduce the riskof fire or shock

hazard, do not expose this TV to

rain or moisture.

To reduce the risk of electric shock, do not remove

cover (or back). No user serviceable parts inside. Refer

servicing to qualified service personnel.

,_ This symbol indicates ,_ This symbol indicates

"dangerous voltage" insidethe important instructions

product that presents a risk of accompanying the product.

electric shock or personal injury.

Caution: To reduce the riskof electric shock, match wide blade of plug to wide slot,

fully insert.

Attention: Pour _viter les chocs _lectriques, introduire la lame la plus large de la

fiche dans la borne correspondantede la prise et pousser jusq6 au fond.

Refer to the identification/rating label located on the back panel of your product for

its proper operating voltage.

FCC Regulations statethat unauthorized changesor modifications to this equipment

may void the user's authority to operate it.

If fixed (non-moving) imagesare left on the screenfor long periods, they may be

permanently imprinted on the screen. Such images include network Iogos, phone

numbers, and video games. This damage is not covered by your warranty. Extended

viewing of channels displaying these images should be avoided.

Cable "IV Installer: This reminder is provided to call your attention to Article 820-40

of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1)

which provides guidelines for proper grounding and, in particular, specifiesthat the

cable ground shall be connected to the grounding system of the building as closeto

the point of cable entry as practical.

VCR Plus+, PlusCode and GUIDE Plus+ are trademarks of Gemstar

Development Corporation. TV GUIDE is a trademark of TV Guide Financial,

Inc. The VCR Plus+ and TV GUIDE Plus+ systems are manufactured under

license from Gemstar Development Corporation and VCR Index Systems

B.V., respectively.

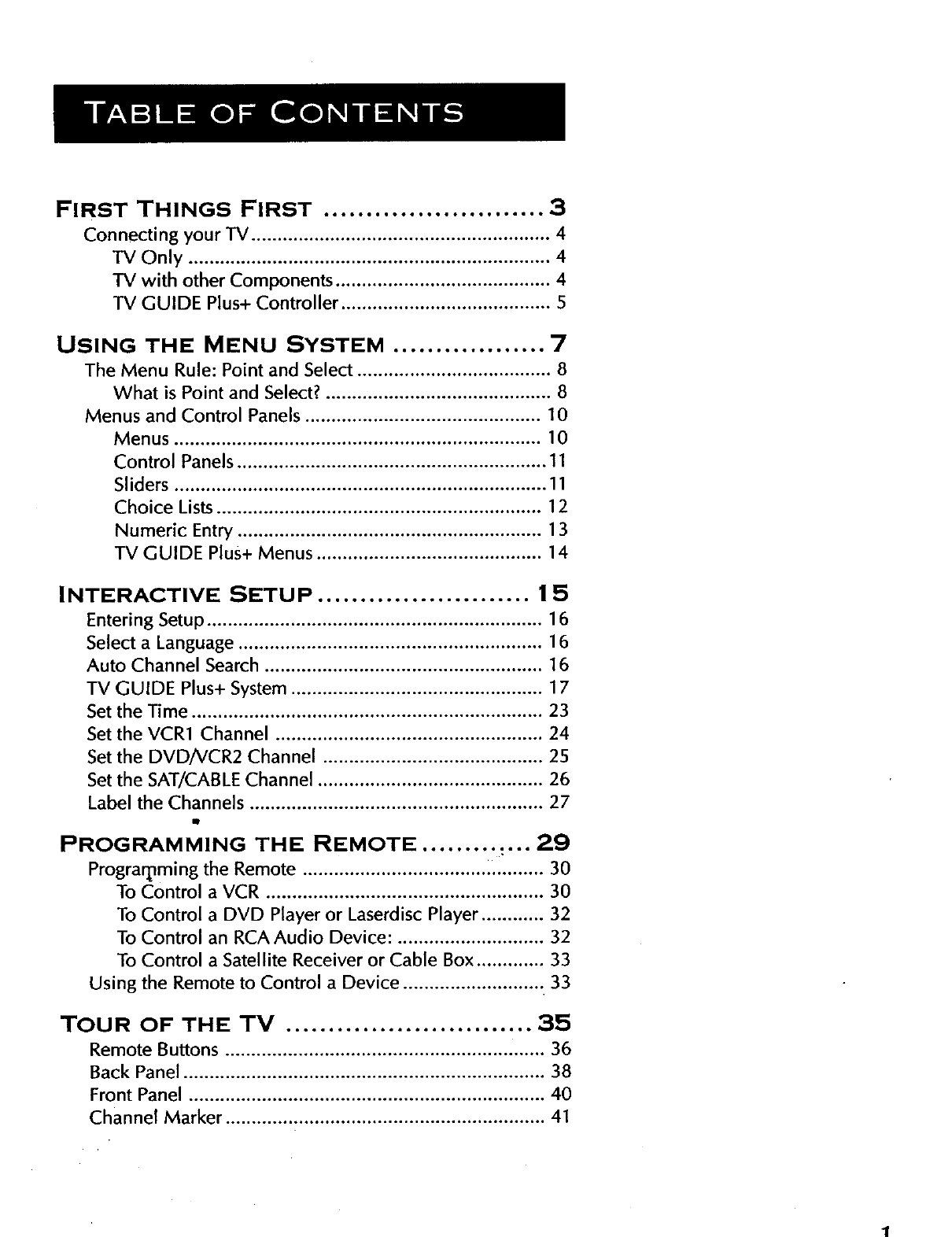

FIRST THINGS FIRST .......................... 3

Connecting your TV ......................................................... 4

TV Only ..................................................................... 4

TV with other Components ......................................... 4

TV GUIDE Plus+ Controller ........................................ 5

USING THE MENU SYSTEM .................. 7

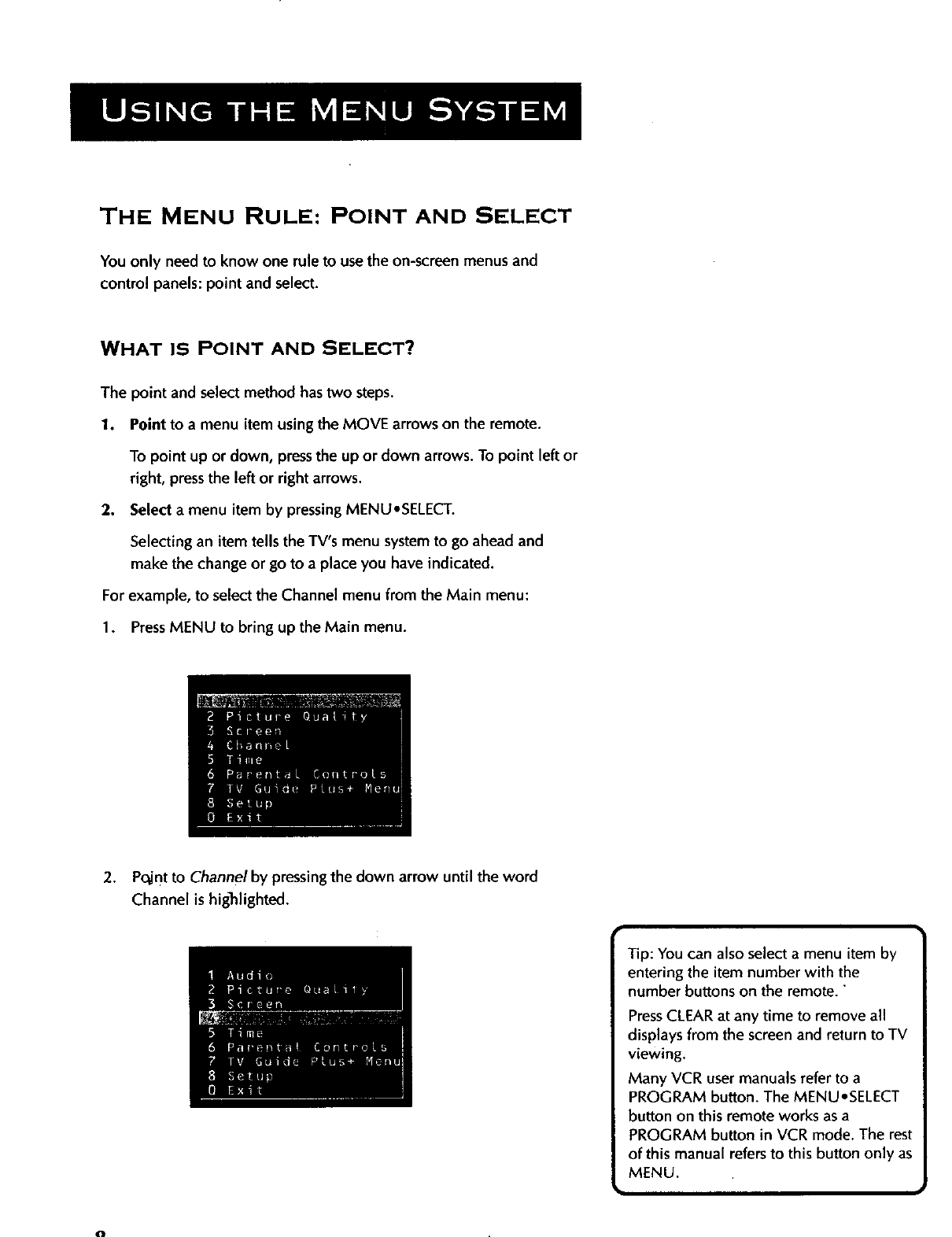

The Menu Rule: Point and Select ..................................... 8

What is Point and Select? ........................................... 8

Menus and Control Panels ............................................. 10

Menus ...................................................................... 10

Control Panels ........................................................... 11

Sliders ....................................................................... 11

Choice Lists .............................................................. 12

Numeric Entry .......................................................... 13

TV GUIDE Plus+ Menus ........................................... 14

INTERACTIVE SETUP ......................... 1 5

Entering Setup ................................................................ 16

Select a Language .......................................................... 16

Auto Channel Search ..................................................... 16

TV GUIDE Plus+ System ................................................ 17

Set the Time ................................................................... 23

Set the VCR1 Channel ................................................... 24

Set the DVDiVCR2 Channel .......................................... 25

Set the SAT/CABLE Channel ........................................... 26

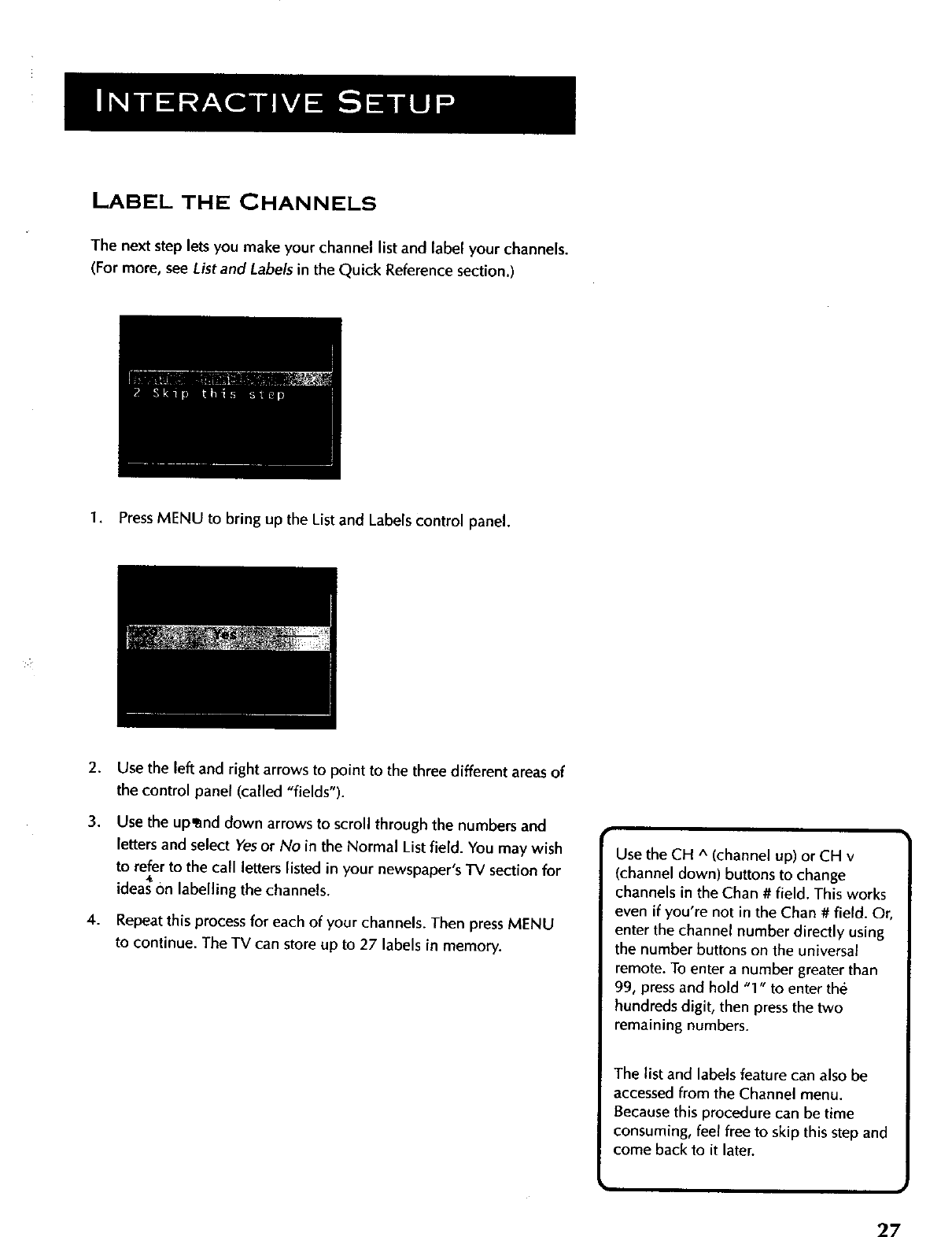

Label the Channels ........................................................ 27

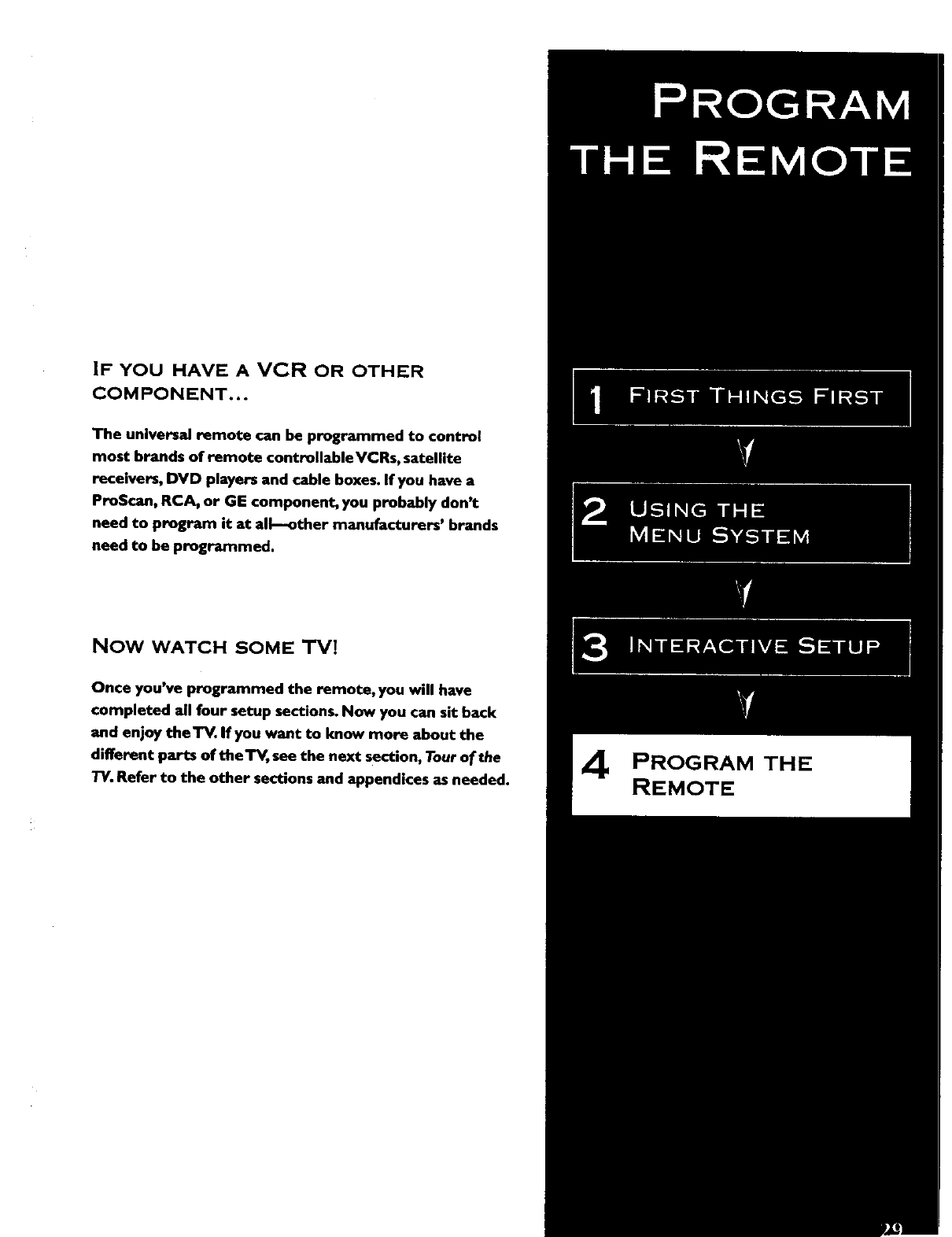

PROGRAMMING THE REMOTE ............. 29

Prograr_ming the Remote ................................... _.......... 30

To Control a VCR ..................................................... 30

To Control a DVD Player or Laserdisc Player ............ 32

To Control an RCA Audio Device: ............................ 32

To Control a Satellite Receiver or Cable Box ............. 33

Using the Remote to Control a Device ........................... 33

TOUR OF THE TV ............................. 35

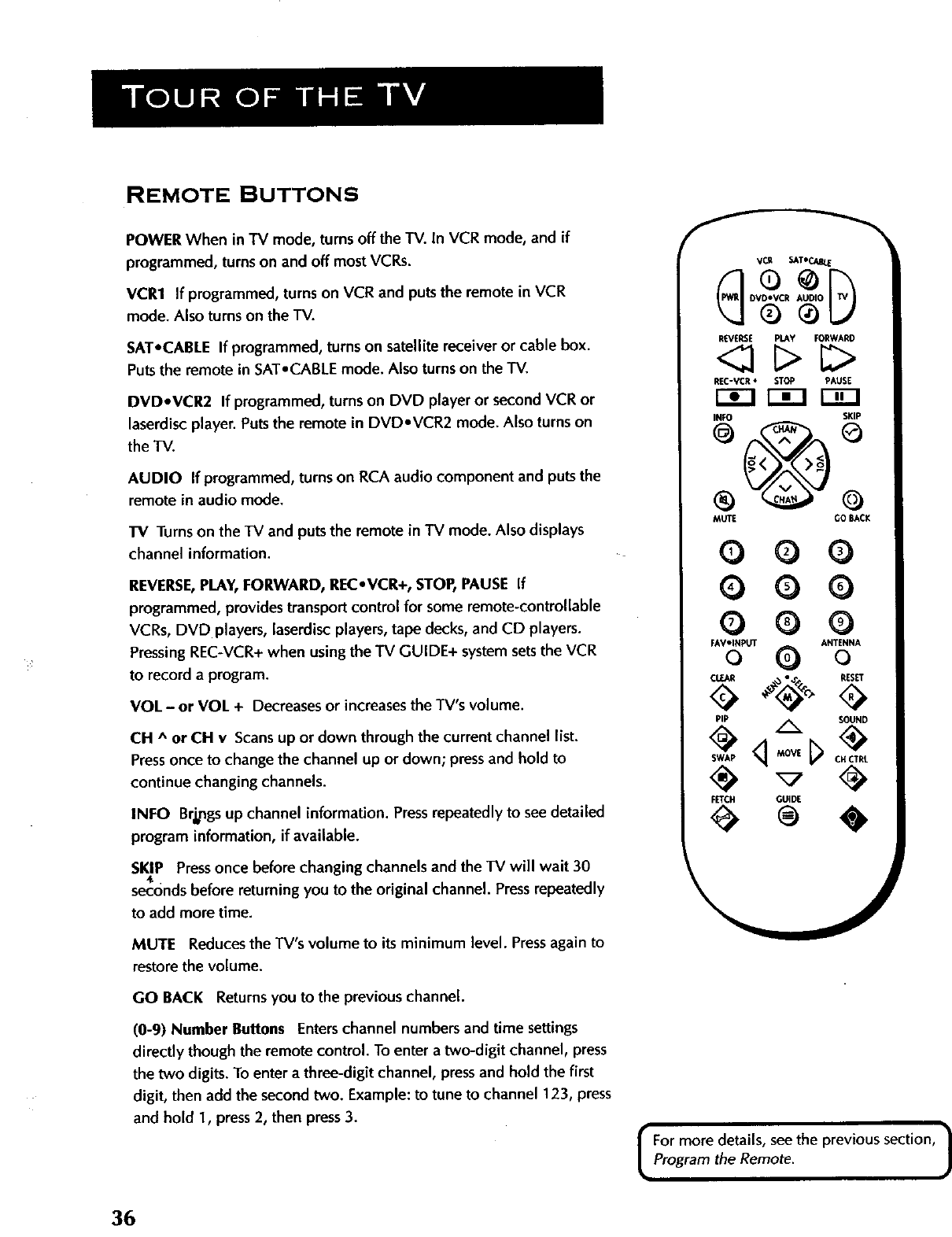

Remote Buttons ............................................................. 36

Back Panel ..................................................................... 38

Front Panel .................................................................... 40

Channel Marker ............................................................. 41

QUICK REFERENCE .......................... 43

Audio Menu .................................................................. 44

Picture Quality Menu .................................................... 45

Screen Menu ................................................................. 46

Channel Menu ............................................................... 47

Time Menu .................................................................... 49

Parental Controls Menu ................................................. 50

TV GUIDE Plus+ Menu .................................................. 51

Setup Menu ................................................................... 52

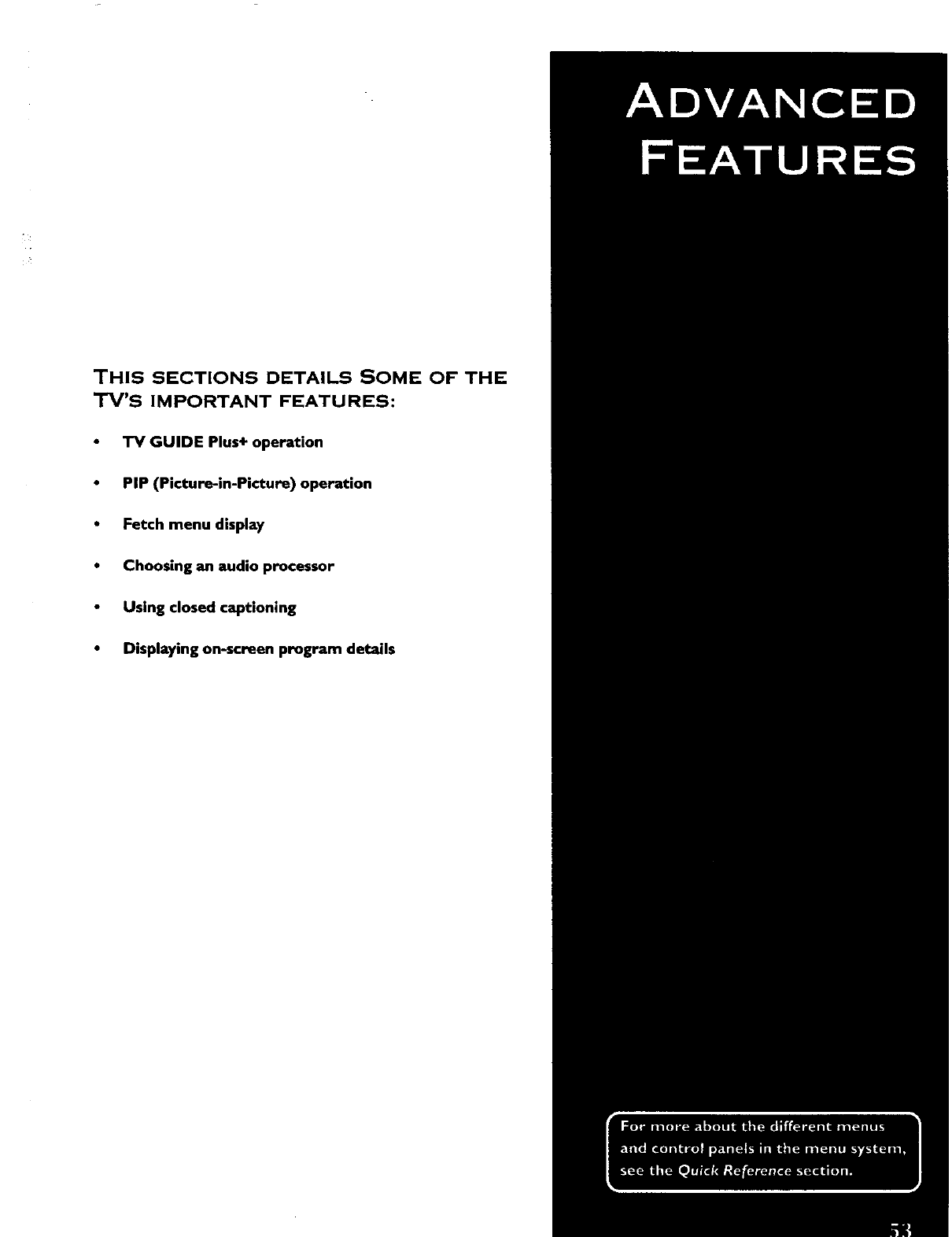

ADVANCED FEATURES ...................... 53

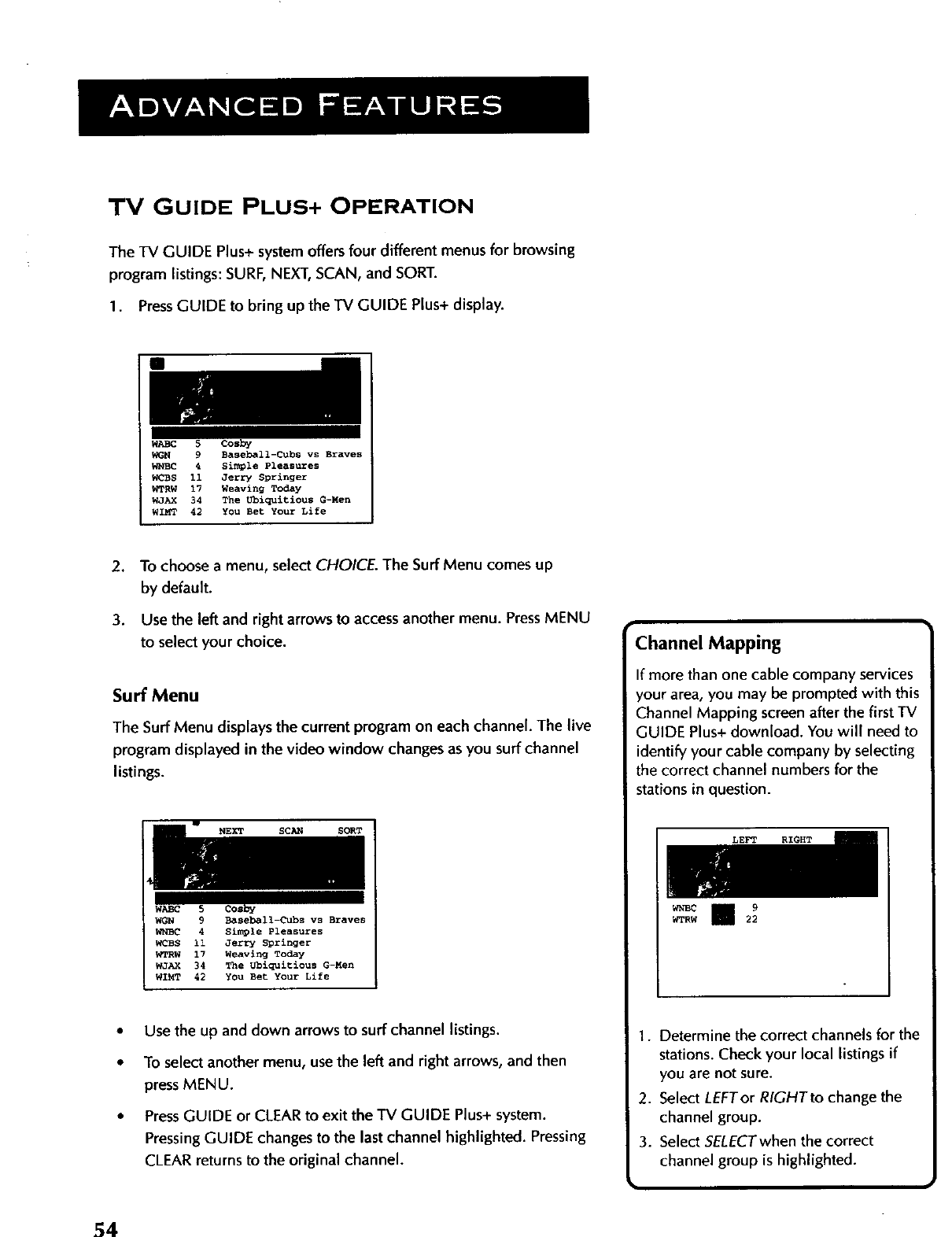

TV GUIDE Plus+ Operation ........................................... 54

Surf Menu ................................................................ 54

Next Menu ............................................................... 55

Scan Menu ............................................................... 55

Sort Menu ................................................................ 56

One Touch Recording .............................................. 57

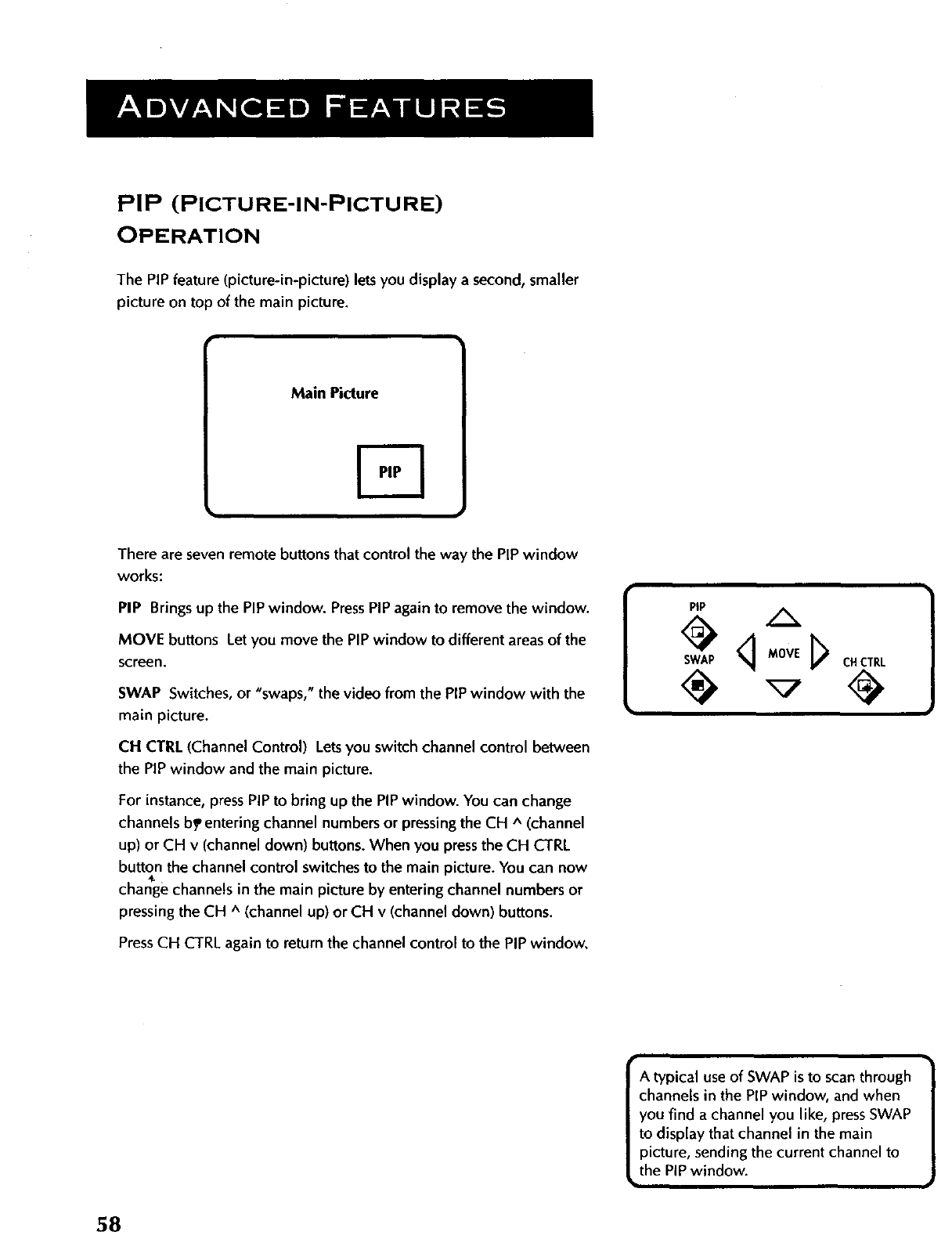

PIP (Picture-in-Picture) Operation .................................. 58

Two Tips for Using PIP Buttons ................................. 59

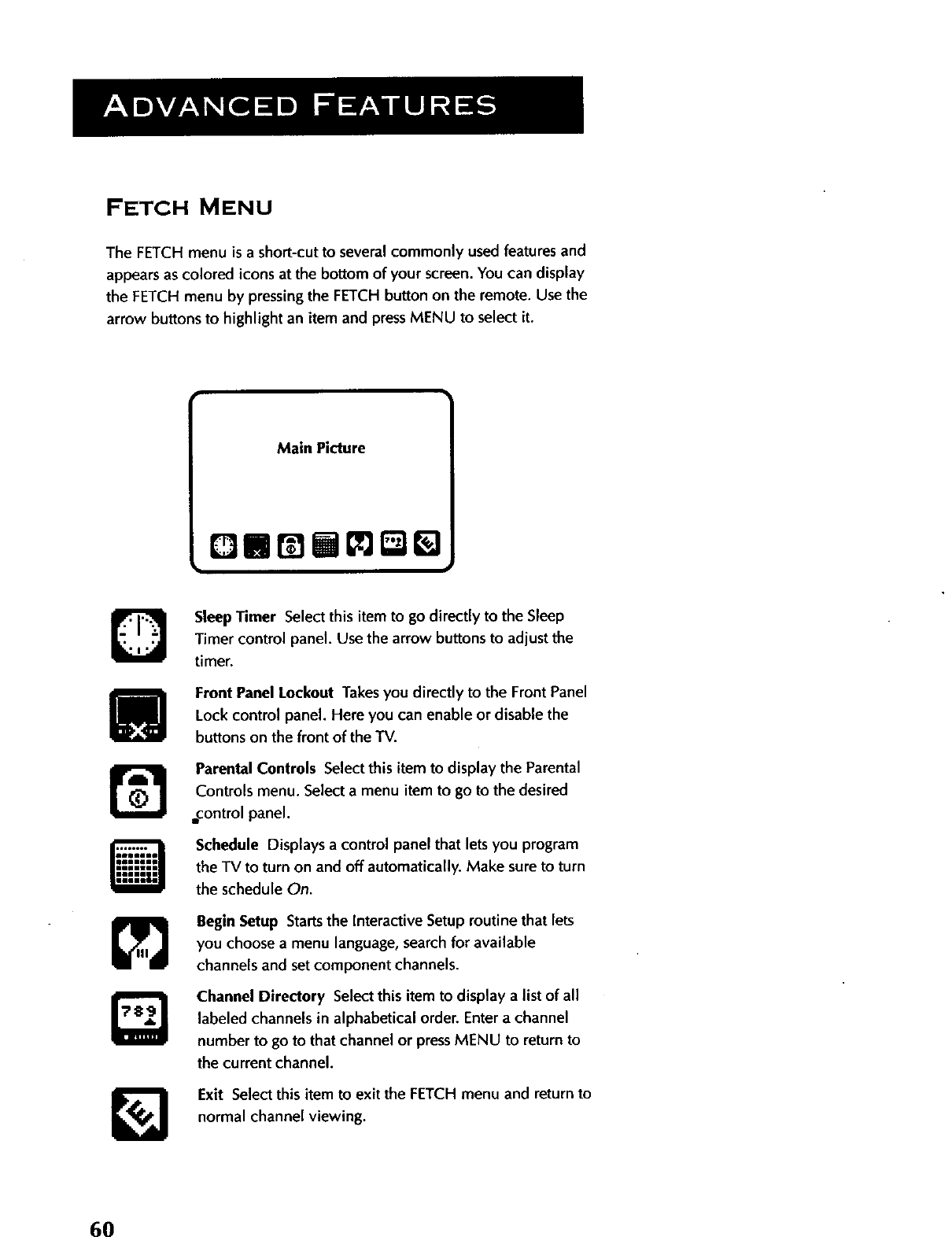

Fetch Menu ................................................................... 60

Choosing an Audio Processor ........................................ 61

Choosing an audio processor from the remote .......... 61

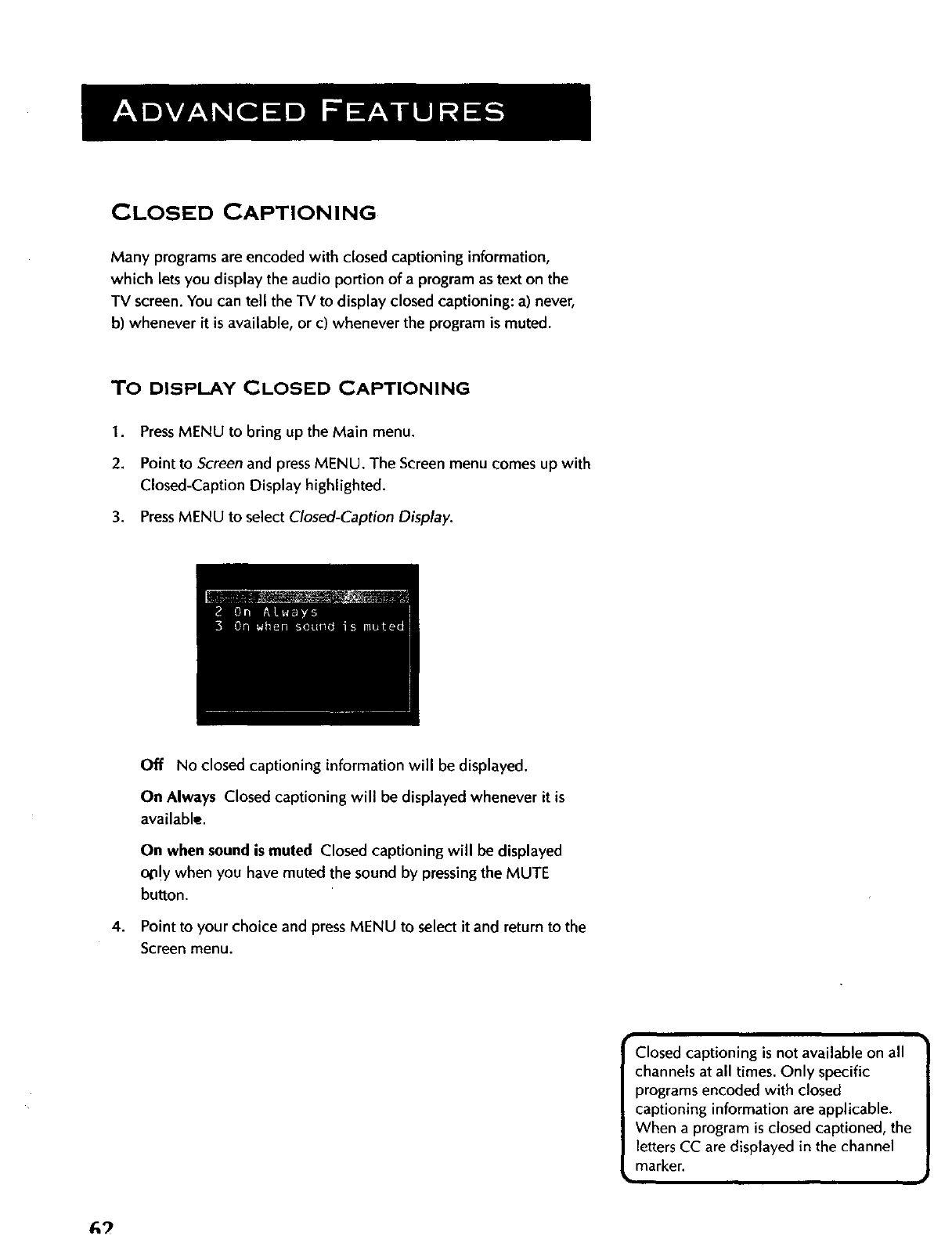

Closed Captioning ......................................................... 62

To display Closed Captioning ................................... 62

Closed Captioning Modes ........................................ 63

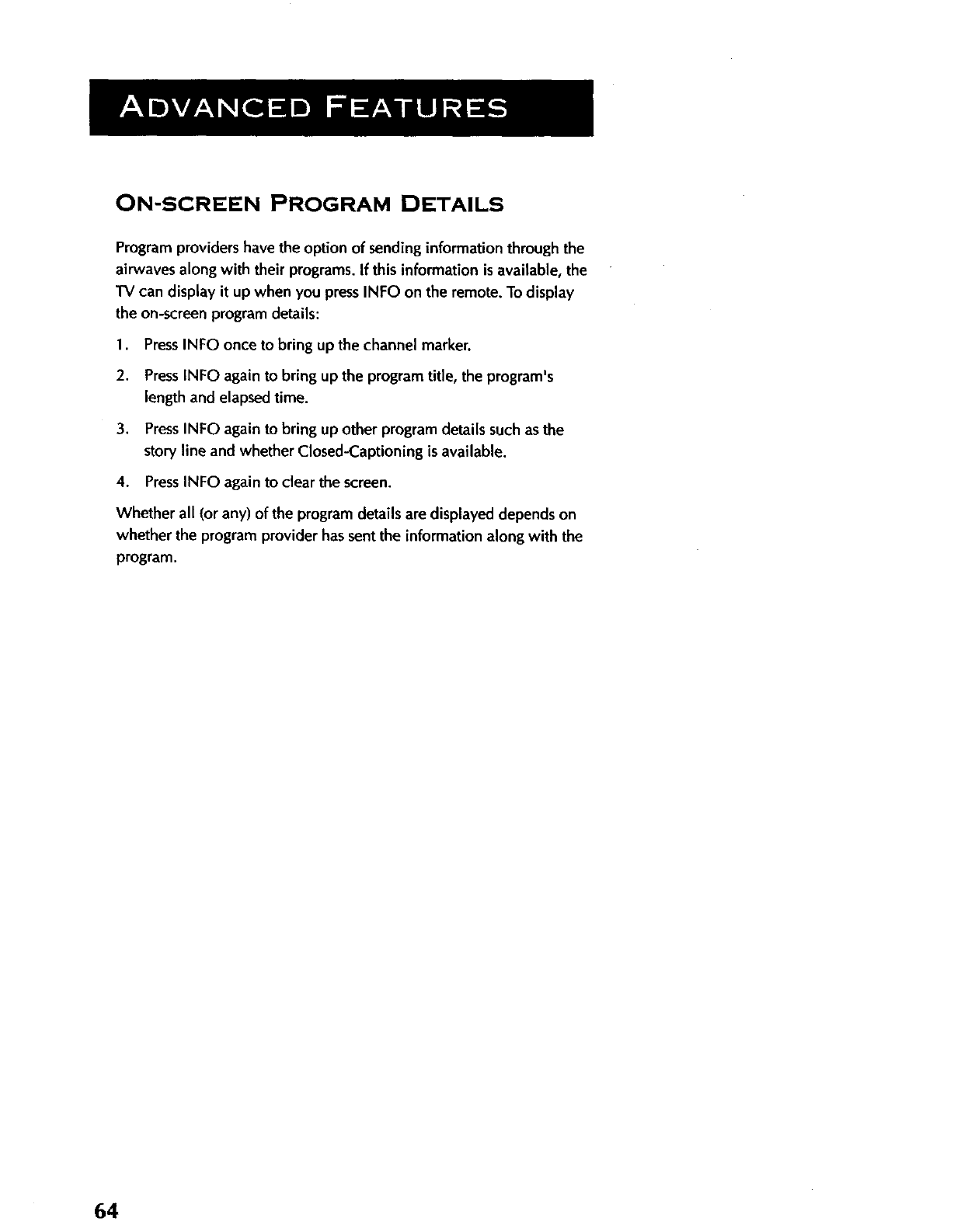

On-screen Program Details ............................................ 64

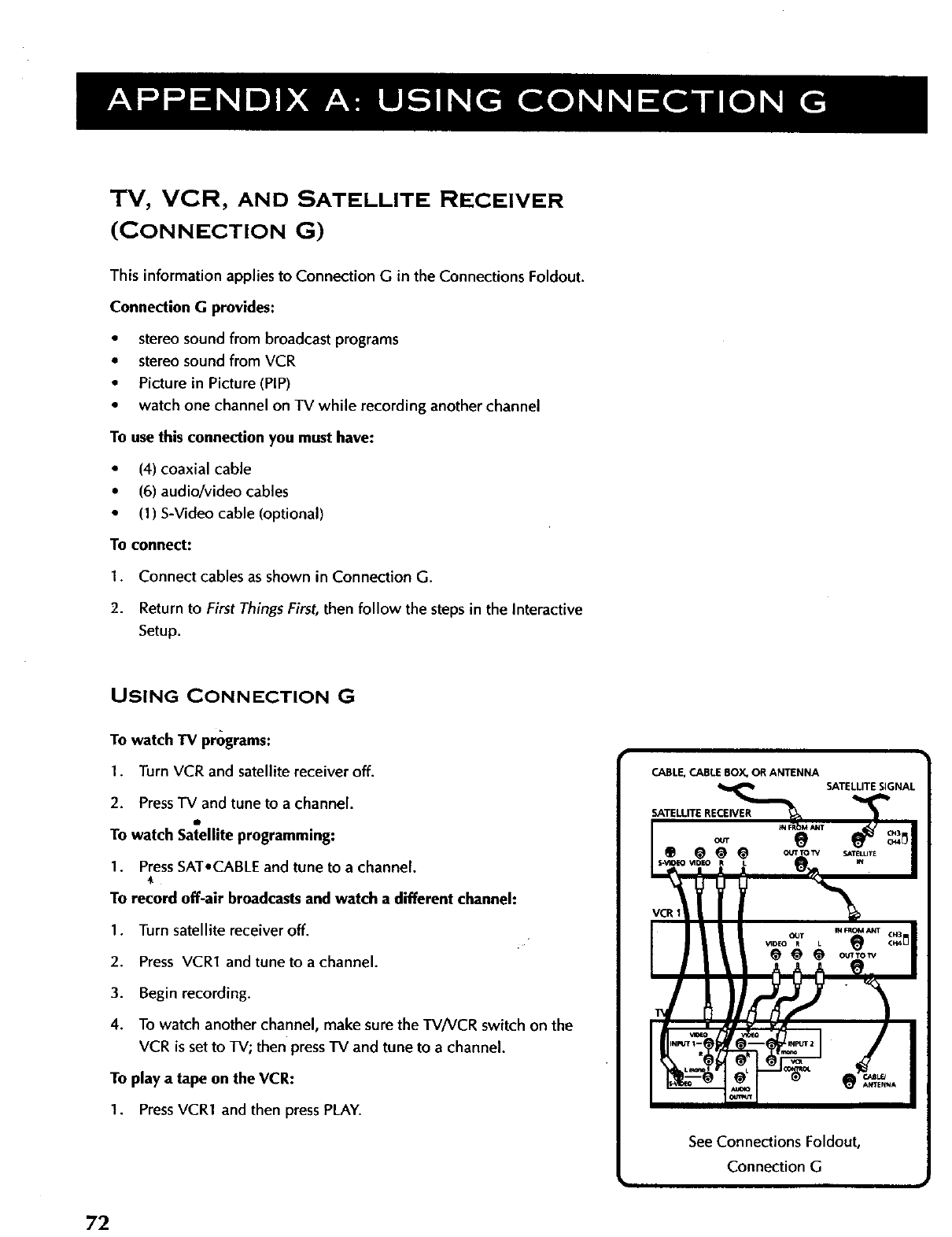

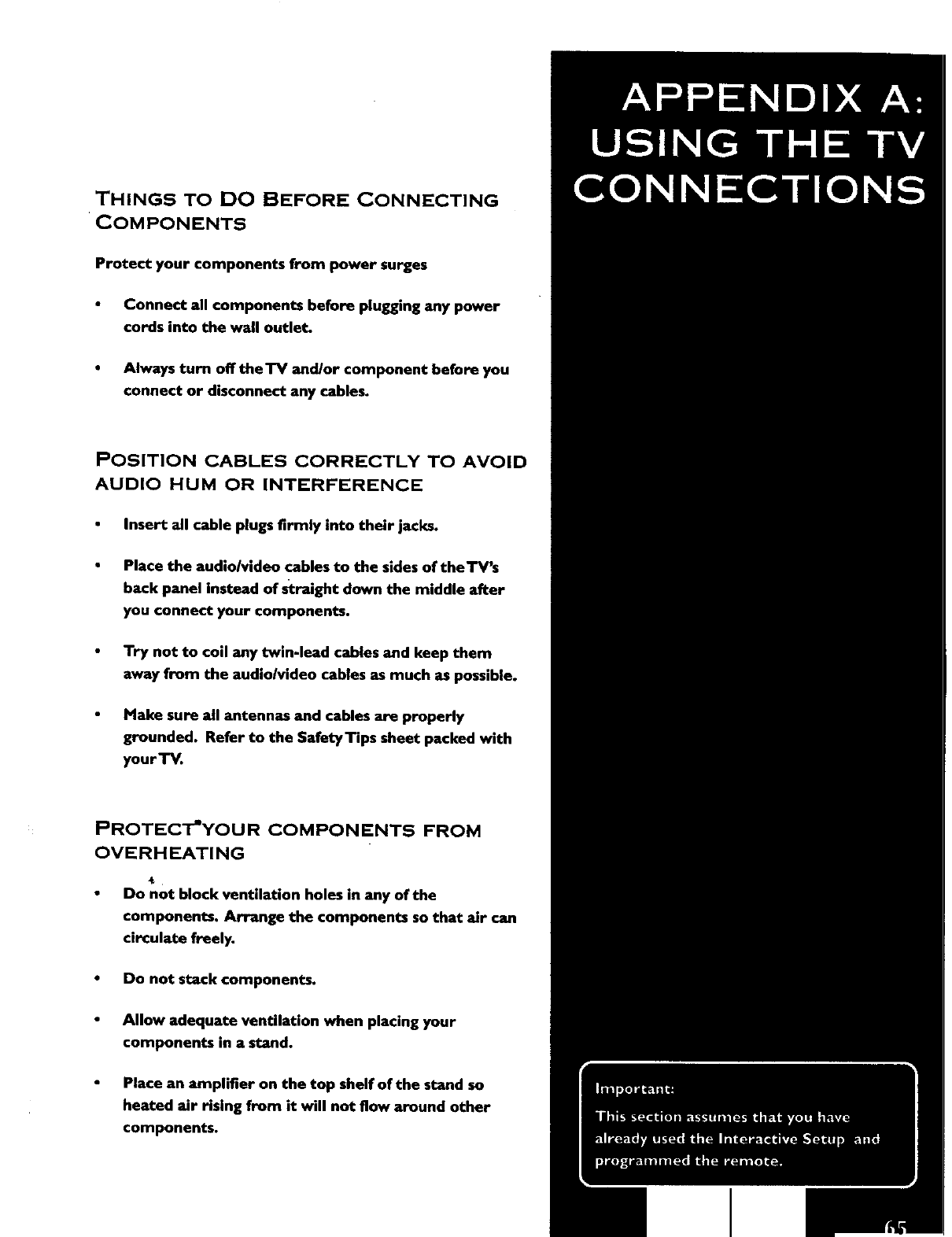

APPENDIX A: TV CONNECTIONS ...... 65

APPENDIX B: OTHER COMPONENTS. 76

APPENDIX C: TROUBLESHOOTING ... 78

APPENDIX C: TROUBLESHOOTING ... 79

APPENDIX D: LIMITED WARRANTY .... 80

APPENDIX E: CARE AND CLEANING.. 81

ACCESSORIES .................................. 82

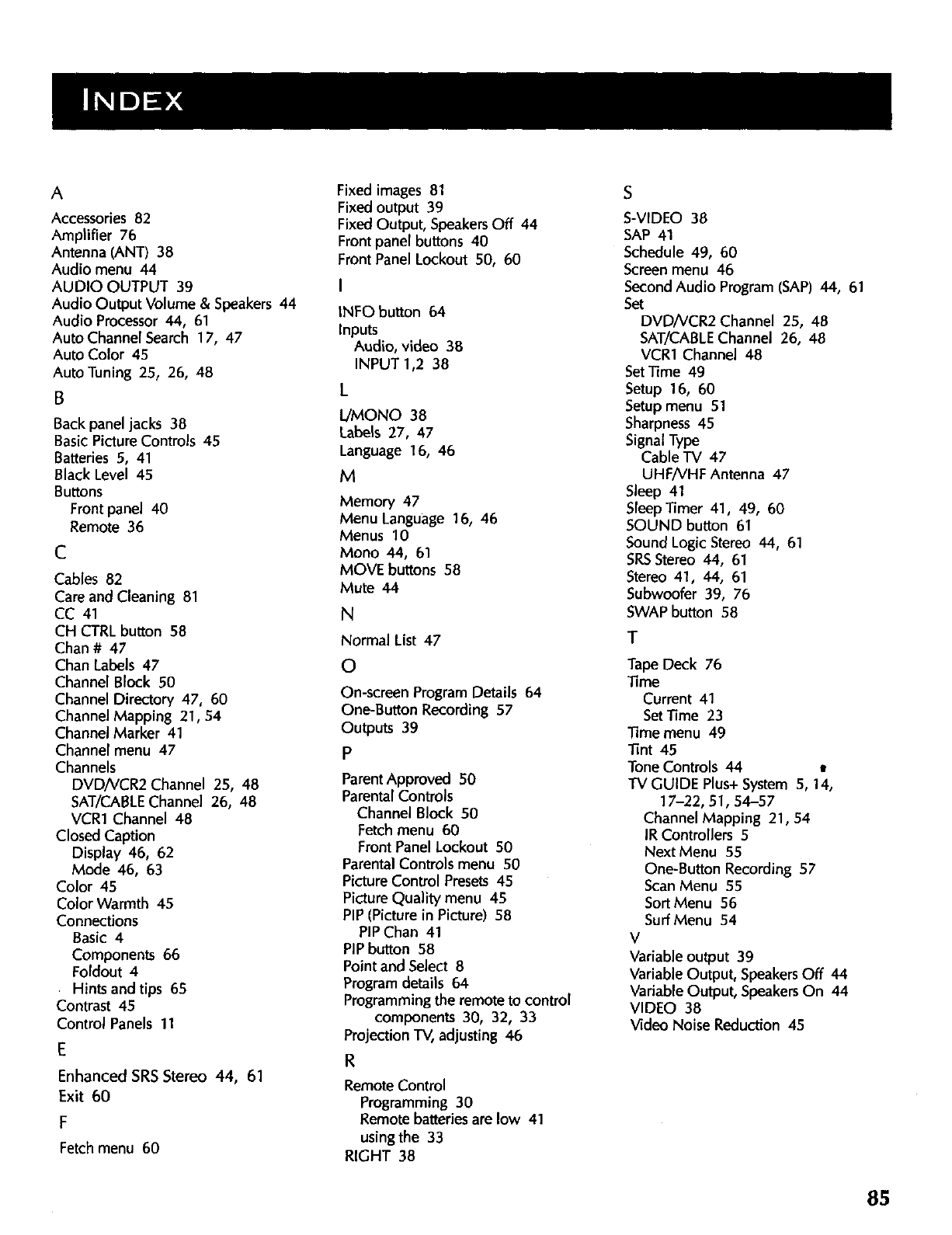

INDEX ............................................. 85

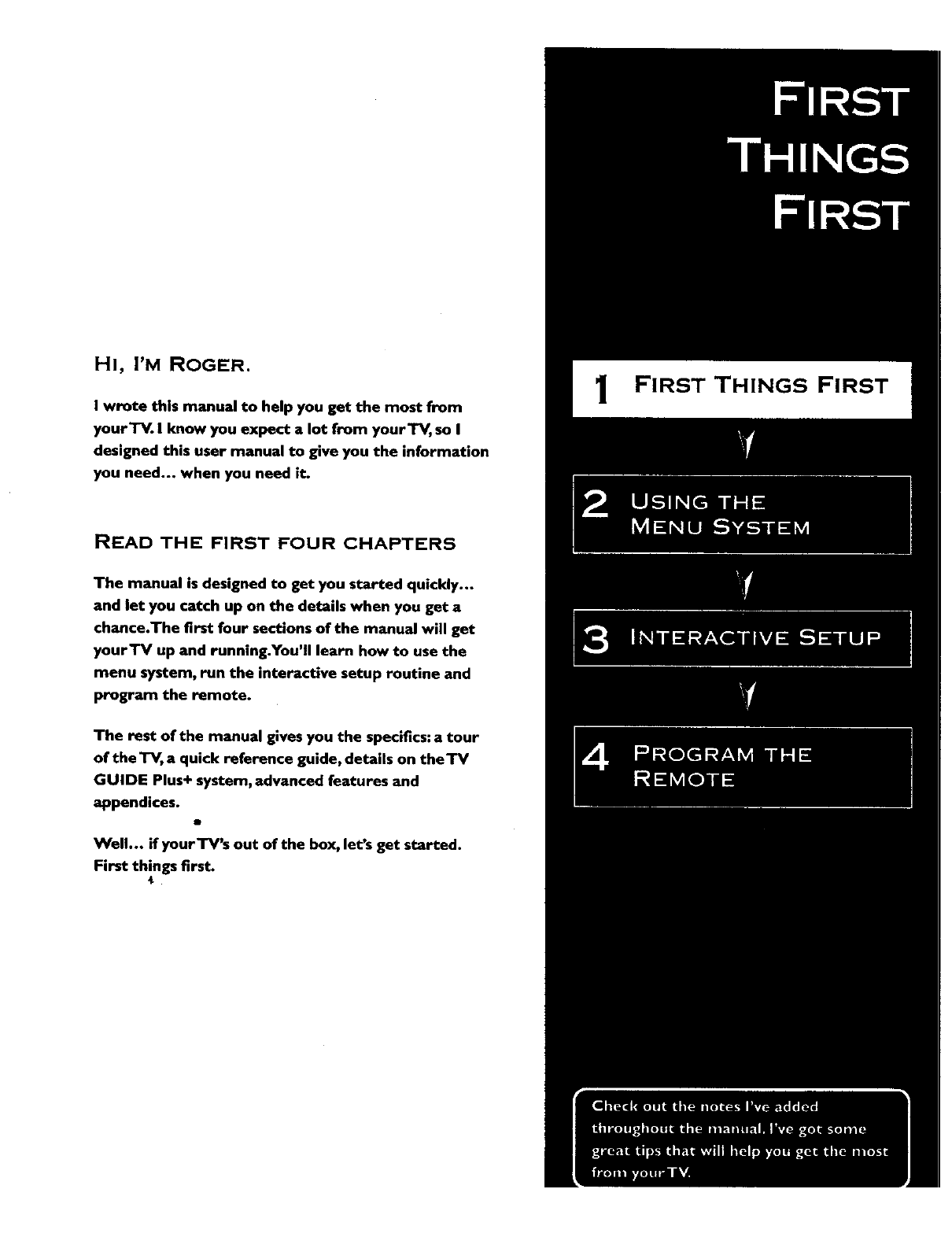

HI, I'M ROGER.

I wrote this manual to help you get the most from

yourTV. I know you expect alot from your TV, so I

designed this user manual to give you the information

you need.., when you need it.

READ THE FIRST FOUR CHAPTERS

The manual is designed to get you started quickly...

and let you catch up on the details when you get a

chance.The first four sections of the manual will get

yourTV up and running.You'll learn how to use the

menu system, run the interactive setup routine and

program the remote.

The rest of the manual gives you the specifics: a tour

of the TV, aquick reference guide, details on the TV

GUIDE Plus+ system, advanced features and

appendices.

Well... if yourTV's out of the box, let's get started.

First things first.

1FIRST THINGS FIRST

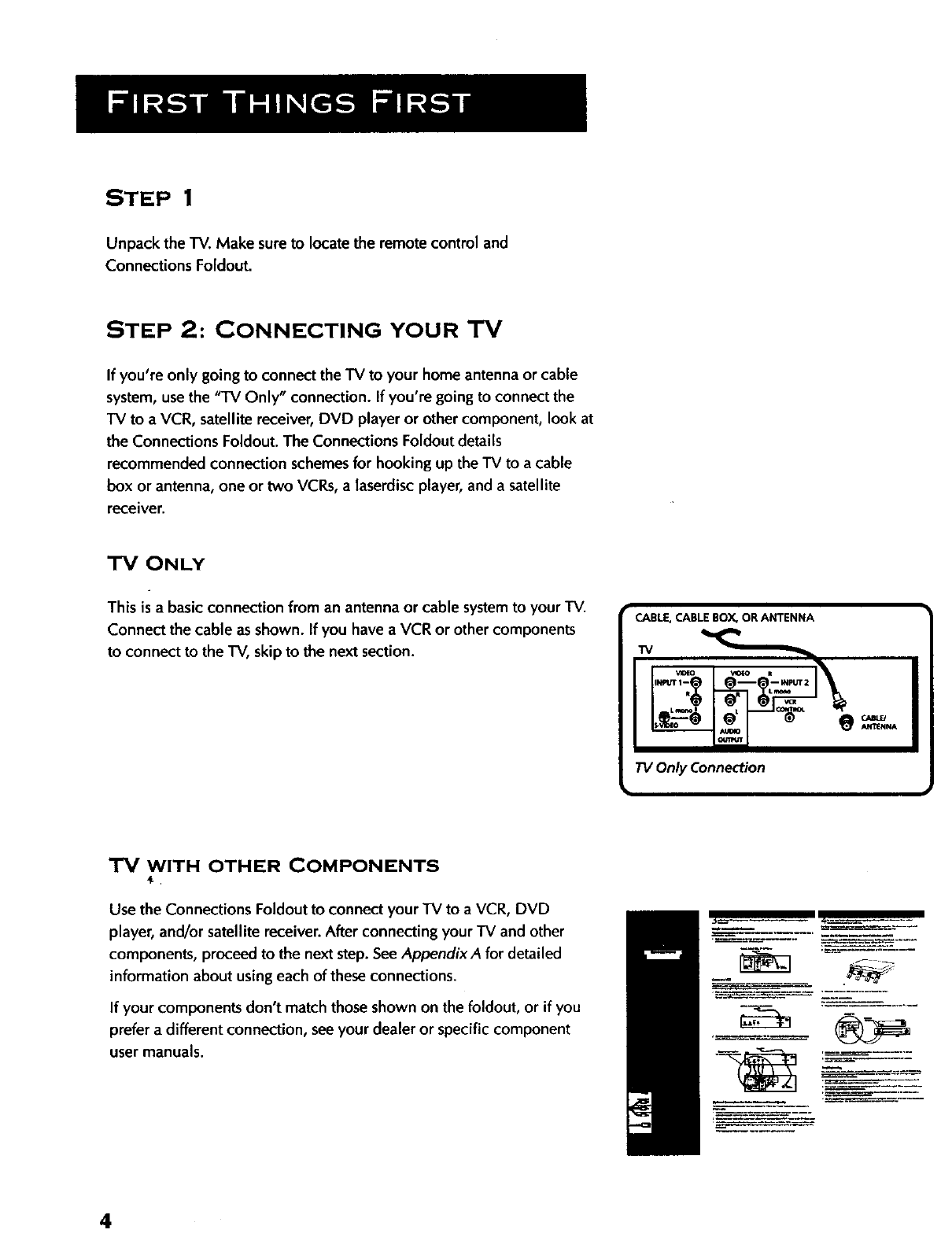

STEP 1

Unpack the "IV. Make sureto locate the remote control and

Connections Foldout.

STEP 2: CONNECTING YOUR TV

If you're only going to connect the TV to your home antenna or cable

system, use the "TV Only" connection. If you're going to connect the

TV to a VCR, satellite receiver, DVD player or other component, look at

the Connections Foldout. The Connections Foldout details

recommended connection schemesfor hooking up the TV to a cable

box or antenna, one or two VCRs, alaserdisc player, and a satellite

receiver.

TV ONLY

This is a basic connection from an antenna or cable systemto your TV.

Connect the cable as shown. If you have a VCR or other components

to connect to the TV, skip to the next section.

CABLE, CABLE BOX, OR ANTENNA

TV Only Connection

TV WITH OTHER COMPONENTS

Use the Connections Foldout to connect your TV to a VCR, DVD

player, and/or satellite receiver.After connecting your "iV and other

components, proceed to the next step.See AppendixA for detailed

information about usingeach of these connections.

If your components don't match those shown on the foldout, or if you

prefer a different connection, see your dealer or specific component

user manuals.

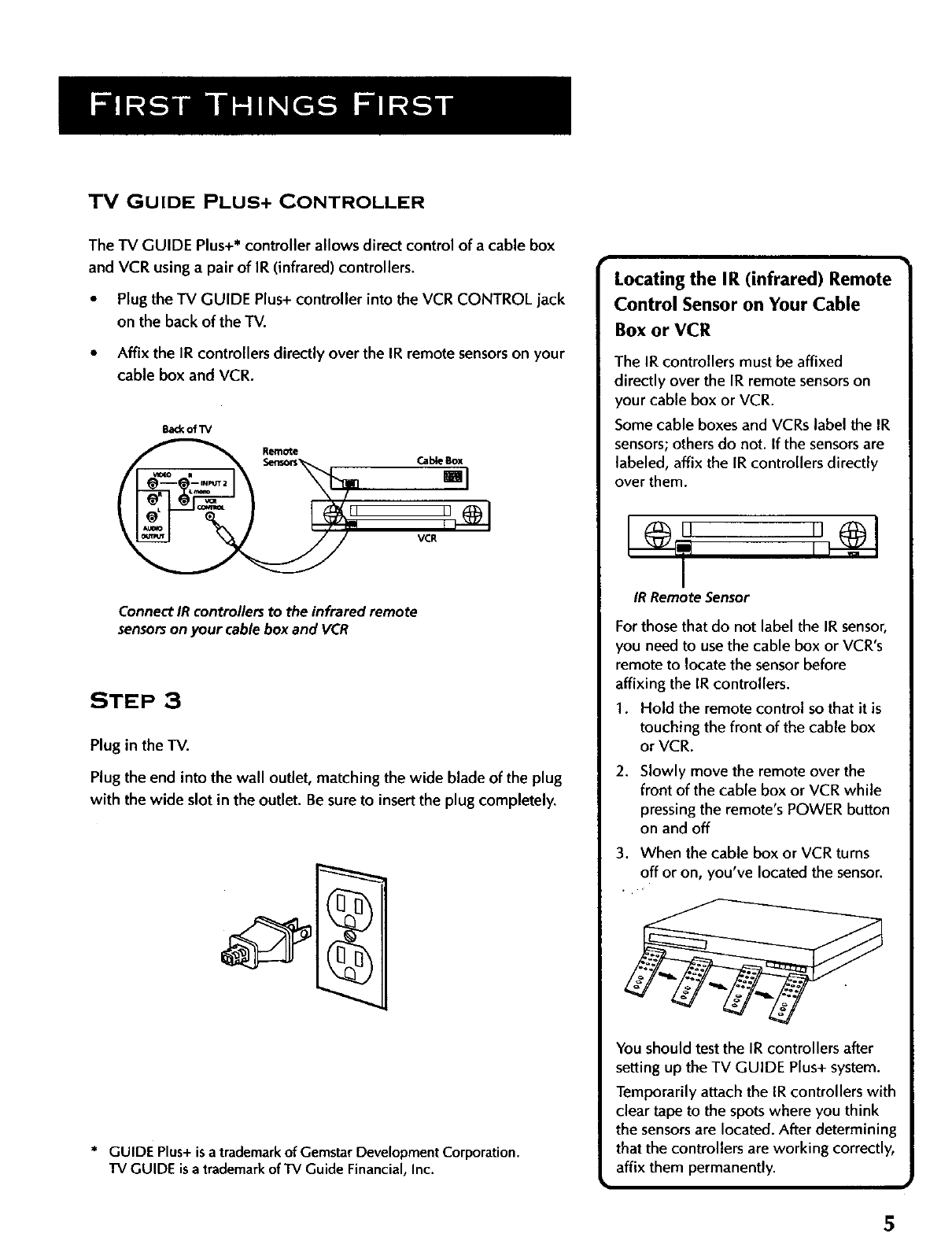

TV GUIDE PLUS+ CONTROLLER

The TV GUIDE Plus+* controller allows direct control of a cable box

and VCR using a pair of IR (infrared) controllers.

• Plug the TV GUIDE Plus+ controller into the VCR CONTROL jack

on the back of the TV.

• Affix the IR controllers directly over the IR remote sensors on your

cable box and VCR.

Backof "IV

°'a,

VCR

Connect IR controllers to the infrared remote

sensors on your cable box and VCR

STEP 3

Plug in the TV.

Plug the end into the wall outlet, matching the wide blade of the plug

with the wide slot in the outlet. Be sure to insert the plug completely.

* GUIDE Plus+ is a trademark of Gemstar Development Corporation.

TV GUIDE is a trademark of TV Guide Financial, Inc.

Locating the IR (infrared) Remote

Control Sensor on Your Cable

Box or VCR

The IR controllers must be affixed

directly over the IR remote sensors on

your cable box or VCR.

Some cable boxes and VCRs label the IR

sensors; others do not. If the sensors are

labeled, affix the IR controllers directly

over them.

IRRemote Sensor

For those that do not label the IR sensor,

you need to use the cable box or VCR's

remote to locate the sensor before

affixing the IR controllers.

1. Hold the remote control so that it is

touching the front of the cable box

or VCR.

2. Slowly move the remote over the

front of the cable box or VCR while

pressing the remote's POWER button

on and off

3. When the cable box or VCR turns

off or on, you've located the sensor.

You should test the IR controllers after

setting up the TV GUIDE Plus+ system.

Temporarily attach the IR controllers with

clear tape to the spots where you think

the sensors are located. After determining

that the controllers are working correctly,

affix them permanently•

STEP 4

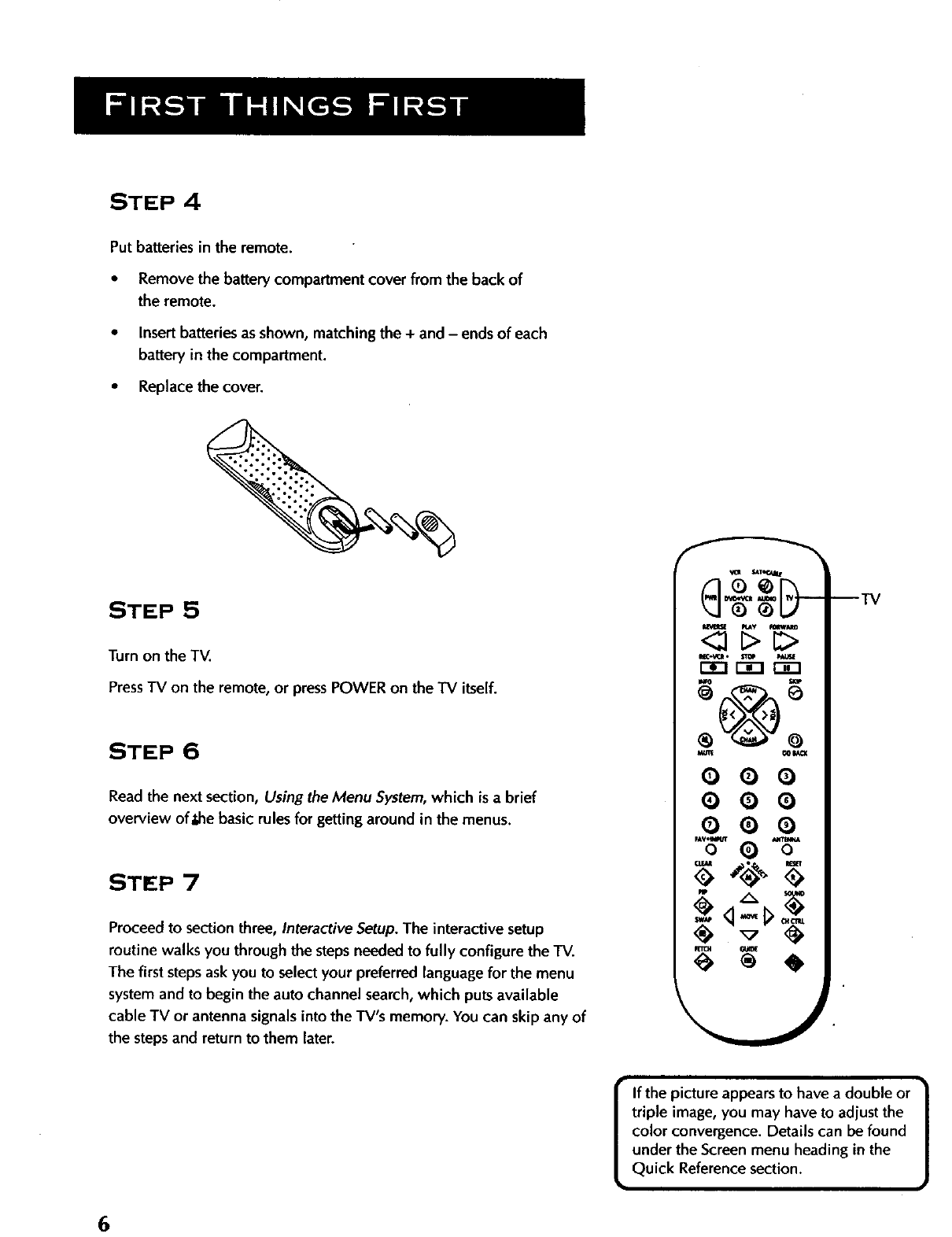

Put batteries in the remote.

• Remove the battery compartment cover from the back of

the remote.

•Insert batteries asshown, matching the + and - endsof each

battery in the compartment.

• Replace the cover.

STEP 5

Turn on the TV.

Press"IV on the remote, or pressPOWER on the TV itself.

STEP 6

Read the next section, Using the Menu System,which is a brief

overview of_e basic rulesfor getting around in the menus.

STEP 7

Proceed to section three, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure the TV.

The first stepsask you to select your preferred language for the menu

systemand to begin the auto channel search, which putsavailable

cable TV or antenna signalsinto the TV's memory. You can skip any of

the stepsand return to them later.

_v fG_WlW

Skip

QQQ

0 Q Q

Q OQ

P,LVilW_" _

o Q o

IIf the picture appears to have a double or

triple image, you may have to adjust the

color convergence. Details can be found

under the Screen menu heading in the

Quick Reference section.

ONE RULE TO REMEMBER

You control and customize theTY by making changes to

various control panels in the menu system.The great

thing is,you only need to know one rule: point and select.

USING THE

MENU SYSTEM

THE MENU RULE: POINT AND SELECT

You only need to know one rule to use the on-screen menus and

control panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item usingthe MOVE arrows on the remote.

To point up or down, pressthe up or down arrows. To point left or

right, pressthe left or right arrows.

2. Select amenu item by pressingMENU.SELECT.

Selecting an item tells the TV's menu systemto go ahead and

make the change or go to a place you have indicated.

For example, to select the Channel menu from the Main menu:

1. PressMENU to bring up the Main menu.

2. Pojqt to Channel by pressing the down arrow until the word

Channel is highlighted.

Tip: You can also select a menu item by

entering the item number with the

number buttons on the remote. "

PressCLEAR at any time to remove all

displays from the screen and return to TV

viewing.

Many VCR user manuals refer to a

PROGRAM button. The MENUeSELECT

button on this remote works as a

PROGRAM button in VCR mode. The rest

of this manual refers to this button only as

MENU.

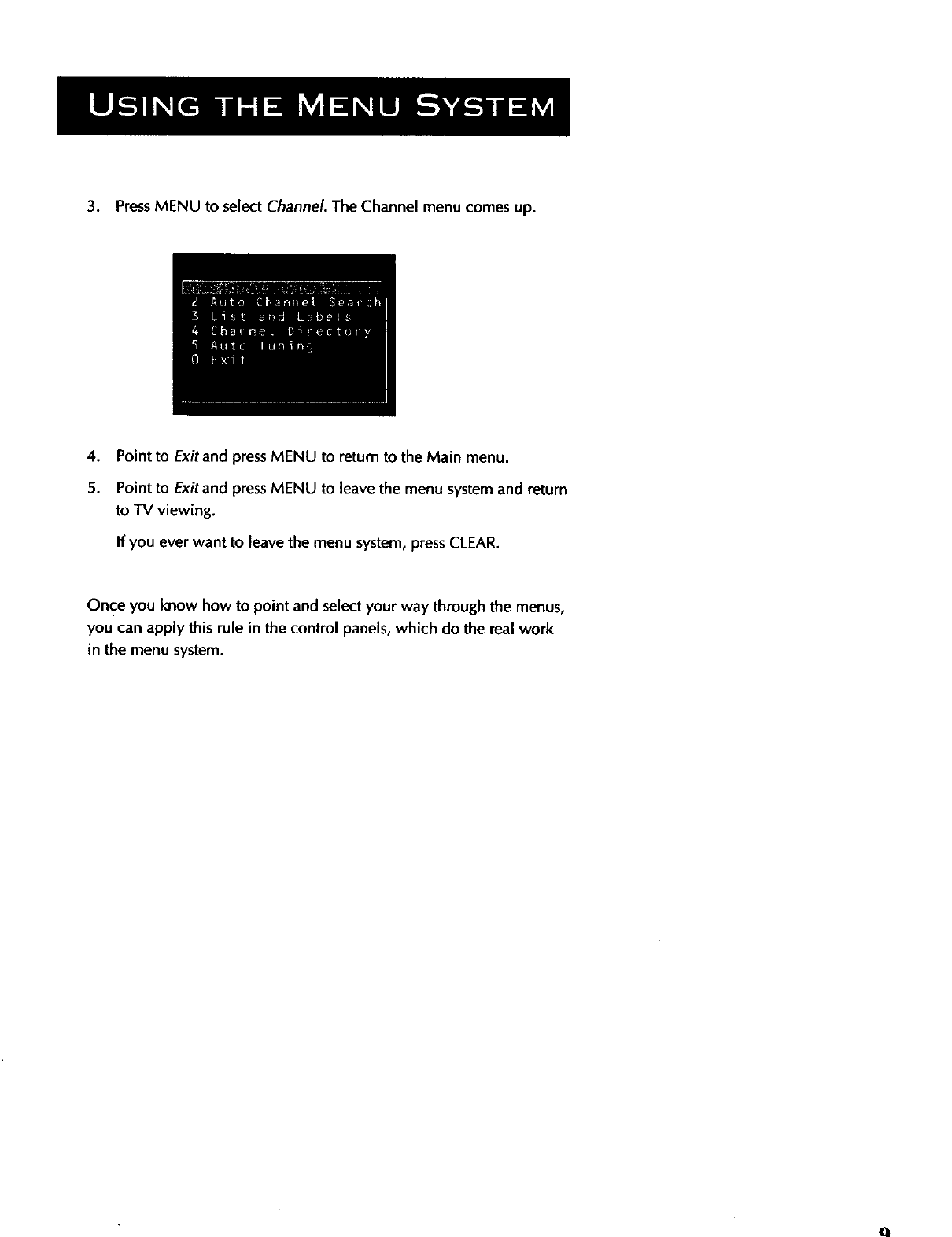

3. Press MENU to select Channel. The Channel menu comes up.

Point to Exit and press MENU to return to the Main menu.

Point to Exitand pressMENU to leave the menu systemand return

to TV viewing.

If you ever want to leave the menu system, press CLEAR.

Once you know how to point and select your way through the menus,

you can apply this rule in the control panels, which do the real work

in the menu system.

€l

MENUS AND CONTROL PANELS

There are three parts to the menu system: menus, control panels, and

TV GUIDE Plus+ menus. But before you can use control panels or the

TV GUIDE Plus+ system, you first have to move through at least one

menu--the Main menu.

MENUS

The first menu is called the Main menu. To bring up the Main menu:

1. PressMENU on the remote or front panel:

Menus take you to another menu or a control panel. There are two

ways to make a choice in a menu:

• Point and select with the MOVE arrows and MENU.

• Pressa number button on the remote. For example, in the Main

menu press 3 to go straight to the Screen menu.

Exiting a menu

There are three ways to exit a menu:

• Point to Exitand press MENU.

• Press0 on the remote.

• Press CLEAR. The on-screen displays are cleared from the screen

and you are returned to TV viewing.

Feelfree to explore the menu system. If

you're ever unsure where you are in the

menu system, or you're just plain tired of

exploring, press CLEAR to remove the

menus from the screen and start over

again.

CONTROL PANELS

Control Panels do the work in the menu system: it's where you choose

a setting, enter a number, or adjust a level such as tint or brightness.

There are three kinds of control panels: sliders, choice lists, and

numeric entry.

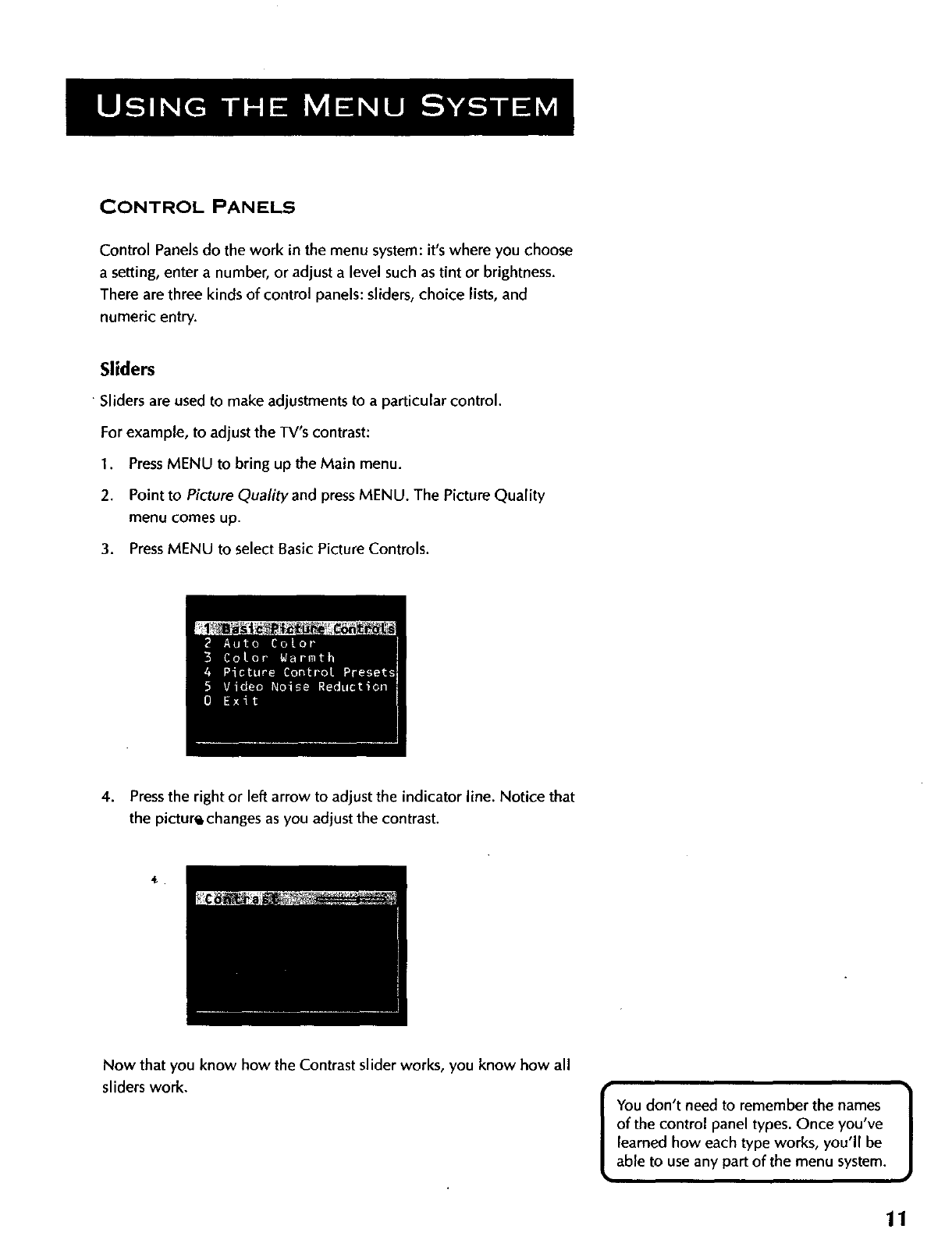

Sliders

Slidersare used to make adjustmentsto a particular control.

For example, to adjust the TV's contrast:

1. PressMENU to bring up the Main menu.

2. Point to Picture Quality and press MENU. The Picture Quality

menu comes up.

3. PressMENU to select Basic Picture Controls.

4. Pressthe right or left arrow to adjust the indicator line. Notice that

the pictur_l, changes as you adjust the contrast.

Now that you know how the Contrast slider works, you know how all

sliders work.

You don't need to remember the names

of the control panel types. Once you've

learned how each type works, you'll be

able to use any part of the menu system.

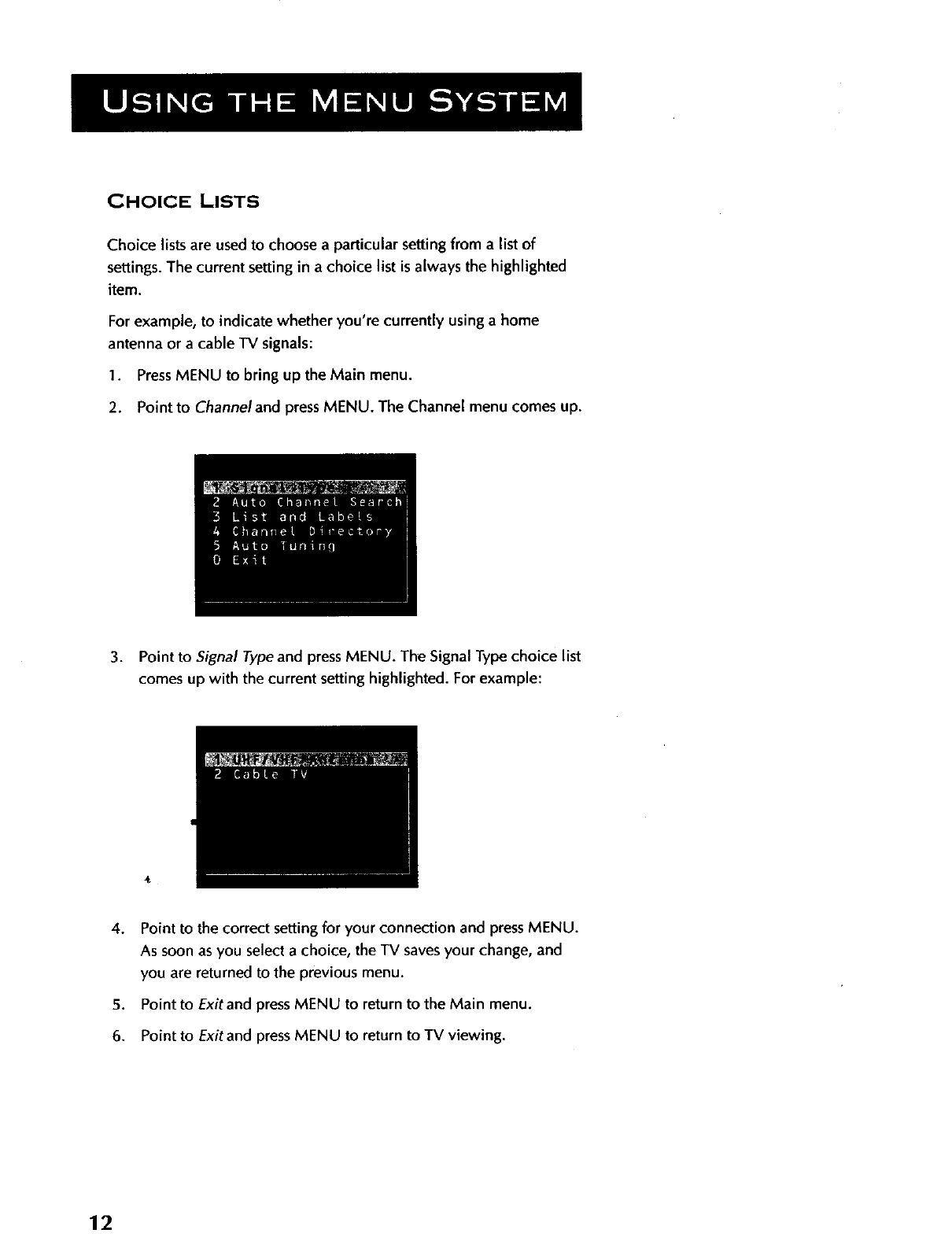

CHOICE LISTS

Choice lists are used to choose a particular setting from a list of

settings. The current setting in a choice list is always the highlighted

item.

For example, to indicate whether you're currently using a home

antenna or a cable TV signals:

1. PressMENU to bring up the Main menu.

2. Point to Channeland press MENU. The Channel menu comes up.

3. Point to Signal Type and press MENU. The Signal Type choice list

comes up with the current setting highlighted. For example:

Point to the correct setting for your connection and press MENU.

As soon as you select a choice, the TV saves your change, and

you are returned to the previous menu.

Point to Exitand press MENU to return to the Main menu.

Point to Exitand press MENU to return to TV viewing.

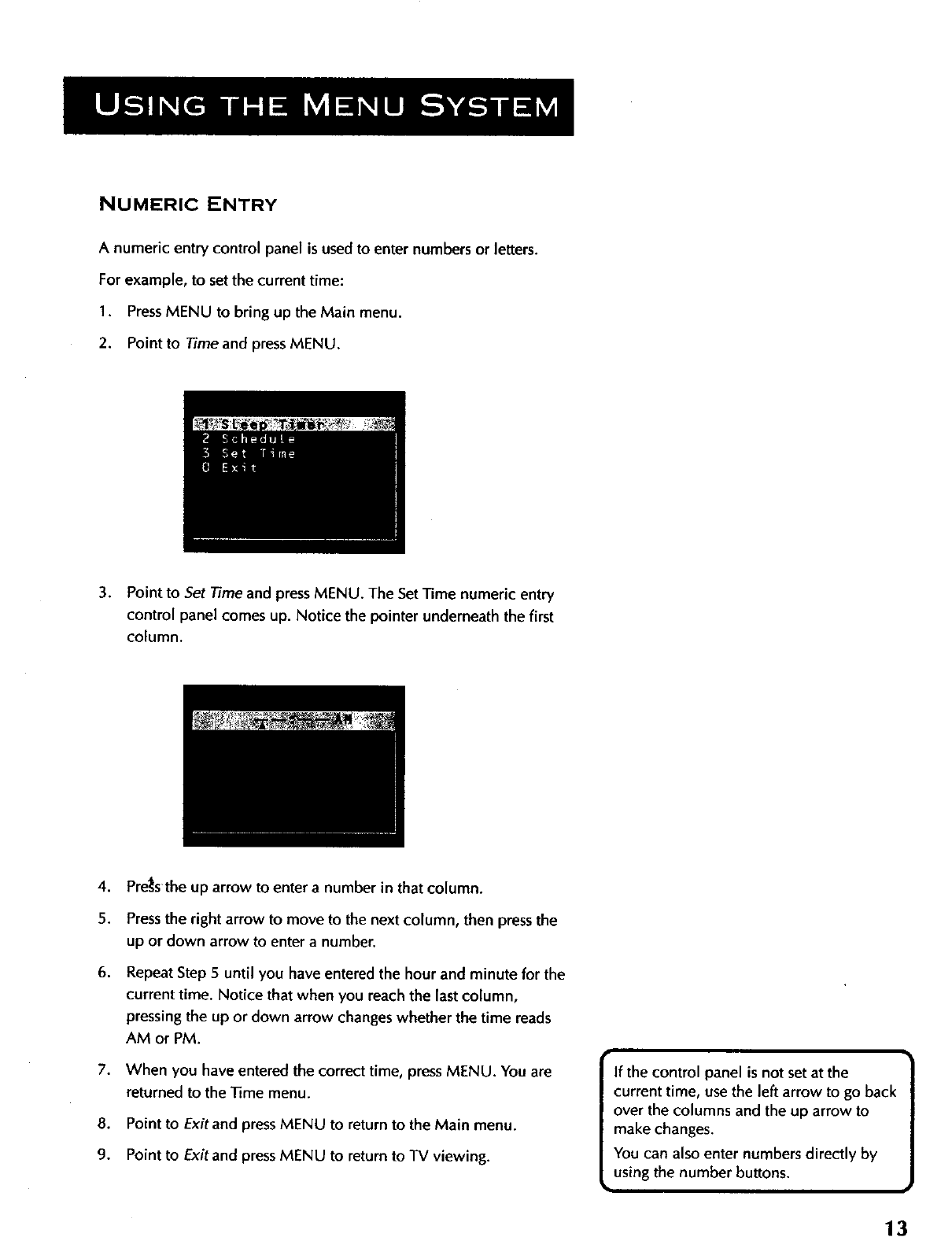

NUMERIC ENTRY

Anumeric entry control panel is usedto enter numbers or letters.

For example, to set the current time:

1. PressMENU to bring up the Main menu.

2. Point to Time and press MENU.

3. Point to Set Time and press MENU. The Set "rime numeric entry

control panel comes up. Notice the pointer underneath the first

column.

Pre_sthe up arrow to enter a number in that column.

Pressthe right arrow to move to the next column, then press the

up or down arrow to enter a number.

Repeat Step 5 until you have entered the hour and minute for the

current time. Notice that when you reach the last column,

pressing the up or down arrow changes whether the time reads

AM or PM.

7. When you have entered the correct time, press MENU. You are

returned to the _me menu.

8. Point to Exit and press MENU to return to the Main menu.

9. Point to Exit and press MENU to return to TV viewing.

If the control panel is not set at the

current time, use the left arrow to go back

over the columns and the up arrow to

make changes.

You can also enter numbers directly by

using the number buttons.

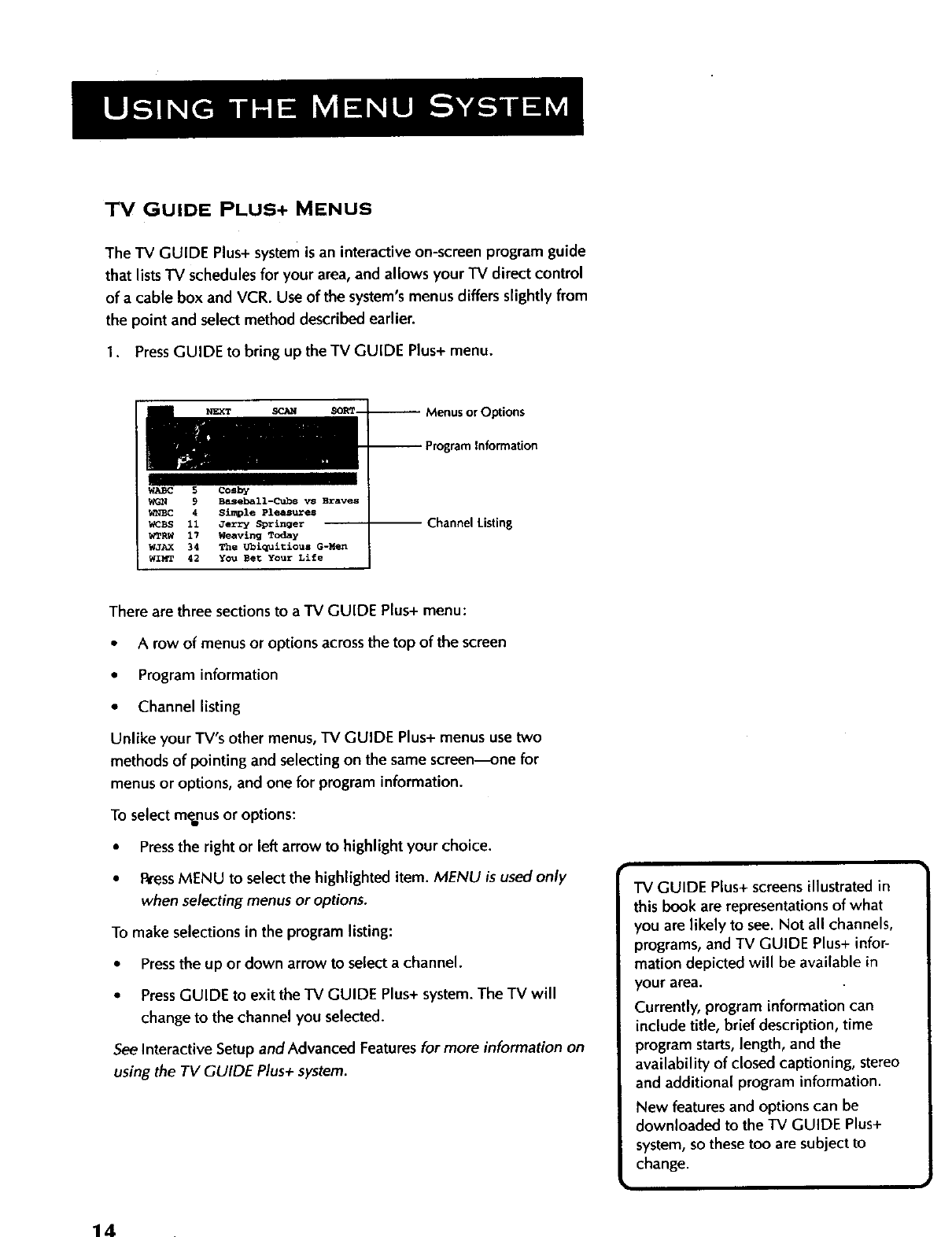

TV GUIDE PLUS+ MENUS

The TV GUIDE Plus+ systemis an interactive on-screen program guide

that listsTV schedulesfor your area, and allows your "IV direct control

of a cable box and VCR. Use of the system'smenus differs slightly from

the point and select method described earlier.

1. PressGUIDE to bring up the TV GUIDE Plus+ menu.

WABC 5 Cosby

WGN 9 Baseball-Cubs vs Braves

_TBC 4 Simple Pleasures

WCBS ii Jerry Springer

WTRW 17 Weaving Today

WJAX 34 The Ublquitious G-Men

WIMT 42 YOU Bet: Your Life

-- Menus or Options

Channel Listin 8

There are three sections to aTV GUIDE Plus+ menu:

•Arow of menus or options across the top of the screen

• Program information

• Channel listing

Unlike your TV's other menus, TV GUIDE Plus+ menus use two

methods of pointing and selecting on the same screen---one for

menus or options, and one for program information.

To select menus or options:

• Pressthe right or left arrow to highlight your choice.

•RressMENU to select the highlighted item. MENU is used only

when selecting menus or options.

To make selections in the program listing:

• Pressthe up or down arrow to select a channel.

• PressGUIDE to exit the TV GUIDE Plus+ system. The TV will

change to the channel you selected.

See Interactive Setup and Advanced Features for more information on

using the TV GUIDE Plus+ system.

TV GUIDE Plus+ screensillustratedin

this book are representationsof what

you are likely to see. Not all channels,

programs, and TV GUIDE Plus+ infor-

mation depicted will be available in

your area.

Currently, program information can

include title, brief description, time

program starts, length, and the

availability of closed captioning, stereo

and additional program information.

New features and options can be

downloaded to the TV GUIDE Plus+

system, so these too are subject to

change.

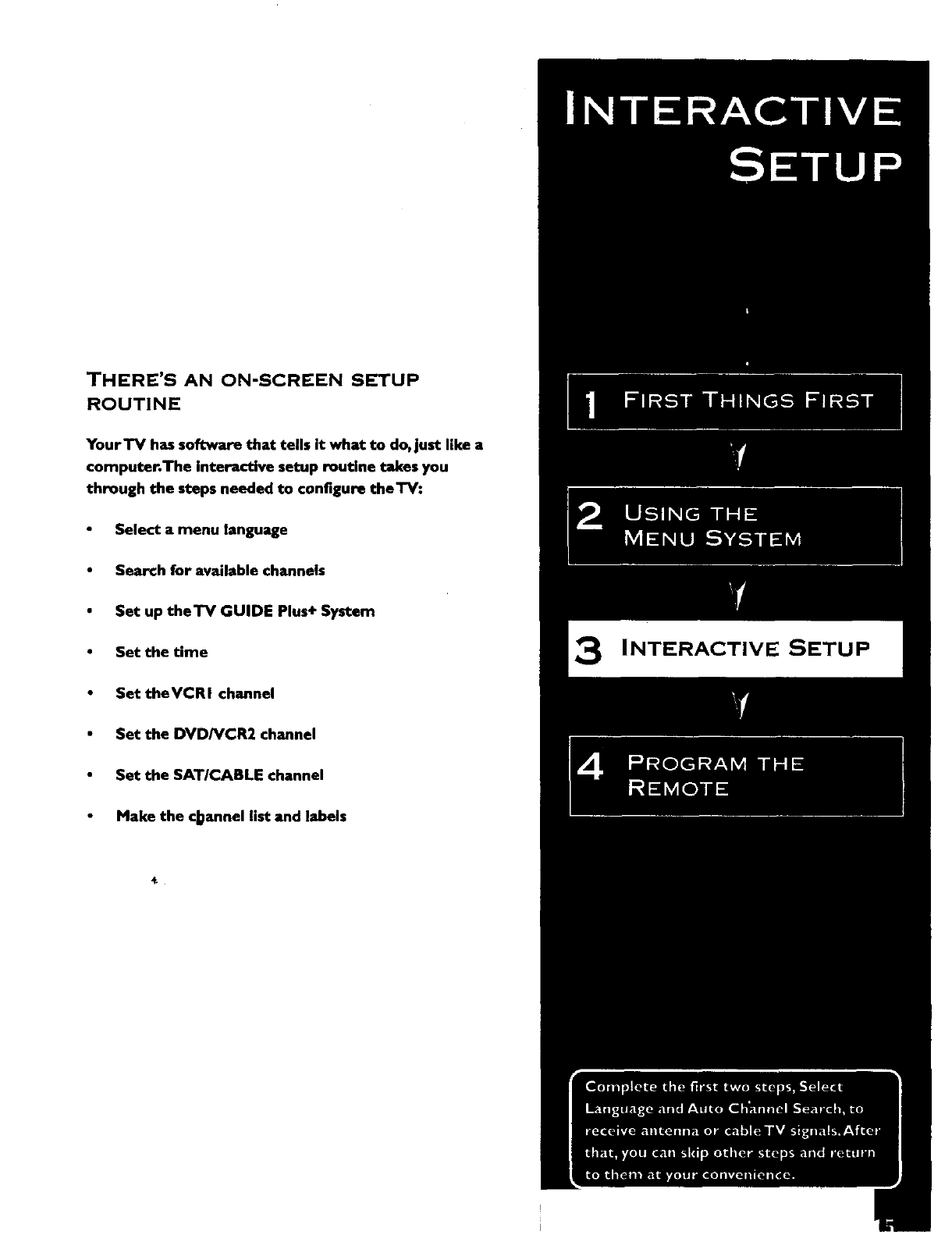

THERE'S AN ON-SCREEN SETUP

ROUTINE

Your'iV has soft'waro that tells it what to do, just like a

computer.The interactive setup routine takes you

through the steps needed to configure theTV:

Select amenu language

• Search for available channels

• Set up theTV GUIDE Plus+ System

•Set the time

•Set theVCRI channel

•Set the DVD/VCR2 channel

Set the SAT/CABLE channel

Make the c_annel list and labels

INTERACTIVE SETUP

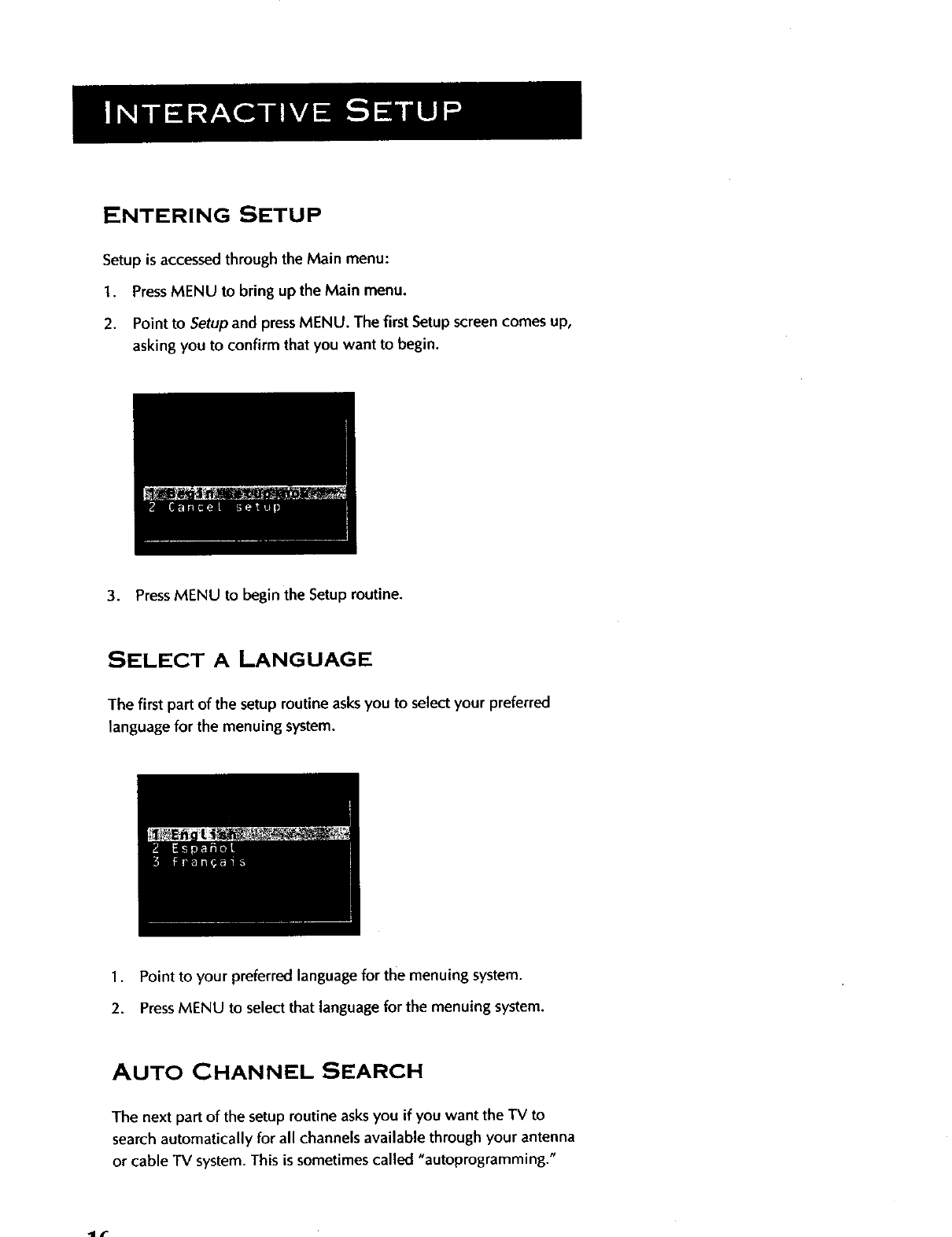

ENTERING SETUP

Setup is accessed through the Main menu:

1. PressMENU to bring up the Main menu.

2. Point to Setup and press MENU. The first Setup screen comes up,

asking you to confirm that you want to begin.

3. PressMENU to begin the Setup routine.

SELECT A LANGUAGE

The first part of the setup routine asks you to select your preferred

language for the menuing system.

1. Point to your preferred language for the menuing system.

2. PressMENU to select that language for the menuing system.

AUTO CHANNEL SEARCH

The next part of the setup routine asks you if you want the TV to

search automatically for all channels available through your antenna

or cable TV system. This is sometimes called "autoprogramming."

tz:

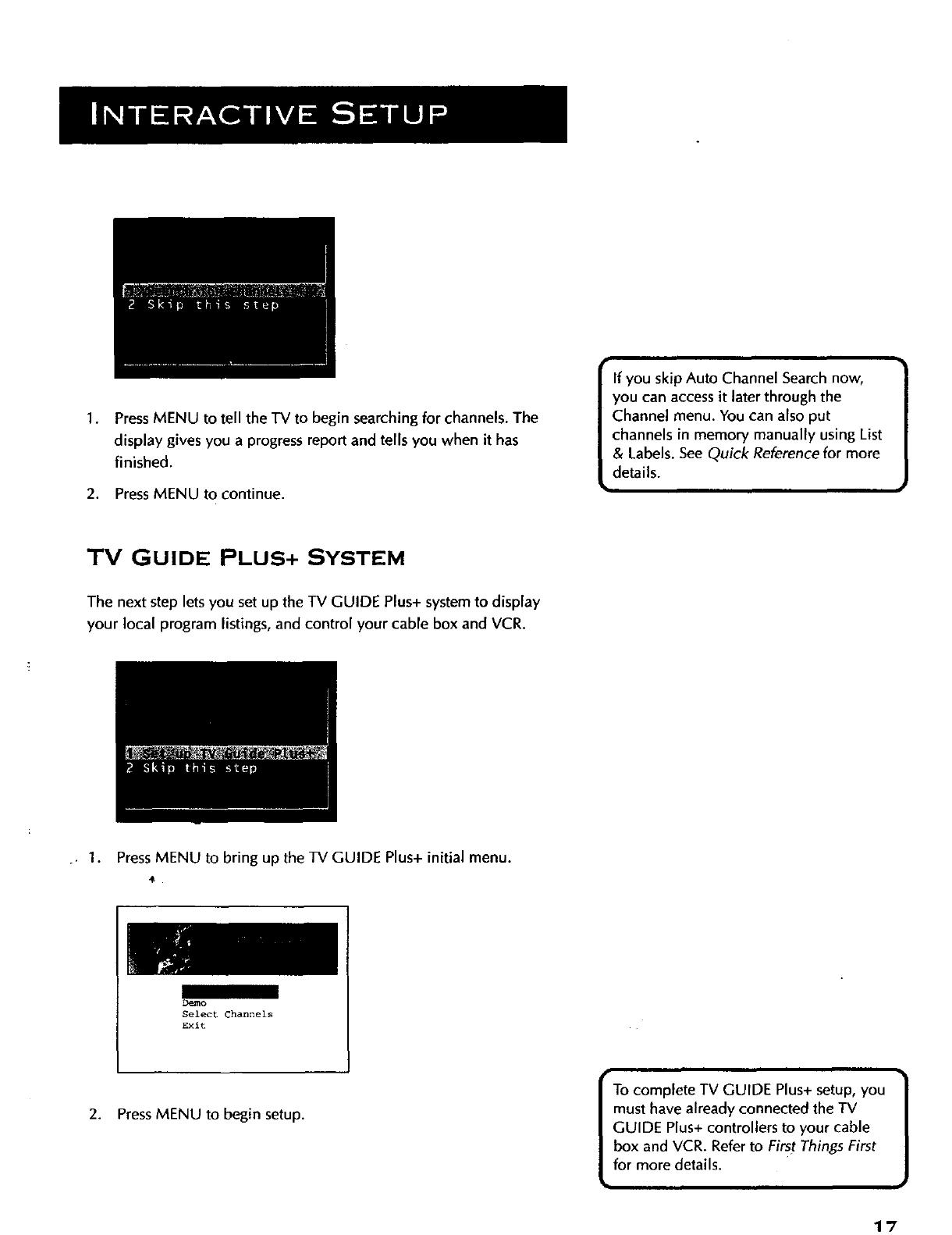

1. Press MENU to tell the TV to begin searching for channels. The

display gives you a progress report and tells you when it has

finished.

2. PressMENU to continue. •}

If you skip Auto Channel Search now,

you can access it later through the

Channel menu. You can also put

channels in memory manually using List

& Labels. See Quick Reference for more

details.

TV GUIDE PLUS+ SYSTEM

The next step lets you set up the TV GUIDE Plus+ system to display

your local program listings, and control your cable box and VCR.

• I. PressMENU to bring up the TV GUIDE Plus+ initial menu.

Demo

Select Channels

Exit

2. Press MENU to begin setup. •}

To complete TV GUIDE Plus+ setup, you

must have already connected the TV

GUIDE Plus+ controllers to your cable

box and VCR. Refer to First Things First

for more details.

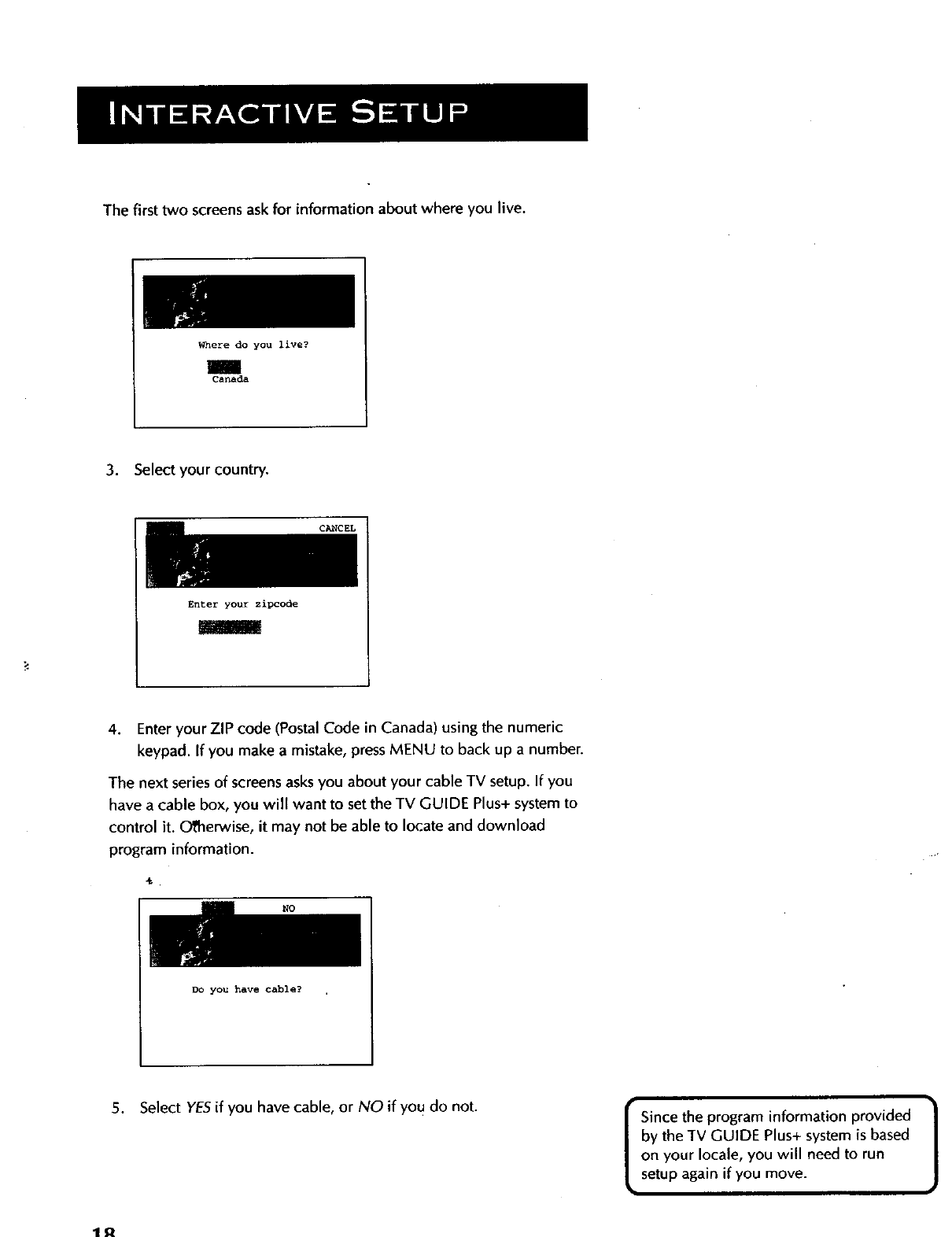

The first two screens ask for information about where you live.

Where do you live?

canada

3. Select your country.

CANCEL

Enter your zipcode

4. Enter your ZIP code (PostalCode in Canada) using the numeric

keypad. If you make a mistake, pressMENU to back up a number.

The next series of screens asksyou about your cable TV setup. If you

have a cable box, you will want to set the TV GUIDE Plus+ system to

control it. Otherwise, it may not be able to locate and download

program information.

4- •

DO you have cable?

5. Select YESif you have cable, or NO if you do not.

Since the program information provided

by the TV GUIDE Plus+ system is based

on your locale, you will need to run

setup again if you move.

DO you have a cable box?

6. Select YESif you have a cable box, or NO if you do not.

CANCEL EXIT

Turn On cable box

Enter cable box brand # from

brand table in your manual

7. Enter the code for your cable box's brand from the table on the

following pages.

When the TV GUIDE Plus+ system correctly identifies the brand and

model of your cable box, the cable box changes to channel 9.

NO EXIT

Testing code 1 2 - 0 1

%Has your cable box

switched to channel 9?

8. Select YESif the cable box changed to channel 9, or NO if it did

not. If you select NO, the system will try another code.

Once the correct model of cable box has been identified, you will

need to set the cable box's output channel.

When the TV GUIDE Plus+ system

cannot recognize either your cable box

or VCR after several tries, a screen

reading, "Cable Box (VCR) test failed...

Please consult manual and try again"

appears. If this happens, you should:

• Double check the codes listed in the

tables. Try entering another if one is

listed.

• Check to make sure the IR

controllers are positioned correctly.

CANCEL

Select Cable Box Output Channel

Enter the channel you normally use to view channels through your

cable box--usually 3 or 4. Consult your cable box's instruction

book or your cable company if you are not sure. Choose 0to use

VIDEO INPUT 1,

The last series of screens asks about your VCR setup.

Do you have a VCR?

10. Select YESif you have a VCR, or NO if you do not.

Answering NO automatically skips forward to the end of TV GUIDE

Plus+ setup.

CANCEL EXIT

Tune VCR to 2 and turn it o£f

Enter VCR brand #from

brand table in your manual

11. Tune your VCR to channel 2 and turn itoff.

12. Enter the code for your VCR's brand from the table on the

following pages.

Channels 0-7 can be used for the

cable box's output channel. "0" is

used for VIDEO INPUT 1 (INPUT 2

cannot be used); 1-7 are regular TV

channels.

SeeAdvanced Features for more details

on using the TV GUIDE Plus+ system to

control a cable box and VCR,

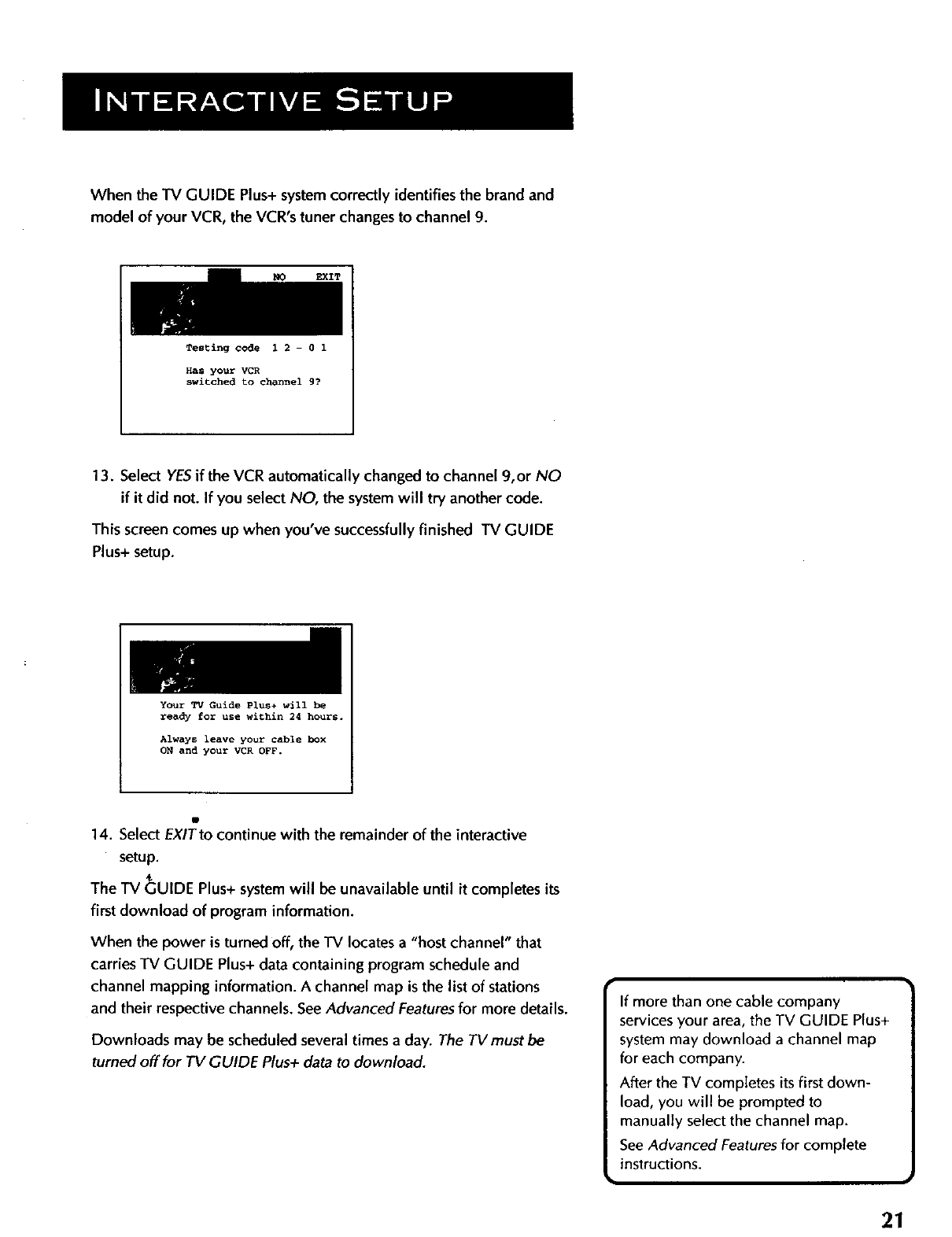

When the "IV GUIDE Plus+ system correctly identifies the brand and

model of your VCR, the VCR's tuner changes to channel 9.

EXIT

Testing code 1 2 - 01

Has your VCR

switched to channel 9?

13. Select YESif the VCR automatically changed to channel 9,or NO

if it did not. If you select NO, the system will try another code.

Thisscreen comes up when you've successfullyfinished TVGUIDE

Plus+ setup.

Your TVGuide Plus+ will be

ready for use within 24 hours.

Always leave your cable box

ON and your VCR OFF.

14. Select EXITto continue with the remainder of the interactive

setup.

The TV GUIDE Plus+ system will be unavailable until it completes its

first download of program information.

When the power is turned off, the "iV locates a "host channel" that

carries TV GUIDE Plus+ data containing program schedule and

channel mapping information. A channel map is the list of stations

and their respective channels, SeeAdvanced Features for more details.

Downloads may be scheduled several times a day. The TV must be

turned off for TV GUIDE Plus+ data to download.

If more than one cable company

services your area, the TV GUIDE Plus+

system may download a channel map

for each company.

After the TV completes its first down-

load, you will be prompted to

manually select the channel map.

See Advanced Features for complete

instructions.

W GUIDE Plus+ VCRCodes

Admiral ................................. 19

Akai ...................................... t 5

Audio Dynamics ................... 11

Belcor ................................... 16

Bell&Howell ......................... 04

Broksonic .............................. 26

Candle .................................. 27

Canon ................................... 03

Capehart ............................... 16

Craig ..................................... 17

Curtis .................................... 23

Daewoo ................................ 16

DBX ...................................... 11

Electrohome .......................... 08

Electron ................................ 01

Emerson ................................ 05

Fisher .................................... 04

Funai .................................... 14

GE ........................................ 01

Go Video .............................. 02

Goldstar ................................ 22

Grundig ................................ 03

Harman Kardon .................... 08

Hitachi .................................. 21

Images .................................. 02

JC Penney ............................. 25

Jenson................................... 31

JVC ....................................... 12

Kenwood .............................. 12

KLH ...................................... 17

Magnavox ............................. 07

Magnin ................................. 23

Marantz ................................ 11

Maria .................................... 22

Memorex .............................. 29

MGA ..................................... 08

Minolta .m.............................. 21

Mitsubishi ............................. 08

Montgomery Ward ................ 14

Movie Walker ....................... 14

MTC ..................................... 14

Multitech .............................. 14

NEC ...................................... 11

Nikko ............................... 16,22

Olympus ............................... 03

Optimus ................................ 27

Optonica .............................. 19

Orion .................................... 24

Panasonic ............................. 03

Pentax ................................... 21

Philco ................................... 28

Philips ................................... 28

Pilot ...................................... 22

Pioneer ................................. 21

ProScan ................................ 01

Quasar .................................. 03

Radio Shack/Realistic ............ 30

Randix .................................. 22

RCA ...................................... 01

Samsung ............................... 23

Sansui ................................... 20

Sanyo .................................... 04

Scott ..................................... 05

Sears..................................... 06

Sharp .................................... 19

Shintom ................................ 17

Shogun ................................. 23

Signature ............................... 19

Sony ..................................... 13

Sylvania ................................ 28

Symphonic ............................ 14

Tatung ................................... 31

Teac ...................................... 31

Teknika ................................. 18

Telefunken ............................ 05

TMK ...................................... 05

Toshiba ................................. I 0

Totevision ............................. 23

Vector Research .................... 11

Zenith ................................... 09

I he TV GUIDE Plus+ system may not operate all models of the |

brands listed in the tables on this page. J

TV GUIDE Plus+ Cable Box Codes

Archer ................................... 14

Cable Cinema ....................... 31

Cabletenna ........................... 31

Cableview ............................. 31

Century ................................. 27

Citizen .................................. 29

Curtis .................................... 04

Diamond'. ............................. 31

Eagle ..................................... 09

Eastern .................................. 13

GC Electronics ...................... 26

Gemini ................................. I 5

General Electric .................... 19

General Instrument ............... 01

Gerrard ................................. 27

Hamlin ............................ 06,13

Hitachi .................................. 16

Jasco ..................................... I 5

Jerrold ................................... 01

Macom ................................. 16

Magnavox ............................. 11

Matsushita ............................ 07

Movietime ............................ 17

NEC ...................................... 22

Novavision ........................... 04

NSC ...................................... 22

Oak ...................................... 05

Oak Sigma ............................ 05

Panasonic ............................. 07

Philips ................................... 10

Pioneer ................................. 02

Pulser .................................... 24

Quest .................................... 02

RCA ...................................... 07

Realistic ................................ 27

Recoton ................................ 27

Regal .................................... 06

Regency ................................ 13

Rembrant .............................. 26

L.L Marx .............................. 23

Samsung ............................... 23

Scientific Atlanta ................... 04

Sheritech ............................... 12

Signal .................................... 11

Sprucer ................................. 07

Standard Components ........... 17

Stargate ................................. 24

Sylvania ............................... "08

Teknika ................................. 20

Telecaption ........................... 21

Teleview ............................... 22

Texscan ................................. 08

Tocom ................................... 18

Toshiba ................................. 30

Unika .................................... 26

Universal .............................. 25

Videoway .............................. 03

Vidtek ................................... 28

Viewstar ................................ 09

Zenith ................................... 03

SET THE TIME

The next step lets you setthe time of day.

1. PressMENU to bring up the Set Time control panel.

2. Use the left and right arrows to point to the hour and minutes spaces.

Use the up and down arrows to scroll through the numbersand

change from AM to PM.

3. PressMENI_ to continue.

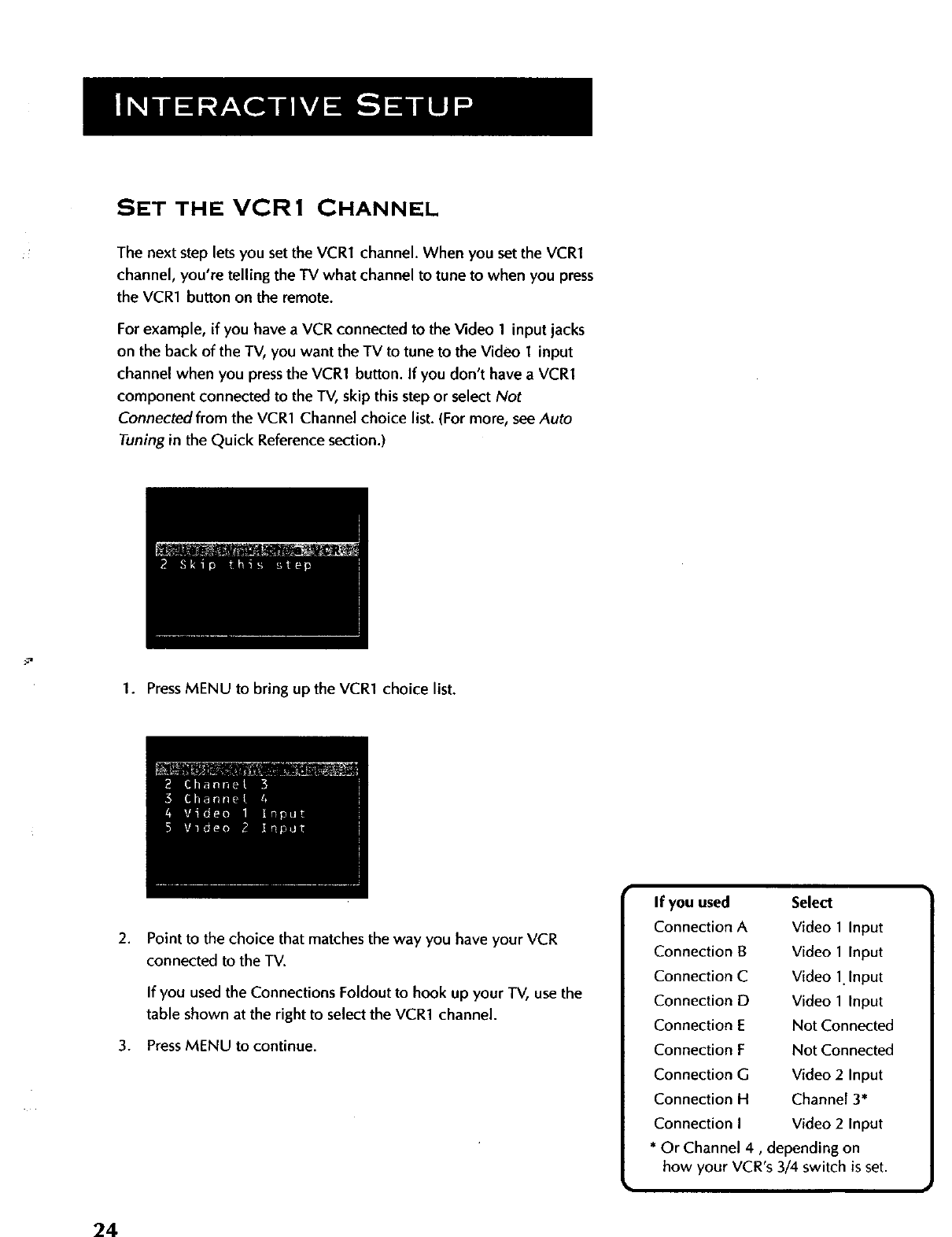

SET THE VCR1 CHANNEL

The next step lets you set the VCR1 channel. When you set the VCR1

channel, you're telling the TV what channel to tune to when you press

the VCR1 button on the remote.

For example, if you have a VCR connected to the Video 1 input jacks

on the back of the TV, you want the TV to tune to the Video I input

channel when you pressthe VCR1 button. If you don't have a VCRI

component connected to the TV, skip this step or select Not

Connected from the VCR1 Channel choice list. (For more, see Auto

Tuning in the Quick Reference section.)

1. PressMENU to bring up the VCR1 choice list.

2. Point to the choice that matches the way you have your VCR

connected to the TV.

If you used the Connections Foldout to hook up your TV, use the

table shown at the right to select the VCR1 channel.

3. PressMENU to continue.

If you used

Connection A

Connection B

Connection C

Connection D

Connection E

Connection F

Connection G

Connection H

Connection I

Select

Video I Input

Video I. Input

Video I Input

Not Connected

Video 2 Input

Channel 3*

Video 2 Input

* Or Channel 4, depending on

how your VCR's 3/4 switch is set.

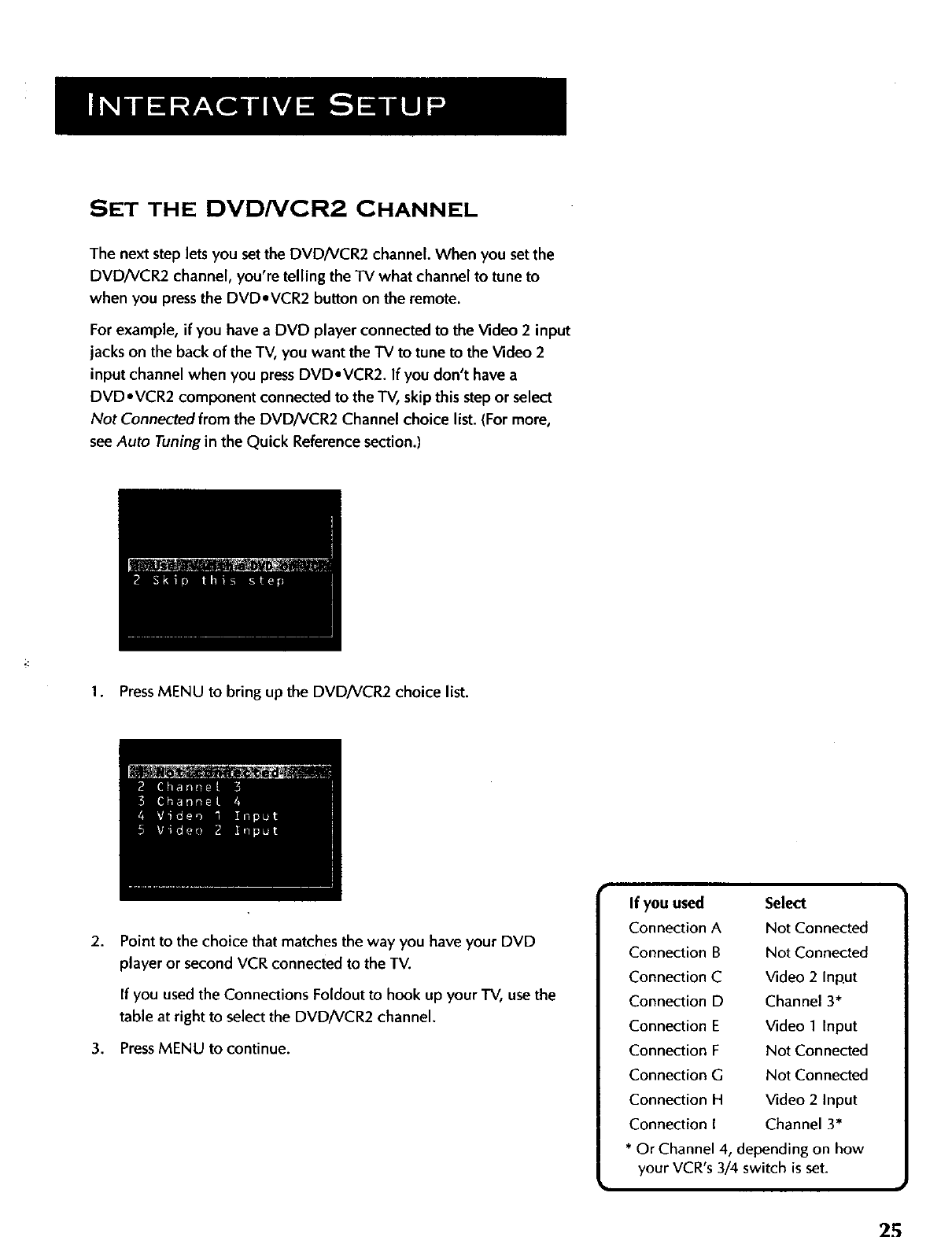

SET THE DVDNCR2 CHANNEL

The next step lets you set the DVDNCR2 channel. When you set the

DVD/VCR2 channel, you're telling the TV what channel to tune to

when you press the DVD,,VCR2 button on the remote.

For example, if you have a DVD player connected to the Video 2 input

jacks on the back of the TV, you want the TV to tune to the Video 2

input channel when you press DVD*VCR2. If you don't have a

DVDoVCR2 component connected to the TV, skip this step or select

Not Connected from the DVDNCR2 Channel choice list. (For more,

see Auto Tuning in the Quick Reference section.)

1. PressMENU to bring up the DVDiVCR2 choice list.

2. Point to the choice that matches the way you have your DVD

player or second VCR connected to the TV.

If you used the Connections Foldout to hook up your TV, use the

table at right to select the DVDiVCR2 channel.

3. PressMENU to continue.

If you used

Connection A

Connection B

Connection C

Connection D

Connection E

Connection F

Connection G

Connection H

Connection I

Select

Not Connected

Video 2 Inl_ut

Channel 3*

Video 1 Input

Not Connected

Video 2 Input

Channel 3*

* Or Channel 4, depending on how

your VCR's 3/4 switch is set.

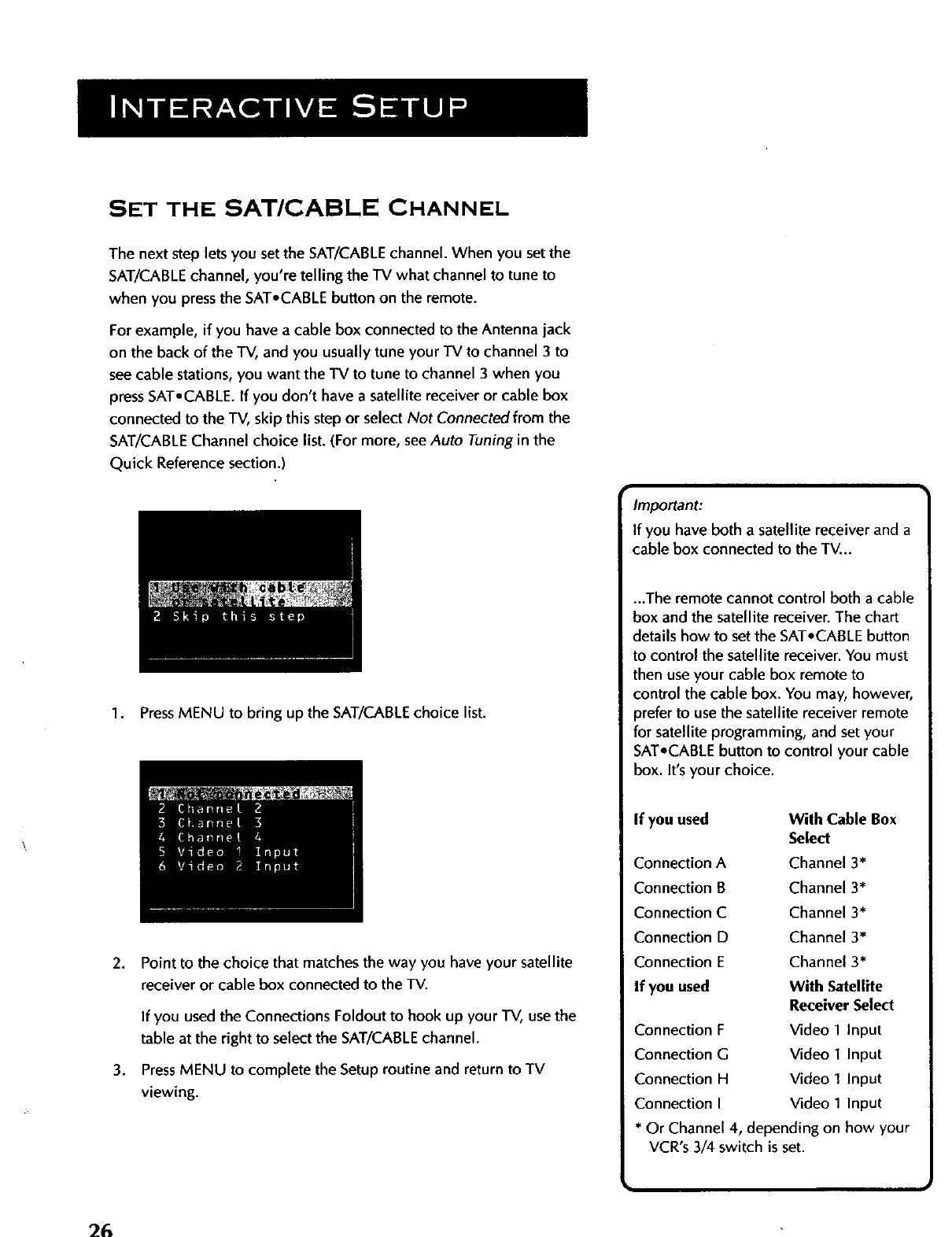

SET THE SAT/CABLE CHANNEL

The next step lets you set the SAT/CABLE channel. When you set the

SAT/CABLE channel, you're telling the TV what channel to tune to

when you press the SAT-CABLE button on the remote.

For example, if you have a cable box connected to the Antenna jack

on the back of the TV, and you usually tune your TV to channel 3 to

see cable stations, you want the TV to tune to channel 3 when you

press SAT,CABLE. If you don't have a satellite receiver or cable box

connected to the TV, skip this step or select Not Connected from the

SAT/CABLE Channel choice list. (For more, see Auto Tuning in the

Quick Reference section.)

1. PressMENU to bring up the SAT/CABLE choice list.

Point to the choice that matches the way you have your satellite

receiver or cable box connected to the TV.

If you used the Connections Foldout to hook up your TV, use the

table at the right to select the SAT/CABLE channel.

PressMENU to complete the Setup routine and return to TV

viewing.

Important:

If you have both a satellite receiver and a

cable box connected to the TV...

...The remote cannot control both a cable

box and the satellite receiver. The chart

details how to set the SAT-CABLE button

to control the satellite receiver. You must

then use your cable box remote to

control the cable box. You may, however,

prefer to use the satellite receiver remote

for satellite programming, and set your

SAT.CABLE button to control your cable

box. It's your choice.

If you used With Cable Box

Select

Connection AChannel 3*

Connection B Channel 3*

Connection C Channel 3*

Connection D Channel 3*

Connection E Channel 3*

If you used With Satellite

Receiver Select

Connection F Video 1 Input

Connection G Video I Input

Connection H Video 1 Input

Connection I Video 1 Input

*Or Channel 4, depending on how your

VCR's 3/4 switch is set.

LABEL THE CHANNELS

The next step lets you make your channel list and label your channels.

(For more, see List and Labels in the Quick Reference section.)

I. Press MENU to bring up the List and Labels Control panel.

Use the left and right arrows to point to the three different areas of

the control panel (called "fields")•

Use the up,l_nd down arrows to scroll through the numbers and

letters and select Yesor No in the Normal List field. You may wish

to refer to the call letters listed in your newspaper's TV section for

• 4},

ideas on labelling the channels.

Repeat this process for each of your channels. Then press MENU

to continue. The T'¢ can store up to 27 labels in memory.

Use the CH A (channel up) or CH v

(channel down) buttons to change

channels in the Chan # field. This works

even if you're not in the Chan # field. Or,

enter the channel number directly using

the number buttons on the universa}

remote. To enter a number greater than

99, pressand hold "1" to enter the

hundreds digit, then press the two

remaining numbers.

The list and labels feature can also be

accessed from the Channel menu.

Because this procedure can be time

consuming, feel free to skip this step and

come back to it later.

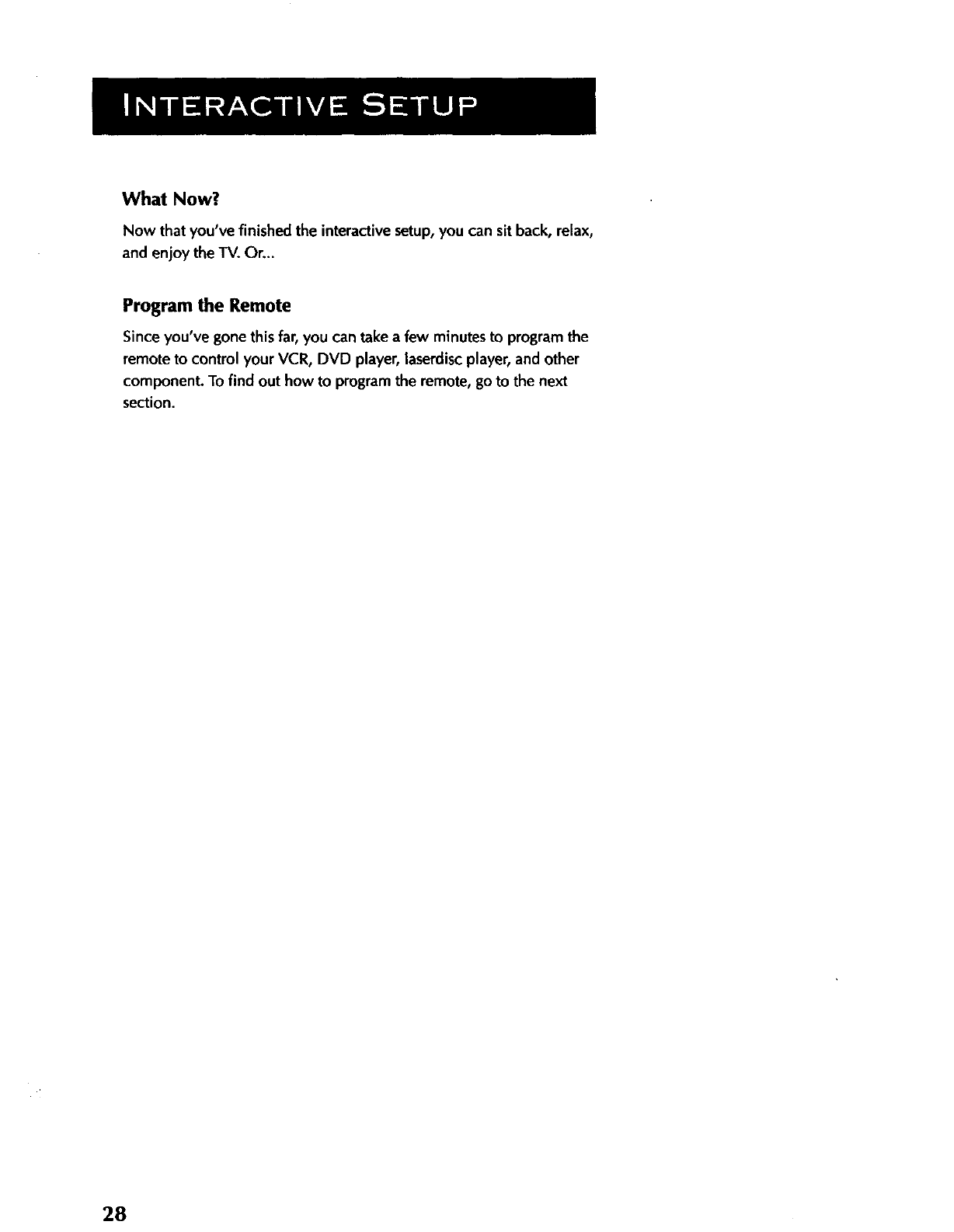

What Now?

Now that you've finished the interactive setup, you can sit back, relax,

and enjoy the TV. Or...

Program the Remote

Since you've gone this far, you can take a few minutes to program the

remote to control your VCR, DVD player, laserdiscplayer, and other

component. To find out how to program the remote, go to the next

section.

IF YOU HAVE A VCR OR OTHER

COMPONENT...

The universal remote can be programmed to control

most brands of remote controllableVCRs, satellite

receivers, DVD players and cable boxes. If you have a

ProScan, RCA, or GE component, you probably don't

need to program it at all---other manufacturers' brands

need to be programmed.

NOW WATCH SOME "IV!

Once you've programmed the remote, you will have

completed all four setup sections. Now you can sit back

and enjoy the'rV. If you want to know more about the

different parts of the "rv, see the next section, Tour of the

TV. Refer to the other sections and appendices as needed. PROGRAM THE

REMOTE

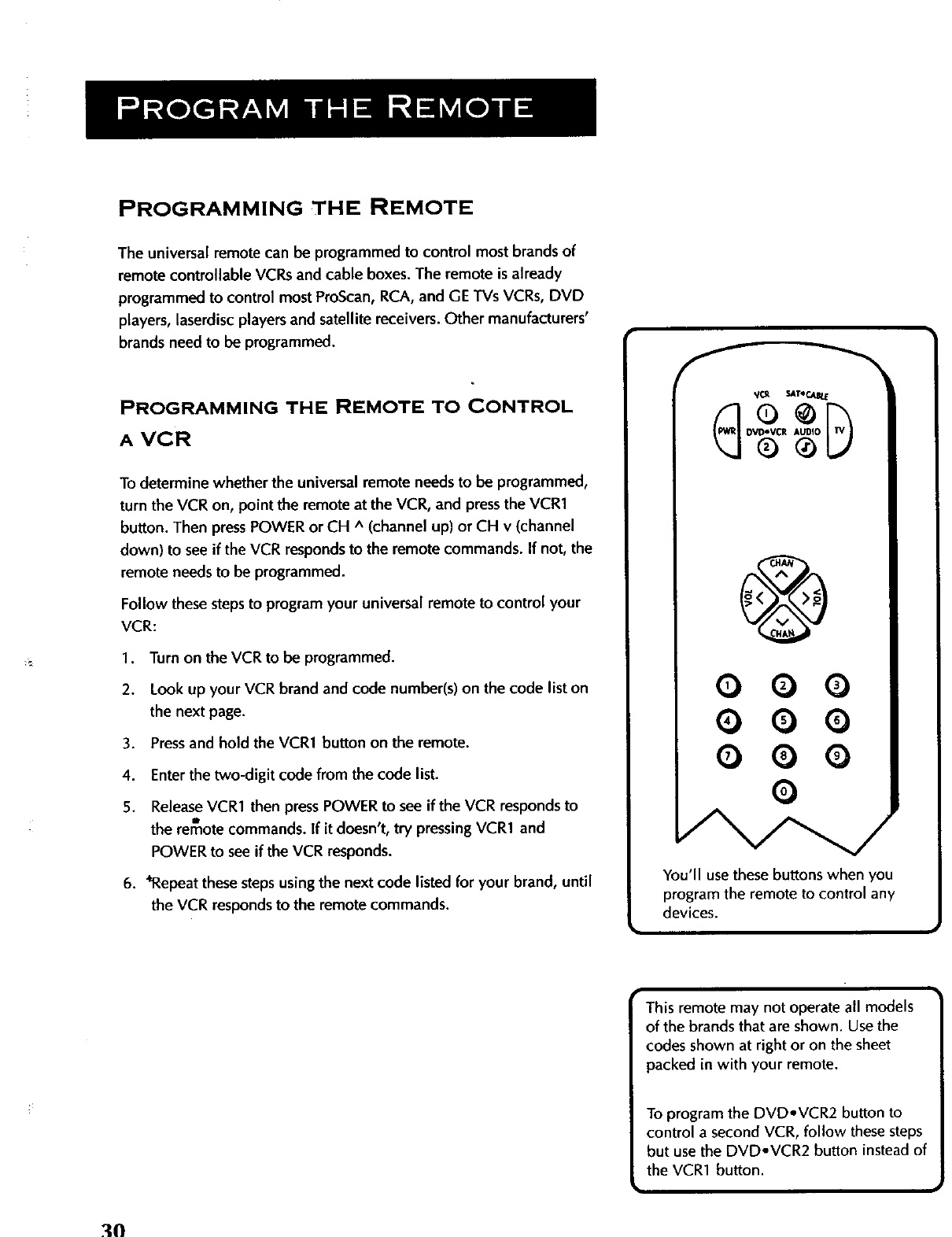

PROGRAMMING THE REMOTE

The universal remote can be programmed to control most brands of

remote controllable VCRs and cable boxes. The remote is already

programmed to control most ProScan, RCA, and GE TVs VCRs, DVD

players, laserdiscplayers and satellite receivers. Other manufacturers'

brands need to be programmed.

PROGRAMMING THE REMOTE TO CONTROL

A VCR

To determine whether the universal remote needs to be programmed,

turn the VCR on, point the remote at the VCR, and pressthe VCR1

button. Then pressPOWER or CH ^ (channel up) or CH v (channel

down) to see if the VCR respondsto the remote commands. If not, the

remote needs to be programmed.

Follow these steps to program your universal remote to control your

VCR:

1. Turn on the VCR to be programmed.

2. Look up your VCR brand and code number(s) on the code liston

the next page.

3. Press and hold the VCR1 button on the remote.

4. Enterthe two-digit code from the code list.

5. Release VCR1 then press POWER to see if the VCR respondsto

the re_ote commands. If it doesn't, try pressing VCR1 and

POWER to see if the VCR responds.

6. '_Repeatthese steps using the next code listed for your brand, until

the VCR responds to the remote commands.

You'll use these buttons when you

program the remote to control any

devices.

This remote may not operate all models

of the brands that are shown. Use the

codes shown at right or on the sheet

packed in with your remote.

To program the DVDoVCR2 button to

control a second VCR, follow these steps

but use the DVD-VCR2 button instead of

the VCR1 button.

Universal Remote VCR Codes

Admiral .................................. 06,79

Aiwa ............................................ 15

Akai .................... 03,17,22,23,63,66

Audio Dynamics ..................... 14,16

Bell&Howell ................................ 02

Broksonic .................................... 10

Candle ......................... 07,09,13,44,

.......................................... 45,46,52

Cannon .................................. 08,53

Capehart ...................................... 01

Citizen ......................... 07,09,13,44,

.......................................... 45,46,52

Colortyme ................................... 14

Craig ...................................... 07,12

Curtis-Mathes .............. 00,07,08,14,

........................... 15,44,46,53,64,67

Daewoo ....................... 13,45,52,76

DBX ....................................... 14,16

Dimensia ..................................... 00

Dynatech ..................................... 15

Electrohome ................................ 27

Emerson ....... 08,09,10,13,15,20,23,

.......................... 27,34,41,42,47,49,

........................... 57,62,65,67,68,70

Fisher ............ 02,12,18,19,43,48,58

Funai ........................................... 15

GE ...................... 00,07,08,32,37,53

Goldstar ....................... 09,14,46,60

Harman Kardon ........................... 14

Hitachi ......................... 05,15,35,36

Instant Replay .............................. 08

JCL .............................................. 08

]C Penney ............... 02,05,07,08,14,

....................... • ....... 16,30,35,51,53

JVC ..................... 02,14,16,30,46,74

Kenwood ............ 02,14,16,30,44,46

KLH ......a...................................... 73

Lloyd ........................................... 15

Logik ........................................... 31

Magnavox .................... 08,29,53,56

Marantz .................. 02,08,14,16,29,

..................................... 30,44,46,61

Marta ........................................... 09

MEI .............................................. 08

Memorex ...................... 08,09,12,15

MGA ...................................... 04,27

Midland ....................................... 32

Minolta ................................... 05,35

Mitsubishi ................ 04,05,27,35,40

Montgomery Ward ...................... 06

MTC ....................................... 07,15

Multitech ...................... 07,15,31,32

NFC ..... 02,14,16,30,44,46,59,61,64

Panasonic ..................... 08,53,75,77

Pentax ............................... 05,35,44

Pentex Research + ....................... 46

Philco ........................... 08,29,53,56

Philips .................................... 08,29

Pioneer .............................. 05,16,50

Portland ............................. 44,45,52

ProScan ....................................... OO

Quartz ......................................... 02

Quasar ................................... 08,53

Radio Shack/Realistic ....... O2,06,08,

...................... 09,12,15,19,27,43,53

RCA ..... 00,05,07,08,28,35,37,54,69

Samsung .................. 07,13,22,32,42

Sansui ..................................... 16,71

Sanyo ..................................... 02,12

Scott ........................ 04,13,41,49,68

Sears.... 02,05,09,12,18,19,35,43,48

Sharp ....................... 06,24,27,39,45

Shintom ........................ 17,26,31,55

Signature ..................................... 15

Sony .................................. 17,26,38

Sylvania ................... 08,15,29,53,56

Symphonic .................................. 15

Tandy ..................................... 02,15

Tashiko ........................................ 09

Tatung ......................................... 30

Teac ................................... 15,30,69

Technics ...................................... 08

Teknika ......................... O8,09,15,21

TMK ............................................ 67

Toshiba .................... 05,13,19,48,49

Totevision ............................... 07,09

Unitech ....................................... 07

Vector Research ................. 14,16,44

Victor .......................................... 16

Video Concepts ................. 14,16,44

Videosonic .................................. 07

Wards ..................... 05,06,07,08,09,

...................... 12,13,15,25,27,31,35

Yamaha ................... 02,14,16,30,46

Zenith ...................... 11,I 7,26,72,79

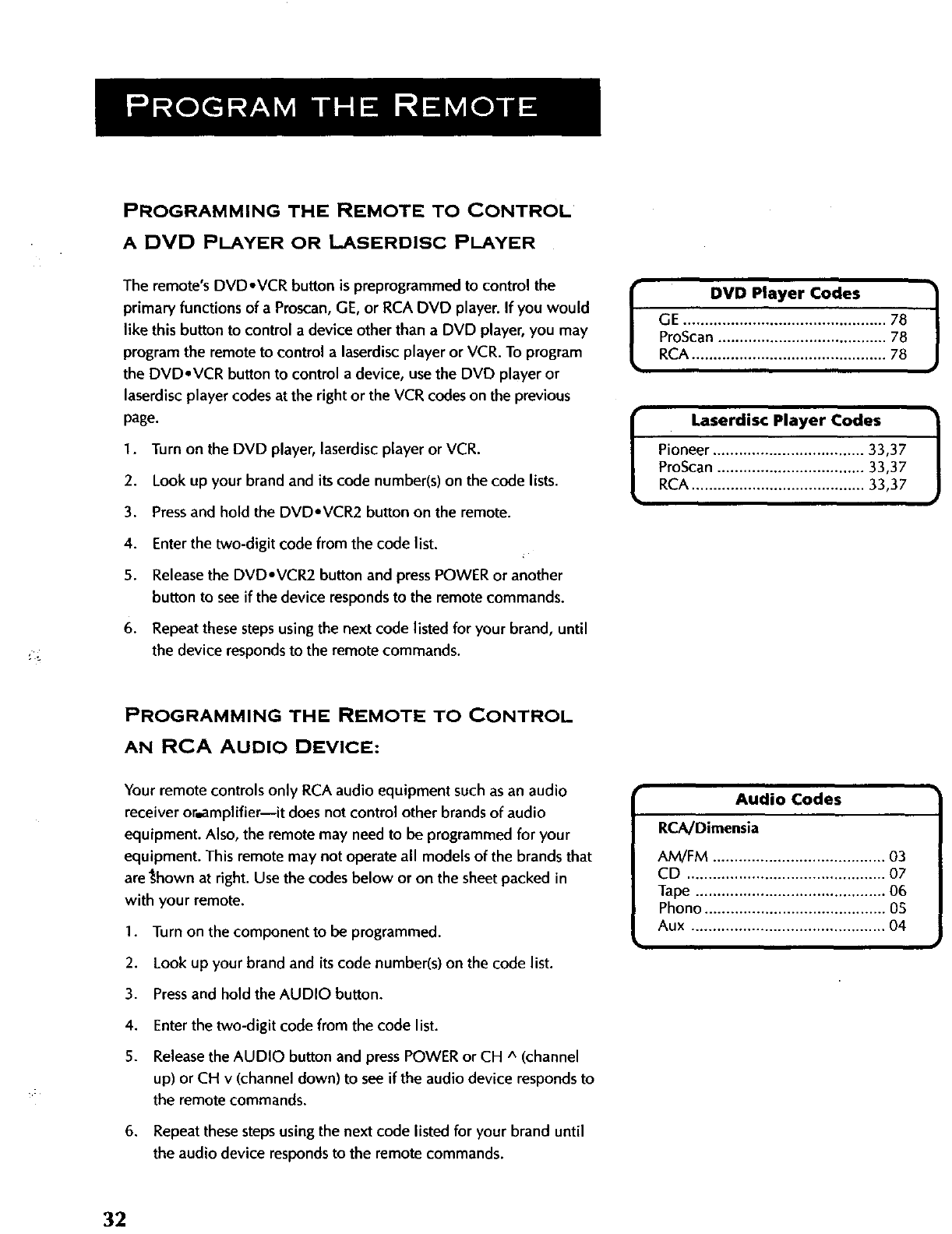

PROGRAMMING THE REMOTE TO CONTROL

A DVD PLAYER OR LASERDISC PLAYER

The remote's DVD-VCR button is preprogrammed to control the

primary functions of a Proscan, GE, or RCA DVD player. If you would

like this button to control a device other than a DVD player, you may

program the remote to control a laserdisc player or VCR. To program

the DVDoVCR button to control a device, use the DVD player or

laserdisc player codes at the right or the VCR codes on the previous

page.

1. Turn on the DVD player, laserdisc player or VCR.

2. Look up your brand and its code number(s) on the code lists.

3. Press and hold the DVDoVCR2 button on the remote.

Enter the two-digit code from the code list.

Release the DVD.VCR2 button and press POWER or another

button to see if the device responds to the remote commands.

Repeat these steps usingthe next code listed for your brand, until

the device responds to the remote commands.

[DVD Player Codes

GE ............................................... 78

ProScan....................................... 78

RCA............................................. 78

Laserdisc Player Codes

Pioneer ................................... 33,37

ProScan .................................. 33,37

RCA........................................ 33,37

PROGRAMMING THE REMOTE TO CONTROL

AN RCA AUDIO DEVICE:

Your remote controls only RCA audio equipment such as an audio

receiver or.amplifier--it does not control other brands of audio

equipment. Also, the remote may need to be programmed for your

equipment. This remote may not operate all models of the brands that

are _hown at right. Use the codes below or on the sheet packed in

with your remote.

I. Turn on the component to be programmed.

2. Look up your brand and its code number(s) on the code list.

3. Pressand hold the AUDIO button.

Enter the two-digit code from the code list.

Release the AUDIO button and press POWER or CH A (channel

up) or CH v (channel down) to see if the audio device responds to

the remote commands.

6, Repeat these stepsusingthe next code listed for your brand until

the audio device respondsto the remote commands.

Audio Codes

RCA/Dimensia

AM/FM ........................................ 03

CD .............................................. 07

Tape ............................................ 06

Phono .......................................... 0S

Aux ............................................. 04

PROGRAMMING THE REMOTE TO CONTROL A

SATELLITE RECEIVER OR CABLE BOX

Refer to the Connection Foldout or contact your cable company to

hook up your cable box. If you have a cable box with itsown remote,

then you may also be able to use the TV's remote with your cable box.

This remote may not operate all models of the brands that are shown.

Use the codes at the right, or on the sheet packed with your remote.

1. Turn on the cable box or satellite receiver.

Look up your brand and its code number(s) on the code list.

Pressand hold the SAT.CABLE button on the remote.

Enterthe two-digit code from the code list.

Release the SAI"oCABLEbutton and pressPOWER or CH A

(channel up) or CH v (channel down) to see if the cable box

respondsto the remote commands.

Repeat these steps using the next code listed for your brand until

the cable box or satellite receiver responds to the remote

commands.

USING THE REMOTE TO CONTROL A DEVICE

Once the remote has been programmed with the correct codes, you

are ready to use it to control your devices.

To operate the device:

1. Pressthe device button (TV, VCR1, SAToCABLE,DVDoVCR2, or

AUDIO) to set the remote to control the device.

2. PressPOWER to turn the device off or on.

3. Use the remote buttons that apply to that device.

Satellite ICable Box Codes

ABC .............................. 22,46,53,54

Anvision ................................. 07,08

Cablestar ................................ 07,08

Chaparral ............................... 80,81

Cheyenne .................................... 81

Diamond ..................................... 56

Drake ..................................... 82,83

Eagle ...................................... 07,08

EasternInt.................................... 02

General Instruments ..... 46,92,93,94

GI 400 ...... 04,05,15,23,24,25,30,36

Hamlin .................... 03,12,13,34,48

Hitachi .............................. 37,43,46

Jerrold .......... 04,05,15,23,24,25,30,

........................... 36,45,46,47,62,65

Macom ................................... 37,43

Magnavox ......... 07,08,19,21,26,28,

................................ 29,32,33,40,41

NSC............................................. 09

Oak ................................... 01,16,38

Oak Sigma ................................... 16

Panasonic ..................... 03,27,39,61

Philips ............... 07,08,19,21,26,28,

................................ 29,32,33,40,41

Pioneer .............................. 18,20,44

Randtek .................................. 07,08

RCA ................................... 00,27,66

Realistic ....................................... 84

Regal ................................. 03,12,13

Regency ................................. 02,33

Samsung ...................................... 44

Sierra I,I1,111.................................. 81

Sci. Atlanta .............. 03,22,35,63,64

Signature ..................................... 46

Sony DBS .................................... 95

Sprucer ........................................ 27

Starcom ....................................... 46

Stargate 2000 ............................... 58

STS1,2,3,4 .................... 85,86,87,88

Sylvania .................................. 11,59

Teknika ........................................ 06

Texscan ............................. 10,11,59

Tocom ..................... 17,21,49,5.0,55

Toshiba ........................................ 89

Uniden ........................................ 90

Unika ................................ 31,32,41

Universal ........................... 51,52,60

Video Cipher II ............................ 91

Viewstar ............ 07,08,19,21,26,28,

................................ 29,32,33,40,41

Warner Amex .............................. 44

Zenith ........................... 14,42,57,61

A PICTURE BOOK TOUR

This section talks about theTV's main parts (at least the

parts you'll actually use):

•The remote control

•The back panel

•The front panel

•The channel marker

REMOTE BUTTONS

POWER When in TV mode, turns off the TV. In VCR mode, and if

programmed, turns on and off most VCRs.

VCR1 If programmed, turns on VCR and putsthe remote in VCR

mode. Also turns on the TV.

SAT.CABLE If programmed, turns on satellite receiver or cable box.

Putsthe remote in SAT.CABLE mode. Also turns on the "FV.

DVD*VCR2 If programmed, turnson DVD player or second VCR or

laserdiscplayer. Putsthe remote in DVD,VCR2 mode. Also turns on

the TV.

AUDIO If programmed, turns on RCA audio component and puts the

remote in audio mode.

TV Turns on the TV and putsthe remote in TV mode. Also displays

channel information.

REVERSE,PLAY,FORWARD, REC*VCR+, STOP, PAUSE If

programmed, provides transport control for some remote-controllable

VCRs, DVD players, laserdiscplayers,tape decks, and CD players.

PressingREC-VCR+ when using the TV GUIDE+ systemsetsthe VCR

to record a program.

VOL - or VOL + Decreasesor increasesthe TV's volume.

CH A or CH v Scansup or down through the current channel list.

Pressonce to change the channel up or down; pressand hold to

continue changing channels.

INFO Br_gs up channel information. Pressrepeatedly to see detailed

program information, if available.

SKIP Pressonce before changing channels and the TV will wait 30

4-.

seconds before returning you to the original channel. Pressrepeatedly

to add more time.

MUTE Reduces the TV's volume to its minimum level. Pressagain to

restore the volume.

GO BACK Returns you to the previous channel.

(0-9) Number Buttons Enterschannel numbers and time settings

directly though the remote control. To enter a two-digit channel, press

the two digits. To enter a three-digit channel, press and hold the first

digit, then add the second two. Example: to tune to channel 123, press

and hold I, press2, then press3.

R_E_E P_Y FORWARD

RE-VCR * STOP PAUSE

[i3

INEO SKIP

® @

MUTE GO _CK

0Q Q

0 0 0

0Q Q

FAVelNPUT ANTENNA

oQo

PIP _SOUND

SWAP CHCTRL

FETCH GUIDE

I or more details, seethe previous section, |

Programthe Remote. J

FAV-INPUT In "IV mode, pressto toggle through the available input

sources (VID1, VID2, previous channel). In SAT mode, pressto select

available channel lists.

ANTENNA FunctionsasTV/VCR button in VCR mode and TV/

receiver button in SAToCABLEmode.

CLEAR Removes any menu or display from the screenand returnsyou

to "IV viewing.

MENU*SELECT Brings up the Main menu. When in the menu system,

selectshighlighted items or returnsyou to the previous menu. When in

VCR mode, it functions as a PROGRAM button.

RESET Resetspicture quality controls to the Bright Lighting Picture

Control Preset.Point and select to choose adifferent Picture Control

Preset.

MOVE (Arrows) Used to point to different items in the menu system.

Also used to adjust the menu controls. Also move the PIP window

when no menus are on the screen.

PIP Brings up the small picture-in-picture window. Pressagain to

remove the PIP window.

SOUND Pressonce to display the audio processor control panel.

Point and select to choose a different processor or pressCLEAR to exit.

SWAP Swaps the main picture with the PIP window.

CH CTRL Selects the picture window, (that is, the main or PIP

window) that is changed by the CH ^ (channel up) or CH v (channel

down) buttons.

FETCH Brings t_pthe FETCH menu. Point to different menu items

with the arrow buttons. PressMENU to select a highlighted FETCH

menu item.

GUIDE Brings up TV GUIDE Plus+ menus. In SATeCABLE mode

brings up available on-screen guides. PressGUIDE button several

times to toggle through the differenttypes of guides.

BACK PANEL

VIDEO

I,N,0T,:

VIDEO RJ

R /L mono

e CABLE/

ANTENNA

INPUT 1Letsyou connect a video component such as a VCR, satellite

receiver, DVD player or laserdisc player.

I./MONO Provides left audio connection. Or, if you are

connecting a mono component, use the L/MONO input. The left

audio connector is usually white.

RIGHT Provides right audio connection. The right audio

connector is usually red.

VIDEO Provides video connection. The video connector is

usually yellow.

S-VIDEO Lets you connect acomponent with S-Video capability,

such as an S-video satellite receiver, DVD player or VCR. When

using S-Video, make sure to connect the three audio/video cables

as well as the S-Video connector.

INPUT 2 Provides a connection for a second video component such as

a VCR, satellite receiver, DVD player or laserdisc player.

I./MONO Provides left audio connection. Or, if you are

connecting a mono component, use the L/MONO input. The left

*audio connector is usually white.

RIGHT Provides right audio connection. The right audio

connector is usually red.

VIDEO Provides video connection. The video connector is

usually yellow.

ANT (Antenna) Provides connection to a home antenna or cable TV

system.

If you are connecting a component to the

VIDEO 1 INPUT and you are using S-

Video, remember to connect the regular

VIDEO 1 INPUT video cable as well.

Hooking up components isn't hard, but

double-checking the cable and jack

connections may help you avoid

problems.

AUDIO OUTPUT Providesvariable-controlled or fixed-level stereo

audio output.

Variable output is ideal when connecting the TV to an amplifier

that does not have its own volume control or remote control.

Fixed output is ideal when connecting to an AN receiver or

amplifier that has itsown remote control.

You can choose the type of audio output by selecting the Audio

Output & Speakerscontrol panel in the Audio menu.

VCR CONTROL Letsyou connect the TV GUIDE Plus+controller,

which allows direct control of your cable box and VCR.

I •

To connect an amplified subwoofer to the

TV, use the left (L) AUDIO OUTPUT jack.

FRONT PANEL

MENU Brings up the Main menu. When in the menu system, it selects

highlighted items.Also returnsyou to the previous menu.

CH vScansdown through the current channel list. In the menu

system, it points down to items and adjustsmenu controls.

CH A Scans up through the channel list. In the menu system, it points

up to items and adjusts menu controls.

VOL - Decreases the volume. When in the menu system,VOL - is

used to point left to items and adjust menu controls.

VOL + Increasesthe volume. When in the menu system,VOL +is

used to point right to items and adjust menu controls.

POWER Turns the TV on and off.

:The front panel above showsa typical

button layout. The exact look of the

buttons may be different from those on

the front of your TV.

If you turn Parental Control on, or

lockout the front panel, the front panel

no longer provides access to the menus.

For more information, see Parental

Control, in the Quick Reference section.

CHANNEL MARKER

There are several indicators that come up when you change channels,

pressthe INFO button, or pressthe TV button. This display is called

the Channel Marker.

12:01 Displays the current time.

CC Displayed when Closed Captioning is available on the current

channel.

VCR1 Displays the label assignedto the current channel.

VID1 Displays the current channel or input channel.

Mute (or Stereo) Mute is displayed when you mute the audio. Stereo

is displayed when the current channel is broadcasting in Stereo.

SAP Displayed when the current channel is broadcasting SAP (Second

Audio Program) information.

PIP 59 (PIP Cban) Displays the current PIP channel.

Remote batteries are low Displayed when the batteries in the remote

need to be replaced.

Sleep Displayed when the Sleep Timer has been set.

0O:00 Displayed to count down time left on the commercial skip (SKIP)

timer.

I The channel marker shown above is just |

an example, of course. J

A SHORT GUIDE TO THE MENU

SYSTEM

This section provides a brief explanation of all the menu

commands.These commands are organized in the

chapter by their location in the Main menu.

• AUDIO Contains the controls that let you adjust the

way theTV sounds.

•PICTURE QUALITY Contains the controls that let

you adjust the picture.

SCREEN Contains the controls that let you adjust

the projection tubes' alignment, menu language, and

closed-caption mode and display.

CHANNEL Contains all the commands used to

control your channels, including custom-building your

channel list and setting up yourTV to control the

components connected to theTV.

TIME Contains the controls that let you set the time

and schedule theTV to turn offand on at specific

tir_es.

PARENTAL CONTROLS Contains the controls that

let you block out specific channels and lock theTV's

front panel controls.

TV GUIDE PLUS+ MENU Contains the controls that

let you set up theTV GUIDE Plus+ menu, run ademo,

or turn the Label &Title display on and off.

•SETUP Begins an interactive setup routine that lets

you adjust yourTV's menu system, channel list and

how yourTV receives signals from other components.

AUDIO MENU

Mute PressMENU to reduce the TV's vollJme to itsminimum level.

PressMENU again to restorethe volume.

Tone Controls Displays the slider controls for adjustingthe rV's treble,

bassand balance.

Audio Processor Displays a choice list of available audio modes,

which control the way the soundcomes through your speakers.

Mono Plays the sound in mono only. Use this settingwhen

receiving broadcastswith weak stereo signals.

Stereo Splits the incoming stereo audio signal into left and right

channels. Most "IV programsand recorded materials have stereo

audio. The "IV displaysthe word STEREOwhen you tune to a

program that is broadcast in stereo.

SRSStereo (-) SRS* isan audio processingtechnology that adds

greater depth and stereo separation to stereo audio signals.

Enhanced SRSStereo Enhancesthe SRSsignalto give the

impressionof even greater depth and stereoseparation.

Sound LogicStereo Sound Logic monitors a program's audio track

and limits the volume to a minimum and maximum volume range.

Whenever you adjustthe volume on the "IV,the minimum and

maximum volume rangeadjusts,too.

Second Audio Program (SAP) Playsthe program'saudio in a

second language, if one is available. The "IV displaysthe word

SAPwhen you tune to a program that is broadcastwith SAP

information. SAP audio is broadcast in mono.

Audio Output & Speakers Displays a choice list that lets you turn the

.4-

TV's internal speakerson or off and setthe audio outputs to fixed-level

or variable control level.

Variable Output, SpeakersOn This setting turns the TV's speakers

on and allows variable output from the TV's audio output jacks.

Variable Output, SpeakersOff This settingturns the TV's speakers

off and allows variable output from the TV's audio output jacks.

Fixed Output, SpeakersOff This setting turns the TV's speakers off

and allows fixed output from the TV's audio output jacks.

* SRS,Sound Retrieval System and the SRS logo (.) are registered

trademarks of SRS Labs, Inc.

llaloud commercial comes on, Sound

Logic can compressthe sound and limit

the volume to a minimum and maximum

volume range.

PICTURE QUALITY MENU

Basic Picture Controls Displays the five slider controls for adjusting

the way the picture looks.

Contrast Adjuststhe difference between the light and dark areas

of the picture.

Color Adjusts the richnessof the color.

Tint Adjuststhe balance between the red and green levels.

Black Level Adjusts the brightness of the picture.

Sharpness Adjusts the crispness of edges in the picture.

Auto Color Displays a choice list that lets you turn on the feature that

automatically correctsthe color of the picture. (This is especially useful

for tracking realistic flesh tone colors asyou switch from channel to

channel.) Choose On or Off, depending on your preference. It's your

choice.

Color Warmth Displays a choice listthat lets you setone of three

automatic color adjustments: Cool for a more blue palette of picture

colors; Normal; and Warm for a more red palette of picture colors.

Picture Control Presets Displays a choice list that lets you select one

of three presetpicture settings: Bright Lighting, Normal Lighting or Soft

Lighting. Choose the setting that is best for your viewing environment.

Video Noise Reduction Displays a choice list that lets you turn on the

feature that automatically reduces noise, or "snow," from the picture.

I Pressthe RESETbutton on the remote to 1

bring up the Picture Control Presets choice I

list. Point to the desired setting;press J

MENU to select it. )

SCREEN MENU

Closed Caption Display Displays a choice list that lets you choose

the way closed captioning information is shown on the screen.

Off No captioning information displayed.

On Always Captioning information shown always, when

available.

On When Sound is Muted Displayscaptioning information,

when available, whenever the TV's sound is muted by pressingthe

MUTE button. The captioning information is not displayed when

the sound is not muted.

Closed Caption Mode Displays a choice list that lets You choose

which captioning mode is used for displaying captioning information.

Menu Language Displays a choice list that lets you select your

preferred language: English, Spanish, or French.

Adjusting Projection TV Letsyou adjust the TV's three color

projection tubes for precise picture alignment.

Selecting Green Centering brings up a control panel that lets you

center the green projection tube on the screen. Selecting Red

Convergence or Blue Convergence lets you align the red and blue

projection tubes.

Center the green projection tube first_ Then, adjust the red and blue

projection tubes until the test patterns on the TV screen appear white.

Your projection TV has three color

projection tubes-one for red, one for

green, and one for blue. When the tubes

are precisely aligned they create the color

images you see on the TV screen. Over

time, the picture can drift out of

alignment due to normal bumps and

vibrations or moving the TV. If you notice

rings or halos around objects in the

picture, you may want to adjust the

picture tubes.

CHANNEL MENU

Signal Type Displays a choice listthat lets you select the current

antenna type. This option does not appear when the 1'4 GUIDE Plus+

systemis set up.

UHF/_/HF Antenna Choose this if you are currently using an off-

air antenna for TV signals.

Cable TV Choose this if you are currently using cable or acable

box for TV signals.

Auto Channel Search Tells the "IV to search automatically for'all the

channels available through the antenna input. When the TV finds an

active channel, it places it in the channel list; inactive channels (weak

stationsor channels with no signal at all) will be removed from the

channel list.

List and Labels Displays a control panel that lets you custom-build

your Normal channel list and choose a six-character label for each

channel. Follow the on-screen directions to enter your channels and

other information.

Chan #Use the up and down arrows to scroll up and down

through the channel scan list. You can enter the channel number

directly usingthe number buttons.

Normal List Only the channels included in the Normal listare

available when you scan up and down usingthe CHAN buttons.

Use the up and down arrows to indicate whether the channel

number indicated is included (Yes)or is not included (No) in the

Normal channel list.

Chan Labels Use the up and down arrows to enter a six-

character label for each channel. Hold the button down to scroll

qdickly through the characters. PressRESETto clear a label. The

"IV can store up to 27 labels in memory.

Channel Directory Displays all of the labeled channels. In the

Channel Directory control panel, you can select achannel by entering

the channel number, or by pressing MENU to return to the current

channel. This option does not appear when the TV GUIDE Plus+

system is set up.

(Channel Menu continued)

Auto Tuning Displays achoice list that lets you setup the TV to

automatically tune to the correct input channel when you pressa

component button (VCR1, DVD.VCR2, or SAT*CABLE).

Set VCR 1 Channel Displays a choice listthat lets you select the

channel that the TV tunes to when you pressthe VCR1 button.

Set DVD.VCR 2 Channel Displays a choice list that lets you select

the channel that the TV tunes to when you pressthe DVD-VCR2

button.

Set SAT-Cable Channel Displays a choice listthat lets you select

the channel that the TV tunes to when you pressthe SAT-CABLE

button.

The choices are:

Not Connected Choose this if you do not have acomponent

connected to an antenna or video input on the back of the TV, or if

you don't want the TV to tune to a channel when the particular

component button is pressed.

Channel 2 (SAT/Cable only) Choose this if your component is

connected to the antenna jack on the back of the TV, and you

want the TV to tune to channel 2 when you pressthe specified

component button. Reminder: Make sure the component's Ch 2/3/

4switch is setto channel 2.

Channel 3Choose this if your component is connected to the

antenna 'packon the back of the TV, and you want the TV to tune

to channel 3 when you press the specified component button.

Reminder: Make surethe components Ch 3/4 switch is set to

channe 3.

Channel 4Choose this if your component isconnected to the

antenna jack on the back of the TV, and you want the TV to tune

to channel 4 when you press the specified component button.

Reminder: Make sure the component's Ch 3/4 switch is set to

channel 4.

Video 1Input Choose this if your component is connected to the

Video 1 jacks on the back of the "IV and you want the TV to tune

to Video1 input when you press the specified component button.

Video 2 Input Choose this if your component is connected to the

Video 2jacks on the back of the TV and you want the "IV to tune

to Video 2 input when you press the specified component button.

TIME MENU

Sleep Timer Displays a control panel that lets you select the amount

of time you want to give the TV before it shutsitselfoff.

Schedule Displaysa control panel that lets you setup a schedule for

turning the TV on and off automatically. Make sure to turn the

schedule On. The on-screen directions guide you through the steps

needed to setthe schedule.

Set Time Displays a control panel that lets you enter the current time.

The on-screen directions guide you through the stepsneeded to set

the time.

PARENTAL CONTROLS MENU

Displays the menu items that let you adjust the Parental Controls

featu re.

Parent Approved Channels Displays acontrol panel that lets you

decide what channels can be viewed or selected usingthe TV's front

panel controls.

Chan #Use the up and down arrows to scroll up and down

through the channel scan list. You can enter the channel number

directly usingthe number buttons.

Parent Approved Use the up and down arrows to choose whether

the channel indicated should be shown when the Channel Block

feature is turned on. Select Yesto indicate that the channel can be

shown at any time, regardlessof whether Channel Block isturned

on. Select No to indicate that the front panel cannot tune to that

channel when Channel Block is turned on. Important: You must

turn the Channel Block feature on. (SeeChannel Block, below.)

Channel Block Displays a control panel that lets you decide when a

channel can be viewed.

Off All channels are available

On Always The front panel CH (channel) buttons will tune only

to channels that you have marked as "Parent Approved." The

remote will still tune to any channel.

Scheduled Selected channels will be blocked out between start

and stoptimes you enter in the control panel. The front panel

CH (cl'rannel)buttonswill tune only to channels that you have

marked as "Parent Approved." The remote will still tune to any

channel.

Front Panel Lockout Displays a control panel that lets you lock

(disable) the TV's front control panel, or unlock (enable) the TV's front

control panel. The remote will still tune to any channel.

I f you can't access a channel or use the

TV's front panel control, maybe you've

forgotten to turn off a parental control.

Check the Channel Block and Front

Panel Lockout control panels.

TV GUIDE PLUS+ MENU

TV GUIDE Plus+ Setup Displays the "IV GUIDE Plus+ setup screen.

Setup Setting up the TV GUIDE Plus+ system is detailed earlier in

Interactive Setup.

Demo Runs the TV GUIDE Plus+demonstration.

Select Channels Allows you to choose which channels appear in

the TV GUIDE Plus+ program schedule.

"IV GUIDE Plus+ Label & Title Displays the "IV GUIDE Plus+ Label &

Title menu.

On Displays the station name and show title when you change

channels.

Off Disables the Label &Title feature.

Continuous Demo Runs the "IV GUIDE Plus+ demonstration until it is

turned off.

SETUP MENU

The setup routine is detailed earlier in the manual in the Interactive

Setup section.

THIS SECTIONS DETAILS SOME OF THE

TV'S IMPORTANT FEATURES:

•TV GUIDE Plus+ operation

•PIP (Picture-in-Picture) operation

•Fetch menu display

•Choosing an audio processor

•Using closed captioning

•Displaying on-screan program details

TV GUIDE PLUS+ OPERATION

The TV GUIDE Plus+ systemoffers four different menus for browsing

program listings: SURF, NEXT, SCAN, and SORT.

I. PressGUIDE to bring up the "IV GUIDE Plus+ display.

WA3C 5Cosby

WGN 9 Baseball-Cubs vs Braves

_BC 4 Si_Ple Pleasures

WCB$ 11 Jerry Springer

_RW 17 Weaving Today

WJ_ 34 The Ubiquitious G-Men

WIH? 42 You Bet Your Life

2. To choose a menu, select CHOICE. The Surf Menu comes up

by default.

3. Use the left and right arrows to access another menu. PressMENU

to select your choice.

Surf Menu

The Surf Menu displays the current program on each channel. The live

program displayed in the video window changes as you surf channel

listings.

NEXT SCAN SORT

WABC 5 Cosby

W_ 9 Baseball-Cubs vs Braves

WNBC 4 simple Pleasures

WCBS ii Jerry springer

_TRW 17 Weaving Today

WJAX 34 The Ubiquitious G-Men

WIMT 42 You Bet Your Life

• Use the up and down arrows to surf channel listings.

• To select another menu, use the left and right arrows, and then

press MENU.

• PressGUIDE or CLEARto exit the TV GUIDE Plus+ system.

Pressing GUIDE changes to the last channel highlighted. Pressing

CLEAR returns to the original channel.

Channel Mapping

If more than one cable company services

tour area, you may be prompted with this

Channel Mapping screen after the first TV

GUIDE Plus+ download. You will need to

identify your cable company by selecting

the correct channel numbers for the

;tations in question.

LEFT RIGHT

m 9WTRW 22

1. Determine the correct channels for the

stations. Check your local listings if

you are not sure.

2. Select LEFTor RIGHTto change the

channel group.

3. Select 5ELECTwhen the correct

channel group is highlighted.

Next Menu

The Next Menu displaysthe programs on a selected channel from the

current time to midnight of the next day.

12:30p The Flintstones

l:00p Tom and Jerry

l:30p Jenny Jones

2:30p Quincy

3:30p Ex_ral

4:00p Roseanne

Use the up and down arrow buttons to move through the

schedule. An asterisk after the time indicatesthat the program

is scheduled for tomorrow.

Use the right and left arrows to select a different menu, or press

GUIDE or CLEAR to exit the "IV GUIDE Plus+ system.

Scan Menu

The Scan Menu shows programming schedules for all channels from

the current time to midnight on the following day.

4:30p 5:00p

9Baseball-Cubs vs Braves

4 simple Pleasures

WCBS 11 Extre_.e Dieting

WTRW 17 TomorrOw NeVer Knows

WJAX 34 Sculpture Review

WIMT 42 You Bet Your Life

Use the left and right arrows to highlight the time of day, and then

press MENU to select it.

Use the up and down arrows to move through the schedule.

The channel displayed in the video window remains on the

initial channel.

Select SURFto return to the surf menu, or press GUIDE or CLEAR

to exit the TV GUIDE Plus+ system.

The Info Center

If this icon _appears in the program

information, you may access additional

information about that program by

pressing INFO. This feature is available

in all four menus.

Even if the _icon isn't displayed,

pressing INFO will show a PlusCode

programming number which allows you

to program your VCR to record using

VCR Plus+.

Press INEO a second time to return to

the TV GUIDE Plus+ menu.

"Alternately, you will find the Info Center

in the Surf and Sort menus. Select it to

view additional information.

Along with additional programming

information, the Info Center may contain

information on local events, or on the TV

GUIDE Plus+ system itself. Information

contained in the info center will vary

from area to area, so not all of these

options may be available to you at this

time.

PressINFO to exit back to the menu.

Sort Menu

The SortMenu lets you browse programs by category. The channel you

are currently tuned to is displayed in the video window and by name.

SURF

Movies

Children

Info Center

1. Use the up and down arrows to select a category. In this example

we'll choose Sports. A listing of subcategories comes up.

SURF

All Racing

Baseball Skating

Skiing

Boxing Soccer

Equestrian Tennis

Football Track

Golf Water Sports

Hockey Wrestlin@

2. Use the up and down arrows to select a subcategory, in this

examp_ Basketball. The message, "Searching in progress.Please

Wait" comes up.

pgDn PgUp BACK

S_orts--Basketball TUe Mar25

College Basketball 7:00p WTTV

NBA Basketball 8:00p TNT

When the listing comes up, select PgDn to view more entries.

Seven days of programming are listed in the Sort Menu.

Select 5URFto return to the surf menu, or press GUIDE or CLEAR

to exit the TV GUIDE Plus+ system.

Customizing Your Channel Listing

You may customize the channel listing

by enabling or disabling the display of

certain channels. For instance, you may

disable channels that you never watch.

You can restore disabled channels at a

later point in time, of course.

1. From the TV's Main Menu, select TV

Guide Plus+ Menu.

2. Select TV Guide Plus+ Setup. The TV

GUIDE Plus+ menu comes up.

3. Select Select Channels.

EXIT

TVGUIDE Plus+ Select Channels

w_c m "

WABC WWOR

WGN

WTRW

ESPN

WRAP

WJAX

4. Use the up and down arrows to

select a channel.

5. Select ENABLEor DISABL to add or

remove a channel from the guide's

listing. Note that this button's name

changes depending on the activation

status of the selected channel.

6. Select EXlTwhen you are finished.

Selected channels will be added or

removed from the list during the next

download.

Sort Menu Options

PgDn shows more listings

PgUp returns to the previous screen.

BACKaIIows you to select another

category to sort.

One-Button Recording

The TV GUIDE Plus+ system allows one-button recording if you have

connected the IR controller to your VCR. See First Things Firstfor more

details on connecting the IRcontroller.

I. PressGUIDE to bring up the TV GUIDE Plus+ menu.

SURF REVIEW

WABC 5Cushy

WGN 9 Baseball-Cubs vs Braves

pl[llllllr'l

WCBS ii Jerry Springer

WTRW 17 Weaving Today

WJAX 34 The Obiquitious G-Men

WIMT 42 YOu Bet Your Life

2. Select a program to record. You may choose a program from any

of the four browsing menus.

3. PressREC,VCR+. A screen confirming your selection comes up.

SURF DAILY WEEKLY

Plus Code # 12345 , for

simple Pleasures WNBC 4

TO Record Select

4, Select a recording option: DALLY,ONCE, or WEEKLY.

SURF REVIEW

Simple Pleasures WNBC 4

This show is Dro_rammed

to be recorded: m

Remember to _urn your VCR off.

5. Insert a blank tape into your VCR and turn it off.

Recording Options

DALLYrecords the same program

Monday through Friday.

ONCE records only on that day.

WEEKLYrecords the program each

week at the same time.

REVIEW displays a list of programs

set to be recorded. You may delete

programs from this list.

Tip: You can record the program you are

currently watching by simply pressing

REC,VCR+.

PIP (PICTURE-IN-PICTURE)

OPERATION

The PiP feature (picture-in-picture) letsyou display a second, smaller

picture on top of the main picture.

Main Picture[_ ]

There are seven remote buttons that control the way the PIP window

works:

PIP Brings up the PIP window. PressPIP again to remove the window.

MOVE buttons Let you move the PIPwindow to different areas of the

screen.

SWAP Switches, or "swaps," the video from the PIP window with the

main picture.

CH CTRL (Channel Control) Lets you switch channel control between

the PIP window and the main picture.

For instance, press PIP to bring up the PIP window. You can change

channels by entering channel numbers or pressing the CH ^ (channel

up) or CH v (channel down) buttons. When you press the CH CTRL

button the channel control switches to the main picture. You can now

change channels n the main picture by entering channel numbers or

pressing the CH A (channel up) or CH v (channel down) buttons.

Press CH CTRL again to return the channel control to the PIP window.

p,P ]

M°vE C.CT.L

Atypical use of SWAP is to scan through

channels in the PIP window, and when

you find a channel you like, press SWAP

to display that channel in the main

picture, sending the current channel to

the PIP window.

Two Tips for Using PIP Buttons

Skip to PIP: Channel Surfing in the Main Picture

You can surfthrough the channels during commercial breaks usingthe

SKIP and CH (channel) buttons.

I. PressSKIP to set the commercial skip timer and bring up the PIP

window. The current channel appears in both the main picture

and the PIP window.

2. Pressthe CH ^ (channel up) or CH v (channel down) buttons. The

main picture surfs through the channel list. When the SKIP feature

times out, the original channel will return automatically to the

main picture.

Channel Surfing in the PIP Window

You can use the PIP window to surf through channels as well.

PressPIP to bring up the PIP window.

Pressthe CH A (channel up) or CH v (channel down) buttons. The

TV begins displaying each channel in the PIP window. If you see a

channel that interests you, press SWAP.

FETCH MENU

The FETCH menu is a short-cut to several commonly used features and

appears as colored icons at the bottom of your screen. You can display

the FETCH menu by pressing the FETCH button on the remote. Use the

arrow buttons to highlight an item and press MENU to select it.

Main Picture

Sleep Timer Select this item to go directly to the Sleep

Timer control panel. Use the arrow buttons to adjust the

timer.

Front Panel Lockout Takesyou directly to the Front Panel

Lock control panel. Here you can enable or disable the

buttons on the front of the TV.

Parental Controls Select this item to display the Parental

Controls menu. Select a menu item to go to the desired

..control panel.

Schedule Displays a control panel that lets you program

the TV to turn on and off automatically. Make sureto turn

the schedule On.

Begin Setup Startsthe Interactive Setup routine that lets

you choose a menu language, searchfor available

channels and setcomponent channels.

Channel Directory Select this item to display a list of all

labeled channels in alphabetical order. Entera channel

number to go to that channel or pressMENU to return to

the current channel.

Exit Select this item to exit the FETCH menu and return to

normal channel viewing.

CHOOSING AN AUDIO PROCESSOR

Changing the audio processor changes the way your "IV sounds. There

are two ways to change the audio processor: a) from the Audio menu,

and b) by pressing SOUND on the remote. For more, see Audio menu

in the Quick Reference section.

Choosing an audio processor from the Audio menu

I. PressMENU to bring up the Main menu.

2. PressMENU again to select the Audio menu.

3. Point to Audio Processor and press MENU. The Audio Processor

choice list comes up, with the current mode highlighted.

4. Point to an audio processor mode and press MENU to select it and

return to the Audio menu. The options are:

Mono Plays the sound in mono only.

Stereo Splits the incoming stereo audio signal into left and right

channels.

SRSStereo (o) SRSis an audio processing technology that adds

greater depth and stereo separation to stereo audio signals.

Enhanced (.) SRSStereo Enhances the SRSsignal to give the

impression of even greaterdepth and stereo separation.

Sound Logic Stereo Sound Logic monitors a program's audio track

and limits the volume to a minimum and maximum volume range.

Whenever you adjustthe volume on the "i-V,the minimum and

maximum _iolume rangeadjusts,too.

Second Audio Program (SAP) Plays the program's audio in a

seco{id language, if one is available. Settingthe audio processor to

SAP tells the TV to play the program's audio in this second

language, if one is available.

Choosing an audio processor from the remote

I. PressSOUND to display the audio processor choice list.

2. Point to and select a different audio processor or press CLEAR to

exit. The number of audio processor choices

available depends on the type of signal

you are currently using. For example,

depending on the way you have your

VCR connected to the TV, the number of

choices is greater when you are watching

TV than when you are watching a video

tape.

CLOSED CAPTIONING

Many programs are encoded with closed captioning information,

which lets you display the audio portion of a program as text on the

TV screen. You can tell the TV to display closed captioning: a) never,

b) whenever it is available, or c) whenever the program is muted.

TO DISPLAY CLOSED CAPTIONING

1. PressMENU to bring up the Main menu.

2. Point to Screen and press MENU. The Screenmenu comes up with

Closed-Caption Display highlighted.

3. PressMENU to select Closed-Caption Display.

Off No closed captioning information will be displayed.

On Always Closed captioning will be displayed whenever it is

availabl_.

On when sound is muled Closed captioning will be displayed

op!y when you have muted the sound by pressingthe MUTE

button.

Point to your choice and press MENU to select it and return to the

Screen menu.

Closed captioning is not available on all

channels at all times. Only specific

programs encoded with closed

captioning information are applicable.

When a program is closed captioned, the

letters CC are displayed in the channel

marker.

CLOSED CAPTIONING MODES

The TV offers eight closed-captioned modes, including four text

modes.

To Setthe Closed-Captioning Mode:

I. Select Screenfrom the Main menu

2. Point to Closed-Caption Mode and pressMENU. This choice list

comes up:

3. Point to your choice and press MENU to select it and return to the

Screen menu.

Turning off Closed Captioning

1. Select Screen from the Main menu.

2. PressMENU to select Closed-Caption Display

3. Point to Offand press MENU. The closed captioning is turned off

and you a_'ereturned to the Screen menu.

If you are unsureof the differences

among the modes, you may prefer to

leave the closed captioned mode setto

CC1, which displays complete text of the

program in the primary language in your

area.

ON-SCREEN PROGRAM DETAILS

Program providers have the option of sending information through the

airwaves along with their programs.If this information is available, the

"IV can display it up when you pressINFO on the remote. To display

the on-screen program details:

1. PressINFO once to bring up the channel marker.

2. PressINFO again to bring up the program title, the program's

length and elapsed time.

3. PressINFO again to bring up other program details suchas the

stow line and whether Closed-Captioning is available.

4. PressINFO again to clear the screen.

Whether all (or any) of the program details are displayed depends on

whether the program provider has sent the information along with the

program.

THINGS TO DO BEFORE CONNECTING

COMPONENTS

Protect your components from power surges

Connect all components before plugging any power

cords into the wall outlet.

• Always turn off the TV and/or component before you

connect or disconnect any cables.

POSITION CABLES CORRECTLY TO AVOID

AUDIO HUM OR INTERFERENCE

Insert all cable plugs firmly into their jacks.

Place the audio/video cables to the sides of theTV's

back panel instead of straight down the middle after

you connect your components.

Try not to coil any twin-lead cables and keep them

away from the audio/video cables as much as possible.

Make sure all antennas and cables are properly

grounded. Refer to the SafetyTips sheet packed with

yourTV.

PROTECT'YOUR COMPONENTS FROM

OVERHEATING

Do not block ventilation holes in any of the

components. Arrange the components so that air can

circulate freely.

•Do not stack components.

•Allow adequate ventilation when placing your

components in astand.

Place an amplifier on the top shelf of the stand so

heated air rising from it will not flow around other

components.

TV AND MONO VCR

(CONNECTION A)

This information applies to Connection A in the Connections Foldout.

Connection A provides:

• stereosound from broadcast programs

• mono sound from VCR

• Picture in Picture (PIP)

• watch one channel on TV while recording another channel

To use this connection you must have:

•(2) audio/video cables

•(2) coaxial cables

To connect:

1. Connect cables as shown in Connection A.

2. Return to First Things First, then follow the steps in the Interactive

Setup.

USING CONNECTION A

To watch "IV programs:

1. Turn VCR off.

2. PressTV and tune to a channel.

To record o_e program and watch another:

1. PressVCR1 and tune to a channel.

2. Begin recording.

3. Make surethe FV/VCR switch on the VCR is set to TV.

4. PressTV and tune to a channel.

To play a tape on the VCR:

1. PressVCR1.

2. PressPLAY.

CABLE, CABLE BOX. OR ANTENNA

MCRI

SeeConnections Foldout,

Connection A

TV AND STEREO VCR

(CONNECTION B)

This information applies to Connection B in the Connections Foldout.

Connection B provides:

•stereo sound from broadcast programs

•stereo sound from VCR

• Picture in Picture (PIP)

• watch one channel on TV while recording another channel

To use this connection you must have:

• (2) coaxial cables

• (3) audio/video cables

• (I) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection B.

2. Return to First ThingsFirs_ then follow the steps in the Interactive

, Setup.

USING CONNECTION B

To watch TV programs:

1. Turn VCRoff.

2. PressTV and tune to a channel.

To record one program and watch another:

I. Pres,_VCRI and tune to a channel.

2. Begin recording.

3. Make sure the TV/VCR switch on the VCR is set to TV.

4. Press TV and tune to a channel.

To play a tape on the VCR:

I. PressVCR1.

2. Press PLAY.

CABLE, CABLE BOX, OR ANTENNA

VCR1

IN FROM ANT OL3

SeeConnections Foldout,

Connection B

TV, VCR AND DVD PLAYER

(CONNECTION C)

This information appliesto Connection C in the Connections Foldout.

Connection C provides:

•stereo sound from broadcast programs

• stereo sound from VCR

•Picture in Picture (PIP)

• watch one channel on TV while recording another channel

To use this connection you must have:

•(2) coaxial cable

• (6) audio/video cables

• (1) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection C.

2. Return to First Things First, then follow the steps in the Interactive

Setup.

USING CONNECTION C

To watch TV programs:

I. Turn VCR off.

2. PressTV and tune to a channel.

To record one program and watch another:

1. P_-essVCR1 and tune to a channel.

2. Begin recording.

3. Make sure the TV/VCR switch on the VCR is set to TV.

4. PressTV and tune to a channel.

To play a tape on the VCR:

I. PressVCRI.

2. Press PLAY.

To play a disc:

I. PressDVD•VCR2.

2. Press PLAY.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

S-V_,O _ II L

See Connections Foldout,

Connection C

TV AND (2) VCRS

(CONNECTION D)

This information applies to Connection D in the Connections Foldout.

Connection D provides:

• stereo sound from broadcast programs

*stereo sound from VCR

• Picture in Picture (PIP)

*watch one channel on TV while recording another channel

• record from one VCR to the other

To use this connection you must have:

• (3) coaxial cable

•(6) audio/video cables

*(1) S-Video cable (optional)

To¢oBoect:

1. Connect cables as shown in Connection D.

2. Return to First Things First, then follow the steps in the Interactive

Setup.

You can record from one tape to

another (tape dubbing):

1. Insert or{gina[ tape into VCR2.

2. Insert blank tape into VCR1.

3. PressVCR1.

4. Set VCR to line input (for more, see

your VCR User Manual).

5. Press RECORD to begin recording.

6. Press DVD•VCR2, then press PLAY.

7. If you want to watch a different

channel, set both the TV/VCR switch

on both VCRs to TV; press TV; then

tune to a channel.

Note: The unauthorized recording of

satellite broadcasts, television programs,

or other copyrighted materials may

infringe the rights of others.

USING CONNECTION D

To watch TV programs:

1. Turn VCR off.

2. Press'IV and tune to a channel.

To record one program and watch another:

1. Turn VCR2 off.

2. Press VCR1 and tune to a channel.

3. Begin recording.

4. Make sure the TViVCR switch on the VCR1 is set to "iV.

5. PressTV and tune to a channel.

To play a tape on the VCR:

1. PressVCR1.

2. Press PLAY.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

See Connections Foldout,

Connection D

TV AND DVD PLAYER

(CONNECTION E)

This information applies to Connection Ein the Connections Foldout.

Connection Eprovides:

• stereo sound from broadcast programs

• Picture in Picture(PIP)

To use this connection you must have:

•(1) coaxial cable

• (3) audio/video cables

• (I) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection F.

2. Return to First Things First, then follow the steps in the Interactive

Setup.

USING CONNECTION E

To watch TV programs:

1. PressTV and tune to a channel.

To play a disc:

1. PressDVD•VCR2.

2. PressPLAY.

CABLE, CABLE BOX, OR ANTENNA

DVD PLAYER

See Connections Foldout,

Connection I=

TV AND SATELLITE RECEIVER

(CONNECTION F)

This information applies to Connection F in the Connections Foldout.

Connection F provides:

•stereo sound from broadcast programs

•stereo sound from the satellite receiver

• Picture in Picture (PIP)

To use this connection you must have:

•(3) coaxial cable

• (3) audio/video cables

•(1) S-Video cable (optional)

• stereo sound from satellite programmin 8

To connect:

1. Connect cables as shown in Connection R

2. Return to First Things First, then follow the steps in the Interactive

Setup.

USING CONNECTION F

To watch TV programs:

1. Turn satellite receiver off.

2. PressTV and tune to a channel.

To watch satellite programming:

1. Pre_sSAT.CABLE and tune to a channel.

CABLE, CABLE BOX, OR ANTENNA

SATELLr_ RE_ Am SATE_GNAL

S-VIOIEO VlDC'O R L _IN

"_ •I I

See Connections Foldout,

Connection F

TV, VCR, AND SATELLITE RECEIVER

(CONNECTION G)

This information applies to Connection G in the Connections Foldout.

Connection G provides:

•stereo sound from broadcast programs

• stereo sound from VCR

• Picture in Picture (PIP)

• watch one channel on TV while recording another channel

To use this connection you must have:

•(4) coaxial cable

" (6) audio/video cables

• (1) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection G.

2. Return to First Things First, then follow the steps in the Interactive

Setup.

USING CONNECTION G

To watch TV programs:

1. Turn VCR and satellite receiver off.

2. PressTV and tune to achannel.

To watch Satellite programming:

1. Press SATeCABLEand tune to a channel.

To record off-air broadcastsand watch a different channel:

Turn satellite receiver off.

Press VCR1 and tune to a channel.

Begin recording.

To watch another channel, make sure the TV/VCR switch on the

VCR is set to TV; then press1-V and tune to a channel.

To play a tape on the VCR:

1. Press VCR1 and then press PLAY•

r.ABLE, CABLE BOX, OR ANTENNA

See Connections Foldout,

Connection G

TV, VCR, SATELLITE RECEIVER, AND

DVD PLAYER (CONNECTION H)

This information applies to Connection H in the Connections Foldout.

Connection H provides:

•stereo sound from broadcast programs

•stereo sound from VCR

•Picture in Picture (PIP)

•watch one channel on TV while recording another channel

To use this connection you must have:

•(4) coaxial cable

• (6) audio/video cables

• (I) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection H.

2. Return to First Things First, and do the Interactive Setup.

USING CONNECTION H

To watch TV programs:

I. Turn VCR and satellite receiver off.

2. PressTV and tune to a channel.

To watch satellite programming:

1. PressSAT:CABLE and tune to a channel.

To record off-air (cable or antenna) broadcastsand watch a different

channel:

1. Turn satellite receiver off.

2. Press VCR1 and tune to a channel.

3. Press RECORD to begin recording.

4. To watch another channel, make sure the TViVCR switch on the

VCR is set to TV; then pressTV and tune to a channel.

To play a tape on the VCR:

1. PressVCRI and then pressPLAY.

To play a disc:

I. Press DVD•VCR2 and then press PLAY.

CABLE, CABLE BOX, OR ANTENNA SATELLITESIGNAL

SATELLITERECEIVER

SeeConnections Foldout,

Connection H

TV, (2) VCRs, AND SATELLITE

RECEIVER (CONNECTION !)

This information applies to Connection Iin the Connections Foldout.

Connection I provides:

*stereo sound from broadcast programs

,stereo sound from VCR

,Picture in Picture (PIP)

*watch one channel on TV while recording another channel

To use this connection you must have:

,(5) coaxial cable

,(9) audio/video cables

,(1) S-Video cable (optional)

To connect:

I. Connect cables as shown in Connection I.

2. Return to First Things First, then follow the steps in the Interactive

Setup.

USING CONNECTION I

To watch "IV programs:

I. Turn VCR and satellite receiver and laserdiscplayer off.

2. PressTV and tune to a channel.

To watch S_tellite programming:

1. PressSAT,CABLE and tune to a channel.

To record from one VCR to the other (tape dubbing):

I. Turn satellite receiver off.

2. Insert original tape into VCR2.

3. Insert blank tape into VCRI.

4. PressVCRI.

5. Set VCR to line input (for more, see your VCR User Manual).

6. Press RECORD to begin recording.

7. Press DVD*VCR2, then press PLAY.

8. If you want to watch a different channel, set the TVAICR switch

on both VCRs to TV; press TV; then tune to a channel.

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

SeeConnections Foldout,

Connection I

To record off-air (cable or antenna) broadcastsand watch a different

channel:

1. Turn off VCR2.

2. Insert blanktape into VCR1.

3 PressVCR1 and tune to a channel.

4. PressRECORD to begin recording

5. To watch another channel, make surethe TV/VCR switch on the

VCR is set to TV; then press TV and tune to a channel.

To play a tape on VCR1 :

1. PressVCR1 and then pressPLAY.

I Note: The unauthorized recording of 1

satellite broadcasts, television programs,

or other copyrighted materials may

infringe the rights of others.

CONNECTING AUDIO COMPONENTS

CONNECTING A STEREO AMPLIFIER

1. Connect the amplifier's TV audio inputs to the left (L) and right (R)

AUDIO OUTPUT jacks.

2. You may prefer to turn off the TV's internal speakers by selecting

Audio Output and Speakers from the Audio menu, then turning

the speakers off.

If your audio amplifier is part of a system that usesits own remote

control, you may prefer to select the fixed output settings.

Important; Do not use the amplifier's PHONO inputs. If the

amplifier is not stereo, use the left (L) AUDIO OUT jack. Consult

the amplifier's owner's manual for the manufacturer's

recommended hookup.

CONNECTING A SUBWOOFER

To connect a subwoofer to the TV:

1. Connect the subwoofer's audio input to the left (L) AUDIO OUT

..jack.

CONNECTING A TAPE DECK

To use a tape deck to record audio from TV:

1. Connect the tape deck's audio inputsto the AUDIO OUTPUT

jacks on the back of the TV.

CONNECTING A CAMCORDER FOR

PLAYBACK

This connection is recommended for playing back from the camcorder

to the TV:

Connect the camcorder's audio/video outputs to the INPUT 1 or

INPUT 2 audio and video jacks on the TV.

PressINPUT on the remote until the channel marker displays

VID1.

3. Start playback on the camcorder.

PLAYBACK FROM AN S-VHS CAMCORDER

To connect a camcorder with S-Video capability:

I. Connect an S-Video cable from the camcorder to the S-VIDEO

jack on the TV.

2. Connect the camcorder's audio/video outputs to the INPUT 1

audio and video jacks on the TV.

3. PressINPUT on the remote until the channel marker displays

VID1.

4. Start playback on the camcorder.

TROUBLESHOOTING

Troublessometimes are caused by simple "faults" that you can correct without the help of a service technician. If you

experience any difficulty with your TV, check a few basic remedies before calling your service technician.

TV will not turn on

•Check to make sure it is plugged in.

• Check the wall receptacle (or extension cord) to make sure it is "live" by plugging in something else.

• Maybe batteries in.remote control are "dead."

• Maybe remote control is not aimed at remote sensor.

• The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by

selecting the Front Panel Lockout in the Parental Controls menu and choosing Unlock.

Controls don't work

• If using remote control, make sure remote is in TV mode by first pressing TV button.

• Try unplugging set for two minutes and then plug it back in and turn it on again.

• The front panel MENU button may be disabled. Use the remote control to turn off channel blocking. Select Channel

Block in the Parental Controls menu and choose Off.

Problems with Remote

• Maybe something is between the remote and the remote sensor.

• Maybe the remote is not aimed directly at the component (TV or VCR) you are trying to control.

• Maybe remote is not in TV Mode. Pressthe TV button so remote will control TV.

• Maybe batteries in remote are weak, dead or installed incorrectly. Try replacing batteries, (Note, if you remove the

batteries, you may have to reprogram the remote to control other components.)

• Remove batteries and hold number 1 for at least 60 seconds to drain the microprocessor inside the remote. Release

number 1, replace the batteries, and (if necessary) reprogram the remote.

• Remove all batteries for approximately 12 hours. Then replace batteries and (if necessary) reprogram the remote.

-Turns off while playing

• Schedule function may have been activated.

• Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn on

again. If this happens frequently, the voltage in your house may be abnormally high or low.

TV Turns on unexpectedly

• Schedule On function may have been activated.

Blank screen

•Maybe the device connected to the input jacks is not turned on.

•Try another channel.

•PressRESET,in case the picture controls are set too low.

No sound, picture okay

• Maybe sound is muted. Try pressing volume up button to restore sound.

• Maybe TV's speakers are turned off. Check the Audio Output and Speakers control panel in the Audio menu.:

• If using an S-VHS component, remember to also connect the component's L and R AUDIO OUT jacks to the TV's L

and R INPUT 1 jacks. =

Can't select certain channel

• Channel may be blocked or not approved in the Parental Controls menu.

• If using a VCR, check to make sure the TV/VCR switch on the VCR is in the correct position.

Noisy stereo reception

• May be a weak station. Use SOUND button to change to mono mode instead of stereo.

No picture, no sound but TV is on

• Maybe the cable/air function is set to the wrong position.

• Maybe a vacant channel is tuned.

• If watching VCR (connected only through antenna input), make sure TV is tuned to channel 3 or 4 - same as C_H3/4

switch on VCR. Also check to make sure TV/MCR switch on VCR is in correct position.

Sound okay, picture poor

•Check antenna connections.

• Try adjusting sharpness function to improve weak signals.

Black Box appears on the screen:

• Captioning may be turned on. Check the Closed-Caption Display control panel in the Channel menu.

TV GUIDE Plus+ IR Controllers not working

• Check to make sure the controllers are positioned correctly over the IR remote sensors.

• Your remote may be interfering with the IR controller. Place a piece of dark tape over the IR controller.

• TV GUIDE Plus+ control of a cable box is slower than direct control of the box itself. Keep this in mind when

changing channels.

What your warranty covers:

• Any defect in materials or workmanship.

For how long after your purchase:

• Oneyear for labor charges.

•One year for parts.

• Twoyears for picture tube.

(The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm,

whichever comes first.)

What we will do:

• Pay _ny Authorized ProScan Television Servicente_ the labor charges to repair your television.

• Pay any Authorized ProScan Television Servicenter for the new or, at our option, refurbished replacement parts and

picture tube required to repair your television,

How you get service:

• Request home service from any Authorized ProScan TelevisionServicenter. To identify your nearest Authorized

ProScan Television Servicenter, ask your dealer, look in the Yellow Pages, or call 1-800-PROSCAN.

• Show the service technician your evidence of purchase date or first rental.

What your warranty does not cover:

•Customer instruction. (Your Owner's Manual clearly describes how to install, adjust, and operate your television,

Any additional information should be obtained from your dealer.)

• Installation and related adjustments.

• Signal reception problems not caused by your television.

• Damage from misuse or neglect.

• Batteries.

• Images burnt ontothe screen.

• A television that has been modified or incorporated into other products or is used for institutional or other

commercial purposes.

• A television purchased or serviced outside the USA.

• Acts of God, such as but not limited to lightning damage.

Product Registration:

• Please complete and mail the Product Registration Card packed with your television. Ltwill make it easier to contact

you should it ever be necessary. The return of the card is not required for warranty coverage.

How state law relates to this warranty:

• This warranty givesyou specific legal rights, and you may have other rights that vary from state to state.

If you purchased your product outside the USA:

• This warranty does not apply. Contact your dealer for warranty information.

CARE AND CLEANING

You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the

cabinet to help assure adequate ventilation.

Th'e TV's screen may be cleaned with a soft, lint-free cloth as well. Take care not to scratch or mar the screen. If

necessary, you may use a cloth dampened with warm water.

Never use strong cleaning agents, suchas ammonia-based cleaners, or abrasive powder. These types of cleaners will

damage the TV.

While cleaning do not spray liquid directly on the screen, or allow liquid to run down the screen and inside the TV.

Also, avoid placing drinks or vaseswith water on top of the TV. This could increase the risk of fire or shock hazard or

damage to the TV.

Caution: If fixed (non-moving) images are left on the screen for long periods, they may be permanently imprinted on the l

screen. Such images include network logos, phone numbers, and video games. Extended viewing of channels displaying J

these images should be avoided.

General Cable Information

Antenna (or cable-TV) connections are made with either

coaxial antenna cable or twin-lead cable. Coaxial

cables are shielded so they are less susceptible to hum

or interference from adjacent cables.

Round 75-ohm coaxial cable

Push-on Connector

Screw-on Coaxial

Connector

Flat 300-ohm twin-lead cable

Most audio/video connections between components

can be made with shielded audio and video cables that

have RCA-type phono connectors.

The following accessories are available from most dealers

and electronics supply stores in case you want to position

your components farther apart or need additional cables.

Antenna Cables

VH81 (3-ft)

VH82 (6-ft)

VH89 (6-ft)

Screw-on Cable attaches to the

round antenna connectors (called

75-ohm F-type) on the back of

your VCR or "IV. The ends screw

onto the connectors for a secure

connection.

Push-on Cable attaches to the

round antenna connectors (called

7S-ohm F-type) on the back of

your VCR or TV. Ends push on for

a quick connection.

Standard Audio/Video cable with RCA-type

phono plugs (such as No. VH83)

Color-Coded Jacks

The jacks on the TV's monitor panel are color-coded for

ease of use. The VIDEOjacks are yellow, the right AUDIO

jacks are red, and the left AUDIOJACKSare white. When

connecting components to each other, be sure that you

always conr_ct left outputs to left inputs and right

outputs to right inputs. If a component has only one

output (mono), connect it to the P,IMoNO INPUTjack.

To connect S-VHS (Super-VHS) components, an

S-VHS video cable is required.

Audio/Video Cables

Gold-Tipped cable

VH83 (6-ft)

Monaural VCR Dubbing Cable

Double cable that lets you connect

the VIDEO and AUDIO JACKS of two

VHS VCRs to duplicate tapes. Can

also be used to connect a VCR to

your TV. Cable is color-coded and

shielded. Has RCA-type phono

plugs on each end.

Stereo VCR Dubbing Cable Triple

cable that lets you connect the

VIDEOand AUDIOjacks of stereo

components.

S-Video cable (such as No. VH913)

Gold-Plated Jacks and Gold-Tipped Cables

Gold plating helps prevent oxidation of contacts which

provides much less loss than conventional contacts. A

complete line of gold-tipped cables is available to help

you obtain optimum performance from your equipment.

Gold-Tipped cable

AH84 (6-ft)

ci:

VH976 (6-ft)

VH913 (12-ft)

S-Video Cable has multi-pin

connectors on each end for

connecting S-Video components to

your TV.

CRK83ML1

238145

Splitter

VH47

ANT200

Remote Control This is the

remote control that came

packed with your TV.

Replacements or sparescan

be ordered as needed.

2-way Signal Splitter helps

you connect to a secondTV

or VCR.

Amplified VHF/UHE/FM

Antenna allows you to easily

switch from the antenna

signal to cable or satellite

easily without disconnecting

antenna.

-r

Accessory Order Form

Description

Screw-on antenna cable (3-ft)

_crew-on antenna cable (6-ft) VH82 $6.95

_ush-on antenna cable (6-ft) VH89 $5.95

vlonaural VCR Dubbing Cable (6-ft) VH83 $5.95

itereo VCR Dubbing Cable (6-f0 VH84 $9.95

i-Video Cable (6-ft) VH976 $7.95

i-Video Cable (12-ft) VH913 $8.95

bway Signal Splitter VH47 $3.95

_,mplified Antenna ANT200 $49.95

_ntenna Mixer 193984 $10.95

_emote Control (CRK83ML1) 238145 $27.75

_,udio-Video Adapter 228449 $4.35

Prices are subject to change without notice.

Total Merchandise ............................................ S_._

Sales Tax .............................................................. $__

We are required by law to collect the

appropriate sales tax for each individual

state, country, and locality to which the

merchandise is being sent.

Shipping and Handling .................................... $s.00

Total Amount Enclosed S-

Use VISA, MasterCard, or Discover Card

preferably.

Money order or check must be in U.S.

currency only.

No COD or CASH.

All accessories are subject to availability.

Where applicable, we will ship a superseding model.

Chargeyourorderon yourVISA,

MasterCard.orDiscoverCardby

filling inbelow

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number

from your VISA card

7TT-N 7T-_ 71-N 7-7_

My_e,pi_:[:E]F-l-q

IMPORTANT: Copy corapleteaccoum number

fromyourMaste_ard

7FT rq 7T r rq N-F71N-r _

copyNum__ My__ 7Yq

above your expires:

name on

MasterCard

IMPORTANT: Copy compLeteaccountnumber

fromyour Discover Card

My card expires: _ [-_

AUTHORIZED SIGNATURE

(Credit card order will not be processed without signature)

Prices are subject to change without notice.

Print or type your name and

address clearly. This will be

lout mailing label. A complete and correct

order will save you days

of waiting.

Nanle:

Street:.

Apt:

City:

State: Zip:

United States and Canada Orders

To place your order by phone, have your Visa, MasterCard

or Discover Card ready and call the toll-free number listed

below between 8AM and 8PM (EST)Monday through

Fridayor between 9AM and 5PM (EST)Saturday.

Use this number only to place on order for accessory

items listed on this order form.

1-800-338-0376

To place your order by mail, detach and mail the

completed order form with credit card information, money

order or check in US currency (made payable to Thomson

Consumer Electronics, Inc.) to the following address:

Video Accessories

PO Box 8419

Ronks,PA 17573

Please make sure that both sides of this form

have been filled out completely.

•Allow 4 weeks for delivery.

•All accessories are subject to availabifity.

•Prices are subject to change

o,I

Accessories 82

Amplifier 76

Antenna (ANT) 38

Audio menu 44

AUDIO OUTPUT 39

Audio Output Volume & Speakers 44

Audio Processor44, 61

Auto Channel Search 17, 47

Auto Color 45

Auto Tuning 25_ 26, 48

Back panel jacks 38

Basic Picture Controls 45

Batteries 5, 41

Black Level 45

Buttons

Front panel 40

Remote 36

Cables 82

Care and Cleaning 81

CC 41

CH CTRL button 58

Chan # 47

Chan Labels 47

Channel Block S0

Channel Directory 47, 60

Channel Mapping 21, S4

Channel Marker 41

Channel menu 47

Channels

DVD/VCR2 Channel 25, 48

SAT/CABLEChannel 26, 48

VCR1 Channel 48

Closed Caption

Display 46, 62

Mode 46, 63

Color 45

Color Warmth 45

Connections

Basic 4

Components 66

Foldout 4

Hints and tips 65

Contrast 45

Control Panels 11

Enhanced SRS Stereo 44, 61

Exit 60

Fetch menu 60

Fixed images 81

Fixed output 39

Fixed Output, SpeakersOff 44

Front panel buttons 40

Front Panel Lockout S0, 60

INFO button 64

Inputs

Audio, video 38

INPUT 1,2 38

L/MONO 38

Labels 27, 47

Language 16, 46

Memory 47

Menu Language 16, 46

Menus 10

Mono 44, 61

MOVE buttons 58

Mute 44

Normal List 47

On-screen Program Details 64

One-Button Recording 57

Outputs 39

Parent Approved S0

Parental Controls

Channel Block 50

Fetch menu 60

Front Panel Lockout 50

Parental Controls menu 50

Picture Control Presets 45

Picture Quality menu 45

PIP (Picture in Picture) 58

PIP Chan 41

PIP button 58

Point and Select 8

Program details 64

Programming the remote to control

components 30, 32, 33

Projection TV, adjusting 46

RemoteControl

Programming 30

Remote batteries are low 41

using the 33

RIGHT 38

S-VIDEO 3B

SAP 41

Schedule 49, 60

Screen menu 46

Second Audio Program (SAP) 44, 61

Set

DVD/VCR2 Channel 25, 48

SAT/CABLEChannel 26, 48

VCR1 Channel 48

Set Time 49

Setup 16, 60

Setup menu 51

Sharpness 45

Signal Type

Cable TV 47

UHFiVHF Antenna 47

Sleep 41

Sleep Timer 41, 49, 60

SOUND button 61

Sound Logic Stereo 44, 61

SRSStereo 44, 61

Stereo 41, 44, 61

Subwoofer 39, 76

SWAP button 58

Tape Deck 76

Time

Current 41

Set Time 23

Time menu 49

Tint 45

Tone Controls 44 •

TVGUIDE Plus+ System S, 14,

17-22, 51, 54-57

Channel Mapping 21,54

IR Controllers 5

Next Menu 55

One-Button Recording 57

Scan Menu 55

Sort Menu 56

Surf Menu 54

Variable output 39

Variable Output, SpeakersOff 44

Variable Output, SpeakersOn 44

VIDEO 38

Video Noise Reduction 45

CREATING A GREENER FUTURE

At Thomson Consumer Electronics we are dedicated to the preservation of our natural

heritage and to a healthy and safe way of life for current and future generations. This isa

global effort which encompasses every THOMSON facility throughout the world.

We believe that clean air, clean water, a protected earth, and healthy people are not only

practical and desirable goals, but achievable ones as well. Our Corporate Environmental,

Health and Safety Charter acknowledges our commitment to protect these precious assets

and provides achallenging vision and guideline for conducting our business.

_1NOMSONCOI_IUMIll B

Below are a few examples of Thomson's achievements in our effortsto preserve our natural resources.

THE EARTH THE AIR THE WATER

Thomson reclaims millions of pounds of

hazardous waste annually, diverting it from

landfills,

Thomson treats millions of pounds of

waste water sludgeannually and renders it

non-hazardous.

Thomson recycles over 50 million pounds

of non-hazardous material annually that

otherwise would have been treated as

trash, an overall recovery rate of 50%.

Thomson globally recycles millions of

pounds of broken television picture tube

glassannually through both internal and

external reclaim processes.

Thomson has replaced solvent-based paints

at many locations resulting in an 80%

reduction in toxic air emissions for

equivelant material used.

Thomson haseliminated the use of ozone-

depleting substancesat television

manufacturing facilities around the world.

Thomson collects and returns over 1.5

million pounds of glassand furnace dust to

the glassmaking process annually,

Thomson haslaunched worldwide energy

savingsprograms which contribute to

effortsto reduce air emissionsfrom

electrical generating facilities.

Thomson recovers over 2 million pounds

of fine glass particles from processwater

each year and recyclesthem back into its

glass furnaces.

Thomson's state-of-the-art waste water

treatment plants filter out over 26 million

pounds of solidsfrom processwater each

year.

Thomson's U.S. glass factory recycles

2,500 gallons of water per minute and

cleans 2.6 million gallons of water per day.

Thomson is researching new processesand

is developing new manufacturing

equipment and technologies to further

reduce large volume water use.

Thomson hasalso increased its usage of recycled materials for packaging of our products. For example, in the U.S. and Mexico our

television plants use recycled content in our television cartons and instruction booklets. The inks used for the print on ca=rtonsand

instruction booklets are soy based. For a free brochure regarding Thomson's Environmental Health and SafetyPrograms, write to Thomson

Consumer Electronics' address below, attention Environmental Programs: INH340.

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for

your product.

THOMSON CONSUMER ELECTRONICS

10330 North Meridian Street

Indianapolis, IN 46290

01997 Thomson Consumer Electronics, Inc.

Trademark(s)® Registered

Marca(s) Registrada(s)

Printed in USA

TOCOM 15232180

The following materials were used in

printing this publication:

50%

MINIMUg1R POSl

RCA Projection/Digital 42 And Above TV Manual 98120086

Navigation menu

Versions of this User Manual:

Views

Navigation
