nCR

camcorder

user's guide

CC4371

Important Safety Information

Be sure to read all the safety information before you begin to use this product.

WARNING: To reduce the risk of fire or shock hazard, do not expose [

camcorder or AC adapter/charger to rain or moisture. I

RISKOF ELECTRICSI-IOCK

DO NOT OPEN

This symbol indicates "dangerous voltage"

inside the product that presents a risk of electric

shock or personal injury.

This symbol indicates important instructions

accompanying the product.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER

(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

Cautions

CAUTION: To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION: Pour 6viter les chocs 61ectriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la prise et

pousser jusqu au fond.

To reduce risk of injury, charge only rechargeable batteries recom-

mended by the manufacturer for this camcorder. Other types of

batteries may burst causing damage and personal injury.

FCC Regulations state that unauthorized changes or modifications to

this equipment may void the user's authority to operate it.

Product Registration

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed.

Keep your sales receipt for proof of purchase to obtain warranty parts

and service and attach it here. Record the serial number and model

numbers located on the bottom of the camcorder.

Model No:

Serial No:

Purchase Date:

Purchased From:

CC4371

Wewantto makesureyouenjoyyournewcamcorder.If you haveany

questions,call:

Camcorder Exchange Warranty ...........800-283-6503 (pages 74-75)

Customer Service ................................... 800-336-1900 (page 73)

Accessories ............................................. 800-338-0376 (pages 59-62)

Safety Information .............................. i

First Time Operation

• Assistance ....................................... 3

•Unpack the Camcorder and

Accessories ................................. 3

•Attach the Adapter/Charger ............ 4

• Adjust the Handstrap, Remove

Lens Cap and Attach

It to the Handstrap ....................... 4

• Insert a Tape .................................... 5

• Turn on the Camcorder ................... 5

• Use the LCD Monitor or

Viewfinder to See What

You Are Recording ..................... 6

• Set LIGHTAUTO/OFF/ON

Switch to AUTO ......................... 7

• Start and Stop Recording ................ 7

• Play Back What you Have

Recorded .................................... 8

• Set the CAMERA/OFF/VCR

Switch to OFF ............................ 8

• Close the LCD Monitor

and Replace the Lens Cap ...... :... 8

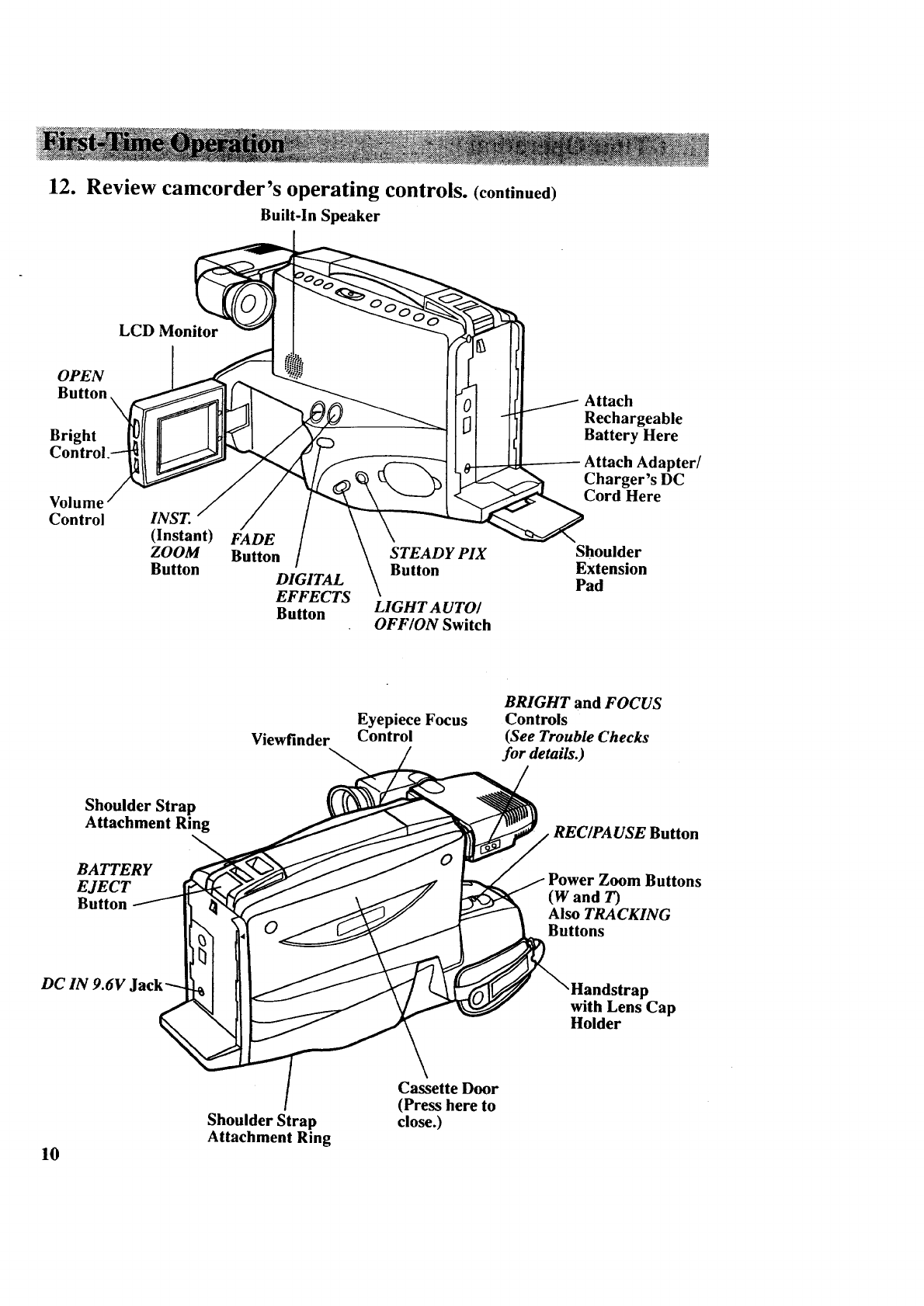

• Review Camcorder's

,Operating Controls ................ 9-10

Attach the Shoulder Strap .............. 11

Built-In Color Enhancement

Light .................................... 12-13

Power Your Camcorder

•Use the Adapter/Charger to

Power Your Camcorder ............ 14

•Use the Battery to Power

Your Camcorder .................. 15- i 9

•Use the Optional DCC096

Car Cord Adapter ..................... 19

Videocassettes

• Erase Protection ............................ 20

• Recording and Playback

Speed and Times ...................... 20

• Insert and Remove Cassettes ........ 21

• Cassette Care and Storage ............. 21

Date and Time Display

• Set the Time and Date ................... 22

• Record Time and Date, AUTO

Date, Auto TITLE, or Date ......... 23

• Charge the Built-in Clock

Battery ..................................... .23

Recording

• UsetheLCD Monitor or Viewfinder

to SeeWhatYouRecord.....24-25

• LCD Monitor or Viewfinder

Displays...............................26-27

•DISPLAY Button ........................... 28

• Microphone ................................... 28

• Quick Review Feature ................... 28

• AutoShot TM Feature ...................... 28

• Auto Focus .................................... 29

• Macro Focus .................................. 29

• Steady Pix TM Feature .................... 29

• Tape-Remaining Display ............... 30

•Electronic Indexing ....................... 30

• Zooming

• Use the Zoom Buttons .............. 31

• Use Instant Zoom ..................... 31

• Digital Effects ........................ ....... 32

• 16X9Mode ............................. 33

• Negative Mode ......................... 34

• Digital Zooming ....................... 34

° Mirror Mode ............................. 35

• Mosaic Mode ............................ 35

• Fade In and Out of Scenes ....... 36-37

• Tape Counter ................................. 38

Editing Features ................................. 39

• Camera Edit .............................. 39

• Flying Erase Head .................. .. 39

• Audio Dub ........................... 40-41

• Audio and Video Dub .......... 42-43

• Titler .................................... 44-46

• Recording Tips .............................. 47

Record from a VCR or

TV Monitor ............................ 48-49

Playback

•Use the LCD Monitor

or Viewfinder for Playback. 50-51

• Playback Features

• Tape Positioning ....................... 52

• Visual Searching ....................... 52

• Stop-Action Pause .................... 52

•Tracking .................................... 53

•Playback on TV (or VCR) with

Audio/Video Input Jacks ..... 54-55

• Playback on TV Without

Audio/Video Input Jacks ..... 56-57

Travel Tips ........................................ 58

Optional Accessories ................... 59-65

• Accessory Order Form ............. 63-65

Trouble Checks ........................... 66-69

Care and Maintenance

•Clean the Camcorder ..................... 70

• Clean the Camcorder's Lens ......... 70

•Clean the Camcorder's LCD

Monitor ..................................... 70

• Clean the Camcorder's

Viewfinder ................................. 70

•Proper Care and Storage ............... 71

•Things to Avoid ............................. 71

Specifications .................................... 72

Information to User ......................... 72

Customer Assistance ........................ 73

Limited Warranty ....................... 74-75

Index ............................................ 76-80

2

This section describes the basic steps necessary to set up your camcorder to record.

Refer to the other sections for detailed operation and feature options.

Assistance

- The toll-free numbers are available to help you with any problem you may encounter.

Camcorder Exchange Warranty............... 800-283-6503

Customer Service ................................... 800-336-1900

Accessories ............................................. 800-338-0376

lo Unpack the camcorder and accessories.

• Save the packing materials and box in case you ever need to ship

or store your camcorder.

• The items shown below are packed with your camcorder. If any

are missing or appear damaged, contact your dealer immediately.

Model CC4371

AC Adapter/Charger: Stock No. 241044

DC Cable: Stock No. 241308

Rechargeable 10-Volt BatterY

Stock No. EP096FS

%

Shoulder Strap

Stock No. 227327

or Stock No. 241305

(continued on next page)3

2. Attach the adapter/charger.

To AC 120V,

50/60 Hz

Ad._

Charger

Since the battery must be charged

before it can be used the first time,

attach the adapter/charger to the

camcorder.

1. Attach one end of the adapter/

charger's DC cable to the DC

OUTPUT jack on the side of the

adapter/charger.

DC IN 9.6V

Jack

2. Attach the other end of the cable

to the DC IN 9.6V jack on the

camcorder.

3. Plug the adapter/charger's plug

into an operating outlet.

4. Details are on page 14.

3. Adjust the handstrap, remove lens cap, and attach

it to the handstrap. _ ........................................................................................................................................................................................................

Cap on

Handstrap

4

1. Open the handstrap, insert your

hand, and adjust the handstrap to

fit your hand.

2. Remove the lens cap and attach it

to the handstrap as shown.

4. Insert a tape. SafetyTab

STOP/EJECT

Button

Tape Windows

Cassette

Cassette Door

Press Here to Close

1.Press STOP/EJECT to open the

cassette compartment.

2. Insert the cassette with the safety

tab facing up and the tape windows

facing out.

3. Press the cassette down gently

until it locks into place, and close

the cassette compartment door.

4. Details are on page 21.

5. Turn on the camcorder.

Switch

Note: If you want the date and

time displayed on your

recordings, you must set it.

See Date and Time Display on

pages 22-23.

•Press and hold the small button on

the CAMERA/OFF/VCR switch

while you slide it to CAMERA.

The camcorder enters record-

pause.

• The position of this switch tells

the camcorder whether you want

to record (CAMERA), turn the

power off (OFF), or play back

tapes (VCR).

The camcorder automatically

turns off if it remains in record-

pause for five minutes. Place

the switch to OFF and then back

to CAMERA.

(continued on next page)

5

Electronic

Viewfinder (Grasp

here to move.

Eyel "

Eyepiece Focus

Control

OPEN Shoulder

Button Extension

Pad

Bright

Control LCD

Monitor

6. Use the LCD monitor or viewfinder to see what you are recording.

6

You can watch what you're recording on the LCD monitor or in the black-and-white

viewfinder. When you open the LCD monitor more than 45 °, the viewfinder

automatically turns off. When you close the LCD monitor, the viewfinder

automatically turns on. When you extend the LCD monitor 900 and rotate it all the

way around (screen side facing toward the person you're recording), both the

viewfinder and the LCD monitor show what's being recorded.

Use the LCD Monitor

I. Unfold the shoulder extension pad.

2. Press the OPEN button to open the

LCD monitor. Make sure the

monitor is open at least 45 °. The

viewfinder automatically turns off.

3. Rotate the monitor around only

when it is open 90 °. When you

rotate the monitor 90 ° or more, the

image becomes a mirror image

and the viewfinder turns on.

The on-screen display on the LCD

monitor will also be as if reflected

on a mirror.

4. To adjust the brightness of the

image in the monitor, tum the

bright control.

5. Fit the shoulder extension pad to

'_ your shoulder for convenient

viewing using the LCD monitor.

Use the Viewfinder

1.Make sure the monitor is closed

and locked. If the monitor is open

more than 45 °, the viewfinder

automatically turns off.

2. Grasp the viewfinder and rotate it

horizontally.

3. Pull the viewfinder out from the

camcorder and rotate the eyepiece

into a comfortable viewing

position.

i : :ito

4. Turn the eyepiece focus control to

adjust the focus of the viewfinder

for your vision. "

RECIPA USE

Button

LIGHT

AUTO/OFF/

ON Switch

.Set the LIGHT A UTO/OFF/

ON switch to A UTO.

•The color enhancement light helps

you create brighter and sharper

images.

•Set the LIGHTAUTO/OFF/ON

switch to AUTO if you want the

color enhancement light to turn on

automatically when you aim the

camcorder at a dark object and

turn off when you aim it at a

bright object.

•Details are on pages 12-13.

.Start and stop recording.

• Press and release the REC/PAUSE

button to start recording. REC

appears in the viewfinder or on

the LCD monitor, when the

camcorder is recording.

•Press and release the REC/PA USE

button again to stop recording.

The camcorder is now in the

record-pause mode ( I| appears in

the viewfinder or on the LCD

monitor when the camcorder is in

record-pause).

(continued on next page)

7

CAMERA/

OFF/VCR

REW/ PLAY

REVIEW Button

Button

REC/PA USE

8

9. Play back what you have

recorded.

1. Press the REC/PAUSE button to

pause recording.

2. Press and hold the small button

on the CAMERA/OFF/VCR

switch while you slide it to VCR.

3. Press REW/REVIEW to rewind

the tape.

4. Press PLAY to play back the tape.

5. Press STOP/EJECT when you are

finished playing back the tape.

Details on LCD monitor and

viewfinder playback are on

pages 50-51.

10. Set the CAMERA/OFF/VCR

switch to OFF to turn off the

camcorder.

11. Close the LCD monitor and

replace the lens cap.

12. Review camcorder's operating controls•

DISPLAY Button

RESET Button

DATE/TIME Button

TITLER Button

CAMERA/

OFF/VCR

Switch

I.

AV DUB Button

REW (Rewind)/REVIEW Button

Also -Button)

PLAY Button

F.FWD (Fast Forward)

Button

(Also + Button)

STOP/EJECT

Button

(Also EDIT-ADV

Button)

Light

Microphone

Lens

Lens Hood

Reset Switch

(See Trouble

Checks for

details.)

VIDEO, AUDIO IN/OUT, and

RF DC OUT Jacks (Located

Behind Small Cover)

(continued on next page)

9

12. Review camcorder's operating controls. (continued)

Built-In Speaker

OPEN

Button

Bright

Volume

Control

LCD Monitor

INST.

(Instant) FADE

ZOOM Button STEADY PIX

Button Button

DIGITAL

EFFECTS

Button LIGHT AUTO/

OFF/ON Switch

Attach

Rechargeable

Battery Here

Attach Adapter/

Charger's DC

Cord Here

Shoulder

Extension

Pad

Viewfinder

Eyepiece Focus

Control

BRIGHT and FOCUS

Controls

(See Trouble Checks

for details.)

Shoulder Strap

Attachment Ring REC/PA USE Button

BATTERY

EJECT

Button

Zoom Buttons

(W and T)

Also TRACKING

Buttons

DC IN 9.6V

with Lens Cap

Holder

10

Shoulder Strap

Attachment Ring

Cassette Door

(Press here to

close.)

Attaching the Shoulder Strap

The camcorder's shoulder strap is designed to let you carry the camcorder from your

shoulder and - when you are ready to shoot - bring the camcorder to shooting position

in one quick movement.

To Attach the Shoulder Strap

1. Unfasten one end of the shoulder 3.

strap from the buckle. Make sure you

leave the buckle on the strap.

Buckle

.\

Thread the end of the strap back

through the buckle making sure it is

threaded over the outer strap. Make

sure the strap is not twisted.

.Thread one end of the shoulder strap

through one of the shoulder strap rings

as shown below.

Shoulder Strap

Attachment Ring

Shoulder Strap

Attachment Ring

.

.

Repeat steps 1-3 to attach the other

end of the strap.

Pull on the straps and make sure they

are securely fastened before using the

shoulder strap to support your

camcorder.

11

Built-In Color Enhancement Light

The built-in color enhancement light automatically adds light when

needed. To operate the video light, press and hold the small button on the

CAMERA/OFF/VCR switch while you set it to CAMERA.

CAMERA/OFF/VCR Switch

Video

Light

LIGHT A UTO/OFF/ON Switch

To Use the Light

Set the LIGHTAUTO/OFF/ON switch.

•To turn the light on, set the switch

to ON.

If you want the light to come on

automatically when the camcorder

senses there is insufficient light, set

the switch to AUTO.

Notes: For the light to operate in AUTO,

you must have atape in the camcorder.

If the lighting condition is unstable, the

light may turn on and off. Set the light to

ON or OFF.

° To turn the light off, set the switch to

OFF. To save battery power, turn the

light off when you are not recording.

Notes: When the light is turned on, the

camcorder may turn off if the battery's power

is low even though the battery level indicator

is not flashing.

Avoid bumping or shaking the light when in

use. The light's bulb is sensitive when hot and

might burn out.

12

Replace Light Bulb

Light Case

ht Cover

Reflection

Plate Lower Hook

To Remove and Replace the Light

Bulb:

1. Press and hold the lower hook of the

light cover while removing the light

cover from the light case.

2. Replace the light bulb.

Note: See the installation instructions

packed with the replacement bulb for

detailed instructions.

3. To replace the light cover, pass the

bulb through the hole of the reflection

plate and attach the lower hook to the

light case on the camcorder.

4. Press gently on the front of the light

cover until it locks into place.

Note: Make sure the front cover of the

light is properly attached.

13

Use the Adapter/Charger to Power Your Camcorder

The adapter/charger attaches to the camcorder and lets you power your camcorder

directly from standard household power. The adapter/charger operates on 120 volts,

50/60 Hz, and can be used to power the camcorder or recharge the battery.

-|

on a power souree6ther!ith_

power

converters. They

CPS014,

POWER

Indicator

To AC 120V,

50/60 Hz DC IN 9.6V

Jack

Adapter/

Charger DC Cable

Attach Adapter/Charger

1. Attach one end of the adapter/charger's

DC cable to the DC OUTPUT jack on

the adapter/charger.

2. Attach the other end of the cable to the

DC IN 9.6V jack on the camcorder.

3. Plug the adapter/charger's plug into an

operating outlet. The POWER indicator

on the adapter/charger lights when it is

properly connected.

Notes: The adapter/chargercannot charge the

battery and operate the camcorder at the same

time. If you connect both, the adapter/charger

powers the camcorder. Remove the adapter/

14

charger's cable from the DC OUTPUT jack to

charge the battery.

When using the adapter/charger to power the

camcorder, the battery level indicator might dis-

play _ ]. This indicator is used for battery

operation and has no meaning when using the

adapter/charger to power the camcorder.

Remove Adapter/Charger

1. Unplug the adapter]charger from the

wall outlet.

.Remove the DC cable from the adapter/

charger and camcorder.

Use the Battery to Power Your Camcorder

Charge the Battery

The battery must be charged before it can be used the first time. Initial charging takes

approximately two hours. The camcorder's operating time depends on how often you

turn the power on and off and how much you use the monitor, zoom, and pause. To

conserve battery power, turn the camcorder off during recording breaks.

To AC 120V,

50/60 Hz Rechargeable Battery

(Hold battery flush and

slide down.)

Align

Arrows

CHARGE

Indicator

._r/

Charger

Charge the Battery

If the DC cable is attached to the

DC OUTPUT jack on the adapter/charger,

remove it.

1. Align reference mark on battery with

mark on adapter/charger.

2. Hold the battery flush against the

adapter/charger and slide it in the

direction of the arrow.

3. Plug adapter/charger into nearest AC

outlet (120V, 50/60Hz).

4. If the battery is properly connected,

the adapter/charger's CHARGE

indicator lights.

Note: Your battery will provide better

service if you charge it before and after use

and store it at room temperature.

5. Remove the charged battery by sliding

it up and off the adapter/charger.

6. Attach the charged battery to the

camcorder as shown on the next page.

15

Use the Battery to Power Your Camcorder (continued)

BATTERY

EJECT

Button

CAMERA/

OFF/VCR

Switch\

Rechargeable

Battery

Hold Battery

Flush and

Slide Down

Attach the Charged Battery

If the DC cable is attached to the

camcorder, remove it before attaching

the battery.

1. Align the reference arrow on the

battery to the arrow on the back of

the camcorder.

.Hold the battery flush against the

camcorder while you slide it down in

the direction of the arrow.

3. Press and hold the small button on the

CAMERA/OFF/VCR switch while you

set it to CAMERA.

Remove the Battery

1. Set the CAMERA/OFF/VCR switch to

OFF.

2. Press and hold the BATTERY EJECT

button while removing the battery.

ATTENTION: LEAD ACID BATTERY MUST BE DISPOSED OF

PROPERLY. THE PRODUCT THAT YOU HAVE PURCHASED

USES A RECHARGEABLE BATFERY. AT THE END OF ITS

USEFUL LIFE, UNDER VARIOUS STATE AND LOCAL LAWS, IT

MAY BE ILLEGAL TO DISPOSE OF THIS BATTERY INTO THE

MUNICIPAL WASTE STREAM. CHECK WITH YOUR LOCAL

SOLID WASTE OFFICIALS FOR DETAILS IN YOUR AREA FOR

RECYCLING OPTIONS OR PROPER DISPOSAL.

Pb

16

Use the Battery to Power Your Camcorder (continued)

Battery Level Indicator

The battery level indicator appears in the viewfinder or LCD monitor and shows

you the amount of power in the rechargeable battery.

Battery Level Indicator Display in

Viewfinder or LCD Monitor

Note: If you can't see the battery level

display, press DISPLAY.

• When _ appears, the battery is

fully charged.

• As the power is used _ I1 and _ _-I

appear.

• When the battery power is almost

gone, :!_ !flashes in the viewfinder

or on the LCD monitor. Recharge the

battery or use the adapter/charger

before continuing to use the camcorder.

Set the CAMERA/OFF/VCR switch to

OFF to turn off the camcorder before

replacing the battery.

Notes: When you record using the recharge-

able battery, the battery level indicator still

flashes to warn you of low battery power

even if you do not have the battery level

indicator displayed.

The battery level indicator isn't recorded on

the tape.

The battery level indicator has no meaning

when you use the adapter/charger or optional

car cord to power the camcorder.

17

Use the Battery to Power Your Camcorder (continued)

Battery Care

•Your battery will provide better service

and longer performance if you charge if

before and after use, and store it at nor-

mal room temperature.

• The battery should be charged at a tem-

perature of 32°F-95°F (0°C-35°C) to pre-

vent damage.

• Do not operate the battery at tempera-

tures below 14°F (-10°C) or above 95°F

(35°C). You might damage the bat-

tery if you use it at temperatures

above 122°F (50°(2). Operation time

decreases at extremely low tempera-

tures.

After repeated chargings and use the

operation time decreases. When the

operation time becomes too short to

be useful, it is time to replace the bat-

tery.

Battery Storage _!_i_:_!_!_!:_:_!_!i!!::i_!!:!_,!_

Store the battery at normal room tem-

perature.

Lead acid batteries discharge if not used.

Recharge the battery at least once ever

six months or you may not be able to re-

charge it.

A battery stored for long periods

might not supply power for the specified

time. Additional

rechargings might help restore

the battery's operation time.

Battery Safety Precautions __:_::_:_::::_:::-_y_

Batteries being recharged that have not

been used for an extended period may

continue to charge after the normal time.

Do not charge a battery for more than 24

hours.

•If the CHARGE indicator on the adapter/

charger starts flashing, remove the bat-

tery, and reattach it. If after several at-

tempts, the indicator continues to flash,

your battery cannot take a charge and

must be replaced.

•Throwing the battery into a fire or ex-

posing the battery to excessive heat -

over 149°F (65°C) could be hazardous.

•Do not short the battery's terminals.

• Allow the battery to cool down before

attaching it to the adapter/charger. The

CHARGE indicator will not light and the

battery will not charge if you attach a hot

battery.

•Do not attempt to disassemble or modify

the battery. There are no user-service-

able parts inside.

• Use the battery only with specified AC

adapter/chargers and camcorders.

• If leakage from a damaged battery con-

tacts your skin or clothing, wash it off

immediately with running water.

18

Use the RCA Optional Car Cord Adapter

The optional DCC096 car cord shown on

page 59 allows you to power your

camcorder from the cigarette lighter socket

of a car, truck, or RV. It converts 12-volts

to a 9.6-volt output.

Note: Consult the installation and operating

instructions enclosed with the DCC096 for com-

plete operating instructions.

Use the DCC096 Car Cord Adapter _:_!_:_i::_: __::_!:!!_::'_:_:':_':_

/Cigarette

,.,//Lighter

_r Socket

1. Set the CAMERA/OFF/VCR switch to 6.

OFF to turn off the camcorder.

.

.

.

.

If the battery or DC cable is attached to

the camcorder, remove it.

Insert the small plug on the car cord to

the DC IN 9.6V jack located on the back

of the camcorder.

Take the vehicle's cigarette lighter out

of the socket.

Insert the car cord's cigarette lighter

plug into the vehicle's cigarette lighter

socket.

DC IN 9.6V

Jack

To turn on the camcorder, press and hold

the small button on the CAMERA/OFF/

VCR switch while you set it to

CAMERA.

Notes: The vehicle does not have to be running

for the camcorder to operate from

the DC car cord.

The battery level indicator has no meaning when

you use the car cord to power the camcorder.

19

Makesureyouselectgoodquality tapesfor your camcorder.Useof poorquality tapes

or tapesthathavebeendamagedor mishandledcancontaminatethevideoheads,

resultingin asnowypictureor nopictureatall duringplayback. Becausethereis no

controloverthetypeof tapepurchasedor rentedby consumers,headcleaningis not

coveredunder warranty. It is considerednormalmaintenance.

If a snowypictureor no-pictureconditionpersists,considertheuseof adry chemical

nonabrasivehead-cleaningtape. Besureto follow thedirectionswith thehead-

cleaningkit carefully. Improperuseof aheadcleanermightdamageyourcamcorder.

Erase Protection -Safety Tab

You can use your videocassettes over and over again. To erase a previous recording,

just record over it.

y Tab

To prevent accidental To record on the tape again, cover

erasure, break off the tab. the hole with vinyl tape.

Recording and Playback Speed and Times ___

The camcorder records and plays back in VHS standard speed (SP). Listed below are

the maximum recording times for popular VHS cassettes.

T-60 60 Min.

T- 120 2 Hrs.

T-160 2 Hrs., 40 Min.

T- 180 3 Hrs.

20

Insert and Remove Cassettes

STOP/

EJECT

Button

'Tab

Windows

°Attach a power source to the

camcorder.

2. Press the STOP/EJECT button.

The cassette holder opens

automatically,

3. Insert the cassette with the tape wheel

.

Press here

to close.

facing up and tape windows facing

out. Gently push the cassette down

until it locks into place.

Gently close the cassette holder with

your hand.

Cassette Care and Storage __:___

When you are finished with a cassette,

rewind it, remove it from the

camcorder, and label it.

• Store cassettes vertically in their

protective cases at normal room

temperatures. Do not leave your

camcorder or cassettes in a car or

outdoors for an extended period.

Excessive heat or cold might damage

your cassettes.

• Keep the cassette away from strong

magnetic fields such as electric motors

and other devices.:

• Keep dust from entering the cassette

compartment. All dust is abrasive and

will cause excessive wear on the tape

and the camcorder's recording or

playback heads.

•Do not use cassettes with damaged or

spliced tape.

• Do not use a cassette if it has been

damaged or exposed to moisture. The

tape might jam and/or damage your

camcorder.

Break off the safety tab to prevent

accidental erasure of your recording.

21

Set the Time and Date

You must set the correct date and time before it can be displayed and recorded on your

tapes. The built-in clock cell must be charged as described on the next page.

CAMERA/ REW/

DATE/TIME OFF/VCR REVIEW

Button _ Swit_ Button

oo8o .. 0

F.FWD Button

STOP/EJECT

Button

°

.

.

Attach a power supply to the

camcorder.

Press and hold the small button on the

CAMERA/OFF/VCR switch while you

set it to CAMERA.

Press the DATE/TIME button to

display the date and time on the LCD

monitor or in the viewfinder.

A flashing cursor lets you know which

part of the display you are setting.

If the flashing cursor does not appear,

press and hold DATE/TIME and then

press STOP/EJECT.

4. Repeatedly press the F.FWD or REW/

REVIEW until the correct month

appears. Press and hold the button to

advance the digits faster.

5. When the correct month is displayed,

press STOP/EJECT. The cursor

moves to the next part of the display.

6. Repeat steps 4 and 5 to set the correct

month, day, year, hour, minute(s), and

AM/PM.

.After setting AM or PM, press the

DATE/TIME button to remove the

flashing cursor and start the internal

clock.

22

12:00AM

"Jl_ 111998

To Correct the Date or Time

To correct the date or time, press and hold

the DATE/TIME button and then press

STOP/EJECT. The display and the

flashing cursor appear. Use STOPI

EJECT, F.FWD, and REWIREVIEW t'o

correct the time or date. Press DATE!

TIME to remove the flashing cursor and

start the clock.

Record the Time and Date, AUTO Date, Auto TITLE, or Date

The time and date, AUTO date, auto TITLE, date only, or no date can be recorded on

your tape. Whenever one of these displays appear, it will be recorded.

To Select the Display to Record

l° Repeatedly press DATE/TIME to

select the display you want to record.

•Date and Time Display: The date

and time will be displayed and

recorded.

• (_)AUTO Date: The date is

automatically recorded for approxi-

mately 10 seconds at the beginning

of the recording.

•(S) TITLE: The date and title you

have created are displayed and

recorded for approximately 10

seconds at the beginning of the

recording.

•Date Display: The date is dis-

played and recorded.

• No Display: No display is dis-

played or recorded.

Charge the Built-in Clock Battery

The camcorder has a built-in rechargeable battery that must be charged

approximately every two months.

1. Attach a power supply and set the

CAMERA/OFF/VCR switch to OFF.

2. Leave the power supply attached at

le[st 24 hours.

23

Use the LCD Monitor or Viewfinder to See What You Record

You can watch what you are recording on the LCD monitor or in the viewfinder.

When the LCD monitor is open more than approximately 45 °, the viewfinder automati-

cally turns off. Close the LCD monitor and the viewfinder automatically turns on.

Use the LCD Monitor

OPEN

Button

Bright

Control Monitor can open up to

90°.Open monitor 90 °

before you rotate it.

1. Press the OPEN button and open the

LCD monitor. Make sure the monitor

is open 90°. The viewfinder

automatically turns off.

2 Rotate the monitor.

24

• Tilt the monitor down to record

from a high angle, such as over a

crowd.

Tilt the monitor up to record from a

low angle, such as when you are

kneeling.

To enable both you and the person

you're recording to see what's

being recorded, rotate the LCD

monitor completely around so the

'front of the monitor faces the

person you're recording. The

viewfinder turns on automatically

when you turn the monitor all the

way around. The image on the

LCD monitor will be a mirror

image, and the on-screen display

will also be as if reflected on a

mirror.

3. To adjust the brightness of the image

on the monitor, turn the bright control.

This does not affect the brightness of

the recording you are making.

4. When you are finished, carefully

rotate the monitor back into position

and close and lock it into place.

Note: When recording on a bright sunny day,

the LCD monitor might be hard to see. Use

the viewfinder.

Use the Viewfinder

The camcorder's viewfinder is aminiature monitor that displays the picture seen by the

camcorder when recording. When the LCD monitor is open more than 45 -°,the

viewfinder automatically turns off.

Eyepiece

Viewfinder

Adjust Viewfinder for Convenient Viewing __

For convenient viewing, rotate the viewfinder horizontally, pull it out from the

camcorder, and adjust the eyepiece.

Eyepiece Focus Control

Eyepiece Focus -

The eyepiece focus control lets you set the

focus of the viewfinder for your vision.

If you wear eyeglasses, you probably can

operate the camcorder without them.

It is easiest to set the correct focus by

focusing on one of the viewfinder's on-

screen displays. Look through the

viewfinder and adjust the eyepiece focus

control for your vision.

The eyepiece focus control does not affect

the focus of the picture actually recorded

by the camcorder.

25

LCD Monitor or Viewfinder Displays

AE:60

ZM:2

I.ZOOM NO TAPE

T

O000M

F_--ql

m

INDEX

WA/V DUB

REC

10:30AM

11/18/1998

AE:60 (Auto Exposure) Shutter Speed

Press the DISPLAY button to display the

shutter speed selected by the camcorder.

Battery Level Indicator (4ira)

Press the DISPLAY button to display the

amount of time left on the rechargeable

battery. Details are on page 17.

Digital Effects (ZM:2)

Press the DISPLAY button to display the

indicator for the digital effect mode

selected. Press the DIGITAL EFFECTS

button to select a digital effect mode.

• Select 16X9 to make a recording

that you're going to play back on a

16X9 TV.

Select NEGPOS to reverse the image

from positive to negative.

Select ZM:2 to activate the extended

zoom mode - wide angle to 130 times.

ZOOM appears when you zoom over

16 times.

26

• Select MIRROR to record a symmetric

image on the left and right.

•Select MOSAIC to record a mosaic

image.

•Details are on pages 32-35.

Steady Pix Indicator (_)

To turn the steady pix feature on or off,

press the STEADY PIX button. _7_

appears when steady pix is turned on.

Details on page 29.

Fade Indicator ([])

Press the DISPLAY button to display the

indicator for the fade mode selected.

Press the FADE button to select a fade.

• Select _1 to white fade.

• Select [_] to wipe fade.

• Select [] to zoom fade.

• Select B/W to black-and-white fade.

•Details are on pages 36-37.

INDEX Indicator

Press the DISPLAY button to display this

indicator when the camcorder is placing

an index mark on the tape. Details are on

page 30.

Status Displays

The following displays appear to tell you

the status of the camcorder.

• The A. DUB indicator appears during

audio dubbing.

• The A/VDUB indicator appears

during audio/video dubbing.

• The REC indicator appears during

recording.

• The • • indicator appears when the

camcorder is fast-forwarding.

• The •• indicator appears when the

camcorder is rewinding.

• The II indicator appears during

record-pause.

Tape Counter with Memory Stop

(O000M)

Press the DISPLAY button to display the

tape counter. The tape counter helps

locate segments of tape.

• Memory stop is turned on whenever

the tape counter appears.

•Details are on page 38.

Tape Warnings (TAPE, NO TAPE, and

TAPE END)

•TAPE flashes when you try to record

with the safety tab removed.

•TAPE flashes when a damaged tape is

inserted. Remove the tape and replace

it with a new one.

•NO TAPE flashes when you try to

record with no cassette inserted.

•TAPE END flashes when there is

approximately five minutes of

recording time left on the tape.

•TAPE END briefly appears when you

reach the end of the cassette when

you're recording.

Time and Date Display

Press the DATE/TIME button to display

the time and date, AUTO date, auto

TITLE, date only, or no date when the

camcorder is in record-pause.

• These displays are recorded on the

tape when they appear in the

viewfinder or LCD monitor.

•Details are on pages 22-23.

Tape-Remaining Indicator (_--')

press the DISPLAY button to display the

tape-remaining indicator. This display

shows the approximate amount of tape

left for recording or playback. Details are

on page 30.

n

Zoom (_), ZOOM, and I.ZOOM

Indicators

• The zoom indicator ( t ) appears

I

when you use the power zoom

u

buttons (T and W).

ZOOM appears when you zoom with

the Tbutton more than 16 times.

•1.ZOOM appears when you press the

INST. ZOOM button to immediately

enlarge the picture 1.5 times.

•Details are on page 31.

27

DISPLAY Button

REW/REVIEW Button

Micro

Zoom Buttons

(T and W)

VCR Switch

Button

DISPLAY Button

The DISPLAY button lets you remove the

battery level, steady pix, tape speed, tape

counter with memory stop, remaining

tape display, index, fade, zoom and digital

effects indicators from the viewfinder or

LCD monitor.

Press DISPLAY to remove the

indicators.

Press DISPLAY again to display the

indicators. •

Microphone

The microphone picks up the sound

during a recording. It is more sensitive to

sounds coming from the direction the lens

is pointed.

Quick Review Feature

Press and release REW/REVIEW when the

camcorder is in record-pause to review

the last few seconds of a recording. The

CAMERA/OFF/VCR switch must be set

to CAMERA.

The camcorder will play back the last few

seconds of the recording, return the tape

to its previous position, and return to

record-pause.

Auto Shot TM Feature

The camcorder automatically adjusts

focus, white balance, iris, shutter speed,

and light according to the recording

conditions.

28

Auto Focus

The camcorder focuses on the subject in

the center of the LCD monitor or

viewfinder. Auto focus operates on the

telephoto (T) side from approximately

2-1/2 feet to infinity. It operates on the

wide-angle (W) side from 3/8 inch from

the lens surface (macro-focus) to infinity.

Note: When the displays appear, the AE

indicator for the shutter speed selected by the

camcorder (1/60, 1/100, 1/120, 1/180, 1/250,

1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,

or 1/4000) appears in the viewfinder or on the

LCD monitor.

The following conditions may prevent

auto focus from operating properly.

• Recording a subject through a window.

• Recording a subject that has a close

foreground and a far background.

• Recording two subjects at different

distances that overlap.

• Subject that isn't in center of scene.

• Recording in low-light situations.

• Recording ascene with fast motions,

like a tennis swing.

Macro Focus

The macro-focus feature lets you focus on

objects as close as 3/8 inch from the

camcorder lens.

1. Press and hold zoom button Wuntil

the lens is completely zoomed out.

2. Position the subject in the center of

the scene.

Notes: Zooming is not possible when using

macro-focus. To change the size of the

subject, move the camcorder lens closer or

farther away from it.

For best results increase illumination when

recording with macro-focus.

Steady Pix TM Feature

The steady pix feature corrects slight

shaking of images during some record-

ing modes.

•While zooming in on a distant subject.

• When recording an approaching small

subject.

• When recording while walking or

riding in a vehicle.

• When recording through a vehicle's

window.

To Use the Steady Pix TM Feature

Press the STEADY PIX button to turn

steady pix on. The steady pix indica-

tor (_)_) appears in the viewfinder or

on the LCD monitor.

Press the STEADY PIX button to turn

the steady pix feature off. The steady

pix indicator (_) disappears.

Notes: Turn steady pix off when using a

tripod. Steady pix may not operate properly

when wide-angle or telephoto lens adapters

are used.

There is a small change in the picture size

when using steady pix.

Accurate stabilization may not be possible if

hand shake is excessive or when shooting the

following:

•Subjects with vertical or horizontal

stripes.

• Dark or dim subjects.

• Subjects with excessive backlighting.

• Scenes with movement in various

directions.

•Scenes with low-contrast backgrounds.

29

ii

Tape-Remaining Display

The tape-remaining display shows the

approximate amount of tape remaining for

recording or playback.

Tape-Remaining Display in

LCD Monitor or Viewfinder

Electronic Indexing

Each time you begin recording (after the

camcorder has been turned off for at least

four hours), the camcorder automatically

records an index mark at the beginning of

the new recording.

When you play back the indexed tape in a

VCR that has a compatible indexing

feature called "VHS Index Search

System" the invisible marks can be

located automatically. See your VCR

Owner's Manual for index playback

instructions.

Press DISPLAY to display the tape-

remaining indicator in the viewfinder

or on the LCD monitor.

• The camcorder takes approximately

ten seconds to calculate the tape

remaining when you first start playing

or recording a tape.

.... appears while the

camcorder calculates the amount of

tape-remaining.

Once tape-remaining has been

calculated, it automatically updates

and is readily available as long as the

same tape remains in the camcorder.

• When B----,, appears, all or most of

the tape remains.

• B_--,- and mt:::_ appear as the tape is

being used.

•When the tape is almost at its end,

TAPE END flashes in the viewfinder

or on the LCD monitor.

INDEX

INDEX Display in

LCD Monitor or Viewfinder

When the DISPLAY button is pressed so

the displays appear, INDEX appears

briefly to let you know the camcorder is

recording an index mark.

Note: The camcorder does not record index

marks every time you stop and start recording.

An index mark is recorded only once - at the

start of each day's recording session

(or whenever the camcorder has been tumed

off for four hours).

30

i__

Zooming

Press one of the zoom buttons to zoom in and out for close ups or wide-angle shots.

Instant zooming immediately magnifies the picture 1.5 times.

Zoom Buttons

(T and W)

Button

Use the Zoom Buttons (T and W)

1. To zoom in or out from wide angle to

32 times, press zoom button Tor W.

•To move the lens in the telephoto

(close-up) direction, press T.

•To move the lens in the wide angle

direction, press W.

When DISPLAY is pressed so the displays

appear, the zoom level indicator appears

in the viewfinder or on the LCD monitor

during normal zooming. ZOOM appears

when you zoom more than 16 times.

ZOOR

T

W

Use the Instant Zoom Button (INST.

ZOOM)

1. To magnify the subject 1.5 times,

from any normal zoom position, press

the INST. ZOOM button.

When DISPLAY is pressed so the displays

appear, I. ZOOM appears in the

viewfinder or on the LCD monitor during

instant zooming.

I. ZOOR

Instant Zoom Display in

LCD Monitor or Viewfinder

•Zoom Level Indicator in

LCD Monitor or Viewfinder

31

Digital Effects

The camcorder has a digital processor that allows you to record using five special

digital effects: 16X9, a negative image, 130 times digital zoom, a symmetric mirror

image, or a mosaic image. Each effect is described in detail on the next pages.

To Select a Digital Effect

°Make sure the displays appear in the

viewfinder or on the LCD monitor. If

they do not, press the DISPLAY

button.

.Repeatedly press the DIGITAL

EFFECTS button. The indicator for

the digital effect you select appears in

the viewfinder or on the LCD monitor.

DIGITAL

EFFECTS

.Button

32

Digital Effects (continued)

16X9 Mode

The camcorder has a wide recording mode that lets you make recordings compatible

with the 16X9 format. When 16X9 is activated, the camcorder records black bars at

the top and bottom of the picture to produce the wide-screen effect. This is also known

as "letterbox" recording.

New 16x9 TV Screen

Standard Shape TV Screen

To

I.

.

.

4.

Record in the 16X9 Mode

Place the camcorder in record pause.

Make sure the displays appear in the

viewfinder or on the LCD monitor.

If they do not, press DISPLAY.

Repeatedly press the DIGITAL

EFFECTS button until 16X9 appears.

Press REC/PAUSE to start recording.

To turn off 16X9 recording, press

REC/PAUSE to pause recording, and

repeatedly press DIGITAL EFFECTS

until no digital effects display appears.

16X9 Mode

16X9

16X9 Display in

LCD Monitor or Viewfinder

Normal Mode 33

Digital Effects (continued)

Negative Mode

The camcorder has a negative mode that lets you turn the image negative.

°

.

Place the camcorder in record-pause.

Make sure the displays appears in the

viewfinder or on the LCD monitor. If

they do not, press DISPLAY.

Repeatedly press DIGITAL EFFECTS

until NEGPOS appears.

;_:.i;_:.

.....

.

4.

Press REC/PA USE to start recording.

To turn off negative recording, press

REC/PAUSE to pause recording, and

repeatedly press DIGITAL EFFECTS

until no digital effects display appears.

Negative Mode Normal Mode

Digital Zooming ............................._.................................................................................................................................................................................r.................................................

The camcorder has digital zooming that allows you to zoom in on a subject with

magnification up to 130 times. Normal zooming is up to 32 times.

1. Place the camcorder in record-pause.

Make sure the displays appear in the

viewfinder or on the LCD monitor. If

they do not, press DISPLAY.

2. Repeatedly press DIGITAL EFFECTS

until ZM:2 appears. Use the zoom

buttons to zoom in and out. ZOOM

appears when you zoom above 16X.

3. Press REC/PAUSE to start recording.

4. To turn off digital zooming, press

REC/PAUSE to pause recording, and

repeatedly press DIGITAL EFFECTS

until no digital effects display appears.

Note: As the zoom level increases during

digital zooming, the picture will gradually

become less sharp. Use the high zoom levels

mainly for special effects.

Digital Zooming Mode

34

Digital Effects (continued)

Mirror Mode

The camcorder has amirror mode that lets you display a symmetric image on

the left and right, obtained by placing a mirror at the center of the screen.

1. Place the camcorder in record-pause.

Make sure the displays appear in the

viewfinder or on the LCD monitor.

If they do not, press DISPLAY.

2. Repeatedly press DIGITAL EFFECTS

until MIRROR appears.

Mirror Mode

.

4.

Press REC/PA USE to start recording.

To turn off mirror recording, press

REC/PA USE to pause recording, and

repeatedly press DIGITAL EFFECTS

until no digital effects display appears.

Normal Mode

The mosaic feature lets you add a mosaic effect to your recording.

1. Make sure the displays appear in the

viewfinder or on the LCD monitor. If

they do not, press DISPLAY.

2. Repeatedly press DIGITAL EFFECTS

until MOSAIC appears.

3. Press REC/PAUSE to start recording.

4. To turn off mosaic recording, press

REC/PAUSE to pause recording, and

repeatedly press DIGITAL EFFECTS

until no digital effects display appears.

Note: Mosaic recording cannot be used with

digital zooming, instant zooming, steady pix,

or the zoom fade features.

Mosaic Normal Mode

35

Fade In and Out of Scenes

You can add a professional touch to your recordings when you fade in and out of

scenes. Both the picture and sound gradually appear or disappear. The speed of the

fade is controlled by the camcorder.

FADE Button

To Select a Type of Fade

You can select white fade, black wipe

fade, zoom fade, or black-and-white fade.

.

.

Press REC/PAUSE to pause recording.

Make sure the displays appear in the

viewfinder or on the LCD monitor. If

they do not, press DISPLAY.

Repeatedly press the FADE button.

The indicator for the fade you select

will appear.

• Select _-111(white) to fade in and out

to/from a white screen.

• Select [] (black wipe) to fade in

and out to/from a black screen.

• Select [] (zoom) to fade in and out

while zooming.

•Select B/W (black-and-white) to

fade in and out to/from a black-and-

white picture.

•Select no fade indicator if you do

not want to fade in or out.

Notes: Zoom fade does not operate with

MIRROR and MOSAIC special effects modes.

Pressing the DIGITAL EFFECTS button turns

off the fade mode. Set the digital effect you

want, and then set the fade.

36

k ... .....

Fade In and Out of Scenes (continued)

Fade In Fade Out

1. Press REC/PAUSE to pause

recording.

2. Repeatedly press FADE to select

the fade you want to use.

Note: The last fade used appears the

first time you press FADE.

3. Press REC/PAUSE to start

recording. The picture and sound

gradually appear in place of the

blank screen.

1. During recording, repeatedly press

FADE to select a fade.

Note: The last fade used appears the

first time you press FADE.

2. Press REC/PAUSE to stop

recording. The picture and sound

gradually disappear.

37

Tape Counter

The tape counter acts as a handy reference to help you locate tape segments.

The memory-stop feature helps locate a certain point on the tape. When the

tape counter appears, the tape stops automatically during rewind or fast

forward when the tape counter reaches O000M.

DISPLAY CAMERA/ REW/

Button RESET OFF/VCR REVIEW

Button Switch Butto_

o

F.FWD Button

STOP/EJECT

Button

Use the Memory-Stop Feature

1. Press REC/PAUSE to pause recording.

Make sure the displays appear in the

viewfinder or on the LCD monitor.

If they do not, press DISPLAY.

2. Locate the place on the tape you want

to return to, and press RESET to reset

the counter to O000M.

oooo_

.

38

Tape Counter

With Memory Stop

Continue to record or play the tape.

When you want to return to the place

.

you marked, press the REC/PAUSE

button to stop recording or the STOP/

EJECT button to stop playback.

Press and hold the small button while

you set the CAMERA/OFF/VCR

switch to VCR.

5. Press the REW/REVIEW button.

The tape rewinds to the counter

reading of O000M.

Notes: Press DISPLAY to display or remove

the tape counter. Memory stop is turned on

whenever the tape counter appears.

The camcorder stops rewinding or fast

forwarding when the counter reaches O000M.

To continue rewinding or fast forwarding,

press the button again.

The tape counter automatically resets to

O000M whenever a cassette is inserted.

Editing Features

The camcorder incorporates a complete package of advanced editing features to make

it easy and fun to edit your home videos like a professional. The major features are

described on the following pages.

• Flying Erase Head • A/V (Audio and Video) Dub

• Camera Edit • Titler

• Audio Dub

CAMERA/OFF/

VCR Switch

REW/REVIEW

Button F.FWD Button

oooo 0

Camera Edit Feature

The camera edit feature allows you to

position the tape when the camcorder is

in record-pause. Press and hold the small

button on the CAMERA/OFF/VCR switch

while you slide it to CAMERA.

•Press and hold REWIREVIEW to

visually search the recorded tape

in reverse.

•Press and hold F.FWD to visually

search forward on the recorded tape.

• Press and hold PLAY to view the

recorded tape at normal speed.

When you release the button, the cam,

corder retums to record-pause at that

point on the tape.

Flying Erase Head

A separate erase head is mounted on the

spinning headwheel (hence the term

"flying"). This allows you to make

clean edits without the "glitches" or

"rainbow noise" that might occur at the

beginning or the end of recordings.

39

Editing Features (continued)

Audio Dub

The audio dub feature lets you record new audio (sound) on a previously recorded

tape without erasing the original video (picture). The previous audio is erased and

replaced with the new audio.

The audio dub feature increases your editing flexibility. You can assemble video

segments first, then add narration or music.

You can add new audio by:

Speaking into the camcorder's built-in microphone.

Connecting an external sound system to the white AUDIO jack. Connect the

camcorder to the audio source as shown on the next page.

To

1.

o

.

.

.

40

Audio Dub

Press and hold the small button on the

CAMERA/OFF/VCR switch while yo u

slide it to VCR.

If you are recording from a source

connected to the white AUDIO jack

on the side of the camcorder, set the

AV OUT/IN switch to IN.

Insert the tape you want to audio dub

and use PLAY, F.FWD, and/or REW/ 6.

REVIEW to locate a point on the tape

that is a few seconds before the place

on the tape where you want to begin

dubbing.

Press REC/PAUSE exactly at the place

where you want to begin dubbing to

place the camcorder in play-pause.

Press and hold AVDUB, and then 7.

press PLAY. Release both buttons at

the same time. A. DUB nappears in

the viewfinder or LCD monitor when

the camcorder is ready to begin audio

dubbing.

A.DUB

II

To begin dubbing, start the audio

source and press REC/PAUSE. II

disappears while you are dubbing.

Note: If you want to stop dubbing at a

certain point on the tape, display the tape

counter and set it to O000M at the point

you want to stop dubbing. The camcorder

stops dubbing automatically when it

reaches O000M.

Press STOP/EJECT when you are

finished dubbing.

Remember: Set the AV OUTIIN switch

to OUT for normal recording.

Editing Features (continued)

Audio Dub (continued)

AV DUB Button

Back of Mono

VCR or Tape Deck

I--AUDIO--.I

IN OUT

,e

White Audio Plug o/"

", s*

""4_q_ Audio/Video Cable White .,:,_"

__m__mVH83) Audio_"--__o

Yellow Video Plug w

(No connection) Video Plug

(no connection)

-OR- White

Audio Plug

'White

Jack

I -'AUDIO --'1 Yellow

Rm tR OUTt Video Plug

Back of stereo White Audio Plug Cable

VCR, Tape Deck, Y-Adapter (such as VH83)

Laser Disc Player, (such as AH25)

DVD Player, or CD Player

Yellow Video Plug

(No connection)

Note: You need an optional audio/video cable, such as VH83, shown on page 61. If the

audio source has separate left and right outputs, attach the audio plug to the one labeled

MONO. If one is not labeled MONO, you might need a Y-adapter, as shown on page 61, to

record audio from both the right and left channels.

41

...

Editing Features (continued)

Audio and Video Dub

The audio and video dub feature lets you record new audio (sound) and video

(picture) on a previously recorded tape.

The source for audio and video dub is:

•The camcorder's built-in microphone and camera.

•An external sound and video system connected to the white AUDIO and

yellow VIDEO jacks on the side of the camcorder. Connect the camcorder to

the audio/video source as shown on the next page.

To

1.

o

Audio and Video Dub

Press and hold the small button on the

CAMERA/OFF/VCR switch while you

slide it to VCR.

If you are recording from a source

connected to the white AUDIO and

yellow VIDEO jack on the side of the

camcorder, set the AV OUT/IN switch

to IN.

3. Insert the tape you want to dub and

use PLAY, F.FWD, and/or REW/

REVIEW to locate a point on the tape

that is a few seconds before the place

on the tape where you want to begin

dubbing.

4. Press REC/PAUSE exactly at the place

where you want to begin dubbing to

place the camcorder in play-pause.

5. Press and hold AVDUB, and then

press PLAY. Release both buttons at

the same time A. DUB appears. Press

AV DUB and PLAY again for audio

and video dub. A/VDUB n will

appear in the viewfinder or LCD

monitor when the camcorder is ready

to begin dubbing.

A/V DUB

II

6. To begin dubbing, start the audio and

video sources and press REC/PAUSE.

II disappears while you dub.

Note: If you want to stop dubbing at a

certain point on the tape, display the tape

counter and set it to O000M at the point

you want to.stop dubbing. The camcorder

stops dubbing automatically when it

reaches O000M.

7. Press STOP/EJECT when you are

finished dubbing.

Remember: Set the AV OUT/IN switch

to OUT for normal recording.

42

Editing Features (continued)

Audio and Video Dubbing A V DUB Button

AUDIO

OUT

VIDEO

OUT

Back or

VCR or

TV Monitor

r-t@

AUDIO

OUT

LR@

@.

Back of

Stereo

VCR or

TV Monitor

Switch

Yellow ,, /

tt

Jack ,,

t t •

'I ;

White Audio Plug u t J

a v t

t p •

"_ Yellow , ,,

Audio/Video.Cable Video Plu_ _t'

Yellow Video Plug "_a_o" ,

White

Audio Plug

Vyellow _A

VideoPlug f _/

""ff _White

"_l_ l.# Aodio

WhiteAud,o Pl"g

" Y-Adapter " " "

"__such asAH25)/ ._Audio/Video Cable

.... "............. -__ll_ _(such asVH83)

Yellow Video Plug

White

Jack

Note: You need an optional audio/video cable, such as VH83, shown on page 61. If the

audio source has separate left and right outputs, attach the audio plug to the one labeled

MONO. If one is not labeled MONO, you might need a Y-adapter, as shown on page 61, to

recoM audio from both the right and left channels.

43

Editing Features (continued)

Titler

.The camcorder's built-in titler can store a title in memory. The created title can

be displayed and recorded at any time.

The built-in character register contains more than 45 different characters. Your

title can contain up to 32 characters on two lines.

-Button

(Also REW/REVIEW Button)

CAMERA/OFF/

VCR Switch

TITLER _!_

Button

000 0

+ Button

(Also F.FWD Button)

EDIT-ADV Button

(Also STOP/

EJECT Button)

44

Editing Features (continued)

Titler (continued)

To Create a Title

1. Attach a power source to the

camcorder. Press and hold the small

button on the CAMERA/OFF/VCR

switch while you slide it to CAMERA.

2. Press TITLER to display the titler

graphics in the viewfinder or on the

LCD monitor. A flashing cursor

appears.

3. Press EDIT-ADV to move the flashing

cursor to the place where you want to

begin your title.

4. Select the first character for your title

by pressing the + or - button until the

character you want appears in the

viewf'mder or LCD monitor.

See the chart below for the characters

available.

5. After you have selected the first

character, press ED1T-ADV to move

the flashing cursor to the place where

you want the next character to appear.

6. Repeat steps 4 and 5 until you have

completed the title.

7. When you are finished, press TITLER

to store the title and remove the title

graphics from the viewfinder or LCD

monitor.

Remember: Be sure to remove the titler

graphics from the viewfinder or LCD

monitor for normal recording.

To Correct an Error

,

o

Press TITLER to display the titler

graphics in the viewf'mder or on the

LCD monitor.

Press EDIT-ADV to move the flashing

cursor over the character you want to

correct.

.Press the +or - button until the

correct character appears.

Note: If you want to delete a character,

press + or - until the blank space appears.

Chart of Characters in Titler's Register

AB C DEFG HIJ KL M

N O PQ R S T U VWXY Z

01 23456789?' ./,

- ; : < > !(BLANK)

45

Editing Features (continued)

Titler (continued)

-Record a Title on a Tape in the Camcorder

1. Attach a power source to the

camcorder. Press and hold the small

button on the CAMERA/OFF/VCR

switch while you slide it to CAMERA.

2. Locate the place on the tape where

you want to record the title.

Note: If you record a title on a

prerecorded tape, the audio and video is

erased where the title is inserted. A 3-to-4

second pause of blank tape appears before

the existing audio and video return.

To eliminate the pauses of blank tape, use

the audio and video dub feature to add

titles to prerecorded tapes. Details are on

pages 42-43.

3. Press TITLER to display the titler

graphics in the viewfinder or on the

LCD monitor.

.

.

Press REC/PAUSE to start recording

the title.

After you have recorded the title for

the desired length of time, press

T1TLER to remove the titler graphics.

The camcorder will now record

normally. If you do not want to

continue recording, press REC/

PAUSE.

Remember: Remove the titler

graphics for normal recording.

Note: You can also use the automatic title

recording feature to automatically record

the title and date for 10 seconds when you

begin recording. Press the DATE/TIME

button to display (S) TITLE before starting

to record.

Record a Title While Copying a Tape from the Camcorder to Another VCR

°Attach apower source to the

camcorder.

2. Place the tape you want to copy in the

camcorder and press and hold the

small button on the CAMERA/OFF/

VCR switch while you slide it to VCR.

3. Place a blank tape in the VCR, and

place the VCR in record-pause.

4. Start copying the tape from the

camcorder to the VCR. Details are on

5. When you see the place on the tape

you want to insert the title, press

TITLER.

6. After you have recorded the title for

the desired time, press T1TLER to stop

recording the title.

7. Stop the camcorder and VCR when

you are finished copying the tape.

Important Note: Remove the titler graphics

for normal recording.

pages 54-55.

46

Recording Tips

Try to make sure indoor scenes are

well-lit. This improves picture quality

and color reproduction.

Do not move the camcorder rapidly

from side-to-side while recording.

A steady, gradual "pan" avoids

blurring and "jitter."

Use the viewfinder or LCD monitor

to make sure the camcorder is level

while recording so that your scenes

won't appear "tilted."

Do not bump or tap the camcorder's

microphone while recording so that

your scenes won't appear tilted.

•Include close-ups of individuals when

taping family outings or group func-

tions.

• Fading in and out of scenes makes

your videos appear more professional.

Learn to use the special digital effects

available with your camcorder to add

variety to your recordings.

Be aware of video and audio back-

grounds. Background details barely

noticed while you are taping may

show up as visual "clutter" on your

recording. Background noises

(especially TV sets, radios, household

appliances, traffic sounds, etc.) can

detract from the sound you want to

record.

Avoid long "still" shots of landmarks

and scenic attractions. Recordings are

more interesting if they include people

and details. "Local color" will give

travel videos lasting appeal. Consider

recording a familiar or landmark scene

from an unfamiliar vantage point.

47

Record from a VCR or TV Monitor

To record on atape in your camcorder from a VCR or TV monitor with audio

and video output jacks, you need an optional audio/video cable, such as VH83

shown on page 61. Detailed instructions are on the next page.

AVOUTIIN Switch

AUDIO

OUT

VIDEO

OUT

Back of

VCR or

TV Monitor

I--t@.

AUDIO

OUT

LR@

VIDEO

OUT @.

Back of

Stereo

VCR or

TV Monitor

Yellow ',_

It

Jack ,, ;

st

It •

White Audio Plug i _, '

...... I:."

_. ./ ,,.

Yellow I''

Audio/Video Cable Video Plu n '_'

.... (suchasVHS3) s

White t

-OR- AodioPlug.

Yellow

Video Plug

White Audio Plug

/

White

Audio

Plug

Audio/Video Cable

(such as VH83)

Yellow Video Plug

48

Record from a VCR or TV Monitor (continued)

Installation

1. Attach the white plug on one end of 2.

the optional audio/video cable to the

AUDIO OUT jack on the VCR (or

TV monitor).

Note: You need an optional audio/video

cable, such as VH83, shown on page 61.

If the audio source has separate left and

right outputs, attach the audio plug to the

one labeled MONO. If one is not labeled

MONO, you may need a Y-adapter, as

shown on page 61 to record audio from

both the right and left channels.

.

Attach the yellow plug on the same

end to the VIDEO OUT jack on the

VCR (or TV monitor).

Attach the yellow plug on the other

end of the cable to the yellow VIDEO

jack and the white plug to the white

AUDIO jack on the side of the

camcorder.

4. Set the AV OUT/IN switch on the

camcorder to IN.

Recording Operation and How to Copy Tapes on the Camcorder

1.A. Camcorder connected directly to TV

monitor: Tum on TV and tune TV to

channel you want to record.

B. Camcorder Connected to VCR that is

connected to TV. Turn on VCR and

select the channel you want to record

(or place cassette you want to copy in

VCR).

Note: If you want to see what is being

recorded, turn on the TV and tune it to the

channel that you normally use to see the

signal from the VCR.

2. Set the AV OUT/IN switch on the

camcorder to IN.

3. Attach a power source to the

camcorder. Press and hold the small

button on the CAMERA/OFF/VCR

switch while you slide it to CAMERA.

4. Insert a cassette into the camcorder

with the safety tab intact.

5. Press REC/PA USE to start the

camcorder recording.

If you are copying a tape, start the

VCR playing.

6. Press REC/PAUSE on the camcorder

to stop recording when you are

finished.

Remember: Set the AV OUT/IN switch

on the camcorder to OUT for normal

recording on the camcorder.

49

Use the LCD Monitor or Viewfinder for Playback

You can watch tapes in color using the LCD monitor or black-and-white using the

viewfinder. When the LCD monitor is open more than 45 -°,the viewfinder

automatically turns off. Close the LCD monitor, the viewfinder automatically turns

on. Rotate the monitor completely around and place it against the camcorder for

convenient playback. During playback, you can hear the sound from the tapes on

the built-in speaker when you use the LCD monitor.

Viewfinder

Eyepiece Focus

Clntr°!

CAMERA/

OFF/VCR

;witch

PLAY

Button

STOP/EJECT

Button

s

OPEN

Button

Bright

Control

Volume

Control

50

Use the LCD Monitor or Viewfinder for Playback (continued)

To Play Back a Tape

1. Attach a power supply.

Attach the adapter/charger, charged

battery, or optional car cord.

2. Insert a tape.

• Press STOP/EJECT to open the

cassette compartment.

• Insert the cassette with the safety

tab facing up and the tape windows

facing out.

• The camcorder can only play back

tapes recorded in the SP speed.

• Press the cassette down gently until

it locks into place, and close the

cassette compartment door.

3. Press and hold the small button on

the CAMERA/OFF/VCR switch

while you set it to VCR.

4. Use the LCD monitor or viewfinder

to view what you are playing back.

Use the LCD Monitor

• Press the OPEN button to open the

LCD monitor. Make sure the

monitor is open at least 45 °. The

viewfinder automatically turns off.

• You can rotate the monitor around

when it is open 90 ° and place it

back against the camcorder.

• Fit the shoulder extension pad to

your shoulder for convenient

viewing using the LCD monitor.

• To adjust the brightness of the

image in the monitor, turn the

bright control.

.

.

• To adjust the speaker volume, turn

the volume control.

Note: The monitor may become warm

when left open for an extended period

of time. This is normal.

Use the Viewfinder

• Close and lock the LCD monitor

because the viewfinder turns off

when the monitor is open more

than 45 °.

• Grasp the viewfinder and rotate it

horizontally.

• Pull the viewfinder out from the

camcorder and rotate the eyepiece

to a comfortable viewing position

• Turn the eyepiece focus control to

adjust the focus of the viewfinder

for your vision.

Note: You cannot hear the sound from

the internal speaker when using the

viewfinder for playback.

Press PLAY to begin playback.

• If necessary, adjust tracking.

• During playback, use the playback

features on the following pages.

Press STOP/EJECT when you are

finished.

51

Playback Features

0000

CAMERA/

OFF/VCR

Switch

REW / F.FWD

REVIEW Button

Button

O

STOP/

EJECT

Button

REC/

PA USE

Button

Tape Positioning

Press the small button on the CAMERA/

OFF/VCR switch while you set it to

VCR.

• Press and quickly release REW/

REVIEW or FFWD to rewind or fast-

forward the tape.

•Press STOP/EJECT to stop

the tape.

Visual Searching

During playback, press and hold

F.FWD or REW/REVIEW if you want

to search the tape visually in forward

or reverse.

• Release the button to return to normal

playback.

52

Stop-Action Pause

•During playback, press REC/PAUSE to

"stop the action" and view one frame of

the tape.

• Press REC/PA USE again to return to

normal playback.

Playback Features (continued)

TRACKING

Buttons

(Also Wand T)

Tracking

During playback, streaks might appear in the playback picture. Press either

TRACKING button (W or T) to move the streaks up or down and out of the picture.

During stop-action playback, pressing

one tracking button might reduce picture

"jitter" (picture bouncing up and down).

Some "jitter" is normal.

Remove the tape to reset the tracking to

its preset center.

Note: The tracking buttons only affect tape

playback. They have no effect during

recording.

53

Playback on TV (or VCR) with Audio/Video Input Jacks

To connect your camcorder to aTV monitor (or VCR) with audio/video in jacks, you

need an optional audio/video cable such as VH83 shown on page 61. If your TV is

already connected to a VCR, attach the camcorder to the VCR and watch what the

camcorder is recording or playing on the TV.

A V OUTIIN Switch

AU ,O"

VIDEO

.°.-'

Back of

VCR or

TV Monitor

7-

AUDIO

IN

L.@

Yellow :_ ,' " White

White Audio Plug VIDEO J_ " AUDIO

..... /Jack ,' : ," '

_"_ Yellow . : o. !Jack

Video Plug _._" : " ;

_q_.. Audio/Video Cable _:o." :

.-"" _,_=.__,/(such as VH831 ?:

Yellow Video Plug White :

-OR- Audio Plug ;

Yellow

Video Plug thite

Audio Plug

White Audio Plug

Y-Adapter

(such as AH25) Audio/Video Cable

(such as VH83)

Back of

Stereo

VCR or

TV Monitor

Installation Yellow Video Plug

.Attach the white plug on one end of

the audio/video cable to the AUDIO

IN jack on the TV (or VCR).

Notes: If your cable does not have white

and yellow plugs, be sure to attach the

same color to the audio jacks.

If your TV (or VCR) has stereo AUDIO IN

jacks, attach the plug to the one labeled

MONO. If one is not labeled MONO, you

might need a Y-adapter, such as AH25,

shown on page 61 to hear both channels.

2. Attach the yellow plug to the VIDEO

IN jack on the TV (or VCR).

3. Attach the white plug on the other

end of the audio/video cable to the

AUDIO jack (located under the small

cover) on the side of the camcorder.

4. Attach the yellow plug to the yellow

VIDEO jack on the camcorder.

5. Set the AV OUT/IN switch to OUT.

54

Playback Operation and How to Copy Tapes on the VCR

1. A. Camcorder connected directly to 3.

TV: Turn on the TV and tune it to

the video input channel.

B. Camcorder connected to VCR that

is already connected to TV: Turn

on VCR and place it in the "line"

or "camera mode". (If your VCR 4.

does not have a "line" or "camera

mode", consult the VCR owner's

manual.) Operate the TV as you

normally do to see the signal

coming from the VCR.

2. Press and hold the small button on the

CAMERA/OFF/VCR switch while you

set it to VCR. 5.

Note: The camcorder can only play back

tapes recorded in the SP speed.

Press PLAY.

• During playback, use the playback

features on pages 52-53.

• Turn the volume control on the

monitor down all the way to

prevent picture distortion.

To copy what the camcorder is

playing, place a blank cassette in

the VCR, and press the VCR's

RECORD button.

Note: Make sure the memory-stop feature

is turned off (press DISPLAY) or the

camcorder will enter play-pause when the

counter reaches O000M.

Press STOP/EJECT when you are

finished.

Viewing What the Camcorder is Seeing (or Recording) __

1. A. Camcorder connected directly to 2.

TV: Turn on the TV, and tune it to

the video input channel.

B. Camcorder connected to VCR that

is already connected to TV: Turn

on VCR and place it in the "line"

or "camera mode". (If your VCR

does not have a "line" or "camera

mode", consult the VCR owner's

manual.) Operate the TV as you

normally do to see the signal

coming from the VCR.

,

Press and hold the small button on the

CAMERA/OFF/VCR switch while

you set it to VCR.

Note: Turn the TV's volume down to

prevent a high-pitched squeal caused by

feedback.

Press the REC/PAUSE button to begin

recording. You can watch what the

camcorder is seeing (or recording) on

the TV screen.

55

Playback on TV Without Audio/Video Inputs

To connect your camcorder to a TV without audio/video inputs, you need an optional

CRF95 RF output adapter and an optional coaxial RF cable, such as VH82 or VH90

-shown on page 61. If your TV has AUDIO and VIDEO IN jacks (or is connected to a

VCR), refer to pages 54-55.

Antenna .

I f',

OR OR ",,

,

Antenna \\\

Optional 300/75 ohm \

Transformer \

Back of TV \\

I "_'K \

OR ",,

IN

FROM

Optional 75.300 Ohm ANT

Transformer

(such as VH54 /

Optional Coaxial RF Cable OUT

(such as VH82 or VH90) TO TV

\\\\\

A V OUT/IN Switch

Channel Selector

Optional RF Output Adapter

(such as CRF95)

Installation

°

.

Disconnect the VHF antenna from

your TV. Connect the antenna to the

IN FROM ANT connector on the RF

output adapter if you are going to

leave the adapter connected to the TV.

Note: If your VHF antenna is the flat

twin-lead type attached by two screws,

you need an optional 300/75 ohm

transformer.

Attach one end of the optional coaxial

RF cable to the OUT TO TV

connector on the adapter, and attach

the other end to the VHF input on

your TV as shown.

°

Note: If your TV has 300 ohm screw

terminals, you need a 75/300 ohm

transformer, such as VH54, shown on

page 61.

Attach the RF output adapter's yellow

plug to the VIDEO jack, the small

plug to the RF DC OUT jack, and the

white plug to the AUDIO jack located

under the small cover on the side of

the camcorder.

4. Set the AV OUT/IN switch to OUT.

56

Playback Operation

1. Set the CH3/CH4 switch on the

RF output adapter to channel CH3

or CH4.

2. Turn on the TV, and tune it to the same

channel you selected with the RF

output adapter's CH3/CH4 switch.

3. Press and hold the small button on the

CAMERA/OFF/VCR switch while you

set it to VCR.

4. Press PLAY on the camcorder.

• Turn the volume control on the

monitor down all the way to

prevent picture distortion.

• During playback, use the playback

features described on pages 52-53.

5. Press STOP/EJECT on the camcorder

when you are finished.

1. Turn on the TV and tune it to channel

3 or 4. Turn the TV's volume down

to prevent a high-pitched squeal

caused by feedback.

2. Set the CH3/CH4 switch on the RF

output adapter to the same channel

you selected on the TV.

3. Press and hold the small button on the

CAMERA/OFF/VCR switch while you

set it to CAMERA.

4. Press the REC/PAUSE button to begin

recording. You can watch what the

camcorder is Seeing (or recording)

on the TV screen.

Normal TV Viewing

For normal TV viewing, leave the RF output

adapter hooked up to the TV. Disconnect

the adapter's plug from the camcorder or

turn the camcorder's power off.

Note to Cable TV Installer

This reminder is provided to call your attention to Article 820-40 of the

National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that

provides guidelines for proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding system of the building as

close to the point of cable entry a.s practical.

57

Write downyourcamcorder'sserial

numberandkeepit separatefrom the

camcorderwhentraveling. If your

camcorderis lost or stolen,youwill be

ableto identify it.

Useextracarewhenyouuseyour

camcorderor accessoriesat abeachor

pool. Spray,sand,anddustshouldbe

avoided. If yourlenshasbeenexposed

to theelements,cleanit only with

properlenscleaningsupplies.

Makesureyouhaveanyadaptersthat

youmightneedbeforetakingyour

camcorderto othercountries. Consult

yourdealerfor advice.

Carryyourcamcorderin a carrying

casewhentraveling. See the next page

for a case designed especially for this

camcorder. An ordinary suitcase or

carry bag does not offer the protection

your camcorder needs. Treat your

camcorder as carry-on luggage to

protect it from rough handling.

58

We invite youto takealook at somegreatideasfor sparkingcreativity andaddingto

thefun of usingyourVHS camcorder.Thefollowing pageshaveaselectionof

accessoriesto helpmakeyour memorablemomentslook andsoundevenbetter.

Theseaccessoriesaredesignedto maketheprocessof recordingandwatchingyour

videosmoreenjoyable.

To order accessories,contactyour local Dealer.

If adealeris notnearby,all accessoriesareavailablethroughtoll-free orderingor by

usingtheorderform on page 63.

AC202 Soft Carrying Case DCC096 DC Car Cord Adapter

This case provides protection and utility

for full size camcorders and most

accessories. It is constructed of rugged

nylon fabric for years of reliable service.

Three outside pockets provide ample

accessory storage with mesh-covered lens

filter compartment and built-in holders for

memo pads, pens, and other accessories.

The hand grip and adjustable shoulder

strap allow for convenient, comfortable

transportation of the camcorder.

This car cord adapter enables you to

operate your camcorder from your car,

truck, or RV by plugging the car cord

directly into the vehicle's cigarette lighter

socket. The DCC096 is designed

specifically to convert power from a

12-volt battery to a 9.6-volt output.

59

EP096FSand EP096FL Rechargeable

Batteries

These rechargeable lead-acid batteries

are designed specifically for long life.

The EP096FS is a l-hour battery. The

EP096FL -powers your camcorder twice

as long as the EP096FS (depending on

how much you turn the camcorder on

and off and use zoom and pause). Both

can be recharged with the AC adapter/

charger that came with your camcorder.

Using the Optional AC093 Tripod

Mounting the camcorder on a tripod, such

as AC093, keeps the camcorder steady

and produce excellent video results.

This tripod's fluid-effect head provides

smooth camera pan and tilt. The quick-

release mount makes it easy to attach or

remove the camcorder. The grooved,

tubular 3-section leg design folds down to

24" when not in use. Rubber feet allow

for sure footing and built-in retractable

leg spikes eliminate the need for

removing the feet.

CPS014 AC Battery Charger

The CPS014 battery charger plugs

directly into an AC outlet and charges the

EP096FS and EP096FL camcorder

batteries. Because the CPS014 operates

on 100-240 Volts, 50/60 Hz, it can be

used virtually anywhere in the world. A

plug adapter might be required in some

countries.

60

CRF95 RF Output Adapter VH54 CableTransformer

This RF output adapter is used with a

coaxial RF cable, such as VH82 or VH90,

to connect your camcorder to a standard

TV (one without audio/video inputs) for

playback.. If your antenna cable is the flat

twin-lead type attached by two screws,

you need a 300-to-75 ohm transformer. If

your TV has 300 ohm antenna screw

terminals, you need an optional 75-to-300

ohm transformer such as VH54.

This 75-to-300 ohm transformer is used to

connect a standard 75-ohm antenna cable

(such as VH82 or VH90) to the 300 ohm

screw terminals on a TV.

VH83 Audio/Video Cable

Coaxial RF Cables

VH82 (6-ft)VH90 (12-ft)

These RF cables are used with the RF

output adapter to connect your camcorder

to a standard TV (one without audio/video

input jacks) for playback. If your TV has

300 ohm antenna screw terminals, you

need an optional 75-to-300 ohm

transformer such as VH54. If your

antenna cable is the flat twin-lead type

attached by two screws, you need an

optional 300-to-75 ohm transformer.

This six foot audio/video cable can be

used to connect the camcorder to a TV

monitor or VCR for tape playback or

copying tapes.

AH25 Y-Adapter

This Y-adapter allows you to connect your

camcorder's mono audio cable to a stereo

TV or VCR.

61

Remove the Lens Hood

Remove the lens hood so you can attach optional accessories, such as

wide-angle lens, lens extenders, or lens filter kits.

Attach an Accessory Lens

1. Attach the lens cap over the lens hood. 3.

J

Turn the accessory lens clockwise

into the camcorder's lens. Make sure

the lens is tightened firmly, but do not

over tighten.

.To remove the lens cap and hood, turn

them counterclockwise with the palm

of your hand.

62

¢9

_D

Order Form for Camcorder Model CC4371

Description

Deluxe Tripod

Soft Camcorder Case

Y-Adapter

AC Adapter/Charger (100-240V)

RF Output Adapter

Car Cord Adapter

Rechargeable Battery (Extended)

Rechargeable Battery (Standard)

75-300 Cable Transformer

Coaxial RF-Cable

Audio/Video Cable

Coaxial RF-Cable

Replacement Bulb (4 watt) for

Built-in Light

Shoulder Strap

AC Adapter/Charger (Supplied)

and

DC Cable

Part No.

AC093

AC202

AH25

CPS014

CRF95

DCC096

EP096FL

EP096FS

VH54

VH82

VH83

VH90

Price

$ 59.95

$ 49.95

$ 2.95

$219.95

$ 69.95

$ 49.95

$ 79.95

$ 69.95

$ 2.95

$ 6.95

$ 5.95

$ 7.95

Qty. Total

221111 $ 12.95

241305 $ 12.95

241044 $169.95

241308 $ 13.65

Total Merchandise ........................................................................................... $

Sales Tax .......................................................................................................... $

We are required by law to collect the appropriate

sales tax for each individual state, county, and

locality to which the merchandise is being sent.

Shipping and Handling .................................................................................... $

Total Amount Enclosed ................................................................................. $

Use VISA, MasterCard, or Discover.

Money order or check must be in U.S.

currency only. No COD or cash.

Prices are subject to change without notice.

5.00

63

Charge your order on your VISA,MasterCard,

or Discover Card by filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number from your VISA card

I III II---l-Tql-l-Y-11--7-1--qExpirationdate:[-"r'-][--_

IMPORTANT: Copy complete account number from your MasterCard

l-_-T-ql I I I II I I I II I I I I

Copy Number above your name on MasterCard _ Expiration date: I

IMPORTANT: Copy complete account number from your Discover Card

I I I I II I I I II--FFNI I I I I

Expiration date: [--F-I

AUTHORIZED SIGNATURE

Prices are subject to change without notice.

Print or type your name and address

clearly.

Name:

Street:

City:

State:

IIIII

A complete and correct order will

save you days of waiting.

Apt:

Zip:

_l

Please make sure that both sides of this form have been filled out completely.

• Allow 4weeks for delivery.

• All accessories are subject to availability.

z

€.)

_D

_3

64

To order accessories, contact your local Dealer.

If a dealer is not nearby, you can also follow the directions below to order by

telephone or direct-by-mail.

United States and Canada Orders

To place your order by phone, have your Visa, MasterCard, or Discover card ready

and call the toll-free number listed below between 8AM and 10PM (EST) Monday

through Friday or between 9AM and 5PM (EST) Saturday.

Use this number only to place an order for accessory items listed on

this order form.

1-800-338-0376

To place your order by mail, detach and mail the completed order form with credit

card information, money order, or check in U.S. currency (made payable to

Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories

PO Box 8419

Ronks, PA 17573

65

If you're having trouble with your camcorder, you probably can correct the problem

yourself. Before you take your camcorder to an Authorized RCA Camcorder Service

Center or call a service person, use the chart below. Find the problem and try the

adjustment(s) that is listed to the right.

If service should be necessary, read your warranty to find out what is covered and how

to get service.

No power •

Won't record or

play back

Won't play back

Won't record

No picture

Camcorder turns

off

Set the CAMERA/OFF/VCR switch to CAMERA or

VCR to turn on the camcorder.

If using battery, it may need to be recharged.

If using AC adapter/charger, make sure it is plugged

into a working outlet.

• If using AC adapter/charger, make sure it is plugged

into a working outlet.

• Make sure CAMERA/OFF/VCR switch is set to correct

position for desired operation.

• There might not be a cassette in the camcorder.

• Try ejecting and reinserting the cassette.

• The cassette tape might be broken, try another cassette.

• You might have reached the end of the cassette, try

rewinding it.

• Moisture condensation might cause the tape to stick to

the headwheel and damage the headwheel or tape. Give

the camcorder 2 or 3 hours to reach a stable temperature

before reinserting a cassette.

•CAMERA/OFF/VCR switch must be set to VCR.

• Safety tab removed. See page 20.

•CAMERA/OFF/VCR switch must be set to CAMERA.

• Remove lens cap.

Set the CAMERA/OFF/VCR switch to OFF and then to

CAMERA or VCR to turn back on. If camcorder is left

in record-pause or play-pause for several minutes, it

turns off to prevent tape wear.

66

'rouble::_: ::_._.!':.': ::_ [_ecksan_:_stmen_i ii'_::::il:i

: ii % ii %iiiiiii iiii ! iiiii iii iiiiiiiiiii ! iii i i i iii ii iiiii iii i iiii iiii!i ii ii ! iiiiii i!i : : ! :: i iii iii i i ii!!iii iiiiiiiii i iiiiiiiiiii iiii!iii i i i iiiiii i iiii!ii!iiiii i iii i i iiiii! iii !i i !i !i!!i!iii ii! ii i !iii

•Subject was too far from camcorder.

Sound is too low or

distorted

Tape stops during

rewind or fast forward

or will not operate

during rewind or fast

forward

Camcorder remains in

play-pause mode

Poor auto-focus

operation

Viewfinder displays

are out of focus

Picture quality is poor

during playback

Picture recorded with

a special fade or

digital effect (such as

negative, 16X9,

mosaic, or mirror)

• Whenever the tape counter appears, the camcorder will

stop rewinding (or fast forwarding) when counter reads

O000M. Press REW/REVIEW or F.FWD again to

continue rewinding or fast forwarding, or press

DISPLAY to remove the tape counter.

• Make sure titler graphics do not appear in viewfinder

or on LCD monitor. Press T1TLER button to remove.

•Press REC/PAUSE to return to normal playback.

• Lens is smudged and image appears unfocused.

• Eyepiece focus control is misadjusted.

Eyepiece focus control is misadjusted. See page 25.

The small BRIGHT and FOCUS controls on the side of

the viewfinder control the brightness and focus of the

viewfinder. These controls have been set at the factory

and should require no adjustment. If the controls ever

require adjustment, carefully use a plastic screwdriver.

Make the adjustments with caution to prevent

damaging the miniature controls.

•Tape was recorded on a different camcorder or VCR.

If the picture contains black-and-white streaks, press

one of the tracking buttons to correct it. See page 53.

• Camcorder only has one speed (SP). If the tape was

recorded at a different speed, it cannot be played back

on this camcorder.

A fade or fade wipe mode has been selected. Turn off

the fade effect by pressing FADE. See pages 36-37.

A digital recording effect has been selected. Turn off

the digital effects by pressing DIGITAL EFFECTS.

See pages 32-35.

67

Date and/or time or

title were recorded

on tape

Date and/or time are

incorrect

Viewfinder turns off

and on

Camcorder does not

turn on and/or

function buttons will

not operate

• Displays are recorded on tape whenever they appear

in the viewfinder or on the LCD monitor. Remove

them from the viewfinder or LCD monitor when

recording. See pages 22-23.

• When (S) DATE or TITLE is selected, the display is

automatically recorded when you begin recording or

change the cassette. See pages 22-23.

• Title is recorded whenever it appears in the viewfinder

or LCD Monitor. Press the TITLER button to remove

the title from the viewfinder or LCD monitor. See

pages 44-46.

Date or time may need to be set. See page 22.

Clock lithium cell battery may need recharging.

See page 23.

• LCD monitor is open at least 45 °. Viewfinder

automatically turns off. Monitor closed, viewfinder

turns on.

• During recording, viewfinder turns on when monitor

rotated around to face the subject.

• During playback, viewfinder turns off when monitor

rotated around and placed against camcorder.

Remove the power source.

After one minute press the

reset switch gently using a

nonmetallic pointed item,

such as a toothpick, until

you feel a click. This

resets the camcorder to the

factory settings and erases

the date, time, and custom

settings. Wait for at least

one minute after resetting

the camcorder to attach a

power supply.

Reset Switch

68

No or low sound

during monitor

playback

Black bars on top

and bottom of

picture.

Bright, crystal-

shaped slgots

appear in

viewfinder or on

LCD monitor

Colored bright

spots appear on

LCD monitor

Back of LCD

monitor is hot

Rechargeable

battery runs down

sooner than

expected

Adjust the volume control on the side of the monitor.

To hear sound during camcorder playback, use the monitor.

There is no sound during viewfinder playback.

•16X9 feature selected. See page 33.

• Sunlight is directly entering the lens.

Black spots or bright spots of light (red, green, or blue) may

appear on the LCD monitor. These spots are not recorded

on the tape and are not due to a defect in the unit.

• The light that illuminates the LCD monitor gets hot. To

cool it down, close the LCD monitor and turn off the

camcorder.

Lead-acid batteries must be kept charged. Charge your

battery before and after every use and at least every

six months.

Battery run times are measured when the camcorder is

recording continuously. To check your battery; charge it

completely, aim the camcorder at a clock, and record the

clock. When the camcorder stops recording, play the last

part of the tape and check the time on the clock. A one-

hour battery should give you about 60 minutes of recording

time. In practical use, a fully charged battery might not

record for 60 minutes because the battery uses power when

you pause the recording and uses extra power when you

zoom.

69

Clean the Camcorder

To clean the camcorder's exterior, remove

any power source connected to the

camcorder and gently wipe it with a clean

soft cloth. • e ::

Clean the Camcorder's Lens __::_::__'_'__

To clean the camcorder's lens, blow it with ablower brush, and then gently wipe the

lens with cleaning tissue and commercially prepared cleaning solution designed for

use on camera lens. Improper cleaning might scratch the lens.

Lens

Caution! Do nol [6ueh the i_:.:_:_:_:__:_

: with you_ _nger_i _ oil. :_

Clean the Camcorder's LCD Monitor _m__:_:__

Monitor

To clean the camcorder's LCD

monitor, use a clean, soft cloth to

carefully wipe the monitor. Improper

cleaning may scratch the monitor.

Depress tab to open small cover.

Gently use a cotton swab and clean the

mirror inside the viewfinder.

Gently close cover until tab snaps in place.

70

Proper Care and Storage

Keep dust and grit from entering the

camcorder's cassette door. Dust and

grit are abrasive and cause excessive

wear to both the camcorder's

recording/playback heads and

cassettes.

Always place the lens cap back on the

camcorder when it is not in use.

Before handling your camcorder, make

sure your hands and face are free from

any chemical products such as suntan

lotion, as it might damage the finish.

The camcorder might be damaged by

improper storage or handling. Do not

subject the camcorder to swinging,

shaking, or dropping.

Do not store the camcorder in

temperatures below -22°F (-30°C) or

above 149°F (65°C).

• When the camcorder is not in use,

always remove the cassette and AC

adapter/charger or battery.

• Retain the original carton for future

storage or shipping purposes.

Do not attempt to disassemble your

camcorder. There are no user-

serviceable parts inside.

Avoid operating your camcorder

immediately after moving it from a

cold location to a warm location. Give

the camcorder 2 to 3 hours to reach a

stable temperature before inserting a

cassette. When the camcorder is

moved from cold to warm,

condensation might cause the tape to

stick to the headwheel and damage the

headwheel or tape.

Do not aim your camcorder at the sun

or other bright objects.

Do not operate the camcorder for

extended periods in temperatures

below 40°F (4°C) or above 95°F

(35°C).

Do not expose the camcorder or

adapter/charger to rain or moisture.

If any component becomes wet, turn

off the power and take the unit to an

Authorized RCA Camcorder

Service Center.

Do not use an adapter/charger or

batteries other than the ones specified

for the camcorder. Use of the wrong

accessories might cause damage to the

camcorder.

Do not leave your camcorder in direct

sunlight for extended periods of time.

The resulting heat buildup might

permanently damage the camcorder's

internal parts.

Do not operate the camcorder in

extremely humid environments.

Do not operate the camcorder near the

ocea_ as salt water or salt water spray

might damage the internal parts of the

camcorder.

Do not hold the

camcorder by the

viewfinder or

LCD monitor

when carrying, as

this could cause a

malfunction,

damage to the

camcorder or a

personal injury

when you drop it. 71

General

Power requirement: 9.6VDC

Power consumption:

LCD monitor on: 9 watts

Viewfinder on: 7.5 watts

Weight: 4.7 lbs. (2.15kg)

Dimensions -Including Viewfinder:

4-3/4" (W) x 8-3/8" (H) x 13-1/8" (D)

121 (W) x 213 (H) x 334 (D) mm

Video Recorder Section

Format: VHS

Record/playback system:

Two video record/playback heads

One flying erase head

Video signal: EIA standard

NTSC color

Viewfinder

0.6" black-and-white electronic viewfinder

LCD Monitor

3" diagonally measured

LCD/TFT active matrix system

Camera Section

Scanning: 525 lines/60 fields/30 frames

Image Sensor: 1/4" CCD Imager

Lens: F 1.4

16:1 (4-64 mm) power zoom lens

Diameter: 46 mm

Tripod Mount

One 1/4" x 10 threaded hole

AC Adapter/Charger

Power requirement: 120 V,

50/60 Hz.

Power consumption: 24 watts

Weight: .85 lbs. (390g)

Dimensions:

6"(W) x 1.7"(H) x 2.7"(D)

152 (W) x 43(H) x 69 (D) mm

This equipment has been tested and found to

comply with the limits for a Class B digital

device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user

is encouraged to try to correct the interference

by one or more of the following measures:

.

•Reorient or relocate the receiving antenna.

72

•Increase the separation between the

equipment and receiver.

•Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/

TV technician for help.

Alterations or modifications carried out

without appropriate authorization may

invalidate the user's FCC right to operate the

equipment.

YoucanreachThomsonatthe

followingnumber:

800-283-6503

(Toll free inside U.S.A.)

Our toll-free Camcorder number

operates from 8 a.m. to 5 p.m., CST

Monday - Friday

for U.S. customers only

Thomson provides a toll-free telephone

number to help you with any problems you

may encounter with your camcorder. Many

can be diagnosed over the phone, and if

necessary, repair or replacement will be

arranged. Please have your camcorder model/

serial number and date of purchase ready

when you call. If your unit is out of warranty,

we will quote the cost of a repair or

replacement unit to you.

Returning equipment to Thomson for repair or exchange

If we are unable to resolve your problem over

the phone, we will gladly service your unit or

exchange it for a new or, at our option,

refurbished camcorder. Refer to the limited

warranty on the next page to learn about your

specific fights and responsibilities.

Always consult Thomson and get a Return

Authorization number before returning

anything! Obtain a Return Authorization

(RA) number from the telephone

representative before returning your

equipment to avoid delays, accounting errors,

or even loss of your unit.

Important information to customers who ship defective equipment to

Thomson Consumer Electronics

The Thomson representative who authorized

the return of your equipment will give you an

RA number over the phone. They will also

provide you with instructions on where and

how to return your Camcorder. Write the

number in large, clear characters on the

outside of the box. To avoid confusion and

misunderstandings, shipments without an RA

number clearly visible on the outside of the

box will be returned to you at your expense.

Include a brief note describing the problem

and any conversations about the problem you

have had with Thomson personnel.

Include your name, address and model/serial

number of your Camcorder. These numbers

are located on the bottom of your unit.

If your Camcorder is within the warranty

period, please provide a copy of the bill of sale

to verify purchase date. Use the original box

and packing material to protect the equipment

from damage in shipment.

For your protection, insure all shipments for

full replacement value and use a reliable

shipper. Thomson assumes no responsibility

for warranty shipments from the customer to

the factory if not shipped in the manner

prescribed by Thomson.

73

What your warranty covers:

• Any defect in materials or workmanship.

For how long after your purchase:

• 90 days for labor charges.

• One year for parts.

The warranty period for rental units begins

with the first rental or 45 days from date of

shipment to the rental firm, whichever

comes first.

What we will do:

During the initial 90 days

Exchange your camcorder with a new or

refurbished unit, or repair your camcorder.

The option will be ours. There will be no

cost to you.

After the 90 days and within one year

Exchange your camcorder with a new or

refurbished unit, or repair your camcorder.

The option will be ours. Parts will be

provided at no charge, but you will be

responsible for the cost of labor required

for the repair.

How you get service:

•Call 1-800-283-6503 and have your unit's

date of purchase and model/serial number

ready. The model/serial number

information is on the bottom of your

camcorder.

• A representative will troubleshoot your

problem over the phone. If the

representative determines that you should

receive a replacement unit, you will be

provided with a Return Authorization (RA)

number and the location of a nearby

exchange point if one exists. No returns

will be accepted without the RA number.

To receive a replacement Camcorder

before you return yours:

If you are located near an exchange point:

1. We will send a replacement unit to the

exchange point next business day delivery

in t_aecontinental U.S.A.

74

2. The exchange location will notify you of its

arrival.

.Take your unit, excluding all accessories,

and your evidence of purchase date, such as

a bill of sale, to the exchange location and

you will be provided the new or refurbished

unit.

4. If the repairs were covered by your

warranty, you will not be billed.

If you are not located near an exchange

P_QmU

I. Provide your Discover, MasterCard, or Visa

account number and expiration date to our

phone representative. This is for security

purposes. If we receive your unit,

excluding all accessories, within 14 days

from the date you were provided the RA

number, only items not covered by

warranty will be charged to your account.

IF YOUR UNIT IS NOT RECEIVED

WITHIN 14 DAYS, THE SUGGESTED

RETAIL VALUE OF THE CAMCOR-

DER WILL BE CHARGED TO YOUR

CREDIT CARD. This amount will be

credited if the unit is subsequently

received.

2. We will send you a replacement unit next

business day delivery in the continental

U.S.A.

3. You will receive an invoice packed with the

replacement product, but will not be

charged for the unit portion of the invoice

amount if we receive your unit within 14

days from the date you were provided the

RA number. Any labor and parts charges

not covered by our warranty will be

included and charged against your account.

4. Ship the unit back to us, excluding all

accessories, using the replacement unit's

carton. Shipping instructions will be

included in the carton along with yourRA

number which will allow you to easily ship

the unit back to us. Make sure you insure

your shipment in case of damage or loss.

Include with the shipment:

•Evidence of purchase date, such as a

bill of sale, to verify your unit's

warranty eligibility.

• A brief note describing your

camcorder's problem.

• Your name, address and phone number.

Return transportation, storage, handling, and

insurance costs are your sole responsibility.

We accept no liability in case of damage or loss.

To receive a replacement unit after we have

received your unit:

1. Write the RA number on the outside of

the carton used to return the unit.

Make sure you insure your shipment in

case of damage or loss.

2. Carefully pack the unit, excluding all

accessories, using the original box and

packing material if possible.

3. Include with the shipment:

• Evidence of purchase date, such as a

bill of sale, to verify your unit's

warranty eligibility.

• A brief note describing your camcorder

problem.

• Your name, address and phone number.

Return transportation, storage, handling, and

insurance costs are your responsibility. We

accept no liability in case of damage or loss.

4. The representative will advise the address

to mail a cashier's check or money order

for payment if there are any out of

warranty labor or parts charges and you

elect not to use your credit card.

5. Upon receipt of your product, a new or

refurbished unit will be shipped to you

next business day delivery in the

continental U.S.A.

To have your Camcorder repaired by an

Authorized RCA Camcorder Service

Center:

•Check with yourdealer or call 1-800-336-

1900 for the Authorized RCA Camcorder

Service Center nearest you.

• Take your unit to the Authorized RCA

Camcorder Service Center of your choice.

• Show the Authorized RCA Camcorder

Service Center representative evidence of

purchase date, such as a bill of sale.

• Pick up your camcorder when repairs are

complete.

What your warranty does not cover:

•Adjustment of customer controls.

•Damage from misuse or neglect.

• A unit that has been modified or

incorporated into other products or is used

for institutional or other commercial

purposes.

•Batteries for remote control and clock.

• Cleaning of video/audio heads.

• Camcorders purchased or serviced outside

the U.S.A.

• Return transportation, storage and handling

costs of your unit, including insurance for

loss or damage.

• Acts of God, such as but not limited to

lightning damage.

Product Registration:

Please complete and mail the Product

Registration Card packed with your

camcorder. It will make it easier to contact

you should it ever be necessary. The return

of the card is not required for warranty

coverage.

How State Law relates to warranty:

• This warranty gives you specific legal

rights and you also may:have other rights

that vary from state to state.

If you purchased your camcorder outside

the United States: ' ....

•This warranty does not apply. 'Contact your

dealer for warranty information.

75

+ and - buttons 9, 44

16X9 feature 33

16X9 indicator 26, 33

A

A. DUB indicator 27, 40, 42

AN DUB indicator 27, 42

Accessories

included 3

optional 59

order form 63

Adapter/charger

accessory 3

charging battery 15

using 4, 14

AE focus indicators 26, 29

Assistance 1, 3

Assistance, customer 73

Audio and video dub 42

AUDIO and VIDEO jacks 9, 40, 42, 54, 56

Audio dub 40

AV DUB button 9, 40, 42

AV OUT/IN switch 9, 40, 42, 49

B

Battery

accessory 3

attaching and removing 16

care 18

charging 15

safety precautions 18

storage 18

using 15

BATTERY EJECT button I0, 16

Battery level indicator 17, 26, 27

BRIGHT control 10

Bright control 10, 24, 50, 51

Built-in speaker 10, 50

C

Cable TV installer note 57

Camcorder

cleaning 70

turn on 5

Camcorder's operating controls 9

Camera edit feature 39

CAMERA/OFF/VCR switch

5, 9, 12, 16, 17, 19, 22, 23, 28, 38,

39, 40, 42, 44, 45, 46, 49, 50, 51,

52, 55, 57

Car cord adapter 19

Care and maintenance

cleaning the camcorder viewfinder 70

cleaning the LCD monitor 70

cleaning the lens 70

cleaning the viewfinder 70

proper care and storage 71

things to avoid 71

Care and storage

camcorder 71

cassette 21

Cassette door 10

Cassette holder 21

Cassettes

insert and remove 21

video 20

Cautions i

Charging clock battery 23

Chart of characters in titler 44

Checks, trouble 66

Cleaning the camcorder's lens 70

Cleaning the LCD monitor 70

Cleaning the viewfinder 70

Clock battery

charging 23

Color enhancement light 7, 9, 12

Contents 1

Copy tapes 55

on camcorder 49

Customer assistance and service 73

76

D

Date and time

display 22, 27

recording 23

setting 22

DATE/TIME button 9, 22, 23, 27, 46

DCcable 3, 14, 15, 16, 19

DCIN9.6Vjack 10, 14, 19

Design specifications 72

Digital effects 32

DIGITAL EFFECTS button

10, 215, 32, 33, 34, 35, 36

Digital effects indicators 26, 32

Digital zooming 34

DISPLAY button

9, 17, 26_27, 28, 30_ 31, 32, 33, 34, 35, 38, 55

Displays in LCD monitor 26

Displays in viewfinder 26

E

EDIT-ADV. button 9, 44, 45

Editing features

audio and video dub 42

audio and video dubbing 43

audio dub 40

camera edit 39

flying erase head 39

title recording 46

titler 44

Electronic indexing 30

Erase protection 20

Eyepiece 51

Eyepiece focus control 10, 25, 50, 51

F

F.FWD (fast forward) button

9, 22, 38, 39, 40, 42, 44, 52

FADE button 10, 36, 37

Fade feature 36

Fade indicators 26, 36

Fast-forwarding indicator 27

First time operation 3

Flying erase head 39

FOCUS control 10

H

Handstrap 4, 10

Head cleaning 20

I

I. ZOOM indicator 31

Important safety information i

INDEX indicator 27, 30

Indicators

16X9 26, 33

A.DUB 27, 40, 42

AN DUB 27, 42

AE focus 26, 29

batterylevel 17, 26

digital effects 26, 32

fade 26, 36

fast-forwarding 27

I.ZOOM 27, 31

INDEX 27, 30

MIRROR 26, 35

MOSAIC 26, 35

NEGPOS 26, 34

NO TAPE 27

pause 27

REC 7, 27

record-pause 7

rewind 27

status 27

steady pix 26, 29

TAPE 27

tape counter 27, 38

TAPE END 27

tape remaining 27, 30

ZM:2 26, 34

ZOOM 26, 27, 31

zoom level 27, 31

77

Informationtouser72

Insertandremovecassettes21

INST.ZOOMbutton10,31

Instantzooming31

L

LCDmonitor 6, 10

displays 26

using to record 24

Lens 9

Lens cap 4

Lens cover 8 "

Lens hood 9

remove 62

Letterbox recording 33

Light

color enhancement 12

LIGHTAUTO/OFF/ON switch 7, 10, 12

Light bulb

replace 13

M

Macro focus 29

Memory-stop feature 38

Microphone 9, 28, 40, 42

MIRROR indicator 26, 35

Mirror mode 35

MOSAIC indicator 26, 35

Mosaic mode 35

N

NEGPOS indicator 26, 34

Negative mode 34

NO TAPE indicator 27

O

OPEN button 6, 10, 24, 50, 51

Operating controls 9

Optional accessories 59

Order form, accessories 63

P

PLAY button

8, 9, 39, 40, 42, 50, 51, 55, 57

Playback

First 8

Playback features

stop-action pause 52

tape counter 38

tape positioning 52

tracking 53

visual searching 52

Playback on a TV without audio/video

inputs 56

Playback on TV (or VCR) with audio/video

inputs 54

Playback speed 20

Playback using LCD monitor 50

Playback using viewfinder 50

Power your camcorder

using adapter/charger 14

using battery 15

using optional car cord adapter 19.

Problem solving 66

Product registration i

Q

Quick review feature 28

78

R

REC indicator 7, 27

REC/PAUSE button

7, 10, 33, 34, 35, 37, 40, 42, 46, 49,

52, 55, 57

Record-pause indicator 7

Recording

16X9 33

letterbox 33

Recording from VCR (or TV) on camcorder

48

Recording speed 20

Recording tips 47

Registration i

RESET button 9, 38

Reset switch 9

REW(rewind)/REVIEW button

8, 9, 22, 28, 38, 39, 40, 42, 44, 52

Rewinding indicator 27

RF DC OUT jack 9, 56

RF output adapter, optional 56

S

Safety information i

Safety precautions

battery 18

Safety tab 20

Searching during playback 52

Shoulder extension pad 6, 10

Shoulder strap 3

attaching 11

Shoulder strap attachment rings 10, 11

Solving problems 66

SP speed 20, 51

Speaker 50

speaker, built-in 10

Specifications 72

Speed

recording and playback 20

Status indicators 27

STEADY PIX button 10, 26, 29

Steady pix feature 29

Steady pix indicator 26

STOP button 8, 38

Stop-action pause 52

STOP/EJECT button

5, 9, 17, 21, 22, 38, 40, 42, 44, 50, 51,

52, 55, 57

T

Table of contents 1

Tape

inserting 5

Tape copying 55

on camcorder 48, 49

Tape counter 27, 38

TAPE END indicator 27

TAPE indicator 27

Tape positioning 52

Tape remaining display 30

Tape warnings 27

Tape-remaining indicator 27

Things to avoid 71

Time and date

setting 22

Time and date display 22, 27

recording 23

Tips

recording 47

travel 58

Titler 44, 45, 46

chart of characters 45

correct an error 45

create a title 45

record on a tape in camcorder 46

record while copying a tape 46

recording 23

TITLER button 9, 44, 45, 46

Tracking 53

TRACKING buttons 10

Tracking buttons 53

Travel tips 58

79

Tripod

optional 60

using 60

Trouble checks 66

U

Unpack camcorder and accessories 3

V

VIDEO at_d AUDIO jacks 9, 40, 42, 54, 56

Videocassettes 20

Viewfinder 6, 10, 24, 25

adjust for viewing 25

displays 26

eyepiece focus control 25

playback 50, 51

using to record 24

Visual searching 52

Volume control 10, 50, 51

W

Warnings i

Warnings, tape 27

Z

ZM:2 indicator 26, 34

Zoom buttons 10, 31

ZOOM indicator 26, 27, 31

Zoom level indicator 27, 31

Zooming 31

digital 34

8O

f_ THOMSON CONSUMER ELECTRONICS

10330 N Meridian Street

Indianapolis, IN 46290

©1998 Thomson Consumer Electronics, Inc.

Trademark(s) ® Registered

Marca(s) Registrada(s)

Printed in Japan

TO(_OM 15331640

QR19421
