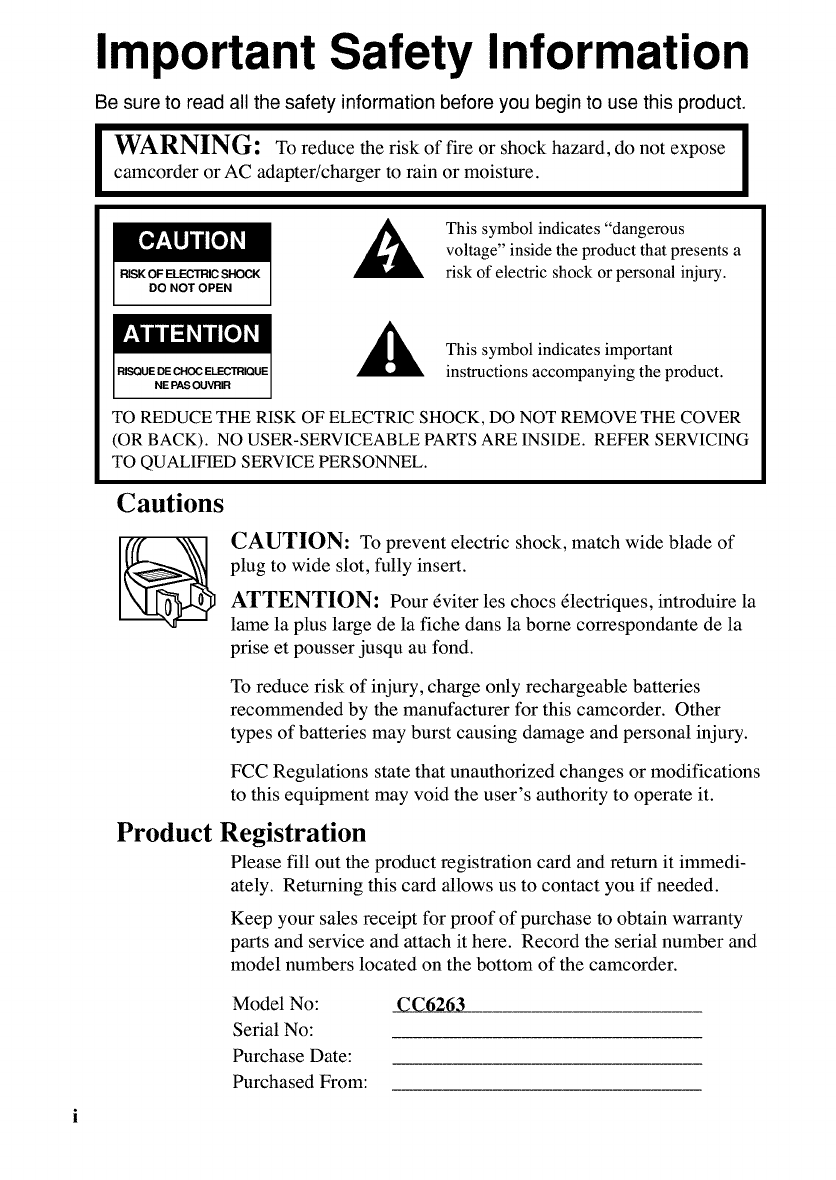

Important Safety Information

Be sure to read all the safety information before you begin to use this product.

I WARNING: To reduce the risk of fire or shock hazard, do not expose I

I

camcorder or AC adapter/charger to rain or moisture. I

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates "dangerous

voltage" inside the product that presents a

risk of electric shock or personal injury.

RISQUE DE CHOC ELECTRIQUE

lie PAS OUVRIR

This symbol indicates important

instructions accompanying the product.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER

(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

Cautions

CAUTION: To prevent electric shock, match wide blade of

plug to wide slot, fully insert.

ATTENTION: Pour _viter les chocs _lectriques, introduire la

lame la plus large de la fiche dans la borne correspondante de la

prise et pousser jusqu au fond.

To reduce risk of injury, charge only rechaxgeable batteries

recommended by the manufacturer for this camcorder. Other

types of batteries may burst causing damage and personal injury.

FCC Regulations state that unauthorized changes or modifications

to this equipment may void the user's authority to operate it.

Product Registration

Please fill out the product registration card and return it immedi-

ately. Returning this card allows us to contact you if needed.

Keep your sales receipt for proof of purchase to obtain warranty

parts and service and attach it here. Record the serial number and

model numbers located on the bottom of the camcorder.

Model No:

Serial No:

Purchase Date:

Purchased From:

CC6263

We want to make sure you enjoy your new camcorder. If you have any

questions, call:

Camcorder Exchange Warranty ........... 800-283-6503 (pages 76-77 )

Customer Service ................................... 800-336-1900 (page 75 )

Accessories ............................................. 800-338-0376 (pages 62-67)

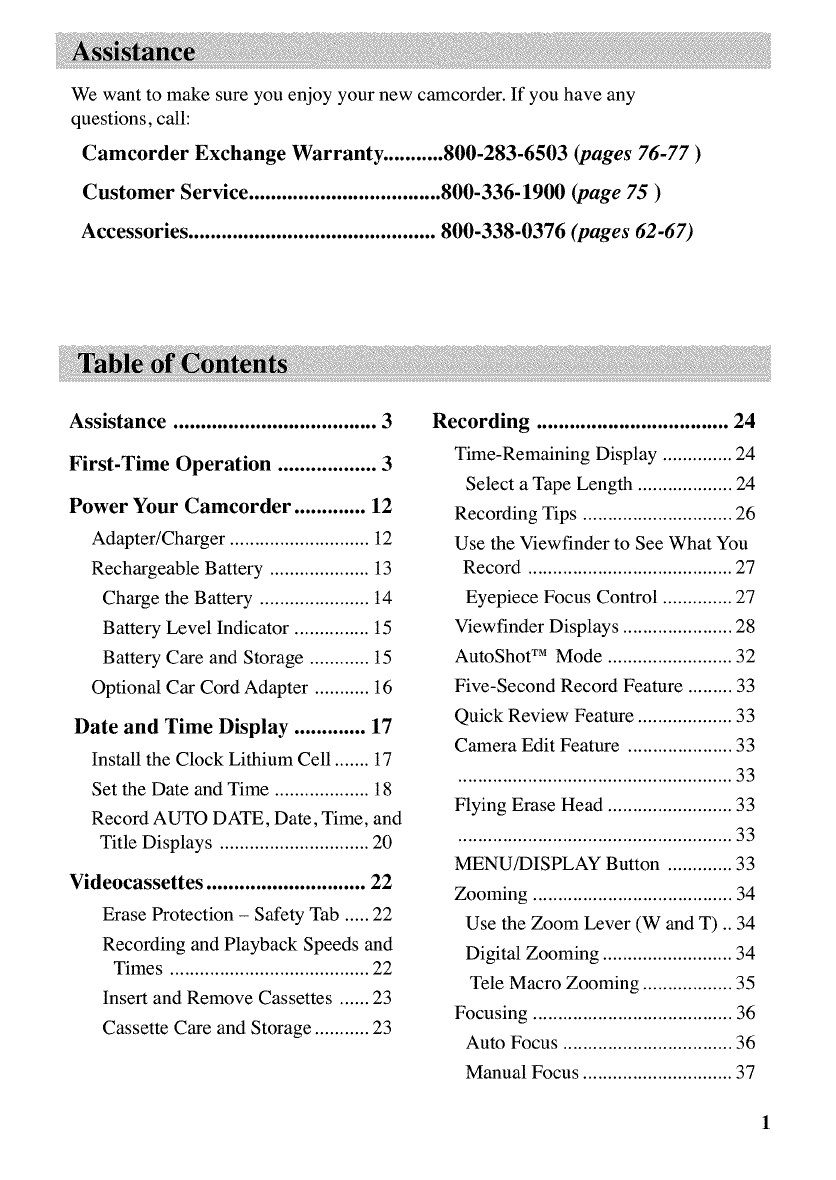

Assistance ..................................... 3

First-Time Operation .................. 3

Power Your Camcorder ............. 12

Adapter/Charger ............................ 12

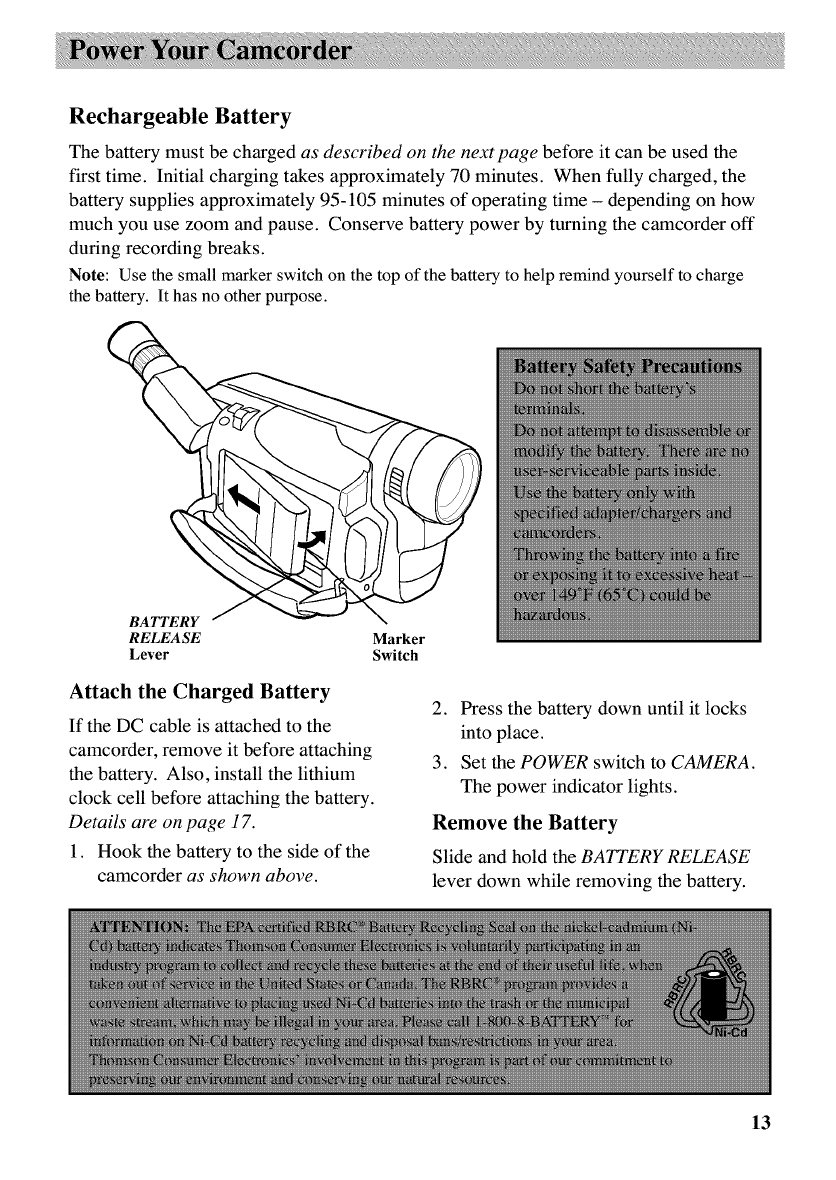

Rechaxgeable Battery .................... 13

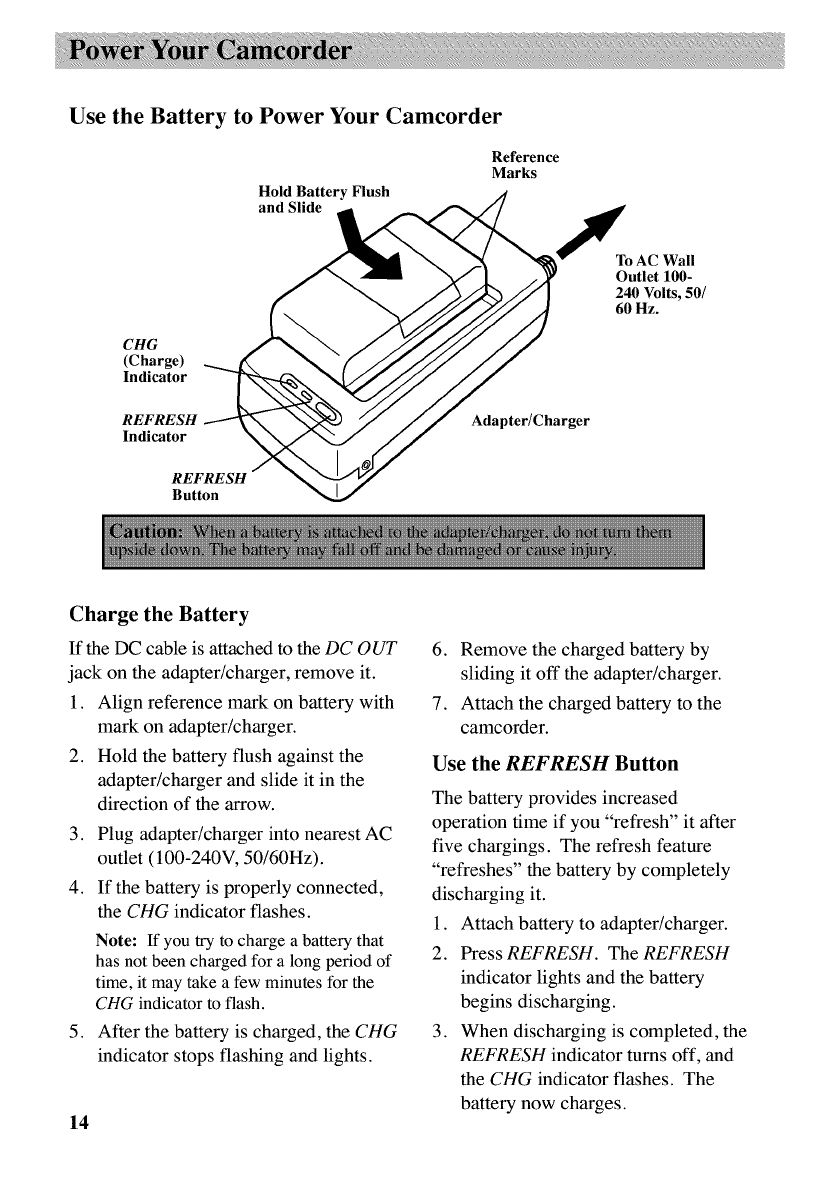

Charge the Battery ...................... 14

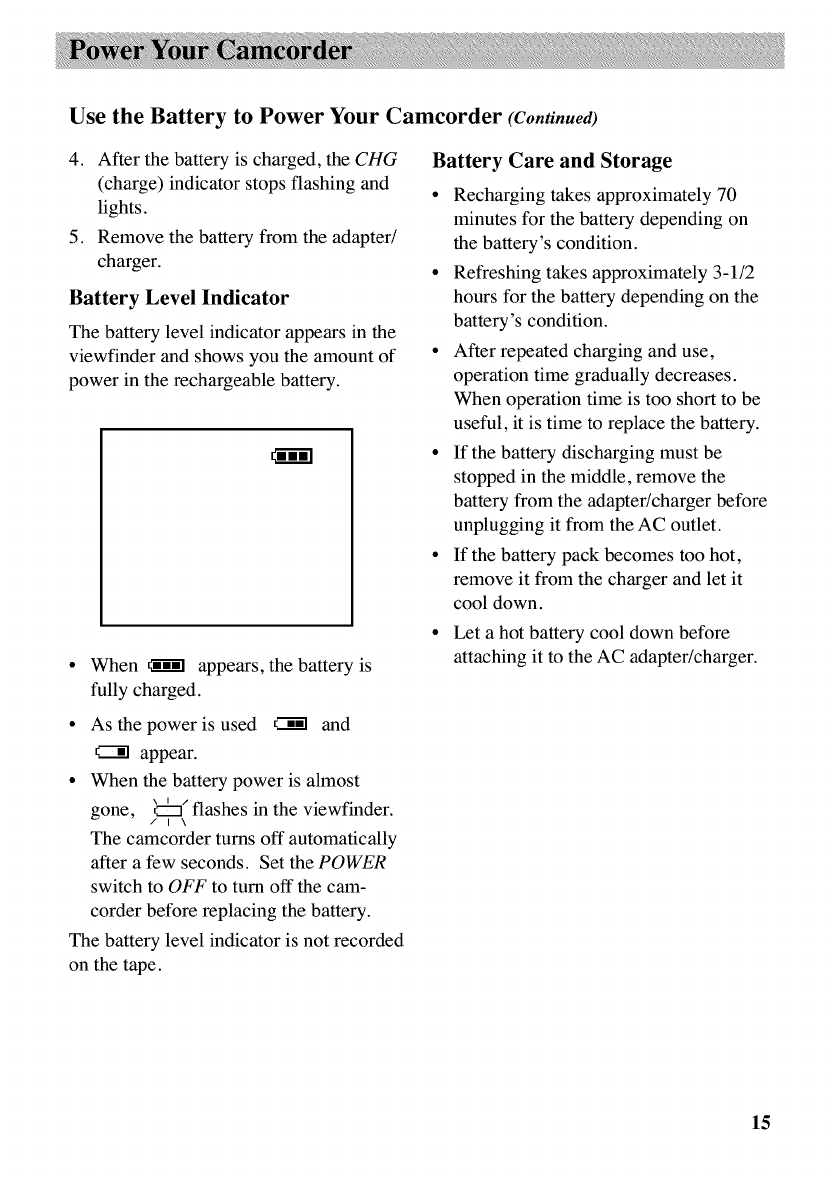

Battery Level Indicator ............... 15

Battery Care and Storage ............ 15

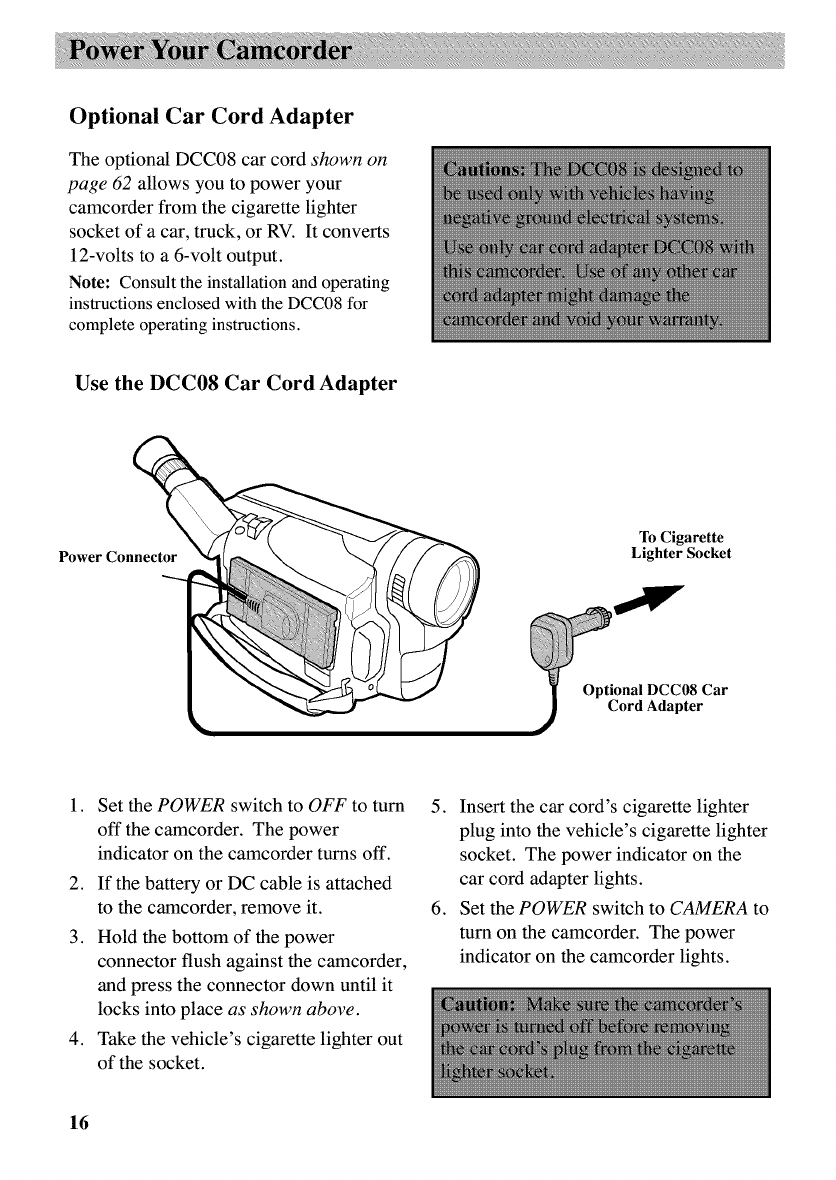

Optional Car Cord Adapter ........... 16

Date and Time Display ............. 17

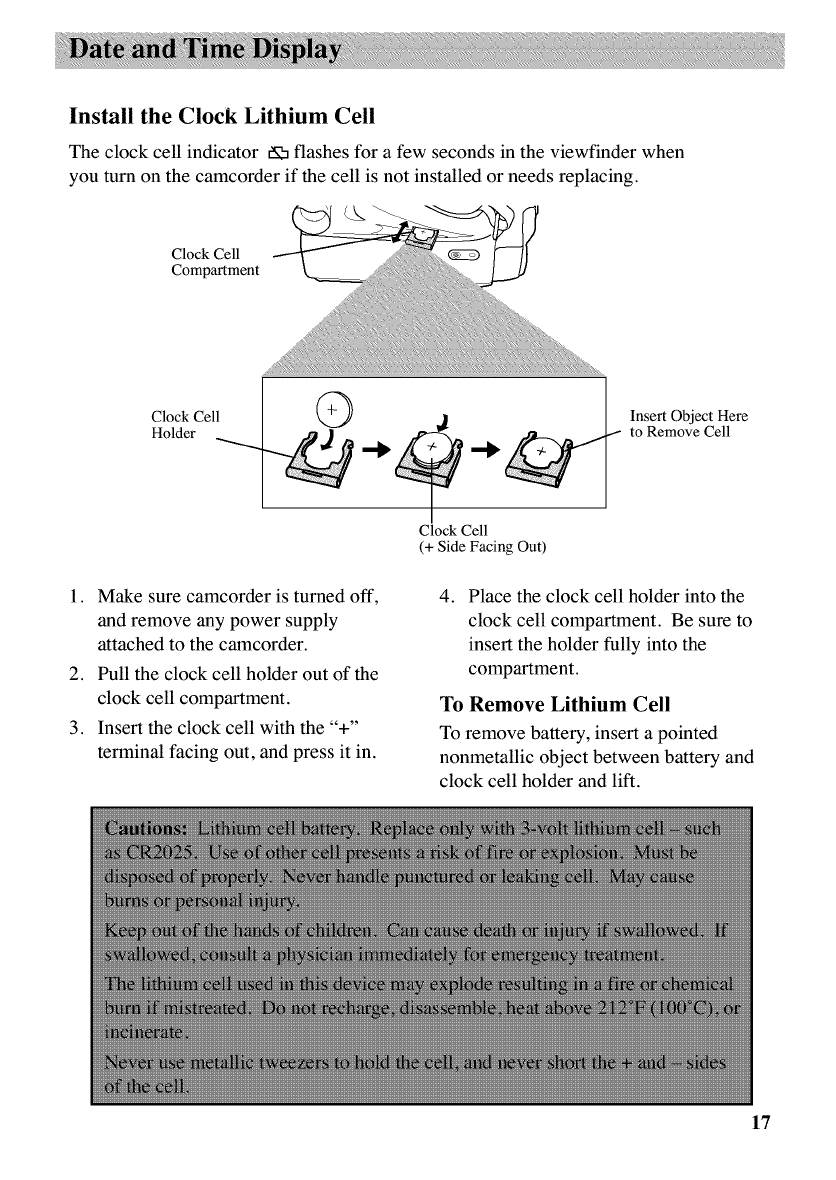

Install the Clock Lithium Cell ....... 17

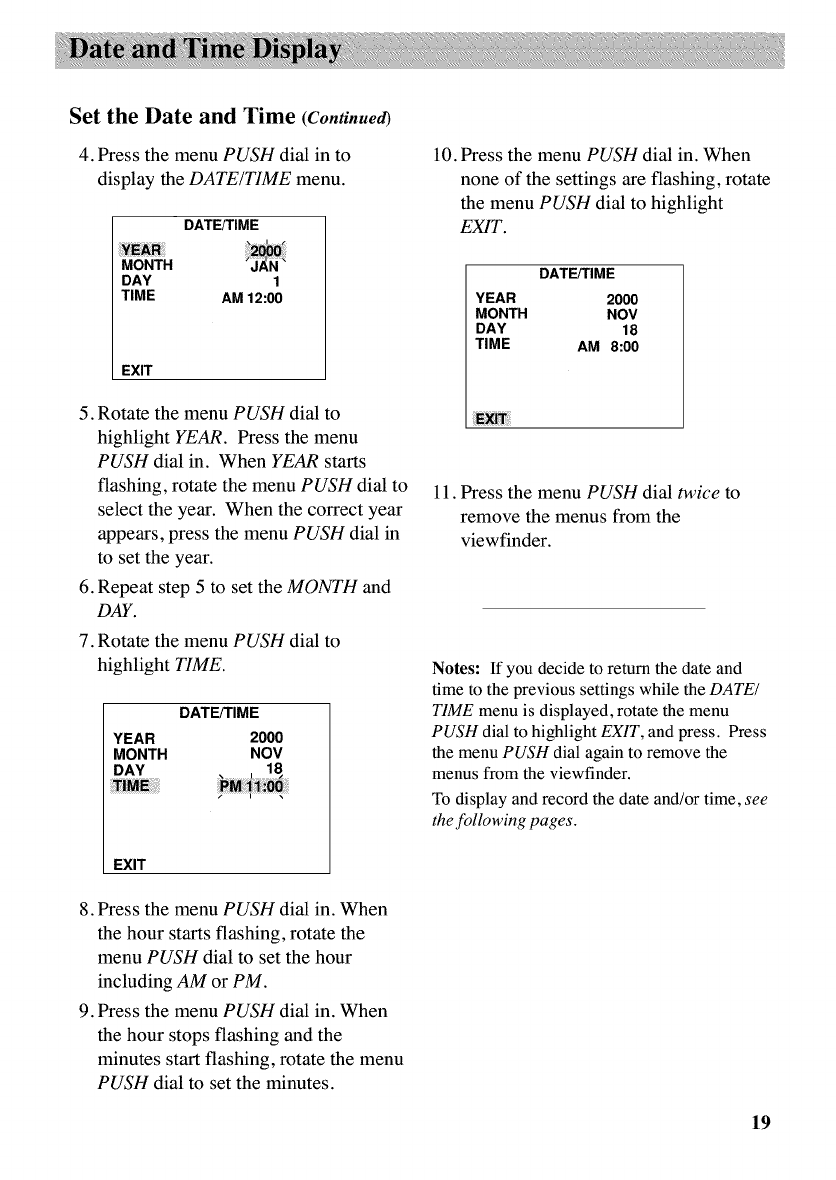

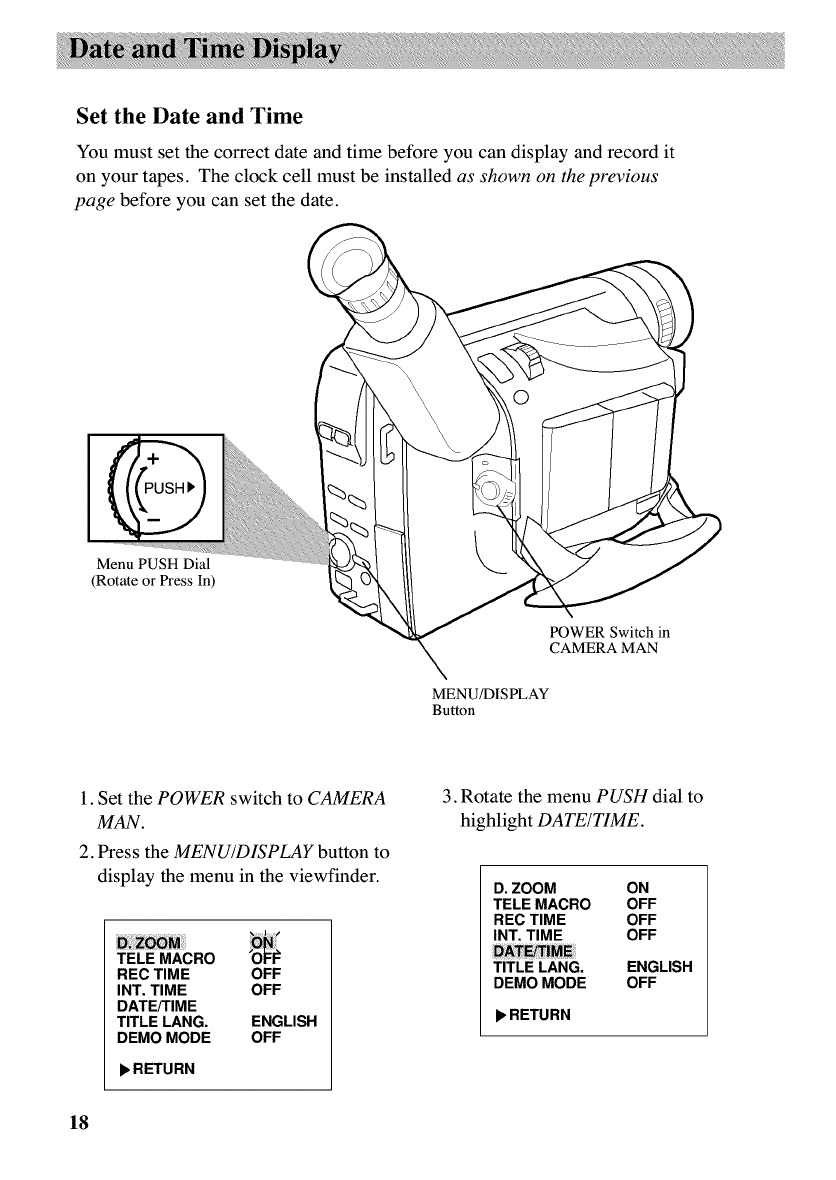

Set the Date and Time ................... 18

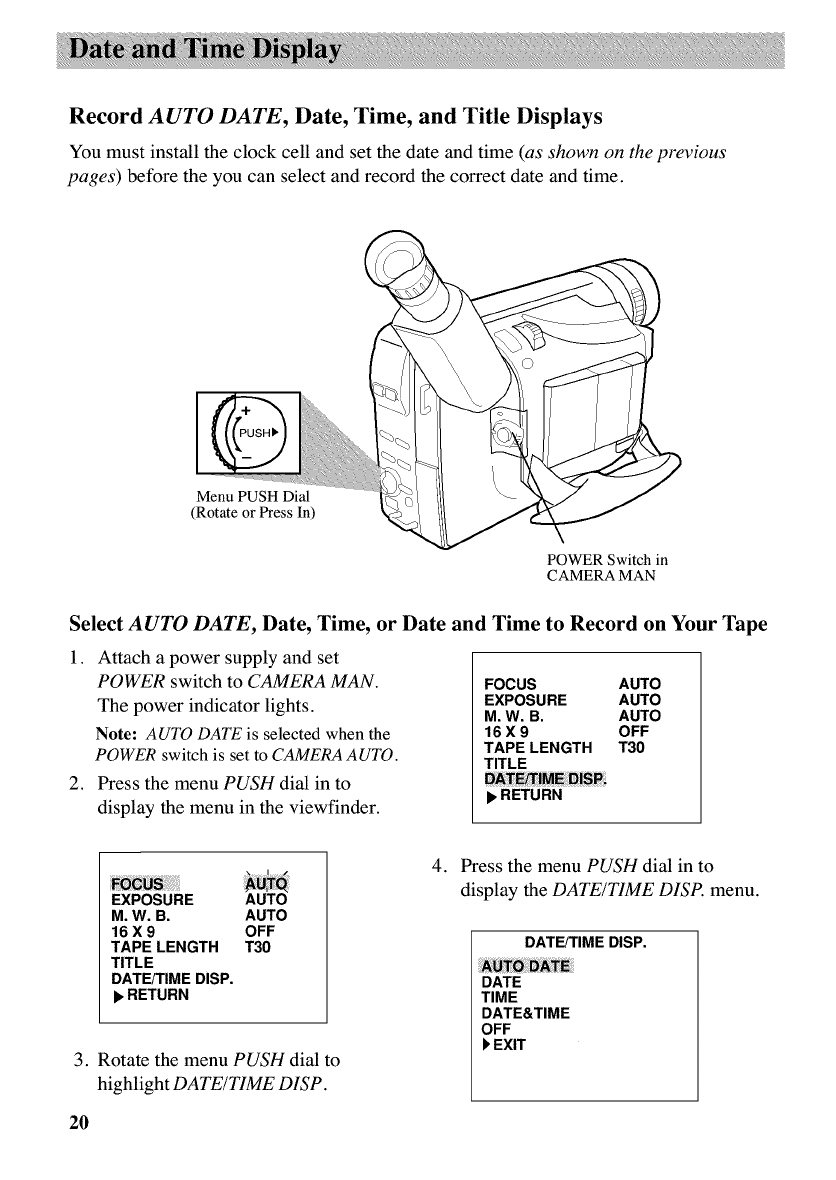

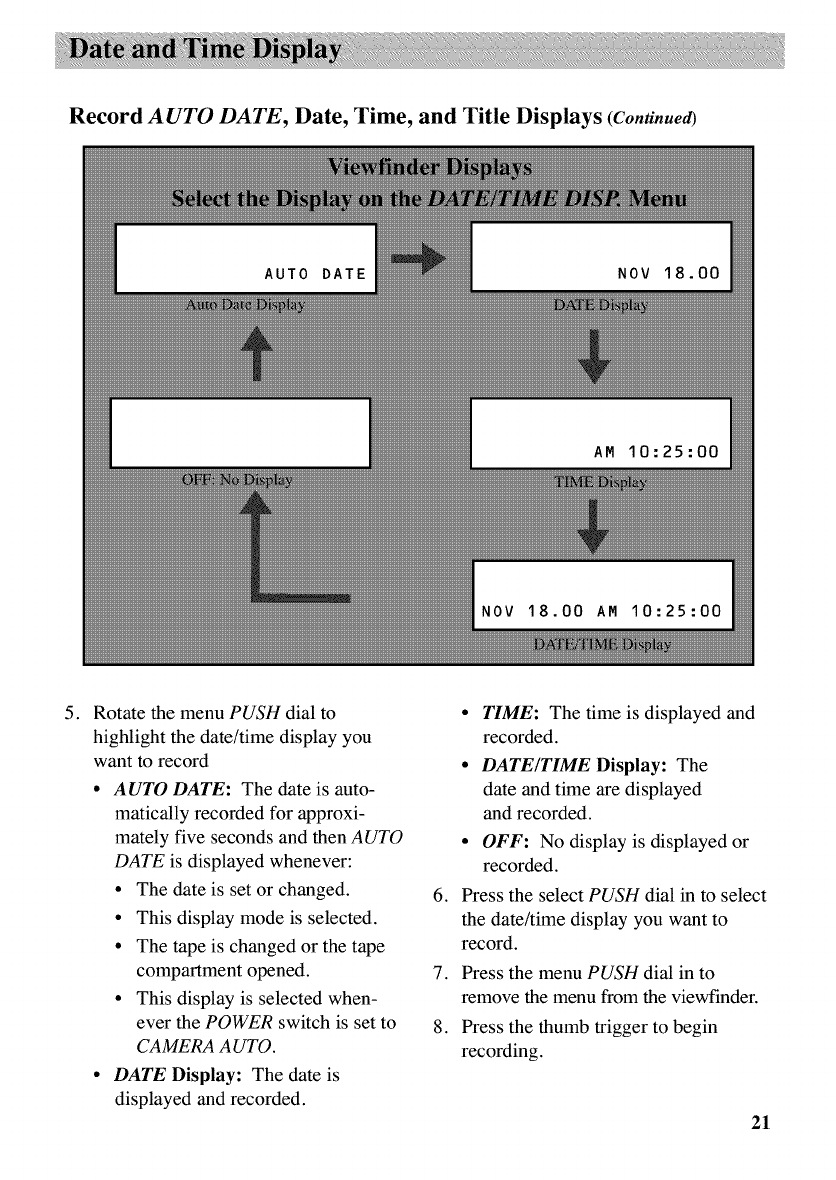

Record AUTO DATE, Date, Time, and

Title Displays .............................. 20

Videocassettes ............................. 22

Erase Protection - Safety Tab ..... 22

Recording and Playback Speeds and

Times ........................................ 22

Insert and Remove Cassettes ...... 23

Cassette Care and Storage ........... 23

Recording ................................... 24

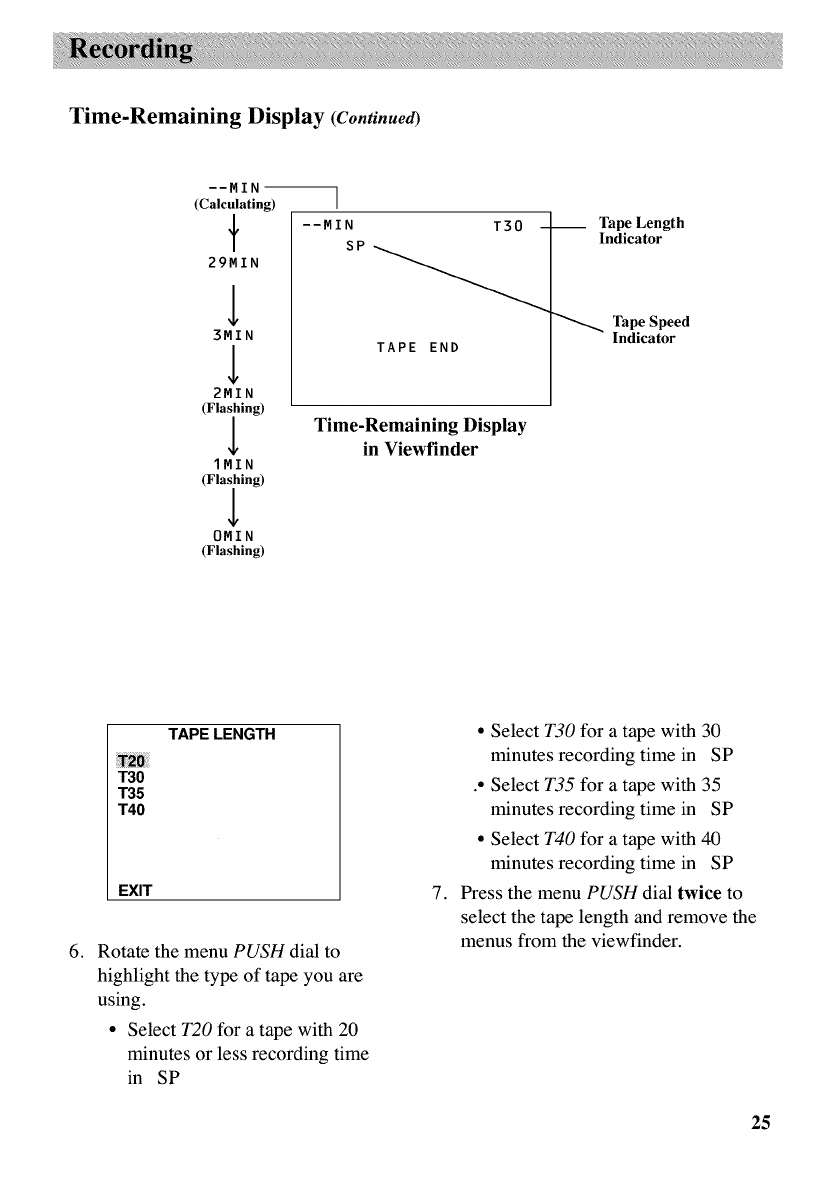

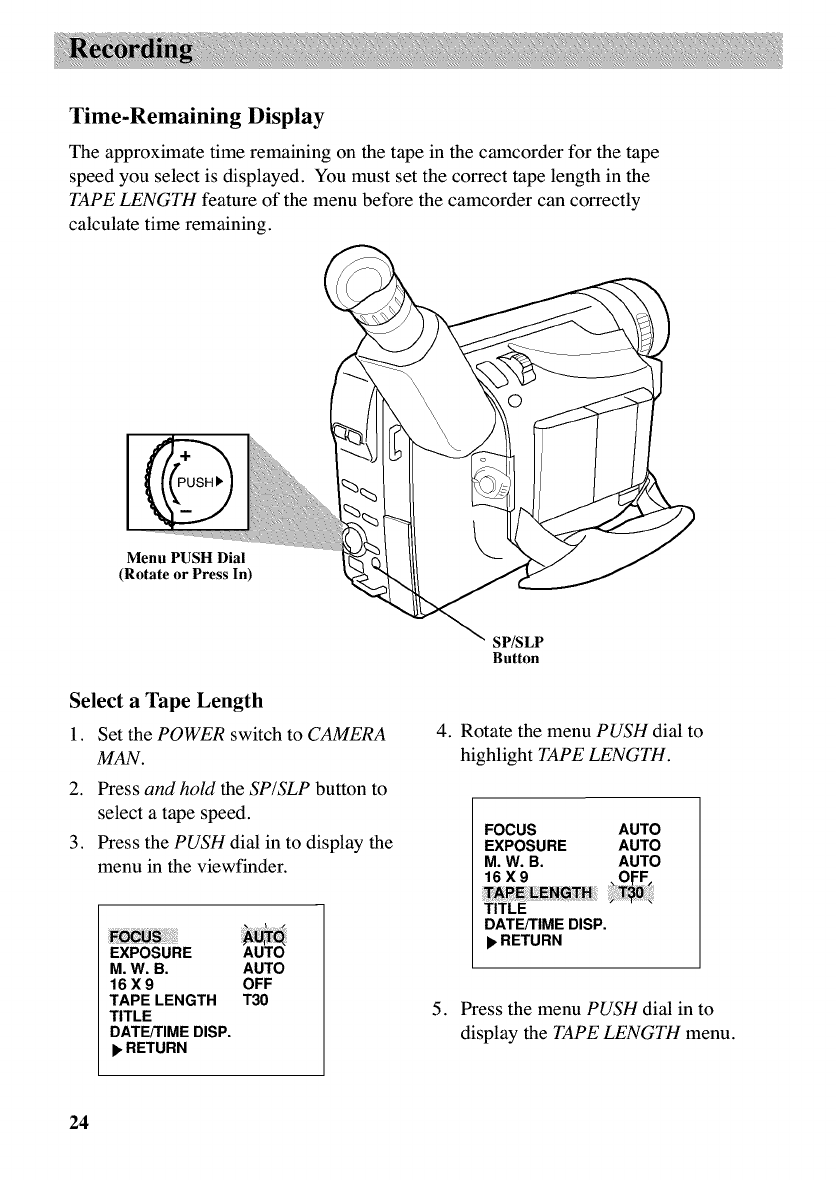

Time-Remaining Display .............. 24

Select a Tape Length ................... 24

Recording Tips .............................. 26

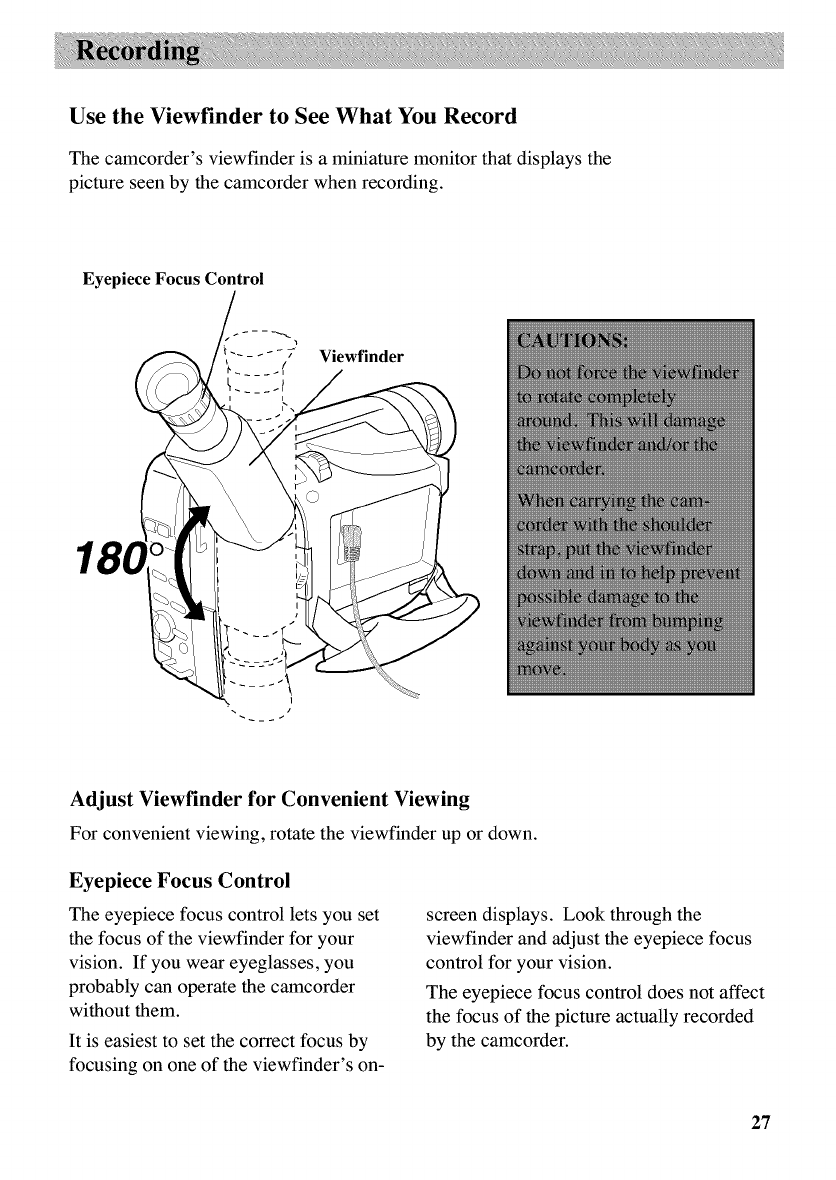

Use the Viewfinder to See What You

Record ......................................... 27

Eyepiece Focus Control .............. 27

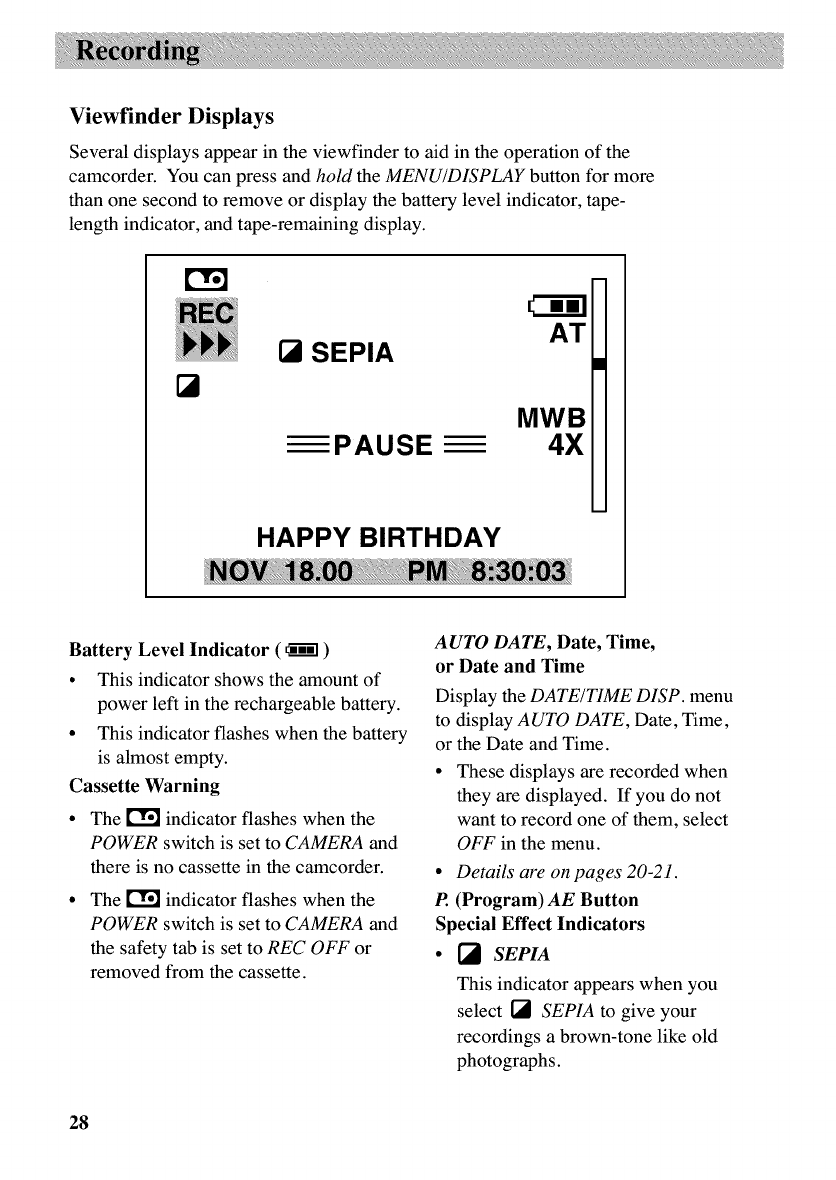

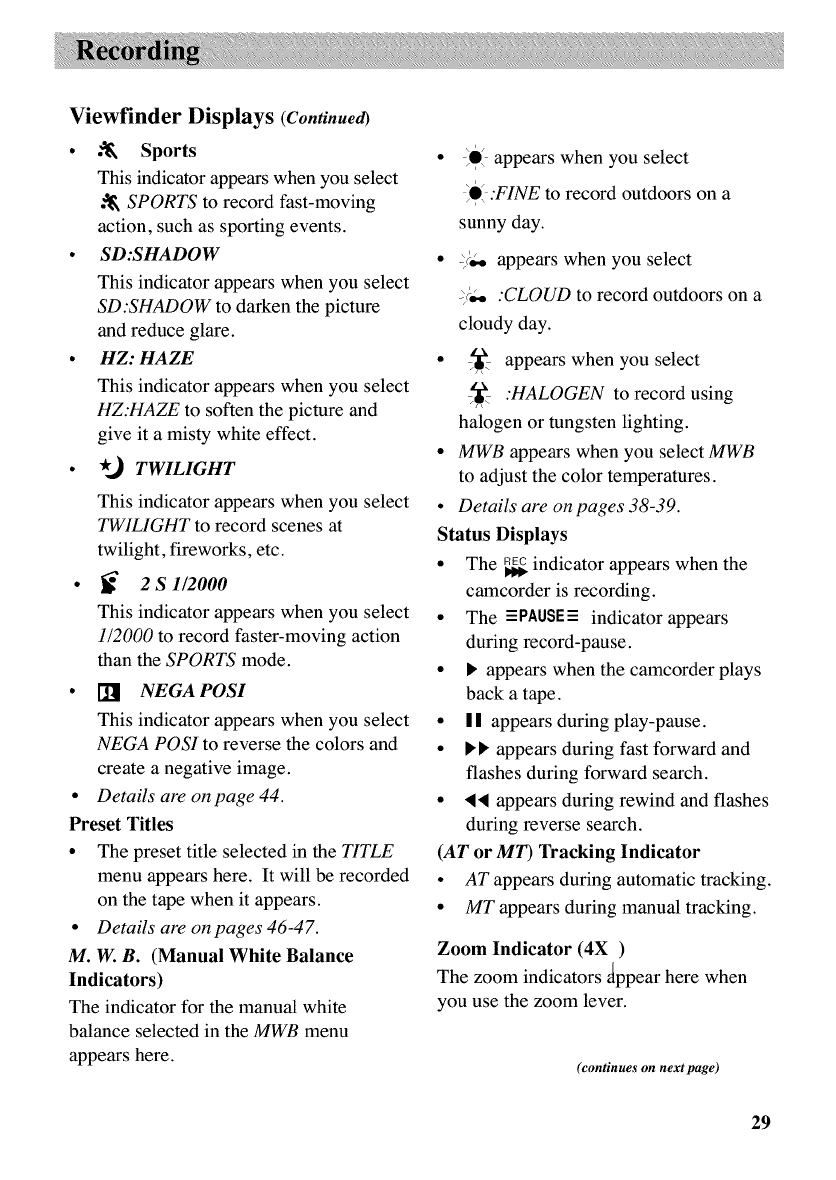

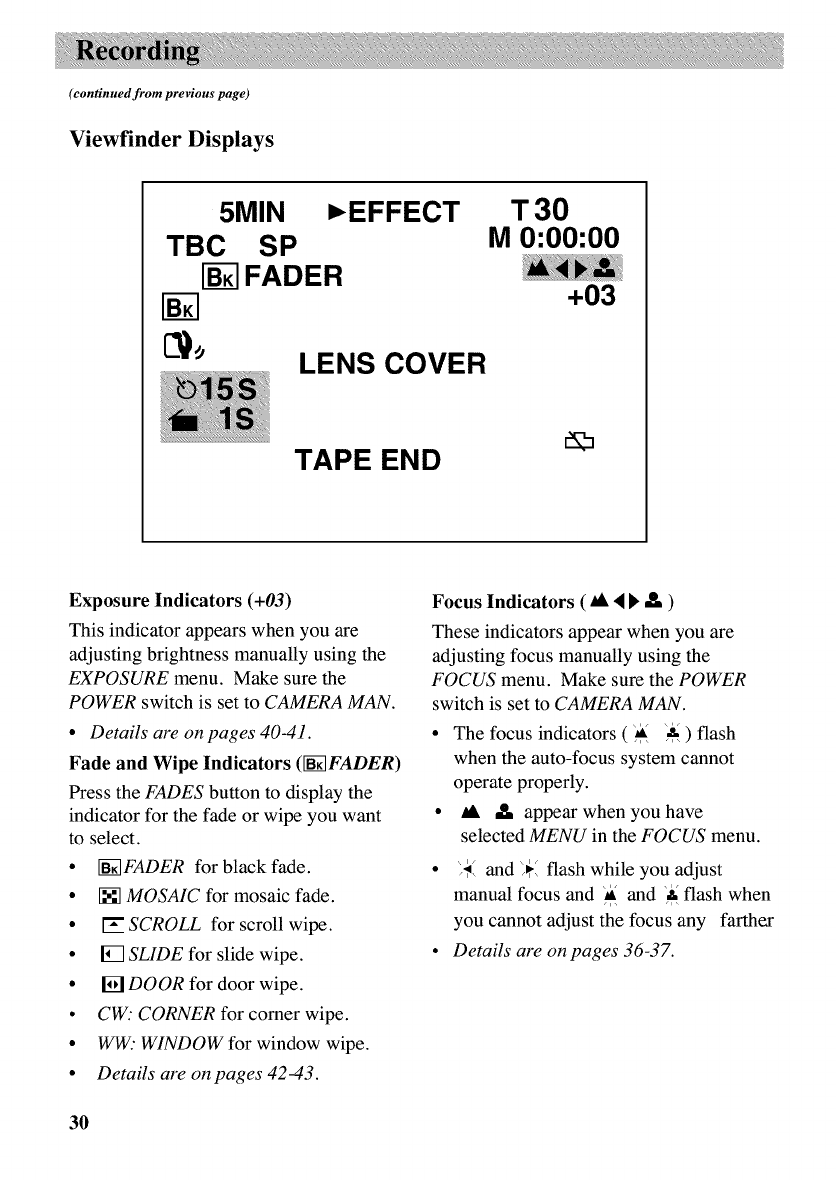

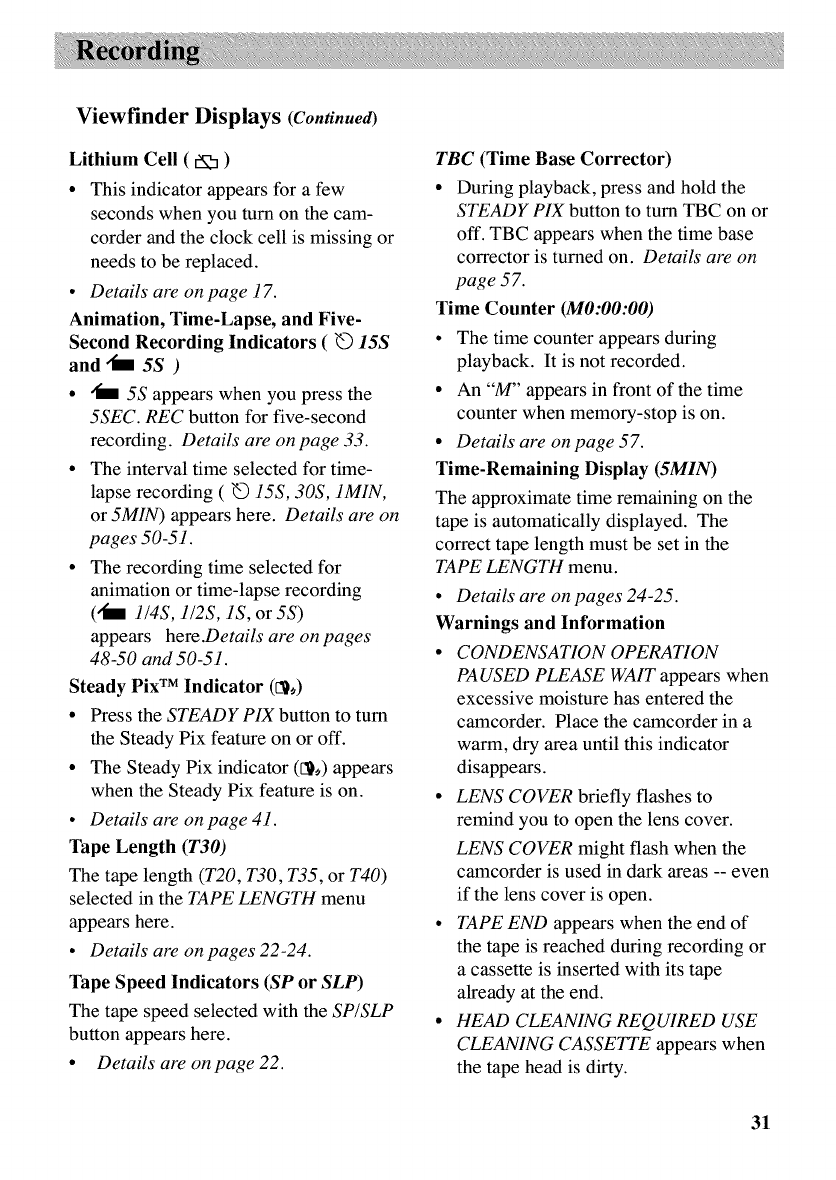

Viewfinder Displays ...................... 28

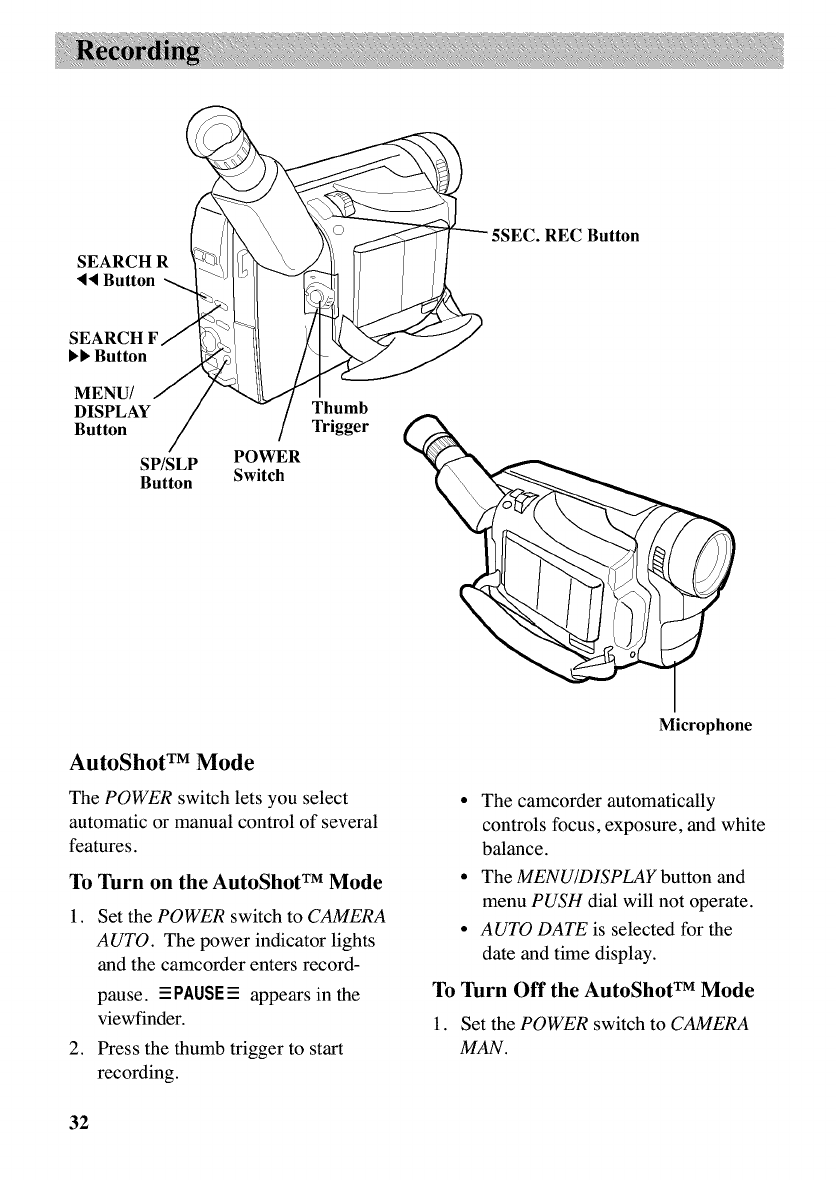

AutoShot TM Mode ......................... 32

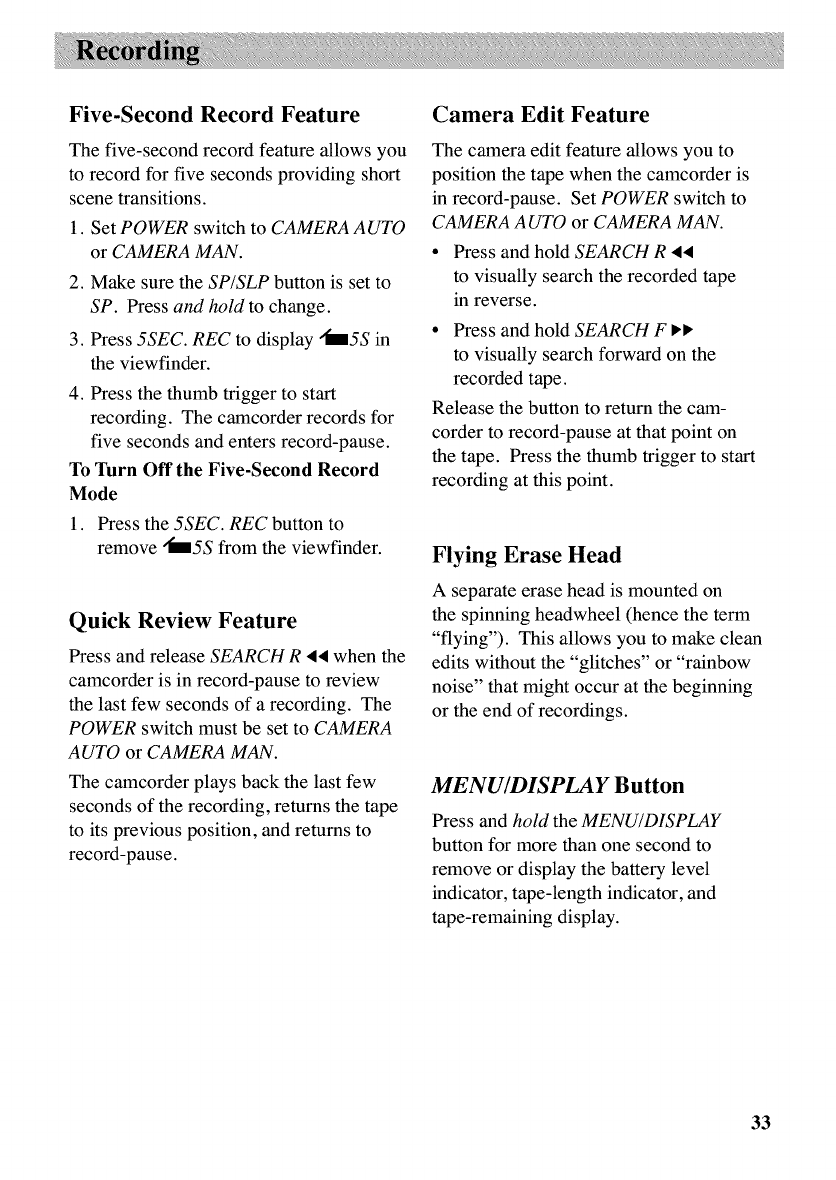

Five-Second Record Feature ......... 33

Quick Review Feature ................... 33

Camera Edit Feature ..................... 33

....................................................... 3

Flying Erase Head ......................... 33

....................................................... 3

MENU/DISPLAY Button ............. 33

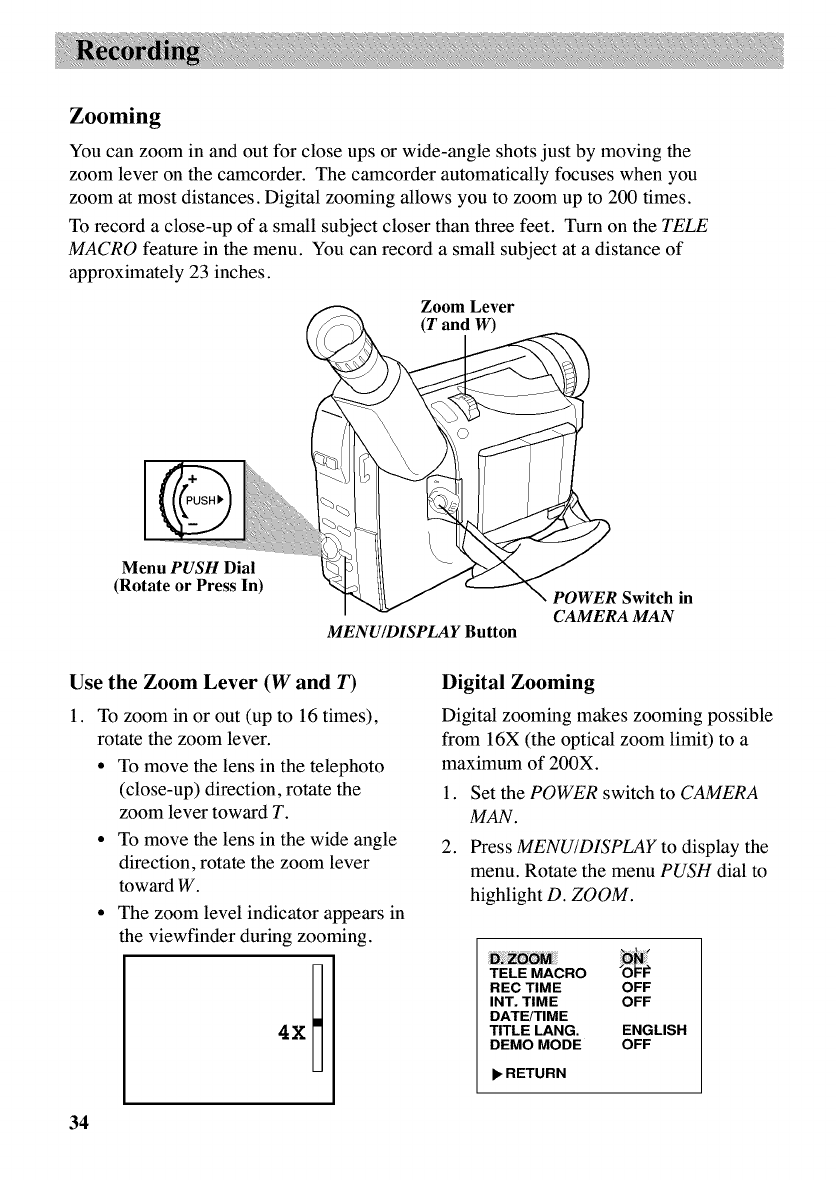

Zooming ........................................ 34

Use the Zoom Lever (W and T) .. 34

Digital Zooming .......................... 34

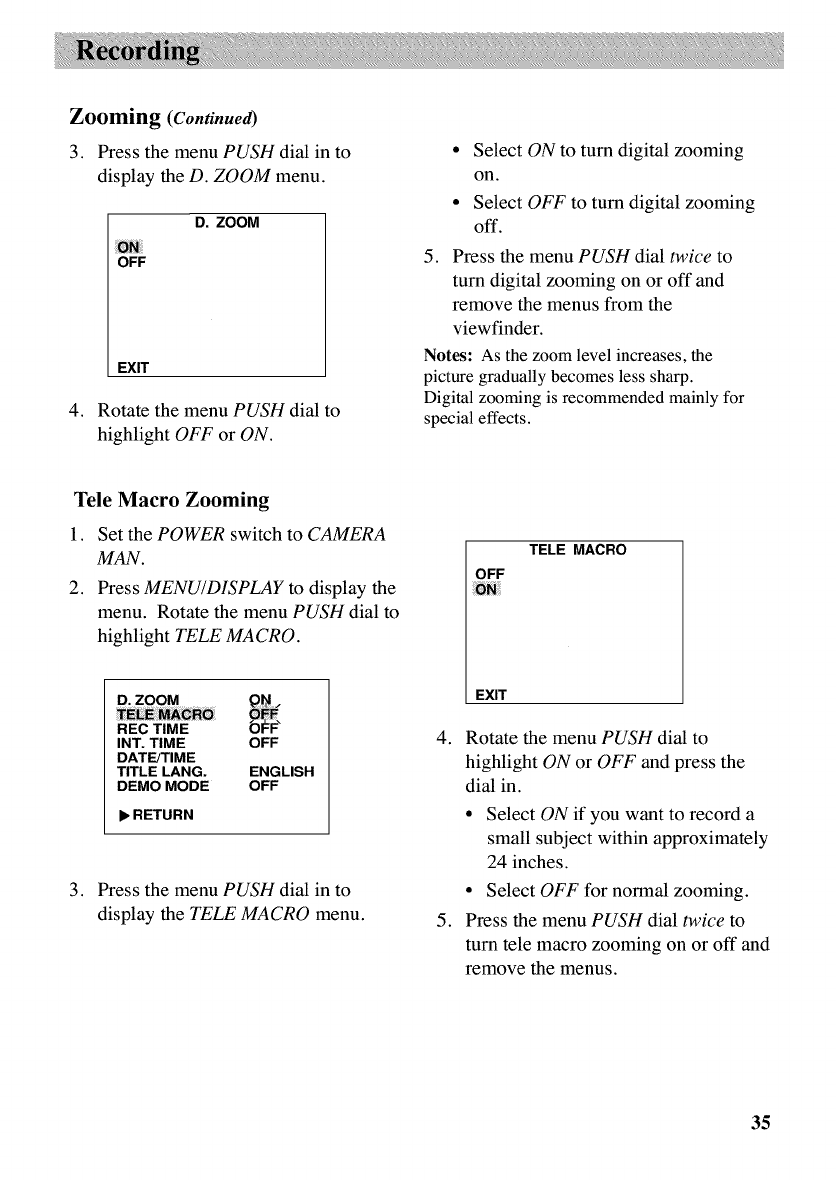

Tele Macro Zooming .................. 35

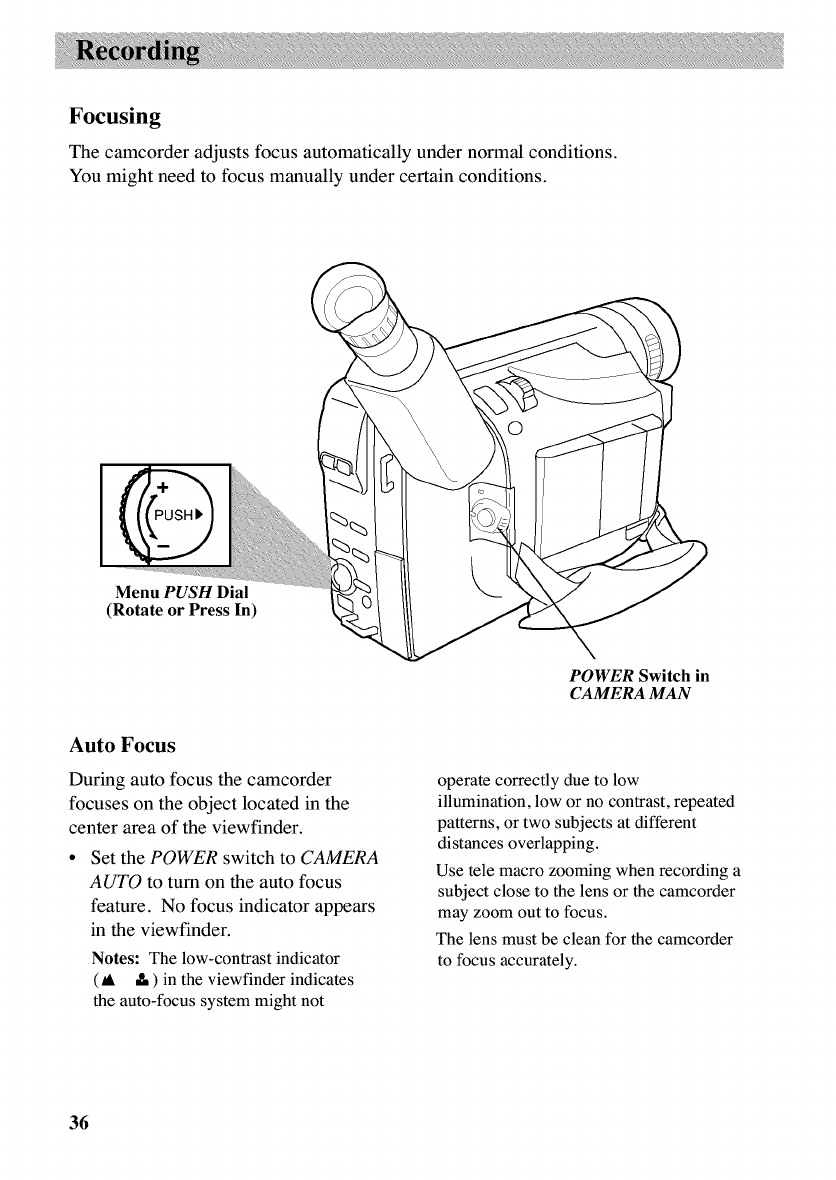

Focusing ........................................ 36

Auto Focus .................................. 36

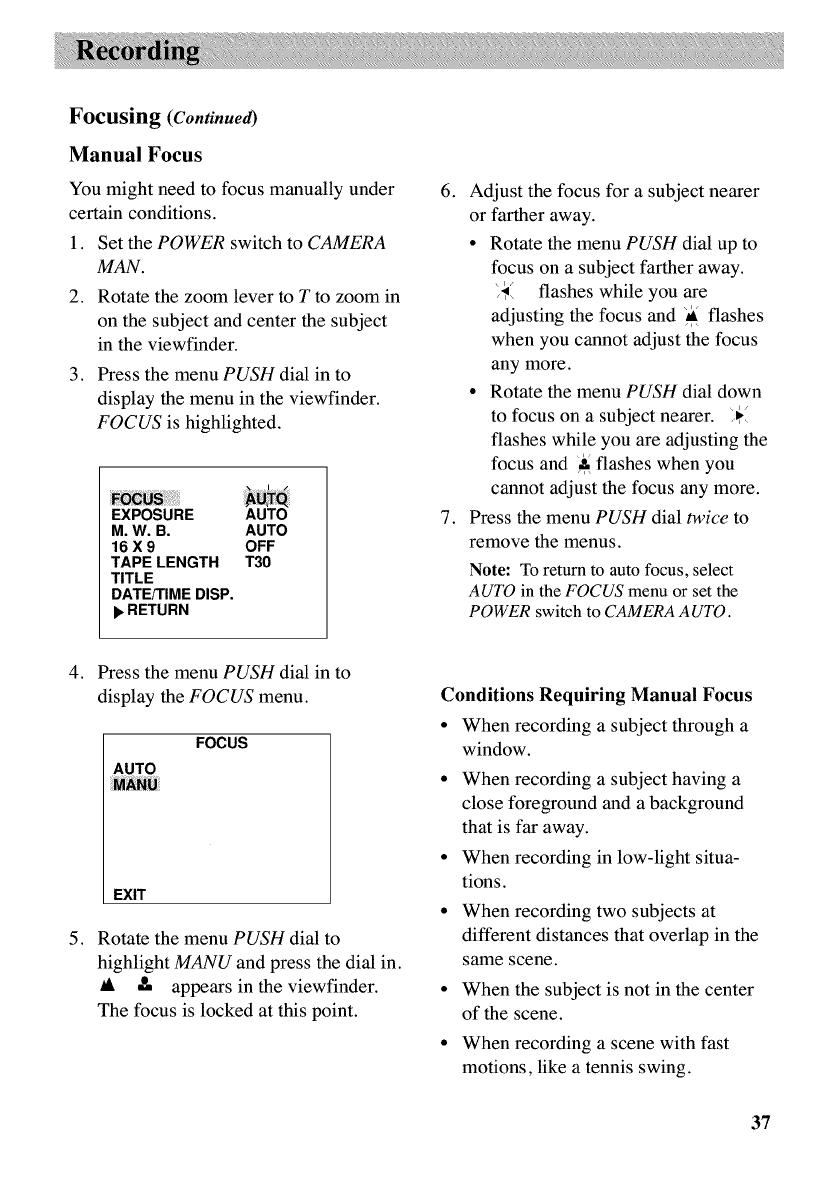

Manual Focus .............................. 37

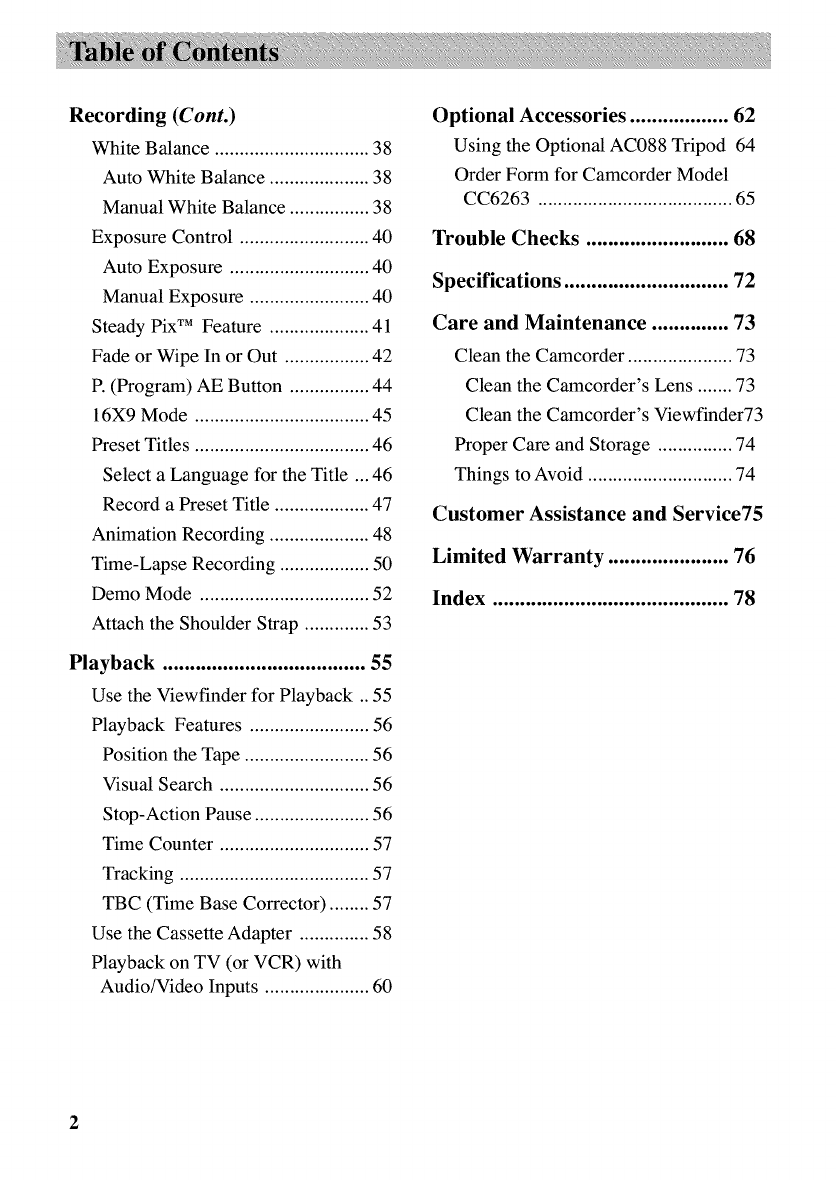

Recording (Cont.)

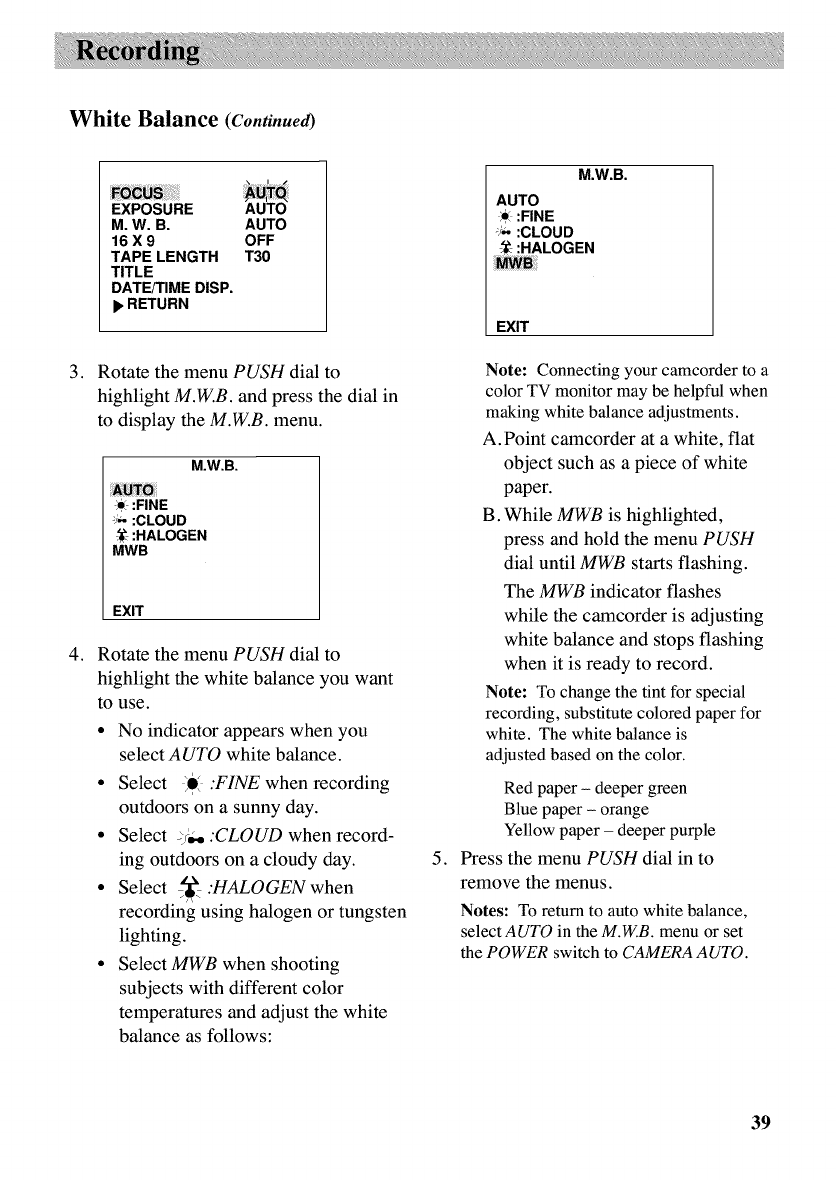

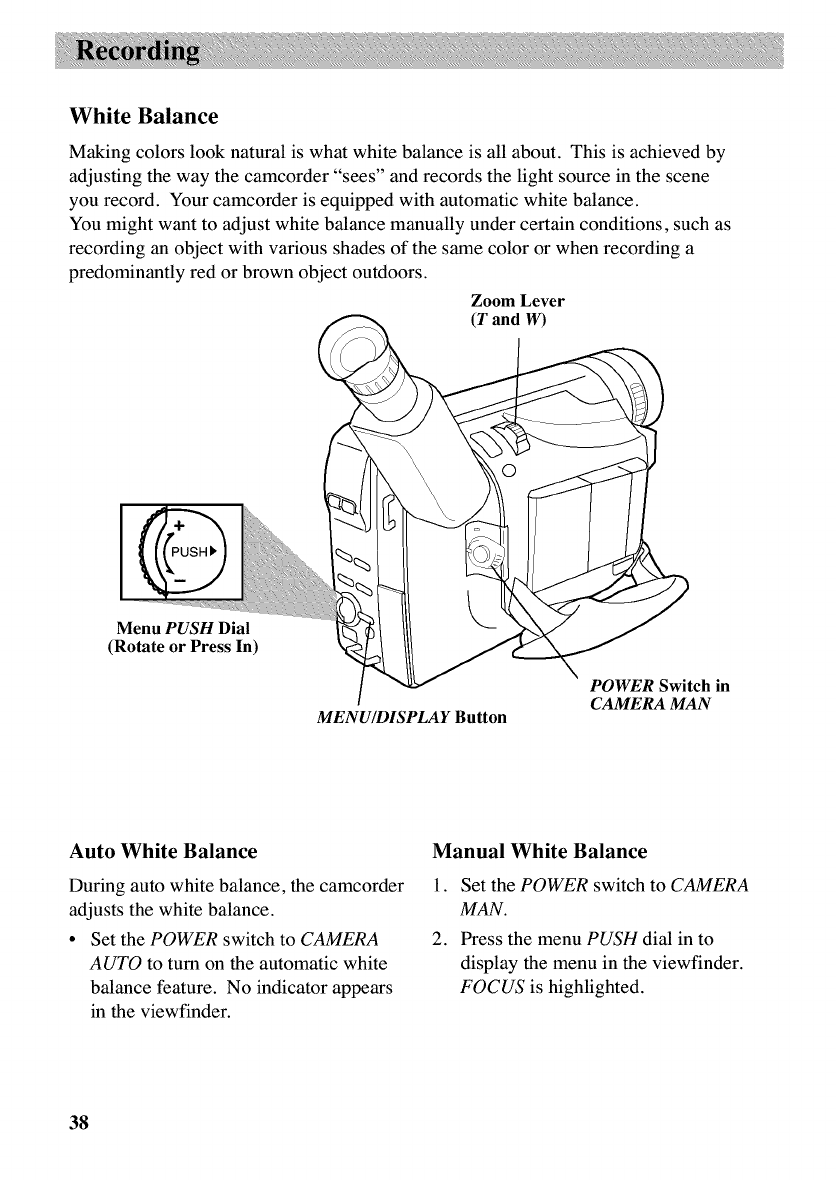

White Balance ............................... 38

Auto White Balance .................... 38

Manual White Balance ................ 38

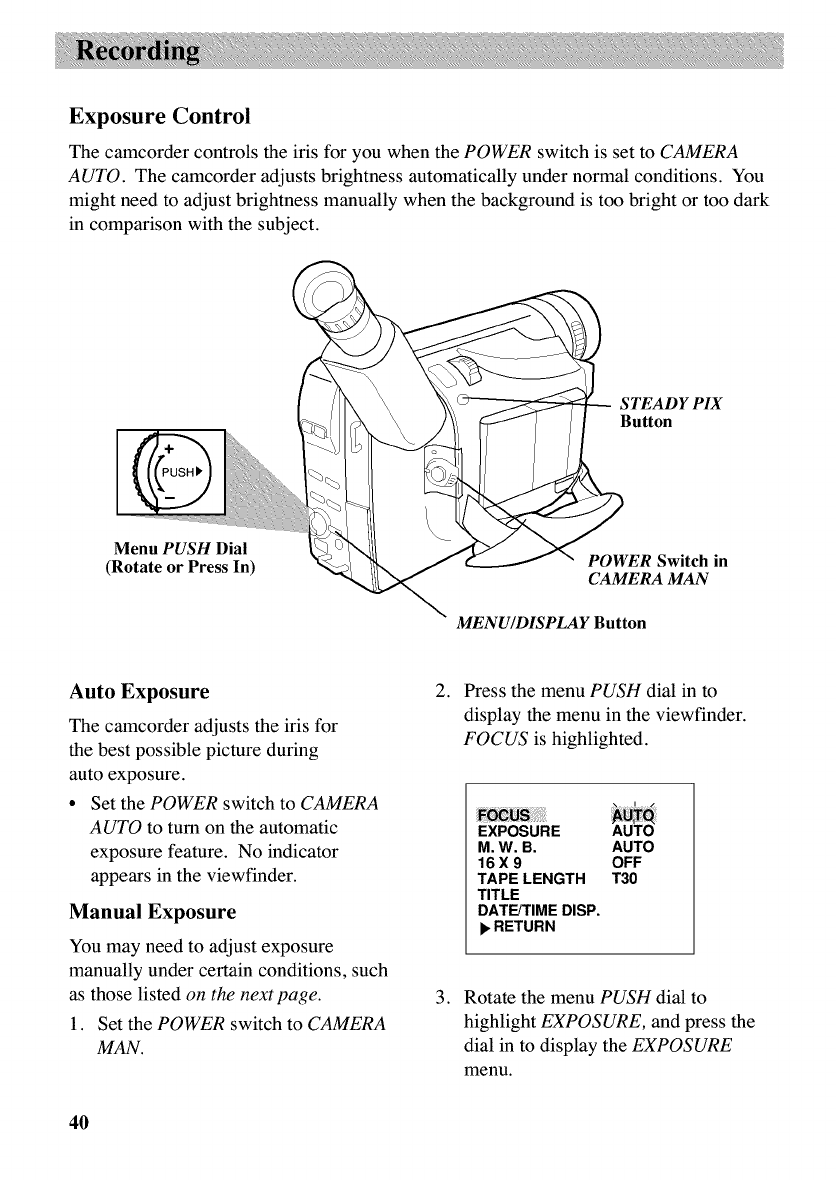

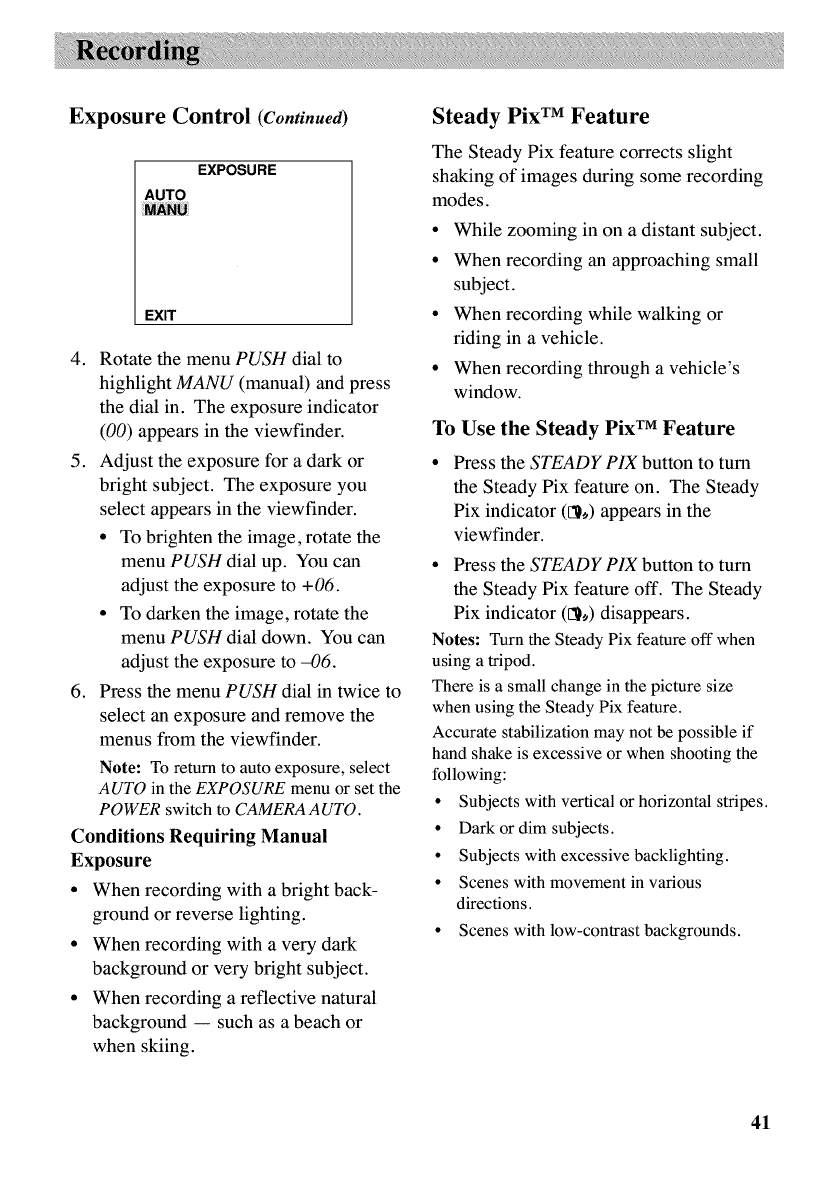

Exposure Control .......................... 40

Auto Exposure ............................ 40

Manual Exposure ........................ 40

Steady Pix TM Feature .................... 41

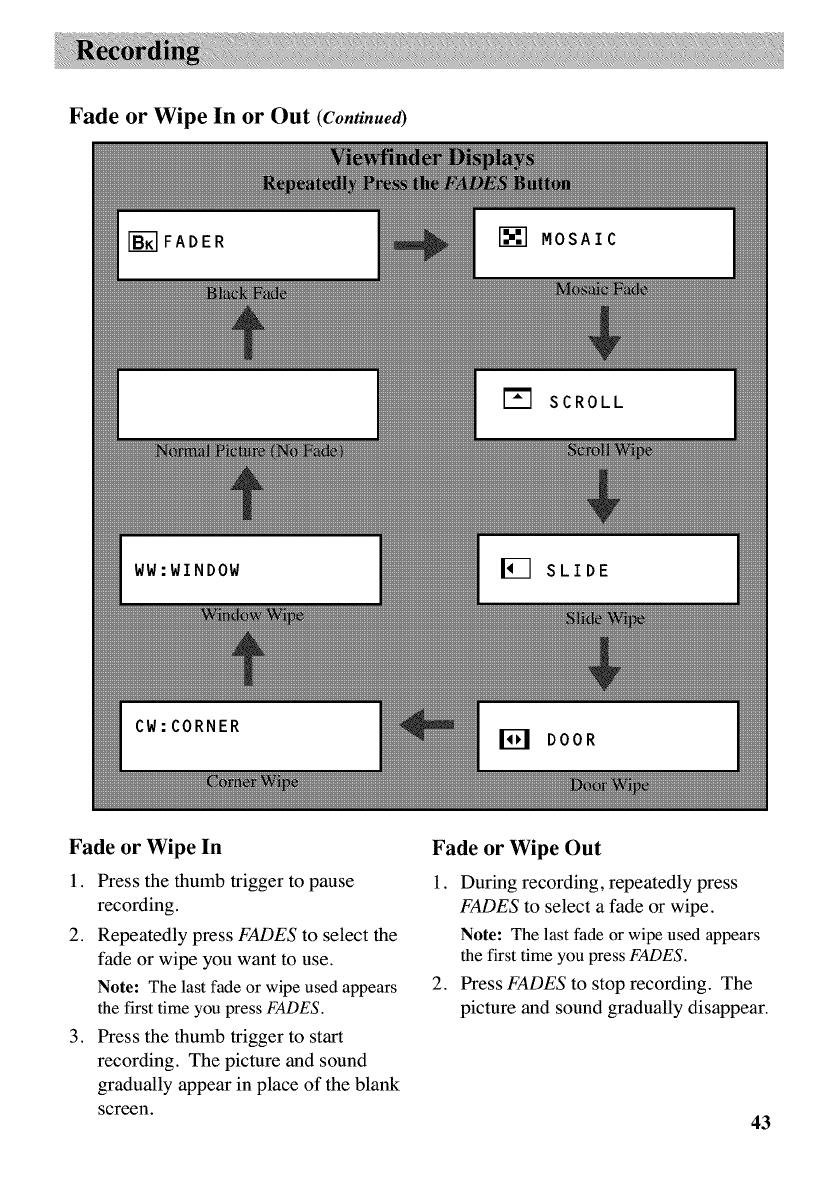

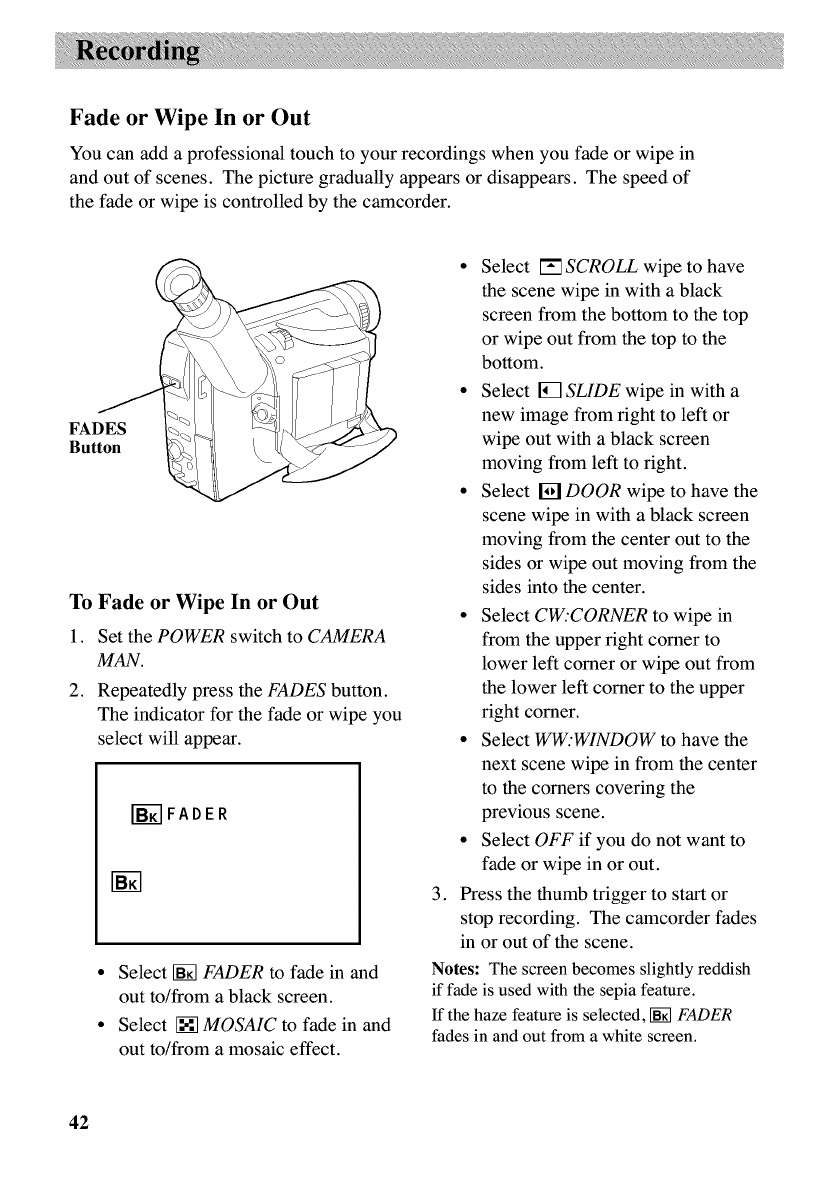

Fade or Wipe In or Out ................. 42

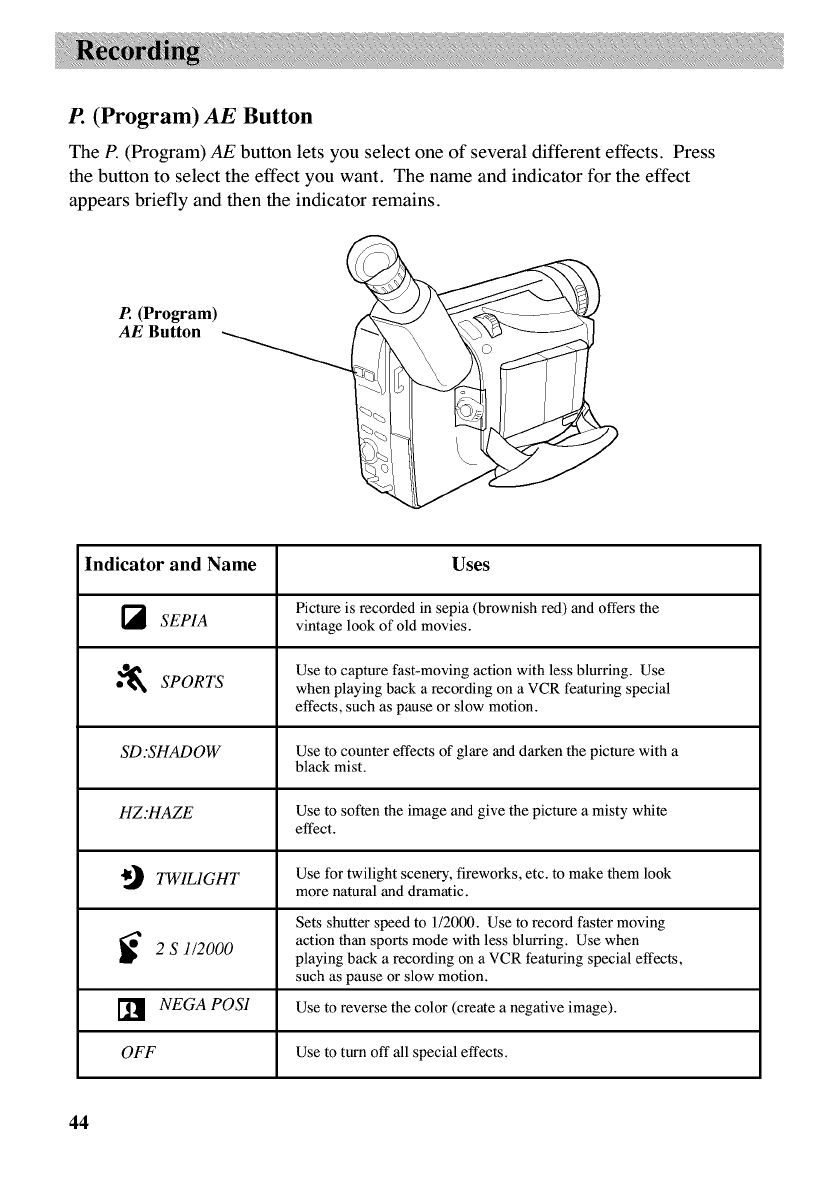

P. (Program) AE Button ................ 44

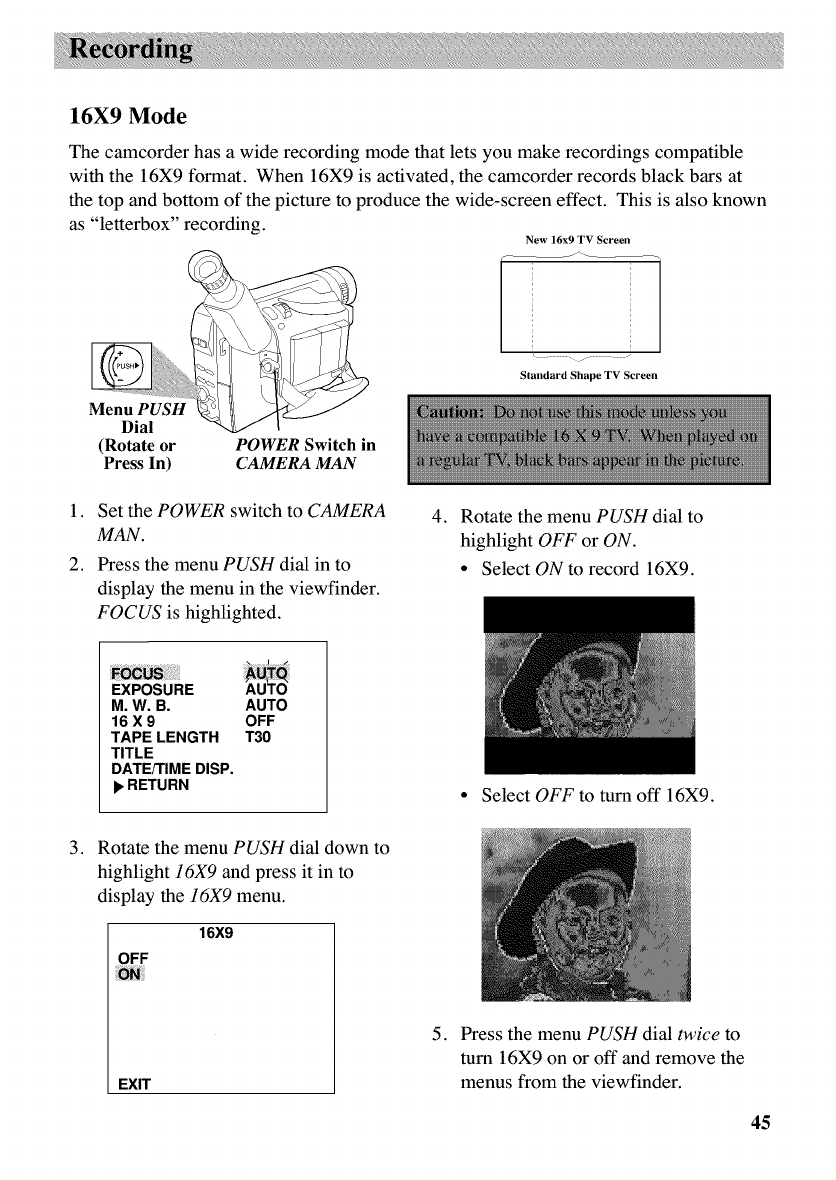

16X9 Mode ................................... 45

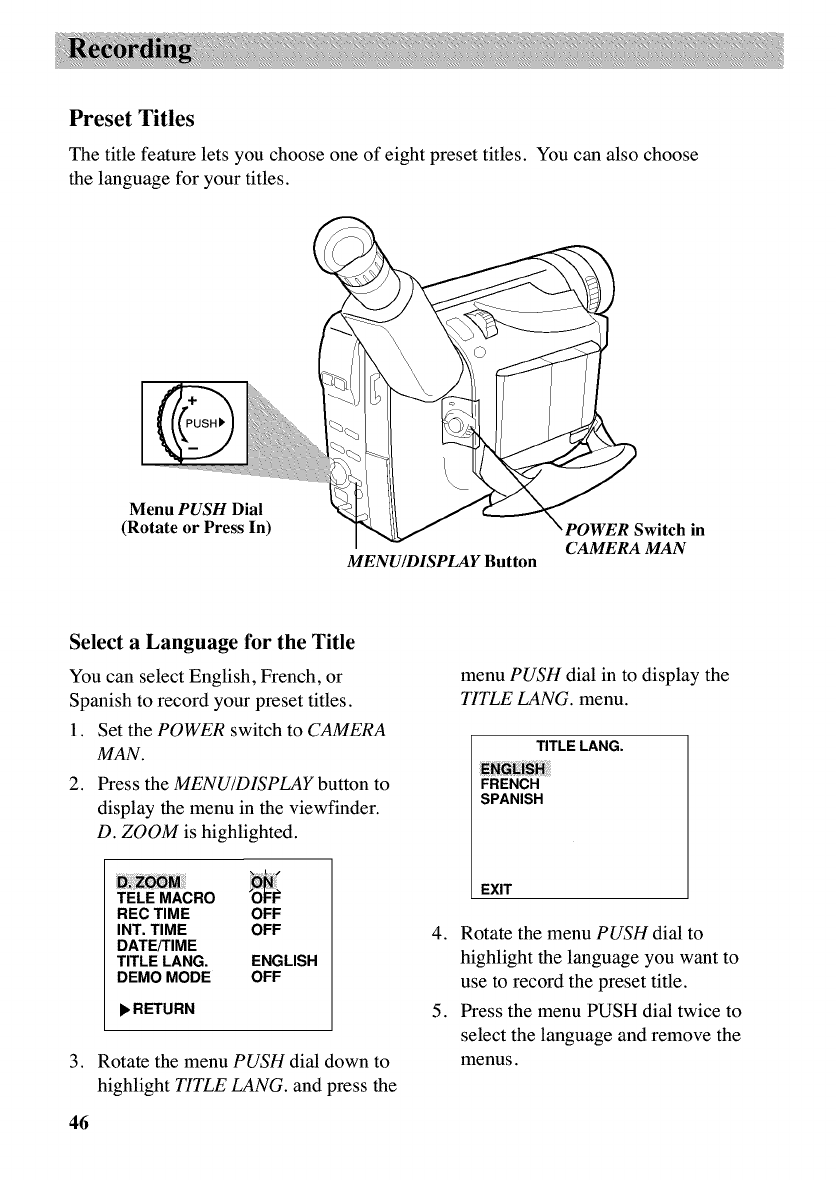

Preset Titles ................................... 46

Select a Language for the Title ... 46

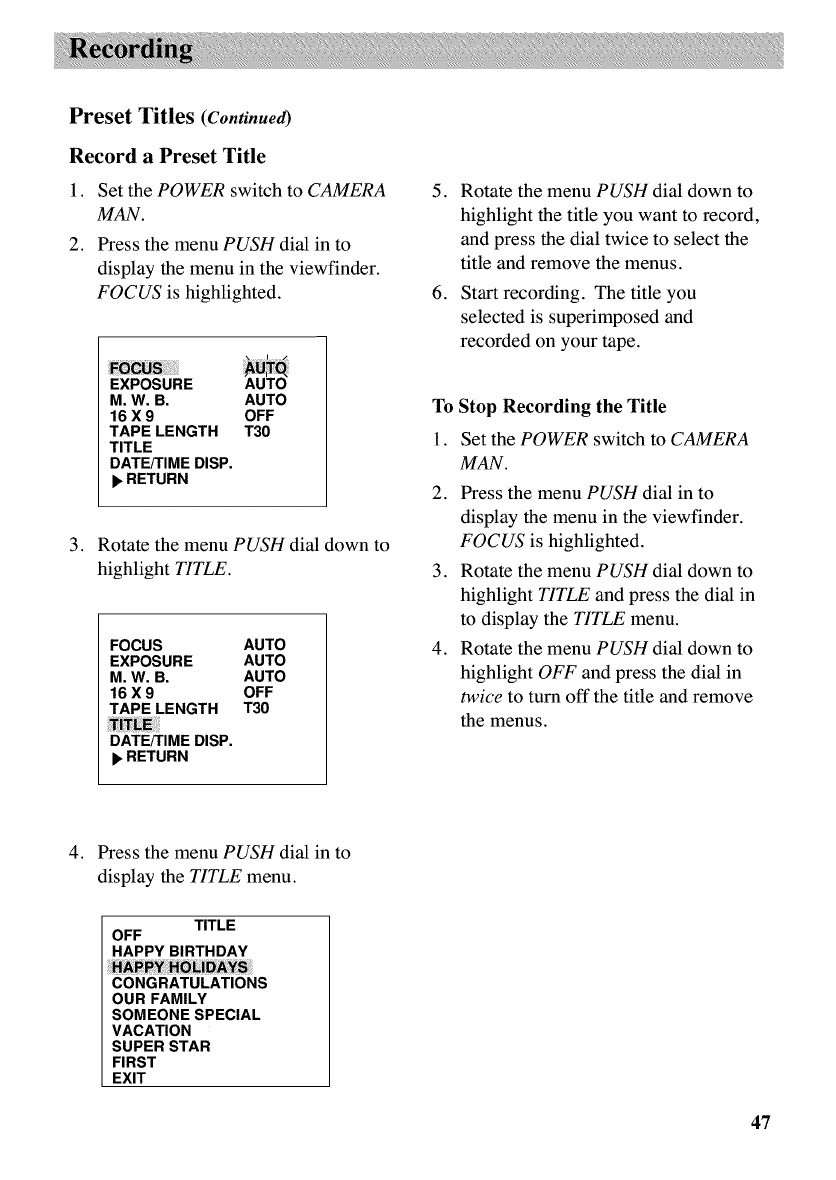

Record a Preset Title ................... 47

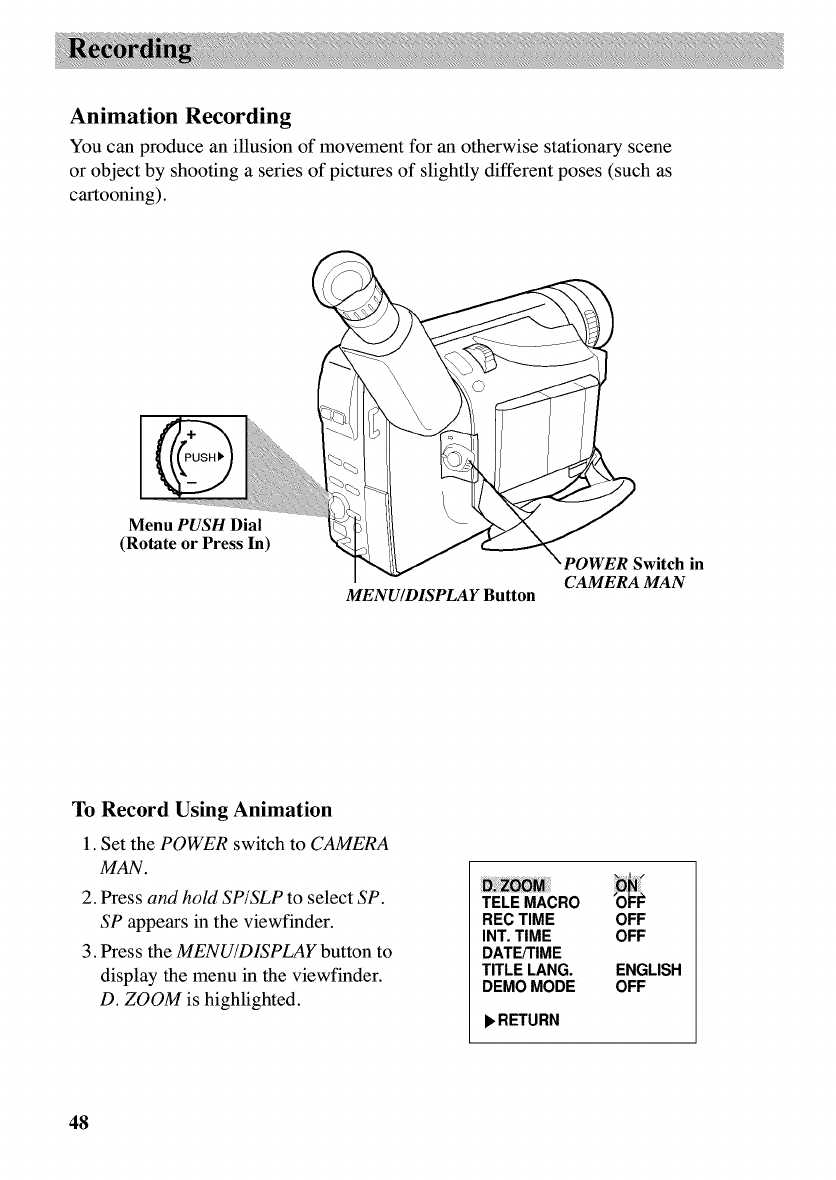

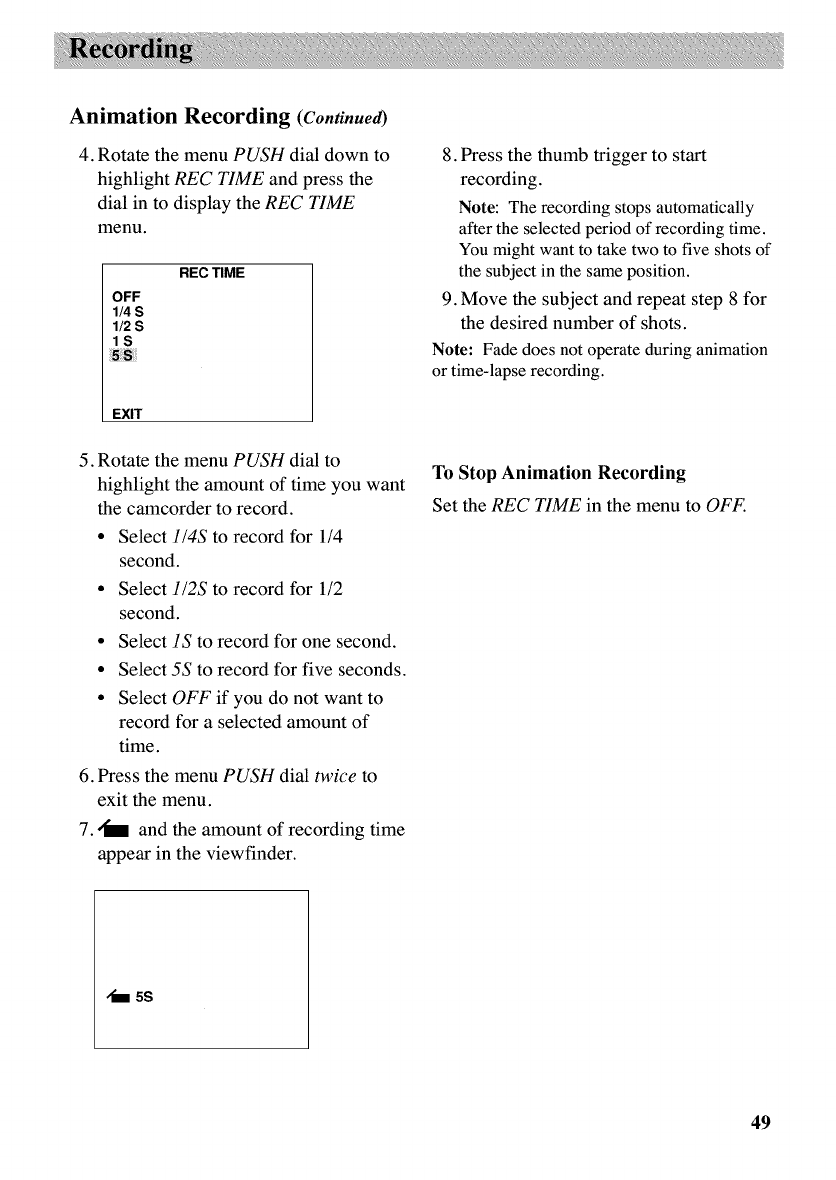

Animation Recording .................... 48

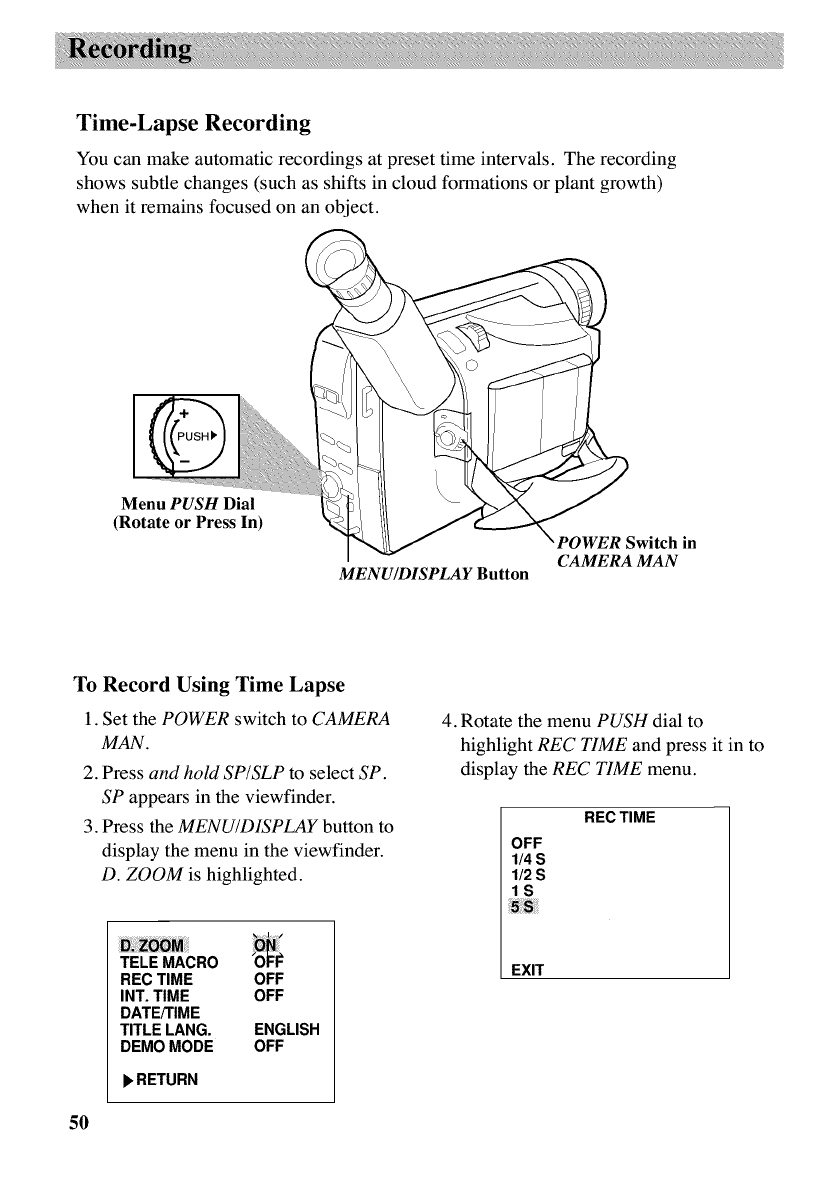

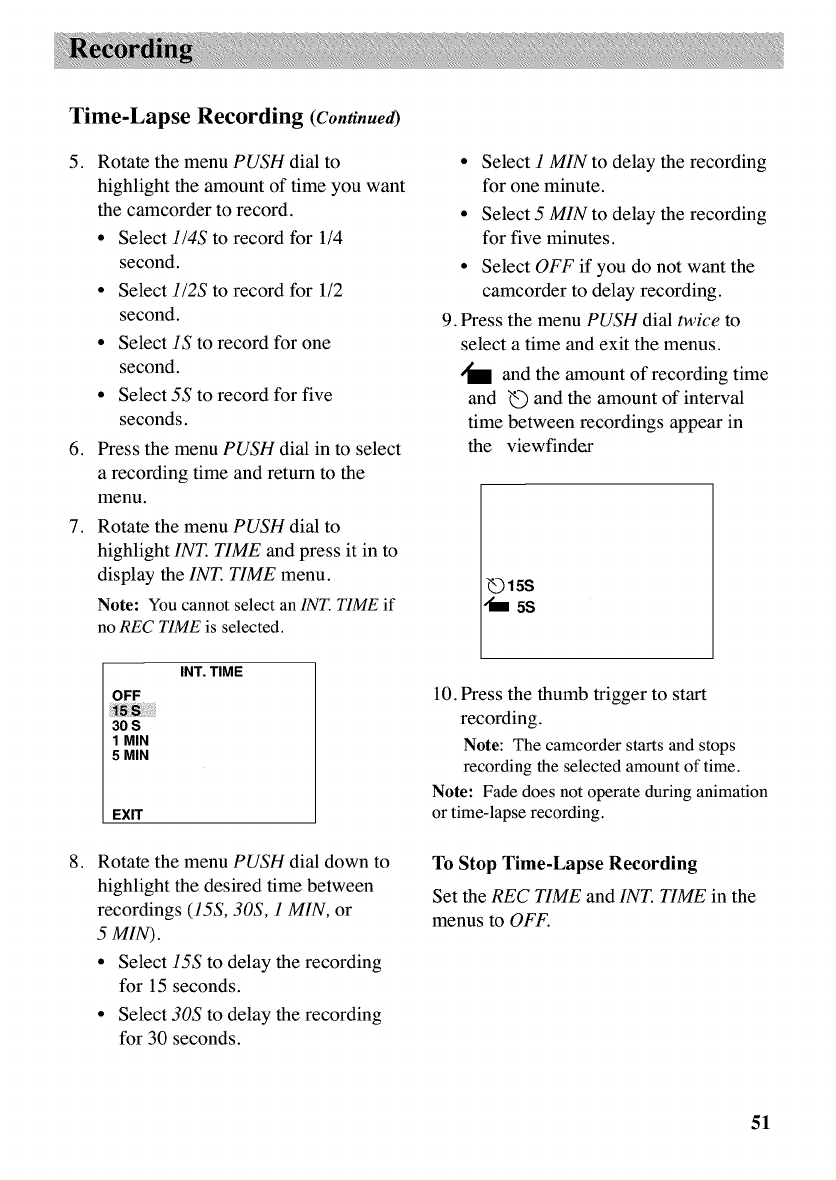

Time-Lapse Recording .................. 50

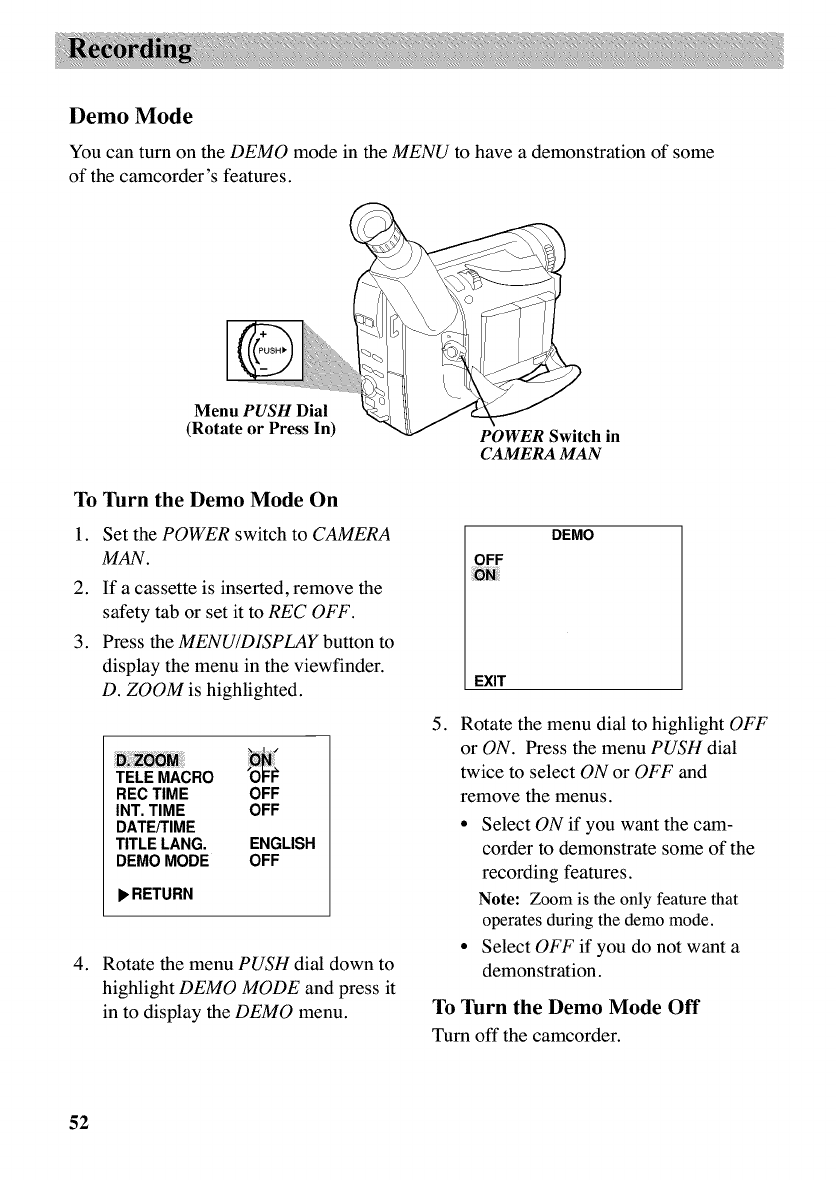

Demo Mode .................................. 52

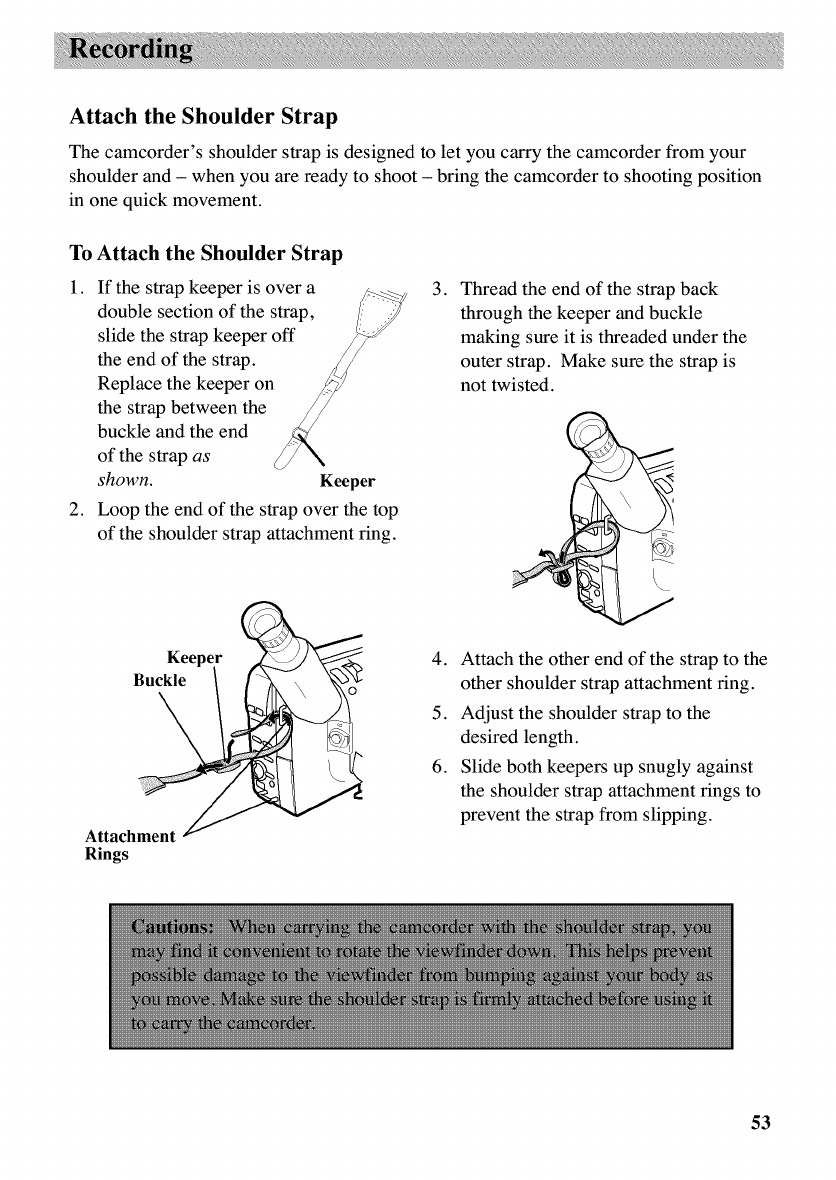

Attach the Shoulder Strap ............. 53

Playback ..................................... 55

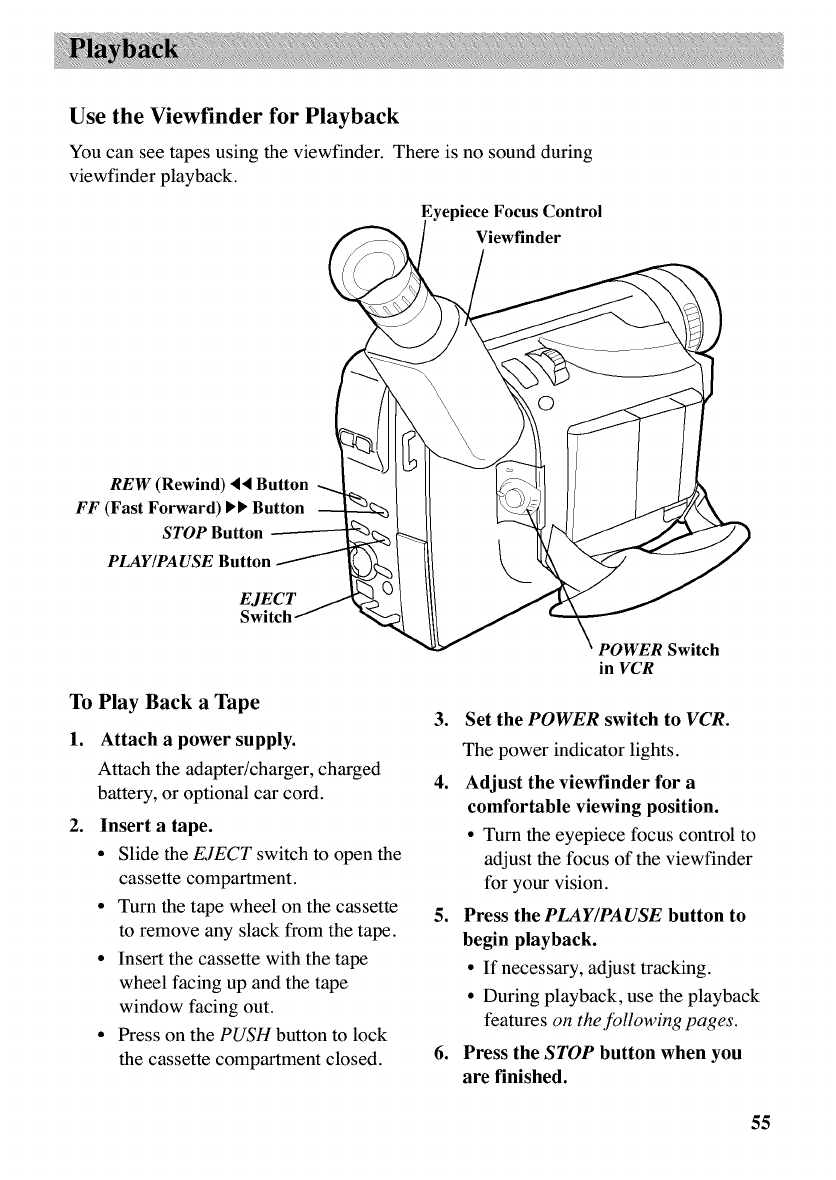

Use the Viewfinder for Playback .. 55

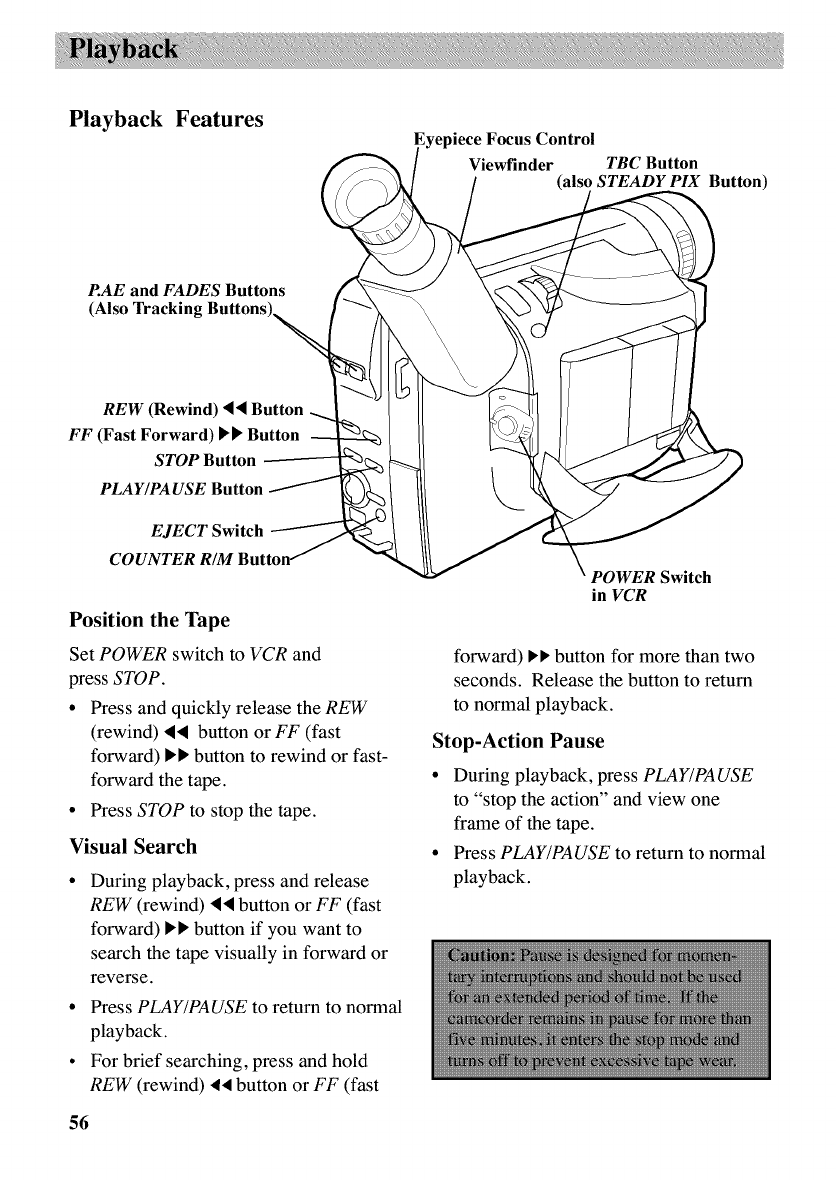

Playback Features ........................ 56

Position the Tape ......................... 56

Visual Search .............................. 56

Stop-Action Pause ....................... 56

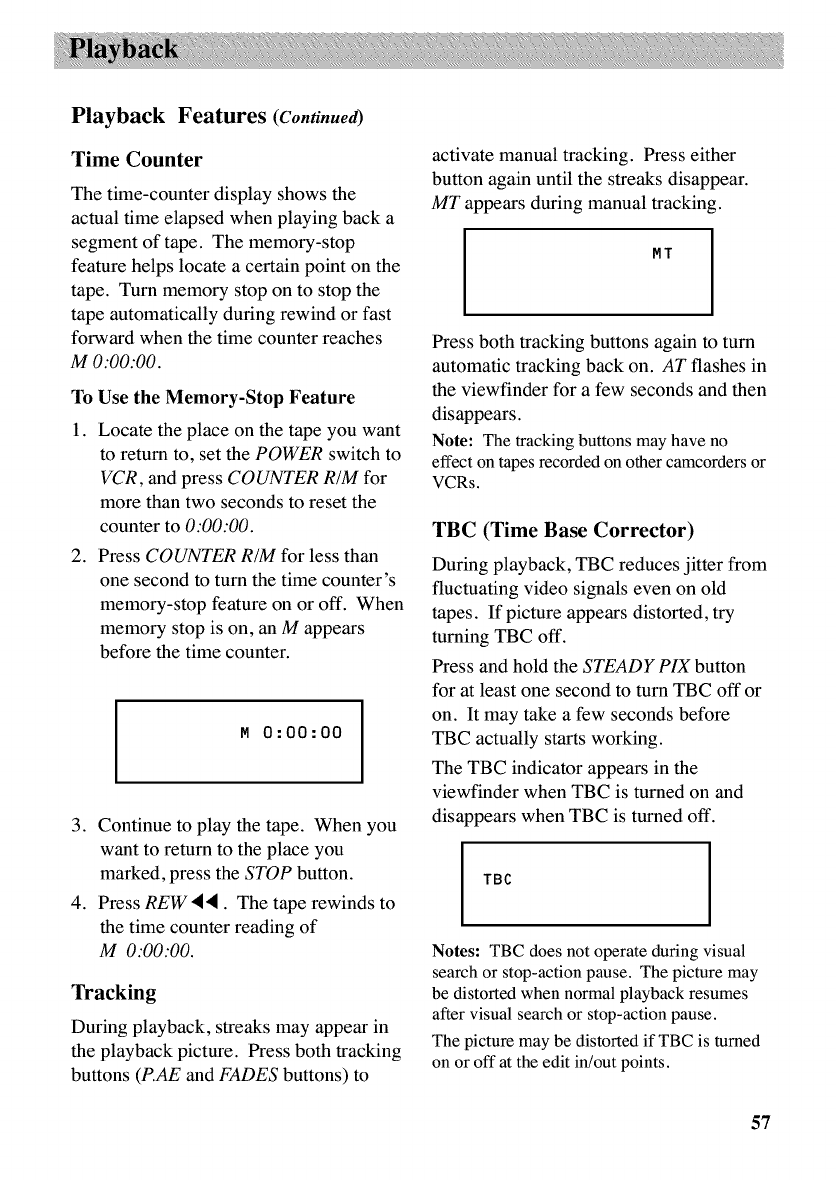

Time Counter .............................. 57

Tracking ...................................... 57

TBC (Time Base Corrector) ........ 57

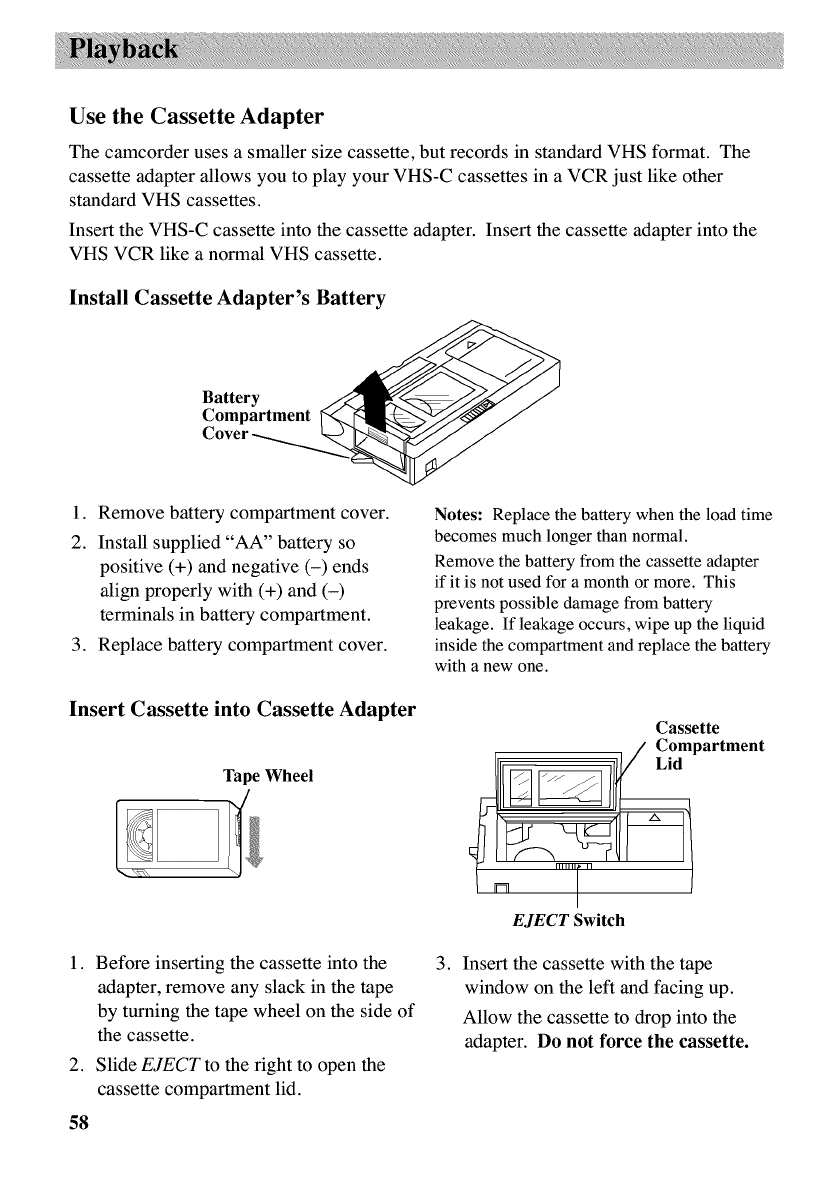

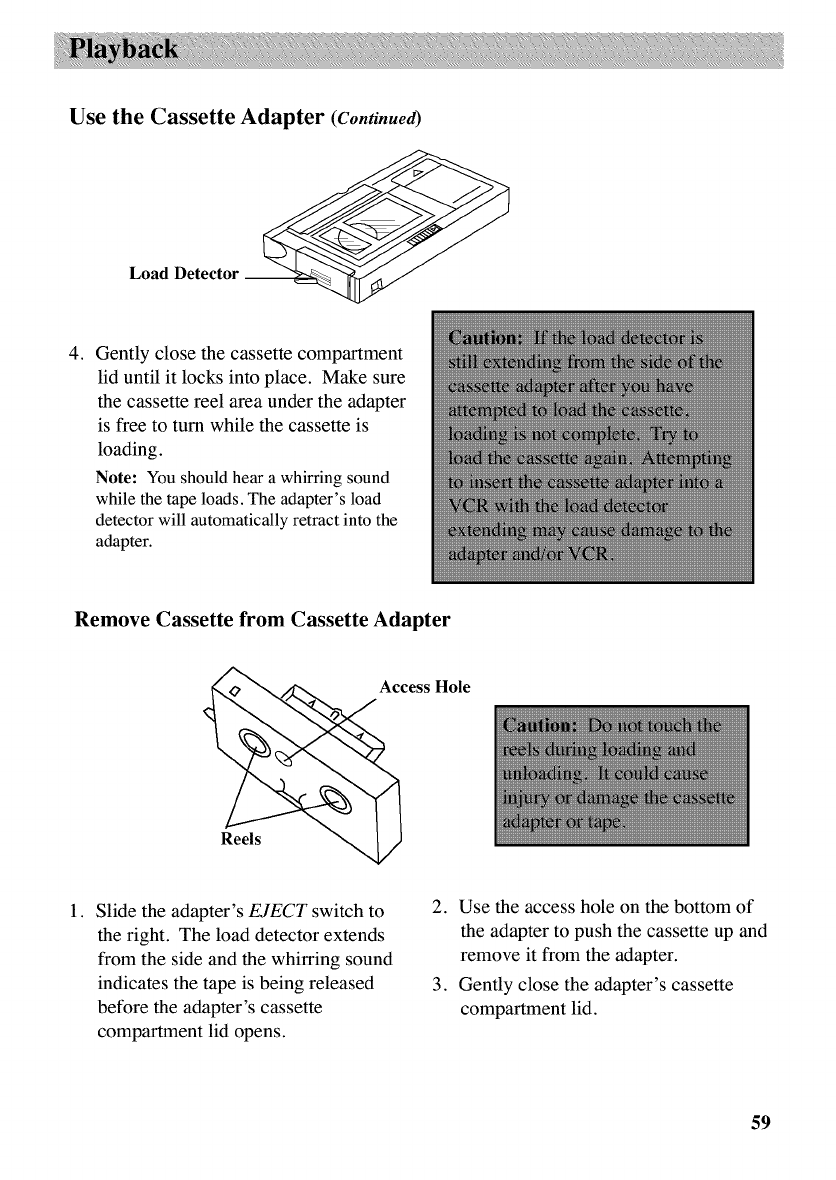

Use the Cassette Adapter .............. 58

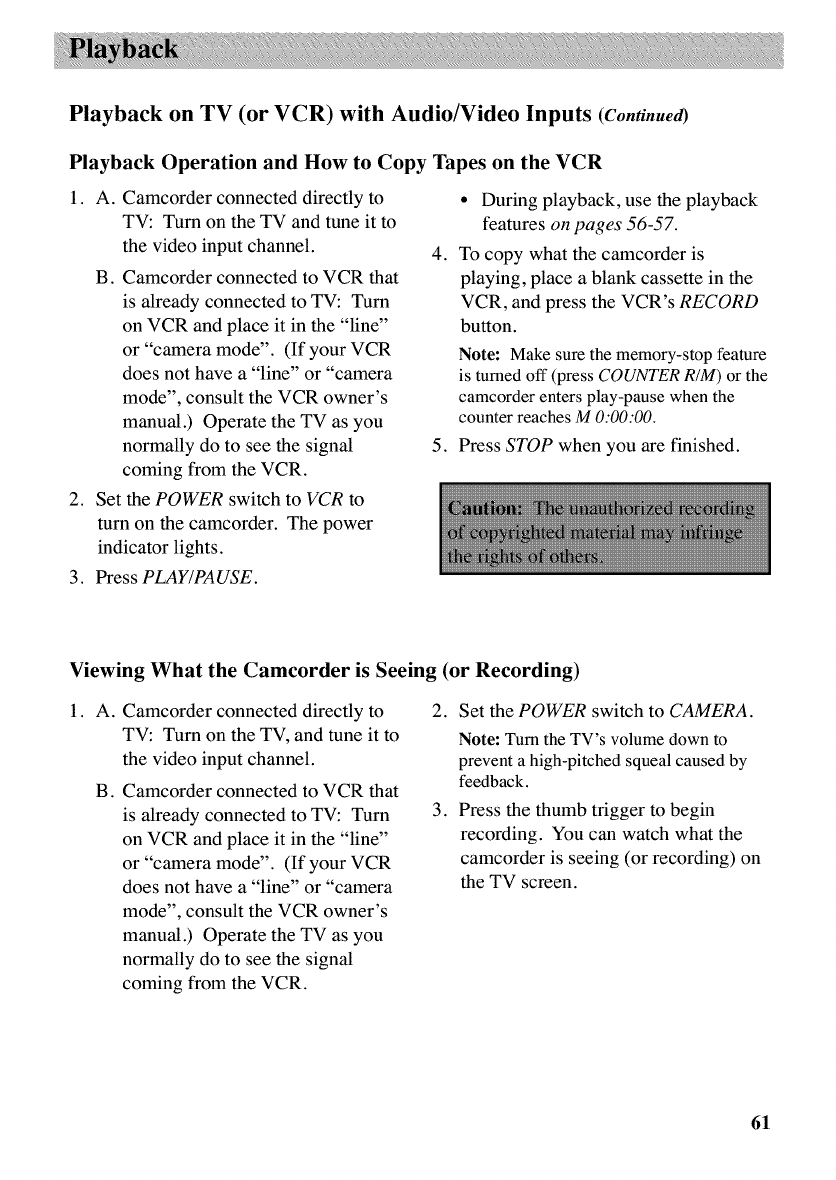

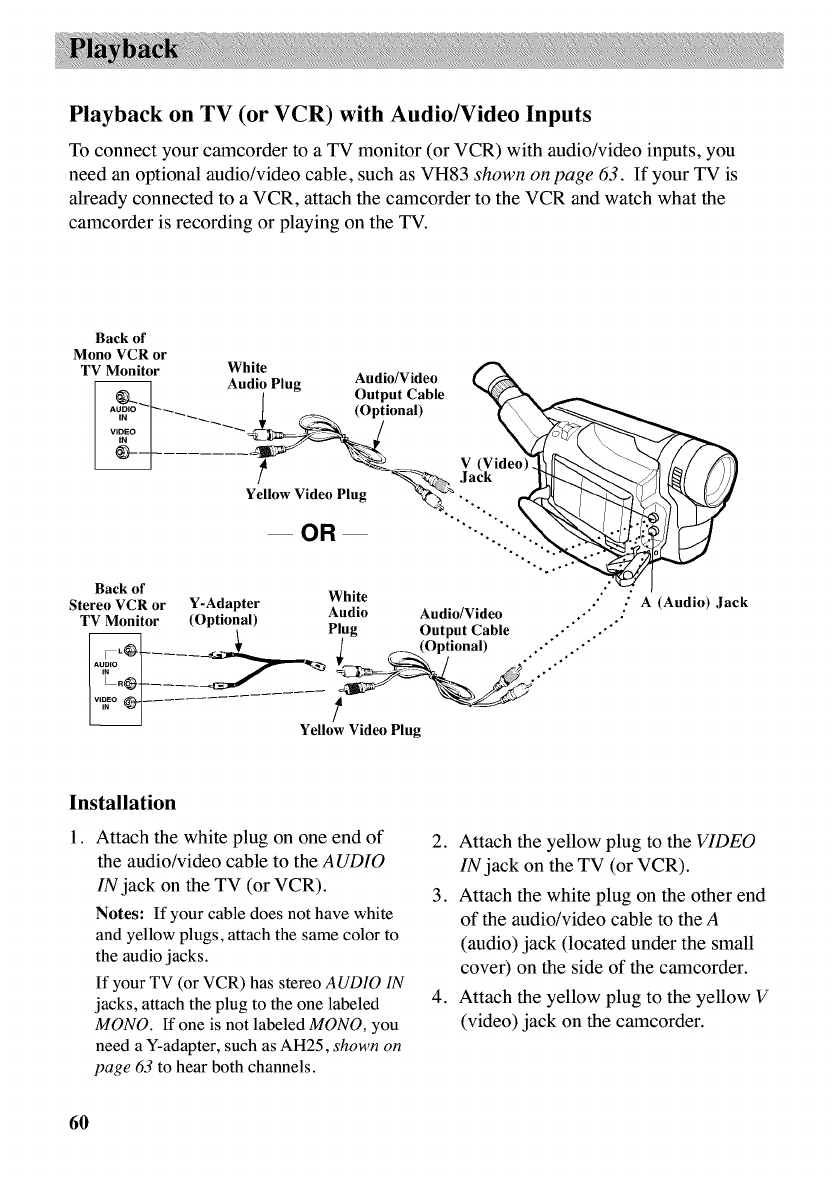

Playback on TV (or VCR) with

Audio/Video Inputs ..................... 60

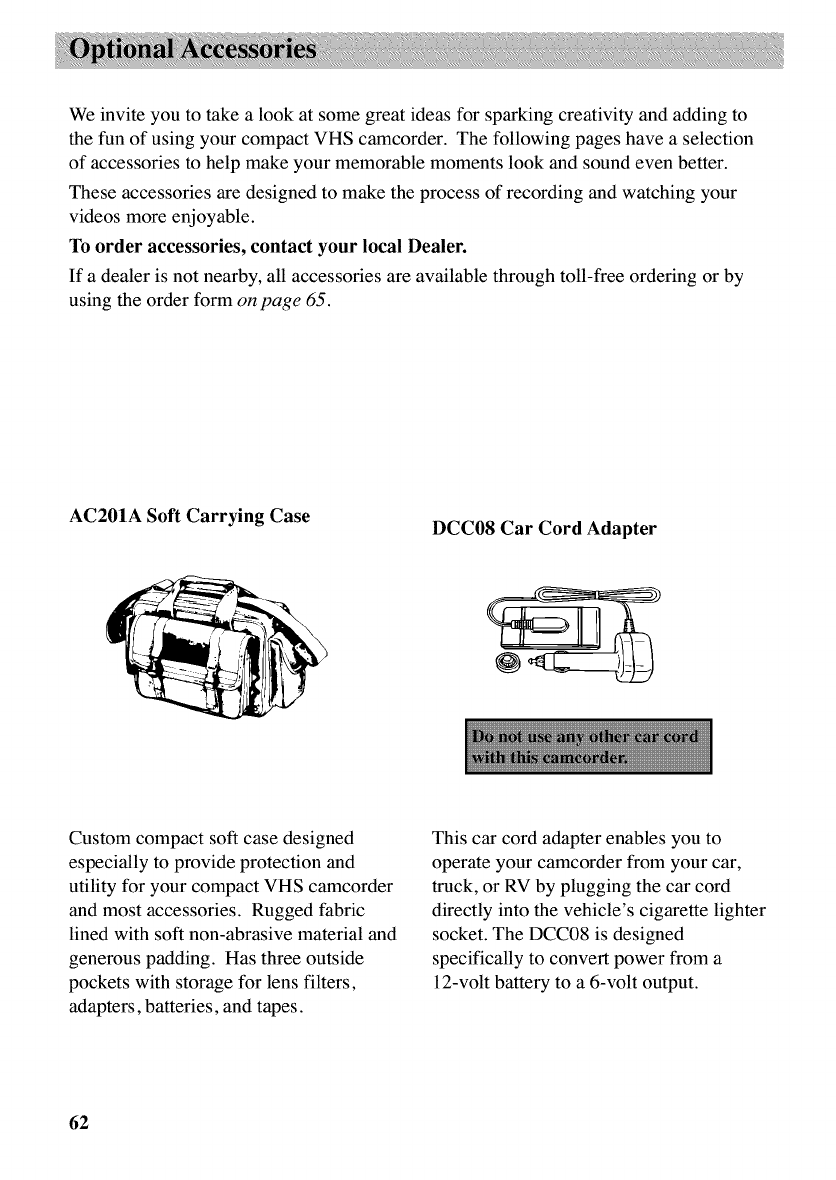

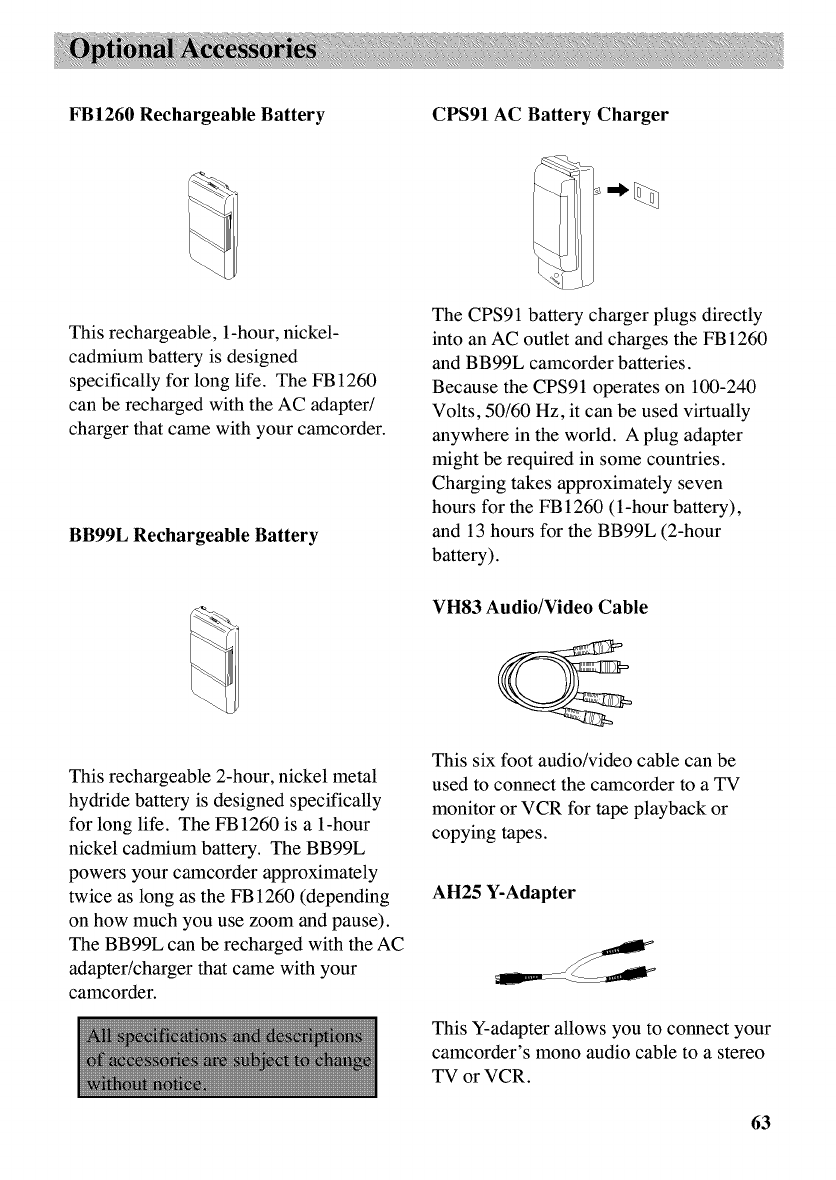

Optional Accessories .................. 62

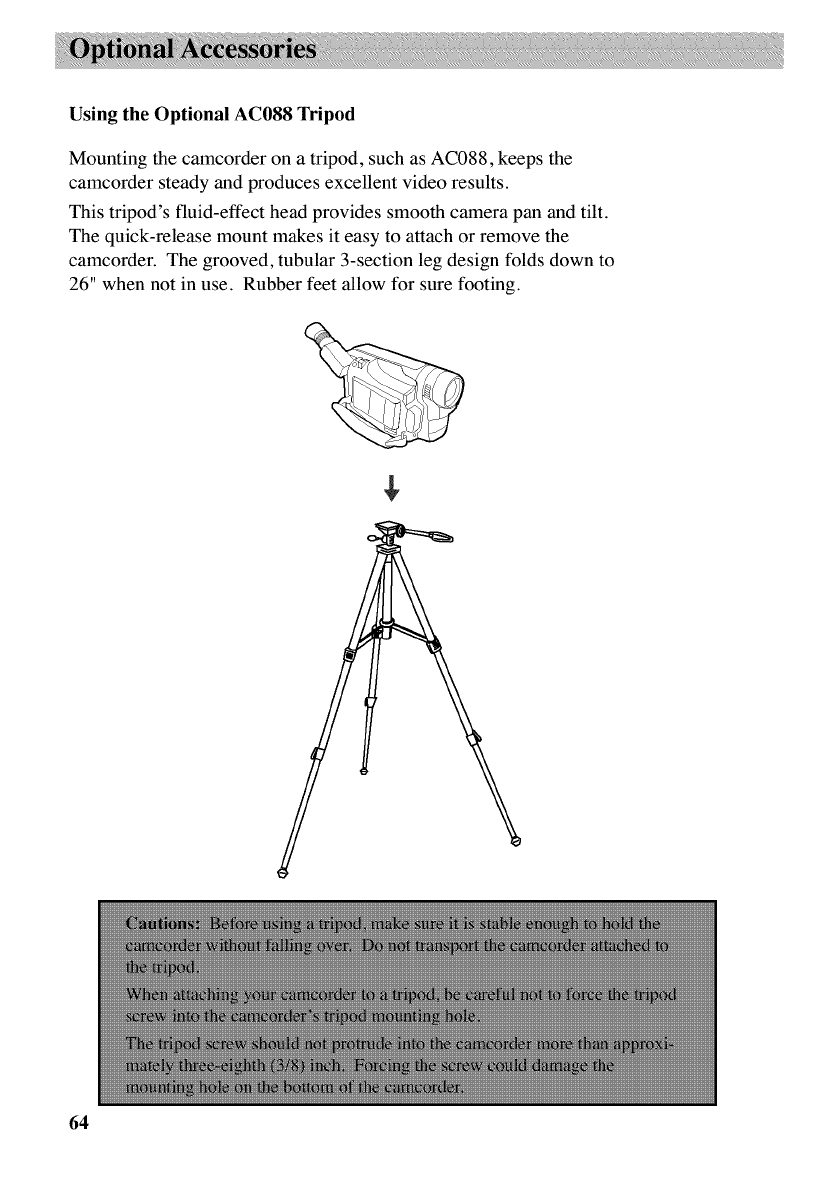

Using the Optional AC088 Tripod 64

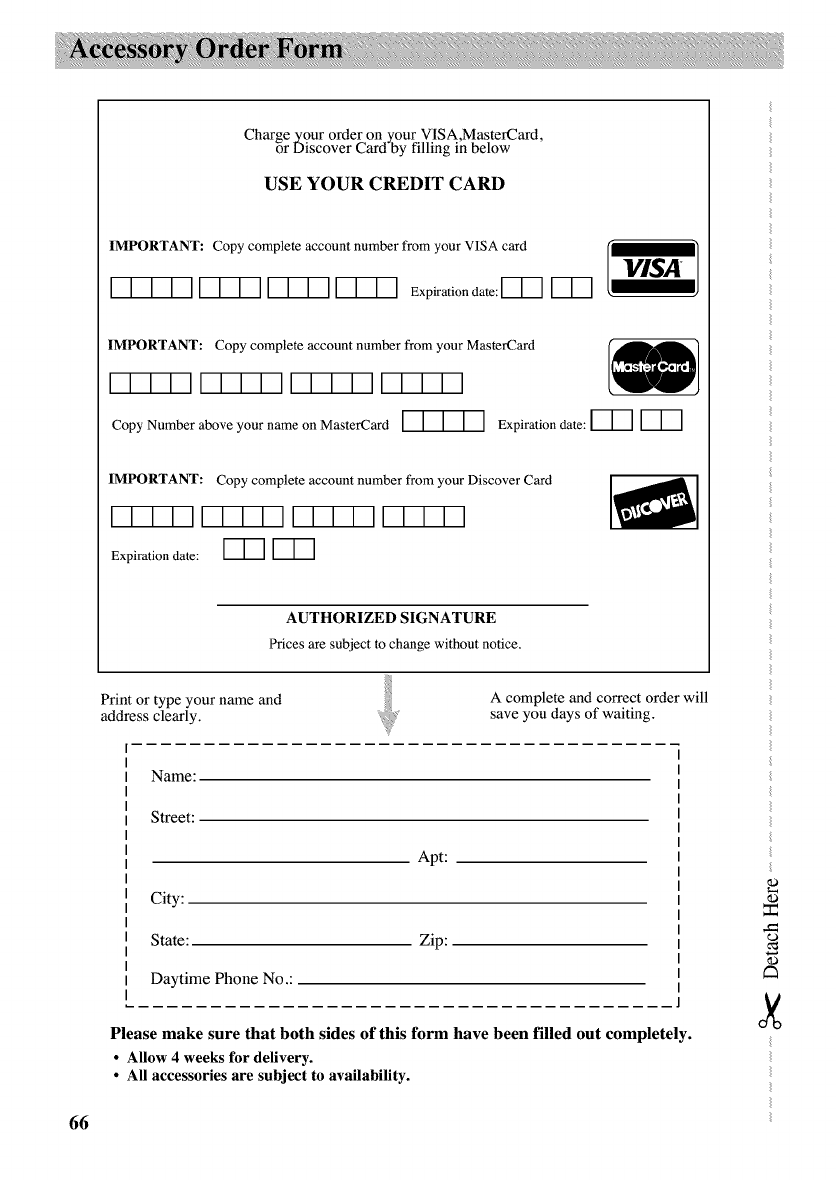

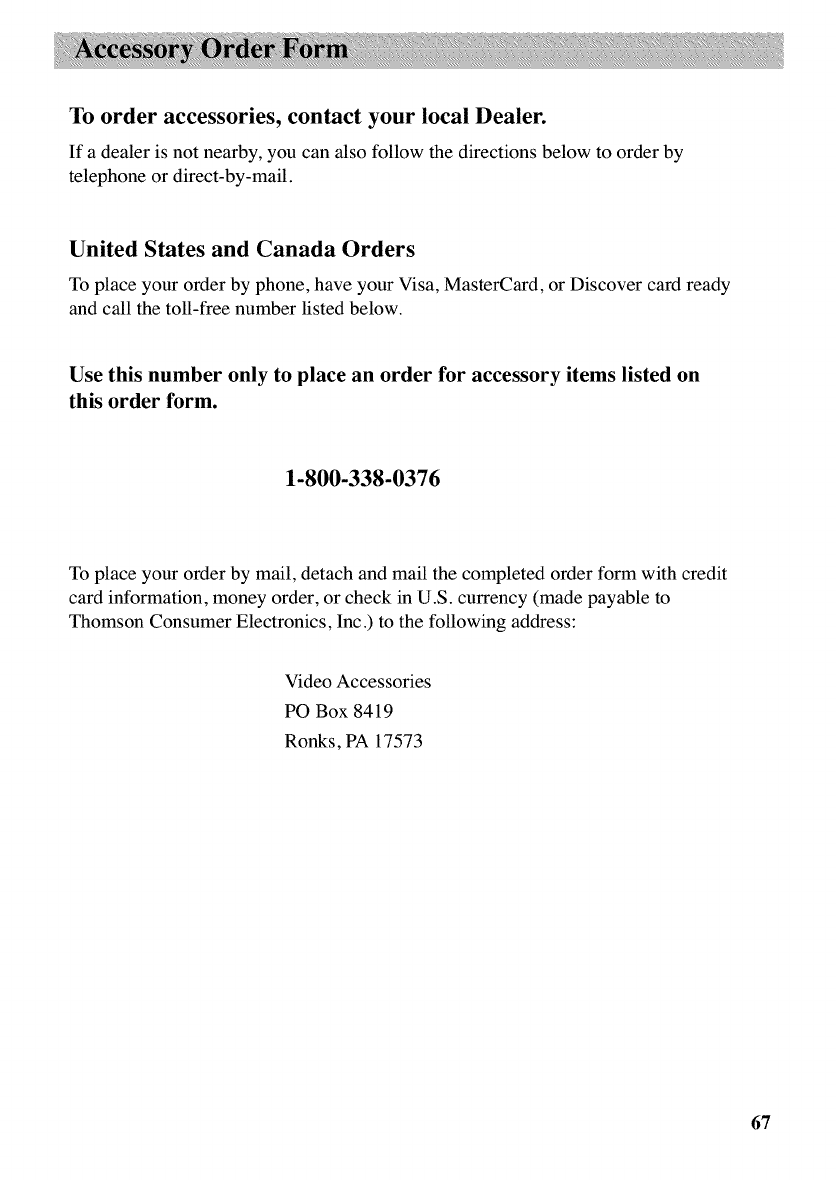

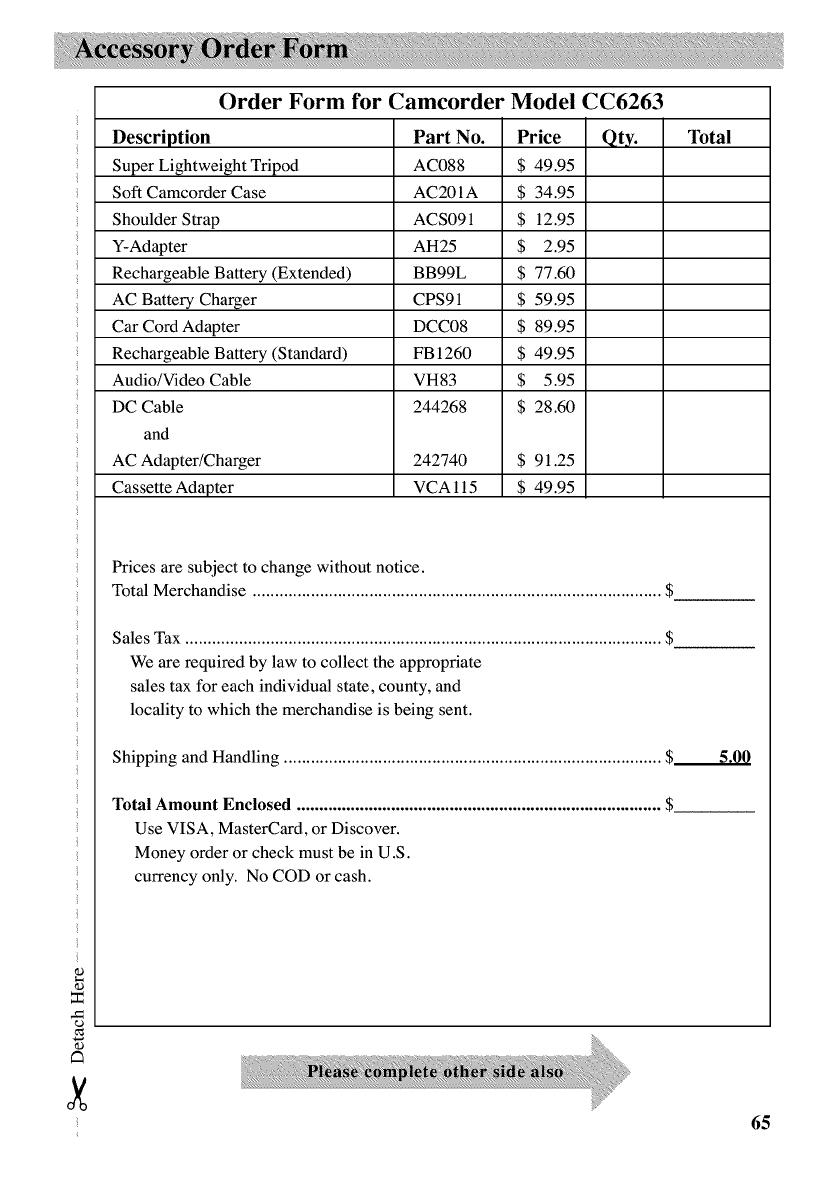

Order Form for Camcorder Model

CC6263 ....................................... 65

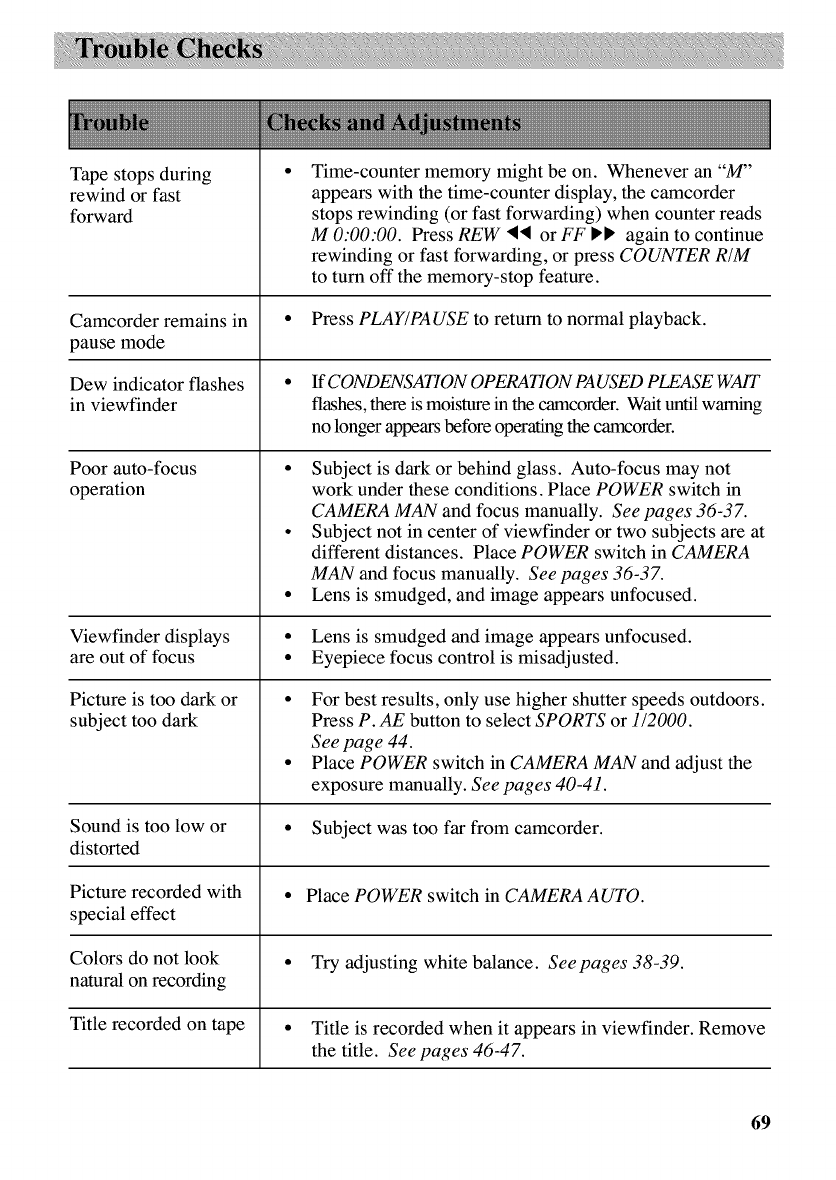

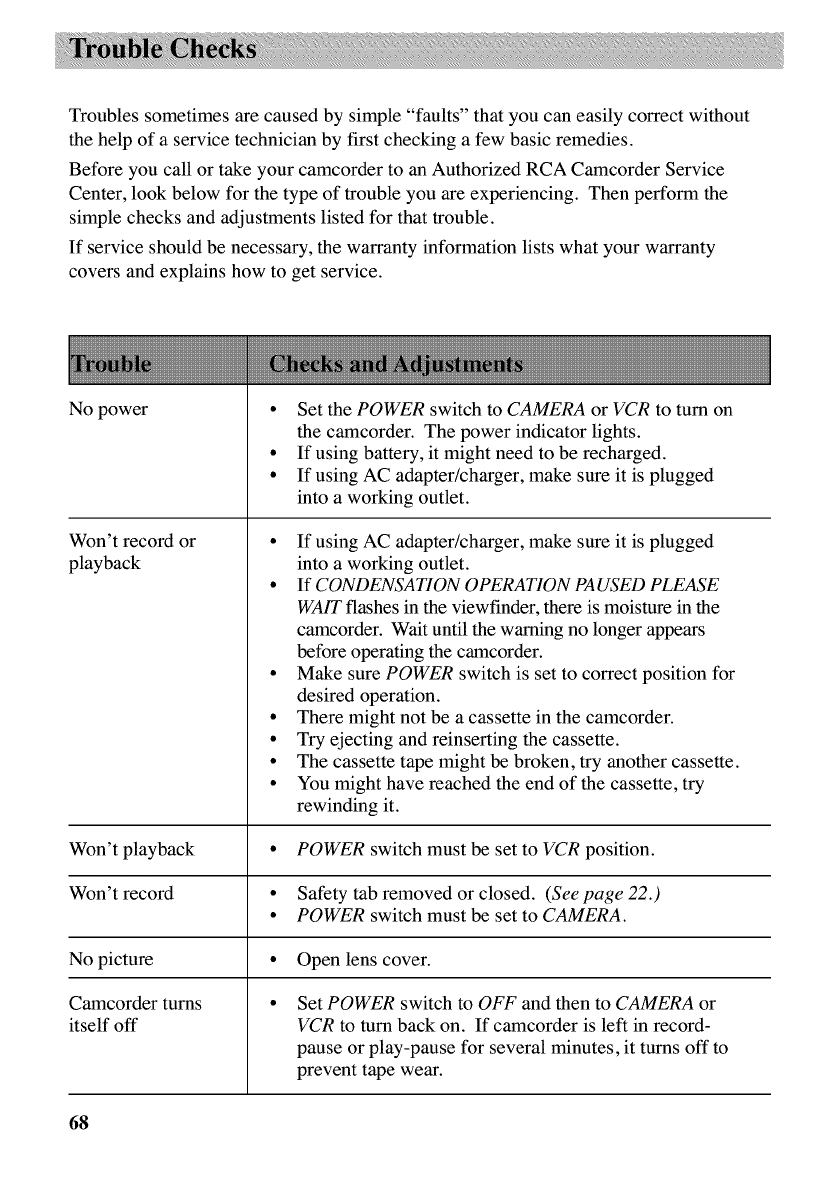

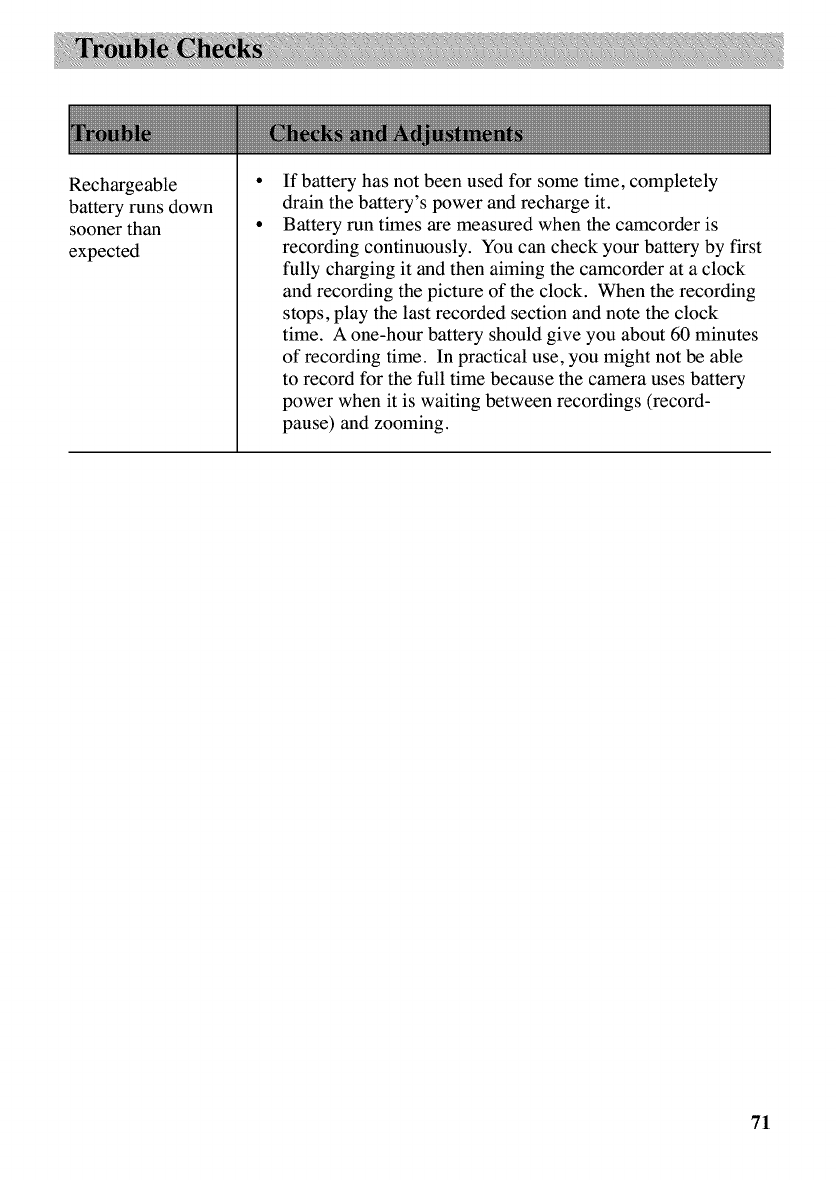

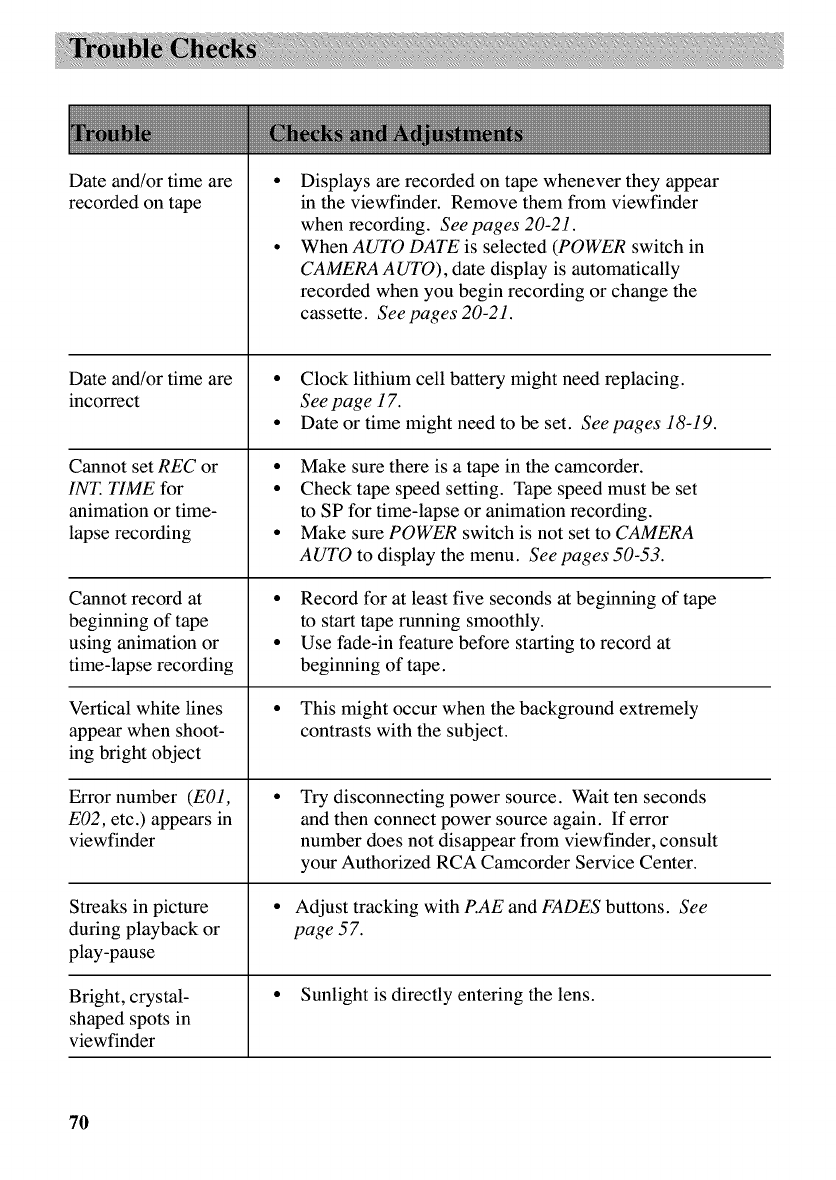

Trouble Checks .......................... 68

Specifications .............................. 72

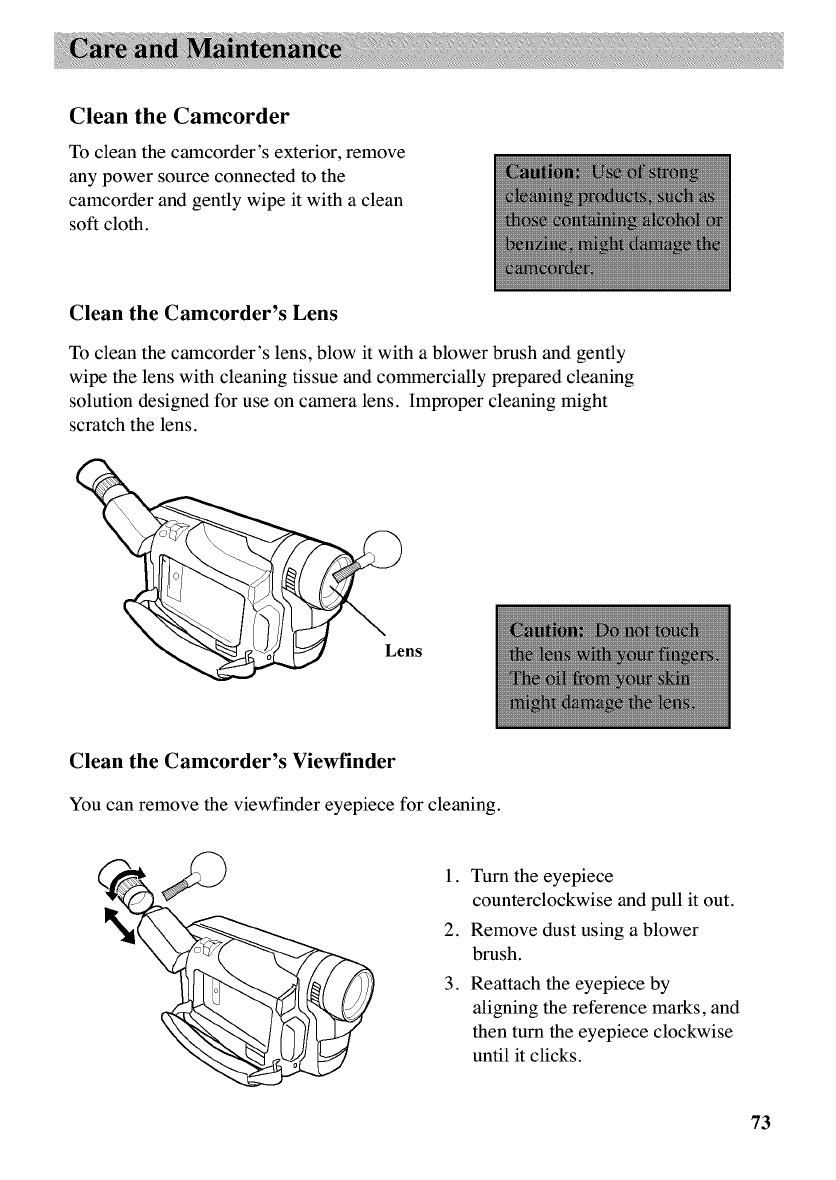

Care and Maintenance .............. 73

Clean the Camcorder ..................... 73

Clean the Camcorder's Lens ....... 73

Clean the Camcorder's Viewfinder73

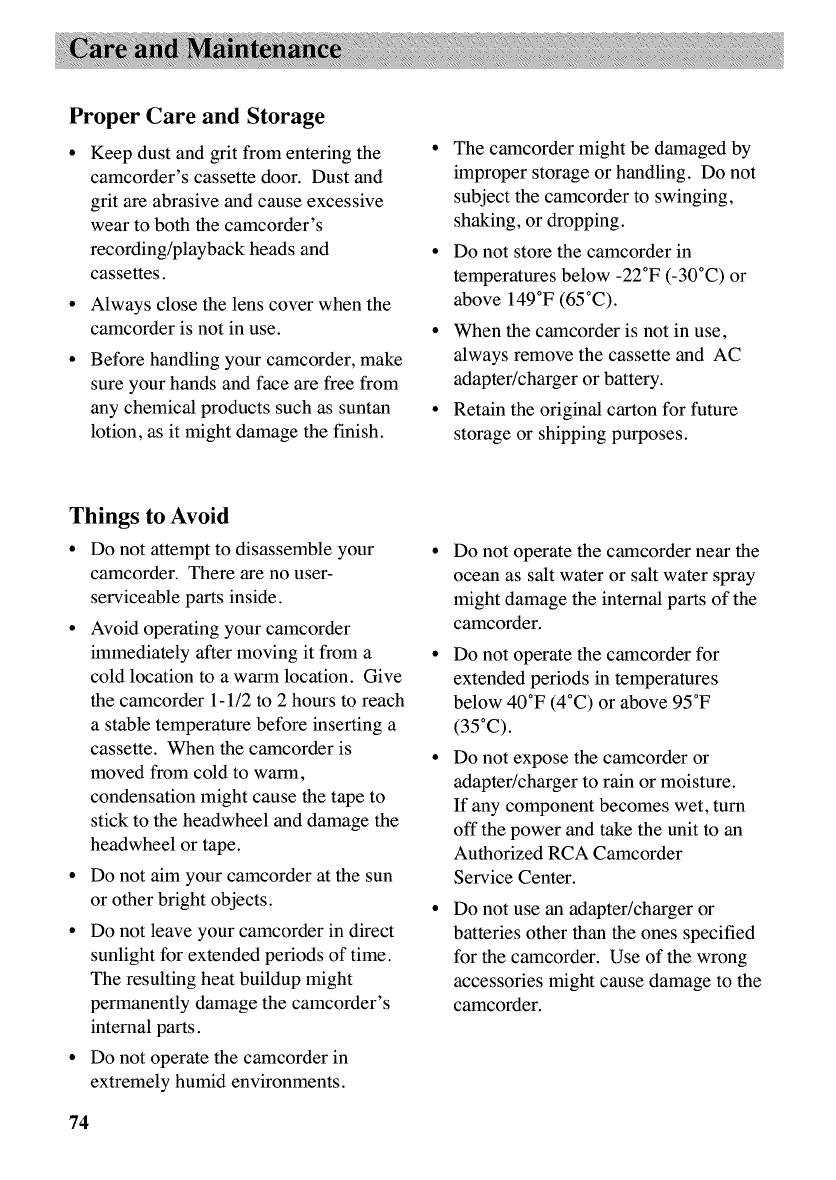

Proper Care and Storage ............... 74

Things to Avoid ............................. 74

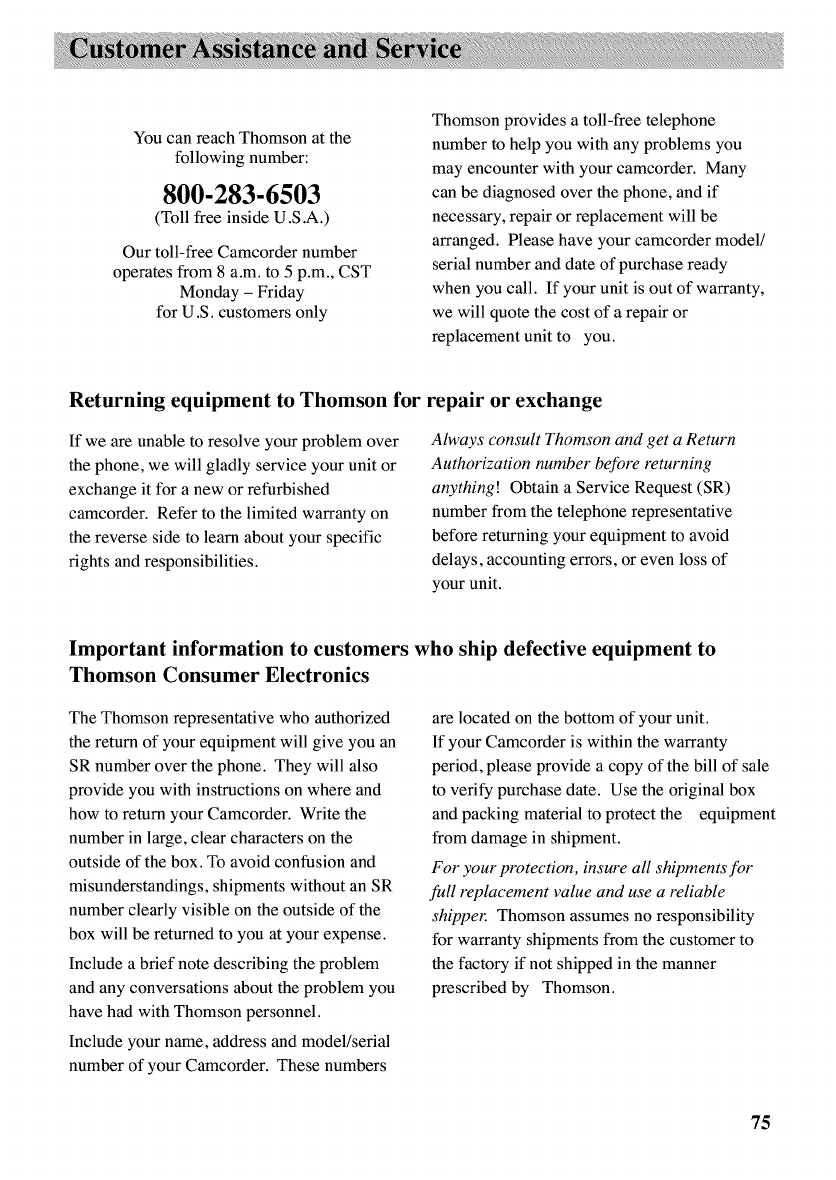

Customer Assistance and Service75

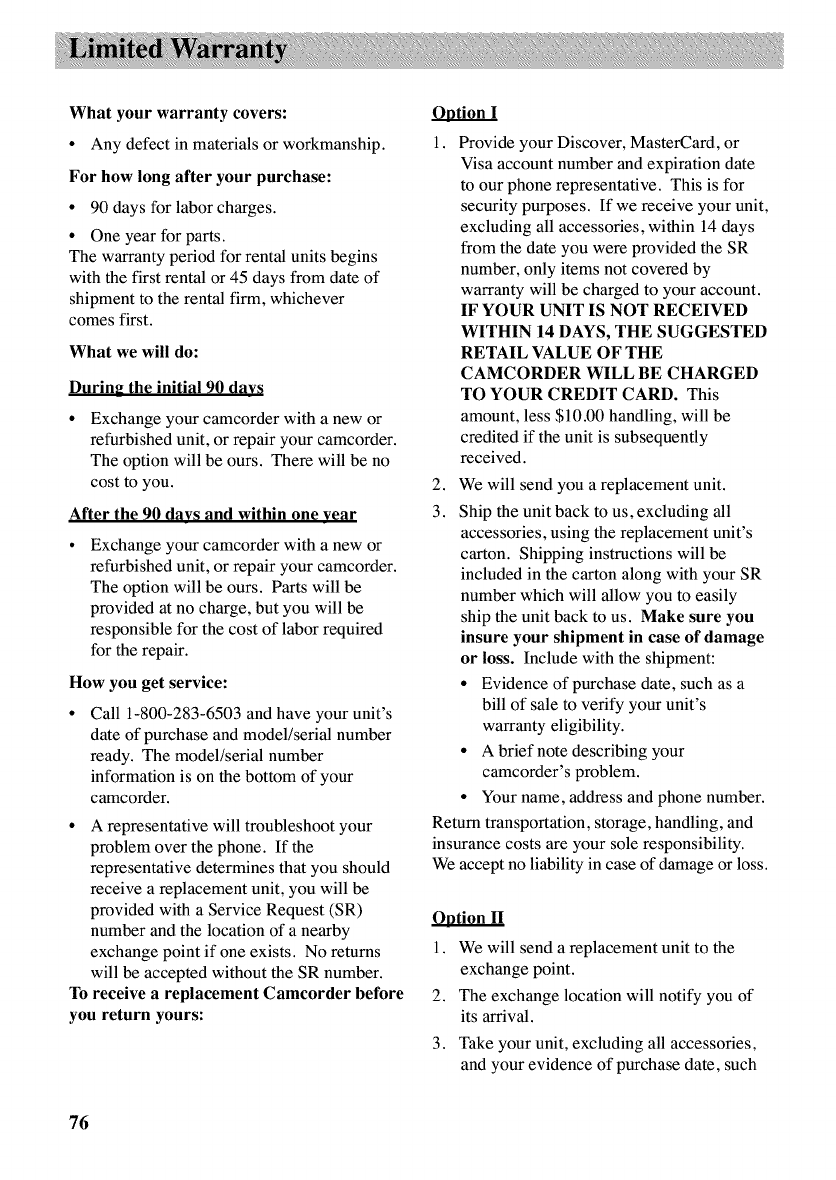

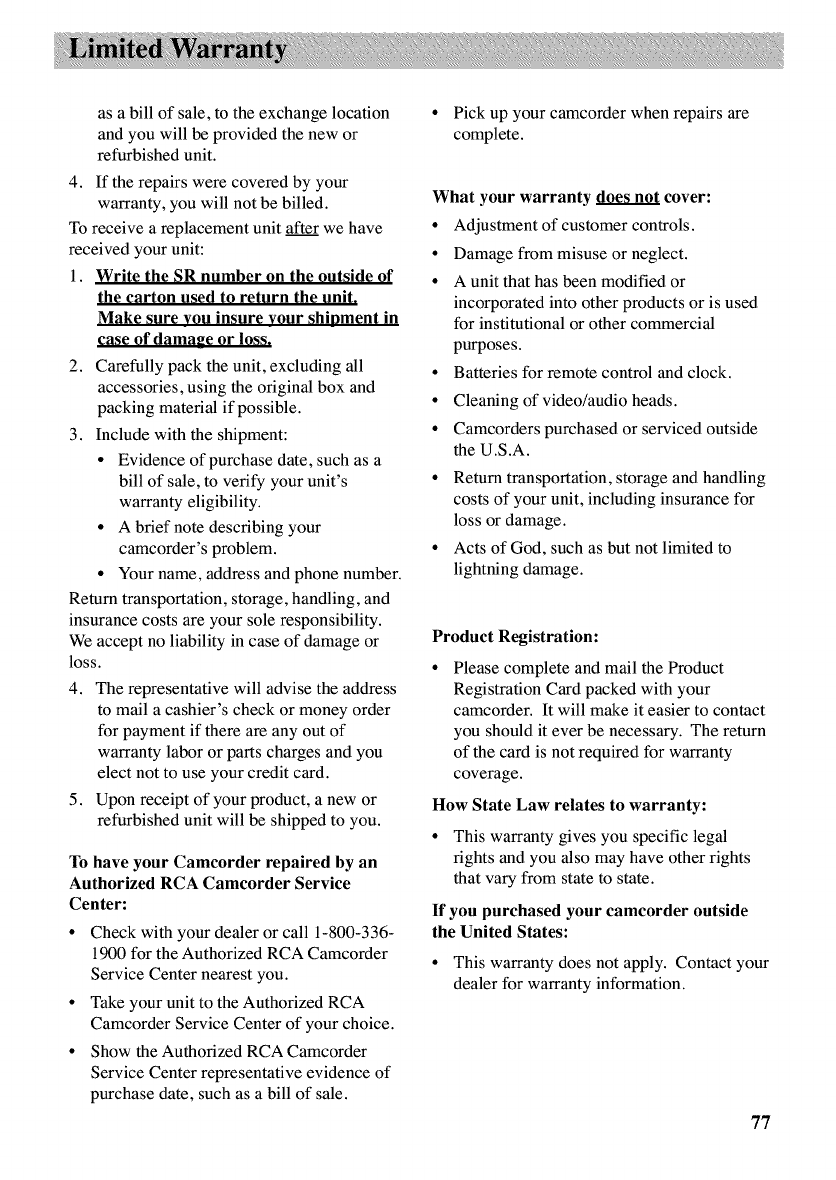

Limited Warranty ...................... 76

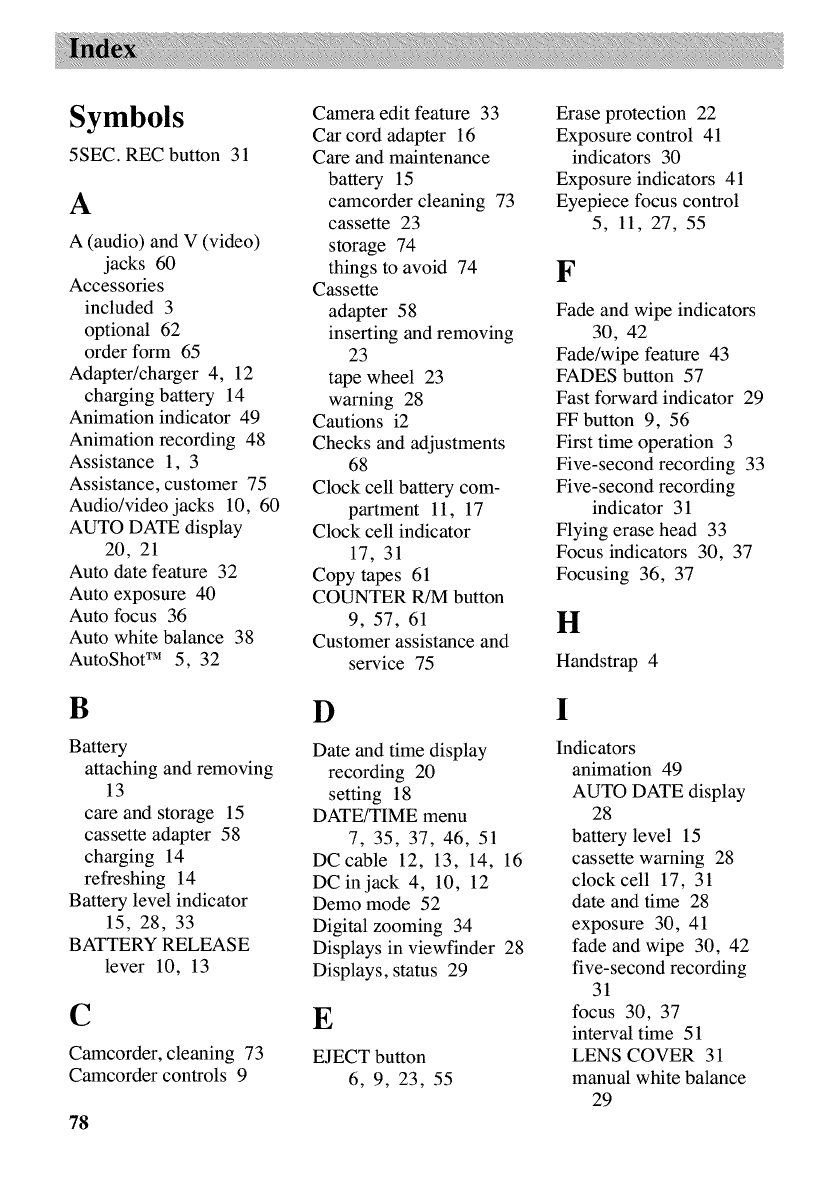

Index ........................................... 78

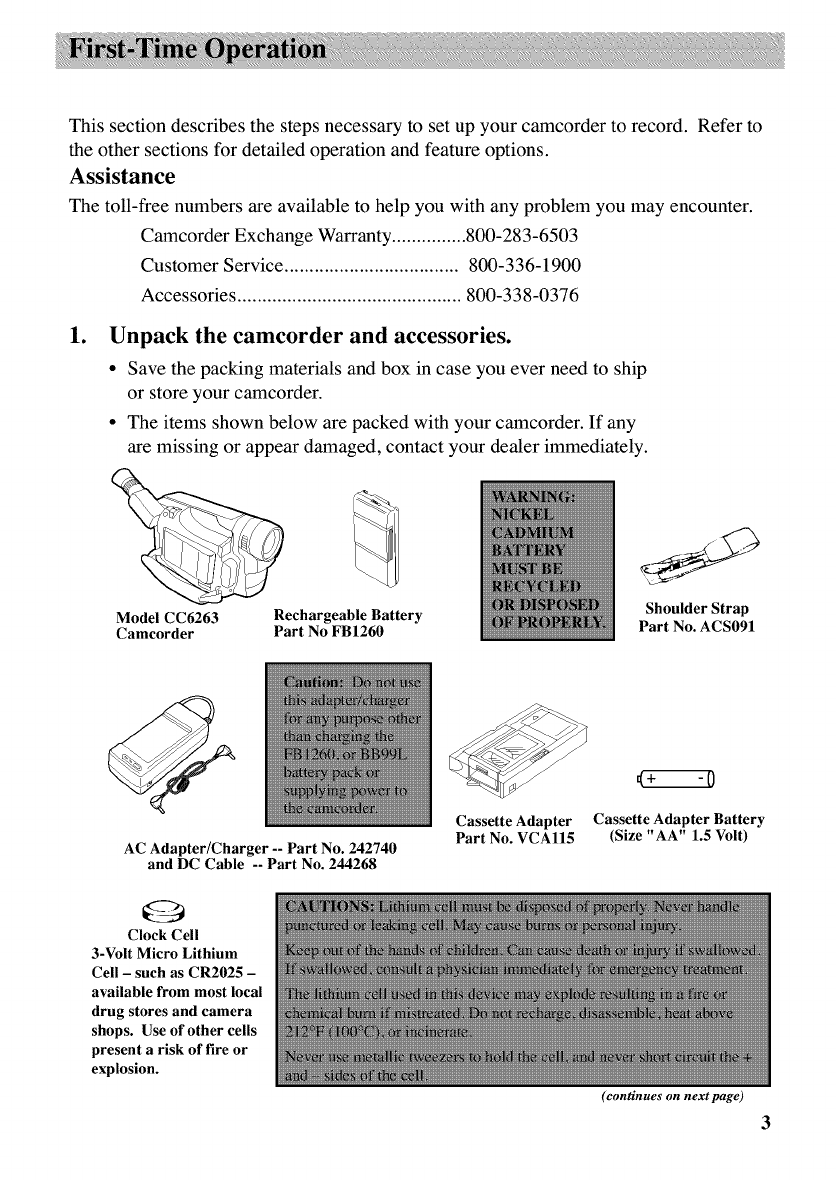

This section describes the steps necessary to set up your camcorder to record. Refer to

the other sections for detailed operation and feature options.

Assistance

The toll-free numbers axe available to help you with any problem you may encounter.

Camcorder Exchange Warranty ............... 800-283-6503

Customer Service ................................... 800-336-1900

Accessories ............................................. 800-338-0376

.Unpack the camcorder and accessories.

•Save the packing materials and box in case you ever need to ship

or store your camcorder.

• The items shown below are packed with your camcorder. If any

axe missing or appear damaged, contact your dealer immediately.

Model CC6263 Rechargeable Battery

Camcorder Part No FB1260

Shoulder Strap

Part No. ACS091

AC Adapter/Charger -- Part No. 242740

and DC Cable -- Part No. 244268

G

Clock Cell

3-Volt Micro Lithium

Cell -such as CR2025 -

available from most local

drug stores and camera

shops. Use of other cells

present a risk of fire or

explosion.

Cassette Adapter

Part No. VCAll5 Cassette Adapter Battery

(Size "AA" 1.5 Volt)

(continues on next page)

3

(continued from previous page)

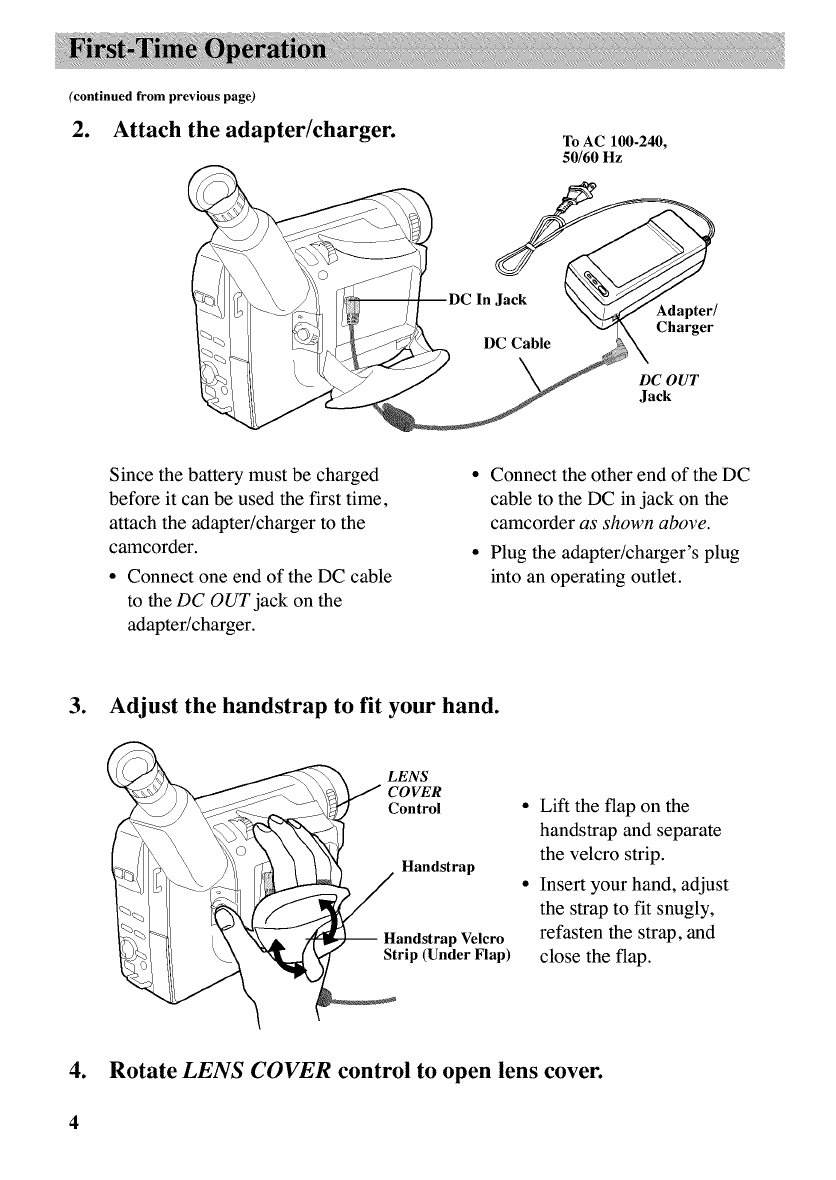

2. Attach the adapter/charger. To AC 100-240,

50/60 Hz

Adapter/

Charger

DC OUT

Jack

Since the battery must be charged

before it can be used the first time,

attach the adapter/charger to the

camcorder.

• Connect one end of the DC cable

to the DC OUT jack on the

adapter/charger.

• Connect the other end of the DC

cable to the DC in jack on the

camcorder as shown above.

• Plug the adapter/chaxger's plug

into an operating outlet.

3. Adjust the handstrap to fit your hand.

LENS

COVER

Control

Handstrap

-- Handstrap Veicro

Strip (Under Flap)

• Lift the flap on the

handstrap and separate

the velcro strip.

• Insert your hand, adjust

the strap to fit snugly,

refasten the strap, and

close the flap.

4. Rotate LENS COVER control to open lens cover.

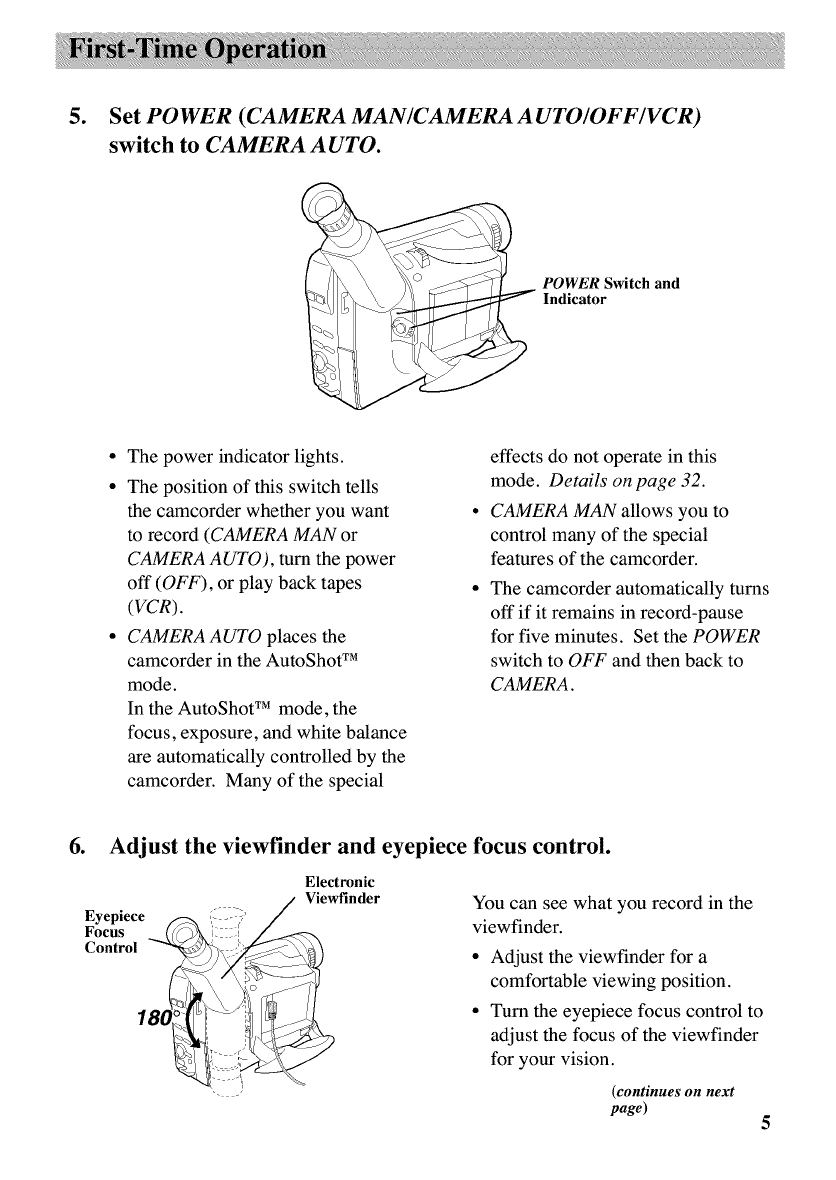

5. Set POWER (CAMERA MAN/CAMERA A UTO/OFF/VCR)

switch to CAMERA AUTO.

POWER Switch and

Indicator

• The power indicator lights.

• The position of this switch tells

the camcorder whether you want

to record (CAMERA MAN or

CAMERA AUTO), turn the power

off (OFF), or play back tapes

(VCR).

•CAMERA AUTO places the

camcorder in the AutoShot TM

mode.

In the AutoShot TM mode, the

focus, exposure, and white balance

are automatically controlled by the

camcorder. Many of the special

effects do not operate in this

mode. Details on page 32.

CAMERA MAN allows you to

control many of the special

features of the camcorder.

The camcorder automatically turns

off if it remains in record-pause

for five minutes. Set the POWER

switch to OFF and then back to

CAMERA.

6. Adjust the viewfinder and eyepiece focus control.

Eyepiece

Focus

Control

Electronic

Viewfinder You can see what you record in the

viewfinder.

• Adjust the viewfinder for a

comfortable viewing position.

• Turn the eyepiece focus control to

adjust the focus of the viewfinder

for your vision.

(continues on next

page) 5

(continued from previous page)

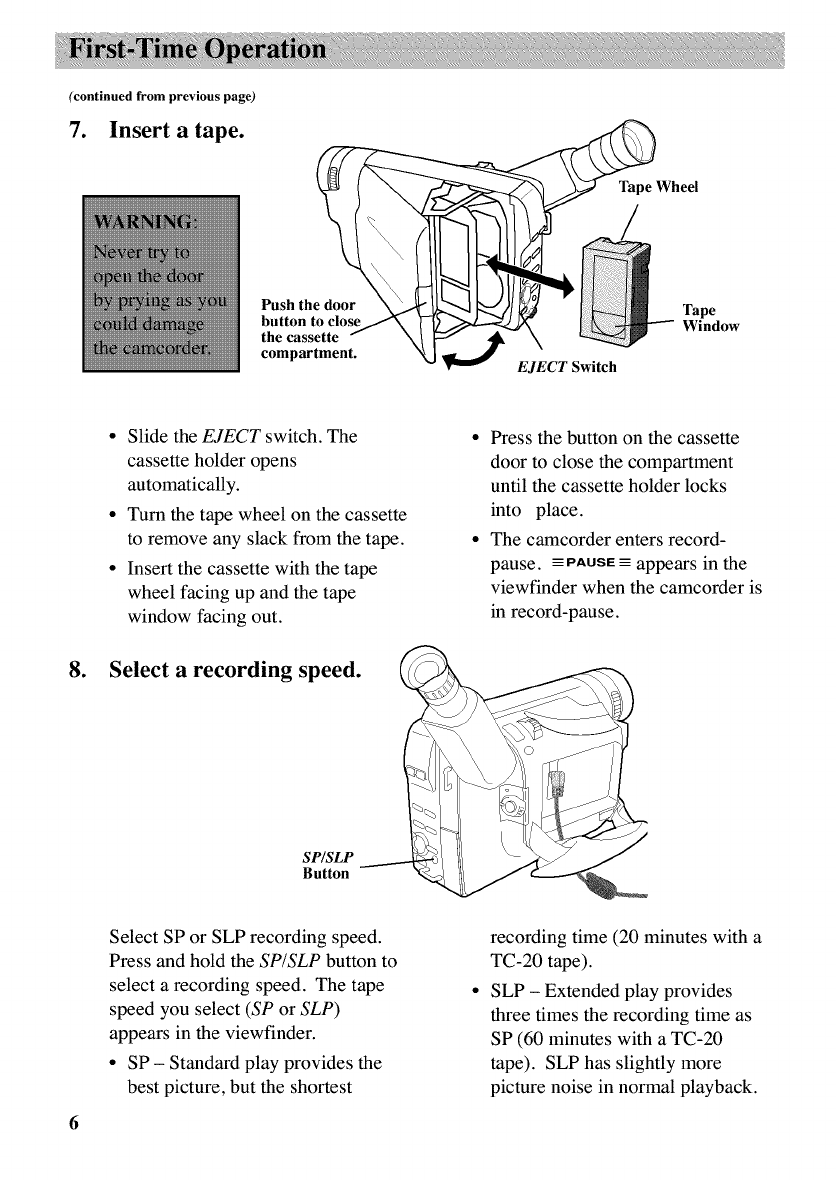

7. Insert a tape.

• Slide the EJECT switch. The

cassette holder opens

automatically.

• Turn the tape wheel on the cassette

to remove any slack from the tape.

• Insert the cassette with the tape

wheel facing up and the tape

window facing out.

8. Select a recording speed.

•Press the button on the cassette

door to close the compartment

until the cassette holder locks

into place.

• The camcorder enters record-

pause. - PAUSE-- appears in the

viewfinder when the camcorder is

in record-pause.

SP/SLP

Button

6

Select SP or SLP recording speed.

Press and hold the SP/SLP button to

select a recording speed. The tape

speed you select (SP or SLP)

appears in the viewfinder.

• SP - Standard play provides the

best picture, but the shortest

recording time (20 minutes with a

TC-20 tape).

SLP -Extended play provides

three times the recording time as

SP (60 minutes with a TC-20

tape). SLP has slightly more

picture noise in normal playback.

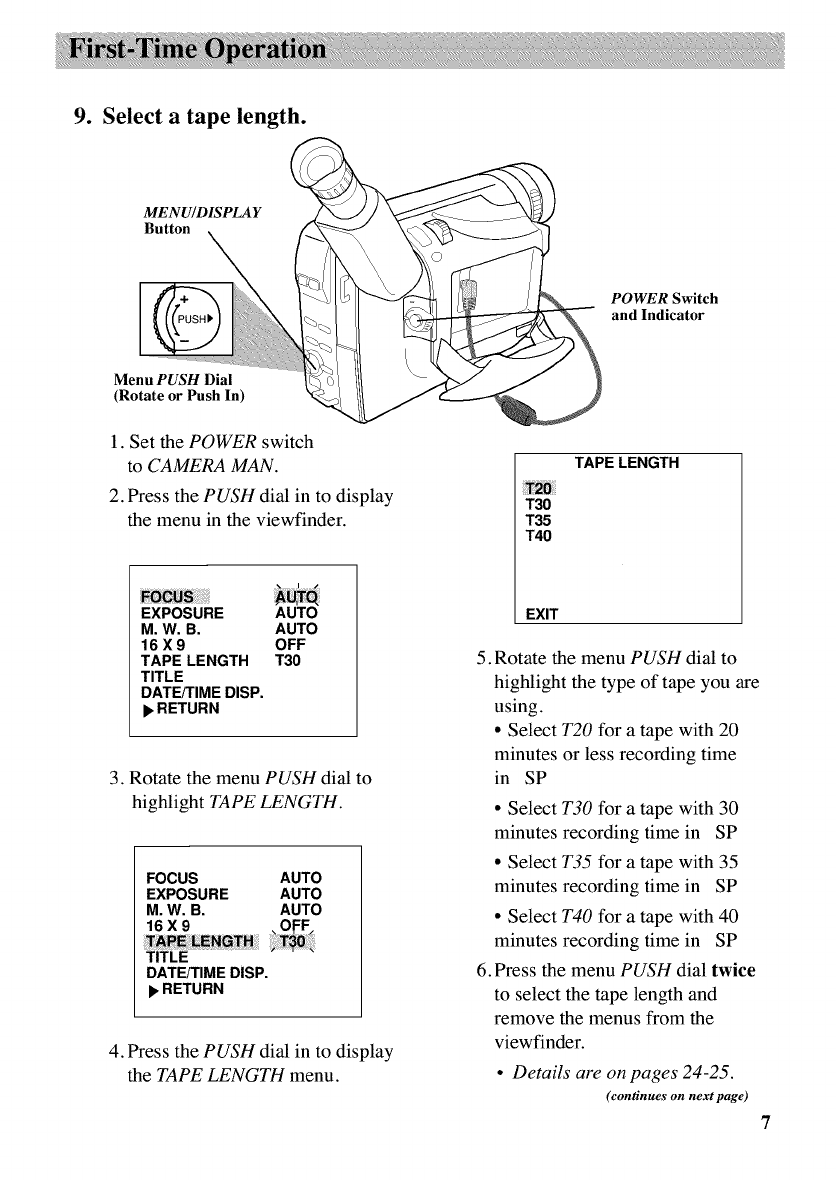

9. Select a tape length.

MENU/DISPLAY

Button

POWER Switch

and Indicator

Menu PUSH Dial

(Rotate or Push In)

1. Set the POWER switch

to CAMERA MAN.

2. Press the PUSH dial in to display

the menu in the viewfinder.

EXPOSURE AUTO

M. W.B. AUTO

16 X 9 OFF

TAPE LENGTH T30

TITLE

DATE/TIMEDISP.

•RETURN

3. Rotate the menu PUSH dial to

highlight TAPE LENGTH.

FOCUS AUTO

EXPOSURE AUTO

M. W.B. AUTO

16 X 9 _Op:F_

TITLE

DATE/TIME DISP.

•RETURN

4. Press the PUSH dial in to display

the TAPE LENGTH menu.

TAPE LENGTH

T20i

T30

T35

T40

EXIT

5. Rotate the menu PUSH dial to

highlight the type of tape you axe

using.

• Select T20 for a tape with 20

minutes or less recording time

in SP

• Select T30 for a tape with 30

minutes recording time in SP

• Select T35 for a tape with 35

minutes recording time in SP

• Select T40 for a tape with 40

minutes recording time in SP

6. Press the menu PUSH dial twice

to select the tape length and

remove the menus from the

viewfinder.

•Details are on pages 24-25.

(continues on next page)

(continuedfrom previous page)

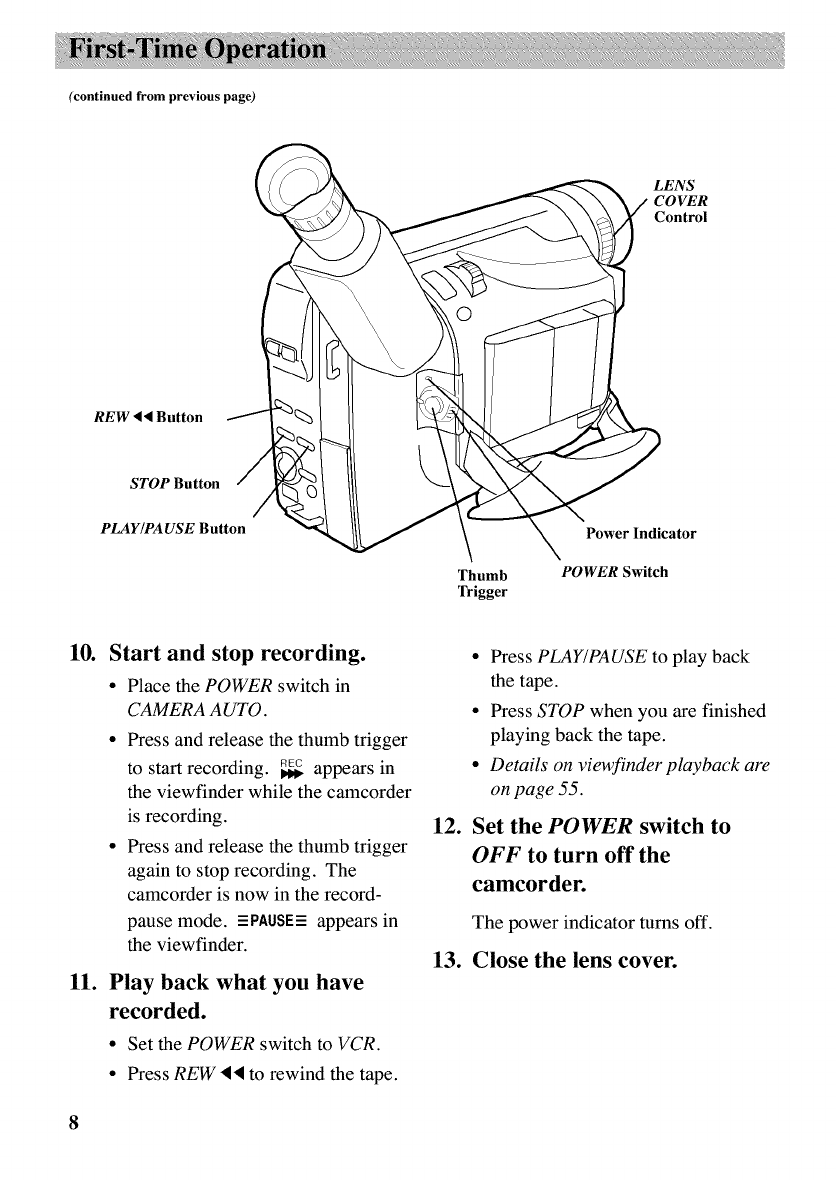

LENS

COVER

Control

REW 44 Button

STOP Button

PLAY/PAUSE Button

Thumb

Trigger

Power Indicator

POWER Switch

10. Start and stop recording.

• Place the POWER switch in

CAMERA AUTO.

• Press and release the thumb trigger

to start recording. _ appears in

the viewfinder while the camcorder

is recording.

• Press and release the thumb trigger

again to stop recording. The

camcorder is now in the record-

pause mode. -OAUSE- appears in

the viewfinder.

11. Play back what you have

recorded.

• Set the POWER switch to VCR.

• Press REW 44 to rewind the tape.

• Press PLAY/PAUSE to play back

the tape.

•Press STOP when you axe finished

playing back the tape.

•Details on viewfinder playback are

on page 55.

12. Set the POWER switch to

OFF to turn off the

camcorder.

The power indicator turns off.

13. Close the lens cover.

8

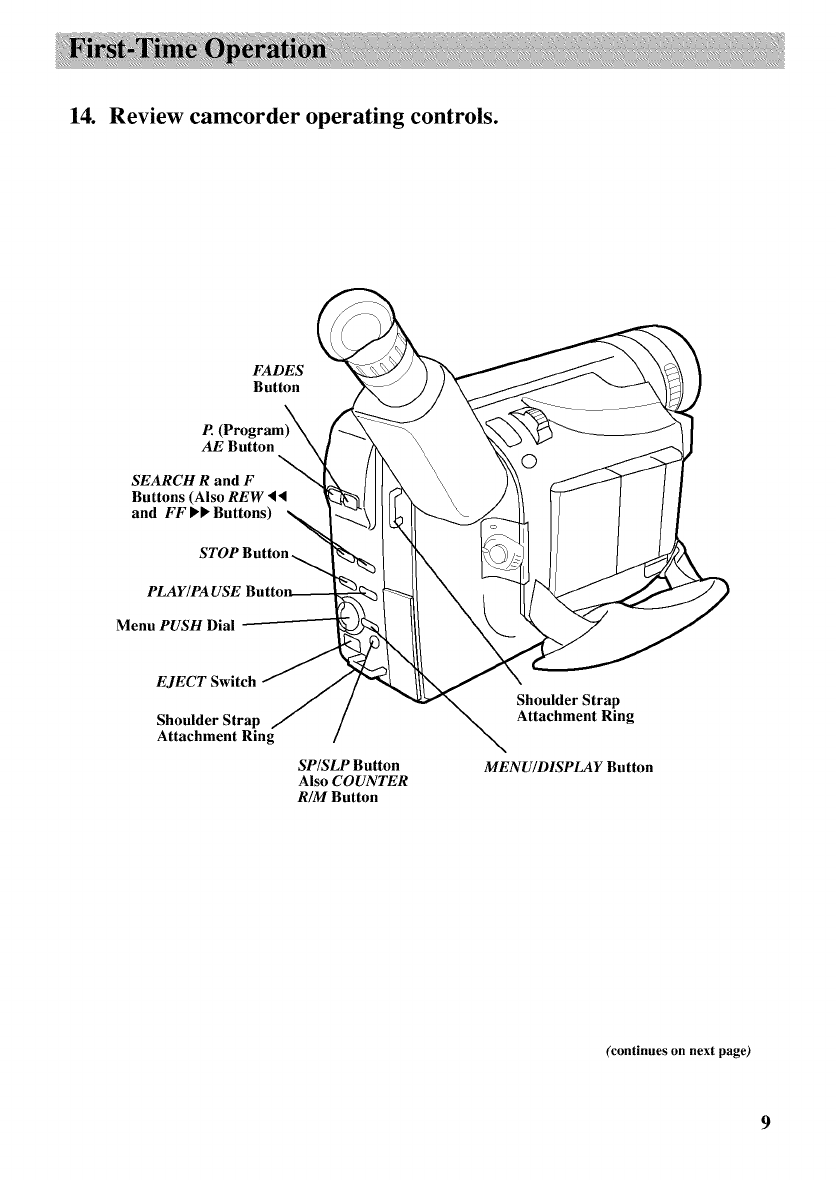

14. Review camcorder operating controls.

FADES

Button

AE Button

SEARCH R and F

Buttons (Also REW _,

and FF I_l_Buttons)

PLAY/PA USE

Menu PUSH Dial

EJECT Switch

Shoulder Strap

Attachment Ring

SP/SLP Button

Also COUNTER

R/M Button

Shoulder Strap

Attachment Ring

MENU/DISPLAY Button

(continues on next page)

(continued from previous page)

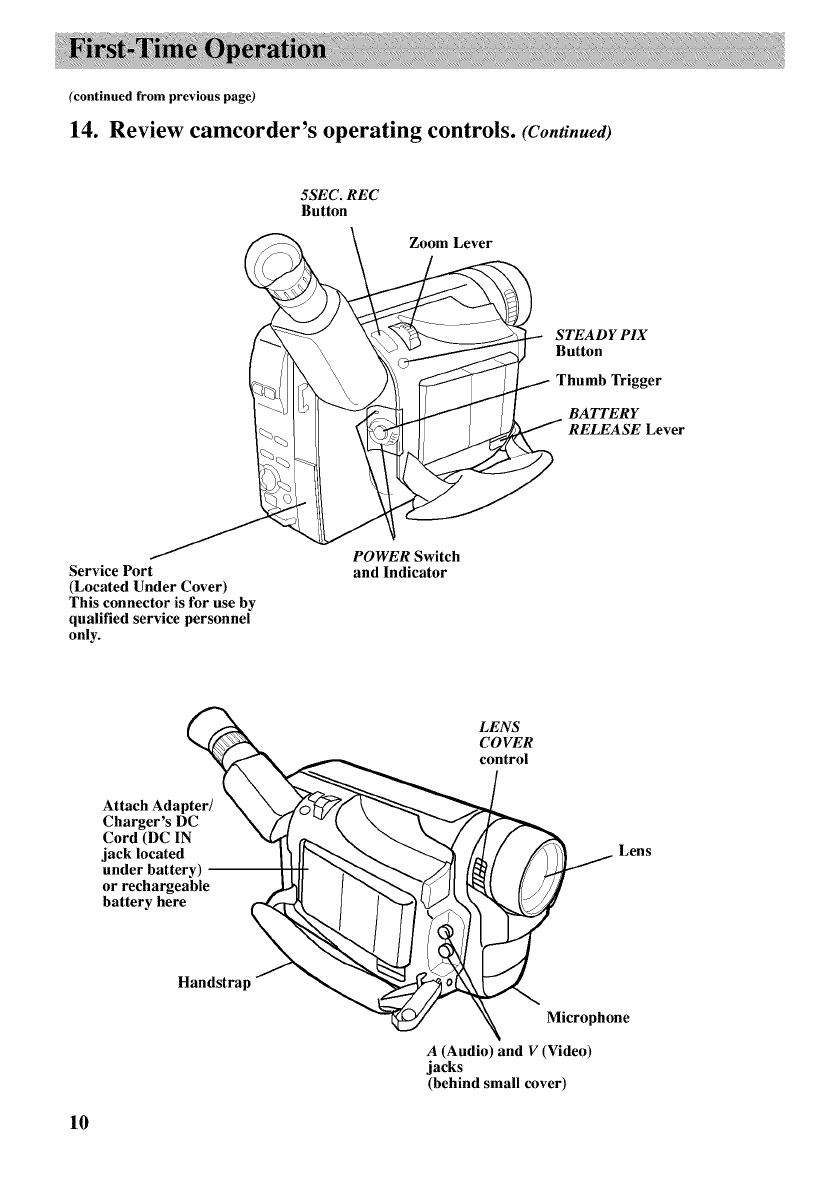

14. Review camcorder's operating controls. (Continued)

5SEC. REC

Button

Zoom Lever

STEADY PIX

Button

Thumb Trigger

BATTERY

RELEASE Lever

Service Port

(Located Under Cover)

This connector is for use by

qualified service personnel

only.

POWER Switch

and Indicator

LENS

COVER

control

Attach Adapter/

Charger's DC

Cord (DC IN

jack located

under battery) --

or rechargeable

battery here

Lens

Handstrap

Microphone

A(Audio) and V(Video)

jacks

(behind small cover)

10

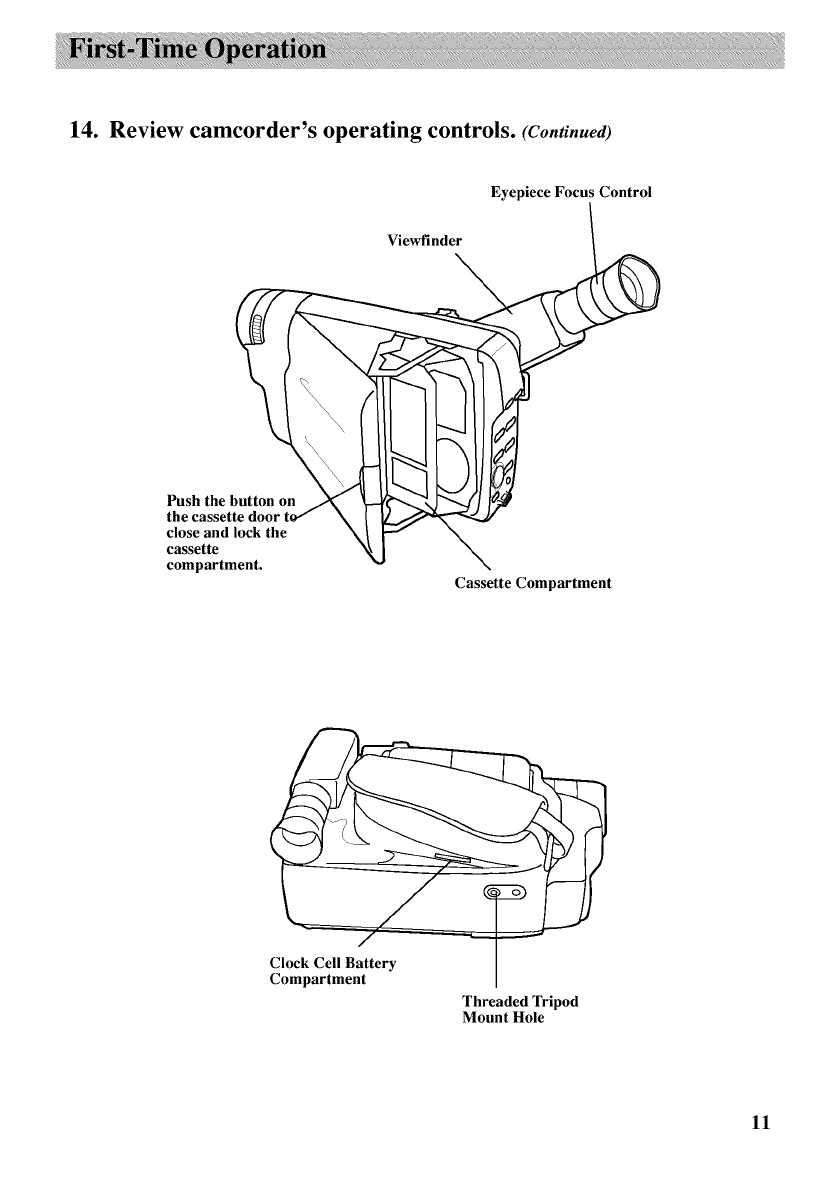

14. Review camcorder's operating controls. (Continued)

Eyepiece Focus Control

PhU/hthe _u_on/tn_ Viewfinder

ci//el_nd lock the

compartment. Cassette Compartment

Clock Cell Battery

Compartment

Threaded Tripod

Mount Hole

11

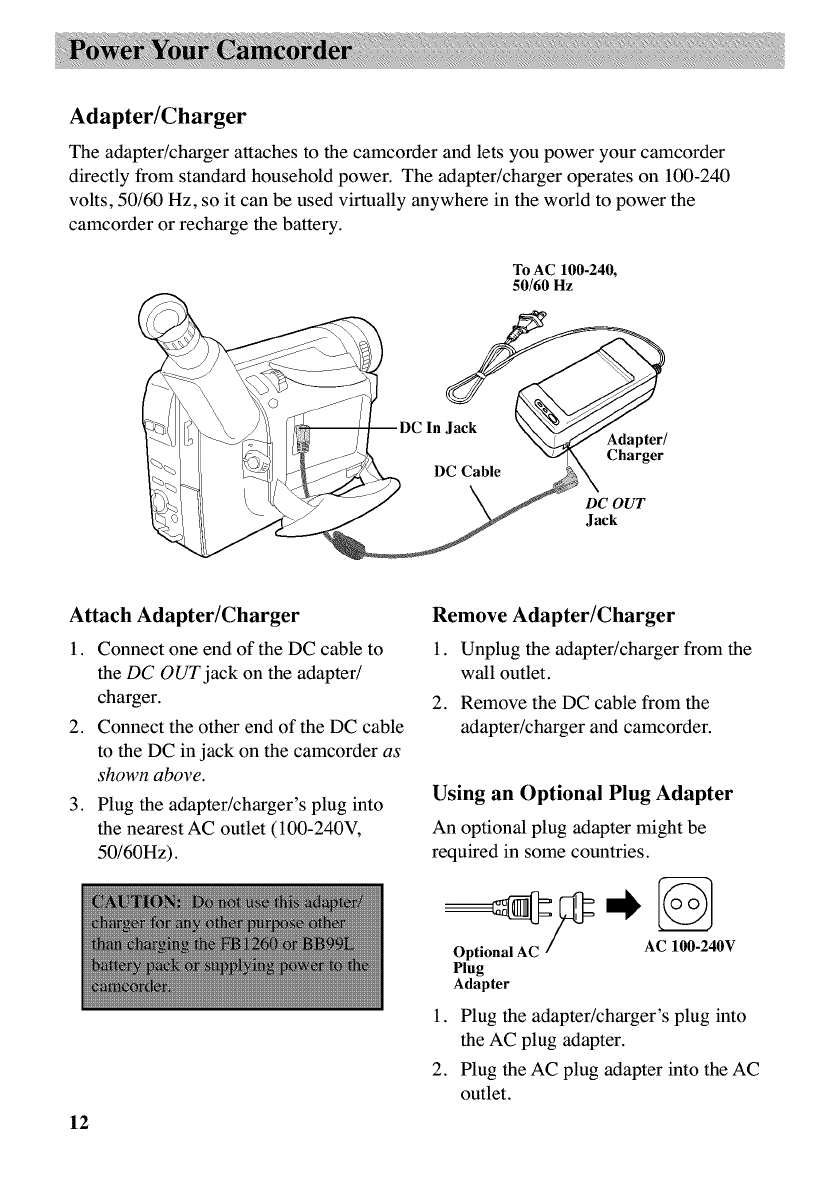

Adapter/Charger

The adapter/chaxger attaches to the camcorder and lets you power your camcorder

directly from standard household power. The adapter/charger operates on 100-240

volts, 50/60 Hz, so it can be used virtually anywhere in the world to power the

camcorder or recharge the battery.

To AC 100-240,

50/60 Hz

Adapter/

Charger

DC OUT

Jack

Attach Adapter/Charger

1. Connect one end of the DC cable to

the DC OUT jack on the adapter/

charger.

2. Connect the other end of the DC cable

to the DC in jack on the camcorder as

shown above.

3. Plug the adapter/chaxger's plug into

the nearest AC outlet (100-240V,

50/60Hz).

12

Remove Adapter/Charger

1. Unplug the adapter/charger from the

wall outlet.

2. Remove the DC cable from the

adapter/charger and camcorder.

Using an Optional Plug Adapter

An optional plug adapter might be

required in some countries.

Optional AC /AC 100-240V

Plug

Adapter

1. Plug the adapter/chaxger's plug into

the AC plug adapter.

2. Plug the AC plug adapter into the AC

outlet.

Rechargeable Battery

The battery must be charged as described on the next page before it can be used the

first time. Initial charging takes approximately 70 minutes. When fully charged, the

battery supplies approximately 95-105 minutes of operating time - depending on how

much you use zoom and pause. Conserve battery power by turning the camcorder off

during recording breaks.

Note: Use the small marker switch on the top of the battery to help remind yourself to charge

the battery. It has no other purpose.

BATTERY

RELEASE Marker

Lever Switch

Attach the Charged Battery

If the DC cable is attached to the

camcorder, remove it before attaching

the battery. Also, install the lithium

clock cell before attaching the battery.

Details are on page 17.

1. Hook the battery to the side of the

camcorder as shown above.

2. Press the battery down until it locks

into place.

3. Set the POWER switch to CAMERA.

The power indicator lights.

Remove the Battery

Slide and hold the BATTERY RELEASE

lever down while removing the battery.

13

Use the Battery to Power Your Camcorder

Reference

Marks

Hold Battery Flush

and Slide IToAC Wall

Outlet 100-

240 Volts,50/

60 Hz.

CHG

(Charge)

Indicator

REFRESH

Indicator Adapter/Charger

REFRESH

Button

Charge the Battery

If the DC cable is attached to the DC OUT

jack on the adapter/charger, remove it.

1. Align reference mark on battery with

mark on adapter/charger.

2. Hold the battery flush against the

adapter/charger and slide it in the

direction of the arrow.

3. Plug adapter/charger into nearest AC

outlet (100-240V, 50/60Hz).

4. If the battery is properly connected,

the CHG indicator flashes.

.

Note: If you try to charge abattery that

has not been charged for a long period of

time, it may take a few minutes for the

CHG indicator to flash.

After the battery is charged, the CHG

indicator stops flashing and lights.

14

6. Remove the charged battery by

sliding it off the adapter/charger.

7. Attach the charged battery to the

camcorder.

Use the REFRESH Button

The battery provides increased

operation time if you "refresh" it after

five chargings. The refresh feature

"refreshes" the battery by completely

discharging it.

1. Attach battery to adapter/charger.

2. Press REFRESH. The REFRESH

indicator lights and the battery

begins discharging.

3. When discharging is completed, the

REFRESH indicator turns off, and

the CHG indicator flashes. The

battery now charges.

Use the Battery to Power Your Camcorder (Continued)

4. After the battery is charged, the CHG

(charge) indicator stops flashing and

lights.

5. Remove the battery from the adapter/

charger.

Battery Level Indicator

The battery level indicator appears in the

viewfinder and shows you the amount of

power in the rechargeable battery.

• When _ appears, the battery is

fully charged.

• As the power is used _ and

appear.

• When the battery power is almost

gone, _:_ flashes in the viewfinder.

/I\

The camcorder turns off automatically

after a few seconds. Set the POWER

switch to OFF to turn off the cam-

corder before replacing the battery.

The battery level indicator is not recorded

on the tape.

Battery Care and Storage

• Recharging takes approximately 70

minutes for the battery depending on

the battery's condition.

• Refreshing takes approximately 3-1/2

hours for the battery depending on the

battery's condition.

• After repeated charging and use,

operation time gradually decreases.

When operation time is too short to be

useful, it is time to replace the battery.

• If the battery discharging must be

stopped in the middle, remove the

battery from the adapter/charger before

unplugging it from the AC outlet.

• If the battery pack becomes too hot,

remove it from the charger and let it

cool down.

• Let a hot battery cool down before

attaching it to the AC adapter/charger.

15

Optional Car Cord Adapter

The optional DCC08 car cord shown on

page 62 allows you to power your

camcorder from the cigarette lighter

socket of a car, truck, or RV. It converts

12-volts to a 6-volt output.

Note: Consult the installation and operating

instructions enclosed with the DCC08 for

complete operating instructions.

Use the DCC08 Car Cord Adapter

Power Connector

To Cigarette

Lighter Socket

Optional DCC08 Car

Cord Adapter

1. Set the POWER switch to OFF to turn

off the camcorder. The power

indicator on the camcorder turns off.

2. If the battery or DC cable is attached

to the camcorder, remove it.

3. Hold the bottom of the power

connector flush against the camcorder,

and press the connector down until it

locks into place as shown above.

4. Take the vehicle's cigarette lighter out

of the socket.

5. Insert the car cord's cigarette lighter

plug into the vehicle's cigarette lighter

socket. The power indicator on the

car cord adapter lights.

6. Set the POWER switch to CAMERA to

turn on the camcorder. The power

indicator on the camcorder lights.

16

Install the Clock Lithium Cell

The clock cell indicator _ flashes for a few seconds in the viewfinder when

you turnon the camcorder if the cell is not installed or needs replacing.

Clock Cell

Compartment

Clock Cell

Holder ©

Clock Cell

(+ Side Facing Out)

1. Make sure camcorder is turned off,

and remove any power supply

attached to the camcorder.

2. Pull the clock cell holder out of the

clock cell compartment.

3. Insert the clock cell with the "+"

terminal facing out, and press it in.

Insert Object Here

to Remove Cell

4. Place the clock cell holder into the

clock cell compartment. Be sure to

insert the holder fully into the

compartment.

To Remove Lithium Cell

To remove battery, insert a pointed

nonmetallic object between battery and

clock cell holder and lift.

17

Set the Date and Time

You must set the correct date and time before you can display and record it

on your tapes. The clock cell must be installed as shown on the previous

page before you can set the date.

Menu PUSH Dial

(Rotate or Press In)

POWER Switch in

CAMERA MAN

MENU/DISPLAY

Button

1. Set the POWER switch to CAMERA

MAN.

2. Press the MENU/DISPLAY button to

display the menu in the viewfinder.

_ZO_:;TELEMACRO _

REC TIME OFF

INT. TIME OFF

DATE/TIME

TITLE LANG. ENGLISH

DEMO MODE OFF

•RETURN

3. Rotate the menu PUSH dial to

highlight DATE/TIME.

D. ZOOM ON

TELE MACRO OFF

REC TIME OFF

INT. TIME OFF

TITLE LANG. ENGLISH

DEMO MODE OFF

•RETURN

18

Set the Date and Time (Continued)

4. Press the menu PUSH dial in to

display the DATE/TIME menu.

DATE/TIME

_EA_MoNTH

DAY 1

TIME AM 12:00

EXIT

5. Rotate the menu PUSH dial to

highlight YEAR. Press the menu

PUSH dial in. When YEAR starts

flashing, rotate the menu PUSH dial to

select the year. When the correct year

appears, press the menu PUSH dial in

to set the year.

6. Repeat step 5 to set the MONTH and

DAY.

7. Rotate the menu PUSH dial to

highlight TIME.

DATE!TIME

YEAR 2000

MONTH NOV

DAY

TiME

EXIT

10. Press the menu PUSH dial in. When

none of the settings axe flashing, rotate

the menu PUSH dial to highlight

EXIT.

DATE/TIME

YEAR 2000

MONTH NOV

DAY 18

TIME AM 8:00

11. Press the menu PUSH dial twice to

remove the menus from the

viewfinder.

Notes: If you decide to return the date and

time to the previous settings while the DATE/

TIME menu is displayed, rotate the menu

PUSH dial to highlight EXIT, and press. Press

the menu PUSH dial again to remove the

menus from the viewfinder.

To display and record the date and/or time, see

the Jbllowing pages.

8. Press the menu PUSH dial in. When

the hour starts flashing, rotate the

menu PUSH dial to set the hour

including AM or PM.

9. Press the menu PUSH dial in. When

the hour stops flashing and the

minutes start flashing, rotate the menu

PUSH dial to set the minutes.

19

Record AUTO DATE, Date, Time, and Title Displays

You must install the clock cell and set the date and time (as shown on the previous

pages) before the you can select and record the correct date and time.

Menu PUSH Dial

(Rotate or Press In)

POWER Switch in

CAMERA MAN

Select AUTO DATE, Date, Time, or Date and Time to Record on Your Tape

1. Attach a power supply and set

POWER switch to CAMERA MAN.

The power indicator lights.

Note: AUTO DATE is selected when the

POWER switch is set to CAMERA AUTO.

2. Press the menu PUSH dial in to

display the menu in the viewfinder.

FOCUS AUTO

EXPOSURE AUTO

M. W.B. AUTO

16 X 9 OFF

TAPE LENGTH T30

TITLE ME_ISP.

•RETURN

EXPOSURE

M. W.B. AUTO

16 X 9 OFF

TAPE LENGTH T30

TITLE

DATE/TIME DISP.

•RETURN

3. Rotate the menu PUSH dial to

highlight DATE/TIME DISP.

20

4. Press the menu PUSH dial in to

display the DATE/TIME DISP. menu.

DATE/TIME DISP.

AUTO

DATE

TIME

DATE&TIME

OFF

I*EXIT

Record AUTO DATE, Date, Time, and Title Displays (Continued)

.Rotate the menu PUSH dial to

highlight the date/time display you

want to record

•AUTO DATE: The date is auto-

matically recorded for approxi-

mately five seconds and then AUTO

DATE is displayed whenever:

•The date is set or changed.

•This display mode is selected.

•The tape is changed or the tape

compartment opened.

•This display is selected when-

ever the POWER switch is set to

CAMERA AUTO.

• DATE Display: The date is

displayed and recorded.

.

.

8.

•TIME: The time is displayed and

recorded.

•DATE/TIME Display: The

date and time axe displayed

and recorded.

• OFF: No display is displayed or

recorded.

Press the select PUSH dial in to select

the date/time display you want to

record.

Press the menu PUSH dial in to

remove the menu from the viewfinder.

Press the thumb trigger to begin

recording.

21

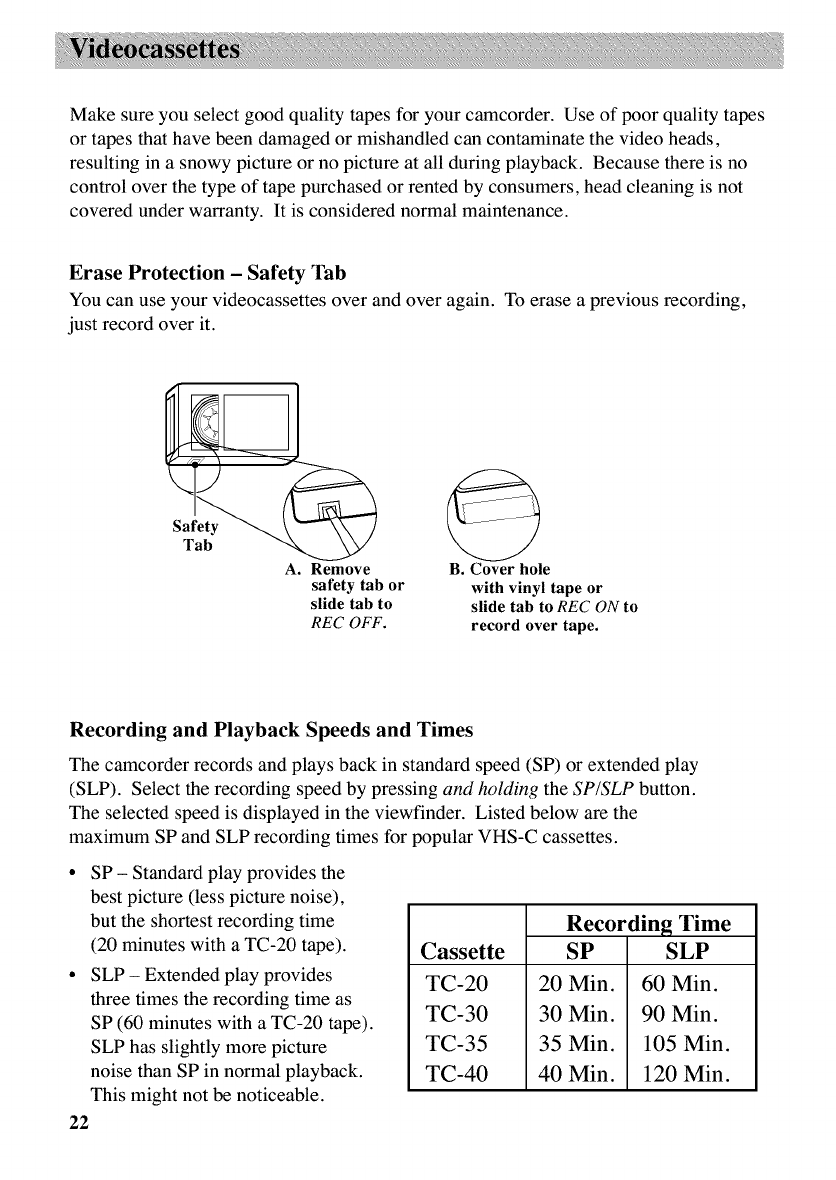

Make sure you select good quality tapes for your camcorder. Use of poor quality tapes

or tapes that have been damaged or mishandled can contaminate the video heads,

resulting in a snowy picture or no picture at all during playback. Because there is no

control over the type of tape purchased or rented by consumers, head cleaning is not

covered under warranty. It is considered normal maintenance.

Erase Protection - Safety Tab

You can use your videocassettes over and over again. To erase a previous recording,

just record over it.

\

Safety

A. Remove B. Cover hole

safety tab or with vinyl tape or

slide tab to slide tab to REC ON to

REC OFF. record over tape.

Recording and Playback Speeds and Times

The camcorder records and plays back in standard speed (SP) or extended play

(SLP). Select the recording speed by pressing and homing the SP/SLP button.

The selected speed is displayed in the viewfinder. Listed below are the

maximum SP and SLP recording times for popular VHS-C cassettes.

• SP - Standard play provides the

best picture (less picture noise),

but the shortest recording time

(20 minutes with a TC-20 tape).

• SLP - Extended play provides

three times the recording time as

SP (60 minutes with a TC-20 tape).

SLP has slightly more picture

noise than SP in normal playback.

This might not be noticeable.

22

Cassette

TC-20

TC-30

TC-35

TC-40

Recording Time

SP

20 Min.

30 Min.

35 Min.

40 Min.

SLP

60 Min.

90 Min.

105 Min.

120 Min.

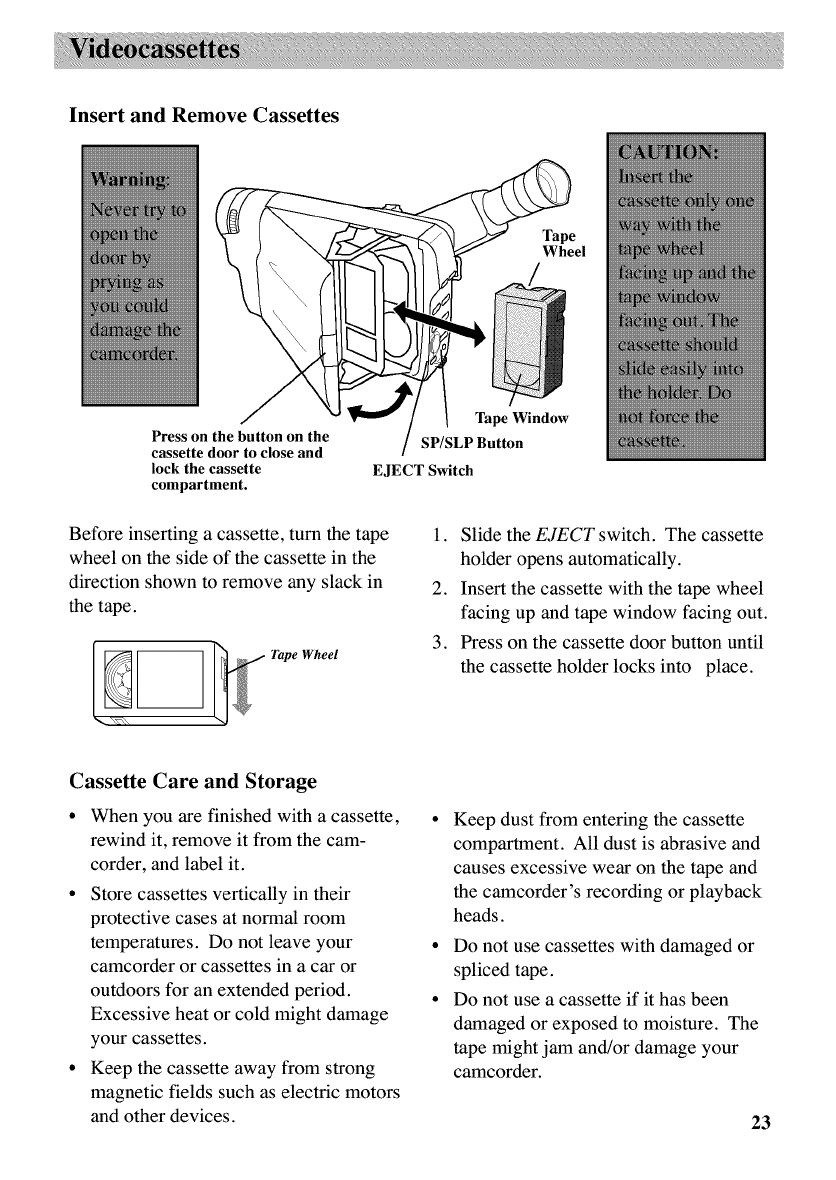

Insertand Remove Cassettes

Press on the button on the

cassette door to close and

lock the cassette

compartment.

_i Tape Window

SP/SLP Button

EJECT Switch

Before inserting a cassette, turn the tape

wheel on the side of the cassette in the

direction shown to remove any slack in

the tape.

Tape Wheel

1. Slide the EJECT switch. The cassette

holder opens automatically.

2. Insert the cassette with the tape wheel

facing up and tape window facing out.

3. Press on the cassette door button until

the cassette holder locks into place.

Cassette Care and Storage

• When you axe finished with a cassette, •

rewind it, remove it from the cam-

corder, and label it.

• Store cassettes vertically in their

protective cases at normal room

temperatures. Do not leave your •

camcorder or cassettes in a car or

outdoors for an extended period. •

Excessive heat or cold might damage

your cassettes.

• Keep the cassette away from strong

magnetic fields such as electric motors

and other devices.

Keep dust from entering the cassette

compartment. All dust is abrasive and

causes excessive wear on the tape and

the camcorder's recording or playback

heads.

Do not use cassettes with damaged or

spliced tape.

Do not use a cassette if it has been

damaged or exposed to moisture. The

tape might jam and/or damage your

camcorder.

23

Time-Remaining Display

The approximate time remaining on the tape in the camcorder for the tape

speed you select is displayed. You must set the correct tape length in the

TAPE LENGTH feature of the menu before the camcorder can correctly

calculate time remaining.

Menu PUSH Dial

(Rotate or Press In)

Select a Tape Length

1. Set the POWER switch to CAMERA

MAN.

2. Press and hold the SP/SLP button to

select a tape speed.

3. Press the PUSH dial in to display the

menu in the viewfinder.

EXPOSURE

M. W.B. AUTO

16 X 9 OFF

TAPE LENGTH T30

TITLE

DATE/TIME DISP.

•RETURN

SP!SLP

Button

4. Rotate the menu PUSH dial to

highlight TAPE LENGTH.

FOCUS AUTO

EXPOSURE AUTO

M. W.B. AUTO

16 X 9 OFF,

TITLE

DATE/TIME DISP.

•RETURN

5. Press the menu PUSH dial in to

display the TAPE LENGTH menu.

24

Time-Remaining Display (Continued)

--MIN _

(Calculating) I

--MIN

29MIN

1

3MIN

1

2MIN

(Flashing)

1

1MIN

(Flashing)

OMIN

(Flashing)

T30

TAPE END

Time-Remaining Display

in Viewfinder

Tape Length

Indicator

Tape Speed

Indicator

.

TAPE LENGTH

T30

T35

T40

EXIT

Rotate the menu PUSH dial to

highlight the type of tape you are

using.

• Select T20 for a tape with 20

minutes or less recording time

in SP

.

•Select T30 for a tape with 30

minutes recording time in SP

.• Select T35 for a tape with 35

minutes recording time in SP

• Select T40 for a tape with 40

minutes recording time in SP

Press the menu PUSH dial twice to

select the tape length and remove the

menus from the viewfinder.

25

Recording Tips

• Try to make sure indoor scenes axe

well-lit. This improves picture quality

and color reproduction.

Do not move the camcorder rapidly

from side-to-side while recording.

A steadygradual "pan" avoids

blurring and "jitter".

• Use the viewfinder to make sure the

camcorder is level while recording so

that your scene isn't "tilted".

• Do not bump or tap the camcorder's

microphone while recording because

this sound is recorded.

• Include close-ups of individuals

when taping family outings or

group functions.

• Fading and wiping in and out of scenes

makes your videos appear more

professional.

Learn to use the special P.AE produc-

tion effects available with your

camcorder to add variety to your

recordings.

• Be aware of video and audio back-

grounds. Background details barely

noticed while you are taping may

show up as visual "clutter" on your

recording. Background noises

(especially TV sets, radios, household

appliances, traffic sounds, etc.) might

detract from the sound you want

to record.

• Avoid long "still" shots of landmarks

and scenic attractions. Recordings axe

more interesting if they include people

and details. "Local color" gives travel

videos lasting appeal. Consider

recording a familiar or landmark

scene from an unfamiliar vantage

point.

26

Use the Viewfinder to See What You Record

The camcorder's viewfinder is a miniature monitor that displays the

picture seen by the camcorder when recording.

Eyepiece Focus Control

2

.... _-' Viewfinder

1

Adjust Viewfinder for Convenient Viewing

For convenient viewing, rotate the viewfinder up or down.

Eyepiece Focus Control

The eyepiece focus control lets you set

the focus of the viewfinder for your

vision. If you wear eyeglasses, you

probably can operate the camcorder

without them.

It is easiest to set the correct focus by

focusing on one of the viewfinder's on-

screen displays. Look through the

viewfinder and adjust the eyepiece focus

control for your vision.

The eyepiece focus control does not affect

the focus of the picture actually recorded

by the camcorder.

27

Viewfinder Displays

Several displays appear in the viewfinder to aid in the operation of the

camcorder. You can press and hold the MENU/DISPLAY button for more

than one second to remove or display the battery level indicator, tape-

length indicator, and tape-remaining display.

SEPIA AT

MWB

4XmPAUSE

HAPPY BIRTHDAY

Battery Level Indicator ( _ )

• This indicator shows the amount of

power left in the rechargeable battery.

• This indicator flashes when the battery

is almost empty.

Cassette Warning

• The _ indicator flashes when the

POWER switch is set to CAMERA and

there is no cassette in the camcorder.

• The _ indicator flashes when the

POWER switch is set to CAMERA and

the safety tab is set to REC OFF or

removed from the cassette.

AUTO DATE, Date, Time,

or Date and Time

Display the DATE/TIME DISP. menu

to display AUTO DATE, Date, Time,

or the Date and Time.

• These displays axe recorded when

they are displayed. If you do not

want to record one of them, select

OFF in the menu.

•Details are on pages 20-21.

P. (Program) AE Button

Special Effect Indicators

• _ SEPIA

This indicator appears when you

select _ SEPIA to give your

recordings a brown-tone like old

photographs.

28

Viewfinder Displays (Continued)

• ._ Sports

This indicator appears when you select

._ SPORTS to record fast-moving

action, such as sporting events.

•SD:SHADOW

This indicator appears when you select

SD:SHADOW to darken the picture

and reduce glare.

• HZ: HAZE

This indicator appears when you select

HZ:HAZE to soften the picture and

give it a misty white effect.

•_TWILIGHT

This indicator appears when you select

TWILIGHT to record scenes at

twilight, fireworks, etc.

°_2S1/2000

This indicator appears when you select

1/2000 to record faster-moving action

than the SPORTS mode.

°[] NEGAPOSI

This indicator appears when you select

NEGA POS1 to reverse the colors and

create a negative image.

•Details are on page 44.

Preset Titles

•The preset title selected in the TITLE

menu appears here. It will be recorded

on the tape when it appears.

• Details are on pages 46-47.

M. W.B. (Manual White Balance

Indicators)

The indicator for the manual white

balance selected in the MWB menu

appears here.

•)e_ appears when you select

)O_:F1NE to record outdoors on a

sunny day.

• -;_... appears when you select

_)_,,. :CLOUD to record outdoors on a

cloudy day.

•_ appears when you select

:HALOGEN to record using

halogen or tungsten lighting.

• MWB appears when you select MWB

to adjust the color temperatures.

• Details are on pages 38-39.

Status Displays

•The _ indicator appears when the

camcorder is recording.

•The -PAOSE- indicator appears

during record-pause.

•• appears when the camcorder plays

back a tape.

•II appears during play-pause.

••• appears during fast forward and

flashes during forward search.

• 'I'I appears during rewind and flashes

during reverse search.

(AT or MT) Tracking Indicator

• AT appears during automatic tracking.

• MT appears during manual tracking.

Zoom Indicator (4X)

The zoom indicators _ppear here when

you use the zoom lever.

(continues on next page)

29

(continued from previous page)

Viewfinder Displays

5MIN _EFFECT

TBC SP

[!_] FADER

1_-3),_ LENS COVER

T30

M 0:00:00

+03

TAPE END e2_

Exposure Indicators (+03)

This indicator appears when you are

adjusting brightness manually using the

EXPOSURE menu. Make sure the

POWER switch is set to CAMERA MAN.

•Details are on pages 40-41.

Fade and Wipe Indicators (_FADER)

Press the FADES button to display the

indicator for the fade or wipe you want

to select.

•_]FADER for black fade.

•[] MOSAIC for mosaic fade.

•F"z"SCROLL for scroll wipe.

•E] SLIDE for slide wipe.

•[] DOOR for door wipe.

•CW: CORNER for comer wipe.

• WW: WINDOW for window wipe.

• Details are on pages 42-43.

Focus Indicators ( _ ,<I' JL )

These indicators appear when you are

adjusting focus manually using the

FOCUS menu. Make sure the POWER

switch is set to CAMERA MAN.

•The focus indicators ( _ _ )flash

when the auto-focus system cannot

operate properly.

•_ A appear when you have

selected MENU in the FOCUS menu.

•_, and _, flash while you adjust

manual focus and i_ and "_ flash when

you cannot adjust the focus any farther

* Details are on pages 36-37.

3O

Viewfinder Displays (Continued)

Lithium Cell ( _ )

• This indicator appears for a few

seconds when you turn on the cam-

corder and the clock cell is missing or

needs to be replaced.

•Details are on page 17.

Animation, Time-Lapse, and Five-

Second Recording Indicators ( D 15S

and "Zl 5S )

•/Ira 5S appears when you press the

5SEC. REC button for five-second

recording. Details are on page 33.

• The interval time selected for time-

lapse recording ( _ 15S, 30S, 1MIN,

or 5MIN) appears here. Details are on

pages 50-51.

• The recording time selected for

animation or time-lapse recording

(lira 1/4S, 1/2S, 1S, or 5S)

appears here .Details are on pages

48-50 and 50-51.

Steady Pix TM Indicator (_,)

• Press the STEADY PIX button to turn

the Steady Pix feature on or off.

• The Steady Pix indicator (_,) appears

when the Steady Pix feature is on.

• Details are on page 41.

Tape Length (T30)

The tape length (T20, T30, T35, or T40)

selected in the TAPE LENGTH menu

appears here.

• Details are on pages 22-24.

Tape Speed Indicators (SP or SLP)

The tape speed selected with the SP/SLP

button appears here.

•Details are on page 22.

TBC (Time Base Corrector)

•During playback, press and hold the

STEADY PIX button to turn TBC on or

off. TBC appears when the time base

corrector is turned on. Details are on

page 57.

Time Counter (MO:O0:O0)

•The time counter appears during

playback. It is not recorded.

• An "M" appears in front of the time

counter when memory-stop is on.

•Details are on page 57.

Time-Remaining Display (5MIN)

The approximate time remaining on the

tape is automatically displayed. The

correct tape length must be set in the

TAPE LENGTH menu.

• Details are on pages 24-25.

Warnings and Information

•CONDENSATION OPERATION

PA USED PLEASE WAIT appears when

excessive moisture has entered the

camcorder. Place the camcorder in a

warm, dry area until this indicator

disappears.

•LENS COVER briefly flashes to

remind you to open the lens cover.

LENS COVER might flash when the

camcorder is used in dark areas -- even

if the lens cover is open.

• TAPE END appears when the end of

the tape is reached during recording or

a cassette is inserted with its tape

already at the end.

•HEAD CLEANING REQUIRED USE

CLEANING CASSETTE appears when

the tape head is dirty.

31

SEARCH R

,I Button

5SEC. REC Button

MENU/

DISPLAY Thumb

Button Trigger

SP/SLP POWER

Button Switch

Microphone

AutoShot TM Mode

The POWER switch lets you select

automatic or manual control of several

features.

To Turn on the AutoShot TM Mode

1.

2.

Set the POWER switch to CAMERA

AUTO. The power indicator lights

and the camcorder enters record-

pause. - PAIJSE- appears in the

viewfinder.

Press the thumb trigger to start

recording.

• The camcorder automatically

controls focus, exposure, and white

balance.

• The MENU/DISPLAY button and

menu PUSH dial will not operate.

•AUTO DATE is selected for the

date and time display.

To Turn Off the AutoShoff MMode

1. Set the POWER switch to CAMERA

MAN.

32

Five-Second Record Feature

The five-second record feature allows you

to record for five seconds providing short

scene transitions.

1. Set POWER switch to CAMERA AUTO

or CAMERA MAN.

2. Make sure the SP/SLP button is set to

SP. Press and hold to change.

3. Press 5SEC. REC to display/Im5S in

the viewfinder.

4. Press the thumb trigger to start

recording. The camcorder records for

five seconds and enters record-pause.

To Turn Off the Five-Second Record

Mode

1. Press the 5SEC. REC button to

remove/am5S from the viewfinder.

Quick Review Feature

Press and release SEARCH R 44 when the

camcorder is in record-pause to review

the last few seconds of a recording. The

POWER switch must be set to CAMERA

AUTO or CAMERA MAN.

The camcorder plays back the last few

seconds of the recording, returns the tape

to its previous position, and returns to

record-pause.

Camera Edit Feature

The camera edit feature allows you to

position the tape when the camcorder is

in record-pause. Set POWER switch to

CAMERA AUTO or CAMERA MAN.

Press and hold SEARCH R 44

to visually search the recorded tape

in reverse.

•Press and hold SEARCH F ,I,

to visually search forward on the

recorded tape.

Release the button to return the cam-

corder to record-pause at that point on

the tape. Press the thumb trigger to start

recording at this point.

Flying Erase Head

A separate erase head is mounted on

the spinning headwheel (hence the term

"flying"). This allows you to make clean

edits without the "glitches" or "rainbow

noise" that might occur at the beginning

or the end of recordings.

MENU/DISPLAY Button

Press and hold the MENU/DISPLAY

button for more than one second to

remove or display the battery level

indicator, tape-length indicator, and

tape-remaining display.

33

Zooming

You can zoom in and out for close ups or wide-angle shots just by moving the

zoom lever on the camcorder. The camcorder automatically focuses when you

zoom at most distances. Digital zooming allows you to zoom up to 200 times.

To record a close-up of a small subject closer than three feet. Turn on the TELE

MACRO feature in the menu. You can record a small subject at a distance of

approximately 23 inches.

Zoom Lever

(T and W)

Menu PUSH Dial

(Rotate or Press In)

MENU/DISPLAY Button

POWER Switch in

CAMERA MAN

Use the Zoom Lever (W and T)

1. To zoom in or out (up to 16 times),

rotate the zoom lever.

• To move the lens in the telephoto

(close-up) direction, rotate the

zoom lever toward T.

• To move the lens in the wide angle

direction, rotate the zoom lever

toward W.

• The zoom level indicator appears in

the viewfinder during zooming.

Digital Zooming

Digital zooming makes zooming possible

from 16X (the optical zoom limit) to a

maximum of 200X.

1. Set the POWER switch to CAMERA

MAN.

2. Press MENU/DISPLAY to display the

menu. Rotate the menu PUSH dial to

highlight D. ZOOM.

TELE MACRO

REC TIME OFF

INT. TIME OFF

DATE!TIME

TITLE LANG. ENGLISH

DEMO MODE OFF

•RETURN

34

Zooming (Continued)

3. Press the menu PUSH dial in to

display the D. ZOOM menu.

D. ZOOM

OFF

4.

EXIT

Rotate the menu PUSH dial to

highlight OFF or ON.

• Select ON to turn digital zooming

on.

• Select OFF to turn digital zooming

off.

5. Press the menu PUSH dial twice to

turn digital zooming on or off and

remove the menus from the

viewfinder.

Notes: As the zoom level increases, the

picture gradually becomes less sharp.

Digital zooming is recommended mainly for

special effects.

Tele Macro Zooming

1. Set the POWER switch to CAMERA

MAN.

2. Press MENU/DISPLAY to display the

menu. Rotate the menu PUSH dial to

highlight TELE MACRO.

D. ZOOM O_

REC TIME

INT. TIME OFF

DATE/TIME

TITLE LANG. ENGLISH

DEMO MODE OFF

•RETURN

3. Press the menu PUSH dial in to

display the TELE MACRO menu.

TELE MACRO

OFF

EXIT

4. Rotate the menu PUSH dial to

highlight ON or OFF and press the

dial in.

• Select ON if you want to record a

small subject within approximately

24 inches.

• Select OFF for normal zooming.

5. Press the menu PUSH dial twice to

turn tele macro zooming on or off and

remove the menus.

35

Focusing

The camcorder adjusts focus automatically under normal conditions.

You might need to focus manually under certain conditions.

Menu PUSH Dial

(Rotate or Press In)

POWER Switch in

CAMERA MAN

Auto Focus

During auto focus the camcorder

focuses on the object located in the

center area of the viewfinder.

Set the POWER switch to CAMERA

AUTO to turn on the auto focus

feature. No focus indicator appears

in the viewfinder.

Notes: The low-contrast indicator

(_ _-) in the viewfinder indicates

the auto-focus system might not

operate correctly due to low

illumination, low or no contrast, repeated

patterns, or two subjects at different

distances overlapping.

Use tele macro zooming when recording a

subject close to the lens or the camcorder

may zoom out to focus.

The lens must be clean for the camcorder

to focus accurately.

36

Focusing (Continued)

Manual Focus

You might need to focus manually under

certain conditions.

1. Set the POWER switch to CAMERA

MAN.

2. Rotate the zoom lever to Tto zoom in

on the subject and center the subject

in the viewfinder.

3. Press the menu PUSH dial in to

display the menu in the viewfinder.

FOCUS is highlighted.

EXPOSURE AUTO

M. W.B. AUTO

16 X 9 OFF

TAPE LENGTH T30

TITLE

DATE/TIMEDISP.

•RETURN

6. Adjust the focus for a subject nearer

or farther away.

• Rotate the menu PUSH dial up to

focus on a subject farther away.

;_ flashes while you axe

adjusting the focus and _ flashes

when you cannot adjust the focus

any more.

• Rotate the menu PUSH dial down

to focus on a subject nearer. ;_

flashes while you are adjusting the

focus and i_, flashes when you

cannot adjust the focus any more.

7. Press the menu PUSH dial twice to

remove the menus.

Note: To return to auto focus, select

AUTO in the FOCUS menu or set the

POWER switch to CAMERA AUTO.

4.

.

Press the menu PUSH dial in to

display the FOCUS menu.

FOCUS

AUTO

EXIT

Rotate the menu PUSH dial to

highlight MANU and press the dial in.

IA • appears in the viewfinder.

The focus is locked at this point.

Conditions Requiring Manual Focus

•When recording a subject through a

window.

• When recording a subject having a

close foreground and a background

that is far away.

• When recording in low-light situa-

tions.

• When recording two subjects at

different distances that overlap in the

same scene.

• When the subject is not in the center

of the scene.

• When recording a scene with fast

motions, like a tennis swing.

37

White Balance

Making colors look natural is what white balance is all about. This is achieved by

adjusting the way the camcorder "sees" and records the light source in the scene

you record. Your camcorder is equipped with automatic white balance.

You might want to adjust white balance manually under certain conditions, such as

recording an object with various shades of the same color or when recording a

predominantly red or brown object outdoors.

Zoom Lever

(T and W)

Menu PUSH Dial

(Rotate or Press In)

MENU/DISPLAY Button

POWER Switch in

CAMERA MAN

Auto White Balance

During auto white balance, the camcorder

adjusts the white balance.

• Set the POWER switch to CAMERA

AUTO to turn on the automatic white

balance feature. No indicator appears

in the viewfinder.

Manual White Balance

1. Set the POWER switch to CAMERA

MAN.

2. Press the menu PUSH dial in to

display the menu in the viewfinder.

FOCUS is highlighted.

38

White Balance (Continued)

.

4.

EXPOSURE

M. W.B. AUTO

16 X 9 OFF

TAPE LENGTH T30

TITLE

DATE/TIMEDISP.

•RETURN

Rotate the menu PUSH dial to

highlight M.W.B. and press the dial in

to display the M.W.B. menu.

M.W.B.

_e_:FINE

_-,, :CLOUD

:HALOGEN

MWB

EXIT

Rotate the menu PUSH dial to

highlight the white balance you want

to use.

•No indicator appears when you

select AUTO white balance.

• Select )o_ :FINE when recording

outdoors on a sunny day.

• Select -)_,.,:CLOUD when record-

ing outdoors on a cloudy day.

• Select _ :HALOGEN when

recording using halogen or tungsten

lighting.

• Select MWB when shooting

subjects with different color

temperatures and adjust the white

balance as follows:

.

M.W.B.

AUTO

_e_:FINE

:J_,:CLOUD

EXIT

Note: Connecting your camcorder to a

color TV monitor may be helpful when

making white balance adjustments.

A. Point camcorder at a white, flat

object such as a piece of white

paper.

B. While MWB is highlighted,

press and hold the menu PUSH

dial until MWB starts flashing.

The MWB indicator flashes

while the camcorder is adjusting

white balance and stops flashing

when it is ready to record.

Note: To change the tint for special

recording, substitute colored paper for

white. The white balance is

adjusted based on the color.

Red paper - deeper green

Blue paper - orange

Yellow paper - deeper purple

Press the menu PUSH dial in to

remove the menus.

Notes: To return to auto white balance,

selectAUTO in the M.W.B. menu or set

the POWER switch to CAMERA AUTO.

39

Exposure Control

The camcorder controls the iris for you when the POWER switch is set to CAMERA

AUTO. The camcorder adjusts brightness automatically under normal conditions. You

might need to adjust brightness manually when the background is too bright or too dark

in comparison with the subject.

STEADY P1X

Button

Menu PUSH Dial

(Rotate or Press In) POWER Switch in

CAMERA MAN

MENU/DISPLAY Button

Auto Exposure 2.

The camcorder adjusts the iris for

the best possible picture during

auto exposure.

• Set the POWER switch to CAMERA

AUTO to turn on the automatic

exposure feature. No indicator

appears in the viewfinder.

Manual Exposure

You may need to adjust exposure

manually under certain conditions, such

as those listed on the next page.

1. Set the POWER switch to CAMERA

MAN.

.

Press the menu PUSH dial in to

display the menu in the viewfinder.

FOCUS is highlighted.

EXPOSURE

M. W.B. AUTO

16 X 9 OFF

TAPE LENGTH T30

TITLE

DATE/TIME DISP.

•RETURN

Rotate the menu PUSH dial to

highlight EXPOSURE, and press the

dial in to display the EXPOSURE

menu.

40

Exposure Control (Con_nued)

EXPOSURE

AUTO

MANU

EXIT

4. Rotate the menu PUSH dial to

highlight MANU (manual) and press

the dial in. The exposure indicator

(00) appears in the viewfinder.

5. Adjust the exposure for a dark or

bright subject. The exposure you

select appears in the viewfinder.

• To brighten the image, rotate the

menu PUSH dial up. You can

adjust the exposure to +06.

• To darken the image, rotate the

menu PUSH dial down. You can

adjust the exposure to _)6.

6. Press the menu PUSH dial in twice to

select an exposure and remove the

menus from the viewfinder.

Note: To return to auto exposure, select

AUTO in the EXPOSURE menu or set the

POWER switch to CAMERA AUTO.

Conditions Requiring Manual

Exposure

•When recording with abright back-

ground or reverse lighting.

• When recording with a very dark

background or very bright subject.

• When recording a reflective natural

background -- such as a beach or

when skiing.

Steady Pix TM Feature

The Steady Pix feature corrects slight

shaking of images during some recording

modes.

• While zooming in on a distant subject.

• When recording an approaching small

subject.

• When recording while walking or

riding in a vehicle.

• When recording through a vehicle's

window.

To Use the Steady Pix TM Feature

•Press the STEADY PIX button to turn

the Steady Pix feature on. The Steady

Pix indicator (_,,) appears in the

viewfinder.

•Press the STEADY PIX button to turn

the Steady Pix feature off. The Steady

Pix indicator (_,,) disappears.

Notes: Turn the Steady Pix feature off when

using a tripod.

There is a small change in the picture size

when using the Steady Pix feature.

Accurate stabilization may not be possible if

hand shake is excessive or when shooting the

following:

•Subjects with vertical or horizontal stripes.

•Dark or dim subjects.

•Subjects with excessive backlighting.

•Scenes with movement in various

directions.

•Scenes with low-contrast backgrounds.

41

Fade or Wipe In or Out

You can add a professional touch to your recordings when you fade or wipe in

and out of scenes. The picture gradually appears or disappears. The speed of

the fade or wipe is controlled by the camcorder.

FADES

Button

To Fade or Wipe In or Out

1. Set the POWER switch to CAMERA

MAN.

2. Repeatedly press the FADES button.

The indicator for the fade or wipe you

select will appear.

F_ FADER

• Select [_ FADER to fade in and

out to/from a black screen.

• Select [] MOSAIC to fade in and

out to/from a mosaic effect.

• Select [] SCROLL wipe to have

the scene wipe in with a black

screen from the bottom to the top

or wipe out from the top to the

bottom.

• Select E] SLIDE wipe in with a

new image from right to left or

wipe out with a black screen

moving from left to right.

• Select [] DOOR wipe to have the

scene wipe in with a black screen

moving from the center out to the

sides or wipe out moving from the

sides into the center.

• Select CW:CORNER to wipe in

from the upper right corner to

lower left corner or wipe out from

the lower left corner to the upper

right corner.

• Select WW:W1NDOW to have the

next scene wipe in from the center

to the corners covering the

previous scene.

• Select OFF if you do not want to

fade or wipe in or out.

3. Press the thumb trigger to start or

stop recording. The camcorder fades

in or out of the scene.

Notes: The screen becomes slightly reddish

if fade is used with the sepia feature.

If the haze feature is selected, [_] FADER

fades in and out from a white screen.

42

Fade or Wipe In or Out (Continued)

Fade or Wipe In

1. Press the thumb trigger to pause

recording.

2. Repeatedly press FADES to select the

fade or wipe you want to use.

Note: The last fade or wipe used appears

the first time you press FADES.

3. Press the thumb trigger to start

recording. The picture and sound

gradually appear in place of the blank

screen.

Fade or Wipe Out

1. During recording, repeatedly press

FADES to select a fade or wipe.

Note: The last fade or wipe used appears

the first time you press FADES.

2. Press FADES to stop recording. The

picture and sound gradually disappear.

43

P. (Program) AE Button

The P. (Program) AE button lets you select one of several different effects. Press

the button to select the effect you want. The name and indicator for the effect

appears briefly and then the indicator remains.

P. (Program)

AE Button

Indicator and Name Uses

Picture is recorded in sepia (brownish red) and offers the

[_ SEPIA vintage look of old movies.

Use to capture fast-moving action with less blurring. Use

SPORTS when playing back a recording on a VCR featuring special

effects, such as pause or slow motion.

SD:SHADOW Use to counter effects of glare and darken the picture with a

black mist.

HZ:HAZE Use to soften the image and give the picture a misty white

effect.

_ Use for twilight scenery, fireworks, etc. to make them look

TWILIGHT more natural and dramatic.

Sets shutter speed to 1/2000. Use to record faster moving

action than sports mode with less blurring. Use when

2 S 1/2000 playing back a recording on a VCR featuring special effects,

such as pause or slow motion.

[] NEGA POS1 Use to reverse the color (create a negative image).

OFF Use to turn off all special effects.

44

16X9 Mode

The camcorder has a wide recording mode that lets you make recordings compatible

with the 16X9 format. When 16X9 is activated, the camcorder records black bars at

the top and bottom of the picture to produce the wide-screen effect. This is also known

as "letterbox" recording.

Menu PUSH

Dial

(Rotate or POWER Switch in

Press In) CAMERA MAN

New l6x9TV Screen

J

Standard Shape TV Screen

1. Set the POWER switch to CAMERA

MAN.

2. Press the menu PUSH dial in to

display the menu in the viewfinder.

FOCUS is highlighted.

4. Rotate the menu PUSH dial to

highlight OFF or ON.

• Select ON to record 16X9.

EXPOSURE

M. W. B.

16X9

TAPE LENGTH

TITLE

DATE/TIMEDISP.

•RETURN

AUTO

OFF

T30

• Select OFF to turn off 16X9.

.Rotate the menu PUSH dial down to

highlight 16X9 and press it in to

display the 16X9 menu.

16X9

OFF

EXIT

5. Press the menu PUSH dial twice to

turn 16X9 on or off and remove the

menus from the viewfinder.

45

Preset Titles

The title feature lets you choose one of eight preset titles. You can also choose

the language for your titles.

Menu PUSH Dial

(Rotate or Press In)

MENU/DISPLAY Button

'POWER Switch in

CAMERA MAN

Select a Language for the Title

You can select English, French, or

Spanish to record your preset titles.

1. Set the POWER switch to CAMERA

MAN.

2. Press the MENU/DISPLAY button to

display the menu in the viewfinder.

D. ZOOM is highlighted.

_,_ZO_MTELEMACRO _1 _

RECTIME OFF

INT. TIME OFF

DATE/TIME

TITLELANG. ENGLISH

DEMOMODE OFF

•RETURN

3. Rotate the menu PUSH dial down to

highlight TITLE LANG. and press the

46

menu PUSH dial in to display the

TITLE LANG. menu.

TITLE LANG.

FRENCH

SPANISH

EXIT

4. Rotate the menu PUSH dial to

highlight the language you want to

use to record the preset title.

5. Press the menu PUSH dial twice to

select the language and remove the

menus.

Preset Titles (Continued)

Record a Preset Title

1. Set the POWER switch to CAMERA 5.

MAN.

2. Press the menu PUSH dial in to

display the menu in the viewfinder.

FOCUS is highlighted. 6.

.

EXPOSURE

M.W.B.

16X9

TAPE LENGTH

TITLE

DATE/TIMEDISP.

•RETURN

AUTO

OFF

T30

Rotate the menu PUSH dial down to

highlight the title you want to record,

and press the dial twice to select the

title and remove the menus.

Rotate the menu PUSH dial down to

highlight TITLE.

FOCUS AUTO

EXPOSURE AUTO

M.W.B. AUTO

16X9 OFF

TAPELENGTH T30

DATE/TIME DISP.

•RETURN

Start recording. The title you

selected is superimposed and

recorded on your tape.

To Stop Recording the Title

1. Set the POWER switch to CAMERA

MAN.

2. Press the menu PUSH dial in to

display the menu in the viewfinder.

FOCUS is highlighted.

3. Rotate the menu PUSH dial down to

highlight TITLE and press the dial in

to display the TITLE menu.

4. Rotate the menu PUSH dial down to

highlight OFF and press the dial in

twice to turn off the title and remove

the menus.

4. Press the menu PUSH dial in to

display the TITLE menu.

TITLE

OFF

HAPPY BIRTHDAY

HA

CONGRATULATIONS

OUR FAMILY

SOMEONE SPECIAL

VACATION

SUPER STAR

FIRST

EXIT

47

Animation Recording

You can produce an illusion of movement for an otherwise stationary scene

or object by shooting aseries of pictures of slightly different poses (such as

cartooning).

Menu PUSH Dial

(Rotate or Press In)

MENU/DISPLAY Button

POWER Switch in

CAMERA MAN

To Record Using Animation

1.Set the POWER switch to CAMERA

MAN.

2. Press and hold SP/SLP to select SP.

SP appears in the viewfinder.

3. Press the MENU/DISPLAY button to

display the menu in the viewfinder.

D. ZOOM is highlighted.

TELE MACRO

REC TIME

INT. TIME

DATE/TIME

TITLE LANG.

DEMO MODE

I_ RETURN

OFF

OFF

ENGLISH

OFF

48

Animation Recording (Continued)

4. Rotate the menu PUSH dial down to

highlight REC TIME and press the

dial in to display the REC TIME

menu.

REC TIME

OFF

1/4S

1/2S

1S

5S

EXIT

8. Press the thumb trigger to start

recording.

Note: The recording stops automatically

after the selected period of recording time.

You might want to take two to five shots of

the subject in the same position.

9. Move the subject and repeat step 8 for

the desired number of shots.

Note: Fade does not operate during animation

or time-lapse recording.

5. Rotate the menu PUSH dial to

highlight the amount of time you want

the camcorder to record.

• Select 1/4S to record for 1/4

second.

• Select 1/2S to record for 1/2

second.

• Select IS to record for one second.

• Select 5S to record for five seconds.

• Select OFF if you do not want to

record for a selected amount of

time.

6. Press the menu PUSH dial twice to

exit the menu.

7. (1 and the amount of recording time

appear in the viewfinder.

To Stop Animation Recording

Set the REC TIME in the menu to OFF.

/ira 5s

49

Time-Lapse Recording

You can make automatic recordings at preset time intervals. The recording

shows subtle changes (such as shifts in cloud formations or plant growth)

when it remains focused on an object.

Menu PUSH Dial

(Rotate or Press In)

MENU/DISPLAY Button

'POWER Switch in

CAMERA MAN

To Record Using Time Lapse

1. Set the POWER switch to CAMERA

MAN.

2. Press and hold SP/SLP to select SP.

SP appears in the viewfinder.

3. Press the MENU/DISPLAY button to

display the menu in the viewfinder.

D. ZOOM is highlighted.

TELE MACRO "OL=F_

REC TIME OFF

INT. TIME OFF

DATE/TIME

TITLE LANG. ENGLISH

DEMO MODE OFF

I_ RETURN

4. Rotate the menu PUSH dial to

highlight REC TIME and press it in to

display the REC TIME menu.

REC TIME

OFF

1/4 S

1/2 S

1S

5 S

EXIT

50

Time-Lapse Recording (Continued)

5. Rotate the menu PUSH dial to

highlight the amount of time you want

the camcorder to record.

• Select 1/4S to record for 1/4

second.

• Select 1/2S to record for 1/2

second.

• Select IS to record for one

second.

• Select 5S to record for five

seconds.

6. Press the menu PUSH dial in to select

a recording time and return to the

menu.

7. Rotate the menu PUSH dial to

highlight INT. TIME and press it in to

display the INT. TIME menu.

Note" You cannot select an INT. TIME if

no REC TIME is selected.

• Select 1 MIN to delay the recording

for one minute.

• Select 5 MIN to delay the recording

for five minutes.

• Select OFF if you do not want the

camcorder to delay recording.

9. Press the menu PUSH dial twice to

select a time and exit the menus.

,_ and the amount of recording time

and _@ and the amount of interval

time between recordings appear in

the viewfinder

_15S

_l 5S

OFF

15

3OS

1 MIN

5 MIN

EXIT

INT. TIME

10. Press the thumb trigger to start

recording.

Note: The camcorder starts and stops

recording the selected amount of time.

Note: Fade does not operate during animation

or time-lapse recording.

.Rotate the menu PUSH dial down to

highlight the desired time between

recordings (15S, 30S, 1 MIN, or

5 MIN).

• Select 15S to delay the recording

for 15 seconds.

• Select 30S to delay the recording

for 30 seconds.

To Stop Time-Lapse Recording

Set the REC TIME and INT. TIME in the

menus to OFF.

51

Demo Mode

You can turn on the DEMO mode in the MENU to have ademonstration of some

of the camcorder's features.

Menu PUSH Dial

(Rotate or Press In)

To Turn the Demo Mode On

1. Set the POWER switch to CAMERA

MAN.

2. If a cassette is inserted, remove the

safety tab or set it to REC OFF.

3. Press the MENU/DISPLAY button to

display the menu in the viewfinder.

D. ZOOM is highlighted.

TELE MACRO "OFF

REC TIME OFF

INT. TIME OFF

DATE/TIME

TITLE LANG. ENGLISH

DEMO MODE OFF

•RETURN

4. Rotate the menu PUSH dial down to

highlight DEMO MODE and press it

in to display the DEMO menu.

POWER Switch in

CAMERA MAN

DEMO

OFF

EXIT

.Rotate the menu dial to highlight OFF

or ON. Press the menu PUSH dial

twice to select ON or OFF and

remove the menus.

• Select ON if you want the cam-

corder to demonstrate some of the

recording features.

Note: Zoom is the only feature that

operates during the demo mode.

• Select OFF if you do not want a

demonstration.

To Turn the Demo Mode Off

Turn off the camcorder.

52

Attach the Shoulder Strap

The camcorder's shoulder strap is designed to let you carry the camcorder from your

shoulder and - when you are ready to shoot - bring the camcorder to shooting position

in one quick movement.

To Attach the Shoulder Strap

1. If the strap keeper is over a

double section of the strap,

slide the strap keeper off

the end of the strap.

Replace the keeper on

the strap between the

buckle and the end

of the strap as

shown. Keeper

2. Loop the end of the strap over the top

of the shoulder strap attachment ring.

Keeper

Attachment

Rings

.Thread the end of the strap back

through the keeper and buckle

making sure it is threaded under the

outer strap. Make sure the strap is

not twisted.

4. Attach the other end of the strap to the

other shoulder strap attachment ring.

5. Adjust the shoulder strap to the

desired length.

6. Slide both keepers up snugly against

the shoulder strap attachment rings to

prevent the strap from slipping.

53

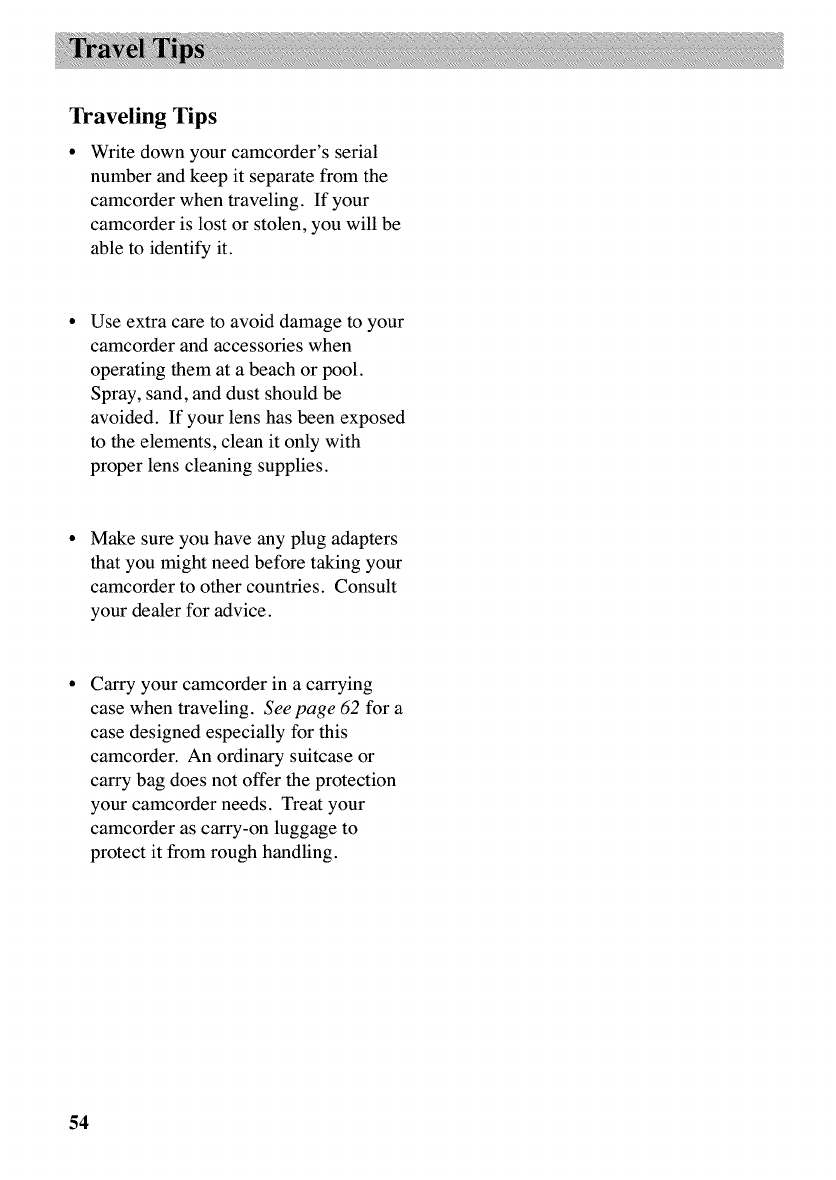

Traveling Tips

Write down your camcorder's serial

number and keep it separate from the

camcorder when traveling. If your

camcorder is lost or stolen, you will be

able to identify it.

Use extra care to avoid damage to your

camcorder and accessories when

operating them at a beach or pool.

Spray, sand, and dust should be

avoided. If your lens has been exposed

to the elements, clean it only with

proper lens cleaning supplies.

Make sure you have any plug adapters

that you might need before taking your

camcorder to other countries. Consult

your dealer for advice.

Carry your camcorder in a carrying

case when traveling. See page 62 for a

case designed especially for this

camcorder. An ordinary suitcase or

carry bag does not offer the protection

your camcorder needs. Treat your

camcorder as carry-on luggage to

protect it from rough handling.

54

Use the Viewfinder for Playback

You can see tapes using the viewfinder. There is no sound during

viewfinder playback.

Eyepiece Focus Control

Viewfinder

REW (Rewind) 44 Button

FF (Fast Forward) I_, Button

STOP Button

PLAY/PAUSE Button

EJECT

Switch

To Play Back a Tape

1. Attach a power supply.

Attach the adapter/charger, charged

battery, or optional car cord.

2. Insert a tape.

• Slide the EJECT switch to open the

cassette compartment.

• Turn the tape wheel on the cassette

to remove any slack from the tape.

• Insert the cassette with the tape

wheel facing up and the tape

window facing out.

• Press on the PUSH button to lock

the cassette compartment closed.

POWER Switch

in VCR

3. Set the POWER switch to VCR.

The power indicator lights.

4. Adjust the viewfinder for a

comfortable viewing position.

• Turn the eyepiece focus control to

adjust the focus of the viewfinder

for your vision.

5. Press the PLAY/PAUSE button to

begin playback.

• If necessary, adjust tracking.

• During playback, use the playback

features on the following pages.

6. Press the STOP button when you

are finished.

55

Playback Features

Viewfinder TBC Button

(also STEADY P1X Button)

P.AE and FADES Buttons

(Also Tracking

REW (Rewind) ••Button

FF (Fast Forward) l_, Button

STOP Button

PLAY/PAUSE Button

EJECT Switch

COUNTER R/M

Position the Tape

POWER Switch

in VCR

Set POWER switch to VCR and

press STOP.

•Press and quickly release the REW

(rewind) •• button or FF (fast

forward) I_I_button to rewind or fast-

forward the tape.

• Press STOP to stop the tape.

Visual Search

During playback, press and release

REW (rewind) •• button or FF (fast

forward) I_I_button if you want to

search the tape visually in forward or

reverse.

forward) ,I, button for more than two

seconds. Release the button to return

to normal playback.

Stop-Action Pause

• During playback, press PLAY/PAUSE

to "stop the action" and view one

frame of the tape.

• Press PLAY/PAUSE to return to normal

playback.

•Press PLAY/PAUSE to return to normal

playback.

•For brief searching, press and hold

REW (rewind) ,, button or FF (fast

56

Playback Features (Continued)

Time Counter

The time-counter display shows the

actual time elapsed when playing back a

segment of tape. The memory-stop

feature helps locate a certain point on the

tape. Turn memory stop on to stop the

tape automatically during rewind or fast

forward when the time counter reaches

M 0:00:00.

To Use the Memory-Stop Feature

1. Locate the place on the tape you want

to returnto, set the POWER switch to

VCR, and press COUNTER R/M for

more than two seconds to reset the

counter to 0:00:00.

2. Press COUNTER R/M for less than

one second to turn the time counter's

memory-stop feature on or off. When

memory stop is on, an Mappears

before the time counter.

M 0:00:00

activate manual tracking. Press either

button again until the streaks disappear.

MT appears during manual tracking.

MT

3. Continue to play the tape. When you

want to return to the place you

marked, press the STOP button.

4. Press REW44. The tape rewinds to

the time counter reading of

M 0:00:00.

Press both tracking buttons again to turn

automatic tracking back on. AT flashes in

the viewfinder for a few seconds and then

disappears.

Note: The tracking buttons may have no

effect on tapes recorded on other camcorders or

VCRs.

TBC (Time Base Corrector)

During playback, TBC reduces jitter from

fluctuating video signals even on old

Tracking

During playback, streaks may appear in

the playback picture. Press both tracking

buttons (P.AE and FADES buttons) to

tapes. If picture appears distorted, try

turning TBC off.

Press and hold the STEADY PIX button

for at least one second to turn TBC off or

on. It may take a few seconds before

TBC actually starts working.

The TBC indicator appears in the

viewfinder when TBC is turned on and

disappears when TBC is turned off.

TBC

Notes: TBC does not operate during visual

search or stop-action pause. The picture may

be distorted when normal playback resumes

after visual search or stop-action pause.

The picture may be distorted ifTBC is turned

on or off at the edit in/out points.

57

Use the Cassette Adapter

The camcorder uses a smaller size cassette, but records in standard VHS format. The

cassette adapter allows you to play your VHS-C cassettes in a VCR just like other

standard VHS cassettes.

Insert the VHS-C cassette into the cassette adapter. Insert the cassette adapter into the

VHS VCR like a normal VHS cassette.

Install Cassette Adapter's Battery

Battery

Compartment

1. Remove battery compartment cover.

2. Install supplied "AA" battery so

positive (+) and negative (-) ends

align properly with (+) and (-)

terminals in battery compartment.

3. Replace battery compartment cover.

Insert Cassette into Cassette Adapter

Tape Wheel

1.

2.

58

Before inserting the cassette into the

adapter, remove any slack in the tape

by turning the tape wheel on the side of

the cassette.

Slide EJECT to the right to open the

cassette compartment lid.

Notes: Replace the battery when the load time

becomes much longer than normal.

Remove the battery from the cassette adapter

if it is not used for a month or more. This

prevents possible damage from battery

leakage. If leakage occurs, wipe up the liquid

inside the compartment and replace the battery

with a new one.

Cassette

_ I__lt /LC°gpartment

ffITN ,_q

M

EJECT Switch

3. Insert the cassette with the tape

window on the left and facing up.

Allow the cassette to drop into the

adapter. Do not force the cassette.

Use the Cassette Adapter (Continued)

Load

4. Gently close the cassette compartment

lid until it locks into place. Make sure

the cassette reel area under the adapter

is free to turn while the cassette is

loading.

Note: You should hear a whirring sound

while the tape loads. The adapter's load

detector will automatically retract into the

adapter.

Remove Cassette from Cassette Adapter

Access Hole

Reels

1. Slide the adapter's EJECT switch to

the right. The load detector extends

from the side and the whirring sound

indicates the tape is being released

before the adapter's cassette

compartment lid opens.

2. Use the access hole on the bottom of

the adapter to push the cassette up and

remove it from the adapter.

3. Gently close the adapter's cassette

compartment lid.

59

Playback on TV (or VCR) with Audio/Video Inputs

To connect your camcorder to a TV monitor (or VCR) with audio/video inputs, you

need an optional audio/video cable, such as VH83 shown on page 63. If your TV is

already connected to a VCR, attach the camcorder to the VCR and watch what the

camcorder is recording or playing on the TV.

Back of

Mono VCR or

TV Monitor White .......

Audio Plug AOOIO/VUleO _

I -I routput Cable _

I_-I-_- _i°nal) ___

--_"_ _V(Video) -[/[_'-._

/_Jack 13"_--..">1,,._

Yellow Video Plug _'_.. _'_"_

Back of

Stereo VCR or Y-Adapter White

TV Monitor (Optional) Audio Audio/Video ..'"

_----- __ _______Plug Output Cable ..- .'"

l (Optional) .."

Yellow Video Plug

•" A (Audio) Jack

Installation

1. Attach the white plug on one end of

the audio/video cable to the AUDIO

IN jack on the TV (or VCR).

Notes: If your cable does not have white

and yellow plugs, attach the same color to

the audio jacks.

If your TV (or VCR) has stereo AUDIO IN

jacks, attach the plug to the one labeled

MONO. If one is not labeled MONO, you

need a Y-adapter, such as AH25, shown on

page 63 to hear both channels.

2. Attach the yellow plug to the VIDEO

IN jack on the TV (or VCR).

3. Attach the white plug on the other end

of the audio/video cable to the A

(audio) jack (located under the small

cover) on the side of the camcorder.

4. Attach the yellow plug to the yellow V

(video) jack on the camcorder.

60

Playback on TV (or VCR) with Audio/Video Inputs (Continued)

Playback Operation and How to Copy Tapes on the VCR

1. A. Camcorder connected directly to

TV: Turn on the TV and tune it to

the video input channel.

B. Camcorder connected to VCR that

is already connected to TV: Turn

on VCR and place it in the "line"

or "camera mode". (If your VCR

does not have a "line" or "camera

mode", consult the VCR owner's

manual.) Operate the TV as you

normally do to see the signal

coming from the VCR.

2. Set the POWER switch to VCR to

turn on the camcorder. The power

indicator lights.

4.

.

•During playback, use the playback

features on pages 56-57.

To copy what the camcorder is

playing, place a blank cassette in the

VCR, and press the VCR's RECORD

button.

Note: Make sure the memory-stop feature

is turned off (press COUNTER R/M) or the

camcorder enters play-pause when the

counter reaches M 0:00:00.

Press STOP when you axe finished.

3. Press PLAY/PAUSE.

Viewing What the Camcorder is Seeing (or Recording)

1. A.

g.

Camcorder connected directly to

TV: Turn on the TV, and tune it to

the video input channel.

Camcorder connected to VCR that

is already connected to TV: Turn

on VCR and place it in the "line"

or "camera mode". (If your VCR

does not have a "line" or "camera

mode", consult the VCR owner's

manual.) Operate the TV as you

normally do to see the signal

coming from the VCR.

2. Set the POWER switch to CAMERA.

.

Note: Turn the TV's volume down to

prevent a high-pitched squeal caused by

feedback.

Press the thumb trigger to begin

recording. You can watch what the

camcorder is seeing (or recording) on

the TV screen.

61

We invite you to take a look at some great ideas for sparking creativity and adding to

the fun of using your compact VHS camcorder. The following pages have a selection

of accessories to help make your memorable moments look and sound even better.

These accessories axe designed to make the process of recording and watching your

videos more enjoyable.

To order accessories, contact your local Dealer.

If a dealer is not nearby, all accessories are available through toll-free ordering or by

using the order form on page 65.

AC201A Soft Carrying Case DCC08 Car Cord Adapter

Custom compact soft case designed

especially to provide protection and

utility for your compact VHS camcorder

and most accessories. Rugged fabric

lined with soft non-abrasive material and

generous padding. Has three outside

pockets with storage for lens filters,

adapters, batteries, and tapes.

This car cord adapter enables you to

operate your camcorder from your car,

truck, or RV by plugging the car cord

directly into the vehicle's cigarette lighter

socket. The DCC08 is designed

specifically to convert power from a

12-volt battery to a 6-volt output.

62

FB1260 Rechargeable Battery CPS91 AC Battery Charger

This rechargeable, 1-hour, nickel-

cadmium battery is designed

specifically for long life. The FB1260

can be recharged with the AC adapter/

charger that came with your camcorder.

BB99L Rechargeable Battery

The CPS91 battery charger plugs directly

into an AC outlet and charges the FB1260

and BB99L camcorder batteries.

Because the CPS91 operates on 100-240

Volts, 50/60 Hz, it can be used virtually

anywhere in the world. A plug adapter

might be required in some countries.

Charging takes approximately seven

hours for the FB1260 (1-hour battery),

and 13 hours for the BB99L (2-hour

battery).

VH83 Audio/Video Cable

This rechargeable 2-hour, nickel metal

hydride battery is designed specifically

for long life. The FB1260 is a 1-hour

nickel cadmium battery. The BB99L

powers your camcorder approximately

twice as long as the FB 1260 (depending

on how much you use zoom and pause).

The BB99L can be recharged with the AC

adapter/charger that came with your

camcorder.

This six foot audio/video cable can be

used to connect the camcorder to a TV

monitor or VCR for tape playback or

copying tapes.

AH25 Y-Adapter

This Y-adapter allows you to connect your

camcorder's mono audio cable to a stereo

TV or VCR.

63

UsingtheOptionalAC088Tripod

Mounting the camcorder on a tripod, such as AC088, keeps the

camcorder steady and produces excellent video results.

This tripod's fluid-effect head provides smooth camera pan and tilt.

The quick-release mount makes it easy to attach or remove the

camcorder. The grooved, tubular 3-section leg design folds down to

26" when not in use. Rubber feet allow for sure footing.

64

_D

,x=

_D

Order Form for Camcorder Model CC6263

Description

Super Lightweight Tripod

Soft Camcorder Case

Shoulder Strap

Y-Adapter

Rechargeable Battery (Extended)

AC Battery Charger

Car Cord Adapter

Rechargeable Battery (Standard)

Audio/Video Cable

DC Cable

and

AC Adapter/Charger

Cassette Adapter

Part No.

AC088

AC201A

ACS091

AH25

BB99L

CPS91

DCC08

FB 1260

VH83

244268

242740

VCAll5

Price

$ 49.95

$ 34.95

$ 12.95

$ 2.95

$ 77.60

$ 59.95

$ 89.95

$ 49.95

$ 5.95

$ 28.60

$ 91.25

$ 49.95

Qty. Total

Prices are subject to change without notice.

Total Merchandise ........................................................................................... $

Sales Tax .......................................................................................................... $

We are required by law to collect the appropriate

sales tax for each individual state, county, and

locality to which the merchandise is being sent.

Shipping and Handling .................................................................................... $

Total Amount Enclosed ................................................................................. $

Use VISA, MasterCard, or Discover.

Money order or check must be in U.S.

currency only. No COD or cash.

5.00

65

Charge your order on your VISA,MasterCard,

or Discover Card by filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number from your VISA card [Z]

IIII IV-V-V-]V-V-I-]V-V-[-]Expiration date: [-"_ [-"_

IMPORTANT: Copy complete account number from your MasterCard

IIIIIIIIIIIIIIIIIIII

Copy Number above your name on MasterCard I I I I I Expiration date: _

IMPORTANT: Copy complete account number from your Discover Card

IIIIIIIIIIIIIIIIIIII

Expiration date: _

AUTHORIZED SIGNATURE

Prices are subject to change without notice.

Print or type your name and A complete and correct order will

address clearly, save you days of waiting.

Name:

Street:

City:

State:

Daytime Phone No.:

Apt:

Zip:

Please make sure that both sides of this form have been filled out completely.

•Allow 4 weeks for delivery.

•All accessories are subject to availability.

66

To order accessories, contact your local Dealer.

If a dealer is not nearby, you can also follow the directions below to order by

telephone or direct-by-mail.

United States and Canada Orders

To place your order by phone, have your Visa, MasterCaxd, or Discover card ready

and call the toll-free number listed below.

Use this number only to place an order for accessory items listed on

this order form.

1-800-338-0376

To place your order by mail, detach and mail the completed order form with credit

card information, money order, or check in U.S. currency (made payable to

Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories

PO Box 8419

Ronks, PA 17573

67

Troubles sometimes axe caused by simple "faults" that you can easily correct without

the help of a service technician by first checking a few basic remedies.

Before you call or take your camcorder to an Authorized RCA Camcorder Service

Center, look below for the type of trouble you are experiencing. Then perform the

simple checks and adjustments listed for that trouble.

If service should be necessary, the warranty information lists what your warranty

covers and explains how to get service.

No power

Won't record or

playback

• Set the POWER switch to CAMERA or VCR to turn on

the camcorder. The power indicator lights.

• If using battery, it might need to be recharged.

• If using AC adapter/charger, make sure it is plugged

into a working outlet.

No picture

Camcorder turns

itself off

• If using AC adapter/charger, make sure it is plugged

into a working outlet.

• If CONDENSATION OPERATION PAUSED PLEASE

WAIT flashes in the viewfinder, there is moisture in the

camcorder. Wait until the warning no longer appears

before operating the camcorder.

• Make sure POWER switch is set to correct position for

desired operation.

• There might not be a cassette in the camcorder.

• Try ejecting and reinserting the cassette.

• The cassette tape might be broken, try another cassette.

• You might have reached the end of the cassette, try

rewinding it.

Won't playback • POWER switch must be set to VCR position.

Won't record • Safety tab removed or closed. (See page 22.)

•POWER switch must be set to CAMERA.

• Open lens cover.

Set POWER switch to OFF and then to CAMERA or

VCR to turn back on. If camcorder is left in record-

pause or play-pause for several minutes, it turns off to

prevent tape wear.

68

Tape stops during •

rewind or fast

forward

Camcorder remains in •

pause mode

Dew indicator flashes •

in viewfinder

Poor auto-focus •

operation

Viewfinder displays

are out of focus

Picture is too dark or •

subject too dark

Sound is too low or

distorted

Picture recorded with

special effect

Colors do not look

natural on recording

Title recorded on tape

Time-counter memory might be on. Whenever an "M"

appears with the time-counter display, the camcorder

stops rewinding (or fast forwarding) when counter reads

M 0:00:00. Press REW '44 or FF "P" again to continue

rewinding or fast forwarding, or press COUNTER RIM

to turn off the memory-stop feature.

Press PLAY/PAUSE to return to normal playback.

If CONDENSATION OPERATION PAUSED PLEASE WAlT

flashes, there is moisture in the camcorder. Wait until warning

no longer appears before operating the camcorder.

Subject is dark or behind glass. Auto-focus may not

work under these conditions. Place POWER switch in

CAMERA MAN and focus manually. See pages 36-37.

Subject not in center of viewfinder or two subjects are at

different distances. Place POWER switch in CAMERA

MAN and focus manually. See pages 36-37.

Lens is smudged, and image appears unfocused.

• Lens is smudged and image appears unfocused.

• Eyepiece focus control is misadjusted.

For best results, only use higher shutter speeds outdoors.

Press P. AE button to select SPORTS or 1/2000.

See page 44.

Place POWER switch in CAMERA MAN and adjust the

exposure manually. See pages 40-41.

• Subject was too fax from camcorder.

• Place POWER switch in CAMERA AUTO.

• Try adjusting white balance. See pages 38-39.

• Title is recorded when it appears in viewfinder. Remove

the title. See pages 46-47.

69

Date and/or time are •

recorded on tape

Date and/or time are •

incorrect

Cannot set REC or •

INT. TIME for •

animation or time-

lapse recording •

Cannot record at •

beginning of tape

using animation or •

time-lapse recording

Vertical white lines •

appear when shoot-

ing bright object

Error number (EO1, •

E02, etc.) appears in

viewfinder

Streaks in picture

during playback or

play-pause

Bright, crystal-

shaped spots in

viewfinder

Displays axe recorded on tape whenever they appear

in the viewfinder. Remove them from viewfinder

when recording. See pages 20-21.

When AUTO DATE is selected (POWER switch in

CAMERA AUTO), date display is automatically

recorded when you begin recording or change the

cassette. See pages 20-21.

Clock lithium cell battery might need replacing.

See page 17.

Date or time might need to be set. See pages 18-19.

Make sure there is a tape in the camcorder.

Check tape speed setting. Tape speed must be set

to SP for time-lapse or animation recording.

Make sure POWER switch is not set to CAMERA

AUTO to display the menu. See pages 50-53.

Record for at least five seconds at beginning of tape

to start tape running smoothly.

Use fade-in feature before starting to record at

beginning of tape.

This might occur when the background extremely

contrasts with the subject.

Try disconnecting power source. Wait ten seconds

and then connect power source again. If error

number does not disappear from viewfinder, consult

your Authorized RCA Camcorder Service Center.

• Adjust tracking with P.AE and FADES buttons. See

page 57.

• Sunlight is directly entering the lens.

7O

Rechaxgeable

battery runs down

sooner than

expected

• If battery has not been used for some time, completely

drain the battery's power and recharge it.

• Battery run times axe measured when the camcorder is

recording continuously. You can check your battery by first

fully charging it and then aiming the camcorder at a clock

and recording the picture of the clock. When the recording

stops, play the last recorded section and note the clock

time. A one-hour battery should give you about 60 minutes

of recording time. In practical use, you might not be able

to record for the full time because the camera uses battery

power when it is waiting between recordings (record-

pause) and zooming.

71

General

Power requirement: 6VDC

Power consumption: 3.6 watts

Weight: 1.6 lbs. (720g)

Dimensions -Including Viewfinder:

3-9/16" (W) x 4-11/16" (H) x 7-13/16" (D)

90 (W) x 119 (H) x 198 (D) mm

Video Recorder Section

Format: VHS-C

Record/playback system:

Four video record/playback heads

One flying erase head

Video signal: EIA standard

NTSC color

Viewfinder

0.44" Color electronic viewfinder

Camera Section

Image sensor: 1/4" CCD imager

Lens: F1.6, f=3.9 to 62.4mm

16:1 power zoom lens

200:1 digital zoom

Filter diameter: 40.5 mm

Tripod Mount

One 1/4" x 20 threaded hole

AC Adapter/Charger

Power requirement: 100-240 V, 50/60 Hz.

Power consumption: 23 watts

Weight: .71 lbs. (300g)

Dimensions:

5-9/16"(W) x 1-11/16"(H) x 2-11/16"(D)

140 (W) x 42 (H) x 68 (D) mm

Service Port

3.5 mm, 4 pole, mini-head jack

72

Clean the Camcorder

To clean the camcorder's exterior, remove

any power source connected to the

camcorder and gently wipe it with a clean

soft cloth.

Clean the Camcorder's Lens

To clean the camcorder's lens, blow it with a blower brush and gently

wipe the lens with cleaning tissue and commercially prepared cleaning

solution designed for use on camera lens. Improper cleaning might

scratch the lens.

as

Clean the Camcorder's Viewfinder

You can remove the viewfinder eyepiece for cleaning.

1. Turn the eyepiece

counterclockwise and pull it out.

2. Remove dust using a blower

brush.

3. Reattach the eyepiece by

aligning the reference marks, and

then turn the eyepiece clockwise

until it clicks.

73

Proper Care and Storage

Keep dust and grit from entering the

camcorder's cassette door. Dust and

grit are abrasive and cause excessive

wear to both the camcorder's

recording/playback heads and

cassettes.

• Always close the lens cover when the

camcorder is not in use.

Before handling your camcorder, make

sure your hands and face are free from

any chemical products such as suntan

lotion, as it might damage the finish.

• The camcorder might be damaged by

improper storage or handling. Do not

subject the camcorder to swinging,

shaking, or dropping.

• Do not store the camcorder in

temperatures below -22°F (-30°C) or

above 149°F (65°C).

• When the camcorder is not in use,

always remove the cassette and AC

adapter/charger or battery.

• Retain the original carton for future

storage or shipping purposes.

Things to Avoid

•Do not attempt to disassemble your

camcorder. There are no user-

serviceable parts inside.

• Avoid operating your camcorder

immediately after moving it from a

cold location to a warm location. Give

Do not operate the camcorder near the

ocean as salt water or salt water spray

might damage the internal parts of the

camcorder.

• Do not operate the camcorder for

extended periods in temperatures

the camcorder 1-1/2 to 2 hours to reach

a stable temperature before inserting a

cassette. When the camcorder is

moved from cold to warm,

condensation might cause the tape to

stick to the headwheel and damage the

headwheel or tape.

Do not aim your camcorder at the sun

or other bright objects.

Do not leave your camcorder in direct

sunlight for extended periods of time.

The resulting heat buildup might

permanently damage the camcorder's

internal parts.

Do not operate the camcorder in

extremely humid environments.

below 40°F (4°C) or above 95°F

(35°c).

• Do not expose the camcorder or

adapter/charger to rain or moisture.

If any component becomes wet, turn

off the power and take the unit to an

Authorized RCA Camcorder

Service Center.

Do not use an adapter/charger or

batteries other than the ones specified

for the camcorder. Use of the wrong

accessories might cause damage to the

camcorder.

74

You can reach Thomson at the

following number:

800-283-6503

(Toll free inside U.S.A.)

Our toll-free Camcorder number

operates from 8 a.m. to 5 p.m., CST

Monday - Friday

for U.S. customers only

Thomson provides a toll-free telephone

number to help you with any problems you

may encounter with your camcorder. Many

can be diagnosed over the phone, and if

necessary, repair or replacement will be

arranged. Please have your camcorder model/

serial number and date of purchase ready

when you call. If your unit is out of warranty,

we will quote the cost of a repair or

replacement unit to you.

Returning equipment to Thomson for

If we are unable to resolve your problem over

the phone, we will gladly service your unit or

exchange it for a new or refurbished

camcorder. Refer to the limited warranty on

the reverse side to learn about your specific

rights and responsibilities.

repair or exchange

Always consult Thomson and get a Return

Authorization number before returning

anything! Obtain a Service Request (SR)

number from the telephone representative

before returning your equipment to avoid

delays, accounting errors, or even loss of

your unit.

Important information to customers who ship defective equipment to

Thomson Consumer Electronics

The Thomson representative who authorized

the return of your equipment will give you an

SR number over the phone. They will also

provide you with instructions on where and

how to return your Camcorder. Write the

number in large, clear characters on the

outside of the box. To avoid confusion and

misunderstandings, shipments without an SR

number clearly visible on the outside of the

box will be returned to you at your expense.

Include a brief note describing the problem

and any conversations about the problem you

have had with Thomson personnel.

Include your name, address and model/serial

number of your Camcorder. These numbers

are located on the bottom of your unit.

If your Camcorder is within the warranty

period, please provide a copy of the bill of sale

to verify purchase date. Use the original box

and packing material to protect the equipment

from damage in shipment.

For your protection, insure all shipments for

full replacement value and use a reliable

shipper. Thomson assumes no responsibility

for warranty shipments from the customer to

the factory if not shipped in the manner

prescribed by Thomson.

75

What your warranty covers: Omion I

• Any defect in materials or workmanship.

For how long after your purchase:

• 90 days for labor charges.

• One year for parts.

The warranty period for rental units begins

with the first rental or 45 days from date of

shipment to the rental firm, whichever

comes first.

What we will do:

Durinu the initial 90 days

Exchange your camcorder with a new or

refurbished unit, or repair your camcorder.

The option will be ours. There will be no

cost to you.

After the 90 days and within one year

Exchange your camcorder with a new or

refurbished unit, or repair your camcorder.

The option will be ours. Parts will be

provided at no charge, but you will be

responsible for the cost of labor required

for the repair.

How you get service:

• Call 1-800-283-6503 and have your unit's

date of purchase and model/serial number

ready. The model/serial number

information is on the bottom of your

camcorder.

• A representative will troubleshoot your

problem over the phone. If the

representative determines that you should

receive a replacement unit, you will be

provided with a Service Request (SR)

number and the location of a nearby

exchange point if one exists. No returns

will be accepted without the SR number.

To receive a replacement Camcorder before

you return yours:

1. Provide your Discover, MasterCard, or

Visa account number and expiration date

to our phone representative. This is for

security purposes. If we receive your unit,

excluding all accessories, within 14 days

from the date you were provided the SR

number, only items not covered by

warranty will be charged to your account.

IF YOUR UNIT IS NOT RECEIVED

WITHIN 14 DAYS, THE SUGGESTED

RETAIL VALUE OF THE

CAMCORDER WILL BE CHARGED

TO YOUR CREDIT CARD. This

amount, less $10.00 handling, will be

credited if the unit is subsequently

received.

2. We will send you a replacement unit.

3. Ship the unit back to us, excluding all

accessories, using the replacement unit's

carton. Shipping instructions will be

included in the carton along with your SR

number which will allow you to easily

ship the unit back to us. Make sure you

insure your shipment in case of damage

or loss. Include with the shipment:

• Evidence of purchase date, such as a

bill of sale to verify your unit's

warranty eligibility.

•Abrief note describing your

camcorder's problem.

• Your name, address and phone number.

Return transportation, storage, handling, and

insurance costs are your sole responsibility.

We accept no liability in case of damage or loss.

1. We will send areplacement unit to the

exchange point.

2. The exchange location will notify you of

its arrival.

3. Take your unit, excluding all accessories,

and your evidence of purchase date, such

76

as a bill of sale, to the exchange location

and you will be provided the new or

refurbished unit.

4. If the repairs were covered by your

warranty, you will not be billed.

To receive a replacement unit after we have

received your unit:

1. Write the SR number on the outside of

the carton used to return the unit.

Make sure you insure your shinlnent in

case of damage or loss.

2. Carefully pack the unit, excluding all •

accessories, using the original box and

packing material if possible. •

3. Include with the shipment: •

• Evidence of purchase date, such as a

bill of sale, to verify your unit's •

warranty eligibility.

• A brief note describing your

camcorder's problem. •

• Your name, address and phone number.

Return transportation, storage, handling, and

insurance costs are your sole responsibility.

We accept no liability in case of damage or

loss. •

4. The representative will advise the address

to mail a cashier's check or money order

for payment if there are any out of

warranty labor or parts charges and you

elect not to use your credit card.

5. Upon receipt of your product, a new or

refurbished unit will be shipped to you.

To have your Camcorder repaired by an

Authorized RCA Camcorder Service

Center:

• Check with your dealer or call 1-800-336-

1900 for the Authorized RCA Camcorder

Service Center nearest you.

• Take your unit to the Authorized RCA

Camcorder Service Center of your choice.

• Show the Authorized RCA Camcorder

Service Center representative evidence of

purchase date, such as a bill of sale.

•Pick up your camcorder when repairs are

complete.

What your warranty does not cover:

• Adjustment of customer controls.

• Damage from misuse or neglect.

• A unit that has been modified or

incorporated into other products or is used

for institutional or other commercial

purposes.

Batteries for remote control and clock.

Cleaning of video/andio heads.

Camcorders purchased or serviced outside

the U.S.A.

Return transportation, storage and handling

costs of your unit, including insurance for

loss or damage.

Acts of God, such as but not limited to

lightning damage.

Product Registration:

Please complete and mail the Product

Registration Card packed with your

camcorder. It will make it easier to contact

you should it ever be necessary. The return

of the card is not required for warranty

coverage.

How State Law relates to warranty:

• This warranty gives you specific legal

rights and you also may have other rights

that vary from state to state.

If you purchased your camcorder outside

the United States:

• This warranty does not apply. Contact your

dealer for warranty information.

77

Symbols

5SEC. REC button 31

A

A (audio) and V (video)

jacks 60

Accessories

included 3

optional 62

order form 65

Adapter/charger 4, 12

charging battery 14

Animation indicator 49

Animation recording 48

Assistance 1, 3

Assistance, customer 75

Camera edit feature 33

Car cord adapter 16

Care and maintenance

battery 15

camcorder cleaning 73

cassette 23

storage 74

things to avoid 74

Cassette

adapter 58

inserting and removing

23

tape wheel 23

warning 28

Cautions i2

Checks and adjustments

68

Clock cell battery com-

Audio/video jacks 10, 60

AUTO DATE display

20, 21

Auto date feature 32

Auto exposure 40

Auto focus 36

Auto white balance 38

AutoShot TM 5, 32

partment 11, 17

Clock cell indicator

17, 31

Copy tapes 61

COUNTER R/M button

9, 57, 61

Customer assistance and

service 75

Erase protection 22

Exposure control 41

indicators 30

Exposure indicators 41

Eyepiece focus control

5, 11, 27, 55

F

Fade and wipe indicators

30, 42

Fade/wipe feature 43

FADES button 57

Fast forward indicator 29

FF button 9, 56

First time operation 3

Five-second recording 33

Five-second recording

indicator 31

Flying erase head 33

Focus indicators 30, 37

Focusing 36, 37

H

Handstrap 4

B

Battery

attaching and removing

13

care and storage 15

cassette adapter 58

charging 14

refreshing 14

Battery level indicator

15, 28, 33

BATTERY RELEASE

lever 10, 13

c

Camcorder, cleaning 73

Camcorder controls 9

78

D

Date and time display

recording 20

setting 18

DATE/TIME menu

7, 35, 37, 46, 51

DC cable 12, 13, 14, 16

DCinjack 4, 10, 12

Demo mode 52

Digital zooming 34

Displays in viewfinder 28

Displays, status 29

E

EJECT button

6, 9, 23, 55

Indicators

animation 49

AUTO DATE display

28

battery level 15

cassette warning 28

clockcell 17, 31

date and time 28

exposure 30, 41

fade and wipe 30, 42

five-second recording

31

focus 30, 37

interval time 51

LENS COVER 31

manual white balance

29

Indicators(Cont.)

R(program)AE28,44

recordtime49,51

REFRESH14

specialeffects28

steadypix 31,41

TAPEEND31

tapelength31

tapespeed31

tape-remaining31

timecounter31

timedisplay28

time-lapse51

titledisplay28

tracking29

whitebalance39

zoomlevel29,34

Informationtouser81

Inserting/removing

cassettes23

Intervaltimeindicators

51

L

Lens 10

Lens cover 8

LENS COVER control 4

LENS COVER indicator

31

Letterbox recording 45

Lithium cell 17, 31

Low-contrast indicator 36

M

M.W.B. menu 39, 40

Manual focus 37

Manual white balance 38

indicator 29

Memory stop 57

Menu PUSH dial

7, 9, l& I0, _ 21,2_ 2_ 3_

35, 37, 38, 40, 45, 46, 47,

49, 51, 52

MENU/DISPLAY button

7, 9, 18, 28, 32, 33,

34, 35, 46, 48, 50, 52

Microphone 10, 32

O

Operating controls 10

Optional accessories 62

Optional plug adapter 12

Order form, accessories

65

Preset titles 46

Problem solving 68

Product registration i2

PUSH button 55

P

R (program) AE button

9, 28, 44, 57

Pause indicator 6, 8, 29

Pause, stop-action 56

Play indicator 29

PLAY/PAUSE button

8, 55, 61

Playback

first 8

on TV (or VCR) 60

using cassette adapter

58

viewfinder 55

Playback features

memory-stop 57

position the tape 56

speeds 22

stop-action pause 56

time counter 57

tracking 57

visual searching 56

Plug adapter 12

Power indicator

5, 8, 10, 16, 32

POWER switch

5, 15, 24, 28, 34, 35, d0,

42, 57, 61

Powering your camcorder

adapter/charger 12

car cord adapter 16

rechaxgeable battery 13

Q

Quick review feature 33

R

REC TIME menu 49

Record date and time

display 20

Record indicator 8

Record time indicators 49

Recording 8

indicator 29

speeds 6, 22

time-lapse 50

tips 26

REFRESH 14

Registration i2

REW button 8, 56, 57

Rewind indicator 29

S

Safety

battery 13

Safety information i2

Safety tab 22

SEARCH buttons 33

Search indicators 29

Service port 10

Shoulder strap

Attaching 53

attachment rings 9

Shoulder strap attachment

rings 53

Shutter speed indicator 44

Solving problems 68

SP/SLP button

9,22,24,31,33,48,50

Special effects 28

79

Specifications 72

Speeds, recording and

playback 22

Sports feature 44

Status displays 29

STEADY PIX button

10, 31, 41

Steady pix indicator 31

STOP button

8, 55, 57, 61

Stop-action pause 56

T

Tape copying 61

TAPE END indicator 31

Tape, inserting 6

Tape length indicators 31

TAPE LENGTH menu

24, 31

Tape speed

SLP 6, 22

SP 6, 22

Tape speed indicators 31

Tape wheel 6

TELE MACRO menu 35

Tele macro zooming 35

Thumb trigger

Tripod mount hole 11

Tripod, using 64

Trouble checks 68

TWILIGHT indicator 29

V

Videocassettes 22

Viewfinder 5, 11, 27

adjust for viewing 27

cautions 27

displays 28

displays (turning on and

off) 33

eyepiece focus control

27

playback 55

Visual searching 56

W

White balance 38

Wipe/fade feature 42

Z

Zoom buttons 37

Zoom level indicator

10, 21, 32, 49, 51, 61

Time counter 57

Time-lapse indicator 51

Time-lapse recording 50

Time-remaining display

24, 31

Tips

recording 26

travel 54

TITLE LANG. menu 46

TITLE menu 29, 47

Tracking 55

indicators 29

Tracking buttons 57

Tracking indicators 57

Travel tips 54

29, 34

Zoom lever 10, 29, 34

Zooming 34

tele macro 35

8O

Information to User

This equipment has been tested and found to comply with the limits for a Class B

digital device pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Alterations or modifications carried out without appropriate authorization may

invalidate the user's FCC fight to operate the equipment.

_THOMSON CONSUMER ELECTRONICS

10330 N Meridian Street

Indianapolis, IN 46290

@2000 Thomson Consumer Electronics, Inc.

Trademark(s) ® Registered

Marca(s) Registrada(s)

Printed in Japan

TOCOM 15530270

Part No. LYT0520-001A (VP)
