Televmsmo
User's G rode
Changing Entertainment. Again.

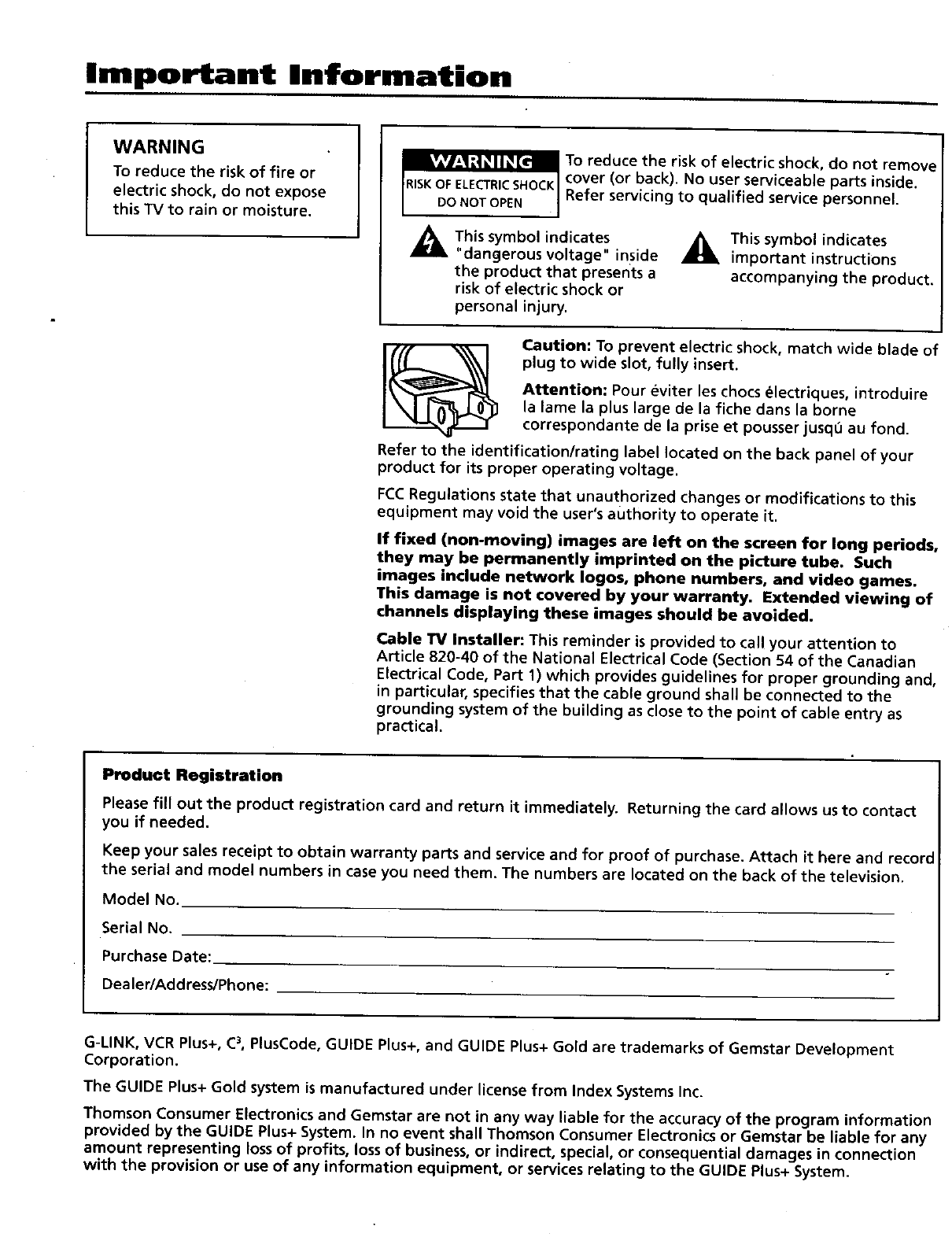

Important Information
WARNING
To reduce the risk of fire or
electric shock, do not expose
this TV to rain or moisture. To reduce the risk of electric shock, do not remove
RISKOFELECTRICSHOCK cover (or back). No user serviceable parts inside.
DONOTOPEN Refer servicing to qualified service personnel.
AThis symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
personal injury.
_IL This symbol indicates
important instructions
accompanying the product.
Caution: To prevent electric shock, match wide blade of
plug to wide slot, fully insert.
Attention: Pour eviter les chocs electriques, introduire
la lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusqO au fond.
Refer to the identification/rating label located on the back panel of your
product for its proper operating voltage.
FCCRegulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
If fixed (non-moving) images are left on the screen for long periods,
they may be permanently imprinted on the picture tube. Such
images include network Iogos, phone numbers, and video games.
This damage is not covered by your warranty. Extended viewing of
channels displaying these images should be avoided.
Cable TV Installer: This reminder is provided to call your attention to
Article 820-40 of the National Electrical Code (Section 54 of the Canadian
Electrical Code, Part 1) which provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of cable entry as
practical.
Product Registration
Please fill out the product registration card and return it immediately. Returning the card allows us to contact
you if needed.
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record
the serial and model numbers in case you need them. The numbers are located on the back of the television.
Model No.
Serial No.
Purchase Date:
Dealer/Address/Phone:
G-LINK, VCR Plus+, C3, PlusCode, GUIDE Plus+, and GUIDE Plus+ Gold are trademarks of Gemstar Development
Corporation.
The GUIDE Plus+ Gold system is manufactured under license from Index Systems Inc.
Thomson Consumer Electronics and Gemstar are not in any way liable for the accuracy of the program information
provided by the GUIDE Plus+ System. In no event shall Thomson Consumer Electronics or Gemstar be liable for any
amount representing loss of profits, loss of business, or indirect, special, or consequential damages in connection
with the provision or use of any information equipment, or services relating to the GUIDE Plus+ System.
Introduction

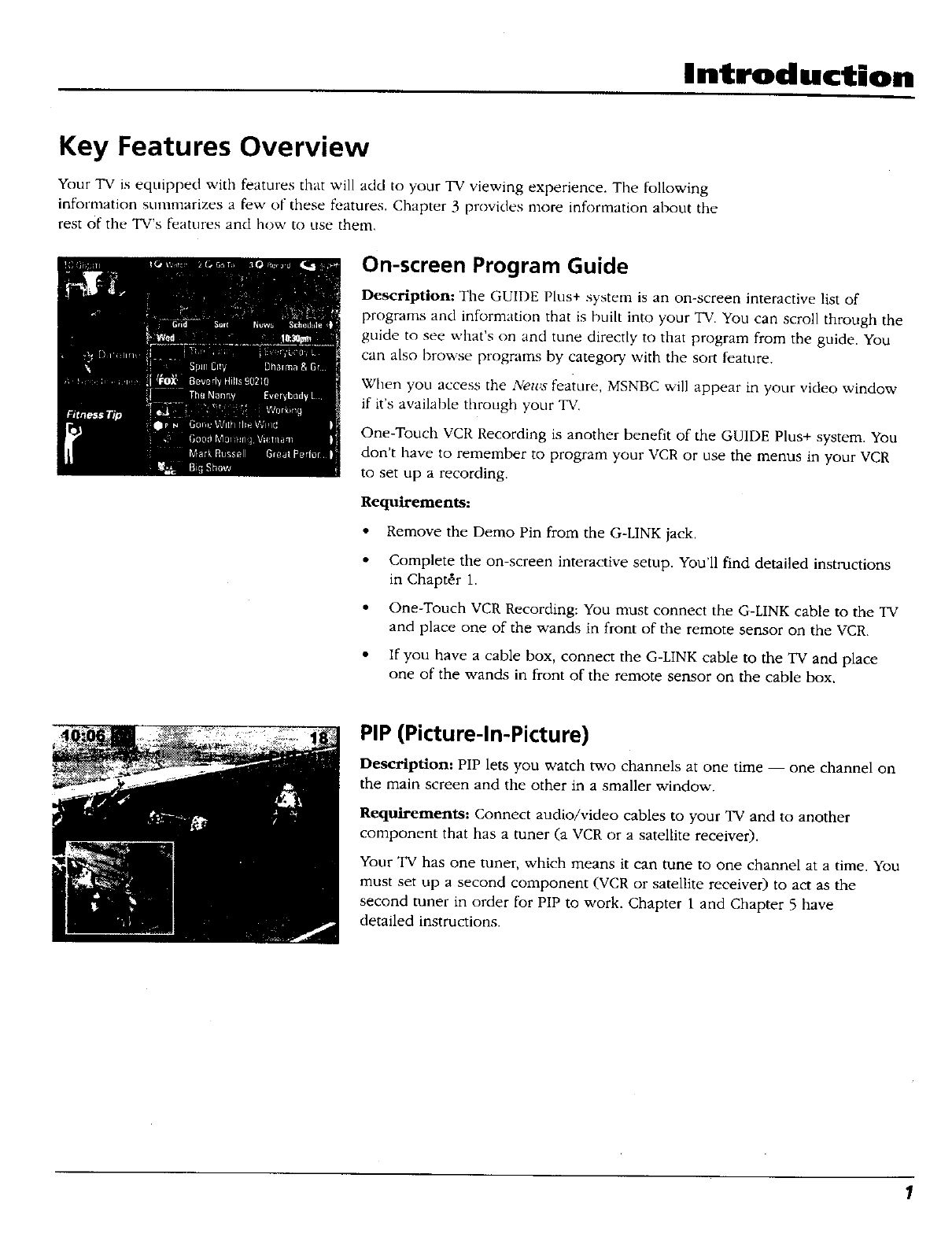

Key Features Overview
Your TV is equipped with features that will add to your TV viewing experience. The following
information sumnlarizes a few of these features. Chapter 3 provides more information about the
rest of the TV's features and how to use them.
On-screen Program Guide
Description: The GUIDE Plus+ system is an on-screen interactive list of
programs and information that is built into your TV. You can scroll through the
guide to see what's on and tune directly to that program from the guide. You
can also hrov,.se programs by category with the sort feature.
When you access the News feature, MSNBC will appear in your video window
if it's available through your TV.
One-Touch VCR Recording is another benefit of the GUIDE Plus+ system. You
don't have to remember to program your VCR or use the menus in your VCR
to set up a recording.
Requirements:
• Remove the Demo Pin from the G-LINK }ack,
• Complete the on-screen interactive setup. You'll find detailed instructions
in Chapt{r 1,
• One-Touch VCR Recording: You must connect the G-LINK cable to the TV
and place one of the wands in front of the remote sensor on the VCR.
• If you have a cable box, connect the G-LINK cable to the TV and place
one of the wands in front of the remote sensor on the cable box,
PIP (Picture-In-Picture)
Description.. PIP lets you watch two channels at one time -- one channel on
the main screen and the other in a smaller window.
Requirements: Connect audio/video cables to your TV and to another
component that has a tuner (a VCR or a satellite receiver).
Your TV has one tuner, which means it can tune to one channel at a time. You
must set up a second component (VCR or satellite receiver) to act as the
second tuner in order for PIP to work. Chapter l and Chapter 5 lzave
detailed instructions.
1
Introduction

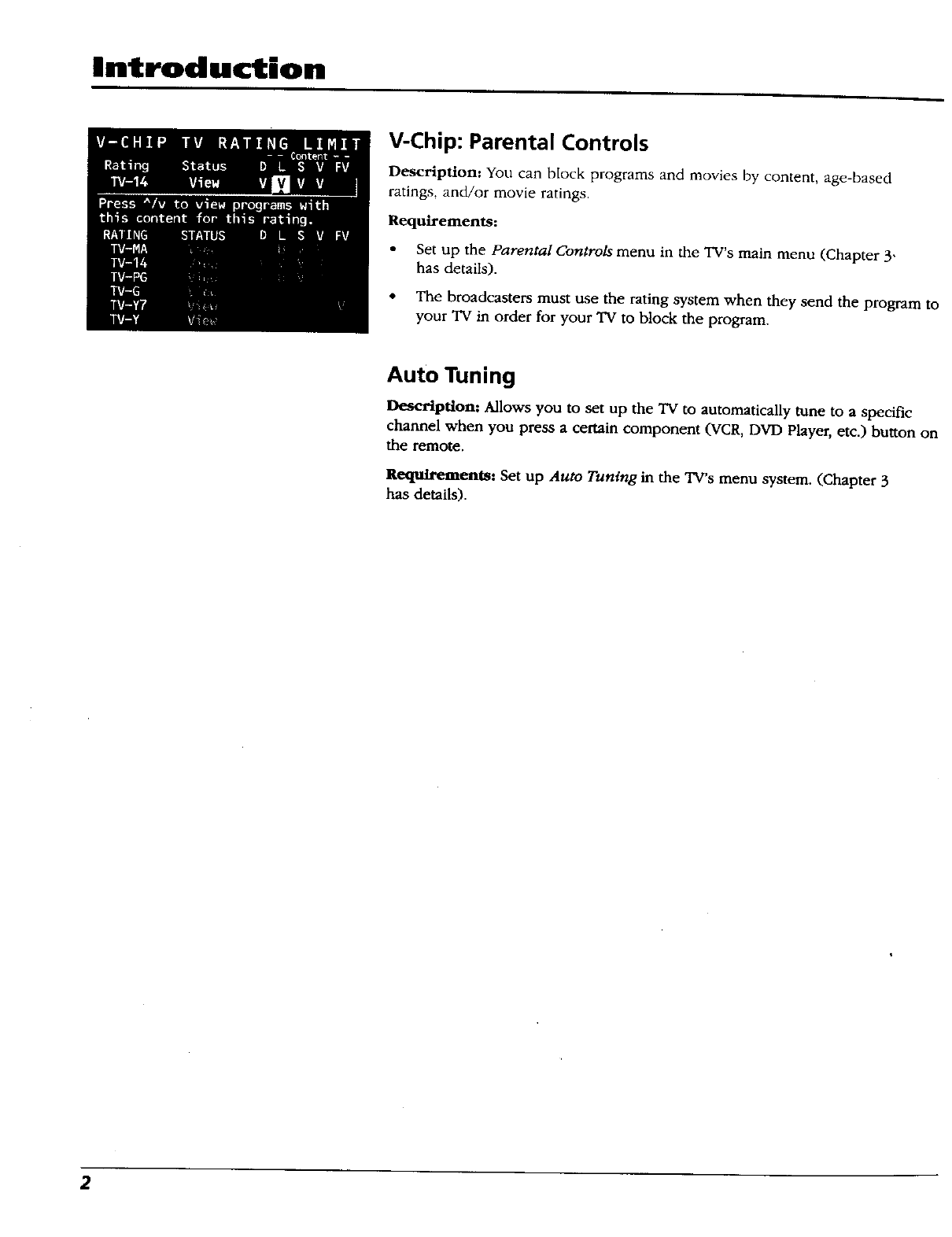

V-Chip: Parental Controls
Description: You can block programs and movies by content, age-based
ratings, and/or movie ratings.
Requirements:
•Set up the Parental Controls menu in the TV's main menu (Chapter 3"
has details).
•The broadcasters must use the rating system when they send the program to
your TV in order for your 'IV to block the program.
Auto Tuning
Description: Allows you to set up the "IVto automatically tune to a specific
channel when you press a certain component (VCR, DVD Player, etc.) button on
the remote.
Requirements: Set up Auto Tuning in the TV's menu system. (Chapter 3
has details).
2
Table of Contents
Introduction
Key Features Overview .................................................................................................... 1
On-screen Program Guide ......................................................................................... 1
PIP (Picture-In-Picture) ............................................................................................... 1
V-Chip: Parental Controls ........................................................................................... 2
Auto Tuning ..................................... :.......................................................................... 2
Chapter 1: Connections & Setup
Things to Consider Before You Connect ......................................................................... 6
Protect Against Power Surges ................................................................................... 6
Protect Components from Overheating ................................................................... 6
Position Cables Properly to Avoid Audio interference ............................................ 6
Important Stand and Base Safety Information ........................................................ 6
Use Indirect Light ....................................................................................................... 6
Connection Pictures ................................................................................................... 6
Demo Pin .................................................................................................................... 6

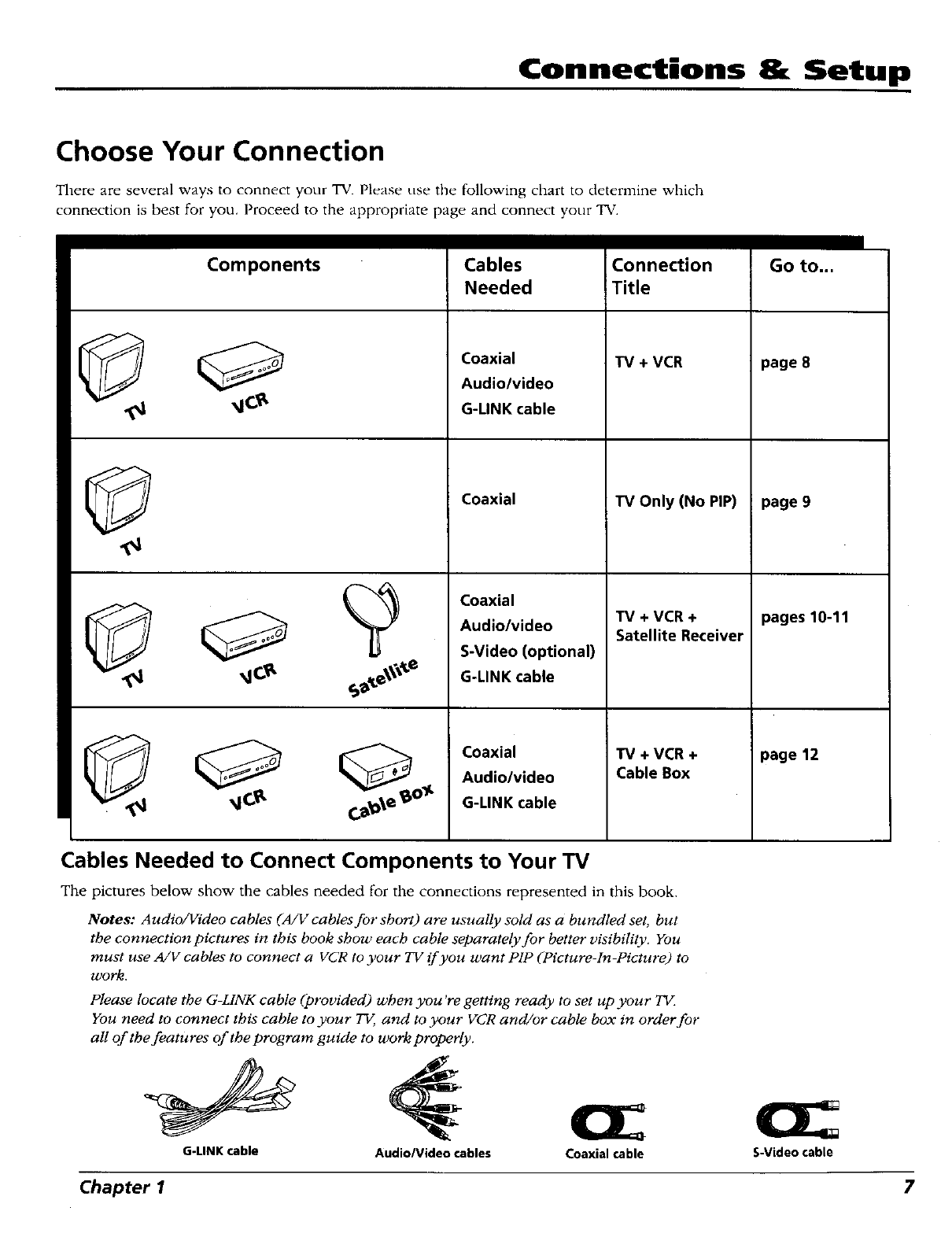

Choose Your Connection .................................................................................................. 7

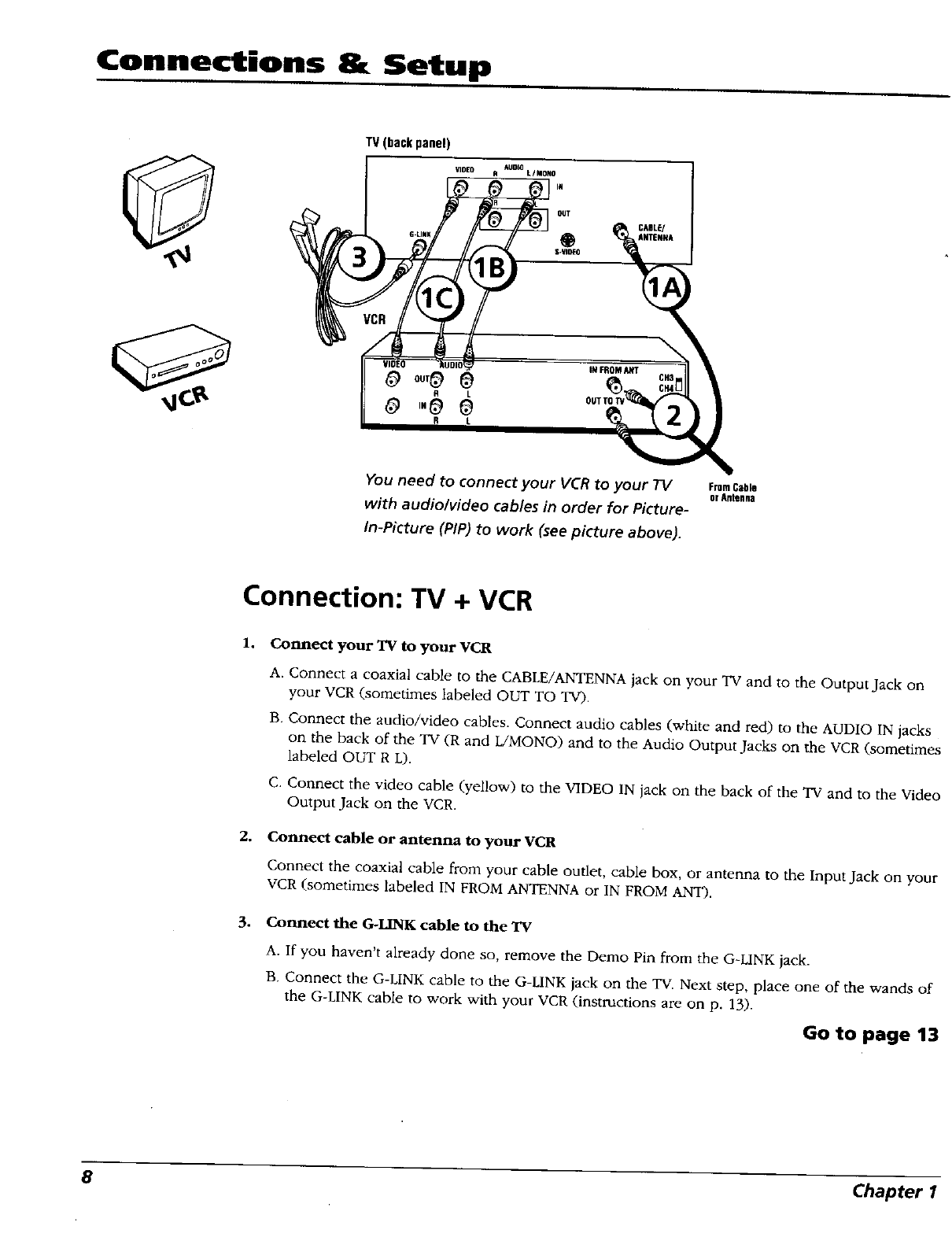

Connection: TV + VCR....................................................................................................... 8

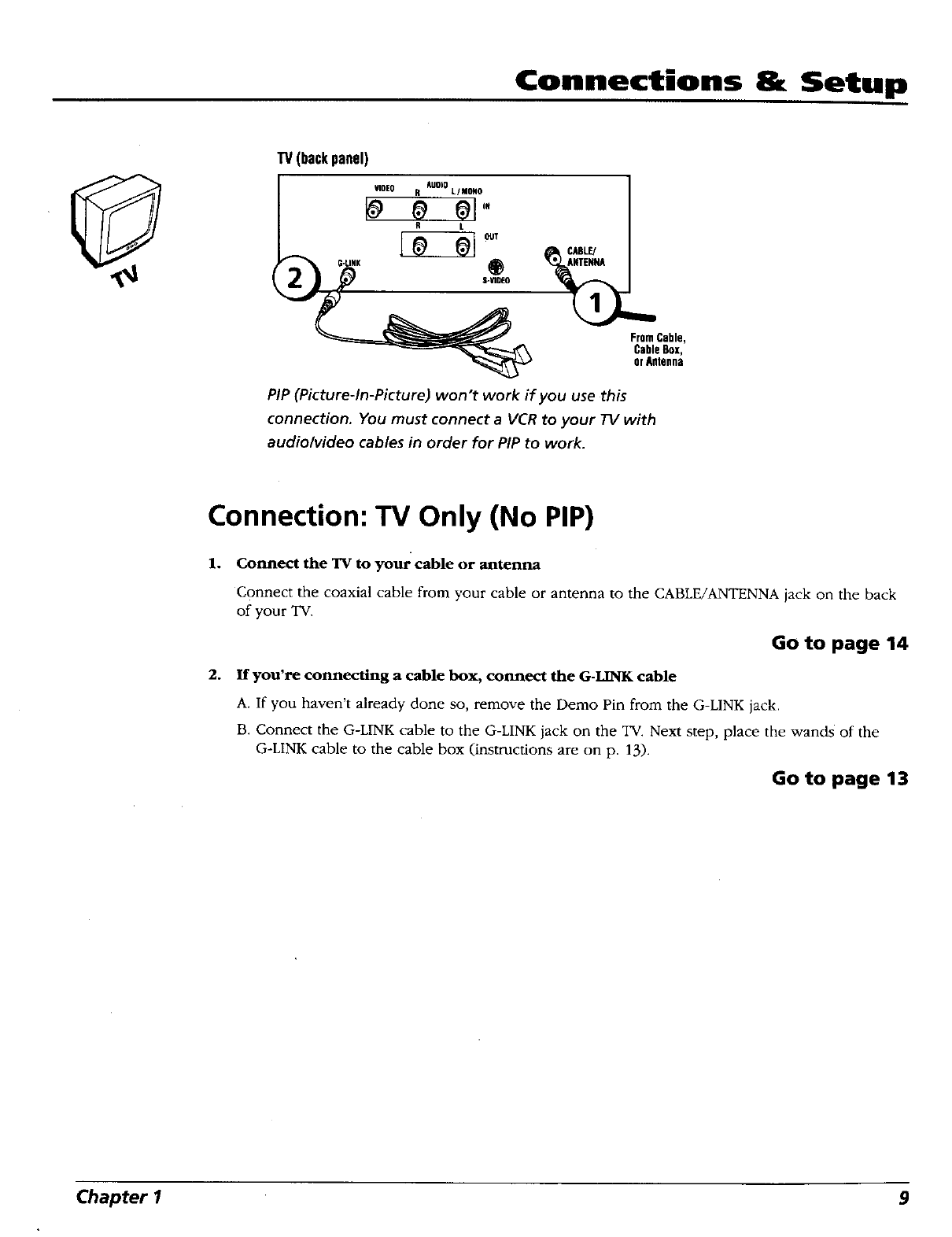

Connection: TV Only (No PIP) .......................................................................................... g

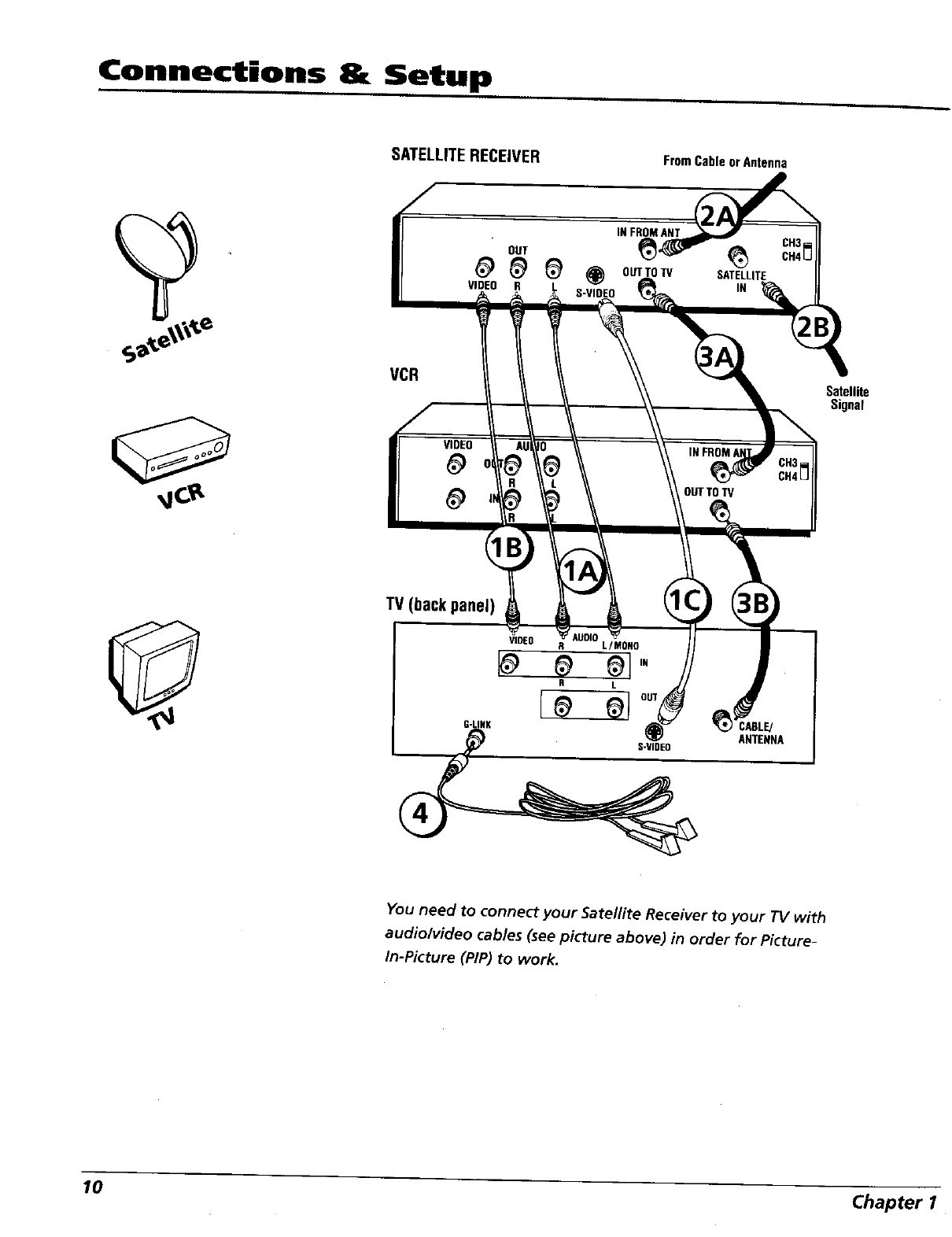

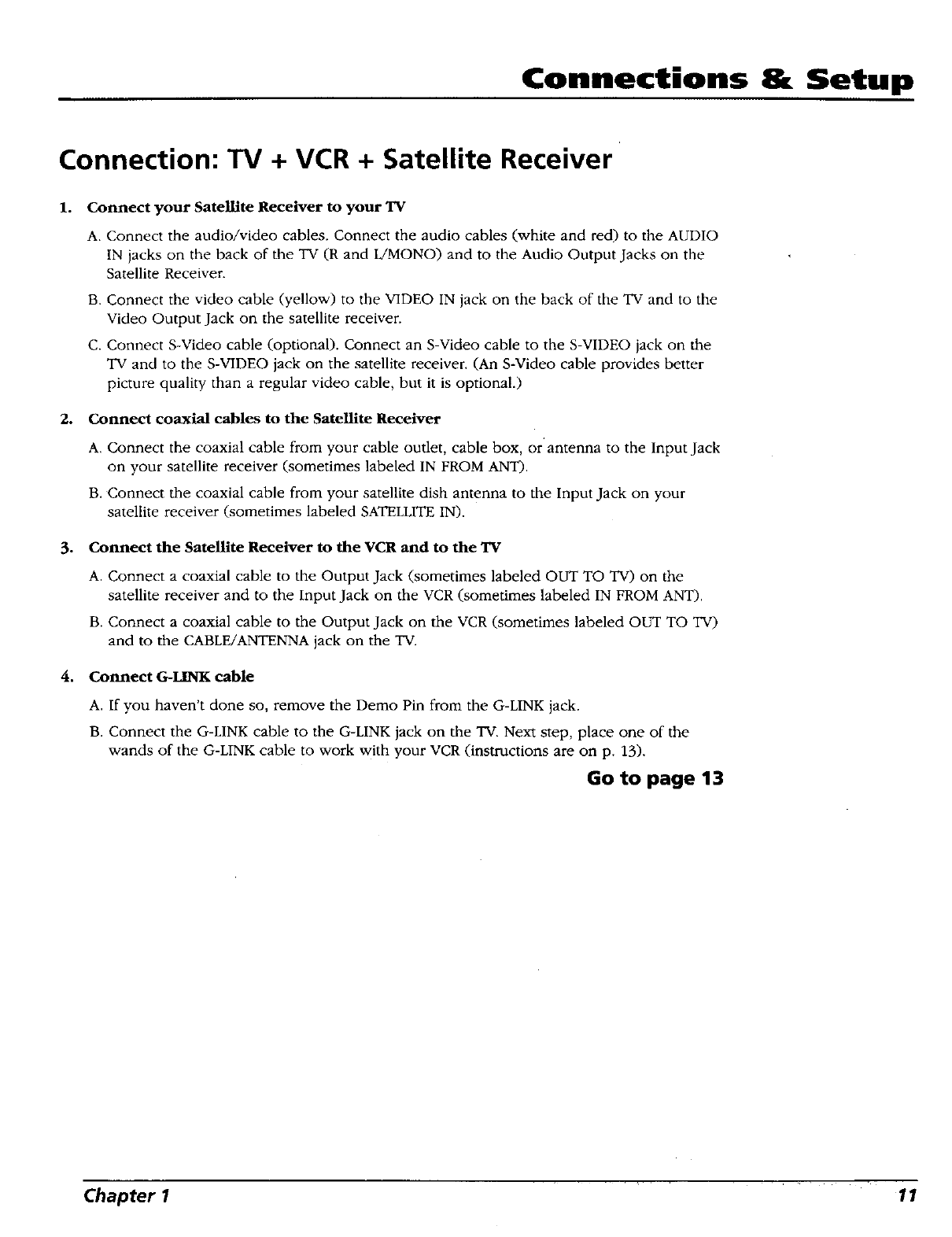

Connection: TV + VCR + Satellite Receiver ................................................................... 11

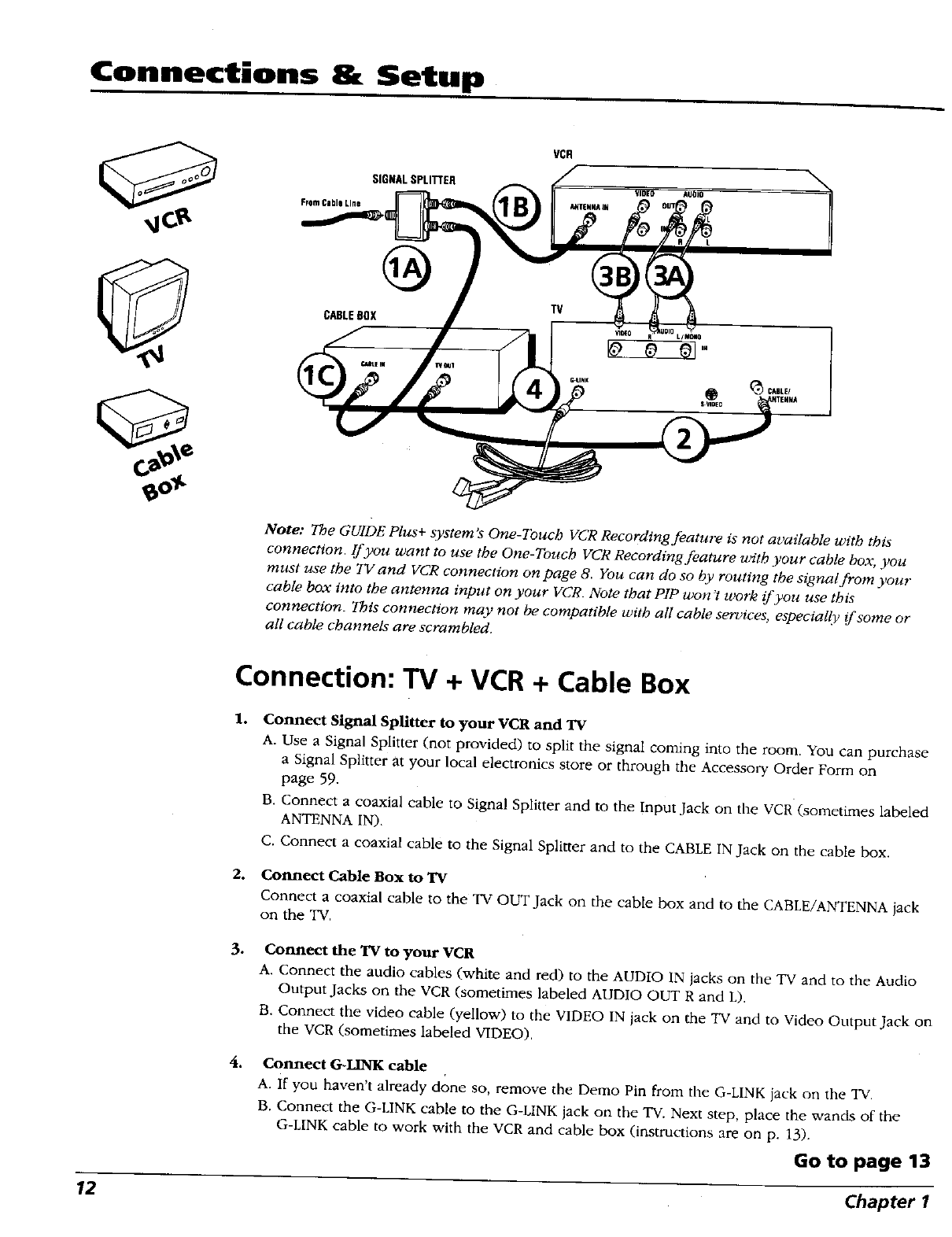

Connection: TV + VCR + Cable Box ................................................................................ 12

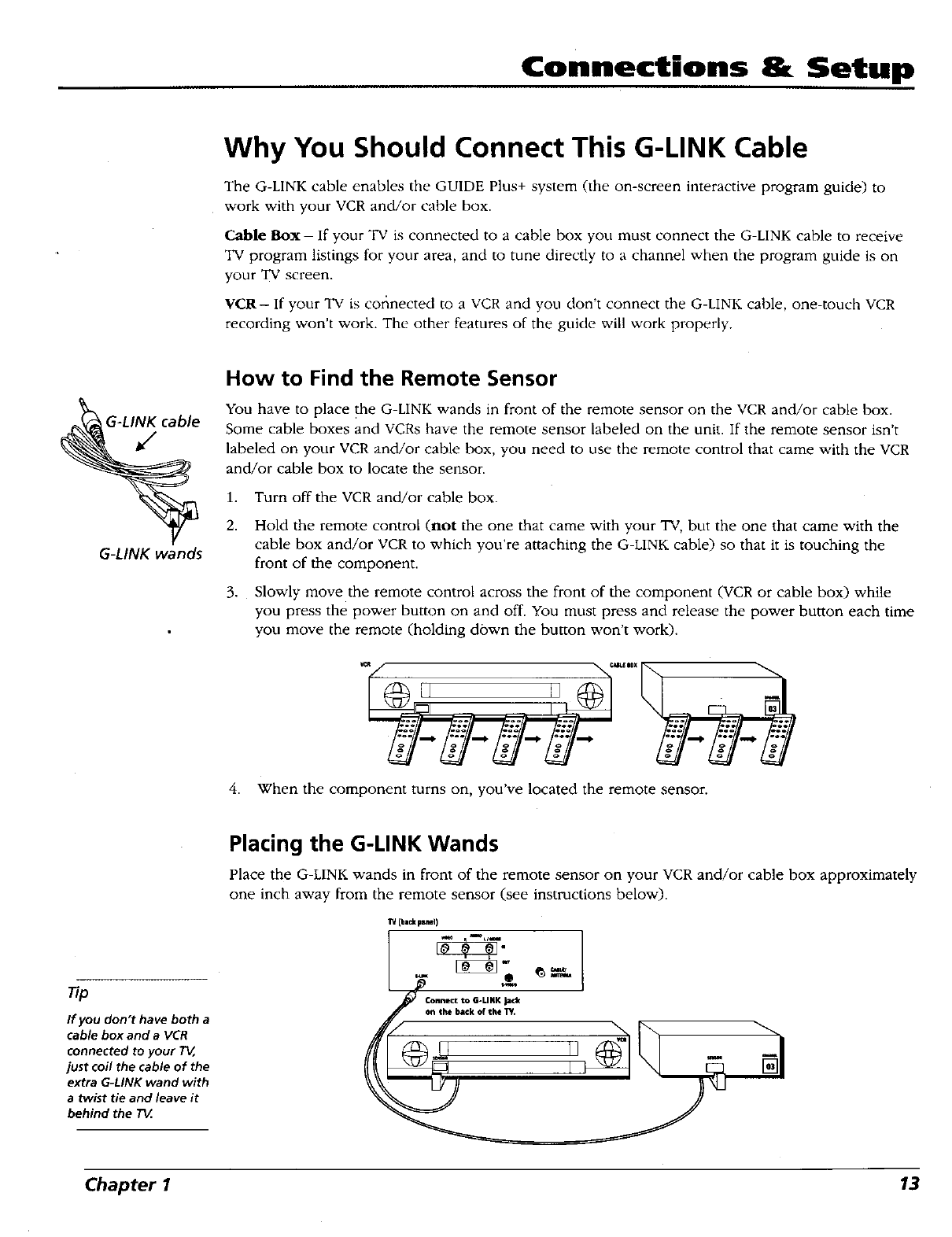

Why You Should Connect This G-LINK Cable ............................................................... 13
How to Find the Remote Sensor ............................................................................. 13
Placing the G-LINK Wands ....................................................................................... 13

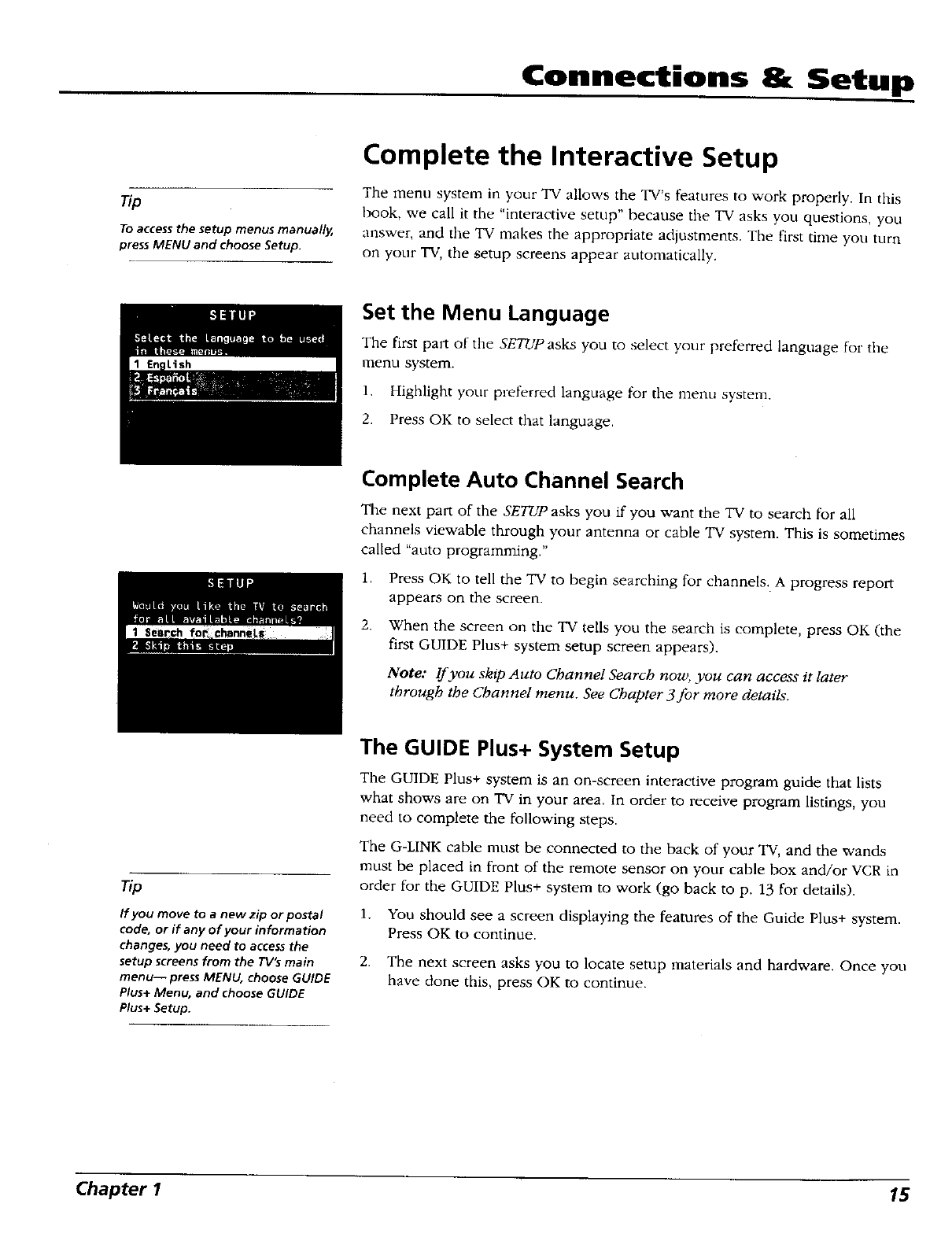

Complete the Interactive Setup ..................................................................................... 15
Set the Menu Language .......................................................................................... 15
Complete Auto Channel Search .............................................................................. 15
The GUIDE Plus+ System Setup ................................................................................ 15

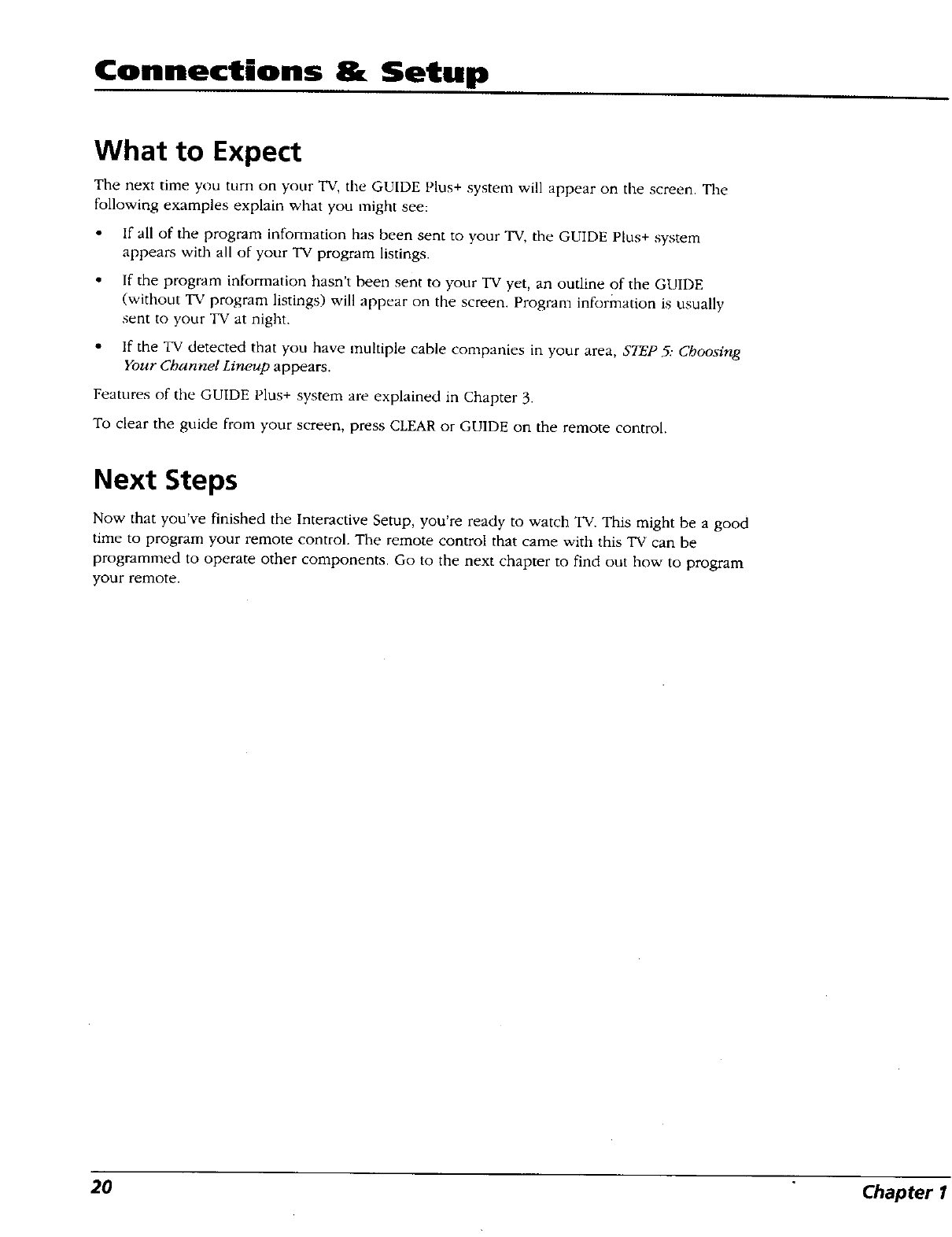

What to Expect ............................................................................................................... 20
Next Steps ....................................................................................................................... 20

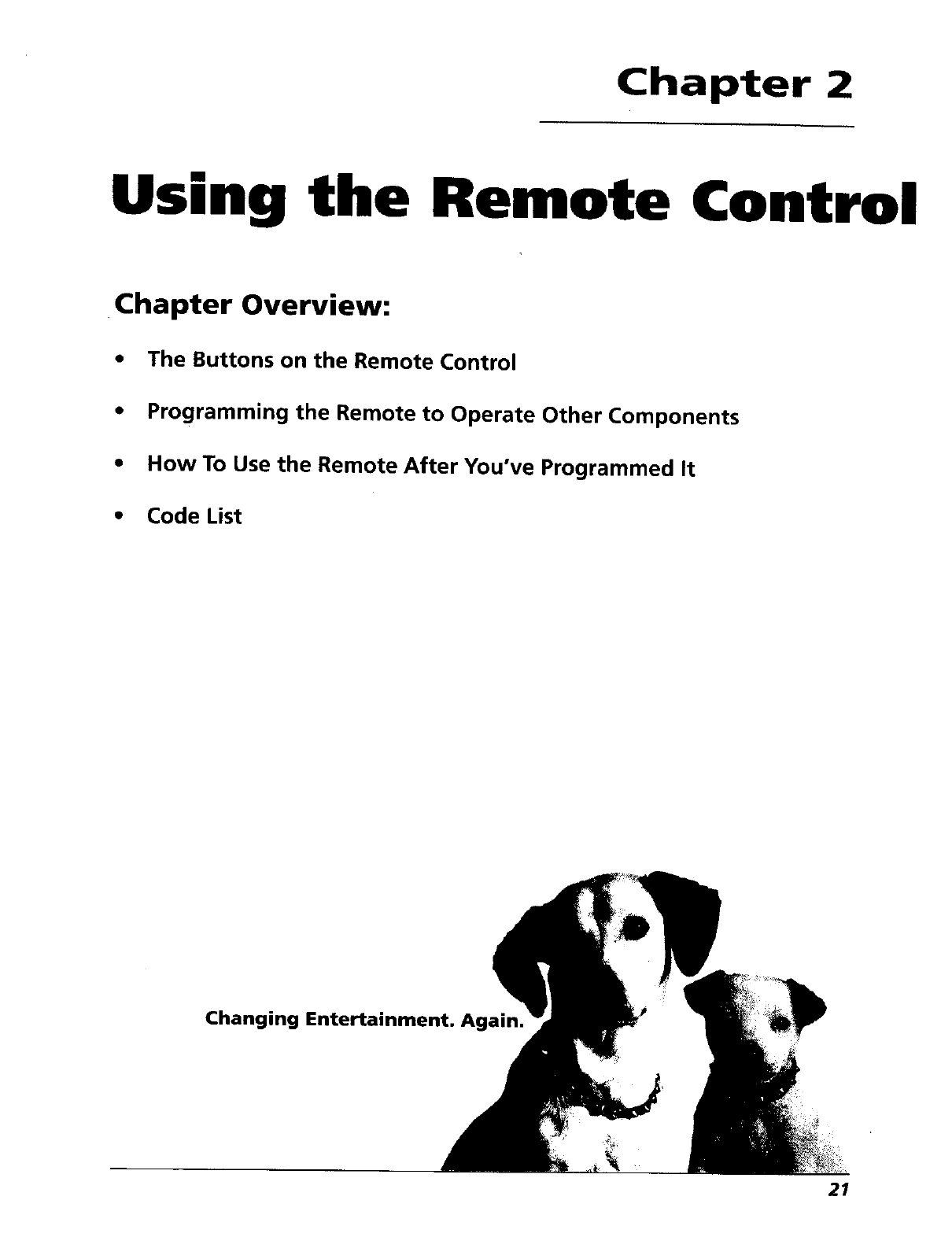

Chapter 2: Using the Remote Control

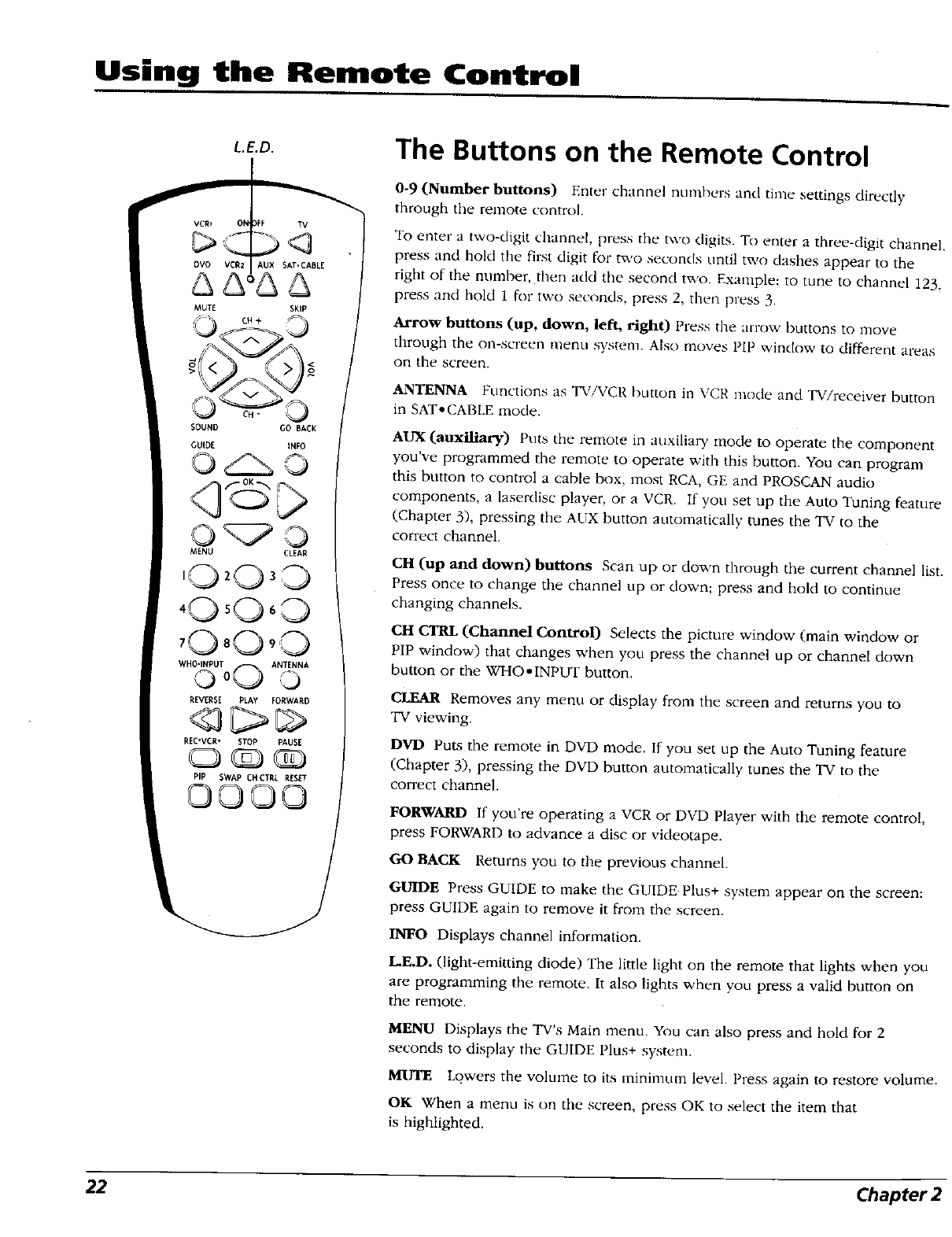

The Buttons on the Remote Control ............................................................................. 22

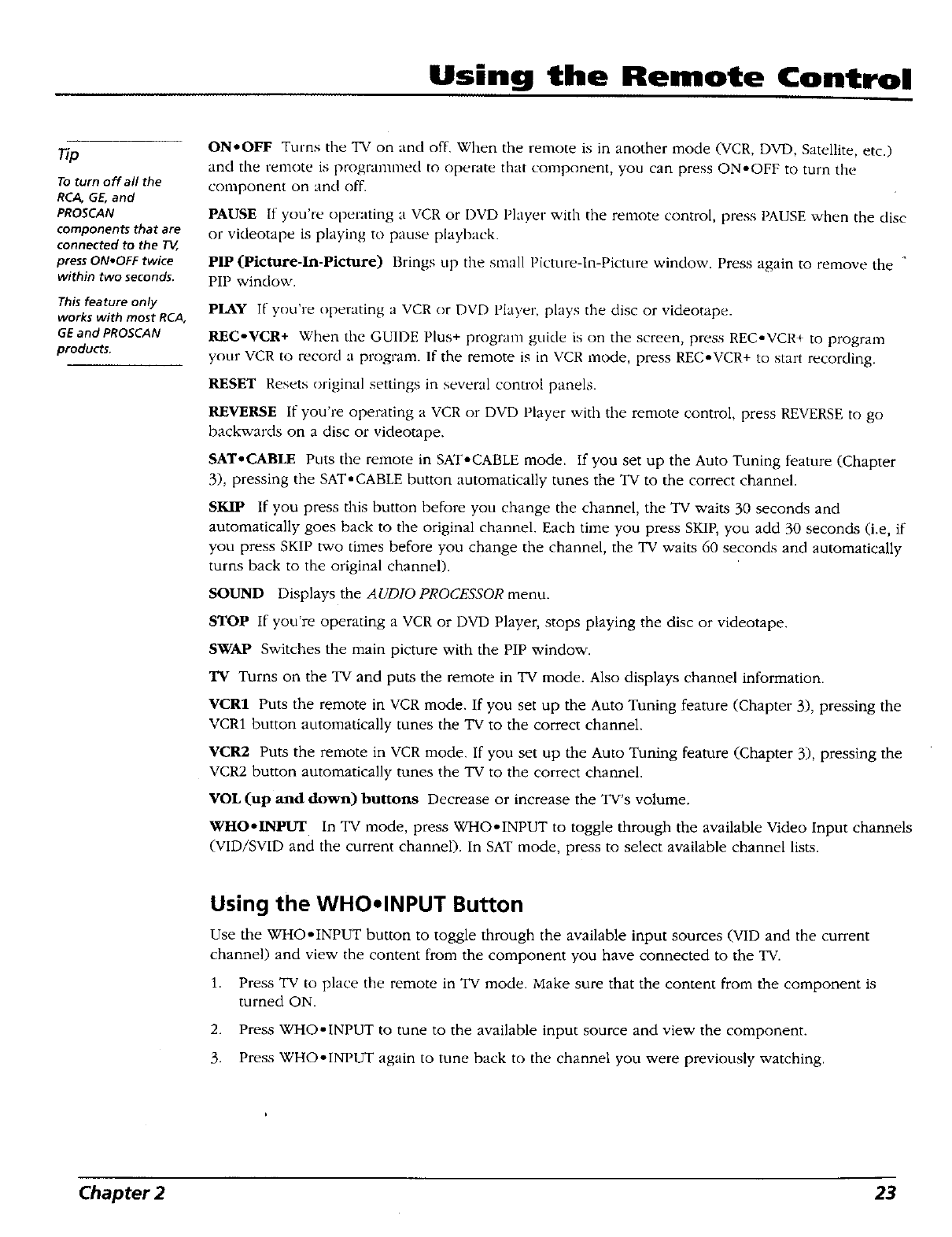

Using the WHOolNPUT Button ................................................................................ 23

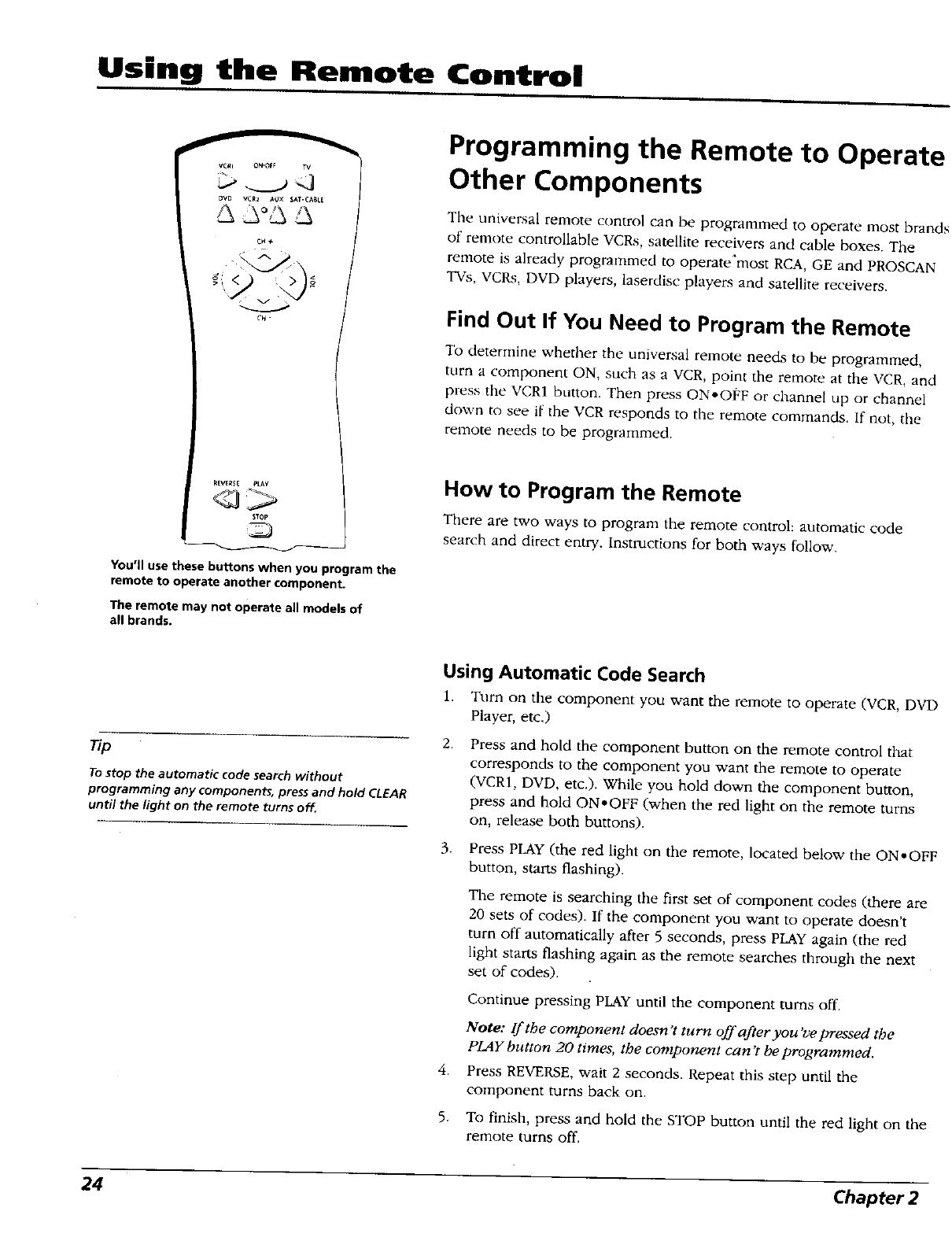

Programming the Remote to Operate Other Components ......................................... 24
Find Out If You Need to Program the Remote ....................................................... 24
How to Program the Remote .................................................................................. 24

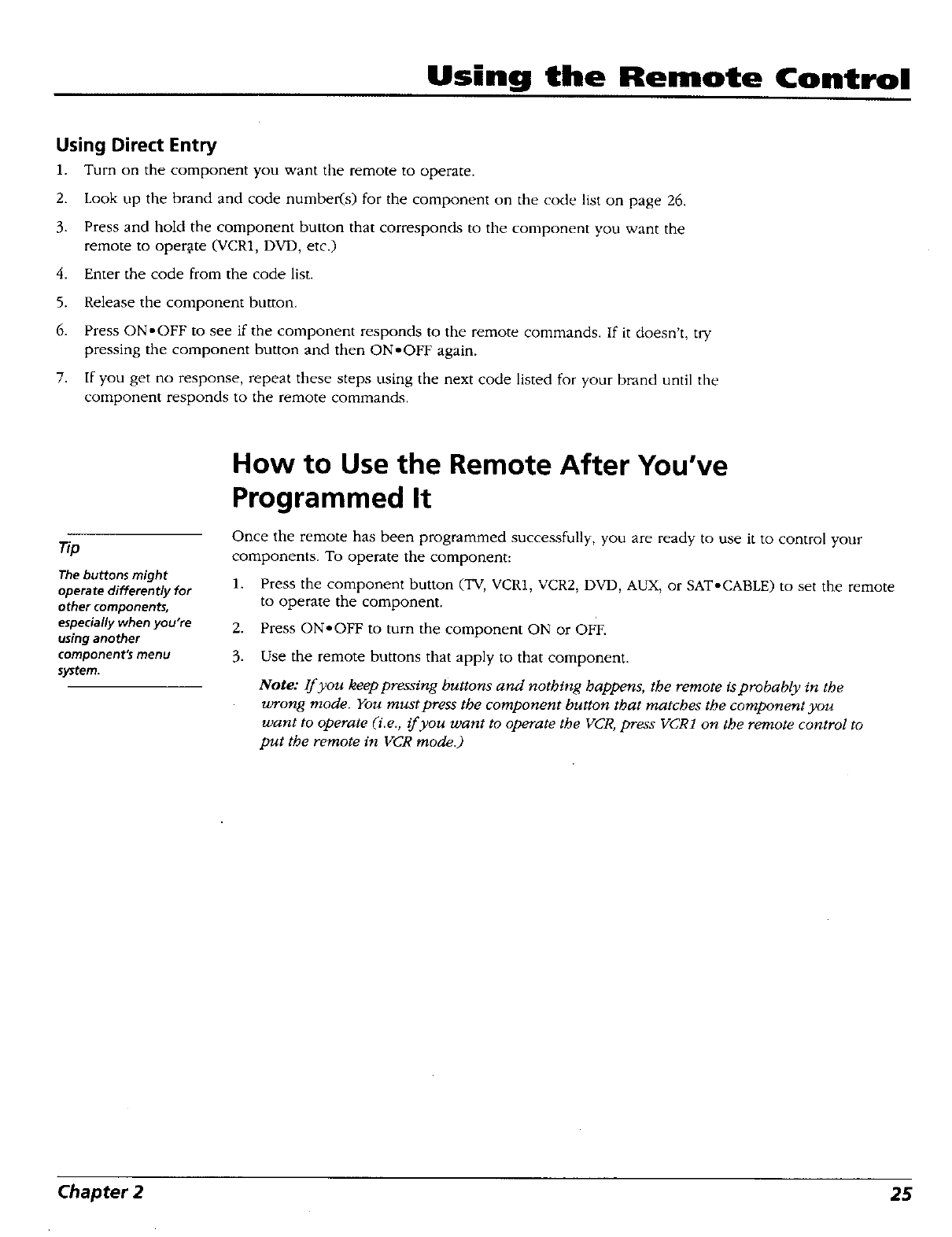

How to Use the Remote After You've Programmed It ................................................ 25

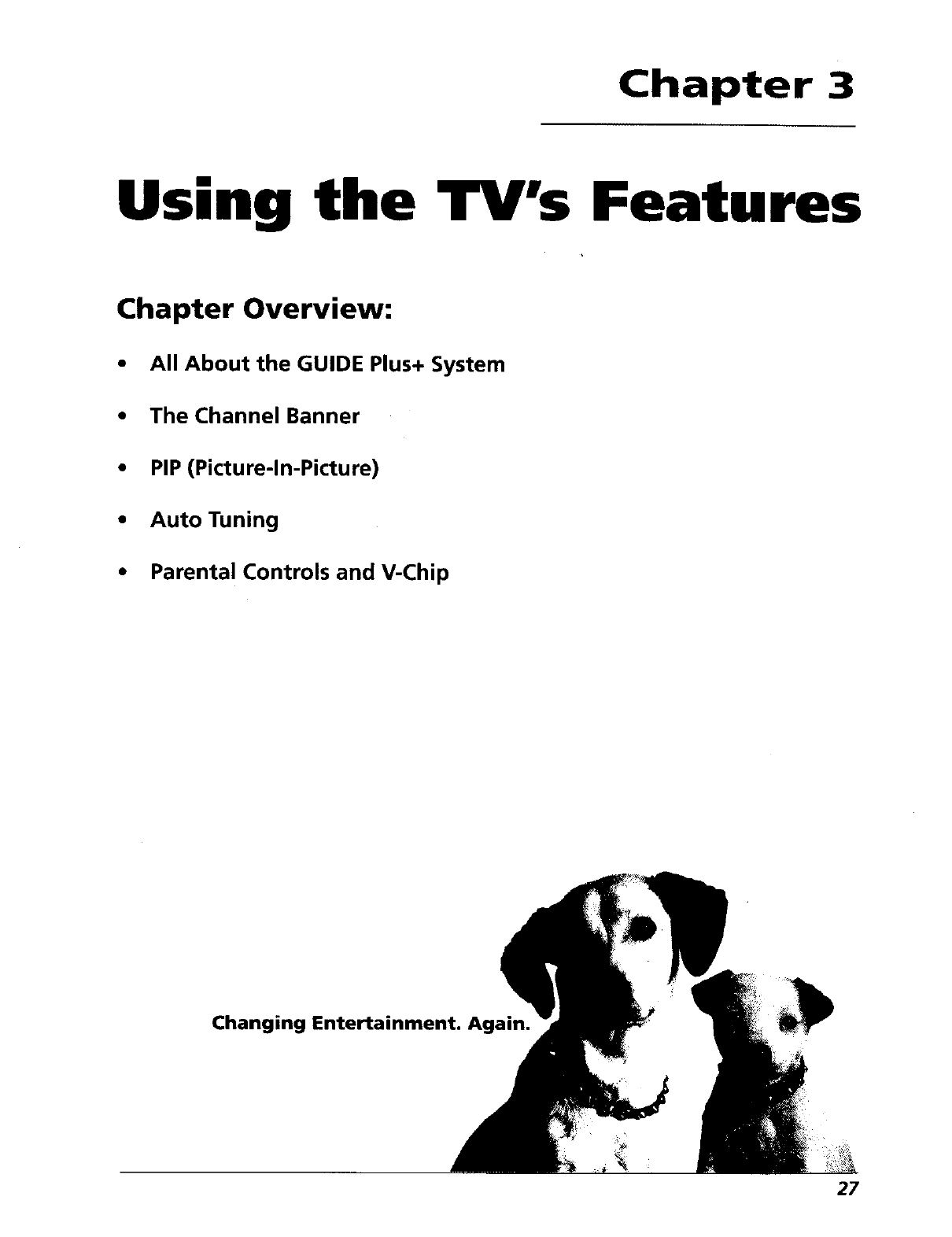

Chapter 3: Using the TV's Features

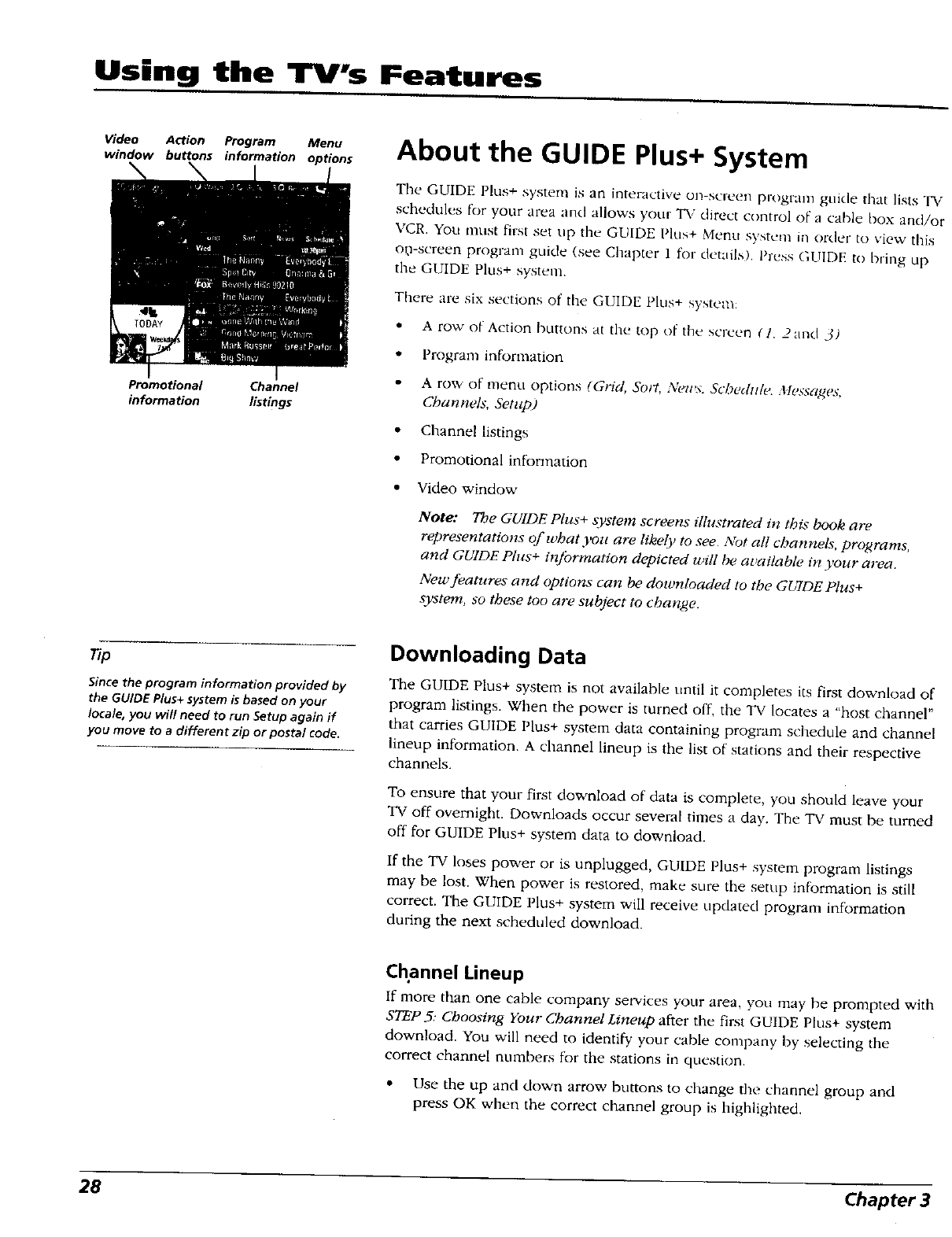

About the GUIDE Plus+ System ..................................................................................... 28
Downloading Data ................................................................................................... 28

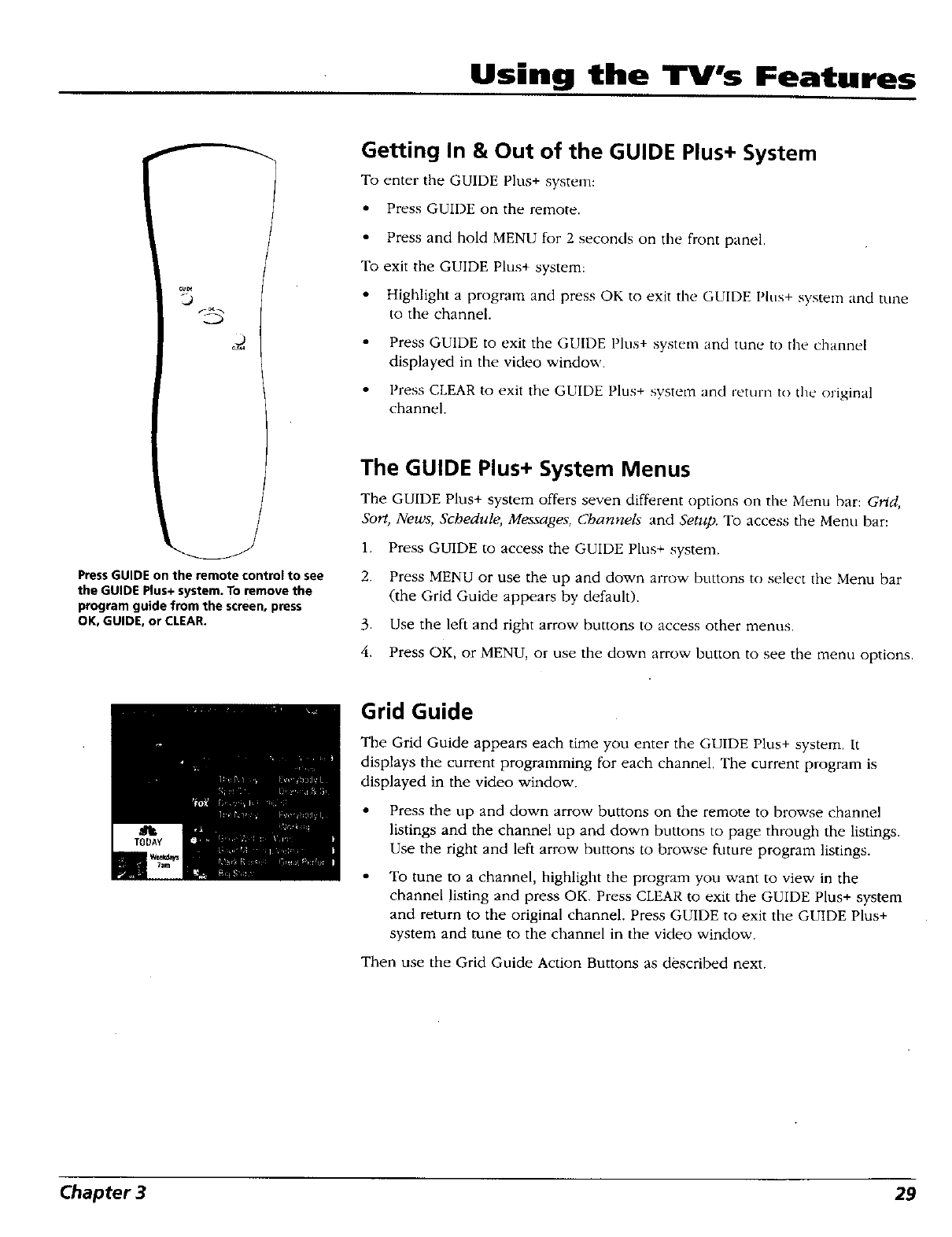

Getting In & Out of the GUIDE Plus+ System ......................................................... 29
The GUIDE Plus+ System Menus .............................................................................. 29

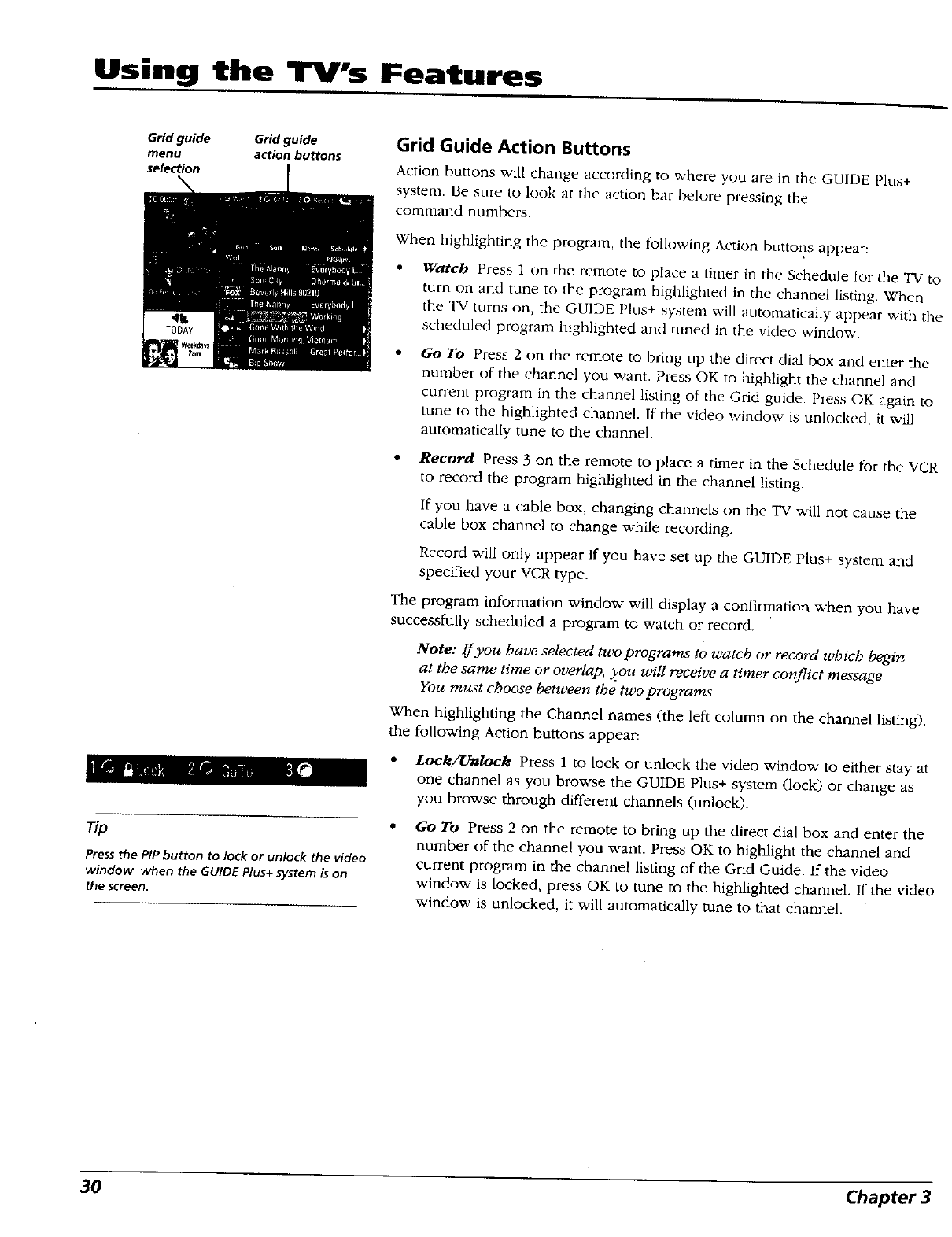

Grid Guide ................................................................................................................ 29

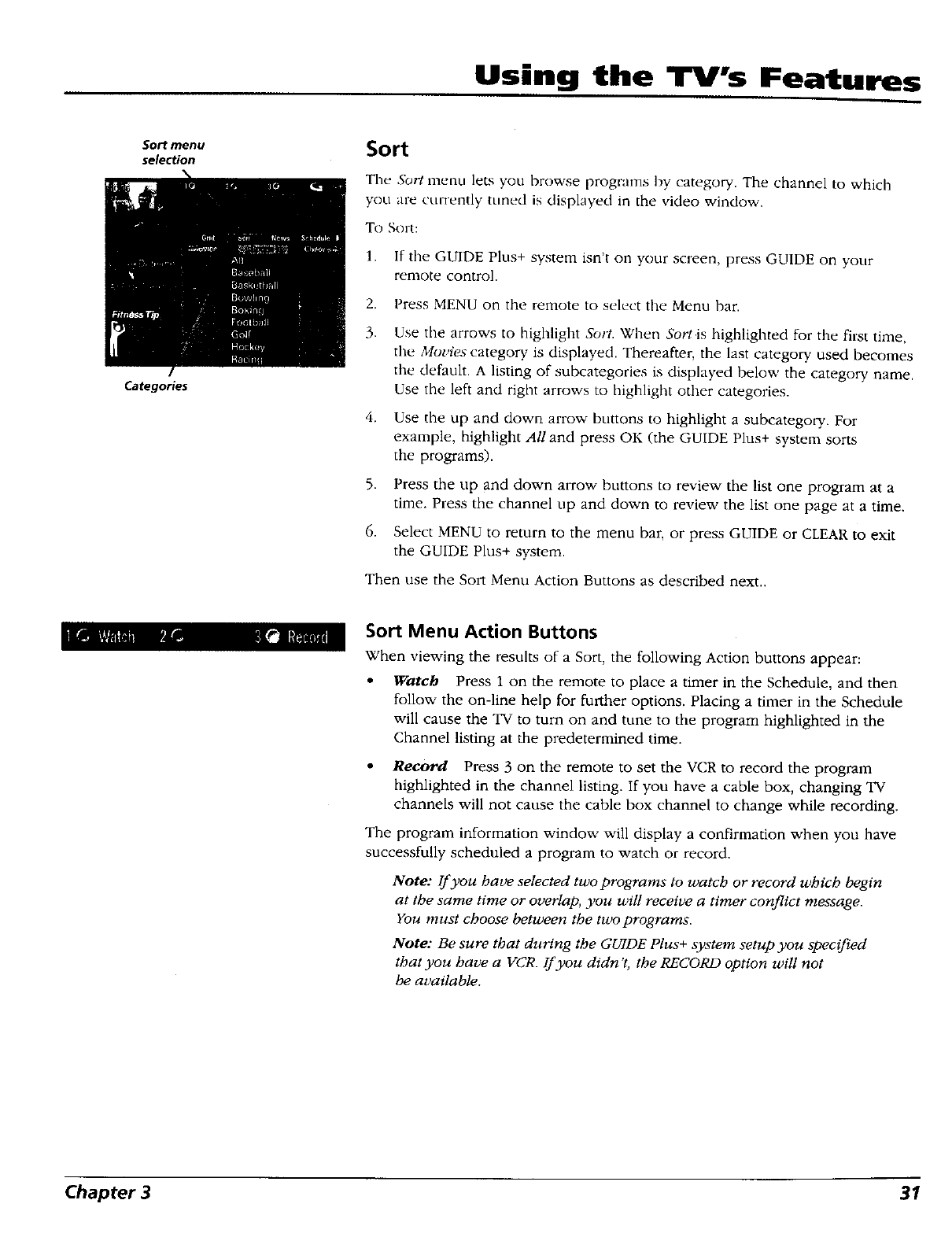

Sort ............................................................................................................................ 31

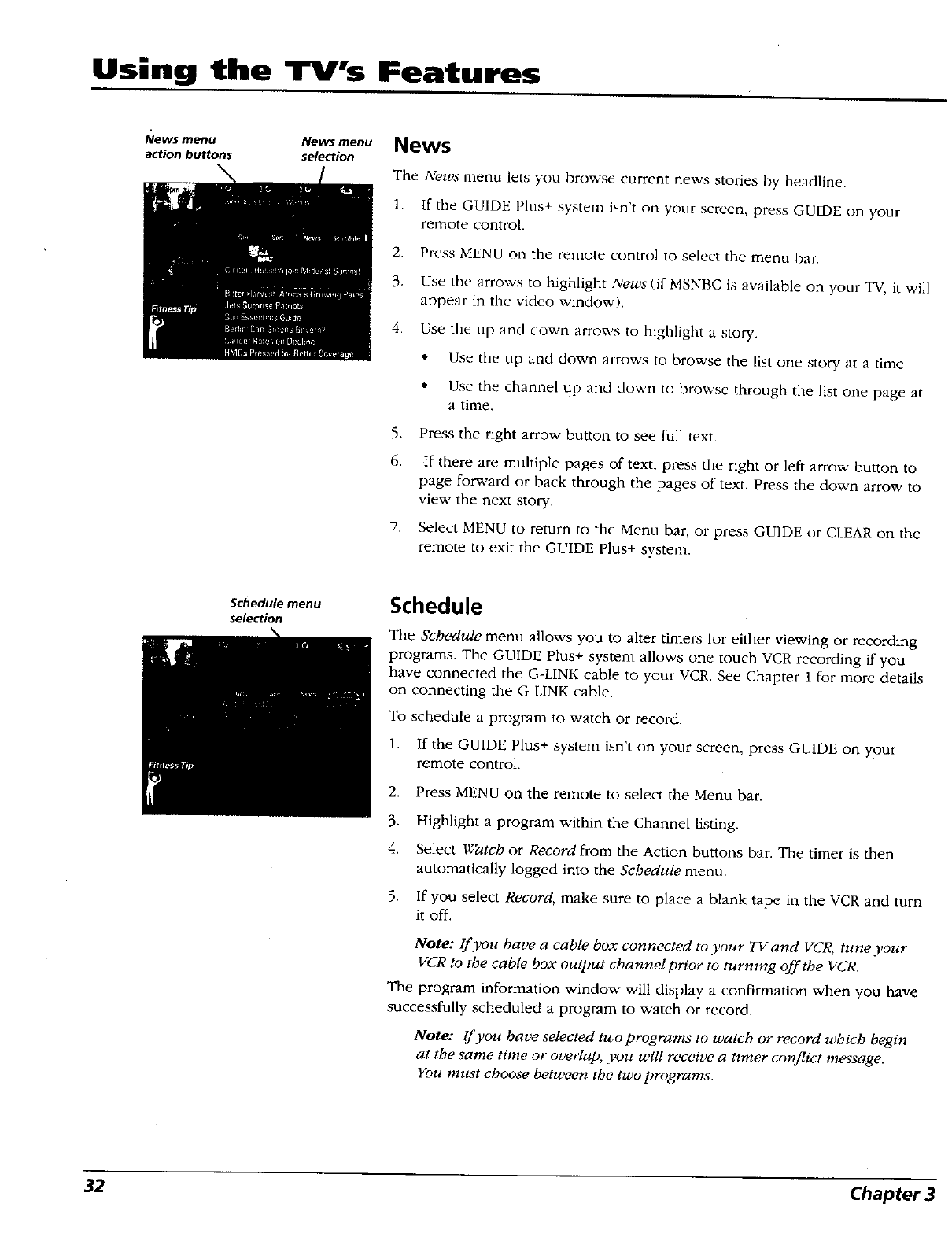

News .......................................................................................................................... 32
3

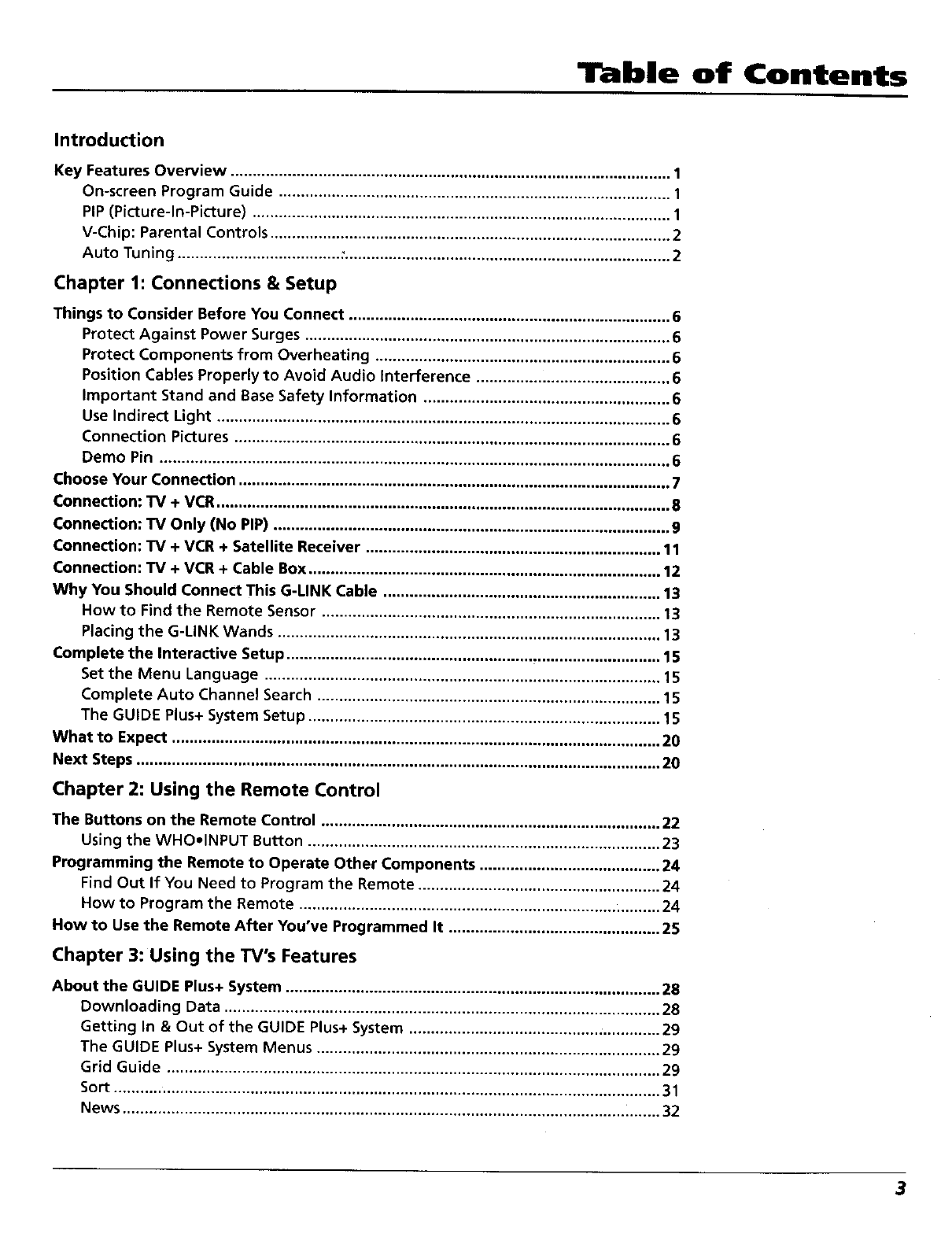

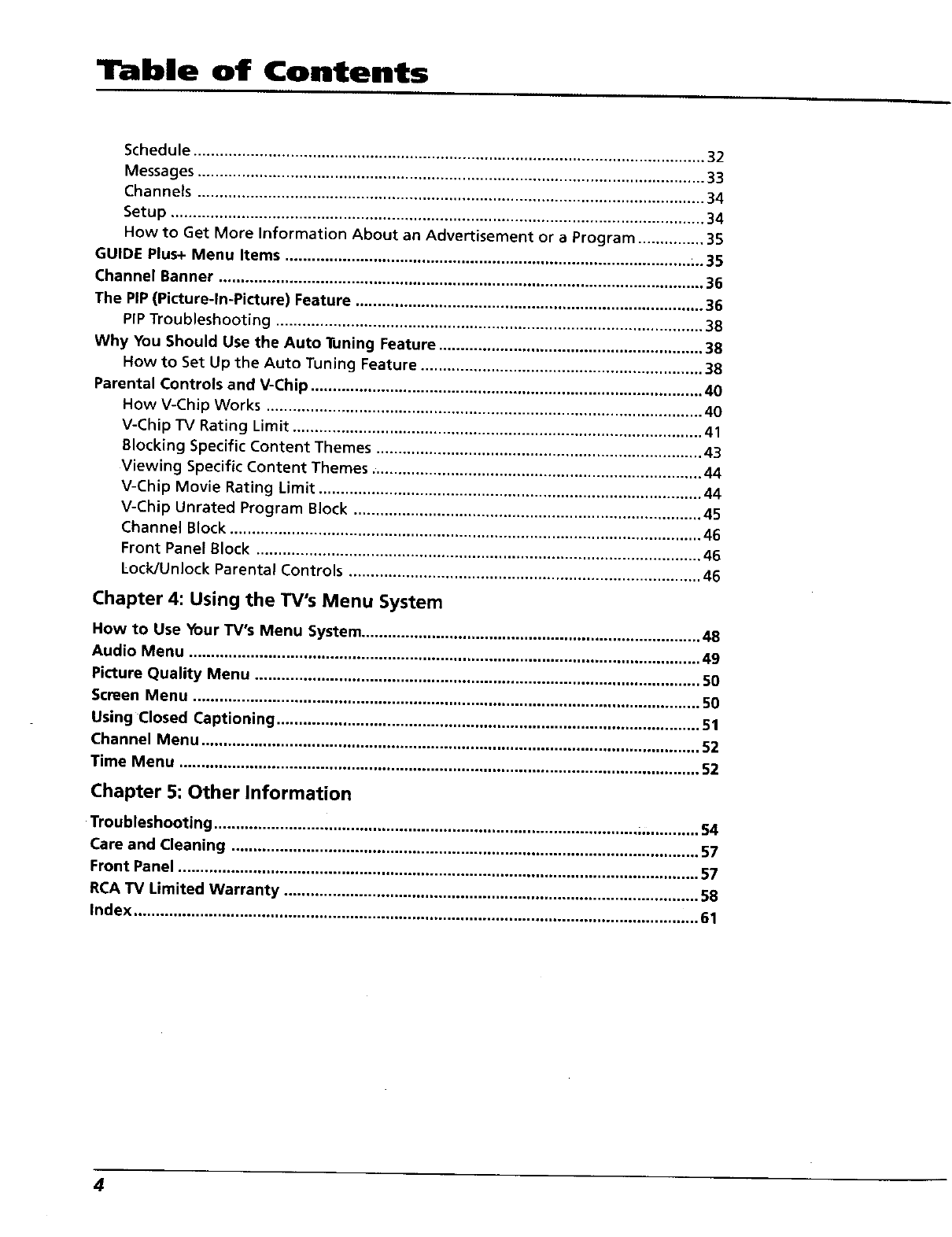

Table of Contents

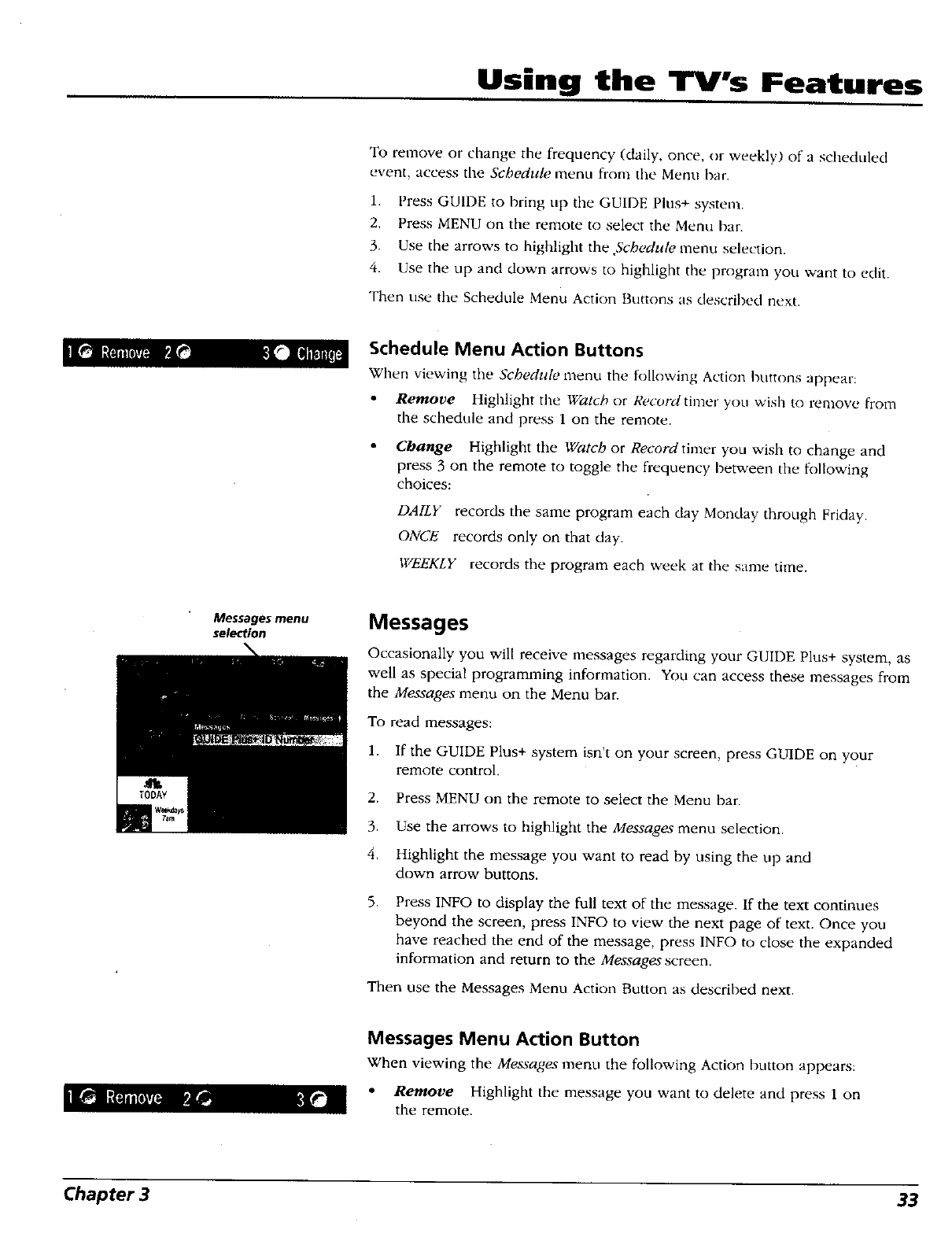

Schedule .................................................................................................................... 32
Messages ................................................................................................................... 33

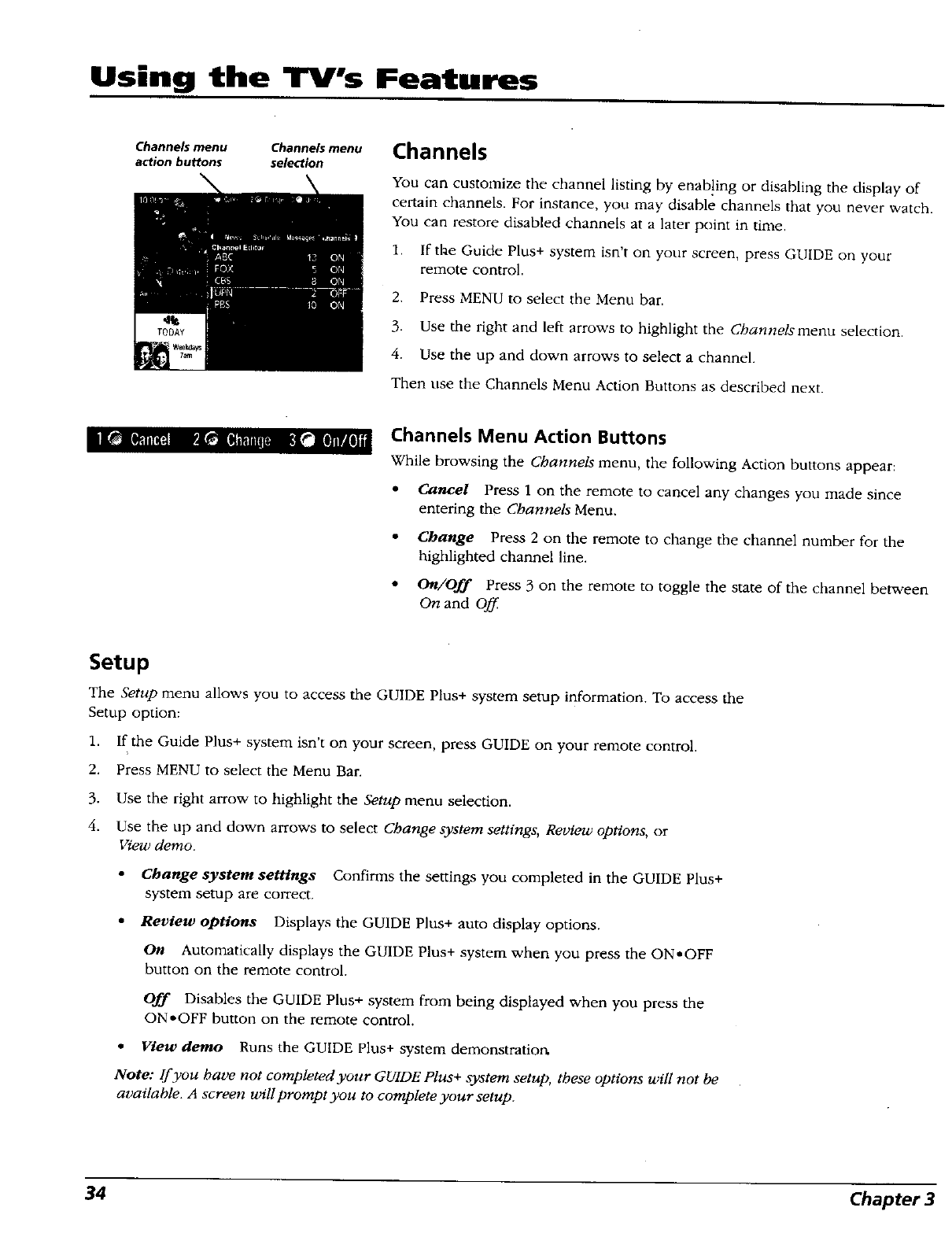

Channels ................................................................................................................... 34
Setup ......................................................................................................................... 34

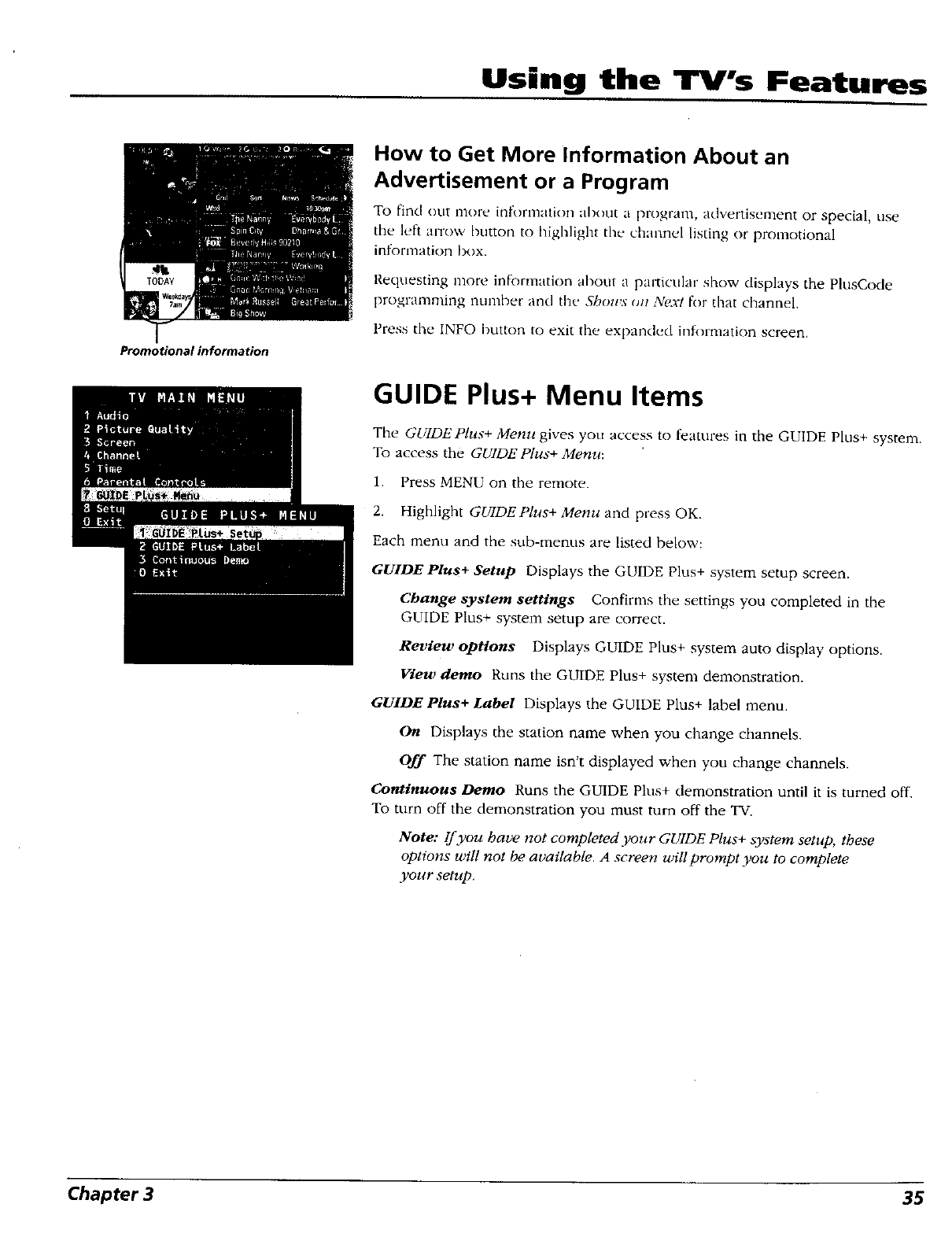

How to Get More Information About an Advertisement or a Program ............... 35
GUIDE Plus+ Menu Items ............................................................................................... 35

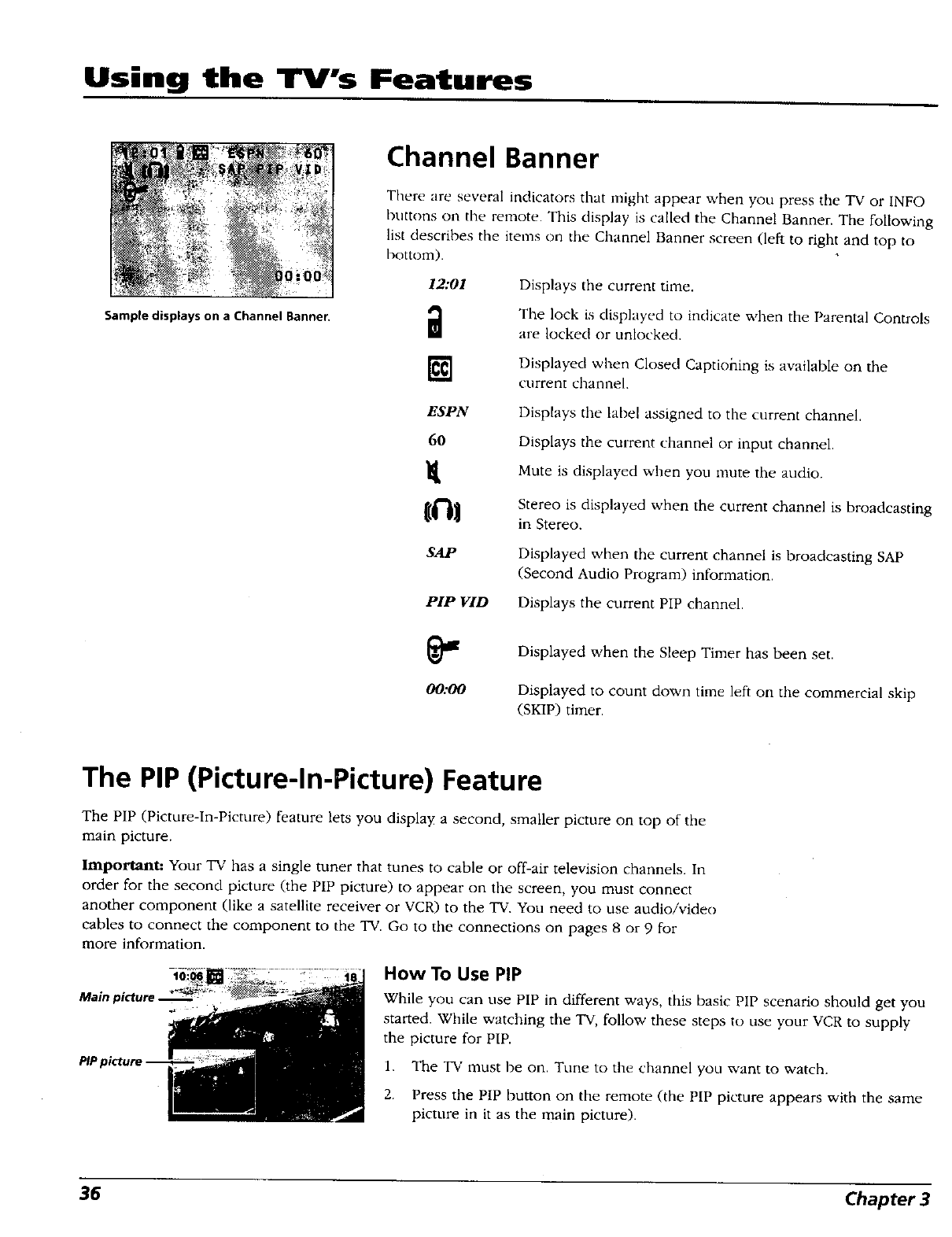

Channel Banner .............................................................................................................. 36

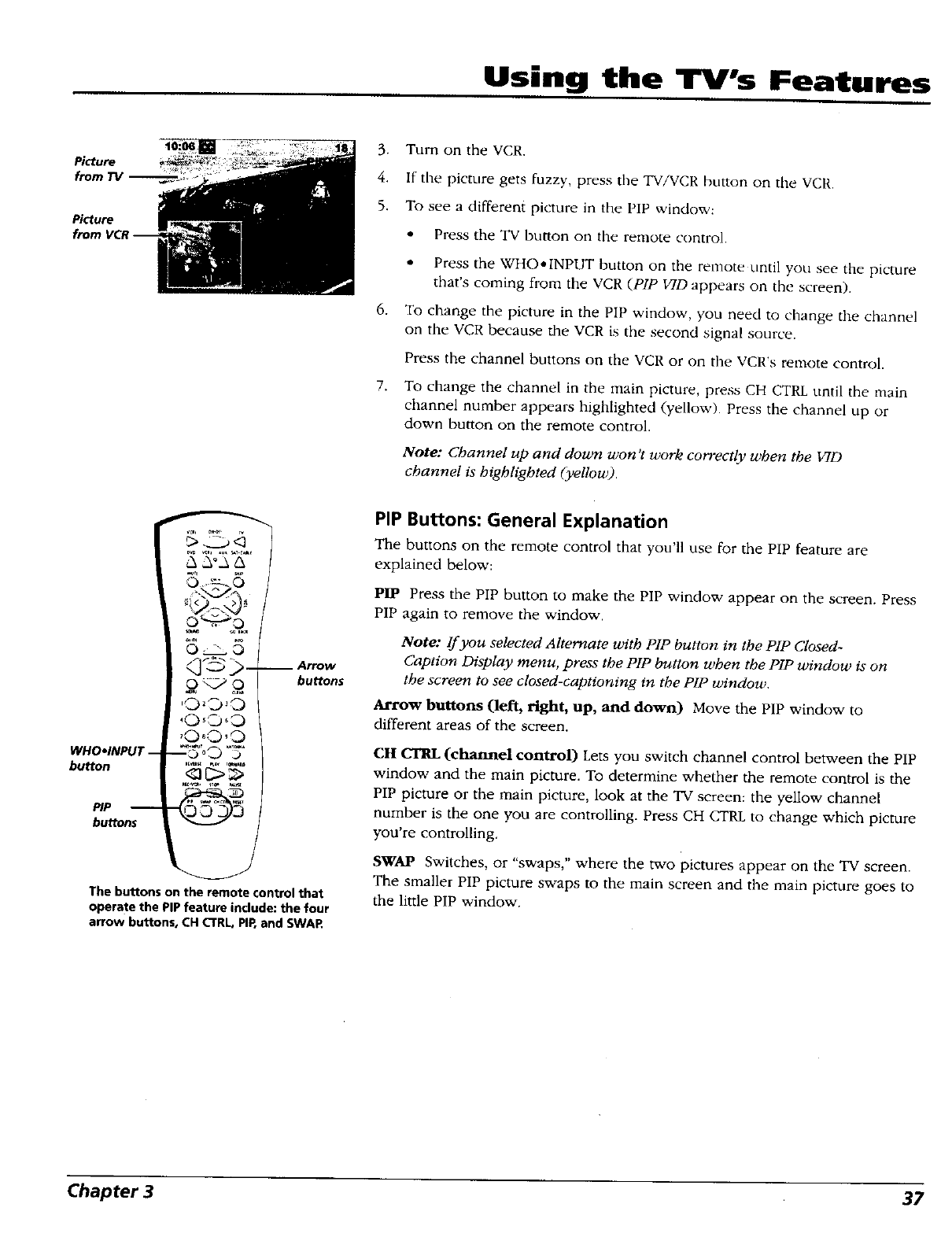

The PIP (Picture-In-Picture) Feature ............................................................................... 36

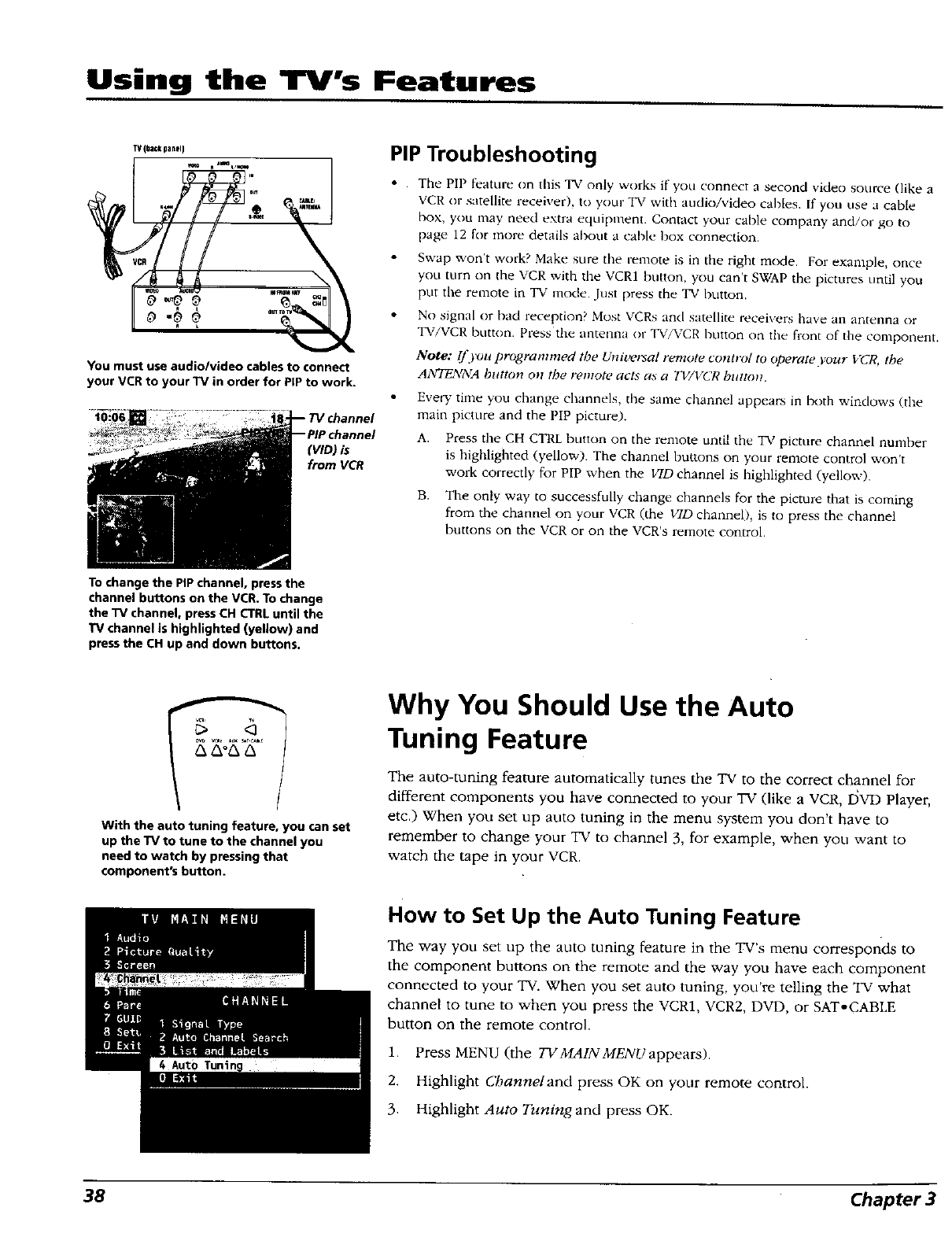

PIP Troubleshooting ................................................................................................. 38
Why You Should Use the Auto Tuning Feature ............................................................ 38

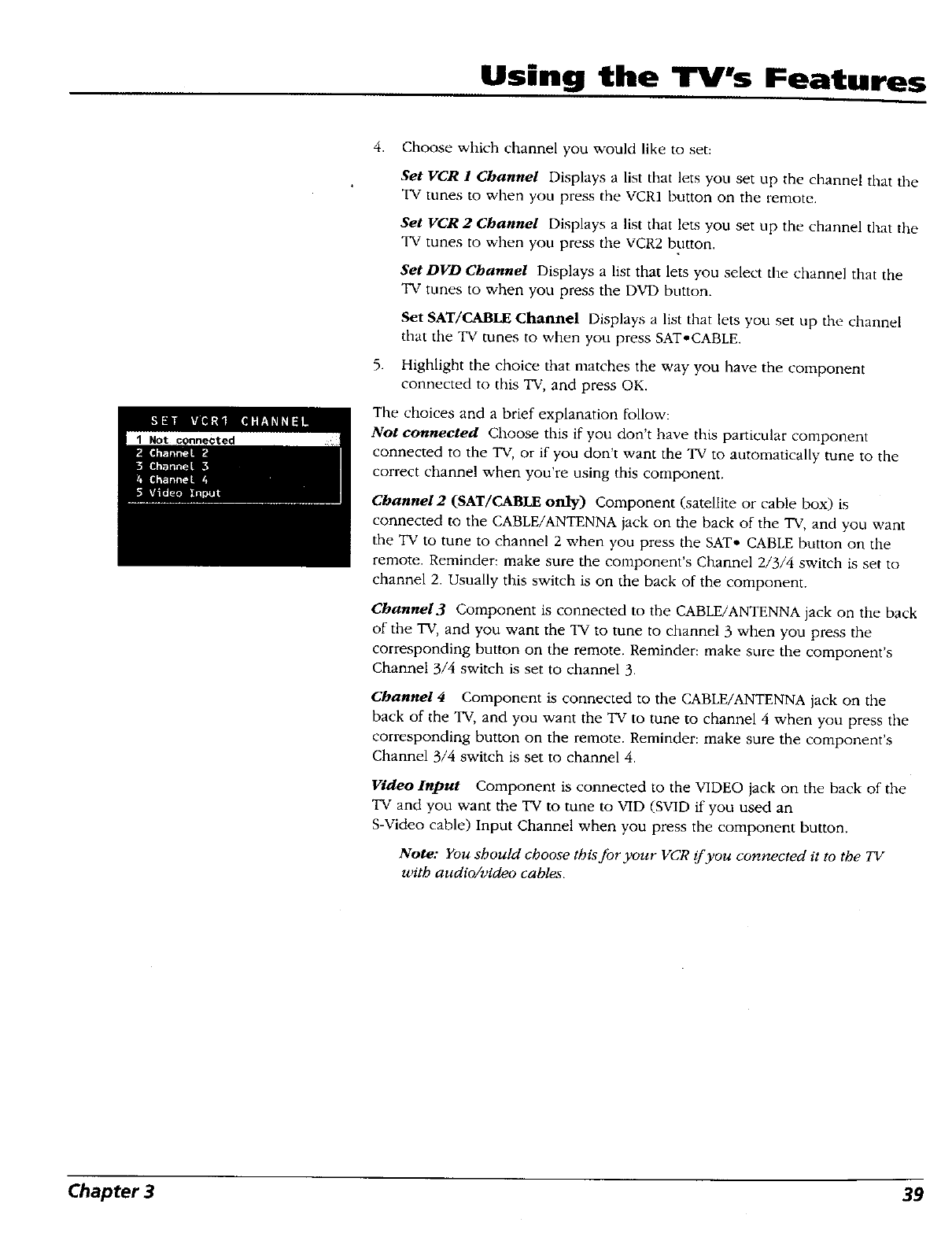

How to Set Up the Auto Tuning Feature ................................................................ 38

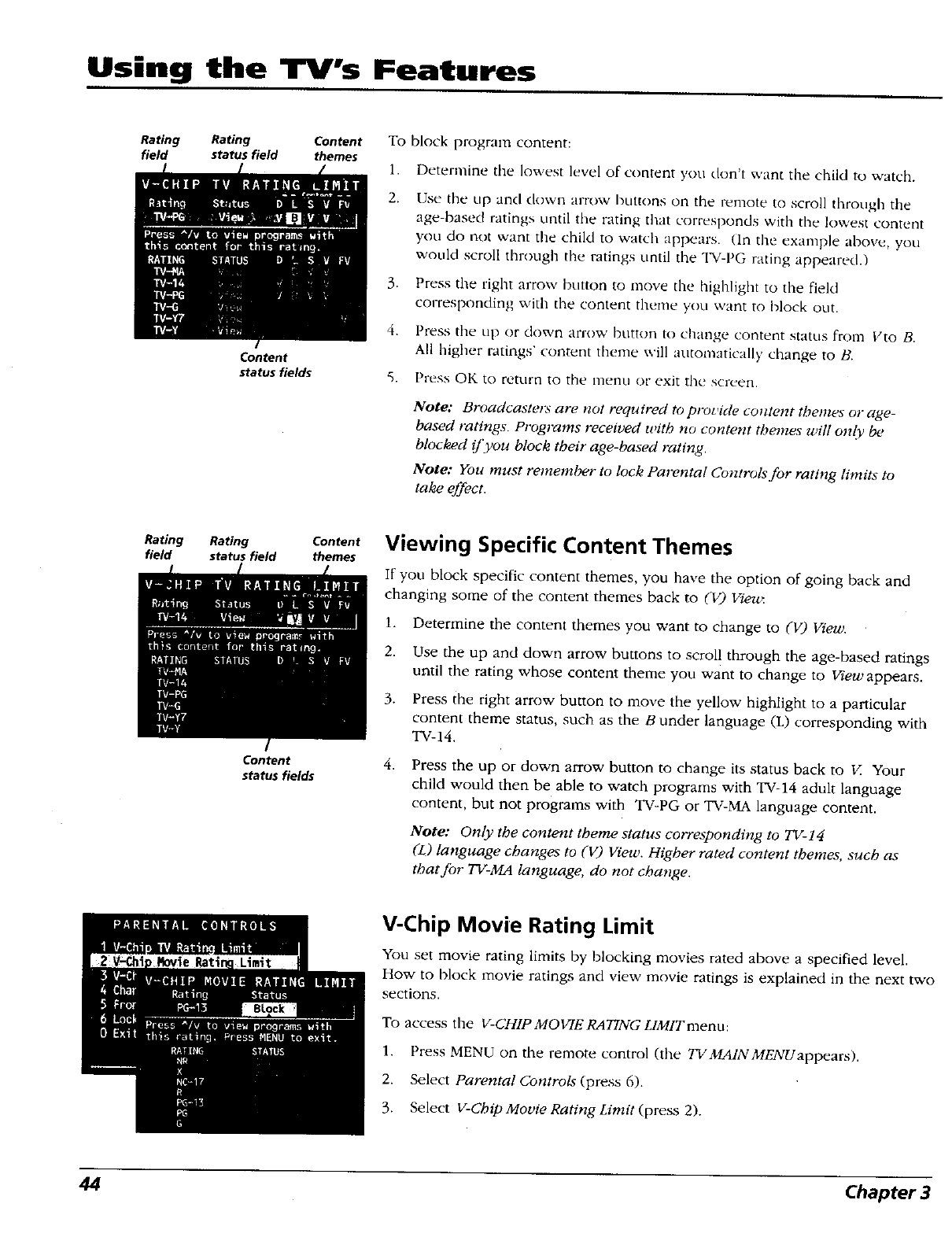

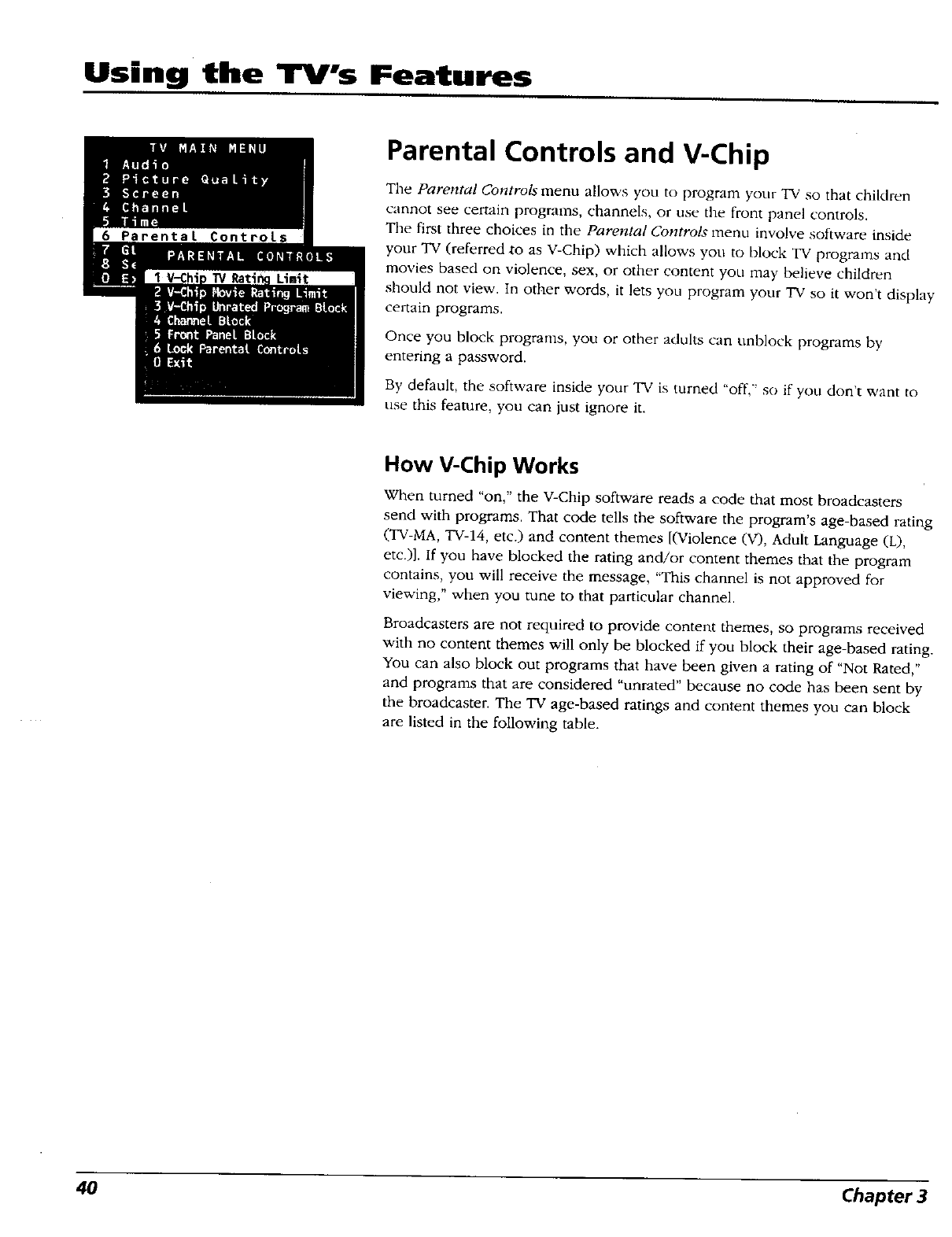

Parental Controls and V-Chip ......................................................................................... 40
How V-Chip Works ................................................................................................... 40

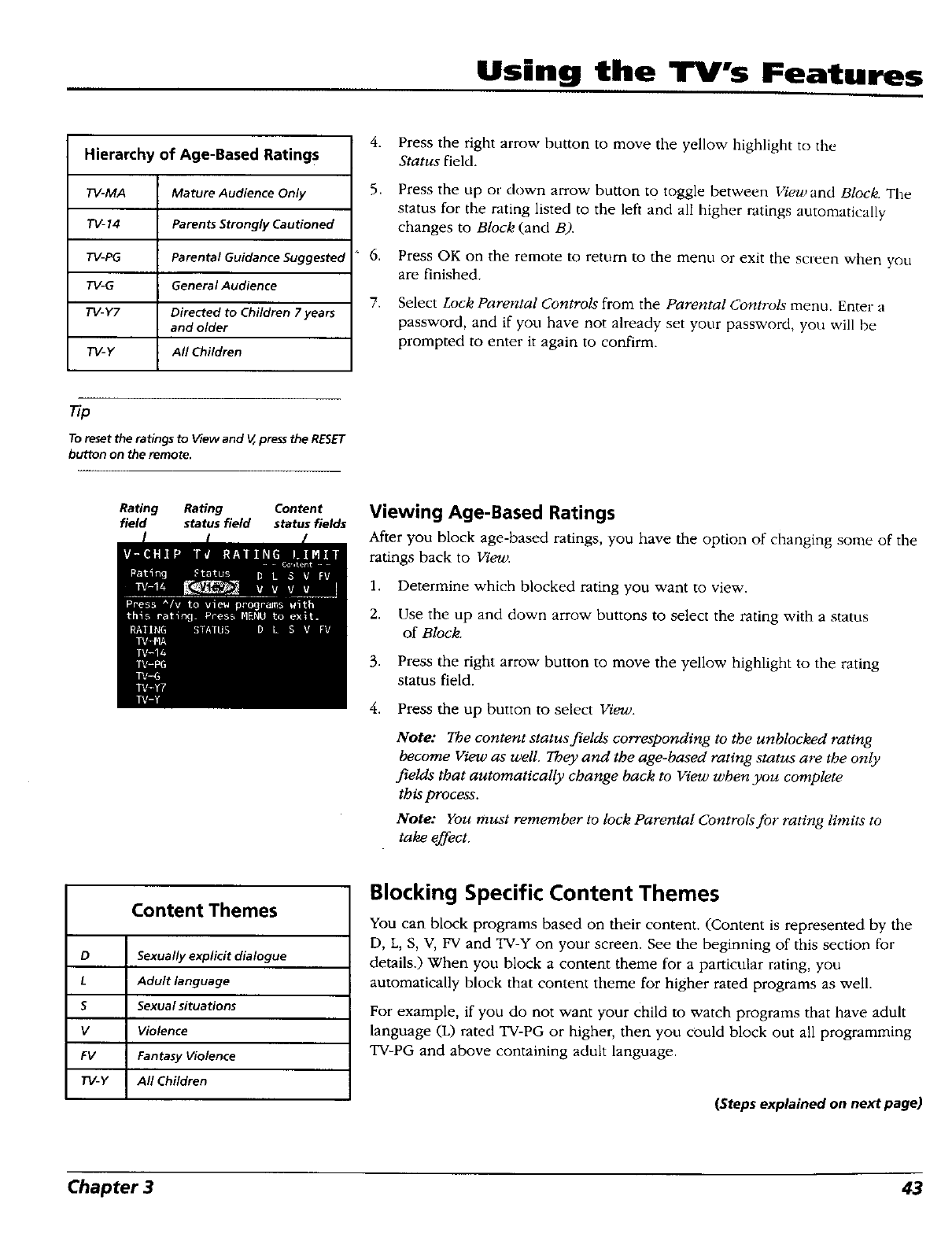

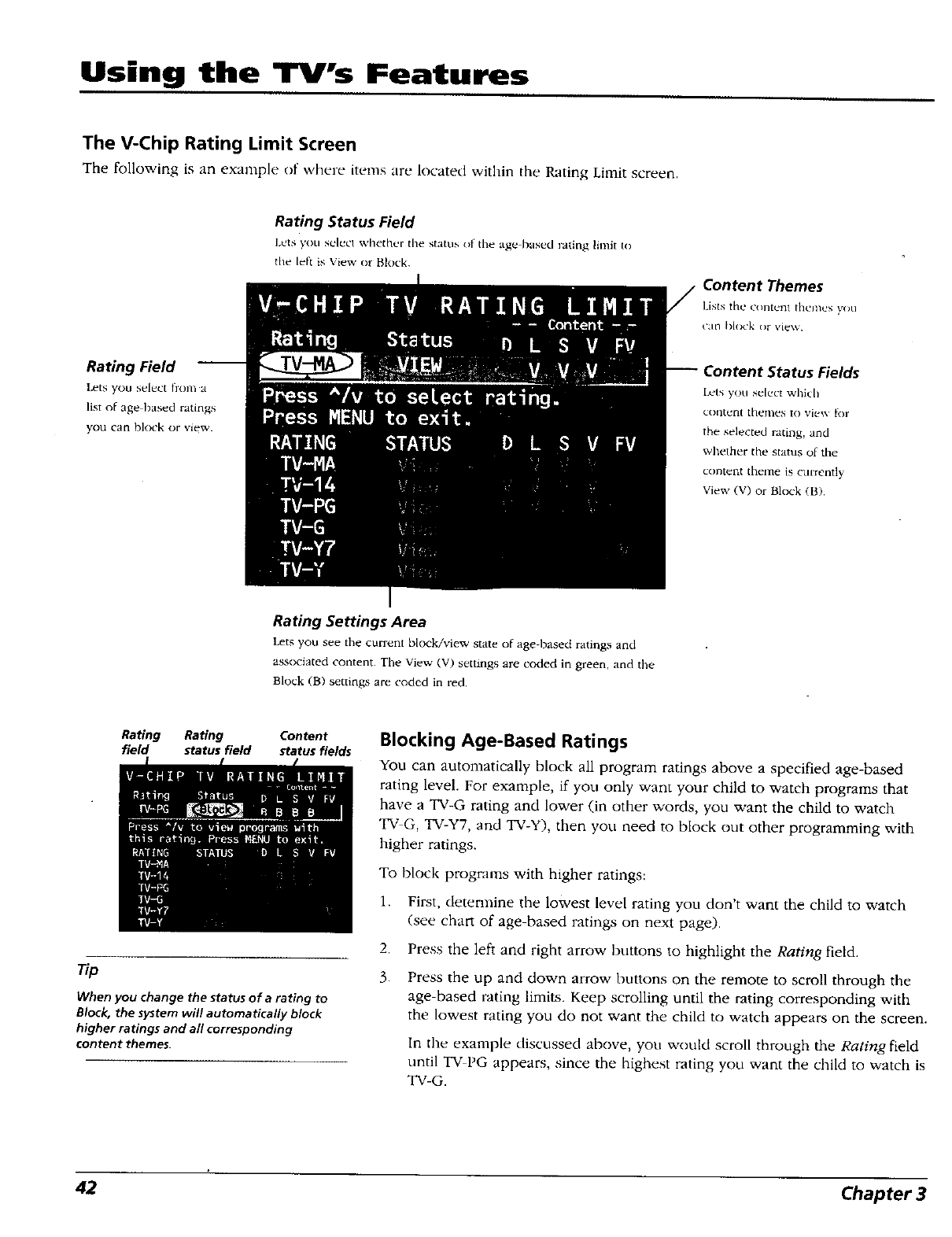

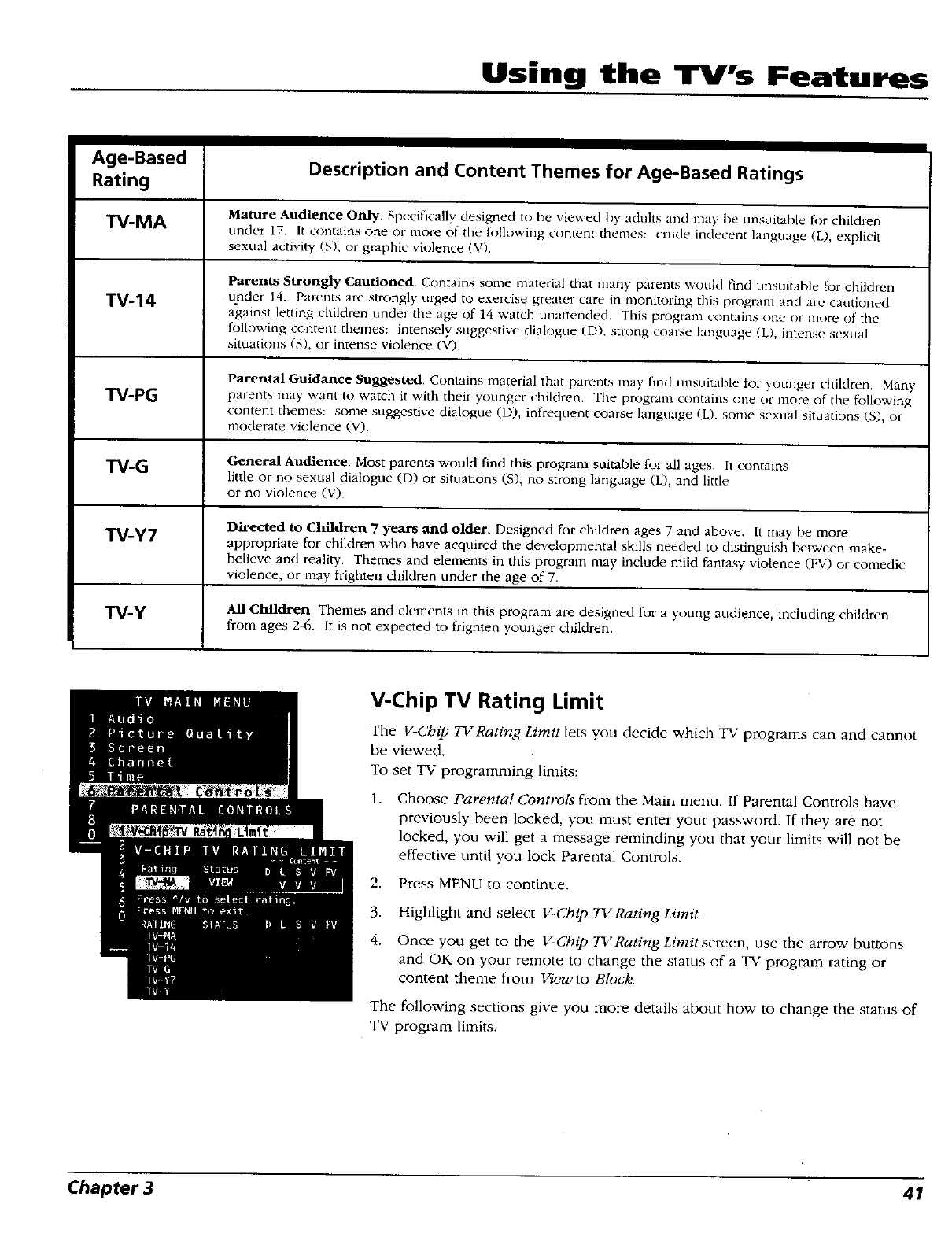

V-Chip TV Rating Limit ............................................................................................. 41
Blocking Specific Content Themes .......................................................................... 43
Viewing Specific Content Themes ........................................................................... 44

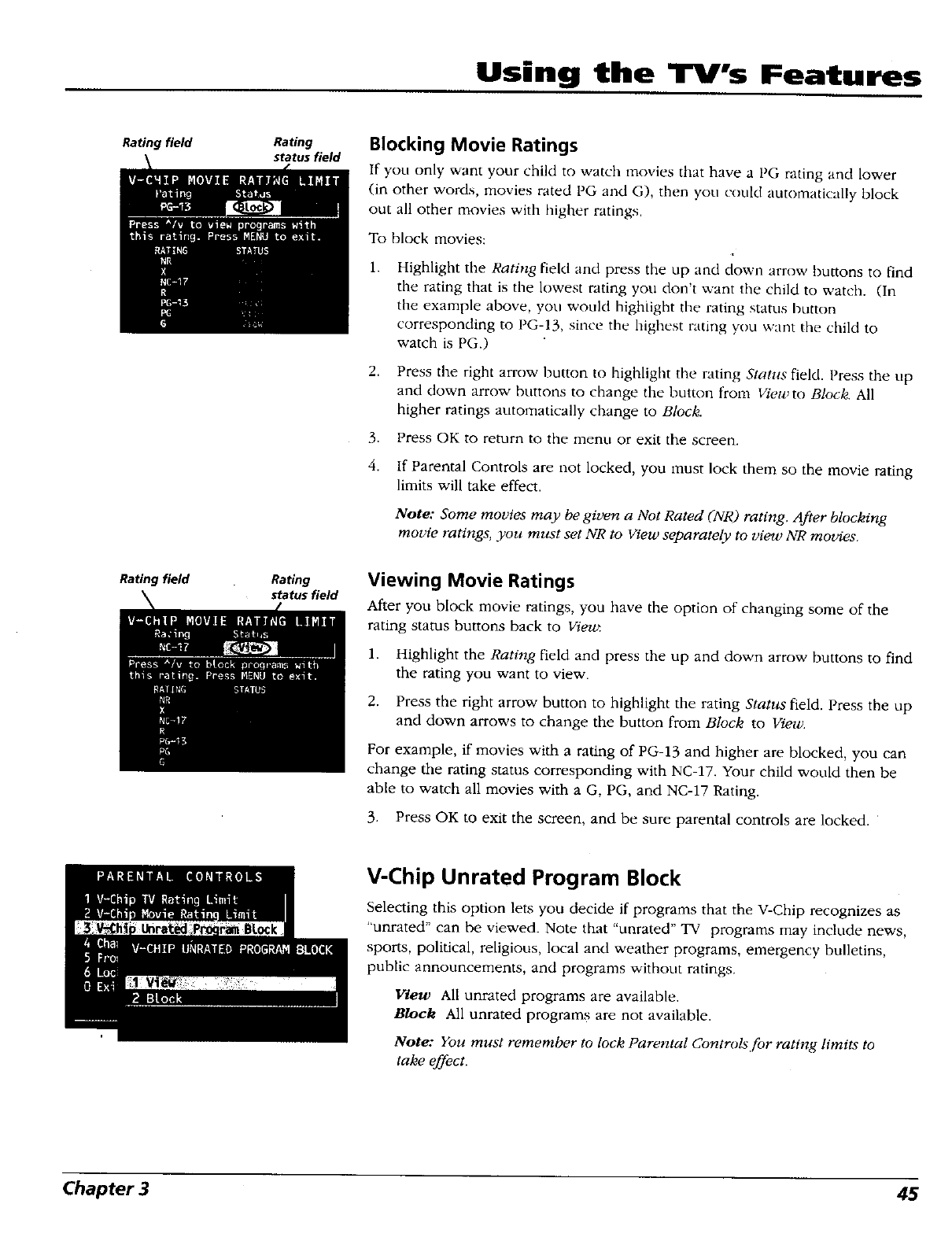

V-Chip Movie Rating Limit ....................................................................................... 44
V-Chip Unrated Program Block ............................................................................... 45

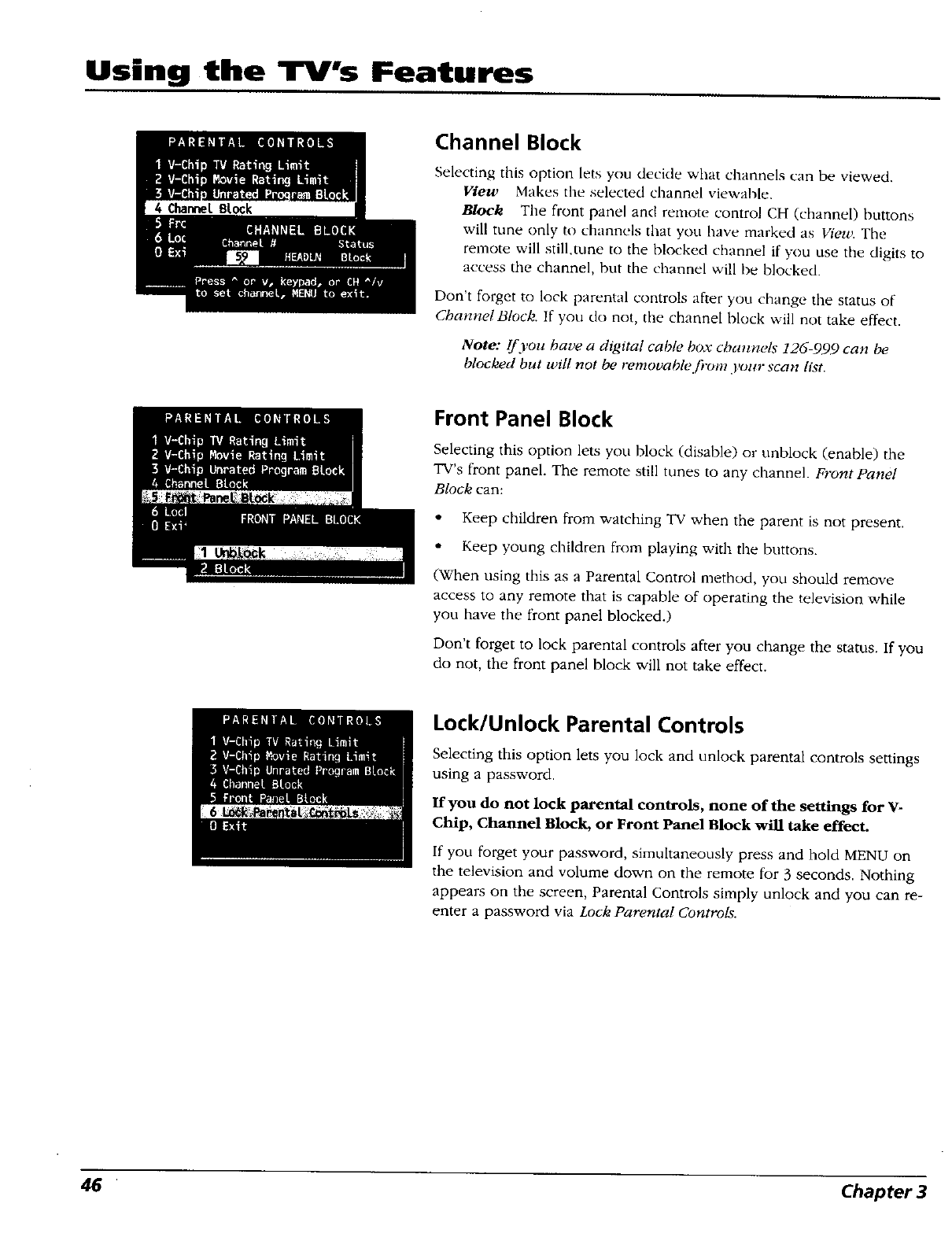

Channel Block ........................................................................................................... 46
Front Panel Block ..................................................................................................... 46
Lock/Unlock Parental Controls ................................................................................ 46

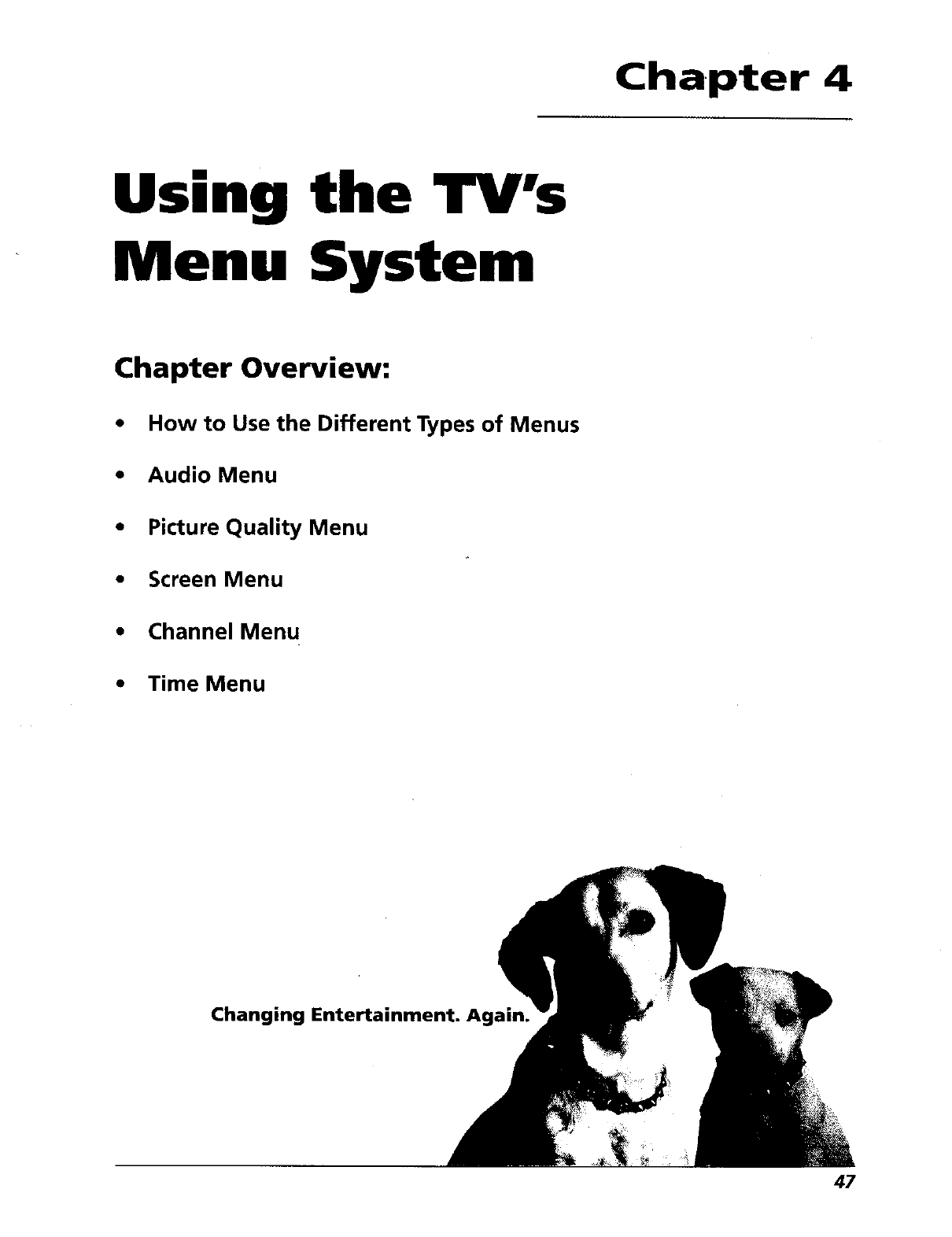

Chapter 4: Using the TV's Menu System

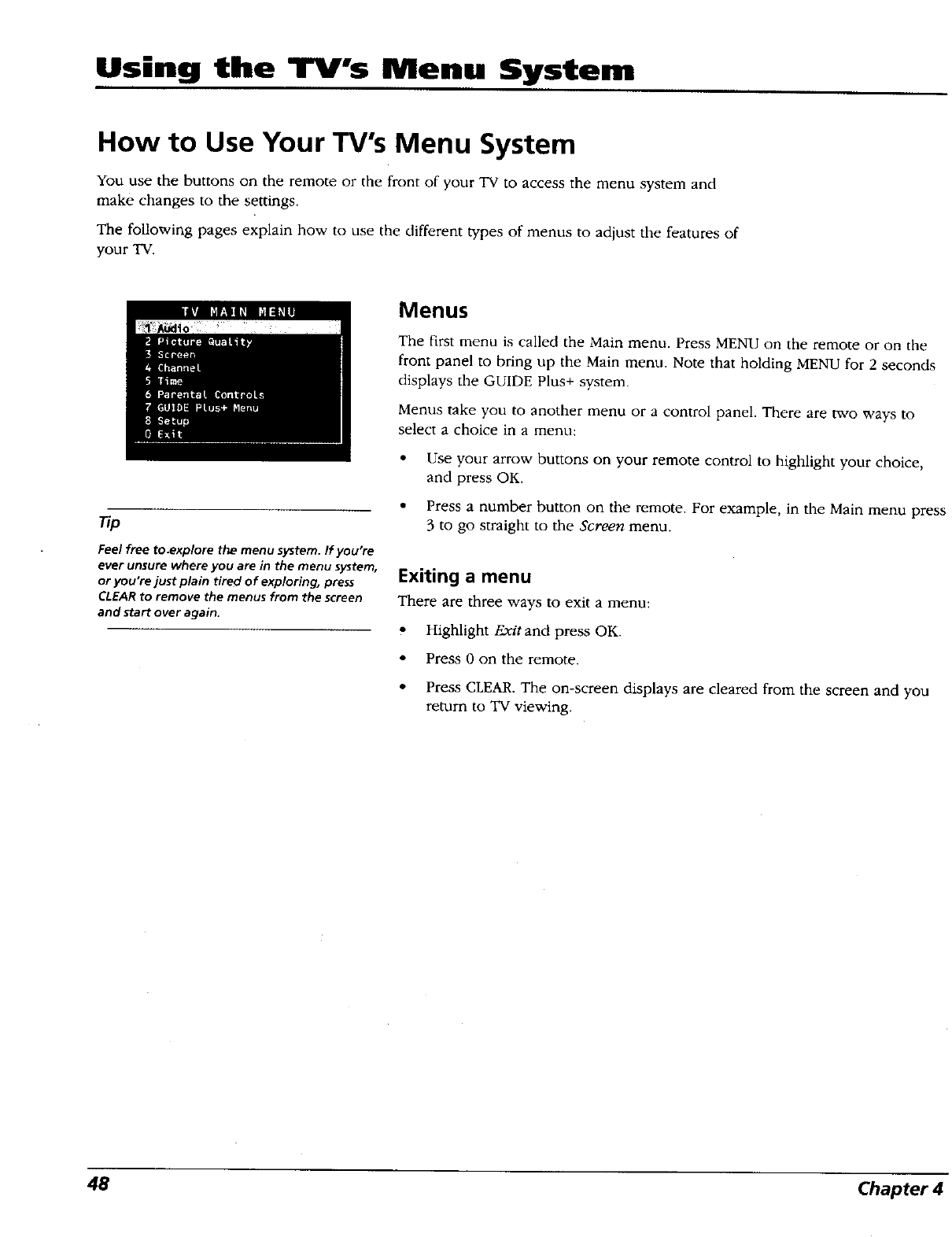

How to Use Your TV's Menu System ............................................................................. 48

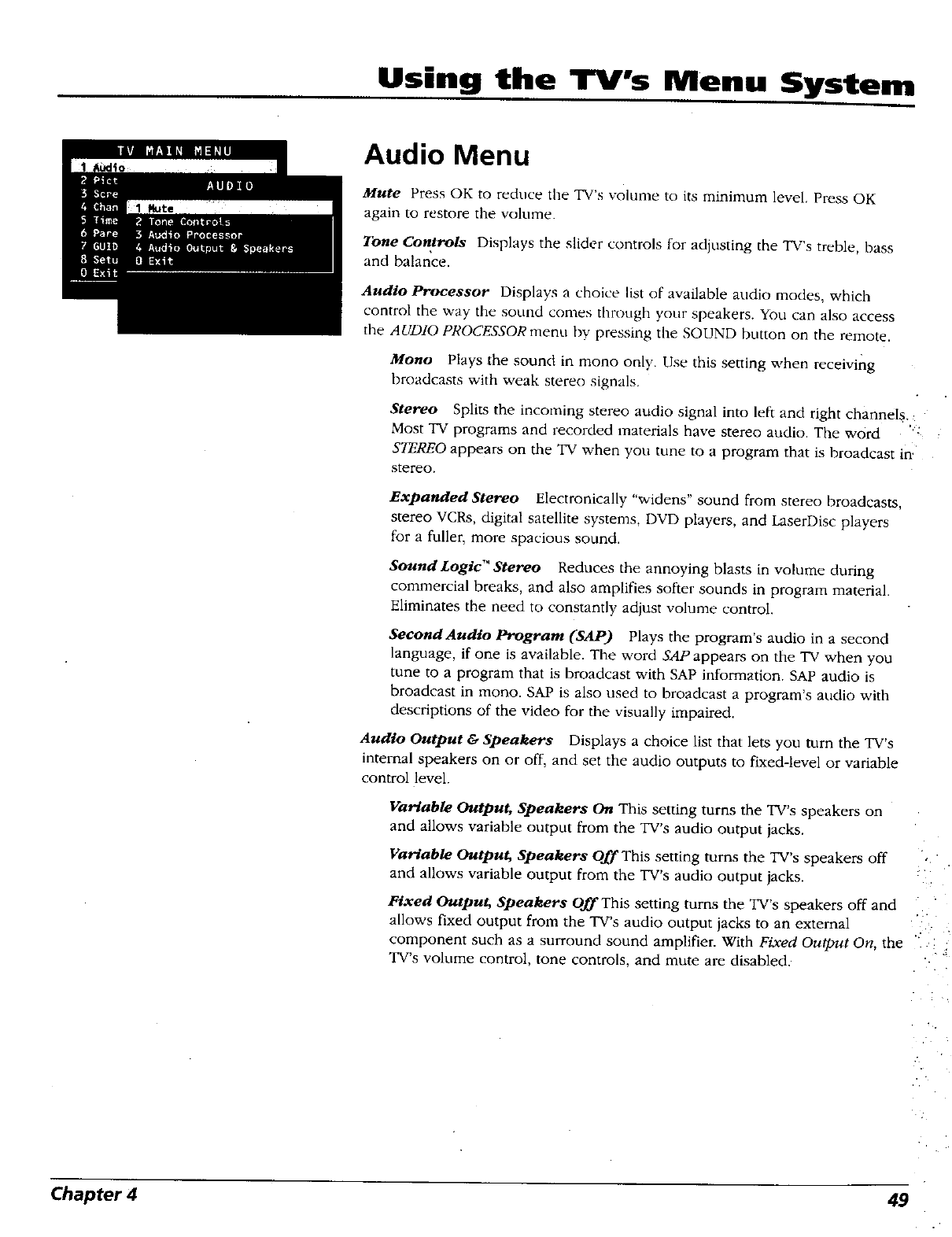

Audio Menu .................................................................................................................... 49

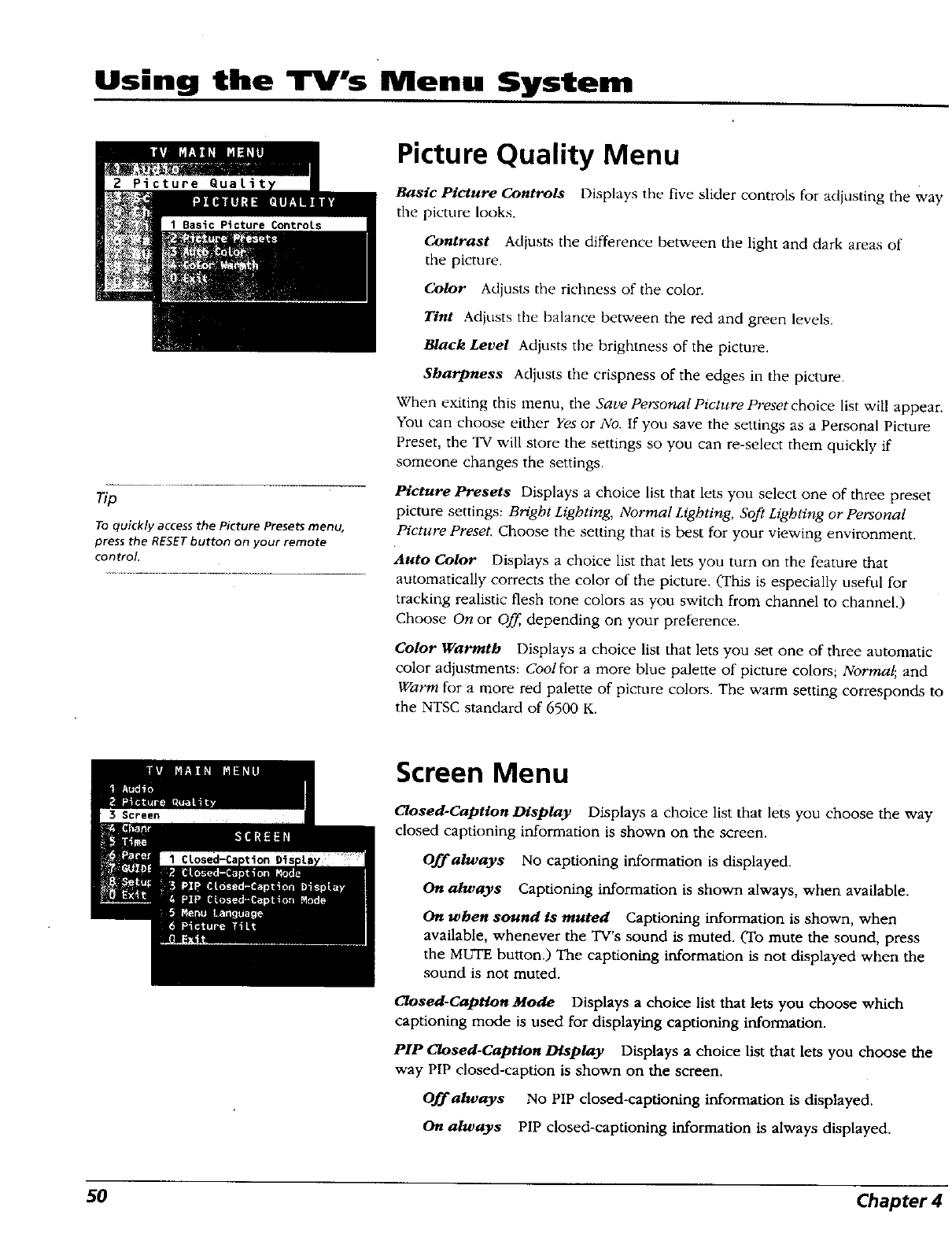

Picture Quality Menu ..................................................................................................... 50
Screen Menu ................................................................................................................... 50

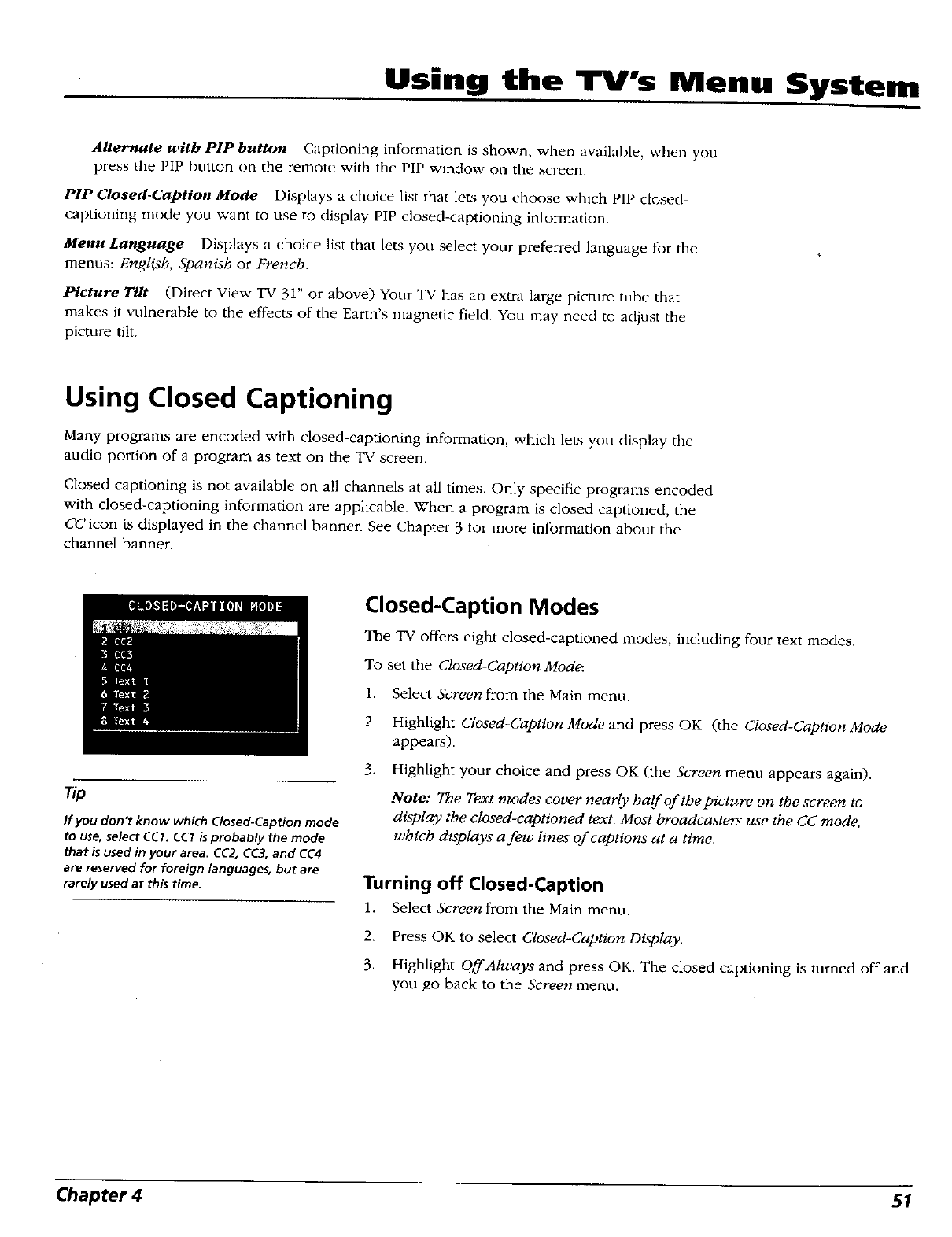

Using Closed Captioning ................................................................................................ 51

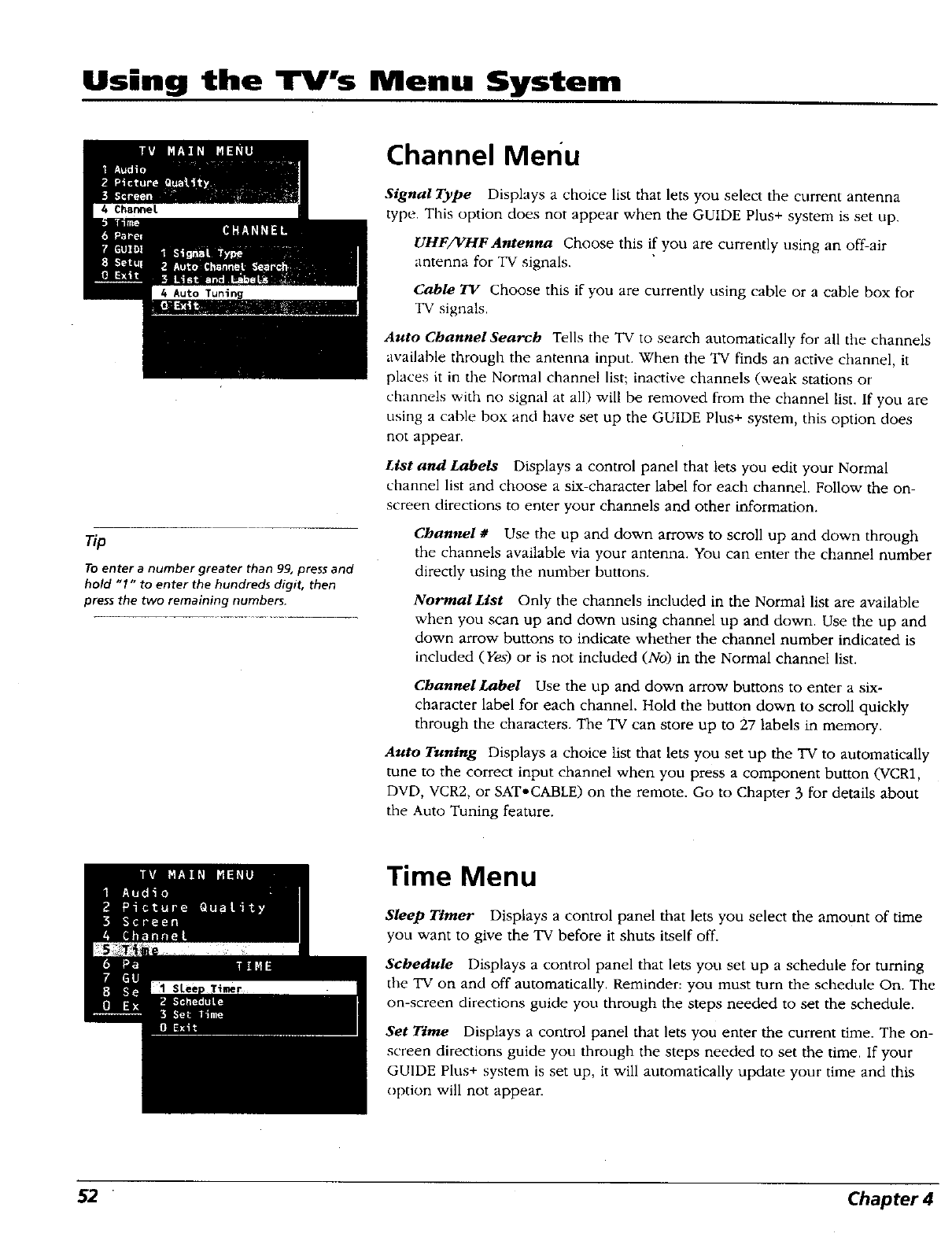

Channel Menu ................................................................................................................. 52
Time Menu ...................................................................................................................... 52

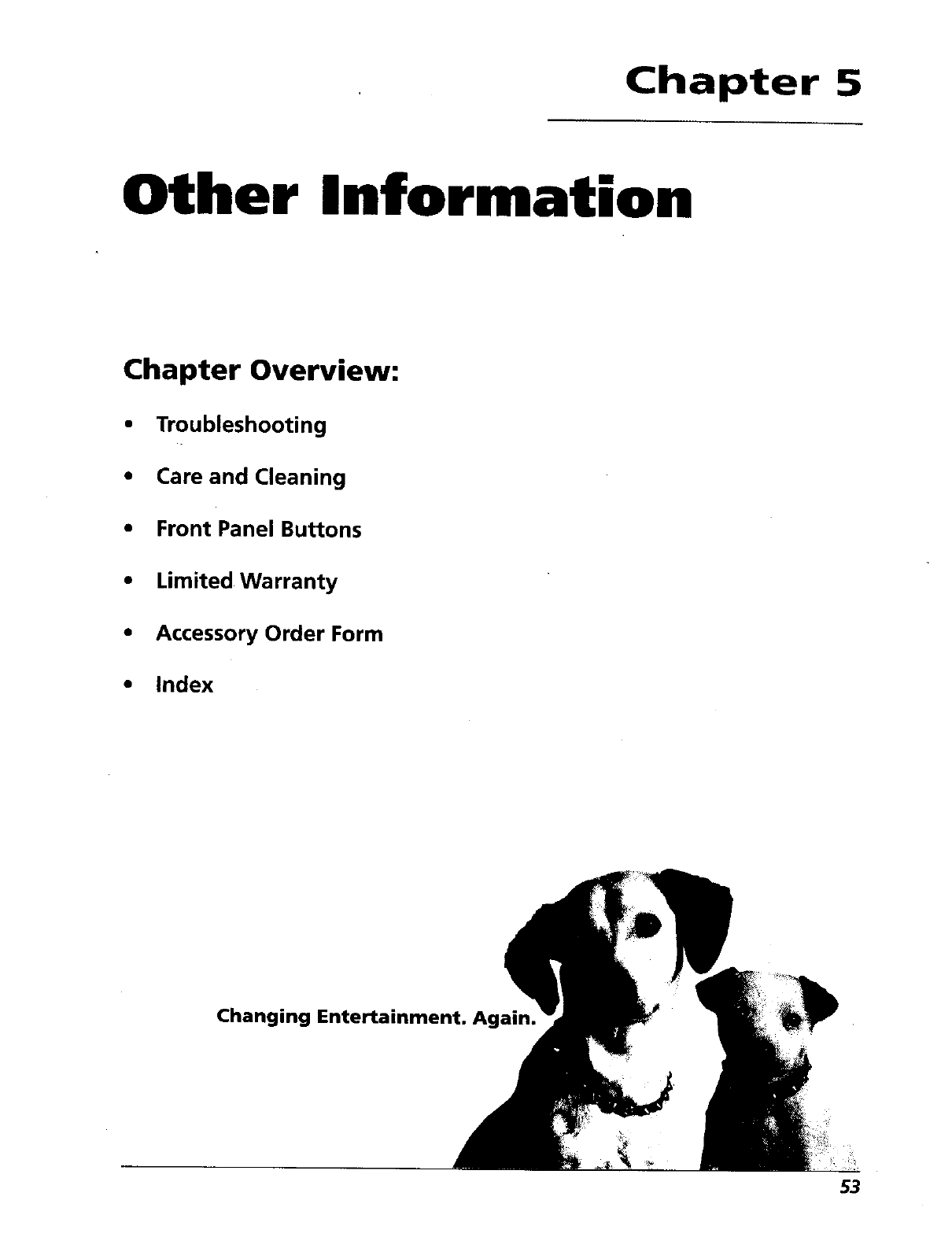

Chapter 5: Other Information

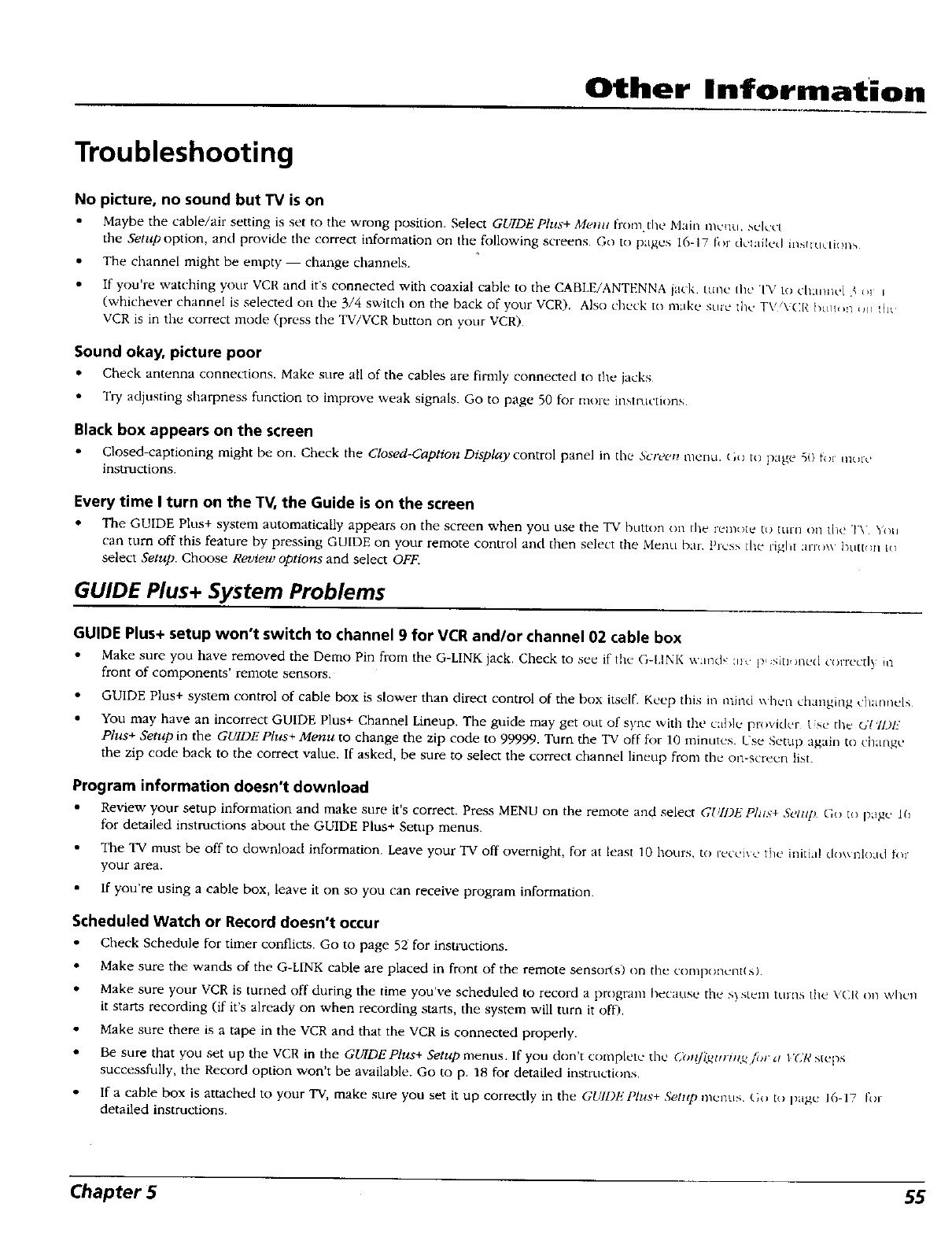

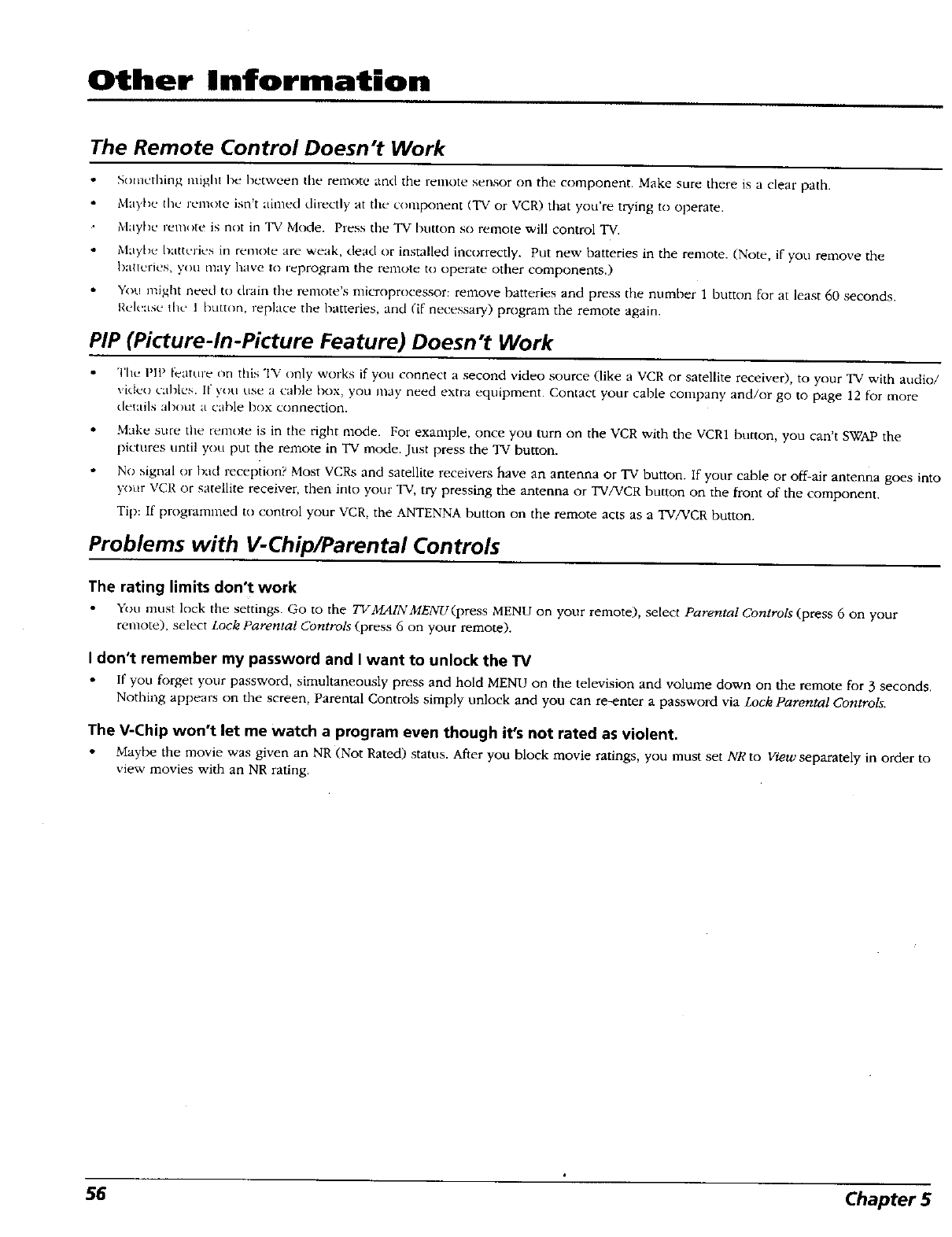

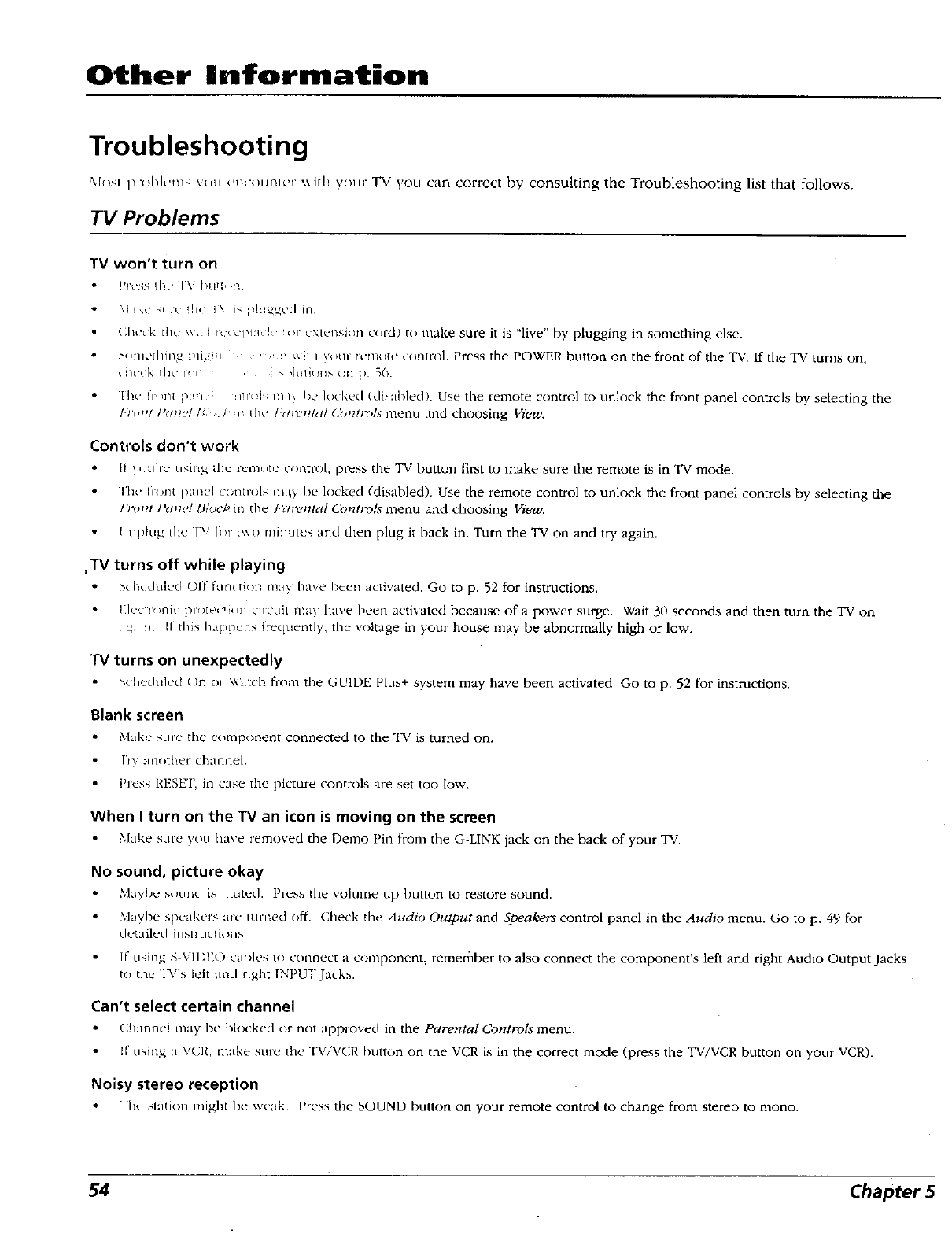

Troubleshooting ................................................................................................ ;;............ 54

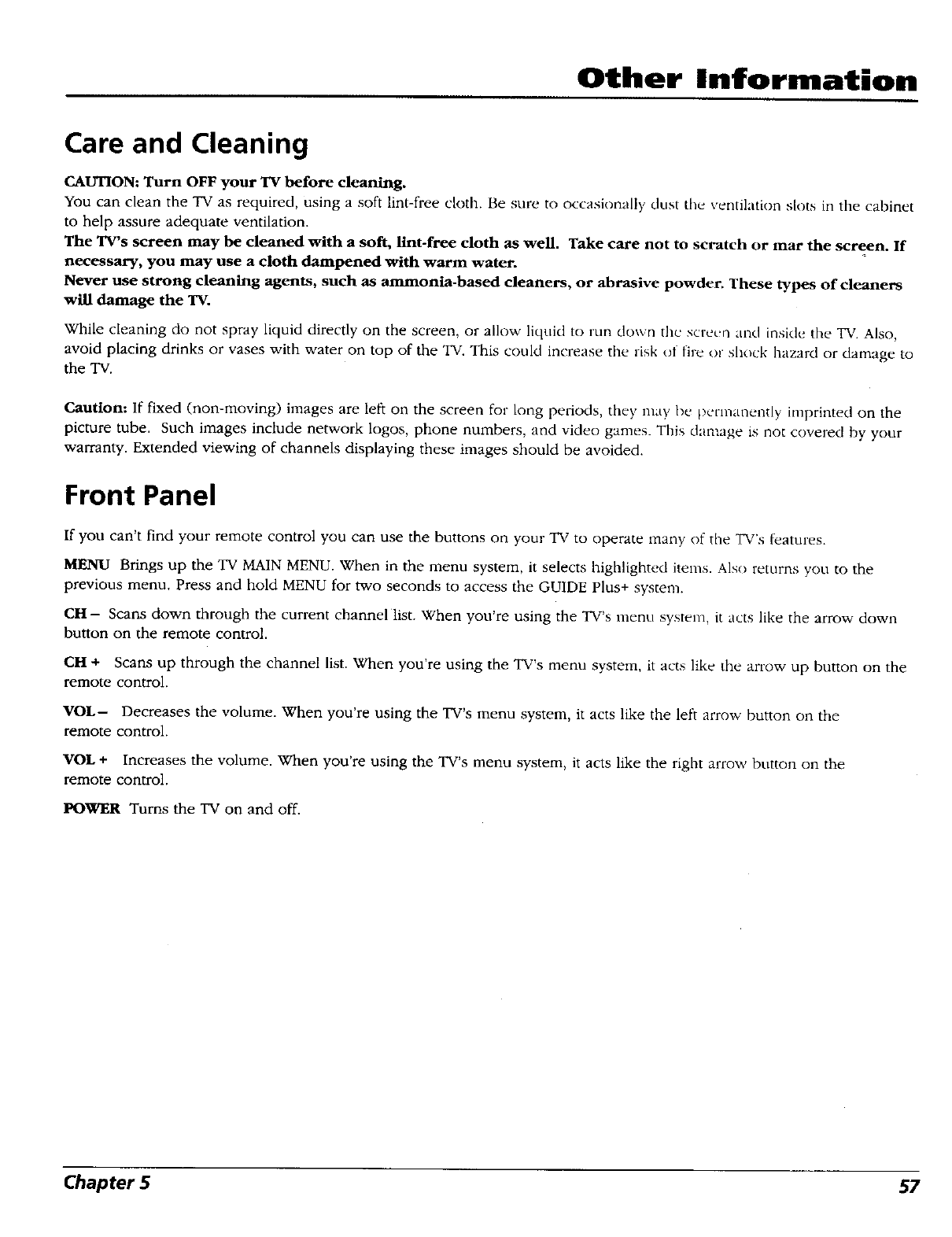

Care and Cleaning .......................................................................................................... 57
Front Panel ...................................................................................................................... 57

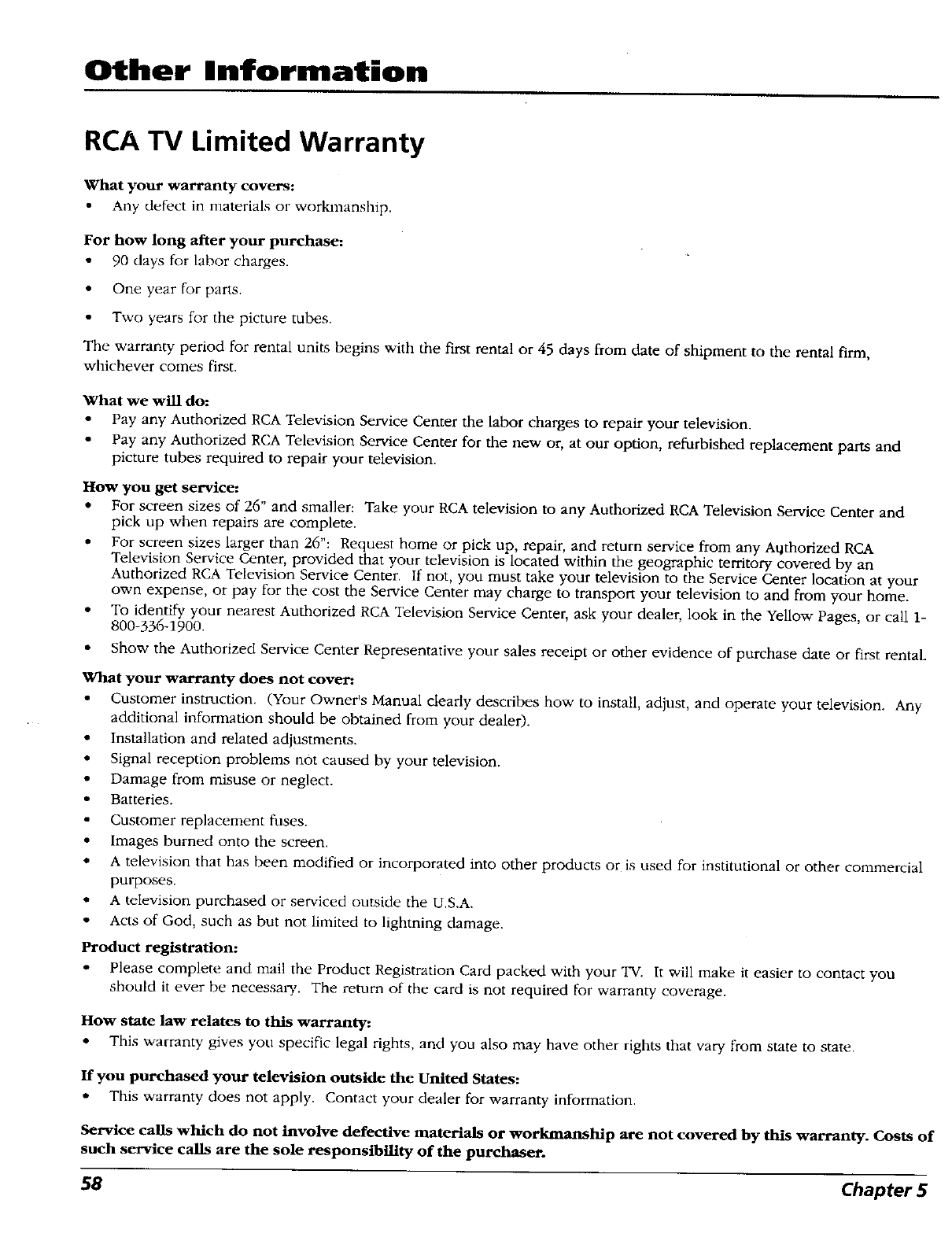

RCA TV Limited Warranty .............................................................................................. 58

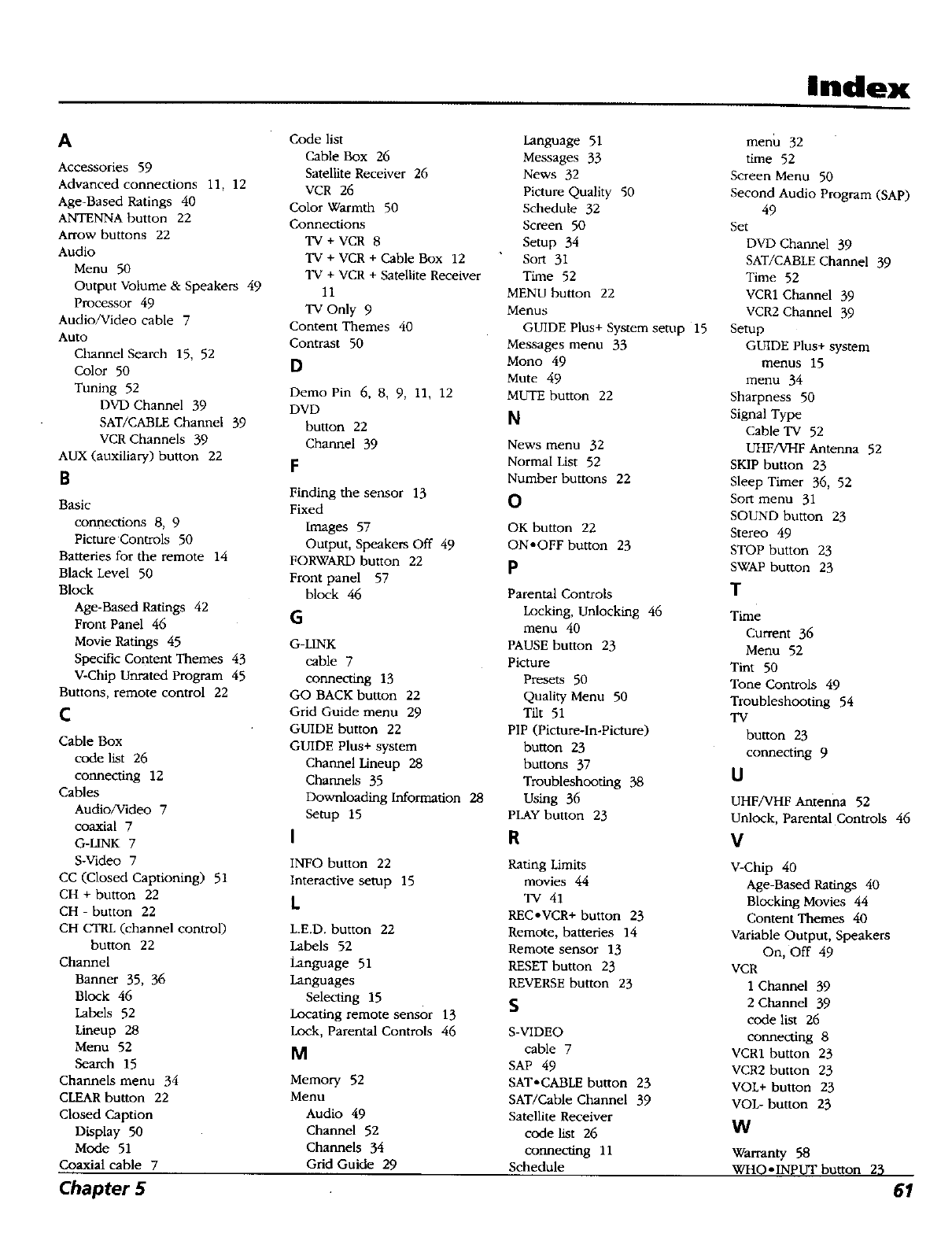

Index ................................................................................................................................ 61
4

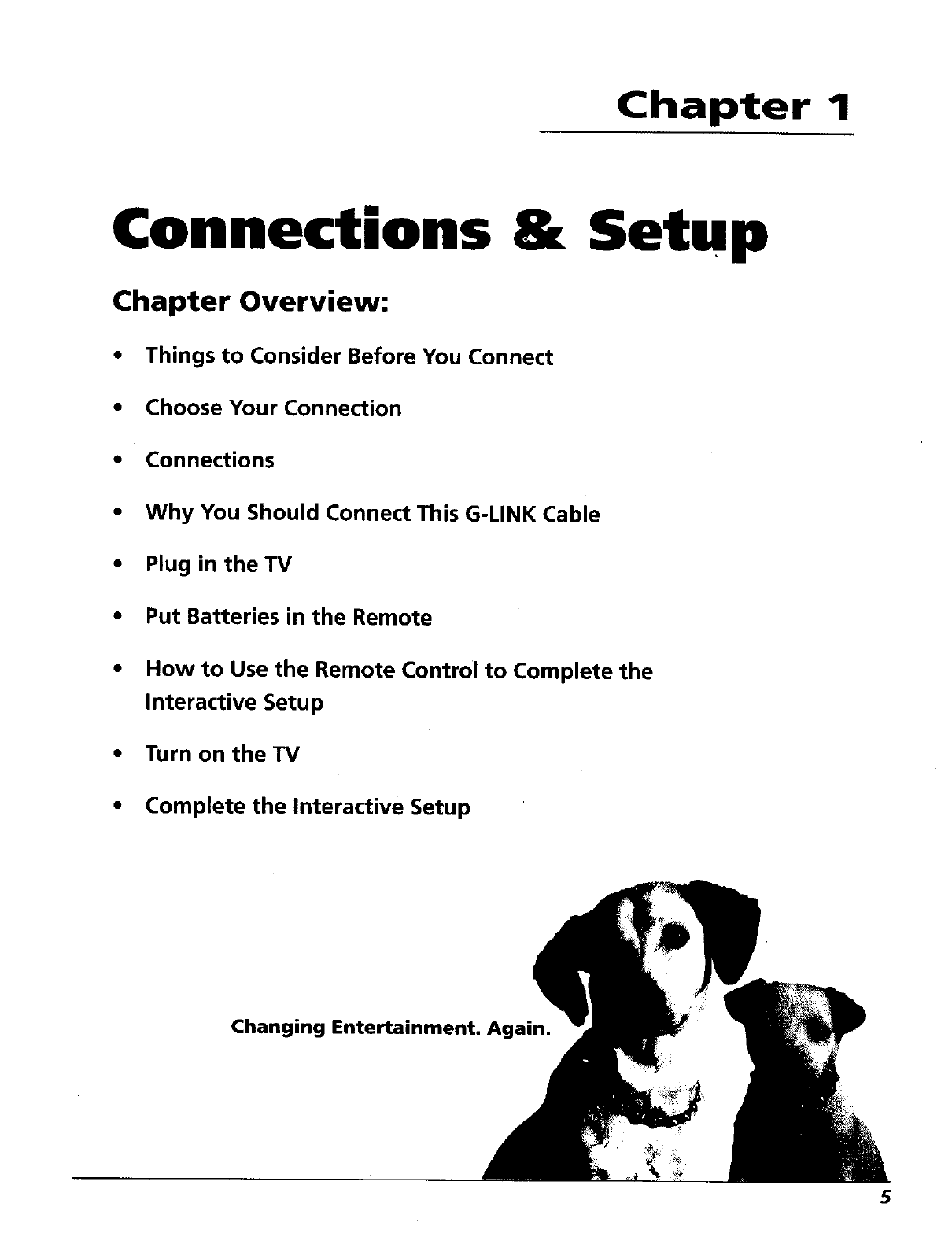

Chapter 1
Connections 8t Setup
Chapter Overview:
•Things to Consider Before You Connect
•Choose Your Connection
•Connections
•Why You Should Connect This G-LINK Cable
•Plug in theTV
•Put Batteries in the Remote
•How to Use the Remote Control to Complete the
Interactive Setup
•Turn on the TV
•Complete the Interactive Setup
Changing Entertainment. Again.
5
Connections 8. Setup

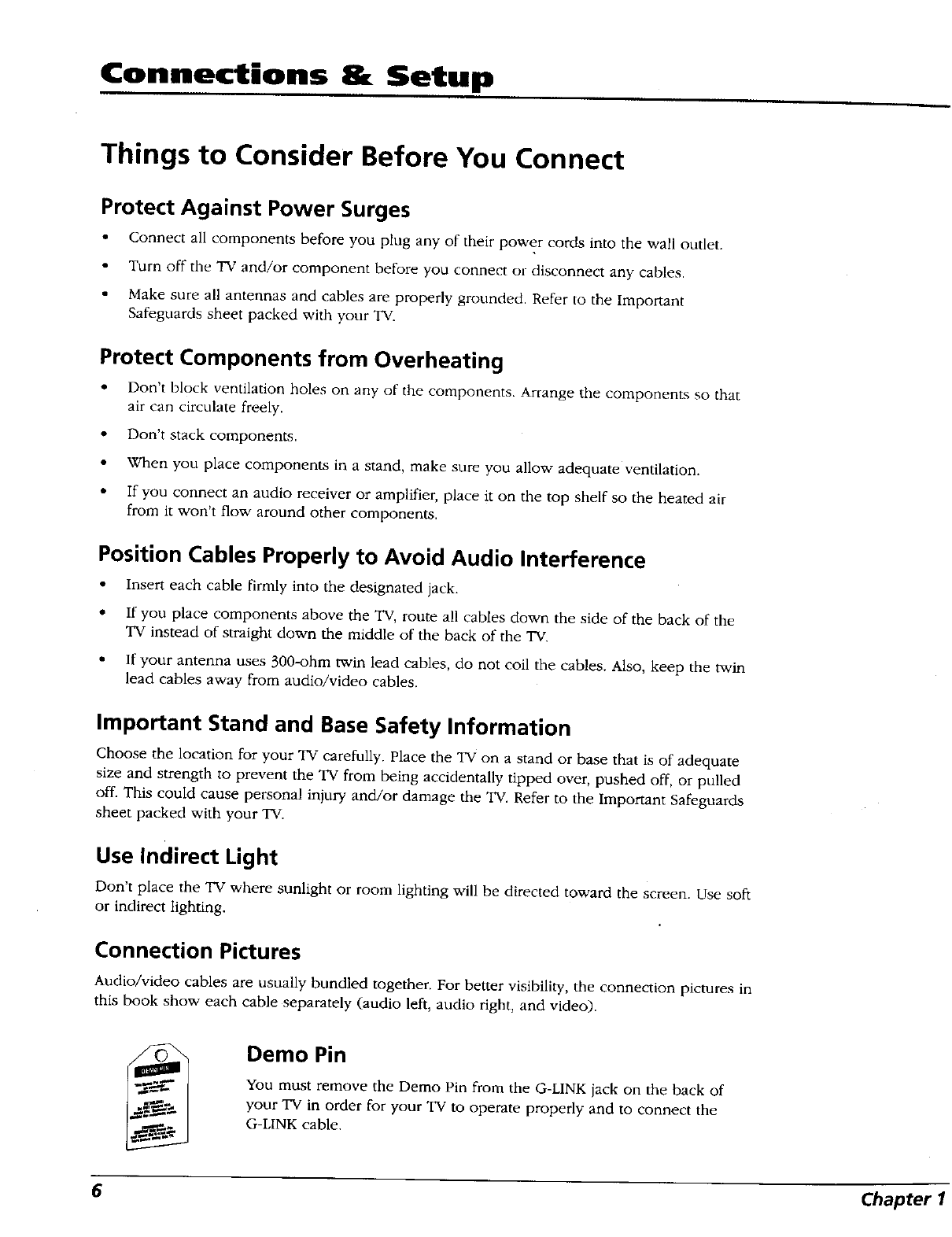

Things to Consider Before You Connect
Protect Against Power Surges
• Connect all components before you plug any of their power cords into the wall outlet.
• Turn off the TV and/or component before you connect or disconnect any cables.
• Make sure all antennas and cables are properly grounded. Refer to the Important
Safeguards sheet packed with your TV.
Protect Components from Overheating
• Don't block ventilation holes on any of the components. Arrange the components so that
air can circulate freely.
• Don't stack components.
• When you place components in a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air
from it won't flow around other components.
Position Cables Properly to Avoid Audio Interference
• Insert each cable firmly into the designated jack.
• If you place components above the TV, route all cables down the side of the back of the
TV instead of straight down the middle of the back of the TV.
• If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin
lead cables away from audio/video cables.
Important Stand and Base Safety Information
Choose the location for your "lW-carefully. Place the TV on a stand or base that is of adequate
size and strength to prevent the TV from being accidentally tipped over, pushed off, or pulled
off. This could cause personal injury and/or damage the TV. Refer to the Important Safeguards
sheet packed with your TV.
Use Indirect Light
Don't place the TV where sunlight or room lighting will be directed toward the screen. Use soft
or indirect lighting.
Connection Pictures
Audio/video cables are usually bundled together. For better visibility, the connection pictures in
this book show each cable separately (audio left, audio right, and video).
Demo Pin
You must remove the Demo Pin from the G-LINK jack on the back of
your TV in order for your TV to operate properly and to connect the
G-LINK cable.
6Chapter 1
Connections & Setup
Choose Your Connection
There are several ways to connect your TV. Please use the following chart to detem_ine which
connection is best for you. Proceed to the appropriate page and connect your TV.
Components Cables
Needed
Coaxial
Audio/video
G-LINK cable
Coaxial
Coaxial
Audio/video
S-Video (optional)
G-LINK cable
Coaxial
Audio/video
G-LINK cable
Connection
Title
TV+ VCR
TV Only (No PIP)
TV + VCR +
Satellite Receiver
TV + VCR +
Cable Box
Go to...
page 8
page 9
pages 10-11
page 12
Cables Needed to Connect Components to Your TV
The pictures below show the cables needed for the connections represented in this book.
Notes: Audio/Video cables (A/V cables for short) are usually sold as a bundled set, but
the connection pictures in this book show each cable separately for better visibility. You
must use A/V cables to connect a VCR to your 73/if you want PIP (Picture-In-Picture) to
work.
Please locate the G-LINK cable (provided) when you're getting ready to set up your TI<
You need to connect this cable to your TV, and to your VCR andJor cable box in order for
all of the features of the program guide to work properly.
G-LINK cable Audio/Video cables Coaxial cable S-Video cable
Chapter 1 7
Connections 8,. Setup
TV(backpanel)
OUT_
R
@'"0
R
VIOEO
0
L
You need to connect your VCR to your TV
with audiolvideo cables in order for Picture-
H AUDIO LIMONOIN _1
_T CABLE/
OUTINFROMT_ ANT CH3
FromCable
or Antenna
In-Picture (PIP) to work (see picture above).
Connection: TV + VCR
1. Connect your TV to your VCR
2o
A. Connect a coaxial cable to the CABLE/ANTENNA jack on your "IV and to the Output Jack on
your VCR (sometimes labeled OUT TO 'IV).
B. Connect the audio/video cables. Connect audio cables (white and red) to the AUDIO IN jacks
on the back of the TV (R and L/MONO) and to the Audio Output Jacks on the VCR (sometimes
[abeledOUTR L).
C. Connect the video cable (yellow) to the VIDEO IN iack on the back of the 'IV and to the Video
Output Jack on the VCR.
Connect cable or antenna to your VCR
Connect the coaxial cable from your cable outlet, cable box, or antenna to the Input Jack on your
VCR (sometimes labeled IN FROM ANTENNA or IN FROM ANT),
3. Connect the G-LINK cable to the TV
A. If you haven't already done so, remove the Demo Pin from the G-LINK jack.
B. Connect the G-LINK cable to the G-LINK jack on the TV. Next step, place one of the wands of
the G-LINK cable to work with your VCR (instructions are on p. 13).
Go to page 13
8 Chapter 1
Connections & Setup
TV(backpanel)
VIDEO R AUDIO L/MONO
00 01"
R L
G'LINK
S-VIDEO
CABLE/
ANTENNA
FromCable,
CableBox,
orAntonna
PIP (Picture-In-Picture) won't work if you use this
connection. You must connect a VCR to your TV with
audio/video cables in order for PIP to work.
Connection: TV Only (No PIP)
1. Connect the TV to your cable or antenna
Connect the coaxial cable from your cable or antenna to the CABLE/ANTENNA jack on the back
of your TV.
Go to page 14
2. If you're connecting acable box, connect the G-LINK cable
A. If you haven't already done so, remove the Demo Pin from the G-LINK jack.
B. Connect the G-LINK cable to the G-LINK jack on the TV. Next step, place the wands of the
G-LINK cable to the cable box (instructions are on p. 13).
Go to page 13
Chapter 1 9
Connections Setup
SATELLITERECEIVER FromCableorAntenna
tNFROMANT
VCR Sateliite
Signal
TV (backpanel)
VIDEO R L/MQNQ
R L
OUT
G-LJNK _CABLE]
ANTENNA
You need to connect your Satellite Receiver to your TV with
audiolvideo cables (see picture above) in order for Picture-
In-Picture (PIP) to work.
10 Chapter 1
Connections & Setup
Connection: TV + VCR + Satellite Receiver
1. Connect your Satellite Receiver to your TV
2°
A. Connect the audio/video cables. Connect the audio cables (white and red) to the AUDIO
IN jacks on the back of the TV (R and L/MONO) and to the Audio Output Jacks on the
Satellite Receiver.
B. Connect the video cable (yellow) to the VIDEO IN jack on the back of the TV and to the
Video Output Jack on the satellite receiver.
C. Connect S-Video cable (optional). Connect an S-Video cable to the S-VIDEO jack on the
TV and to the S-VIDEO jack on the satellite receiver. (An S-Video cable provides better
picture quality than a regular video cable, but it is optional.)
Connect coaxial cables to the Satellite Receiver
A. Connect the coaxial cable from your cable outlet, cable box, or'antenna to the Input Jack
on your satellite receiver (sometimes labeled IN FROM ANT).
B. Connect the coaxial cable from your satellite dish antenna to the Input Jack on your
satellite receiver (sometimes labeled SATELLITE IN).
3. Connect the Satellite Receiver to the VCR and to the TV
A. Connect a coaxial cable to the Output Jack (sometimes labeled OUT TO TV) on the
satellite receiver and to the Input Jack on the VCR (sometimes labeled IN FROM ANT).
B. Connect a coaxial cable to the Output Jack on the VCR (sometimes labeled OUT TO TV)
and to the CABLE/ANTENNA jack on the TV.
4. Connect G-LINK cable
A. If you haven't done so, remove the Demo Pin from the G-LINK jack.
B. Connect the G-LINK cable to the G-LINK jack on the TV. Next step, place one of the
wands of the G-LINK cable to work with your VCR (instructions are on p. 13).
Go to page 13
Chapter I 11
Connections Setup
SIGNAL SPLITTER
FromCableLine
VCR
CABLEBOX
Note: The GUIDE Plus+ system's One-Touch VCR Recording.feature is not available with this
connection. If you want to use the One-Touch VCR Recording feature with your cable box, you
must use the TV and VCR connection on page 8. You can do so by routing the signal from your
cable box into the antenna input on your VCR. Note that PIP won't work if you use this
connection. This connection may not be compatible with all cable services, especially if some or
all cable channels are scrambled.
Connection: TV + VCR + Cable Box
1o
2o
Connect Signal splitter to your VCR and TV
A. Use a Signal Splitter (not provided) to split the signal coming into the room, You can purchase
a Signal Splitter at your local electronics store or through the Accesso W Order Form on
page 59.
B. Connect a coaxial cable to Signal Splitter and to the Input Jack on the VCR (sometimes labeled
ANTENNA IN).
C. Connect a coaxial cable to the Signal Splitter and to the CABLE IN Jack on the cable box.
Connect Cable Box to 'IV
Connect a coaxial cable to the TV OUT Jack on the cable box and to the CABLE/ANTENNA jack
on the TV,
°
4,
Connect the TV to your VCR
A, Connect the audio cables (white and red) to the AUDIO IN jacks on the TV and to the Audio
Output Jacks on the VCR (sometimes labeled AUDIO OUT R and L).
B. Connect the video cable (yellow) to the VIDEO IN jack on the TV and to Video Output Jack on
the VCR (sometimes labeled VIDEO).
Connect G-LINK cable
A. If you haven't already done so, remove the Demo Pin from the G-LINK jack on the TV.
B, Connect the G-LINK cable to the G-LINK jack on the TV. Next step, place the wands of the
G-LINK cable to work with the VCR and cable box (instructions are on p. 13).
Go to page 13
12 Chapter 1
Connections Setup
Why You Should Connect This G-LINK Cable
The G-LINK cable enables the GUIDE Plus+ system (the on-screen interactive program guide) to
work with your VCR and/or cable box.
Cable Box- If your TV is connected to a cable box you must connect the G-LINK cable to receive
TV program listings for your area, and to tune directly to a channel when the program guide is on
your "IN screen.
Veil- If your TV is cor_nected to a VCR and you don't connect the G-LINK cable, one-touch VCR
recording won't work. The other features of the guide will work properly.
G-LINK cable
/
G-LINK wands
How to Find the Remote Sensor
You have to place the G-LINK wands in front of the remote sensor on the VCR and/or cable box.
Some cable boxes and VCRs have the remote sensor labeled on the unit. If the remote sensor isn't
labeled on your VCR and/or cable box, you need to use the remote control that came with the VCR
and/or cable box to locate the sensor.
1. Turn off the VCR and/or cable box.
2. Hold the remote control (not the one that came with your TV, but the one that came with the
cable box and/or VCR to which you're attaching the G-LINK cable) so that it is touching the
front of the component.
3. Slowly move the remote control across the front of the component (VCR or cable box) while
you press the power button on and off. You must press and release the power button each time
you move the remote (holding down the button won't work).
,
_11 II _
When the component turns on, you've located the remote sensor.
If you don't have both a
cable box and a VCR
connected to your T_,
just coil the cable of the
extra G-LINK wand with
a twist tie and leave it
behind the TV
Placing the G-LINK Wands
Place the G-LINK wands in front of the remote sensor on your VCR and/or cable box approximately
one inch away from the remote sensor (see instructions below).
IV (hackpIriel)
Chapter I 13
Connections &Setup

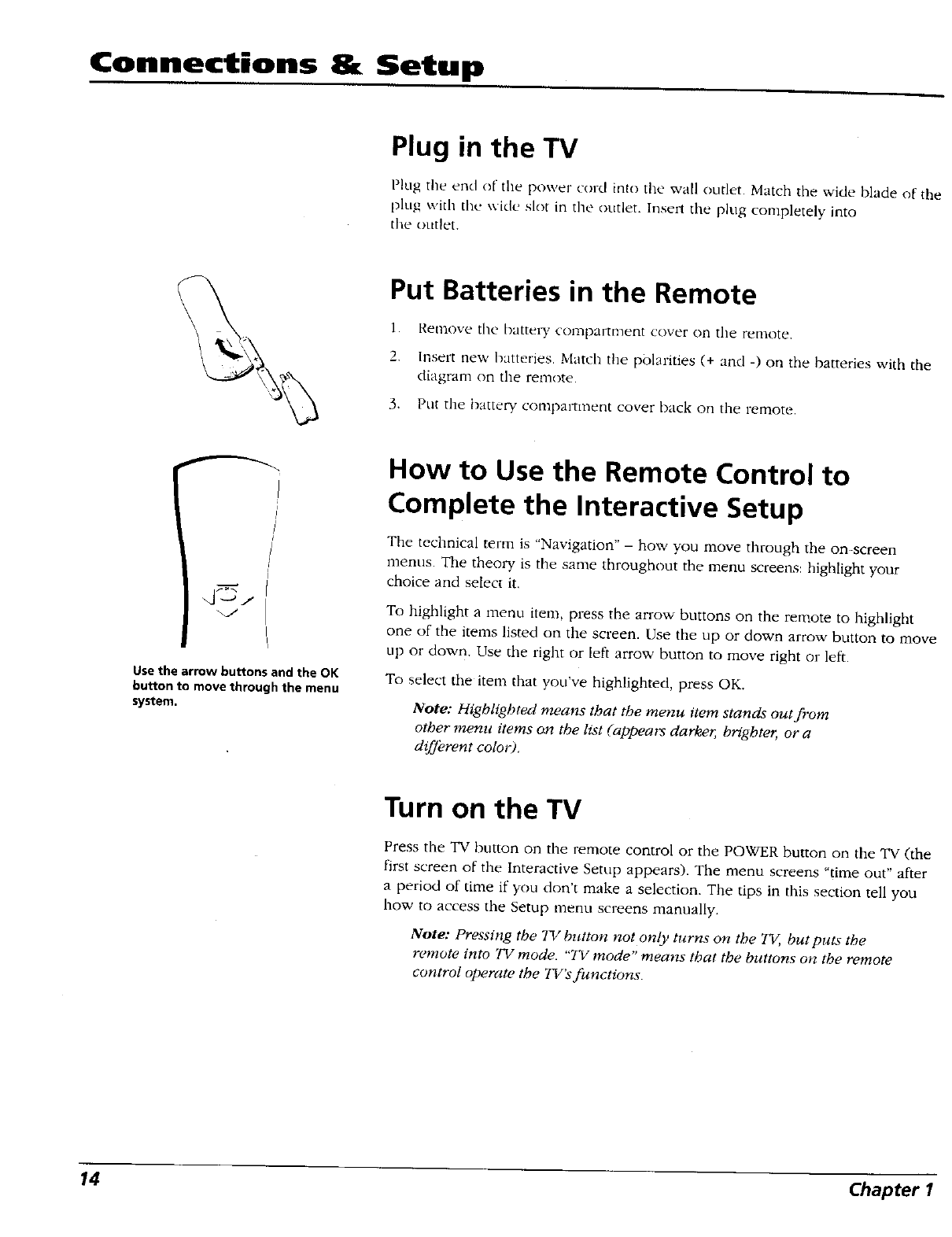

Plug in the TV
Plug the end of the power Cold into the wall outlet. Match the wide blade of the
plug with the wide slot in the outlet. Insert the plug completely into
the outlet.
Put Batteries in the Remote
1. Remove the battm T compartment cover on the remote,
2. Insert new batteries. Match tile polarities (+ and -) on the batteries with the
diagram on the remote.
3. Put the battery compartment cover back on the remote.
iI
i
4
"d ---' /
Use the arrow buttons and the OK
button to move through the menu
system,
How to Use the Remote Control to
Complete the Interactive Setup
The technical tenn is "Navigation" - how you move through the on-screen
menus. The theo W is the same throughout the menu screens: highlight your
choice and sel.ect it.
To highlight a menu item, press the arrow buttons on the remote to highlight
one of the items listed on the screen. Use the up or down arrow button to move
up or down. Use the right or left arrow button to move right or left.
To select the item that you've highlighted, press OK.
Note: Highlighted means that the menu item stands out from
other menu items on the list (appears darker, brighter, or a
different colo_9.
Turn on the TV
Press the TV button on the remote control or the POWER button on the TV (the
first screen of the Interactive Setup appears). The menu screens "time out" after
a period of time if you don't make a selection. The tips in this section tell you
how to access the Setup menu screens manually.
Note: Pressing the 7V button not only turns on the TV, but puts the
remote into "IV mode. "TV mode" means that the buttons on the remote
control operate the 7V's functions.
14 Chapter I
Connections 8( Setup
To access the setup menus manually,
press MENU and choose Setup.
Complete the Interactive Setup
The menu system in your TV allows the TV's features to work properly. In this
book, we call it the "interactive setup" because the TV asks you questions, you
answer, and the TV makes the appropriate adjustments. The first time you turn
on your TV, the setup screens appear automatically.
Set the Menu Language
The first part of the SETUPasks you to select your preferred language for the
nlenu system
1. Highlight your preferred language ik_r the menu system.
2. Press OK to select that language.
Complete Auto Channel Search
The next part of the SETUP asks you if you want the TV to search for all
channels viewable through your antenna or cable TV system. This is sometimes
called "auto programming."
1. Press OK to tell the TV to begin searching for channels. A progress report
appears on the screen.
2. When the screen on the TV tells you the search is complete, press OK (the
first GUIDE Plus+ system setup screen appears).
Note: lf you skip Auto Channel Search now, you can access it later
through the Channel menu. See Chapter 3 for more details.
If you move to a new zip or postal
code, or if any of your information
changes, you need to access the
setup screens from the TV's main
menu--press MENU, choose GUIDE
Plus+ Menu, and choose GUIDE
Plus+ Setup.
The GUIDE Plus+ System Setup
The GUIDE Plus+ system is an on-screen interactive program guide that lists
what shows are on TV in your area. In order to receive program listings, you
need to complete the following steps.
The G-LINK cable must be connected to the back of your TV, and the wands
must be placed in front of the remote sensor on your cable box and/or VCR in
order for the GUIDE Plus+ system to work (go back to p. 13 for details).
1. You should see a screen displaying the features of the Guide Plus+ system.
Press OK to continue.
2. The next screen asks you to locate setup materials and hardware. Once you
have done this, press OK to continue.
Chapter 1 15
Connections & Setup
USA

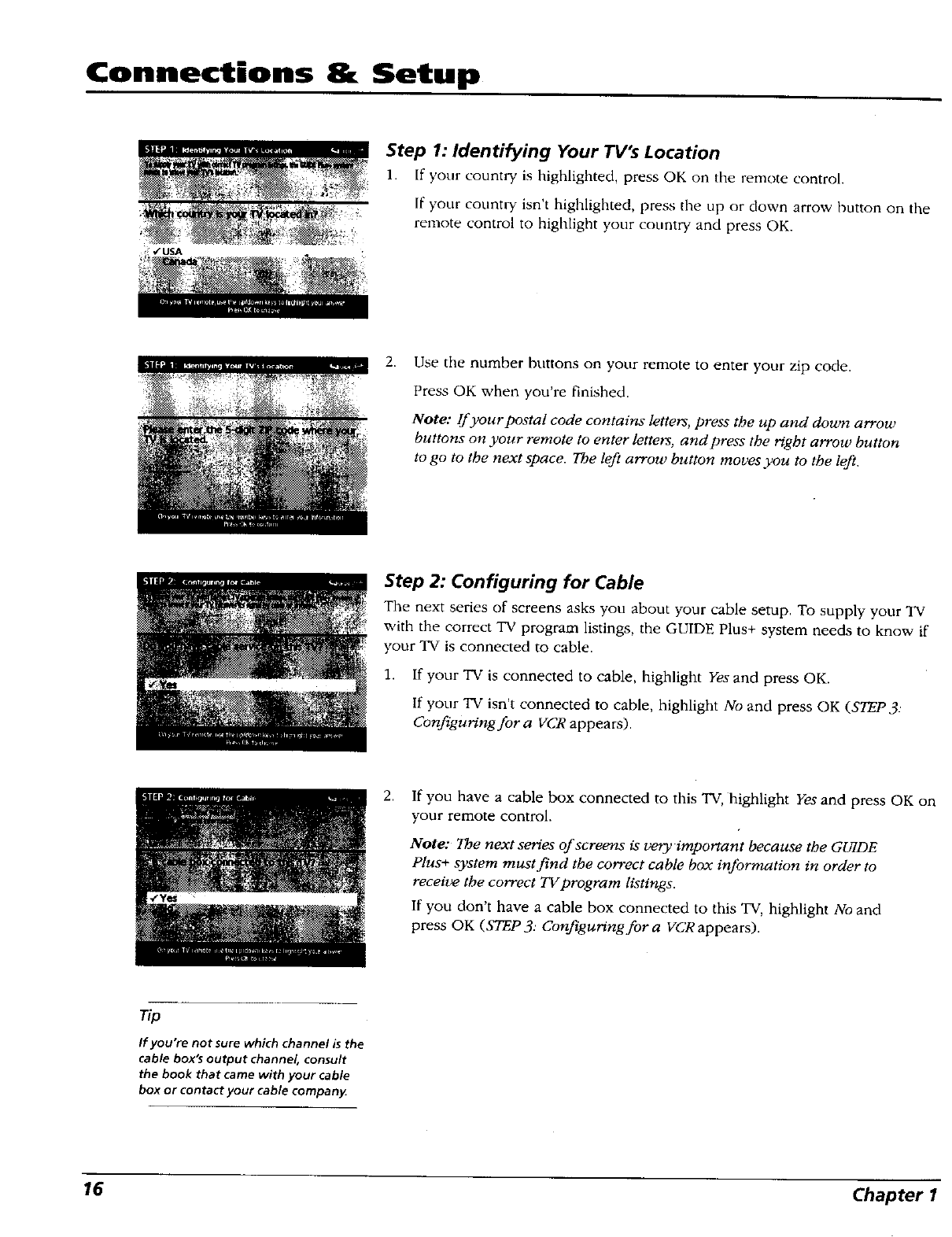

Step 1: Identifying Your TV's Location
1. If your country is highlighted, press OK on the remote control.
If your countl T isn't highlighted, press tile up or down arrow button on the
remote control to highlight your countt T and press OK.
2. Use the number buttons on your remote to enter your zip code.
Press OK when you're finished.
Note: If your postal code contains letters, press the up and down arrow
buttons on your remote to enter letters, and press the right arrow button
to go to the next space. The left arrow button moves you to the left.
Step 2: Configuring for Cable
The next series of screens asks you about your cable setup. To supply your TV
with the correct TV program listings, the GUIDE Plus+ system needs to know if
your TV is connected to cable.
1. If your TV is connected to cable, highlight Yes and press OK.
If your TV isn't connected to cable, highlight No and press OK (STEP3:
Configuring for a VCR appears).
2, If you have a cable box connected to this TV, highlight Yes and press OK on
your remote control.
Note: The next series of screens is very important because the GUIDE
Plus+ system must find the correct cable box information in order to
receive the correct TV program listings.
If you don't have a cable box connected to this TV, highlight No and
press OK (STEP 3: Configuring for a VCR appears).
Tip
If you're not sure which channel is the
cable box's output channel, consult
the book that came with your cable
box or contact your cable company.
16 Chapter I
Connections &Setup

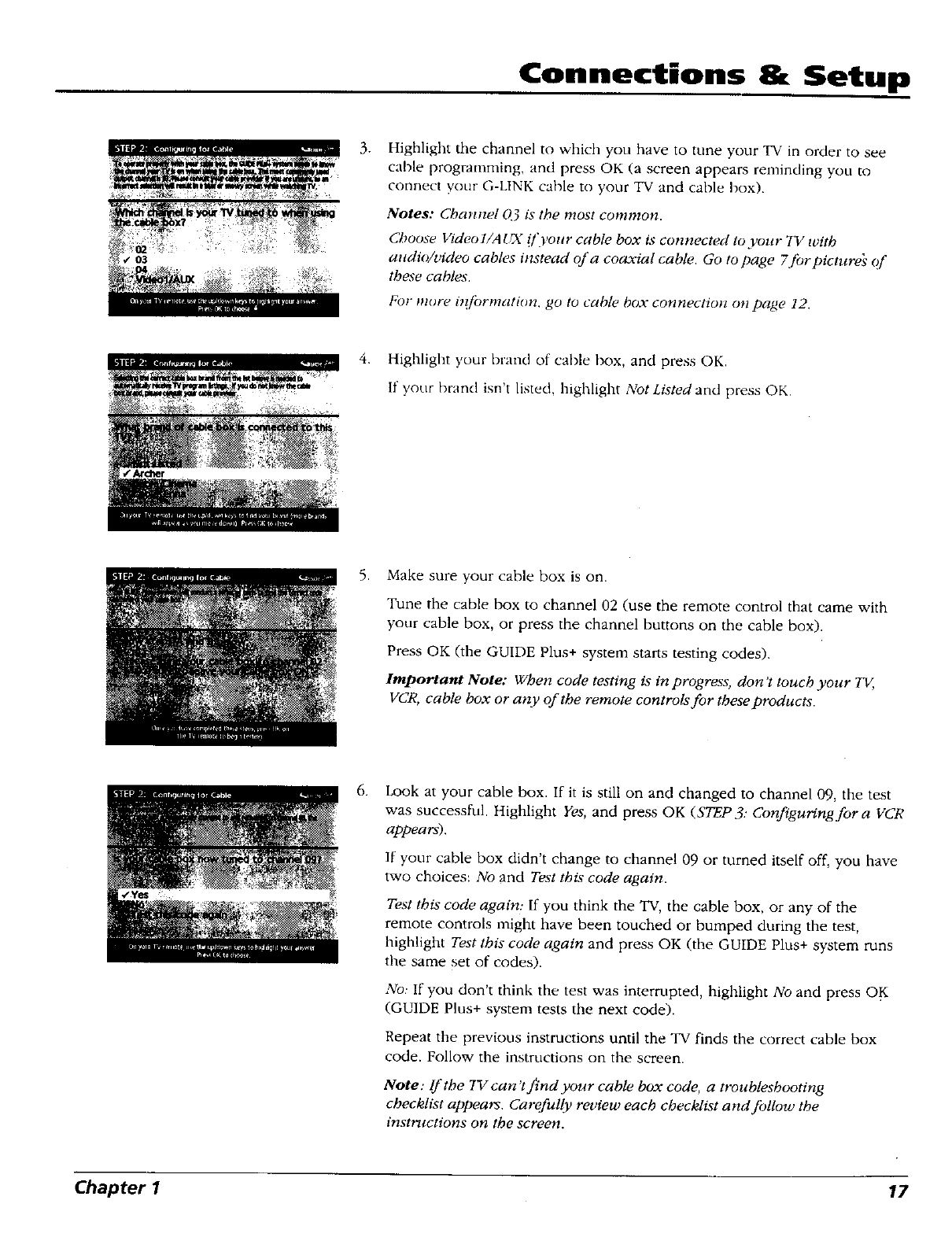

.Highlight the channel to which you have to tune your TV in order to see
cable progranmring, and press OK (a screen appears reminding you to
connect your G-LINK cable to your TV and cable box).
Notes: Channd C_)is the most common.
Choose Video 1/A {{X0"you r cable box is con nected to you r 737 vith
attdio/video cables instead of a coaxial cable. Go to page 7forpicture's of
these cables.
For more in[brmation go to cable box connection on page 12.
4. Highlight your brand of cable box, and press OK.
If yot r )rand isn't listed, highlight Not Listed and press OK.
,Make sure your cable box is on.
Tune the cable box to channel 02 (use the remote control that came with
your cable box, or press the channel buttons on the cable box).
Press OK (the GUIDE Plus+ system starts testing codes).
Important Note: When code testing is in progress, don't touch your TV,,
VCR, cable box or any of the remote controls for these products.
.Look at your cable box. If it is still on and changed to channel 09, the test
was successful. Highlight Yes, and press OK (STEP3: Config,uringfora VCR
appears).
If your cable box didn't change to channel 09 or turned itself off, you have
two choices: No and Test this code again.
Test this code again- If you think the TV, the cable box, or any of the
renrote controls might have been touched or bumped during the test,
highlight Test this code again and press OK (the GUIDE Plus+ system runs
the same set of codes).
No.. If you don't think the test was interrupted, highlight No and press OK
(GUIDE Plus+ system tests the next code).
Repeat the previous instructions until the TV finds the correct cable box
code. Follow the instructions on the screen•
Note.. If the 7]Tcan 't find your cable box code, a troubleshooting
checklist appears. Carefully review each checklist and follow the
instructions on the screen.
Chapter 1 17
Connections & Setup
•Yes

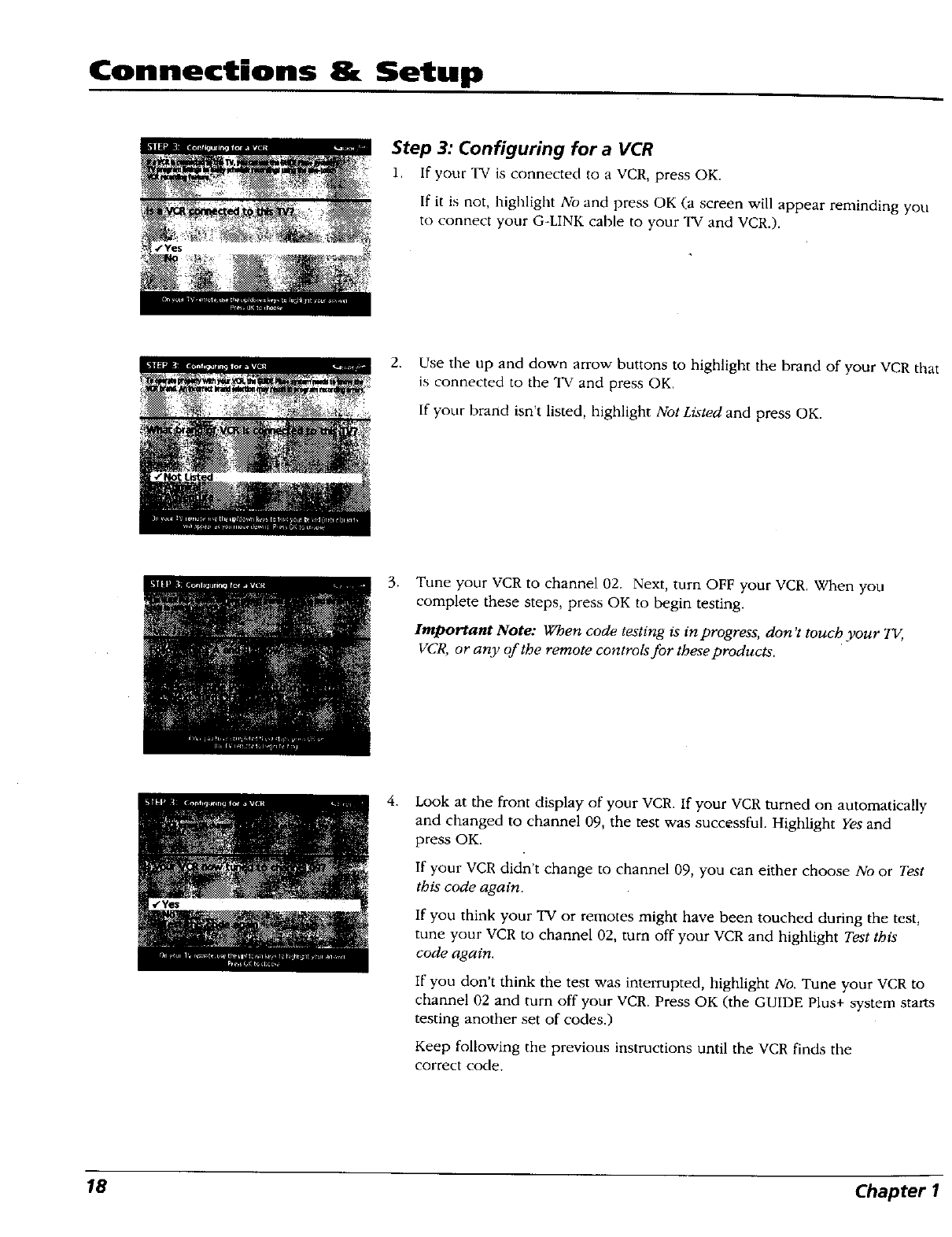

Step 3: Configuring for a VCR
1. If your TV is connected to a VCR, press OK.
If it is not, highlight No and press OK (a screen will appear reminding you
to connect your G-LINK cable to your TV and VCR.).
2. Use tile up and down arrow buttons to highlight the brand of your VCR that
is connected to the "IV and press OK.
If your brand isn't listed, highlight Not Listed and press OK.
3. Tune your VCR to channel 02. Next, turn OFF your VCR. When you
complete these steps, press OK to begin testing.
Important Note: When code testing is in progress, don't toucb your TV,
VCR, or any of the remote controls for tbese products.
4. Look at the front display of your VCR. If your VCR turned on automatically
and changed to channel 09, the test was succ_'ssful. Highlight Yesand
press OK.
If your VCR didn't change to channel 09, you can either choose No or Test
this code again.
If you think your TV or remotes might have been touched during the test,
tune your VCR to channel 02, turn off your VCR and highlight Test this
code again.
If you don't think the test was interrupted, highlight No. Tune your VCR to
channel 02 and turn off your VCR. Press OK (the GUIDE Plus+ system starts
testing another set of codes.)
Keep following the previous instructions until the VCR finds the
correct code.
18 Chapter1
Connections &Setup
Tip
Leave your cable box turned ON to
download program information.
Leave your VCR turned OFF to record
programs.

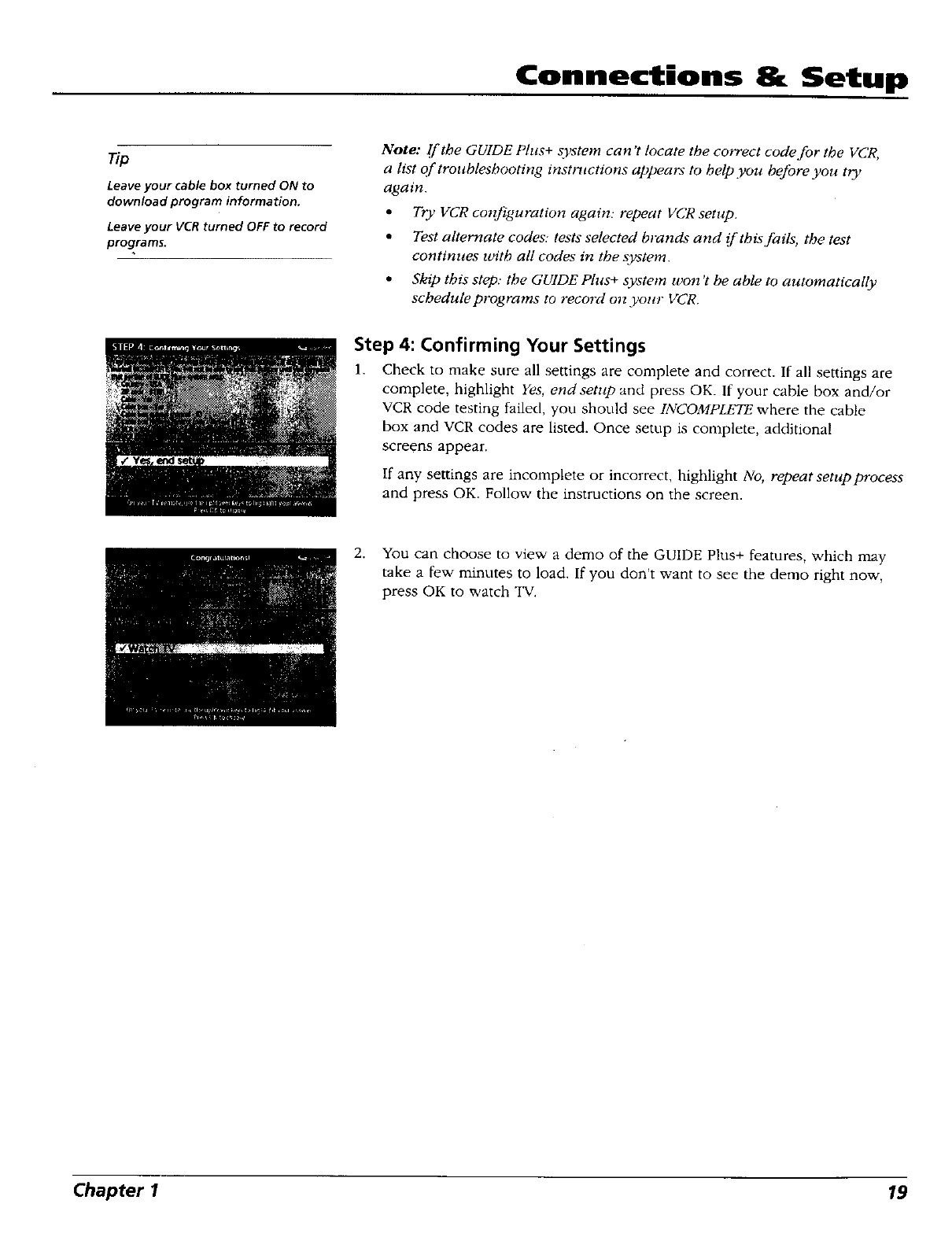

Note: If the GUIDE Plus+ sFstem can't locate the correct code for the VCR,
a list of troubleshooting inst*_tctions appears to helpyou heforeyou try
again.
•Try VCR configuration again: repeat VCR setup.
• Test alternate codes: tests selected brands and if this fails, the test
continues with all codes in the system.
• Skipthisstep:theGUIDEPlus+systemwon'tbeabletoautomatically
schedule programs to record on your VCR.
Step 4: Confirming Your Settings
1. Check to make sure all settings are complete and correct. If all settings are
complete, highlight Yes, endsetup and press OK. If your cable box and/or
VCR code testing failed, you should see INCOMPLETE where the cable
box and VCR codes are listed. Once setup is complete, additional
screens appear.
If any settings are incomplete or incorrect, highlight No, repeat setup process
and press OK. Follow the instructions on the screen.
2. You can choose to view a demo of the GUIDE Plus+ features, which may
take a few minutes to load. If you don't want to see the demo right now,
press OK to watch TV.
Chapter 1 19
Connections & Setup
What to Expect
The next time you turn on your TV, the GUIDE Plus+ system will appear on the screen. The
following examples explain what you might see:
• If all of the program information has been sent to your TV, the GUIDE Plus+ system
appears with all of your TV program listings.
• If the program information hasn't been sent to your TV yet, an outline of the GUIDE
(without TV program listings) will appear on the screen. Program information is usually
sent to your TV at night.
• If the TV detected that you have multiple cable companies in your area, STEP 5: Choosing
Your Channel Lineup appears.
Features of the GUIDE Plus+ system are explained in Chapter 3.
To clear the guide from your screen, press CLEAR or GUIDE on the remote control.
Next Steps
Now that you've finished the Interactive Setup, you're ready to watch TV. This might be a good
time to program your remote control. The remote control that came with this TV can be
programmed to operate other components. Go to the next chapter to find out how to program
your remote.
20 Chapter I
Chapter 2
Using the Remote Control
Chapter Overview:
•The Buttons on the Remote Control
•Programming the Remote to Operate Other Components
•How To Use the Remote After You've Programmed It
•Code List
Changing Entertainment. Again
21
Using the Remote Control
LE.D.
VCRP OF _FF TV
OVO VCR2 AUX SAT.CABLE
&&&&
MUTE SKIP
© c.- ©
SOUND GO BACK
GUIDE INFO
MENU CLEAR
',0'0' 0
,0 0,0
WHO'INPUT ANTENNA
O°O 0
REVERSE PLAY FORWARD
REC'VCR÷ STOP PAUSE
PiP SWAP CHCTRL RESET
OO©O
The Buttons on the Remote Control
0-9 (Number buttons) Enter channel ntmlbers and time settings directly
through the remote control.
To enter a two-digit channel, press the two digits. To enter a three-digit channel.
press and hold the first digit for two seconds until two dashes appear to the
right of the number, then add the second two. Example: to tune to channel 123.
press and hold 1 for two seconds, press 2, then press 3.
Arrow buttons (up, down, left, right) Press the arrow buttons to move
through the on-screen menu system. Also moves PIP window to different areas
on the screen.
ANTENNA Functions as TV/VCR bu[ton in VCR mode and TV/receiver button
in SAT-CABLE mode.
AUX (auxiliary) Puts the remote in auxiliaw mode to operate the component
you've programmed the remote to operate with this button. You can program
this button to control a cable box, most RCA, GE and PROSCAN audio
components, a laserdisc player, or a VCR. If you set up the Auto Tuning feature
(Chapter 3), pressing the AUX button automatically tunes the TV to the
correct channel.
CH (up and down) buttons Scan up or down through the current channel list,
Press once to change the channel up or down; press and hold to continue
changing channels.
CH CTR1. (Channel CoxatroD Selects the picture window (main window or
PIP window) that changes when you press the channel up or channel down
button or the WEIO-INPUT button.
CLEAR Removes any menu or display from the screen and returns you to
TV viewing.
DVD Puts the remote in DVD mode. If you set up the Auto Tuning feature
(Chapter 3), pressing the DVD button automatically tunes the TV to the
correct channel.
FORWARD If you're operating a VCR or DVD Player with the remote control,
press FORWARD to advance a disc or videotape.
GO BACK Returns you to the previous channel.
GUIDE Press GUIDE to make the GUIDE Plus+ system appear on the screen:
press GUIDE again to remove it from the screen.
INFO Displays channel information.
LE.D. (light-emitting diode) The little light on the remote that lights when you
are programming the remote. It also lights when you press a valid button on
the remote.
MENU Displays the TV's Main menu. You can also press and hold for 2
seconds to display the GUIDE Plus+ system.
MUTE Lowers the volume to its minimum level. Press again to restore volume.
OK When a menu is on the screen, press OK to select the item that
is highlighted.
22 Chapter 2
Using the Remote Control
To turn off all the
RCA, GE, and
PRO$CAN
components that are
connected to the T_,
press ON.OFF twice
within two seconds,
Thbfeature on_
works withmost RCA,
GEandPROSCAN
produc_.
ON-OFF Turns the TV on and off. When the remote is in another mode (VCR, DVD, Satellite, etc.)
and the remote is programmed to operate that component, you can press ON-OFF to turn the
component on and off-.
PAUSE If you're operating a VCR or DVD Player with tile recnote control, press PAUSE when the disc
or videotape is playing to pause playback.
PIP (Picture-In-Picture) Brings up the scnall Picture-In-Picture window. Press again to remove the
PIP window.
PLAY If you're operating a VCR or DVD Player, plays the disc or videotape.
REC-VCR+ When the GUIDE Plus+ progrmn guide is on the screen, press REC-VCR+ to program
your VCR to record a program. If the remote is in VCR mode, press REC.VCR+ to start recording.
RESET Resets original settings in several control panels.
REVERSE If you're operating a VCR or DVD Player with the remote control, press REVERSE to go
backwards on a disc or videotape.
SAT-CABLE Puts the remote in SAT-CABLE mode. If you set up the Auto Tuning feature (Chapter
3), pressing the SAT.CABLE button automatically tunes the TV to the correct channel.
SKIP If you press this button before you change the channel, the TV waits 30 seconds and
automatically goes back to the original channel. Each time you press SKIP, you add 30 seconds (i.e, if
you press SKIP two times before you change the channel, the TV waits 60 seconds and automatically
turns back to the original channel).
SOUND Displays the AUDIO PROCESSOR menu.
STOP If you're operating a VCR or DVD Player, stops playing the disc or videotape.
SWAP Switches the main picture with the PIP window.
TV Turns on the TV and puts the remote in TV mode. Also displays channel information.
VCR1 Puts the remote in VCR mode. If you set up the Auto Tuning feature (Chapter 3), pressing the
VCR1 button automatically tunes the TV to the correct channel.
VCR2 Puts the remote in VCR mode. If you set up the Auto Tuning feature (Chapter 3), pressing the
VCR2 button automatically tunes the TV to the correct channel.
VOL (up and down) buttons Decrease or increase the TV's volume.
WHO-INPUT In TV mode, press WHO*INPUT to toggle through the available Video Input channels
(VID/SVID and the current channel). In SAT mode, press to select available channel lists.
Using the WHO,INPUT Button
Use the WHO-INPUT button to toggle through the available input sources (VID and the current
channel) and view the content from the component you have connected to the TV.
1. Press TV to place the remote in TV mode. Make sure that the content from the component is
turned ON.
2. Press WHO-INPUT to tune to the available input source and view the component.
3. Press WHO-INPUT again to tune back to the channel you were previously watching.
Chapter 2 23
Using the Remote Control
R£V[RSE ptA¥
STOP
You'll use these buttons when you program the
remote to operate another component.
The remote may not operate all models of
all brands.
Programming the Remote to Operate
Other Components
Tire universal remote control can be programmed to operate most brand.,
of remote controllable VCRs, satellite receNers and cable boxes. The
remote is already programmed to operate'most RCA, GE and PROSCAN
TVs, VCRs, DVD players, laserdisc players and satellite receivers.
Find Out If You Need to Program the Remote
To determine whether the universal remote needs to be programmed,
turn a component ON, such as a VCR, point the remote at the VCR, and
press the VCR1 button. Then press ON*O]FF or channel up or channel
down to see if the VCR responds to the remote commands. If not, the
remote needs to be programmed.
How to Program the Remote
There are two ways to program the remote control: automatic code
search and direct entry. Instructions for both ways follow.
To stop the automatic code search without
programming any components, press and hold CLEAR
until the light on the remote turns off,
Using Automatic Code Search
1. Turn on the component you want the remote to operate (VCR, DVD
Player, etc.)
2, Press and hold the component button on the remote control that
corresponds to the component you want the remote to operate
(VCR1, DVD, etc.). While you hold down the component button,
press and hold ON.OFF (when the red light on the remote turns
on, release both buttons).
3. Press PLAY (the red light on the remote, located below the ON*OFF
button, starts flashing).
The remote is searching the first set of component codes (there are
20 sets of codes). If the component you want to operate doesn't
turn off automatically after 5 seconds, press PLAY again (the red
light starts flashing again as the remote searches through the next
set of codes).
Continue pressing PLAY until the component turns off.
4.
5.
Note: If the component doesn't turn off after you'vepressed tbe
PLAY button 20 times, the component can't be programmed.
Press REVERSE, wait 2 seconds. Repeat this step until the
component turns back on.
To finish, press and hold the STOP button until the red light on the
remote turns off.
24 Chapter 2
Using the Remote Control
Using Direct Entry
1. Turn on the component you want the remote to operate.
2. Look up the brand and code number(s) for the component on the code list on page 26.
3. Press and hold the component button that corresponds to the component you want the
remote to oper.ate (VCR1, DVD, etc.)
4. Enter the code from the code list.
5. Release the component button.
6. Press ON-OFF to see if the component responds to the remote commands. If it doesn't, try
pressing the component button and then ON*OFF again.
7. If you get no response, repeat these steps using the next code listed for your brand until the
component responds to the remote commands.
Tip
The buttons might
operate differently for
other components,
especially when you're
using another
component's menu
system.
How to Use the Remote After You've
Programmed It
Once the remote has been programmed successfully, you are ready to use it to control your
components. To operate the component:
1. Press the component button (TV, VCR1, VCR2, DVD, AUX, or SAT-CABLE) to set the remote
to operate the component.
Press ON*OFF to turn the component ON or OFF.
2.
3. Use the remote buttons that apply to that component.
Note: If you keep pressing buttons and nothing happens, the remote isprobably in the
wrong mode. You must press the component button that matches the component you
want to operate (i.e., if you want to operate the VCR, press VCR1 on the remote control to
put the remote in VCR mode.)
Chapter 2 25

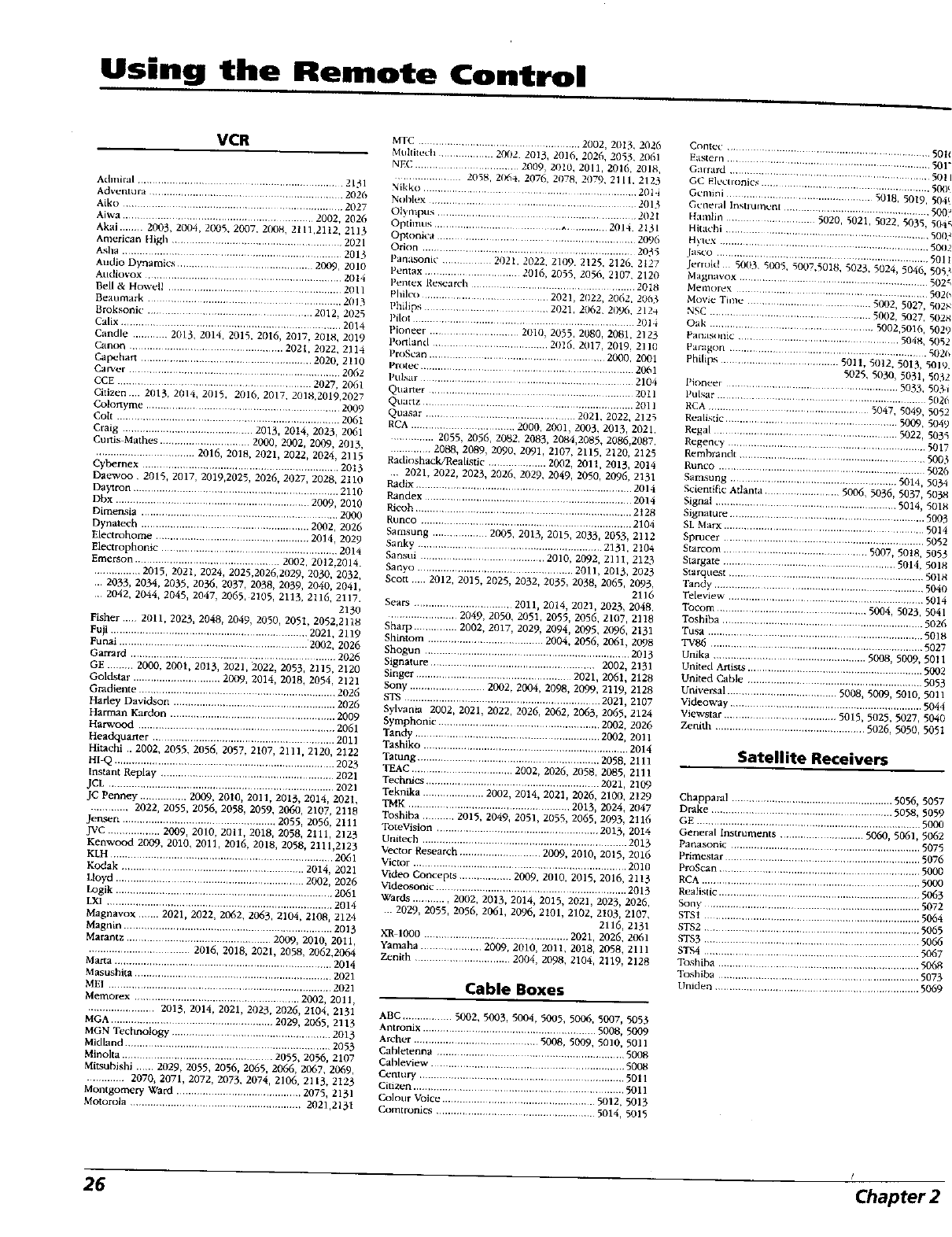

Using the Remote Control
VCR
Admiral ................................................... 2131
Adv_ntura ................................................... 2020
Alko ................................................................ 2027
Aiwa ........................................................... 20_2, 2826
Akai ....... 2003, 2004, 2005, 2007, 2808, 2111,2112, 2113
At_x_ricat_ High ................................................... 2021
A_ha ................................................................. 2013
Audio Dynamics ..................................... 2009, 2010
Audiovox ......................................................... 2014
Bell & Howell ................................................. 2011
Beaumark .............................................. 2013
groksonic ............................................... 2012, 2025
Calix .................................................................... 2014
C'_ndle .......... 2013, 2014, 2015, 2016, 2017, 2018, 2019
Canon ................................................. 2021, 2022, 2114
Capehart ......................................................... 2020, 2110
Carver .............................................................. 2062
CCE ................................................. 2027, 2061
Citizen r... 2013, 2(114, 2015, 2016, 2017, 2018,2019,2027
Co!ortyme ......................................................... 2009
Colt ......................................................................... 2061
Craig ............................................. 2013, 2014, 2023, 2061
Curtis Mathes .............................. 2000, 2002, 2009, 2013,
................................ 2016, 2018, 2021, 2022, 2024, 2115
Cybernex ................................................................. 2013
Daewoo 2015, 2017, 2019,2025, 2026, 2027, 2028, 2110
Daytmn ................................................................... 2110
Dbx ................................................................... 2009, 2010
Dimensia ................................................................ 2000
Dynatech ......................................................... 2002, 2026
Electmhome ................................................... 2014, 2029
Electrophonic ........................................................... 2014
Emerson .............................................. 2002, 2012,2014.
................ 2015, 2021, 2024, 2025,2026,2029, 2030, 2032,
... 2033, 2034, 2035, 203_, 2037, 2038, 2039, Z040, 2041,
. 2042, 2044, 2045, 2047, 2065, 2105, 2113, 2116, 2117.
2130
Fisher ... 2011, 2023, 2048, 2049, 2050, 2051, 2052,2118
Fuji .................................................................... 2021, 2119
Funai ................................................................ 2002, 2026
Oarrard .................................................................. 2026
GR ......... 2000, 20{11, 2013, 2021, 2022, 2053, 2115, 2120
Goldstar .............................. 2009, 2014, 2018, 2054, 2121
Gradien'te ................................................................... 2026
Hadey Davidson ........................................................ 2026
Vlamaan Kardor_ ......................................................... 2009
Harwood ................................................................... 2061
Headquarter ...................................................................
Hitachi. 2002, 2055, 2056, 2057, 2107, 2111, 2120, 2122
HI-Q ........................................................................... 2023
Instant Replay ......................................................... 2021
JCL .............................................................................. 2021
JC Penney ................ 2009, 2010, 2011, 2013, 2014, 2021,
............. 2022, 2055, 2056, 2058, 2059, 2060, 2107, 2118
Jenser_ ..................................................... 2055, 2,056, 2111
JVC .................. 20119, 2010, 2011, 2018, 2058, 2111, 2123
Kenwood 2009, 2010, 2011, 2016, 2018, 2058, 2111,2123
KLH ............................................................................ 2061
Kodak .............................................................. 2014, 2021
Lloyd ................................................................. 2002, 2026
Logik .......................................................................... 2061
I242 .............................................................................. 2014
Magnavox 2021, 2022, 2062, 2063, 2104, 2108, 2124
Magrl0_ ........................................................................ 2013
Marantz ................................................ 2009, 2010, 2011,
.................................. 2016, 2018, 2021, 2058, 2062,2064
Maria ........................................................................... 2014
Masushita ................................................................... 2021
MEI ............................................................................. 2021
Memorex ..................................................... 2002, 2011,
....................... 2013, 2014, 2021, 2023, 2026, 2104, 2131
MGA .................................................... 2029, 2065, 2113
MGN Techr_,logy ................................................... 2013
Midland ................................................................. 2053
Minol 'ta ................................................. 2055, 2056, 2107
MiEsubishi .., 2029, 2055, 2056, 2065, 2066, 2067, 2069,
............. 2070, 2071, 2072, 2073, 2074, 2106, 2113, 2123
Montgomery Ward ........................................... 2075, 2131
Motorola .......................................................... 2021,2131
MTC ....................................... 2002, 2013, 2020
Mult0ech ............. 2002. 2013, 2016, 2026, 2053, 2061
NEC ........................ 2009, 2810, 20ll, 2016, 2018,
................. 2058, 21K34,2076, 20"8, 20"9, 2111, 2123
Nikko .................................................. 2Ol,i
Nohlex ..................................................... 2013
Olympus ................................................. 2021
Optimus ............................................... 2014, 2131
Optonica ........................................................ 2096
Orion ............................................................. 2035
Panasonic ............ 2021. 2022. 2109. 2125. 2126, 2127
Pemax ............................ 2016, Z055, 2056, 2107, 2120
I)entex Research ............................................ 2018
Flolco .................................. 2021, 2022, 2062, 20h3
Fhi0ps ................................ 2021, 2062, 2(_X), 2124
l)ih)t .................................................................. 2014
Pioneer ............................ 2010, 2055, 2080, 2081, 2123
por0and ............................... 2016. 2017. 2019, 2110
ProScan ................................................. 2000, 2001
Frotec .................................................................. 2061
Fnism- ................................................................... 2104
Quarter ...................................................... 2011
Quartz .............................................................. 2011
Quasar ....................................... 2021, 2022, 2125
RCA ............................... 2000, 2001, 2003, 2013, 2021,
............... 2035, 2056, 2082. 2083, 2084,2085, 2086,2087,
.............. 2088, 2089, 2090, 2091, 2107, 2115, 2120, 2125
Radioshack/Realistic .................... 2002, 2011, 2013, 2014
• 2021, 2022, 2023, 2026, 2029, 2049, 2050, 2096, 2131
Radix ....................................................................... 2014
Randex ................................................................... 2014
Ricoh ......................................................................... 219..8
Runco ........................................................................ 2104
Samsung ................. 2005, 2013, 2015, 2033, 2053, 2112
Sanky ........................................................ 2131, 2104
Sansui ......................................... 2010, 2092, 2111, 2123
Sanyo ..................................................... 2011, 2013, 2023
Scott .... 2012, 2015, 2025, 2032, 2035, 2038, 2065, 2093,
2116
Sears .................................. 2011, 2014, 2021, 2023, 2048,
..................... 2049, 2050, 2051, 2055, 2056, 2107, 2118
Sharp .............. 2002, 2017, 2029, 2094, 2095, 2096, 2131
Shintom .................................... 2004, 2056, 206I, 2098
Shogun ....................................................................... 2013
Signature ......................................................... 2002, 2131
Singer ...................................................... 2021, 2061, 2128
Sony ......................... 2002, 2004, 2098, 2099, 2119, 2128
STS ................................................................... 2021, 2107
Sylvania 2002, 2021, 2022, 2026, 2062, 2063, 2065, 2124
Symphonic ........................................................ 2g02, 2026
Tandy .............................................................. 2002, 2011
Tashiko ...................................................................... 2014
Tatung ............................................................... 2058, 2111
TEAC ................................... 2002, 2026, 2058, 2085, 2111
Technics ............................................................ 2021, 2109
Teknika ..................... 2002, 2014, 2021, 2026, 2100, 2129
TMK ....................................................... 2013, 2024, 2047
Toshiba ........... 2015, 2049, 2051, 2055, 2065, 2093, 2116
Tote'Vision ........................................................ 2013, 2014
Unitech ....................................................................... 2013
Vecto¢ Research ............................ 2009, 2010, 2015, 2016
Victor ...................................................................... 2010
Video Concepts ................ 2009, 2010, 2015, 2016, 2113
Videosonic ................................................................. 2013
Ward.* ........... , 2002, 2013, 2014, 2015, 2021, 2023, 2026,
... 2029, 2055, 2056, 2061, 2096, 2101, 2102, 2103, 2107,
2116, 2131
XR 1000 .................................................. 2021, 2026, 2061
Yamaha .................. 2009, 2010, 2011, 2018, 2050, 2111
Zenith ............................ 21_i, 2098, 2104, 2119, 2128
Cable Boxes
ABC ................. 5002, 5003, 5004, 5005, 5006, 5007, 5053
Ant mnix ......................................................... 5008, 5009
Archer ....................................... 5008, 5009, 5010, 5011
Cabletenna ...................................................... 5008
Cabieview ......................................................... 5008
Century ................................................................... 5011
Citizen .................................................................... 5011
Colour Voice .................................................... 5012, 5013
Corot tonics ....................................................... 5014, 5015
C<_nlt:c ............................................................. 5011
Eastern .......................................................... SOU
Garntrd ................................................................ 501 I
GC Electlonics ............................................... 5()0_
Gcn0ni ............................................. 5018, 5019, 504_
General Instrument .................................................. 500_
tEun0n ......................... 5020, 5021, 5022, 5035, 50_
Hitaehl ............................................................... 5003
H!¸rex ............................................................... 5002
Jasco ................................................................ 501 I
Jerroid 5003 5005, 5007,5018, 5023, 5024, 5046, 5053
Magnavox ........................................................ 502*'
Memorex ......................................................... 5020
Movi_ Time .............................. 5002. 5027, 502_
NSC .......................................... 5/)02, 5027, 502_,
Oak ............................................. 5002,5016, 5029
Panasonic ........................................... 5048, 5052
Parason ........................................................ 5021_
Philips ................................... 5011, 5812, 5013, 5019
5025, 5030, 5031, 5032
Pinp_'e t ............................................... 5033, 5034
Pulsar ...................................................... 5826
RCA ............................................ 5047, 5049, 5052
Realistic ................................................. 5009, 5049
Regal ........................................................ 5022, 503_
Regency ................................................................. 5017
Rembrandt ............................................................ 5003
Runco ................................................................... 5026
Samsung ....................................................... 5014, 5034
Scientific Adama ......................... 5006, 5036, 5037, 5038
Signal .............................................................. 5014, 5018
Signature ............................................................... 5003
SL Marx ................................................................... 5014
Spmcer ................................................................ 5052
Starcom ............................................. 5007, 5018, 5053
Stargate ......................................................... 5014, 5018
Starquest .................................................................... 5018
Tandy .................................................................. 5040
Teleview ................................................................... 5014
Tocom ................................................... 5004, 5023, 5041
Toshiba ..................................................................... 5026
Tusa ........................................................................... 5018
TV86 ........................................................................ 5027
Unika ................................................... 5008, 5009, 5011
United Artists ............................................................. 5002
United Cable ............................................................. 5053
Universal ...................................... 5008, 5009, 5010, 5011
"qideoway ................................................................... 5044
Viewstar ...................................... 5015, 5025, 5027, 5040
Zemth .................................................... 5026, 5050, 505I
Satellite Receivers
Chapparal ....................................................... 5056, $057
Drake .......................................................... 5058, 5059
GE .............................................................................. 5000
General Instruments ............................. 5060, 5061, 5062
Panasonic .................................................................. 5075
Primestar .............................................................. 5076
ProScan .................................................................... 5000
RCA ............................................................................ 5000
Realistic ..................................................................... 5063
Sony ...................................................................... 5072
STS1 ....................................................................... 5064
STS2 ........................................................................ 5065
8Ts3.................................................................... 5o66
STS4 .................................................................. 5067
Toshiba .......................................................... 5068
Toshiba .............................................................. 5073
Uniden ................................................................... 5069
26 Chapter 2
Chapter 3
Using the TV's Features
Chapter Overview:
• All About the GUIDE Plus+ System
•The Channel Banner
• PIP (Picture-In-Picture)
•Auto Tuning
•Parental Controls and V-Chip
Changing Entertainment.
27
Using the TV's Features
Video Action program Menu
window buttons information options
Promotional Channel
information listings
About the GUIDE Plus+ System
The GUIDE PILls+ system is an interactive Oll-scfeen pfogralll guide that lists TV
schedules for your area and allows your TV direct control of a cable box and/or
VCR. You must first set up the GUIDE Plus+ Menu system in order to view this
o_._-screen program guide (see Chapter 1 R)r details!. Press GUIDE to bring up
the GUIDE Plus+ system.
There a_'e six sections of the GUIDE Plus+ system:
• A row of Action buttons at the top of the screen (I. 2 and 31
• Program information
A row of menu options (G_q¢l,Sort, Xews. Scbedule. t!essages,
Channels, Setup)
• Channel listings
• Promotional inforrnation
• Video window
Note: The GUIDE Plus'+ system screens illustrated in this book are
representations of what you are likely to see. Not all channels, programs,
and GUIDE Plus+ inJ_rmation depicted will be available in your area.
New features and options can be dozonloaded to the G&gDEPlus+
system, so these too are subject to change.
Since the program information provided by
the GUIDE Plus+ system is based on your
locale, you will need to run Setup again if
you move to adifferent zip or posta! code.
Downloading Data
The GUIDE Plus+ system is not available until it completes its first download of
program listings. When the power is turned off, the TV locates a "host channel"
that carries GUIDE Plus+ system data containing program schedule and channel
lineup information. A channel lineup is the list of stations and their respective
channels.
To ensure that your first download of data is complete, you should leave your
TV off overnight. Downloads occur several times a day. The TV must be turned
off for GUIDE Plus+ system data to download.
If the TV loses power or is unplugged, GUIDE Plus+ system program listings
may be lost. When power is restored, make sure the setup information is still
correct. The GUIDE Plus+ system will receive updated program information
during the next scheduled download.
Channel Lineup
If more than one cable company services your area, you may be prompted with
STEP _. Choosing You*"Channel Lineup after the first GUIDE Plus+ system
download. You will need to identify your cable company by selecting the
correct channel numbers for the stations in question.
• Use the up and down arrow buttons to change the channel group and
press OK when the correct channel group is highlighted.
28 Chapter 3
Using the TV's Features
,3
Press GUIDE on the remote control to see
the GUIDE Plus+ system. To remove the
program guide from the screen, press
OK, GUIDE, or CLEAR.
Getting In & Out of the GUIDE Plus+ System
To enter the GUIDE Plus+ system:
•Press GUIDE on the remote.
• Press and hold MENU for 2 seconds on the front panel.
To exit the GUIDE Plus+ system:
• Highlight a program and press OK to exit tile GUIDE Plus+ system and tune
to the channel.
• Press GUIDE to exit the GUIDE Plus+ system and tune to the channel
displayed in the video window.
Press CLEAR to exit the GUIDE Plus+ system and return to the original
channel.
The GUIDE Plus+ System Menus
The GUIDE Plus+ system offers seven different options on the Menu bar: Grid,
Sort, News, Schedule, Messages, Channels and Setup. To access the Menu bar:
1. Press GUIDE to access the GUIDE Plus+ system.
2. Press MENU or use the up and down arrow buttons to select the Menu bar
(the Grid Guide appears by default).
3. Use the left and right arrow buttons to access other menus.
4. Press OK, or MENU, or use the down arrow button to see the menu options.
Grid Guide
The Grid Guide appears each time you enter the GUIDE Plus+ system. It
displays the current programming for each channel. The current program is
displayed in the video window.
Press the up and down arrow buttons on the remote to browse channel
listings and the channel up and down buttons to page through the listings.
Use the right and left arrow buttons to browse future program listings.
To tune to a channel, highlight the program you want to view in the
channel listing and press OK. Press CLEAR to exit the GUIDE Plus+ system
and return to the original channel. Press GUIDE to exit the GUIDE Plus+
system and tune to the channel in the video window.
Then use the Grid Guide Action Buttons as described next.
Chapter 3 29
Using the TV's Features
Grid guide Grid guide
menu action buttons
selection
np
Press the PIP button to lock or unlock the video
window when the GUIDE Plus+ system is on
the screen.
Grid Guide Action Buttons
Action buttons will change according to where you are in the GUIDE Plus+
system. Be sure to look at the action bar before pressing the
command numbers.
When highlighting the program, the following Action buttons appear:
Watch Press 1 on the minute to place a timer in tl_e Schedule for the TV to
turn on and tune to the program highlighted in the channel listing. When
the TV turns on, the GUIDE t'Ius+ system will automatically appear with th¢
scheduled program highlighted and tuned in the video window.
C-_ To Press 2 on the remote to bring up the direct dial box and enter the
number of the channel you want. Press OK to highlight the channel and
current program in the channel listing of the Grid guide. Press OK again to
tune to the highlighted channel. If the video window is unlocked, it will
automatically tune to the channel.
Record Press 3 on the remote to place a timer in the Schedule for the VCR
to record the program highlighted in the channel listing.
If you have a cable box, changing channels on the TV will not cause the
cable box channel to change while recording.
Record will only appear if you have set up the GUIDE Plus+ system and
specified your VCR type.
The program information window will display a confirmation when you have
successfully scheduled a program to watch or record.
Note: If you have selected two programs to watch or record which begin
at the same time or overlap, )_ou will receive a timer conflict message.
You must c,_oose between the two programs.
When highlighting the Channel names (the left column on the channel listing),
the following Action buttons appear:
I,oci_/U_:_k Press 1 to lock or unlock the video window to either stay at
one channel as you browse the GUIDE Plus+ system (lock) or change as
you browse through different channels (unlock).
Go To Press 2 on the remote to bring up the direct dial box and enter the
number of the channel you want, Press OK to highlight the channel and
current program in the channel listing of the Grid Guide. If the video
window is locked, press OK to tune to the highlighted channel. If the video
window is unlocked, it will automatically tune to that channel.
30 Chapter 3
Using the TV's Features
Sort menu
selection
Categories
Sort
The .Sort metal lets you browse programs by category. The channel to which
you are currently tuned is displayed in the video window.
To Sort:
1. If tile GUIDE Plus+ system isn't on your screen, press GUIDE on your
remote control.
2. Press MENU on the remote to select the Menu bar.
.
4.
Use the arrows to highlight Sort. When Sort is highlighted for the first time,
the Movies category is displayed. Thereafter, the last category used becomes
the default. A listing of subcategories is displayed below the category name.
Use the left and right arrows to highlight other categories.
Use the up and down arrow buttons to highlight a subcategory. For
example, highlight All and press OK (the GUIDE Plus+ system sorts
the programs).
.
6.
Press the up and down arrow buttons to review the list one program at a
time. Press the channel up and down to review the list one page at a time.
Select MENU to return to the menu bar, or press GUIDE or CLEAR to exit
the GUIDE Plus+ system.
Then use the Sort Menu Action Buttons as described next..
Sort Menu Action Buttons
When viewing the results of a Sort, the following Action buttons appear:
•Watch Press 1 on the remote to place a timer in the Schedule, and then
follow the on-line help for further options. Placing a timer in the Schedule
will cause the TV to turn on and tune to the program highlighted in the
Channel listing at the predetermined time.
•Record Press 3 on the remote to set the VCR to record the program
highlighted in the channel listing. If you have a cable box, changing TV
channels will not cause the cable box channel to change while recording.
The program information window will display a confirmation when you have
successfully scheduled a program to watch or record.
Note: If you have selected two programs to watch or record which begin
at the same time or overlap, you will receive a timer conflict message.
You must choose between the two programs.
Note: Be sure that during the GUIDE Plus+ system setup you specified
that you have a VCR. If you didn't, the RECORD option will not
be available.
Chapter 3 31
Using the TV's Features
News menu News menu
action buttons selection
%
News
The News menu lets you browse current news stories by headline.
1. If tile GUIDE Plus+ system isn't on your screen, press GUIDE on your
remote control.
2. Press MENU on the remote control to _lect the menu bar.
3. Use the arrows to highlight News (if MSNBC is available on your TV, it will
appear in the video window).
4. Use the up and down arrows to highlight a story.
• Use the up and down arrows to browse the list one stow at a time.
• Use the channel up and down to browse through tile list one page at
a time.
5. Press the right arrow button to see full text.
6. If there are mulgple pages of text, press the right or left arrow button to
page forward or back through the pages of text. Press the down arrow to
view the next stow.
7. Select MENU to return to the Menu bar, or press GUIDE or CLEAR on the
remote to exit the GUIDE Plus+ system.
Schedule menu
selection Schedule
The Schedule menu allows you to alter timers for either viewing or recording
programs. The GUIDE Plus+ system allows one-touch VCR recording if you
have connected the G-LINK cable to your VCR. See Chapter 1 for more details
on connecting the G-LINK cable.
To schedule a program to watch or record:
1. If the GUIDE Plus+ system isn't on your screen, press GUIDE on your
remote control.
2. Press MENU on the remote to select the Menu bar.
3. Highlight a program within the Channel listing.
4. Select Watch or Record from the Action buttons bar. The timer is then
automatically logged into the Schedule menu.
5. If you select Record, make sure to place a blank tape in the VCR and turn
it off.
Note: If you have a cable box connected to your TVand VCR, tune your
VCR to the cable box output channel prior to turning off the VCR.
The program information window will display a confirmation when you have
successfully scheduled a program to watch or record.
Note: lf you have selected two programs to watch or record which begin
at the same time or overlap, you will receive a timer conflict message.
You must choose between the two programs.
32 Chapter 3
Using the TV's Features
To remove or change the frequency (daily, once, or weekly) of a scheduled
event, access the Schedule menu from the Ment_ bar.
1. Press GUIDE to bring up the GUIDE Plus+ system.
2. Press MENU on the remote to select the Menu bar.
3. Use the arrows to highlight the Schedule menu selection.
4. Use the up and down arrows to highlight tile program yott want to edit.
Then use tile Schedule Menu Action Buttons as descrihed next.
Schedule Menu Action Buttons
When viewing the Schedule menu tile following Action buttons appear:
•Remove Highlight the Watch or Record timer you wish to remove from
the schedule and press 1 on the remote.
Change Highlight the Watch or Record timer you wish to change and
press 3 on the remote to toggle the frequency between the following
choices:
DAILY records the same program each day Monday through Friday.
ONCE records only on that day.
WEEKLY records the program each week at the same time.
Messages menu
selection Messages
Occasionally you will receive messages regarding your GUIDE Plus+ system, as
well as special programming information. You can access these messages from
the Messages menu on the Menu bar.
To read messages:
1. If the GUIDE Plus+ system isn't on your screen, press GUIDE on your
remote control.
2. Press MENU on the remote to select the Menu bar.
3. Use the arrows to highlight the Messages menu selection.
4. Highlight the message you want to read by using the up and
down arrow buttons.
5. Press INFO to display the full text of the message. If the text continues
beyond the screen, press INFO to view the next page of text. Once you
have reached the end of the message, press INFO to close the expanded
information and return to the Messages screen.
Then use the Messages Menu Action Button as described next.
Messages Menu Action Button
When viewing the Messages menu the following Action button appears:
•Remove Highlight the message you want to delete and press 1 on
the remote.
Chapter 3 33
Using the TV's Features
Channelsmenu Channelsmenu
action buttons selection
\
Channels
You can customize the channel listing by enabling or disabling the display of
certain channels. For instance, you may disable channels that you never watch.
You can restore disabled channels at a later point in time.
1. If the Guide Plus+ system isn't on your screen, press GUIDE on your
remote control.
2. Press MENU to select the Menu bar.
3. Use the right and left arrows to highlight the Channels menu selection.
4. Use the up and down arrows to select a channel.
Then use the Channels Menu Action Buttons as described next.
Channels Menu Action Buttons
While browsing the Channels menu, the following Action buttons appear:
* Cancel Press 1 on the remote to cancel any changes you made since
entering the Channels Menu.
.Change Press 2 on the remote to change the channel number for the
highlighted channel line.
. On/Off Press 3 on the remote to toggle the state of the channel between
On and Off
II_ iimum::=L'ttt_+_.':.'::7 ""i[i.'.'--:.-_"+!
Setup
The Setup menu allows you to access the GUIDE Plus+ system setup information. To access the
Setup option:
1. If the Guide Plus+ system isn't on your screen, press GUIDE on your remote control.
2. Press MENU to select the Menu Bar.
3. Use the right arrow to highlight the Setup menu selection.
4. Use the up and down arrows to select Change system settings, Review options, or
View demo.
•Change system settings Confirms the settings you completed in the GUIDE Plus+
system setup are correct.
•Review options Displays the GUIDE Plus+ auto display options.
On Automatically displays the GUIDE Plus+ system when you press the ON.OFF
button on the remote control.
Off Disables the GUIDE Plus+ system from being displayed when you press the
ON-OFF button on the remote control.
•View demo Runs the GUIDE Plus+ system demonstration.
Note: lf you have not completed your GUIDE Plus+ system setup, these options will not be
available. A screen will prompt you to complete your setup.
34 Chapter 3
Using the TV's Features
Promotional information
How to Get More Information About an
Advertisement or a Program
To find out more information about a program, advertisement or special, use
the left arro_, button to highlight the channel listing or promotional
information box.
Requesting more information about a paltieular show displays the PlusCode
programm ng m n _er and the Shon,s (m Next t_r that channel.
Press the INFO button to exit the expanded inl_mnation screen.
GUIDE Plus+ Menu Items
The GUIDEPlus+ Menu gives you access to l;eatures in the GUIDE Plus+ system.
To access the GUIDE Plus+ Menu:
1. Press MENU on the remote.
2. Highlight GUIDE Plus+ Menu and press OK.
Each menu and the sub-menus are listed below:
GUIDEPlus+ Setup DispLays the GUIDE Plus+ system setup screen.
Change system settings Confirms the settings you completed in the
GUIDE Plus+ system setup are correct.
Review options Displays GUIDE Plus+ system auto display options.
View demo Runs the GUIDE Plus+ system demonstration.
GUIDE Plus+ Label Displays the GUIDE Plus+ label menu.
On Displays the station name when you change channels.
Off The station name isn't displayed when you change channels.
Continuous Demo Runs the GUIDE Plus+ demonstration until it is turned off.
To turn off the demonstration you must turn off the TV.
Note: If you have not completed your GUIDE"Plus+ system setup, these
options will not be available. A screen will prompt you to complete
your setup.
Chapter3 35
Using the TV's Features
Sample displays on a Channel Banner.
ChannelBanner
There are several indicators that might appear when you press the TV or INFO
buttons on tile remote. This display is called the Channel Banner. The following
list describes the items on the Channel Banner screen (left to right and top to
bottom).
12:01
i
[]
ESPN
60
SAP
PIP VID
Displays the current time.
The lock is displayed to indicate when the Parental Controls
are locked or unlocked.
Displayed when Closed Captioning is available on the
current channel.
Displays the label assigned to the current channel.
Displays the current channel or input channel.
Mute is displayed when you mute the audio.
Stereo is displayed when the current channel is broadcasting
in Stereo.
Displayed when the current channel is broadcasting SAP
(Second Audio Program) information.
Displays the current PIP channel.
00:00
Displayed when the Sleep Timer has been set.
Displayed to count down time left on the commercial skip
(SKIP) timer.
The PIP (Picture-In-Picture) Feature
The PIP (Picture-In-Picture) feature lets you display a second, smaller picture on top of the
main picture.
Important: Your TV has a single tuner that tunes to cable or off-air television channels. In
order for the second picture (the PIP picture) to appear on the screen, you must connect
another component (like asatellite receiver or VCR) to the TV. You need to use audio/video
cables to connect the component to the TV. Go to the connections on pages 8 or 9 for
more information.
1o
Main picture
PIP picture
How To Use PIP
While you can use PIP in different ways, this basic PIP scenario should get you
started. While watching the TV, follow these steps to use your VCR to supply
the picture for PIP.
1. The "IV must be on. Tune to the channel you want to watch.
2. Press the PIP button on the remote (the PIP picture appears with the same
picture in it as the main picture).
36 Chapter 3
Using the TV's Features
from I
3. Turn on the VCR.
4. If the picture gets fuzzy, press the TV/VCR button on the VCR.
5. To see a different picture in the PIP window:
• Press the TV button on the remote control.
• Press the WHO°INPUT button on the remote until you see the picture
that's coming from the VCR (PIP V1D appears on the screen).
6. To change the picture in the PIP window, you need to change the channel
on the VCR because the VCR is the second signal source.
Press the channel buttons on the VCR or on the VCR's remote control.
7. To change the channel in the main picture, press CH CTRL until the main
channel number appears highlighted (yellow). Press the channel up or
down button on the remote control.
Note: Channel up and dow_ won't work correctly when the VID
channel is highlighted (yellow).
WHO,INPUT --
button
PIP
buttons
Q o
<T&>-
,O,Ta,O
,©,O,_
,0,0,0
--S0o %T
__ Arrow
buttons
The buttons on the remote control that
operate the PIP feature include: the four
arrow buttons, CH CTRL, PIP,and SWAR
PIP Buttons: General Explanation
The buttons on the remote control that you'll use for the PIP feature are
explained below:
PIP Press the PIP button to make the PIP window appear on the screen. Press
PIP again to remove the window.
Note: If you selected Alternate with PIP button in the PIP Closed-
Caption Display menu, press the PIP button when the PIP window is on
the screen to see closed-captioning in the PIP window.
Arrow buttons (left, right, up, and down) Move the PIP window to
different areas of the screen.
CH CTRL (channel control) Lets you switch channel control between the PIP
window and the main picture. To determine whether the remote control is the
PIP picture or the main picture, look at the TV screen: the yellow channel
number is the one you are controlling. Press CH CTRL to change which picture
you're controlling.
SWAP Switches, or "swaps," where the two pictures appear on the TV screen.
The smaller PIP picture swaps to the main screen and the main picture goes to
the little PIP window.
Chapter 3 37
Using the TV's Features
You must use audio/video cables to connect
your VCR to your TV in order for PiP to work.
(WD) is
from VCR
PIP Troubleshooting
The PIP feature on this TV only works if you connect a second video source (like a
VCR or satellite receiver), to your TV with audio/video cables. If you use a cable
box, you may need extra equipment. Contact your cable company and/or go to
page 12 for more details about a cable box connection•
Swap won't work? Make sure the ren]ote is in the right mode. For e×ample, once
you turn on the VCR with the VCR1 button, you can't SWAP the pictures until you
put the remote in TV mode Just press the TV button.
No signal or bad reception? Most VCRs and satellite receivers have an antenna or
TV/VCR button. Press the antenna or TV/VCR button on tile front of the component.
Note: If J'ou programmed the Ulziversal remote control to operale.Four VCR, the
ANTEA_rA button o_1 the remote acts as a TV/L_'R butto_L
Every time you change channels, the same channel appears in both windows (the
main picture and the PIP picture).
A. Press the CH CTRL bunon on the remote until the TV picture channel number
is highlighted (yellow)• The channel buttons on your remote control won't
work correctly for PIP when the V!D channel is highlighted (yellow).
B. The only way to successfully change channels for the picture that is coming
from the channel on your VCR (the I//D channel), is to press the channel
buttons on the VCR or on the VCR's remote control.
To change the PIP channel, press the
channel buttons on the VCR. To change
the TV channel, press CH CTRL until the
TV channel is highlighted (yellow) and
press the CH up and down buttons.
With the auto tuning feature, you can set
up the TV to tune to the channel you
need to watch by pressing that
component's button.
Why You Should Use the Auto
Tuning Feature
The auto-tuning feature automatically tunes the TV to the correct channel for
different components you have connected to your TV (like a VCR, 1)VD Player,
etc.) When you set up auto tuning in the menu system you don't have to
remember to change your TV to channel 3, for example, when you want to
watch the tape in your VCR.
How to Set Up the Auto Tuning Feature
The way you set up the auto tuning feature in the TV's menu corresponds to
the component buttons on the remote and the way you have each component
connected to your TV. When you set auto tuning, you're telling the TV what
channel to tune to when you press the VCR1, VCR2, DVD, or SAT-CABLE
button on the remote control.
1. Press MENU (the TVMAINMENUappears).
2. Highlight Channeland press OK on your remote control.
3. Highlight Auto Tuning and press OK.
38 Chapter 3
Using the TV's Features
4. Choose which channel you would like to set:
Set VCR 1 Channel Displays a list that lets you set up the channel that the
TV tunes to when you press the VCR1 hutton on the remote.
Set VCR2 Channel Displays a list that lets you set up the channel that the
TV tunes to when you press the VCR2 button.
5.
Set DVD Channel Displays a list that lets you select the channel that the
TV tunes to when you press the DVD button.
Set SAT/CABLE Channel Displays a list that lets you set up the channel
that the TV tunes to when you press SAT,CABLE.
Highlight the choice that matches the way you have the component
connected to this TV, and press OK.
The choices and a brief explanation follow:
Not connected Choose this if you don't have this particular component
connected to the TV, or if you don't want the TV to automatically tune to the
correct channel when you're using this component.
Channel 2(SAT/CABLE only) Component (satellite or cable box) is
connected to the CABLE/ANTENNA jack on the back of the TV, and you want
the TV to tune to channel 2 when you press the SAT,. CABLE button on the
remote. Reminder: make sure the component's Channel 2/3/4 switch is set to
channel 2. Usually this switch is on the back of the component.
Channel3 Component is connected to the CABLE/ANTENNA jack on the back
of the TV, and you want the TV to tune to channel 3 when you press the
corresponding button on the remote. Reminder: make sure the eomponent's
Channel 3/4 switch is set to channel 3.
Channel 4 Component is connected to the CABLE/ANTENNA jack on the
back of the TV, and you want the TV to tune to channel 4 when you press the
corresponding button on the remote. Reminder: make sure the component's
Channel 3/4 switch is set to channel 4.
Video Input Component is connected to the VIDEO jack on the back of the
TV and you want the TV to tune to VID (SVID if you used an
S-Video cable) Input Channel when you press the component button.
Note: You should choose this for your VCR if you connected it to the TV
with audio/video cables.
Chapter 3 39
Using the TV's Features
Parental Controls and V-Chip
Tile Parental Controls menu allows you to program your TV so that children
cannot see certain progratrts, channels, or use the front panel controls.
The first three choices in the Parental Controls menu involve software inside
your TV (referred to as V-Chip) which allows you to block TV programs and
movies based on violence, sex, or other content you may believe children
should not view. In other words, it lets you program your TV so it won't display
certain programs.
Once you block programs, you or other adults can unblock programs by
entering a password.
By default, the software inside your TV is turned "off," so if you don't want to
use this feature, you can just ignore it.
How V-Chip Works
When turned "on," the v-Chip software reads a code that most broadcasters
send with programs. That code tells the software the program's age-based rating
(TV-MA, TV-14, etc.) and content themes [(Violence (V), Adult Language (L),
etc.)]. If you have blocked the rating and/or content themes that the program
contains, you will receive the message, "This channel is not approved for
viewing," when you tune to that particular channel.
Broadcasters are not required to provide content themes, so programs received
with no content themes will only be blocked if you block their age-based rating.
You can also block out programs that have been given a rating of "Not Rated,"
and programs that are considered "unrated" because no code has been sent by
the broadcaster. The TV age-based ratings and content themes you can block
are listed in the following table.
40 Chapter 3
Using the TV's Features
Age-Based Description and Content Themes for Age-Based Ratings
Rating
Mature Audience Only. Specifically designed to be viewed by adults and nlay he unsuitable f_r children
TV-MA under 17. It contains one or more of the foElowing content themes: crude indecent language (L), explicit
sexual activity (S), or graphic violence (V).
Parents Strongly Cautioned. Contains some material that many parents would find unsuitable for children
TV-14 under 14 Parents are strongly urged to exercise greater care in monitoring this program and are cautioned
against letting children under tile age of 14 watch unattended. This program contains _me or more of the
following content themes: intensely suggestive dialogue (D). strong coarse hmguage (1.).intense sexual
situations (S), or intense violence (V).
Parental Guidance Suggested. Contains material that parents may find unsuitahle for younger children. Many
TV-PG parents may want to watch it with their younger children, The program contains one or lnore of the following
content themes: some suggestive dialogue (D), infrequent coarse language (L). some sexual situations (S), or
moderate violence (V).
TV-G General Audience. Most parents would find this program suitable for all ages. It contains
little or no sexual dialogue (D) or situations (S), no strong language (L), and little
or no violence (V).
Directed to Children 7 years and older. Designed for children ages 7 and above. It may be more
TV-Y7 appropriate for children who have acquired the developmental skills needed to distinguish between make-
believe and reality. Themes and elements in this program may include mild fantasy violence (FV) or comedic
violence, or may frighten children under the age of 7.
"{'V-Y /drChildren. Themes and elements in this program are designed for a young audience, including children
from ages 2-6. It is not expected to frighten younger children,
V-Chip TV Rating Limit
The V-Chip TVRating Limit lets you decide which TV programs can and cannot
be viewed.
To set TV programming limits:
1. Choose Parental Controls from the Main menu. If Parental Controls have
previously been locked, you must enter your password. If they are not
locked, you will get a message reminding you that your limits will not be
effective until you lock Parental Controls.
2. Press MENU to continue.
3. Highlight and select V-Chip TVRating Limit.
4. Once you get to the VChip 7_v'Rating Limit screen, use the arrow buttons
and OK on your remote to change the status of a TV program rating or
content theme from View to Block.
The following sections give you more details about how to change the status of
TV program limits.
Chapter 3 41
Using the TV's Features
The V-Chip Rating Limit Screen
The following is an example of where items are located within the Rating Limit screen.
Rating Field
Lets you select f/'om a
list of age based ratings
you can block or view.
Rating Status Field
Lels you selecl whether the status of the age based mtlng limit to
the left is View or Block
Content Themes
Lists I[1_2c(intenl theJn_s yl)u
C4[I block or Vie\ _,
Content Status Fields
Lets you select whidl
contt'nt th_nles to vi_ _. _)r
the selected rating, and
whether the status of the
content theme is currently
View (V) or Block (B)
Rating Settings Area
Lets you see the current block/view state of age-based ratings and
associated content. The View (V) settings are coded in green, and the
Block (B) settings are coded in red.
Rating Rating Content
field status field status fields
When you change the status of arating to
Block, the system will automatically block
higher ratings and all corresponding
content themes.
Blocking Age-Based Ratings
You can automatically block all program ratings above a specified age-based
rating level. For example, if you only want your child to watch programs that
have a TV_G rating and lower (in other words, you want the child to watch
TV G, TV-Y7, and TV-Y), then you need to block out other programming with
higher ratings.
To block programs with higher ratings:
1. First, determine the lowest level rating you don't want the child to watch
(see chart of age-based ratings on next page).
2.
3.
Press the left and right arrow buttons to highlight the Rating field.
Press the up and down arrow buttons on the remote to scroll through the
age-based rating limits. Keep scrolling until the rating corresponding with
the lowest rating you do not want the child to watch appears on the screen.
In the example discussed above, you would scroll through the Rating field
until TV PG appears, since the highest rating you want the child to watch is
TV-G.
42 Chapter 3
Using the TV's Features
Hierarchy of Age-Based Ratings
TV-MA Mature Audience Only
TV-14 Parents Strongly Cautioned
TV-PG Parental Guidance Suggested
TV-G General Audience
TV-Y7 Directed to Children 7 years
and older
TV- Y All Children
Tip
To reset the ratings to View and V, press the RESET
button on the remote,
4.
5.
,
7.
Press the right arrow button to move the yellow highlight to the
Status field.
Press the up or down arrow button to toggle between View and Block. Tile
status for the rating listed to the left and all higher ratings automatically
changes to Block (and B).
Press OK on the remote to return to the menu or exit the screen when you
are finished.
Select Lock Parental Controls from the Parental Controls menu. Enter a
password, and if you have not already set your password, you will be
prompted to enter it again to confirm.
Rating Rating Content
field status field status fields Viewing Age-Based Ratings
After you block age-based ratings, you have the option of changing some of the
ratings back to View.
1. Determine which blocked rating you want to view.
2. Use the up and down arrow buttons to select the rating with a status
of Block.
3. Press the right arrow button to move the yellow highlight to the rating
status field.
4. Press the up button to select View.
Note: The content status fields corresponding to the unblocked rating
become View as well. They and the age-based rating status are the only
fields that automatically change back to View when you complete
this process.
Note." You must remember to lock Parental Controls for rating limits to
take effect.
Content Themes
D Sexually explicit dialogue
L Adult language
S Sexual situations
V Violence
FV Fantasy Violence
TV-Y All Children
Blocking Specific Content Themes
You can block programs based on their content. (Content is represented by the
D, L, S, V, FV and TV-Y on your screen. See the beginning of this section for
details.) When you block a content theme for a particular rating, you
automatically block that content theme for higher rated programs as well.
For example, if you do not want your child to watch programs that have adult
language (L) rated TV-PG or higher, then you could block out all programming
TV-PG and above containing adult language.
(Steps explained on next page)
Chapter3 43
Using the TV's Features
Rating Rating Content
field status field themes
Content
status fields
To block program content:
1. Determine the lowest level of content you don't want the child to watch.
2. Use the up and down arrow buttons on the remote to scroll through the
age-based ratings until the rating that corresponds with the k)west content
you do not want the child to watch appears. (in the example above, you
would scroll through the ratings until the TV-PG rating appeared.)
3. Press the right arrow button to move the highlight to the fieM
corresponding with the content theme you want to block ont.
4. Press the up or down arrow button to change content status from Vto B,
All higher ratings" content theme will automatically change to B.
_. Press OK to return to the menu or exit the screen.
Note." Broadcasters are *lot required to proL,ide content themes or age-
based ratings. Programs receiued with no content themes will on/y be
blocked iJ_ou block their age-based rating.
Note: You must remember to lock Parental Controls for rating limits to
take effect.
Rating Rating Content
field status field themes
Content
status fields
Viewing Specific Content Themes
If you block specific content themes, you have the option of going back and
changing some of the content themes back to (V) Vlem
1. Determine the content themes you want to change to (1I) View.
2. Use the up and down arrow buttons to scroll through the age-based ratings
until the rating whose content theme you want to change to View appears.
3. Press the right arrow button to move the yellow highlight to a particular
content theme status, such as the Bunder language (L) corresponding with
TV-14.
4. Press the up or down arrow button to change its status back to V. Your
child would then be able to watch programs with TV-14 adult language
content, but not programs with TV-PG or TV-MA language content.
Note: Only the content theme status corresponding to TV-14
(L) language changes to (_,9 View. Higher rated content themes, such as
that for TV-MA language, do not change.
V-Chip Movie Rating Limit
You set movie rating limits by blocking movies rated above a specified level,
How to block movie ratings and view movie ratings is explained in the next two
sections.
To access the V-CHIP MOVIE RAT1NG LIMIT menu:
1. Press MENU on the remote control (the TVMAINMENUappears).
2. Select Parental Controls (press 6).
3. Select V-Chip Movie Rating Limit (press 2).
44 Chapter 3
Using the TV's Features
Rating field Rating
status field Blocking Movie Ratings
If you only want your child to watch movies that have a PG rating and lower
(in other words, movies rated PG and G), then you could automatically block
out all other movies with higher ratings.
To block movies:
1, Highlight the Rating field and press the up and down arrow buttons to find
the rating that is the lowest rating you don't want the child to watch. (In
the example above, you would highlight the rating status button
corresponding to PG-13, since the highest rating you want the child to
watch is PG.)
2, Press the right arrow button to highlight the rating Status field. Press the up
and down arrow buttons to change the button from l_'ew to Block. All
higher ratings automatically change to Block.
3. Press OK to return to the menu or exit the screen.
4. If Parental Controls are not locked, you must lock them so the movie rating
limits will take effect.
]Vole: Some movies may be given a Not Rated (NR) rating. After blocking
movie ratings, you must set NR to View separately to view NR movies.
Rating field Rating
status field Viewing Movie Ratings
After you block movie ratings, you bave the option of changing some of the
rating status buttons back to Vieu2
1. Highlight the Rating field and press the up and down arrow buttons to find
the rating you want to view.
2. Press the right arrow button to highlight the rating Status field. Press the up
and down arrows to change the button from Block to Vtew.
For example, if movies with a rating of PG-13 and higher are blocked, you can
change the rating status corresponding with NC-17. Your child would then be
able to watch all movies with a G, PG, and NC-17 Rating.
3. Press OK to exit the screen, and be sure parental controls are locked.
V-Chip Unrated Program Block
Selecting this option lets you decide if programs that the V-Chip recognizes as
"unrated" can be viewed. Note that "unrated" TV programs may include news,
sports, political, religious, local and weather programs, emergency bulletins,
public announcements, and programs without ratings.
VLe_ All unrated programs are available.
BZoc/_ All unrated programs are not available.
!Vote: You must remember to lock Parental Controls.fi)r rating limits to
take effect.
Chapter 3 45
Using the TV's Features
Channel Block
Selecting this option lets you decide what channels can be viewed.
View Makes the selected channel viewable.
Block The front panel and remote control CH (channel) buttons
will tune only to channels that you have marked as View. The
remote will still,tune to the blocked channel if you use the digits to
access the channel, but the channel will he blocked.
Don't forget to lock parental controls after you change the status of
ChannelBlocl_. If you do not, the channel block will not take effect.
Note: If you have a digital cable, box channels 126-999 can be
blocked but will not be removable.fi'om your scan list.
Front Panel Block
Selecting this option lets you block (disable) or unblock (enable) the
TV's front panel. The remote still tunes to any channel. Front Panel
Block can:
• Keep children from watching TV when the parent is not present.
• Keep young children from playing with the buttons.
(When using this as a Parental Control method, you should remove
access to any remote that is capable of operating the television while
you have the front panel blocked,)
Don't forget to lock parental controls after you change the status. If you
do not, the front panel block will not take effect.
Lock/Unlock Parental Controls
Selecting this option lets you lock and unlock parental controls settings
using a password.
If you do not lock parental controls, none of the settings forV-
Chip, Channel Block, or Front Panel Block will take effect.
If you forget your password, simultaneously press and hold MENU on
the television and volume down on the remote for 3 seconds. NotbSmg
appears on the screen, Parental Controls simply unlock and you can re-
enter a password via Lock Parental Controls.
46 Chapter 3
Chapter 4
Using the TV's
Menu System
Chapter Overview:
•How to Use the Different Types of Menus
•Audio Menu
•Picture Quality Menu
•Screen Menu
• Channel Menu
•Time Menu
Changing Entertainment. Again.
47
Using the TV's Menu System
How to Use Your TV's Menu System
You use the buttons on the remote or the front of your TV to access the menu system and
make changes to the settings.
The following pages explain how to use the different types of menus to adjust the features of
your TV.
Feel free to_xplore the menu system. If you're
ever unsure where you are in the menu system,
or you're just plain tired of exploring, press
CLEAR to remove the menus from the screen
and start over again.
Menus
The first menu is called the Main menu. Press MENU on the remote or on the
front panel to bring up the Main menu. Note that holding MENU for 2 seconds
displays the GUIDE Plus+ system.
Menus take you to another menu or a control panel. There are two ways to
select a choice in a menu:
• Use your arrow buttons on your remote control to highlight your choice,
and press OK.
• Press a number button on the remote. For example, in the Main menu press
3 to go straight to the Screen menu.
Exiting a menu
There are three ways to exit a menu:
• Highlight Exit and press OK.
• Press 0 on the remote.
• Press CLEAR. The on-screen displays are cleared from the screen and you
return to TV viewing.
48 Chapter 4
Using the TV's Menu System
Audio Menu
Mute Press OK to reduce the TV's volume to its minimum level. Press OK
again to restore the volume.
Tone Controls Displays the slider controls for adjusting the TV's treble, bass
and balance.
Audio Processor Displays a choice list of available audio modes, which
control tire way the sound comes through your speakers. You can also access
tbe AUDIO PROCESSOR menu by pressing the SOUND button on the remote.
Mono Plays the sound in mono only. Use this setting when receiving
hroadcasts with weak stereo signals.
Stereo Splits the incoming stereo audio signal into left and right channeis..
Most TV programs and recorded materials have stereo audio. The word '"; •
STEREO appears on the TV when you tune to a program that is broadcast in'
stereo.
Expanded Stereo Electronically "widens" sound from stereo broadcasts,
stereo VCRs, digital satellite systems, DVD players, and LaserDisc players
for a fuller, more spacious sound.
Sound Logic" Stereo Reduces the annoying blasts in volume during
commercial breaks, and also amplifies softer sounds in program material•
Eliminates the need to constantly adjust volume control.
Second Audio Program (SAP) Plays the program's audio in a second
language, if one is available. The word SAP appears on the TV when you
tune to a program that is broadcast with SAP information. SAP audio is
broadcast in mono. SAP is also used to broadcast a program's audio with
descriptions of the video for the visually impaired.
Audio Output & Speakers Displays a choice list that lets you turn the TV's
internal speakers on or off, and set the audio outputs to fixed-level or variable
control level.
Variable Output, Speakers On This setting turns the TV's speakers on
and allows variable output from the TV's audio output jacks.
Variable Output, Speakers OffThis setting turns the TV's speakers off
and allows variable output from the TV's audio output jacks. :
Fixed Output, Speakers OffThis setting turns the TV's speakers off and
allows fixed output from the TV's audio output jacks to an external
component such as a surround sound amplifier. With Fixed Ouq)ut On, the
TV's volume control, tone controls, and mute are disabled.
,i.
&
Chapter 4 49
Using the TV's Menu System
To quickly access the Picture Presets menu,
press the RESETbutton on your remote
control.
Picture Quality Menu
Basic Picture Controls Displays the five slider controls for adjusting the way
the picture looks.
Contrast Adjusts the difference between the light and dark areas of
tile picture.
Color Adjusts the richness of the color.
Tint Adjusts the balance between the red and green levels.
Black Level Adjusts the brightness of the picture.
Sharpness Adjusts the crispness of the edges in the picture.
When exiting this menu, tile Save Personal Picture Preset choice list will appear.
You can choose either Yes or No. If you save the settings as a Personal Picture
Preset, the TV will store the settings so you can re-select them quickly if
someone changes the settings.
Picture Presets Displays a choice list that lets you select one of three preset
picture settings: Bright Lighting, Normal Lighting, Soft Lighting or Personal
Picture Preset. Choose the setting that is best for your viewing environment.
Auto Color Displays a choice list that lets you turn on the feature that
automatically corrects the color of the picture. (This is especially useful for
tracking realistic flesh tone colors as you switch from channel to channel.)
Choose On or Off, depending on your preference.
Color Warmth Displays a choice list that lets you set one of three automatic
color adjustments: Coolfor a more blue palette of picture colors; Normal; and
Warm for a more red palette of picture colors. The warm setting corresponds to
the NTSC standard of 6500 K.
Screen Menu
Closed-Caption Display Displays a choice list that lets you choose the way
closed captioning information is shown on the screen.
Off always No captioning information is displayed.
On always Captioning information is shown always, when available.
On when sound is muted Captioning information is shown, when
available, whenever the TV's sound is muted. (To mute the sound, press
the MUTE button.) The captioning information is not displayed when the
sound is not muted.
Closed-Caption Mode Displays achoice list that lets you choose which
captioning mode is used for displaying captioning information.
PIP Closed-Caption Display Displays achoice list that lets you choose the
way PIP closed-caption is shown on the screen.
Off always No PIP closed-captioning information is displayed.
On always PIP closed-captioning information is always displayed.
50 Chapter 4
Using the TV's Menu System
Alternate with PIP button Captioning information is shown, when available, when you
press the PIP button on the remote with the PIP window on the screen.
PIP Closed-Caption Mode Displays a choice list that lets you choose which PIP closed-
captioning mode you want to use to display PIP closed-captioning information.
Menu Language Displays a choice list that lets you select your preferred language for the
menus: Engl{sh, Spanish or French.
Picture Ttlt (Direct View TV 31" or above) Your TV has an extra large picture tube that
makes it vulnerable to the effects of the Earth's magnetic field, You may need to adjust the
picture tilt.
Using Closed Captioning
Many programs are encoded with closed-captioning information, which lets you display the
audio portion of a program as text on the TV screen.
Closed captioning is not available on all channels at all times. Only specific programs encoded
with closed-captioning information are applicable. When a program is closed captioned, the
CC icon is displayed in the channel banner. See Chapter 3 for more information about the
channel banner.
rip
If you don't know which Closed-Caption mode
to use, select CC1. CC1 is probably the mode
that is used in your area. CC2, CC3, and CC4
are reserved for foreign languages, but are
rarely used at this time.
Closed-Caption Modes
The TV offers eight closed-captioned modes, including four text modes.
To set the Closed-Caption Mod_
1. Select Screen from the Main menu.
2. Highlight Closed-Caption Mode and press OK (the Closed-Caption Mode
appears).
3. Highlight your choice and press OK (the Screen menu appears again).
Note: The Text modes cover nearly half of thepicture on the screen to
display the closed-captioned text. Most broadcasters use the CC mode,
which displays a few lines of captions at a time.
Turning off Closed-Caption
1. Select Screen from the Main menu.
2. Press OK to select Closed-Caption Display.
3. Highlight Off Always and press OK. The closed captioning is turned off and
you go back to the Screen menu.
Chapter 4 51
Using the TV's Menu System
To enter a number greater than 99, press and
hold _I"to enter the hundreds digit, then
press the two remaining numbers.
Channel Menu
Signal Type Displays a choice list that lets you select the current antenna
type. This option does not appear when the GUIDE Plus+ system is set up.
UHF/VHFAntenna Choose this if you are currently using an off-air
antenna for TV signals.
Cable TV Choose this if you are currently using cable or a cable box for
TV signals.
Auto ChannelSearch Tells the "IV to search automatically for all tlle channels
available through the antenna input. When the 'IV finds an active channel, it
places it in the Normal channel list; inactive channels (weak stations or
channels with no signal at all) will be removed from the channel list. If you are
using a cable box and have set up the GUIDE Plus+ system, this option does
not appear.
List and LabeLs Displays a control panel that lets you edit your Normal
channel list and choose a six-character label for each channel. Follow the on-
screen directions to enter your channels and other information.
Channel # Use the up and down arrows to scroll up and down through
the channels available via your antenna. You can enter the channel number
directly using the number buttons.
Normal List Only the channels included in the Normal list are available
when you scan up and down using channel up and down. Use the up and
down arrow buttons to indicate whether the channel number indicated is
included (Yes) or is not included (No) in the Normal channel list.
Channel Label Use the up and down arrow buttons to enter a six-
character label for each channel. Hold the button down to scroll quickly
through the characters. The TV can store up to 27 labels in memory.
Auto Tuning Displays a choice list that lets you set up the TV to automatically
tune to the correct input channel when you press a component button (VCR1,
DVD, VCR2, or SAT-CABLE) on the remote. Go to Chapter 3 for details about
the Auto Tuning feature.
Time Menu
Sleep Timer Displays a control panel that lets you select the amount of time
you want to give the 'IV before it shuts itself off.
Schedule Displays a control panel that lets you set up a schedule for turning
the TV on and off automatically. Reminder: you must turn the schedule On. The
on-screen directions guide you through the steps needed to set the schedule.
Set Time Displays a control panel that lets you enter the current time. The on-
screen directions guide you through the steps needed to set the time. If your
GUIDE Pins+ system is set up, it will automatically update your time and this
option will not appear.
52 "Chapter 4
Chapter 5
Other Information
Chapter Overview:
• Troubleshooting
•Care and Cleaning
•Front Panel Buttons
•Limited Warranty
•Accessory Order Form
•Index
Changing Entertainment. Again
53
Other Information
Troubleshooting
Most problcm_ y_,u cn<ountc, xxith your TV you can correct by consulting the Troubleshooting list that follows.
TV Problems
TV won't turn on
Pie's>; Il!:" T\ /_HTb_l_
(;lice k t lie \\ aJi rcc _'pr:_ !_ c _1cxlcl_su/n cl)ld) tl) make sure it is "live" by p[tlgging in something else,
_mc,lhinx ;mfi_ _ , _ ith y<,t_t tcmutc conm)L Press the POWER button on the front of tbe TV. If the TV turns on,
hc'cl,, lily' ]_r! ,.,]ilti_lil> I)ll p =_('1.
lhc IE,_;/[ p:_/ ,_!_<>i;ma_ !_c k_ckcd (disabled). Use the remote control to unlock the front panel controls by selecting the
l.;_,J/! I',l_l_,/ /;r' .L"_I_c"l'_/rc#l/a/ (.7)/_lr_l._ menu and choosing View.
Controls don't work
_ \OLI IC' (l>;illt{ [ll_" I'L'[_]L)I_2 uoI_tro k press the WV button first to make sure the remote is in TV mode,
The, t_om panel conlrols _1]_ Ix, locked (disabled). Use the remote control to unlock the front panel controls by selecting the
t'r<n_! l'_l_t_,l IUoc_, in Ihe Par_.ntal Co_ttt-uls menu and choosing View.
] nplug the F_ tkr t_ o minutes and then plug it back in. Turn the TV on and try again.
TV turns off while playing
Schcdtdcd t)ll fun_ri_r_ m:_y have been activated. Go to p. 52 for instructions.
I ]c'¢/_>rlic p_<}te,'r<_*_vi_cuit I/1:1_have been activated because of a power surge. Wait 30 seconds and then turn the TV on
;t_:tir! II this hal_!_cns {requent]y. the w>kage in your house may be abnormally high or low.
TV turns on unexpectedly
&hcdul_'d On or Watch from the GUIDE Plus+ system may have been activated. Go to p. 52 for instructions.
Blank screen
Make stlre tile conlponent connected to the TV is turned on.
Try another channel.
Pi_'ss RESET, in case the picture controls are set too low.
When I turn on the TV an icon is moving on the screen
Make sure you ha_e removed the Demo Pin from tbe G-LINKjack on the back of your TV.
No sound, picture okay
M_lybe s()tll_¢] is ii_uted. Press the vohln_e tip button to restore sound.
Maybe speakers arc tut_;ed off. Check tbe Audio Output and Speakers control panel in the Audio menu. Go to p. 49 for
detailed inslrtlt tiolls
If using S-V!I)PO cables to connect a component, remen_ber to also connect the component's left and right Audio Output Jacks
to the T\'s leIi and rigl_t INPUT Jacks.
Can't select certain channel
( :hanncq inay be bk)cked or not approved in the Parental _ontrols menu.
11using :i \'CR, make stue the TV/VCR button on the VCR is in the correct mode (press tbe TV/VCR button on your VCR).
Noisy stereo reception
"1'11_'statJol] mJght 1)_ weak Press the _OUND button oll your remote control to change fron__ stereo to mono.
54 Chapter 5
Other Information
Troubleshooting
No picture, no sound but TV is on
Maybe the cable/air setting is set to the wrong position. Select GUIDEPlus+ ML,ml fronl, the Main nlcnu, s,.l_._t
the Setupoption, and provide the correct information on the following screens. Go to pages I6-17 fi>]d,'lailed in_ltU_li<n/s
The channel might be empty -- change channels.
If you're watching your VCR and it's connected with coaxial cable to the CABLE/ANTENNA iack. tune the 'D: to channel 3 _,_ i
(whichever channel is selected on the 3/4 switch on the back of your VCR). Also check to make suze the TV\CR hum_.._ ,,r_ _l]v
VCR is in the correct mode (press the TV/VCR button on your VCR).
Sound okay, picture poor
• Check antenna connections. Make sure all of the cables are firmly connected to the jacks
Try adjusting sharpness function to improve weak signals. Go to page 50 for more instructions
Black box appears on the screen
Closed-captioning might be on. Check the Closed-Caption Display control panel in the J;cr_,_,nmenu. _}o t_) page _0 f_ morv
instructions.
Every time I turn on the TV, the Guide is on the screen
• The GUIDE Pins+ system automatically appears on the screen when you use the TV button on the r{'mole to turn on tl_e TV "_ntJ
can turn off this feature by pressing GUIDEon your remote control and then select the Menu bar Press the light aH<)xx butt_m t_
select Setup. Choose Review options and select OFF.
GUIDE Plus+ System Problems
GUIDE Plus+ setup won't switch to channel 9 for VCR and/or channel 02 cable box
Make sure you have removed the Demo Pin from the G-LINKjack. Cbeck to see if the G-LINK_and_ mc p, _sit],_nedcolrc'ctl_ in
front of components' remote sensors.
GUIDE Plus+ system control of cable box is slower than direct control of the box itself. Keep this in mind _\hen changing channels
You may have an incorrect GUIDE Plus+ Channel Lineup. The guide may get out of sync with the cable provider tse the (;[ll)k
Plus+ Setupin the GUIDE Plus+ Menu to change the zip code to 99999. Turn the TV off for 10 minutes. Use Setu I) again to change
the zip code back to the correct value. If asked, be sure to select the correct channel lineup from the on-screen list
Program information doesn't download
Review your setup information and make sure it's correct. Press MENU on the remote and select GUII)£'Ph_s+&'/up. (1o to page 1(_
for detailed instructions about the GUIDE Plus+ Setup menus,
The TV must be off to download information, Leave your TV off overnight, for at least 10 hours, to recelxc the initial doxxnload for
your area.
If you're using a cable box, leave it on so you can receive program information.
Scheduled Watch or Record doesn't occur
Check Schedule for timer conflicts. Go to page 52 for instractions.
Make sure the wands of the G-LINK cable are placed in front of the remote sensoi{s) on the con/ponentIsl
• Make sure your VCR is turned off during the time you've scheduled to record a program because the s) stem turns the VCR on when
it starts recording (if it's already on when recording starts, the system will turn it off).
Make sure there is a tape in the VCR and that the VCR is connected properly.
• Be sure that you set up the VCR in the GUIDEPlus+ Setup menus. If you don't complete the C?_*{/ilgHll*l/_/i_r¢1I"CRsteps
successfully, the Record option won't be available. Go to p. 18 for detailed instructions.
If a cable box is attached to your 'IV, make sure you set it up correctly in the GUlI)k'l'lus+ Sehq_ menus. 11o t<_page 16 17 for
detailed instructions.
Chapter 5 55
Other Information
The Remote Control Doesn't Work
SOlt/t, thJng nlight ]'*eI_etween tile remote and the renlote sensor on the component. Make sure there is a clear path.
Maybe the remote isn't aimed directly at the component (TV or VCR) that you're trying to operate.
Maybe remote is not in TV Mode. Press the TV button so remote will control TV.
Maybe batteries in rentote are weak, dead or installed incorrectly. Put new batteries in the remote. (Note, if you remove the
batteries, you ntay have to ieprogram the remote to operate other components.)
You might need to drain the remote's microprocessor: remove batteries and press the numher 1 button for at least 60 seconds.
Release tile 1 button, replace the batteries, and (if necessa W) program the remote again.
PIP (Picture-In-Picture Feature) Doesn't Work
The PIP [;-_ature on this "I'Vonly works if you connect a second video source (like a VCR or satellite receiver), to your TV with audio/
\idco cables. If you use a cable box, you May need extra equipment. Contact your cable company and/or go to page 12 for more
details about a cable box connection.
Make sure the remote is in the right mode. For example, once you turn on the VCR with the VCR1 button, you can't SWAP the
pictures until you put the remote in TV mode. Just press the TV button.
No signal or bad reception? Most VCRs and satellite receivers have an antenna or "IV button. If your, cable or off-air antenna goes into
yoLtr VCR or satellite receiver, then into your TV, try pressing the antenna or TV/VCR button on the front of the component.
Tip: If programmed n) control your VCR, the ANTENNA button on the remote acts as a TV/VCR button.
Problems with V-Chip/Parental Controls
The rating limits don't work
You must lock the settings. Go to the TVMAINMENU(press MENU on your remote), select Parental Controls (press 6 on your
remote), select Lock Parental Controls (press 6 on your remote).
I don't remember my password and I want to unlock the TV
If you forget your password, simultaneously press and hold MENU on the television and volume down on the remote for 3 seconds.
Nothing appears on the screen, Parental Controls simply unlock and you can re-enter a password via Lock Parental Controls.
The V-Chip won't let me watch a program even though it's not rated as violent.
Maybe the movie was given an NR (Not Rated) status. After you block movie ratings, you must set NR to View separately in order to
view movies with an NR rating.
56 Chapter 5
Other Information
Care and Cleaning
CAUTION: Turn OFF your TV before cleaning.
You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet
to help assure adequate ventilation.
The TV's screen may be cleaned with asoft, lint-free cloth as weU. Take care not to scratch or mar the screen. If
necessary, you may use a cloth dampened with warm water.
Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. These types of cleaners
will damage the TV.
While cleaning do not spray liquid directly on the screen, or allow liquid to run down the scret:n and inside tile "I_'. Also,
avoid placing drinks or vases with water on top of the TV. This could increase the risk of fire or shock hazard or damage to
the TV.
Caution: If fixed (non-moving) images are left on the screen for long periods, they may be permanently imprinted on the
picture tube. Such images include network logos, phone numbers, and video games. This damage is not covered by your
warranty. Extended viewing of channels displaying these images should be avoided.
Front Panel
If you can't find your remote control you can use the buttons on your TV to operate many of the TV's features.
MENU Brings up the TV MAIN MENU. When in the menu system, it selects highlighted items. Also returns you to the
previous menu. Press and hold MENU for two seconds to access the GUIDE Plus+ system.
CH- Scans down through the current channel list. When you're using the TV's menu system, it acts like the arrow down
button on the remote control.
CH +Scans up through the channel list. When you're using the TV's menu system, it acts like the arrow up button on the
remote control.
VOL- Decreases the volume. When you're using the TV's menu system, it acts like the left arrow button on the
remote control.
VOL + Increases the volume. When you're using the TV's menu system, it acts like the right arrow button on the
remote control.
POWER Turns the TV on and off.
Chapter 5 57
Other Information
RCA TV Limited Warranty
What your warranty covers:
Any defect in materials or workmanship.
For how long after your purchase:
• 90 days for labor charges.
• One year for parts.
Two years for the picture tubes.
The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm,
whichever comes first.
What we will do:
• Pay any Authorized RCA Television Service Center the labor charges to repair your television.
• Pay any Authorized RCA Television Service Center for the new or, at our option, refurbished replacement parts and
picture tubes required to repair your television.
How you get service:
• For screen sizes of 26" and smaller: Take your RCA television to any Authorized RCA Television Service Center and
pick up when repairs are complete.
•For screen sizes larger than 26": Request home or pick up, repair, and return service from any At_thorized RCA
Television Service Center, provided that your television is located within the geographic territory covered by an
Authorized RCA Television Service Center. If not, you must take your television to the Service Center location at your
own expense, or pay for the cost the Service Center may cha_ge to transport your television to and from your home.
• To identify your nearest Authorized RCA Television Service Center, ask your dealer, look in the Yellow Pages, or call 1-
800-336-1900.
• Show the Authorized Service Center Representative your sales receipt or other evidence of purchase date or first rental.
What your warranty does not cover:.
• Customer instruction. (Your Owner's Manual clearly describes how to install, adjust, and operate your television. Any
additional information should he obtained from your dealer).
•Installation and related adjustments.
• Signal reception problems not caused by your television.
• Damage from misuse or neglect.
• Batteries.
Customer replacement fuses.
• Images burned onto the screen.
• A television that has been modified or incorporated into other products or is used for institutional or other commercial
purposes.
• A television purchased or serviced outside the U.S.A.
• Acts of God, such as but not limited to lightning damage.
Product registration:
-Please complete and mail the Product Registration Card packed with your TV. It will make it easier to contact you
should it ever be necessary. The return of the card is not required for warranty coverage.
How state law relates to this warranty:
• This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.
If you purchased your television outside the United States:
• This warranty does not apply. Contact your dealer for warranty information.
Service calls which do not involve defective materials or workmanship are not covered by this warranty. Costs of
such service calls are the sole responsibility of the purchaser.
58 Chapter 5

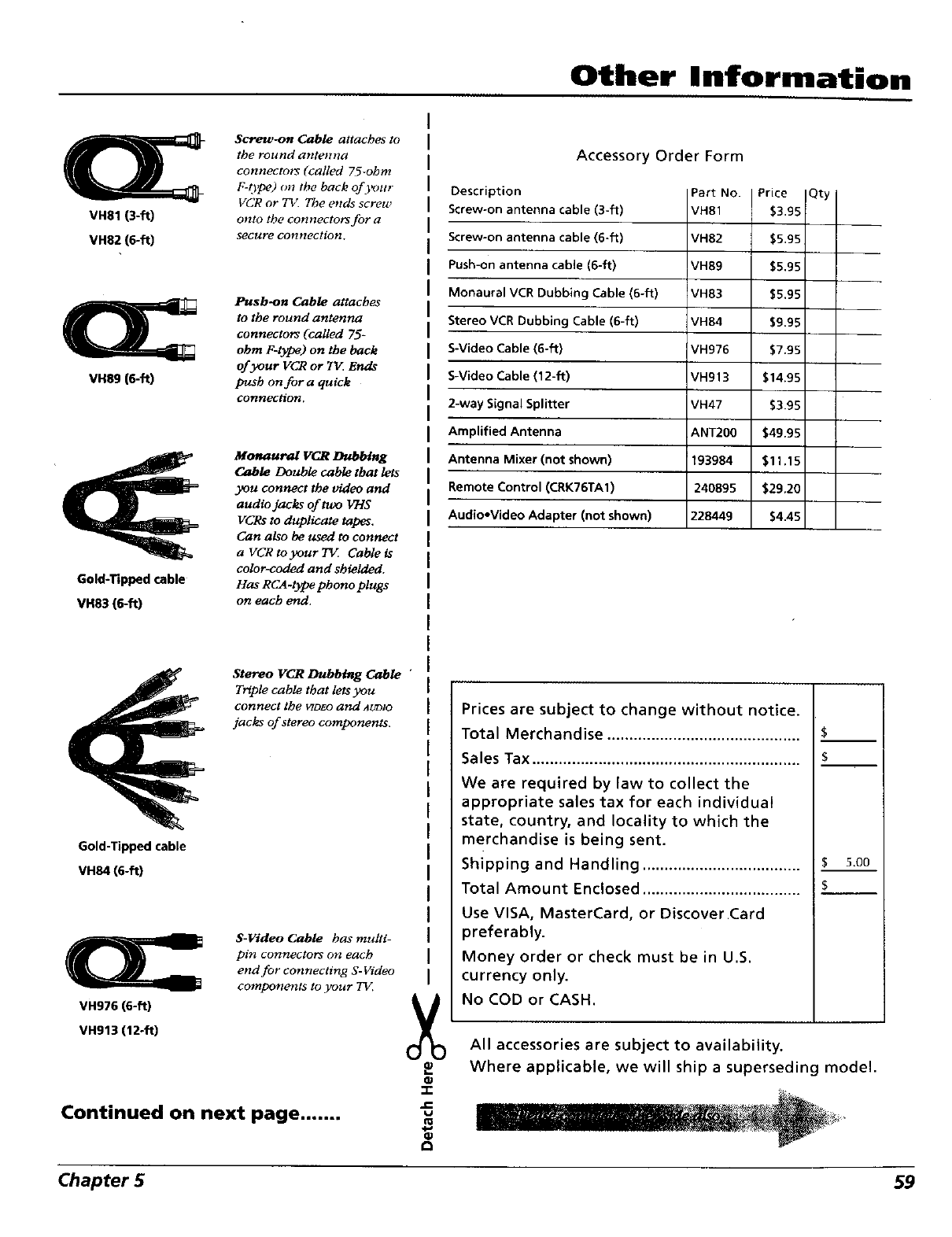

Other Information
VH81 (3-ft)
VH82 (6-ft)
Screw-on Cable attaches to
the round antenna
connectors (called 75-ohm
F-Ope) on the back of 3_mr
VCR or T_ The e_lds screw
onto the connectors for a
S_cure connection.
VH89(6-ff)
Push-on Cable attaches
to the round antenna
connectors (called 75-
ohm F-type) on the back
of your VCR or TI_ Ends
push on for a quick
connec_ogg ,
Gold-Tipped cable
VH83 (6-ft)
Monaur_d VCR Dubbing
Cable Double cable that lets
you connect the video and
audio jacks of two VHS
VCRs to duplicate tapes.
Can also be used to connect
a VCRtoyourTl_ Cablels
color-coded and shielded.
Has RCA-type phono plugs
on each end.
Stereo VCR Dubbing Cable '
Triple cable that lets you
connect the _DEO and a_lo
jacks of stereo components.
Gold-Tipped cable
VH84 (6-ft)
VH976 (6-ft)
VH913 (12-ft)
S-Video Cable has multi
pin connectors on each
end for connecting S- Video
components to your TE
Continued on next page .......
3:
J=
,iw
r_
Accessory Order Form
Description
Screw-on antenna cable (3-ft)
Screw-on antenna cable (6-ft) VH82
Push-on antenna cable (6-ft) VH89
Monaural VCR Dubbing Cable (6-ft) VH83
Stereo VCR Dubbing Cable (6-ft) VH84
S-Video Cable (6-ft) VH976
S-Video Cable (12-ft) VH913
2-way Signal Splitter VH47
Amplified Antenna ANT200
Antenna Mixer (not shown) 193984
Remote Control (CRK76TA1) 240895
Audio-Video Adapter (not shown) 228449
$5.95
$5.95
$5.95
$9.95
$7.95
$14.95
$3.95
$49.95
$11.1s
$29.2O
$4.45
Prices are subject to change without notice.
Total Merchandise ............................................ $
Sales Tax .............................................................. $__
We are required by law to collect the
appropriate sales tax for each individual
state, country, and locality to which the
merchandise is being sent.
Shipping and Handling ..................................... $ 5.oo
Total Amount Enclosed .....................................
Use VISA, MasterCard, or Discover Card
preferably.
Money order or check must be in U.S.
currency only.
No COD or CASH.
All accessories are subject to availability.
Where applicable, we will ship a superseding model.
%
Chapter 559
Other Information
Charge your order on your VlSA,
MasterCard, or Discover Card by
filling in below
USE YOUR CREDIT CARD
IMPORTANT: Copy complete account number -,..--F,--V.t_._.
from your VISA card
F-1-1- gl--r-1F-FT-1
My card expires: _
IMPORTANT: Copy complete account number
from your MasterCard
N-rs-q r--r--FT-1
Copy Number
above your
narlle on
MasterCard
My.card [-"_ [""_
expires:
IMPORTANT: Copy complete account number
from your Discover Card
FS-FF1FFS-q-9N-FT-1
My card expires: _
AUTHORIZED SIGNATURE
(Credit card order will not be processed without signature)
Print or type your name and _ A complete and correct
address clearly. _. order will save you days
Yof waiting.
Name"
Street:
Apt:
City:
State: Zip:
[.
Daytime phone number:
Please make sure that both sides of this form
have been filled out completely.
• Allow 4 weeks for delivery.
• All accessories are subject to availability,
• Prices are subject to change.
2-way Signal Splitter
Helps )_)tt connect a second TV
or VCR.
Splitter VH47
Amplifted Antealla
Allows you to quickly switch
from the atztenna signal to the
cable or satellite signal without
disconnecting the antenna.
ANT200
"D'_'D
-], j"y
JJD3
/
CRK76TA1
Remote Control
This is the remote control that
came pacbed with your TK
Replacements or spares can be
ordered as needed.
To Order
To place your order by phone, have your Visa,
MasterCard or Discover Card ready and call the toll-free
number listed below.
Use this number only to place an order for accessory
items listed on this order form.
1-800-338-0376
To place your order by mail, detach and mail the
completed order form with credit card information,
money order or check in US currency (made payable to
Thomson Consumer Electronics, Inc.) to the following
address:
I
Video Accessories
PO Box 8419
Ronks, PA 17573
Z
u
iIJ
60 Chapter 5
Index
A
Accessories 59
Advanced connections 11, 12
Age-Based Ratings 40
ANTENNA button 22
Arrow buttons 22
Audio
Menu 50
Output Volume & Speakers 49
Processor 49
Audio/Video cable 7
Auto
Channel Search 15, 52
Color 50
Tuning 52
DVD Channel 39
SAT/CABLE Channel 39
VCR Channels 39
AUX (auxiliary) button 22
B
Basic
connections 8, 9
Picture Controls 50
Batteries for the remote 14
Black Level 50
Block
Age-Based Ratings 42
Front Panel 46
Movie Ratings 45
Specific Content Themes 43
V-Chip Unrated Program 45
Buttons, remote control 22
C
Cable Box
code list 26
connecting 12
Cables
Audio/Video 7
coaxial 7
G-LINK 7
S-_ldeo 7
CC (Closed Captioning) 51
CH +button 22
CH - button 22
CH CTRL (channel control)
button 22
Channel
Banner 35, 36
Block 46
Labels 52
Lineup 28
Menu 52
Search 15
Channels menu 34
CLEAR button 22
Closed Caption
Display 50
Mode 51
Coaxial cable 7
Chapter 5
Code list
Cable Box 26
Satellite Receiver 26
VCR 26
Color Warmth 50
Connections
TV + VCR 8
TV + VCR + Cable Box 12
"IV + VCR + Satellite Receiver
11
TV Only 9
Content Themes 40
Contrast 50
D
DemoPin 6, 8, 9, 11, 12
DVD
button 22
Channel 39
F
Finding the sensor 13
Fixed
Images 57
Output, Speakers Off 49
FORWARD button 22
Front panel 57
block 46
G
G-LINK
cable 7
connecting 13
GO BACK button 22
Grid Guide menu 29
GUIDE button 22
GUIDE Plus+ system
Channel Lineup 28
Channels 35
Downloading Information 28
Setup 15
I
INFO button 22
Interactive setup 15
L
L.E.D. button 22
Labels 52
Language 51
Languages
Selecting 15
Locating remote sensor 13
Lock, Parental Controls 46
M
Memory 52
Menu
Audio 49
Channel 52
Channels 34
Grid Guide 29
Language 51
Messages 33
News 32
Picture Quality 50
Schedule 32
Screen 50
Setup 34
Sort 31
Time 52
MENU button 22
Menus
GUIDE Plus+ System setup 15
Messages menu 33
Mono 49
Mute 49
MUTE button 22
N
News menu 32
Normal List 52
Number buttons 22
o
OK button 22
ON-OFF button 23
P
Parental Controls
Locking, Unlocking 46
menu 40
PAUSE button 23
Presets 50
Quality Menu 50
Tilt 51
PIP (Picture-In-Picture)
button 23
buttons 37
Troubleshooting 38
Using 36
PLAY button 23
R
Rating Limits
movies 44
TV 41
REC-VCR+ button 23
Remote, batteries 14
Remote sensor 13
RESET button 23
REVERSE button 23
s
S-VIDEO
cable 7
SAP 49
SAT*CABLE button 23
SAT/Cable Channel 39
Satellite Receiver
code list 26
connecting 11
Schedule
menu 32
time 52
Screen Menu 50
Second Audio Program (SAP)
49
Set
DVD Channel 39
SAT/CABLE Channel 39
Time 52
VCR1 Channel 39
VCR2 Channel 39
Setup
GUIDE Plus+ system
menus 15
menu 34
Sharpness 50
Signal Type
Cable TV 52
UHF/V]-IF Antenna 52
SKIP button 23
Sleep Timer 36, 52
Sort menu 31
SOUND button 23
Stereo 49
STOP button 23
SWAP button 23
T
Time
Current 36
Menu 52
Tint 50
Tone Controls 49
Troubleshooting 54
TV
button 23
connecting 9
O
UHF/VHF Antenna 52
Unlock, Parental Controls 46
V
V-Chip 40
Age-Based Ratings 40
Blocking Movies 44
Content Themes 40
Variable Output, Speakers
On, Off 49
VCR
1 Channel 39
2 Channel 39
code list 26
connecting 8
VCR1 button 23
VCR2 button 23
VOL+ button 23
VOL- button 23
w
Warranty 58
WHO-INPUT button 23 61
:3
_OZ
_-"3
Please do not send any products to the Indianapolis address listed in this manual or on the carton, This will only
add delays in service for your product.
€_ 11"IOMSON CONSUMER ELECTRONICS
10330 North Meridian Street
Indianapolis, IN 46290
©2000 Thomson Consumer Electronics, Inc.
Trademark(s)® Registered
Marca(s) Registrada(s)
Printed in USA MODEL #: 15489490
TOCOM 15489490 F27667
F27668
F32668
F36668
The following materials were used in
printing this publication:
6O%
RECYCLF.9PAPER
MINIMUM20%POSTCONSUMER
