H o

User's G

Jtor

ude

Changing Entertainment. Again.

Important Information

WARNING

To reduce the risk of fire or

electric shock, do not expose

this product to rain or moisture. Refer servicing to qualified service personnel.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

This symbol indicates

important instructions

accompanying the product

personal injury.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

Caution: Using video games or any external accessory with fixed

images for extended periods of time can cause them to be

permanently imprinted on the picture tube (or projection TV picture

tubes). ALSO, some network/program Iogos, phone numbers, etc.

may cause similar damage. This damage is not covered by your

warranty.

Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding and,

in particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

Product Registration

Please fill out the product registration card and return it immediately. Returning the card allows us to contact

you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record

the serial and model numbers in case you need them. The numbers are located on the back of the television.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

G-LINK, VCR Plus+, C3, PlusC0de, GUIDE Plus+, and GUIDE Plus+ Gold are trademarks of Gemstar Development

Corporation.

The GUIDE Plus+ Gold system is manufactured under license from Index Systems Inc.

Thomson multimedia Inc. and Gemstar are not in any way liable for the accuracy of the program information

provided by the GUIDE Plus+ System. In no event shall Thomson multimedia or Gemstar be liable for any amount

representing loss of profits, loss of business, or indirect, special, or consequential damages in connection with the

provision or use of any information equipment, or services relating to the GUIDE Plus+ System.

Introduction

Key Features Overview

Your TV is equipped with features that will add to your TV viewing experience. The following

information summarizes a few of these features. Chapter 3 provides more information about the

rest of the TV's features and how to use them.

On-screen Program Guide

Description: The GUIDE Plus+ system is an on-screen interactive list of

programs and information that is built into your TV. You can scroll through the

guide to see what's on and tune directly to that program from the guide. You

can also browse programs by category with the Sort feature.

When you access the News feature, MSNBC will appear in your video window if

available and display current news stories by headline.

One-Touch VCR Recording is another benefit of the GUIDE Plus+ system. You

don't have to remember to program your VCR or use the menus in your VCR to

set up a recording.

Requ_emen_:

• If there is a Demo Pin in the G-LINK jack on the back of the TV, remove it.

• Complete the on-screen interactive setup. You'll find detailed instructions in

Chapter 1.

• One-Touch VCR Recording: You must connect the G-LINK cable to the TV

and place one of the wands in front of the remote sensor on the VCR.

• If yon have a cable box, connect the G-LINK cable to the TV and place one

of the wands in front of the remote sensor on the cable box.

V-Chip: Parental Controls

Description: You can block programs and movies by content, age-based

ratings, and/or movie ratings.

Requirements:

•Set up the Parental Co_ztrols menn in the TV's main menu (Chapter 3

has details).

• The broadcasters nlust use the rating system when they send the program

to your TV in order for your TV to block the program.

Parental controls must be locked for these settings to take affect.

16:9 Mode

Description: Lets you select a widescreen format for a wider viewing area

using a 16:9 aspect ratio source, such as a DVD player, for display on this 4:3

aspect-ratio TV.

Requirements:

A 16:9 aspect-ratio source, such as a DVD player or HD receiver.

• A 16:9 aspect-ratio disc or signal.

The 16:9 source needs to be set to output a 16:9 format signal.

• The 16:9 mode on the TV needs to be on.

OOMPONENTV,O O,NPO

AOO,Op. P61

High Resolution Input and Component Video

Input Jacks

Description: The HIGH RESOLUTION INPUT jack allows you to connect your

TV to an RGB device or component video device (Y,,Pb•Pr) (with the supplied

adapter cable). The component video inputs can be used to connect a

component video device directly.

Autotuning

Description: Allows you to set up the TV to automatically tune to a specific

channel when you press a certain component button on the remote (VCR1,

DVD, etc.).

Requirement: Set up AutotHm_tg in the TV's menu system. (Chapter 3

has details).

Table of Contents

Introduction

Key Features Overview .................................................................................................... 1

On-screen Program Guide ......................................................................................... 1

V-Chip: Parental Controls ........................................................................................... 1

16:9 Mode ................................................................................................................... 2

High Resolution Input and Component Video input Jacks...................................... 2

Autotuning ................................................................................................................. 2

Chapter 1: Connections & Setup

Things to Consider Before You Connect ......................................................................... 6

Protect Against Power Surges ................................................................................... 6

Protect Components from Overheating ................................................................... 6

Position Cables Properly to Avoid Audio Interference ............................................ 6

Important Stand and Base Safety Information ........................................................ 6

Use Indirect Light ....................................................................................................... 6

Demo Pin .................................................................................................................... 6

Choose Your Connection .................................................................................................. 7

Cables Needed to Connect Components to Your TV ............................................... 7

How to Connect: TV + HD Receiver + VCR + DVD Player ......................................... 8

How to Connect: TV + Satellite Receiver + VCR ..................................................... 10

How to Connect: TV + DVD + VCR .......................................................................... 11

How to Connect: A/V Receiver + Speakers .............................................................. 12

Explanation of Input Jacks and Cables ......................................................................... 13

Why You Should Connect the G-LINK Cable ................................................................. 15

How to Find the Remote Sensor ............................................................................. 15

Placing the G-LINK Wands ....................................................................................... 15

The Front of Your TV ...................................................................................................... 16

Front Inputs .............................................................................................................. 16

Front Panel ............................................................................................................... 16

Plug in the TV ........................................................................................................... 17

Place batteries in the remote .................................................................................. 17

Turn on the TV .......................................................................................................... 17

Complete the Interactive Setup ..................................................................................... 18

Set the Menu Language .......................................................................................... 18

Complete Auto Channel Search .............................................................................. 18

The GUIDE Plus+ System Setup ................................................................................ 19

What to Expect ............................................................................................................... 23

Next Steps ....................................................................................................................... 23

Chapter 2: Using the Remote Control

The Buttons on the Remote Control ............................................................................. 26

Using the INPUT Button ........................................................................................... 27

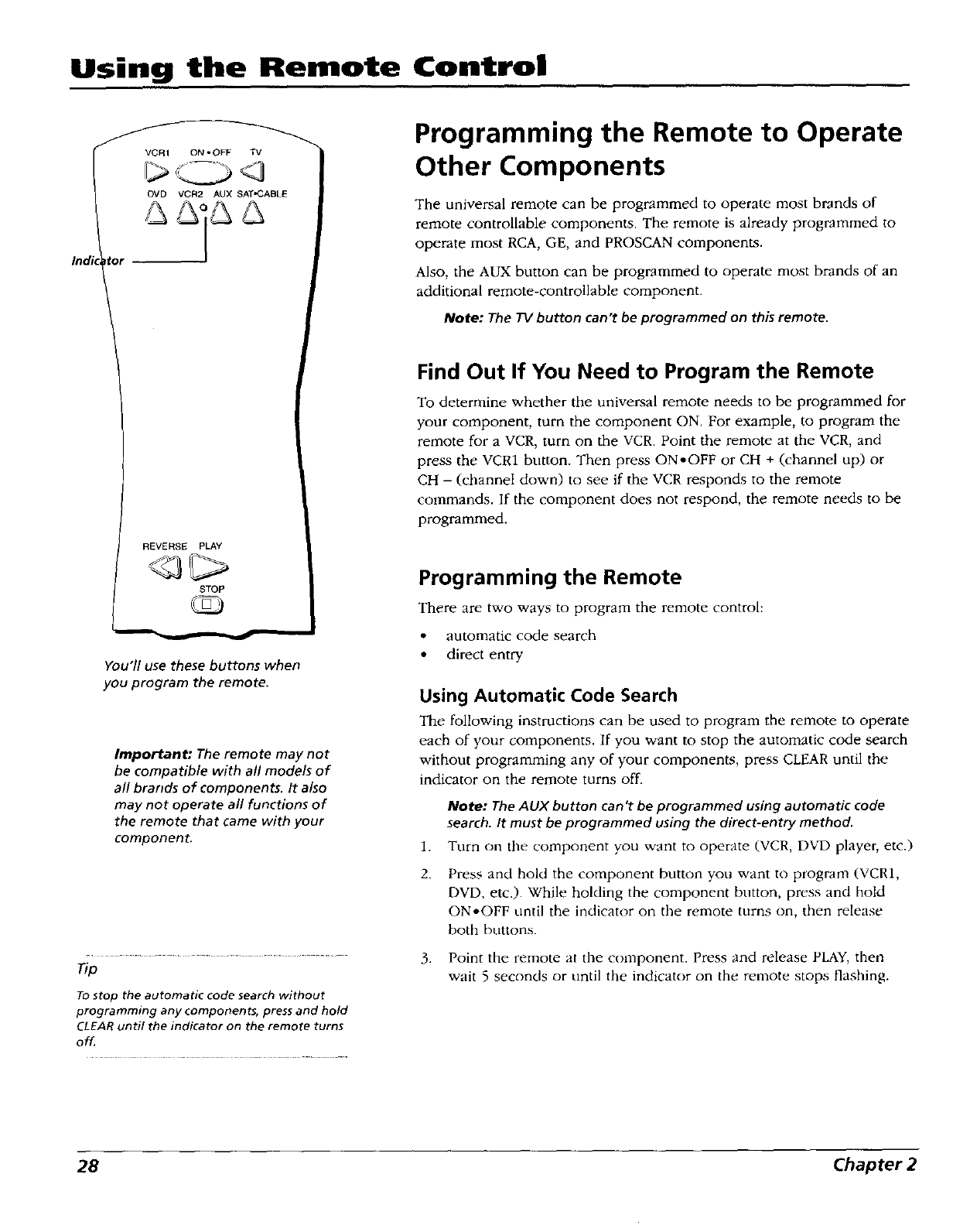

Programming the Remote to Operate Other Components ......................................... 28

Find Out If You Need to Program the Remote ....................................................... 28

Programming the Remote ....................................................................................... 28

How to Use the Remote After You've Programmed It .......................................... 30

Table of Contents

Chapter 3: Using the TV's Features

About the GUIDE Plus+ System ..................................................................................... 34

Downloading Data ................................................................................................... 34

Getting In & Out of the GUIDE Plus+ System ......................................................... 35

The GUIDE Plus+ System Menus .............................................................................. 35

Grid Guide ................................................................................................................ 35

Sort ............................................................................................................................ 37

News .......................................................................................................................... 38

Schedule .................................................................................................................... 38

Messages ................................................................................................................... 39

Editor ........................................................................................................................ 40

Setup ......................................................................................................................... 40

How to Get More Information About an Advertisement or a Program ............... 41

GUIDE Plus+ Menu Items ............................................................................................... 41

Channel Banner .............................................................................................................. 42

Why You Should Use the Autotuning Feature ............................................................. 43

How to Set Up the Autotuning Feature ................................................................. 43

Parental Controls and V-Chip ......................................................................................... 45

How V-Chip Works ................................................................................................... 45

V-Chip TV Rating Limit ............................................................................................. 46

Blocking Specific Content Themes .......................................................................... 48

Viewing Specific Content Themes ........................................................................... 49

V-Chip Movie Rating Limit ....................................................................................... 50

V-Chip Unrated Program Block ............................................................................... 51

Channel Block ........................................................................................................... 51

Front Panel Block ..................................................................................................... 51

Lock/Unlock Parental Controls ................................................................................ 51

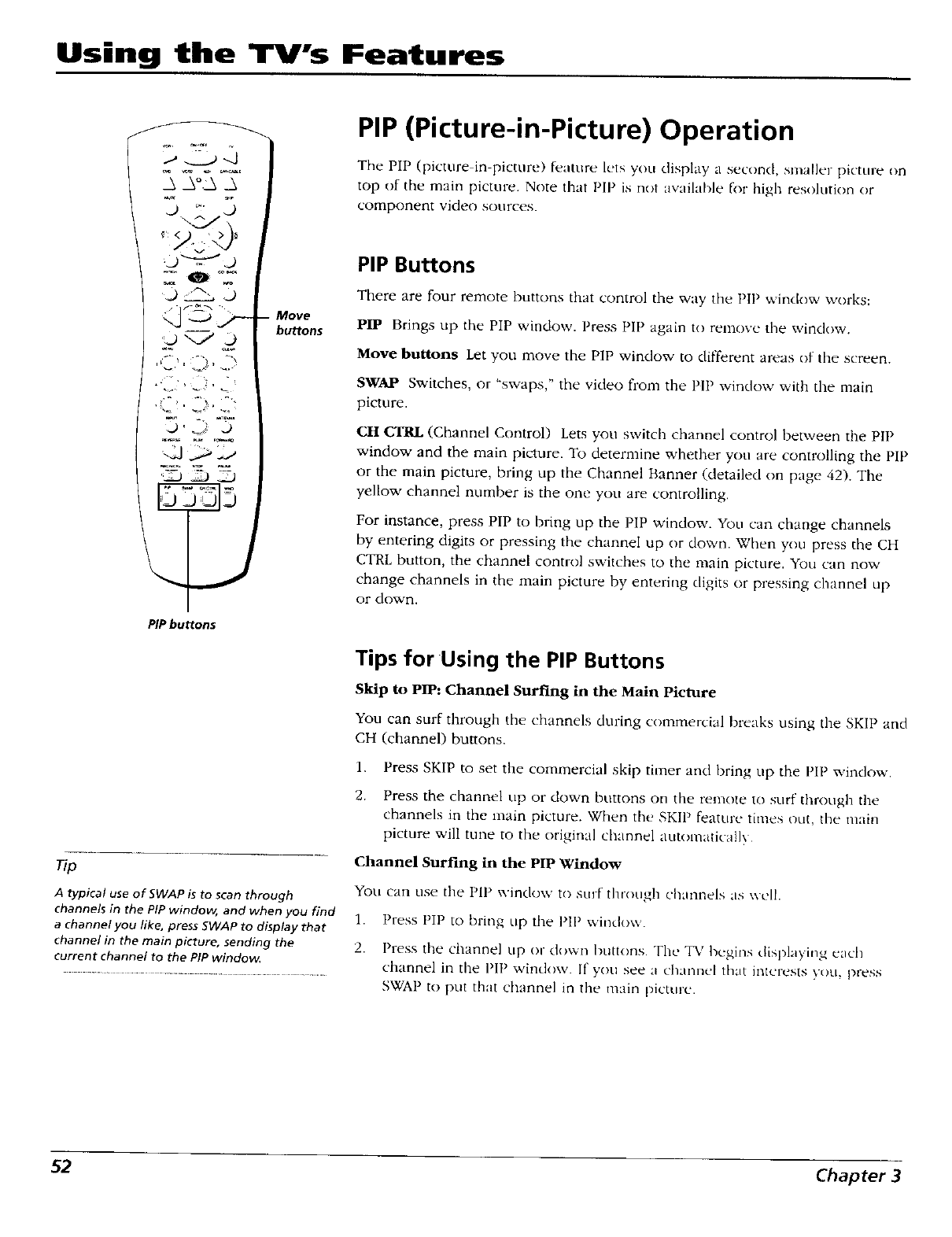

PIP (Picture-in-Picture) Operation .................................................................................. 52

PIP Buttons ................................................................................................................ 52

Tips for Using the PIP Buttons ................................................................................. 52

Chapter 4: Using the TV's Menu System

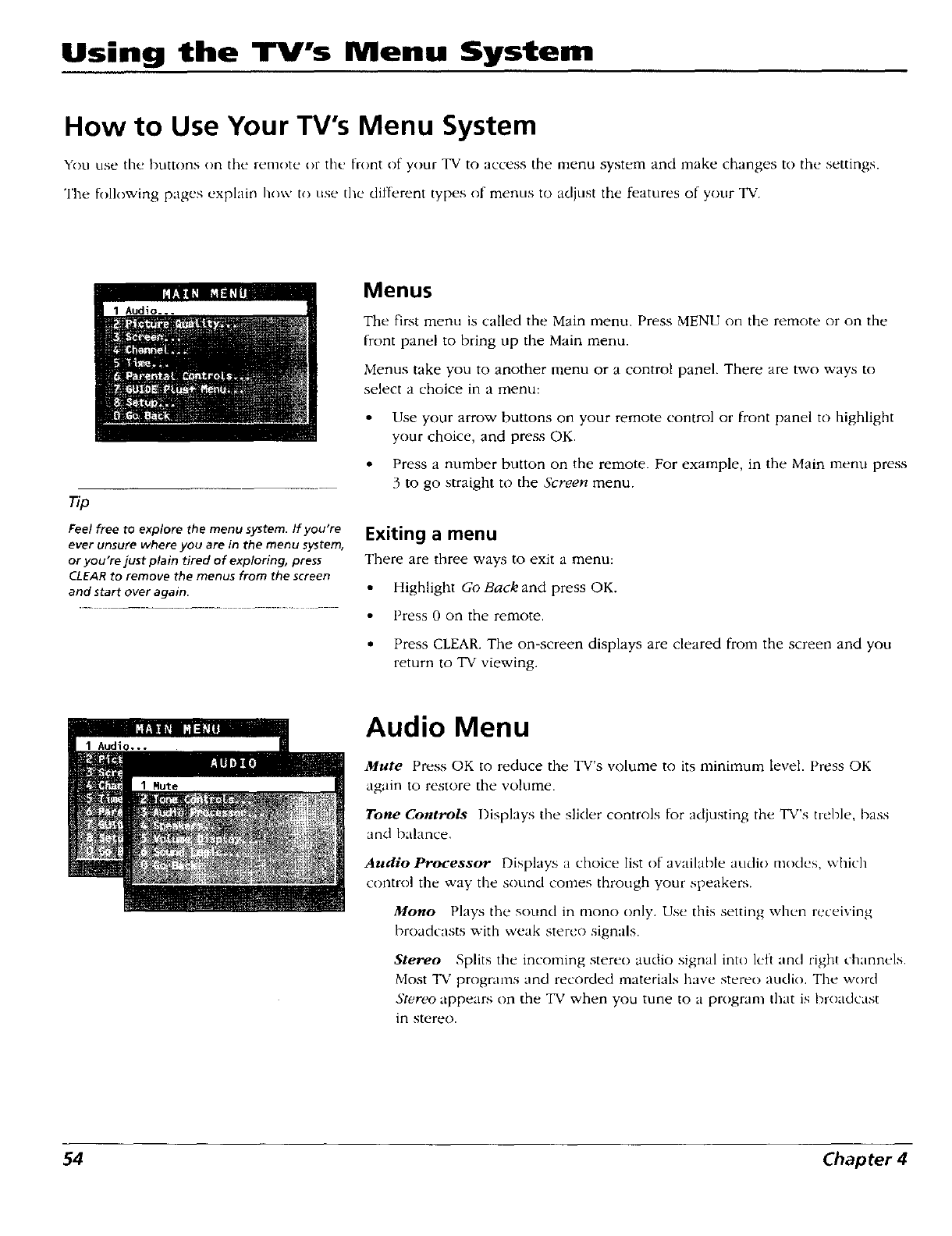

How to Use Your TV's Menu System ............................................................................. 54

Audio Menu .................................................................................................................... 54

Picture Quality Menu ..................................................................................................... 55

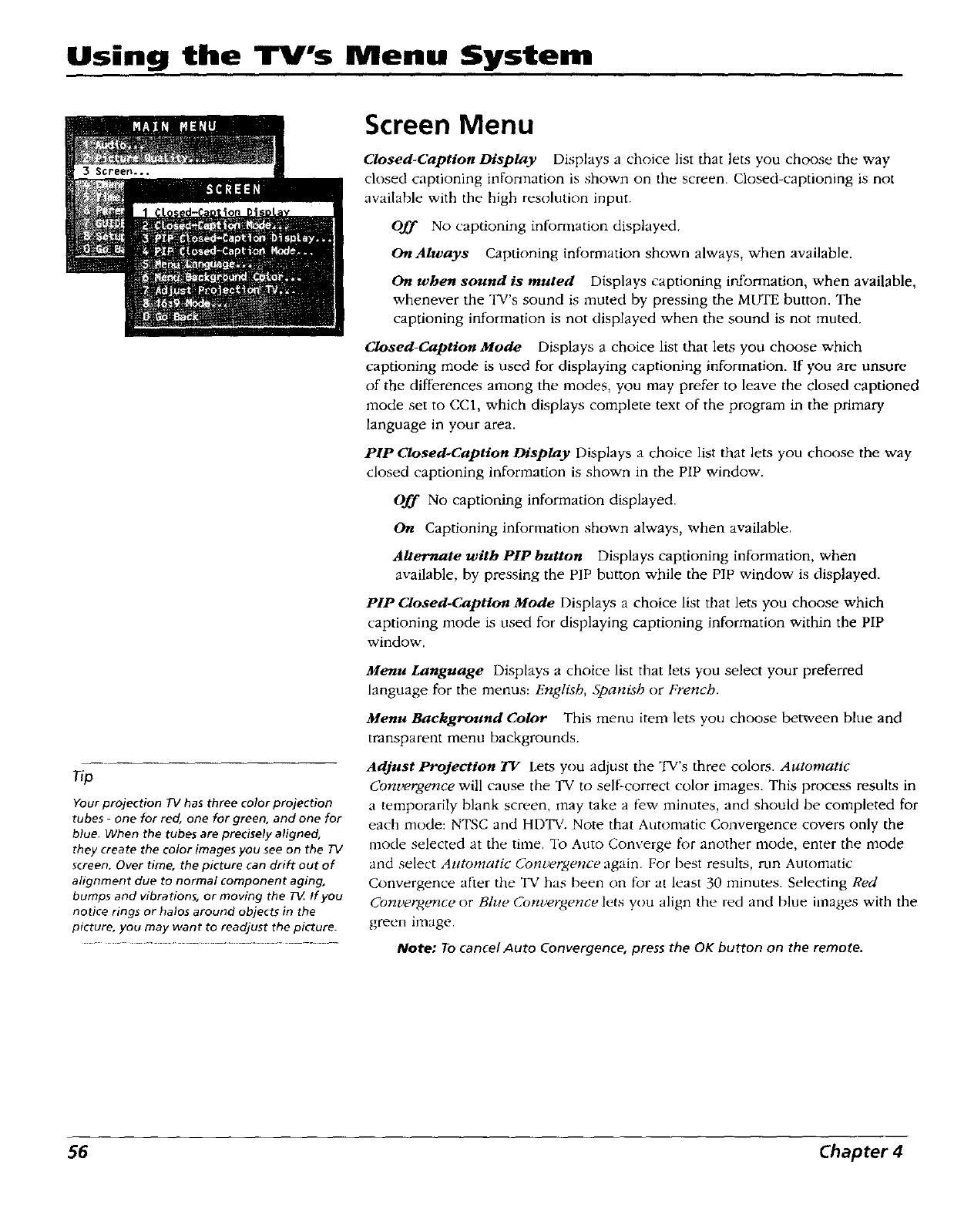

Screen Menu ................................................................................................................... 56

Using Closed Captioning ................................................................................................ 57

Channel Menu ................................................................................................................. 58

Time Menu ...................................................................................................................... 58

Chapter 5: Other Information

Troubleshooting .............................................................................................................. 60

RCA HDTV Monitor Specifications ................................................................................. 63

Care and Cleaning .......................................................................................................... 64

RCA HDTV Monitor Limited Warranty .......................................................................... 65

Index ................................................................................................................................ 74

Chapter 1

Connections 8t Setup

Chapter Overview:

• Things to Consider Before You Connect

•Choose Your Connection

•Connections

•Explanation of Input Jacks and Cables

•Why You Should Connect the G-LINK Cable

•The Front of Your TV

•Plug in theTV

•Put Batteries in the Remote

•How to Use the Remote Control to Complete the Interactive

Setup

•Turn on theTV

•Complete the Interactive Setup

Changing Entertainment. Again.

lllustratiotzs co*_tairt_,d i_z this docttlt_ep_t arc /{)r r{,l_r{,s{,tllcttion oJt/l'. 5

Connections &Setup

Things to Consider Before You Connect

Protect Against Power Surges

• Connect all components before you plug any of their power cords into the wall outlet.

Turn off the TV and/or component before you connect or disconnect any cables.

Make sure all antennas and cables are properly grounded. Refer to the Important

Safeguards sheet packed with your TV.

Protect Components from Overheating

Don't block ventilation holes on any of the components. Arrange the components so that

air can circulate freely.

• Don't stack components.

• When you place components in a stand, make sure you allow adequate ventilation.

• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air

from it won't flow around other components.

Position Cables Properly to Avoid Audio Interference

Insert each cable firmly into the designated jack.

If you place components above the TV, route all cables down the side of the back of the

TV instead of straight down the middle of the TV.

• If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin

lead cables away from audio/video cables.

Important Stand and Base Safety Information

Choose the location for your TV carefully. Place the TV on a stand or base that is of adequate

size and strength to prevent the TV from being accidentally tipped over, pushed off, or pulled

off'. This could cause personal injury and/or damage the TV. Refer to the Important Safeguards

sheet packed with your TV.

Use Indirect Light

Don't place the TV where sunlight or room lighting will be directed toward the screen. Use soft

or indirect lighting.

Demo Pin

If there is a demo pin in the G-LINK jack on the back of the TV, you must

remove it before you connect the G-LINK cable. If there is no demo pin,

just insert the G-LINK cable into the G-LINK jack.

6Chapter 1

Connections & Setup

Choose Your Connection

There are several ways to connect your TV. Please use the following chart to determine which

connection is best for you. Proceed to the appropriate page and connect your TV.

Components Cables

Needed

Coaxial

Audlo/video

G-LINK cable

RGB cable

Con nection

Title

TV + HD Receiver

+ DVD + VCR

Coaxial

Audio/video

G-LINK cable

Coaxial

Audio/video

G-LINK cable

TV +Satellite

Receiver + VCR

TV + DVD + VCR

Go to...

page 8

page 10

pages 11

Cables Needed to Connect Components to Your TV

The pictures below show the cables needed for the connections represented in this book.

Note: Pleaselocate the G-LINK cable (provided) when you're getting ready to set up your T_ You need to connect this

cable to your TV and to your VCRandlor cable box in order for all of the features of the program guide to work

properly.

G-LINK cable Audio/Video cables Coaxial cable S-Video cable Component Video

(Y-Pb*Pr) cables

High Resolution (RGB to RGB) cable High Resolution to Component Video

adapter (RGB to Y=Pb=Pr) cable

Chapter 1 7

Connections 8= Setup

,jc_,

_HDTV MONITOR

HD RECEIVER

How to Connect: TV + HD Receiver + VCR + DVD Player

1. Connect your DVD Player to your TV.

A. Connect the DVD player's audio/video outptlt to INPUT3 on the TV using audio/video cables. If your DVD player

has an S-Video output, you can make the video connection by using the S-Video jacks instead.

Notes:

If you are using an S-Video cable, you must also use audio cables. The S-Video cable only transfers video

information.

If your DVD player has a component video output, we recommend you use the component video input on the TV

instead of the standard video or S-Video connection.

Connect your VCR to your TV.

A. Connect a coaxial cable to tile VCRs antenna output and to tile ANTENNA/CABLE INPUT jack on the TV.

B. Cotlnect the VCR's audio/video output to INP1IT1 on the TV using audio/video cables.

Make sure cable or antenna is connected to your VCR.

A. Connect the coaxial cable carrying your television signal (off-air or cable) to tile antenna input on the VCR.

8Chapter 1

Connections & Setup

4, Connect your HD Receiver to your TV.

A. Connect the supplied high resolution cable to your HI) receiver and to the HIGH P,ESOLUTION INPUT on the "IV.

Note: Due to copyright restrictions, you may not be able to view some high definition programs in high definition

format using this product. To view material in standard definition instead, you also must connect the AudiolVideo jacks

to the T_.

B. Connect audio/video cables from the HD receiver's AUDIO OUT (R and L) and VIDEO jacks to the 1NPUT2 AUDIO

and VIDEO IN jacks on the TV.

C. Connect audio cables from the HD receiver's AUDIO OUT (R and L) jacks to the TV's HIGH RESOLUTION AUDIO IN

(R and L) jacks.

D. Connect an optional S-Video cable from the HD receiver's S-VIDEO jack to the TV's S-VIDEO jack.

Note: If you are using an S-Video cable, you must also use audio cables. The S-Video cable only transfers video

information.

Viewing the Components

1. Turn on tire TV and the component(s) you want to view.

2. Press the TV button on the remote control.

3. Press the INPUT button on the remote control to scroll through the video inputs.

• The VCR can be viewed on the VID1 input channel.

• The HD receiver can be viewed on the HiRes (recommended) or VID2 input channel.

• The DVD player can be viewed on the VID3 input channel.

Notes:

•You can set up the TV to automatically tune to the correct input channel. This is called Autotuning. (See Chapter 3

for more information.)

•The TV automatically detects when a component is connected to the HIGH RESOLUTION INPUT jack. To connect a

component video device to this jack, you need to use the supplied RGB-component video adapter cable. The TV

automatically detects and displays the component video signel.

Important: If your RCA or PROSCAN HD receiver switches from a high definition output to a standard definition

output, you will need to switch from the high resolution input channel to the standard definition INPUT2 (VID2)

channel in order for you to view the signal. There are two situations in which this would occur:

When recording from the HD receiver

When a high definition output signal is not allowed by the program provider and/or movie studio for that

particular program

Go to page 15

Chapter I 9

Connections & Setup

HDTV MONITOR

1oo oo

How to Connect: TV + Satellite Receiver + VCR

1. Connect your VCR to your TV.

A. Connect a coaxial cable to the VCR's antenna output and to the ANTENNA/CABLE INPUT jack on thv TV.

B. Connect the VCR's audio/video output jacks to the INPUT1 AUDIO (R and L) and VIDEO acks on the TV using

audio/video cables.

2. Make sure cable or antenna is connected to your VCR.

A. Connect the coaxial cable carwing your television signal (off air or cable) to the antenna repot on the VCR.

3. Connect your Satellite Receiver to your TV.

A. Connect the satellite receiver's audio/video output jacks to the INPUT2 AUDIO (R and L) and VIDEO jacks on the TV

using audio/video cables. If your satellite receiver has an S Video output, you can make the video connection by

using the S-Video jacks instead.

Note: If you are using an S-Video cable, you must also use audio cables. The S-Video cable only transfers video

information.

Viewing the Components

1, Turn on the TV and the conlponentIs) yotl want to view.

2. Press the TV button on tl'4_ r_iI3ot(' control.

3. Press the INPUT button on the remote (ontrol to scroll through the video inputs.

• The VCR can be vie_\cd on the VID1 input channel.

• The satellite receive2" can be viewed on the VI1)2 input channel.

Note: You can set up the TV to automatically tune to the correct input channel This is called Autotuning. (SeeChapter

3for more information.)

Go to page 15

10 Chapter 1

Connections & Setup

° Z

_DVD pLAYER

HD3_/MONITOR

IoI 0o oo

How to Connect: TV + DVD + VCR

1. Connect your DVD Player to your 'IV.

A. Connect the DVD player's audio/video output jacks to the INPUT2 AUDIO (R and L) and VIDEO jacks on the TV

using audio/video cables. If your DVD player has an S-Video output, you can make the video connection by using

the S-Video jacks instead.

Notes:

•IfyouareusinganS-Videocable, youmustalsouseaudiocables. TheS-Videocableonlytransfersvideo

information.

If your DVD player has acomponent video output, we recommend you use the component video input on the TV

instead of the standard video or S-Video connection.

Connect your VCR to your "IV.

A. Connect a coaxial cable to the VCR's antenna output and to the ANTENNA/CABLE INPUT jack on the TV.

B. Connect the VCR's audio/video output jacks to the INPUT1 AUDIO (R and L) and VIDEO acks on the TV using

audio/video cables.

Make sure cable or antenna is connected to your VCR.

A. Connect the coaxial cable carrying your television signal (off air or cable) to the antenna input on the VCR.

Viewing the Components

I. Ttnn on the "l_' and tile component(s) you Want to view.

2. Press the "lag button on the remote contn)l.

3. Press the INPUT button on the remote control to scroll through the video inputs.

• The VCR can be viewed on the VID1 input channel

•The DVI) player can be viewed Cm the VID3 input channel.

Note: You can set up the TV to automatically tune to the correct input channel. This is called Autotuning. (See Chapter

3 for more information.)

Go to page 15

Chapter 1 11

Connections & Setup

How to Connect: A/V Receiver + Speakers

1. Connect either the FIXED or VARIABLE AUDIO OUTPUT from the TV to an A/V receiver using audio cables.

FIXED provides fixed-level audio output from the TV. This audio output is ideal for connecting to an A!V

receiver that has its own volume control.

Note: If you use the fixed audio output jacks, you may want to turn off the volume displayin the Audio menu.

• VARIABLE provides variableqevel audio output. Volume levels are controlled by the volume controls on the 'IV

and TV remote control.

Use speaker wire to connect the TV to external speakers.

• The EXT/INT switch beside the jacks let you turn tile TV's internal speakers on or off. EXT sends audio to

external speakers only. INT sends audio to the TV's internal speakers only.

Note: The external speaker rating is 8 ohmswith 10watts power handling capabilities.

Connect to either FIXED

or VARIABLE Output

Left Speaker

12 Chapter 1

Connections & Setup

Explanation of Input Jacks and Cables

This section describes the jacks and cables you can use to make connectkms. There are several ways to cnnnect

components to your TV.

COMPONENT VIDEO INPUT

AUDIO y P, P. I

Component Video (Y,Pb,Pr) Jacks and Cables

The Y°Pb°Pr jacks allow you to connect an optional component video source,

such as a DVD player. This connection provides optimum picture quality

because the video is separated into three signals. To ensure maximum picture

quality, use three video-grade cables for the connection.

Note: Also,remember to connect the left and right audio cablesbecause

the YoPb,Prcablescarryonly the picture signal, not the sound.

S-Video Jack

S-Video Jacks and Cables

The S-Video (separate video) jacks provide better picture quality than the

regular video jacks (labeled INPUT1 VIDEO; INPUT2 VIDEO; INPUT3 VIDEO)

because the color (chrominance, also called chroma) part of the signal is

separated from the black and white (luminance) part of the picture.

If a component you're connecting to your TV (like a DVD) has an S-VIDEO

jack, connect the DVD to the TV with an S-Video cable (not provided) for a

better quality picture.

Note: Remember to connect the left and right audio cablesbecause the

S-Video cable carries only the picture signal, not the sound.

000

Audio/Video Jacks

Audio/Video Jacks and Cables (RCA-type)

These jacks are used for most audio/video connectkms between components.

The attdio/video jacks are often color coded (yellow for video, red for right

audio, and white lk)r left audio). This is also called composite vide().

Note: If your component has only one input for audio (mono), connect it

to the left (white L/Mono) audio jack on the TV and don't connect the

right audio part of the cable.

Chapter1 13

Connections & Setup

RF Jack

RFJack and Coaxial Cables (F-type)

The RF jack is necessary for reception of off air broadcasts, cable, and satellite

signals.

This iack is required for antenna or cable connectkms. The RF jack on the TV is

labeled ANTENNA/CABLE INPUT.

An RG-6 coaxial cable is required for all satellite signal distribution.

AUDIO OUTPUTS

FIXED VARIABL_

L R L R

F1 L

Audio Output Jacks and the External Speakers Jacks and Switch

These jacks are used to connect your _ to an audio receiver or other audio

processing component. The two types of jacks you can use for audio output are

fixed and variable. "fbu can also connect external speakers directly to the TV, if

you want to use the TV's audio processor.

The FIXED jacks provide fixed-level audio output from the TV. This audio

output is ideal for connecting to an A/V receiver when you want to control the

volume through the A/V receiver.

Note: If you use the FIXEDAUDIO output jacks, you may want to turn off

the volume display in the Audio menu.

The VARIABLE jacks provide variable-level audio output. Volume levels are

controlled by the volume controls on the TV and remote control.

The EXT SPEAKERS jacks let you connect external left and right speakers to the

TV. The EXT/INT switch beside the jacks lets you turn the TV's internal

speakers on or off. EXT sends audio to external speakers only. INT sends audio

to the TV's internal speakers only.

HJGH RESOLUTION

AUDIO INPUTS

High Resolution Input Jack and Cables

This iack lets you connect your TV to an RGB or component video device

(Y*Pb°Pr). How images are displayed, however, depends on other factors such

as the type of device connected to the TV and the media being transmitted.

Notes:

Remember to connect the left and right audio cables because the

high resolution cable carries only the picture signal, not the sound.

•The TV automatically detects when a component is connected to the

HIGH RESOLUTION INPUT jack. To connect a component video device

to this jack, you need to use the supplied RGB-component video

adapter cable. The TV automatically detects and displays the

component video signal.

14 Chapter 1

Connections & Setup

Why You Should Connect the G-LINK Cable

Tile G LINK cable enables the GUIDE Plus+ system (the on-screen interactive program guide) to

work with your VCR and/or cable box.

Cable Box- If your TV is connected to a cable box, you must connect the G-LINK cable to

receive TV program listings for your area and to tune directly to a channel when the program

guide is on your TV screen.

VCR- If your TV is connected to a VCR and you don't connect the G-LINK cable, one-touch VCR

recording won't work. The other features of the guide will work properly, however.

G-LINK wands

If there is a demo

pin in the G-LINK

jack on the back of

the TV, you must

remove it before

you connect the G-

LINK cable. If there

is no demo pin,

just insert the

G-LINK cable into

the G-LINK jack.

Tip

If you don't have both a

cable box and a VCR

connected to your T_,

just coil the cable of the

extra G-LINK wand with

a twist tie and leave it

behind the T_

How to Find the Remote Sensor

You have to place the G-LINK wands in front of the remote sensor on the VCR and/or cable box.

Some cable boxes and VCRs have the remote sensor labeled on the unit. If the remote sensor

isn't labeled on your VCR and/or cable box, you need to use the remote control that came with

the VCR and/or cable box to locate the sensor.

1. Turn off the VCR and/or cable box.

2. Hold the remote control (not the one that came with your TV, but the one that came with

the cable box and/or VCR to which you're attaching the G-LINK cable) so that it is touching

the front of the component.

3. Slowly move the remote control across the front of the component (VCR or cable box) while

you press the power button on and off. Yon must press and release the power button each

time you move the remote (holding down the button won't work).

4. When the component turns on, you've located the VCR's or cable box's remote sensor.

Placing the G-LINK Wands

Place the G_LINK wands in front of the remote sensor on your VCR and/or cable box

approximately one inch away from the remote sensor (see instructions below).

TV Ibl©k p_nll) _

[Onnecl to G-LiNK j_tk

_n the Nck of €hi _.

Chapter 1 15

Connections & Setup

The Front of Your TV

Front Inputs

The TV has front inputs for convenience: one set of audio/video inputs, and a headphone jack. Look for a hinged door and

open the cover. Please note the illustration below shows a Wpical front input layout.

Notes:

•When you plug in headphones, the TV's internal and external speakers are automatically turned off.

• When connecting a device that usesa monaural cable, such as some camcorders, use the Left (mono) input jack to

get sound from both speakers.

Front Panel

If you cannot locate your remote, you can use the front panel of your TV to operate many of the TV's features.

MENU/OK Brings up the Main menu. In the menu system, it selects highlighted items.

CH v Scans down through the current channel list. In the menu system, it points down to items and adjusts menu controls.

CH ^ Scans up through the channel list. In the menu system, it points up to items and adjusts menu controls.

VOL- Decreases the volume. In the menu system, it points left to items and adjusts menu controls.

VOL + Increases the volume. In the menu system, it points right to items and adjusts menu controls.

I:K)WER Turns the TV on and off.

A/V jacks

Headphone jack

MENU"OK CH v CH ^ VOL-- VOL +POWER

The front panel illustration shows a

typical front panel layout. The exact look

may be different from the one on the

front of your T_

If you use the Front Panel Block feature,

the front panel no longer provides

access to the menus. The Front Panel

Block feature disables all front panel

buttons. For more information, see

Chapter 3.

16 Chapter 1

Connections & Setup

Plug in the TV

Plug the fiat end of the cable into the POWER jack on the back of the

TV. Then plug the end of the power cord into an appropriate wall outlet.

Be sure to insert the plug completely.

Put batteries in the remote

• Remove the battery compartment cover from the back of the remote

by pushing down on and sliding off the cover.

Insert 2 "AA" fresh batteries. Make sure the polarities (+ and -) are

aligned correctly.

• Replace the cover.

ON_FF _ --

_,_

OVD VCR2 AUX SAT'CABLE

MUTE SKIP

FETCH _GO BACK

6UID[ INFO

©d2_ ©

D -

-- TV button

--Arrows

How to Use the Remote Control to

Complete the Interactive Setup

The technical term is "Navigation" - how you move through the on-

screen menus. The theory is the same throughout the menu screens:

highlight your choice and select it.

To highlight a menu item, press the arrow buttons on the remote to

highlight one of the items listed on the screen. Use the up or down

arrow button to move up or down. Use the right or left arrow button to

move right or left.

To select the item that you've highlighted, press OK,

Note: Highlighted means that the menu item stands out from

other menu items on the list (appears darker, brighter, or a

different color).

Turn on the TV

Press TV on the remote, or press POWER on the TV's front panel.

Note: Pressing the TV button not only turns on the T_, but puts

the remote into TV mode. "TV mode" means that the buttons on

the remote control operate the TV's functions.

Chapter 1 17

Connections & Setup

To access the setup menus

manually, press MENU and choose

SETUP

Complete the Interactive Setup

The menu system in your TV allows tile TV's features to work properly.

In this book, we call it the "interactive setup" because tile +IWasks you

questions, you answer, and the TV makes the appropriate adiustments.

The first time you turn on your TV, the setup screens appear

automatically.

Set the Menu Language

The first part of the SETUP menu asks you to select your preferred

language for the menu system.

1. Highlight your preferred language for the menu system using the

arrow buttons.

2. Press OK to select that language.

Complete Auto Channel Search

The next part of the SETUP asks you if you want the TV to search for all

channels viewable through your antenna or cable TV system. This is

sometimes called "auto programming."

1. Highlight Yes and press OK to tell the TV to begin searching for

channels. A progress report appears on the screen.

2, When the screen on the TV tells you the search is complete, press

OK (the first GUIDE Plus+ system setup screen appears).

Note: If you skip Auto Channel Search now, you can accessit later

through the Channel menu. See Chapter 4 for more details.

18 Chapter 1

Connections &Setup

If you move to a new zip or postal

code, or if any of your information

changes and you need to access the

setup screens from the TV's main

menu-- press MENU, choose GUIDE

Plus+ Menu, and choose GUIDE

Plus+ Setup, then choose Setup•

The GUIDE Plus+ System Setup

Important: If you have a VCR or cable box connected to the T_,

you need to connect the G-LINK cable to use the GUIDE Plus+

system. Go to page 15.

'l'hu GUll)I_ Plus+ system i_ _ln on-so-icon JntcmctJ_,e pr(_gr:un guide th:ll

lists wh:tt shows :ire on r]_/ in yi)ur ;Ue:L In order to receivu progr_u/1

listings, you need to complete the following steps.

Step 1: Begin Setup

Use d_c :lrrow buttons to high]ight Setup ;rod press OK.

lWhat would you like to do?Setup

__ V_V¢ DemO

O_]ons

JExd

_s up_own to cnoo_

E •

7> :_ • _

Where do you lye?

,/ USA

C_ada

Step 2: Identifying Your TV's Location

L if your country is highlightd, press OK on t]_e remote control

If your c(>unti_i isn't highlighted, press the up or clov, n _lrrow button

on the remote control o highlight your countl y :lnd press OK.

Enter the Z_ code wT_ere your TV

is located:

017 = =

[TSL' lhc' ntlMl)cll}tllIons 011%OLII IL'III()tL' [() t'l]lt'I \011I" zip tout' or

p()sLil code.

Iqc",>, ()K \1 hc'il _,()tl le linished

Note: If your postal code contains letters, press the up and down

arrow buttons on your remote to enter letters, and press the right

arrow button to go to the next space The left arrow button also

moves the highlight to the left.

Chapter 1 19

Connections & Setup

Step 3: Configuring for Cable

'l'ht'ilcxt>,c'rk_'_.(_i_,,.tc't.'ilsask',you al)out)'out(al)[c"',L'IUI) "1'(>>,tq)ply

+torn T\ \,.ith the ¢oHc'ct TV pr<_r+an] listings+, th<._GtIDK Plu_,+ sy_lc, m

ncc'¢lst(>knl)'+vif"y<)utTV is(()Ill]L'¢tc'(.l{(J(.al)Zc'

I II )(ItlF '1_</iS totlnc'tlc'cl to _abk', highlight Y+',+and press (I)K

If "/our TV isn't conllc'ctcd to cable, highlight N(s and press OK.

If you ]ill%c' :t cahlc b<>x connected to this l_,'. highlight Yes and press

OK on your i'elllC)te c:o]/trol.

Note: Tile next series of screens is very important because the

GUIDE Plus+ system must find the correct cable box information in

order to receive the correct TV program listings.

If yOU cl+mt have a cable box connected to this TV, Ilighlight +\Oand

press OK, Then go to page 22.

3 Use the ario',v buttons to highlight yoLtr brand of cable box, and

prt+ss OK.

If yocu bian(t isnt listed, highlight Not Listed and press OK.

-i. Make sure your cable box is on.

-_+ '['Lille tile cable box t{_channel 02 (use the iemote c<mtrolthat CLII]lC

with your cable box, or press the channel buttons on the cable box).

Pres:., O1,{ (the Gt'IDE Plus+ system starts testing codes).

Important: When code testing is in progress, don't touch your T_,

VCR, cable box, or any of the remote controls for these products.

20 Chapter 1

Connections &Setup

cable box to 09?

Yes

I.ix_k at _,our cable b<>× 11il is still on and cl]angud to channel 09,

d_c test,,xas:,uccesslul.llighlight}_,,x,and plc_,s()K.

IIthe c:ll)Icbox did not change tl)channel 9, highlighl,\'r_ IIy_)u

svlccl_\'_,the ",y',Ivm',rillfry:tnodlurc_du.

II the GUII)E Pins+ system cannot recognize your cabk. box aftvr

st:vend tries, a screen stating "Cable Box (VCR) test fifilecl...lqeasu

consult your manual and try again" appears. You have a choice to

either 7)3_ Again or Skip CTlblc, Box S_,tup. I[ you get this message,

you should also:

Double check the brand of your cable box, and try entering it

again.

Check to make sure the G-LINK cable wand is positioned

correctly.

If you choose to skip the cable box or VCP. setup some l:eatures of

the guide may not be available until you successKIlly complete this

procednre.

7. Highlight the channel to which you have to tune your TV in order to

see cable programming, and press OK (a screen appears reminding

you to connect your G LINK cable to your TV and cable box).

Notes:

Channel 03 is the most common.

Choose Videol/AUX if your cable box is connected to your TV

with audio/video cables instead of a coaxial cable. Go to page

13 for pictures of these cables.

Tips

If you're not sure which channel is the cable

box's output channel, consult the owner's

manual that came with your cable box or

contact your cable company

Leave your cable box turned ON to recewe

program information.

Leave your VCR turned OFF to record programs

Chapter 1 21

Connections &Setup

Step 4: Configuring for a VCR

I If your TV is connecl,t,d to a VCR, press OK

If it is not, highlight AL, and p[css OK. (Answering No automatically

skips to th,' end of (;/TII)F. lqus+ setup.)

Use the up and down arrow buttons to highlight the brand of your

VCR that is connected to the TV and press OK.

If your brand isn't listed, highlight Nnt Lisled and press OK.

/Yes

con_at'ulat_ns! Your Setup is

now complete!

'#_t h_ 24 hours, your TV wdl

receive your local lineup and

program information.

3, Tune your VCR to channel 02. Next, turn OFF your VCR. When you

complete these steps, press OK to begin testing•

Important Note: When code testing is in progress, don't touch

your T_, VCR, or any of the remote controls for these products.

4. Look at the front display of your VCIL If your VCR turned on

automatically and changed to channel 09, the test was successful.

Highlight Yes and press OK.

if your VCR did not change to channel 9, highlight No. If you select

No, the system will t*T another code.

If the GUIDE F%s+ system cannot recognize your VCR after several

tries, a screen stating "Cable Box (VCR) test failed...Please consult

your manual and try again" appears. You have a choice to either D3'

Again or Skip _,_'RSetup. if you get this message, you should alsn,:

I)ouble check the brand of your VCR, and t_T entering it again.

Check to make sure the G LINK cable wand is positioned

correctly.

If you choose to skip the cable box or VCR setup some ti:'atures of

the guide may not be available until you successfully complete tills

procedure.

I i "

I W_al would yc.a like to do?

_ . ,,[ Setup

..... V ieW Dern0

Option s

_()lI can chooSg lo \'i_-'\\ :l dcmo oI the (;UII)li Ph_s+ I_.,;llllrcs. \\hith

I/I;ly [akc a lew i//illtl[C', lo ]oa(] [_ v()LI (]o1_ I \\alll to >,co t[l_, (]ulno

light now, highlight l£x_tand plcss OK to ",,.ak h 'IT

22 Chapter 1

Connections 8. Setup

What to Expect

The next time you turn on your TV, the GUIDE Plus+ system will appear on the screen. The following examples explain

what you might see:

• If all of the program information has been sent to your TV, the GUIDE Plus+ system appears with all of your TV

program listings.

If the program information hasn't been sent to your TV yet, an outline of the GUIDE (without "IV program listings) will

appear on the screen. Program information is usually sent to your TV at night.

• If more than one cable company services your area, you may be prompted with a Channel Mapping screen after the

first GUIDE Plus+ system download. You will need to identify your cable company by selecting the correct channel

numbers for the stations in question.

Features of the GUIDE Plus+ system are explained in Chapter 3.

To clear the guide from your screen, press CLEAR or GUIDE on the remote control.

Next Steps

Now that you've finished the Interactive Setup, you're ready to watch TV. This might be a good time to program your

remote control. The remote control that came with this TV can be programmed to operate other components. Go to the

next chapter to find out how to program your remote.

Chapter 1 23

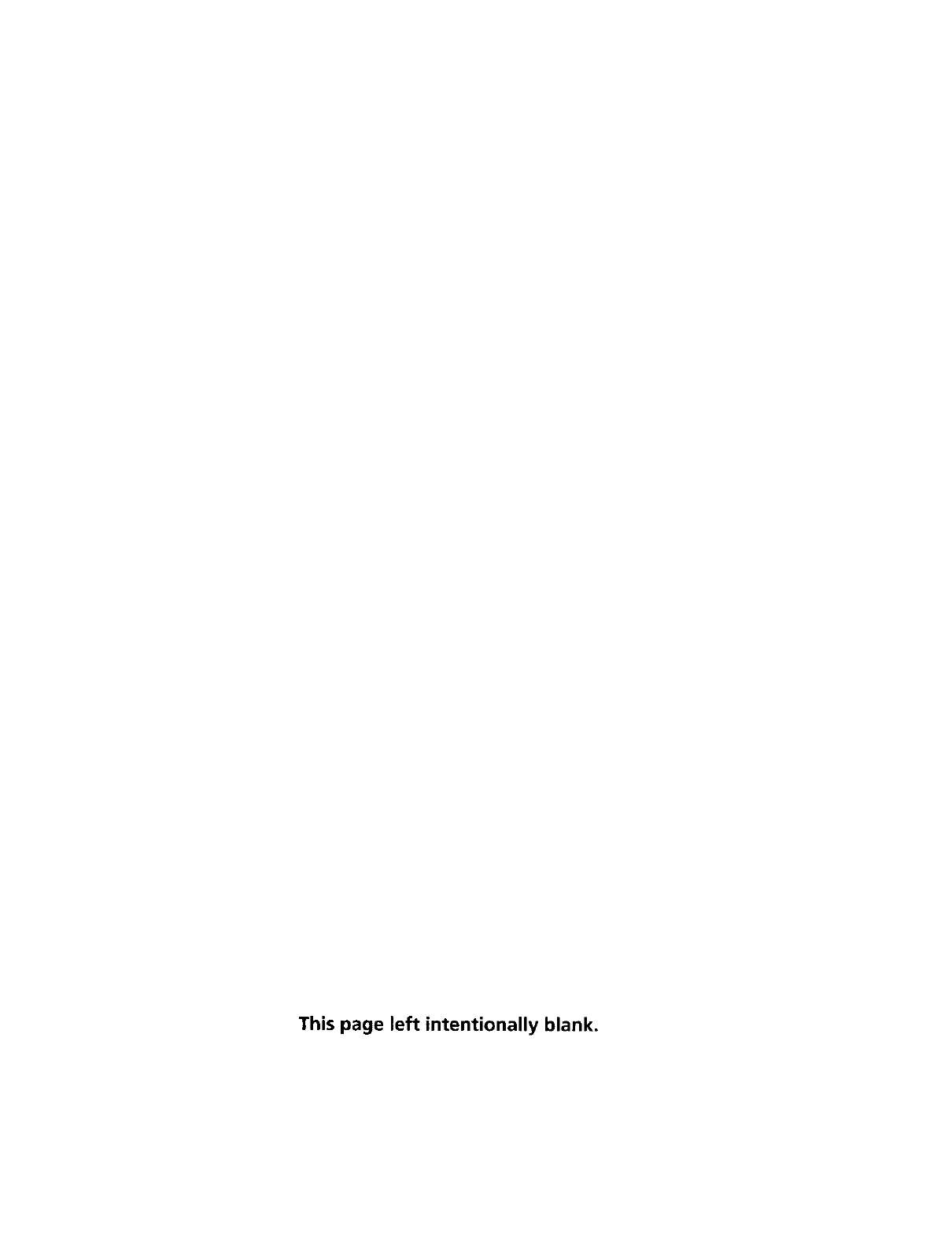

This page left intentionally blank.

Chapter 2

Using the Remote Control

Chapter Overview:

• The Buttons on the Remote Control

•Programming the Remote to Operate Other Components

•How To Use the Remote After You've Programmed It

•Code List

Changing Entertainment. Again.

llhtslrations cotltctitt_d itl tl_is doc'ltmettt cltx,,fi)r re/_re_eHttt/t(_tl otl/u. 25

Using the Remote Control

Indicator

Note: The VCR1, DVD, VCR2, and

SATeCABLE buttons also turn on most

RCA, GE, and PROSCAN products.

The Buttons on the Remote Control

(0-9) Number Buttons Enter channel numbers and time settings

directly through the remote control. They are also used in the GUIDE

Flus+ system and in the TV menu to make selectkms.

To enter a one-digit channel, enter a zero first. To enter a two-digit

channel, press the two digits. To enter a three digit channel, press and

hold the "1" button until "1" and two dashes (- -) appear, then add the

second two digits. Example: to tune to channel 123, press and hold 1

until "1- -" appears, release the 1 button and then press 2 and 3.

ANTENNA Functions as TV/VCR button in VCR mode and TV/receiver

button in satellite mode for most brands.

Move (Arrows) Used to point to different items in the GUIDE Plus+

system and TV menu and to adjust the menu controls. Also moves the

P1F window when no menus are on the screen.

AUX Puts the remote in AUX mode. Can also be programmed to

operate most brands of an additional remote-controllable component.

Bacldight Lights up some of the buttons in the dark.

Cti + or CH - Scans up or down through the current channel list. Press

once to change the channel up or down; press and hold to continue

changing channels. In DVD mode, skips chapters for some brands. In the

Guide Flus+ system, scrolls a page of info at a time.

CH CTRL When using PIP, selects the picture window, (that is, the

main or PIP window) to be changed by the CH ^ (channel up) or CH v

(c runnel down) buttons.

CLEAR Removes any menu or display from the screen and returns you

to normal viewing.

DVD Puts the remote in DVD mode and, if Autotnning is enabled, will

turn on the TV and tune to the con'ect input channel.

FETCH Turns 16:9 mode on or off in the TV mode.

GO BACK Returns you to the previous channel or previous screen in

the nlenu system.

GUIDE Brings up and exits the GUIDE Flus+ system. In SAT-CABLE

mode, brings up avaiktble on-screen guides for sonic bran(Is.

INDICATOR Indicates the programming mode when i)rogmmming the

remote to contro] components

INFO Brings up channel information; press again to clear the screen. In

the GUIDF Plus+ systell/, brings up nlore program infornlation.

INPUT In TV mode, press to toggle through the available input sources

(VID1. VID2, V )_. FRONT. lliRes, CMFNT. last channel).

MENU Blings up the Main memt and selects highlighted items. In VCR

mode. it fimctions as a FRO(}IiAM button for inost bnmds.

26 Chapter 2

Using the Remote Control

To turn of_ all the RCA, GE, and PROSCAN components

that are connected to the T_, press ON*OFF twice

within two seconds.

This feature only works with most RCA, GE, and

PROSCAN products.

MUTE Reduces the TV's volume to its minimmn level. Press again to

restore the w)lume.

OK When in the menn system, selects highlighted items.

ON*OFF When in TV mode, turns the TV on and off. If in another

device mode (VCR, DVD, SAT*CABLE, etc.) and programmed, will turn

the device on and off.

PIP Brings up the small picture-in-picture window. Press again to

remove the PIP window. (See Chapter 3 for more information about

using PIP.)

REVERSE, PLAY, FORWARD, REC*VCR+, STOP, PAUSE If

programmed, provides transport control for some remote-controllable

VCRs, DVD players, laserdisc players, tape decks, and CD players.

Pressing REC*VCR+ when using the GUIDE Plus+ System sets the VCR

to record a program.

SAT*CABLE Puts the remote in SAT*CABLE mode and, if Autotuning is

enabled, will turn on the TV and tune to the correct input channel.

SKIP Press once before changing channels and the TV will wait 30

seconds before returning you to the original channel. Press repeatedly to

add more time. Also, activates Search function for some GE, RCA, or

PROSCAN VCRs.

SWAP When using PIP, swaps the main picture with the PIP window.

TV Turns on the TV and puts the remote in TV mode. Also displays

channel information.

VCR1 Puts the remote in VCR1 mode and, if Autotuning is enabled,

will turn on the TV and tune to the correct input channel.

VCR2 Puts the remote in VCR2 mode and, if Autotuning is enabled,

will turn on the TV and tune to the correct input channel.

VOL-or VOL +Decreases or increases the TV's volume.

WHO In SAT mode, press to select available channel lists "profiles"

(RCA, GE, and PROSCAN satellite or HD receivers only). This button

does not operate in the TV mode.

Using the INPUT Button

Use the INPUT button to scroll thcough the available input channels and

view components you have connected to the TV.

1. Press TV to place tire remote in TV mode. Make sure the

component you want to view is turned ON.

2. Press INPUT to tune to an available input channel.

3. To return to the channel you were previously watching, press

the INPUT button until you see the channel in the upper right

corner.

Chapter 2 27

Using the Remote Control

InO

VCR1 ON-OFF TV

OVD VCR2 AUX SAT'CABLE

& &i & &

tor

REVERSE PLAY

STOP

You'll use these buttons when

you program the remote.

Important: The remote may not

be compatible with all models of

all brands of components. It also

may not operate all functions of

the remote that came with your

component.

Tip

To stop the automatic code search without

programming any components, press and hold

CLEAR until the indicator on the remote turns

of_

Programming the Remote to Operate

Other Components

The universal remote can be programmed to operate most brands of

remote controllable components. The remote is already programmed to

operate most RCA, GE, and PROSCAN components.

Also, the AUX button can be programmed to operate most brands of an

additional remote-controllable component.

Note: The 73/button can't be programmed on this remote.

Find Out If You Need to Program the Remote

To determine whether the universal remote needs to be programmed for

your component, turn the component ON. For example, to program the

remote for a VCR, turn on the VCR. Point the remote at the VCR, and

press the VCR1 button. Then press ON-OFF or CH + (channel up) or

CH - (channel down) to see if the VCR responds to the remote

commands. If the component does not respond, the remote needs to be

programmed.

Programming the Remote

There are two ways to program the remote control:

• automatic code search

• direct entry

Using Automatic Code Search

The following instructions can be used to program the remote to operate

each of your components. If you want to stop the automatic code search

without programming any of your components, press CLEAR until the

indicator on the remote turns off.

Note: The AUX button can't be programmed using automatic code

search. It must be programmed using the direct-entry method.

I. Turn on tile component you want to operate (VCR, DVD player, etc.)

2. Press and hold the component button you want to program (VCR1,

DVD, etc.). While holding the component button, press and hold

ON-OFF until the indicator on the remote turns on, then release

both buttons.

3. Point the remote a[ the component. Press and release PLAY,then

wait 5 seconds or until the indicator on the remote stops flashing.

28 Chapter 2

Using the Remote Control

At this point the remote is searching |_.)rthe correct code to program.

If, alter 5 seconds, the component yon want to operate does not mm

off, press PLAY again to tell the remote to search the next set of

codes.

Continue pressing PLAY until the component turns off or you have

searched through all of the codes. There are 20 total sets of codes. If

the component does not turn off after pressing PLAY 20 times, then

the remote can't be programmed to operate that component.

If the component you want to control does turn off:

1. Press and release REVERSE, then wait 2 seconds. Repeat this step

until the device turns back ON.

2. To finish, press and hold STOP until the indicator on the remote

turns off.

Important

You must continue pressing the component button

while you enter the code.

Let's say you have a Zenith VCR. To program the

universal remote to operate the VCR, you would:

Press and hold the VER1 button while you enter the

first code listed for Zenith in the VCR Codes column.

Release the VCRt button. Press ONoOFF to see if the

VCR responds. If it doesn't, follow the same steps, but

enter the second code for Zenith VCRs instead of the

first.

Note

The buttons might operate differently for other

components, especially when you're using another

component's menu system.

Using Direct Entry

l. Turn on the component to be programmed.

2. Look up the brand and code number(s) for the component on the

code list in this section.

3. Point the remote at the component.

4. Press and hold the component button you want to program on the

remote.

Enter the 4-digit code from the remote control code list on the

following pages. If the indicator flashes, you have either entered an

invalid code or the button isn't programmable.

Release the component button, and then press ON-OFF to see if the

component responds to the command. If it doesn't, try pressing the

component button and then ON-OFF again.

If you get no response, repeat these steps using the next code listed

for your brand, until the component responds to the remote

cornmands.

If you try all the codes for your component brand and none work,

try the automatic code search method. If automatic code search

doesn't find the code, the remote is not compatible with your

component.

Chapter 2 29

Using the Remote Control

How to Use the Remote After You've Programmed It

Because this universal remote can control several different components (TV, DVD, VCR, satellite receiver, etc.) it uses

operational modes triggered by the component buttons. For example, if you want the remote to control the TV, you would

press the TV button to put the remote into TV mode before you could control the TV.

1. Press the appropriate component button (DVD, TV, VCR1, VCR2, SAT-CABLE, AUX) to set the remote to control the

component.

2. Press ON-OFF to turn the component ON or OFF.

3. Use the remote buttons that apply to that component.

Notes."

*The remote may not be compatible with all brands and models of components.It also may not operate all functions

of the remote that came with your component.

•If you keep pressing buttons and nothing happens, the remote is probably in the wrong mode. You must press the

component button that matches the component you want to operate (i.e., if you want to operate the VCR,press

VCRI on the remote control to put the remote in VCRmode.)

30 Chapter 2

Using the Remote Control

VCR Codes

Programmable for VCR1, VCR2, and

AUX buttons.

Admiral ...................................... 2131

Adventura ..................................... 2020

Aiko ............................................. 2027

Aiwa ......................................... 2002, 2026

Akai .................. 2003, 2004, 2005, 2007, 2008,

......................................... 2111, 2112, 2113

American High ..................................... 2021

Asha .................................................. 2013

Audio Dynamics ......................... 2009, 2010

Audiovox ....................................... 2014

Bell & Howell ..................................... 2011

Beaumark .......................................... 2013

Broksonlc ....................................... 2012, 2025

Calix ........................................................ 2014

Candle ..................... 2013, 2014, 2015, 2016,

........................................... 2017, 2018, 2019

Canon ............................. 2021, 2022, 2114

Capehart ..................................... 2020, 2110

Carver ................................................. 2062

CCE ................................................. 2027, 2061

Citizen ................................... 2013, 2014,

.............. 2015, 2016, 2017, 2018, 2019, 2027

CoMnyme ............................................... 2009

Colt .......................................................... 2061

Craig .............................. 2013, 2014, 2023, 2061

Curtis Mathes ................ 2000, 2002, 2009, 2013,

............ 2016, 2018, 2021, 2022, 2024, 2115

Cylyernex .................................................. 2013

1)aewcx_ ............. 2015, 2017, 2019, 2025, 2026,

2027, 2028, 2110

Daytron ................................................. 2110

DBX ........................................ 2009, 2010

Dimensla .............................................. 2000

Dynatech ...................................... 2002, 2026

Electrohome .............................. 2014, 2029

Electrophonic ............................................ 2014

Emerson 2002, 2012, 2014. 2015, 2021, 2024.

2025.

....... 2026, 2029, 2030, 2032, 2033, 2034, 2035,

............ 2036, 2037, 2038, 2039, 2040, 2041.

.................. 2042, 2044, 2045, 2047, 2065, 2105

................................... 2113, 2116, 2117, 2130

Fisher .................... 2011, 2023, 2048,

.......................... 2049, 2050, 2051. 2052, 2118

Fuji ................................... 2021, 2119

Funai .......................................... 2002, 2026

Garrard ................................... 2026

GE ............................... 2000, 2001, 2013

...................... 2021, 2022, 2053. 2115, 2120

Goldstar .............. 2009, 2014, 2018, 2054, 2121

Gr'adicnte .................................. 2026

Harley Davidson ........................................ 2(}26

Harman Kardon .................................. 2009

[Iarwood ............................ 2{K_I

tleadquar_er .................................... 2011

Hitachi ................................. 2002 2055, 20_6,

.................. 2057 2107, 2111 2120,2122

tliQ ................................ 2023

Inslam Replay .............................. 2021

JCL ...................................................................

IC Penncy ................ 2009,2010 201h 2013

.......... 2014 202h 2022 2055, 2(156.

............... 2/)58. 2059, 2060 2107 2118

ensen ......... 2055 2056, 211 I

VC 2009 2010, _OIh 2018 2058 2Ill, 212_

Kcn_ocKl 21XI9 2010, 21111

....... 201{i, 201g, 20_8 211h2123

KLII ............................... 2001

KIKhlk ......... 201q, 2021

lloyd ....................................... 2002 2020

Iogik ........................ 206]

LXI .................................................... 2014

M_tgllavt_x ............... 2021 2022, 2(162,

................................ 2{KI3, 2104, 2108. 2124

Magnin ............................................. 2013

Mamntz .......................... 2009, 2010, 201 L

............................. 2016, 2018, 2021, 2058. 2062, 2064

Maria ................................................. 2014

Masushita .......................................................... 2021

Mei ...................................................................... 2021

Memorex ......................................... 2002, 21111, 2013,

............................. 2014, 2021, 2023, 2026, 2104, 2131

MGA ............................................ 2029, 2065, 2113

MGN Technology ...................................................... 2013

Midland .................................................... 2053

Minoka ................................................... 2055, 2056, 2107

Mitsubishi ........... 2029, 2055, 2056, 2065, 2066, 2067, 2069,

............. 2070, 2071, 2072, 2073, 2074, 2106, 2113, 2123

Momgomery Ward .......................................... 2075, 2131

Motorola ............................................................ 2021, 2131

MTC ......................................................... 2002, 2013, 2026

Mul0tech ...................... 2002. 2013. 2016, 2026, 2053, 2061

NEC ........................................ 2009, 2010, 2011,2016, 2018,

.................. 2058, 2064, 2076, 2078, 2079, 21ll, 2123

Nikko .................................................................. 2014

Noblex ................................................... 2013

Olympus ...................................................... 2021

Optimus ........................................... 2014, 2131

Optonica ............................................................. 2096

Orion ......................................................... 2035

Panasonic ............. 2021, 2022, 2109, 2125, 2126, 2127

Pentax ................................. 2016, 2055, 2056, 2107, 2120

Pentex Research ..................................................... 2018

Philco ............................. 2021, 2022, 2062, 2063

Philips ...................................... 2021. 2062, 20_. 2124

Pilot ................................................................. 2014

Pioneer ............................ 2010, 2055, 2080 2081, 2123

Portland ..................................... 2016, 2017. 2019, 2110

PROSCAN ................................................ 2000, 2001

Protec ....................................................... 2(R_1

Ptdsar ............................................................ 2104

Quarter ................................................ 2011

Quartz ................................................... 2011

Quasar ........................................ 2021, 2022, 2125

RCA ..................... 2000 2001, 2003, 2013, 2021, 2055, 2056,

................. 2082, 2083, 2084, 2085, 2086, 2087. 2088, 2089,

.............................. 2090, 2091, 2!07, 2115. 2120, 2125

Radioshack/Realistlc .............. 2002, 2011, 2013 2014, 2021,

................... 2022, 2023, 2026, 2029, 2049. 2030, 2096, 2131

Radix ........................................... 2014

Randex ................................................... 2014

Ricoh .................................................... 2128

Runco ........................................................ 2104

Sanlsung .................... 2005. 2013, 2015, 2033, 2053, 2112

Sanky ....................................................... 2104, 2131

Sansui ................................... 2010,2092 2111,2123

Sanyo .............................................. 2011. 2013, 2023

Scott ........................... 2012 20t5, 2025. 2032, 2035,

2038 2065, 2093. 2116

Sears .......................... 2011 2014, 2021 2023. 2048,

........ 20q9 2050 2051. 2055, 2056, 2107, 2118

Sharp 2002, 201v 2029, 2094, 2095, 2(86, 2131

Shinhnn ........................ 200q, 2056 20GI 2098

Shogun ............................... 2013

81gnaIu m .............................. 2002 2131

Singen ................................ 2021 2061,2128

Sony ................. 2002 2001 2(D8, 209 t) 2119 2128

S_S .................................... 2021 2107

S}lvania ................................. 2002 2021 2022

................ 202(_ 2(}62 20(_3 2005. 212q

S) nlphonic ................... 2002 2020

"land 3 ............... 2002. 2011

"lashiko ....................... 2014

latung ....................... 20_8 2111

"['EA( ............ 2002 202(_ 20fig, 208-5 2111

"let hnit s ................... 2021. 2109

Teknika ............... 2002, 2014, 2021, 2026. 2100, 2129

"IMK ................................. 2013, 2024, 2047

T(_hilxt ...................... 2015, 2049, 2(1"31,

.......................................... 2055, 2065, 2(D3, 2116

Totevsion ........................................... 2013, 2014

Unitech .................................................... 2013

Vector Research ..................... 2009, 2010, 2015, 2016

Victor .......................................................... 2010

Video Concepts ............ 2009, 2010, 2015, 2016, 2113

Videosonic .......................................................... 2013

Wards ........................ 2002, 2013, 2014, 2015, 2021,

....................... 2023, 2026, 2029, 2055, 2056, 2061,

............. 2096, 2101, 2102, 2103, 2107, 2116, 2131

XR 1000 ............................................ 2021, 202@ 2061

Ymnaha ............ 2009, 2010, 2011, 2018, 2058, 2111

Zenith ....................... 2004, 2098, 2104, 2119, 2128

Cable Box Codes

Programmable for SAT*CABLEand

AUX buttons.

ABC ........... 5002, 5003, 5004, 5005, 5006, 5007, 5053

Antronix .................................................. 5008, 5009

Archer ................................. 5008, 5009, 5010, 5011

Cabletenna .................................................... 5008

Cableview ..................................................... 5008

Century ................................................... 501 l

Citizen ......................................................... 5011

Co[our Voice ......................................... 5012, 5013

Corot ronics ............................................. 5014, 5015

Contec .................................................... 5016

Eastern ...................................................... 5017

Garntrd ......................................................... 5011

GE Electronics .................................................. 5009

Gemini ............................................ 5018, 5015 5049

General Instrument .................................. 5003

Hamlin ......................... 5020, 5021. 5022, 5033, 5045

Hitachi ................................................... 5003

Hytex ..................................................... 5002

Jasco ................................................ 5011

Jerrold ................................... 5003, 5005, 5007, 5018.

.................................... 5023, 5024, 5046, 5053

Magnavox ............................................... 5025

Memorex .................................................... 5026

Movie Time ................................ 5002, 5027, 5028

NSC ................................ 5002. 5027, 5028

Oak ........................................... 5002, 5016, 5029

Panasonic .................................. 5048, 5052

Paragon .................................................... 5026

Phiiips ................................... 501 h 5012, 5013,

................................ 5019. 5025, 5030. 5031, 5032

Pioneer ................................................. 5033, 5034

Pulsar .......................................... 502(7

RCA .......................................... 5047, 5049, 5052

Realistic ........................................... 5009, 5049

Regal ............................................. 3022, 5035

Regency ..................................... 501 -

Reml_randt ................................. 5(R)3

Runco ............................... _020

Sanlsung ...................................... S014, 503t

Scientific Adanta ......... 5004x 5030 8037, S038

Signal .................................. 5014, 5018

Signature ............................................ 51)03

SI Marx .................................. qOI t

Sprucer .................................... q052

Starcon_ ........................... 51807, 5018, 50_3

Stargate ................................ %014. 501N

Starques t ................................... 5018

I'andy ....................................... 50_0

Tele_ie_ ............................... 5014

Toconl .................... %(R)q 5023, %041

3oshiba .................................... 5020

_ klS_l .................................. 5018

Chapter2 31

Using the Remote Control

la,'86 .................................. 5027

tJnika ..................... 5008 5{×19, 5011

I Init t'_.i Al_lSls ............................. 5002

United Cable ....................................... 5053

Universal ........................ 5008, 5{XIg, 5010, 501 ]

Videow: W....................................... 5044

Vice, star ....................... 5015, 5025, "5{127, 6040

Zenith ................................ 5026, 5050, 5051

Satellite Receiver Codes

Programmable for SAT,CABLE and AUX

buttons.

Alphastar .................................................. 5079

Chapparal ........................................... 5006, 5057

l)ishnct ................................................ 5078

Drake ................................................ 5058, 5059

Echostar ........................................................... 5089

GE ................................ 5000, 5001, 5071, 5080, 5081

General lnstumems ........................ 5060, 5061, 5062

1[itachi ..................................................... 5083, 5084

11ughes .......................................... 5077, 5(_)0

JVC ............................................................... 5082

Panasonic ............................................................ 5075

Phillips ................................................................ 5085

Primestar ........................................................... 5076

PROSCAN ..................... 5000, 5001, 5071, 5080, 5081

RCA ............................... 5000, 5001, 5071, 5080, 5081

Realistic .................................................... 5063

Sony .................................................. 5072

STSI ..................................................... 5064

8TS2 ............................................................ 5065

STS3.............................................................. 506_

STS4 ................................................. 5067

Toshiba ............................................ 5068, 5073

Uniden .................................................... 5086

DVD codes

Programmable for DVD and

AUX buttons.

Ai_a ...................................................... 3009

Hitachi ..................................................... 3008

JVC ................................................. 3002, 3010

Konka ............................................. 3011, 3012

Magnavox ........................................ 3003

Mitstlbishi ......................................... 3004

Panasonic ............................................. 3013

Phillips ................................................. 3019, 3021

Pioneer .............................................. 3005

RCA ................................................... 3000, 3001

Sanyo ................................................ 3014

Shinto ................................................... 3001

5,_my .................................. 3006, 3015, 3016

l_shiha ............................... _007 3017, 302{)

Zenith ............................................. 3018

Audio Codes

Programlriablc for the A[TX ])utton only.

ROC_iV_'t"_

Aiwu .......................... 1261, _262, 4263 420t.

.............................. -i265, 42(Z_..i267, 4277

I)enon ............................................ 4283

Harman Kardon ................................... 4276

JBL ........................................................... 4276

]CV ............................................................. 4268

Ker_w_m<l ................................................... 4264, 4209

Onkyo ................................................................... 4278

Oplimus ................................................ 42H t

Panamnic ................................................. 4279, 4280

Pioneer ........................................................... 4275

Sherwl×Jd ................................................... 4282

Sony ................................. 4266, 4271, 4272, 4281

Technics .................................................... 4279, 4280

Wards .............................................................. 4275

Yamaha ..................................................... 4272, 4274

CD Player's

ADC .................................................. 4200, 4201. 4220

Aiwa ...................................................... 4175, 4203

Akai ........................................................ 4205

I)enon ........................................................ 4208

I)ynated_ ......................................................... 4177

Emerson ................................................... 4178

Fisher ........................................ 4179¸ _212, 4213

GE .............................................................. 4216

Hitachi .......................................................... 4180

JVC ............................................... 418_, 4221

Kenw(x)'.l ................................. 4183, 4222, 422'J

Luxman ..................................................... 4225

Marantz ................................................. 4185, 4226

Mitsubishi ...................................... 4229, 4230

MCS ........................................................... 4228

Nakamichi ........................................ 4232, 4233

NEC ........................................................ 7184

Onkyo ........................................... 4186¸ 4234, 4235

Optimus ............................................. 4237, 4238, 4230

Panasonic ............................................ 4188

Pioneer ...................................... 4189, 42i0

Sanyo ..................................................... 4250

Sears .................................................. 420 _

Sherwood .................................................. 4243

Sony ....................................... 4195, 42{F), 424 i

"l_ac ......................................... 4245, 4246, 4247

Technics ................................................. 4197

Toshiba ............................................. 4231

Yamaha .................................. 4108. 4199, 424

RCA and Dimensia

AM/FM .................. 4003. 4270

AI!X .................................... 400¸t

I'hono ................................. 4005

I!lpe .............................. 4(R_

32 Chapter 2

Chapter 3

Using the TV's Features

Chapter Overview:

•All About the GUIDE Plus+ System

•The Channel Banner

•Autotuning

•Parental Controls and V-Chip

•PIP (Picture-In-Picture) Operation

Changing Entertainment. Again.

Illustrations contained in this document g_refor representation only. 33

Using the TV's Features

Video Action Program Menu

window buttons information options

Promotional Channel Listings

Information

About the GUIDE Plus+ System

The GUIDE Plus+ system is an interactive on-screen program guide that

lists TV schedules for your area and allows your TV direct control of a

cable box and/or VCR. You must first set up the GUIDE Plus+ menu

system in order to view this on-screen program guide (see Chapter 1 for

details). Press GUIDE to bring up the GUIDE Plus+ system.

There are six sections of the GUIDE Plus+ system:

• A row of Action buttons at the top of the screen (/, 2 and 3)

• Video window

Program information

• A row of menu options (Grid, Sort, News, Schedule, Messages,

Editor, Setup)

Channel listings

• Promotional information

Note: The GUIDEPlus+ system screensillustrated in this book are

representations of what you are likely to see. Not all channels,

programs, and GUIDEPlus+ information depicted will be available

in your area.

New features and options can he downloaded to the GUIDEPlus+

system, so these too are subjectto change.

Tips

The GUIDE Plus+ system automatically comes

up when you use the TV button on the remote

to turn on the TV You can turn off this

feature by selecting Setup from the GUIDE

Plus+ Menu, selecting Options, then setting

Auto Display to off.

Also, since the program information provided

by the GUIDE Plus+ system is based on your

locale, you will need to run Setup again if

you move to a different zip or postal code.

Downloading Data

Important: If you have a VCRor cable box connectedto the T_,

you need to connect the G-LINK cable to use the GUIDEPlus+

system. Go to page 15.

The GUIDE Plus+ system is not available until it completes its first

download of program listings. When the power is turned off, the TV

locates a "host channel" that carries GUIDE Plus+ system data containing

program schedule and channel lineup information. A channel lineup is

the list of stations and their respective channels.

To ensure that your first download of data is complete, you should leaxe

your TV off overnight. Downloads occur several times a clay. The TV

must be turned off for GUIDE Plus+ system data to download.

If the TV loses power or is unplugged, GUIDE Plus÷ system prognlm

listings may be lost. When power is restored, make sure the setup

information is still correct. The GUIDE Plus+ system will receive updated

program information during the next scheduled download.

34 Chapter 3

Using the TV's Features

Press GUIDE on the remote control to see

the GUIDE Plus+ system. To remove the

program guide from the screen, press

OK, GUIDE, or CLEAR.

Channel Lineup

If more than one cable company services your area, you may be

prompted with a Channel Mapping screen after the first GUIDE Plus+

system download. You will need to identify your cable company by

selecting the correct channel numbers for the stations in question.

• Use the up and down arrow buttons to change the channel group

and press OK when the correct channel group is highlighted.

Getting In & Out of the GUIDE Plus+ System

To enter the GUIDE Plus+ system:

Press GUIDE on the remote.

To exit the GUIDE Plus+ system:

• Highlight a program and press OK to exit the GUIDE Plus+ system

and tune to the channel.

• Press GUIDE to exit the GUIDE Plus+ system and tune to the channel

displayed in the video window.

Press CLEAR to exit the GUIDE Plus+ system and return to the

original channel.

The GUIDE Plus+ System Menus

The GUIDE Plus+ system of_>rs seven different options on the Menu bar:

Grid, Sort, Neu_, Schedule, Messages, Editor, and Setup. To access the

Menu bar:

1. Press GUIDE to access the GUIDE Plus+ system.

2. Press MENU or use the up and down arrow buttons to select the

Menu bar (the Grid Guide appears by default).

3. Use the left and right arrow buttons to access other menus.

4. Press OK, or MENU, or use the down arrow button to see the menu

options,

Grid Guide

Tire Grid Guide appears each time you enter the GUIDE Plus+ system. It

displays the current programming for each channel. The current prognun

is displayed in the video window.

Press the Lip and CI()_r_arrow buttons o[1 [he remote to bro%vse

ch:mnel listings and the channel up and down buttons to page

through the listings. Use the right and lelt arrow huttons to browse

future program listings.

To tune to a channel, highlight the program you want to view in the

channel listing and press ()K. Press CI.EAR to exit the GUIDE Plus+

system and return to the original channel Press GLIII)E to exit the

GIIII)E Plus+ system and tune to the channel in the video window.

Then use the Grid Guide Action buttons as described next.

Chapter 3 35

Using the TV's Features

Grid guide menu Grid guide action

selection buttons

Tip

The PIP button on the remote also toggles the

video window between the locked and

unlocked states,

Grid Guide Action Buttons

Action buttons will change according to where you are in the GUIDE Plus+

system. Be sure to look at the action bar before pressing the command

Ilunlbcrs.

When highlighting the program, the following Action buttons appear:

Watch Press 1 on the remote to place a timer in the Schedule for the TV to

turn on and tune to the program highlighted in the channel listing. When

the TV turns on, the GUIDE Plus+ system will automatically appear with the

scheduled program highlighted and tuned in the video window.

Go To Press 2 on the remote to bring up the direct dial box and enter the

number of the channel you want. Press OK to highlight the channel and

current program in the channel listing of the Grid guide. Press OK again to

tune to the highlighted channel. If the video window is unlocked, it will

automatically tune to the channel.

Record Press 3 on the remote to place a timer in the Schedule for the VCR

to record the program highlighted in the channel listing.

If you have a cable box, changing channels on the TV will not cause the

cable box channel to change while recording.

Record will only appear if you have set up the GUIDE Plus+ system and

specified your VCR type.

The program information window will display a confirmation when you have

successfully scheduled a program to watch or record.

Note; If you have selected two programs to watch or record which begin

at the same time or overlap, you will receive a timer conflict message. You

must choose between the two programs.

When highlighting the Channel names (the left column on the channel listing),

the following Action buttons appear:

Lock/Unlo¢l¢ Press 1 to lock or unlock the video window to either stay at

one channel as you browse the GUIDE Plus+ system (lock) or change as

you browse through different channels (unlock).

Go To Press 2 on the remote to bring up the direct dial box and enter the

l_umber of the channel you want. Press OK to highlight the channel and

current program in the channel listing of the Grid Guide. If the video

window is locked, press OK to tune to the highlighted channel. If the video

window is unlocked, it will automatically tune to that channel.

36 Chapter3

Using the TV's Features

Sort menu

selection

Categories

Sort

Tile 5oft ITIenLI let. }()u brov..e pl()ghl[IP_ t}% [alegoE% The ,hannd n) _\lnO_

V(.)LI Jre LL][ 1Cntl_ tkl[1Ld D, dt_plJ_ L'd in the2 %[Lie( ) ',k ]tlc[( )k\

To .%ott

1 [f the GUIDE Plu _,+ system 1%n't on %otlr screen, press GUIDE or; y(+ur

remote control

2 Press MENU on the _emote t_ select tile Menu b:u

3 Use the atloW buttons tt) hLghhght 5on' \',:'hen &m is hlghhghted {_)rtile ht-t

ttnle, tile .I[oI'ItL_cattgot-y I_ chspla,,ed Thereafter, tile last (_.ltego_' Llset]

becomes the delauh A I_stmg o_ sub_.ategones is displayed belov, the

Lategox3., name Use tile left and right arrow buttons to hlghhght other

__ategortes

-_ Use the up anti down arrov, buttons to htghhght a-,ub(_ategol 3 For

example, htgh[lght All and press OK Ithe GUIDE Plu,,+ system s()rts

the plograms)

"3 Press the up and do\_,n arrow butt<)ns to tcx lev, tilt" h-,t ()he pn),glanl dt a

ttme Press the channel up and cIo_, n [_LlttOn _, to le_ le_ the [t'.t {qle page at

a time You can al_.o _ te'_\ the next sexcn cla_,'- [_[oglantnllng [Y_ pressing the

tight arlow button

6 Select MENU to return to the menu |)al o[ p_e-,., L,UIDE or CLFa_Rto [\LI

the GUIDE Plus+ -,v-,tern

TLlen use tile Sot| Menu A.ctto[1 I_lLttOn', .ts de-,tithed nc',:t

Sort Menu Action Buttons

\_;hen vtewmg the resllhs ol a _,olt, tilL' tollowmg .__{_tlon buttons appeal

1!_I¢/* Press 1 on tile [emote to pla__e a lintel m the '_Lhe(.lule Jnd then

tollo\x tile on-hne help tor tuLther option. Placing a nmel m tile qchedule

wrt[Icause the TV to turn on and tune to tile proglanl htgh[lghted m the

channel hstmg at the piedetermmed time \\ hen tile TV ttnns on, tile

GUIDE Plus+ ,..v.tem automJtlLa]l'_ appeals _,.ith tile %heduled plogrant

h_ghhghted ancl tuned m tile _ _cleo v. Ln(IoP.

Record Pte,_-, 3 oil the lelll(.)te 1o _,e[ tilt.' \ CIr. 1() lUL()lvt the progtJm

hlghhghted in the LhJnnel h'q[n_ i| \_u h.t\ e ,_ _.tl_le I_\ l hanL_u_ Tk

Lh,mnel., _ i[I nl )t _.,it[,,c the ,_LIhIL h( )\ Lh.t[n_c_ tl_ • hJ [_gL \_ hit{. I_ _l _I_lll_

The pro_ralll Info[ ntJtL( )n \\ L[l(J(n.\ %\ill dlspLl\ aL{ ,nh111LL[I()11 \\ hL n k( _tl h.l\ e

",ULLt",',tt.Ill_. ',__heLlule_l LI p[I _1,11// tl ) _\ .Itch ( ,I |L-v, _l(.[

Note: If you have selected two programs to watch or record whtch begin

at the same ttme or overlap, you wdl recewe a ttmer confltct message You

must choose between the two programs

Note: Be sure that during the GUIDE Plus+ system setup you speof_ed that

you have a VCR If you dtdn't, the RECORD opoon will not be available

Chapter 3 37

Using the TV's Features

News menu News menu

action buttons selection News

The News menu lets you browse current news stories by headline.

1. If the GUIDE Plus+ system isn't on your screen, press GUIDE on your

remote control.

2. Press MENU on the remote control to select the menu bar.

3. Use the arrow buttons to highlight News (if MSNBC is available on your TV,

it will appear in the video window).

4. Use the up and down arrow buttons to highlight a sto W.

• Use the up and down arrow buttons to browse the list one sto W at a

time.

• Use the channel up and down buttons to browse through the list one

page at a time.

5. Press the right arrow button to see full text.

6. If there are multiple pages of text, press the right or left arrow button to

page forward or back through the pages of text. Press the down arrow

button to view the next sto W.

7. Select MENU to return to the Menu bar, or press GUIDE or CLEAR on the

remote to exit the GUIDE Plus+ system.

Schedule menu Schedule menu

action buttons selection Schedule

The Schedule menu allows you to alter timers for either viewing or recording

programs. The GUIDE Plus+ system allows one-touch VCR recording if you

have connected the G-LINK cable to your VCR. See Chapter 1 for more details

on connecting the G-LINK cable.

To schedule a program to watch or record:

1. If the GUIDE Plus+ system isn't on your screen, press GUIDE on your

remote control.

2. Press MENU on the remote to select the Menu bar.

3. Use the arrow buttons to highlight a program within the channel listing.

4. Select Watch or Record from the Action buttons bar. The timer is then

automatically logged into the Schedule menu.

5. If you select Record, make sure to place a blank tape in tile VCR and turn

it off.

Note: If you have a cable box connected to your TV and VCR,tune your

VCRto the cable box output channel prior to turning off the VCR.

The program information window will display a confirmation when you have

successfully scheduled a program to watch or record.

Note: If you have selected two programs to watch or record which begin

at the same time or overlap, you will receive a timer conflict message. You

must choose between the two programs.

38 Chapter 3

Using the TV's Features

To remove or change the frequency (daily, once. or weekly) of a scheduled

event, access the Schedule menu fronl the Menu bar.

1. Press GUIDE to bring tip the GLJIDE l'ltas+ system.

2. Press MENU on the remote to select the Menu bar.

3. Use the arrow buttons to highlight the Schedule menu selection.

4. Use the up and down arrow buttons to highlight the program you want to

edit.

Then use the Schedule Menu Action buttons as described next.

Schedule Menu Action Buttons

When viewing the Schedule menu, the following Action buttons appear:

•Remove Highlight the Watch or Record timer you wish to remove from

the schedule and press 1 on the remote.

Change Highlight the Watch or Record timer you wish to change and

press 3 on the remote to toggle the frequency between the following

choices:

DAILY records the same program each day Monday through Friday.

ONCE records only on that day.

WEEKLY records the program each week at the same time.

Messages menu

action button

Messages menu

selection Messages

Occasionally you will receive messages regarding your GUIDE Plus+ system, as

well as special programming information. You can access these nressages from

the Messages menu on the Metal bar.

To read messages:

1. If the GUIDE Plus+ system isn't on your screen, press GUIDE on your

remote control.

2. Press MENU on the remote to select the Menu bar.

3. Use the arrow buttons to highlight the Messa,_es menu selection.

4. Highlight the message you want to read by using the up and

clown arrow buttons.

5. Press INFO to display the full text of the nressage. If the text continues

beyond the screen, press INFO to ,_iew the next page of text. Once you

have reached the end of the message, press INFO to close the expanded

information and return to the Messages screen.

Then use the Messages Menu Action button as described next

Messages Menu Action Button

\Vhen vi_,wing the M¢,ssu_(,s menu, the loll(_\ing Action butt(_n appears:

Remove Highlight the message you \_ant to dek'tc and press 1 on

the remote.

Chapter 3 39

Using the TV's Features

Editor menu Editor menu

action buttons selection

Editor

You can custonlize tilt" channel listing by _,nabling or disabling the display of

ccmlin channels, For instance, you may disable channels that you never watch.

You can restore disabled channels at a later point in time.

1. If the GUIDE Plus+ system isn't on your striven, press GUIDE on your

remote control.

2. Press MENU to select the Menu bar.

3. Use the right and left arrow buttons to highlight the Editormenu selection.

4. Use the up and down arrow buttons to select a channel,

Then use the Channels Menu Action buttons as described next.

Editor Menu Action Buttons

While Drowsing the Editor menu, the following Action buttons appear:

•Cancel Press 1 on the remote to cancel any changes you made since

entering the Editor Menu.

• Change Press 2 on the remote to change the channel number for the

highlighted channel line.

On/Of! Press 3 on the remote to toggle the state of the channel between

On and Off

Setup

The Setup menu allows you to access the GUIDE Plus+ system setup

information. To access the Setup option:

1, If the GUIDE Plus+ system isn't on your screen, press GUIDE on your

remote control.

2. Press MENU to select the Menu Bar.

3. Use the right arrow to highlight the Setup menu selection.

4. Use the up and clown :_'_=()_rst() select Ct_a_tge .slysWmsetting& Review

options, or I,Tewdemo.

Setup Displays the GUII)E Plus system setup screens. Setting up the

GUIDE Plus+ system is detailed in Chapter 1,

View Demo Runs the GIIDE Plus+ system demonstratiol_.

Options l)isplays die GUII)E Plus+ auto dispkty optinns.

On Auton]atical]y displays the GUIDE Plus+ system when you press

the ON•OFF hutton on the renlote c_mtr_)].

Of/" Disab[es the GIIIDE Phls+ s.vstem h'om being displayed when you

press the ON*OFF ]_tltton on the remote control.

40 Chapter 3

Using the TV's Features

Promotional information

How to Get More Information About an

Advertisement or a Program

To find out more int'ornlation about a program, advertisement or special, use

the le|_ arrow button to highlight the channel listing or promotional

information box and press the INFO button.

Requesting more information about a particular show displays the PlusCode

programming number and the Shows on Next for that channel.

Press the INFO button again to exit the expanded information screen.

GUIDE Plus+ Menu Items

The GUIDEPlus+ Menugives you access to features in the GUIDE Plus+ system.

To access the GUIDE Plus+ Menu:

1. Press MENU on the remote.

2. Highlight GUIDE Plus+ Menu and press OK.

Each menu and the sub menus are listed below:

GUIDE Plus+ Setup Displays the GUIDE Plus+ system setup screen.

Setup Setting up the GUIDE Plus+ system is detailed in Chapter 1.

View demo Runs the GUIDE Plus+ system demonstration.

Options Displays GUIDE Plus+ system auto display options.

On Automatically displays the GUIDE Plus+ system when you use the

ON',OFF button on the remote to turn on the TV.

Off Disables the GUIDE Plus+ system from being displayed when

you use the ON-OFF button on the remote to turn on the TV.

GUIDE Plus+ Label Displays the GUIDE Plus+ label menu.

On Displays the station name when you change channels.

Off The station name isn't displayed when you change channels.

Continuous Demo Runs the GUIDE Plus+ system demoilstration until it is

turned off. To turn off the demonstration, you ITIUSIturn off the TV.

Chapter 3 41

Using the TV's Features

12:01 CC ESPN 60

Mute SAP PIP SVID2

Locked

Sample displays on a Channel Banner.

Channel Banner

Th_.+re Hit" '_uvur+alhldi,.ator_, th:it nii<_hl appear \vht:rl _,OH pFess [he "I+V_>l INF()

hultons on th(' rum<>tu This display i_,_.allud tlt+-' (]h;tnlld l'_;tn]Ict. "]he Ii_]h)\\ h1_

]ist d_.,s<_ribus the items on thu Cimnne] l'tanncr sclc, un dult to ]igllt and top t()

I)OHOlt] ).

12:01

Locked

Displays the current ti]lle.

Displayed when the ]>aruntal Controls are locked.

I)isplayed v<hcn (:loscd (':tptioning is available on the

current channel.

ESPN

Mute

(or Stereo)

I)isplays the label assigned to the current channel.

I)isplays the current channel or input dlannc]

Mute is disF+layed when you mute tile audio. Stereo is

displayed when the current channel is broadcasting in

stereo+

SAP

SLEEP

I)isplayud v, hc+ntile (2Llrttql[channel is broadcasting SAP

(Second Audio PrograwO information

Displayed when the Sleep Timer has been set.

O0:00 Displayed to count do'+vn time lelk on tile commercial skip

(SKIP) timer.

PIP SVID2 Displays the input source, or channel, to which PIP is tuned.

16:9 Mode I)isplayed when the "I_ is in 16:9 aspect-ratio mode

Oil (4natllorphi(' ll/odc) wide screen viexx lg

42 Chapter 3

Using the TV's Features

With the autotuning feature, you can

set up the TV to tune to the channel

you need to watch by pressing that

component's button.

Why You Should Use the Autotuning

Feature

The autotuning feature automatically tunes the "IN'to the correct channel 11.7r

different components you have connected to your TV (like a VCR, DVD Player,

etc.) When you set up autotuning in the nlenu systenr you don't have to

remember to change your TV to channel 3, for example, when you want to

watch the tape in your VCR.

How to Set Up the Autotuning Feature

The way you set up the autotuning feature in the TV's menu corresponds to the

component buttons on the remote and the way you have each component

connected to your TV. When you set autotuning, you're telling the "lad what

channel to tune to when you press the VCRI, VCR2, DVD, or SAT°CABLE

button on the remote control.

1. Press MENU (the MAINMENUappears).

2. Highlight Channeland press OK on your remote control.

3. Highlight Autotuning and press OK,

4. Choose which channel you would like to set:

Set VCR 1 Channel Displays a list that lets you set up the channel the TV

tunes to when you press the VCR1 button.

Set VCR 2 Channel Displays a list that lets you set up the channe[ the TV

tunes to when you press the VCR2 button.

SetDVD Channel Displays a list that lets you set up the channel the TV

tunes to when you press tile DVD button.

Set SAT/CABLE Channel Displays a list that lets you set up the channel

the TV tunes to when you press the SAT°CABLE button on an RCA satellite

receiver remote. (The RCA DTC100 HD receiver is considered a satellite

device and can be set up for autotuning using this channel.}

Set SAT2 Channel Displays a list that lets you set up the channel the TV

tunes to when you press the 1)SS2/SNF2 button (or AtJX progr:mmled to the

5001 code).

Set RCA WEB Channel Displays a list that lets you xct up the, ch:mncl the

"IV tunes to when you press the W|'I'_ button on :In RCA \VehT\,' remote

control.

5. Highlight the choice that matches the way you haxc ll_c component

connected to this TV, and press OK.

The choices and a brief explanation follow:

Not connected Choose this if you dorl't have this p:uticular component

connected to the TV, or if you don't want the "lad to :tutomatic:tl[ 3 ttlnc t{l tile

correct channel when you're rising tilts componellt

Chapter3 43

Using the TV's Features

Notes:

To use SAT2 autotuning for a

second RCA satellite receiver,

program the AUX button

using the direct entry

method and program the

5001 code. Then set up the

SAT2 channel in the

Autotuning menu.

To use RCA WEB autotuning

for an RCA WebTV remote,

set up the WEB channel in

the Autotuning menu.

Channel3or4 Component is connected to the CABLE/ANTENNA jack on the

back of the "IV, and you want the TV to tune to channel 3 when you press the

corresponding button on the remote. Reminder: make sure the component's

Channel 3/4 switch is set to channel 3.

Video 1, Video 2, or Video 3Input Component is connected to a VIDEO or

S-Video jack on the back of the TV and you want the TV to tune to a VID input

channel when you press the corresponding button. If you're using the S-Video

input jacks, they will also be displayed.

Component Video Input Compatible component video source, such as a

DVD player or digital TV converter box, is connected to the three

COMPONENT VIDEO INPUT jacks (yopboPr) on the back of the "IV and you

want the TV to tune to the component video input channel (CMPNT) when you

press the corresponding button.

High Resolution Input Component is connected to the HIGH RESOLUTION

INPUT jack on the back of the TV and you want the "IV to tune to a high

resolution input channel (HiRes) when you press the corresponding button.

Front Input Component is connected to the VIDEO jack on the front of the

TV and you want the 'IV to tune to the front VID input channel (FRONT) when

you press the corresponding button.

44 Chapter 3

Using the TV's Features

Parental Controls and V-Chip

The Parental Controls menu allows you to program your TV so that children

cannot see certain programs, channels, or use the front panel controls.

The first three choices in the Parental Controls menu involve software inside

your TV (referred to as V-Chip) which allows you to block TV programs and

movies based on violence, sex, or other content you may believe children

should not view. In other words, it lets you program your TV so it won't display

certain programs.

Once you block programs, you or other adults can unblock programs by

entering a password.

By default, the software inside your TV is turned "off," so if you don't want to

use this feature, you can just ignore it.

How V-Chip Works

When turned "on," the V-Chip software reads a code that most broadcasters

send with programs. That code tells the software the program's age-based rating

(TV MA, TV-14, etc.) and content themes [(Violence (V), Adult Language (L),

etc.)]. If you have blocked the rating and/or content themes that the program

contains, you will receive the message, "This channel is not approved for

viewing," when you tune to that particular channel.

Broadcasters are not required to provide content themes, so programs received

with no content themes will only be blocked if you block their age-based rating.

You can also block out programs that have been given a rating of "Not Rated,"

and programs that are considered "unrated" because no code has been sent by

the broadcaster. The TV age-based ratings and content themes you can block

are listed in the following table.

Chapter3 45

Using the TV's Features

Age-Based Description and Content Themes for Age-Based Ratings

Rating

Mature Audience Only. Specifically designed to be viewed by adults and may be unsuitable for children

TV-MA under 17. It contains one or more of the following content themes: crude indecent language (L), explicit

sexual activity (S), or graphic violence (V).

Parents Strongly Cautioned. Contains some material that many parents would find unsuitable for children

TV-14 under 14. Parents are strongly urged to exercise greater care in monitoring this program and are cautioned

against letting children under the age of 14 watch unattended. This program contains one or more of the

following content themes: intensely suggestive dialogue (D), strong coarse language (L), intense sexual

situations (S), or intense violence (V).

Parental Guidance Suggested. Contains material that parents may find unsuitable for younger children. Many

TV-PG parents may want to watch it with their younger children. The program contains one or more of the following

content themes: some suggestive dialogue (D), infrequent coarse language (L), some sexual situations (S), or

moderate violence (V).

TV-G General Audience. Most parents would find this program suitable for all ages. It contains

little or no sexual dialogue (D) or situations (S), no strong language (L), and little

or no violence (V).

Directed to children 7 years and older. Designed for children ages 7 and above. It may be more

TV-Y7 appropriate for children who have acquired the developmental skills needed to distinguish between make-

believe and realiW. Themes and elements in this program may include mild i:antasy violence (FV) or comedic

violence, or may frighten children under the age of 7.

TV-Y all chUdren. Themes and elements in this program are designed for a young audience, including children

from ages 2 6. It is not expected to frighten younger children.

V-Chip TV Rating Limit

The V-Chip TVRating Limit lets you decide which TV programs can and cannot

be viewed.

To set TV programming limits:

1. Choose Parental Controls from the Main menu. If Parental Controls have

previously been locked, you must enter your password. If they are not

locked, you will get a message reminding yon that yotu limits will not be

effective until you lock Parental Controls.

2. Press MENU to continue.

3. Highlight and select VCht_ 77/Rating Limit.

4. Once you get to the VChip TVRatiTlg Limit screen, rise the arrow bLltt(ms

an(] OK on your remote to change the status of a "I_ program rating or

content theme from View to Block.

The following sections give yotl ntore details about how to change the status of

TV program limits.

46 Chapter 3

Using the TV's Features

The V-Chip Rating Limit Screen

The following is an example of where items are located within the Rating Limit screen.

Rating Field

Lets you select from a

list of age based ratings

you can block or view.

Rating Status Field

Lets you select whether the status of the age based rating limit Io

the left is View or Block.

Content Themes

l.isLs the content themes you

can block or view

'us Fields

Lets you select which

content themes to view for

the selected rating, and

whether the status of the

content theme is currently

View (V) or Block (B)

Rating Settings Area

Lets you see the current block/view state of age-based ratings and

associated content. The View (V) settings are coded in green, and the

Block (B) settings are coded in red.

Rating Rating Content

field status field status fields

Tip

When you change the status of a rating to

Block, the system will automatically block

higher ratings and all corresponding

content themes.

Blocking Age-Based Ratings

You can automatically block all program ratings above a specified age-based

rating level. For example, if you only want your child to watch programs that

have a TV-G rating and lower (in other words, you want the child to watch

TVG, TV-Y7, and TV-Y), then you need to block out other programming with

higher ratings.

To block programs with higher ratings:

1. First, determine the lowest level rating you don't want the child to watch

(see chart of age-based ratings on next page).

2. Press the left and right arrow buttons to highlight the Rating field.

3. Press the up and down arrow buttons on the remote to scroll through the

age-based rating limits. Keep scrolling until the rating corresponding with

the lowest rating you do not want the child to watch appears on the screen.

In the example discussed above, you would scroll through the Rating field

until TV-PG appears, since the highest rating you want the child to watch is

TV-G.

(Steps continued on next page)

Chapter 3 47

Using the TV's Features

Hierarchy of Age-Based Ratings

TV-MA Mature Audience Only

TV-14 Parents Strongly Cautioned

TV-PG Parental Guidance Suggested

TV-G General Audience

TV-Y7 Directed to Children 7 years

and older

TV- Y All Children

Tip

To reset the ratings to View and V, press the RESET

buPton on the remote.

Press the right arrow button to nrove the yellow highlight to tile

Status field.

Press the tap or clown arrow button to toggle between Vieu'and Bl()ck. The

status for the rating listed to the left and all higher ratings automatically

changes to Block (and B).

Press OK on the remote to return to the menu or exit the screen when ynu

are finished.

Select Lock Parental Controls from the Parental Controls menu. Enter a

password, and if you have not already set your password, you will be

prompted to enter it again to confirm.

Rating Rating Content

field status field status fields Viewing Age-Based Ratings

After you block age+based ratings, you have the option of changing some of the

ratings back to View.

1. Determine which blocked rating you want to view.

2. Use the up and down arrow buttons to select the rating with a status

of Bh)ck.

3. Press the right arrow button to move the yellow highlight to the rating

status field.

4. Press the up button to select View.

Notes:

•The content status fields corresponding to the unblocked rating

become View as well. They and the age-based rating status are the

only fields that automatically change back to View when you

complete

this process.

• You must remember to lock Parental Controls for rating limits to take

effect.

Content Themes

D Sexually explicit dialogue

L Adult language

S Sexual situations

V Violence

FV Fantasy Violence

TV-y All Children

Blocking Specific Content Themes

You can block progran]s based on theh content. (Content is repres('nted by the

D, L, S, V, FV and TV Y on your screen. See the beginning of this section for

details.) When you block acontent theme for a pal'ticular nltiug, you

automatically block that content theme filr higher rated programs as _ell.

For example, if yon do not want your chikl to watch prognuns that have aduh

language (L) rated TV PG or higher, then you could block out all l_rogramming

TV-PG anti above containing adult language.

48 Chapter3

Using the TV's Features

Rating

field

Rating

status field

Content

status fields

Content

themes To block program content:

1. Determine the lowest level of content you don't want the child to watch.

Use the up and down arrow buttons on the remote to scroll through the

age-based ratings until the rating that corresponds with the lowest content

you do not want the child to watch appears. (In the example above, you

would scroll through the ratings until the TV-PG rating appeared.)

Press the right arrow button to move the highlight to the field

corresponding with the content theme you want to block out.

Press the up or down arrow button to change content status from Vto B.

All higher ratings' content theme will automatically change to B.

Press OK to return to the menu or exit the screen.

Notes:

•Broadcasters are not required to provide content themes or age-

based ratings. Programs received with no content themes will only be

blocked if you block their age-based rating.

• You must remember to lock Parental Controls for rating limits to take

effect.

Rating

field Rating

status field

Content

themes

Content

status fields

Viewing Specific Content Themes

If you block specific content themes, you have the option of going back and

changing some of the content themes back to (V) ¼"era

1. Determine the content themes you want to change to (17) View.

2. Use the up and down arrow buttons to scroll through the age-based ratings

until the rating whose content theme you want to change to View appears.

3. Press the right arrow button to move the yellow highlight to a particular

content theme status, such as the Bunder language (L) corresponding with

TV-14.

4, Press the up or down arrow button to change its status back to V. Your

child would then be able to watch programs with TV-14 adult language

content, but not programs with TV-PG or TV-MA language content.

Note: Only the content theme status corresponding to TV-14

(L) language changes to (V) View. Higher rated content themes, such as

that for TV-MA language, do not change.

Chapter 3 49

Using the TV's Features

V-Chip Movie Rating Limit

You set movie rating limits by blocking movies rated above a sp_'cii:ied level.

l tow to block movie ratings and view movie ratings is explained in the next two

sections.

To access the V-CHIPMOV1ERATINGLIMITmenu:

1. Press MENU on the remote control (the TVMAINMENUappeans).

2. Select Parental Controls (press 6).

3. Select V-Chip Movie Rating Limit (press 2).

Rating field Rating

status field Blocking Movie Ratings

If you only want your child to watch movies that have a PG rating and lower

(in other words, movies rated PG and G), then you could automatically block

out all other movies with higher ratings.

To block movies:

1. Highlight the Rating field and press the up and down arrow buttons to find

the rating that is the lowest rating you don't want the child to watch. (In

the example above, you would highlight the rating stares button

corresponding to PG-13, since the highest rating you want the child to

watch is PG.)

2. Press the right arrow button to highlight the rating Status field. Press the up

and down arrow buttons to change the button from Viewto Block. All

higher ratings automatically change to Block.

3. Press OK to return to the menu or exit the screen.

4. If Parental Controls are not locked, you must lock them so the movie rating

limits will take effect.

Note: Some movies may be given aNot Rated (NR) rating. After blocking

movie ratings, you must set NR to View separately to view NR movies.

Rating field Rating

status field

Viewing Movie Ratings

Alter you block movie ratings, you have the option of changing some of the

nlting status buuons back to Vieu_

1. Highlight the Rating field and press the up and down arrow buttons to find

the rating you want to view.

2. Press the right arrow Imtton to highlight the rating ,S't:ttzlsfield. Press the up

and down arrows to change the butRm froln Block to [Teu'.

For example, if movies with a rating of PG-13 and higher are blocked, you can

c'llailge the rating status corresponding with NC-17. Your child would then bc

able to watch all movies with a G, PG, and NC-17 Rating.

3. Press OK to exit the screen, and be sure parcnui] contro]s are locked.

50 Chapter3

Using the TV's Features

V-Chip Unrated Program Block

Selecting this option lets you decide if programs that the V-Chip recognizes as

"'unnltecl" can he viewed. Note that "unrated" TV programs may include news,

sports, political, religious, local and weather programs, emergency bulletins,

public announcenlents, and programs without ratings.

View All unrated programs are available.

Block All unrated programs are not awulable.

Note: You must remember to lock Parental Controls for rating limits to

take effect.

Channel Block

Selecting this option lets you decide what channels can be viewed.

View Makes the selected channel viewable.

Block The front panel and remote control CH (channel) buttons will tune

only to channels that you have marked as View. The renrote will still tune to

the blocked channel if you use the digits to access the channel, but the

channel will be blocked.

Don't forget to lock parental controls after you change the status of Channel

Block. If you do not, the channel block will not take effect.

Front Panel Block

Selecting this option lets you block (disable) or unblock (enable) the TV's front

panel. The remote still tunes to any channel. Front Panel Block can:

• Keep children from watching TV when the parent is not present.

• Keep young children from playing with the buttons.

(When using this as a Parental Control method, you should remove access to

any remote that is capable of operating the television while you have the front

panel blocked.)

Don't forget to lock parental controls after you change the status. If yon do not,

the flont panel block will not take effect.

Lock/Unlock Parental Controls

Selecting this option lets you lock and unlock parental controls settings using a

p_lss\vor0.

If you do not lock parental controls, none of the settings for v-Chip,

Channel Block, or Front Panel Block will take effect.

If you forget your password, sitnuhaneousl':,' press and hold MENU/OK on the

television and the "IA,'button on the remote tk_r3 seconds. Parental Controls

unlock and you can rc enter a passxxord via Lock Par_,lttal Controls. Your

parental controls settings ,,,.ill not be aflected.

Chapter3 51

Using the TV's Features

J2J

,.) ,_', ,.)

buttons

5. & "U

_&..)_,-.3

PIP buttons

A typical use of SWAP is to scan through

channels in the PIP window, and when you find

a channelyou like, press SWAP to display that

channel in the main picture, sending the

current channel to the PIP windo_

PIP (Picture-in-Picture) Operation

The PIP (picture in-picture) featttre lets you display a second, smaller picture on

top of the main picture. Note that PIP is not :ivailable {k_rhigh resohition or

component video sources.

PIP Buttons

There are four remote buttons that control the way the PIP window works:

PIP Brings up the PIP window. Press PIP again to remove the window.

Move buttons Let you move the PIP window to different areas of the screen.

SWAP Switches, or "swaps," the video fl'om the PIP window with the main

picture.

CH CTRL (Channel Control) Lets you switch channel control between the PIP

window and the main picture. To determine whether you are controlling the PIP

or the main picture, bring up the Channel Banner (detailed on page 42). Tire

yellow channel number is the one you are controlling.

For instance, press PIP to bring up the PIP window. You can change channels

by entering digits or pressing the channel Lip or clown. When you press the CH

CTRL button, the channel control switches to the main picture. You can now

change channels in the main picture by entering digits or pressing channel up

or down.

Tips for Using the PIP Buttons

Skip to PIP: Channel Surfing tn the Main Picture

You can surf through the channels during commercial breaks using the SKIP and

CH (channel) buttons,

1. Press SKIP to set the commercial skip timer and bring up the PIP window,

2. Press the channel up or down buttons on the remote to surf tl'_rough the

channels in the main picture. When the SKIP feature times uut, the mail]

picture will tune to the original channel automaticall 5

Channel Surfing in the PIP Window

You can use the PiP window to surf tlarough channels ;IS _\ell.

1. Press PIP to hring up the PIP window.

2. Press the channel up or down buttons. The TV begins displaying each

channel in the PiP window. If you see a channel that ii'_tcrests you, press

SWAP to put that channel in the main picture.

52 Chapter3

Chapter 4

Using the TV's

Menu System

Chapter Overview:

• How to Use Your TV's Menu System

•Audio Menu

•Picture Quality Menu

•Screen Menu

•Channel Menu

• Time Menu

Changing Entertainment. Again.

Using the TV's Menu System

How to Use Your TV's Menu System

Yotl use the buttons on the renlotc ()r tht' front of your TV to access the menu system and make changes to the settings.

The folh_wing pages explain how to use the different types of menus to adjust the features of your TV,

Tip

Feel free to explore the menu system. If you're

ever unsure where you are in the menu system,

or you "re just plain tired of exploring, press

CLEAR to remove the menus from the screen

and start over again.

Menus

The first menu is called the Main menu. Press MENU on the remote or on the

front panel to bring up the Main menu.

Menus take you to another menu or a control panel. There are two ways to

select a choice in a menu:

• Use your arrow buttons on your remote control or front panel to highlight

your choice, and press OK.

• Press a number button on the remote. For example, in the Main menu press

3 to go straight to the Screen menu.

Exiting a menu

There are three ways to exit a menu:

Highlight Go Back and press OK.

Press 0 on the remote.

• Press CLEAR. The on-screen displays are cleared from the screen and you

return to TV viewing.

Audio Menu

Mute Press OK to reduce the TV's volume to its minimum level. Press OK

again to restore the volume.

Tone Controls Displays the slider controls for adjusting the TV's treble, bass

and bahmce,

Audio Processor Displays a choice list of available audio modes, which

control the way the sound comes through your speakers.

Mono Plays the sound in mono only. Use this setting when receiving

broadcasts with weak stereo signals.

Stereo Splits the incoming stereo audio signal into left and right channels.

Most TV programs and recorded materials have stereo audio. The word

Stereo appears on the TV when you tune to a program that is broadcast

in stere{).

54 Chapter 4

Using the TV's Menu System

SRS Stero (.) SRS technology is an audio processing technology that adds

greater depth and stere() separation to stereo audio signals.

SRS Stereo (.) -- Focus This technology enhances audio signals by

adding treble and making dialog more understandable.

Second Audio Program (SAP) Plays the program's audio in a second

language, if one is available. The TV displays the word SAP in the channel

marker when you tune to a program that is broadcast with SAP information.

SAP audio is broadcast in mono. SAP is also used to broadcast a program's

audio with descriptions of the video for the visually impaired.

Speakers Displays a choice list that lets you turn the TV's speakers on or off.

Volume Display Displays a choice list that lets you turn off the TV's volume

display if you have an audio receiver connected to the fixed audio output jacks.

SoundLogic TM Sound Logic monitors a program's audio track and limits the

volume to a maximum volume range. Whenever you adjust the volume on the

"IV, the maximum volume range adiusts, too.

Note: Auto Color only appears in

the Picture Quality menu when

the following modes are selected:

Tuner, Vid I-3, Front, and S-

Video. This feature does not

appear in the Picture Quality

menu if the TV is tuned to

CMPNT or HiRes inputs.

Picture Quality Menu

Basic Picture Controls Displays the five slider controls for adiusting the way

the picture looks.

Contrast Adjusts the difference between the light and dark areas of

the picture.

Color Adjusts the richness of the color.

Tint Adjusts the balance between the red and green levels.

Black Level Adjusts the brightness of the picture.

Sharpness Adjusts the crispness of the edges in the picture.

When exiting this menu, the Save Personal Picture Preset choice list will appear.

You can choose either Yes or No. If you save the settings as a Personal Picture

Preset, the TV will store the settings so you can re-select them quickly if

someone changes the settings.

Picture Presets Displays a choice list that lets you select one of three preset

picture settings: Bright Lighting, Normal ZightiHg, Soft LightiHg or Personal

Picture Preset. Choose the setting that is best fi)r your viewing environment.

Auto Color Displays a choice list that lets you turn on the feature that

atttomatically corrects the color of the picture. (This is especially useful for

tracking realistic flesh tone colors as you switch from channel to channel.)

Choose On or Of/_ depending on your preference.

Color Warmth Displays a choice list that lets you set one of three atttomatic

color adjustments: Cool for a more blue palette of picture colors; Normal; and

Warm for a nrore red palette of picture colors. The warm setting corresponds to

the NTSC standard of 6500 K.

SRS, Sound Retrieval System, and the SRS logo are registered trademarks of SRS Labs. Inc.

Chapter 4 55

Using the TV's Menu System

Your projection TV has three color projection

tubes -one for red, one for green, and one for

blue. When the tubes are precisely aligned,

they create the color images you see on the TV

screen. Over time, the picture can drift out of

alignment due to normal component aging,

bumps and vibrations, or moving the T_ZIf you

notice rings or halos around objects in the

picture, you may want to readjust the picture.

Screen Menu

Closed-Caption Display Displays a choice list that lets you choose the way

closed captioning information is shown on the screen. Closed-captioning is not

available with the high resolution input.

Off No captioning information displayed,

On Always Captioning information shown always, when available.

On when sound is muted Displays captioning information, when available,

whenever the TV's sound is muted by pressing the MUTE button. The

captioning information is not displayed when the sound is not muted.

Closed-Caption Mode Displays a choice list that lets you choose which

captioning mode is used for displaying captioning information. If you are unsure

of the differences among the modes, you may prefer to leave the closed captioned

mode set to CC1, which displays complete text of the program in the primary

language in your area.

PIP Closed-Caption Display Displays a choice list that lets you choose the way

closed captioning information is shown in the PIP window.

Off No captioning information displayed.

On Captioning information shown always, when available.

Alternate with PIP button Displays captioning information, when

available, by pressing the PIP button while the PIP window is displayed.

PIP Closed-Caption Mode Displays a choice list tbat lets you choose which

captioning mode is used for displaying captioning information within the PIP

window.

Menu Language Displays a choice list that lets you select your preferred

language for the menus: English, Spanish or French.

Menu Background Color This menu item lets you choose between blue and

transparent menu backgrounds.

Adjust Projection TV Lets you adjust the TV's three colors. Automatic

Convergence will cause the TV to self-correct color images. This process results in

a temporarily blank screen, may take a few minutes, and should be completed for

each mode: NTSC and HDTV. Note that Automatic Convergence covers only the

mode selected at the time. To Auto Converge for another mode, enter the mode

and select Automatic Conveplgenceagain. For best results, run Automatic

Convergence after the TV has been on for at least 30 minutes. Selecting Red

Convergence or Blue Convergence lets you align the red and blue images with the

green image.

Note: To cancel Auto Convergence, press the OK hu_ton on the remote.

56 Chapter 4

Using the TV's Menu System

TIp

You can turn 16 9 mode onloff from the menu

or the FETCH button on the remote If you are

using a DTCI00 remote, you can use the FETCH

button w_th the remote in the TV mode

16:9Mode Also known a +,ahamorphxc mode Let+; ,_ou .select a wl(lc,+Lreen

[Olnlat [ol Jwider Vle_ lng area U_,ll'lg a 16 9 ds[)ect-ratlo SOLIrLe, ',uLh a +.a I)VD

pla,.'cl, for ,._h_,play on tht_ 4 3 a,,pect-ratu) TV Requxrements include a16 9

a-,i)cct ratio "-,ource..',uch a', aDVD pla}et ot HD recm\er ,t 16 9 aspe(t-rauo

d_,,c or signal, the 16 9 -,outce need', to be set to output a 1(/9 format ",_gnal,

and tile 16 9 mode on the TV need', to be on

important: Prolonged use of !6:9 mode will result m visible darkening of

the picture tube. To maintain screen quality, do not operate m 16"9 mode

for extended periods of time

Notes:

When using 16 9 mode, the on-screen displays (menus, guide, CC, and

PIP) will be compressed somewhat, which is normal.

A separate 16 9 mode setting is retained for the tuner, video,

component, and high resolution inputs If the TV is turned off, all 16 9

mode settings are retained.

Using Closed Captioning

MAIl _, [,iogrAms are encoded with _.[osecl captioning u;[-ormatton, x\ hR_h lets you dr>play t|le :.lLIdlO pOltlOn Of a progranl as

te'<t (_n the TV -,Lreell.

Clo,ed captt(mmg is not a_ affable on all cll.tnnel-, at all tnnes Onl,, specific progranls encoded v. tth cto,,ed-capttorung

tnlolln.ttl(in .lle apphcable \\ hen a ptoglam i,, closed capnoned, CC ta dlsplaved m the channel banner See Chapter 3 for

II1()1C IIl_()ln'latlOll about the channel b,mnet

1COl

.J,_ =

, _ ,-a z

:,-

If you don't know which Closed°Capoon mode

rouse, select CCl CCI _sprobably the mode

that is used myour area CC2, CC3, and CC4

are reserved for foreign languages, but are

rarely used at this time

Closed-Caption Modes

Tile TV ottep, e=ght closed-capt=oned modes m(ludtng [_)ur text n',ode_

To >et the (7oaed Caption tlode

1 .',elect 5_reen from the Mare ]tleP,u

2 H=.qhhght Closed-Captloiz Mode and pie'+, OK (tile C/r,',ed Capttoll IR)de

appcat _-)

{ Htghhght ,,out Lhotce and press OK {the 3ctg_'#l mcntl appeal'-, agall]J

Note: The Text modes cover nearly half of the picture on the screen to

display the closed-captioned text Most broadcasters use the CCmode,

which displays a few lines of captions at a time

Turning off Closed-Caption

I_,ck'(t _/_,c, ii horn the Mdm mentl

2Iq e-,', OK t() sc[ctt (lo.s{'d Cgq)ttoll Dt._plggv

3 Highlight 1)//,'lht'{ll'_ and press OK "Ihe do:-.ed captioning 1.-.ttuned o[t anti

_,Otl g() ba(k t() the .go H_,,t,n I//entl

Chapter4 57

Using the TV's Menu System

To enter a channel number greater than 99,

press and hold "I" to enter the hundreds digit,

then press the two remaining numbers.

Channel Menu

Signal Type I)isplays a choice list that lets you select tile current antenna

type. This option does not appear when the GUIDE Plus+ system is set up.

UHF/VHFAntenna Choose this if you are currently using an off-air

antenna for TV signals.

Cable TV Choose this if you are currently using cable or a cable box tk_r

TV signals.

Auto ChannelSearch Tells the TV to search automatically for all the channels

available through the antenna input. When the TV finds an active channel, it

places it in the Normal channel list; inactive channels (weak stations or

channels with no signal at all) will be removed from the channel list, If you are

using a cable box and have set up the GUIDE Plus+ system, this option does

not appear.

List and Labels Displays a control panel that lets you edit your Normal

channel list and choose a six-character label for each channel. Follow the on-

screen directions to enter your channels and other ini:ormation.

Channel #Use the up and down arrows to scroll up and down through

the channels available via your antenna. Yon can enter the channel number

directly using the number buttons.

NormalList Only the channels included in the Normal list are available

when you scan up and down using channel tip and down. Use the up and

down arrow buttons to indicate whether the channel number indicated is

included (Yes) or is not included (No) in the Normal channel list.

ChannelLabel Use the up and down arrow buttons to enter a six-

character label fi)r each channel. Hold the button down to scroll quickly

through the characters. The TV can store up to 45 labels in memo W.

Autotuning l)isplays a choice list that nets you set up the TV to automatically

tune to the correct input channel when you press a component button (VCR1,

1)VD, VCR2, SAT*CABLE, etc.) on the remote. Go to Chapter 3 for details about

the Autotuning feature.

Time Menu

Sleep Timer I)isplays a control panel that lets you select the anlount of time

you want to give tile TV before it shuts itself off.

Schedule 1)isl)lays a contro! panel that lets you set up a schedule for turning

the "1.' on and off automatically. Reminder: you must turn the schedule On. The

on-st rcen directions guide you through tile steps needed to set tile schedule.

Set Time l)isplays a control panel that lets you enter the current tilne. The on

screen directions gtfidc you through the steps needed to set the time. If your

G[!II)E Plus+ system is set up. it \\'ill automatically update your time and this

op0on \xil] not appeal.

58 Chapter 4

Chapter 5

Other Information

Chapter Overview:

•Troubleshooting

•Specifications

•Care and Cleaning

•Limited Warranty

• Accessory Order Form

•Index

Changing Entertainment. Again.

llhtstratio**s co*_tained iH this docltnz_,nt are,i_r re/_r_<s_,p*lattopl olz/l'. 59

Other Information

Troubleshooting

Most problems you encounter with your TV can be corrected by consulting the following troubleshooting list.

TV Problems

TV won't turn on

Press the TV button.

Make sure the TV is plugged in.

Check the wall receptacle (or extension cord) to make sure it is "live" by plugging in something else.

Something might be wrong with your remote control. Press the POWER button on the front of the TV. If the TV turns on, check the

remote control solutions on page 62.

The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by selecting the Front

Panel Block in the Parental Controls menu and choosing View.

Buttons don't work

If you're using tile remote control, press the TV button first to make sure the remote is in "IV mode.

The hont panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by selecting the Front

Panel Block in the Parental Controls menu and choosing View.

Unplug the TV for two minutes and then plug it back in. Turn the TV on and try again.

TV turns off while playing

Scheduled Off function may have been activated. Go to page 38 for instructions.

Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn on again. If this

happens frequently, the voltage in your house may be abnormally high or low.

The sleep timer may be set.

Unplug. Wait five minutes. Plug in again.

TV turns on unexpectedly

Scheduled On or Watch from the GUIDE Plus+ system may have been activated. Go to page 38 for instructions.

Blank screen

Make sure the component connected to the "IV is turned on.

Try :mother channel.

If you have connected a digital set top converter (i.e. DTC100), you must connect to botl_ the HIGH RESOLUTION INPUT and

INPUT2 jacks in order to view both digital and analog signals.

Due to copyright restrictions, you may not be able to view some high definition programs in high definition format using this

product. To view this type of programming in standard definition R)rmat, you must also connect the audio/video iacks from the HI)

recei\ er to the TV

When I turn on the TV, an icon is moving on the screen

• Make sure yon have removed the Demo Pin from the G-LINK iack on the back of your TV.

No sound, picture okay

Maybe."the sound is n_uted Try pressing the volume up button to restore sound.

60 Chapter 5

Other Information

Maybe the speakers are turned off. Check the Audio Output and Speakers control panel in the Audio menu.

If using an S-VHS component, remember to also connect the component's L and R AUDIO OUT jacks to the TV's L and R INPUT

jacks.

Check the INT/EXT switch on the back of the TV.

Can't select certain channel

('hannel may be blocked or not approved in tile Parental Controls menu.

If using a VCR, check to make sure the TV/VCR button on tile VCR is in the correct mode (press the TV/VCR button on your VCR).

Noisy stereo reception

• May be a weak station. Use Audio menu to choose mono sound.

No picture, no sound but TV is on

Maybe the cable/air function is set to the wrong position. Select GUIDKPlus+ Menu from the Main menu, select

the Setupoption, and provide the correct information on the following screens. Go to pages 19_21 for detailed instructions.

The channel might be blank -- change channels.

If you're watching your VCR and it's connected with coaxial cable to the CABLE/ANTENNA jack, rune the TV to channel 3 or 4

(whichever channel is selected on the 3/4 switch on the back of your VCR). Also check to make sure the TV/VCR button on the VCR

is in the correct mode (press the TV/VCR button on your VCR).

Sound okay, picture poor

Check antenna connections. Make sure all of the cables are firmly connected to the jacks.

Try adiusting sharpness function to improve weak signals. Go to page 55 f()rmore instructions.

Black box appears on the screen

Closed-captkming might be on. Check the Closed-Caption Display control panel in the Screen menu. Go to page 57 for more

instructions.

Every time I turn on the TV, the Guide is on the screen

The GUIDE Plus+ system automatically appears on the screen when you use the TV button on the remote to mrn on the TV. You can

turn off this feature by pressing GUIDE on your remote control and then select the Menu bar. Press the right arrow button to select

Setup. Choose Review options and select OFF

GUIDE Plus+ System Problems

GUIDE Plus+ setup won't switch to channel 9 for VCR and/or channel 02 cable box

Make sure you have removed the Demo Pin from the G-LINK jack, Chuck to see if the G LINK wands are positioned correctly in

front of components" remote sensors

GI TIDEPlus+ system control of cable box is s!ower than direct control of the box itself. Keep this in mind when changing channels

You may have an incorrect GUIDE Plus+ Channel Lineup. The guide may get out of sync with the cable provider. Use the GUIDt5

lqus+ .5_.lupin the GUIDt:+lqus÷ Metal to change the zip code to 99999. Turn the TV off R+r 10 minutes. Use Setup again to change

the zip cocle hack to the correct value If asked, be sure to select tile correct channel lineup from the on-screen list.

(Continued on next page)

Chapter 5 61

Other Information

Program information doesn't download

Review your setup information and make sure it's correct. Press MENU on the remote and select GUIDEPlus+ Setup. Go to page 19

ibr detailed instructions about the GUIDE Plus+ Setup menus.

The WV must be off to download information. Leave your TV off overnight, for at least 10 hours, to receive the initial download ff)r

your area.

If you're using a cable box, leave it on so you can receive program information.

Scheduled Watch or Record doesn't occur

Check Scbeduk" for timer conflicts. Go to page 38 for instructions.

Make sure the wands of the G=LINK cable are placed in front of the remote sensor(s) on the component(s).

Make sure your VCR is turned off during the time you've scheduled to record a program because the system turns the VCR on when

it starts recording (if it's already on when recording starts, the system will turn it off).

Make sure there is a tape in the VCR and that the VCR is connected properly.

Be sure that you set up the VCR in the GUIDE Plus+ Setup menus. If you don't complete the Configuring for a VCR steps successfully,

the Record option won't be available. Go to page 22 for detailed instructions.

If a cable box is attached to your TV, make sure you set it up correctly in the GUIDE Plus+ Setup menus. Go to page 20 for detailed

instructions.

The Remote Control Doesn't Work

Something might be between the remote and the remote sensor on the component. Make sure there is a clear path.

Maybe the remote isn't aimed directly at the component (TV or VCR) that you're trying to operate.

Maybe remote is not in TV Mode. Press the TV button so remote will control TV.

Maybe batteries in remote are weak, dead, or installed incorrectly. Put new batteries in the remote. (Note, if you remove the

batteries, you may have to reprogram the remote to operate other components.)

You might need to drain the remote's microprocessor: remove batteries and press the number 1 button for at least 60 seconds.

Release the 1 button, replace the batteries, and (if necessary) program the remote again.

Problems with V-Chip/Parental Controls

The rating limits don't work

You must lock the settings. Go to the MAINMENU(press MENU on your remote), select Parental Controls (press 6 on your remote),

select Lock Parental Controls (pre_s 6 on your remote).

Idon't remember my password and I want to unlock the TV

If you forget your password, simultaneously press and hold MENU/OK on tbe television and TV on the remote for 3 seconds.

Nothing appears on the screen, Parental Controls simply unlock and you can re-enter a password via Lock Parental ControLs'.

The V-Chip won't let me watch a program even though it's not rated as violent.

Maybe the movie was given an NR (Not Rated) status. After you block movie ratings, you must set NRto _ewseparately in order to

view movies with an NR rating.

62 Chapter 5

Other Information

RCA HDTV Monitor Specifications*


MULTI-SYNC SCAN MODES

SOUND

Optimum Contrast Screen ...................................... Yes

Picture Power (Watts) ............................................. 6S

Dot Pitch ................................................................. 78ram

Dynamic Focus ......................................................... Yes

Scan Velocity Modulation ...................................... Yes

Aperture Sharpness ................................................ Yes

Comb Filter .............................................................. 3 Line Digital Comb

Auto Color Control ................................................. Color Level & Tint

Black Stretch ............................................................ Yes

Color Detail Enhancement ..................................... Yes

Wide Band Video Amplifier ................................... Yes

Video Noise Reduction ........................................... Yes

Color Temperature Selections ................................ 6500, 7500 & 9300 Kelvin

NTSC......................................................................... 32.SkHzl 60 Hz Progressive

HDTV ........................................................................ 1280xi080 Interlaced

Audio Power 0Natts) Total ..................................... 20 (10 WattslCh)

DBX t Broadcast Stereo ............................................ Yes

Second Audio Program ........................................... Yes

SRSI Sound Retrieval System with Focus .............. Yes

Speakers .................................................................. 2 - 55ram x 160ram High Compliance

CONVENIENCE Channel Tuning Capability ..................................... 181

Gemstar GUIDE+ Gold ............................................ Yes

16:9 Aspect-Ratio Mode (Widescreen) .................. Yes

Dual Tuner Picture-in-Picture ................................. Yes

PIP,Swap, and Move ............................................... Yes

Channel Labeling .................................................... Yes

Parental Control ...................................................... Yes

Stereo Headphone Jack .......................................... 3.5ram Stereo Mini-jack

Front AIV Input ....................................................... Composite, L (Mono)l Right

BACK PANEL INPUTSlOUTPUTS AIV Inputs ............................................................... 3 -S-Video IComposite

Component Video Input ......................................... Y-Pr-Pb (RCA Jacks) Synchroscan

UHFI VHF, Cable Input ............................................ 75-ohm Terminal

High Resolution Input ............................................ 15 Pin D-sub

•RGB Video Input

• Component Video Input (with provided adapter cable)

Audio Output Jacks ................................................ Fixed And Variable

External Speaker Terminals .................................... Yes

G-LINK jack .............................................................. Yes

GENERAL SPECIFICATIONS

Screen Size (Measured Diagonally)

Dimensions (H X W X D)

D521201D52130 D611201D61130

52" 61"

52 X 44.25 X 24.5" 61 X 51.5 X 25.25"

*Specifications are subject to change.

t DBX is a registered trademark of Carillon Electronics Corporation.

Chapter 5 63

Other Information

Care and Cleaning

CAUTION: Turn OFF your TV before cleaning.

You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet

to help assure adequate ventilation.

The TV's screen may be cleaned with a soft, lint-free cloth as well. Take care not to scratch or mar the screen. If necessary,

you may use a cloth dampened with warm water.

Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. These types of cleaners will

damage the TV.

While cleaning do not spray liquid directly on the screen, or allow liquid to run down the screen and inside the TV. Also,

avoid placing drinks or vases with water on top of the TV. This could increase the risk of fire or shock hazard or damage to

the TV.

64 Chapter 5

Other Information

RCA HDTV Monitor Limited Warranty

What your warranty covers:

• Defects in materials or workmanship.

For how long after your purchase:

• One year from date of purchase for labor.

One year from date of purchase for parts.

• Two years from date of purchase for the picture tube.

The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm,

whichever comes first.

What we will do:

• Pay an Authorized Service Center the labor charges to repair your unit.

Pay an Authorized Service Center for the new, or at our option, refurbished replacement parts and picture tube required

to repair your unit.

How you get service:

• Call 1-877-RCA-HDTV and have your unit's date of purchase and model number ready.

A representative will troubleshoot your problem over the phone.

If the representative determines that you should receive service, they will provide you with the name(s) of the

Authorized Service Center in your area.

Contact the Service Center and arrange for home or pick up, repair, and return service, provided that your unit is

located within the geographic territory covered by an Authorized Service Center. If not, you must take your unit to the

Service Center location at your own expense, or pay for the cost the Service Center may charge to transport your unit to

and from your home.

Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the

warranty period must be presented to obtain warranty service. For rental firms, proof of first rental is also required.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual describes how to install,

information should be obtained from your dealer.)

Installation and related adjustments.

Signal reception problems not caused by your unit.

• Damage from misuse or neglect.

Batteries,

hnages burnt onto the screen.

• A unit that has been modified or incorporated into other products.

A unit purchased or serviced outside the U.S.A.

adjust, and operate your unit. Any additional

Acts of nature, such as but not limited to lightning damage.

Chapter 5 65

Other Information

Product registration:

Please complete and mail the Product Registration Card packed with your trait. It will make it easier to ,,:omact you

should it _ver be necessary The return ol the card is not required for warranty coverage.

Limitation of Warranty:

THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITYEN INFORMATION

GIVEN BY THOMSON MULTIMEDIA INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY

WAY INCREASE THE SCOPE OF THIS WARRANTY.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE

CONSUMER. THOMSON MULTIMEDIA INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS

OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY

ARE GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPT TO THE EXTENT PROHIBITED BY

APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE

ON THIS PRODUCT IS LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

How State Law relates to this warranty:

Some states do not allo\x the exclusion nor limitation of"incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

• This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.

If you purchased your television outside the United States:

This warranty does not apply. Contact your dealer for warranty information.

Service calls which do not involve defective materials or workmanship are not covered by this warranty. Costs

of such service calls are the sole responsibility of the purchaser.

66 Chapter5

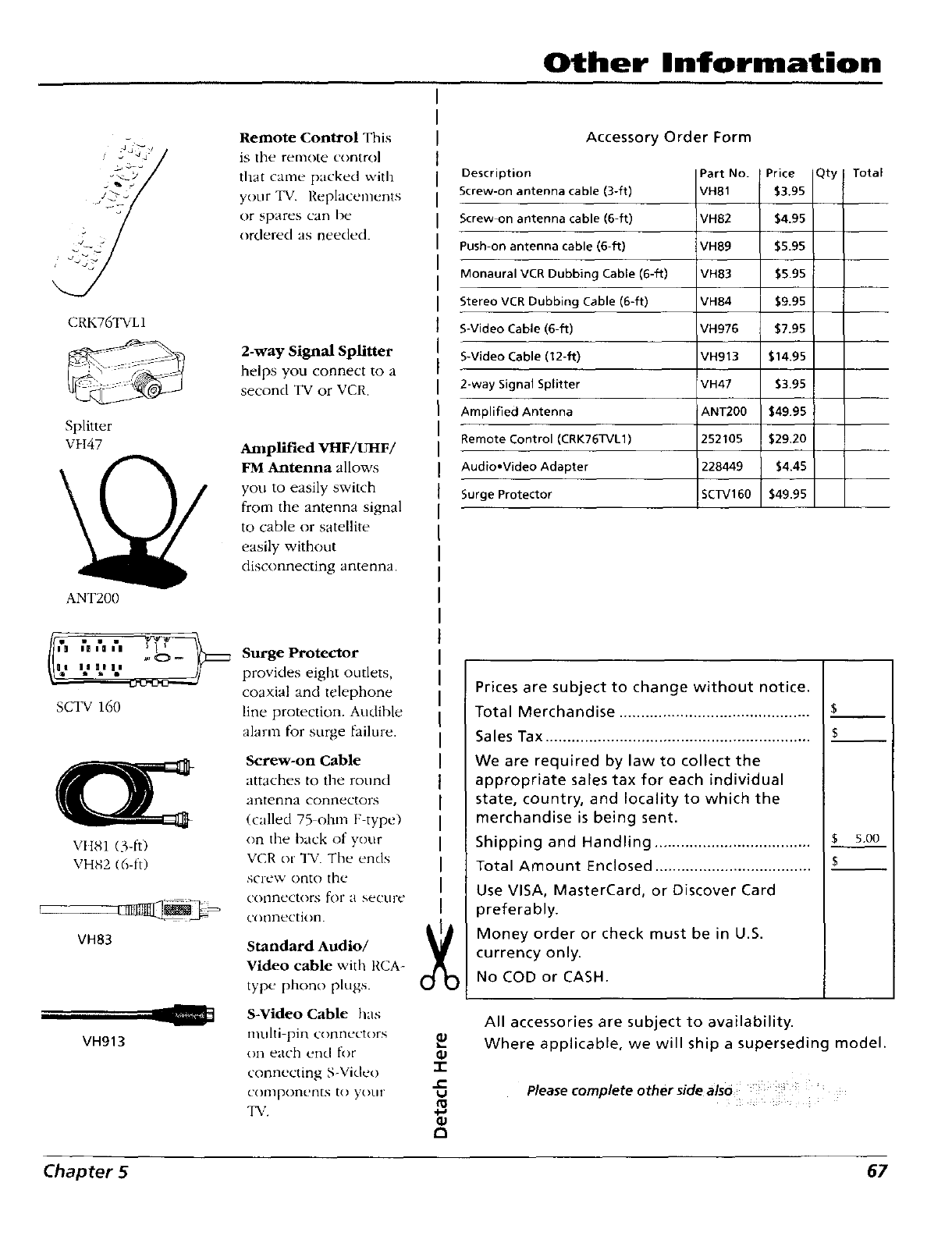

Other Information

CRK76TVL1

Splitter

VH47

ANT200

SCTV 160

,,71181(3-ft)

VH82 (6-ft)

VH83

VH913

Remote Control This

is the remote control

that came packed with

your TV. Replacements

or spares can be

ordered as needed.

2-way Signal Splitter

helps you connect to a

second TV or VCR.

Amplified VHF/UHF/

FM Antenna allows

you to easily switch

from the antenna signal

to cable or satellite

easily without

disconnecting antenna.

Surge Protector

provides eight outlets,

coaxial and telephone

line protection. Audible

alarm for surge [hilum.

Screw-on Cable

attaches to the round

antenna connectors

(called 75 ohm F-type)

on the back of yonr

VCR or TV. The ends

screw onto the

COllnectors for a secLtre

connection.

Standard Audio/

Video cable with RCA-

type phono plugs.

S-Video Cable has

nlulti pin connectors •

on each end for •

connecting S-Video "r

e'-

components to your t.a

TV.

Accessory Order Form

Description Part No.

Screw-on antenna cable (3-ft)

_crew on antenna cable (6-ft) VH82 $4.95

_ush-on antenna cable (6-ft) VH89 $5.95

_lonaural VCR Dubbing Cable (6-ft) VH83 $5.95 1

_tereo VCR Dubbing Cable (6-ft) VH84 $9.95

;-Video Cable (6-ft) VH976 $7.95

_-Video Cable (t2-ft) VH913 $14.95

__-way Signal Splitter VH47 $3.95

_mplified Antenna ANT200 $49.95

_emote Control (CRK76TVL1) 252105 $29.20

Audio*Video Adapter 228449 $4.45

_urge Protector SC1_/160 $49.95

Total

Prices are subject to change without notice.

Total Merchandise .............................................

Sales Tax ............................................................. $

We are required by law to collect the

appropriate sales tax for each individual

state, country, and locality to which the

merchandise is being sent.

Shipping and Handling ..................................... $ 5.00

Total Amount Enclosed ..................................... $-_

Use VISA, MasterCard, or Discover Card

preferably.

Money order or check must be in U.S.

currency only.

No COD or CASH.

All accessories are subject to availability.

Where applicable, we will ship a superseding model.

Please complete other side also 7 ;

Chapter 5 67

Other Information

Charge your order on your VISA,

MasterCard, or Discover Card by

filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number _"_--V_/_"

from your VISA card i

EEY22 r-]--V]C-V-V]

M,cardoxpire :VT-IVr-I

IMPORTANT: Copy complete account number

from your MasterCard

[SSZI] vr-vr-1 v-r-vN cr--v-v]

Copy Number

above your

name on

MasterCard

My.card F-T'-] [-"V- ]

expires:

IMPORTANT: Copy complete account number

from your Discover Card

I111 II I I I II--i--I--_ _

My card expires: _

AUTHORIZED SIGNATURE

(Credit card order will not be processed without signature)

Print or type your name and Acomplete and correct

address clearly, order will save you days

of waiting.

Name:

Street:

Placing an Order

To place your order by phone, havc yotu Vis:t, MasterCard of

Discover Card reacly and call the toll-fr,Jc numher listcd

below.

Use this number only to place on order t_)l accessory items

listed on this order form

1-800-338-0376

To place your order by mail, detach and mail the completed

order form with credit card information, illonc'y order or

check in US currency (made payahle to Thomson nmltimedia

Inc.) to the lollowing address:

Video Accessories

PO Box 8419

Ronks, PA 17573

Apt:

City:

State: Zip:

Daytime phone number:

Please make sure that both sides of this form

have been filled out completely.

• Allow 4 weeks for delivery.

• All accessories are subject to availability.

• Prices are subject to change.

__.J

68 Chapter 5

This page left intentionally blank.

Index

Symbols

16:9 Mode 2, 57

Accessory Order Form 67

Adjust Projection TV 56

Age-Based Ratings 47

Anamorphic Mode (16:9) 57

ANTENNA Button 26

Audio

Menu 54

Output 14

Processor 54

Audio Menu

Sound Logic Stereo 55

Speakers 55

Tone Controls 54

Second Audio Program 55

Audio/video cables 7, 13

Audio/video iacks 13

Auto

Channel Search 18, 58

Color 55

Converge 56

Tuning 58

Automatic Code Search 28

Automatic Convergence 56

Autotuning 2, 43

DVD Channel 43

Front Input 44

High Resolution Input 44

SAT/CABLE Channel 43

VCR Channels 43

AUX Button 26

Batteries 17

Black Level 55

Block

Age-Based Ratings 47

Front Panel 51

Movie Ratings 50

Specific Content Themes 48

V Chip Unrated Program 51

Blue Convergence 56

Buttons

Front Panel 16

Remote 26

Cables 13

Audio/Video 7

audio/video 13

coaxial 7, 14

COMPONENT VIDEO 13

for RF jacks 14

forY, Pb, Pr jacks 13

G LINK 7

&Video 7, 13

Care and Cleaning 61

CH CTRL 26, 52

Channel

3 44

Banner 41, 42

Block 51

Labels 58

Lineup 35

Menu 58

Search 18

Choose Your Connection 7

CLEAR Button 26

Closed Caption

Display 56

Mode 56, 57

PIP Display 56

PIP Mode 56

Coaxial cable 7

Color Warmth 55

Component Video 13

Component Video cables 7

Composite video 13

Connecting Optional Components

A!V Receiver + Speakers 12

HD Receiver + VCR + DVD Player 8

TV+DVD+VCR 11

TV+Satellite Receiver+VCR 10

Content Themes 47

Contrast 55

DVI)

Button 26

Channel 43

Editor Menu 40

EXT/INT Switch 14

External Speakers 14

Finding the sensor 15

Fixed Output 12, 14

Front Panel

Buttons 16

Inputs 16

Front panel

Block 51

G-LINK

cable 7

connecting 15

GO BACK Button 26

Green Image 56

Grid Guide menu 35

GUIDE Button 26

GUIDE Plus+ system

Channel Lineup 35

Channels 41

Downloading Information 34

Setup 19

Guide Plus+ system 19, 23

High Resolution Input Jacks and Cables 14

INFO Button 26

INPUT1 44

INPUT1 iacks 13

INPUT2 jacks 13

INPUT3 jacks 13

INT Switch 14

Interactive setup 18

Jacks 13

audio/video 13

COMPONENT VIDEO 13

RF 14

S VIDEO 13

SATELLITEIN 14

74 Chapter 5

Index

Key Features Overview

Labels 58

Language 56

Languages, selecting 18

Limited Warranty 65

Locating remote sensor

Lock, Parental Controls

Memory 58

Audio 54

Channel 58

Editor 40

Grid Guide 35

Messages 39

News 38

Picture Quality 55

Schedule 38

Setup 40

Sort 37

Time 58

Menu Background Color

MENU Button 26

Menu Language 56

Menus 54

GUIDE Plus+ System

setup 19

Messages menu 39

Modes, remote control

Mono 54

Mute 27, 54, 56

News menu 38

Normal List 58

OK Button 27

ON*OFF Button 26

On-screen Program Guide 1

Order form 67

Parental Controls

Locking, Unlocking 51

menu 45


Presets 55

Quality Menu 55

PIP (Picture in Picture) 52

Buttons 52

Closed caption display 56

Closed caption mode 56

PIP Button 27

POWER on Front Panel 16

Programming the Remote

Automatic Code Search 28

Direct Entry 29

Rating Limits

movies 50

TV 46

RCA-type cables 13

Red Convergence 56

Remote

component buttons 28

sensor 15

Remote Control

Buttons 26

Installing the Batteries 17

Programming 28

Programming Codes 31

RF jacks 14

S VIDEO 13

cable 7

SAT/Cable Channel 43

SATELLITE IN jack 14

Satellite receiver codes 32

Schedule

menu 38

time 58

Screen Menu 56

Second Audio Frogram

(SAP) 55

Set

DVD Channel 43

SAT/CABLE Channel

Time 58

VCR1 Channel 43

VCR2 Channel 43

Setup

GUIDE Plus+ system

menus 19

menu 40

Sharpness 55

Signal Type

Cable TV 58

UHF/VHF Antenna 58

SKIP Button 27

Sleep Timer 42, 58

Sort menu 37

Specifications 63

SRS Stereo (*) Focus

Stereo 54

SWAP Button 27, 52

Things to Consider

Before You

Connect 6

Time

Current 42

Menu 58

Tint 55

Tone Controls 54

Troubleshooting 60

TV Button 27

UHF/VIqF Antenna 58

Universal remote

programming to

control other brands

of components 30

Unlock, Parental

Controls 51

Chapter 5 75

Index

V-Chip 45

Age Based Ratings 45

Blocking Movies 50

Content Thenles 4_,

V-Chip: Parental Controls 1

Variable Outptlt 12, 14

VCR

1 Channel 43

2 Channel 43

VCR1 Button 27

VCR2 Button 27

Warranty 65

Y Pb Pr jacks 13

76 Chapter 5

This page left intentionally blank.

Visit the RCA website at www.rca.com

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only

add delays in service for your product.

Thomson multimedia Inc.

10330 North Meridian Street

Indianapolis, IN 46290

Trademark(s)® Registered

Marca(s) Registrada(s)

Printed in USA

TOCOM 15719660 D52120

D52130

D61120

D61130

THOMSON

RCA Projection/Digital 42 And Above TV Manual L0108043

Navigation menu

Versions of this User Manual:

Views

Navigation
