Satellite Receiver
User's G ide
Changing Entertainment. ain.
Important Information
WARNING
To reduce the risk of fire or
electric shock, do not expose
this product to rain or moisture,
Caution: To reduce the risk of electric shock, do
not remove cover (or back). No user serviceable
parts inside. Refer servicing to qualified service
personnel.
_I_, This symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
_[_IL This symbol indicates
important instructions
accompanying the product.
personal injury.
Cautions
Note to Cable TV Installer:
Note to Satellite Dish Installer:
IMPORTANT NOTICE:
Care and Cleaning:
Do not stack electronic components or other objects on top of the
Digital Satellite Receiver. The slots on top of the receiver must be left
uncovered to allow proper airflow to the unit. Blocking the airflow to the unit
could impair performance or damage your receiver and other components.
Remove any sales or promotional materials attached to the product.
Do not stack the digital satellite receiver on top of a "hot component" suchas
an audio power amplifier.
FCCRegulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
This reminder is provided to call your attention to article 820-40 of the
National Electrical Code (Section 54 of the Canadian Electrical Code, Part I
which provides guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding system of the
building as close to the point of cable entry as practical.
This reminder is provided to call your attention to articles 810 and 820 of the
1999 National Electrical Code. Refer to article 810, in particular to 810-1 and
810-15, for required grounding of the metal structure of the Dish Antenna.
Refer also to the 810-2 which, by reference to article 820, requires that the
satellite dish coaxial cable shield be connected to the grounding system of the
building as close to the point of cable entry as practical.
This device incorporates an anticopy process technology that is protected by I
U.S. patents and other intellectual property rights. The anticopy process is
licensed for non-commercial, home use only. Reverse engineering or
disassembly is prohibited.
Use a soft cloth or dusting attachment of your vacuum cleaner to dust your
digital satellite receiver. Remove dust from the ventilation holes on the top and
bottom.
Plastic surfaces are easily scratched and can be marred by alcohol and various
solvents. Avoid excessive use of oil-based furniture polishes since the materials
used in the cabinet will accumulate more dust. A non-abrasive, anti-static
cleanerlpolisher is recommended.
Product Registration
Please fill out the product registration card (packed separately) and return it immediately. Returning the card allows us to
contact you if needed.
Product Information
Keep your salesreceipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial
and model numbers in caseyou need them. These numbers are located on the product.
Model No.
Serial No.
Purchase Date:
Dealer/Address/Phone:
Introduction
Key Features Overview
Your digital satellite receiver is equipped ,.\ith fcattLreS flint \,.ill add to yotu vie\_,ing expcncnc.c
The folk)wing infomlation sumnmrizcs a lew (7[ these tuatLIl+eS. (:hal)tCl" "_ provides more
infommtion about the rest of the TV's features and how to use then1
On-screen Program Guides
Description: Avaihlble on screen guides indude a new Advanced Program
Guide TM ,,vhid_ stores up to seven days of programming inforinatkm and a new
Advanced Program Guide _ which lists five diflerent channels of programming at
a glance.
Requirements: Complete the on-screen assisted setup. You'll find detailed
instructions how to do this in Chapter l, Con._,ctio_ts & Setup.
>Oq I
k_'&& i
a
J__J
J J J
ojr0 ,
,j k) k)
,c1L_, c2>
Interactive Channel Banner
Description: A transparent banner at the top of the picture allows direct access
to tile key features of the digital satellite receiver including a way to display the
Main Menu. viewing suggestions, program details, The Guardian TM channel
locking system, on-screen message display, the Scout/_ keyword/phrase and
the AlphaSorV Malphabetical search features, and alternate audio offerings.
Requirements: Press the INFO button on the remote control. Highlight
different icons using the remote controFs arrow buttons. Select the highlighted
icon using the remote control's OK button
Dolby Digital Sound Capability
Description: Dolby I)lgltal- ,,',,hen awu! fl)le) provides six independent
soundmtck channels through the optical and coaxia! output jacks. When
connected to an optional, conlpatible six channel amplifier/receiver and
speakers, these connections provide I)olbv DigitaV Surround Sound.
Requirements: A l_.' xxith digital audio input jacks, or a digital audio receiver/
decoder
Universal Remote Control
Description: Ih_ ides _l]]l_lc'l_' s:ncllitc s\slcm (>l_elalion, and pntnm_.
lunctioi_cc>ntlololm<>sllmlnclsolmln_Ic _>ntr<>lhdHcIX>.\CRs. and Cable
Ix Ix(:s
Requir('In('nts: \ i'Ut/]I)IU _ol_ltoll:il+lt + _lcx Itc ",tt_ has :l (Ix. _:d+lc Ix)x. ck
JilL' IL+Ill()[L.(1)nll()I lll_l} IL{\ u' I() hL" pI()LtlLIIlllI]L%I t() (>['_.'T;llc}()U{ t()lllp()llen[ il
il Is not 1_( ,\ (;l: ()l" I>II)St'Zlll
Introduction
VCR One-button Record
Description: Records any program being watched with the touch of one
button. The receiver sends infrared commands to the VCR to execute the
recordings at the proper time.
Requirements: Connect the satellite receiver to the VCR and attach the infrared
cable on top of the VCR's remote control sensor. Set up the digital satellite
receiver system using the first-time assisted setup and follow the directions on
page 19 to select the VCR type.
DIRECTV INTERACTIVE TM powered by WINK
Communications ®
Description: An interactive television service that lets you access up-to-the-
minute news, sports, financial information, weather, program trivia, and
respond to free offers and even shop- all while you watch 'IV.
Requirements: Establish a free, secure Interactive TV account, then press the
OK/i button on the remote control whenever you see the Interactive logo ((_)
appear on-screen. For more information, see page 32 in the Satellite System
Features chapter.

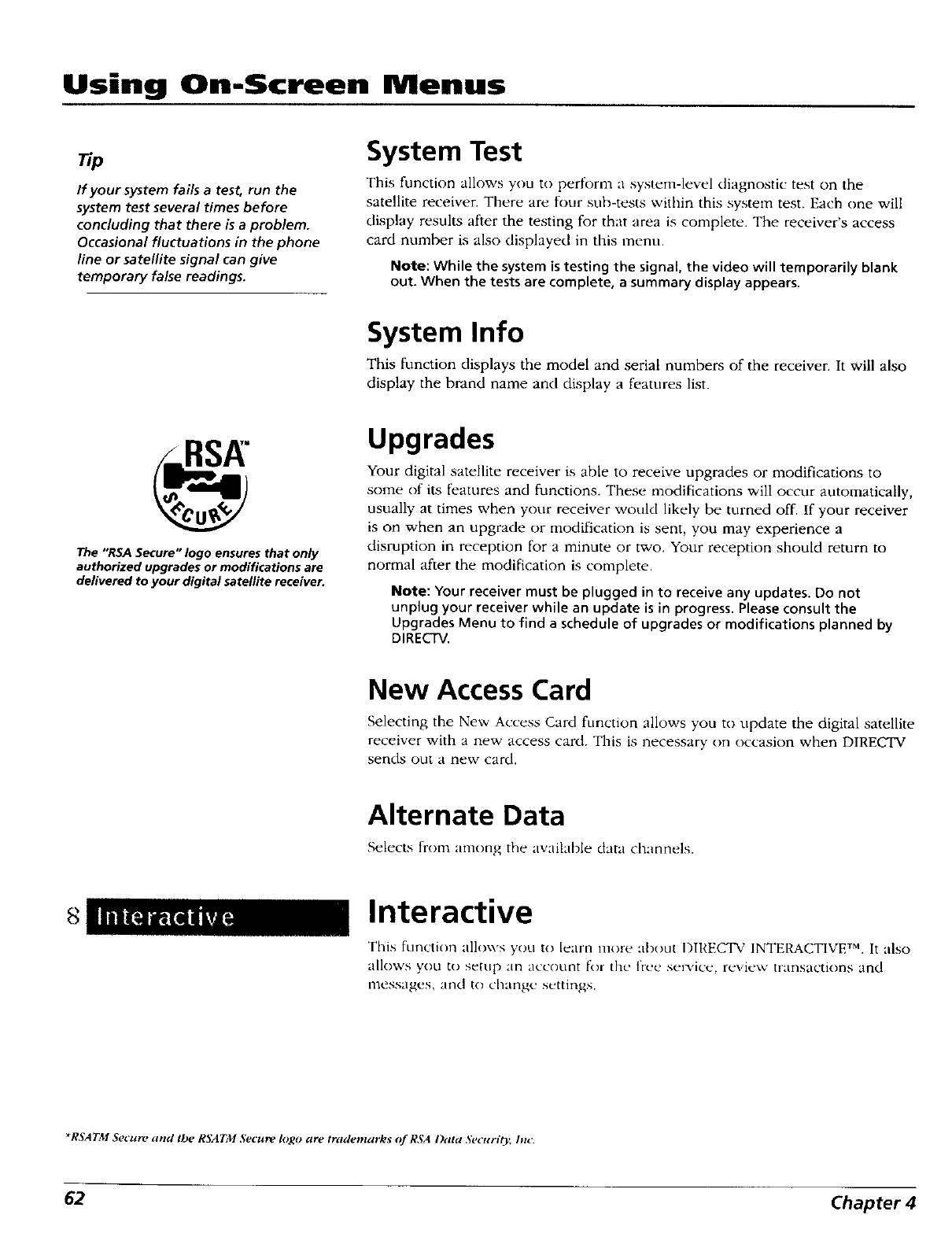

RSR" Software Upgrades via Satellite
Description: The digital satellite receiver is able to modify some of its features
and functions with downloaded RSA-secure upgrades or modifications. RSA-
secure downloads ensure that only authorized upgrades are delivered to your
RCA digital satellite receiver.
Requirements: Consult the Upgrade Menu to find a schedule of upgrades or
modifications planned by DIRECTV. For more information, see page 62 in the

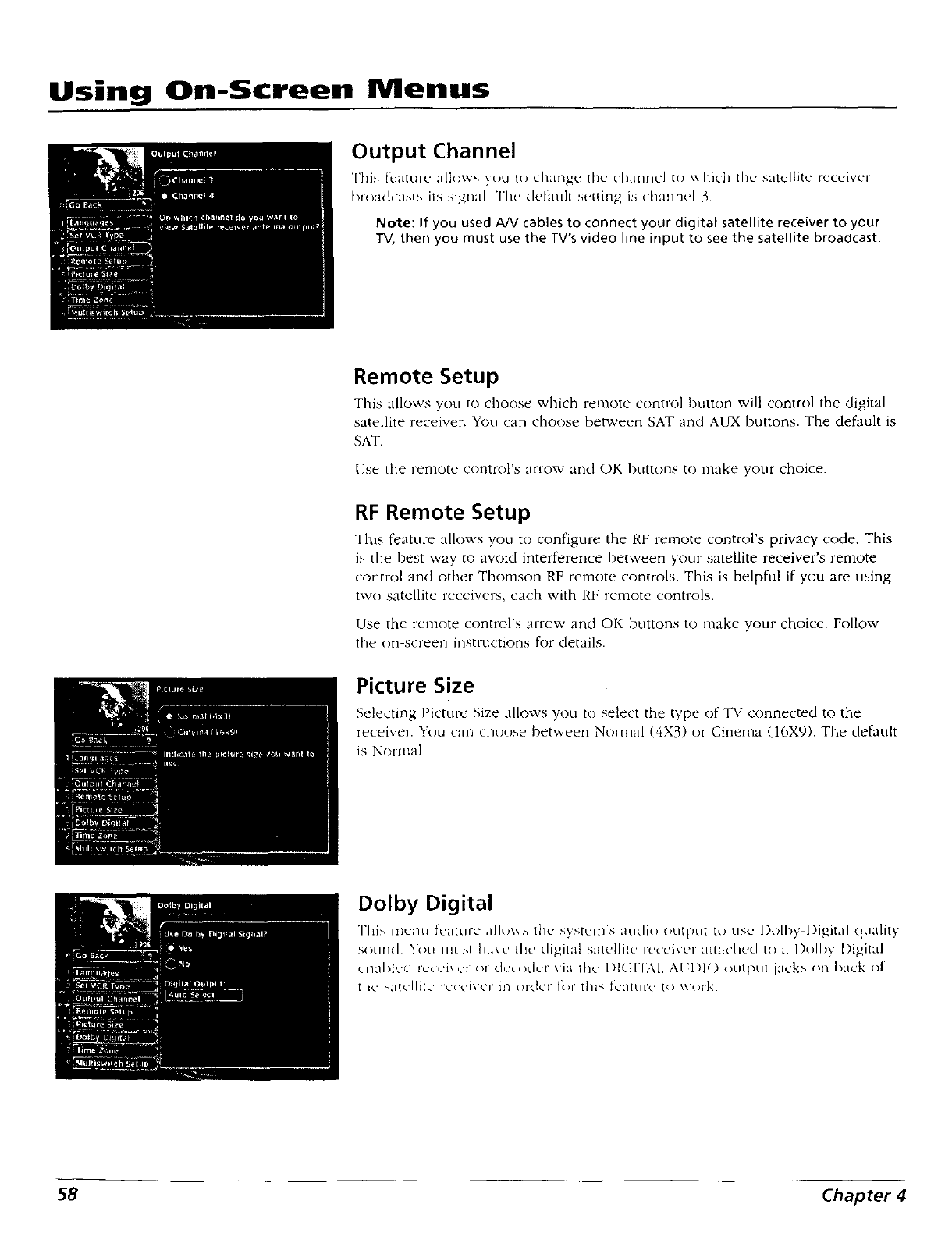

Using On-screen Menus chapter.
2
Table of Contents
Key Features Overview ............................................................................................ 1

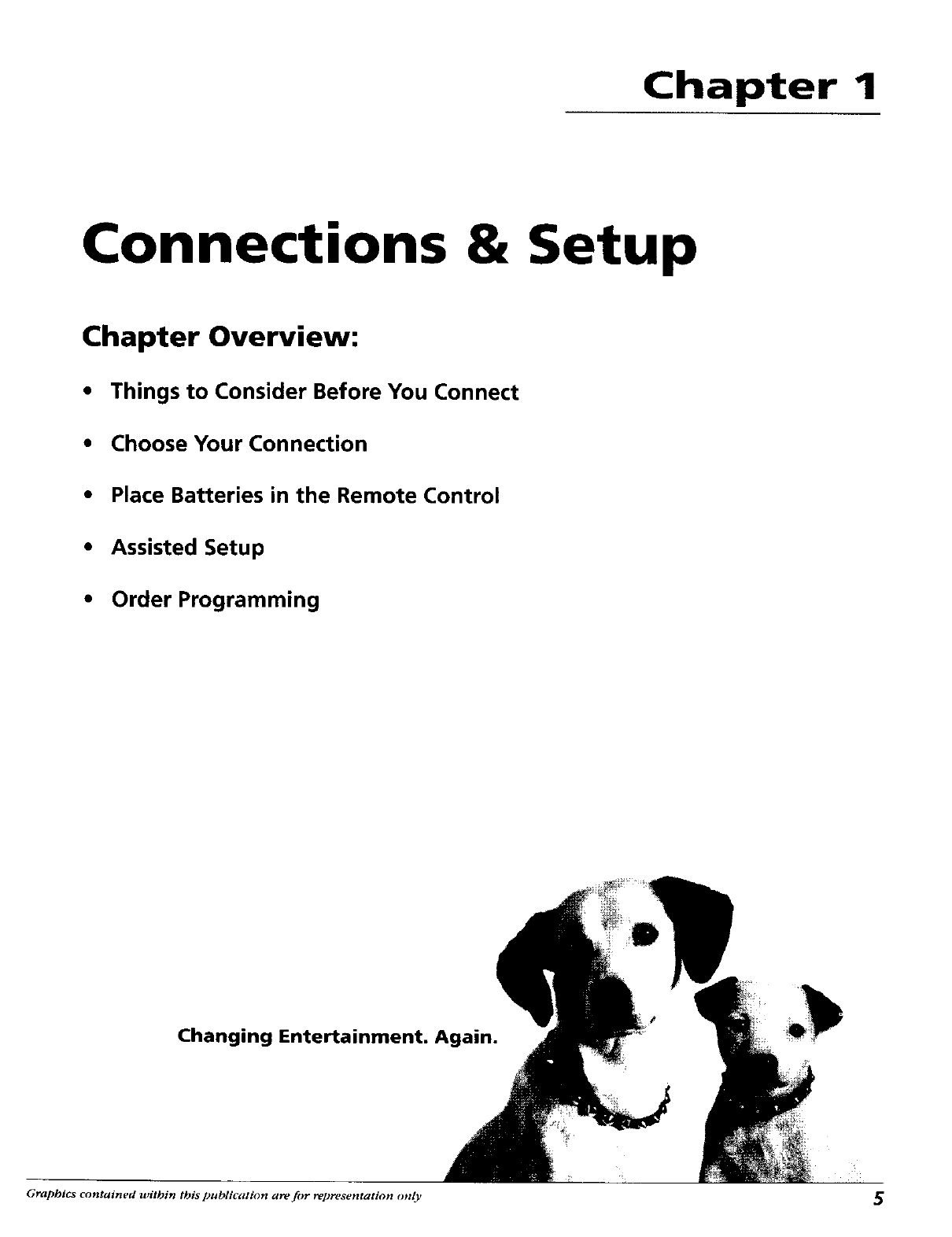

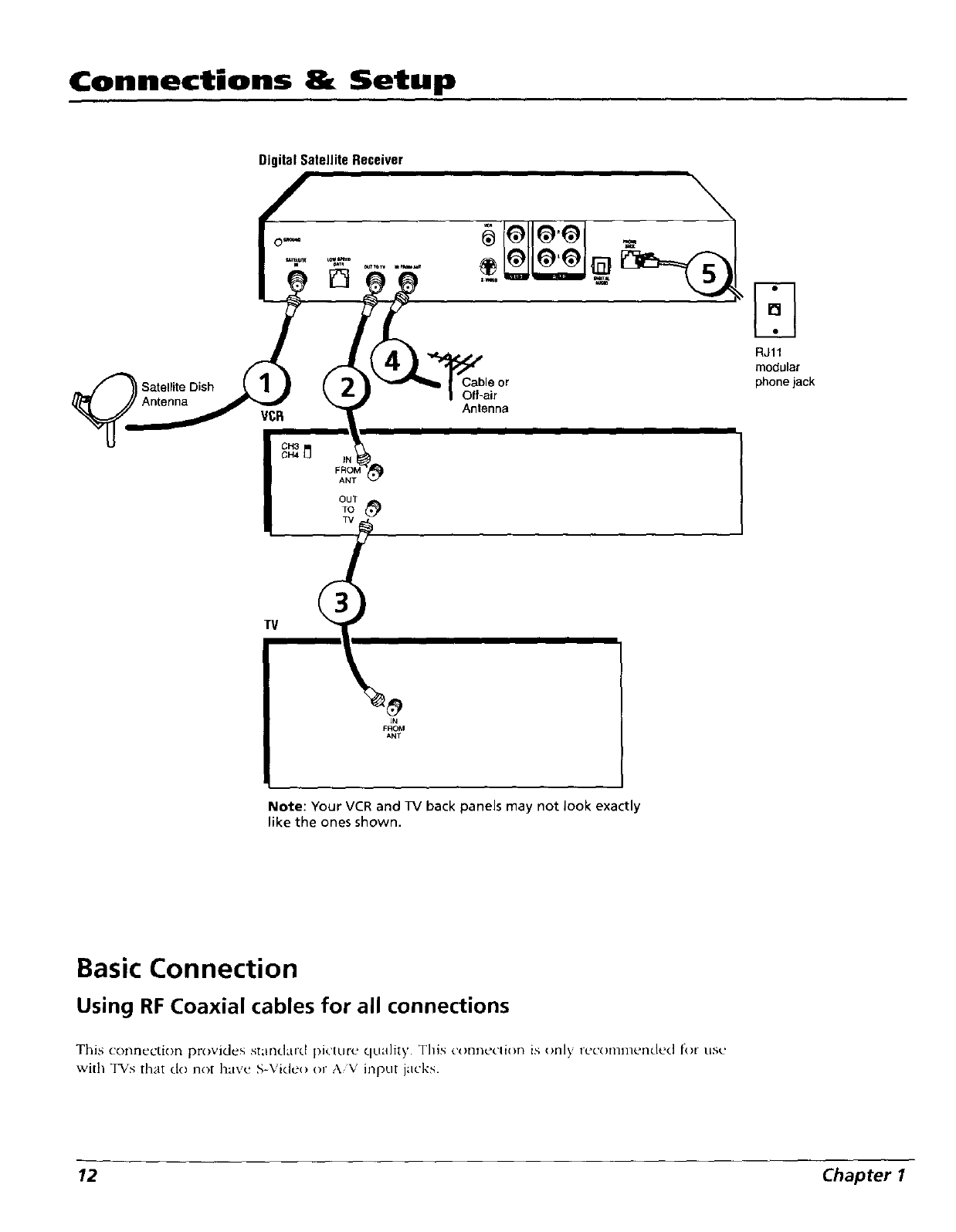

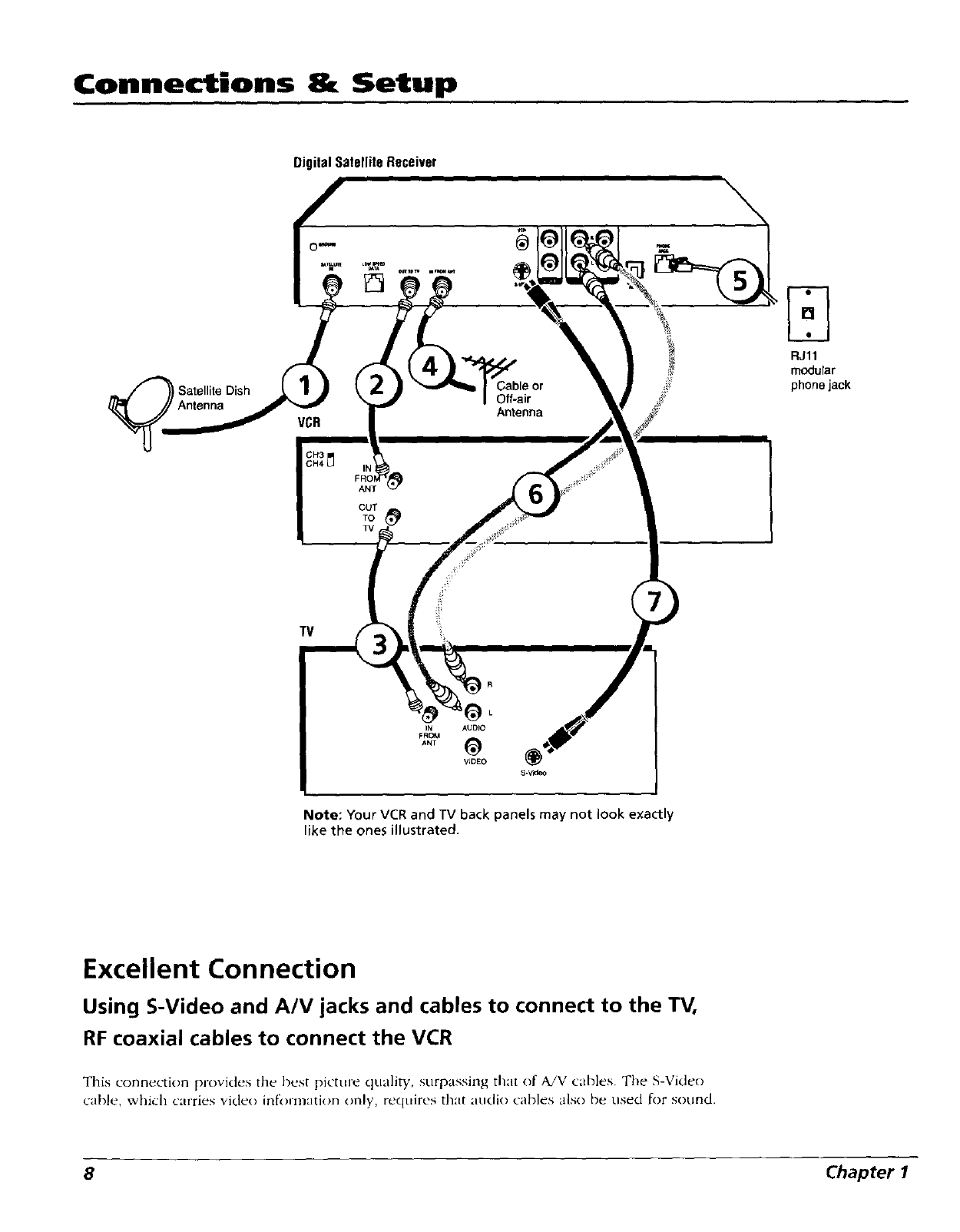

Connections & Setup ................................................................................................ 5
Things To Consider Before You Connect Components ............................................. 6

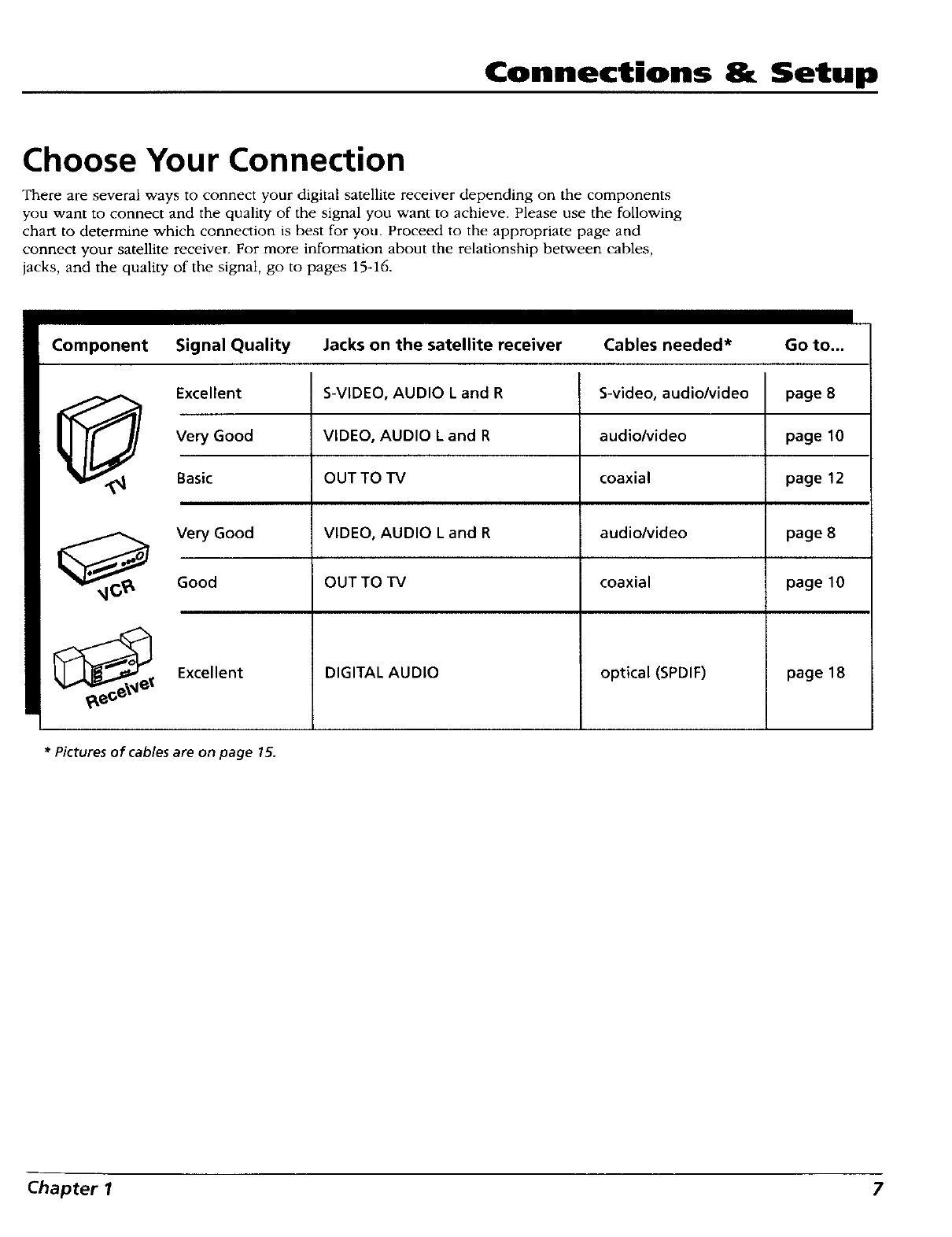

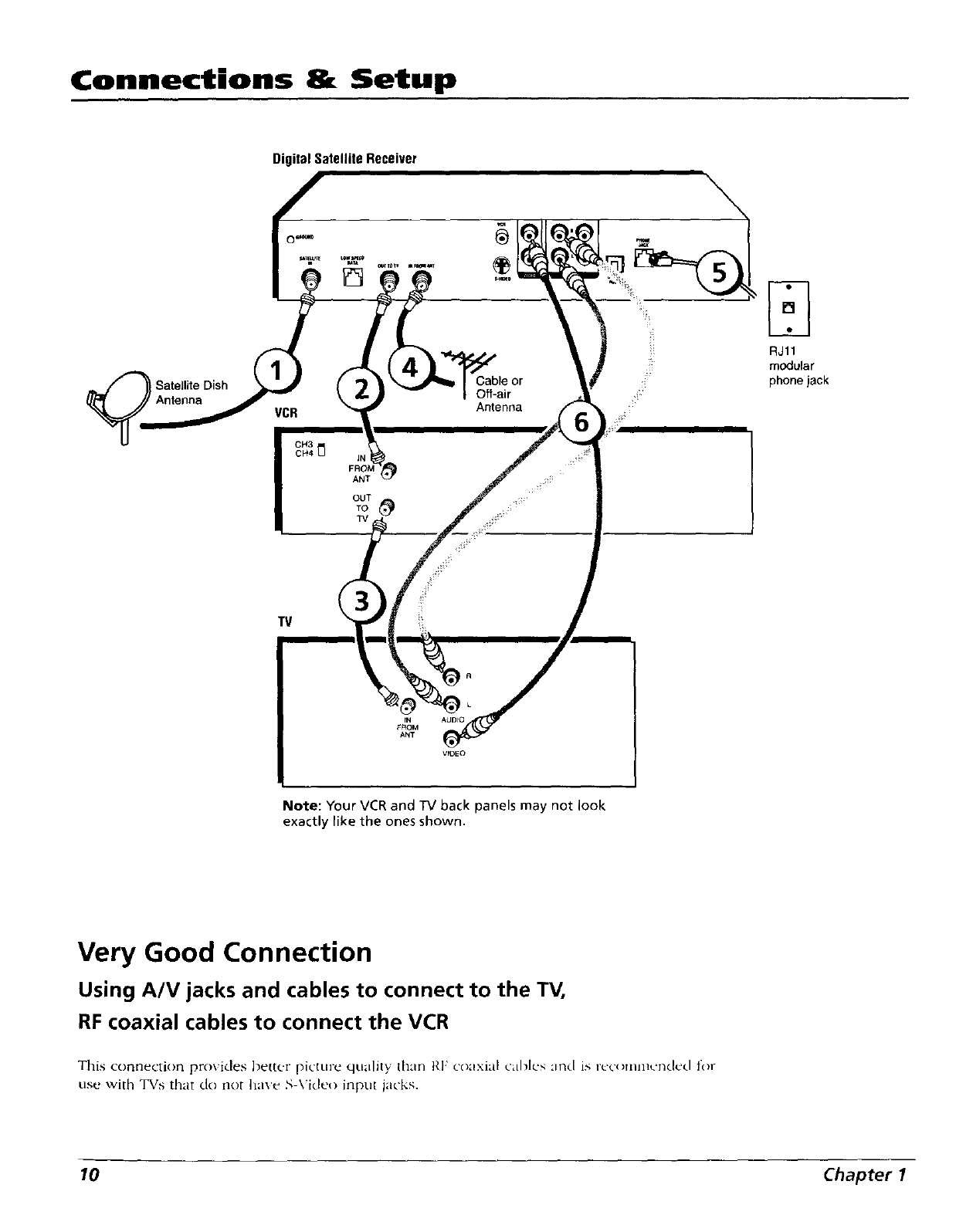

Choose Your Connection ........................................................................................... 7
Jacksand Cables ....................................................................................................... 15

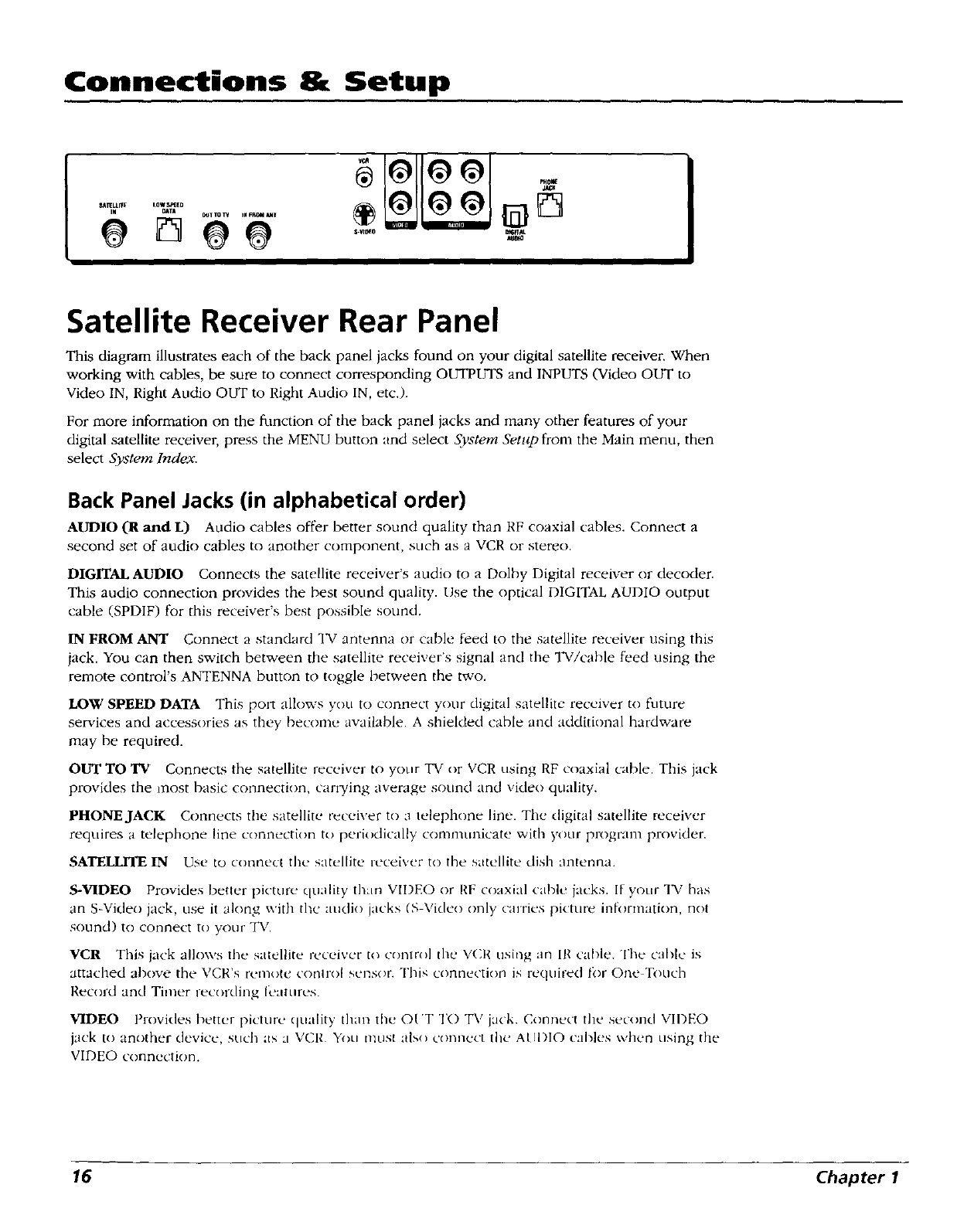

Satellite Receiver Rear Panel ................................................................................... 16

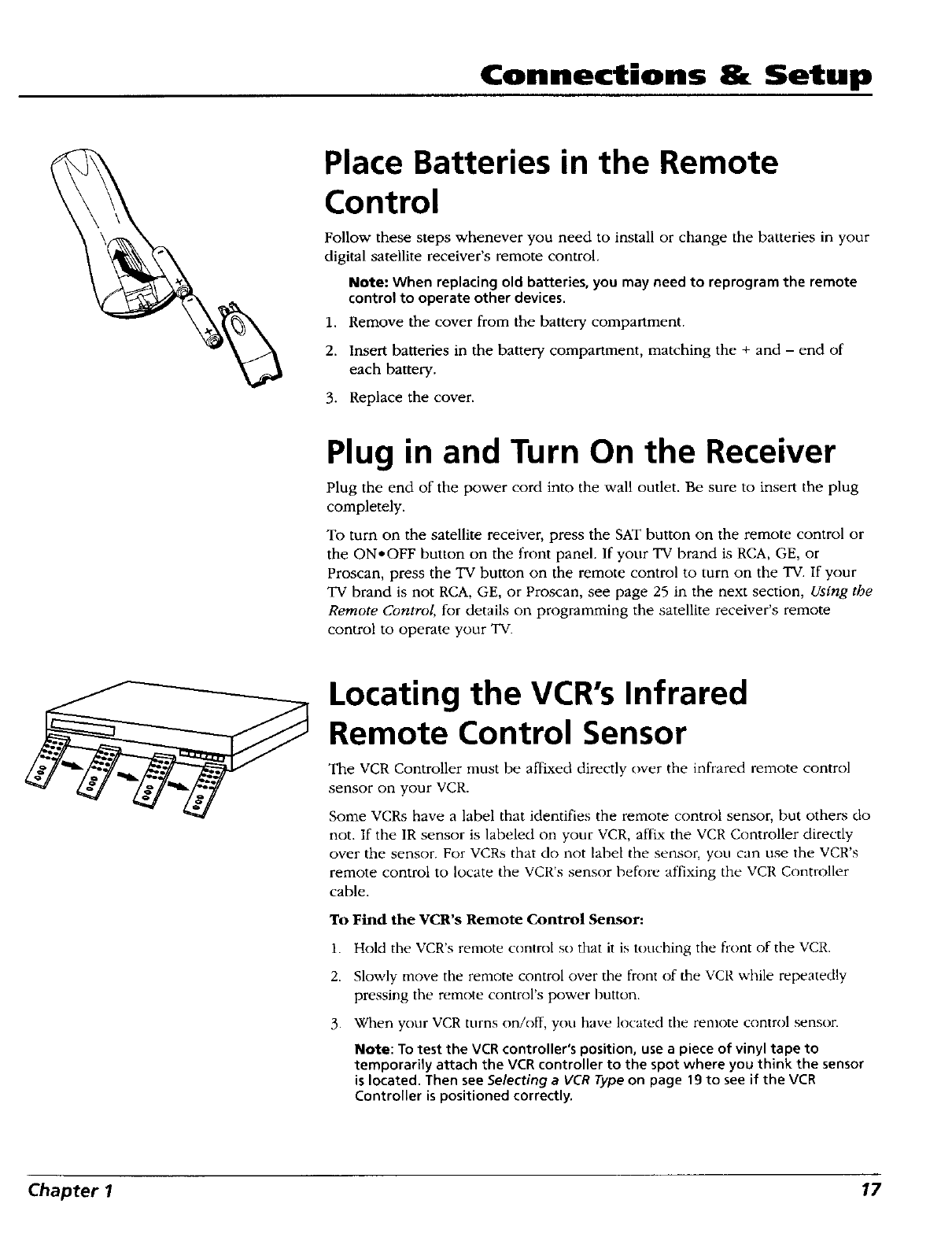

Locating the VCR's Infrared Remote Control Sensor ............................................. 17
Connect the VCR Controller .................................................................................... 18
Using Highlight and Select ................................................................................ 18
Selecting a VCR Type ......................................................................................... 19
Complete the Assisted Setup ................................................................................... 19
Order Programming ................................................................................................. 20
Using the Remote Control .................................................................................... 21

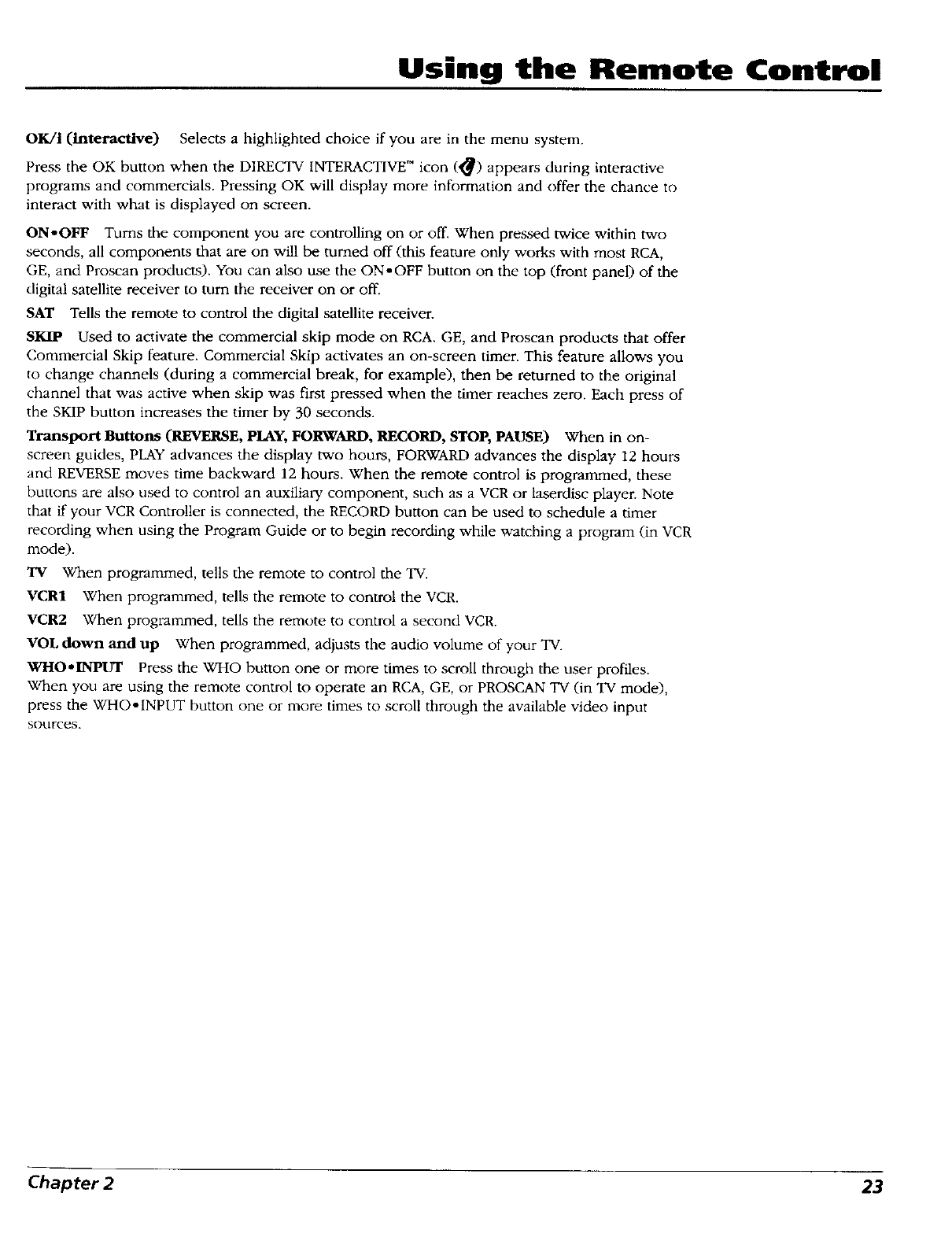

Remote Control Buttons .......................................................................................... 22
Top of the Digital Satellite Receiver ........................................................................ 24

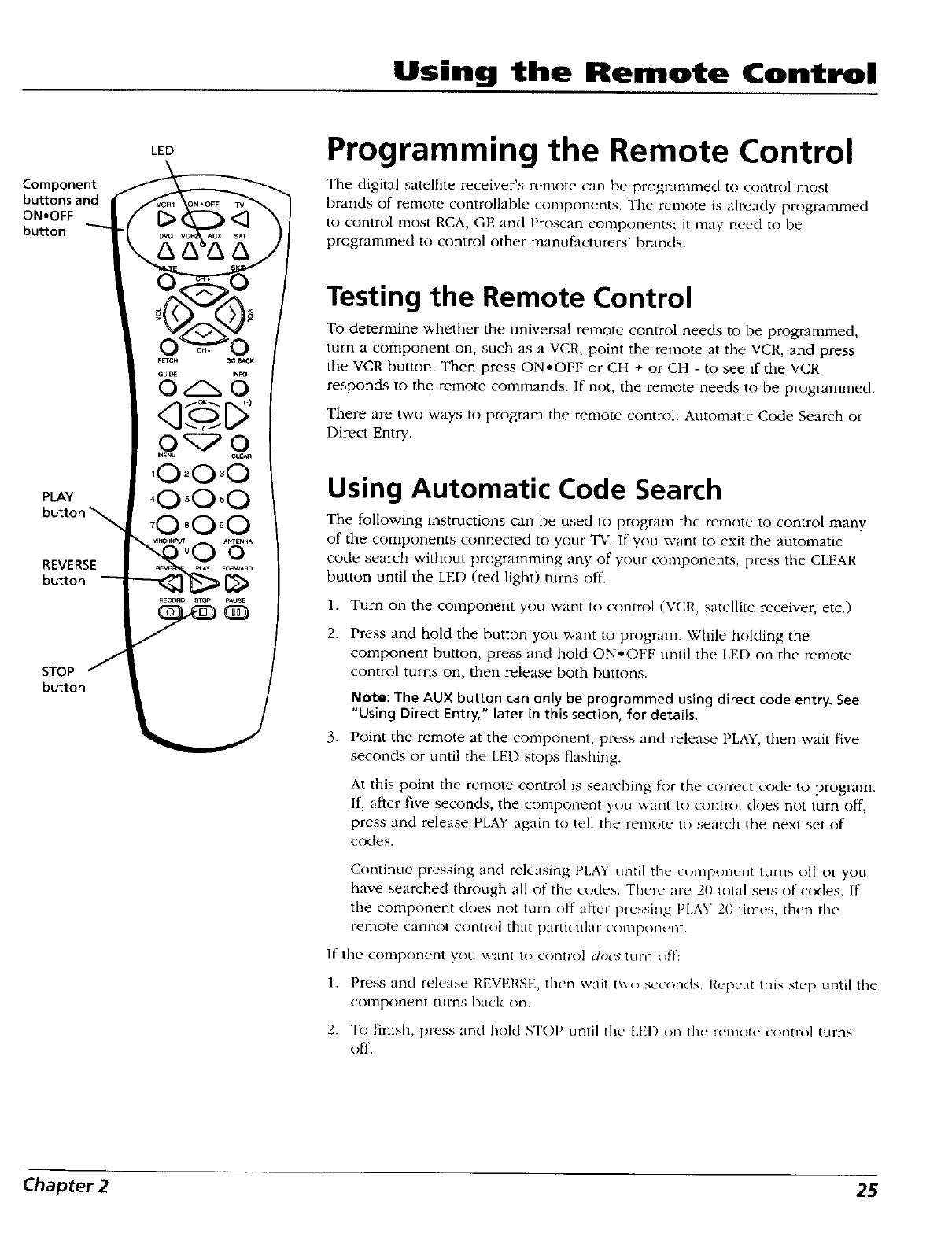

Programming the Remote Control ......................................................................... 25
Testing the Remote Control .............................................................................. 25
Using Automatic Code Search ........................................................................... 25
Using Direct Entry .............................................................................................. 26
Operating Other Components .......................................................................... 26

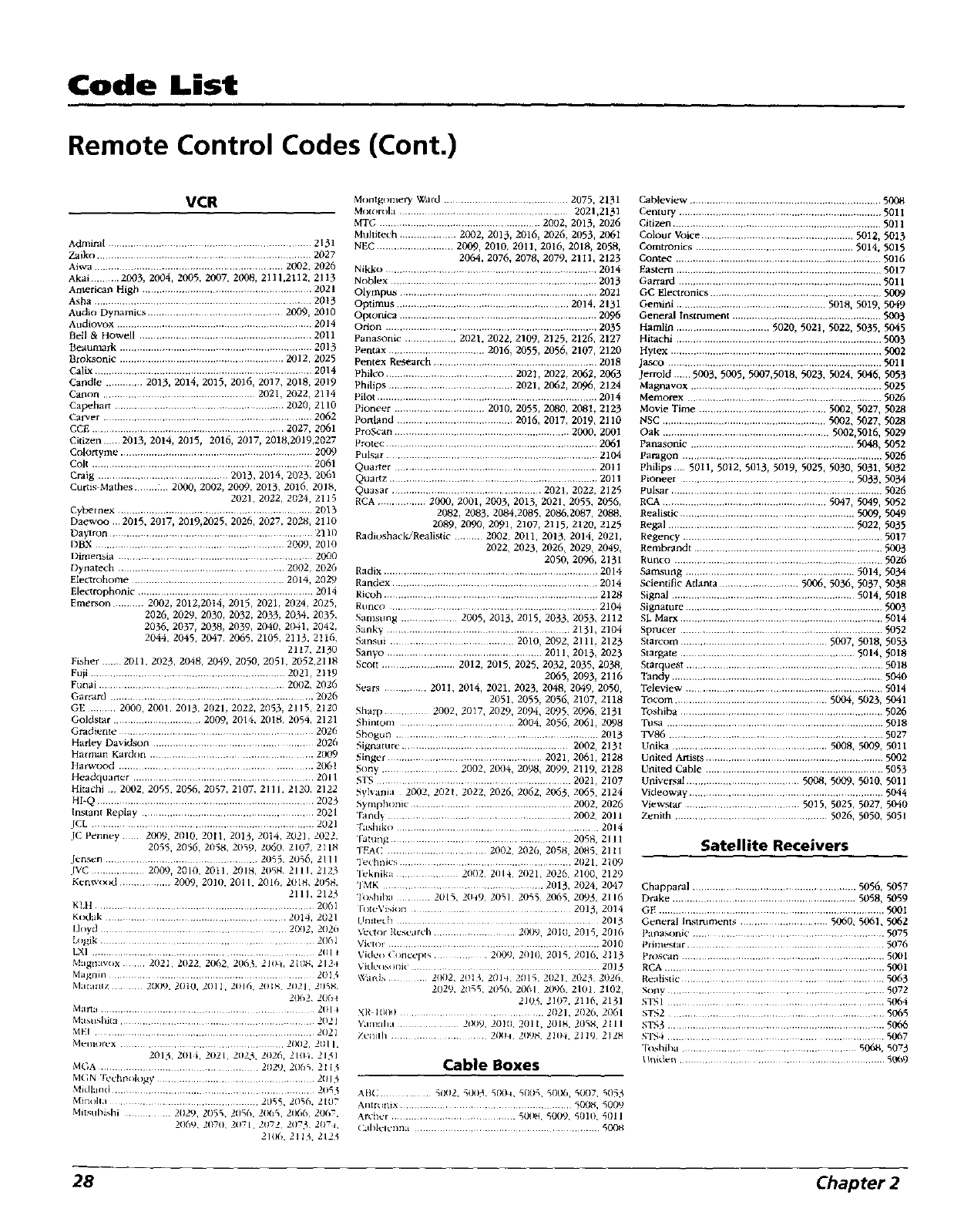

Remote Control Codes ....................................................................................... 27
Using the Satellite Receiver's Features ........................................................... 29
Anatomy of a Program Guide ................................................................................. 30
Displaying the Program Guides ........................................................................ 30
Using The Channel Banner ................................................................................ 31
Buttons of the Channel Banner .................................................................. 31

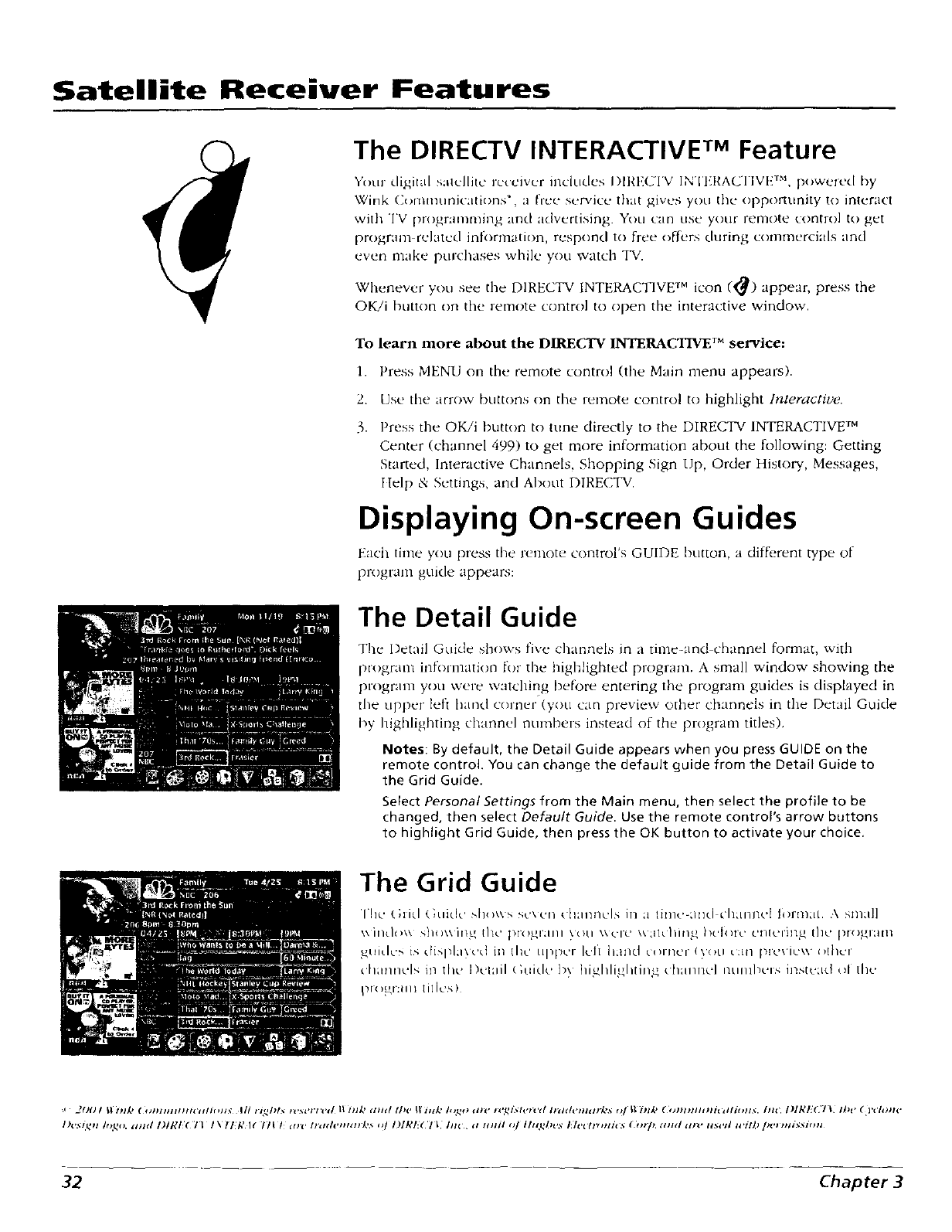

The DIREa_/INTERACTIVE TM Feature .............................................................. 32
Displaying On-screen Guides ................................................................................... 32
The Detail Guide ................................................................................................ 32
The Grid Guide ................................................................................................... 32
Getting Around In the Guides ................................................................................. 33
Scrolling Channel By Channel ........................................................................... 33
Scrolling Page By Page ...................................................................................... 33
Scrolling Forward and Reverse .......................................................................... 33
Tuning to a Program .......................................................................................... 34
More Details ................................................................................................. 34
Additional Program Guides ..................................................................................... 35
The Channel Guide ............................................................................................ 35
The Logo Guide .................................................................................................. 35
The Suggestions Guide ...................................................................................... 35
Sorting the Guides ................................................................................................... 36
Viewing Suggestions ......................................................................................... 36
Active Profile's Preferences ............................................................................... 37
Movies ................................................................................................................ 37
Sports .................................................................................................................. 37
Channel Sort ....................................................................................................... 37

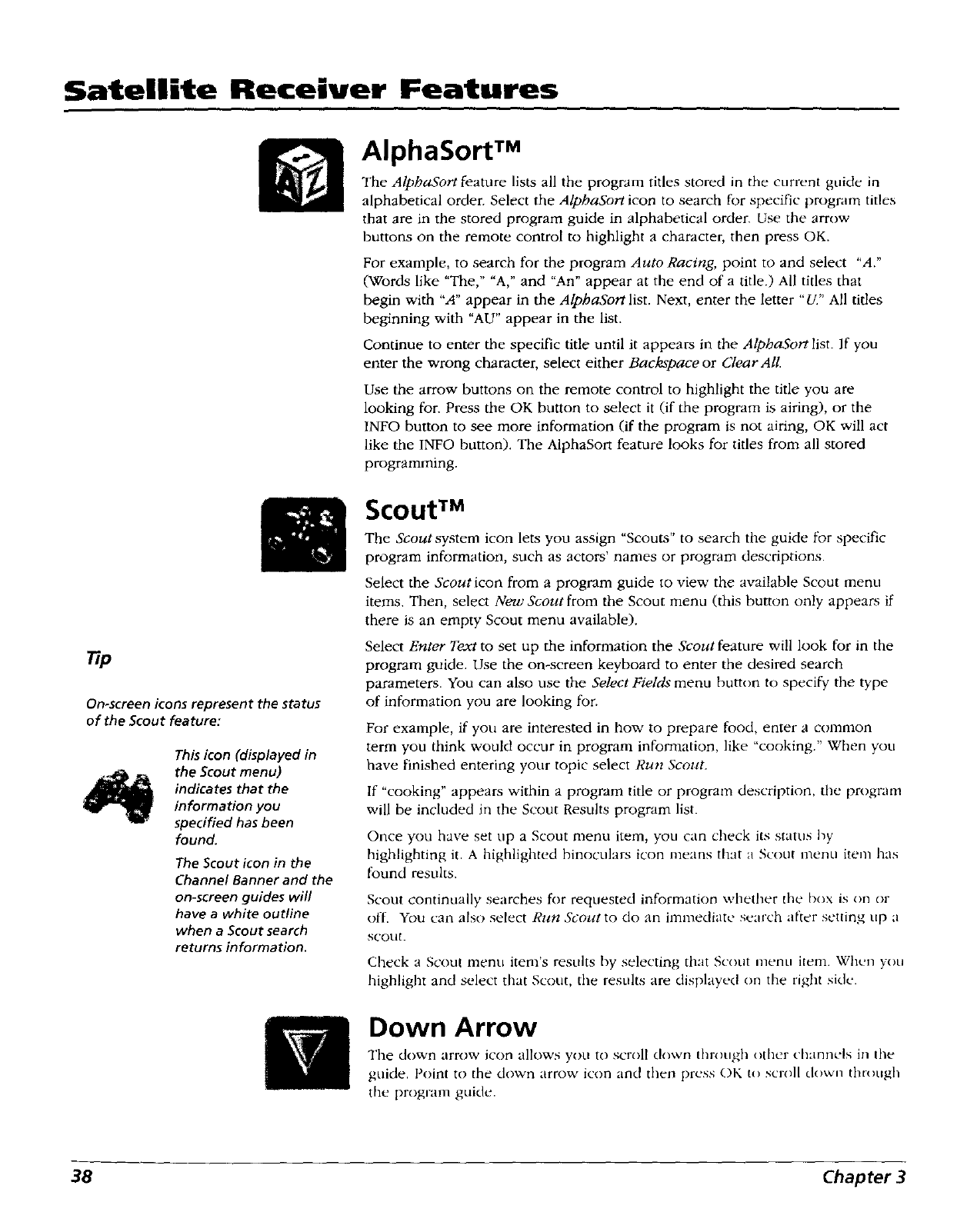

Alp haSortTM ........................................................................................................ 38
ScoutTM ............................................................................................................... 38
Down Arrow ....................................................................................................... 38
3

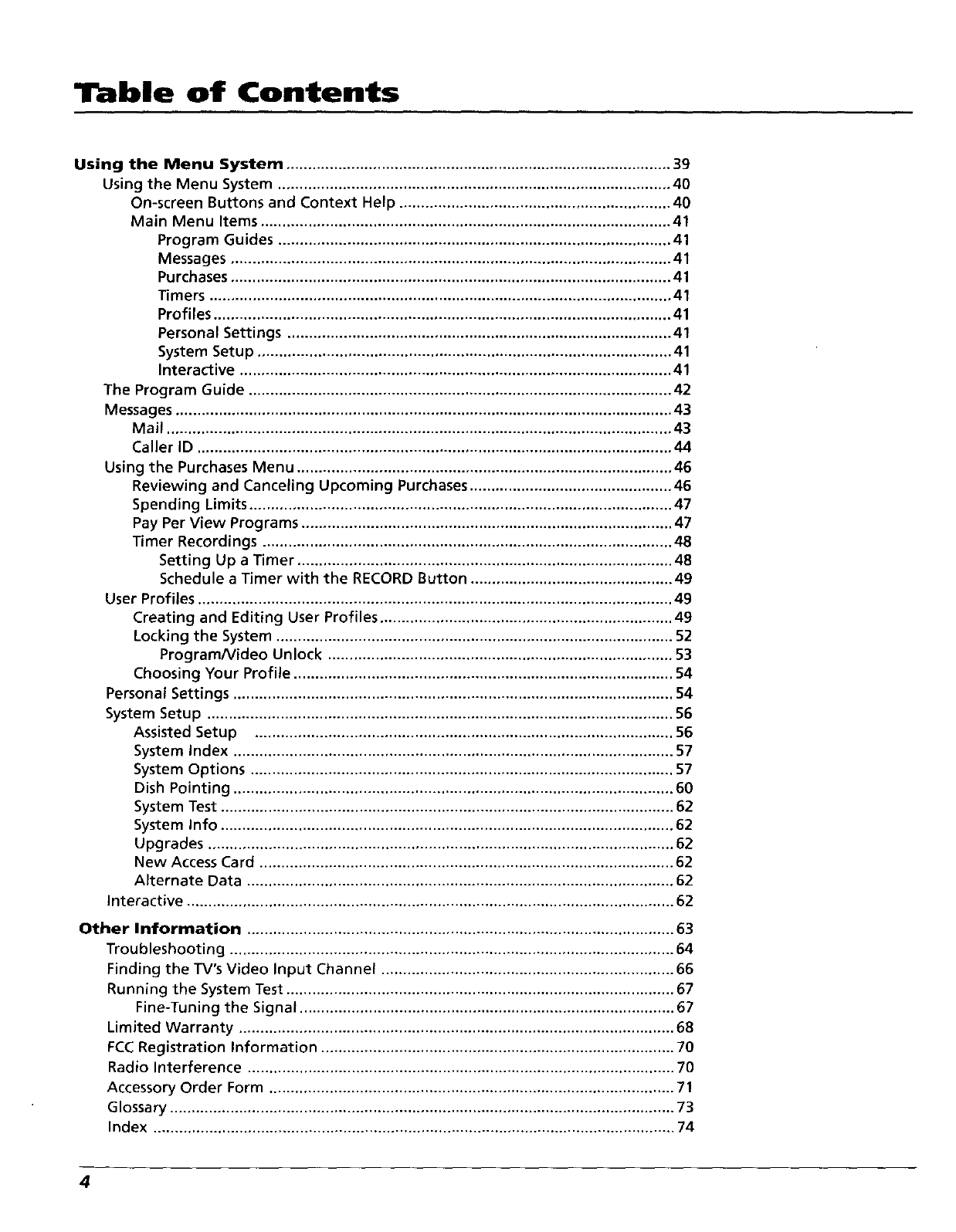

Table of Contents

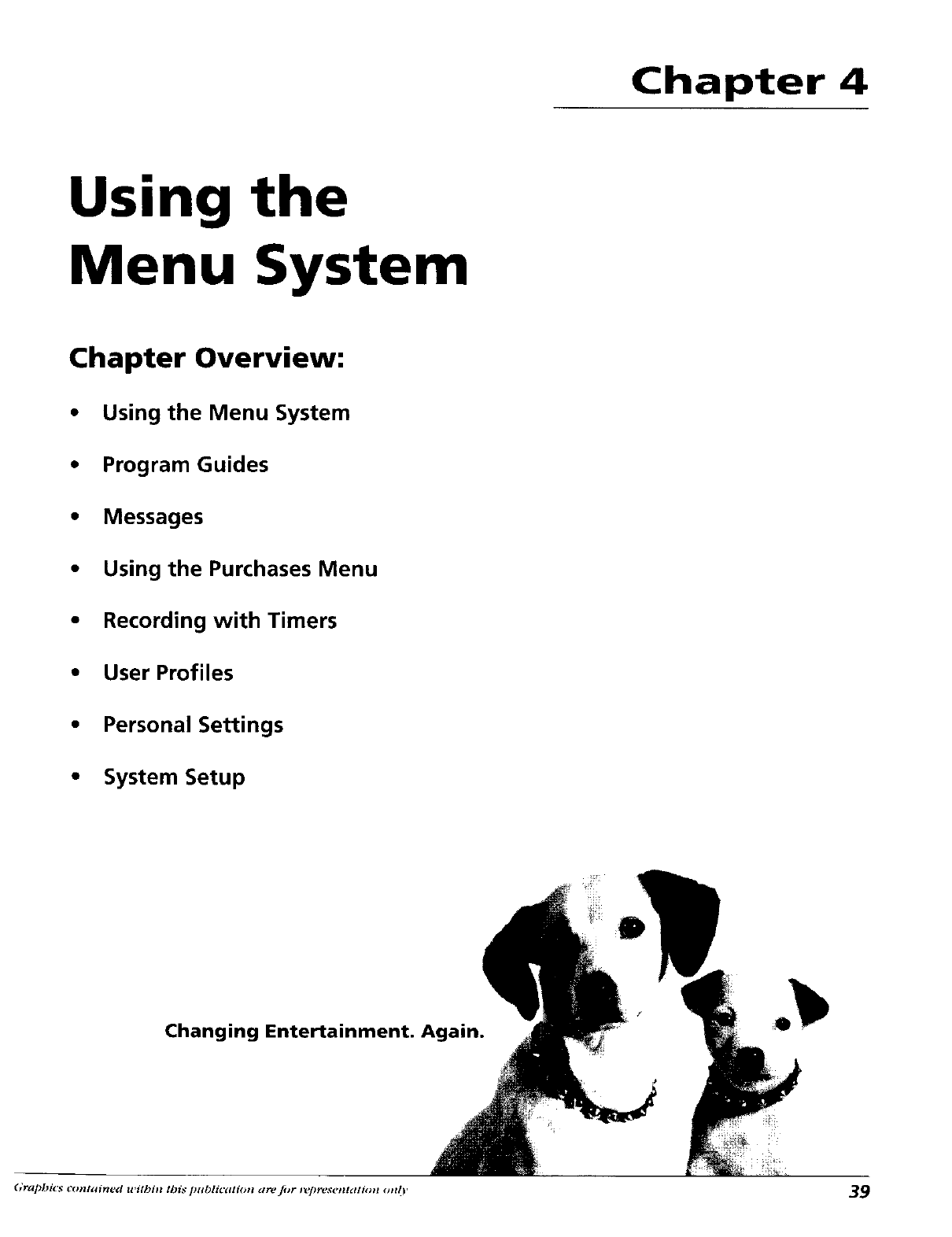

Using the Menu System ......................................................................................... 39
Using the Menu System ........................................................................................... 40
On-screen Buttons and Context Help ............................................................... 40
Main Menu Items ............................................................................................... 41
Program Guides ........................................................................................... 41
Messages ...................................................................................................... 41
Purchases ...................................................................................................... 41
Timers ........................................................................................................... 41

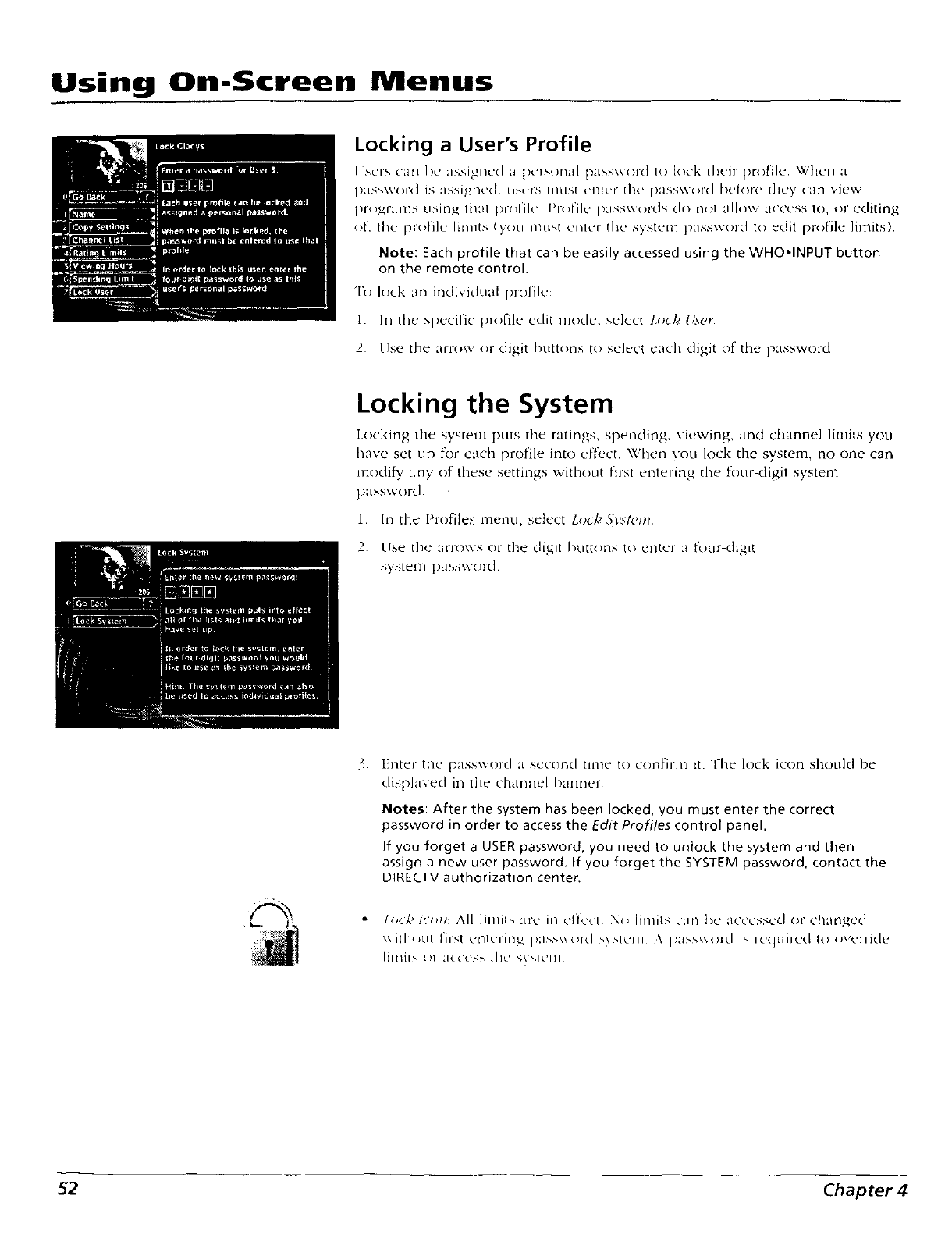

Profiles .......................................................................................................... 41
Personal Settings ......................................................................................... 41

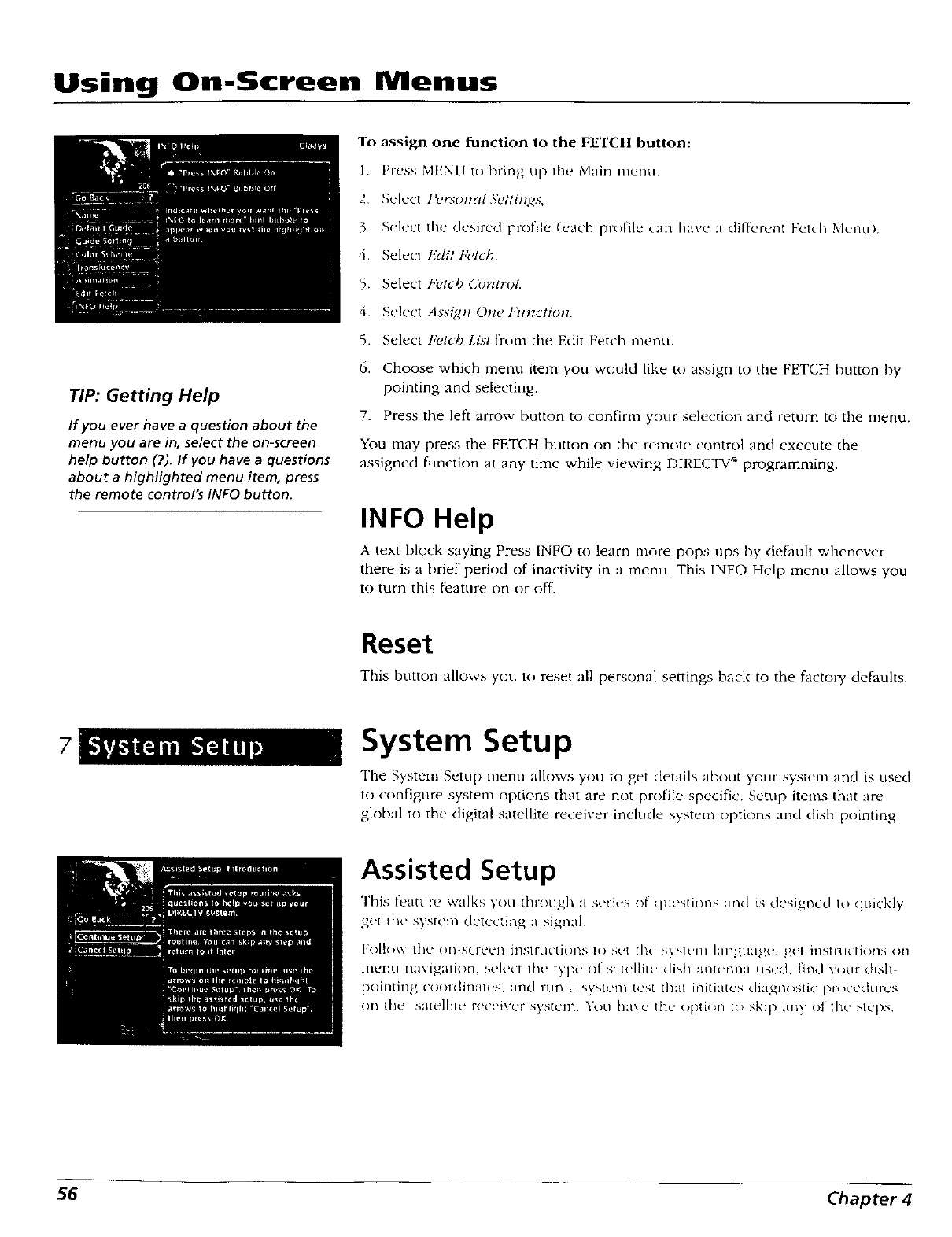

System Setup ................................................................................................ 41
Interactive .................................................................................................... 41
The Program Guide .................................................................................................. 42
Messages ................................................................................................................... 43
Mail ..................................................................................................................... 43

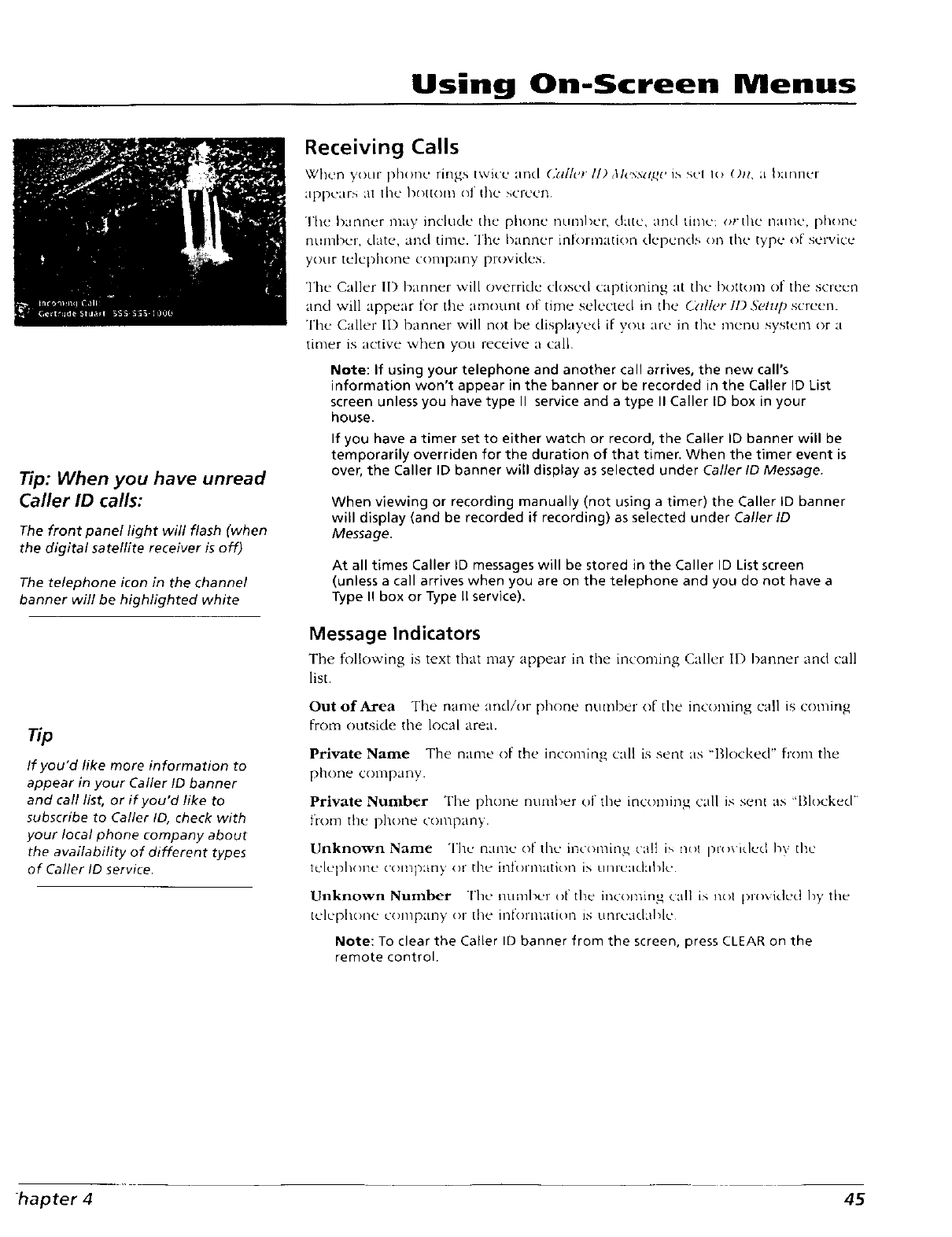

Caller ID .............................................................................................................. 44

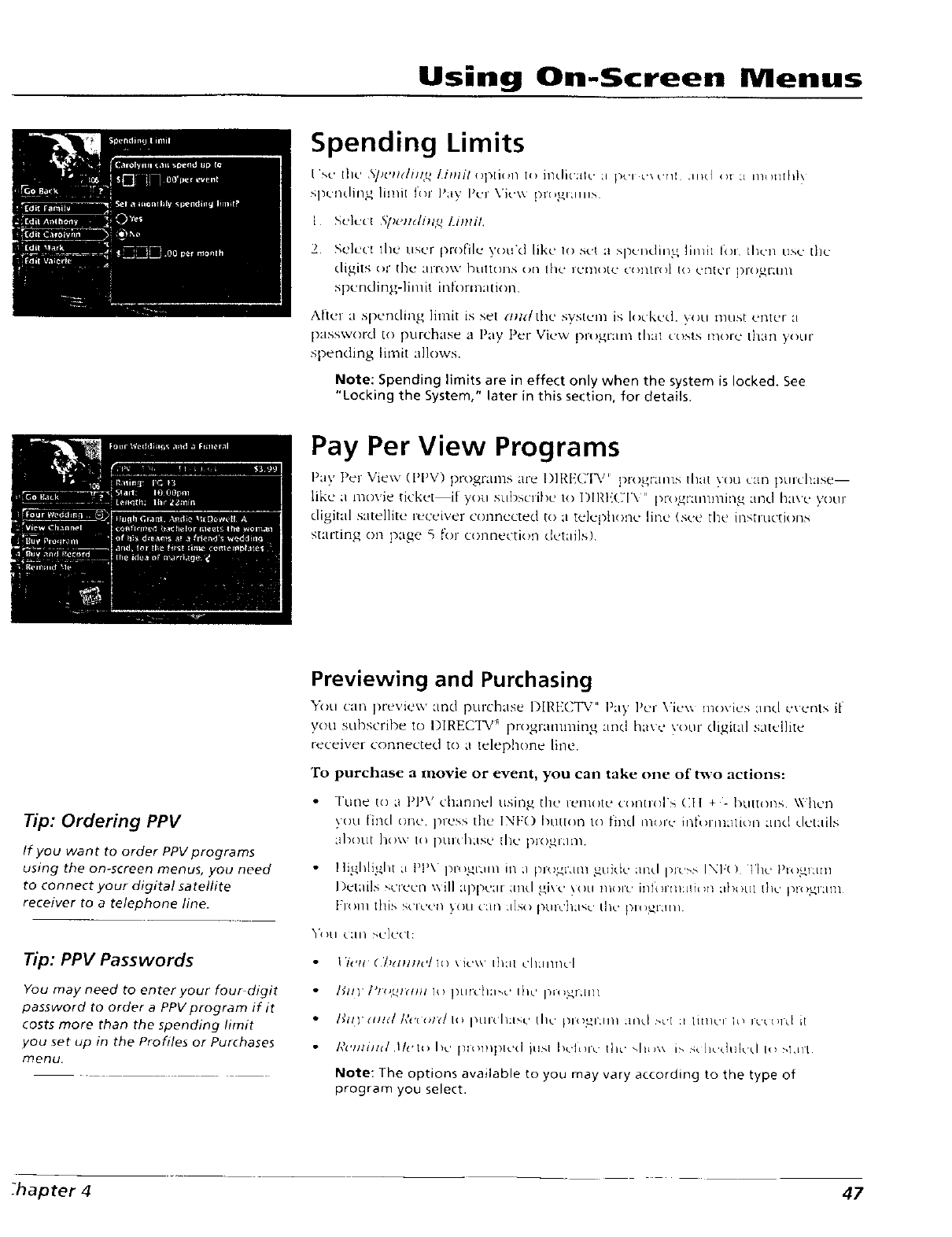

Using the Purchases Menu ....................................................................................... 46
Reviewing and Canceling Upcoming Purchases ............................................... 46

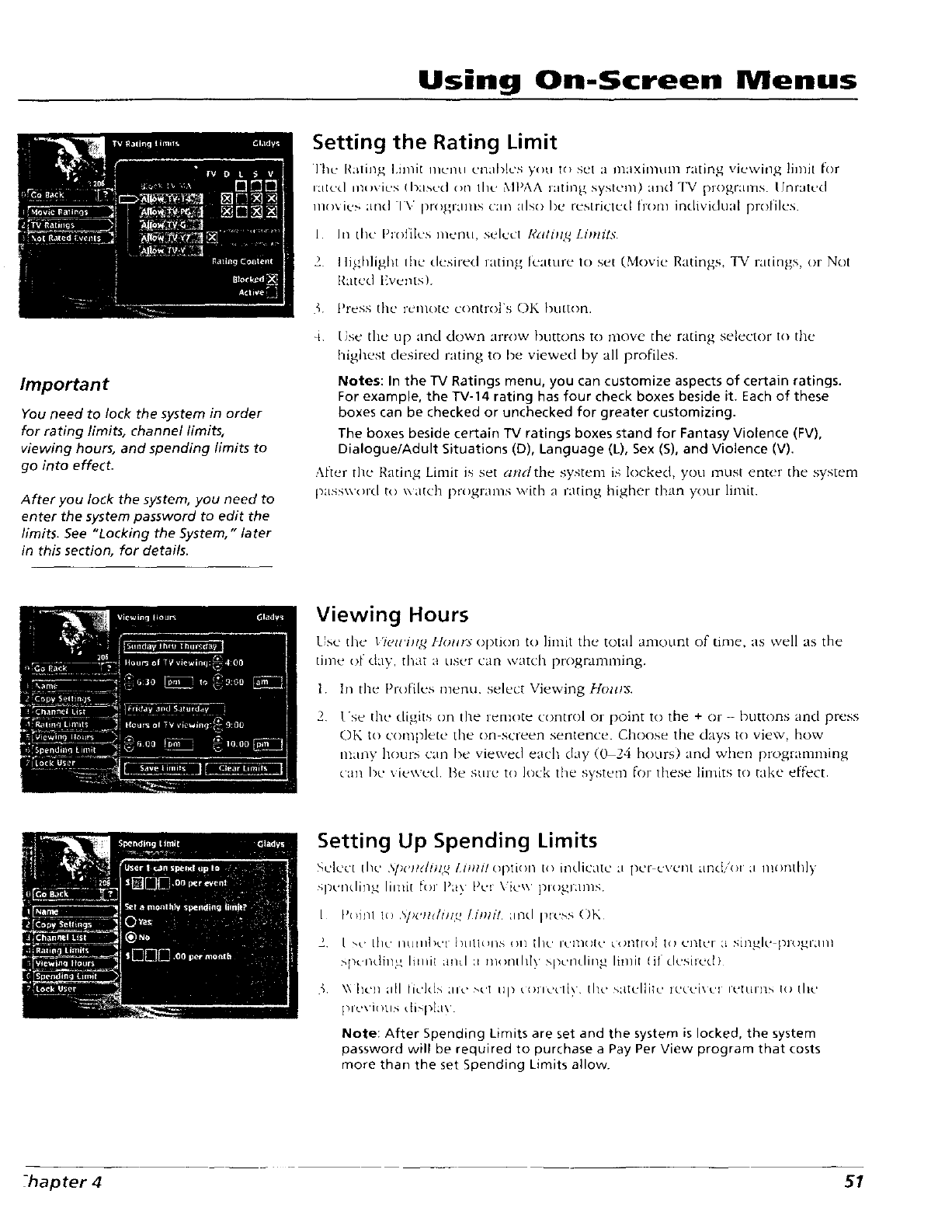

Spending Limits .................................................................................................. 47
Pay Per View Programs ...................................................................................... 47
Timer Recordings ............................................................................................... 48
Setting Up a Timer ....................................................................................... 48

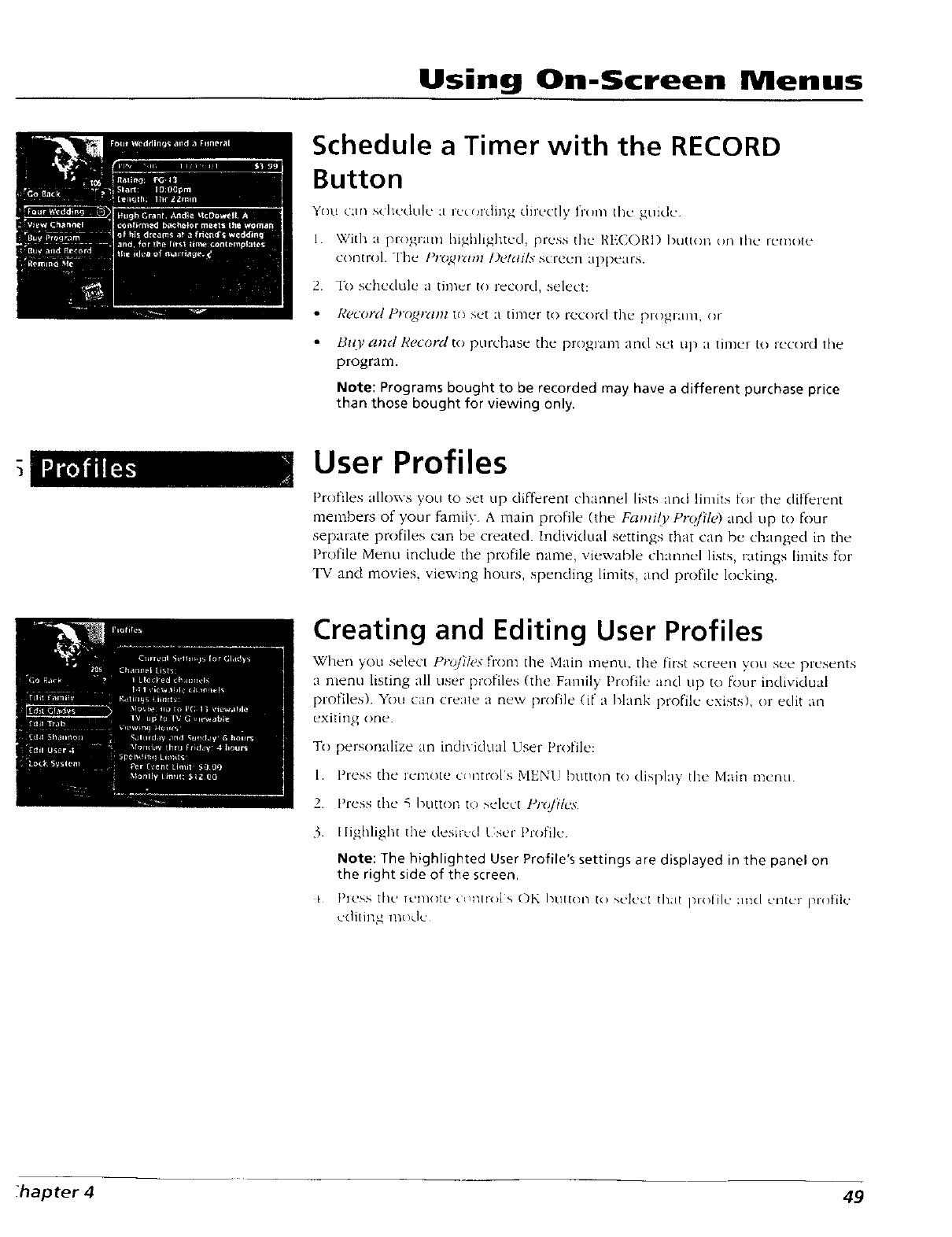

Schedule a Timer with the RECORD Button ............................................... 49
User Profiles .............................................................................................................. 49
Creating and Editing User Profiles .................................................................... 49

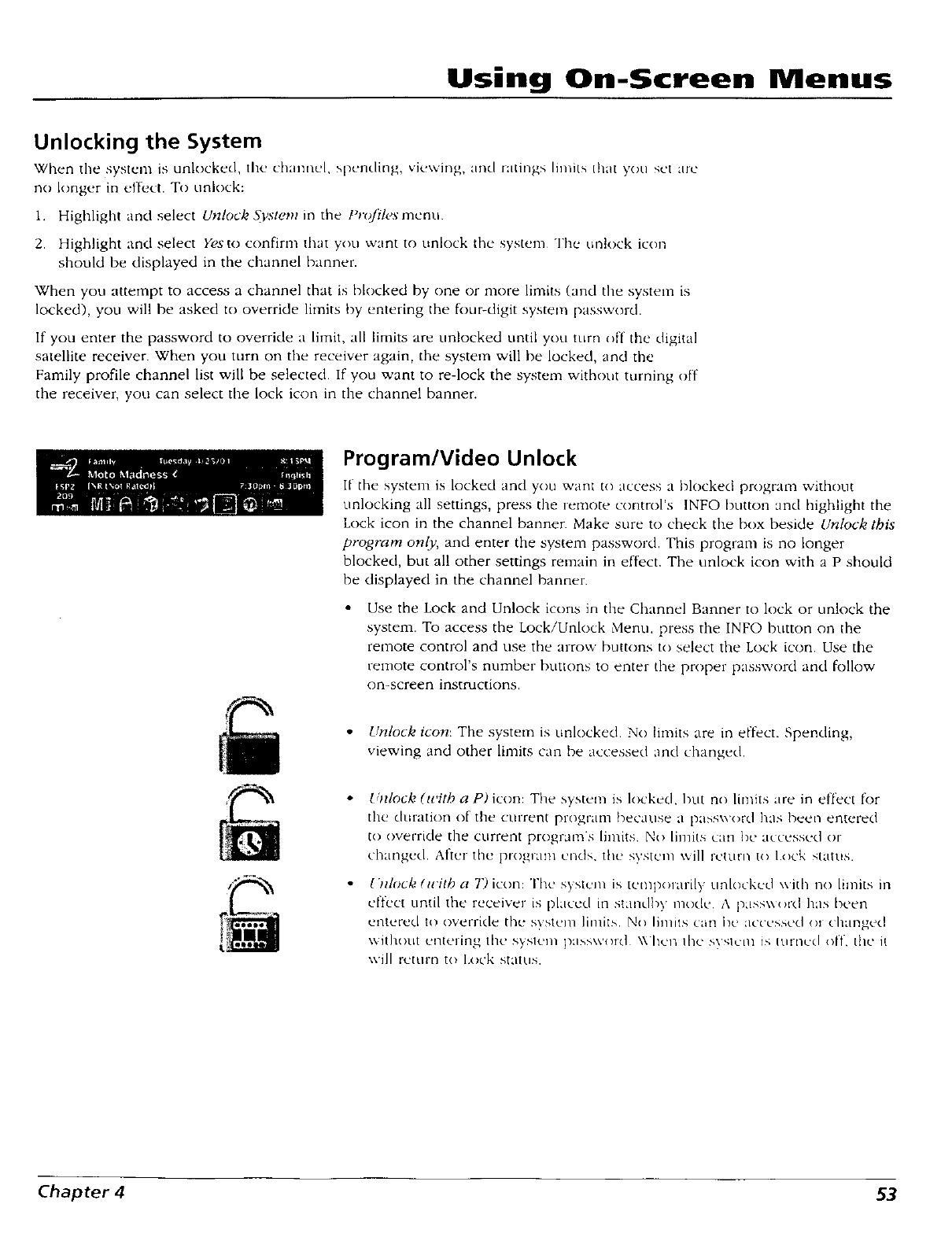

Locking the System ............................................................................................ 52
ProgramNideo Unlock ................................................................................ 53
Choosing Your Profile ........................................................................................ 54
Personal Settings ...................................................................................................... 54
System Setup ............................................................................................................ 56
Assisted Setup ................................................................................................. 56
System Index ...................................................................................................... 57
System Options .................................................................................................. 57

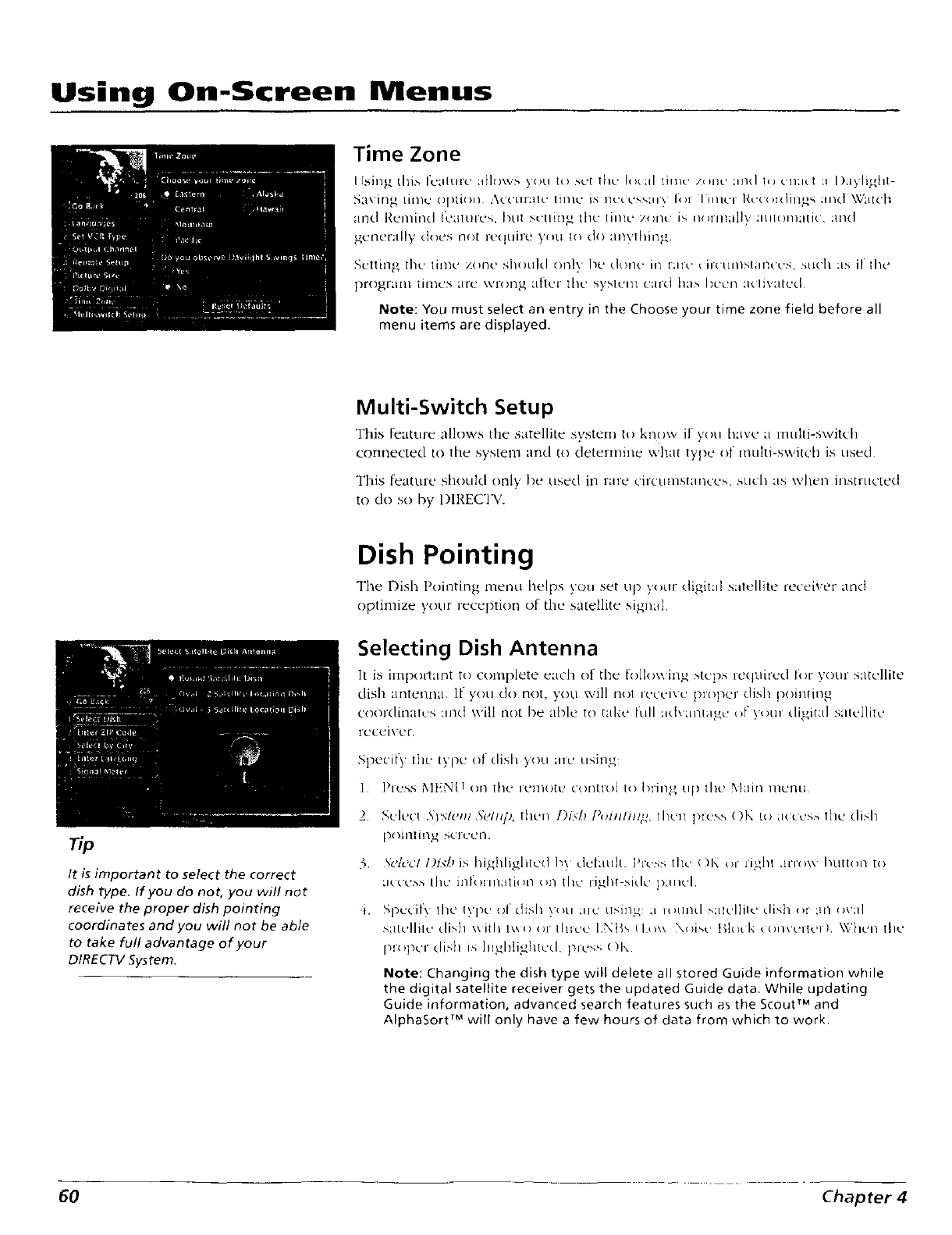

Dish Pointing ...................................................................................................... 60
System Test ......................................................................................................... 62
System Info ......................................................................................................... 62
Upgrades ............................................................................................................ 62
New Access Card ................................................................................................ 62
Alternate Data ................................................................................................... 62
Interactive ................................................................................................................. 62

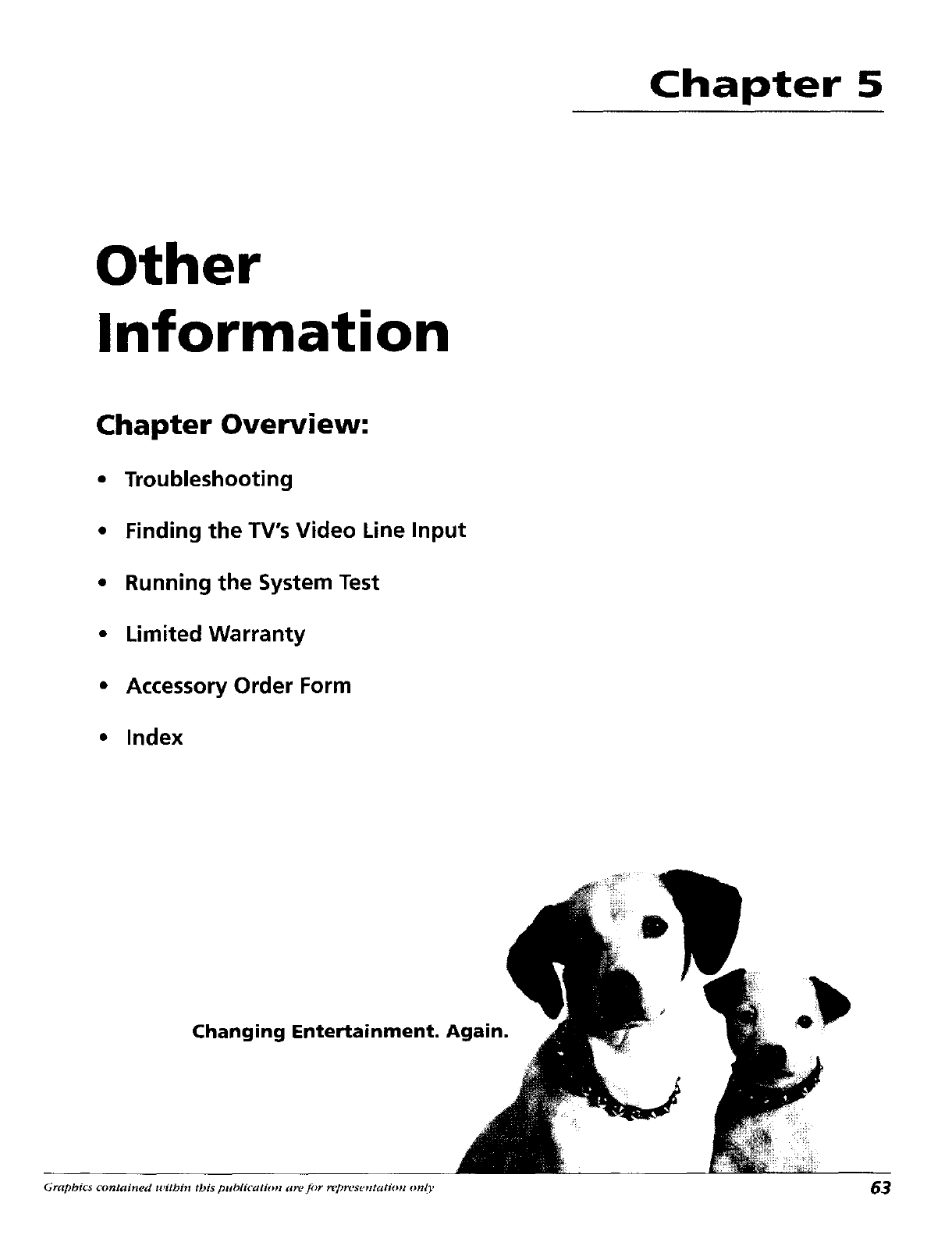

Other Information ................................................................................................... 63

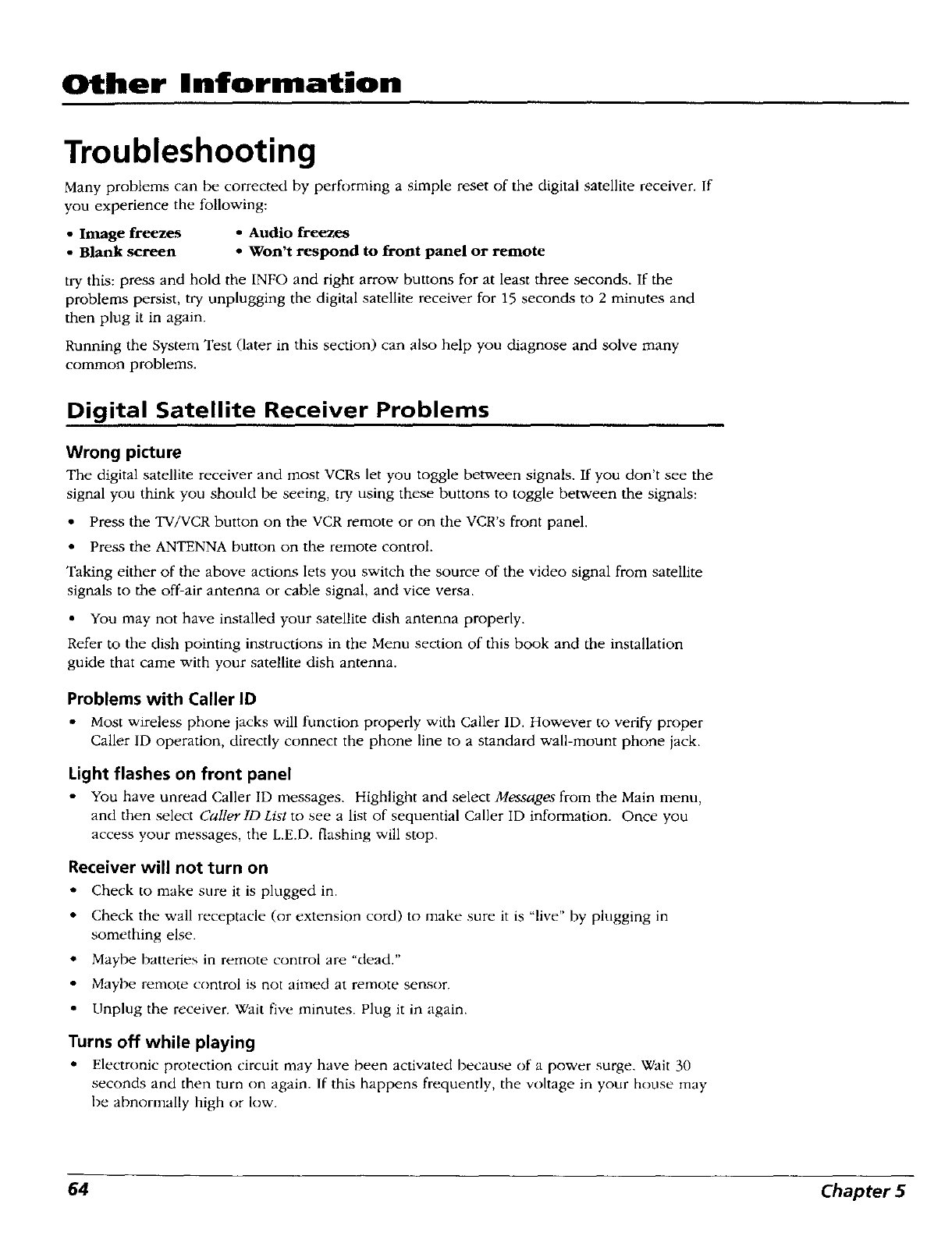

Troubleshooting ....................................................................................................... 64
Finding the TV's Video Input Channel .................................................................... 66

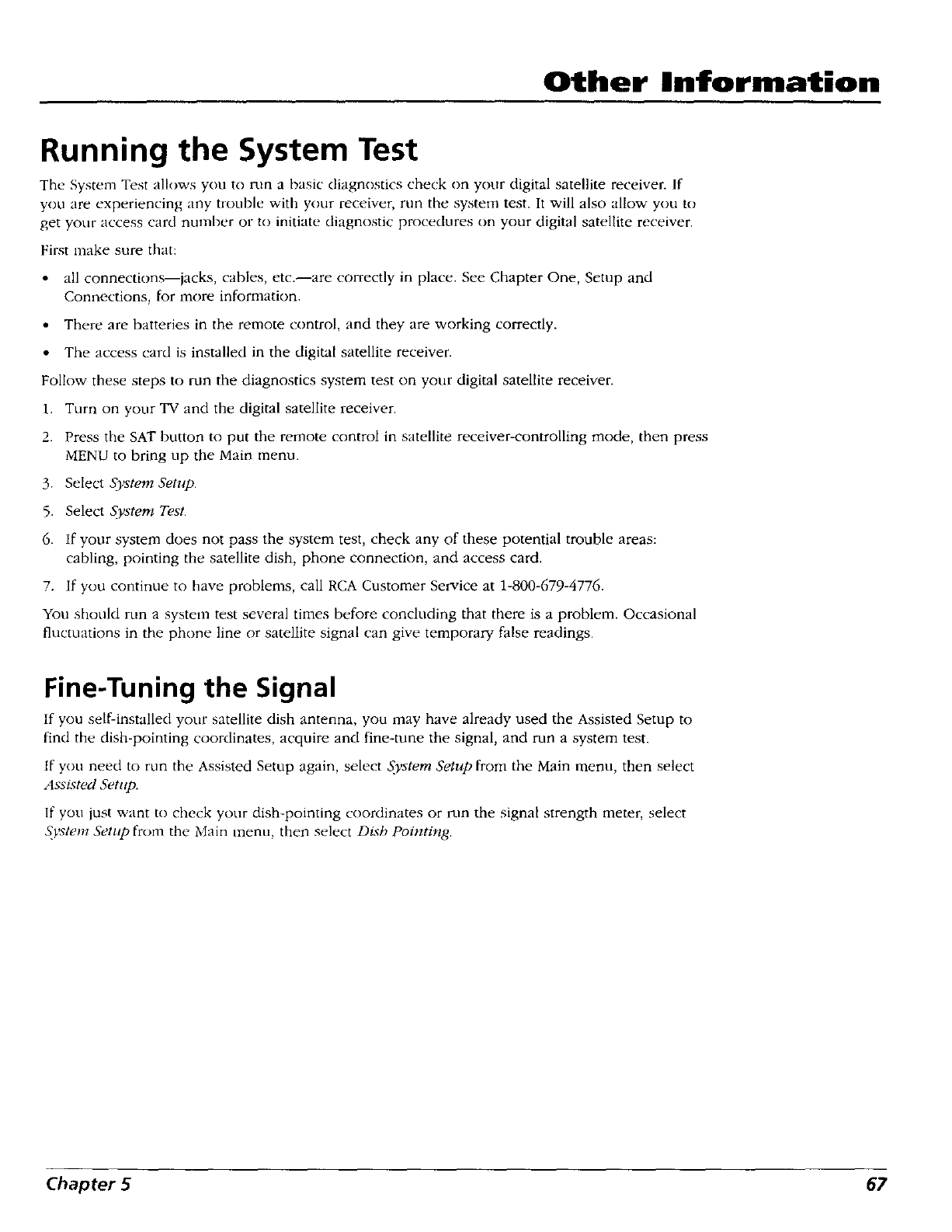

Running the System Test .......................................................................................... 67
Fine-Tuning the Signal ....................................................................................... 67

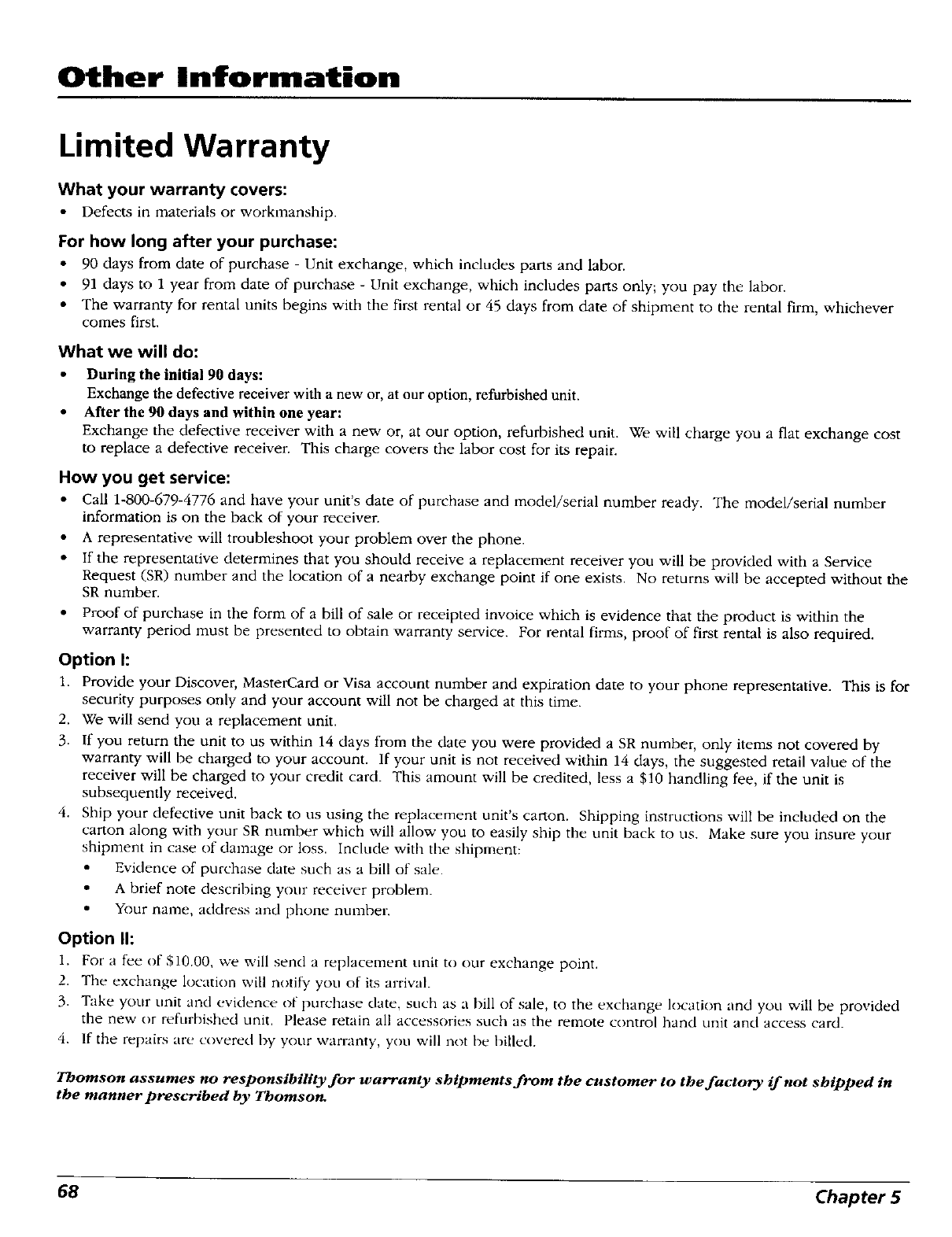

Limited Warranty ..................................................................................................... 68
FCC Registration Information .................................................................................. 70
Radio Interference ................................................................................................... 70

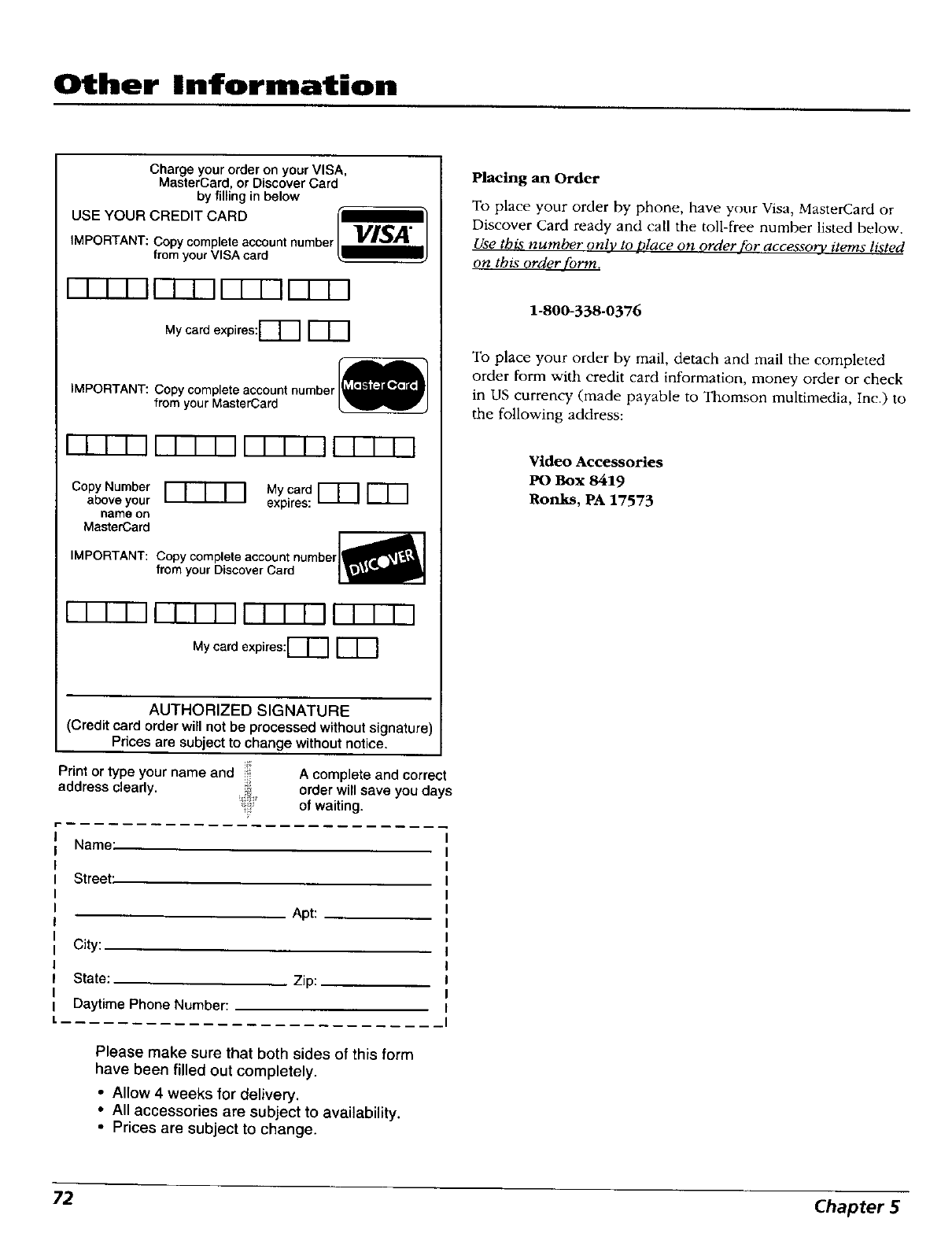

Accessory Order Form .............................................................................................. 71

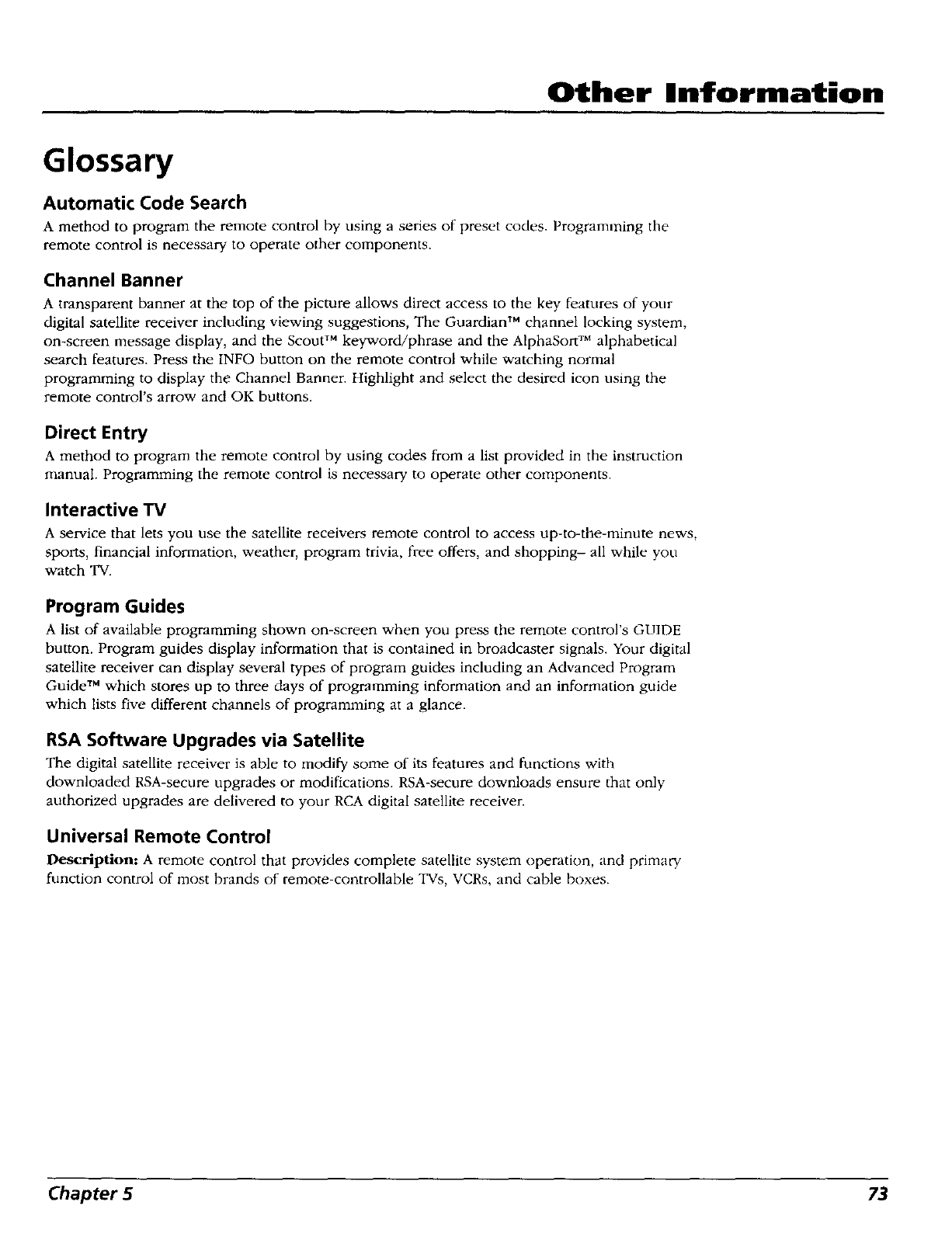

Glossary ..................................................................................................................... 73

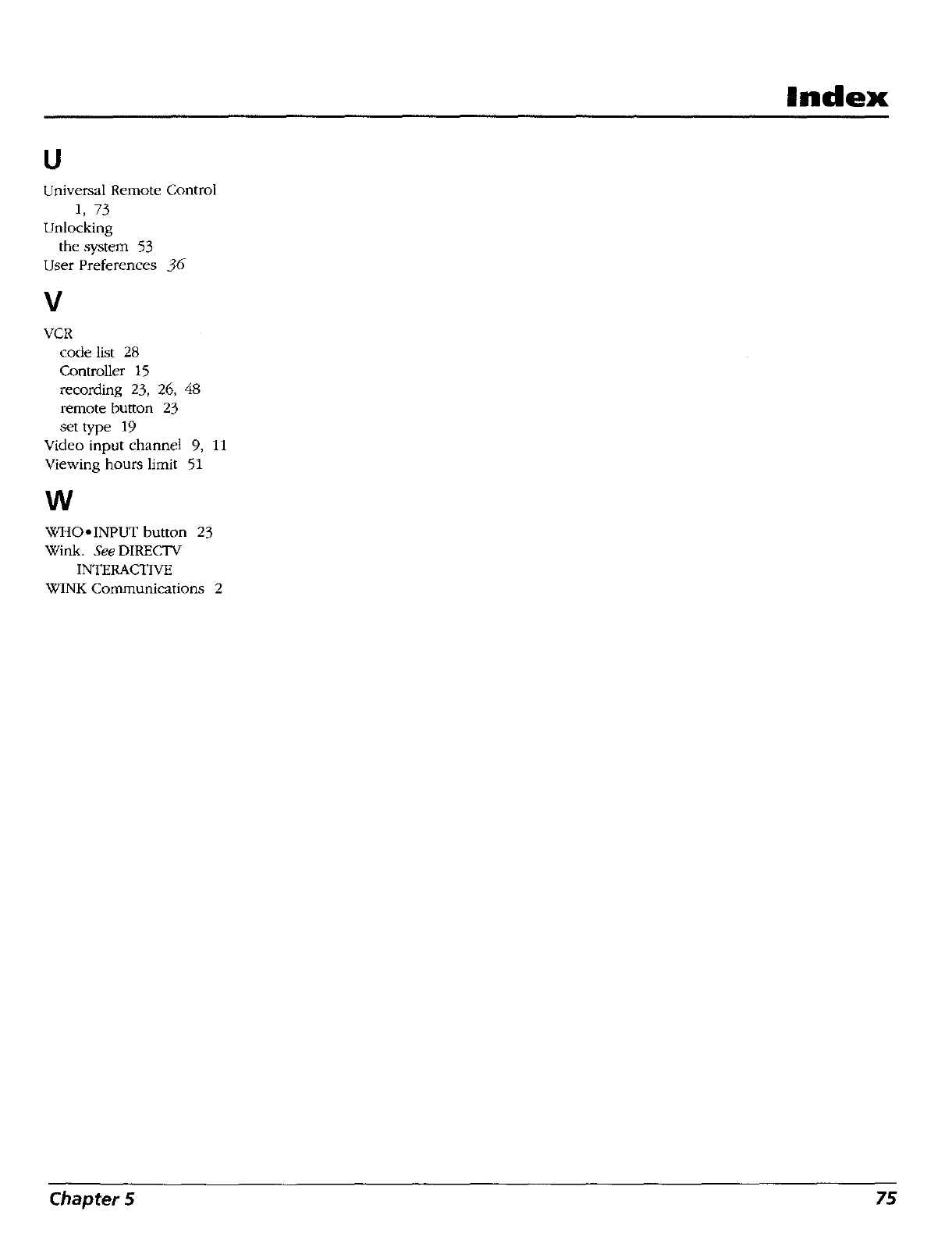

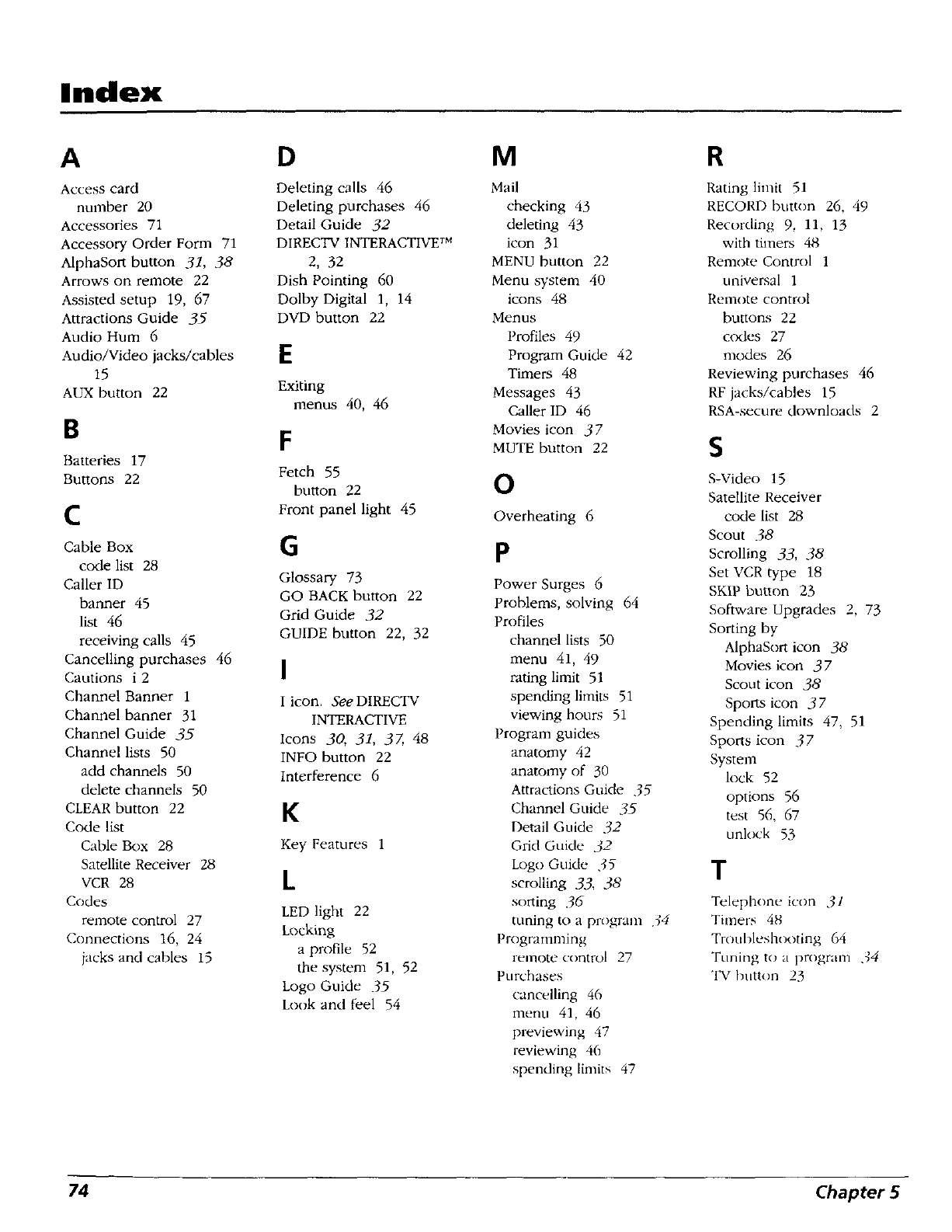

Index ......................................................................................................................... 74
4
Chapter 1
Connections &Setup
Chapter Overview:
• Things to Consider Before You Connect
•Choose Your Connection
•Place Batteries in the Remote Control
•Assisted Setup
•Order Programming
Changing Entertainment. Again.
Graphics contained within this publication are fiJr repr_,sentation only 5
Connections &Setup
Things To Consider Before You Connect
Components
Protect Your Components from Power Surges
• Connect all components before plugging any power cords into the wall outlet.
• Always turn off the digital satellite receiver, TV and other components before you connect or
disconnect any cables.
Position Cables Correctly to Avoid Audio Hum or
Interference
•Insert all cable plugs firmly into their jacks.
• Place the Audio/Video (ATV) cables to the sides of the TV's back panel instead of straight
down the middle after you connect your components.
• Try not to coil any twin-lead cables and keep them away from the ATV cables as much as
possible.
• Make sure all antennas and cables are properly grounded. Refer to the Safety Tips sheet
packed with your unit.
Protect Your Components from Overheating
• Do not block ventilation holes in any of the components. Arrange the components so that
air can circulate freely. Remove any sales or promotional materials attached to the
product.
• Do not stack components.
• Allow adequate ventilation when placing components in a stand.
• Place an amplifier or receiver on the top sheIf of the stand so heated air rising from it will
not flow around other components.
6Chapter 1
Connections &Setup
Choose Your Connection
There are several ways to connect your digital satellite receiver depending on the components
you want to connect and the quality of the signal you want to achieve. Please use the following
chart to determine which connection is best for you. Proceed to the appropriate page and
connect your satellite receiver. For more information about the relationship between cables,
jacks, and the quality of the signal, go to pages 15-16.
Component Signal Quality Jacks on the satellite receiver Cables needed* Go to...
Excellent
Basic
Very Good
Good
S-VIDEO, AUDIO L and R
VIDEO, AUDIO L and R
S-video, audio/video
audio/video
Excellent
OUT TO TV
VIDEO, AUDIO L and R
OUT TO TV
coaxial
audio/video
coaxial
DIGITAL AUDIO optical (SPDIF)
page 8
page 10
page 12
page 8
page 10
page 18
* Pictures of cables are on page 15.
Chapter 1 7
Connections &Setup
Digital Satellite Receiver
_ atellite Dish
Antenna VCR
CH3
CH4 _ If
ANI
OUT
ro _
_V
Cable or
Off-air
Antenna
L
IN AUDpO
FRCM
V_DEO
S.Video
RJll
modular
phone jack
Note: Your VCR and TV back panels may not look exactly
like the ones illustrated.
Excellent Connection
Using S-Video and A/V jacks and cables to connect to the TV0
RF coaxial cables to connect the VCR
This connection provides the best picture quality, surpassing that of A/V cahles. The S-Video
cable, whicil carries video infkmnation only, requires that audio cables also be used for sound.
8Chapter 1
Connections &Setup
What you will need:
Two (2) RF coaxial cables
•Two (2) A/V cables
One (1) S-Video cable
• One (1) telephone line cord
• Coaxial cable lines fed from a digital satellite antenna and a standard TV antenna (or cable line)
Making the Connection
1. Connect the satellite dish antenna feed (RG-6 coaxial cable) to the SATELLITEIN jack on the satellite
receiver.
2. Connect one end of an RF coaxial cable to the OUT TO TV jack on the satellite receiver, and the other end
to the antenna input jack on the VCR.
Note: If your VCR has AN input jacks, you can use A/V cablesto connect the satellite receiver's second
AN jacksto the AN jacksof the VCRinstead of usingthe RFcoaxialcable.
3. Connect one end of an RF coaxial cable to the antenna output jack on the VCR, and the other end to the
TV's antenna input jack.
4. Connect the cable or off-air antenna feed (RF coaxial cable) to the IN FROM ANT jack on the satellite
receiver.
5. Connect one end of the supplied telephone line cord to the PHONE JACK on the back of the satellite
receiver, and the other end to an RJ11-type modular phone jack (the most common type of phone jack).
6. Connect two ends of the supplied A/V cables to AUDIO R and L jacks on the satellite receiver, and the
other ends to the corresponding audio input jacks on the TV.
Note: Make sure you connect jacks by their labels. For example, AUDIO R on the digital satellite receiver
should be connected to TV's right audio input jack, L Audio to L Audio, etc.
If your TV only has one audio input jack, use the satellite receiver's AUDIO L jack to make the
connection.
7. Connect one end of the supplied S-Video cable to the satellite receiver, and the other end to the
S-Video input jack on the TV.
Go to Page 15
Using Your Components
To watch DIRECTV* programming:
Tune the TV to its S-Video line input (if you have difficuhy finding your TV's S-Video line input, see your
TV's User'sManualor page 66 in this manual). Then tune the satellite receiver to the desired channel.
To record DIRECTV* programming:
Tune the satellite receiver to the desired channel. Then set your VCR to record on the proper input
channel (video line input if using A/V cables to connect the VCR to the satellite receiver, channel 3 or 4 if
using RF coaxial cable).
To view VCR recordings:
Tune the TV to channel 3 or 4 (whichever is set on the VCR as its output channel). Begin VCR pktyhack
as usual.
Chapter 1 9
Connections & Setup
Digital Satellite Receiver
SateJlite Dish
Antenna
Gable or
Off-air
VCR Antenna
CH3
CH4 uJN
ANT
OUTTO
TV
rN
FROM
ANT
VrDEO
RJll
modular
phone jack
Note: Your VCR and TV back panels may not look
exactly like the ones shown.
Very Good Connection
Using A/V jacks and cables to connect to the TV,
RF coaxial cables to connect the VCR
This connection proxides better picture quality than RF coaxial cables and is rccotnmended for
use with TVs that do not ha\'e S-Vicleo input jacks.
10 Chapter 1
Connections & Setup
What you will need:
• Two (2) RF coaxial cables
• Three (3) Audio/Video cables
•One (1) telephone line cord
Coaxial cable lines fed from a digital satellite antenna and a standard TV antenna (or cable line)
Making the Connection
1. Connect the satellite dish antenna feed (RG-6 coaxial cable) to the SATELLITEIN jack on the satellite
receiver.
2. Connect one end of an RF coaxial cable to the OUT TO TV jack on the satellite receiver, and the other
end to the antenna input jack on the VCR.
Note: If your VCR has A/V input jacks, you can use AN cables to connectthe satellite receiver's
secondsetof A/V output jacksto the AN jacksof the VCRinsteadof usingthe RFcoaxial cable.
3. Connect one end of an RF coaxial cable to the antenna output jack on the VCR, and the other end to
the TV's antenna input jack.
4. Connect the cable or off-air antenna feed (RF coaxial cable) to the IN FROM ANT jack on the satellite
receiver.
5. Connect one end of the supplied telephone line cord to the PHONE JACK on the back of the satellite
receiver, and tire other end to an RJll-type m_×lular phone jack (the most common type of phone jack).
6. Connect the ends of the supplied A/V cables to the satellite receiver's AUDIO and VIDEO jacks, and
the other ends to the corresponding AUDIO and VIDEO input jacks on the TV.
Notes: Make sure you connect jacks and cables corresponding to their labels. For example, AUDIO R
output on the digital satellite receiver should be connected to AUDIO R input on the TV, VIDEO OUT to
VIDEO IN, etc.
If your TV only has one audio input jack, use the satellite receiver's AUDIO L jack to make the
connection.
Go to Page 15
Using Your Components
To watch DIRECTV* programming:
Tune the TV to its video line input (if you have difficulty finding your TV's video line input, see your
TV's U_er_"Manualor refer to the instructions on page 66 in this manual). Then tune the satellite
receiver to the desired channel.
To record DIRECTV _ programming:
Follow tim steps in the pre_ ious step, then tune the satellite receiver to the desired channel. Set your
VCR to record on its proper input channel (channel 3 or 4).
To view VCR recordings:
Tune the TV to channel 3 or 4 (whichew_r is set on the VCR as its output channel). Begin VCR
playback as usual.
Chapter1 11
Connections & Setup
Digital Satellite Receiver
RJll
modular
phone jack
_N
FROM
ANT
Note: Your VCR and TV back panels may not look exactly
like the ones shown.
Basic Connection
Using RF Coaxial cables for all connections
This coilncction provides standard [)icttJre (Iulalit},'. This connection is only r(_+comn]ellded for ttsc
with TVs that do not have S&qdco or A V input jacks.
12 Chapter 1
Connections & Setup
What you will need:
• Two (2) RF coaxial cables
• One (1) telephone line cord
• Coaxial cable lines fed from a digital satellite antenna and a standard TV antenna (or cable line)
Making the Connection
1. Connect the satellite dish antenna feed (RG-6 coaxial cable) to the SATELLITEIN jack on the satellite
receiver.
2. Connect one end of an RF coaxial cable to the OUT TO TV jack on the satellite receiver, and the other
end to the antenna INPUT jack on the VCR.
3. Connect one end of an RF coaxial cable to the antenna OUTPUT jack on the VCR, and the other end
to the TV's anteni_a INPUT jack.
4. Connect the cable box or off-air antenna feed (RF coaxial cable) to the IN FROM ANT jack on the
satellite receiver.
5. Connect one end of the supplied telephone line cord to the PHONE JACK on the back of the satellite
receiver, and the other end to an RJ11-type modular phone jack (the most common type of phone
jack).
Go to Page 15
Using Your Components
To watch DIRECTV* programming:
Tune the TV to the satellite receiver's output channel (either channel 3 or 4).
Note: You can change the satellite receiver's output channel by pressing the remote control's SAT
button, then the MENU button, then select System Setup, then System Options, and finally select
Output Channel. Use the remote control's arrow and OK buttons to highlight and select the desired
output channel. Tune the TV to that channel to see the satellite receiver's picture.
To record DIRECTV* programming:
Follow the directions in the previous step, then set your VCR to record on its proper input channel
(channel 3 or 4 if using RF coaxial cable to make the connection, Video Line Input if using A/V cables
to connect the VCR to the satellite receiver).
To view VCR recordings:
Tune the TV to channel 3 or 4 (whichever is set on the VCR as its output channel). Begin VCR
playback as usual.
Chapter 1 13
Connections &Setup
ReceiverorDecoder
withOpticalInput
DIGfTAL
AUDIO
INPUT
Advanced Audio
(Digital Audio Output Connection)
Cables: Optical (SPDIF)
Use this connection to take advantage of Dolby DigitaF quality sound, when available.
Notes: Your digital receiver back panel may not look exactly like the one pictured.
This satellite receiver's optical digital output jack fully complies with the international standard
governing this type of jack (IEC958), and is designed for connection to a Dolby Digital (AC-3 or
PCM) receiver or Dolby Digital (AC-3 or PCM) decoder. Older equipment, some of which is not
fully compliant with IEC958, may not be compatible with the Dolby Digital bitstream. Such a
connection using anything other than a PCM, Dolby Digital, or Dolby Pro Logic receiver or
decoder could create a high noise level, causing damage to headphones or speakers.
Making the Connection
Connect one end of the optical (SPI)IF) cable to the DIGITAL AUDIO OUTPUT jack* on the
satellite receiver, and to the digital audio input jack on a Dolby Digital receiver/decoder.
Using Your Component
After you connect ynur satellite receiver to a Dolby Digital receiver, you must select Dolbv Dz_,_tal
flom the S3,xtem Options menu (press the remote control's MENU button, then select S_stem Setup,
then Syswm Options, then highlight Dolby Digital. Use the remote control's arrow and OK buttons
to highlight and select AIm_select, PCM, or Dolk_I, Digilalin order Ik)r the receiver to recognize the
digital audio connection.
For more inlk)rmation on this !i:aturc, see the Dolby Digital entry starting on page 59 in the
section, Using The Menu System
*ManlcJil_'lutl, d une&,r licellseJY_mz 1)o11), Labr*reztr_ries. "l)oll_),'atul the double*O sFmbol czte trademarlz$ of Dolt,,
Labo_ttoriex. (.'oqfidential _:11ptlblisl_e_l _*rks ©/992-1997 Dolby La&omttories. lnc.AII r_hts resettled.
14 Chapter 1
Connections & Setup
Jacks and Cables
Below is a description of the jacks and cables you can use to make connections. Not all cables
come with your digital satellite receiver.
S-VIDEO
000
L R
VIDEO AUDIO
ANTENNA IN
VCR
@
S-Video Jack and Cable
S-Video jacks/cables provide this receiver's best picture quality. Remember to
connect the left and right audio cables to the TV because the S-Video cable
carries only the picture signal, not the sound.
Audio/Video (A/V) Jack and Cable (RCA-type)
Audio/Video (A!V) cables provide good picture quality and stereo sound, and
should be used if your TV has no S-video jacks. The digital satellite receiver's A/V
jacks are color coded (yellow for video, red for right audio, and white for left
audio). If your TV has only one input for audio (mono), connect it to the left
(white) audio jack on the satellite receiver.
RF Jack and Coaxial Cable (F-type)
RF jacks provide good picture and mono sound quality. They should be used if
A/V connections are not available on your TV. RF jacks are used for off-air
antenna and cable feed connections. The RF jacks on the receiver are labeled
IN FROM ANT and OUT TO TV. The coaxial cable supplied with your system is
used to connect the receiver to your TV/VCR's antenna input jack.
VCR Controller
The VCR Controller plugs into the VCR jack on the satellite receiver's back
panel. Attach the other end of the cable to your VCR's remote control sensor.
DIGITAL
AUOIO
PHON%
Digital Audio Output (SPDIF)
If you own a Dolby Digital receiver that uses an optical cable-type input, use an
optical (SPDIF) cable to connect the satellite receiver to your Dolby Digital
receiver or decoder for the best sound quality.
Telephone Jack and Cord
The telephone line cord is required to connect your satellite receiver to a
telephone line if you choose to subscribe to *DIRECTV_ programming. The
phone line connection is used to periodically call out to DIRECTV. You will
need an RJll-type modulator jack (the most common type of phone jack)
which might look like one of those pictured here. If you don't have a modular
jack, call your local telephone company to find out how to get one installed.
DIRECTV pr_gramming is subject to the ternzs and conditions of the DIREC IV Customer Ag_.emetlt. a coi_r is pr_mided at I)lRECl_dco.l and u'flh.l_mr flrst bill
DIRECTOr, the _chme Desigll logo and Advanced Progrom Guide are lr_ulemarks _f l)IRh'CT_ DIc. a unit of Itughes ElectrYmics Corp., aml are used with permission.
Chapter 1 15
Connections & Setup
Satellite Receiver Rear Panel
This diagram illustrates each of the back panel jacks found on your digital satellite receiver. When
working with cables, be sure to connect corresponding OUTPUTS and INPUTS (Video OUT to
Video IN, Right Audio OUT to Right Audio IN, etc.).
For more information on the function of the back panel jacks and many other features of your
digital satellite receiver, press the MENU button and select System Sett_p from the Main menu, then
select System Index.
Back Panel Jacks (in alphabetical order)
AUDIO (R and L) Audio cables offer better sound quality than RF coaxial cables. Connect a
second set of audio cables to another component, such as a VCR or stereo.
DIGITAL AUDIO Connects the satellite receiver's audio to a Dolby Digital receiver or decoder.
This audio connection provides the best sound quality. Use the optical DIGITAL AUDIO output
cable (SPDIF) for this receiver's best possible sound.
IN FROM ANT Connect a standard TV antenna or cable f_eed to the satellite receiver using this
jack. You can then switch between the satellite receiver's signal and the TV/cahle feed using the
remote control's ANTENNA button to toggle between the two.
LOW SPEED DATA This port allows you to connect your digital satellite receiver to future
services and accessories as they become available. A shielded cable and additional hardware
may be required.
OUT TO "IV Connects the satellite receiver to your TV or VCR using RF coaxial cable. This jack
provides the most basic connection, canting average sound and video quality.
PHONE JACK Connects the satellite receiver to a telephone line. The digital satellite receiver
requires a telephone line connection to periodically coramunicate with ),our progranl provider.
SATELLITEIN Use to connect the satellite receiver to the satellite dish antenna.
S-VIDEO Provides better picture quality than VIDEO or RF coaxial cable lacks. If your TV has
an S-Video jack, use it along with the audio jacks (S Video only carries picture information, not
sound) to connect to your TV.
VCR This jack allov,,s the satellite r_:ceivcr to control the VCR usi_lg an IR cable. The cable is
attached above the VCR's remote conlrol sensor. This c_mnection is required Ik)r One Totlch
Record and Timer recoI'0ing [_'atures.
VIDEO Provides better picture quality than the OI T TO "I__ jack. C(mnect the second VIDEO
jack to another device, such as a VCR "_k_unmst also c()llnect the AUDIO cables when using the
VIDEO connection.
16 Chapter 1
Connections & Setup
Place Batteries in the Remote
Control
Follow these steps whenever you need to install or change the batteries in your
digital satellite receiver's remote control.
Note: When replacing old batteries, you may need to reprogram the remote
control to operate other devices.
1. Remove the cover from the battery compartment.
2. Insert batteries in the battery compartment, matching the + and - end of
each battery.
3. Replace the cover.
Plug in and Turn On the Receiver
Plug the end of the power cord into the wall outlet. Be sure to insert the plug
completely.
To turn on the satellite receiver, press the SAT button on the remote control or
the ON*OFF button on the front panel. If your TV brand is RCA, GE, or
Proscan, press the TV button on the remote control to turn on the TV. If your
TV brand is not RCA, GE, or Proscan, see page 25 in the next section, Using the
Remote Control, for details on programming the satellite receiver's remote
control to operate your TV.
Locating the VCR's Infrared
Remote Control Sensor
The VCR Controller must be affixed directly over the infrared remote control
sensor on your VCR.
Some VCRs have a label that identifies the remote control sensor, but others do
not. If the IR sensor is labeled on your VCR, affix the VCR Controller directly
over the sensor. For VCRs that do not label the sensor, you can use the VCR's
remote control to locate the VCR's sensor before affixing the VCR Controller
cable.
To Find the VCR's Remote Control Sensor:
1. Hold the VCR's remote ccmm_l so that it is touching the tront of the VCR.
2. Slowly move the remote control over the front of the VCR while repeatedly
pressing the remote control's power button.
3. When your VCR turns on/off, you have locateci tile remote control sensor.
Note: To test the VCR controller's position, use a piece of vinyl tape to
temporarily attach the VCR controller to the spot where you think the sensor
is located. Then see Selecting a VCR Type on page 19 to see if the VCR
Controller is positioned correctly.
Chapter 1 17
Connections & Setup
Satellite Receiver(Back Panel)
VCR(FrontPanel)
Remonte Control
IR Sensor
Connect the VCR Controller
To use the One-Touch Record and Timer features, you need to attach the VCR Controller cable
to the VCR and the satellite receiver.
1. Plug the VCR Controller into the VCR jack on the satellite receiver.
2. Affix the other end in front of the remote control sensor on your VCR.
Arrow
buttons "-'"
MENU J
button
MU_ S,,p
O °"" O
Ere ¢_
,O_O,O
'O +O'O
'0 +O'O
_
OK
_'_ button
CLEAR
button
Using Highlight and Select
All on-screen menus can be handled the same way, using highlight and
select navigation.
Highlight and select navigation has two steps:
1. Use the arrow buttons (up, clown, left, and right) on the remote
control to highlight different choices on the screen.
2. Press OK to select the highlighted item.
Note: When a highlighted on-screen menu choice has a number
beside it, you can also press the corresponding number button on the
remote control to select it.
Once you know how to navigate on-screen menus, you can complete the
AsststedSettlp(see the next page) and explore the menu system.
To display 111_+oll-s,.;recll lllenu sys[enl, press the renlote control's SAT
button, then [)tess the MENU button.
Note: Don't worry about getting stuck inside a menu. Pressing the
CLEAR button on the remote control takes you out of the menu
system and back to the program you were watching.
18 Chapter 1
Connections &Setup
Selecting a VCR Type
I11o['(+I(+rt() use the+ ()ne [()tlch Rcc(>t+(_l:ulcl 'I inlt+i l_+?;iltIIC",, yl)tl nccd to tell the
satellite recchel _,,hich VCR brand yOtt ate ttsing_
1. Trine tile TV to its satellite receiver vic,,ving chann('l (either 03, 04, or the+
TV's appropriate input channtq del)ending on }()tit conn(.ctions).
2. Press MENU on tile i('mote control to disI+la7 the satellite r{'ot+iver's Main menu.
2. Highlight and select nunlber 7, .Si',)s/+'m<ST>fHI;.
3. Highlight and select ntunl),er 3, 3_7-<;t_-'mOptfo#zs.
4. Highlight and select number 2, Set VCR 7)7)_,.
5. Highlight and select the name of your VCR manufacturer.
Note: If you do not see your VCR manufacturer's name, select Other (at the
bottom of the list) and enter the appropriate code from the VCR Remote
Control code list on page 27.
6. Follow the on-screen instructions to ensure that yol.i :it(" using the correct
code (if you need more assistance while in a i/lentl, press the remote
control's 1NFO button t_)r details).
Note: Some VCR brands may not be capable of being controlled by the
receiver.
Complete the Assisted Setup
If you installed your satellite dish antenna yourself, you may have already used
the Assisted Setllp to find dish-pointing coordinates, acquire and fine-tune the
signal, and FLirta system test.
If you need to run tilt' setup again, select ,_t,stenl ,<,kqtq_ fionl the Main menu,
then select Assfsted &,ttqJ.
To check your disll-pointing coordhlates or run the signal strength meter,
displa Tthe Main tl_enu, tl/en select ,Sl',stw#1/,_W/Iq), dlld linall) l)tsb Poilztt'ttg.
Chapter 1 19
Connections & Setup
When you order programming, you
need to know your accesscard number
To get the number, selectSystem Setup
from the Main menu, then System Test.
Wait for the systemto run all of its
tests. The accesscard number is
displayed at the end of the system test.
Write the accesscard number in the
space below for easyreference:
Order Programming
After you have installed your DIRECTV System, you should contact D1RECTVto
order DIRECTV®programming.
With this receiver and the proper satellite dish antenna, you may be able to
subscribe to local channels from DIRECTV in certain areas. Additional
equipment may be required in some markets. Check with your retailer or visit
DIRECTV.com for information on availability of local channels from DIRECTV in
your area.
Activation of programming may be subject to credit approval and requires valid
service address, social security number and/or major credit card. Programming
subject to change. You must be physically located in the U.S. to receive DIRECTV
service. DIRECTV services not available outside the U.S. DIRECTV®programming
is sold separately and independently of DIRECTV System hardware. A valid
programming subscription is required to operate DIRECTV System hardware.
Activate your DIRECTV®programming today at 1-800-DIRECTV (1-800-347-3288).
20 Chapter 1
Chapter 2
Using the
Remote Control
Chapter Overview:
• Remote Control Buttons
•Buttons on Top of the Digital Satellite Receiver
•Programming the Remote Control
•Using the Remote Control to Operate
Another Component
•Modes of Operation
•Controlling a Second Satellite Receiver
•Remote Control Codes
Changing Entertainment. Again.
Graphics contained within this publication are fi_r mpresetttation only 21
Using the Remote Control
LED
MUTE SKIP
FETCH GO P_CK
GUIDE INFO
O/' O
_ENU CLEAR
,O O O
'O 00 00
,O 0000
A_E_NA
o'00 o
REVERSE pLAy [ORWARD
RECORD STOP PAUSE
Remote Control Buttons
in Alphabetical Order
ANTENNA. In TV mode, lets you toggle between the satellite and standard TV/
cable signals when the satellite receiver is connected to the TV using the OUT
TO TV jack. In VCR mode, ANTENNA functions as a TV/VCR input button.
Arrows Use the navigation arrows to move the on-screen highlight up, down,
left, or right.
A.Lrx Turns on a compatible RCA amplifier/receiver or audio/video receiver.
This button can be programmed to control an RCA, GE, or Proscan auxiliary
component.
(2I-I+ (up)/- (down) Use to scan up and down through the channels in the
current channel list. If you are in the program guide or menu system, use the
CH +/- buttons to page up and down a screen at a time.
CLEAR Removes the on-screen displays and returns you to normal viewing.
Digit Buttons (0 - 9) Used to tune directly to a specific channel. If you are in
the menu system, use the digits to select menu items. In the menu system, use 0
to return to the previous menu screen.
DVI) Tells the remote to operate the DVD player. Note that this button is only
functional with RCA, GE, and Proscan DVD players.
FETCH Displays the Fetch menu with up to eight different actions, or executes
a single task- depending on the preferences set.
GO BACK Moves you back and forth between the last two selected channels. In
the menu system, returns you to the previous screen.
GUIDE Brings up the program guide. Subsequent presses of the GUIDE button
switch between the Detail and Grid guide formats.
INFO Brings up the on-screen channel banner, password challenge, or
purchase offer screen. In the program guides, press to get information about the
highlighted program or channel. In the menu system, this button displays
context-sensitive help for highlighted control elements.
LED (Light-Emitting Diode) This light is illuminated with each valid button
press. When programming the remote control, it flashes or turns on or off to
indicate programming status.
MENU Displays the Main menu. When you are using the remote control to
operate an RCA, GE, or Proscan VCR (the remote is in VCR mode), the MENU
],utton functions as a Program button.
MU'I_ When the remote is programmed to control a TV, this button reduces
the TV's volume to its minitutllll level. Press again to restore the volume.
22 Chapter 2
Using the Remote Control
OK/t (interactive) Selects a highlighted choice if you are in the menu system.
Press the OK button when the DIRECTV INTERACTIVE" icon ('l_) appears during interactive
programs and commercials. Pressing OK will display more information and offer the chance to
interact with what is displayed on screen.
ON-OFF Turns the component you are controlling on or off. When pressed twice within two
seconds, all components that are on will be turned off (this feature only works with most RCA,
GE, and Proscan products). You can also use the ON-OFF button on the top (front panel) of the
digital satellite receiver to turn the receiver on or off.
SAT Tells the remote to control the digital satellite receiver.
SKIP Used to activate the commercial skip mode on RCA. GE, and Proscan products that offer
Commercial Skip feature. Commercial Skip activates an on-screen timer. This feature allows you
to change channels (during a commercial break, for example), then be returned to the original
channel that was active when skip was first pressed when the timer reaches zero. Each press of
the SKIP button increases the timer by 30 seconds.
Transport Buttons (REVERSE, PLAY, FORWARD, RECORD, STOP, PAUSE) When in on-
screen guides, PLAY advances the display two hours, FORWARD advances the display 12 hours
and REVERSE moves time backward 12 hours. When the remote control is programmed, these
buttons are also used to control an auxiliary component, such as a VCR or laserdisc player. Note
that ff your VCR Controller is connected, the RECORD button can he used to schedule a timer
recording when using the Program Guide or to begin recording while watching a program (in VCR
mode).
'IV When programmed, tells the remote to control the TV.
VCR1 When programmed, tells the remote to control the VCR.
VCR2 When programmed, tells the remote to control a second VCR.
VOL down and up When programmed, adjusts the audio volume of your TV.
WHO-INPLrr Press the WHO button one or more times to scroll through the user profiles.
When you are using the remote control to operate an RCA, GE, or PROSCAN TV (in TV mode),
press the WHO,,INPUT button one or more times to scroll through the available video input
sources.
Chapter 2 23
Using the Remote Control
Top of the Digital Satellite Receiver
This diagram illustrates the buttons on the top (also referred to as the front panel) of the digital
satellite receiver. For more information on the function of the front panel buttons and many other
features of your digital satellite receiver, press the MENU button and select System Setup from the
Main menu, then select System Index.
f --CHANNEL--
Front Panel Buttons (Left to Right)
ON-OFF Use to turn your digital satellite receiver on for viewing or off when you are not
viewing it. Your receiver will still be able to download software upgrades and receive messages
from program providers when it is off'.
MENU°OK Use this button to display the Main menu. If you are already in the menu system,
pressing this button selects the highlighted item.
_L_OWS Use the navigation arrows to move the on-screen highlight up, down, left, or right.
Channel Down and Up When you're watching TV, use these buttons to change the channel.
INI_O Use this button to display the channel banner, password challenge, or purchase offer
screen. Press twice to display additional program information, when available. While in the
menu system INFO also summons context sensitive help about a highlighted menu item.
24 Chapter 2
Using the Remote Control
Component
buttons and
ON,OFF
button
PLAY
REVERSE
button
STOP
button
LED Programming the Remote Control
The digital satellite receiver's r(*nlote carl be progr_Elnlned to control I]IOSt
brands of remote controllable components. The remote is already programmed
to control lnost RCA, OR and Proscan components: it may need to he
programmed to control other manufacturers' brands.
Testing the Remote Control
To determine whether the universal remote control needs to be programmed,
turn a component on, such as a VCR, point the remote at the VCR, and press
the VCR button. Then press ON-OFF or CH + or CH - to see if the VCR
responds to the remote commands. If not, the remote needs to be programmed.
There are two ways to program the remote control: Automatic Code Search or
Direct Entry.
Using Automatic Code Search
The following instructions can be used to program the remote to control many
of the components connected to your TV. If you want to exit the automatic
code search without programming any of your components, press the CLEAR
button until the LED (red light) turns off.
1,
2.
.
Turn on the component you want to control (VCR, satellite receiver, etc.)
Press and hold the button you want to program. While holding the
component button, press and hold ON*OFF until the LED on the remote
control turns on, then release both buttons.
Note: The AUX button can only be programmed using direct code entry. See
"Using Direct Entry," later in this section, for details.
Point the remote at the component, press and release PLAY,then wait five
seconds or until the LED stops flashing.
At this point the remote control is searching for tile correct code to program.
If, after five seconds, the component you want to control does not turn off,
press and release PLAY again to tell the remote to search tt_e next set of
codes.
Continue pressing and releasing PLAY until the component turns off or you
have searched through all of the codes. There are 20 total sets of codes. If
tile compnnent does not turn off after pressing PI.AY 20 times, then the
remote cannot c<)ntrol that particular conlpol3Cllt,
If the component yon v, ant to control d(_('s ltl/'[1 O{'1:
1. Press and rdease REVERSE, then wait txxo seconds. Repeat this step until the
component turns back on.
2. TO finish, press and hold ST()I_ until the LEI) on the rcmot,: control turns
ofh
Chapter 2 25
Using the Remote Control
Using Direct Entry
1. Turn on the component to be programmed.
2. Look up the brand and code number(s) for the component on the code list at the end of this
section.
3. On your remote control, press and hold the component button you want to program.
4. While pressing the component button, enter a code from the code list.
5. Release the component button, and then press ON-OFF to see if the component responds to
the remote control commands. If it doesn't, try pressing the component button and then
ON • OFF again.
6. If you get no response, repeat these steps using the next code listed for your brand, until the
component responds to tile remote control commands.
One Button Recording
If your remote is programmed to
operate a VCR, and the VCR is
properly connected to the satellite
receiver, you only need to press
the RECORD button to begin
recording from video.
Operating Other Components
Once the remote has been programmed successfully, you are ready to use it to
operate your components.
To Operate the Component:
1. Press the component button (TV, VCR1, SAT, VCR2, or A[PX) to set the
remote to control the component.
2. Press ON-OFF to turn the component on or off.
3. Use the remote control buttons that apply to that component.
Modes of Operation
Because this universal remote can control several diflerent components (DVD
player, VCR, cable box, etc.) it uses operational modes triggered by the
component buttons. For example, if you want the remote control to operate the
TV, press the TV button to put the remote into TV mode. If you want to play a
videotape, press VCR1 then PLAY (pointing the remote at the VCR).
Controlling a Second Satellite Receiver
The remote can control two satellite recei\,el-s, l_'roln [tic, Mail] ill{,nl.[, select
System Setup then System Options, then R_,mote .S>tlq_.Then l}_llo\'_ the on-
screen instructions and enter the appropriate code from the Satellite Receiver
list at the end of this section. By default, the SAT button is tt_,ec]to control the
first satellite receiver and the AI.JX button is usec] u) tonHoJ the se_o0d satellite
receiver.
If your second receiver is an RCA, GE. or Ploscan :rod 3_nl want to _ontt-o[ it
using the AUX button, use code 5001. Code -_0()0is used ])V the SAT bulton.
26 Chapter 2
Using the Remote Control
Remote Control Codes
TV
Aix:x ......................................................................... 1172
Admiral ............................................................. 1001, 1173
Adventura ......................................................... 1174
Aiko ............................................................................ 1016
Akai ............................................................................ 1002
Aileron ......................................................................... 1046
Amtron ........................................................................ 1038
Anam National ............................................... 1003, 1038
AOC ........................... 1004, 1005, 1006, 1007, 1175, 1176
Audiovox .................................................... 1038
l_h:or ................................................................... 1004
Bell & Howell .................................. 1001, 1083, 1162
Bradford ...................................................................... 1038
Brokw_x'vJ ........................................................ 1004
Candle ............................................ 1004, 1006, 1008, 1174
Capehart ...................................................... 1175
Celebrity .................................................................. 1002
Centurion ..................................................................... 1009
Citizen ........... 1004, 1006, 1008, 1016, 1038, 1105.
1171.1174,1177
Clairtc_ne ...................................... 1176
Colortyme ........................................................ 1004, 1006
Concerio ................................................... 1004, 1006
Contec/Cony ......... 1012, 1013, 1014, 1038, 1176
C_llg .................................................. 1038
Crown ................................................................ 1038, 1171
Curtis Mathes • 1000, 1004, 1006, 1015, 1!05, 1162, 1171
CXC .............................................................................. 1038
I)aewoo 1004, 1005, 1006, 1016, 1017, 1018, 1127, 1171
Daytron .................................................... 1004, 1006, 1171
I}imensia ..................................................................... 1000
I)_lml>nt ................................................ 1004, 1151
Dynatech ................................................... | 178
Electrohand .................................... 1002, 1176
Electro,home ............... 1003, 1004, 1006, 1019, 1022
Emerson 1004, 1006, 1012., 1014, 1023, 1024, 1025¸
1026, 1027, 1028, 1029, 1030, 1031, 1032¸
1033, 1034, 1035, 1036, 1037, 1038, 1039¸
1041, 1042, 1043, 1044, 1046, 1047, 1123.
1124, 1162, 1171, 1176, 1177, 1179, 1191
Envision ........................................ 1004, 1006
I:isher ......................... 1048, !049, 1050, 1051, 1162, ll_q0
Fuiils_ ...................................................... 1046
Funai ..................................................... 1038. 10_6
Futur_lec .............................................. 1038
GE 1000. 1003, 1004, 1006, 1022. 10_2, 105_
10"35, 1087, 1164, 1165, 1166, 1167. 116X, 1181
GibralI_r ................................. I[X]4, 1151
G_>hlstar • 1004, ](/05, 1006, 1012. I(}19. 1056¸
10_7 1058. 11-3-3, 1156, 117!, 1172
Grtmdy .............................. 1038. 10-t6, 11_1
IlalLmalk .............................................. 1(104. I{RK_
t{arvard ................................................... 1038
llil_l_lli l_}CI-t, 10{_ i012, 1[}[3, 11159, I0(_0, ll)6L 1135¸
1136, 1137_ l13g, 1139. I1-_0, Ilil 1[_2, IIt_
II4_, 114_ 11_6 Ili_ 11-3{I, II -_)
[MA ................................................ 1038
lanei/ ......................................... I 1-
JBL ............................................................................... 1062
JCB ........................................................................ 1002
JC Penney ........... 1000, 1004, 1005, 1006 1008,1022,
1052, 1054,1058, 1063, 1064, 1072,
10_7, 1105,1128, 1171,1172, 1181
Jensen ................................................................ 1004, 1006
JVC ............................ 1012, 1013, 1054, 1060, 1065, 1066,
1067, 1089, 1157, 1158, 1159, 1182
Kawasho ................................................ 1002, 1004, 1006
Kaypani ................................................ 1175
Kenwood ................................................. 1004, 1006, 1019
Kloss Novabeam ........................... 1068, 1069, 1174, 1183
KTV .................................... 1038, 1070, 1171, 1176, 1177
Loewe .............................................. 1062
Logik ................................................................ 1083
Luxman ...................... 1004, 1006
LXI ............. 1000, 1006, 1049, 1062, 107!. 1072, 1073,
1162, 1181
Magnavox .... 1004, 1006, 1008, 1019, 1062, 10(_8, 1069,
1074, 1075, 1076, 1077, 10&8, 1089, 1131,
1130, 1132, 1133, 1134, 1183, 1184
Majestic .......................................... I083
Marants ...................................................................... 1062
Marantz ............................. 1004, 1006, 1062, 1078
Megalron ........................................................... 1006, 1059
MEI ........................................................................ 1176
Memorex ............................. 1001, 1006, 1082, 1083, 1162
MGA .......................... 1004, 1005, 1006, 1019, 1022, 1051,
1079, 1080, 1092
Midland ................................ 1054, 1151, 1171, 1172, 1181
Minulz ................................................................... 10_2
Mitsubishi ............... 1004, 1005, 10416 1019. 1022, 1051,
1079, 1080, 1081, 1082, 1083, 1125
Montgomery Ward .................... 1083
MotoroLa .................................... 1(103, 1173
MTC ......................... !004. 1005, 1006, 1105, 1176, 1178
Multitech ........................................................ 1038, 1178
Muhivision ........................................................... 1084
NAD ..................................... 1006, 1071, 1072, 1185
NEC ....................... 1{)03, 10{]4, 1005. l{R)6, 1089
Nikko ................................................................. 1[)06, 1016
NTC ................... 1016
On_a ........................ 103_
Optimus .......................................................... 1185
Optcmlca .................................................... 1095, 1173
Orion .............................................................. 103_, 1191
Panaslmlc ................................ 1{)03, 10_4 1062, 1170
Philco 1003¸ 1004, I(R)_, 1[)06¸ 1008¸ 1{)12. 1019, 1(_2,
I{)68, 1069¸ 1074¸ 107_, 1077. 1183, I IH-t
Philips 1003, 1004, 1008. 1012¸ 1019, I_2, I0(_, 1069_
1074_ 107_ 1076¸ 1086 10H7, 1[>88, I0_L)
Pih_l .......... 10(_. 1171
Pioneer _00_ 10[_ 1/)91/ 11191, 1[_)2, 1179. 11_5
p_r_klnd ............... 1[)0_ l[l/)_, 1006¸ 1016. 1171
Price Club 11{)5
Pri*nl ........... I0_;
PRO'_CAN 1{_00, I181
I>r_ll/_i_ IOIl_ IO(_ 1{112¸ 11_)3, 117_
Pulsar 1151
Pul_.er ............................................... 1004
Quasar ..................... 1003, 1054, 1070, 1094
Radio Shack!Realistic 1000, 1004, 1006, 1012, , 1038,
1049, 1095, 1162, 1171, 1172
RCA ....... 1000, 1003, 1004, 1005, 1006, 1007, 1019, 1096,
1098, 1099, 1100, 1101, 1102, 1103, 1129, 1179,
liB1, llf17, 118_, 1190, 1198, 1199
Rhapsody ................................. 1176
Ru[ico ........................................... 1151
Sampo ..... 1004, 1006, 1171, 1172, 1175
Samsung ................... 1004, 1005, 1006, 1012, 1015, 1019,
1104, 1105, 1106, 1!71, 1172
Samsu× .................................................... 1171
Sansui .................................... 1191
Sanyo ......................................... 1004, 1048, 1049¸ 1050
10_0. 1107 1108¸ 1162, I180, !189
Scratch .................................. 1006
Scotl ................. 1004, 1006, 1012, 102"1_ 1035, 1038. 1046
Sears ............. 1000, 1004, lIRI6, 1013¸ 1019, 1046, 1048,
1049, 1050, 1051¸ 1[)66. 1071, 1072, 1109,
1110¸ 1t62, 1180, 1181. 1189
Sharp ................... 1004. 1006, 1012, 1029, 1095¸ 111l,
!112, 1113¸ 1122, 1171¸ 1173
Shogun ........................ 1004
Signature .................................................. 1001, 1083, 1115
_impson ........................................................... 1008
Y,onic .................................................................... 1176
Sony ............................................................ 1(_)_
Soundesi_n .............. 1004, I_6 1008. 1038¸ 1046
Squareview .................................................... 11 H9
Starllre .................. 1038
Supre-macy ..................... 1174
Suprenlt: ............. I(X)2
_;_lvania .................... 1CA)i, 10(_ 1/10H. 1(119, 1(/62¸ llkgS,
11/69, IO7-t l/l_. 1076 10_- 10g,8
111(_, 1161_ 1183. 11_4
Symphonic .................................... 1033, 103_q 1 lg9
Tandy ............................................. 1173
l_tung 1003¸ 11_8
Technics .............................................................. 10_4
Techw_>od ...... 11_)4. I1_)6. 1054
T_knika ....... ![_{]t, IO(1_ 100(_. I_R]_q, 1012¸ 1013
1(}16, 103_ 111_6 11176, 1082 1083¸
I111_, 11-0 1171
I_lecaptil m ...................... 1117
I_.IK ..... 1[10; 1[)06
I_shiba I0i9 111-_ 1072¸ 1089¸ 110_ 1109,
II1- 1118. 11{_(/ 1162
I__Ie\'isi<_fl .............................. 1171
/ ni_e_al ......................................... 10-_2. I(hS-
Vi_tl>r .... IO(_l_ 11H2
Viking I17 i
1[]33 I01(_ 11)_2 1_2 IOI_H lll(_ _) 11)7t.
112(I IIg_
'_ullall:l .... I[_lll ll_l_5 _(lI)(_ 1019
Chapter 2 27
Code List
Remote Control Codes (Cont.)
VCR
Admiral ..................................................................... 2131
Zaiko ....................................................................... 2027
Aiwa .............................................................. 2002, 2026
Akai .......... 2003, 2004, 2005, 2007, 2/)O8, 2111,2112, 2113
American High ........................................................ 2021
Asha ......................................................................... 2013
Audio Dynamics ............................................. 2009, 2010
Audiovox .................................................................... 2014
Bell & Howell ............................................................. 2011
Beaumark .................................................................... 2013
Broksonic .......................................................... 2012, 2025
Calix ............................................................................ 2014
Candte ............. 2013, 2014, 2015, 2016, 2017, 2018, 2019
Canon ................................................. 2021, 2022, 2114
Capehart ....................................................... 2020, 2110
Carver ......................................................................... 2062
CCE .................................................................. 2027, 21361
Citizen¸ 2013, 2014, 2015, 2016, 2017, 2018,2019,2027
Co[ortyme .................................................................... 2009
Colt ............................................................................. 2061
Craig .............................................. 2013, 2014, 2023, 2061
Curtis Mathes ...:, 2000, 2002, 2009, 2013, 2016. 2018,
2021, 2022, 2024, 2115
Cybernex ............................................................... 2013
Daewoo 2015, 2017, 2019,2025, 2020, 2027, 2028, 21 IO
DaCron .................................................................... 2110
DBX ............................................................ 2009+ 2010
I)imensia ............................................................... 2000
Dynatech ....................................................... 2002. 2026
EIectrohome ................................................. 2014, 2029
Elect rophonic ......................................................... 2014
Emerson ......... 2002, 2012,2014, 2015, 2021, 2024, 2025+
2026, 2029, 2030, 2032, 2033, 2034, 2035,
2036, 2037, 2038, 2039, 2040, 2{)41, 2042,
2044, 2045, 2047. 2065, 2105, 2113, 2116.
2117, 2130
Fisher ... 2011, 2023, 2048, 2049, 2050, 2051, 2052,2118
Fuji .................................................................. 2021, 2119
Funai .............................................................. 2002, 2026
Garrard ................................................................. 2026
GE ......... 2000, 2001. 2013, 2021, 2022, 2053, 2115, 2120
Goldstar ............................ 2009, 2014, 2018, 2054, 2121
Gradiente ......................................................... 2026
Harley Davidson .............................................. 2020
Harman Kard()n .................................................. 2009
Harwood .......................................................... 206!
Headquarter ...................................................... 201 I
Hitachi 2002, 2055. 2056, 2057, 2107, 211 I, 2120, 2122
HI-Q .................................................................. 2023
Instant Replay ................................................. 2021
JCL ................................................................. 2021
JC Penney 2009, 2010. 2011, 2013, 2014, 2021, 2022.
2055, 2056, 2058, 2059, 2060, 2107, 2118
Jonson ......................................... 2055. 2056, 2111
IVC ............ 2009, 2010. 20tl, 2018, 205_4, 211 I. 2123
Kenw_x)d ............ 2009, 2010. 201 I. 2010. 2018, 205&
2111. 2123
KI_t .................................................. 2001
Ktxlak ....................................... 20i4, 202/
Lh)yd ........................................ 21_)2. 202i)
Logik ........................................... 2001
LXI ...................................... 2111
Magnav()x .... 202I. 2022. 2062, 2063. 2111t, 210_4, 212¸)
Magnin ...................................... 2013
Maraillz ........ 2009. 2010, 2OI I, 2{110¸ 2018 2021, 21)_X
2062¸ 2OO_
Marta ..................................... 2OI
Masushita .................................. 2{121
MEI ........................................... 202]
Menlort_x ................................ 21XI2, 21}1I.
2013. 2014. 2021, 2{)23, 2026. 2111t. 2131
MGA ................................... 2{}29. 2005¸ 2113
MGN Tcclmc_h)gy ............................. 2oi3
Midland ........................................ 20_3
Minolla .......................... 21)_5, 2056. 2Hr
Mitsuhishi ........ 2{)29, 2055. 20_6. 21_, 2O4_), 2007.
2009, 20_O 20_1 2_)72 20"3¸ 20 _l
2100. 2113. 2123
Montgomery Ward ..................................... 2075, 2131
Motorola ..................................................... 2021,2131
MTC .................................................... 2002, 2013, 2026
Mulftech ................. 2002, 2013, 2016, 2026, 2053, 2061
NEC ........................ 2009, 2010. 2011, 2016, 2018, 2058,
2064, 2076, 2078, 2079, 2111, 2123
Nikko ..................................................................... 2014
Noblex ..................................................................... 2013
Olympus ..................................................................... 2021
Optimus ............................................................ 2014, 2131
Optonica ..................................................................... 2096
Orion ........................................................................... 2035
Panasonic .................. 2021. 2022, 2109, 2125, 2126, 2127
Pentax .................................. 2016, 2055, 2056, 2107, 2120
Pentex Research .......................................................... 2018
Phi]co ............................................. 2021, 2022, 2062, 2063
Philips .......................................... 2021, 2062, 2096, 2124
Pilot ....................................................................... 2014
Pioneer ............................... 2010. 2055, 2080, 208l, 2123
Portland ........................................ 2016, 2017, 2019, 2110
ProScan ............................................................ 2000, 2001
Protec ......................................................................... 2061
Pulsar ........................................................................... 2104
Quarter ...................................................................... 2011
Quartz .................................................................... 2011
Quasar ................................................ 2021. 2022, 212_
RCA ............... 2000, 2001, 2003, 2013, 2021, 2055, 2056,
2082, 2083, 2084,2085, 2086,2087, 2088,
2089, 2090, 2091, 2107, 2115, 2120, 2125
Radioshack/Realistic ........ 2002, 2011, 2013, 2014, 2021,
2022, 2023, 2026, 2029, 2049_
2050. 2096, 2131
Radix ...................................................................... 2014
Randex ................................................................... 2014
Ricoh ....................................................................... 2128
Runco ................................................................. 2104
Samstmg ................... 2005, 2013. 2015, 2033, 2053, 2112
Sank,; ........................................................... 2131, 2104
Sansui .................................. 2010, 2092, 2111, 2123
Sanyo ..................................................... 2011, 2013, 2023
Scott ......................... 2012, 2015, 2025, 2032, 2035, 2038,
2065, 2093, 2116
Sears ........... 2011, 2014, 2021, 2023, 2048, 2049, 2050,
2051. 2055, 2056+ 2107, 2118
Sharp .......... 2002, 2017, 2029, 2094, 2095, 2096 2131
Shintom .................................... 2004, 2056, 2061, 2098
Shogun ................................................................ 2013
5ig)aat u rc ................................................ 2002, 2131
Singer ............................................. 2021, 2061, 2128
Sony ........................ 2002, 2004, 2098, 2099, 2119, 2128
STS ......................................................... 2021, 2107
Sylvania 2002. 2021, 2022, 2026, 2062, 2063, 2065, 2124
Symphonic ............................................... 2002, 2026
_nd_ ¸ •............................................ 2002, 201 l
Tashiko ...................................................... 2014
I_tung ...................................... 2058, 2111
TEAC ...................... 2002, 2026, 2058, 2085, 21 ll
5_ hnics ................................... 2021. 2109
leknika ............ 2002¸ 2()14, 2021, 2026, 2100, 2129
fMK ....................................... 2013. 2024. 2047
l_)shiba ....... 2015, 20-)9, 2051¸ 2055, 2065, 2093, 2116
_tc\ri?q(m .................................. 2013, 2014
[!nitecJ/ .......................................... 2013
Vc"ct_)rResearch ................ 20(_, 2010, 2015, 2010
Vi_ lot ................................. 2010
Video C<mcepts ...... 2009, 2010¸ 201q 2010. 2113
Vidc_)sonk .................................. 2013
_0_ls 2002, 2013, 201_ 2015. 2021. 2023¸ 2026,
2029, 21)_5, 2050. 2001¸ 2090. 210!. 2102,
2103. 210_. 2116, 2131
XR lllO0 .................... 2(}21, 2026, 2061
Y;unah:l ......... 21_)9 2010¸ 2011, 201_ 2058, 2t 11
Zcnilh .............. 21R)_ 2(_& 21(_.2119 212_4
Cable Boxes
A[IC ....... 5(R)2. _()()4 5{R)q, 500g 501_), 5(R)7 5053
Anmmix ........................ _(Y08, _009
Archer ................... 5008¸5009¸5010,5011
(Jal)l_ICnna ........................... _(R)_
Cableview .................................................................. 5008
Century ...................................................................... 5011
Citizen .......................................................................... 5011
Colour Voice ...................................................... 5012, 5013
Comtronics ........................................................ 5014, 5015
Contec ....................................................................... 5016
Eastern ......................................................................... 5017
Garrard ........................................................................ 5011
GC Electronics ............................................................. 5009
Gemini .................................................... 5018, 5019, 5049
General Instrument ..................................................... 5003
Hamlin ................................. 5020, 5021, 5022, 5035, 5045
Hitachi ......................................................................... 5003
Hytex ........................................................................... 5002
Jasco ............................................................................ 5011
Jerrold .... 5003, 5005, 5007,5018, 5023, 5024, 5046, 5053
Magnavox .................................................................... 5025
Memorex ................................................................... 5026
Movie Time ............................................. 5002, 5027, 5028
NSC .......................................................... 5002, 5027, 5028
Oak ........................................................... 5002,5016, 5029
Panasonic ......................................................... 5048, 5052
Faragon ....................................................................... 5026
Fhilips ... 5011, 5012. 5013, 5019, 5025, 5030, 5031, 5032
Fioneer ........................................................... 5053, 5034
Fulsar ......................................................................... 5026
RCA ......................................................... 5047, 5049, 5052
Realistic .............................................................. 5009, 5049
Regal .............................................................. 5022, 5035
Regency ....................................................................... 5017
Rembrandt ................................................................. 5003
Runco .......................................................................... 5026
Samsurtg .......................................................... 5014, 5034
Scientific Atlanta ........................... 5006, 5036, 5037, 5038
Signal ............................................................... 5014, 5018
Signature .................................................................... 5003
SL Marx ................................................................... 5014
Sprucer ....................................................................... 5052
Starcom ................................................... 5007, 5018, 5053
Stargate .............................................................. 5014, 5018
Starquest ..................................................................... 5018
Tandy ........................................................................... 5040
Teleview .................................................................. 5014
Tocom .................................................... 5004, 5023, 5041
Toshiba .................................................................. 5026
Tusa ............................................................................ 5018
TV86 ......................................................................... 5027
Unika ................................................... 5008, 5009. 5011
United Artists .............................................................. 5002
United Cable ............................................................... 3053
Unive_al .................................... 5008, 5009. 5010. 5011
Videoway ................................................................ 5044
Viewstar ....................................... 5015, 5025, 5027, 5040
Zenith ................................................ 5026, 5050. 5051
Satellite Receivers
Chapparal ................................................ 5056, 5057
Drake ..................................................... 5038, 5059
GE .............................................................. 5001
General Instruments ......................... 5060, 5o61, 5062
])al_asonic ................................................... 5075
Primestar .......................................... 5076
Proscan .............................................. 5001
RCA ...................................................... 5001
Realistic ............................................... 5063
Sony ..................................................... 5072
Sq);l .................................................... 5064
STS2 .................................................. 5O65
SIY,3 ...................................................... 5O4-,6
STS4 ..................................................... 5O67
"l_)shil_a ..................................... 5068 50"r3
Umden ..................................................... 50(_9
28 Chapter 2
Chapter 3
Using the Satellite
Receiver's Features
Chapter Overview:
•What is a Program Guide?
•The interactive programming feature
•The Channel Banner and other on-screen displays
•How to use the on-screen programming schedule
Changing Entertainment, Again.
Graphics contaitted within this publication aru for representation ott,{l' 29
Satellite Receiver Features
Current user Current time
profile and date
Selectable
Advertisements
(highlight and
select for more
information).
Viewing Sorts by Scroll AlphaSortT M
Suggestions Movies down
Active Profile's Sorts by Channel sort
Preferences Sports
Program titles
and information
Scout TM
Anatomy of a Program Guide
The following diagram sho'+',.s you the' kind of infiIlm;itio]_ you ',',ill scc in the progr;ml guides.
Displaying the Program Guides
[k) ;l¢ccss th,_: pri)gt:tm grades, plcss +\lENt on the remote c<>ntrol _md select
/_r_4_r_H;t (;/lid(<_. then the g_uidc ol youn ( Ii(fic. c / I)L:](uI//. (7_/Iz_/e/+ ol //4_(J)
'l()Cl (:Ul (ILfi( kl_ ;l(cc>_, the tccci\cl _, ])cl;in]t (;uklc b_ [)l('?,3dl/_L {he (IUII)i-
I_Ll[[()ll <I]1 I}IL' ]'_.'ln()lL'
[k) ( h;lng,.' (he ( {I]'IL'Ilt /l_,Cl. plCt, s the i'cII/<llu 1_()1/(1(_1s \\1 i()"iN];q "t t/1111()1/
',',hi]c \ic\\h/g l_l'(_l':l]1111/lllg. Ihcl/ (ist. lilt I_'IIl_E(' _()l_[I()l ¸_,;uT()\\ :ki/(I ()Ix
I_LlIl(_;/', L(_ '_clc_I [I]_' d_ _.h_.(I p]_lilc' "l_tL (;Jl/ ;l!"._ l_I'. "_,', lhc lcnl()t_. ' _()U/tl()l '_
'ql_X.( I_utl_lL then -,ck'(t /'F_!_lwJl/ _,llh/(:_. ;u_l I_lcn _'/_'_/ [_'/ l(_lli>l_];I _, [hc
30 Chapter 3
Satellite Receiver Features
Active Profile Program titles Interactive content
and information indicator
Dolby Digital Main menu AlphaSort TM Mailbox Viewing Alternate audio
and alternate suggestions
audio indicators System lock/unlock ScoutTM Caller ID Program details
Using The Channel Banner
The channel banner appears whenever you do one of the following:
Tune to a channel.
• Press the remote control's INFO, SAT, or GO BACK buttons while watching programming.
• Press UP, DOWN, or INFO on the satellite receiver's front panel.
• Exit the on-screen menu system.
On-screen icons represent frequently-used menu items. Some icons also change appearance to show the item's
stares. Use the arrow buttons to highlight an on-screen item, and the OK button to select it. Some of the items
you select in the channel banner can also be selected in the program guides.
Buttons of the Channel Banner
reMain Menu icon Takes you to the Main menu.
_ Locked icon The system is locked. Spending, viewing and other limits cannot be accessed or changed.
Selecting this icon displays a password menu. Enter the correct system password to override settings.
gUnlock icon The system is unlocked. Spending, viewing and other limRs can be accessed or changed.
Selecting this icon in the channel banner displays the l.ock System control panel.
_ Video Unlock icon A password has been entered to temporarily override the limits. The system will
remain unlocked until the satellite receiver is turned off or re locked.
_Program Unlock icon A password has been entered to override limits for a single i)l-ogram. After the
program ends, or when the channel is changed, lilnits are restored.
_ AlphaSort TM icon Enables you to SOl't titles alphal_ctically
_ Scout rMicon Alk)\vs you 1o search for progranls using key \xords
_Mail icon l)isplays the Mail screen. The icon ,,,,'illbe white if you have an unread mail.
_ Telephone icon Displays the Caller I1) list screen The icon will hc \vhiic if you have received :t new call
but have not accessed the Caller I1) List screen. It \xill bc gray il you ha\c :Lccesscd the Caller 11) List
screen.
_ Viewing Suggestions icon I)isplays the I?_,wiH_ ,S'tlt_esllcms metro.
_Program Details Displays a dcscliption of the current prognun (il axailable).
_ Alternate Audio icon Cycles through the iI en tc_ t c choices
Chapter 3 31
Satellite Receiver Features
The DIRECTV INTERACTIVE TM Feature
Yore digital salcllitc rc_civcr includes I)IRE(-TV INTERACIIVI "r_, pow'elcd by
Wink ('o[ntnunications', a free service that giw_'s you the oppom.mity to interact
wit]T TV prograu/ming and advertising. You can use your re[note contro] to get
program related inlk}mlation, respond to free offers during commercials and
even make purchases whi]e you watch TV.
Whenever you see tile DIRECTV INTEP,ACT1VETM icon ('_) appear, press the
OK/i button on tile remote control to open tile interactive window.
To learn more about the DIREC'IW INTI_]I{AC'FI_ TM service:
1. Press MENU on the remote control (the Main menu appears).
2. Use tile arrow buttons on the remote control to highlight Interactive.
3. Press tile OK/i button to tune directly to the DIRECTV INTERACTIVE TM
Center (channel 499) to get more information about the R_llowing: Getting
Started, Interactive Channels. Shopping Sign Up, Order History, Messages,
Iielp & Settings, and About DIRECTv.
Displaying On-screen Guides
Each time you press tile remote control's GUIDE button, a diff_erent wpe of
program guicle appears:
The Detail Guide
Tile I)etail Guide sho_,vs five channels in a time-and channel format, with
program informatio0 h)r the highlighted program. A small window showing the
program you were watching heR)re entering the program guides is displayed in
the upper left hand comer (you can preview other channels in the Detail Guide
by highlighting channel numbers instead of the program titles).
Notes: By default, the Detail Guide appears when you press GUIDE on the
remote control. You can change the default guide from the Detail Guide to
the Grid Guide.
Select Personal Settings from the Main menu, then select the profile to be
changed, then select Default Guide. Use the remote control's arrow buttons
to highlight Grid Guide, then press the OK button to activate your choice.
The Grid Guide
Ihc (hid (;uidc >hoxxs so\co _h:mnc'ls in a lhnc<md channel lblma{ \ small
\\ illtl{)\\ 5h()\\il_ {l_.' I)I(}_IAIll _,(}tl \\_/I(" \\dI_llhlg ))_'Jkllc c'llb.qn1_ t]Ic [)lO_l;Ull
£l_klc> is _fi>pl;I}Cd in {he tq_pt.,[ Ich h:{l/d (()ll_Ci (\()tl t:Ul [)ie_,iL'\\ (l[hcr
_hannelsinthel)cl:liI{;uiclc b_, hiMhli/h{inM <h:umclnunflxqsinsteadoldie
I_l<)_l:llll Iillcs)
'2till I II ill_ • ( t*lllllllllllllllll_ll_ III ll_lIl_ 'a "rl'_'d II Ill/,' Illld t/_(" _1 il _" I_o _ll{' *l'gl_l "tl'll _" I*l "k'S /_171 _• (t)*l _II*l i I o _ Ill I)lRl:(T1 Ib " ( )'doll "
I)_'s_ll o_J d I)11_1"( 71 I\IIA '(II _, I_l_l_,_t_l_'_ r_/ I)IRI:( I l V _ il o/ Iltl_l) "s I/i,(tr_* s (_._'_ illd _' s''illl p ,1._ is_tcJ_l
32 Chapter 3
Satellite Receiver Features
CH +/-
Bu_ons
Getting Around In the Guides
This section describes how to change channels and move arounda program
guide.
Digit Buttons (0-9)
You can point quickly to any channel in the program guide by entering the
channel number with the digit buttons (0-9). For example, to point to channel
228, press the digits 2-2+8, on the remote control.
+0 +0 o0
,0 +0 o0
Arrow
Buttons
Digit
Buttons
Scrolling Channel By Channel
The programs that you see on the TV screen make up one section--or page--
of the total program guide. You can scroll one line at a time using the arrows:
point to other times with the left and right arrows; point to other channels with
the up and down arrows.
Scrolling Page By Page
If you want to scroll up or down through the program guide faster, press the
CH +/- buttons on the remote control. The highlight scrolls a page at a time.
REWIND/
FORWARD
Buttons
Scrolling Forward and Reverse
To scroll forward in two-hour increments, press the remote control's PLAY
button while in SAT mode. To go forward or reverse by a 12-hour block of
time, use the FORWARD and REVERSE buttons on the remote control.
Note: Your digital satellite receiver can store up to seven days of
programming information. Getting all this information can take up to 12
hours to download.
Chapter 3 33
Satellite Receiver Features
rip
For information on tuning to a PPV
program, see pages 47.
Tuning to a Program
To tune dit,::cfly t<> a cunc'nt l+rogtam li,,tt:d in the ?uidc+ point n> the p+%qram
and p]es',OK
To SOL" inI(>m/ation alx)ut a pro/,ram in the guide, point to the pr(_gram and
press INF()
'I']IL'R, yOU call S<.+Ic+ct:
View Chamml to rune to that channe]
RPCO?'(I Pl++_l'a/'ll 10 re_old [Pie program
Remand Meto set up a Watch Timer. This ,.viii display a prompt allowing you
to quickly change the channel when the program is about to begin•
Other Times to see what other times the program is available.
•More Details opens another display with detailed information (if available).
Tile options available to yot.i may vaW according to tile type of program you
select•
Tip
Your digital satellite receiver can
store up to seven days of information,
so retrieving data can take a little
time.
It can take up to 12 hours to
download all seven days of
information when turning the system
on after the Guide information has
been lost
More Details
Thel-e's a vaI+iety of pl+ogl'all] infoFnlation sent along wit]l standard broadcast
signals, and ".,our digital satellite receiver can dispkty much of it (if available).
The More Details menu can offer ini}.mnation (if available) about Actors and
Roles, the I)irector, the \Vriter, Original Materials. the Production Studio,
Awards, Ke}.words associated with the program, and the original release l)ate
and Run Length Just use the remote control's arrow aod OK buttons to
highlight and select the desired button, and to display more inR>rmation.
You can even use the displayed infommdon in the More Details menu to look
for matching information in the stored guide programs, or to create search
critelia for use with the Scout TM search feature of your digital satellite receiver•
To Access More Details:
l[ghlight a desired program in the on-screen guide and pt+ess the remote
control's [NFO button.
2 llighlight and select ,l/ore l)etails.
Note: The More Details button is displayed in the Program Details menu
only if more information is available.
3I lighlight :rod s,..lect the desired on-sclcen int})tTnation I+unol] to diNfl:b, tlw
d_'l;lil_ 1_11the ()pl_O_itC sic]t.' ()_ the _( I('t'!l
1'o search fk)r ()tiler progranls with similar inl_,)rlnatioll:
i I li_hlighl file dc,qlwd itfl_unl_Hi_>tl c>n the right >idc ot the: nlcnu and im.",s
the' IC'l//()tc+ Li)l_nols ()K I)tttl()n this \\ill disl)l;I _, :11/} ()lh£'I p[()gl;lln Sl(>l['d
in tiiL' ()11 '+,Lit?t21_ gtli_+it'>, that 5h;Ii¢ '_, the hip, blighted inlolnlalt(>n
To save your search ;is Scout Criteria;
S .\It_.'l totllplctin_ _tt.' l) I. U_,<.,tiiL' I_'Ill(>lt + _.(>ult1"()l> ;ItlO,a and ()K ]_ult_)r15 t_)
_,ulc_I tiil + S;I\L + 215 5t_<)tl[ I)ttlh)ll _t()tl '+;ill bC ,_ Cn _)u N_ IL'C]/ ill',Ittltli()11,, It)
t(llllplt'tc till', I;mk
34 Chap ter 3
Satellite Receiver Features
kdditional Program Guides
._._kiu_the_:l)(_'t;fi];rodGEi(I(;ui&*'_,tll_-'l_.':tt'u:tf(:',_,'m<)ru t(><.I_<)<>_.'horn: t]__+(:l_:tnnul(]ukI_,
•l_,u Logo (;ui(]c', :m(I the Viu,,;in_ _u_ustiun,, (;ui&*
_LL L';lll [K'CL+SS II]¢'SL' _LIKI(z_; h'(>ll/ [ix + _];Ii[1 I]/(Ll]tl ])y SL'IL'(:(iFI_ ]_l+Oql'dlTZ (,'ll/dqs".
The Channel Guide
])ispl_tys tht + l_ro_]ammi[lg sch_,dule for the s_lect_d channc,].
The Logo Guide
!l Displays channel Iogos _br the current user's channel list.
The Suggestions Guide
[)ispl_lys _1list ()1 lZOg]ams I)as_'d orl lzo_r_lnl]l/itlg theft I'_ts ])_'(m t0revi(_usty
\\:_tc'h('cl un(]c] th_! user pro_i!_',
:hapter 3 35
Satellite Receiver Features
Sorting the Guides
5(>ttin_ the _tticlc + is a ,,\ay ()l (>t_anixing the hflorn+atiOil to _,l+o\v only tile' types
()Jptogl;itt1_that Jntt:le',Iyou "]'hc'rLPare _uvural OI]-,",UI'(2L'IIic()n_, tllatsot_ the
guicl,.+' in ditfuiunt ways _+ti +_:in list progt-anls hy sports or movie thcnles+ for
cxan+plc. Yot.i (-an customize tliL' themes t<) t+]eet your tastes, and each profile
can havct its own default progranl sorting.
"I'o get to the sorting icons, use the down arrow button to move the highlight to
the icons at d;e I'_ottoln of the screen "l'hen, use the left and right arrc, w buttons
to highlight the desired icon.
TIP: Accessing Viewing
Suggestions
You can select Viewing Suggestions
by selecting Suggestions in the Main
menu, or by pressing the icon
displayed in the channel banner or
on-screen guides.
Viewing Suggestions
When you select the Viewing Sttggestions icon, a list of recommended program
events appears. Tile rec,:)mmendations are based on your previous viewing
habits in terms of the amotLnt of time spent watching programs that match a
topic and theme catego_ T. Tile st.lggestions are ordered by best match.
Vie',\ ing suggestions arc created for each active user profile. The suggestions
being shown are always for the current user profile+
You can view and change your suggestions, or turn the digital satellite receiver's
learning behavior off altogether from the Viewing 5"uggestionsmenu.
To Access the Viewing Suggestions Meno:
1 Press the Fc.nlote ¢Olltrol's MENU bLitton to display tile Main menu.
2+ F+ress 1 to select t)#TJ_P'glI_IGuides.
3, Press the _ ]_utton tochoose 5'u,ggestlo*_s.
1. Access (leshed viewing st. ggest ons LIS lg the retllote control's arrow and
OK ht.lttons to select
Note: You can also accessthis menu by selecting the Viewing Suggestions
icon in the Channel Banner or at the bottom of the
on-screen guides.
Customizing Viewing Suggestions
"tot._can edit the thcll]CS that x\ill appeal in die Vicxvmg Suggestions nlenLi hy
:i!_pl) in_ dilfciunt '\\ci£hts' to the topics. Increasing a topic"s,aeigl/t increases
the"oh:into +that plogianls \,,ith such thctnes will appear in the" l'ieu'mg
_l/,771"._lt_ll._ IllCl]tl ])c'crc;t_in_ ;I lhemc"s ",,.eigM xtill less,.+ntlt.e chance + that sttch
lhc>nlc's \\ ill ;i!)pc'al.
T() ('hali_12 tilt" Weight of Thenles and/or Tol)i¢.',;:
1 Iolh)t\ ,,t_,p_> t "_ ah()_e t_) displa) tilL' i( > ' _ _l _f_ )q[lf) ", t'I t.I
2l)lc'hs fill 2I)tlll()ll 1(I selc'_t I:dst 7i>/)#{._.
A >;de'el Ilk' iltllltht'rt'd I(>ptc It) edit, Ihen tl>c' dte lel/t()le contlol's alio\v and
! )K hHII()EI', Io Sdccl :lllcl :tcljtl>,t \\ci_hl pc'it t+i/ta_t's
36 Chapter 3
Satellite Receiver Features
Active Profile's Preferences
Each individual can edit preferences so customized themes and topics appear
when a sorting icon is pressed. The Active profile's preferences can be quickly
accessed by selecting this icon at the bottom of all on-screen guides.
To Change the Active Profile's Preferences:
1. Press the GUIDE button on the remote control to display the default guide.
2. Use the remote control's arrow and OK buttons to select the Active Profile
Preferences icon at the bottom of the guide.
3. Press the 2 button to select Edit Preferences. This will display a menu where
you can customize the themes to appear when the Active Profile's
Preferences icon is selected.
4. In the customizing menu, use the remote control's arrow and OK buttons to
highlight and select/deselect theme choices.
Note: The themes and topics can be customized for any profile.
Once finished customizing the themes, only topics that match your choices
should appear when you select the active profile's preferences icon in the
on-screen guides.
Movies
Select the Moviesicon to sort and list only movies. After selecting Movies, the
Movies Themes menu is displayed. Here you can sort movies by various themes.
By default, AllMovies is highlighted first.
Select the Movies Themes icon to sort the guide to list specific types of movies,
such as comedies or musicals. This icon may change from Movies to a different
topic in the future, but it will continue to function in the same way.
Sports
Select the Sports icon to list sporting events only. After selecting Sports', the
Sports icon changes to a Sports Themes icon.
Select the Sports Themes icon to sort the guide to list specific types nf sports, such
as basketball or soccer. This icon may change from Spo(ts to a clifferent topic in the
future, but it will continue to function in the same way.
Channel Sort
Sort the on screen guides to display channels in either numeric or alphabetical
order. When the guide is sortecl alphabetically, the 1-2-3 icon is displayed (select
the icon to change the display to numeric). When the guide is sorted
numerically, an A B-C icon is dispklyed (select it to display the guide
alphabetically).
Chapter 3 37
Satellite Receiver Features
AlphaSort TM
The AlphaSort feature lists all the program titles stored in the cun'ent guide in
alphabetical order. Select the AlphaSort icon to search for specific program titles
that are in the stored program guide in alphabetical order. Use the arrow
buttons on the remote control to highlight a character, then press OK.
For example, to search for the program Auto Racing, point to and select "A."
(Words like "The," "A," and "An" appear at the end of a title.) All titles that
begin with "A" appear in the AlphaSort list. Next, enter the letter "U." All titles
beginning with "AU" appear in the list.
Continue to enter the specific title until it appears in the AlphaSort list. If you
enter the wrong character, select either Backspace or ClearAll.
Use the arrow buttons on the remote control to highlight the title you are
looking for. Press the OK button to select it (if the program is airing), or the
INFO button to see more information (if the program is not airing, OK will act
like the INFO button). The AlphaSort feature looks for titles from all stored
programming.
On-screen icons represent the status
of the Scout feature:
This icon (displayed in
the Scout menu)
indicates that the
information you
specified has been
found.
The Scout icon in the
Channel Banner and the
on-screen guides will
have a white outline
when a Scout search
returns information.
Scout TM
The Scout system icon lets you assign "Scouts" to search the guide ior specific
program information, such as actors' names or program descriptions.
Select the Scout icon from a program guide to view the available Scout menu
items. Then, select New Scout from the Scout menu (this button only appears if
there is an empty Scout menu available).
Select Enter Text to set up the information the Scout feature will look for in the
program guide. Use the on-screen keyboard to enter the desired search
parameters. You can also use the Select Fields menu button to specify the type
of information you are looking for.
For example, if you are interested in how to prepare food, enter a common
term you think would occur in program infornlation, like "cooking." When you
have finished entering your topic select Run Scout.
If "cooking" appears within a program title or program description, the program
will be included in the Scout Results program list.
Once you have set up a Scout menu item, you can check its status by
highlighting it. A highlighted binoculars icon means that a Scout menu item has
found results.
Scout continually searches for requested information whether the box is on or
off. You can also select Run Scout to do an imnlediate search illtc'r setting tip a
scout.
Check a Scout menu item's results by selecting that Scout menu item. When you
highlight and select that Scout, the results are displayed on the right side.
Down Arrow
The down arrow icon allows you to scroll down through other channels in the
guide. Point to the down arrow icon and then press OK t() scroll down through
the program guide.
38 Chapter 3
Using the
Menu System
Chapter Overview:
• Using the Menu System
•Program Guides
•Messages
•Using the Purchases Menu
•Recording with Timers
•User Profiles
• Personal Settings
•System Setup
Changing ain.
Chapter 4
(;raphi_'s contained u'itbill this pttblictltiott ar_, for t_'l)r_,setttatiott onl ' 39
Using On-Screen Menus
Using the Menu System
To (lisp]a_ tilt, Main menu, prcs_, *[ENU on Ihc rt,nl(>tc, connol.
"to LI_,C the I11(.'Iltl systc[I/, _OLI need t() u5(2 the r_:tnot(" contro]'s arrow buttons ro
hib_hli_h[ your on screen c]/oic(_, lhcn rise tile OK button to sc]ect it. In menus
that tls_2 ntllltbercd choices, yoLI call use [h(2 r(:nlotc control's number bLlttons to
_,('lc'ct ;i11 itelll quickly.
Tip: No Menus?
If the Main menu doesn't appear
when you press MENU, the remote
control might not be in SAT mode.
Try pressing the SAT button on the
remote, and then MENU.
Tip: Using On-screen Help
Pressthe remote control's INFO
button at any time for more
information.
On-screen Buttons and Context Help
The on-screen menu system offers you l'nore than one way to get more
information or to navigate within the system using the on-screen Go Back and
ttelp buttons at the top of most menus.
Exiting aScreen
There are three ways to exit a menu:
• Select the on-screen Go Back button and press the OK button on the remote
control.
Press the CLEAR button on the remote control. The on-screen display clears
from the screen and you return to TN' viewing.
Press the GO BACK button on the remote control. This returns the TV to its
preceding display.
Getting Help
Fol an o'_ei'vi_,w of a displayed menu, use the renlote control's arrow and OK
buttons to select the on-screen Help button (?).
For details about a highlighted ntenu item (in what context an on-screen button
is used, for example), press the remote conn-ol's INFO button and a popup
window will tell you iltore.
40 Chapter 4
Using On-Screen Menus
3
Main Menu Items
This section briefly describes each of the optkms available from the Main menu.
More inl_mmation about each menu and its features is included later in this
chapter, and you can always get more in[k)rmation when an item is highlighted
by pressing the remote control's INFO button.
Program Guides
Selecting this button will display a menu with a wu'iety of different ways to
view program guide information.4 iliinlil
6
7
8
Tip: Don't Be Afraid to
Explore
Once you've learned the basics, feel
free to poke around the menu
system- exploring this system is a
great way to learn!
Remember to use you remote
control's arrow and OK buttons to
maneuver through menus.
And, so you don't worry about
getting lost in the menus, you can
press CLEAR at any time to leave
the menu system and return to
regular system viewing.
Messages
This button is used to access the Caller ID information from your telephone
company and mail messages from DIRECTV.
Note: You must subscribe to Caller ID service from your telephone service
provider in or der for the on-screen Caller ID information to be displayed.
Purchases
Use this button to review or cancel upcoming purchases, review past purchases,
and set spending limits for saved profiles.
Timers
Schedule the digital satellite receiver to tune to a specific channel at a specific
time. If a VCR has been properly connected to the receiver, you can also record
future programming.
Profiles
This button displays a menu where you can set system and user passwords,
ratings limits, spending limits, viewing hours, :is well as create favorite channel
lists.
Personal Settings
I)o you want to set tip an individual profile's personal settings or alter the look
and feel of an existing profile? This button will take you to a menu where you
can alter or set personal prel>rences of your diRital s ire e receiver.
System Setup
Allows you to adjust to the way your systcnt works, to get n]ol-e inl()rmatlon
about system [__'atures, get dish pointing coordin tcs. uc
Interactive
Television broadcasts typically carry a x\cahh of inlormation and now you can
access and interact with it sta[ting \,,ith this buttol3 Selecting Interactive fiom
the Main lnentl dispklys the I)IRECT\ IN'I'!'RACI'IVE '_' Center for setting up
intcracti\ c "I_i scr\ kc.
Chapter 4 41
Using On-Screen Menus
Active Current time
profile and date
Selectable
Advertisements
(highlight and
select for more
information).
Viewing Sorts by Scroll AIphaSort TM
Suggestions/ Movies down
Active Profile's Sorts by Channel sort
Preferences Sports
Program titles
and information
Scout TM
The Program Guide
Note: The program guide is described in detail in the previous chapter, Using
the Satellite Receiver's Features, starting on page 29.
_ulc'c'[itl_ Pfo_FCllll (;zlJ_l_{_ from the Main I//cntl clislbk q.,_a menu with a "_ariu[_.
of display opHons a\ailal)D _/Itl can sulc_l a specific [ sol ]hofilc, thu sysitnn
default <_,uidc (Detail Guide or tile Grid Guidu acco_clin_, to $otll plcfc, lcnc'csL
()[ the Logo or Channel Gui¢lc. Vicwin£ SugMcsfions, {)r ch;ln£u {l/c' acti\c
pr,ffilu
Anatomy of a Program Guide
Ihc cli_l_Ualll ;th_)\c _h()\\'< _!)tl Ihu killcl {_l i;/h)llll;lli(Hl \{)tl ',',ill nu'u m lltv'
!)ui:dl Guklc ;llld (;lid Guide' ((;T'icl (;tliclc" '_h_\\ I/ ]l_'rc)
Displaying Program Guides
h/ addUi_)n 1o >clctlin- /)ll{_J_lfll (,lllll('s ill tll_ NLtin iIIt'lltl \(itl t;ll/ [)lt ,'_<, Ihw
_,;1 tl)l! !_UIl_l/ _1/ Ihc Ic'lii{Hc ' tt)l_ll_! Ihi_ I_\l_;i_t'> lli_' I_l_l:illi t_tticlc'_ lll_'ilu
:rod (tilc't II), tli_pla)> II_c' tlt,l:ltlll _tlitlt'
42 Chapter 4
Using On-Screen Menus
Messages
The Messages menu lets }r_)t] L_'tCSS ]//_$_1_U_ __ phone calls. 11}ou sdccl Mail.
it shows you messages that are sent trom I)II,_E(TIV. I:ot UXalllplc you may
receive a nlussagu calling your attention to a nu\_ scl_,icc. If you scluct Caller
ID, this menu shows you Caller II) information hom your telephone prl)vidur (if
you subscribe to Caller II) service).
Mail
To tell if you have mail, you need to check file channel hanner available e,'hun
you press the remote control's 1NFO button. In tile channel banner, the
messages icon will be highlighted i! you have an unread message waiting,
Checking Your Mail
Select Messages from the Main menu, then Mail from tile next menu. Or select
tile maill)ox icon on the channel banner to view your nlai].
1. l_oint to a message ancl press OK. The muss:tgc is opened lor }ou to read
2 Press OK again to dose the message.
If you want to erase a message, point to F.ras{, Message and press OK. When
yoLI exit ,_leSS(lg(,s, messages that aren't erased al-e saved in IlqelqX)Pf,
Note: The quickest way to check for messages is to press the INFO button on
the remote control. This will display the channel banner. With the channel
banner displayed, use the remote control's arrow buttons to highlight the
mail icon, then press the remote control's OK button to access the Mail
menu.
Chapter4 43
Using On-Screen Menus
Caller ID
Your digital _<ttellit<: it:ct:i,.cr is _.apabl,.: ol displa) ing and sti,.mg Calk.r ll) inlorn+:ttJon pit>,+ided hy
your local telul+h(me _ompany To use this feature, you must have your receiver directly
plugged into a telephone outlet (or a RC930 wireless ulodelll) and you must subscribe to
Caller ID or similar caller identification services from your telephone company.
Your CallerII)enables you to:
• Identify callers betk_re you answer the phones.
• View the time and date of each incoming call.
•Record the Caller ID inRJrmation of up to 20 incoming calls sequendaliy.
Note: Only the last ten calls will be retained after a power outage.
• See who called while you were away.
There are two ways to access the Caller ID menus: hy selecting Message, s from the Mare menu, or
by pressing INFO on the renrote control anti selecting tire telephone icon in the Channel Banner.
Tire icon will be white if you have received a new call but have not accessed the Caller I1) List
screen It will be gray if you have accessed the Caller ID List screen.
Setting Up Caller ID
To set up your Caller ID, go to the Main menu and select Messages, then select
CallerlD Setup. Use tbe up and down arrow and OK buttons to select your
preferences.
Caller ID Light Setting CW/ler/D Ltg,l)t to ()J_ causes the front panel light to
flash if you receive new calls while the digital s Rclli e ]cceiver is off. The light
\viii flash ,al-Jti]you turn the receiver on.
Caller ID Message Setting Caller 1D Mc<ssageto ()Jz displays the on screen
Caller ID hanner when a call is received. You may want to turn this feature off
when you are recording nranually and tin not \vant the on-screen messages to
appear on your recordings. "_k)urcalls ,,,,ill he stored in tire Caller ID List screen
even when Caller 11)is turned off.
Caller ID Message Time-out Set the amount of dine (front 1-30 seconds) that
the Caller II) hanner will display when yOLI ha\e :to incoming call. For this
fc:lture to woIk, Itlake st]re (?l//d]+ll) Ilt<_sg qc)t_,s_+t t<) ()JI
Note: If you have a timer set to either watch or record, the Caller ID banner
will be temporarily overridden for the duration of that timer. When the
timer event is over, the Caller ID banner will display as selected under Caller
ID Message.
When viewing or recording manually (not using a timer) the Caller ID banner
will display (and be recorded if recording) as selected under CallerlD
Message.
At all times Caller ID messages will be stored in the Caller ID List screen
(unless a call arrives when you are on the telephone and you do not have a
Type II box or Type II service).
44 Chapter4
Using On-Screen Menus
Tip: When you have unread
Caller ID calls:
The front panel light will flash (when
the digital satellite receiver is off)
The telephone icon in the channel
banner will be highlighted white
If you'd like more information to
appear in your Caller ID banner
and call list, or if you'd like to
subscribe to Caller ID, check with
your local phone company about
the availability of different types
of Caller ID service,
Receiving Calls
When _Z()Ll[1pl/<mt.' rings t\vi+.'t_'and C_d/er//) 3/uxsaqu i_, _;ct Io <+)_t,a t):ulncr-
appears at the bottom ol the _,cr,++en.
The bam1+++r may includ,u the phone nLlt311)ct 1, d:tt,=, and time: orthe tlam,t. L phone
nunlber, date, and tim('. ]+he banner inJolnlatiotl depends on the type ol service
your telephone company provides.
The Caller 11) banner will override closed captioning at the bottom of the screen
and will appear for the amount of time selected in the C?dler lD.S2_lttp screen.
The Caller II) banner will not be displayed if you are in the menu system or a
timer is active when you receive a call.
Note: If using your telephone and another call arrives, the new call's
information won't appear in the banner or be recorded in the Caller ID List
screen unless you have type II service and a type II Caller ID box in your
house.
If you have a timer set to either watch or record, the Caller ID banner will be
temporarily overriden for the duration of that timer. When the timer event is
over, the Caller ID banner will display as selected under Caller ID Message.
When viewing or recording manually (not using a timer) the Caller ID banner
will display (and be recorded if recording) as selected under Caller ID
Message.
At all times Caller ID messages will be stored in the Caller ID List screen
(unless a call arrives when you are on the telephone and you do not have a
Type II box or Type II service).
Message Indicators
The following is text that may appear in the incoming Calh'r ID banner ancl ('all
list.
Out of Area The name and/or phone number of the incoming call is coming
from outside the local area.
Private Name The name of the incoming call is sent as "I_]ocked" fllon] the
phone company.
Private Number The pllone number of the incoming call is sent as "Blocked"
from die phone COlnpany.
Unknown Name The n:unc of the incotning call is not
telel)hone (lotnpany or t]lc information is ulnic:tdablc.
Unknown Number The number t)f the incoming call
teluphotle company oi the ill[ornlation is unte:tcl:dHc
Note: To clear the Caller ID banner from the screen, press CLEAR on the
remote control.
)to,+ idcd hy the
not provided by the
hapter4 45
Using On-Screen Menus
Tip: Don't Forget About the
CLEAR Button
Press the CLEAR button on the remote
control to remove the on-screen
menus and return to normal viewing.
The Caller ID List Screen
+Ihc _lii_il;l] _,att.'ilit{: ic<+c+,,_'r +.an -,ti>t+t.+ up to 20 _:tll <_,ntue_, in thu C]HII£+[ ]D [.Jst
_,_ruun. When tl+u met+l(>t\ i_ lull+ a nuv, call automatically r,uplace_, the oldu_,t
+.all in mt.'it+i+l_ +lhc h',t also tu+l'+ you i+ you have +u++'uivud multq+]c cal[s from
the _+amu ]lUI//l+(J+
To access the _al] list:
Select C_zll++r/7) Li._t horn the +\lcssages menu, or
Press t]tc INFO ])llttOll on the remote control at/d select the
phone icon
Deleting Calls
From the Caller ID List screen, you can delete entries:
1+ Highlight the call you wish to delete and press OK.
2 A crumpled paper icoz+Jappears to indicate that you wish to delete the call.
3 "1"ol)ermancntly delete the call. exit the sc+een If you change your mind
before exiting the' street'J, highlight the call thctl press OK to restore it. The
crumpled paper icon shouM disappear.
3Using the Purchases Menu
The Putcllases menu allox\s _,'c)t.ito rexiex\ kq+collling a[ld past purchases and
set spe-Jding limits.
The list of purchases ma_+ be longer than ot+te s_.rccn: use the up and down
arrow I_tfftons to >ee l_lote items. The display also shows th_ title, channel+
date, tii_le, atld cost of eac]l [)rogra111.
Note: The Past Purchases list is updated as soon as a purchased program is
viewed.
Reviewing and Canceling
Upcoming Purchases
I lighlight and "+cTc_I An ttl+{{)lllill _ ])tll£ h;t-,c II{>ttl lh_' Ill/Ill'I' ]'III(_TCIgt'_ '% 1<.%+11
_I_tl _An Iv'\i_\\ th£ ])i_)_i:t111 d_.'>Ulil_tl<lll :t'+ \\ull _t> _;iiic_'I :111 tIi_I)111111 _
l_ttl_ h:i_._.
46 Chapter 4
Using On-Screen Menus
Spending Limits
('St' lilt' ,S/)('IIdIH_ /.illlilt)pliInl h> hltlit;llc ;I ptl t'_t HI ;ll/d {_l :t II1Ul/lhl\
H_cnclin_ limil Mr P;ly I'cr \'k'\_ pr{}_i;ilii_
t Sole, it ,S_u_/dn qLi,
2. Selec-t the u_,c,r profile you'd like Io _et ;i Hx.ndin!4 limit I{)[ thc, n use, the,
digits {>r the i[lro\v bul|OlqS o11 [he ]'UI])OIL' L'{)l_h'()l 1() L'iqR'r l)ro_tiil]/
spending-limit irtfoml:ltion,
After tl spending limit is set alldthc system is locked. }oci must enter :i
p_lssword to purcktse a I:'¢iy Per Vie,.,: progianl t[/_{l cost:-; more than your-
spending limit :lllows.
Note: Spending limits are in effect only when the system is locked. See
"Locking the System," later in this section, for details.
Pay Per View Programs
P;q" Per View (PPV) progranls _lre I)]RI{CI'V' pro L_rzims tlmt you {_zm purch:lse--
like :l movie tick,2,t if you all)scribe to I)II{ECI'X " piofii:mmain_ _md ha,.c y{}ur
digital stltellite ruceiver connected [o ;i te]ephonc Nne (sc'u [ht: ii_';tructions
Sttltting on ptlge "_ _{}l connectiorl dcttli]s)
Tip: Ordering PPV
If you want to order PPV programs
using the on-screen menus, you need
to connect your digital satellite
receiver to a telephone line.
Tip: PPV Passwords
You may need to enter your fou_digit
password to order a PPV program if it
costs more than the spending limit
you set up in the Profiles or Purchases
menu•
Previewing and Purchasing
_)u car, preview ;Ind purchase I)[Rt'CTV" Pay Per \:ie,,,. Inovies al_(.I e\eilts i[
you sul_scril)e to I)IRECTV" progr;imlning ;ind h;lvc vour digital s_/tellitc,
receiver connected to ;i telephone line.
To purchase a Ulovie or event, you can take one of two actions:
• TLIIle 1{} _t P]}V ¢'h_lnllt_'] using the remote c{}ntlol _, (ill + - btmol_s. \\'hc, l_
}{}u Nnd {}no, press thu INFO htltt{}n t{} lind i//or{: inl{)l I11_ltiOI] LIIKI dct;lJls
;ll){}l.l[ how 1{} l_tU{ h;Isc tl]c ploMi:lm.
I li_hli_ht :t PPV pt{}giuin in :l i'_l{>£4r:lm guictc. ;ind pie>> IXF{ ) Ihc Pl{)[4+:tnl
])e[;li]5 %LICCI] \\il] :t]3pC'tll ;tl]cl _i\t' _{}tl II]{H'L' inI2rnm:ttit+I_ ;Iht>ctt t]ic pl{)_lttll]
}:1Oil1 this XC'lC{.'n )(}El ¢LII] :llso pUIL}ILINU [IR' plOM_:m_
_1( )[I L_llq _L'Ic{'[:
I1{'11 (_}tlllth'[ h) \ it',\ I}I:H c h;ImR'l
1_III' ]9"q_l'm_l I{} pLIR h;l',C Ihc pi{}_r:tl]/
Hl(l' _t_l([ ]¢c1 or(/ h} i_tlt( II:l'_c' the i}t{}Mt:llll ;lnd _,L'[ :1 linlcn lo Ic't {>Td it
/¢Plqi!ll[ I/{'h) hc [}iol}lpIcd iu_,l huh}iu l}ic "di{}\\ i', -.{ h_ deled I<} "q.tll
Note: The options available to you may vary according to the type of
program you select•
?hapter 447
Using On-Screen Menus
,1
Key
On-screen icons are a quick way to
understand the timers:
Indicates that the timer is set.
Indicates that the timer is set
for a PPVprogram.
Indicates a timer conflict.
Indicates Interactive content.
Timer Recordings
The Timers l_'aturc' allows you to pleset your digital _,atcllite receiver to
atLtomaticaL]y tun_, to a particular channt, I at :i prcdctcrn]in_d time.
To use the Timers [_mture, select 7bners from the Mare menu. S_'[ect a Timer
(1-16) and then use the arrow buttons to complete the on+screen details. When
the in[()rulation is COUlplete, select ConlJ_lue.
Note: If you subscribe to Caller ID service, note that the Caller ID banner will
neither be displayed or recorded during a timer (watch or record). However,
all calls will be logged. The banner will display as selected when the timer
recording is over.
Setting Up aTimer
The Timers feature allows you to set up timer recordings if you have connected
the VCR Controller to your digital satellite receiver and told the receiver what
type of VCR you are using. See page 19 in the Setup and Connections section
for details on connecting a VCR Controller.
Editing or Canceling a Timer
From the Timers screen, select the Timer you want to edit or cancel, and then
do the following:
• Use the arrows buttons to edit the Timer, then select Continue.
• Select Clear 77met to cancel the timer.
• To watch the program daily or weekly, edit that program's Timer.
Recording with a Timer
If you choose Record instead of Watch when setting a Timer/and have set up
your VCR as previously cliscussecl), the Timer will turn on your VCR. then start
and stop recording a program.
To record with timers:
Your VCR must be tuu{'d to channel 3 or 4 (fl the VCR is connected with iust
coaxial cab[es). Ol to the \'idco input channel (if the \+CR is connected _\ith
ad,_lcle ) _ablcs)
You must tmn your VCR off prior to the scheduled rccolding time
You must hax ua icc()tdahIc tape in tht: \'CI,L
48 Chapter 4
Using On-Screen Menus
Schedule a Timer with the RECORD
Button
You _an s¢hudule :t ]c_oMing dir_'ctly h'lm/ the guide
1. With a program hi.vhlightcd, press tile I{ECORI) Imtt<m on the remote
control. The Progrgtm l)_,tail,_screen appears.
2. To schedule a timer to record, select:
Record l°ro_ral_z t{} set a timer to record tile plogram, or
!_l(y and Record to purchase tile program anti set up a timel t,:) record the
program.
Note: Programs bought to be recorded may have a different purchase price
than those bought for viewing only.
User Profiles
Profiles allows you to set up difl_rent channel lists and limits for the different
members of your family A main profile (the Fallli{); Pr({/'ile) and up to fk_clr
separate profiles can be created. Individual settings that can be changecl in the
F'rofile Menu include the profile name, viewable cbarmcl lists, ratings limits for
TV and movies, viewing hours, spending limits, an¢l profile l(:,cking.
Creating and Editing User Profiles
When you select PnJiles flom tile Main menu, the fir:-;tscreen you see presents
a menu listing all user pcofiles (the Family Profile and up to four individual
profiles). You can creole a new profile (if a blank profile exists), or edit an
exiting one.
To persomdize an indi: idual User Profile:
1. Press the _emote ciql[i-ol's MENU button to display the Main menu
2. Press tl;e -_button t_ select Pro/iles
3. [Iighlight the desilud l:ser Profile
Note: The highlighted User Profile's settings are displayed in the panel on
the right side of the screen.
tPI_'ss the lei//i)tc, _qltt<>i s ()K I_tllton to select that pt<>lilu antI cntur i_[(ffil_.•
editing in_>dc
7hapter 449
Using On-Screen Menus
Setting the Profile Name
Ihv lirst _,lep ",,+hc'nCI'C':ililll4 a i/C'Wprl_lile i_,!o sc't :t milliC. Ibis will hv the
I1HII/t' ih:ll :l[)[)c':llS \\ ht,l_ rel_eaic, dly ple_,in<<d Ihc \\"1 I()*INP[I'I 1I)ullon.
17) set the' prolilc' Ilail/C:
1. In tiae Profiles lilt'till, prt.ss thv 1 hi.ittOl] to sulect ,\7imp,.
2 [ist' the tell/oil, coniilols :lrrow and ()K buttons 1o higl/light anti select tile
different lett/qlSof the prof]h" tl;tlllt_.
Copying Profile Settings
To make creating or editing a profile t.asicr. ),otlr cligila! satellite receiver giw_'s
you the ability to use the settings of a pleviousty set prolile.
To copy the settings of :in existing profile:
1, In the Profiles menu, press the 2 I)uttl)n to select Cop3,SettDl<gs.
2 Use the remote control's arrow )'Juttons to select the proper profile to copy
settings from.
3. Press the remote control's OK button to select the clesimd profile.
4 Use the remote control's arrow and OK buttons to highlight ancl select the
COPY button at the bottom of the scleen
Creating a Profile Channel List
1, Select Edi! dT";anm,/s.
2, Use the arrow buttons to highlight a channel, and press OK to remove (or
replace) the check mark. Checknlarkecl items appeal in the channel list.
Add or Delete All Channels
You might be able to sa_c time _\hc'n creating a channel list by using the Acid
All C[.lgllllle].g option ol the Delete All (]/l(lll*!_,/,g_)ption bcl{xe removing or
adding inclividual channels
Also. prognun proxich_.rs Ill:ty make aclcliti(>n:ll +_h:ii/nels a',:tilahlc, To plexcnI
ile\\ channels fr()ln :ipl)u:ning in :1 ploiilv channvl ]isl, cll_sc, I)(,leleAII
(,'/)(IHitw]._ :libel checlcmaik (>hi\ flw t hanllc'['+ \()it\\_lll[ 1() :tpl)C'_iI ill thu list
Subscriptions
the channel list :ill ch:mn,.,ls that ',ou <.ton_t stll_sclil_v t<_ I '_c'the+IC'lll()lc"
c_ntil)i's air()\\ itl/(l ()1 _. l_tlt!_)i/,,l_> su'lccl tllu' clt'-,iit-tl _m ",(Tu'c'n mt>nu I_ttlh)n,,
Note: This step may take several minutes to complete.
50 Chapter 4
Using On-Screen Menus
Importan t
You need to lock the system in order
for rating limits, channel limits,
viewing hours, and spending limits to
go into effect.
After you lock the system, you need to
enter the system password to edit the
limits. See "Locking the System, "later
in this section, for details.
Setting the Rating Limit
Ihu Ralin<q I.imi[ IllCq/tl enal)les you 1(i st.t a i/laxilllUll] rating viewing limit for
latc'd inll\ ic.+ (l_a_,ed on Ihc MPAA iHtil]_ systen/J cind TV programs. IJnratc.d
illO'+ic.> and TV pr%!4r_llilS Call also I)e restricwd froill incliviclucil prolih.s.
1. Ill Ihc Profiles nl__.ntl, st'loci ]'_gtil#/f_ Littlll.<;
2I lighlight the desired rating leature to set (Movie Ratings, TV ratings, or Not
Rat_'d Events).
"_ Press the remote controls OK button.
-t [ Jse tile up and down arrow buttons to move the rating selector to the
highest desired rating to be viewed by all profiles.
Notes: In the TV Ratings menu, you can customize aspects of certain ratings.
For example, the TV-14 rating has four check boxes beside it. Each of these
boxes can be checked or unchecked for greater customizing.
The boxes beside certain TV ratings boxes stand for Fantasy Violence (FV),
Dialogue/Adult Situations (D), Language (L), Sex (S), and Violence (V).
,\her the Rating Limit is set andthe system is locked, ynu mtlst enter the system
passw(_icl t(> e, atch programs \_,ith a rating higher than ),()tit limit
Viewing Hours
rs
I,, e the 17ewm<g HoHrs ol)tion to limit the total amount of time, as well as the
time of day, that ;t riser ean watch programming.
1 In the Profiles menu, select Viewing/-tours.
[se tl_e digits on the remote control or point to the + or - buttons and press
OK to complete the on screen sentence. Choose the days to view, how
111anyhour> can I)e viewed each day (0 24 hours) anti when programming
can bcx iewecl. Be sure to lock the system for these limits tel take effect.
Setting Up Spending Limits
<%'lust Ihc .',/Jml:lnz<_ Lm_l! option t_ inclicatc a pet cxunt and,'ot a inonilfl)
",!_c'llclillg limit for Pa\ PuI \let\ pll)gl;nns
I Iq>h/I Io .',l_'nU_ss<.,Im;il ;llld pless ()K
2 [ ".c"Ihu ntJlli])c'l I)tllhH/s I)11the' ic'iI/()ie contlol to C+lllc'I a single' plOglalll
spcq/clhlg Ihnii and :l monthl,, Sl_c,llcling liinit (if dushed)
\\ hell all liclds ;lie" ".c'l tip t ()llt2tli) , the' _atcliitc ic'cei\ ui iUt/lln5 1o the'
plt,X it)u,+ disl)l;t\
Note: After Spending Limits are set and the system is locked, the system
password will be required to purchase a Pay Per View program that costs
more than the set Spending Limits allow.
;hapter 4 51
Using On-Screen Menus
Locking aUser's Profile
Iscr_, _all I_L, :i_,_,igncd :I i_']_,onal p:p,_,\_¢>r¢] to l<_'k t]_(.'i] ptofi]_ _. \Vbc'tl a
l_a>,s,,vord is assign_.'d, te, crs Intp, t +,iTIcr t]]e pa_,_,,,,,ord b(.'I<>te they can vic,',v
pr+)_l_ttlls tt_,ing th;It p)<>lilc Pl()lilt. + l_;iss',\ otds eli) [i¢1t aIlo',v accc+ss to, or editing
<>t. th,' ploli]c Ihnits (you n/ust c_nlct the system passx_old to edit pro[i]e limits).
Note: Each profile that can be easily accessed using the WHO.INPUT button
on the remote control.
To lock an individual profile:
1 In the specilic pr<)file cdit mode. scl+,<_tLock _/,+,-u,++
2 Use the arrow <)r digit I+uttons to select tacit digit of the password.
Locking the System
I.ocking the system puts the ratings, spencling, x iewing, and channel limits you
have set up _:oreach profile into et'l_'ct. When you lock the system, no one can
modify any of these settings without first entering the four digit system
ixtsswor(]
I. In the F'rofiles menu, select Locl._S'l,stc**l.
2Use the arrows or the digit butt<ms t+>enter :+ four digit
systel_l p_lssword
3Enter the pass_,'+ord a second time to confirm it. The lock icon should be
displa_,ecl in the channel 13annel
Notes: After the system has been locked, you must enter the correct
password in order to access the Edit Profiles control panel.
If you forget a USER password, you need to unlock the system and then
assign a new user password. If you forget the SYSTEM password, contact the
DIRECTV authorization center.
!o<./,+z_.<+//:All limits :ue in t_qte+.l N() limits ,.an bc a+_+.ussed<}tel/ aged
\\itJl/)tll tilst &>t7lUlil)_ p;l',+,\\()ld _,\ 4k'111 \ pil'+4',\<)ld is I'+:'(Itlilt:'d 1o ovt:'rlJde
lillliIs {)1 i1_(_'>5 thu '+\ _,l_'ll/
52 Chapter 4
Using On-Screen Menus
Unlocking the System
When the systenr is unlocked, the channt, I, ",pending, viev, ing, and latings limit_, that you set al,_'
no longer in effect. To unlock:
1. Highlight and select Unlock._l_stem in the Pr_files mcnu
2. Highlight and select Yesto confirm that you want to unlock the system The unk)ck icon
should be displayed in the channel banner.
When you attempt to access a channel that is blocked by one or more limits (and the system is
locked), you will be asked to override limits by entering the four-digit system password.
If you enter the password to override a limit, all limits are unlocked until you turn off the digital
satellite receiver. When you turn on the receiver again, the system will be locked, and the
Family profile channel list will be selected. If you want to re-lock the system without turning off
the receiver, you can select the lock icon in tire channel banner.
Program/Video Unlock
If the system is locked and you want to access ;I.blocked program without
unlocking all settings, press tire remote control's INFO button and highlight the
Lock icon in the channel banner. Make sure to check the box beside Unlock this
program only, and enter the system password. This program is no longer
blocked, but all other settings remain in effect. The unlock icon with a P should
be displayed in the channel banner.
Use the Lock and Unlock icons in the Channel Banner to lock or unlock the
system. To access the Lock/Unlock Menu. press the INFO hutton on the
remote control and use the arrow buttons to select the Lock icon. Use the
remote control's number buttons to enter the proper password and follow
on-screen instructions.
Unlock icon: The system is unlocked. No limits are in effect. Spending,
viewing and other limits can be accessed and changed.
Unlnck (with a P)icon: The system is locked, but no limits are in effect for
the cluration of the current program because a pass',\'(>rd has been entered
to override the cunent programs [in/its No limits can bc accessed or
chal'Jgcd. After the program cncts, the s_,,st_.}inwill leu.iln t(> lock statns.
{)Hock gu'itb a T) icoll: The systcn/ is tcmp(>lari! 3 unloO, ud \\ith no limits in
cfft'ct until the receiver is placed in stan{.Iby i//oclc A p;tss\\ord has been
entered to ovenide the system limits N(_ limits can be :lc_ css_.+(I ()I chunged
\\:ith(>ut entering the syslc]n p;is,,\x_)id \\hen Ihe sxslcm is tult]cd {)ll, the it
,,,,ill return to Lock stalus.
Chapter 4 53
Using On-Screen Menus
Choosing Your Profile
[_ath timv }'(_u (tun on die dig{i[:fl ",at,t,llitc rc(vi_.er, t]lc Family plolilc i., sc.lc,:te(I
hy dc,hluh. _,() this should hc the p]olik" \,. ith the most i(,_,[licliv(., Imfits you \_ant
cnlolccd across all pt()lik's
To select another profile:
1. Press the WtI()-INI_tJT button to display a list of prolilcs.
2. USe the relllOte control's arrow anti ()K I)uttons to select tile desired profile
"Filer[ enter tile {k)ur-,.ligit password to activate tile profile.
Note: If the profile is not password protected, you can just press OK to
activate it.
The channels, spending, rating and viewing limits associatecl with the chosen
profile ,,,,ill be active only when the system is locked.
The active profile also affects what you see in the program guides. Selecting the
tJsel Prd;erences icon sorts the guide to sho_._,only programs meeting the
c'urrent user profile criteria and which personal settings are used.
To cllange dle current profile, press the \vEIO*INPUT button,
6Personal Settings
"file Personal Settings nlenu, accessed by piessing the 6 button in the Main
menu, lets you customize the look ancl feel of the active profile. Each of the
satellite system's profiles can have indiviclualized personal settings.
Note: If a personal profile is password protected, then that password must
be entered before changing any of the profile's settings.
Once you have accessecl the personal settings 111enu, sdeet the desired profile.
You vdll use the remote control's arrow afd OK buttons to make your
selections.
The folk)wing sections explain your options when changing your pcrson:d
ple[crences Follow the on-screen instlq.tctions to nlake changes to the system
Name
[sod to change the profile (lisf, la> name This name ,,,.ill he displa_,cd in tile
I)mtiIes mVIlUS as \\rcl] as wl/cn t]lc I'Clnotk' ((>lltfO]'S \_'1 ]()" INP[ T htLtton is
pressed.
Note: A profile's name can be changed either by selecting the Personal
Settings in the Main menu, and then selecting Name, or in the Profiles edit
menu.
Default Guide
Icl>, \Otl _l>osc \,, hk h gtlkk' :lpp(.'_llS titsl \\ hL'n \()tl pi(.'ss Ill(-' ill [[)1_ hwli(lll
(_1/ Ihv I_'lll(_lc (_ntl()l Ihc ch()iccs :tic t;_id (;tli_h:_)] [)etail (;uidc
54 Chapter4
Using On-Screen Menus
Guide Sorting
L,-'tsyou choose whether tilL'dciauh guide is:-,ortcdmunelically by (hannc] numhet-_,or
alphabetically by (hallnL, I n:t111(%
Color Scheme
Lets you pick which colors appear in the guide and inentl systems.
Translucency
Lets you choose how see-through the channel banner, the Fetch iI/enLl, and the Main f_lenu are
when displayed. Use the remote control's arrow buttons to access and slide the indicator bar to
make the screens more or less opaque.
Animation
Lets you select which graphics are displayed when you tune to an audio-only channel and also
lets you select the animation time-out.
Edit Fetch
Lets you choose a single function for the FETCH button on the remote control,
or to bring up a custom nlentl of up to 8different features to choose from.
To create a custom Fetch menu:
1. Press MENU to bring up the Main tnenu.
2. Select Pet5o_lal Settings,
3 Select the desired profile (each profile can have a different Fetch Menu).
4. Select Edit Fetch
5. Select t:etcb CotztroL
iSelect Show t:etcb Metzu
6. Select I'g'tcb L*xIfrom the Edit Verdi IneI3LC
- Choose up Io eight menu items to include in your customized n/Cl3kl b}"
_ hc_l, nlalking them wilh the OK button.
N I)lk'_s tilt" loll HIIII'_\ I)till(>n to C(Hllirlll _,()lll sel_:ctions alld rU[tllll Io tile
l/Ik'll tl
_*_ht*ll \[)kl \\'o/lld like t<) access ,, otH c tlstol//ized tllC!ltl, press The> I:H'(21 I button
()ll lht.' lelll()Ik' c()l_ll'(ll
Chapter4 55
Using On-Screen Menus
TIP: Getting Help
If you ever have a question about the
menu you are in, select the on-screen
help button (7). If you have a questions
about a highlighted menu item, press
the remote control's INFO button.
To assign one function to the FETCH button:
1 Press MENU it) bring up tile Main menu.
2 SulccI Pm:_oHal,S'ettm_s,
3 Select the desired profile (each prol]lc can llavc :l different Fetch MemO.
4. Select Edit Fetch.
5. Select Pk,tch Control.
4. Select As._ig_l One t.Ttnction.
S. Select Fetch List fron't tile Edit Fetch menu
6. Choose which menu item you would like to assign to the FETCH button by
pointing and selecting.
7. Press the left arrow button to confirm your selectkm and return to tire menu.
You may press the FETCH button on the remote control and exectite the
assigned function at any time while viewing DIRECTV ® programming.
INFO Help
A text block saying Press INFO to learn lrrore pops tips by defacflt whenever
there is a brief period of inactivity in a menu. This INFO Help menu allows you
to turn this feature on or off.
Reset
This button allows you to reset all personal settings back to the factol T defaults.
7System Setup
The System Setclp menu allows yocl to get details about _'()[I11system and is used
to configure system options that are not profile specific. Setup items that are
global to the digital satellite receiver include system options and dish pointing
Assisted Setup
This lleatl.l[e walks you d_rough a series o[ Clticstions and is designed to quickly
get the system detecting a signal.
l:olto\\ the2 on-sOl+Cell illSlrtlt (iol_s to su{ the NkSIL'III ]HI]_LI:t_C, L{et II/Sl['tlctioi/S oil
menu navigation, sclc_t tile t_,pe ol satellite dish antcnn:i used, find \oui dish
[)ointing c'oordinalcs. ;ind ]un _1 systeln test []]_il initi;IteS di;tgn()Sli(. [_l()cedtllUS
on the satellite ileCetvcl system. You t]a\e lhc opfi(m I(_ skip an,, ol the steps
56 Chapter 4
Using On-Screen Menus
System Index
The System Inclc.x Ic.altlle _ll]o\_,s ).(itl to ,R_.,IOc'l:liled inl<_im:iti_i_ :il_cil y()tlr tligita] salellitc
receivc.r.
Dr.tails thai c:ln be' vie_..c.d fr_)m willlin the _,y_,lem lnclc'x i//erltl illc]ude pro lli;llll pl.iitlt-
informatioil, tic>tails al)()til the Illc'nu systc'lil> cJxplanati_)trs _1 the ielllOti +control, lrorlt pand, _lncl
back ptine] ()! the' receiver, ;111(1c\ c'11:1g!<)ss_ity ()1 \_+'()lClSc()ml/l()i/ w]len discussing cligit:tl
satellite' rt.c(,ivc'i s.
System Options
The System Options te:_iitlre allows you t{) set :l clefatlit on-screen display language, identify the
type of VCR to I)e controlled by the receiver, choose a receiver output channel (the chatmel that
the TV views satellite I_roadc:lsting), set tip the rem()te c(mtrol, select :l default picttire size,
select a Dolby Digital option, _lnctset the time zone,
Use the remote control's aric)w anti OK buttons to nll'_'igate thr¢)ugh these menus, or yol.i can
use the digit btltt_)llS ()n the lelll()te colltrol to select anullll_erecl _)n screen item.
Languages
This mentl _l][[)\x,s you to s_'lect nle0u all(] atldio langtiltg_'s. Yotl ca0 c]loose
bet',vet*n English iincl Spanish for tile nlenn language,
You c;tn ch()ose fiom _l variety of ;luciio I_lnguages to !)e hearcl if a progranl is
sinlulcast in that [:mguage. If th_lt l:lngu:lge is not avctilahle for that broadcast.
tile progr_tmming will I)e heard in its clefault language.
Set VCR Type
Use the_"aiiow, OK, ;incl number I)uttons of tile remote control to follow the
menu {)ptions clisplayed xx,hen y_cl select the Set VCR Type menu button. These
streellS _,\ill allox',, tile digit:l] stltellite receiver to control a properly att:lchecl
g(:l{
5clcctil_g this ]+tttt(_n traoslers }()tt to a Set VCR "l'ype menu with a scr¢)ll;tl)le list
{!1 ill:llltll;tcttileis clisl+layecl in alph:ibetic:il _>l-_.lcl.Scr<)ll to tile proper
i/l_mtllacttli_.,t, anti a list (If codes appears. Use the remote control's arr()w a0cl
()Ix <_tthe_+c<_ticsp{_ncli_ i/tlnll_et button t<) select one of tile options.
Notes: If you select Code Search from the list of codes, the satellite system
will automatically try every code in the list until the proper one is used.
If you do not see your VCR manufacturer's name, select Other (at the bottom
of the list) and enter the appropriate code from the "Using the Remote"
section.
t'_ll{>_x lhc' (tn-stic't'n iliSlltlClillos tlniil llle Sc'l VCR Type feattire is pl()perly set
Chapter 457
Using On-Screen Menus
Output Channel
'l'his IZmtule alio\vs )ou to Orange the _l_anncl to x_hich d_c satelhtc n'c_'iv_._r
l+toadcasts it', si,_nal. "[ht.+ d+..'lault st:tting is channt+q +
Note: If you used A/V cables to connect your digital satellite receiver to your
TV, then you must use the TV's video line input to see the satellite broadcast.
Remote Setup
This allows you to choose which remote control button will control the digital
satellite receiver. You can choose between SAT and AUX buttons. The default is
SAT
Use the remote control's arrow and OK buttons to make your choice.
RF Remote Setup
This/_ature allows you to configure the RF remote control's privacy code. This
is the best way to avoid interference between your satellite receiver's remote
control and other Thomson RF remote controls. This is helpful if you are using
two satellite receivers, each with RF remote controls.
Use the remote control's arrow and OK buttons to make your choice. Follow
the on-screen instructions for details.
Picture Size
Selecting Picture Size allows you to select the type of +1_7connected to the
receiver. You can choose between Normal (4X3) or Cinema (16X9). The default
is Normal.
Dolby Digital
This mc+ntt ft..atLircallo\xs thu systum s audio output to use. l)olhy l')igital quality
SI>LIr/(.I "ll>tt IIltlSt h:{\L' tht +diaitat s it(+'tlitc' tt'Cc'i\Cl H[t:iL'hL'd t() :1 I)olhy [)i£Jt:t]
L'tl31)lc'cl I'L'_t't\<'t (ir c]ut odL'r \ia tilL" I)IGIT.\I, At :I)IO ()tltpUI ia(.ks on txtck of
[IIL + 5_ltL+llilL+ lu'_t'i\L'l in Ol(fL'l h)l lhi _, Ic3nll_. + t() \\()tk
58 Chapter 4
Using On-Screen Menus
Dolby Digital* Setup
Dolby Digital (when available) provides six independent soundtrack channels through a digital audio
output jack. Your digital satellite receiver has an SPDIF [1EC-958] digital PCM or l)olby Digital-encoded
digital audio output jack. This can be connected to an external Digital Audio Receiver/Decoder
equipped with a compatible digital audio input (see page 14 in the Setup and Connections section for
more information). With such additional equipment, you can enjoy more dynamic and realistic sound.
DigitalSatelliteReceiver
i, I
OPTICAL (SPDIF)
DIGITAL AUDIO
CAeLe Digital AN Receiver
[]
Requirements
•Digital Audio Receiver/Decoder with a digital optical input jack.
• Programming with a digital soundtrack
• Optical (SPDIF) cable.
• Six speakers: left front, left rear (surround). right front, right rear (surronnd), center and suh-woo_;er.
Connections
This diagram illustrates the equipment connections and home theatre speaker arrangements. Check your
equipment's user's manual R_r more detailed connection information. (Note: older digital equipment may
not be compatible with the Dolby Digital bitstream and could cause damage to ears, headphones, or
speakers. Please read the note below for more informaticm.)
Note: This digital satellite receiver's digital audio output jack fully complies with the international
standard governing this type of jack (IEC958), and is designed for connection to a Dolby Digital (AC-3 or
PCM) receiver or Dolby Digital (AC-3 or PCM) decoder. Older equipment, some of which is not fully
compliant with IEC958, may not be compatible with the Dolby Digital bitstream. Such a connection
using anything other than a PCM, Dolby Digital, or Dolby Pro Logic receiver or decoder could create a
high noise level, causing damage to headphones or speakers.
Chapter 4 59
Using On-Screen Menus
Time Zone
[Isin,u tiff+ feature ai]+)\v> )ou to ',c[ d]L J It}( _11till]l. ' /{)]ll.' ;lll(i If) <.']];i(t :t l)ayli,_ht
_axing li01c option i_t_tlt:IIt+ lhllc Is Jlctt.*s'.:u "_, I_t linlLq ¸ I_t'(_>idin_ ', and \V:ll+.h
ai3d l._clllind I_.,_iItlle,_, l)tll st'Iliil_ lhc {illlU+z<)nc i,, t1(_illl_illy ;ltlI()111_iti+.¸, :rod
g+dneraliy doffs not icquire you to do an_,thin+v.
Setthlg tile titllt+' zone Mloukl ()ill', l',,u don,., ill IHtt+ t il( tlIllNt_II]tL'S, '+tiI_J} _IS il the. +
program tithes aru ",vr(mg after till + system Catd ha_, l)ccn :tclivatL, d
Note: You must select an entry in the Choose your time zone field before all
menu items are displayed.
Multi-Switch Setup
This feature allows the satellite system tt> knov, ilI yotl h:lv+_' Lt multi-switch
connected to the system and to determine k,+hattype of multi-switch is used
This feature should only be used in rare ch+.unlstal/ccs. St.lch LISWheI1 instructed
to clo so by I)IREC'IN'.
It is important to select the correct
dish type. If you do not, you will not
receive the proper dish pointing
coordinates and you will not be able
to take full advantage of your
DIRECTV System.
Dish Pointing
The Dish Pointing menu helps you set up your digital satellite receiver and
optimize your reception of tile satellite signal.
Selecting Dish Antenna
It is important to complete each of the follo',\ in_ steps ]cquit+..+dIor your satellite
dish antenna, it you do not. you will not receive proper clish poin n_
coordinates and will not be abh, to take kill ad_amagc of _ul digiud satellite
receiver
Spec'it} tilt+type ()f dish _+oua]c using:
1. Press MENU (m tile lemote control t<>bring up the 5+kti0 menu
2. 5;C](+Ct,S)'SIUIII <_'('lll]), thL'o /+)q,/1t_oi*lt_ _. tht.m press ()l,. tt>a<Lcs'+the dish
[)OlllI i{]_ S( I LJUn.
3. S'_'/ccl I)i+/_ is highlighted I+'_ dcktttlt Pt<+ss the t)l,+ (>n tight aHo\\ I+utton t()
:ic+.es:-, tilL' iilli)tllKtti(ll_ (Ill {hv + t'i_ht skit: i'+:tnL+i.
4. Spc(il\ the typt+ ()i dish _()tl ;lie ttsiil_ AlOtllld s:tlt+llile dish <>I :in ()X:l]
s:m.+llit,: dish ',', ith t,+',_+(>t tlnu'c INB<, I I_>\\ N<_i',c I+i<+_l<,.<+n',cltel) sX'hcn the
l',_<>pcr dish i', hi,_IHightt+d plc',', t )Ig
Note: Changing the dish type will delete all stored Guide information while
the digital satellite receiver gets the updated Guide data. While updating
Guide information, advanced search features such as the Scout TM and
AlphaSort TM will only have a few hours of data from which to work.
60 Chapter4
Using On-Screen Menus
LNBs
An oval satellite dish with two LNBs
(not provided with all systems).
Enter Zip Code
This feature allows you to find dish-pointing coordinates from your local zip
code.
1. In the Dish Pointing menu, use the remote control's arrow buttons to select
Enter Zip Code.
2. Use the numeric buttons on the remote control to enter in the proper zip
code.
3. After entering the final digit, the receiver displays the dish-pointing
coordinates. For convenience, record the numbers in the spaces below.
Note: If you have a round satellite antenna, you will not see numbers for
Tilt. Tilt applies only for satellite antennas with more than one LNB.
Tip
Azimuth is the side- to-side
direction that the satellite dish
antenna is pointed.
Elevation is the upldown angle that
the satellite dish antenna is
pointed. Tilt is the circular rotation
of the dish itself, like the motion of
a steering wheel
Dish-pointing Coordinates
Elevation Azimuth
Tilt (oval satellite dish only)
Select by City
Allows you to choose major cities from selected states to find dish-pointing
coordinates.
Enter Lat/Long
Allows you to find dish-pointing coordinates from latitude and longitude
entries. Latitudes between 20 and 55 can be entered, and longitudes bem, een
65 and 125 can be entered.
Signal Meter
This feature allows you to determine the strength of all available signals, one at
a time. There is a separate test for each satellite from which your antenna
receives information.
Chapter4 61
Using On-Screen Menus
If your system fails atest, run the
system test several times before
concluding that there is a problem.
Occasional fluctuations in the phone
line or satellite signal can give
temporary false readings.
System Test
This function allows you to perfi)rm a system-level diagnostic test on the
satellite receiver. There are four sub-tests within this system test. Each one will
display results after the testing for that area is complete. The receiver's access
card number is also displayed in this menu.
Note: While the system is testing the signal, the video will temporarily blank
out. When the tests are complete, a summary display appears.
System Info
This function displays the model and serial numbers of the receiver. It will also
display the brand name and display a features list.
The "RSA Secure" logo ensures that only
authorized upgrades or modifications are
delivered to your digital satellite receiver.
Upgrades
Your digital satellite receiver is able to receive upgrades or modifications to
some of its features and functions. These modifications will occur automatically,
usually at times when your receiver would likely be turned off. If your receiver
is on when an upgrade or modification is sent, you may experience a
disruption in reception for a minute or two. Your reception should return to
normal after the modification is complete.
Note: Your receiver must be plugged in to receive any updates. Do not
unplug your receiver while an update is in progress. Please consult the
Upgrades Menu to find a schedule of upgrades or modifications planned by
DIRECTV.
New Access Card
Selecting the New Access Card function allows you to update the digital satellite
receiver with a new access card. This is necessary on occasion when DIRECTV
sends out a new card.
Alternate Data
Selects from among the available data channels.
8Interactive
This function allows you to [earn lnore about I)IRECTV INTERACTIVETM. It also
allows you to se[up an account fi)r the free sep,'ice, review transactions and
messages, and to change settings.
*RSATM Secure a* d the RSATM Secure logo are trademarks of RSM Data ,_ecuritF Inc.
62 Chapter4
Chapter 5
Other
Information
Chapter Overview:
• Troubleshooting
•Finding the TV's Video Line Input
•Running the System Test
•Limited Warranty
• Accessory Order Form
•Index
Changing ain.
Graphics contai_led within this publication are for repre.¢entatiot* on{}, 63
Other Information
Troubleshooting
Many problems can be corrected by performing a simple reset of the digital satellite receiver. If
you experience the following:
•Image freezes • Audio freezes
•Blank screen • Won't respond to front panel or remote
try this: press and hold the INFO and right arrow buttons for at least three seconds. If the
problems persist, try unplugging the digital satellite receiver for 15 seconds to 2 minutes and
then plug it in again.
Running the System Test (later in this section) can also help you diagnose and solve many
common problems.
Digital Satellite Receiver Problems
Wrong picture
The digital satellite receiver and most VCRs let you toggle between signals. If you don't see the
signal you think you should be seeing, try using these buttons to toggle between the signals:
• Press the TV/VCR button on the VCR remote or on the VCR's front panel.
• Press the ANTENNA button on the remote control.
Taking either of the above actions lets you switch the source of the video signal from satellite
signals to the off-air antenna or cable signal, and vice versa.
• You may not have installed your satellite dish antenna properly.
Refer to the dish pointing instructions in the Menu section of this book and the installation
guide that came with your satellite dish antenna.
Problems with Caller ID
• Most wireless phone jacks will function properly with Caller ID. However to verify proper
Caller ID operation, directly connect the phone line to a standard wall-mount phone jack.
Light flashes on front panel
You have unread Caller ID messages. Highlight and select Messages from the Main menu,
and then select CallerlD List to see a list of sequential Caller ID information. Once you
access your messages, the L.E.D. flashing will stop.
Receiver will not turn on
• Check to make sure it is plugged in.
• Check the wall receptacle (or extension cord) to make sure it is "live" by plugging in
something else.
• Maybe batteries in remote control are "dead."
Maybe remote control is not aimed at remote sensor.
• Unplug the receiver. Wait five minutes. Plug it in again.
Turns off while playing
• Electronic protection circuit may have been activated because of a power surge. Wait 30
seconds and then turn on again. If this happens frequently, the voltage in your house may
be abnormally high or low.
64 Chapter 5
Other Information
Satellite receiver turns on or changes channels unexpectedly
• Scheduled Watch or Record timer has been activated.
Blank screen
• Your satellite receiver may be hooked incorrectly to the TV. Change channels using the
satellite receiver's front panel buttons to see if the channel banner appears. If it does not,
check the Setup and Connections section for instructions about connecting your satellite
receiver.
Partial programming loss
•Your multiple LNB satellite antenna may be incorrectly configured. Change the dish type set in
your receiver's preferences. Press the MENU button on the remote control, then select System
Setup. In the next menus, select Dish Pointing, and then Select Dish. From the Select Dish
display, make sum the proper antenna is selected (round, or oval with 2 LNBs, or oval with 3
LNBs.
Remote Control Problems
Problems with the remote control
• Maybe something is between tire remote control and the remote sensor.
• Maybe the remote control is not in SAT mode. Press the SAT (or, if your remote is older,
SAT1 or DIRECTV) button so the remote will control the digital satellite receiver.
Remember to press the OK button after entering a channel number that is less than four
digits long.
Maybe batteries in the remote control are weak, dead or installed incorrectly. Try replacing
batteries. (Note that when you replace the batteries you may have to reprogram your remote
to control other devices.)
Remove batteries; press and hold the 1 button for at least 60 seconds to drain the
microprocessor inside the remote control. Release number 1, replace the batteries, and (if
necessary) reprogram the remote.
If you are trying to operate a device other than the digital satellite receiver that you have
programnred the remote to control, make sure you press the corresponding device button
(DVD, VCR2, etc.) first.
TV or VCR Problems
Blank screen
• Maybe the component connected to the input jacks is not turned on.
• Try another channel.
1"3/turns on or changes channels unexpectedly
•A scheduled Watch or Record Timer has been activated.
VCR turns on or off unexpectedly
• A timer may be set to record. The timer will automatically turn the VCR on and off.
Chapter 5 65
Other Information
WHO*
INPUT
Button
TV
Button
DVD VCR2 AUX SAT
&A °&&
MUT ESKiP
FETCH GO BACK
GUIDE INFO
O/_O
MENU CLEAR
,O _O 00
,O 0000
b 00.6
REVERSE pLAy FORWARD
,¢1C>C_
RECORD STOP PAUSE
(D(D_
Finding the TV's Video Input
Channel
Note: If your TV is connected with just coaxial cables, you only need to tune
to channel 3 or 4.
If you used audio/video cables to connect your TV to the digital satellite
receiver, you must tune your TV to the video input channel to view DIRECTV_
programming and menus. There are just as many ways to access a TV's video
input channel as there are brands and models of TVs. Below are some things
you can try.
• If your TV brand is RCA, GE, or PROSCAN, press TV on the remote control
that came with your digital satellite receiver. Then press the WHO*INPUT
button on the remote.
• If your TV brand is not RCA, GE, or PROSCAN, consult your TV Owner's
Manual.
If you cannot find your TV Owner's Manual, you will have to investigate. You
might access the TV's video input channel by:
• pressing a button on the remote control
• finding it through the TV's menu system
tuning directly to it by pressing a specific channel number
• going through all channels in the list by pressing the channel up or down
buttons on the TV.
The box below lists of some of the different ways manufacturers label the video
input channel.
Video Line Input Variations
Button/switch Button on the Channel #
on the TV TV Remote
VIDEO VID 1 00
SIGNAL LINE 90
VID 1 VID 91
VID 2 VIDEO 92
S-VID S-VID VID 1
S-VIDEO INPUT VID 2
SOURCE
AUX
66 Chapter5
Other Information
Running the System Test
The System Test allows you to run a basic diagnostics check on your digital satellite receiver. If
you are experiencing any trouble with your receiver, run the system test. It will also allow you to
get your access card ntmlher or to initiate diagnostic procedures on your digital satellite receiver.
First lnake sure that:
all connections--jacks, cables, etc.--are correctly in place. See Chapter One, Setup and
Connections, for more information.
• There are batteries in the remote control, and they are working correctly.
• The access card is installed in the digital satellite receiver.
Follow these steps to run the diagnostics system test on your digital satellite receiver.
1. Turn on your TV and the digital satellite receiver.
2. Press the SAT button to put the remote control in satellite receiver-controlling mode, then press
MENU to bring up the Main menu.
3. Select System Setup.
5. Select System Test.
6. If your system does not pass the system test, check any of these potential trouble areas:
cabling, pointing the satellite dish, phone connection, and access card.
7. If you continue to have problems, call RCA Customer Service at 1-800-679-4776.
You should run a system test several times before concluding that there is a problem. Occasional
fluctuations in the phone line or satellite signal can give temporary false readings.
Fine-Tuning the Signal
If you self-installed your satellite dish antenna, you may have already used the Assisted Setup to
find the dish-pointing coordinates, acquire and fine-tune the signal, and run a system test.
If you need to run the Assisted Setup again, select System Setup from the Main menu, then select
Assisted Setup.
If you just want to check your dish-pointing coordinates or run the signal strength meter, select
System Setztp from the Main menu, then select Disl9 Pointillg.
Chapter5 67
Other Information
Limited Warranty
What your warranty covers:
Defects in materials or workmanship.
For how long after your purchase:
• 90 days from date of purchase - Unit exchange, which includes parts and labor.
• 91 days to 1 year from date of purchase - Unit exchange, which includes parts only; you pay the labor.
• The warranty for rental units begins with the first rental or 45 days from date of shipment to the rental firm, whichever
comes first.
What we will do:
During the initial 90 days:
Exchange the defective receiver with a new or, at our option, refurbished unit.
After the 90 days and within one year:
Exchange the defective receiver with a new or, at our option, refurbished unit. We will charge you a fiat exchange cost
to replace a defective receiver. This charge covers the labor cost for its repair.
How you get service:
• Call 1-800-679-4776 and have your unit's date of purchase and model/serial number ready. The model/serial number
information is on the back of your receiver.
• A representative will troubleshoot your problem over the phone.
• If the representative determines that you should receive a replacement receiver you will be provided with a Service
Request (SR) number and the location of a nearby exchange point if one exists. No returns will be accepted without the
SR number.
• Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the
warranty period must be presented to obtain warranty service. For rental firms, proof of first rental is also required.
Option I:
1. Provide your Discover, MasterCard or Visa account number and expiration date to your phone representative. This is for
security purposes only and your account will not be charged at this time.
2. We will send you a replacement unit.
3. If you return the unit to us within 14 days from the date you were provided a SR number, only items not covered by
warranty will be charged to your account. If your unit is not received within 14 days, the suggested retail value of the
receiver will be charged to your credit card. This amount will be credited, less a $10 handling fee, if the unit is
subsequently received.
4. Ship your defective unit back to us using the replacement unit's carton. Shipping instructions will be included on the
carton along with your SR number which will allow you to easily ship the unit back to us. Make sure you insure your
shipment in case of damage or loss. Include with the shipment:
Evidence of purchase date such as a bill of sale.
• A brief note describing your receiver problem.
• Your name, address and phone number.
Option I1:
I. For a fee of $10.00, we will send a replacement unit to our exchange point.
2. The exchange location will notify you of its arriwd.
3. Take your unit and evidence of purchase date, such as a bill of sale, to the exchange location and you will be provided
the new or refurbished unit. Please retain all accessnries such as the remote control hand unit and access card.
4. If the repairs are covered by your warranty, you will not be billed.
Thomson assumes no responsibility for warranty shipments from the customer to the factory if not shipped in
the manner prescribed by Thomsom
68 Chapter 5
Other Information
To receive a replacement receiver after we have received your unit:
• Write the SR number on the outside of the carton used to return tile unit. Make sure you insure your shipment in case
of damage or loss.
• Carefully pack the unit using the original box and packing material if possible. Please retain all accessories that were
included with your unit such as the remote control hand unit and access card.
Include with the shipment:
1. Evidence of purchase date such as a bill of sale.
2. A brief note describing your receiver problem.
3. Your name, address and phone number.
• The representative will advise the address to mail a cashier's check or money order for payment if there are any out of
warranty labor or parts charges, and you elect not to use your credit card.
• After we receive your product, a new or refurbished unit will be shipped to you.
What your warranty does not cover:
• Customer instruction. (Your Owner's Manual describes how to install, adjust, and operate your unit. Any additional
information should be obtained from your dealer.)
• Acts of nature, such as but not limited to lightning damage.
• Adjustment of customer controls.
• Damage from misuse or neglect.
• A unit that has been modified or incorporated into other products or is used for institutional or other commercial
purposes.
Batteries.
• Units purchased, serviced or operated outside the continental U.S.A. and Alaska.
• Loss of programming.
• Installation.
• Shipping damage if the unit was not packed and shipped in the manner prescribed by Thomson.
• Storage fees may be charged by the exchange point if you fail to pick up the replacement unit in a timely manner.
Product Registration:
• Please complete and mail the Product Registration Card packed with your unit. It will make it easier to contact you
should it ever be necessary. The return of the card is not required for warranty coverage.
Limitation of Warranty:
• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABHATY OR FITNESS
FOR APARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRrITEN INFORMATION GIVEN BY
THOMSON MULTIMEDIA INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY
INCREASE THE SCOPE OF THIS WARRANTY.
•REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER. THOMSON MULTIMEDIA INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE
GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPT TO THE EXTENT PROHIBrl_D BY APPLICABLE
LAW, ANY IMPLIED WARRANTY OF MERCHANTABHXFY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
HOW state law relates to warranty:
• Some states do not allow the exclusion nor limitation of incidental or consequential damages, or limitations on how long
an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.
If you purchased your product outside the United States:
• This warranty does not apply. See your dealer for warranty information.
Chapter 5 69
Other Information
FCC Registration Information
Your digital satellite receiver is registered with tile Federal Communications Commission and is in compliance with parts 15B
and 68, FCC Rules and Regulations.
1. Notification to the Local Telephone Company.
On the back of this equipment is a label indicating among other information, the FCC Registration number and Ringer
Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone
company.
The REN is useful to determine the number of devices you may connect to your telephone line and still have all these
devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices
connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as
determined by the REN, you should contact your local telephone company.
Note: This equipment may not be used on coin service provided by the telephone company. Party lines are subject to state
tariffs, and therefore you may not be able to use your own telephone equipment if you am on a party line. Check with
your local telephone company. Notice must be given to the telephone company upon permanent disconnection of your
equipment from your line.
2. Rights of the Telephone Company.
Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall,
where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not
practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service
immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such
temporary discontinuance (2) afford you the opportunity to correct the situation and (3) inform you of your right to bring
a complaint to the Commission pursuant to procedures set forth in Subpan E of Part 68, FCC Rules and Regulations.
The telephone company may make changes in its communications facilities, equipment, operations of procedures where
such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these
changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you
adequate notice, in writing, to allow you to maintain uninterrupted service.
Radio Interference
This equipment has been type tested and found to comply with the limits for a Class B Digital Device in accordance with
the specifications in Part 15 of FCC Rules. These rules are designed to provide reasonable protection against radio and
television interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause hamfful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception (which you can determine by turning the
equipment off and on), try to correct the interference by one or more of the following measures.
•Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is "receiving" the interference).
• Change the position of the satellite receiver with respect to the radio or television equipment that is receiving
interference.
• Move the satellite receiver away from equipment receiving interflerence.
• Plug the satellite receiver into a different wall outlet so tile receiver and equipment receiving interference are on
different branch circuits.
If these measures do not eliminate interlerencc, please consult your dealer or an experienced radio/television technician for
additional suggestions. Also, tile Federal Comnmnications Commission has prepared a helpfffl booklet, "How To Identity"
and Resolve Radio/TV lntcrfl:rence l_rohlems ". This booklet is availahle from the U.S. Government Printing Office,
Washington, D.C. 20402. Please specify stock number 004-000 00345-4 when ordering copies
70 Chapter 5
Other Information
,4__
9_Q
ooo
ooo
6o_
__I
T.,Vl
RG-6 Coaxial Burial
Cable with
weatherproof "F"
connectors comes in a
variety of lengths.
S-Video Cable comes in
12 foot lengths.
Self-Installer's Kit
contains all the cable
and hardware needed
to install the dish and
connect the system.
Remote Control
replaces a lost remote.
Or, order a second
remote for convenience.
Eight outlet surge
protection for cable TV,
satellite systems and
other electronics.
Comes with a $50,000
equipnlent guarantee.
Accessory Order Form
Description
RG-6 Coaxial Cable
12 feet
25 feet
50 feet
S-Video Cable 12 feet
Weatherproof "F" Connector (2)
Optical/SPDIF Cable (3-_)
Optical/SPDIF Cable (6-ft)
TYRO Bullet Amplifier
Self-lnstaller's Kit
Remote Control CRK76SG3
Surge Protector
Wireless Modem Jack
Part No. Total
DT12C $14.95
DT25C $24.95
DT50C $39.95
DT12S $19.95
D905 $5.95
DV3 $15.95
DV6 $19.95
D903 $22.95
DKIT96 $69.95
247047 $33.10
SCTV1650 $49.95
RC930 $99.95
Total Merchandise ............................................................
Sales Tax
We are required by law to collect the appropriate
sales tax for each individual state, country, and
locality to which the merchandise is being sent.
Shipping, Handling, and Insurance .................................
Total Amount Enclosed ....................................................
Use VISA, MasterCard, or Discover preferably.
Money order or check must be in U.S. currency only.
No COD or CASH.
$
$
$ 5.00
$
All accessories are subject to availability.
Prices are subject to change without notice.
"r
a= ..... : : ....
u P|easecomplete O_her:
Chapter 5 71
Other Information
Charge your order on your VISA,
MasterCard, or Discover Card
by filling in below
IUMSpEYTOLR:C_oomum_l_ a_rr_ unt number _
My card expires:l_[_
IMPORTANT: Copy complete account number
from your MasterCard
r-FT- r- -N N-T-N
Copy Number
above your
name on
MasterCard
My card _
expires:
IMPORTANT: Copy complete account number
from your Discover Card
rTr-r FTI- F-N-r3 F- -T7
My card expires:l_r-- ]
AUTHORIZED SIGNATURE
(Credit card order will not be processed without signature)
Prices are subject to change without notice.
Print or type your name and A complete and correct
address clearly, order will save you days
of waiting.
Name"
Street"
Apt:
City:
State:
Daytime Phone Number:
Zip:
Please make sure that both sides of this form
have been filled out completely.
• Allow 4 weeks for delivery.
• All accessories are subject to availability.
• Prices are subject to change.
Placing an Order
To place your order by phone, have your Visa, MasterCard or
Discover Card ready and call the toll-free number listed below.
Use this number onlF to place on order for accesso_ items listed
on this order form.
1-800-338-0376
To place your order by mail, detach and mail the completed
order form with credit card information, money order or check
in US currency (made payable to Thomson multimedia, Inc.) to
the following address:
Video Accessories
PO Box 8419
Ronks, PA 17573
72 Chapter 5
Other Information
Glossary
Automatic Code Search
A method to program the remote control by using a series of preset codes. Programming the
remote control is necessary to operate other components.
Channel Banner
A transparent banner at the top of the picture allows direct access to the key features of your
digital satellite receiver including viewing suggestions, The Guardian TM channel locking system,
on-screen message display, and the Scout TM keyword/phrase and the AlphaSort TM alphabetical
search features. Press the INFO button on the remote control while watching normal
programming to display the Channel Bannec Highlight and select the desired icon using the
remote control's arrow and OK buttons.
Direct Entry
A method to program the remote control by using codes from a list provided in the instruction
manual. Programming the remote control is necessary to operate other components.
Interactive TV
A service that lets you use the satellite receivers remote control to access up-to-the-minute news,
sports, financial information, weather, program trivia, free offers, and shopping- all while you
watch TV.
Program Guides
A list of available programming shown on-screen when you press the remote control's GUIDE
button. Program guides display information that is contained in broadcaster signals. Your digital
satellite receiver can display several types of program guides including an Advanced Program
Guide TM which stores up to three days of programming information and an information guide
which lists five different channels of programming at a glance.
RSA Software Upgrades via Satellite
The digital satellite receiver is able to modify some of its features and functions with
downloaded RSA-secure upgrades or modifications. RSA-secure downloads ensure that only
authorized upgrades are delivered to your RCA digital satellite receiver.
Universal Remote Control
Description: A remote control that provides complete satellite system operation, and prima W
function control of most brands of remote-controllable TVs, VCRs, and cable boxes.
Chapter 5 73
Index
A
Access card
number 20
Accessories 71
Accessory Order Form 71
AlphaSort button 3l, 38
Arrows on remote 22
Assisted setup 19, 67
Attractions Guide 35
Audio Hum 6
Audio/Video jacks/cables
15
AUX button 22
B
Batteries 17
Buttons 22
C
Cable Box
code list 28
Caller ID
banner 45
list 46
receiving calls 45
Cancelling purchases 46
Cautions i 2
Channel Banner 1
Channel banner 31
Channel Guide 35
Channel lists 50
add channels 50
delete channels 50
CLEAR button 22
Code list
Cable Box 28
Satellite Receiver 28
VCR 28
Codes
remote control 27
Connections 16, 24
jacks and cables 15
D
Deleting calls 46
Deleting purchases 46
Detail Guide 32
DIRECTV INTERACTIVE TM
2, 32
Dish Pointing 60
Dolby Digital 1, 14
DVD button 22
E
Exiting
menus 40, 46
F
Fetch 55
button 22
Front panel light 45
G
Glossary 73
GO BACK button 22
Grid Guide 32
GUIDE button 22, 32
I
I icon. See DIRECTV
INTERACTIVE
Icons 30, 31, 37, 48
INFO button 22
Interference 6
K
Key Features 1
L
LED light 22
Locking
a profile 52
the system 51, 52
Logo Guide .35
Look and feel 54
M
Mail
checking 43
deleting 43
icon 31
MENU button 22
Menu system 40
icons 48
Menus
Profiles 49
Program Guide 42
Timers 48
Messages 43
Caller ID 46
Movies icon 37
MUTE button 22
O
Overheating 6
P
Power Surges 6
Problems, solving 64
Profiles
channel lists 50
menu 41, 49
rating limit 51
spending limits 51
viewing hours 51
Program guides
anatomy 42
anatomy of 30
Attractions Guide .35
Channel Guide .35
Detail Guide 32
Grid Guide .32
Logo Guide .35
scrolling 33, 38
sorting .36
tuning to a program .34
Programming
remote control 27
Purchases
cancelling 46
menu 41, 46
previewing 47
reviewing 46
spending limits 47
R
Rating limit 51
RECORD button 26, 49
Recording 9, 11, 13
with timers 48
Remote Control 1
universal 1
Remote control
buttons 22
codes 27
m(x.tes 26
Reviewing purchases 46
RF jacks/cables 15
RSA-secure downloads 2
S
S-Video 15
Satellite Receiver
code list 28
Scout 38
Scrolling 33, 38
Set VCR type 18
SKIP button 23
Software Upgrades 2, 73
Sorting by
AlphaSort icon 38
Movies icon 37
Scout icon 38
Sports icon 37
Spending limits 47, 51
Sports icon 37
System
lock 52
options 56
test 56, 67
unlock 53
T
Telephone icon 31
Timers 48
Troubleshooting 64
Tuning to a program 34
TV button 23
74 Chapter 5
Index
U
Universal Remote Control
1, 73
Unlocking
the system 53
User Preferences 36
V
VCR
code list 28
Controller 15
recording 23, 26, 48
remote button 23
set type 19
Video input channel 9, 11
Viewing hours limit 51
W
WHOoINPUT button 23
Wink. See DIRECTV
INTERACTIVE
WINK Communications 2
Chapter5 75
This page left intentionally blank
This page left intentionally blank
If your digital satellite receiver needs service, please contact
your dealer or the nearest Service Center from the Yellow
Pages. Please do not send any products to the Indianapolis
address listed in this manual or on the carton. This will only
add delays in service for your product.
Thomson multimedia Inc.
10330 North Meridian Street
Indianapolis, IN 46290
02001 Thomson multimedia Inc.
Trademark(s)® Registered
Marca(s) Registrada(s)
DIRECTV, and the Cyclone Desiign logo are trademarks of
DIRECTV, Inc., a unit of Hughes Electronics Corp., and is used
with permission.
Printed in the USA
TOCOM 15660900
IB-IDRD450RG
The software used to display images in this
product is based in part on the work of the
Independent JPEG Group.
"n.IOMSON
THOMSON
