g,ng Entertainment. i,n.

WARNING

To reduce the risk of fire or

electric shock, do not expose

this product to rain or moisture.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO

USERSERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICEPERSONNEL.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the product.

Caution: To prevent electric shock, match wide blade of

plug to wide slot, fully insert.

Attention: Pour eviter les chocs electriques, introduire la

lame la plus large de la fiche dans la borne correspondante

de la prise et pousserjusqu au fond.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) images are left on the screen for long periods,

they may be permanently imprinted on the picture tube. Such

images include network Iogos, phone numbers, and video games.

This damage is not covered by your warranty. Extended viewing of

channels displaying these images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding and,

in particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

Product Registration

Please fill out the product registration card (packed separately) and return it immediately. Returning this card

allows us to contact you if needed.

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record

the serial and model numbers in case you need them. The numbers are located on your product.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

Key Features Overview

Your TV is equipped with features that will add to your viewing experience. The following

information summarizes these features. Chapter 3 provides more information about the rest of the

TV's features and how to use them.

MAIN MENU

TIMER

VIDEO ADJUST

COMPONENT ADJ.

AUDIO ADJUST

CLOSED CAPTION

_PARENT CONTROL

LANGUAGE

ENERGY SAVE

SET UP

[A,v} to move cursor

[OK] to set

PARENT CONTROL

IV-CHIP BLOCK

RETURN

,[* v] to move cursor

, OK to set

V-Chip: Parental Controls

Description: You can block programs and movies by content, age-based

ratings, and/or movie ratings.

Requirements:

•Set up the TV GUIDELINES and MPAA menus in the TV's main MENU

(Chapter 3 has details).

• The broadcasters must use the rating system when they send the program to

your TV in order for your TV to block the program.

W backpanel

ANT/CABLE

75_

0

Component Input Jacks

Description: The jacks on the back of your TV labeled COMPONENT-IN can

be used to connect a component with Component Output jacks (like a DVD

player). Component video connections provide a higher quality picture

because the video signal is divided into three parts instead of being compressed

into one.

Requirements: A component with Component Output jacks, and three video

grade cables that you'll use to connect the component to your TV.

PIP (Picture-In-Picture)

Description: PIP lets you watch two channels at one time -- one channel on

the main screen and the other in a smaller window.

Requirements: Press the PIP button on the remote control. Go to page X for

more information about PIP.

1

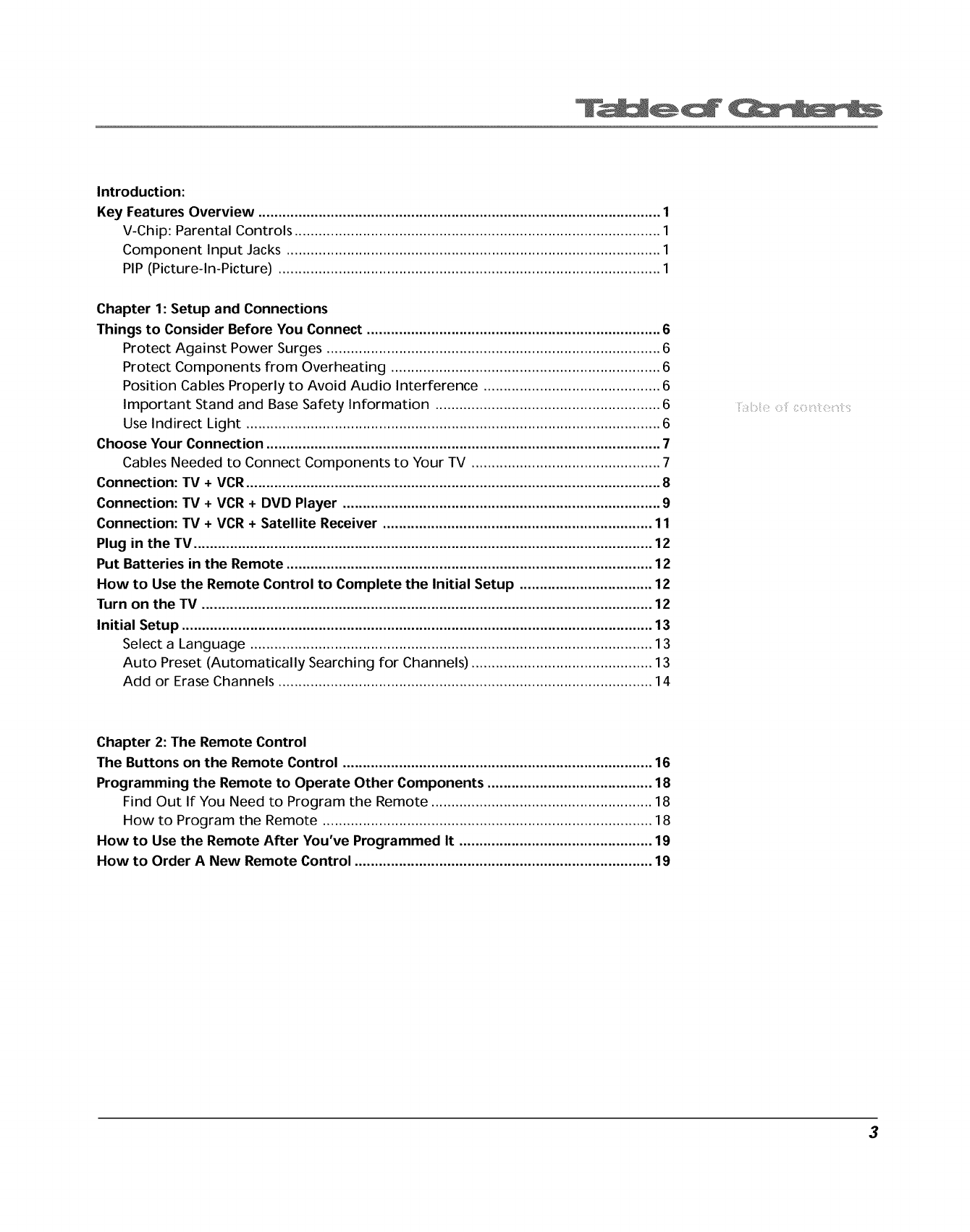

Introduction:

Key Features Overview .................................................................................................... 1

V-Chip: Parental Controls ........................................................................................... 1

Component Input Jacks ............................................................................................. 1

PIP (Picture-In-Picture) ............................................................................................... 1

Chapter 1: Setup and Connections

Things to Consider Before You Connect ......................................................................... 6

Protect Against Power Surges ................................................................................... 6

Protect Components from Overheating ................................................................... 6

Position Cables Properly to Avoid Audio Interference ............................................ 6

Important Stand and Base Safety Information ........................................................ 6

Use Indirect Light ....................................................................................................... 6

Choose Your Connection .................................................................................................. 7

Cables Needed to Connect Components to Your TV ............................................... 7

Connection: TV +VCR ....................................................................................................... 8

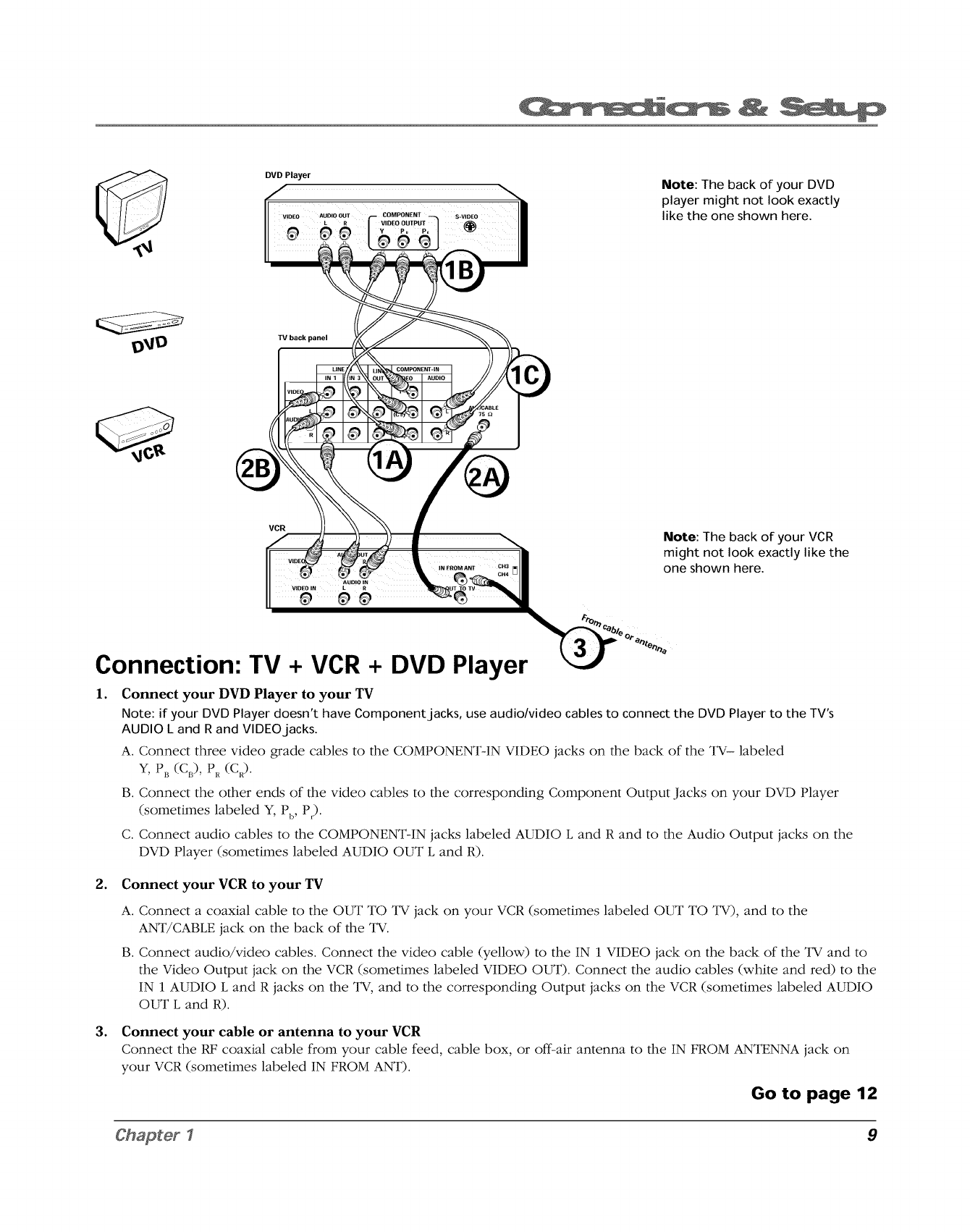

Connection: TV + VCR + DVD Player ............................................................................... 9

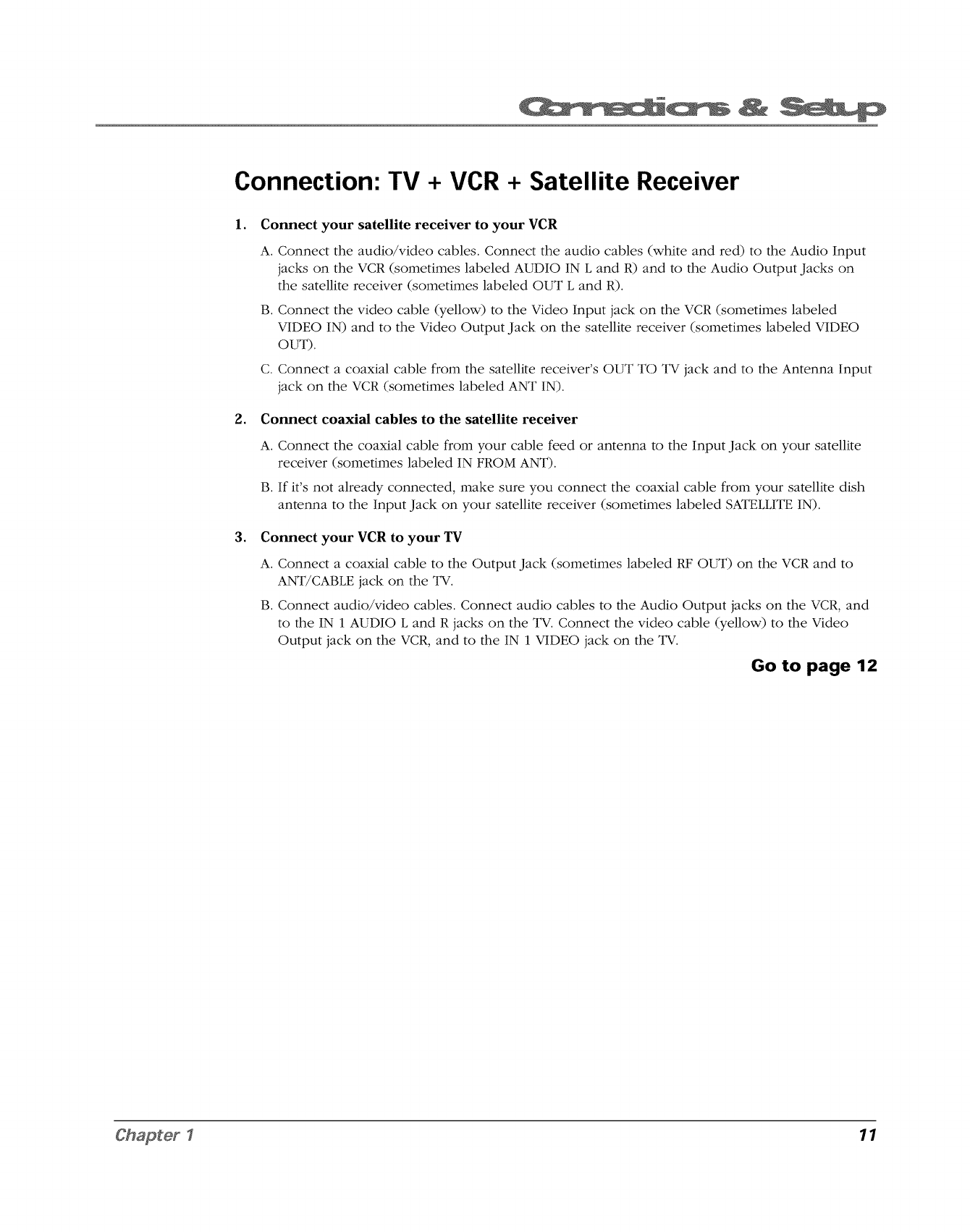

Connection: TV + VCR + Satellite Receiver ................................................................... 11

Plug in the TV .................................................................................................................. 12

Put Batteries in the Remote ........................................................................................... 12

How to Use the Remote Control to Complete the Initial Setup ................................. 12

Turn on the TV ................................................................................................................ 12

Initial Setup ..................................................................................................................... 13

Select a Language .................................................................................................... 13

Auto Preset (Automatically Searching for Channels) ............................................. 13

Add or Erase Channels ............................................................................................. 14

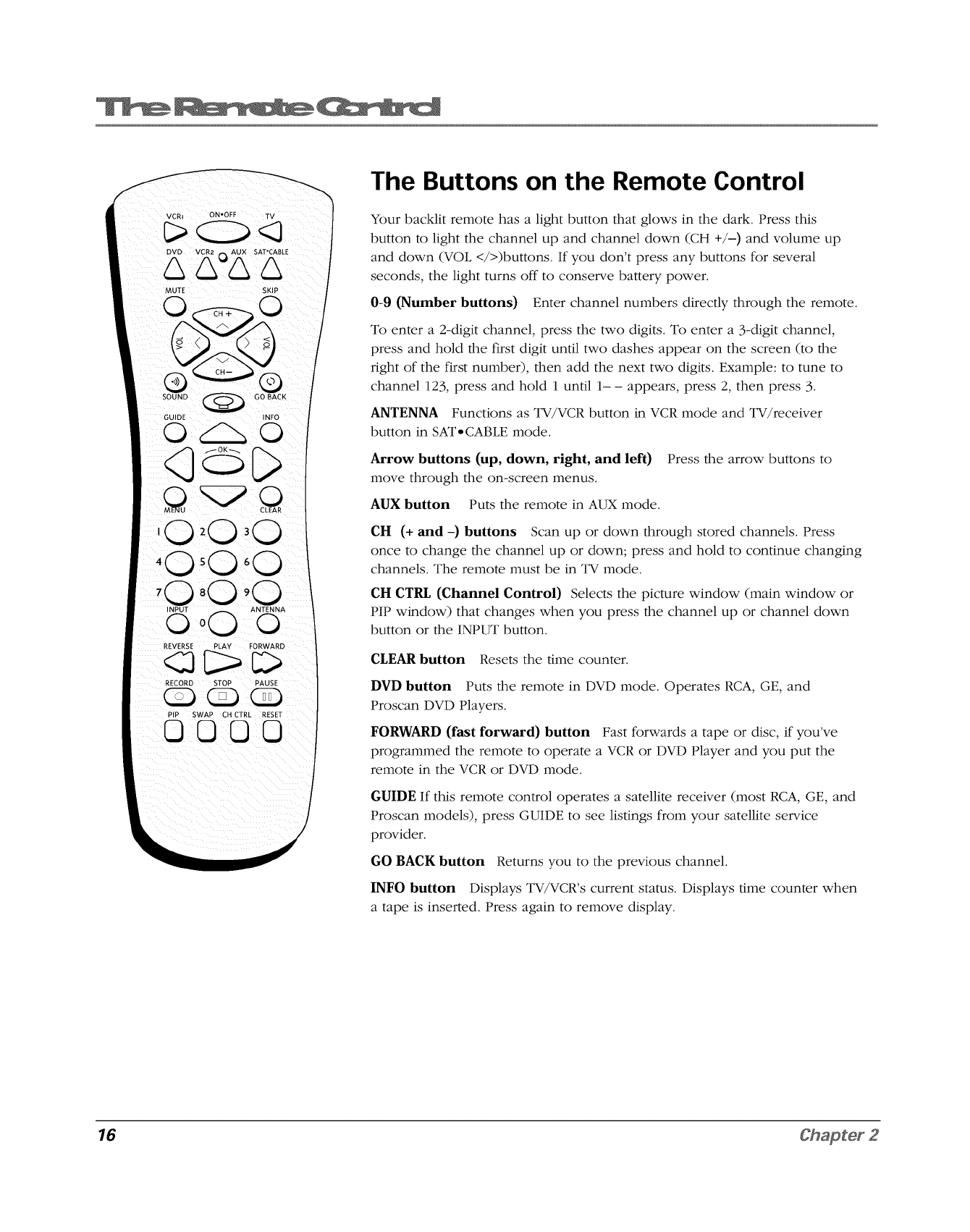

Chapter 2: The Remote Control

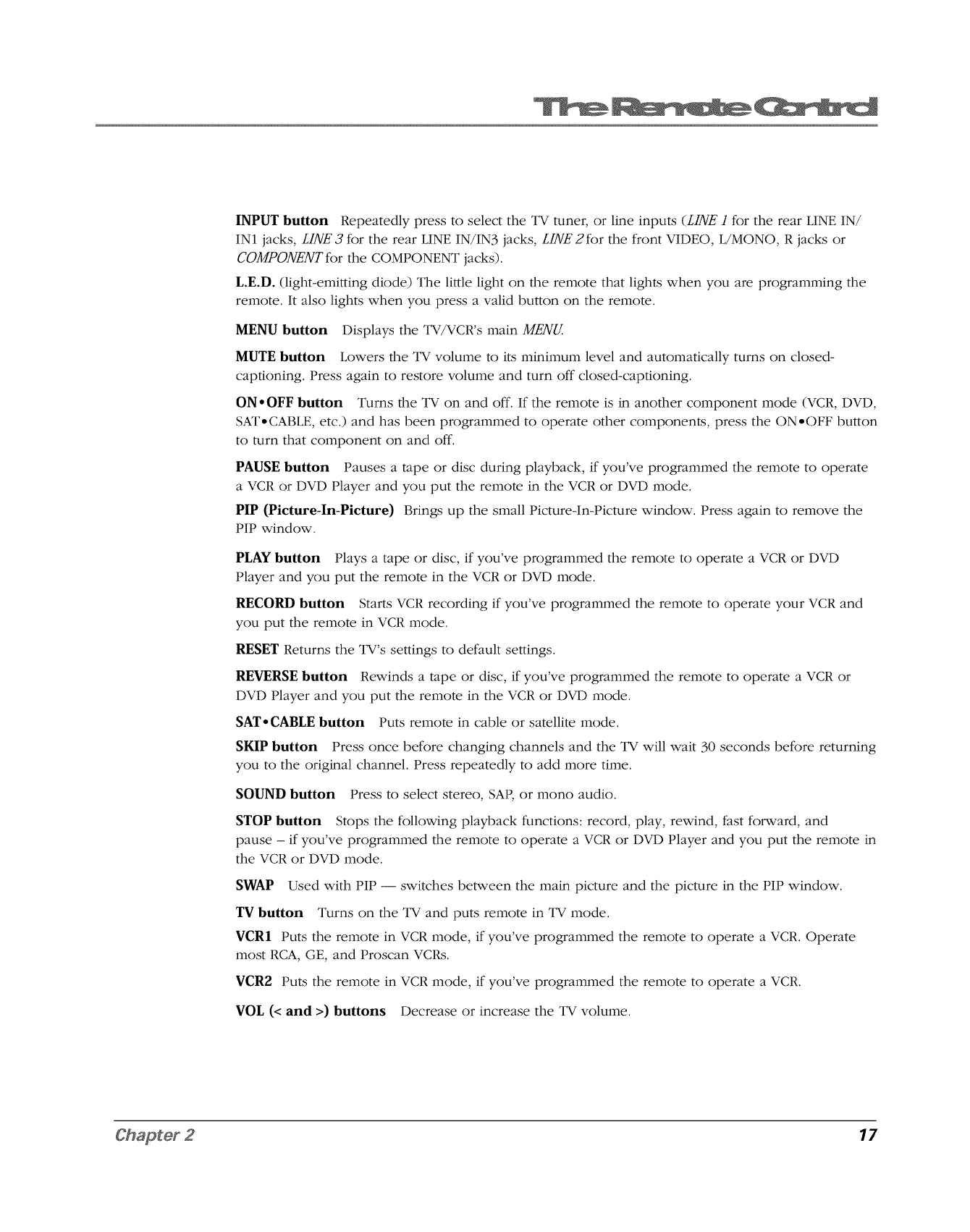

The Buttons on the Remote Control ............................................................................. 16

Programming the Remote to Operate Other Components ......................................... 18

Find Out If You Need to Program the Remote ....................................................... 18

How to Program the Remote .................................................................................. 18

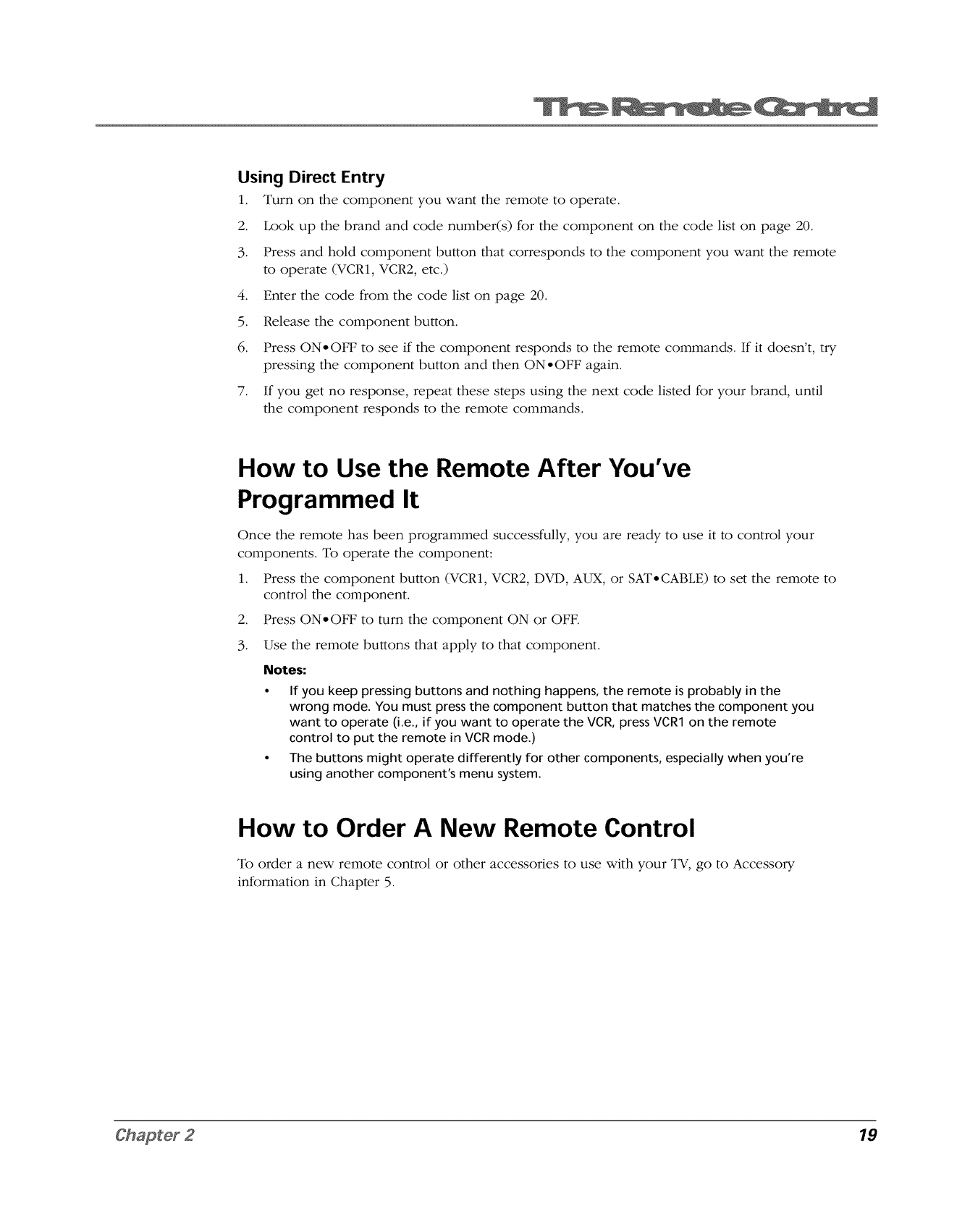

How to Use the Remote After You've Programmed It ................................................ 19

How to Order A New Remote Control .......................................................................... 19

3

Chapter 3: Using the TV's Features

The PIP (Picture-In-Picture) Feature ............................................................................... 22

How V-Chip Works ................................................................................................... 23

New Rating Systems ................................................................................................. 23

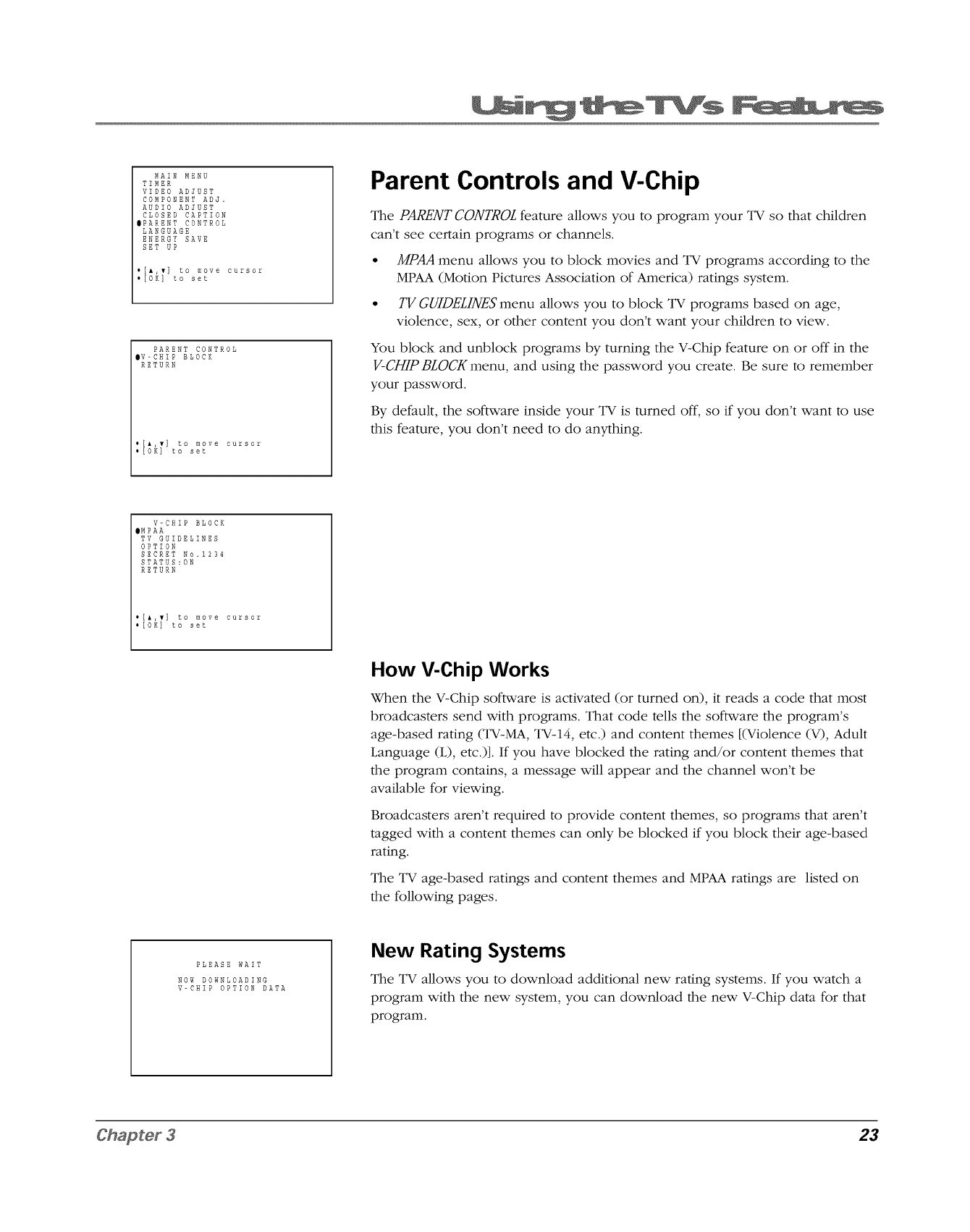

Parent Controls and V-Chip ............................................................................................ 23

Set the MPAA Rating Limits ..................................................................................... 24

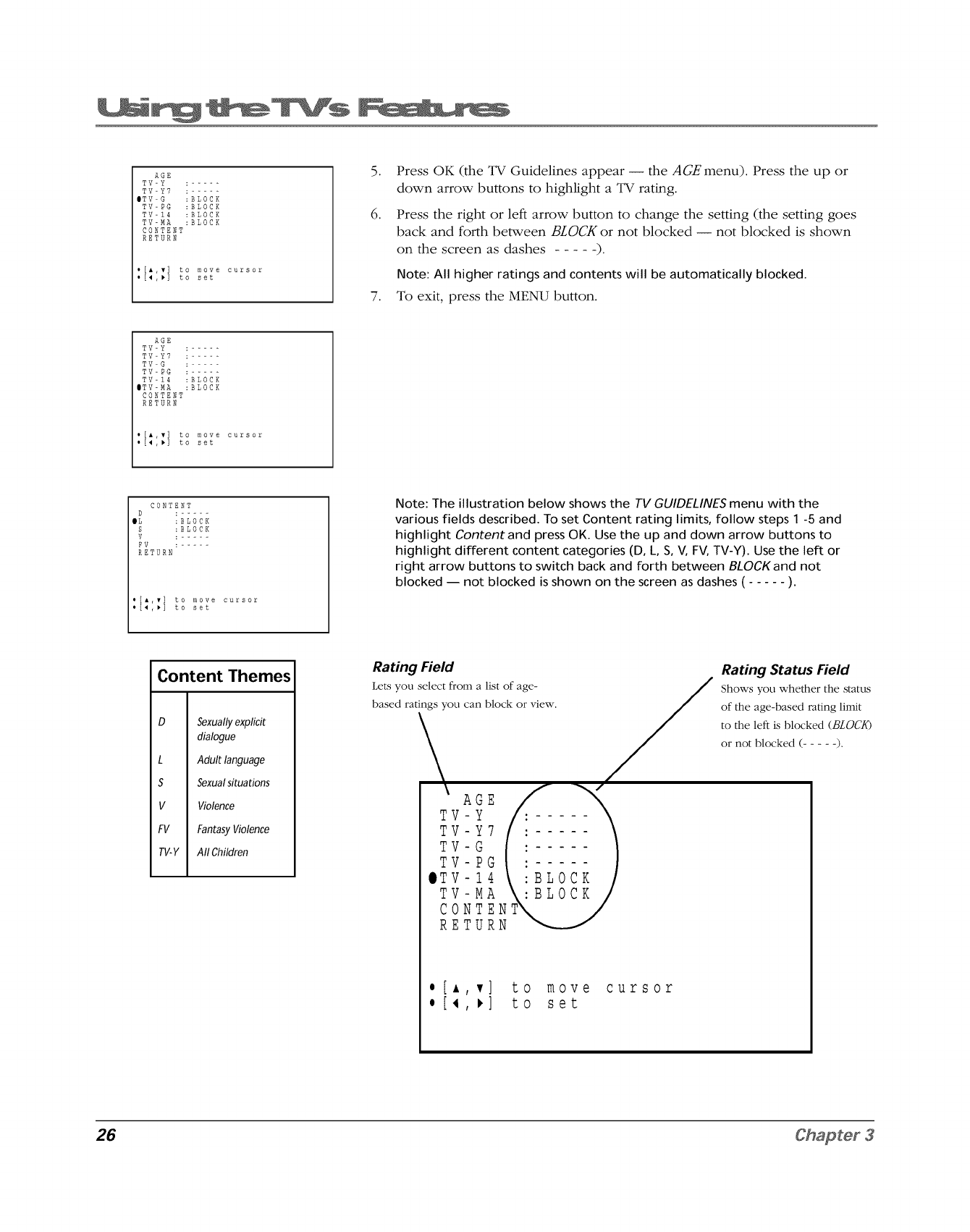

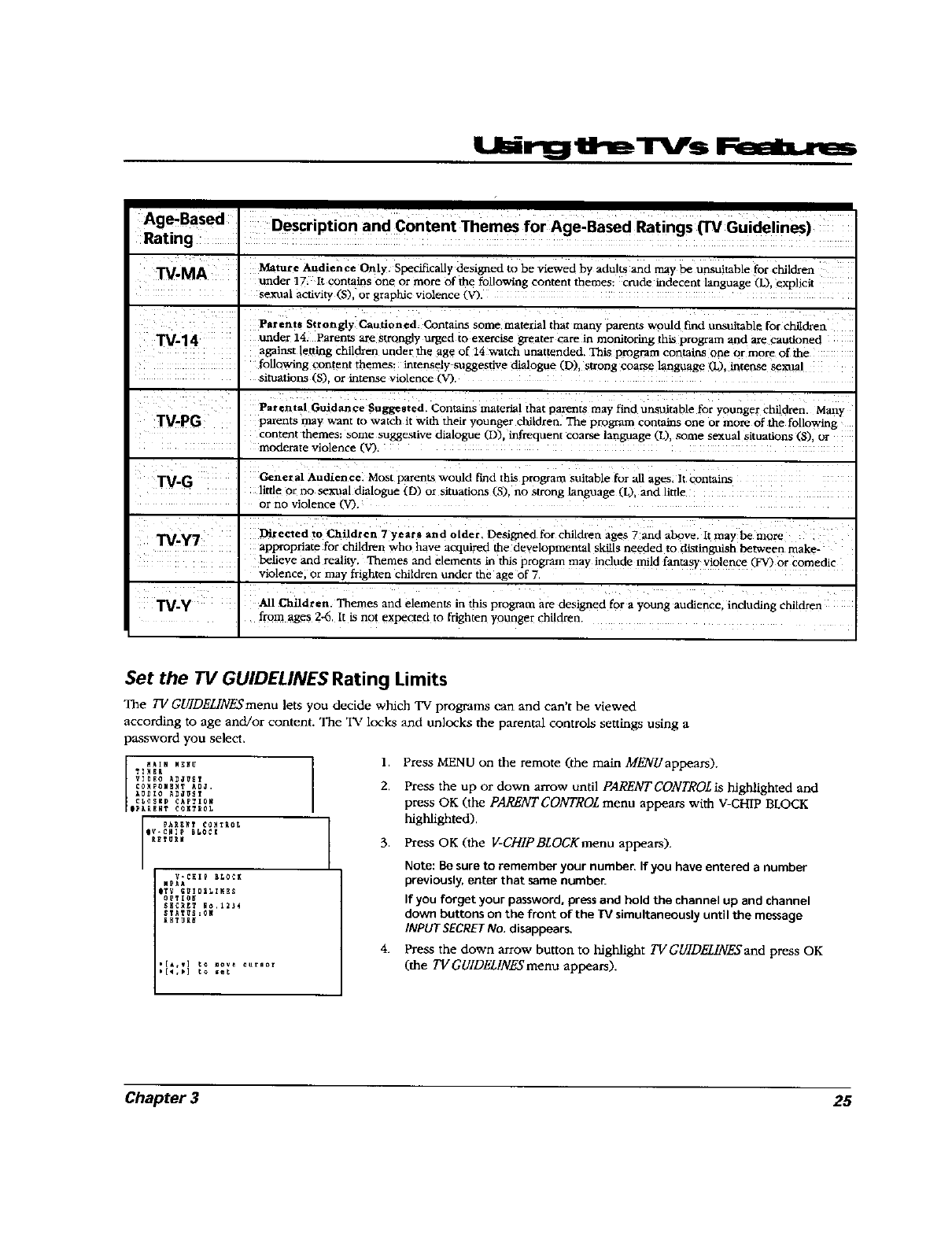

Set the TV GUIDELINES Rating Limits ...................................................................... 25

Entering Your Secret Number .................................................................................. 27

Download New Rating System ................................................................................ 27

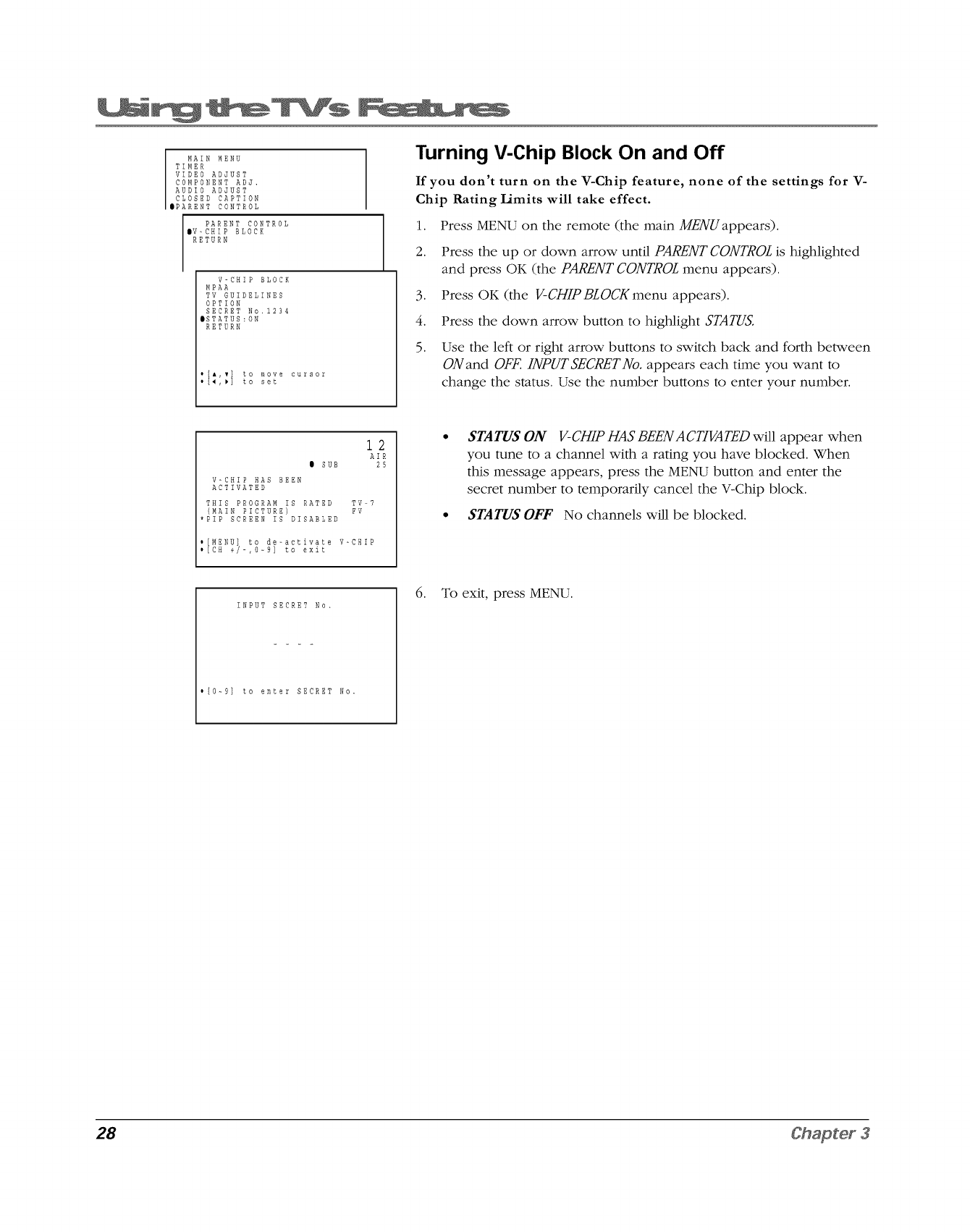

Turning V-Chip Block On and Off ............................................................................ 28

Chapter 4: Using the TV's Menu System

How to Use Your TV's Menu System ............................................................................. 30

TIMER Menu ............................................................................................................. 30

To set the clock.................................................................................................. 30

Accessing Menus ...................................................................................................... 30

Exiting from a menu ................................................................................................ 30

To set the on timer or sleep timer ..................................................................... 31

VIDEO ADJUST Menu ............................................................................................... 32

COMPONENT ADJUST Menu ................................................................................... 32

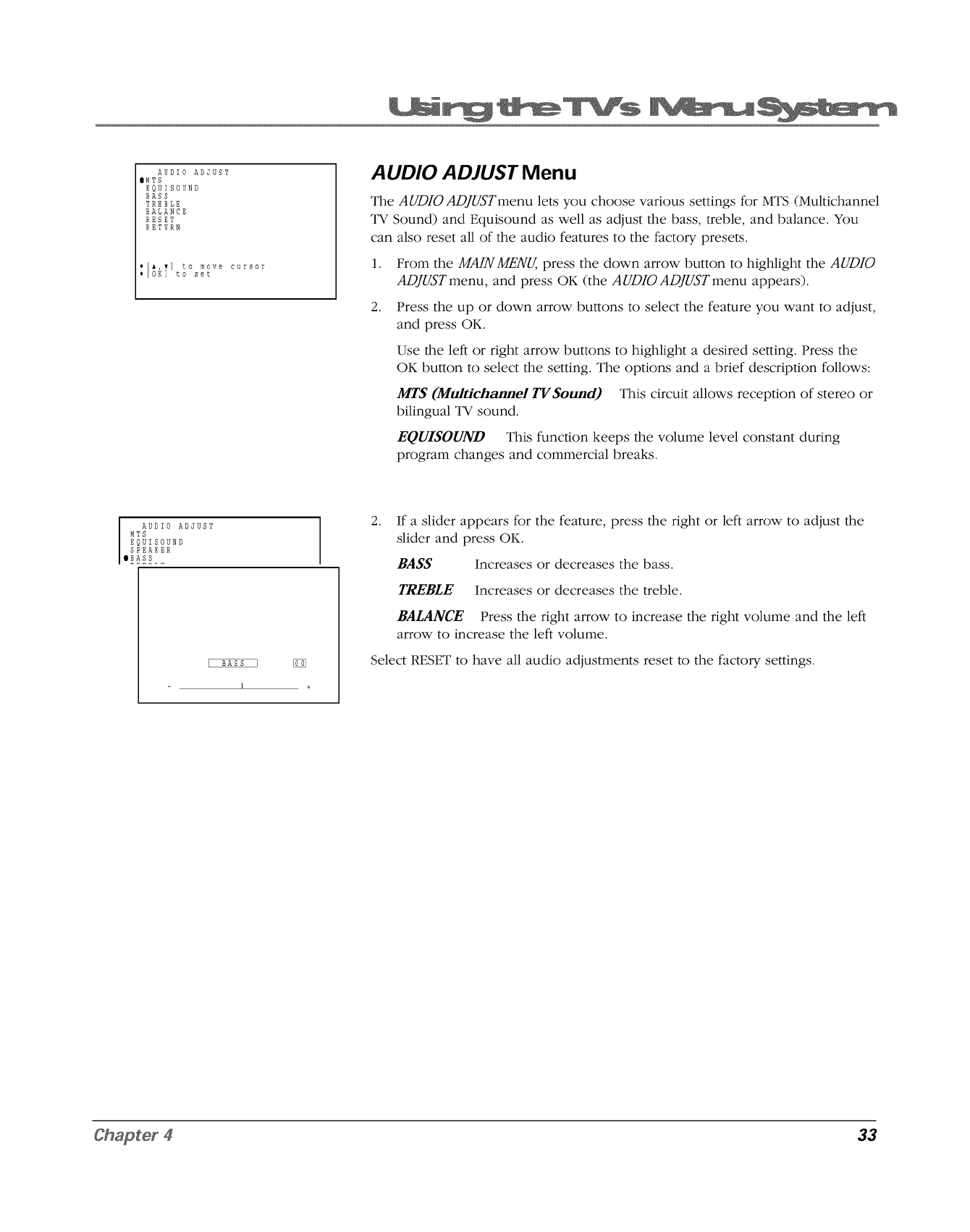

AUDIO ADJUST Menu .............................................................................................. 33

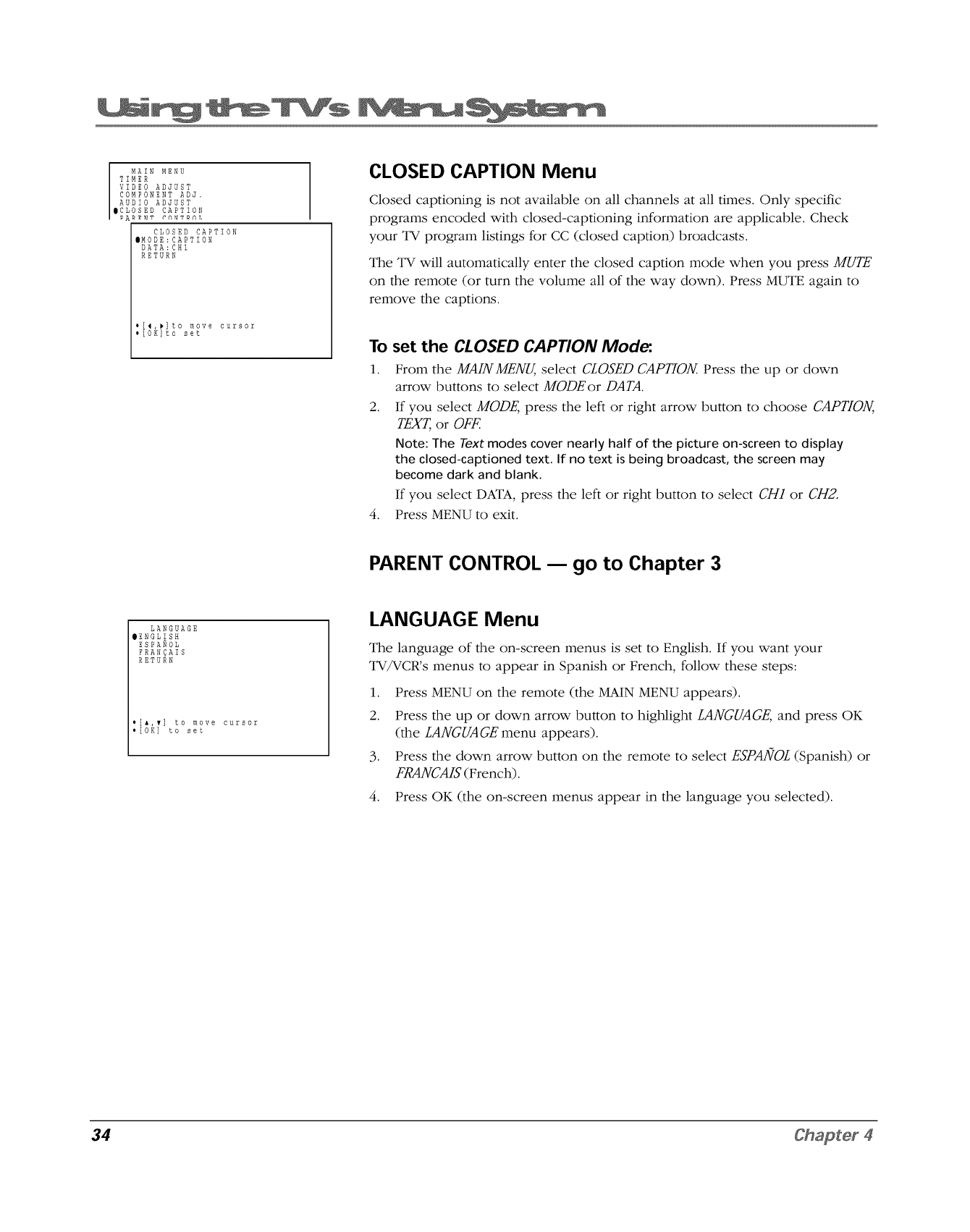

CLOSED CAPTION Menu .......................................................................................... 34

PARENT CONTROL -- go to Chapter 3.................................................................... 34

LANGUAGE Menu .................................................................................................... 34

Additional Settings in the SETUP Menu ................................................................. 35

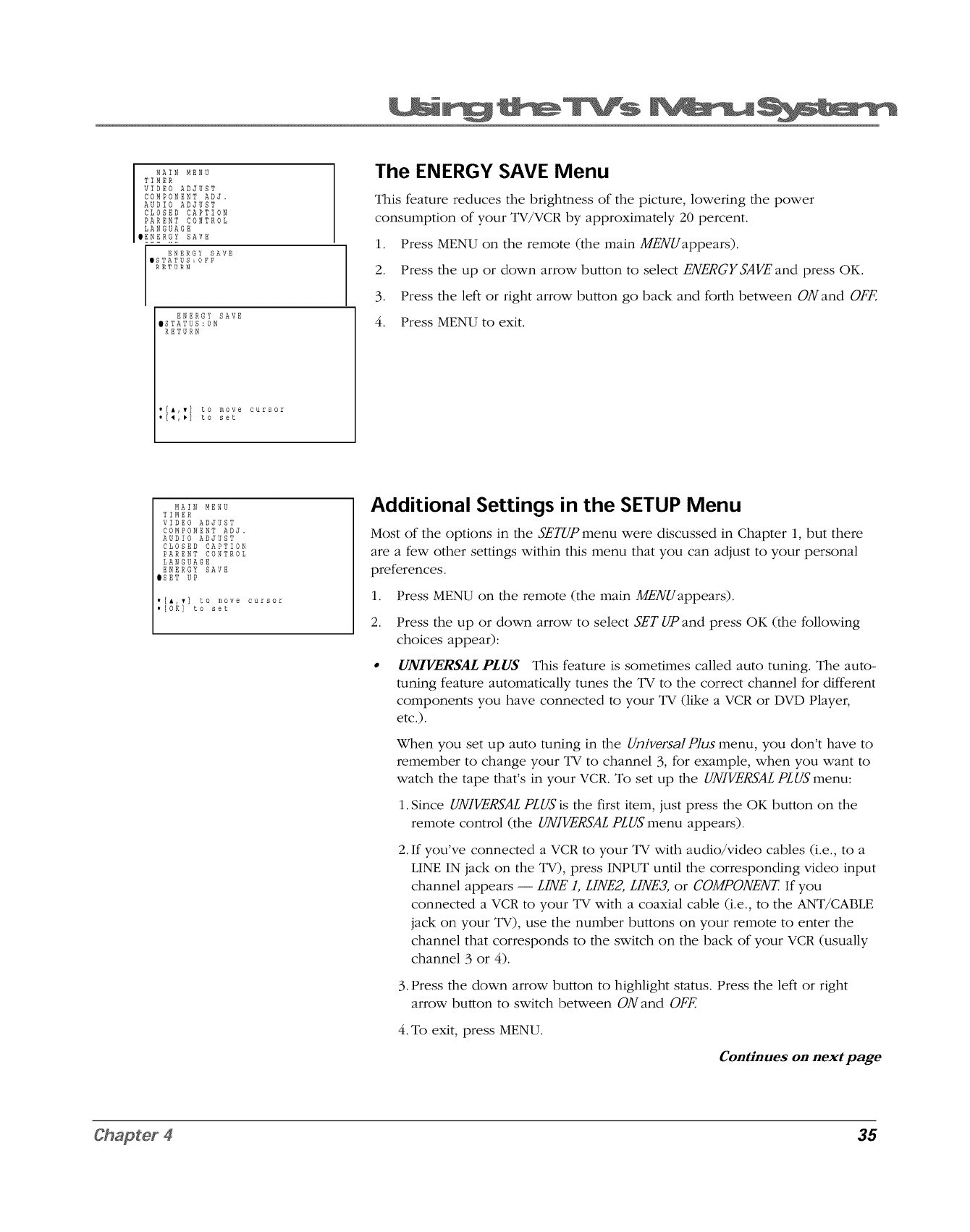

The ENERGY SAVE Menu ......................................................................................... 35

Chapter 5: Additional Information

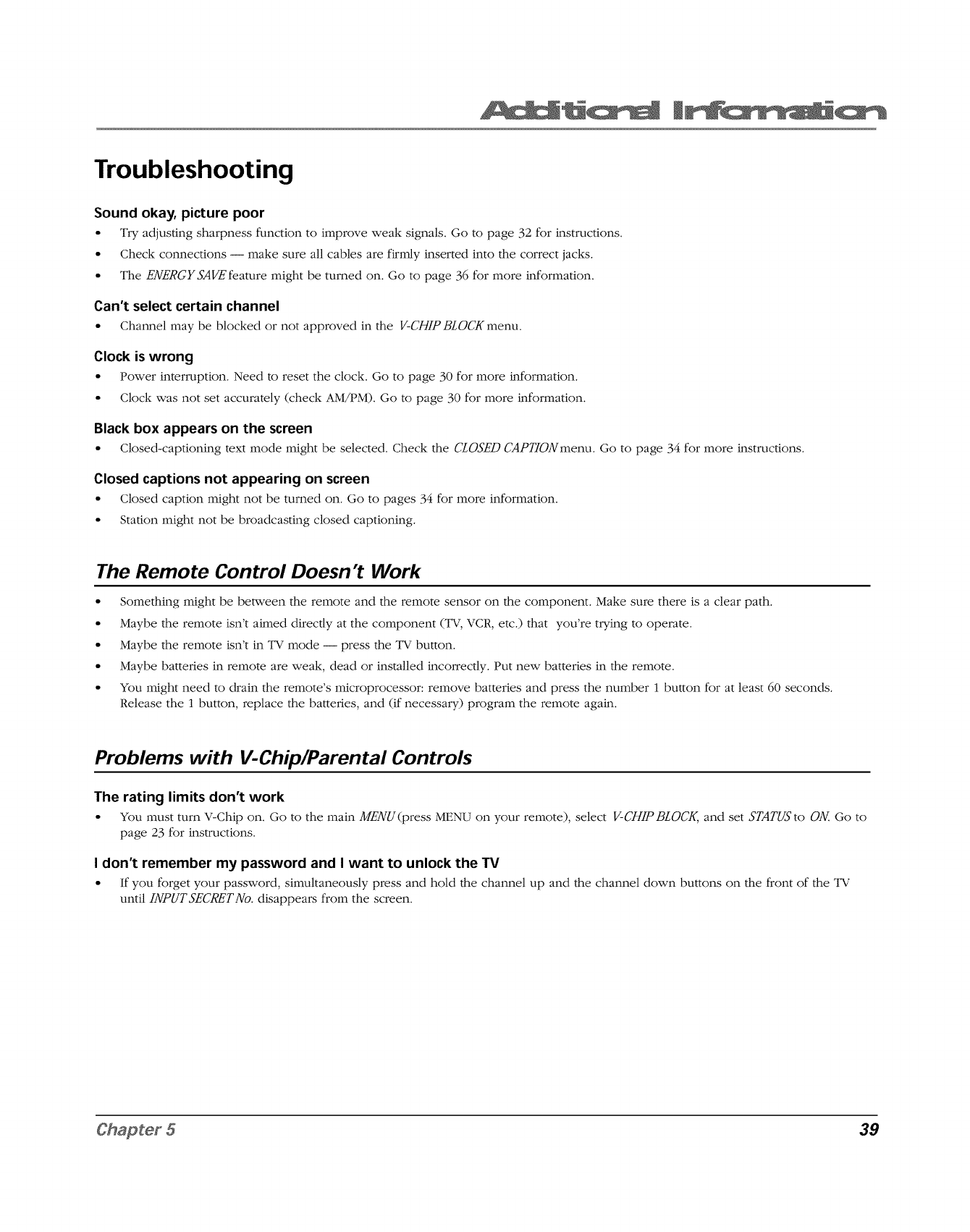

Troubleshooting .............................................................................................................. 38

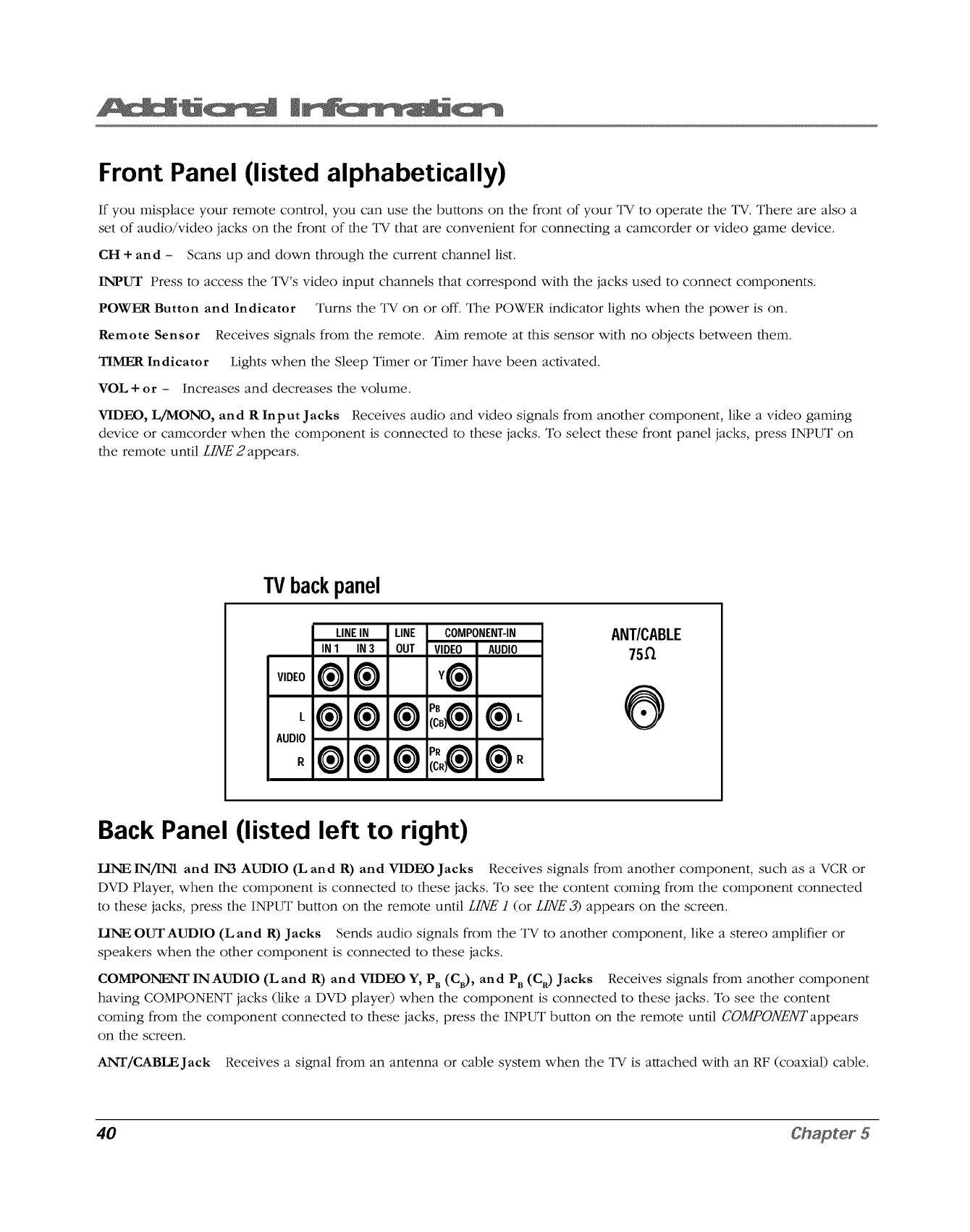

Back Panel (listed left to right) ...................................................................................... 40

Front Panel (listed alphabetically) ................................................................................. 40

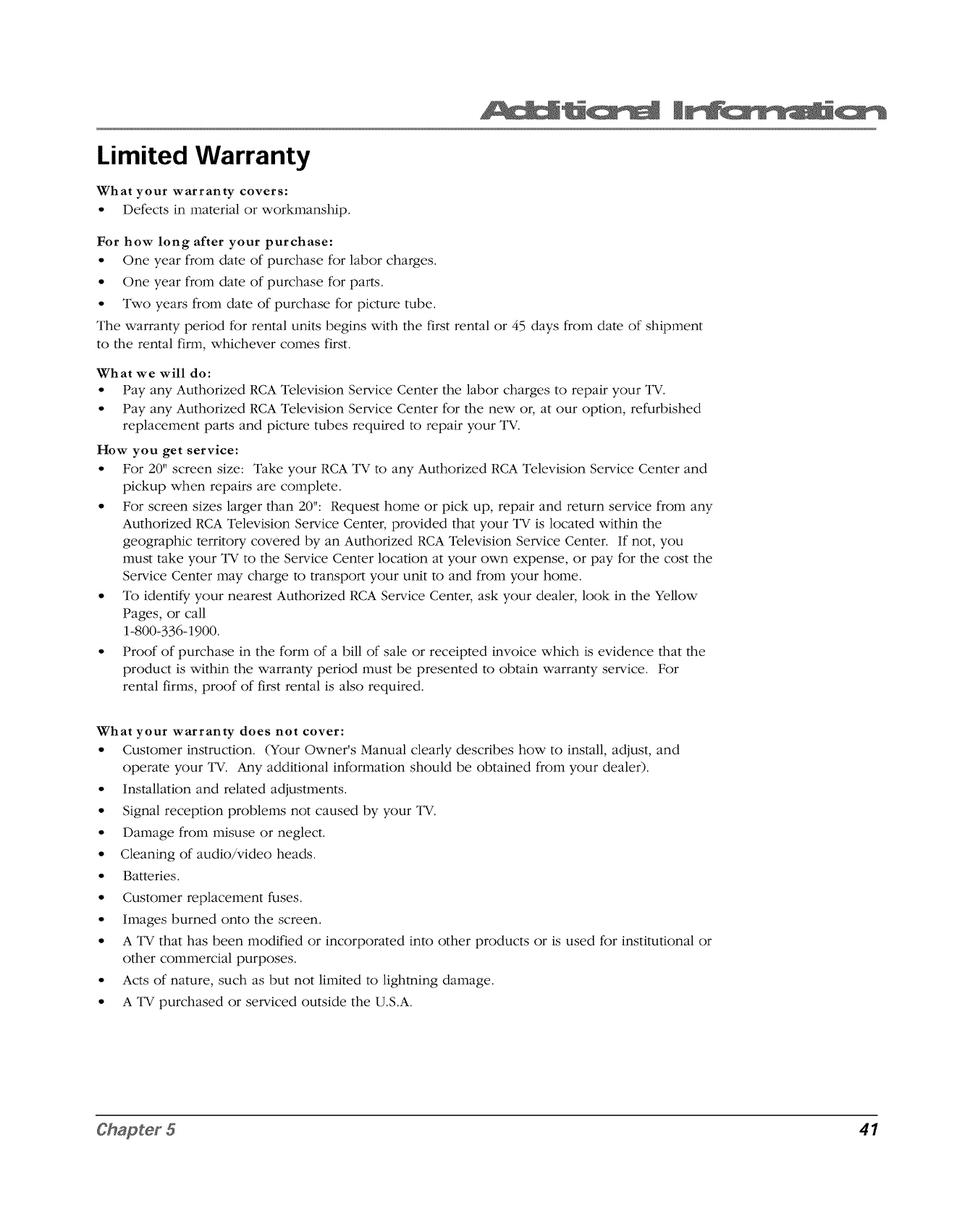

Limited Warranty ............................................................................................................ 41

Care and Cleaning .......................................................................................................... 43

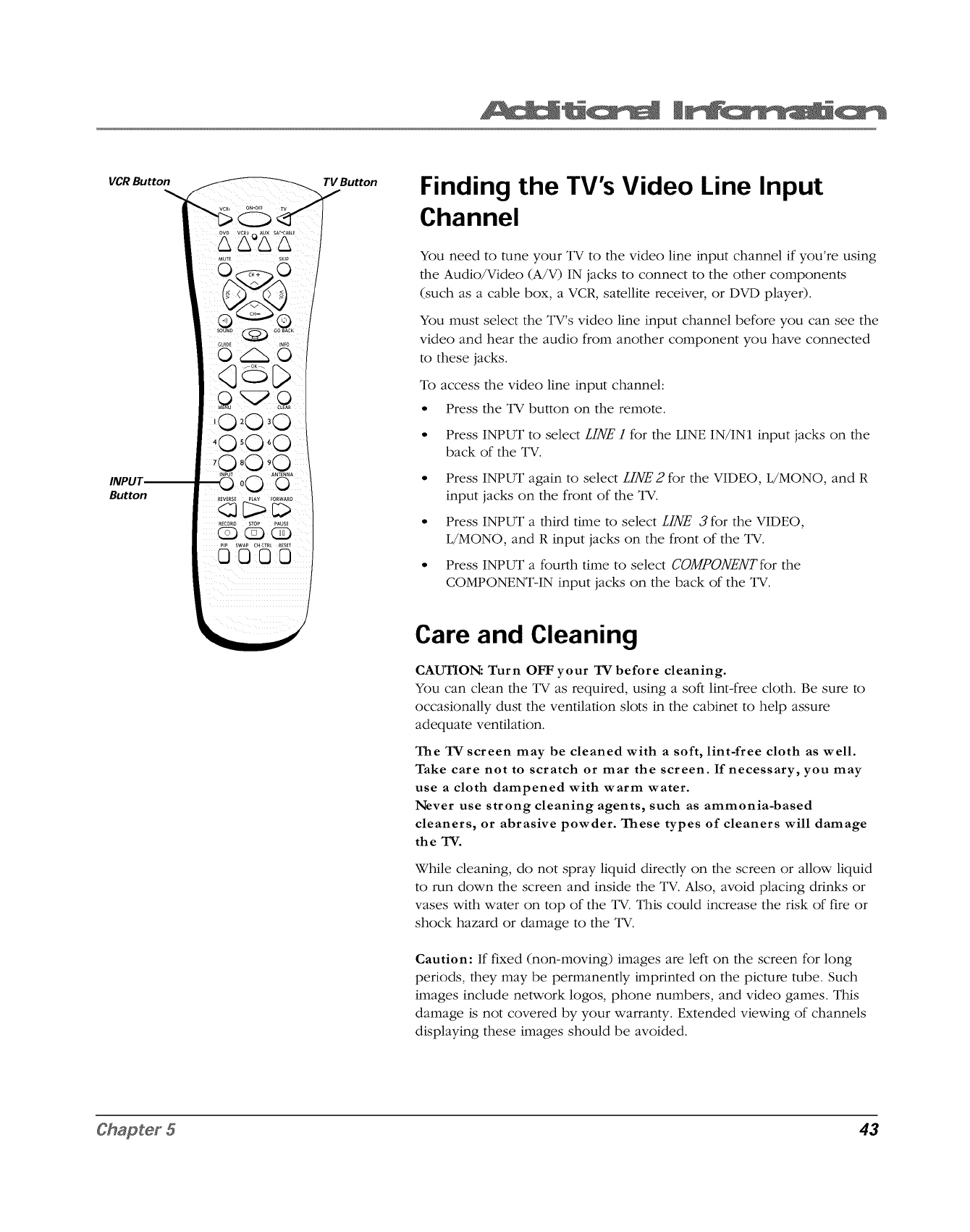

Finding the TV's Video Line Input Channel ................................................................... 43

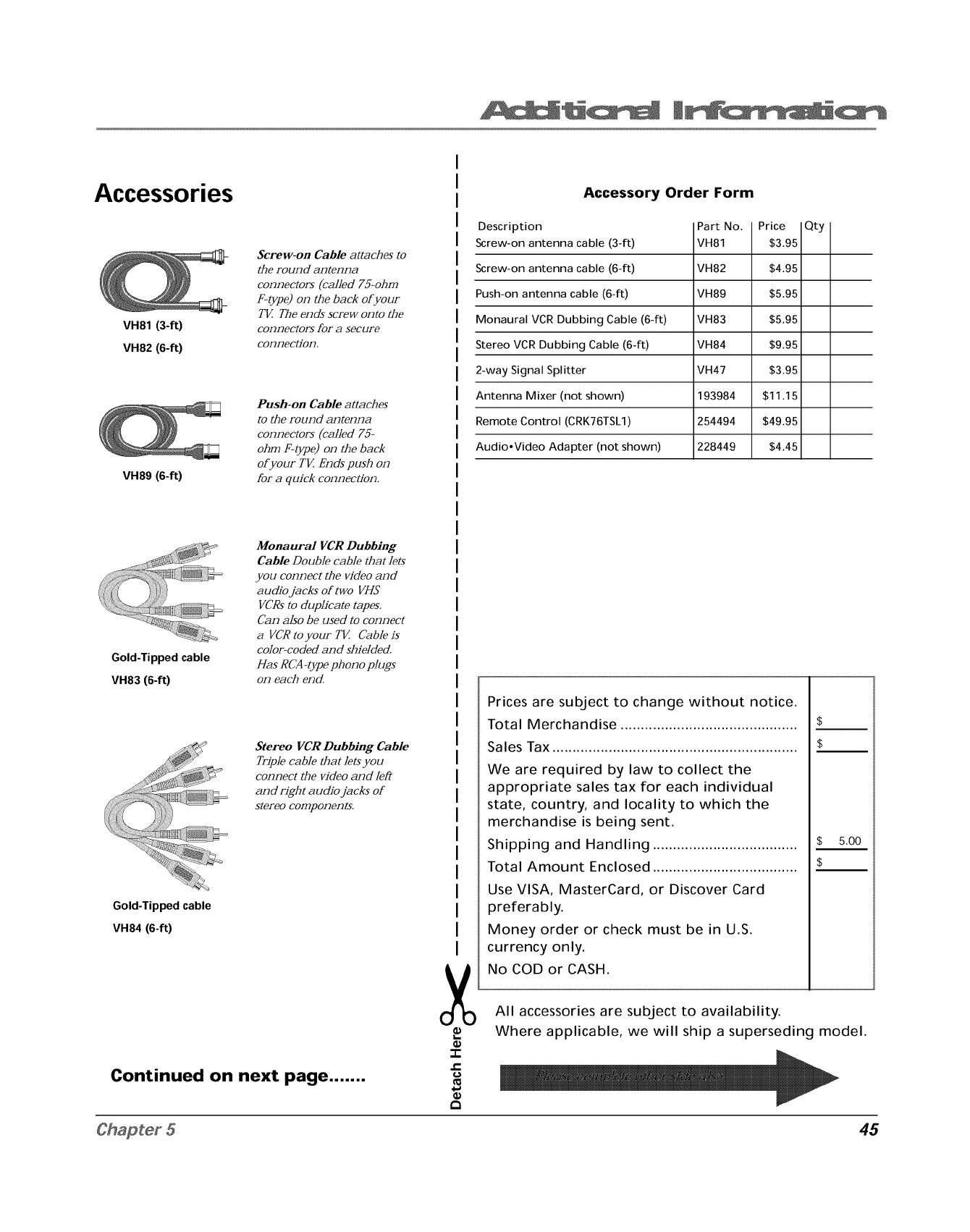

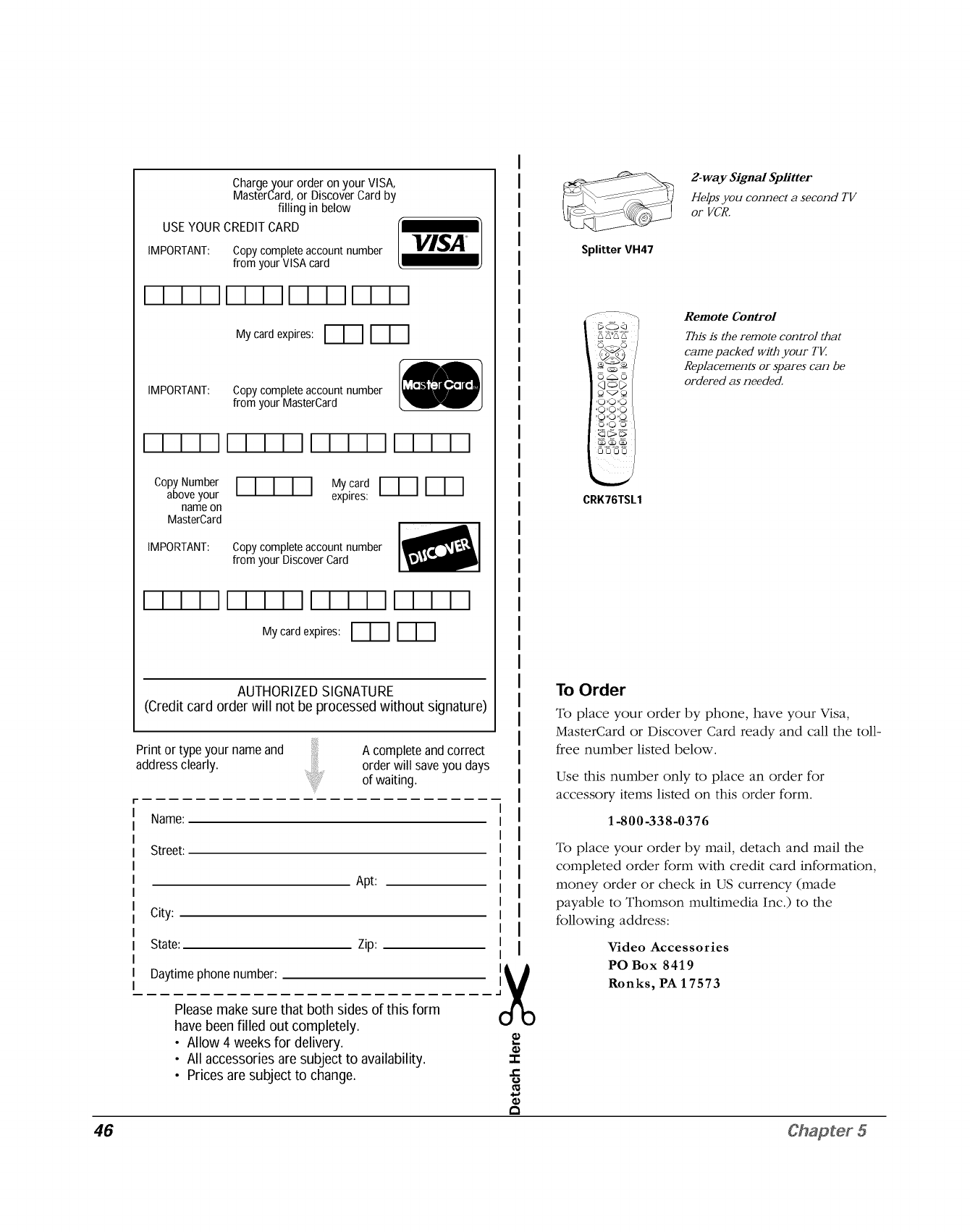

Accessories ...................................................................................................................... 45

Index ................................................................................................................................ 47

4

apt r

Chapter Overview:

•Things to Consider Before You Connect

•Choose Your Connection

•Connections

•Plug in theTV

•Put Batteries in the Remote Control

•Turn on theTV

•Initial Setup

Changing Entertainment.

Graphics used within this publication are for representation only. 5

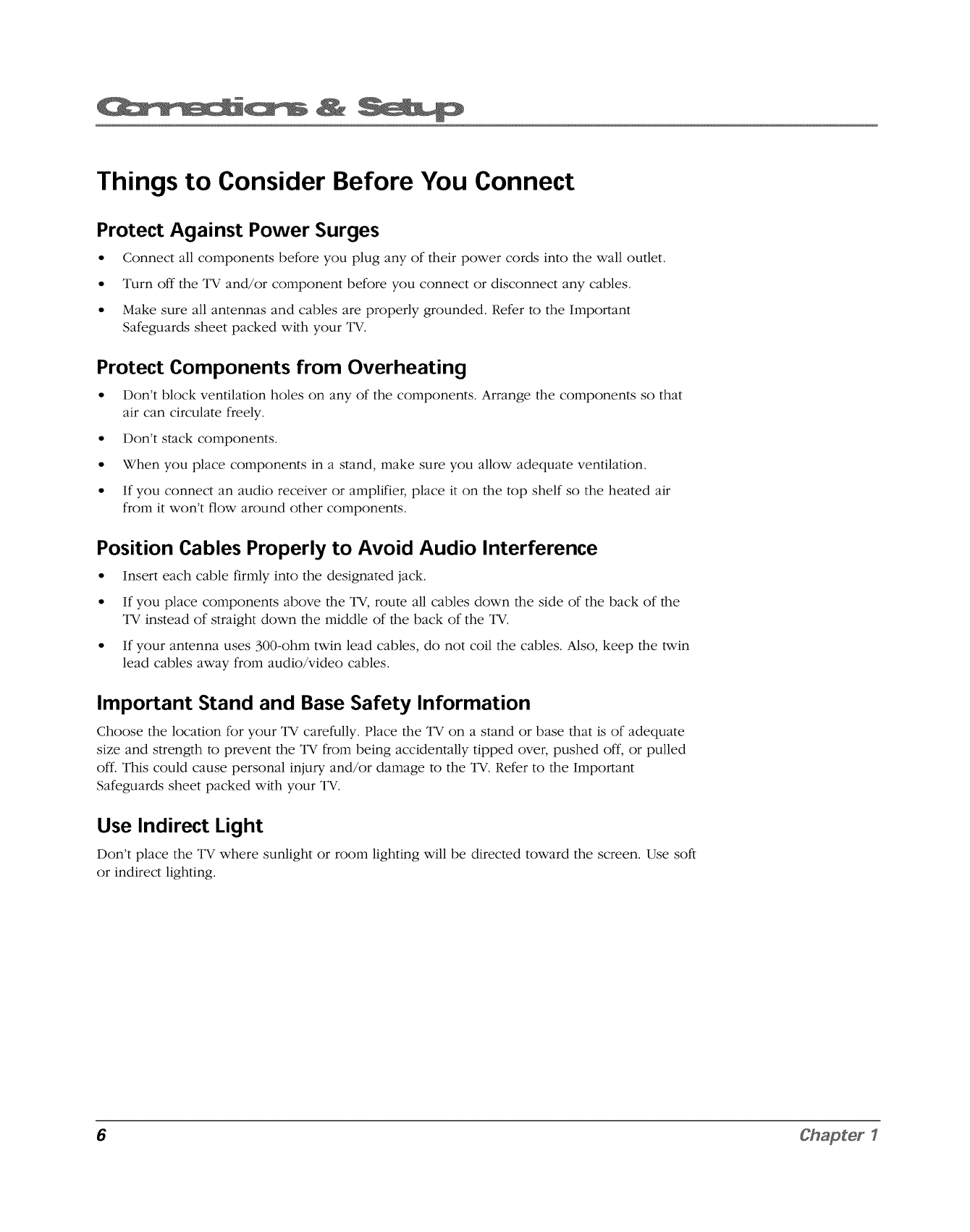

Things to Consider Before You Connect

Protect Against Power Surges

•Connect all components before you plug any of their power cords into the wall outlet.

• Turn off"the TV and/or component before you connect or disconnect any cables.

• Make sure all antennas and cables are properly grounded. Refer to the Important

Safeguards sheet packed with your TV.

Protect Components from Overheating

• Don't block ventilation holes on any of the components. Arrange the components so that

air can circulate freely.

• Don't stack components.

• When you place components in a stand, make sure you allow adequate ventilation.

• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air

from it won't flow around other components.

Position Cables Properly to Avoid Audio Interference

• Insert each cable firmly into the designated jack.

• If you place components above the TV, route all cables down the side of the back of the

TV instead of straight down the middle of the back of the TV.

• If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin

lead cables away from audio/video cables.

Important Stand and Base Safety Information

Choose the location for your TV carefully. Place the TV on a stand or base that is of adequate

size and strength to prevent the TV from being accidentally tipped over, pushed off', or pulled

off'. This could cause personal injury and/or damage to the TV. Refer to the Important

Safeguards sheet packed with your TV.

Use Indirect Light

Don't place the TV where sunlight or room lighting will be directed toward the screen. -Use soft

or indirect lighting.

6Chapter 1

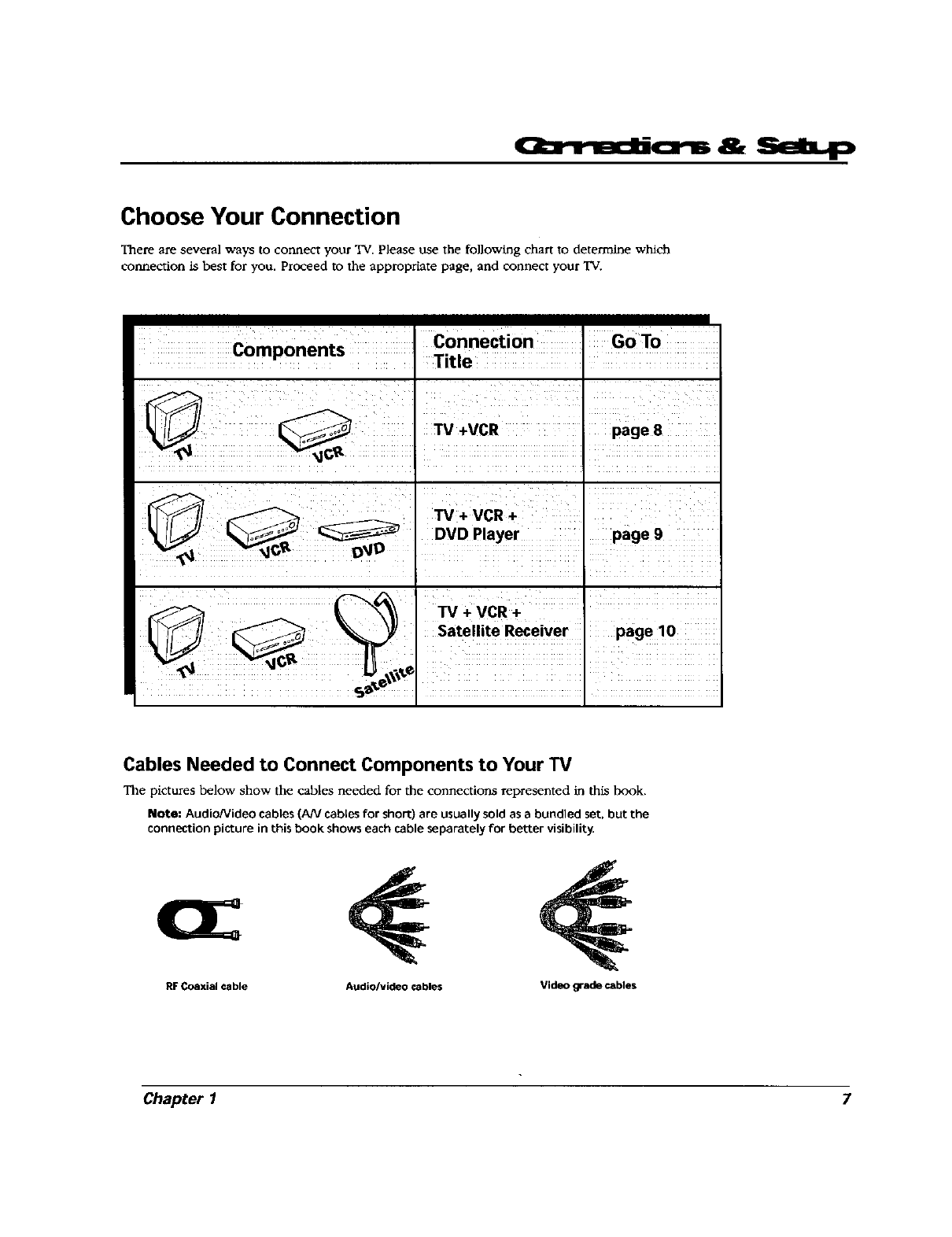

Choose Your Connection

There are several ways to connect your TV. Please use the following chart to determine which

connection is best for you. Proceed to the appropriate page, and connect your TV.

I

.I

Cables Needed to Connect Components to Your TV

The pictures below show the cables needed for the connections represented in this book.

Note: AudioNideo cables (AN cables for short) are usually sold as a bundled set, but the

connection picture in this book shows each cable separately for better visibility.

RFCoaxialcable Audio/video cables Video gradecables

Chapter 1 7

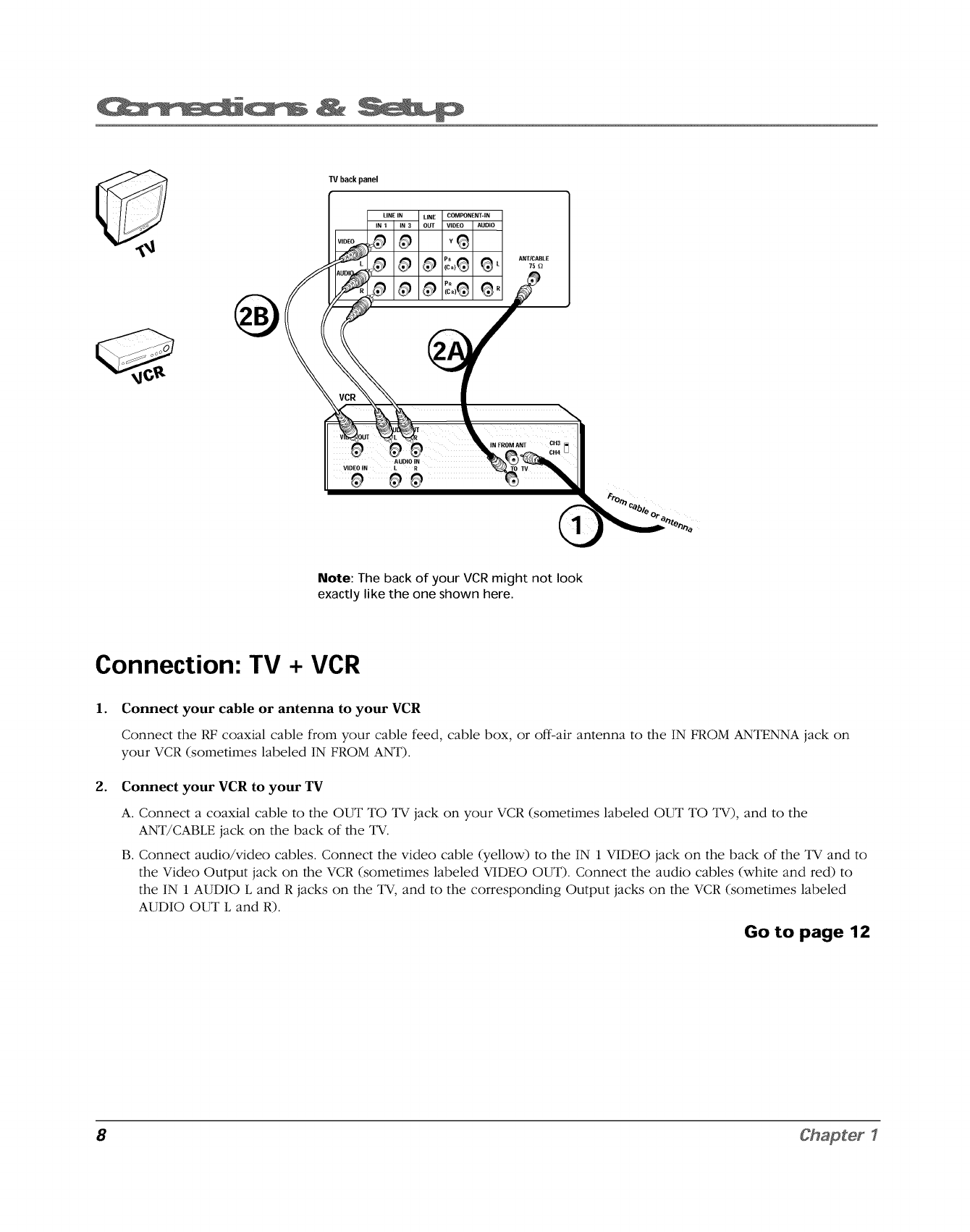

TVback panel

LINE IN LINE COMPONENT-IN

tN 3 OUT VIDEO AUDIO

AN_CABLE

75

iN FROM ANT CN3

AUDIO tN

VIDEO IN L R

Note: The back of your VCR might not look

exactly like the one shown here.

Connection: TV + VCR

°Connect your cable or antenna to your VCR

Connect the RF coaxial cable from your cable feed, cable box, or off-air antenna to the IN FROM ANTENNA jack on

your VCR (sometimes labeled IN FROM ANT).

2. Connect your VCR to your TV

A. Connect a coaxial cable to the OUT TO TV jack on your VCR (sometimes labeled OUT TO TV), and to the

ANT/CABLE jack on the back of the TV.

B. Connect audio/video cables. Connect the video cable (yellow) to the IN 1 VIDEO jack on the back of the TV and to

the Video Output jack on the VCR (sometimes labeled VIDEO OUT). Connect the audio cables (white and red) to

the IN 1 AUDIO L and R jacks on the TV, and to the corresponding Output jacks on the VCR (sometimes labeled

AUDIO OUT L and R).

Go to page 12

8Chapter 1

AUDIO OUT S-VIDEO

DVD Player

.... 0_ _ VIDEO OUTPUT (_

p_ P_

Note: The back of your DVD

player might not look exactly

like the one shown here,

W back panel

VCR Note: The back of your VCR

might not look exactly like the

one shown here,

Connection: TV +VCR +DVD Player

1. Connect your DVD Player to your TV

Note: if your DVD Player doesn't have Componentjacks, useaudio/video cables to connect the DVD Player to the TV's

AUDIO L and R and VIDEOjacks.

A. Connect three video grade cables to the COMPONENT-IN VIDEO jacks on the back of the TV- labeled

Y, PB (C_), PR(CR)'

B. Connect the other ends of the video cables to the corresponding Component Output Jacks on your DVD Player

(sometimes labeled Y, Pb, P_)'

C. Connect audio cables to the COMPONENT-IN jacks labeled AUDIO L and R and to the Audio Output jacks on the

DVD Player (sometimes labeled AUDIO OUT L and R).

2. Connect your VCR to your TV

,

A. Connect a coaxial cable to the OUT TO TV jack on your VCR (sometimes labeled OUT TO TV), and to the

ANT/CABLE jack on the back of the TV.

B. Connect audio/video cables. Connect the video cable (yellow) to the IN 1 VIDEO jack on the back of the TV and to

the Video Output jack on the VCR (sometimes labeled VIDEO OUT). Connect the audio cables (white and red) to the

IN 1 AUDIO L and R jacks on the TV, and to the corresponding Output jacks on the VCR (sometimes labeled AUDIO

OUT L and R).

Connect your cable or antenna to your VCR

Connect the RF coaxial cable from your cable feed, cable box, or off-air antenna to the IN FROM ANTENNA jack on

your VCR (sometimes labeled IN FROM ANT).

Go to page 12

Chapter 1 9

TVback panel

__ LINE COMPONENT-IN

OUT VIDEO AUDIO

VCR

ANT. IN

RF OUT

Satellitereceiver

panel

Fromantenna orcable

Fromsatellite

Note: The back of your VCR and satellite receiver might not

look exactly like the ones shown here,

10 Chapter 1

Connection: TV + VCR + Satellite Receiver

1. Connect your satellite receiver to your VCR

A. Connect the audio/video cables. Connect the audio cables (white and red) to the Audio Input

jacks on the VCR (sometimes labeled AUDIO IN L and R) and to the Audio Output Jacks on

the satellite receiver (sometimes labeled OUT L and R).

B. Connect the video cable (yellow) to the Video Input jack on the VCR (sometimes labeled

VIDEO IN) and to the Video Output Jack on the satellite receiver (sometimes labeled VIDEO

OUT).

C. Connect a coaxial cable from the satellite receiver's OUT TO TV jack and to the Antenna Input

jack on the VCR (sometimes labeled ANT IN).

2. Connect coaxial cables to the satellite receiver

A. Connect the coaxial cable from your cable feed or antenna to the Input Jack on your satellite

receiver (sometimes labeled IN FROM ANT).

B. If it's not already connected, make sure you connect the coaxial cable from your satellite dish

antenna to the Input Jack on your satellite receiver (sometimes labeled SATELLITE IN).

3. Connect your VCR to your TV

A. Connect a coaxial cable to the Output Jack (sometimes labeled RF OUT) on the VCR and to

ANT/CABLE jack on the TV.

B. Connect audio/video cables. Connect audio cables to the Audio Output jacks on the VCR, and

to the IN 1 AUDIO L and R jacks on the TV. Connect the video cable (yellow) to the Video

Output jack on the VCR, and to the IN 1 VIDEO jack on the TV.

Go to page 12

Chapter 1 11

Plug in the TV

Plug the end of the power cord into the wall outlet. Match the wide blade of the plug with the

wide slot in the outlet. Insert the plug completely into the outlet.

Put Batteries in the Remote

1. Remove the battery compartment cover on the remote.

2. Insert new batteries. Match the polarities (+ and -) on the batteries with the

diagram on the remote.

3. Put the battery compartment cover back on the remote.

/

ON, OFFbutton

Arrow buttons

(up, down, left,

right), and the

OK button

How to Use the Remote Control to

Complete the Interactive Setup

The technical term is called "navigation" - how you move through the on-screen

menus. The theory is the same throughout the menu screens: highlight your

choice and select it.

To highlight or point to an item on the screen, press the arrow buttons on the

remote (you'll notice the circle moves). Use the up or down arrow button to

move up or down respectively. Use the left or right arrow buttons to move left

or right respectively.

To select an item you've highlighted (i.e., it has the circle next to it), press the

OK button.

Turn on the TV

To turn on the TV, press the ON-OFF button on the remote or the

POWER on the front of the TV (the POWER indicator on the front of the TV

lights).

12 Chapter 1

Initial Setup

The first time you turn on your TV, you'll be asked to set a few menu screens so that your TV will set up correctly.

Complete the following steps to set up your TV. The other options in the SET UP menu are explained in Chapter 4.

SELECT LANGUAGE

OENGL!SW

ESPANOL

VRANCAIS

NEXT

,[A,v] to move cursor

,[OK] to set

SELECT LANGUAGE

ENGLISH

ESPANOL

FRANCAIS

ONEXT

,[A,,] to move cursor

,[OK] to set

Select a Language

The first time you turn on the TV, the SELECT LANGUAGE menu appears on the

screen. If you want the on-screen menus to appear in English, press the OK

button on the remote control. If you want the on-screen menus to appear in a

different language, follow these steps.

1. Press the down arrow on the remote to highlight ESPANOL (Spanish) or

FRANCAIS (French).

2. Press OK to select the language.

3. Press the down arrow button to highlight NEXT, and press OK (a menu

appears asking you if you want to STARTAUTOPRESET.%

Note: If you need to change the language later, you can access this menu

from the Main menu - go to page 34 for instructions,

CONNECT ANTENNA OR CABLE

START AUTO PRESET?

YES:OK

NO :MENU

PLEASE WAIT

AUTO PROGRAMMING

69

STOP:MENU

Auto Preset (Automatically Searching for Channels)

Auto Preset enables the TV to search for all of the channels that are viewable

through your cable TV connection or off-air antenna.

1. If you've connected your antenna or cable, press the OK button on the

remote (auto programming starts).

Note: If you want to stop the auto programming, press MENU.

When the search is complete the TV will automatically tune to the first channel

in the channel list.

Chapter 1 13

MAIN MENU

TIMER

VIDEO ADJUST

COMPONENT ADJ.

AUDIO ADJUST

CLOSED CAPTION

PARENT CONTROL

LANGUAGE

ENERGY SAVE

eSET UP

,[A v] to move cursor

, OK to set

SET UP

UNIVERSAL PLUS

BLUE SCREEN

AUTO PRESET

CABLE

CE SEARCH

OCE MEMORY

RETURN

,[A ,] to move cursor

, OK to set

Add or Erase Channels

You might want to add or erase some channels if they're inactive, have weak

signals, or you don't want them in your channel list. The channel list is the list

of channels that the TV tunes to when you press the channel up and/or channel

down buttons.

Note: Even if you erase a channel, you can still tune to it by pressing the

number buttons on the remote control,

1. Press MENU on the remote (the main MENUappears).

2. Press down arrow button to highlight SET UP,

3. Press OK (the SET UP menu appears).

4. Press the down arrow button to highlight CHMEMORY

5. Press OK (the CH MEMORY menu appears).

CE MEMORY

AIR 12

[CE +/-,0~9]to select

[_] to ADD

.Follow the on-screen directions to ADD or ERASE a channel (press CH+

and/or CH -, or the number buttons to make different channel numbers

appear).

• To add the channel that's shown on the screen to the TV's channel

memory, press the right arrow button.

CH MEMORY

AIR 12

'[CH +/-,0~9]to select

,[4] to ERASE

•To erase the channel listed on the screen, press the left arrow button.

7. To exit, press MENU.

14 Chapter 1

apt r

Chapter Overview:

•The buttons on the remote control

•Programming the remote to operate other components

•How to use the remote after you've programmed it

•How to order a new remote control

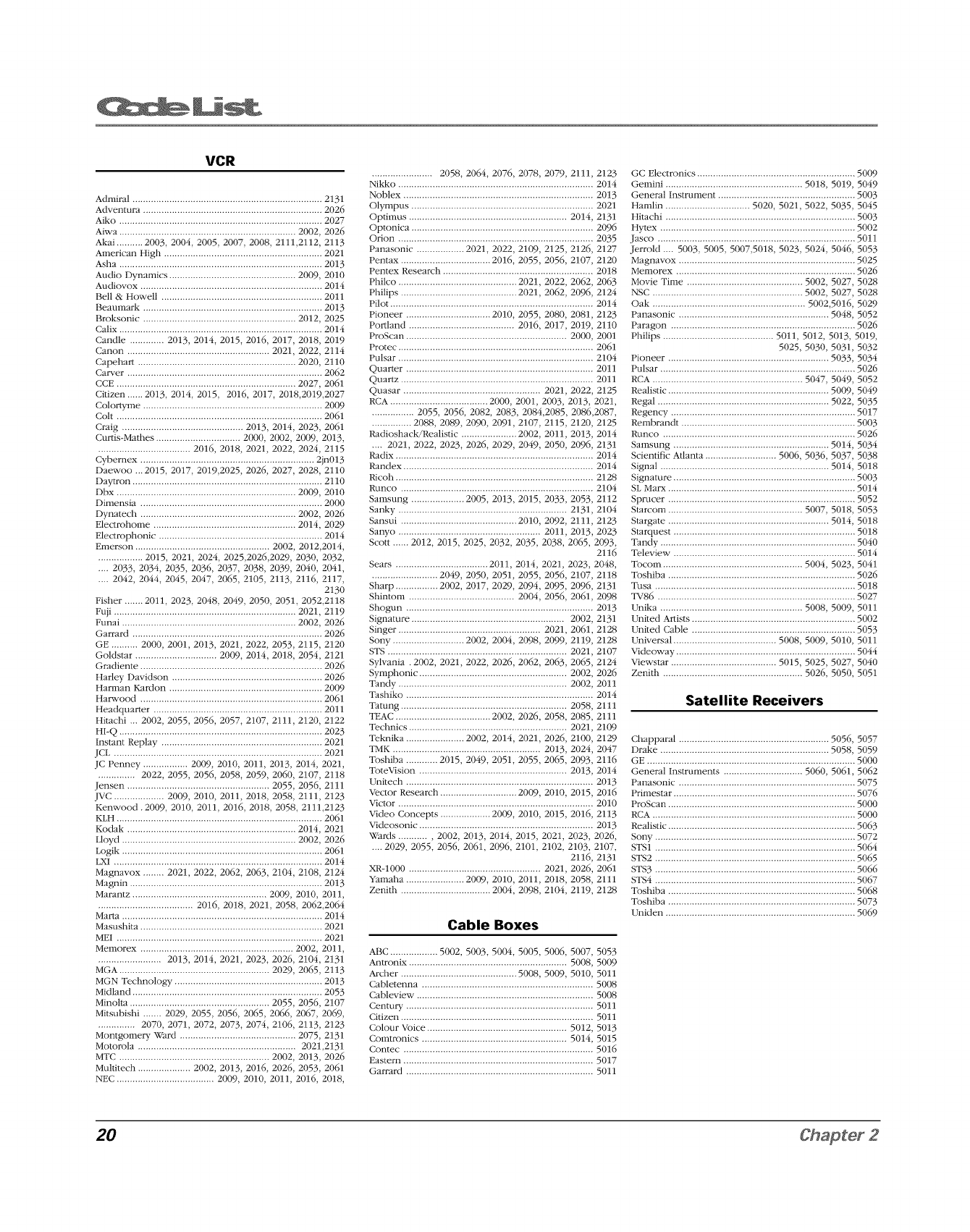

°Code list

Changing Entertainment. Again.

Graphics used within this publication are for representation only. 15

DVD VCR2 AUX SAT'CABLE

MUTE SKIP

'Q

GUIDE INFO

,030

'0°0 0

INPUT ANTENNA

PLAY FORWARD

RECORD STOP PAUSE

The Buttons on the Remote Control

Your backlit remote has a light button that glows in the dark. Press this

button to light the channel up and channel down (CH +/-) and volume up

and down (VOL </>)buttons. If you don't press any buttons for several

seconds, the light turns off"to conserve battery power.

0-9 (Number buttons) Enter channel numbers directly through the remote.

To enter a 2-digit channel, press the two digits. To enter a 3-digit channel,

press and hold the first digit until two dashes appear on the screen (to the

right of the first number), then add the next two digits. Example: to tune to

channel 123, press and hold 1 until 1-- appears, press 2, then press 3.

ANTENNA Functions as TV/VCR button in VCR mode and TV/receiver

button in SAT-CABLE mode.

Arrow buttons (up, down, right, and left)

move through the on-screen menus.

AUX button Puts the remote in AUX mode.

Press the arrow buttons to

CH (+ and -) buttons Scan up or down through stored channels. Press

once to change the channel up or down; press and hold to continue changing

channels. The remote must be in TV mode.

CH CTRL (Channel Control) Selects the picture window (main window or

PIP window) that changes when you press the channel up or channel down

button or the INPUT button.

CLEAR button Resets the time counter.

DVD button Puts the remote in DVD mode. Operates RCA, GE, and

Proscan DVD Players.

FORWARD (fast forward) button Fast forwards a tape or disc, if you've

programmed the remote to operate a VCR or DVD Player and you put the

remote in the VCR or DVD mode.

GUIDE If this remote control operates a satellite receiver (most RCA, GE, and

Proscan models), press GUIDE to see listings from your satellite service

provider.

GO BACK button Returns you to the previous channel.

INFO button Displays TV/VCR's current status. Displays time counter when

a tape is inserted. Press again to remove display.

16 Chapter 2

INPUT button Repeatedly press to select the TV tuner, or line inputs (LINE ifor the rear LINE IN/

IN1 jacks, LINE 3 for the rear LINE IN/IN3 jacks, LINE 2 for the front VIDEO, L/MONO, R jacks or

COMPONENT for the COMPONENT jacks).

L.E.D. (light-emitting diode) The little light on the remote that lights when you are programming the

remote. It also lights when you press a valid button on the remote.

MENU button Displays the TV/VCR's main MENU.

MUTE button Lowers the TV volume to its minimum level and automatically turns on closed-

captioning. Press again to restore w)lume and turn off"closed-captioning.

ON, OFF button Turns the TV on and off'. If the remote is in another component mode (VCR, DVD,

SAT-CABLE, etc.) and has been programmed to operate other components, press the ON-OFF button

to turn that component on and off'.

PAUSE button Pauses a tape or disc during playback, if you've programmed the remote to operate

a VCR or DVD Player and you put the remote in the VCR or DVD mode.

PIP (Picture-In-Picture) Brings up the small Picture-In-Picture window. Press again to remove the

PIP window.

PLAY button Plays a tape or disc, if you've programmed the remote to operate a VCR or DVD

Player and you put the remote in the VCR or DVD mode.

RECORD button Starts VCR recording if you've programmed the remote to operate your VCR and

you put the remote in VCR mode.

RESET Returns the TV's settings to default settings.

REVERSE button Rewinds a tape or disc, if you've programmed the remote to operate a VCR or

DVD Player and you put the remote in the VCR or DVD mode.

SAT, CABLE button Puts remote in cable or satellite mode.

SKIP button Press once before changing channels and the TV will wait 30 seconds before returning

you to the original channel. Press repeatedly to add more time.

SOUND button Press to select stereo, SAP, or mono audio.

STOP button Stops the following playback functions: record, play, rewind, fast forward, and

pause - if you've programmed the remote to operate a VCR or DVD Player and you put the remote in

the VCR or DVD mode.

SWAP Used with PIP -- switches between the main picture and the picture in the PIP window.

TV button Turns on the TV and puts remote in TV mode.

VCR1 Puts the remote in VCR mode, if you've programmed the remote to operate a VCR. Operate

most RCA, GE, and Proscan VCRs.

VCR2 Puts the remote in VCR mode, if you've programmed the remote to operate a VCR.

VOL (< and >) buttons Decrease or increase the TV volume.

Chapter 2 17

ovD vc_z AuxSa_C_BLE

&&°&&

You'll use these buttons when you program

the remote to operate another component.

The remote may not operate all models of

all brands.

Programming the Remote to Operate

Other Components

The universal remote control can be programmed to operate most brands of

remote controllable VCRs, satellite receivers and cable boxes. The remote is

already programmed to operate most RCA, GE and Proscan TVs, VCRs, DVD

players, laserdisc players and satellite receivers.

Find Out If You Need to Program the Remote

To determine whether the universal remote needs to be programmed, turn a

component ON, such as a VCR, point the remote at the VCR, and press the

VCR1 button. Then press ON-OFF or channel up or channel down to see if

the VCR responds to the remote commands. If not, the remote needs to be

programmed.

How to Program the Remote

There are two ways to program the remote control: automatic code search and

direct entry. Instructions for both ways follow.

Tostop the automatic codesearchwithout

programming anycomponents,pressand hold CLEAR

until the light on the remote turns off.

Using Automatic Code Search

1. Turn on the component you want the remote to operate (VCR, satellite

receiver, etc.).

2.

.

.

Press and hold the component button on the remote control that

corresponds to the component you want the remote to operate (VCR1,

VCR2, etc.). While you hold down the component button, press and hold

ON-OFF (when the red light on the remote turns on, release both buttons).

Press PLAY (the red light on the remote, located below the ON-OFF button,

starts flashing).

The remote is searching the first set of component codes (there are 20 sets

of codes). If the component you want to operate doesn't turn off"

automatically after 5 seconds, press PLAY again (the red light starts flashing

again as the remote searches through the next set of codes).

Continue pressing PLAY until the component turns off.

]Vote: I£ the component doesn't turn o!_£after you've pressed the PLAY

button 20 times, the component can't be progTammed,

Press REVERSE, wait 2 seconds. Repeat this step until the component turns

back on.

5. To finish, press and hold the STOP button until the red light on the remote

turns off'.

18 Chapter 2

Using Direct Entry

1. Turn on the component you want the remote to operate.

2. Look up the brand and code number(s) for the component on the code list on page 20.

3. Press and hold component button that corresponds to the component you want the remote

to operate (VCR1, VCR2, etc.)

4. Enter the code from the code list on page 20.

5. Release the component button.

6. Press ON*OFF to see if the component responds to the remote commands. If it doesn't, try

pressing the component button and then ON*OFF again.

7. If you get no response, repeat these steps using the next code listed for your brand, until

the component responds to the remote commands.

How to Use the Remote After You've

Programmed It

Once the remote has been programmed successfully, you are ready to use it to control your

components. To operate the component:

1. Press the component button (VCR1, VCR2, DVD, AUX, or SAT*CABLE) to set the remote to

control the component.

2. Press ON*OFF to turn the component ON or OFF.

3. -Use the remote buttons that apply to that component.

Notes:

•If you keep pressing buttons and nothing happens, the remote is probably in the

wrong mode. You must press the component button that matches the component you

want to operate (i.e., if you want to operate the VCR, press VCR1 on the remote

control to put the remote in VCR mode.)

° The buttons might operate differently for other components, especially when you're

using another component's menu system.

How to Order A New Remote Control

To order a new remote control or other accessories to use with your TV, go to Accessory

information in Chapter 5.

Chapter 2 19

VCR

Admiral ........................................................................ 2131

Adventura .................................................................... 2026

Aikn ............................................................................. 2027

Aiwa ................................................................... 2002, 2026

Akai .......... 2003, 2004, 2005, 2007, 2008, 2111,2112, 2113

American High ............................................................ 2021

Asha ............................................................................. 2013

Audio Dynamics ................................................ 2009, 2010

Audiovox ..................................................................... 2014

Bell & Howell ............................................................. 2011

Beaumark .................................................................... 2013

Broksonic .......................................................... 2012, 2025

Calix ............................................................................. 2014

Candle ............. 2013, 2014, 2015, 2016, 2017, 2018, 2019

Canon ...................................................... 2021, 2022, 2114

Capehart ............................................................ 2020, 2110

Carver .......................................................................... 2062

CCE .................................................................... 2027, 2061

Citizen ...... 2013, 2014, 2015, 2016, 2017, 2018,2019,2027

Cnlnrtyme .................................................................... 2009

Colt .............................................................................. 2061

Craig .............................................. 2013, 2014, 2023, 2061

Curtis_Mathes ................................ 2000, 2002, 2009, 2013,

................................... 2016, 2018, 2021, 2022, 2024, 2115

Cybernex .................................................................. 2jn013

Daewoo ...2015, 2017, 2019,2025, 2026, 2027, 2028, 2110

Daytron ........................................................................ 2110

Dbx .................................................................... 2009, 2010

Dimensia ..................................................................... 2000

Dynatech ........................................................... 2002, 2026

Electrohome ...................................................... 2014, 2029

Electrophonic .............................................................. 2014

Emerson ................................................... 2002, 2012,2014,

................. 2015, 2021, 2024, 2025,2026,2029, 2030, 2032,

.... 2033, 2034, 2035, 2036, 2037, 2038, 2039, 2040, 2041,

.... 2042, 2044, 2045, 2047, 2065, 2105, 2113, 2116, 2117,

2130

Fisher ....... 2011, 2023, 2048, 2049, 2050, 2051, 2052,2118

Fuji ..................................................................... 2021, 2119

Funai .................................................................. 2002, 2026

Garrard ........................................................................ 2026

GE .......... 2000, 2001, 2013, 2021, 2022, 2053, 2115, 2120

Goldstar ............................... 2009, 2014, 2018, 2054, 2121

Gradiente ..................................................................... 2026

Harley Davidson ......................................................... 2026

Harman Kardon .......................................................... 2009

Harwood ..................................................................... 2061

Headquarter ................................................................ 2011

Hitachi ... 2002, 2055, 2056, 2057, 2107, 2111, 2120, 2122

HI-Q ............................................................................. 2023

Instant Replay ............................................................. 2021

JCL ............................................................................... 2021

JC Penney ................. 2009, 2010, 2011, 2013, 2014, 2021,

.............. 2022, 2055, 2056, 2058, 2059, 2060, 2107, 2118

Jensen ...................................................... 2055, 2056, 2111

JVC ................... 2009, 2010, 2011, 2018, 2058, 2111, 2123

Kenwood. 2009, 2010, 2011, 2016, 2018, 2058, 2111,2123

KLH .............................................................................. 2061

Kodak ................................................................ 2014, 2021

Lloyd .................................................................. 2002, 2026

Logik ............................................................................ 2061

LXI ............................................................................... 2014

Magnaw)x ........ 2021, 2022, 2062, 2063, 2104, 2108, 2124

Magnin ......................................................................... 2013

Marantz ................................................... 2009, 2010, 2011,

.................................... 2016, 2018, 2021, 2058, 2062,2064

Marta ............................................................................ 2014

Masushita ..................................................................... 2021

MEI .............................................................................. 2021

Memorex .......................................................... 2002, 2011,

........................ 2013, 2014, 2021, 2023, 2026, 2104, 2131

MGA ......................................................... 2029, 2065, 2113

MGN Technology ........................................................ 2013

Midland ........................................................................ 2053

Minolta ..................................................... 2055, 2056, 2107

Mitsubishi ....... 2029, 2055, 2056, 2065, 2066, 2067, 2069,

.............. 2070, 2071, 2072, 2073, 2074, 2106, 2113, 2123

Montgomery Ward ............................................ 2075, 2131

Motorola ............................................................ 2021,2131

MTC ......................................................... 2002, 2013, 2026

Multitech .................... 2002, 2013, 2016, 2026, 2053, 2061

NEC ..................................... 2009, 2010, 2011, 2016, 2018,

....................... 2058, 2064, 2076, 2078, 2079, 2111, 2123

Nikko .......................................................................... 2014

Noblex ........................................................................ 2013

Olympus ..................................................................... 2021

Optimus ............................................................ 2014, 2131

Optonica ..................................................................... 2096

Orion .......................................................................... 2035

Panasonic .................. 2021, 2022, 2109, 2125, 2126, 2127

Pentax .................................. 2016, 2055, 2056, 2107, 2120

Pentex Research ......................................................... 2018

Philco ............................................. 2021, 2022, 2062, 2063

Philips ............................................ 2021, 2062, 2096, 2124

Pilot ............................................................................. 2014

Pioneer ................................ 2010, 2055, 2080, 2081, 2123

Portland ........................................ 2016, 2017, 2019, 2110

ProScan ............................................................. 2000, 2001

Protec .......................................................................... 2061

Pulsar .......................................................................... 2104

Quarter ....................................................................... 2011

Quartz ......................................................................... 2011

Quasar .................................................... 2021, 2022, 2125

RCA ..................................... 2000, 2001, 2003, 2013, 2021,

................ 2055, 2056, 2082, 2083, 2084,2085, 2086,2087,

............... 2088, 2089, 2090, 2091, 2107, 2115, 2120, 2125

Radioshack/Realistic ..................... 2002, 2011, 2013, 2014

.... 2021, 2022, 2023, 2026, 2029, 2049, 2050, 2096, 2131

Radix ........................................................................... 2014

Randex ........................................................................ 2014

Ricoh ........................................................................... 2128

Runco ......................................................................... 2104

Sanzsung .................... 2005, 2013, 2015, 2033, 2053, 2112

Sanky ................................................................ 2131, 2104

Sansui ............................................ 2010, 2092, 2111, 2123

Sanyo ...................................................... 2011, 2013, 2023

Scott ...... 2012, 2015, 2025, 2032, 2035, 2038, 2065, 2093,

2116

Sears ................................... 2011, 2014, 2021, 2023, 2048,

......................... 2049, 2050, 2051, 2055, 2056, 2107, 2118

Sharp ................ 2002, 2017, 2029, 2094, 2095, 2096, 2131

Shintom ........................................ 2004, 2056, 2061, 2098

Shogun ....................................................................... 2013

Signature .......................................................... 2002, 2131

Singer ...................................................... 2021, 2061, 2128

Sony ........................... 2002, 2004, 2098, 2099, 2119, 2128

STS .................................................................... 2021, 2107

Sylvania , 2002, 2021, 2022, 2026, 2062, 2063, 2065, 2124

Symphonic ........................................................ 2002, 2026

Tandy ................................................................ 2002, 2011

Tashiko ....................................................................... 2014

Tatung ............................................................... 2058, 2111

TEAC .................................... 2002, 2026, 2058, 2085, 2111

Technics ............................................................ 2021, 2109

Teknika ...................... 2002, 2014, 2021, 2026, 2100, 2129

TMK ........................................................ 2013, 2024, 2047

Toshiba ............ 2015, 2049, 2051, 2055, 2065, 2093, 2116

ToteVision ........................................................ 2013, 2014

Unitech ....................................................................... 2013

Vector Research ............................. 2009, 2010, 2015, 2016

Victor .......................................................................... 2010

Video Concepts ................... 2009, 2010, 2015, 2016, 2113

Videosonic .................................................................. 2013

Wards ........... ,2002, 2013, 2014, 2015, 2021, 2023, 2026,

.... 2029, 2055, 2056, 2061, 2096, 2101, 2102, 2103, 2107,

2116, 2131

XRq000 .................................................. 2021, 2026, 2061

Yamaha ...................... 2009, 2010, 2011, 2018, 2058, 2111

Zenith .................................. 2004, 2098, 2104, 2119, 2128

Cable Boxes

ABC .................. 5002, 5003, 5004, 5005, 5006, 5007, 5053

Antronix ............................................................ 5008, 5009

Archer ............................................ 5008, 5009, 5010, 5011

Cabletenna ................................................................. 5008

Cableview ................................................................... 5008

Century ....................................................................... 5011

Citizen ......................................................................... 5011

Colour Voice ..................................................... 5012, 5013

Comtronics ....................................................... 5014, 5015

Contec ........................................................................ 5016

Eastern ........................................................................ 5017

Garrard ....................................................................... 5011

GC Electronics ............................................................ 5009

Gemini .................................................... 5018, 5019, 5049

General Instrument .................................................... 5003

Hamlin ................................ 5020, 5021, 5022, 5035, 5045

Hitachi ........................................................................ 5003

Hytex .......................................................................... 5002

Jasco ........................................................................... 5011

Jerrold .... 5003, 5005, 5007,5018, 5023, 5024, 5046, 5053

Magnavox ................................................................... 5025

Memorex .................................................................... 5026

Movie Time ............................................ 5002, 5027, 5028

NSC ......................................................... 5002, 5027, 5028

Oak .......................................................... 5002,5016, 5029

Panasonic ......................................................... 5048, 5052

Paragon ...................................................................... 5026

Philips .......................................... 5011, 5012, 5013, 5019,

5025, 5030, 5031, 5032

Pioneer ............................................................. 5033, 5034

Pulsar .......................................................................... 5026

RCA ......................................................... 5047, 5049, 5052

Realistic ............................................................. 5009, 5049

Regal ................................................................. 5022, 5035

Regency ...................................................................... 5017

Rembrandt .................................................................. 5003

Runco ......................................................................... 5026

Samsung ........................................................... 5014, 5034

Scientific Atlanta ........................... 5006, 5036, 5037, 5038

Signal ................................................................ 5014, 5018

Signature ..................................................................... 5003

SL Marx ....................................................................... 5014

Sprucer ....................................................................... 5052

Starcom ................................................... 5007, 5018, 5053

Stargate ............................................................. 5014, 5018

Starquest ..................................................................... 5018

Tandy .......................................................................... 5040

Tdeview ..................................................................... 5014

Tocom ..................................................... 5004, 5023, 5041

Toshiba ....................................................................... 5026

Tusa ............................................................................ 5018

TV86 ........................................................................... 5027

Unika ...................................................... 5008, 5009, 5011

United Artists .............................................................. 5002

United Cable .............................................................. 5053

Universal ....................................... 5008, 5009, 5010, 5011

Videoway .................................................................... 5044

Viewstar ........................................ 5015, 5025, 5027, 5040

Zenith ..................................................... 5026, 5050, 5051

Satellite Receivers

Chapparal ......................................................... 5056, 5057

Drake ................................................................ 5058, 5059

GE ............................................................................... 5000

General Instruments .............................. 5060, 5061, 5062

Panasonic ................................................................... 5075

Primestar ..................................................................... 5076

ProScan ....................................................................... 5000

RCA ............................................................................. 5000

Realistic ....................................................................... 5063

Sony ............................................................................ 5072

STS1 ............................................................................ 5064

STS2 ............................................................................ 5065

STS3 ............................................................................ 5066

STS4 ............................................................................ 5067

Toshiba ....................................................................... 5068

Toshiba ....................................................................... 5073

Uniden ........................................................................ 5069

20 Chapter 2

C_apt_r

"r_iJ$

Chapter Overview:

•PIP (Picture-In-Picture)

•Parental Controls and V-Chip

Changing Entertainment. Again.

Oraphics used within this publication are for representation only. 21

The PIP (Picture-In-Picture) Feature

The PIP (Picture-In-Picture) feature lets you display a second, smaller picture on top of the

main picture.

SOUND _ GOt_ACK

GUIDE INFO

0

i©

'0'0'0

iO0 O !

RECORD STOP PAUSE

The main PIP buttons (PIP, OH

CTRL and SWAP) are at the

bottom of the remote control.

How To Use PIP

While you can use PIP in different ways, this basic PIP scenario should get you

started.

1. The TV must be on. Tune to the channel you want to watch.

2. Press the PIP button on the remote (the PIP picture appears with the same

picture in it as the main picture).

3. To change the picture in the PIP window, press the CH CTRL button on the

remote control and then press the channel up or down buttons.

4. To change the channel in the main picure, press CH CTRL again and then

press the channel up or down button on the remote control.

PIP Buttons: General Explanation

The buttons on the remote control that you'll use for the PIP feature are

explained below:

PIP Press the PIP button to make the PIP window appear on the screen. Press

PIP again to remove the window.

Right arrow button Moves the PIP window to different areas of the screen.

Press and hold or just press.

CH CTRL (channel control) Lets you switch channel control between the PIP

window and the main picture. To determine whether the remote control is the

PIP picture or the main picture, look at the TV screen: the channel with the

white circle next to it is the one you are controlling. Press CH CTRL to change

which picture you're controlling.

SWAP Switches, or "swaps," where the two pictures appear on the TV screen.

The smaller PIP picture swaps to the main screen and the main picture goes to

the little PIP window.

Note: Swap won't work if the remote is in the wrong mode. For example,

once you turn on the VCR with the VCR1 button, you can't SWAP the

pictures until you put the remote in TV mode. Just press the TV button.

22 Chapter 3

MAIN MENU

TIMER

VIDEO ADJUST

COMPONENT ADJ.

AUDIO ADJUST

CLOSED CAPTION

ePARENT CONTROL

LANGUAGE

ENERGY SAVE

SET UP

,[A,v] to move cursor

,[OK] to set

PARENT CONTROL

eV-CEIP BLOCK

RETURN

l_K[]t to...........set

Parent Controls and V-Chip

The PARENT CONTROL feature allows you to program your TV so that children

can't see certain programs or channels.

•MPAA menu allows you to block movies and TV programs according to the

MPAA (Motion Pictures Association of America) ratings system.

•TV GUIDELINES menu allows you to block TV programs based on age,

violence, sex, or other content you don't want your children to view.

You block and unblock programs by turning the V-Chip feature on or off in the

V-CHIP BLOCK menu, and using the password you create. Be sure to remember

your password.

By default, the software inside your TV is turned off, so if you don't want to use

this feature, you don't need to do anything.

V-CHIP BLOCK

e_PAA

V GUIDELINES

OPTION

SECRET No.1234

STATUS:ON

RETURN

[A,I] to move cursor

[OK] to set

How V-Chip Works

When the V-Chip software is activated (or turned on), it reads a code that most

broadcasters send with programs. That code tells the software the program's

age-based rating (TV-MA, TV-14, etc.) and content themes [(Violence (V), Adult

Language (L), etc.)]. If you have blocked the rating and/or content themes that

the program contains, a message will appear and the channel won't be

available for viewing.

Broadcasters aren't required to provide content themes, so programs that aren't

tagged with a content themes can only be blocked if you block their age-based

rating.

The TV age-based ratings and content themes and MPAA ratings are listed on

the following pages.

PLEASE WAIT

NOW DOWNLOADING

V-CEIP OPTION DATA

New Rating Systems

The TV allows you to download additional new rating systems. If you watch a

program with the new system, you can download the new V-Chip data for that

program.

23

Set the MPAA Rating Limits

The MPAA menu lets you decide which movies can and can't be viewed according to the age-based rating of the MPAA.

The TV locks and unlocks the parental control settings using a password you select.

If you only want your child to watch movies that have a PG rating and lower (in other words, movies rated PG and G),

then you could automatically block out all other movies with higher ratings.

MAIN MENU

VIDEO ADJUST

TIMER

COMPONENT ADJ.

AUDIO ADJUST

CLOSED CAPTION

OPARENT CONTROL

PARENT CONTROL

OV-CHIP BLOCK

RETURN

V-CHIP BLOCK

OMPAA

TV GUIDELINES

OPTION

SECRET No.1234

STATUS:ON

RETURN

'[A,W] to move cursor

,[OK] to set

1.

2.

.

Press MENU on the remote (the main MENU appears).

Press the up or down arrow until PARENT CONTROL is highlighted and

press OK (the PARENT CONTROL menu appears with V-CHIP BLOCK

highlighted).

Press OK (the V-CHIP BLOCK menu appears with MPAA highlighted). Press

OK (the MPAA menu appears).

Note: Be sure to remember your number, If you have entered a number

previously, enter that same number.

If you forget your secret number, press and hold the channel up and

channel down buttons on the front of the TV simultaneously until the

message INPUT SECRETNo. disappears.

MPAA

GELOCKO -13 :BLOCK

R :BLOCK

NC-17 :BLOCK

X :BLOCK

RETURN

,[A,v] to move cursor

,[<,_] to set

.

.

Use the up and down arrows to select the MPAA rating that you want to

block.

Press the right or left arrow button to change the setting (the setting goes

back and forth between BLOCK or not blocked -- not blocked is shown on

the screen as dashes ..... ).

Note: All higher ratings and contents will be automatically blocked.

6. Press MENU to exit.

Rating Description for MPAA Age-Based Ratings

X An Older Rating. Encoded on older movies. Same as NC-17.

RiRestricted. Under 17 requires accompanying parent or adult guardian.

PG-13 Parent Strongly Cautioned. Some material may be inappropriate for children under 13.

PG • Parental Guidance Suggested. Some material may not be suitable for children.

G • General Audience. All ages admitted.

24 Chapter 3

tlh l" $ I mtlx.artmB

Age-Based Description and Content Themes for Age-Based Ratings (TV Guidelines)

Rating

i

"13/MA Mature audience Only. Specifically designed to be viewed by adults and may be unsuitable for children

"under 17. It contains one or more of the following content themes: crude indecent language (L), explicit

sexual activity (S), or graphic violence (V).

IParents Strongly Cautioned. Contains some material that many parents would find unsuitable for children

1_-14 under 14. Parents are strongly urged to exercise greater care in monitoring this program and are cautioned

: against letting children under the age of 14 watch unattended• This program contains one or more of the

following content themes: intensely suggestive dialogue (De, strong coarse language (L), intense sexual

sltuataons (S), or intense v olence (V).

Pmretatal Guidance Suggested. Contains material that parents may find unsuitable for younger ch dren Mmly

TV-PG parents may want to watch it with their younger children. The program contains one or more of the following

content themes: some suggestive dialogue (De, infrequent coarse language (L), some sexual situations (S), or

' moderate violence (V).

TV-G I General Audien ce. Most parents would find this program suitable for all ages. It contains

•little or no sexual dialogue (De or situations (S), no strong language (L), and little

or no violence 0D.

Directed to Children 7 years and older Designed for children ages 7 and above, it may be more

TV-Y7 appropriate for children who have acquired the developmental skills needed to distinguish between make-

believe and reality. Themes and elements in this program may include mild fantasy violence (FV) or comedic

violence, or may frighten children under the age of 7.

I

"]_.y All Children. Themes and elements in this program are designed for a young audience, including children

from ages 2-6. It is not expected to l$igh en younger ch dren

Set the TV GUIDELINES Rating Limits

The TVGU1DELINESmenu lets you decide which TV programs can and can't be viewed

according to age and/or content. The TV iocks and unlocks the parental controls settings using a

password you select,

4.

Press MENU on the remote (the main MEN/Jappears).

Press the up or down arrow until PARENT CONTROL is highlighted and

press OK (the PARENT CONTROL menu appears with V-CHIp BLOCK

highlighted).

3. Press OK (the V-CH1PBLOCKmenu appears).

Note: Be sure to remember your numben If you have entered a number

previously, enter that same number.

If you forget your password, press and bold the channel up and channel

down buttons on the front of the TV simultaneously until the message

INPUT SECRETNo. disappears.

Press the down arrow button to highlight TV GUIDELINES and press OK

(the TV GUIDELINES menu appears).

Chapter 3 25

AGE

TV-Y

TV-Y7 .....

eTV-G :BLOCK

TV-PG :BLOCK

TV-14 :BLOCK

TV-MA :BLOCK

CONTENT

RETURN

.E,,_ t.....

, [_ _] to set

.

.

Press OK (the TV Guidelines appear -- the AGEmenu). Press the up or

down arrow buttons to highlight a TV rating.

Press the right or left arrow button to change the setting (the setting goes

back and forth between BLOCK or not blocked -- not blocked is shown

on the screen as dashes ..... ).

Note: All higher ratings and contents will be automatically blocked.

7. To exit, press the MENU button.

AGE

TV-Y

TV-Y7 .....

TV-G

TV-PG .....

TV-14 :BLOCK

ITV-MA :BLOCK

CONTENT

RETURN

.E,,_ t...........

, [< _] to set

CONTENT

D

OL BLOCK

S:BLOCK

V : .....

FV : .....

RETURN

A,v] o move cursor

<_] to set

Note: The illustration below shows the TV GUIDELINES menu with the

various fields described, To set Content rating limits, follow steps 1 -5 and

highlight Content and press OK, Use the up and down arrow buttons to

highlight different content categories (D, L, S, V, FV, TV-Y), Use the left or

right arrow buttons to switch back and forth between BLOCKand not

blocked -- not blocked is shown on the screen as dashes ( ..... ),

Content Themes

DSexuallyexplicit

dialogue

L Adult language

SSexualsituations

V Violence

FV FantasyViolence

TV-Y All Children

Rating Field

Lets you select from a list of age-

based ratings you can block or view.

AGE

TV-Y

TV-Y7

TV-G

TV-PG

OTV-14

TV-MA

CONTEN

RETURN

.[A,,] to

to move cursor

set

Rating Status Field

Shows you whether the status

of the age-based rating limit

to the left is blocked (BLOCK)

or not blocked (..... ).

26 Chapter 3

MAIN MENU

VIDEO ADJUST

TIMER

COMPONENT ADJ.

JAUDIO ADJUST

CLOSED CAPTION

JOPARENT CONTROL

PARENT CONTROL

OV-UHIP BLOCK

RETURN

V-CHIP BLOCK

MPAA

TV GUIDELINES

OOPTION

SECRET No.1234

STATUS:ON

RETURN

.'I_T_tot...........set

OPTION

ODOWNLOAD:ON

RETURN

'[A,V] to move cursor

,[4,_] to set

Download New Rating System

You can choose to download additional new rating systems. The new rating

systems will be automatically set according to the ratings you have previously

chosen.

1.

2.

.

4.

.

6.

Press MENU on the remote (the main MENU appears).

Press the up or down arrow until PARENT CONTROL is highlighted and

press OK (the PARENT CONTROL menu appears with V-CHIP BLOCK

highlighted).

Press OK (the V-CHIP BLOCK menu appears).

Press the down arrow button to highlight OPTION, and press OK (the

OPTION menu appears).

Note: Be sure to remember your number, If you have entered a number

previously, enter that same number.

If you forget your secret number, press and hold the channel up and

channel down buttons on the front of the TV simultaneously until the

message INPUT SECRETNo. disappears.

Since DOWNLOAD is highlighted, just press OK.

Press the left or right arrow button to change the setting back and forth

from OFF to ON

Note: If you watch a channel that uses the new system, PLEASE WAIT

NOW DOWNLOADING V-CHIP OPTION DATA wi II appear.

PLEASE WAIT

NOW DOWNLOADING

V-CHIP OPTION DATA

7. To exit, press MENU.

INPUT SECRET No.

INPUT SECRET No.

÷ ÷ ÷ ÷

,[0~9] to enter SECRET No.

Entering Your Secret Number

Your PaFe13tCOl'ltFO]Sare password-protected. To create your password (secret

number):

1.

2.

3.

Follow Steps 1-3 above to display the V-CHIP BLOCK menu.

Use the down arrow button to select SECRETNo. and press OK.

-Use the number buttons on the remote to enter a password.

Note: Be sure to remember your number. If you have entered a number

previously, enter that same number.

If you forget your secret number, press and hold the channel up and

channel down buttons on the front of the TV simultaneously until the

message INPUT SECRETNo. disappears.

27

MAIN MENU

TIMER

VIDEO ADJUST

COMPONENT ADJ.

AUDIO ADJUST

CLOSED CAPTION

IPARENT CONTROL

PARENT CONTROL

OV-CHIP BLOCK

RETURN

V-CHIP BLOCK

NPAA

TV GUIDELINES

OPTION

SECRET NO.1234

OSTATUS:ON

RETURN

,{A,v] to move cursor

,[_,_] to set

Turning V-Chip Block On and Off

If you don't turn on the V-Chip feature, none of the settings for V-

Chip Rating Limits will take effect.

1. Press MENU on the remote (the main MENU appears).

2. Press the up or down arrow until PARENT CONTROL is highlighted

and press OK (the PARENT CONTROL menu appears).

3. Press OK (the V-CHIPBLOCK menu appears).

4. Press the down arrow button to highlight STATUS,

5. Use the left or right arrow buttons to switch back and forth between

ONand OFF. INPUT SECRET No, appears each time you want to

change the status. -Use the number buttons to enter your number.

| SUE

V-CHIP HAS BEEN

ACTIVATED

THIS PROGRAM IS RATED TV-7

(MAIN PICTURE) EV

*PlP SCREEN IS DISABLED

12

AIR

25

,[MENU] to de-activate V-CHIP

,[CE +/-,0_9] to exit

STATUS ON V-CHIP HAS BEEN ACTIVATED will appear when

you tune to a channel with a rating you have blocked. When

this message appears, press the MENU button and enter the

secret number to temporarily cancel the V-Chip block.

STATUS OFF No channels will be blocked.

INPUT SECRET No.

,]0~9] to enter SECRET No.

6. To exit, press MENU.

28 Chapter 3

C apt r

Usir 0 '1"V$

Chapter Overview:

•How to Use Your TV's Menu System

•The TIMER Menu

•The VIDEO ADJUST Menu

•The COMPONENT ADJUST Menu

•The AUDIO ADJUST Menu

•The LANGUAGE Menu

•The CLOSED CAPTION Menu

•The LANGUAGE Menu

•The ENERGY SAVE Menu

•Some of the SET UP Menu items

Changing Entertainment. Again.

Graphics contained within this publication are for representational purposes. 29

How to Use Your TV's Menu System

The V-CHIP BLOCK menu was explained in Chapter 3, and most of the items in the SET UP menu

were explained in Chapter 1. This Chapter explains the rest of the menu system. Use the buttons on

the remote to access the menu system and make changes to the settings. To highlight or point to an

item on the screen, press the arrow buttons on the remote (you'll notice the circle moves to indicate

the item is highlighted). To select an item or activate a choice, press the OK button.

MAIN MENU

eTIMER

VIDEO ADJUST

COMPONENT ADJ.

AUDIO ADJUST

CLOSED CAPTION

PARENT CONTROL

LANGUAGE

ENERGY SAVE

SET UP

'[A,w] to move cursor

,[OK] to set

Accessing Menus

The first menu is called the MAINMENU. To bring up the MAINMENU, press

MENU on the remote.

The choices in the main menu take you to a sub-menu or screen that enables

you to change a setting. Press the up and down arrow buttons to highlight a

choice, and press OK to select the choice that's highlighted. Some menus

require you to press the left and/or right arrow buttons on the remote to

change settings.

Feelfree to explorethe menusystem. Theup and down

arrow buttons on the remote movethe white circleto

indicate that you've highlighted an item. TheOKbutton is

usedto selecta choiceyou've highlighted. Toexit the

menu system,pressMENU.

Exiting from a menu

There are two ways to exit a menu:

• Press MENU on the remote.

• Highlight RETURNon the screen, and press the OK button.

IMAIN MENU

OTIMER

VIDEO ADJUST

OnMDnN_NT A_J

TIMER

ISLEEP TIMER

ON TIMER

CLOCK SET

RETURN

tot...........sot

TIMER Menu

You must set the clock before you can use the ON TIMER or SLEEP TIMER,

CLOCK SET The TV has an automatic clock setting feature that

automatically sets the time from an EDS (Extended Data Service) channel

when the power is turned off'. If there is no EDS channel or the signal is

weak, the automatic clock setting may not function properly. You can turn

off"the automatic clock setting feature and enter the time and date

manually.

ON TIMER Lets you set the timer to turn the TV on automatically. You

can set it to wake you up in the morning or remind you that a favorite

program is about to start.

SLEEP TIMER Lets you select the amount of time you want to give the

TV before it shuts itself off'.

TIMER

SLEEP TIMER

ON TIMER

ICLOCK SET

RETURN

,[&,w] to move cursor

,[OK] to set

To set the clock.

1. From the MAIN MENU, select TIMER, Press the down arrow button to

select CLOCK SETand press OK (the CLOCK SETscreen appears).

30 Chapter 4

CLOCK SET

OAUTO CLOCK

ON

EDS CH AUTO

CLOCK SET

RETURN-:--

'[*,V] to move cursor

,[_,_] to set

CLOCK SET

AUTO CLOCK

OFF

EDS CH AUTO

OCLOCK SET

RETURN-:--

,[A v] to move cursor

, OK] to set

.

Automatic Clock Set Press the up or down arrow to select AUTO CLOCK

ON and press OK.

The indicator moves to EDS CH, If you know the EDS channel in your area,

use the left and right arrows to enter the number or select AUTOand

press OK.

Turn off the power. The clock is set automatically using the EDS signal. It

may take a few hours to set the clock.

Manual Clock Set Press the down arrow button to select CLOCKSET

and press OK (the hour field starts flashing).

Press the left or right arrow button on the remote to set the hour. Press OK

when finished (the minutes field starts flashing).

Press the left or right arrow button to set the minutes. Press OK when

you're finished.

Note: Set the AUTO CLOCKto OFFwhen you're setting the clock

manually,

Press MENU when you are finished.

TIMER

OSLEEP TIMER

ON TIME

CLOCK SET

RETURN

Av] to move cursor

OK to set

To

1.

2.

set the ON TIMER or SLEEP TIMER.

Display the MAIN MENU menu. Use the up or down arrow button on the

remote to select TIMER and press the OK button (the TIMER menu

appears).

Highlight SLEEP TIMER or ON TIMER.

SLEEP TIMER Press the left or right arrow button to select the number

of minutes (30M, 60M, 90M, or 120M) you want the TV to remain on. The

TV will automatically turn off"after the amount of time you have selected.

To cancel the SLEEP TIMER, follow the steps described, but press the left or

right arrow button on the remote until - - -REMAIN appears. You can also

cancel the sleep timer by turning the TV off"manually.

TIMER

SLEEP TIMER

eON TIMER

CLOCK SET

RETURN

,[A,v] to move cursor

,[OK] to set

ON TIMER When ON TIMER is highlighted on the ON TIMER menu

screen, press the OK button (the hour field starts flashing). Press the left or

right arrow buttons on the remote to select the hour, and press OK (the

field for the minutes starts flashing). Press the left or right arrow button to

set the minutes, and press OK.

Press the down arrow button to highlight STATUS, and press the left or right

arrow button to change the setting toON

To turn off the ON TIMER, highlight STATUSand select OFF.

If there is no other operation, the TV will turn off automatically after two

hours.

3. To exit, press MENU.

Chapter 4 31

VIDEO ADJUST Menu

The VIDEO ADJUSTmenu lets you adjust the way the picture looks on your TV. You also can reset all of

the video features to the factory presets.

VIDEO ADJUST

_PICTURE

TINT

COLOR

BRIGHT

SHARP

FAVORITE COLOR

FLESH TONE

NOISE EEDUCT.

RESET

RETURN

I_K[ ] tot ...........set

1.

2.

.

Press MENU (the MAIN MENU appears).

Press the arrow down button to highlight VIDEO ADJUST, and press OK (the

following choices appear).

Highlight the item you want to adjust, and press OK. You'll use the left and

right arrow buttons to make adjustments.

PICTURE Adjusts the difference between the light and dark areas of the

picture.

TINT Adjusts the balance between the red and green levels.

COLOR Adjusts the intensity of the color.

BRIGHT Adjusts the brightness of the picture.

SHARP Adjusts the sharpness of the picture.

FAVORITE COLOR Adjusts the color temperature (balance between

reddish whites and bluish whites).

FLESH TONE When it's turned ON, it adjusts skin tone to more natural

colors.

NOISE REDUCTION When it's ON, reduces overall video "noise."

RESETAll settings are changed to the presets used at the factory.

COMPONENT ADJ.

IPICTURE

TINT

COLOR

BRIGHT

SHARP

FAVORITE COLOR

NOISE REDUCT.

RESET

RETURN

,[A v] to move cursor

,OK to set

COMPONENT ADJUST Menu

Component video has better color resolution, purity, and resolution than the

other video inputs. This feature is most evident with newer digital video

equipment such as DVD Players.

Note: The COMPONENTADJ menu is only available when you're playing

video from the video connected to the TV'sCOMPONENT-INjacks.

The items in the COMPONENT ADJ. menu are the same as those described in

the VIDEO ADJUST menu (described previously), but you are adjusting the

settings to be active only when the TV is playing content from the component

connected to the COMPONENT IN jacks.

32 Chapter 4

AUDIO ADJUST

eMTS

EQUISOUND

BASS

TREBLE

BALANCE

RESET

RETURN

"I_K_ I tot ...........set

AUDIO ADJUST Menu

The AUDIO ADJUSTmenu lets you choose various settings for MTS (Multichannel

TV Sound) and Equisound as well as adjust the bass, treble, and balance. You

can also reset all of the audio features to the factory presets.

1.

2.

From the MAINMENU, press the down arrow button to highlight the AUDIO

ADJUST menu, and press OK (the AUDIO ADJUST menu appears).

Press the up or down arrow buttons to select the feature you want to adjust,

and press OK.

Use the left or right arrow buttons to highlight a desired setting. Press the

OK button to select the setting. The options and a brief description follows:

MTS (Multichannel TVSound) This circuit allows reception of stereo or

bilingual TV sound.

EQUISOUND This function keeps the volume level constant during

program changes and commercial breaks.

MTsAUDIO ADJUST

IEQUISOUND

I+

2. If a slider appears for the feature, press the right or left arrow to adjust the

slider and press OK.

BASS Increases or decreases the bass.

TREBLE Increases or decreases the treble.

BALANCE Press the right arrow to increase the right volume and the left

arrow to increase the left volume.

Select RESET to have all audio adjustments reset to the factory settings.

Chapter 4 33

CLOSED CAPTION

IMODE:CAPTION

DATA:CEI

RETURN

4_]to move cursor

OK to set

CLOSED CAPTION Menu

Closed captioning is not available on all channels at all times. Only specific

programs encoded with closed-captioning information are applicable. Check

your TV program listings for CC (closed caption) broadcasts.

The TV will automatically enter the closed caption mode when you press MUTE

on the remote (or turn the volume all of the way down). Press MUTE again to

remove the captions.

1.

set the CLOSED CAPTION Mode:

From the MAINMENU, select CLOSED CAPTION Press the up or down

arrow buttons to select MODEor DATA.

2. If you select MODE,, press the left or right arrow button to choose CAPTION,

TEXT, or OFF.

Note: The Text modes cover nearly half of the picture on-screen to display

the closed-captioned text. If no text is being broadcast, the screen may

become dark and blank.

If you select DATA, press the left or right button to select CH1 or CH2o

4. Press MENU to exit.

PARENT CONTROL -- go to Chapter 3

LANGUAGE

OENGLIS

ESPANO_

FRANCAIS

RETURN

{A,vl to move cursor

ION] to set

LANGUAGE Menu

The language of the on-screen menus is set to English. If you want your

TV/VCR's menus to appear in Spanish or French, follow these steps:

1. Press MENU on the remote (the MAIN MENU appears).

2. Press the up or down arrow button to highlight LANGUAGE, and press OK

(the LANGUAGE menu appears).

3. Press the down arrow button on the remote to select ESPANOL (Spanish) or

FRANCAIS (French).

4. Press OK (the on-screen menus appear in the language you selected).

34 Chapter4

MAIN MENU

VIDEO ADJUST

TIMER

COMPONENT ADJ.

I AUDIO ADJUST

CLOSED CAPTION

PARENT CONTROL

LANGUAGE

I,E_R_ SAVE

ENERGY SAVE

QSTATUS:OFF

RETURN

ENERGY SAVE

eSTATUS:ON

RETURN

'{A,v] to move cursor

,[_] to set

The ENERGY SAVE Menu

This feature reduces the brightness of the picture, lowering the power

consumption of your TV/VCR by approximately 20 percent.

1. Press MENU on the remote (the main MENUappears).

2. Press the up or down arrow button to select ENERGY SAVE and press OK.

3. Press the left or right arrow button go back and forth between ON and OFF.

4. Press MENU to exit.

MAIN MENU

TIMER

VIDEO ADJUST

COMPONENT ADJ.

AUDIO ADJUST

CLOSED CAPTION

PARENT CONTROL

LANGUAGE

ENERGY SAVE

OSET UP

{A,vl to move cursor

[OK] to set

Additional Settings in the SETUP Menu

Most of the options in the SETUP menu were discussed in Chapter 1, but there

are a few other settings within this menu that you can adjust to your personal

preferences.

1.

2.

Press MENU on the remote (the main MENU appears).

Press the up or down arrow to select SET UP and press OK (the following

choices appear):

UNIVERSAL PLUS This feature is sometimes called auto tuning. The auto-

tuning feature automatically tunes the TV to the correct channel for different

components you have connected to your TV (like a VCR or DVD Player,

etc.).

When you set up auto tuning in the Universal Plus menu, you don't have to

remember to change your TV to channel 3, for example, when you want to

watch the tape that's in your VCR. To set up the UNIVERSAL PLUS menu:

1.

2.

Since UNIVERSAL PLUS is the first item, just press the OK button on the

remote control (the UNIVERSAL PLUS menu appears).

If you've connected a VCR to your TV with audio/video cables (i.e., to a

LINE IN jack on the TV), press INPUT until the corresponding video input

channel appears -- LINE 1, LINE2, LINE3, or COMPONENT. If you

connected a VCR to your TV with a coaxial cable (i.e., to the ANT/CABLE

jack on your TV), use the number buttons on your remote to enter the

channel that corresponds to the switch on the back of your VCR (usually

channel 3 or 4).

3. Press the down arrow button to highlight status. Press the left or right

arrow button to switch between ON and OFF.

4.To exit, press MENU.

Continues on next page

Chapter 4 35

MAIN MENU

TIMED

VIDEO ADJUST

COMPONENT ADJ.

AUDIO ADJUST

CLOSED CAPTION

PARENT CONTROL

LANGUAGE

ENERGY SAVE

OSET UP

[A,v] to move cursor

JOE] to set

•BLUESCREEN This feature reduces the noise and mutes sound from

channels with no signal or a weak signal.

1.Press the up or down arrow to select BLUF.SCRF.F.Nand press OK.

2.Press the left or right arrow button to switch between ON and OFF,

3.Press MENU to exit.

•AUTOPRESET Go to chapter 1.

SET AIR/CABLE

OANT:AIR

NEXT

'[A,v] to move cursor

,[OK] to set

CABLE If you change the type of signal you use to get programming (i.e.,

you hook up cable and you used to rely on off-air signals to get

programming), you'll need to change the setting in this menu.

1. Press the up or down arrow to select CABLE and press OK.

2. Press the left or right arrow button to highlight your choice (AIR, CABLE,

STD, CABLE HRC, or CABLE IRC),

3.To set, press OK.

4.To exit, press MENU.

•CH SEARCH Go to chapter 1.

•CHMEMORY Go to chapter 1.

• RETURN Takes you to previous menu screen.

36 Chapter 4

C apt r

I

Chapter Overview:

•Troubleshooting

•Care and Cleaning

•Front Panel

•Back Panel

•TV's Video Input Channel

°Limited Warranty

•Accessories

•Index

Changing Entertainment. Again.

Oraphics used within this publication are for representation only.

37

Troubleshooting

Most problems you encounter with your TV you can correct by consulting the Troubleshooting list that follows.

General TV Problems

TV won't turn on

• Press the TV button.

• Something might be wrong with your remote control. Press the POWER button on the front of the TV. If the TV turns on with the

POWER button, go to page 39 for remote control solutions.

• Make sure the TV is plugged in.

• Check the wall receptacle (or extension cord) to make sure it is "live" by plugging in something else.

Controls don't work

• If you're using the remote control, press the TV button first to make sure the remote is in TV mode.

• Unplug the TV for 10 minutes and then plug it back in. Turn the TV on, and try again.

TV turns off unexpectedly

• Sleep timer might have been activated. Go to page 31 for instructions.

• The TV turned on with the on timer. It will automatically turn off after two hours if no other control is used.

• Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn the TV on again. If

this happens frequently, the voltage in your house may be abnormally high or low.

TV turns on unexpectedly

• On timer (alarm) might have been activated. Go to page 31 for instructions.

Blank screen

• Try another channel.

• Check video adjustments. Go to page 32 for info about the VIDEO ADJUST menu.

• Make sure the line input isn't selected if you're trying to watch channels from off-air antenna or cable feed. Repeatedly press INPUT

on the remote to switch between audio/video input jacks and the tuner.

No sound, picture okay

• Press the VOL UP button to increase the sound.

• Maybe sound is muted. Press the MUTE button to restore sound.

No picture, no sound but TV is on

• The channel might be empty- change channels,

38 Chapter 5

Troubleshooting

Sound okay, picture poor

• Try adjusting sharpness function to improve weak signals. Go to page 32 for instructions.

• Check connections -- make sure all cables are firmly inserted into the correct jacks.

• The ENERGY SAVEfeature might be turned on. Go to page 36 for more information.

Can't select certain channel

• Channel may be blocked or not approved in the V-CHIPBLOCK menu.

Clock is wrong

• Power interruption. Need to reset the clock. Go to page 30 for more information.

• Clock was not set accurately (check AM/PM). Go to page 30 for more information.

Black box appears on the screen

• Closed-captioning text mode might be selected. Check the CLOSEDCAPTIONmenu. Go to page 34 for more instructions.

Closed captions not appearing on screen

• Closed caption might not be turned on. Go to pages 34 for more information.

• Station might not be broadcasting closed captioning.

The Remote Control Doesn't Work

• Something might be between the remote and the remote sensor on the component. Make sure there is a clear path.

• Maybe the remote isn't aimed directly at the component (TV, VCR, etc.) that you're trying to operate.

• Maybe the remote isn't in TV mode -- press the TV button.

• Maybe batteries in remote are weak, dead or installed incon'ectly. Put new batteries in the remote.

• You might need to drain the remote's microprocessor: remove batteries and press the number 1 button for at least 60 seconds.

Release the 1 button, replace the batteries, and (if necessary) program the remote again.

Problems with V-Chip/Parental Controls

The rating limits don't work

•You must turn V-Chip on. Go to the main MENU (press MENU on your remote), select V-CHIP BLOCK, and set STATUS to ON. Go to

page 23 for instructions.

I don't remember my password and I want to unlock the TV

• If you forget your password, simultaneously press and hold the channel up and the channel down buttons on the front of the TV

until INPUTSECRETNo. disappears from the screen.

39

Front Panel (listed alphabetically)

If you misplace your remote control, you can use the buttons on the front of your TV to operate the TV. There are also a

set of audio/video jacks on the front of the TV that are convenient for connecting a camcorder or video game device.

CH + and - Scans up and down through the current channel list.

INPUT Press to access the TV's video input channels that correspond with the jacks used to connect components.

POWER Button and Indicator Turns the TV on or off'. The POWER indicator lights when the power is on.

Remote Sensor Receives signals from the remote. Aim remote at this sensor with no objects between them.

TIMER Indicator Lights when the Sleep Timer or Timer have been activated.

VOL +or - Increases and decreases the volume.

VIDEO, L/MONO, and R Input Jacks Receives audio and video signals from another component, like a video gaming

device or camcorder when the component is connected to these jacks. To select these front panel jacks, press INPUT on

the remote until LINE 2 appears.

TVbackpanel

LINEIN LINE COMPONENT-IN

IN1 IN3 OUT VIDEO AUDIO

,o,o® ®

. ® ® ® ®,

AUDIO

ANT/CABLE

75.('1

Back Panel (listed left to right)

LINE IN/IN1 and IN3 AUDIO (L and R) and VIDEO Jacks Receives signals from another component, such as a VCR or

DVD Player, when the component is connected to these jacks. To see the content coming from the component connected

to these jacks, press the INPUT button on the remote until LINE i (or LINE 33 appears on the screen.

LINE OUT AUDIO (L and R) Jacks Sends audio signals from the TV to another component, like a stereo amplifier or

speakers when the other component is connected to these jacks.

COMPONENT INAUDIO (L and R) and VIDEO Y, PB (CB)' and PB (CR) Jacks Receives signals from another component

having COMPONENT jacks (like a DVD player) when the component is connected to these jacks. To see the content

coming from the component connected to these jacks, press the INPUT button on the remote until COMPONENT appears

on the screen.

ANF/CABLE Jack Receives a signal from an antenna or cable system when the TV is attached with an RF (coaxial) cable.

40 Chapter 5

Limited Warranty

What your warranty covers:

•Defects in material or workmanship.

For how long after your purchase:

• One year from date of purchase for labor charges.

• One year from date of purchase for parts.

• Two years from date of purchase for picture tube.

The warranty period for rental units begins with the first rental or 45 days from date of shipment

to the rental firm, whichever comes first.

What we will do:

• Pay any Authorized RCA Television Service Center the labor charges to repair your TV.

• Pay any Authorized RCA Television Service Center for the new or, at our option, refurbished

replacement parts and picture tubes required to repair your TV.

How you get service:

• For 20" screen size: Take your RCA TV to any Authorized RCA Television Service Center and

pickup when repairs are complete.

• For screen sizes larger than 20": Request home or pick up, repair and return service from any

Authorized RCA Television Service Center, provided that your TV is located within the

geographic territory covered by an Authorized RCA Television Service Center. If not, you

must take your TV to the Service Center location at your own expense, or pay for the cost the

Service Center may charge to transport your unit to and from your home.

• To identify your nearest Authorized RCA Service Center, ask your dealer, look in the Yellow

Pages, or call

1-800-336-1900.

• Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the

product is within the warranty period must be presented to obtain warranty service. For

rental firms, proof of first rental is also required.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual clearly describes how to install, adjust, and

operate your TV. Any additional information should be obtained from your dealer).

• Installation and related adjustments.

• Signal reception problems not caused by your TV.

• Damage from misuse or neglect.

• Cleaning of audio/video heads.

• Batteries.

• Customer replacement fuses.

• Images burned onto the screen.

• A TV that has been modified or incorporated into other products or is used for institutional or

other commercial purposes.

• Acts of nature, such as but not limited to lightning damage.

• A TV purchased or serviced outside the U.S.A.

41

Product registration:

• Please complete and mail the Product Registration Card packed with your TV. It will make it

easier to contact you should it ever be necessary. The return of the card is not required for

warranty coverage.

Limitation of Warranty:

• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS

PRODUCT. AIL OTHER WARRANTIES, EXPRESS OR IMPLED (INCLUDING AIL IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR APARTICLR_AR PURPOSE) ARE

HEREBY DISCIAIMED. NO VERBAL OR WRITI]EN INFORMATION GIVEN BY THOMSON

MULTIMEDIA INC., ITS AGENTS OR EMPOLOYEES SHALL CREATE A GUARANTY OR IN

ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCILTSIVE

_Y OF THE CONSUMER. THOMSON MULTIMEDIA INC. SHALL NOT BE LIABLE

FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS

PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED

WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED

WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPT TO

THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE ON THIS PRODUCT IS

LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE

How state law relates to this warranty:

Some states do not allow the exclusion nor limitation of incidental or consequential damages,

or limitations on how long an implied warranty lasts, so the above limitations or exclusions

may not apply to you.

This warranty gives you specific legal rights, and you also may have other rights that vary from

state to state.

If you purchased your product outside the United States:

• This warranty does not apply. Contact your dealer for warranty information.

Service calls which do not involve defective materials or workmanship are not covered by

this warranty. Costs of such service calls are the sole responsibility of the purchaser.

42 Chapter 5

VCR Button

INPUT

Button

TV Button Finding the TV's Video Line Input

Channel

You need to tune your TV to the video line input channel if you're using

the Audio/Video (A/V) IN jacks to connect to the other components

(such as a cable box, a VCR, satellite receiver, or DVD player).

You must select the TV's video line input channel before you can see the

video and hear the audio from another component you have connected

to these jacks.

To access the video line input channel:

• Press the TV button on the remote.

• Press INPUT to select LINE 1 for the LINE IN/IN1 input jacks on the

back of the TV.

Press INPUT again to select LINE 2 for the VIDEO, L/MONO, and R

input jacks on the front of the TV.

Press INPUT a third time to select LINE 3 for the VIDEO,

L/MONO, and R input jacks on the front of the TV.

Press INPUT a fourth time to select COMPONENT for the

COMPONENT-IN input jacks on the back of the TV.

Care and Cleaning

CAUTION: Turn OFF your TV before cleaning.

You can clean the TV as required, using a soft lint-free cloth. Be sure to

occasionally dust the ventilation slots in the cabinet to help assure

adequate ventilation.

The TV screen may be cleaned with a soft, lint-free cloth as well.

Take care not to scratch or mar the screen. If necessary, you may

use a cloth dampened with warm water.

Never use strong cleaning agents, such as ammonia-based

cleaners, or abrasive powder. These types of cleaners will damage

the TV.

While cleaning, do not spray liquid directly on the screen or allow liquid

to run down the screen and inside the TV. Also, aw)id placing drinks or

vases with water on top of the TV. This could increase the risk of fire or

shock hazard or damage to the TV.

Caution: If fixed (non-moving) images are left on the screen for long

periods, they may be permanently imprinted on the picture tube. Such

images include network logos, phone numbers, and video games. This

damage is not covered by your warranty. Extended viewing of channels

displaying these images should be avoided.

43

(This page intentionally left blank.)

44 Chapter 5

Accessories

VH81 (3-ft)

VH82 (6-ft)

Screw-on Cable attaches to

the round antenna

connectors (called 75-ohm

F-type) on the back of your

TV. The ends screw onto the

connectors for a secure

connection.

VH89 (6-ft)

Push-on Cable attaches

to the round antenna

connectors (called 75-

ohm F-type) on the back

of your TV. Ends push on

for a quick connection.

Gold-Tipped cable

VH83 (6-ft)

Monaural VCR Dubbing

Cable Double cable that lets

you connect the video and

audio jacks of two VHS

VCRs to duplicate tapes.

Can also be used to connect

a VCR to your TV. Cable is

color-coded and shielded

Has RCA-type phono plugs

on each end.

Stereo VCR Dubbing Cable

Triple cable that lets you

connect the video and lel_

and right audio jacks of

stereo components.

Gold-Tipped cable

VH84 (6-ft)

Continued on next page .......

,=

e-

_3

4_

t_

Accessory Order Form

Description

Screw-on antenna cable (3-ft)

Screw-on antenna cable (6-ft) VH82

Push-on antenna cable (6-ft) VH89

Monaural VCR Dubbing Cable (6-ft) VH83

Stereo VCR Dubbing Cable (6-ft) VH84

2-way Signal Splitter VH47

Antenna Mixer (not shown) 193984

Remote Control (CRK76TSL1) 254494

Audio,Video Adapter (not shown) 228449

$4.95

$5.95

$5.95

$9.95

$3.95

$11.15

$49.95

$4.45

Prices are subject to change without notice.

Total Merchandise ............................................. $__

Sales Tax .............................................................. $__

We are required by law to collect the

appropriate sales tax for each individual

state, country, and locality to which the

merchandise is being sent.

Shipping and Handling ..................................... $ 5.00

Total Amount Enclosed ..................................... $---

Use VISA, MasterCard, or Discover Card

preferably.

Money order or check must be in U.S.

currency only.

No COD or CASH.

All accessories are subject to availability.

Where applicable, we will ship a superseding model.

45

Chargeyour order on your VISA,

MasterCard,or DiscoverCard by

filling in below

USE YOURCREDITCARD

IMPORTANT: Copy complete account number

from your VISA card

VISA

IIIII

Mycardexpires:

IMPORTANT: Copy complete account number

from your MasterCard

Copy Number _ My card IIIIII

above your expires:

name on

MasterCard

IMPORTANT: Copy complete account number

from your Discover Card

My card expires: [_ [_

AUTHORIZEDSIGNATURE

(Credit card order will not be processed without signature)

Printor typeyour nameand Acompleteandcorrect

addressclearly, orderwill saveyou days

of waiting.

r-

Name:

Street:

Apt:

City:

State: Zip:

Daytime phone number:

Pleasemake sure that both sides of this form

have been filled out completely.

• Allow 4 weeks for delivery.

• All accessories are subject to availability.

• Prices are subject to change.

,=

.1-

,,C

2-way Signal Splitter

Helps you connect a second TV

or VCR.

Splitter VH47

Remote Control

This is the remote control that

came packed with your TV.

Replacements or spares can be

ordered as needed.

CRK76TSL1

To Order

To place your order by phone, have your Visa,

MasterCard or Discover Card ready and call the toll-

free number listed below.

Use this number only to place an order for

accessory items listed on this order form.

1-800-338-0376

To place your order by mail, detach and mail the

completed order form with credit card information,

money order or check in US currency (made

payable to Thomson multimedia Inc.) to the

following address:

Video Accessories

PO Box 8419

Ronks, PA 17573

46 Chapter 5

This page intentionally left blank

A

Accessories, ordering 45

Add/erase channels 14

Age-Based Ratings 25

ANT/CABLE jack 40

Arrow buttons 16, 24, 33, 34, 35

AUDIO ADJUST menu 33

AUDIO IN jacks 11

Audio/video jacks 40, 43

Auto channel search 13

AUX button 16

B

Back panel jacks 40

Back-lit remote 16

Batteries for remote 12

BLUE SCREEN feature 36

C

Cable Box, code list 20

CH buttons 16, 40

CH MEMORY menu 14

Channels, add or erase 14

CLEAR button 16, 17

Clock setting, automatic and manual 31

CLOSED CAPTION menu 34

Code list

Cable Box 20

Satellite Receiver 20

VCR 20

COMPONENT jacks 40

Connections 6, 7, 8, 9, 11

Controls

back of TV 40

front of TV 40

D

DVD button 16

DVD, connecting 9

F

Fixed images 43

FORWARD button 16

Front panel controls 40

I

INFO button 16

Initial setup 13

INPUT button 17, 43

I_

Language, select 13

Light button 16

Limited Warranty 41

M

Main MENU 14, 24, 25, 27, 28, 30

MENU button 14, 17, 24, 25, 27, 28, 30, 34, 35, 36

Menu system 30

MPAA menu 23, 24

MUTE button 17

N

New rating system 23, 27

Number buttons 16

O

OK button 13, 34

ON TIMER feature 31

ON-OFF button 17

P

Parental controls 23

Password 27

PAUSE button 17

PIP

buttons 22

feature 22

PLAY button 17

POWER button 12, 40

POWER indicator 12, 40

Programming the remote 18

R

Remote

batteries 12

sensor 40

Remote control

buttons 16

programming 18

Reset audio 33

REVERSE button 17

$

SAT-CABLE button 17

Satellite receiver

code list 20

connecting 11

Secret number 27

Sensor, remote 40

Setup, initial 13

SKIP button 17

SLEEP TIMER feature 31

SOUND button 17

Stand and base safety information 6

STOP button 17

48 Chapter 5

Table of contents 3

TIME menu 30

TIMER button 17

Troubleshooting 38

TV button 17, 43

TV GUIDELINES menu 23, 25

V

V-Chip 23

chart for age-based ratings 25

chart for content themes 26

chart for MPAA ratings 24

download new rating system 23, 27

secret number 27

set MPAA rating limits 24

set TV GUIDELINES rating limits 25

turning on and off 28

V-CHIP BLOCK menu 23

VCR

code list 20

connecting 8, 9, 11

VIDEO ADJUST menu 32

VIDEO IN jack 11

Video input channel 43

VOL buttons 17, 40

W

Wan-anty 41

49

Visit the RCA website at www.rca.com

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only

add delays in service for your product.

Thomson multimedia Inc.

10330 North Meridian Street

Indianapolis, IN 46290

@2001 Thomson multimedia Inc.

Trademark(s)@ Registered

Marca(s) Registrada(s)

Printed in Malaysia

TOCOM 15775930

0

THOMSON

THOMSON
