WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture. ]To reduce the risk of electric shock, do not remove

cover (or back). No user serviceable parts inside.

Refer servicing to qualified service personnel,

_IL This symbol indicates _ This symbol indicates

"dangerous voltage" inside important instructions

the product that presents a accompanying the product.

risk of electric shock or

personal injury.

Caution: To reduce the risk of electric shock, match wide blade of plug to wide slot, fully insert.

Attention: Pour eviter les chocs electriques, introduire la lame la plus large de la fiche dans la borne correspondante

de la prise et pousserjusqe au fond.

Refer to the identification/rating label located on the back panel of your product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this equipment may void the user's authority to

operate it.

If fixed (non-moving) images are left on the screen for long periods, they may be permanently

imprinted on the screen. Such images include network Iogos, phone numbers, and video games. This

damage is not covered by your warranty. Extended viewing of channels displaying these images should

be avoided.

Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code

(Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in

3articular, specifies that the cable ground shall be connected to the grounding system of the building as close to the

3oint of cable entry as practical,

Product Registration

Please fill out the product registration card and return it immediately. Returning the card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model

numbers in case you need them, The numbers are located on the back of the television.

Model No.

Serial No.

Purchase Date:

Dealer/AddresslPhone:

VCR Plus+, Cs, PlusCode and GUIDE Plus+ are trademarks of Gemstar Development Corporation.

The VCR Plus+ and GUIDE Plus+ systems are manufactured under license from Gemstar Development Corporation

and VCR Index Systems B.V., respectively.

GEMSTAR IS NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION

PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL GEMSTAR BE LIABLE FOR ANY AMOUNTS

REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL

DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION EQUIPMENT, OR

SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.

VCR required for recording,

Setup And Connections .......................................................... 3

Step 1: Unpack the TV ...................................................................... 4

Step 2: Connect Your TV .................................................................. 4

TV Only ....................................................................................... 4

The Basic connection ................................................................. 5

Advanced Connections .............................................................. 6

Step 3: Connect the IR Controller .................................................... 9

Attaching the IR Controller ....................................................... 9

Step 4: Plug in the TV ..................................................................... 10

Step 5: Place Batteries in Remote .................................................. 10

Step 6: Turn On the TV ................................................................... 10

Step 7: Program the TV .................................................................. 10

Interactive Setup .................................................................... 11

Using Point and Select ................................................................... 12

Entering Setup ................................................................................ 12

Selecting a Language ..................................................................... 13

Auto Channel Search ..................................................................... 13

The GUIDE Pius+ Gold System ....................................................... 14

Setting Up the GUIDE Pius+ Gold System ............................... 14

Setting the Time ............................................................................. 16

Setting the VCR1 Channel (auto tuning) ...................................... 17

Setting the VCR2 Channel (auto tuning) ...................................... 17

Setting the DVD Channel (auto tuning) ....................................... 18

Setting the SAT/CABLE Channel (auto tuning) ............................. 19

Labeling the Channels ................................................................... 20

Using the Remote ..................................................................... 21

Interactive Setup ............................................................................ 21

Remote Buttons .............................................................................. 22

Using the WHO, INPUT Button ................................................ 23

Programming the Remote ............................................................. 24

Testing the Remote .................................................................. 24

Using the Remote to Control a Device ................................... 25

Modes of Operation ................................................................ 25

Front Panel ..................................................................................... 25

Using The Menus ....................................................................... 27

Menus and Control Panels ............................................................. 28

Audio Menu .................................................................................... 30

Using the Remote to Select an Audio Processor .......................... 31

Picture Quality Menu ..................................................................... 32

Screen Menu ................................................................................... 33

Using Closed Captioning ......................................................... 34

Channel Menu ................................................................................ 35

Time Menu ...................................................................................... 36

Other Menus ................................................................................... 36

Features and Controls ......................................................... 37

GUIDE PLus+ Gold Menu ................................................................ 38

About the GUIDE PLus+ Gold System ............................................ 38

Downloading Data .................................................................. 39

Grid Guide ................................................................................ 40

Sort ........................................................................................... 41

Schedule ................................................................................... 42

News ......................................................................................... 42

Messages .................................................................................. 43

Editor ........................................................................................ 44

Channel Marker .............................................................................. 45

PIP (Picture-in-Picture) Operation ................................................. 46

Parental Controls and V-Chip ........................................................ 47

V-Chip TV Rating Limit ............................................................ 48

V-Chip Movie Rating Limit ...................................................... 52

V-Chip Unrated Program Block ............................................... 53

Channel Block .......................................................................... 53

Front Panel Block ..................................................................... 53

Lock/Unlock Parental Controls ................................................ 53

Reference ..................................................................................... 54

Troubleshooting ............................................................................. 54

Care and Cleaning .......................................................................... 55

RCA Direct view tv LIMITED WARRANTY ...................................... 56

RCA PROJECTION TV WARRANTY ................................................. 57

Accessory Information ....................................................... 58

I ndex ............................................................................................. 61

Getti ng sta rted

This manual is designed to get you started quickly.

The first five sections of the manual show you how to

get your TV set up and connected, run the Interactive

Setup, program the remote, and use all of the menus,

features, and controls of your TV.

The Reference section in the back of the book

contains troubleshooting tips, care and cleaning

instructions, accessory ordering information and your

warranty.

Well... if your TV's out of the box, let's get started.

1Setup and connections

• j

Check out the notes that have been added

throughout the manual in these Tip

Boxes, There are some important tips that

will help you get the most from your TV,

Step 1: Unpack the TV

Make sure to locate the remote control.

Step 2: Connect Your TV

There are three types of connections outlined in this section:

TV Only: If you're only going to connect the

TV to your home antenna or cable

system.

The Basic Connection: If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up the TV to a

VCR and a satellite receiver.

Cable information and illustrations are given for each type of connection.

Once you have completed your desired connection you may skip forward

to Step 3.

TV On ly

This is a basic connection from an antenna or cable system to your TV.

Connect the cable into the Cable/Antennajack as shown.

Important Stand Information

CAUTION: Choose the location for your TV

carefully. Take precautions that the stand

or other furniture on which the TV is

placed is properly located (see Important

Safeguards sheet) and of adequate size

and strength to prevent the TV from

accidentally being tipped over, pushed off,

or pulled off. This could cause damage to

the TV and/or personal injury.

p- Before You Connect

Protect against power surges:

• Connect all components before

plugging any power cords into the wall

outlet.

• Turn off the TV and/or component

before connecting or disconnecting any

cables.

• Make sure all antennas and cables are

properly grounded. Refer to the

Important Safeguards sheet packed

with your T_L

Cables

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and video

signals to the TV from an antenna, cable, or cable

box.

CABLE, CABLE BOX, OR ANTENNA

Once you have completed this connection you may skip to Step 3.

The Basic connection

The basic connection below (TV and VCR) is the most common

connection and is therefore used to illustrate a single component

connection with your TV. For better sound and picture quality and

multiple component connection information refer to the next section,

Advanced Connections.

Cables

You will use the following type of cable to make your connection:

Coaxial Cables: In this connection, two coaxial

cables are used: one connects from an antenna,

cable, or cable box to the VCR, and one connects

from the VCR to the TV. These cables carry both

audio and video signals.

CABLE, CABLE BOX, OR ANTENNA

VCR 1 \IN _[_OM ANT CH 3

OUT TO TV

To VCR

To cable box (if you do

not have a cable box,

then leave this portion

unconnected).

How to View the VCR

To watch the VCR in this connection tune TV to

Channel 3 or 4.

Later, in the Interactive Setup section you will

program the TV to automatically tune to Channel 3 or

4 when you turn on the VCR.

Once you have completed this connection you may skip to Step 3,

"Connect the IR Controller."

Advanced Connections

Advanced connections give you better sound and video by separating

the audio and video signals and enabling you to connect multiple

components.

This section describes the types of inputs available on the back of your

TV and suggests ways you can use them for optimum performance.

Once you have made your connections

you will need to program the TV to tune

to the correct Video INPUT channel in

order to see and hear audio and video

from the component. You will program

this later in the Interactive Setup.

Backofthe TV

The diagram below describes each of the back panel jacks. When

connecting A/V cables, be sure to connect corresponding OUTPUTS and

INPUTS (Video to Video, Right Audio to Right Audio, etc.).

Input 1

Connect any of the following components:

• VCR • lnternet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to Input 1:

Use the WHO.INPUT button on the remote.

Input 2

Connect any of the following components:

. VCR • Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to Input 2:

Use the WHO,INPUT button on the remote.

S-Video

This optional

connection car

be used for

better video

quality picture.

External Speaker Jacks

Use to connect external

speakers for surround

sound. Make sure the

Speaker Selection is set

to EXTERNAL.

S-Video

This optional

connection can

be used for

better video

quality picture.

Audio Outputs

Connect to an audio receiver or

amplifier for variable controlled

or fixed level stereo output. Cable/Antenna 1

Takes the signal input from a cable,

cable box, or an off-air antenna. Can also

be used for basic component connections.

VCR Control

Connect Guide

Plus+ Gold

controller for one-

button recording

and channel

tuning from the

Guide.

Sample Connections

The following are sample connection scenarios you may encounter

when connecting components to your TV. Note: those components

which offer an S-Video connection, such as DVD, VCR or satellite

receivers, must match their S-Video connection with their audio INPUT

connection.

Cables

You will use the following types of cables to

make your connection:

Coaxial Cables: Carry the signal from the

antenna or cable directly to the television or

through a cable box, as needed by your

cable system.

Audio/Video Cables: Carry audio and video

from a component to the TV.

S-Video Cable: Carry video from an S-Video

capable component which provides best

picture quality.

TV and Stereo VCR

Compared to the Basic Connection, using Audio/Video and

S-Video (if available) cables will enhance the sound and picture quality

from a component.

CABLE, CABLE BOX, OR ANTENNA

Cautions:

Position Cables to Avoid Audio Hum

or Interference

• Insert all cables firmly into jacks.

• Place the audio/video cables to the

sides of the TV's back panel instead of

straight down the middle.

• Try not to coil any twin-lead cables and

keep them away from the audio/video

cables.

Protect Your Components From

Overheating

• Do not block ventilation holes in any of

the components. Arrange the

components so that air can circulate

freely.

• Do not stack components,

• Allow adequate ventilation when

placing your components in a stand,

• Place an amplifier on the top shelf of

the stand so heated air rising from it

will not flow around other

components.

TOVCR

To cable box (If you do not

have a cable box, then leave

this portion unconnected).

How to View Your VCR

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press WHO,INPUT to

toggle through the video (VID) inputs.

In the Interactive Setup section you can program the TV to

automatically tune to the VlD input channel when you turn

on the VCR.

Most Audio/Video cables are

combined into one cable with

three heads on each end.

We show individual _ ,,_ o_

cables in these __

sampte connections. _ _G"T_ O_

Either may be used, but

you must be sure to connect L_ _UD,OlW,,_E/

Video tO Video, Right to Right

and Left to Left.

TV, VCR and Satellite Receiver

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

TOVCR

CABLE, CABLE BOX, OR ANTENNA

SATELLITE SIGNAL

TO cable box (If you do not

have a cable box, then leave

this portion unconnected).

To VCR

SATELLITE SIGNAL

To cable box (If you do not

have a cable box, then leave

this portion unconnected).

How to View Your Components

To watch the satellite receiver in this connection,

press TV to put the remote control into TV mode,

then press WHO.INPUT to scroll through the video

input channels until you tune to VID (or SVID) input.

To watch the VCR in this connection, press

WHO.INPUT to scroll through the video input

channels until you tune to VlD2.

In the Interactive Setup you can program the TV to

automatically tune to the correct input channel

when you turn on your component.

How to View Your Components

To watch the Satellite Receiver in this connection, press

TV to put the remote control into TV mode, then press

WHO.INPUT to scroll through the video input channels

until you tune to VID1 ( or SVID 1) input.

To watch the VCR in this connection press WHO.INPUT

to scroll through the video input channels until you tune

to VlD2.

To watch the DVD player in this connection, press TV to

put the remote control into TV mode, then press

WHO.INPUT to scroll through the video input channels

until you tune to VlD2 ( or SVID 2) input.

In the Interactive Setup you can program the TV to

automatically tune to the correct input channel when

you turn on your component.

Step 3: Connect the IR Control ler

The IR (infrared) Controller enables the GUIDE Plus+ Gold system to

control your VCR and cable box (if necessary) so you can tune to

television channels and even start recording a program from the GUIDE

Plus+ Gold system.

After you have affixed the ends of the controller to the necessary

components (VCR, or Cable box), you will use the on-screen interactive

setup routine for the GUIDE Plus+ Gold system to test the connected

components.

The IR Controller is used to send commands

to your VCR and/or cable box.

Attaching the IR Controller

Some components label the infrared remote sensor, and others do not. If

your component is labeled, affix the IR controller directly over the

sensor. If the IR location is not labeled on your component, you need to

use to use the component's remote control to locate the sensor.

1. Hold the component's remote control (not the remote that came

with your TV) so that it is touching the front of the component.

2. Slowly move the remote over the front of the component while

pressing the remote power button on and off. (Be sure to press and

release the power button each time you move the remote. Holding

the button may not work.)

3. When the component turns off or on, you've located the sensor.

4. Affix the controller's node directly to the remote sensor.

Attach to the VCR /

-÷- hAttac_at_thlecalbleboxvlfe YO_dao;Oted"

Connect to the 13/

Tip

You may want to use a piece of clear

plastic tape to temporarily affix the

controller's node until you have completed

the interactive setup. That way you can

easily move it if you have not placed it

exactly over the sensor. The adhesive is

Io-tack and will not mar the finnish of

VCRs, cable boxes, or other products.

Step 4: P I ug i n the TV

Plug the end of the power cord into the wall outlet, matching the wide

blade of the plug with the wide slot in the outlet. Be sure to insert the

plug completely.

Step 5: P I ace Batter ies in Remote

Remove the battery compartment cover from the back of the

remote.

Insert fresh batteries. Make sure that the polarities (+ and -) are

aligned correctly.

Replace the cover.

Step 6: Turn On the TV

Press TV on the remote, or press POWER on the TV itself.

Pressing the TV button not only turns on the TV, but puts the remote

into TV mode, so that the buttons on the remote will control TV

functions.

On-Screen Program Guide

The TV is designed to bring up the GUIDE Plus+ Gold on-screen program

guide when you use the TV button on the remote to turn on the TV

(after you have set up the GUIDE Plus+ Gold system). For more

information on setting up the GUIDE Plus+ Gold system, see the next

section, Interactive Setup.

To get out of the GUIDE Plus+ Gold System:

Press OK to exit the GUIDE Plus+ Gold system and tune to the

highlighted channel.

Press GUIDE to exit the GUIDE Plus+ Gold system and tune to the

channel displayed in the View window.

PressCLEAR to exit the GUIDE Plus+ Gold system and go to the last

channel you were watching.

Step 7: Program the TV

Proceed to the next section, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure the TV.

The first steps ask you to select your preferred language for the menu

system and to begin the auto channel search, which puts available cable

TV or antenna signals into the TV's memory.

Projection TV Only.

If the picture appears to have a double or

triple image or if you notice rings or halos

around objects, you may have to adjust the

color convergence. Details can be found

under the Screen menu heading in the

"Using the Menu System" section of this

manual.

There's an on-screen setup routine

The interactive setup routine helps you through the steps

needed to configure the TV and set up the GUIDE Plus+

Gold menu system:

Select a menu language

Search for available channels

Set up the GUIDE Plus+ system

Set the time

Set the VCR1 channel

Set the VCR2 channel

Set the DVD channel

Set the SAT/CABLE channel

Make the channel list and labels

Interactive Setup

Using Point and Select

You only need to know one rule when using the remote to access on-

screen menus and control panels: point and select. The point and select

method has two steps.

1. Point to a menu item using the MOVE arrows on the remote.

To point up or down, press the up or down arrows. To point left or

right, press the left or right arrows.

2. Select a menu item by pressing MENU or OK.

Selecting an item tells the TV's menu system to go ahead and make

the change or go to a place you have indicated.

Entering Setup

The first screen of the Interactive Setup appears automatically when

you turn on your TV for the first time or after a power outage.

MENU ¢LEA_

Point and Select

buttons

1. Press MENU to begin setup or CLEAR to exit.

You can also access the Interactive Setup through the Main menu:

1. Press MENU to bring up the Main menu.

2, Point to Setup and press MENU or OK. The first Setup screen comes

up, asking you to confirm that you want to begin.

You can also select a menu item by

entering the item number with the

number buttons on the remote.

Press CLEAR at any time to remove all

displays from the screen and return to TV

viewing.

Many VCR user manuals refer to a

PROGRAM button. The MENU button on

this remote works as a PROGRAM button

in VCR mode. Other manuals may refer to

a SELECT button. The OK button on this

remote works as a SELECT button.

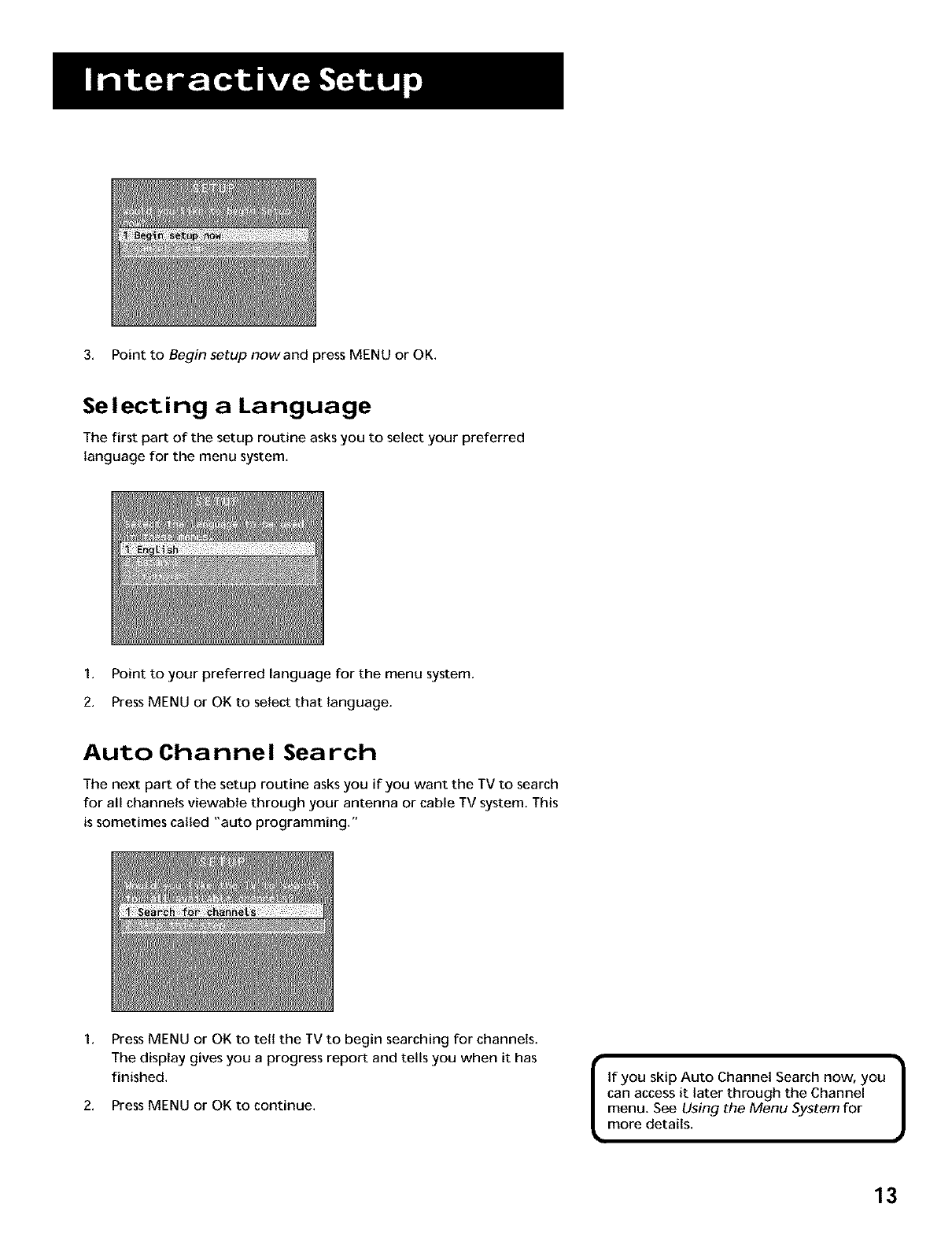

3. Point to Begin setup now and press MENU or OK.

Selecting a Language

The first part of the setup routine asks you to select your preferred

language for the menu system.

1. Point to your preferred language for the menu system.

2. Press MENU or OK to select that language.

Auto Channel Search

The next part of the setup routine asks you if you want the TV to search

for all channels viewabte through your antenna or cable TV system. This

is sometimes called "auto programming."

1, Press MENU or OK to tell the TV to begin searching for channels.

The display gives you a progress report and tells you when it has

finished.

2. Press MENU or OK to continue. [If you skip Auto Channel Search now, you

can access it later through the Channel

menu. See Using the Menu System for

more details. J

The GUIDE Plus+ Gold System

The next step lets you set up the GUIDE Plus+ Gold system to display your local

program listings, and control your cable box and VCR.

You can either press MENU or OK to bring up the GUIDE Plus+ Gold initial menu or

point to Skip this Step to move to the next step in the Interactive Setup.

You can set up the GUIDE

Plus+ Gold system during

Interactive Setup or by

selecting the GUIDE Plus+

Gold Menu from the Main

Menu. You can also access

the GUIDE Plus+ menus by

pressing menu on the

remote, and selecting GUIDE

Plus+ Menu.

Setting Up the GUIDE Pius+ Gold System

To complete GUIDE Plus+ Gold setup, the GUIDE Plus+ Gold IR controllers must be connected to your cable box

and VCR if you have them. Refer to the Setup and Connections section for additional information.

Select your Country and enter your ZIP

or Postal code.

The next series of screens asks you

about your cable TV setup. If you have

a cable box, you need to set the

GUIDE Plus+ Gold system to control it.

Otherwise, it may not be able to

locate and download program

information.

Tune your cable box to Channel 2 and

then select the brand of your cable

box from the choices available. The

system then searches for the correct

code to control your cable box. When

your cable box switches to channel 9 it

has located the correct code.

Select Yesif the cable box changed to channel 9, or No if it did not. If you select No, the system will try

another code.

If the GUIDE Plus+ Gold system cannot recognize either your cable box or VCR after several tries, a screen

stating "Cable Box (VCR) test failed...Please consult your manual and try again" appears. You have a

choice to either Try Again or Skip Cable Box Setup. If you get this message, you should also:

Double check the brand of your cable box or VCR, and try entering it again.

Check to make sure the IR controllers are positioned correctly.

If you choose to skip the cable box (or VCR) setup some features of the guide may not be available until

you successfully complete this procedure.

Once the correct model of cable box (or

VCR) has been identified, you need to set

the cable box's output channel. Enter the

channel you use to view channels through

your cable box--usually 3 or 4. Consult

your cable box's instruction book or your

cable company if you are not sure. Choose

0to use VIDEO INPUT.

Select YESif you have a VCR, or NO if not.

(Answering NO automatically skips forward

to the end of GUIDE Plus+ Gold setup.)

Tune your VCR to channel 2 and turn it off.

Enter the brand of your VCR.

When the GUIDE Plus+ Gold system correctly

identifies the correct code for your VCR,

the VCR's tuner changes to channel 9.

Select YESif the VCR automatically changed

to channel 9, or NO if it did not.

If you select NO, the system will try another

code.

The last screen comes up when you've

successfully finished the GUIDE Plus+ Gold

setup.

Remember:

Leave your cable box turned ON to download program information,

Leave your VCR turned OFF to record programs and download program

information.

Press OK to leave the GUIDE Plus+ Gold system setup,

Setting the Time

The next step in the Interactive Setup lets you set the time of day. If your

GUIDE Plus+ system has not completed its first download, you need to

set the time. Once the system has completed its first download, it sets

the time for you automatically.

1. Press MENU or OK to bring up the SET TIME control panel.

2. Use the left and right arrows to point to the hour and minutes

spaces. Use the digits to enter the numbers and the up and down

arrows to change from AM to PM

3. Press MENU or OK to continue.

Setting the VCR1 Channel (auto

tun i ng)

The next step lets you set the VCR1 channel. When you set the VCR1

channel, you're telling the TV what channel to tune to when you press

the VCR1 button on the remote. This is called auto tuning.

Indicate which input you used to connect the VCR. If you don't have a

VCR1 component connected to the TV, skip this step or select Not

Connected from the VCR1 Channel choice list. (For more, see Auto

Tuning in the Using the Menus section.)

1. Press MENU or OK to bring up the VCR1 choice list.

2. Point to the choice that matches the way you have your VCR

connected to the TV.

3. Press MENU or OK to continue.

Setting the VCR2 Channel (auto

tun i ng)

The next step lets you set the VCR2 channel. When you set the VCR2

channel, you're telling the TV what channel to tune to when you press

the VCR2 button on the remote.

Indicate which input you used to connect a second VCR. If you don't

have a second VCR component connected to the TV, skip this step or

select Not Connected from the VCR2 Channel choice list. (For more, see

Auto Tuning in the Using the Menu System section.)

1. Press MENU or OK to bring up the VCR2 choice list.

2. Point to the choice that matches the way you have your second VCR

connected to the TV.

3. Press MENU or OK to continue.

Setting the DVD Channel (auto

tun i ng)

The next step lets you set the DVD channel. When you set the DVD

channel, you're telling the TV what channel to tune to when you press

the DVD button on the remote.

Indicate which input you used to connect a DVD player. If you don't have

a DVD player connected to the TV, skip this step or select Not Connected

from the DVD Channel choice list. (For more, see Auto Tuning in the

Using the Menus section.)

1. Press MENU or OK to bring up the DVD choice list.

2. Point to the choice that matches the way you have your DVD player

connected to the TV.

3. Press MENU or OK to continue.

Setti ng the SAT/CABLE Channe I

(auto tuning)

The next step lets you set the SAT/CABLE channel. When you set the SAT/

CABLE channel, you're telling the TV what channel to tune to when you

press the SAT*CABLE button on the remote.

Indicate which input you used to connect a satellite receiver or a cable

box. If you don't have a satellite receiver or cable box connected to the

TV, skip this step or select Not Connected from the SAT/CABLE Channel

choice list. (For more, see Auto Tuning in the Using the Menus section.)

1. Press MENU or OK to bring up the SAT/CABLE choice list.

Point to the choice that matches the way you have your satellite

receiver or cable box connected to the TV.

Press MENU or OK to continue.

If You Have Both a Satellite

Receiver and a Cable Box

Connected to the TV

The remote cannot control both a cable

box and the satellite receiver. If you

choose to have the remote control the

satellite receiver, you must then use your

cable box remote to control the cable box

You may, however, prefer to use the

satellite receiver remote for satellite

programming, and set your SAT.CABLE

button to control your cable box. It's your

choice.

Label ing the Channels

This last step in the Interactive Setup lets you edit your channel list and

label your channels. (For more, see List and Labels in the Using the

Menus section.)

Use the CH ^ (channel up) or CH v

(channel down) buttons to change

channels in the Chan # field. This works

even if you're not in the Chan # field. Or,

enter the channel number directly using

the number buttons on the universal

remote. To enter a number greater than

99, press and hold "1" to enter the

hundreds digit, then press the two

remaining numbers.

The list and labels feature can also be

accessed from the Channel menu. Because

this procedure can be time consuming,

feet free to skip this step and come back

to it later.

1. Press MENU or OK to bring up the List and Labels control panel.

Use the left and right arrows to point to the three different areas of

the control panel (called "fields").

Use the up and down arrows to scroll through the numbers and

letters and select Yesor No in the Normal List field. You may wish to

refer to the call letters listed in your newspaper's TV section for ideas

on labeling the channels.

Repeat this process for each of your channels. Then press MENU or

OK to continue. The TV can store up to 27 labels in memory.

Programming the Remote

Since you've gone this far, you can take a few minutes to program the

remote to control your VCR, satellite receiver, or other components. To

find out how to program the remote, go to the next section.

How to use your Universal Remote

This section defines the buttons of the remote and

how to program it to control other components.

The universal remote can be programmed to control

most brands of remote controllable VCRs, satellite

receivers, DVD players and cable boxes, If you have

an RCA, GE, or PROSCAN component, you may not

need to program it at all.

Using the remote

Modes of Operation /

Because this universal remote can control

several different components (DVD

player, VCR, Cable Box, etc.), it uses

operational modes triggered by the

component buttons. For example if you

want the remote to control the TV, you

would press the TV button to put the

remote into TV mode before you could

control the TV.

Remote Buttons

ON.OFF When in TV mode, turns TV on and off. If in another device

mode (VCR, DVD, Satellite, etc.) and programmed, will turn the device

on and off. When pressed twice within two seconds, all devices that are

on will be turned off (this feature only works with most RCA, PROSCAN

and GE products).

VCR1 Puts the remote in VCR mode and if autotuning is enabled, it will

turn on the TV and tune to the correct channel.

TV Turns on the TV and puts the remote in TV mode. Also displays

channel information.

DVD Puts the remote in DVD mode and if auto tuning is enabled, it will

turn on the TV and tune to the correct channel.

VCR2 Puts the remote in VCR2 mode and if auto tuning is enabled, it

will turn on the TV and tune to the correct channel.

LED Red light which indicates programming mode when programming

the remote. Also displays when a valid remote button is pressed.

AUX When pressed, will turn on the component you have programmed

it to control. Also turns on the TV if auto tuning is enabled and the

remote is programmed to control the TV.

SAT.CABLE Puts the remote in SAT*CABLE mode and if auto tuning is

enabled, it will turn on the TV and tune to the correct channel.

MUTE Reduces the TV's volume to its minimum level Press again to

restore the volume.

SKIP Press once before changing channels and the TV will wait 30

seconds before returning you to the original channel. Press repeatedly

to add more time.

CH ^ or CH v Scans up or down through the current channel list. Press

once to change the channel up or down; press and hold to continue

changing channels.

VOL< or VOL> Decreases or increases the TV's volume.

SOUND Press once to display the audio processor choice list. Point and

select to choose a different processor or press CLEAR to exit.

GO BACK Returns you to the previous channel.

GUIDE Brings up and exits the GUIDE Plus+ system. In SAT*CABLE

mode, brings up available on-screen guides.

INFO Brings up channel information.

MOVE (Arrows) Used to point to different items in the menu system.

Also used to adjust the menu controls. Also move the PIP window when

no menus are on the screen.

OK When in the menu system, selects highlighted items or returns you

to the previous menu.

LED

VCRE Ol )FF TV

33<3

DVD VCR2 AUX SAT. CABLE

&&'&&

MUTE SKIP

SOUND GO BACK

GUIDE INFO

MENU CLEAR

10203©

,05060

,O ,O 00

WHOHNPUT ANTENNA

©°O ©

REVERSE PLAY FORWARD

REC'VCR +STOP PAUSE

PIP SWAP CHCTRL RESET

OOOO

MENU Brings upthe Main menu and selects highlighted items. When in

VCR mode, it functions as a PROGRAM button.

CLEAR Removes any menu or display from the screen and returns you

to TV viewing. Also exits the GUIDE Plus+ Gold menu system.

(0-9) Number Buttons Enters channel numbers, digitsfor

programming the remote, and time settings directly though the remote

control. To enter a two-digit channel, press the two digits. To enter a

three-digit channel, press and hold the first digit, release, then add the

second two. For example: to tune to channel 123, press and hold 1,

release, press 2, then press 3.

WHO.INPUT In TV mode, press to toggle through the available input

sources (VIDI/SVID1, VID2/SVID2, current channel). In SAT mode, press to

select available channel lists(RCA, PROSCAN, and GE only).

ANTENNA Functions as TV/VCR button in VCR mode and TV/receiver

button in SAT.CABLE mode.

REVERSE, PLAY, FORWARD, REC*VCR+, STOP, PAUSE If programmed,

provides transport control for some remote-controllable VCRs, DVD

players, laserdisc players, tape decks, and CD players. Pressing REC.VCR+

when using the GUIDE Plus+ system sets the VCR to record a program.

PIP Brings up the small picture-in-picture window. Press again to

remove the PIP window. If you have selected the option labelled

Alternate with PIPwhite in the PIP Caption Display menu, then you

will be able to toggle closed captioning between the main screen and

the PIP window by pressing the PIP button.

SWAP Swaps the main picture with the PIP window.

CH CTRL Selects the picture window (that is, the main or PIP window)

to be changed by the CH ^ (channel up), CH v (channel down), or

WHO.INPUT buttons.

RESET Resets picture quality controls to the Bright Lighting Picture

Control Preset. Point and select to choose a different Picture Control

Preset. Also used to reset the settings in a menu, such as the Parental

Controls menu.

WHO.INPUT

DVb VCR2 AUX SAC,CAbLE

&A°&&

_UTE S_IP

SOUND GO BACK

GUIDE

OO©O

Using the WHO.INPUT Button

Use the WHO.INPUT button to toggle through the available input sources

and view the component you have connected to the TV.

1. Press TV to place the remote in TV mode. Make sure that the

component you want to view is turned on.

2. Press WHO,INPUT to tune to an available input source.

3. Continue to press WHO,INPUT to scroll through the input sources.

Modes of Operation

Because this universal remote can control

several different components (DVD player,

VCR, Cable Box, etc.), it uses operational

modes triggered by the component

buttons. For example if you want the

remote to control the TV, you would press

the TV button to put the remote into TV

mode before you could control the TV.

Programming the Remote

The universal remote can be programmed to control most brands of

remote controllable VCRs, satellite receivers and cable boxes. The

remote is already programmed to control most RCA, GE and PROSCAN

TVs, VCRs, DVD players, laserdisc players and satellite receivers.

Testing the Remote

To determine whether the universal remote needs to be programmed,

turn a device ON, such as a VCR, point the remote at the VCR, and press

the VCR1 button. Then press ON.OFF or CH ^ (channel up) or CH v

(channel down) to see if the VCR responds to the remote commands. If

not, the remote needs to be programmed.

Programming the Remote

Using Automatic Code Search

The following instructions can be used to program the remote to

control each of the devices connected to your TV. If you want to exit the

automatic code search without programming any of your devices, press

and hold CLEAR until the LED turns off.

Turn on the device you want to control (VCR, SAT, etc.).

Press and hold the button you want to program (VCR1, VCR2, etc.).

While holding the device button, press and hold ON*OFF until the

red light on the remote turns on, then release both buttons.

Press and release PLAY, then wait 5 seconds or until the LED stops

flashing.

At this point the remote is searching for the correct code to

program. If, after 5 seconds, the device you want to control does

not turn off, press PLAY again to tell the remote to search the next

set of codes.

Continue pressing PLAY until the device turns off or you have

searched through all of the codes. There are 20 total sets of codes.

If the device does not turn off after pressing PLAY 20 times, then

the remote cannot control that particular device.

If the device you want to control doesturn off:

1. Press and release REVERSE,then wait 2 seconds. Repeat this step

until the device turns back ON.

2. To finish, press and hold STOP until the red light on the remote

turns off.

Using Direct Entry

1. Turn on the component to be programmed.

2. Look up the brand and code number(s) for the component on the

code list on the last page of this section, Using the Remote.

3. Press and hold the button on the remote you want to program.

I Note: Programming the remote will not 1

work with the AUX button i this model.

DW vc_2 _ux SA_.CA_tE

&&°&&

CH ÷

You'll use these buttons when you

program the remote to control any

device.

The remote may not operate all models

of all brands.

Enter the code from the code list.

Release button, and then press ON.OFF to see if the component

responds to the remote commands. If it doesn't, try pressing the

component button and then ON.OFF again.

If you get no response, repeat these steps using the next code listed

for your brand, until the component responds to the remote

commands.

Using the Remote to Control aDevice

Once the remote has been programmed successfully, you are ready to

use it to control your devices.

To operate the device:

1. Press the device button (TV, VCR1, VCR2, DVD, AUX, or SAT.CABLE)

to set the remote to control the device.

2. Press ON.OFF to turn the device ON or ore

3. Use the remote buttons that apply to that device.

Modes of Operation

Because this universal remote can control several different components

(DVD player, VCR, Cable Box, etc.) it uses operational modes triggered

by the component buttons. For example, if you want the remote to

control the TV, you would press the TV button to put the remote into TV

mode before you could control the TV.

Front Panel

If you cannot locate your remote you can use the front panel of your TV

to operate many of the TV's features.

MENU Brings up the Main menu. When in the menu system, it selects

highlighted items. Also returns you to the previous menu.

CH v Scans down through the current channel list. In the menu system,

it points down to items and adjusts menu controls.

CH ^ Scans up through the channel list. In the menu system, it points

up to items and adjusts menu controls.

VOL -Decreases the volume. When in the menu system, VOL - is used

to point left to items and adjust menu controls.

VOL + Increases the volume. When in the menu system, VOL + is used

to point right to items and adjust menu controls.

POWER Turns the TV on and off.

MENU CHV _ VOL-- VOL+ POWER I

The front panel above shows a typical

button layout. The exact look of the

buttons may be different from those on

the front of your T_Z

The Front Panel Block feature disables all

front panel buttons if Parental Controls

are locked. For more information, see

Parental Control, in the Features and

Menus section.

Multitech .................2002, 2013, 2016, 2026, 2063, 2061

| NEC ....................................2009, 2010, 2011,2016, 2018,

Admiral .........................................................................2131 .......................2050,2064,2076,2078,2079,2111,2123

Adventura .....................................................................2026

Aiko ...............................................................................2027

Aiwa ....................................................................2002, 2026

Akai ....2003, 2004, 2006, 2007, 2008, 2111,2112, 2113

American High ............................................................2021

Asha ...............................................................................2013

Audio Dynamics ..............................................20_9, 2010

Audiovox ......................................................................2014

Belt & Howelt ...............................................................2011

Beaumark .....................................................................2013

Broksonic ..........................................................2012, 2025

Calix ..............................................................................2014

Candle ....... 2013, 2014, 2015, 2016, 2017,2018, 2019

Canon ......................................................2021, 2022, 2114

Capehart ............................................................2020, 2110

Carver ...........................................................................2062

CCE ....................................................................2027, 2061

Citizen2013, 7014, 2010, 7016, 7017, 2018,2019,2027

Cotortyme ...................................................................2009

Colt ................................................................................2061

Nikko ...............................................................................2014

Noblex ............................................................................2013

Olympus .........................................................................2021

OpRmus ...............................................................2014, 2131

Optonica .........................................................................2096

Orion ..............................................................................2036

Panasonic .................2021, 2022, 2109, 2125, 2126, 2127

Pentax .................................2016, 2056, 2066, 2107, 2120

Pentex Research ...........................................................2018

Philco ..............................................2021, 2022, 2062, 2063

Philips .............................................2021, 2062, 2096, 2124

Pilot .................................................................................2014

Pioneer ................................2010, 2060, 2080, 2081, 2123

Portland .........................................2016, 2017, 2019, 2110

PROSCAN ..........................................................2000, 2001

Protec ..............................................................................2061

Pulsar ...............................................................................2104

Quarter ..........................................................................2011

Quartz .............................................................................2011

Quasar ......................................................2021, 2022, 2125

Craig .............................................2013, 2014, 2023, 2061 RCA ....................................2000, 2001, 2003, 2013, 2021,

Curtis-Mathes ...........................2000, 2002, 2009, 2013, ..............2055, 2056, 2082, 2083, 2084,2085, 2086,2087,

.................................2016,2018,2021,2022,2024,2116 ..............2088,2089,2090,2091,2107,2115,2120,2125

Cybernex ......................................................................2013

Daewoo .... 2015 2017, 2019 2025 2026, 2027 2028

.... 211_

Daytron .........................................................................2110

Dbx .....................................................................2009, 2010

Dimensia .......................................................................2000

Dynatech ...........................................................20_2, 2026

Electrohome .....................................................2014, 2029

Electrophonic ..............................................................2014

Emerson .................................................2002, 2012,2014,

............2010, 2021, 2024, 2025,2026,2029, 2030, 2032,

2033, 2034, 2039, 2036, 2037, 2038, 2039, 2040, 2041,

2042, 2044, 2045, 2047, 2065, 2105, 2113, 2116, 2117,

RadieshacldRealistic ....................2002,2011,2013,2014

• 2021,2022,2023,2026,2029,2049,2050,2096,2131

Radix ................................................................................2014

Randex ............................................................................2014

Ricoh ...............................................................................2128

Runco ..............................................................................2104

Samsuog...................2005,2013,2016,2033,2063,2112

Sanky ....................................................................2131,2104

Sansui .............................................2010,2092,2111,2123

Sango .........................................................2011,2013,2023

Scott,..2012,2015,2026,2032,2036,2038,2066,_3g

Sears ....................................2011, 2014, 2021,2023, 2048,

2130 .........................?049, 2050, 2061, 2065, 2050, 2107, 2118

Fisher• 2011, 2023, 2048, 2049,2050,2051, 2052,2118

Fuji ......................................................................2021,2119

Funai ...................................................................20_2, 2026

Garrard .........................................................................2026

GE....2000,2001,2013,2021,2022,2053,2110,2120

Goldstar ............................2009,2014,2018,2054,2121

Gradiente .....................................................................2026

Harley Davidson .........................................................2026

Harman Kardon ..........................................................2009

Harwood ......................................................................2061

Headquarter ................................................................2011

Hitachi2002,2050,2056,2057,2107,2111,2120,2122

HI-Q ..............................................................................2023

Instant Replay ..............................................................2021

]CL .................................................................................2021

]CPenney .............2009,2010,2011,2013,2014,2021,

.......... 2022,2055,2050,2058,2059,2060,2107,2118

]ensen ......................................................2055,2056,2111

)VC ...............2009,2010,2011,2018,2058,2111,2123

Konwood ..............2009 2010,2011,2016,2018,2058

211 ,212_

KLH ...............................................................................2061

Kodak .................................................................2014,2021

Lloyd ...................................................................2002,2026

Logik ..............................................................................2061

LXi .................................................................................2014

Magnavox....2021,2022,2062,2063,2104,2108,2124

Magoin ...........................................................................2013

Marantz ..................................................2009,2010,2011,

..................................2016,201&2021,2058,2062,2064

Marta .............................................................................2014

Masushita ......................................................................2021

MEI .................................................................................2021

Memorex ..........................................................2002,2011,

.....................2013, 2014, 2021, 2023, 2026, 2104, 2131

MGA ........................................................2029, 2066, 2113

MGN Technology ........................................................2013

Midland .........................................................................2053

Minolta ....................................................2055,2056,2107

Mitsubishi.. 2029,2050,2056,2065,2066,2067,206_

.......... 2070, 2071,2072,2073,2074,2106,2113,2123

MontgomeryWard ..........................................2075,2131

Motorola ...........................................................2021,2131

MTC ........................................................2002,2013,2026

Sharp ..............2002, 2017, 2029, 2094, 2095, 2096, 2131

Shintom ..........................................20_4,2056, 2061, 2098

Shogun ............................................................................2013

Signature .............................................................20_2, 2131

Singer .........................................................2021, 2061, 2128

Sony ..........................20_2,2004, 2098, 2099, 2119, 2128

STS ........................................................................202% 2107

Sylvania 2002, 2021, 2022, 2026, 2062, 2063, 2065, 2124

Symphonic ...........................................................2002, 2026

Tandy ....................................................................2002, 2011

Tashiko ............................................................................2014

Tatung ...................................................................205& 2111

TEAC ...................................2002,2026, 2058, 2085, 2111

Technics ...............................................................2021, 2109

Teknika .....................2002, 2014, 2021, 2026, 2100, 2129

TMK ...........................................................2013, 2024, 2047

Toshiba ...........2015, 2049, 2061, 2055,2065, 2093, 2116

ToteVision ...........................................................2013, 2014

Unitech ...........................................................................2013

Vector Research ..........................2009, 2010, 2015, 2016

Victor ..............................................................................2010

Video Concepts ................2009, 2010, 2015, 2016, 2113

Videosonic .....................................................................2013

Wards ...........2002, 2013, 2014,2015, 2021, 2023, 2026,

.. 2029, 2059, 2050, 2061, 2096, 2101, 2102, 2103, 2107,

2110,2131

XR-IO00 ...................................................2021, 2026, 2061

Yamaha .....................2009, 2010, 2011, 2018, 2068, 2111

Zenith ..................................2004, 2098, 2104, 2119, 2128

f.,wm't_

AI3C ................5002, 5003, 5004, 6000, 5006, 5007, 5053

Antronix ..............................................................5008, 5009

Archer ............................................5008, 5009, 5010, 5011

Cabletenna .....................................................................5008

Cableview .......................................................................0008

Century ..........................................................................5011

Citizen .............................................................................5011

Cotour Voice .......................................................5012, 5013

Comtronics .........................................................5014, 5015

Contec ............................................................................5016

Eastern ............................................................................6017

Garrard ..................................................................................5011

GC Electronics .....................................................................5009

Gemini .............................................................5018, 5019, 5049

General instrument ............................................................5003

Hamlin ........................................6020, 6021, 6022, 5036, 5045

Hitachi ....................................................................................5003

Hytex ......................................................................................5002

}asco .......................................................................................5011

]errold ...... 5003, 6006, 5007,501& 5023, 6024, 5046, 5063

Magoavox ...............................................................................6026

Memorex ...............................................................................6026

Movie Time .....................................................6002, 6027, 6028

NSC ..................................................................5002, 5027, 5028

Oak ....................................................................5002,5016, 5029

Panasonic ....................................................................5048, 5052

Paragon ..................................................................................5026

PM_ips....... 5011, 5012, 5013, 6019, 5026, 5030, 5031, 5032

Pioneer ........................................................................5033, 5034

Pulsar ......................................................................................5026

RCA ..................................................................5047, 5049, 5052

Realistic .......................................................................5009, 5049

Regat ............................................................................5022, 5035

Regency .................................................................................5017

Rembrandt ............................................................................6003

Runco .....................................................................................5026

5amsung ......................................................................5014, 5034

Scientific ARanta ..................................5006, 5036, 5037, 5038

5igoat............................................................................5014, 5018

Signature ................................................................................6003

5L Marx ..................................................................................5014

Sprucer ..................................................................................5052

Starcom ............................................................5007, 5018, 5053

Stargate .......................................................................5014, 5018

Starquest ................................................................................5018

Tandy ......................................................................................5040

Teleview .................................................................................50!4

Tocom ..............................................................5004, 5023, 5041

Toshiba ...................................................................................5026

Tusa.........................................................................................6018

TV86 .......................................................................................5027

Unika ................................................................5008, 5009, 5011

United Artists .......................................................................5002

United Cable ........................................................................5053

Universal ...............................................6008, 5009, 5010, 5011

Videoway ...............................................................................6044

Viewstar ................................................6016, 5025, 5027, 5040

Zenith ...............................................................5026, 5050, 5091

Chapparal ...................................................................5056, 5067

Drake ..........................................................................5068,5069

GE ................................................................................5000,5001

Generat_nstuments .......................................5060,5061,5062

Panasonic ...............................................................................5075

Primestar ...............................................................................5076

PROSCAN .................................................................5000,5001

RCA .............................................................................5000,5001

Realistic ..................................................................................5063

Sony ........................................................................................5072

5TS1........................................................................................6064

5T62 ........................................................................................6065

5T63 ........................................................................................6066

5T64 ........................................................................................6067

Toshiba ...................................................................................5068

Toshiba ...................................................................................5073

Uniden ....................................................................................5069

(For RCA and Dimel_sia brands only)

AM/EM ...................................................................................4003

Aux .........................................................................................4004

Phono .....................................................................................4005

CD ..........................................................................................4007

Tape ........................................................................................4000

the MENU SYSTEM

This section explores the menus of your TVIbeginning with

some information on using menus and control panels.

Each menu is then outlined and special features are detailed to

help you get the most from your TV. V

Using the Menu System

Menus and Control Panels

Using the buttons on both the remote and front panel enable you to

access and make changes to the menus, control panels, and choice lists.

Menus and choice lists use the point and select rule to navigate, but

control panels use a variety of methods to adjust features on your TV.

The following pages detail how to use these controls to customize the

functions of your TV.

Menus

The first menu is called the Main menu. Press MENU on the remote or on

the front panel to bring up the Main menu:

Menus take you to another menu or a control panel. There are two ways

to select a choice in a menu:

Point with the arrows and then select with MENU or OK.

Press a number button on the remote. For example, in the Main

menu press 3 to go straight to the Screen menu.

Exiting a menu

There are three ways to exit a menu:

Point to Exit and press MENU or OK.

Press 0 on the remote.

Press CLEAR. The on-screen displays are cleared from the screen and

you return to TV viewing.

• ]

Feel free to explore the menu system. If

you're ever unsure where you are in the

menu system, or you're just plain tired of

exploring, press CLEAR to remove the

menus from the screen and start over

again.

Control Panels

Control panels allow you to adjust the default settings on many features

of your TV. You can choose a setting, enter a number, or adjust a level

such as tint or brightness. There are three types of control panels: sliders,

choice lists, and numeric entry.

Sliders

Sliders are used to make adjustments to a particular control.

To use a Slider in a menu:

1. Press the up or down arrow to select the slider control for the

feature you want to adjust.

2. Press the right or left arrow to adjust the indicator line on the slider.

Numeric Entry

A numeric entry control panel is used to enter numbers or letters.

A pointer appears underneath the column you are changing.

Arrows

VCK_ ON'OFF TV

>CC> <3

OVD VCR2 AUX SAT. CABL_

&&°&&

MUTE SI<Ip

SOUND GO BACK

GUEOE INFO

MENU CL_A_

REVERSE PLAY FORWARD

REC'VCR÷ STOP PAUSE

P_P SWAP CHCTRL RESET

©©©©

1. Use the digits to enter a number in the column above the pointer.

2. Press the right arrow to move to the next column, then use the

digits to enter a number.

3. When you have finished entering information, press MENU or OK. If the control panel is not set to the

current time, use the arrows to go back

over the columns and the digits to make

changes.

You can also enter numbers by using the

up and down arrows on the remote.

Choice Lists

Choice lists are used to choose a particular setting from a list. When the

choice list appears, the highlighted item is the one that is currently

selected, or "in use."

Point to a choice on a menu and press MENU or OK to select that choice.

You will then return to the previous screen.

Now that you know how to access the menus and adjust the control

panels the following pages provide a brief explanation of all the menu

features. The features are organized in order of their location on the

Main Menu.

Audio Menu

Mute Press OK to reduce the TV's volume to its minimum level. Press

OK again to restore the volume.

Tone Controls Displays the slider controls for adjusting the TV's treble,

bass and balance.

Audio Processor Displays a choice list of available audio modes, which

control the way the sound comes through your speakers.

Mono Plays the sound in mono only. Use this setting when

receiving broadcasts with weak stereo signals.

Stereo Splits the incoming stereo audio signal into left and right

channels. Most TV programs and recorded materials have stereo

audio. The TV displays the word STEREOwhen you tune to a

program that is broadcast in stereo.

SRS Stereo (.) SRS* is an audio processing tecnology that adds

greater depth and stereo separation to stereo audio signals.

Enhanced SRS Stereo Enhances the SRSsignal togive the

impression of even greater depth and stereo separation.

Sound Logic Stereo Reduces the annoying blasts in volume

during commercial breaks, and also amplifies softer sounds in

program material. Eliminates the need to constantly adjust volume

control.

SRS,Sound Retrieval System and the SRS logo (.) are registered trademarks of SRSLabs, lnc.

Second Audio Program (SAP) Plays the program's audio in a

second language, if one is available. The TV displays the word SAP

when you tune to a program that is broadcast with SAP

information. SAP audio is broadcast in mono. SAP is also used to

broadcast a program's audio with descriptions of the video for the

visually impaired.

Audio Output & Speakers Displays a choice list that lets you turn the

TV's internal speakers on or off and set the audio outputs to fixed-level

or variable control level.

Variable Output, Speakers On This setting turns the TV's speakers

on and allows variable output from the TV's audio outputjecks.

Variable Output, Speakers Off This setting turns the TV's

speakers off and allows variable output from the TV's audio output

jacks.

Fixed Output, Speakers Off This setting turns the TV's speakers

off and allows fixed output from the TV's audio outputjacks to an

external device such as a surround sound amplifier. With Fixed

Output On, the TV's volume control, tone controls and mute are

disabled.

Using the Remote to Select an

Aud io Processor

You can change the audio processor from the Audio menu, as illustrated

above, or by pressing the SOUND button on the remote. To make a

selection using the remote:

1. Press SOUND to display the audio processor choice list.

2. Point to and select a different audio processor or press CLEAR to

exit.

button SOUND GO B_C_

GUIDE

'0 00 00

_Ec.vc_ STO_ PAUSE

Picture Qual ity Menu

Basic Picture Controls Displays the five slider controls for adjusting

the way the picture looks.

Contrast AdJusts the difference between the light and dark areas

of the picture,

Color Adjusts the richness of the color.

Tint Adjusts the balance between the red and green levels.

Black Level Adjusts the brightness of the picture.

Sharpness Adjusts the crispness of edges in the picture.

When exiting this menu, the Save Personal Picture Preset choice list will

appear. You can choose either Yesor No. If you save the settings as a

Personal Picture Preset, the TV will store the settings so you can reselect

them easily if someone changes the settings.

Picture Presets Displays a choice list that lets you select one of three

preset picture settings: Bright Lighting, Normal Lighting, Soft Lighting

or Personal Picture Preset. Choose the setting that is best for your

viewing environment.

Auto Color Displays a choice list that lets you turn on the feature that

automatically corrects the color of the picture. (This is especially useful

for tracking realistic flesh tone colors as you switch from channel to

channel.) Choose On or Off, depending on your preference.

Color Warmth Displays a choice list that lets you set one of three

automatic color adjustments: Cool for a more blue palette of picture

colors; Normal; and Warm for a more red palette of picture colors. The

warm setting corresponds to the National Television Standards

Committee (NTSC) standard of 6500°K.

Video Noise Reduction Displays a choice list that lets you turn on the

feature that automatically reduces noise from the picture, Audio-

variable enables the TV to automatically adjust noise reduction level;

off turns off noise reduction feature; on-fixedsets a fixed level of noise

reduction,

I Press the RESET button on the remote to /

bring up the Picture Control Presets choice J

list. Point to the desired setting; press

MENU or OK to select it.

Screen Menu

Closed-Caption Display Displays a choice list that lets you choose the

way closed captioning information is shown on the screen.

Off No captioning information is displayed.

On Captioning information is shown always, when available.

On When Sound is Muted Captioning information is shown,

when available, whenever the TV's sound is muted. (To mute the

sound, press the MUTE button.) The captioning information is not

displayed when the sound is not muted.

Closed-Caption Mode Displays a choice list that lets you choose which

captioning mode is used for displaying captioning information.

PIP Closed-Caption Display Displays a choice list that lets you choose

the way closed captioning information is shown in the PIP window.

Off No captioning information is displayed.

On Captioning information is shown always, when available.

Alternate with PIP button Captioning information is shown,

when available, when the PIPbutton is pressed and the PIP window

is displayed.

PIP Closed-Caption Mode Displays a choice list that lets you choose

which captioning mode is used for displaying captioning information

within the PIP window.

Menu Language Displays a choice list that lets you select your

preferred language for the menus: English, Spanish or French.

Picture Tilt (Direct View only) Your TV has an extra-large picture

tube, which makes it vulnerable to the effects of the Earth's magnetic

field. You may need to adjust the picture tilt. Use the left and right

arrow buttons adjust the picture tilt.

Adjust Projection TV (Projection TV only) Lets you adjust the TV's

three colors. Selecting Green Centering brings up a control panel that

lets you center the green projection tube on the screen. Selecting Red

Convergence or Blue Convergence lets you align the red and blue

projection tubes.

Center the green projection tube first. Then, adjust the red and blue

projection tubes until the test patterns on the TV screen appear white.

Direct View TIZ.5"-36" or above Screen

Projection TV Screen menu

Your projection TV has three color

projection tubes - one for red, one for

green, and one for blue. When the tubes

are precisely aligned, they create the color

images you see on the TV screen. Over

time, the picture can drift out of

alignment due to normal component

aging, bumps and vibrations or moving

the TV. If you notice rings or halos around

objects in the picture, you may want to

readjust the picture tubes.

Using Closed Captioning

Many programs are encoded with closed captioning information, which

lets you display the audio portion of a program as text on the TV screen.

Closed captioning is not available on all channels at all times. Only

specific programs encoded with closed captioning information are

applicable. When a program is closed captioned, the letters CC are

displayed in the channel marker. See the section Features and Controls

for more information about the channel marker.

Closed Captioning Modes

The TV offers eight closed-captioned modes, including four text modes.

To set the Closed-Captioning Mode:

1. Select Screen from the Main menu.

2. Point to Closed-Caption Mode and press OK. A choice list displays:

3. Point to your choice and press OK to select it and return to the

Screen menu.

Turning off Closed Captioning

1. Select Screen from the Main menu.

2. Press OK to select Closed-Caption Display.

3. Point to Off Always and press OK. The closed captioning

off and you are returned to the Screen menu.

isturned

I If you are unsure of the differences |

among the modes, you may prefer to J

leave the closed captioned mode set to

CCl, which displays complete text of the

program in the primary language in your

area.

Channel Menu

Signal Type Displays a choice list that lets you setect the current

antenna type. This option does not appear when the GUIDE Plus+

system is set up.

UHF/VHF Antenna Choose this if you are currently using an off-air

antenna for TV signals.

Cable TV Choose this if you are currently using cable or a cable

box for TV signals.

Auto Channel Search Tells the TV to search automatically for all the

channels available through the antenna input. When the TV finds an

active channel, it places it in the Normal channel list; inactive channels

(weak stations or channels with no signal at all) will be removed from

the channel list. If you are using a cable box and have set up the GUIDE

Plus+ system then this option does not appear.

List and Labels Displays a control panel that lets you edit your

Normal channel list and choose a six-character label for each channel.

Follow the on-screen directions to enter your channels and other

information.

Chan# Use the up and down arrows to scroll up and down

through the channels available via your antenna. You can enter the

channel number directly using the number buttons.

Normal List Only the channels included in the Normal list are

available when you scan up and down using the CH^/v buttons. Use

the up and down arrows to indicate whether the channel number

indicated is included (Yes) or is not included (No) in the Normal

channel list.

Chan Label Use the up and down arrows to enter a six-character

label for each channel. Hold the button down to scroll quickly

through the characters. Press RESETto clear a label. The TV can

store up to 27 labels in memory.

Auto Tuning Displays a choice list that lets you set up the TV to

automatically tune to the correct input channel when you press a

component button (VCR1, DVD, VCR2 or SAT,CABLE) on the remote.

Set VCR 1 Channel Displays a choice list that lets you select the

channel that the TV tunes to when you press the VCR1 button.

Set VCR 2 Channel Displays a choice list that lets you select the

channel that the TV tunes to when you press the VCR2 button.

Set DVD Channel Displays a choice list that lets you select the

channel that the TV tunes to when you press the DVD button.

Set SAT/CABLE Channel Displays a choice list that lets you select

the channel that the TV tunes to when you press the SAT,CABLE

button.

The choices for each screen are:

Not connected Choose this if you do not have a component

connected to an antenna or video input on the back of the TV, or if

you don't want the TV to tune to a channel when the particular

component button is pressed.

Channel 2 (SAT/Cable only) Choose this if your component is

connected to the antenna jack on the back of the TV, and you want

the TV to tune to channel 2 when you press the specified

component button. Reminder: Make sure the component's Ch 2/3/4

switch is set to channel 2.

Channel 3 Choose this if your component is connected to the

antennajack on the back of the TV, and you want the TV to tune to

channel 3 when you press the specified component button.

Reminder: Make sure the component's Ch 3/4 switch is set to

channel 3.

Channel 4 Choose this if your component is connected to the

antenna jack on the back of the TV, and you want the TV to tune to

channel 4 when you press the specified component button.

Reminder: Make sure the component's Ch 3/4 switch is set to

channel 4.

Video Input1/Video input2 Choosethis if your component is

connected to the VIDEO jack on the back of the TV and you want

the TV to tune to VID (S-VlD if you used an S-Video cable) input

channel when you press the specified component button.

Time Menu

Sleep Timer Displays a control panet that lets you select the amount

of time you want to give the TV before it shuts itself off.

Schedule Displays a control panet that lets you set up a schedute for

turning the TV on and off automatically. Make sure to turn the

schedule On. The on-screen directions guide you through the steps

needed to set the schedule.

Set Time Displays a control panel that lets you enter the current time.

The on-screen directions guide you through the steps needed to set the

time. If your GUIDE Plus+ Gold system is set up and running then it will

automatically update your time and this option will not be available.

Other Menus

The rest of the menus--Parental Controls, GUIDE Plus+ Gold menu, and

Setup--are also detailed in this manual. Look for the GUIDE Plus+ Gold

setup routine and the Setup menu in the section Interactive Setup.

Descriptions of how to use Parental Controls and the GUIDE Plus+ Gold

menu are in the section Features and Controls.

How to use the Features and

Controls

This section introduces you to the features and controls with which

your TV is equipped, In this section, you will learn how to use:

• The GUIDE Plus+ Menu system

• PIP (Picture-In-Picture) control

• Parental controls, including V-Chip rating limits

Features and Controls

GUIDE PLus+ Gold Menu

You can access the GUIDE Plus+ Gold menu directly by pressing GUIDE on

the remote, or by pressing MENU on the remote and then selecting

GUIDE Plus Gold+ Menu. If you press MENU on the remote, you can

access several other features the GUIDE Plus+ Gold system offers:

GUIDE Plus+ Setup Displays the GUIDE Plus+ Gold setup screen.

Setup Setting up the GUIDE Plus+ Gold system is detailed in the

Interactive Setup section of the book.

View Demo Runs the GUIDE Plus+ Gold system demonstration.

GUIDE Plus+ Label Displays the GUIDE Plus+ Gold label menu.

On Displays the station name when you change channels.

Off Disables the Label feature.

Options Displays the GUIDE Plus+ Gold autodisplay options.

On Automatically displays the GUIDE Plus+ Gold system

when you use the TV button on the remote to turn on the

TV.

Off Disables the GUIDE Plus+ Gold system from being

displayed when you use the TV button on the remote to

turn on the TV.

Continuous Demo Runs the GUIDE Plus+ Gold demonstration until it is

turned off. To end the Continuous Demo, press MENU.

The following sections tell you more about the GUIDE Plus+ Gold system,

how to use it, and how it works.

About the GUIDE PLus+ Gold System

The GUIDE Plus+ Gold system is an interactive on-screen program guide

that lists TV schedules for your area and allows your TV direct control of

a cable box and VCR. You must first set up the GUIDE Plus+ Gold Menu

system in order to view it (see the Interactive Setup section for more

details).

To bring up the GUIDE Plus+ Gold screen, press GUIDE.

There are six sections to a GUIDE Plus+ Gold screen:

A row of Action buttons at the top of the screen numbered 1, 2

and 3

Program information

A row of Menu options

Channel listings

Advertising and special show information

Live video window

Live video Action Program Menu

window Buttons Information Options

Ad/Show Channel Listings

Information

Getting In & Out of the Guide Plus+ Gold System

To enter the GUIDE Plus+ Gold system:

Press GUIDE on the remote.

There are three ways to exit the GUIDE Plus+ Gold system:

Press OK to exit the GUIDE Plus+ Gold system and tune to the

channel highlighted in the Channel listing.

Press GUIDE to exit the GUIDE Plus+ Gold system and tune to the

channel displayed in the View window.

Press CLEAR to exit the GUIDE Plus+ Gold system and return to the

original channel.

Press INFO to get more nformation about a program, channel, or

advertisement.

Down Ioad ing Data

The GUIDE Plus+ Gold system is not available until it completes its first

download of program information. When the power is turned off, the

TV locates a "host channel" that carries GUIDE Plus+ Gold data

containing program schedule and channel mapping information. A

channel map is the list of stations and their respective channels.

To ensure that your first download of data is complete, you should leave

your TV off overnight. Downloads occur several times a day. The TVmust

be turned off for GUIDE Plus+ Gold data to download.

If the TV loses power or is unplugged, GUIDE Plus+ Gold program

information may be lost. When power is restored, make sure the setup

information is still correct. The GUIDE Plus+ Gold program will complete

a download at the next available time.

GUIDE

OK_

CLEAR

_w vcR2 _ux S_T.C_B_E

_Ul_ SKiP

S_UND _ _CK

C>C>

0©©0

Channel Mapping

If more than one cable company services your area, you may be

prompted with a Channel Mapping screen after the first GUIDE Plus+

Gold download. You will need to identify your cable company by

selecting the correct channel numbers for the stations in question.

Use the left and right arrows to change the channel group and

press OK when the correct channel group is highlighted.

The Different GUIDE Plus+ Gold System Menus

The GUIDE Plus+ Gold system offers six different options on the Menu

bar: GRID, SORT, NEWS, SCHEDULE, MESSAGES, EDITOR and SETUE To

access the Menu bar:

1. Press GUIDE to bring up the GUIDE Plus+ Gold screen.

2. Press MENU or use the up and down arrows to highlight the Menu

bar. The Grid Guide comes up by default.

3. Use the left and right arrows to access other menus.

4. Press OK, MENU, or use the down arrow to see the menu options.

Since the program information provided

by the GUIDE Plus+ Gold system is based

on your locale, you will need to run

Setup again if you move. )

Grid Guide

The Grid Guide appears each time you enter the GUIDE Plus+ Gold menu

system. It displays the current programming for each channel. The live

program is displayed in the video window.

Use the up and down arrows to browse channel listings and CH ^Iv

to page through listings. Use the right and left arrows to browse

future program listings.

To tune to a channel, highlight the program you want to view in the

channel listing and press OK. Press CLEAR to exit the GUIDE Plus+

system and return to the original channel. Press GUIDE to exit the

GUIDE Plus+ system and tune to the channel in the view window.

Grid Guide Action Buttons

Action buttons will change according to where you are in the GUIDE

Plus+ Gold system. Be sure to look at the action bar before pressing the

command numbers.

When highlighting the Channel listings, the following Action buttons

are available on the bar:

GUIDE Plus+ Gold screens illustrated in /

this book are representations of what

]

you are likely to see. Not all channels,

programs, and GUIDE Plus+ Gold

information depicted will be available in

your area.

New features and options can be

downloaded to the GUIDE Plus+ Gold

system, so these too are subject to

change.

Grid Guide

Action Buttons

Grid Guide

Selection

Watch Press 1 on the remote to place a timer in the Schedule for

the TV to turn on and tune to the program highlighted in the

Channel listing. When the TV turns on, the GUIDE Plus+ Gold system

will automatically appear with the scheduled program highlighted

and tuned in the View window.

Go To Press 2 on the remote to bring up the direct dial box and

enter the number of the channel you want. This will highlight the

channel and current program in the channel listing of the Grid

Guide. Press OK to tune to the highlighted channel. If the view

window is unlocked, you can press GUIDE to tune to the channel.

Record Press 3 on the remote to place a timer in the Schedule for

the VCR to record the program highlighted in the Channel listing. If

you have a cable box, changing channels on the TV will not cause

the cable box channel to change while recording.

The Program information window will display a confirmation when you

have successfully created a timer to watch or record. If you have selected

two programs to watch or record which begin at the same time or

overlap, you will receive a timer conflict message. The GUIDE Plus+ Gold

system will not schedule a conflicting timer, therefore you must choose

between the two programs.

When highlighting the Channel names (the left column on the Channel

listing), the following Action buttons are available on the bar:

Action Button

command

numbers

_ w_, _ux S_.CABLC

o6o

qssC>

'0 0 0

OOOO

Lock/Unlock Press 1 to lock or unlock the video window to

either stay at one channel as you browse the GUIDE Plus+ Gold

system (lock) or change as you browse through different channels

(unlock). The PIPbutton on the remote also toggles between the

locked and unlocked states.

Go To Press 2 on the remote to bring up the direct dial box and

enter the number of the channel you want. This will highlight the

channel and current program in the channel listing of the Grid

Guide. Press OK to tune to the highlighted channel. If the view

window is unlocked, you can press GUIDE to tune to the channel.

The PIP button on the remote also toggles 3

etween the locked and unlocked state. /

Sort

The Sort Menu lets you browse programs by category. The channel to

which you are currently tuned is displayed in the video window. To sort:

1. Press MENU on the remote to highlight the Menu bar.

2, Use the arrows to highlight Sort. When Sort is highlighted for the

first time, the Movies category is displayed. Thereafter, the last

category used becomes the default. A listing of subcategories is

displayed below the category name.

3. Use the up and down arrows to highlight a subcategory. For

example, highlight All and press OK.

4, When the listing comes up, All Movies are displayed. Use the up

and down arrows to browse the list one at a time. Use CH ^ and CHv

to browse through the list one page at a time. You can also view the

next seven days' programming by pressing the right arrow.

5. Select MENU to return to the menu bar, or press GUIDE or CLEAR to

exit the GUIDE Plus+ Gold system.

Sort Menu

Action Buttons

Sort Menu

-Categories

Sort Menu Action Buttons

When viewing the results of a Sort, the following Action buttons will

appear on the bar:

Watch Press 1 on the remote to place a timer in the Schedule, and

then follow the online help for further options. Placing a timer in

the Schedule will cause the TV to turn on and tune to the program

highlighted in the Channel listing at the predetermined time. When

the TV turns on, the GUIDE Plus+ Gold system will automatically

appear with the scheduled program highlighted and tuned in the

View window.

Record Press 3 on the remote to place a timer in the Schedule for

the VCR to record the program highlighted in the Channel listing. If

you have a cable box, changing channels on the TV will not cause

the cable box channel to change while recording. I e sure that during the GUIDE Plus+ Gold |

setup you specified that you have a VCR. J

If you do not, the RECORD option will not

be available.

The program information window will display a confirmation when you

have successfully created a timer to watch or record. If you have selected

two programs to watch or record which begin at the same time or

overlap, you will receive a timer conflict message. The GUIDE Plus+ Gold

system will not schedule a conflicting timer; you must choose between

the two programs.

News

The News Menu lets you browse current news stories by headline.

1. Press Menu on the remote to highlight the Menu bar.

2. Use the arrows to highlight News.

3. Use the up and down arrows to highlight a story.

• Use the up and down arrows to browse the list one at a time.

Use CH^ and CHv to browse through the list one page at a time.

4. Press the right to see full text.

5. Select Menu to return to the menu bar, or press GUIDE or CLEAR

to exit the GUIDE Plus+ Gold system.

News Menu

Selection

Schedu I e

The Schedule menu lets you create timers for either viewing or recording

programs. The GUIDE Plus+ Gold system allows one-button recording if

you have connected the IR controller to your VCR. See the Setup and

Connections section of this manual for more details on connecting the IR

controller.

To schedule a program to watch or record:

1. Press GUIDE to bring up the GUIDE Plus+ Gold system.

2. Highlight a program within the Channel listing.

3. Select Watch or Record from the Action buttons bar. The timer is

then automatically logged into the Schedule menu.

4. If you select Record, make sure to place a blank tape in the VCR.

The program information window will display a confirmation when you

have successfully created a timer to watch or record.

To remove or change the frequency (daily, once, or weekly) of a

scheduled event, access the Schedule Menu from the Menu bar.

1. Press GUIDE to bring up the GUIDE Plus+ system.

2. Press MENU to highlight the Menu bar.

3. Use the arrows to highlight the Schedule menu selection.

4. Use the up and down arrows to highlight the program you want to

edit. Then use the Schedule Menu Action Buttons as described in the

next section.

Schedule Menu

Action Buttons

Sample

News

Story

Schedule

-Menu

Selection

Schedule Menu Action Buttons

When viewing the Schedule menu the following Action buttons will

appear on the bar:

Remove Highlight the Watch or Record timer you wish to remove

from the schedule and press 1 on the remote.

Change Highlight the Watch or Record timer you wish to change

and press 3 on the remote to toggle the frequency between the

following choices:

DAILY records the same program each day Monday through

Friday.

ONCE records only on that day.

WEEKLY records the program each week at the same time.

flf you have selected two programs to

watch or record which begin at the same

time or overlap, you wilt recieve a time

conflict message, the GUIDE Plus+ Gold

system will not schedule a conflicting

timer, therefore you must choose

between the two programs.

Messages

Occasionally you will receive messages regarding your GUIDE Plus+ Gold

system, as well as special programming information. You can access

these messages from the Message Menu on the Menu bar.

To read messages:

1. Press MENU on the remote to select the Menu bar.

2. Use the arrows to highlight the Messages menu selection.

3. Highlight the message you wish to read by using the up and down

arrows.

4, Press INFO to display the full text of the message. If the text

continues beyond the screen, press INFO to view the next page of

text. Once you have reached the end of the message, pressing INFO

closes the expanded information and returns you to the Messages

screen.

5. Then use the Messages Menu Action Button as described in the next

section.

Messages

Action Buttons

Messages

Messages Menu Action Button

When viewing the Messages menu the following Action button will

appear on the bar:

Remove Highlight the message you wish to delete and press 1 on

the remote.

Editor

You may customize the channel listing by enabling or disabling the display

of certain channels. For instance, you may disable channels that you never

watch. You can restore disabled channels at a later point in time.

1. Press GUIDE to bring up the GUIDE Plus+ Gold system.

2. Press MENU to highlight the Menu bar.

3. Use the right and left arrows to highlight the Editor menu selection.

4. Use the up and down arrows to select a channel.

Then use the Editor Menu Action Buttons as described in the next section.

Editor Menu Action Buttons

While browsing the Editor menu, the following Action buttons are

available on the bar:

Editor Menu

Action Buttons

Editor

Selection

Cancel Press 1 on the remote to cancel any changes made since

entering the Editor Menu.

Change Press 2 on the remote to change the channel number for

the highlighted channel line.

On/Off Press 3 on the remote to toggle the state of the channel

between On and Off.

Expanded Information

To view more information about a program, advertisement or special,

highlight the channel listing or ad/show information box and press the

INFO button. Requesting more information about a particular show will

also display the PlusCode programming number and the Shows on Next for

that channel.

Pressing INFO while highlighting an ad panel will fill the screen with any

additional and/or promotional information regarding that particular

program.

Pressing the INFO button again exits the expanded information screen. Ad/Show Information

Troubleshooting

Troubles sometimes are caused by simple "faults" that you can correct

without a service technician. Here are a few basic remedies:

Program information does not download

Review your setup information and make sure it is correct,

The TV must be off to download information. Leave your TV off

overnight, for at least 10 hours, to receive a download for your

area.

If you are using a cable box, make sure the cable box is on in order

to receive program information.

If you are using a VCR, make sure the VCR is off in order to receive

program information.

Scheduled Watch or Record does not occur

Check Schedule for timer conflicts.

Check that IR controllers are attached securely and directly over the

remote sensor,

Make sure there is a tape in the VCR and that the VCR is properly

connected.

Channel Marker

There are several indicators that may come up when you press the TV,

INFO, PIP or SWAP button, This display is called the Channel Marker.

12:01 Displays the current time.

CC Displayed when Closed Captioning is available on the current

channel.

ESPN Displays the label assigned to the current channel.

60 Displays the current channel or input channel. If yellow, pressing

channel up and down changes this channel.

Mute (or Stereo) Mute is displayed when you mute the audio.

Stereo is displayed when the current channel is broadcasting in

Stereo,

SAP Displayed when the current channel is broadcasting SAP

(Second Audio Program) information,

PIP 59 (PIP Chart) Displays the current PIP channel, If yellow,

pressing channel up and down changes the PIP channel.

Locked Displayed when Parental Controls are locked, "Unlocked"

will be displayed when Parental Controls are unlocked.

Sleep Displayed when the Sleep Timer has been set.

00:00 Displayed to count down time left on the commercial skip

(SKIP) timer. Sample displays on a Channel Market:

PiP (Picture-in-Picture) Operation

The PIP (picture-in-picture) feature lets you display a second, smaller

picture on top of the main picture.

PIP Buttons

There are four remote buttons that control the way the PIP window

works:

PIP Brings up the PIP window. Press PIPagain to remove the window.

If you have selected the option labelled Alternate with PIPwhile in the

PIP Caption Display menu, then you will be able to toggle closed

captioning between the main screen and the PIP window by pressing

the PIP button.

MOVE buttons Let you move the PIP window to different areas of

the screen.

SWAP Switches, or "swaps," the video from the PIP window with the

main picture.

CH CTRL (Channel Control) Lets you switch channel control between

the PIP window and the main picture. To determine whether you are

controlling the PIP or the main picture, bring up the Channel Marker

(detailed on the following page). The yellow channel number is the

one you are controlling.

For instance, press PIP to bring up the PIPwindow. You can change

channels by entering digits or pressing the CH^/v. When you press the

CH CTRL, the channel control switches to the main picture. You can

now change channels in the main picture by entering digits or pressing

CH^/v.

_vD vcR_ _ux SAT,CAbLE

_EVE_SE _LA¥ _RWAR_

PIP buttons

-- Move

buttons

Press CH CTRL again to return the channel control to the PIP

window.

Two Tips for Using PIP Buttons

Skip to PIP: Channel Surfing in the Main Picture

You can surf through the channels during commercial breaks using the

SKiP and CH (channel) buttons.

1. Press SKiP to set the commercial skip timer and bring up the PIP

window.

2. Press the CH ^ or CH v buttons to surf through the channels in the

main picture. When the SKIP feature times out, the main picture

will tune to the original channel automatically.

Channel Surfing in the PIP Window

You can use the PIP window to surf through channels as well.

1. Press PIPto bring up the PIP window.

2. Press the CH ^ or CHv buttons. The TV begins displaying each

channel in the PIP window. If you see a channel that interests you,

press SWAP.

You can program the TV to tune to a

specific channel when you press the VCR1

SAT.CABLE, DVD and VCR2 buttons. This

is an easy way to tune the PIP window to

the correct video input channel.

Check out the auto tuning feature in the

Interactive Setup and Using the Menus

sections.

A typical use of SWAP is to scan through

channels in the PIP window, and when

you find a channel you like, press SWAP

to display that channel in the main

picture, sending the current channel to

the PIP window.

Parental Controls and V-Chip

The Parental Controls menu allows you to program your TV so that children

cannot see certain programs, channels, or use the front panel controls.

The first three choices in the Parental Controls menu involve software inside

your TV (dubbed V-Chip) which allows you to "block" TV programs and movies

based on violence, sex, or other content you may believe children should not

view. In other words, it lets you program your TV so it will not display certain

programs. Once you block programs, you or other adults are not limited to only

parent-approved programs; you can "unblock" programs by entering a

password.

The software inside your TV comes turned "off," so if you choose not to

implement it, you can just ignore it.

When turned "on," the software reads a code that most broadcasters send with programs. That code tells the

software the program's age-based rating (TV-MA, TV-14, etc.) and content themes (Violence (V), Adult Language (L),

etc.). If you have blocked the rating and/or content themes that the program contains, you will receive the message,

"This channel is not approved for viewing," when you turn to that particular channel. Broadcasters are not required

to provide content themes, so programs received with no content themes will only be blocked if you block their age-

based rating. You can also block out programs that have been given a rating of "Not Rated," and programs that are

considered "unrated" because no code has been sent by the broadcaster.

The TV age-based ratings and content themes you can block are listed in the table below.

Age-Based

Rating Description and Content Themes for Age-Based Ratings

TV-MA Mature Audience Only. Specifically designed to be viewed by adults and may be unsuitable for

children under 17. It contains one or more of the following content themes: graphic violence (V),

explicit sexual activity (S), or crude indecent language (L).

Parents Strongly Cautioned. Contains some material that many parents would find unsuitable for

children under 14. Parents are strongly urged to exercise greater care in monitoring this program and

TV-14 are cautioned against letting children under the age of 14 watch unattended. This program contains

one or more of the following content themes: intense violence (V), intense sexual situations (S),

strong coarse language (L), or intensely suggestive dialogue (D).

Parental Guidance Suggested. Contains material that parents may find unsuitable for younger

children. Many parents may want to watch it with their younger children. The program contains one

TV-PG or more of the following content themes: moderate violence (V), some sexual situations (S),

infrequent coarse language (L), or some suggestive dialogue (D).

General Audience. Most parents would find this program suitable for all ages. It contains little or no

TV-G violence (V), no strong language (L) and little or no sexual dialogue (D) or situations (S).

Directed to Children 7 years and older. Designed for children ages 7 and above. It may be more

TV-Y7 appropriate for children who have acquired the developmental skills needed to distinguish between

make-believe and reality. Themes and elements in this program may include mild fantasy violence

(FV) or comedic violence, or may frighten children under the age of 7.

TV-Y All Children. Themes and elements in this program are designed for a young audience, including

children from ages 2-6. It is not expected to frighten younger children.

V-ChipTV Rating Limit

The V-Chip TV Rating Limit lets you decide what TV programs can and

cannot be viewed.

To set TV programming limits:

1. Choose Parental Controls from the Main menu. If Parental Controls

have previously been locked, you must enter your password. If they are

not locked, you will get a message reminding you that your limits will

not be effective until you lock Parental Controls.

2. Press MENU to continue.

Highlight and select V-Chip TV Rating Limit.

Once you get to the V-Chip TV Rating Limit screen, use the arrows and

OK on your remote to change the status of a TV program rating or

content theme from View to Block.

The following sections give you more details about how to change the

status of TV program limits.

The Ratings Limits Screen

Below is an example of where items are located within the Rating Limits screen.

Rating Field

Lets you select from a list of age_based

ratings you can block or view.

Rating Status Field

Lets you select whether the status of the age-

based rating limit to the left is View or Block.

Rating Settings Area

Lets you see the current block/view state of age-based ratings and

associated content. The View (V) settings are coded in green, and

the Block (B) settings are coded in red.

Content Themes

Lists the content

themes you can block

or view,

Content Status

Fields

Lets you select which

content themes to

view for the selected

rating, and whether

the status of the

content theme is

currently View (V) or

Block (B).

Blocking Age-Based Ratings

You can automatically block all program ratings above a specified

age-based rating level. For example, if you only want your child to

watch programs that have a TV-G rating and lower (in other words,

you want the child to watch TV-G, TV-Y7, and TV-Y), then you need to

block out other programming with higher ratings.

To block programs with higher ratings:

1. First, determine the lowest level rating you do not want the child

to watch.

Use the left and right arrows to highlight the Rating Field.

Use the up and down arrows on the remote to scroll through the

age-based rating limits. Keep scrolling until the rating

corresponding with the lowest rating you do not want the child

to watch appears.

In the example discussed above, you would scroll through the

rating field until TV-PG appears, since the highest rating you

want the child to watch is TV-G.

4. Use the right arrow to move the yellow highlight to the rating

status field.

5. Press the up or down arrow to toggle between View and Block.

The status for the rating listed to the left and all higher ratings

automatically changes to Block (and B).

Rating status field

Rating

field Content status

When you change the status of a |

rating to Block, the system will J

automatically block higher ratings

and all corresponding content

themes,

Hierarchy of

Age-Based Ratings

TV-MA Mature Audience

Only

TV-14 Parents Strongly

Cautioned

TV-PG Parental Guidance

Suggested

TV-G General Audience

TV-Y7 Directed to Children

7 years and older

TV-Y All Children

Press MENU or OK on the remote to return to the menu or exit

the screen when you are finished.

Select Lock Parental Controls from the Parental Controls menu.

Enter a password, and if you have not already set your password,

you will be prompted to enter it again to confirm. [Pressing RESET on the remote l

will reset all ratings to View J

and V.

Viewing Age-Based Ratings

After you block age-based ratings, you have the option of changing

some of the ratings back to View.

1. Determine which blocked rating you want to view.

2. Use the left and right arrows to highlight the Rating Field.

3. Use the up and down arrows to select the rating whose status is

Block.

4. Press the right arrow to move the yellow highlight to the rating

status field.

5. Press the up or down arrows to toggle between View and Block.

Note that the content status fields corresponding to the unblocked

rating become Viewas well. They and the age-based rating status

are the only fields that automatically change back to Viewwhen

you complete this process.

Rating

Rating status field

Content

status

fields

I You must remember to Lock 1

Parental Controls for rating limits

to take effect.

Content Themes

D Sexually Explicit Dialogue

L Adult Language

S Sexual Situations

V Violence

FV Fantasy Violence

Blocking Specific Content Themes

You can block programs based on their content. (Content is

represented by the D, L, S, V, and FV on your screen. See the

beginning of this section for details.) When you block a content

theme for a particular rating, you automatically block that content

theme for higher rated programs as well.

For example, if you do not want your child to watch programs that

have adult language (L) rated TV-PG or higher, then you could block

out all programming TV-PG and above containing adult language.

To block program content:

1. Determine the lowest level of content you do not want the

child to watch.

Use the left and right arrows to highlight the Rating Field.

Use the up and down arrows on the remote to scroll through

the age-based ratings until the rating that corresponds with the

lowest content you do not want the child to watch appears. (In

the example above, you would scroll through the ratings until

the TV-PG rating appeared.)

Press the right arrow to move the highlight to the field

corresponding with the content theme you wish to block out.

Press the up or down arrow to change content status from Vto

B. All higher ratings' content theme will automatically change

to B.

Broadcasters are not required to

provide content themes or age-

based ratings. Programs received

with no content themes will only

be blocked if you block their age-

based rating.

Raring

field

Rating status field

-- Content themes

-- Content status fields

I You must remember to Lock 1

Parental Controls for rating limits

to take effect.

6. Press MENU or OK to return to the menu or exit the screen.

Viewing Specific Content Themes

If you block specific content themes, you have the option of going back and

changing some of the content themes back to View (V):

Determine the content themes you want to change to View (V).

Use the left and right arrows to highlight the Rating Field.

Use the up and down arrows to scroll through the age-based ratings

until the rating whose content theme you want to change to View

appears.

Press the right arrow to move the yellow highlight to a particular

content theme status, such as the Bunder language (L) corresponding

with TV-14.

5. Press the up or down arrows to change its status back to t4 Your child

would then be able to watch programs with TV-14 adult language

content, but not programs with TV-PG or TV-MA language content.

Rating status field

[Pressing RESETon the remote |

will reset all ratings to View J

and _Z

Rating

field

-- Content themes

-- Content status fields

Note that only the content theme status corresponding to TV-14 language

(L) changes to View (V). Higher rated content themes, such as that for TV-MA

language, do not change.

V-Chip Movie Rating Limit

You set movie rating limits by blocking movies rated above a specified level.

Blocking Movie Ratings

If you only want your child to watch movies that have a PG rating and lower

(in other words, movies rated PG and G), then you could automatically block

out all other movies with higher ratings.

To block movies:

Highlight the rating field and press the up and down arrows to find the

rating that is the lowest rating you do not want the child to watch. (tn

the example above, you would point to the rating status button

corresponding to PG-13, since the highest rating you want the child to

watch is PG.)

Use the right arrow to highlight the rating status field. Press the up and

down arrows to change the button from Viewto Block. All higher

ratings' Viewbuttons will automatically change to Block.

Rating field Rating status field I Some movies may be given a Not I

Rated (NR) rating. After blocking J

movie ratings, you must set NR to

View separately to view NR

movies.

3. Press OK to return to the menu or exit the screen.

4. If Parental Controls are not locked, you must lock them so the movie

rating limits will take effect. See the section Locking Parental Controls.

Viewing Movie Ratings

After you block movie ratings, you have the option of changing some of the

rating status buttons back to View:

1. Highlight the rating field and press the up and down arrows to find the

rating you want to view.

2. Use the right arrow to highlight the rating status field. Press the up and

down arrows to change the button from Block to View.

For example, if movies with a rating of PG-13 and higher are blocked, you

can change the rating status button corresponding with NC-17. Your child

would then be able to watch all movies with a G, PG, and NC-17 rating.

3. Press MENU or OK to return to the menu or exit the screen, and be sure

parental controls are locked (see the section Locking Parental Controls).

[You must remember to Lock

Parental Controls for rating limits

to take effect.

Rating field Rating status field

]

V-Chip Unrated Program Block

Selecting this option lets you decide if programs that the V-Chip

recognizes as "unrated" can be viewed. Note that "unrated" TV

programs may include news, sports, political, religious, local and

weather programs, emergency bulletins, public announcements, and

programs without ratings.

View All unrated programs are available.

Block All unrated programs are not available.

Don't forget to lock parental controls after you change the status of

unrated program viewing. If you do not, the limit will not take effect.

Channel Block

Selecting this option lets you decide what channels can be viewed.

View Makes the selected channel viewable.

Block The front panel and remote CH (channel) buttons will tune

only to channels that you have marked as View. You may tune to

a blocked channel manually by using the number buttons and

entering the correct password.

Don't forget to lock parental controls after you change the status of

Channel Block. If you do not, the channel block will not take effect.

Front Panel Block

Selecting this option lets you block (disable) or unbtock (enable) the TV's

front panel. The remote still tunes to any channel. Front Panel Block can:

Keep children from watching TV when the parent is not present.

Keep small children from playing with the buttons.

(When using this as a Parental Control method, you should remove

access to any remote capable of controlling the front panel while you

have the Front Panel blocked.)

Don't forget to lock parental controls after you change the status. If you

do not, the front panel block will not take effect.

Lock/Unlock Parenta I Controls

Selecting this option lets you lock and unlock parental controls settings

using a password.

If you do not lock parental controls, none of the settings for V-

Chip, Channel Block, or Front Panel Block will take effect.

If you forget your password, press and hold TV on the remote and the

MENU button on the television simultaneously for 3 seconds. Parental

controls will then unlock and you can re-enter a password via Lock

Parental Controls.

Troubleshooting

Troubles sometimes are caused by simple "faults" that you can correct without the help of aservice technician. If you

experience any difficulty with your TV, check a few basic remedies before calling your service technician.

TV will not turn on

Check to make sure it is plugged in.

Check the wall receptacle (or extension cord) to make sure it is "live" by plugging in something else.

Maybe batteries in remote control are "dead."

Maybe remote control is not aimed at remote sensor.

The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by

selecting the Front Panel Block in the Parental Controls menu and choosing View.

Controls don't work

If using remote control, make sure remote is in TV mode by first pressing TV button.

The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by

selecting the Front Panel Block in the Parental Controls menu and choosing View.

Try unplugging set for two minutes and then plug it back in and turn it on again.

Problems with remote

Maybe something is between the remote and the remote sensor.

Maybe the remote is not aimed directly at the component (TV or VCR) you are trying to control.

Maybe remote is not in TV Mode. Press the TV button so remote will control TV.

Maybe batteries in remote are weak, dead or installed incorrectly. Try replacing batteries. (Note, if you remove the

batteries, you may have to reprogram the remote to control other components.)

Remove batteries and hold number 1 for at least 60 seconds to drain the microprocessor inside the remote. Release

number 1, replace the batteries, and (if necessary) reprogram the remote.

Guide comes on when I turn on TV

The GUIDE Plus+ Gold system automatically comes up when you use the TV button on the remote to turn on the TV.

You can turn off this feature by selecting GUIDE Plus+ Auto Display from the Gemstar GUIDE Plus+ Gold Menu, and

setting it to Off.

Turns off while playing

Scheduled Off function may have been activated.

Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn on

again. If this happens frequently, the voltage in your house may be abnormally high or low.

TV Turns on unexpectedly

Scheduled On or Watch from the GUIDE Plus+ Gold system may have been activated.

Blank screen

Maybe the component connected to the input jacks is not turned on.

Try another channel.

Press RESET,in case the picture controls are set too low.

No sound, picture okay

Maybe sound is muted. Try pressing volume up button to restore sound.

Maybe speakers are turned off. Check the Audio Output and Speakers control panel in the Audio menu.

If using an S-VHS component, remember to also connect the component's L and R AUDIO OUT jacks to the TV's L and R

INPUTjacks.

Can't select certain channel

Channel may be blocked or not approved in the Parental Controls menu.

If using a VCR, check to make sure the TV/VCR button on the VCR is in the correct "mode."

Noisy stereo reception

May be a weak station. Use SOUND button to change to mono mode instead of stereo.

No picture, no sound but TV is on

Maybe the cable/air setting is set to the wrong position. To fix, select GUIDE Plus+ Gold Menu from the Main menu,

select the Setup option, and provide the correct information on the following screens.

Maybe a vacant channel is tuned.

If watching VCR (connected only through antenna input), make sure TV is tuned to channel 3 or 4 - same as CH3/4

switch on VCR. Also check to make sure the TVNCR button on the VCR is in the correct "mode."

Sound okay, picture poor

Check antenna connections.

Try adjusting sharpness function to improve weak signals.

If the picture appears to have a double or triple image or if you notice rings or halos around objects, you may have to

adjust the color convergence. Details can be found under the Screen menu heading in the "Using the Menu System" section

of this manual (Projection TV only).

Black box appears on the screen

Captioning may be turned on. Check the Closed-Caption Display control panel in the Channel menu.

GUIDE Plus+ IR controllers not working

Check to make sure the controllers are positioned correctly over the IR remote sensors.

Your remote may be interfering with the IR controller. Place a piece of dark tape over the IR controller.

GUIDE Plus+ Gold system control of cable box is slower than direct control of the box itself. Keep this in mind when

changing channels.

Care and Cleaning

CAUTION: Turn OFF your TV before cleaning.

You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet

to help assure adequate ventilation.

The TV's screen may be cleaned with a soft, lint-flee cloth as well. Take care not to scratch or mar the screen. If

necessary, you may use a cloth dampened with warm water.

Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. These types of

cleaners will damage the TV.

While cleaning do not spray liquid directly on the screen, or allow liquid to run down the screen and inside the TV. Also,

avoid placing drinks or vases with water on top of the TV. This could increase the risk of fire or shock hazard or damage to

the TV.

I auti°n: If fixed (n°n'm°ving) images are left °n the screen f°r l°ng peri°ds' they may be permanently imprinted °n the 1

screen. Such images include network logos, phone numbers, and video games. This damage is not covered by your

warranty. Extended viewing of channels displaying these images should be avoided.

RCA Di rect view tv(5"- 36' LIMITED WARRANTY

What your warranty covers:

Any defect in materials or workmanship.

For how long after your purchase:

90 days for labor charges.

One year for parts.

Two years for the picture tube.

The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm,

whichever comes first.

What we will do:

Pay any Authorized RCA Television Service Center the labor charges to repair your television.

Pay any Authorized RCA Television Service Center for the new or, at our option, refurbished replacement parts and

picture tube required to repair your television.

How you get service:

For screen sizes of 26" and smaller: Take your RCA television to any Authorized RCA Television Service Center and pick

up when repairs are complete.

For screens sizes larger than 26": Request home service from any Authorized RCA Television Service Center, provided

that your television is located within the geographic territory covered by an Authorized RCA Television Service Center.

If not, you must take your television to the Service Center location at your own expense, or pay for the cost the Service

Center may charge to transport your television to and from your home.

To identify your nearest Authorized RCA Television Service Center, ask your dealer, look in the Yellow Pages, or call 1-

800-336-1900.

Show the Authorized Service Center Representative your sales receipt or other evidence of purchase date or first rental.

What your warranty does not cover:

Customer instruction. (Your Owner's Manual clearly describes how to install, adjust, and operate your television. Any

additional information should be obtained from your dealer.)

Installation and related adjustments.

Signal reception problems not caused by your television.

Damage from misuse or neglect.

Batteries.

Customer replacement fuses.

Images burnt onto the screen.

A television that has been modified or incorporated into other products or is used for institutional or other commercial

purposes.

A television purchased or serviced outside the U.S.A.

RCA PROJECTION TV WARRANTY

What your warranty covers:

Any defect in materials or workmanship,

For how long after your purchase:

One year for labor charges.

One year for parts.

Two years for picture tubes.

The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm,

whichever comes first.

What we will do:

Pay any Authorized RCA Television Service Center the labor charges to repair your television.

Pay any Authorized RCA Television Service Center for the new or, at our option, refurbished replacement parts and

picture tubes required to repair your television.

How you get service:

Request home service from any Authorized RCA Television Service Center, provided that your television is located within

the geographic territory covered by an Authorized RCA Television Service Center. If not, you must take your television

to the Service Center location at your own expense, or pay for the cost the Service Center may charge to transport your

television to and from your home. To identify your nearest Authorized RCA Television Service Center, ask your dealer,

look in the Yellow Pages, or call 1-800-336-1900.

Show the Authorized Service Center Representative your evidence of purchase date or first rental.

What your warranty does not cover:

Customer instruction. (Your Owner's Manual clearly describes how to install, adjust, and operate your television. Any

additional information should be obtained from your dealer.)

Installation and related adjustments.

Signal reception problems not caused by your television.

Damage from misuse or neglect.

Batteries.

Images burnt onto the screen.

A television that has been modified or incorporated into other products or is used for institutional or other commercial

purposes.

A television purchased or serviced outside the U.S.A.

Acts of God, such as but not limited to lightning damage.

Product Registration:

Please complete and mail the Product Registration Card packed with your television. It will make it easier to contact

you should it ever be necessary. The return of the card is not required for warranty coverage.

How State Law relates to warranty:

This warranty gives you specific legal rights and you also may have other rights that vary from state to state.

If you purchased your television unit outside the United States:

This warranty does not apply. Contact your dealer for warranty information.

Accessory Information

Antenna (or cable-TV) connections are made with either

coaxial antenna cable or twin-lead cable. Coaxial cables

are shielded so they are less susceptible to hum or

interference from adjacent cables.

Most audio/video connections between components can

-- Push-on Connector

Round 75-ohm coaxial cable

Screw-on Coaxial

Connector

Flat 300-ohm twin-lead cable

be made with shielded audio and video cables that have

RCA-type phono connectors,

Standard Audio/Video cable with RCA-type

phono plugs (such as No. VH83)

Color-Coded Jacks

Thejacks on the TV's monitor panel are color-coded for

ease of use. The videojacks are yellow, the right audio

jacks are red, and the left audiojacks are white. When

connecting components to each other, be sure that you

always connect left outputs to left inputs and right

outputs to right inputs. If a component has only one

output (mono), connect it to the r/mono inputjack.

To connect S-VHS (Super-VHS) components, an

S-VHS video cable is required.

The following accessories are available from most dealers and

electronics supply stores in case you want to position your

components farther apart or need additional cables.

Antenna Cables

VH81 (3-ft)

VH82 (6-ft)

Screw-on Cable attaches to the

round antenna connectors (called

75-ohm F-type) on the back of your

VCR or TV. The ends screw onto the

connectors for a secure connection.

Push-on Cable attaches to the

round antenna connectors (called

75-ohm F-type) on the back of your

VCR or TV. Ends push on for a quick

connection.

Audio/Video Cables

VH89(6-_)

Gold-Tipped cable

VH83 (6-ft)

Monaural VCR Dubbing Cable

Double cable that lets you connect

the video and audiojacks of two

VHS VCRs to duplicate tapes. Can

also be used to connect a VCR to

your TV. Cable is color-coded and

shielded. Has RCA-type phono

plugs on each end.

Stereo VCR Dubbing Cable Triple

cable that lets you connect the V_DEO

and AUDiOjacks of stereo

components.

S-Video cable (such as No. VH913)

Gold-Plated Jacks and Gold-Tipped Cables

Gold plating helps prevent oxidation of contacts which

provides much less loss than conventional contacts. A

complete line of gold-tipped cables is available to help

you obtain optimum performance from your equipment.

Gold-Tipped cable

VH84 (6-ft)

VH976 (6-ft)

VH913 (12-ft)

S-Video Cable has multi-pin

connectors on each end for

connecting S-Video components to

your TV.

CRK76TA1

Splitter

VH47

ANT200

SCTV160

Remote Control This is the

remote control that came

packed with your TV.

Replacements or spares can

be ordered as needed.

2-way Signal Splitter helps

you connect to a second TV or

VCR.

Amplified VHF/UHF/FM

Antenna allows you to easily

switch from the antenna

signal to cable or satellite

without disconnecting

antenna. This comes

complete with 75/300 Ohm

band separator and matching

transforme£

Cable TV and Satellite

Surge Supressor features 8

outlets and accomodates 4

large AC adapters, has 940

Joules, audible alarm and

diagnostic indicator lights.

Includes $50,000 equipment

guarantee. (_

Accessory Order Form

Description

Screw-on antenna cable (3-ft)

_crew-on antenna cable (6-ft) VH82

;ush-on antenna cable (6-ft) VH89

Vlonaural VCR Dubbing Cable (6-ft) VH83

;tereo VCR Dubbing Cable (6-ft) VH84

;-Video Cable (6-ft) VH976

;-Video Cable (12-ft) VH913

__-waySignal Splitter VH47

&mplified Antenna ANT200

_ntenna Mixer 193984

{emote Control (CRK76TA1) 240895

&udio,Video Adapter 228449

;urge 5upressor SCTV160

$6.95

$5.95

$9.95

$7.95

$8.95

$3.95

$49.95

$11.15

$29.20

$4.45

$49.95

Prices are subject to change without notice.

Total Merchandise ............................................ $

Sales Tax .............................................................. $__

We are required by law to collect the

appropriate sales tax for each individual

state, country, and locality to which the

merchandise is being sent,

Shipping and Handling ..................................... $ 5.00

Total Amount Enclosed ..................................... $-_

Use VISA, MasterCard, or Discover Card

3referably.

Money order or check must be in U.S.

currency only.

No COD or CASH.

All accessories are subject to availability,

Where applicable, we will ship a superseding model.

Charge your order on your VISA,

MasterCard, or Discover Card by

filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number

from your VISA card

VISA

Mycardexpires: _

IMPORTANT: Copy complete account number

from your MasterCard

Copy Number

above your

name on

MasterCard

My.card _

expires:

IMPORTANT: Copy complete account number

from your Discover Card

Mycardexpires: _

AUTHORIZED SIGNATURE

(Credit card order will not be processed without signature)

Prices are subject to change without notice.

Print or type your name and ::: A complete and correct

address clearly. This will be order will save you days

your mailing label, of waiting.

Name:

Street:

Apt:

City:

State: Zip:

Please make sure that both sides of this form

have been filled out completely.

•Allow 4 weeks for delivery.

• All accessories are subject to availability.

• Prices are subject to change

Placing An Order

To place your order by phone, have your Visa, MasterCard

or Discover Card ready and call the toll-free number listed

below between 8AM and 8PM (EST)Monday through Friday

or between 9AM and 5PM (EST) Saturday.

Use this number only to place an order for accessory items

listed on this order form.

1-800-338-0376

To place your order by mail, detach and mail the completed

order form with credit card information, money order or

check in US currency (made payable to Thomson Consumer

Electronics, Inc.) to the following address:

Video Accessories

PO Box 8419

Ronks, PA 17573

Accessories 58

Advanced connections

4,6

Age-Based Ratings 47

Audio menu 30

Audio Output 6

Audio Output Volume &

Speakers 31

Audio Processor 30

Audio/Video cables 7

Auto Channel Search

13, 35

Auto Color 32

AutoTuning 17, 18, 20

DVDChannel 18, 35

SAT/CableChannel 19, 35

VCR1Channel 17, 35

VCR2Channel 17, 35

Back of the TV 6

Basic Connection 4, 5

Basic Picture Controls 32

Batteries 10, 45

Black Level 32

Buttons

Remote 22

Cable/Antenna 6

Cables

Coaxial 4

Care and Cleaning 55

CC 45

Chan #35

Chan Labels 35

Channel

Mapping 39

Channel 3 36

Channel 4 36

Channel Block 53

Channel Map 39

Channel Marker 45

Channel menu 35

Channel search 13

Channels

Labeling 20

CLEAR button 12

Closed Caption

Display 33

Mode 33, 34

PIP Display 33

PIP Mode 33

Coaxial Cable 4, 5, 7

Color 32 M

Color Warmth 32

Connections 4

Advanced 4, 6

Basic 4, 5

TV and stereo VCR 7

TV Only 4

TV, VCR and Satellite Receiver

Content Tbemes 47

Contrast 32

Control Panels 29 N

DVD Channel 18, 35

Fixed images 55

Fixed Output, Speakers Off 31

Front panel buttons 25

Front Panel Lockout 53

Grid Guide 40

GUIDE Plus+

Setup 14

Guide Plus+ System 14, 38

Downloading information 39

Editing 44

Messages 43

Schedules 42

Setting up the Guide 14

Sorting menus 41

INPUT1 6, 36

INPUT2 6

Interactive Setup 12

IR Controller

attaching to other compo-

nents 9

locating IR sensors on your

components 9

Labels 20, 35

Language 13, 33

Languages

Selecting 13

List &Labels 20

Locating IR sensors 9

Main Menu 12

Memory 35

MENU button 12

Menu Language 13, 33

Menus 28

Messages 43

Mono 30

Mute 30

Normal List 35

Parental Controls

Channel Block 53

Front Panel Block 53

Front Panel Lockout 53

Locking, unlocking 53

Menu 47

Parental Controls menu 47

Picture Presets 32

Picture Quality menu 32

Picture Tilt 33

PIP (Picture in Picture)

Buttons 46

Closed caption display 33

Closed caption mode 33

PIPChan 45

Point 12

Point and Select 12

Programming the remote to

control components 24

Projection TV

Convergence 33

Rating Limits

Movie 52

TV 48

Remote Control

Installing the batteries 10

Programming 24

Remote batteries are low 45

Remote control

Programming 20

S-Video 6

S-Video Cable 7

SAP 45

SAT/CABLE Channel 19

Schedule 36

Screen menu 33

Second Audio Program (SAP) 30

Select 12

Set

DVDChannel 18, 35

SAT/CABLE Channel 19, 35

VCR1 Channel 17, 35

VCR2Cbennel 17, 35

Set'rime 36

Setup 12

Sharpness 32

Signal Type

Cable TV 35

UHF/VHF Antenna 35

Sleep Timer 36

Stereo 30, 45

Time

Current 45

Set Time 16

Time menu 36

Time of Day

Setting 16

Tint 32

Tone Controls 30

Troubleshooting 54

TV GUIDE Plus+ 41, 42, 44

TV Guide Plus+ 38

TV GUIDE Plus+ System 15, 39

Channel Mapping 39

Scan Menu 41

Sort Menu 41

TV only connection 4

UHF/VHF Antenna 35

V-Chip

Age-Based Ratings 47

Blocking Movies 52

Content themes 47

V-chip 47

Variable Output, Speakers Off 31

Variable Output, Speakers On 31

VCR 2 channel 17

VCR control 6

VCR1 Channel 17, 35

VCR1 channel 17

VCR2 Channel 17, 35

Video Noise Reduction 32

CREATING A GREENER FUTURE

At Thomson Consumer Electronics we are dedicated to the preservation of our

natural heritage and to a healthy and safe way of life for current and future

generations. This is a global effort which encompasses every THOMSON facility

throughout the world.

We believe that clean air, clean water, a protected earth, and healthy people are not

only practical and desirable goals, but achievable ones as well. Our Corporate

Environmental, Health and Safety Charter acknowledges our commitment to protect

these precious assets and provides a challenging vision and guideline for conducting

our business.

_'I1HOMSONCONSUMERIS.EC11RONICS

Below are a few examples of Thomson's achievements in our efforts to preserve our natural resources.

The Earth

Thomson reclaims millions of pounds

of hazardous waste annually, diverting

it from landfills.

Thomson treats millions of pounds of

waste water sludge annually and

renders it non-hazardous.

Thomson recycles over 50 million

pounds of non-hazardous material

annually that otherwise would have

been treated as trash, an overall

recovery rate of 50%.

Thomson globally recycles millions of

pounds of broken television picture

tube glass annually through both

internal and external reclaim processes.

The A i r

Thomson has replaced solvent-based

paints at many locations resulting in an

80% reduction in toxic air emissions for

equivalent material used.

Thomson has eliminated the use of

ozone-depleting substances at television

manufacturing facilities around the

world.

Thomson collects and returns over 1.5

million pounds of glass and furnace dust

to the glass making process annually.

Thomson has launched worldwide

energy savings programs which

contribute to efforts to reduce air

emissions from electrical generating

facilities.

the water

Thomson recovers over 2 million

pounds of fine glass particles from

process water each year and recycles

them back into its glass furnaces.

Thomson's state-of-the-art waste water

treatment plants filter out over 26

million pounds of solids from process

water each year.

Thomson's U.S. glass factory recycles

2,500 gallons of water per minute and

cleans 2.6 million gallons of water per

day.

Thomson is researching new processes

and is developing new manufacturing

equipment and technologies to further

reduce large volume water use.

Thomson has also increased its usage of recycled materials for packaging of our products. For example, in Mexico our television

plants use recycled content in our television cartons and instruction booklets. The inks used for the print on cartons and

instruction booklets are soy based. For a free brochure regarding Thomson's Environmental Health and Safety Programs, write

to Thomson Consumer Electronics' address below, attention Environmental Programs: INH340.

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in

service for your product.

The following materials were used in

printing this publication:

"n'IOMSON CONSUMER ELECTRONICS

10330 North Meridian Street

Indianapolis, IN 46290

Trademark(s)® Registered

Marca(s) Registrada(s)

Printed in USA

_1 100%

RECYCLEDPAPER

MINIMUM40%POSTCONSIIM[R

___j PRINTED WITHI

SOYINK

TOCOM 15407360

RCA Direct View Digital 27 To 40 TV Manual L0310229

Navigation menu

Versions of this User Manual:

Views

Navigation
