RCA Projection/Digital 42 And Above TV Manual L0312171

User Manual: RCA RCA Projection/Digital 42 and above TV Manual RCA Projection/Digital 42 and above TV Owner's Manual, RCA Projection/Digital 42 and above TV installation guides

Open the PDF directly: View PDF .
Page Count: 64

mmcR sc m

m

ml",,JIU l'vl

!_i!_ iiii_!ii_!iiiii!iiiiiiiiiiiiiiiiiiiiiiiii__ _i_iiiiiiiiiiiiiii!ii!iiiiiiiiiiiiiiiiiiiiiiiiiii__iiiiii_!iiiiiii_i__iiiiiii__iiiiii_iiiiiiiiii

|mportant |nformatic)n

WARNING

To reduce the risk of fire or

electric shock, do not expose

this product to rain or

moisture. The apparatus shall

not be exposed to dripping

or splashing. No objects filled

with Equids, such as vases, shall

be placed on the apparatus.

CAUTION

THIS PRODUCT UTILIZESA

LASER.USE OF CONTROLS

OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULTIN

HAZARDOUS RADIATION

EXPOSURE.DO NOT OPEN

COVERSAND DO NOT REPAIR

YOURSELE REFERSERVICINGTO

QUALIFIED PERSONNEL.

Note:

This device is protected by U.S.

patent numbers 4,631,603 and

4,577,216 and 4,819,098 and

other intellectual property

rights. The use of Macrovision's

copy protection technology in

the device must be authorized

by Macrovision and is intended

for home and other limited

pay-per-view uses only, unless

otherwise authorized in

writing by Macrovision. Reverse

engineering or disassembly is

prohibited.

-_1 This symbol indicates that this product

incorporates double insulation between

RiSKOF ELECTRICSHOCK hazardous mains voltage and user

DO NOT OPEN accessible parts. When servicing use only

identical replacement parts.

Caution: To reduce the risk of electric shock, do not remove cover (or back).

No user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates

"dangerous voltage" inside the

product that presents a risk of

electric shock or personal injury.

_This symbol indicates

important instructions

accompanying the product.

Caution: To prevent electric shock, match wide blade of plug to wide slot,

fully insert.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

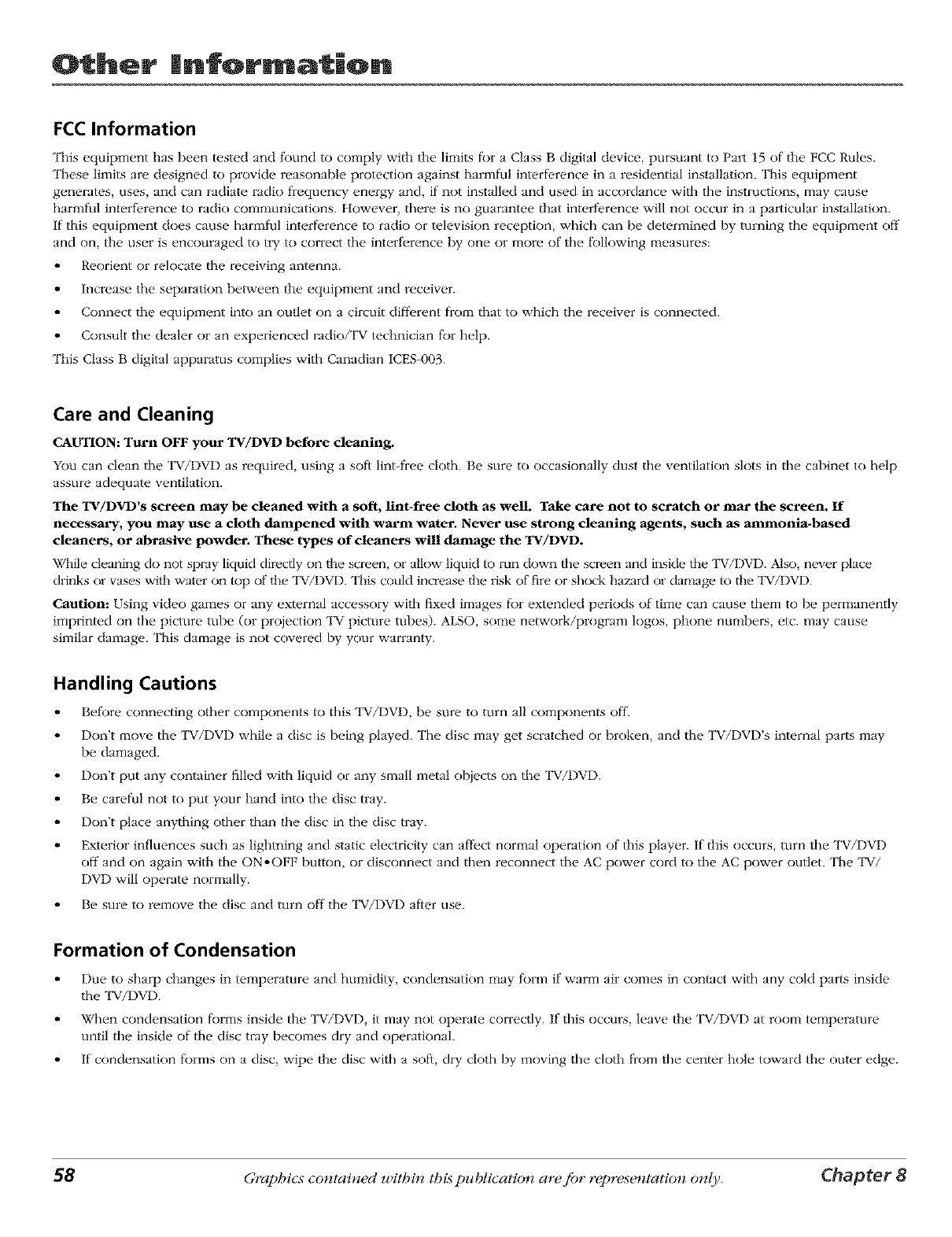

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

Caution: Using video games or any external accessory with fixed images

for extended periods of time can cause them to be permanently imprinted

on the picture tube (or projection TV picture tubes). ALSO, some network/

program Iogos, phone numbers, black borders (sides, top and bottom), etc.

may cause similar damage. This damage is not covered by your warranty.

Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

Warning: Do not use the Freeze feature for an extended period of time. This

can cause the image to be permanently imprinted on the picture tube. Such

damage is not covered by your warranty. Press any button to unfreeze the

picture at any time.

Note:

This DVD player is designed

and manufactured to respond

to the Region Management

Information. If the Region

number of a DVD disc does

not correspond to the Region

number of this DVD player, this

DVD player cannot play the

disc. The Region number for

this DVD player is Region No 1.

Product Registration

Please fill out the product registration card (packed separately) and return

it immediately. For US customers: Your RCA Scenium Consumer Electronics

product may also be registered at www.rcascenium.com/productregistration.

Registering this product allows us to contact you if needed.

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof

of purchase. Attach it here and record the serial and model numbers in case

you need them. These numbers are located on the product.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

| portant |nfor ation

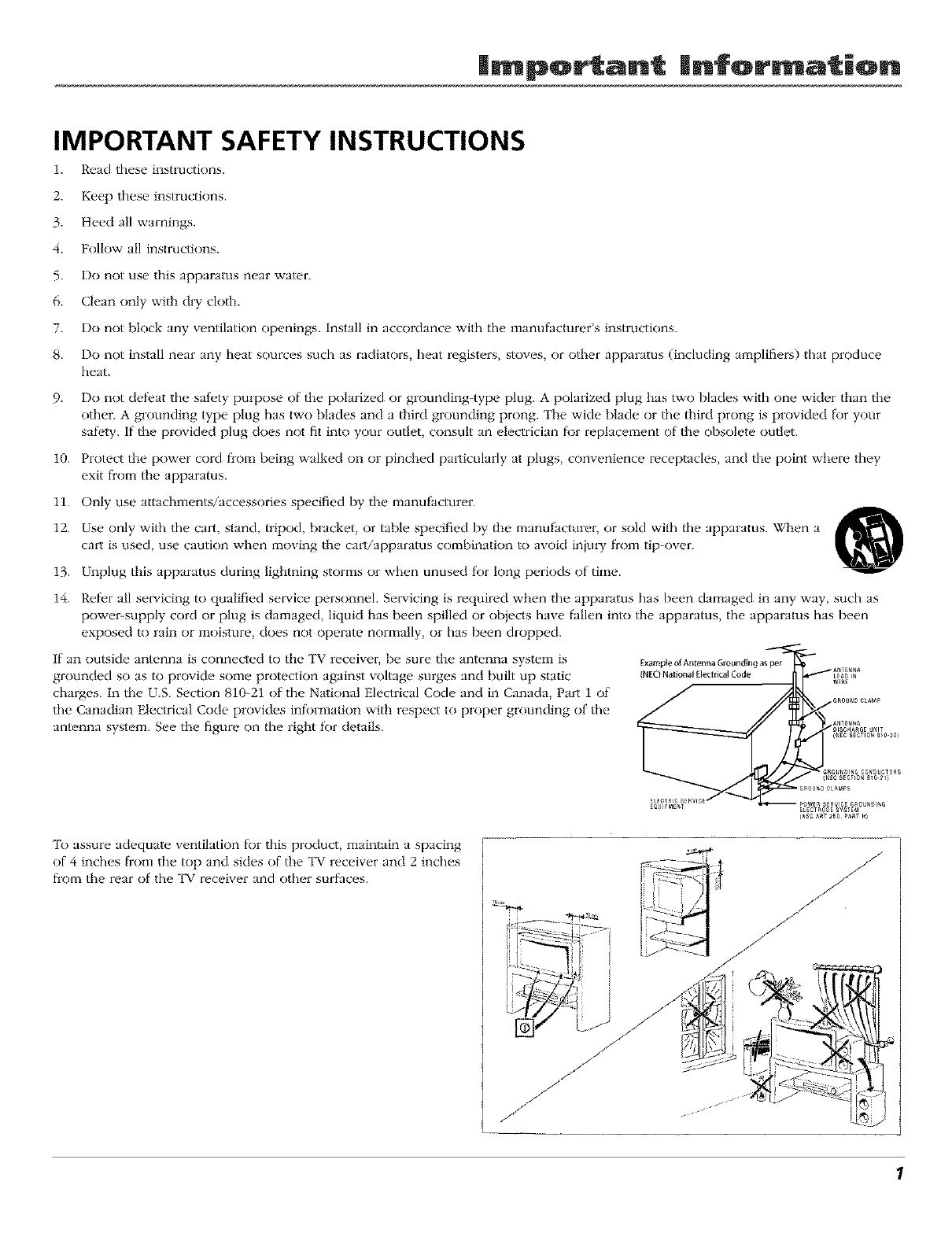

IMPORTANT SAFETY INSTRUCTIONS

I. l{_,ac] these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dlT cloth.

7. Do not block any ventilation openings, install in accordance with the manufhcturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce

heat.

9. Do not defk'at the safi, ty purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your

safk'ty, if the provided plug does not fit into your outlet, consult an electrician fi)r replacement of the obsolete outlet.

I0. Protect the power cord fiom being walked on or pinched pal_ticularly at plugs, convenience receptacles, and the point where they

exit fiom the apparatus.

I1. Only use attachments/accessories specified by the manufacturer.

I2. Use only with the Call, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a _

call is used, use caution when moving the cant/apparatus combination to avoid injm T from tip-over.

I3. Unplug this apparatus dming lightning storms or when unused for long periods of time.

I4. l{_,f_.'r all servicing to qualified service personnel. Sel_-icing is required when the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been spilled or obiects have fhllen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

if an outside antenna is connected to the 'IV receiver, be sure the antenna system is ExampleofAntennaaroundlngaspar

grounded so as to provide some protection against voltage surges and built up static (NEC)Nati°nalElectdcaJC°de _E_D_N

charges, in the U.S. Section 810-2I of the National Electrical Code and in Canada, Part 1 of

the Canadian Electrical Code provides information with respect to proper grounding of the

antenna system. See the figure on the right for details. "_NS_t_GEur_,T

'11) assure adequate ventilation fi)r this product, maintain a spacing

of 4 inches from the top and sides of the 'IY receiver and 2 inches

fiom the rear of the TV recei_ _er and other surfaces.

1

Introduction

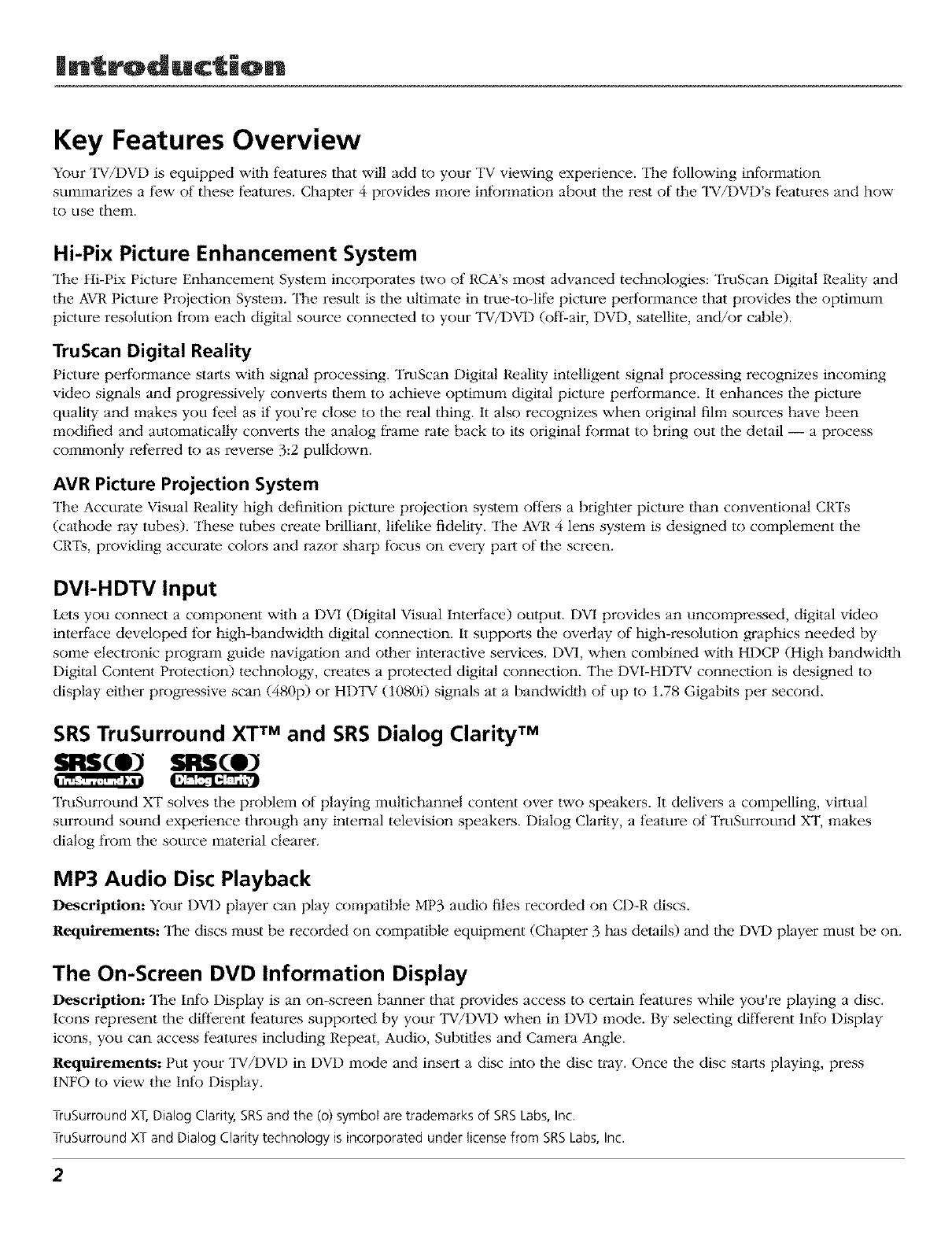

Key Features Overview

Your TV/DVD is equipped wi|h features that will add to your TV viewing experience. The following information

summarizes a few of these features. Chapter 4 provides more intk_rmation about the rest of the TV/DVD's features and how

to use them.

Hi-Pix Picture Enhancement System

The Hi-Pix Picture Enhancement System incorporates two of RCA's most advanced technologies: "lYuScan Digital Reality and

the AVRPicture Projection System. The result is the ultimate in true-to-life picture performance that provides the optimum

picture resolution from each digital source connected to your TV/1)VD (off-air, DVD, satellite, and/or cable).

TruScan Digital Reality

Picture performance starts with signal processing. TruScan Digital Realily intelligent signal processing recognizes incoming

vide() signals and progressively converts lhem to achieve optimum digital picture performance. It enhances tlle picture

quality and makes you feel as if you're close to the real thing. It also recognizes when original fihn sources have been

modified and automatically converts the analog frame rate back to its original format to bring out the detail -- a process

commonly ret_..rred to as reverse 3:2 pulldown.

AVR Picture Projection System

The Accurate Visual Reality high definition picture proiection sys_m o_rs a brighter picture _an conventional CRTs

(cathode ray tubes). These tubes create brilliant, lifelike fidelity'. The AVR 4 lens system is designed to complement lhe

CR'Es, providing accurate coloi=s and razor sharp focus on evely part of the screen.

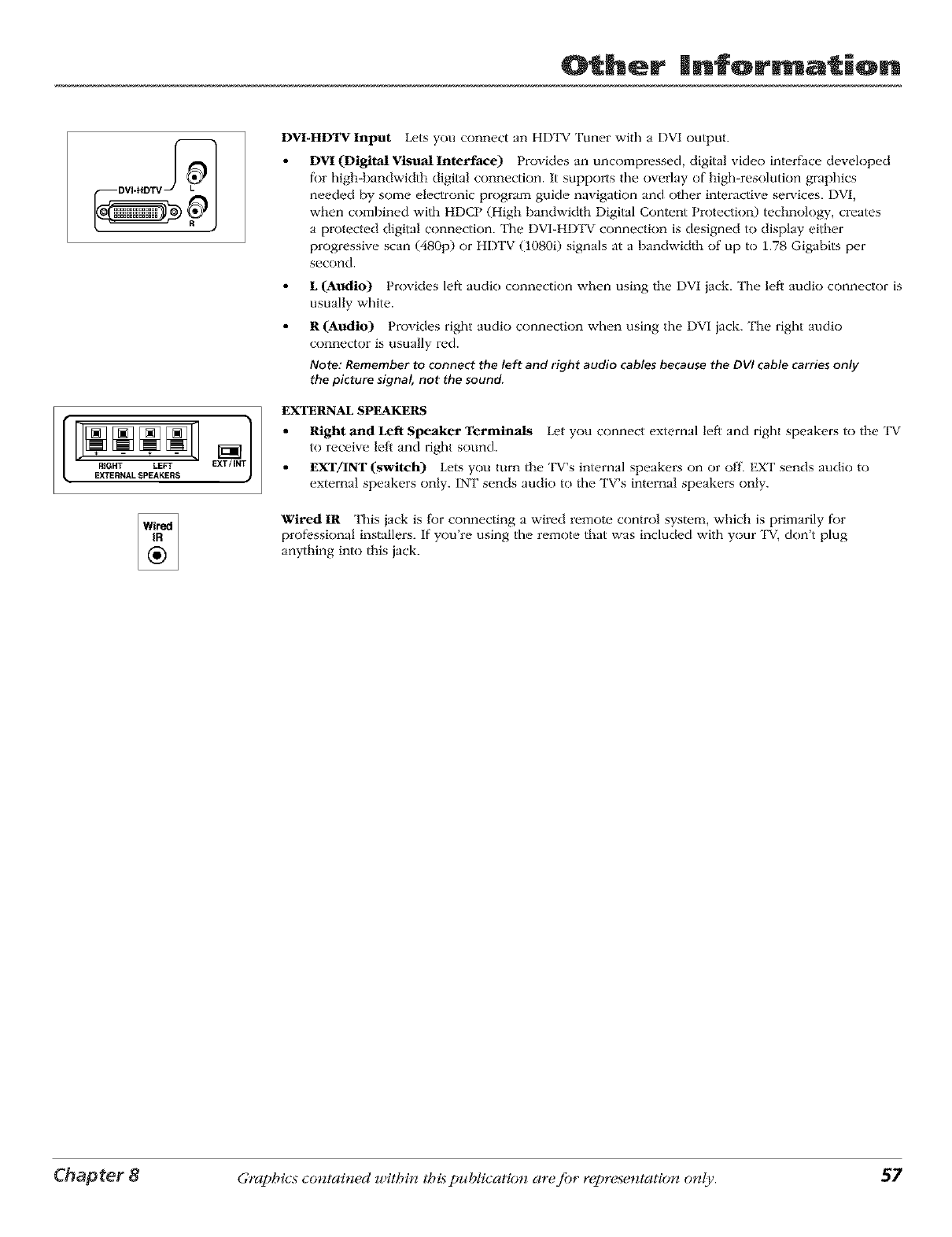

DVI-HDTV Input

Lets you connect a component with a DVI (Digital Visual Interface) output. DVI provides an uncompressed, digital video

interface developed for high-bandwidth digital connection. It supports lhe overlay of high-resolution graphics needed by

some electronic program guide navigation and olher interactive services. DVI, when combined with HDCP (High bandwidth

Digital Content Protection) technology', creates a protected digital connection. The DVI-HDTV connection is designed to

display eilher progressive scan (480p) or HDTV (1080i) signals at a bandwidlh of up to 1.78 Gigabits per second.

SRS TruSurround XT TM and SRS Dialog Clarity TM

TmSurround XT solves the problem of playing multichannel content over two speakers. It delivers a compelling, virtual

surround sound experience through any internal television speakei=s. Dialog Clarity, a feature of TruSurround XT, makes

dialog from the source material clearer.

MP3 Audio Disc Playback

Description: Your DVD player can play" compatible MP3 audio files recorded on CD-R discs.

Requirements= The discs must be recorded on compatible equipment (Chapter 3 has derails) and the DVD player must be on.

The On-Screen DVD Information Display

Description: The Into Display is an on-screen banner that provides access to certain l)atures while you're playing a disc'.

Icons represent the different R.'atums supported by your TV/DVD when in DVD mode. By selecting different lnfo Display

icons, you can access features including Repeat, Audio, Subtitles and Camera Angle.

Requirements: Put your TV/1)VD in DVD mode and insert a disc into the disc tray. Once the disc starts playing, press

INFO to view the Intk) Display.

TruSurround XT, Dialog Clarity, SRSand the (o) symbol are trademarks of SRSLabs, Inc.

TruSurround XT and Dialog Clarity technology is incorporated under license from SRSLabs, Inc.

2

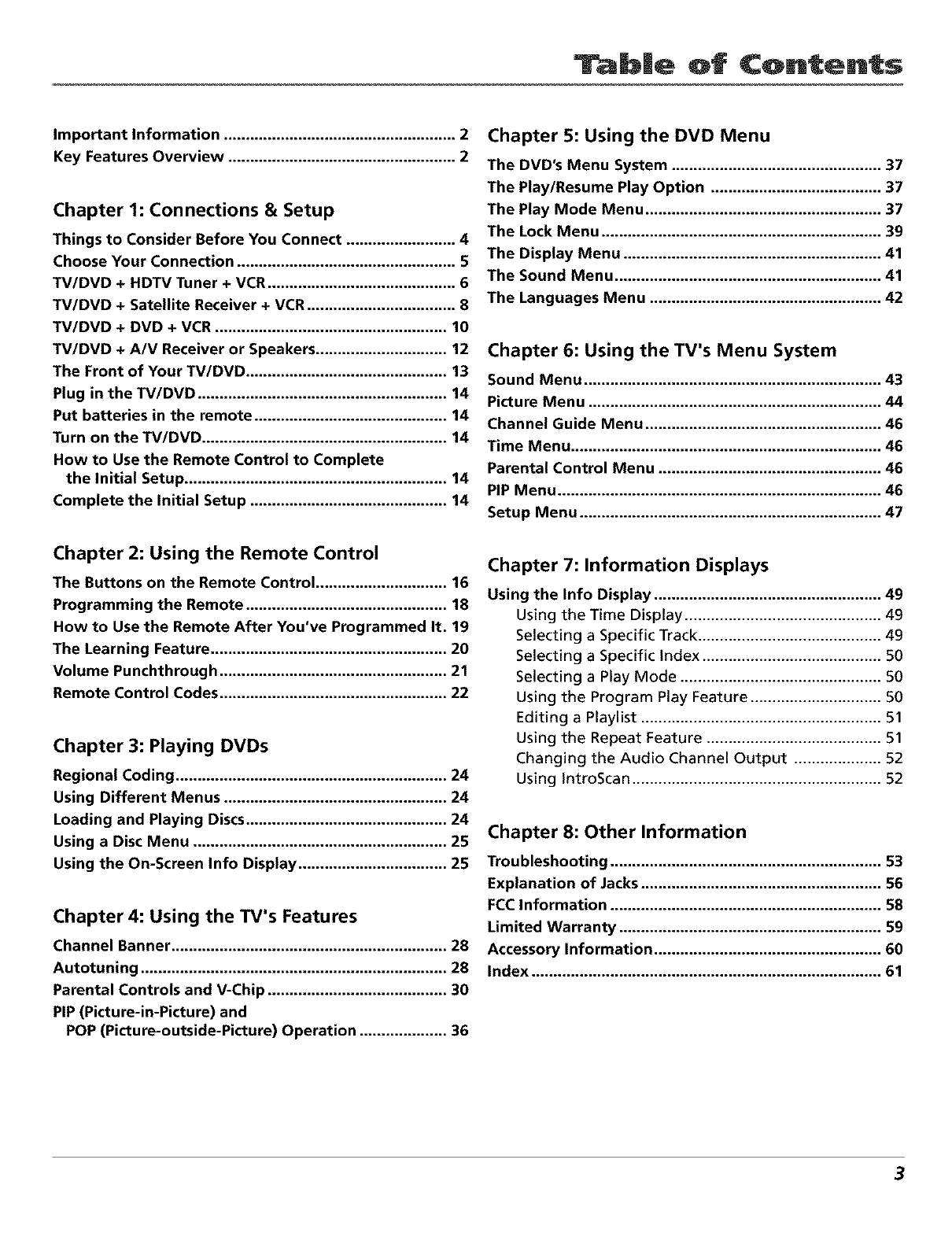

b|e of Contents

Important Information ..................................................... 2

Key Features Overview .................................................... 2

Chapter 1: Connections & Setup

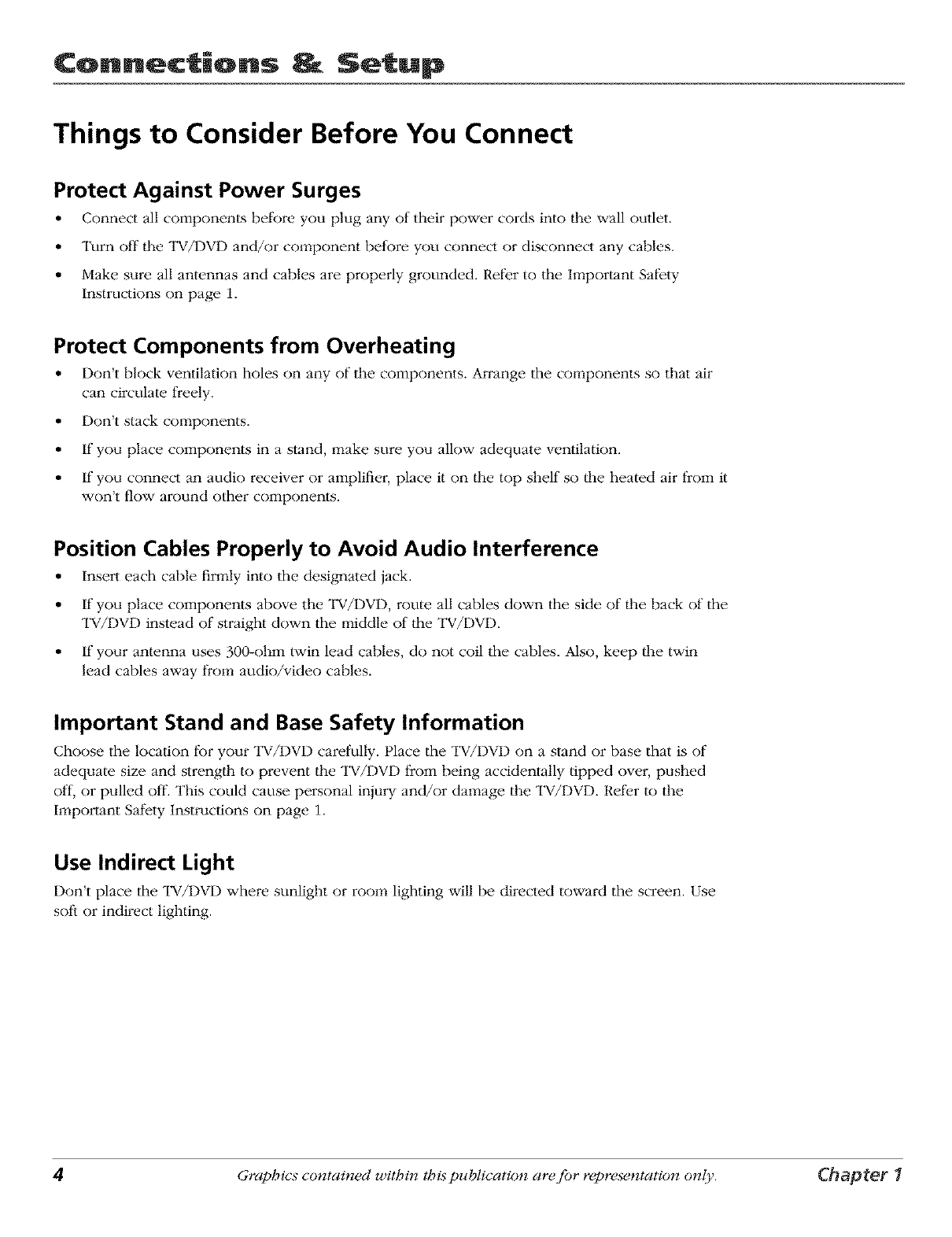

Things to Consider Before You Connect ......................... 4

Choose Your Connection .................................................. 5

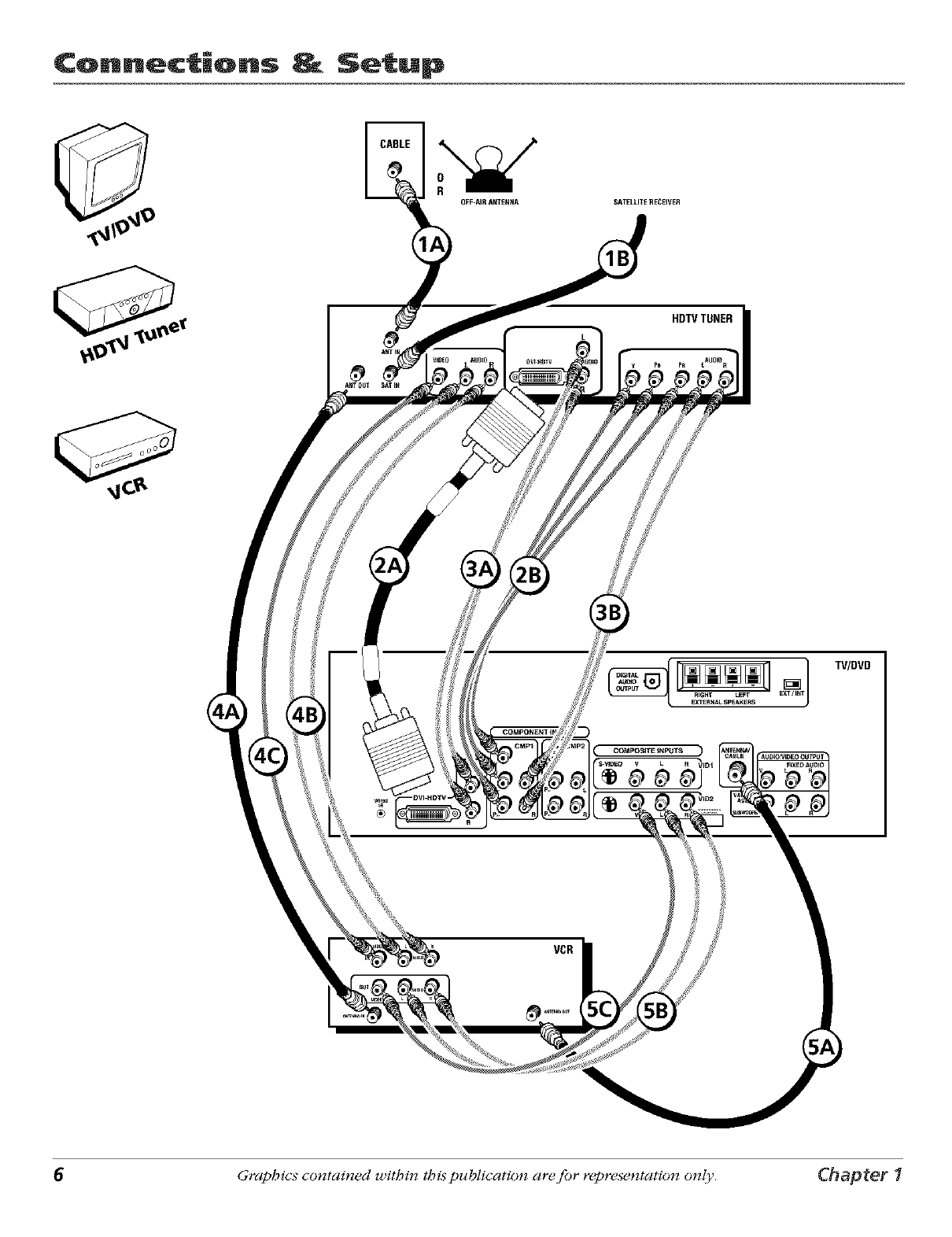

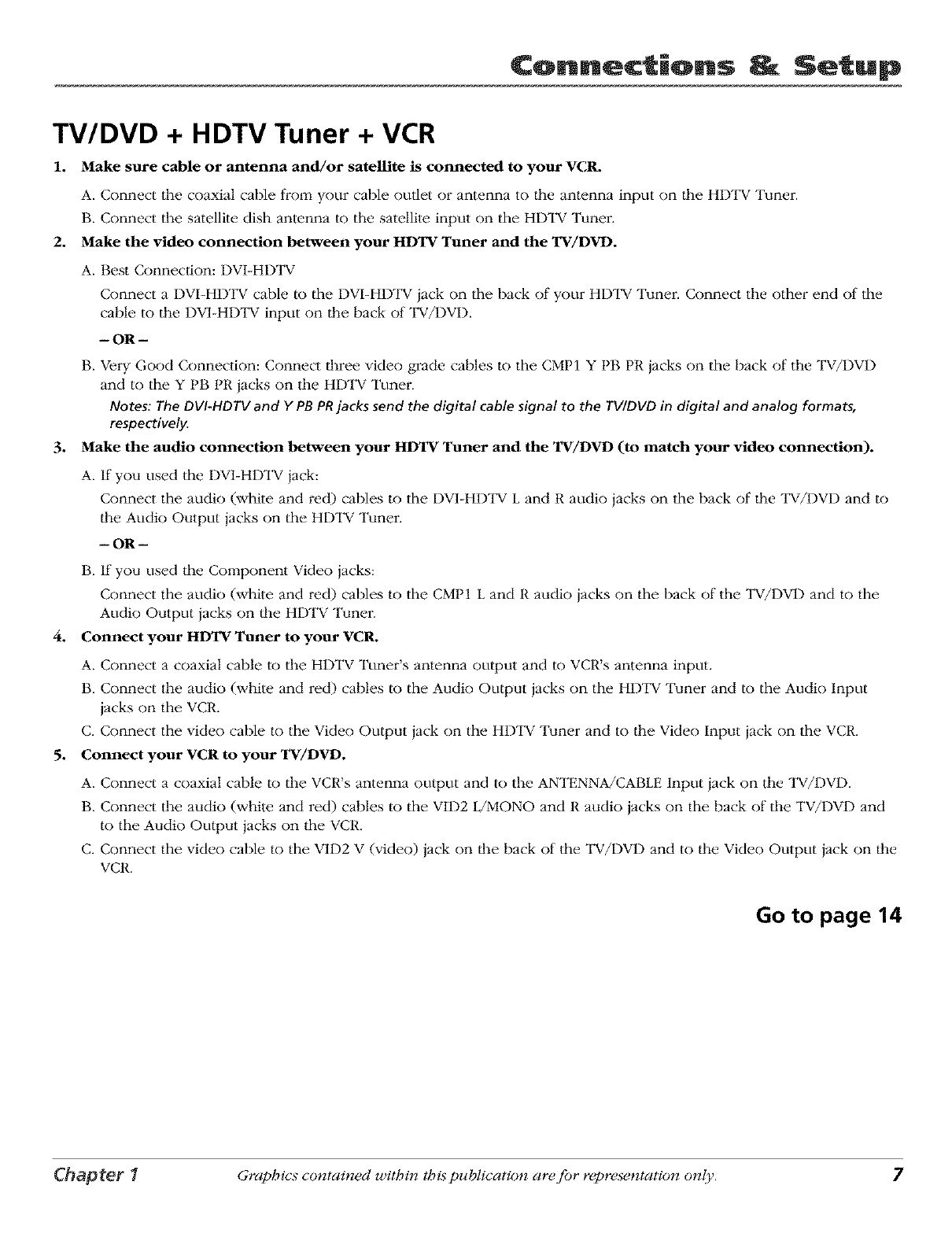

TV/DVD + HDTV Tuner + VCR ........................................... 6

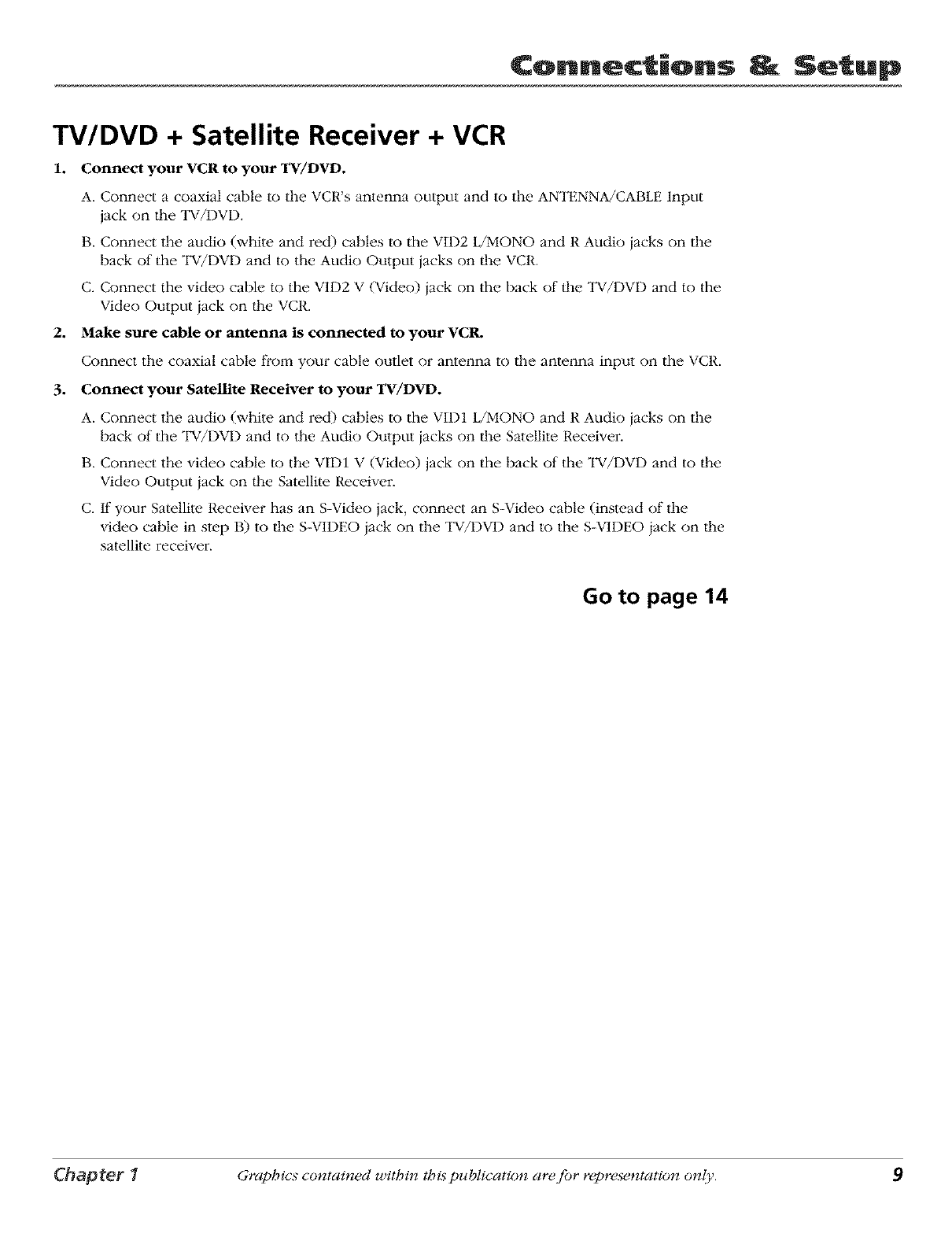

TV/DVD + Satellite Receiver + VCR .................................. 8

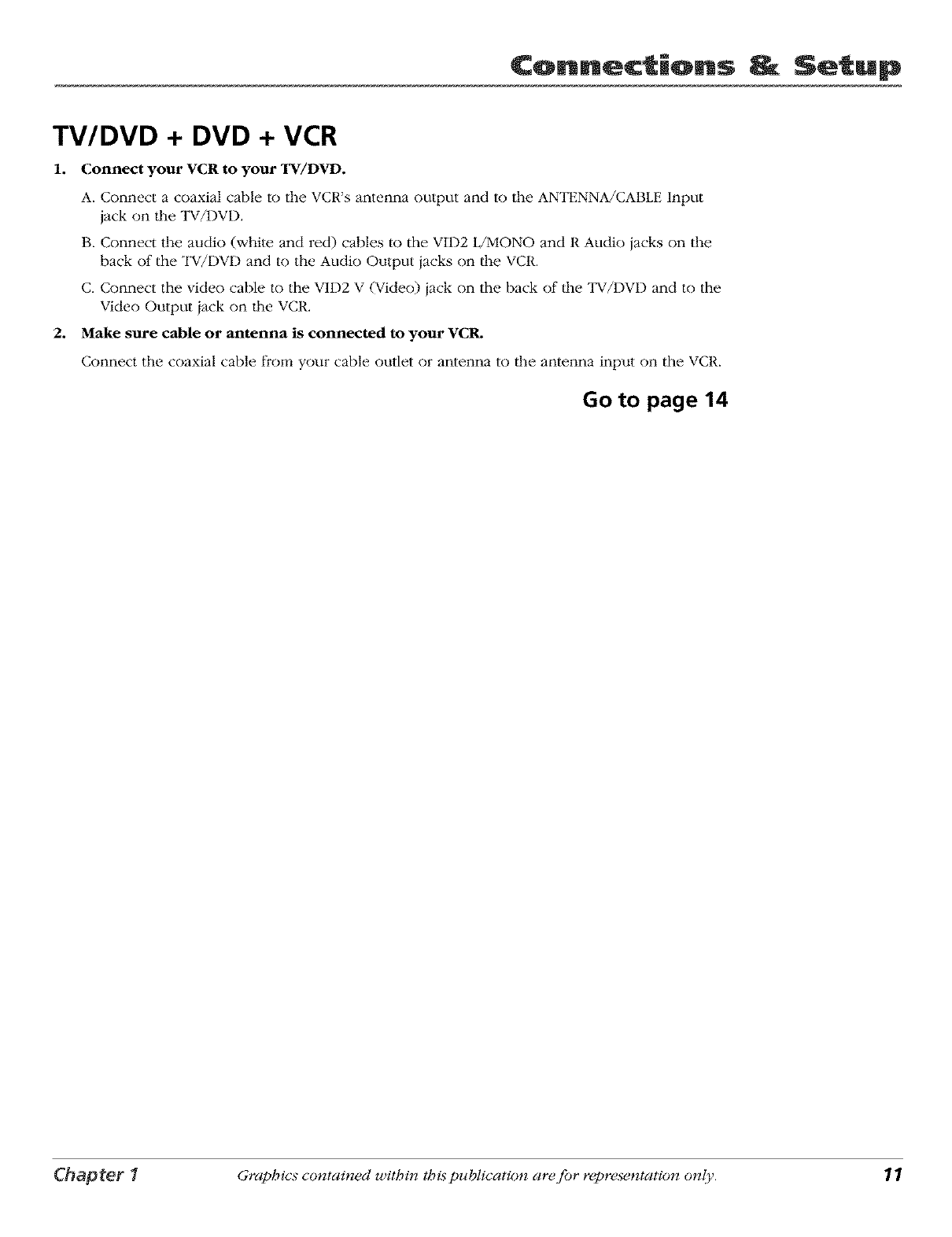

TV/DVD + DVD + VCR ..................................................... 10

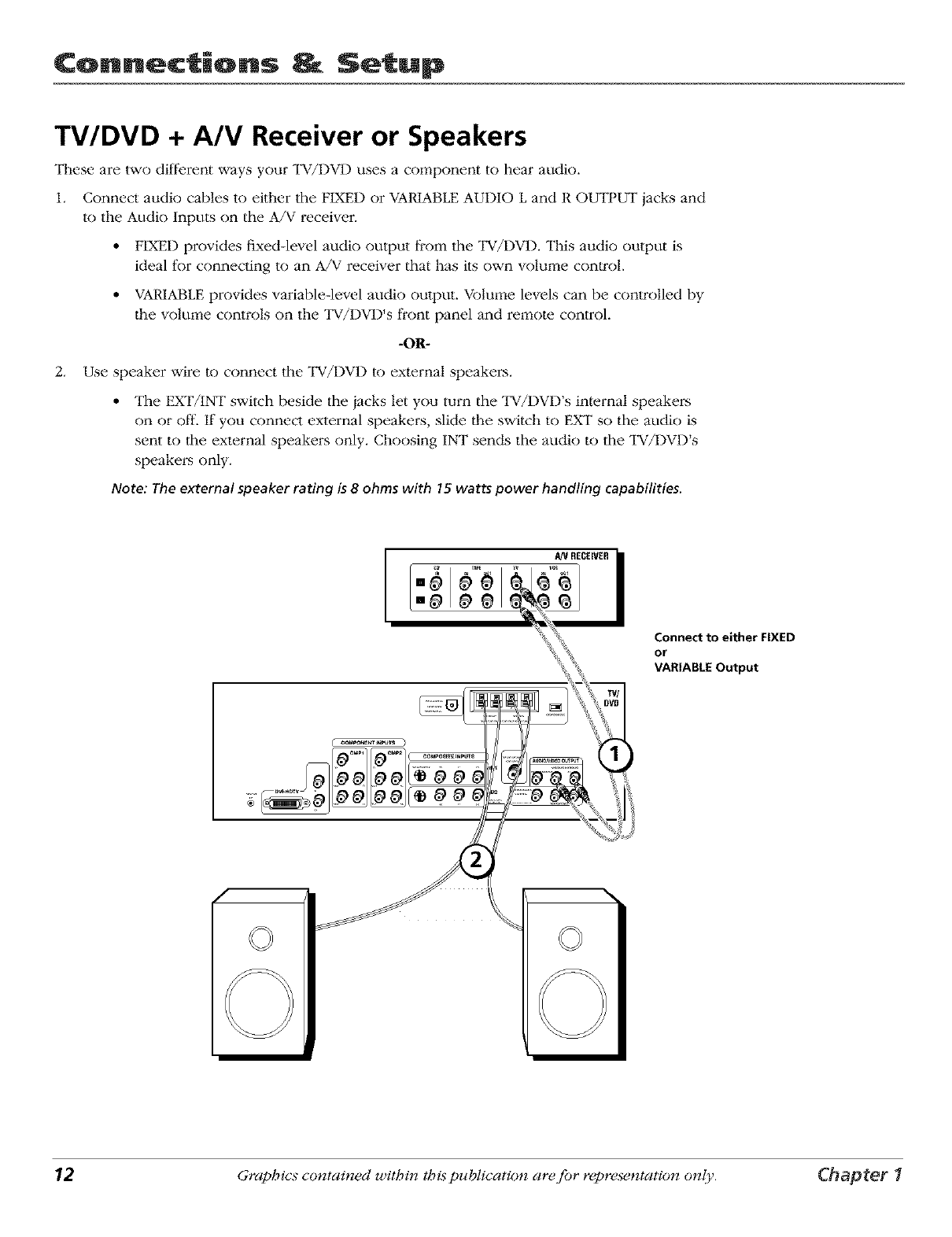

TV/DVD + A/V Receiver or Speakers .............................. 12

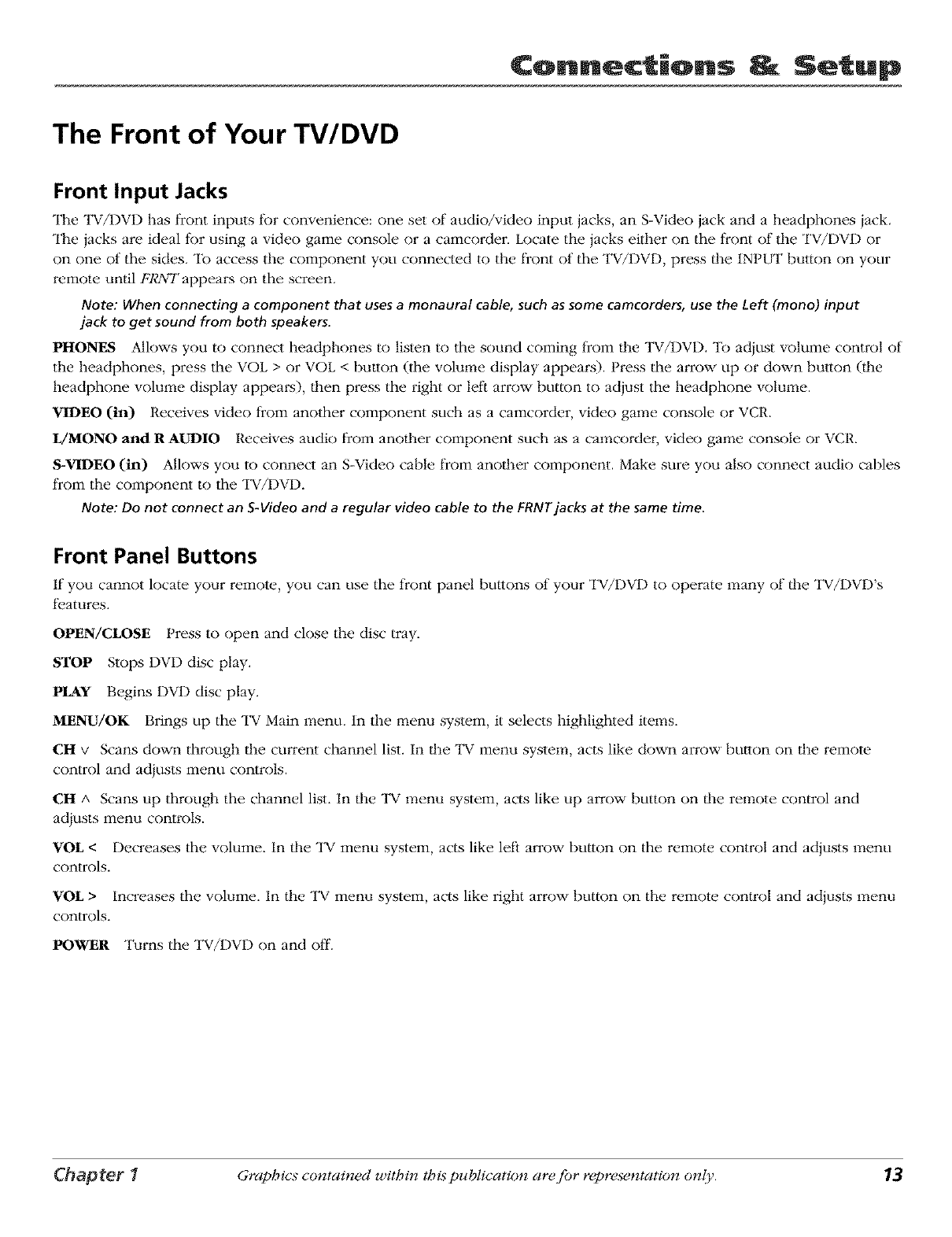

The Front of Your TV/DVD .............................................. 13

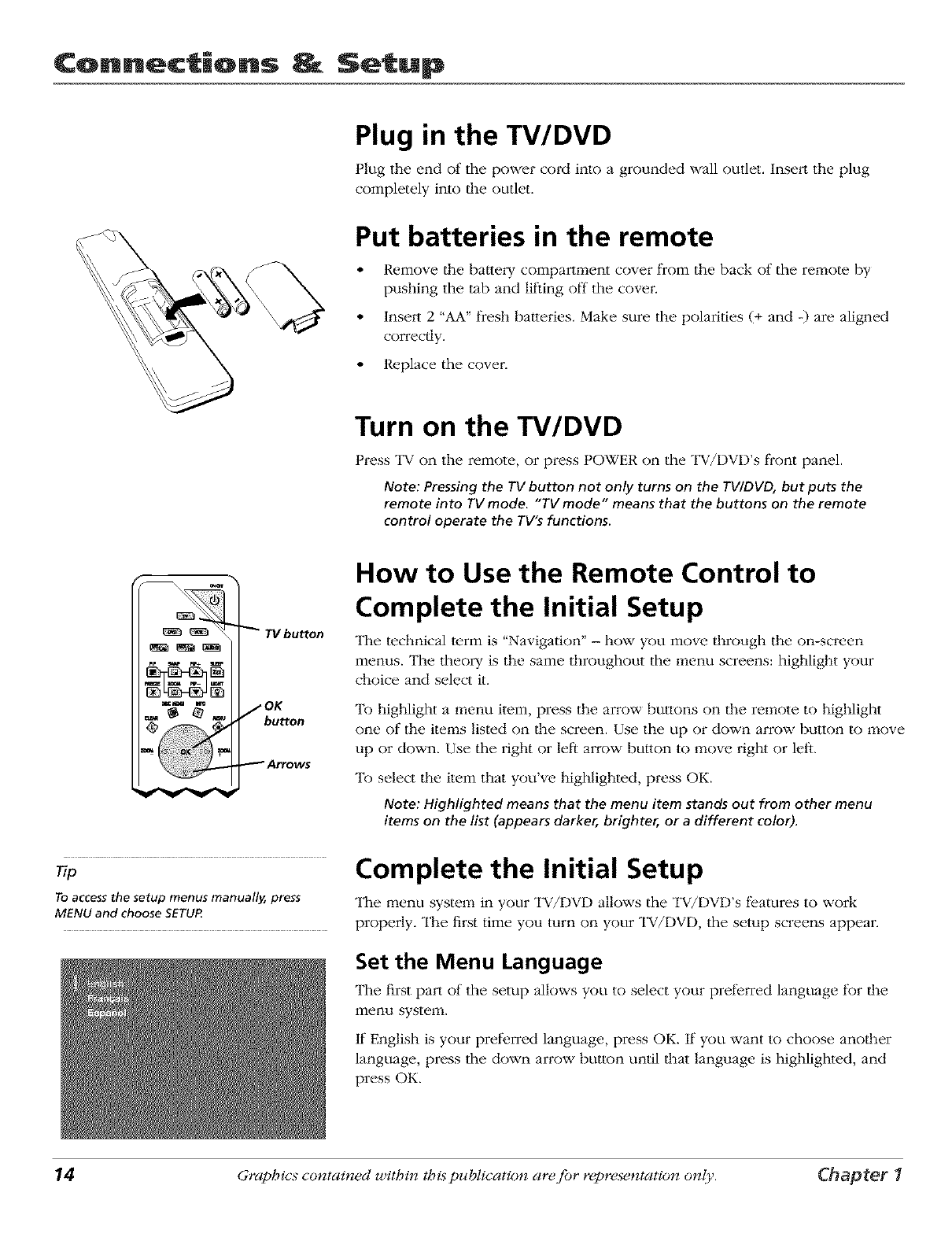

Plug in the TV/DVD ......................................................... 14

Put batteries in the remote ............................................ 14

Turn on the TV/DVD ........................................................ 14

How to Use the Remote Control to Complete

the Initial Setup ............................................................ 14

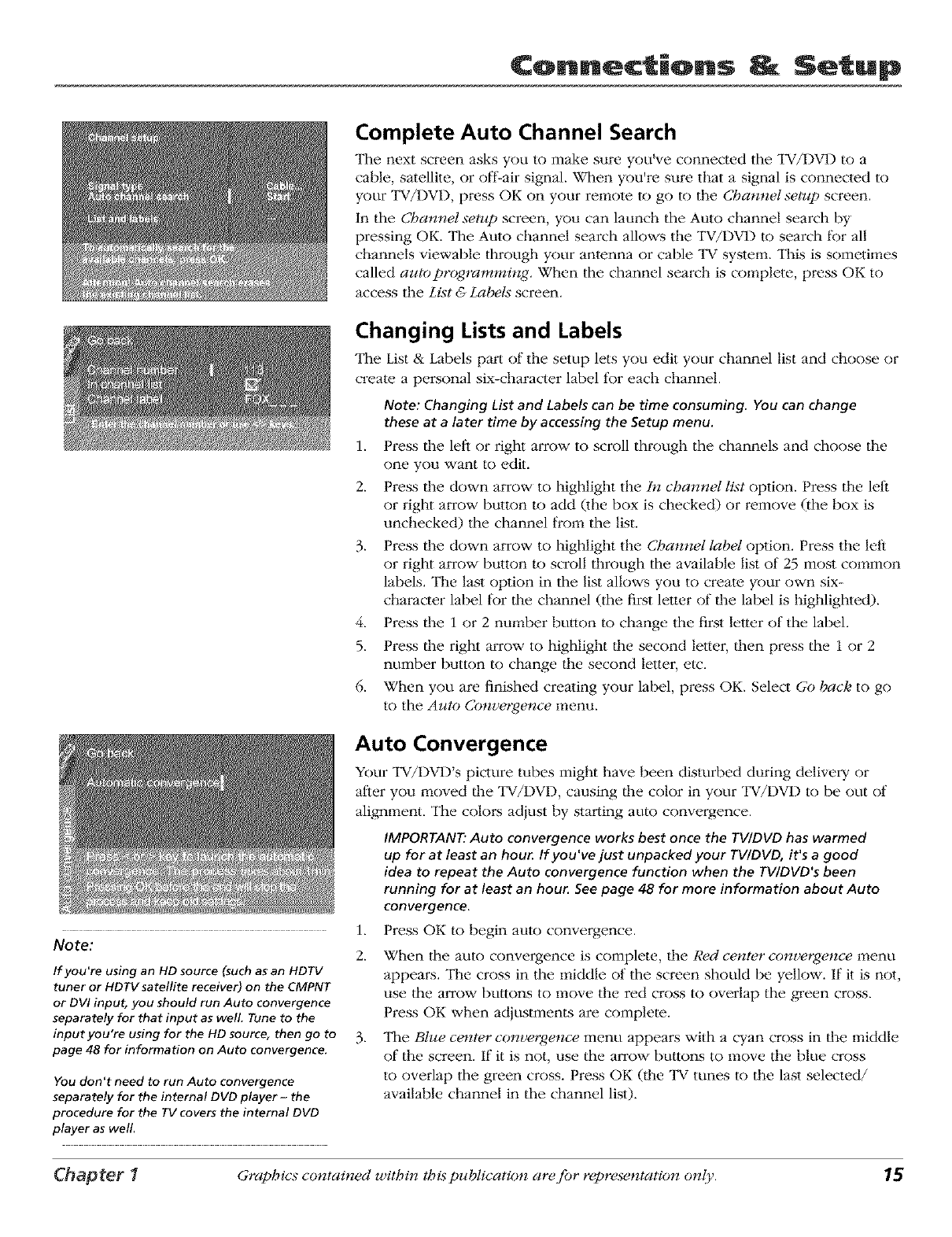

Complete the Initial Setup ............................................. 14

Chapter 2: Using the Remote Control

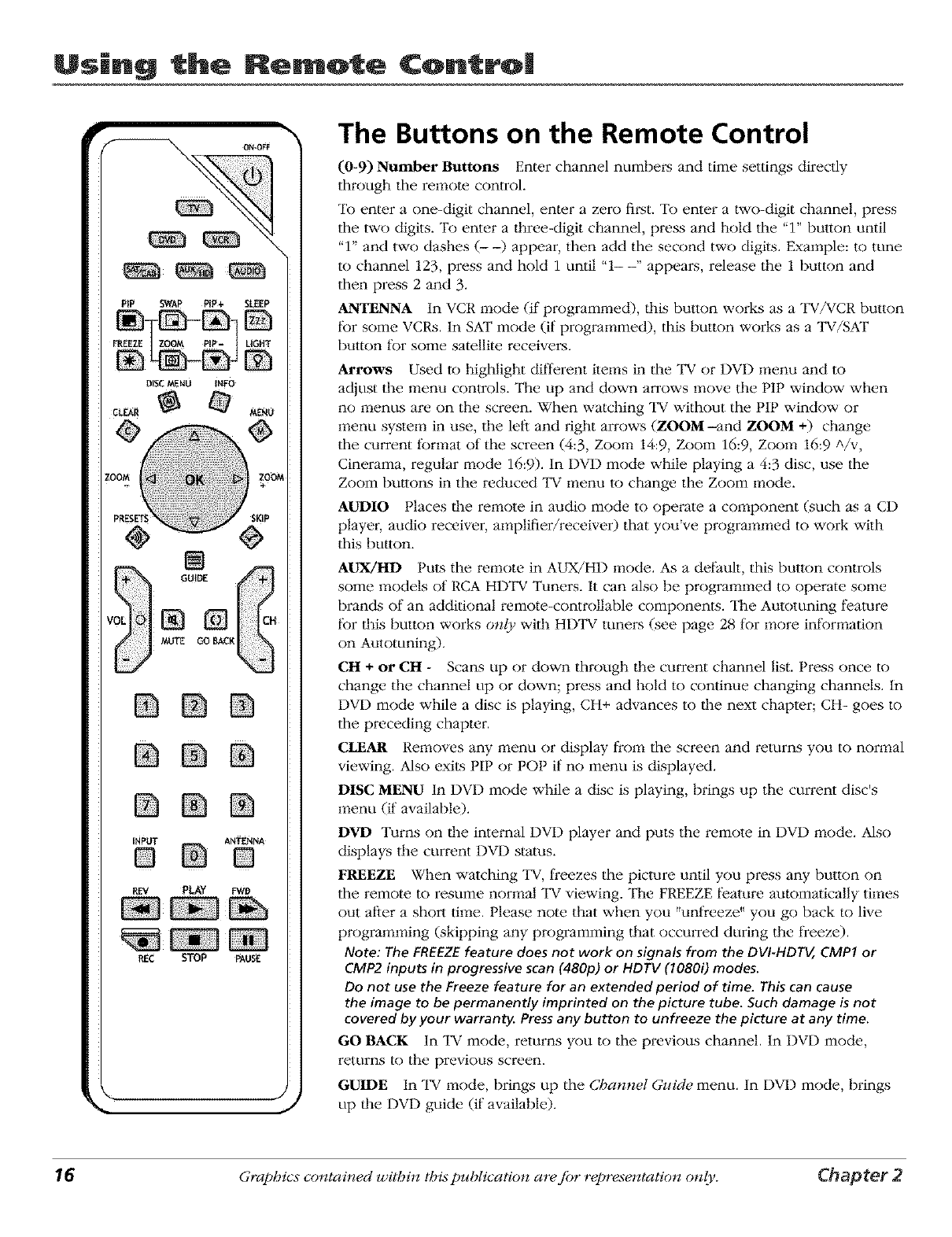

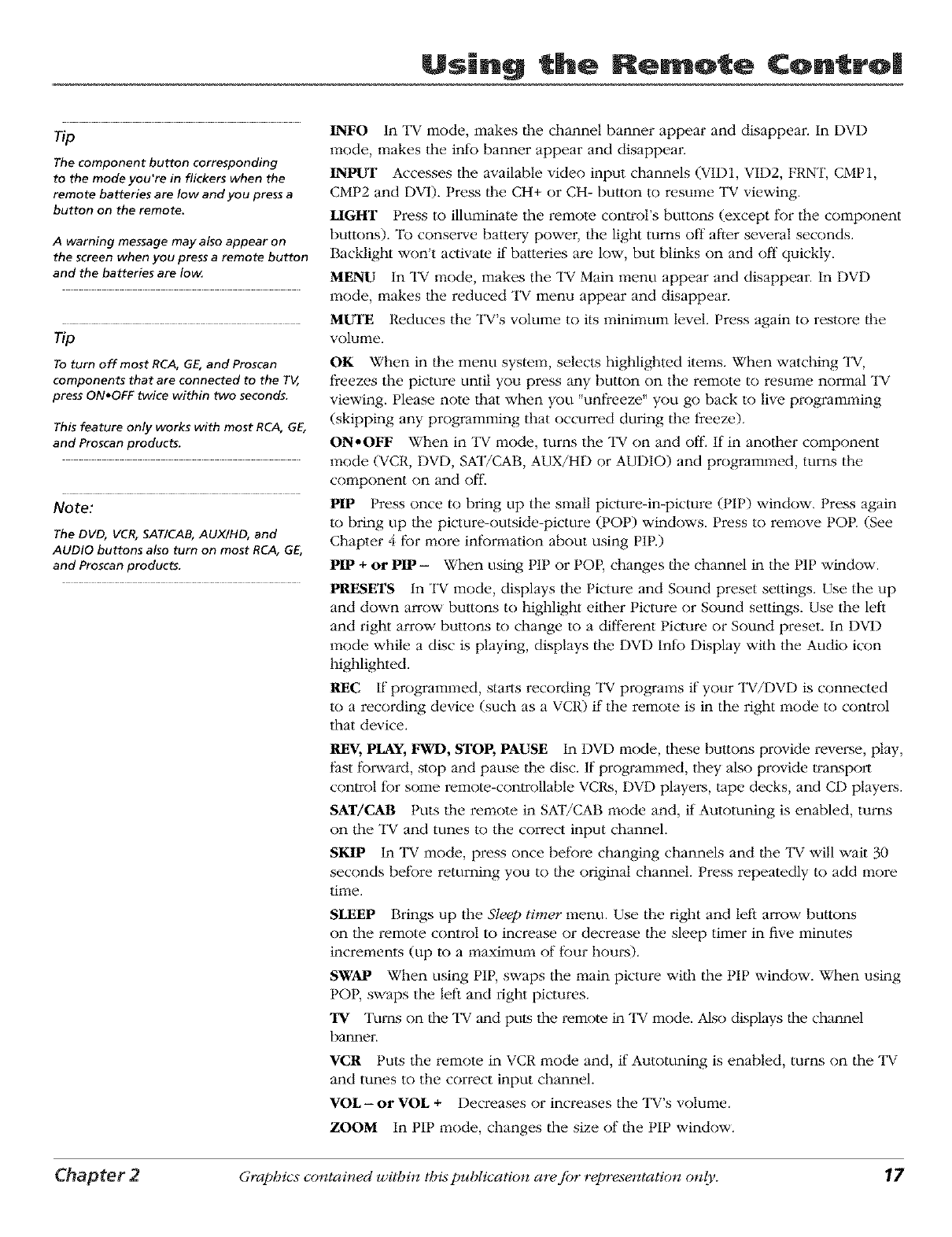

The Buttons on the Remote Control .............................. 16

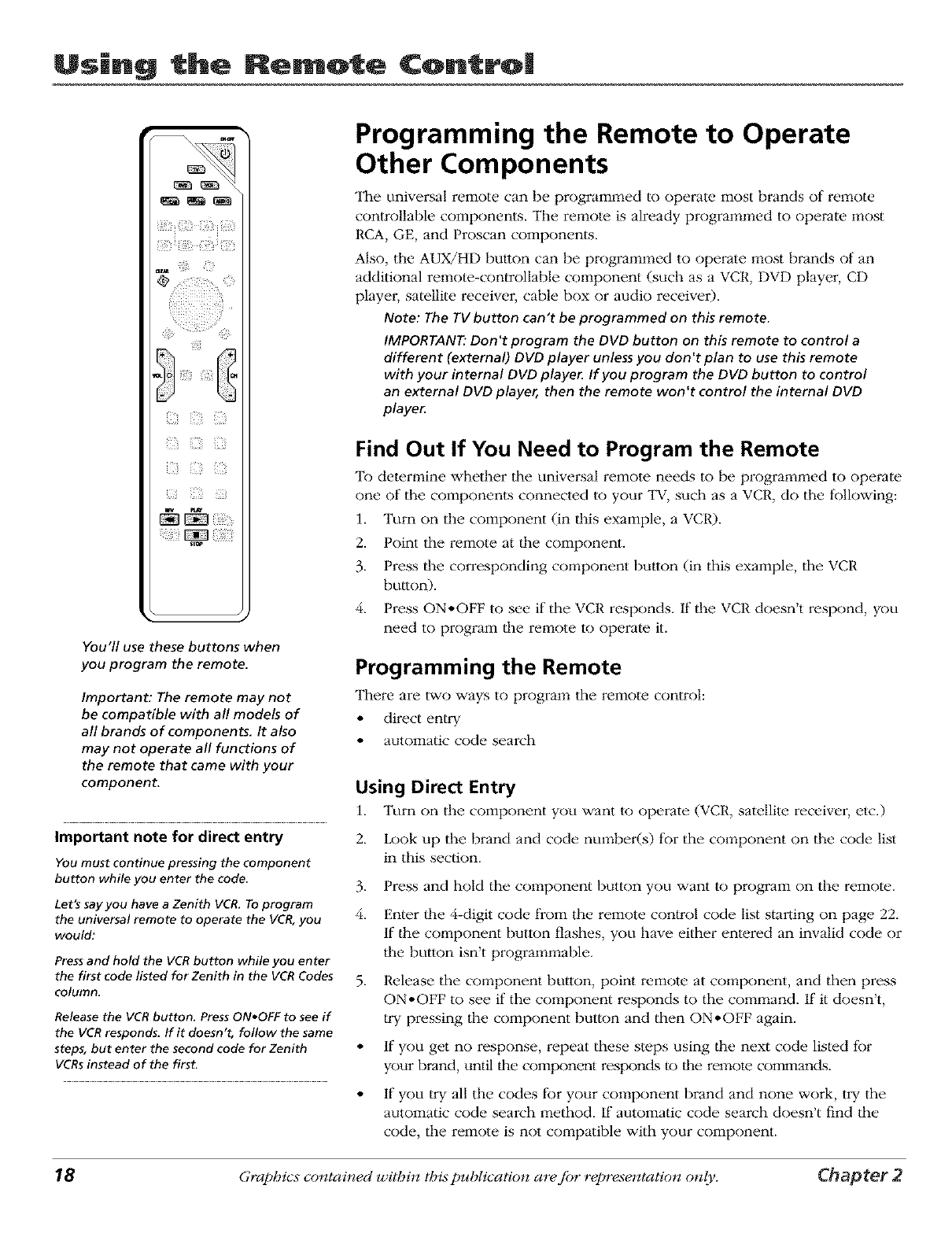

Programming the Remote .............................................. 18

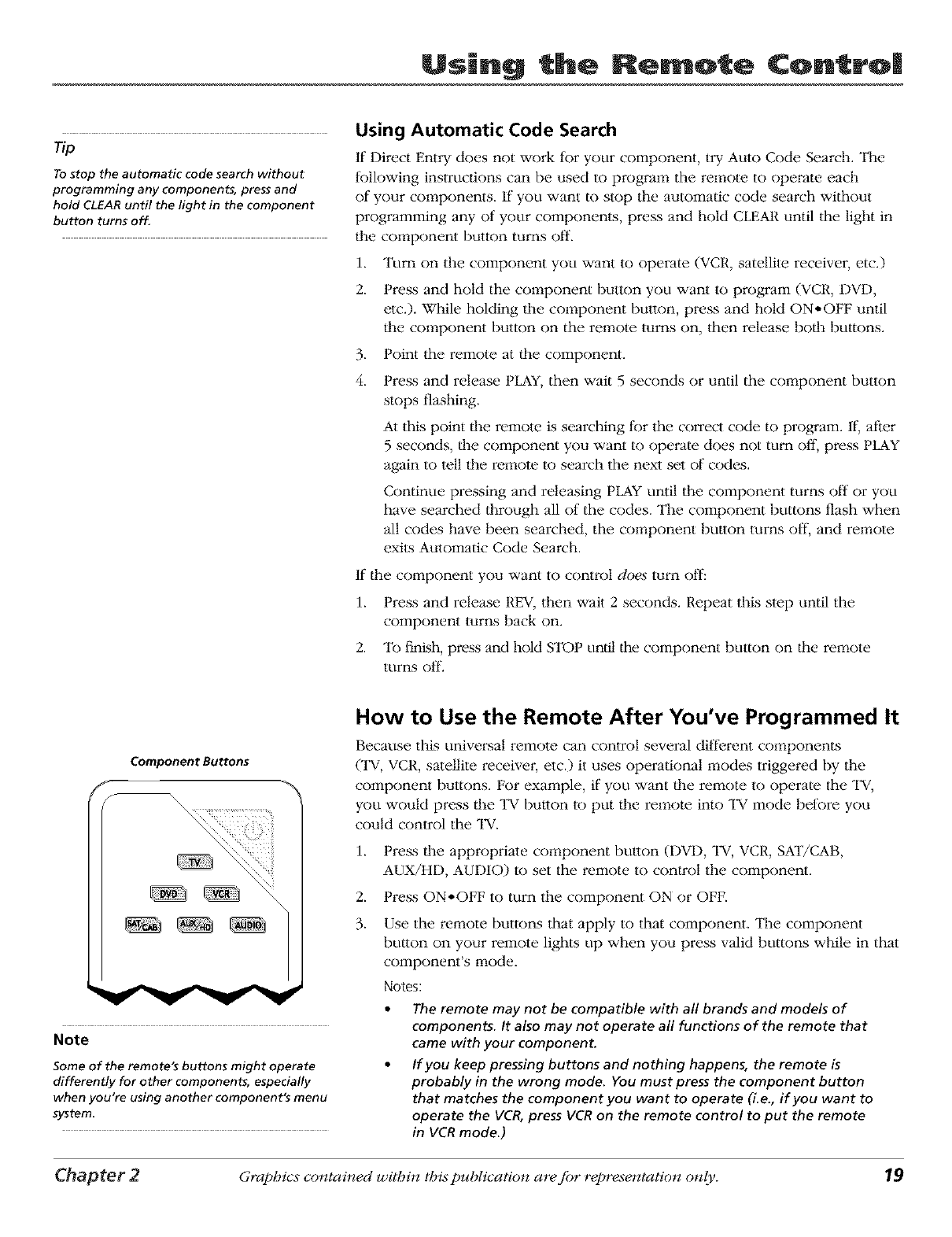

How to Use the Remote After You've Programmed It. 19

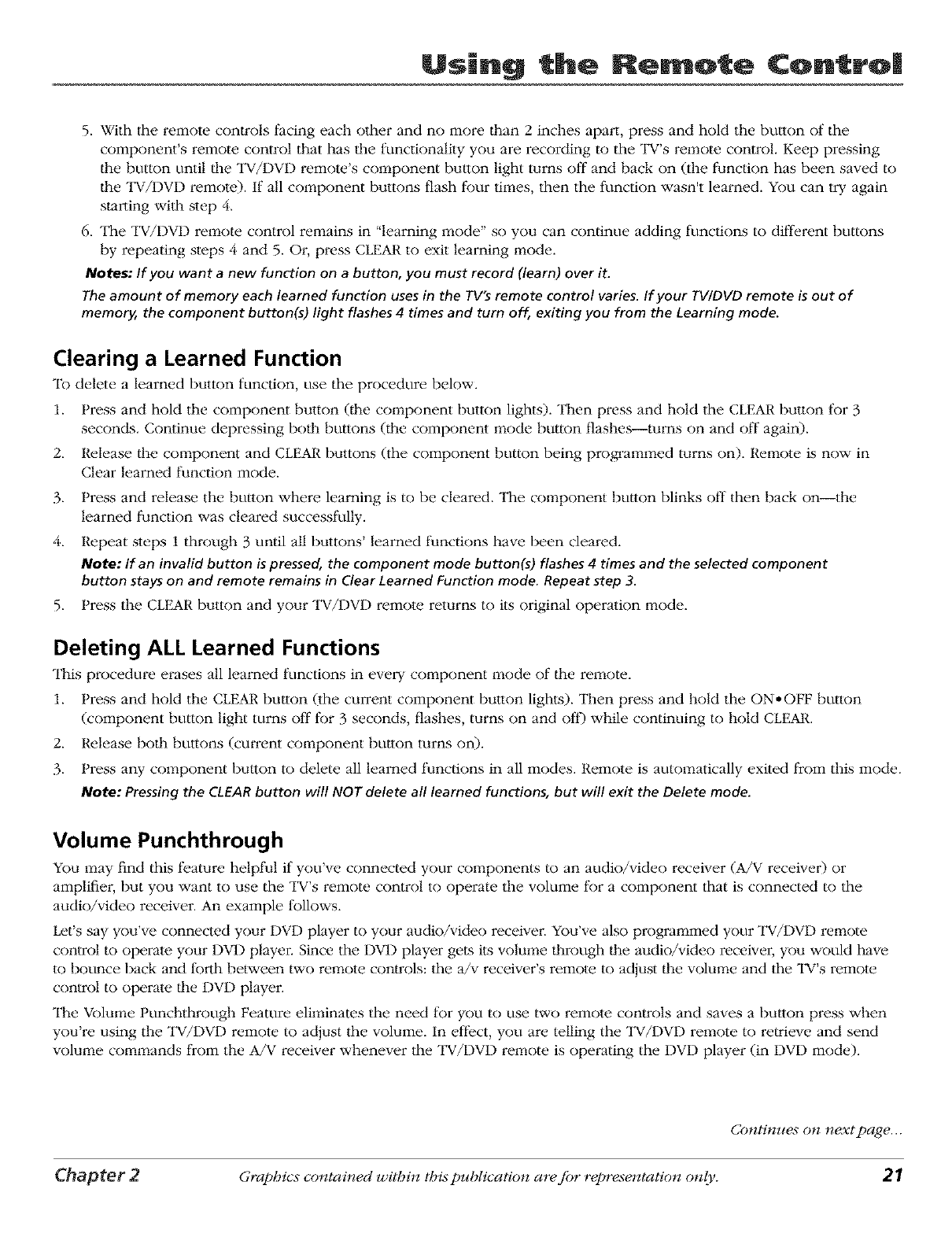

The Learning Feature ...................................................... 20

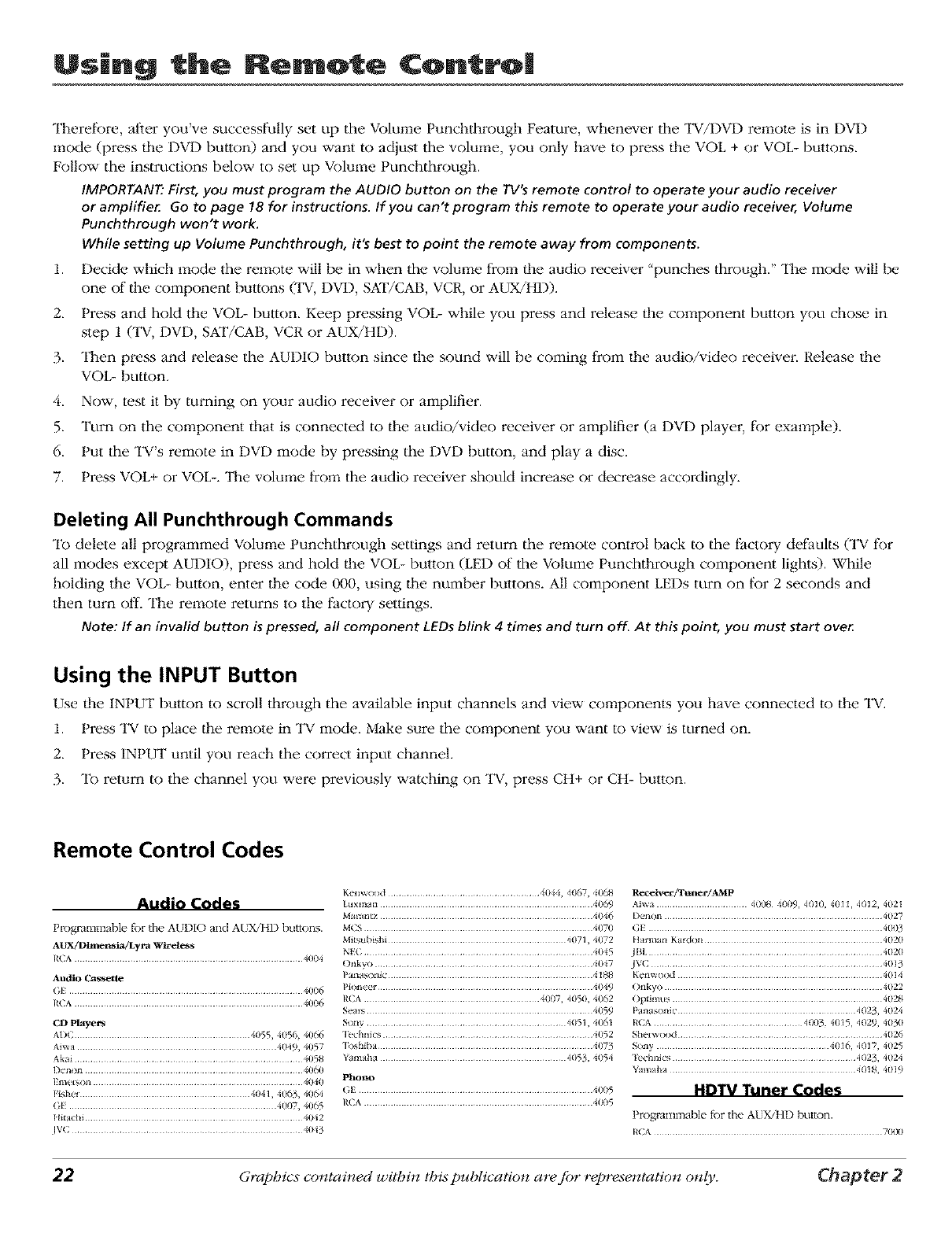

Volume Punchthrough .................................................... 21

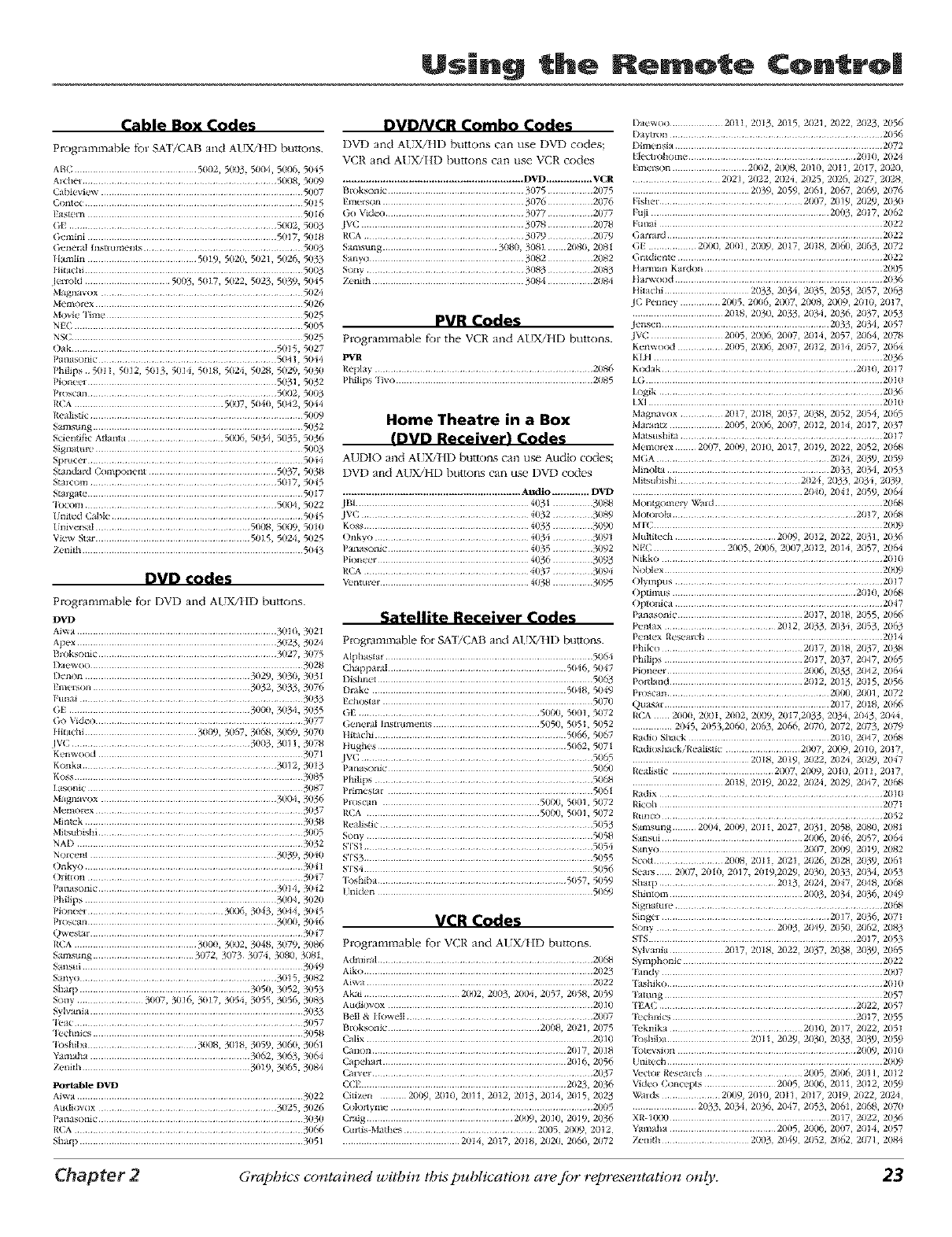

Remote Control Codes .................................................... 22

Chapter 3: Playing DVDs

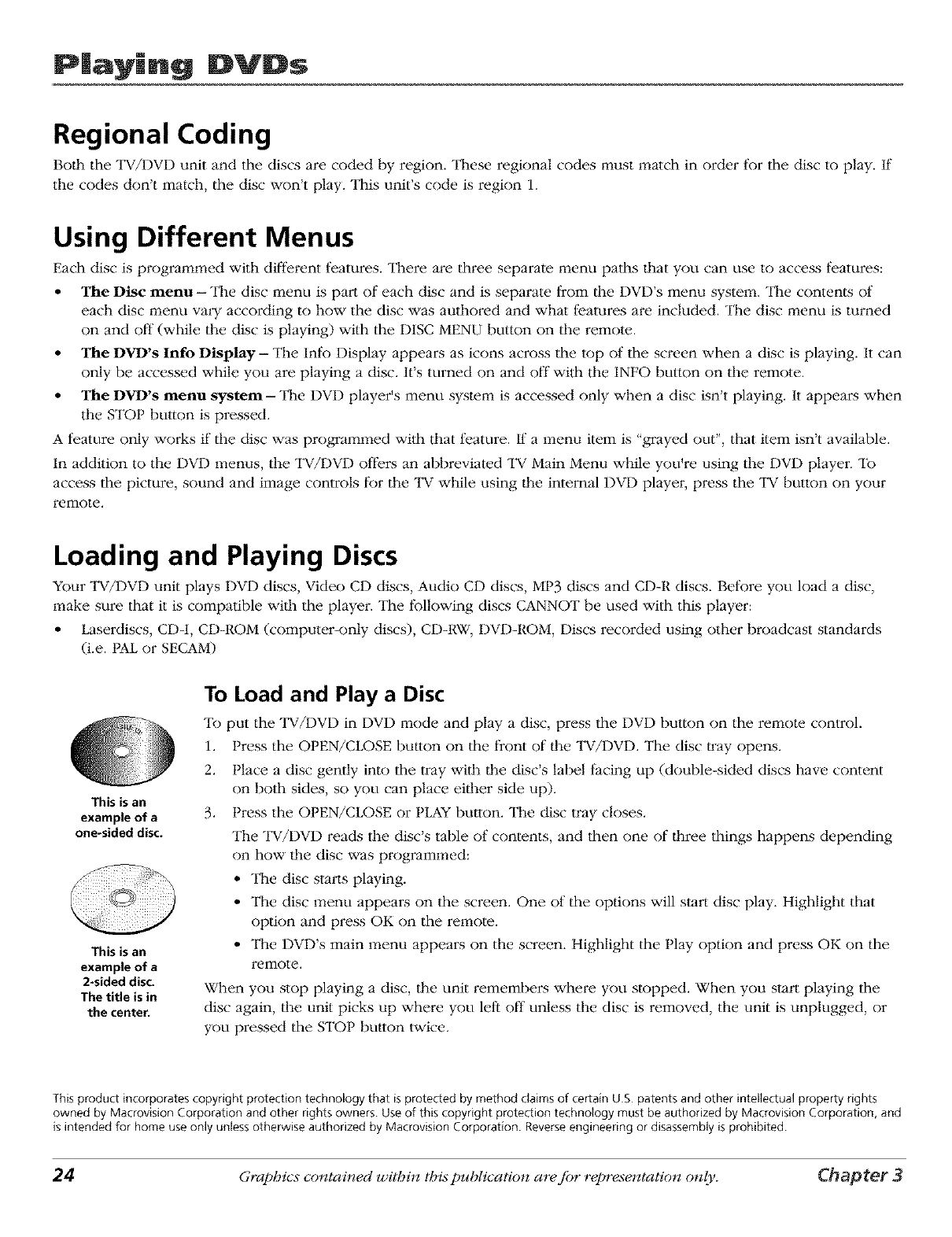

Regional Coding .............................................................. 24

Using Different Menus ................................................... 24

Loading and Playing Discs.............................................. 24

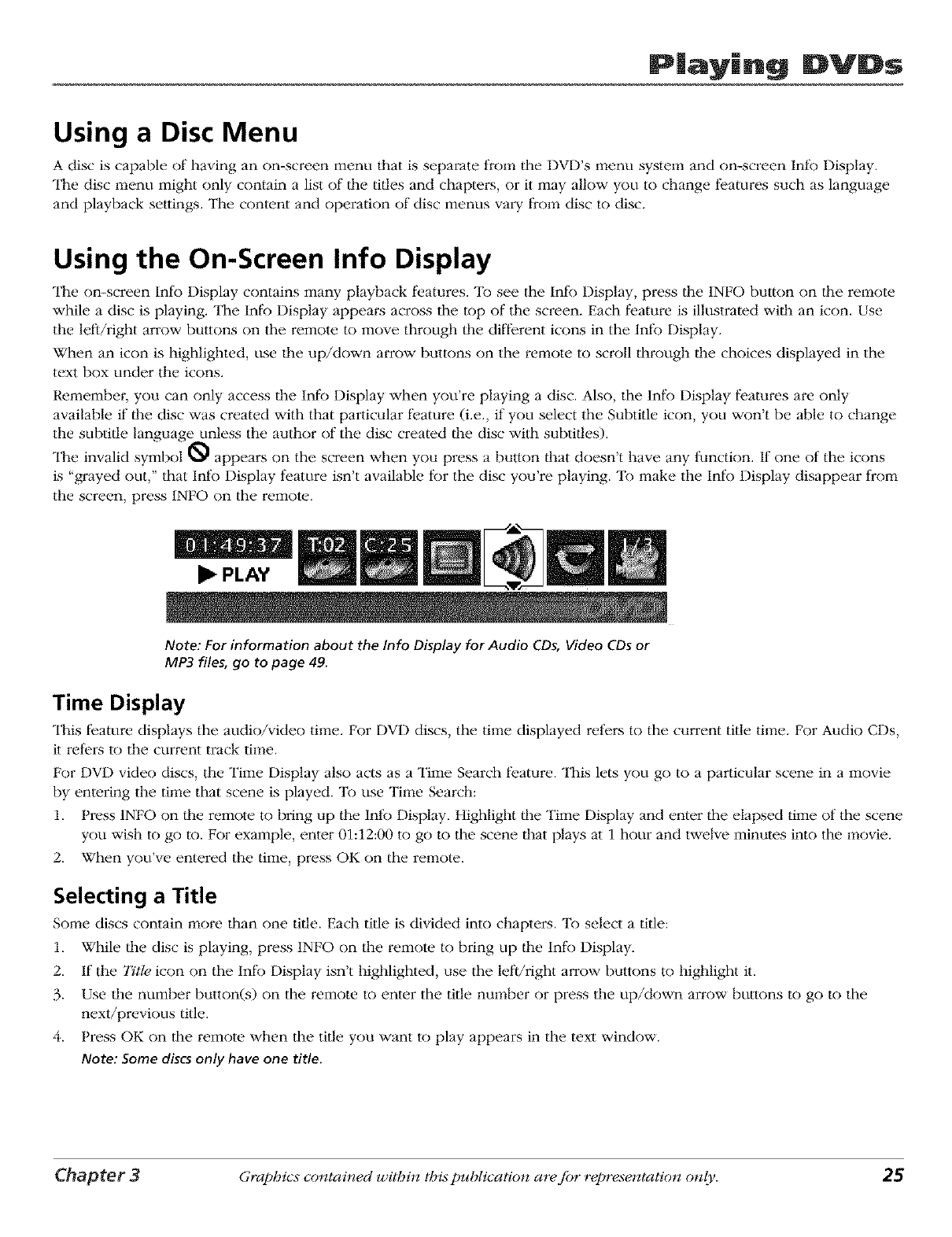

Using a Disc Menu .......................................................... 25

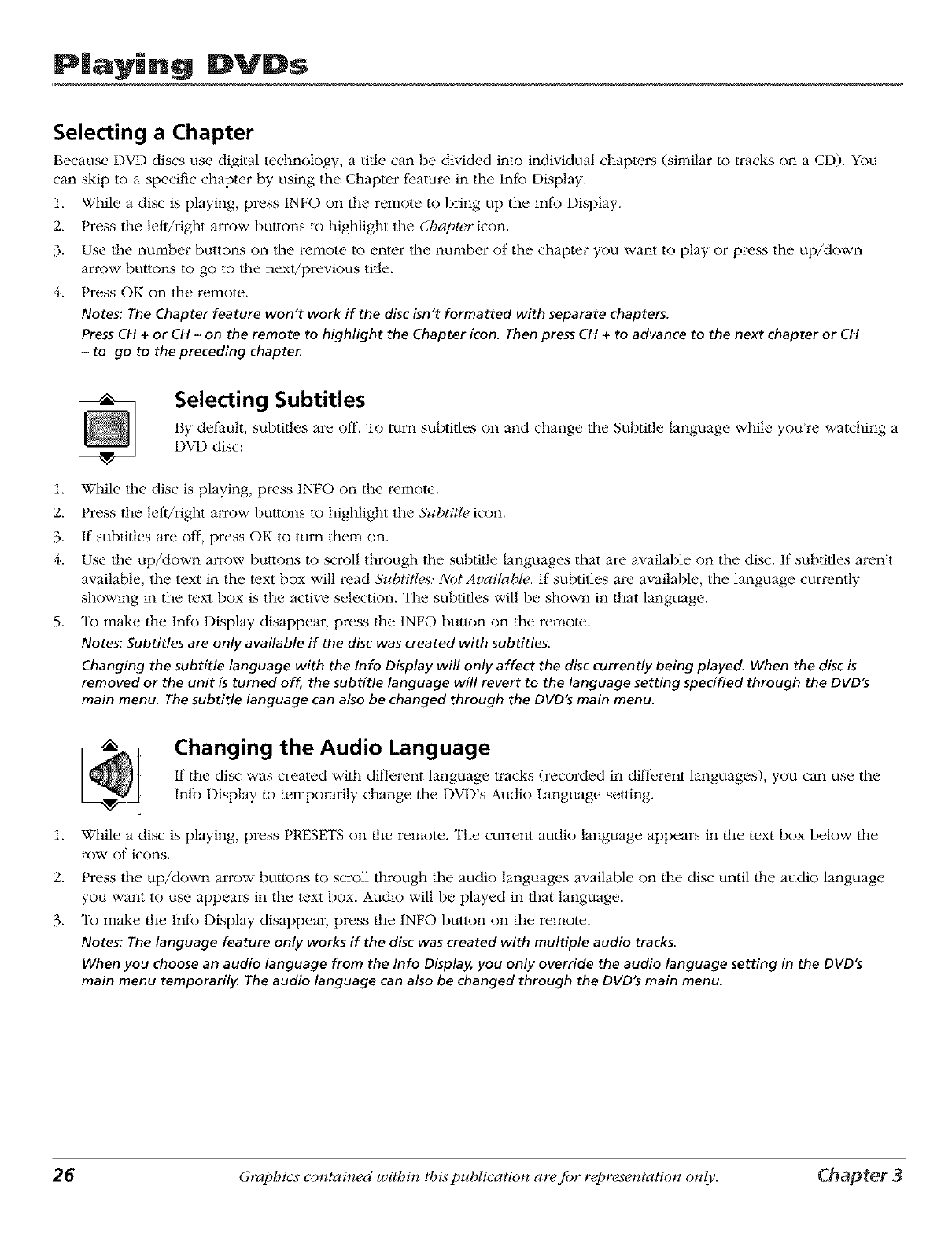

Using the On=Screen Info Display .................................. 25

Chapter 4: Using the TV's Features

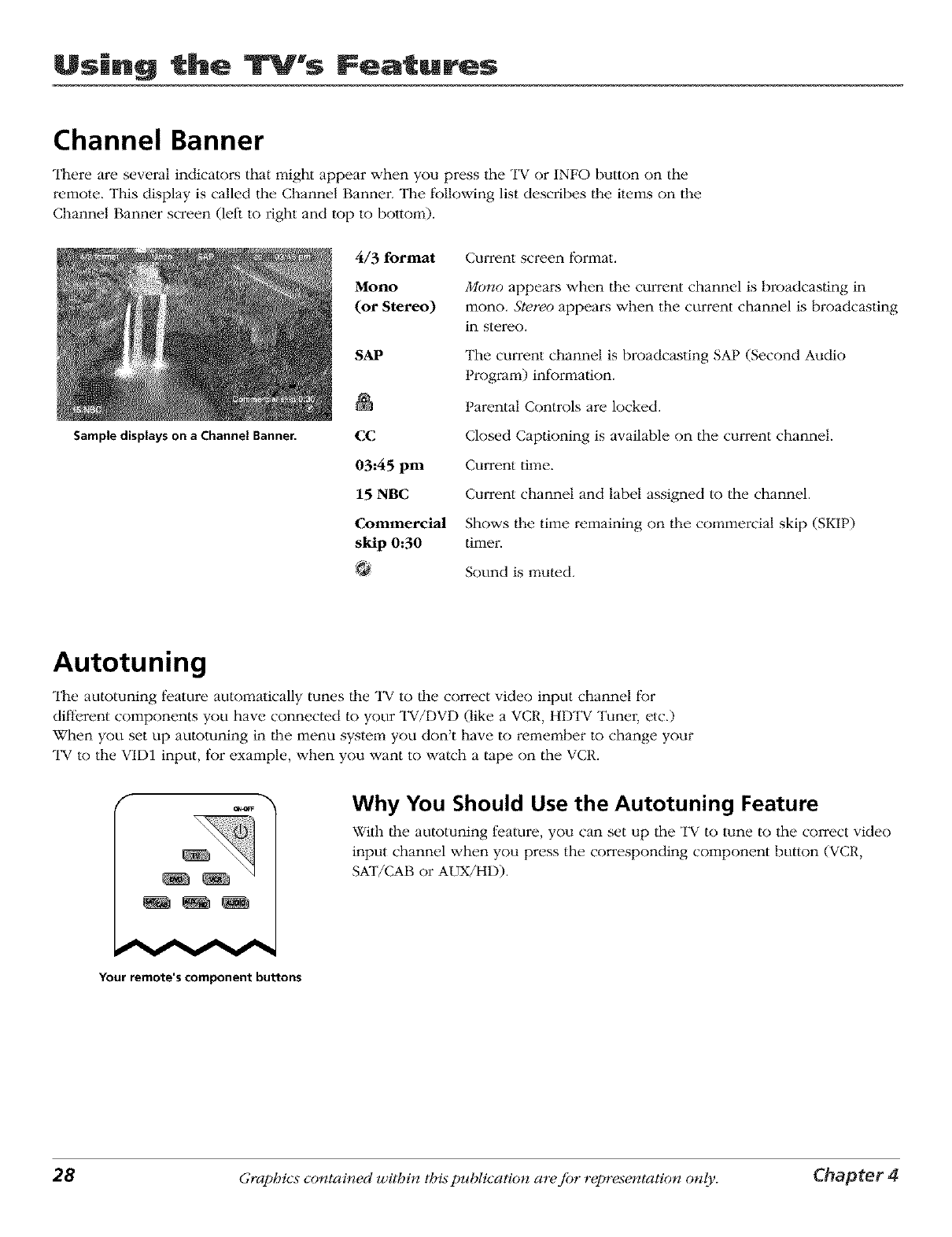

Channel Banner ............................................................... 28

Autotuning ...................................................................... 28

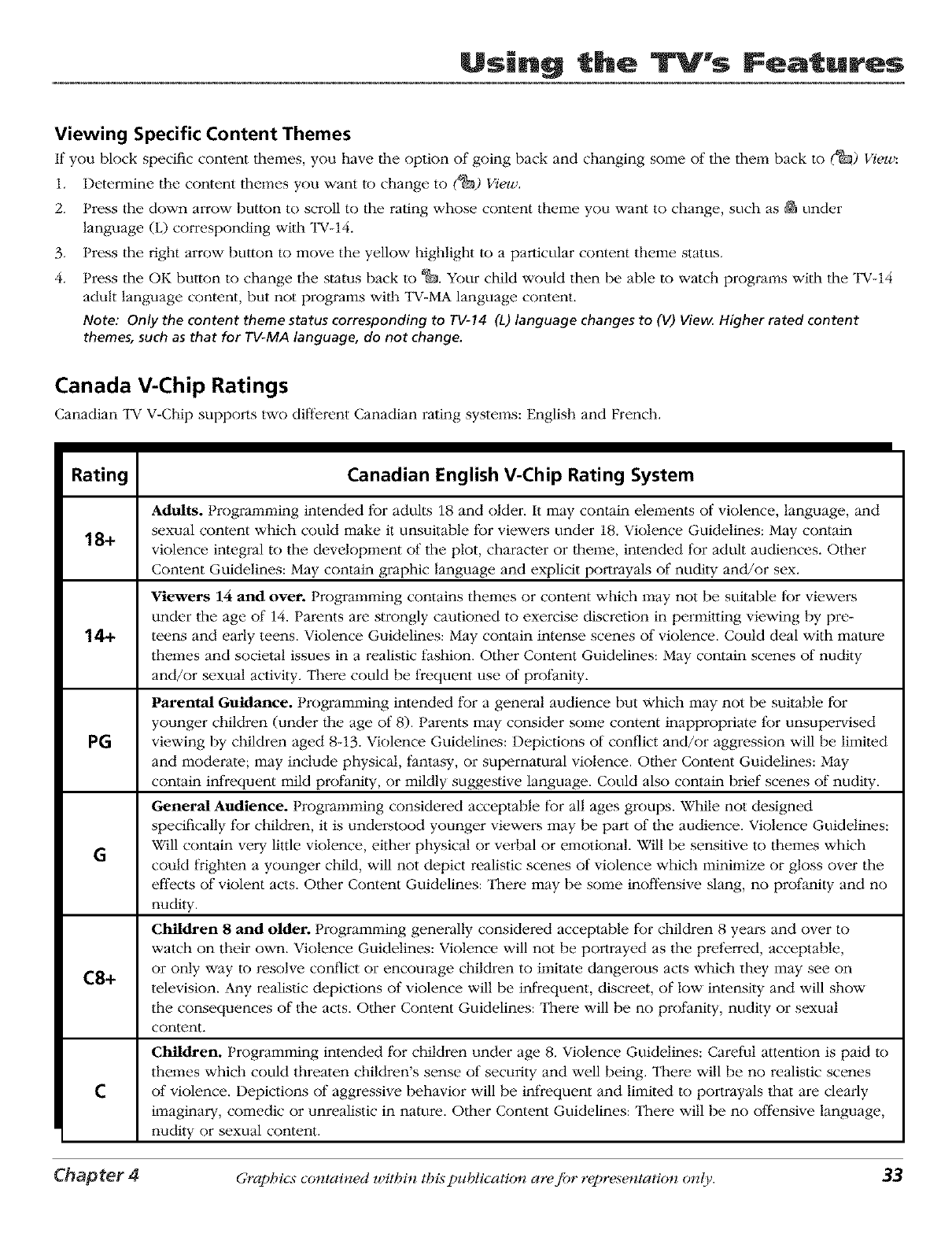

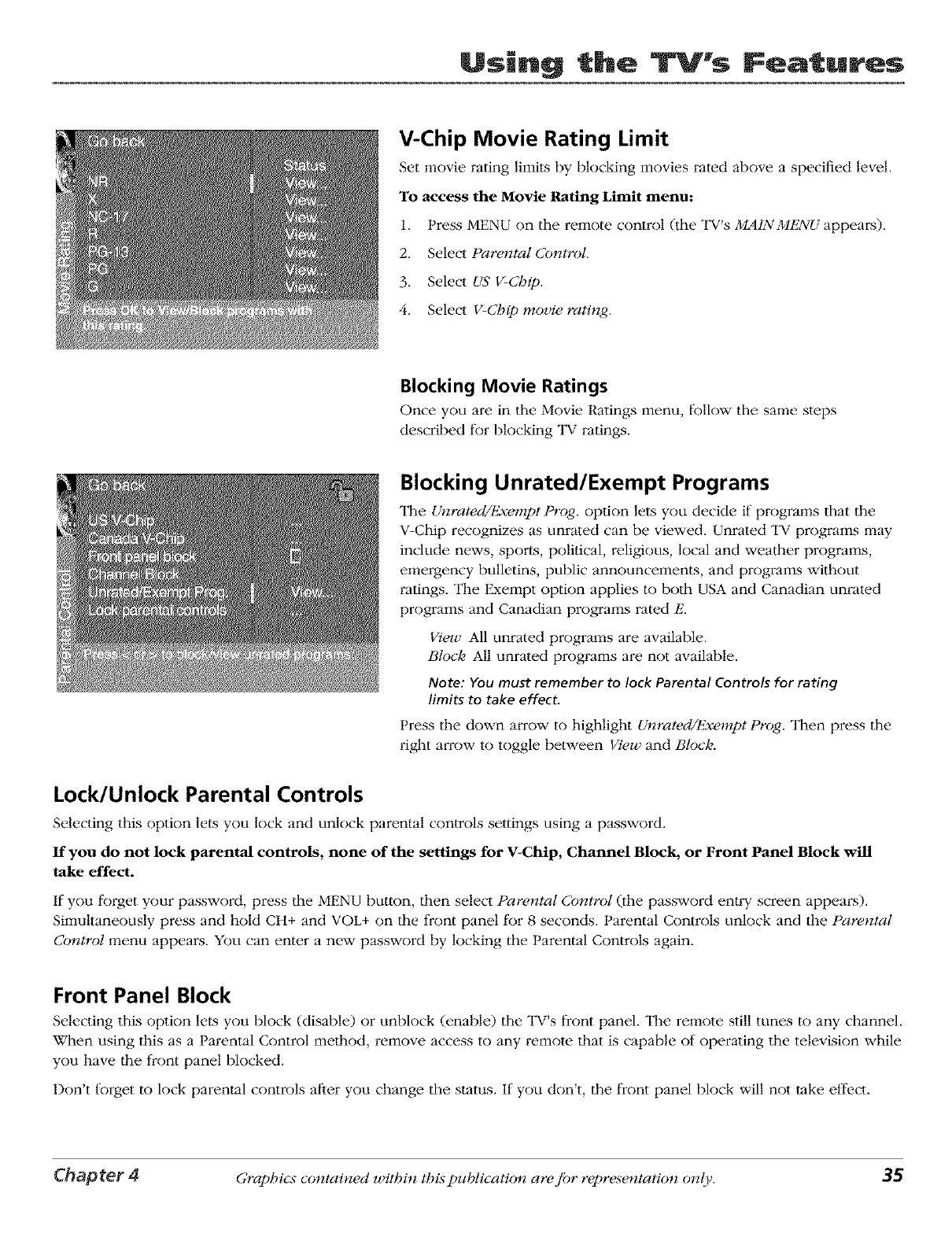

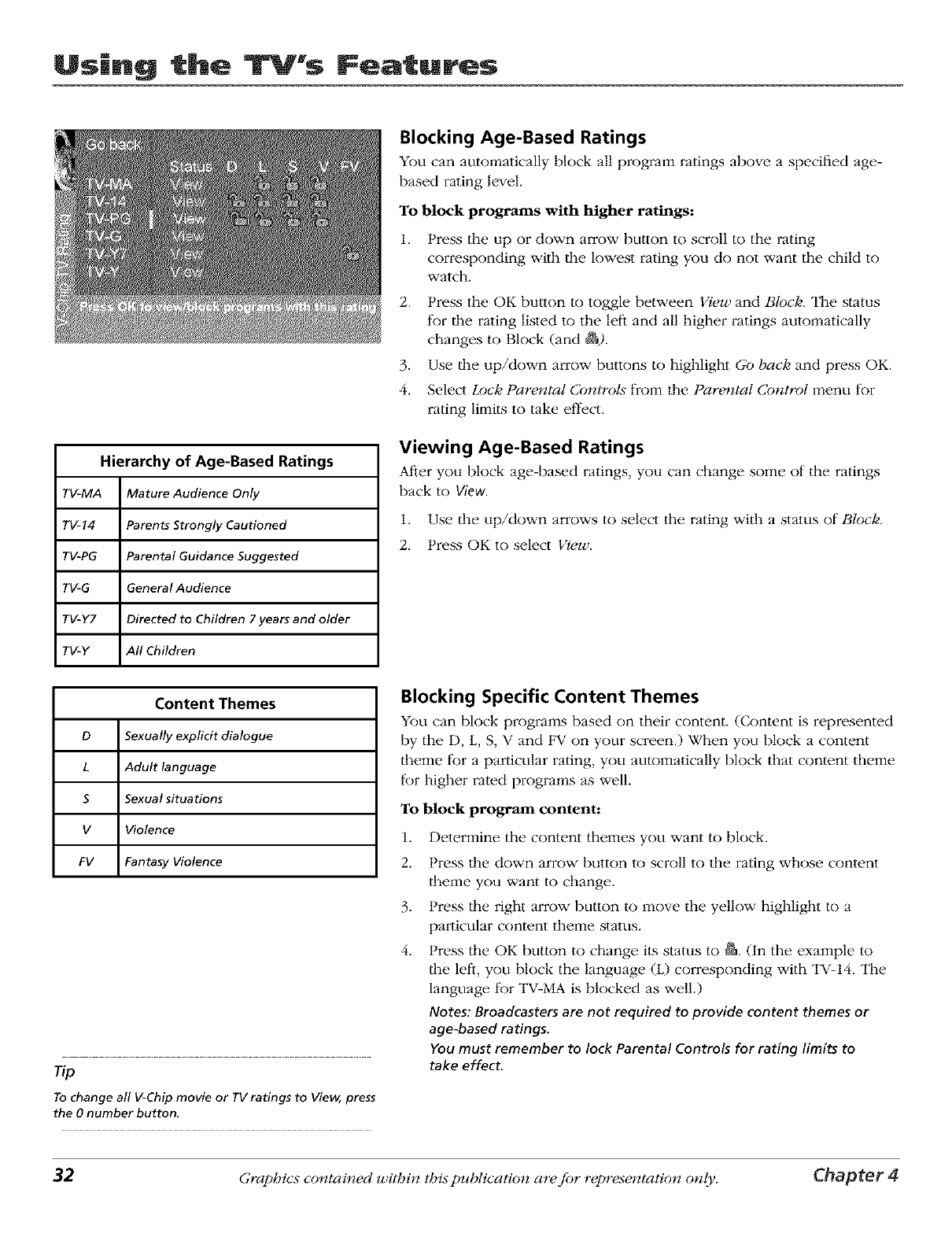

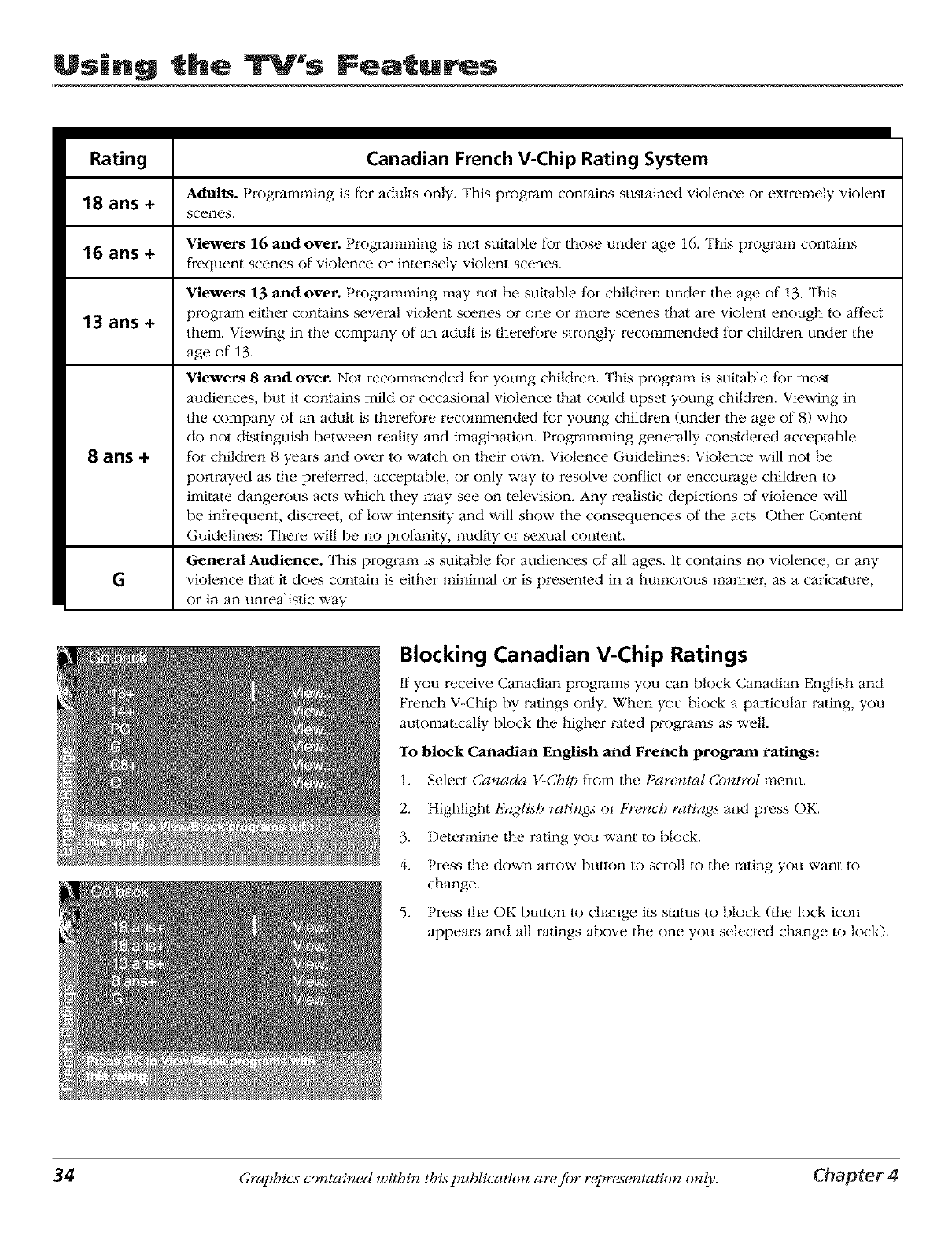

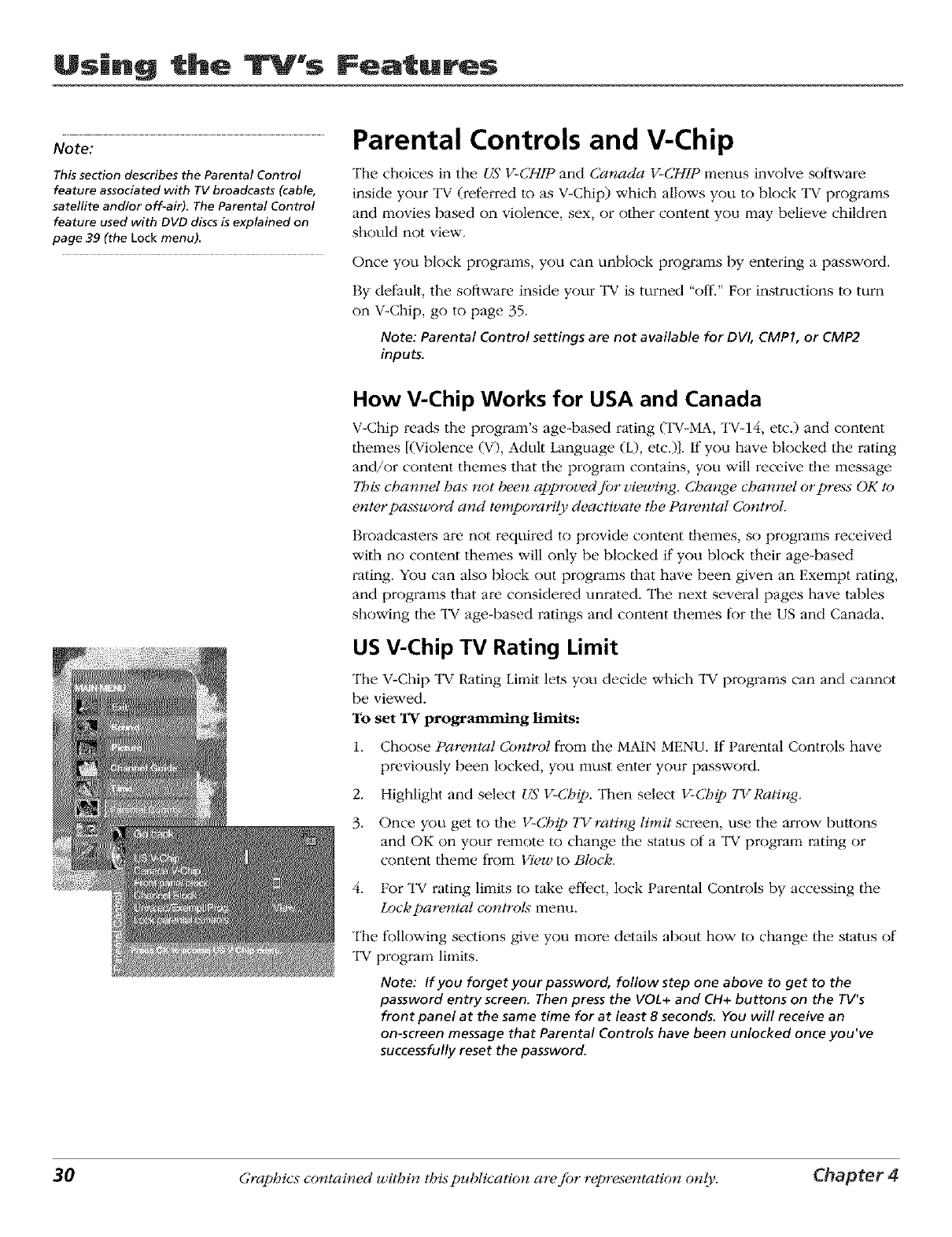

Parental Controls and V-Chip ......................................... 30

PIP (Picture-in=Picture) and

POP (Picture-outside-Picture) Operation .................... 36

Chapter 5: Using the DVD Menu

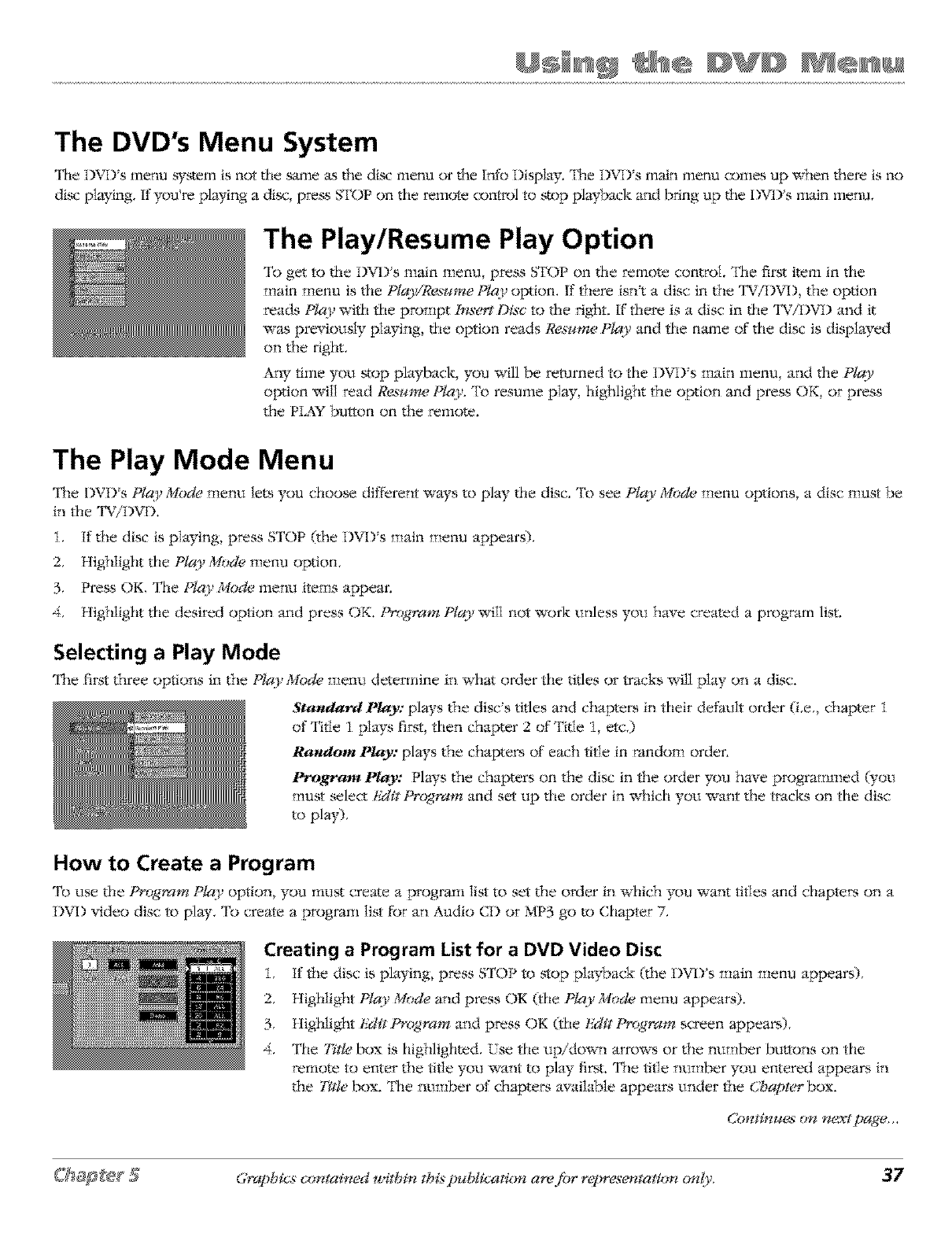

The DVD's Menu System ................................................ 37

The Play/Resume Play Option ....................................... 37

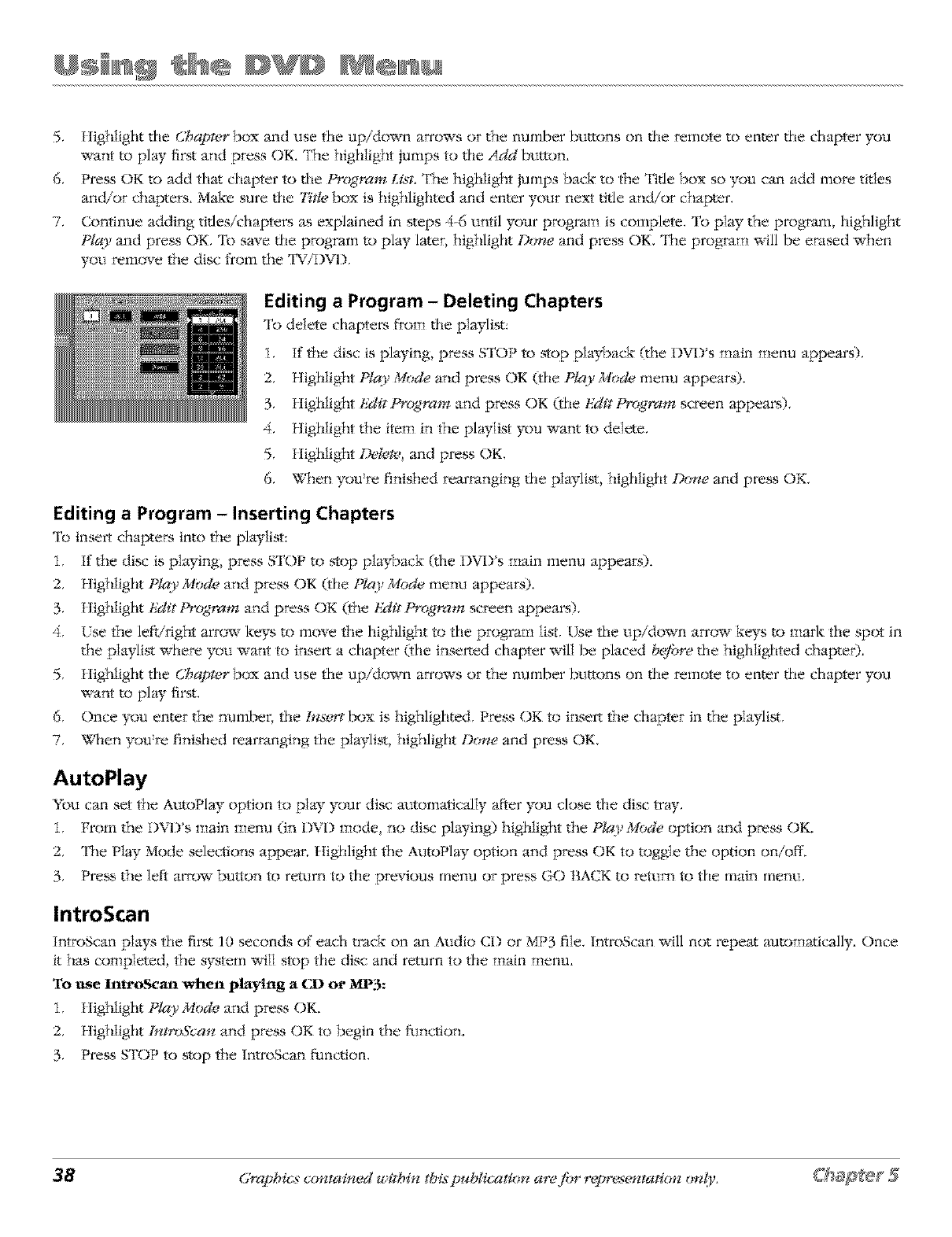

The Play Mode Menu ...................................................... 37

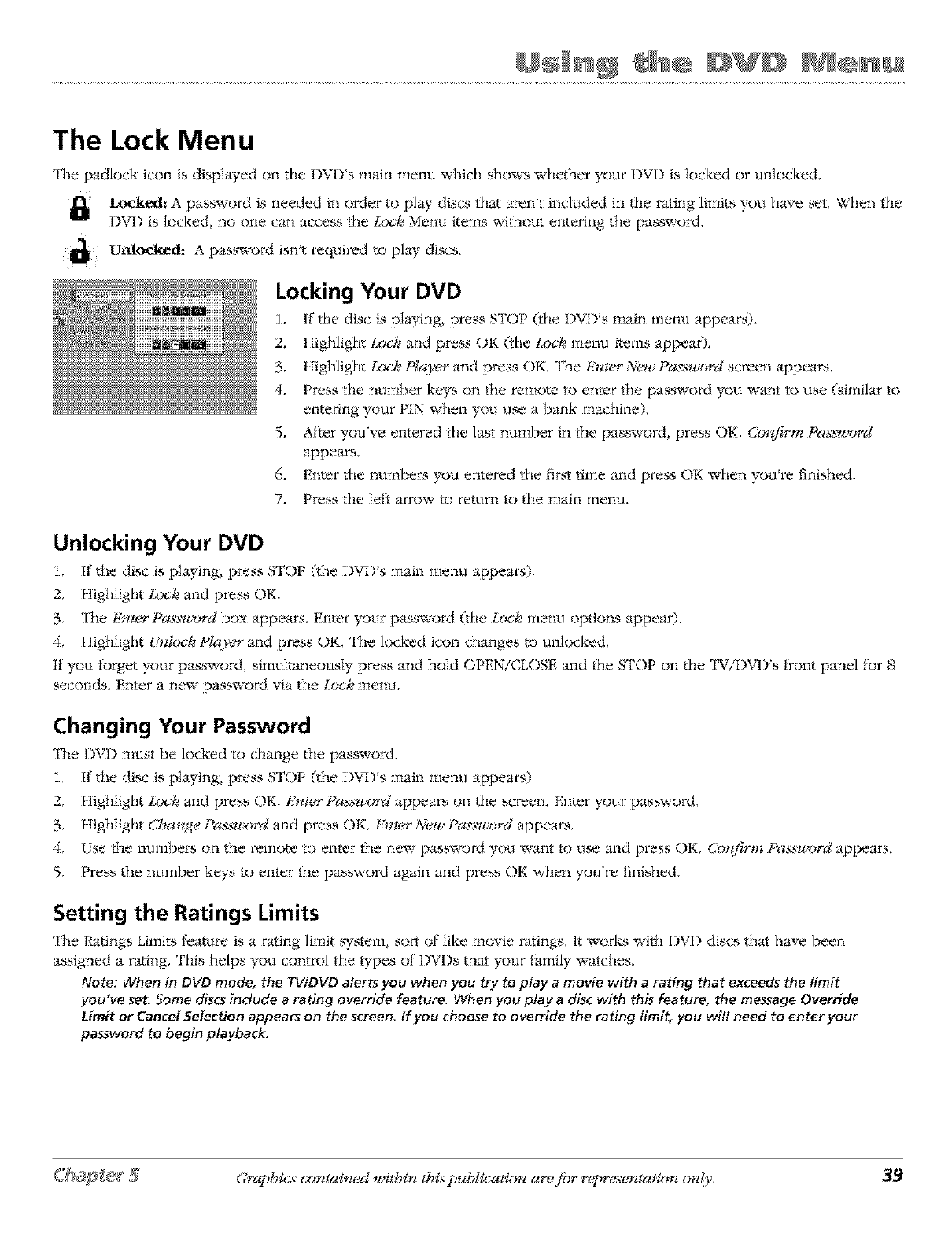

The Lock Menu ................................................................ 39

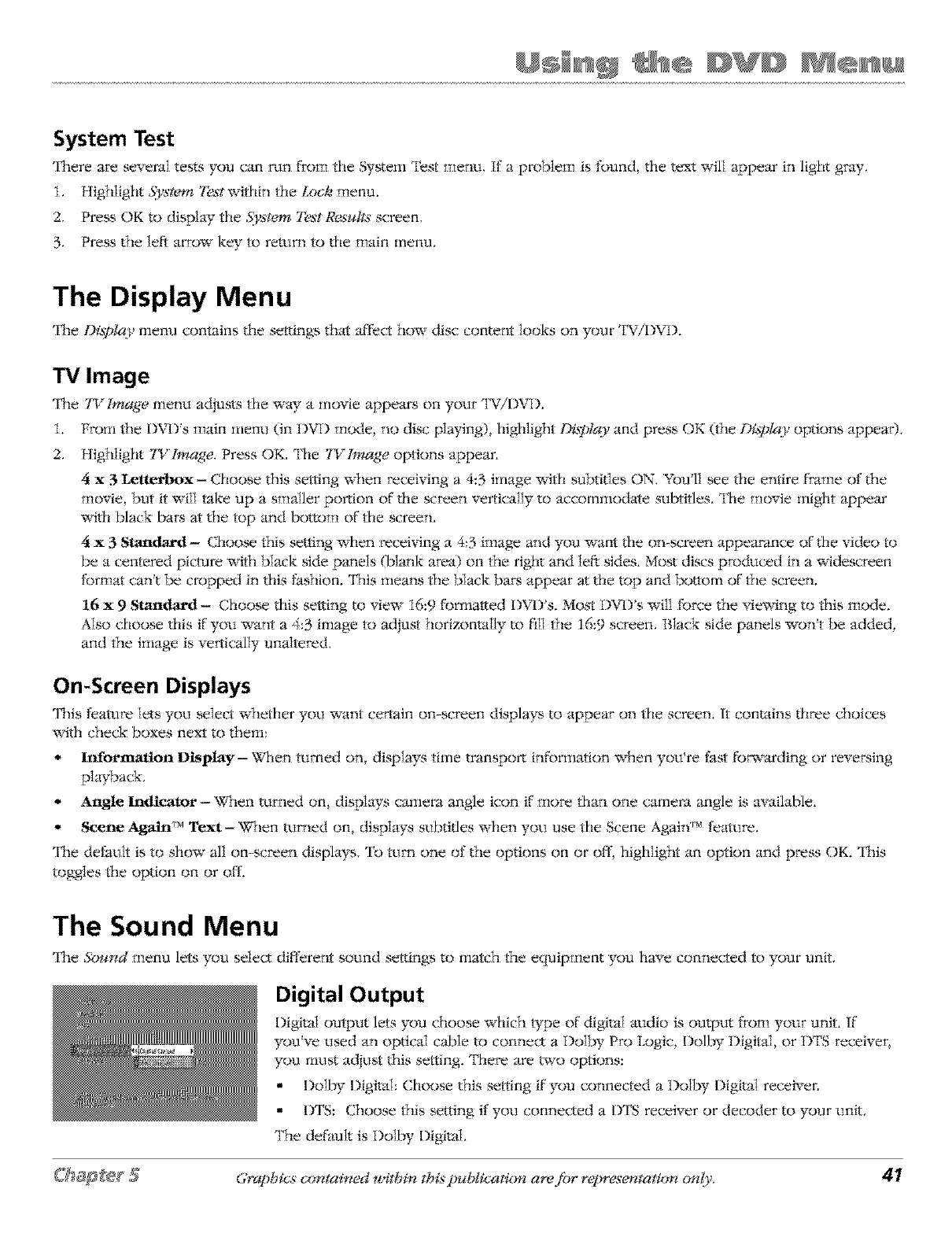

The Display Menu ........................................................... 41

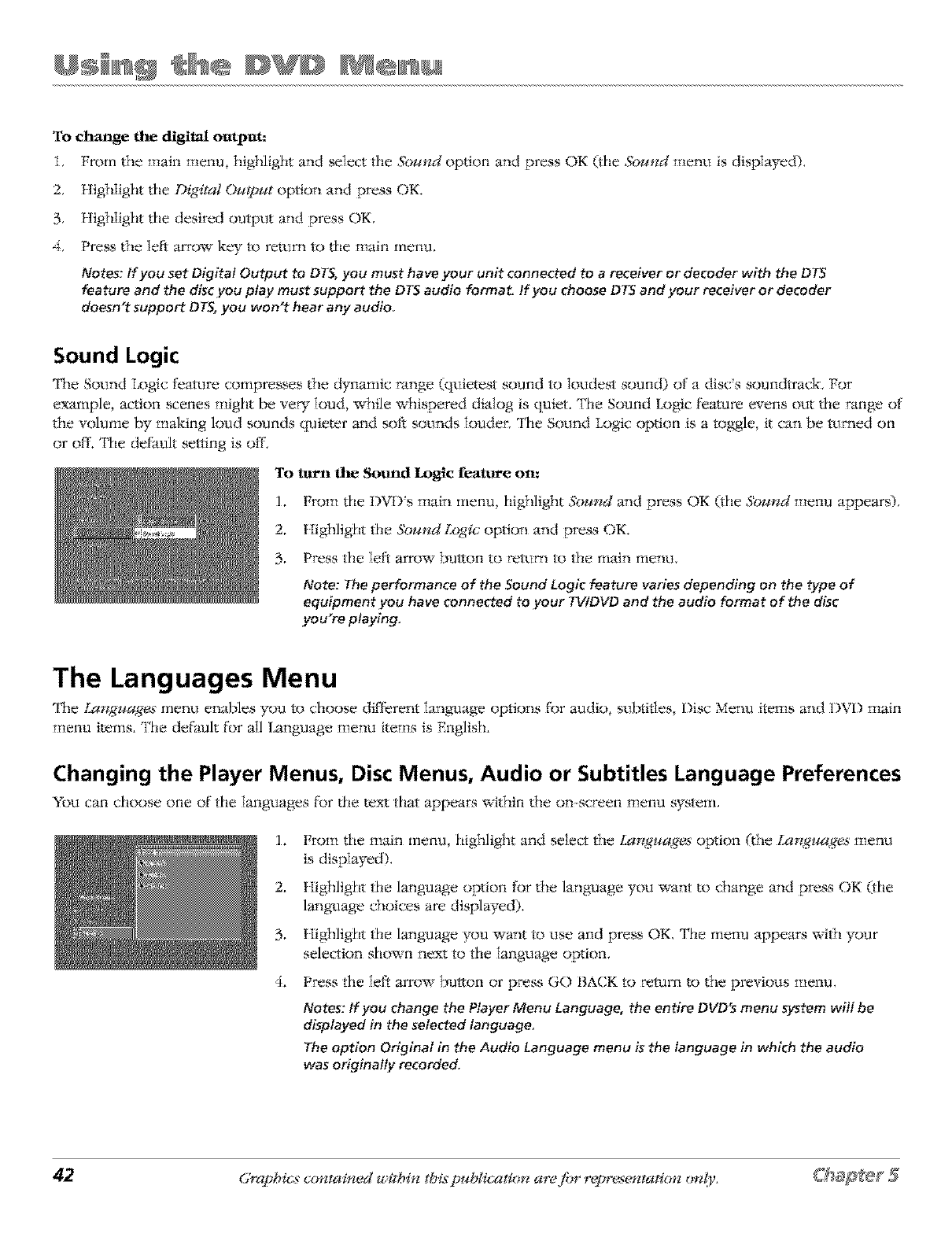

The Sound Menu ............................................................. 41

The Languages Menu ..................................................... 42

Chapter 6: Using the TV's Menu System

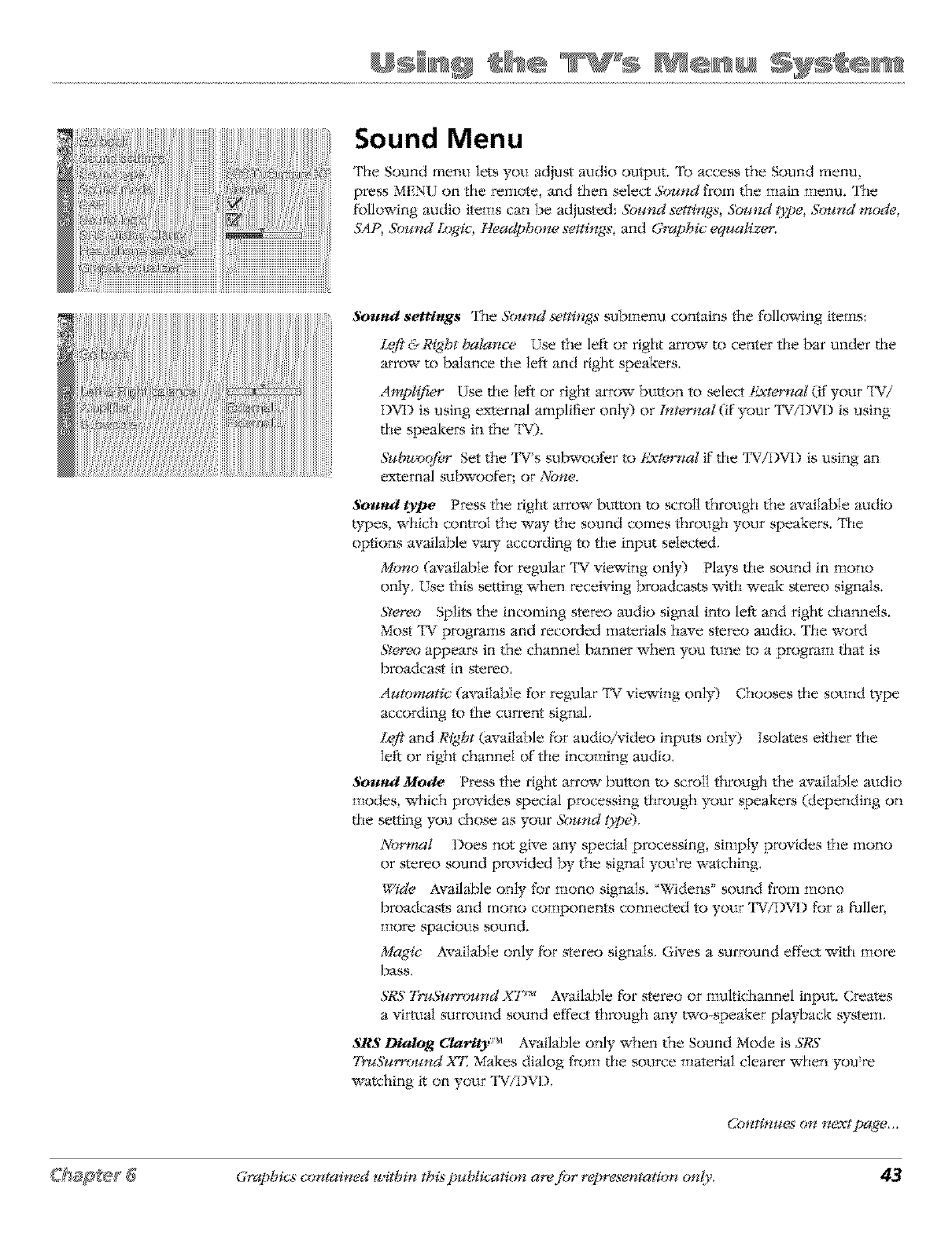

Sound Menu .................................................................... 43

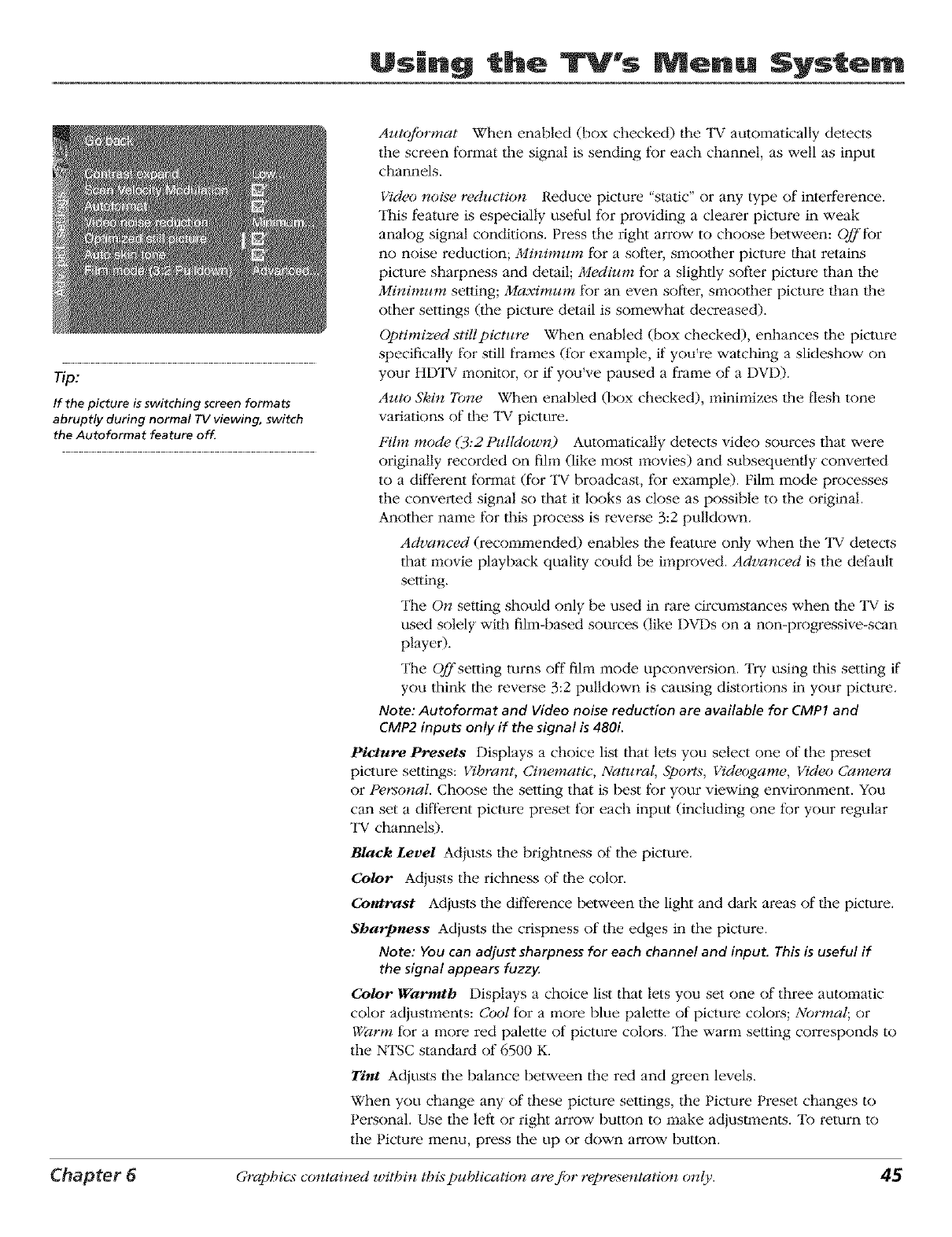

Picture Menu ................................................................... 44

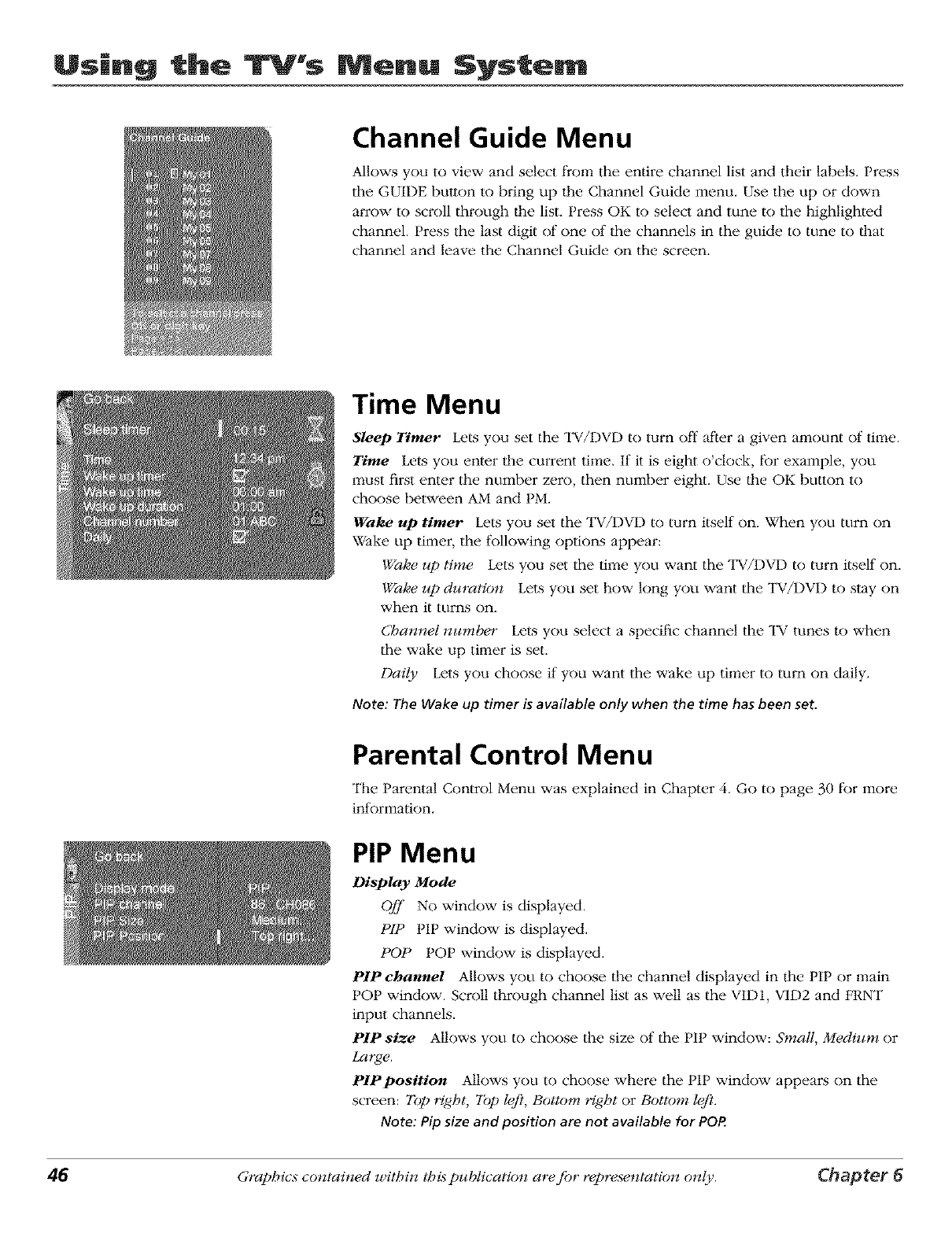

Channel Guide Menu ...................................................... 46

Time Menu ....................................................................... 46

Parental Control Menu ................................................... 46

PIP Menu .......................................................................... 46

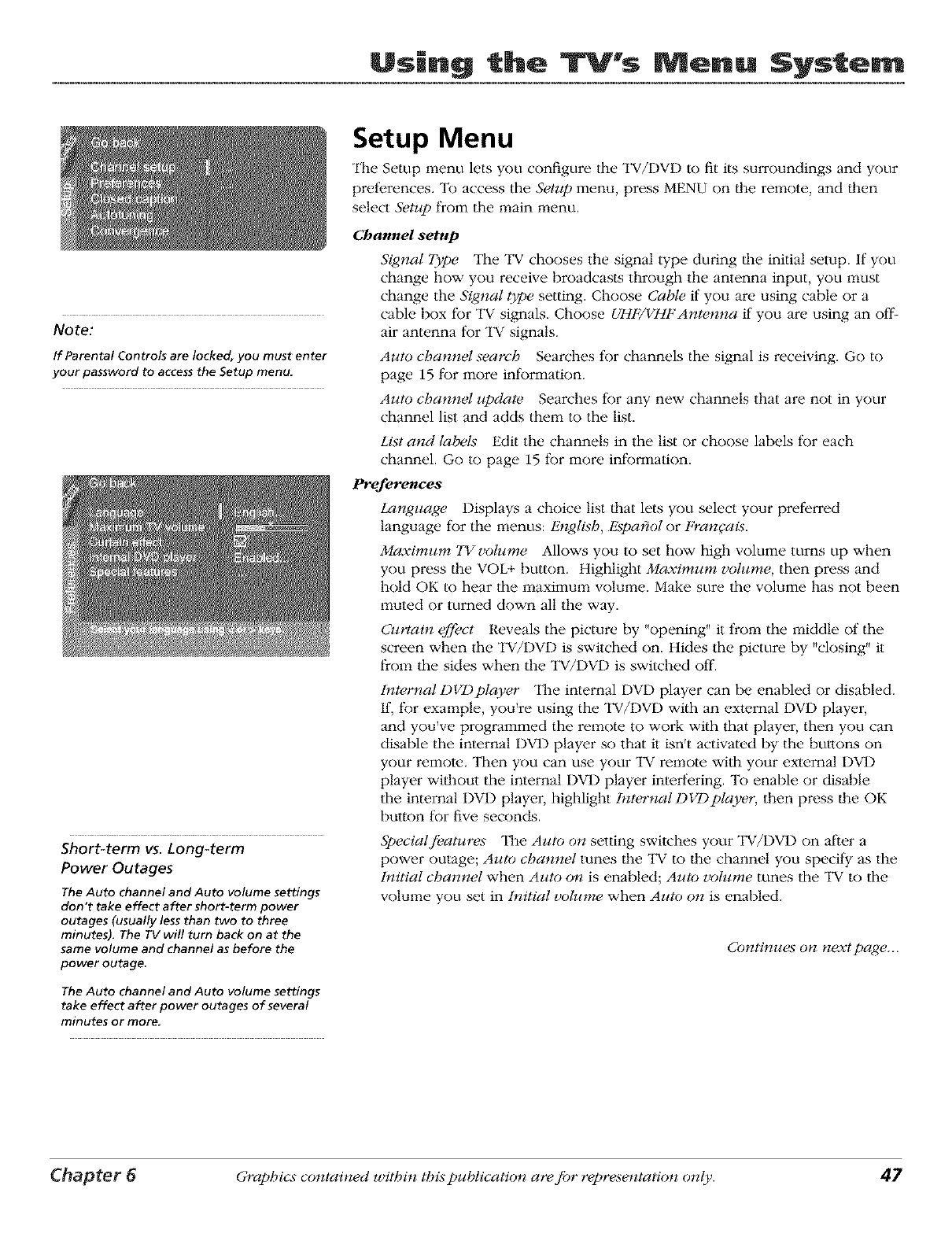

Setup Menu ..................................................................... 47

Chapter 7: Information Displays

Using the Info Display .................................................... 49

Using the Time Display ............................................. 49

Selecting a Specific Track.......................................... 49

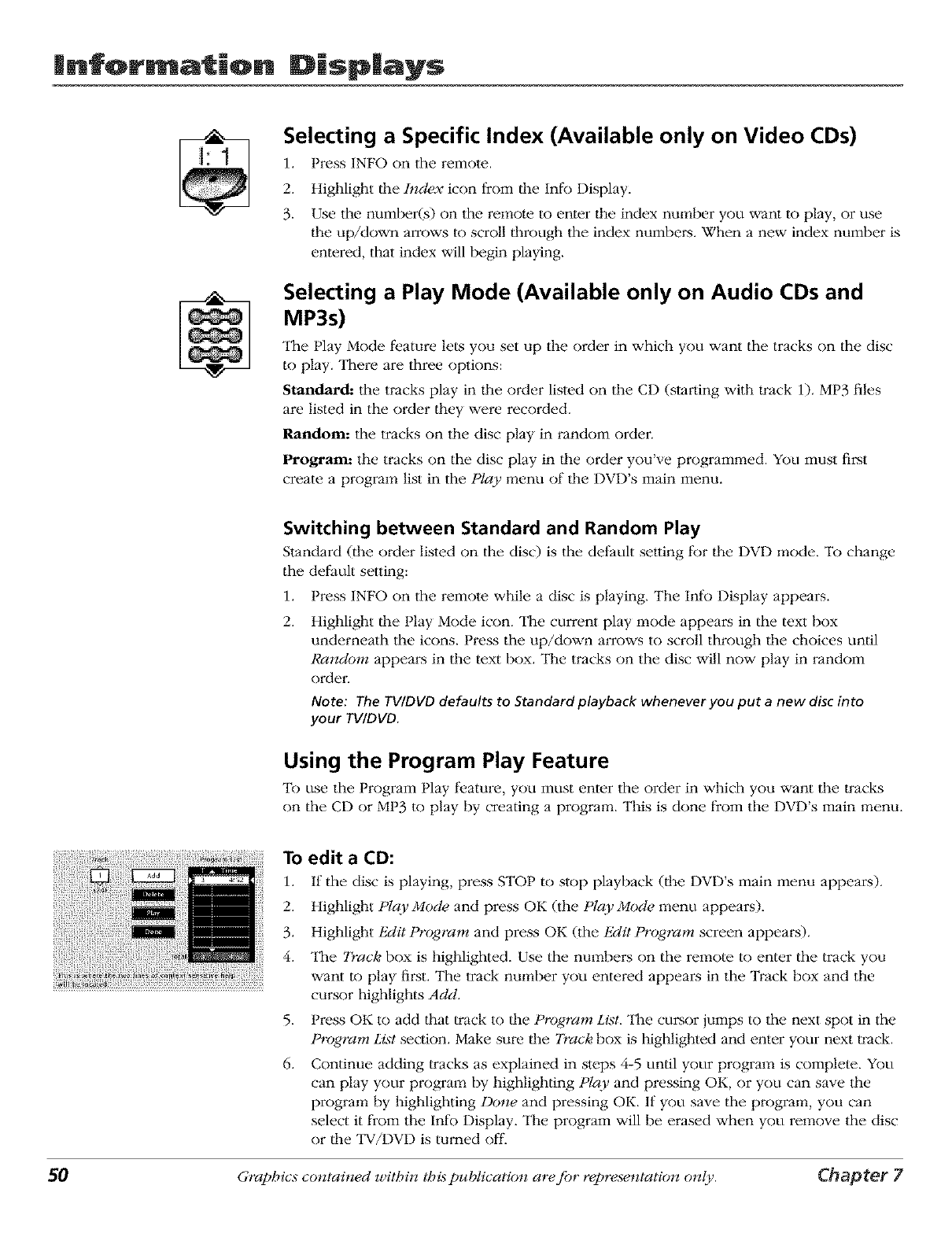

Selecting a Specific Index ......................................... 50

Selecting a Play Mode .............................................. 50

Using the Program Play Feature .............................. 50

Editing a Playlist ....................................................... 51

Using the Repeat Feature ........................................ 51

Changing the Audio Channel Output .................... 52

Using IntroScan ......................................................... 52

Chapter 8: Other Information

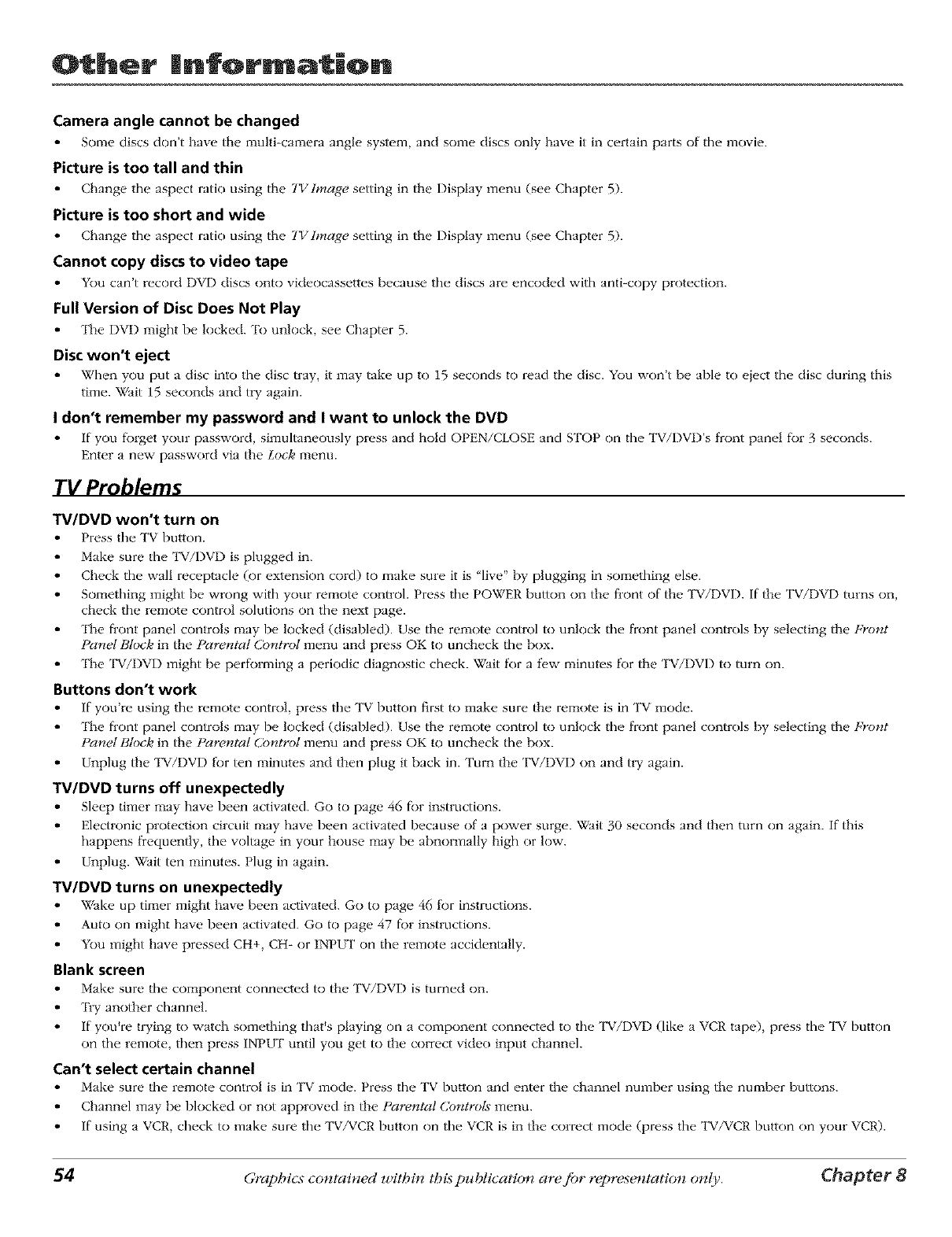

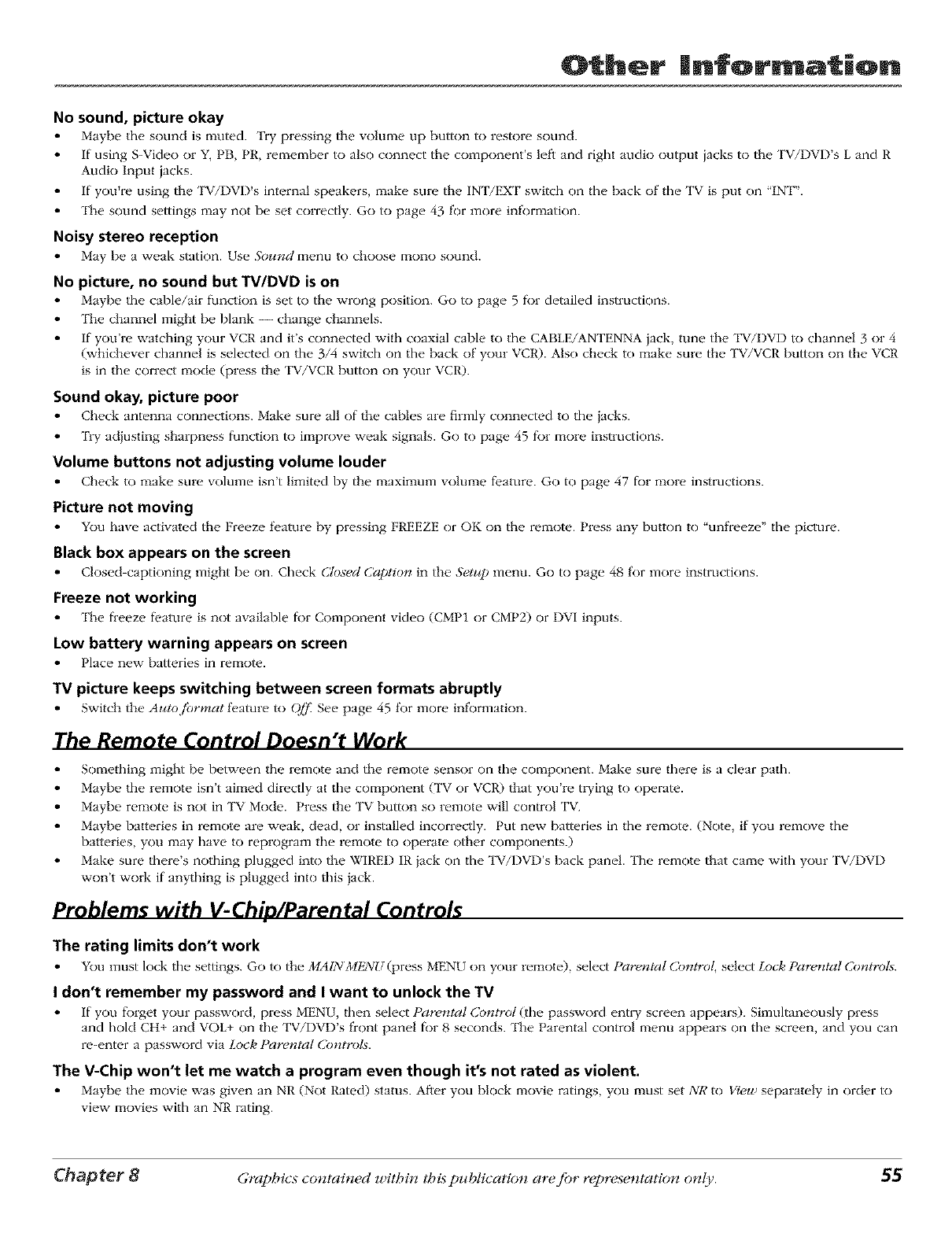

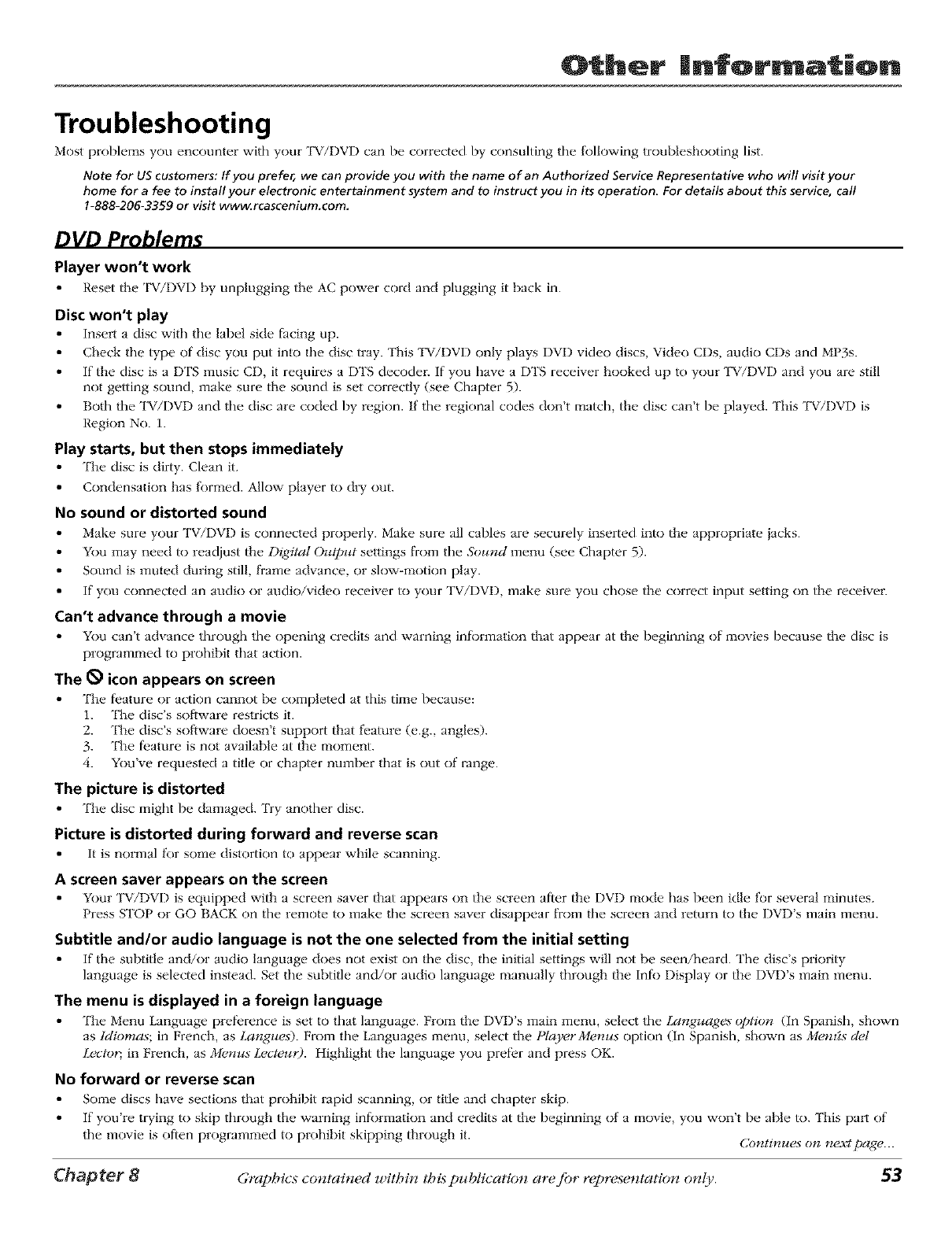

Troubleshooting .............................................................. 53

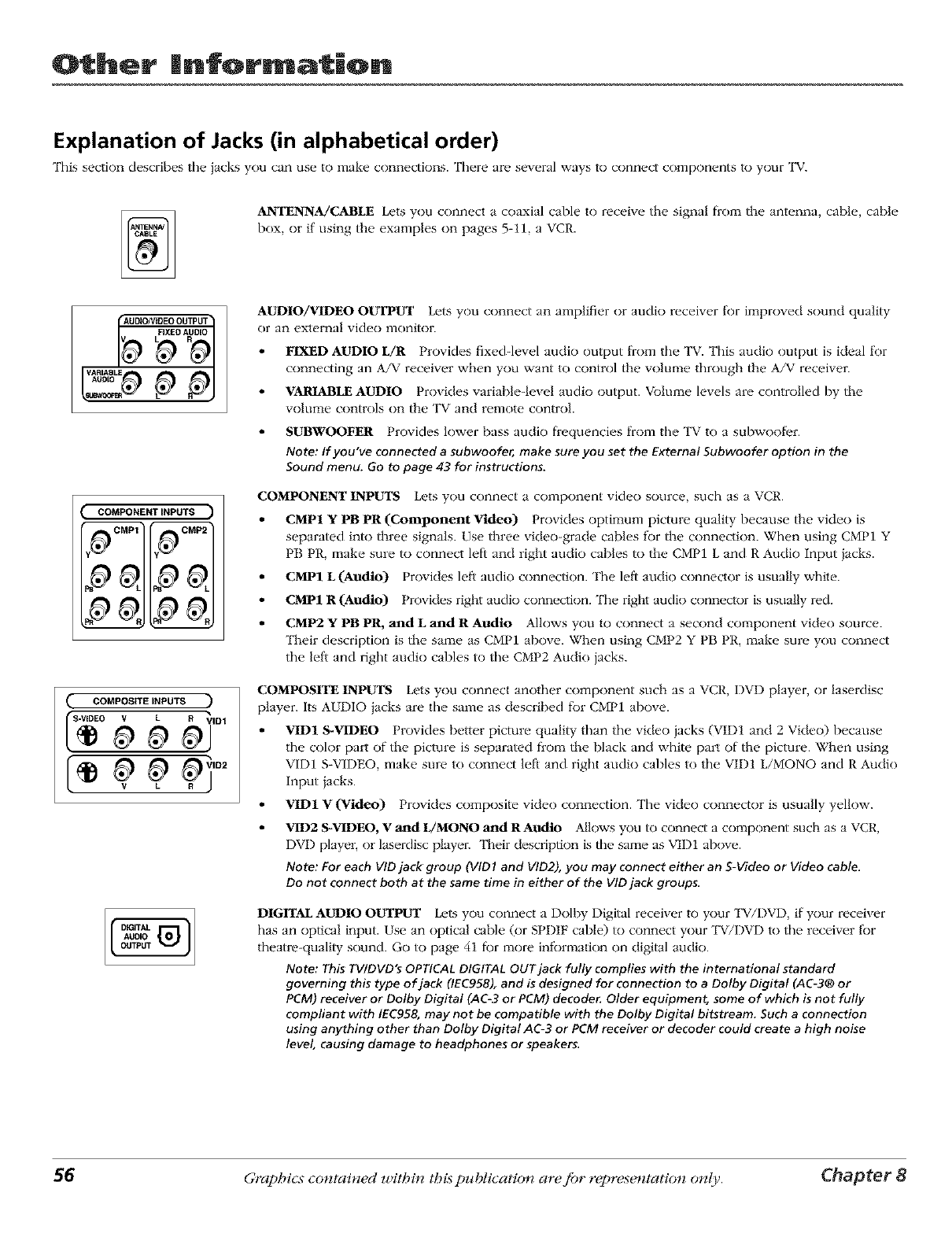

Explanation of Jacks....................................................... 56

FCC Information .............................................................. 58

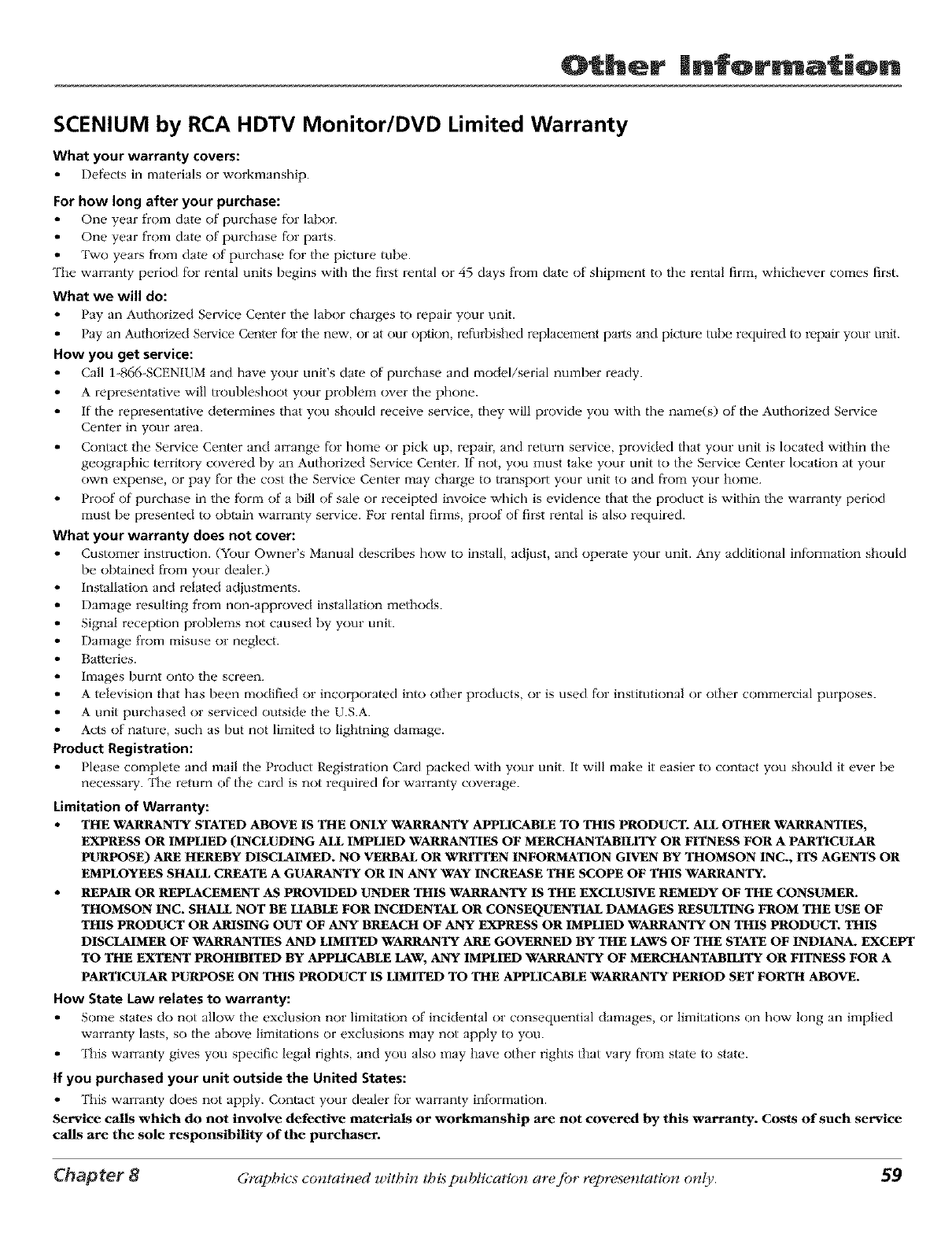

Limited Warranty ............................................................ 59

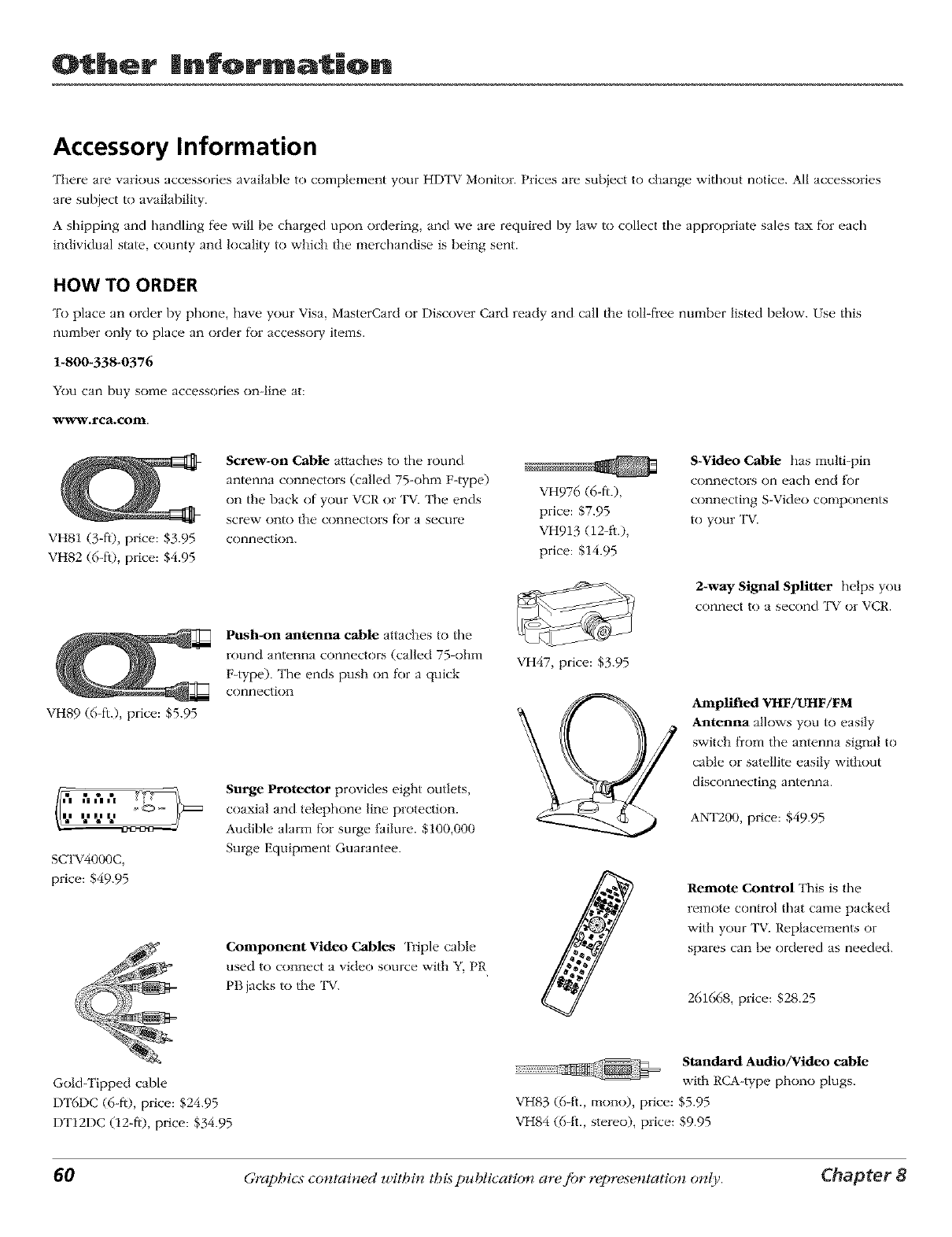

Accessory Information .................................................... 60

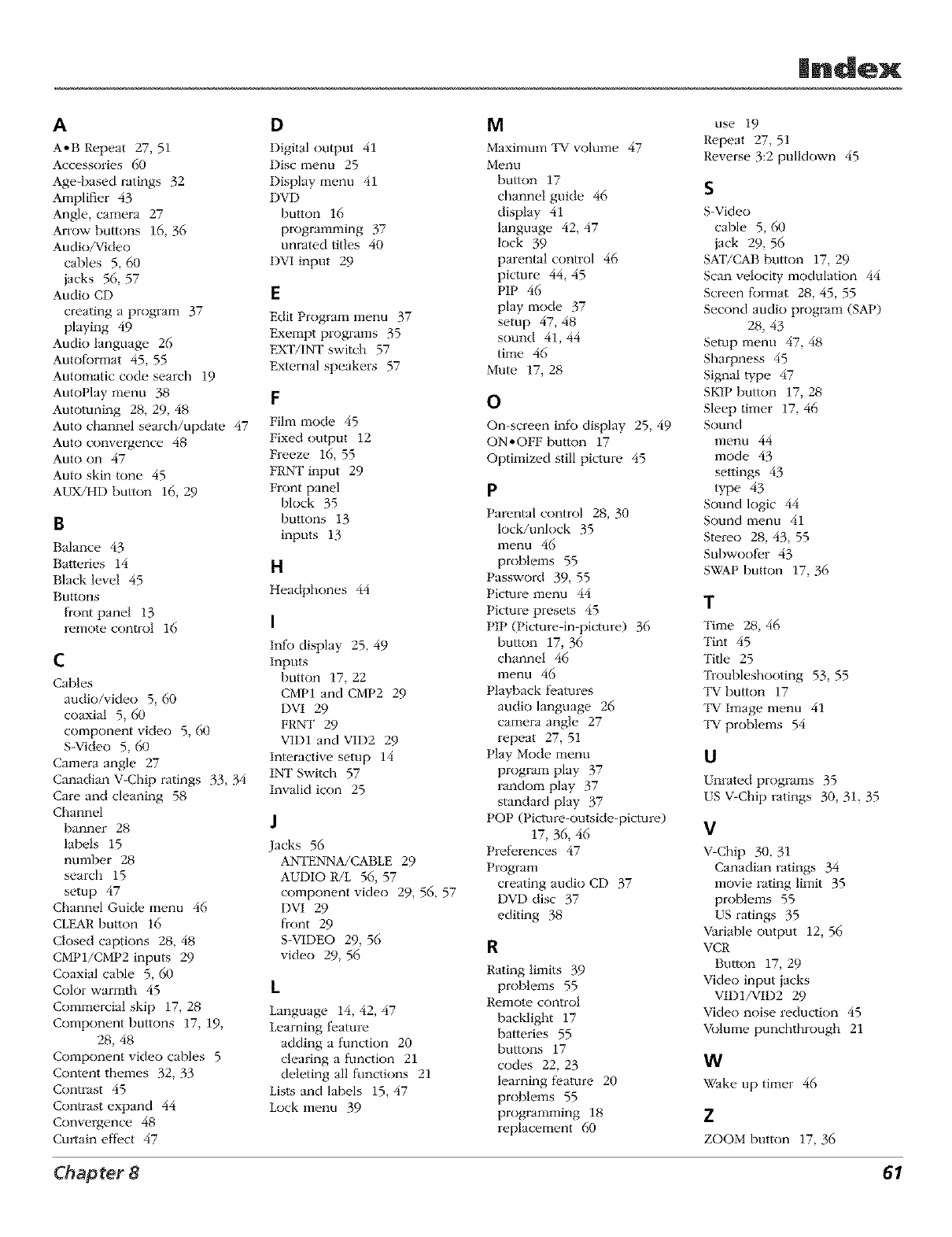

Index ................................................................................ 61

3

¢onn ctiQns Setup

Things to Consider Before You Connect

Protect Against Power Surges

• Connect all components before you plug any" of their power cords into the wall outlet.

• Turn off the TV/DVD and/or component before you connect or disconnect any cables.

• Make sure all antennas and cables are properly grounded. Refer to the hnportant Safety

Instructions on page 1.

Protect Components from Overheating

• I)on't block ventilation holes on any of the components. An'ange the components so that air

can circulate freely.

• Don't stack components.

• If you place components in a stand, make sure you allow adequate ventilation.

• If you connect an audio receiver or amplifier, place it on file top shelf so file heated air from it

won't flow around other components.

Position Cables Properly to Avoid Audio Interference

• Insert each cable firmly into the designated jack.

• If you place components above the TV/DVD, route all cables down the side of the back of the

TV/DVD instead of straight down the middle of the TV/DVD.

• If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin

lead cables away from audio/video cables.

Important Stand and Base Safety Information

Choose the location for your TV/DVD carefully. Place the TV/DVD on a stand or base that is of

adequate size and strenglh to prevent the TV/DVD from being accidentally tipped over, pushed

off, or pulled off. This could cause personal injury and/or damage the TV/DVD. Refer to the

Important Safety Instructions on page 1.

Use Indirect Light

I)on't place the TV/DVD where sunlight or room lighting will be directed toward the screen. Use

soft or indirect lighting.

4Graphics contained within lhispublication arefi)r representation only. Chapter 1

Connections Setup

Choose Your Connection

There are several ways to connect your TV/1)VD. Please use the following chart to determine which connection is best for

you. Proceed to the appropriate page and connect your TV/1)VD.

Note for US customers: If you prefer, we can provide you with the name of an Authorized Service Representative who

will visit your home for a fee to install your electronic entertainment system and to instruct you in its operation. For

details about this service, call I_88&206-3359.

For additional assistance while using your RCA Scenium product, please visit www.rcascenium.com/customersupport.

Components Cables

Needed

Coaxial

Audio/video

Component

video

DVI-HDTV

Coaxial

Audio/video

S-Video

Coaxial

Audio/video

Component video

Connection

Title

TV/DVD +

HDTV Tuner +

VCR

TV/DVD +

Satellite Receiver

+ VCR

TV/DVD + VCR

Go to...

page 6

page 8

page 10

For general intk_rmation on connecting an A/V receiver or speakers to your TV/DVD, go to page 12.

Cables Needed to Connect Components to Your TV/DVD

The pictures below show the cables needed for the connections represented in this book.

Audio/Video Coaxial cable S-Video cable Component Video

cables (Y.Pb.Pr) cables

DVI_HDTV Cable

Chapter 1Graphics contained within lhis publication ar¢ fi_r r¢presentation only.

¢onn_ctiQns _Setup

OFF-AIRANTERHA SATELLITERECDVER

A_TOU_ $ATk_

®

(COMPOSITE _NF'UTS )

I_°_ _ _i'°_

VCR

TV/DVD

6Graphics contained within lhispublication arefi_r representation only. Chapter 1

Connections Setup

TV/DVD + HDTV Tuner + VCR

1. Make sure cable or antenna and/or satellite is connected to your VCR.

A. Connect the coaxial cable from your cable outlet or antenna to lhe antenna input on lhe HDTV Tuner.

B. Connect the satellite dish antenna to the satellite input on the HDTV Tuner.

2. Make the video connection between your HDTV Tuner and the TV/DVD.

A. Best Conneclion: DVI-HDTV

Connect a I)VI-HDTV cable to the I)VI-HDTV iack on the back of your HDTV Tuner. Connect the other end of the

cable to the DVI-HDTV input on lhe back of TV/DVD.

-OR -

B. Very Good Connection: Connect lllree video grade cables to the CMP1 Y PB PR jacks on the back of the TV/DVD

and to the Y PB PR iacks on lhe HDTV Tuner.

Notes: The DVI-HDTV and Y PB PRjacks send the digital cable signal to the TVIDVD in digital and analog formats,

respectively.

3. Make the audio connection between your HDTV Tuner and the TV/DVD (to match your video connection).

A. If you used the DVI-HDTV iack:

Connect the audio (white and red) cables to the I)VI-HDTV L and R audio jacks on the back of lhe TV/1)VD and to

lhe Audio Output jacks on the HDTV Tuner.

-OR -

B. If you used the Component Video jacks:

Connect the audio (white and red) cables to the CMP1 L and R audio jacks on the back of the TV/DVD and to the

Audio Output iacks on lhe HDTV Tuner.

4. Connect your HDTV Tuner to your VCR.

A. Connect a coaxial cable to the HDTV Tuner's antenna output and Io VCR's antenna input.

B. Connect lhe audio (white and red) cables to the Audio Output jacks on the HDTV Tuner and to the Audio Input

jacks on the VCR.

C. Connect the video cable to the Video Output jack on the HDTV Tuner and to the Video Input iack on the VCR.

5. Connect your VCR to your TV/DVD.

A. Connect a coaxial cable to the VCR's antenna output and Io the ANTENNA/CABLE Input iack on lhe TV/DVD.

B. Connect lhe audio (white and red) cables to the VID2 L/MONO and R audio jacks on the back of the TV/DVD and

to the Audio Output jacks on the VCR.

C. Connect the video cable to the VID2 V (video) jack on lhe back of the TV/DVD and to lhe Video Output jack on lhe

VCR.

Go to page 14

Chapter 1 Graphics contained within this publication ar_ fi)r r_presentation only. 7

¢onn_ctiQns _ Setup

SATELLITE

RECEIVER

TV/OVD

8 Graphics contained within thispublication ar_fi_r r_presentation only. Chapter 1

Connections Setup

TV/DVD + Satellite Receiver + VCR

1. Connect your VCR to your TV/DVD.

A. Connect a coaxial cable to the VCR's antenna output and to the ANTENNA/CABLE Input

jack on tim TV/DVD.

B. Connect the audio (white and red) cables to the VID2 L/MONO and R Audio jacks on the

back of the TV/DVD and to the Audio Output jacks on file VCR.

C. Connect the video cable to the VID2 V (Video) jack on the back of file TV/DVD and to the

Video Output jack on the VCR.

2. Make sure cable or antenna is connected to your VCR.

Connect the coaxial cable from your cable outlet or antenna to tim antenna input on the VCR.

3. Connect your Satellite Receiver to your TV/DVD.

A. Connect the audio (white and red) cables to the VID1 L/MONO and R Audio jacks on the

back of the TV/DVD and to the Audio Output jacks on the Satellite Receiver.

B. Connect the video cable to the VID1 V (Video) jack on the back of the TV/DVD and to the

Video Output jack on the Satellite Receiver.

C. If your Satellite Receiver has an S-Video jack, connect an S-Video cable (instead of the

video cable in step B) to the S-VIDEO jack on the TV/DVD and to the S-VIDEO jack on the

satellite receiver.

Go to page 14

Chapter 1 Graphics contained within this publication ar¢ fi)r representation only. 9

¢onn_ctiQns _Setup

®

COMPONENTI_PUTS

COMPOS_INPUTS

TV/DVD

VCR

10 Graphics contained within lhis publication ar_ fi_r r_presentation only. Chapter 1

Connections Setup

TV/DVD + DVD + VCR

1. Connect your VCR to your TV/DVD.

A. Connect a coaxial cab|e to the VCR's antenna output and to the ANTENNA/CABLE Input

jack on tim TV/DV1).

B. Connect the audio (white and red) cables to the VID2 L/MONO and R Audio jacks on the

back of the TV/DVI) and to the Audio Output jacks on file VCR.

C. Connect the video cable to the VID2 V (Video) jack on the back of file TV/DVD and to the

Video Output jack on the VCR.

2. Make sure cable or antenna is connected to your VCR.

Connect the coaxial cable from your cable outlet or antenna to tim antenna input on the VCR.

Go to page 14

Chapter 1Graphics contained within tbis publication are fi_r representation only. 11

¢onn ctiQns Setup

TV/DVD + A/V Receiver or Speakers

These are two different ways your TV/DVD uses a component to hear audio.

1. Connect audio cables to either the FIXED or VARIABLE AUDIO L and R OUTFUT jacks and

to the Audio Inputs on the A/V receiver.

• FIXED provides fixed-level audio output from the TV/DVD. This audio output is

ideal for connecting to an A/V receiver that has its own volume con_ol.

• VARIABLE provides variable-level audio oulput. Volume levels can be con_olled by

the volume controls on the TV/DVD's front panel and remote control.

-OR-

2. Use speaker wire Io connect the TV/DVD to external speakers.

• The EXT/INT switch beside the iacks let you turn the TV/DVD's internal speakers

on or off. If you connecl external speakei:s, slide the switch to EXT so the audio is

sent to lhe external speakei:s only. Choosing INT sends the audio to the TV/DVD's

speakers only.

Note: The external speaker rating is 8 ohmswith 15 watts power handling capabilities.

f

A!V RECEIVER

Connect to either FIXED

or

VARIABLE Output

\

12 Graphics contained within lhis publication ar_ fi)r r_presentation only. Chapter 1

Connections Setup

The Front of Your TV/DVD

Front Input Jacks

The TV/1)V1) has front inputs for convenience: one set of audio/video input jacks, an S-Video jack and a headphones jack.

The jacks are ideal for using a video game console or a camcorder. Locate the jacks either on the front of the TV/DVD or

on one of the sides. To access the component you connected to the front of the TV/1)VD, press lhe INPUT button on your

remote until FRN1 appea_:s on the screen.

Note: When connecting a component that usesa monaural cable, such as some camcorders, use the Left (mono) input

jack to get sound from both speakers.

PHONES Allows you to connect headphones to listen to the sound coming from the TV/1)VD. To adiust volume control of

the headphones, press the VOL > or VOL < bulton (lhe volume display appem:s). Press the mTOW up or down button 0he

headphone volume display appears), lhen press the right or let) arrow button to adjust the headphone volume.

VIDEO (in) Receives video from another component such as a camcorder, video game console or VCR.

IJMONO and R AUDIO Receives audio from anolher component such as a camcordei; video game console or VCR.

S-VIDEO (in) Allows you to connect an S-Video cable from anolher component. Make sure you also connect audio cables

from the component to the TV/DVD.

Note: Do not connect an S-Video and a regular video cable to the FRNrjacks at the same time.

Front Panel Buttons

If you cannot locate your remote, you can use the front panel btmons of your TV/1)VD to operate _:qany of the TV/1)V1)'s

features.

OPEN/CLOSE Press to open and close the disc tray.

STOP Stops DVD disc play.

PLAY Begins DVD disc play.

MENU/OK Brings up the "IV Main menu. In the menu system, it selects highlighted items.

Eli v Scans down through lhe cun'ent channel list. In lhe TV menu system, acts like down arrow bulton on the remote

control and adjusts menu controls.

Eli ^ Scans up through the channel list. In lhe TV menu system, acts like up arrow button on lhe remote control and

adjusts menu controls.

¥OE < Decreases the volume. In lhe TV menu system, acts like left arrow bulton on the remote control and adjusts menu

controls.

¥OE > Increases the volume. In lhe TV menu system, acts like right arrow button on the remote con_ol and adjusts menu

controls.

POWER Turns the TV/1)VD on and off.

Chapter 1 Graphics contained within tbis publication are fi_r representation only. 13

¢onn_ctiQns _Setup

Plug in the TV/DVD

Plug the end of"the power cord into a grounded wall outlet. Insert the plug

completely into file outlet.

Put batteries in the remote

• Remove file battery compartment cover from tile back of tile remote by

pushing the "taband lifting off the cover.

• Insert 2 "AA" fresh batteries. Make sure the polarities (+ and -) are aligned

correctly.

• Replace the cover.

Turn on the TV/DVD

Press TV on tile remote, or press POWER on the TV/DVI)'s front panel.

Note: Pressing the TV button not only turns on the TV/DVD, but puts the

remote into TV mode. "TV mode" means that the buttons on the remote

control operate the TV'sfunctions.

TV button

/OK button

_Arrows

How to Use the Remote Control to

Complete the Initial Setup

The technical term is "Navigation" - how you move through tile on-screen

menus. The theory is the same throughout the menu screens: highlight your

choice and select it.

"1_)highlight a menu item, press tile arrow buttons on file remote to highlight

one of the items listed on llle screen. Use the up or down mTOW button to move

up or down. Use the right or left arrow button to move right or left.

To select file item that you ve highlighted, press OK.

Note: Highlighted means that the menu item stands out from other menu

items on the list (appears darker, brighter, or a different color).

r_ Complete the Initial Setup

To access the setup menus manually, press The menu system in your TV/DVD allows the TV/DVD's features to work

MENU and choose SETUP properly. The first time you turn on your TV/DVD, tile setup screens appear.

Set the Menu Language

The first part of the setup allows you to select your pre_rred language _r the

menu system.

If English is your preferred language, press OK. If you want to choose anoflmr

language, press the down arrow button until lllat language is highlighted, and

press OK.

14 Graphics contained within lhis publication ar_ fi)r r_presentation only. Chapter 1

Connections Setup

Complete Auto Channel Search

The next screen asks you to make sure you've connected the "I_/1)Vl) to a

cable, satellite, or off-air signal. When you're sure ttmt a signal is connected to

your TV/1)V1), press OK on your remote to go to the Channel.sel_tp screen.

In the Channel setup screen, you can launch the Auto channel search by

pressing OK. The Auto channel search allows the TV/DVD _o search for all

channels viewable through your antenna or cable TV system. This is sometimes

called auloprogrammi_g. When the channel search is complete, press OK to

access the List & Labels screen.

Changing Lists and Labels

The List & Labels part of the setup lets you edit your channel list and choose or

create a personal six-character label for each channel.

Note: Changing List and Labels can be time consuming. You can change

these at a later time by accessing the Setup menu.

1. Press llle lefi or right arrow to scroll through the channels and choose the

one you want to edit.

2. Press llle down arrow to highlight the In channel list option. Press the leli

or right arrow butlon to add (the box is checked) or remove (the box is

unchecked) lhe channel from the list.

3. Press llle down arrow to highlight the Channel label option. Press the let_

or right arrow button to scroll through the available list of 25 most common

labels. The last option in the list allows you to cmale your own six-

character label for lhe channel (lhe first leller of llle label is highlighted).

4. Press llle 1 or 2 nmnber button to change lhe first leller of the label.

5. Press llle right arrow to highlight llle second letter, lllen press the 1 or 2

number button to change tim second letter, etc.

6. When you are finished creating your label, press OK. Select Go back to go

to the Auto ConveE_ence _:qenu.

Note:

If you're using an HD source (such as an HDTV

tuner or HDTV satellite receiver) on the CMPNT

or DVI input, you should run Auto convergence

separately for that input as well. Tune to the

input you're using for the HD source, then go to

page 48 for information on Auto convergence.

You don't need to run Auto convergence

separately for the internal DVD player- the

procedure for the TV covers the internal DVD

player as well.

Auto Convergence

Your TV/DVD's piaure tubes might have been disturbed during delivery" or

after you moved llle TV/1)VD, causing llle color in your TV/DVD to be out of

alignment. The colcms adjust by starting auto convergence.

IMPORTANE" Auto convergence works best once the TVIDVD has warmed

up for at least an hour If you've just unpacked your TV/DVD, it's a good

idea to repeat the Auto convergence function when the TV/DVD's been

running for at least an hour See page 48 for more information about Auto

convergence.

1. Press OK to begin auto convergence.

2. When lhe auto convergence is complete, tim Red center convergence menu

appeai:s. The cross in lhe middle of the screen should be yellow. If it is not,

use the arrow butlons to move the red cross to overlap the green cross.

Press OK when adjustments are complete.

.The Blue center conveEqence menu appears with a cyan cross in the middle

of the screen. If it is not, use the arrow buttons to move lhe blue cross

to overlap lhe green cross. Press OK (tim TV tunes to the last selected/

available channel in the channel list).

Chapter 1Graphics contained within lhis publication ar¢ fi)r r¢presentation only. 1_

Using the Remote Control

ON.OFF

PIP SWAP PIP+ SLEEP

Dl_ MENU INFO

CLF_R _ MENU

[]

GUIDE

MUTE GOBACK

INPUT ANTENNA

@

REV PLAY FWD

RE€ STOP PAUSE

,.. j

• J

The Buttons on the Remote Control

(0-9) Number Buttons Enter channel numbers and time settings directly

through the remote control.

To enter a one-digit channel, enter a zero fi_:st.To enter a two-digit channel, press

the two digits. To enter a dlree-digit channel, press and hold the "1" button until

"1" and two dashes (- -) appear, then add the second two digits. Example: Io tune

to channel 123, press and hold 1 until "1- -" appears, release the 1 button and

then press 2 and 3.

ANTENNA In VCR mode (if programmed), lllis button works as a TV/VCR button

tSr some VCRs. In SAT mode (if programmed), this button works as a TV/SAT

button for some satellite receivers.

Arrows Used Io highlight different items in the "IV or DVD menu and to

adjust the menu controls. The up and down mTOWSmove lhe PIP window when

no menus are on the screen. When watching "IV without the PlP window or

menu system in use, the left and right arrows (ZOOM-'and ZOOM +) change

the cmTent lklrmat of the screen (4:3, Zoom 14:9, Zoom 16:9, Zoom 16:9 A/v,

Cinerama, regular mode 16:9). In DVD mode while playing a 4:3 disc, use the

Zoom buttons in the reduced TV menu to change the Zoom mode.

AUDIO Places file remote in audio mode to operate a component (such as a CD

player, audio receiver, amplifier/receiver) that you've programmed to work with

this button.

AUX/HD Puts the remote in AUX/HD mode. As a default, this butKm controls

some models of RCA HDTV Tuners. It can also be programmed to operate some

brands of an additional remote-controllable components. The Autotuning t'eamm

ti/r this button works only with HDTV tunei:s (see page 28 for more information

on Autotuning).

CH + or CH -Scans up or down through tlle cmTent channel list. Press once to

change the channel up or down; press and hold to continue changing channels. In

DVD mode while a disc is playing, CH+ advances to tlle next chapter; CH- goes to

the preceding chapter.

CLEAR Removes any menu or display from the screen and returns you to normal

viewing. Also exits PIP or POP if no menu is displayed.

DISC MENU In DVD mode while a disc is playing, brings up tile current disc's

menu (if available).

DVD Turns on tile internal DVD player and puts tile remote in DVD mode. Also

displays the current DVD status.

FREEZE When watching TV, fl'eezes the picture until you press any" button on

the remote to resume normal TV viewing. The FREEZE t'ealum automatically times

out alter a short time. Please note that when you "unt)'eeze" you go back to live

programming (skipping any programming that occmTed during the freeze).

Note: The FREEZEfeature does not work on signalsfrom the DVI-HDTV, CMP1or

CMP2inputs in progressive scan(480p) or HDTV (1080i) modes.

Do not use the Freeze feature for an extended period of time. This can cause

the image to be permanently imprinted on the picture tube. Such damage is not

covered by your warranty. Pressany button to unfreeze the picture at any time.

GO BACK In "IV mode, returns you to tile previous channel. In DVD mode,

returns to the previous screen.

GUIDE In TV mode, [)rings up the Channel Guide menu. In DVD mode, brings

up file DVD guide (if available).

16 Graphics contained within tbis publication are fi)r r#prexenlation on/y. Chapter 2

Using the Romote Control

The component button corresponding

to the mode you're in flickers when the

remote batteries are low and you press a

button on the remote.

A warning message may also appear on

the screen when you press a remote button

and the batteries are love

INIFO In "IV mode, makes the channel banner appear and disappear. In DVD

mode, makes the int_ banner appear and disappea1:

INPUT Accesses the available video input channels (VID1, VID2, FRNT, CMP1,

CMP2 and DVI). Press the CH+ or CH- bullon to resume TV viewing.

LIGHT Press to illuminate tile mmolc control's buttons (except for tile component

bultons). To conserve battery power, the light turns off at'ter several seconds.

Backlight won't activate if batteries are low, but blinks on and off quickly.

MENU In "IV mode, makes the "IV Main menu appear and disappear. In DVD

mode, makes the reduced TV menu appear and disappear.

MUTE Reduces the TV's volume to its minimum level. Press again to restore the

Tip volume.

To turn offmost RCA,GE,andProscan OK When in the menu system, selects highlighted items. When watching TV,

components that are connected to the TV, freezes the picture until you press any button on the remote to resume normal TV

press ON*OFFtwice within two seconds, viewing. Please note that when you "unfreeze" you go back to live programming

Thisfeature only works with most RCA,GE, (skipping any programming that occmxed during the freeze).

and Proscanproducts. ON°OFF When in TV mode, turns the "IV on and oil'. If in another component

mode (VCR, DVD, SAT/CAB, AUX/HD or AUDIO) and programmed, turns the

component on and off.

Note:

The DVD, VCR, SATICAB, AUXIHD, and

AUDIO buttons also turn on most RCA, GE,

and Proscan products.

PIP Press once to bring up the small picture-in-picture (PIP) window. Press again

to bring up the picture-outside-picture (POP) windows. Press to remove POP. (See

Chapter 4 tBr more intkmnation about using PIP.)

PIP +or PIP- When using PIP or POP, changes the channel in the PIP window.

PRESETS In "IV mode, displays the Picture and Sound preset seltings. Use the up

and down a_ow butlons to highlight either Picture or Sound sethngs. Use the left

and right mxow buttons to change to a different Picture or Sound preset. In DVD

mode while a disc is playing, displays the DVD Int_ Display with the Audio icon

highlighted.

REC If programmed, stmls recording TV programs if your TV/1)VD is connected

to a recording device (such as a VCR) if the remote is in the right mode to control

that device.

REV, PLAY, FWD, STOP, PAUSE In DVD mode, these butlons provide mvei:se, play,

last tBrward, stop and pause the disc. If programmed, they also provide transport

control for some remote-controllable VCRs, DVD players, "tapedecks, and CD players.

SAT/CAB Puts the remote in SAT/CAB mode and, if Autotuning is enabled, turns

on the "IV and tunes to the correct input channel.

SKIP In TV mode, press once before changing channels and the TV will wait 30

seconds before returning you to the original channel. Press repeatedly to add more

time.

SLEEP Brings up the Sleep timer menu. Use the right and left arrow buttons

on the remote control to increase or decrease the sleep timer in five minutes

increments (up to a maximmn of four horn:s).

SWAP When using PIR swaps the main picture with the PIP window. When using

POP, swaps the let't and right pictures.

TV Turns on the "IV and puts the remote in TV mode. Also displays the charmel

banne_:

VCR Puts the remote in VCR mode and, if Autotuning is enabled, turns on the TV

and tunes to the correct input channel.

VOL- or VOL + Decreases or increases the TV's volmne.

ZOOM In PIP mode, changes the size of the PIP window.

Chapter 2 Graphics contained within tbis publication are fi)r representation on(l_. 1]

Using the Remote Control

i_ _ lid

You'll use these buttons when

you program the remote.

Important: The remote may not

be compatible with all models of

all brands of components. It also

may not operate all functions of

the remote that came with your

component.

Important note for direct entry

YOUmust continue pressing the component

button while you enter the code.

Let's say you have a Zenith VCR. To program

the universal remote to operate the VCR, you

would:

Press and hold the VCR button while you enter

the first code listed for Zenith in the VCR Codes

column.

Release the VCR button. Press ON*OFF to see if

the VCR responds. If it doesn't, follow the same

steps, but enter the second code for Zenith

VCRs instead of the first.

Programming the Remote to Operate

Other Components

The unive_:sal remote can be program_:qed to operate most brands of re_:qote

controllable components. The remote is already progrm:q_:qed to operate _:qost

RCA, GE, and Proscan components.

Also, the AUX/HD bulton can be program_:qed to operate most brands of an

additional remote-controllable component (such as a VCR, DVD player, CD

playei, satellite receiver, cable box or audio receiver).

Note: The YVbutton can't be programmed on this remote.

IMPORTANT" Don't program the DVD button on this remote to control a

different (external) DVD player unless you don't plan to use this remote

with your internal DVD playe_ If you program the DVD button to control

an external DVD player, then the remote won't control the internal DVD

playe_

Find Out If You Need to Program the Remote

To determine whether _e unive_al remote needs to be programmed to operate

one of the components connecled to your TV, such as a VCR, do the following:

1. Turn on the component (in this example, a VCR).

2. Point the remote at the component.

3. Press the corresponding co_:qponent bulton (in this example, the VCR

button).

4. Press ON*OFF to see if the VCR responds. If the VCR doesn't respond, you

need to program the re_:qote to operate it.

Programming the Remote

There are two ways to prograi:q the remote control:

* direct en| W

* automatic code search

Using Direct Entry

1. Turn on the component you want to operate (VCR, satellite receiver, etc.)

2. Look up the brand and code nm:qber(s) for the co_:qponent on the code list

in this section.

3. Press and hold the component button you want to program on the remote.

4. Enter the 4-digit code from the remote con_ol code list starting on page 22.

If the component button flashes, you have either entered an invalid code or

the button isn't program_qable.

5. Release the component button, point remote at component, and then press

ON*OFF to see if the component responds to the command. If it doesn't,

fry pressing the component button and then ON*OFF again.

* If you get no response, repeat these steps using the next code listed for

your brand, until the component responds to the remole corrunands.

* If you fry all the codes tbr your component brand and none work, try"the

automatic code search method. If automatic code search doesn't find the

code, the remote is not compatible with your component.

18 Graphics contained within this publication are fi)r raprexenlation on{l_. Chapter 2

Using the Remote Control

Using Automatic Code Search

Tip If 1)irect Entw does not work for your component, try" Auto Code Search. The

To stop the automatic code search without following instructions can be used to program the remote to operate each

programming any components, press and of your components. If you want to stop the automatic code search without

hold CLEARuntil the light in the component

button turns off. programming any" of your components, press and hold CLEAR until tile light in

the component button turns off.

1. Turn on the component you want to operate (VCR, satellite receiver, etc.)

2. Press and hold the component button you want to program (VCR, DVD,

etc.). While holding the component button, press and hold ONoOFF until

the component button on the remote turns on, then release both buttons.

.

4.

Point the remote at the component.

Press and release PLAY,then wait 5 seconds or until the component button

stops flashing.

At this point the remote is searching lbr the correct code to program. If, after

5 seconds, the component you want to operate does not turn off, press PLAY

again to tell the remote to search the next set of codes.

Continue pressing and releasing PLAY until the component turns off or you

have searched through all of the codes. The component buttons flash when

all codes have been searched, the component button turns oil', and remote

exits Automatic Code Search.

If the component you want to control does turn off:

1. Press and release REV, then wait 2 seconds. Repeat this step until the

component turns back on.

2. To finish, press and hold STOP until the component button on the remote

turns off.

CornponentButtons

Note

Some of the remote's buttons might operate

differently for other components, especially

when you're using another component's menu

system.

How to Use the Remote After You've Programmed It

Because this universal remote can control several di_rent components

(TV, VCR, satellite receiver, etc.) it uses operational modes triggered by the

component buttons. For exmnple, if you want the remote to operate the TV,

you would press the TV button to put the remote into TV mode before you

could control the TV.

1.

2.

3.

Press the appropriate component button (DVD, TV, VCR, SAT/CAB,

AUX/HD, AUDIO) to set the remote to conlrol the component.

Press ONoOFF to turn the component ON or OFF.

Use the remote buttons that apply to that component. The component

button on your remote lights up when you press valid buttons while in that

component's inode.

Notes:

The remote may not be compatible with all brands and models of

components. It also may not operate all functions of the remote that

came with your component.

If you keep pressing buttons and nothing happens, the remote is

probably in the wrong mode. You must press the component button

that matches the component you want to operate (i.e., if you want to

operate the VCR, press VCRon the remote control to put the remote

in VCR mode.)

Chapter 2Graphics contained within tbis publication are fi)r representation on/y. 19

Using the Remote Control

The Learning Feature

Before using the learning feature, make sure this TV's remote control is programmed to control other components you have

connected to tim TV. Programming the remote control erases all learned commands for that component mode.

After you program file TV's remote con_ol to operate file other component, the TV's remote provides most of the

operations you need. HoweveE there may be some t\mctions on the component's original remote control that your TV's

remote control doesn't have. For example, your DVD remote control might have a ZOOM button lhat enables you to

enlarge Ihe picture, but your TV/1)VD remote doesn't have |hat button. The learning feature enables you to record the

tZmctionality of a specific button from the original remote control to one of the TV's remote control buttons.

Note: All learned functions for a mode can be erased if you program a different component to that mode.

Up to 2 inches apart

\

Adding a Learned Function

There are several things to consider betbre you begin the learning process:

• You can't record a learned function to the following buttons on the TV's remote control: component buttons (TV, VCR,

DVD, AUX/HD, and AUDIO), the CLEAR button, and llle LIGHT button.

• Before adding a Learned Function, you must program this TV's remote conlrol to operate lllat component because

programming the remote control erases all learned commands for flint component mode.

• Do the learning process in low light areas because too much natural light or fluorescent light might cause the learning

feature to fail because llle remote control functions are recorded (learned) by sending infrared (IR) signals.

• The TV's remote and the original remote should be no more than 2 inches apart.

• In order to record (learn) a function from one remote to the olher, you must make sure llle Infrared (IR) transmitter of

the original remote is facing the IR receiver on the top of the TV's remote (see illustration). To accomplish this, you may

have to hold a remote in each hand instead of laying both on the table.

• The learned buttons are mode specific--if you add a button function l¥om your DVD player's remote conlrol, you must

press the DVD button first belbre llle learned function will work (in TV mode, the button where you've stored llle learned

function will continue to work as it always has).

1. Press and hold the component button on the TV's remote that applies to the function you will be adding (DVD, VCR,

SAT/CAB, AUDIO, or AUX/HD). The component button lights.

2. On llle TV/DVD remote, press and hold the RECOI_) button.

3. Keep pressing t)oI11of llle buttons 0he component button and the RECOI_) button) until the component button light

turns off', flashes, and turns off. Release both buttons.

4. On llle TV's remote control, press and release the button where you want to store the new function (the component

button turns olT and titan back on).

Note: If you press an invalid button on the TVIDVDremote, one of the component button flashes 4 times to alert you.

You'll have to repeat step 4.

20 Graphics contained within this publication are fi)r representation on/y. Chapter 2

Using the Romote Control

5. With tile remote consols lacing each olher and no morn lhan 2 inches apart, press and hold the buuon of the

component's remote control that has the functionality you are recording to the TV's remote control. Keep pressing

lhe button until lhe TV/I)VD mmote's component bullon light turns olT and back on (the function has been saved to

lhe TV/1)VD mmolc). If all component buttons flash four times, then the function wasn't learned. You can try again

starting with step 4.

6. The TV/DVD remote control remains in "learning mode" so you can continue adding functions to different buttons

by repeating steps 4 and 5. Or; press CLEAR to exit learning mode.

Notes: If you want a new function on a button, you must record (learn) over it.

The amount of memory each learned function uses in the TV's remote control varies. If your TVIDVD remote is out of

memory, the component button(s) light flashes 4 times and turn off, exiting you from the Learning mode.

Clearing a Learned Function

To delete a learned button function, use the procedure below.

1. Press and hold the component button 0he component button lights). Then press and hold lhe CLEAR bullon for 3

seconds. Continue depressing bolh buttons (the component mode button flashes---turns on and off again).

Release lhe component and CLEAR buttons (flm component button being programmed turns on). Remote is now in

Clear learned function mode.

2.

3.

4.

5.

Press and release the bullon where learning is to be cleared. The component buuon blinks off then back on--the

learned function was cleared successfully.

Repeat steps 1 through 3 until all buttons' learned functions have been cleared.

Note: If an invalid button is pressed, the component mode button(s) flashes 4 times and the selected component

button stays on and remote remains in Clear Learned Function mode. Repeat step 3.

Press the CLEAR button and your TV/1)VD remote returns to its original operation mode.

Deleting ALL Learned Functions

This procedure erases all learned functions in every component mode of the remote.

1. Press and hold the CLEAR breton (the current component bullon lights). Then press and hold the ON* OFF button

(component button light turns ofl" lbr 3 seconds, flashes, turns on and ofl+)while continuing to hold CLEAR.

2. Release bolh buttons (current component breton turns on).

3. Press any component bullon to delete all learned functions in all modes. Remote is automatically exited from this mode.

Note: Pressing the CLEARbutton will NOT delete all learned functions, but will exit the Delete mode.

Volume Punchthrough

You may find this feature helpful if you've connected your components to an audio/video receiver (A/V receiver) or

amplifier; but you want to use the TV's remote control to operate the volume for a component that is connected to the

audio/video receiver. An example lbllows.

Let's say you've connected your DVD player to your audio/video receiven You've also programmed your TV/1)VD remote

control to operalc your DVD player. Since the DVD player gets its volmne lhrough lhe audio/video receiver, you would have

to bounce back and lbrth between two remote consols: the a/v receiver's remote to adjust the volmne and the TV's remote

control to operalc lhe DVD player.

The Volmne Punchthrough Feature eliminates the need for you to use two remolc controls and saves a breton press when

you're using the TV/DVD mmolc to adjust the volume. In effect, you are telling the TV/1)VD remote to mlrieve and send

volmne commands from the A/V receiver whenever the TV/DVD remote is operating the DVD player (in DVD mode).

Chapter 2

Continues on nextpage...

Graphics conlained wilhin this publication are fi_r represenlation on/y. 21

Using the Remote Control

Therefore, alter you've successfully set up the Volume Punchthrough Feature, whenever the TV/DVD remote is in DVD

mode (press the DVD button) and you want to adjust the volume, you only have to press the VOL + or VOL- buttons.

Follow the instructions below to set up Volume Punchthrough.

IMPORTANT"First, you must program the AUDIO button on the TV'sremote control to operate your audio receiver

or amplifie_ Go to page 18 for instructions. If you can't program this remote to operate your audio receiver, Volume

Punchthrough won't work.

While setting up Volume Punchthrough, it's best to point the remote away from components.

1. Decide which mode file remote will be in when the volume from the audio receiver "punches through." The mode will be

one of the component buttons (TV, DVD, SKF/CAB, VCR, or AUX/HD).

2. Press and hold the VOL- button. Keep pressing VOL- while you press and release the component button you chose in

step 1 (TV, DVD, SAT/CAB, VCR or AUX/HD).

3. Then press and release the AUDIO button since the sound will be coming from the audio/video receiven Release the

VOL- button.

4. Now, test it by turning on your audio receiver or amplifier.

5. Turn on the component that is connected to the audio/video receiver or amplifier (a DVD playeL for example).

6. Put the TV's remote in DVD mode by pressing the DVD button, and play a disc.

7. Press VOL+ or VOL-. The volume from the audio receiver should increase or decrease accordingly.

Deleting All Punchthrough Commands

To delete all programmed Volume Punchthrough settings and return the remote control back to the factoly defaults (TV _r

all modes except AUDIO), press and hold the VOL- button (LED of the Volume Punchthrough component lights). While

holding dm VOL- button, enter dm code 000, using the number buttons. All component LEDs turn on for 2 seconds and

then turn off. The remote returns _o the factory settings.

Note: If an invalid button is pressed, all component LEDsblink 4 times and turn off. At this point, you must start oven

Using the INPUT Button

Use tim INPUT button to scroll through the available input channels and view components you have connected to the TV.

1. Press TV to place |he remote in TV mode. Make sure the component you want to view is turned on.

2. Press INPUT until you reach the correct input channel.

3. To return to the channel you were previously watching on TV, press CH+ or CH- button.

Remote Control Codes

Audio Codes

I*v)gmmmable fbr the AUDIO and ALW/1 ti) buttons.

A_W_/Dtnle_ia/Lyra Wireless

R(A ..................... 1001

Audio Cassette

GE ............................................ 4006

RCA ..................... 4006

CD Players

AI)C ........................... 1055, iO56, ,i066

Aiwa .................................... 41)_19,4057

Aka_ ..................................... 4058

Denon ...................................... 4060

Eme_on ............................... 4040

Fishel ............................. 404], 4063, 4064

G[! ..................................... 4_)(_, 4065

Hitachi ........................................ 4042

JVC ..................... 4043

Ken_x ood ........................... 1044, 4067, 4068

[uxman ................................. 4069

Mamntz ...................................... 4046

MCS ................................... 4070

Mitsubishi ............................... d07], 4072

NEC ..................................... 4045

Onkyo ....................................... 4047

I__lllas()_ll¢ ............................... 4¸188

Pioneer ........................................ 4049

RCA ............................ 4007, _R)50, 4062

Sea_ ...................................... 4059

S_ly ................................. 4051, 4061

"l_'chnics ................................... 4052

"l_hiba ........................................ 4073

Yamaha ................. _R)53, 4054

Phono

GE ............................................ 4005

RCA ...................... 4005

Receiver/rnner/AMP

Ai_a ............... dllO8 4009, dO]O, 40II, dO]2, d02I

Denim .................................... d027

GE ....................................... _(_)3

[tarnlan Kal_loxl .............................. d()20

]B[ ....................................... 4020

]VC ....................................... 'RII3

Kenwood ................................... 4()Id

Onkyo ................................. 4022

()ptimus .................................... d()28

Pana_xlic ............................. d023, 41)2d

RCA .......................... 4(X)3, 4015, 4029, 40_)

Sh_wood ................................. d026

S_ly ............................ 4016, 4017, 4025

l_hnics .................................. dO23, 41)2d

Yamaha ................. _O18, 4OI9

HDTV Tuner Codes

1rogmmn_d)le fbr the AUX/HD button.

R(A ..................... 7000

22 Graphics contained within this publication are fi)r rapresentation on(l_. Chapter 2

Using the Romote Control

Cable Box Codes

ProgmmmabIe f_)rSK[TCAB and AI XiltD buttons,

AIIC .................... 5002, 51KI3, 500d, 5006, 50i5

AlVh_ .................................... 5008, 5009

Cal_evie_ .................................. 5007

Contec .................................... 5015

Eastern ................................... 5016

GE ..................................... 5002, 5003

Gemim ................................. 5017, 5018

Genel-aI lnstru_'nts ....................... 5003

Hmnlin ................... 5019, 5(12(I, 5021, 5026, 5033

Hitadli ..................................... 5003

_ermld ............... 5003, 5017, 5(122, 5023, 5039, 5045

Magnavox .................................. 5024

Memolk*x .................................. 5026

Movie 'l_me ................................. 5025

NEC ...................................... 5005

NSC ....................................... 5025

Oak ..................................... 5015, 5027

Panas_lic ............................... 50_1], 5044

Philips 50II, 50_2, 5013, 5014, 5018, 5(124, 5028, 5028, 5030

Pion_._ ................................. 503L 5032

Proscan ............................... 5002. 5003

RCA .......................... 51K_, 5040, 50_12, 5044

Realistic .................................... 5009

Samsung .................................... 5032

S_entiSc Atlanta ................ 5(K)6. 5034, 5(135, 5036

Signatum ................................... 5003

Sprucer .................................... 5044

Standard Component ....................... 5()37, 5038

Stal_ Om ................................ 5017, 5045

Stalgale .................................... 5017

"lbcom ................................ 500_1, 5022

United Cabk_ ................................. 5045

UnivelsaI .......................... 5008, 50(_, 5010

Viex_ Star ............................. 5015, 502_1, 5025

_nith .................... 5(}43

DVD codes

Programmable t_.)r DVD and AI. X/HD buttons.

DVD

Aiwa .................................. 3010, 302I

Apex .................................... 3023, 302.i

[h _)ksoni¢ ............................... 3027, 3075

1) l_.'_lll/ ................................... 3028

Denim ............................ 3029, 3030, 3031

I merson ............................ 3032, 3(133, 3076

Funai ................................... 3033

(] .................................. 3000, 3O34, 3035

(o Video ................................. 3077

Hitachi ................... 3009, 306_, 3068, 31169, 3070

WC ................................ 3003, 3(111,3078

Kenwood .................................. 3071

Konkt .................................. 3(112, 3013

Ko_s ....................................... 3085

lasonic ..................................... 3087

Magnavox ............................... 3(_)4, 3036

Memomx ................................... 3037

Minlek ...................................... 3038

Mitsubishi ................................... 3005

NAD ........................................ 3032

Nolcenl ................................ 3(139, 3010

Onkyo ..................................... 301I

Oritron .................................... 3017

Panasonic ............................... 3014, 30i2

Philips ................................. 31)0L 3020

Pil)n_.'l ....................... 3(K)6, 3043, 304d, 3015

Pros< m ................................. 3000, 3016

Qwcstar ................................. 30i7

RCA ...................... 3000, 31KI2, 30,i8, 3(179, 3086

Samsung ................. 3072, 3073 3074, 3080, 508I,

Sansui ...................................... 30i9

Sanyo .................................. 3015, 3082

Shmp .............................. 3050, 5052, 3053

Sony ............. 3(X)7, 3016, 3017, 3115<i, 3055, 3(156, 3083

Sylvania .................................. 3033

"l_-ac ....................................... 3057

"l_-chnics .................................. 3058

"l_)shi[) t ................. 3008, 3(118, 3059, 31160, 306I

Yamaha ............................ 3062, 3063, 306i

Zamith .................. 3019, 3065, 308"i

DVDNCR Combo Codes Daewoo ......... 20]], 2<1I3, 20] 5, 2021, 2022, 2023, 2(156

Dayt_m ...................................... 2(156

DVD and AleX/HI) buttons can use DVD codes; Din_'nsia ..................................... 2(_2

VCR and AUXiHD buttons can use VCR codes _:lectmhome ........................... 2010, 202_

Emerita ............ 2(X)2, 2008, 2010, 20I I, 2017, 2020,

............................................................... DVD ................ VCR .............. 2021, 2022, 202L 2025, 2026, 2027, 2028,

BLt_ksonic ........................ 3075 ........ 2075 ...................... 2O39, 2059, 2061, 206v, 2O69, 20_6

I m_ rson ........................ 3076 ......... 2076

GO Video ......................... 3077 ....... 2077

_VC ........................... 3078 ......... 2078

RCA ............................ 3O79 ....... 2079

Samsung ................... 3080, 3081 2080, 208_

Sanyo ........................... 3082 ......... 2082

S_ly ............................. 3(183 ........ 2083

7_,nith .............. N)84 ..... 2(184

PVR Codes

Programmable* for the VCRand AI XiHD buttons.

lmgR

Repl ly ........................................ 2086

Phili[_ "l_w_ .................. 2(185

Home Theatre in a Box

_DVD Receiver) Codes

AUDIO and A_ Xiltl) buttons can use Audio co&'s;

1)VD and AI X/ItD buttons can use I)VD co&'s

I'isher ........................ 2007. 2019, 2029, 20N1

Rlii ............................ 2003, 2017, 2062

Rmai ......................................... 2(¸)22

Garm_ ...................................... 2(122

GE ........ 20_1. 200], 21K_, 20Iv, 2018, 2060, 2063, 2(_2

Gradiente ................................... 2022

1tam,an Kaldon ................................ 2(KI5

ltarwood .................................... 2(136

l titachi ............. 2033, 2034, 2035, 2053, 2057, 2063

JC Penney ...... 2005, 2006, 20(_, 2008, 20(_, 2010, 201v

............... 2018, 2030, 2033, 2034, 2036, 2037, 2(153

j_ nsen ............................... 2033, 2034, 2(157

JVC ............ 2005, 2(KI6, 2007, 2(/14, 2057, 2(/64, 20_8

Kenwood ....... 2005, 21KI6, 2007, 2012, 20I,i, 2057, 2(164

KIll ......................................... 2056

Kodak ................................ 2010, 2017

IG ......................................... 20IO

logik ...................................... 2056

iXI ............................................ 2010

Magnavllx ....... 2017, 2(118, 2037, 2038, 2052, 2054, 2065

Marantz ........ 2005, 21K)6, 2007, 2012, 20I.i, 2017, 2037

Matsushita .................................... 2017

Memolcx 2007. 2009, 2oi0, 2017, 2019, 2022, 2(/52, 2068

MGA ............................. 202"i, 2039, 2059

Minlllta ........................... 2033, 2034, 2053

Mitsublshi ..................... 2024, 2(133, 203i, 2039,

.............................................................. AI!diO ............. DVD ............................ 20_10. 2011, 2059, 2064

JBI............................... 4031 ....... 3088

_VC .............................. 4032 ........ 3089

K_S ............................. 4033 ....... 3090

Onkyo ............................ 4034 ........ 309I

Pana_lic ........................ 4035 ........ 3092

Pi_leer .......................... 4036 ...... 3093

RCA ............................... 4037 ........ 3094

_enture_ .............. 4(138 .... 3095

Satellite Receiver Codes

Progmmn_ble fbr SA'[7('AB and A1 X/ItI) buttons.

Alphast _ ..................................... 506i

ChappamI .............................. 5016, 5047

Dishnet ..................................... 506.3

l)mke .................................. 5018, 50i9

I cho_tar ..................................... 5070

GE ................................. 5000, 5001, 5072

GenemI Instruments ................. 5050, 5051, 5052

Hitachi ................................ 5066, 5067

Hughe_ ................................. 5062, 5071

Montgomery _{rd .............................. 2088

M_)mla ................................... 2017, 2{¸)68

MTC ........................................ 2(K_

Multitech ................. 2009, 2012, 2022, 203], 2036

NEC ............... 2005, 2006, 2007,2012, 2014, 2057, 2064

Nikko ...................................... 2(1I(I

Noblex ................................... 2(K_

Olympus ................................... 2(117

Optimus ................................ 2010, 2068

()ptonlca .................................... 20d7

Pariah>nit .................... 2017, 2018, 2055, 20_

Pentax .................... 20] 2, 2033, 2034, 2053, 2063

Pentex Resea_h ................................ 20Id

Philco ...................... 2017. 2018, 2037, 2(138

Phili[_ ....................... 2017, 2037, 20_17, 2065

Pioneer ...................... 2006, 2033, 20_12, 2064

Po_.land ........................ 2012. 2013, 2015, 2(156

Proscan .............................. 2000, 2001, 2(_2

Quasar .......................... 2017, 2018, 20_

RCA • 2000, 21_)I, 2002, 2(KD, 2017,2033, 2(134, 2(}43, 20&i,

....... 2oi5. 2053,2060, 2O63, 2066, 2ov0, 2072, 2ov3, 20_9

Rldio Shack ......................... 2010, 2047, 20(¢4

Radi_M_ackiR_ alistic ............. 2007, 201_), 2010, 2017,

[VC ......................................... 5065 .................. 20_8. 2019, 2022, 202,i, 2029, 2047

Pana_)nic ................................... 5060 Realistic ............... 20(_. 2009, 2010, 20II, 2017,

Phili[_ ..................................... 5068 ............... 2018, 2019, 2022, 202_1, 2029, 20_17, 2068

Primestar ................................... 506_ Radix ...................................... 2(1I(I

Pmscan ........................... 5000, 500L 5072

RCA ............................. 5000,5(_)1,5072

Realistic ...................................... 5053

Sony ...................................... 5058

SIS1 ......................................... 5054

SIS3 ...................................... 5055

SIS4 ........................................ 5056

"l_hiba ................................... 5057, 5059

Uniden ..................... 5069

VCR Codes

Programmable f_Jr VCR and AUX/HD buttons•

Admiral ....................................... 2068

Aiko ......................................... 2023

Aiwa ................................... 2022

Akai ................. 20112. 2003, 2(KI,i, 2057, 2058, 2059

Audiovo'_ ................................... 2010

BelI& Hi)_elI .................................. 2007

B_)ksonic ......................... 2008, 2021, 2075

Calix ..................................... 2010

Canon ................................. 2017, 2018

Capehm_ ............................... 2016, 2056

Cm'¢er ...................................... 2037

CCE ...................................... 2023, 2036

Citizt'n 2009, 2010, 20I I, 2012, 2013, 20I"i, 2015, 2023

Porlablcz DVD

Aiwa ......................................... 3022

Audiovox .............................. 3(125, 3026

Panasonic .................................. 3030

RCA ......................................... 3066

Shalp .................... 305I ........... 2oi4. 2017, 2oi8, 2020, 20(,0. 2072

Ricoh ....................................... 20_I

Runco ...................................... 2052

Samsung • 2004. 2009, 20I I, 2027, 2031, 2058, 2(/80, 208I

Sansm ....................... 2006, 2046, 2057, 2064

Sanyo ........................ 2(X_7 2009, 2019, 2082

Scott ............. 2008, 20I I, 202_, 2026, 2028, 2039, 206I

Sea_ 21_. 20_0, 2017, 2019,2029, 2030, 2033, 2034, 2(153

Sharp ..................... 2013, 202_1 2047, 20_18, 2068

Shintom ....................... 2003, 2034, 2036, 20_9

Signature .................................. 2068

Sing_ ............................... 2017, 2036, 2(_I

S_ly ..................... 2003, 20_19, 2050, 2062, 2083

S'I_ ...................................... 2017, 2(153

Sylvania ........ 2017, 2018, 2022, 2037, 2038, 2039, 2065

Symphonic .................................. 2(122

l_ndy ...................................... 2(K_

l_shiko ..................................... 2010

l_tung .................................... 2(157

FEAC ................................... 2022, 2(157

l_chnics ............................... 2017, 2055

l_knika ....................... 2010, 2017, 2022, 205I

l_hiba ............. 20I I. 2029, 2030, 2033, 2039, 2(159

l_tevsion .............................. 2009, 2010

Unitech ...................................... 2(K_

Vector R_earch ................ 2(X)5, 2006, 2011, 2(1I 2

_deo Concepts ............. 2005, 2(X)6, 20I _, 2012, 2059

Wards ......... 2009, 2010, 20I I, 2017, 2019, 2022, 202_1,

Cok)r tyme ..................................... 2005 ........... 2033, 2034, 2036, 2047, 2053, 2061, 2068, 20_o

Craig ....................... 2(_, 2010, 2019, 2036 XR-I_I ........................... 2017, 2022, 2036

Cu_is_Mathes ........................ 2(KI5. 2009, 2012. Yamaha .................... 2005, 2(X)6, 2007, 2014, 2(157

7_'nith ........ 2_3, 2049, 2052, 2(162, 2071, 2084

Chapter 2Graphics contained within tbis publication are fi)r representation on{l_. 23

Playing DVDs

Regional Coding

Both the TV/DVD unit and the discs are coded by region. These regional codes must match in order for the disc to play. If

the codes don't match, the disc won't play. This unit's code is region 1.

Using Different Menus

Each disc is programmed with different leatures. There are three separate menu paths that you can use to access features:

• The Disc menu - The disc menu is part of each disc and is separate l¥om lhe DVD's menu system. The contents of

each disc menu va W according to how the disc was authored and what leatures am included. The disc menu is turned

on and off (while the disc is playing) with the DISC MENU button on the mmolc.

• The DVID's Info Display - The Intk} Display appears as icons across the top of the semen when a disc is playing. It can

only be accessed while you are playing a disc. It's turned on and off with llle INFO button on the remote.

• The DVD's menu system- The DVD player's menu system is accessed only when a disc isn't playing. It appears when

the STOP button is pressed.

A feature only works if the disc was programmed with lhat leature. If a menu item is "grayed out", that item isn't available.

In addition to the DVD menus, the TV/DVD oilers an abbmvialcd "IV Main Menu while you're using the DVD player. To

access the picture, sound and image controls for the TV while using lhe internal DVD playei; press the "IV button on your

remote.

Loading and Playing Discs

Your TV/1)VD unit plays DVD discs, Video CD discs, Audio CD discs, MP3 discs and CD-R discs. BeR)re you load a disc,

make sure that it is compatible wilh the player. The following discs CANNOT be used with this player:

• Laserdiscs, CD-1, CD-ROM (computer-only discs), CD-RW, DVD-ROM, Discs recorded using other broadcast standards

(i.e. PAL or SECAM)

This is an

example of a

one-sided disc.

This is an

example of a

2-sided disc.

The title is in

the center.

To Load and Play a Disc

To put the TV/DVD in DVD mode and play a disc', press the DVD button on the remote control.

1. Press the OPEN/CLOSE button on the front of lhe TV/DVD. The disc fray opens.

2. Place a disc gently into the tray with lhe disc's label facing Lip (double-sided discs have content

on both sides, so you can place eilher side up).

3. Press the OPEN/CLOSE or PLAY button. The disc tray closes.

The TV/DVD reads the disc's table of contents, and then one of lhree things happens depending

on how lhe disc was programmed:

• The disc starts playing.

• The disc menu appears on the screen. One of the options will start disc play. Highlight that

option and press OK on the remote.

• The DVD's main menu appears on the screen. Highlight the Play option and press OK on the

remote.

When you stop playing a disc, the unit remembers where you stopped. When you start playing the

disc again, the unit picks up where you leli off unless the disc is removed, the unit is unplugged, or

you pressed the STOP button twice.

This product incorporates copyright protection technology that is protected by method claims of certain US patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners Use of this copyright protection technology must be authorized by Macrovision Corporation, and

is intended for home use only unless otherwise authorized by Macrovision Corporation Reverse engineering or disassembly is prohibited

24 Graphics contained within this publication are fi)r representation on/y. Chapter 3

P|aying DVDs

Using a Disc Menu

A disc is capable of having an on-screen menu that is separate from the DVD's menu system and on-screen Info Display.

The disc menu might only contain a list of tlle titles and chapters, or it may allow you to change features such as language

and playback settings. The content and operation of disc menus vary" from disc to disc.

Using the On-Screen Info Display

The on-screen Into Display contains many" playback features. "1_ see lhe Intk) Display, press lhe 1NFO button on llle remote

while a disc is playing. The Info Display appeai:s across the lop of lhe screen. Each feature is illustrated will1 an icon. Use

the lefl/right arrow buttons on lhe remote to move through lhe different icons in the lnfo Display.

When an icon is highlighted, use llle up/down arrow buttons on the remote to scroll through llle choices displayed in the

text box under lhe icons.

Remembei; you can only access lhe lnfo Display when you're playing a disc. Also, the lnfo Display features am only

available if llle disc was created with that particular feature (i.e., if you select lhe Subtitle icon, you won't be able to change

the subtide language unless the author of the disc created lhe disc with subtilles).

The invalid symbol _ appears on the screen when you press a button lhat doesn't have any lYmction. If one of the icons

is "grayed out," that Intk) Display feature isn't available for the disc you're playing. To make the Intk) Display disappear from

the screen, press 1NFO on the remote.

Note: For information about the Info Display for Audio CDs, Video CDs or

MP3 files, go to page 49.

Time Display

This feature displays the audio/video time. For DVD discs, the time displayed refers to the cmTent title time. For Audio CDs,

it relk'rs to the current track time.

For DVD video discs, the Time Display also acts as a Time Search feature. This lets you go to a particular scene in a movie

by entering the time that scene is played. To use Time Search:

1. Press 1NFO on llle remote to bring up the Intk_ Display. Highlight llle Time Display and enter the elapsed time of the scene

you wish to go to. For example, enter 01:12:00 to go to the scene dmt plays at 1 hour and twelve minutes into the movie.

2. When you've entered the time, press OK on the remote.

Selecting a Title

Some discs contain more dmn one tide. Each title is divided into chapters. To select a title:

1. While the disc is playing, press 1NFO on the remote to bring up llle lnfo Display.

2. If the Title icon on the Info Display isn't highlighted, use the left/right arrow buttons to highlight it.

3. Use llle number button(s) on the remote to enter the title number or press the up/down arrow buttons to go to the

next/previous title.

4. Press OK on the remote when the title you want to play appears in the text window.

Note: Some discs only have one title.

Chapter 3 Graphics contained within tbis publication are fi)r representation on/y. 25

Playing DVDs

Selecting a Chapter

Because DVD discs use digital technology, a title can be divided into individual chapters (similar to tracks on a CD). You

can skip to a specific chapter by using the Chapter feature in the Infi_ Display.

1. While a disc is playing, press INFO on the remote to bring up the Info Display.

2. Press the leti/right arrow buttons to highlight the Chapter icon.

3. Use llle number buttons on the remote to enter the number of the chapter you want to play or press the up/down

arrow buttons to go to ll_e next/previous title.

4. Press OK on the remote.

Notes: The Chapter feature won't work if the disc isn't formatted with separate chapters.

PressCH+ or CH - on the remote to highlight the Chapter icon. Then press CH + to advance to the next chapter or CH

-to go to the preceding chapte_

Selecting Subtitles

By default, subtitles are off. To turn subtitles on and change the Subtitle language while you're watching a

DVD disc:

1. While llle disc is playing, press 1NFO on the remote.

2. Press lhe leti/right arrow bultons to highlight the Subtitle icon.

3. If subtitles are off, press OK to turn them on.

4. Use llle up/down mTOWbuttons to scroll through lhe subtille languages that are available on the disc. If subtitles aren't

available, the text in the lext box will mad Subtitles: NotAvailahle. If subtides are available, the language currently

showing in the lext box is the active selection. The subtides will be shown in dmt language.

5. To make llle lnfo Display disappear, press llle INFO button on the remote.

Notes: Subtitles are only available if the disc was created with subtitles.

Changing the subtitle language with the Info Display will only affect the disc currently being played. When the disc is

removed or the unit is turned off, the subtitle language will revert to the language setting specified through the DVD's

main menu. The subtitle language can also be changed through the DVD's main menu.

Changing the Audio Language

If the disc" was created with different language tracks (recorded in different languages), you can use the

Infi_ Display to temporarily change the DVD's Audio Language setting.

1. While a disc is playing, press PRESETS on llle remote. The currant audio language appears in llle text box below the

row of icons.

2. Press the up/down arrow buttons to scroll lhrough the audio languages available on the disc until llle audio language

you want to use appears in the lext box. Audio will be played in that language.

3. To make llle lnfo Display disappear, press llle 1NFO button on the remote.

Notes: The language feature only works if the disc was created with multiple audio tracks.

When you choose an audio language from the Info Display, you only override the audio language setting in the DVD's

main menu temporarily. The audio language can also be changed through the DVD's main menu.

26 Graphics contained within this publication are fi)r representation on/y. Chapter 3

P|aying DVDs

Using the Repeat Feature

The default mode for the Repeat feature is Oft'. There are four Repeat options:

• Disc - repeats the disc that is playing

• Title - repeats the title tllat is playing

• Chapter - repeats the chapter that is playing

• Ao B - Set |he beginning (point A) and |he end (point B) to make this part of |he movie play repeatedly.

To Use Repeat:

1. While a disc is playing, press INFO on the remote to bring up the lnfo Display.

2. Highlight the Repeat icon. The text in the text box below llle icons will read Repeat Mode: Qyfl

3. Press the up/down arrow buttons to scroll through the Repeat options until the Repeat option you want is displayed in

the text box.

4. Press OK. The selected repeat option will loop repeatedly until you turn Repeat off'. Repeat is turned off"by completing

steps 1 through 3 above, and selecting the Oil" option.

A,B Repeat

A°B Repeat lees you define a specific segment on the disc that you want to repeat. For example, you might like to watch

the dogfight in the movie Top Gun. To watch this scene over and over:

1. Find the spot on the disc lhat is a lk_wseconds before the beginning of the scene you want to repeat 0his gives you

time to access the Info Display and the Repeat feature).

2. Press INFO on the remote and selecl the Repeat icon from lhe Infi) Display.

3. Press file up/down arrow buttons until the A°B Repeat option is shown in the text box underneath the icons. The text

box reads Repeat Mode: A-B l@ess OK to Set A Point.

4. At lhe beginning of the scene you want to repeat, press OK to set tim A point.

5. When you gel to the part of the disc that you want to be the end of llle repeated seg_:qent (the B point), press OK. The

segment will repeat until you turn Repeat off

6. To make llle lnfo Display disappear from the screen, press the INFO button on the remote.

How to Cancel Repeat

There are three ways to cancel Repeat:

• Press STOP twice.

• Go to llle Repeat icon in the Intk) Display and select Off

• Eject the disc.

Changing the Camera Angle

Some discs contain multiple angles of a particular scene or sequence. If |he disc" only has one angle, this

feature won't work. When multiple angles are available, the Camera Angle icon appears in the upper

right corner of the screen. To change the camera angle:

1. While a disc is playing, press INFO on the remote.

2. The Camera Angle icon will display the nmnber of angles available. For example, if flmre am 3 different angles, the icon

will mad 1 of 3. This means angle 1 is cmTently being played.

3. The text box beneath the icons displays Camera Angle: 1. Use the up/down arrow buttons to scroll through the camera

angle choices. The camera angle number displayed in the text window is automatically shown.

4. To make llle lnfo Display disappear, press llle INFO button on the remote.

Chapter 3Graphics contained within this publication are for representation on/y. 27

Using the 'lrV i=ea ures

Channel Banner

There are several indicators that might appear when you press the TV or 1NFO button on the

remote. This display is called the Channel Banner. The following list describes llle items on the

Channel Banner screen (leli to right and top to bottom).

Sample displays on a Channel Banner.

4/3 format

iono

(or Stereo)

SAP

CC

03:45 pm

15 NBC

Commercial

skip 0:30

Current screen format.

Mono appeai:s when the current channel is broadcasting in

mono. Stereo appeai:s when the current channel is broadcasting

in stereo.

The current channel is broadcasting SAP (Second Audio

Program) int_rmation.

Parental Controls am locked.

Closed Captioning is available on the current channel.

Current time.

Current channel and label assigned to the channel.

Shows llle time remaining on llle commercial skip (SKIP)

time_:

Sound is muted.

Autotuning

The autotuning l_ature automatically tunes dm TV to the correct vide<) input channel for

different components you have connected to your TV/DVD (like a VCR, HDTV Tuner, etc.)

When you set up atttotuning in tl_e menu system you don't have to remember to change your

"IV to the VID1 input, for example, when you want to watch a tape on the VCR.

Why You Should Use the Autotuning Feature

With the autotuning feature, you can set up the TV to tune to the correct video

input channel when you press the corresponding component button (VCR,

SAT/CAB or AUX/HD).

Your remote's component buttons

28 Graphics contained within this publication are fi)r reprexenlation on/y. Chapter 4

Using the "lr % Features

How to Set Up the Autotuning Feature

The way you set up the automning _atum in the TV's menu corresponds to the component

buttons on the remote and tile way you have each component connected to your "IV. When you

set up autotuning, you're telling the TV/1)VD what channel/input to tune to when you press the

VCR, SAT/CAB, AUX/HD or AUDIO button on the remote con_ol.

1.

2.

3.

4.

5.

Press MENU (tile MAIN MENU appears).

Highlight Selztp and press OK on your remote con_ol.

Highlight Auloluning and press OK.

Choose which component button you would like to set:

Set VCR Channel Lets you set up the channel the "IV tunes to when you

press the VCR button.

Set SAT/CABLE Channel Lets you set up the channel the "IV tunes to when

you press the SAT/CAB button.

Set AUX/HD Channel Lets you set up the channel the TV tunes to when

you press the AUX/HD button.

Press lhe right arrow button to select the choice lhat matches the way you

have the component connected to this TV, and press OK.

You can select from the lk/llowing inputs or channels:

N/A Choose lhis if you don't have lhis particular component connected

to the TV, or if you don't want the "IV to automatically tune to llle correct

channel/input when you're using this component.

Channel3 or 4 Component is connected to tile CABLE/ANTENNA jack on

tlle back of the "IV, and you want tlle TV to tune to channel 3 when you

press the corresponding button on the remote. Reminder: make sure the

component's Channel 3/4 switch is set to channel 3.

VID1 or VID2 (Video InpuO Component is connected to a VIDEO or

S-Video jack on the back of the TV/DVD and you want the "IV to tune to a

VII) input channel when you press tlle corresponding component button.

FRNT (Front Video lnpuO Component is connected to the VIDEO jack on

tlle front of the TV/DVD and you want the TV to tune to the front VID input

channel (FliNT) when you press the corresponding component button.

CMP1 or CMP2 (Component Video Input) Compatible component video

source, such as an H1)TV tuner or satellite receiveL is connected to tile three

COMPONENT VIDEO INPUT iacks (Y, PB,PR) on the back of tile TV/DVD and

you want tlle TV to tune to the component video input channel (CMP) when

you press the corresponding component button.

DVI Component (such as an HDTV tuner) is connected to the DVI-HDCP

jack on the back of tile TV/DVD and you want the TV to tune to the DVI

input channel when you press tlle corresponding component button.

_hapter 4Graphics contained within tbispublication are fi_r representation only. 29

Using the Features

Note:

This section describes the Parental Control

feature associated with TV broadcasts (cable,

satellite and/or off-air). The Parental Control

feature used with DVD discs is explained on

page 39 (the Lock menu).

Parental Controls and V-Chip

The choices in the UN V-CHIP and Canada V-CHIP menus involve software

inside your TV (rel)ixed to as V-Chip) which allows you to block TV programs

and movies based on violence, sex, or other content you may believe children

should not view.

Once you block programs, you can unblock programs by entering a password.

By default, the software inside your "IV is turned "oil'" For instructions to turn

on V-Chip, go to page 35.

Note: Parental Control settings are not available for DVI, CMP1,or CMP2

inputs.

How V-Chip Works for USA and Canada

V-Chip reads the program's age-based rating (TV-MA, TV-14, etc.) and content

themes [(Violence (V), Adult Language (L), etc.)[. If you have blocked the rating

and/or content themes lhat the program contains, you will receive tlle message

7his channel has not been approved fi)r viewing. Cha_zge channel orpress OK to

enterpassword and temporarily deactivate the Parental Control.

Broadcasters are not required to provide content dmmes, so programs received

with no content themes will only be blocked if you block their age-based

rating. You can also block out programs flint have been given an Exempt rating,

and programs that am considered unmted. The next several pages have tables

showing the "IV age-based ratings and content dmmes for the US and Canada.

US V-Chip TV Rating Limit

The V-Chip TV Rating Limit lets you decide which "IV programs can and cannot

be viewed.

To set TV programming limits:

1. Choose Parental Control from the MAIN MENU. If Parental Controls have

previously been locked, you must enter your password.

2. Highlight and select US V-Chip. Then select V-Chip TVRalhzg.

3. Once you get to llle V-Chip 2a/rating limit screen, use the arrow buttons

and OK on your remote to change tl_e status of a "IV program rating or

content theme from View to Block.

4. For "IV rating limits to take effect, lock Parental Controls by accessing the

Lock parenlal controls menu.

The following sections give you more details about how to change the status of

"IV program limits.

Note: If you forget your password, follow step one above to get to the

password entry screen. Then press the VOL+ and CH+ buttons on the TV's

front panel at the same time for at least 8 seconds. You will receive an

on-screen message that Parental Controls have been unlocked once you've

successfully reset the password.

30 Graphics contained within this publication are fi)r reprexenlation on/y. Chapter 4

Using the "TV% Features

The V-Chip Rating Screen

The following is an example of where items are located within the Rating Limit screen.

Rating Status Field

Lets you sdect wh_'ther the status of the agcd_ased paring limit to

the Ie_ is View oi" Block.

Rating Field

i,ets yo_ select from a

Iistof"ag_d_ased ratings

you can block or vk'w.

Content Themes

Lists the content thrones you can block or

Content Status Fields

Ix_ts you sek'ct which content themes to

vk'w f_r the" sel_.cted rating and whether

the statics of the cont_'nt thcn]_" is cm'rentty

unlock_d (_) or locked (_).

Rating Settings Area

Lets you se*e the* current block/view state of" age-base_d ratings and as_

sociatc'd content. The" View (_) settings are code.d in green, and the"

Block (_) settingsare coded in red.

Age-Based

Rating USA Description and Content Themes for Age-Based Ratings

Mature Audience Only. Specifically designed to be viewed by adults and may be unsuitable for

TV-MA children under 17. It contains one or morn of the tMlowing content themes: crude indecent language

(L), explicit sexual activi W(S), or graphic violence (V).

Parents Strongly Cautioned. Contains some material that many parents would find unsuitable for

children under 14. Parents are strongly urged to exercise greater care in monitoring this program and

TV-'I4 are cautioned against letting children under the age of 14 watch unattended. This program contains

one or more of the following content themes: intensely suggestive dialogue (D), strong coarse

language (L), intense sexual situations (S), or intense violence (V).

Parental Guidance Suggested. Contains material that parents may find unsuitable tbr younger

children. Many" parents may want to watch it with their younger children. The program contains one

TV-PG or more of the following content themes: some suggestive dialogue (D), infrequent coarse language

(L), some sexual situations (S), or moderate violence (V).

General Audience. Most parents would find this progrmn suitable for all ages. It contains little or no

TV-G sexual dialogue (D) or situations (S), no strong language (L), and little or no violence (V).

Directed to Children 7years and older. Designed for children ages 7 and above. It may be more

TV-Y7 appropriate for children who have acquired the developmental skills needed to distinguish between

make-believe and reality. Themes and elements in this program may include mild t_ntasy violence

(FV) or comedic violence, or may frighten children under the age of 7.

All Children. Themes and elements in this program are designed tBr a young audience, including

TV-Y children from ages 2-6. It is not expected to l¥ighten younger children.

Chapter 4 Graphics contained within thispublication are fi)r representation only. 31

Using the "rv i=ea ures

Hierarchy of Age-Based Ratings

TV-MA Mature Audience Only

TV-14 Parents Strongly Cautioned

TV-PG Parental Guidance Suggested

TV-G General Audience

TV-Y7 Directed to Children 7 years and older

TV-Y All Children

Content Themes

D Sexually explicit dialogue

L Adult language

S Sexual situations

V Violence

FV Fantasy Violence

Blocking Age-Based Ratings

You can automatically block all program ratings above a specified age-

based rating level.

To

1.

2.

.

4.

block programs with higher ratings:

Press the up or down arrow butlon to scroll to the rating

corresponding with die lowest rating you do not want the child to

watch.

Press lhe OK bullon Io toggle between View and Block. The status

for llle rating listed Io the left and all higher ratings automatically

changes to Block (and _).

Use |he up/down arrow buttons to highlight Go back and press OK.

Select Lock Parental ControLs from tlle Parental Control menu for

rating limits to take effect.

Viewing Age-Based Ratings

After you block age-based ratings, you can change sornc of tile ratings

back to View.

1. Use |he up/down arrows to select the rating wi|h a status of Bk)ck.

2. Press OK to select View.

To change all V-Chip movie or TV ratings to View, press

the 0 number button.

Blocking Specific Content Themes

You can block programs based on their content. (Content is represented

by the D, L, S, V and FV on your screen.) When you block a content

dleme for a pmticular rating, you automatically block that content theme

for higher rated programs as well.

To block program content:

1. Determine the content themes you want to block.

2. Press die down arrow button to scroll to die rating whose content

dleme you want to change.

3. Press llle right arrow bulton to move the yellow highlight to a

particular content theme status.

4. Press die OK button to change its status to &. (In the example to

llle left, you block the language (L) corresponding with TV-14. The

language for TV-MA is blocked as well.)

Notes: Broadcasters are not required to provide content themes or

age-based ratings.

You must remember to lock Parental Controls for rating limits to

take effect.

32 Graphics contained within this publication are fi)r representation on/y. Chapter 4

Using the Features

Viewing Specific Content Themes

If you block specific content themes, you have |he option of going back and changing some of tile them back to _) View:

1. Determine the content themes you want to change to (*_) View.

2. Press tile down arrow bntton to scroll to the rating whose content theme you want to change, such as _ under

language (L) corresponding with TV-14.

3. Press the right arrow button to move the yellow highlight to a particular content theme status.

4. Press the OK button to change the status back to _. Your child would then be able to watch programs with the TV-14

adult language content, but not programs will1 TV-MA language content.

Note: Only the content theme status corresponding to TV-14 (t) language changes to (V) View. Higher rated content

themes, such as that for TV-MA language, do not change.

Canada V-Chip Ratings

Canadian "IV V-Chip supports two different Canadian rating systems: English and French.

Rating

18+

14+

PG

G

C8+

Canadian English V-Chip Rating System

Adults. Programming intended tbr adults 18 and older. It may contain elements of violence, language, and

sexual content which could make it unsuitable tbr viewers under 18. Violence Guidelines: May contain

violence integral to the development of the plot, character or theme, intended tot adult audiences. Other

Content Guidelines: May contain graphic language and explicit portrayals of nudity" and/or sex.

Viewers 14 and over. Programming contains themes or content which may not be suitable for viewe_:s

under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-

teens and early teens. Violence Guidelines: May contain intense scenes of violence. Could deal with mature

themes and societal issues in a realistic t_shion. Other Content Guidelines: May contain scenes of nudity

and/or sexual activity'. There could be l)'equent use of profanily.

Parental Guidance. Programming intended for a general audience but which may not be suitable tbr

younger children (under dm age of 8). Parents may consider some content inappropriate tbr unsupervised

viewing by children aged 8-13. Violence Guidelines: Depictions of conflict and/or aggression will be limited

and moderate; may include physical, tantasy, or supernatural violence. Other Content Guidelines: May

contain infrequent mild profanity, or mildly suggestive language. Could also contain brief scenes of nudity.

General Audience. Programming considered acceptable for all ages groups. While not designed

specifically for children, it is understood younger viewe_:s may be part of the audience. Violence Guiddines:

Will contain very little violence, either physical or verbal or emotional. Will be sensitive to themes which

could tkighten a younger child, will not depict realistic scenes of violence which minimize or gloss over the

efl)cts of violent acts. Other Content Guidelines: There may be some inoffensive slang, no profanity and no

nudity.

children 8and older. Programming generally considered acceptable for children 8 years and over to

watch on their own. Violence Guidelines: Violence will not be portrayed as the prefeiTed, acceptable,

or only way to resolve conflict or encourage children to imitate dangerous acts which they may see on

television. Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show

the consequences of the acts. Other Content Guidelines: There will be no prot;anity, nudity or sexual

content.

Children. Programming intended for children under age 8. Violence Guidelines: Careful attention is paid to

themes which could threaten children's sense of security and well being. There will be no realistic scenes

Cof violence. Depictions of aggressive behavior will be infrequent and limited to portrayals that are clearly

imaginary, comedic or unrealistic in nature. Other Content Guidelines: There will be no offensive language,

nudity or sexual content.

Chapter 4 Graphics contained within thispublication are fi)r representation only. 33

Using the "lrV i=ea ures

Rating Canadian French V-Chip Rating System

Adults. Programming is t_n" adults only. This program contains sustained violence or extremely violent

18 ans + scen(.'S.

Viewers 16 and over. Programming is not suitable for those under age 16. This progi'am contains

16 ans + frequent scenes of violence or intensely" violent scenes.

13 ans +

8 ans +

G

Viewers 13 and over. Programming may not be suitable for children under the age of 13. This

program either contains several violent scenes or one or more scenes that are violent enough to afl)ct

them. Viewing in the company of an adult is therefore strongly recommended for children under the

age of 13.

Viewers 8 and over. Not recommended for young children. This program is suitable for most

audiences, but it contains mild or occasional violence that could upset young children. Viewing in

the company of an adult is theretbre recommended for young children (under the age of 8) who

do not distinguish between reality" and imagination. Programming generally considered acceptable

for children 8 years and over to watch on their own. Violence Guidelines: Violence will not be

portrayed as the preferred, acceptable, or only way to resolve conflict or encourage children to

imitate dangerous acts which they may see on television. Any realistic depictions of violence will

be infrequent, discreet, of low intensity and will show the consequences of the acts. Other Content

Guidelines: There will be no profanity', nudity or sexual content.

General Audience. This program is suitable for audiences of all ages. It contains no violence, or any

violence that i_ does contain is either minimal or is presented in a hmnorous manneL as a caricature,

or in an unrealistic way.

Blocking Canadian V-Chip Ratings

If you receive Canadian programs you can block Canadian English and

French V-Chip by ratings only. When you block a particular rating, you

automatically block the higher rated programs as well.

TO block Canadian English and French program tat'rags:

1. Select Canada V-Chip from the Parental Control menu.

2. Highlight E_zglisb ratings or French ratings and press OK.

3. Determine tlle rating you want to block.

4. Press the down mxow button to scroll to the rating you want to

change.

5. Press the OK buuon to change its status to block (the lock icon

appeai:s and all ratings above the one you selected change to lock).

34 Graphics conlained within this publication are fi)r represenlation on/y. Chapter 4

Using the Features

V-Chip Movie Rating Limit

Set movie rating limits by blocking movies rated above a specified level.

To access the Movie Rating Limit menu:

1. Press MENU on the remote control (tile TV's MAIN MENU appears).

2. Select Parental Control.

3. Select US V-Chip.

4. Select V-Chip movie rati*zg.

Blocking Movie Ratings

Once you am in the Movie Ratings menu, _llow the same steps

described for blocking TV ratings.

Blocking Unrated/Exempt Programs

The Unrated/Exempt Prog. opdon lels you decide if programs that the

V-Chip recognizes as unrated can be viewed. Unrated TV programs may

include news, sports, political, religious, local and weather programs,

emergency bulletins, public announcements, and programs without

ratings. The Exempt option applies to both USA and Canadian unrated

programs and Canadian programs rated E.

View All unrated programs are available.

Block All unrated programs am not available.

Note: You must remember to lock Parental Controls for rating

limits to take effect.

Press the down arrow to highlight Unrated/Exempt Prog. Then press the

right arrow to toggle between View and Block.

Lock/Unlock Parental Controls

Selecting this option lets you lock and unlock parental controls settings using a password.

If you do not lock parental controls, none of the settings for V-Chip, Channel Block, or Front Panel Block will

take effect.

If you forget your password, press the MENU button, dmn select Parental Control (the password entry screen appears).

Simultaneously press and hold CH+ and VOL+ on llle front panel for 8 seconds. Parental Controls unlock and the Parental

Comrol menu appears. You can enter a new password by locking the Parental Controls again.

Front Panel Block

Selecting this option lets you block (disable) or unblock (enable) the TV's front panel. The remote still tunes to any" channel.

When using this as a Parental Control melllod, remove access to any remote dmt is capable of operating the television while

you have llle front panel blocked.

Don't l_)rget to lock parental controls alter you change the status. If you don't, the front panel block will not "take effect.

Chapter 4Graphics contained within tbispublication are fi_r representation only. 35

Using the "rv% i=ea ures

PIP example

POP example

PIP (Picture-in-Picture) and POP

(Picture-outside-Picture) Operation

The PIP (picture-in-picture) feature lets you display a second, smaller

picture on top of the main picture. POP (picture-outside-picture) lets you

display two windows side by side.

Note: PIPand POPare not available for DVI sources, component

video sources (CMPI or CMP2), or when you're using the internal

DVD playe_

PIP SWAP PiP+

PIP and POP Buttons

There are several remote buttons that control the way the PIP window

works:

PIP Brings up tim 11P window, tress again to [)ring up t 01. tress again

to remove the window.

Up and down arrow buttons Let you move the PIP window to

different corners of the screen. Up arrow moves PIP counterclockwise;

down arrow moves PIP clockwise.

Left and right arrow buttons Switches the main POP window, where

tim sound is coming from, wdth tim other window.

SWAP Switches, or "swaps," the video from the PIP window with the

main picture. Switches the main POP window, where the sound is

coming from, with the other window.

PIP + and PIP -Lets you change channels in the PIP and right POP

window.

ZOOM Changes the size of the PIP window.

36 Graphics contained within this publication are fi)r reprexenlation on/y. Chapter 4

The DVD's Menu System

The 1:/_,7)s merm system is not the s_mle its the disc m_trm or the Info DispIay. 'tIle 1)_,7)s main m_trm comes up w;hen them is no

disc playing. Kyou're playing a di_:, press b_I"OPon the remote control to stop playtx_ck and bring up the DVDs main m_rau,

The Play/Resume Play Option

"lb get to file 17V1)s main menu, pmss STOP on ff_e mmote control. 'tile first item in file

main menu is the Plr4y/Resume Pie l.,option. If them isnt a disc in the TV/I)VD, the option

roads Pla l;with the prompt I*tsert Disc to the right. 1[ them is a disc in the "IY/I)VI) and it

was previously pktying, the option reads Rexume tqa.y and the name of the disc is displayed

on the right.

Any time you stop playback you will be returned to the DVI) s main menu, and the PIr4y

option wiI1 read R_ume Pie l,,.To resmne pIay, highlight the option and press OK or press

the PLAY button on the remote.

The Play Mode Menu

The DVDs Play Mode menu lets you choose different ways to play the disc. To see Pla.y Mode menu options a disc must be

in the "I*%:DVD.

1, If the disc is playing, pmss STOP (the DVI)'s main menu aRpears),

2. tlighlight the PIr4yM_Me menu option.

3. Press OK. The Play Mode menu items appear.

4. Highlight the desired option and press OK. Pr_gram PIr4ywill not work unless you have cmamd a program list.

Selecting a Play Mode

The lirst three options in the Play Mode menu determine in what order the titles or tracks will pIay on a disc.

_;tandardPlay plays the disc's titles and chapters in their del:ault order (i,e, dlapter 1

of Tithe 1 plays lirst, then chapter 2 of Title I, etc,)

Random P_.I;* plays the chapters of each title in random order.

larogram Play:" Plays ttle chapters on the disc in ttle order you have programmed @ou

must selec_ t:?lff Pro(gram and set up the order in which you want the tracks on the disc

to play).

How to Create a Program

To use the Program lqal, of._tion, you FrKIstcreate a program Iist to set the order in v_-llich yOl.lwarlt titles and chapters on a

DVD video disc to play. To create a program Iist ['or an Audio CD or MP3 go to Chapter 7.

Creating a Program List for a DVD Video Disc

1, If fhe disc is playing, pmss STOP to stop play;ba_ (the I)VI) s main menu appears),

2. tlighlight PIr4y M_Me and press OK _.the Play M_Me menu appears).

3. ttighlight t:?I# Pro(gram and press OK _.the Edil I)r_gram semen appears).

4. The "Igllebox is highlighmd. Use the up/down arrows or tile number buttons on the

remote to enter the title you want to play first. "I_letitle number you entered appears in

the Title box. The number of dlapters avaikible appears under the CbapWr box.

(.bntfnut_ on next jaage. _

Graphicx conl_ined _>qltHnti6i.spublicalion are fim r¢qmest*_tl_l_)mon{),. 37

,

6.

7.

ttighlight the Chapter box and use the up/down arrows or the nurrfl:_er bt_ttons on the mmote to enter the chapter you

want to play first and press OK. The highlight jumps to tile Add bt_tton.

Press OK to add that chapter to the Program Hat. The highIight jumps ba<_ to the Title box so you can add room titles

ancFor dlapters. Make sum the 2_tle box is highligl_lted and enter yot_r next title and/or chapter.

Continue adding titles/chapters as explained in steps 4-6 until your program is complete. To pkff tile program, l_dghlight

Play and press OK. To save the program m play later, highlight l_me and press OK. The program will be erased when

yot_ mmove file disc from tile 3_/I)VI),

Editing a Program -Deleting Chapters

To delete chapters {:tom the pIaylist:

i, if tim disc is playing, press STOP to stop pkty;bac_ (the DVI)s main menu appears),

2, Highlight Pla), M_Me and press OK _,the Play Mode menu appears).

3, tiighlight Ed# Program and press OK (the Edil Program semen appears),

4, ttighlight tim item in fhe playlist you want to delete,

5, ttighlight I._lelt,, and press OK,

6. Wh_ra youm [inished marmnNng tile pI@ist, highli_lt Done and press OK.

Editing a Program -Inserting Chapters

"lb insert dmpters into fhe playlist:

1. If the disc is pktying, press STOP to stop pla?iback 0.he DVDs main menu appears).

2. ttighlight Play Mode and press OK _.the Play Mode ment_ appears).

3. HighIight t:?Iil Pro[_ram and press OK film Edit Pro_4ram scm<ra appears).

4. Use file lea/right arrow k<rysto move file highlight to the program list. Use the up/down arrow keTs m mark the spot in

ele playlistwhere you want to insert a chapter _.the inserted chapter will be placed b_;ibre tile highlighted dlapter).

5. Highlight the Chapter box and use the up/down arrows or the number bt_ttons on the remote to enmr the chapter you

want to play first.

6. Once you enter the number, the I*_ert box is highlighted. Pmss OK to insert the chapter in the pI@ig.

7. When youm [inished rearranging the playlist, highlight Done and press OK.

AutoPlay

Yot_ can set the AutoPlay option to play" your disc at_tomatical}y after you close die disc tray.

1. From tile DVI)s main menu On I)VI) mode, no disc playing) higl_llight tile I_lal.,Mode option and press OK.

2. The Play Mode selections appear, tlighlight fhe ,'mtoPlay option and pmss OK to toggle tim option on/off.

3. Press the le[_ arrc_w button to return to the pmvious menu _r press GO BACK to return to the man menu.

IntroScan

IntroScan plays the first 10 seconds of each traek on an Mldio ('1) or MP3 [ile. lntroScan will not repeat automatically. Once

it has completed, file system will stop the disc and return to the mNn menu.

To use IntroScan when playing a C_ or MP3:

1. Highlight Play Mode and pmss OK,

2. ttighlight tmro, Skan and press OK to begin tim ffmction.

3. Press gI'OP to stop the IntroScan [:unction.

38 (;>al)hic._conm#wd within thispublicat_;_m are jbr r_g)r_enmlion on{l.'.

The Lock Menu

The padlock icon is dispIayed on the DVDs main menu which shows whether your DVD is locked or unIocked.

locked, A pass;vv'ord is needed in order to play discs that aren't included in die rating limits you have set. Wh<rr_the

DVI) is locked, no one can access the Lock Menu items without entering the password.

!- Unlocked: A password isnt required to play discs.

Locking Your DVD

1. _ _le disc is pl_ng, press _['OP _he I_VIYs mmn menu appea_.

2. Highlight Lock and press OK _,the Lock menu items appear).

3. Highlight Lock Player and press OK. The t:nWr N_*wPa_'_rd screen appears.

4. Press the number kcrys on the remote to enter the password you want to use (similar to

entering your PIN when you use a bank machine).

5. A_er youve entered the last number in the password, press OK. Ck_*girm Pas_'ord

appears.

6. D_mr the numbers you entered the first time and press OK when youre finished.

7. Press the ]eft arrow to return to the main menu.

Unlocking Your DVD

1. 11"the disc is pk_ying press STOP (the I)Vl)s main menu appears).

2. tiighlight Lock and press OK.

3. The Enter Pa._'_rd box appears. Enter your password (the Lock menu options appear).

4. tIighlight Unk_ck Playt*r and press OK. The locked icon dmnges to un]ocked.

If you forget your password, simultaneously press and ho]d OPEN/CLOSE and the STOP on the TV/I)VI) s front panel [i_r 8

seconds. Enter a new password vial the Lock menu.

Changing Your Password

_le_ 1)¥_I) mmst be lo_ed to clmnge the password.

1. If the disc is pktying, press STOP (the DVI)'s main menu appears).

2. tiighlight Lock and press OK. tinter Pass_>_rd appears on the screen. Enter your password.

3. tlighlight Change Pa,_sword and press OK. Ent_*rN_*wPa,_'_*<Jrdappears.

4. Use the numbers on the remote to enter the ne,vwpassword you want to use and press OK, Ck_*girm Pa_v,_rd appears.

5. Press the number keys to enter the password again and press OK when youre finished.

Setting the Ratings Limits

The Ratings Limits feature is a rating limit system, sort of like movie ratings, k works wifli I)VI) discs that have been

assigned a rating. This helps you control the types of DVI)s that your [:emily watches.

Note: When in DVD mode, the TVIDVD alerts you when you try to play a movie with a rating that exceedsthe limit

you've set. Some discsinclude a rating override feature. When you play a disc with this feature, the message Override

Limit or CancelSelectionappears on the screen, tf you choose to override the rating limit, you will need to enter your

password to begin playback.

Graph_cx conlr_Jned _>qltHn#_{spubHcalion ar_,fi_r r¢q_rest,*tlr_lionon{),. 39

Changing to a Different Country's Rating System

Some countries use distant rating systems. The default _r this TV/ITVI) is tile United S_tes. You c_ change to a distant

country's ratting system through the Lock menu.

1, If tile disc is playing, press STOP (the DVI)'s main menu is displayed).

2, From the main menu, highligl_lt the Lock option and press OK (the Lock ment_ appears).

3, ttighlight Ratings Limits and press OK (the Ratings Limilx menu appears),

4, Highlight Counl'(y and press OK [a list o{"countries appears).

5. ttighlight the countr?, you want m dlange m and press OK (the court W you selected appears ne_t m the C<*un_?,'mentf).

6. Press the le{t arrow key to return to the main menu.

Rated Titles

The Rated Titles option lets you determine how your DVI) will mact to discs that contain movies that am rated (in the

U.S,A,, the Motion Pictt_ms Association of America rotes movies as G, PG, PGq3, etc.), You decide which ratings reqtfim

a password and which ones don't. '?his system ranks the ratings 1 through 8 in order to accommodate different countries

ratings systems (1 is considered a movie title with the least offensive material). In order {br the Ratting I_vel feature to work,

the disc must be encoded with rating in[brmation. 1["the author o["the disc did not encode rafting information, then this

featum will not work for that disc, _llen in DVI) mode, the TV/DVI) must be locked in order for it to en[brce the seNngs

in the Ratings Limits part of the Lock menu.

1. Prom file Lock menu, highlight Ratings Limits and pmss OK (the Ratings LimJlx menu is

displwed).

2. tlighlight Rated Titles and press OK (the 8-level rating limits Iist appears).

3. To change the ratting limit, press the up or down arrow button.

•The ratings that dent require a password (_'ree access) appear under the bar, in the

green part o{"the block.

• "l_le rating;s that require a password appear above the bar, in the red part of the block.

4. When you have moved the bar to the desired setting, press OK. Youm returned to the

Rated Titk_ screen and the setting appears to the right of the Rated "I:itlesoption. For

example, if you set 3 as the highest rating for Free Access (green), then the Rated Titles

selection appears as 3 (that's the I)VD's nuniber for PG in the 8-1eve1 system) {'or the

movie studio's ratting. This means xvhcra the I_VI) is Iocked, it will require you to enter

the password to pIay any discs the am ratted higher than 3 0.e., PG-I3 ar NC-I7).

5. Pmss the left arrow button to rett_rrl to the l'i'lai_lscreen.

Unrated Titles

Some titles (nlovies) amnt rated, but may contain material that is tmsuit_ible ['or chiIdmn. You deckle how you want the

Ratings Limils feature to handle these discs: free access or password required. To set the g_nrated Titles option:

1. From the Lock Menu, highligl_lt Ratings Limits and press OK.

2. Highlight Unrated 7_tles and press OK. Tile Unrated Titles options appear.

3. Use the up/down arrow buttons to highIigtYt your choice: From Access or Pass_,ord

Required. Press OK to select. Then, press the le{_ arrow button to return to the previous

screen. The option you chose is displayed ne_ m the g_nrated Titles option.

4. Press the 1eft arrow ke2_"to remm to the main menu.

Note: Many speciat features added to DVDs, such as the director's commentary, are

also unrated_

40 Graphic._ conmincd_ w#¢_in lhispublicalion are.jbr re_rescnmlion_._ on{f;

System Test

There are several tests you can run [:rom the System _t_:stmenu, 1" a probl<_n is l_und, the text will appear in light gray,

1, tfighJight ,5_l,,xl_,m "!_xtwithin the Lock menu.

2, Press OK to dispIay the 6),_tem Text R_ults screen,

3, Press the left arrow key to return to the main menu.

The Display Menu

The Di@la), menu contains the settings that affect how disc content Iook on your _r'\/l)_,I).

TV Image

_l_m TVImage menu adjusts the way a movie appears on your TV/I)VI).

1. From [he l)Vl)'s main menu On DVD mode, no disc pIaying), l_liOllight IYislda), and press OK (the t.g.<plal;options appea0,

2, t/ighIight "I_'tmage, Press OK. The 7_'tmage options appear.

4 x 3 Imtterlmx: - Choose this setting when receiNng a 4:3 image with subtitles ON, "_u 11see the entire [:mme of the

movie, but it wiI1 take up a smaller poNon of the screen vertically to accommodate subtitles. The movie miOlt appear

with black bars at the top and bottom of the screen.

4x3Sta._tda.rd- Choose this setting w'll_rr_receiNng a 4:3 image and you want tile on-screen appearance of tile video to

be a centered picture with Nack side panels (l:_Iank area.) on t_e right and leR sides. Most discs produced in a widescmen

forma can't }x::cropped in this i':ashion. This means the black bars appear a the top and }.xottom of the scre_rr_.

16 x 9 ,b'tanda.rd - Choose this setting to New i6:9 [i_rmatted l)Vl)'s. Most l_Vl)'s wilI force the Newing to this mode.

Also choose this if you war_t a 4:3 image to adjust horizontally to 1ill the ]6:9 screen, Bla(_ side panels won't be added,

and the image is vertically unaImmd,

On-Screen Displays

This feature lets you seIect whether you want certain on-screen displays to appear on the screen. It contains three d_oices

with check boxes next to them:

° l,ffoi-mtatton Display- When turned on, displays time transport inli_rmation when you're i':ast [brwarding or reversing

play;back,

- Angle Indkato*" -When mined on, dispIays camera angle icon if more than one camera angle is available.

° Scene aN'altl _ Text-When mined on, dispIays subtitles when you use the Scene Again TM feature.

The del:ault is to show all on-screen displays, To turn one of the options on or off, highIight an option and press OK. This

tobies the option on or off.

The Sound Menu

"ltm &_and menu lets you sele(x different sound settings to match the equipment you have connected to your unit,

Digital Output

l)igital outpttt lets you ehoose which type of digital audio is Otltput fro_l your urlit. 1["

youve used an optical cabIe to conne(* at Dot:}y Pro Logic, l)olby Digital, or DTS receiver,

you must adiust this setting. 2]:_ere are two options:

• l)olby Digital: Choose this setting if you connected at Dolby l)igitaI receiver.

• DTS: Choose this setting if you conne(*ed at I)TS receiver or decoder to your unit,

The deBauIt is Dolby l)igitaI.

Grapbgcx conl_gned _)qlhgn t¢_ixpublgcalion are fi_r r_q_rexe_tl_l_)_non{),. _1

To clmnge the digital output:

1, From the *_ain *_enu, highlight and select tl_le,S_und option and press OK _.tl_le,S_und *_ent_ is dispIayed),

2, Highlight the t_gital OugJut option and press OK.

3, Highlight tile desired outpt_t and press OK,

4, Press the left arrow key to return to the *r_ain menu.

Notes: If you set Digital Output to D TS,you must have your unit connected to areceiver or decoder with the DTS

feature and the discyou play must support the DTSaudio format, tf you choose DT5 and your receiver or decoder

doesn't support DTS,you won't hear any audio

Sound Logic

The Sotmd Logic i"eatL_recompresses the dynamic range (q_ietest sound to Iot_dest sound) of a disc's soundtra_, For

example, action scenes _night be very Ioud while whispered dialog is quiet. _l:le Sound Logic feature e._vensout the range of

the volume by _uaking loud sounds quieter and soi'_ sounds Iouder, The Sound Logic option is a to_le, it can be tt_rned on

or off. The default setting is of[',

To turn the Sound Im_c feature on:

1. Fro_u the DVDs _l"iainmenu, highlight &_u_M and press OK _.the &_u_d _nenu appears).

2. Highlight the &_und Logic option and press OK.

3. Press the lef_ arrow button to remm to the main menlo,

Note: The performance of the Sound Logic feature varies depending on the type of

equipment you have connected to your TVIDVD and the audio format of the disc

you're playing

The Languages Menu

The La_tguag{_ ment_ enables you to choose different Iangl.lage options for audio, subtitles, Disc M<rrm ite_ns and DVD _nain

snenu items. The def:ault for all Langl.lage snenti itesns is English.

Changing the Player Menus, Disc Menus, Audio or Subtitles Language Preferences

Yot_ can choose one of the langt_ages for the text that appears within the on-s_:reen _nenu system.

2.

3.

4.

Pro_u the _uain menu, highlight and select the La_guag{_ option (the La*_g,¢ages _nent_

is disp]ayed),

Highlight the lamg_._ageoption for the lang_._age yot_ want to <fhange amd press OK _.the

language <fhoices are displayed).

Ilighlight the lang_.iage you want to use and press OK, The menu appears wit]l your

selection shown ne×t to the language option,

Press tl_le lef_ arrow t.mtton or press GO BACK to remm to the previous _]enu,

Notes: tf you change the Player Menu Language, the entire DVD's menu system wilt be

displayed in the selected language

The option Original in the Audio Language menu is the language in which the audio

was originally recorded.

42 Graphic._ conmin_d_ _#t_in lhispublicalt_on are,jbr re_r_s_.nmlion_,_on{f,'

Sound Menu

'[lie Sound menu lets you adjust audio output. "1_ access the Sound menu,

press MF,NU on the remote, and then select .5_J_nd from the main _r_enu. The

following audio it_as can be adjusted: &_und se_ings, ,S_und/'lq_e, .S_und mode,

5>IP, .S_und Logic, Headphone se_tings, and Graphic eq*_lizt_.

SoundsetHngs The .S_undset_ings sub*r_enu contains fhe follovdng ite*r_s:

I_fl &Right _lance Use ffm left or right arrow to center the bar under file

arrow to baIance the left and right speakers.

Amplgier Use the left or right arrow button to select F_tc,r_al (if your TV/

DVI) is using external amplifier on13¢)or tntt_nal (if your TV/DVI) is using

the speakers in the TV).

S*_<_(ft_ Set the _s subwoofer m b;xte_al if the TV/DVI) is using an

_ernal subwoofer; _r None,

Sound _'pe Press the right arrow button m scrolI througl_l the available audio

tqpes, which control the w W the sound comes through your speakers. The

options awtilable va_ according to the input selecmd.

Mono (availabIe for regl.flar TV viewing only) Plays the sound in *rlono

only. Use fhis setting when receiving broadcasts with weak stereo signals.

Stereo SpIits the incoming stereo audio signal into lel_ and right chmmels.

Most TV programs and recorded mamrials have stereo audio. The word

Stereo appears in the channeI banner when you tune to a progra*r_ that is

broadcast in stereo.

A_alomaNc (available for reg,.tier TV vi_qng onIy) Chooses the sound type

according to the current signal.

I_fl and Right (avaiIable ['oraudio/video inputs onIy) Isolates either the

le_ or right channel of the inco_ing audio.

Sound Mode Press the right arrow button m scroI1 fhrouO_ the ava_ktble audio

*rlodes, which provides special processing through your speakers (deptrading on

the setting you chose as your .S_und 0_i_e).

Normal Does not give any special processing, si*uply provides the mono

or smreo sound provided by the signaI you're watching.

WMe Available only for _ono signals. 'Widens" sound from mono

broadcasts and mono co*r_ponents connected to your _A)VI) fr_r a l:uller,

*r_ore spacious sound.

Magic AvaiIable only ['orstereo signaIs. Gives a surround effe(* with *r_ore

bass.

SRS T_¢,_nd XT _ Available ['or stereo or _mltichannel input. Creates

a virtuaI surround sound effect through any two-speaker playback system.

SRS D_g _rtty TM Available only when the Sound Mode is SRS

"YruS_rro*_nd XTI Makes dialog fro_r_the source _r_aterial c]earer when youm

watching it on your _/I)VI).

C_mtinut_ on nextj_ge-.

Graphics conl_i*wd withi*¢ t_is publfcatfon are fi_r rcg_resc*_lation on/.)', 43

Using the Menu System

Second Audio Program (SAP) Plays the program's audio in a second

language, if one is available. The le|tei_s "SAP" appear in the channel banner

when you tune to a program that is broadcast with SAP information. SAP audio

is broadcast in mono. SAP is also used to broadcast a program's audio with

descriptions of lhe video for the visually impaired.

Sound logic Reduces the annoying blasts in volume during commercial

breaks, and also amplifies softer sounds in program material. Eliminates the

need to constantly adjust the volume.

Headphone settings Displays a choice list of available setlings you can

adiust: Volume, Bass and Treble. The Headphone sound option allows you to

choose stereo, mono or automatic. These descriptions are same as for Sound

7:l_e (see on previous page).

Graphic equalizer Allows you to choose a specific preset through the Sound

Preset option. Press tile right arrow to cycle lhrough lhe options: Standard,

Movie, Voice, Music, Flat, Vide(4_ame ,Vldeo camera and Pers'onal.

2be Frequency ra*zge displays lhe diflk'rent treble and bass bands set for each

Sound Preset option. You can choose a band and make adiustments. When you

make adiustments ,the Sound Preset option automatically changes to Personal.

Press the lefi or right arrow button to select the frequency (Bass 100Hz, Mid

Bass 500Hz, Medium 1.5kHz, Mid "IYeble 5kHz, Treble 10kHz) you want to

adiust. Then use the up or down arrow button to adiust the level.

To view the tYequency range of another 5bund Preset option, press the right or

left arrow until no band is selected and Frequency range is highlighted. Then

press the up arrow to highlight Sound Preset.

Picture Menu

The Picture menu contains menus and controls to configure the following video

settings: Advanced picture settings, Picture presets, Black level, Colog Contrgt_t,

Sharpness, Color Warmth, and Tlnt. The Picture menu options apply to the

video for the main TV and video input selections.

Advanced picture settings

Contrast expand You can adjust the contrast of tile picture to suit the light

of the room. Press lhe right arrow to choose which of the following best

describes the lighting in the room: Low, Medium or High.

Scan Velocity Modulation Improves the sharpness of the picture by

changing the speed of the cathode-my tube's electron beam when it

transitions between dark and light areas of the screen. Choose to have it on

(box checked) or off (box unchecked), depending on your preference.

Graphics contained within tbis publication are fi_r representation only. Chapter

Using the "rV Menu System

Tip'.

If the picture is switching screen formats

abruptly during normal TV viewing, switch

the Autoformat feature off,

Autoformat When enabled (box checked) llle TV automatically detects

the screen format the signal is sending for each channel, as well as input

channels.

Video noise reduction Reduce picture "static" or any" type of interference.

This feature is especially useffd for providing a clearer picture in weak

analog signal conditions. Press the right alxow to choose between: Qfftbr

no noise reduction; Minimum tbr a sot'teL smoother picture dmt retains

picture sharpness and detail; Medium for a slightly softer picture than llle

Minimum setting; Maximum for an even softeg smoother picture dmn dm

other settings (the picture detail is somewhat decreased).

Optimized stillpicture When enabled (box checked), enhances the picture

specifcally for still frames (lk)r example, if you're watching a slideshow on

your HDTV monitor, or if you've paused a t'mme of a DVD).

Aulo Skin Tone When enabled (l)ox checked), minimizes llle flesh tone

variations of the TV picture.

lS71mmode (3:2 I)ulMown) Automatically detects video sources that were

originally recorded on fihn (like most movies) and subsequenlly converted

to a different lbrmat (for TV broadcast, for example). Film mode processes

the converted signal so that it looks as close as possible to the original.

Another name tbr this process is mvense 3:2 pulldown.

Advanced (recommended) enables llle l)ature only when llle TV detects

that movie playback qualily could be improved. Advanced is the del_ult

setting.

The On setting should only be used in rare circmnstances when llle TV is

used solely will1 film-based sources (like DVDs on a non-progressive-scan

player).

The Offsetting turns off fihn mode upconversion. Try using this setting if

you drink tile mvense 3:2 pulldown is causing distortions in your picture.

Note: Autoformat and Video noise reduction are available for CMP1 and

CMP2 inputs only if the signal is 480i.

Picture Presets Displays a choice list that lets you select one of the preset

picture settings: Vibrant, Cinematic, Natural, 3)orts, Video_ame, Video Camera

or Personal. Choose the setting that is best lk)r your viewing environment. You

can set a different picture preset lk)r each input (including one for your regular

"IV channels).

Black Level Adjusts |he brightness of the picture.

Color Adjusts the richness of llle color.

Contrast Adiusts llle difference between llle light and clark areas of llle picture.

Sharpness Adjusts the crispness of the edges in the picture.

Note: You can adjust sharpness for each channel and input. This is useful if

the signal appears fuzzy.

Color Warmth Displays a choice list that lets you set one of three automatic

color adjustments: Cool for a more blue palette of picture colors; Normal; or

Warm tk_r a more red palette of picture colons. The warm setring corresponds to

the NTSC standard of 6500 K.

Tint Adiusts |he balance between the red and green levels.

When you change any of these picture settings, the Picture Preset changes to

Personal. Use the leti or right mwow button to make adjusunents. To return to

the Picture menu, press the up or down mwow button.

Chapter 6 Graphics contained within tbispublication are fi)r representation only. 111_

Using the "lrV Menu System

Channel Guide Menu

Allows you to view and select from the entire channel list and their labels. Press

the GUIDE button to bring up the Channel Guide menu. Use the up or down

arrow to scroll through the list. Press OK to select and tune to the highlighted

channel. Press tile last digit of one of the channels in the guide to tune to that

channel and leave the Channel Guide on the screen.

Time Menu

Sleep Timer Lets you set the TV/DVD to turn off alter a given amount of time.

Time Lets you enter the current time. If it is eight o'clock, for example, you

must first enter the number zero, then number eight. Use the OK button to

choose between AM and PM.

Wake up timer Lets you set the TV/1)VD to turn itself on. When you turn on

Wake up timer, the following options appear:

Wake up time Lets you set the time you want the TV/1)VD to turn itself on.

Wake up duration Lets you set how long you want the TV/1)VD to stay on

when it turns on.

Channel number Lets you select a specific channel the "IV tunes to when

the wake up timer is set.

Daily Lets you choose if you want the wake up timer to turn on daily.

Note: The Wake up timer is available only when the time has been set.

Parental Control Menu

The Parental Control Menu was explained in Chapter 4. Go to page 30 for more

information.

PIP Menu

Ois_/ay Mode

Off No window is displayed.

PIP PIP window is displayed.

POP POP window is displayed.

PIP channel Allows you to choose the channel displayed in the t IP or main

POP window. Scroll through channel list as well as the VID1, VID2 and FliNT

input channels.

PIP size Allows you to choose the size of the PIP window: Small, Medium or

La_qe.

PlPposition Allows you to choose where the PIP window appears on the

screen: Top right, Top left, Bottom right or Bottom left.

Note: Pip size and position are not available for POP

46 Graphics contained within this publication ar¢ fi)r r¢presentation only. Chapter 6

Using the Menu System

Note:

If Parental Controls are locked, you must enter

your password to access the Setup menu.

Short-term vs. Long-term

Power Outages

The Auto channel and Auto volume settings

don't take effect after short-term power

outages (usually less than two to three

minutes). The TV will turn back on at the

same volume and channel as before the

power outage.

The Auto channel and Auto volume settings

take effect after power outages of several

minutes or more,

Setup Menu

The Setup izqenu lets you configure the TV/DVD to fit its SmToundings and your

pretE'rences. To access the Setzq) menu, press MENU on |he re_zqote, and dmn

select Setup from the _:qain _:qenu.

Channel setup

Signal T3Pe The "IV chooses the signal type during llle initial selup. If you

change how you receive broadcasts through the antenna input, you _:qust

change the Signal t3Pe setting. Choose Cable if you are using cable or a

cable box tbr "IV signals. Choose UHF/VHFAntenna if you am using an off'-

air antenna for "IV signals.

Aulo channel search Searches for channels the signal is receiving. Go to

page 15 for more intk_rmation.

Auto channel ztpdale Searches for any new channels that am not in your

channel list and adds thelzq to the list.

List and labels Edit the channels in dm list or choose labels for each

channel. Go to page 15 for morn information.

Preferences

Language Displays a choice list dmt lets you select your preferred

language for the menus: E_zglish, Espa_ol or _ran_ai.s.

Maximum 2!7volume Allows you to set how high volume turns up when

you press llle VOL+ button. Highlight Maximum volume, then press and

hold OK to hear the maximum volume. Make sure the volume has not been

muted or turned down all the way.

Curtain effect Reveals the picture by "opening" it from the middle of the

screen when dm TV/DVD is switched on. Hides the picture by "closing" it

from the sides when the TV/DVD is switched off.

Internal DVDplayer The internal DVD player can be enabled or disabled.

If, for example, you're using the TV/DVD with an exlernal DVD player,

and you've programmed the remote to work with that player, then you can

disable the internal DVD player so that it isn't activated by the butlons on

your remote. Then you can use your "IV remote with your external DVD

player willlout the internal DVD player interfering. To enable or disable

the internal DVD player, highlight Internal DVDplayer, then press llle OK

button for five seconds.

Special features The Auto on setting switches your TV/DVD on at'ter a

power outage; Aulo channel tunes llle TV to llle channel you specify as the

Initial channel when Auto on is enabled; Auto volnme tunes the "IV to the

volume you set in Initial volume when Auto on is enabled.

Continues on next pa,_e...

Chapter 6 Graphics contained within tbi.spublication are fi_r representation only. 47

Using the "IFV Menu System

Closed Caption Many programs are encoded widl closed-caplioning

information, which lets you display the audio portion of a program as text on

dm TV screen.

Closed captioning is not available on all channels at all times. Only specific

programs encoded wilh closed-captioning intormation. When a program is

closed captioned, CC is displayed in the channel banner. See Chaplcr 4 for

more intormation about the channel bannei: The closed caption options are:

Closed caption settling Lets you choose the way closed captioning

information appears on lhe screen. The Closed caption setting does not

effect the DVI-HDTV input.

Qff No captioning intk)rmation displayed.

On always Captioning intbrmation shown always, when available.

On when mute Displays captioning intk)rmation, when available,

whenever tlle TV's sound is muted by pressing the MUTE button. The

captioning information is not displayed when the sound is not muted.

Closed-Caption Mode Displays a choice list that lets you choose which

captioning mode is used for displaying captioning intormation. If you are

unsure of lhe differences among the modes, you may prefer to leave dm

closed captioned mode set to CC1, which displays complete text of the

program in the primm T language in your area.

Autotuning Displays a choice list that lets you set up the TV to automatically

tune to lhe correct input channel when you press a component button (VCR,

DVD, AUX/HD or SAT/CABLE) on the remote. Go to Chapter 4 for details about

the Autotuning feature.

Convergence The Auto convergence t'ealure automatically adjusts tlle TV's

tubes 0his may take several minutes, aficr which you can make fine adjusunents

to the convergence settings); Red conveKqence displays tile Red convergence

screen, allowing you to use tile arrow bu|lons to align lhe red and green

images; Bh¢e conveqgence displays lhe Blue convergence screen, allowing you

to use the arrow buttons to align the blue and green images.

48 Graphics contained within this publication ar_ fi)r r_presentation only. Chapter

|nfor ation Disp|ays

Using the Info Display

Your TV/1)VD gives you many" options when playing difl_.'rent types of discs. You can access these features through lhe on-

screen lnfo Display.

To access dm lntk_ Display while a disc is playing, press INFO on the remote. The Intk) Display appears across lhe top of the

screen. Each of the playback t)atures is represented by an icon. To access a feature, use the arrow bullons on the mmole to

highlight the icon. Each feature lhat can be accessed from tile On-Screen Intk_ Display is described on the following pages.

To clear tile Intk_Display from the screen, press INFO on the remote control.

Note: The DVD Info Display is described on page 25.

Audio CD Info Display

Repeat

i

Play Mode I IntroScan

I I I

MP3 Info Display

Repeat

PlaylMode IlntroScan,

Video CD Info Display

index Audiol Releat

÷

Using the Time Display

The Clock part of the Info Display shows the current disc" time. To see the current disc" time:

1. Press 1NFO on the remote (the lnfo Display appears).

2. Highlight the Clock icon. Press OK. The amount of time the track has played appears in the time

window.

3. Press 1NFO to clear the screen.

Selecting aSpecific Track

1. Press INFO on the remote.

2. Highlight lhe Track icon.

3. Use the nmzaber buttons on lhe remote to enter the track number you want to play, or use the up/

down arrow buttons to scroll lhrough the Irack numbers. You may need to press the OK button on

the remote afler you enter a single digit track number.

Chap_:er 7 Graphics contained within tbispublication are fi)r representation only. 49

|nfor ation Disp|ays

÷Selecting a Specific Index (Available only on Video CDs)

1. Press INFO on the remolc.

2. Highlight lhe hzdex icon from lhe lnfo Display.

3. Use the number(s) on the remote to enler lhe index number you wanl to play, or use

the up/down arrows to scroll through the index numbers. When a new index number is

entered, that index will begin playing.

Selecting a Play Mode (Available only on Audio CDs and

MP3s)

The Play Mode _atum lets you set up the o_er in which you want the tracks on the disc

to play. There are three options:

Standard= the tracks play in the order lislcd on the CD (starting with track 1). MP3 files

are listed in the order they were recorded.

Random: the tracks on the disc play in random order.

Program: lhe tracks on the disc play in the order you've programmed. You must first

create a program list in the Play menu of the DVD's main menu.

Switching between Standard and Random Play

Slandard 0he order listed on the disc') is the det_ult setling for the DVD mode. To change

the default setting:

1. Press 1NFO on the remolc while a disc is playing. The Into Display appears.

2. Highlight the Play Mode icon. The current play mode appears in the text box

underneath the icons. Press the up/down mTOWS tO scroll through the choices until

Random appem:s in the text box. The tracks on the disc will now play in random

ordei:

Note: The TVIDVD defaults to Standard playback whenever you put a new disc into

your TV/DVD.

Using the Program Play Feature

"lb use the Program Play feature, you must enter the order in which you want the tracks

on the CD or MP3 to play by creating a program. This is done from the DVD's main menu.

To edit a CD:

1. If the disc" is playing, press STOP to stop playback (the DVD's main menu appears).

2. Highlight Play Mode and press OK 0he Play Mode menu appears).

3. Highlight Edit Program and press OK 0he Edit Program screen appeai:s).

4. The 7kack box is highlighted. Use the numbei:s on the remote to enter the track you

want to play fi_:st. The track number you entered appears in the Track box and the

cm:sor highlights Add.

5. Press OK to add that track to the Program List. The cursor jumps to the next spot in the

Program List section. Make sum the 7kack box is highlighted and enter your next track.

6. Continue adding tracks as explained in steps 4-5 until your program is complete. You

can play your program by highlighting Play and pressing OK, or you can save tile

progrmn by highlighting Done and pressing OK. If you save the program, you can

select it from the Intk) Display. The program will be erased when you remove the disc

or the TV/1)VD is turned off.

50 Graphics contained within tbis publication are fi)r representation only. Chapter 7

|nfor ation Disp|ays

To edit an MP3 disc:

1. If the disc" is playing, press STOP to slop playback 0he DVD's main menu appears).

2. Highlight Play Mode and press OK (the Play Mode menu appears).

3. Highlight Edit Program and press OK (the Edit Program screen appears).

4. The Slandard Playlist box is highlighted. Use lhe up/down arrow buttons on the

re_zqote to enter lhe track you want to play fi_:st.

5. Highlight Add to add that track to the Program List and press OK.

6. Continue adding tracks as explained in sleps 4-5 until your program is c<mqplete. You

can play your program by highlighting Play and pressing OK, or you can save dm

program by highlighting Done and pressing OK. If you save the program, you can

select it from the Int_ Display. The program will be erased when you re_zqove the

disc or the TV/DVD is turned off'.

Editing a Playlist

1. If the disc is playing, press STOP to slop playback. The DVD's _:qain menu appeai:s.

2. Highlight Play Mode and press OK 0he Play Mode menu appears).

3. Highlight Edit Program and press OK (the Edit Program screen appears).

4. Highlight lhe item in the playiist you want to delete.

5. Highlight Delete, and press OK.

6. When you've rearranged the playiist and/or deleted all the tracks necessary, press

OK.

Using the Repeat Feature

The det_ult mode for tim Repeat feature is Oil'. There are three Repeat options for Audio

CDs:

•Disc -repeats lhe disc dmt is playing

• Track -repeats the track that is playing

• A• B - Set the beginning (point A) and lhe end (point B) to make this part of the CD

play repeatedly.

To Use Repeat:

1. While a disc"is playing, press 1NFO on the re_zqote to bring up the Int_) Display.

2. Highlight lhe Repeat icon. The text in the text box below the icons will mad Repeat

Mode: Off

3. Press the up/down arrows to scroll through |he Repeat options until the option you

want is displayed in the text box.

4. Press OK. The selected repeat option will loop repeatedly until you turn Repeat off.

Repeat is turned oil" by completing steps 1 lhrough 3 above, and selecting lhe Off

option.

Chap_:er 7 Graphics contained within tbispublication are fi_r representation only. _1

|nfor ation Disp|ays

A.B Repeat (Available only on Audio CDs)

A-B Repeat lets you define a specific segment on tile disc that you want to repeat:

1. Find the spot on %e disc that is a few seconds before the beginning of lhe part you

want to repeat (this gives you time to access lhe lnfo Display and lhe Repeat lkmture).

2. Press INFO on lhe remote and select the Repeat icon from tile Intk) Display.

3. Press the up/down arrow buttons until the A,,B Repeat option is shown in the text

box underneath the icons. The text box reads Repeat Mode: A--B Press OK 1oSet A

Point.

4. At the beginning of the part you want to repeat, press OK to set the A point.

5. When you ge_ to the part of the disc that you want to be the end of the repeated

segment 0he B point), press OK. The segment will repeat until you turn Repeat off.

6. To make lhe lnfo Display disappear from the screen, press the INFO bulton on the

remote.

How to Cancel Repeat

There are three ways to cancel Repeat:

• Press STOP twice.

• Go to the Repeat icon in the Info Display and select Off

• Eject the disc.

Changing the Audio Channel Output (Available only on

Video CDs)

If you are playing a stere() Video CD, you can change the channel output.

1. Press INFO on the remote to bring up the Info Display.

2. Highlight the Audio Channel icon on the lnfo Display.

3. The audio channel choices appear in the text box. Use the up/down mTOWkeys to

scroll through the choices: Stereo, Left, Right or Mono. Whatever choice is displayed

becomes the active choice.

Using IntroScan (Available only on Audio CDs and MP3s)

IntroScan play's the first ten seconds of each track on the CD. To use IntroScan:

1. Press INFO on the remote (the Intk) Display appears).

,r .¢ ) ,

2. Highlight the IntroScan icon. tress OK. The first ten seconds of each track will play.

• Alter lntroScan goes through all of the tracks, it stops.

• If you want to stop IntroScan while it's in progress, press PLAY. The current track

starts playing in its entirety.

• You can also access IntroScan from the Plal_Mode menu in the DVD's main menu.

52 Graphics contained within lhis publication are fi_r representation only. Chapter 7

Otbor |nfor ation

Troubleshooting

Most problems you encounter with your TV/DVD can be corrected by consulting the following troubleshooting list.

Note for US customers: If you prefer, we can provide you with the name of an Authorized Service Representative who will visit your

home for a fee to install your electronic entertainment system and to instruct you in its operation. For details about this service, call

1-888-206-3359 or visit www.rcascenium.com.

DVD Problems

Player won't work

Reset the TV/DVD by unplugging the AC power cord and plugging it back in.

Disc won't play

inscr! a disc with the label side fhcing up.

Check the type of disc you put into the disc tray. This TV/DVD only plays DVD video discs, Video CDs, audio CDs and MP3s.

if the disc is a D'I\S music CD, it requires a DTS decoder, if you have a DTS receiver hooked up to your TV/DVD and you are still

not getting sound, make sure the sound is set correctly (see Chapter 5).

Both the TV/DVD and the disc are coded by region, if the regional codes don't match, the disc can't be played. This TV/DVD is

Region No. 1.

Play starts, but then stops immediately

The disc is dirty. Clean it.

Condensation has formed. Allow player to d W out.

No sound or distorted sound

Make sure your TV/I)VD is connected properly. Make smc all cables are securely inserted into the appropriate jacks.

You may need to readjust the Digital Output settings from the Sound menu (see Chapter 5).

Sound is muted during still, frame advance, or slow-motkm play.

if you connected an audio or audio/vkleo receiver to your TV/DVD, make sure you chose the correct input setting on the receiver.

Can't advance through a movie

You can't advance through the opening credits and warning information that appear at the beginning of movies because the disc is

programmed to prohibit that actkm.

The 0icon appears on screen

The fk.'aturc or action cannot/)_, completed at this tinl_, because:

1. The disc's softwm-e restricts it.

2. The disc's software doesn't support that feature (e.g., angles).

3. The fL'ature is not available at the moment.

4. You've requested a title or chapter nmnber that is out of range.

The picture is distorted

The disc might bc damaged. Try another disc.

Picture is distorted during forward and reverse scan

it is normal for some distortion to appear while scanning.

A screen saver appears on the screen

Your TV/DVI) is equipped with a screen saver that appears on the screen afh.'r the DVD mode has been idle for several minutes.

Press STOP or GO BACK on the remote to make the screen saver disappear from the screen and return to the DVD's main menu.

Subtitle and/or audio language is not the one selected from the initial setting

if the subtitle and/or audio language does not exist on the disc, the initial settings will not be seen/heard. The disc's priority

language is selected instead. Set the subtitle and/or audio language manually through the info Display or the DVD's main menu.

The menu is displayed in a foreign language

The Menu Language prefi.'rence is set to that language. From the DVD's main menu, select the Languages option (in Spanish, shown

as ldiomas; in French, as Langues). From the Languages menu select the [lr4_erM_nus option (in Spanish shown as 114c_,2._ del

Lector; in French, as Me,/us LecWur). Highlight the language you pref_.'r and press OK.

No forward or reverse scan

Some discs have sections that prohibit rapid scanning, or title and chapter skip.

if you're trying to skip through the warning information and credits at the beginning of a movie, you won't be able to. This part of

the movie is often programmed to prohibit skipping through it. C_mtinues on nextpage...

Chapter 8Graphics contained within lhis publication are fi)r representation only. 53

Other |n orma iQn

Camera angle cannot be changed

Som_, discs don't have the" multi-cam_,ra angle system and some discs only have it in certain parts of the movie.

Picture is too tall and thin

Change the aspect ratio using the TVlmage setting in the I)isplay menu (see Chapter 5).

Picture is too short and wide

Change the aspect ratio using the TVtntage setting in the I)isplay menu (see Chapter 5).

Cannot copy discsto video tape

You can't record DVD discs onto vkk, ocassettes b_,cause the discs are _,ncod_,d with anti-copy protection.

Full Version of Disc Does Not Play

The DVD might be locked. 'lk_ unlock see Chapter 5.

Disc won't eject

When you put a disc into the disc tray, it may take up to 15 seconds to read the disc. You won't be able to eject the disc dm'ing this

time. Wait 15 seconds and tW again.

I don't remember my password and I want to unlock the DVD

if you forget your password, simultaneously press and hold OPEN/CLOSE and STOP on the TV/I)VD's front panel for 3 seconds.

Enter a new password via the Lock menu.

TVProblems

TV/DVD won't turn on

Press the TV button.

Make sure the TWDVD is plugged in.

Check the wall receptacle (or extensk:m cord) to make sure it is "live" by plugging in something else.

Something might be wrong with your remote control. Press the POWER button on the fiont of the TV/DVI). if the TV/DVI) turns on,

check the remote control solutk:ms on the next page.

The fiont panel controls may be locked (disaNed). Use the remote control to unlock the front panel controls by selecting the Front

Panel Block in the Parental Cbntrol menu and press OK to uncheck the box.

The TV/DVI) might be perf_)rming a periodic diagnostic check. Wait for a few minutes for the TV/DVI) to turn on.

Buttons don't work

if you're using the remote control, press the TV button first to make sure. the remote is in 'IV mode.

The fiont panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by selecting the Front

Panel Block in the Parental Cbntrol menu and press OK to uncheck the box.

Unplug the TV/DVI) ['or ten minutes and then plug it back in. Turn the TV/DVI) on and tW again.

TV/DVD turns off unexpectedly

Sleep timer may have been activated. Go to page 46 for instructions.

Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn on again, if this

happens frequently, the voltage in your house may be abnormally high or low.

Unplug. Wait ten minutes. Plug in again.

TV/DVD turns on unexpectedly

Wake up timer might have been activated. Go to page 46 for instructions.

Auto on might have been activated. Go to page 47 for instructions.

You might have pressed CH+, CH_ or INPUT on the remote accidentally.

Blank screen

Make sure the component connected to the TV/DVI) is turned on.

TW another channel.

if you're trying to watch something that's playing on a component connected to the TWI)VD (like a VCR tape), press the TV button

on the remote, then press INPUT until you get to the correct vkleo input channel.

Can't select certain channel

Make sure the remote control is in 'IV mode. Press the TV button and enter the, channd number using the" numb_,r buttons.

Channd may be blocked or not approved in the Parental (2mtrols menu.

if using a VCR check to make sure the TV/VCR button on the VCR is in the correct mode (press the TV/VCR button on your VCR).

54 Graphics contained within this publication ar# fi)r t#pr#sentation only. Chapter 8

Otbor |nfor ation

No sound, picture okay

Maybe* the sound is muted. "Fry pressing the* volume up button to restore sound.

if using S-Video or Y, I'B ER remember to also connect the component's left and right audio output jacks to the TV/DVD's L and R

Audio input jacks.

if you're using the TV/DVD's internal speakers, make stare the INT/EXT switch on the back of the TV is put on "IN'I".

The sound settings may not be set correctly. Go to page 43 for more information.

Noisy stereo reception

May b_" a w_,ak station. Use ,5'o_¢_1dm_,nu to choose mono sound.

No picture, no sound but TV/DVD is on

Maybe the cable/air function is set to the wrong position. Go to page, 5 for detailed instructions.

The channel might be blank -- change channels.

if you're watching your VCR and it's connected with coaxial cable to the CABLE/ANTENNA jack, tune the TV/DVD to channel 3 or 4

(whichever channel is selected on the 3/4 switch on the back of your VCR). Also check to make sure the TV/VCR button on the VCR

is in the correct mode (press the TV/VCR button on your VCR).

Sound okay, picture poor

Check antenna connections. Make sure all of the cables arc firmly connected to the jacks.

TW adjusting sharpness fhnction to improve weak signals. Go to page 45 for more instructkms.

Volume buttons not adjusting volume louder

Ch_,c'k to make sure volume isn't limited by the, maximum volume, fi.'ature. Go to page, 47 for more insti_dctions.

Picture not moving

You have activatcc! the Freeze feature by pressing FREEZE or OK on the remote. Press any button to 'unfreeze' the picture.

Black box appears on the screen

Closcc!-captioning might be on. Check Closed (2q)tio_l in the Setup menu. Go to page' 48 for more instructions.

Freeze not working

The ficeze fbature is not available for Component video (CMP1 or CME2) or DVI inputs.

Low battery warning appears on screen

Place n_'w batteries in remote.

TV picture keeps switching between screen formats abruptly

Switch the Au_format feature to O,/,_See page 45 for more in_)rmation.

The Remote Control Doesn't Work

Someflfing might be between the remote and the remote sensor on the component. Make sure there is a clear path.

Maybe the remote isn't aimed directly at the component (TV or VCR) that you're twing to operate.

Maybe remote is not in 'IV Mocle. Press the 'IV button so remote will control 'IV.

Maybe batteries in remote are weak, dead, or installed incorrectly. Put new batteries in the remote. (Note, if you remove the

batteries, you may have to reprogram the remote to operate other components.)

Make sure there's nothing plugged into the WIRED IR jack on the TWI)VD's back panel. The remote that came with your 'IV/DVI)

won't work if anything is plugged into this jack.

Problems with V-Chip/Parental Controls

The rating limits don't work

You must lock the settings. Go to the II4AIN MENU (press MENU on your remote) select Pare_ltal (2mtrol, select Lock Pare_ltal (2mtrols.

I don't remember my password and I want to unlock the TV

if you forget your passworc!, press MENU, then select Pare_ltal Control (the password cnt W screen appears). Simultaneously press

and holc! CH+ and VOL+ on the TV/DVD's front panel for g seconds. The Parental control menu appears on the screen, and you can

re-enter a password via Lock Parental (2mtrols.

The V-Chip won't let me watch a program even though it's not rated as violent.

Maybe the movie was given an NR (Not Rated) status. Afi_,r you block movie ratings you must set NR to View separat_,ly in order to

view movies with an NR rating.

Chapter 8Graphics contained within tbis publication are fi)r representation only. _

Oth r |n orma ion

Explanation of Jacks (in alphabetical order)

'lllis section desci-ib_,s the jacks you can use to make connections. 'llleI'e are several ways to connect components to your 'IV.

ANTENNA/CABLE Lets you connect a coaxial cable to receive the signal from the antenna, cable, cable

box, or if using the examples on pages 5-11, a VCR.

AUDIONIDEO OUTPUT

RXED AUDIO

AUD[D

(COMPONENT INPUTS _)

(COMPOSITE INPUTS )

DEGITAL

AUDIO

AUDIO/VIDEO OUTPUT Lets you connect an amplifier or audio receiver for improved sound quality

or an external video monitor.

FIXED AUDIO L/R Provides fixedqevel audio output from the TV. This audio output is ideal for

connecting an A/V receiver when you want to control the w)lume through the A/V receiver.

VARIABLE AUDIO Provides variableqevel audio output. Volume levels are controlled by the

w)lume controls on the 'IV and remote control.

SUBWOOFER Provides lower bass audio fiequencies fiom the TV to a subwoofer.

Note: If you've connected a subwoofer, make sure you set the External Subwoofer option in the

Sound menu. Go to page 43 for instructions.

COMPONENT INPUTS Lets you connect a component video source, such as a VCR.

CMP1 Y PB PR (Component Video) Provides optimum picture quality because the video is

separated into three signals. Use three video-grade cables for the connection. When using CMP1 Y

PB PR, make sure to connect left and right audio cables to the CMP1 L and R Audio input jacks.

CMP1 L (Audio) Provides left audio connection. The left audio connector is usually white.

CMP1 R (Audio) Provides right audio connection. The right audio connector is usually red.

CMP2 Y PB PR, and L and R Audio Allows you to connect a second component video source.

Their description is the same as CMP1 above. When using CMP2 Y PB PR, make sure you connect

the left and right audio cables to the CMP2 Audio jacks.

COMPOSITE INPUTS Lets you connect another component such as a VCR, DVD player, or laserdisc

player, its AUDIO jacks are the same as described fi)r CMP1 above.

VlD1 S-VIDEO Provides better picture quality dlan the video jacks (VII)I and 2 Video) because

the color pan of the picture is separated fiom the black and white pr!! of the picture. When using

VID1 S-VIDEO, make sure to connect left and right audio cables to the VII)I L/MONO and RAudio

input jacks.

•r r r

VlD1 V(Video) t rox ides composite xideo connection. The xideo connector is usually yellow.

VID2 S.VIDEO, V and L/MONO and R Audio Mlows you to connect a component such as a VCR,

DVI) player, or laserdisc player. Their description is the same as VID1 al×)ve.

Note: For each VID jack group (VID1 and VID2), you may connect either an S-Video or Video cable.

Do not connect both at the same time in either of the VID jack groups.

DIGITAL AUDIO OUTPUT Lets you connect a I)olby Digital receiver to your TV/DVI), if your receiver

has an optical input. Use an optical cable (or SPI)IF cane) to connect your TV/DVD to the receiver fi)r

theatre-quality sound. Go to page 41 for more information on digital audio.

Note: This TVIDVD's OPTICAL DIGITAL OUT jack fully complies with the international standard

governing this type of jack (IEC958), and is designed for connection to a Dolby Digital (AC-3® or

PCM) receiver or Dolby Digital (AC-3 or PCM) decode_ Older equipment, some of which is not fully

compliant with IEC958, may not be compatible with the Dolby Digital bitstream. Such a connection

using anything other than Dolby Digital AC-3 or PCM receiver or decoder could create a high noise

level, causing damage to headphones or speakers.

56 Graphics contained within thi,spublication ar# fi_r representation only. Chapter 8

Otbor |nfor ation

R,0MT

EXTERNALSPEAKERS

DVI-HDTV Input Lets you connect an HDTV 'I\mer with a DVI output.

DVI (Digital VL_ual Interface) Provides an uncompressed, digital vide<) interface developed

for high-bandwidth digital connection, it suppons the overlay of high-resolution graphics

needed by some electronic program guide navigation and other interactive services. DVI,

when combined with HDCP (High bandwidth Digital Content Protection) technology, creates

a protected digital connection. The DVI-HDTV connection is designed to display either

progressive scan (480p) or HDTV (1080i) signals at a bandwidth of up to 1.78 Gigabits per

second.

L(Audio) Provides left audio connection when using the DVI jack. The left audio connector is

usually white.

R(Audio) Provides right audio connection when using the DVI jack. The right audio

connector is usually red.

Note: Remember to connect the left and right audio cables because the DVI cable carries only

the picture signal, not the sound.

EXTERNAL SPEAKERS

Right and Left Speaker Terminals Let you connect external left and right speakers to the 'IV

to receive left and right sound.

EXT/INT (switch) Lets you turn the TV's internal speakers on or off. FXT sends audio to

external speakers only. INT sends audio to the TV's internal speakers only.

Wired IR This iack is for connecting a wired remote control system, which is primarily fbr

profk.'ssional installers, if you're using the remote that was included with your 'IV, don't plug

anything into this jack.

Chaptel" 8 Graphics contained within lhis publication are fi_r representation only. 57

Other |n orma iQn

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Pall 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interfl.'rence in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmflfl interfl.'rence to radio communications. However, there is no guarantee that interfl.'rence will not occur in a particular installation.

if this equipment does cause harmfi.fl interfl.'rence to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different fi-om that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Care and Cleaning

CAUTION: Turn OFF your TV/DVD before cleaning.

You can clean the TV/DVD as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet to help

assure adequate ventilation.

The TV/DVD's screen may be cleaned with a soft, lint-free cloth as well Take care not to scratch or mar the screen. If

necessary, you may use a cloth dampened with warm water. Never use strong cleaning agents, such ms ammonia-based

cleaners, or abrasive powder. These types of cleaners will damage the TV/DVD.

xXrhilecleaning do not spray liquid directly on the screen, or allow liquid to run down the screen and inside the TV/DVD. Mso, never place

drinks or vases with water on top of die W/DVD. This could increase the risk of fire or shock haTard or damage to the W/DVD.

Caution: Using video games or any external accessory with fixed images for extended periods of time can cause them to be permanently

imprinted on the picture lube (or projection 'IV picture tubes). ALSO, some network/program logos, phone numbers, etc. may cause

similar damage. This damage is not covered by your warranty.

Handling Cautions

Before connecting other compon_*nts to this TV/DVD l)e sure to turn all compon_*nts of_

I)on't move the TV/DVI) while a disc is being played. The disc may get scratched or broken and the TV/DVI)'s internal parts may

be damaged.

Don't put any container filled with liquid or any small metal objects on the TV/DVD.

Be careful not to put your hand into the disc tray.

Don't place anything other than the disc in the disc tray.

Exterior influences such as lightning and static electricity can affect normal operation of this player, if this occurs, mrn the TV/DVD

off and on again with the ON-OFF button, or disconnect and then reconnect the AC power cord to the AC power outlet. The 'IV/

DVD will operate normally.

Be sure to remove the disc and turn off the TV/DVD after use.

Formation of Condensation

Due to sharp changc.s in tenlperature and hunlidity condensation nlay f_)l-lqnif warm air comes in contact with any cold parts insick.

the TV/I)VD.

When condensation forms inside the 'IV/DVD, it may not operate correctly, if this occurs, leave the 'IV/DVD at room temperature

until the inside of the disc tray becomes dry and operational.

if condensation ff)rms on a disc, wipe the disc with a soft, dry cloth by moving the cloth from the center hole toward the outer edge.

58 Graphics contained within this publication are fi_r representation only. Chapter 8

Otbor |nfor ation

SCENIUM by RCA HDTV Monitor/DVD Limited Warranty

What your warranty covers:

Defi.'cts in materials or workmanship.

For how long after your purchase:

One year fiom dau, of purchase fi_r labor.

One year from date of purchase fi)r palls.

- Two years from date of purchase fi)r the picture robe.

Tfie warranty period fi)r rental units begins with the first rental or 45 days from date of shipment to the rental firm, whichever comes first.

What we will do:

Pay an Authorizvd Service Center the labor chmges to repair your unit.

Pay an Authorizec! Svlw-icv Center fi)r thv new or at our option, refhrbishvd replacement pa(ts and picture tubv rvquired to repair your unit.

How you get service:

Call 1 g66-SCENIUIVl and have your unit's datv of purchase and modal/serial numbvr ready.

A representative will troubleshoot your problem over the phone.

if the representative determines that you should receive service, they will provide you with the name(s) of the Authorizec! Service

Center in your area.

Contact the Service Center and arrange for home or pick up, repair, and return service, provided that your unit is located within the

geographic territo W covered by an Authorized Service Center. if not, you must take your unit to the Service Center location at your

own expense, or pay for the cost the Service Center may charge to transport your unit to and fiom your home.

Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the warranty period

must be presented to obtain warranty service. For rental firms, proof of first rental is also required.

What your warranty does not cover:

Customer instruction. (Your Owner's Manual describes how to install acljust and opvratv your unit. Any additional infimnation should

be obtained from your dealer.)

installation and related adjustments.

Damage resulting from non-approved installation methods.

Signal reception problems not caused by your unit.

Damage from misuse or neglect.

Ba!leries.

images burnt onto the screen.

A television that has been moclified or incorporated into other products, or is used for institutional or other commercial purposes.

A unit purchased or selw-icecl outside the U.S.A.

Acts of nature, such as but not limitec! to lightning damage.

Product Registration:

Pleasv complete and mail the Product Registration Card packed with yore unit. it will makv it vasivr to contact you should it ever be

necessm T. Tfie return of the card is not required fi)r warranty coverage.

Limitation of Warranty:

THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO "I_IIS PRODUCT. ALL OTHER WARRANTIES,

EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR APARTICULAR

PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION GIVEN BY I_IOMSON INC., ITS AGENTS OR

EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.

REPAIR OR REPLACEMENT AS PROVIDED UNDER "I_IIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER.

THOMSON INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM "I_IE USE OF

THIS PRODUCT OR ARISING our OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON "I_IIS PRODUCT. THIS

DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF "I_IE STATE OF INDIANA. EXCEPT

TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE ON "I_IIS PRODUCT IS LIMITED TO "I_IE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

How State Law relates to warranty:

Some states do not allow the exclusion nor limitation of incick*ntal or consequvntial damagvs, or limitations on how long an implied

warranty lasts, so thv above limitations or _.xc'lusions may not apply to you.

Tfiis warranty gives you specific legal rights, and you also may have other rights that vary fiom state to state.

If you purchased your unit outside the United States:

Tfiis warranty does not apply. Contact your dealer fi)r warranty infi)rmation.

Service calls which do not involve defective materials or workmanship are not covered by this warranty. Costs of such service

calls are the sole responsibility of the purchaser.

Chapter 8Graphics contained within lhis publication are fi)r representation only. 59

Oth r |n ormat:iQn

Accessory Information

There are various accessories available to complement your HDTV Monitor. Prices are subject to change without notice. All accessories

are subject to availability.

A shipping and handling fk'e will be charged upon ordering, and we are required by law to collect the appropriate sales tax fbr each

individual state, county and locality to which the merchandise is being sent.

HOW TO ORDER

'lk_ place an oMcr by phone, have yon Visa MasterCaM or Discover CaM ready and call the toll-flee number listed below. Us<.'this

number only to place an order for accesso W items.

1-800-338-0376

You can buy some accessories onqine at:

www.rca.com.

VH81 (3-if), price: $3.95

VH82 (6-if), price: $4.95

Screw-on Cable attaches to the round

antenna connectors (called 75-ohm F-type)

on the back of your VCR or 'IV. The ends

screw onto the connectors for a secure

connection.

Push-on antenna cable attaches to the

round antenna connectors (called 75-ohm

F-type). The ends push on for a quick

connection

VH89 (64L), price: $5.95

w w 9 • _

SCSFV4000C,

price: $49.95

Surge Protector provides eight outlets,

coaxial and telephone line protection.

Audible alarm fbr surge failure. $100,000

Surge Equipment Guarantee.

Component Video Cables Triple cable

used to connect a video source with Y, PR

PB jacks to the 'IV.

VH976 (6-ft.),

price: $7.95

VH913 (12-fl.),

price: $14.95

VH47, price: $3.95

S-Video Cable has multi-pin

connectors on each end for

connecting S-Video components

to your 'IV.

2-way Signal Splitter helps you

connect to a second 'IV or VCR.

Amplified VHF/UHF/FM

Antenna allows you to easily

switch from the antenna signal to

cable or satellite easily without

disconnecting antenna.

ANT200, price: $49.95

Remote Control This is the

remoW control that came packed

with your TV. Replacements or

spares can be ordered as needed.

261668, price: $2825

Gold-Tipped cable

I)T6DC (6-if), price: $24.95

DT12DC (12-fl), price: $34.95

Standard Audio/Video cable

with RCA-type phono plugs.

VH83 (6-ft., mono), price: $5.95

VH84 (6-ft., stereo), price: $9.95

60 Graphics contained within thi,spublication ar_ fi2r *_pr_sentation only. Chapter 8

index

A

A'B Repeat 27, 51

Accessories 60

Ageq)ased ratings 32

Amplifier 43

Angle camera 27

Arrow buttons 16, 36

Audio/Video

cables 5, 60

jacks 56, 57

Audio CD

creating a program 37

playing 49

Audio language 26

Autoformat 45, 55

Automatic code search 19

AutoPlay menu 38

Autotuning 28, 29, 48

Auto channel search/update 47

Auto convergence 48

Auto on 47

Auto skin tone 45

AUX/HD button 16, 29

B

Balance 43

Baneries 14

Black level 45

Buttons

front panel 13

remote control 16

C

Cables

audio/video 5, 60

coaxial 5, 60

component video 5, 60

S-Video 5, 60

Camera angle 27

Canadian V-Chip ratings 33, 34

Care and cleaning 58

Channel

banner 28

labels 15

number 28

search 15

setup 47

Channel Guide menu 46

CLF_a.Rbunon 16

Closed captions 28, 48

CMP1/CMP2 inputs 29

Coaxial cane 5, 60

Color warmth 45

Commercial skip 17, 28

Component buttons 17, 19,

28, 48

Component video cables 5

Content themes 32, 33

Contrast 45

Contrast expand 44

Convergence 48

Cmlain effect 47

D

Digital output 41

Disc menu 25

Display menu 41

DVD

button 16

programming 37

unrated titles 40

DVI input 29

E

Edit Program menu 37

Exempt programs 35

F_XT/INT switch 57

External speakers 57

F

Film mode 45

Fixed output 12

Freeze 16, 55

FRNT input 29

Front panel

block 35

buttons 13

inputs 13

H

Headphones 44

I

info display 25, 49

inputs

button 17, 22

CMP1 and CMP2 29

DVI 29

FRNT 29

VID1 and VID2 29

interactive setup 14

INT Switch 57

invalid icon 25

J

Jacks 56

ANTENNA/CABLE 29

AUDIO IUL 56, 57

component video 29, 56, 57

DVI 29

flont 29

S-VIDEO 29, 56

video 29, 56

I.

Language 14, 42, 47

Learning feature

adding a f_.mction 20

clearing a f_.mction 21

deleting all functions 21

Lists and labels 15, 47

Lock menu 39

M

Maximum 'IV w)lume 47

Menu

button 17

channel guide 46

display 41

language 42, 47

lock 39

parental control 46

picture 44, 45

PIP 46

play mode 37

setup 47, 48

sound 41, 44

time 46

Mute 17, 28

O

On-screen info display 25, 49

ON,OFF button 17

Optimized still picture 45

P

Parental control 28, 30

lock/unlock 35

menu 46

problems 55

Password 39, 55

Picture menu 44

Picture presets 45

PIP (Pictureqn-picture) 36

button 17, 36

channel 46

menu 46

Playback features

audio language 26

camera angle 27

repeat 27, 51

Play Mode menu

program play 37

random play 37

standard play 37

POP (Pictu re-ou tside-picture)

17, 36, 46

Preferences 47

Program

creating audio CD 37

DVD disc 37

editing 38

R

Rating limits 39

problems 55

Remote control

backlight 17

batteries 55

buttons 17

codes 22, 23

learning fl.'ature 20

proNems 55

programming 18

replacement 60

use 19

Repeat 27, 51

Reverse 3:2 pulldown 45

S

S-Video

cable 5, 60

jack 29, 56

SAT/CAB button 17, 29

Scan velocity modulation 44

Screen fbnnat 28, 45, 55

Second audio program (SAP)

28, 43

Setup menu 47, 48

Sharpness 45

Signal type 47

SKIP button 17, 28

Sleep timer 17, 46

Sound

menu 44

mode 43

settings 43

type 43

Sound logic 44

Sound menu 41

Stereo 28, 43, 55

Subwoofer 43

SWAP button 17, 36

T

Time 28, 46

Tint 45

Title 25

Troubleshooting 53, 55

'IV button 17

'IV image menu 41

'IV problems 54

U

Unrated programs 35

US V-Chip ratings 30, 31, 35

V

V-Chip 30, 31

Canadian ratings 34

movie rating limit 35

problems 55

US ratings 35

Variable output 12, 56

VCR

Button 17, 29

Video input jacks

VID1/VID2 29

Video noise reduction 45

Volume punchthrough 21

W

Wake up timer 46

Z

ZOOM button 17, 36

Chapter 8 61

Visit the RCA Scenium website at www.rcascenium.com

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only

add delays in service for your product.

Thomson Inc.

10330 North Meridian Street

Indianapolis, IN 46290

02003 Thomson Inc.

Trademark(s)® Registered

Marca(s) Registrada(s)

Printed in USA

TOCOM 16266190

O

THOMSON

THOMBON
