RCI ISLE E_R0711_ISLEK6 6 Series/7 Series Lip Bracket Extension Installation Instructions E R0711
User Manual: RCI 6 Series/7 Series Lip Bracket Extension Installation Instructions Installation Instructions
Open the PDF directly: View PDF
.
Page Count: 2
INSTALLATION
6 Series Electric Strike Lip Bracket Extensions
In or Out... we make it Easy!®
INSTRUCTIONS

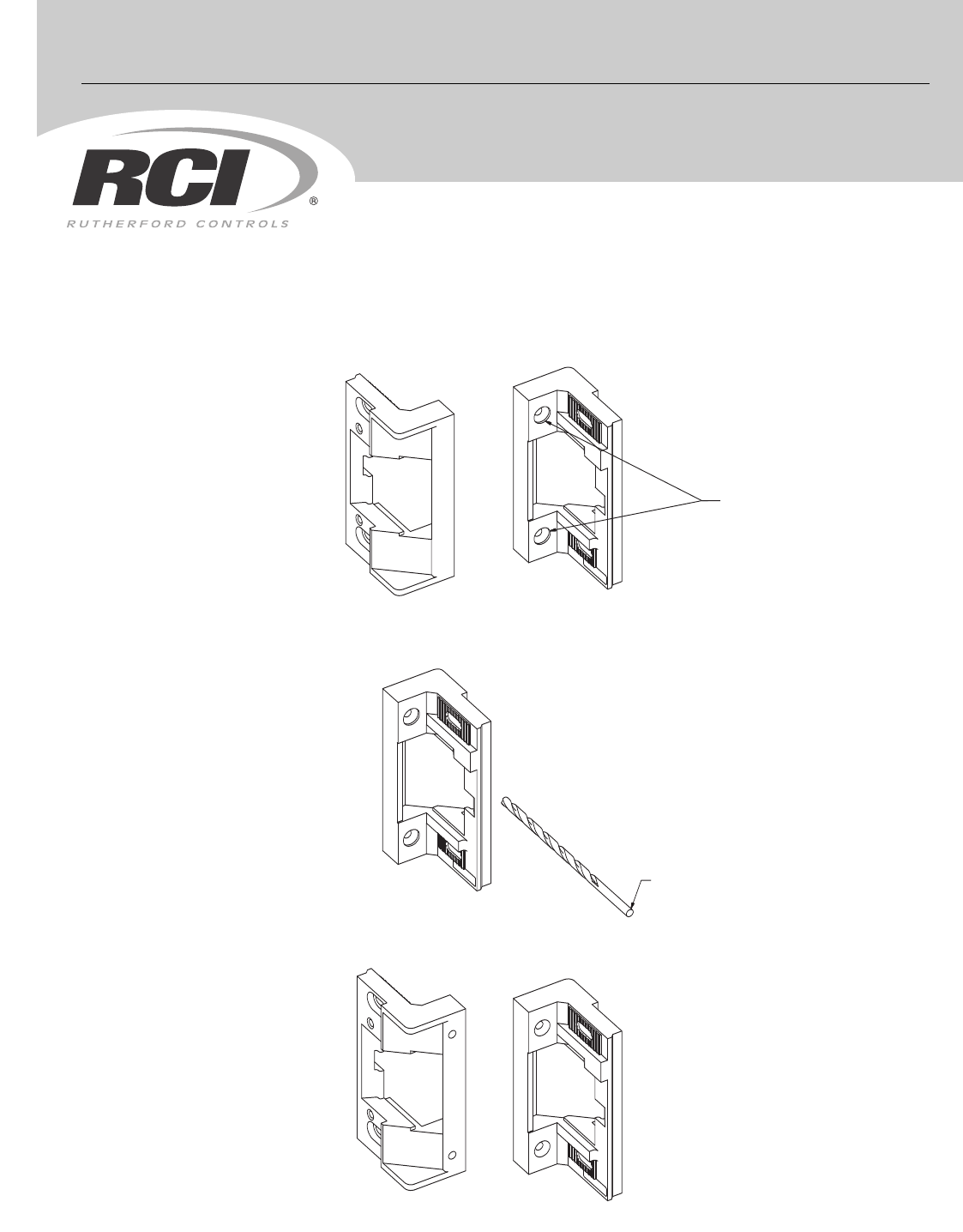

Drilling Instructions
BLI ND HOLES
9/64 DRI LL
Follow Electric Strike Lip Bracket
Extension installation instructions
on the reverse side for following
steps.
Using 9/64" Drill,
make two thru holes
using blind holes.
ISLE-E PCN110045
R07/11SH
©2011 RUTHERFORD CONTROLS INT’L CORP. • WWW.RUTHERFORDCONTROLS.COM
USA: 2517 SQUADRON COURT, SUITE 104, VIRGINIA BEACH, VA 23453 • CANADA: 210 SHEARSON CRESCENT, CAMBRIDGE, ON N1T 1J6
PHONE: 1.800.265.6630 519.621.7651 • FAX: 1-800482-9795 519.621.7939 • E-MAIL: SALES@RUTHERFORDCONTROLS.COM
INSTRUCTIONS
For Center-Hung Doors or Deep-Reveal Frames
NOTE: Not to scale. Specifications are subject to change without notice.

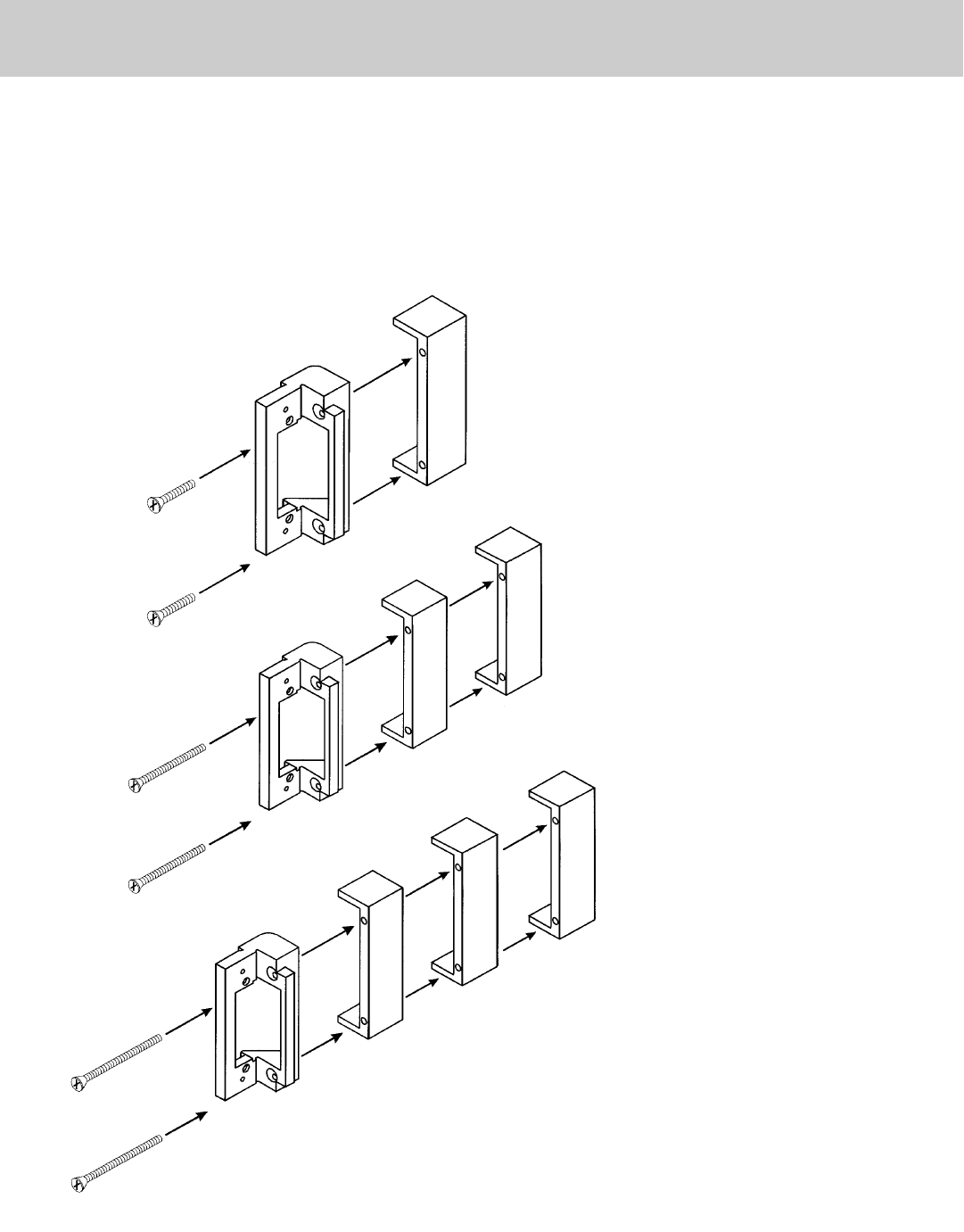

A generic lip bracket extension diagram shown as example only.
1˝ Extension
#6-32 x 1˝ Screws
2˝ Extension
#6-32 x 2˝ Screws
3˝ Extension
#6-32 x 3˝ Screws
©2011 RUTHERFORD CONTROLS INT’L CORP. • WWW.RUTHERFORDCONTROLS.COM
USA: 2517 SQUADRON COURT, SUITE 104, VIRGINIA BEACH, VA 23453 • CANADA: 210 SHEARSON CRESCENT, CAMBRIDGE, ON N1T 1J6
PHONE: 1.800.265.6630 519.621.7651 • FAX: 1-800482-9795 519.621.7939 • E-MAIL: SALES@RUTHERFORDCONTROLS.COM
6 Series Lip Bracket Extensions Installation Instructions (Continued)
