Drilling

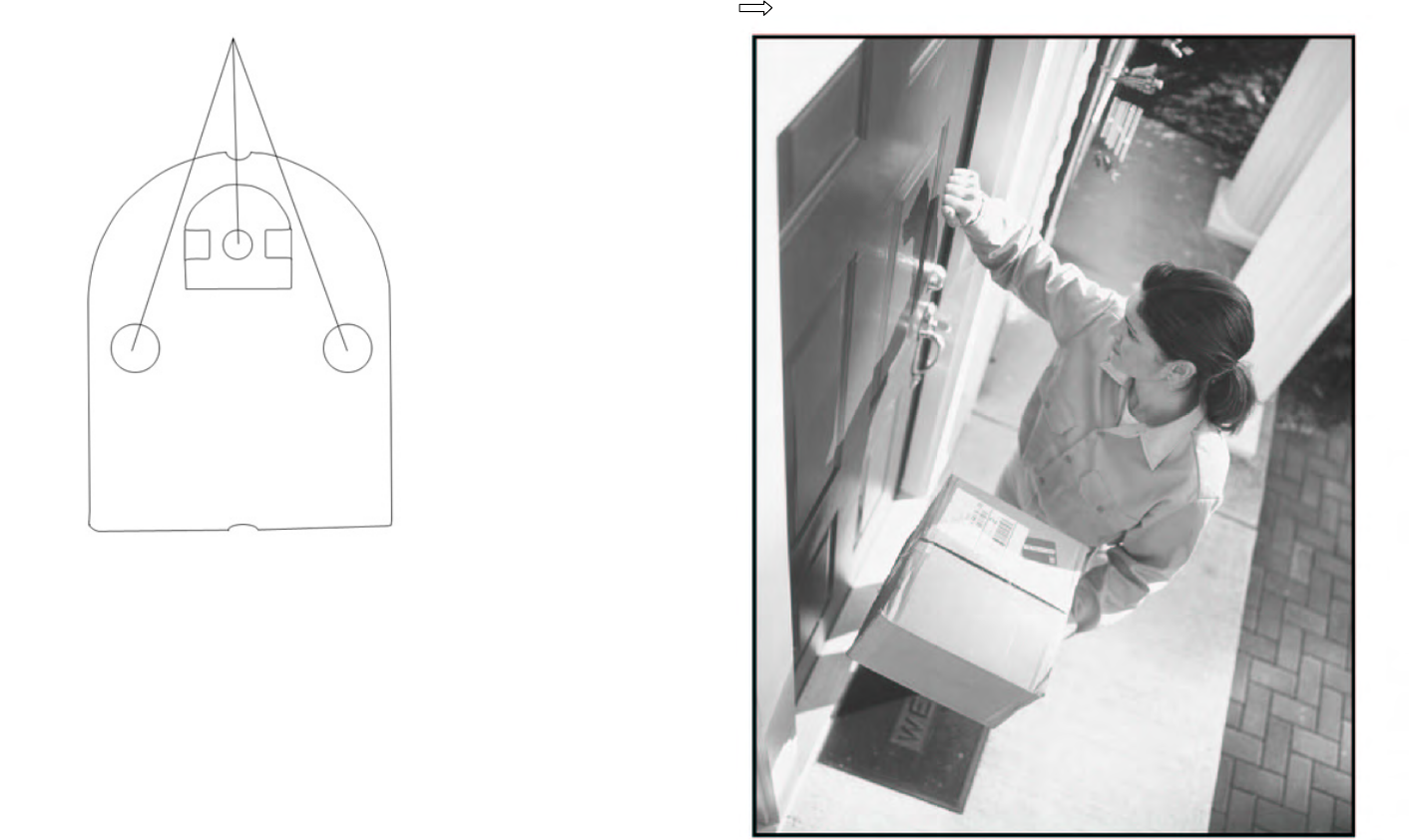

Template for Wall Mounting Camera(s)///
For wall
-mounting Camera (s), drill three holes using a 1/4” drill bit and the
template
below. Insert supplied wall anchors into holes and secure Camera to
wall with supplied
screws.
INDOOR/OUTDOOR
900MHz
WIRELESS CAMERA SYSTEM
US
INCLUDES: VIDEO/AUDIO CAMERA TRANSMITTER & MONITOR/RECEIVER
CR3020 USER’S GUIDE
Congratulations
on
your
purchase
of
the
900MHz
Wireless
Color
Camera
system
.
The
system
consists
of
a
wireless
A/V
receiver
and
a
wireless
Camera,
an
ideal
product
for
application
of
covert
monitoring,
such
as
the
porch,
watching
the
yard,
pool,
pets
or
the
baby.
It
is
also
suited
to
small
business
surveillance
application.
.
FEATURES
•
900MHz
wireless
technology
•
Color
camera
with
night
vision
•
Both
audio
and
video
output
•
Supports
up
to
2
cameras
•
Manual
or
auto
switching
between
cameras
•
Adjustable
cycle
time
between
different
channels
•
AC
power
adaptor
or
battery
operation
•
Weatherproof
construction(
IP54
standard)
for
outdoor
use
•
WiFi
interference
free
SYSTEM

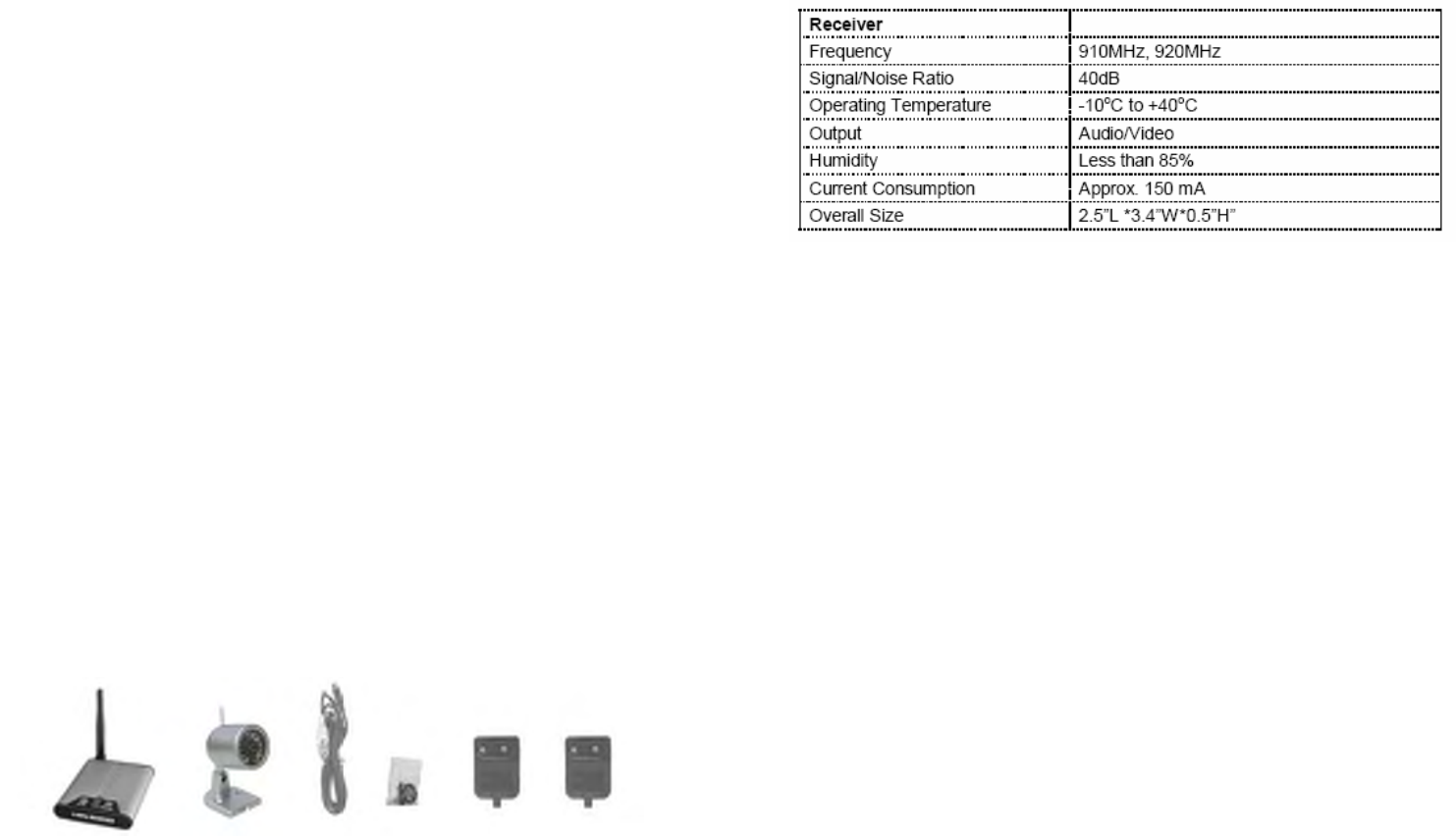

CONTENTS
•
Wireless
A/V
receiver
x1
•
Wireless
Camera
with
night
vision
x1
•Power
adaptor
x2
•Adaptor
cable
x1
•Hardware
kit
x1
•Manual
x1
THINGS
TO
CONSIDER
BEFORE
INSTALLATION
For
best
performance,
follow
these
simple
guidelines:
•
Camera(s)
should
be
installed
between
8
and
13
feet
above
the
area
to
be
APPROVALS///
This
device
complies
with
part
15
of
the
FCC
rules.
Operation
is
subject
to
the
following
two
conditions:
(1)
this
device
may
not
cause
harmful
interference,
and (2)
this
device
must
accept
any
interference
received,
including
interference that
may
cause
undesired
operation.
FCC NOTE:
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user's authority to operate the equipment.
WARRANTY///
This
product
has
a
one
year
manufacturer’s
warranty
which
covers
parts
and
labor
only.
In
the
Unlikely
event
that
you
encounter
a
problem,
the
unit
should
be
returned
to
the
place
of
purchase.
1
6
5
Interference on
camera picture
1. Make sure each camera (transmitter) is within
range, and that no large obstructions are blocking the
signal.
2. Try repositioning the camera, receiver or both to
improve the reception quality.
3. If a camera is positioned close to the receiver, point
antenna away from the receiver.
Audio problems
1. Ensure the volume is turned up sufficiently on the
TV.
2. Make sure the sound is within the microphone
range.
3. If the unit emits a loud wailing sound (feeds back),
try moving the camera away from the receiver or
angle the receiver differently.
SPECIFICATIONS
Camera
TV System
PAL or NTSC
Resolution
360 horizontal TV Lines
Signal/Noise Ratio
48dB
High
-Speed Electronic Shutter 1/60 - 1/15,000 sec
Image Sensor
1/3” CMOS
Min. Illumination
0.1 lux
Current Consumption
150mA
Overall Size
2.36"L×1.69" Diameter
Frequency
910MHz, 920MHz
Modulation
FM
Video Signal/Noise Ratio
48dB
Audio Signal/Noise Ratio
45dB
Case Finish
Metal Aluminum case, suited for indoor or
outdoor use
2
monitored
• The Camera should
be aimed accordingly to optimize viewing area
• For best transmission, avoid installations where there are thick walls or major
obstructions between the Camera and Receiver
INSTALLING THE CAMERA (TRANSMITTER)
1. Unpack the Camera.
2
. Decide whether the Camera will be wall-mounted or sit on a desk/table top. If
wall mounting, use
the hardware kit in the package. The Camera can be
adjusted for either mounting
scenario by rotating the Camera to the required
position.
DESK TOP WALL MOUNTING
3
. If using the 9V camera power adapter, just connect power jack. Make sure
the Camera is
positioned no more than 5 1/2 feet from an AC power outlet.
4. Each
camera’s channel number can be set by user, screw the lens part of
came
ra to open the lens cover, and then could set the camera’s channel
number. After finish setting the channel, screw the lens cover on.
5.
The Camera (Transmitter) installation is now complete.
Night
Vision///
The Camera includes IR LEDs, which allows viewi
ng up to 12 feet in the dark
when
used with the adapter. It can automatically turn to night vision in low light.
SETTING UP THE RECEIVER
3
1. Connect one end of the
cable to the back of the receiver, the another end
(RCA cord) to your television's A/V inputs, the yellow plug to the VIDEO IN
jack and the white plug to the AUDIO IN jack.
2. Plug the receiver power adapter into the
9V DC power jack on the back of
the receiver and plug the power adapter into any 120 V/240 V power outlet.
3
. Place the receiver either on top or near to your TV. Rotate the antenna to a
vertical position.
OPTIMIZING THE WIRELESS CAMERA SYSTEM
The
900MHz video signals pass easily through your home’s interior walls, but
the signal may be reflected
by power wires or plumbing inside the wall. Usually
a slight adjustment of the Receiver and/or Camera
antenna will improve
reception. Take care not to force the antennas past their lock positions.
MULTI
-CAMERA OPERATION
Our w
ireless 900MHz Camera system is designed to work with up to 2
Camer
as. Additional Cameras are sold separately.
IMPORTANT: When using more than one Camera,
please check channel
number on package,
make sure it is exclusive to each camera. Accordingly
the
dip switch located on the back of the Receiver should be adjusted to reflect
the channels in use.
OPERATING THE SYSTEM
Set your TV to monitor the VIDEO INPUT designated for the Receiver.
The receiver can
support up to two different camera/transmitter signals. You
can switch from one camera
to the next either manually or automatically via
button on
the top panel of the receiver.
MANUAL
MODE
To select one of the
two channels manually, press the MANUAL button on the
panel of the receiver.
T
he receiver will switch to a different channel (CAM1, CAM2) each time when
the MANUAL
button is pressed. To avoid searching channels that do not have
4
cameras/transmitters
assigned to them, set the DIP switches (located on the
rear
panel of the receiver) for those corresponding channels to the OFF
position
(up). When you have selected a channel with an active camera, that
video will
appear on your TV screen.
AUTO
MODE
To have the receiver automatically rotate
through the channels, press the
AUTO button on the
top panel of the receiver. The receiver will continuously
scan through all chan
nels which are ON. To avoid searching channels that do
not have cameras/transmitters assigned to them, set the
DIP switches for those
corresponding channels
to the OFF position. The monitor will display the
from one camera to the next. The dwell time (time taken to switch
between cameras) is preset to 4 seconds and can be adjusted
between 2-30
seconds. To adjust the dwell time, press both the AUTO and MANUAL button
simultaneously.
Each flash of the LED increases the dwell time by one second.
TROUBLE SHOOTING
If you are having trouble operating this product, please consult the guide
below:
SYMPTOM REMEDIES
No camera picture
1. Check all connectors. Make sure camera(s) and
receiver are switched ON.
2. Ensure camera(s) and receiver are set to correct
channel(s).
3. Make sure camera is within range of receiver.
Blank monitor
1. Make sure receiver is switched ON.
2. If using AC adapter, make sure it is plugged in.
