RDI Technology CA610 WIRELESS DIGITAL CAMERA User Manual SJ8CA610 UserManual
RDI Technology (Shenzhen) Co., Ltd. WIRELESS DIGITAL CAMERA SJ8CA610 UserManual
USERS MANUAL
Connect the camera
CMD6129 Quick Start
Connect the camera to a power outlet with supplied power adapter for the camera, the power supply jack
is in the rear of the camera base. Then set the slide switch in the left side to ‘on’ position, the camera is
now switched on, and meanwhile the light below the dip switch is also on.
Sound Input: Below the camera lens there is a built-in microphone to input the sound which can be
outputted in the monitor (Figure 1).
Night Light: In the top of the camera is a night light button, users can press it to switch on the light for
the use in dark (Figure 1).

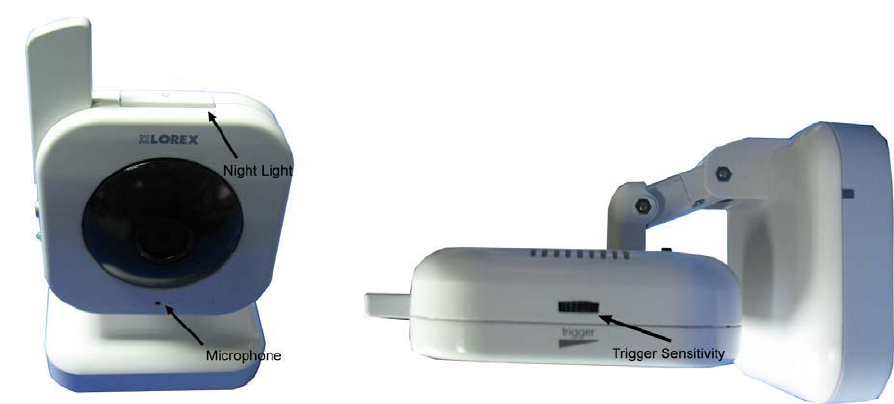

Figure 1 Figure 2
Sound Trigger: This digital transmission kit has a unique sound trigger feature. Monitor beeps to alert
users when sound is above preset sound level. Users can adjust the sound trigger sensitivity by turning
the ‘trigger’ knob located in the right side of the camera (Figure 2).
Connect the monitor
Connect the monitor to a power outlet with supplied power adapter for the monitor. There are two options.
For desktop stand use, put the monitor into the monitor base, and then plug the power adapter to the
jack in the rear of the monitor base. Accordingly, the light in the front of the monitor base will be on. For
hand-held use, just plug the power adapter to the ‘DC 9V’ jack in the left side of the monitor, and the light
above the jack will be on. Then press the ‘power’ button in left side of the monitor the switch on the
monitor.
A/V Out: For Audio/Video output, plug the stereo end of the A/V cable to one of the ‘AV OUT’ jacks.
There are two Audio/Video output jacks, one is in the left side of the monitor, the other one is in the rear
of the monitor base, just beside the power jack.
Notes: When using the jack in the rear of the monitor base, image will be automatically displayed in the
external display device which is connected to the monitor base when the monitor is put onto the base.
Night Light: Press the night light button in the right side of the monitor to switch on/off the night light in
the camera, the function of this button is the same as the one in the top of the camera.
Alarm: For sound trigger feature, monitor beeps when sound is above preset sound level. The alarm
I
volume can be adjusted by turning the ‘Alarm’ knob in the right side of the monitor.
Volume: Press the ‘V+’ and ‘V-’ to adjust the volume. And these two buttons will be the up and down
navigation buttons after entering the menu interface.

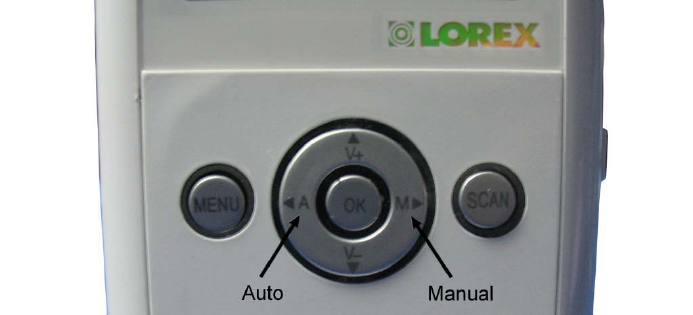

Manual/Auto: For more than one camera use, press button ‘M’ to view the images from one camera to
another
manually, and press button ‘A’ to view the images from one camera to
another camera automatically. These two buttons will be the left and right navigation
buttons after entering the menu interface.
Scan: Pressing the ‘Scan’ button places the system in Scan mode. The
monitor screen blanks into standby mode while the system continuously scans
active cameras. If sound is detected above the pre-set sound trigger level, the monitor
beeps and displays the camera picture. Several minutes after the last detection, the screen
returns to scan mode and the palm monitor resumes scanning. Pressing the Manual or
Auto button will cancel this mode.
Set up the monitor
Press ‘Menu’ button in the front panel of the monitor to enter the main menu interface, then use the four
navigation buttons and ‘OK’ button to select and confirm each setting.
Pairing: The monitor can receive the signal from the camera only when it is paired to the camera. The
standard kit has been already pre-paired before ex-factory, and the camera is defaulted as Cam1. For
multi-camera use, select ‘Pairing’ and then choose one channel. The monitor can support 4 cameras in
total. Press the ‘Pair’ button deep in the bottom of the monitor, the screen with display a sentence to
indicate users to press the ‘Pair’ button located in the back of the camera body in 10 seconds. After 10
seconds with no pressing the ‘Pair’ button in the camera, the operation will be automatically cancelled.
When the button is pressed, the camera will be successfully paired to the monitor.
II
EV: This menu is to adjust the exposal value. There are 6 grades from the lowest to highest exposal
value.
Power Saving: This is for the adjustment of automatic power saving time when there is no operation in
the monitor. Users can choose 1 minute, 2, 5 or 10 minutes. Press ‘Cancel’ to cancel the operation.
Setting: This is for the settings of the monitor.
·A/V Out \ Resolution: There are two options for the A/V output resolution of the monitor: Low and High.
In Low Resolution, the image plays better but the picture is not clear enough, while in High Resolution,
the picture in much clearer but the image is not fluent enough.
·Default: Select this menu to restore the monitor to ex-factory settings.
NSTRUCTIONS TO THE USER:
The user is cautioned that changes and modifications made to the equipment without the approval of
manufacturer could void the user’s authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interferences will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
III
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
CE directive 93/68/EEC, EMC directive 89/336/EEC, LV directive 73/23/EEC
This class B digital apparatus complies with Canadian ICES-003
The term “IC:” before the certification/registration number only signifies that the Industry Canada
technical specifications were met.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC NOTE：
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD
VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
This device complies with RSS 210 of Industry Canada. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
