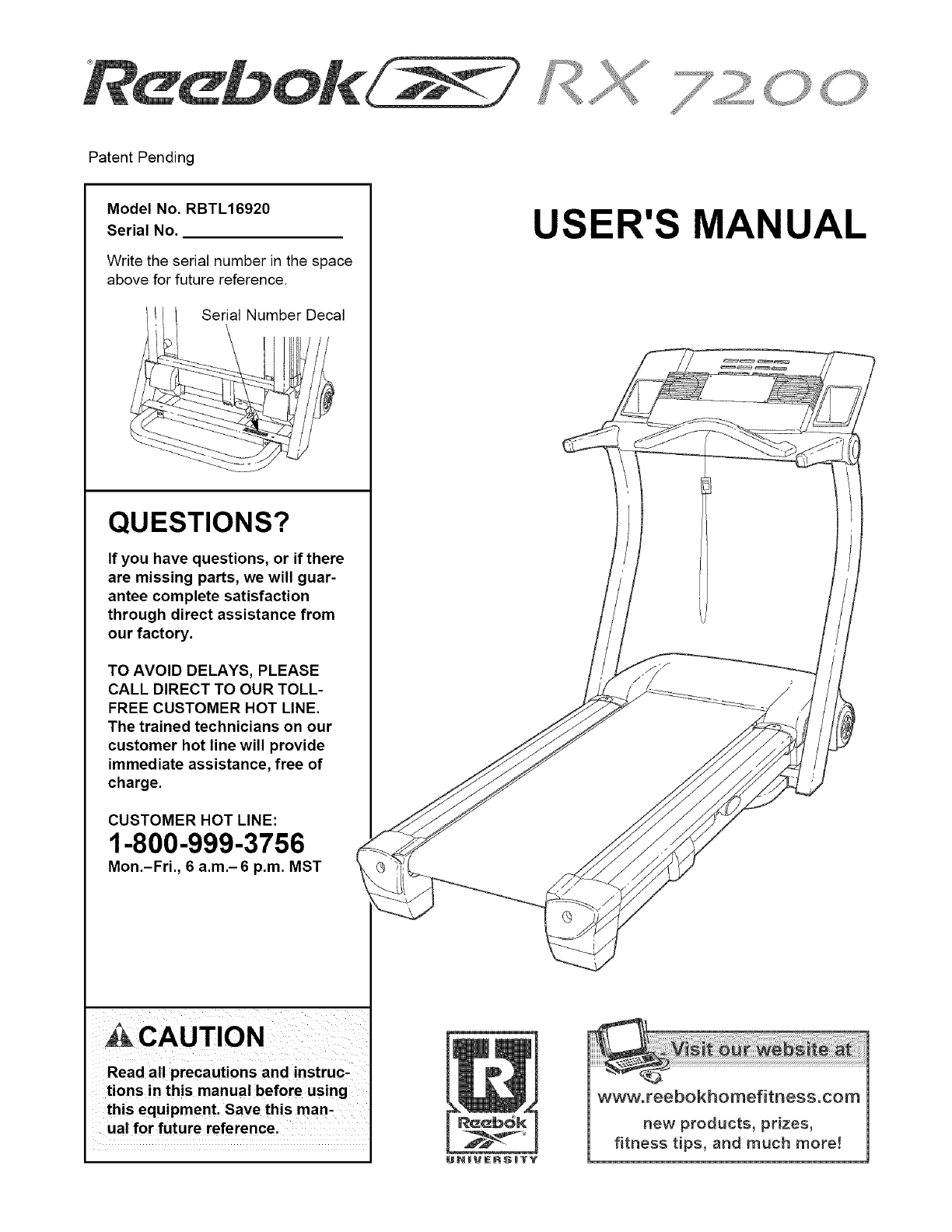

REEBOK Treadmill Manual L0503445

User Manual: REEBOK REEBOK Treadmill Manual REEBOK Treadmill Owner's Manual, REEBOK Treadmill installation guides

Open the PDF directly: View PDF .
Page Count: 34

PatentPending

Model No. RBTL16920

Serial No.

Write the serial number in the space

above for future reference.

Serial Number Decal

QUESTIONS?

If you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.-Fri., 6 a.m.-6 p.m. MST

USER'S MANUAL

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this man-

ual for future reference.

www.reebokhomefitness.com

new products, prizes,

fitness tips, and much more!

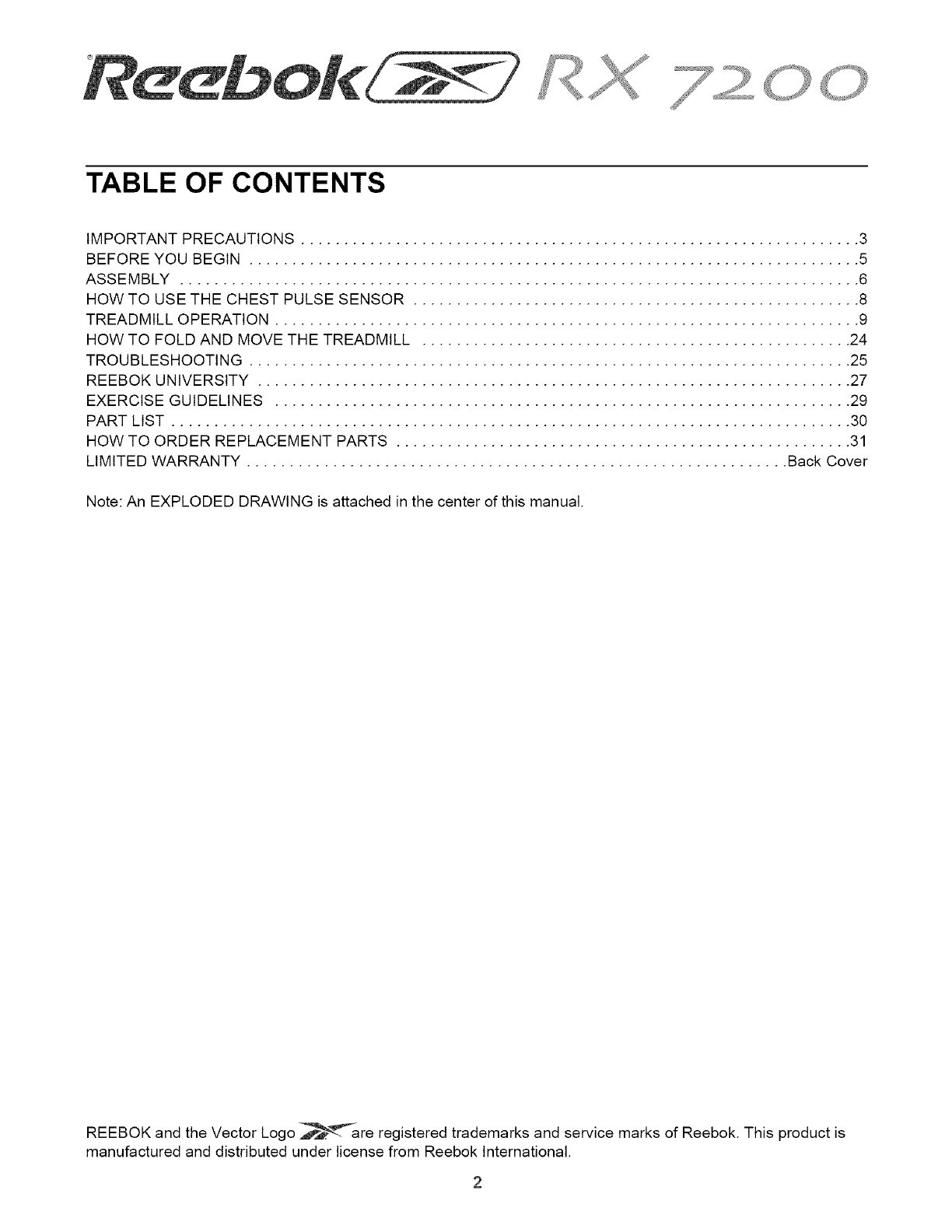

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................. 3

BEFORE YOU BEGIN ....................................................................... 5

ASSEMBLY ............................................................................... 6

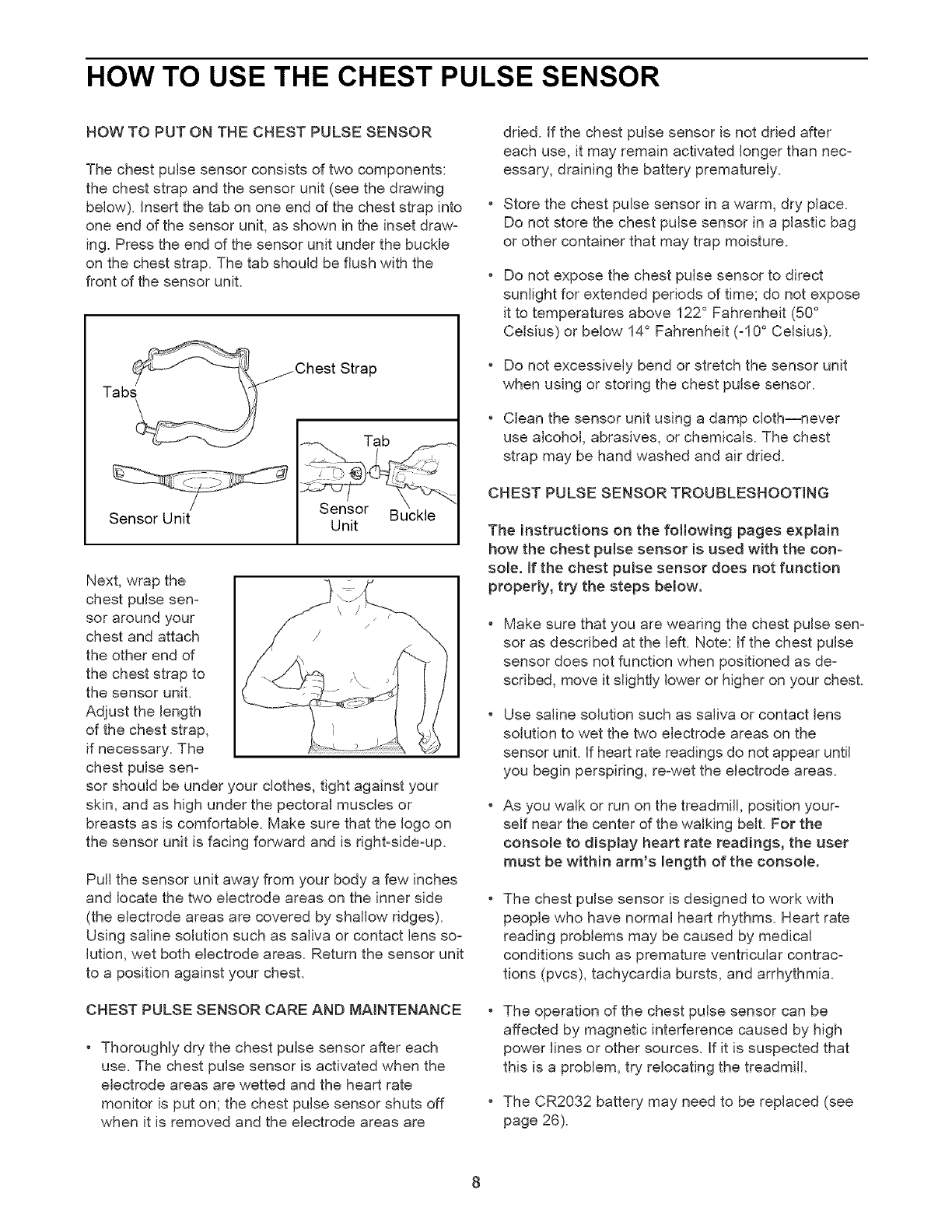

HOW TO USE THE CHEST PULSE SENSOR .................................................... 8

TREADMILL OPERATION .................................................................... 9

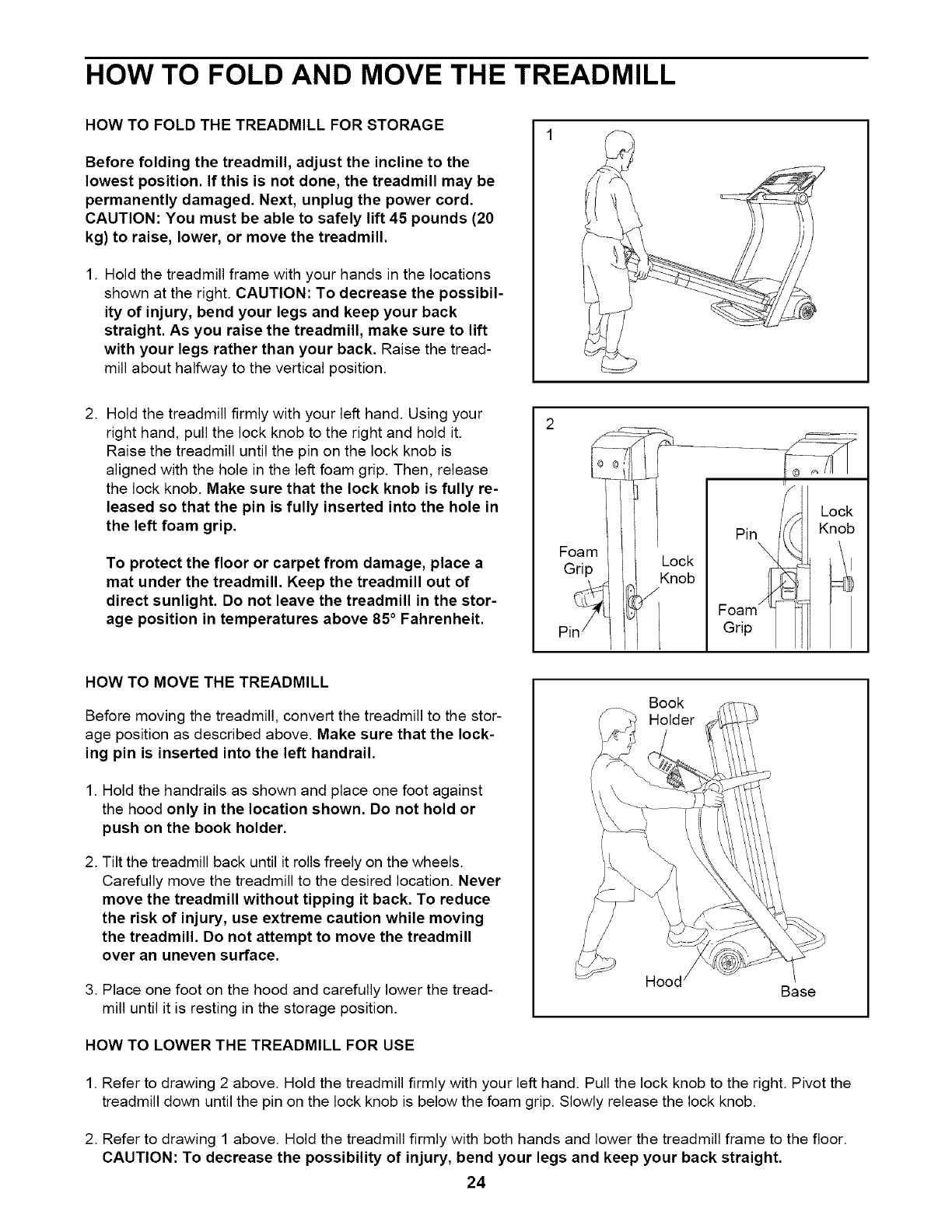

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 24

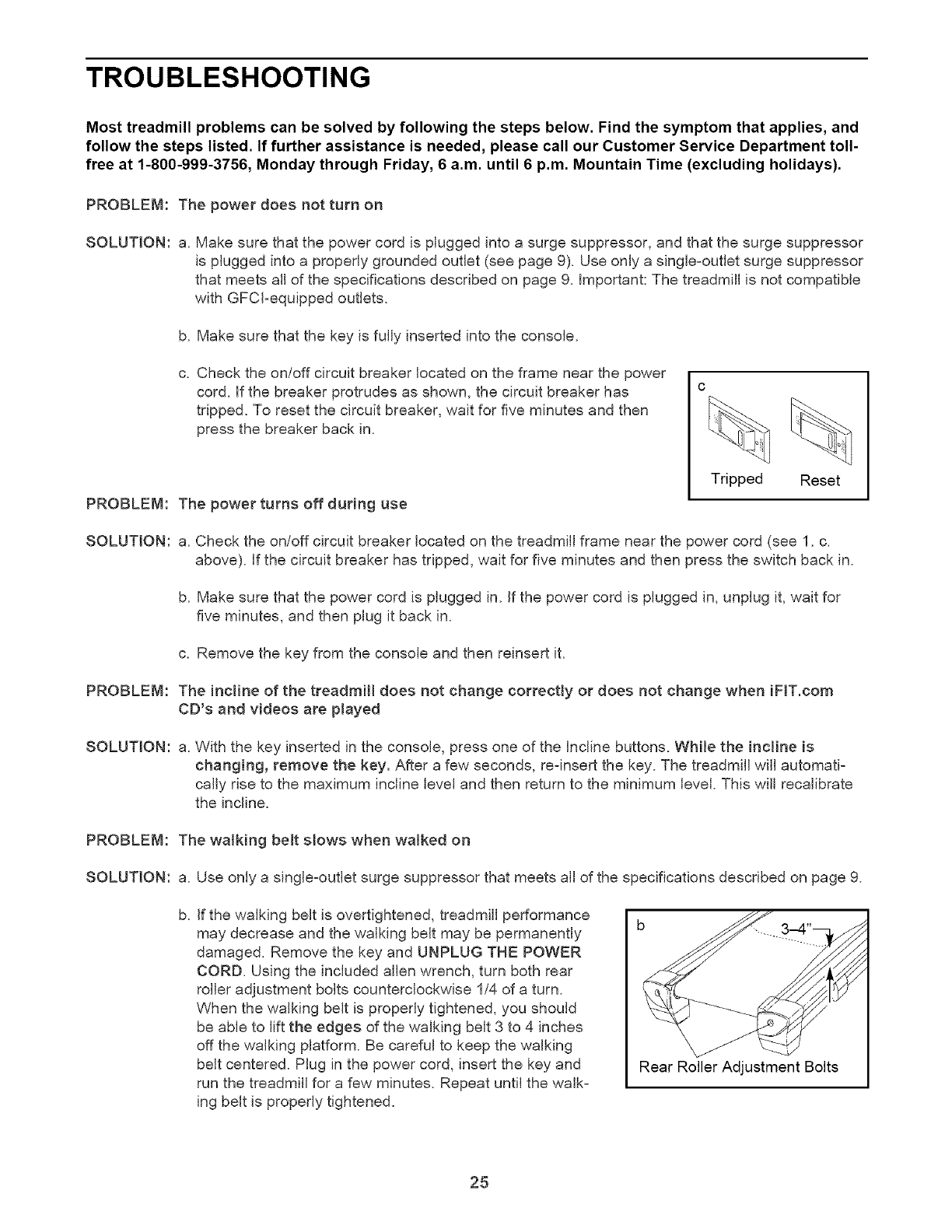

TROUBLESHOOTING ...................................................................... 25

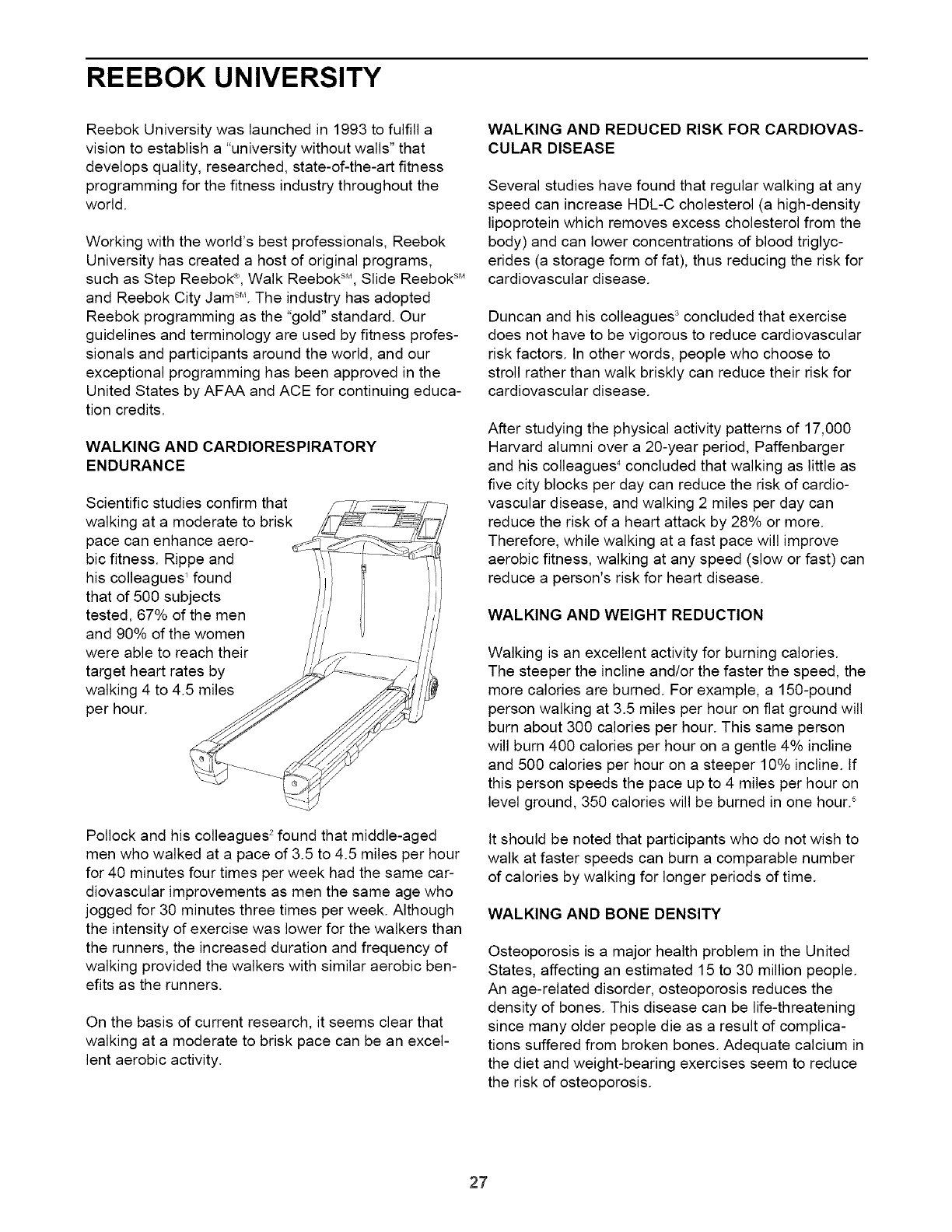

REEBOK UNIVERSITY ..................................................................... 27

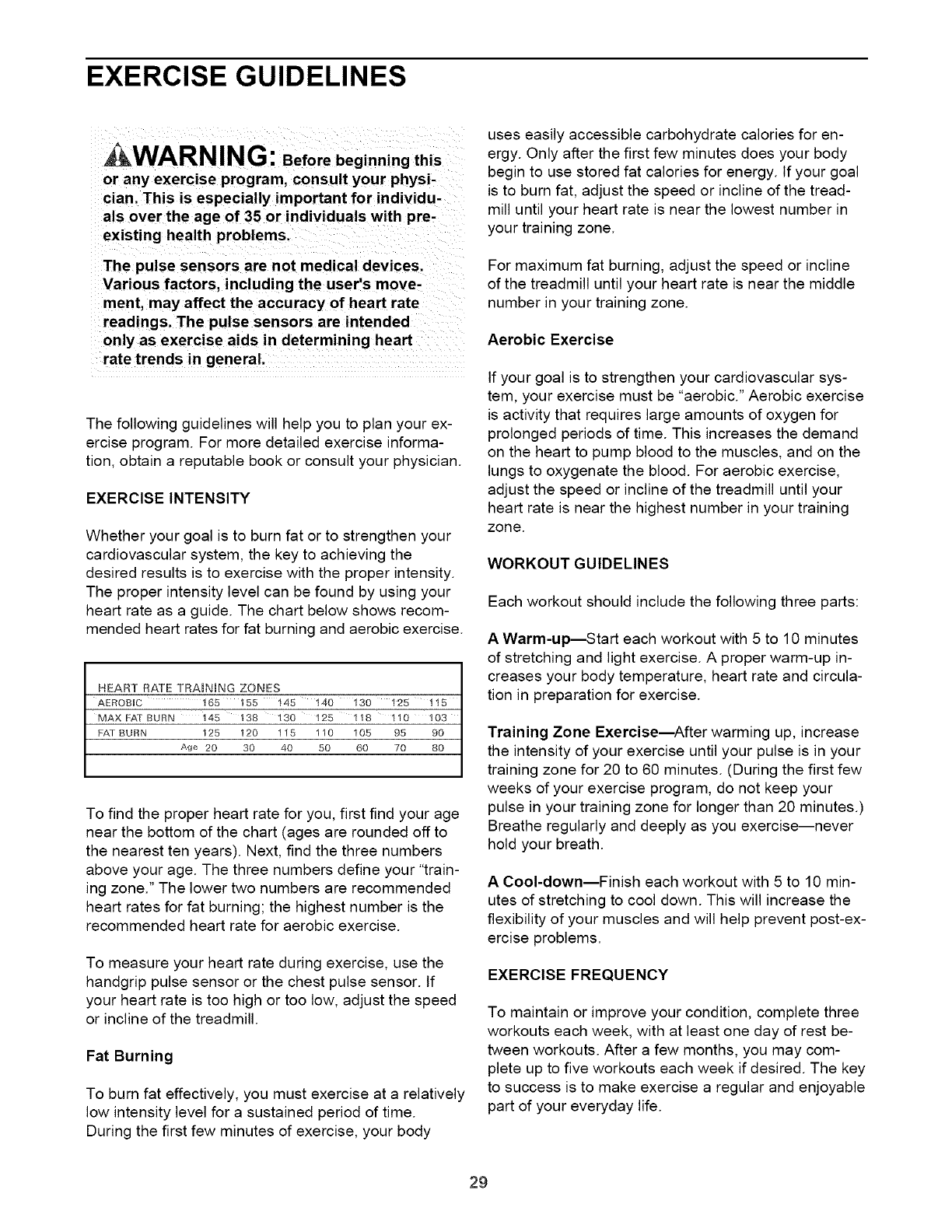

EXERCISE GUIDELINES ................................................................... 29

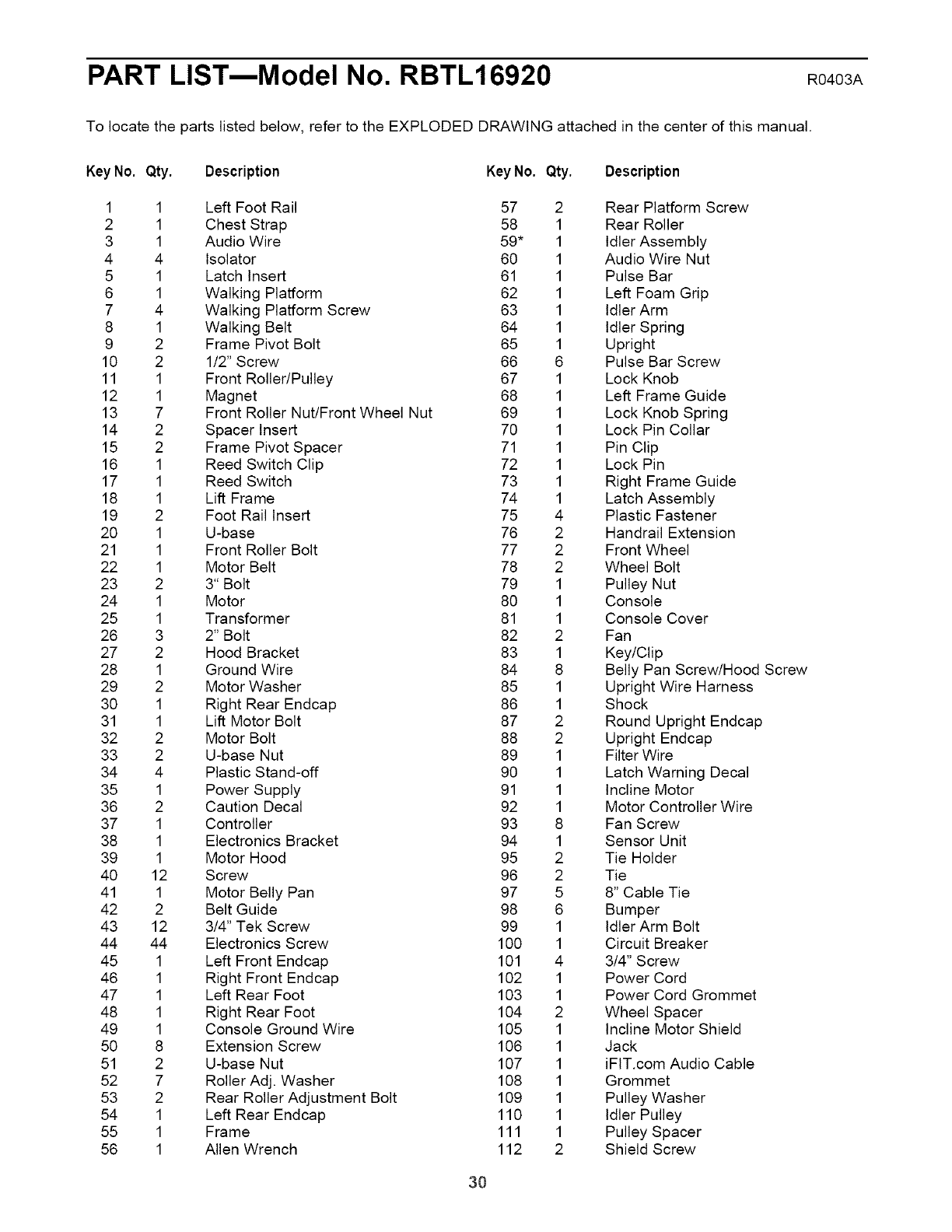

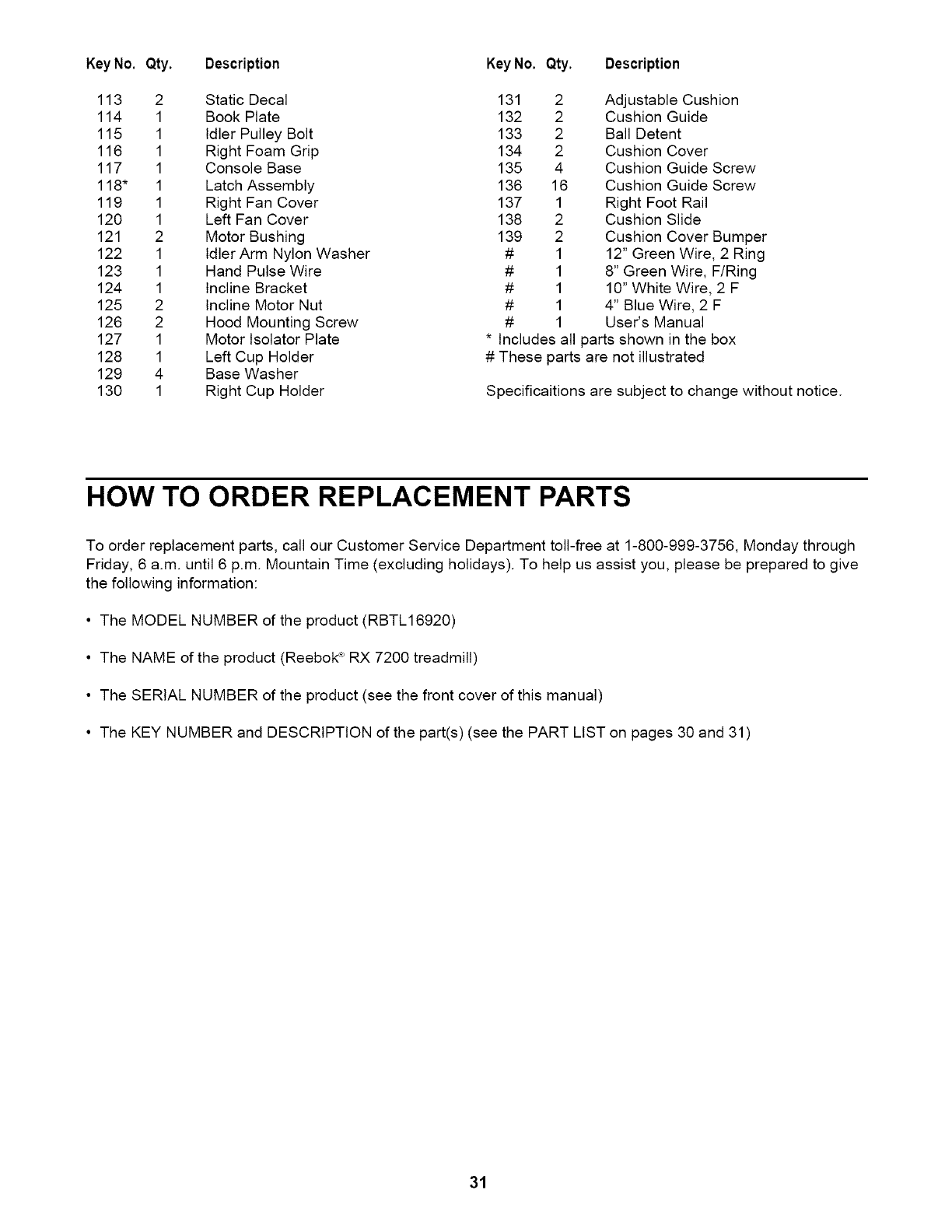

PART LIST ............................................................................... 30

HOW TO ORDER REPLACEMENT PARTS ..................................................... 31

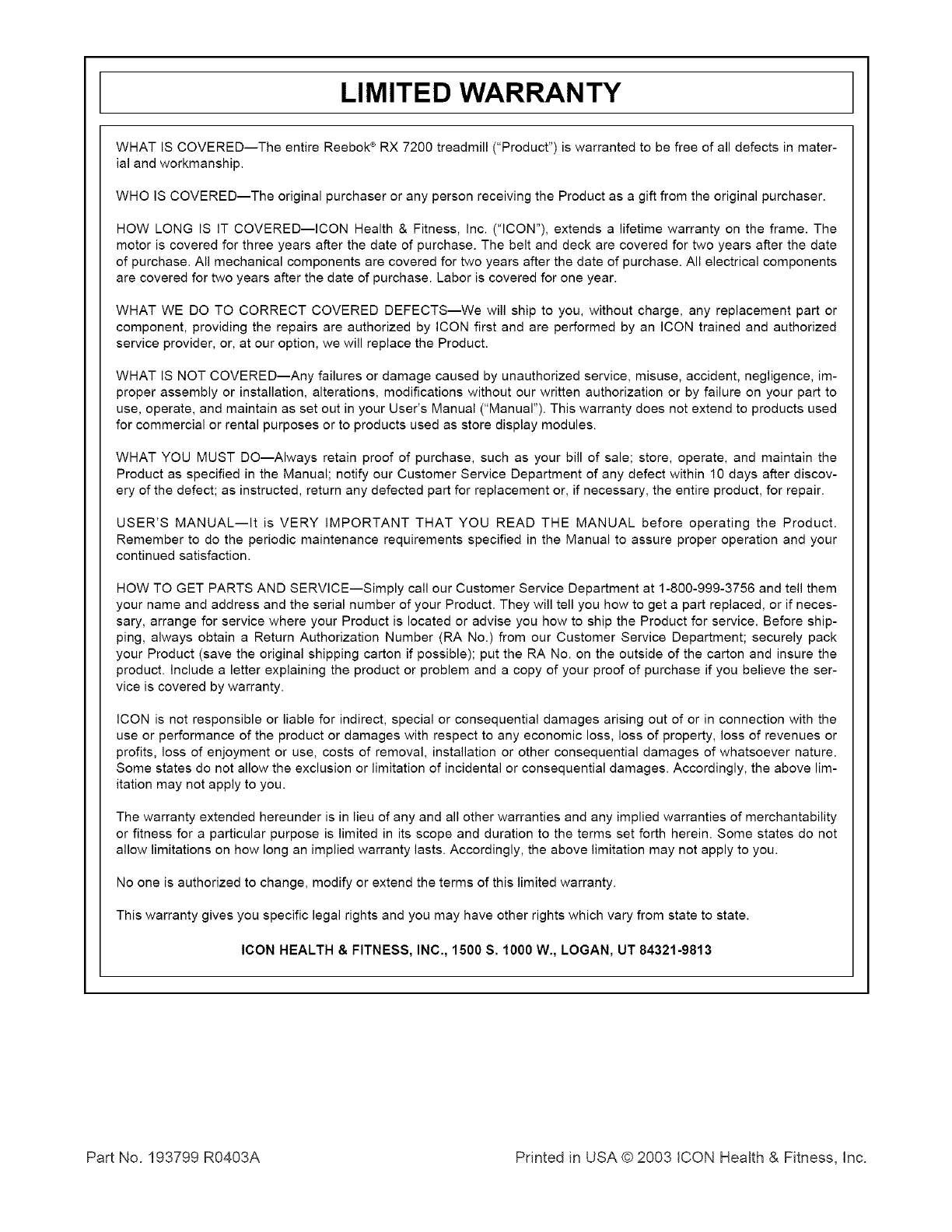

LIMITED WARRANTY ............................................................... Back Cover

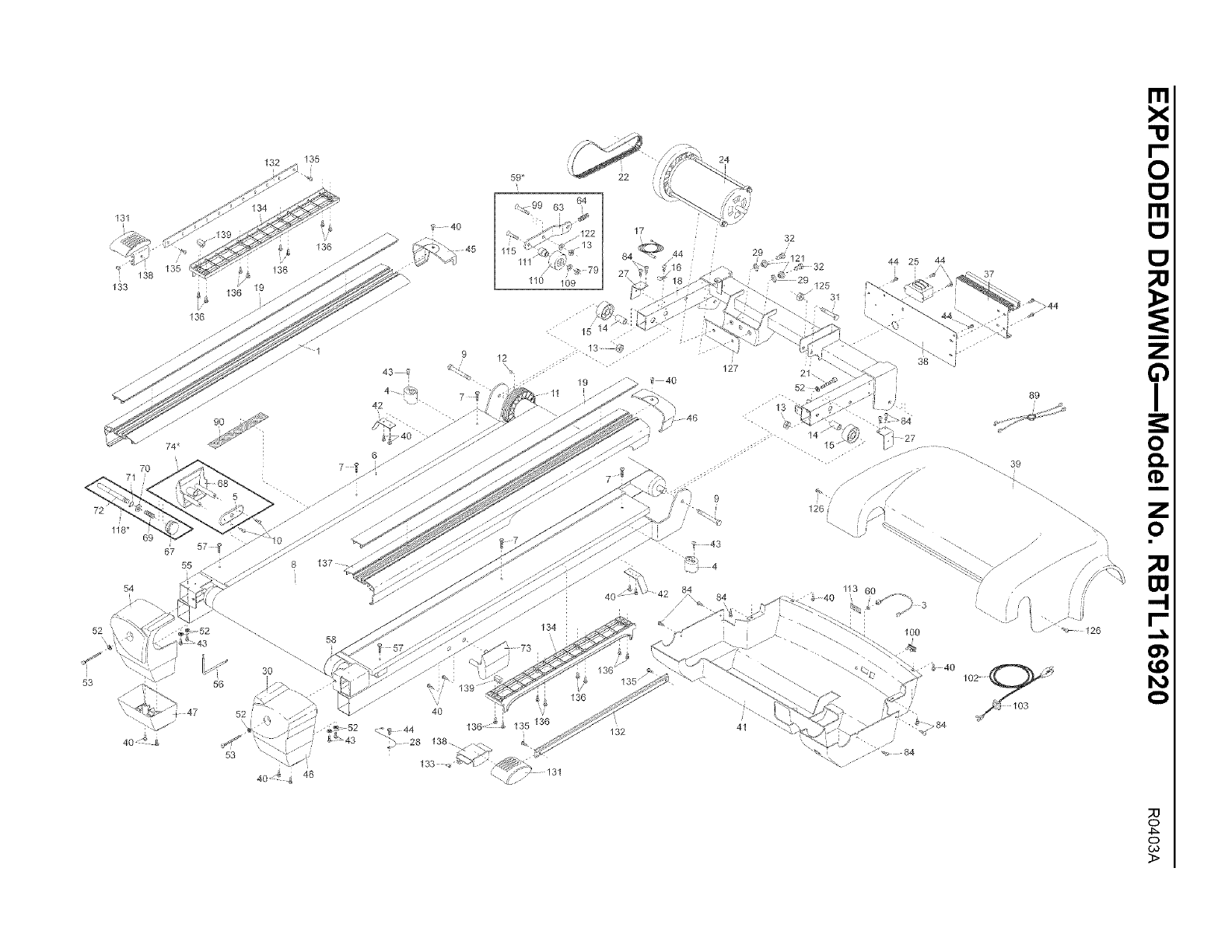

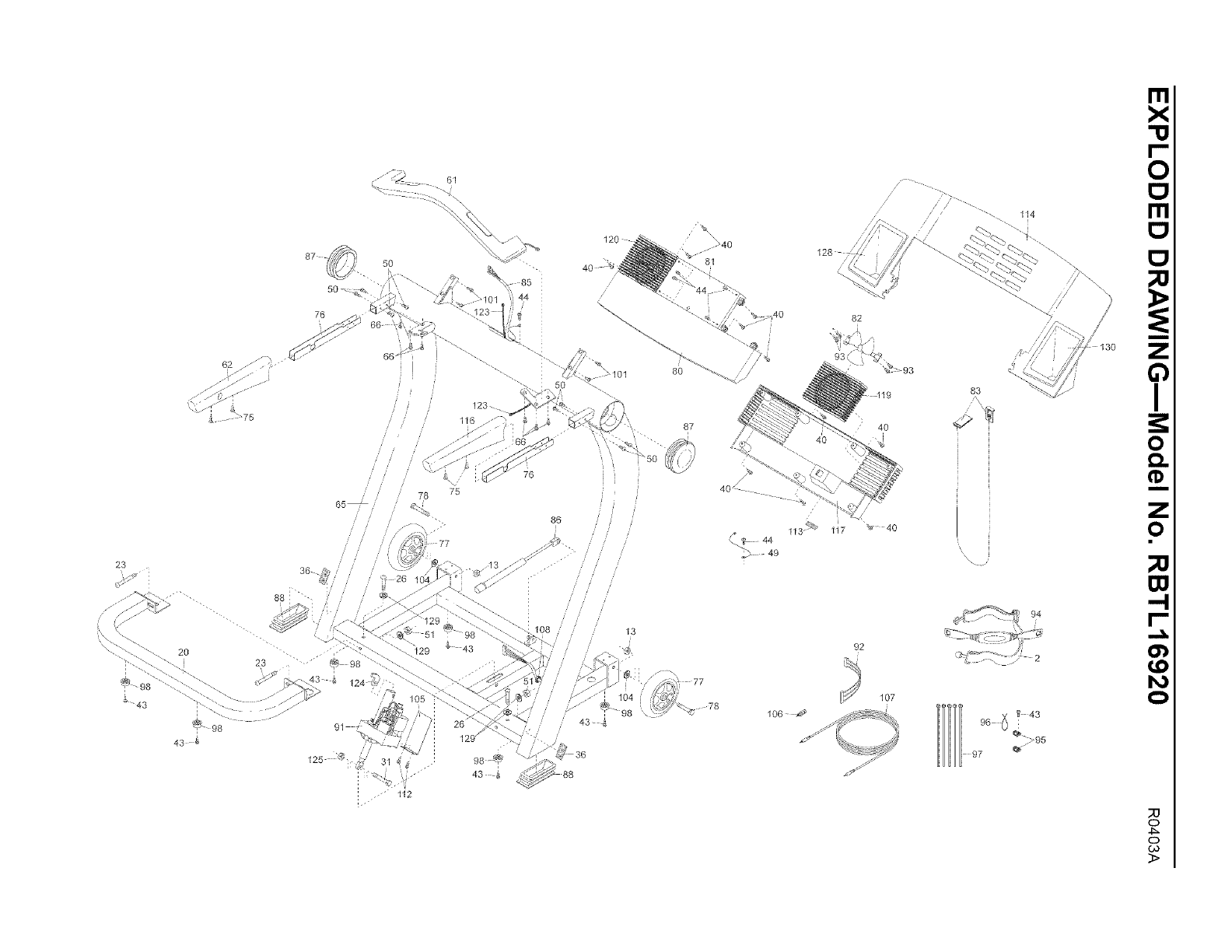

Note: An EXPLODED DRAWING is attached in the center of this manual.

REEBOK and the Vector Logo _ are registered trademarks and service marks of Reebok. This product is

manufactured and distributed under license from Reebok International.

2

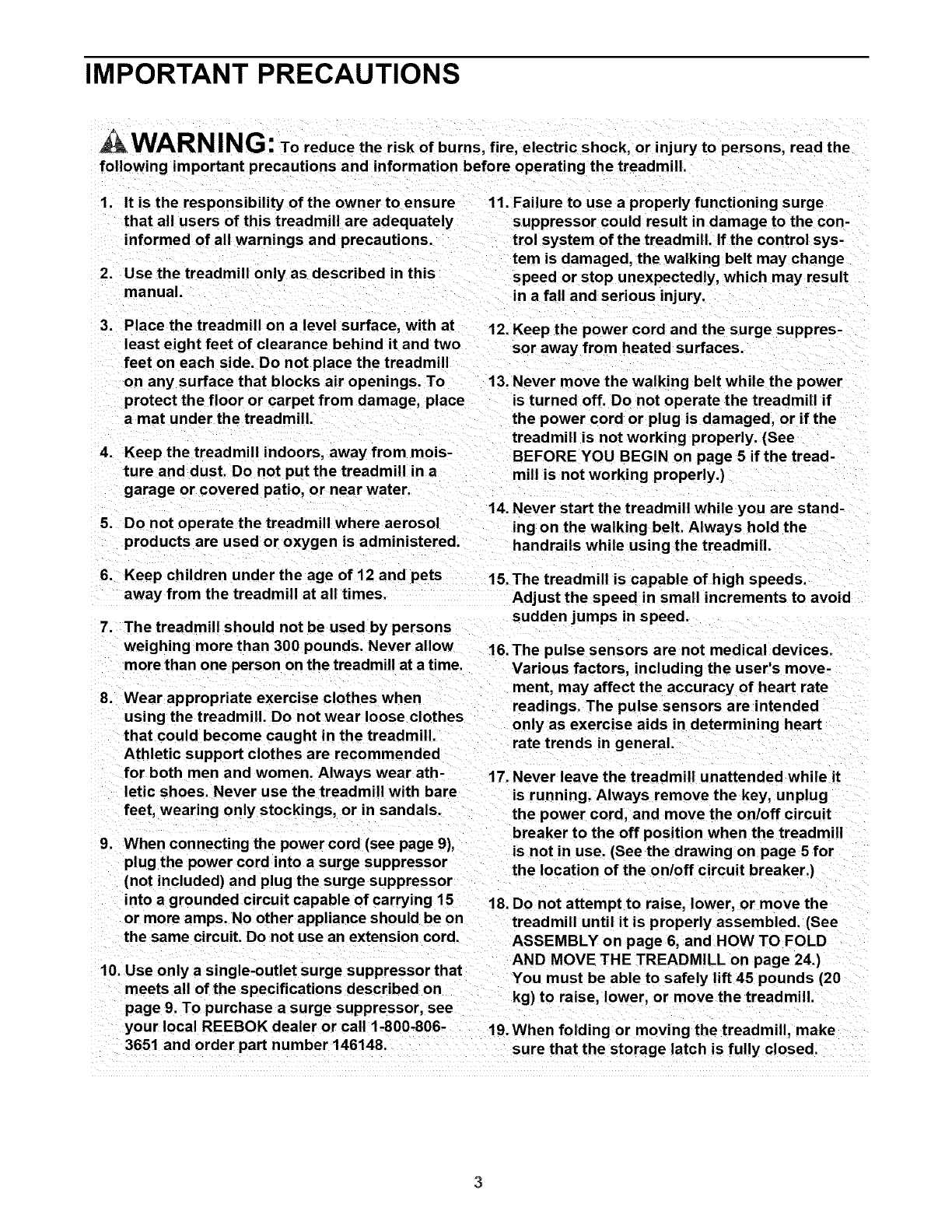

IMPORTANT PRECAUTIONS

AWARN ING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure 11. Failure to use a properly functioning surge

that all users of this treadmill are adequately suppressor could result in damage to the con-

informed of all warnings and precautions, trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may change

2. Use the treadmill only as described in this speed or stop unexpectedly_ which may result

manual, in a fall and serious injury.

3. Place the treadmill on a level surface, with at 12. Keep the power cord and the surge suppres-

least eight feet of clearance behind it and two

feet on each side. Do not place the treadmill

on any surface that blocks air openings. To

protect the floor or carpet from damage, place

a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water. 14.

5. Do not operate the treadmill where aerosol

products are used or oxygen is administered.

sor away from heated surfaces.

13. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See

BEFORE YOU BEGIN on page 5 if the tread-

mill is not working properly.)

Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

6. Keep children under the age of 12 and pets 15. The treadmill is capable of high speeds.

away from the treadmill at all times. Adjust the speed in small increments to avoid

sudden jumps in speed.

7. The treadmill should not be used by persons

weighing more than 300 pounds. Never allow 16. The pulse sensors are not medical devices.

more than one person on the treadmill at a time. Various factors, including the user's move-

Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended

ment, may affect the accuracy of heart rate

readings. The pulse sensors are intended

only as exercise aids in determining heart

rate trends in general.

for both men and women. Always wear ath- 17. Never leave the treadmill unattended while it

letic shoes. Never use the treadmill with bare is running. Always remove the key, unplug

feet, wearing only stockings, or in sandals, the power cord, and move the on/off circuit

breaker to the off position when the treadmill

9. When connecting the power cord (see page 9), is not in use. (See the drawing on page 5 for

plug the power cord into a surge suppressor the location of the on/off circuit breaker.)

{not included) and plug the surge suppressor

into a grounded circuit capable of carrying 15 18. Do not attempt to raise, lower, or move the

or more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

10, Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 9. To purchase a surge suppressor, see

your local REEBOK dealer or call 1-800-806-

treadmill until it is properly assembled. [See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 24.)

You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the tread mill.

19. When folding or moving the treadmill, make

3651 and order part number 146148. sure that the storage latch is fully closed.

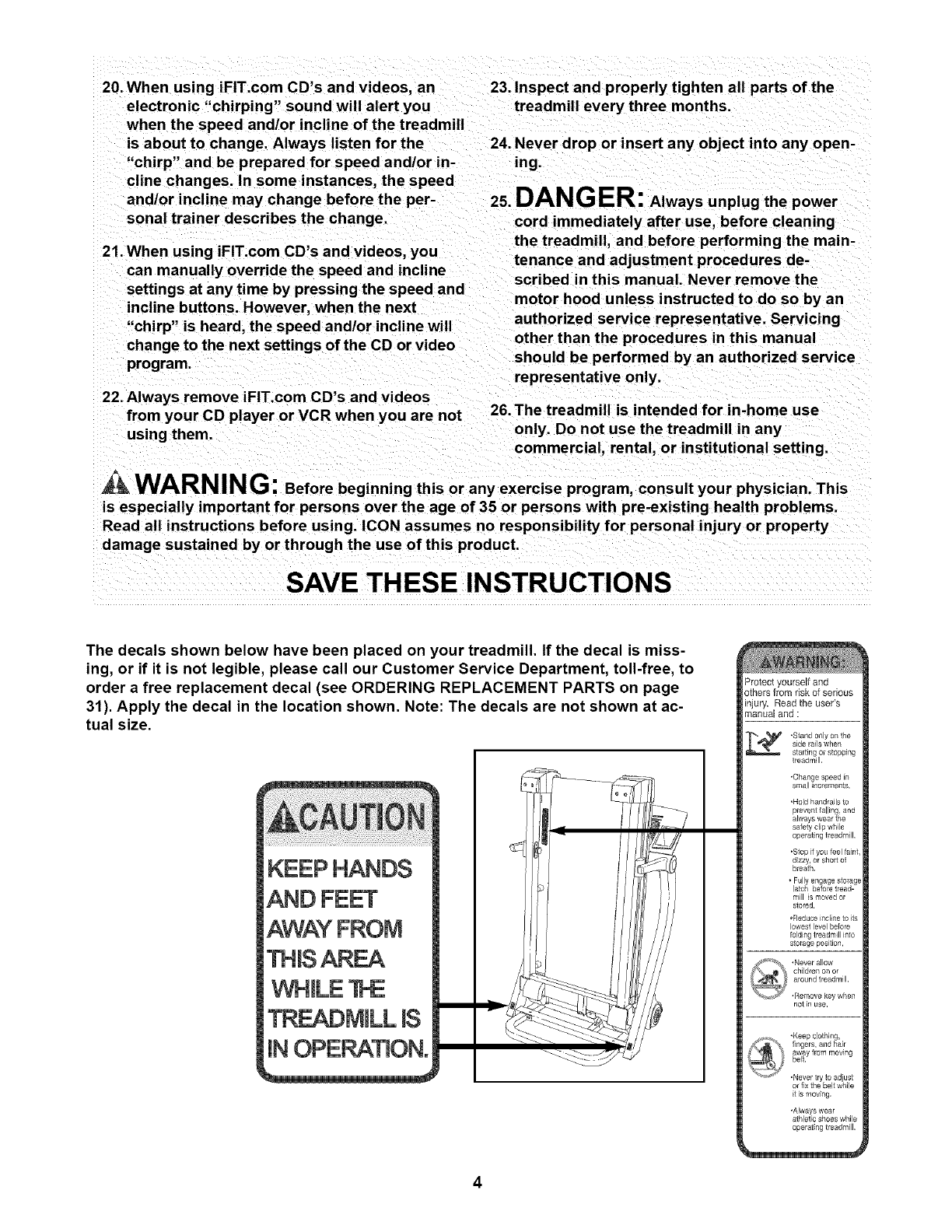

20.WhenusingiFIT.comCD'sandvideos,an 23.Inspectandproperlytightenall partsof the

electronic"chirping" sound will alert you treadmill every three months.

when the speed and/or incline of the treadmill

is about to change. Always listen for the 24. Never drop or insert any object into any open-

"chirp" and be prepared for speed and/or in- ing.

cline changes. In some instances, the speed

and/or incline may change before the per-

sonal trainer describes the change.

21. When using iFIT.com CD's and videos, you

can manually override the speed and incline

settings at any time by pressing the speed and

incline buttons. However, when the next

"chirp" is heard, the speed and/or incline will

2s. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

change to the next settings of the CD or video other than the procedures in this manual

should be performed by an authorized service

program,

22. Always remove iFIT.com CD's and videos

from your CD player or VCR when you are not

using them.

representative only.

26. The treadmill is intended for in-home use

only. Do not use the treadmill in any

commercial, rental, or institutional setting.

WARN ING: Before beginning this or any exercise program, consult your physicia n. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown below have been placed on your treadmill. If the decal is miss-

ing, or if it is not legible, please call our Customer Service Department, toll-free, to

order a free replacement decal (see ORDERING REPLACEMENT PARTS on page

31). Apply the decal in the location shown. Note: The decals are not shown at ac-

tual size.

AND FEET

AWAY FROM

Protect yourself and

others from risk of serious

injury, Read the user's

manual and :

,Stand only o1_the

side rails when

starting Or stopping

treadmill,

,Change speed in

small increments,

operating treadmill,

,Stop if you feel faint,

dzzy, or short of

breath,

mill is moved or

stored.

*Reduce incline to its

lowest level before

folding treadmill into

storage posi_on.

notin use,

,Keep clothing,

fingers, and hair

away from moving

belt.

,Never try to adjust

or fix the belt while

g is moving,

,Always wear

athletic shoes while

operagng treadmill,

4

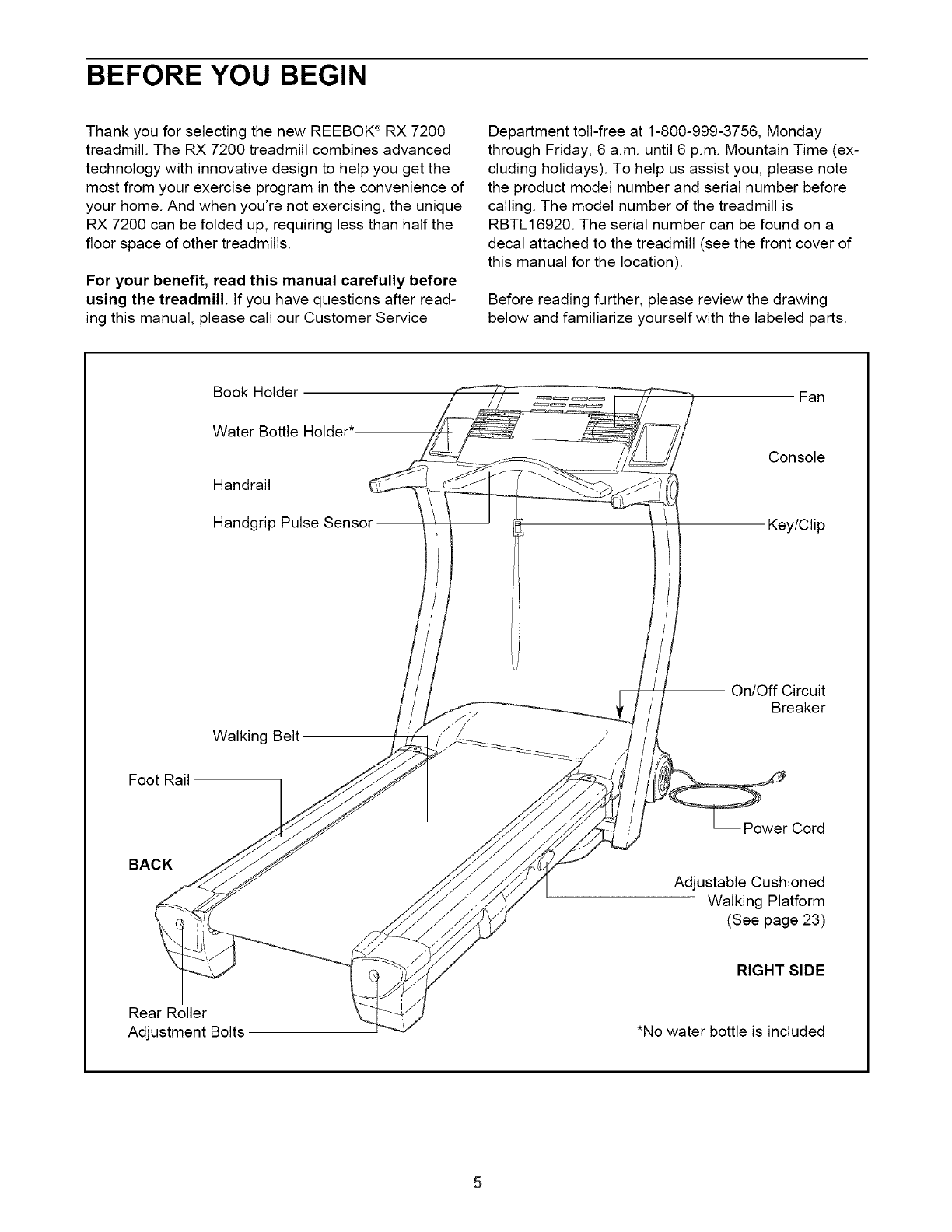

BEFORE YOU BEGIN

Thank you for selecting the new REEBOK _ RX 7200

treadmill. The RX 7200 treadmill combines advanced

technology with innovative design to help you get the

most from your exercise program in the convenience of

your home. And when you're not exercising, the unique

RX 7200 can be folded up, requiring less than half the

floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time (ex-

cluding holidays). To help us assist you, please note

the product model number and serial number before

calling. The model number of the treadmill is

RBTL16920. The serial number can be found on a

decal attached to the treadmill (see the front cover of

this manual for the location).

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

Book Holder

Water Bottle Holder*

Handrail

Handgrip Pulse Sensor-

Fan

Console

Key/Clip

Foot Rail

Walking Belt

-- On/Off Circuit

Breaker

BACK

Power Cord

Adjustable Cushioned

Walking Platform

(See page 23)

Rear Roller

Adjustment Bolts

RIGHT SIDE

*No water bottle is included

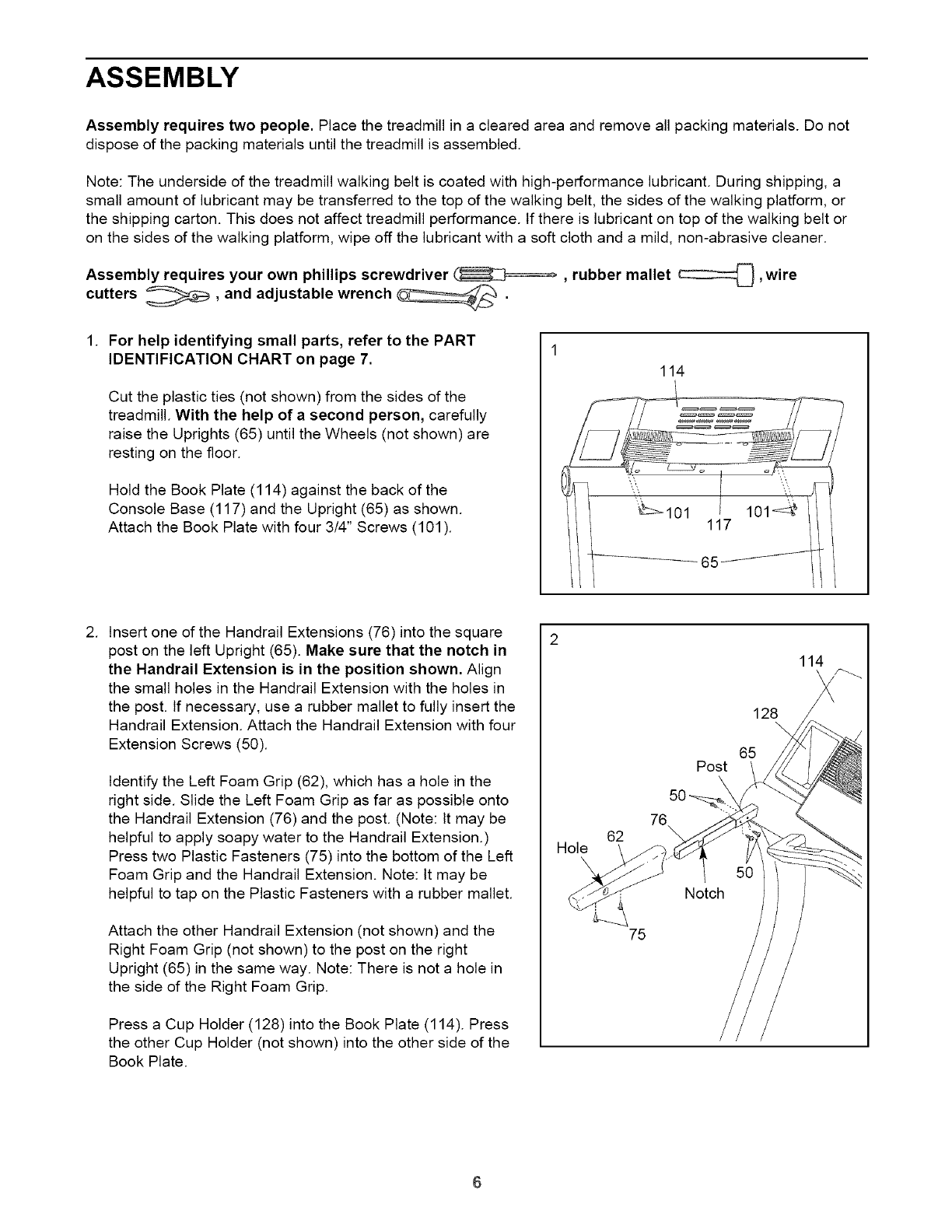

ASSEMBLY

Assembly requires two people. Place the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until the treadmill is assembled.

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a

small amount of lubricant may be transferred to the top of the walking belt, the sides of the walking platform, or

the shipping carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt or

on the sides of the walking platform, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires your own phillips screwdriver ,rubber mallet _, wire

cutters _, and adjustable wrench

1. For help identifying small parts, refer to the PART

IDENTIFICATION CHART on page 7.

Cut the plastic ties (not shown) from the sides of the

treadmill. With the help of a second person, carefully

raise the Uprights (65) until the Wheels (not shown) are

resting on the floor.

Hold the Book Plate (114) against the back of the

Console Base (117) and the Upright (65) as shown.

Attach the Book Plate with four 3/4" Screws (101).

114

117

2. Insert one of the Handrail Extensions (76) into the square

post on the left Upright (65). Make sure that the notch in

the Handrail Extension is in the position shown. Align

the small holes in the Handrail Extension with the holes in

the post. If necessary, use a rubber mallet to fully insert the

Handrail Extension. Attach the Handrail Extension with four

Extension Screws (50).

Identify the Left Foam Grip (62), which has a hole in the

right side. Slide the Left Foam Grip as far as possible onto

the Handrail Extension (76) and the post. (Note: It may be

helpful to apply soapy water to the Handrail Extension.)

Press two Plastic Fasteners (75) into the bottom of the Left

Foam Grip and the Handrail Extension. Note: It may be

helpful to tap on the Plastic Fasteners with a rubber mallet.

Attach the other Handrail Extension (not shown) and the

Right Foam Grip (not shown) to the post on the right

Upright (65) in the same way. Note: There is not a hole in

the side of the Right Foam Grip.

Press a Cup Holder (128) into the Book Plate (114). Press

the other Cup Holder (not shown) into the other side of the

Book Plate.

Hole

76

62 \

75

Post

128

65

114

\

6

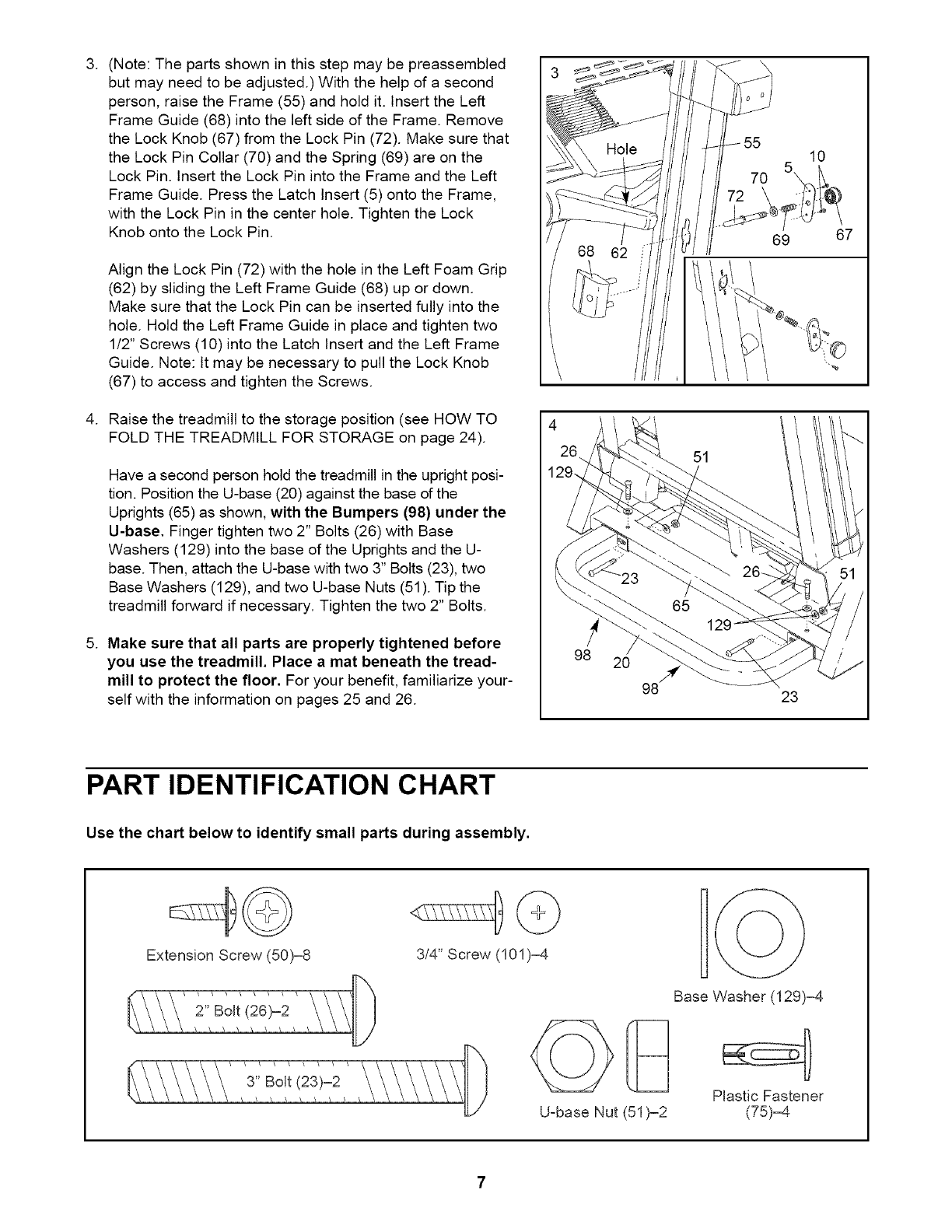

3. (Note: The parts shown in this step may be preassembled

but may need to be adjusted.) With the help of a second

person, raise the Frame (55) and hold it. Insert the Left

Frame Guide (68) into the left side of the Frame. Remove

the Lock Knob (67) from the Lock Pin (72). Make sure that

the Lock Pin Collar (70) and the Spring (69) are on the

Lock Pin. Insert the Lock Pin into the Frame and the Left

Frame Guide. Press the Latch Insert (5) onto the Frame,

with the Lock Pin in the center hole. Tighten the Lock

Knob onto the Lock Pin.

Align the Lock Pin (72) with the hole in the Left Foam Grip

(62) by sliding the Left Frame Guide (68) up or down.

Make sure that the Lock Pin can be inserted fully into the

hole. Hold the Left Frame Guide in place and tighten two

1/2" Screws (10)into the Latch Insert and the Left Frame

Guide. Note: It may be necessary to pull the Lock Knob

(67) to access and tighten the Screws.

4. Raise the treadmill to the storage position (see HOW TO

FOLD THE TREADMILL FOR STORAGE on page 24).

Have a second person hold the treadmill in the upright posi-

tion. Position the U-base (20) against the base of the

Uprights (65) as shown, with the Bumpers (98) under the

U-base. Finger tighten two 2" Bolts (26) with Base

Washers (129) into the base of the Uprights and the U-

base. Then, attach the U-base with two 3" Bolts (23), two

Base Washers (129), and two U-base Nuts (51). Tip the

treadmill forward if necessary. Tighten the two 2" Bolts.

5. Make sure that all parts are properly tightened before

you use the treadmill. Place a mat beneath the tread-

mill to protect the floor. For your benefit, familiarize your-

self with the information on pages 25 and 26.

68 62

10

69 67

51

98 20

98 23

PART IDENTIFICATION CHART

Use the chart below to identify small parts during assembly.

Extension Screw (50)-8 3/4" Screw (101 )-4

U=base Nut (51)=2

Base Washer (129)-4

Plastic Fastener

(75)-4

HOW TO USE THE CHEST PULSE SENSOR

HOW TO PUT ON THE CHEST PULSE SENSOR

The chest pulse sensor consists of two components:

the chest strap and the sensor unit (see the drawing

below), insert the tab on one end of the chest strap into °

one end of the sensor unit, as shown in the inset draw-

ing. Press the end of the sensor unit under the buckle

on the chest strap. The tab should be flush with the

front of the sensor unit. °

Chest Strap

Tab _--.. Tab .__--_.

Sensor Unit Unit

Next, wrap the

chest pulse sen-

sor around your

chest and attach

the other end of

the chest strap to

the sensor unit.

Adjust the length

of the chest strap,

if necessary. The

chest pulse sen-

sor should be under your clothes, tight against your

skin, and as high under the pectoral muscles or

breasts as is comfortable. Make sure that the logo on

the sensor unit is facing forward and is right-side-up.

Pull the sensor unit away from your body a few inches

and locate the two electrode areas on the inner side

(the electrode areas are covered by shallow ridges).

Using saline solution such as saliva or contact lens so-

lution, wet both electrode areas. Return the sensor unit

to a position against your chest.

CHEST PULSE SENSOR CARE AND MAINTENANCE

• Thoroughly dry the chest pulse sensor after each

use. The chest pulse sensor is activated when the

electrode areas are wetted and the heart rate

monitor is put on; the chest pulse sensor shuts off

when it is removed and the electrode areas are

dried. If the chest pulse sensor is not dried after

each use, it may remain activated longer than nec-

essary, draining the battery prematurely.

Store the chest pulse sensor in a warm, dry place.

Do not store the chest pulse sensor in a plastic bag

or other container that may trap moisture.

Do not expose the chest pulse sensor to direct

sunlight for extended periods of time; do not expose

it to temperatures above 122 ° Fahrenheit (50°

Celsius) or below 14° Fahrenheit (-10 ° Celsius).

Do not excessively bend or stretch the sensor unit

when using or storing the chest pulse sensor.

Clean the sensor unit using a damp cloth--never

use alcohol, abrasives, or chemicals. The chest

strap may be hand washed and air dried.

CHEST PULSE SENSOR TROUBLESHOOTING

The instructions on the following pages explain

how the chest pulse sensor is used with the con=

sole. If the chest pulse sensor does not function

propeNy, try the steps below.

Make sure that you are wearing the chest pulse sen-

sor as described at the left. Note: If the chest pulse

sensor does not function when positioned as de-

scribed, move it slightly lower or higher on your chest.

Use saline solution such as saliva or contact lens

solution to wet the two electrode areas on the

sensor unit. If heart rate readings do not appear until

you begin perspiring, re-wet the electrode areas.

As you walk or run on the treadmill, position your-

self near the center of the walking belt. For the

console to display heart rate readings, the user

must be within arm's length of the console.

The chest pulse sensor is designed to work with

people who have normal heart rhythms. Heart rate

reading problems may be caused by medical

conditions such as premature ventricular contrac-

tions (pvcs), tachycardia bursts, and arrhythmia.

The operation of the chest pulse sensor can be

affected by magnetic interference caused by high

power lines or other sources. If it is suspected that

this is a problem, try relocating the treadmill.

The CR2032 battery may need to be replaced (see

page 26).

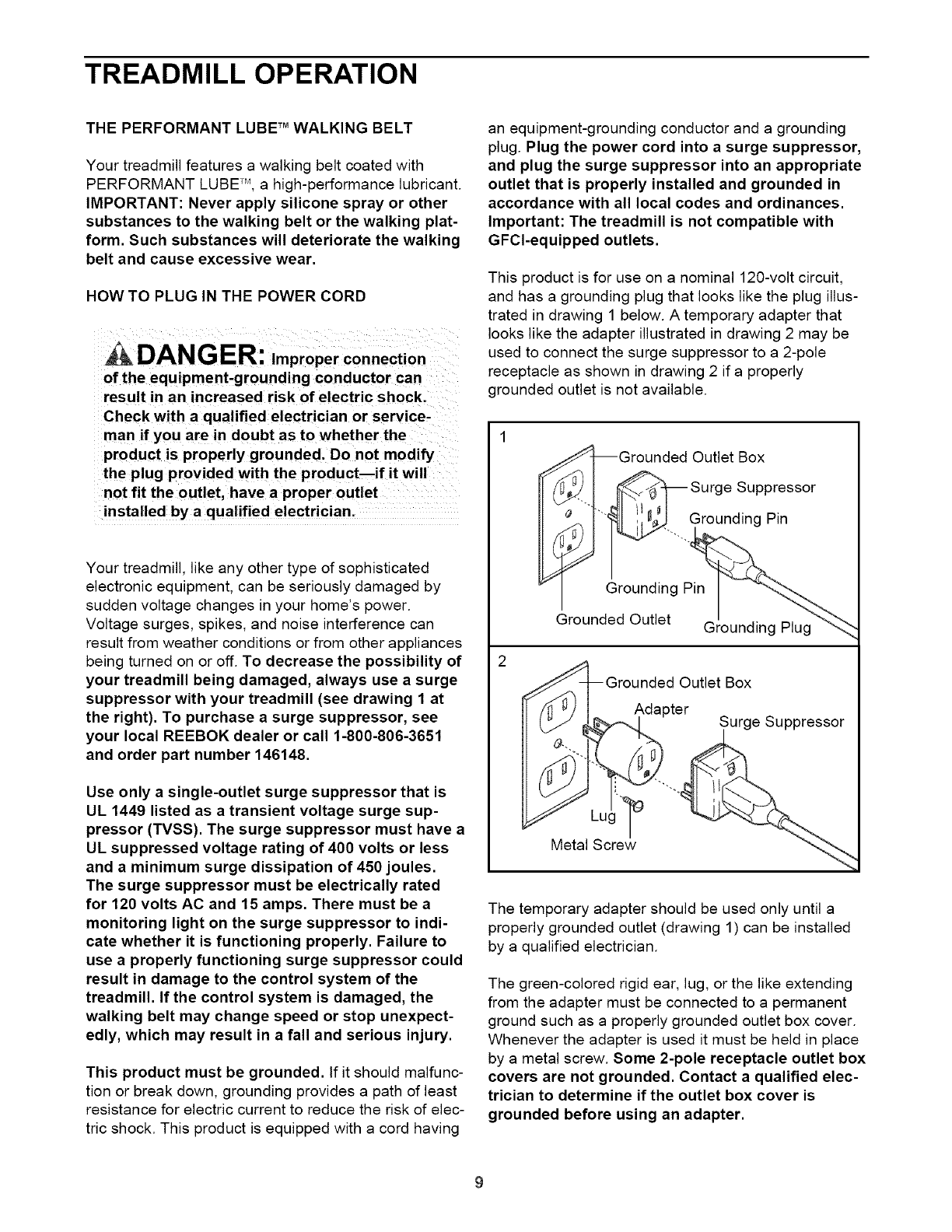

TREADMILL OPERATION

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBE TM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. Such substances will deteriorate the walking

belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product--if it will

not fit the outl et, have a proper outlet

installed by a qualified electrician.

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home's power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right). To purchase a surge suppressor, see

your local REEBOK dealer or call 1-800-806-3651

and order part number 146148.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated

for 120 volts AC and 15 amps. There must be a

monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to

use a properly functioning surge suppressor could

result in damage to the control system of the

treadmill. If the control system is damaged, the

walking belt may change speed or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCl-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

_Grounded Outlet Box

_ _-.1 _ Surge Suppressor

"___ti'" GreundingPip_

Grounding Plug

Metal Screw

Outlet Box

Adapter

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

-- 1_

rr_A_UALCOr_TROL_]O0@®@@®@OC {SpEED._Ir,CLme_'ROGR,_MS]

,_ c_*m _] 0 @ 0 O 0 O O 0 @C _ WALK _,_' ,-

..... @00000000¢

.....q.E,_.r,,,r_.,o,__'_ 7=]÷00000000_ [=_ >77,_,_loo__/>-_ .......

L............. _:::::_a O00OO0000@ =

D

r -rl_E _lsE =_× _ISrANCE SPEZ_

I u*_7- m

L _ SffG TIME _ pACE _ CALORIES _kT _ INCLINE _ps _ _Irr,/ll

© ©

PROG_M SELECT STOP ST,_RT

-T 7.,_'- _ 7 V-

II

7_ _ _7T-

I _ ]_

,_WARNHN6 :]

T0dJ¢e,i of,i0u i_jr_ ta_d

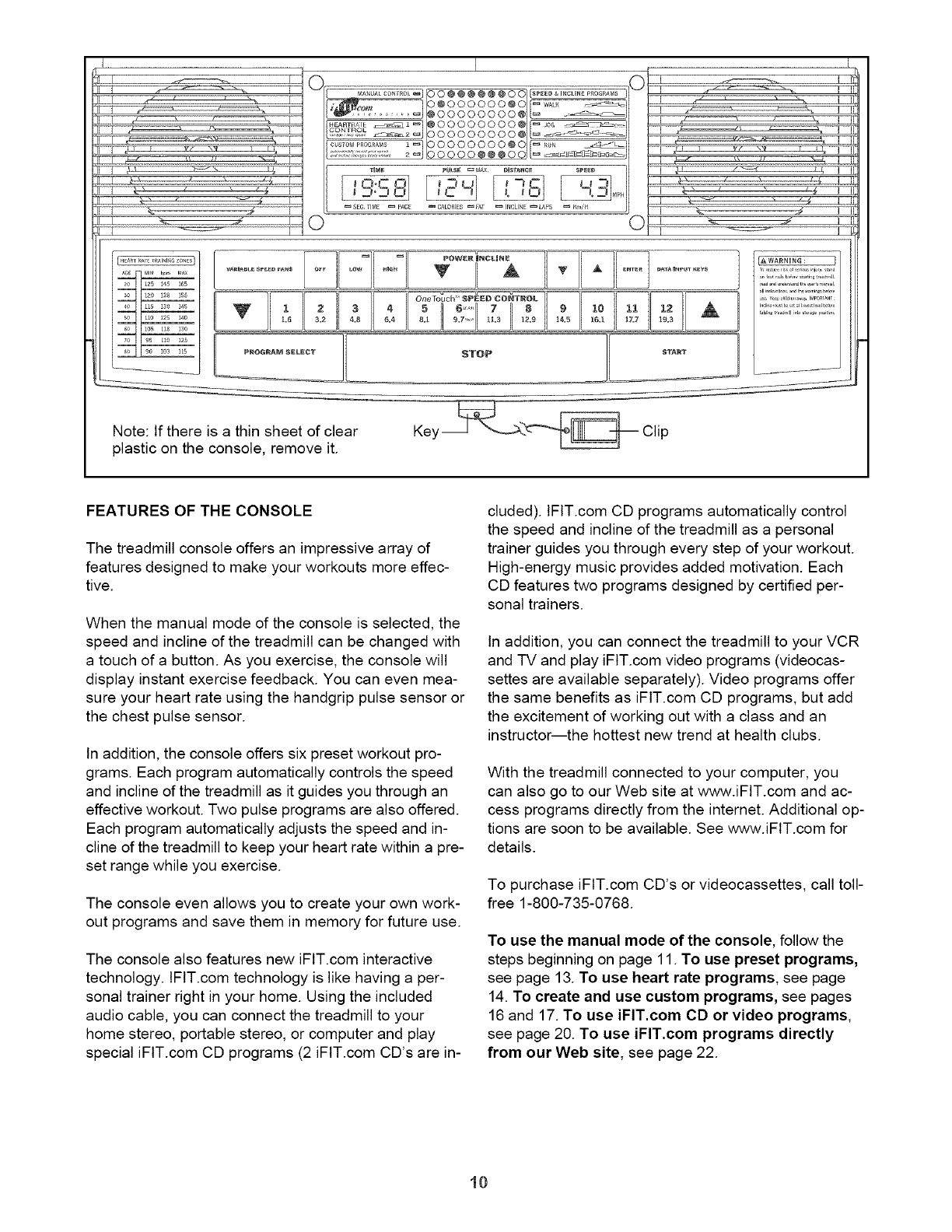

Note: If there is a thin sheet of clear

plastic on the console, remove it. Clip

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive.

When the manual mode of the console is selected, the

speed and incline of the treadmill can be changed with

a touch of a button. As you exercise, the console will

display instant exercise feedback. You can even mea-

sure your heart rate using the handgrip pulse sensor or

the chest pulse sensor.

In addition, the console offers six preset workout pro-

grams. Each program automatically controls the speed

and incline of the treadmill as it guides you through an

effective workout. Two pulse programs are also offered.

Each program automatically adjusts the speed and in-

cline of the treadmill to keep your heart rate within a pre-

set range while you exercise.

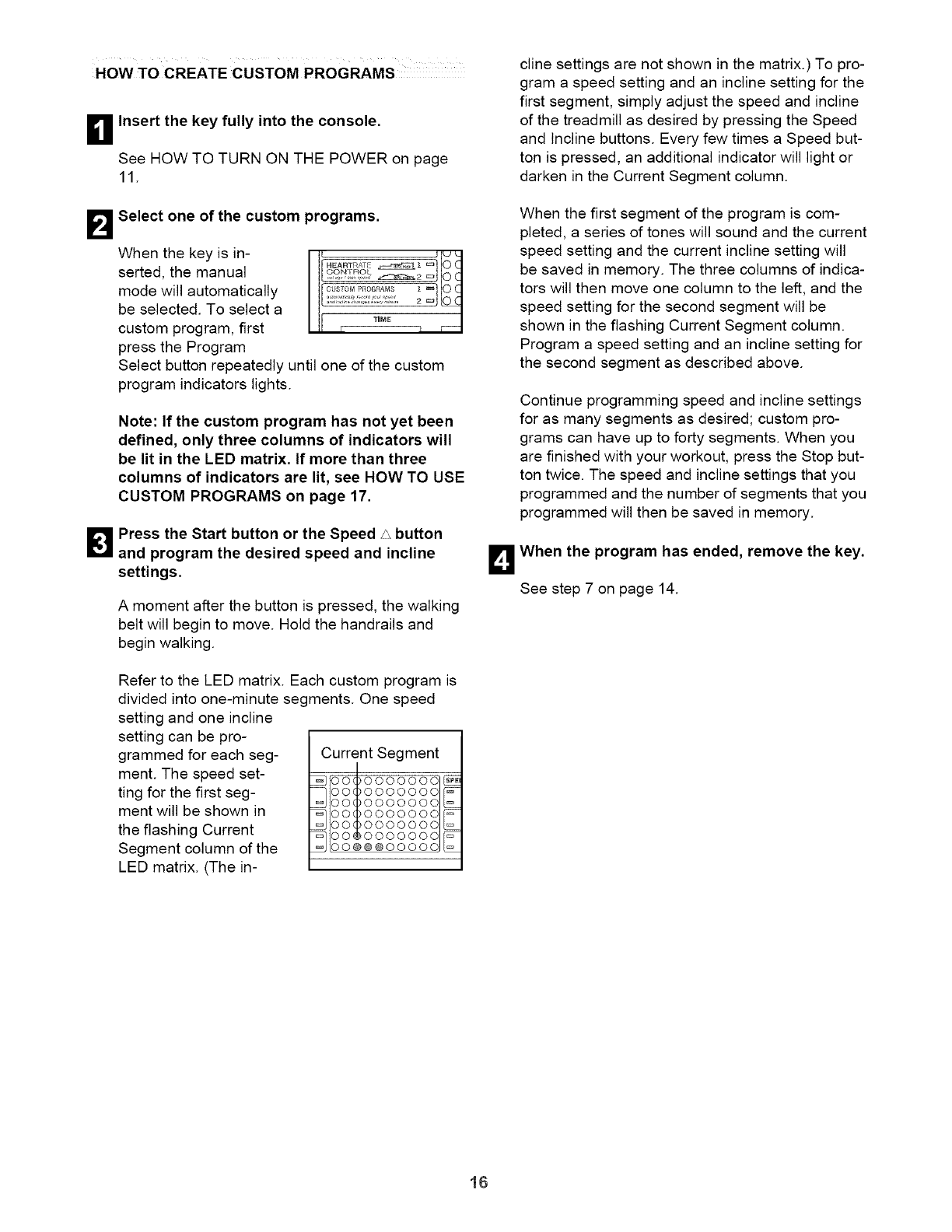

The console even allows you to create your own work-

out programs and save them in memory for future use.

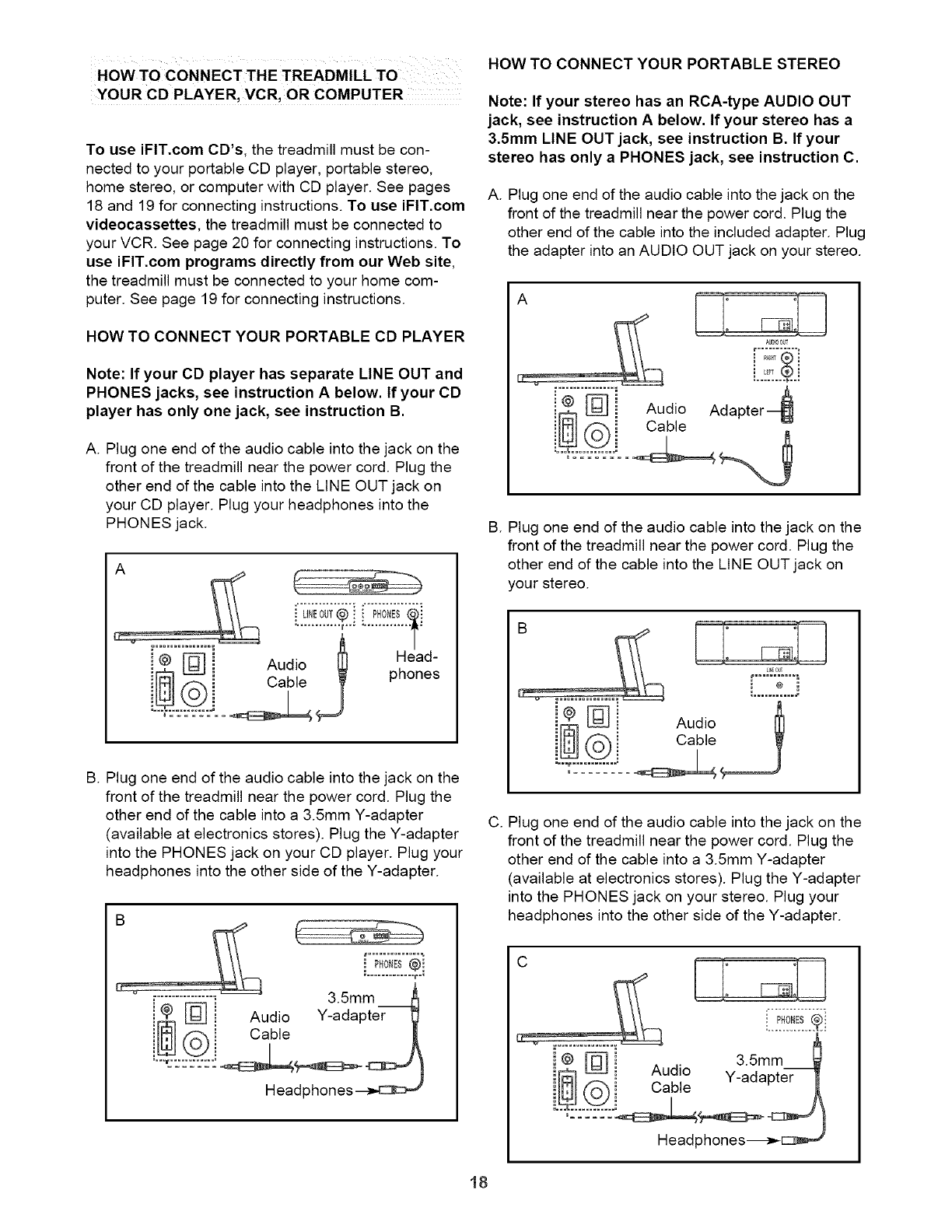

The console also features new iFIT.com interactive

technology. IFIT.com technology is like having a per-

sonal trainer right in your home. Using the included

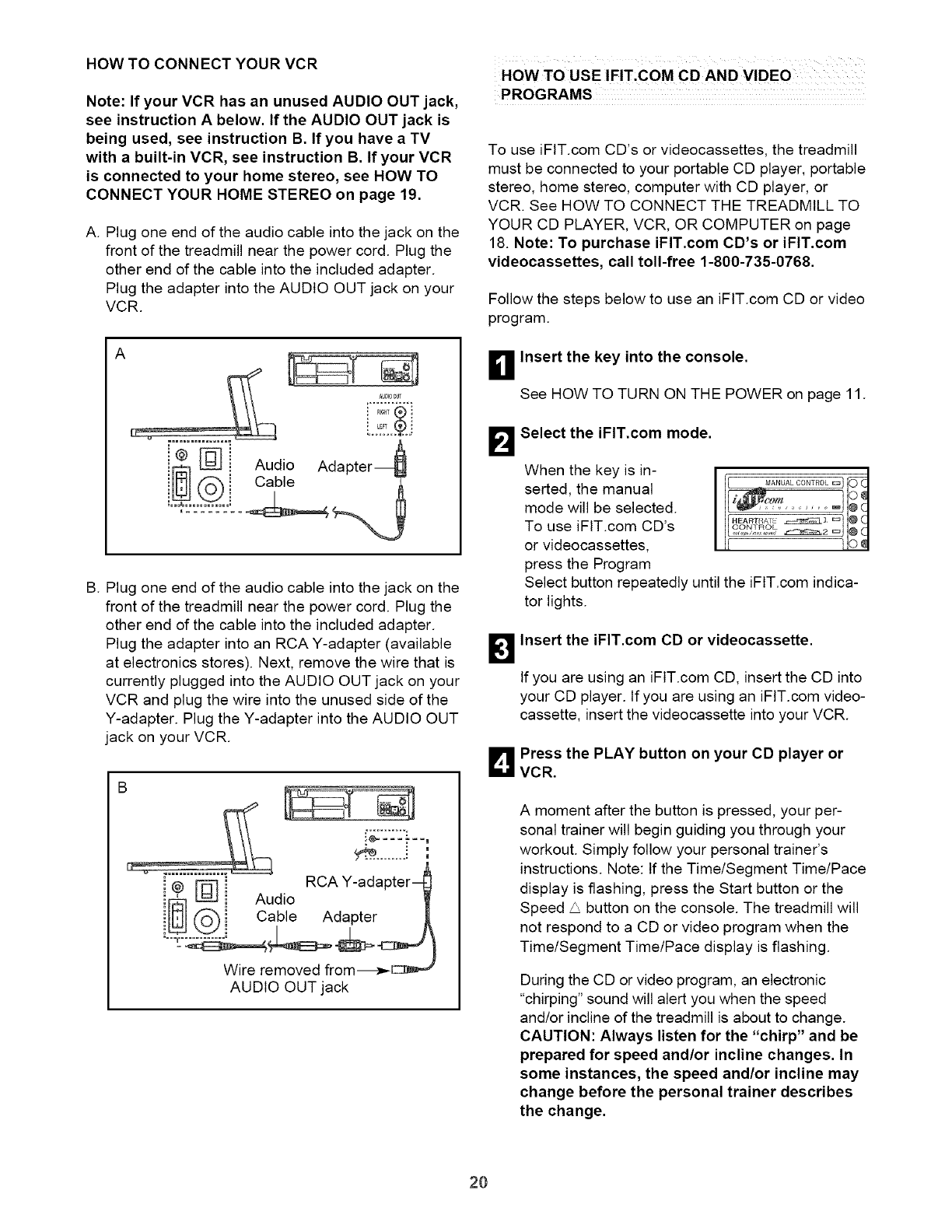

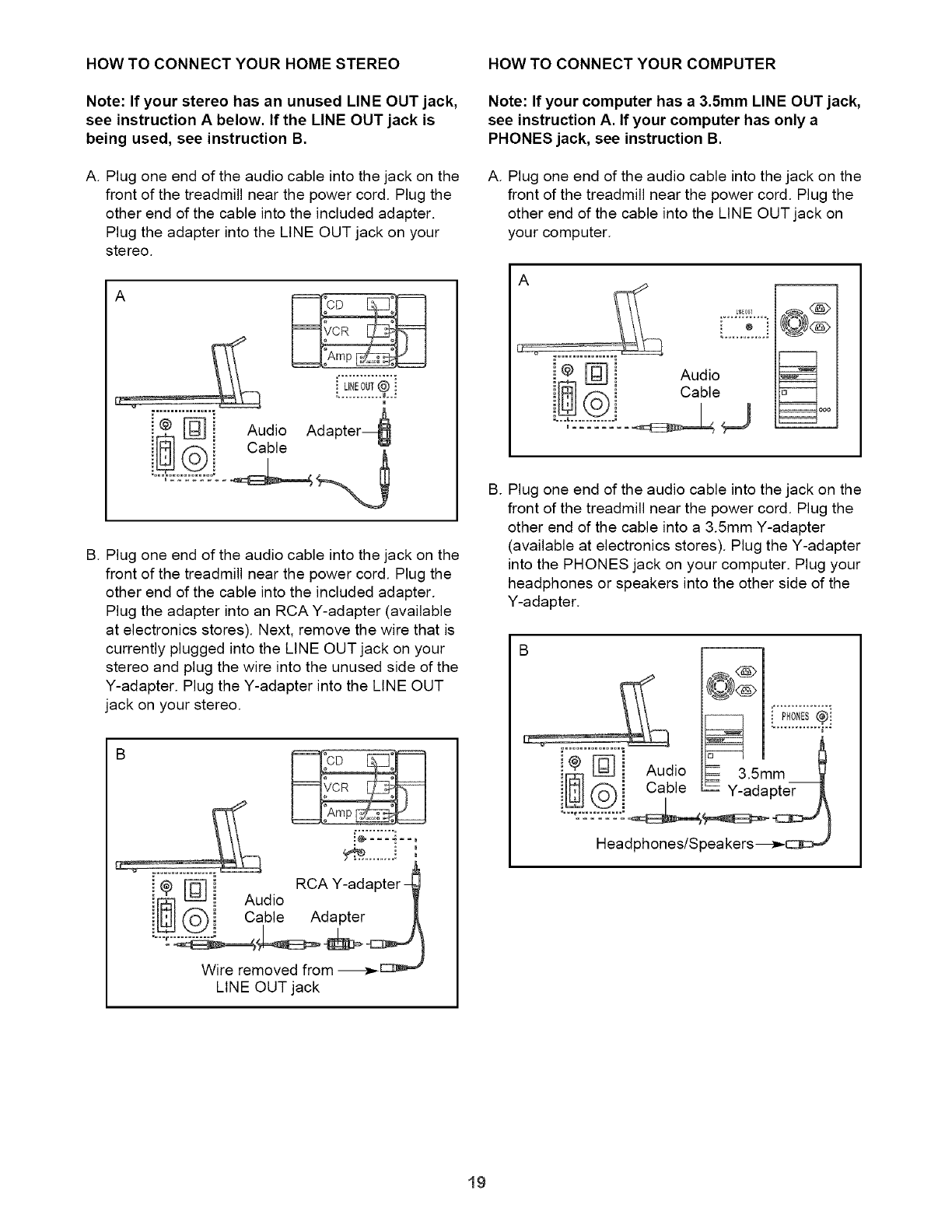

audio cable, you can connect the treadmill to your

home stereo, portable stereo, or computer and play

special iFIT.com CD programs (2 iFIT.com CD's are in-

cluded). IFtT.com CD programs automatically control

the speed and incline of the treadmill as a personal

trainer guides you through every step of your workout.

High-energy music provides added motivation. Each

CD features two programs designed by certified per-

sonal trainers.

In addition, you can connect the treadmill to your VCR

and TV and play iFIT.com video programs (videocas-

settes are available separately). Video programs offer

the same benefits as iFIT.com CD programs, but add

the excitement of working out with a class and an

instructor--the hottest new trend at health clubs.

With the treadmill connected to your computer, you

can also go to our Web site at www.iFIT.com and ac-

cess programs directly from the internet. Additional op-

tions are soon to be available. See www.iFIT.com for

details.

To purchase iFIT.com CD's or videocassettes, call toll-

free 1-800-735-0768.

To use the manual mode of the console, follow the

steps beginning on page 11. To use preset programs,

see page 13. To use heart rate programs, see page

14. To create and use custom programs, see pages

16 and 17. To use iFIT.com CD or video programs,

see page 20. To use iFIT.com programs directly

from our Web site, see page 22.

10

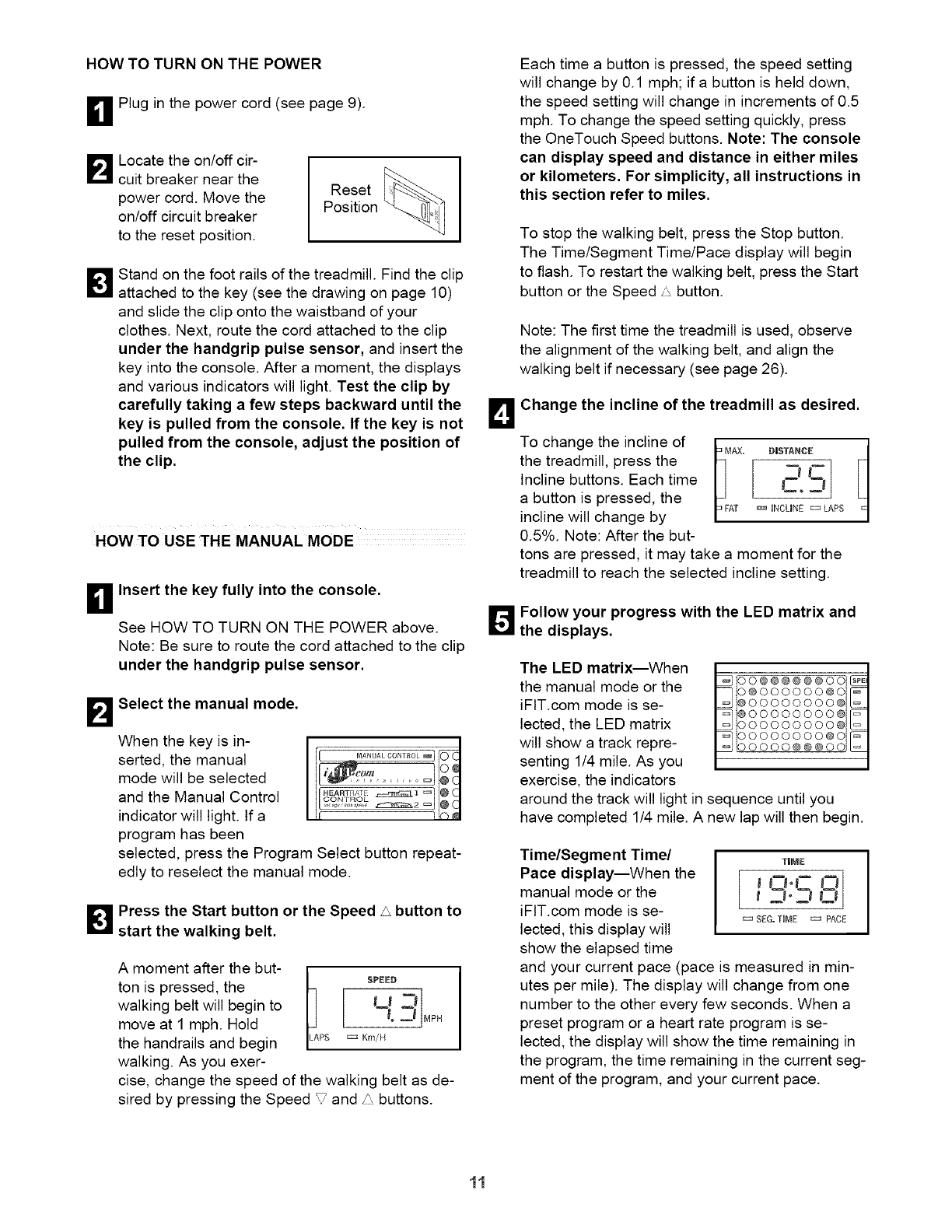

HOW TO TURN ON THE POWER

_lPlug in the power cord (see page 9).

Bocate the on/off cir-

cuit breaker near the

power cord. Move the

on/off circuit breaker

to the reset position.

Reset

Position

_1 Stand on the foot rails of the treadmill. Find the clip

attached to the key (see the drawing on page 10)

and slide the clip onto the waistband of your

clothes. Next, route the cord attached to the clip

under the handgrip pulse sensor, and insert the

key into the console. After a moment, the displays

and various indicators will light. Test the clip by

carefully taking a few steps backward until the

key is pulled from the console. If the key is not

pulled from the console, adjust the position of

the clip.

HOW TO USE THE MANUAL MODE

BInsert the key fully into the console.

See HOW TO TURN ON THE POWER above.

Note: Be sure to route the cord attached to the clip

under the handgrip pulse sensor.

rl Select the manual mode.

When the key is in-

serted, the manual

mode will be selected

and the Manual Control

indicator will light. If a

program has been

I!

selected, press the Program Select button repeat-

edly to reselect the manual mode.

_1 Press the Start button or the Speed _button to

start the walking belt.

A moment after the but-

ton is pressed, the

walking belt will begin to

move at 1 mph. Hold

the handrails and begin

walking. As you exer-

IA SPEEO

_* MPH

PS _ Km/H

cise, change the speed of the walking belt as de-

sired by pressing the Speed _ and/', buttons.

Each time a button is pressed, the speed setting

will change by 0.1 mph; ifa button is held down,

the speed setting will change in increments of 0.5

mph. To change the speed setting quickly, press

the OneTouch Speed buttons. Note: The console

can display speed and distance in either miles

or kilometers. For simplicity, all instructions in

this section refer to miles.

To stop the walking belt, press the Stop button.

The Time/Segment Time/Pace display will begin

to flash. To restart the walking belt, press the Start

button or the Speed/'_ button.

Note: The first time the treadmill is used, observe

the alignment of the walking belt, and align the

walking belt if necessary (see page 26).

BChange the incline of the treadmill as desired.

the treadmill, press the

Incline buttons. Each time C_ ZI

a button is pressed, the

incline will change by T _ INCUNE = LAPS

0.5%. Note: After the but-

tons are pressed, it may take a moment for the

treadmill to reach the selected incline setting.

_ollow your progress with the LED matrix and

the displays.

The LED matrix--When

the manual mode or the

iFIT.com mode is se-

lected, the LED matrix

will show a track repre-

senting 1/4 mile. As you

exercise, the indicators

around the track will light in sequence until you

have completed 1/4 mile. A new lap will then begin.

Time/Segment Time/

Pace display--When the

manual mode or the

iFIT.com mode is se-

lected, this display will

show the elapsed time

TiME

'-'°'-8

SEG=TIME _ PACE

and your current pace (pace is measured in min-

utes per mile). The display will change from one

number to the other every few seconds. When a

preset program or a heart rate program is se-

lected, the display will show the time remaining in

the program, the time remaining in the current seg-

ment of the program, and your current pace.

11

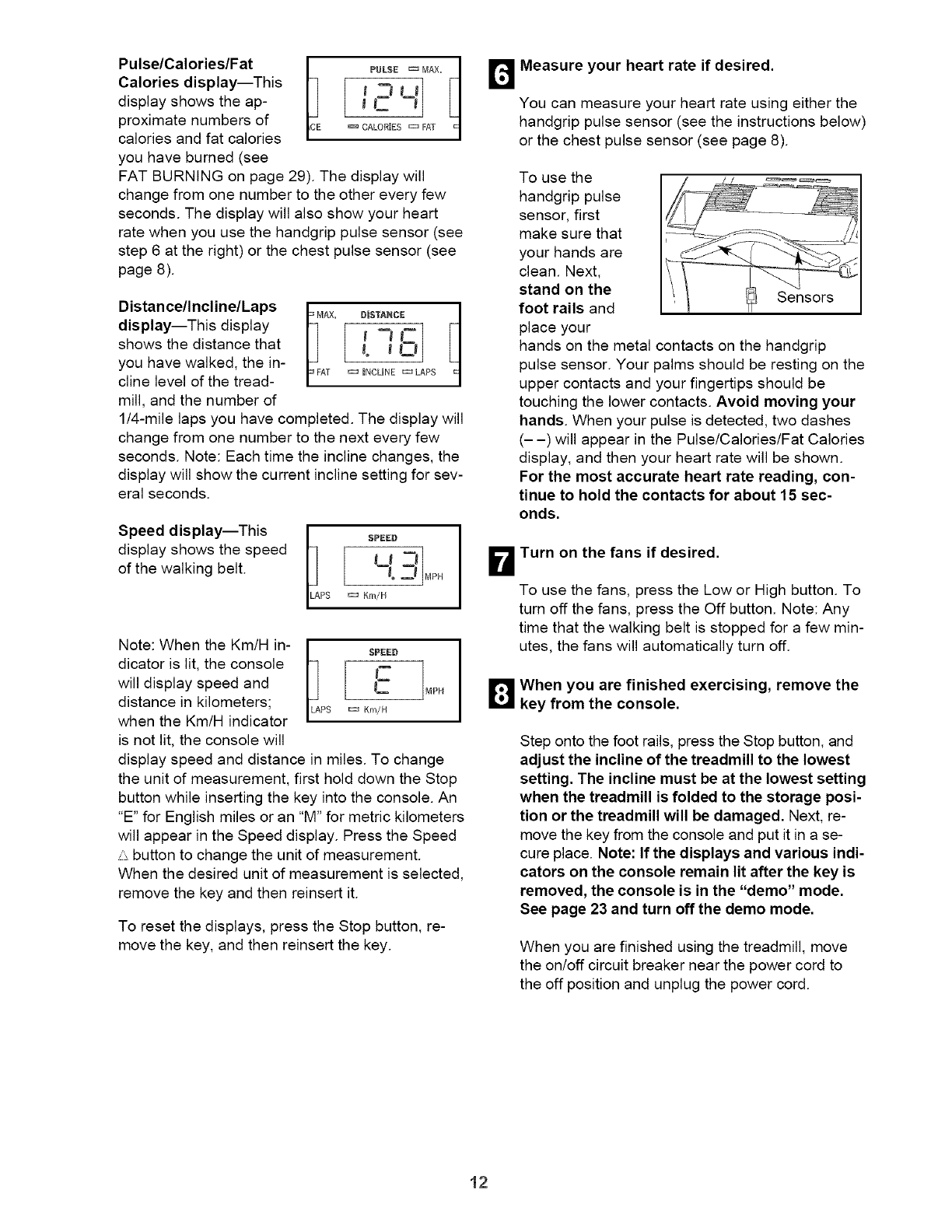

Pulse/Calories/Fat

Calories display--This I "7

display shows the ap- _ C

proximate numbers of

calories and fat calories

you have burned (see

FAT BURNING on page 29). The display will

change from one number to the other every few

seconds. The display will also show your heart

rate when you use the handgrip pulse sensor (see

step 6 at the right) or the chest pulse sensor (see

page 8).

Distan ce/Incline/Laps

display--This display

shows the distance that

you have walked, the in-

cline level of the tread-

mill, and the number of

T c::= INCLINE c:= LAPS

1/4-mile laps you have completed. The display will

change from one number to the next every few

seconds. Note: Each time the incline changes, the

display will show the current incline setting for sev-

eral seconds.

Speed display--This

display shows the speed

of the walking belt.

SPEED

PS c:= Km/H

Note: When the Km/H in-

dicator is lit, the console

will display speed and

distance in kilometers;

when the Km/H indicator

is not lit, the console will

,4 SPEED 1

_ MPH

PS c::= Km/H

display speed and distance in miles. To change

the unit of measurement, first hold down the Stop

button while inserting the key into the console. An

"E" for English miles or an "M" for metric kilometers

will appear in the Speed display. Press the Speed

/'_button to change the unit of measurement.

When the desired unit of measurement is selected,

remove the key and then reinsert it.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

[] Measure your heart rate if desired.

You can measure your heart rate using either the

handgrip pulse sensor (see the instructions below)

or the chest pulse sensor (see page 8).

To use the

handgrip pulse

sensor, first

make sure that

your hands are

clean. Next,

stand on the Sensors

foot rails and

place your

hands on the metal contacts on the handgrip

pulse sensor. Your palms should be resting on the

upper contacts and your fingertips should be

touching the lower contacts. Avoid moving your

hands. When your pulse is detected, two dashes

(- -) will appear in the Pulse/Calories/Fat Calories

display, and then your heart rate will be shown.

For the most accurate heart rate reading, con-

tinue to hold the contacts for about 15 sec-

onds.

BTurn on the fans if desired.

To use the fans, press the Low or High button. To

turn off the fans, press the Off button. Note: Any

time that the walking belt is stopped for a few min-

utes, the fans will automatically turn off.

When you are finished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest setting

when the treadmill is folded to the storage posi-

tion or the treadmill will be damaged. Next, re-

move the key from the console and put it in a se-

cure place. Note: If the displays and various indi-

cators on the console remain lit after the key is

removed, the console is in the "demo" mode.

See page 23 and turn off the demo mode.

When you are finished using the treadmill, move

the on/off circuit breaker near the power cord to

the off position and unplug the power cord.

12

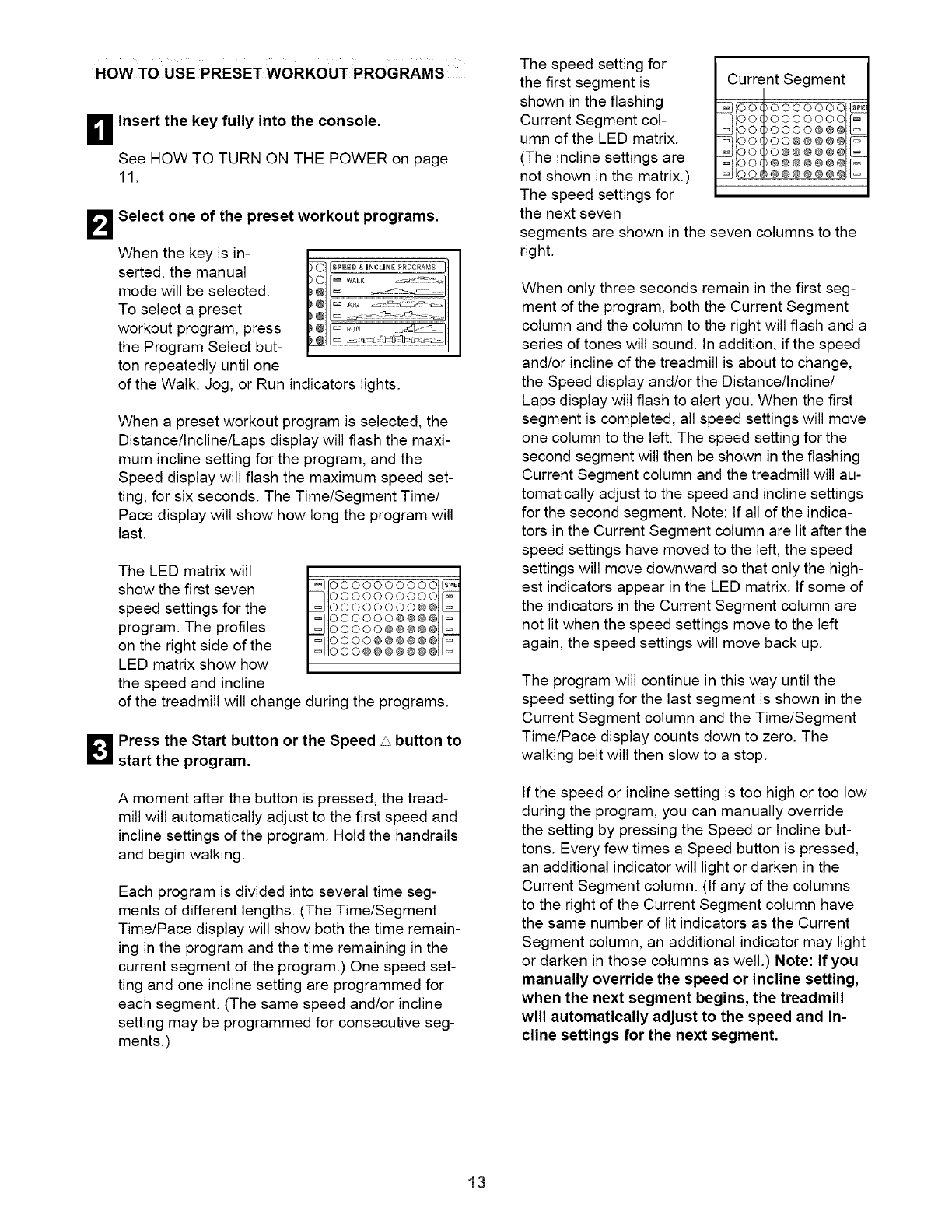

HOW TO USE PRESET WORKOUT PROGRAMS

D Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page

11.

BSelect one of the preset workout programs.

When the key is in-

serted, the manual

mode will be selected.

To select a preset

workout program, press

the Program Select but-

ton repeatedly until one

of the Walk, Jog, or Run indicators lights.

When a preset workout program is selected, the

Distance/Incline/Laps display will flash the maxi-

mum incline setting for the program, and the

Speed display will flash the maximum speed set-

ting, for six seconds. The Time/Segment Time/

Pace display will show how long the program will

last.

The LED matrix will

show the first seven

speed settings for the

program. The profiles

on the right side of the

LED matrix show how

the speed and incline

of the treadmill will change during the programs.

_1 Press the Start button or the Speed Abutton to

start the program.

A moment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings of the program. Hold the handrails

and begin walking.

Each program is divided into several time seg-

ments of different lengths. (The Time/Segment

Time/Pace display will show both the time remain-

ing in the program and the time remaining in the

current segment of the program.) One speed set-

ting and one incline setting are programmed for

each segment. (The same speed and/or incline

setting may be programmed for consecutive seg-

ments.)

The speed setting for

the first segment is

shown in the flashing

Current Segment col-

umn of the LED matrix.

(The incline settings are

not shown in the matrix.)

The speed settings for

the next seven

Current Segment

DOc)O00000C _

_DO,)O00OOOC _

DO_)OOOO@@@

_ DO')OO@@@@@ [_--

DO_)O@@@@@@

_DO_)@@@@@@@DO_)@@@@@@@

segments are shown in the seven columns to the

right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash and a

series of tones will sound. In addition, if the speed

and/or incline of the treadmill is about to change,

the Speed display and/or the Distance/Incline/

Laps display will flash to alert you. When the first

segment is completed, all speed settings will move

one column to the left. The speed setting for the

second segment will then be shown in the flashing

Current Segment column and the treadmill will au-

tomatically adjust to the speed and incline settings

for the second segment. Note: If all of the indica-

tors in the Current Segment column are lit after the

speed settings have moved to the left, the speed

settings will move downward so that only the high-

est indicators appear in the LED matrix. If some of

the indicators in the Current Segment column are

not lit when the speed settings move to the left

again, the speed settings will move back up.

The program will continue in this way until the

speed setting for the last segment is shown in the

Current Segment column and the Time/Segment

Time/Pace display counts down to zero. The

walking belt will then slow to a stop.

If the speed or incline setting is too high or too low

during the program, you can manually override

the setting by pressing the Speed or Incline but-

tons. Every few times a Speed button is pressed,

an additional indicator will light or darken in the

Current Segment column. (If any of the columns

to the right of the Current Segment column have

the same number of lit indicators as the Current

Segment column, an additional indicator may light

or darken in those columns as well.) Note: If you

manually override the speed or incline setting,

when the next segment begins, the treadmill

will automatically adjust to the speed and in-

cline settings for the next segment.

13

B

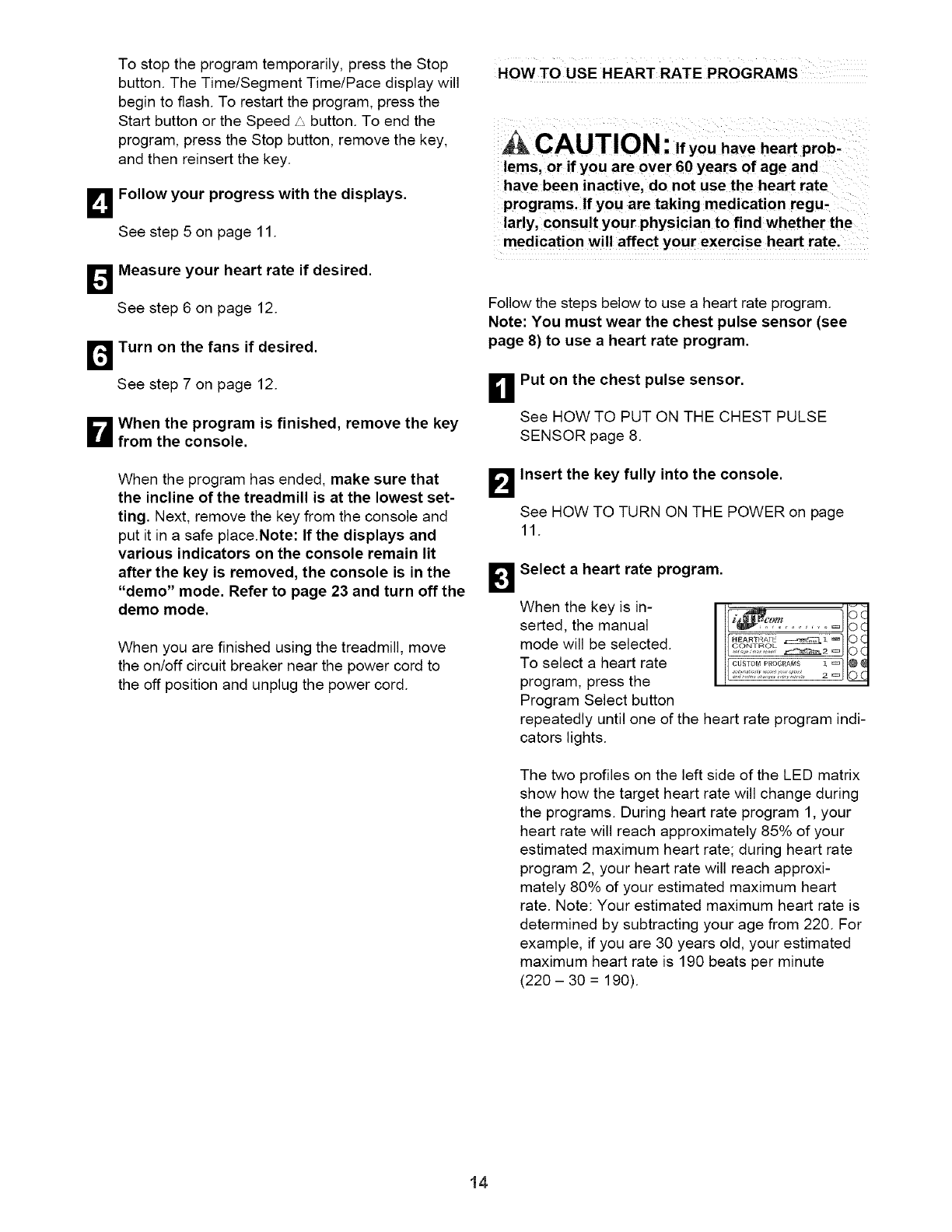

To stop the program temporarily, press the Stop

button. The Time/Segment Time/Pace display will

begin to flash. To restart the program, press the

Start button or the Speed ?, button. To end the

program, press the Stop button, remove the key,

and then reinsert the key.

Follow your progress with the displays.

See step 5 on page 11.

_easure your heart rate if desired.

See step 6 on page 12.

r_ Turn on the fans if desired.

See step 7 on page 12.

Bhen the program is finished, remove the key

from the console.

When the program has ended, make sure that

the incline of the treadmill is at the lowest set-

ting. Next, remove the key from the console and

put it in a safe place.Note: If the displays and

various indicators on the console remain lit

after the key is removed, the console is in the

"demo" mode. Refer to page 23 and turn off the

demo mode.

When you are finished using the treadmill, move

the on/off circuit breaker near the power cord to

the off position and unplug the power cord.

HOWTO USE HEART RATE PROGRAMS

CAUTION: ifyouhaveheartprob-

lems, or if you are over 60 years of age and

have been inactive, do not use the heart rate

programs. If you are taking medication regu-

larly, consult your physician to find whether the

medication will affect your exercise heart rate.

Follow the steps below to use a heart rate program.

Note: You must wear the chest pulse sensor (see

page 8) to use a heart rate program.

_lPut on the chest pulse sensor.

See HOW TO PUT ON THE CHEST PULSE

SENSOR page 8.

B Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page

11.

DSelect a heart rate program.

When the key is in-

serted, the manual

mode will be selected.

To select a heart rate

program, press the

Program Select button

repeatedly until one of the heart rate program indi-

cators lights.

The two profiles on the left side of the LED matrix

show how the target heart rate will change during

the programs. During heart rate program 1, your

heart rate will reach approximately 85% of your

estimated maximum heart rate; during heart rate

program 2, your heart rate will reach approxi-

mately 80% of your estimated maximum heart

rate. Note: Your estimated maximum heart rate is

determined by subtracting your age from 220. For

example, if you are 30 years old, your estimated

maximum heart rate is 190 beats per minute

(220 - 30 = 190).

14

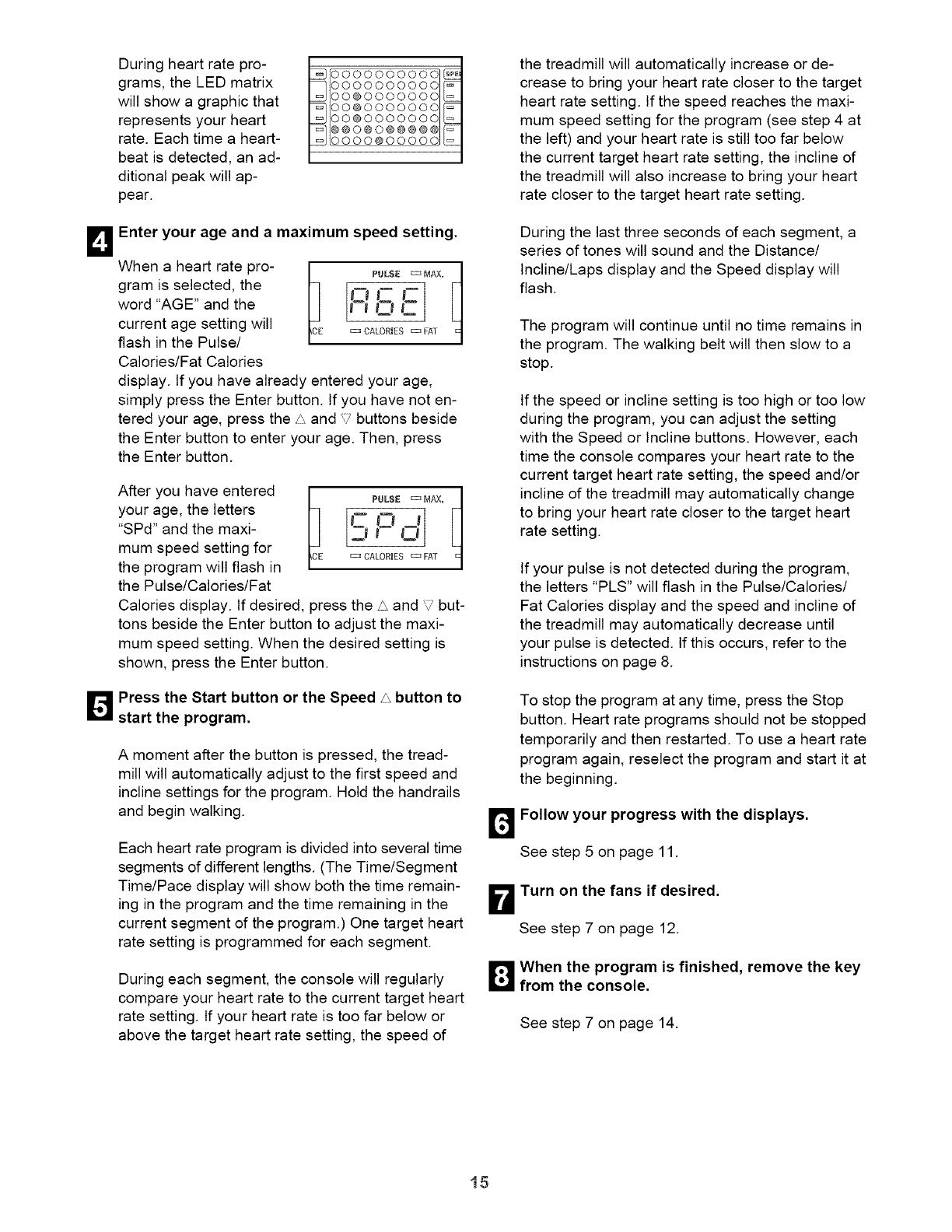

During heart rate pro-

grams, the LED matrix

will show a graphic that

represents your heart

rate. Each time a heart-

beat is detected, an ad-

ditional peak will ap-

pear.

O00000000C[s_E

0000000000

O0@O00000C

_O0@OOOO00C _

O0@O00000C

@@0@0@@@@@

OOOO@OOOOC

BEnter your age and a maximum speed setting.

Whenahea ratepr°ULSE° Axn1

gram is selected, the rS _5word "AGE" and the

current age setting will =_CALORIES=_FAT

flash in the Pulse/

Calories/Fat Calories

display, tf you have already entered your age,

simply press the Enter button. If you have not en-

tered your age, press the/', and '7 buttons beside

the Enter button to enter your age. Then, press

the Enter button.

er ouhavee tere,l

your age, the letters

"SPd" and the maxi- _-- t

mum speed setting for _=CALORIESc:= FAT

the program will flash in

the Pulse/Calories/Fat

Calories display. If desired, press the/'_ and 'q but-

tons beside the Enter button to adjust the maxi-

mum speed setting. When the desired setting is

shown, press the Enter button.

_"_ Press the Start button or the Speed _button to

start the program.

A moment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings for the program. Hold the handrails

and begin walking.

Each heart rate program is divided into several time

segments of different lengths. (The Time/Segment

Time/Pace display will show both the time remain-

ing in the program and the time remaining in the

current segment of the program.) One target heart

rate setting is programmed for each segment.

During each segment, the console will regularly

compare your heart rate to the current target heart

rate setting. If your heart rate is too far below or

above the target heart rate setting, the speed of

the treadmill will automatically increase or de-

crease to bring your heart rate closer to the target

heart rate setting. If the speed reaches the maxi-

mum speed setting for the program (see step 4 at

the left) and your heart rate is still too far below

the current target heart rate setting, the incline of

the treadmill will also increase to bring your heart

rate closer to the target heart rate setting.

During the last three seconds of each segment, a

series of tones will sound and the Distance/

Incline/Laps display and the Speed display will

flash.

The program will continue until no time remains in

the program. The walking belt will then slow to a

stop.

If the speed or incline setting is too high or too low

during the program, you can adjust the setting

with the Speed or Incline buttons. However, each

time the console compares your heart rate to the

current target heart rate setting, the speed and/or

incline of the treadmill may automatically change

to bring your heart rate closer to the target heart

rate setting.

If your pulse is not detected during the program,

the letters "PLS" will flash in the Pulse/Calories/

Fat Calories display and the speed and incline of

the treadmill may automatically decrease until

your pulse is detected. If this occurs, refer to the

instructions on page 8.

To stop the program at any time, press the Stop

button. Heart rate programs should not be stopped

temporarily and then restarted. To use a heart rate

program again, reselect the program and start it at

the beginning.

r_ Follow your progress with the displays.

See step 5 on page 11.

B urn on the fans if desired.

See step 7 on page 12.

Bhen the program is finished, remove the key

from the console.

See step 7 on page 14.

15

HOW TO CREATE CUSTOM PROGRAMS

_Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page

11.

BSelect one of the custom programs.

When the key is in-

serted, the manual

mode will automatically

be selected. To select a

custom program, first

press the Program

Select button repeatedly until one of the custom

program indicators lights.

Note: If the custom program has not yet been

defined, only three columns of indicators will

be lit in the LED matrix. If more than three

columns of indicators are lit, see HOW TO USE

CUSTOM PROGRAMS on page 17.

_ress the Start button or the Speed Abutton

and program the desired speed and incline

settings.

A moment after the button is pressed, the walking

belt will begin to move. Hold the handrails and

begin walking.

Refer to the LED matrix. Each custom program

divided into one-minute segments. One speed

setting and one incline

setting can be pro-

grammed for each seg-

ment. The speed set-

ting for the first seg-

ment will be shown in

the flashing Current

Segment column of the

LED matrix. (The in-

Current Segment

is

oo()ooooooc

_= O0()OOOO00C

O0()o00000c

__] O0()OOOO00C

OO()OOOOOOC

= O0_O00000C

00@@@0000©

cline settings are not shown in the matrix.) To pro-

gram a speed setting and an incline setting for the

first segment, simply adjust the speed and incline

of the treadmill as desired by pressing the Speed

and Incline buttons. Every few times a Speed but-

ton is pressed, an additional indicator will light or

darken in the Current Segment column.

When the first segment of the program is com-

pleted, a series of tones will sound and the current

speed setting and the current incline setting will

be saved in memory. The three columns of indica-

tors will then move one column to the left, and the

speed setting for the second segment will be

shown in the flashing Current Segment column.

Program a speed setting and an incline setting for

the second segment as described above.

Continue programming speed and incline settings

for as many segments as desired; custom pro-

grams can have up to forty segments. When you

are finished with your workout, press the Stop but-

ton twice. The speed and incline settings that you

programmed and the number of segments that you

programmed will then be saved in memory.

B hen the program has ended, remove the key.

See step 7 on page 14.

16

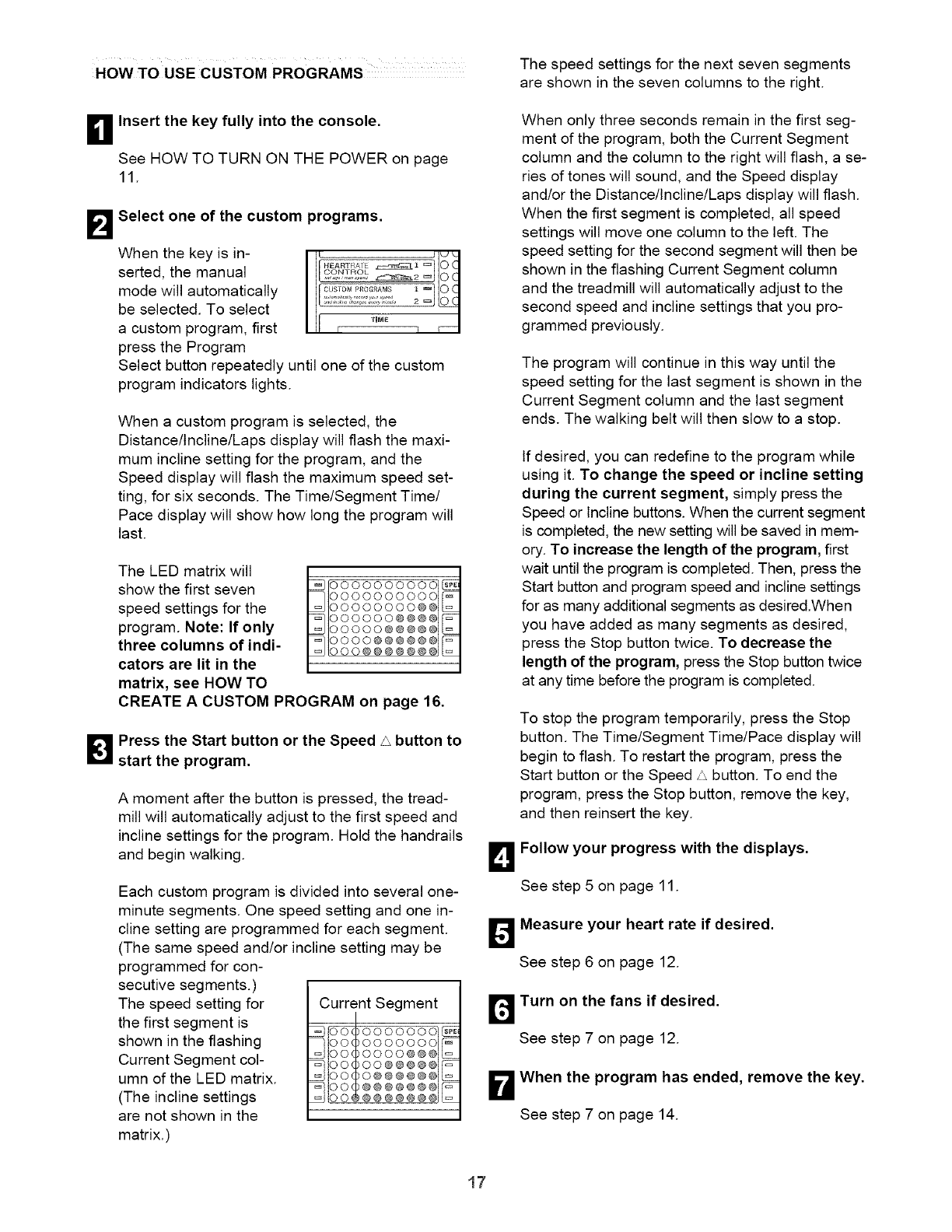

HOWTO USE CUSTOM PROGRAMS

_Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page

11.

BSelect one of the custom programs.

When the key is in-

serted, the manual

mode will automatically

be selected. To select

a custom program, first

press the Program

I

CUSTOMPROO_-A_

Select button repeatedly until one of the custom

program indicators lights.

When a custom program is selected, the

Distance/Incline/Laps display will flash the maxi-

mum incline setting for the program, and the

Speed display will flash the maximum speed set-

ting, for six seconds. The Time/Segment Time/

Pace display will show how long the program will

last.

The LED matrix will

show the first seven

speed settings for the

program. Note: If only

three columns of indi-

cators are lit in the

matrix, see HOW TO

CREATE A CUSTOM PROGRAM on page 16.

_Press the Start button or the Speed _button to

start the program.

A moment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings for the program. Hold the handrails

and begin walking.

Each custom program is divided into several one-

minute segments. One speed setting and one in-

cline setting are programmed for each segment.

(The same speed and/or incline setting may be

programmed for con-

secutive segments.)

The speed setting for Current Segment

the first segment is

shown in the flashing

Current Segment col-

umn of the LED matrix.

(The incline settings

are not shown in the

matrix.)

The speed settings for the next seven segments

are shown in the seven columns to the right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash, a se-

ries of tones will sound, and the Speed display

and/or the Distance/Incline/Laps display will flash.

When the first segment is completed, all speed

settings will move one column to the left. The

speed setting for the second segment will then be

shown in the flashing Current Segment column

and the treadmill will automatically adjust to the

second speed and incline settings that you pro-

grammed previously.

The program will continue in this way until the

speed setting for the last segment is shown in the

Current Segment column and the last segment

ends. The walking belt will then slow to a stop.

If desired, you can redefine to the program while

using it. To change the speed or incline setting

during the current segment, simply press the

Speed or Incline buttons. When the current segment

is completed, the new setting will be saved in mem-

ory. To increase the length of the program, first

wait until the program is completed. Then, press the

Start button and program speed and incline settings

for as many additional segments as desired.When

you have added as many segments as desired,

press the Stop button twice. To decrease the

length of the program, press the Stop button twice

at any time before the program is completed.

To stop the program temporarily, press the Stop

button. The Time/Segment Time/Pace display will

begin to flash. To restart the program, press the

Start button or the Speed/'_ button. To end the

program, press the Stop button, remove the key,

and then reinsert the key.

Bollow your progress with the displays.

See step 5 on page 11.

_"_ Measure your heart rate if desired.

See step 6 on page 12.

r_ Turn on the fans if desired.

See step 7 on page 12.

B hen the program has ended, remove the key.

See step 7 on page 14.

17

HOW TO CONNECT THE TREADMILL TO

YOUR CD PLAYER, VCR, OR COMPUTER

To use iFIT.com CD's, the treadmill must be con-

nected to your portable CD player, portable stereo,

home stereo, or computer with CD player. See pages

18 and 19 for connecting instructions. To use iFIT.com

videocassettes, the treadmill must be connected to

your VCR. See page 20 for connecting instructions. To

use iFIT.com programs directly from our Web site,

the treadmill must be connected to your home com-

puter. See page 19 for connecting instructions.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below. If your CD

player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your CD player. Plug your headphones into the

PHONES jack.

Ai::!!!!:(!:{i

H ad

i ,@ [_i Audio []] , -

i i Cable phones

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your CD player. Plug your

headphones into the other side of the Y-adapter.

.... r .............

Audio

Cable

Headphones

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

3.5mm LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter. Plug

the adapter into an AUDIO OUT jack on your stereo.

i @ [_ ! Audio

AUBI0_JT

i LE_

Adapter_

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your stereo.

® Audio

....;.=..:.=..=..:.=..===

C. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your stereo. Plug your

headphones into the other side of the Y-adapter.

i; @! 3 mm6

ir . .i ud!o Y-adapter

Headphones-_,-_

18

HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into the LINE OUT jack on your

stereo.

i® @ Audio

Cab,e

===¢=2=2=2=2=2=2'

LIF_EOUT@

m

Adapter_

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into an RCA Y-adapter (available

at electronics stores). Next, remove the wire that is

currently plugged into the LINE OUT jack on your

stereo and plug the wire into the unused side of the

Y-adapter. Plug the Y-adapter into the LINE OUT

jack on your stereo.

@ @ RCA Y-adapter

!r;2q L=W.J Audio

i_©i Cable Adapter

Wire removed from __

LINE OUT jack

Note: If your computer has a 3.5mm LINE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your computer.

A

i ® i

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your computer. Plug your

headphones or speakers into the other side of the

Y-adapter.

B

@®

@ _ Audio _ 3.5mm

© CableY-adapter

.....-'--'--=" =_41""_e_ <:_>J

Headphones/Speakers@

19

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 19.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into the AUDIO OUT jack on your

VCR.

.... t =7=,,"........ '

Audio Adapter_

.......:::--d

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into an RCA Y-adapter (available

at electronics stores). Next, remove the wire that is

currently plugged into the AUDIO OUT jack on your

VCR and plug the wire into the unused side of the

Y-adapter. Plug the Y-adapter into the AUDIO OUT

jack on your VCR.

B

i@ [_ RCA Y-adapter-J

ir_ Audio

!l[[lJ (_ i Cable Adapter

!_ _ i l/

Wire removed from_

AUDIO OUT jack

HOW TO USE IFIT,COM CD AND VIDEO

PROGRAMS

To use iFtT.com CD's or videocassettes, the treadmill

must be connected to your portable CD player, portable

stereo, home stereo, computer with CD player, or

VCR. See HOW TO CONNECT THE TREADMILL TO

YOUR CD PLAYER, VCR, OR COMPUTER on page

18. Note: To purchase iFIT.com CD's or iFIT.com

videocassettes, call toll-free 1-800-735-0768.

Follow the steps below to use an iFIT.com CD or video

program.

_1 Insert the key into the console.

See HOW TO TURN ON THE POWER on page 11.

BSelect the iFIT.com mode.

When the key is in-

serted, the manual

mode will be selected.

To use iFIT.com CD's

or videocassettes,

press the Program

I f|=A=0 Lco=T.oL

IIIO_

Select button repeatedly until the iFIT.com indica-

tor lights.

DInsert the iFIT.com CD or videocassette.

If you are using an iFIT.com CD, insert the CD into

your CD player. If you are using an iFIT.com video-

cassette, insert the videocassette into your VCR.

B ress the PLAY button on your CD player or

VCR.

A moment after the button is pressed, your per-

sonal trainer will begin guiding you through your

workout. Simply follow your personal trainer's

instructions. Note: If the Time/Segment Time/Pace

display is flashing, press the Start button or the

Speed/_ button on the console. The treadmill will

not respond to a CD or video program when the

Time/Segment Time/Pace display is flashing.

During the CD or video program, an electronic

"chirping" sound will alert you when the speed

and/or incline of the treadmill is about to change.

CAUTION: Always listen for the "chirp" and be

prepared for speed and/or incline changes. In

some instances, the speed and/or incline may

change before the personal trainer describes

the change.

20

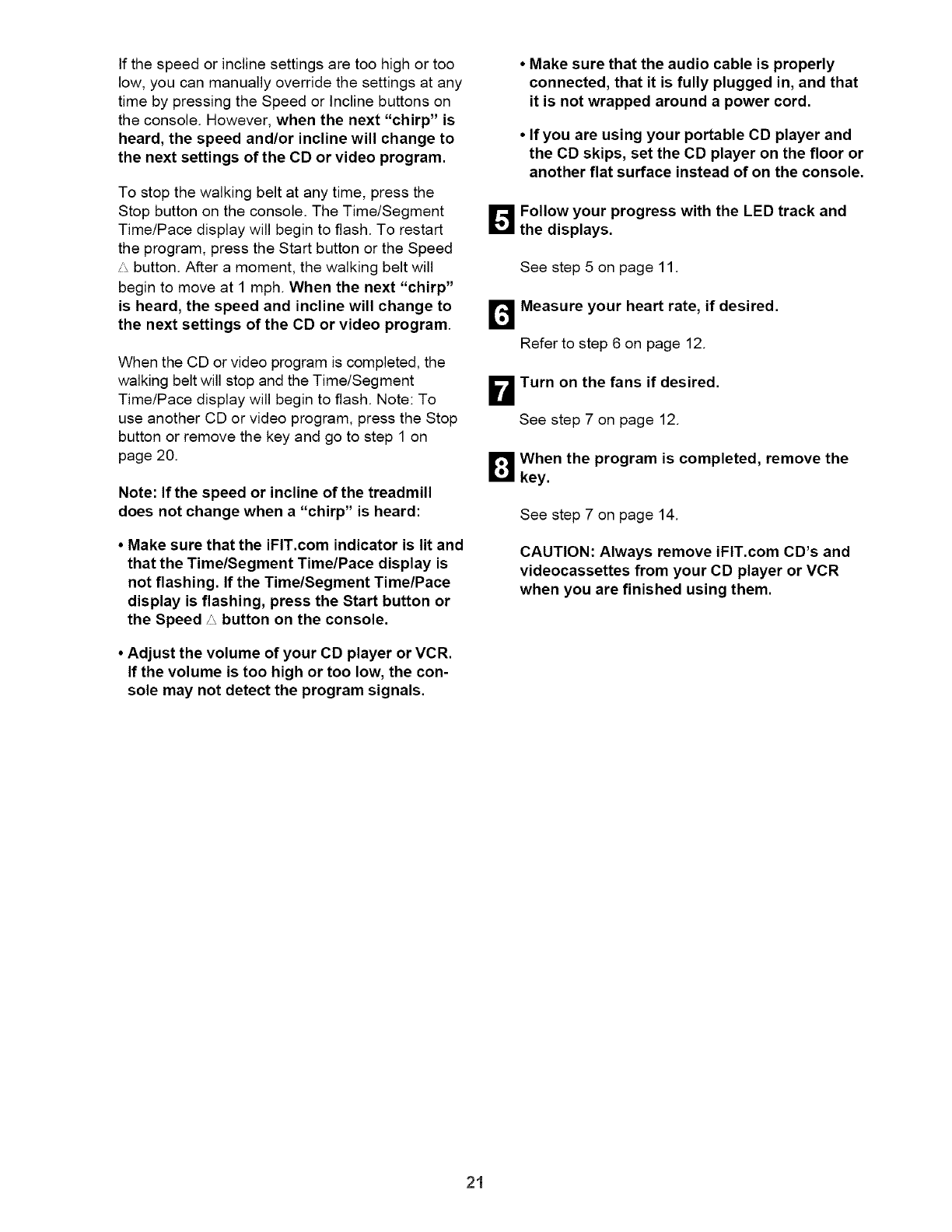

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next "chirp" is

heard, the speed and/or incline will change to

the next settings of the CD or video program.

To stop the walking belt at any time, press the

Stop button on the console. The Time/Segment

Time/Pace display will begin to flash. To restart

the program, press the Start button or the Speed

/'_ button. After a moment, the walking belt will

begin to move at 1 mph. When the next "chirp"

is heard, the speed and incline will change to

the next settings of the CD or video program.

When the CD or video program is completed, the

walking belt will stop and the Time/Segment

Time/Pace display will begin to flash. Note: To

use another CD or video program, press the Stop

button or remove the key and go to step 1 on

page 20.

Note: If the speed or incline of the treadmill

does not change when a "chirp" is heard:

•Make sure that the iFIT.com indicator is lit and

that the Time/Segment Time/Pace display is

not flashing. If the Time/Segment Time/Pace

display is flashing, press the Start button or

the Speed/'_ button on the console.

•Adjust the volume of your CD player or VCR.

If the volume is too high or too low, the con-

sole may not detect the program signals.

•Make sure that the audio cable is properly

connected, that it is fully plugged in, and that

it is not wrapped around a power cord.

•If you are using your portable CD player and

the CD skips, set the CD player on the floor or

another fiat surface instead of on the console.

_'q_ Follow your progress with the LED track and

the displays.

See step 5 on page 11.

r_ Measure your heart rate, if desired.

Refer to step 6 on page 12.

B urn on the fans if desired.

See step 7 on page 12.

When the program is completed, remove the

key.

See step 7 on page 14.

CAUTION: Always remove iFIT.com CD's and

videocassettes from your CD player or VCR

when you are finished using them.

21

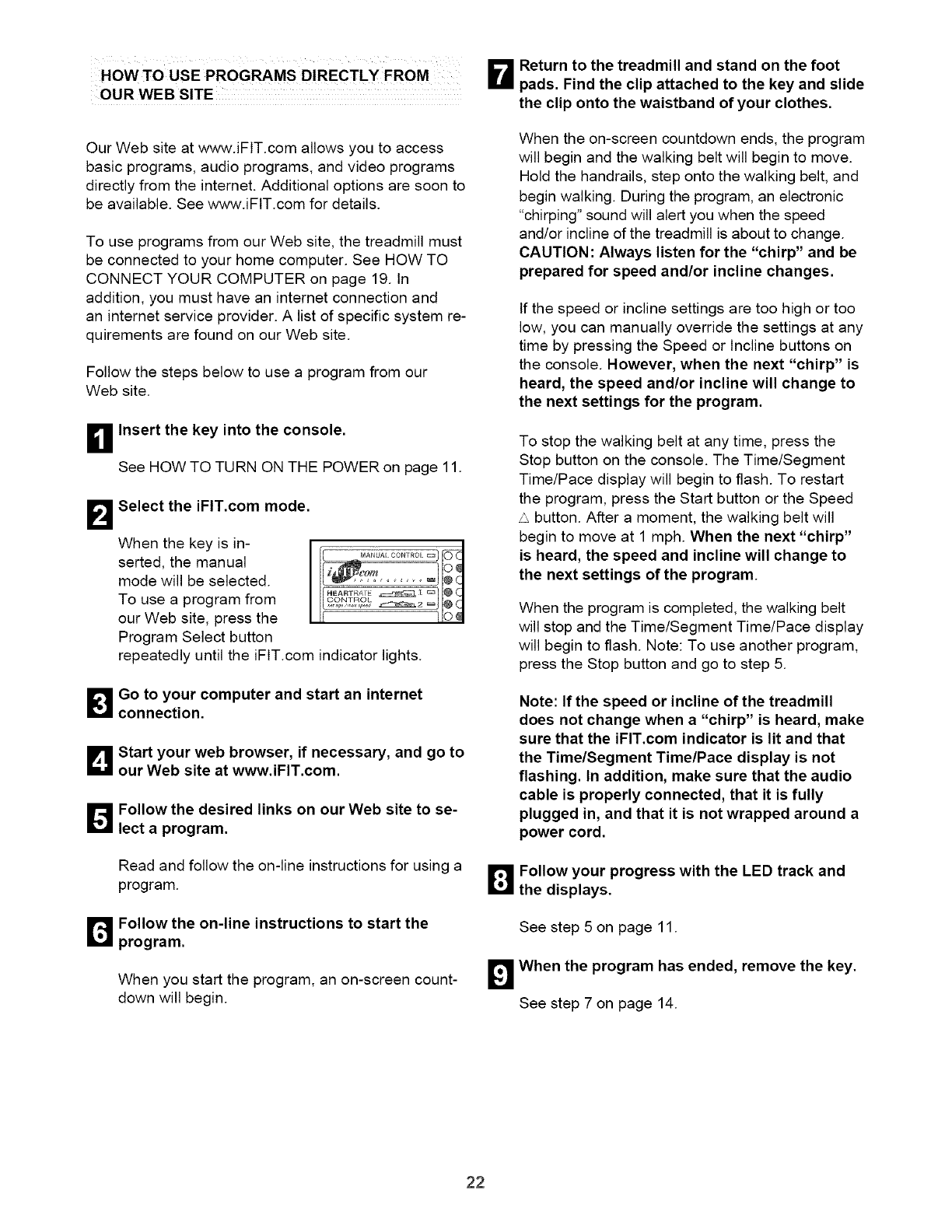

HOW TO USE PROGRAMS DIRECTLY FROM

OUR WEB SITE

Our Web site at www.iFtT.com allows you to access

basic programs, audio programs, and video programs

directly from the internet. Additional options are soon to

be available. See www.iFIT.com for details.

To use programs from our Web site, the treadmill must

be connected to your home computer. See HOW TO

CONNECT YOUR COMPUTER on page 19. In

addition, you must have an internet connection and

an internet service provider. A list of specific system re-

quirements are found on our Web site.

Follow the steps below to use a program from our

Web site.

_1 Insert the key into the console.

See HOW TO TURN ON THE POWER on page 11.

FISelect the iFIT.com mode.

When the key is in-

serted, the manual

mode will be selected.

To use a program from

our Web site, press the

Program Select button

I rr MA..A,0oN,.o,

Fi IFo_

repeatedly until the iFIT.com indicator lights.

_lGo to your computer and start an internet

connection.

B tart your web browser, if necessary, and go to

our Web site at www.iFIT.com.

_ Follow the desired links on our Web site to se-

lect a program.

Read and follow the on-line instructions for using a

program.

r_ Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

B eturn to the treadmill and stand on the foot

pads. Find the clip attached to the key and slide

the clip onto the waistband of your clothes.

When the on-screen countdown ends, the program

will begin and the walking belt will begin to move.

Hold the handrails, step onto the walking belt, and

begin walking. During the program, an electronic

"chirping" sound will alert you when the speed

and/or incline of the treadmill is about to change.

CAUTION: Always listen for the "chirp" and be

prepared for speed and/or incline changes.

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next "chirp" is

heard, the speed and/or incline will change to

the next settings for the program.

To stop the walking belt at any time, press the

Stop button on the console. The Time/Segment

Time/Pace display will begin to flash. To restart

the program, press the Start button or the Speed

/'_button. After a moment, the walking belt will

begin to move at 1 mph. When the next "chirp"

is heard, the speed and incline will change to

the next settings of the program.

When the program is completed, the walking belt

will stop and the Time/Segment Time/Pace display

will begin to flash. Note: To use another program,

press the Stop button and go to step 5.

Note: If the speed or incline of the treadmill

does not change when a "chirp" is heard, make

sure that the iFIT.com indicator is lit and that

the Time/Segment Time/Pace display is not

flashing. In addition, make sure that the audio

cable is properly connected, that it is fully

plugged in, and that it is not wrapped around a

power cord.

_ollow your progress with the LED track and

'the displays.

See step 5 on page 11.

1_'1 When the program has ended, remove the key.

See step 7 on page 14.

22

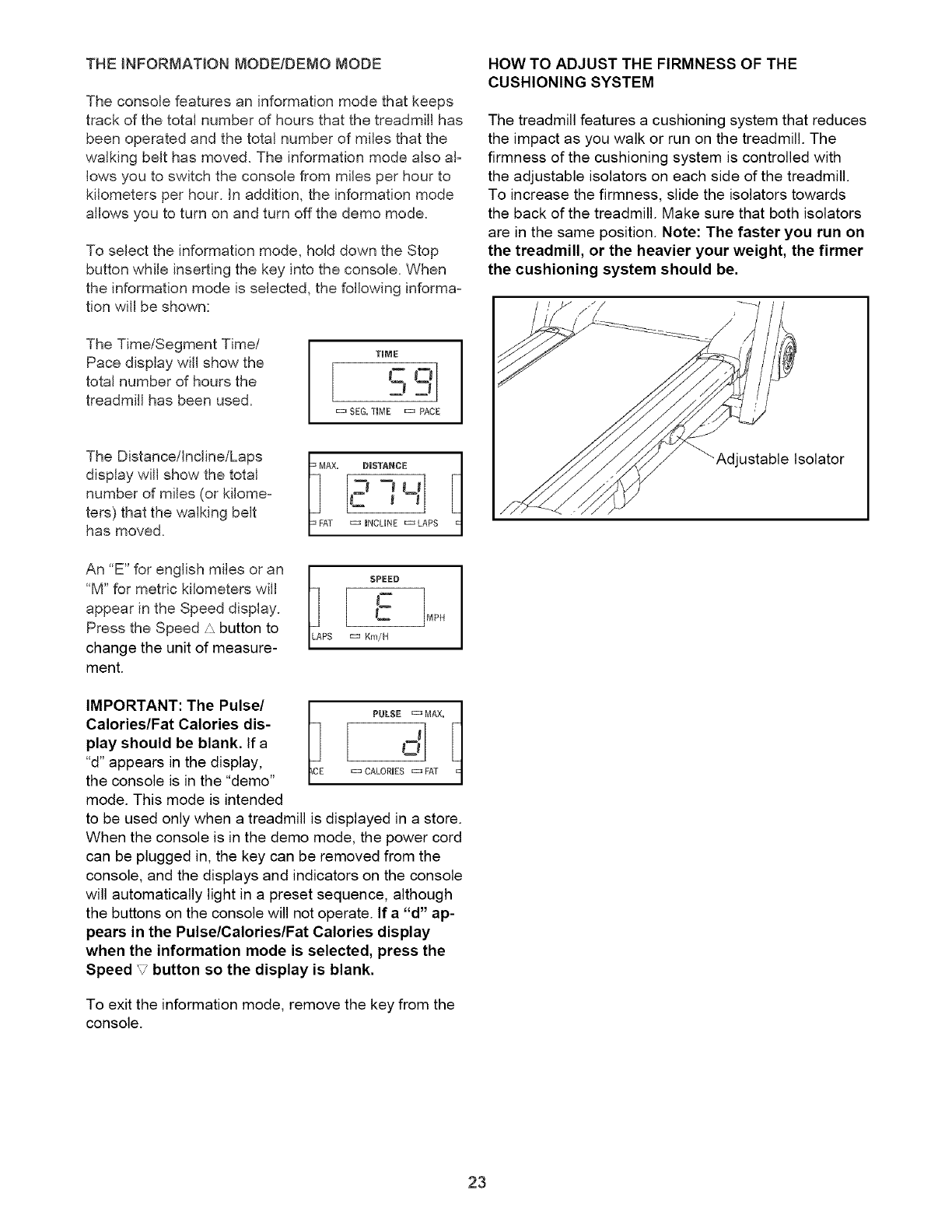

THE INFORMATION MODEIDEMO MODE

The console features an information mode that keeps

track of the total number of hours that the treadmifl has

been operated and the total number of miles that the

walking belt has moved. The information mode also aJ=

lows you to switch the console from miles per hour to

kilometers per hour. In addition, the information mode

allows you to turn on and turn off the demo mode.

To select the information mode, hold down the Stop

button while inserting the key into the console. When

the information mode is selected, the following informa=

tion wifl be shown:

The Time/Segment Time/

Pace display wifl show the

total number of hours the

treadmifl has been used.

TIME

r]rs

D2w

c:= SEG. rIME == PACE

HOW TO ADJUST THE FIRMNESS OF THE

CUSHIONING SYSTEM

The treadmill features a cushioning system that reduces

the impact as you walk or run on the treadmill. The

firmness of the cushioning system is controlled with

the adjustable isolators on each side of the treadmill.

To increase the firmness, slide the isolators towards

the back of the treadmill. Make sure that both isolators

are in the same position. Note: The faster you run on

the treadmill, or the heavier your weight, the firmer

the cushioning system should be.

The Distance/incline/Laps

display wifl show the total

number of miles (or kilome=

ters) that the walking belt

has moved.

I I'IAX= _°msTAH Ci_ I

AT c:= INCUNE c:= LAPS

An "E" for english miles or an

"M" for metric kilometers will

appear in the Speed display.

Press the Speed/'_ button to

change the unit of measure-

ment.

IA SPEED MPH

L:

PS c:= Km/H

IMPORTANT: The Pulse/

Calories/Fat Calories dis-

play should be blank. If a

"d" appears in the display,

the console is in the "demo"

mode. This mode is intended

IE PULSE c:=iAX. 1

d

c:= CALORUES c:= FAT

to be used only when a treadmill is displayed in a store.

When the console is in the demo mode, the power cord

can be plugged in, the key can be removed from the

console, and the displays and indicators on the console

will automatically light in a preset sequence, although

the buttons on the console will not operate. If a "d" ap-

pears in the Pulse/Calories/Fat Calories display

when the information mode is selected, press the

Speed '_ button so the display is blank.

To exit the information mode, remove the key from the

console.

ustable Isolator

23

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

lowest position. If this is not done, the treadmill may be

permanently damaged. Next, unplug the power cord.

CAUTION: You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the treadmill.

1. Hold the treadmill frame with your hands in the locations

shown at the right. CAUTION: To decrease the possibil-

ity of injury, bend your legs and keep your back

straight. As you raise the treadmill, make sure to lift

with your legs rather than your back. Raise the tread-

mill about halfway to the vertical position.

2. Hold the treadmill firmly with your left hand. Using your

right hand, pull the lock knob to the right and hold it.

Raise the treadmill until the pin on the lock knob is

aligned with the hole in the left foam grip. Then, release

the lock knob. Make sure that the lock knob is fully re-

leased so that the pin is fully inserted into the hole in

the left foam grip.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of

direct sunlight. Do not leave the treadmill in the stor-

age position in temperatures above 85° Fahrenheit.

Foam

Grip Lock

Knob Pin

Foam _1

Grip /

Lock

Knob

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor-

age position as described above. Make sure that the lock-

ing pin is inserted into the left handrail.

1. Hold the handrails as shown and place one foot against

the hood only in the location shown. Do not hold or

push on the book holder.

2. Tilt the treadmill back until it rolls freely on the wheels.

Carefully move the treadmill to the desired location. Never

move the treadmill without tipping it back. To reduce

the risk of injury, use extreme caution while moving

the treadmill. Do not attempt to move the treadmill

over an uneven surface.

3. Place one foot on the hood and carefully lower the tread-

mill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

Book

Holder

Base

1. Refer to drawing 2 above. Hold the treadmill firmly with your left hand. Pull the lock knob to the right. Pivot the

treadmill down until the pin on the lock knob is below the foam grip. Slowly release the lock knob.

2. Refer to drawing 1 above. Hold the treadmill firmly with both hands and lower the treadmill frame to the floor.

CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.

24

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-

free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor

that meets all of the specifications described on page 9. important: The treadmill is not compatible

with GFCI-equipped outlets.

b. Make sure that the key is fully inserted into the console.

C. Check the on/off circuit breaker located on the frame near the power

cord. If the breaker protrudes as shown, the circuit breaker has

tripped. To reset the circuit breaker, wait for five minutes and then

press the breaker back in.

PROBLEM: The power turns off during use

Tripped Reset

SOLUTION: a. Check the on/off circuit breaker located on the treadmill frame near the power cord (see 1. c.

above), if the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. if the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

c. Remove the key from the console and then reinsert it.

PROBLEM: The incline of the treadmill does not change correctly or does not change when iFJT.com

CD's and videos are played

SOLUTION: a. With the key inserted in the console, press one of the Incline buttons. While the incline is

changing, remove the key. After a few seconds, re-insert the key. The treadmill will automati-

cally rise to the maximum incline level and then return to the minimum level. This will recalibrate

the incline.

PROBLEM: The watking belt slows when walked on

SOLUTION: a. Use only a single=outlet surge suppressor that meets all of the specifications described on page 9.

b. If the walking belt is overtightened, treadmill performance

may decrease and the walking belt may be permanently

damaged. Remove the key and UNPLUG THE POWER

CORD. Using the included allen wrench, turn both rear

roller adjustment bolts counterclockwise 1/4 of a turn.

When the walking belt is properly tightened, you should

be able to lift the edges of the walking belt 3 to 4 inches

off the walking platform. Be careful to keep the walking

belt centered. Plug in the power cord, insert the key and

run the treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

Rear Roller Adjustment Bolts

25

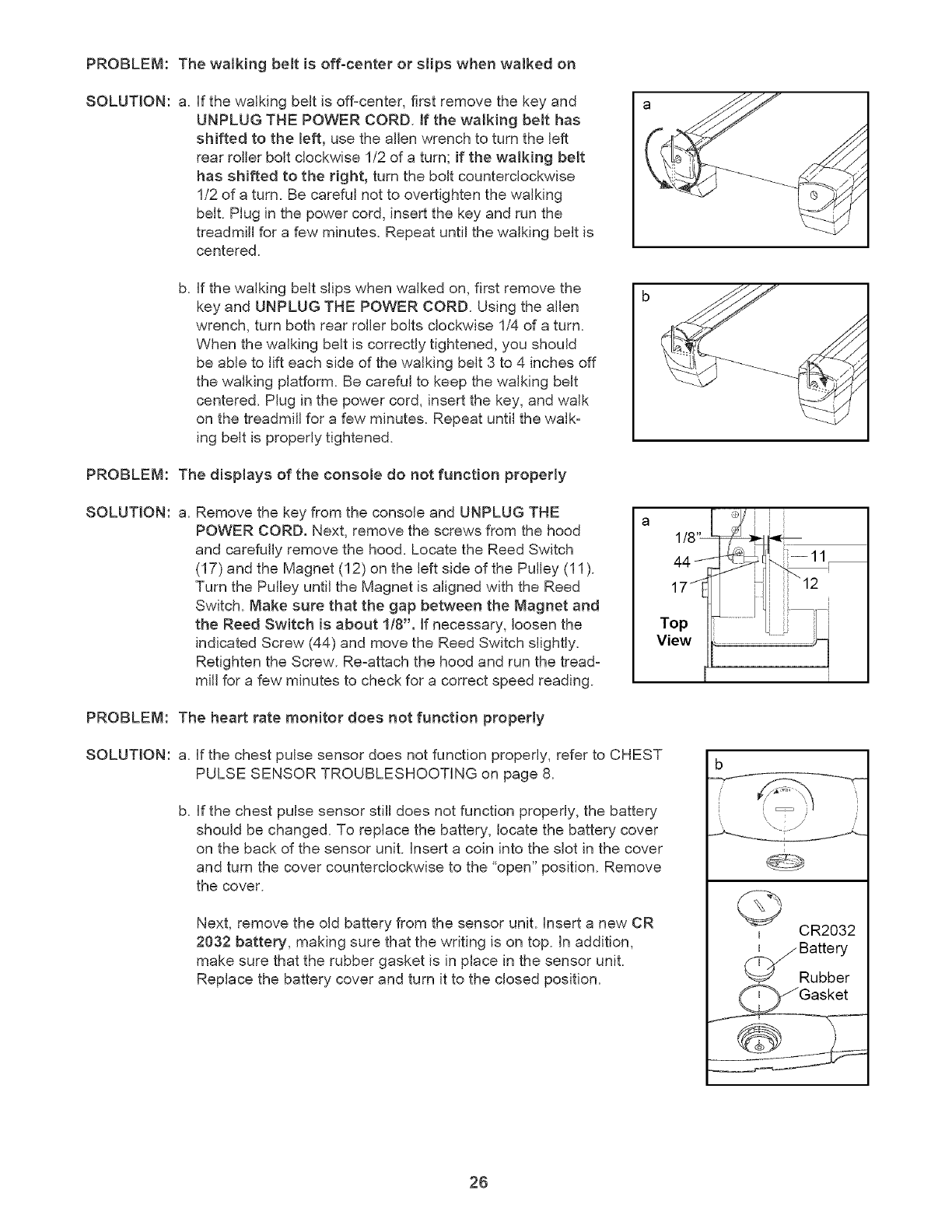

PROBLEM: The watking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key and

UNPLUG THE POWER CORD. If the walking belt has

shifted to the left, use the allen wrench to turn the left

rear roller bolt clockwise 1/2 of a turn; if the walking belt

has shifted to the right, turn the bolt counterclockwise

1/2 of a turn. Be careful not to overtighten the walking

belt. Plug in the power cord, insert the key and run the

treadmill for a few minutes. Repeat until the walking belt is

centered.

b. If the walking belt slips when walked on, first remove the

key and UNPLUG THE POWER CORD. Using the allen

wrench, turn both rear roller bolts clockwise 1/4 of a turn.

When the walking belt is correctly tightened, you should

be able to lift each side of the walking belt 3 to 4 inches off

the walking platform. Be careful to keep the walking belt

centered. Plug in the power cord, insert the key, and walk

on the treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and UNPLUG THE

POWER CORD. Next, remove the screws from the hood

and carefully remove the hood. Locate the Reed Switch

(17) and the Magnet (12) on the left side of the Pulley (11).

Turn the Pulley until the Magnet is aligned with the Reed

Switch. Make sure that the gap between the Magnet and

the Reed Switch is about 1/8". If necessary, loosen the

indicated Screw (44) and move the Reed Switch slightly.

Retighten the Screw. Re=attach the hood and run the tread-

mill for a few minutes to check for a correct speed reading.

Top

View

PROBLEM: The heart rate monitor does not function properly

SOLUTION: a.

b.

If the chest pulse sensor does not function properly, refer to CHEST

PULSE SENSOR TROUBLESHOOTING on page 8.

If the chest pulse sensor still does not function properly, the battery

should be changed. To replace the battery, locate the battery cover

on the back of the sensor unit. Insert a coin into the slot in the cover

and turn the cover counterclockwise to the "open" position. Remove

the cover.

Next, remove the old battery from the sensor unit. Insert a new CR

2032 battery, making sure that the writing is on top. In addition,

make sure that the rubber gasket is in place in the sensor unit.

Replace the battery cover and turn it to the closed position.

b

_mt_

i CR2032

i Battery

Rubber

26

REEBOK UNIVERSITY

Reebok University was launched in 1993 to fulfill a

vision to establish a "university without walls" that

develops quality, researched, state-of-the-art fitness

programming for the fitness industry throughout the

world.

Working with the world's best professionals, Reebok

University has created a host of original programs,

such as Step Reebok _, Walk Reebok s"_,Slide Reebok s_'_

and Reebok City JamS'L The industry has adopted

Reebok programming as the "gold" standard. Our

guidelines and terminology are used by fitness profes-

sionals and participants around the world, and our

exceptional programming has been approved in the

United States by AFAA and ACE for continuing educa-

tion credits.

WALKING AND CARDIORESPIRATORY

ENDURANCE

Scientific studies confirm that

walking at a moderate to brisk

pace can enhance aero-

bic fitness. Rippe and

his colleagues _found

that of 500 subjects

tested, 67% of the men

and 90% of the women

were able to reach their

target heart rates by

walking 4 to 4.5 miles

per hour.

Pollock and his colleagues 2found that middle-aged

men who walked at a pace of 3.5 to 4.5 miles per hour

for 40 minutes four times per week had the same car-

diovascular improvements as men the same age who

jogged for 30 minutes three times per week. Although

the intensity of exercise was lower for the walkers than

the runners, the increased duration and frequency of

walking provided the walkers with similar aerobic ben-

efits as the runners.

On the basis of current research, it seems clear that

walking at a moderate to brisk pace can be an excel-

lent aerobic activity.

WALKING AND REDUCED RISK FOR CARDIOVAS-

CULAR DISEASE

Several studies have found that regular walking at any

speed can increase HDL-C cholesterol (a high-density

lipoprotein which removes excess cholesterol from the

body) and can lower concentrations of blood triglyc-

erides (a storage form of fat), thus reducing the risk for

cardiovascular disease.

Duncan and his colleagues 3concluded that exercise

does not have to be vigorous to reduce cardiovascular

risk factors. In other words, people who choose to

stroll rather than walk briskly can reduce their risk for

cardiovascular disease.

After studying the physical activity patterns of 17,000

Harvard alumni over a 20-year period, Paffenbarger

and his colleagues 4concluded that walking as little as

five city blocks per day can reduce the risk of cardio-

vascular disease, and walking 2 miles per day can

reduce the risk of a heart attack by 28% or more.

Therefore, while walking at a fast pace will improve

aerobic fitness, walking at any speed (slow or fast) can

reduce a person's risk for heart disease.

WALKING AND WEIGHT REDUCTION

Walking is an excellent activity for burning calories.

The steeper the incline and/or the faster the speed, the

more calories are burned. For example, a 150-pound

person walking at 3.5 miles per hour on flat ground will

burn about 300 calories per hour. This same person

will burn 400 calories per hour on a gentle 4% incline

and 500 calories per hour on a steeper 10% incline. If

this person speeds the pace up to 4 miles per hour on

level ground, 350 calories will be burned in one hour. 5

It should be noted that participants who do not wish to

walk at faster speeds can burn a comparable number

of calories by walking for longer periods of time.

WALKING AND BONE DENSITY

Osteoporosis is a major health problem in the United

States, affecting an estimated 15 to 30 million people.

An age-related disorder, osteoporosis reduces the

density of bones. This disease can be life-threatening

since many older people die as a result of complica-

tions suffered from broken bones. Adequate calcium in

the diet and weight-bearing exercises seem to reduce

the risk of osteoporosis.

27

Several studies have reported that regular walking at

moderate to brisk speeds appears to increase bone

density. Specifically, Fradin and his colleagues ° found

that 70-year-old subjects who walked at least 30 min-

utes per day had higher bone mineral content than

subjects who walked less than 30 minutes per day.

Jones and his colleagues 7reported that sedentary

women (aged 30 to 61 years old) who began a regular

walking program and continued for one year increased

their bone density.

Since walking can be comfortably performed by people

of any age, walking appears to be practical and effec-

tive in reducing a person's risk for developing osteo-

porosis.

WALKING AND STRESS REDUCTION

There are many stressors in today's society, including

economic concerns, work-related pressures and the

need to balance career goals with home responsibili-

ties. People who are unable to cope with these types

of stressors are often tense and anxious, and may

even become physically or psychologically ill.

Researchers have found that exercise is one way to

help people reduce stress. For example, subjects who

engaged in a regular aerobic conditioning program and

who altered their diets experienced significant gains in

self-concept, feelings of well-being and reduced

depression 8

Cramer and his colleagues _specifically examined the

effect of brisk walking on mildly obese sedentary

women and found that walking improved general psy-

chological well-being. Walking therefore appears to be

an effective tool for improving psychological well-being.

WALKING AND INJURIES

Walking is often associated with a low injury rate.

Walking is considered to be a "low impact" activity be-

cause one foot remains in contact with the ground at

all times. Walking at speeds of 3 miles per hour pro-

duces vertical impact forces that are around 1.25 times

body weight, whereas running at 7 miles per hour in-

creases vertical impact forces to more than 2.5 times

body weight.

During a 24-week study, not one of 59 participants

who walked five days a week at speeds between 3 and

5 miles per hour sustained a walking-related injury that

necessitated consulting with a physician. Carroll and

his colleagues '° reported that 14% of the elderly sub-

jects participating in a walking study suffered training-

related orthopedic injuries, mostly to the lower leg and

foot. The majority of injuries occurred in the group as-

signed to "fast walking."

It is important to note that all forms of exercise have

some degree of risk associated with the activity.

Generally, the less mechanical stress on the muscu-

Ioskeletal system, the less risk of becoming injured.

Because of the low-impact nature of walking, the inci-

dence of injury appears to be low when compared to

other high-impact activities.

REFERENCES

1. Rippe, J., Ross, J., et. al. "Cardiovascular effects of walking."

(Abstract), Proceedings of the Second International Conference

on Physical Activity, Aging and Sports, July, 1985, p. 47.

2. Pollock, M., Miller, H. Jr., et. al. "Effects of walking on body com-

position and cardiovascular function of middle-aged men."

Journal of Applied Physiology, 1971,30:126-130.

3. Duncan, J., Gordon, N., et. aI. "Women walking for health and fit-

ness. How much is enough?" Journal of the American Medical

Association, 199!, 266(23):3295-9.

4. Paffenbarger, R., Hyde, R., et.al. "Physical activity, all-cause

mortality and longevity of college alumni." New England Journal

of Medicine, 1986, 314:605-613.

5. "Better walking workouts." University of California at Berkeley

Wellness Letter, !992, 8(12):4-5.

6. Fradin, K. Grimby, G., et. al. "Walking habits and health-related

factors in a 70-year-old population," Gerontology, 1991,

37(5):28!-8.

7. Jones, P., Hardman, A., et. al. "influence of brisk walking on the

broadband ultrasonic attenuation of the caIcaneus in previously

sedentary women aged 30-61 years." Calcified Tissue

International, 199!, 49(2):112-5.

8. Blair, S., Coltingwood, T., et. aI. "Health Promotion for Educators:

Impact on Health Behaviors, Satisfaction, and General Well-

Being," American Journal of Public Health, 1984, 74:14749.

9. Cramer, S., Nieman D., et. aI. "The effects of moderate exercise

training on psychological well-being and mood state in women."

Journal of Psychosomatic Research, 199!, 35(4-5):437-49.

10. Carroll, J., Pollack, M., et. al. "incidence of injury during moder-

ate and high intensity walking in the elderly." Journal of

Gerontology, 1992, 47(3):M61-6.

28

EXERCISE GUIDELINES

,&WARNIN G: Beforebeginning this

or any exercise program, consult your physi-

cian, This is especially important for individu-

als over the age of 35 or individuals with pre-

existing health problems,

The pulse sensors are not medical devices,

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings, The pulse sensors are intended

only as exercise aids in determining heart

rate trends in general,

The following guidelines will help you to plan your ex-

ercise program. For more detailed exercise informa-

tion, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

HEART RATE TRABMNG ZONES

AEROBIC t65 155 145 t40 130 I25 1t5

MAX FA_BURN I45 138 130 I25 118 110 I03

FATBURN I25 120 115 110 105 95 90

Age 20 30 40 50 60 70 80

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your "train-

ing zone." The lower two numbers are recommended

heart rates for fat burning; the highest number is the

recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the

handgrip pulse sensor or the chest pulse sensor. If

your heart rate is too high or too low, adjust the speed

or incline of the treadmill.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible carbohydrate calories for en-

ergy. Only after the first few minutes does your body

begin to use stored fat calories for energy, tf your goal

is to burn fat, adjust the speed or incline of the tread-

mill until your heart rate is near the lowest number in

your training zone.

For maximum fat burning, adjust the speed or incline

of the treadmill until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be "aerobic." Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed or incline of the treadmill until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up--Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise--After warming up, increase

the intensity of your exercise until your pulse is in your

training zone for 20 to 60 minutes. (During the first few

weeks of your exercise program, do not keep your

pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise--never

hold your breath.

A Cool-down--Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-ex-

ercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired. The key

to success is to make exercise a regular and enjoyable

part of your everyday life.

29

PART LIST--Model No. RBTL16920 R0403A

To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.

KeyNo, Qty. Description KeyNo. Qty. Description

1 1 Left Foot Rail 57 2

2 1 Chest Strap 58 1

3 1 Audio Wire 59* 1

4 4 Isolator 60 1

5 1 Latch Insert 61 1

6 1 Walking Platform 62 1

7 4 Walking Platform Screw 63 1

8 1 Walking Belt 64 1

9 2 Frame Pivot Bolt 65 1

10 2 1/2" Screw 66 6

11 1 Front Roller/Pulley 67 1

12 1 Magnet 68 1

13 7 Front Roller Nut/Front Wheel Nut 69 1

14 2 Spacer Insert 70 1

15 2 Frame Pivot Spacer 71 1

16 1 Reed Switch Clip 72 1

17 1 Reed Switch 73 1

18 1 Lift Frame 74 1

19 2 Foot Rail Insert 75 4

20 1 U-base 76 2

21 1 Front Roller Bolt 77 2

22 1 Motor Belt 78 2

23 2 3" Bolt 79 1

24 1 Motor 80 1

25 1 Transformer 81 1

26 3 2" Bolt 82 2

27 2 Hood Bracket 83 1

28 1 Ground Wire 84 8

29 2 Motor Washer 85 1

30 1 Right Rear Endcap 86 1

31 1 Lift Motor Bolt 87 2

32 2 Motor Bolt 88 2

33 2 U-base Nut 89 1

34 4 Plastic Stand-off 90 1

35 1 Power Supply 91 1

36 2 Caution Decal 92 1

37 1 Controller 93 8

38 1 Electronics Bracket 94 1

39 1 Motor Hood 95 2

40 12 Screw 96 2

41 1 Motor Belly Pan 97 5

42 2 Belt Guide 98 6

43 12 3/4" Tek Screw 99 1

44 44 Electronics Screw 100 1

45 1 Left Front Endcap 101 4

46 1 Right Front Endcap 102 1

47 1 Left Rear Foot 103 1

48 1 Right Rear Foot 104 2

49 1 Console Ground Wire 105 1

50 8 Extension Screw 106 1

51 2 U-base Nut 107 1

52 7 Roller Adj. Washer 108 1

53 2 Rear Roller Adjustment Bolt 109 1

54 1 Left Rear Endcap 110 1

55 1 Frame 111 1

56 1 Allen Wrench 112 2

Rear Platform Screw

Rear Roller

Idler Assembly

Audio Wire Nut

Pulse Bar

Left Foam Grip

Idler Arm

Idler Spring

Upright

Pulse Bar Screw

Lock Knob

Left Frame Guide

Lock Knob Spring

Lock Pin Collar

Pin Clip

Lock Pin

Right Frame Guide

Latch Assembly

Plastic Fastener

Handrail Extension

Front Wheel

Wheel Bolt

Pulley Nut

Console

Console Cover

Fan

Key/Clip

Belly Pan Screw/Hood Screw

Upright Wire Harness

Shock

Round Upright Endcap

Upright Endcap

Filter Wire

Latch Warning Decal

Incline Motor

Motor Controller Wire

Fan Screw

Sensor Unit

Tie Holder

Tie

8" Cable Tie

Bumper

Idler Arm Bolt

Circuit Breaker

3/4" Screw

Power Cord

Power Cord Grommet

Wheel Spacer

Incline Motor Shield

Jack

iFIT.com Audio Cable

Grommet

Pulley Washer

Idler Pulley

Pulley Spacer

Shield Screw

30

Key No, Qty. Description Key No. Qty. Description

113 2 Static Decal 131 2 Adjustable Cushion

114 1 Book Plate 132 2 Cushion Guide

115 1 Idler Pulley Bolt 133 2 Ball Detent

116 1 Right Foam Grip 134 2 Cushion Cover

117 1 Console Base 135 4 Cushion Guide Screw

118* 1 Latch Assembly 136 16 Cushion Guide Screw

119 1 Right Fan Cover 137 1 Right Foot Rail

120 1 Left Fan Cover 138 2 Cushion Slide

121 2 Motor Bushing 139 2 Cushion Cover Bumper

122 1 Idler Arm Nylon Washer # 1 12" Green Wire, 2 Ring

123 1 Hand Pulse Wire # 1 8" Green Wire, F/Ring

124 1 Incline Bracket # 1 10" White Wire, 2 F

125 2 Incline Motor Nut # 1 4" Blue Wire, 2 F

126 2 Hood Mounting Screw # 1 User's Manual

127 1 Motor Isolator Plate * Includes all parts shown in the box

128 1 Left Cup Holder # These parts are not illustrated

129 4 Base Washer

130 1 Right Cup Holder Specificaitions are subject to change without notice.

HOW TO ORDER REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through

Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give

the following information:

• The MODEL NUMBER of the product (RBTL16920)

• The NAME of the product (Reebok '_RX 7200 treadmill)

• The SERIAL NUMBER of the product (see the front cover of this manual)

• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on pages 30 and 31)

31

72

J

118" 69

67

54

52

53 56

52

53

6

4o:_ 4 48

59*

12

22

24

29

/g 135

136

132

32

/

44 25 44

J

40

89

o

P:,

I'

z

o_

g

2O

43 -4

31

[

:" 112

123.

116

87

/f "-...

/40

/

40

92

107

114

83

I'!1

I"

o

i"rl

I

O

LIMITED WARRANTY

WHAT IS COVERED--The entire Reebok ® RX 7200 treadmill ("Product") is warranted to be free of all defects in mater-

ial and workmanship.

WHO IS COVERED--The original purchaser or any person receiving the Product as a gift from the original purchaser.

HOW LONG IS IT COVERED--ICON Health & Fitness, Inc. ("ICON"), extends a lifetime warranty on the frame. The

motor is covered for three years after the date of purchase. The belt and deck are covered for two years after the date

of purchase. All mechanical components are covered for two years after the date of purchase. All electrical components

are covered for two years after the date of purchase. Labor is covered for one year.

WHAT WE DO TO CORRECT COVERED DEFECTS--We will ship to you, without charge, any replacement part or

component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized

service provider, or, at our option, we will replace the Product.

WHAT IS NOT COVERED--Any failures or damage caused by unauthorized service, misuse, accident, negligence, im-

proper assembly or installation, alterations, modifications without our written authorization or by failure on your part to

use, operate, and maintain as set out in your User's Manual ("Manual"). This warranty does not extend to products used

for commercial or rental purposes or to products used as store display modules.

WHAT YOU MUST DO--Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the

Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discov-

ery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.

USER'S MANUAL--It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product.

Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your

continued satisfaction.

HOW TO GET PARTS AND SERVICE--Simply call our Customer Service Department at 1-800-999-3756 and tell them

your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if neces-

sary, arrange for service where your Product is located or advise you how to ship the Product for service. Before ship-

ping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack

your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the

product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the ser-

vice is covered by warranty.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the

use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or

profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature.

Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above lim-

itation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability

or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not

allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

No one is authorized to change, modify or extend the terms of this limited warranty.

This warranty gives you specific legal rights and you may have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Part No. 193799 R0403A Printed in USA © 2003 iCON HeaJth & Fitness, inc.
