REWO INTELLIGENCE TECHNOLOGY LE528H LilEyes Baby Monitor User Manual LE538H Instructionx
REWO INTELLIGENCE TECHNOLOGY CO., LIMITED LilEyes Baby Monitor LE538H Instructionx
Manual
Operating instructions
1. Booting up
a) Open the router
b) Firstly insert the USB to your LilEyes, put the power adapter into an
electrical socket and insert the other side into the power interface, then

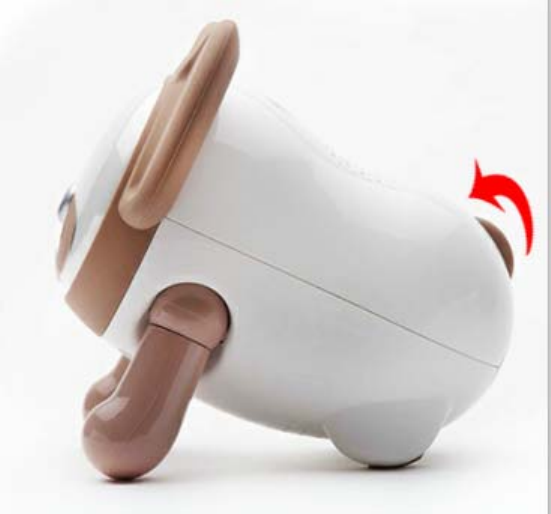

push the rotary switch to turn on LilEyes (the sound of “da” means that it
starts up ).
c) After it is turned on, please wait for about 1’05” when the system is
launched and will automatically connect to the router. After that, the
product will get ready for use with the expression, “==”, appearing on the
LED screen of LilEyes and the prompt tone of “dear master”.
d) After entering the apk of LilEyes in your smartphone (we will launch the ios
system later), all the applications can be used and controlled by your
phone.
2. Use of Applications by Smartphone

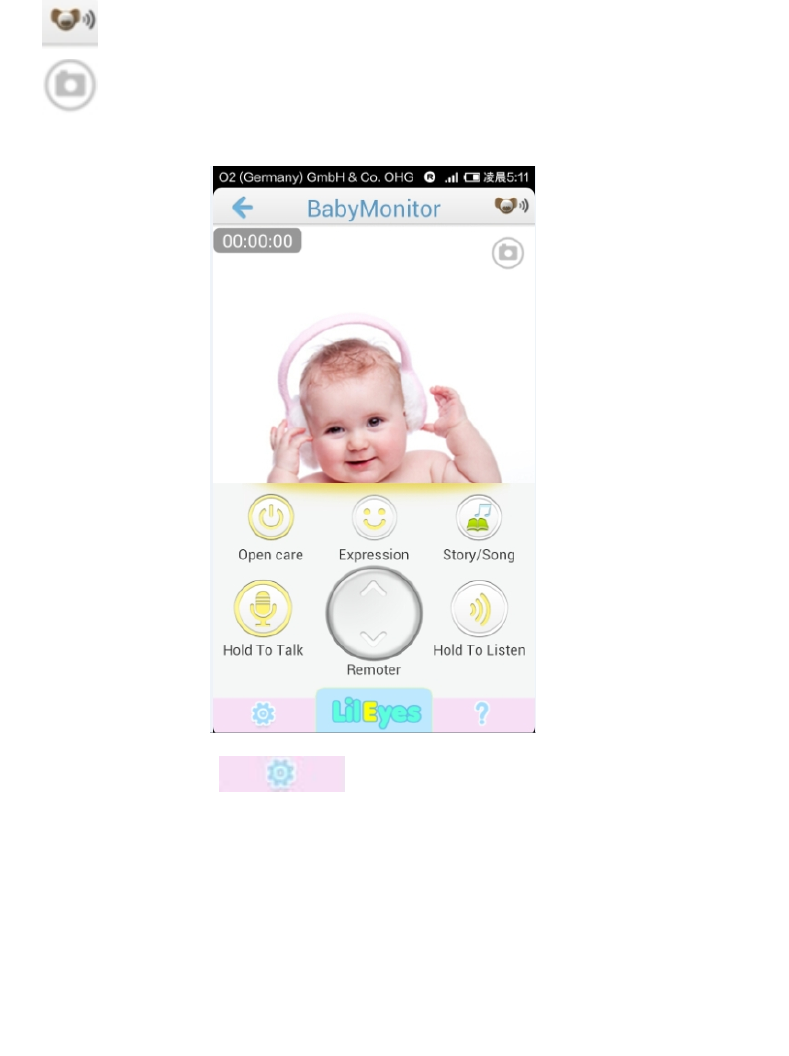

·Baby Monitor
a) Open care and Close care: press the button of “Open Care” to start
the monitoring function and click “Close Care” to end the monitoring.
In addition, the function of monitoring will run automatically and send
you alerting messages backstage when you start the function of baby
monitor and quit the app interface.
b) Expression：click “Expression” and choose one of the expressions that
pop up below, then LilEyes will show it.
c) Story/Song：press “Story/Song” to play stories or music for your baby.
d) Hold to Talk: hold the button to talk with your baby, but please pay
attention to keeping a certain distance (at least 5 meters) away from
your LilEyes to avoid noise,
e) Hold to Listen：hold the button to listen to your baby, and please turn
up your phone receiver to the maximum volume for clear sound。
Meanwhile, some noise may exists because of the surroundings at
times.
f) Remoter：press the upward arrow constantly to rise the camera and
the other way around, the angle of the camera will lower.
g) ：Click this button to control the volume.
h) ：One picture of your baby will be taken and saved to the album in
the smartphone when you click this button once.
i) Click the button to see the following options:
Click "Nursery Rhymes" and "Fairy Tales", pre-stored DIY audio files in
USB disk can be added to the playlist, including nursery rhymes, lullabies,
stories for children and the voice of parents.
Click "Video Review", you can watch the previous video downloaded from
LilEyes through USB. (Not available for the sample)
Click "Ringtone Settings" to choose "ON ", you can find when the warning
message pops up, the smartphone can be not only vibrating, but also set
to the mode of ringtone.
Remark：
a) The function of sending alerting messages when your baby is crying will be
contained in the final product, which is not included in the sample for the
moment. We will bring the final product with this function in the language of
English to the HK Electronics Fair (Spring Edition,13 - 16 April 2014). The
information of our booth is as follow:
Product Zone Baby Tech
Booth Number 5F-G09
b) If parents do not react to the first warning message within 45 seconds, the
app will send another alerting message to your smartphone as follow: (the
function has been contained in the sample)
·Music Function
The function can be controlled as other mp3 player, including repeating,
random play, pause, previous one and next one. LilEyes will play and dance
with the music downloaded from USB disc.

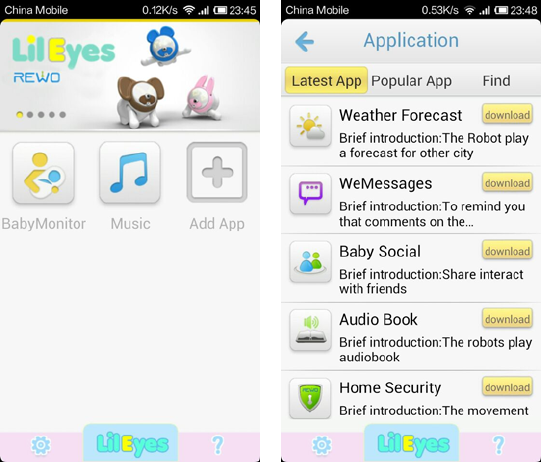

·Other Functions
Other additional functions can be added as long as clicking the icon of “Add
App” on the main interface of your app when your smartphone has a network
(The additional functions are not available for the sample and the basic version
of the final product).
FCC Statement:
This equipment has been tested and found to comply with the limits for Part 15
of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: Modifications to this product will void the user’s authority to
operate this equipment.
