RF Digital RFDANT RF Antenna Module User Manual
RF Digital Corporation RF Antenna Module
User Manual
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
1
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
Complete 2.4 GHz RF Transceiver Module
with Built-In RFDP8 Application Protocol
RFD21743 is a complete, READY-TO-USE wireless solution with it's built-in user
application interface (RFDP8). Includes RFID, ESN, Logic Switch Transmitter /
Receiver, 9600,N,8,1 Serial UART and many easy-to-use addressable network
modes. No development required at all, no RF layout, no code writing, all features
are built-in. Be up and running with a full wireless solution in minutes.
Applications
• Active RFID
• Long Range RFID
• Remote Control
• Light Controls
• Home Automation
• Alarm Security
• Keyless Entry
• Perimeter Monitoring
• PC Keyboard Security
• Wireless Keyboard
• Wireless Mouse
• TV Remote
• Home Stereo Remote
• Asset Tracking
• Wireless PTT
• Remote Switches
• Remote Terminals
• Wireless RS232 DB9
• Wireless RS485
• Temperature Control
• HV/AC
• Meter Reading
• Data Acquisition
• Inventory Control
• Keyfob Remotes
• Industrial Controls
• Vending Machines
RFD21743 RFDANT FCC APPROVED
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
2
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
• Runs on a single coin cell for years.
• WiFi interference tolerant.
• Bluetooth interference tolerant.
• Zigbee interference tolerant.
• Very low cost.
• No external parts required.
• No RF layout required.
• Easy and ready-to-use, hand-held, eval and application boards available.
• Fully contained, truly a finished, ready to use module.
• FCC Certified.
• Typical range outdoor; 300 feet (100 meters), indoor 100 feet (33 meters).
• Worldwide 2.4GHz ISM band operation.
• User configurable without need for any programming.
• 2uA Ultra low power modes.
• Only 14mA current consumption at 0dbm RF power output.
• Only 17mA current consumption at -94 dBm receive sensitivity.
• 16 bit CRC data accuracy verification built-in.
• 32 bit unique factory ESN in every module (4 billion combination security).
• Flexible network modes, including broadcast and individual addressing.
• Optional version available for use with external antenna (RFD21735).
• Switch on/off, logic, remote-control without the need for an external controller.
• Switch nodes individually addressable without the need for an external controller.
• Wide supply range +1.9V to +3.6V.
• Built-in, high performance internal antenna.
• Peer to Peer (Ad-Hoc) networks and configurations.
• Point to Multi-Point networks and configurations.
• Multi-Point to Multi-Point networks and configurations.
• Selective addressing of any module by using factory built-in ESN.
• Fast-turn-around, minimal latency (20 millisecond).
• Patent pending RFDP8 interference tolerant protocol.
• Full application protocol runs transparent to the user.
• Easy to use, simple to design in.
• Stores up to 60 ESNs (Electronic Serial Numbers) for network modes.
• Many to one data modes ideal for multi-point data acquisition.
• Unlimited number of module nodes can communicate to each other.
RFD21743 RFDANT Features
RF Digital's RFDP8
application firmware
loaded into the
RFD21743 RFDANT
module can be
customized to fit
application specific
user requirements.
RF Digital can design
and manufacture fully
custom modules to fit
specific customer
requirements.
If you do not find what
you're looking for, feel
free to contact
RF Digital with your
requirements.
Custom Modules

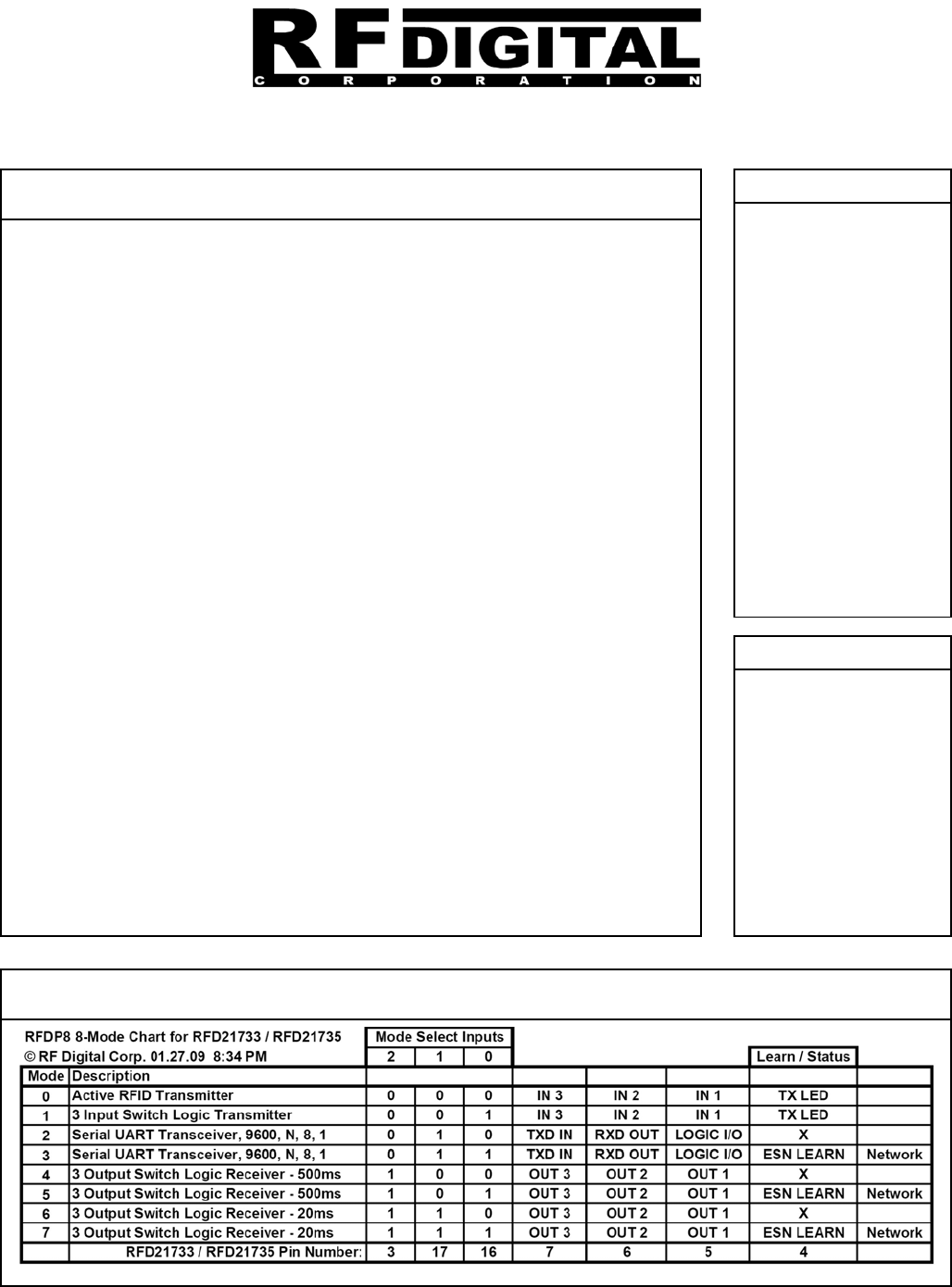

RFDP8 Application Protocol • Mode Selector Chart
See below fo
r
READY-TO-USE
Eval boards.
Eval Kits
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
3
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773

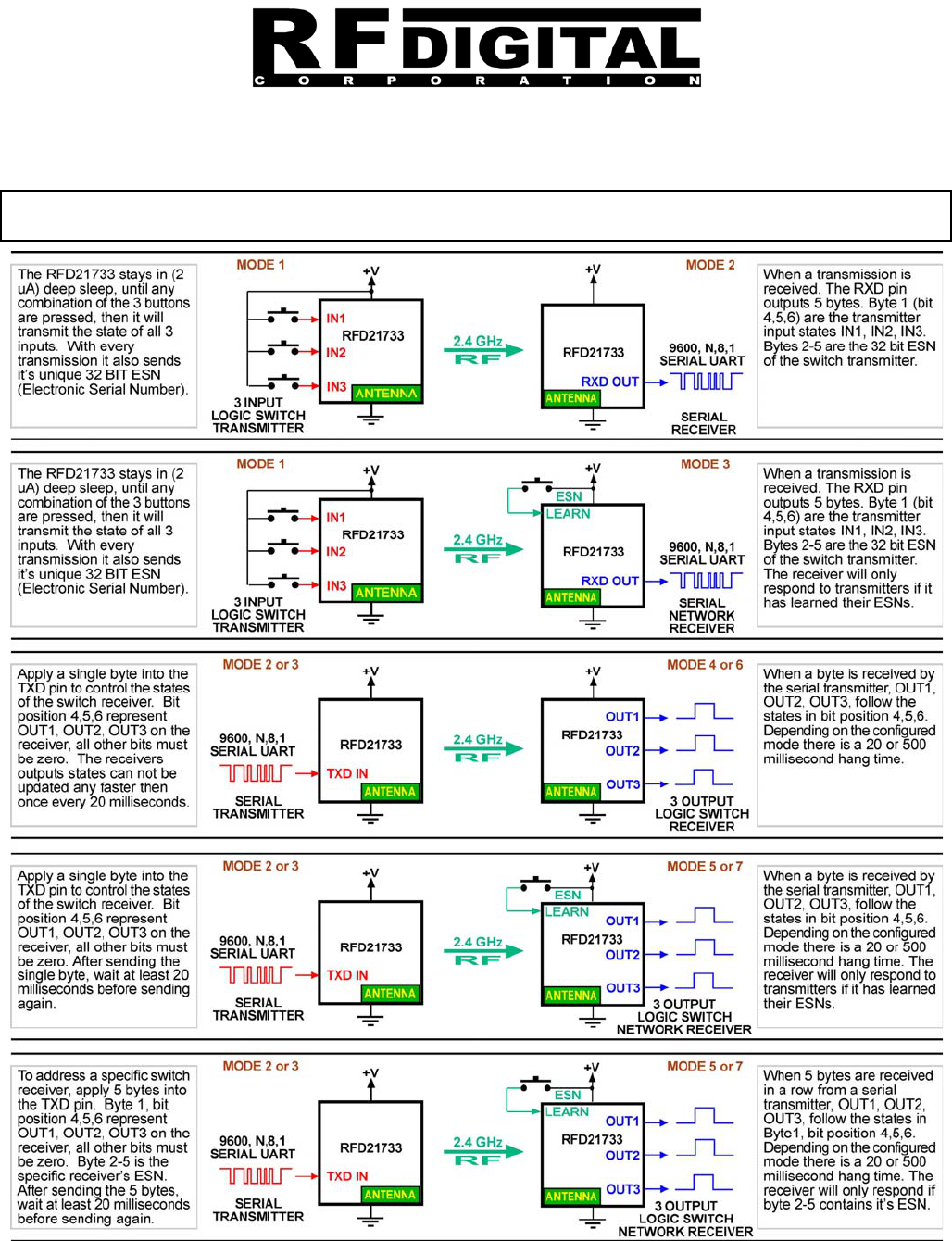

RFD21743 Application Configuration Examples

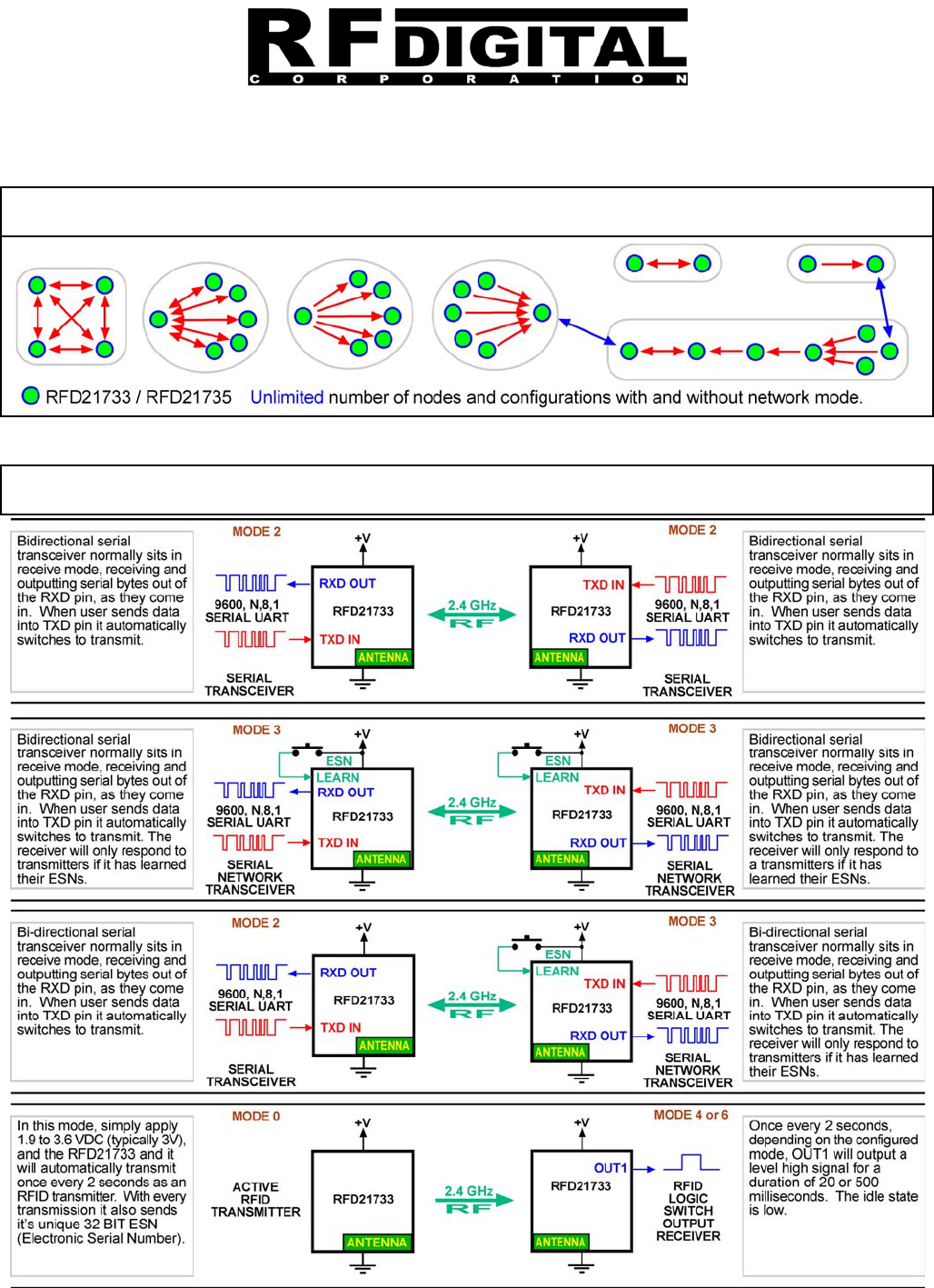

RFD21743 System Configuration Examples
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
4
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
RFD21743 Application Configuration Examples
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
5
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773

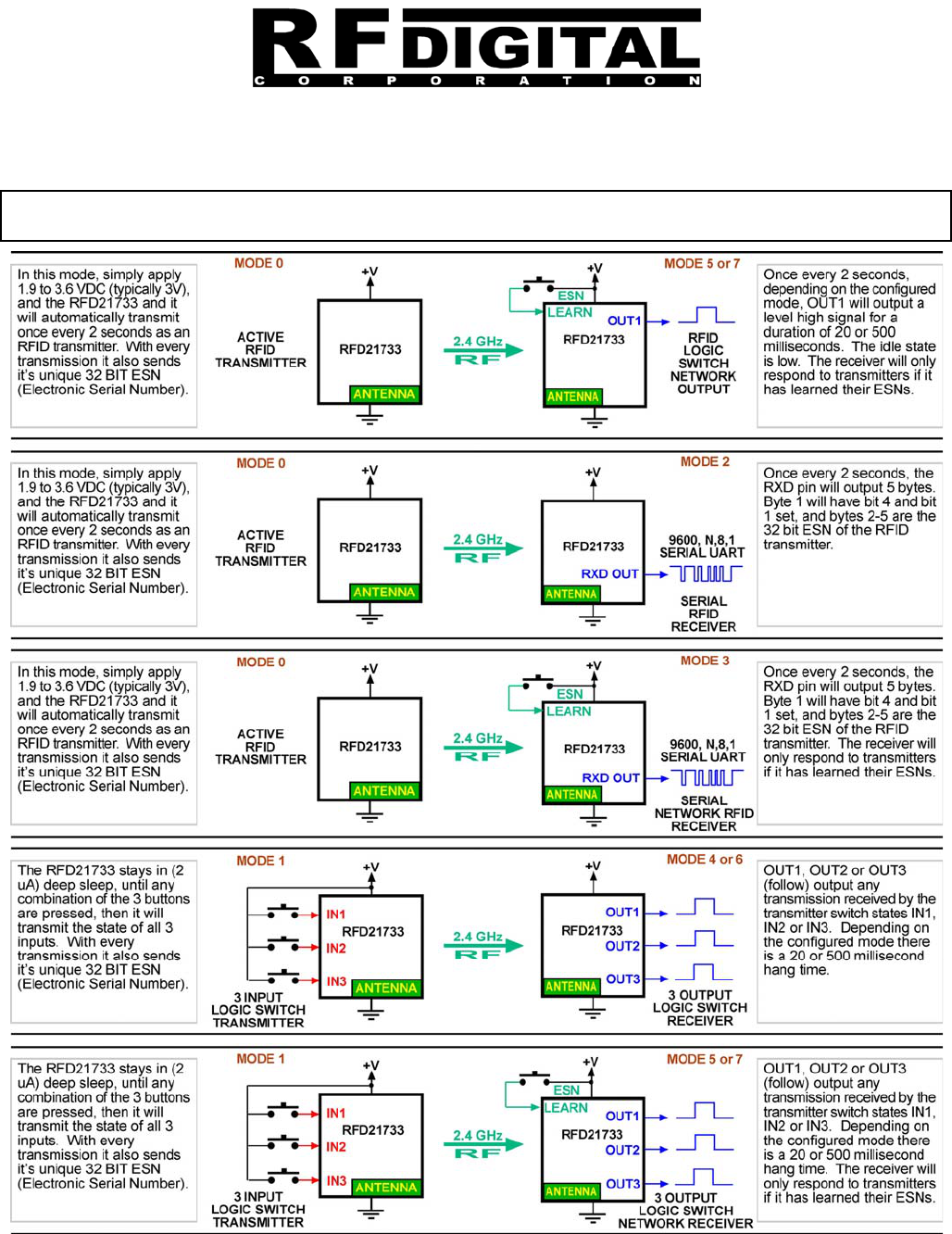

RFD21743 Application Configuration Examples
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
6
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773

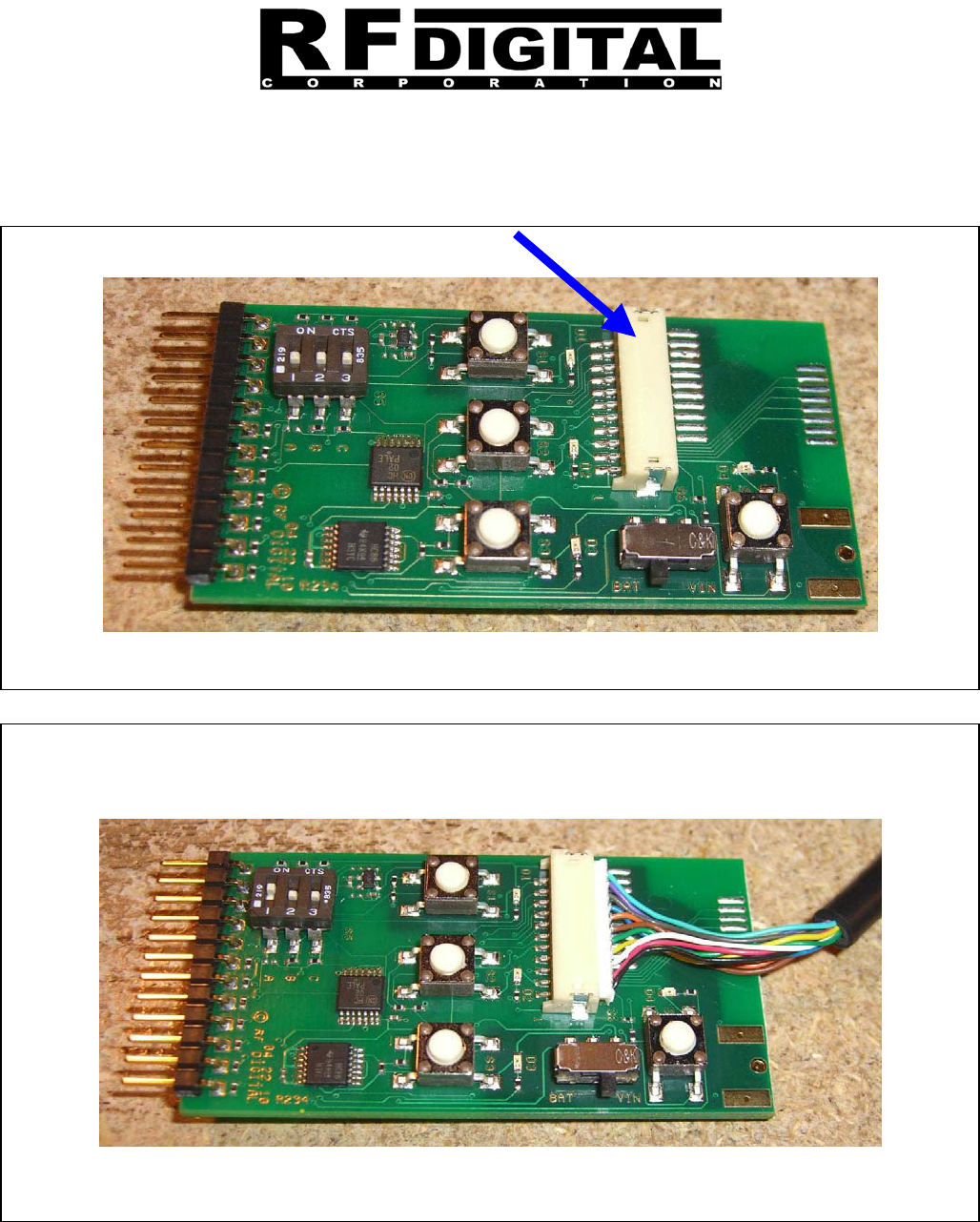

All three eval boards can be powered from their on-board CR2032 3V battery or through the 12 pin 0.100 inch
(2.54mm) pitch header, which can plug into directly into standard solderless breadboards or connect to mating a
0.100 inch (2.54mm) mating socket. The Eval Boards can work as stand-alone or can be wired to your application.

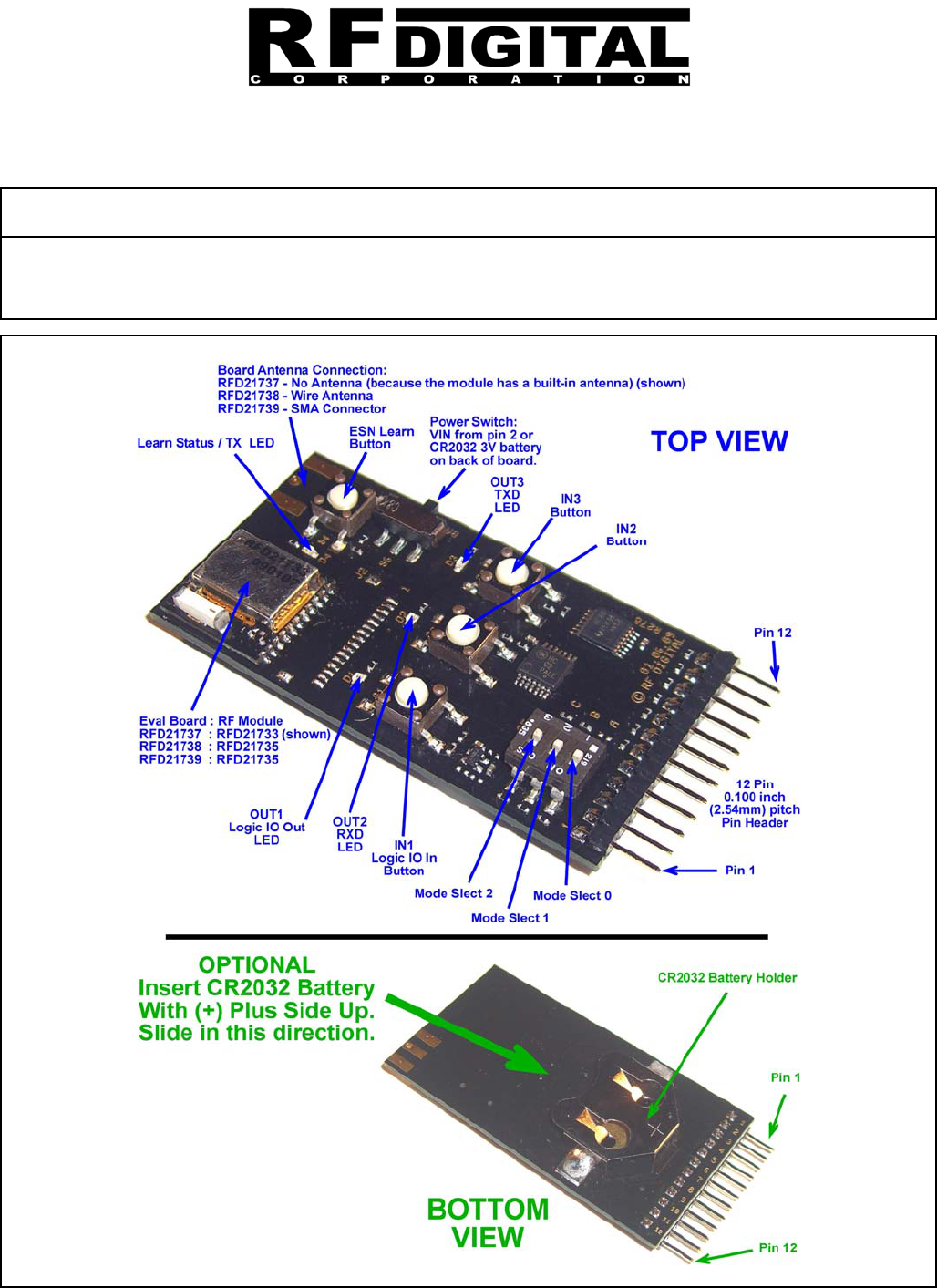

Eval Board Top and Bottom Labeled Views
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
7
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773

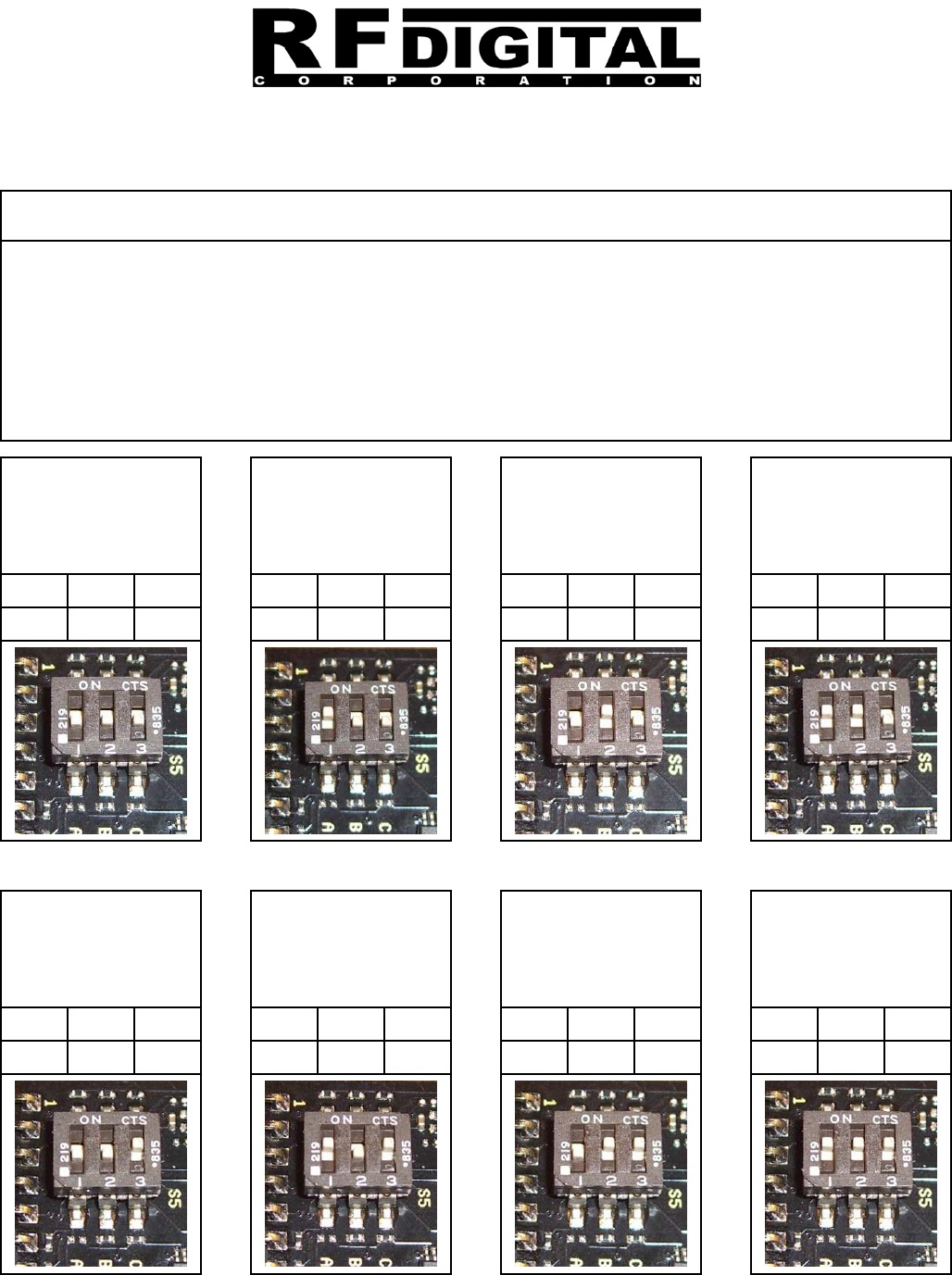

The 8 different modes of the RFDP8 Application Protocol are selected using the 3-position dip-switch S5 shown in
the examples below. The 3 inputs have resistor pull-downs to ground, so when the switch is in its OFF (open)
position, there is a low (0) on the input. When the switch is in its ON (closed) position, it connects the input to +V,
which produces a high (1).
The proper way to read binary is MSB on the left and LSB on the right. Switch manufacturers label the switches
from left to right and furthermore they commonly start with 1 rather then 0. So careful attention needs to be given
to identify the switch positions. The binary is read from MSB to LSB, rather then LSB to MSB as shown in the
examples below. To remove all doubt, only follow the examples shown below.
RFDP8 Mode Selector Switch
Mode 0
Active RFID
Transmitter
OFF OFF OFF
Mode 1
3-Input
Switch Logic
Transmitter
ON
OFF OFF
Mode 2
Serial UART
Transceiver
9600-8N1
ON
OFF OFF
Mode 3
Serial UART
Transceiver
9600-8N1
Network
ON ON
OFF
Mode 4
3-Output Switch
Logic Receiver
500ms Hang Time
ON
OFF OFF
Mode 5
3-Output Switch
Logic Receiver
500ms Hang Time
Network
ON ON
OFF
Mode 6
3-Output Switch
Logic Receiver
20ms Hang Time
ON ON
OFF
Mode 7
3-Output Switch
Logic Receiver
20ms Hang Time
Network
ON ON ON
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
8
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773

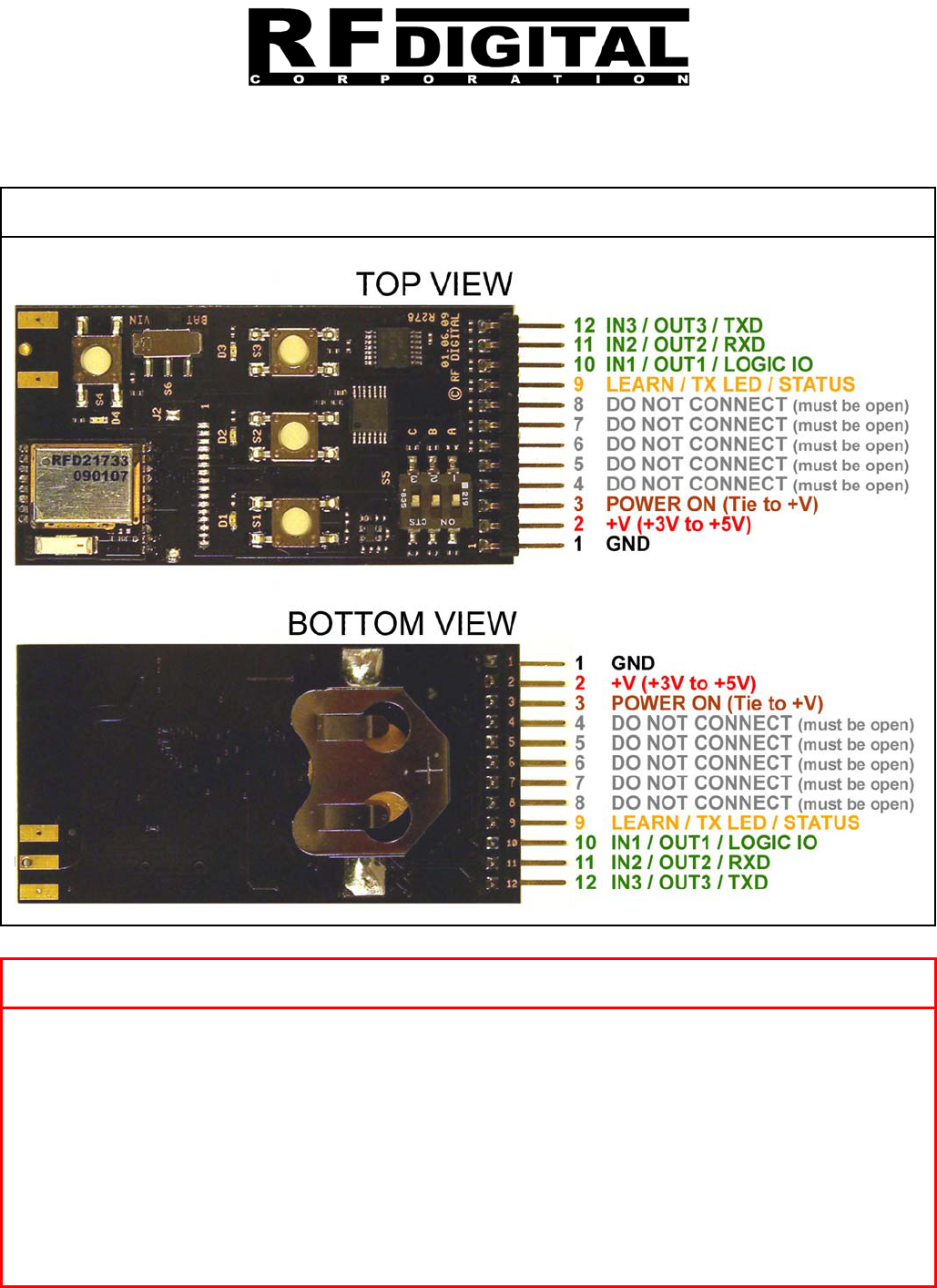

Eval Board Top and Bottom View Pinout
Eval Board Power Suppl
y
and Lo
g
ic Levels - Important
There is an internal 3.3 Volt (LDO) on the eval boards. At the (pin 2) +V input pin, you can supply
2.1VDC minimum and a maximum of 3.6VDC. When your supplied voltage is between 3.4V and 3.6V the
internal regulator is in regulation and the internal supply to all parts will be 3.3V, and all signals on pins
9-12 will be at 3.3V logic. When 2.1V to 3.4V is supplied the internal 3.3V regulator is of regulation and
tracks the input voltage (minus 100mv overhead). If you supply 2.5V your logic will be at 2.4V, and if
you supply 2.1V your logic will be at 2.0V. The internal 3.3V regulator accept up to a 5V supply input,
but at 5V supply, your logic levels on pins 9-12 will be at 3.3V, so use caution. So you will need to use
3.3V to 5V logic level shifters to run properly at 5V or you will cause damage to the module. When using
a 5V supply, a very quick 5V level shifter method (not to be used for production) just for testing, which
works in some cases would be to use a 22K resistor in series between the eval boards 3.3V logic and
your 5V logic. There is a 47k pull down resistor internal to the board on pin 9-12 and this is just enough
to switch the logic levels in both directions for a quick and dirty level shifter.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
9
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
RFDP8 Firmware
RF Digital offers firmware for the RFD21743 modules meets many common user requirements. The firmware and
a unique identifier are pre-programmed and tested at the factory. The programmed module is therefore
immediately ready for use upon delivery.
The RFDP8 firmware use the 3 mode select inputs to select the operating mode. These inputs are sampled when
the module powers-on.
Some of the operating modes have additional options which are described in the section for that mode.
The RFDP8 firmware cannot be modified by the user. For applications that require alternative functionality,
contact RF Digital for information about custom firmware to fit your specific requirements.
Interference Immunity Algorithm
RF Digital's RFDP8 proprietary patent-pending frequency agility protocol operates in the internationally accepted
2.4 GHz band. The RFDP8's leading-edge advanced algorithm is not burdened by a heavy-weight stack as is
BlueTooth, ZigBee, WLAN and other protocols, which are well suited for cross-manufacturer interoperability. The
RFDP8 protocol is highly robust and effective where there is a need to penetrate through a high saturation of RF
noise which is common in nearly all environments today. It is especially effective and can easily coexist in heavy
WiFi environments, which very few technologies can do successfully without the need of excessive processing
power. The protocol strategically changes channels frequently to deliver its payload to the destination device
reliably, yet not too excessively as to demand too much internal processing power which allows it to run with a
very low current consumption profile and fast start up times allowing substantial flexibility with implementation.
The RFDP8 protocol reduces the amount of on-air traffic and unnecessary chatter due to its unique and highly
efficient design, which does not require bilateral registration and association as do many other technologies
today. The RFDP8 does not require ack-nacks to complete a packet delivery, it's unique technique of packet
delivery, recovery and correction allows it to work as a one-way link, hence drastically simplifying users'
applications which always results in more a robust wireless system. The RFDP8 protocol combined with RF
Digital's leading-edge RF Module hardware delivers a highly robust method of delivering user data from point to
point, point to multi-point or multi-point to multi-point, transmitter-receiver, transceiver, serial or switch on/off data
modes. The protocol is designed to work seamlessly with RF Digital's hardware modules, the combination results
in ultra long range at ultra low currents without concern for compliance approvals since modules such as the
RFD21733 come with FCC approval for USA and have passed CE - ETSI emission testing for European
requirements. The RFDP8 protocol adds several dB of range gain passively through it's advanced data recovery
technique which pulls valid data out of a noisy environment adding effective gain which results in more range,
delivering the net result, which is a very robust wireless system. All of this is built into the overhead of the RFDP8
protocol and RF Digital modules, so it's all done behind the scenes, allowing the user to focus on building their
application and simply putting data into the radio device as a wireless pipe and easily receiving it on the other
end.
Electronic Serial Number
Every RF Digital Module has its own 32-bit unique identifier (over 4 billion unique values), known as the Electronic
Serial Number, or ESN. This value is assigned at the factory and cannot be changed by the user.
The ESN is included in every packet that is transmitted, as part of the protocol overhead and is transparent to the
user.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
10
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
The user does not ordinarily need to know what the ESN is. However, in certain cases it is helpful to know the
serial number, and so a mechanism has been provided to read out the ESN. This method is documented in the
UART section below.
Network Mode
The UART and the Receiver with logic output can be configured to accept data only from transmitters with which it
has been associated, i.e. in its network.
When in network mode, a module must “learn” the ESN of any module which it wishes to “hear." The LEARN
signal (listed in the UART and receiver sections below) is usually an input, pulled to GND through an external
resistor. When LEARN is driven high for at least 20ms and then allowed to return to GND, the module enters
learning mode.
While in learning mode, the LEARN signal is changed to an output and driven high. During this time, the module
will learn the ESN of the first module that sends any data; the data will be discarded, the ESN of the transmitting
module will be learned by the receiving module. The receiving module indicates that it has learned the ESN by
toggling the LEARN output on and off quickly three times.
After learning the transmitting modules ESN, or after 10 seconds pass, the module will exit learning mode by
driving LEARN low and then changing it back to an input.
The LEARN / STATUS pin is bidirectional, it is an input when in the LEARN state and an output when in the
STATUS state, so you must drive it using a series resistor, we recommend you not use any value smaller 1k ohm
to limit the amount of load current. There is an internal 47k pull down resistor, so if you use a value of 1k series
resistor that will easily be enough to drive it high against the internal 47k pull down resistor.
Modules can learn up to 60 unique ESN’s. ESN’s cannot be deleted individually. The list of learned ESN’s can
be completely cleared by holding the LEARN signal high for at least 10 seconds and then releasing it. The
module will erase its ESN list, and then drive the LEARN signal in a fast alternating high/low pattern for a few
seconds to indicate that the ESN list is now empty.
Once a module has learned the ESN of another module, it will accept any and all data from that module only and
not any other modules. Up to 60 unique transmitters can be taught to one receiver. If a module is configured to
any of the 3 Network modes and it has not learned any transmitters ESN, then it will not receive and output any
data, until it learns at least one transmitter.
This network feature can be used for peer-to-peer networks, point to multi-point networks, multi-point to multi-
point networks. The association can be between two units for simple functions like opening a garage door or with
many units to form complex networks with multiple nodes.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
11
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
Modes
Mode 0 – Active RFID Transmitter
Pin # Pin Label Direction Function
13 +V Input +V Power
10 GND Input Ground
16 Mode Select 0 Input Tie to GND
17 Mode Select 1 Input Tie to GND
3 Mode Select 2 Input Tie to GND
4 TX LED Output Toggles high during transmission (1 blink every 2 seconds)
5 IN1 Input Active high switch input #1 (optional) if not used, pull to GND.
6 IN2 Input Active high switch input #2 (optional) if not used, pull to GND.
7 IN3 Input Active high switch input #3 (optional) if not used, pull to GND.
The Active RFID Transmitter transmits a packet with its ESN every 2 seconds when the three inputs are all at a
low logic level. If any of the three inputs go high, the module transmits the state of all three inputs every 15 ms,
until all three inputs are low. The logic inputs should be tied low if they are not used in the end application.
The module is active during transmit for 15ms, but remains in an ultra-low power mode for the rest of the 2
second interval. The average power over time is measured in microamps, such that a CR2032 battery should
provide about 60 days of continuous use.
During the 15ms transmission times the current consumption is about 15mA and during the roughly 2 seconds the
current is about 2uA.
If you determine that you need a different period of transmission other then the 2 seconds, a shorter period or a
longer period, then simply use Mode 1 shown below and use your own controller to pulse one of the 3 inputs at
the desired period and it will perform exactly the same function as the RFID transmitter Mode 0.
If longer periods of use are required, a larger battery can be used to allow it to run up to years of time without
replacing the battery, or contact RF Digital to inquire about a custom time setting which will reduce the
transmission interval thus reducing the average power consumption.
The Mode 0 is effectively Mode 1, except, in addition to Mode 1 features, the module will internally cause input 1
to transmit on its own every 2 seconds.
Mode 1 – Input Logic Transmitter
Pin # Pin Label Direction Function
13 +V Input +V Power
10 GND Input Ground
16 Mode Select 0 Input Tie to +V
17 Mode Select 1 Input Tie to GND
3 Mode Select 2 Input Tie to GND
4 TX LED Output Toggles high during transmission (1 blink every 15 milliseconds)
5 IN1 Input Active high switch input #1 (optional) if not used, pull to GND.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
12
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
6 IN2 Input Active high switch input #2 (optional) if not used, pull to GND.
7 IN3 Input Active high switch input #3 (optional) if not used, pull to GND.
When all three switch inputs are low, the module does not transmit, but remains in an ultra-low-power state
consuming only 2uA.
When any of the three switch inputs go high, the module transmits the state of all three inputs. As long as any of
the three inputs remain high, the module continues to transmit the state of all three inputs every 15ms, while
transmitting it will draw about 15mA.
You can also tie any of the three inputs to +V and then connect a switch between +V of the module and your
supply, then once you apply +V to the module it will instantly transmit as fast as possible, this is the method can
be used to consume zero current when not in use such as in the case of garage door openers or keyfobs and can
be used for many years without consuming any current at all.
Modes 2 – 9600 baud UART
Pin # Pin Label Direction Function
13 +V Input +V Power
10 GND Input Ground
16 Mode Select 0 Input Tie to GND
17 Mode Select 1 Input Tie to +V
3 Mode Select 2 Input Tie to GND
4 Not Used Output Do not connect, not used.
5 Logic IO I/O Bidirectional switch logic I/O, if not used, pull to GND.
6 RXD Output RX Data Out, UART output of received data.
7 TXD Input TX Data In, UART input of data to transmit.
Modes 3 – 9600 baud UART (Network)
Pin # Pin Label Direction Function
13 +V Input +V Power
10 GND Input Ground
16 Mode Select 0 Input Tie to +V
17 Mode Select 1 Input Tie to +V
3 Mode Select 2 Input Tie to GND
4 Learn / Status I/O Pulse high to enter learn mode and LED Learn Status Output.
5 Logic IO I/O Bidirectional switch logic I/O, if not used, pull to GND.
6 RXD Output RX Data Out, UART output of received data.
7 TXD Input TX Data In, UART input of data to transmit.
9600 baud half-duplex UART, suitable for connection to a microcontroller, or a level translator (such as a
MAX202) to an RS-232 port. RF transmission takes priority over RF reception, so that a module will not receive
anything over the air if it is given a full-speed stream of serial data on TX_in.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
13
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
The UART is configured for 9600 baud, 8 data bits, 1 stop bit, and no parity. Because the module does not
perform any parity checking on the data stream, it is possible to use 7 data bits with even or odd parity instead of
8 data bits with no parity.
When in UART mode, the module remains in an active state with the radio enabled in receive mode.
If you are only using the module as a receiver, you must terminate the TXD line with a pull up resistor to +V so
you do not leave a floating input which may cause unintentional transmissions by the module detecting anything
other then a solid logic level on the TXD pin. Note you can also pull it to ground to terminate it if you require, but
most applications will want to terminate by a pull up resistor if the pin is unused.
There is a general purpose IO line in mode 2 and mode 3 which is pin 5 on the module and the label in these
modes are called LOGIC IO. This is a powerful feature which allows you to not only send serial data back and
forth using the TXD and RXD, but in addition you can apply a high logic level to the LOGIC IO pin and it will start
transmitting without the need for sending serial data into the TXD pin. Once it is transmitting, any mode 2 or
mode 3 receiver's LOGIC IO pin will go high for the same duration of time. This allows you to send switch data
between two transceivers as well as serial data. In some applications this is very useful since you can use this
feature to have one master device turn on a slave device and wait for the slave device to be ready to
communicate using the UART and then begin sending data to it rather then keeping it awake all the time.
The LOGIC IO pin (pin 5) on the RFD21733 MUST be terminated when in mode 2 or 3, (pulled to ground with a
resistor) or it will float and cause the transmitter sporadically. All inputs must be terminated properly and this one
is no exception. If you do not plan on using it, tied it to ground using any resistor between 10k to 47k. Note this is
a BI-DIRECTIONAL pin so do not directly connect to an output or to ground, you must use a pull down resistor.
Also, when in use with a microcontroller pin you should consider using a series 1k resistor as well between the
LOGIC IO pin and your controller pin since that will prevent any possible conflicts that might happen if you chose
to drive the pin when it was an output by mistake, which can be a very common occurance.
End-to-End Latency
In order to use the radio efficiently, the RFDP8 firmware buffers data received from the UART into packets which
are transmitted over the radio. The firmware transmits a packet when it has buffered 12 bytes of data, or 15ms
after receiving a byte of data. On the receiving end, data will be transmitted over the UART at line speed, with no
pauses between the bytes (other than the RS-232 start and stop bits). The buffering allows for the RFDP8 to
support a full 9600 baud data rate.
The buffering and latency may cause problems with certain microcontrollers that can not tolerate serial data into
their UART in a constant stream at 9600-8N1. One possible solution is to add a 16ms delay on the transmitting
side which will cause each byte to be sent in its own packet by the module and therefore on the receiving end the
bytes will be outputted at a pace of one byte every 16ms which will help your controller of choice handle the fast
UART data.

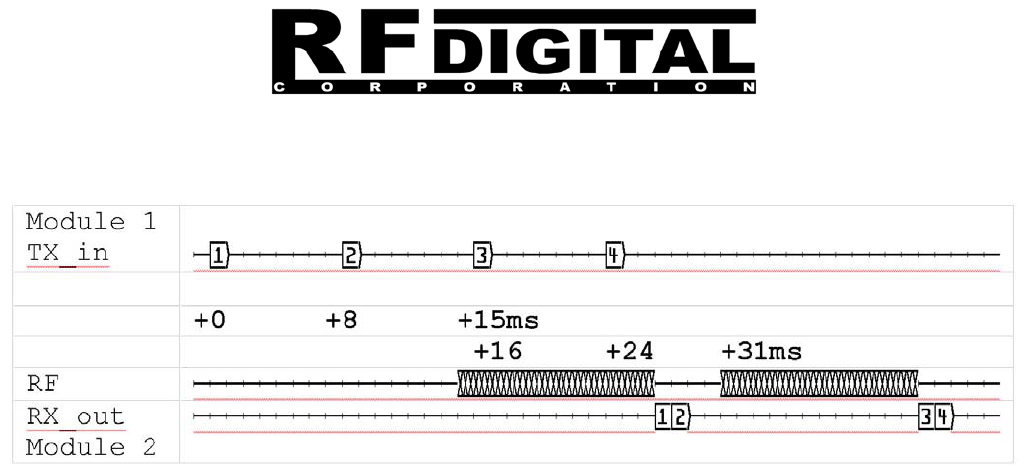

As an example, consider a scenario where one system is sending a byte of data every 8ms. When module 1
receives the 1st byte on its UART, the 15ms timer begins. The 2nd byte arrives before 15ms elapses, and so the
first two bytes are sent in a single packet over the air to Module 2. Module 2 will transmit the bytes on its UART
with no delay between them. Module 1 receives the third byte on its UART, and re-starts the 15ms timer. As with
the 2nd byte, the 4th byte arrives before 15ms elapses, and so the 3rd and 4th bytes are also sent in a single packet
over the air, as illustrated in the following timing diagram.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
14
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
Bi-Directional IO Signal Operation
UART mode includes an additional bi-directional general-purpose IO line. The IO signal is generally an input, and
should be pulled to GND with an appropriately sized resistor (for example 10k). If the IO signal is driven high, the
module will transmit this information, and any UART which receives the data will turn its IO signal into an output
and drive it high. This will continue until 20ms pass without receiving any new data, or until the module receives a
packet which indicates that the IO signal should be driven low and turned back to an input. The state of the IO
signal does not require any extra data in the radio stream, and so is “free” in the packet overhead.
When the module is driving its IO signal high, it will periodically change the pin to an input and check to see if it
remains high, before changing it back to an output. This causes a periodic dip in the signal, 1ms every 12-16ms,
and so any circuitry which relies on a steady-state output from the IO signal should include conditioning (for
example a retriggerable one-shot with a hold time of 2ms) to avoid adverse effects.
ESN Read-back
In certain applications, it is helpful to know the ESN of a module. There is a provision in both UART modes to
read back the ESN when the module comes out of reset. ESN read-back is not available in any of the other
modes.
Pin 14 on the RFD21733 / RFD21735 is marked as Do Not Connect, this pin normally is not connected for all
applications except for reading back the ESN. So that is why it is mentioned here and not anywhere else. The
reset signal does not have to be used, instead of using reset you can use power the module off and then back on.
The reset is a cleaner way of doing it. If you are using the RFD21737, RFD21738, RFD21739 eval boards, the
reset signal is available on pin 5 of the 12 pin connector. Internal to the RFD21733 / RFD21735 there is a 3.3K
pull up resistor on the reset signal, so when you are not using it, you can just leave it open.
To activate ESN read-back:
1. Place the module in a reset state by holding the /RESET signal low.
2. Hold the LEARN signal high.
3. Release the /RESET signal.
4. Wait 250ms. If the LEARN signal goes low at any time during this 250ms interval, the module
immediately exits ESN read-back mode.
5. Release the LEARN signal.
6. Send the string “READ ESN” (all capitals, one space between the two words) at 9600-8N1 into the
module on the TXD Input signal. If this string is not received within 1 second, the module exits ESN read-
back mode.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
15
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
The module will respond with the ESN and a firmware identifier on the RXD Output signal at 9600-8N1, and then
exit ESN read-back mode. An example of the output is:
314CE686:RFDP8 v1.2 11/18/08 08:45:16$
The ESN is 8 characters, representing a 32-bit number in hexadecimal format. A colon separates the ESN from
the Firmware ID. The Firmware ID is 32 bytes long. The output is terminated with a carriage return/line feed pair.
When the module exits ESN read-back mode, or if the LEARN signal is not high when the module exists reset,
the module will enter regular operation in Mode 2 or 3, according to the mode select signals.
Modes 4 – Receiver with Logic Output (500ms hang-time)
Pin # Pin Label Direction Function
13 +V Input +V Power
10 GND Input Ground
16 Mode Select 0 Input Tie to GND
17 Mode Select 1 Input Tie to GND
3 Mode Select 2 Input Tie to +V
4 Not Used Output Leave open, not used.
5 OUT1 Output Active high switch output #1, 500 millisecond hang-time.
6 OUT2 Output Active high switch output #2, 500 millisecond hang-time.
7 OUT3 Output Active high switch output #3, 500 millisecond hang-time.
Modes 5 – Receiver with Logic Output (Network) (500ms hang-time)
Pin # Pin Label Direction Function
13 +V Input +V Power
10 GND Input Ground
16 Mode Select 0 Input Tie to +V
17 Mode Select 1 Input Tie to GND
3 Mode Select 2 Input Tie to +V
4 Learn / Status I/O Pulse high to enter learn mode and LED Learn Status Output.
5 OUT1 Output Active high switch output #1, 500 millisecond hang-time.
6 OUT2 Output Active high switch output #2, 500 millisecond hang-time.
7 OUT3 Output Active high switch output #3, 500 millisecond hang-time.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
16
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
Modes 6 – Receiver with Logic Output (20ms hang-time)
Pin # Pin Label Direction Function
13 +V Input +V Power
10 GND Input Ground
16 Mode Select 0 Input Tie to GND
17 Mode Select 1 Input Tie to +V
3 Mode Select 2 Input Tie to +V
4 Not Used Output Leave open, not used.
5 OUT1 Output Active high switch output #1, 20 millisecond hang-time.
6 OUT2 Output Active high switch output #2, 20 millisecond hang-time.
7 OUT3 Output Active high switch output #3, 20 millisecond hang-time.
Modes 7 – Receiver with Logic Output (Network) (20ms hang-time)
Pin # Pin Label Direction Function
13 +V Input +V Power
10 GND Input Ground
16 Mode Select 0 Input Tie to +V
17 Mode Select 1 Input Tie to +V
3 Mode Select 2 Input Tie to +V
4 Learn / Status I/O Pulse high to enter learn mode and LED Learn Status Output.
5 OUT1 Output Active high switch output #1, 20 millisecond hang-time.
6 OUT2 Output Active high switch output #2, 20 millisecond hang-time.
7 OUT3 Output Active high switch output #3, 20 millisecond hang-time.
In modes 4 through 7, the module is always in receiving mode.
The receiver drives its outputs to match the values received in a packet from a transmitter. This allows up to 8
possible (23) combinations on the receiver’s outputs.
Since a transmitter does not send any data when all of its inputs are low, there must be a mechanism for turning
off the receiver’s outputs in the absence of data. When Mode Select 1 is pulled to GND, the receiver will maintain
its output state for 500ms or until it receives new data, whichever comes first. The 500ms is referred to as the
“hang time,” or the time that the outputs will “hang” in the absence of new data. If Mode Select 1 is pulled to +V,
the hang time is 20ms.
Hang time is a trade-off between latency and resiliency to packet loss. With all RF systems sometimes a packet
will be lost, especially as the distance between the transmitter and the receiver grows. If an output is connected
to a relay driver, packet loss will result in chattering on the relay, which will not have good results. The 500ms
hang time is perfect for applications like a keyless entry system or a garage door opener.
For faster switching to the “all off” state, the 20ms hang time is preferred. Since a transmitter sends new data
every 15ms, the time delay to turn off all outputs is only 5ms more than to update the outputs to a different state
where at least one of them is still driven high.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
17
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773

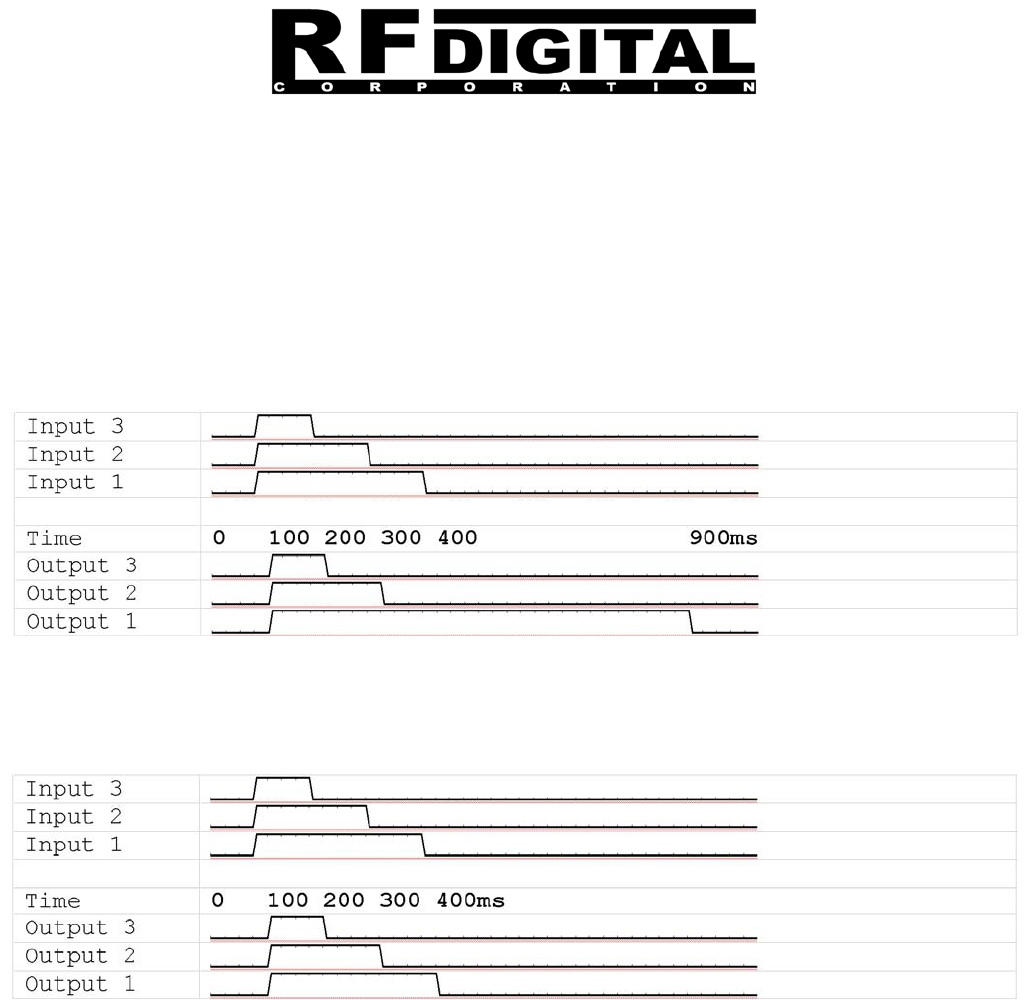

The following timing diagrams show the operation of a logic transmitter and a logic receiver with the different hang
time options.
In the first diagram, the logic transmitter’s inputs are all asserted, and then sequentially de-asserted. There is a
small delay between the transmitter input going high and the corresponding output on the receiver going high, due
to the time required to transmit over the air.
Note that when the last input on the transmitter is de-asserted, there is a 500ms delay before the receiver de-
asserts its last output.
The second diagram shows the same operation at the transmitter, but with the receiver configured with a 20ms
hang time.
Note that shortly after the last input is de-asserted, the receiver updates its output state to turn off all outputs.
Communication between UART and Switch Logic Receiver/Transmitter
The Logic Receiver and Transmitter modes are able to communicate with a module operating in one of the UART
modes, which opens up a wide range of possible applications involving PC’s or embedded systems with serial
communications capability.
Logic Transmitter to UART
A Logic Transmitter (whether RFID or not) sends the state of its inputs as a single byte of data, followed by its
ESN as four bytes. A UART can receive this packet and output it as a binary stream to a PC serial port or an
embedded microcontroller. The format of the data is:
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
18
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
1 Input 3 Input 2 Input 1/
RFID
RFID
2 ESN Byte 1
3 ESN Byte 2
4 ESN Byte 3
5 ESN Byte 4
In the first byte, bits 6 through 4 carry the state of the logic inputs, with a ‘1’ indicating the logic input on the
transmitter is high, and a ‘0’ indicating it is low. An RFID Transmitter will set both bits 0 and 4 to indicate that it is
a periodic transmission from an RFID Transmitter, and is set to ‘1’ if this is the case.
For example, if an RFID Transmitter with ESN 314CE686 sent a packet on its 2-second interval, a UART would
receive the bytes 11 31 4C E6 86 in binary format.
If input #1 on that same RFID transmitter were pulled high, the UART would receive the bytes 10 31 4C E6 86 in
binary format; since bit 0 is clear, the receiver can tell that this was not a periodic transmission.
Most ESN’s will contain at least one unprintable character, and so this data will not be suitable for displaying
directly in a terminal package (such as HyperTerminal), but a PC-based program or an embedded system (such
as the BASIC Stamp) can collect the data and display it in a more friendly fashion.
The ESN which the UART receives is the same one that is in the packet header. If the UART is in Network Mode,
and has not learned the ESN, it will never receive the packet, and there will be no output on the serial port.
UART to Logic Receiver
A UART can also send data to a logic receiver, which will decode the data and assert its outputs as though it
received a packet from a logic transmitter. The data format is very similar to the one described in the previous
section. The differences matter only when the receiver is in Network Mode.
The UART must follow a packet with at least 15ms of no data so that all bytes as described below are sent as a
single packet.
Note that a UART can send a single zero byte – all bits clear – to force a receiver to turn off its outputs
immediately, regardless of hang time.
Format 1:
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
1 Output 3 Output 2 Output 1
When the receiver is not in Network Mode, the receiver will accept any packet it receives, and so this is the
preferred format.
A receiver in Network Mode will use the UART’s ESN from the packet header to determine if it should accept the
packet. This allows one UART to send the same data to multiple receivers, provided that each receiver has
learned the UART’s ESN.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
19
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
Format 2:
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
1 Output 3 Output 2 Output 1
2 ESN Byte 1
3 ESN Byte 2
4 ESN Byte 3
5 ESN Byte 4
To allow individual addressing of receivers in Network Mode, the UART can send a particular receiver’s ESN after
the byte for the logic state. In this case, the receiver will only accept the packet if the ESN in the data portion
matches the receiver’s own ESN.
If the receiver is actively learning ESN’s, it will learn only the ESN from the packet header; the ESN in the data
portion will not be learned.
Electrical Characteristics
Operating Conditions
Symbol Parameter Minimum Typical Maximum
VDD Supply voltage 1.9V 3.0V 3.6V
Operating Temperature -40°C +85°C
Power Consumption
Conditions: VDD = 3.0V, TA = +25°C
Logic Transmitter or Active RFID Transmitter
Parameter Minimum Typical Maximum
Ultra-low power mode - Switch Logic Transmitter / RFID 2uA
UART or Switch Logic Transmitter / Receiver
Parameter Minimum Typical Maximum
Listening - Receiving 17mA
Transmitting 14mA
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
20
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
FCC NOTICE
Relating to Model Number RFDANT (RFD Stock Code: RFD21743)
LABELING REQUIREMENT FOR USA
FCC CERTIFICATION
This device has a modular approval from the FCC. You must place the following label outside,
on your product in an obvious location.
Permanently attached label in a conspicuous location with the following statement:
NOTES:
1. The FCC does not specify the size of the label or the lettering thereon. The only requirement
is that the text be legible.
2. If the entire label can not be placed on the unit due to space constraint (e.g. Pacemaker),
only “contains an FCC ID: UYI-RFDANT” may be displayed on the unit. In such cases, the
compliance statement will have to be included in the "instruction to the user."
******* It is the users responsibility to determine if their device requires additional approvals *******
This device contains FCC ID: UYI-RFDANT RF module that
complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
21
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
SAMPLE FCC STATEMENT TO BE INCLUDED IN USER'S MANUAL
INSTRUCTION TO THE USER (if device contains a digital device)
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
The user is cautioned that changes and modifications made to the equipment without the
approval of manufacturer could void the user's authority to operate this equipment.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
22
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
RoHS
Declaration Of Conformity
RF Digital declares that part numbers
• RFD21731
• RFD21732
• RFD21733
• RFD21734
• RFD21735
• RFD21736
• RFD21737
• RFD21738
• RFD21739
• RFD21741
• RFD21742
• RFD21743
• RFD21772
• RFD21773
are manufactured with RoHS materials.
RFDANT - RFD21743
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
23
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
The RFD21743 RFDANT is a full 2.4 GHz radio transceiver including the RFDP8 protocol, completely
built into an antenna form factor allowing the entire radio transceiver to be outside your product, were
only the power and signal cable will extend into your product enclosure to then be connected to your
PCB with a simple 1.5mm SMT or THROUGH HOLE connector.
It has already passed FCC testing and in the documentation phase and therefore FCC Modular Approval
is pending and should be available Aug-Sep 2010 time frame.
The RFD21743 RFDANT is currently available, as well as it's eval board which is the RFD21740. The
RFD21743 is functionally identical to the RFD21733 module and the RFD21740 works just like the
RFD21737 eval board except it has an 11 pin 1.5mm connector on it so the RFDANT RFD21743 can plug
into it for use with any other RFDP8 product from RF Digital.
The RFD21743 has been range tested at 2,000 feet which is 4x the range of the RFD21733 which is at 500
feet. No special PCB layout is needed for the RFD21743, simply just put a connector on your PCB and
you are done . All this substantial range increase is achieved all without any increase in current or
battery consumption.
The RFDANT is RF Digital's Worldwide Patent Pending Radio Inside Antenna product, which is a
complete radio transceiver and antenna mounted inside of an antenna enclosure, suitable for mounting
to virtually any type of end-product.
The entire radio transceiver is mounted inside the antenna enclosure, so there is no loss of RF power to
the antenna from the module, and results in the most effective power transfer ratio possible, providing
lowest power consumption possible to achieve a specific range.
The radio being inside of the antenna and outside the enclosure allows for more room inside the
enclosure for the designers application electronics.
Minimal interference with the internal electronics of the enclosure results in better range and
performance of the wireless system.
The actual effective antenna is pushed away from the enclosure, which reduces the effect of holding the
enclosure, therefore improving the performance, range and predictability of the users wireless system.
Logic level signals are used through an unshielded cable (not coax) to the RFDANT, which can be run
for long distances without any loss to the performance of the wireless transceiver.
By the antenna and module being fully outside allows for easy retrofit of nearly any product due to it not
consuming any internal space inside the enclosure, drill a hole and screw it in, add a nut inside to
secure it and wire the logic level signals to your electronics.
Mount on metal or plastic enclosures with no worry about ground effects.
Stable Antenna Pattern providing substantial, well-distributed, passive-gain for transmit and receive,
results longer repeatable range from your wireless system.
RFDANT - RFD21743 - FCC Approved
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
24
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773

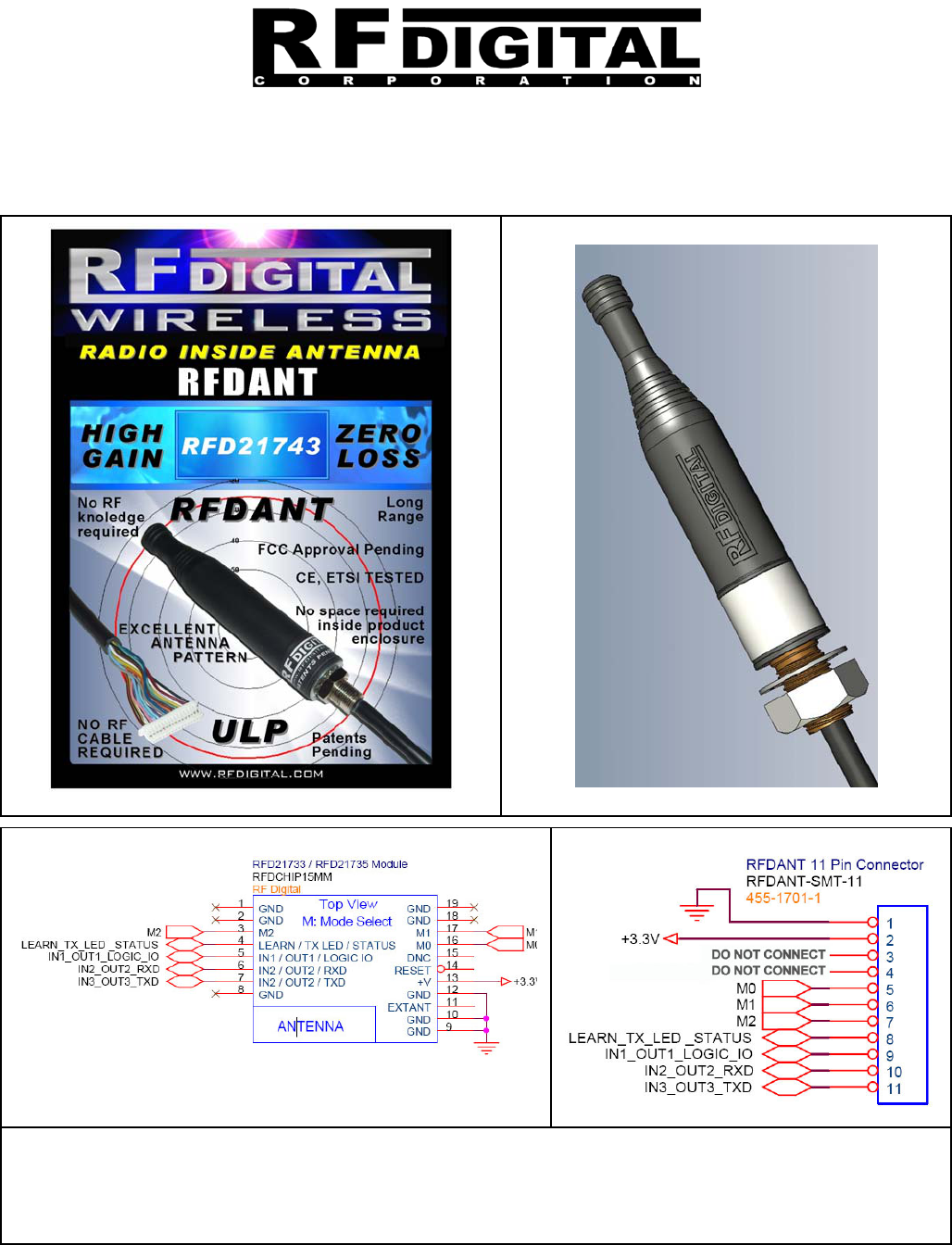

The pin out on the left is of the RFD21733 / RFD21735 module which is referenced through out this data
sheet. To wire the RFDANT 11 pin connector simply match up the pin labels shown in both drawings
above. Treat the RFDANT RFD21743 exactly as if it were an RFD21733 module and wire it the same way,
except follow the pin outs shown above. The BLACK wire on the RFD21743 connector is pin 1.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
25
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
Mating connectors for the 11 pin RFDANT connector, these part numbers can be found at Digikey in the
USA http://www.digikey.com or at any other distributor. They are standard connectors and you may use
other manufacturers as well.
1) Top Entry, Through Hole Type, 11 pos
a. Digikey P/N 455-1666-ND
b. Manufacturer P/N: B11B--ZR
2) Side Entry, Through Hole Type, 11 pos
a. Digikey P/N 455-1678-ND
b. Manufacturer P/N: S11B--ZR
3) Top Entry, SMT Type, 11 pos
a. Digikey P/N 455-1690-2-ND
b. Manufacturer P/N: B11B—ZR-SM4-TF
4) Side Entry, SMT Type, 11 pos
a. Digikey P/N 455-1701-2-ND
b. Manufacturer P/N: S11B—ZR-SM4-TF
RFDANT - RFD21743 Mating Connectors
-
50
-40
-30
-20
1
234
5
6
7
8
9
10
11
45
46
47
48
49
50
51
52 53 54

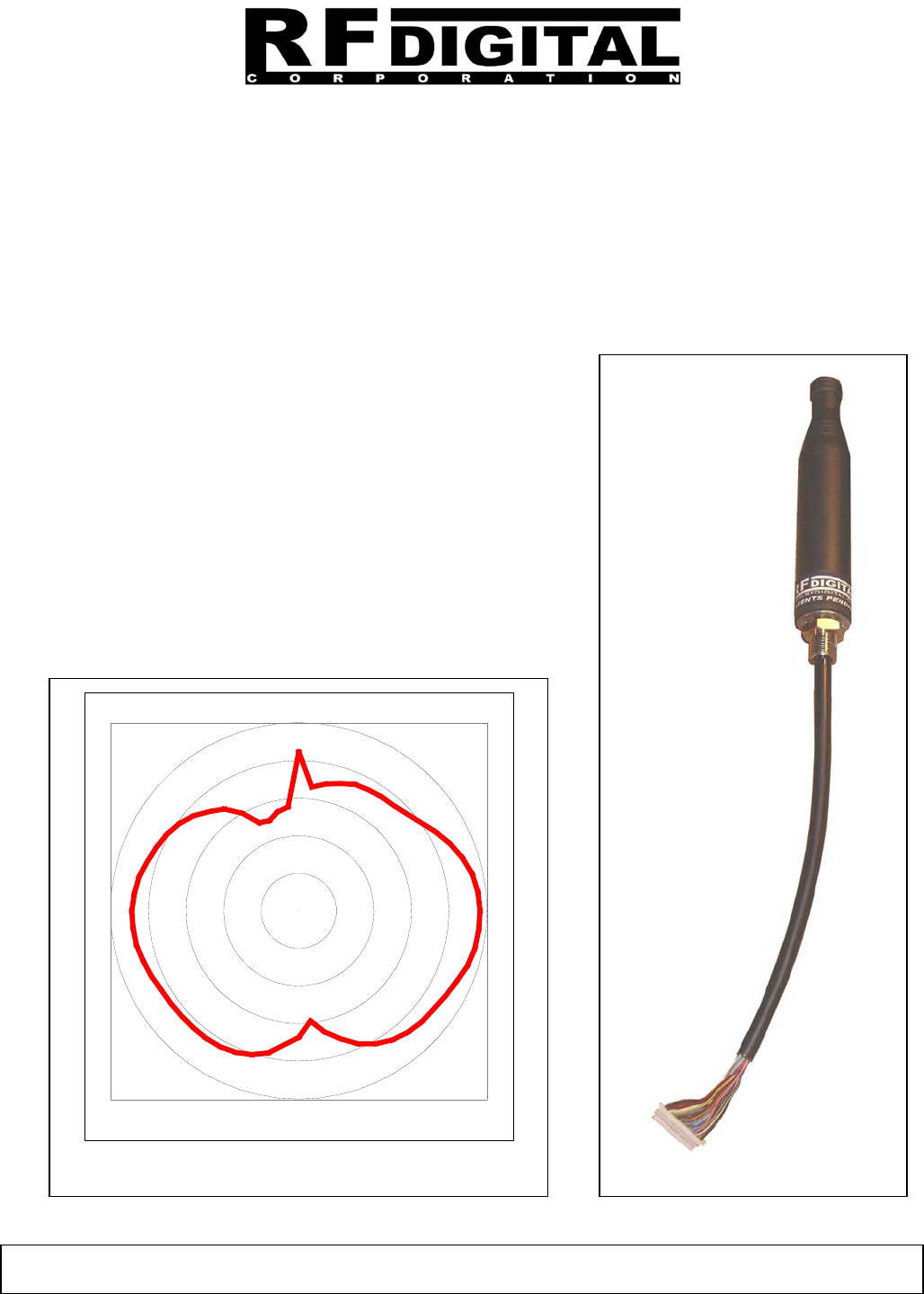

RFDANT RFD21743 high
performance antenna patterns
are easily achieved without any
RF considerations or knowledge
because the 11 pin cable and
connector only carries power
and data si
g
nals so NO RF cable
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
26
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
-70
-60
-50
-40
-30
-20
12345678
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
545556 57 58 59 60
Vertical Antenna Pattern
RFD21773 Eval board (for RFD21743 RFDANT)
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
27
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
RFD21773 Eval board with RFDANT 11 pin connector.
RFD21773 Eval board with RFDANT RFD21743 plugged into the eval board connector. This is a
polarized connector and there is only one way to plug in the connector. The black wire is ground and is
located close to the slide switch as shown below. The RFD21773 functions exactly like the RFD21737.
13715 Alton Pkwy • Irvine • CA • 92618
Tel: 949.610.0008 • Fax: 949.610.0009
www.rfdigital.com • sales@rfdigital.com
28
© Copyright,
RF Digital Corp.
9/2/2010 12:02 PM
Patents Pending
RoHS
FCC APPROVED
RFDP8
RFDANT
RFD21743
Eval Board
RFD21773
Important Notice
RF Digital reserves the right to make corrections, modifications, and/or improvements to the product
and/or its specifications at any time without notice.
RF Digital assumes no liability for the user’s product and/or applications.
RF Digital products are not authorized for use in safety-critical applications, including but not limited to
life-support applications.
RF Digital assumes no liability for parts or their application beyond replacement or refunding the original
purchase price.
All trademarks and trade names belong to their respective owners.
End of Document.
