RF LINK RL-UM02 RTL8188CTV WIFI module User Manual

RF-LINK INTERNATIONAL LIMITED RTL8188CTV WIFI module

User manual

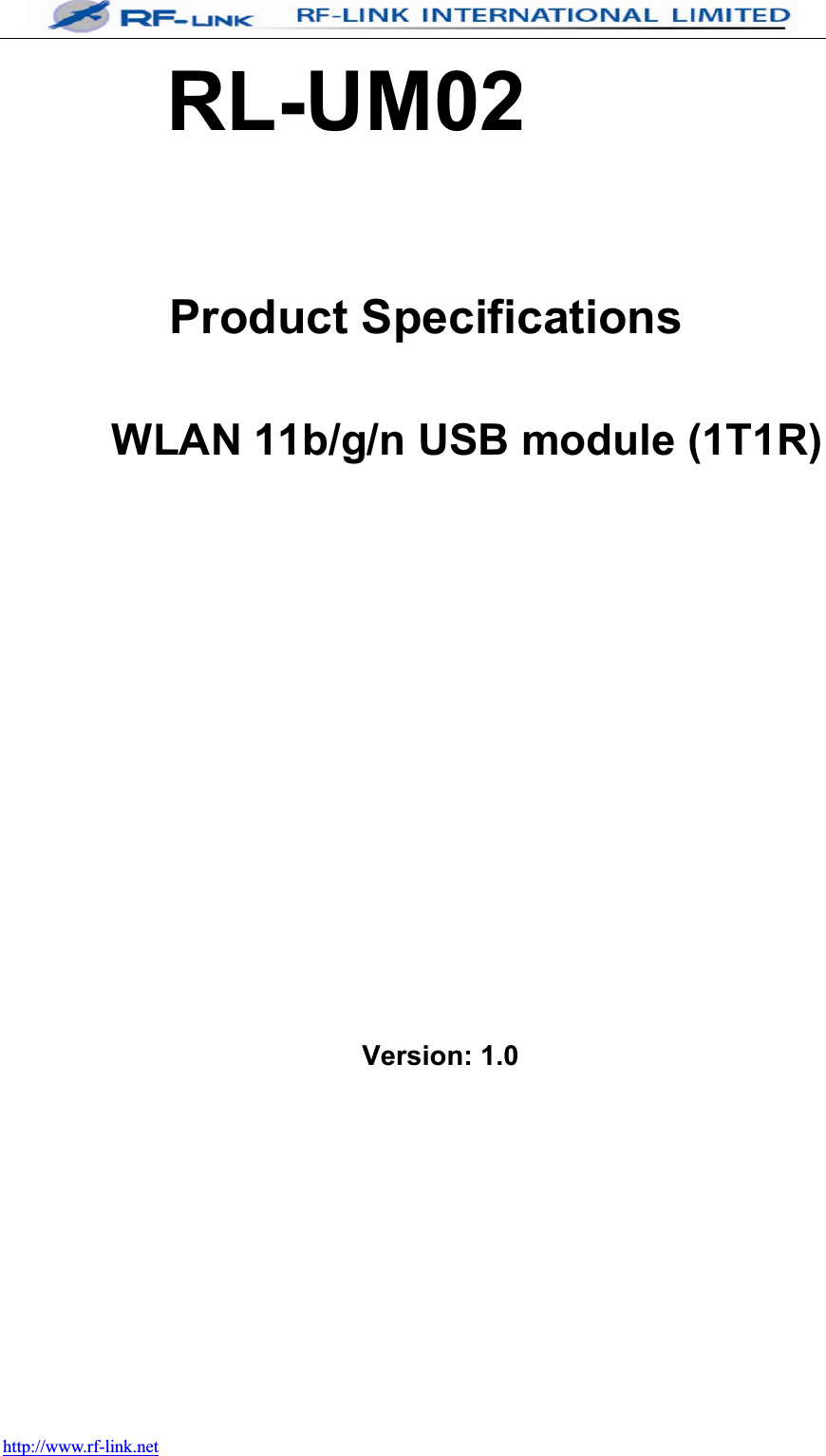

http://www.rf-link.netRL-UM02Product Specifications WLAN 11b/g/n USB module (1T1R) Version: 1.0
http://www.rf-link.netOverviewUM02 is a WLAN 11n USB module, which fully supports the features and functional compliance of IEEE 802.11n,e and i standards. It supports up to 150Mbps high-speed wireless network connections. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective. It is targeted at competitive superior performance, better power Management applications.Features*Operates in 2.4 GHz frequency bands *Data rates: up to 150Mbps *802.11e-compatible bursting and I standards *BPSK, QPSK, 16 QAM, 64 QAM modulation schemes *WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes
http://www.rf-link.netGeneral SpecificationModel RL-UM02Product Name WLAN 11n USB module Major Chipset Realtek RTL8188CTV Standard 802.11b/g/n, 802.3, 802.3u Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 150Mbps ModulationMethod BPSK/ QPSK/ 16-QAM/ 64-QAM Frequency Band 2.4~2.4835 GHz ISM Band Spread Spectrum IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum) IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing)RF Output Power < 13dBm@11n,< 18dBm@11b,< 14dBm@11g Operation Mode Ad hoc, Infrastructure ReceiverSensitivity11B11Mbps -86dBm@8%, 5.5Mbps -88dBm@8%, 2Mbps -90dBm@8% 1Mbps -91dBm@8% 11G54Mbps -73dBm@10%, 48Mbps -73dBm@10% 36Mbps -76dBm@10% 24Mbps -79dBm@10% 18Mbps -82dBm@10% 12Mbps -85dBm@10% 9Mbps -87dBm@10% 6Mbps -88dBm@10% 11N HT20 MCS0 -88dBm@10% MCS1 -85dBm@10% MCS2 -82dBm@10% MCS3 -79dBm@10% MCS4 -76dBm@10% MCS5 -73dBm@10% MCS6 -70dBm@10% MCS7 -68dBm@10% 11N HT40 MCS0 -86dBm@10%

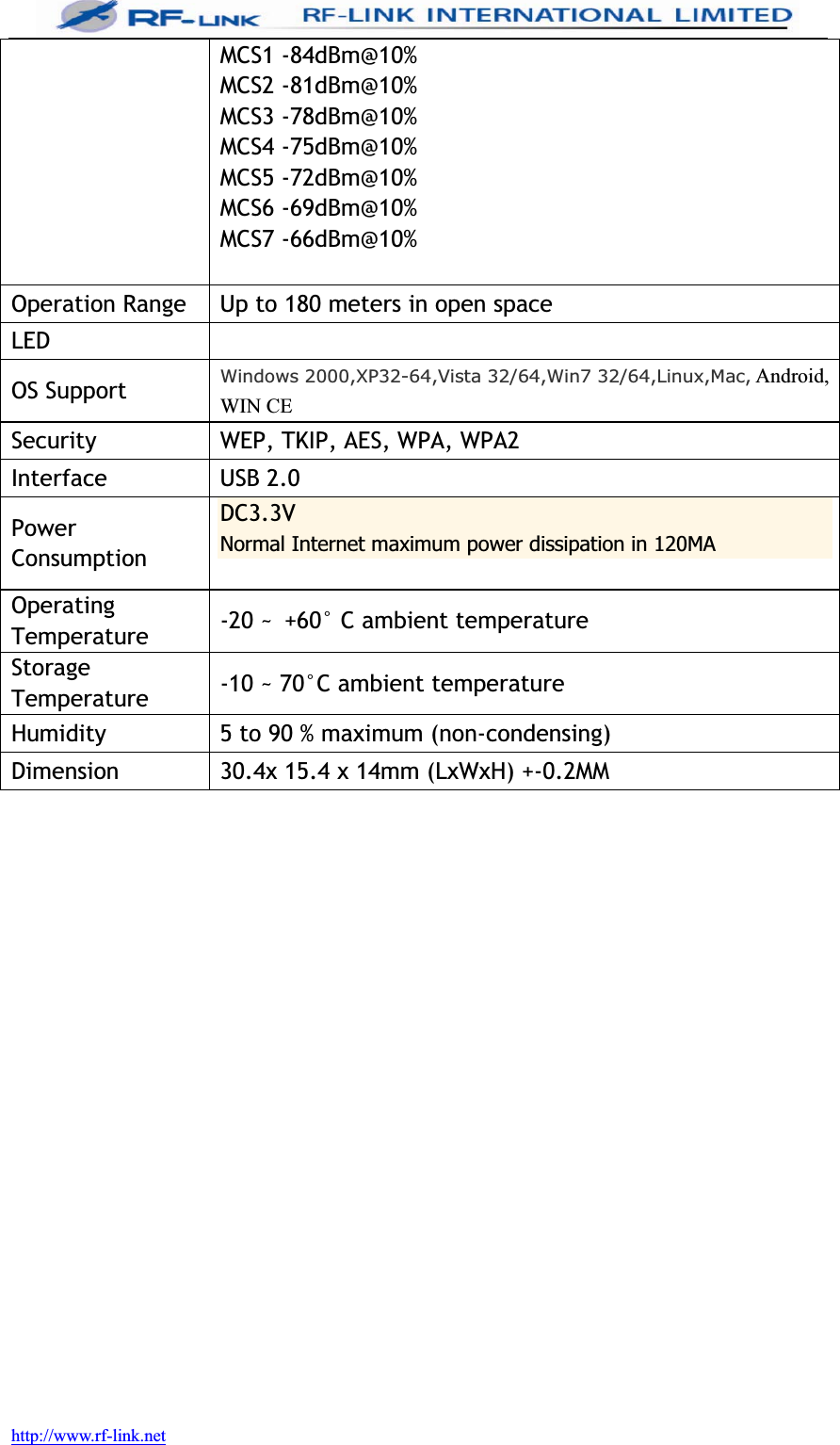

http://www.rf-link.netMCS1 -84dBm@10% MCS2 -81dBm@10% MCS3 -78dBm@10% MCS4 -75dBm@10% MCS5 -72dBm@10% MCS6 -69dBm@10% MCS7 -66dBm@10% Operation Range Up to 180 meters in open space LED OS Support Windows 2000,XP32-64,Vista 32/64,Win7 32/64,Linux,Mac, Android, WIN CESecurity WEP, TKIP, AES, WPA, WPA2 Interface USB 2.0 PowerConsumption DC3.3V Normal Internet maximum power dissipation in 120MA OperatingTemperature -20 ~ +60° C ambient temperature StorageTemperature -10 ~ 70°C ambient temperature Humidity 5 to 90 % maximum (non-condensing) Dimension 30.4x 15.4 x 14mm (LxWxH) +-0.2MM

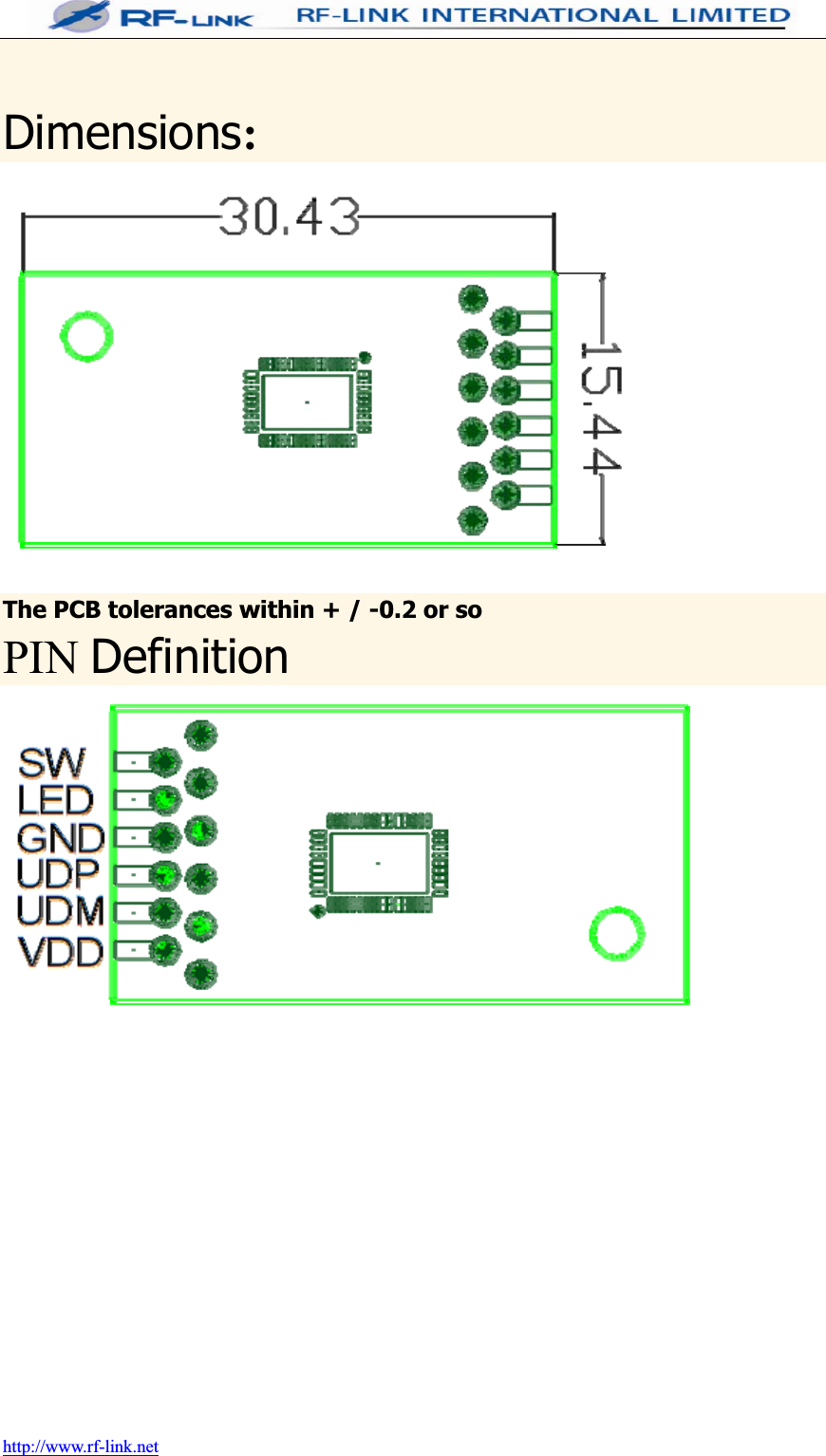

http://www.rf-link.netDimensions:The PCB tolerances within + / -0.2 or so PIN Definition
http://www.rf-link.netTOPBOT

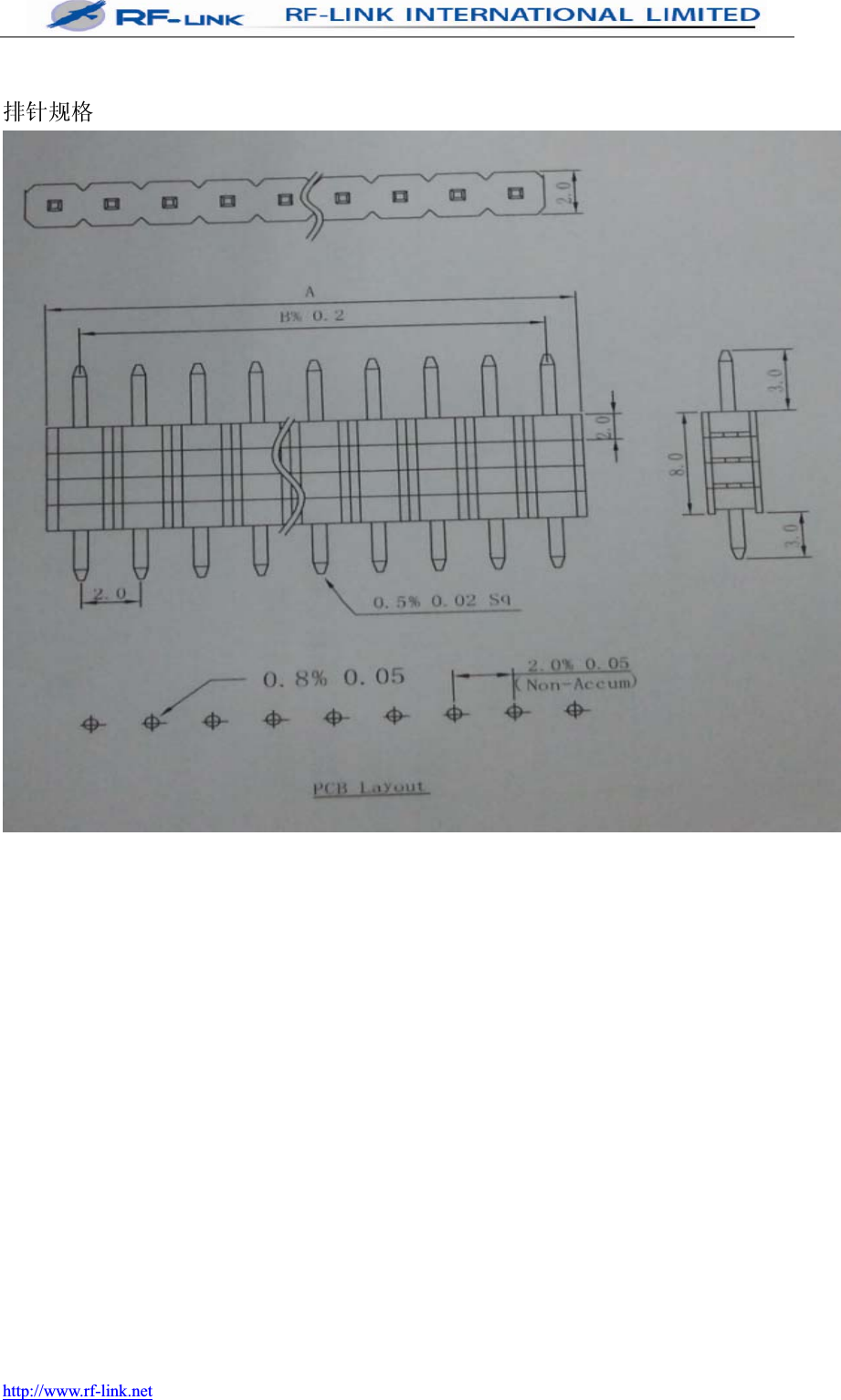

http://www.rf-link.netᥦ䩜㾘Ḑ

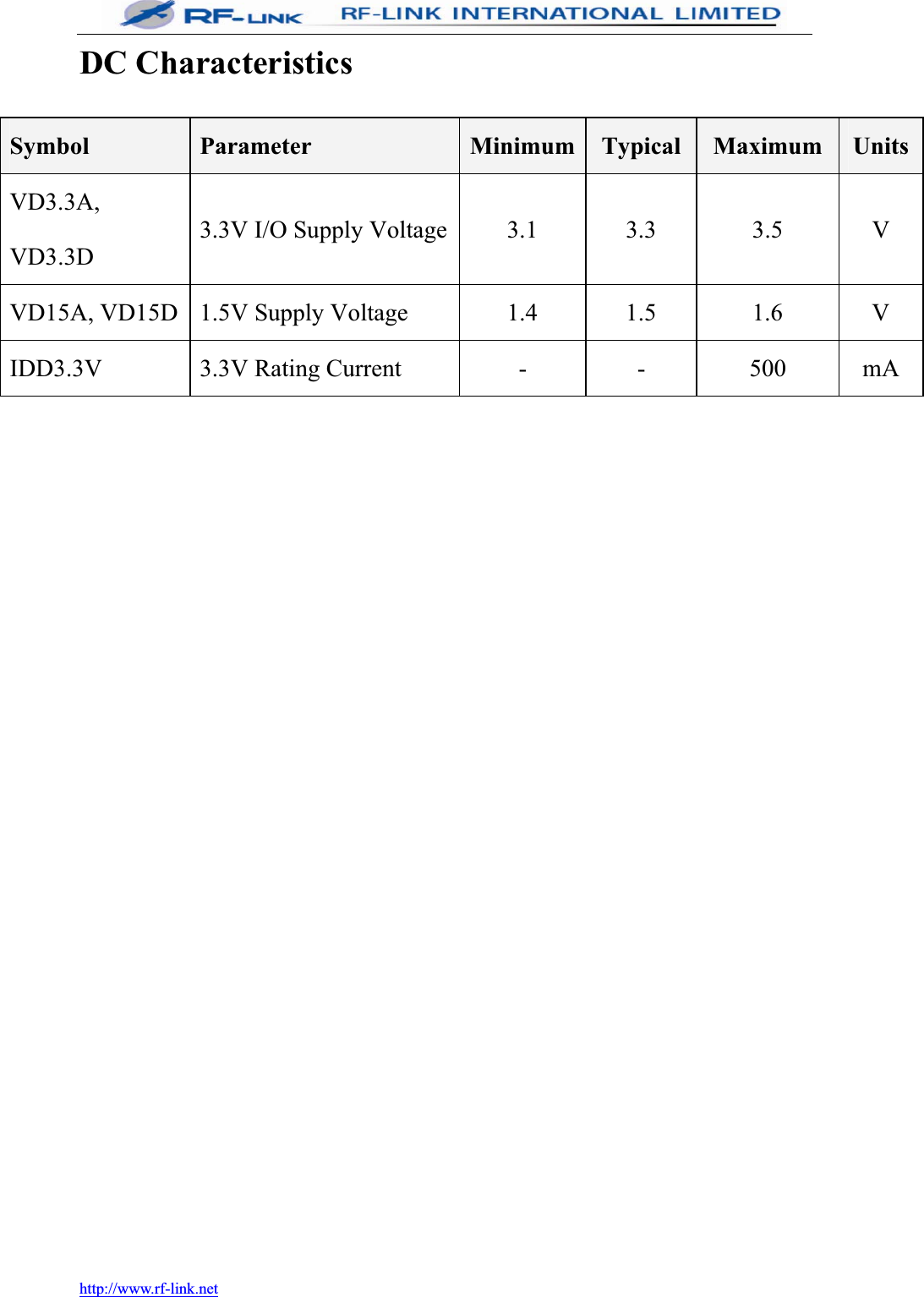

http://www.rf-link.netDC Characteristics Symbol Parameter Minimum Typical Maximum UnitsVD3.3A,VD3.3D3.3V I/O Supply Voltage 3.1 3.3 3.5 V VD15A, VD15D 1.5V Supply Voltage 1.4 1.5 1.6 V IDD3.3V 3.3V Rating Current - - 500 mA

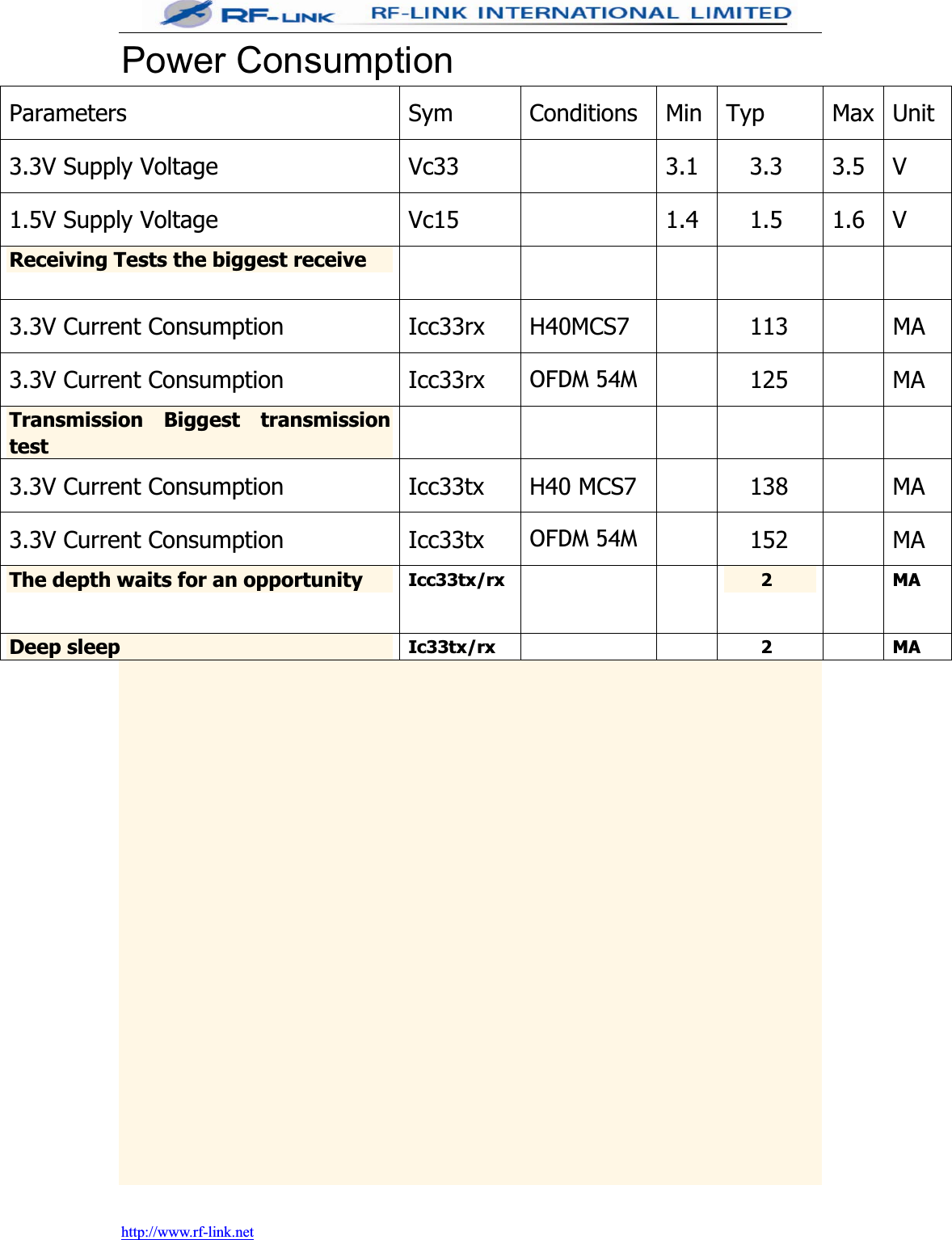

http://www.rf-link.netPower Consumption Parameters Sym Conditions Min Typ Max Unit 3.3V Supply Voltage Vc33 3.1 3.3 3.5 V 1.5V Supply Voltage Vc15 1.4 1.5 1.6 V Receiving Tests the biggest receive 3.3V Current Consumption Icc33rx H40MCS7 113 MA 3.3V Current Consumption Icc33rx OFDM 54M 125 MA Transmission Biggest transmission test 3.3V Current Consumption Icc33tx H40 MCS7 138 MA 3.3V Current Consumption Icc33tx OFDM 54M 152 MA The depth waits for an opportunity Icc33tx/rx 2 MA Deep sleep Ic33tx/rx 2 MA

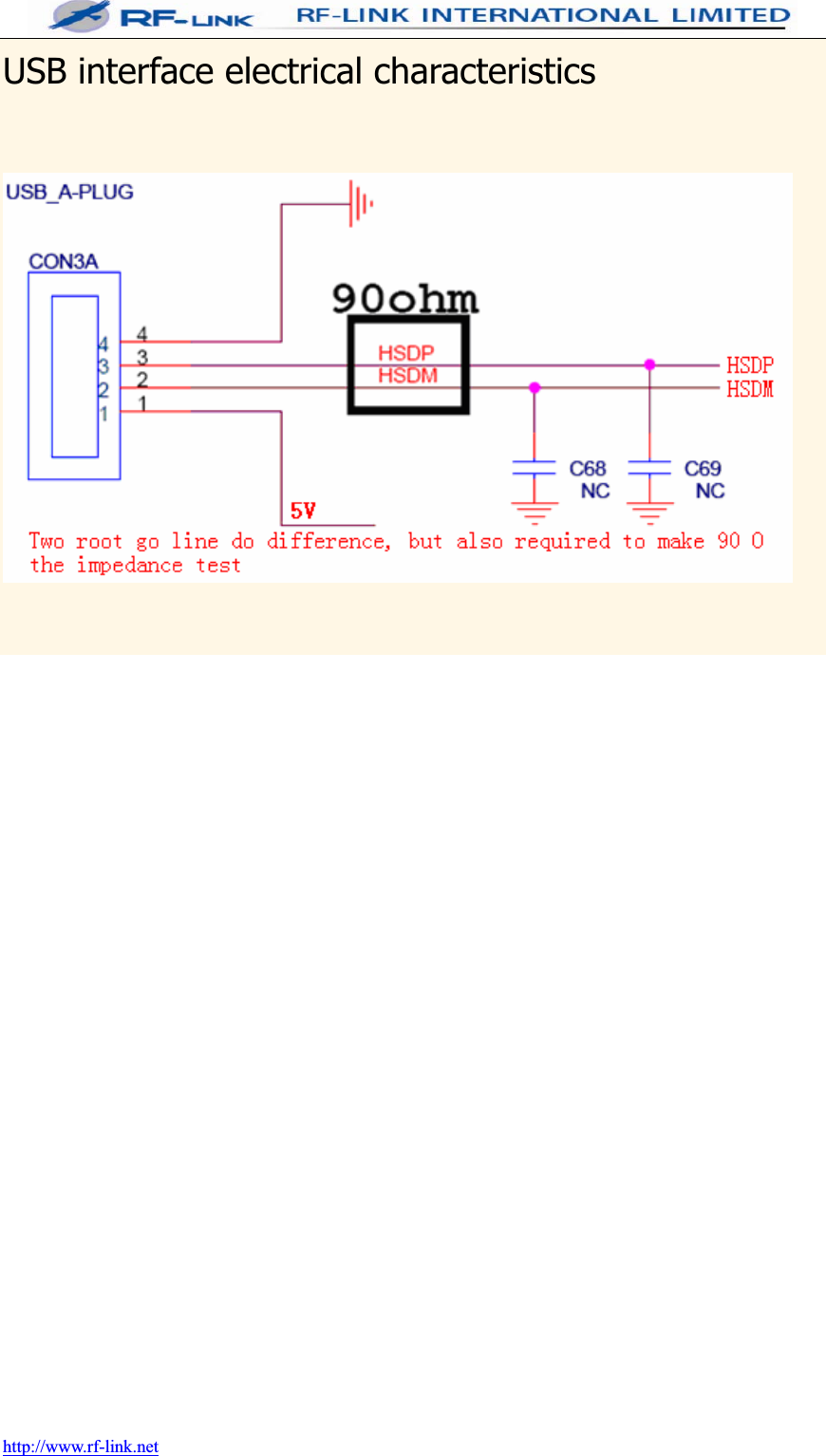

http://www.rf-link.netUSB interface electrical characteristics
Regulatory Information The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: A5LRL-UM02 When the module is installed inside another device, the user manual of this device must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This modular could be installed in the fix or mobile devices only, installed in the portable device, like USB dongle like transmitters is forbidden. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Modular could be only used in mobile or fix device, and could not be used in any portable device. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
