Product Specifications
WLAN 11b/g/n USB module (1T1R)
Version: V1.0
http://www.rf-link.net
Overview
UM12BS is a WLAN 11n USB module, which fully supports the
features and
Functional compliance of IEEE 802.11n,e and i standards. It
supports up to
150Mbps high-speed wireless network connections.
It is designed to provide excellent performance with low power
Consumption and enhance the advantages of robust system and
cost-effective.
It is targeted at competitive superior performance, better power
Management applications.
Features
*Operates in 2.4 GHz frequency bands
*1x1 technology improves effective throughput and range
existing 802.11 b/g products
*Data rates: up to 150Mbps
*802.11e-compatible bursting and I standards
*BPSK, QPSK, 16 QAM, 64 QAM modulation schemes
*WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes
http://www.rf-link.net
General Specification
Model RL-UM12BS V1.0
Product Name WLAN 11n USB module
Major Chipset Realtek RTL8188EUS
Standard 802.11b/g/n, 802.3, 802.3u
Data Transfer
Rate
1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and
maximum of 150Mbps
Modulation
Method BPSK/ QPSK/ 16-QAM/ 64-QAM
Frequency Band 2.412~ 2.462 GHz
Spread Spectrum
IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum)
IEEE 802.11g/n:OFDM (Orthogonal Frequency Division
Multiplexing)
RF Output Power < 13dBm@11n,< 18dBm@11b,< 14dBm@11g
Operation Mode Ad hoc, Infrastructure
Receiver
Sensitivity
11Mbps -86dBm@8%,54Mbps -73dBm@10%,130Mbps
-66dBm@10%
Operation Range Up to 180 meters in open space
LED
OS Support Windows 2000,XP32-64,Vista 32/64,Win7 32/64,Linux,Mac, Android,
WIN CE
Security WEP, TKIP, AES, WPA, WPA2
Interface USB 2.0
Power
Consumption
DC3.3V
Maximum power dissipation in 80MA
Operating
Temperature -20 ~ +60°C ambient temperature
Storage
Temperature -10 ~ 70°C ambient temperature
Humidity 5 to 90 % maximum (non-condensing)
Dimension 12ˊ9032 x 12.1920 x 1.6mm (LxWxH) +-0.2MM
http://www.rf-link.net

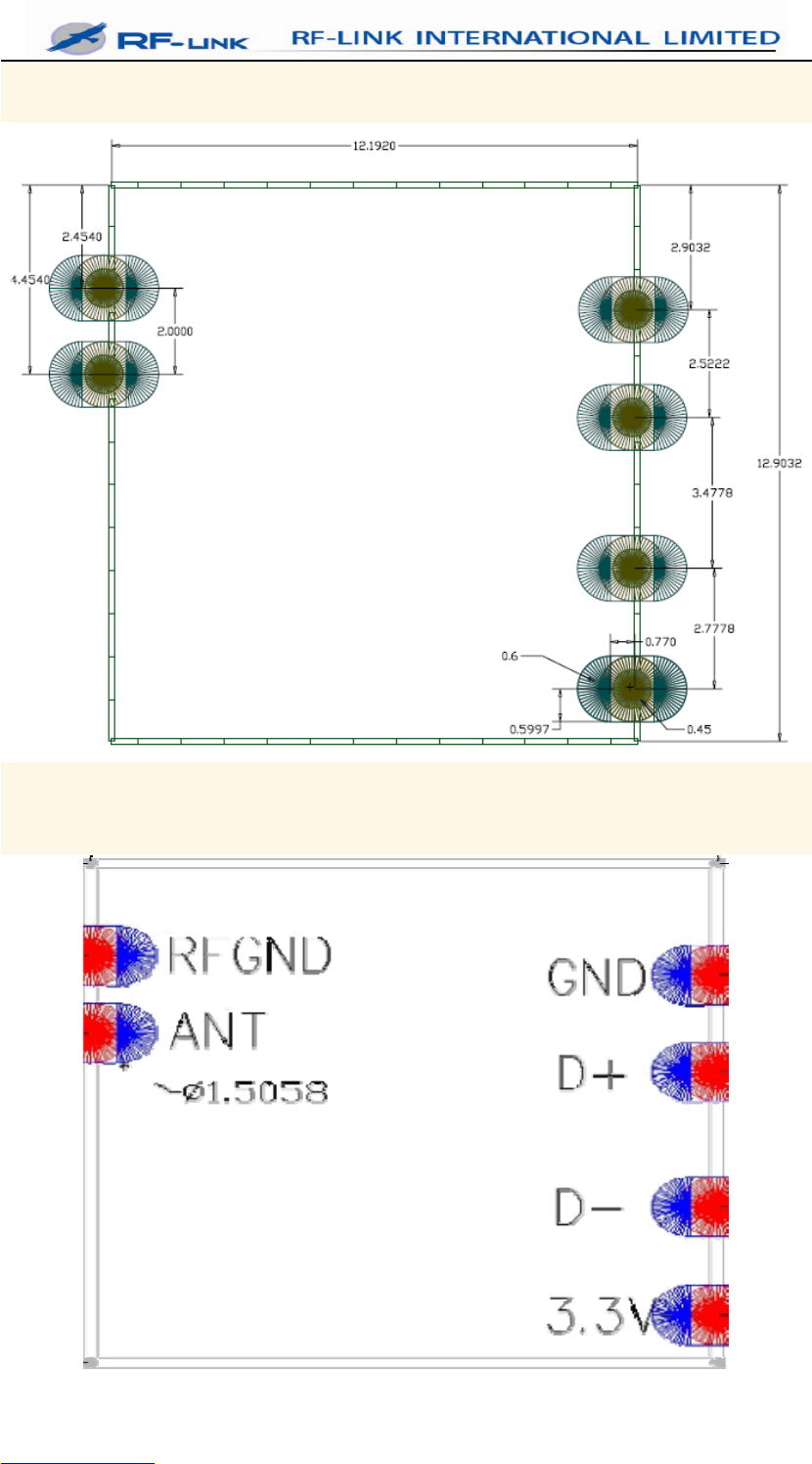

Dimensions:
The PCB tolerances within + / -0.2 or so
PIN Definition
http://www.rf-link.net

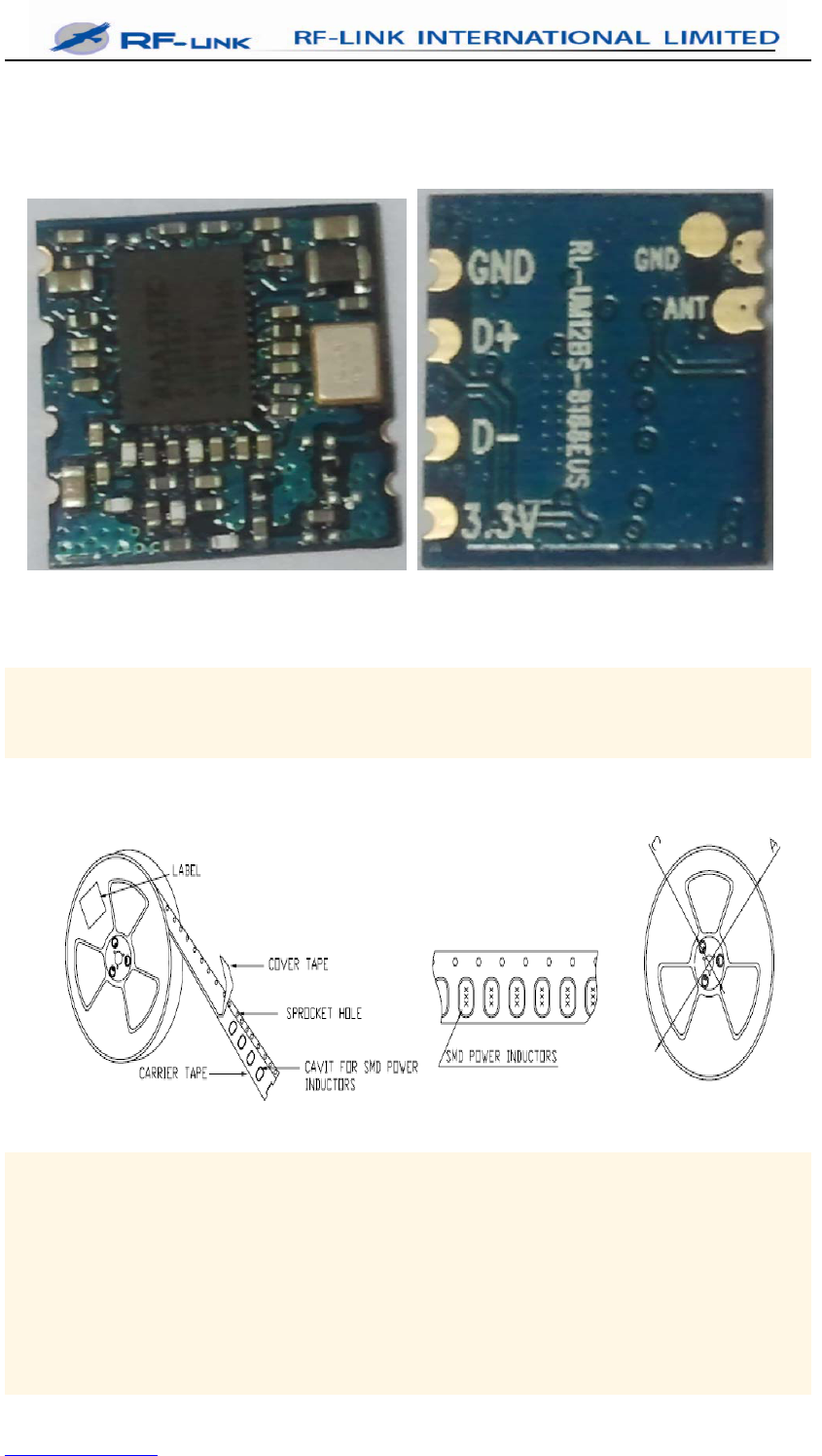

Physical map
⊼˖៥ৌUM12BS᳝㑶ǃ咥ǃ㪱ǃ咘ಯ⾡买㡆ⱘᵓˈϞᷛߎϔ⾡㪱㡆կᅶ᠋খ
㗗DŽ
Packaging Appearance Figure
There are Red, Black, Yellow and Blue four color PCB for option. Above shows the Blue
PCB.
http://www.rf-link.net

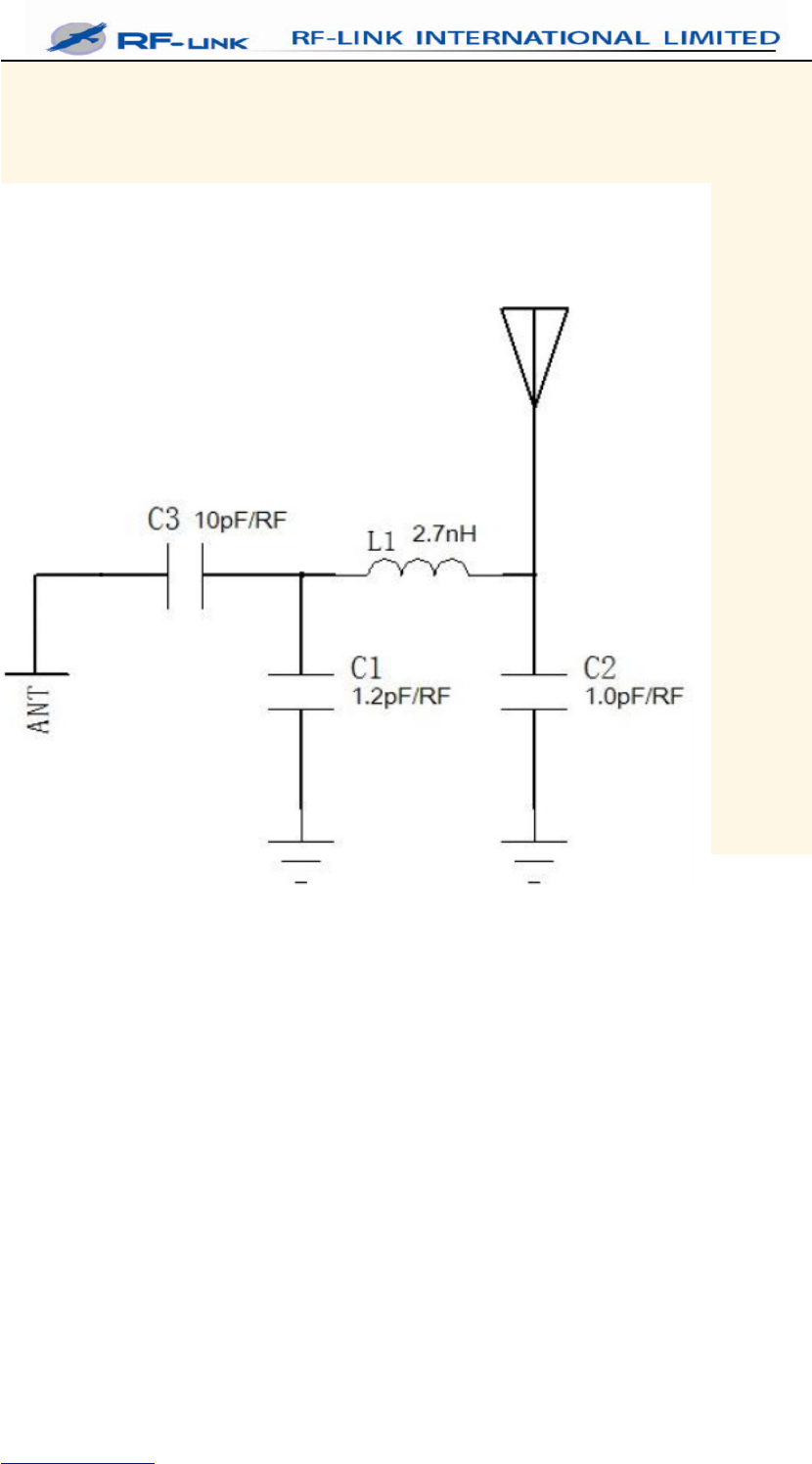

External antenna reference design
http://www.rf-link.net
DC Characteristics
Symbol Parameter Minimum Typical Maximum Units
VD33A, VD33D 3.3V I/O Supply Voltage 3.1 3.3 3.5 V
VD15A, VD15D 1.5V Supply Voltage 1.4 1.5 1.6 V
IDD33 3.3V Rating Current - - 400 mA
http://www.rf-link.net
Power Consumption
Parameters Sym Conditions Min Typ Max Unit
3.3V Supply Voltage Vc33 3.1 3.3 3.5 V
1.5V Supply Voltage Vc15 1.4 1.5 1.6 V
Receiving Tests the biggest receive
3.3V Current Consumption Icc33rx H40MCS7 65 MA
3.3V Current Consumption Icc33rx OFDM 54M 70 MA
Transmission Biggest transmission
test
3.3V Current Consumption Icc33tx H40 MCS7 80 MA
3.3V Current Consumption Icc33tx OFDM 54M 85 MA
The depth waits for an opportunity Icc33tx/rx 2MA
Deep sleep Ic33tx/rx 2 MA

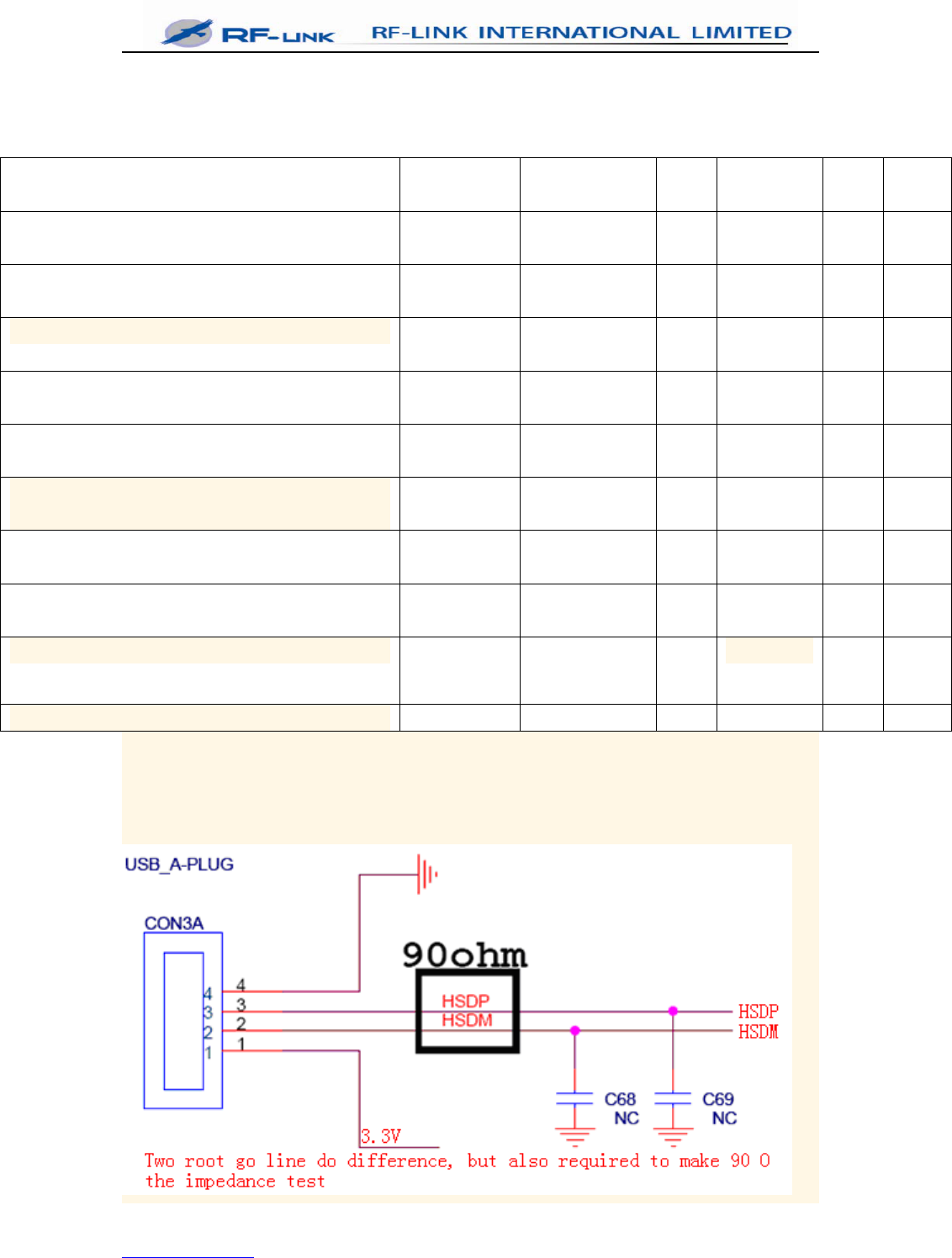

USB interface electrical characteristics
Regulatory Information
The devices must be installed and used in strict accordance with the instructions as described in
the user documentation that comes with the product.
If the FCC identification number is not visible when the module is installed inside another device,
then the outside of the device into which the module is installed must also display a label referring
to the enclosed module.
This exterior label can use wording such as the following:
“Contains Transmitter Module FCC ID: A5LRTL8188EUS”
When the module is installed inside another device, the user manual of this device must contain
below warning statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This modular could be installed in the fix or mobile devices only, installed in the portable device,
like USB dongle is forbidden. This modular complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. This modular must be installed and operated
with a minimum distance of 20 cm between the radiator and user body.
For manufacturer:
The end product into which the module will be installed should be the fix or mobile devices only,
the portable device, like USB dongle is forbidden.
The end product into which the module will be installed should be installed and operated with a
minimum distance of 20 cm between the radiator and user body.
