RF Technology T800C EXCITER User Manual T800 Manual Rev 2

Eclipse Series

RF Technology

rfinfo@rftechnology.com.au

September 2003 Revision 2

T800 Transmitter

Operation and Maintainance Manual

This manual is produced by RF Technology Pty Ltd

10/8 Leighton Place, Hornsby NSW 2077 Australia

___________________________________________________________________________

RF Technology T800 Page 2

CONTENTS CONTENTS

1. Operating Instructions 5

1.1 Front Panel controls and Indicators 5

1.1.1 PTT 5

1.1.2 Line 5

1.1.3 PWR LED 5

1.1.4 TX LED 5

1.1.5 ALARM LED 6

1.1.6 ALC LED 6

1.1.7 REF LED 6

1.1.8 TEST MIC 6

2. Transmitter Internal Jumper Options 7

2.1 JP2: EPROM Type 7

2.2 JP3: Dc Loop PTT 7

2.3 JP4: Audio Input source 7

2.4 JP5: 600 ¿ Termination 7

2.5 JP6: Input Level Attenuation8

2.6 JP7: Audio Frequency Response 8

2.7 JP8:

Subaudible Tone Source

8

2.8 JP9, JP10, JP11 dc Loop PTT Input Configuration JP3 (1-2) 8

2.9 JP16: Direct Digital Input (Rev 4 or Higher) 8

2.10 JP17:

Bypass Low Pass Filter (Rev 4 or Higher)

9

2.11 JP19: Alarm Output (Rev 4 or Higher) 9

2.12 JP22: Use Tone- as a Direct Digital Input (Rev 4 or Higher) 9

2.13 JP23: Connection of DMTX Board (Rev 4 or Higher) 9

3. Transmitter Internal Jumper Options

3.1 25 Pin Connector 10

3.2 Rear Panel Connectors 11

4. Channel and Tone Frequency Programming 12

5. Circuit Description 13

5.1 VCO Section 13

5.2 PLL Section 13

5.3 Power Amplifier 14

5.4 Temperature Protection 14

5.5 600 ¿ Line Input 14

5.6 Direct coupled Audio Input 14

5.7 Local Microphone Input 15

5.8 CTCSS and Tone Filter 15

5.9 Audio Signal Processing 15

5.10 PTT and DC Remote Control 16

5.11 Microprocessor Controller 16

5.12 Voltage Regulator 17

6. Field Alignment Procedure 17

6.1 Standard Test Conditions 18

6.2

VCO Alignment

18

6.3 TCXO Calibration 18

6.4 Modulation Balance 19

___________________________________________________________________________

RF Technology T800 Page 3

CONTENTS CONTENTS

6.5 Tone Deviation 19

6.6 Deviation 20

6.7 Line Input Level 20

6.8 Output Power 20

7Specifications 21

7.1 Overall Description 21

7.1.1 Channel Capacity 21

7.1.2 CTCSS 21

7.1.3 Channel Programming 21

7.1.4 Channel Selection 21

7.1.5 Microprocessor 21

7.2 Physical Configuration 22

7.3 Front Panel Controls, Indicators and Test Points 22

7.3.1 Controls 22

7.3.2 Indicators 22

7.3.3 Test Points 22

7.4 Electrical Specifications 22

7.4.1 Power Requirements 22

7.4.2 Frequency Range and Channel Spacing 23

7.4.3 Frequency Synthesizer Step Size 23

7.4.4 Frequency Stability 23

7.4.5 Number of Channels 23

7.4.6 Antenna Impedance 23

7.4.7 Output Power 23

7.4.8

Transmit Duty Cycle

23

7.4.9 Spurious and Harmonics 23

7.4.10 Carrier and Modulation Attack Time 23

7.4.11 Modulation 23

7.4.12 Distortion 24

7.4.13 Residual Modulation and Noise 24

7.4.14

600¿ Line Input Sensitivity

24

7.4.15 HI-Z Input 24

7.4.16 Test Microphone Input 24

7.4.17 External Tone Input 24

7.4.18 External ALC Input 24

7.4.19 T/R Relay Driver 24

7.4.20 Channel Select Input/Output 24

7.4.21 DC Remote Keying 25

7.4.22 Programmable No-Tone Period 25

7.4.23 Firmware Timers 25

7.4.24 CTCSS 25

7.5 Connectors 25

7.5.1 Antenna Connector 25

7.5.2 Power and I/O Connector 27

7.5.3 Test Connector 27

___________________________________________________________________________

RF Technology T800 Page 4

CONTENTS CONTENTS

AEngineering Diagrams

A1 Block Diagram

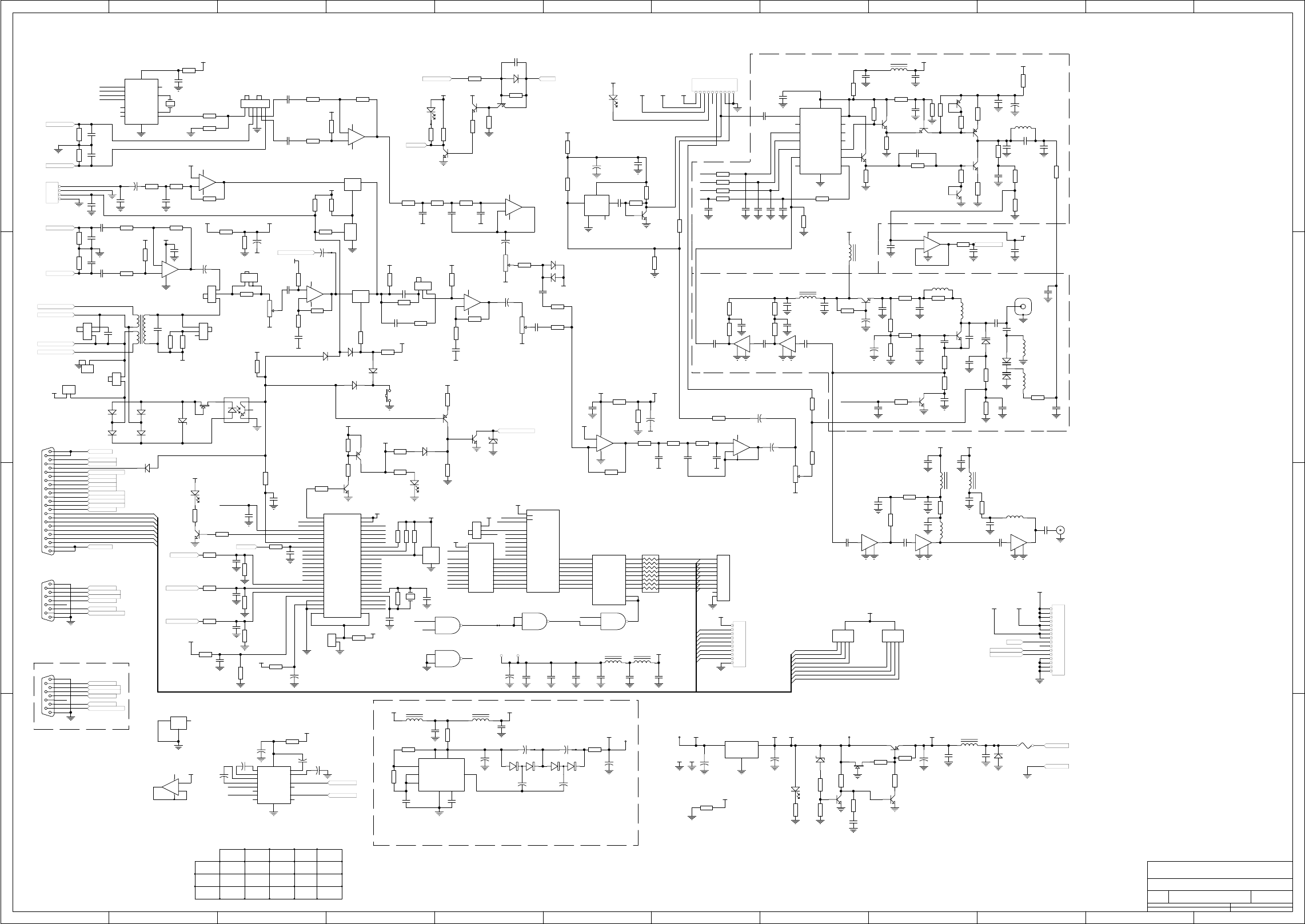

A2 Circuit Diagram

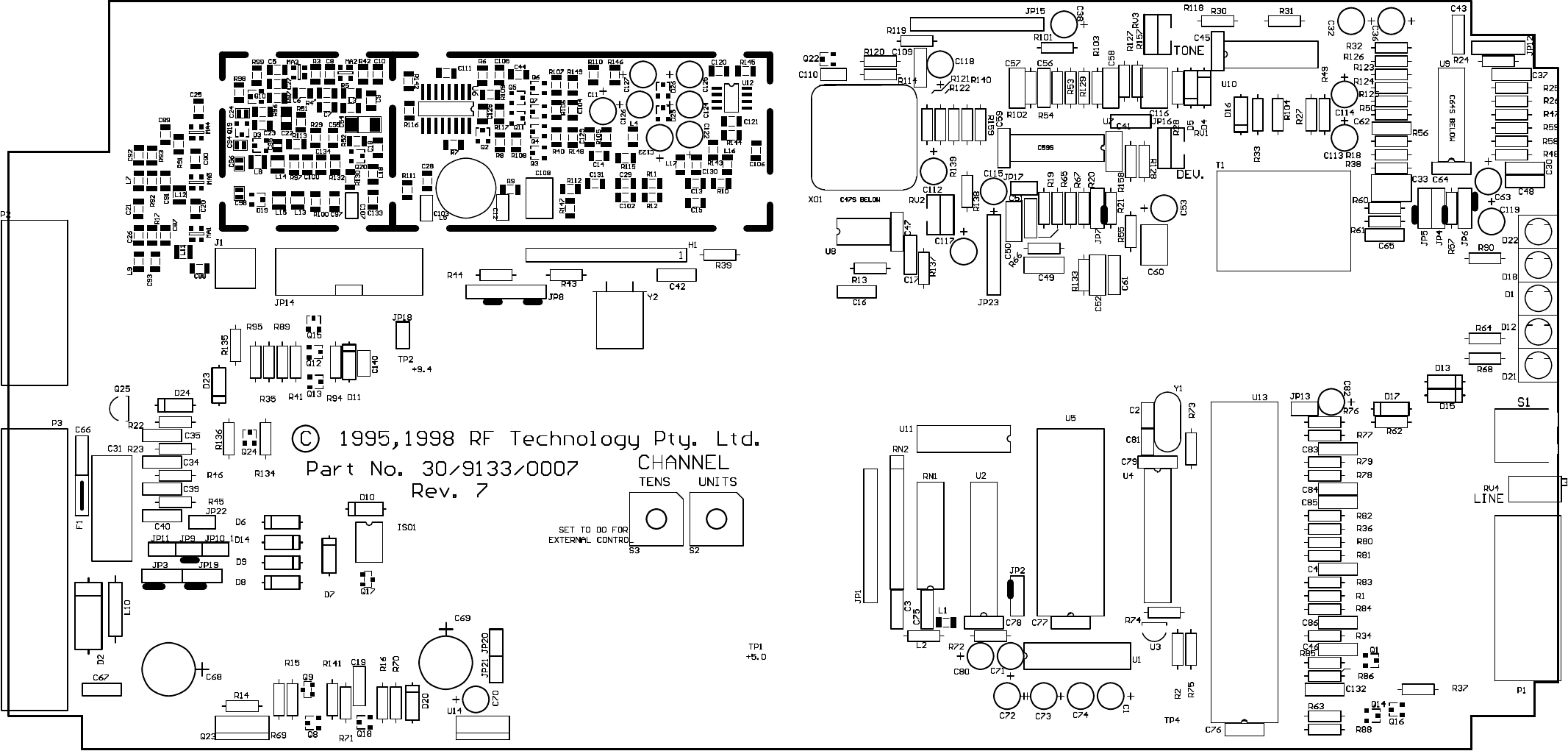

A3 Component Overlay Diagram

BParts List

___________________________________________________________________________

RF Technology T800 Page 5

1 OPERATING INSTRUCTIONS

WARNING

Changes or modifications not expressly approved by

RF Technology could void your authority to operate this

equipment. Specifications may vary from those given in

this document in accordance with requirements of local

authorities. RF Technology equipment is subject to

continual improvement and RF Technology reserves the

right to change performance and specification without

further notice.

1Operating Instructions

1.1 Front Panel Controls and Indicators

1.1.1 PTT

A front-panel push-to-talk (PTT) button is provided to facilitate bench and field tests and

adjustments. The button is a momentary action type. When keyed, audio from the line input

is disabled so that a carrier with sub-tone is transmitted. The front-panel microphone input is

not enabled in this mode, but it is enabled when the PTT line on that socket is pulled to

ground.

1.1.2 Line

The LINE trimpot is accessible by means of a small screwdriver from the front panel of the

module. It is used to set the correct sensitivity of the line and direct audio inputs. It is

factory preset to give 60% of rated deviation with an input of 0dBm (1mW on 600

Ω

equivalent to 775mV RMS or about 2.2V peak-to-peak) at 1kHz. The nominal 60% deviation

level may be adjusted by measuring between pins 6 and 1 on the test socket, and adjusting the

pot. By this means an input sensitivity from approximately -30dBm to +10dBm may be

established.

An internal jumper provides a coarse adjustment step of 20dB. Between the jumper and the

trimpot, a wide range of input levels may be accommodated.

1.1.3 POWER LED

The PWR LED shows that the dc supply is connected to the receiver.

1.1.4 TX LED

The TX LED illuminates when the transmitter is keyed. It will not illuminate (and an Alarm

cadence will be shown) if the synthesizer becomes unlocked, or the output amplifier supply is

interrupted by the microprocessor.

___________________________________________________________________________

RF Technology T800 Page 6

1.1.5 Alarm LED 1 OPERATING INSTRUCTIONS

1.1.5 ALARM LED

The Alarm LED can indicate several fault conditions if they are detected by the self test

program. The alarm indicator shows the highest priority fault present. Receivers using

software issue 5 and higher use the cadence of the LED flash sequence to indicate the alarm

condition. Refer to table 1. Receivers using software issue 4 and lower use the LED flash

rate to indicate the alarm condition. Refer to table 2.

LED Flash Cadence Fault Condition

5 flashes, pause Synthesizer unlocked

4 flashes, pause Tuning voltage out of range

3 flashes, pause Low forward power

2 flashes, pause High reverse (reflected) power

1 flash, pause Low dc supply voltage

LED ON continuously

Transmitter timed out

Table 1: Interpretations of LED flash cadence

Indication Fault Condition

Flashing, 8 per second Synthesizer unlocked

Flashing, 4 per second Tuning voltage outside correct range

Flashing, 2 per second Low forward power

Flashing, 1 per second High reverse power

Continuous dc supply voltage low or high

Table 2: Interpretations of LED flash speed, for early models

1.1.6 ALC LED

The ALC LED indicates that

the transmitter output power is being controlled by an external

amplifier through the external ALC input.

1.1.7 REF LED

The REF LED indicates that the synthesizer frequency reference is locked to an external

reference.

1.1.8 TEST MIC.

The TEST MIC. DIN socket is provided for use with a standard mobile or handset 200 Ohm

dynamic microphone. The external audio inputs are disabled when the TEST MIC’S PTT is

on.

___________________________________________________________________________

RF Technology T800 Page 7

2TRANSMITTER INTERNAL JUMPER OPTIONS

2Transmitter Internal Jumper Options

In the following subsections

an asterisk (*) signifies the standard (Ex-Factory) configuration

of a jumper.

2.1 JP2: EPROM Type

Condition Position

27C256 2-3 *

27C64 1-2

2.2 JP3: 600 Ohm Line Dc Loop PTT Input

By default, Eclipse exciters can be keyed up by pulling the PTT signal low, or by dc loop

signalling on the audio pair.

This jumper enables or disables this second method.

Condition Position

dc loop connected (enabled) 1-2 *

dc loop not connected (bypassed) 2-3

2.3 JP4: Audio Input Source Selection

Either the 600Ω or the high-Z balanced inputs may be selected.

Condition Position

600Ω Input 2-3 *

High-impedance Input 1-2

2.4 JP5: 600 ¿ Termination

Normally the Line Input is terminated in 600 ¿ . The 600 ohm termination can be removed

by choosing the alternate position.

Condition Position

600¿ Termination 1-2*

No Termination 2-3

___________________________________________________________________________

RF Technology T800 Page 8

2.5 JP6: Input Level Attenuation 2 TRANSMITTER JUMPER OPTIONS

2.5 JP6: Input Level Attenuation

This jumper permits coarse input sensitivity to be set. In the default position, the unit expects

a line level of 0dBm (nominal) at its Line Input. In the alternate position, levels of

+20dBm(nominal) can be accepted.

Condition Position

0dB attenuation 1-2 *

20dB attenuation 2-3

2.6 JP7: Audio Frequency Response

Condition Position

750 uSec. Pre-emphasis 1-2 *

Flat Response 2-3

2.7 JP8: Sub-audible Tone Source

Condition Position

Internal CTCSS 1-2, 4-5 *

External input 2-3, 5-6

2.8 JP9/10/11: dc Loop Configuration

Dc loop current on the audio pair is normally sourced externally. The Eclipse exciters loop

the current through an opto-isolator. When the current flows the exciter keys up.

An alternative arrangement is possible. The exciters can source the current and an external

device can provide the dc loop.

These three jumpers select the appropriate mode.

Condition JP9 JP10 JP11

Current Loop Input ON OFF OFF *

12Vdc Loop source OFF ON ON

2.9 JP16: Direct Digital Input (Rev 4 or Higher)

Some trunking controllers have digital encoding schemes which operate to very low

frequencies. The elliptical filter, used as a 250Hz low pass filter in the tone section, can

___________________________________________________________________________

RF Technology T800 Page 9

2 TRANSMITTER INTERNAL JUMPER OPTIONS 2.10 JP17: Bypass Low Pass Filter

cause excessive pulse edge distortion of the trunking controller’s digital signals. In such

circumstances, JP16 allows a user to bypass the low and high pass filters in the

tone input

section. See also 2.12 - JP22: If direct tone input is selected, then JP22 should be removed

(open)

Condition Position

Normal Tone Input 1-2*

Direct Tone Input 2-3

2.10 JP17: Bypass Low Pass Filter (Rev 4 or higher)

Some trunking controllers have digital encoding schemes that require the low pass filter in the

tone input section to be bypassed. JP17 allows this. Normally JP17 is open circuit. Placing

a link across it will bypass the low pass filter.

In conjunction with this change, it sometimes may be necessary, depending on the type of

trunking controller used, to add a 100K resistor in the place reserved for R157.

2.11 JP19: Alarm Output (Rev 4 or higher)

The main audio transformer (T1), is connected to the Line IP1 and Line IP4 pins on P3.

These two pins constitute the main audio input for the exciter. The centre taps of the audio

transformer, though, are brought out on Line IP2, and Line IP3. These can be used as

alternate audio pins for larger signals, or to directly access the dc loop sense circuitry. JP19

allows an alternate use for Line IP2 (pin 7 of P3). In the alternate position for JP19, the

ALARM signal (the signal that drives the ALARM LED itself) is connected to pin 7 of P3.

The ALARM signal when asserted is low active; when unasserted, it pulls high to +9.4V

through an LED and a 680 ohm resistor.

Condition Position

P3, pin 7 connects to center tap of transformer T1 1-2*

P3, pin 7 connects to ALARM signal 2-3

2.12 JP22: Use Tone- as a Direct Digital Input (Rev 4 or higher)

JP22 is normally shunted with a jumper, which connects Tone- on P3 (pin 18), as the negative leg of the

Tone input pair. Removing this jumper disconnects Tone- from this path and allows the use of the

Tone- pin to be used as a direct digital input. See also 2.9 - JP16: If this jumper is removed, then JP16

should be in the alternative position (Direct Tone Input).

2.13 JP23: Connection of DMTX Board (Rev 4 or higher)

When a DMTX board is connected to an exciter, there is provision for digital or audio modulation of the

reference osciallator and the VCO. The digital signal is input via the DB9 rear connector and the audio

input signal is via the Line inputs on the standard DB25 rear panel connector.

___________________________________________________________________________

RF Technology T800 Page 10

3.1 25 Pin Connector 3 TRANSMITTER I/O CONNECTIONS

Condition Position

No DMTX board 1-2, 5-6*

DMTX board connected 2-3, 4-5

In addition to the jumper changes, a wire link or zero ohm

resistor must be connected in the

place marked for R159.

3Transmitter I/O Connections

3.1 25 Pin Connector

The D-shell

25 pin connector is the main interface to the transmitter. The pin connections are

described in table 3.

Function Signal Pins Specification

DC power +12 Vdc

0 Vdc 1, 14

13, 25 +11.4 to 16 Vdc

Ground

Channel Select 1

2

4

8

10

20

40

80

21

9

22

10

23

11

24

12

BCD Coded

0 = Open Circuit

or 0 Vdc

1 = +5 to +16 Vdc

RS232 Data In

Out 15

2

Test and Programming use

9600, 8 data 2 stop bits

600Ω Line High

Low 20

6Transformer Isolated

Balanced 0dBm Output

150Ω / Hybrid 7

19

Direct PTT input 3Ground to key PTT

T/R Relay driver output 16 Open collector,250mA/30V

Sub-Audible Tone Input [+] 5>10kΩ, AC coupled

[-] 18 (1-250Hz)

High-Z Audio Input [+] 4>10kΩ, AC coupled

[-] 17 (10Hz-3kHz)

External ALC input 8 <0.5V/1mA to obtain

>30dB attenuation, O/C

for maximum power

Table 3: Pin connections and explanations for the main 25-pin, D connector.

___________________________________________________________________________

RF Technology T800 Page 11

3 TRANSMITTER I/O CONNECTIONS 3.2 Rear Panel Connectors

3.2 Rear Panel Connectors

The exciter and receiver can be supplied with optional rear panel connectors that bring

out the more important signals available on P1, the rear panel DB25 connector.

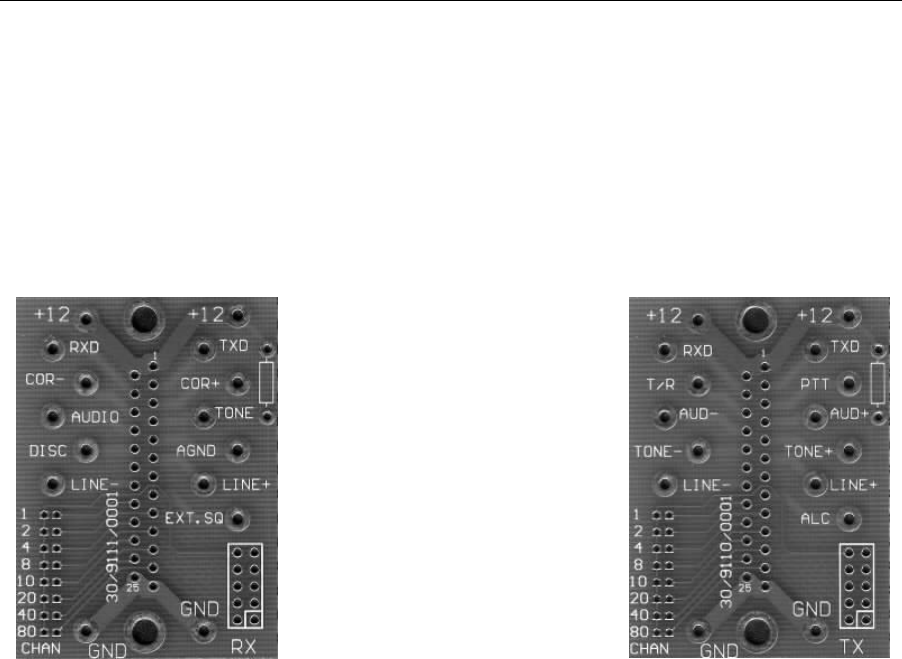

Figures 1 and 2 show the rear panel connectors, and Table 4 shows the signals that are brought

out to the spade connectors. The spade connectors (2.1x0.6x7mm) are captive/soldered

at the labelled points.

Fig 1 Fig 2

RX PCB TX PCB

The Receiver and Transmitter modules plug into the back plane DB25/F connectors

To configure: Solder wire connections between appropriate points.

___________________________________________________________________________

RF Technology T800 Page 12

4 CHANNEL and TONE FREQUENCY PROGRAMMING

Receiver

DB25/F RX

PCB DESCRIPTION TX

PCB Transmitter

DB25/F

1, 14 +12V +12V DC SUPPLY +12V 1, 14

2TXD TX Data TXD 2

15 RXD RX Data RXD 15

3COR+ Carrier Operate Sw+ PressToTalk input PTT 3

16 COR- Carrier Operate Sw- Tx/Rx output T/R 16

4TONE Subtone output Hi Z audio input+ AUD+ 4

17 AUDIO Audio output Hi Z audio input- AUD- 17

5AGND Audio Ground Ext tone input+ TONE+ 5

18 DISC Discriminator output Ext tone input- TONE- 18

6LINE+ Line output+ Line input+ LINE+ 6

20 LINE- Line output- Line input- LINE- 20

8EXT SQ Ext Squelch input Auto Level Control ALC 8

13, 25 GND Ground, 0V GND 13, 25

21 BCD 1 Channel select 1’s digit BCD 1 21

9BCD 2 Channel select 1’s digit BCD 2 9

22 BCD 4 Channel select 1’s digit BCD 4 22

10 BCD 8 Channel select 1’s digit BCD 8 10

23 BCD 10 Channel select 10’s digit BCD 10 23

11 BCD 20 Channel select 10’s digit BCD 20 11

24 BCD 40 Channel select 10’s digit BCD 40 24

12 BCD 80 Channel select 10’s digit BCD 80 12

4

Channel and Tone Frequency Programming

Channel and tone frequency programming is most easily accomplished with RF Technology

TecHelp software or the Service Monitor 2000 software. This software can be run on an IBM

compatible PC and provides a number of additional useful facilities. DOS and 32-bit versions

are available.

TecHelp allows setting of the adaptive noise squelch threshold, provides a simple means of

calibrating the forward and reverse power detectors, setting the power alarm preset levels, and

enabling transmitter hang time and timeout time limits. TecHelp can be supplied by your

dealer, distributor or by contacting RF Technology directly.

___________________________________________________________________________

RF Technology T800 Page 13

5 CIRCUIT DESCRIPTION 5.1 VCO Section

5Circuit Description

The following descriptions should be read as an aid to understanding the block and schematic

diagrams given in the appendix of this manual.

5.1 VCO Section

The Voltage Controlled Oscillator uses a bipolar junction FET Q19

which oscillates at the

required transmitter output frequency. Varactor diodes D25 and D26 are used by the PLL

circuit to keep the oscillator on the desired frequency. A second varactor diode D3 is used to

frequency

modulate the VCO. Transistor Q20 is used as an active filter to reduce the noise

on the oscillator supply voltage.

The VCO is keyed ON by the microcontroller through Q10. It is keyed ON when any of the

PTT inputs are active and OFF at all other times.

The VCO output is amplified and buffered by monolithic amplifiers MA2 and MA3 before

being fed to the PLL IC U6.

Amplifiers MA1, MA4 and MA5 increase the VCO output to approximately 10 mW to drive

the power amplifier. MA1 is not switched on until the PLL has locked and had time to settle.

This prevents any momentary off channel transmission when the transmitter is keyed.

5.2 PLL Section

The frequency reference for the synthesiser is a crystal oscillator using transistors Q26 and

Q27 and crystal Y3. The temperature stability is better than 5 ppm and it can be synchronised

to an external reference for improved stability. External reference option board 11/9119 is

required when using an external reference.

A positive temperature coefficient thermistor, XH1, is used in versions intended for operation

down to -30 degrees Celsius. The thermistor heats the crystal's case to maintain its

temperature above -10 degrees thus extending the oscillator stability of 5 ppm down to -30

degrees ambient.

Varactor diodes D27-30

are used to frequency modulate the oscillator. The processed transmit

audio signal from U7b varies the diodes bias voltage to modulate the reference frequency.

This extends the modulation capability down to a few Hz for sub-audible tones and digital

squelch codes. A

two point modulation scheme is used with the audio also being fed to the

VCO to modulate the higher audio frequencies.

The 12.8 MHz output of Q27 is amplified by Q28 and Q29 to drive the reference input of the

PLL synthesiser IC U6. This IC is a single chip synthesiser which includes a 1.1 GHz pre-

scaler, programmable divider, reference divider and phase/frequency detector. The frequency

data for U6 is supplied via a serial data link by the microcontroller.

___________________________________________________________________________

RF Technology T800 Page 14

5.3 Power Amplifier 5 CIRCUIT DESCRIPTION

The phase detector output signals of U6 are used to control two switched current sources. The

output of the positive and negative sources Q3 and Q6, produce the tuning voltage which is

smoothed by the loop filter components to bias the V.C.O. varactor diode D3.

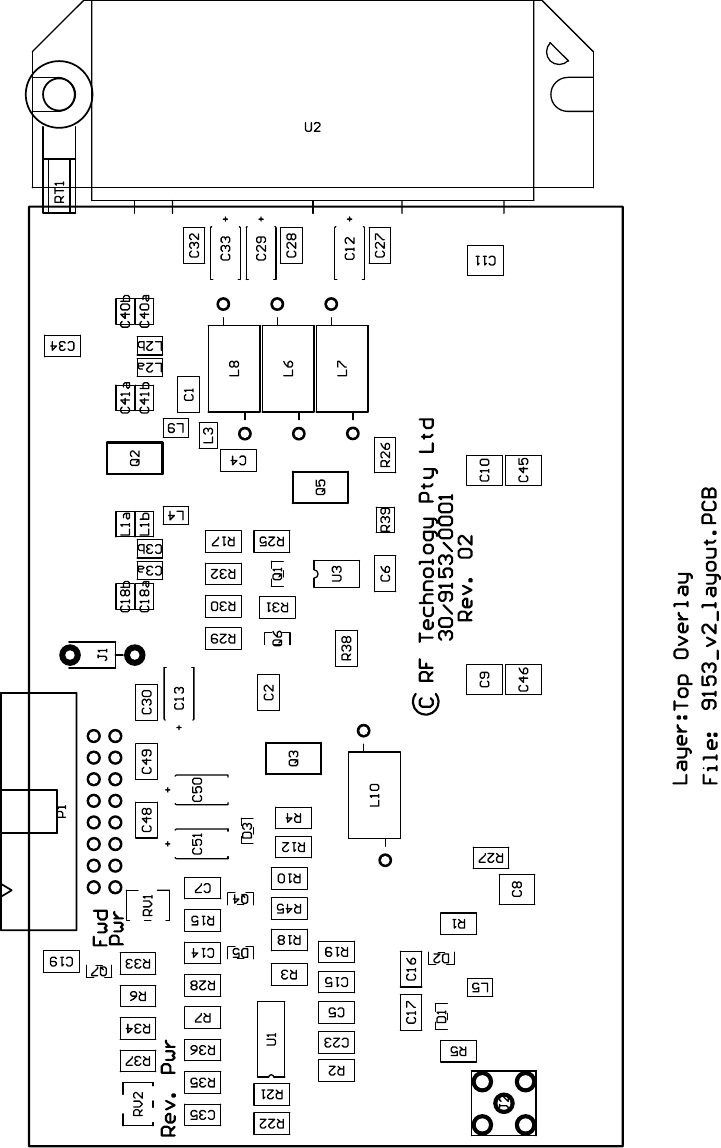

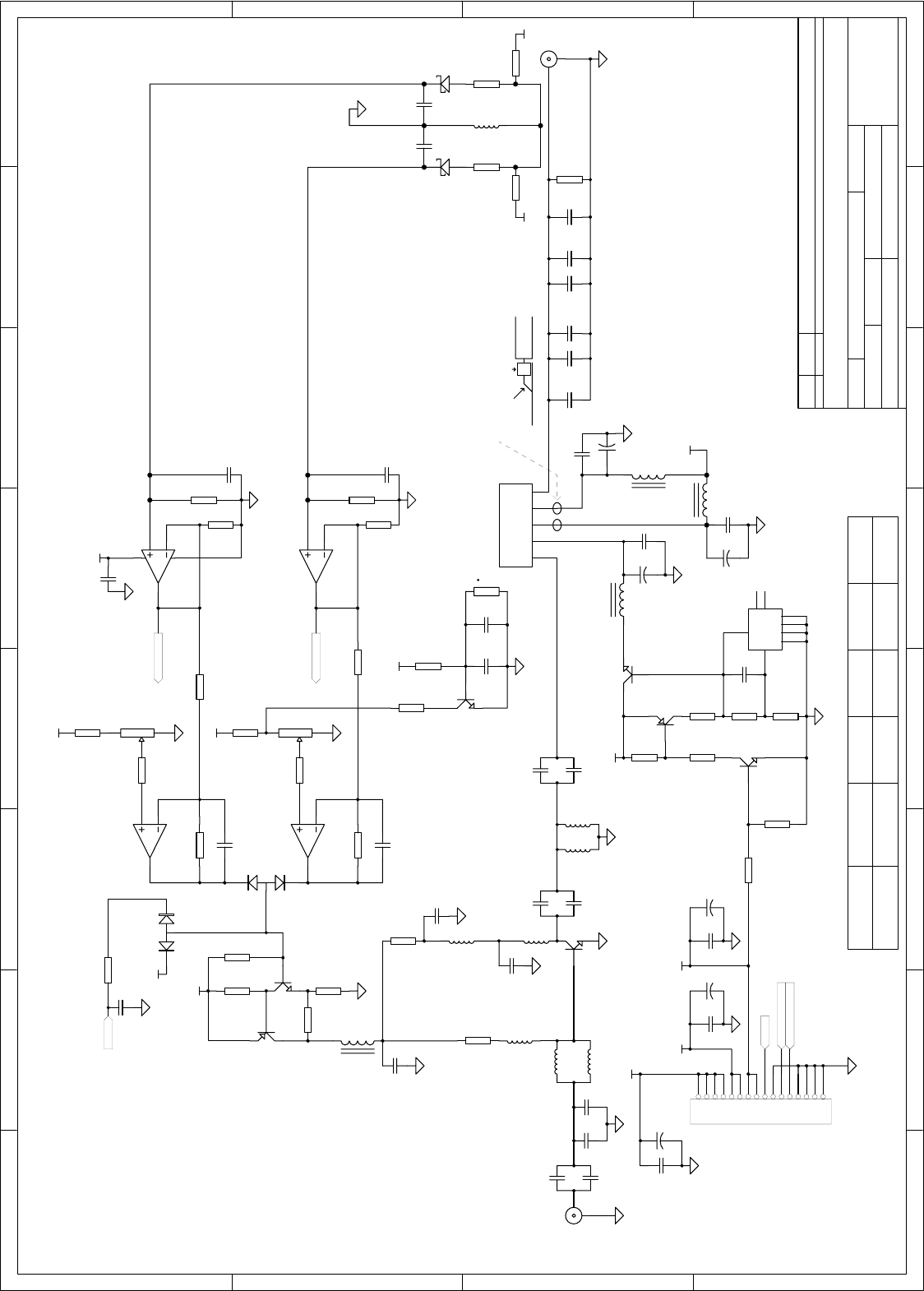

5.3 Power Amplifier

The 10 mW output from the main board connects to the power amplifier board through a short

miniature 50Ω coaxial cable.

Q2 on the power amplifier board increases the signal to approximately200mW.

The bias of

Q2 is controlled by Q1 and the power leveling circuitry to adjust the drive to the output

module U2.

U2 increases the power from the driver to 30 watts before it is fed to the directional coupler,

low pass filter and output connector. The directional coupler detects the forward and reverse

power components and provides proportional dc voltages which are amplified by U1a and

U1b.

The forward power voltage from U1a and U1b are compared to the present DC reference

voltage from RV1.

The difference is amplified by U1c, Q3 and Q4. The resulting control

voltage supplies Q2 through R10, R12 and completes the power levelling control loop.

5.4 Temperature Protection

Thermistor RT1 on the power amplifier board is used to sense the case temperature of the

output module U2. If the case temperature rises above 90 degrees C, the voltage across RT1

will increase and transistor Q5 will be turned on. This reduces the dc reference voltage to the

power regulator which inturn reduces the outpower by 6-10dB.

5.5 600Ω Line Input

The 600Ω balanced line input connects to line isolation transformer T1. T1 has two 150Ω

primary windings which are normally connected in series for 600Ω

lines. The dual primary

windings can be used to provide DC loop PTT signaling or a 2/4 wire hybrid connection. All

four leads are available at the rear panel system connector.

The secondary of T1 can be terminated with an internal 600Ω

load through JP5 or left un-

terminated in high impedance applications.

5.6 Direct Coupled Audio Input

A high impedance (10k

Ω) direct AC coupled input is available at the system connector. The

direct coupled input connects to U9a which is configured as a unity gain bridge amplifier.

The bridge configuration allows audio signal inversion by interchanging the positive and

negative inputs and minimizes ground loop problems. Both inputs should be connected, with

one lead going to the source output pin and the other connected to the source audio ground.

___________________________________________________________________________

RF Technology T800 Page 15

5 CIRCUIT DESCRIPTION 5.7 Local Microphone Input

5.7 Local Microphone Input

The local microphone input is provided for use with a

standard low impedance dynamic

microphone. The microphone output is amplified by U9a before connecting to analogue

switch U10a. U10b inverts the local microphone PTT input to switch U10a ON when the

microphone PTT button is pressed. U10a is OFF at all other times.

The local microphone audio has priority over the other inputs. Activation of the local

microphone PTT input switches OFF the audio from the line or direct inputs through D16 and

U10c

5.8 CTCSS and Tone Filter

The CTCSS encoder module H1, under control of the main microprocessor U13, can encode

all 38 EIA tones and (on some models) additional commonly-used tones.

The tone output of H1 connects to jumper JP8

which is used to select either H1 or an external

tone source. The selected source is coupled to U9c which is a balanced input unity gain

amplifier. The buffered tone from U9c is fed to 300 Hz low pass filter U7c.

On Rev 4 or later revisions, the low pass filter can be by passed by inserting a jumper onto

JP17.

RV3, the tone deviation trimmer, is used to adjust the level of the tone from U7c before it is

combined with the voice audio signal in the summing amplifier U7a.

Back to back diodes D4 and D5 limit the maximum tone signal amplitude to prevent

excessive tone deviation when external tone sources are used.

The subtone amplifier, filter and limiter can be bypassed on Rev 4 or later exciters by

removing the link from JP22 and moving the link in JP16 to the alternate position.

5.9 Audio Signal Processing

Jumper JP4 selects either the line or direct input source. The selected source is then

connected to JP6. JP6 can be removed to provide 20 dB attenuation when the input level is

above 10 dBm to expand the useful range of the line level trimmer RV4. The wiper of RV4 is

coupled to the input of the input amplifier U9d. U9d provides a voltage gain of ten before

connecting to the input of analogue switch U10c.

The outputs of U10a and U10c are connected to the frequency response shaping networks

C52, R133 (for 750

µs pre-emphasis) and C61, R55 (for flat response). JP7 selects the pre-

emphasized or flat response.

The audio signal is further amplified 100 times by U7d. U7d also provides the symmetrical

clipping required

to limit the maximum deviation. The output level from U7d is adjusted by

RV1, the deviation adjustment, before being combined with the tone audio signal in the

summing amplifier U7a.

___________________________________________________________________________

RF Technology T800 Page 16

5.10 PTT and DC Remote Control 5 CIRCUIT DESCRIPTION

The composite audio from U7a is fed through the 3Khz low pass filter U7b. When the links

on JP23 are in their default state, the filtered audio is coupled to the TCXO voltage tuning

input and the modulation balance trimmer RV2. RV2, R99 and R98 attenuate the modulation

signal before applying it to the VCO via varactor D3.

When DMTX board option is required, Jumper JP23 allows the audio paths to be re-routed.

The DMTX board provides for an external digital modulation input signal.

When the two

links on JP23 are positioned in the middle of the 6 pin header, the audio from the exciter is

passed to the DMTX board via pin 5 of JP15, where the signal is conditioned and then

returned from the DMTX board via pin 2 of JP15, and passed to the two modulation points.

RV2 adjusts level of the audio used to modulate the VCO. This primarily effects the deviation

of audio frequencies above 500 Hz. RV2 is used to balance the high and low frequency

deviation to obtain a flat frequency response relative to the desired characteristic.

5.10 PTT and DC Remote Control

Two main PTT inputs are provided. The first, a direct logic level input, is connected to pin 3

of the system connector. The transmitter can be keyed by applying

a logic low or ground on

pin 3. Pin 3 connects to the PTT logic and microprocessor through D10.

DC current loop control can be used for remote PTT operation.

The current loop can be

configured by JP9, JP10 and JP11 for use with either a remote free switch or a remote

switched source.

Opto-isolator ISO1 is used to isolate the loop current signal from the transmitter PTT logic.

The loop current passes through the input of ISO1 and the output of ISO1 connects to the PTT

logic.

A bridge consisting of diodes D6, D8, D9 and D14 ensures correct operation regardless of the

current polarity. Q17 limits the current and D7 limits the voltage input of ISO1. Any low

voltage current source capable of providing 2mA at 4V or switching circuit with less than

4.8k¿ loop resistance can be used to switch the DC loop.

The test PTT button on the front panel and the local microphone PTT button will also key the

transmitter. Both of these also mute the line audio input. The microphone line also enables

that audio input.

A DMTX board can also cause the exciter to key up. When TX (or TTL_TX) signal is

received by the DMTX board, it pulls pin 6 of JP15 low, which in turn asserts the

PTT_WIRE-OR signal, causing the microprocessor (U13) to key the exciter up.

5.11 Microprocessor Controller

The microprocessor controller circuit uses a single-chip eight bit processor and several

support chips. The processor U13 includes non-volatile EE memory for channel frequencies,

tones, and other information. It also has an asynchronous serial port, a synchronous serial

port and an eight bit analogue to digital converter.

___________________________________________________________________________

RF Technology T800 Page 17

5 CIRCUIT DESCRIPTION 5.12 Voltage Regulator

The program is stored in U5, a CMOS EPROM. U4 is an address latch for the low order

address bits. U2 is used to read the channel select lines onto the data bus. U11 is an address

decoder for U5 and U2. U3 is a supervisory chip which keeps the processor reset unless the

+5 Volt supply is within operating limits. U1 translates the asynchronous serial port data to

standard RS232 levels.

The analogue to digital converter is used to measure the forward and reverse power, tuning

voltage and dc supply voltage.

If the processor detects that the PTT_WIRE_OR signal is asserted low, it will

attempts to key

the exciter up. If will first attempt to key the VCO through Q10, and if the LD pin goes high,

it will switch the 9.2 Volt transmit line through Q14 and Q16.

asserting Q16 has the effect of

also asserting the yellow Tx LED (D12) on the front panel, enabling the local 25W power

amplifier, and causing the T/R Relay output to be pulled low. D24 is

30 volt zener which

protects Q25 from both excessive voltages or reverse voltages.

Should there be a problem with either the tuning volts, or the battery voltage, the VCO

locking, the forward power, or the reverse power, the microprocessor will assert the ALARM

LED, through Q1. Depending on the setting of Jumper JP19, the ALARM signal can be

brought out on pin 7 of P3.

5.12 Voltage Regulator

The

dc input voltage is regulated down to 9.4 Vdc by a discrete regulator circuit. The series

pass transistor Q23 is driven by error amplifiers Q8 and Q18. Q9 is used to start up the

regulator and once the circuit turns on, it plays no further part in the operation.

The +5 Volt supply for the logic circuits is provided by an integrated circuit regulator U14

which is run from the regulated 9.4 Volt supply.

Jumper JP18 is not normally fitted to the board, and is bridged with a 12mil track on the

component side of the board. It is provided so that the 9.4V load can be isolated from the

supply by the service department to aid in fault finding.

Jumpers JP20 and JP21 are also not normally fitted on the board, and are usually bridged with

a 12mil track on the component side. They allow U14 to be isolated from its input, or its

output or both.

6Field Alignment Procedure

The procedures given below may be used to align the transmitter in the field. Normally,

alignment is only required when changing operating frequencies, or after component

replacement.

The procedures below do not constitute an exhaustive test or a complete alignment of the

module, but if successfully carried out are adequate in most circumstances.

___________________________________________________________________________

RF Technology T800 Page 18

6.1 Standard Test Condition 6 FIELD ALIGNMENT PROCEDURE

TCXO calibration may be periodically required owing to normal quartz crystal aging. A drift

of 1ppm/year is to be expected.

Each alignment phase assumes that the preceding phase has been successfully carried

out, or

at least that the module is already in properly aligned state with respect to preceding

conditions.

6.1 Standard Test Condition

The following equipment and conditions are assumed unless stated otherwise:

•AF signal generator with 600Ω impedance, 50-3000Hz frequency range, with level set to

387mV RMS.

•Power supply set to 13.8Vdc, with a current capable of >5A.

•RF 50Ω load, 30W rated, return loss <-20dB.

•Jumpers set to factory default positions.

Alignment Frequency

Model Range Align F

T800A 806-830 818MHz

T800B 850-870 860MHz

T800C 928-942 935MHz

6.2 VCO Alignment

1. Select a channel at the center frequency (half way between the highest and lowest

frequencies for the model in question).

2. Disconnect the Audio input (no signal input).

3. Key the PTT line.

4. Measure the voltage between pins 9 and 1 of the test socket (TUNE V), and adjust C99 to

obtain 4.5±0.25V, while the TX LED is ON and the ALARM LED is OFF.

6.3 TCXO Calibration

1. Select a channel at the center frequency (half way between the highest and lowest

frequencies for the model in question).

2. Disconnect the Audio input (no signal input).

___________________________________________________________________________

RF Technology T800 Page 19

6 FIELD ALIGNMENT PROCEDURE 6.4 Modulation Balance

3. Key the PTT line.

4. Measure the carrier frequency at the output connector, and adjust XO1 until the correct

carrier frequency is measured, ±50Hz.

6.4 Modulation Balance

1.

Set RV3 fully counter clockwise (CCW) (sub-tone off).

2.

Set RV1 fully clockwise (CW) (maximum deviation)

3. Set RV2 mid-position

4. Set JP7 for flat response

5. Set JP4 for Hi-Z input

6. Key the transmitter on

7. Set the audio input to 150Hz, 0dBm.(387mV)

8.

Measure deviation and adjust RV4 (line Level) for a deviation of 5kHz (2.5kHz for

narrow band transmitters).

9. Set the audio input to 1.5kHz, 0dBm.

10. Adjust RV2 (Mod. Bal.) for a deviation of 5kHz (2.5kHz for narrow band transmitters).

11. Repeat steps 6-9 until balance is achieved.

12. Key the transmitter off.

13. Return JP7 to its correct setting.

14.

Carry out the Deviation (section 6.6) and Tone Deviation (section 6.5) alignment

procedures.

6.5 Tone Deviation

1. Remove the audio input.

2. Key the transmitter on

3. Adjust RV3 for the desired deviation in the range 0-1kHz.1

If sub-tone

(CTCSS) coding is not to be used, adjust RV3 fully CCW.

_________________________

1 The factory default is 500Hz for wide band (5kHz maximum deviation) and 250Hz for narrow band channels.

___________________________________________________________________________

RF Technology T800 Page 20

6.6 Deviation 6 FIELD ALIGNMENT PROCEDURE

6.6 Deviation

1.

Set RV4 (Line Level) fully clockwise (CW).

2. Set the audio to 1kHz, 0dBm, on the line input.

3. Key the transmitter on.

4.

Adjust RV1 (Set Max. Deviation) for a deviation of 5kHz (2.5kHz for narrow band

transmitters).

5. Key the transmitter off.

6.

Carry out the Line Input Level alignment procedure (section 6.7)

6.7 Line Input Level

1.

Set the audio to 1kHz, 0dBm, on the line input, or use the actual signal to be

transmitted.

2. Key the transmitter on.

3.

Adjust RV4 (line level) for 60% of system deviation (3kHz or 1.5kHz for narrow band

systems).

4. If the test signal is varying, RV4 may be adjusted to produce a level of 234mV RMS or

660mVp-p at the audio voltage test connector pin 6 to pin 1.

5. Key the transmitter off.

6.8 Output Power

1. No audio input is required

2. Key the transmitter on.

3. Adjust RV1 on the power amplifier PCB for the desired power level at the output

connector. 2

4. Key the transmitter off.

____________________

2 Be sure to set the power below the rated maximum for the model of transmitter. If in doubt, allow 1.5dB

cable and connector losses, and assume that the maximum rated power is 15W. This means no more than 10W

at the end of a 1m length of test cable. This pessimistic procedure is safe on all models manufactured at the time

of writing.

___________________________________________________________________________

RF Technology T800 Page 21

7SPECIFICATIONS 7.1 Overall Description

7SPECIFICATIONS

7.1 Overall Description

The transmitter is a frequency synthesized, narrow band FM unit, normally used to drive a

50

watt amplifier. It can also be used alone in lower power applications.

Various models allow 2-25W of output power to be set across a number of UHF frequency

bands. All necessary control and 600Ω line interface circuitry is included.

7.1.1 Channel Capacity

Although most applications are single channel, it can be programmed for up to 100 channels,

numbered 0 - 99. This is to provide the capability of programming all channels into all of the

transmitters used at a given site. Where this facility is used in conjunction with

channel-

setting in the rack, exciter modules may be “hot-jockeyed” or used interchangeably. This can

be convenient in maintenance situations.

7.1.2 CTCSS

Full EIA sub-tone capability is built into the modules. The CTCSS tone can be programmed

for each channel. This means that each channel number can represent a unique RF and tone

frequency combination.

7.1.3 Channel Programming

The channel information is stored in non-volatile memory and can be programmed via the

front panel test connector using a PC and RF Technology software.

7.1.4 Channel Selection

Channel selection is by eight

channel select lines. These are available through the rear panel

connector. Internal presetting is also possible. The default (open-circuit) state is to select

channel 00.

A BCD active high code applied to the lines selects the required channel. This can be

supplied by pre-wiring the rack connector so that each rack position is dedicated to a fixed

channel. Alternatively, thumb-wheel switch panels are available.

7.1.5. Microprocessor

A microprocessor is used to control the synthesizer, tone squelch,

PTT function and facilitate

channel frequency programming. With the standard software, RF Technology modules also

provide fault monitoring and reporting.

___________________________________________________________________________

RF Technology T800 Page 22

7.2 Physical Configuration 7 SPECIFICATIONS

7.2 Physical Configuration

The transmitter is designed to fit in a

19 inch rack mounted sub-frame. The installed height is

4 RU (178 mm) and the depth is 350 mm. The transmitter is 63.5 mm or two Eclipse modules

wide.

7.3 Front Panel Controls, Indicators, and Test Points

7.3.1 Controls

Transmitter Key - Momentary Contact Push Button

Line Input Level - screwdriver adjust multi-turn pot

7.3.2 Indicators

Power ON - Green LED

Tx Indicator - Yellow LED

Fault Indicator - Flashing Red LED

External ALC - Green LED

External Reference - Green LED

7.3.3 Test Points

Line Input – Pin 6 + Ground (pin 1)

Forward Power – Pin 8 + Ground (pin 1)

Reverse Power – Pin 4 + Ground (pin 1)

Tuning Voltage – Pin 9 + Ground (pin 1)

Serial Data (RS-232) – Pins 2 / 3 + Ground (pin 1)

7.4 Electrical Specifications

7.4.1 Power Requirements

Operating Voltage - 10.5 to 16 Vdc with output power reduced below 12 Vdc

Current Drain - 5A

Maximum, typically 0.25A Standby

Polarity - Negative Ground

___________________________________________________________________________

RF Technology T800 Page 23

7 SPECIFICATIONS 7.4.2 Frequency Range and Channel Spacing

7.4.2 Frequency Range and Channel Spacing

Frequency 25 kHz 12.5 kHz

806-830 MHz T800A T800AN

850-870 MHz T800B T800BN

928-942 MHz T800C T800CN

7.4.3 Frequency Synthesizer Step Size

Step size is 10 / 12.5kHz or 5 / 6.25kHz, fixed, depending upon model

7.4.4 Frequency Stability

±1 ppm over 0 to +60 C, standard

±1ppm over -20 to +60 C, optional

7.4.5 Number of Channels

100, numbered 00 - 99

7.4.6 Antenna Impedance

50Ω

7.4.7 Output power

Preset for 2-15 or 2-25W depending upon model

7.4.8 Transmit Duty Cycle

100% to 40C, de-rating to zero at 60C.

100% to 5000ft altitude, de-rating to zero at 15,000ft.

7.4.9 Spurious and Harmonics

Less than 0.25µW

7.4.10 Carrier and Modulation Attack Time

Less than 20ms. Certain models have RF envelope attack and decay times controlled in the

range 200µs< tr/f <2ms according to regulatory requirements.

7.4.11 Modulation

Type - Two point direct FM with optional pre-emphasis

Frequency Response - ±1 dB of the selected characteristic from 300 - 3000 Hz

___________________________________________________________________________

RF Technology T800 Page 24

7.4.12 Distortion 7 SPECIFICATIONS

Maximum Deviation - Maximum deviation preset to 2.5 or 5 kHz

7.4.12 Distortion

Modulation distortion is less than 3% at 1 kHz and 60% of rated system deviation.

7.4.13 Residual Modulation and Noise

The residual modulation and noise in the range 300 - 3000 Hz is typically less than -50dB

referenced to rated system deviation.

7.4.14 600Ω Line Input Sensitivity

Adjustable from -30 to +10 dBm for rated deviation

7.4.15 HI-Z Input

Impedance - 10KΩ Nominal, balanced input

Input Level - 25mV to 1V RMS

7.4.16 Test Microphone Input

200Ω

dynamic, with PTT

7.4.17 External Tone Input

Compatible with R500 tone output

7.4.18 External ALC Input

Output will be reduced 20dB by pulling the input down to below 1V. (Typically more than

40dB attenuation is available.) The input impedance is

≅10kΩ

, internally pulled up to rail.

The external ALC input can be connected to the power control circuit in Eclipse external

power amplifiers.

7.4.19 T/R Relay Driver

An open collector transistor output is provided to operate an antenna change over relay or

solid state switch. The transistor can sink up to 250mA.

7.4.20 Channel Select Input / Output

Coding - 8 lines, BCD coded 00 - 99

Logic Input Levels - Low for <1.5V, High for >3.5V

Internal 10K pull down resistors select channel 00 when all inputs are O/C.

___________________________________________________________________________

RF Technology T800 Page 25

7 SPECIFICATIONS 7.4.21 DC Remote Keying

7.4.21 DC Remote Keying

An opto-coupler input is provided to enable dc loop keying over balanced lines or local

connections. The circuit can be connected to operate through the 600Ω

line or through a

separate isolated pair.

7.4.22 Programmable No-Tone Period

A No-Tone period can be appended to the end of each transmission to aid in eliminating

squelch tail noise which may be heard in mobiles with slow turn off decoders. The No-Tone

period can be set from 0--5 seconds in 0.1 second increments. The No Tone period operates

in addition to the reverse phase burst at the end of each transmission.3

7.4.23 Firmware Timers

The controller firmware includes some programmable timer functions.

Repeater Hang Time - A short delay or ``Hang Time''

can be programmed to be added to the

end of transmissions. This is usually used in talk through repeater applications to prevent the

repeater from dropping out between mobile transmissions. The Hang Time can be

individually set on each channel for 0 - 15 seconds.

Time Out Timer - A time-out or transmission time limit can be programmed to automatically

turn the transmitter off. The time limit can be set from 0-254 minutes in increments of one

minute. The timer is automatically reset when the PTT input is released.

7.4.24 CTCSS

CTCSS tones can be provided by an internal encoder or by an external source connected to

the external tone input. The internal CTCSS encoding is provided by a subassembly PCB

module. This provides programmable encoding of all EIA tones.

Some models encode certain extra tones.

Tone frequencies are given in table 4.

7.5 Connectors

7.5.1 Antenna Connector

Type N Female Mounted on the module rear panel

_______________________

3 The reverse phase burst is usually sufficient to eliminate squelch tail noise in higher-quality mobiles

___________________________________________________________________________

RF Technology T800 Page 26

7.4.22 Programmable No-Tone Period 7 SPECIFICATIONS

Frequency EIA Number

No Tone

67.0 A1

69.4

71.9 B1

74.4 C1

77.0 A2

79.7 C2

82.5 B2

85.4 C3

88.5 A3

91.5 C4

94.8 B3

97.4

100.0 A4

103.5 B4

107.2 A5

110.9 B5

114.8 A6

118.8 B6

123.0 A7

127.3 B7

131.8 A8

136.5 B8

141.3 A9

146.2 B9

151.4 A10

156.7 B10

159.8

162.2 A11

165.5

167.9 B11

171.3

173.8 A12

177.3

179.9 B12

183.5

186.2 A13

189.9

192.8 B13

196.6

199.5

203.5 A14

206.5

210.7 B14

218.1 A15

225.7 B15

229.1

233.6 A16

241.8 B16

250.3 A17

254.1

Table 4: Tone Squelch Frequencies

___________________________________________________________________________

RF Technology T800 Page 27

7 SPECIFICATIONS 7.5.2 Power & I/O Connector

7.5.2 Power & I/O Connector

25-pin “D” Male Mounted on the rear panel

7.5.3 Test Connector

9-pin “D” Female mounted on the front panel

___________________________________________________________________________

RF Technology T800 Page 28

BT800 Parts List Main PCB Assembly Parts

Ref. Description Part Number

C1 Capacitor 10U 35V Rad Electro 41/2001/010U

C2 Capacitor 18P 2% 100V NPO Rad.1 45/2680/018P

C3 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C4 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C5 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C6 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C7 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C8 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C9 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C10 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C11 Capacitor 10U 35V Rad Electro 41/2001/010U

C12 Capacitor 47N 20% 50V X7R Rad.2 46/2001/047N

C13 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C14 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C15 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C16 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C17 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C18 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C19 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C20 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C21 Capacitor 100N 10% 63V X7R 1206 46/3310/100N

C23 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C24 Capacitor 22P 5% 63V NP0 SM1206 46/3300/022P

C25 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C26 Capacitor 6.8uF 10% 10V SMD Tant 42/3009/06u8

C27 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C28 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C29 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C30 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C31 Capacitor 2U2 10% 100V MKT Rad.2 47/2010/02U2

C32 Capacitor 10U 35V Rad Electro 41/2001/010U

C33 Capacitor 1UO 10% 63V MKT Rad.2 47/2007/01U0

C34 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C35 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C36 Capacitor 10U 35V Rad Electro 41/2001/010U

C37 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C38 Capacitor 10U 35V Rad Electro 41/2001/010U

C39 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C40 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C41 Capacitor 100N 5% 50V MKT Rad.2 47/2007/100N

C42 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C43 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C44 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C45 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C46 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C47 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C48 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C49 Capacitor 22N 5% 63V MKT Rad.2 47/2010/022N

C50 Capacitor 100N 5% 50V MKT Rad.2 47/2007/100N

C51 Capacitor 1N2 5% NPO Rad.2 46/2000/01N2

C52 Capacitor 1N5 10% 50V COG Rad.2 46/2000/01N5

C53 Capacitor 1U 35V Rad Electro 41/2001/001U

C54 Capacitor 10U 35V Rad Electro 41/2001/010U

C55 Capacitor 10N 10% 63V X7R SM1206 46/3310/010N

C56 Capacitor 1N2 5% NPO Rad.2 46/2000/01N2

C57 Capacitor 100N 5% 50V MKT Rad.2 47/2007/100N

C58 Capacitor 22N 5% 63V MKT Rad.2 47/2010/022N

C59 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C60 Capacitor 1UO 10% 63V MKT Rad.2 47/2007/01U0

___________________________________________________________________________

RF Technology T800 Page 29

Ref. Description Part Number

C61 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C62 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C63 Capacitor 10U 35V Rad Electro 41/2001/010U

C64 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C65 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C66 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C67 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C68 Capacitor 470U 25V RB Electro 41/2001/470U

C69 Capacitor 470U 25V RB Electro 41/2001/470U

C70 Capacitor 10U 35V Rad Electro 41/2001/010U

C71 Capacitor 10U 35V Rad Electro 41/2001/010U

C72 Capacitor 10U 35V Rad Electro 41/2001/010U

C73 Capacitor 10U 35V Rad Electro 41/2001/010U

C74 Capacitor 10U 35V Rad Electro 41/2001/010U

C75 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C76 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C77 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C78 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C79 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C80 Capacitor 10U 35V Rad Electro 41/2001/010U

C81 Capacitor 18P 2% 100V NPO Rad.1 45/2680/018P

C82 Capacitor 10U 35V Rad Electro 41/2001/010U

C83 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C84 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C85 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C86 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C87 Capacitor 100N 10% 63V X7R 1206 46/3310/100N

C88 Capacitor 10P 5% 63V NPO SM1206 46/3300/010P

C89 Capacitor 100N 10% 63V X7R 1206 46/3310/100N

C90 Capacitor 10P 5% 63V NPO SM1206 46/3300/010P

C91 Capacitor 100N 10% 63V X7R 1206 46/3310/100N

C92 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C93 Capacitor 100N 10% 63V X7R 1206 46/3310/100N

C94 Capacitor 1P8 5% 63V NPO SM1206 46/3300/01P8

C95 Capacitor 100N 10% 63V X7R 1206 46/3310/100N

C96 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C97 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C98 Capacitor 4P7 5% 63V NPO SM1206 46/3300/04P7

C99 Capacitor Trim 5-25P 49/3000/025P

C100 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C101 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C102 Capacitor 10N 10% 63V X7R 1206 46/3310/010N

C103 Capacitor 47N 20% 50V X7R Rad.2 46/2001/047N

C104 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C105 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C106 Capacitor 100N 10% 63V X7R 1206 46/3310/100N

C107 Capacitor 47N 20% 50V X7R Rad.2 46/2001/047N

C108 Capacitor 1UO 10% 63V MKT Rad.2 47/2007/01U0

C109 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C110 Capacitor 47P 2% 100V NPO Rad.1 45/2680/047P

C111 Capacitor 100N 10% 63V X7R 1206 46/3310/100N

C112 Capacitor 100U 25V RB Electro 41/1025/100U

C113 Capacitor 1UO 10% 63V MKT Rad.2 47/2007/01U0

C114 Capacitor 1UO 10% 63V MKT Rad.2 47/2007/01U0

C115 Capacitor 100U 25V RB Electro 41/1025/100U

C116 Capacitor 1UO 10% 63V MKT Rad.2 47/2007/01U0

C117 Capacitor 100U 25V RB Electro 41/1025/100U

C118 Capacitor 10U 35V Rad Electro 41/2001/010U

C119 Capacitor 10U 35V Rad Electro 41/2001/010U

C132 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

D1 Diode Led RED T1 3/4 21/1010/LEDR

___________________________________________________________________________

RF Technology T800 Page 30

Ref. Description Part Number

D2 Diode 3Amplifier 1KV Rectifier 21/1080/5408

D3 Diode VCapacitor MMBV105G SOT23 21/3060/105G

D4 Diode Silicon 1N4148 21/1010/4148

D5 Diode Silicon 1N4148 21/1010/4148

D6 Diode Silicon GP 21/1010/4002

D7 Diode Zener 1N4751 30V 1W Axial 21/1040/4751

D8 Diode Silicon GP 21/1010/4002

D9 Diode Silicon GP 21/1010/4002

D10 Diode Silicon 1N4148 21/1010/4148

D11 Diode Silicon 1N4148 21/1010/4148

D12 Diode Led Yellow T1 3/4 21/1010/LEDY

D13 Diode Silicon 1N4148 21/1010/4148

D14 Diode Silicon GP 21/1010/4002

D15 Diode Silicon 1N4148 21/1010/4148

D16 Diode Silicon 1N4148 21/1010/4148

D17 Diode Silicon 1N4148 21/1010/4148

D18 Diode Led Green T1 3/4 21/1010/LEDG

D19 Diode Schottkey BAT17 SOT23 21/3030/0017

D20 Diode 8V2 Zener 21/1040/B8V2

D21 Diode Led Green T1 3/4 21/1010/LEDG

D22 Diode Led Green T1 3/4 21/1010/LEDG

D23 Diode Silicon 1N4148 21/1010/4148

D24 Diode Zener 1N4751 30V 1W AXI 21/1040/4751

D25 SMD Diode Silicon 100ma 50V 21/3009/AS85

H1 Hybred CTCSS 18/9150/0002

ISO1 IC Opto-Isolator 4N33 25/1010/4N33

J1 Connector Coax SKT SMB Vertical PCB 35/2004/0001

JP2 Connector 3Way Header 35/2501/0003

JP3 Connector 3Way Header 35/2501/0003

JP4 Connector 3Way Header 35/2501/0003

JP5 Connector 3Way Header 35/2501/0003

JP6 Connector 3Way Header 35/2501/0003

JP7 Connector 3Way Header 35/2501/0003

JP8 Connector 6Way Header 35/2501/0006

JP9 Connector 2Way Header 35/2501/0002

JP10 Connector 2Way Header 35/2501/0002

JP11 Connector 2Way Header 35/2501/0002

JP13 Connector 2Way Header 35/2501/0002

JP14 Connector 16Way Shrouded Header 35/2502/0016

JP15 Connector 10Way Header 35/2501/0010

L1 Ferrite Bead SMD 37/3321/LM31

L2 Inductor 1uH Axial 37/2021/001U

L3 Ferrite Bead SMD 37/3321/LM31

L4 Ferrite Bead SMD 37/3321/LM31

L5 Inductor 150mH 10RBH 37/2021/1RBH

L6 Inductor 220N 10% Choke SM1206 37/3320/220N

L7 Ferrite Bead SMD 37/3321/LM31

L8 Ferrite Bead SMD 37/3321/LM31

L10 Inductor 6 Hole Ferrite RFC 37/1021/0001

L11 Inductor 220N 10% Choke SM1206 37/3320/220N

L12 Inductor 220N 10% Choke SM1206 37/3320/220N

L13 Inductor 220N 10% Choke SM1206 37/3320/220N

L14 Inductor 220N 10% Choke SM1206 37/3320/220N

L15 Inductor 47N Air Core Coil 37/MIDI/47NJ

MA1 Amplifier MMIC MWA0311 SOT143 24/3010/0311

MA2 Amplifier MMIC MWA0311 SOT143 24/3010/0311

MA3 Amplifier MMIC MWA0311 SOT143 24/3010/0311

MA4 Amplifier MMIC VAM6 SOT143 24/3010/VAM6

MA5 Amplifier MMIC MWA0311 SOT143 24/3010/0311

P1 Filter D RT AGL 9W F Ferrite 35/5012/009F

P3 Filter D RT AGL 25W M Ferrite 35/5012/025M

Q1 Transistor GP NPN MMBT3904 SOT23 27/3020/3904

___________________________________________________________________________

RF Technology T800 Page 31

Ref. Description Part Number

Q2 Transistor GP NPN MMBT3904 SOT23 27/3020/3904

Q3 Transistor GP PNP MMBT3906 SOT23 27/3020/3906

Q4 Transistor GP PNP MPS 3640 SOT23 27/3020/3640

Q5 Transistor GP NPN MMBT3904 SOT23 27/3020/3904

Q6 Transistor GP NPN MMBT3904 SOT23 27/3020/3904

Q7 Transistor GP PNP MMBT3906 SOT23 27/3020/3906

Q8 Transistor GP NPN MMBT3904 SOT23 27/3020/3904

Q9 Transistor MMBF5459 LT1 SOT23 27/3020/5459

Q10 Transistor GP NPN MPS2369 SOT23 27/3020/2369

Q11 Transistor GP NPN MPS2369 SOT23 27/3020/2369

Q12 Transistor GP PNP MMBT3906 SOT23 27/3020/3906

Q13 Transistor GP NPN MMBT3904 SOT23 27/3020/3904

Q14 Transistor GP NPN MMBT3904 SOT23 27/3020/3904

Q15 Transistor GP NPN MMBT3904 SOT23 27/3020/3904

Q16 Transistor GP PNP MMBT3906 SOT23 27/3020/3906

Q17 Transistor MMBF5459 LT1 SOT23 27/3020/5459

Q18 Transistor GP NPN MMBT3904 SOT23 27/3020/3904

Q19 FET NJ MMBFJ309 SOT23 27/3030/J309

Q20 Transistor GP NPN MMBT3904 SOT23 27/3020/3904

Q21 Transistor GP PNP MPS 3640 SOT23 27/3020/3640

Q22 Transitor GP NPN MPS2369 SOT23 27/3020/2369

Q23 Transistor PNP MJF6107 TO22O 27/2010/6107

Q24 Transistor GP PNP MMBT3906 SOT23 27/3020/3906

Q25 Transistor NPN GP MPSA06 TO92 27/2010/PA06

R1 Resistor 5K11 1% 0.25W Axial 51/1010/5K11

R2 Resistor 4K7 5% 0.25W Axial 51/1040/04K7

R3 Resistor 100R 5% 0.25W SM1206 51/3380/0100

R4 Resistor 100R 5% 0.25W SM1206 51/3380/0100

R5 Resistor 100R 5% 0.25W SM1206 51/3380/0100

R6 Resistor 15R 5% 0.25W SM1206 51/3380/0015

R7 Resistor 68R 5% 0.25W Axial 51/1040/0068

R8 Resistor 3K3 5% 0.25W Axial 51/1040/03K3

R9 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R10 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R11 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R12 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R13 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R14 Resistor 680R 5% 0.25W Axial 51/1040/0680

R15 Resistor 6K8 5% 0.25W Axial 51/1040/06K8

R16 Resistor 680R 5% 0.25W Axial 51/1040/0680

R17 Resistor 270R 5% 0.25W SM1206 51/3380/0270

R18 Resistor 10K 5% 0.25W Axial 51/1040/010K

R19 Resistor 47K 5% 0.25W Axial 51/1040/047K

R20 Resistor 1M0 5% 0.25W Axial 51/1040/01M0

R21 Resistor 10K 5% 0.25W Axial 51/1040/010K

R22 Resistor 10K 5% 0.25W Axial 51/1040/010K

R23 Resistor 10K 5% 0.25W Axial 51/1040/010K

R24 Resistor 330R 5% 0.25W Axial 51/1040/0330

R25 Resistor 330R 5% 0.25W Axial 51/1040/0330

R26 Resistor 18K 5% 0.25W Axial 51/1040/018K

R27 Resistor 10K0 1% 0.25W Axial 51/1010/010K

R28 Resistor 10K 5% 0.25W Axial 51/1040/010K

R29 Resistor 2K2 5% 0.25W Axial 51/1040/02K2

R30 Resistor 470K 5% 0.25W Axial 51/1040/470K

R31 Resistor 10K 5% 0.25W Axial 51/1040/010K

R32 Resistor 10K 5% 0.25W Axial 51/1040/010K

R33 Resistor 10K 5% 0.25W Axial 51/1040/010K

R34 Resistor 100K 5% 0.25W Axial 51/1040/100K

R35 Resistor 100K 5% 0.25W Axial 51/1040/100K

R36 Resistor 5K11 1% 0.25W Axial 51/1010/5K11

R37 Resistor 10K 5% 0.25W Axial 51/1040/010K

R38 Resistor 91K 5% 0.25W Axial 51/1040/091K

___________________________________________________________________________

RF Technology T800 Page 32

Ref. Description Part Number

R39 Resistor 22R 5% O.25W Axial 51/1040/0022

R40 Resistor 4K7 5% 0.25W Axial 51/1040/04K7

R41 Resistor 2K2 5% 0.25W Axial 51/1040/02K2

R42 Resistor 100R 5% 0.25W SM1206 51/3380/0100

R43 Resistor 100K 5% 0.25W Axial 51/1040/100K

R44 Resistor 6K8 5% 0.25W Axial 51/1040/06K8

R45 Resistor 10K 5% 0.25W Axial 51/1040/010K

R46 Resistor 10K 5% 0.25W Axial 51/1040/010K

R47 Resistor 64K9 1% 0.25W Axial 51/1010/64K9

R48 Resistor 64K9 1% 0.25W Axial 51/1010/64K9

R49 Resistor 7K50 1% 0.25W Axial 51/1010/07K5

R50 Resistor 1M0 5% 0.25W Axial 51/1040/01M0

R51 Resistor 10K 5% 0.25W SM1206 51/3380/010K

R52 Resistor 10K 5% 0.25W SM1206 51/3380/010K

R53 Resistor 7K50 1% 0.25W Axial 51/1010/07K5

R54 Resistor 10K0 1% 0.25W Axial 51/1010/010K

R55 Resistor 91K 5% 0.25W Axial 51/1040/091K

R56 Resistor 100K 5% 0.25W Axial 51/1040/100K

R57 Resistor 91K 5% 0.25W Axial 51/1040/091K

R58 Resistor 64K9 1% 0.25W Axial 51/1010/64K9

R59 Resistor 64K9 1% 0.25W Axial 51/1010/64K9

R60 Resistor 1K2 5% 0.25W Axial 51/1040/01K2

R61 Resistor 1K2 5% 0.25W Axial 51/1040/01K2

R62 Resistor 10K 5% 0.25W Axial 51/1040/010K

R63 Resistor 4K7 5% 0.25W Axial 51/1040/04K7

R64 Resistor 390R 5% 0.25W Axial 51/1040/0390

R65 Resistor 47K 5% 0.25W Axial 51/1040/047K

R66 Resistor 47K 5% 0.25W Axial 51/1040/047K

R67 Resistor 10K 5% 0.25W Axial 51/1040/010K

R68 Resistor 680R 5% 0.25W Axial 51/1040/0680

R69 Resistor 1K 5% 0.25W Axial 51/1040/001K

R70 Resistor 680R 5% 0.25W Axial 51/1040/0680

R71 Resistor 4K7 5% 0.25W Axial 51/1040/04K7

R72 Resistor 47R 5% 0.25W Axial 51/1040/0047

R73 Resistor 10M 5% 0.25W Axial 51/1040/010M

R74 Resistor 4K7 5% 0.25W Axial 51/1040/04K7

R75 Resistor 4K7 5% 0.25W Axial 51/1040/04K7

R76 Resistor 10K 5% 0.25W Axial 51/1040/010K

R77 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R78 Resistor 6K49 1% 0.25W Axial 51/1010/6K49

R79 Resistor 28K7 1% 0.25W Axial 51/1010/28K7

R80 Resistor 5K11 1% 0.25W Axial 51/1010/5K11

R81 Resistor 5K11 1% 0.25W Axial 51/1010/5K11

R82 Resistor 5K11 1% 0.25W Axial 51/1010/5K11

R83 Resistor 5K11 1% 0.25W Axial 51/1010/5K11

R84 Resistor 100K 5% 0.25W Axial 51/1040/100K

R85 Resistor 2K2 5% 0.25W Axial 51/1040/02K2

R86 Resistor 680R 5% 0.25W Axial 51/1040/0680

R87 Resistor 2K2 5% 0.25W SM1206 51/3380/02K2

R88 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R89 Resistor 10K 5% 0.25W Axial 51/1040/010K

R90 Resistor 180R 5% 0.25W Axial 51/1040/0180

R91 Resistor 100R 5% 0.25W SM1206 51/3380/0100

R92 Resistor 180R 5% 0.25W SM1206 51/3380/0180

R93 Resistor 270R 5% 0.25W SM1206 51/3380/0270

R94 Resistor 1K8 5% 0.25W Axial 51/1040/01K8

R95 Resistor 1K 5% 0.25W Axial 51/1040/01K0

R96 Resistor 15R 5% 0.25W SM1206 51/3380/0015

R97 Resistor 470R 5% 0.25W SM1206 51/3380/0470

R98 Resistor 47R 5% 0.25W SM1206 51/3380/0047

R99 Resistor 10K 5% 0.25W SM1206 51/3380/010K

R100 Resistor 47R 5% 0.25W SM1206 51/3380/0047

___________________________________________________________________________

RF Technology T800 Page 33

Ref. Description Part Number

R101 Resistor 4K32 1% 0.25W Axial 51/1010/4K32

R102 Resistor 4K32 1% 0.25W Axial 51/1010/4K32

R103 Resistor 4K32 1% 0.25W Axial 51/1010/4K32

R104 Resistor 470K 5% 0.25W Axial 51/1040/470K

R105 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R106 Resistor 560R 5% 0.25W Axial 51/1040/0560

R107 Resistor 3K3 5% 0.25W Axial 51/1040/03K3

R108 Resistor 560R 5% 0.25W Axial 51/1040/0560

R109 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R110 Resistor 100R 5% 0.25W Axial 51/1040/0100

R111 Resistor 2K2 5% 0.25W Axial 51/1040/02K2

R112 Resistor 220K 5% 0.25W Axial 51/1040/220K

R113 Resistor 68R 5% 0.25W Axial 51/1040/0068

R114 Resistor 47K 5% 0.25W Axial 51/1040/047K

R115 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R116 Resistor 10K 5% 0.25W Axial 51/1040/010K

R117 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R119 Resistor 22R 5% O.25W Axial 51/1040/0022

R120 Resistor 220R 5% 0.25W Axial 51/1040/0220

R121 Resistor 120K 5% 0.25W Axial 51/1040/120K

R123 Resistor 150K 5% 0.25W Axial 51/1040/150K

R124 Resistor 150K 5% 0.25W Axial 51/1040/150K

R125 Resistor 680K 5% 0.25W Axial 51/1040/680K

R126 Resistor 680K 5% 0.25W Axial 51/1040/680K

R127 Resistor 470K 5% 0.25W Axial 51/1040/470K

R128 Resistor 560K 5% 0.25W Axial 51/1040/560K

R129 Resistor 470K 5% 0.25W Axial 51/1040/470K

R130 Resistor 470R 5% 0.25W SM1206 51/3380/0470

R131 Resistor 47R 5% 0.25W SM1206 51/3380/0047

R132 Resistor 47R 5% 0.25W SM1206 51/3380/0047

R133 Resistor 510K 5% 0.25W Axial 51/1040/510K

R134 Resistor 270R 5% 0.25W Axial 51/1040/0270

R135 Resistor 470R 5% 0.25W Axial 51/1040/0470

R136 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R137 Resistor 10K 5% 0.25W Axial 51/1040/010K

R138 Resistor 22K 5% 0.25W Axial 51/1040/022K

R139 Resistor 4K7 5% 0.25W Axial 51/1040/04K7

R140 Resistor 100K 5% 0.25W Axial 51/1040/100K

R141 Resistor 10R 5% 0.25W Axial 51/1040/0010

R142 Resistor 470K 5% 0.25W SM1206 51/3380/470K

RN1 Resistor PACK 100K X8 DIP16 52/2002/100K

RN2 Resistor PACK 10K SIP10 52/2002/010K

RV1 Trimpot 10K 1 Turn Vertical 53/1020/010K

RV2 Trimpot 10K 1 Turn Vertical 53/1020/010K

RV3 Trimpot 10K 1 Turn Vertical 53/1020/010K

RV4 Trimpot 10K Multiurn HOR 53/2060/010K

S1 Switch PSH BTN SPDT & Capacitor 31/0005/E121

T1 Transformer Line 600 Ohm 37/2040/5065

U1 IC RS232 Inter MAX232C 26/2001/232C

U2 IC 3 State BUF 74HC244N 26/2030/244N

U3 IC Micro Super MC34064P-5 26/2000/064P

U4 IC 8 Bit Latch 74HC573N 26/2030/C573

U5 IC Eprom 27C256 26/2090/C256

U6 IC Frequency SYN MB1501 SO16X 26/2000/1501

U7 IC Quad OP Amplifier TLC274 25/2050/274C

U8 IC Dual FET OP Amplifier DIP8 25/1050/272C

U9 IC Quad OP Amplifier TLC274 25/2050/274C

U10 IC Analogue GATE MC14066B 26/2040/4066

U11 IC Quad Nand 74C00 DIP14 26/2031/4C00

U13 IC Micro 68HC11A1P 26/2000/HC11

U14 IC Volt Regulator LM7805 25/2040/7805

XO1 TCXO 12.8 MHz O91/143-2 32/2030/12.8

___________________________________________________________________________

RF Technology T800 Page 34

Ref. Description Part Number

Y1 Crystal 8.0MHz 32/2049/08M0

Y2 Crystal 4.0MHz 32/2049/04M0

Power Amplifier Assembly

Ref. Description Part Number

C1 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C2 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C3 Capacitor 18P 5% NPO SM1206 46/3300/018P

C4 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C5 Capacitor 10N 10% 50V X7R Rad.2 46/2001/010N

C6 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C7 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C8* Capacitor 15P 500V Mica SM1210 48/3003/015P

C9 Capacitor 27P 500V Mica SM1210 48/3003/027P

C10 Capacitor 27P 500V Mica SM1210 48/3003/027P

C11* Capacitor 15P 500V Mica SM1210 48/3003/015P

C12 Capacitor 10U 35V Rad Electro 41/2001/010U

C13 Capacitor 10U 35V Rad Electro 41/2001/010U

C14 Capacitor 22N 5% 63V MKT Rad.2 47/2010/022N

C15 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C16 Capacitor 100P 5% 63V NPO 1206 46/3300/100P

C17 Capacitor 100P 5% 63V NPO 1206 46/3300/100P

C18 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C20 Capacitor 10U 35V Rad Electro 41/2001/010U

C21 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C23 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C24 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

C25 Capacitor 10P 5% 63V NPO SM1206 46/3300/010P

C26 Capacitor 10P 5% 63V NPO SM1206 46/3300/010P

C27 Capacitor 100N 10% 63V X7R 1206 46/3310/100N

C28 Capacitor 100N 10% 63V X7R 1206 46/3310/100N

C29 Capacitor 10U 35V Rad Electro 41/2001/010U

C30 Capacitor 1N0 5% 63V NPO SM1206 46/3300/01N0

C31 Capacitor 100N 10% 50V X7R Rad.2 46/2001/100N

C32 Capacitor 1N0 5% 100V NPO Rad.2 46/2000/01N0

D1 Diode Schottkey BAT17 SOT23 21/3030/0017

D2 Diode Schottkey BAT17 SOT23 21/3030/0017

D3 Diode Silicon 1N4148 21/1010/4148

D4 Diode Silicon 1N4148 21/1010/4148

J2 Connector Coax SMB PCB Horizontal 35/2001/0001

L1 In Molded 4.5 Turn 37/2021/0004

L2 In Molded 4.5 Turn 37/2021/0004

L3 In Molded 4.5 Turn 37/2021/0004

L4 Ferrite Beads (4) 37/1022/0001

L5 Ind 3U3 10% Choke SM1008 7/3320/03U3

L6 Ind 6 Hole Ferrite RFC 37/1021/0001

L7 Ind 6 Hole Ferrite RFC 37/1021/0001

L8 Ind Molded 1.5 Turn 37/2021/0001

L9 Ind Molded 2.5 Turn 37/2021/0002

P1 Connector 16 Way Horizontal Shrouded Header 35/2503/0016

Q2 Transistor RF NPN MRF5812 SO8 27/3020/5812

Q3 Transistor GP PNP 1A MPSW51A 27/2010/PW51

Q4 Transistor GP NPN 2N3904 TO92 27/2020/3904

Q5 Transistor GP NPN 2N3904 TO92 27/2020/3904

R1 Resistor 220R 5% 0.25W SM1206 51/3380/0220

R2 Resistor 100K 5% 0.25W Axial 51/1040/100K

R3 Resistor 100K 5% 0.25W Axial 51/1040/100K

R4 Resistor 100R 5% 0.25W Axial 51/1040/0100

R5 Resistor 220R 5% 0.25W SM1206 51/3380/0220

R6 Resistor 15K 5% 0.25W Axial 51/1040/015K

___________________________________________________________________________

RF Technology T800 Page 35

Ref. Description Part Number

R7 Resistor 47K 5% 0.25W Axial 51/1040/047K

R10 Resistor 10R 5% 0.25W Axial 51/1040/0010

R11 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R12 Resistor 10R 5% 0.25W Axial 51/1040/0010

R13 Resistor 470R 5% 0.25W Axial 51/1040/0470

R14 Resistor 10K 5% 0.25W Axial 51/1040/010K

R15 Resistor 470R 5% 0.25W Axial 51/1040/0470

R16 Resistor 470R 5% 0.25W SM1206 51/3380/0470

R17 Resistor 7K5 1% 0.25W Axial 51/1010/07K5

R18 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R19 Resistor 100K 5% 0.25W Axial 51/1040/100K

R20 Resistor 100R 5% 0.25W Axial 51/1040/0100

R21 Resistor 100K 5% 0.25W Axial 51/1040/100K

R22 Resistor 1K0 5% 0.25W Axial 51/1040/01K0

R23 Resistor 47K 5% 0.25W SM1206 51/3380/047K

R24 Resistor 47K 5% 0.25W SM1206 51/3380/047K

R25 Resistor 220R 5% 0.25W SM1206 51/3380/0220

R26 Resistor 220R 5% 0.25W SM1206 51/3380/0220

R27 Resistor 100K 5% 0.25W Axial 51/1040/100K

R28 Resistor 1M0 5% 0.25W Axial 51/1040/01M0

R29 Resistor 10K 5% 0.25W Axial 51/1040/010K

R30 Resistor 4K7 5% 0.25W Axial 51/1040/04K7

R33(Q1) Resistor 10R 5% 0.25W Axial 51/1040/0010

RT1 Thermistor 54/0400/0080

RV1 Trimpot 10K 1 Turn Vertical 53/1020/010K

U1 IC Quad Op Amp MC3403P 25/1050/3403

U2 Amp 20W 220-245MHz 18/M687/0029

*C8 and C11 are not located as per PCB reference designators.

1 2 3 4 5 6 78

A

B

C

D

8

7654321

D

C

B

A

11

20 WATT AMPLIFIER 806-960 MHz - Mitsubishi Module

11/9153 R2 3

3-Feb-2005

D:\Protel Files\Master_EDA\9153_20W_800MHzPA\9153-15W8.DDB - Documents\9153-15W8_V3.SCH

Title

Size: Number:

Print Date:

File:

Revision:

Sheet of

A3 RF Technology Pty Ltd

Unit 10, 8 Leighton Place

Hornsby, NSW 2077

Australia

Rev. Release Date: Originator:

Rev No. ECO No. Description of Change

Sheet

Revision:

Design

PA Module Options

Frequency

Range MHz

POWER

SET MAX.

REVERSE

SET FWD.

POWER

FWD.PWR.

REV.PWR.

ALC

FWD.PWR.

REV.PWR.

+13.8

+9.4

+9.2TX

+9.4

+13.8

+9.4 +9.2TX

+9.2TX

806-870

896-941

M67760LC

M67760HC

+13.8

5

6

7

U1B

LM224

12

13

14

U1D

LM224

+C13

10uF

1

2

J1

SMB

J2

SMB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

P1

RV2

10K

C27

100nF

+

C12

10uF

10

9

8

U1C

LM224

t

RT1

L10

C11

3p0F

C8

3p0F

C10

3p0F

C45

3p0F

C9

3p0F

C46

3p0F

C16

100pF

C17

100pF

L6

L7

C30

100nF

L5

330nH

RFI

1

VS1

2

VS2

3

VS3

4

RFO

5

U2 M67760**

R45

10K

C14

100nF

R28

330K

C35

100nF

R35

330K

R15

10R

C7 100nF

R7

10K

R36

10K

C34

100nF

R33

10K

C15

100nF

R3

10K

R21

10K

R37

220R

R19

10K

C5

100nF

C23

100nF

R2

10K

R27

100K

R32

2K2

R31

10K

Q6

BC847A

B

E C

Q7

BC847A

Q4

BC847A

C48

100nF

C49

100nF

R29

1K

R30

220R

R4

220R

R12

220R

C28

100nF

+

C29

10uF

+

C33

10uF

C32

100nF

L8

R18

10K

R22

10K

RV1

10K

R1

1K

R5

1K

+

C51

10uF

R6

2K7

R34

2K7

T800A, B

T800C

MODEL

R26

5K6

R39

2K0

REF

8

A

2

A

3

A

6

A

7

K1

NC 4

NC 5

U3

TL431ACD(8)

R25

100R

C18a 220pF

C18b 220pF

L1a

6.8nH

C3a

2p2F

C3b

3p9F

Q3

BCP53T1

R10

1K

D5

BAW56

R38

10R

L4

330nH

L9

330nH

R17

6K8

L2a

Not Fitted

C41a

15pF

C41b 22pF

Q1

BC857A

D3

BAW56

+9.2TX

3

2

1

411

U1A

LM224

L1b

12nH

L2b

Not Fitted

C40a 220pF

C40b 220pF

C6

100nF

Q2

BFG97

Q5

BCP56T1

D1

BAT17

D2

BAT17

L3

330nH

+

C50

10uF

C4

1nF

C2

100nF

C1

1nF

C19

1nF

PA Module C3a L1a L1b

6n8H 12nH2p2F

Not Fitted 0 Ohm resistor 0 Ohm resistor 28/10/2003 David Lecomte

R8

120R

R9

120R GNDGND

3EAR0200 Added Ferrite beads. R15:470R->10R; R2,R19:10K->470K; C15,C23:100nF->1uF

Place a Ferrite bead (37/10222/0001)

on both pins 3 and 4 of the module, as shown below

PCB Module

BeadLead

EAR0199 Added R8, R9. R1,R5: 470R -> 1K. L6 taken to +13.8V rail

+9.5V

2

12345678910 11 12

A

B

C

D

12

1110987654321

D

C

B

A

Title

Number RevisionSize

A1

Date: 3-Feb-2005 Sheet of

File: D:\Protel Files\Temp\9133_T800_V7.DDB Drawn By:

ALARM

OPTIONAL

REAR PANEL

CONNECTOR

VCO

MODULATION

BALANCE

HI-Z

600

TERMINATED

0 DBM-20

PF

LOCAL MIC.

SET MAX

DEVIATION

SET TONE

LINE

LEVEL

TEST KEY

TX LED

PWR LED

LED

EXT. ALC

LED

EXT.REF.

LOCKED

EXT.REF.OPTION

CHANNEL SELECT SWITCHES

TENS UNITS

SET TO 00 WHEN USING AN EXTERNAL SWITCH

VOLTAGE REGULATORSRS-232 INTERFACE

MICROPROCESSOR

SYNTHESIZER P.L.L.

BUFFER AMPLIFIER

3 KHz LOW PASS FILTERSUMMING AMP.

LIMITER

250 Hz LOW PASS FILTER

LINE AMP.

TONE AMP.

MIC. AMP.

CTCSS MODULE

HI-Z INPUT AMP.

RELAY DRIVER

OUTPTUT

SYSTEM CONNECTOR

TEST CONNECTOR

** NOT USED

10 mW

TUNE V.

+ PWR

- PWR

LINE I/P1

LINE I/P2

LINE I/P3

LINE I/P4

RX DATA

TX DATA

RX DATA

TX DATA

TUNE V.

+ PWR

- PWR

HI-Z +

HI-Z -

LINE I/P1

LINE I/P2

LINE I/P3

LINE I/P4

TONE +

TONE -

TONE +

TONE -

HI-Z -

HI-Z +

EXT.ALC

FWD.PWR.

REV.PWR.

RX DATA

TX DATA

TUNE V.

FWD.PWR.

REV.PWR.

FWD.PWR.

REV.PWR.

ALC

FWD.PWR.

REV.PWR.

LINE INP.

RX DATA

TX DATA

T/R RELAY

XALC

D7

D6

D5

D4

D3

D2

D1

D0

A8

A9

A10

A11

A12

A13

A14

A15

A0

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

D0

D1

D2

D3

D4

D5

D6

D7

AS

E

R/W

A14

AS

D0

D1

D2

D3

D4

D5

D6

D7

E

R/W

READ

EPROM

A15

EPROM

A13

RESET

SCK

MOSI

MISO

TXD

RXD

STONE

SYN

LD

CH1

CH2

CH4

CH8

CH10

CH20

CH40

CH80

CH1

CH2

CH4

CH8

CH10

CH20

CH40

CH80

TXD

RXD

SYN

MOSI

SCK

LD

KEY VCO

PTT

RESET

MOSI

STONE

SCK

CH80

CH40

CH20

CH10

CH8

CH4

CH2

CH1

CH2

CH4

CH8

CH10

CH20

CH40

CH80

0

VCC

+9.4

0

+9.2TX+9.4

+9.4

+9.4 Vab1

Vab1 Vab1 Vab2

Vab1

Vab2

+9.4 Vab2

Vab1

+9.4

+13.8

+9.4+5.0

+5L

+5.0+5L

+5L

+5L+5L

+5L

+13.8+5.0

+9.4

+9.2TX

+9.4

+13.8

+9.4+9.2TX

+5.0

+9.4+9.2TX+5.0

+9.4

AGND

+13.8

+5.0

VSS

VDD-A

+5.0

Vab2

+5.0

+9.4

+20

AGND

AGND AGND

AGND

AGNDAGND

AGND

T800B

T800C

T800A

* COMPONENT VALUES

C98

3P9

3P3

+9.4V

TUNING VOLTAGE SUPPLY ( PLL SECTION )

D1

RED LED

R1

5K11

Q1

2N3904

116

215

314

413

512

611

710

8 9

RN1

R-PACK 100K

1

2

3

4

5

6

7

8

9

10

RN2

SIP-10 RNET10K

1

2

3

4

5

6

7

8

9

10

JP1

+

C1

10U

L1

BLM31

L2

1U

1

2

3

JP2

Y1

8 MHz

C2

18P

VCC 16

GND

15

C1+

1

C1-

3

C2+

4

C2-

5

T1I

11

T2I

10

R1O

12

R2O

9

V+ 2

V- 6

T1O 14

T2O 7

R1I 13

R2I 8

U1

MAX232

C3

100N

5

9

4

8

3

7

2

6

1

P1 DB9

C4

10N

1A1 2

1Y1

18

2A4 17

2Y4

3

1A2 4

1Y2

16

2A3 15

2Y3

5

1A3 6

1Y3

14

2A2 13

2Y2

7

1A4 8

1Y4

12

2A1 11

2Y1

9

1G 1

2G 19

U2

74HC244

+2

R

1

-

3

U3

MC34064P-5

R2

4K7

D1

2Q1 19

D2

3Q2 18

D3

4Q3 17

D4

5Q4 16

D5

6Q5 15

D6

7Q6 14

D7

8Q7 13

D8

9Q8 12

C

11 OC

1

U4

74HC573

A0

10 A1

9A2

8A3

7A4

6A5

5A6

4A7

3A8

25 A9

24 A10

21 A11

23 A12

2A13

26 A14

27

CE

20 OE

22 VPP

1

O0 11

O1 12

O2 13

O3 15

O4 16

O5 17

O6 18

O7 19

U5

27C256

R4

100

C8

1N0

R6

15

L4

BLM31

+C11

10U

L5

150 mH

C16

10N C17

10N

D2

1N5408

R14

680

Q8

2N3904

R15

6K8

R16

680

Q9

2N5459

L7

BLM31

C30

100N

1

2

3

JP3 C31

2U2

T1

TRANSFORMER LINE

1

2

3

JP4

1

2

3

JP5

1

2

3

JP6

+C32

10U

R18

10K

1

2

3

JP7

R20

1M

R21

10K

C33

1U

R22

10K

R23

10K C34

1N0

C35

1N0

+

C36

10U

R24

330

R25

330

R26

18K

C37

1N0

+

C38

10U

RV1

10K TRIMPOT

R27

10K0

C39

1N0

C40

1N0

C41

100N

C42

100N

RST

3

5V 1

0V

2

DATA

4

STB

5

CLK

6

DEC

11

BW

12

BIA

13

SIG 10

XTLO 8

XTLI 7

TO 9

H1 M1752

1

2

3

4

5

6

JP8

RV2

10K TRIMPOT

R28

10K

D4

1N4148

D5

1N4148

C43

1N0

C45

1N0

R30

470K

R31

10K

R32

10K

R33

10K

D6

1N4002

D7

1N4751

D8

1N4002

D9

1N4002

1

2

JP9

C46

10N

R34

100K

S1

C&K_PB

D10

1N4148

D11

1N4148

Q12

2N3906

Q13

2N3904

R35

100K

5

9

4

8

3

7

2

6

1

P2

DB9

R36

5K11

Q14

2N3904

R37

10K

D12

YELLOW LED

D13

1N4148

10

9

8

00

+

-

U7C

TLC274

12

13

14

00

+

-

U7D

TLC274

3

2

1

411

+

-

U7A

TLC274

5

6

7

00

+

-

U7B

TLC274

10

9

8

00

+

-

U9C

TLC274

5

6

7

00

+

-

U9B

TLC274

2

3

1

411

-

+

U9A

TLC274

A

1B2

C

13

U10A

4066

A

11 B10

C

12

U10B

4066

A

4B3

C

5

U10C

4066

A

8B9

C

6

U10D

4066

D14

1N4002

1

2

3

4

JP12

L9

BLM31

Q15

2N3904

Q16

2N3906

R38

91K

R39

22

Y2

5 MHz

L10

6 HOLE CHOKE

RV3

10K TRIMPOT

R41

2K2

R43

100K

R45

10K

C48

100N

R47

64K9

R48

64K9

R49

7K50

C49

22N C50

100N

+

C53

1U

C56

1N2

C57

100N

C58

22N

R53

7K50

R54

10K0

C59

100N

C60

1U

R55

91K

C61

100N

C62

100N

R57

91K

+

C63

10U

C64

100N

R58

64K9

R59

64K9

C65

1N0

R60

1K2

R62

10K

6

5

41

2

ISO1

4N35

Q17

2N5459

R63

4K7

R65

47K

R66

47K

C66

100N

C67

100N

+

C68

470U

R69

680

R70

680

Q18

2N3904

+C70

10U

+

C71

10U

R72

47

+

C72

10U

+

C73

10U

+

C74

10U

C75

1N0

C76

1N0

C77

100N

C78

100N

C79

100N

+

C80

10U

R73

1M

C81

18P

R74

4K7

R75

4K7

R76

10K

1

2

JP13

+C82

10U

R77

1K0

R78

6K49

C83

10N

R79

28K7

R80

5K11

R81

5K11

C84

10N

R82

5K11

C85

10N

PA7

1

PA6

2

PA5

3

PA4

4

PA3

5

PA2

6

PA1

7

PA0

8

PB7

9

PB6

10

PB5

11

PB4

12

PB3

13

PB2

14

PB1

15

PB0

16

AN0

17

AN1

18

AN2

19

AN3

20

VRL

21

VRH

22

VSS

23

MODB

24 MODA 25

STRA 26

E27

STRB 28

EXTAL 29

XTAL 30

PC0 31

PC1 32

PC2 33

PC3 34

PC4 35

PC5 36

PC6 37

PC7 38

RESET 39

XIRQ 40

IRQ 41

RXD 42

TXD 43

MISO 44

MOSI 45

SCK 46

SS 47

VDD 48

U13

68HC11A1P

C86

10N

R83

5K11

R84

100K

R85

2K2

R86

680

R88

1K0

D15

1N4148

D16

1N4148

D17

1N4148

R89

10K

R90

180

D18

GREEN LED

C92

1N0

R94

1K8

C97

1N0

R104

470K

C105

1N0

C106

100N

C110

47P

C111

100N

R118

00

Q23

BD242A

VI 1

GND

2

VO

3

U14

LM7805

13

25

12

24

11

23

10

22

9

21

8

20

7

19

6

18

5

17

4

16

3

15

2

14

1

P3

DB25

C113

1U

C114

1U

+C115

100U

C116

1U

R127

470K

R128

680K

R129

470K

RV4

10K POT

J1

SMB

+

C117

100U

D20

BZX79-B8V2

C109

10N

C52

1N5

R50

1M

R133

510K

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

JP14

T&B 609-1627

D22

GREEN LED

1

2

3

4

5

6

7

8

9

10

JP15

3

2

1

84

+

-

U8A

TLC272

C47

100N

R56

100K

12

13

14

00

+

-

U9D

TLC274

+

C119

10U

C51

1N2

R46

10K

R120

220

R114

47K

Q22

MPS2369

5

6

7

00

+

-

U8B

TLC272

+1

G

3

G

4

OUT 2

VC

5

XO1

12.8 MHz

R64

390

R134

270

R135

470

D23

1N4148

R136

1K0

D24

1N4751

C19

100N

F1

PC FUSE

8421

C

S2

MIYAMA MS-830-10RS

84 21

C

S3

MIYAMA MS-830-10RS

Q24

2N3906

R67

10K

R19

47K

R137

10K

+

C112

100U

R122

**

R140

100K

R61

1K2

1

2

JP11

1

2

JP10

+C69

470U

R119

22

R121

120K

C21

100N

C93

100N

C91

100N C87

100N

1

2

3

U11A

74C00

4

5

6

U11B

74C00

9

10

8

U11C

74C00

12

13

11

U11D

74C00

C108

1U

R52

10K

R93

100

C26

1N0

R95

1K0

R123

150K

R124

150K

R125

680K

R126

680K

R44

6K8

R141

10

R71

4K7

C89

100N

R103

4K32

R101

4K32

R102

4K32

TP1

TP2

R142

470K

R138

22K

Q25

MPSA06

C132

10N

D21

GREEN LED

R68

680

TP3

R4

VCC 8

GND

1

CV

5

TR

2

THR

6

DIS

7

Q3

U12LM555

C121

10N

+C124

10U +C125

10U

+

C127

10U

+C122

47U

+

C123

10U R146

100

D25 BAV99 D26 BAV99

C107

47N

C103

47N

C28

1N0

C12

47N

R112

10M

R147

4M7

OSC1

1

OSC2

2

LE

11

DATA

10

CLK

9

FIN

8

VCC 4

GND

6

VP

3

FC 12

FP 14

FR 13

DO 5

0P 15

0R 16

LD 7

U6

MB1501

R110

100

C104

100N

R116

10K

R115

1K0

R10

1K0

R11

1K0

R12

1K0

C15

10N

C14

1N0

C13

1N0

C29

1N0 C102

10N

Q2

MMBT3904

Q3

MMBT3904

Q6

MMBT3906

Q7

MMBT3906

Q11

MMBT3904

R40

2K2

R117

470

R105

10K

R109

220

R8

1K0

R7

470

Q4

MMBT3904

R148

470

C128

10P

Q20

MMBT3904

C55

10N

R132

47

C100

1N0

C5

1P8

MA3

VAM-6

R3

270

C6

100N

C9

100N

R91

270

MA4

VAM-6

R100

47

+

C54

10U

C27

1N0

L13

220N

CR1

COAX_RESONATOR

Q19

BFR92A

+

C22

1U

R29

1K0

R51

1K0

R96

10

C23

33P

R97

1K0

D19

MA4538CK

L15

220N

R99

100

MA1

VAM-3

C129

10N

R106

220

D3

MMBV809L

R139

47K

MA2

VAM-6

C96

*

R98

220

R130

3K3

R113

10K

C120

100P

R145

18K

R143

33

+

C126

10U

+C118

10U

R149

1K0

C44

10N

L11

220N

L12

220N

Q5

MMBT3904

R144

10K

R13

1K0

C90

33P

C20

33P

C88

33P

R17

150

R92

390

MA5

VAM-6

R107

150

R108

150

R9

2K7

R111

2K7

C98

*

C94

*

C24

*

C25

1P8

C95

not used

L8

680N

L14

3U3

C10

33P

R42

47

R5

330

L16

BLM31

L17

BLM31

C130

100N

L3

BLM31

C18

1N0

C7

1N0

L18

BLM31

C133

1N0

R87

2K2

Q10

MMBT3904

C134

1N0

C131

1N0

5P1 3P3

C24

3P3

03P3

1P0

C94 C96

1P2

1P0

CR1

0970

1140

RF Technology Pty Ltd

10/8 Leighton Place, Hornsby, Australia, 2077

T800 Exciter (9133)

4

JBS

11

C140

1N0

Title:

Size: Number:

Print Date:

File:

Revision:

Sheet

A1

of

RF Technology Pty Ltd

Unit 10, 8 Leighton Place

Hornsby, NSW 2077

Australia

Release Date: Originator:

Rev No. ECO No. Description of Change

800-950 MHZ EXCITER

05/9133 R7 7

16-Jun-2005 09:28:18

D:\Protel Files\Master_EDA\9133_T800\9133_T800_V8.DDB - Documents\9133_T800_v7.sch

12

1 23456 78 9 10 11 12

A

B

C

D

E

F

G

H

I

A

B

C

D

E

F

G

H

I

David leComte16/06/2005

ALARM

VCO

HI-Z

600

TERMINATED

PF

LOCAL MIC.

SET MAX

DEVIATION

SET TONE

LINE

LEVEL

TEST KEY

TX LED

LED

EXT. ALC

LED

EXT.REF.

LOCKED

EXT.REF.OPTION

CHANNEL SELECT SWITCHES

TENS UNITS

SET TO 00 WHEN USING AN EXTERNAL SWITCH

RS-232 INTERFACE

MICROPROCESSOR

SYNTHESIZER P.L.L.

BUFFER AMPLIFIER

LIMITER

250 Hz LOW PASS FILTER

LINE AMP.

TONE AMP.

MIC. AMP.

CTCSS MODULE

HI-Z INPUT AMP.

RELAY DRIVER

OUTPTUT

SYSTEM CONNECTOR

** Not Fitted

10 mW

TUNE V.

+ PWR

- PWR

LINE I/P1

LINE I/P2

LINE I/P3

LINE I/P4

RX DATA

TX DATA

TUNE V.

HI-Z +

HI-Z -

LINE I/P1

LINE I/P3

LINE I/P4

TONE +

TONE -

HI-Z -

HI-Z +

EXT.ALC

FWD.PWR.

REV.PWR.

ALC

FWD.PWR.

REV.PWR.

LINE INP.

RX DATA

TX DATA

T/R RELAY

XALC

D7

D6

D5

D4

D3

D2

D1

D0

A8

A9

A10

A11

A12

A13

A14

A15

A0

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

D0

D1

D2

D3

D4

D5

D6

D7

AS

E

R/W

A14

AS

D0

D1

D2

D3

D4

D5

D6

D7

E

R/W READ

READ

EPROM

A15 EPROM A13

RESET

SCK

MOSI

MISO

TXD

RXD

STONE

SYN

LD

CH1

CH2

CH4

CH8

CH10

CH20

CH40

CH80

CH1

CH2

CH4

CH8

CH10

CH20

CH40

CH80

TXD

RXD

SYN

MOSI

SCK

LD

KEY VCO

PTT

RESET

MOSI

STONE

SCK

CH80

CH40

CH20

CH10

CH8

CH4

CH2

CH1

CH2

CH4

CH8

CH10

CH20

CH40

CH80

0

VCC

+9.4

+9.2TX+9.4

+9.4

+9.4 Vab1

Vab1 Vab1 Vab2

Vab1

+9.4

+13.8

+5L

+5.0+5L

+5L

+5L+5L

+5L

+13.8+5.0

+9.4

+9.2TX

+9.4

+13.8

+9.4+9.2TX

+5.0

+9.4+9.2TX+5.0

+9.4

+13.8

+5.0

Vab2

+5.0

+9.4

+20

AGND

AGND AGND

AGND

+9.4V

TUNING VOLTAGE SUPPLY ( PLL SECTION )

D1

RED LED

R1

5K11

Q1

MMBT3904

116

215

314

413

512

611

710

8 9

RN1

R-PACK 100K

1

2

3

4

5

6

7

8

9

10

RN2

SIP-10 RNET10K

1

2

3

4

5

6

7

8

9

10

JP1

+

C1

10U

L1

BLM31 L2

1U

1

2

3

JP2

Y1

8 MHz

C2

18P

VCC 16

GND

15

C1+

1

C1-

3

C2+

4

C2-

5

T1I

11

T2I

10

R1O

12

R2O

9

V+ 2

V- 6

T1O 14

T2O 7

R1I 13

R2I 8

U1

MAX232

C3

100N

C4

10N

1A1 2

1Y1

18

2A4 17

2Y4

3

1A2 4

1Y2

16

2A3 15

2Y3

5

1A3 6

1Y3

14

2A2 13

2Y2

7

1A4 8

1Y4

12

2A1 11

2Y1

9

1G 1

2G 19

U2

74HC244

+2

R

1

-

3

U3

MC34064P-5

R2

4K7

D1

2Q1 19

D2

3Q2 18

D3

4Q3 17

D4

5Q4 16

D5

6Q5 15

D6

7Q6 14

D7

8Q7 13

D8

9Q8 12

C

11 OC

1

U4

74HC573

A0

10 A1

9A2

8A3

7A4

6A5

5A6

4A7

3A8

25 A9

24 A10

21 A11

23 A12

2A13

26 A14

27

CE

20 OE

22 VPP

1

O0 11

O1 12

O2 13

O3 15

O4 16

O5 17

O6 18

O7 19

U5

27C256

R4

100

C8

1N0

R6

15

L4

BLM31

+C11

10U

L5

**

C16

10N C17

10N

L7

BLM31

C30

100N

1

2

3

JP3 C31

2U2

T1

TRANSFORMER LINE

1

2

3

JP4

1

2

3

JP5

1

2

3

JP6

+C32

10U

R18

10K

1

2

3

JP7

R20

1M

R21

10K

C33

1U

R22

10K

R23

10K C34

1N0

C35

1N0

+

C36

10U

R24

330 R25

330

R26

18K

C37

1N0

RV1

10K TRIMPOT

R27

10K0

C39

1N0

C40

1N0

C41

100N

C42

100N

RST

3

5V 1

0V

2

DATA

4

STB

5

CLK

6

DEC

11

BW

12

BIA

13

SIG 10

XTLO 8

XTLI 7

TO 9

H1 M1752

1

2

3

4

5

6

JP8

R28

10K D4

1N4148

D5

1N4148

C43

1N0

C45

1N0

R30

470K

R31

10K

R32

10K

R33

10K

D6

1N4002

D7

1N4751

D8

1N4002

D9

1N4002

1

2

JP9

C46

10N

R34

100K

S1

C&K_PB

D10

1N4148

D11

1N4148

Q12

MMBT3906

Q13

MMBT3904

R35

100K

R36

5K11

Q14

MMBT3904

R37

10K

D12

YELLOW LED

D13

1N4148

10

98

00

+

-

U7C

TLC274

12

13 14

00

+

-

U7D

TLC274

10

98

00

+

-

U9C

TLC274

5

67

00

+

-

U9B

TLC274

2

31

411

-

+U9A

TLC274

A

1B2

C

13

U10A

4066

A

11 B10

C

12 U10B

4066

A

4B3

C

5

U10C

4066

A

8B9

C

6

U10D

4066

D14

1N4002

1

2

3

4

JP12

L9

BLM31

Q15

MMBT3904

Q16

MMBT3906

R38

91K

R39

22

Y2

5 MHz

RV3

10K TRIMPOT

R41

2K2

R43

100K

R45

10K

C48

100N

R47

64K9

R48

64K9

R49

7K50

C49

22N C50

100N

+C53

1U

C60

1U

R55

91K

C61

100N

C62

100N

R57

91K

+

C63

10U

C64

100N

R58

64K9

R59

64K9

C65

1N0

R60

1K2

R62

10K

Q17

MMBF5459

R63

4K7

R65

47K

R66

47K

+

C71

10U

R72

47

+

C72

10U

+

C73

10U

+

C74

10U

C75

1N0

C76

1N0

C77

100N

C78

100N

C79

100N

+

C80

10U

R73

10M

C81

18P

R74

4K7

R75

4K7

R76

10K

1

2

JP13

+C82

10U

R77

1K0

R78

6K49

C83

10N

R79

28K7

R80

5K11

R81

5K11

C84

10N

R82

5K11

C85

10N

PA7

1

PA6

2

PA5

3

PA4

4

PA3

5

PA2

6

PA1

7

PA0

8

PB7

9

PB6

10

PB5

11

PB4

12

PB3

13

PB2

14

PB1

15

PB0

16

AN0

17

AN1

18

AN2

19

AN3

20

VRL

21

VRH

22

VSS

23

MODB

24 MODA 25

STRA 26

E27

STRB 28

EXTAL 29

XTAL 30

PC0 31

PC1 32

PC2 33

PC3 34

PC4 35

PC5 36

PC6 37

PC7 38

RESET 39

XIRQ 40

IRQ 41

RXD 42

TXD 43

MISO 44

MOSI 45

SCK 46

SS 47

VDD 48

U13

68HC11A1P

C86

10N

R83

5K11

R84

100K

R85

2K2

R86

680

R88

1K0

D15

1N4148

D16

1N4148

D17

1N4148

R89

10K

R90

180

D18

GREEN LED

C92

1N0

R94

1K8

C97

1N0

R104

470K

C105

1N0 C106

100N

C110

47P

C111

100N

13

25

12

24

11

23

10

22

9

21

8

20

7

19

6

18

5

17

4

16

3

15

2

14

1

P3

DB25

+C115

100U

C116

1U

R128

680K

RV4

10K POT

J1

SMB

C109

10N

C52

1N5

R50

1M

R133

510K

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

JP14

T&B 609-1627

D22

GREEN LED

1

2

3

4

5

6

7

8

9

10

JP15

3

21

84

+

-

U8A

TLC272

C47

100N

R56

100K

12

13 14

00

+

-

U9D

TLC274

+

C119

10U

C51

1N2

R46

10K

R120

220

R114

47K

Q22

MMBT2369

5

6

7

00

+

-

U8B

TLC272

+1

G

3

G

4

OUT 2

VC

5

XO1

12.8 MHz

R64

390

R134

270

R135

470

D23

1N4148 R136

1K0

D24

1N4751

8421

C

S2

MIYAMA MS-830-10RS

8421

C

S3MIYAMA MS-830-10RS

Q24

MMBT3906

R67

10K

R19

47K

R122

**

R61

1K2

1

2

JP11

1

2

JP10

R119

22

R121

120K

C21

100N C93

100N

C91

100N C87

100N

1

23

U11A

74C00

4

56

U11B

74C00

9

10 8

U11C

74C00 12

13 11

U11D

74C00

C108

1U

R52

10K

R93

100 C26

1N0

R95

1K0

R123

150K

R124

150K

R125

680K

R126

680K

R44

6K8

C89

100N

R142

470K

Q25

MPSA06

C132

10N

TP3

R4

VCC 8

GND

1

CV

5

TR

2

THR

6

DIS

7

Q3

U12LM555

C121

10N

+C124

10U +C125

10U

+C127

10U

+C122

47U

+

C123

10U R146

100

D25 BAV99 D26 BAV99

C107

**

C103

**

C28

**

C12

**

R112

10M

R147

4M7

OSC1

1

OSC2

2

LE

11

DATA

10

CLK

9

FIN

8

VCC 4

GND

6

VP

3

FC 12

FP 14

FR 13

DO 5

0P 15

0R 16

LD 7

U6

MB1501

R110

100

C104

100N

R116

10K

R115

1K0

R10

1K0

R11

1K0

R12

1K0

C15

10N

C14

1N0

C13

1N0 C29

1N0 C102

10N

Q2

MMBT3904

Q3

MMBT3904

Q6

MMBT3906

Q7

MMBT3906

Q11

MMBT3904

R40

2K2

R117

470

R105

10K

R109

220

R8

1K0

R7

470

Q4

MMBT3904

R148

470

C128

10P

Q20

MMBT3904

C55

10N

R132

47

C100

1N0

C5

1P8

MA3

VAM-6

R3

270 C6

100N

C9

100N

R91

270

MA4

VAM-6

R100

47

+

C54

10U

C27

1N0

L13

220N

CR1

COAX_RESONATOR

Q19

BFR92A

+

C22

1U

R29

1K0

R51

1K0

R96

10

C23

33P

R97

1K0

D19

MA4538CK

L15

220N

R99

100

MA1

VAM-3

C129

10N

R106

220

D3

MMBV809L

MA2

VAM-6

C96

*

R98

220

R130

3K3

R113

10K

C120

100P

R145

18K

R143

33

+

C126

10U

+C118

10U

R149

1K0

C44

10N

L11

220N

L12

220N

Q5

MMBT3904

R144

10K

R13

1K0

C90

33P

C20

33P

C88

33P

R17

150

R92

390

MA5

VAM-6

R107

**

R108

**

R9

**

R111

**

C98

*

C94

*

C24

*

C25

1P8

C95

not used

L8

680N

L14

3U3

C10

33P

R42

47

R5

330

L16

BLM31 L17

BLM31

C130

100N

L3

BLM31

C18

1N0

C7

1N0

L18

BLM31

C133

1N0

R87

2K2

Q10

MMBT2369

C134

1N0

C131

1N0

C140

1N0

OPTIONAL

REAR PANEL

CONNECTOR

TEST CONNECTOR

RX DATA

TX DATA

TUNE V.

LINE I/P2

FWD.PWR.

REV.PWR.

RX DATA

TX DATA

TUNE V.

FWD.PWR.

REV.PWR.

LINE INP.

5

9

4

8

3

7

2

6

1

P1

DB9

5

9

4

8

3

7

2

6

1

P2

DB9

R127

470K

R140

100K

TONE-_DCS

1

2

JP22

R158

1M

TONE-_DCS

1

2

JP17

1

2

3

JP19

R157

100K

1

2

3

JP16

Not Normally Fitted

***

Not Normally Fitted

Model C24 CR1Frequency Range

T800A

T800B

T800C

803 - 830 MHz

850 - 870MHz

928 - 942 MHz

3p3F

NF

32/8800/0970

32/8800/1140

R107

R108

C28

25/12.5kHz

Frequency Step Size (Lowest Common Divisor)

7/6.25/5kHz 2.5kHz

R9

C108

C12

C103

L5

R111

C107

150R

1nF

2K7

1uF

47nF

0.15H

2K7

47nF

68R

4n7F

2K7

1uF

47nF

0.15H

2K7

47nF

68R

3n3F

10K

220nF

33nF

1.2H

4K7

10nF

*** Not Normally Fitted

R159

1R0

***

3 KHz LOW PASS FILTER

Vab2

+9.4 Vab2

AGNDAGND

AGND

+C38

10U

RV2

10K TRIMPOT

3

21

411

+

-

U7A

TLC274 5

67

00

+

-

U7B

TLC274

C56

1N2

C57

100N

C58

22N

R53

7K50

R54

10K0

C59

NF

R129

470K

+

C117

100U R137

10K

+

C112

100U

R139

47K

R103

4K32

R101

4K32

R102

4K32

R138

22K

C59S

1nF

1

2

3

4

5

6

JP23

AGND

PTT_WIRE_OR

PWR LED

VOLTAGE REGULATORS

+ PWR

- PWR

0

+9.4Test+5.0

AGND

+13.8

VSS

VDD-A

D2

1N5408

R14

680

Q8

MMBT3904

R15

6K8

R16

680

Q9

MMBF5459

R68

680

C66

100N

C67

100N

+C68

470U

R69

1K

R70

680

Q18

MMBT3904

+

C70

10U

R118

00

Q23

MJF6107

VI 1

GND

2

VO

3

U14

LM7805

D20

BZX79-B8V2

D21

GREEN LED C19

100N

F1

PC FUSE

+

C69

470U

R141

10

R71

4K7

TP1 TP2

1

2

JP20

1

2

JP21

1

2

JP18

*** JP18, JP20, and JP21 are not

as a 12mil Solder Side track.

normally fitted. Each one is implemented

******

***

+9.4

L10

6 Hole Ferrite Choke

*** Not Normally Fitted.

Implemented as 12

mil tracks on the PCB

TP4

*** Not Normally Fitted

6

5

41

2

ISO1

4N32 (or 4N33)

0 dBm 20dBm

C98

5p1F

3p3F

3p9F

C94

1p0

3p3F

R137

10K

3K3

R138

22K

6K8

C96

1p2

1p0

SPARE

5EAR0198 Refer to file J:\CAD_FILE\PROTEL99\9133_T800\EAR0198.doc

R157, R158, C140, and jumpers JP16-JP23 added in Rev.7 PCB

+

C114

10U

+

C113

10U

6 EAR0204 C113, C114 changed to 10uF electrolytics from 1uF WIMAs

RF Technology T800C EXCITER User Manual T800 Manual Rev 2

RF Technology Pty Ltd EXCITER T800 Manual Rev 2

Users Manual

Navigation menu

Namespaces

Views

Navigation
