RFNet Technologies Pte Ltd Wireless Super G Router INTRODUCTION
Manual
APRT-2518G/APRT-2518GS
WIRELESS G ROUTER/
SUPER G ROUTER
USER MANUAL
Version 6.0
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
The manufacturer declares that APRT-2518G/APRT-2518GS is limited to channel 1~channel 11
by specified firmware controlled in USA.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
To maintain compliance with FCC RF exposure compliance requirements, please avoid direct
contact to the transmitting antenna during transmitting.
Information to User:
The users manual or instruction manual for an intentional or unintentional radiator shall caution
the user that changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Page 2 of 45
CONTENT PAGE
1 INTRODUCTION.......................................................................................................5
THE PRODUCT....................................................................................................................5
PRODUCT FEATURES ..........................................................................................................5
2 PACKAGE CONTENTS ...........................................................................................6
CONTENTS OF PACKAGE ....................................................................................................6
SYSTEM REQUIREMENTS FOR CONFIGURATION .................................................................6
3 CONNECTIONS.........................................................................................................7
4 LED ..............................................................................................................................7
5 BASIC IP NETWORKING .......................................................................................8
WIRELESS LAN BASICS.....................................................................................................9
6 GETTING STARTED..............................................................................................11

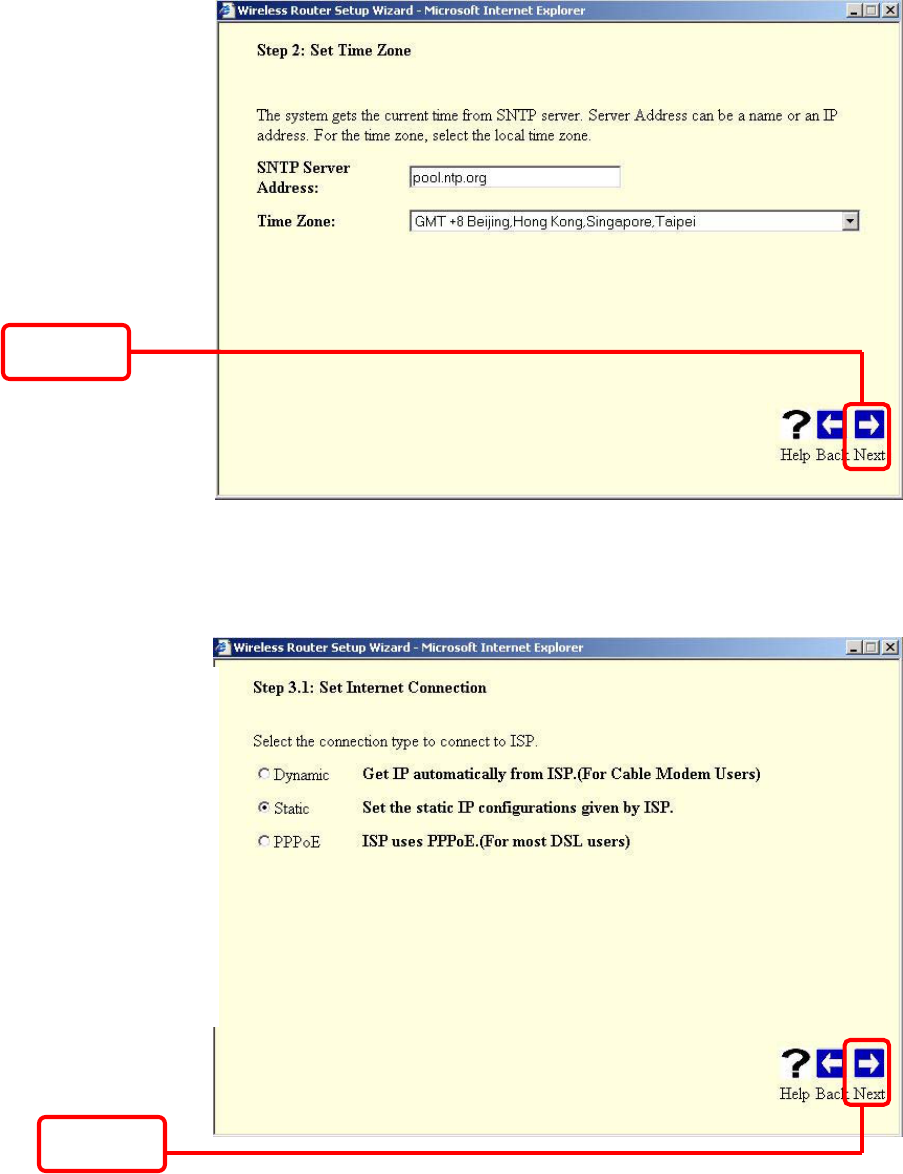

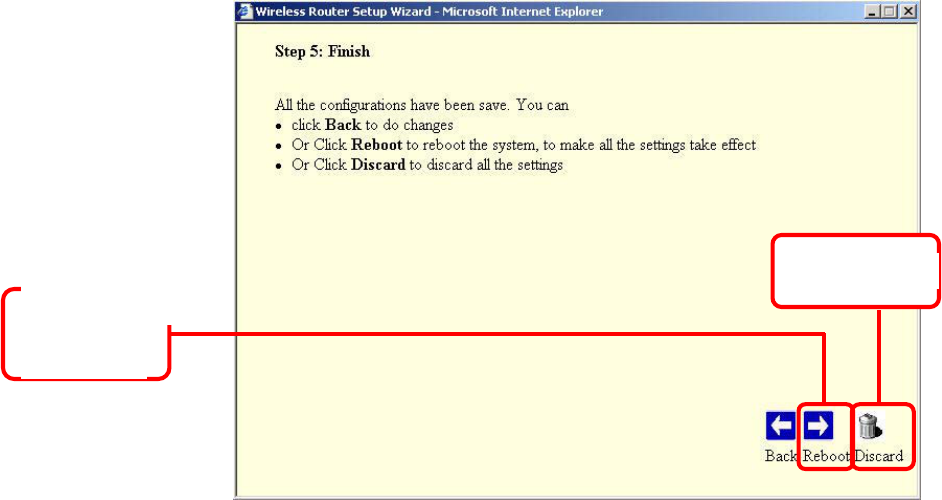

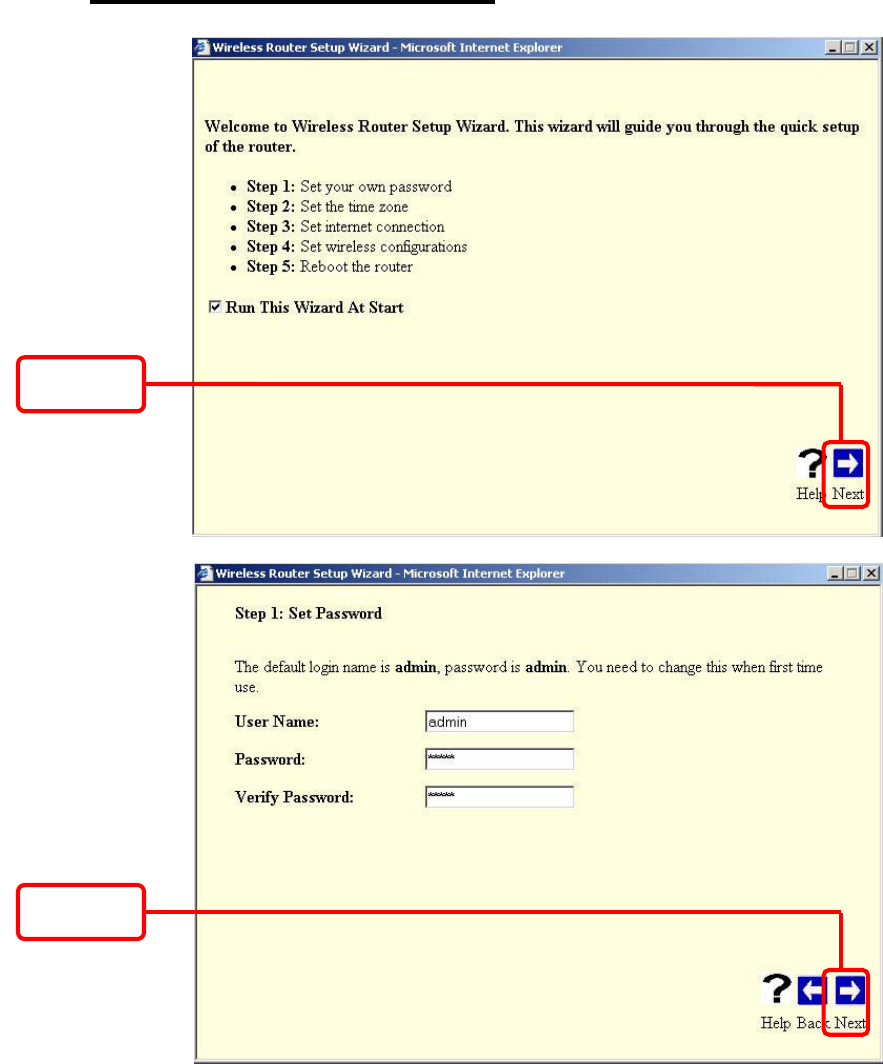

7 CONFIGURATION WIZARD................................................................................14
8 CONFIGURATION MENU ....................................................................................19

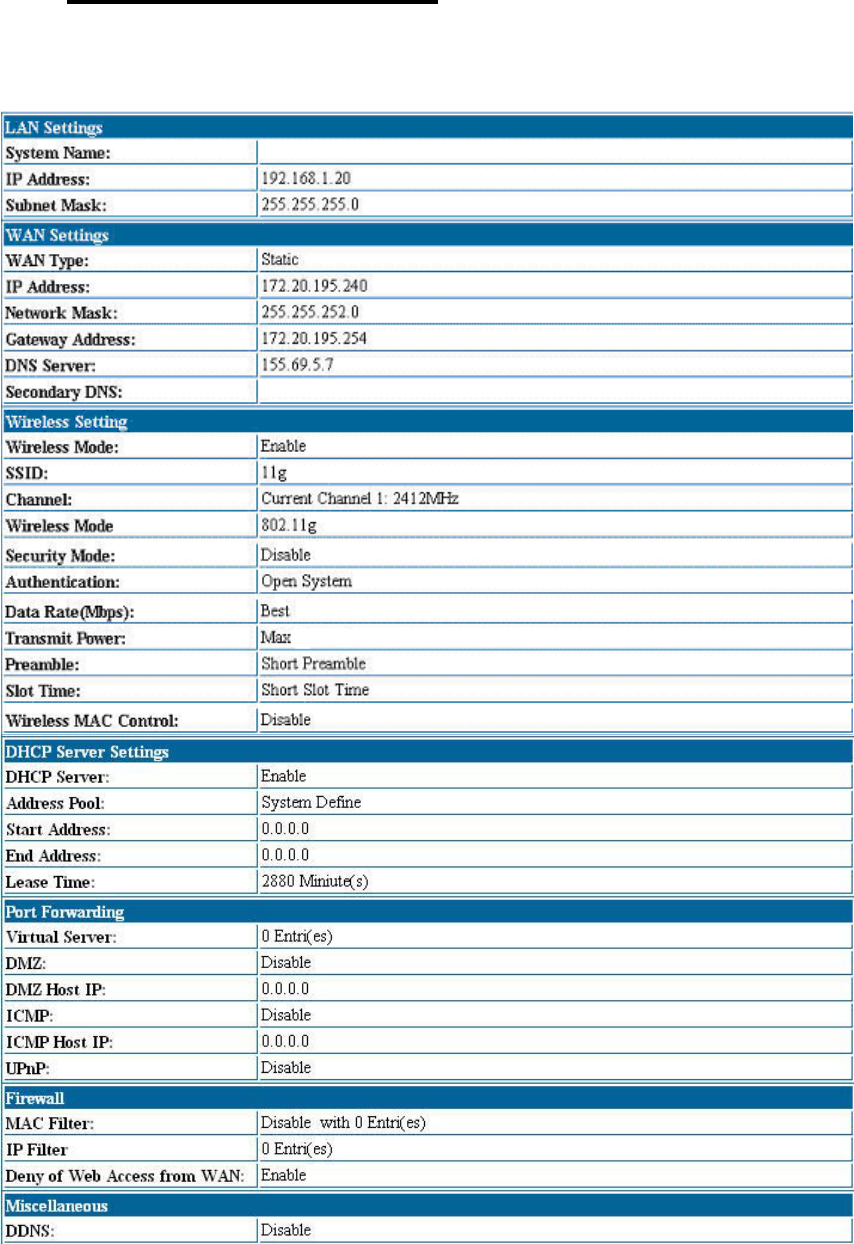

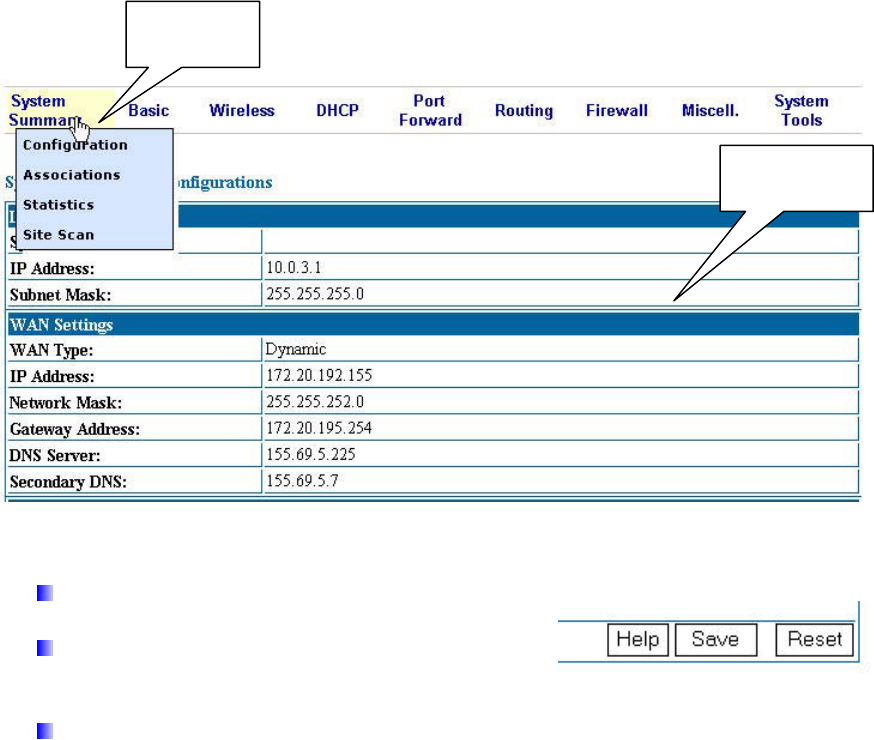

SYSTEM SUMMARY > CONFIGURATION ...........................................................................19

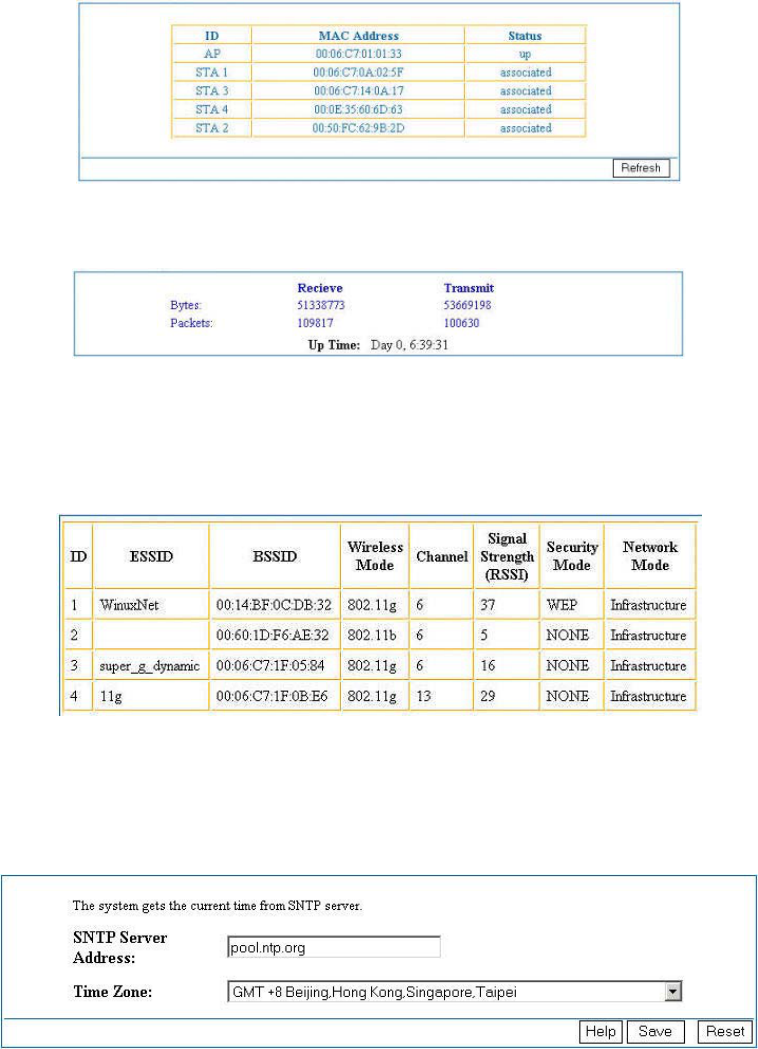

SYSTEM SUMMARY > ASSOCIATIONS ..............................................................................20
SYSTEM SUMMARY > STATISTICS....................................................................................20
SYSTEM SUMMARY > SITE SCAN .....................................................................................20
BASIC > SNTP SETTING ..................................................................................................20

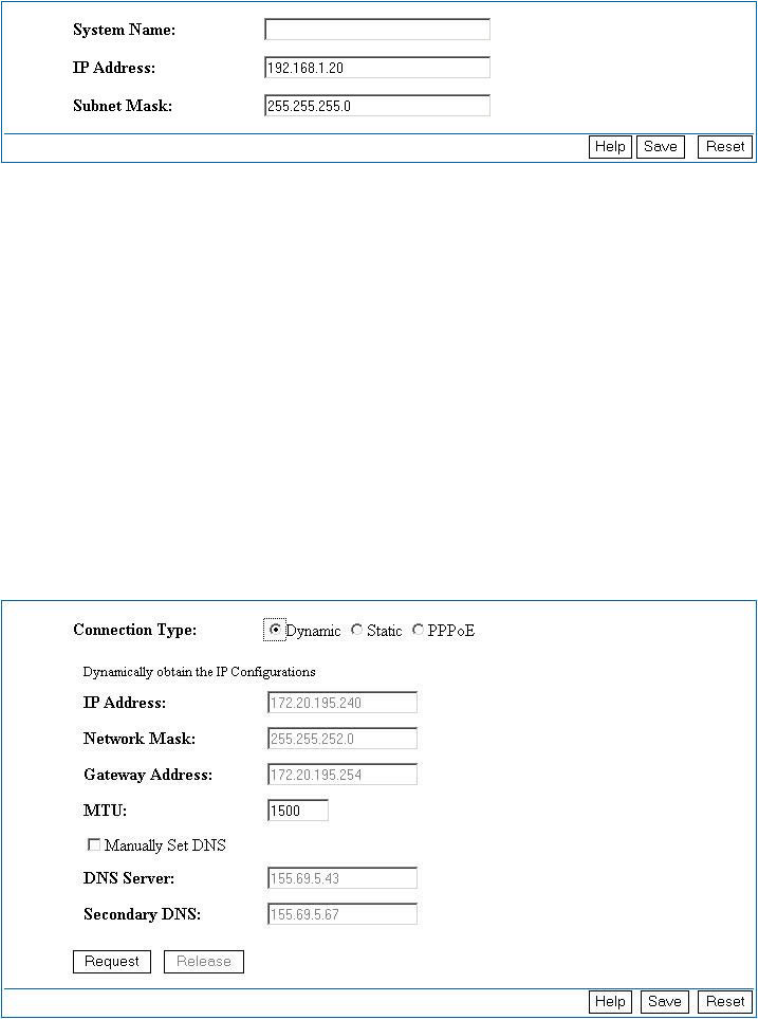

BASIC > LAN SETTING....................................................................................................21

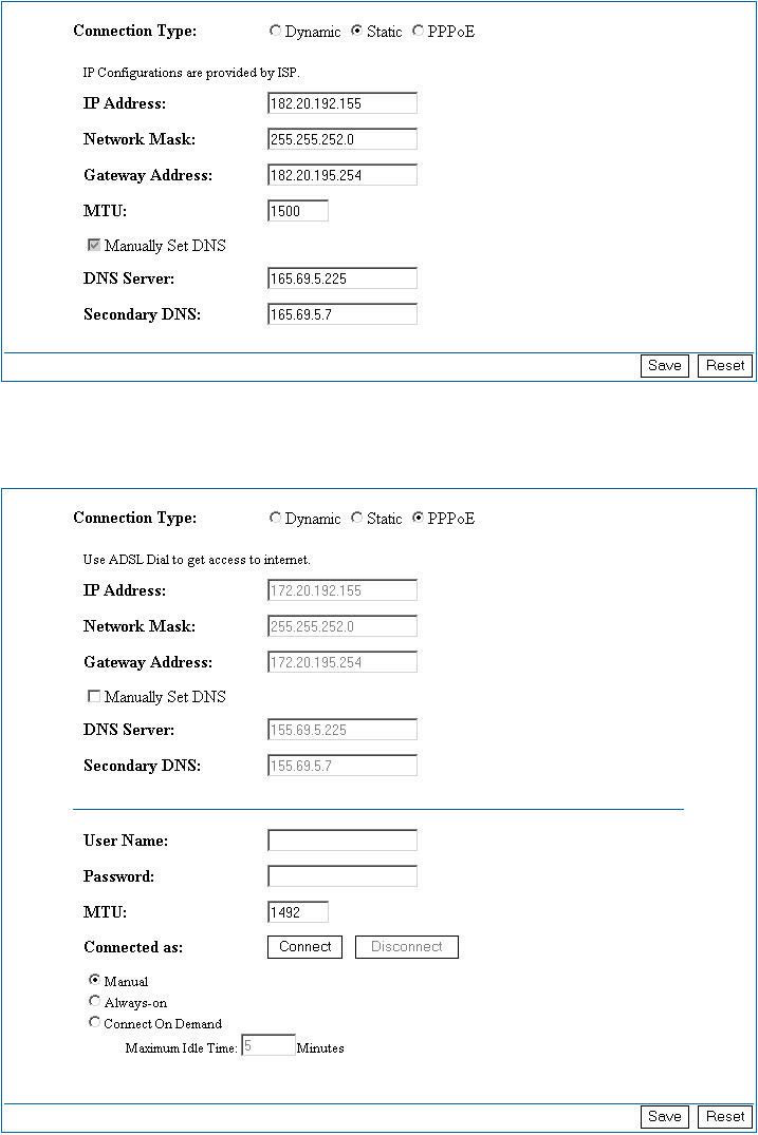

BASIC > WAN SETTING ..................................................................................................21

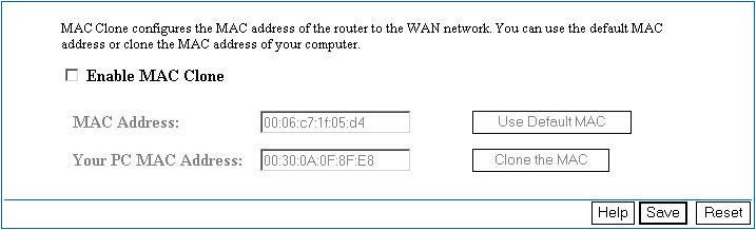

BASIC > MAC CLONE ...................................................................................................23

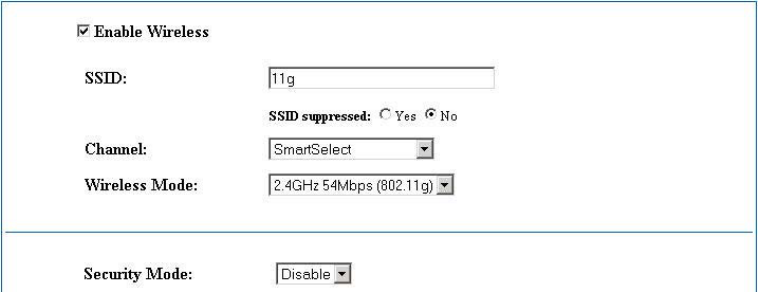

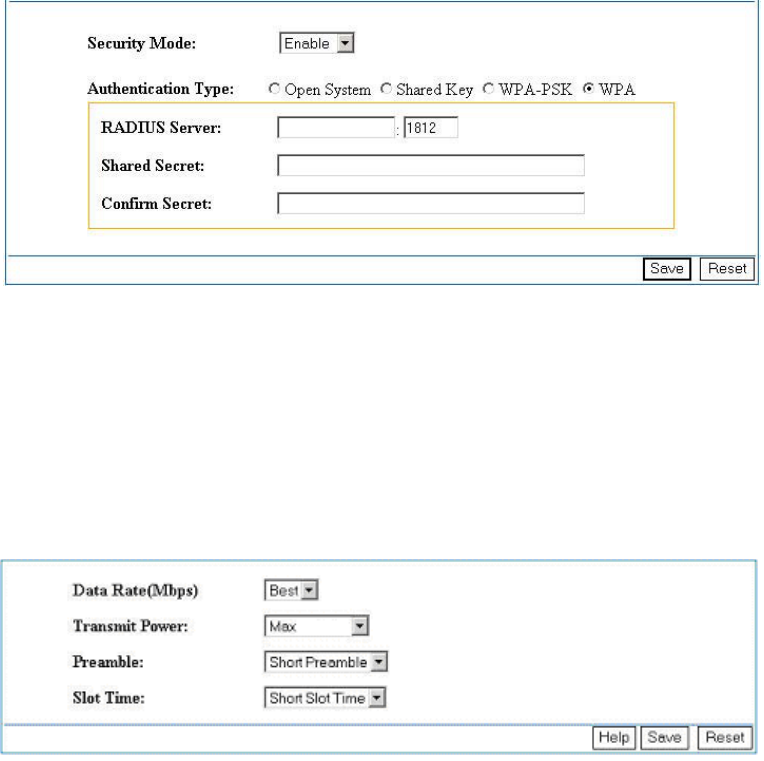

WIRELESS > BASIC SETTING ............................................................................................24
WIRELESS > ADVANCE SETTING......................................................................................26

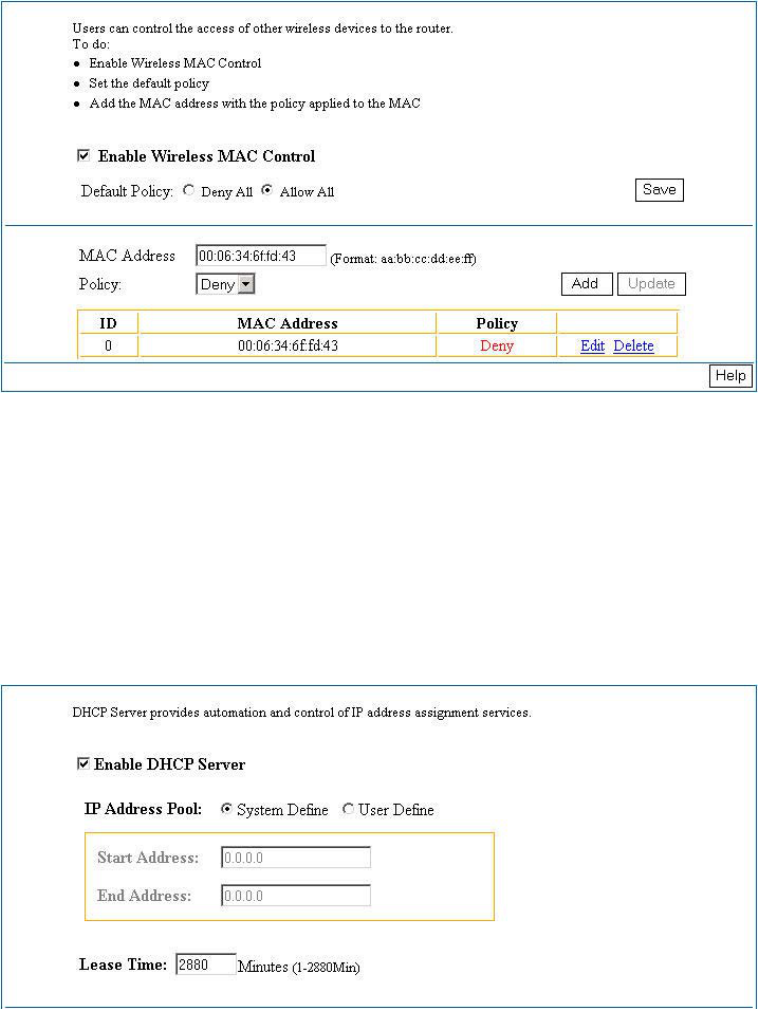

WIRELESS > MAC ADDRESS CONTROL...........................................................................27

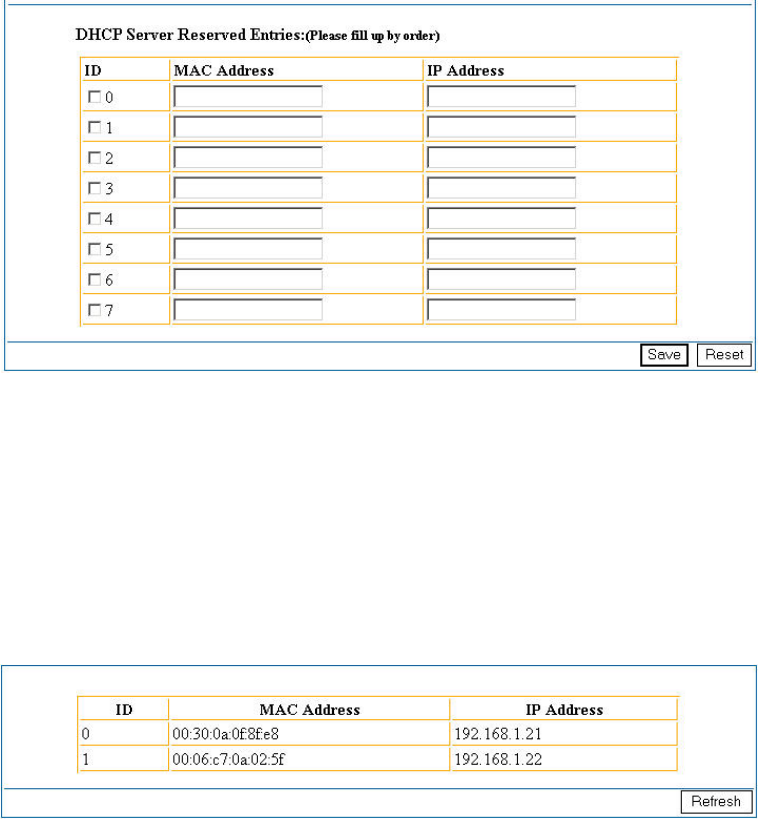

DHCP > DHCP SERVER .................................................................................................27
DHCP > DHCP LIST.......................................................................................................28

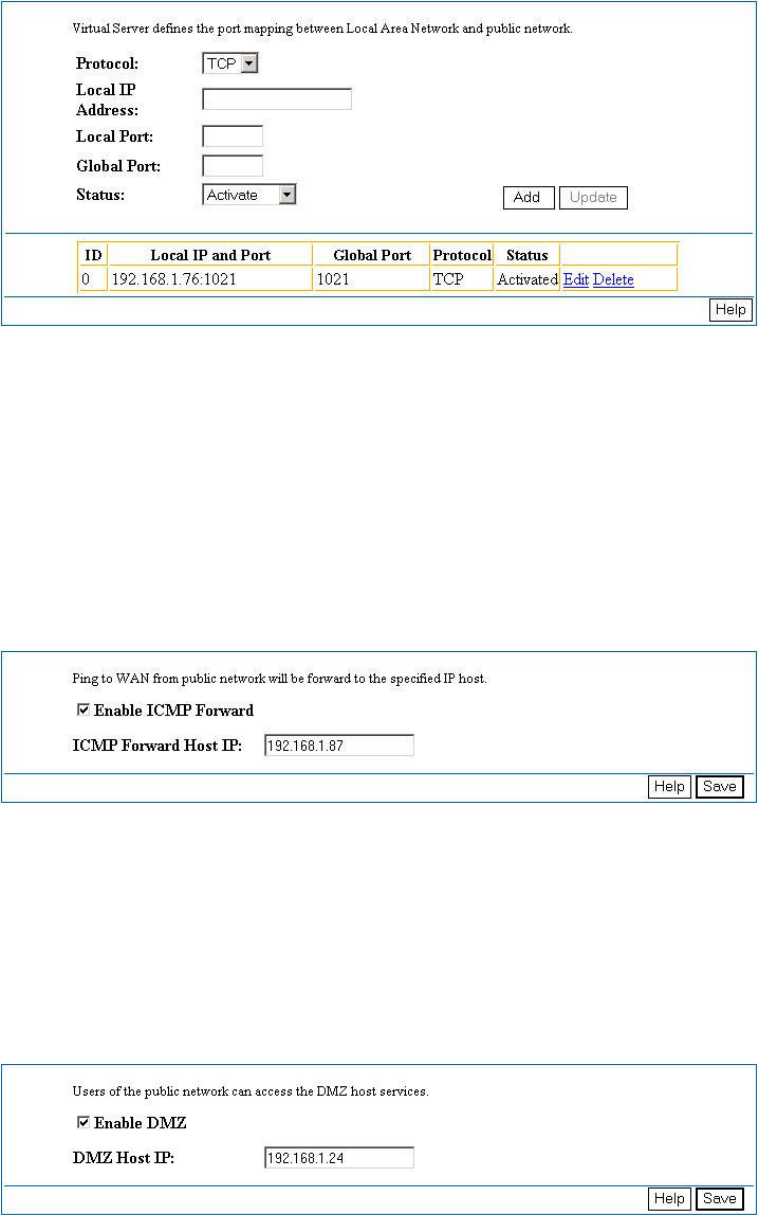

PORT FORWARD > VIRTUAL SERVER ...............................................................................28
PORT FORWARD > ICMP FORWARD................................................................................29
PORT FORWARD > DMZ SETTING ...................................................................................29

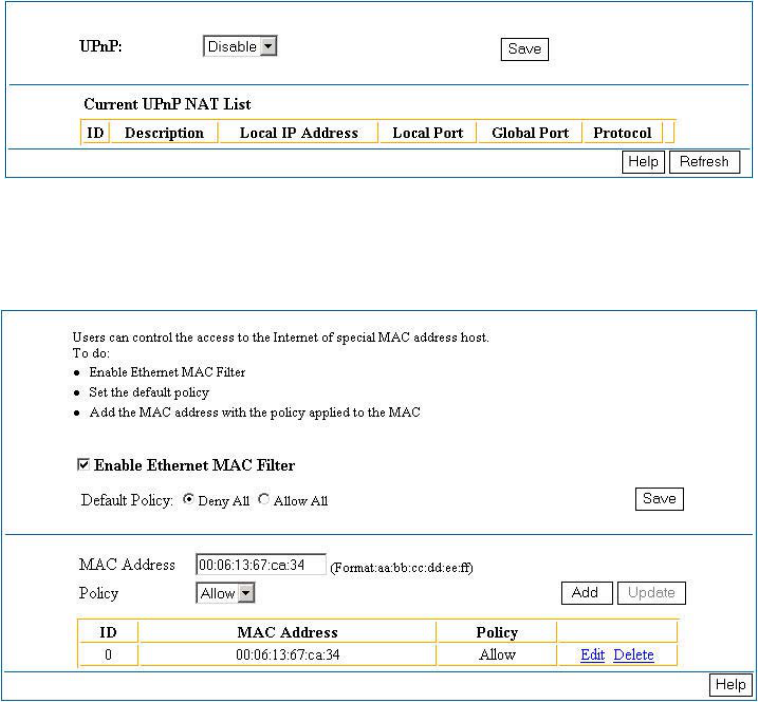

PORT FORWARD > UPNP SETTING...................................................................................30
FIREWALL > MAC FILTER...............................................................................................30
FIREWALL > IP FILTER ....................................................................................................31

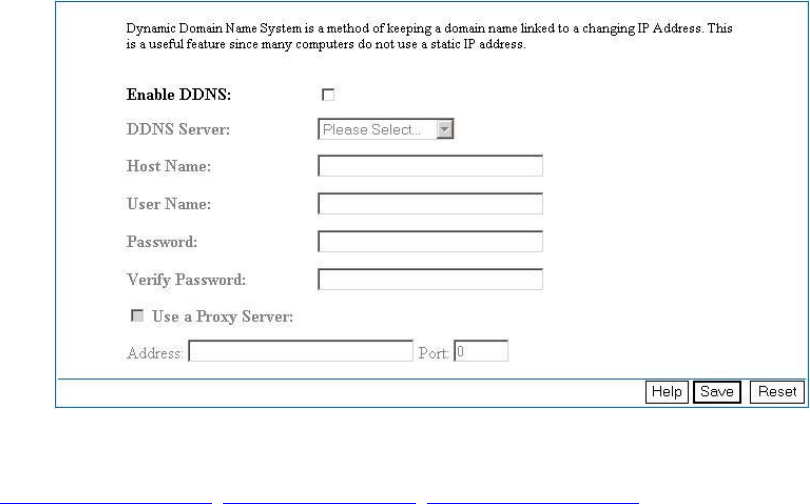

MISCELLANEOUS > DYNAMIC DNS.................................................................................32

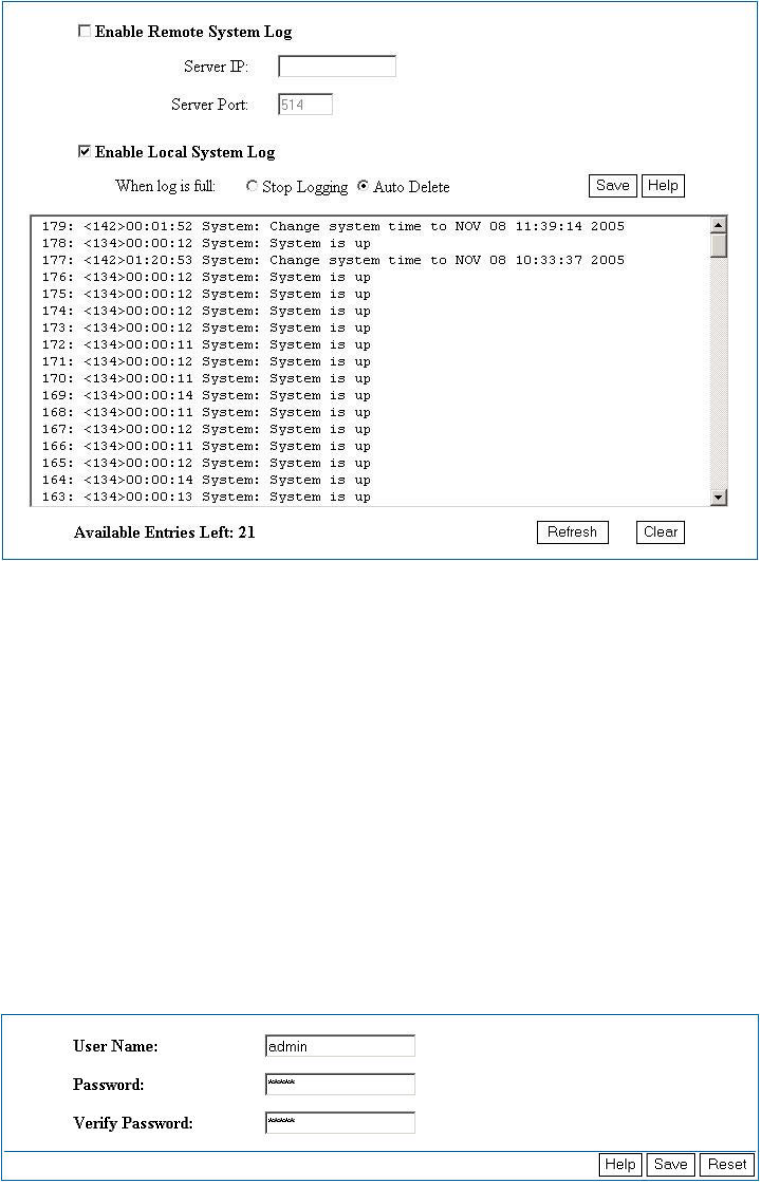

SYSTEM TOOLS > SYSTEM LOG .......................................................................................33
SYSTEM TOOLS > SYSTEM ADMIN ...................................................................................33

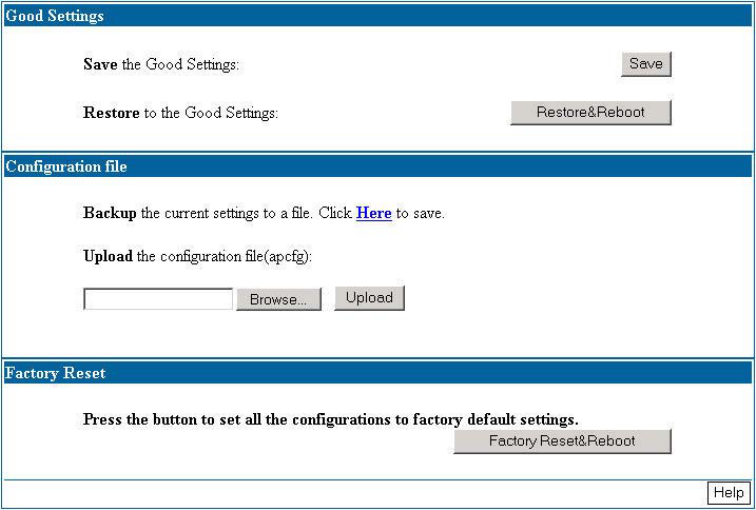

SYSTEM TOOLS > BACKUP/RESTORE SETTINGS...............................................................34
SYSTEM TOOLS > FIRMWARE UPDATE.............................................................................35
SYSTEM TOOLS > REBOOT...............................................................................................35

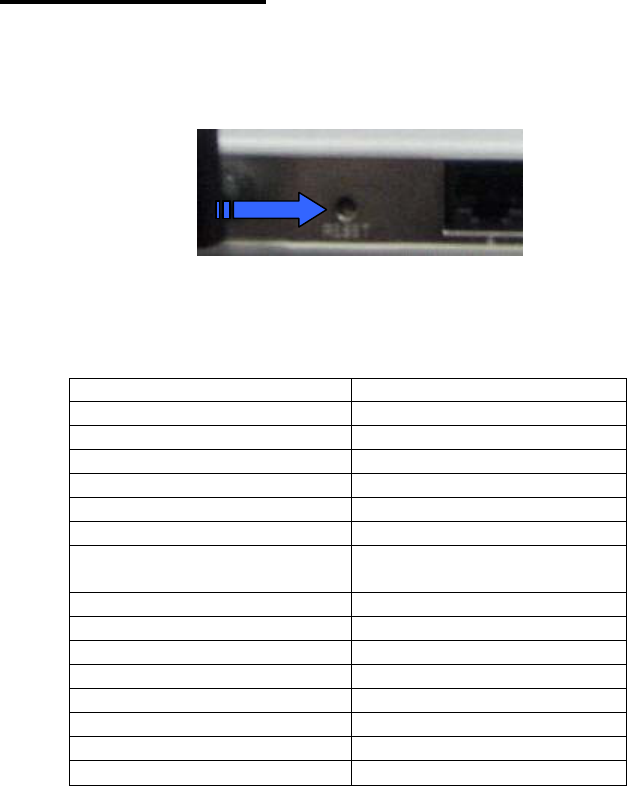

9 FACTORY RESET...................................................................................................36
10 PC CONFIGURATION .......................................................................................37
Page 3 of 45

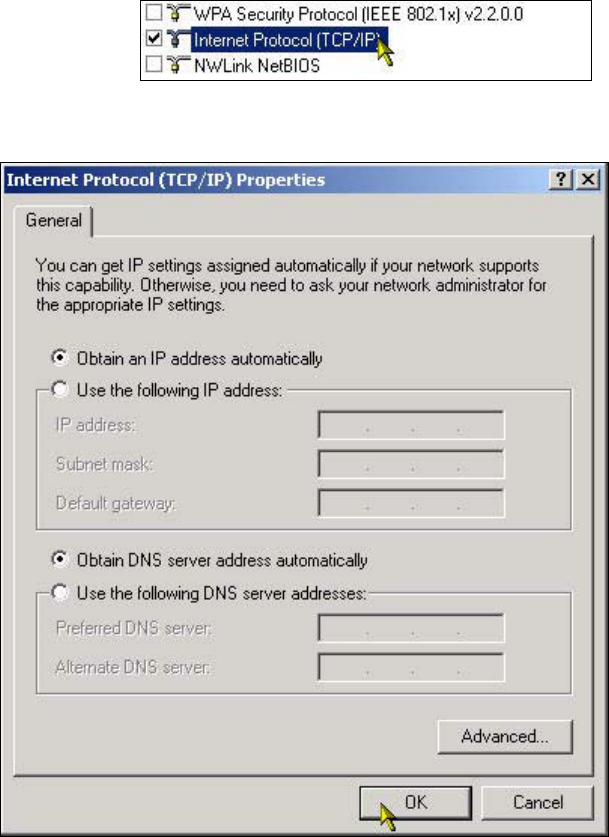

SETTING DHCP IP ADDRESS...........................................................................................37

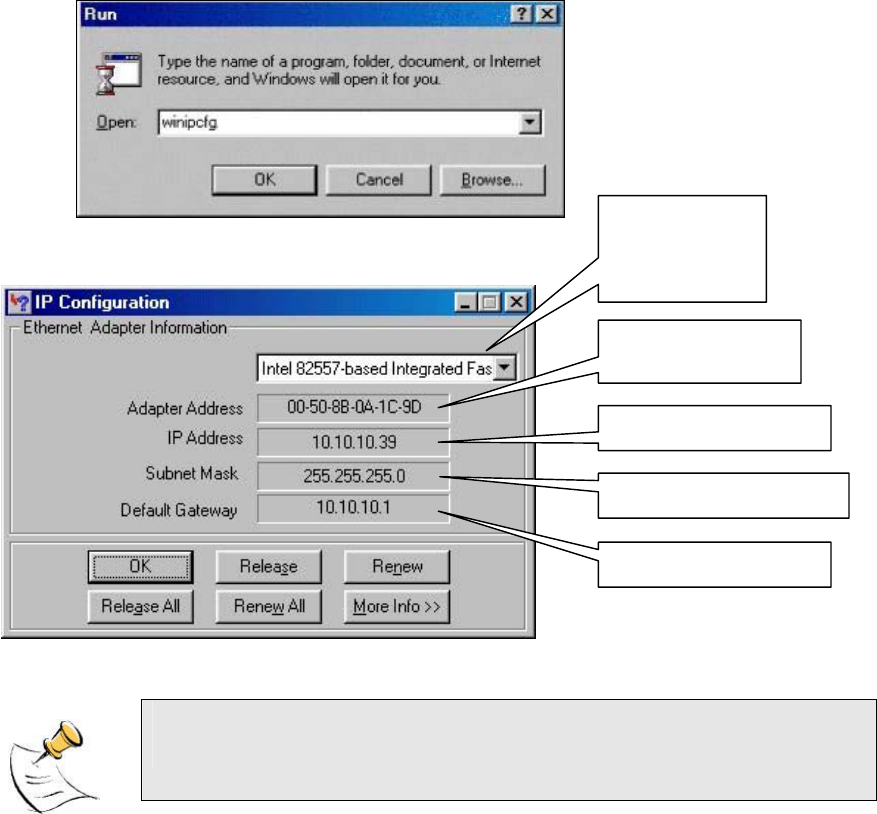

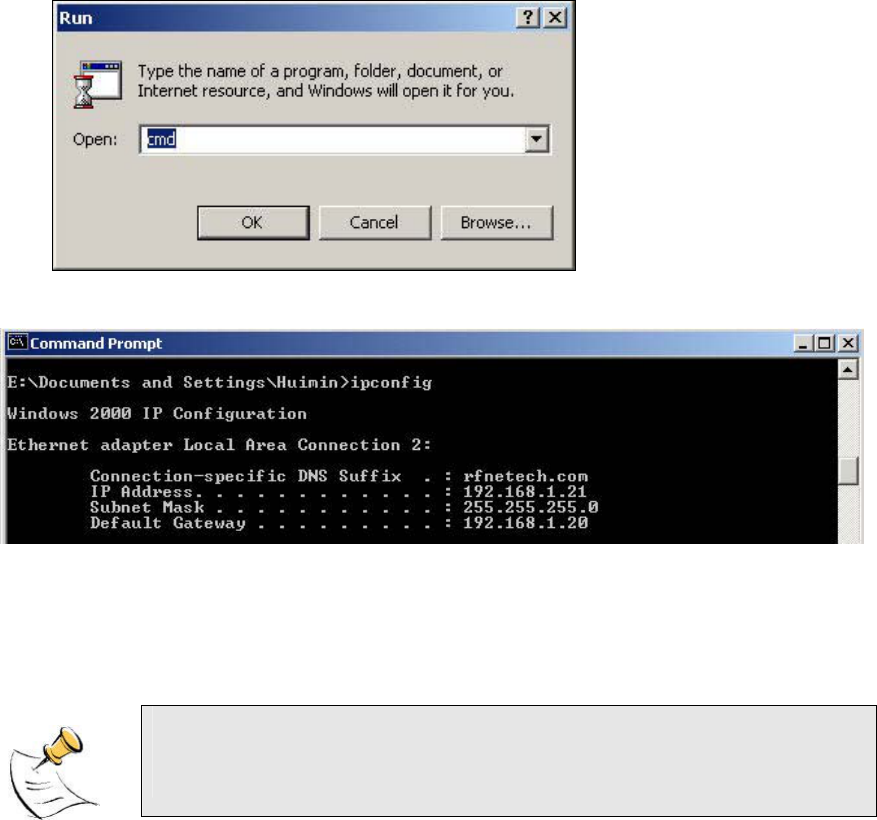

MY IP ADDRESS ..............................................................................................................39

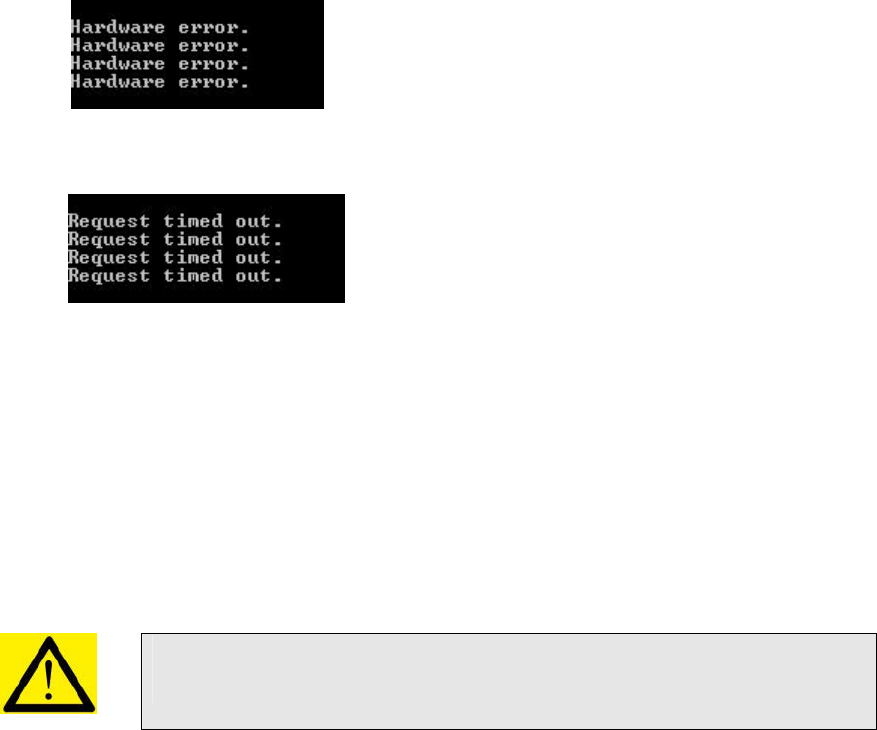

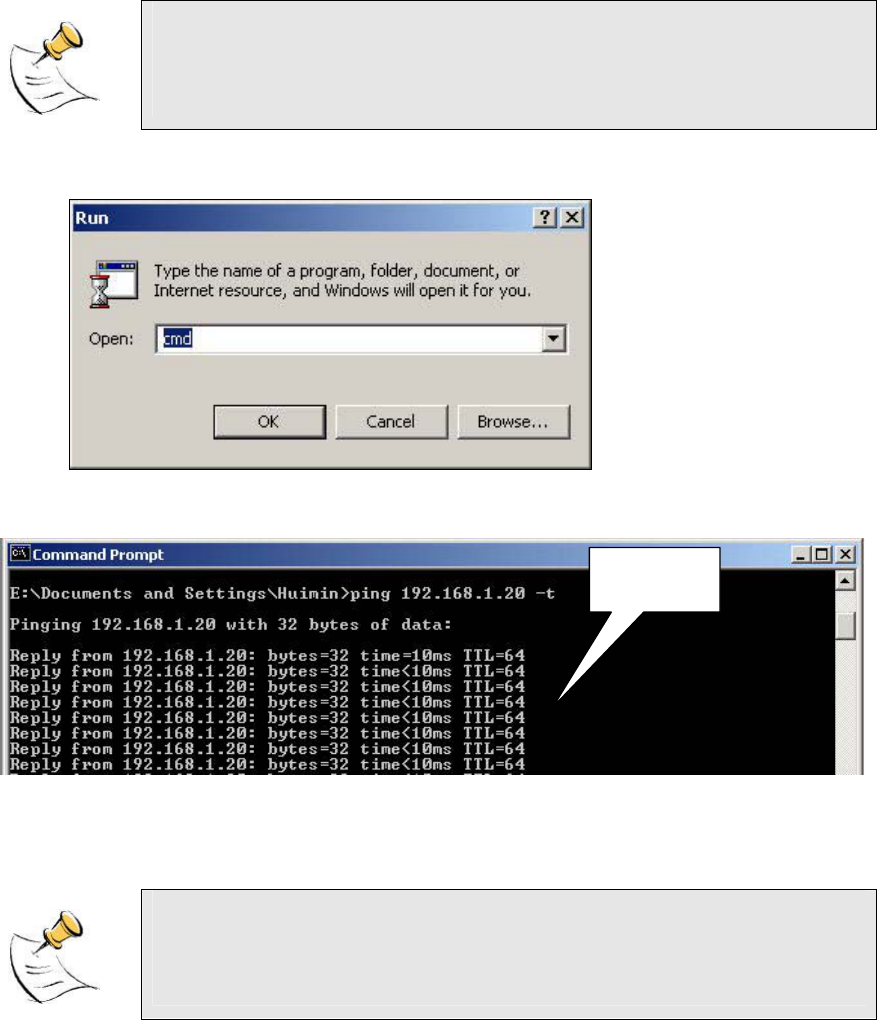

PING! ...............................................................................................................................41

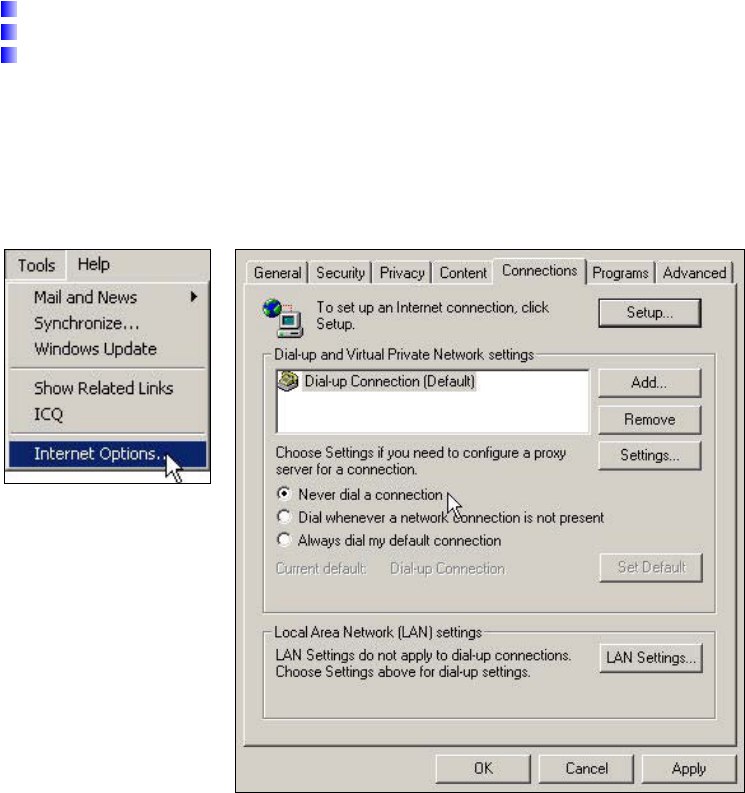

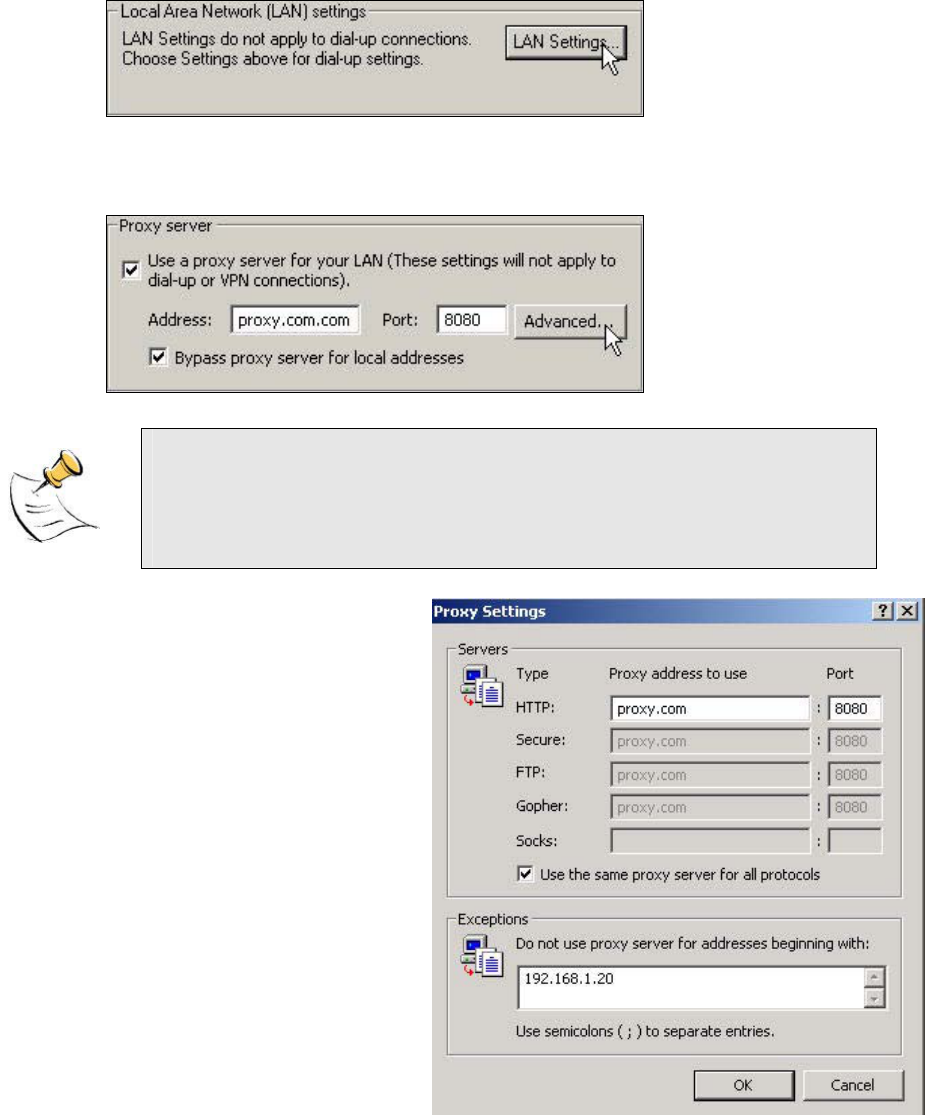

WEB BROWSER SETTINGS ................................................................................................43
11 TECHNICAL SUPPORT.....................................................................................45
Page 4 of 45
1 INTRODUCTION

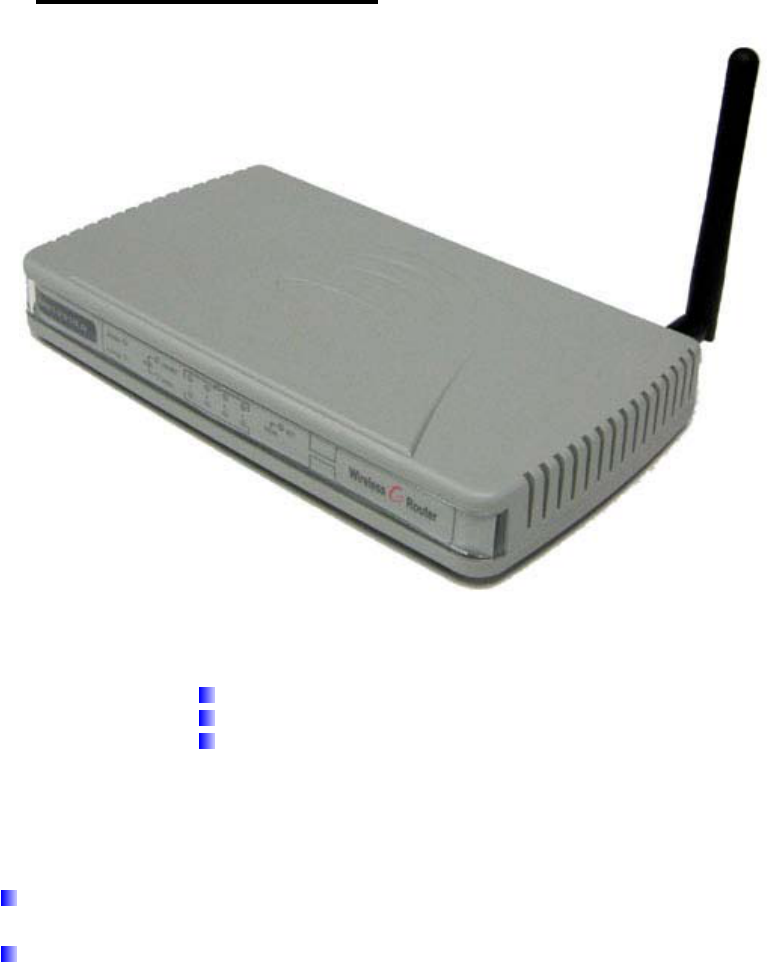

The Product
The product is based on the IEEE 802.11g standard, which is the latest 54Mbps Wireless LAN
(WLAN) standard. This standard is five times faster than the widely deployed WiFi (802.11b)
products that are found in homes, airport and public wireless hotspots. Because 802.11g uses the
same 2.4GHz frequency band, the product is fully interoperable with existing WiFi cards and
devices.
Having two wireless protocols in one product ensure that your investments are protected, while
enabling you to enjoy the fastest Wireless LAN speed.
The product is a combination of 3 devices:
a. Wireless LAN Access Point (AP) compliant to 802.11b and 802.11g standards.
b. 4-port Auto MDI/MDIX Switch
c. Router with NAT, DHCP Server built-in.
The product is an all-in-one device that allows multiple PCs to share a common broadband
(ADSL/Cable) modem. It can serve up to 4 Ethernet-PCs and many WLAN-notebooks. The built-
in NAT and DHCP Servers ensure almost plug-and-play convenience for your home network.
Advanced features such as Firewall, DMZ and WPA Encryption make this a product equally
suitable for your office needs.
Product Features
Fully compatibility with IEEE 802.11g WLAN standard
Utilize OFDM (Orthogonal Frequency Division Multiplexing)
Wireless data rate of up to 54Mbps for APRT-2518G and 108Mbps for APRT-2158GS
Operates in the 2.4GHz license-free frequency band
Connects multiple computers to a broadband modem to share Internet connection
Equipped with 4 10/100 Ethernet ports and 1 WAN port, Auto MDI/MDIX
Full backward compatibility with 802.11b standard (WiFi 11Mbps)
WEP (Wired Equivalent Privacy) authorizes users based on a simple WLAN encryption
standard to protect wireless data from sniffers.
WPA (WiFi Protected Access) authorizes users and identifies users based on an
improved WLAN encryption standard where the secret key changes dynamically at
regular intervals
TKIP (Temporal Key Integrity Protocol), when used in conjunction with a corporate
RADIUS server, ensure higher security for enterprise networks.
Pre Shared Key, suitable for home user, without a RADIUS server. A new key is
generated each time the PC connects to the network, vastly improving the safety of
information exchange within the network
Advance Firewall features to protect your network from the Internet.
NAT with VPN pass through to provide higher security.
MAC filtering
IP filtering
Built-in DHCP Servers that distributes IP addresses automatically to computers,
simplifying network setup.
User-friendly web-based interface for managing and configuring the Router
Page 5 of 45
2 PACKAGE CONTENTS
Contents of Package
2.4GHz High Speed Wireless Router with Antenna
Power Adaptor-DC
User Manual
Note: Using a power adaptor with a power rating other than the one included in the package will
cause serious damage to the Router and void the warranty for this product.
System Requirements for Configuration
Computers with Windows, Macintosh or Linux-based operating systems and with
an Ethernet adaptor
Internet Explorer version 5.5 and above or Netscape Navigator that supports Java.
Page 6 of 45

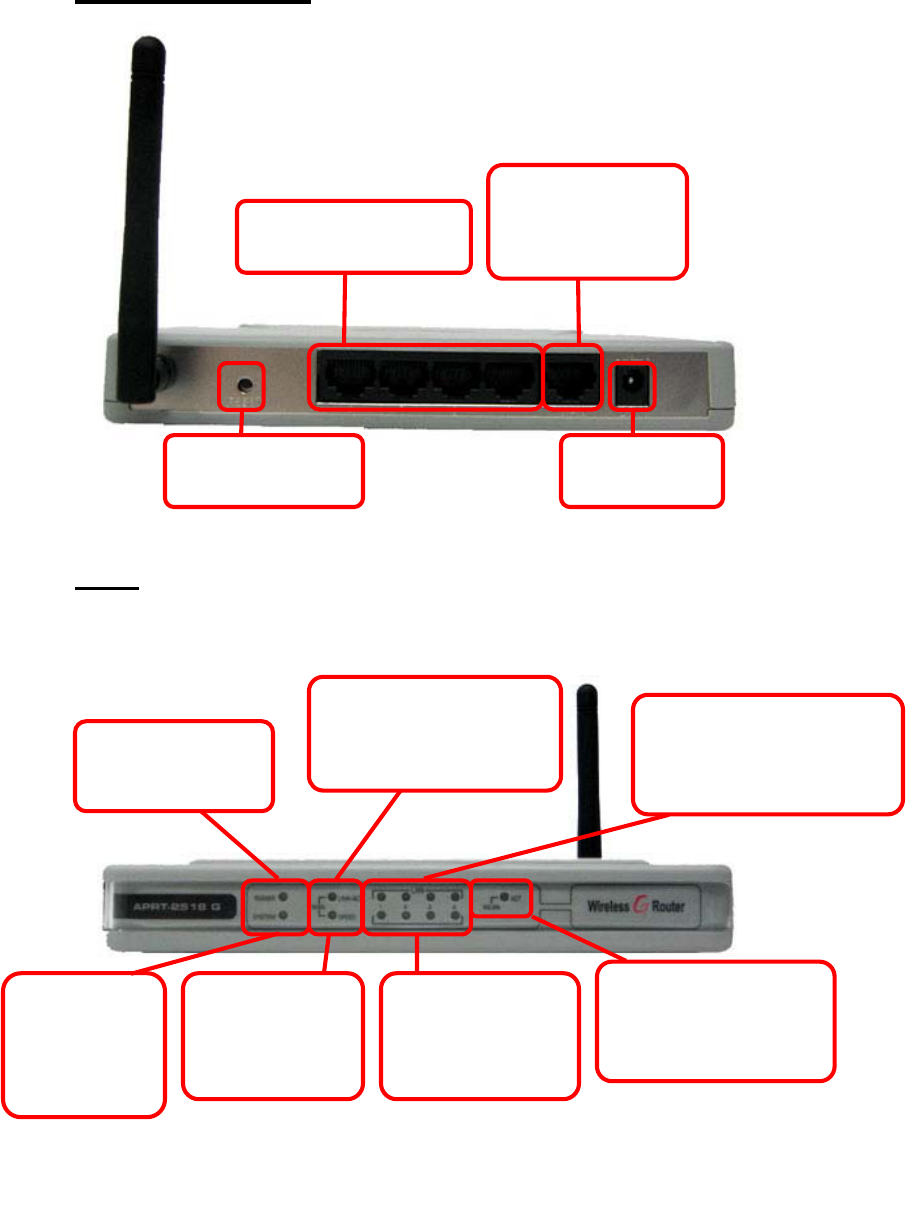

3 CONNECTIONS
Auto MDI/MDIX LAN
port. It is to be connected
to PC via Ethernet cable
Reset switch to restore
the Router’s setting to
factory default setting
DC receptor for
power adaptor
Auto MDI/MDIX
WAN port. It is to be
connected to DSL or
cable modem via
Ethernet cable
4 LED
LAN Speed LED
S
olid: LAN speed is
100Mbps
N
othin
g
: LAN speed is
10Mbps
WAN Speed LED
S
olid: WAN speed
is 100Mbps
N
othin
g
: WAN
speed is 10Mbps
System LED
S
olid: Indicates
system is ready
B
link: Indicates
system is still
rebooting
LAN LED
S
olid: Indicates connection to
a Ethernet-enable computer
B
link: Indicates data
transmission
WLAN LED
S
olid: Indicates wireless
segment is ready
B
link: Indicates data
transmission
WAN LED
S
olid: Indicates connection
on the WAN port
B
link: Indicates data
transmission
Power LED
A solid light indicates
a proper connection
to the power supply
Note: For APRT-2518GS, there will be an additional LED below the WLAN LED. This additional LED
indicates the turbo g function. When the Router is in turbo g mode, the LED will light up.
Page 7 of 45
5 BASIC IP NETWORKING
Internet Protocol (IP)
IP stands for Internet Protocol. In an IP network, every device has a unique IP Address (For
example: 192.168.1.35) to identify itself. There are two ways of assigning an IP address to a PC
or Router: Static and Automatic (DHCP). Static IP addresses are keyed-in manually, while
Dynamic IPs are distributed by a DHCP Server.
Ports
Every packet of traffic is identified by its Source and Destination Addresses, which would ensure
that the packet arrives at the correct destination. A Port Number is also embedded in each
packet; to identify which software application that generated and uses that packet. Therefore, if
the Router blocks a certain port number, it denies the particular software from using the
connection.
Static IP Address
Static IP addressing ensures that the device will always have the same IP address. Static
addressing is commonly used for your servers.
Dynamic IP Address
A dynamic IP address is one that is automatically assigned to a PC. These IP addresses are
“dynamic” because they are only temporarily leased to the PC when it connects to the network.
This is the most convenient and common way of managing IP addresses in a network. The
Server that manages this pool of IP addresses is called the DHCP Server. The product has a
DHCP Server built-in to simplify the network management.
DHCP (Dynamic Host Configuration Protocol)
The PC obtaining an IP address from the Server is called the DHCP Client. If there is already a
DHCP Server running on your network, you must disable one of the two DHCP servers. Running
more than one DHCP server together will cause network problems!

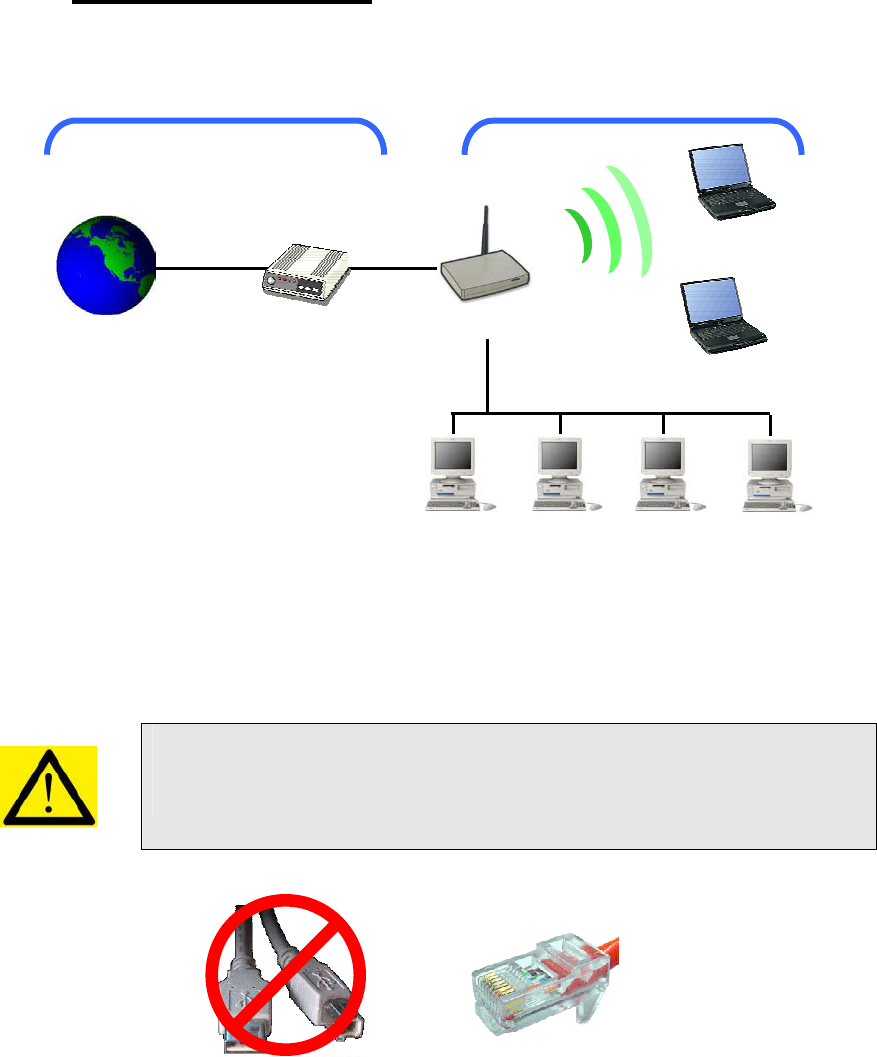

What is a Router?
A router is a network device that connects two networks together, to let them communicate. All
the PCs in your home or office would be considered to be in one network: the Local Area Network
(LAN). The Internet (including the ADSL modem) is considered to be another network: the Wide
Area Network (WAN). The Router serves 2 purposes:
Connect all the PCs in the LAN together, allowing them to communicate with one
another. (File sharing, Printer sharing etc.)
Connect all the PCs in the LAN to the Internet, allowing them to simultaneously surf the
web and access e-mails.
The Router is connected to 2 networks at the same time. Therefore, it has two IP addresses: one
for the LAN, and one for the WAN. The Router’s LAN IP address can be configured, but it is best
to use the default settings. The WAN port is a DHCP client by default.
Page 8 of 45
Wireless LAN Basics
A Wireless LAN (WLAN) is a computer network that transmits and receives data with radio
signals instead of using cables. WLANs have become common in homes, offices, airports and
public Hotspots. WLAN can support the same applications and software that run on a wired
network (LAN). Besides supporting the same software and functions, WLAN brings greater
convenience and eliminates the need to lay Ethernet cables in a home or office.
The Router is based on the finalised 802.11g standard. The IEEE 802.11g standard is an
improvement on the 802.11b (WiFi) standard. It increases the data rate up to 54 Mbps within the
2.4GHz band. As the 802.11b standard is also using the 2.4GHz frequency band, the product is
fully backward compatible with the older 802.11b devices. WiFi cards can be used to connect to
the Router at 11Mbps.
The Router can even support 108Mbps WLAN if the user is using a recommended Turbo-capable
Cardbus.
The Router is also known as the Wireless Access Point (AP). The PC using the Cardbus is
known as the Client. WLAN networking involves a few additional parameters to be configured:
SSID
The SSID is the “network name” for the WLAN network. The SSID is any name, and can be any
set of characters or numbers, and must be configured on both the AP and Client. The Client sniffs
the radio frequencies for an AP with the same SSID with itself. The client locks onto the AP and
they are “associated”.
To enable plug-and-play convenience, most client cards can sniff the frequencies to extract the
available SSIDs to let the user choose from. Alternatively, setting the client’s SSID to “ANY” can
allow it to connect to most APs regardless of the AP’s SSID setting.
Encryption
WLAN traffic can be captured by anybody to be read! The solution is to use encryption to make
the traffic appear as random characters to the eavesdropper. Both the AP and client must use the
same encryption standard and key to enable them to decode the “rubbish”. If the encryption
settings are mismatched, the client and AP cannot associate. WEP (Wired Equivalent Privacy) is
the most common WLAN encryption standard.
MAC Address Control
Every client card has a unique MAC Address. This MAC Address can be input into the AP
(Router), such that the AP only allows this pool of MAC Addresses to use the WLAN.
Channel
There are a total of 11 channels in the 2.4GHz band. Depending on regulation, not all the
frequencies may be available in every country. Frequency is configured on the AP only. The client
searches for the AP and locks onto that AP’s channel.
Signal Strength
Radio signals drop in power over a distance. Even if all the settings are correct, a low signal
strength makes association impossible. The usable distance between the AP and client can
range from a few meters indoor to 200m outdoors maximum. When setting up the AP, make sure
that you:
Keep the distance from the AP to the clients as short as possible.
Make sure that the WLAN signals do not have to pass through too many concrete walls
and metal structures to reach the client.
Page 9 of 45
Make sure that APs are located far away from one another to avoid interference.
Interference
Interference happens when 2 APs with the same channels are placed near to one another. The
speed of the network drops and the signal strength fluctuates wildly.
Roaming
Association happens when the SSID, Encryption and MAC Address Control settings are correct
between the AP and client. If 2 APs with these same settings are located in the same area, the
client would choose to associate to the one which gives it a better signal strength. The client
would roam over to the 2nd AP when he moves nearer to it. The client switches AP and
frequency as he does so.
Page 10 of 45
6 GETTING STARTED
The router is connected to the WAN and LAN networks.
LAN
WAN
Router
Modem
Internet
The cables are all connected to the back-panel of the Router. The PCs and Modem are
connected to the Router via Ethernet cables. Take note that the head of the Ethernet Cable looks
similar to a phone connector but is bigger. Your notebook can also be connected to the Router by
installing and plugging in the CardBus Card on your notebook.
Modems that connect using a USB cable cannot be used.
Use only modems that have Ethernet connectors.
Ethernet connector
USB Modem
Page 11 of 45
To access the Configuration menu of the Router,
connect the router as shown in the previous section.
Open the web browser.
Type the Router’s default IP address (192.168.1.20)
into the browser’s Address field.
Note: If you have changed the default IP of the Router, make sure you enter the correct IP
address.
Type in admin for user name.
Type in admin for the password.
Click on Log In.
Note: If you have changed the default user name and password of the Router, make sure you
enter the correct user name and password.
Once the login is successful, you’ll see a configuration menu and a pop up window for wizard
setup. The wizard is a quick guide to run you through the configuration process so as to setup
your system in the shortest time. After the initial setup, you may wish to turn off the setup wizard
by removing the tick on Run This Wizard At Start. Click on Next to proceed with the setup wizard.
Note: If you have pop-ups blocker installed on your computer, it may prevent the Wizard window
from functioning properly.
Page 12 of 45
Detailed configuration for the Router can be found at the configuration menu. The Configuration
menu consists of a navigation menu and a configuration panel. The configuration panel is a place
to set the entire detailed configuration.
Configuration
panel
Navigation
panel
These buttons will appear at most configuration pages.
Help: Clicking help will bring up helpful
information on the functions.
Save: Click to save the configuration. Do a
reboot when you have configured all the
parameters.
Reset: Click to reset all the parameters on the page.
Page 13 of 45
7 CONFIGURATION WIZARD
Once you have
logged in, the
Wizard screen will
appear.
Click Next
Set up your new
password
The default User
Name and
password is admin
and admin.
Click Next
Page 14 of 45
Select your Internet
connection
- For DSL user, choose
PPPoE.
- For Cable user,
choose Dynamic
- Choose Static
connection only if
your ISP provide you
with the IP address,
subnet mask,
gateway and DNS
server IP address.
Click Next
Click Next
Choose your Time
Zone
Enter the SNTP
Server. If you do not
know of any SNTP
Server, you can use
the default.
Choose your time
zone from the drop
down list.
Page 15 of 45
Click Next

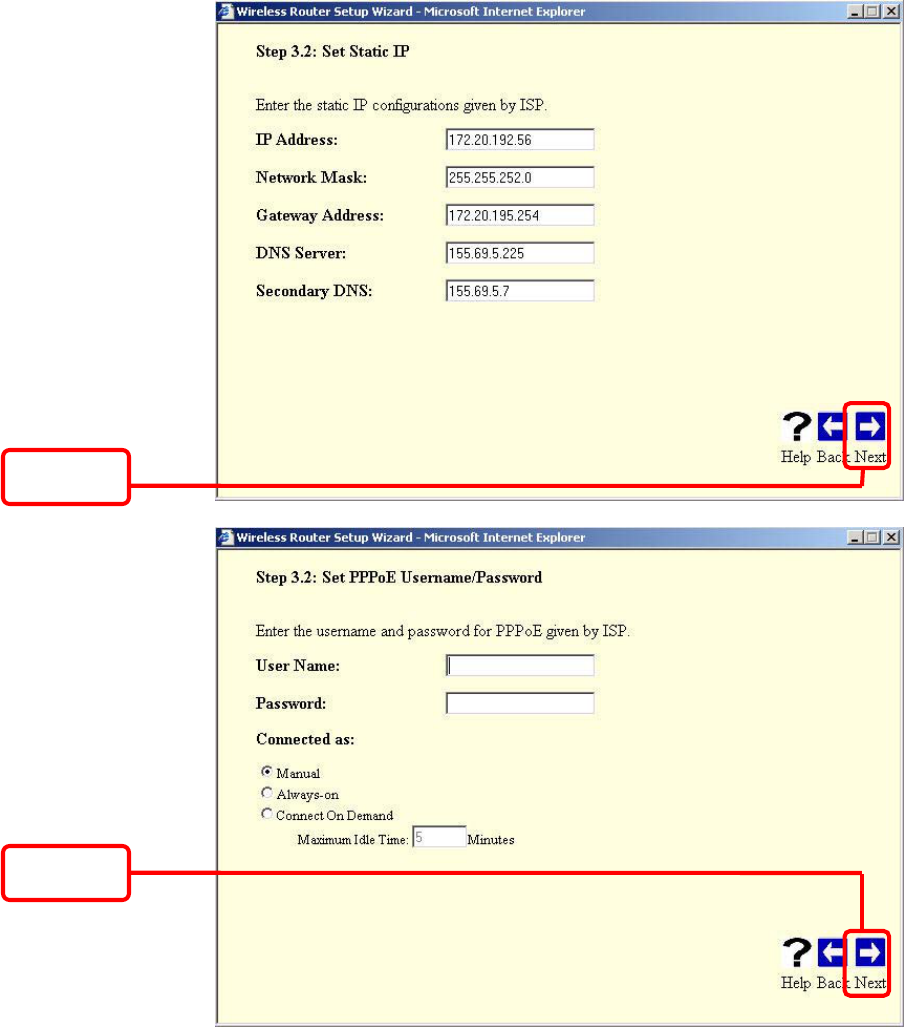

If your ISP requires
static IP and you
have chosen this
option, this screen will
appear.
Enter the IP address,
network mask,
gateway address,
DNS server IP
address as provided
by your ISP in the
relevant fields.
Click Next
If you are a DSL user
and you have chosen
PPPoE option, this
screen will appear.
Enter the user name
and password
provided by your ISP.
Page 16 of 45
Wireless Setup
Enter the SSID you
preferred for your
network.
You can manually
select the channel
you wish to use or
allow the Router to
select a clean
channel to use by
selecting
SmartSelect.
Click Next
Click Next
Wireless Security
Enter the type of
security mode you
wish to use. Take
note that if you are
using a 802.11b
card, it does not
support WPA-PSK
or WPA.
Page 17 of 45
Click Discard to
cancel all settin
g
s
Click Reboot to
finish the setup
Wizard
End of Setup
Click on Reboot to
save the setting and
reboot the Router. If
you wish to discard all
the setting, click on
Discard.
Page 18 of 45
8 CONFIGURATION MENU
System Summary > Configuration
This page presents a convenient overview of the overall status of the Router. The most common
configuration parameters are shown here, for a quick look.
(
18dB
m
)
Page 19 of 45
System Summary > Associations
This page allows you to view the MAC address of all the wireless laptop and PC connected to the
Router. ID AP is the MAC address of the Router itself. Any wireless computers or laptop
associated with the Router will have a ID of STA.
System Summary > Statistics
This page allows you to view the packets and bytes receive and transmit by the Router.
System Summary > Site Scan
Using the site scan, you can scan for the presence of other AP near you. The ESSID, BSSID,
wireless mode, channel, signal strength, security mode and network mode of the surrounding AP
will be display in the table. You can use this function to select a clean channel for your Router.
Take note that there would not be any result if the wireless function of the Router is disable.
Basic > SNTP Setting
Simple Network Time Protocol (SNTP) allows the Router to set its internal clock based on
periodic updates from the specified timeserver (SNTP or NTP). The time is useful in the IP filter
section, where you can configure to block certain IP address daily at a certain time.
Page 20 of 45
Basic > LAN Setting
This page is for the configuration of the Router’s internal (LAN) IP Address.
System Name: This is to assign a name to the router so that you can identify the Router.
LAN IP address: This is where you assign a local IP address to your router’s LAN port. The
factory default value is 192.168.1.20. If you give your computer a static IP address, the gateway
of your computer must be set to this IP for you to access the Internet.
Subnet Mask: This is where you assign the corresponding subnet mask. The default subnet
mask is 255.255.255.0.
(Note: When you change the LAN Setting of the Router, you need to reset/renew the Local computer IP address.)
Basic > WAN Setting
This page allows you to configure how the WAN is connected. For ADSL modem users, you have
to use PPPoE. If you connect the WAN to an existing Ethernet network, you have to set either
Static WAN or DHCP Client. The default setting for the router is in DHCP Client mode.
Dynamic WAN
When using dynamic WAN, the Router will automatic request for IP address, network mask,
gateway address and DNS server from the network. The acquired IP addresses will reflect in the
relevant fields. You can choose to manually set the DNS server if you know the IP address of the
DNS server. Typically, cable modem users will be using this option.
Page 21 of 45
Static WAN
You can choose to manually set all the fields if your ISP or network provides you with the IP
address, network mask, gateway and DNS. Do take note that the IP addresses in each field must
be of the appropriate format (xxx.xxx.xxx.xxx). The Router will not accept the IP address if it is not
in the correct format.
PPPoE Type
Select this option if your ISP requires you to use a PPPoE connection. Typically, users with DSL
connection would require this option.
Page 22 of 45
IP Address: This displays the IP of your WAN as given by the ADSL modem.
Network Mask: This displays the network mask of your WAN as given by the ADSL modem.
Gateway Address: This displays the gateway address of your WAN as given by the ADSL
modem.
DNS Server: This displays the IP address of the DNS server as given by the ADSL modem. You
can manually set the DNS server if your ISP provides you with the IP address of the DNS server.
Secondary DNS: This displays the IP address of the secondary DNS server as given by the
ADSL modem. You can manually set the secondary DNS server if your ISP provides you with the
IP address of the secondary DNS server.
Username: Enter the username given by your ISP.
Password: Enter the password given by your ISP.
MTU: Maximum Transmission Unit indicates that packets larger than this size will be fragmented
before the transmission. Enter an MTU value only if required by your ISP. Otherwise, leave it as
the default setting.
Manual: You will only be connected or disconnect to the Internet when you click on the Connect
and Disconnect button.
Always on: The Router will auto-connect with the ISP when it restarts or when the PPPoE
connection is dropped.
Connect on Demand: Router will auto-connect to ISP when user launches any program that
require Internet connection on his PC.
Idle Time before auto-disconnect: You can set the Router in such a way that it will disconnect
after a certain period of inactivity. The time can be set in this field.
Basic > MAC CLONE
The default WAN MAC address is set to the WAN’s physical interface MAC address on the
Router. You can use the MAC Clone function to replace the default MAC address to that of the
Ethernet Card installed by your ISP. It is not recommended that you change the default MAC
address unless required by your ISP.
Enable MAC Clone: Tick to enable MAC Clone function.
MAC Address: Enter the MAC address you wish to clone or use the default MAC by
clicking on the Use Default MAC button.
Your PC MAC Address: This field reflects the MAC address of your computer.
Page 23 of 45
Wireless > Basic Setting
This page lets you configure the Wireless settings of the Router. There are 2 sections: Radio and
Security.
Enable Wireless: Tick to enable wireless function. With this function, laptop with cardbus or in-
built wireless function can access the Router wirelessly.
SSID: Service Set Identifier. It is a sequence of characters that uniquely names a Wireless LAN.
This name allows PCs to connect to the correct Wireless Access Point when multiple Access
Points (or Wireless Routers) operate in the same location.
Channel: The radio channel number. You can select channel 1 to 11 or use SmartSelect, where
the Router will select the cleanest channel to use upon booting up. The number of channels
varies according to countries.
SSID Suppressed: When SSID is suppressed, the router will not broadcast the SSID.
Unwelcome PCs will not be able to scan for the SSID of this Router, and they can only associate
if they know exactly what is the SSID.
Wireless Mode: You can choose to operate the Router in 802.11g or 802.11b mode. The data
rate for 802.11g is 54Mbps while the data rate for 802.11b is 11Mbps. 802.11g is backward
compatible with 802.11b.
For model APRT-2518gs, you will be able to select Dynamic Turbo or Static Turbo Mode. Turbo
mode operates in 108Mbps.
Security Mode: This section allows you to configure wireless encryption to prevent unwelcome
parties from reading your traffic. You must Enable the Security Mode before choosing the type of
wireless security.
Page 24 of 45
Open-System/Shared Key
Open-System: When chosen, the Key is not used for authentication. It is only used for
encryption. Open-System uses Static Keys for encryption. Static (Shared) Keys are never
changed, and a hacker can crack the key after a period of time.
Shared-Key: When chosen, the encryption Key is also used for authentication between the
Router and Client. Note that this system is also using Static Keys.
Key Entry Method: Choose HEX if you want to enter the Keys in hexadecimal format. Otherwise,
enter in ASCII format. ASCII is also called Alphanumeric in some systems. Use the same key
format for the Router and Client!
Key 1-4: The Key is to be entered in the boxes. The SAME Key must be entered in both the
Router and Client. Take note that there is a different Key length for a different number of
encryption bits. 152 bits is the most secure, but make sure that your Client card supports it. The
last point to take note is that if you use Key 4 on the Router, you must also use Key 4 on the
Client, for example. The same logic applies for Keys 1-3.
WPA-PSK
WPA-PSK is also known as WPA-Preset-Key. This implementation is more secure than WEP as
the encryption is automatically changed periodically. To configure this feature, just key in a 8-63
ASCII character or 64 HEX character pass-phrase for both the Router and Cards.
Cipher: You can choose to use TKIP or AES for the cipher type.
Page 25 of 45
WPA
WPA (WiFi Protected Access) is a standard where the Wireless Card has to authenticate to a
RADIUS Server, through the Access Point. The Server can also manage the encryption keys
such that they are changed dynamically. You need to have a RADIUS Server to be able to use
this feature.
RADIUS Server: Enter the IP Address and the port of the RADIUS Server.
Shared Secret: Enter the Shared Secret of the RADIUS Server.
Confirm Source: Enter the Shared Secret again to confirm.
Wireless > Advance Setting
This page allows you to configure the advance wireless setting of the Router.
(18dBm)
Data Rate (Mbps): You can set the wireless data rate from the available list or choose Best to
allow the Router to choose the most appropriate data rate. When Best is used, the Router will
determine the optimal data rate according to the environment.
Transmit Power: This adjust the transmit power of the antenna. Sometimes, it is useful to
decrease the coverage range of each Router, so that more Routers can be located together
without interfering one another.
Preamble: Choose Short Preamble or Long Preamble. Most manufacturers implement long
preambles. Even if there is a mismatch between the Router and the card, they can still connect
well and the mismatch may not be noticeable to most users. Do not change this setting without
seeking advice.
Slot Time: Choose short or long slot time. The slot time is the amount of time a device waits
after a collision before retransmitting.
Page 26 of 45
Wireless > MAC Address Control
This page allows you to specify which wireless computer can access the Internet and which
wireless computer cannot access the Internet. The specified MAC address and the policy for the
computer are reflected in the table.
Enable Wireless MAC Control: Tick to enable Wireless MAC Control.
Default Policy: This policy determines whether computers, whose MAC addresses are not in the
table, are able to access the Internet. If you choose Deny All, all computer associated to the
Router will not be able to access the Internet other than those specified in the table.
MAC Address: Enter the MAC address of the computer. The format for the MAC address is
aa:bb:cc:dd:ee:ff.
Policy: Choose to deny or allow the computer to access the computer. Click on the Add button to
add the policy.
DHCP > DHCP Server
This page is to configure the properties of the Router’s built-in DHCP Server. Take note that the
built-in DHCP Server distributes IP Addresses to both the LAN ports and the WLAN clients.
Enable DHCP Server: Tick to enable the built-in DHCP (Dynamic Host Configuration Protocol)
Server. When enabled, the Router will provide IP addresses to the computers connected to the
router.
IP Address pool: When ‘System Define’ is selected, router will assign IP address automatically
from the pre-defined pool. If ‘User Define’ is selected, you would have to define the range of the
pool manually.
Page 27 of 45
IP Address pool (For User Defined only), Start Address: This is the start address of the DHCP
pool. The router will assign this to the first computer connected to the router.
IP Address pool (For User Defined only), End Address: This is the end address that the router
will assign to the computers connected to the router.
Lease Time: The amount of time a network computer will be allowed to connect with the DHCP
Server. By default, the lease time is 2880 minutes.
DHCP Server Reserved Entries: This feature allows you to reserve up to 8 LAN IP Addresses.
These addresses can be assigned to your Servers, so that they always get the same IP Address
when they boot up. Fill up the table by order of ID.
ID: Tick to enable this reservation.
MAC Address: Enter the MAC Address of the Server, so that the Router can identify your Server
properly. The format for the MAC address is aa:bb:cc:dd:ee:ff.
IP Address: Enter the IP Address that you want to reserve for your Server.
DHCP > DHCP List
This is a log showing all the IP assigned to the computer by the Router in the WLAN and LAN
ports. The table will display the MAC address of the computer with the corresponding IP address.
Port Forward > Virtual Server
This page allows you to configure Virtual Server. This feature is used when you need to allow
computers from the Internet to access servers in LAN. Traffic initiated from the WAN (Internet) is
normally blocked. Virtual Server allows the specific type of traffic to pass through the Router to
reach the Server in the LAN. Examples of these Servers are Web Servers and Game Servers.
Page 28 of 45
Protocol: Select the type of protocol to be forwarded. Choose between TCP and UDP.
Local IP Address: Enter the IP address of the Local Server.
Local Port: Enter the port value on the LAN side.
Global Port: Enter the port value on the WAN side.
Status: Choose to activate or deactivate this rule.
Click Add button to add the rule. The rules will be listed in the table. You can amend the rules in
the table by clicking on Edit or delete the rules by clicking on Delete. Click Update button when
amending the rule in the table.
Port Forward > ICMP Forward
You can forward Ping (a network troubleshooting tool) from the Internet to a specified
LAN host. If the host exits, the host will reply to the ICMP sender.
Enable ICMP Forward: Tick to enable ICMP forward.
ICMP Forward Host IP: Enter the IP address of the Host PC. All Ping from the Internet
will be forwarded to this specified PC.
Port Forward > DMZ Setting
The DMZ (De-Militarized Zone) Configuration page lets you map a local computer to this zone.
By default, the Router protects the PCs from the Internet. The local PCs can access the Internet
(WAN) but not vice versa. Local PCs are hidden behind the NAT and Firewall.
DMZ is used when you want to expose that PC to the Internet. For example, you want to set up a
Web Server or Game Server such that outsiders can access from the Internet.
Enable DMZ: Tick to enable DMZ.
DMZ Host IP: Enter the local computer's (Web or Game Server) IP address.
Page 29 of 45
Port Forward > UPnP Setting
Universal Plug and Play (UPnP) is a network feature utilizing the Internet and Web protocols to
promote the communicative exchange of information between networking devices. To enable this
function, choose Enable. The current UPnP NAT list will be display in the table.
Firewall > MAC Filter
This page allows you to specify which computer can access the Internet and which computer
cannot access the Internet. The specified MAC address and the policy for the computer is
reflected in the table.
Enable Ethernet MAC Control: Tick to enable Ethernet MAC Control.
Default Policy: This policy determines whether computers, whose MAC addresses are not in the
table, are able to access the Internet. If you choose Deny All, all computer connected to the
Router will not be able to access the Internet other than those specified in the table.
MAC Address: Enter the MAC address of the computer. The format for the MAC address is
aa:bb:cc:dd:ee:ff.
Policy: Choose to deny or allow the computer to access the computer. Click on the Add
button to add the policy.
Page 30 of 45
Firewall > IP Filter
This page allows you to filter off certain IP addresses at certain time of the day.
LAN IP: Enter the LAN IP address that would be denied access to the Internet. It can be one IP
or a range of IP.
Port: The single LAN port or port range that will be denied access to the Internet.
WAN IP: Enter the WAN IP address that would be denied access to the Internet. It can be one IP
or a range of IP.
Port: The single WAN port or port range that will be denied access to the Internet.
Protocol:
Schedule (Always): Choose this to keep the filter rule always on.
Schedule (Start time): The time when you would like to start blocking the IP Address.
Schedule (Stop time): The time when you would like to stop blocking the IP Address.
Status: Choose to activate or de-activate the filter rule.
Page 31 of 45
Miscellaneous > Dynamic DNS
Dynamic DNS allows you to update your current dynamic IP address with dynamic DNS services
so that you can be contactable most of the time. You can also access your FTP server or web
page on your own computer using a domain name. Unlike IP address, the domain name will not
change with each reconnect.
First of all, you would need to register a dynamic DNS account dynamic DNS service provider.
The Dynamic DNS service provider will give you a password.
Enable DDNS: Tick to enable dynamic DNS.
DDNS Server: There is a few default DDNS server in the drop down menu;
http://www.dyndns.com/, http://www.no-ip.com/, http://freedns.afraid.org/.
Host Name: Enter the host name registered with the dynamic DNS service provider.
User Name: Enter the user name registered with the dynamic DNS service provider.
Password: Enter the password registered with the dynamic DNS service provider.
Verify Password: Verify the password registered with the dynamic DNS service provider.
Use a Proxy Server: Tick this option if your network is using a proxy server.
Address/Port: Address and port of the proxy server.
Page 32 of 45
System Tools > System Log
This page allows you to configure the Router to dump its status to a System Log Server.
Enable Remote System Log: Enable this feature to allow the Router to constantly update its
status on a System log Server.
System Log Server IP: Enter the IP Address of the System Log Server if you had enabled
Remote Logging.
System Log Server Port: Enter the port number the System Log Server is using.
Enable Local System Log: Enable this feature if you do not have a System log Server. The
events would then be logged locally on the Router.
Log Management when log is full (Stop Logging): When this option is chosen, the Router will
stop logging.
Log Management when log is full (Auto Delete): The maximum number of local log entry is
200. When all the 200 entries are used up, the Router will overwrite previous entries with new
logs.
Remember to Apply and Reboot for the settings to take effect.
System Tools > System Admin
This page allows you to change the Administrator’s Username and Password. The default
username and password is admin / admin. After every Factory Reset, the Router reverts to this
combination.
Page 33 of 45
System Tools > Backup/Restore Settings
Use this page to preserve any good setting. You can save the configuration file into your
computer and upload it back to the Router when the setting of your Router when
necessary. In addition, you can do a factory reset and restore the Router back to factory
default setting. The factory default setting is shown in the Factory Reset section.
Page 34 of 45
System Tools > Firmware Update
This page allows you to update the firmware (software) in the Router. New firmwares are issued
to improve the performance and add features to the product.
1. The new firmware is a file name “apimg1”.
2. Save the file in your PC.
3. Browse and select the firmware file.
You will see the following page when firmware upgrading is successful.
Do not close the browser or shutdown the Router during firmware upgrading.
Failure to do so will cause serious damage to Router.
System Tools > Reboot
This page allows you to reboot the Router. You must reboot the Router after you have finished
configuring the Router for the new setting to take effect.
Page 35 of 45
9 FACTORY RESET
When you have wrongly configured the Router and wish to start all over again, you can perform a
Factory Reset to restore the Router to its original state. Simply use a paper clip or any pointed
object to press in the hole for 10 seconds and release.
The Router would be reset to its original Factory Default configuration:
Router’s Feature Factory Default
User Name admin
Password admin
WAN IP -
WAN subnet mask -
LAN IP 192.168.1.20
LAN subnet mask 255.255.255.0
DHCP Server (including
WLAN)
On.
SysLog Local System logging on
SSID 11g
Channel SmartSelect
MAC Address Control Off
Wireless Security Off
DMZ Off
Virtual Server Off
IP Filter Off.
Page 36 of 45
10 PC CONFIGURATION
The Router’s function is to connect multiple PCs to the Internet. In addition to configuring the
Router, the PCs’ IP settings would also need to be configured.
It is easiest to use DHCP client for the PCs. This is also the default whenever you:
a. Install a new Wireless PCMCIA/Cardbus card, or
b. When you plug an Ethernet cable into your PC for the first time.
Fortunately, in default mode, the Router’s DHCP Server is on. This means that when you buy a
new Router and install a new Wireless Card, the IP settings on the PC are already correct!
In the event that you need to troubleshoot the IP settings, the easiest method is:
a. Perform a Hardware Reset to the Router, and
b. Perform a following to configure Automatic IP (DHCP Client) on the PC.
Setting DHCP IP Address
The steps outlined are applicable for Windows PCs. The GUI for Windows 98SE and ME may
look slightly different, but the steps are the same.
1. Connect the PC to the Router. This can be via Ethernet or Wireless. Do not connect
any other networking devices! Do not connect the modem to the PC!
2. Go to Start >> Settings >> Control Panel >> Network and Dial-Up Connections

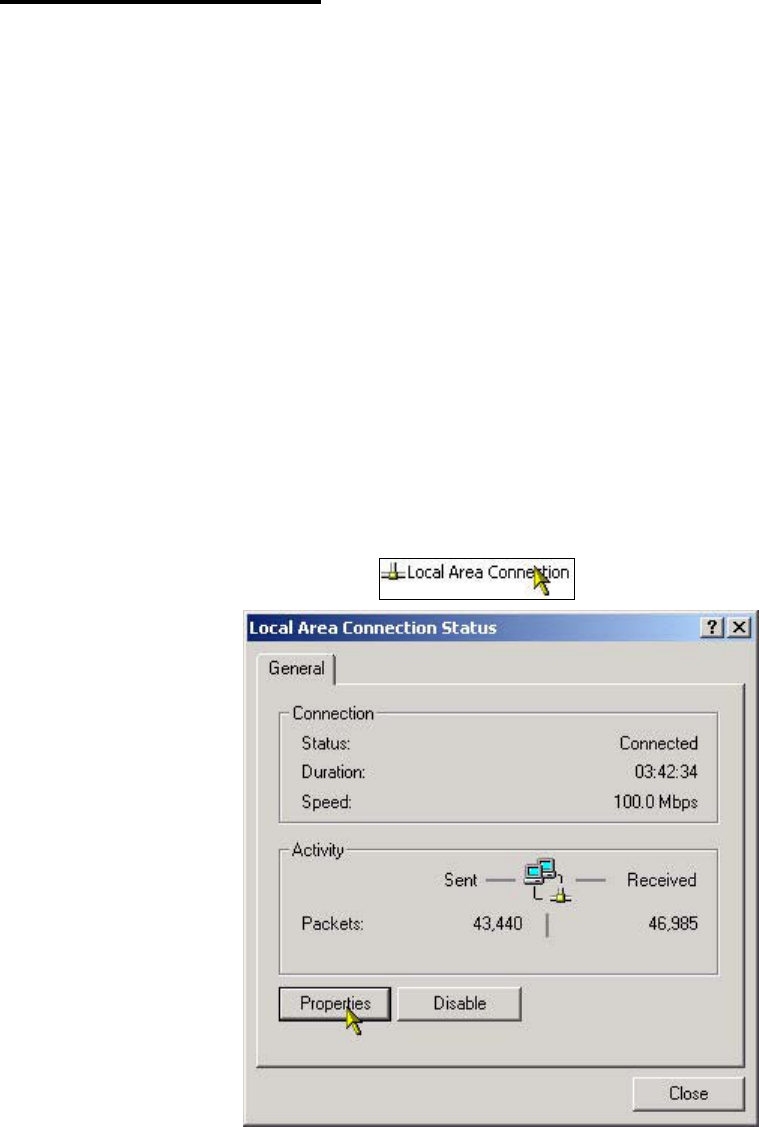

3. Double-click Local Area Connection.
4. Click on Properties.
Page 37 of 45
5. In the box, click on Internet Protocol (TCP/IP). Make sure there is a tick in the box for
TCP/IP.
6. Use automatic for both the settings. Click OK and close all windows.
7. Windows 98SE and ME may prompt you for a reboot.
DHCP Client has been set up on your PC. Make sure you do a Factory Reset to the Router and
configure your broadband account again.
Page 38 of 45
My IP Address
This section describes how to check your PC’s IP Address. Every PC in your network must have
a unique IP Address. A new Router (or after Factory Reset) would have a default IP Address of
192.168.1.20.
For Win98 and Windows ME Users
To check your PC’s IP Address, go to Start >> Run and type winipcfg
Your PC displays your IP properties in a window:
Your Default Gateway.
Your PC’s subnet mask.
Your PC’s IP Address.
Network Adapter’s
MAC Address.
Choose the
correct
Network device
to view.
For more information, click More Info>>.
It would be good to know your MAC address if you want to implement MAC
address control on your Router.
Page 39 of 45
For Windows 2000 and Windows XP Users
Go to Start >> Run. Type cmd
In the DOS-window, type ipconfig
In this example, we can see that the PC has an IP Address of 192.168.1.21. The Default
Gateway is 192.168.1.20, which is the Router.
For more details, type ipconfig/all.
It would be good to know your MAC address if you want to implement MAC
address control on your Router.
Your Default Gateway is usually the IP Address of the Router: 192.168.1.20
Page 40 of 45
Ping!
Ping is a very useful tool to check network connectivity. Making sure that your PC is physically
plugged into your Router is NOT sufficient! They must also be connected in the networking
sense: their IP settings must be correct. To check if your PC is connected to the Router, you can
perform a Ping to the Router’s IP Address (Usually 192.168.1.20).
When you perform a ping, your PC sends a message to the destination.
If the destination exists, it would receive the message and send a reply back to
you automatically.
If the destination cannot be reached, your PC informs you of the network error.
Go to Start >> Run. Type cmd or command
In the DOS-window, type ping 192.168.1.20.
Destination
IP Address
The connection is good if you are getting replies, as shown above.
Ping also works for a Wireless connection.
But the replies may not be consistent, depending on your distance from the
Router.
Page 41 of 45
If the Ethernet cable is unplugged or if the Wireless LAN settings are wrong, it shows Hardware
error:
If the destination does not exist or cannot be reached because of incorrect IP settings, it would
show Request timed out.
Ping tests are very useful. If the ping is not successful, you may have:
a. Changed the LAN IP of the Router.
b. Turned off the DHCP Server in the Router.
c. Configured a wrong Static Address for your PC.
You would have to:
a. Check the Ethernet cable and/or check the Wireless LAN settings
b. Perform a Factory Reset to the Router if necessary
c. Ensure that your PC is set to DHCP client (automatic).
If you are not even able to ping the Router, there is no way you can access its
Configuration Page.
Page 42 of 45
Web Browser Settings
By default, your Web Browser (eg. Microsoft Internet Explorer, Netscape) does not need any
setup to use the Router. The default settings would allow you to surf the web using the Router.
However, if you have previously used the following methods to access the Internet, you would
need to check your browser settings:
Internal / External 56k modem
ADSL modem connected to your USB port
ADSL dialer software (eg. WinPOET)
Never Dial a Connection
The Web Browser is tied to a particular device for accessing the Internet. This is the reason why
you have to configure it if you had used another networking device previously. The steps are
described for IE6, but the procedure is similar for other Web Browsers.
1. Go to Tools >> Internet Options >> Connections.
2. As seen in the above, the Browser has a Dial-up Connection configured previously.
Choose “Never dial a connection” and Apply. The Browser will now use your LAN
connection (Ethernet or WLAN) to access the Internet instead of the old device.
Page 43 of 45
Proxy Server
Most ISPs do not require you to configure a Proxy Server to surf the Internet. Check with your
ISP. If you are required to configure a Proxy Server, you would have to follow these steps:
1. Continue from the previous page. Click on LAN Settings.
2. Enter the Proxy Server Address and Port number. Do NOT use proxy.com.com!
Check with your ISP!
The Browser would now go through the Proxy Server for every Internet session.
However, the Proxy Server would not be able to direct you to your Router’s
Configuration page (192.168.1.20). Therefore, you have to carry out the next
few steps to make sure that when you want to configure the Router, you go to
192.168.1.20 directly.
3. Click the Advance button.
4. Enter
192.168.1.20 in the box.
5. Click OK on all the windows.
Page 44 of 45
11 TECHNICAL SUPPORT
For technical support, please contact the following local distributor or reseller.
12 DISCLAIMER
• Manufacturer assumes no responsibility for any damage or loss resulting from
the use of this manual.
• Manufacturer assumes no responsibility for any loss or claims by third parties
that may arise through the use of this product.
• Manufacturer assumes no responsibility for any damage or loss caused by
incorrect use of APRT-2518G / APRT-2518GS.
• The contents of this manual are subject to change without prior notice due to
engineering improvement.
• No part of this manual may be reproduced in any form without the express
written consent of the Manufacturer.
• Sample displays shown in this Manual may differ somewhat from the displays
actually produced by the product.
• User Manual may differ for different firmware version.
• All brands and product names are trademarks or registered trademarks of their
respective holders.
Page 45 of 45
