RFNet Technologies AP2001G Wireless LAN 802.11b/g AP & Ethernet Bridge User Manual AP2001g v1 00
RFNet Technologies Pte Ltd Wireless LAN 802.11b/g AP & Ethernet Bridge AP2001g v1 00

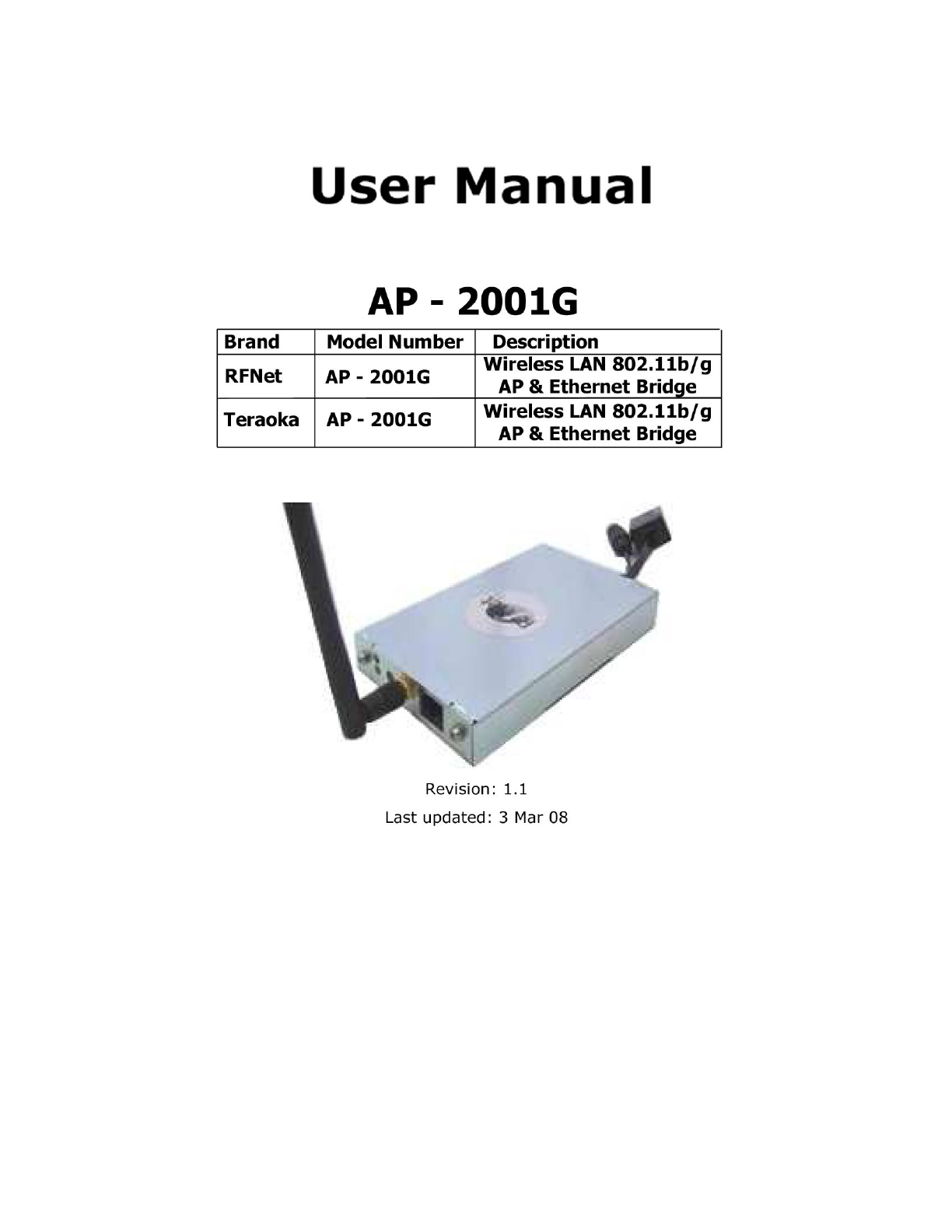

User Manual
FCC Compliance
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
Important Note:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end product for any additional compliance
requirements required with this module installed (for example, digital device emissions, PC
peripheral requirements, etc.)
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID cannot be used on the final product. In these circumstances, the
OEM integrator will be responsible for re-evaluating the product (Including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may
be installed
such that 20cm may be maintained between the antenna and users (for
example: Notebook,
Access Point, Router and similar product). The final end
product must be labeled in a visible area
with the following: “Contains TX FCC
ID: PXPAP2001G’’.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end
user regarding how to
install or remove this RF module in the user’s manual of
the end product which integrates this
module.
The user’s manual for OEM integrators must include the following information in a
prominent
location “IMPORTANT NOTE: To comply with FCC RF exposure
compliance requirements. The
antenna must not be co-located or operating in
conjunction with any other antenna or transmitter
and antenna must be installed such that 20cm is maintained between the antenna and users
Canada-Industry Canada (IC)
Operation is subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause
undesired operation of the device.
This device has been designed to operate with an antenna having a maximum gain of 0.52 dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The
required antenna impedance is 50 ohms.
Contents
INTRODUCTION............................................................................................ 9
THE PRODUCT .................................................................................................9
PRODUCT FEATURES ..........................................................................................9
BASIC IP NETWORKING ....................................................................................10
WIRELESS LAN BASICS ....................................................................................11
GETTING STARTED ..................................................................................... 13
CONNECTING AP-2001G..................................................................................13
AP-2001G CONFIGURATION ....................................................................... 14
WEB CONFIGURATION ......................................................................................14
STATUS ...................................................................................................... 16
SYSTEM SUMMARY ..........................................................................................16
SITE SURVEY ................................................................................................16
STATISTICS ..................................................................................................17
BASIC SETUP.............................................................................................. 18
ADMIN SETTING .............................................................................................18
USER SETTING...............................................................................................18
IP ADDRESS SETTING ......................................................................................19
WIRELESS SETUP ....................................................................................... 19
BASIC SETTING..............................................................................................19
ADVANCE SETTING..........................................................................................20
SECURITY SETTING .........................................................................................21
SYSTEM SETUP ........................................................................................... 24
BACKUP/RESTORE SETTINGS ..............................................................................24
FIRMWARE UPLOAD .........................................................................................25
REBOOT ......................................................................................................25
ABOUT........................................................................................................ 26
FACTORY DEFAULT SETTING ...................................................................... 26
9
Introduction
The Product
The product is based on the IEEE 802.11g standard, which is the latest 54Mbps Wireless LAN
(WLAN) standard. This standard is five times faster than the widely deployed WiFi (802.11b)
products that are found in homes, airport and public wireless hotspots. Because 802.11g uses the
same 2.4GHz frequency band, the product is fully interoperable with existing WiFi cards and
devices.
Having two wireless protocols in one product ensure that your investments are protected, while
enabling you to enjoy the fastest Wireless LAN speed.
This product could operate as either one of the following modes:
a. Access Point mode, or
b. Wireless Ethernet Bridge mode.
Product Features
Fully compatibility with IEEE 802.11g WLAN standard
Wireless data rate of up to 54Mbps
2.4GHz license-free frequency band
Adjustable Radio Transmit Power
Two LAN ports
Full backward compatibility with 802.11b standard (WiFi 11Mbps)
Management support for administration control with ID & password, Web and Telnet.
802.1x Authentication (For AP mode only). Used with a RADIUS server to check and
verify the identity of WLAN users.
WEP (Wired Equivalent Privacy). A simple WLAN encryption standard to protect wireless
data from sniffers.
WPA (WiFi Protected Access), for AP mode only. An improved WLAN encryption
standard where the secret key renew automatically at regular intervals.
TKIP (Temporal Key Integrity Protocol). A new encryption key will be generated by
corporate RADIUS server when a authorized wireless adaptor/user associate with
the Access Point. This encryption key renew automatically at regular intervals. This
is normally used in high security enterprise networks.
Pre Shared Key (WPA-PSK). A new key is generated each time a wireless adaptor
connects to the Access Point. This normally used for home user without a RADIUS
server.
Intuitive Web-based configuration
Access Control List provides added security for AP mode.
Basic IP Networking
IP = Internet Protocol
IP stands for Internet Protocol. In an IP network, every device has a unique IP Address (For
example: 192.168.1.35) to identify itself. There are two ways of assigning an IP address to a PC
or Router: Static and Automatic (DHCP). Static IP addresses are keyed-in manually, while
Dynamic IPs are distributed by a DHCP Server.
Ports
Every packet of traffic is identified by its Source and Destination Addresses, which would ensure
that the packet arrives at the correct destination. A Port Number is also embedded in each
packet; to identify which software application that generated and uses that packet. Therefore, if
AP-2001g blocks a certain port number, it denies the particular software from using the
connection.
Static IP Address
Static IP addressing ensures that the device will always have the same IP address. Static
addressing is commonly used for your servers.
Dynamic IP Address
A dynamic IP address is one that is automatically assigned to a PC. These IP addresses are
“dynamic” because they are only temporarily leased to the PC when it connects to the network.
This is the most convenient and common way of managing IP addresses in a network. The
Server that manages this pool of IP addresses is called the DHCP Server. The product has a
DHCP Server built-in to simplify the network management.
DHCP (Dynamic Host Configuration Protocol)
The PC obtaining an IP address from the Server is called the DHCP Client. If there is already a
DHCP Server running on your network, you must disable one of the two DHCP servers. Running
more than one DHCP server together will cause network problems!
Wireless LAN Basics
A Wireless LAN (WLAN) is a computer network that transmits and receives data with radio
signals instead of using cables. WLANs have become common in homes, offices, airports and
public Hotspots. WLAN can support the same applications and software that run on a wired
network (LAN). Besides supporting the same software and functions, WLAN brings greater
convenience and eliminates the need to lay Ethernet cables in a home or office.
The AP-2001g is based on the finalised 802.11g standard. The IEEE 802.11g standard is an
improvement on the 802.11b (WiFi) standard. It increases the data rate up to 54 Mbps within the
2.4GHz band. As the 802.11b standard is also using the 2.4GHz frequency band, the product is
fully backward compatible with the older 802.11b devices. WiFi cards can be used to connect to
AP-2001g at 11Mbps.
The AP-2001g can even support 108Mbps wireless data rate at Turbo mode. This is only
applicable for user using recommended Turbo-capable Cardbus (with Atheros chipset).
The AP-2001g is also known as the Wireless Access Point (AP). The PC using the Cardbus is
known as the Client. WLAN networking involves a few additional parameters to be configured:
SSID
The SSID is the “network name” for the WLAN network. The SSID is any name, and can be any
set of characters or numbers, and must be configured on both the AP and Client. The Client sniffs
the radio frequencies for an AP with the same SSID with itself. The client locks onto the AP and
they are “associated”.
To enable plug-and-play convenience, most client cards can sniff the frequencies to extract the
available SSIDs to let the user choose from.
Encryption
WLAN traffic can be captured by anybody to be read! The solution is to use encryption to make
the traffic appear as random characters to the eavesdropper. Both the AP and client must use the
same encryption standard and key to enable them to decode the “rubbish”. If the encryption
settings are mismatched, the client and AP cannot associate. WEP (Wired Equivalent Privacy) is
the most common WLAN encryption standard.
MAC Address Control
Every client card has a unique MAC Address. This MAC Address can be input into the AP
(Router), such that the AP only allows this pool of MAC Addresses to use the WLAN.
Channel
There are a total of 13 channels in the 2.4GHz band. Depending on regulation, not all the
frequencies may be available in every country. Frequency is configured on the AP only. The client
searches for the AP and locks onto that AP’s channel.
Signal Strength
Radio signals drop in power over a distance. Even if all the settings are correct, a low signal
strength makes association impossible. The usable distance between the AP and client can
range from a few meters indoor to 200m outdoors maximum. When setting up the AP, make sure
that you:
Keep the distance from the AP to the clients as short as possible.
Make sure that the WLAN signals do not have to pass through too many concrete walls
and metal structures to reach the client.
Make sure that APs are located far away from one another to avoid interference.
Interference
Interference happens when 2 APs with the same channels are placed near to one another. The
speed of the network drops and the signal strength fluctuates wildly.
Roaming
Association happens when the SSID, Encryption and MAC Address Control settings are correct
between the AP and client. If 2 APs with these same settings are located in the same area, the
client would choose to associate to the one which gives it a better signal strength. The client
would roam over to the 2nd AP when he moves nearer to it. The client switches AP and
frequency as he does so.
GETTING STARTED
Connecting AP-2001g
This manual is for both AP-2001g and EB1-T002-TRK. Connect RJ45 and the power adapter as
shown in Figure 1.
Figure 1
Wireless AP
&
Ethernet Bridge
WLAN RADIO
Antenna 1
Antenna 2
LAN 2
LED LAN1/WAN
LED WLAN
Reset
Switch
LAN1/WAN
AP-2001g CONFIGURATION
Web Configuration
AP-2001g can be configured using a web server.
1. Connect the network as shown previously.
If you are accessing the web server via Ethernet cable, check that the
upper LED lights up on AP-2001g.
If your PC is wireless, check the PC’s card utility to make sure that the
signal strength is good and that the bottom LED lights up on AP-2001g.
2. Open a Web browser (Internet Explorer, Netscape etc.).
3. Type AP-2001g LAN IP (10.0.0.2) address into the browser’s Address field. The default
LAN IP address of AP-2001g is 10.0.0.2.
4. Enter username and password. The default username is admin and the default password
is admin.

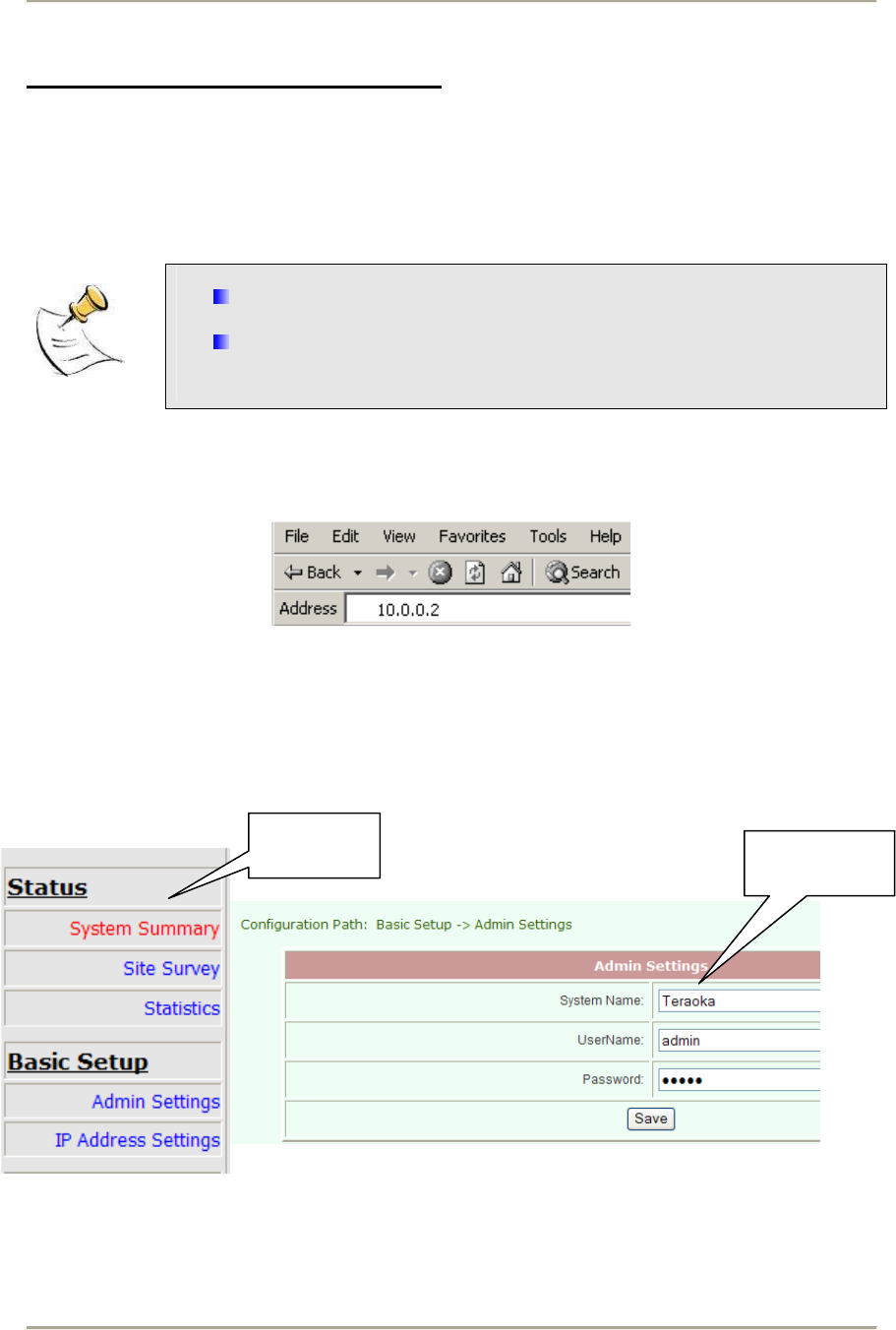

In every AP-2001g Web Configuration page, the left panel is the navigation menu containing the
main sections. The right-side frame is where the detailed configuration is done.
Navigation
panel Configuration
panel
Remember that after every configuration change, it is necessary to:
- Click Save on the page.
- Reboot AP2001g.
The changes take effect only AFTER Reboot.

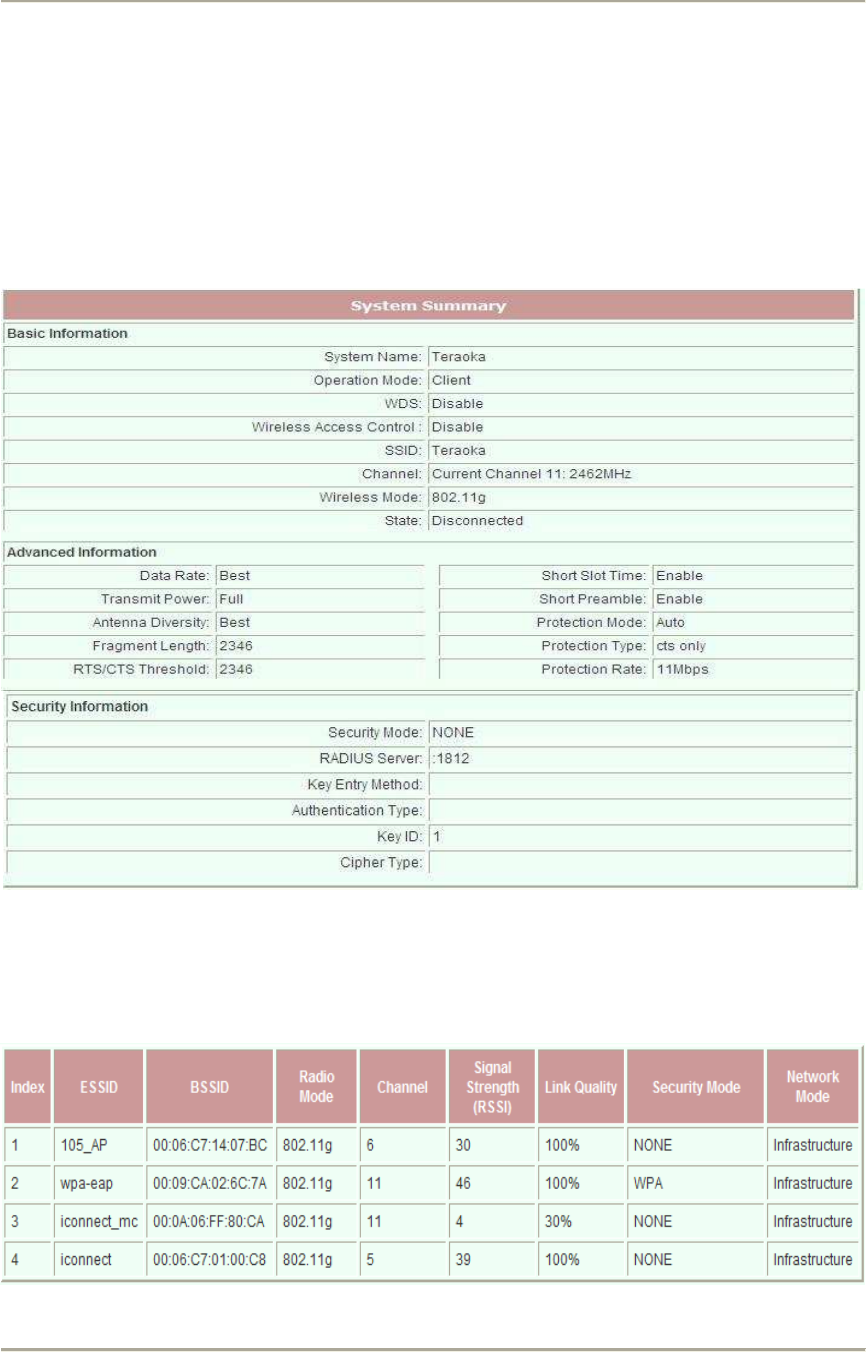

Status
System Summary
This page presents a convenient overview of the overall status of the AP-2001g. The most
common configuration parameters are shown here, for a quick look.
Site Survey
This page shows all the AP around AP-2001g. It also shows details such as the SSID, channel,
MAC Address, radio mode and etc. of the surrounding AP.

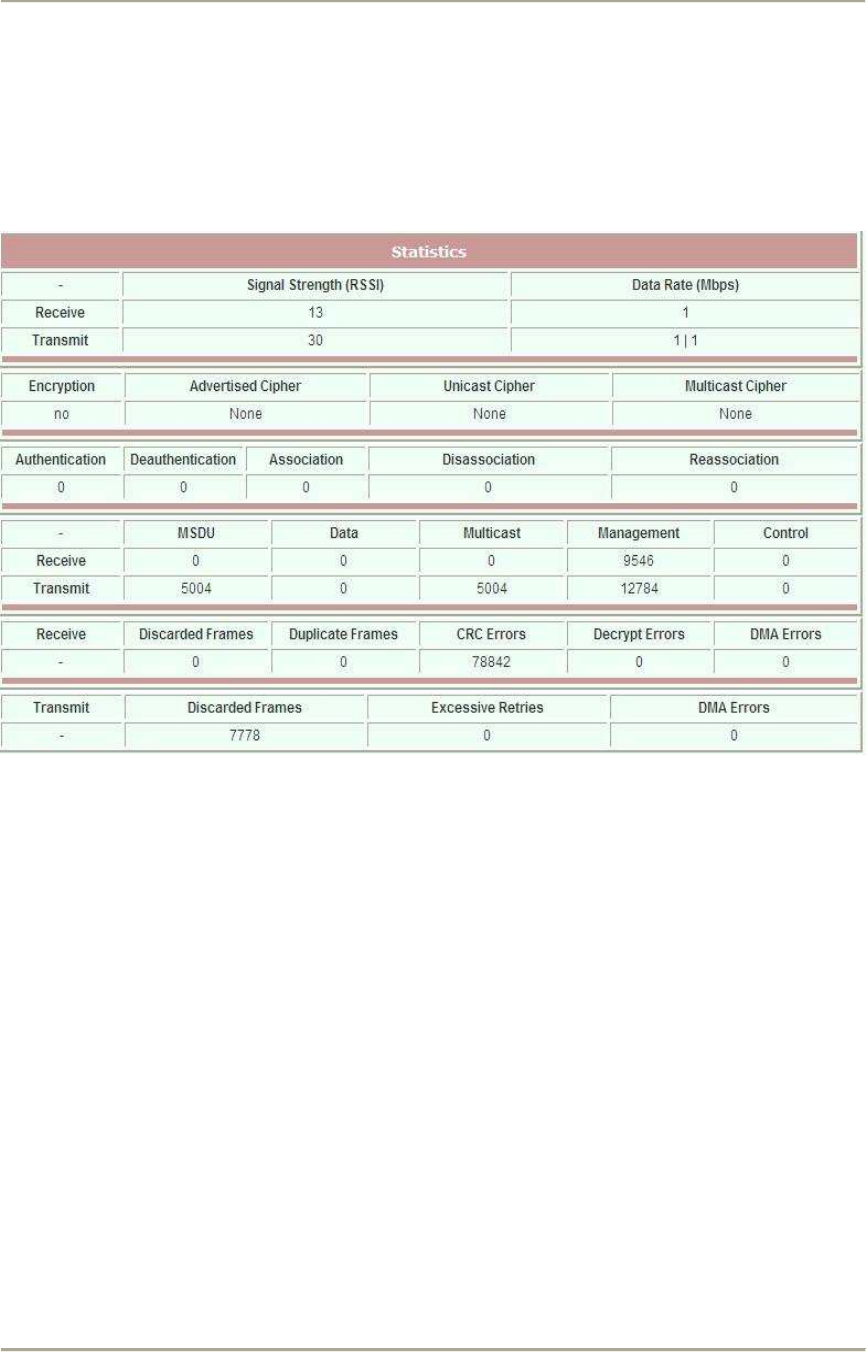

Statistics
This page shows the Statistics of AP-2001g such as the signal strength of the radio, the data rate,
the error rate and etc.
Basic Setup

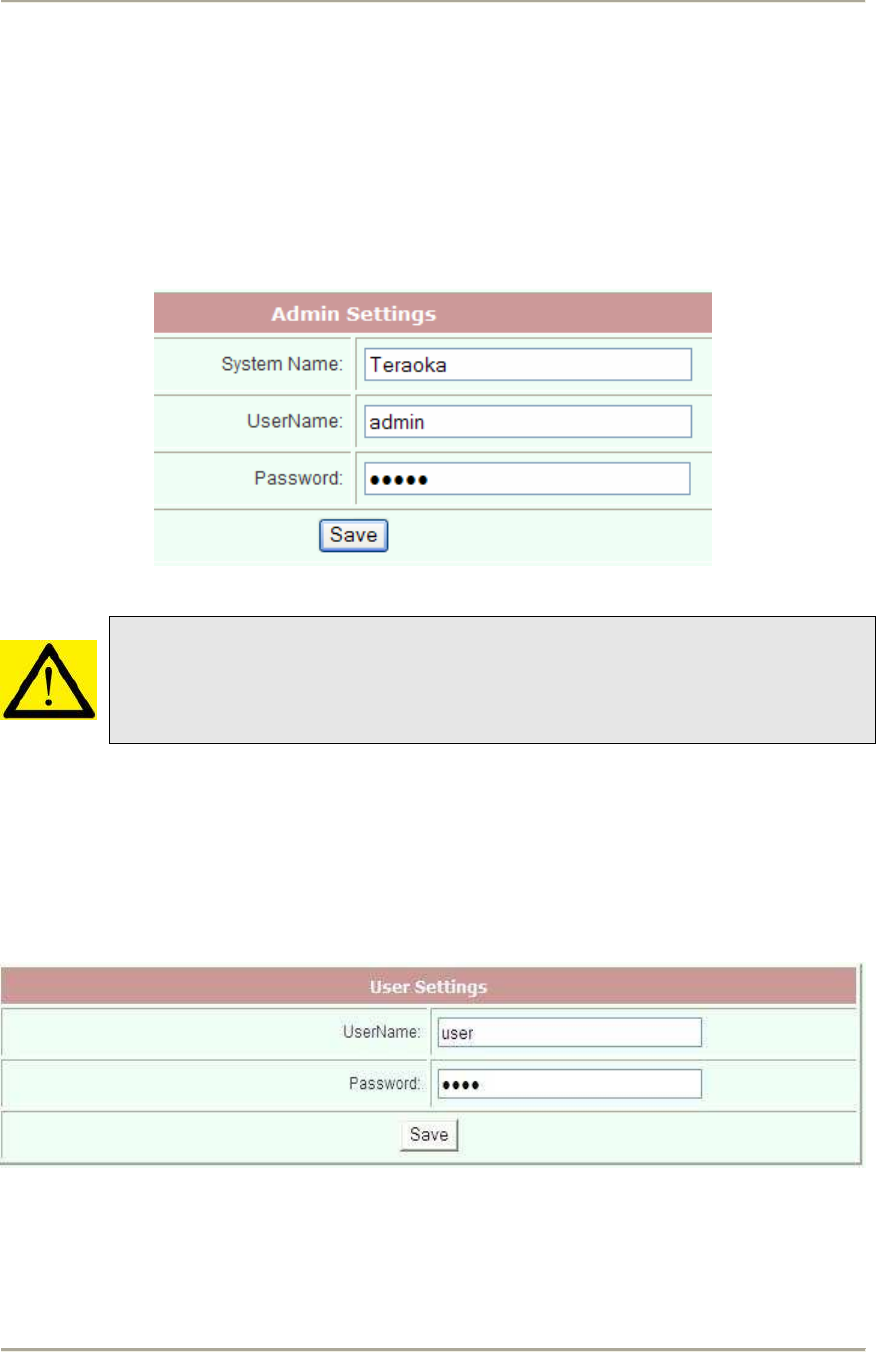

Admin Setting
This page allows you to change the System Name, Username and Password for AP-2001g. The
default system name is Teraoka and the default username and password is admin / admin. After
every factory reset, the Username and Password reverts to this combination.
The username and password are case sensitive.
User Setting
This page allows you to change the User name and Password of the new user.
The default User name is user and the password is user

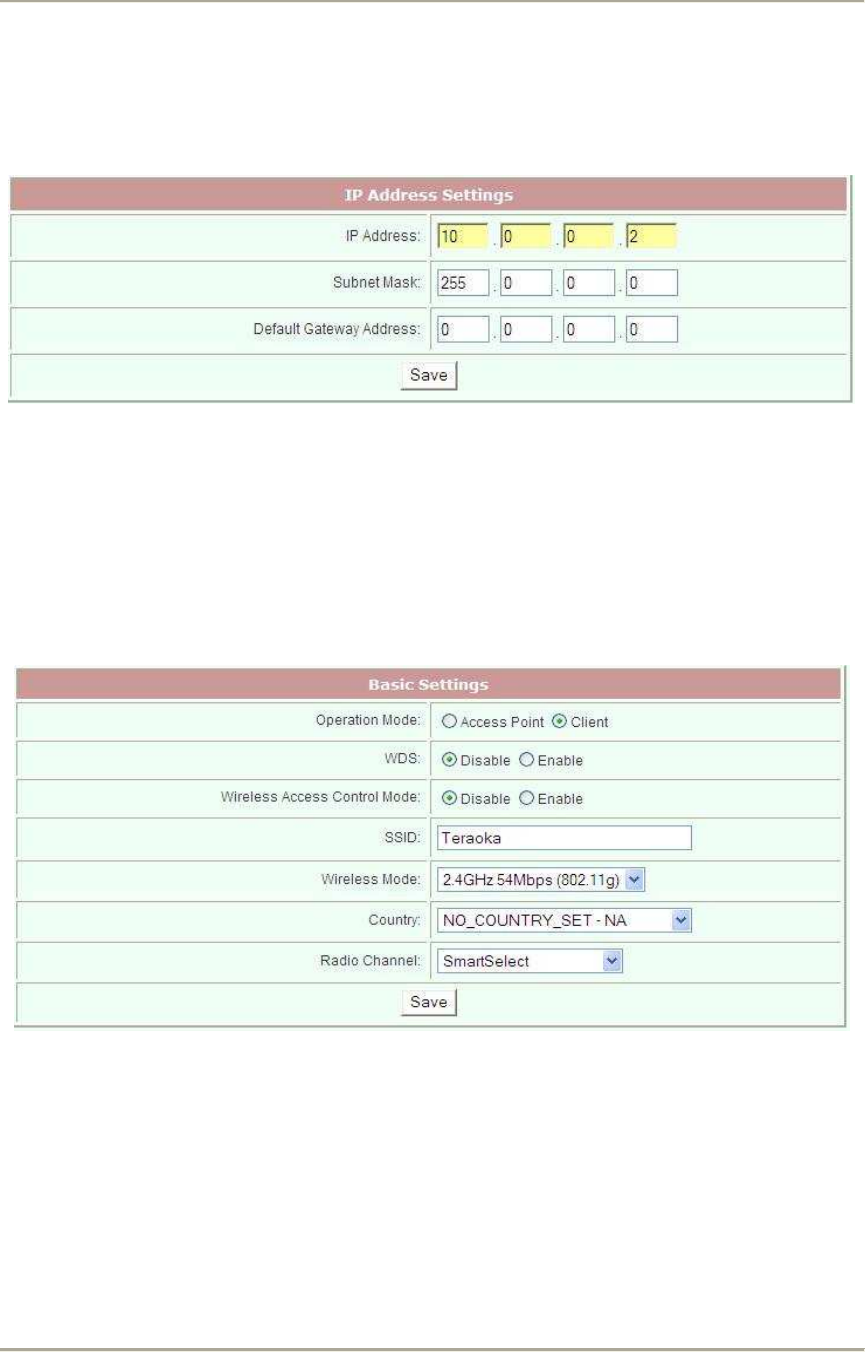

IP Address Setting
This page allows you to change the IP address, Subnet Mask and Gateway of AP-2001g. The
default IP address is 10.0.0.2.
Wireless Setup
Basic Setting
This page allows you to change the basic settings of the wireless configuration.
Operation Mode: AP-2001g can be used as an Access Point or as a Wireless Client. The default
setting is Client
WDS: Wireless Distribution System. Enable WDS allows more than one user to connect to
AP-2001g. Disable WDS allows only one user to connect to AP-2001g. The default setting is
WDS disable.
SSID: Service Set Identifier. It is a sequence of characters that uniquely names a Wireless LAN.
This name allows PCs to connect to the correct Wireless Access Point when multiple Access
Points operate in the same location. The default SSID is Teroaka.
Wireless Mode: To choose to operate the AP or Client in 802.11b or 802.11g. Both operate in
the frequency of 2.4GHz but 802.11g has a faster data rate of 54Mbps as compared to the
11Mbps of 802.11b.
Country: List of different countries which you can choose and set for the AP-2001g device.
Radio Channel: There are 11 different frequency channels. You can choose to set the frequency
channel to use or use SmartSelect for automatic channel selection.
Remember that after every configuration change, it is necessary to:
- Click Save on the page.
- Reboot AP-2001g.
The changes take effect only AFTER Reboot.
Advance Setting
Data Rate
:
You can fix the data rate to different values as 11Mbps or 24Mbps. However it is
recommended to set the setting to “Best” for AP-2001g to determine the best data rate to be use.
Transmit Power: Sometimes, it is useful to decrease the coverage range of each AP-2001g, so
that more AP-2001g can be located together without interference to one another. The default
transmission power is 100% (full).
Antenna Diversity: Allows you to choose which antenna to use. Always choose Best for best
performance. Do not change this setting without seeking advice.
Fragment Length
:
Specifies the fragment length. Enter a value between 256 and 2346.
RTS/CTS Threshold: Enter a value between 256 and 2346
Protection Mode: Select None, Always or Auto
Protection Rate: Select 1Mbps, 2Mbps, 5.5Mbps or 11Mbps
Protection Type: Select either CTS only or RTS-CTS
Short Slot Time: Enable or disable short time slot usage
Short Preamble
:
Enable to use Short Preamble in the Wireless LAN packet headers. Most
manufacturers implement long preambles. Even if there is a mismatch between AP-2001g and
the client, they can still connect well and the mismatch may not be noticeable to most users. Do
not change this setting without seeking advice.

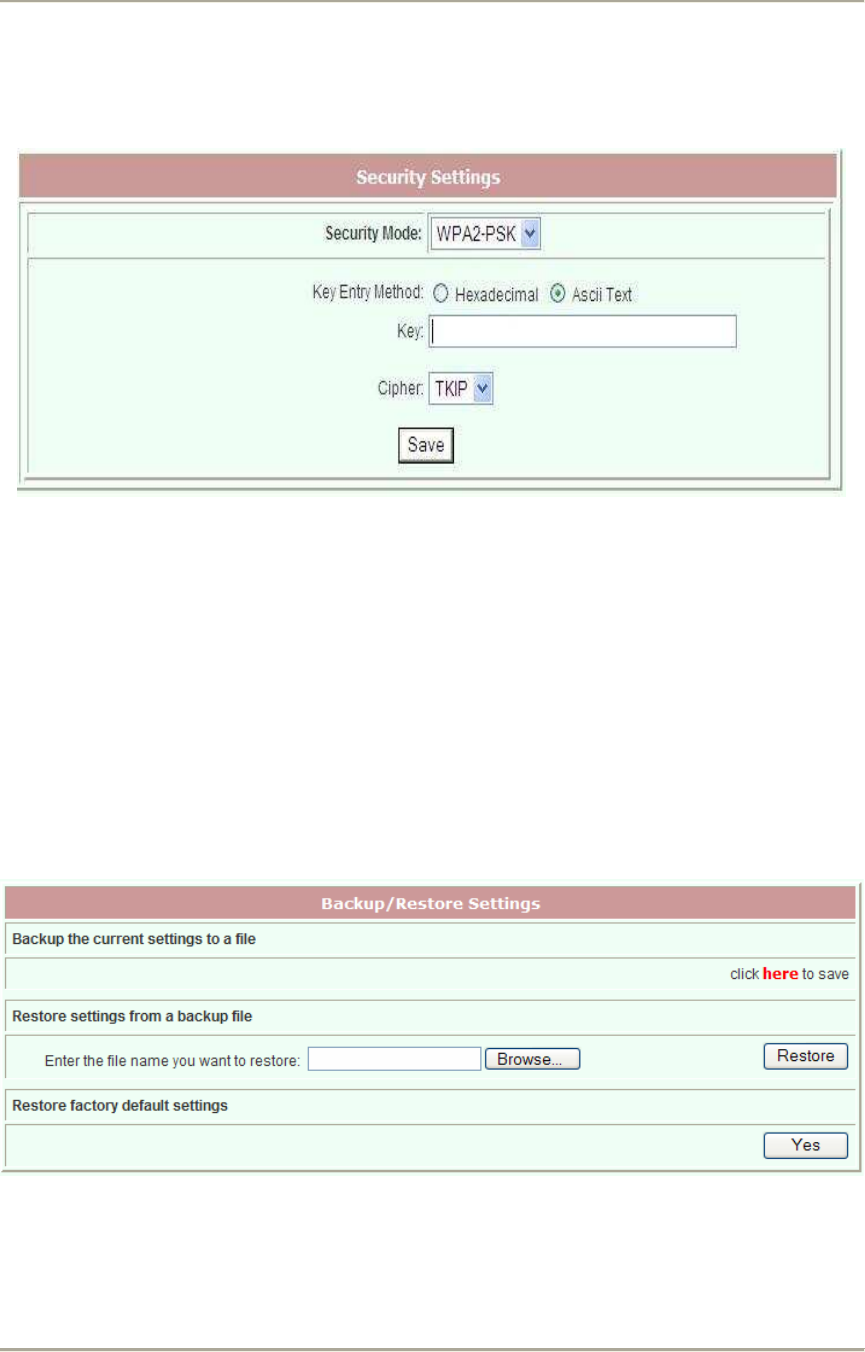

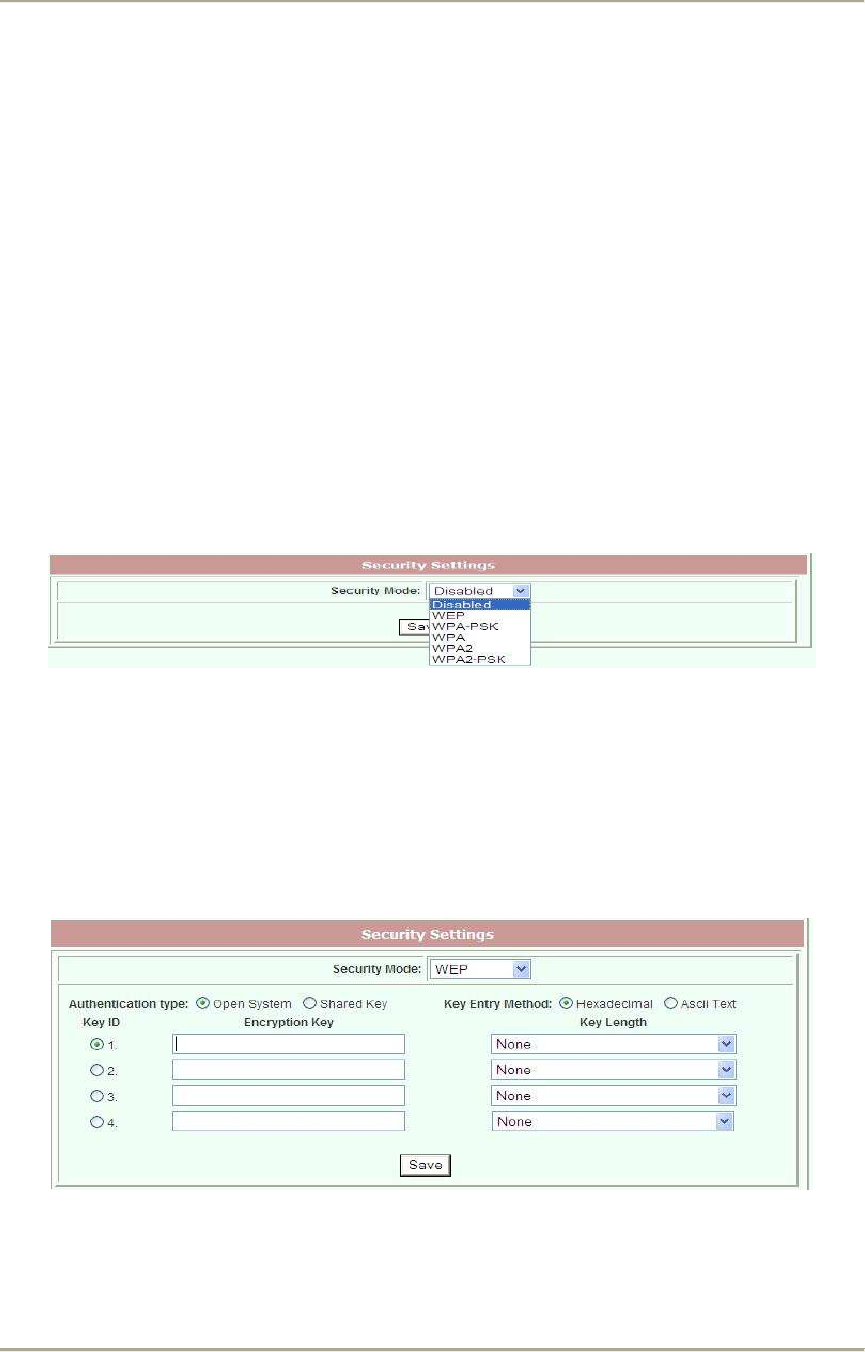

Security Setting
This page allows you to choose the wireless security setting. WPA is only available if AP-2001g
operates as an Access Point. If AP-2001g is in Client mode, WPA is not available.
Disabled: To disable wireless security.
WEP: To enable WEP security.
WPA_PSK: To enable WPA PSK Security.
WPA: To enable WPA Security.
WPA2: To enable WPA2 Security
WPA2-PSK: To enable WPA2-PSK Security
WEP Security
Open System: The key is used for encryption only. No authentication is required. To configure,
enter the encryption Key in the “Encryption Key” field.
Pre-shared Key: When chosen, the encryption Key is also used for authentication. To configure,
enter the encryption Key in the “Encryption Key” field.
Key Entry Method: Choose Hexadecimal if you want to enter the Keys in hexadecimal format.
Otherwise, choose Ascii Text to enter the Key in ASCII format. ASCII is also called Alphanumeric
in some systems.

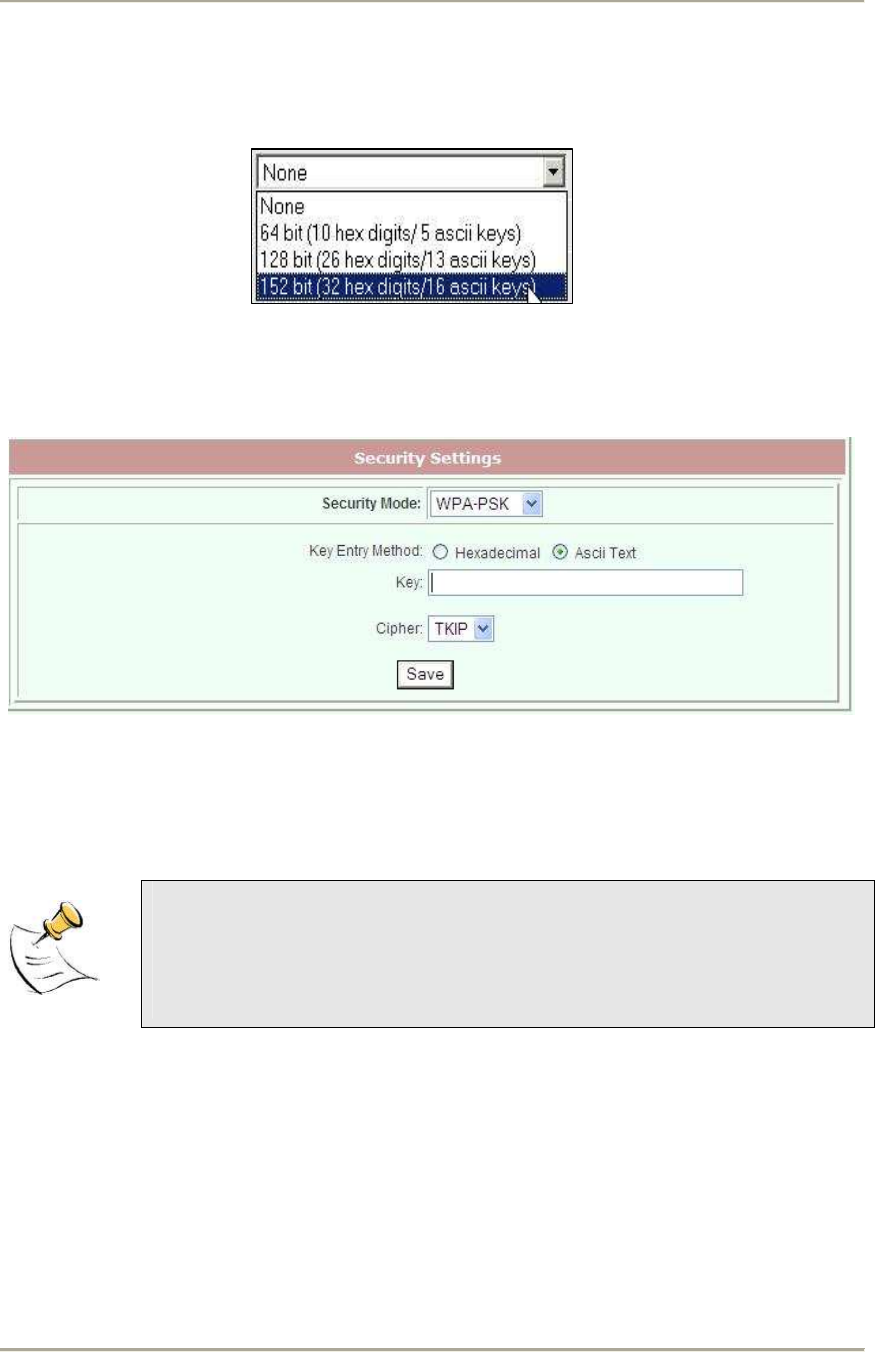

Key Length: Choose the number of bit for the encryption key.
WPA-PSK Security
Key Entry Method: Choose Hexadecimal if you want to enter the Keys in hexadecimal format.
Otherwise, choose Ascii Text to enter the Key in ASCII format. ASCII is also called Alphanumeric
in some systems.
Key: Enter the Encryption key. The Encryption key has to be between 8 - 64 characters.
Cipher Type: Choose TKIP or AES
Hexadecimal Characters:
0,1,2,3,4,5,6,7,8,9 and a,b,c,d,e,f
ASCII Characters:
0,1,2,……8,9 and
a,b,c,d,………x,y,z

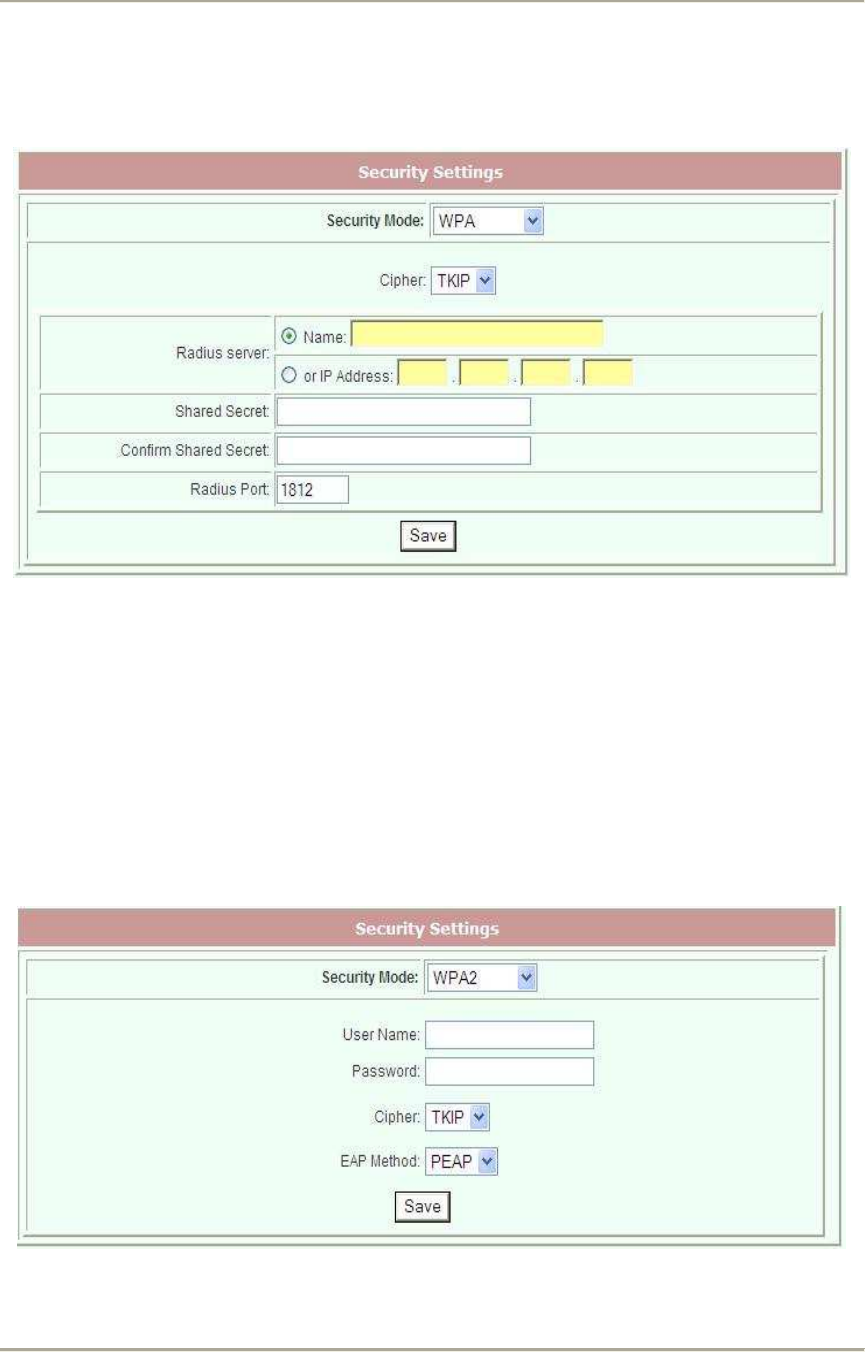

WPA Security
This security setting is only available when AP-2001g is operating as an Access Point.
RADIUS Server: Enter the IP Address or the Name of the RADIUS Server (for 802.1x
authentication purposes). This is used only when you have a RADIUS Server and want to use it
for authenticating the Wireless Clients.
RADIUS Secret: Enter the Shared Secret of the RADIUS Server. (Only if 802.1x protocol is used)
Confirm Shared Secret: Enter the Shared Secret again.
RADIUS Port
:
Enter the port number of the RADIUS Server.
WPA2 Security
Common feature for both Access Point and Wireless Ethernet Bridge mode
WPA2-PSK Security
Key Entry Method: Choose Hexadecimal if you want to enter the Keys in hexadecimal format.
Otherwise, choose ASCII Text to enter the Key in ASCII format. ASCII is also called
Alphanumeric in some systems.
Key: Enter the Encryption key. The Encryption key has to be between 8 - 64 characters.
Cipher Type: Choose TKIP or AES
System Setup
Backup/Restore Settings
Backup the current settings to a file: To save the current configuration of AP-2001g.
Restore settings from a backup file: To restore the previous configuration that was previously
saved.
Restore factory default settings: To restore AP-2001g back to factory default.

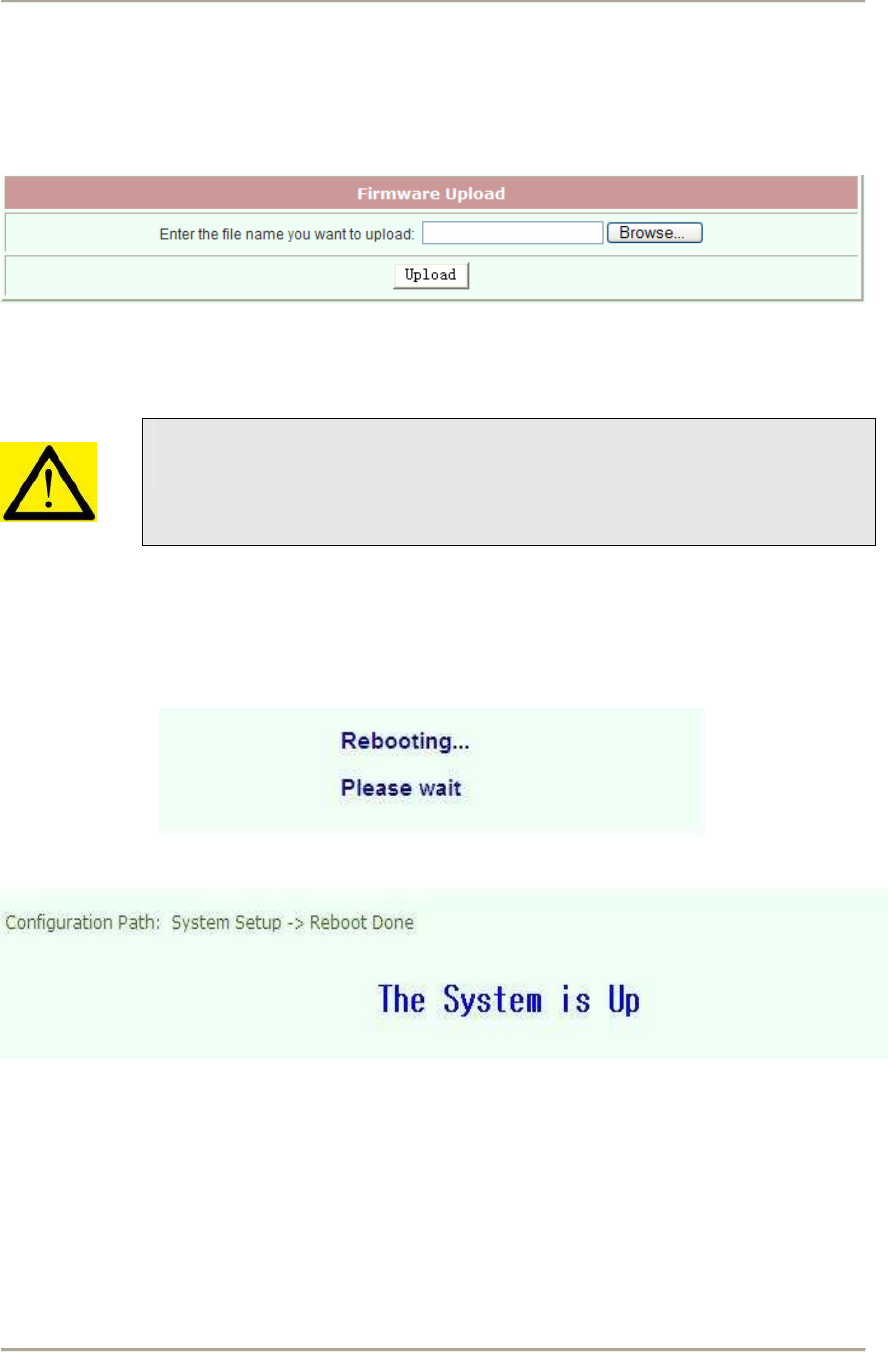

Firmware Upload
This page allows you to update the firmware (software) in AP-2001g. New firmware is issued to
improve the performance and add features to the product.
Browse to the new firmware file name apimg1 and click upload. Do not change the filename of
the new firmware as doing so will cause the upgrading process to fail.
Do not change the filename of the new firmware. New firmware with filename
other than “apimg1” will cause the process to fail.
Reboot
This page allows you to check when you do the device rebooting until such time the system is up.

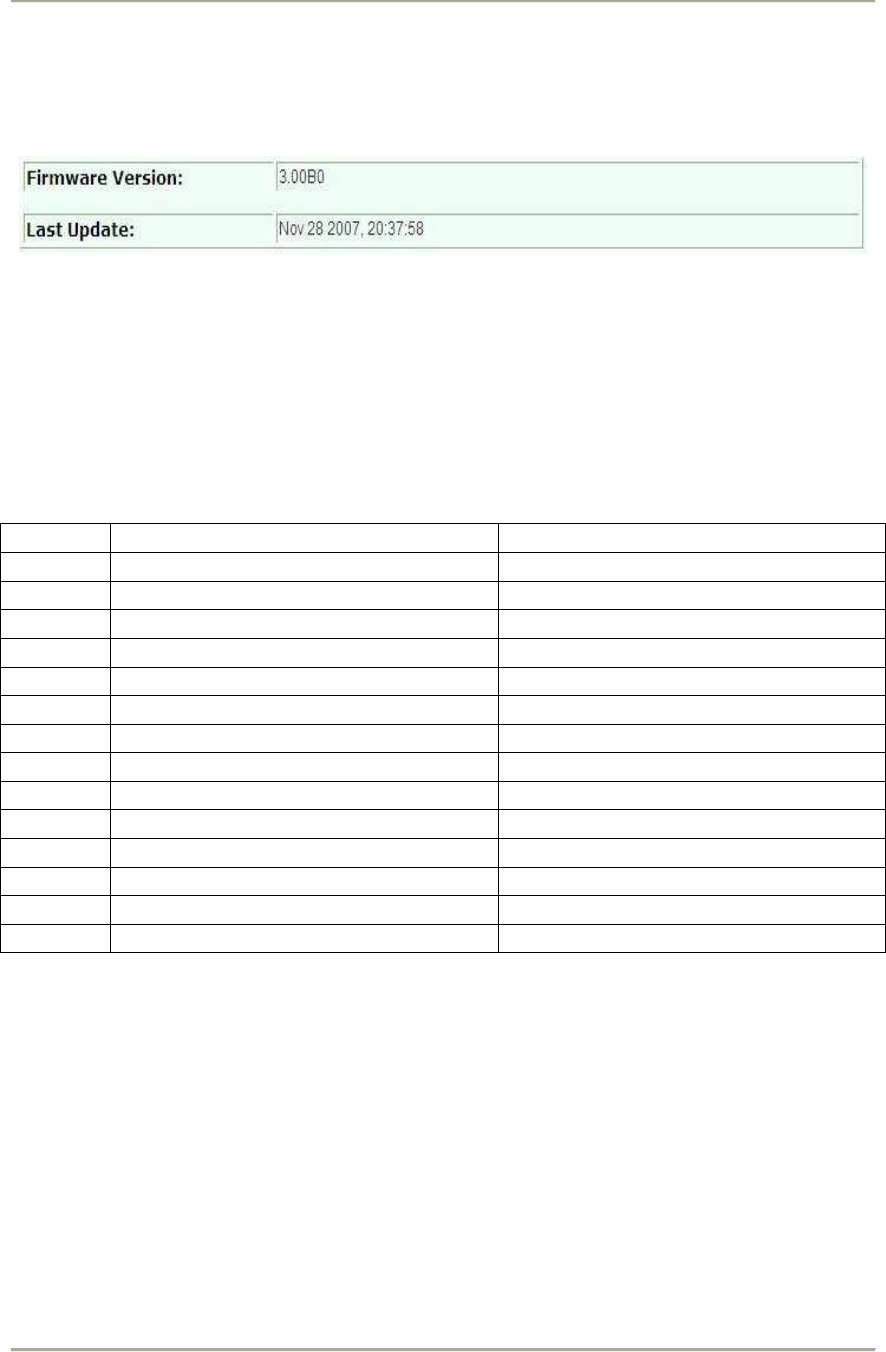

About
This page shows the firmware version and the date at which the firmware was updated.
Factory Default Setting
To set the wireless bridge back to factory default setting, press the reset button for 5sec and
release.
The factory default setting is as follows:
No Item Factory Default
1 User ID (for configuration) admin
2 Password (for configuration) admin
3 Default Static IP address 10.0.0.2
4 Default Subnet Mask 255.0.0.0
5 Default Gateway Address 0.0.0.0
6 WLAN Client Mode Client
7 WDS Disable
8 ESSID Teraoka
9 WEP/WPA Off
10 Radio Power 100%
11 FTP Port 1301
12 Country Default NA
13 Additional Files in Flash Version
14 Firmware Version Version 3.00B0
