RFNet Technologies AP2010 Professional Outdoor 2.4Ghz 802.11b/g, AP/Bridge/Repeater. User Manual AP 2010 r1 01
RFNet Technologies Pte Ltd Professional Outdoor 2.4Ghz 802.11b/g, AP/Bridge/Repeater. AP 2010 r1 01
User manual
![](/img.php?id=1186564&img=bg1.png)
User Manual
2.4GHz 802.11b/g Outdoor
Access Point – Repeater - Bridge
Professional Speed - 54Mbps
AP-2010
Revision : 1-01
Updated : 02 Oct 09
![](/img.php?id=1186564&img=bg2.png)
Pg 2 of 26
Federal Communication Commission Interference Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation. Changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate the
equipment.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled enviroment.
![](/img.php?id=1186564&img=bg3.png)
Pg 3 of 26
Important Note
1) The transmitter module may not be co-located with any other transmitter or antenna.
2) This equipment should be installed and operated with minimum distance
20cm between the radiator and your body.
![](/img.php?id=1186564&img=bg4.png)
Pg 4 of 26
Contents
1 INTRODUCTION .................................................................................... 1
THE PRODUCT ........................................................................................... 1
KEY FEATURES .......................................................................................... 1
2 PACKAGE CONTENTS............................................................................. 2
CONTENT OF PACKAGE ................................................................................. 2
SYSTEM REQUIREMENTS FOR CONFIGURATION ...................................................... 2
3 CONNECTION ........................................................................................ 3
4 BASIC IP NETWORKING........................................................................ 3
WIRELESS LAN BASICS................................................................................ 4
5 GETTING STARTED................................................................................ 5
6 CONFIGURATION WIZARD.................................................................... 8
7 CONFIGURATION MENU ...................................................................... 11

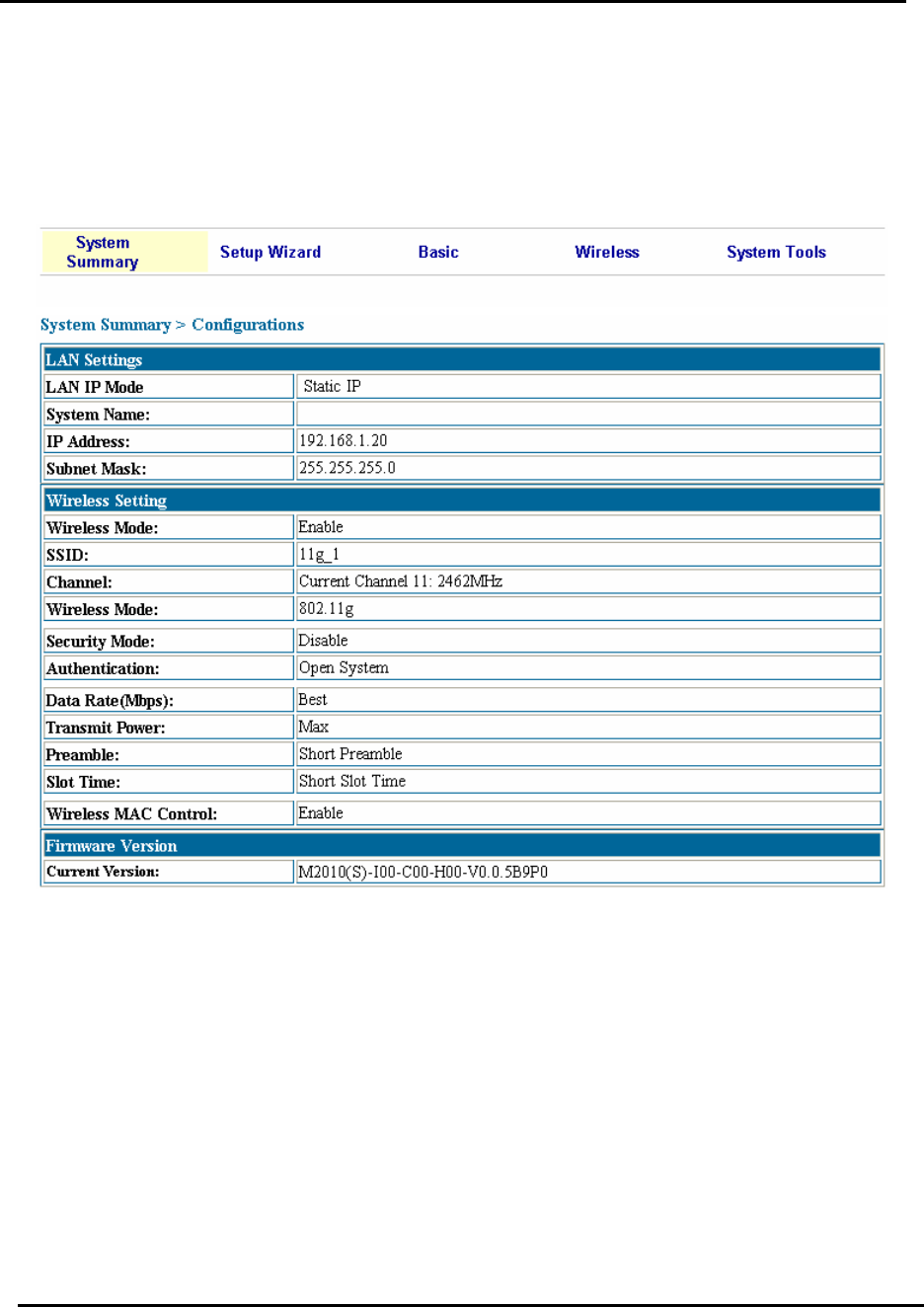

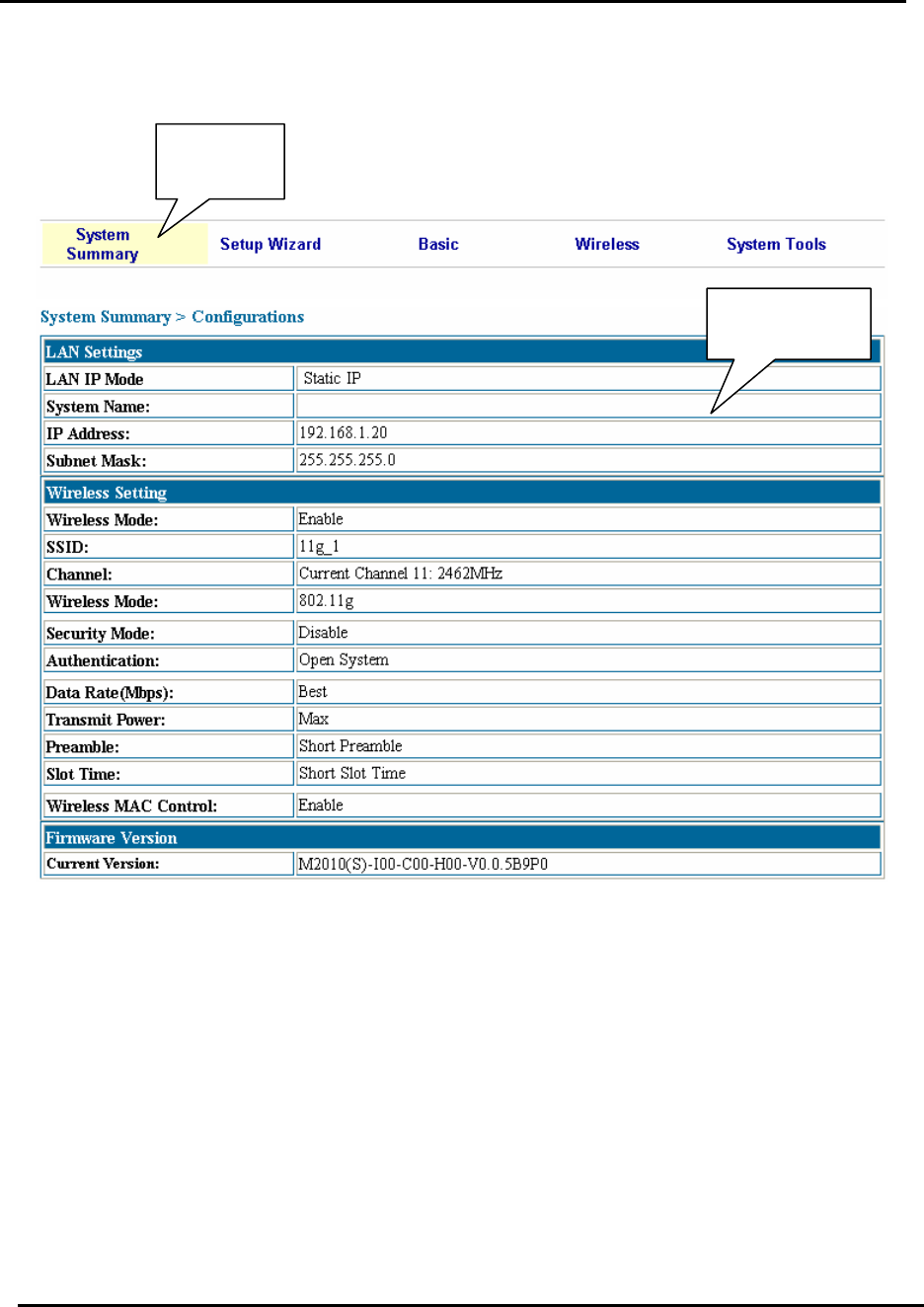

SYSTEM SUMMARY > CONFIGURATION ..............................................................11

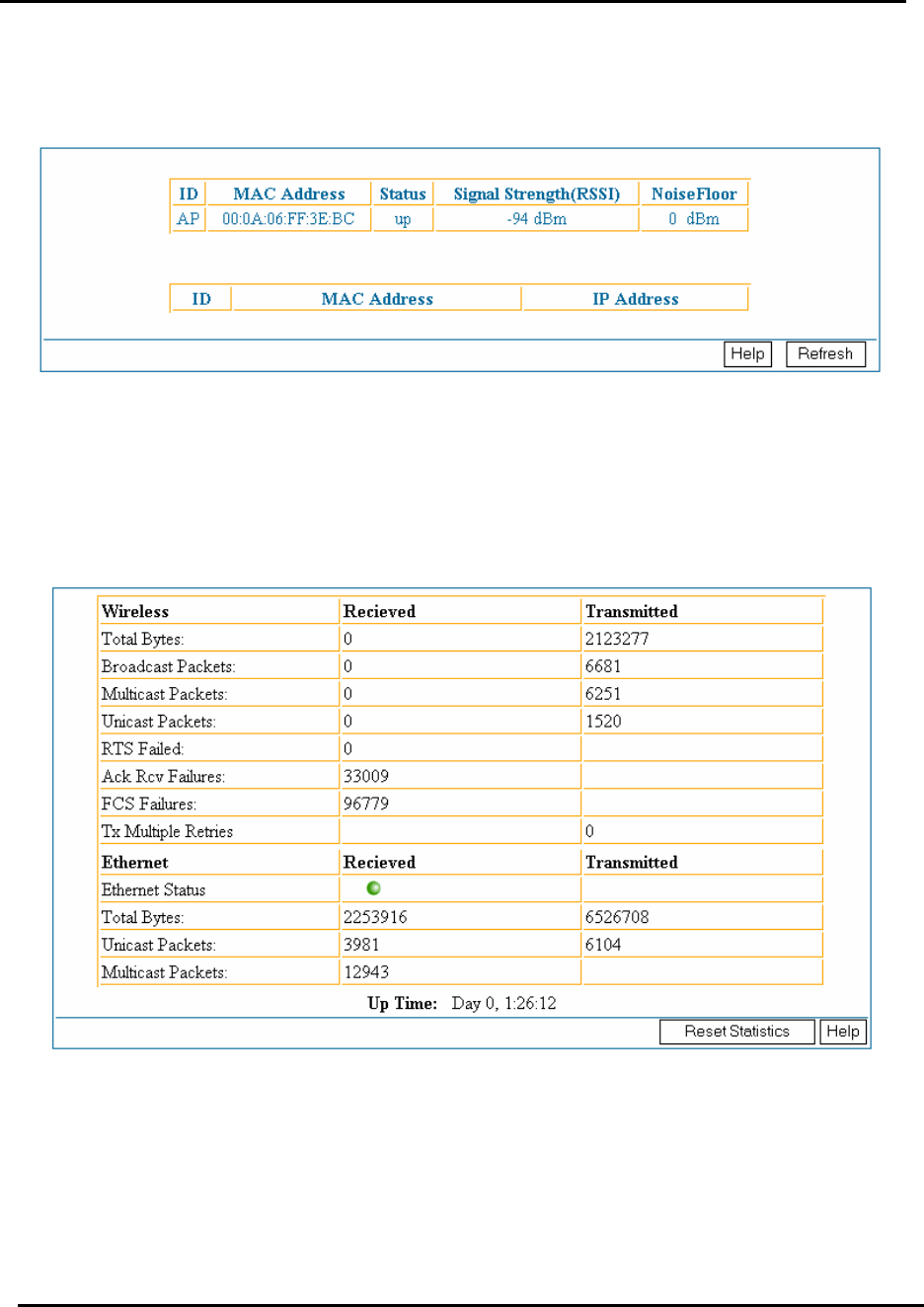

SYSTEM SUMMARY > ASSOCIATIONS................................................................12
SYSTEM SUMMARY > STATISTICS ...................................................................12

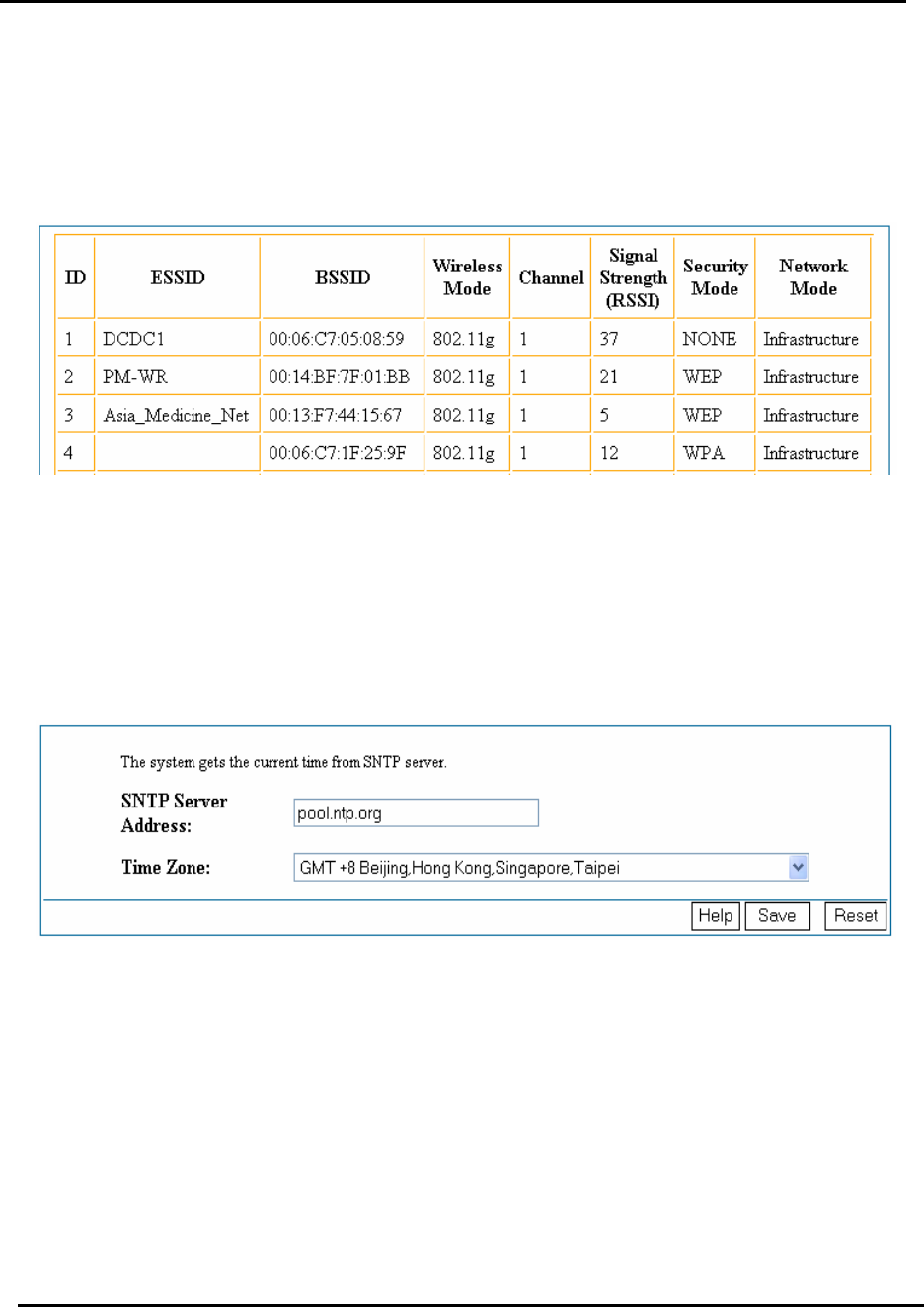

SYSTEM SUMMARY > SITE SCAN ....................................................................13
BASIC SETTING > SNTP .............................................................................13

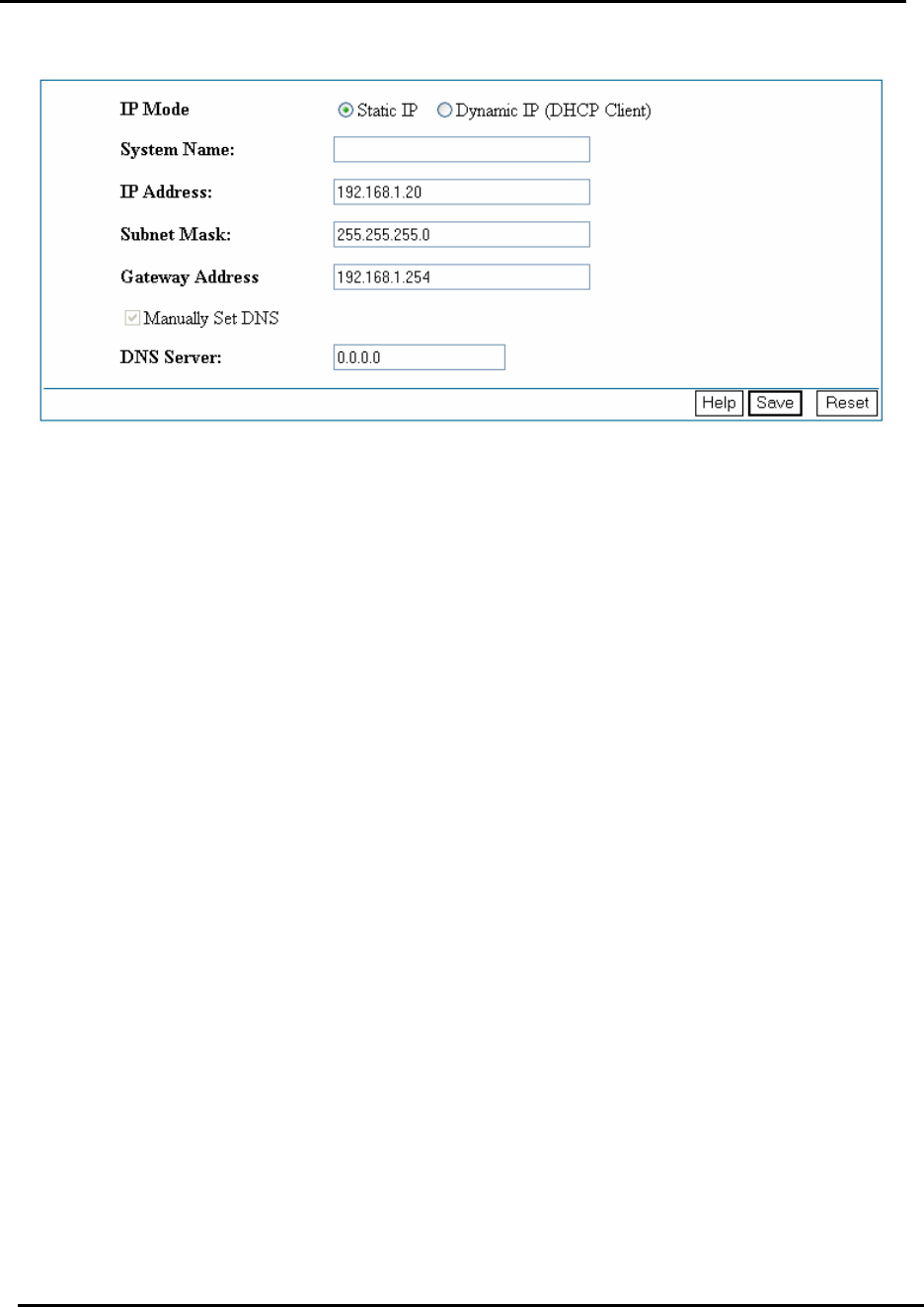

BASIC SETTING > LAN SETTING ....................................................................14
BASIC > VLAN SETTING .............................................................................15

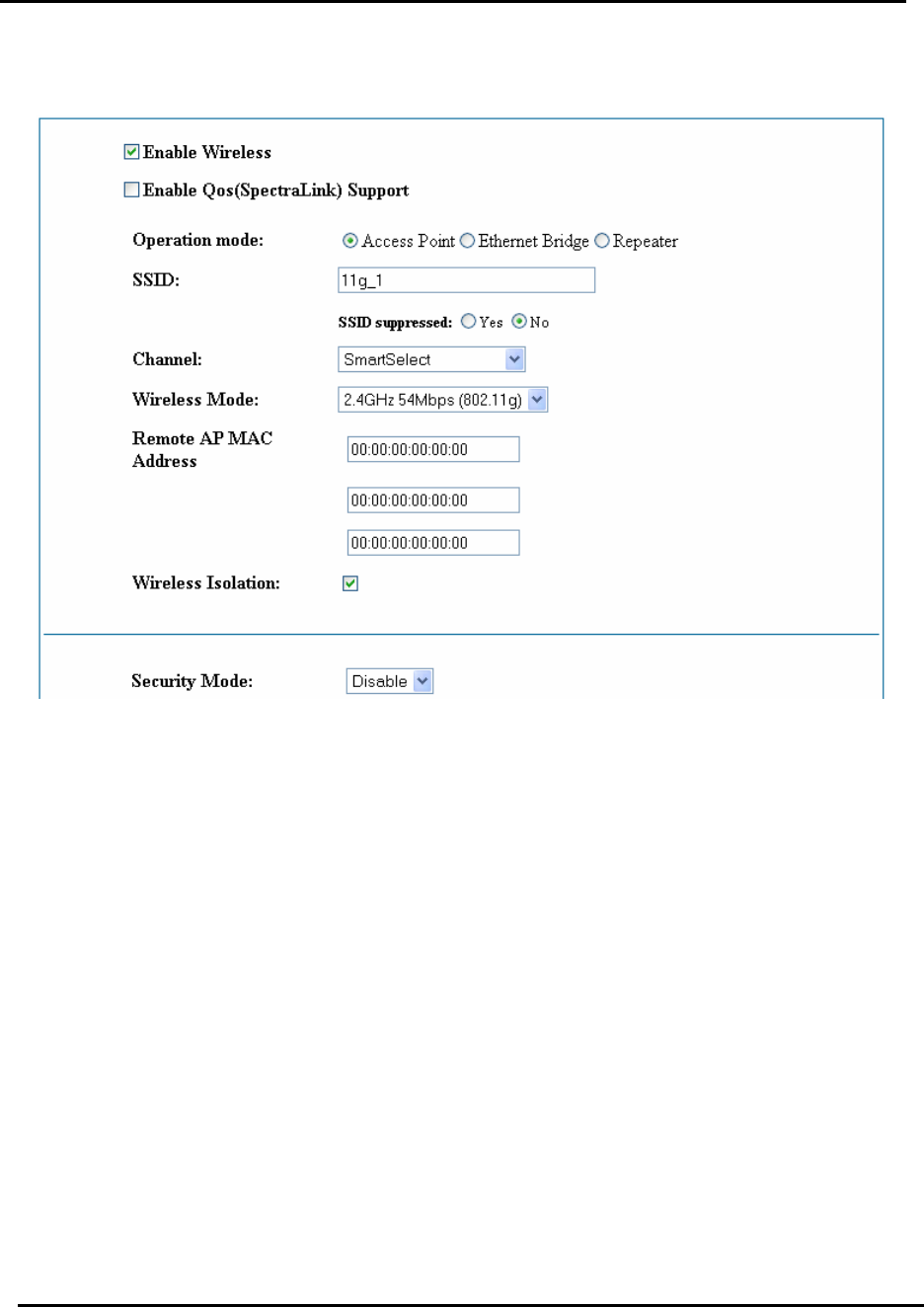

WIRELESS > BASIC SETTING ........................................................................16

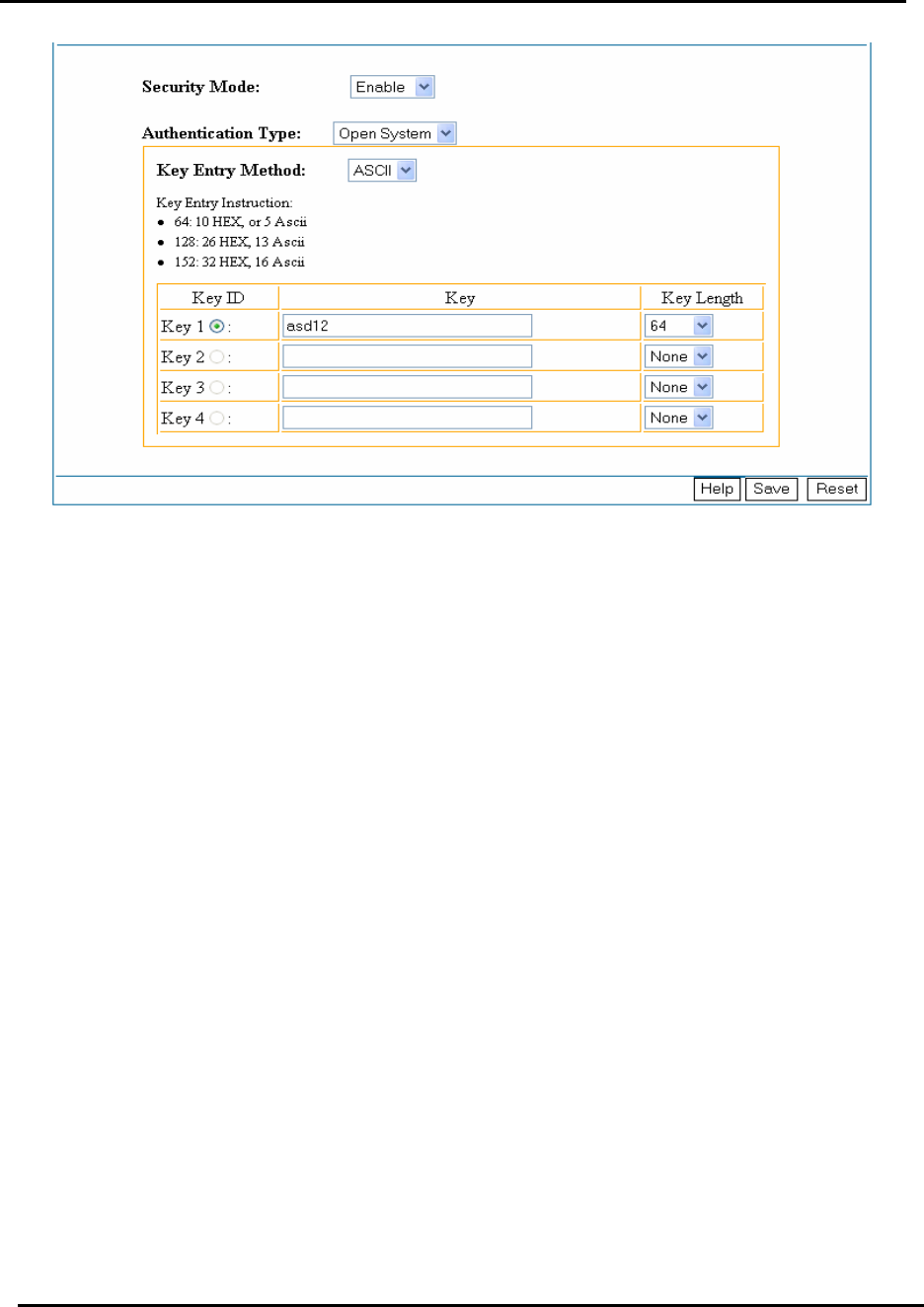

SECURITY MODE > OPEN-SYSTEM/SHARED KEY ...................................................18

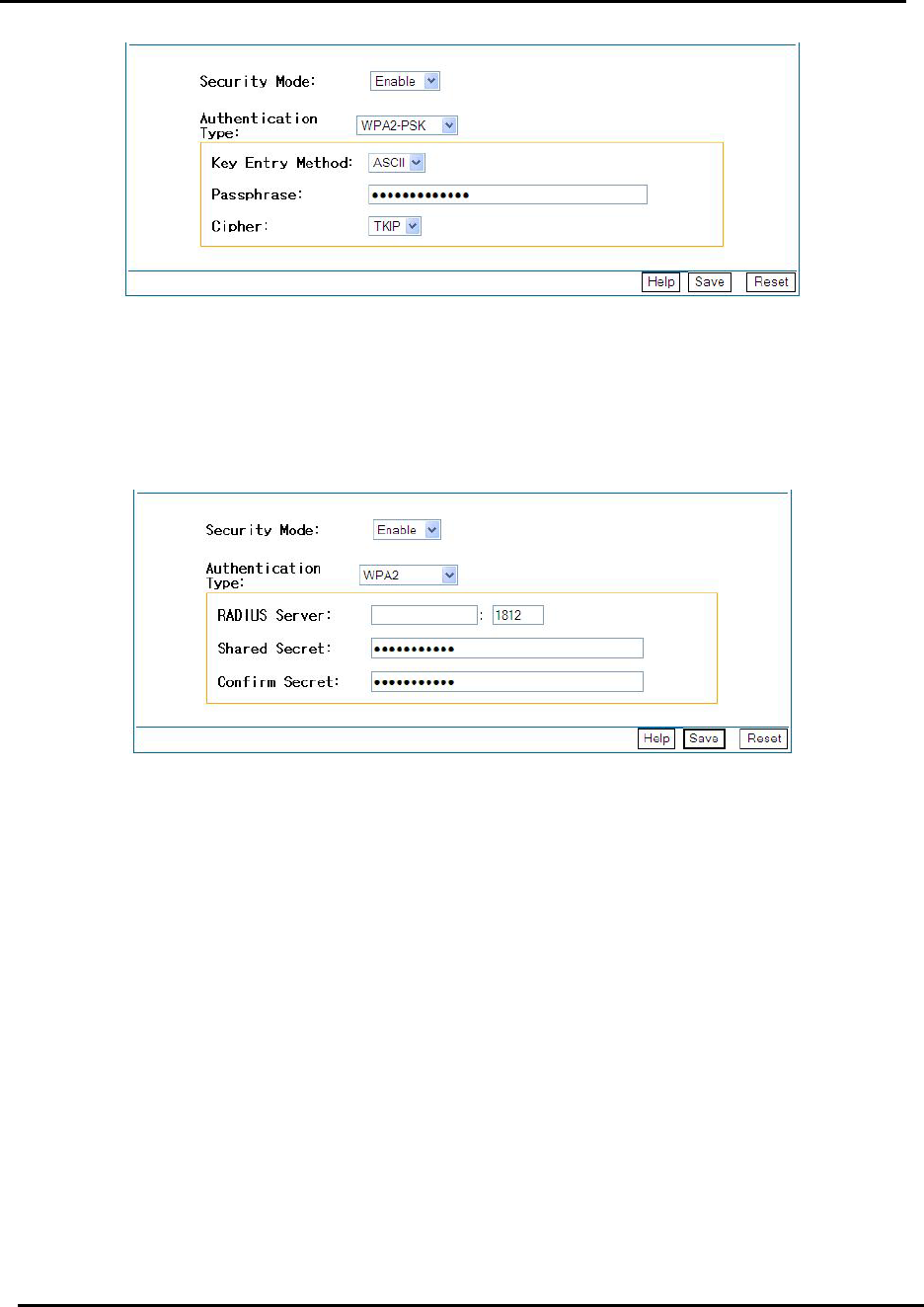

SECURITY MODE > WPA 2-PSK ....................................................................20

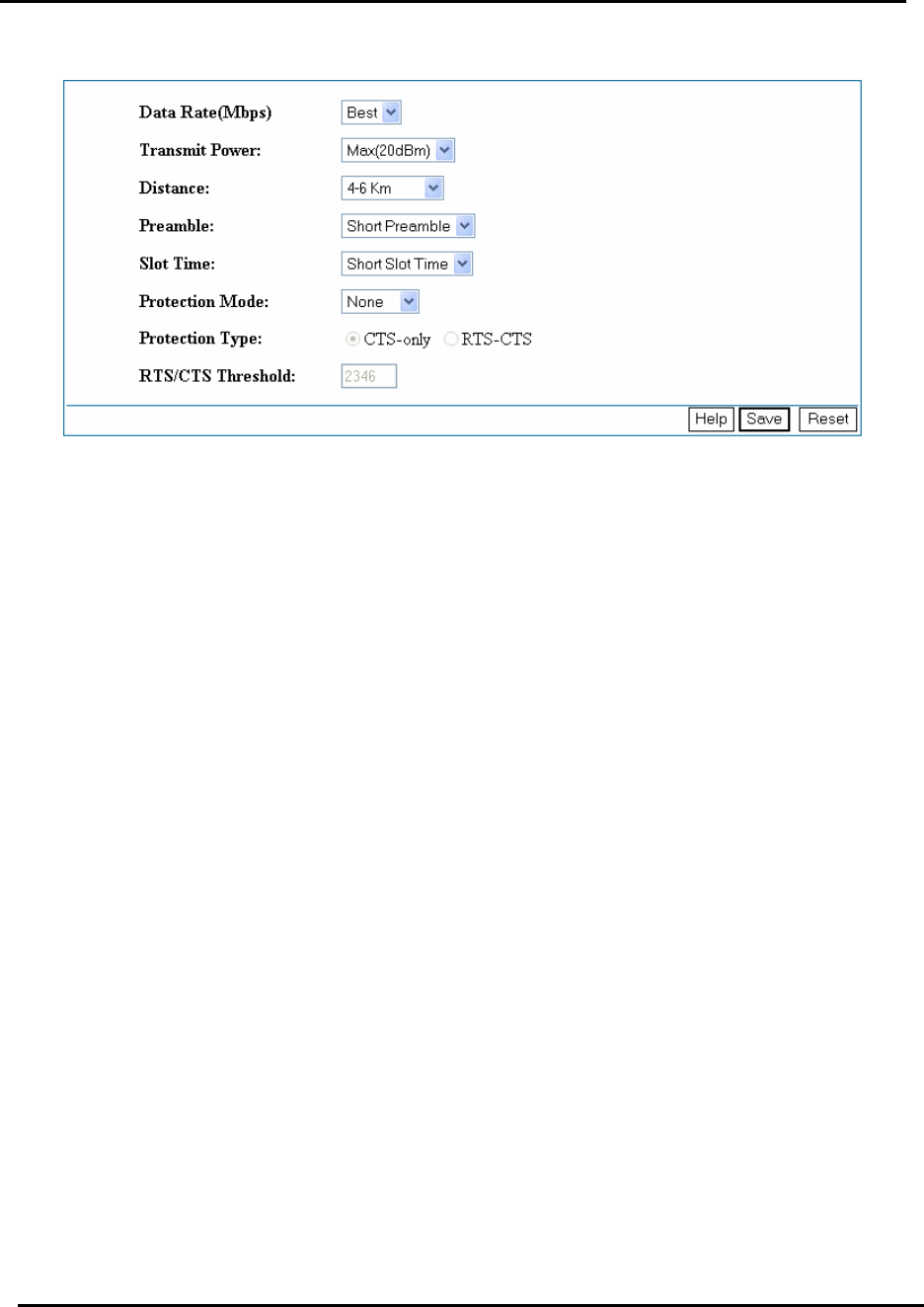

WIRELESS > ADVANCE SETTING.....................................................................21

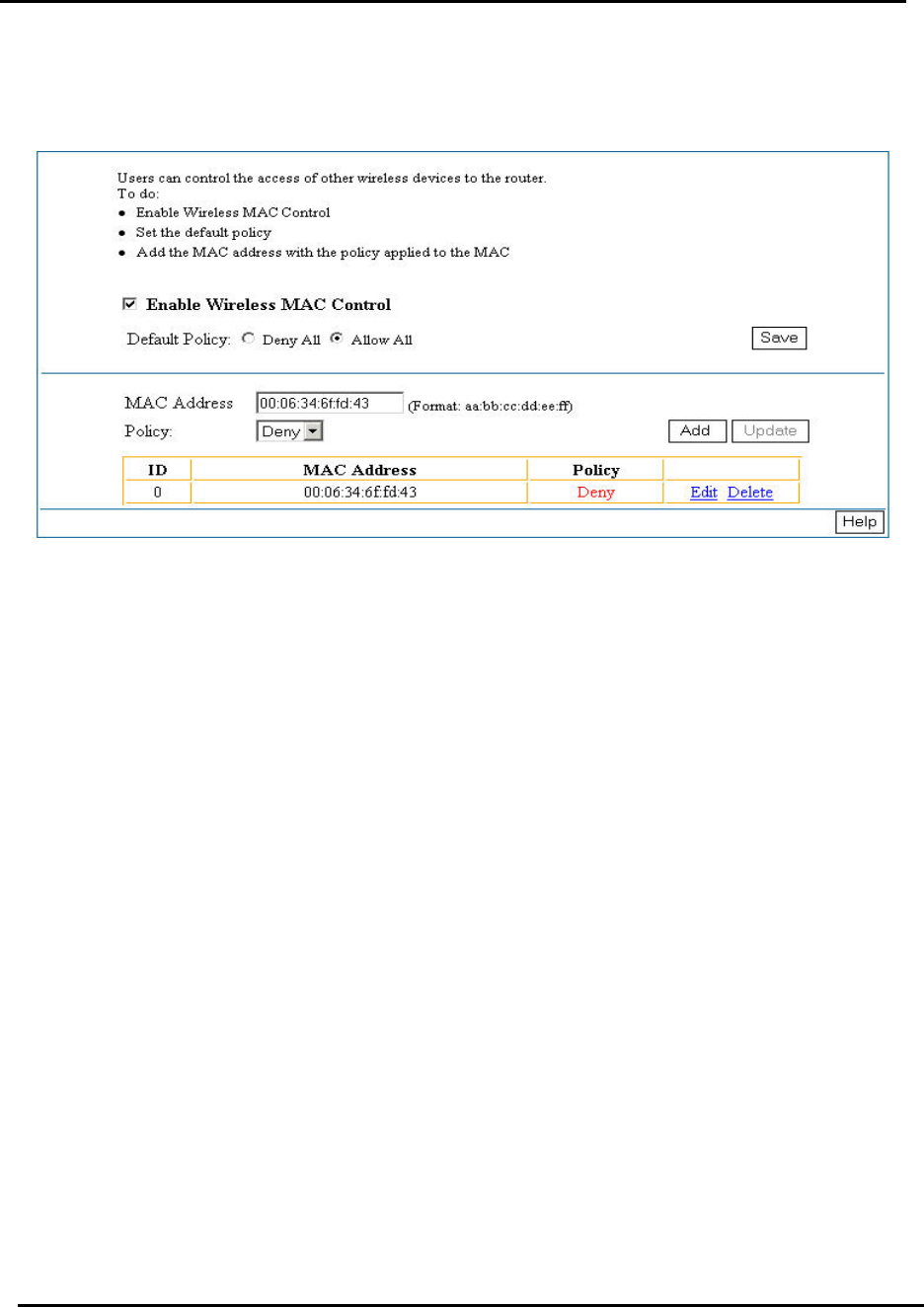

WIRELESS > MAC ACCESS CONTROL...............................................................22

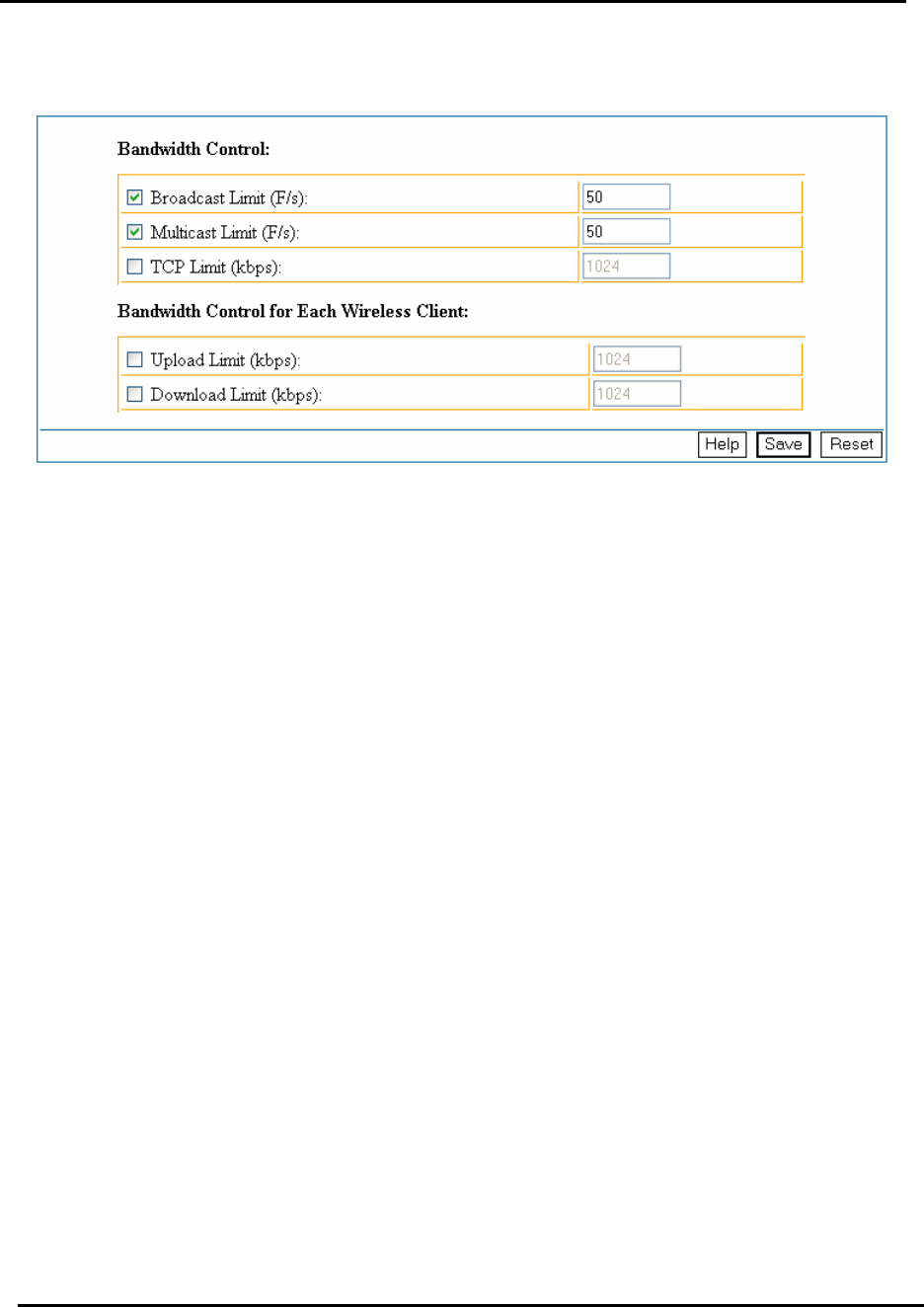

WIRELESS > BANDWIDTH CONTROL ................................................................23

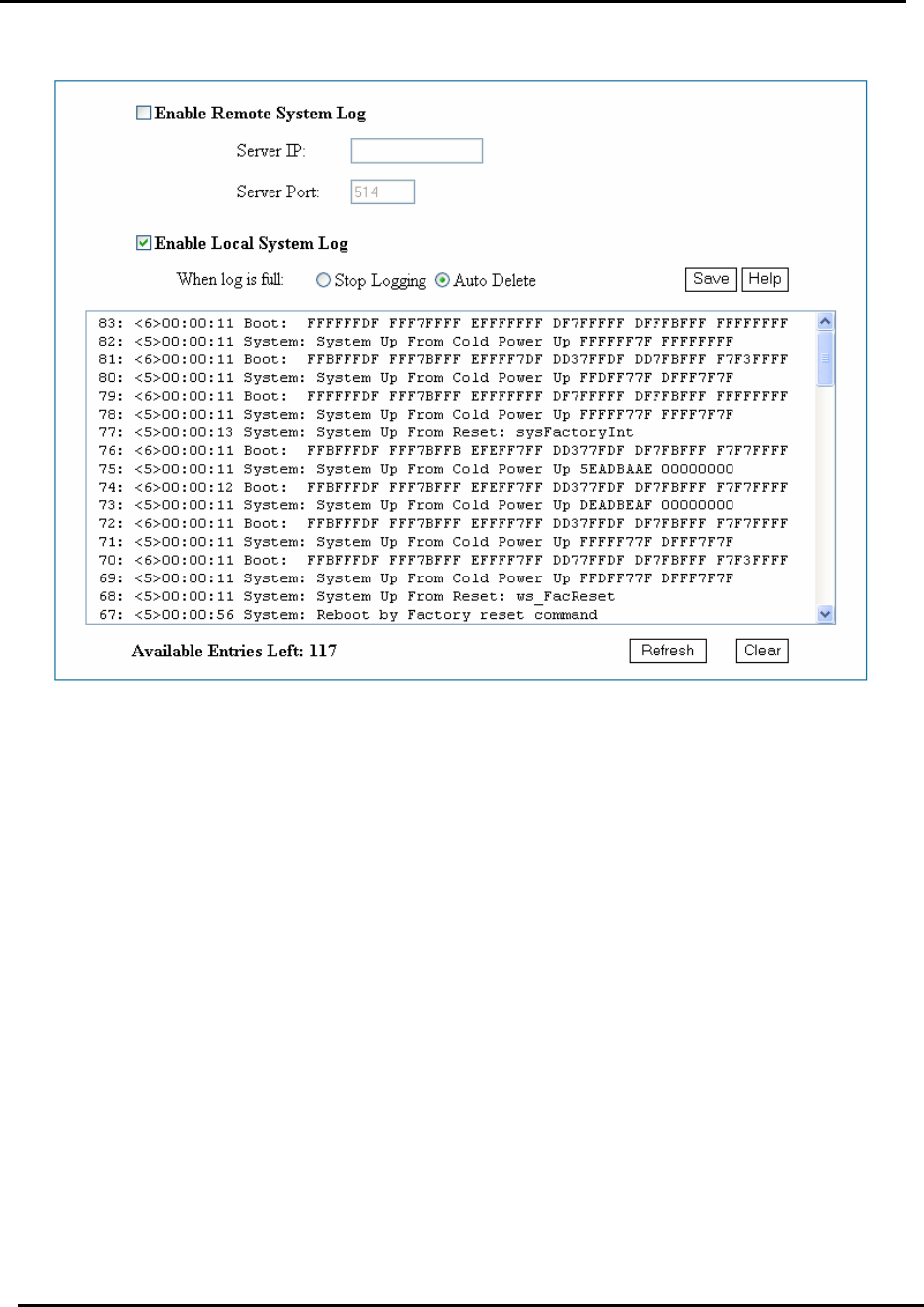

SYSTEM TOOLS > SYSTEM LOG ......................................................................24

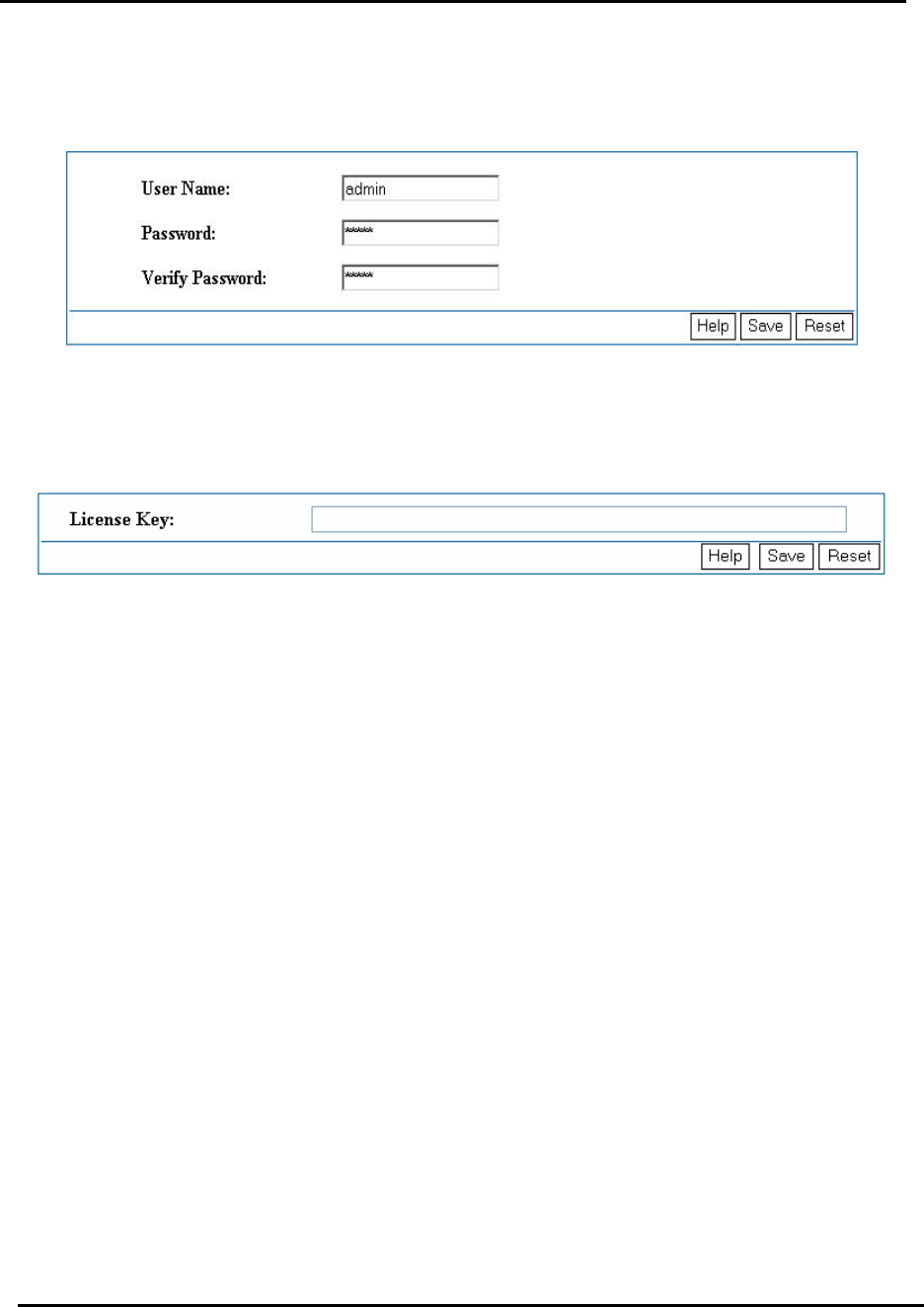

SYSTEM TOOLS > SYSTEM ADMIN ...................................................................25
SYSTEM TOOLS > LICENSE KEY......................................................................25

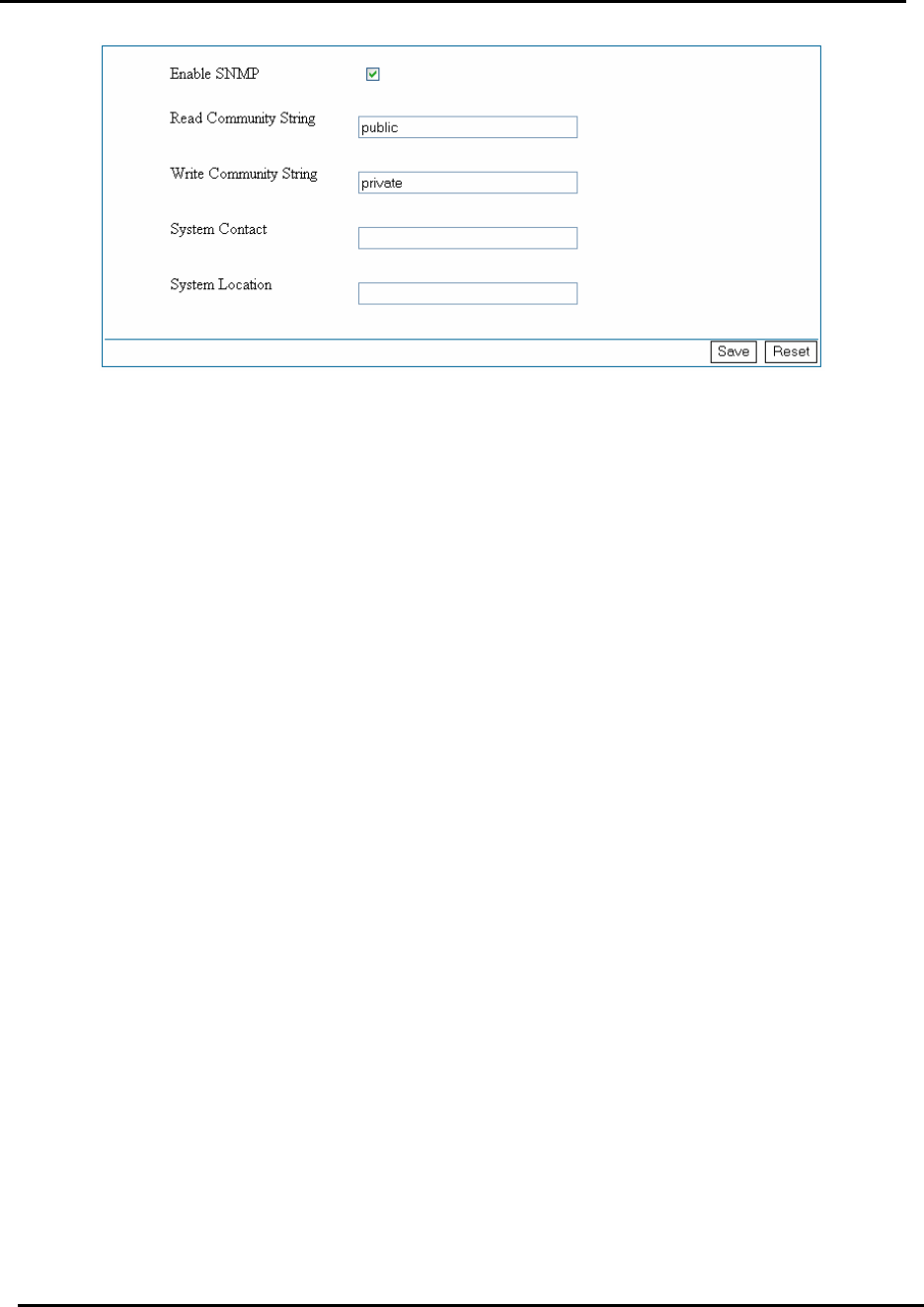

SYSTEM TOOLS > SNMP CONFIGURATION .........................................................26

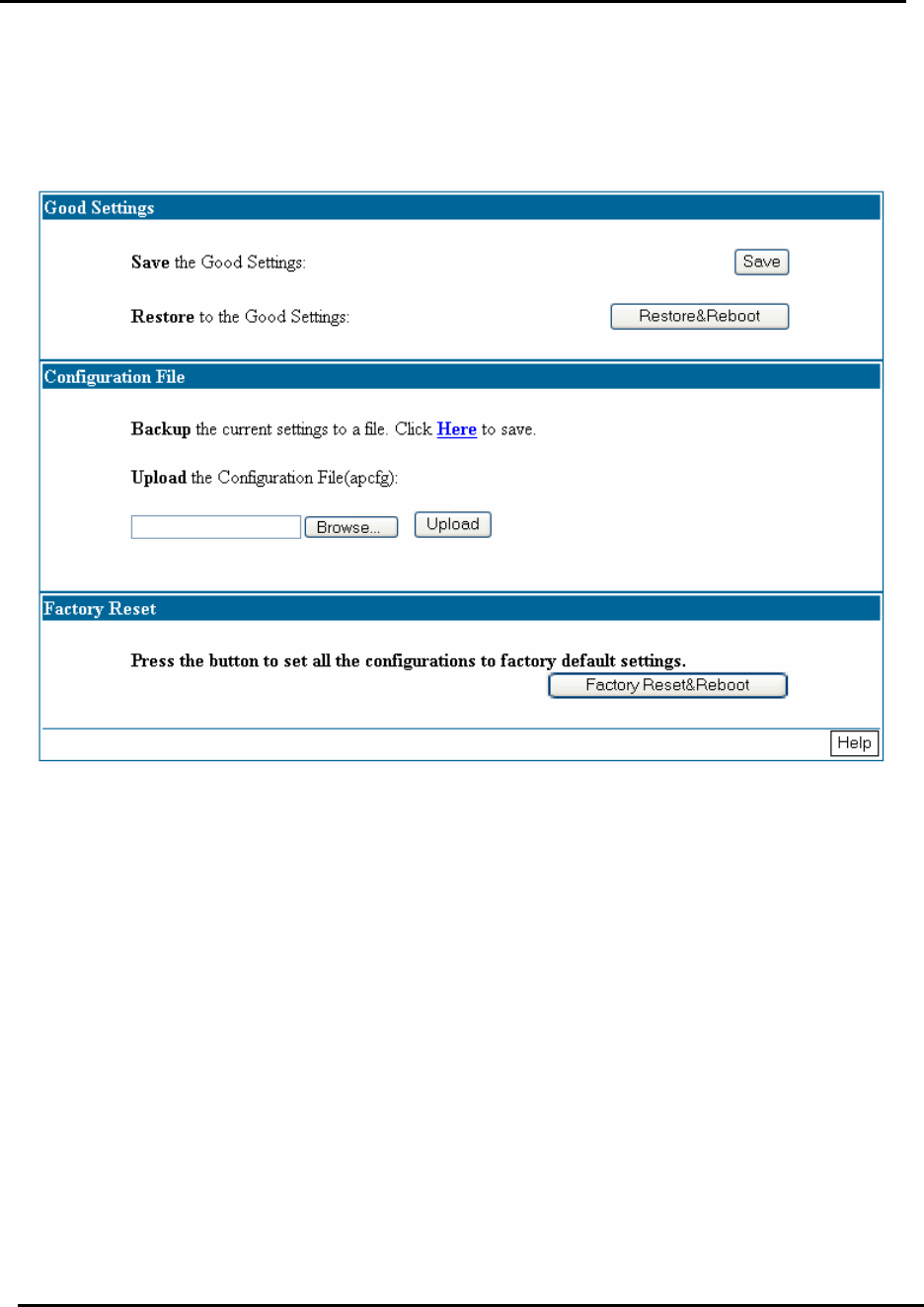

SYSTEM TOOLS > BACKUP/RESTORE SETTINGS ...................................................27

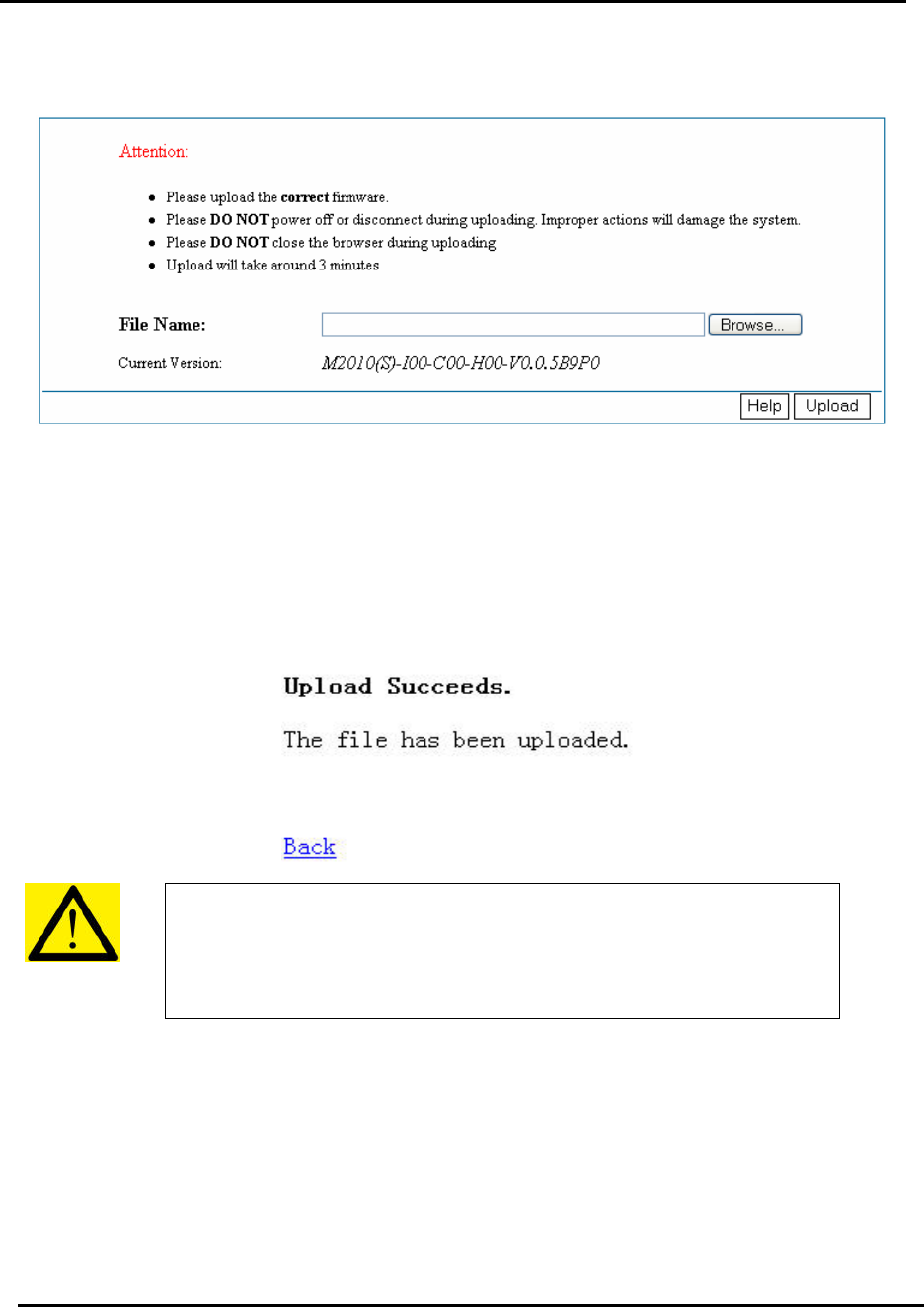

SYSTEM TOOLS > FIRMWARE UPDATE ..............................................................28

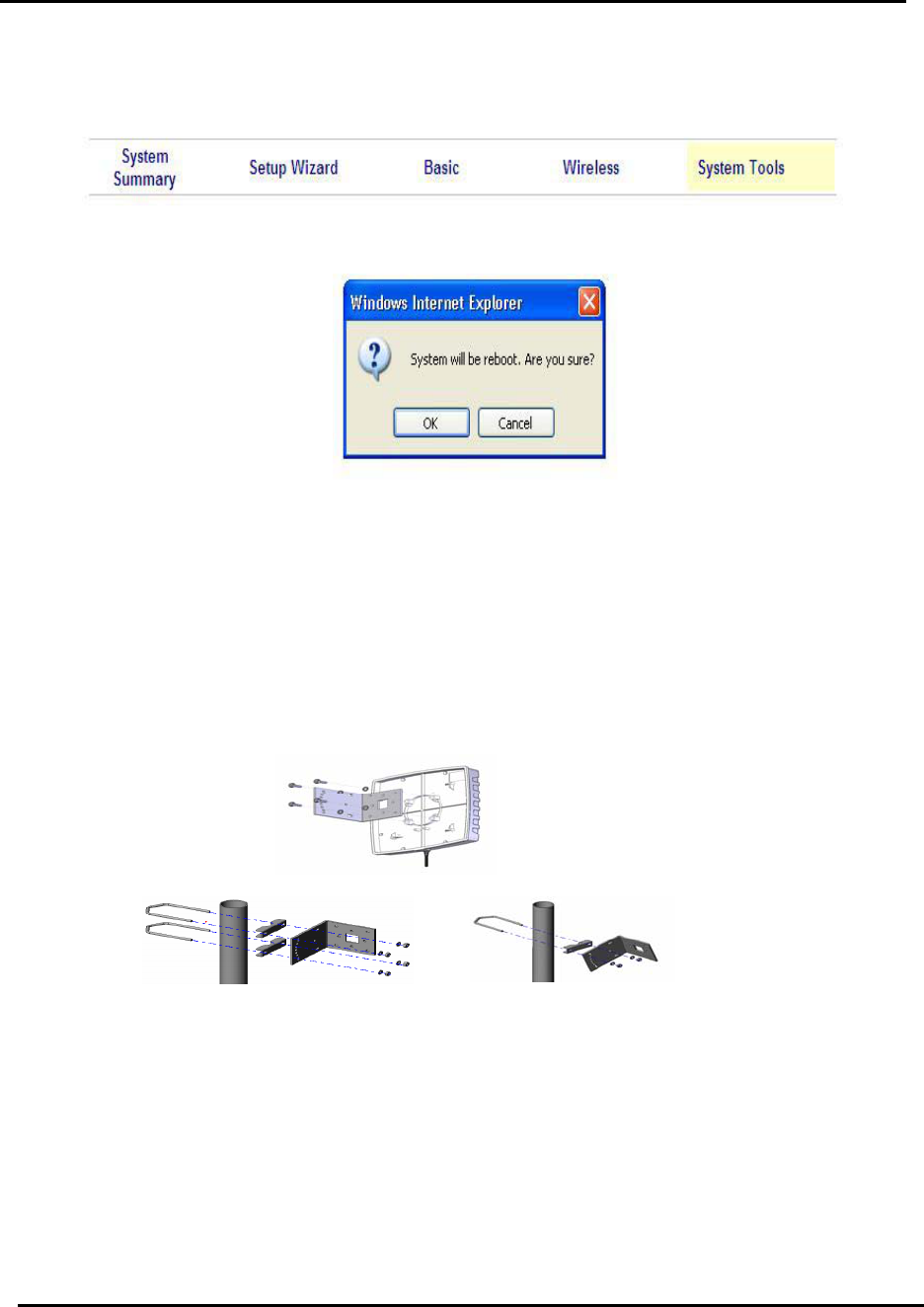

SYSTEM TOOLS > REBOOT ...........................................................................29
![](/img.php?id=1186564&img=bg5.png)
Pg 5 of 26
8 ACCESS POINT MOUNTING GUIDE ...................................................... 29
9 VIPER QUICKSTART INSTALLATION ................................................... 30

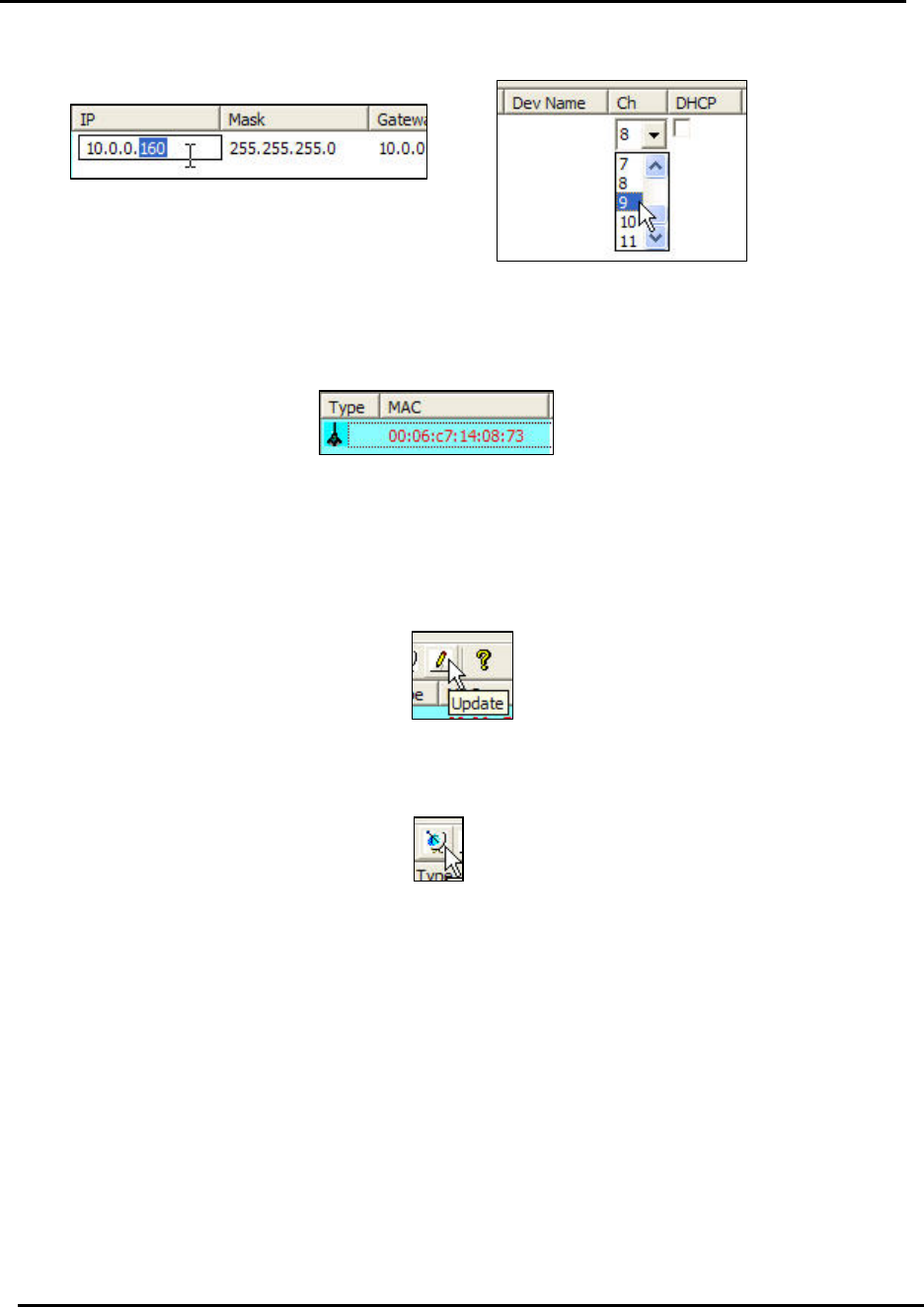

10 VIPER QUICKSTART USER GUIDE........................................................ 31
11 TECHNICAL SUPPORT ......................................................................... 33
11 DISCLAIMER ....................................................................................... 34
![](/img.php?id=1186564&img=bg6.png)
Pg 1 of 26
1 INTRODUCTION
The Product
The product is based on the IEEE 802.11b/g standard, which is the latest 54Mbps Wireless
LAN (WLAN) standard. Having this wireless protocols in one product ensure that your
investments are protected, while enabling you to enjoy the fastest Wireless LAN speed.
This product model AP-2010 could operate as either one of the following modes:
a. Wireless LAN Access Point (AP) mode.
b. Wireless Ethernet Bridge mode.
c. Repeater mode.
Key Features
Support up to four distinct SSID
Fully compatibility with IEEE 802.11b/g WLAN standard
Utilize OFDM (Orthogonal Frequency Division Multiplexing)
With independent 802.1Q VLAN Tagging
Operates in the 2.4GHz license-free frequency band
Industrial grade IP67 Casing
Power over UTP cable DC supply
WEP (Wired Equivalent Privacy). A simple WLAN encryption standard to protect wireless
data from sniffers.

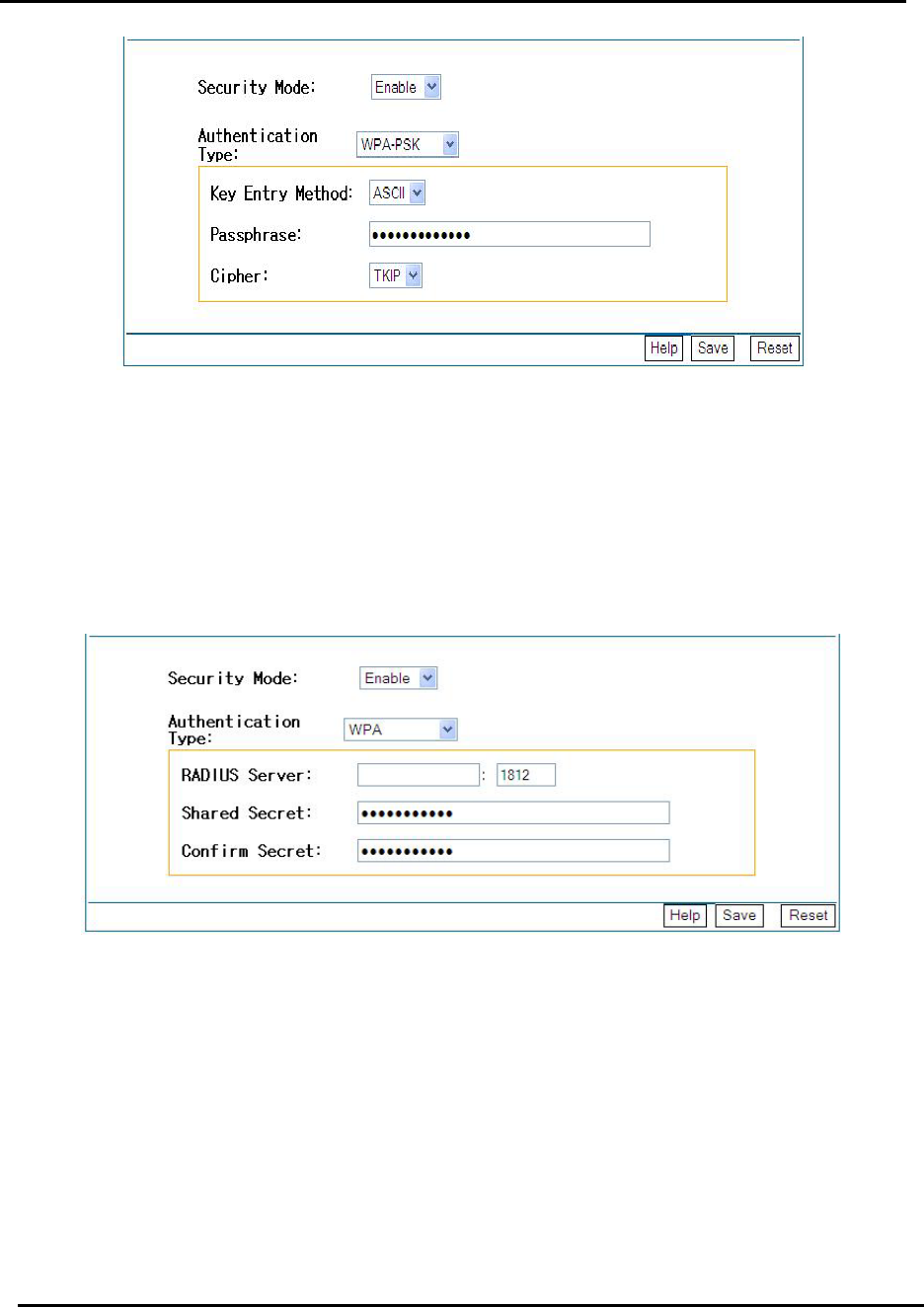

WPA (WiFi Protected Access), for AP mode only. An improved WLAN encryption
standard where the secret key renew automatically at regular intervals.
TKIP (Temporal Key Integrity Protocol). A new encryption key will be
generated by corporate RADIUS server when a authorized wireless
adaptor/user associate with the Access Point. This encryption key renew
automatically at regular intervals. This is normally used in high security
enterprise networks.
Pre Shared Key (WPA-PSK). A new key is generated each time a wireless
adaptor connects to the Access Point. This normally used for home user
without a RADIUS server.
Remote AP list provides added security for AP mode.
Protocol Filters provides security to the network
IPX Filter
Wireless Isolation. Each wireless user would not be able to see each other
even though they are in the same subnet. This is to protect the privacy of each
user.
Broadcast Filter
![](/img.php?id=1186564&img=bg7.png)
Pg 2 of 26
Multicast Filter
User-friendly web-based interface for managing and configuring the Access Point.
QoS features for multimedia support - voice, video and audio.
2 PACKAGE CONTENTS

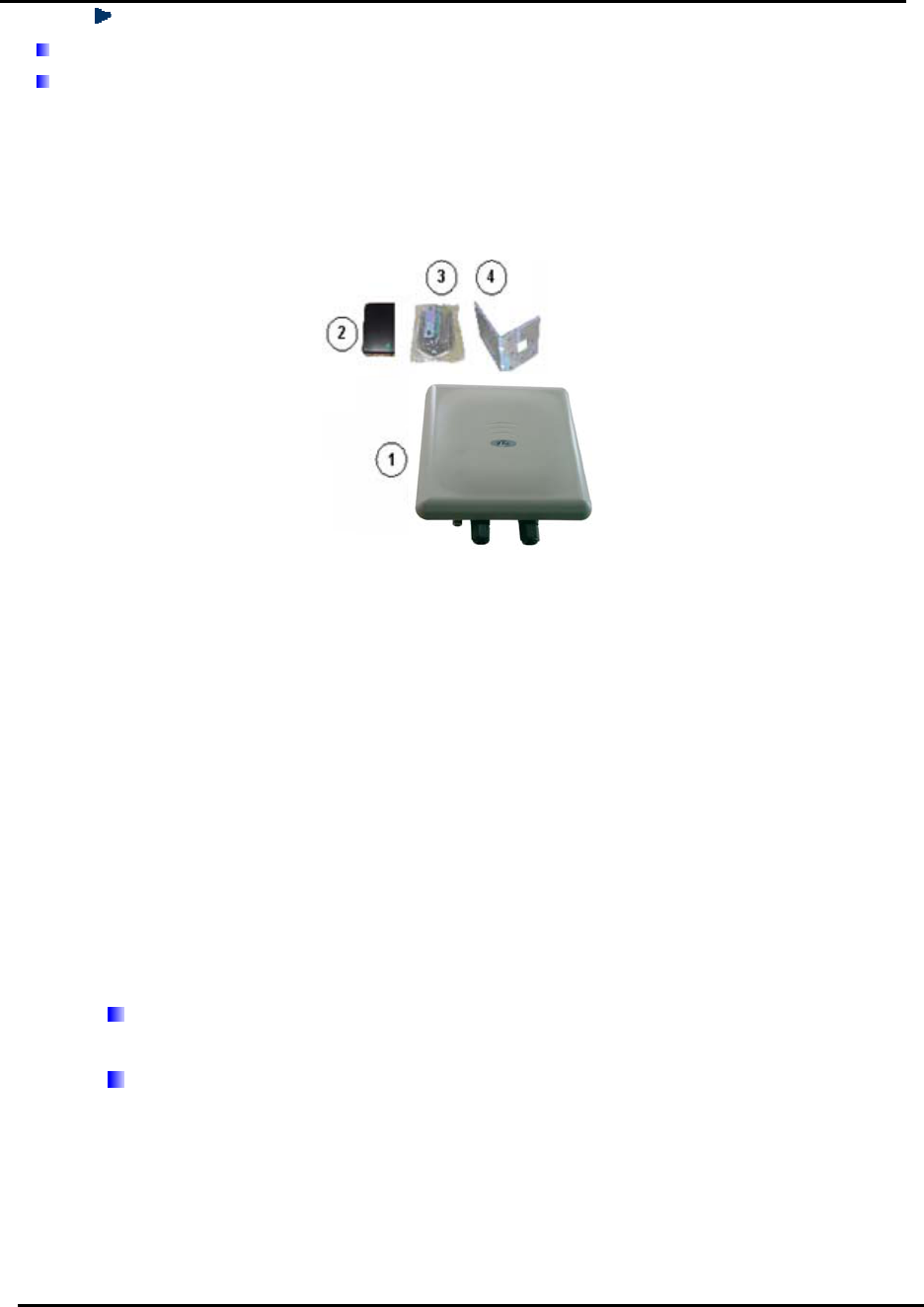

Content of Package
1. AP-2010
2. 48V DC combiner adaptor (Power Over Ethernet)
3. screws, washers, nuts, U-bolt
4. mounting bracket (pole)
Note: Standard package may vary with model type and country. Using a combiner adaptor
with a power rating other than the one included in the package will cause serious damage to
the Access Point and void the warranty for this product.
System Requirements for Configuration
Computers with Windows, Macintosh or Linux-based operating systems and
with an Ethernet adaptor
Internet Explorer version 5.5 and above or Netscape Navigator that supports
Java
![](/img.php?id=1186564&img=bg8.png)
Pg 3 of 26

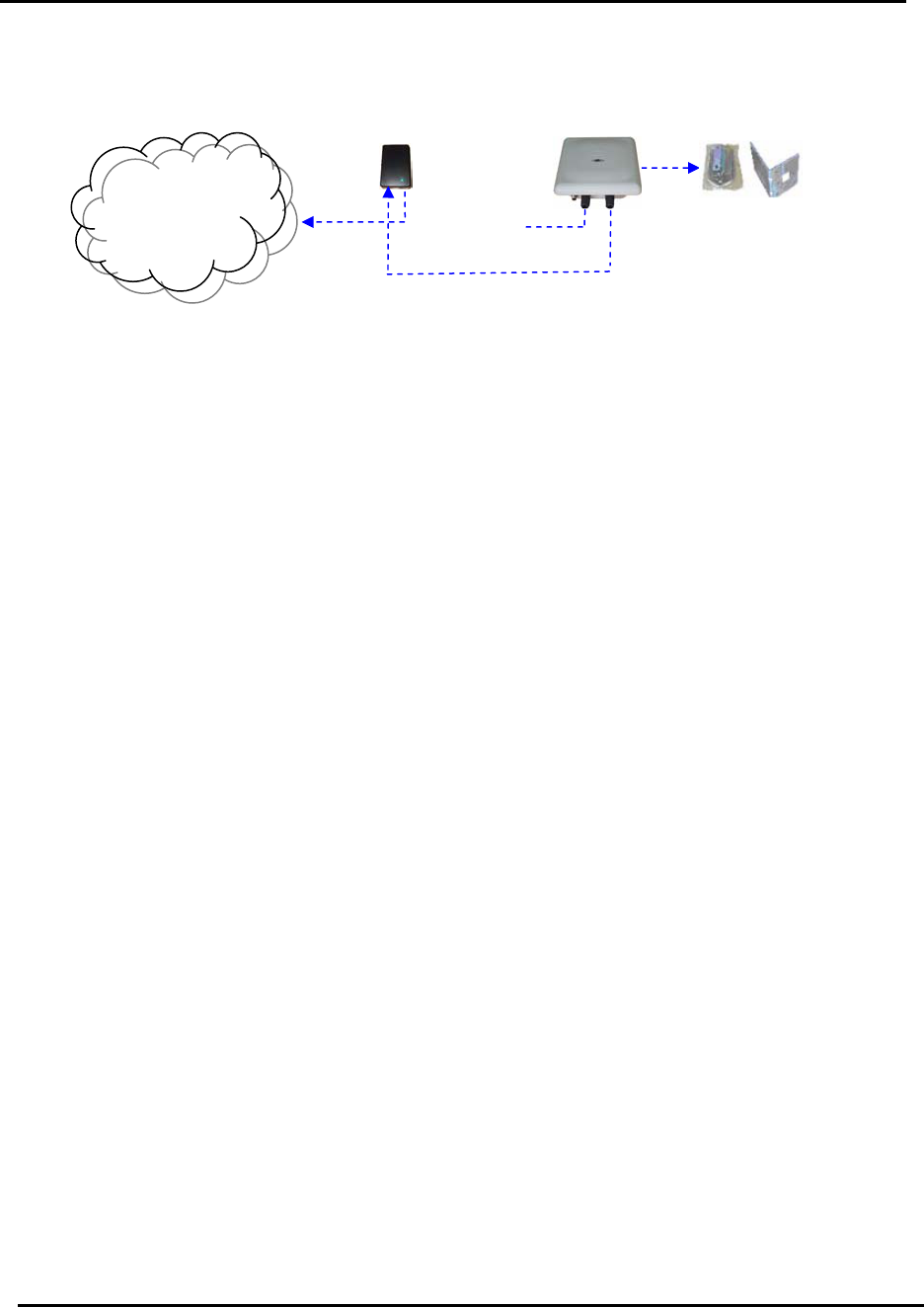

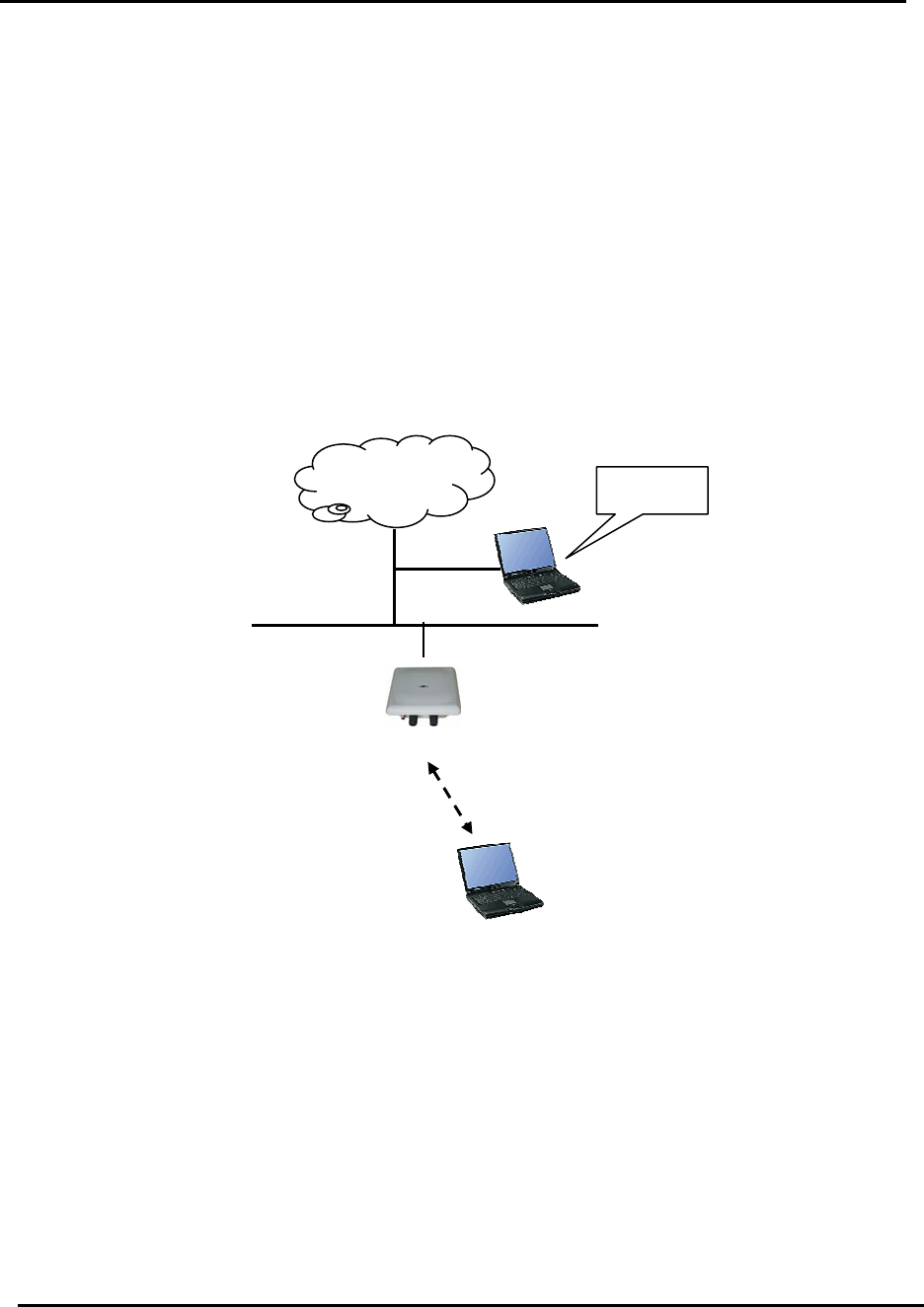

3 CONNECTION
4 BASIC IP NETWORKING
IP = Internet Protocol
IP stands for Internet Protocol. In an IP network, every device has a unique IP Address (For
example: 192.168.1.35) to identify itself. There are two ways of assigning an IP address to a
PC or AP: Static and Automatic (DHCP). Static IP addresses are keyed-in manually, while
Dynamic IP’s are distributed by a DHCP Server.
Ports
Every packet of traffic is identified by its Source and Destination Addresses, which would
ensure that the packet arrives at the correct destination. A Port Number is also embedded in
each packet; to identify which software application that generated and uses that packet.
Therefore, if it blocks a certain port number, it denies the particular software from using the
connection.
Static IP Address
Static IP addressing ensures that the device will always have the same IP address. Static
addressing is commonly used for your servers.
Network
LAN+DC
LAN
IP DEVICE
![](/img.php?id=1186564&img=bg9.png)
Pg 4 of 26
Dynamic IP Address
A dynamic IP address is one that is automatically assigned to a PC. These IP addresses are
“dynamic” because they are only temporarily leased to the PC when it connects to the
network. This is the most convenient and common way of managing IP addresses in a
network. The Server that manages this pool of IP addresses is called the DHCP Server. The
product has a DHCP Server built-in to simplify the network management.
DHCP (Dynamic Host Configuration Protocol)
The PC obtaining an IP address from the Server is called the DHCP Client. If there is already a
DHCP Server running on your network, you must disable one of the two DHCP servers.
Running more than one DHCP server together will cause network problems!
Wireless LAN Basics
A Wireless LAN (WLAN) is a computer network that transmits and receives data with radio
signals instead of using cables. WLANs have become common in homes, offices, airports and
public Hotspots. WLAN can support the same applications and software that run on a wired
network (LAN). Besides supporting the same software and functions, WLAN brings greater
convenience and eliminates the need to lay Ethernet cables in a home or office.
WLAN networking involves a few additional parameters to be configured:
SSID
The SSID is the “network name” for the WLAN network. The SSID is any name, and can be
any set of characters or numbers. The Client sniffs the radio frequencies for an AP with the
same SSID with itself. The client locks onto the AP and they are “associated”.
To enable plug-and-play convenience, most client cards can sniff the frequencies to extract the
available SSIDs to let the user choose from.
Encryption
WLAN traffic can be captured by anybody to be read! The solution is to use encryption to
make the traffic appear as random characters to the eavesdropper. Both the AP and client
must use the same encryption standard and key to enable them to decode the “rubbish”. If
the encryption settings are mismatched, the client and AP cannot associate. WEP (Wired
Equivalent Privacy) is the most common WLAN encryption standard.
Channel
There are a total of 13 channels in the 2.4GHz band. Depending on regulation, not all the
frequencies may be available in every country. Frequency is configured on the AP only. The
client searches for the AP and locks it into that AP’s channel.
![](/img.php?id=1186564&img=bga.png)
Pg 5 of 26
Signal Strength
Radio signals drop in power over a distance. Even if all the settings are correct, low signal
strength makes association impossible. The usable distance between the AP and client can
range from a few meters indoor to a few km. When setting up the client, make sure that you:
Keep at a distance between the AP and the clients.
Make sure that the WLAN signals do not have to pass through too many
concrete walls and metal structures to reach the client.
Make sure that clients are located far away from one another to avoid
interference.
Make sure that there is line of sight between the AP and client device.
Interference
Interference happens when 2 clients with the same channels are placed near to one another.
The speed of the network drops and the signal strength fluctuates wildly.
Roaming
Association happens when the SSID, Encryption and MAC Address Control settings
are correct between the AP and client. If 2 APs with these same settings are located
in the same area, the client would choose to associate to the one which gives it a
better signal strength. The client would roam over to the 2nd AP when he moves
nearer to it. The client switches AP and frequency as he does so.

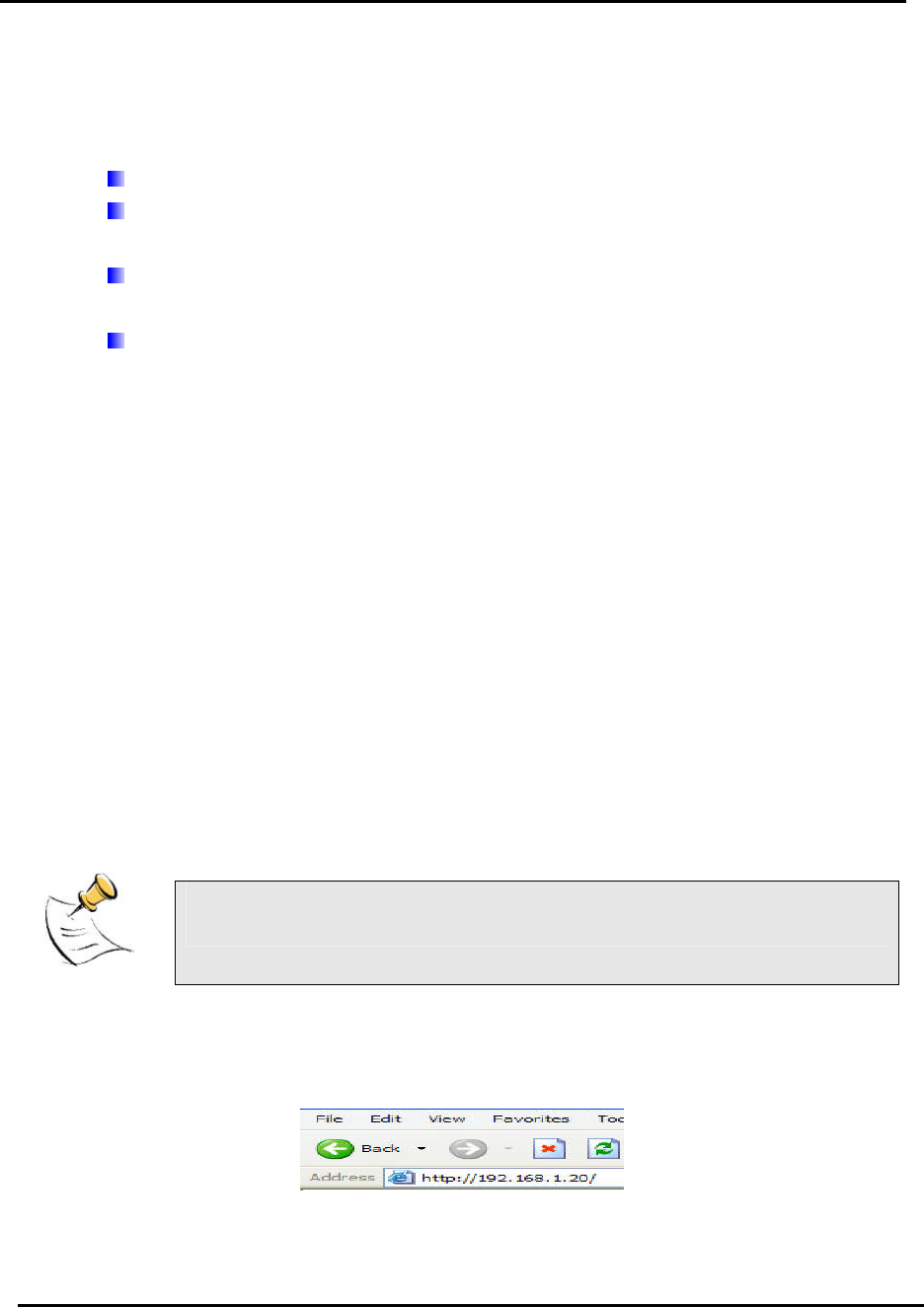

5 GETTING STARTED
Connect the network as shown previously.
If your PC is wireless, check the PC’s card utility to make sure that the
signal strength is good.
Open a Web browser (Internet Explorer, Netscape etc.).
Type the AP LAN IP (192.168.1.20) address into the browser’s Address field. The default LAN
IP address is 192.168.1.20.
Note: If you have changed the default IP of the AP, make sure you enter the correct IP
address.
![](/img.php?id=1186564&img=bgb.png)
Pg 6 of 26

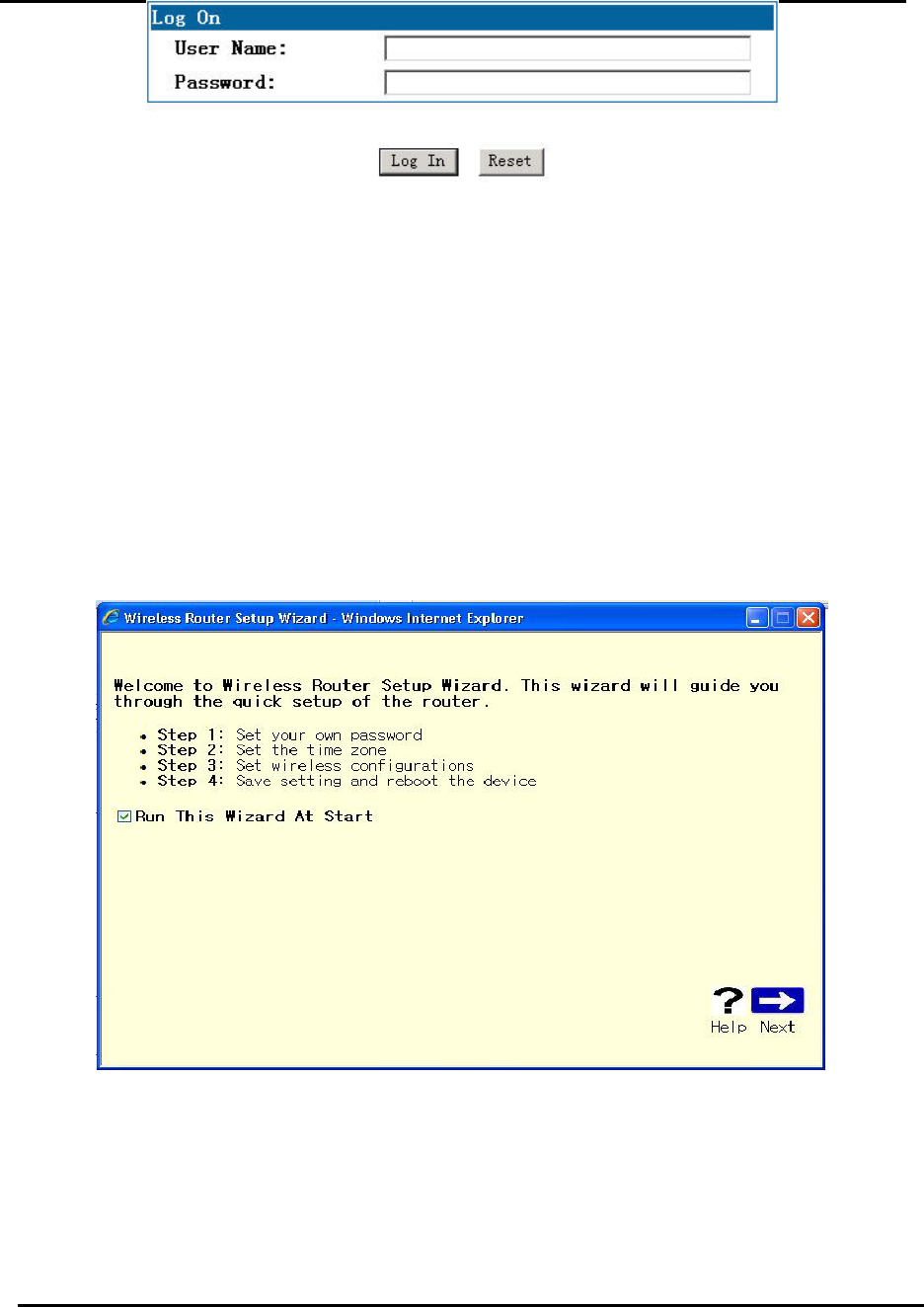

o Type in admin for user name.
o Type in admin for the password
o Click on Log In
Note: If you have changed the default user name and password of the AP, make sure you
enter the correct user name and password.

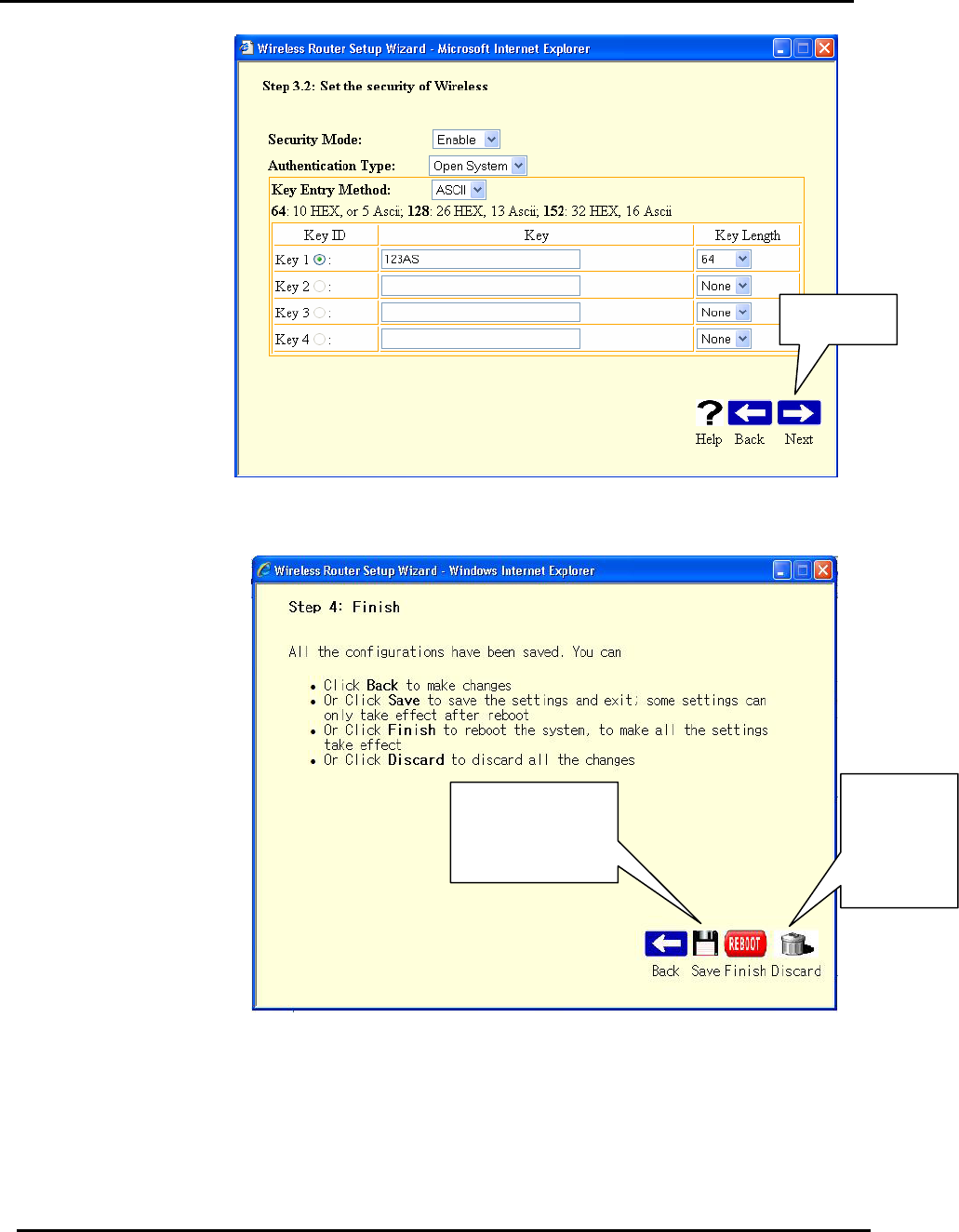

Once the login is successful, you’ll see a configuration menu and a pop up window for

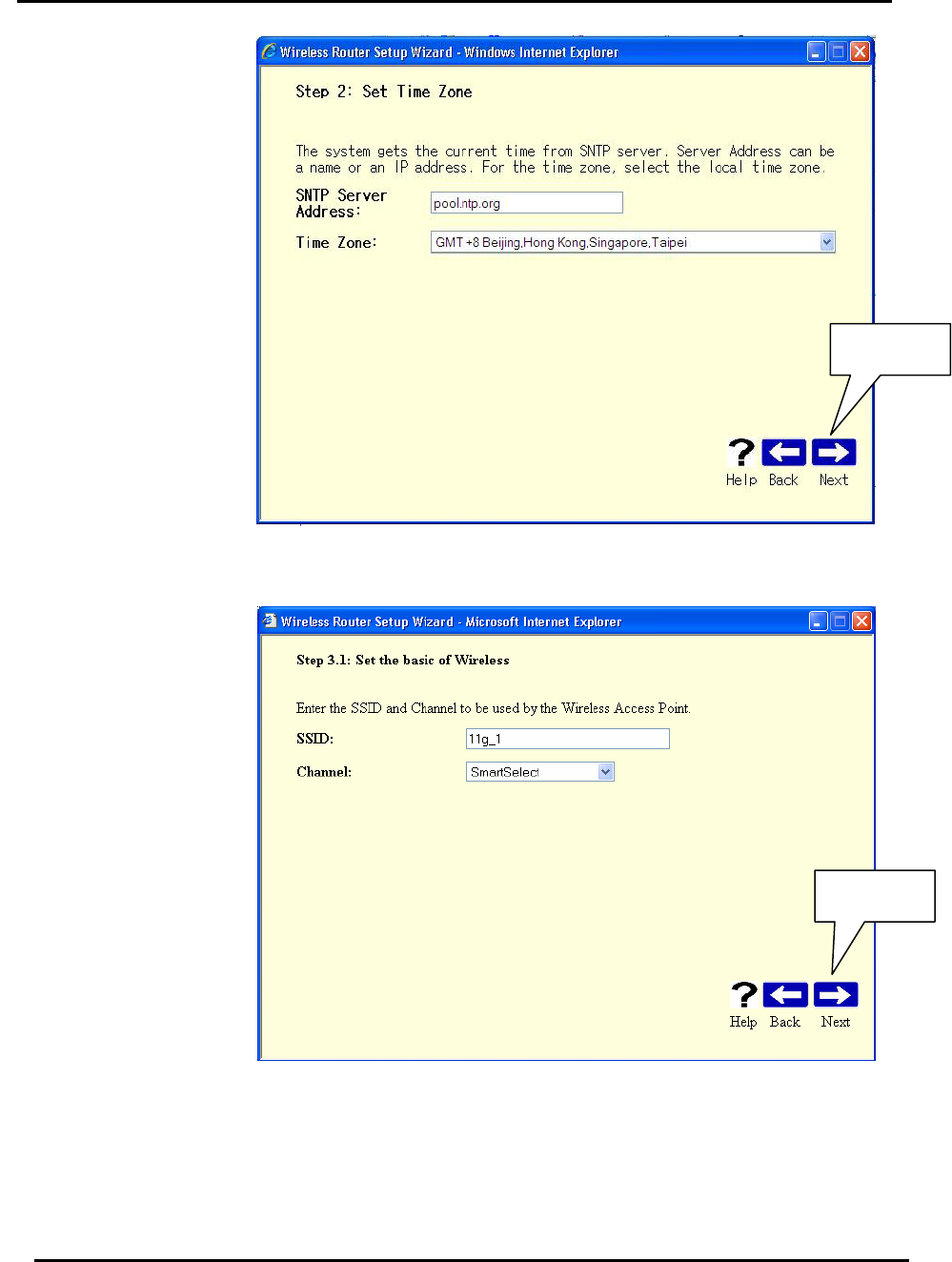

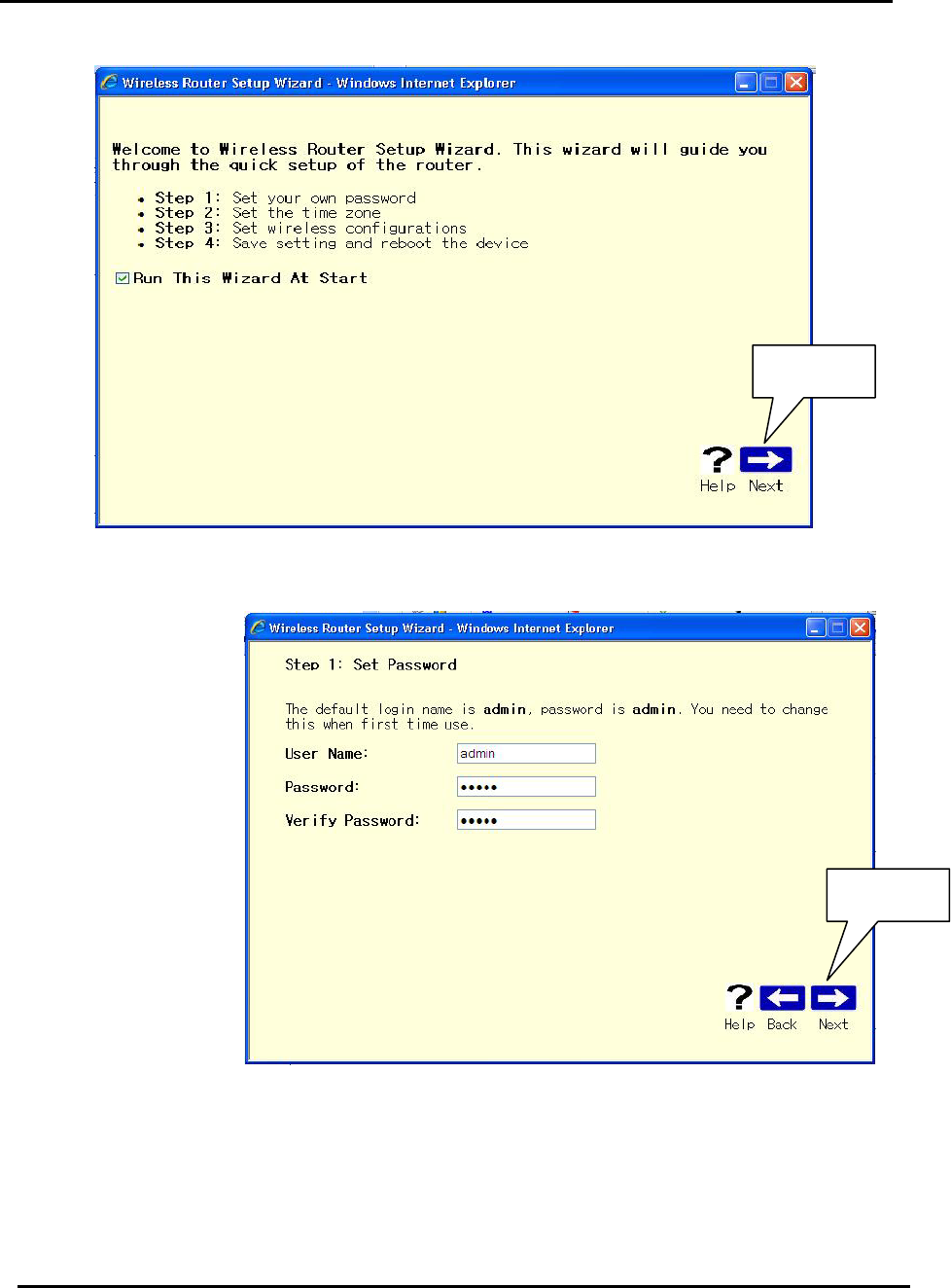

wizard setup. The wizard is a quick guide to run you through the configuration
process so as to setup your system in the shortest time. After the initial setup, you
may wish to turn off the setup wizard by removing the tick on Run This Wizard At
Start. Click on Next to proceed with the setup wizard.
Note: If you have pop-ups blocker installed on your computer, it may prevent the Wizard
window from functioning properly.
![](/img.php?id=1186564&img=bgc.png)
Pg 7 of 26
Detailed configuration for the AP can be found at the System Summary menu. The
System Summary menu consists of a navigation panel and a configuration panel. The
configuration panel is a place to view the entire detailed configuration.
Navigation
Panel
Configuration
Panel
![](/img.php?id=1186564&img=bgd.png)
Pg 8 of 26
6 CONFIGURATION WIZARD
Click Next
Once you have
logged in, the Wizard
screen will appear.
Set up your new
password
The default User
Name and password is
admin and admin.
Click Next
![](/img.php?id=1186564&img=bge.png)
Pg 9 of 26
Click Next
Choose your Time
Zone
Enter the SNTP
Server. If you do not
know of any SNTP
Server, you can use
the default.
Choose your time
zone from the drop
down list.
Click Next
Wireless Setup
Enter the SSID you
preferred for your
network.
You can manually select
the channel you wish to
use or allow the AP to
select a clean channel to
use by selecting
smartSelect.
![](/img.php?id=1186564&img=bgf.png)
Pg 10 of 26
Click Next
Wireless Security
Enter the type of
security mode you wish
to use.
Take note that if you
are using 802.11b
card, it does not
support WPA-PSK or
WPA or WPA 2-PSK or
WPA 2
End of Setup
Click on Reboot to
save the setting and
reboot the AP. If you
wish to discard all
the setting, click on
Discard. Click if
you wish
to discard
changes
Click to save
the setting and
reboot the AP.
![](/img.php?id=1186564&img=bg10.png)
Pg 11 of 26
7 CONFIGURATION MENU
System Summary > Configuration
This page presents a convenient overview of the overall status of the AP. The most
common configuration parameters are shown here, for a quick look.
![](/img.php?id=1186564&img=bg11.png)
Pg 12 of 26
System Summary > Associations
This page allows you to view the MAC address of all the wireless laptop and PC connected to the
AP. ID of AP is the MAC address of the AP itself. Any wireless computers or laptop associated
with the AP will have an ID of STA.
System Summary > Statistics
This page allows you to view the packets and bytes receive and transmit by the
Access Point.
![](/img.php?id=1186564&img=bg12.png)
Pg 13 of 26
System Summary > Site Scan
Using the site scan, you can scan for the presence of other AP near you. The ESSID,
BSSID, wireless mode, channel, signal strength, security mode and network mode of
the surrounding AP will be display in the table. You can use this function to select a
clean channel for your AP. Take note that there would not be any result if the
wireless function of the AP is set to disable.
Basic Setting > SNTP
Simple Network Time Protocol (SNTP) allows the AP to set its internal clock based on
periodic updates from the specified timeserver (SNTP or NTP). The time is useful in
the IP filter section, where you can configure to block certain IP address daily at a
certain time.
![](/img.php?id=1186564&img=bg13.png)
Pg 14 of 26
Basic Setting > LAN Setting
This page allows you to choose the type of IP mode
Static IP mode: When you boot up the AP for the first time, it is in Static mode. You can
assign a Static IP to the AP.
DHCP mode: The AP will obtain an IP Address from an upstream DHCP Server.
System Name: This is to assign a name to the AP for system identification.
LAN IP address: This is where you assign a local IP address to your AP’s LAN port. The
factory default value is 192.168.1.20. If you give your computer a static IP address, the
gateway of your computer must be set to this IP for you to access the Internet.
Subnet Mask: This is where you assign the corresponding subnet mask. The default subnet
mask is 255.255.255.0.
(Note: When you change the LAN Setting of the AP, you need to reset/renew the Local
computer IP address.)
Gateway Address: This displays the gateway address of your WAN as given by the ADSL
modem.
DNS Server: This displays the IP address of the DNS server as given by the ADSL modem.
You can manually set the DNS server if your ISP provides you with the IP address of the DNS
server.
Take note:
User must un-tick the manually set DNS if your ISP did not provide the DNS IP address.
![](/img.php?id=1186564&img=bg14.png)
Pg 15 of 26
Basic > VLAN Setting
The VLAN provides broadcast filtering, security, address summarization, and traffic
flow management. VLAN tagging is to control traffic flow patterns and react to port
relocations.
This page lets you configure the wireless AP, VLAN tagging
configurations and additional function of the wireless AP.
The features includes as follows:
1. VLAN Tagging function in Access Point mode
2. VLAN Tagging function in Ethernet Bridge mode
3. Management VLAN support for both AP and Ethernet Bridge mode
VLAN mode: Can be set as enabled or disabled.
Once the AP or Bridge is set to Enabled mode, use LAN1 as your uplink port to
connect to your PC (for configuration use).
ou may also set
LAN1 port to have
the same VLAN ID
as the management
port to enable the
PC connected to this
port to get access
to web or console.
![](/img.php?id=1186564&img=bg15.png)
Pg 16 of 26
Wireless > Basic Setting
This page lets you configure the Wireless settings of the AP. There are 2 sections:
Radio and Security.
Enable Wireless: Tick to enable wireless function. With this function, laptop with
card bus or in-built wireless function can access the AP wirelessly.
Enable QoS (SpectraLink) Support: Selecting this option will enable the 802.11e QoS
support feature for VOIP and video data.
Operation mode: AP operates as Wireless LAN Access Point or Ethernet Bridge or
Repeater. Wireless Bridge is used when it is not advisable to lay an Ethernet line
over a distance. Two AP’s can be set up to connect over this distance, acting as the
wired backbone.
SSID: Service Set Identifier. It is a sequence of characters that uniquely names a
Wireless LAN. This name allows PCs to connect to the correct Wireless Access Point
when multiple Access Points operate in the same location.
The default SSID is 11g_1
Channel: The radio channel number. You can select channel 1 to 11 or use
SmartSelect, where the AP will select the cleanest channel to use upon booting up.
The number of channels varies according to countries.
![](/img.php?id=1186564&img=bg16.png)
Pg 17 of 26
Wireless Mode: You can choose to operate the AP in 802.11g or 802.11b mode.
The data rate for 802.11g is 54Mbps while the data rate for 802.11b is 11Mbps.
802.11g is backward compatible with 802.11b.
WDS: This feature is available for Ethernet bridge mode. Enable or disable or disable with
multiple PC support. When WDS enabled, the bridge can support multiple PCs behind it. When
WDS disabled, the bridge can support only one PC behind it. When disabled with multiple PCs
support, the bridge can support multiple PCs behind it, even if the AP cannot support WDS.
Remote AP MAC List: The Bridge will only associate with AP whose MAC address is in the
list. It is essential to type in the MAC address of the AP without any spacing in front or behind
it.
Wireless Isolation: Selecting this option will disallow wireless clients associated with this
device to communicate with each other.
Security Mode: This section allows you to configure wireless encryption to prevent
unwelcome parties from reading your traffic. You must Enable the Security Mode
before choosing the type of wireless security.
![](/img.php?id=1186564&img=bg17.png)
Pg 18 of 26
Security mode > Open-System/Shared key
Open-System: When chosen, the Key is not used for authentication. It is only used
for encryption. Open-System uses Static Keys for encryption. Static (Shared) Keys
are never changed, and a hacker can crack the key after a period of time.
Shared-Key: When chosen, the encryption Key is also used for authentication
between the AP and Client. Note that this system is also using Static Keys.
Key Entry Method: Choose HEX if you want to enter the Keys in hexadecimal
format. Otherwise, enter in ASCII format. ASCII is also called Alphanumeric in some
systems. Use the same key format for the AP and Client!
Key 1-4: The Key is to be entered in the boxes. The SAME Key must be entered in
both the AP and Client. Take note that there is a different Key length for a different
number of encryption bits. 152 bits is the most secure, but make sure that your
Client card supports it. The last point to take note is that if you use Key 4 on the AP,
you must also use Key 4 on the Client, for example. The same logic applies for Keys
1-3.
![](/img.php?id=1186564&img=bg18.png)
Pg 19 of 26
Security Mode > WPA-PSK
WPA-PSK is also known as WPA-Preset-Key. This implementation is more secure
than WEP as the encryption is automatically changed periodically. To configure this
feature, just key in 8-63 ASCII character or 64 HEX character pass-phrase for both
the AP and Cards.
Cipher: You can choose to use TKIP or AES for the cipher type.
Security Mode > WPA
WPA (WiFi Protected Access) is a standard where the Wireless Card has to
authenticate to a RADIUS Server, through the Access Point. The Server can also
manage the encryption keys such that they are changed dynamically. You need to
have a RADIUS Server to be able to use this feature.
RADIUS Server: Enter the IP Address and the port of the RADIUS Server.
Shared Secret: Enter the Shared Secret of the RADIUS Server.
Confirm Secret: Enter the Shared Secret again to confirm.
![](/img.php?id=1186564&img=bg19.png)
Pg 20 of 26
Security Mode > WPA 2-PSK
WPA 2-PSK is the enhancement of WPA-PSK which uses the AES encryption
algorithm.
Cipher: You can choose to use TKIP or AES for the cipher type.
Security Mode > WPA 2
WPA 2 is the enhancement of WPA which uses the AES encryption algorithm.
RADIUS Server: Enter the IP Address and the port of the RADIUS Server.
Shared Secret: Enter the Shared Secret of the RADIUS Server.
Confirm Secret: Enter the Shared Secret again to confirm.
![](/img.php?id=1186564&img=bg1a.png)
Pg 21 of 26
Wireless > Advance Setting
This page allows you to configure the advance wireless setting of the AP.
Data Rate (Mbps): You can set the wireless data rate from the available list or
choose Best to allow the AP to choose the most appropriate data rate. When Best is
used, the AP will determine the optimal data rate according to the environment.
Transmit Power: This will adjust the transmit power of the antenna. Sometimes, it
is useful to decrease the coverage range of each AP, so that more AP can be located
together without interfering one another.
Distance: This is to set the distance for bridging. The default distance is 4-6km.
Preamble: Choose Short Preamble or Long Preamble. Most manufacturers
implement long preambles. Even if there is a mismatch between the AP and the
client, they can still connect well and the mismatch may not be noticeable to most
users. Do not change this setting without seeking advice.
Slot Time: Choose short or long slot time. The slot time is the amount of time a
device waits after a collision before retransmitting.
Protection Mode: Select None, Always or Auto.
Protection Type: Select either CTS only or RTS-CTS.
RTS/CTS Threshold: Request to Send/Clear to Send. The primary use of RTS/CTS
is to minimize collisions among hidden stations. Forcing the access point to
implement the RTS/CTS handshake will significantly increase the overhead and
reduce throughput. Once the RTS/CTS is set at the station, it initiates by sending a
RTS frame. Upon receiving, the access point will responds by sending a CTS frame.
Select the RTS/CTS radio button to enable this feature. Set a packet size threshold
(2346 bytes) value to trigger this protection. If the packet that the station/access
point is transmitting is larger than the threshold, it will initiate the RTS/CTS function.
![](/img.php?id=1186564&img=bg1b.png)
Pg 22 of 26
Wireless > MAC Access Control
This page allows you to specify which wireless computer can access the Internet
and which wireless computer cannot access the Internet. The specified MAC address
and the policy for the computer are reflected in the table.
Enable Wireless MAC Control: Tick to enable Wireless MAC Control.
Default Policy: This policy determines whether computers, whose MAC addresses
are not in the table, are able to access the Internet. If you choose Deny All, all
computer associated to the AP will not be able to access the Internet other than
those specified in the table.
MAC Address: Enter the MAC address of the computer. The format for the MAC
address is aa:bb:cc:dd:ee:ff.
Policy: Choose to deny or allow the computer to access the computer. Click on the
Add button to add the policy.
![](/img.php?id=1186564&img=bg1c.png)
Pg 23 of 26
Wireless > Bandwidth Control
This page allows you to control the bandwidth limit for broadcast/multicast/TCP and
individual wireless client.
Enable Broadcast Limit: Selecting this option will filter off out broadcast storm.
Broadcast Box: Select a number in between 0 to 1000 F/s.
Enable Multicast Filter: Selecting this option will filter off out multicast storm.
Multicast Box: Select a number in between 0 to 1000 F/s.
Enable TCP Limit: Selecting this option will limit the bandwidth on TCP/IP data
based on the number entered in the textbox.
TCP Limit: Select a number in between 48 to 55296 Kbps.
Enable Upload Limit: Selecting this option for bandwidth control of wireless Client
uplink to AP.
Upload Box: Select a number in between 48 to 55296 Kbps.
Enable Download Limit: Selecting this option for bandwidth control of AP downlink
to wireless Client
Download Box: Select a number in between 48 to 55296 Kbps.
![](/img.php?id=1186564&img=bg1d.png)
Pg 24 of 26
System Tools > System Log
This page allows you to configure the AP to dump its status to a System Log Server.
Enable Remote System Log: Enable this feature to allow the AP to constantly
update its status on a System log Server.
System Log Server IP: Enter the IP Address of the System Log Server if you had
enabled Remote Logging.
System Log Server Port: Enter the port number the System Log Server is using.
Enable Local System Log: Enable this feature if you do not have a System log
Server. The events would then be logged locally on the AP.
Log Management when log is full (Stop Logging): When this option is chosen,
the AP will stop logging.
Log Management when log is full (Auto Delete): The maximum number of local
log entry is 200. When all the 200 entries are used up, the AP will overwrite previous
entries with new logs.
Remember to Apply and Reboot for the settings to take effect.
![](/img.php?id=1186564&img=bg1e.png)
Pg 25 of 26
System Tools > System Admin
This page allows you to change the Administrator’s Username and Password. The
default username and password is admin / admin. After every Factory Reset, the
AP reverts to this combination.
System Tools > License Key
This page allows you to key in the license key to enable your request for additional
features requirements. The license key can be obtained from our company at a
certain fees and features request agreement.
![](/img.php?id=1186564&img=bg1f.png)
Pg 26 of 26
System Tools > SNMP Configuration
Enable SNMP: Selecting this option will enable the SNMP feature.
Read Community String: The password set for the SNMP Client for read access.
Write Community String: The password set for the SNMP Client for write access.
System Contact: To set the system contact for users.
System Location: To set the system location for users.
![](/img.php?id=1186564&img=bg20.png)
Pg 27 of 26
System Tools > Backup/Restore Settings
Use this page to preserve any good setting. You can save the configuration file into
your computer and upload it back to the AP when the setting of your AP when
necessary. In addition, you can do a factory reset and restore the AP back to factory
default setting. The factory default setting is shown in the Factory Reset section.
Save configuration to local device: After you have successfully configured the AP, you can
save this “Good Config” into device memory.
Restore configuration from local device: You can retrieve this “Good Config”, if you have
messed up some settings and do not know what the previous working setting is.
Save configuration to local PC: After successfully configured the AP, save this “Good
Config” into the computer system.
Configuration file on local PC: Browse to the location of the saved “Good Config” in the
computer system.
Restore configuration from local PC: Allow restoring back to the “Good Config” from the
computer system.
Revert to factory setting: If you have even forgotten the password to get into the
configuration pages, you would have to do a Factory Reset to the AP.
![](/img.php?id=1186564&img=bg21.png)
Pg 28 of 26
System Tools > Firmware Update
This page allows you to update the firmware (software) in the AP. New firmware is
issued to improve the performance and add features to the product.
1. The new firmware is a file name “apimg1”.
2. Save the file in your PC.
3. Browse and select the firmware file.
You will see the following page when firmware upgrading is successful.
Do not close the browser or shutdown the AP during firmware upgrading.
Failure to do so will cause serious damage to Access Point.
![](/img.php?id=1186564&img=bg22.png)
Pg 29 of 26
System Tools > Reboot
This page allows you to reboot the AP. You must reboot the AP after you have
finished configuring the AP for the new setting to take effect.
8 ACCESS POINT MOUNTING GUIDE
![](/img.php?id=1186564&img=bg23.png)
Pg 30 of 26
9 VIPER QUICKSTART INSTALLATION
Introduction
The Viper QuickStart Version 1.2 utility is an easy-to-use software that allows an
Administrator to quickly configure the AP at first boot-up. The QS Utility only communicates
with authorized Access Points and Bridge. The Utility allows the devices to be monitored and
configured even if they all have the same default IP Address at first boot-up after installation.
Execution of viper
Double click on the viper program - quickstart.exe and it is ready for use.
PC Requirement
• X86 based CPU, 600Mhz & above
• 128 MB RAM
• 1.5 MB hard disk space
• Ethernet port / Wireless LAN adapter
• Windows 2000 and above
WAN/Internet QS PC
AP
Wireless Client
![](/img.php?id=1186564&img=bg24.png)
Pg 31 of 26
10 VIPER QUICKSTART USER GUIDE
Viper QuickStart Icon
Click on the icon to start the application.
Parameters Display in Utility
The Utility displays the following basic parameters that can be changed.
1. MAC ID
2. IP Address
3. Subnet Mask
4. Gateway
5. Device Name
6. Channel
7. DHCP/Static IP
Username and Password of Utility
If the username/password of the Devices have been changed, the QS Utility has to be updated
with the correct username and password. If the username/password of the QS Utility and the
Device is different, QS Utility will not operate as desire.
![](/img.php?id=1186564&img=bg25.png)
Pg 32 of 26
Making Changes
The changes are directly applied in the Utility.
It does not matter if all the devices have the same IP Address. The QS Utility identifies them
uniquely by their MAC Addresses.
Updating Changes
After the necessary changes have been made, the Administrator can apply the changes to the
AP. Check on the Reboot Checkbox and click on the Update button to reboot the device.
Multiple devices can be updated all at once. Use ctrl-left click to select multiple entries or type
ctrl-A to select all entries. Click on Update button to begin the update process.
To refresh the view, use the Find button.
![](/img.php?id=1186564&img=bg26.png)
Pg 33 of 26

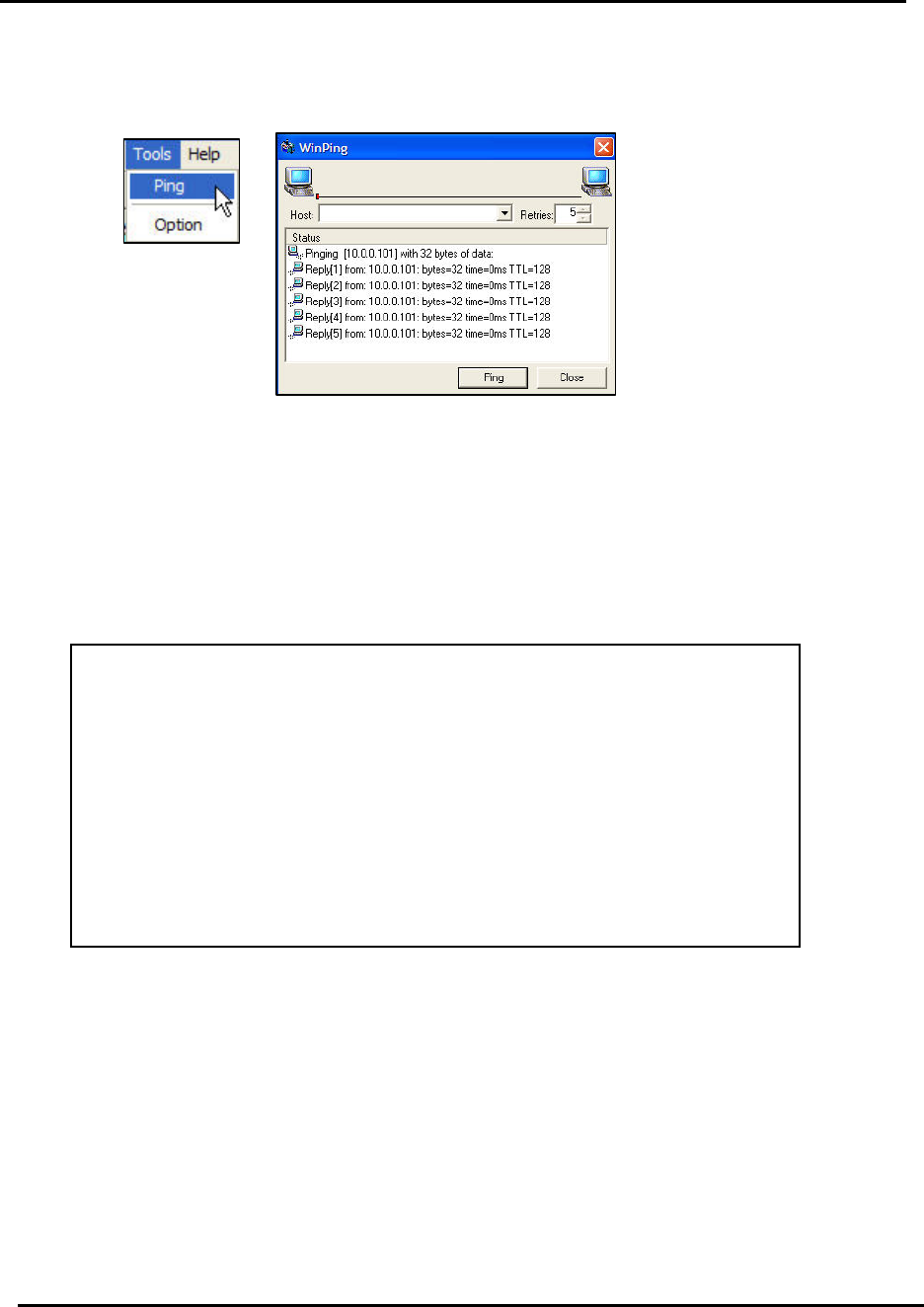

Pinging the Device
The QS Utility can also be used to ping a selected Device to check the connectivity.
11 TECHNICAL SUPPORT
For technical support, please contact the following local distributor or reseller.
![](/img.php?id=1186564&img=bg27.png)
Pg 34 of 26
11 DISCLAIMER
• Manufacturer assumes no responsibility for any damage or loss resulting
from the use of this manual.
• Manufacturer assumes no responsibility for any loss or claims by third
parties that may arise through the use of this product.
• Manufacturer assumes no responsibility for any damage or loss caused by
incorrect use of the AP.
• The contents of this manual are subject to change without prior notice due
to engineering improvement.
• No part of this manual may be reproduced in any form without the express
written consent of the Manufacturer.
• Sample displays shown in this Manual may differ somewhat from the
displays actually produced by the product.
• User Manual may differ for different firmware version.
• All brands and product names are trademarks or registered trademarks of
their respective holders.
