RFRemotech 6XT Remote Control Transmitter TCF200-6XT User Manual TCF200 6XT

RFRemotech Company Remote Control Transmitter TCF200-6XT TCF200 6XT

user manual

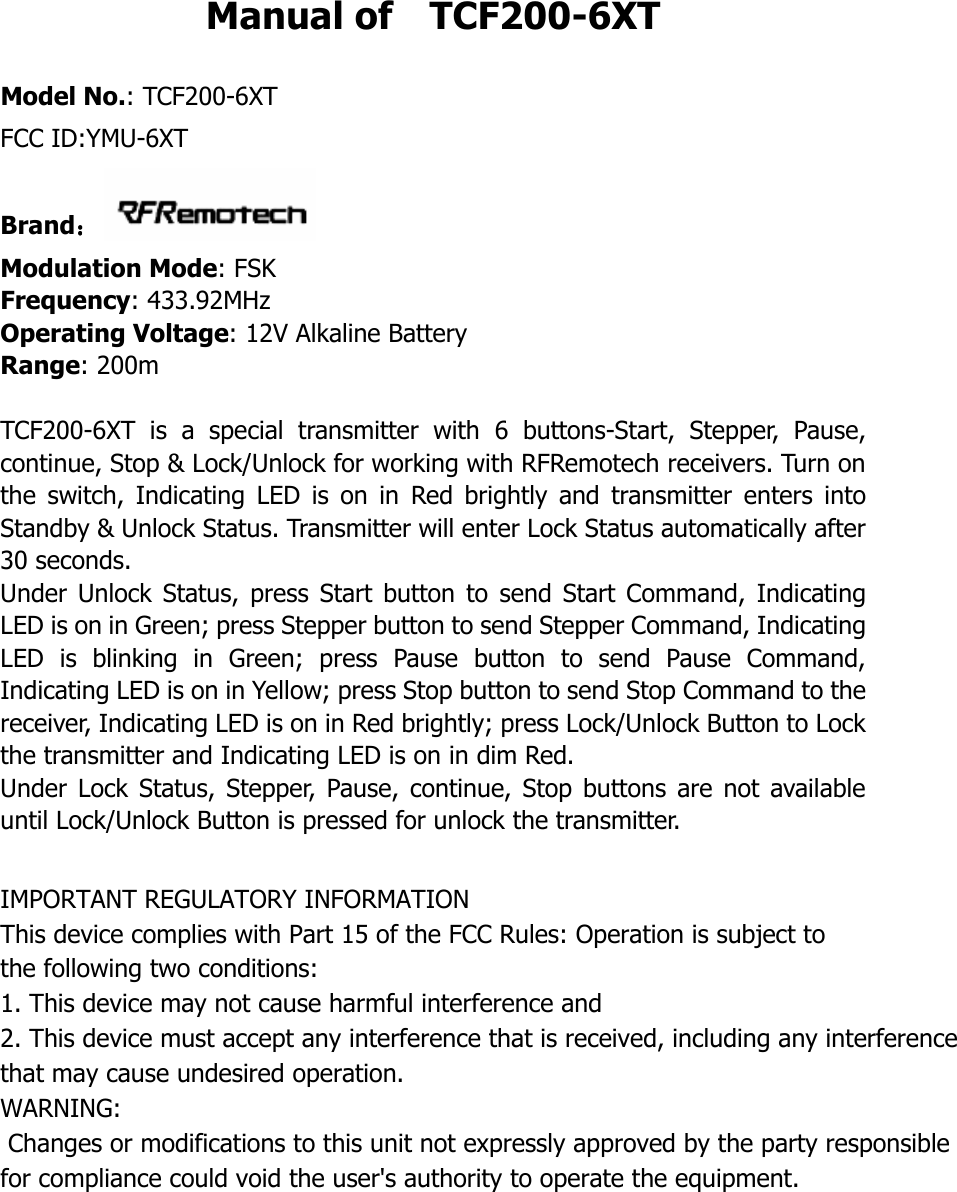

Manual of    TCF200-6XT  Model No.: TCF200-6XT FCC ID:YMU-6XTBrand:::: Modulation Mode: FSK Frequency: 433.92MHz Operating Voltage: 12V Alkaline Battery   Range: 200m  TCF200-6XT  is  a  special  transmitter  with  6  buttons-Start,  Stepper,  Pause, continue, Stop & Lock/Unlock for working with RFRemotech receivers. Turn on the  switch,  Indicating  LED  is  on  in  Red  brightly  and  transmitter  enters  into Standby & Unlock Status. Transmitter will enter Lock Status automatically after 30 seconds. Under  Unlock  Status,  press  Start button  to  send  Start  Command,  Indicating LED is on in Green; press Stepper button to send Stepper Command, Indicating LED  is  blinking  in  Green;  press  Pause  button  to  send  Pause  Command, Indicating LED is on in Yellow; press Stop button to send Stop Command to the receiver, Indicating LED is on in Red brightly; press Lock/Unlock Button to Lock the transmitter and Indicating LED is on in dim Red.   Under  Lock  Status, Stepper,  Pause,  continue,  Stop  buttons  are  not available until Lock/Unlock Button is pressed for unlock the transmitter.  IMPORTANT REGULATORY INFORMATIONThis device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions:1. This device may not cause harmful interference and2. This device must accept any interference that is received, including any interference that may cause undesired operation.WARNING:     Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
