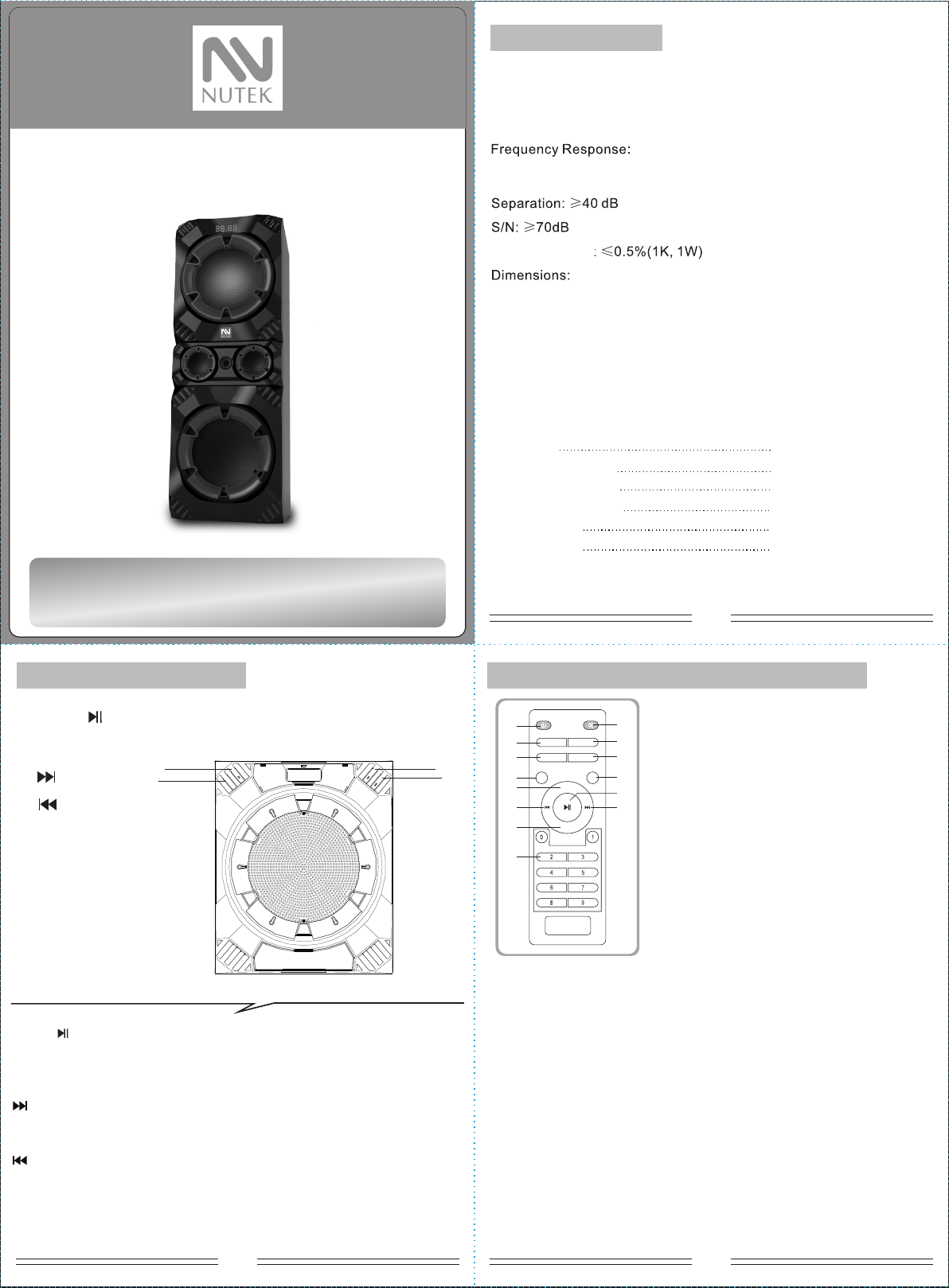

RIDER BEST PS-8322 MULTIMEDIA SPEAKER SYSTEM with Bluetooth User Manual L7621KBU PS 8322 F38 07620 004
Rider best,Inc MULTIMEDIA SPEAKER SYSTEM with Bluetooth L7621KBU PS 8322 F38 07620 004
User Manual
NO.1
NO.2
PS-8322
注：A4大小，105g铜版纸黑色双面印刷，根据虚线对折，封面在前.L7621KBU(PS-8322)-F38-07620-004 设计：陈鸿辉
NO.3
MULTIMEDIA SPEAKER SYSTEM
How to use the remote control
Thank you for choosing our product!
Please read the Manual carefully before using.
SPECIFICATIONS
Speaker Units: 1 X 8" Woofer, 2 X 3" Tweeter
Output Power (RMS):80 Watts + 30 Watts X 2
Power Supply: ~110V 60Hz
High-Quality Multimedia Speaker with built-in Amplifier.
Full Audio Spectrum Performance, Ideal for your Favorite Entertainments
Specially Designed Woofer Cabinet For Excellent Performance of Bass
Remote Controller & 3.5mm Stereo Cable included
Woofer 20Hz - 170Hz
Tweeter 120Hz - 20KHz
Speaker: W314xH895xD398 (mm)
Distortion Rate
Package Contents:
Speaker 1 PCS
3.5mm Input Cable
FM Antenna
Remote Controller
User Manual
Wired Microphone 1 PCS
1 PCS
1 PCS
1 PCS
1 PCS
PLAYBACK CONTROLLER HOW TO USE THE REMOTE CONTROLLER?
1. ST-BY
2. SOURCE
3. TONE
4. TUNING-
5. VOL+
6. PREVIOUS
7. VOL-
8. 0~9
9. MUTE
10. LED effect
11. MEMORY
12.TUNING+
13. PLAY/PAUSE
14. NEXT
VOL+
LED
TONE MEMORY
TUNE+
TUNE-
VOL-
SOURCE
(1)
(2)
(5)
(3)
(4)
(6)
(8)
(7)
(9)
(10)
(11)
(12)
(14)
(13)
1. Press “ST-BY” LED showing “AU18”, it is AUX mode playing state.
2. “MUTE” means to activate or deactivate mute.
3. “SOURCE” means you can choose AUX, Multi-media, MEMORY CARD,
FM, BT input mode, at the same time, the LED will show “Au18” means AUX
mode, “Du18” means Multi-media mode. “87.5” means FM mode, “Bl18”
means BT mode.
4. “TONE” means you can choose “TREBLE” and “BASS” “VOL+/-” means
you can increase or decrease volume of “ TREBLE ” or “BASS”.
5. When enter into FM mode, press “MEMORY” the number on the LED will
Blink. this means the machine is under save channel state. You can change
the blinking number by pressing “NEXT” or “PREV”, press “PLAY/PAUSE”
you can save the channel into same number. it will enter into automatic search
channel and automatic save channel when pressing “MEMORY” for 3-5
seconds (noted: the channel which you saved before will be deleted when you
press “MEMORY” for 3-5 seconds.
1.
2. SOURCE
/ VOL-
/ VOL+
3.
4.
ST-BY/
: In MEMORY CARD/BT Mode, short press to play or pause.
In FM Radio Mode, short press to search FM channels
automatically. In AUX Mode, short press to mute.
SOURCE: Turn to the MEMORY CARD/BT/FM/AUX Mode as you want.
/VOL+: In MEMORY CARD/BT Mode, short press to play the next song.
In FM Radio Mode, short press to play the next FM channel.
In all Modes, long press to increase the volume.
/VOL-: In MEMORY CARD/BT Mode, short press to play the previous
song. In FM Radio Mode, short press to play the previous
FM channel. In all Modes, long press to decrease the volume.
ST-BY/
ST-BY/
SOURCE
/VOL+
/VO L-
(1)
(2) (3)
(4)
NO.5
NO.7
NO.6
NO.4
1. ANTENNA
2. AUX/MULTI-MUDIA INPUT:
Connect to amplify the sound
from others devices.
3. AC IN: AC Power cord
(3)
(1)
(2)
(2)
6. When entering into MEMORY CARD mode. “NEXT” means next song;
“PREV” means previous song; “PLAY/PAUSE” means play/pause; pressing
the number “0-9” on the remote control, you can choose the corresponding
song.
7. VOL+/- means you can increase or decrease volume.
8.“TUNING-” means decrease the frequency of channel selection. Press
“TUNING-” for a long time means decrease the frequency of channel
selection continuously
9.“TUNING+” means increase the frequency of channel selection. Press
“TUNING+” for a long time means increase the frequency of channel
selection continuously.
10.“PLAY/PAUSE” means play/pause for MEMORY CARD.
11.“PREV” means previous song for MEMORY CARD.
12.“NEXT” means next song for MEMORY CARD.
13. Press “SOURCE” buttons on the remote to convert to Bluetooth input
mode, LED display right bottom start to flashing (2 seconds) to search the
Bluetooth device. Turn on the BT Mode on your mobile first and search the
device named "PS-8322" to pair it. It will sound out a TICK while the devices
get paired successfully, then you can play music with the PLAYBACK
CONTROLLER that contains multi-functions as we mentioned above.
Press “ ” for 3 seconds to disconnect the devices in BT Mode.
14. LED: Short press to change 7 LED effects.

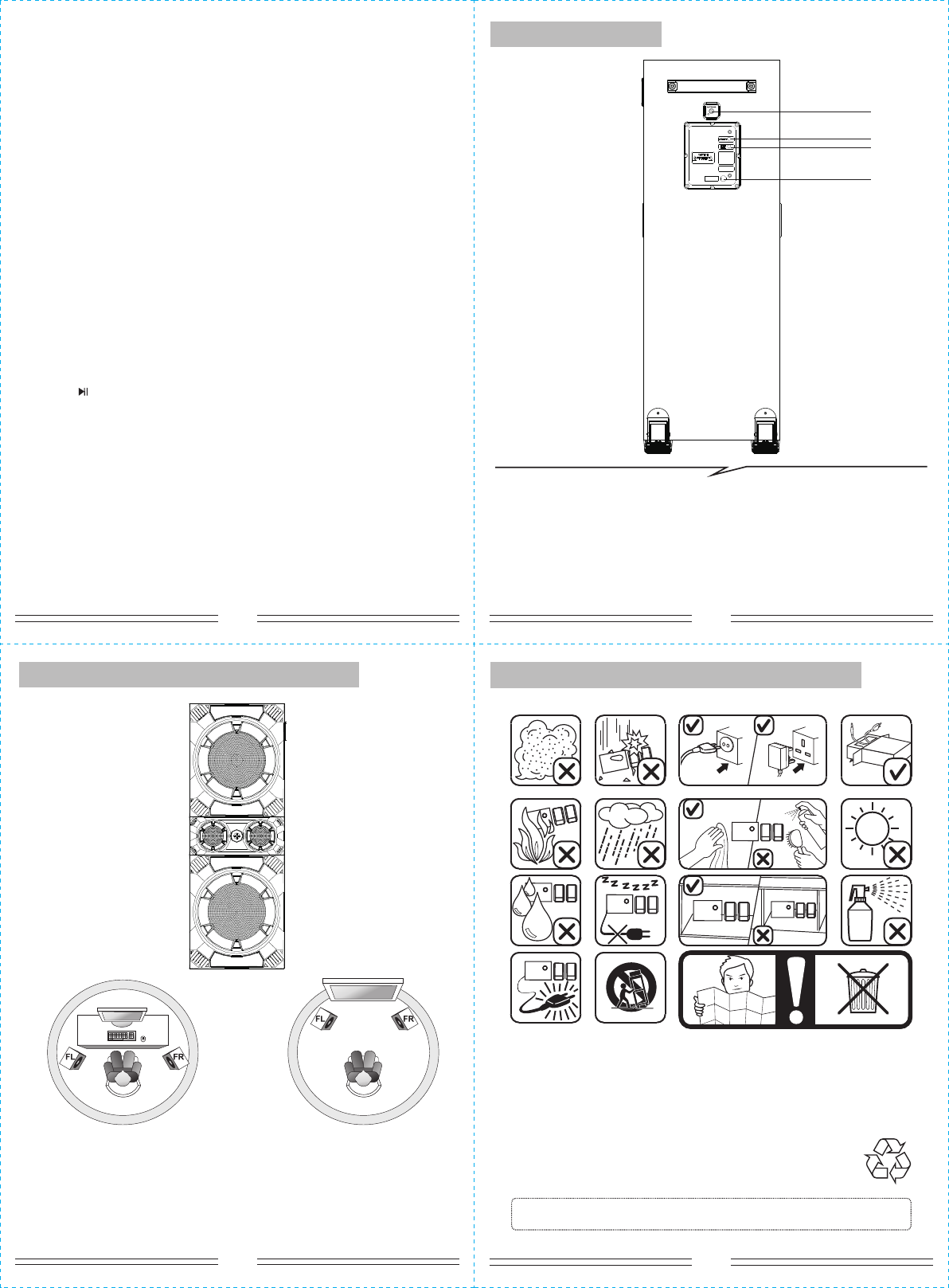

BACKSIDE PANEL
DIAGRAM FOR THE IDEAL PLACEMENT
Ideal Placements
for the Speakers
FL - Front Left
FR - Front Right
SPEAKER
Place the Main Speaker any position on the floor. No directional
requirement for the bass effect.
PAY ATTENTIONS TO THE FOLLOWING CASES
*If the Remote Controller do not work, please change a new battery.
Thank you!
