RIDER BEST QS-1221B loudspeaker box User Manual 1
Rider best,Inc loudspeaker box 1
Users Manual
QS-1221
120V
User Manual for QS-1221 Portable Speaker
WARNING!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER ON
THIS SPEAKER.
THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED
TECHNICIAN.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of dangerous voltage within the product`s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to humans.Users should exhibit extra safety when this
symbol appears in this instruction manual and follow all precautions as they are stated.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in this manual.
1- Read these instructions.
2- Keep these instructions.
3- Heed all waruing.
4- Follow all instructions.
5- WARNING: To prevent fire or electric shock. do not expose this equipment to rain or moisture.
Do not store or operate this product near any liquids.
6- Clean only with a dry cloth.
7- Do not store or operate this product near any heat sources such as radiators, heat registers,
stoves, or other apparatuses (including amplifiers) that produce heat. Keep this product in a well
ventilated area.
8- Do not defeat the safety purpose of the polarized or prounding-type plug. A polarized plug has
two blades with one wider than the other. A grounging plug has two blades and a round grounding
prong. The wide blade or third prong is provided for your safety. If the provided piug does not fit your
outlet, consult an electrician for the replacement of the ob solete outlet.
9- Protect all the wires connected to this unit from being walked on or pinched, particularly plugs
and the point where they exit from the unit. When removing the cord from the poweroutlet, remove
It by holding the plug, not by pulling the cord.
10- Unplug the unit during lightning storms or when unused for lond periods of time.
11- When wiring this unit and all other equipment used in connection to this unit make sure that all
of your equipment is turned OFF.
12- Once installation and wiring is complete power on all your equipment with the volume and level
controls turned DOWN. Once all the equipment in ON slowly raise the volume or level controls to
their proper positions.
13- Before Placing, Installing, rigging. or suspending any product, inspect all hardware, suspension,
cabinets, transducers, brackets and associate equipment for damage. Any missing, corroded,
deformed, or non-load rated component could significantly reduce the strength of the installation,
placement or array. Any such condition severely reduces the safety of the installation and should
be immediately corrected. Use only hardware which is rated for the loading conditions of the
installation and any possible short-term, unexpected overloading, Never exceed the rating of the
hardware or equipment.
14- Consult a licensed, Professional Engineer regarging physical equipment installation, Ensure
that all local, state and national regulations regarding the safety and operation of equipment are
understood and adhered to.
15- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen info the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Congratulations and thank you for your purchase of this Rider Powered Portable PA System with
wired microphone, Memory Card, Bluetooth inputs . To get the most from your system, we
recommend you review all the information provided in this instruction Manual.
BE SURE THAT YOU HAVE COMPLETELY CHARGED THE BATTERY PRIOR TO FIRST USE
TO MAXIMIZE THE BATTERY`S LIFESPAN.
Introduction
QS-1221

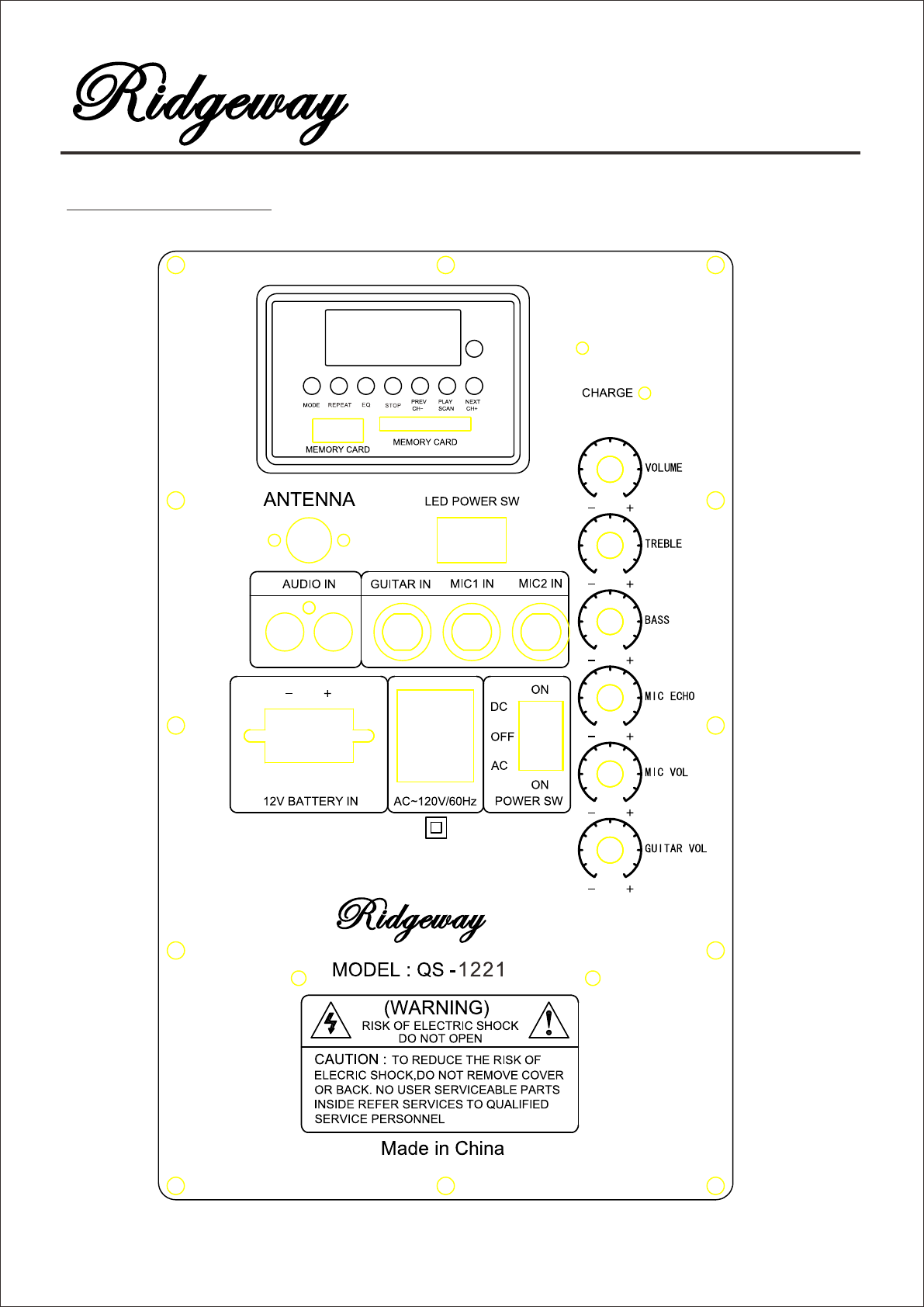

QS-1221 REAR PANEL
QS-1221 REAR PANEL
24. Antenna is for receiving the FM signal. Before use, pull up the telescopic FM antenna. After
use, pack up the FM antenna to better protect it.
12. DC 12V IN is for connecting to 12V external battery if needed.
14. Power Supply: The power switch should be set to the off position before the power supply is
connected.
13. Power Button: Press this button to power the unit on.
9. AUX Input (RCA): The RCA Input is designed to connect directly to a CD/DVD/TV or any
other stereo level audio device.
21.LED Displayer.
5. Previous Track Button: When on Memory card and BT mode, short press this button
to move to the previous track for Memory card and BT.
When on FM mode, short press this button to move to the previous channel.
7. Next Track Button: When on Memory and BT mode, short press this button to move
to the next track for Memory and Bluetooth.
When on FM mode, short press this button to move to the next channel.
1. Mode Button: Press this button to select between the 5 built-in modes.
6. Play/Pause Button: The play /pause button will only control the Memory card and BT.
11. Microphone Input (1/4"): Connect a microphone to this microphone input terminal.
15. VOLUME: MUSIC Level Control,Turn this knob to adjust the music volume.
16. TREBLE: MUSIC Treble Control,Turn this knob to adjust the music Treble.
17. BASS: MUSIC Bass Control,Turn this knob to adjust the music Bass.
18. Microphone Echo Knob: Use this knob to adjust the echo for the microphone input.
19. Microphone Volume Knob: Turn this knob to adjust the microphone volume level of the
microphone input .
8.Memory card slot: Connect your Memory card memory storage (flash drive) device here.
The maximum size of the Memory card can not exceed 16GB. The speaker will only play .mp3
&. wma files from the Memory card input. Do not connect your computer to this input as it will
not play files directly from a computer.
22. Remote control receiver - - - R.
23. Battery charging indicator light .
10. Guitar Input (1/4"): Connect a guitar cable to this input terminal.
20. Guitar Volume Control: Turn this knob to adjust the volume for the guitar.
Inputs ( Line in, Memory, BT, FM) .
When on the mode of FM, Press this button to auto scan all channels.
2.REPEAT: Repeat function in Memory card mode all songs and single songs repeat.
3.EQ: EQ In Memory mode is Memory card option.
4.STOP: STOP In Memory mode is Memory card option.
QS- 1221
QS-1221
QS-1221 BATTERY
1. The QS-1221 is a battery powered PA loudspeaker. Be sure that you have completely
charged the battery prior to first use to maximize the battery’s lifespan.
The QS-1221 takes approximately 8 hours to fully charge. The QS-1221 automatically
begin charging once the power cord is connected to a power source .
The unit will also power on when connected to a power source even if the battery power is low.
When connected to a power source the QS-1221 will play while also charging the battery.
When the battery is full, the charging indicator light on the back panel will OFF.
2. Upon completion of the charging, Please disconnect the power cabie.
3. With standard usage, a fully charged battery can play for about 4-5 hours.
4. Battery can be recharged about 300 times in its lifetime.
5. When not in use, the speaker should always be set fo OFF to prevent the unit from draining
the battery.
6. When the unit is not used for prolonged periods of time, the battery will gradually lose its
power. It is recommended to fully charge the battery at least every 60 days.
QS - 1221 BT
BT Mode:When chose the BT mode, after pressing the button to the right,the unit will
sent out a beep.At the same time,the BT indicate will go twinkle. Then it will search
the BT signal.Open the BT of moilephone. Find the BT
“QS-1221" to connect. Then enter the password for "0000". After
you can play the music in mobilephone. When playing the music,you switch the other
mode,you can press the play button to continue the music whithout reconnect the BT.
name of the unit called
a successful match,

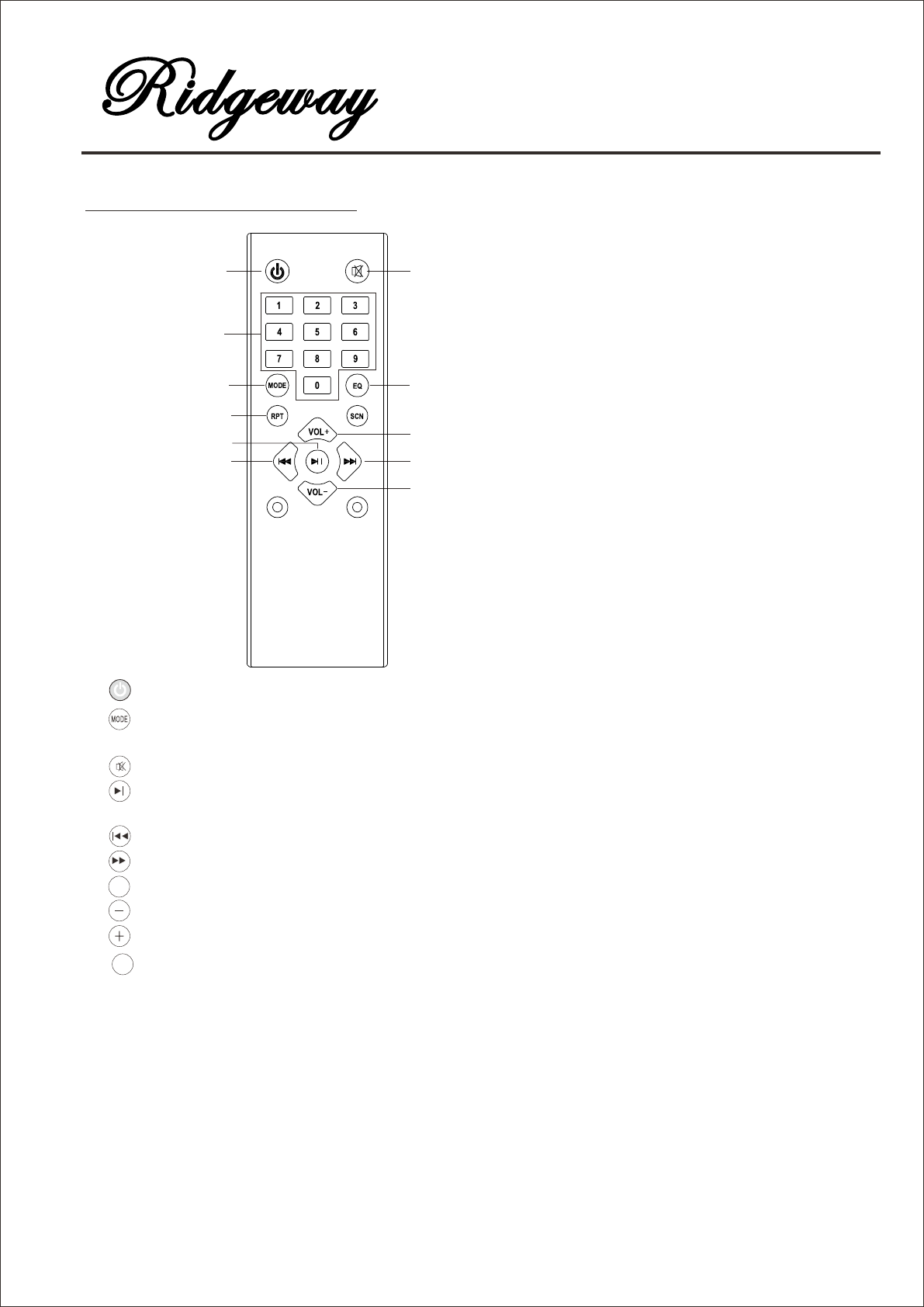

QS-1221 REMOTE CONTROL
QS-1221
MODE
Mute
Next
Play/Pause
Volume -
Volume +
EQ(Memory card)
EQ
Repeat(Memory card)
Power on/off
Previous
Numbers
1.
2.
3.
5.
6.
4.
8.
9.
7.
10.
11.
MODE: Input MODE Button: Press this button to toggle between thevarious
inputs ( Line in, Memory, BT, FM) .
When on the mode of FM,Press this button to auto scan all channels.
MUTE: Mute button.
PREVIOUS: MP3/BT previous song and FM CH- button.
NEXT: MP3/BT next song and FM CH+ button.
PLAY/PAUSE: play pause button.
VOL - : Volume reduce button.
VOL +: Volume increase button.
EQ: Mp3 and BT mode : (Normal/Pop/Rock/Jass/Classic/Cut/Bass)
REPEAT: Repeat function in Memory card mode all songs and single songs repeat.
"0-9" songs select button. In Memory card mode can select songs directly can select
In FM mode can select FM channels directly (input channel frequency to select
b.Select frequency directly for channels by numbers 0- 9. For example: in FM mode,
you want to hear 98.5 MHz channel, just need to press 9+8+5.
in Memory card by numbers 0-9.
For example: if you want No. 9 song by playing songs in Memory card, just need
to press 9, and if you want No.19 song, just need to press 1+9.
POWER: Power ON/OFF.
channels) : a. Can select auto-kept channels by pressing 0- 9 ( make sure channels
were already kept). For example: in FM mode, you want to listen No.3 channel,
just need to press 3, and if you want No.19 channels, just need to press 1+9.
RPT
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
