RITS N RMC321GRX Garage door remote control (RF Receiver) User Manual

RITS-N Co., Ltd. Garage door remote control (RF Receiver)

Users Manual

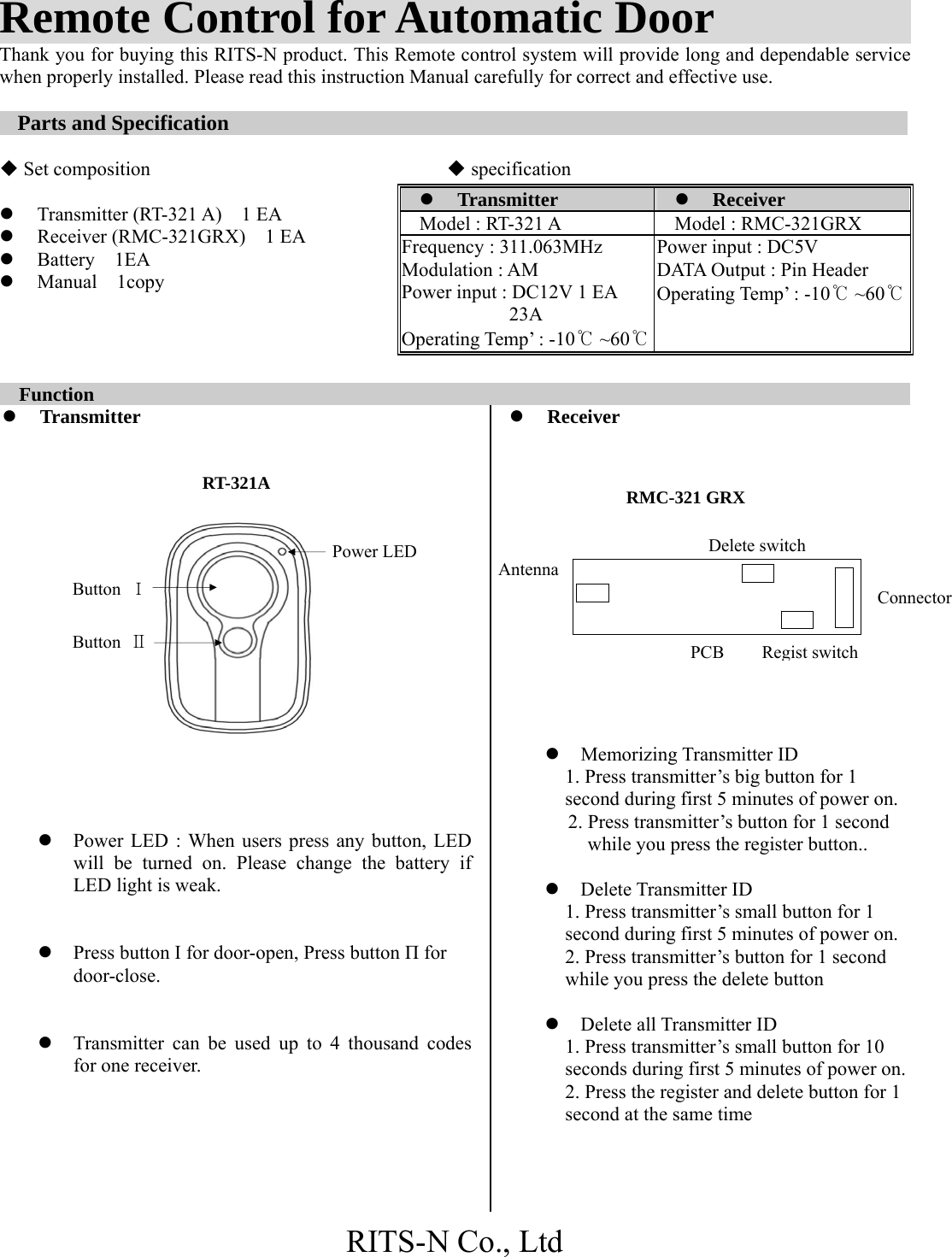

RITS-N Co., Ltd Antenna Remote Control for Automatic Door Thank you for buying this RITS-N product. This Remote control system will provide long and dependable service when properly installed. Please read this instruction Manual carefully for correct and effective use. Parts and Specification  Set composition  specification z Transmitter (RT-321 A) 1 EA z Receiver (RMC-321GRX) 1 EA z Battery 1EA z Manual 1copy Function z Transmitter z Power LED : When users press any button, LED will be turned on. Please change the battery if LED light is weak. z Press button Ι for door-open, Press button Π for door-close. z Transmitter can be used up to 4 thousand codes for one receiver. z Receiver z Memorizing Transmitter ID 1. Press transmitter’s big button for 1 second during first 5 minutes of power on. 2. Press transmitter’s button for 1 second while you press the register button.. z Delete Transmitter ID 1. Press transmitter’s small button for 1 second during first 5 minutes of power on. 2. Press transmitter’s button for 1 second while you press the delete button z Delete all Transmitter ID 1. Press transmitter’s small button for 10 seconds during first 5 minutes of power on. 2. Press the register and delete button for 1 second at the same time z Transmitter z Receiver Model : RT-321 A Model : RMC-321GRX Frequency : 311.063MHz Modulation : AM Power input : DC12V 1 EA 23A Operating Temp’ : -10℃ ~60℃Power input : DC5V DATA Output : Pin Header Operating Temp’ : -10℃ ~60℃RMC-321 GRX RT-321A Power LED Button Ι Button Ⅱ PCB Delete switchRegist switchConnector
RITS-N Co., Ltd
