RITS N RT321A Garage door remote control (RF Transmitter) User Manual

RITS-N Co., Ltd. Garage door remote control (RF Transmitter)

Users Manual

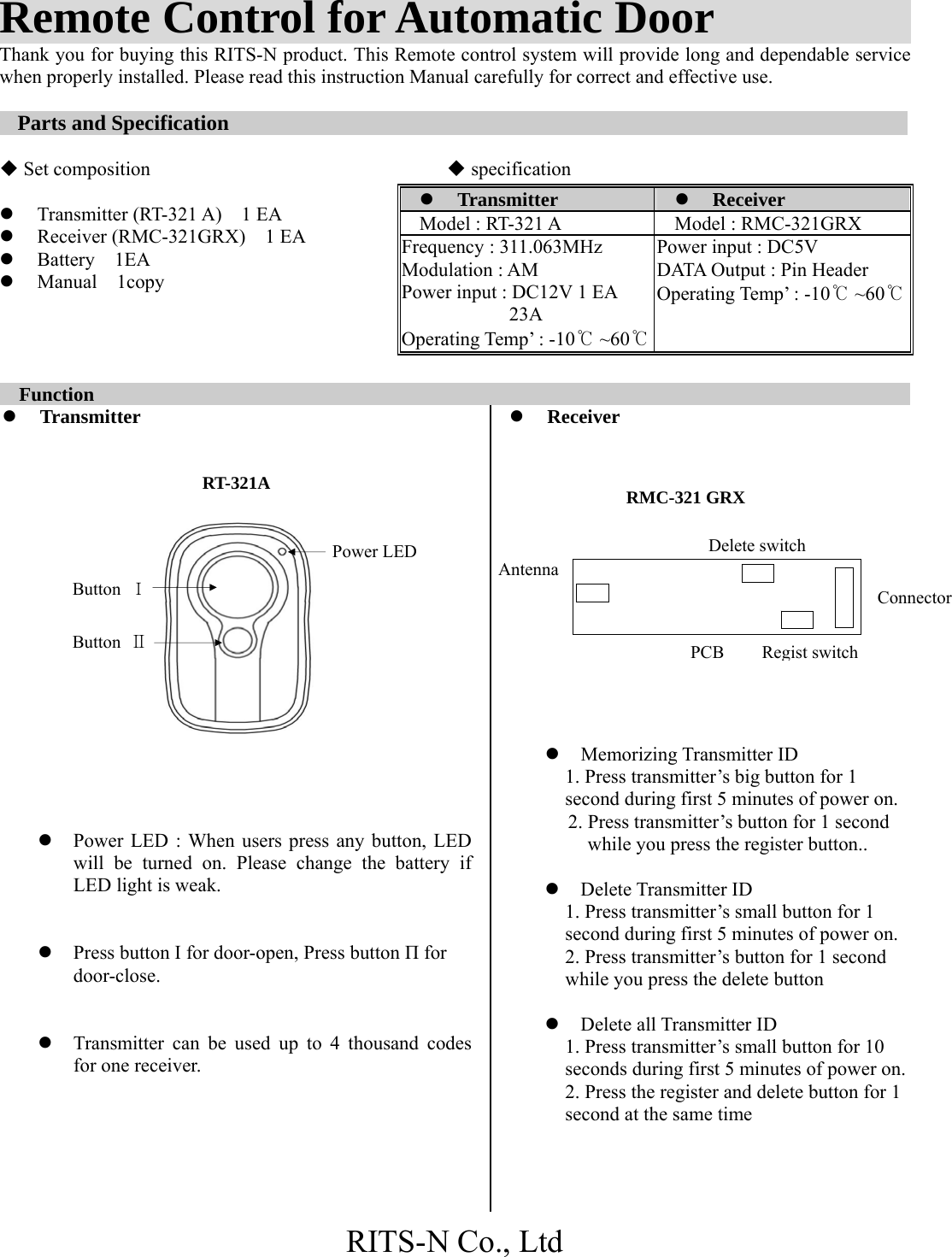

RITS-N Co., Ltd Antenna  Remote Control for Automatic Door            Thank you for buying this RITS-N product. This Remote control system will provide long and dependable service when properly installed. Please read this instruction Manual carefully for correct and effective use.  Parts and Specification                                                              Set composition               specification  z Transmitter (RT-321 A)    1 EA z Receiver (RMC-321GRX)  1 EA z Battery  1EA z Manual  1copy       Function                                                                   z Transmitter          z Power LED : When users press any button, LED will be turned on. Please change the battery if LED light is weak.   z Press button Ι for door-open, Press button Π for door-close.   z Transmitter can be used up to 4 thousand codes for one receiver.       z Receiver               z Memorizing Transmitter ID 1. Press transmitter’s big button for 1 second during first 5 minutes of power on. 2. Press transmitter’s button for 1 second           while you press the register button..    z Delete Transmitter ID 1. Press transmitter’s small button for 1 second during first 5 minutes of power on. 2. Press transmitter’s button for 1 second while you press the delete button  z Delete all Transmitter ID 1. Press transmitter’s small button for 10 seconds during first 5 minutes of power on. 2. Press the register and delete button for 1 second at the same time z Transmitter  z Receiver Model : RT-321 A  Model : RMC-321GRX Frequency : 311.063MHz Modulation : AM Power input : DC12V 1 EA            23A  Operating Temp’ : -10℃ ~60℃Power input : DC5V DATA Output : Pin Header     Operating Temp’ : -10℃ ~60℃RMC-321 GRX RT-321A Power LED Button  Ι Button  Ⅱ PCB Delete switchRegist switchConnector
RITS-N Co., Ltd
