RM Acquisition 10006A GPS User Manual
RM Acquisition LLC GPS Users Manual
Users Manual
730 LM, 530 LM, 525 LM
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual vii
About GPS
The Global Positioning System (GPS) is a constellation of satellites that
a GPS receiver uses to calculate geographical positions. To determine
a position, data from at least three satellites is required. To determine
elevation, the data from four or more satellites is required. Accuracy of
the positioning varies from 10 feet to several hundred feet, depending
on vehicle placement and the surrounding environment.
Geographical terrain (such as mountains), man-made structures (such as
highway overpasses, bridges, and tall buildings), as well as weather
can interfere with the GPS signal. For best GPS reception, position the
device and mount with a clear line of sight to the sky. Some vehicles
may have a limited view of the sky due to metal sun shields or a
metallized windshield coating.
Map data includes the geographical coordinates for address locations and
points of interest (POIs). With GPS reception, your device calculates a route
to your selected location.
Customer Support
Call toll-free:
800-333-0136
Service hours:
Monday through Friday, 8 a.m. to 5 p.m. CT
(Except official holidays)
E-mail:
TNDSupport@randmcnally.com
ii
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual viii
Table of Contents
1. Your Device ...............................................................................................1
Safety Information ...................................................................................1
What’s Included .....................................................................................2
Charge the Battery .................................................................................2
Install the Mount ......................................................................................2
Your IntelliRoute® TND™ .........................................................................3
2. Settings ...................................................................................................4
Main Menu ..............................................................................................4
Guide to Truck Tools and Device Preferences .............................................5
Truck Info ...............................................................................................6
Warnings ...............................................................................................7
General Preferences ............................................................................. 8-9
Route Preferences ..................................................................................10
Map Preferences ....................................................................................11
3. Destinations .............................................................................................12
Tips ......................................................................................................13
New Location .................................................................................. 14-17
Address Book .................................................................................. 18-19
Multi-Stop Trips ............................................................................... 20-22
Tap Map ...............................................................................................23
Set Home ..............................................................................................24
Points of Interest (POIs) ..................................................................... 25-28
Local Search ...........................................................................................29
Confirmation Windows ..........................................................................30
Compare Routes .....................................................................................31
4. Maps & Routing .......................................................................................32
Route Map Window ..............................................................................32
Exits Quick View .....................................................................................33
Directions Slide-Out List ........................................................................34
Virtual Dashboard ............................................................................ 35-36
Junction View ....................................................................................37
Location and Route Options ..................................................................38
5. Tools & Features .......................................................................................39
Wi-Fi ....................................................................................................39
Weather .................................................................................................40
Fuel Prices ............................................................................................. 41
Truck Tools ............................................................................................. 42

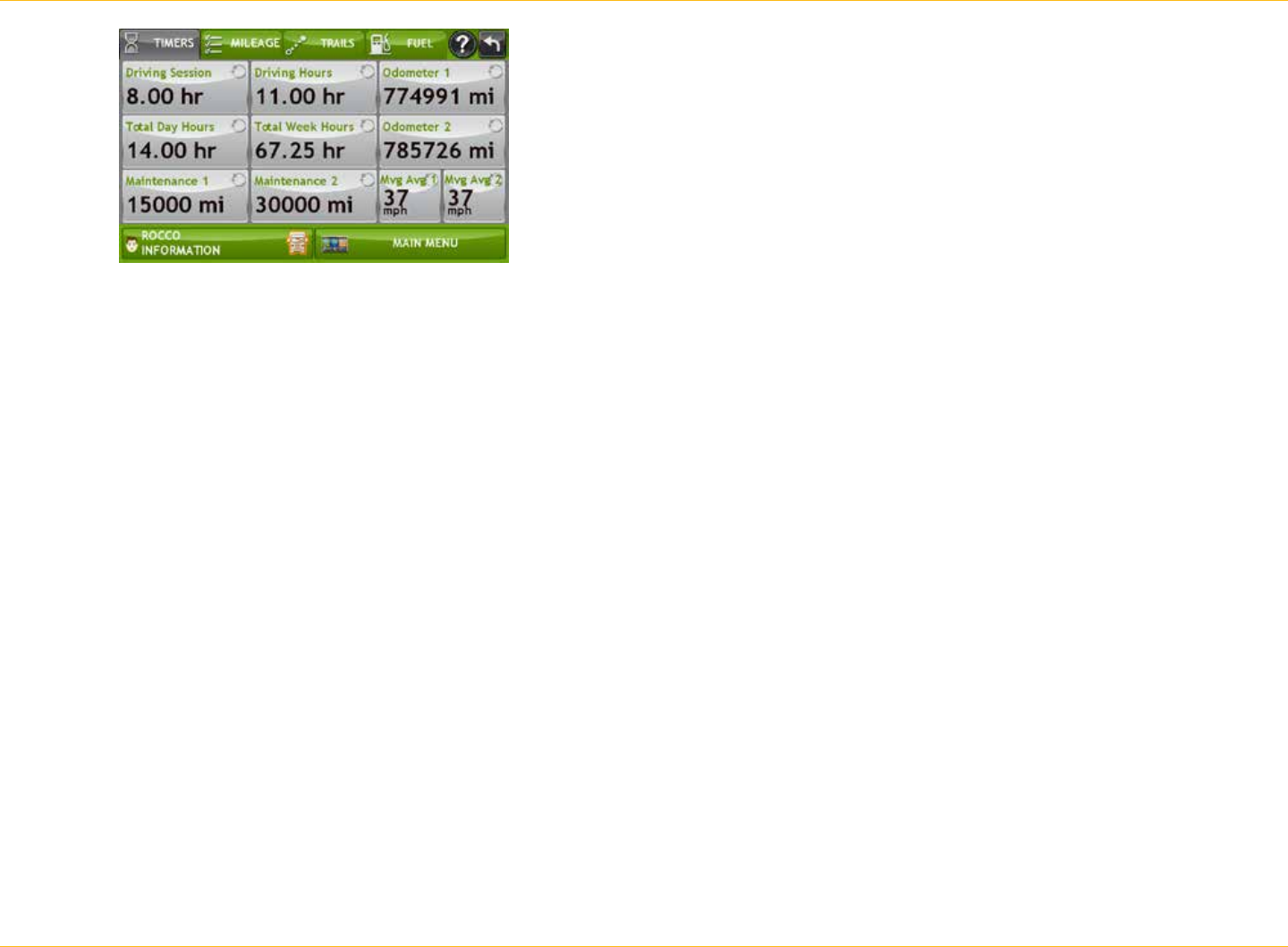

Timers .................................................................................................43

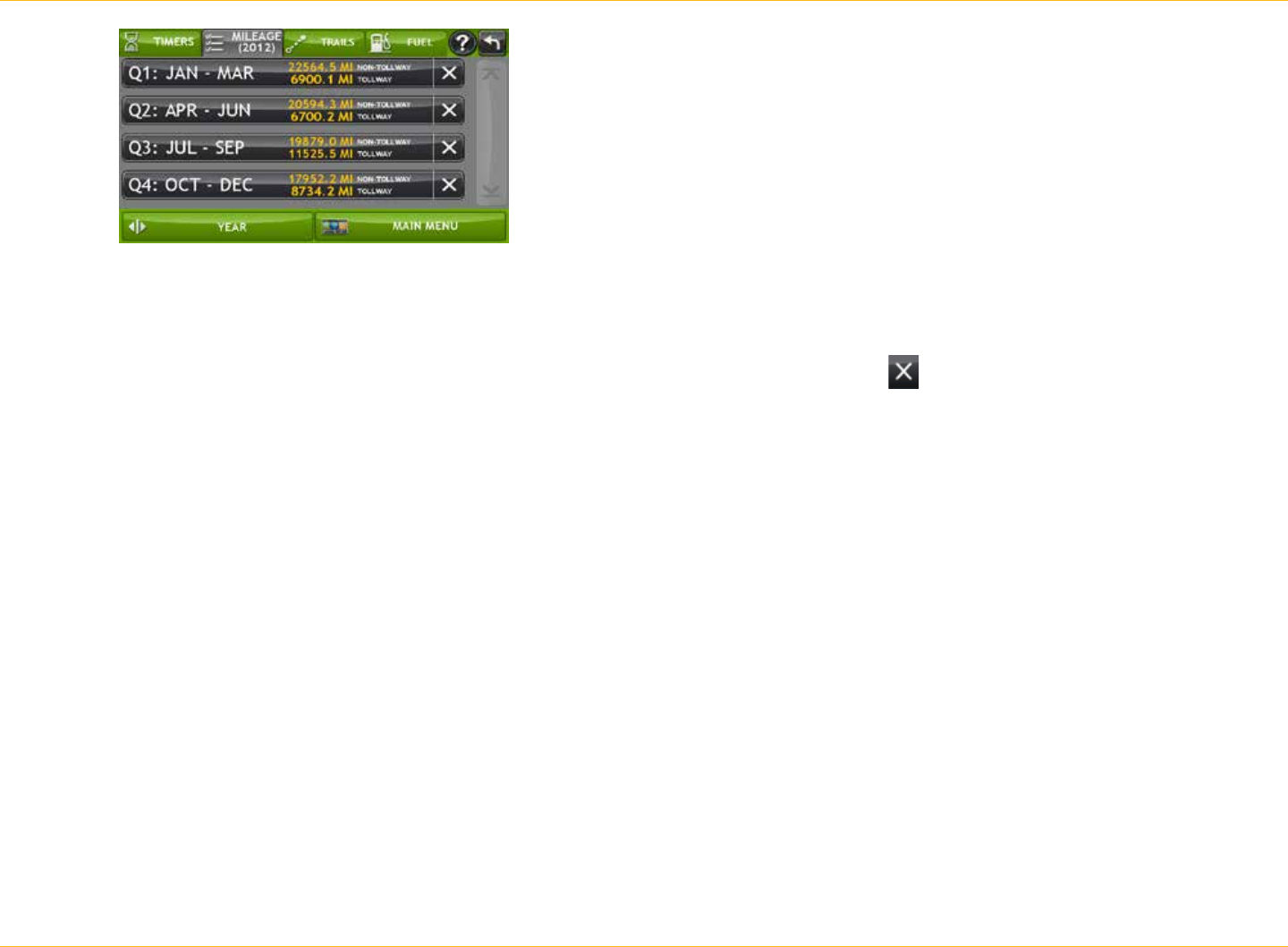

Mileage ................................................................................................44

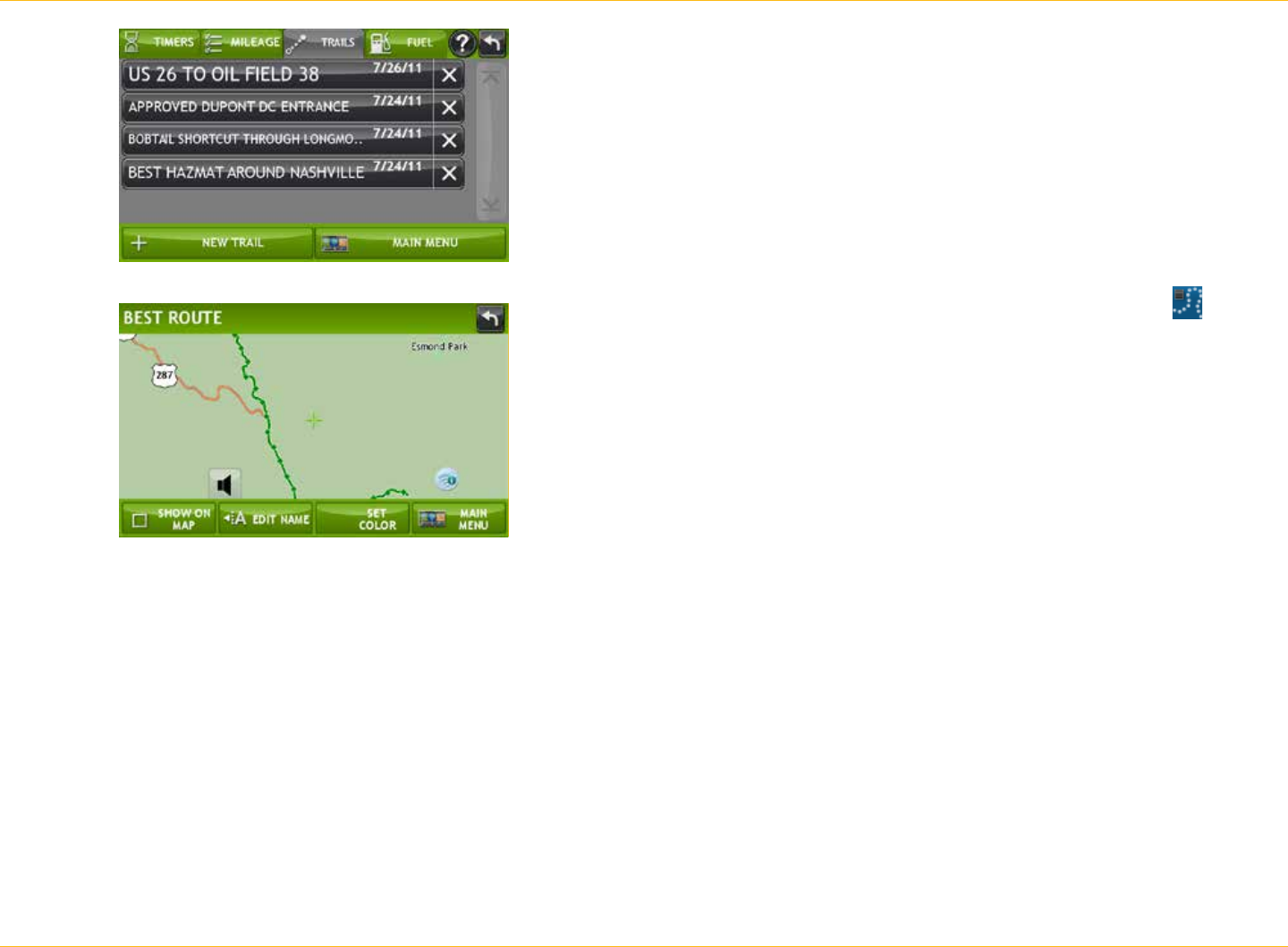

Trails .....................................................................................................45

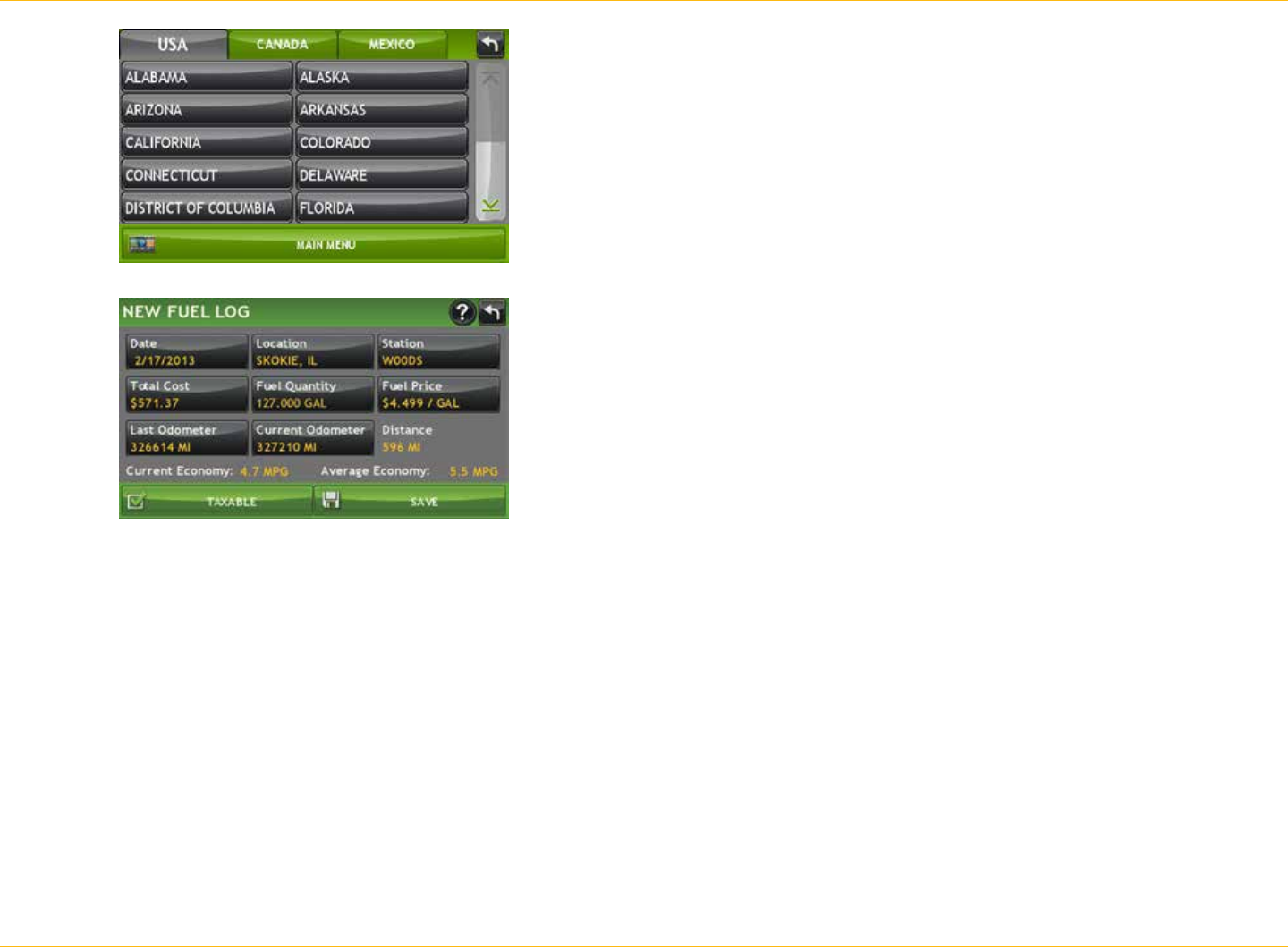

Fuel .....................................................................................................46

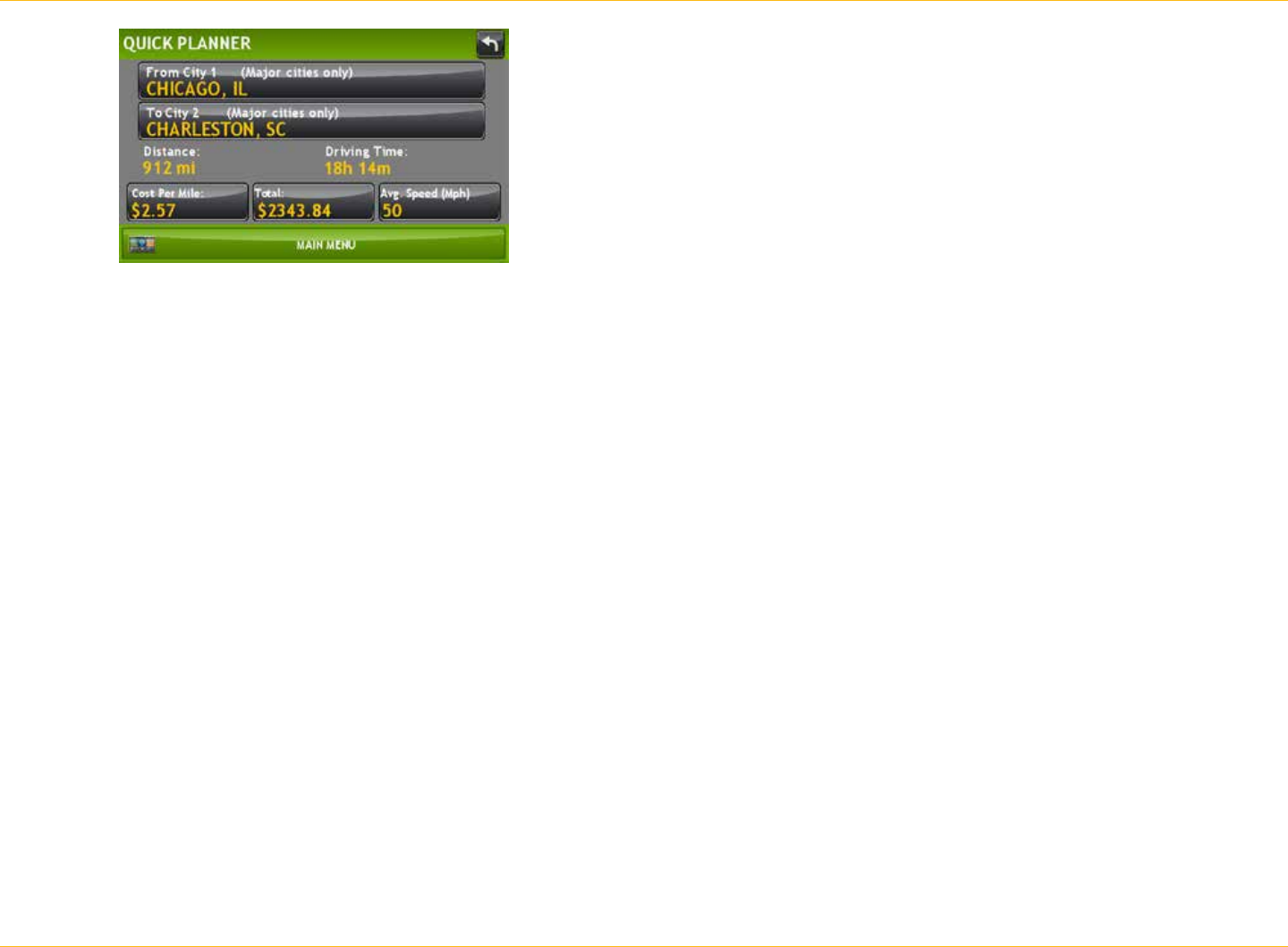

Quick Planner ......................................................................................47

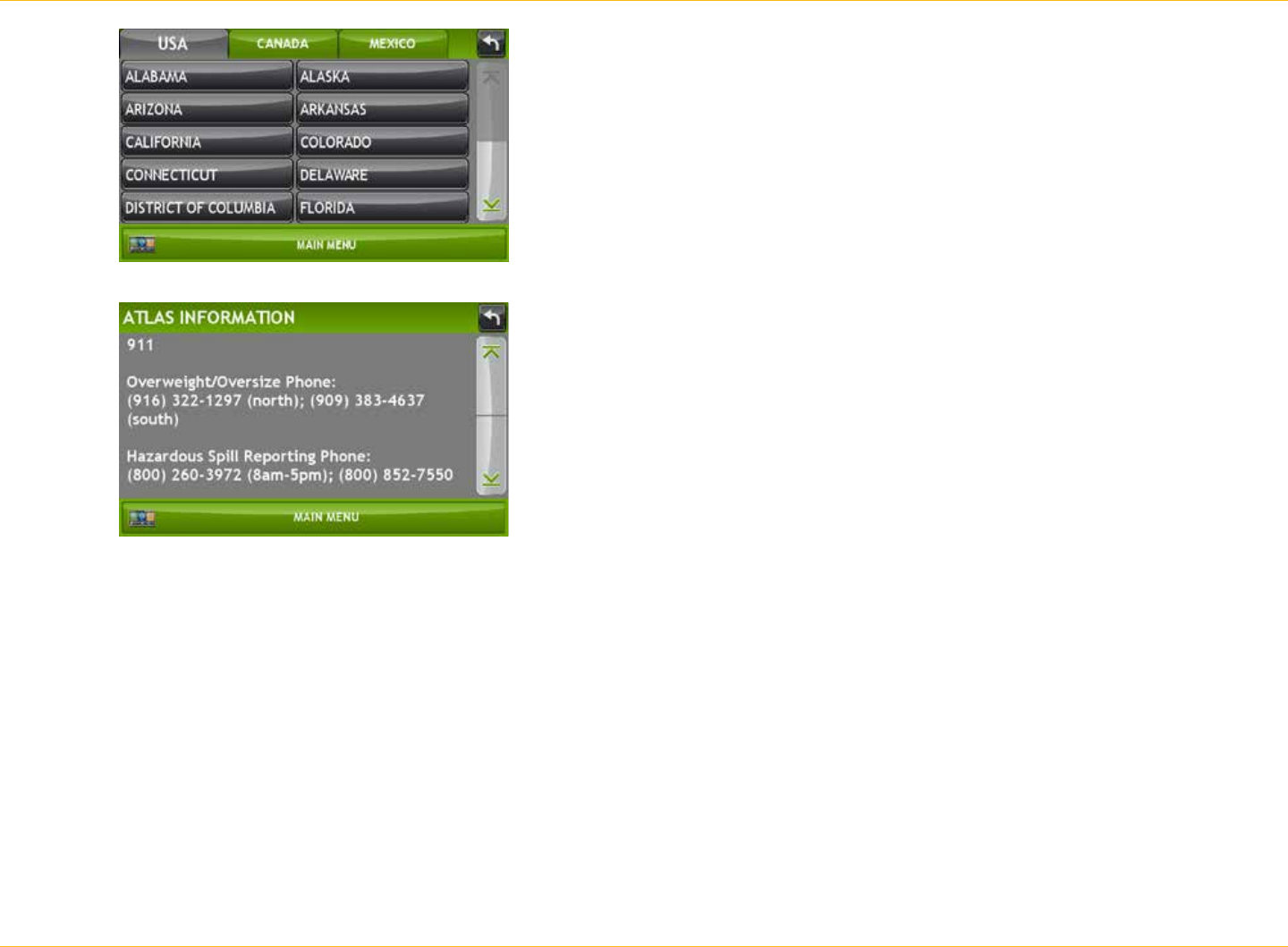

Road Atlas Information ...........................................................................48
Unit Converter .......................................................................................49
Calculator .............................................................................................49
Calendar .............................................................................................49
Notepad .............................................................................................49
Traffic Everywhere (optional) ............................................................ 50-51
6. Connect With Rand ..................................................................................52
Rand McNally Dock ................................................................................52
Custom POI Information ................................................................... 53-54
Export Mileage and Fuel Logs .................................................................55

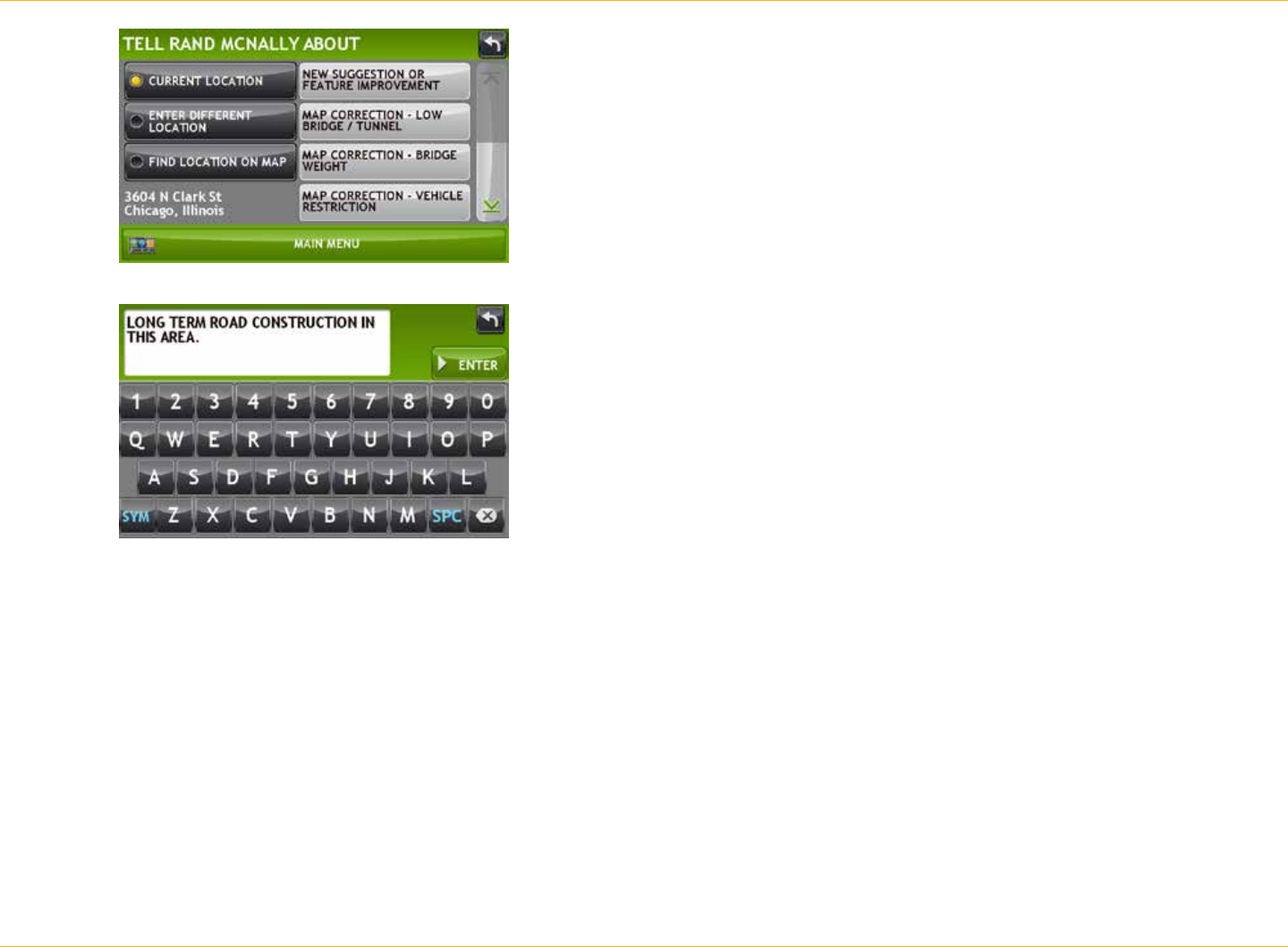

Tell Rand .............................................................................................56
More Information ..................................................................................57
Look for this icon for help tips on many screens.
Note: Some screens may appear different, depending on device model.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 1
Caution: Important Safety Information
Navigation
• Use this navigation device at your own risk.
• Use this navigation device only when it is safe to do so.
• Look at the display only when it is safe to do so.
• Traffic regulations always have priority over any instructions from
the navigation system.
• Follow navigation system instructions only when local regulations
and road traffic allow you do so.
• Make sure that the mount is securely mounted and properly
adjusted before each trip.
• Note: If you do not understand the spoken instructions or are
unsure of what to do next, refer to the navigation map on your
navigation device.
Installation
• Make sure that the mount does not impair the driver’s visibility.
• Do not attach the mount within the airbag deployment zone.
• When installing the mount, make sure that it does not pose a risk
in the event of an accident.
• Do not run cables directly next to safety-relevant devices and
power supplies.
• After installation, check all safety-relevant equipment.
• Connect the wall charger to a 120V or 240V outlet only.
• Connect the vehicle charger to a 12V outlet only.
1. Your Device
Device
• Do not use sharp-edged objects on the device touch screen.
• The device is not waterproof and is not protected against water
damage.
• Protect the device from extreme temperatures. Operating
temperature for the device is between 32 degrees F and
120 degrees F.
• Do not open the navigation device casing.
• Do not attempt to replace the battery. Contact Rand McNally
Customer Support with questions about the battery.
• Always follow local regulations when disposing of this device.
• Note: Make sure that there are no kinks in the cable and that
it will not be damaged by any sharp objects.
• Note: Use only a moist cloth to clean the navigation device.
• Note: Do not pull the cable to unplug the unit.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 2
What’s Included
• Rand McNally IntelliRoute® TND™
• Windshield mount with suction cup
• Quick Start Guide
• Vehicle charger
• USB cable
• Wall charger (730 only)
Charge the Battery
It is recommended that the device is always
connected to a power source during use.
Note: The vehicle may need to be on for the device to charge.
1. Your Device
Install the Mount
Note: Follow all local regulations governing the placement of the mount.
1. Select an area with a line of sight to the sky and GPS satellites.
2. Clean and dry the mounting area.
3. Remove the suction cup protective film.
4. Adjust the angle of the mount using the thumbscrews.
5. Pull the suction cup lever up to release suction.
6. Plug the power cord into the device and the vehicle’s 12-volt
power source.
7. Slide the device onto the mount.
8. Place and hold the mount suction cup against the
mounting surface.
9. Press the suction cup lever down until it snaps into place.
10. Adjust the device so that it can be easily seen and does not
block the driver’s line of sight.
Thumbscrews
Press down
to hold Slide up
to mount
Press down
to hold
Slide up
to mount
Thumbscrews
IntelliRoute®TND™ 530
IntelliRoute®TND™ 730
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 3
Your IntelliRoute® TND™
1 Power Button
Press and hold to turn on or off. While the device is running, the
power button can also be used for quick access to certain features
with one quick tap. See page 9 for Quick Power Press settings.
2 Battery Power Indicator
A red light indicates the battery is charging and blinks when the
battery is low; a green light indicates the battery is fully charged.
3 External GPS Port
Used with an optional GPS antenna.
4 Speaker
Video Input (730 only)
Connect to optional blind spot camera.
Note: When a camera is connected, tap the camera icon in the upper
left corner of the map screen to view. A quick tap on the power button
adjusts the brightness of the camera image.
6 Audio Output
Connect to optional external speaker.
7 Mini-USB Port
Connect the charger or the USB cord.
8 SD Card Slot
For future use, as needed.
9 Reset Button
Use the reset button on the back of the device to restart. This will
cancel the current route, but preferences, address book, and other
personal data will be saved.
Start Your Device
Each time you turn on your device, the Warning and Legal Consent
window displays.
• To view short tutorial on device use, tap Tutorial.
• Tap Accept, or if you turned the device off while on a route,
tap Accept and Continue Previous Route.
1. Your Device
Model intelliroute® TND™ 720
FCC ID: 4AC-10001A
FCC ID: 10199A-10001AMade in China
INPUT:DC 5V=2A
Canada 310
Reset
Antenna
USB
Video In
Audio Out
Model intelliroute® TND™ 720
FCC ID: 4AC-10001A
FCC ID: 10199A-10001AMade in China
INPUT:DC 5V=2A
Canada 310
Reset
Antenna
USB
Video In
Audio Out
1
3
4
5
6
7
8
9
2
5
1
8
7
6
9
2
IntelliRoute®TND™ 530
IntelliRoute®TND™ 730
Model intelliroute
®
TND
™
720
FCC ID: 4AC-10001A
FCC ID: 10199A-10001AMade in China
INPUT:DC 5V=2A
Canada 310
Reset
Antenna
USB
Audio Out
Model intelliroute
®
TND
™
720
FCC ID: 4AC-10001A
FCC ID: 10199A-10001AMade in China
INPUT:DC 5V=2A
Canada 310
Reset
Antenna
USB
Audio Out
4
3
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 4
2. Settings
Main Menu
1 Battery Power Indicator
2 Load Option*
Specify in Preferences whether the trailer is always loaded or whether
you want to be prompted each time a route is calculated. (See page 8).
(Does not display if load option is set to Always Loaded.)
3 Driver Status*
Select driver status.
Note: Set Driver Status to Automatic to start/stop driving timers when
the vehicle moves/stops. (See page 8). However, when the driver status
is set to Automatic mode, tapping the driver status buttons on the
Main Menu temporarily overrides the automatic setting.
4 Truck Tools
Select to enter truck information, set warnings, and access other tools.
(See page 5.)
5 Go To Map
Tap to view location on the map.
6 Choose Destination
Tap to select an address or point of interest (POI).
7 Preferences
Tap to set device, route, or map options. (See page 5.)
8 Mute/Unmute the Speaker
Tap to mute or unmute spoken instructions.
Note: You can also tap this icon when it appears on the map screen
to mute/unmute.
9 Volume
Tap to increase or decrease spoken instructions volume.
Note: You can also mute the speaker from the map screen
when you see . Tap to unmute .
*Note: Not available in Car Mode.
1 2 3
4 5 6
7 8 9
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 5
2. Settings
Truck Tools Page
Truck Info
Hazmat Type ............................................6
Height ....................................................6
Number of Axles ......................................6
Trailers ....................................................6
Truck ETA Adjustment ..............................6
Weight (Empty) .......................................6
Weight (Loaded) .....................................6
Width ....................................................6
Warnings
Auto Dismiss Warnings ............................ 7
Construction Area ...................................7
Crossing State Border/
Time Zone Change Warning ............7
Curve Warnings .......................................7
Driving Day ..............................................7
Engine Brake Warnings ............................7
Hill Warnings ..........................................7
Narrow Road Warnings ...........................7
On Duty Day ...........................................7
On Duty Week ........................................7
Speed ....................................................7
Speed Limit Display .................................7
State Border Alert ...................................7
Tollbooth Alert ........................................7
Warning/Alert Prompts ...........................7
Warning Display Size ...............................7
Weigh Station .........................................7
General
About ....................................................9
Align screen ............................................9
Brightness ...............................................8
Clock Setting ..........................................9
Day/Night Map Color ..............................8
GPS Status ..............................................9
Keyboard ................................................9
Language ................................................ 9
Load Option ............................................8
Mileage Log ............................................8
My Custom POIs .....................................8
Quick Power Press ..................................9
Reset Truck Timers ..................................8
Screen Click ............................................9
Screen Snapshot Button .........................9
Team Driving ............................................8
Tutorial ................................................... 9
Units ....................................................9
Update Driver Status ...............................8
Vehicle Type ............................................8
Voice Name ............................................9
Yard Time Zone .......................................8
Route
Avoid List ...............................................10
Cross-Country Borders ..........................10
Dirt Roads .............................................10
Fast Recalc ............................................10
Ferries ..................................................10
Freeways ...............................................10
Junction View Distance ..........................10
Recalculation ........................................10
Route ..................................................10
States/Provinces to Avoid ......................10
Tollways ................................................10
Truck ETA Adjustment ........................... 10
Tunnels .................................................10
Turn Announcements ............................10
Turn View Distance ...............................10
U-Turns .................................................10
Map
Address Book Icons ...............................11
Car Icon ................................................11
Map Auto Zoom ...................................11
POI Icons ...............................................11
Route Color ..........................................11
Truck Icon .............................................11
Truck POI Icons ......................................11
Device Preferences Page Device Preferences Page
1. Tap and to view the options.
2. Tap the option to be set.
3. Enter the new information.
4. Tap Back to save changes.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 6
2. Settings
Width Use the + and - buttons or enter a numeric
value by tapping the calculator.
Trailers Straight
48’
53’
Double
Triple
ETA Adjustment Increase ETA more
Increase ETA some
ETA ok
Decrease ETA some
Decrease ETA more
Set adjustments to your ETA due to weather
or traffic conditions. You can add (increase)
time to make the trip take longer or
subtract (decrease) time to make the trip
take less time.
Number of Axles Use the + and the - buttons.
Truck Info Options
Hazmat Type None
Explosives
Gases
Flammable Liquids
Flammable Solids
Oxidizers
Poison
Radioactive
Corrosives
Other
PIH
Weight (Empty) Use the + and - buttons or enter a numeric
value by tapping the calculator.
Weight (Loaded) Use the + and - buttons or enter a numeric
value by tapping the calculator.
See Load Option in
Preferences › General (page 8)
or on the Main Menu (page 4).
Height Use the + and - buttons or enter a numeric
value by tapping the calculator.
Truck Info Options
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 7
2. Settings
Warnings Options
Warning/Alert Prompts None
Audio & Visual
Visual
Audio
Auto Dismiss Warnings Never
After 10 seconds
After 30 seconds
Height and weight violations will not be
auto dismissed.
Warning Display Size Full screen
Small bar
Height and weight restrictions will always
display in full screen.
Curve Warnings Set warning distance to curves by using the
+ and - buttons.
Hill Warnings Set warning distance to hills by using the
+ and - buttons.
Engine Brake Warnings Set warning distance to locations where
engine braking is prohibited and by using
the + and - buttons
Narrow Road Warnings Set warning distance to narrow roads by
using the + and - buttons.
Driving Day Set when to be warned before reaching
the driving hours limit.
On Duty Day Set when to be warned before reaching the
duty hours limit.
On Duty Week Set when to be warned before reaching the
duty week limit.
Speed Limit Display None
Truck only (limited)
Show car (if no truck limit is available)
State Border Alert Set warning distance to state borders by
using the + and - buttons.
Crossing State Border/
Timezone Change Warning Off
On
Tollbooth Alert Set warning distance to toll booths
by using the + and - buttons.
Weigh Station Set warning distance to weigh stations
by using the + and - buttons.
Construction Area Set warning distance to construction
areas by using the + and - buttons.
Construction information is based on
RoadWork™ data distributed through the
Rand McNally Dock. (See page 52.)
Speed Set warning distance to speed limit
changes by using the + and - buttons.
Set the amount over the posted limit at
which the warning appears.
Set a user-defined maximum speed to
be warned whenever the truck exceeds
that speed, regardless of posted
speed limits.
Note: To turn warnings off completely, tap the - button
until “off” displays.
Warnings Options
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 8
2. Settings
General Preferences Options
Vehicle Type Truck
Car
Controls how routes are calculated.
Note: Some tools and settings may not
be available in car mode.
Yard Time Zone Hawaii
Alaska
Pacific Time
Arizona
Mountain Time
Central Time
Eastern Time
Indiana (East)
Atlantic (Canada)
Newfoundland
Team Driving Turn team driving on and set profiles
to keep separate driving timers for
two team members.
Day/Night Map Color Always day
Always night
Automatic
Brightness Set separately for day and night modes.
My Custom POIs Tap Manage Custom POIs to specify how
custom POIs are displayed on the map: set
image, warning distance, warning type,
and street/city/state level map display.
See page 53 for Custom POIs.
Update Driver Status Automatic
Main Menu buttons
Specify how driver status is changed.
Note: When in Automatic mode,
tapping the driver status buttons on the
Main Menu will temporarily override
the automatic setting.
Reset Truck Timers Automatic
Manual
Mileage Log Truck only
Car only
Truck & Car
Don’t log
See page 44 for mileage.
Load Option Prompt
Always loaded
Specify whether mileage should be
calculated with the truck empty, always
loaded, or whether to display a prompt
for each route. When set to Prompt, each
time you tap Begin New Route, a window
displays asking if the truck is loaded or empty.
General Preferences Options
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 9
2. Settings
General Preferences Options General Preferences Options
Screen Click Click off
Click on
Tutorial View on-device tutorial
Keyboard ABC
Computer (QWERTY)
Voice Name Samantha
Tom (English only)
Language English
Spanish
French
For the screen and spoken instructions.
Units U.S. Standard
Metric
Clock Setting 12-hour clock
24-hour clock
Screen Snapshot Button Off
On
Quick Power Press POI along route
Screen snapshot
Main Menu
Show map
Toggle mute
Save current location
Tell Rand
Press the power button for 1 second to
access these screens at any time.
Align screen Calibrate the touch screen.
Note: Select this option if your TND
seems to have buttons that are hard
to tap.
GPS Status Tap to show details about your location.
About Tap to show version information
and copyrights.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 10
2. Settings
Route Preferences Options Route Preferences Options
Note: The default settings for your device are already optimized for
truck routing. Use the options below to fine-tune these settings.
A route may still include a roadway or maneuver set to Avoid if the
only legal route found contains these types of roads or the route is
over several hundred miles.
Turn Announcement Set three distances at which you want
to be warned about an upcoming turn.
The first announcement will be the farthest
from the turn and the third the closest to it.
Truck ETA Adjustment Increase ETA more (by 15%)
Increase ETA some (by 5%)
ETA ok
Decrease ETA some (by 5%)
Decrease ETA more (by 10%)
Set adjustments to your ETA due to
weather or traffic conditions. You can
add (increase) time to make the trip
take longer or subtract (decrease) time
to make the trip take less time.
Recalculation Manual recalculate
Auto recalculate
Route Fastest route
Shortest route
Freeways Allow all (default)
Avoid freeways
Prefer freeways
Avoid small roads
Tollways Allow tollways
Avoid tollways
U-Turns Allow u-turns
Avoid u-turns
Ferries Allow ferries
Avoid ferries
States/Provinces to Avoid Tap the bottom right corner to access
a list of states/provinces. Check the box
to avoid.
Cross-Country Borders Allow cross borders
Avoid cross borders
Dirt Roads Allow dirt roads
Avoid dirt roads
Tunnels Allow tunnels
Avoid tunnels
Avoid List Tap on the map and select a road segment
to add it to the Avoid List. (See page 23.)
Fast Recalc Off
On
Fact recalc calculates a route to a midpoint
between your location and the destination,
rather than recalculating the entire route
from scratch. Best used on a long route
that has short distances between
intersections.
Junction View Distance Set the distance before the maneuver
at which the highway junction view
screen appears.
Turn View Distance Set the distance before the maneuver at
which the local street turn view screen
appears. (Note: In 3D map view, this
warning is not needed and will be
turned off.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 11
2. Settings
Map Preferences OptionsMap Preferences Options
Map Auto Zoom Off
On, auto scale
On, street scale
On, city scale
On, county scale
Set to auto scale to keep the current
vehicle position and the next turn
in the map view at all times. Set to
street/city/county scale to specify the
maximum scale of the zoom.
Note: Map redraw speed is impacted
by autozoom choice, especially when
combined with 3D map display option.
Turn it off for quicker display.
POI Icons Off
On
Select icons to display on map
Select restaurants, banks, and consumer
POIs (“Other” category) to display on
the map.
Truck POI Icons Off
On
Select travel centers, service, weigh stations
and truck POIs to display on the map.
Address Book Icons Off
On
Address book entries appear as pushpin
icons unless they are assigned to a group.
Grouped entries appear as folders.
(See page 19.)
Truck Icon Use the arrows to select different icons to
display when using the truck setting.
Use the slider to change the color.
Car Icon Use the arrows to select different icons to
display when using the car setting.
Use the slider to change the color.
Route Color Use the slider to select.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 12
Destinations
To access this window from the Main Menu, tap Choose Destination.
1 Back
Tap to return to the Main Menu.
2 New Location
Tap to route to a new location by address, city center, intersection,
or latitude/longitude. (See page 14.)
3 History
Tap to route to a recently entered location.
4 Address Book
Tap to view a list of saved locations. (See page 18.)
5 Multi-Stop Trips
Tap to view a list of saved multi-stop trips or to create a new one.
(See page 20.)
6 Points of Interest/POIs
Tap to search for a point of interest (POI) such as a gas station,
restaurant, etc. (See page 25.)
Local Search
Tap to search for local businesses, restaurants, and more
by name or keyword. (Note: Wi-Fi connection required.)
(See page 29.)
3. Destinations
1
2 3 4
5 6
7
7
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 13
Helpful Tips on Entering Addresses
Auto-Complete Feature:
Enter the first few characters in a name and a short list displays
a couple of names that start with the typed characters.
On the keyboard, the only keys available are for the next valid
characters in a search name.
Continue entering characters until the searched-for name displays
in the list. Tap on the name to select it.
Cities:
Some cities with common names such as “Athens” have several types
of names associated with a city.
If a name does not display, continue typing characters until the name
you are looking for displays in the list.
Streets:
If the next letter in the street name can not be selected on the keyboard,
tap Expand Search to search a greater area.
The Expand Search button can also help locate addresses that may actually
be in a different town, spelled slightly differently, or in a neighboring town.
Note: If you’re entering a State or County Route, it’s typically best to first
either enter the State or County initials (for example, State Road 535 would
be entered as “SR”) but you may also need to try other options, such as
“State Road” or “CA” for California, for example.
3. Destinations
Tap to view a longer list of names
matching the typed characters.
Tap to view a list of previously
selected locations.
Add a space.
Delete last character and move
back one space.
Type an apostrophe, hyphen,
or other symbol.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 14
New Location
1 Address
Tap to route to an address by entering the city, street, and number,
or by entering the zip code and street. (See page 15.)
2 City Center
Tap to route to a city center. (See page 16.)
3 Intersection
Tap to route to two intersecting roads in a city. (See page 16.)
4 Back
Tap to return to the previous window.
5 Enter Lat/Long
Tap to route to a location by latitude and longitude. (See page 17.)
6 Menu
Tap to return to the Main Menu.
3. Destinations
1 2 3
4
5 6
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 15
Search for an Address
1. Tap Choose Destination > New Location > Address.
2. Type the first few characters in the city name. As you type,
a short list of matching city names displays.
3. Tap on a city to select it.
• If the city is not displayed on the short name list, continue typing
characters in the city name or tap List to display a long list of city
names. Use the up and down arrows to view all cities/states.
Tap on a city to select it.
• On the next use, the city name selected in the previous
search displays. Tap on the city name to search for a
location in the city.
Note: If a city name appears twice within a state, you may need to check
both for your specific address.
4. Or tap Enter Zip Code. Type the zip code.
5. Type the first few characters in the street name, or if the next
characters of the street name cannot be selected on the keyboard,
tap Expand Search and search a wider area.
6. Tap on the street name from the displayed list. Or tap house
number to enter the house number first. (This changes the default
house number first. Tap Street on the next entry to reset the
default to street first.)
7. Tap the house number or tap Select Crossroad to enter an
intersecting street, or tap List to show a list of address ranges.
Tap on house number range from the list.
8. The Confirmation Window displays. (See page 30.)
9. Tap Begin New Route to navigate to the location.
3. Destinations > Addresses
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 16
Route to a City Center
1. Tap Choose Destination > New Location > City Center.
2. Type the first few characters in the city name.
3. Tap on the city/state name.
The Confirmation Window displays. (See page 30.)
4. Tap Begin New Route to navigate to the location.
Route to an Intersection
5. Tap Choose Destination > New Location > Intersection.
6. Type the first few characters in the city name.
7. Tap on the city name.
8. Type the first few characters in the primary street name, or if the next
characters of the street name cannot be selected on
the keyboard, tap Expand Search and search a wider area.
9. Tap on the street name in the list.
10. Type the first few characters in the intersecting street name.
11. Tap on the intersecting street name.
The Confirmation Window displays. (See page 30.)
12. Tap Begin New Route to navigate to the location.
3. Destinations > Addresses
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 17
Route to a Latitude/Longitude
1. Tap Choose Destination > New Location > Enter Lat/Long
2. Tap in the Latitude field.
3. Enter the latitude of the location and tap Enter.
4. Tap in the Longitude field.
5. Enter the longitude of the location and tap Enter.
6. Tap Go. The Confirmation Window displays. (See page 30.)
7. Tap Begin New Route to navigate to the location.
Note: There are two ways to enter latitude/longitude: by decimal degrees
or by degrees, minutes, and seconds.
3. Destinations > Addresses
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 18
Address Book
Add Locations to the Address Book from the Confirmation Window
(See page 30.):
1. Ta p Save to Address Book.
2. Tap Yes to accept the default name or tap No to display a keyboard.
3. Type the name of the location and tap Enter to save the location
in the Address Book. The Confirmation Window re-displays.
Entries
1. Tap Choose Destination > Address Book.
Entries are alphabetically sorted by name.
2. To sort by distance or date, tap Sort By.
3. Select Sort By: Distance or Sort By: Date.
Note: Use the up and down arrows to scroll through the list or use the
alphabet buttons on the left.
Note: The notepad icon indicates a note has been added for this location.
Route to an Address Book Location
1. Tap Choose Destination > Address Book.
• Tap on the All Addresses tab or
• Tap on the Groups tab.
2. Tap on an address to select it.
The Confirmation Window displays. (See page 30.)
3. Tap Begin New Route to navigate to the location.
3. Destinations > Address Book
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 19

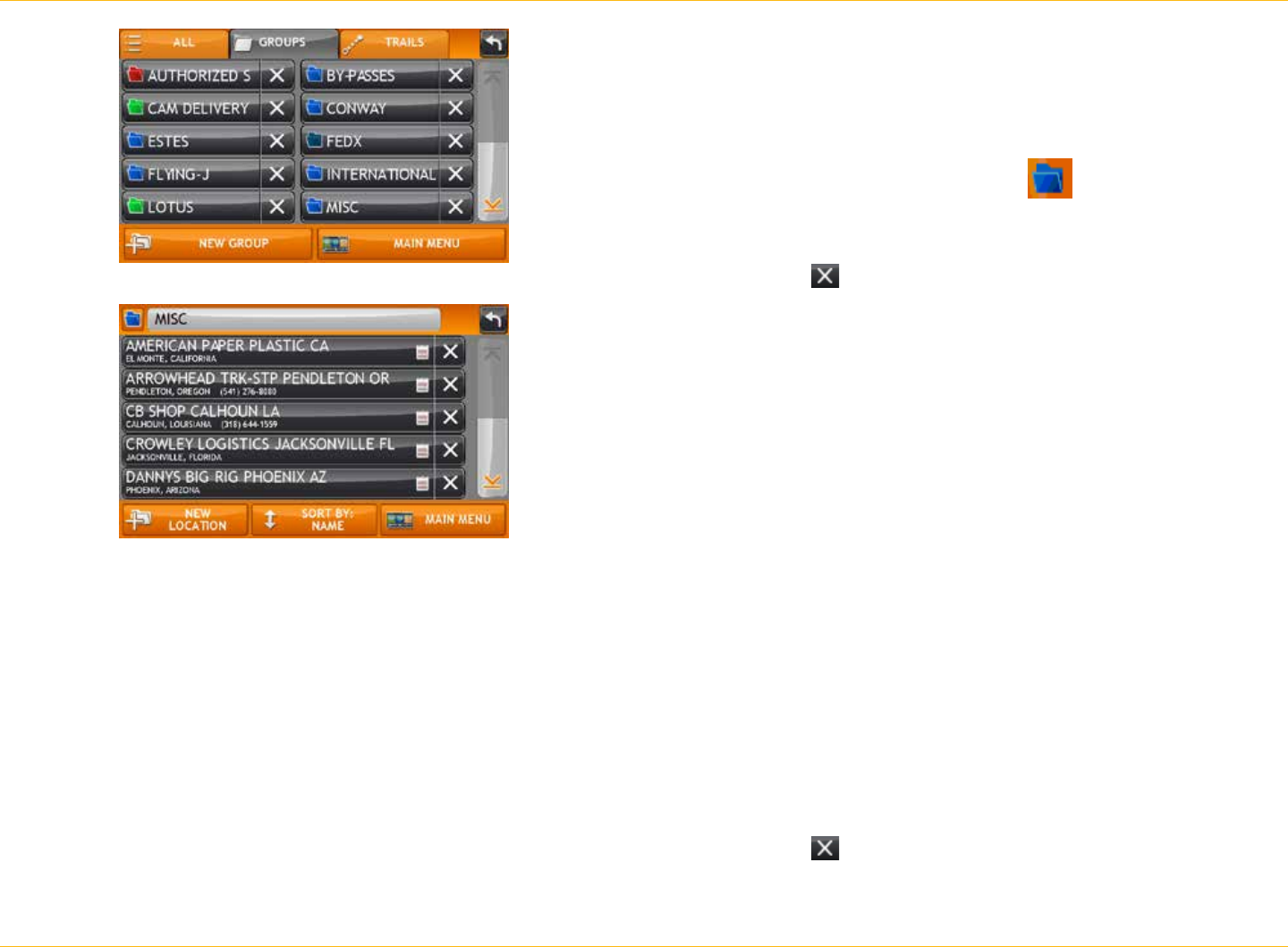

Create a Group
1. Tap Choose Destination > Address Book.
2. Tap on the Groups tab.
3. Tap New Group.
4. Type the group name.
5. To select a different color folder, tap .
6. Tap on a color, then tap Close.
7. When finished, tap Enter.
Tap on the next to a group to delete the group.
Addresses will still be saved in the Address Book.
Note: You can also choose to display address book icons
on the map. (See page 11.)
Add an Address to a Group
1. Tap Choose Destination > Address Book.
2. Tap the Groups tab.
3. Tap on the group you want to add an address to.
4. Tap New Location.
5. Tap Enter New Address, History, Address Book, or POI.
6. If you selected:
• History, Saved, or POI, the selected location is added to
the group.
• Enter a New Address, tap Yes to accept the default name
or tap No to display a keyboard and enter a new name.
Remove an Address From a Group
1. Tap Choose Destination > Address Book.
2. Tap on the Group tab.
3. Tap on the Group you want to remove the address from.
4. Tap on the next to the address to be removed.
5. Tap Yes.
3. Destinations > Address Book
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 20
Create a Multi-Stop Trip
1. Tap Choose Destination > Multi-Stop Trips.
2. Tap New Trip.
3. Type the trip name.
4. To select a different color folder, tap .
5. Tap on a color, then tap Close.
6. When finished, tap Enter.
Note: A multi-stop trip can include up to 50 stops.
Add a Stop
Note: You can add locations in the order you want to route to them
or reorder stops later (See page 21.)
From the Main Menu:
1. Tap Choose Destination > Multi-Stop Trips.
2. Tap on the route.
3. Tap Add Address.
4. To add an address, tap Enter New Address, History,
Address Book, or POI.
5. A Confirmation Window asks if you want to add another stop.
Tap:
• Yes to add another stop
• No if the route is complete.
6. Tap Back to save changes.
Remove a Stop
1. Tap Choose Destination > Multi-Stop Trips.
2. Tap on the route.
3. Tap on the next to the stop to be removed.
4. Tap Yes.
3. Destinations > Multi-Stop Trips
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 21
Reorder Routes
Optimize Automatically
After all locations have been added to a multi-stop trip, you can run
the optimizer wizard to organize your trip.
1. Tap Choose Destination > Multi-Stop Trips.
2. Tap on the route you want to optimize.
3. Tap Reorder Trip.
4. Tap Automatic/Optimize.
5. Tap Select First Stop and select the first stop, or No Preference.
6. Tap Select Last Stop and select the last stop, or No Preference.
7. Tap Yes to return to your current location to complete the route
or No to complete the route at the last stop.
8. Tap Start Trip to begin the route.
Note: There is a limit of ten stops that can be optimized automatically.
Reorder a Route Manually
1. Tap Choose Destination > Multi-Stop Trips.
2. Tap on the route you want to optimize.
3. Tap Reorder Trip.
4. Tap Manual.
5. Tap on the stop to be moved and tap the arrows to move stops
up or down.
6. When finished, tap OK.
7. Tap Start Trip to begin the route.
3. Destinations > Multi-Stop Trips
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 22
Select and Run a Saved Route
1. Tap Choose Destination > Multi-Stop Trips.
2. Tap on the route to select it.
3. Tap Start Trip. The Confirmation Window displays. (See page 30.)
4. Tap Begin New Route to navigate to the location.
5. The IntelliRoute® TND™ calculates the route to your first stop.
When you have reached the stop, a message displays.
6. Tap:
• Next Stop - To calculate a route to the next stop in the route.
• Skip Next Stop - To skip the next stop and calculate a route
to the stop after the next one.
• End Current Trip - To end the route at the current stop.
Note: To view your entire trip, select Summary Map View from the
Route Display Options. (See page 34.)
Delete a Route
1. Tap Choose Destination > Multi-Stop Trips.
The Multi-Stop Trips window displays.
2. Tap on the next to the route to be deleted.
3. A confirmation message displays.
4. Tap:
• Yes to delete the route.
• No to keep the route.
3. Destinations > Multi-Stop Trips
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 23
Tap on the Map
When you tap on the map screen, the crosshairs display.
1 Add as Via
Add a via—an interim stop between the origin and the destination.
2 Avoid
If the location is along the current route, the location is temporarily
blocked and added to the Avoid List. (See page 10.) Tap the location
and choose Remove Avoid to remove the block.
If the location is not along the current route, the avoid will be permanent.
3 Set Origin
Tap to set the location as the starting point of the route.
4 Route to Here
Tap Begin New Route to navigate to the location.
3. Destinations > Tap Map
1234
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 24
Set Home
Note: Only available in Car mode. May not appear on all devices.
(See page 8.)
Current Location
1. Tap Choose Destination > Set as Home.
The current location is saved in your Address Book as Home.
The button changes to Take Me Home.
2. Tap the Take Me Home button to calculate a route from your
current location to your home location.
Another Location
1. Tap Choose Destination.
2. Search for and select a location.
3. On the Confirmation Window, tap Set Origin. (See page 30.)
4. Tap Choose Destination > Set as Home.
The selected location is saved in your Address Book as Home.
The button changes to Take Me Home.
5. Tap the Take Me Home button to calculate a route from your
current location to your home location.
To reset to a new Home, simply delete the Home entry from your
Address Book and then repeat the steps above.
3. Destinations > Set Home
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 25
Points of Interest (POIs)
1 My Truck/Near Car
Tap to search for a point of interest near the current vehicle location.
2 City
Tap to search for a point of interest in a city.
3 My Route
Tap to search for a point of interest along the vehicle route.
4 End of Day
Tap to search for a point of interest along the last 30 minutes of
your route. This search is based on your remaining driving hours
in Truck Tools > Timers. (See page 43.)
Note: Not available in Car mode.
5 Destination
Tap to search for a point of interest near the route destination.
6 Back
Tap to return to the previous window.
7 Custom POI
Tap to select a custom POI location. (See page 53.)
8 Quick Stops
Tap to find a truck-friendly POI near the current truck location.
(See page 26.)
9 Main Menu
Tap to return to the Main Menu.
3. Destinations > POIs
1
3
6
7 8 9
4 5
2
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 26
Points of Interest (POIs)
1 Travel Center
Tap to search for a travel center with truck amenities.
See page 28 to filter by amenities.
2 Truck Services
Tap to search for a truck services POI. See page 28 to filter by amenities.
3 Parking & Rest Areas
Tap to search for truck parking or a rest stop.
4 Weigh Station
Tap to search for a truck weigh station.
5 CAT Scales
Tap to search for a CAT scale location.
6 Dealers
Tap to search for a truck dealership.
7 Other Categories
Tap to select a consumer (non-truck) related point of interest.
8 Back
Return to previous window.
3. Destinations > POIs
1 2 3
4 5 6 7
8
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 27
Other Categories
1. Tap Choose Destination > Points of Interest.
2. Select a search type (My Truck/My Car, City, My Route,
End of Day, or Destination).
3. Tap Other Categories.
4. Tap on a category. (For example, tap Hospital/Emergency.)
5. If necessary, tap on a subcategory type. (For example, tap Pharmacy.)
6. Tap on a location from the list
or
7. Tap All.
8. Tap on the Spell button to display the keyboard.
9. Type the first characters in the POI name.
10. Tap on the POI name in the displayed list.
11. Tap on a location from the list.
3. Destinations > POIs
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 28
Select and Filter Travel Center Amenities and Truck Services
Truck-related Travel Center points of interest can include over 70 different
types of amenities. To select only the travel centers with the amenities that
you are interested in, filter your search results.
1. Tap Choose Destination > Points of Interest.
2. Select a search type (My Truck/My Car, City, My Route,
End of Day, or Destination).
3. Tap Travel Center or Truck Service.
4. Tap Select Services.
5. Click on the check box of each amenity to be included in
the search.
6. Tap OK.
The Travel Center window displays POI locations with your
selected amenities.
7. Tap on a location from the list.
8. A check next to Filter indicates the search terms have been applied.
Tap Filter to return to general search results.
Rate a Truck Point of Interest
You can rate truck POIs from the Confirmation Window. (See page 30.)
For each POI, the top row indicates the community rating from
fellow drivers for the point of interest. The bottom row indicates
your individual rating.
1. Tap on the POI Ratings button.
2. Use and to rate the facility.
3. Tap Create Comment and type a personal comment on the facility.
4. Tap Enter to save the comment.
5. Tap Back to save changes.
Note: You can share ratings with fellow drivers through Rand McNally
Dock software for your Mac or PC. (See page 52.)
3. Destinations > POIs
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 29
Note: This feature requires a Wi-Fi connection. (See page 39.)
Use Local Search to search the Internet for a restaurant, business, or any
type of location by name, keyword, or category. Tap Choose Destination >
Local Search.
Choose whether to search:
near your truck
in a specific city
near your destination
Select a category, or tap Keywords to search using a specific name
(e.g., “Subway”) or a keyword (“sandwich”).
Tap Nearby Food to show a list of area restaurants based
on your current location.
Tap My Local History to show a list of previous searches.
3. Destinations > Local Search
1
2
3
4
5
1 2 3
4 5
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 30
3. Destinations > Confirmation Windows
Confirmation Windows
1 Destination Address
The selected location address.
Begin New Route
Tap to route to destination.
Compare Routes
Tap to choose between two routes (See page 31.)
Add as Via
Add this location as an interim stop between the origin and destination.
This automatically makes the current route a multi-stop trip.
(See page 20.)
Save to Address Book
Add the location to the Address Book or add to Address Book group.
(See page 18).
Atlas
Cross-reference to printed Rand McNally Motor Carriers’ Road Atlas.
(Page numbers apply to the most recent Atlas.)
Go to Map
Tap to view this location on a map.
Set Origin
Tap to set the location as the starting point of a route.
Menu
Tap to return to the Main Menu.
Services
Tap to view amenities at this location.
POI Rating
Tap to rate or add a comment to this location. (See page 28.)
Edit Entry
Rename or edit this entry in the Address Book.
Note
Add a note about this location in the Address Book.
Back
Tap to return to previous window.
Address Book
New Location
1
2
Truck POI
5
6
3
4
14
7
10 8
8 12 13 9
11
8
14
1
4 5
3
6 7
2
3
4
5
6
7
8
9
10
11
12
13
14
9
114
3
5
2
4
2
76
Screens differ according to destination type:
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 31
3. Destinations > Compare Routes
Compare Routes
1. From the destination confirmation window, tap Compare Routes
to view two calculated routes: the primary route and an
alternative route.
2. The top of the screen displays the total distance and time for
each route. Zoom in to get a closer look at each route on the map.
3. Tap on #1 or #2 to select that route.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 32
9 Compass Direction
Tap to change the map display. An icon in the upper right corner displays
the selected option: North up (N), heading up (arrow), or 3D (3). Also dis-
plays Wi-Fi status.
10 Road Information
Tap to view current information by city, street, or upcoming intersection.
11 Location and Route Options
Tap to see current location information, change route settings, detour,
or cancel a route. (See page 38.)
12 Current Speed
Tap to display the Virtual Dashboard. Turns red for speed warnings.
(See page 35.)
13 Speed Limit
Orange for truck limit; white for general limit. Tap to open a "Tell Rand"
message about speed limits.
14 Traffic
Tap to view the Traffic window. (Requires subscription, see page 50.)
15 Mute
Tap to mute the speaker.
16 Current Mile Marker
Tap to open a “Tell Rand” message.
1 Next Maneuver
Tap to repeat spoken next maneuver instructions.
2 Road Name
Name of street you will turn onto next.
3 Miles/Time
Displays remaining distance. Tap to select from: yard arrival time,
arrival time, remaining time, yard time, and elevation.
4 Exits Quick View
Slide out to show upcoming exit information. (See page 33.)
5 Directions Slide-Out List
Tap to select a route display option. (See page 34.)
6 Zoom In/Zoom Out
7 Wi-Fi
Tap to connect and access Wi-Fi services.
8 Main Menu
Tap to return to the Main Menu.
4. Maps & Routing
City, county, and state
Current street name
Next intersecting street name
12 3
13
12
11 10 9
14 15
8
6
5
4
7
16
Route Map Window
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 33
4. Maps & Routing
Exits Quick View
Slide out to show Points of Interest and amenities at upcoming exits.
The list displays the distance to the next exit, exit name and number,
and a count of available amenities.
1. Tap on an exit to bring up the list icon .
2. Tap the icon to display locations by category.
3. Tap on any item in the list to route to that location.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 34
4. Maps & Routing
Directions Slide-Out List
Route Display Options
1. When first opened, the slide-out list displays in Detail View.
2. Use and to view the instructions.
3. To change the display option, tap Route Display Options. Select
Detail View, Highway View, Trip Summary (for multi-stop trips), or
Summary Map View.
1 Rise/Set
Displays the times of sunrise and sunset for your current location.
2 MPH
Displays the current vehicle speed, in miles per hour.
3 Distance, Time
Displays remaining distance and time.
4 Distance
Displays the distance to the next maneuver and the type of maneuver.
5 Street/Road Name
Displays the street name you will be on after performing the next
maneuver. Tap on any item in the list to view it on the map and to
detour around it if necessary.
6 Total Distance and Time
Total distance and time for the entire trip.
7 Leg
Number of the leg and distance.
8 Leg Destination
Leg destination.
Trip Summary (for multi-stop trips)
Highway View 1 2 3
4
5
6
78
Summary Map View (entire trip)
6
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 35
4. Maps & Routing
Virtual Dashboard
To show the Virtual Dashboard, tap the Current Speed.
1 Current direction of travel.
2 Displays current times at the yard, current location
and destination, as well as estimated time of arrival.
3 Sunrise and sunset times based on vehicle location
(latitude/longitude) and day.
4 Current speed (above) and posted speed limit (below).
Note: Turns red when speed limit warning exceeded.
(See page 7 to set speed limit alert.)
5 Elevation at current location.
6 Percentage of current trip completed, distance to next maneuver,
and the number of miles and time spent on the trip to this point.
7 Match with truck’s odometer to automatically update new fuel logs.
Tap the pencil to edit.
8 Return to the Route Map Window.
9 Gather trip information for up to three trips.
Includes odometer settings, hours, and speeds.
10 Reset trip information for the selected trip (Tab 1, Tab 2 or Tab 3).
(See page 36.)
11 Select to automatically reset the information in each tab after
the vehicle has remained stationary for the specified number of hours.
12 View fuel logs and add fuel purchase information.
Tap here
1 2 12 8
3
4
5
6
7
9
10 11
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 36
4. Maps & Routing
Manually Reset Trip Information
1. Tap on the tab you want to reset.
2. To set the odometer for the selected tab back to zero,
tap Reset All.
3. Information is captured as you travel the route.
Automatically Reset Trip Information
To reset trip information after the vehicle has remained stationary after
a specific number of hours:
1. Tap on the tab you want to reset.
2. Tap Auto Reset.
3. Tap to increase the number of hours.
4. Tap to decrease the number of hours.
5. To save changes, tap Change.
6. The Tab displays the auto reset number of hours.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 37
Junction View
When on a route, Junction View displays when you have an upcoming
maneuver. Once past the maneuver, Junction View closes and the
previous window displays.
1 Signs to follow for the next maneuver.
2 Number and direction of lanes for the next maneuver.
3 Distance to the upcoming maneuver. Distance decreases as you
approach the ramp.
4 Turn direction arrow.
5 Mute the speaker.
6 Return to previous window.
4. Maps & Routing
1
2
3
4
56
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 38
4. Maps & Routing
Location and Route Options
1 Nearest cross street
2 Current road you’re on, current town you’re in
3 Latitude and longitude at current location
4 Current location by mile marker
5 Return to previous window
6 Detour
Around Part of the Route
1. On the left side of the Window, tap the number of miles
on the route to be avoided.
2. The route is recalculated.
Around a Specific Roadway
1. On the right side of the Window, tap and to view
a list of roads in the current route.
2. Tap on one or more roadways to be avoided.
A check mark appears in front of each selected road.
3. Tap Detour to recalculate the route.
7 Skip to next stop (for multi-stop trips)
8 Cancel current route
9 Save current location to the Address Book. (See page 18.)
10 Access Avoid List. (See page 10.)
11 Access Route Settings. (See page 10.)
1
4
5
2 3
6
9
7 8
10 11
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 39
5. Tools & Features
Wi-Fi
For information on setting up a Wi-Fi hotspot through your cellular phone
or laptop computer, please visit www.randmcnally.com/wifihelp for
basic instructions, or contact your wireless carrier.
Note: Wi-Fi connectivity requires a supporting feature and data plan from
your wireless service provider. As the user, you are responsible for all data
charges. Please contact your wireless service provider to make sure
you do not exceed the limits of your data plan.
Once you have established a Wi-Fi hotspot,
1. Tap the Wi-Fi icon ( ) on the map screen.
( Also accessible from the Preferences menu.)
2. Tap Enable WiFi to search for available hotspots.
3. Tap the hotspot you want to connect to.
4. Enter the network password. (Note: Many passwords are case
sensitive. To access lowercase letters, set the Keyboard to
Computer (Qwerty). See page 9.)
5. Tap Disable WiFi to turn Wi-Fi connectivity off. (Note: Disable
to save battery power.)
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 40
5. Tools & Features
Weather
Notes:
• This feature requires a Wi-Fi connection.
• The refresh speed of the weather display is dependent on the
connection speed. Weather information is updated every few
minutes while Wi-Fi connection is active.
• Weather display depends on active weather patterns and
map zoom level.
To view current weather information and the three-day forecast for
your location, tap the Wi-Fi icon ( ) on the map screen and
tap the Weather tab.
1 View details for current weather alerts.
2 View weather information at your destination.
Note: You can view weather information at any other location
by tapping the map and then the Weather icon.
3 Select type of weather overlay to display on the map.
4 Select from a variety of weather types:
• No weather (turn off)
• Traffic impact
• Temperature
• Feels like
• Current precipitation intensity and type
• Probability of precipitation
• Forecasted precipitation intensity, type, and clouds
• Forecasted precipitation intensity and type
• Dew point
• Relative humidity
• Wind speed
5 Slide to adjust the transparency of the overlay on the map.
Note: Use the slider to readjust for visibility when switching
between day and night modes.
1
3 2
4
5
Tap to re-display city, street, or intersection.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 41
5. Tools & Features
Fuel Prices
Note: This feature requires a Wi-Fi connection.
To show fuel prices, tap the Wi-Fi icon on the map screen and
tap the Fuel Prices tab.
1 Displays stations and prices, with distance as the crow flies.
Check to show the icons and prices on the map screen.
Sort by distance or price.
Apply filters for type of fuel and specific brand.
Check to show fuel prices along the route.
1
32 4 5
2
3
4
5
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 42
5. Tools & Features
Truck Tools
Note: Some features are not available in Car Mode.
1 Back
Return to the Main Menu.
2 Truck Info
Enter truck information (weight, length, etc.). (See page 6.)
3 Timers, Mileage, Trails, and Fuel
View driving, on-duty, and maintenance timers; state logs; trails;
and fuel purchase information. (See pages 43-46.)
4 Warnings
Set warning distances for driving time, duty hours, and upcoming
weigh stations. (See page 7.)
5 Quick Planner
Between any two cities or towns, quickly calculate the distance,
driving time, and cost.
6 Rand Motor Carrier’s Road Info
View Rand McNally Truck Emergency contact information and
truck regulations.
7 Tell Rand
Compose a message to send to Rand McNally when you
connect to the Dock. (See page 56.)
8 Calendar (See page 49.)
9 Notepad (See page 49.)
10 Converter (See page 49.)
Quickly convert distance, weight, and temperature.
11 Calculator (See page 49.)
1
2 3
4 5 6 7
8 9 10 11
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 43
5. Tools & Features
Timers
Note: Odometers count up and record the current mileage. Maintenance
counters count down. When a maintenance timer counts down to 2,000
miles, a reminder displays each time the TND starts.
Note: To avoid timer warnings, set the timer limits to a very high number.
1. Tap Truck Tools.
2. Tap Timers, Mileage, Trails, Fuel.
3. Tap the Timers tab.
Tap the driver profile on the bottom left to switch between two team drivers.
On the left, use the Change To field to make adjustments to
mileage or hours. The mileage/hours continue to count down
from the changed value.
1. Tap
--
to decrease the setting.
2. Tap + to increase the setting.
3. Tap the calculator to display a keyboard. Enter a number and tap Enter.
4. Tap Change.
On the right, use the Reset To field to set the most common reset
value, normally zero. At the beginning of each day or run,
tap Reset to set the value back to zero for odometers and 15,000
or 35,000 for maintenance odometers.
1. Tap
--
to decrease the setting.
2. Tap + to increase the setting.
3. Tap the calculator to display a keyboard. Enter a number and tap Enter.
4. Tap Reset.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 44
5. Tools & Features
Mileage
1. Tap Truck Tools.
2. Tap Timers, Mileage, Trails, Fuel.
3. Tap the Mileage tab to view list of logs for the current year,
ordered by quarter.
4. To view quarterly mileage logs for previous years, tap Year.
Tap on a quarter to view log entries.
5. Tap on a quarter to view details. Tap View by Date/View by State
and Empty/Loaded for more information.
To delete a log, tap on the next to the log entry to be deleted.
Tap Yes to delete the log.
Note: Load Option and Driver Status control how logs are recorded.
( See page 8.)
Note: Mileage logs can be exported to your computer via the
Rand McNally Dock.
( See page 55.)
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 45
5. Tools & Features
Trails
Use Trails to record a “bread-crumb” path of GPS coordinates where
your truck has traveled.
1. Tap Truck Tools.
2. Tap Timers, Mileage, Trails, Fuel.
3. Tap the Trails tab.
4. To record a trail, tap New Trail.
5. To end the trail, tap the Trails icon on the map screen.
6. The trail is recorded in the Trails tab.
7. Tap on a trail to view details.
8. Tap Show on Map to display the trail on the map screen.
9. Tap Edit Name to change the name of the trail.
10. Tap Set Color to change the color of the trail.
Note: The Trails feature is also accessible from the Address Book.
(See page 18.)
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 46
5. Tools & Features
Fuel
1. Tap Truck Tools.
2. Tap Timers, Mileage, Trails, Fuel.
3. Tap the Fuel tab to view a list of fuel logs by quarter.
4. Tap Add Fuel to record the date, location and cost of fuel purchase.
5. Tap on any field to edit.
6. Check Taxable to include the purchase in the fuel log.
7. Tap Save (Note: Fuel economy is calculated automatically.)
8. Once fuel purchases have been entered, tap on a quarter to view
the details.
9. You can View by State or View by Month.
10. Tap the state or month to view fuel purchases.
11. Tap View All to see all fuel purchases.
Note: Fuel logs can be exported to your computer via the
Rand McNally Dock. ( See page 55.)
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 47
5. Tools & Features
Quick Planner
Use this tool to quickly estimate the mileage and time between any
two cities or towns.
1. Tap Truck Tools.
2. Tap Quick Planner.
The revenue or cost per mile used in the last computation displays.
3. Tap From City 1 and select the city.
4. Tap To City 2 and select the city.
5. The distance displays.
6. Tap Cost per Mile and enter the per mile rate or tap Total and
enter the total amount.
7. Tap the new dollar amount and tap Enter.
8. The dollar amounts readjust automatically.
9. Tap Average Speed (MPH) enter a speed:
• Tap
--
or + to decrease or increase the speed.
• Tap the calculator to enter a speed.
10. Tap Change.
11. The driving time displays.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 48
5. Tools & Features
Road Atlas Information
To reference Rand McNally’s Motor Carriers’ Road Atlas:
1. Tap Truck Tools.
2. Tap Road Atlas Information.
3. Select the appropriate country tab.
4. Select the appropriate state/province to view emergency
and other key phone numbers.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 49
5. Tools & Features
Unit Converter
1. Tap Truck Tools.
2. Tap Converter.
3. Tap on the first field and select the type of conversion to perform.
4. Tap on the second field and enter the value to be converted.
5. Tap Enter.
Calculator
1. Tap Truck Tools.
2. Tap Calculator.
Calendar
1. Tap Truck Tools.
2. Tap Calendar.
3. Use the arrows to view other months and years.
4. Tap Today to return to the current date.
Notepad
1. Tap Truck Tools.
2. Tap Notepad.
3. Tap New Note.
4. Tap a note in the list to view and edit.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 50
5. Tools & Features
Traffic Everywhere
Traffic Everywhere is available as an optional service on the
Rand McNally Dock. (See page 52.)
Note: This feature requires a Wi-Fi connection.
To view traffic information, tap the Wi-Fi icon on the map screen and then
tap the Traffic tab.
Traffic Window
1 Optional Route
Tap to select either a recalculated route based on traffic events
or to stay on the current route.
2 Traffic on Route
Tap to view traffic events along your route. Tap Filter to
choose to display traffic flow, incidents, or both.
3 Traffic List
Tap to view a list of traffic events within receiver range. Tap
Filter to choose to display flow, incidents, or both.
4 Back
Tap to return to the previous screen.
5 Traffic Off/Internet-Based Traffic
Tap to turn traffic reporting off.
6 Wi-Fi
Check Wi-Fi connection status.
7 Menu
Tap to return to the Main Menu.
1 2 3 4
56 7
Tap any traffic icon for incident details.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 51
5. Tools & Features
Traffic Icons
Accident Accident Incident Closure
Exit blocked Entrance blocked Traffic Carpool Road work
Obstruction
Dangerous Road condition Temperature Wind Activities
Security Delay Cancel Size/weight limit Visibility
Heavy
traffic
Moderate
traffic
Light
traffic
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 52
Rand McNally DockTM
The Rand McNally Dock enables you to receive software upgrades and
access map updates, construction updates, and additional features.
Simply download the Dock software for your PC or Mac at
www.randmcnally.com/dock and connect your device using
the USB cable provided.
With the Rand McNally Dock, you can also:
• Purchase Traffic Everywhere
• Export mileage and fuel logs to your home computer
• Load custom POIs, such as red light cameras and
railroad crossings, to your device
• Access the Rand McNally support site and online store
• Read product news and announcements
• Send feedback and suggestions to Rand McNally
through “Tell Rand”
6. Connect With Rand
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 53
6. Connect With Rand
Custom POI Information
Use custom POIs to upload lists of your own locations to your TND™.
There are two types of custom POIs:
1. Destinations you can route to.
2. Alert locations, such as red light cameras and railroad crossings,
you want to be warned about when they are along your route.
(See page 7.)
Lists of custom POIs are available from third-party sources such as
POI Factory: www.poi-factory.com.
Or enter your own list. Tips for formatting your own list of POIs:
1. Files must be in .csv format.
2. You can enter locations by longitude/latitude (in decimal format),
address, or both.
3. Separate each piece of information with a comma.
Do not use spaces before or after commas.
4. Enter in order the longitude, latitude, location name, street address,
city, state, zip, and country. For example:
• Longitude/latitude and address:
-87.761039,42.059611,Rand McNally,9855 Woods
Dr,Skokie,IL,60077,USA
• Longitude/latitude only:
-87.761039,42.059611,Rand McNally
• Address only:
,,Rand McNally,9855 Woods Dr,Skokie,IL,60077,USA (Note: In
this example, there are two commas at the beginning. Commas
are required as placeholders for fields with no data in them.)
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 54
6. Connect With Rand
Custom POI Information
To load custom POI files to your TND™:
1. Connect your device to the Rand McNally Dock.
2. On the Dock, click Add Your Own POI.
3. Click POI (for destinations) or Alert POI (for warnings).
4. Select the file from your computer.
5. Click Open to automatically transfer the file to your device.
6. Unplug your device from your computer.
7. Plug your device into power using the power adapter.
8. Turn the device on.
9. Depending on the size, the download could take up to 30 minutes.
Note: “Failed records” are those for which some description
information has been excluded. If you would like to know why
some records failed, plug your device into your computer, and view
the error messages in the Dock.
10. Customize how you want the POIs to display in
Preferences > My Custom POIs. (See page 8.)
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 55
Export Mileage and Fuel Logs
Use this feature to export mileage breakdowns by state and fuel
purchase information to your computer. The exported file can be
in .xls or .csv format.
On the Rand McNally Dock:
1. Click on Mileage/Fuel.
2. Select where you want the file to be downloaded, and click Save.
3. The file will be downloaded to your computer. When finished,
a notification message displays.
4. Click Ok.
6. Connect With Rand
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 56
6. Connect With Rand
Tell Rand
While you’re en route with your TND™, you can enter messages for Rand
McNally regarding construction, truck restrictions, addresses, your device,
and more. The next time you connect to the Rand McNally Dock, you can
reopen, edit, and send the message.
1. Tap Truck Tools.
2. Tap Tell Rand. On the left side, tap Current Location.
Enter Different Location or Find Location on Map.
Note: You can open a Tell Rand speed limit message by tapping
the speed limit or mile marker on the map screen. Or open a
Tell Rand with the power button by setting the Quick Power Press
to Tell Rand. (See page 9.)
3. If you selected Enter Different Location, enter it as an address.
If you selected Find Location on Map, tap on the map to set the
crosshairs at that location, then tap Back.
4. On the right side, tap the type of message you want to send.
5. Type your message.
6. Tap Enter to save the message.
7. To discard the message and return to the previous window,
tap Back.
8. To send the message, connect your device to the
Rand McNally Dock.
9. On the Dock, click Tell Rand to access and send the messages saved
on your device.
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 57
For more information
• Rand McNally Website
www.randmcnally.com/trucking
• Support
www.randmcnally.com/support
• GPS accessories
www.randmcnally.com/gps-accessories
• Rand McNally Dock
www.randmcnally.com/dock
• Demo Videos
www.youtube.com/randmcnallyonline
6. Connect With Rand
Rand McNally IntelliRoute® TND™ 730, 530, 525 LM User Manual 58
Trademarks
Rand McNally and IntelliRoute are registered trademarks
and TND and the Dock are trademarks of RM Acquisition LLC,
d/b/a Rand McNally.
NAVTEQ ON BOARD is a trademark of NAVTEQ.
The Trucker’s Friend and National Truck Stop Directory are
registered trademarks of TR Information Publishers.
TruckDown is a registered trademark of TruckDown Info International, Inc.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
InfoGation is a registered trademark of InfoGation Corporation.
Local search information provided by CityGrid Media.
Weather data provided by myweather.com.
Fuel prices provided by OPIS.
Traffic information provided by INRIX, Inc.
© 2014 Rand McNally. All rights reserved.
Rand McNally follows a continuous improvement process and reserves
the right to provide enhancements that may not be reflected in the
pictures and specifications in this manual.
The information contained herein may be changed at any time without
prior notification. Neither this manual nor any parts thereof may be
reproduced for any purpose whatsoever without the express written
consent of Rand McNally, Inc., nor may it be transmitted in any form
either electronically or mechanically, including photocopying, and
recording. All technical specifications, drawings, etc. are subject to
copyright law.
