RM COSTRUZIONI ELETTRONICHE Srl KL7405V HF power amplifier User Manual KL7405 Istruction Rev 1 1

RM COSTRUZIONI ELETTRONICHE Snc di Marchioni Davide e Daniele HF power amplifier KL7405 Istruction Rev 1 1

General Specifications

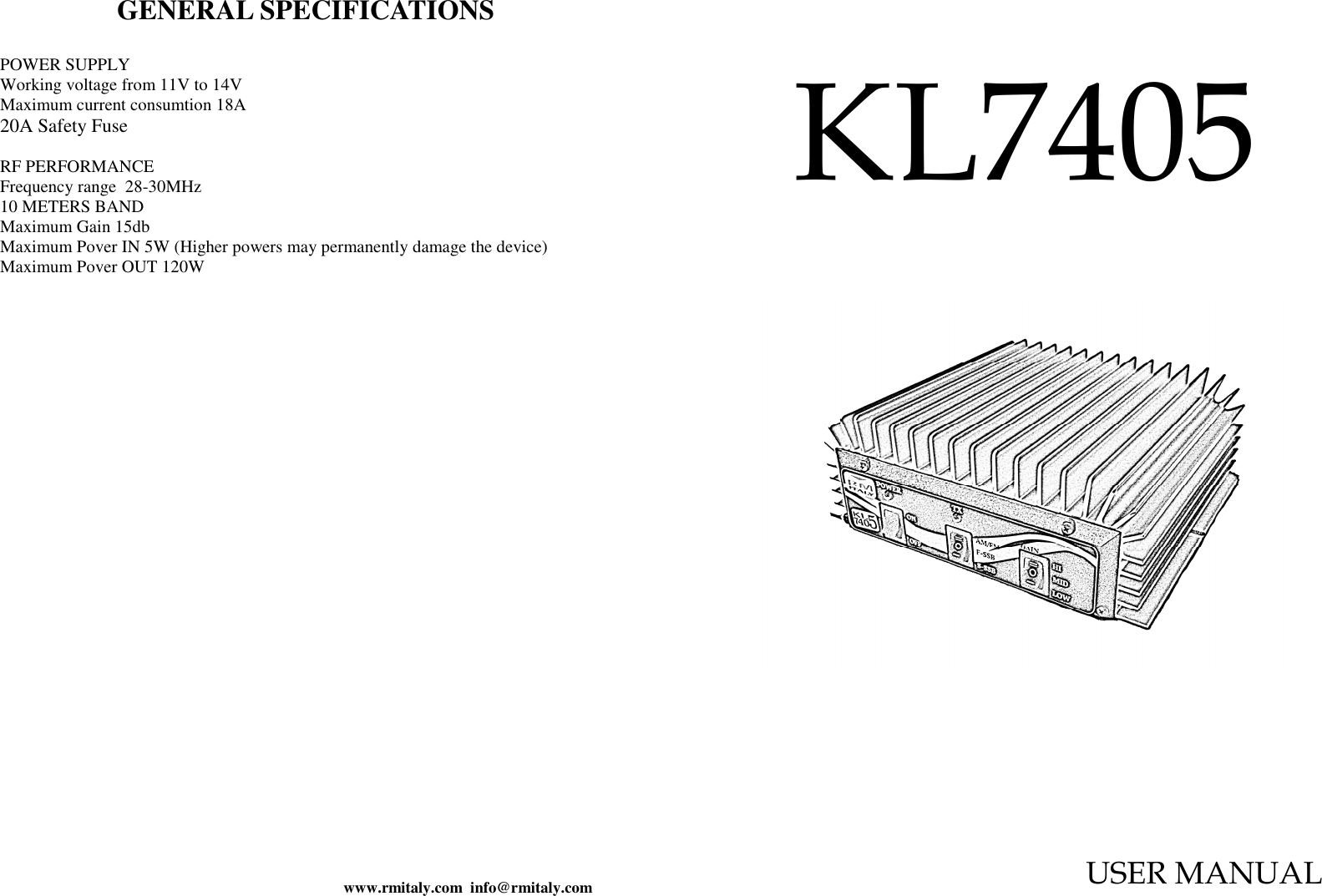

www.rmitaly.com info@rmitaly.com GENERAL SPECIFICATIONS POWER SUPPLY Working voltage from 11V to 14V Maximum current consumtion 18A 20A Safety Fuse RF PERFORMANCE Frequency range 28-30MHz 10 METERS BAND Maximum Gain 15db Maximum Pover IN 5W (Higher powers may permanently damage the device) Maximum Pover OUT 120W KL7405 USER MANUAL

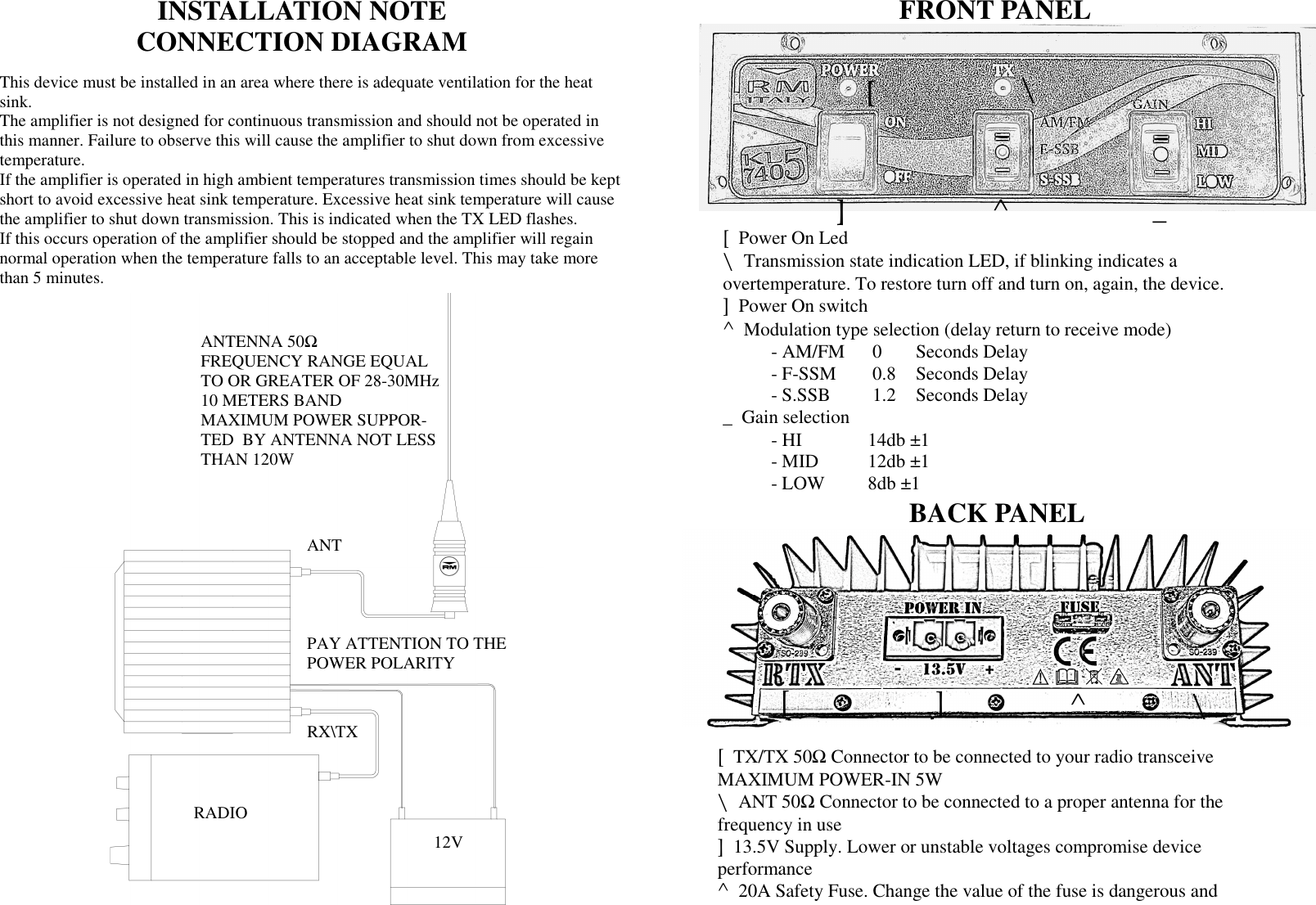

ANT RX\TX 12V ANTENNA 50Ω FREQUENCY RANGE EQUAL TO OR GREATER OF 28-30MHz 10 METERS BAND MAXIMUM POWER SUPPOR-TED BY ANTENNA NOT LESS THAN 120W PAY ATTENTION TO THE POWER POLARITY RADIO INSTALLATION NOTE CONNECTION DIAGRAM This device must be installed in an area where there is adequate ventilation for the heat sink. The amplifier is not designed for continuous transmission and should not be operated in this manner. Failure to observe this will cause the amplifier to shut down from excessive temperature. If the amplifier is operated in high ambient temperatures transmission times should be kept short to avoid excessive heat sink temperature. Excessive heat sink temperature will cause the amplifier to shut down transmission. This is indicated when the TX LED flashes. If this occurs operation of the amplifier should be stopped and the amplifier will regain normal operation when the temperature falls to an acceptable level. This may take more than 5 minutes. FRONT PANEL BACK PANEL [ \ ] ^ _ [ Power On Led \ Transmission state indication LED, if blinking indicates a overtemperature. To restore turn off and turn on, again, the device. ] Power On switch ^ Modulation type selection (delay return to receive mode) - AM/FM 0 Seconds Delay - F-SSM 0.8 Seconds Delay - S.SSB 1.2 Seconds Delay _ Gain selection - HI 14db ±1 - MID 12db ±1 - LOW 8db ±1 [ TX/TX 50Ω Connector to be connected to your radio transceive MAXIMUM POWER-IN 5W \ ANT 50Ω Connector to be connected to a proper antenna for the frequency in use ] 13.5V Supply. Lower or unstable voltages compromise device performance ^ 20A Safety Fuse. Change the value of the fuse is dangerous and [ ] \ ^ [ ]
