RM COSTRUZIONI ELETTRONICHE Srl MLA100 AMPLIFIER User Manual

RM COSTRUZIONI ELETTRONICHE Snc di Marchioni Davide e Daniele AMPLIFIER

User Manual

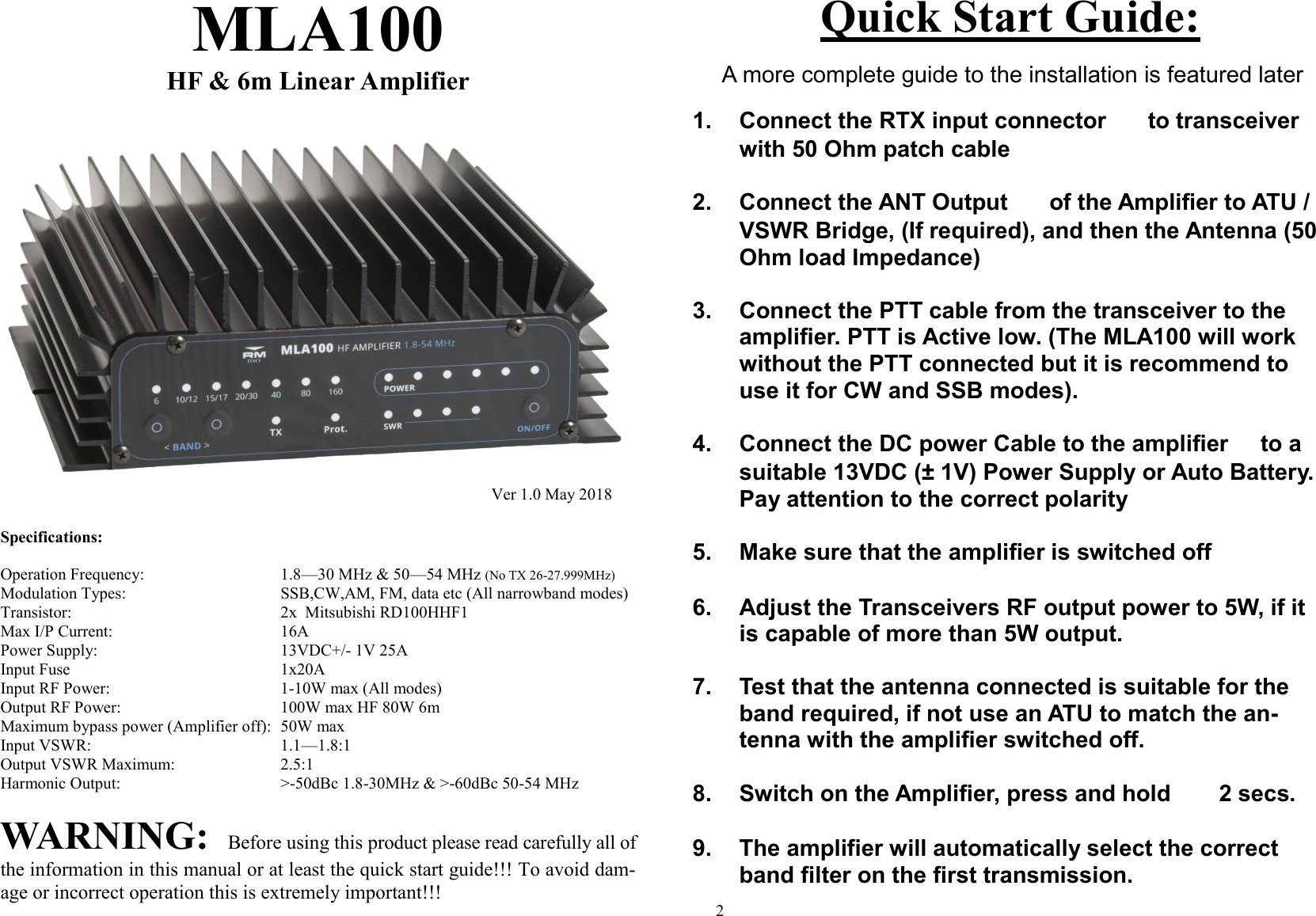

MLA100 HF & 6m Linear Amplifier Specifications: Operation Frequency: 1.8—30 MHz & 50—54 MHz (No TX 26-27.999MHz) Modulation Types: SSB,CW,AM, FM, data etc (All narrowband modes) Transistor: 2x Mitsubishi RD100HHF1 Max I/P Current: 16A Power Supply: 13VDC+/- 1V 25A Input Fuse 1x20A Input RF Power: 1-10W max (All modes) Output RF Power: 100W max HF 80W 6m Maximum bypass power (Amplifier off): 50W max Input VSWR: 1.1—1.8:1 Output VSWR Maximum: 2.5:1 Harmonic Output: >-50dBc 1.8-30MHz & >-60dBc 50-54 MHz WARNING: Before using this product please read carefully all of the information in this manual or at least the quick start guide!!! To avoid dam-age or incorrect operation this is extremely important!!! Ver 1.0 May 2018 2 Quick Start Guide: A more complete guide to the installation is featured later 1. Connect the RTX input connector e to transceiver with 50 Ohm patch cable 2. Connect the ANT Output f of the Amplifier to ATU /VSWR Bridge, (If required), and then the Antenna (50 Ohm load Impedance) 3. Connect the PTT cable from the transceiver to the amplifier. PTT is Active low. (The MLA100 will work without the PTT connected but it is recommend to use it for CW and SSB modes). 4. Connect the DC power Cable to the amplifier c to a suitable 13VDC (± 1V) Power Supply or Auto Battery. Pay attention to the correct polarity 5. Make sure that the amplifier is switched off [ 6. Adjust the Transceivers RF output power to 5W, if it is capable of more than 5W output. 7. Test that the antenna connected is suitable for the band required, if not use an ATU to match the an-tenna with the amplifier switched off. 8. Switch on the Amplifier, press and hold [ 2 secs. 9. The amplifier will automatically select the correct band filter on the first transmission.

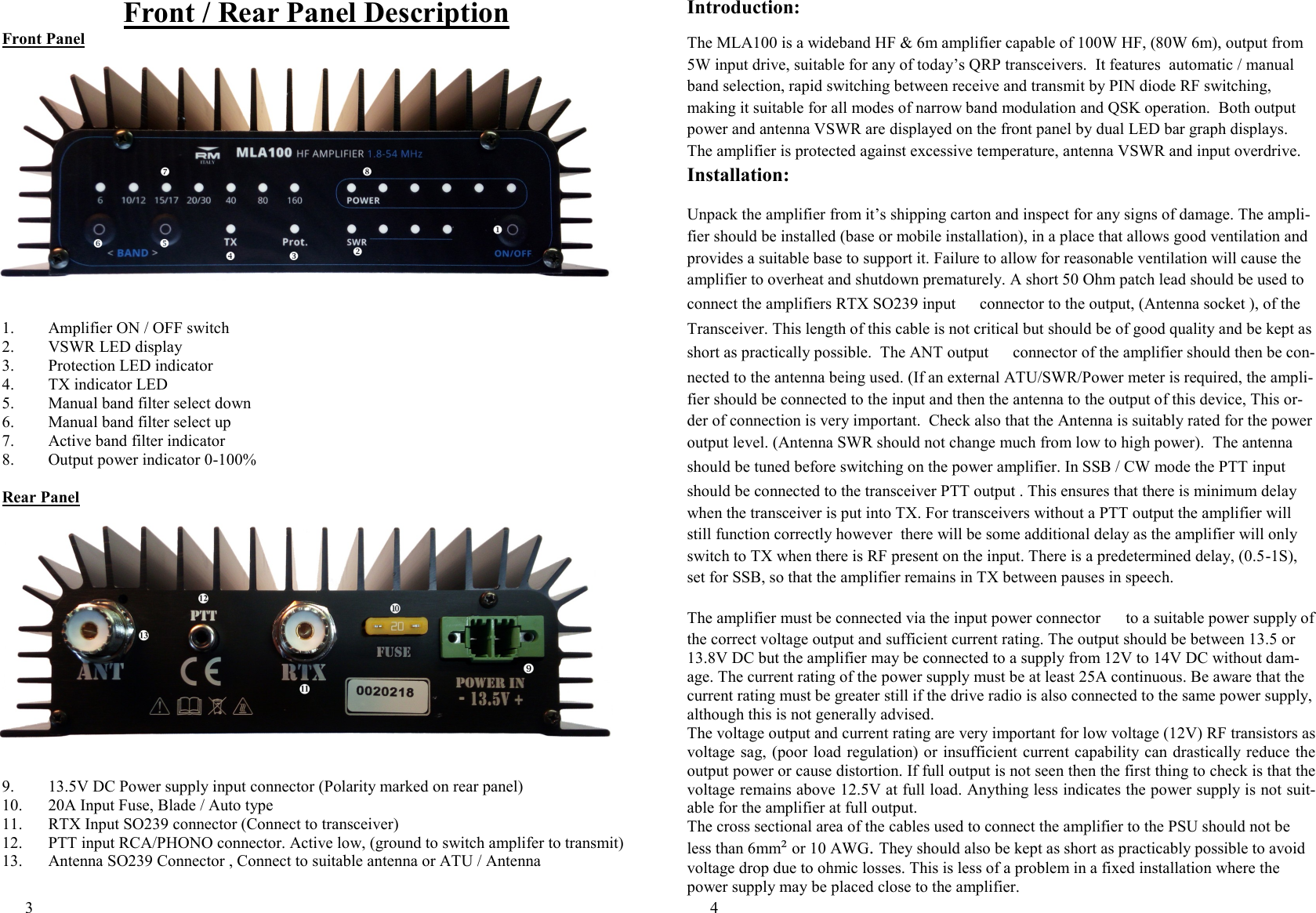

3 Front / Rear Panel Description Front Panel 1. Amplifier ON / OFF switch 2. VSWR LED display 3. Protection LED indicator 4. TX indicator LED 5. Manual band filter select down 6. Manual band filter select up 7. Active band filter indicator 8. Output power indicator 0-100% Rear Panel 9. 13.5V DC Power supply input connector (Polarity marked on rear panel) 10. 20A Input Fuse, Blade / Auto type 11. RTX Input SO239 connector (Connect to transceiver) 12. PTT input RCA/PHONO connector. Active low, (ground to switch amplifer to transmit) 13. Antenna SO239 Connector , Connect to suitable antenna or ATU / Antenna 4 Introduction: The MLA100 is a wideband HF & 6m amplifier capable of 100W HF, (80W 6m), output from 5W input drive, suitable for any of today’s QRP transceivers. It features automatic / manual band selection, rapid switching between receive and transmit by PIN diode RF switching, making it suitable for all modes of narrow band modulation and QSK operation. Both output power and antenna VSWR are displayed on the front panel by dual LED bar graph displays. The amplifier is protected against excessive temperature, antenna VSWR and input overdrive. Installation: Unpack the amplifier from it’s shipping carton and inspect for any signs of damage. The ampli-fier should be installed (base or mobile installation), in a place that allows good ventilation and provides a suitable base to support it. Failure to allow for reasonable ventilation will cause the amplifier to overheat and shutdown prematurely. A short 50 Ohm patch lead should be used to connect the amplifiers RTX SO239 input e connector to the output, (Antenna socket ), of the Transceiver. This length of this cable is not critical but should be of good quality and be kept as short as practically possible. The ANT output g connector of the amplifier should then be con-nected to the antenna being used. (If an external ATU/SWR/Power meter is required, the ampli-fier should be connected to the input and then the antenna to the output of this device, This or-der of connection is very important. Check also that the Antenna is suitably rated for the power output level. (Antenna SWR should not change much from low to high power). The antenna should be tuned before switching on the power amplifier. In SSB / CW mode the PTT input c should be connected to the transceiver PTT output . This ensures that there is minimum delay when the transceiver is put into TX. For transceivers without a PTT output the amplifier will still function correctly however there will be some additional delay as the amplifier will only switch to TX when there is RF present on the input. There is a predetermined delay, (0.5-1S), set for SSB, so that the amplifier remains in TX between pauses in speech. The amplifier must be connected via the input power connector \ to a suitable power supply of the correct voltage output and sufficient current rating. The output should be between 13.5 or 13.8V DC but the amplifier may be connected to a supply from 12V to 14V DC without dam-age. The current rating of the power supply must be at least 25A continuous. Be aware that the current rating must be greater still if the drive radio is also connected to the same power supply, although this is not generally advised. The voltage output and current rating are very important for low voltage (12V) RF transistors as voltage sag, (poor load regulation) or insufficient current capability can drastically reduce the output power or cause distortion. If full output is not seen then the first thing to check is that the voltage remains above 12.5V at full load. Anything less indicates the power supply is not suit-able for the amplifier at full output. The cross sectional area of the cables used to connect the amplifier to the PSU should not be less than 6mm² or 10 AWG. They should also be kept as short as practicably possible to avoid voltage drop due to ohmic losses. This is less of a problem in a fixed installation where the power supply may be placed close to the amplifier.

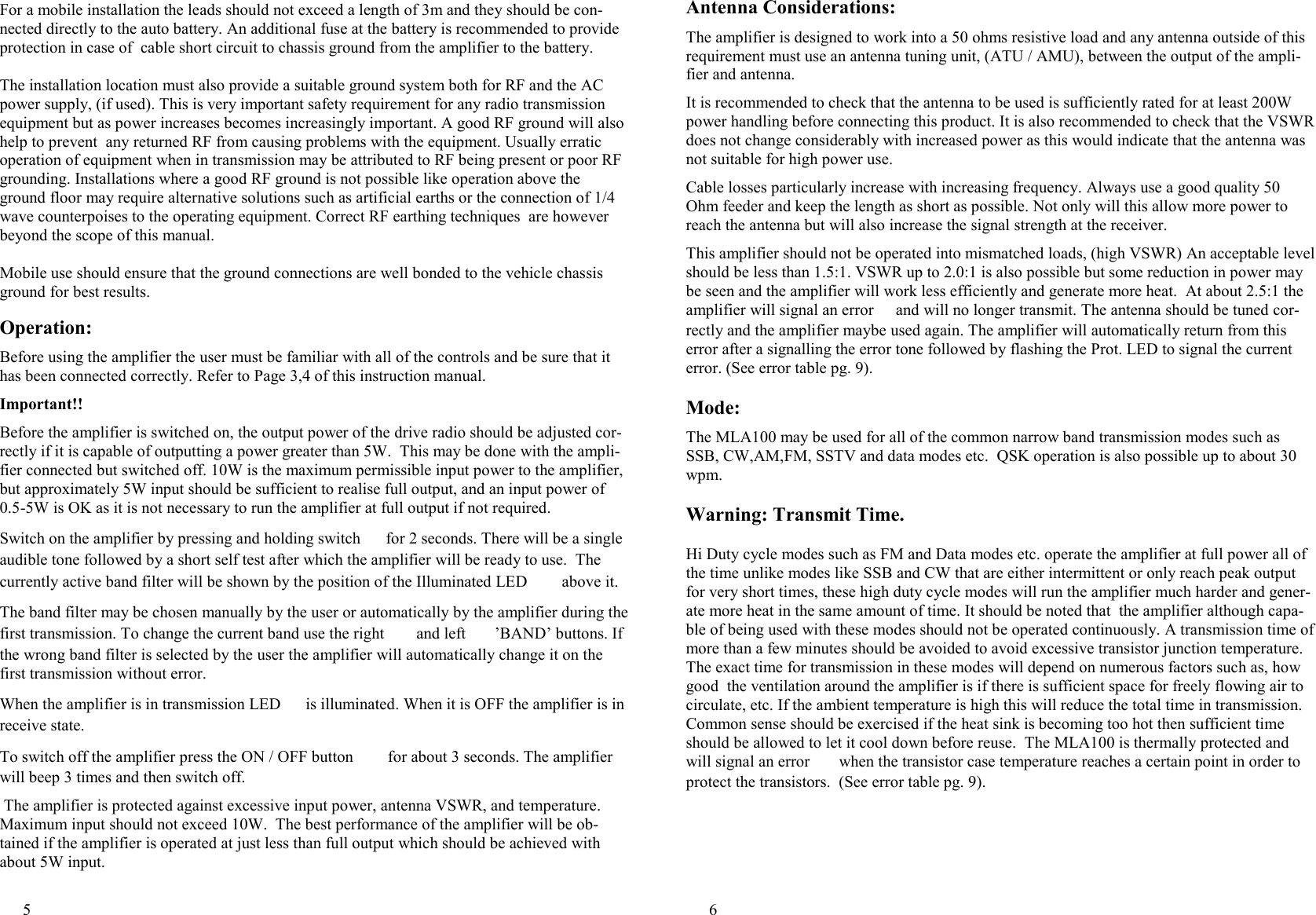

5 Operation: Before using the amplifier the user must be familiar with all of the controls and be sure that it has been connected correctly. Refer to Page 3,4 of this instruction manual. Important!! Before the amplifier is switched on, the output power of the drive radio should be adjusted cor-rectly if it is capable of outputting a power greater than 5W. This may be done with the ampli-fier connected but switched off. 10W is the maximum permissible input power to the amplifier, but approximately 5W input should be sufficient to realise full output, and an input power of 0.5-5W is OK as it is not necessary to run the amplifier at full output if not required. Switch on the amplifier by pressing and holding switch [ for 2 seconds. There will be a single audible tone followed by a short self test after which the amplifier will be ready to use. The currently active band filter will be shown by the position of the Illuminated LED a above it. The band filter may be chosen manually by the user or automatically by the amplifier during the first transmission. To change the current band use the right _ and left ` ’BAND’ buttons. If the wrong band filter is selected by the user the amplifier will automatically change it on the first transmission without error. When the amplifier is in transmission LED ^ is illuminated. When it is OFF the amplifier is in receive state. To switch off the amplifier press the ON / OFF button [ for about 3 seconds. The amplifier will beep 3 times and then switch off. The amplifier is protected against excessive input power, antenna VSWR, and temperature. Maximum input should not exceed 10W. The best performance of the amplifier will be ob-tained if the amplifier is operated at just less than full output which should be achieved with about 5W input. For a mobile installation the leads should not exceed a length of 3m and they should be con-nected directly to the auto battery. An additional fuse at the battery is recommended to provide protection in case of cable short circuit to chassis ground from the amplifier to the battery. The installation location must also provide a suitable ground system both for RF and the AC power supply, (if used). This is very important safety requirement for any radio transmission equipment but as power increases becomes increasingly important. A good RF ground will also help to prevent any returned RF from causing problems with the equipment. Usually erratic operation of equipment when in transmission may be attributed to RF being present or poor RF grounding. Installations where a good RF ground is not possible like operation above the ground floor may require alternative solutions such as artificial earths or the connection of 1/4 wave counterpoises to the operating equipment. Correct RF earthing techniques are however beyond the scope of this manual. Mobile use should ensure that the ground connections are well bonded to the vehicle chassis ground for best results. 6 Antenna Considerations: The amplifier is designed to work into a 50 ohms resistive load and any antenna outside of this requirement must use an antenna tuning unit, (ATU / AMU), between the output of the ampli-fier and antenna. It is recommended to check that the antenna to be used is sufficiently rated for at least 200W power handling before connecting this product. It is also recommended to check that the VSWR does not change considerably with increased power as this would indicate that the antenna was not suitable for high power use. Cable losses particularly increase with increasing frequency. Always use a good quality 50 Ohm feeder and keep the length as short as possible. Not only will this allow more power to reach the antenna but will also increase the signal strength at the receiver. This amplifier should not be operated into mismatched loads, (high VSWR) An acceptable level should be less than 1.5:1. VSWR up to 2.0:1 is also possible but some reduction in power may be seen and the amplifier will work less efficiently and generate more heat. At about 2.5:1 the amplifier will signal an error ] and will no longer transmit. The antenna should be tuned cor-rectly and the amplifier maybe used again. The amplifier will automatically return from this error after a signalling the error tone followed by flashing the Prot. LED to signal the current error. (See error table pg. 9). Mode: The MLA100 may be used for all of the common narrow band transmission modes such as SSB, CW,AM,FM, SSTV and data modes etc. QSK operation is also possible up to about 30 wpm. Warning: Transmit Time. Hi Duty cycle modes such as FM and Data modes etc. operate the amplifier at full power all of the time unlike modes like SSB and CW that are either intermittent or only reach peak output for very short times, these high duty cycle modes will run the amplifier much harder and gener-ate more heat in the same amount of time. It should be noted that the amplifier although capa-ble of being used with these modes should not be operated continuously. A transmission time of more than a few minutes should be avoided to avoid excessive transistor junction temperature. The exact time for transmission in these modes will depend on numerous factors such as, how good the ventilation around the amplifier is if there is sufficient space for freely flowing air to circulate, etc. If the ambient temperature is high this will reduce the total time in transmission. Common sense should be exercised if the heat sink is becoming too hot then sufficient time should be allowed to let it cool down before reuse. The MLA100 is thermally protected and will signal an error ] when the transistor case temperature reaches a certain point in order to protect the transistors. (See error table pg. 9).

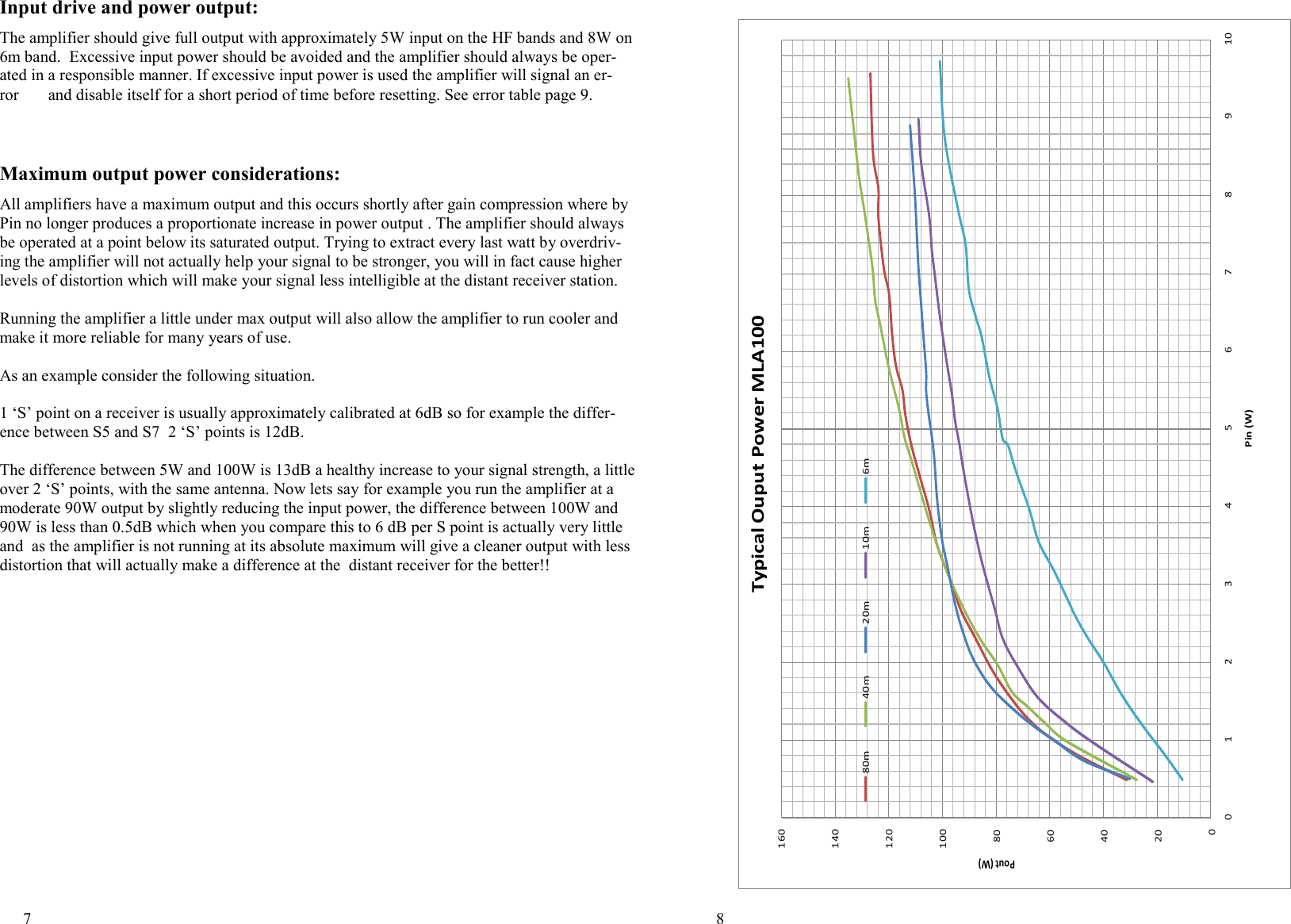

7 Input drive and power output: The amplifier should give full output with approximately 5W input on the HF bands and 8W on 6m band. Excessive input power should be avoided and the amplifier should always be oper-ated in a responsible manner. If excessive input power is used the amplifier will signal an er-ror ] and disable itself for a short period of time before resetting. See error table page 9. Maximum output power considerations: All amplifiers have a maximum output and this occurs shortly after gain compression where by Pin no longer produces a proportionate increase in power output . The amplifier should always be operated at a point below its saturated output. Trying to extract every last watt by overdriv-ing the amplifier will not actually help your signal to be stronger, you will in fact cause higher levels of distortion which will make your signal less intelligible at the distant receiver station. Running the amplifier a little under max output will also allow the amplifier to run cooler and make it more reliable for many years of use. As an example consider the following situation. 1 ‘S’ point on a receiver is usually approximately calibrated at 6dB so for example the differ-ence between S5 and S7 2 ‘S’ points is 12dB. The difference between 5W and 100W is 13dB a healthy increase to your signal strength, a little over 2 ‘S’ points, with the same antenna. Now lets say for example you run the amplifier at a moderate 90W output by slightly reducing the input power, the difference between 100W and 90W is less than 0.5dB which when you compare this to 6 dB per S point is actually very little and as the amplifier is not running at its absolute maximum will give a cleaner output with less distortion that will actually make a difference at the distant receiver for the better!! 8 0204060801001201401600 1 2 3 4 5 6 7 8 9 10Pout (W)Pin (W)Typical Ouput Power MLA10080m40m20m10m6m

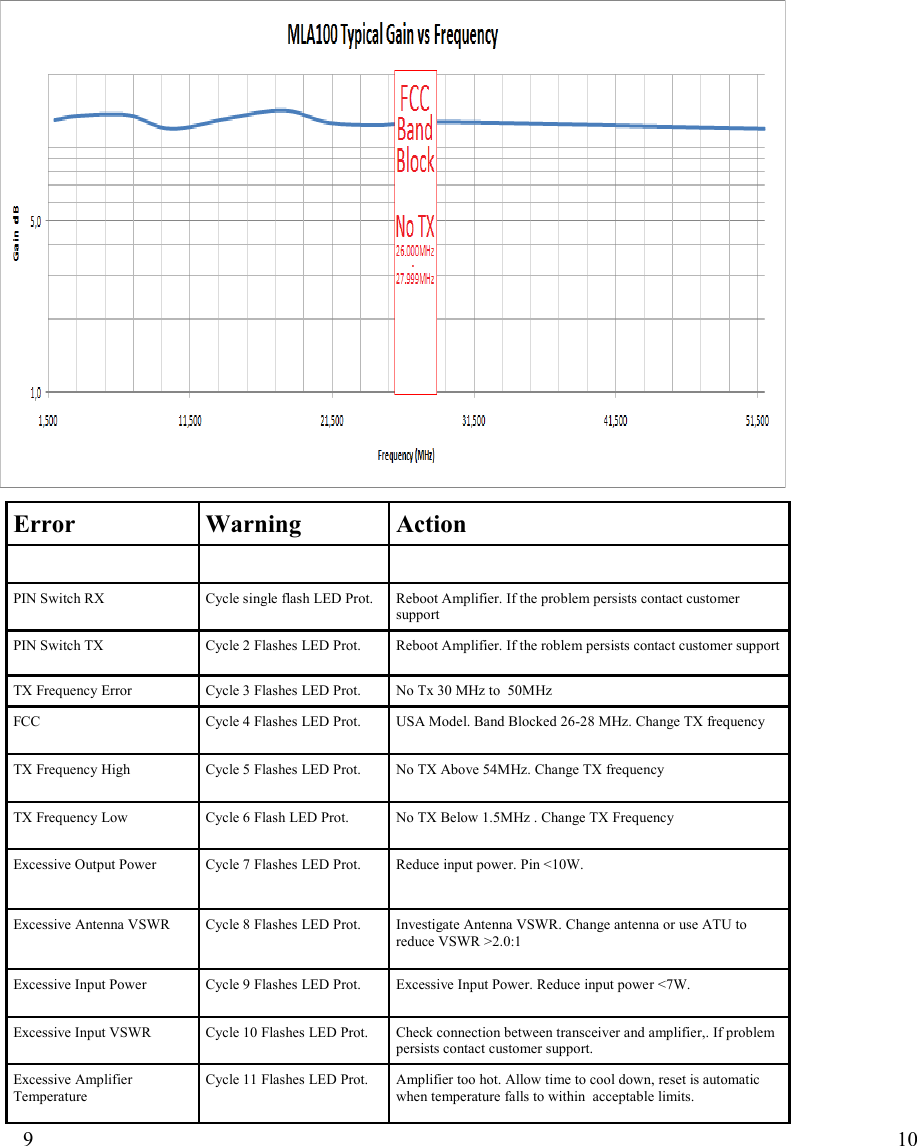

9 Error Warning Action PIN Switch RX Cycle single flash LED Prot. Reboot Amplifier. If the problem persists contact customer support PIN Switch TX Cycle 2 Flashes LED Prot. Reboot Amplifier. If the roblem persists contact customer support TX Frequency Error Cycle 3 Flashes LED Prot. No Tx 30 MHz to 50MHz FCC Cycle 4 Flashes LED Prot. USA Model. Band Blocked 26-28 MHz. Change TX frequency TX Frequency High Cycle 5 Flashes LED Prot. No TX Above 54MHz. Change TX frequency TX Frequency Low Cycle 6 Flash LED Prot. No TX Below 1.5MHz . Change TX Frequency Excessive Output Power Cycle 7 Flashes LED Prot. Reduce input power. Pin <10W. Excessive Antenna VSWR Cycle 8 Flashes LED Prot. Investigate Antenna VSWR. Change antenna or use ATU to reduce VSWR >2.0:1 Excessive Input Power Cycle 9 Flashes LED Prot. Excessive Input Power. Reduce input power <7W. Excessive Input VSWR Cycle 10 Flashes LED Prot. Check connection between transceiver and amplifier,. If problem persists contact customer support. Excessive Amplifier Temperature Cycle 11 Flashes LED Prot. Amplifier too hot. Allow time to cool down, reset is automatic when temperature falls to within acceptable limits. 10

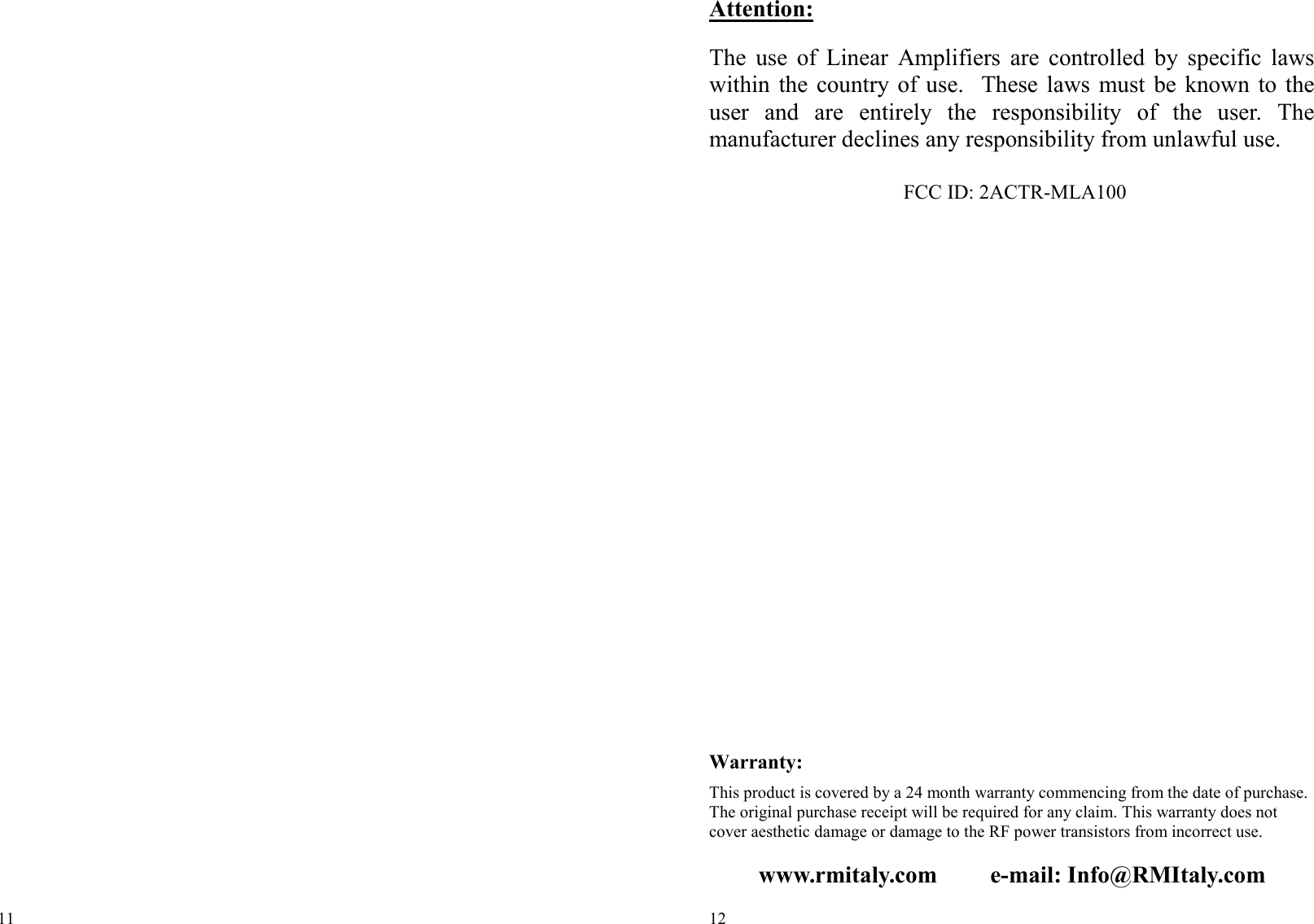

11 12 Attention: The use of Linear Amplifiers are controlled by specific laws within the country of use. These laws must be known to the user and are entirely the responsibility of the user. The manufacturer declines any responsibility from unlawful use. FCC ID: 2ACTR-MLA100 Warranty: This product is covered by a 24 month warranty commencing from the date of purchase. The original purchase receipt will be required for any claim. This warranty does not cover aesthetic damage or damage to the RF power transistors from incorrect use. www.rmitaly.com e-mail: Info@RMItaly.com
