Root PBLS PLAYFUL BASE LANTERN SPEAKER BOTTLE User Manual

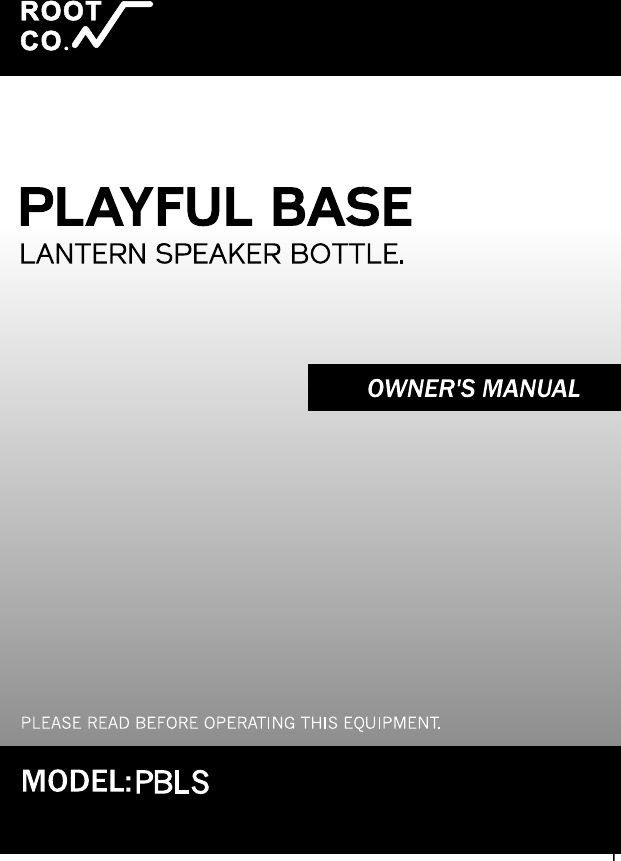

ROOT CO. PLAYFUL BASE LANTERN SPEAKER BOTTLE Users Manual

User Manual

ROOTCO.

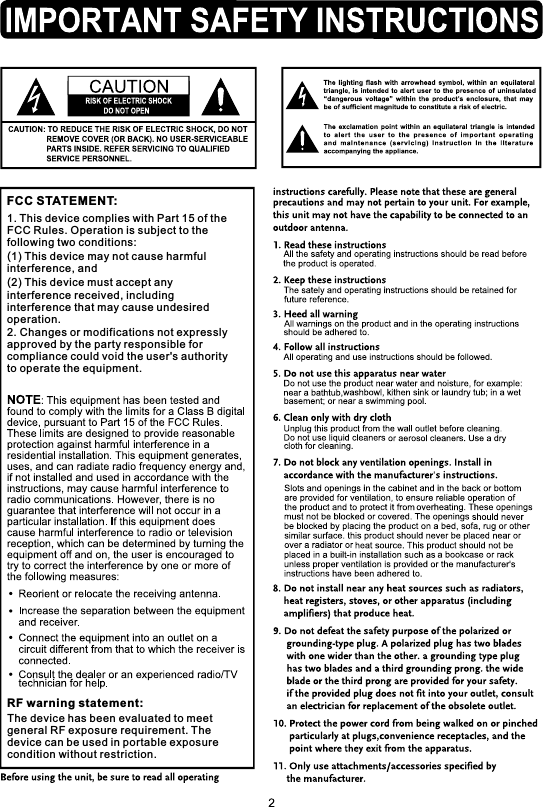

RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC STATEMENT:1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
THE MAIN FEATURESBluetooth Version 4.2 ,more stable,high quality sound transmition.IP65 waterproof designBuilt-in chargeble batteryThe materials of bottle: edible PC + edible silicon;BPA free,non bisphenol A and pass the Japan food sanitation law test.Water bottle volumn:350ml,meeting the needs of all kindsof consumers.Be used as flashlight or night light.PRODUCT SPECIFICATIONBluetooth : V4.2Distance of Bluetooth : covered over 10 metersPlaying time : : 80hz~20khzSpeaker Power Output : 3WBuilt-in Lithium battery : 3.7V 2000mAhCharging Battery : DC 5V/1ACharging time : 3~4 hoursVolumn of the bottle : 350mlMaterials of bottle : edible PCflashlight range : 50~100MLED Lumen : about 120LMIP grade : IP65Usage temperature : -20~40℃Product size : Version4~6 hoursFrequency Response215*70*70mm

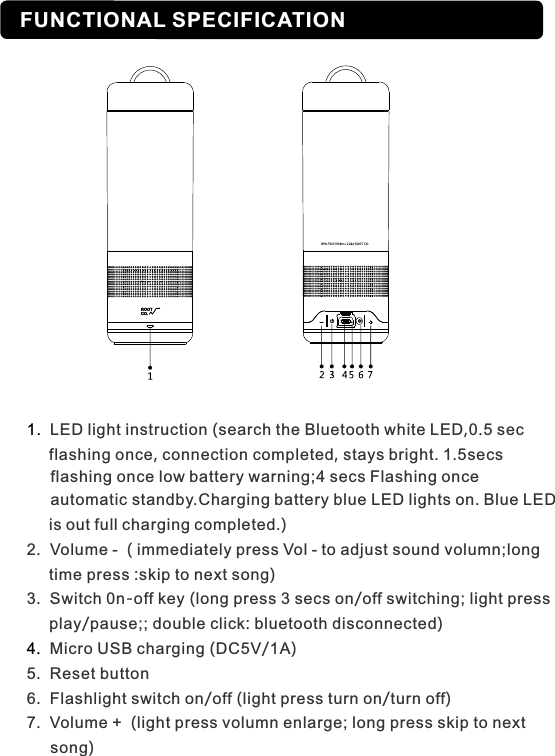

FUNCTIONAL SPECIFICATION1. 4. LED light instruction (search the Bluetooth white LED,0.5 sec flashing once, connection completed stays bright. 1.5secs flashing once low battery warning;4 secs Flashing once automatic standby.Charging battery blue LED lights on. Blue LED is out full charging completed.)2. Volume - ( immediately press Vol - to adjust sound volumn;long time press :skip to next song)3. Switch 0n-off key (long press 3 secs on/off switching; light press play/pause;; double click: bluetooth disconnected)Micro USB charging (DC5V/1A)5. Reset button6. Flashlight switch on/off (light press turn on/turn off)7. Volume + (light press volumn enlarge; long press skip to next song),

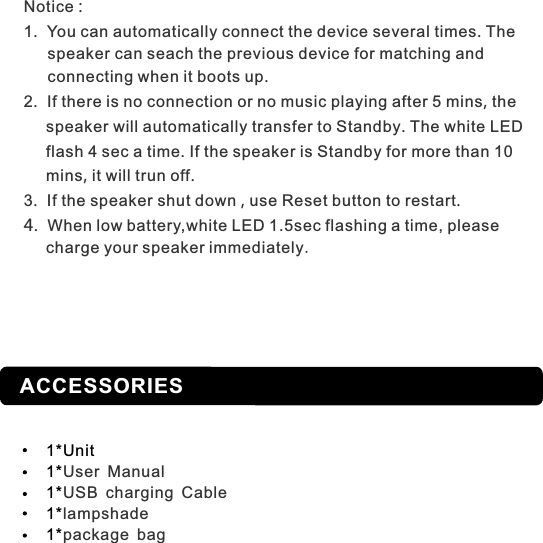

ACCESSORIES1*Unit1*1*1*1*User ManualUSB charging Cablelampshadepackage bagNotice :1. You can automatically connect the device several times. The speaker can seach the previous device for matching and connecting when it boots up. 2. If there is no connection or no music playing after 5 mins, the speaker will automatically transfer to Standby. The white LED flash 4 sec a time. If the speaker is Standby for more than 10 mins, it will trun off.3. If the speaker shut down , use Reset button to restart.4. When low battery,white LED 1.5sec flashing a time, please charge your speaker immediately.
