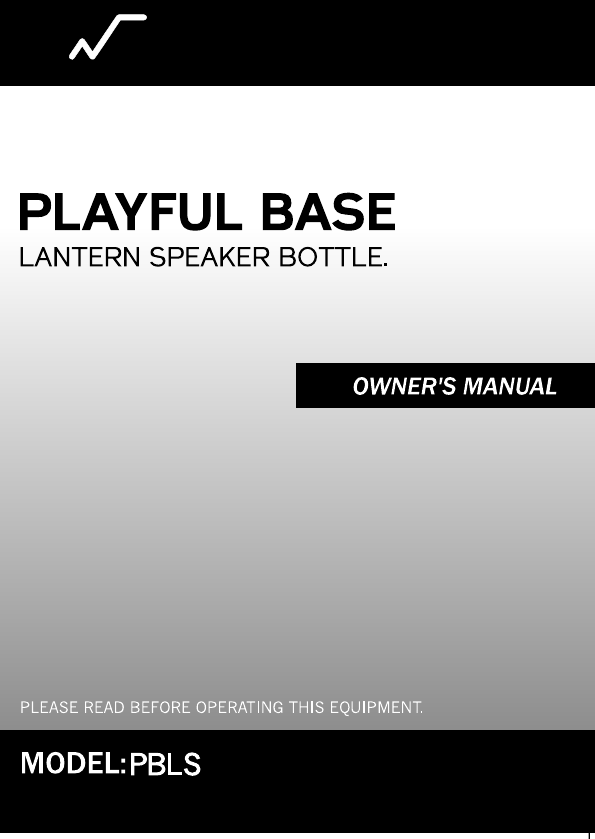

Root PBLS PLAYFUL BASE LANTERN SPEAKER BOTTLE User Manual
ROOT CO. PLAYFUL BASE LANTERN SPEAKER BOTTLE Users Manual
Root >
User Manual
ROOT
CO.
RF warning statement:
The device has been evaluated to meet
general RF exposure requirement. The
device can be used in portable exposure
condition without restriction.
FCC STATEMENT:
1. This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including
interference that may cause undesired
operation.
2. Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
THE MAIN FEATURES
Bluetooth Version 4.2 ,more stable,high quality
sound transmition.
IP65 waterproof design
Built-in chargeble battery
The materials of bottle: edible PC + edible silicon;BPA free,
non bisphenol A and pass the Japan food sanitation law test.
Water bottle volumn:350ml,meeting the needs of all kinds
of consumers.
Be used as flashlight or night light.
PRODUCT SPECIFICATION
Bluetooth : V4.2
Distance of Bluetooth : covered over 10 meters
Playing time :
: 80hz~20khz
Speaker Power Output : 3W
Built-in Lithium battery : 3.7V 2000mAh
Charging Battery : DC 5V/1A
Charging time : 3~4 hours
Volumn of the bottle : 350ml
Materials of bottle : edible PC
flashlight range : 50~100M
LED Lumen : about 120LM
IP grade : IP65
Usage temperature : -20~40℃
Product size :
Version
4~6 hours
Frequency Response
215*70*70mm
FUNCTIONAL SPECIFICATION
1.
4.
LED light instruction (search the Bluetooth white LED,0.5 sec
flashing once, connection completed stays bright. 1.5secs
flashing once low battery warning;4 secs Flashing once
automatic standby.Charging battery blue LED lights on. Blue LED
is out full charging completed.)
2. Volume - ( immediately press Vol - to adjust sound volumn;long
time press :skip to next song)
3. Switch 0n-off key (long press 3 secs on/off switching; light press
play/pause;; double click: bluetooth disconnected)
Micro USB charging (DC5V/1A)
5. Reset button
6. Flashlight switch on/off (light press turn on/turn off)
7. Volume + (light press volumn enlarge; long press skip to next
song)
,
ACCESSORIES
1*Unit
1*
1*
1*
1*
User Manual
USB charging Cable
lampshade
package bag
Notice :
1. You can automatically connect the device several times. The
speaker can seach the previous device for matching and
connecting when it boots up.
2. If there is no connection or no music playing after 5 mins, the
speaker will automatically transfer to Standby. The white LED
flash 4 sec a time. If the speaker is Standby for more than 10
mins, it will trun off.
3. If the speaker shut down , use Reset button to restart.
4. When low battery,white LED 1.5sec flashing a time, please
charge your speaker immediately.
