ROOTCLOUD TECHNOLOGY HI1503 T-Box User Manual T Box LN1502 DC H DataSheet EN

IROOTECH TECHNOLOGY CO.,LTD T-Box T Box LN1502 DC H DataSheet EN

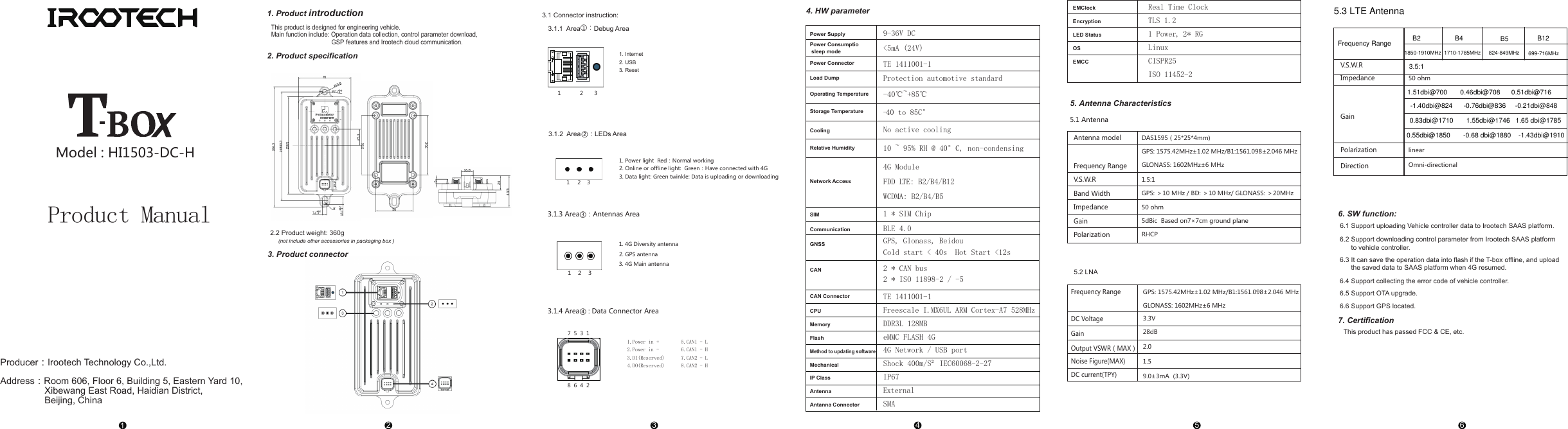

15_HI1503-DC-H UserMan r3

4. HW parameter3.1.4 Area④ : Data Connector Area3 4 51Producer：Irootech Technology Co.,Ltd. Address：Room 606, Floor 6, Building 5, Eastern Yard 10, Xibewang East Road, Haidian District, Beijing, China Model : HI1503-DC-H2 This product is designed for engineering vehicle. Main function include: Operation data collection, control parameter download, GSP features and Irootech cloud communication. 3.1.1 Area①：Debug Area1. Internet2. USB3. Reset 3.1.2 Area ②：LEDs Area1 2 31. Power light Red：Normal working2. Online or offline light: Green：Have connected with 4G3. Data light: Green twinkle: Data is uploading or downloading1 2 3 3.1.3 Area③：Antennas Area2. GPS antenna1 2 31.Power in +2.Power in -3.DI(Reserved)4.DO(Reserved)5.CAN1 - L6.CAN1 - H7.CAN2 - L8.CAN2 - HEMClockEncryptionLED StatusOSEMCC9-36V DC<5mA (24V)TE 1411001-1Protection automotive standard-40℃~+85℃-40 to 85C°No active cooling10 ~ 95% RH @ 40°C, non-condensing 4G ModuleFDD LTE: B2/B4/B12WCDMA: B2/B4/B51 * SIM ChipBLE 4.0GPS, Glonass, BeidouCold start < 40s Hot Start <12s2 * CAN bus2 * ISO 11898-2 / -5TE 1411001-1Freescale I.MX6UL ARM Cortex-A7 528MHzDDR3L 128MBeMMC FLASH 4G4G Network / USB portShock 400m/S² IEC60068-2-27IP67ExternalSMAReal Time ClockTLS 1.21 Power, 2* RGLinuxCISPR25ISO 11452-27 5 3 18 6 4 2 Product Manual2. Product specification3. Product connector1. Product introduction 3.1 Connector instruction: 2.2 Product weight: 360g (not include other accessories in packaging box )Power SupplyPower Consumptio sleep modePower ConnectorLoad DumpOperating TemperatureStorage TemperatureCoolingRelative HumidityNetwork AccessSIMCommunicationGNSSCANCAN ConnectorCPUMemoryFlashMethod to updating softwareMechanicalIP ClassAntennaAntanna ConnectorAntenna modelFrequency RangeV.S.W.RBand WidthImpedanceGainPolarization5. Antenna Characteristics5.1 AntennaDAS1595（25*25*4mm)GPS: 1575.42MHz±1.02 MHz/B1:1561.098±2.046 MHzGLONASS: 1602MHz±6 MHz1.5:1GPS: ＞10 MHz / BD: ＞10 MHz/ GLONASS: ＞20MHz50 ohm5dBic Based on7×7cm ground planeRHCPFrequency RangeDC VoltageGainOutput VSWR（MAX）Noise Figure(MAX)DC current(TPY)GPS: 1575.42MHz±1.02 MHz/B1:1561.098±2.046 MHzGLONASS: 1602MHz±6 MHz3.3V28dB2.01.59.0±3mA (3.3V)5.2 LNA 66. SW function: 6.1 Support uploading Vehicle controller data to Irootech SAAS platform. 6.2 Support downloading control parameter from Irootech SAAS platform to vehicle controller. 6.3 It can save the operation data into flash if the T-box offline, and upload the saved data to SAAS platform when 4G resumed. 6.4 Support collecting the error code of vehicle controller. 6.5 Support OTA upgrade. 6.6 Support GPS located.7. Certification This product has passed FCC & CE, etc.V.S.W.RImpedanceGainPolarizationDirection50 ohmlinearOmni-directional1. 4G Diversity antenna3. 4G Main antenna 3.5:15.3 LTE Antenna1.51dbi@700 0.46dbi@708 0.51dbi@716-1.40dbi@824 -0.76dbi@836 -0.21dbi@848 0.83dbi@1710 1.55dbi@1746 1.65 dbi@17850.55dbi@1850 -0.68 dbi@1880 -1.43dbi@1910Frequency Range1850-1910MHz 1710-1785MHz 824-849MHz 699-716MHzB2 B4 B5 B12

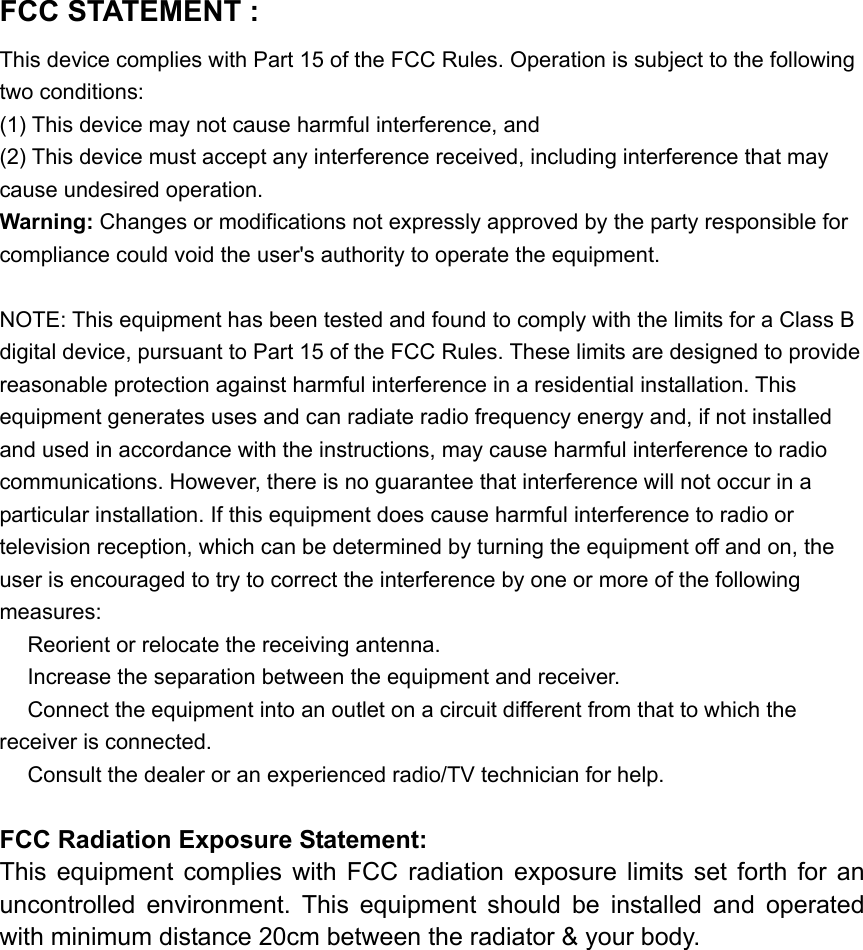

FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving an　tenna. Increase the separation between the equipment and receiver.　 Connect the equipment into an outlet on a circuit different from that to which the 　receiver is connected. Consult the dealer or an experienced radio/TV technician for help.　 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
