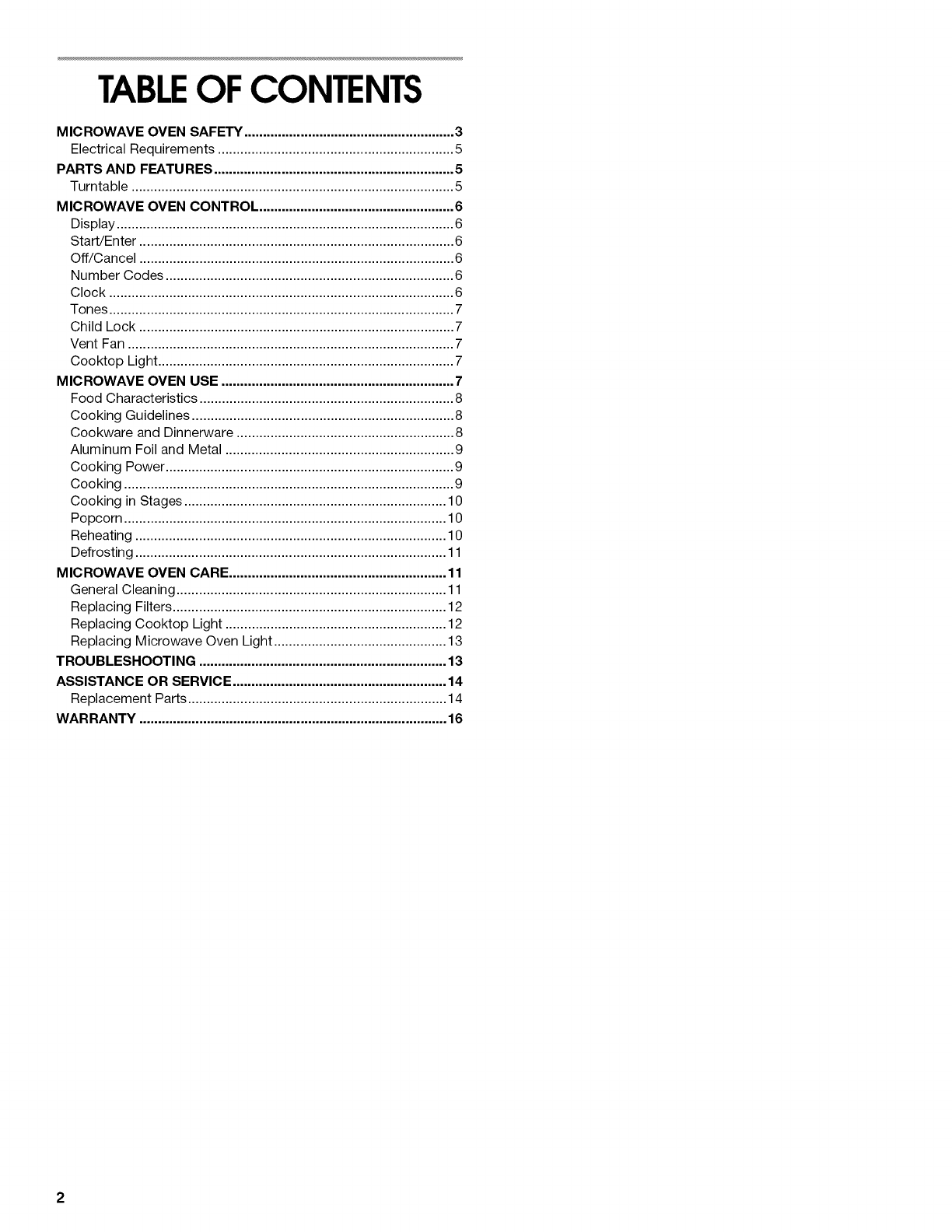

TABLEOF CONTENTS
MICROWAVE OVEN SAFETY ........................................................ 3
Electrical Requirements ............................................................... 5
PARTS AND FEATURES ................................................................ 5
Turntable ...................................................................................... 5
MICROWAVE OVEN CONTROL .................................................... 6
Display .......................................................................................... 6
Start/Enter .................................................................................... 6
Off/Cancel .................................................................................... 6
Number Codes ............................................................................. 6
Clock ............................................................................................ 6
Tones ............................................................................................ 7
Child Lock .................................................................................... 7
Vent Fan ....................................................................................... 7
Cooktop Light ............................................................................... 7
M IC ROWAVE OVEN USE .............................................................. 7
Food Characteristics .................................................................... 8
Cooking Guidelines ...................................................................... 8
Cookware and Dinnerware .......................................................... 8
Aluminum Foil and Metal ............................................................. 9
Cooking Power ............................................................................. 9
Cooking ........................................................................................ 9
Cooking in Stages ...................................................................... 10
Popcorn ...................................................................................... 10
Reheating ................................................................................... 10
Defrosting ................................................................................... 11
MICROWAVE OVEN CARE .......................................................... 11
General Cleaning ........................................................................ 11
Replacing Filters ......................................................................... 12
Replacing Cooktop Light ........................................................... 12
Replacing Microwave Oven Light .............................................. 13
TROUBLESHOOTING .................................................................. 13
ASSISTANCE OR SERVICE ......................................................... 14
Replacement Parts ..................................................................... 14
WAR RANTY .................................................................................. 16
2

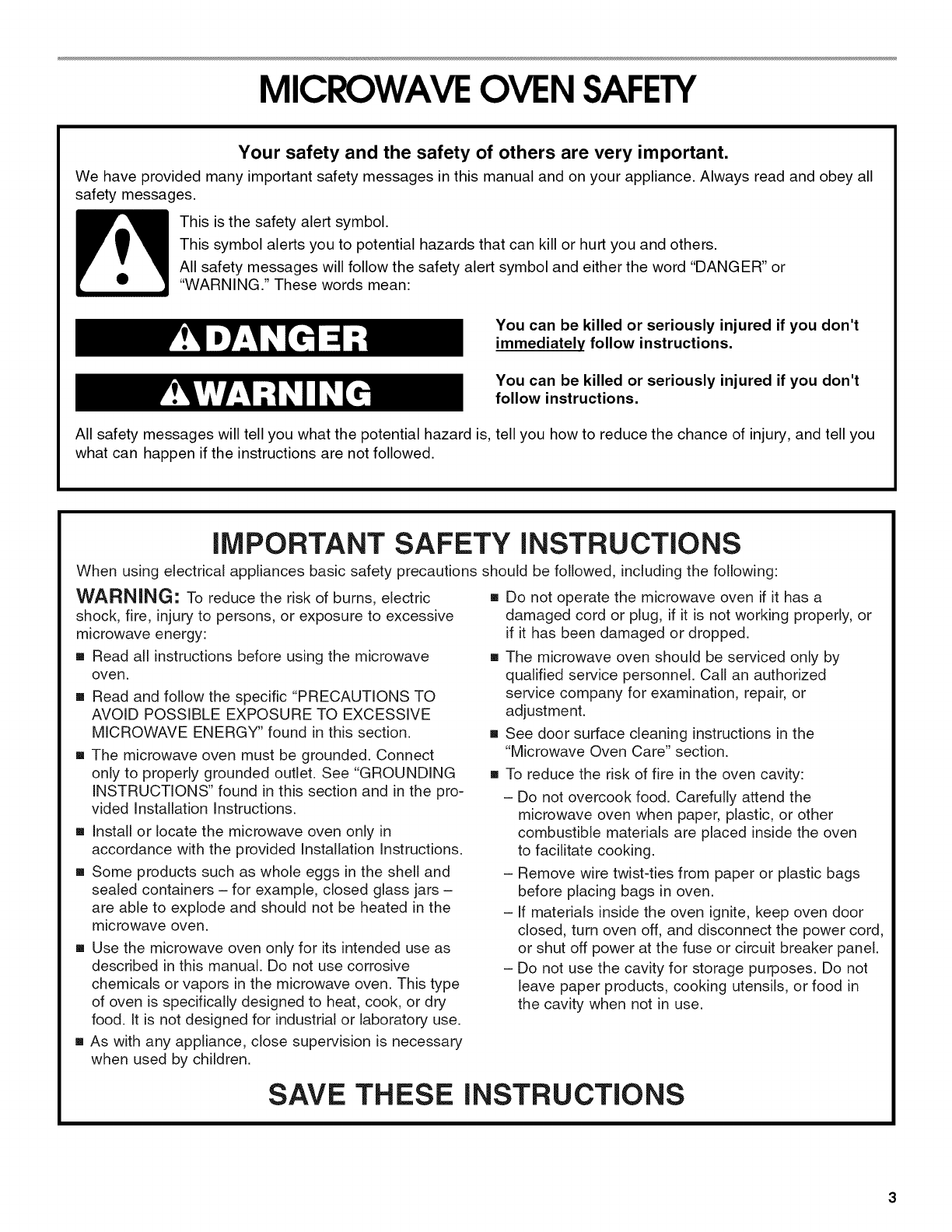

MICROWAVEOVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
iMPORTANT SAFETY iNSTRUCTiONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING: To reduce the risk of burns, electric [] Do not operate the microwave oven if it has a
shock, fire, injury to persons, or exposure to excessive
microwave energy:
[] Read all instructions before using the microwave
oven.
[] Read and follow the specific "PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" found in this section.
[] The microwave oven must be grounded. Connect
only to properly grounded outlet. See "GROUNDING
INSTRUCTIONS" found in this section and in the pro-
vided Installation Instructions.
[] Install or locate the microwave oven only in
accordance with the provided Installation Instructions.
[] Some products such as whole eggs in the shell and
sealed containers - for example, closed glass jars -
are able to explode and should not be heated in the
microwave oven.
[] Use the microwave oven only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in the microwave oven. This type
of oven is specifically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory use.
[] As with any appliance, close supervision is necessary
when used by children.
damaged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
The microwave oven should be serviced only by
qualified service personnel. Call an authorized
service company for examination, repair, or
adjustment.
See door surface cleaning instructions in the
"Microwave Oven Care" section.
To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend the
microwave oven when paper, plastic, or other
combustible materials are placed inside the oven
to facilitate cooking.
- Remove wire twist-ties from paper or plastic bags
before placing bags in oven.
- If materials inside the oven ignite, keep oven door
closed, turn oven off, and disconnect the power cord,
or shut off power at the fuse or circuit breaker panel.
- Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
SAVE THESE INSTRUCTIONS

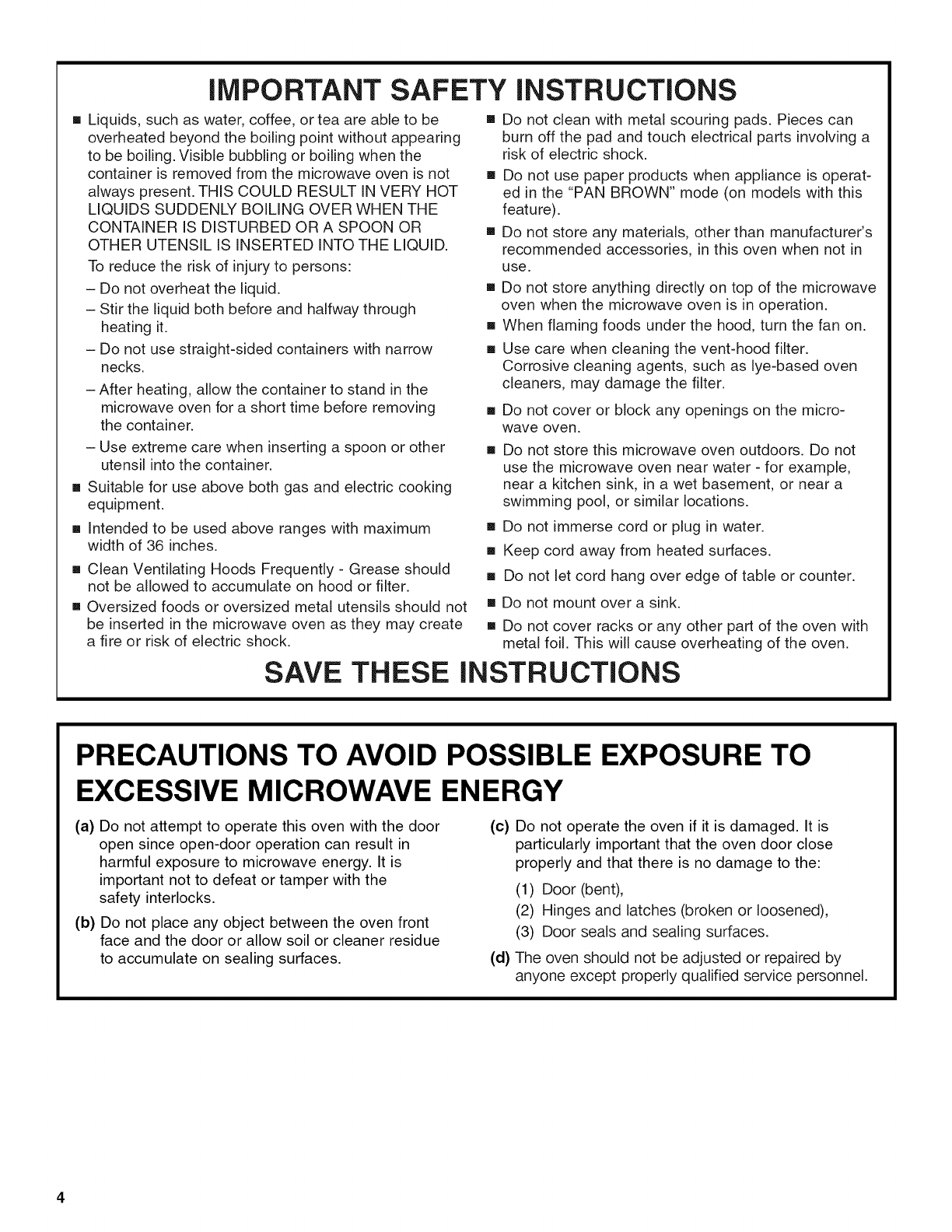

iMPORTANT SAFETY iNSTRUCTiONS
[] Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing
to be boiling. Visible bubbling or boiling when the
container is removed from the microwave oven is not
always present. THIS COULD RESULT IN VERY HOT
LIQUIDS SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR
OTHER UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
- Do not overheat the liquid.
- Stir the liquid both before and halfway through
heating it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
[] Suitable for use above both gas and electric cooking
equipment.
[] Intended to be used above ranges with maximum
width of 36 inches.
[] Clean Ventilating Hoods Frequently - Grease should
not be allowed to accumulate on hood or filter.
[] Oversized foods or oversized metal utensils should not
be inserted in the microwave oven as they may create
a fire or risk of electric shock.
SAVE THESE
[] Do not clean with metal scouring pads. Pieces can
burn off the pad and touch electrical parts involving a
risk of electric shock.
[] Do not use paper products when appliance is operat-
ed in the "PAN BROWN" mode (on models with this
feature).
[] Do not store any materials, other than manufacturer's
recommended accessories, in this oven when not in
use.
[] Do not store anything directly on top of the microwave
oven when the microwave oven is in operation.
[] When flaming foods under the hood, turn the fan on.
[] Use care when cleaning the vent-hood filter.
Corrosive cleaning agents, such as lye-based oven
cleaners, may damage the filter.
[] Do not cover or block any openings on the micro-
wave oven.
[] Do not store this microwave oven outdoors. Do not
use the microwave oven near water - for example,
near a kitchen sink, in a wet basement, or near a
swimming pool, or similar locations.
[] Do not immerse cord or plug in water.
[] Keep cord away from heated surfaces.
[] Do not let cord hang over edge of table or counter.
[] Do not mount over a sink.
[] Do not cover racks or any other part of the oven with
metal foil. This will cause overheating of the oven.
INSTRUCTIONS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door
open since open-door operation can result in
harmful exposure to microwave energy. It is
important not to defeat or tamper with the
safety interlocks.
(b) Do not place any object between the oven front
face and the door or allow soil or cleaner residue
to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is
particularly important that the oven door close
properly and that there is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by
anyone except properly qualified service personnel.
i _' ,_ _ _%_ % _ _ ,_' ........ _,_
Eec cos men s
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Observe all governing codes and ordinances. A 120 Volt, 60 Hz,
AC only, 15- or 20-amp fused electrical supply is required. (A
time-delay fuse or circuit breaker is recommended.) It is
recommended that a separate circuit serving only this appliance
be provided.
GROUNDING iNSTRUCTiONS
[] For all cord connected appliances:
The microwave oven must be grounded. In the event
of an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire for
the electric current. The microwave oven is equipped
with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions
are not completely understood, or if doubt exists as to
whether the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord
is too short, have a qualified electrician or serviceman
install an outlet near the microwave oven.
[] For a permanently connected appliance:
This appliance must be connected to a grounded,
metallic, permanent wiring system, or an equipment
grounding conductor should be run with the circuit
conductors and connected to the equipment
grounding terminal or lead on the appliance.
SAVE THESE iNSTRUCTiONS
I This device complies with Part 18 of the FCC Rules. I
PARTSAND FEATURES
This manual may cover several different models. The model you
have purchased may have some or all of the features shown here.
The appearance of your particular model may differ slightly from
the illustrations in this manual.
123
5 6
1. Charcoal Filter
(behind Vent Grille)
2. Microwave Inlet Cover
3. Microwave Oven Light
4. Vent Grille
5. Metal Shielded Window
6. Model and Serial Number Plate
789 10
7. Grease Filters
(shipped in oven cavity)
8. Cooking Guide Label
9. Cooktop Light
10. Control Panel
Parts and Features not shown
Turntable
1 .......
4 v L_
1. Turntable
2. Hub
3. Support
4. Shaft
The turntable can rotate in either direction to help cook food
more evenly. Do not operate the oven without the turntable in
place. See "Assistance or Service" to reorder any of the parts.
To Install:
1. Remove tape from the hub.
2. Place the support on the oven cavity bottom.
3. Place the turntable on the support.
Fit the raised, curved lines in the center of the turntable
bottom between the three spokes of the hub. The rollers on
the support should fit inside the turntable bottom ridge.

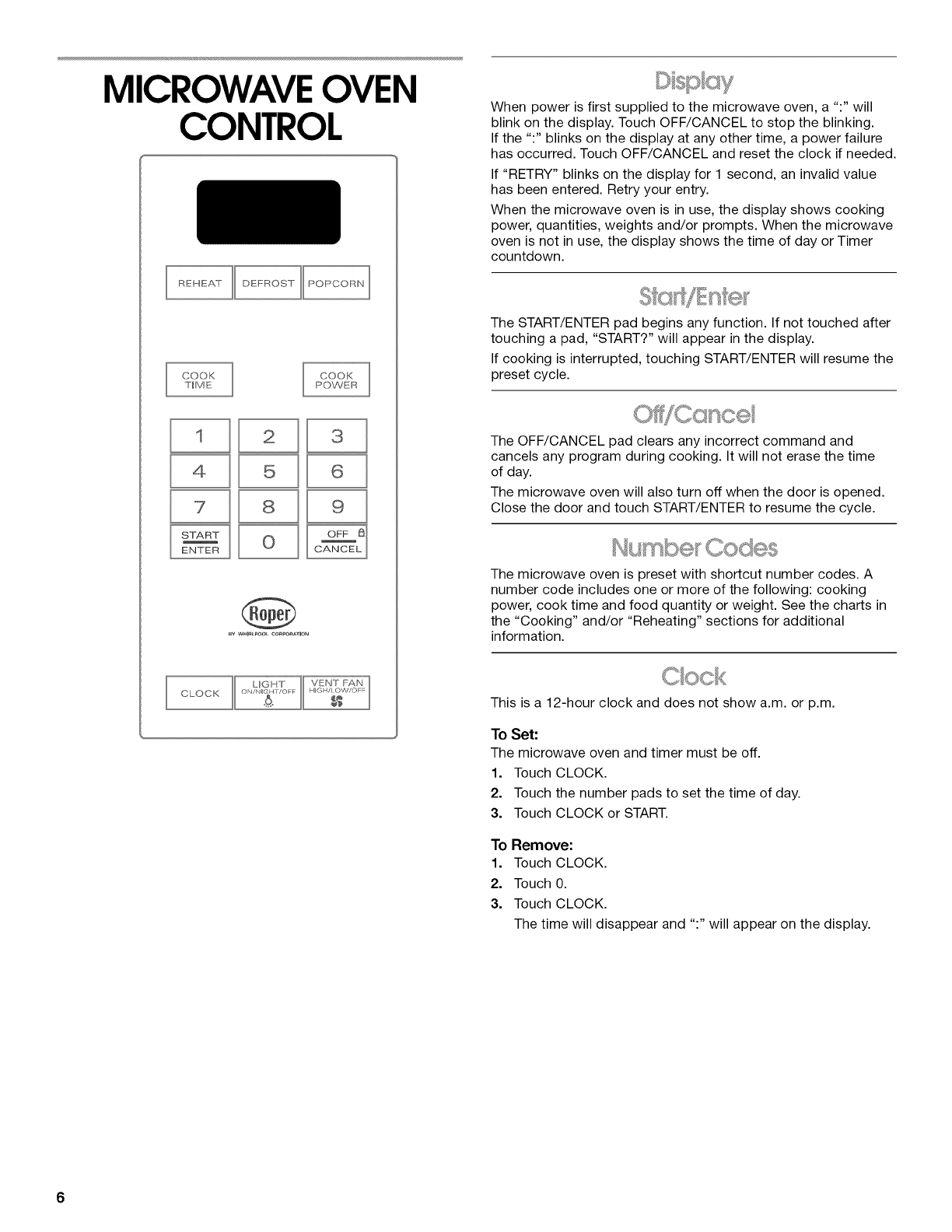

MICROWAVEOVEN
CONTROL
REHEAT DEFROST POPCORN
COOK COOK
TIME POWER
CLOCK ON/I_IGH /OFH HIGH/[ OVV/OFF
When power is first supplied to the microwave oven, a ":" will
blink on the display. Touch OFF/CANCEL to stop the blinking.
If the ":" blinks on the display at any other time, a power failure
has occurred. Touch OFF/CANCEL and reset the clock if needed.
If "RETRY" blinks on the display for 1 second, an invalid value
has been entered. Retry your entry.
When the microwave oven is in use, the display shows cooking
power, quantities, weights and/or prompts. When the microwave
oven is not in use, the display shows the time of day or Timer
countdown.
The START/ENTER pad begins any function. If not touched after
touching a pad, "START?" will appear in the display.
If cooking is interrupted, touching START/ENTER will resume the
preset cycle.
The OFF/CANCEL pad clears any incorrect command and
cancels any program during cooking. It will not erase the time
of day.
The microwave oven will also turn off when the door is opened.
Close the door and touch START/ENTER to resume the cycle.
The microwave oven is preset with shortcut number codes. A
number code includes one or more of the following: cooking
power, cook time and food quantity or weight. See the charts in
the "Cooking" and/or "Reheating" sections for additional
information.
This is a 12-hour clock and does not show a.m. or p.m.
To Set:
The microwave oven and timer must be off.
1. Touch CLOCK.
2. Touch the number pads to set the time of day.
3. Touch CLOCK or START.
To Remove:
1. Touch CLOCK.
2. Touch 0.
3. Touch CLOCK.
The time will disappear and ":" will appear on the display.
6

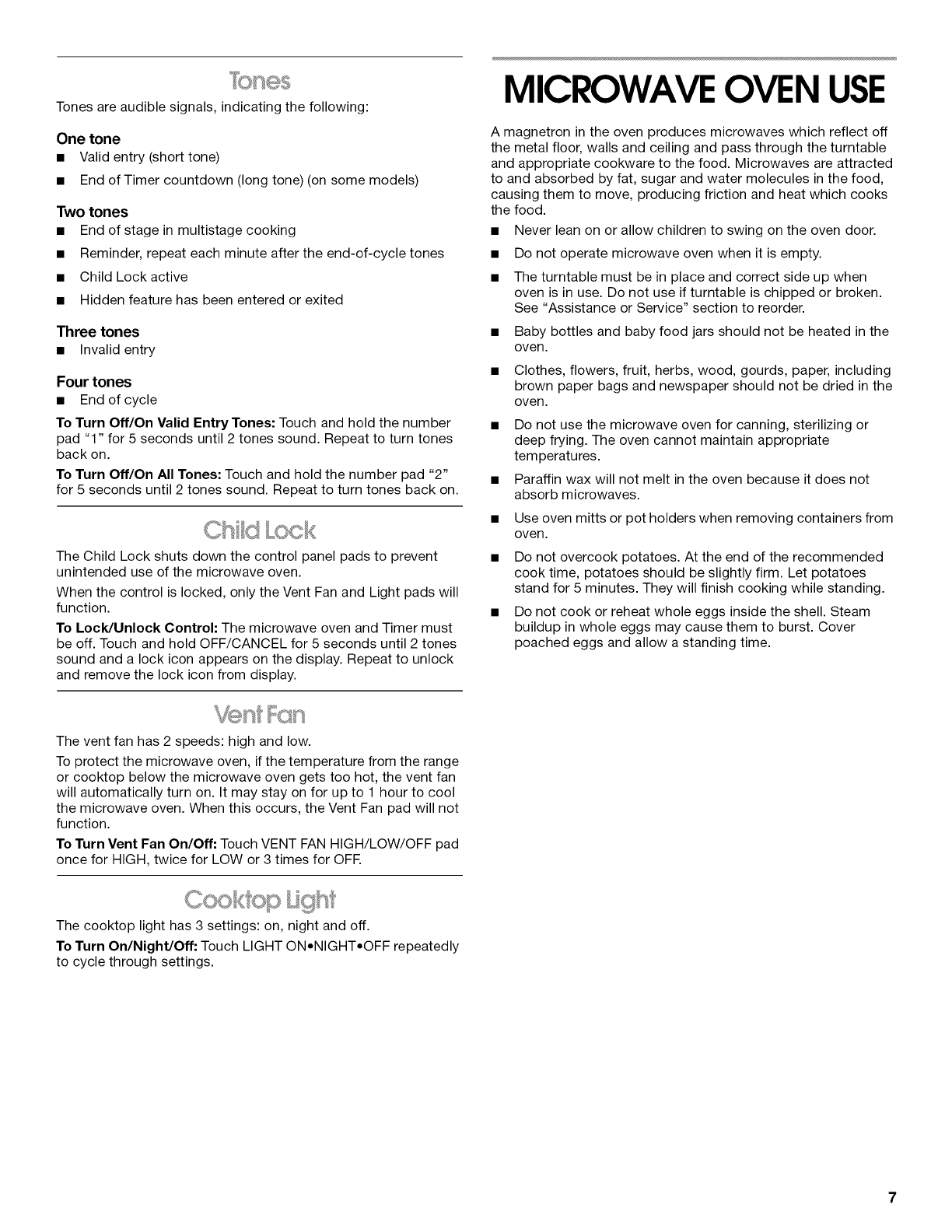

Tones are audible signals, indicating the following:
One tone
• Valid entry (short tone)
• End of Timer countdown (long tone) (on some models)
Two tones
• End of stage in multistage cooking
• Reminder, repeat each minute after the end-of-cycle tones
• Child Lock active
• Hidden feature has been entered or exited
Three tones
• Invalid entry
Four tones
• End of cycle
To Turn Off/On Valid Entry Tones: Touch and hold the number
pad "1" for 5 seconds until 2 tones sound. Repeat to turn tones
back on.
To Turn Off/On All Tones: Touch and hold the number pad "2"
for 5 seconds until 2 tones sound. Repeat to turn tones back on.
The Child Lock shuts down the control panel pads to prevent
unintended use of the microwave oven.
When the control is locked, only the Vent Fan and Light pads will
function.
To Lock/Unlock Control: The microwave oven and Timer must
be off. Touch and hold OFF/CANCEL for 5 seconds until 2 tones
sound and a lock icon appears on the display. Repeat to unlock
and remove the lock icon from display.
% _
The vent fan has 2 speeds: high and low.
To protect the microwave oven, if the temperature from the range
or cooktop below the microwave oven gets too hot, the vent fan
will automatically turn on. It may stay on for up to 1 hour to cool
the microwave oven. When this occurs, the Vent Fan pad will not
function.
To Turn Vent Fan On/Off: Touch VENT FAN HIGH/LOW/OFF pad
once for HIGH, twice for LOW or 3 times for OFF.
Cook p L;gh?
The cooktop light has 3 settings: on, night and off.
To Turn On/Night/Off: Touch LIGHT ON-NIGHT.OFF repeatedly
to cycle through settings.
MICROWAVEOVEN USE
A magnetron in the oven produces microwaves which reflect off
the metal floor, walls and ceiling and pass through the turntable
and appropriate cookware to the food. Microwaves are attracted
to and absorbed by fat, sugar and water molecules in the food,
causing them to move, producing friction and heat which cooks
the food.
• Never lean on or allow children to swing on the oven door.
• Do not operate microwave oven when it is empty.
• The turntable must be in place and correct side up when
oven is in use. Do not use if turntable is chipped or broken.
See "Assistance or Service" section to reorder.
• Baby bottles and baby food jars should not be heated in the
oven.
• Clothes, flowers, fruit, herbs, wood, gourds, paper, including
brown paper bags and newspaper should not be dried in the
oven.
• Do not use the microwave oven for canning, sterilizing or
deep frying. The oven cannot maintain appropriate
temperatures.
• Paraffin wax will not melt in the oven because it does not
absorb microwaves.
• Use oven mitts or pot holders when removing containers from
oven.
• Do not overcook potatoes. At the end of the recommended
cook time, potatoes should be slightly firm. Let potatoes
stand for 5 minutes. They will finish cooking while standing.
• Do not cook or reheat whole eggs inside the shell. Steam
buildup in whole eggs may cause them to burst. Cover
poached eggs and allow a standing time.
Whenmicrowavecooking,theamount,sizeandshape,starting
temperature,compositionanddensityofthefoodaffectcooking
results.
Amount of Food
The more food heated at once, the longer the cook time. Check
for doneness and add small increments of time if necessary.
Size and Shape
Smaller pieces of food will cook more quickly than larger pieces,
and uniformly shaped foods cook more evenly than irregularly
shaped food.
Starting Temperature
Room temperature foods will heat faster than refrigerated foods,
and refrigerated foods will heat faster than frozen foods.
Composition and Density
Foods high in fat and sugar will reach a higher temperature and
heat faster than other foods. Heavy, dense foods, such as meat
and potatoes, require a longer cook time than the same size of a
light, porous food, such as cake.
Covering
Covering food helps retain moisture, shorten cook time and
reduce spattering. Use the lid supplied with cookware. If a lid is
not available, wax paper, paper towels or plastic wrap approved
for microwave ovens may be used. Plastic wrap should be turned
back at one corner to provide an opening to vent steam.
Stirring and Turning
Stirring and turning redistributes heat evenly to avoid
overcooking the outer edges of food. Stir from outside to center.
If possible, turn food over from bottom to top.
Arranging
If heating irregularly shaped or different sized foods, the thinner
parts and smaller sizes should be arranged toward the center. If
cooking several items of the same size and shape, place them in
a ring pattern, leaving the center of the ring empty.
Piercing
Before heating, use a fork or small knife to pierce or prick foods
that have a skin or membrane, such as potatoes, egg yolks,
chicken livers, hot dogs, and sausage. Prick in several places to
allow steam to vent.
Shielding
Use small, flat pieces of aluminum foil to shield the thin pieces of
irregularly shaped foods, bones and foods such as chicken
wings, leg tips and fish tail. See "Aluminum Foil and Metal" first.
Standing Time
Food will continue to cook by the natural conduction of heat even
after the microwave cycle ends. The length of standing time
depends on the volume and density of the food.

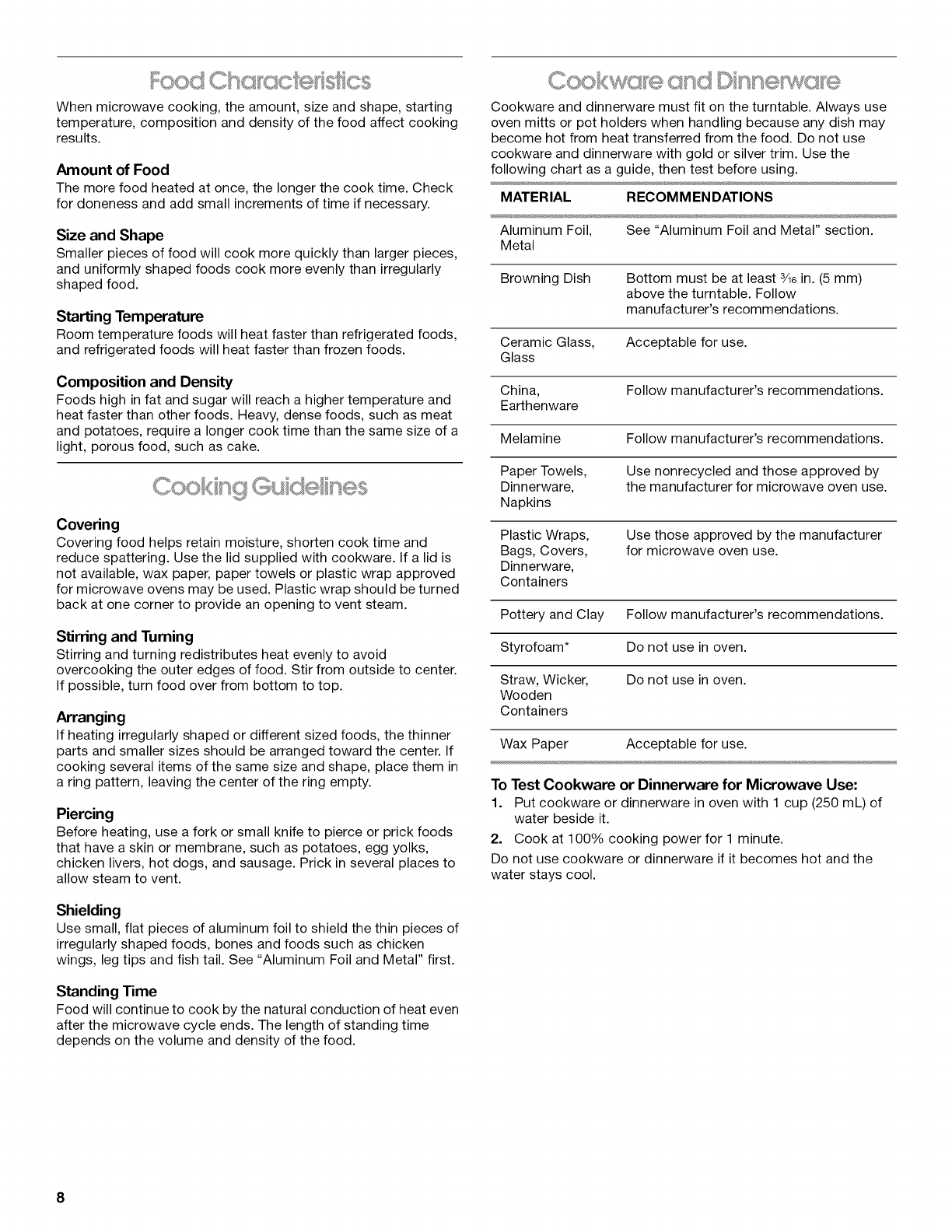

Cookware and dinnerware must fit on the turntable. Always use
oven mitts or pot holders when handling because any dish may
become hot from heat transferred from the food. Do not use
cookware and dinnerware with gold or silver trim. Use the
following chart as a guide, then test before using.
MATER IAL R ECOM M EN DATIONS
Aluminum Foil, See "Aluminum Foil and Metal" section.
Metal
Browning Dish Bottom must be at least 3/16in. (5 mm)
above the turntable. Follow
manufacturer's recommendations.
Ceramic Glass, Acceptable for use.
Glass
China, Follow manufacturer's recommendations.
Earthenware
Melamine Follow manufacturer's recommendations.
Paper Towels, Use nonrecycled and those approved by
Dinnerware, the manufacturer for microwave oven use.
Napkins
Plastic Wraps, Use those approved by the manufacturer
Bags, Covers, for microwave oven use.
Dinnerware,
Containers
Pottery and Clay Follow manufacturer's recommendations.
Styrofoam* Do not use in oven.
Straw, Wicker, Do not use in oven.
Wooden
Containers
Wax Paper Acceptable for use.
To Test Cookware or Dinnerware for Microwave Use:
1. Put cookware or dinnerware in oven with 1 cup (250 mL) of
water beside it.
2. Cook at 100% cooking power for 1 minute.
Do not use cookware or dinnerware if it becomes hot and the
water stays cool.
8
Always use oven mitts or pot holders when removing dishes from
the microwave oven.

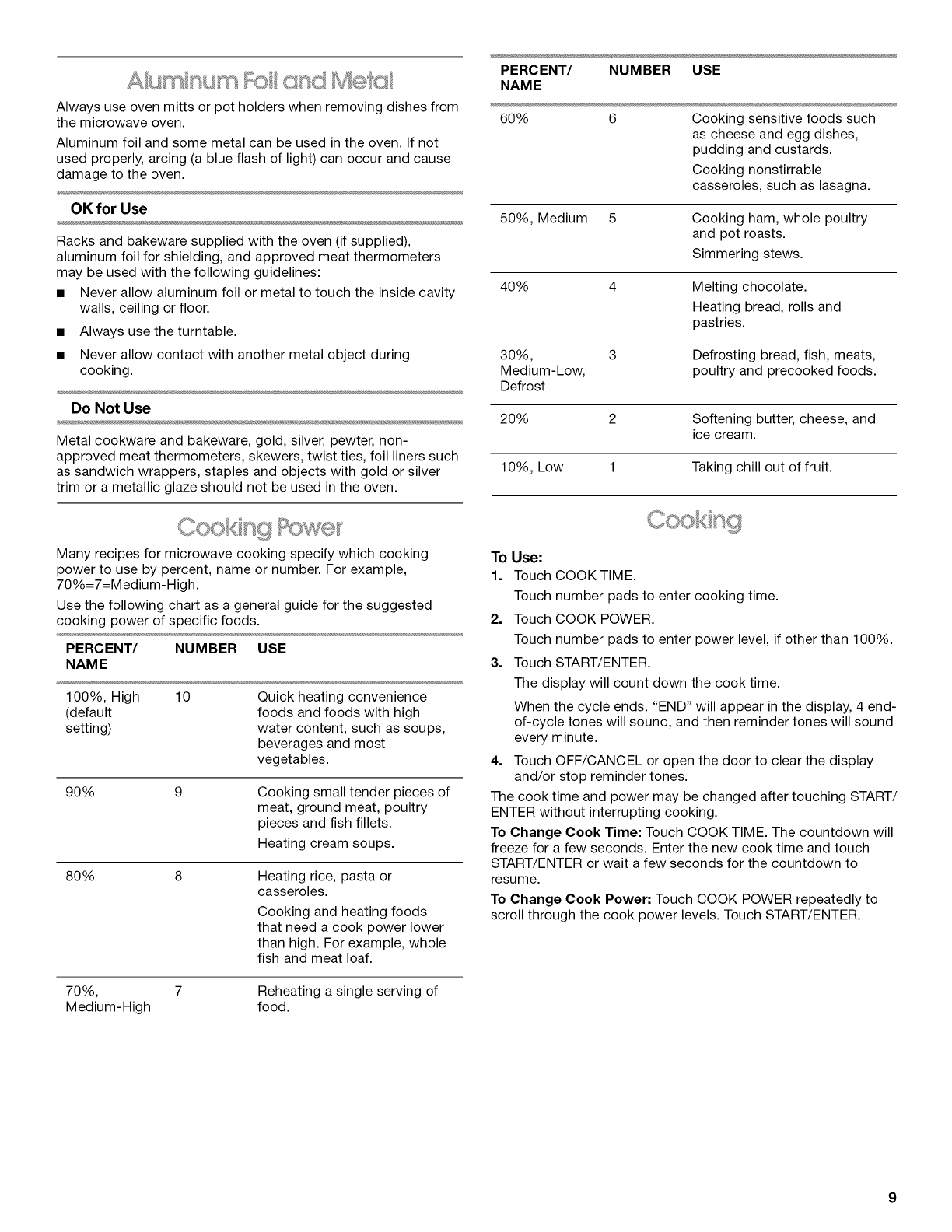

Aluminum foil and some metal can be used in the oven. If not
used properly, arcing (a blue flash of light) can occur and cause
damage to the oven.
OK for Use
Racks and bakeware supplied with the oven (if supplied),
aluminum foil for shielding, and approved meat thermometers
may be used with the following guidelines:
• Never allow aluminum foil or metal to touch the inside cavity
walls, ceiling or floor.
• Always use the turntable.
• Never allow contact with another metal object during
cooking.
Do Not Use
Metal cookware and bakeware, gold, silver, pewter, non-
approved meat thermometers, skewers, twist ties, foil liners such
as sandwich wrappers, staples and objects with gold or silver
trim or a metallic glaze should not be used in the oven.
Many recipes for microwave cooking specify which cooking
power to use by percent, name or number. For example,
70%=7=Medium-High.
Use the following chart as a general guide for the suggested
cooking power of specific foods.
PERCENT/ NUMBER USE
NAME
100%, High 10
(default
setting)
90%
80%
Quick heating convenience
foods and foods with high
water content, such as soups,
beverages and most
vegetables.
Cooking small tender pieces of
meat, ground meat, poultry
pieces and fish fillets.
Heating cream soups.
Heating rice, pasta or
casseroles.
Cooking and heating foods
that need a cook power lower
than high. For example, whole
fish and meat loaf.
70%, 7
Medium-High
Reheating a single serving of
food.
PERCENT/ NUMBER USE
NAME
60% 6 Cooking sensitive foods such
as cheese and egg dishes,
pudding and custards.
Cooking nonstirrable
casseroles, such as lasagna.
50%, Medium 5 Cooking ham, whole poultry
and pot roasts.
Simmering stews.
40% 4 Melting chocolate.
Heating bread, rolls and
pastries.
30%, 3 Defrosting bread, fish, meats,
Medium-Low, poultry and precooked foods.
Defrost
20% 2 Softening butter, cheese, and
ice cream.
10%, Low 1 Taking chill out of fruit.
To Use:
1. Touch COOK TIME.
Touch number pads to enter cooking time.
2. Touch COOK POWER.
Touch number pads to enter power level, if other than 100%.
3. Touch START/ENTER.
The display will count down the cook time.
When the cycle ends. "END" will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
4. Touch OFF/CANCEL or open the door to clear the display
and/or stop reminder tones.
The cook time and power may be changed after touching START/
ENTER without interrupting cooking.
To Change Cook Time: Touch COOK TIME. The countdown will
freeze for a few seconds. Enter the new cook time and touch
START/ENTER or wait a few seconds for the countdown to
resume.
To Change Cook Power: Touch COOK POWER repeatedly to
scroll through the cook power levels. Touch START/ENTER.
_,......_C__ ° _____'___'__C¸__ _
Themicrowaveovencanbesettocookatdifferentcooking
powersforvariouslengthsoftime,upto3stages.

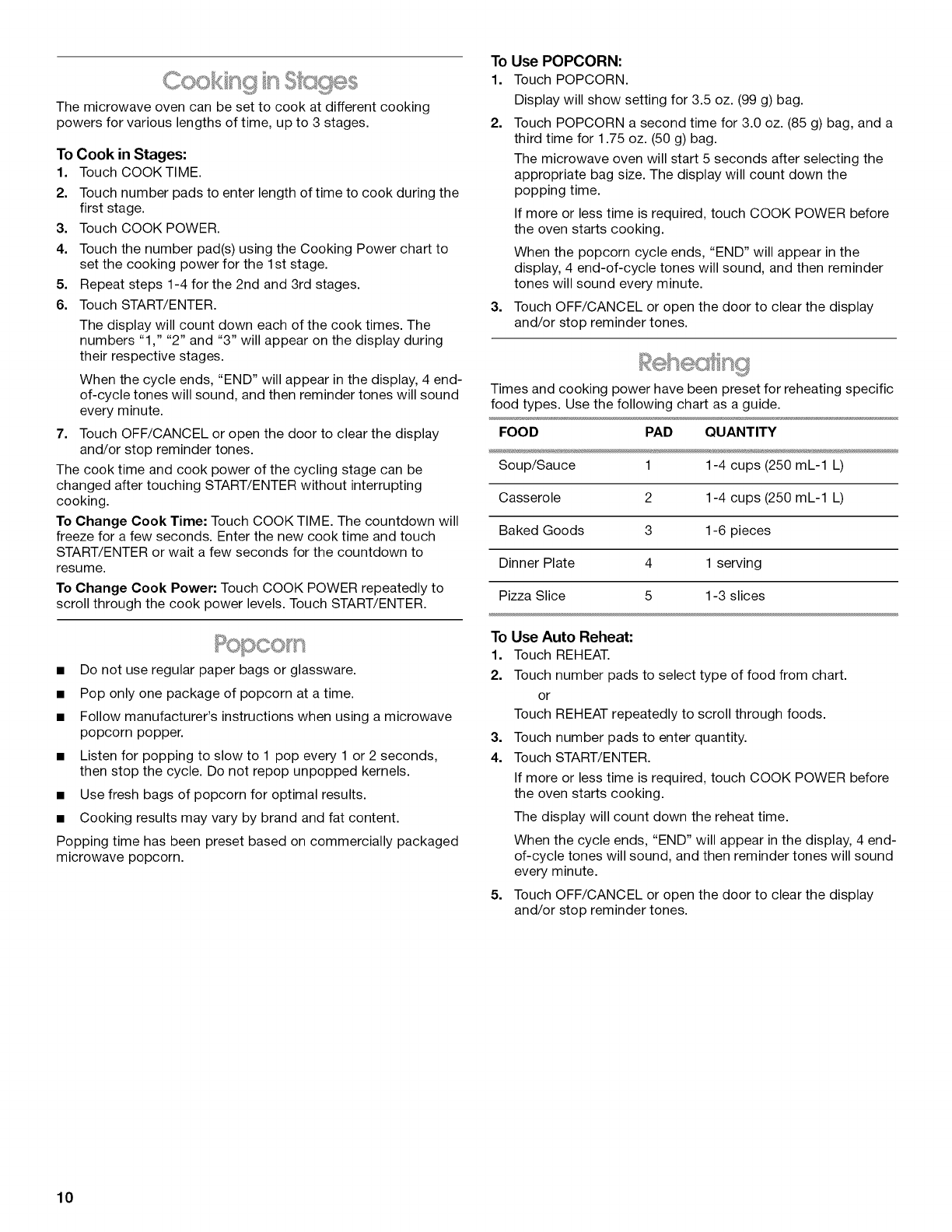

To Cook in Stages:
1. Touch COOK TIME.
2. Touch number pads to enter length of time to cook during the
first stage.
3. Touch COOK POWER.
4. Touch the number pad(s) using the Cooking Power chart to
set the cooking power for the 1st stage.
5. Repeat steps 1-4 for the 2nd and 3rd stages.
6. Touch START/ENTER.
The display will count down each of the cook times. The
numbers "1 ," "2" and "3" will appear on the display during
their respective stages.
When the cycle ends, "END" will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
7. Touch OFF/CANCEL or open the door to clear the display
and/or stop reminder tones.
The cook time and cook power of the cycling stage can be
changed after touching START/ENTER without interrupting
cooking.
To Change Cook Time: Touch COOK TIME. The countdown will
freeze for a few seconds. Enter the new cook time and touch
START/ENTER or wait a few seconds for the countdown to
resume.
To Change Cook Power: Touch COOK POWER repeatedly to
scroll through the cook power levels. Touch START/ENTER.
• Do not use regular paper bags or glassware.
• Pop only one package of popcorn at a time.
• Follow manufacturer's instructions when using a microwave
popcorn popper.
• Listen for popping to slow to 1 pop every 1 or 2 seconds,
then stop the cycle. Do not repop unpopped kernels.
• Use fresh bags of popcorn for optimal results.
• Cooking results may vary by brand and fat content.
Popping time has been preset based on commercially packaged
microwave popcorn.
To Use POPCORN:
1. Touch POPCORN.
Display will show setting for 3.5 oz. (99 g) bag.
2. Touch POPCORN a second time for 3.0 oz. (85 g) bag, and a
third time for 1.75 oz. (50 g) bag.
The microwave oven will start 5 seconds after selecting the
appropriate bag size. The display will count down the
popping time.
If more or less time is required, touch COOK POWER before
the oven starts cooking.
When the popcorn cycle ends, "END" will appear in the
display, 4 end-of-cycle tones will sound, and then reminder
tones will sound every minute.
3. Touch OFF/CANCEL or open the door to clear the display
and/or stop reminder tones.
Times and cooking power have been preset for reheating specific
food types. Use the following chart as a guide.
FOOD PAD QUANTITY
Soup/Sauce 1 1-4 cups (250 mL-1 L)
Casserole 2 1-4 cups (250 mL-1 L)
Baked Goods 3 1-6 pieces
Dinner Plate 4 1 serving
Pizza Slice 5 1-3 slices
To Use Auto Reheat:
1. Touch REHEAT.
2. Touch number pads to select type of food from chart.
or
Touch REHEAT repeatedly to scroll through foods.
3. Touch number pads to enter quantity.
4. Touch START/ENTER.
If more or less time is required, touch COOK POWER before
the oven starts cooking.
The display will count down the reheat time.
When the cycle ends, "END" will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
5. Touch OFF/CANCEL or open the door to clear the display
and/or stop reminder tones.
10

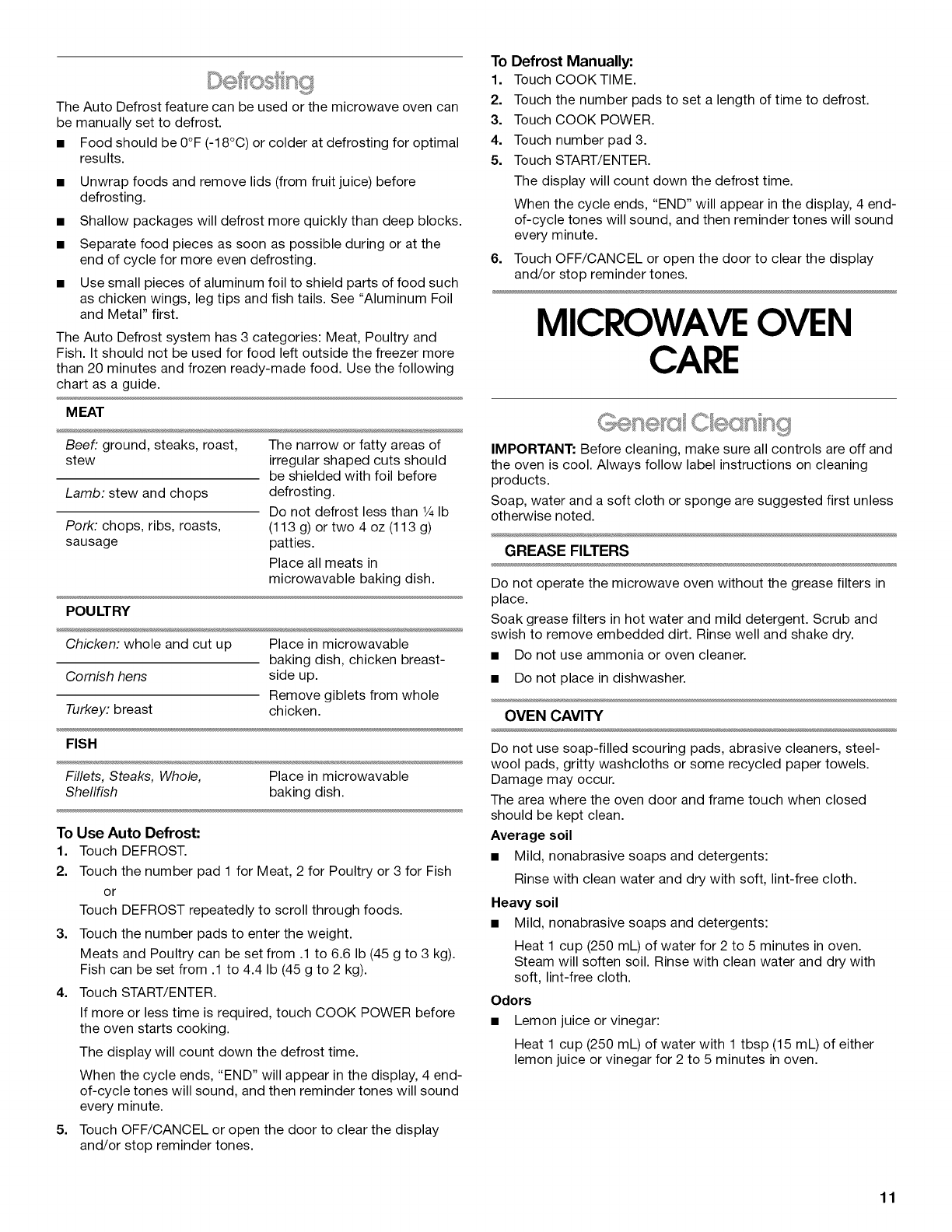

The Auto Defrost feature can be used or the microwave oven can
be manually set to defrost.
• Food should be 0°F (-18°C) or colder at defrosting for optimal
results.
• Unwrap foods and remove lids (from fruit juice) before
defrosting.
• Shallow packages will defrost more quickly than deep blocks.
• Separate food pieces as soon as possible during or at the
end of cycle for more even defrosting.
• Use small pieces of aluminum foil to shield parts of food such
as chicken wings, leg tips and fish tails. See "Aluminum Foil
and Metal" first.
The Auto Defrost system has 3 categories: Meat, Poultry and
Fish. It should not be used for food left outside the freezer more
than 20 minutes and frozen ready-made food. Use the following
chart as a guide.
MEAT
Beef: ground, steaks, roast, The narrow or fatty areas of
stew irregular shaped cuts should
be shielded with foil before
Lamb: stew and chops defrosting.
Do not defrost less than 1/4Ib
Pork: chops, ribs, roasts, (113 g) or two 4 oz (113 g)
sausage patties.
Place all meats in
microwavable baking dish.
POULTRY
Chicken: whole and cut up Place in microwavable
baking dish, chicken breast-
Cornish hens side up.
Remove giblets from whole
Turkey: breast chicken.
FISH
Fillets, Steaks, Whole, Place in microwavable
Shellfish baking dish.
To Use Auto Defrost:
1. Touch DEFROST.
2. Touch the number pad 1 for Meat, 2 for Poultry or 3 for Fish
or
Touch DEFROST repeatedly to scroll through foods.
3. Touch the number pads to enter the weight.
Meats and Poultry can be set from .1 to 6.6 Ib (45 g to 3 kg).
Fish can be set from .1 to 4.4 Ib (45 g to 2 kg).
4. Touch START/ENTER.
If more or less time is required, touch COOK POWER before
the oven starts cooking.
The display will count down the defrost time.
When the cycle ends, "END" will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
5. Touch OFF/CANCEL or open the door to clear the display
and/or stop reminder tones.
To Defrost Manually:
1. Touch COOKTIME.
2. Touch the number pads to set a length of time to defrost.
3. Touch COOK POWER.
4. Touch number pad 3.
5. Touch START/ENTER.
The display will count down the defrost time.
When the cycle ends, "END" will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
6. Touch OFF/CANCEL or open the door to clear the display
and/or stop reminder tones.
MICROWAVEOVEN
CARE
IMPORTANT: Beforecleaning,make sureallcontrolsareoffand
theoven iscool.Always followlabelinstructionson cleaning
products.
Soap, waterand a softclothorsponge aresuggested firstunless
otherwisenoted.
GREASE FILTERS
Do not operate the microwave oven without the grease filters in
place.
Soak grease filters in hot water and mild detergent. Scrub and
swish to remove embedded dirt. Rinse well and shake dry.
• Do not use ammonia or oven cleaner.
•Do not place in dishwasher.
OVEN CAVITY
Do not use soap-filled scouring pads, abrasive cleaners, steel-
wool pads, gritty washcloths or some recycled paper towels.
Damage may occur.
The area where the oven door and frame touch when closed
should be kept clean.
Average soil
• Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
Heavy soil
• Mild, nonabrasive soaps and detergents:
Heat 1 cup (250 mL) of water for 2 to 5 minutes in oven.
Steam will soften soil. Rinse with clean water and dry with
soft, lint-free cloth.
Odors
• Lemon juice or vinegar:
Heat 1 cup (250 mL) of water with 1 tbsp (15 mL) of either
lemon juice or vinegar for 2 to 5 minutes in oven.
11
OVEN DOOR EXTERIOR
• Glass cleaner and paper towels or nonabrasive plastic
scrubbing pad:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
TURNTABLE
Replace turntable immediately after cleaning. Do not operate the
microwave oven without the turntable in place.
• Mild cleanser and scouring pad
• Dishwasher

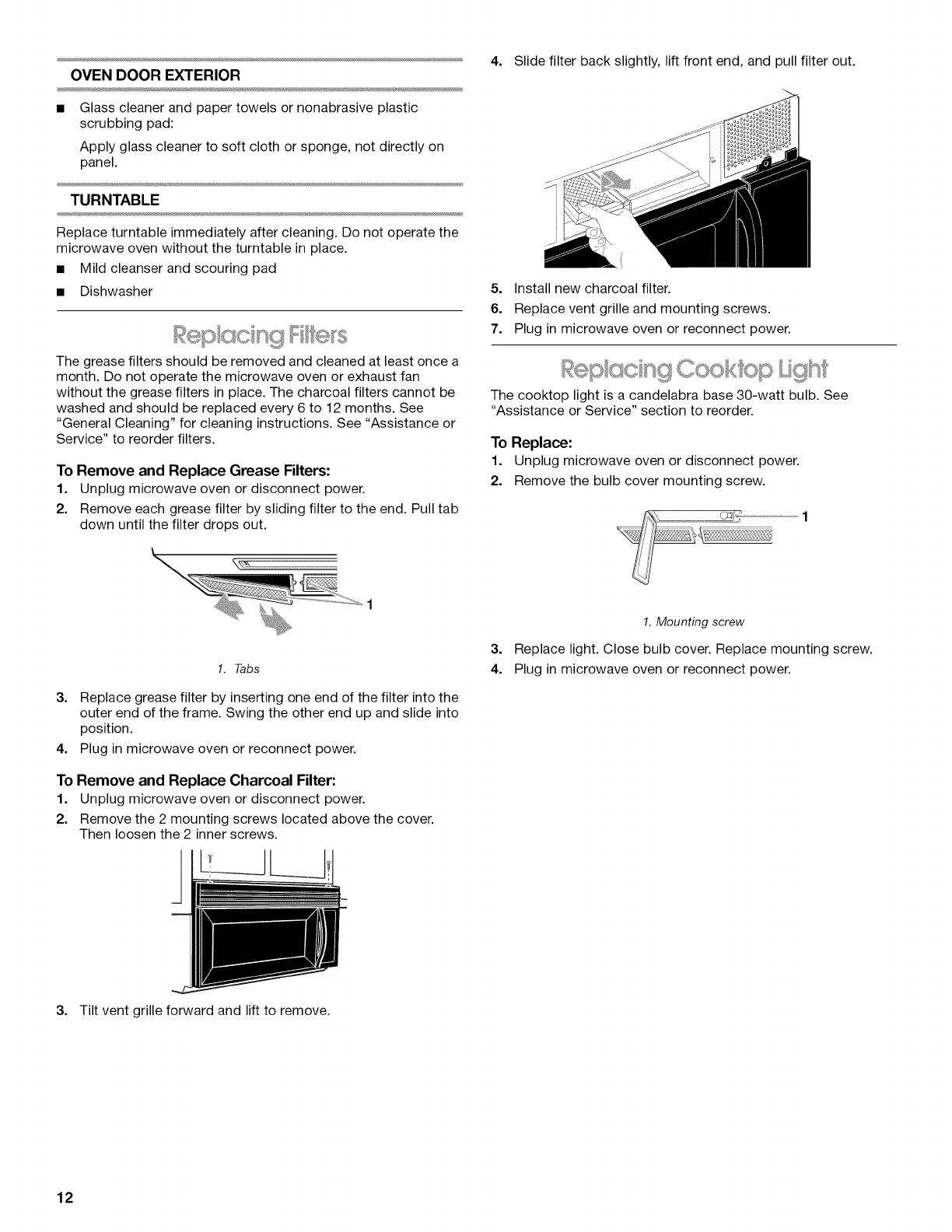

The grease filters should be removed and cleaned at least once a
month. Do not operate the microwave oven or exhaust fan
without the grease filters in place. The charcoal filters cannot be
washed and should be replaced every 6 to 12 months. See
"General Cleaning" for cleaning instructions. See "Assistance or
Service" to reorder filters.
To Remove and Replace Grease Filters:
1. Unplug microwave oven or disconnect power.
2. Remove each grease filter by sliding filter to the end. Pull tab
down until the filter drops out.
4. Slide filter back slightly, lift front end, and pull filter out.
j J-
5. Install new charcoal filter.
6. Replace vent grille and mounting screws.
7. Plug in microwave oven or reconnect power.
The cooktop light is a candelabra base 30-watt bulb. See
"Assistance or Service" section to reorder.
To Replace:
1. Unplug microwave oven or disconnect power.
2. Remove the bulb cover mounting screw.
1. Tabs
3. Replace grease filter by inserting one end of the filter into the
outer end of the frame. Swing the other end up and slide into
position.
4. Plug in microwave oven or reconnect power.
To Remove and Replace Charcoal Filter:
1. Unplug microwave oven or disconnect power.
2. Remove the 2 mounting screws located above the cover.
Then loosen the 2 inner screws.
3. Tilt vent grille forward and lift to remove.
1. Mounting screw
3. Replace light. Close bulb cover. Replace mounting screw.
4. Plug in microwave oven or reconnect power.
12
The microwave oven light is a candelabra base 30-watt bulb. It
will automatically come on when the door is opened and when
the microwave oven is operating. See "Assistance or Service"
section to reorder.
To Replace:
1. Unplug microwave oven or disconnect power.
2. Remove the 2 outer vent grille mounting screws located
above the cover.
3. Tip the grille forward, then lift out to remove.
4. Lift up the bulb cover.
1. Bulb cover
5. Replace light. Close bulb cover.
6. Reattach vent grille. Replace the mounting screws.
7. Plug in microwave oven or reconnect power.

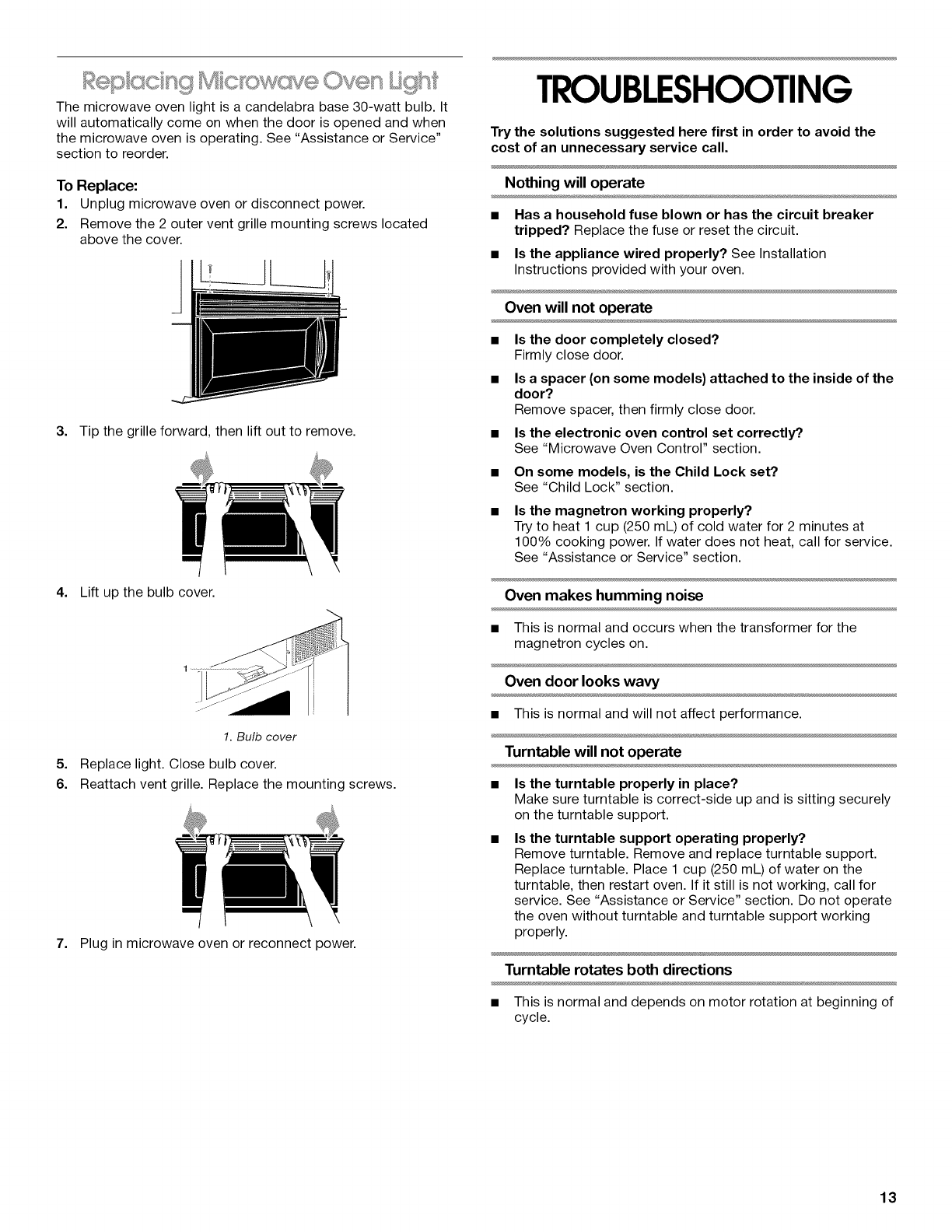

TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the
cost of an unnecessary service call.
Nothing will operate
•Has ahousehold fuse blown or has the circuit breaker
tripped? Replace the fuse or reset the circuit.
•Is the appliance wired properly? See Installation
Instructions provided with your oven.
Oven will not operate
•Is the door completely closed?
Firmly close door.
• Is a spacer (on some models) attached to the inside of the
door?
Remove spacer, then firmly close door.
Is the electronic oven control set correctly?
See "Microwave Oven Control" section.
On some models, is the Child Lock set?
See "Child Lock" section.
Is the magnetron working properly?
Try to heat 1 cup (250 mL) of cold water for 2 minutes at
100% cooking power. If water does not heat, call for service.
See "Assistance or Service" section.
Oven makes humming noise
• This is normal and occurs when the transformer for the
magnetron cycles on.
Oven door looks wavy
• This is normal and will not affect performance.
Turntable will not operate
Is the turntable properly in place?
Make sure turntable is correct-side up and is sitting securely
on the turntable support.
Is the turntable support operating properly?
Remove turntable. Remove and replace turntable support.
Replace turntable. Place 1 cup (250 mL) of water on the
turntable, then restart oven. If it still is not working, call for
service. See "Assistance or Service" section. Do not operate
the oven without turntable and turntable support working
properly.
Turntable rotates both directions
• This is normal and depends on motor rotation at beginning of
cycle.
13

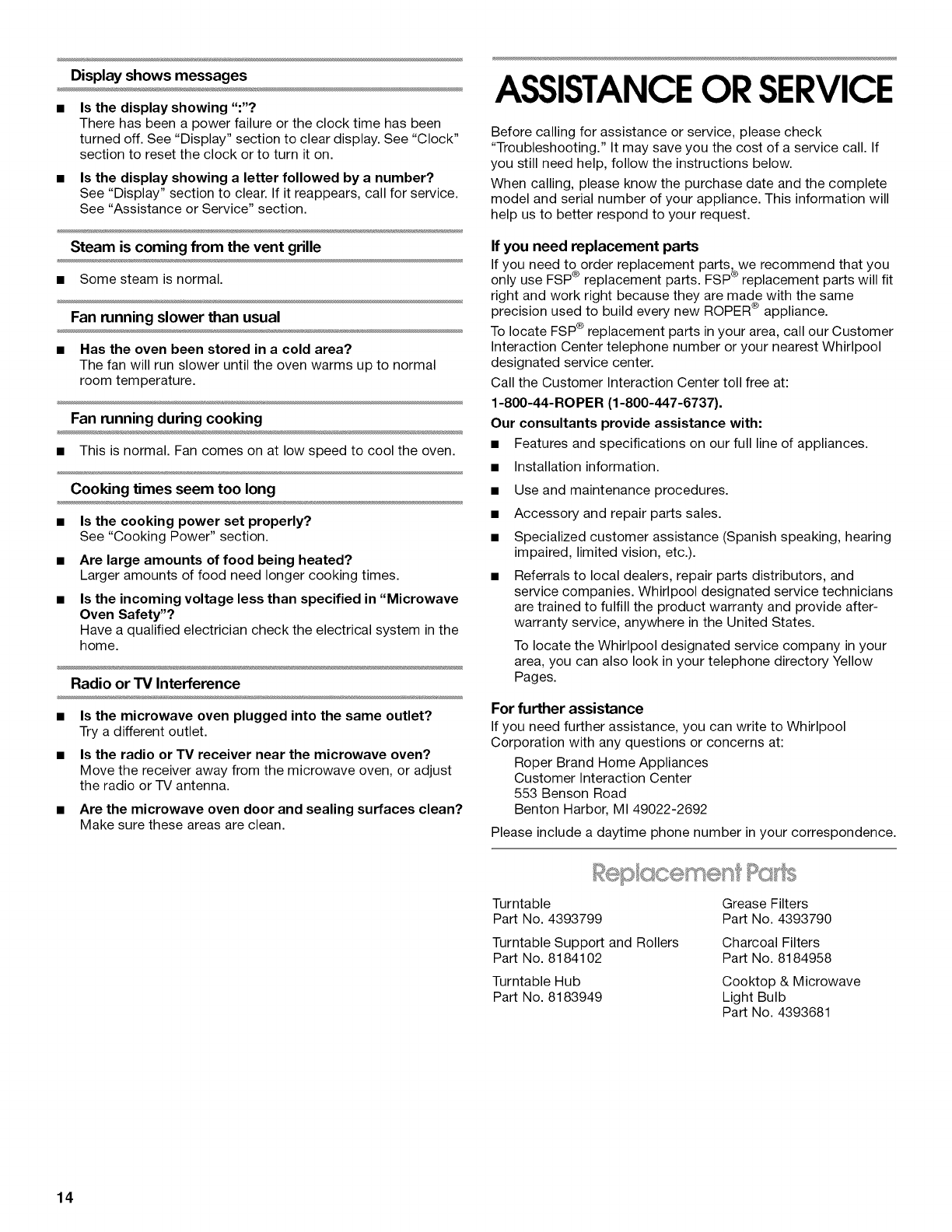

Display shows messages
•Is the display showing ":"?
There has been a power failure or the clock time has been
turned off. See "Display" section to clear display. See "Clock"
section to reset the clock or to turn it on.
•Is the display showing aletter followed by anumber?
See "Display" section to clear. If it reappears, call for service.
See "Assistance or Service" section.
Steam is coming from the vent grille
• Some steam is normal.
Fan running slower than usual
•Has the oven been stored in a cold area?
The fan will run slower until the oven warms up to normal
room temperature.
Fan running during cooking
• This is normal. Fan comes on at low speed to cool the oven.
Cooking times seem too long
•Is the cooking power set properly?
See "Cooking Power" section.
• Are large amounts of food being heated?
Larger amounts of food need longer cooking times.
• Is the incoming voltage less than specified in "Microwave
Oven Safety"?
Have a qualified electrician check the electrical system in the
home.
Radio or TV Interference
•Is the microwave oven plugged into the same outlet?
Try a different outlet.
•Is the radio or TV receiver near the microwave oven?
Move the receiver away from the microwave oven, or adjust
the radio or TV antenna.
Are the microwave oven door and sealing surfaces clean?
Make sure these areas are clean.
ASSISTANCEOR SERVICE
Before calling for assistance or service, please check
"Troubleshooting." It may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
® ®
only use FSP replacement parts. FSP replacement parts will fit
right and work right because they are made with the same
precision used to build every new ROPER ® appliance.
To locate FSP®replacement parts in your area, call our Customer
Interaction Center telephone number or your nearest Whirlpool
designated service center.
Call the Customer Interaction Center toll free at:
1-800-44-ROPER (1-800-447-6737).
Our consultants provide assistance with:
Features and specifications on our full line of appliances.
Installation information.
Use and maintenance procedures.
Accessory and repair parts sales.
Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors, and
service companies. Whirlpool designated service technicians
are trained to fulfill the product warranty and provide after-
warranty service, anywhere in the United States.
To locate the Whirlpool designated service company in your
area, you can also look in your telephone directory Yellow
Pages.
For further assistance
If you need further assistance, you can write to Whirlpool
Corporation with any questions or concerns at:
Roper Brand Home Appliances
Customer Interaction Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
Turntable
Part No. 4393799
Turntable Support and Rollers
Part No. 8184102
Turntable Hub
Part No. 8183949
Grease Filters
Part No. 4393790
Charcoal Filters
Part No. 8184958
Cooktop & Microwave
Light Bulb
Part No. 4393681
14
15

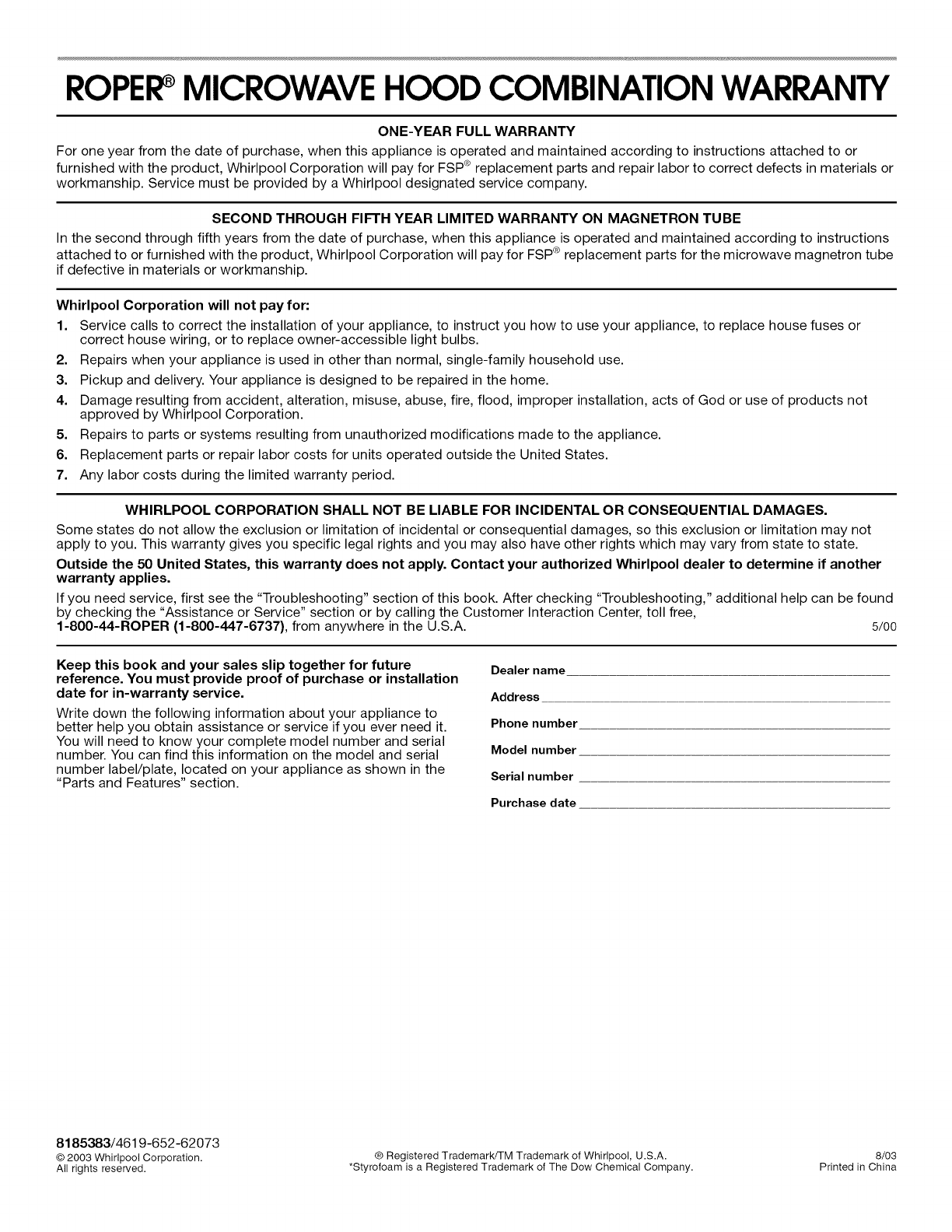

ROPER MICROWAVE HOOD COMBINATION WARRANTY
ONE-YEAR FULL WARRANTY
For one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or
furnished with the product, Whirlpool Corporation will pay for FSPC®replacement parts and repair labor to correct defects in materials or
workmanship. Service must be provided by a Whirlpool designated service company.
SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON MAGNETRON TUBE
In the second through fifth years from the date of purchase, when this appliance is operated and maintained according to instructions
attached to or furnished with the product, Whirlpool Corporation will pay for FSP° replacement parts for the microwave magnetron tube
if defective in materials or workmanship.
Whirlpool Corporation will not pay for:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace house fuses or
correct house wiring, or to replace owner-accessible light bulbs.
2. Repairs when your appliance is used in other than normal, single-family household use.
3. Pickup and delivery. Your appliance is designed to be repaired in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God or use of products not
approved by Whirlpool Corporation.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Replacement parts or repair labor costs for units operated outside the United States.
7. Any labor costs during the limited warranty period.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not
apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.
Outside the 50 United States, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another
warranty applies.
If you need service, first see the "Troubleshooting" section of this book. After checking "Troubleshooting," additional help can be found
by checking the "Assistance or Service" section or by calling the Customer Interaction Center, toll free,
1-800-44-ROPER (1-800-447-6737}, from anywhere in the U.S.A. 5/oo
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your appliance to
better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label/plate, located on your appliance as shown in the
"Parts and Features" section.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
8185383/4619-652-62073
© 2003 Whirlpool Corporation.
All rights reserved.
® Registered Trademark/TM Trademark of Whirlpool, U.S.A.
*Styrofoam is a Registered Trademark of The Dow Chemical Company.
8/03
Printed in China

Navigation menu
