ROULE ELECTRONICS RL-IP02 WiFi Remote Video Doorbell User Manual RL IP02C
GUANGDONG ROULE ELECTRONICS CO., LTD WiFi Remote Video Doorbell RL IP02C
User Manual
MODEL: RL-IP02C
USER MANUAL
WIFI REMOTE VIDEO DOORBELL
Features

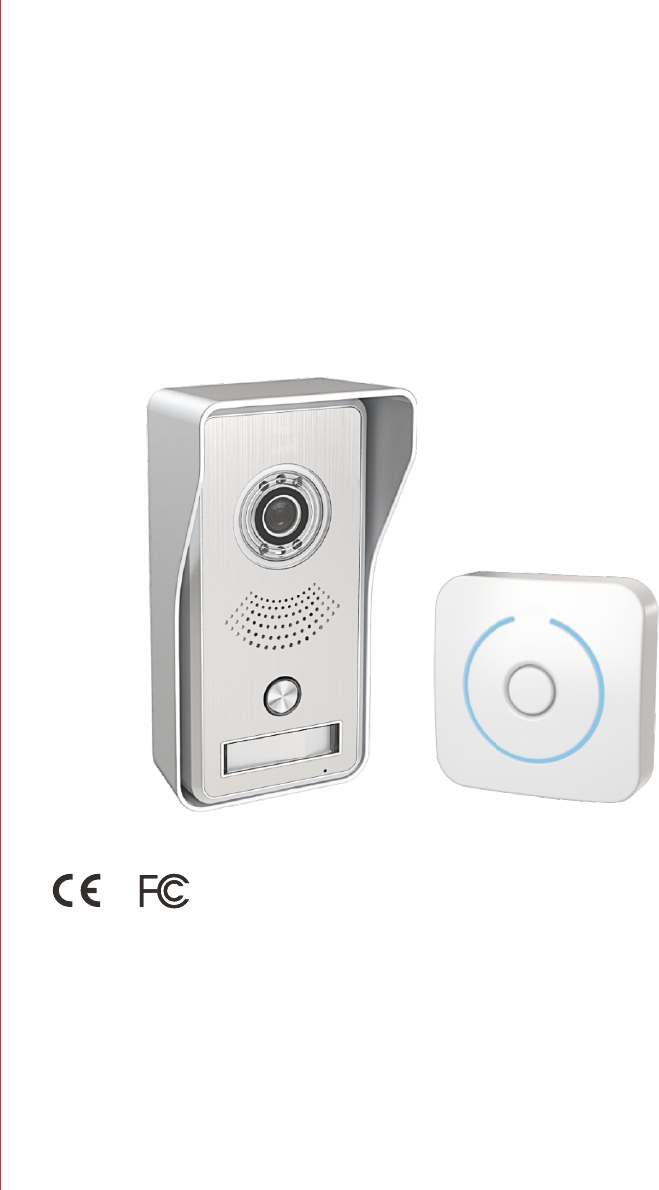

Product Description
1
The product is a video intercom product that integrates wireless remote communication
and security alarm functions together. It connects home routers through network wire or
WIFI and has the remote video intercom function through mobile phone APP terminal.
When there is a visitor, mobile phone will have an active prompt message, users can
remotely video intercom with the visitor. The doorbell will automatically send an alarm
signal to the user's mobile phone when the motion detection function is turned on and
there are image changes detected, the user can confirm the outdoor situation through
the video.
Version 1.1
1. GK7102 arm processor, Maximum 720P@30FPS 2Mbps H264 encoding, multi-bitrate
supported
2. 1M pixels CMOS image sensor, full-size H264 encoding motion compensation
technology for high definition images
3. Adopt professional digital noise reduction and echo cancellation algorithm to ensure
high quality voice interaction.
4. Mobile phone app remotely unlocking supported
5. Variable networking connection supported, Wifi or wiring.
6. Motion detection function, When moving physical body detected, alarm sound
generated and alarm signals will be sent to the user's mobile phone.
7. Night vision function. Infrared night vision light for high quality image at night.
QR code sharing supported, you can do the remote paring connection with the device 8.
within effective time after scanning the QR code shared from other users.
CONTENTS
Product Description...................................1
Features....................................................1
Package Contents......................................1
Panel Introduction.....................................2
Installation Instruction...............................2
Operation Instruction.................................3
Technical Parameters.............................8
Sub unit code learning.............................9
Wiring Diagram .........................................3
FCC WARNINGS
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Rain shade
Camera
Speaker
Button
Microphone
Wiring terminal
reset
POWER(+ -)
LOCK(NO/COM/NC)
INPUT:100~240 /50~60HZ
OUTPUT:DC12V/1.1A
1、Connect with an electric lock
Note: The enclosed adapter in the package is for the main unit, not
the power supply for unlocking.
2、Connect with a magnetic lock
INPUT:100~240 /50~60HZ
OUTPUT:DC12V/1.1A
- French:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement."
2

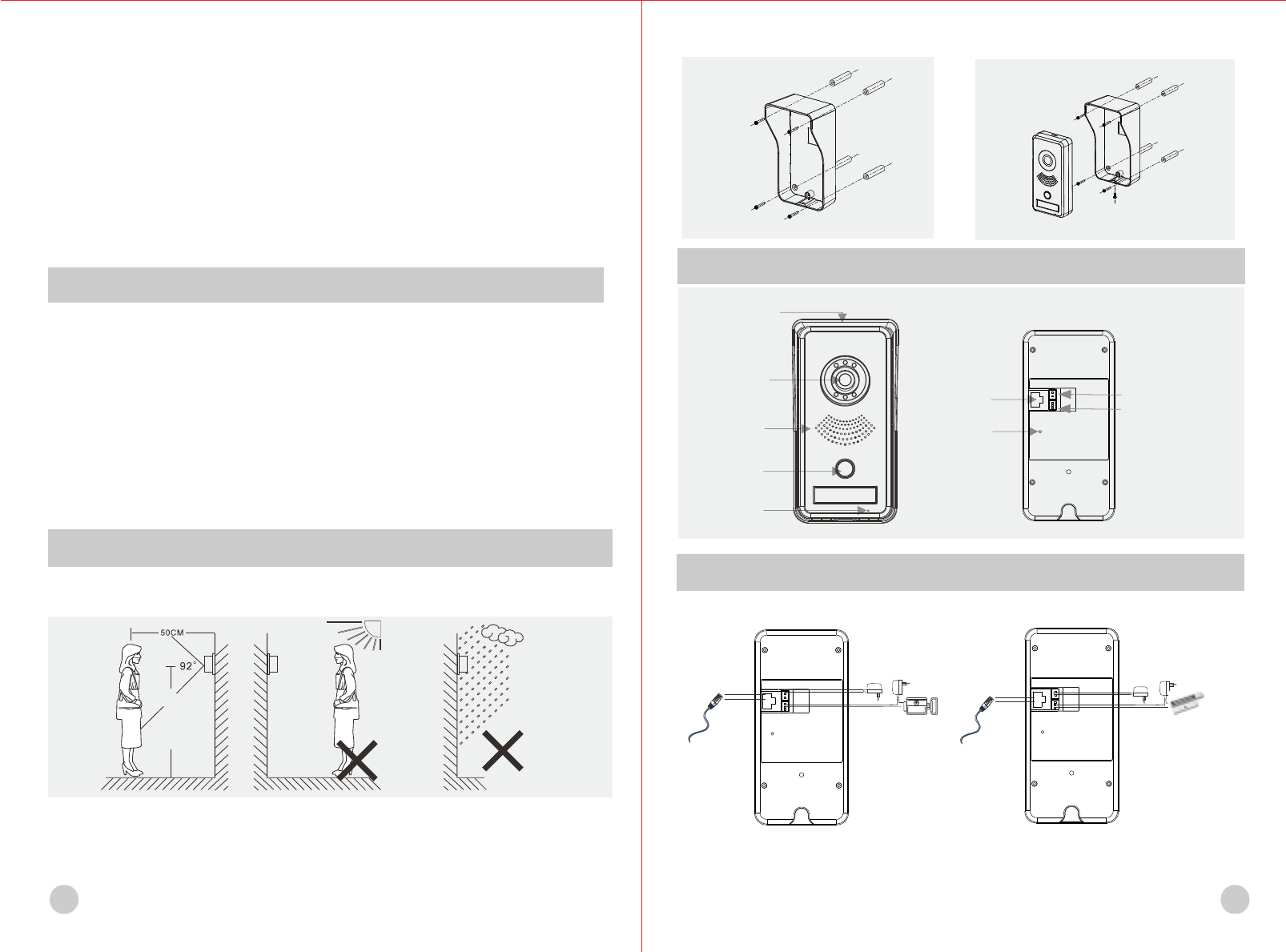

Panel Introduction
Installation Instruction
1. Install the rain shade on the door at 1.4m~1.7m height up from the ground (according to the
camera's effect), avoid direct sunlight.
140-170mm
2. Fix the rain shade with the enclosed screws by referring to the diagram below.
3. Put the outdoor unit in the rain shade after finishing wire connection (see the picture below),
and then fasten the outdoor unit with screws.
②③
3
Wiring Diagram
IC WARNINGS
English:
1.This device complies with Industry Canada's licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body

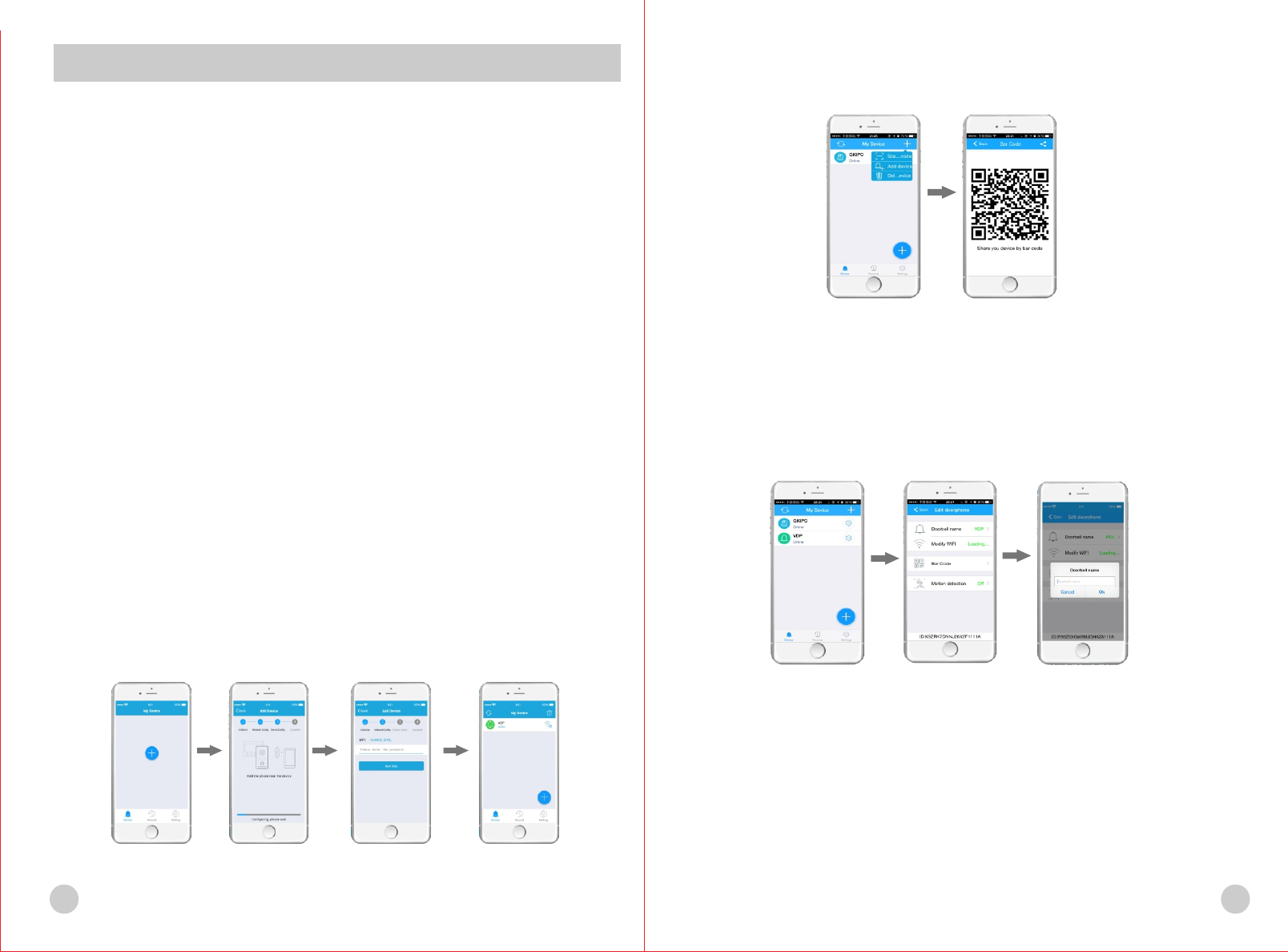

C. Add Devices
·DC 12V power supply, add device through connecting WIFI,
Automatically add
·Please make sure the WIFI signals can cover the doorbell's installation area. Connect
your mobile phone with WIFI, login the APP > click the “+” button > WIFI configuration
enter the WIFI password > start configuration. You can know whether the WIFI >
configuration is succeed by the outdoor unit's indicating information. (If the device is
already connected with the network, this function will be invalid and restoration operation
is needed if you want to restore the function. Please refer to the restoration operation .
·After the device is successfully connected to the network, all the devices on the LAN will
be found and displayed on “My device” list. (Please see the pictures below.)
Click the “+” button on the top right corner, scan the QR code and then you can add the
device shared by your friends.
4 5
1) Edit the device name
On “My device” page, click the “Setting” button on the right side to enter device setting interface.
Click the “Device Name” to enter device name setting, input the device name you want to set and
then click “ok” to save the setting. (Please see the pictures below.)
D. Device Settings

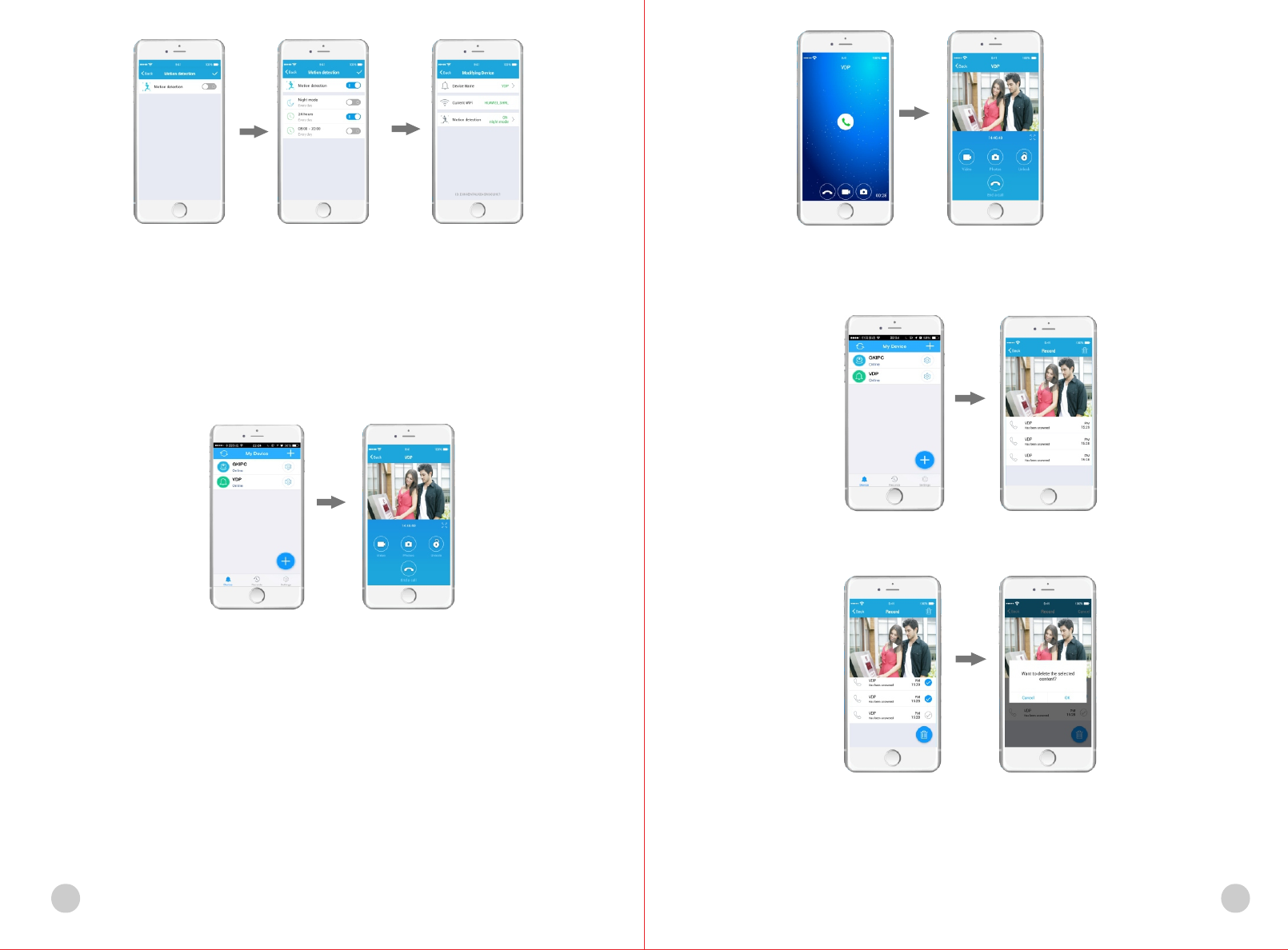

2) Motion detection setting
Click the “Motion detection” button to enter the setting page, turn on this function and then select
the detection time. Note: The motion detection function will be on only during the detection time
you selected. Click the “√” button on the top right side to save the setting. (Please see the pictures
below.)
·APP installation instructions.
·Scan the QR code on the package box to download the APP by your smart mobile
phone/apad/ipad etc.
Operation Instruction
1). Adopt high-performance ARM SOC chips, 720P CMOS sensor, 85° viewing angle and H264
encode, support infrared night vision function and the night vision range reaches 1.5 meters.
2). Support WIFI or wire connection with internet. Adopt 802.11b/g/n protocol, support one-click
wifi password setting.
3). Motion detection function, alarm signals can be sent to the user's mobile phones.
4). Remotely SmartLock unlocking function.
5). Adopt professional digital noise reduction and echo cancellation algorithm, duplex two-way
intercom is available on both the device terminal and the mobile phone app.
6). Max 8 users' APP can be connected to the device at the same time.
7).Users can share the device QR code for his friends to connect with the same device.
A. Product Introduction.
B. Installation
·Power supply instruction.
· DC 12V Power Supply .
· The doorbell can wireless connect with home routers, but if the router's signal is too
weak to cover the installation area, high power router is recommended.
2) Incoming calls
When there is a call from the visitor, a calling interface will pop up on the smart terminal. Users
can intercom with the visitor after the call is answered. (See the pictures below.)
·Unlock: Click the “Unlock” button to release the electric lock.
·Video recording: Click the “Video” button to start video recording, the recorded videos will be
saved on the smart terminals, click the “Video” button again to stop recording.
·Photo taking: Click the “Photos” button to take pictures by the device, the taken photos will be
saved on the smart terminal.
·End a call: Click “End a call” button to hang up the current call.
6 7
F. Records
1) Check the records
Click the “Record” button to enter the record page; you can check the calling record
information of each device. Slide the media player to check the photos and videos.(See
the picture below)
2) Delete Records
Click the “Cancel” button on the top right side, select the records you want to delete and
then click the delete button on the bottom right corner, click “ok” to delete the records.
(See the pictures below.)
1) Real time monitoring
Click the current device to enter the video intercom interface, it will start the talking and video
functions between users and outdoor unit. (Please see the pictures below.)
·Unlock: Click the “Unlock” button to release the electric lock.
·Video recording: Click the “Video” button to start video recording, the recorded videos will be
saved on the smart terminals, click the “Video” button again to stop recording.
·Photo taking: Click the “Photos” button to take pictures by the device, the taken photos will be
saved on the smart terminal.
·End a call: Click “End a call” button to hang up the current call.
E. Video Intercom
G. APP Settings

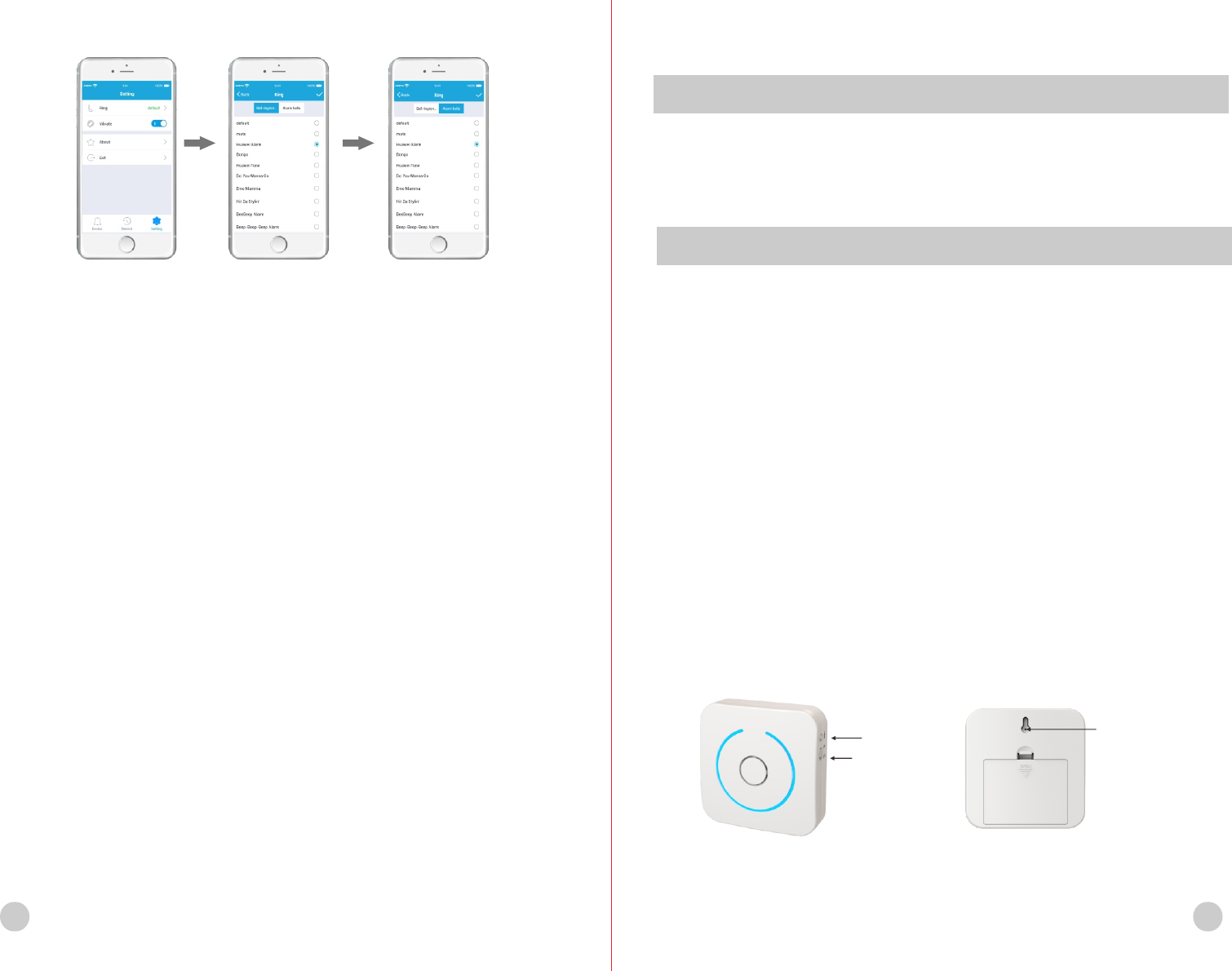

1) Ring Setting
Click “Setting” to enter the setting page, clicks “Ring” to set the doorbell ringtone and
alarm ringtone (see the pictures below), click the “√” button on the top right corner to save
the setting.
Melody selection
ON/OFF- power
on or power off the unit
Coding button
Code
8 9
Technical Parameters
Camera: one megapixel CMOS
Power supply: DC 12V
Working current: <400mA
Max power consumption: <5W
Outline size: 163*85*62mm
I. Factory Default Reset
·All the setting will be cleared if the factory reset is done, including WIFI information,
access password and alarm information. The operation method is as below:
·Find the reset button on the back of the device, use a needle to press and hold it for 3
seconds under standby mode, you can hear a sound saying “Reset the product
successfully, the system will restart”, which means the factory reset is done successfully.
H. FAQ
1) The APP cannot find new devices when adding a device.
·Please check whether the doorbell and the mobile phone is in the same LAN.
·If wired network is used, please check whether the network indicator light is on.
·You can reset the device as factory default.
2) Devices not online.
·Please click the refresh button on the top left corner to refresh the device status.
·Please check whether the doorbell is connected to network and the network indicator
light is on.
·Please check whether the router's network is normal. Please check whether the mobile
phone is connected to network normally.
3) The camera is offline when talking
·Please check the device's online-state.
·5G network is not supported by the doorbell; please connect the mobile phone with
2.4G WIFI network.
·Please connect the mobile phone and the outdoor unit to the same wireless router.
After the network configuration is finished, remote controlling can be achieved on the
mobile phone through WIFI or 4G, 5G mobile network.
Sub unit code learning
1)Buttons Instruction：
·ON/OFF: Power on or power off the sub unit
·Code: Coding button ：
·Melody selection
2)Code learning:
·Load batteries in the sub unit, press the coding button and then release, touch the
button on the outdoor main unit ( the indicator light will be on and it will transmit
signals), the sub unit will sound “DING-DONG” with the indicator light flashing blue
light when it receives the signals, which means the code is learned successfully.
3)Code clearing:
·Load batteries in the sub unit, turn the switch to OFF, press and hold the code button,
release it in about 2 seconds after turn the switch to ON. The sub unit will sound
“DING-DONG” with the indicator light flashing blue light, which means the code is
cleared successfully.
4)Technical Specification:
Battery: DC4.5V (AA*3)
Standby current: <0.25mA
Max working current: <175mA
Max volume: >85dB
Wireless receiving frequency: 433.92MHz
Receiving distance in open area: ≥ 80m
2) Vibrate Setting
Slide the vibrate button to turn on or turn off the vibration function when there is a call or
alarm.
3) About
Check the current version, if the current version is not the latest version, you can download
the latest APP on our official website.
4) Exit
Click the “Exit” button, the APP will be offline. Calling and alarm information messages will
be sent to the user's smart terminals.
