Android TV Box
User Manual
CONTENTS
CONTENTS .............................................................................................................................. 2
WHAT’S IN THE BOX ............................................................................................................ 1
ABOUT REMOTE ................................................................................................................... 2
CONNECTION GUIDE ........................................................................................................... 3
USING YOUR ANDROID TV BOX........................................................................................ 3
MAIN MENU INTERFACE..................................................................................................... 4
MAIN MENU INTERFACE..................................................................................................... 4
CONNECTING TO THE INTERNET ..................................................................................... 5
ADJUSTING YOUR SETTINGS ............................................................................................. 5
CONNECTING EXTERNAL DEVICES ................................................................................. 6
PRODUCT SPECIFICATIONS ................................................................................................ 6
SAFETY NOTES ...................................................................................................................... 7
FREQUENTLY ASKED QUESTIONS .................................................................................... 8
Warnings………………………………………………………………………………………9
1
WHAT’S IN THE BOX

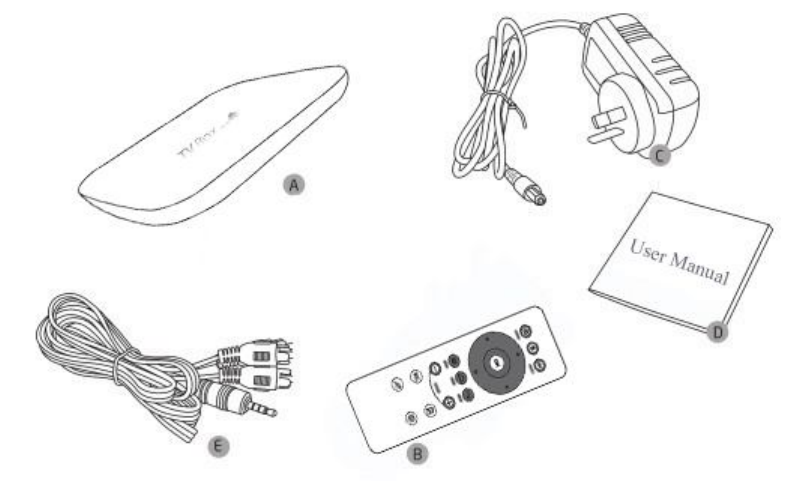

Please ensure the product package has all the following contents
A. Android TV Box
B. Remote Control
C. Power adapter
D. User manual
E. AV Cable
2

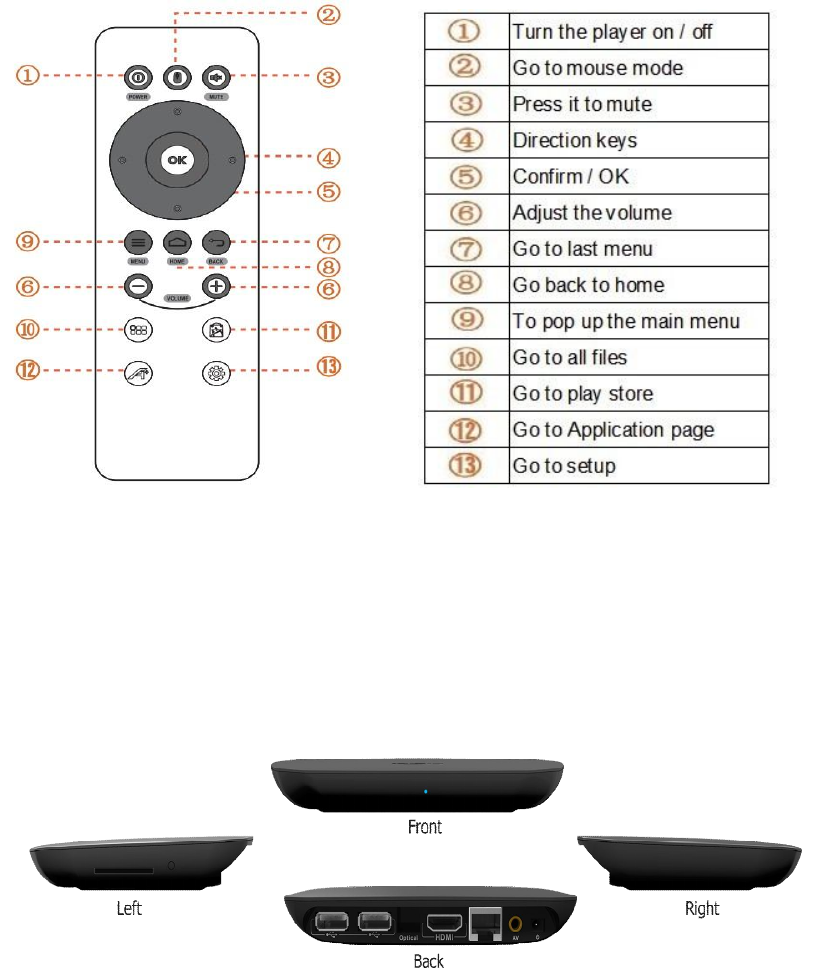

ABOUT REMOTE
CONNECTION PORTS INTRODUCTION
USB inputs 1&2
HDMI output
SD card input
Power/DC in
AV output
LAN input
S/PDIF, Optical output
3

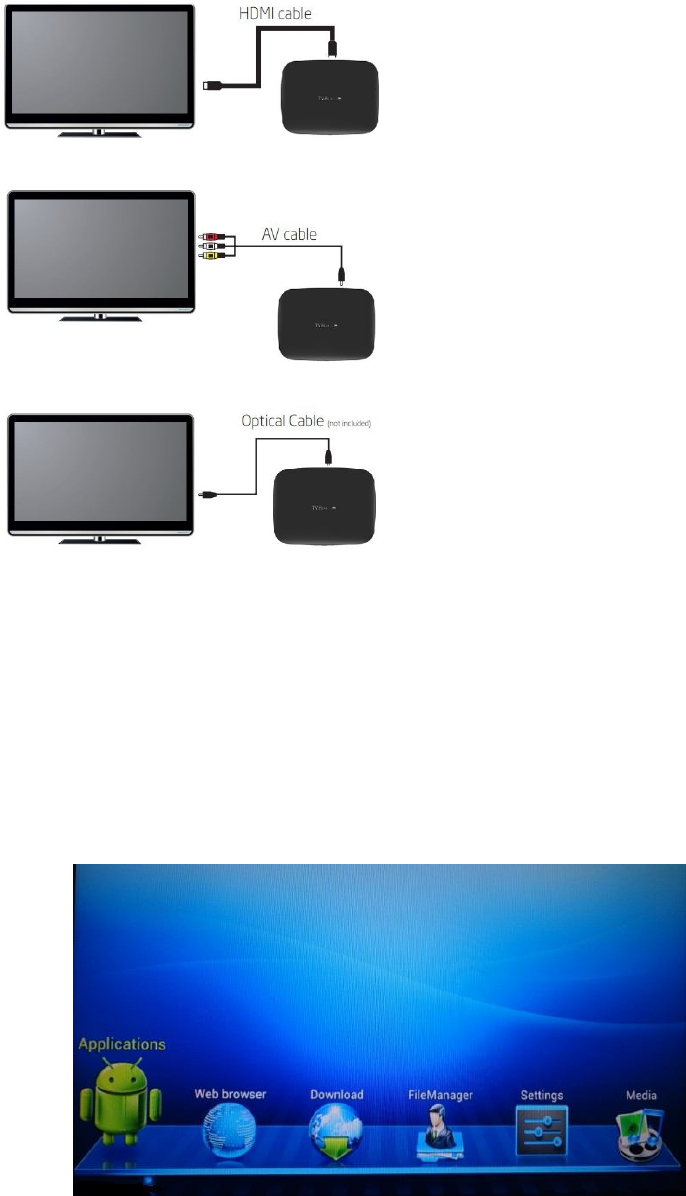

CONNECTION GUIDE
Connecting the Android TV Box with an HDMI cable
Connecting the Android TV Box with an AV cable
Optical Audio connection with a S/PDIF cable
USING YOUR ANDROID TV BOX
The player will boot up once you have connected the power , which will take few minutes. The
following main menu will appear after booting up:
Use the directional buttons on the remote to highlight an option, press OK to select it.
You can also press the “Mouse” button to switch to Mouse Mode.
4
MAIN MENU INTERFACE
Applications: access the apps screen, where you can browse through apps and use
Play Store etc to access more apps or media.
Web browser: go to google browser
Download: check all your download files
FileManager: check all folders
Settings: set up the player
Media: show all videos / photos
MAIN MENU INTERFACE

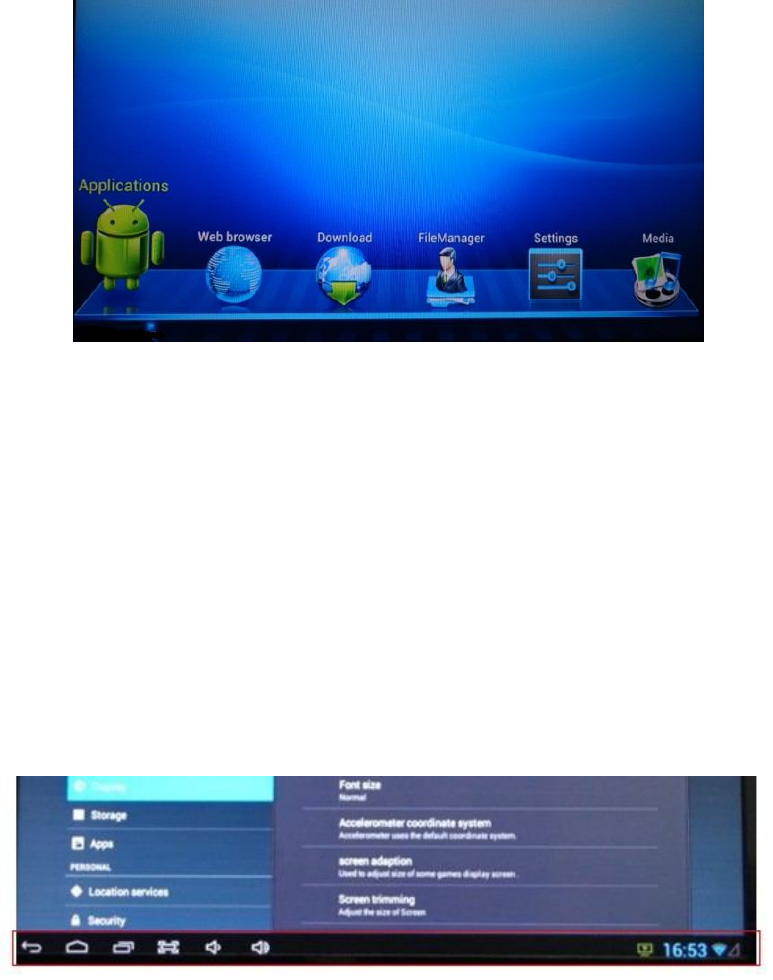

Below is a screenshot of the Android OS menu bar.
Reading in order from left to right are descriptions of the Android OS menu bar icons
Back: to go backwards one step (same function as on Remote)
Home: to return to the Main Interface menu (same function as on Remote)
Task Bar: to view any apps running in the background. Tip: this is useful for closing down
apps running in the background
Screen Shot: capture a photo of the screen (Screen Shots are stored in local
memory://Pictures/Screenshots)
Volume Down: to adjust volume lower
Volume Up: to adjust volume higher
5
CONNECTING TO THE INTERNET
Connect by LAN Cable
Connect a LAN cable directly from your router to the LAN input on the player, the network
will connect automatically

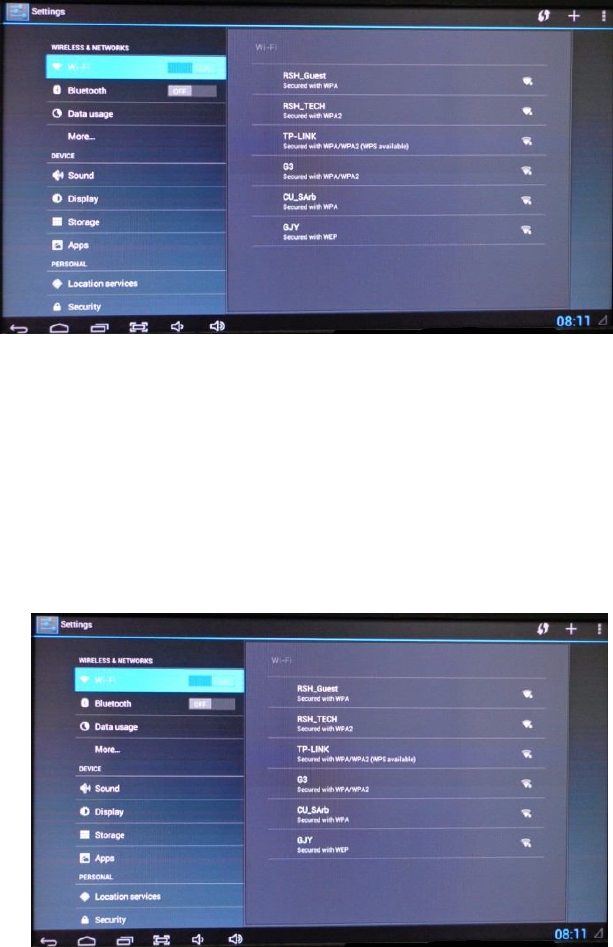

Connect by WIFI
The wifi is built in the player, you just need to go to “setting” choose wifi, swich on, the
player will begin to search wifi signal nearby, choose one and input password, click
connect, the player will connect to network automatically. Noted: the player can
remember the password for the same wifi signal, if you choose the same network next
time, the player will connect to network automatically, no need to input password again.
ADJUSTING YOUR SETTINGS
Use the directional buttons on the remote control to highlight an option, press OK to
select an option, follow the prompts to make adjustments
Tip: Switching to “mouse” mode on the remote is useful to select some options.
6
CONNECTING EXTERNAL DEVICES
There are various devices the Player is compatible with. Most USB
keyboard, mouse, storage and webcam devices will be detected. To connect
an external device, simply plug it into one of the USB ports on the Player.
After a few seconds, a window will pop up explaining if it has successfully connected.
For some devices you may be able to download an app to make your device compatible
with the Player.
PRODUCT SPECIFICATIONS
Hardware
Video Output HDMI1.4 / AV
Audio Output RCA(R/L) / Optical / HDMI(R/L)
Format FAT16 / FAT32 / NTFS
CPU ALLWINNER A31 4 X A7 1G CPU SG*544 GPU*4
Size 128*95*20 MM
Memory DDR III 2GB
Storage 8GB NAND Flash
Card Reader SD / MMC up to 32G
USB Host 2x USB2.0 support external harddisk up to 4TB
Power 5V / 2A
Audio & Video Decoding
Video
Video
Codecs
MPEG-1/MGEG-2/MPEG-4/H.264/VC-1/DIVX,Xvid/Rrel
Video8/9/10
Video
Formats
WMV/ASF/MP4/ISO/AVI/RM/RMVB/MOV/VOB/MKV/FLV/VC
-1/RV10/H.264/H/263
Audio AAC,AAC+,EAAC+,AMR-NB,AMR-WB,QCP,MP3,WMA,WAVMIDI, M4A
Picture JPG/JPEG.BMP,PNG,GIF
Subtitle sub,smi,ssa,ass,srt,idx+sub,pgs
Software
Network
WIFI 150M internal 802.11 b/g/n
Bluetooth
Optional
7
Application
DLNA DLNA Network media sharing
FireAir Media sharing via WiFi with your mobile phone&Tablet
MIRACAST Play your media via Miracast with your mobile phone or Tablet
Google TV
remote Through your mobile phone to control this device
XBMC Building in latest XBMC, support HD BD Movies, up to 1080p
SAFETY NOTES
Before using the Android TV Box, please ensure you read and understand all the
safety precautions below.
1. Do not attempt to open the case or modify it in any way
2. Keep the Player away from water and other liquids. Do not use wet hands
3. Keep the Player away from direct sunlight and heat sources.
4. Do not place heavy objects on the Player, as this may cause it to malfunction.
5. Use the supplied power supply; do not substitute for another power supply
8
FREQUENTLY ASKED QUESTIONS
Problem Solution
No Power a. Check the power adapter is properly connected
b. Check if the power adapter damaged or not
c. Re-connect HDMI / AV Cable
No show on monitor a. Re-connect power adapter
b. Check if the output mode for TV and media box keep the
same
c. Check if the TV is switched on
No sound or distorted sound a. Adjust the volume
b. Check if the cable connect to TV and media player well
c. Check that the speakers are connected correctly
No audio or digital output a. Check if the cable connected well
b. Check if your amplifier is set correctly
c. Re-connect power adapter
d. Check if the output mode for TV and media box keep the
same
The remote control does not work a. Reduce the distance to the box
b. Replace the batteries in the remote control
Player does not respond to some operating
commands during display
a. Operations may not be permitted. Refer to the user manual
b. Possibility of system halted, re-connect with power adapter
to restart
No sound during movies display a. The audio codec may not be supported by the box, you
can change to the supported audio on playing menu
b. Check the volume
c. Check if the cable connected well
d. Check if the output mode for TV and media box keep the
same
The contents of the USB drive or Memory
card cannot be read
a. The USB drive formats not compatible with the box
b. If one of the USB cannot be read, please turn off the box
and restart.
No sound with HDMI connection a. Check if TV output mode is the same with the media box
b. Check your TV system setup
c. Check the volume
The TV screen is black and the player’s
LED is blinking
a. Turn off your player and wait 30s, turn it on again. If under
HDMI status, check if HDMI connection is correct or
change another HDMI cable. Set the output solution of the
box into 720P
9
